RADIOLAND TECHNOLOGY CC2640S1 BLE Wireless Module User Manual RL CC254x S1

SHENZHEN RADIOLAND TECHNOLOGY CO.,LTD BLE Wireless Module RL CC254x S1

User manual

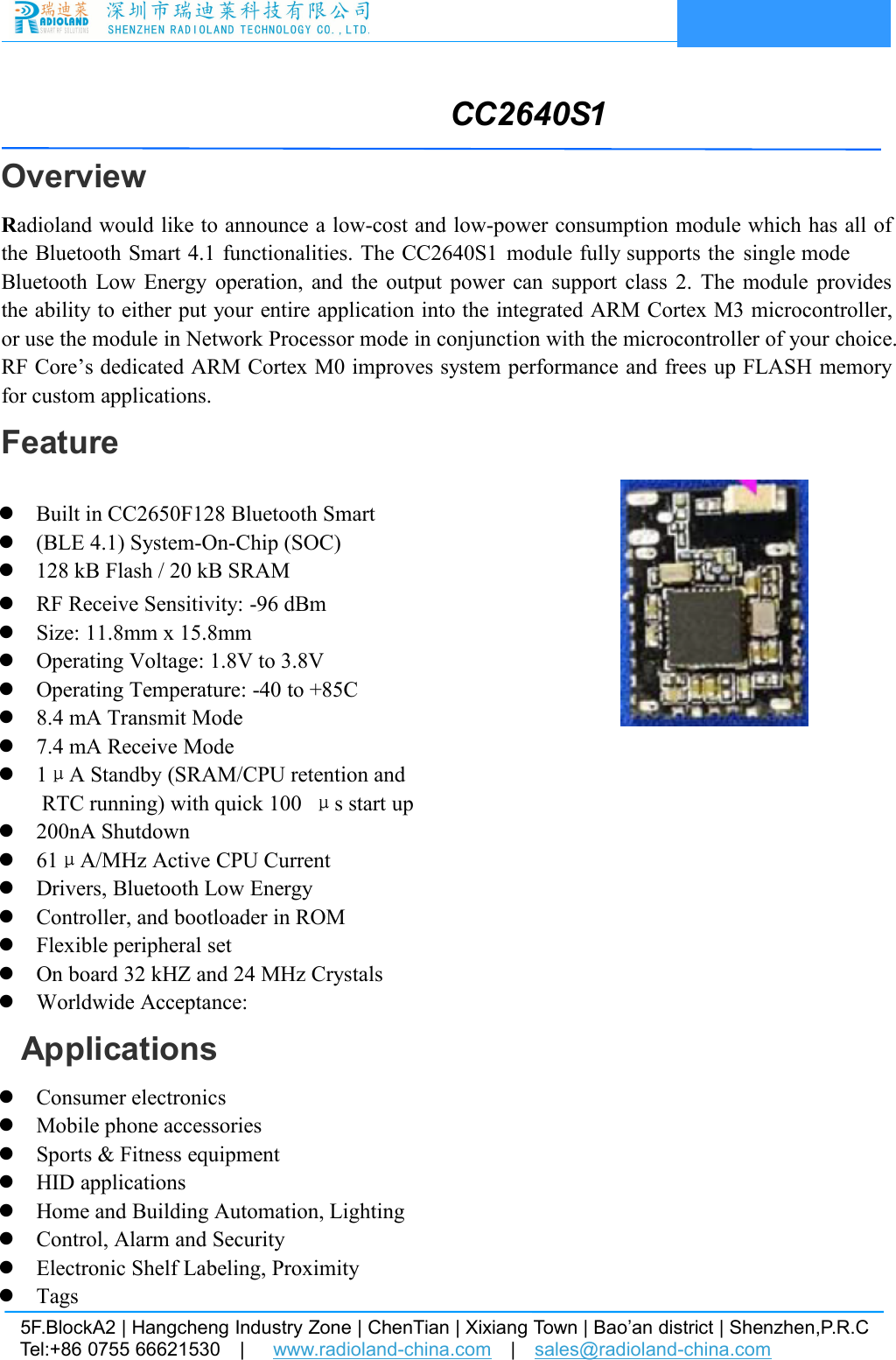

5F.BlockA2 | Hangcheng Industry Zone | ChenTian | Xixiang Town | Bao’an district | Shenzhen,P.R.CTel:+86 0755 66621530 | www.radioland-china.com |sales@radioland-china.comCC2640S1OverviewRadioland would like to announce a low-cost and low-power consumption module which has all ofthe Bluetooth Smart 4.1 functionalities. The CC2640S1 module fully supports the single modeBluetooth Low Energy operation, and the output power can support class 2. The module providesthe ability to either put your entire application into the integrated ARM Cortex M3 microcontroller,or use the module in Network Processor mode in conjunction with the microcontroller of your choice.RF Core’s dedicated ARM Cortex M0 improves system performance and frees up FLASH memoryfor custom applications.FeatureBuilt in CC2650F128 Bluetooth Smart(BLE 4.1) System-On-Chip (SOC)128 kB Flash / 20 kB SRAMRF Receive Sensitivity: -96 dBmSize: 11.8mm x 15.8mmOperating Voltage: 1.8V to 3.8VOperating Temperature: -40 to +85C8.4 mA Transmit Mode 7.4 mA Receive Mode1μA Standby (SRAM/CPU retention andRTC running) with quick 100 μs start up200nA Shutdown61μA/MHz Active CPU CurrentDrivers, Bluetooth Low EnergyController, and bootloader in ROMFlexible peripheral setOn board 32 kHZ and 24 MHz CrystalsWorldwide Acceptance:ApplicationsConsumer electronicsMobile phone accessoriesSports & Fitness equipmentHID applicationsHome and Building Automation, LightingControl, Alarm and SecurityElectronic Shelf Labeling, ProximityTags

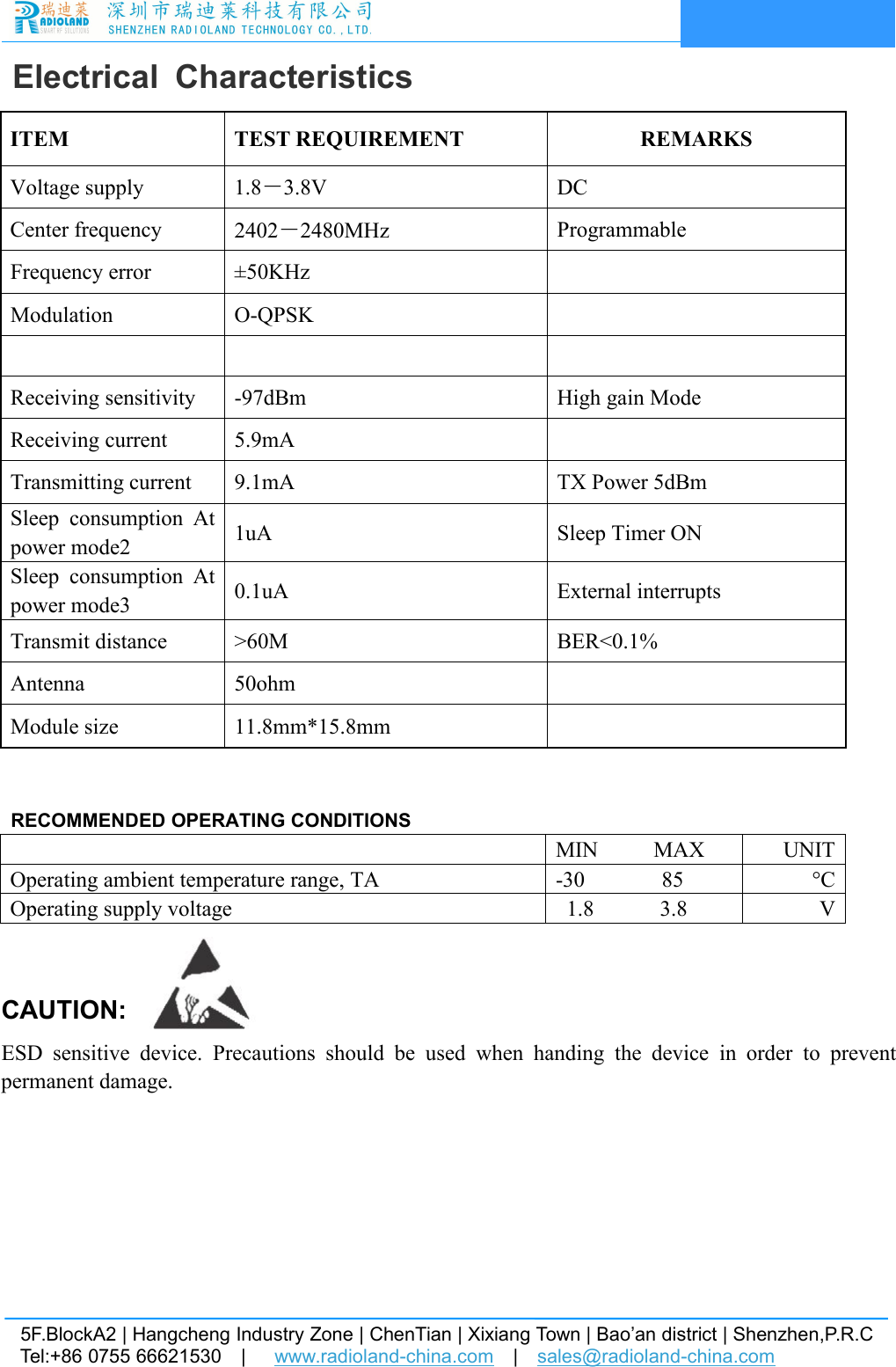

5F.BlockA2 | Hangcheng Industry Zone | ChenTian | Xixiang Town | Bao’an district | Shenzhen,P.R.CTel:+86 0755 66621530 | www.radioland-china.com |sales@radioland-china.comElectrical CharacteristicsRECOMMENDED OPERATING CONDITIONSMIN MAX UNITOperating ambient temperature range, TA -30 85 °COperating supply voltage 1.8 3.8 VCAUTION:ESD sensitive device. Precautions should be used when handing the device in order to preventpermanent damage.ITEM TEST REQUIREMENT REMARKSVoltage supply 1.8－3.8V DCCenter frequency 2402－2480MHz ProgrammableFrequency error ±50KHzModulation O-QPSKReceiving sensitivity -97dBm High gain ModeReceiving current 5.9mATransmitting current 9.1mA TX Power 5dBmSleep consumption Atpower mode2 1uA Sleep Timer ONSleep consumption Atpower mode3 0.1uA External interruptsTransmit distance >60M BER<0.1%Antenna 50ohmModule size 11.8mm*15.8mm

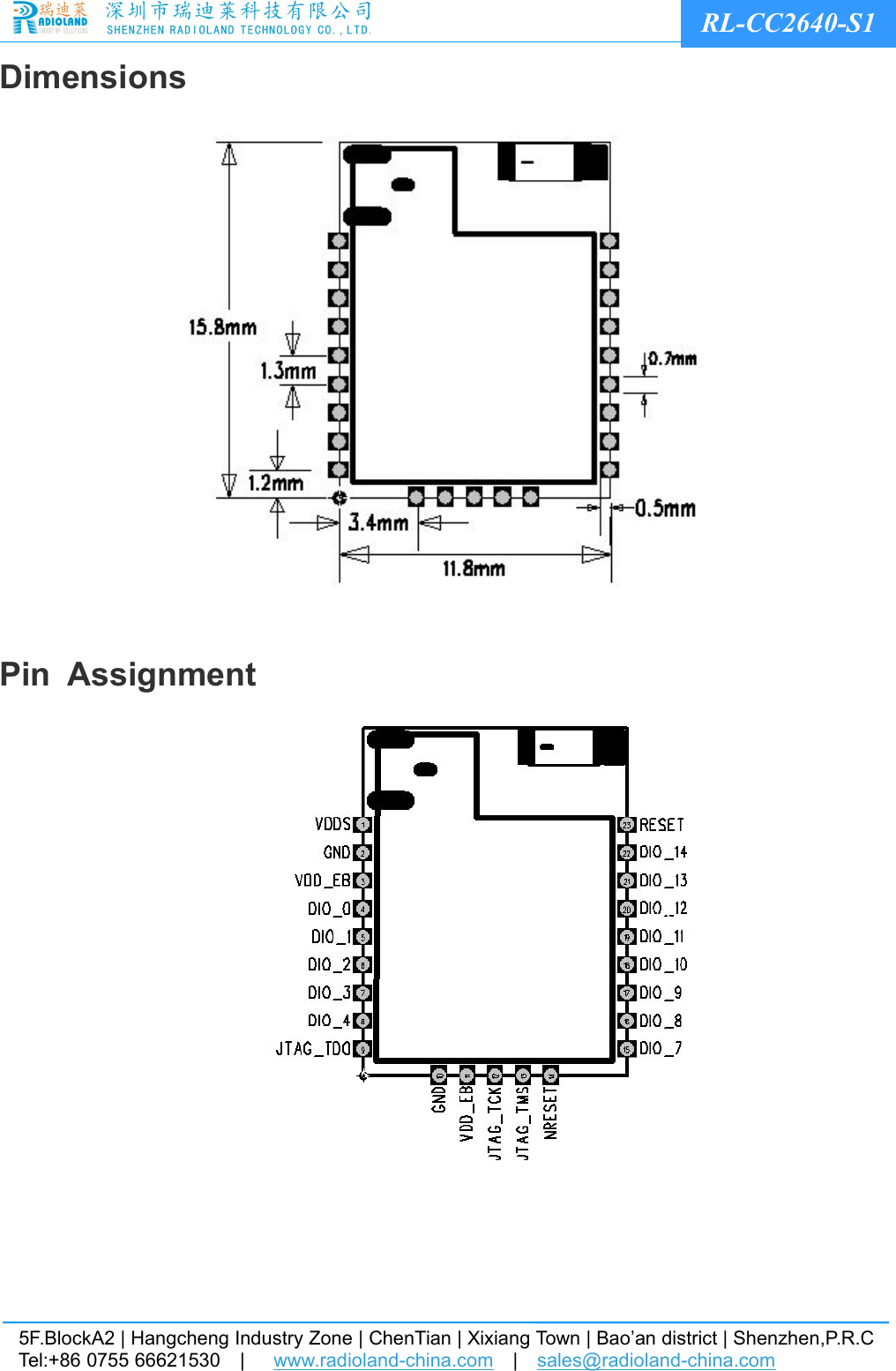

5F.BlockA2 | Hangcheng Industry Zone | ChenTian | Xixiang Town | Bao’an district | Shenzhen,P.R.CTel:+86 0755 66621530 | www.radioland-china.com |sales@radioland-china.comRL-CC2640-S1DimensionsPin Assignment11314 232436

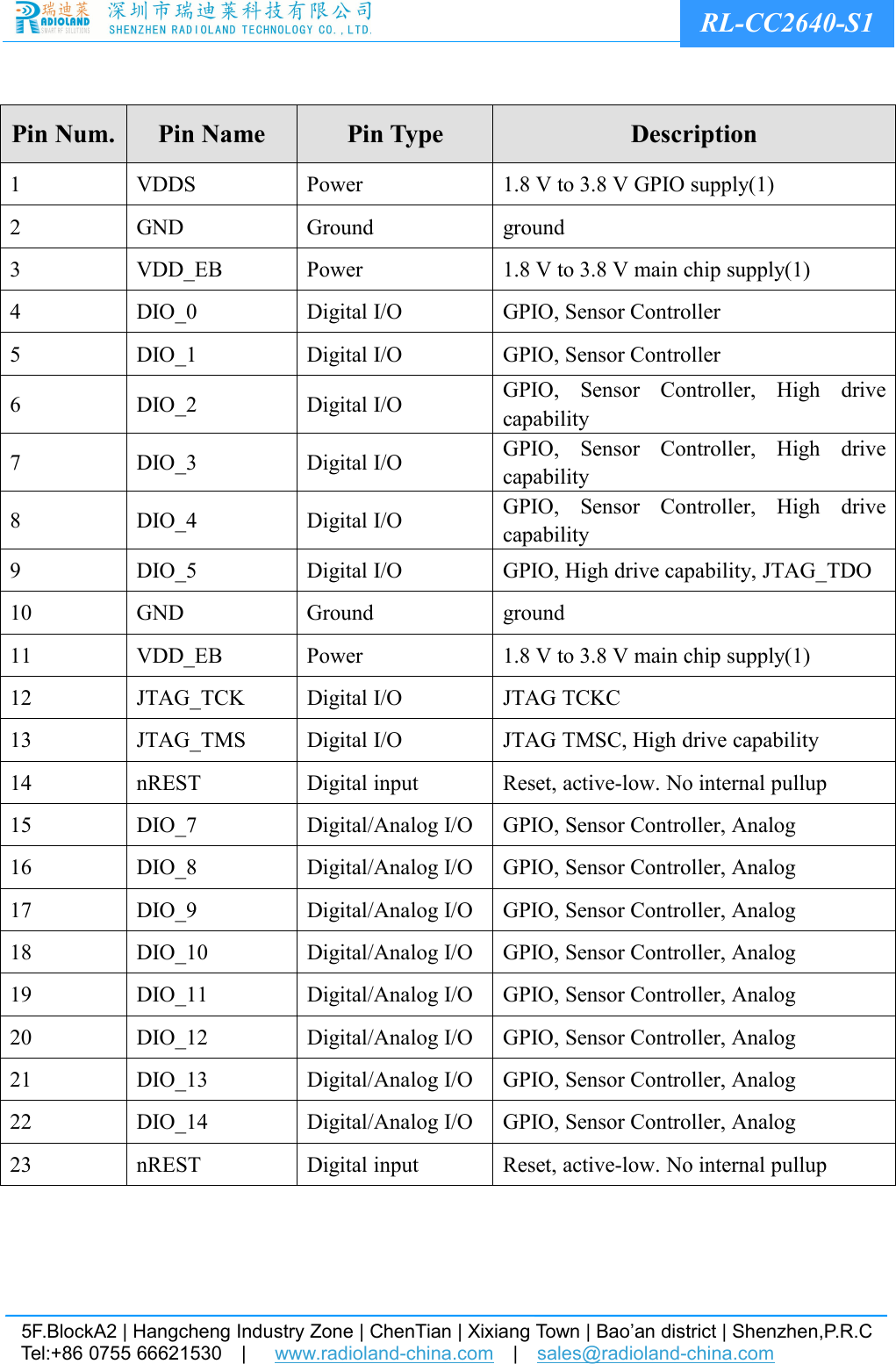

5F.BlockA2 | Hangcheng Industry Zone | ChenTian | Xixiang Town | Bao’an district | Shenzhen,P.R.CTel:+86 0755 66621530 | www.radioland-china.com |sales@radioland-china.comRL-CC2640-S1Pin Num. Pin Name Pin Type Description1 VDDS Power 1.8 V to 3.8 V GPIO supply(1)2 GND Ground ground3 VDD_EB Power 1.8 V to 3.8 V main chip supply(1)4 DIO_0 Digital I/O GPIO, Sensor Controller5 DIO_1 Digital I/O GPIO, Sensor Controller6 DIO_2 Digital I/O GPIO, Sensor Controller, High drivecapability7 DIO_3 Digital I/O GPIO, Sensor Controller, High drivecapability8 DIO_4 Digital I/O GPIO, Sensor Controller, High drivecapability9 DIO_5 Digital I/O GPIO, High drive capability, JTAG_TDO10 GND Ground ground11 VDD_EB Power 1.8 V to 3.8 V main chip supply(1)12 JTAG_TCK Digital I/O JTAG TCKC13 JTAG_TMS Digital I/O JTAG TMSC, High drive capability14 nREST Digital input Reset, active-low. No internal pullup15 DIO_7 Digital/Analog I/O GPIO, Sensor Controller, Analog16 DIO_8 Digital/Analog I/O GPIO, Sensor Controller, Analog17 DIO_9 Digital/Analog I/O GPIO, Sensor Controller, Analog18 DIO_10 Digital/Analog I/O GPIO, Sensor Controller, Analog19 DIO_11 Digital/Analog I/O GPIO, Sensor Controller, Analog20 DIO_12 Digital/Analog I/O GPIO, Sensor Controller, Analog21 DIO_13 Digital/Analog I/O GPIO, Sensor Controller, Analog22 DIO_14 Digital/Analog I/O GPIO, Sensor Controller, Analog23 nREST Digital input Reset, active-low. No internal pullup

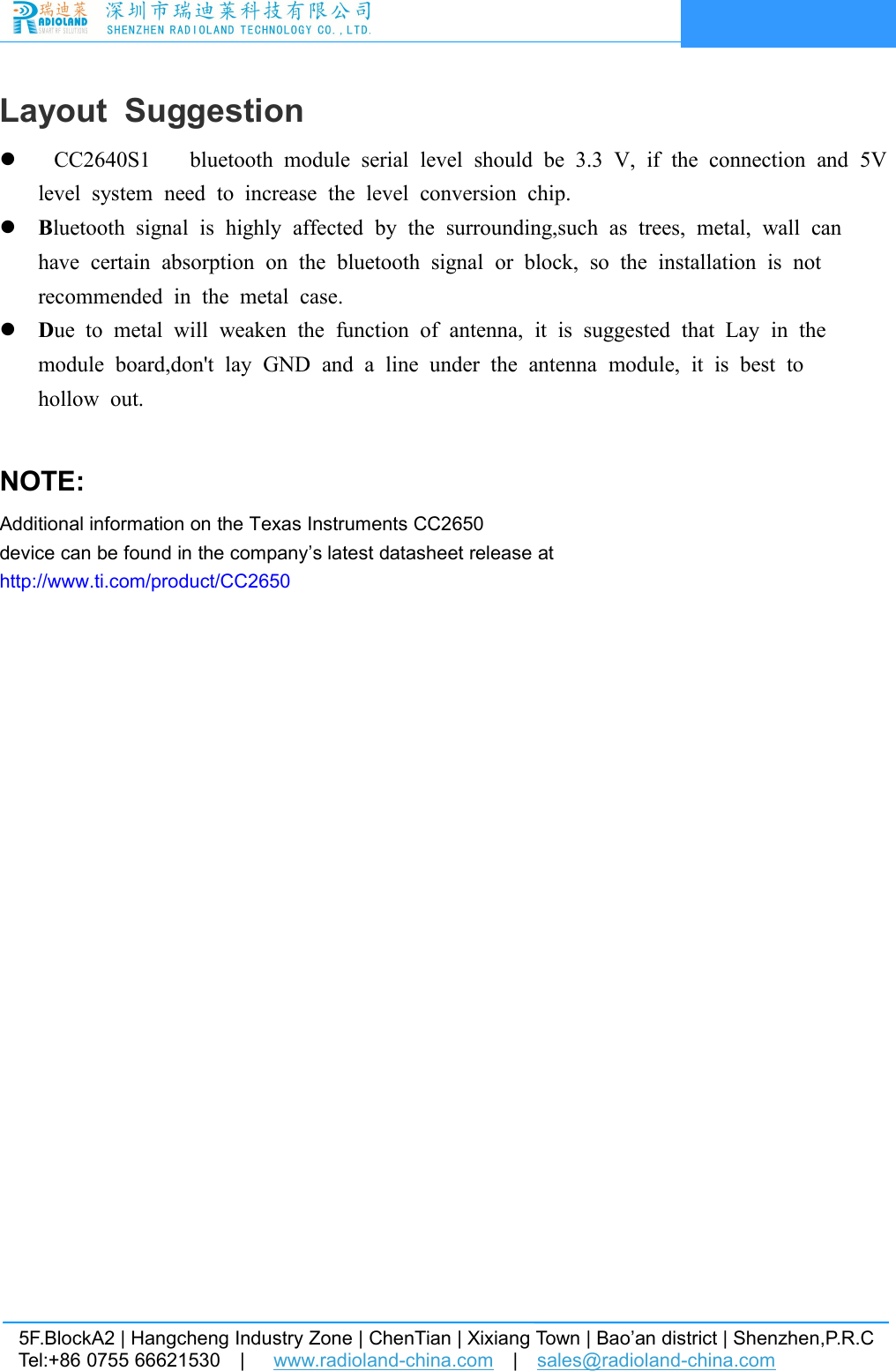

5F.BlockA2 | Hangcheng Industry Zone | ChenTian | Xixiang Town | Bao’an district | Shenzhen,P.R.CTel:+86 0755 66621530 | www.radioland-china.com |sales@radioland-china.comLayout SuggestionCC2640S1 bluetooth module serial level should be 3.3 V, if the connection and 5Vlevel system need to increase the level conversion chip.Bluetooth signal is highly affected by the surrounding,such as trees, metal, wall canhave certain absorption on the bluetooth signal or block, so the installation is notrecommended in the metal case.Due to metal will weaken the function of antenna, it is suggested that Lay in themodule board,don't lay GND and a line under the antenna module, it is best tohollow out.NOTE:Additional information on the Texas Instruments CC2650device can be found in the company’s latest datasheet release athttp://www.ti.com/product/CC2650

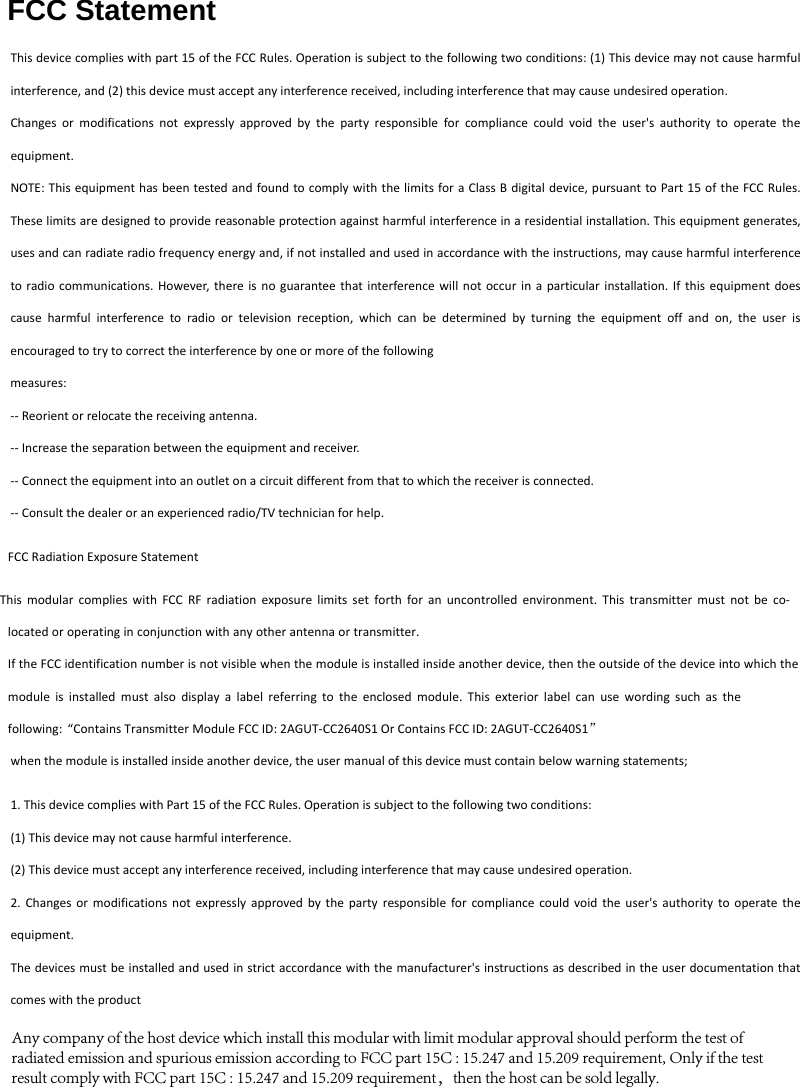

FCC StatementThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2AGUT-CC2640S1 Or Contains FCC ID: 2AGUT-CC2640S1” when the module is installed inside another device, the user manual of this device must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate theequipment. The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product Any company of the host device which install this modular with limit modular approval should perform the test of radiated emission and spurious emission according to FCC part 15C : 15.247 and 15.209 requirement, Only if the test result comply with FCC part 15C : 15.247 and 15.209 requirement，then the host can be sold legally.
