RADIOLAND TECHNOLOGY CC2640S1 BLE Wireless Module User Manual RL CC254x S1
SHENZHEN RADIOLAND TECHNOLOGY CO.,LTD BLE Wireless Module RL CC254x S1
User manual
5F.BlockA2 | Hangcheng Industry Zone | ChenTian | Xixiang Town | Bao’an district | Shenzhen,P.R.C
Tel:+86 0755 66621530 | www.radioland-china.com |sales@radioland-china.com

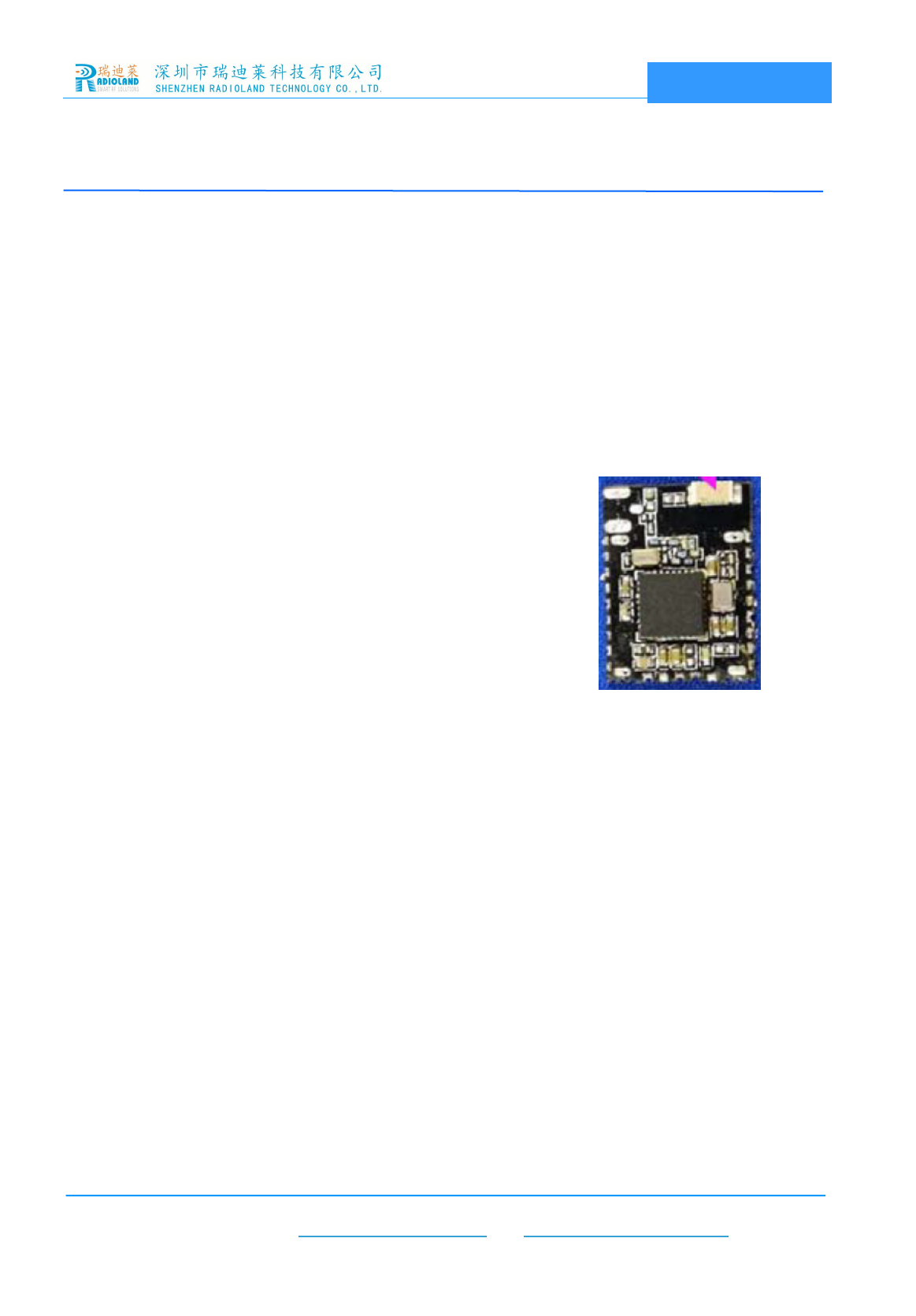

CC2640S1
Overview
Radioland would like to announce a low-cost and low-power consumption module which has all of
the Bluetooth Smart 4.1 functionalities. The CC2640S1 module fully supports the single mode
Bluetooth Low Energy operation, and the output power can support class 2. The module provides
the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller,
or use the module in Network Processor mode in conjunction with the microcontroller of your choice.
RF Core’s dedicated ARM Cortex M0 improves system performance and frees up FLASH memory
for custom applications.
Feature
Built in CC2650F128 Bluetooth Smart
(BLE 4.1) System-On-Chip (SOC)
128 kB Flash / 20 kB SRAM
RF Receive Sensitivity: -96 dBm
Size: 11.8mm x 15.8mm
Operating Voltage: 1.8V to 3.8V
Operating Temperature: -40 to +85C
8.4 mA Transmit Mode
7.4 mA Receive Mode
1μA Standby (SRAM/CPU retention and
RTC running) with quick 100 μs start up
200nA Shutdown
61μA/MHz Active CPU Current
Drivers, Bluetooth Low Energy
Controller, and bootloader in ROM
Flexible peripheral set
On board 32 kHZ and 24 MHz Crystals
Worldwide Acceptance:
Applications
Consumer electronics
Mobile phone accessories
Sports & Fitness equipment
HID applications
Home and Building Automation, Lighting
Control, Alarm and Security
Electronic Shelf Labeling, Proximity
Tags
5F.BlockA2 | Hangcheng Industry Zone | ChenTian | Xixiang Town | Bao’an district | Shenzhen,P.R.C
Tel:+86 0755 66621530 | www.radioland-china.com |sales@radioland-china.com
Electrical Characteristics
RECOMMENDED OPERATING CONDITIONS
MIN MAX UNIT
Operating ambient temperature range, TA -30 85 °C
Operating supply voltage 1.8 3.8 V
CAUTION:
ESD sensitive device. Precautions should be used when handing the device in order to prevent
permanent damage.
ITEM TEST REQUIREMENT REMARKS
Voltage supply 1.8－3.8V DC
Center frequency 2402－2480MHz Programmable
Frequency error ±50KHz
Modulation O-QPSK
Receiving sensitivity -97dBm High gain Mode
Receiving current 5.9mA
Transmitting current 9.1mA TX Power 5dBm
Sleep consumption At
power mode2 1uA Sleep Timer ON
Sleep consumption At
power mode3 0.1uA External interrupts
Transmit distance >60M BER<0.1%
Antenna 50ohm

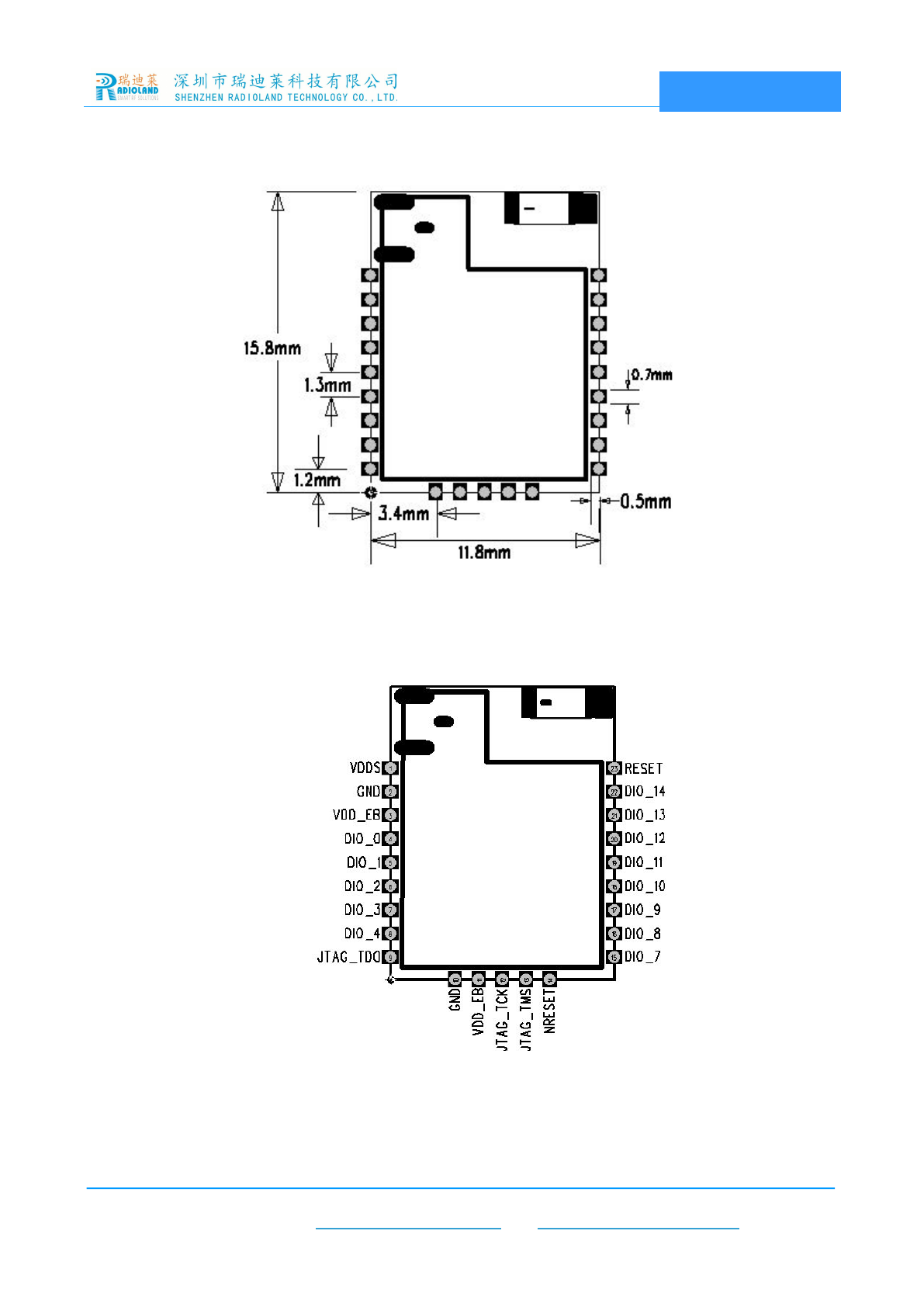

Module size 11.8mm*15.8mm
5F.BlockA2 | Hangcheng Industry Zone | ChenTian | Xixiang Town | Bao’an district | Shenzhen,P.R.C
Tel:+86 0755 66621530 | www.radioland-china.com |sales@radioland-china.com
RL-CC2640-S1
Pin Num. Pin Name Pin Type Description
1 VDDS Power 1.8 V to 3.8 V GPIO supply(1)
2 GND Ground ground
3 VDD_EB Power 1.8 V to 3.8 V main chip supply(1)
4 DIO_0 Digital I/O GPIO, Sensor Controller
5 DIO_1 Digital I/O GPIO, Sensor Controller
6 DIO_2 Digital I/O GPIO, Sensor Controller, High drive
capability
7 DIO_3 Digital I/O GPIO, Sensor Controller, High drive
capability
8 DIO_4 Digital I/O GPIO, Sensor Controller, High drive
capability
9 DIO_5 Digital I/O GPIO, High drive capability, JTAG_TDO
10 GND Ground ground
11 VDD_EB Power 1.8 V to 3.8 V main chip supply(1)
12 JTAG_TCK Digital I/O JTAG TCKC
13 JTAG_TMS Digital I/O JTAG TMSC, High drive capability
14 nREST Digital input Reset, active-low. No internal pullup
15 DIO_7 Digital/Analog I/O GPIO, Sensor Controller, Analog
16 DIO_8 Digital/Analog I/O GPIO, Sensor Controller, Analog
17 DIO_9 Digital/Analog I/O GPIO, Sensor Controller, Analog
18 DIO_10 Digital/Analog I/O GPIO, Sensor Controller, Analog
19 DIO_11 Digital/Analog I/O GPIO, Sensor Controller, Analog
20 DIO_12 Digital/Analog I/O GPIO, Sensor Controller, Analog
21 DIO_13 Digital/Analog I/O GPIO, Sensor Controller, Analog
22 DIO_14 Digital/Analog I/O GPIO, Sensor Controller, Analog
23 nREST Digital input Reset, active-low. No internal pullup
5F.BlockA2 | Hangcheng Industry Zone | ChenTian | Xixiang Town | Bao’an district | Shenzhen,P.R.C
Tel:+86 0755 66621530 | www.radioland-china.com |sales@radioland-china.com
Layout Suggestion
CC2640S1 bluetooth module serial level should be 3.3 V, if the connection and 5V
level system need to increase the level conversion chip.
Bluetooth signal is highly affected by the surrounding,such as trees, metal, wall can
have certain absorption on the bluetooth signal or block, so the installation is not
recommended in the metal case.
Due to metal will weaken the function of antenna, it is suggested that Lay in the
module board,don't lay GND and a line under the antenna module, it is best to
hollow out.
NOTE:
Additional information on the Texas Instruments CC2650
device can be found in the company’s latest datasheet release at
http://www.ti.com/product/CC2650
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-
located or operating in conjunction with any other antenna or transmitter.
If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the
module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the
following: “Contains Transmitter Module FCC ID: 2AGUT-CC2640S1 Or Contains FCC ID: 2AGUT-CC2640S1”
when the module is installed inside another device, the user manual of this device must contain below warning statements;
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that
comes with the product
Any company of the host device which install this modular with limit modular approval should perform the test of
radiated emission and spurious emission according to FCC part 15C : 15.247 and 15.209 requirement, Only if the test
result comply with FCC part 15C : 15.247 and 15.209 requirement，then the host can be sold legally.
