RESEARCH INSTRUMENTS 670807 RlWITNESS EMBRYOLOGY HEATED PLATE User Manual Installation manual
RESEARCH INSTRUMENTS LTD RlWITNESS EMBRYOLOGY HEATED PLATE Installation manual
Contents
- 1. User manual
- 2. Users manual
- 3. Installation manual
Installation manual

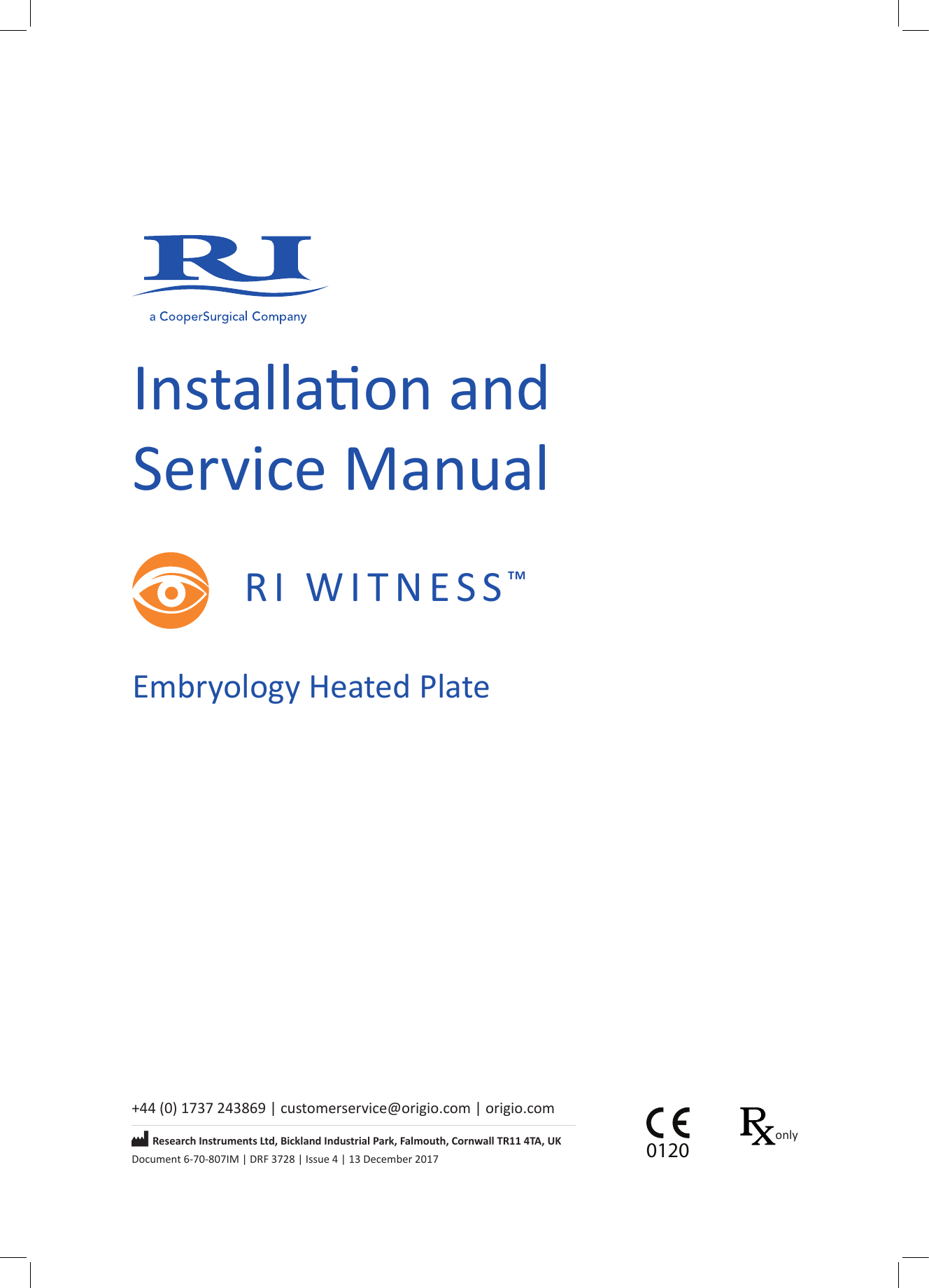

![Installaon and Service ManualRI WITNESS™Embryology Heated Plate+44 (0) 1737 243869 | customerservice@origio.com | origio.comResearch Instruments Ltd, Bickland Industrial Park, Falmouth, Cornwall TR11 4TA, UKDocument 6-70-807IM | DRF 3728 | Issue 4 | 13 December 20170120only](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-1.png)
![](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-2.png)

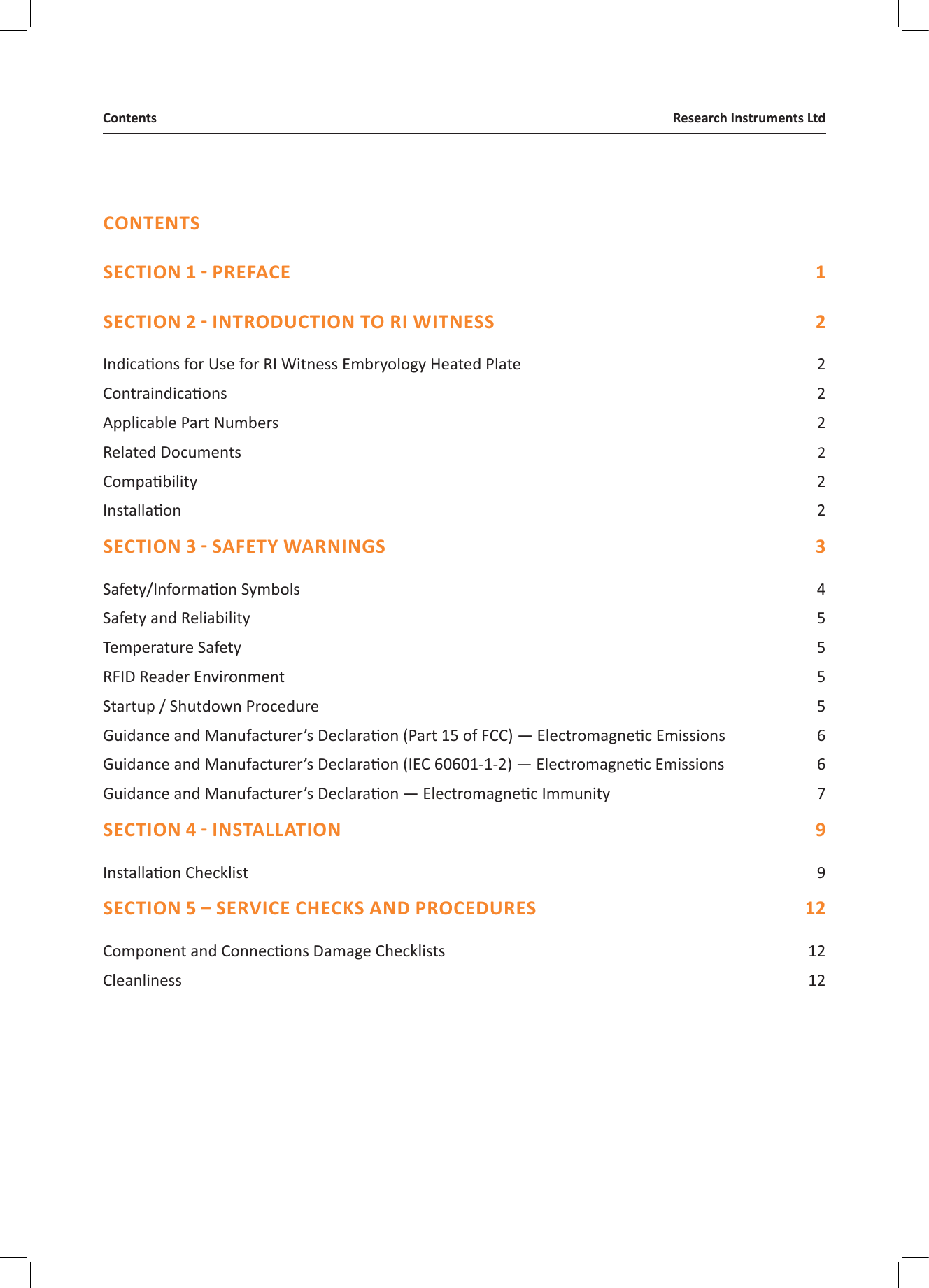

![Research Instruments LtdContentsCONTENTS Indicaons for Use for RI Witness Embryology Heated Plate 2Contraindicaons 2Applicable Part Numbers 2Related Documents 2Compability 2Installaon 2 Safety/Informaon Symbols 4Safety and Reliability 5Temperature Safety 5RFID Reader Environment 5Startup / Shutdown Procedure 5Guidance and Manufacturer’s Declaraon (Part 15 of FCC) — Electromagnec Emissions 6Guidance and Manufacturer’s Declaraon (IEC 60601-1-2) — Electromagnec Emissions 6Guidance and Manufacturer’s Declaraon — Electromagnec Immunity 7 Installaon Checklist 9 Component and Connecons Damage Checklists 12Cleanliness 12](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-3.png)
![RFID Tag Read Range Checklist 13Temperature Calibraon Checklist 13 Reuse Statement 14RI Repairs System 14RI Returns System 14Product Disposal (European Union) 14Contact Details 14Obligaon to Inform 14ContentsResearch Instruments Ltd](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-4.png)

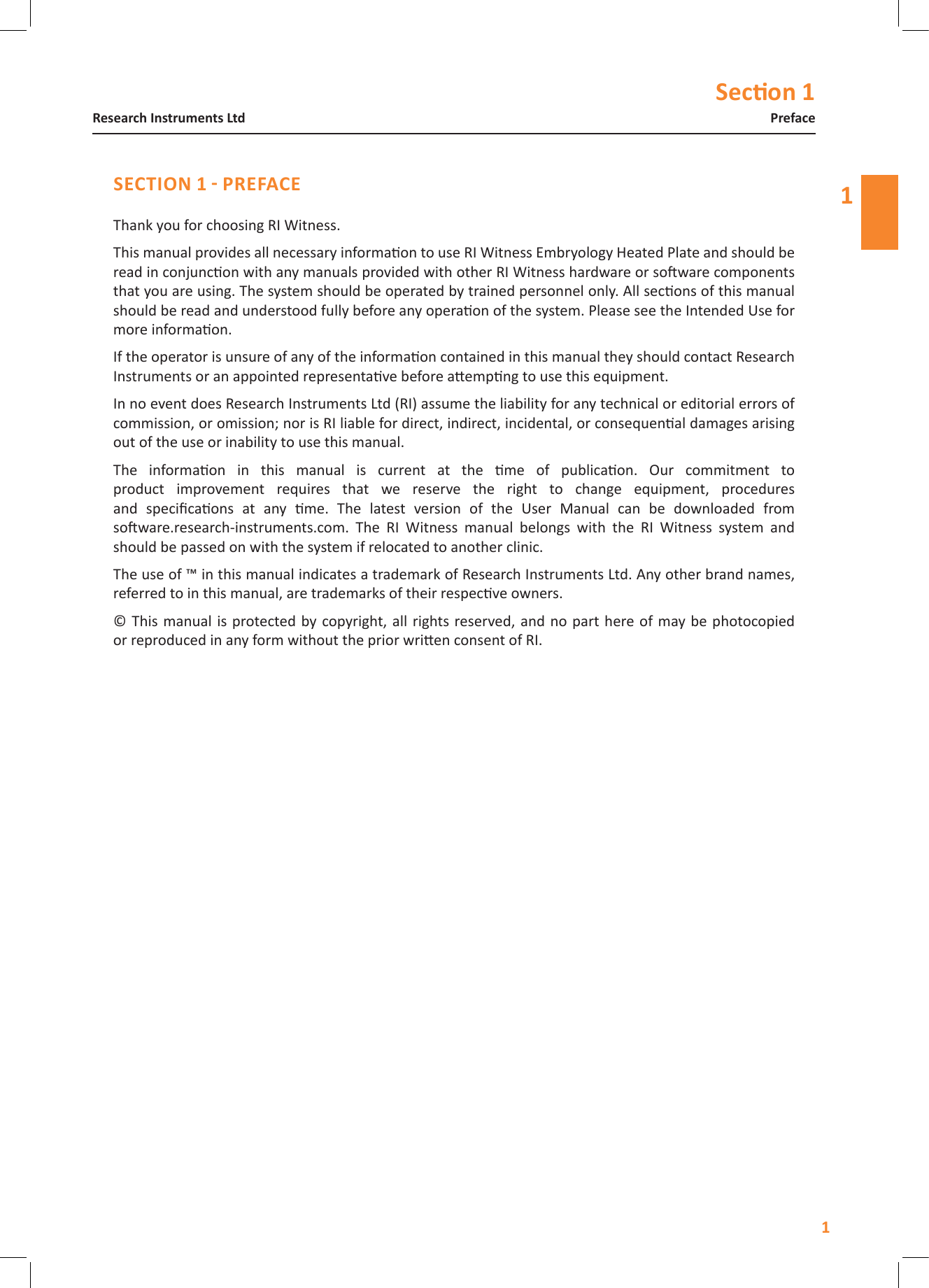

![Secon 111PrefaceResearch Instruments LtdThank you for choosing RI Witness.This manual provides all necessary informaon to use RI Witness Embryology Heated Plate and should be read in conjuncon with any manuals provided with other RI Witness hardware or soware components that you are using. The system should be operated by trained personnel only. All secons of this manual should be read and understood fully before any operaon of the system. Please see the Intended Use for more informaon.If the operator is unsure of any of the informaon contained in this manual they should contact Research Instruments or an appointed representave before aempng to use this equipment.In no event does Research Instruments Ltd (RI) assume the liability for any technical or editorial errors of commission, or omission; nor is RI liable for direct, indirect, incidental, or consequenal damages arising out of the use or inability to use this manual.The informaon in this manual is current at the me of publicaon. Our commitment to product improvement requires that we reserve the right to change equipment, procedures and specicaons at any me. The latest version of the User Manual can be downloaded from soware.research-instruments.com. The RI Witness manual belongs with the RI Witness system and should be passed on with the system if relocated to another clinic.The use of ™ in this manual indicates a trademark of Research Instruments Ltd. Any other brand names, referred to in this manual, are trademarks of their respecve owners.© This manual is protected by copyright, all rights reserved, and no part here of may be photocopied or reproduced in any form without the prior wrien consent of RI.](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-5.png)
![Secon 2Introducon to RI Witness™2Research Instruments Ltd2To maintain the temperature of human reproducve ssue such as oocytes and embryos through an assisted reproducon (AR) cycle.This device is not intended to be exposed to known sources of electromagnec interference (EMI) with medical devices such as diathermy, CT, MRI, RFID (except other RI Witness RFID components) and electromagnec security systems, eg metal detectors and electronic arcle surveillance systems.Applicable indicaons for use are subject to the regulaons of the country into which the device is sold. Availability of RI Witness for clinical use is dependent on the regulatory approval status of RI Witness within the country the device is intended to be sold into.* 6-70-807 can be supplied in several conguraons depending on the required mounng type eg ush ed or sit on top. 6-70-121UM RI Witness Soware ManualRI Witness is used in conjuncon with the following:• Essenal medical devices, eg dishes and tubes, maybe AR or non-AR specic.• Non-essenal medical devices, eg safety cabinets, incubators, micromanipulators, lasers.• Non medical devices (general laboratory equipment), eg work benches, microscopes, PCs.This device has RFID reader capability. If it is the intenon that it be employed in a clinical lab, we recommend its use alongside other medical devices and that the performance of these medical devices be monitored for potenal eects of EMI disturbances, and reported when appropriate.Installaons of the RI Witness Embryology Heated Plate should be carried out by a RI technician or other RI authorised personnel. Incorrect installaon could result in overall poor performance.All relevant secons of this manual should be read and understood fully before any use of RI Witness takes place. If the operator is unsure of any of the informaon contained in this manual, they should contact Research Instruments or an appointed representave before aempng to use this equipment.0120only 6-70-807* RI Witness Embryology Heated Plate 6-70-809 RI Witness Tube Reader](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-6.png)

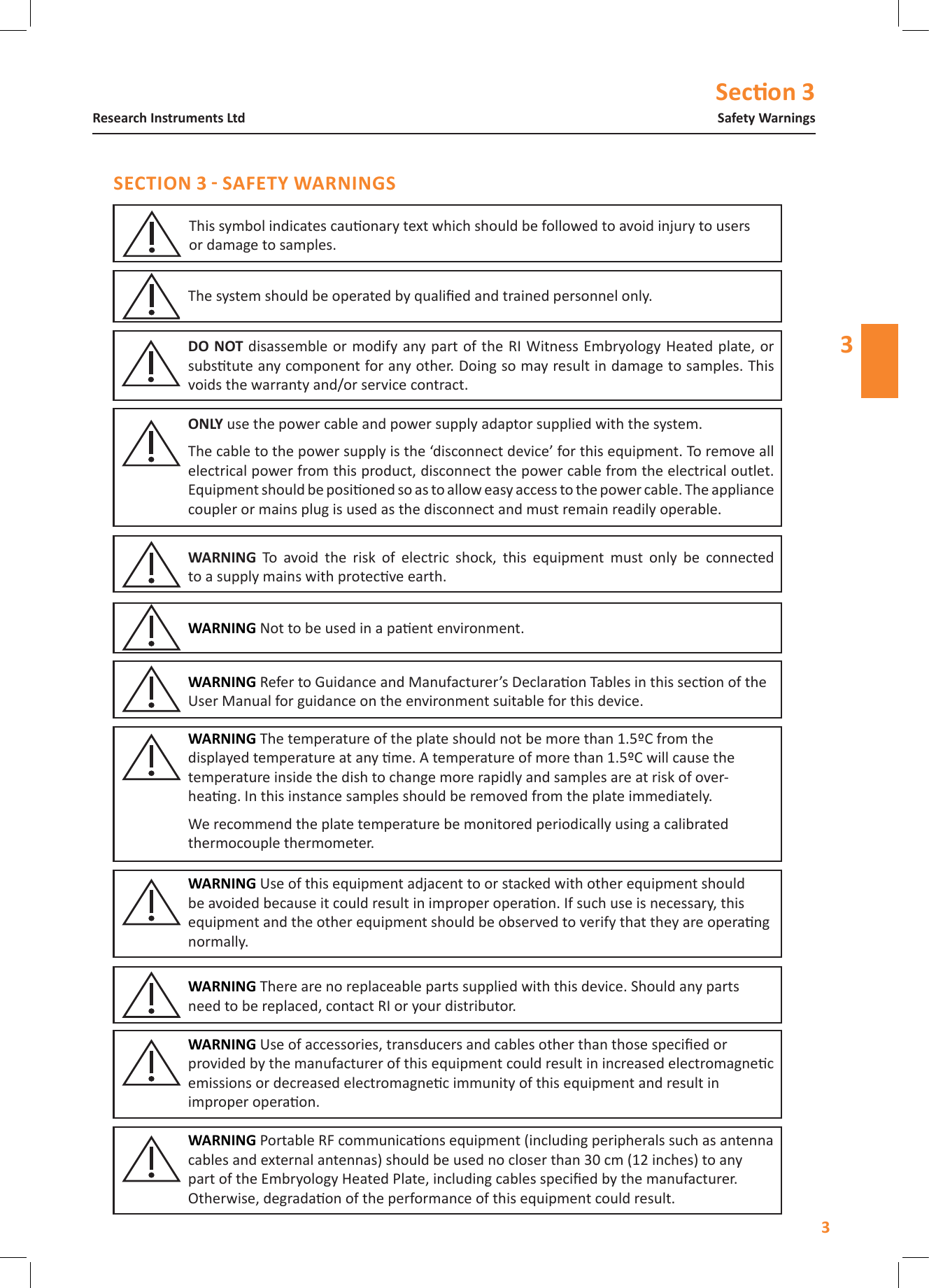

![Secon 33Safety WarningsResearch Instruments Ltd3disassemble or modify any part of the RI Witness Embryology Heated plate, or substute any component for any other. Doing so may result in damage to samples. This voids the warranty and/or service contract. To avoid the risk of electric shock, this equipment must only be connected to a supply mains with protecve earth. use the power cable and power supply adaptor supplied with the system.The cable to the power supply is the ‘disconnect device’ for this equipment. To remove all electrical power from this product, disconnect the power cable from the electrical outlet. Equipment should be posioned so as to allow easy access to the power cable. The appliance coupler or mains plug is used as the disconnect and must remain readily operable.Not to be used in a paent environment. The system should be operated by qualied and trained personnel only.This symbol indicates cauonary text which should be followed to avoid injury to users or damage to samples. Refer to Guidance and Manufacturer’s Declaraon Tables in this secon of the User Manual for guidance on the environment suitable for this device. Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operaon. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operang normally. The temperature of the plate should not be more than 1.5ºC from the displayed temperature at any me. A temperature of more than 1.5ºC will cause the temperature inside the dish to change more rapidly and samples are at risk of over-heang. In this instance samples should be removed from the plate immediately. We recommend the plate temperature be monitored periodically using a calibrated thermocouple thermometer. There are no replaceable parts supplied with this device. Should any parts need to be replaced, contact RI or your distributor. Use of accessories, transducers and cables other than those specied or provided by the manufacturer of this equipment could result in increased electromagnec emissions or decreased electromagnec immunity of this equipment and result in improper operaon. Portable RF communicaons equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the Embryology Heated Plate, including cables specied by the manufacturer. Otherwise, degradaon of the performance of this equipment could result.](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-7.png)

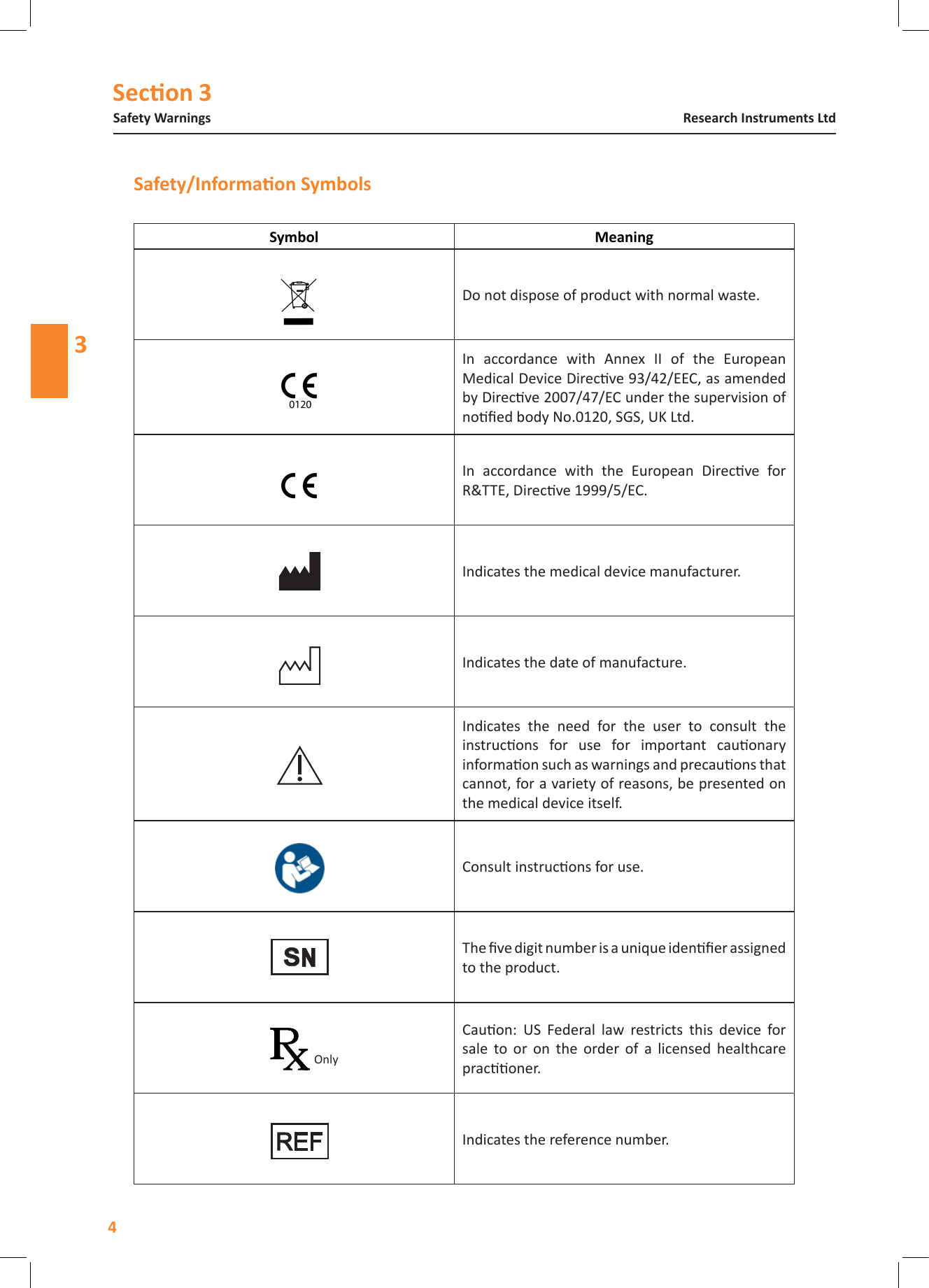

![Secon 3Safety Warnings4Research Instruments Ltd3 Do not dispose of product with normal waste.In accordance with Annex II of the European Medical Device Direcve 93/42/EEC, as amended by Direcve 2007/47/EC under the supervision of noed body No.0120, SGS, UK Ltd.In accordance with the European Direcve for R&TTE, Direcve 1999/5/EC.Indicates the medical device manufacturer.Indicates the date of manufacture.Indicates the need for the user to consult the instrucons for use for important cauonary informaon such as warnings and precauons that cannot, for a variety of reasons, be presented on the medical device itself.Consult instrucons for use.The ve digit number is a unique idener assigned to the product. Cauon: US Federal law restricts this device for sale to or on the order of a licensed healthcare praconer.Indicates the reference number.SNOnlyREF](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-8.png)

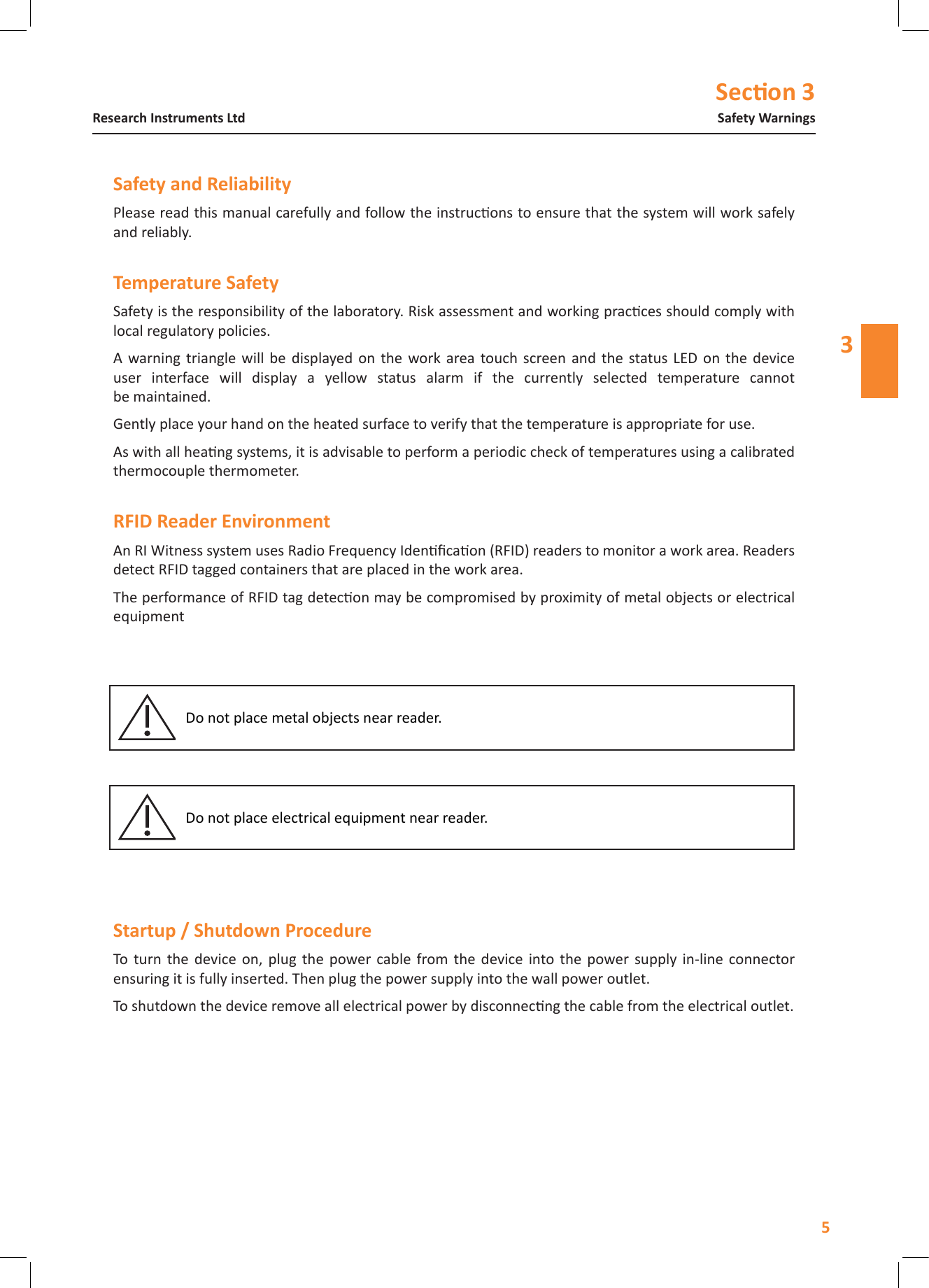

![Secon 35Safety WarningsResearch Instruments Ltd3Please read this manual carefully and follow the instrucons to ensure that the system will work safely and reliably.Safety is the responsibility of the laboratory. Risk assessment and working pracces should comply with local regulatory policies.A warning triangle will be displayed on the work area touch screen and the status LED on the device user interface will display a yellow status alarm if the currently selected temperature cannot be maintained.Gently place your hand on the heated surface to verify that the temperature is appropriate for use.As with all heang systems, it is advisable to perform a periodic check of temperatures using a calibrated thermocouple thermometer.An RI Witness system uses Radio Frequency Idencaon (RFID) readers to monitor a work area. Readers detect RFID tagged containers that are placed in the work area.The performance of RFID tag detecon may be compromised by proximity of metal objects or electrical equipmentDo not place metal objects near reader.Do not place electrical equipment near reader. To turn the device on, plug the power cable from the device into the power supply in-line connector ensuring it is fully inserted. Then plug the power supply into the wall power outlet.To shutdown the device remove all electrical power by disconnecng the cable from the electrical outlet.](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-9.png)

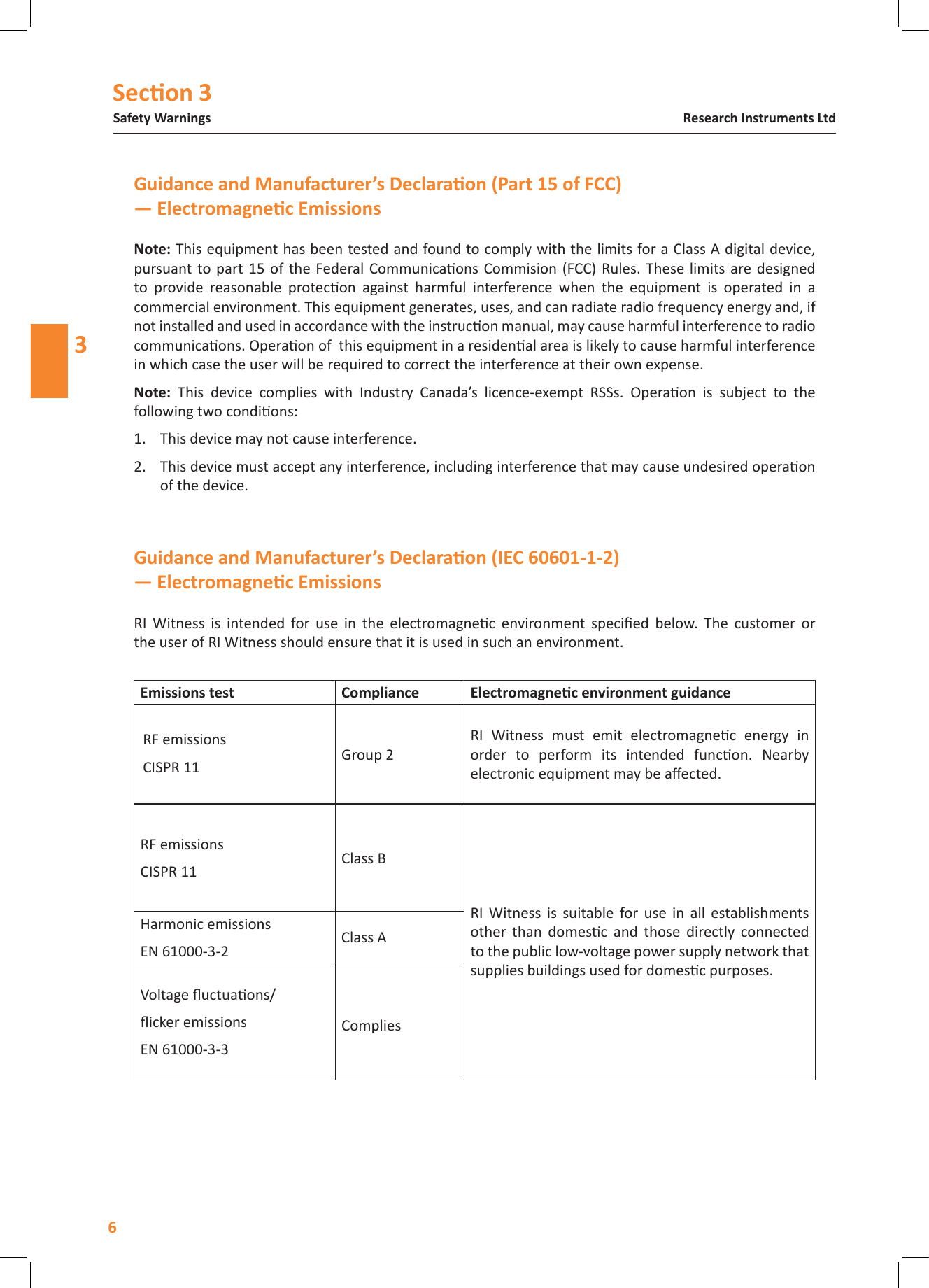

![Secon 3Safety Warnings6Research Instruments Ltd3RI Witness is intended for use in the electromagnec environment specied below. The customer or the user of RI Witness should ensure that it is used in such an environment.Emissions test Compliance RF emissionsCISPR 11 Group 2RI Witness must emit electromagnec energy in order to perform its intended funcon. Nearby electronic equipment may be aected.RF emissionsCISPR 11 Class BRI Witness is suitable for use in all establishments other than domesc and those directly connected to the public low-voltage power supply network that supplies buildings used for domesc purposes.Harmonic emissionsEN 61000-3-2 Class AVoltage uctuaons/icker emissionsEN 61000-3-3CompliesNote: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the Federal Communicaons Commision (FCC) Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residenal area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense.Note: This device complies with Industry Canada’s licence-exempt RSSs. Operaon is subject to the following two condions:1. This device may not cause interference.2. This device must accept any interference, including interference that may cause undesired operaon of the device.](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-10.png)

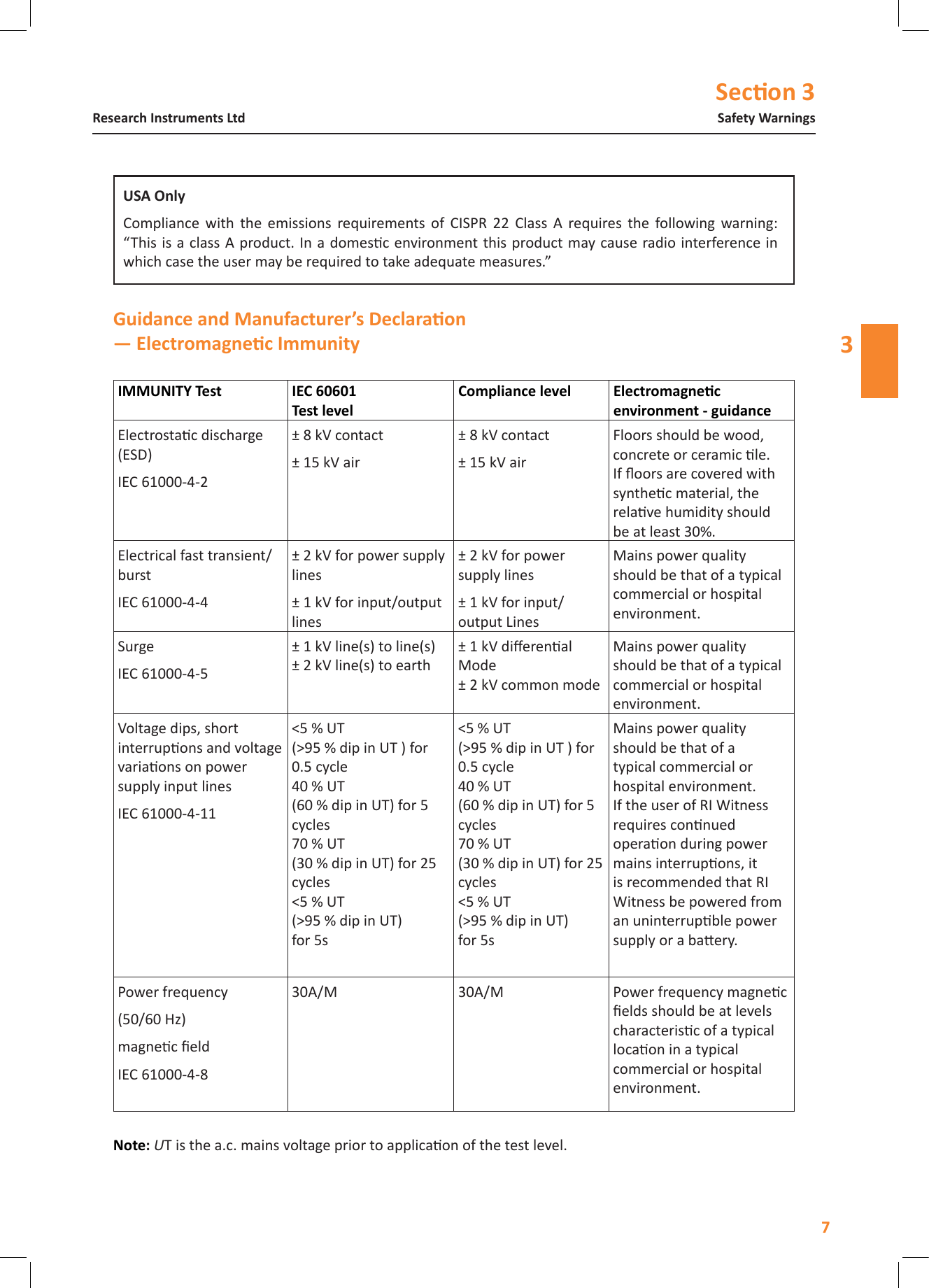

![Secon 37Safety WarningsResearch Instruments Ltd3 Electrostac discharge (ESD)IEC 61000-4-2± 8 kV contact± 15 kV air± 8 kV contact± 15 kV airFloors should be wood, concrete or ceramic le. If oors are covered with synthec material, the relave humidity should be at least 30%.Electrical fast transient/burstIEC 61000-4-4± 2 kV for power supply lines± 1 kV for input/output lines± 2 kV for power supply lines± 1 kV for input/output LinesMains power quality should be that of a typical commercial or hospital environment.SurgeIEC 61000-4-5± 1 kV line(s) to line(s) ± 2 kV line(s) to earth± 1 kV dierenal Mode ± 2 kV common modeMains power quality should be that of a typical commercial or hospital environment.Voltage dips, short interrupons and voltage variaons on power supply input linesIEC 61000-4-11<5 % UT (>95 % dip in UT ) for 0.5 cycle 40 % UT (60 % dip in UT) for 5 cycles 70 % UT (30 % dip in UT) for 25 cycles <5 % UT (>95 % dip in UT) for 5s<5 % UT (>95 % dip in UT ) for 0.5 cycle 40 % UT (60 % dip in UT) for 5 cycles 70 % UT (30 % dip in UT) for 25 cycles <5 % UT (>95 % dip in UT) for 5sMains power quality should be that of a typical commercial or hospital environment. If the user of RI Witness requires connued operaon during power mains interrupons, it is recommended that RI Witness be powered from an uninterrupble power supply or a baery.Power frequency(50/60 Hz)magnec eldIEC 61000-4-830A/M 30A/M Power frequency magnec elds should be at levels characterisc of a typical locaon in a typical commercial or hospital environment.Note: UT is the a.c. mains voltage prior to applicaon of the test level.Compliance with the emissions requirements of CISPR 22 Class A requires the following warning: “This is a class A product. In a domesc environment this product may cause radio interference in which case the user may be required to take adequate measures.”](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-11.png)
![Secon 3Safety Warnings8Research Instruments Ltd3 Compliance Conducted RF IEC 61000-4-6Radiated RF IEC 61000-4-33 Vrms150 kHz to 80 MHz3 V/m80 MHz to 2.5 GHz3 Vrms3 V/mPortable RF communicaons equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the Embryology Heated Plate, including cables specied by the manufacturer. Otherwise, degradaon of the performance of this equipment could result.](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-12.png)

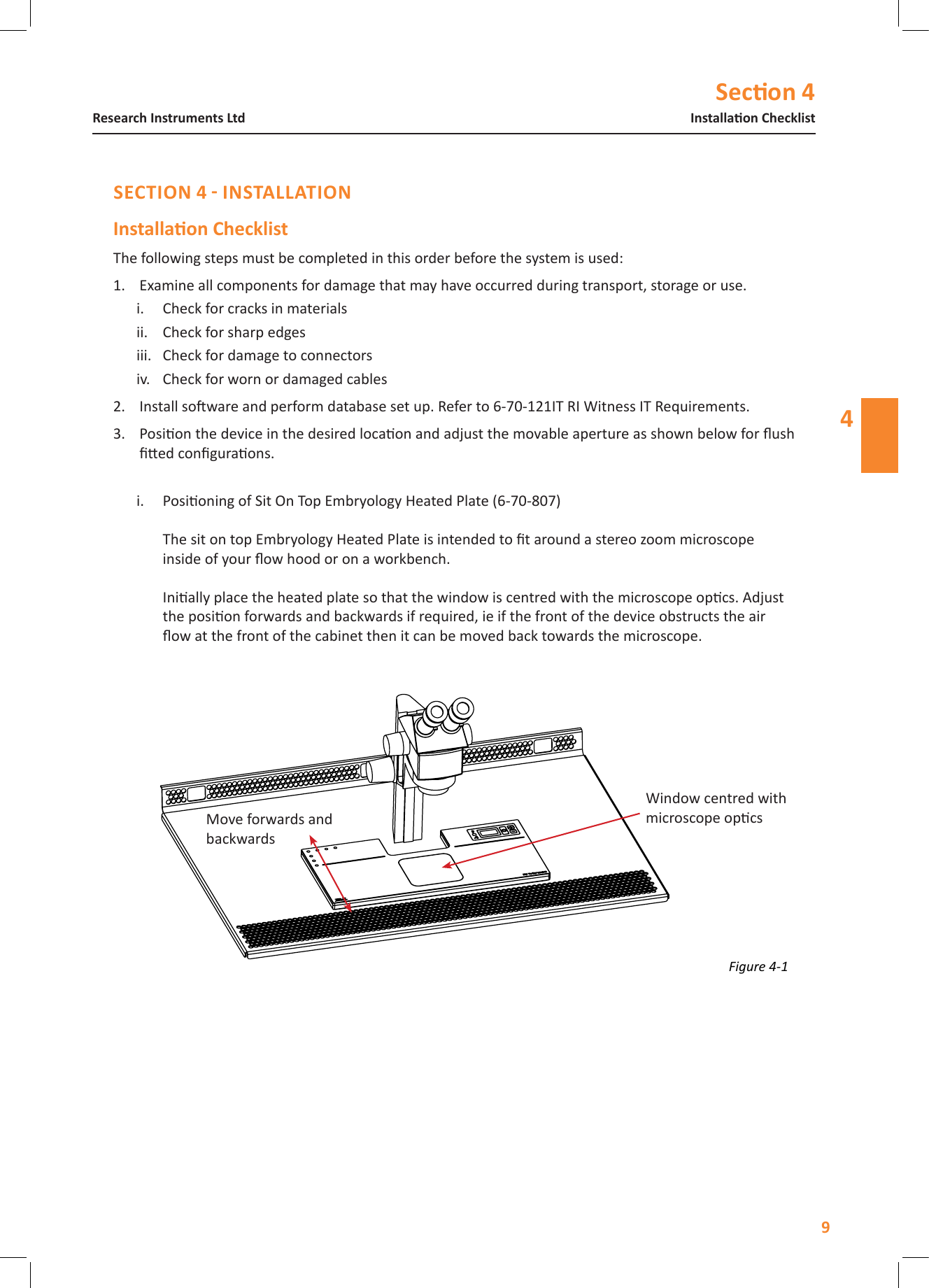

![Secon 4Installaon ChecklistResearch Instruments Ltd4The following steps must be completed in this order before the system is used: 1. Examine all components for damage that may have occurred during transport, storage or use.i. Check for cracks in materialsii. Check for sharp edgesiii. Check for damage to connectorsiv. Check for worn or damaged cables2. Install soware and perform database set up. Refer to 6-70-121IT RI Witness IT Requirements.3. Posion the device in the desired locaon and adjust the movable aperture as shown below for ush ed conguraons.i. Posioning of Sit On Top Embryology Heated Plate (6-70-807) The sit on top Embryology Heated Plate is intended to t around a stereo zoom microscope inside of your ow hood or on a workbench. Inially place the heated plate so that the window is centred with the microscope opcs. Adjust the posion forwards and backwards if required, ie if the front of the device obstructs the air ow at the front of the cabinet then it can be moved back towards the microscope. Figure 4-1 Window centred with microscope opcsMove forwards and backwards](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-13.png)

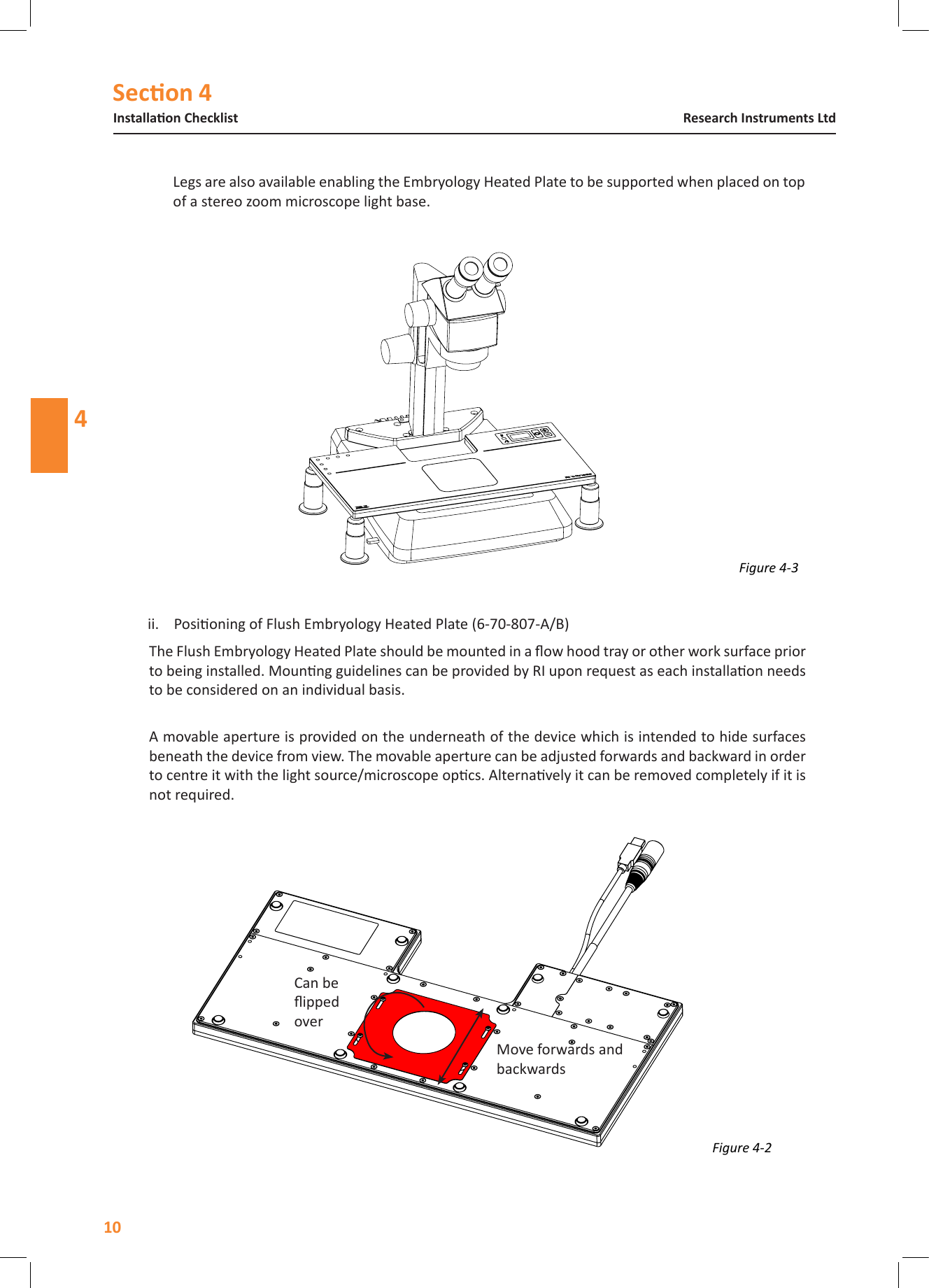

![Secon 4Installaon ChecklistResearch Instruments Ltd4Legs are also available enabling the Embryology Heated Plate to be supported when placed on top of a stereo zoom microscope light base.Figure 4-2 Move forwards and backwardsCan be ipped overFigure 4-3 ii. Posioning of Flush Embryology Heated Plate (6-70-807-A/B)The Flush Embryology Heated Plate should be mounted in a ow hood tray or other work surface prior to being installed. Mounng guidelines can be provided by RI upon request as each installaon needs to be considered on an individual basis. A movable aperture is provided on the underneath of the device which is intended to hide surfaces beneath the device from view. The movable aperture can be adjusted forwards and backward in order to centre it with the light source/microscope opcs. Alternavely it can be removed completely if it is not required.](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-14.png)
![Secon 411Installaon ChecklistResearch Instruments Ltd4When installing a Flush Embryology Heated Plate the movable aperture will need to be adjusted in order that it is centred with the microscope opcs. Refer to Sit On Top secon for details of movable aperture adjustment. To slide the movable aperture loosen the 4 screws, slide the aperture into the desired posion then re-ghten the screws. Note that to move the aperture into posion in front and behind the centre line of the window, it is necessary to turn the movable aperture over. The 4 screws will need to be removed in order to do this. See “Figure 4-2” on page 10.4. Connect the Power connecons as described in the ‘Start up procedure’ secon in 6-70-807UM RI Witness Embrology Heated Plate User Manual.5. Connect the USB A plug, that protrudes from the rear le corner of the Embryology Heated Plate, into an available USB socket on the PC or Tablet. Verify the connecon to the soware as described in ‘Connecng to the Soware’ secon in 6-70-807UM RI Witness Embrology Heated Plate User Manual.6. Go into the RFID Tuning Screen and check that all connected antennas have a green ck next to them.7. Perform temperature calibraon of all ve heang channels as described in the ‘Temperature Calibraon’ secon in 6-70-807UM RI Witness Embrology Heated Plate User Manual.](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-15.png)

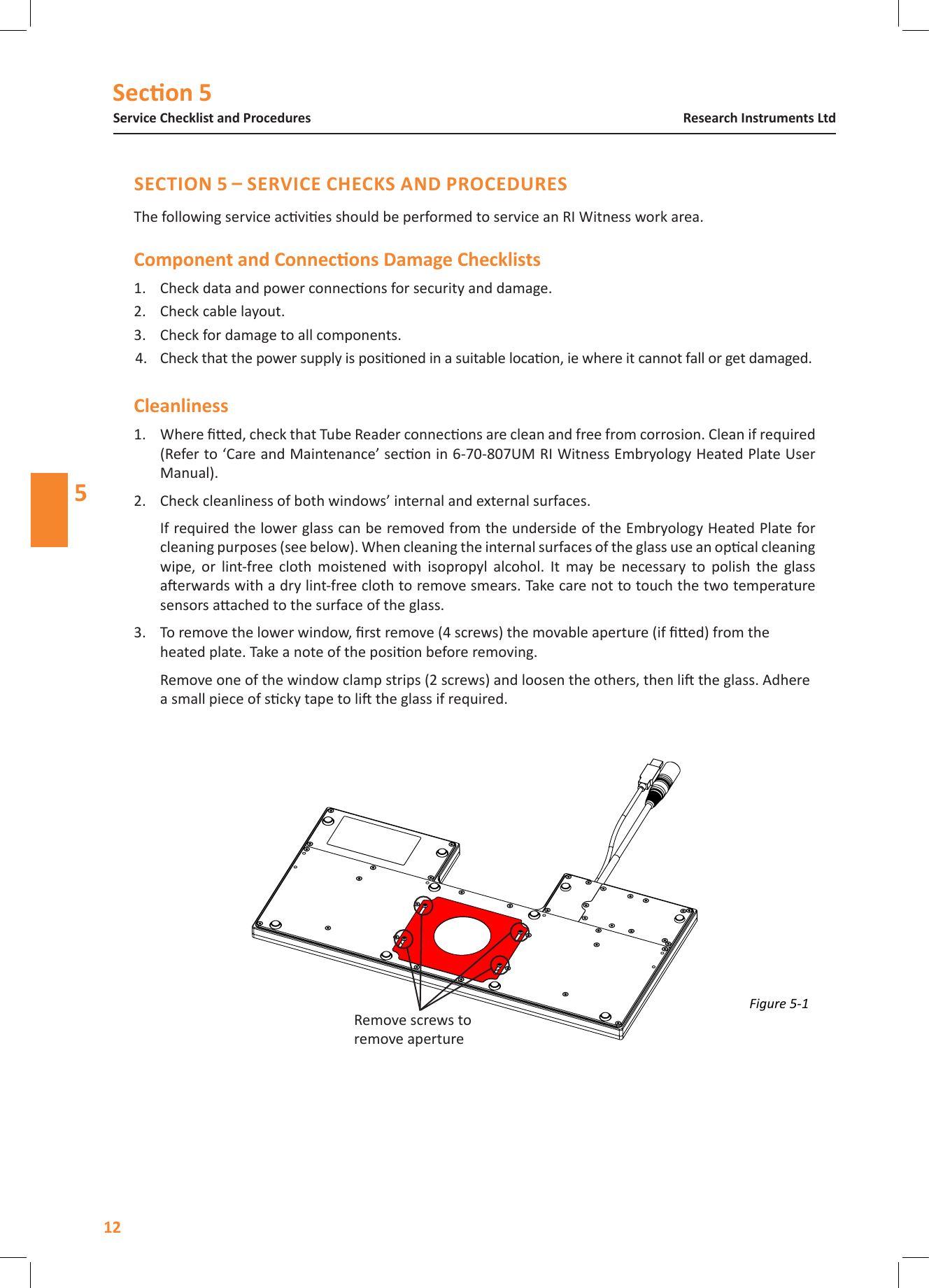

![Secon 5Service Checklist and Procedures12Research Instruments Ltd5The following service acvies should be performed to service an RI Witness work area.1. Check data and power connecons for security and damage. 2. Check cable layout. 3. Check for damage to all components.4. Check that the power supply is posioned in a suitable locaon, ie where it cannot fall or get damaged.Cleanliness1. Where ed, check that Tube Reader connecons are clean and free from corrosion. Clean if required (Refer to ‘Care and Maintenance’ secon in 6-70-807UM RI Witness Embryology Heated Plate User Manual).2. Check cleanliness of both windows’ internal and external surfaces. If required the lower glass can be removed from the underside of the Embryology Heated Plate for cleaning purposes (see below). When cleaning the internal surfaces of the glass use an opcal cleaning wipe, or lint-free cloth moistened with isopropyl alcohol. It may be necessary to polish the glass aerwards with a dry lint-free cloth to remove smears. Take care not to touch the two temperature sensors aached to the surface of the glass.3. To remove the lower window, rst remove (4 screws) the movable aperture (if ed) from the heated plate. Take a note of the posion before removing. Remove one of the window clamp strips (2 screws) and loosen the others, then li the glass. Adhere a small piece of scky tape to li the glass if required.Figure 5-1 Remove screws to remove aperture](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-16.png)

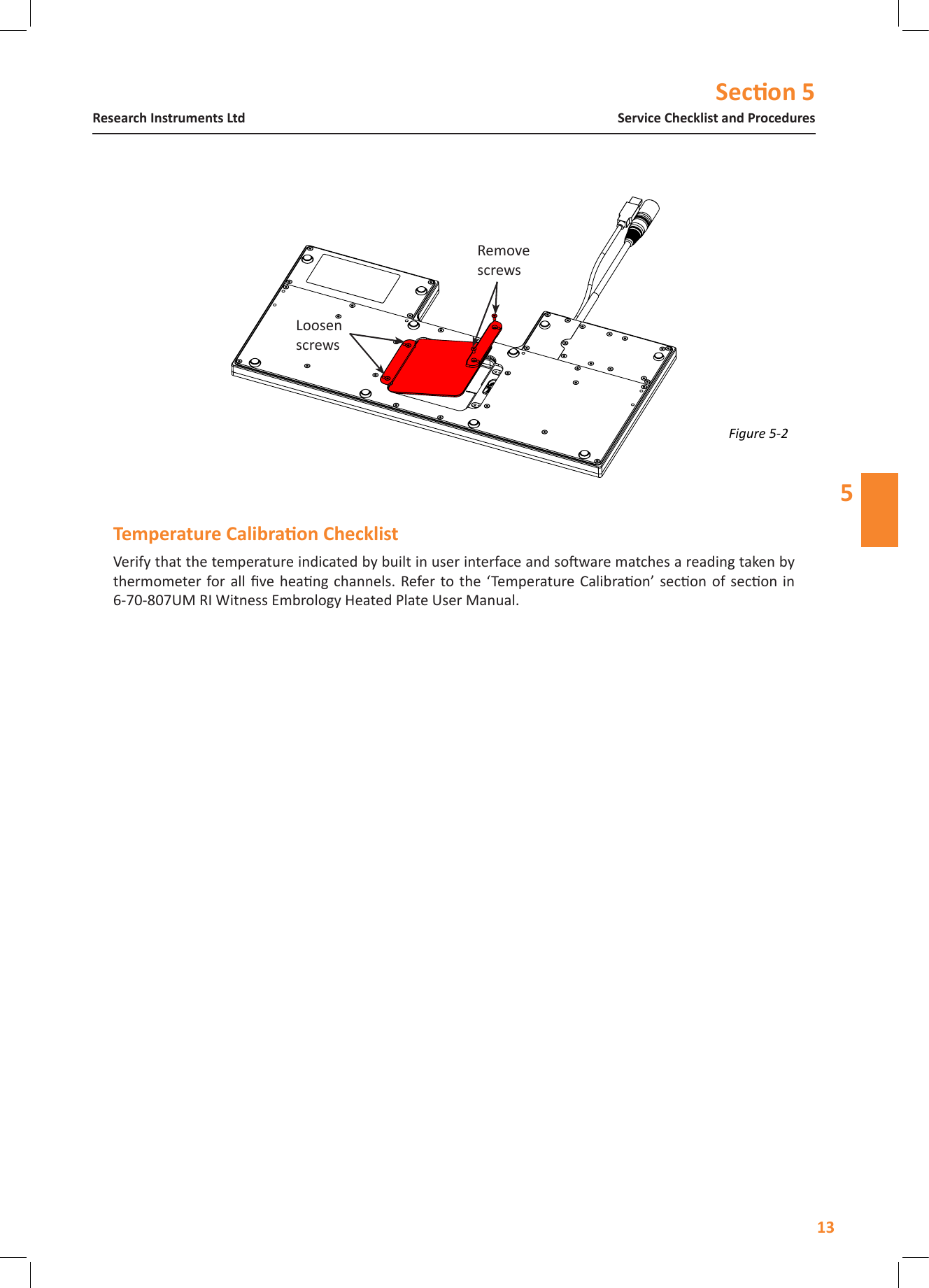

![Secon 513Service Checklist and ProceduresResearch Instruments Ltd5Verify that the temperature indicated by built in user interface and soware matches a reading taken by thermometer for all ve heang channels. Refer to the ‘Temperature Calibraon’ secon of secon in 6-70-807UM RI Witness Embrology Heated Plate User Manual.Figure 5-2 Loosen screwsRemove screws](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-17.png)

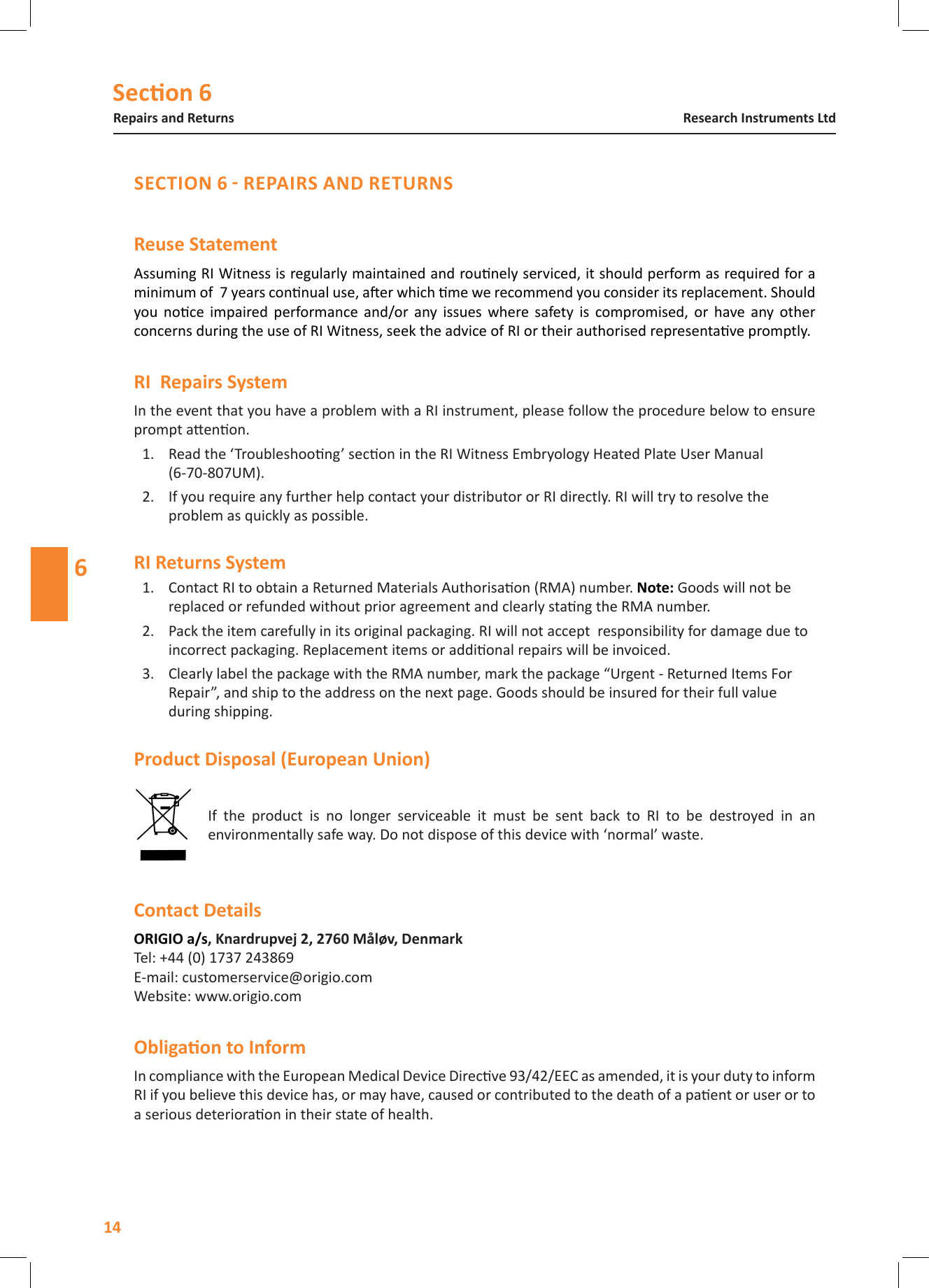

![Secon 6Repairs and Returns14Research Instruments Ltd6Reuse StatementAssuming RI Witness is regularly maintained and rounely serviced, it should perform as required for a minimum of 7 years connual use, aer which me we recommend you consider its replacement. Should you noce impaired performance and/or any issues where safety is compromised, or have any other concerns during the use of RI Witness, seek the advice of RI or their authorised representave promptly. In the event that you have a problem with a RI instrument, please follow the procedure below to ensure prompt aenon.1. Read the ‘Troubleshoong’ secon in the RI Witness Embryology Heated Plate User Manual (6-70-807UM).2. If you require any further help contact your distributor or RI directly. RI will try to resolve the problem as quickly as possible.1. Contact RI to obtain a Returned Materials Authorisaon (RMA) number. Note: Goods will not be replaced or refunded without prior agreement and clearly stang the RMA number.2. Pack the item carefully in its original packaging. RI will not accept responsibility for damage due to incorrect packaging. Replacement items or addional repairs will be invoiced.3. Clearly label the package with the RMA number, mark the package “Urgent - Returned Items For Repair”, and ship to the address on the next page. Goods should be insured for their full value during shipping. If the product is no longer serviceable it must be sent back to RI to be destroyed in an environmentally safe way. Do not dispose of this device with ‘normal’ waste. Tel: +44 (0) 1737 243869 E-mail: customerservice@origio.com Website: www.origio.comIn compliance with the European Medical Device Direcve 93/42/EEC as amended, it is your duty to inform RI if you believe this device has, or may have, caused or contributed to the death of a paent or user or to a serious deterioraon in their state of health.](https://usermanual.wiki/RESEARCH-INSTRUMENTS/670807.Installation-manual/User-Guide-3897025-Page-18.png)
