RSI VIDEOTECHNOLOGIES SE01 Indoor Siren User Manual
RSI VIDEOTECHNOLOGIES Indoor Siren
User Manual
www.videofied.com
Installation Guidelines
For easier installation, programming and RF testing
should be done to check for good communication between the
control panel and all system devices before mounting system
devices. Install the siren and other system devices in the order of
the following steps:
> Programming/RF Testing - program siren and
all other devices into the control panel and test
RF communication from each intended device
location to the control panel.
> Mounting - mount siren at the tested location.
Programming/RF Testing
The following provides summarized steps for device
programming and testing. For complete details, refer
to the control panel installation manual.

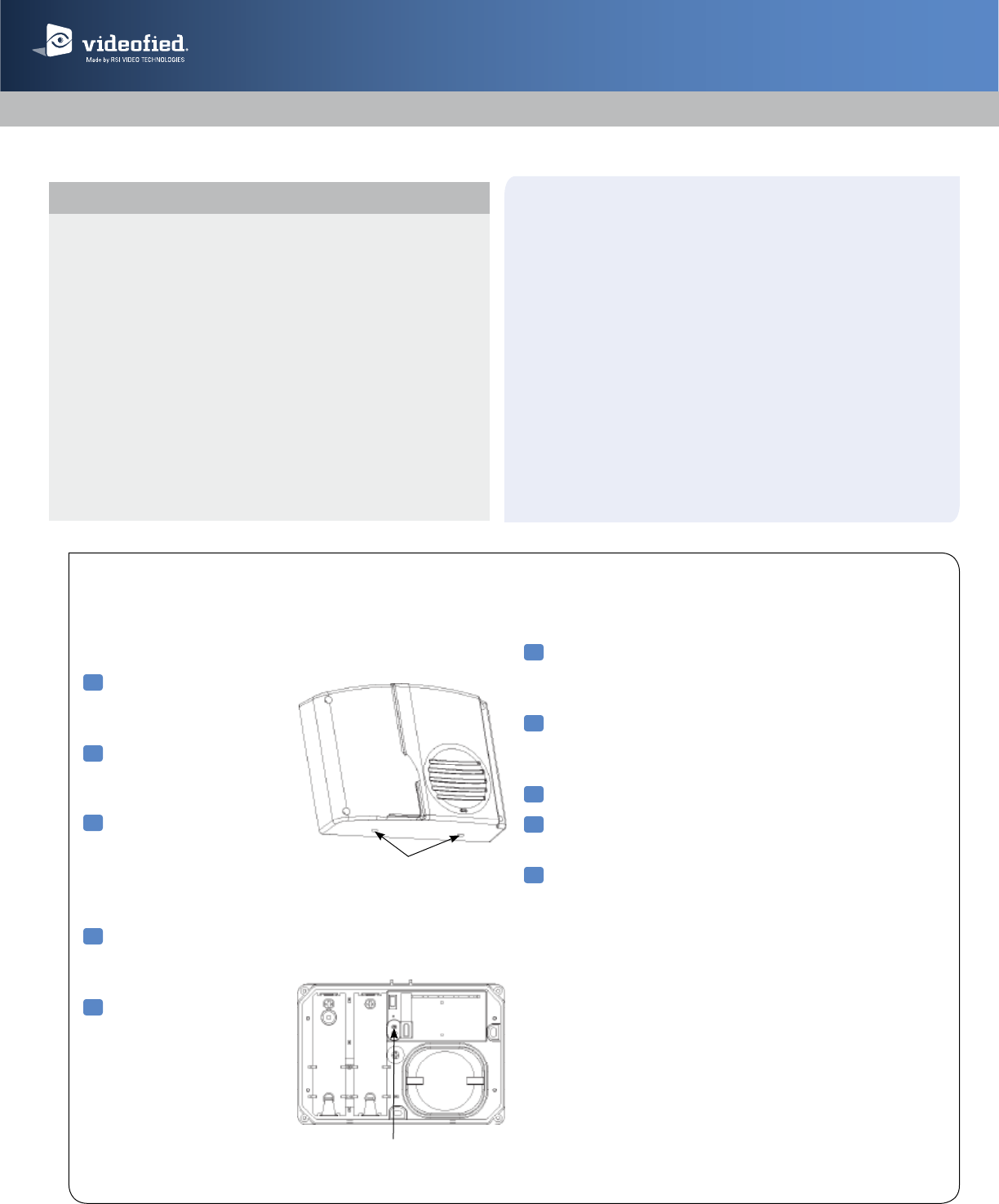

1 Remove bottom screws,
separate cover from siren
and install batteries.
2 Put control panel
into programming/
configuration mode.
3 Using a programmed
alphanumeric keypad,
proceed through menus
until the display shows
ADD A NEW DEVICE.
4 Press Yes. The display
shows PRESS PROGRAM
BUTTON OF DEVICE.
5 Press and release
program button on siren
using a paper clip end.
The siren LED flashes.
Wait for keypad display
to show SIREN (1 - 25)
RECORDED.
6 Press Yes. The display shows RADIO RANGE TEST?
Press Yes again. The siren LED starts flashing and
keypad display shows TEST IN PROGRESS.
7 Take siren to its intended mounting location and
make sure LED flashes continuously, indicating good
communication with control panel.
8 Press Yes to end radio range test, then press Esc/No.
9 The display shows RECORDING A NEW DEVICE?
Repeat steps 4 - 8 for remaining sirens.
10 When finished, exit from configuration mode.
Product Summary
The Interior Siren SE 200w/601w/702w is a wireless
siren designed for use with Videofied security systems.
The siren includes the following features:
> Totally wireless, battery operated.
> Dual tamper function provides detection for both wall
and cover tamper.
> Transmits check-in/status signal every 8 minutes.
Screws
Program Button
Indoor Siren SE 200w/601w/702w
PRODUCT INSTALLATION SHEET
2205 - SEIS March 2015
Mounting
> Use proper tools and hardware.
> Mount where siren can be heard by occupants.
> Mount out-of-reach of intruders to help prevent
disabling of unit.

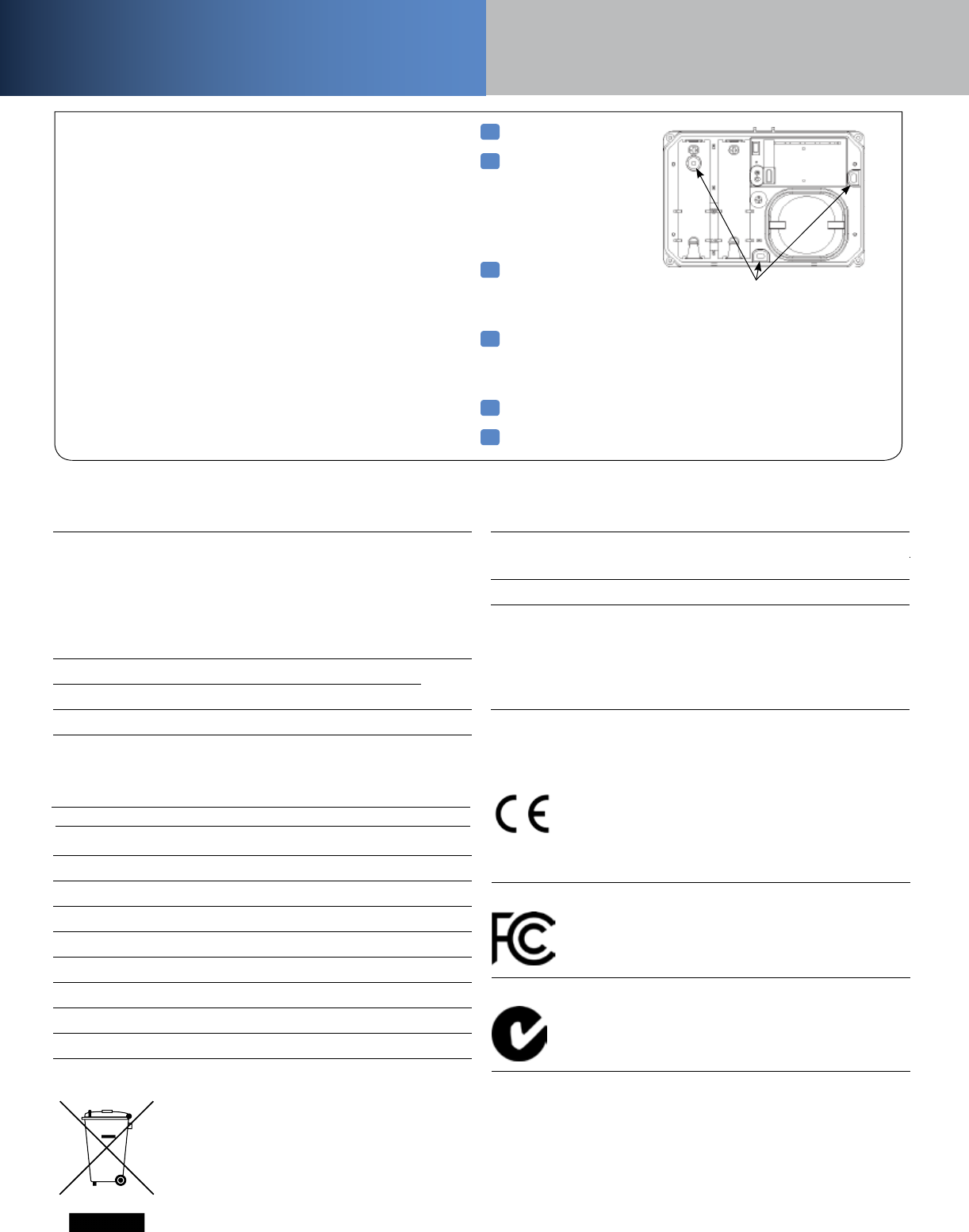

1 Remove batteries.
2 Hold unit up
against mounting
surface and mark
the three mounting
holes.
3 Drill pilot holes
and install anchors
where needed.
4 Place unit on mounting surface so mounting holes
line up with pilot holes/anchors and secure unit with
appropriate screws.
5 Install batteries, observing correct polarity.
6 Attach front cover.
Electrical Data
Panel Compatibility XL, XLL, XVIP, Visio, XT, XTIP
Power requirements Four 1.5 V Alkaline Batteries
Nominal Voltage 6V
Low Battery Limit 4.2V
Battery type Energizer Alkaline LR20, D size
Battery life Up to 4 years
RF technology S2View®
Radio type Spread Spectrum Bidirectional
Operating frequency
868MHz - SE200w (Europe, South Africa, Asia)
915MHz - FHSS - SE601w (USA, Canada, South America)
920MHz - FHSS - SE702w (Australia, South America)
Transmission security AES encryption algorithm
Supervision Polled signal every 8 minutes
Antenna Integrated
Tamper detection Wall and cover tampered
Speaker impedance 4 ohms
Output level 110 dB @ 1 meter
Output duration Configured in Control Panel
Built-in sounder Emits entry/exit delay beeps, alarms
Operating temperature -10°/+40°C (14°/104°F)
Maximum relative humidity 70%, non-condensing
Physical Data
Material ABS—ULV0
Dimensions (LxWxD) 228 mm x 168 mm x 60 mm
9 in. x 6.61 in. x 2.36 in.
Weight 740 g/26 oz.(without batteries)
Installation/Mounting
Siren/Base Two screws secure siren to base; three screws
secure siren base to mounting surface.
Mounting Holes
INSTALLATION DATA
SHEET
Indoor Siren SE 200w/601w/702w
Standards & Certifications
868MHz (SE200w)
915MHz (SE601w)
USA FCC (Part 15C)
Canada IC (RSS-210 Issue 8)
920MHz (SE702w)
Australie C-Tick (AS-NZS4268)
Compliant with the annex IV of the R&TTE Directive 1999/5/EC
Ce symbole, apposé sur le produit ou sur son emballage, indique que ce produit ne doit pas être traité avec
les déchets ménagers. Il doit être remis à un point de collecte approprié pour le recyclage des équipements
électriques et électroniques. En s’assurant que ce produit est bien mis au rebut de manière appropriée, vous
aiderez à prévenir les conséquences négatives potentielles pour l’environnement et la santé humaine.
Le recyclage des matériaux aidera à préserver les ressources naturelles.
Pour toute information supplémentaire au sujet du recyclage de ce produit, vous pouvez contacter votre
municipalité, votre déchetterie ou la société qui a installé le produit.
