Raven E1003925 Remote Control Transmitter User Manual 99300799 pmd
Raven Industries Remote Control Transmitter 99300799 pmd
Raven >
User Manual
EDR10488 4/05
Document Part No. 99300799
© Leggett & Platt, Inc.
OPERATION GUIDE
MASSAGE NOTE:
When activated, the massage system will launch the prior intensity setting used and automatically
shut off after 30 minutes. To restart Neurosage wave, press the Neurosage on/off button. To restart
head or foot massagers, press the “+” symbol on the head or foot massage button/s.
IMPORTANT:
Read advisory information in the owners manual carefully before using this product. The
potential for electrical shock exists if electrical components are not installed or operated
properly.
See back of page for additional programming features...

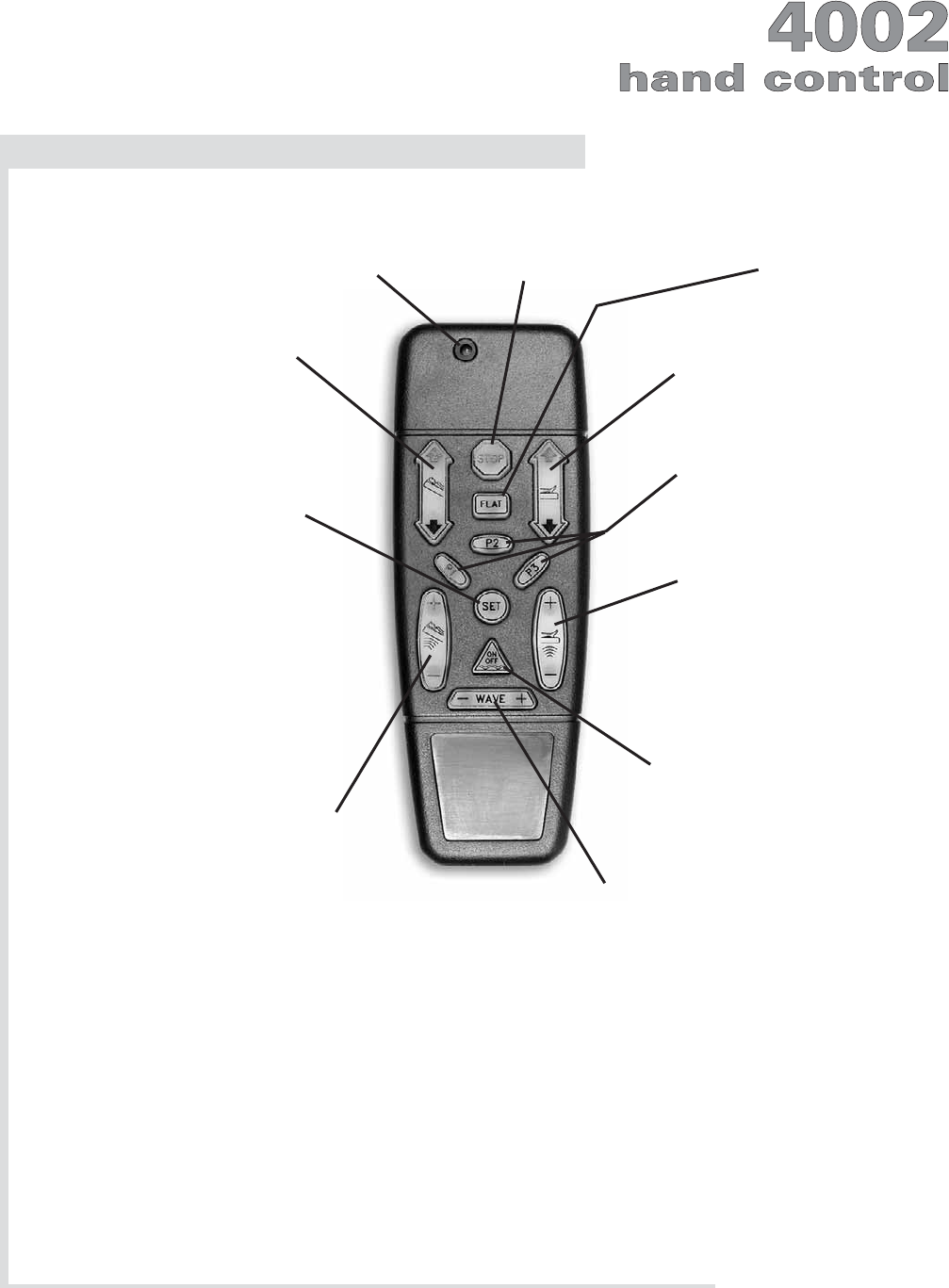

FOOT UP/DOWN BUTTON
Press and hold to raise or
lower the foot section.
HEAD UP/DOWN BUTTON
Press and hold to raise or
lower the head section.
POSITION RECALL BUTTONS
Press to activate a position set
by the program button.
FLAT BUTTON
Press to return bed
to the level position.
HEAD MASSAGE BUTTON
Press the “+” symbol to activate the
head massager at a preset intensity.
Press and hold the “+” symbol to
intensify head massager. Press and
hold the “–” symbol to decrease head
massager intensity.
PROGRAM SET BUTTON
Press to capture any position
of the bed as a programmed
position (3 unique positions).
Press the recall buttons (“P1,
P2 or P3”) to return bed to
any of the preset positions.
To Program Preset Positions:
1. Set the head and/or foot to
the desired position.
2. Press the program set button
once.
3. Press position recall button
“P1” to save position.
4. Repeat steps 1 thru 3 above
to program favorite positions
for “P2” and “P3”.
TRANSMISSION
INDICATOR LIGHT
FOOT MASSAGE BUTTON
Press the “+” symbol to
activate the foot massager at
a preset intensity. Press and
hold the “+” symbol to
intensify foot massager. Press
and hold the “–” symbol to
decrease foot massager
intensity.
STOP BUTTON
Press to immediately stop
all active bed functions.
NEUROSAGE ON/OFF BUTTON
Press to activate or deactivate
the Neurosage wave vibration
system.
NEUROSAGE WAVE INTENSITY BUTTON
Press and hold the “+” symbol to intensify
Neurosage wave intensity. Press and hold
the “–” symbol to decrease Neurosage
wave intensity.
www.lpadjustablebeds.com
4002 BATTERY REPLACEMENT
Requires (2) CR2032 3 volt batteries.
REMOVAL:

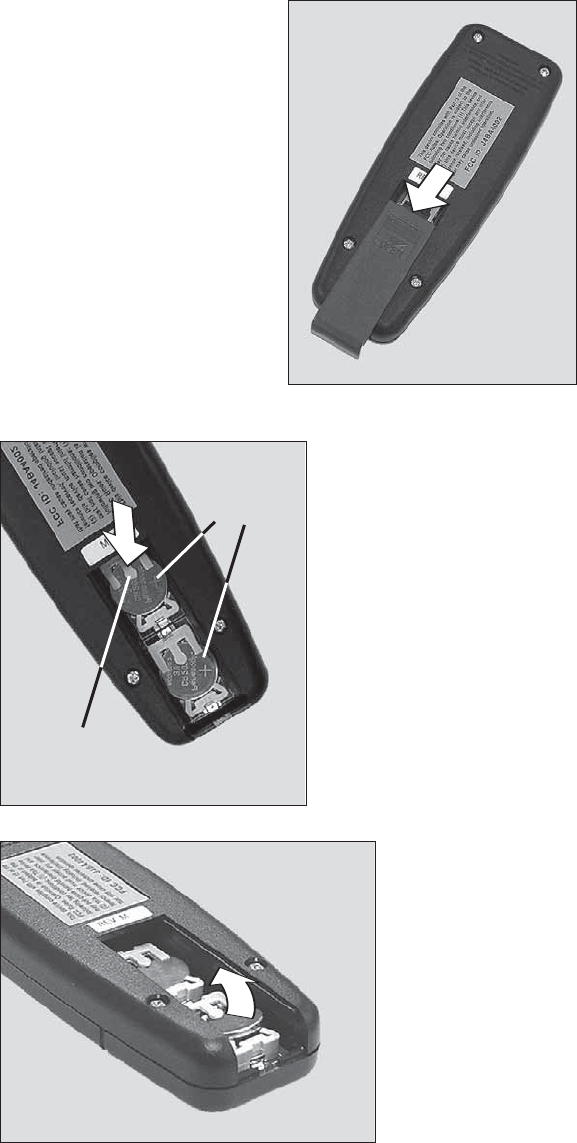

1. Remove the battery
compartment cover
located on the back of
the hand control
(FIGURE 1).
2. Press the round-
shaped tab (FIGURE 2)
and each battery will
eject from the plastic
captive clip (FIGURE 3).
3. Grasp and remove
batteries. Note
position of batteries
when removing for
replacement.
REPLACEMENT:
4. Position the new
batteries face-up
and insert into the
plastic captive clips
(reverse of removal).
5. Carefully push
batteries in and
down to install.
6. Replace battery
compartment cover.
FIGURE 1
PUSH IN (SLIGHTLY)
AND SLIDE OFF
BATTERY
COMPARTMENT
COVER
FIGURE 3
WHEN BATTERY EJECTS
FROM CAPTIVE CLIP,
ROTATE UP AND OUT
OF BATTERY
COMPARTMENT
TO REMOVE
4002 PROGRAMMING
To set channels on a single base:
1. Plug the bed into a power
source and within 30 seconds,
press the head up button on
the hand control until the
transmission indicator light
illuminates. This will confirm
that the hand control and the
bed are communicating.
2. The hand control channel is
now programmed.
To set channels for 2 or more
beds to operate independently:
1. Unplug all beds from their
power sources.
2. Plug in the first bed to be
programmed and within 30
seconds, press the head up
button on the hand control until
the transmission indicator light
illuminates. This will confirm
that the hand control and the
bed are communicating.
3. Repeat steps 1 and 2 with each
base requiring programming (It
is important to use the specific
hand control that will be used
to operate the bed). Beds prior
programmed with the remote
need not be unplugged.
4. Multiple beds are now
programmed for independent
operation.
Note: In the event of power
failure or if bed is inadvertently
unplugged from the electrical
power source, wait 30 seconds
(after power is restored) before
using any hand control. This
will prevent bases from
learning and working
simultaneously.
FIGURE 2
PUSH DOWN
ON TAB TO
EJECT BATTERIES
BATTERIES
Re: Certification for Raven Transmitter
Model(s): E1003925
FCC ID: KSME1003925
IC: 2004A-E1003925
USER'S MANUAL INFORMATION
(PRELIMINARY)
The User's Manual is in preparation. The following material will also be contained in the
manual:
WARNING: Changes or modifications not expressively approved by the party
responsible for compliance could void the user's authority to operate the equipment.
The term “IC:” before the radio certification number only signifies that Industry Canada
technical specifications were met.
