Raycan Technology RADWALL Area radiation monitor User Manual RadWall H User Guide FCC
Raycan Technology Co.,Ltd.(Su Zhou) Area radiation monitor RadWall H User Guide FCC
User Manual
X-Z LAB, Inc.
2440 Camino Ramon
Suite #264
San Ramon, CA 94583
Phone (925) 359-6908
Email contact@x-zlab.com

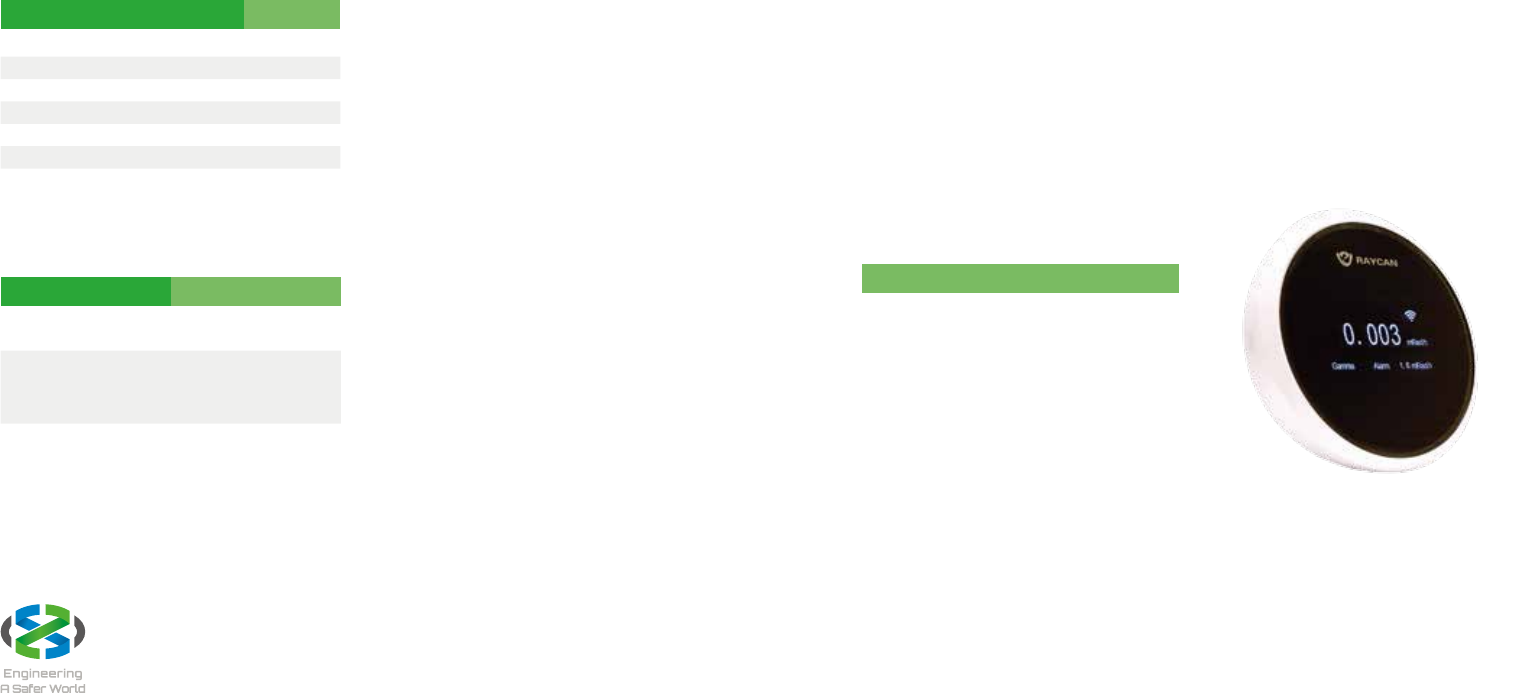

RadWall-H
Area Radiation Monitor
USER GUIDE
TROUBLESHOOTING
PROBLEM SOLUTION
Unable to boot Ensure power
adapter is plugged in
Continuous alarm
ringing
Confirm proximity
to radiation source;
check alarm
threshold settings
Alarm not ringing
near radiation source
Check alarm
threshold settings
* If your problem cannot be resolved, please
contact X-Z LAB or your account administrator.
PACKAGE CONTENTS
ITEM QTY
RadWall-H 1
Mounting plate 1
Flat-head screw (M4 x 14 mm) 3
User guide 1
Power adapter 1
MicroUSB cable 1
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
§ 15.21 Information to user.
Any Changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the
equipment and receiver.
-Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
*RF warning for Mobile device:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be
installed and operated with minimum distance
20cm between the radiator & your body.
TECHNICAL SPECIFICATIONS
FEATURE PARAMETER
Detector YSO scintillator + SiPM
Type of Radiation
Detected Gamma; X-ray
Energy Range 20 keV–30 MeV
Dose Rate Range1 µrad/h–1 rad/h
(0.01 µGy/h–10 mGy/h)
Sensitivity 410 cps/mrad/h
(41 cps/uGy/h)
Energy
Response≤ ±15% (∝ Cs-137)
Dose Rate
Linearity
≤ ±10% up to 1 rad/h
(10 mGy/h)
Accuracy ±10% (∝ Cs-137)
Alarm Threshold
User-set values for
dose rate:
100 µrad/h–1 rad/h
(1 µGy/h–10 mGy/h)
Alert Options Audible (80 dB at 12 in /
30 cm); visual (display)
Alarm Response
Time < 2 s
Overload Display
Activation when >
1 rad/h (10 mGy/h)
Overload indication up
to 10 rad (100 mGy/h)
Display Units Gy; rad; cps
Dimensions ⌀ 6.89 x 1.97 in
(⌀ 175 x 50 mm)
Weight 19.0 oz (540 g)
Operating
Temperature 41–122 °F (5–50 °C)
Relative Humidity ≤ 90% (non-condensing)
EMI/EMC Exceeds IEC 61526
FCC Compliance FCC Part 15
RadWall-H is a next-generation, all-digital
area radiation monitor that combines three
functions in one:
• Alarm and display unit
• Built-in scintillation detector
• Self-healing and self-forming
mesh network capable monitor
RadWall-H has high detection accuracy,
high sensitivity, fast response, and a high-
resolution display, as well as other significant
advantages. RadWall-H can be used as a
standalone area radiation monitor, or multiple
units can be combined to form a protected
mesh network communicating via ZigBee.
RadWall-H also includes the RadSys 2.0
software to accommodate applications of
any size or complexity.
RADWALL-H
AREA RADIATION MONITOR
PRODUCT DIAGRAM
OPERATING INSTRUCTIONS
Startup/Installation
Threshold Settings
Working Status
Plug RadWall-H into a standard power outlet. Turn
on power switch. The RAYCAN logo is followed
by device ID, indicating active monitoring state.
Cable routing is included on the back of RadWall-H.
The power cord can be tucked into the groove
for better cable management.
The manufacturer default alarm threshold value
is 1 mrad/h (10 µGy/h). The alarm threshold range
can be set remotely via RadSys. Please check
the RadSys software manual for more details.
The device can issue overload indication, error
warnings, and audible and visible alarms. When the
absorbed dose rate exceeds the alarm threshold,
red lights and sound will indicate danger.
DISPLAY
MICROUSB
FIRMWARE
UPDATE PORT
POWER
JACK
POWER
SWITCH
TOP
BOTTOM
