Specification
Territory EU, USA, Japan, China, Canada, Switzerland, Norway and others pending.
Transmission type Frequency hopping spread spectrum radio (FHSS).
Radio frequency 2400 MHz – 2483.5 MHz
Operating voltage 12 Vdc to 30 Vdc
Operating range Up to 15 m (49.2 ft)
Weight In box including 15 m (49.2 ft) of cable
2065 g (72.84 oz) 1625 g (57.32 oz)
Cable 15 m (49.2 ft) of cable standard length.
Optional 30 m (98.4 ft) and 50 m (164 ft) cable assemblies are also available.
Screened 16 core (each core 18 x 0.1 mm).
Configuration Can be configured between side and rear exit.
Probe status outputs 1. SSR (N.O/N.C, pulsed/level).
2. Driven at power supply voltage (trigger high/trigger low, pulsed/level).
3. Driven output for Fanuc high speed skip.
Configurable M-code input Pulsed or level.
Compatible probes RMP40/RMP40M/RLP40/RTS/RMP60 and RMP600.
Probe communication Up to four probes non-simutaneously.
Probe turn on Optional 0.5s.
Mounting Mounting bracket to allow directional setting.
Sealing IPX8 (EN/IEC60529)
Storage temperature -25 °C to +70 °C (-13 °F to +158 °F)
Operating temperature +5 °C to +55 °C (+41 °F to +131 °F)
For the best possible application and performance support please contact Renishaw.
Data sheet
RMI-Q
RMI-Q data sheet
www.renishaw.com/rmi-q
Draft 2 07/09/11
Spare parts and accessories
A full range of spare parts and accessories are available. Please
contact Renishaw for a full list.
75°
60°
45°
30°
15°
0°
15°
30°
45°
60°
75° 90° 75°
60°
45°
30°
15°
0°
15°
45°
60°
75°
75°
60°
45°
30°
30°
45°
60° 75°
10 (33)
15 (49)
5 (16)
5 (16)
10 (33)
15 (49)
15°
0°
15°
30°
5
(16)
10
(33)
15
(49)
OPERATING AND SWITCH ON/OFF Range metres (feet)
RMP RMI-Q

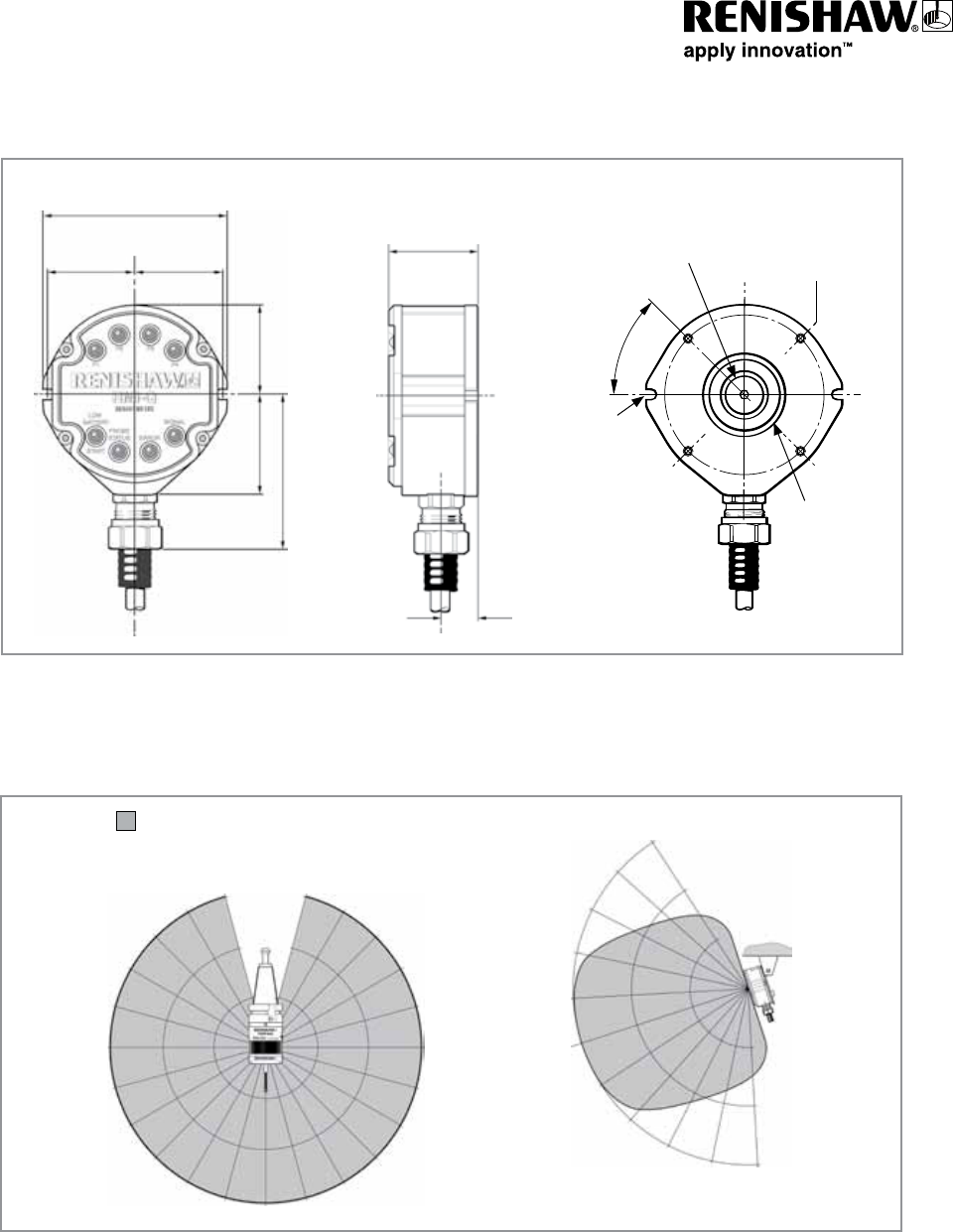

Performance envelope
Dimensions
Renishaw plc
New Mills, Wotton-under-Edge,
Gloucestershire, GL12 8JR
United Kingdom
T +44 (0)1453 524524
F +44 (0)1453 524901
E uk@renishaw.com
www.renishaw.com
For worldwide contact details, please visit our
main web site at www.renishaw.com/contact
*H-5687-8200-01*
RENISHAW HAS MADE CONSIDERABLE EFFORTS TO ENSURE THE CONTENT OF THIS DOCUMENT IS CORRECT
AT THE DATE OF PUBLICATION BUT MAKES NO WARRANTIES OR REPRESENTATIONS REGARDING THE CONTENT.
RENISHAW EXCLUDES LIABILITY, HOWSOEVER ARISING, FOR ANY INACCURACIES IN THIS DOCUMENT.
© 2011 Renishaw plc. All rights reserved. Part no. H-5687-8200-01-A Issued 09.11
46 (1.81)
97 (3.82)
46 (1.81)
45 (1.77)
44 (1.73)
50 (1.97)
74 (2.91)
17.5 (0.69)
dimensions mm (in)
45°
4 holes
M5 x 13 deep
on 80 p.c.d.
When using rear exit
cable, provide a
Ø25 (1.0) hole in
mounting for clearance
Blanking plug with sealing ring.
The plug and seal fit either side
or rear exit cable positions.
Groove for
rear exit
O ring seal
Slot to suit
M6 bolts supplied
(two places)
Draft 2 07/09/11
