Resmed Sensor Technologies BM08 Motion Detector Module User Manual Module Specifications
Resmed Sensor Technologies Ltd Motion Detector Module Module Specifications
Manual
BM08_2DOC_001 Page 1 User Manual
User Manual
The BiancaMed BM08 Sensor is a 10.525GHz motion detector. It comprises a motherboard
PCBA, an integral RF PCBA, die cast RF metalwork and a custom plastic anti-tamper enclosure.
Physical Specifications
Parameter
Value
Remarks
Circuit board dimensions
44.5mm by 77.5mm by 6 mm
See diagram below
Complete assembly (including
anti-tamper enclosure)
dimensions
63.75mm (x) by 79.3mm (y)
by 10mm (z) main body of
enclosure,
13.8 mm (z) at enclosure
hump
22.5mm (z) max by horn, see
Figure 2 below

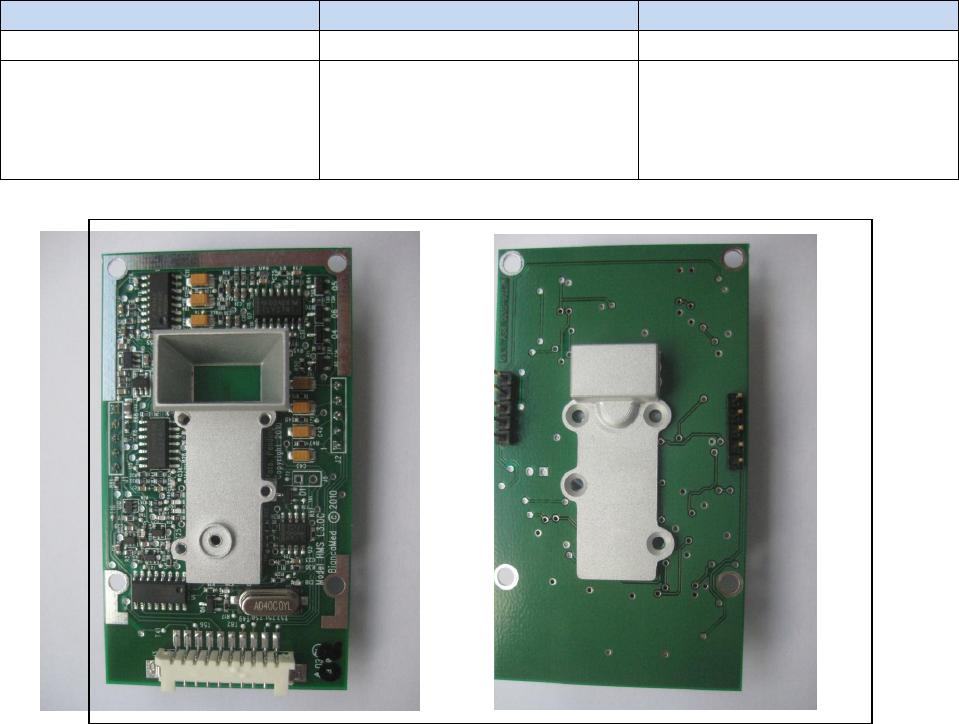

Figure 1: PCB Layout, showing the Antenna Horn on the top side and the connector at the
bottom
Page 2
Figure 2: 3-D Model of PCB Enclosed in Anti-Tamper Enclosure
Radio Frequency Sensor Specifications
Parameter
Value
Remarks
Centre frequency
10.525 GHz
RF t/x Pulse
500nS
PRF
1MHz
RF Duty Cycle
50%
Electrical Specifications
Parameter
Value
Remarks
Input voltage
+4.5 to 12 VDC
Maximum current draw
25 mA
nominal current draw
22mA
Maximum voltage ripple
allowed
100 nVrms /(root(Hz))
Maximum supply voltage
allowed
12 VDC
Minimum tolerable supply
+4.5 VDC
x
y
z
Page 3
Parameter
Value
Remarks
voltage
Reference Voltage
1.25 VDC
Reference Voltage line output
impedance
1 kOhm
Sensor start time before data
is available
40 s
Connector
Hirose 10-Way 2mm Pitch
Header Connector
Analogue Sensor Data
Environmental Specifications
Parameter
Value
Remarks
Operating Temperature Range
+5 to +35 deg C
Operating Humidity Range
30 to 85% RH (non
condensing)
Storage Temperature range
-20 to +60C
Storage Humidity Range
20 to 95 RH (non-condensing)
IP value
Not Applicable
IP value provided by OEM
enclosure

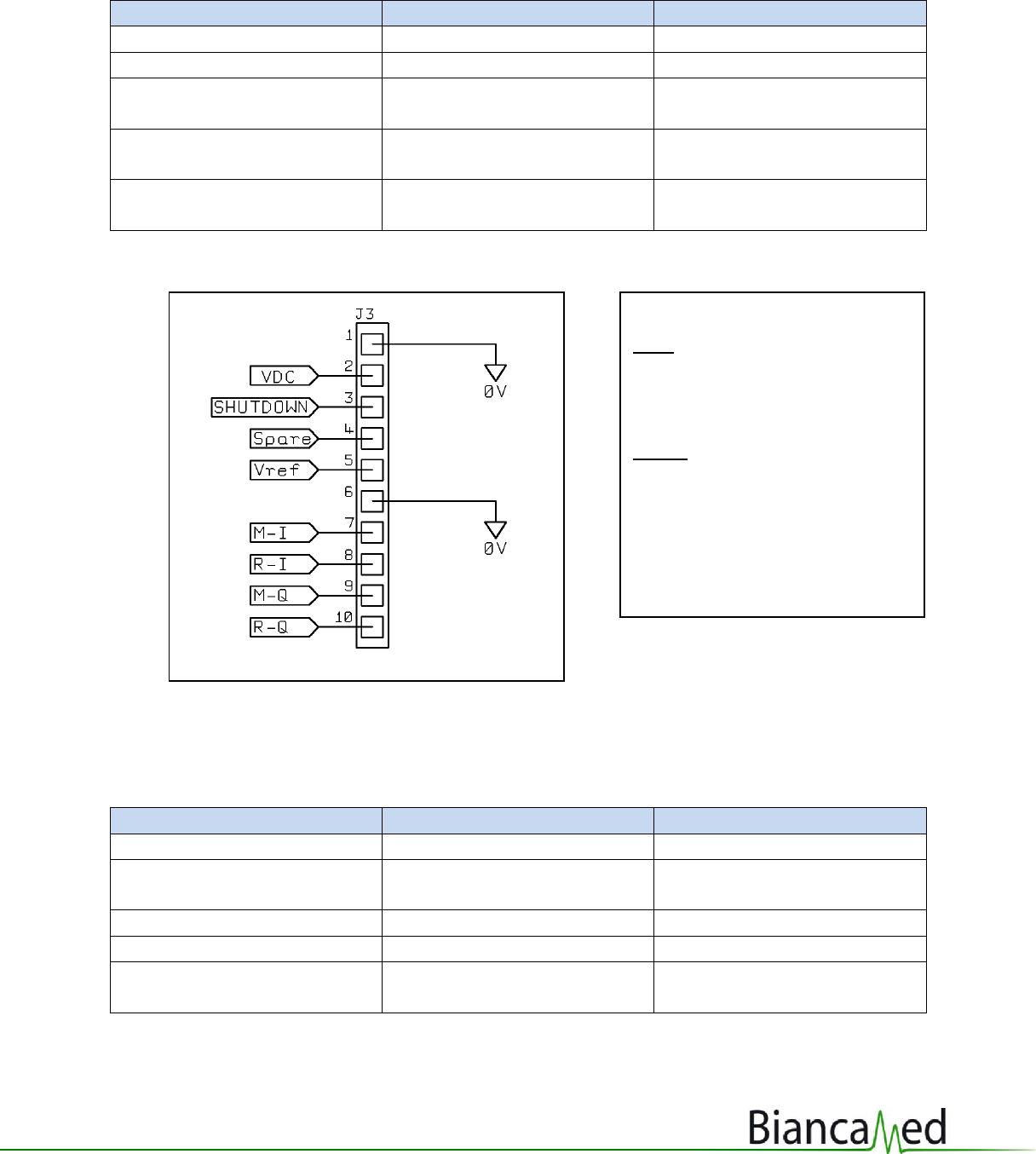

Where:
Input:
VDC = +4.5 to +12 VDC
Shutdown = active low, connect to
pin 2 to enable sensor
Output:
Vref = +1.25 VDC
M-I= Movement I channel data
R-I= Respiration I channel data
M-Q= Movement Q channel data
R-Q= Respiration Q channel data
Figure 3: Pin out of Connector
Page 4
FCC Warning Statements
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by BiancaMed could void
the user's authority to operate this equipment.
This transmitter module is authorized to be used in other devices only by OEM further
transmitter testing will not be required. However, the OEM integrator is still responsible for
testing their end-product for any additional compliance requirements required with this
module installed (for example, digital device emissions, PC peripheral requirements, etc.).
The OEM integrator has to be aware not to provide information to the end user regarding how
to install or remove this RF module in the user manual of the end product.
End Product Labeling
The final end product must be labeled in a visible area with the following:
“Contains TX FCC ID: YAKBM08” or “Contains FCC ID: YAKBM08”.
