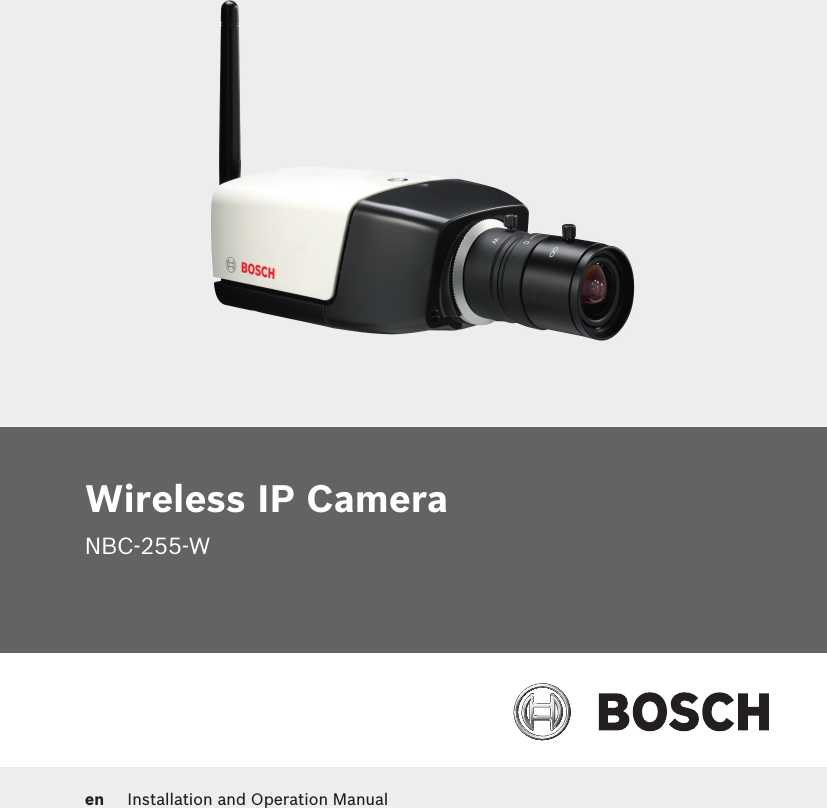

Wireless IP CameraNBC-255-Wen Installation and Operation Manual

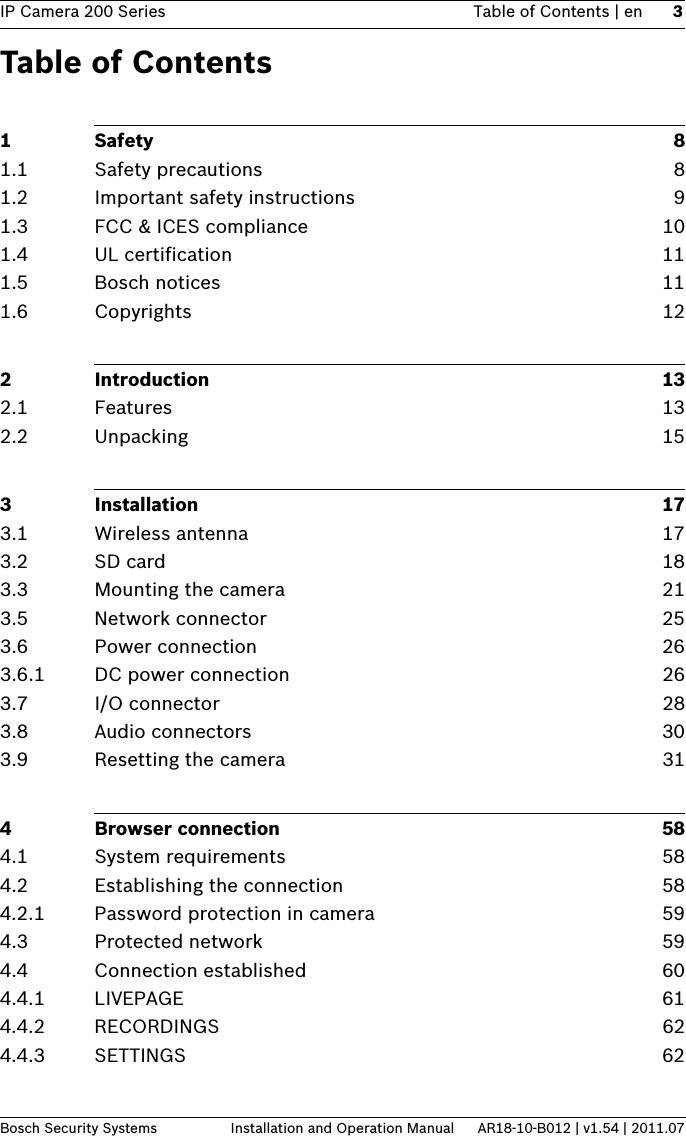

IP Camera 200 Series Table of Contents | en 3Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.07Table of Contents1Safety 81.1 Safety precautions 81.2 Important safety instructions 91.3 FCC & ICES compliance 101.4 UL certification 111.5 Bosch notices 111.6 Copyrights 122 Introduction 132.1 Features 132.2 Unpacking 153 Installation 173.1 Wireless antenna 173.2 SD card 183.3 Mounting the camera 213.5 Network connector 253.6 Power connection 263.6.1 DC power connection 263.7 I/O connector 283.8 Audio connectors 303.9 Resetting the camera 314 Browser connection 584.1 System requirements 584.2 Establishing the connection 584.2.1 Password protection in camera 594.3 Protected network 594.4 Connection established 604.4.1 LIVEPAGE 614.4.2 RECORDINGS 624.4.3 SETTINGS 62

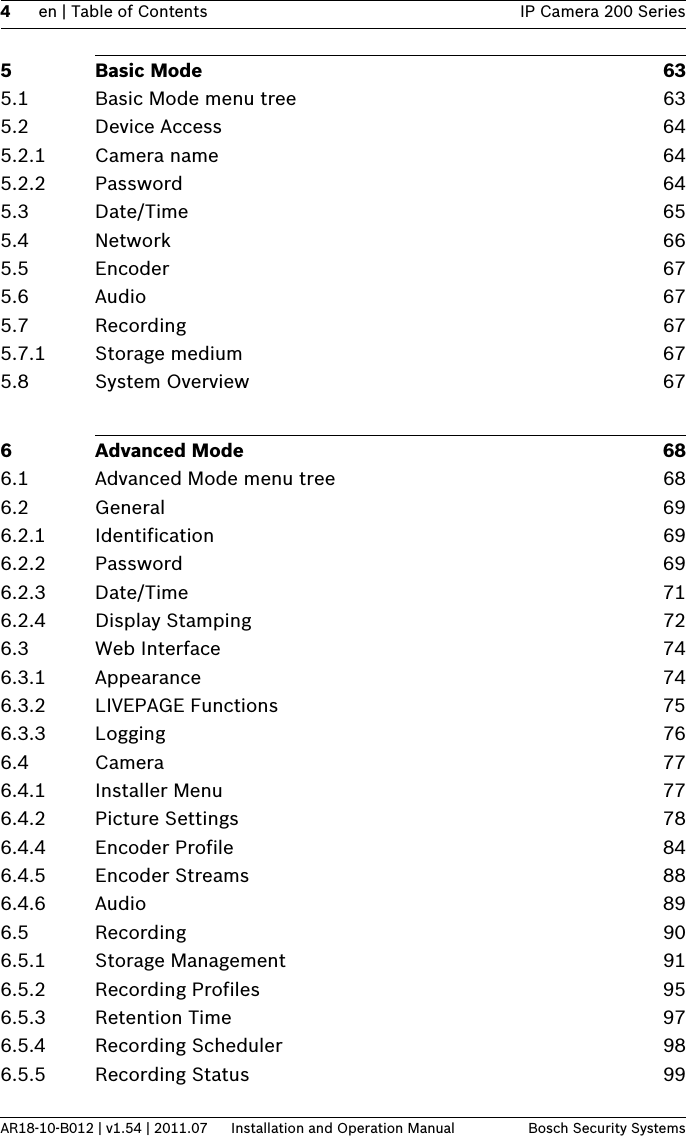

4en | Table of Contents IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems5 Basic Mode 635.1 Basic Mode menu tree 635.2 Device Access 645.2.1 Camera name 645.2.2 Password 645.3 Date/Time 655.4 Network 665.5 Encoder 675.6 Audio 675.7 Recording 675.7.1 Storage medium 675.8 System Overview 676 Advanced Mode 686.1 Advanced Mode menu tree 686.2 General 696.2.1 Identification 696.2.2 Password 696.2.3 Date/Time 716.2.4 Display Stamping 726.3 Web Interface 746.3.1 Appearance 746.3.2 LIVEPAGE Functions 756.3.3 Logging 766.4 Camera 776.4.1 Installer Menu 776.4.2 Picture Settings 786.4.4 Encoder Profile 846.4.5 Encoder Streams 886.4.6 Audio 896.5 Recording 906.5.1 Storage Management 916.5.2 Recording Profiles 956.5.3 Retention Time 976.5.4 Recording Scheduler 986.5.5 Recording Status 99

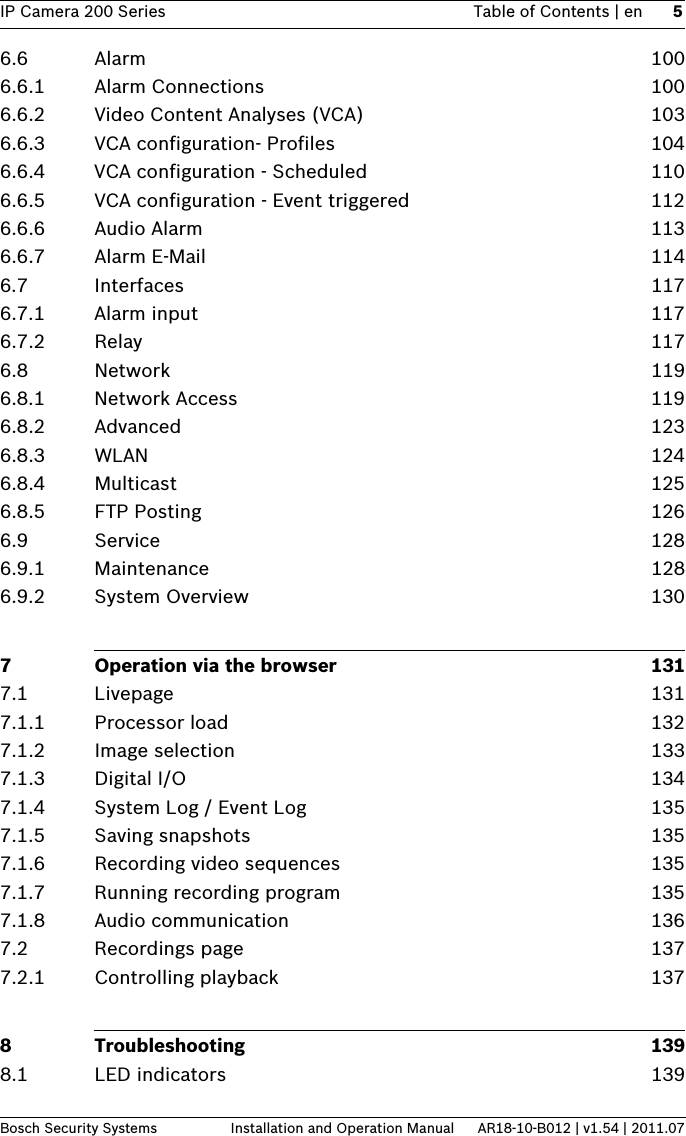

IP Camera 200 Series Table of Contents | en 5Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.076.6 Alarm 1006.6.1 Alarm Connections 1006.6.2 Video Content Analyses (VCA) 1036.6.3 VCA configuration- Profiles 1046.6.4 VCA configuration - Scheduled 1106.6.5 VCA configuration - Event triggered 1126.6.6 Audio Alarm 1136.6.7 Alarm E-Mail 1146.7 Interfaces 1176.7.1 Alarm input 1176.7.2 Relay 1176.8 Network 1196.8.1 Network Access 1196.8.2 Advanced 1236.8.3 WLAN 1246.8.4 Multicast 1256.8.5 FTP Posting 1266.9 Service 1286.9.1 Maintenance 1286.9.2 System Overview 1307 Operation via the browser 1317.1 Livepage 1317.1.1 Processor load 1327.1.2 Image selection 1337.1.3 Digital I/O 1347.1.4 System Log / Event Log 1357.1.5 Saving snapshots 1357.1.6 Recording video sequences 1357.1.7 Running recording program 1357.1.8 Audio communication 1367.2 Recordings page 1377.2.1 Controlling playback 1378 Troubleshooting 1398.1 LED indicators 139

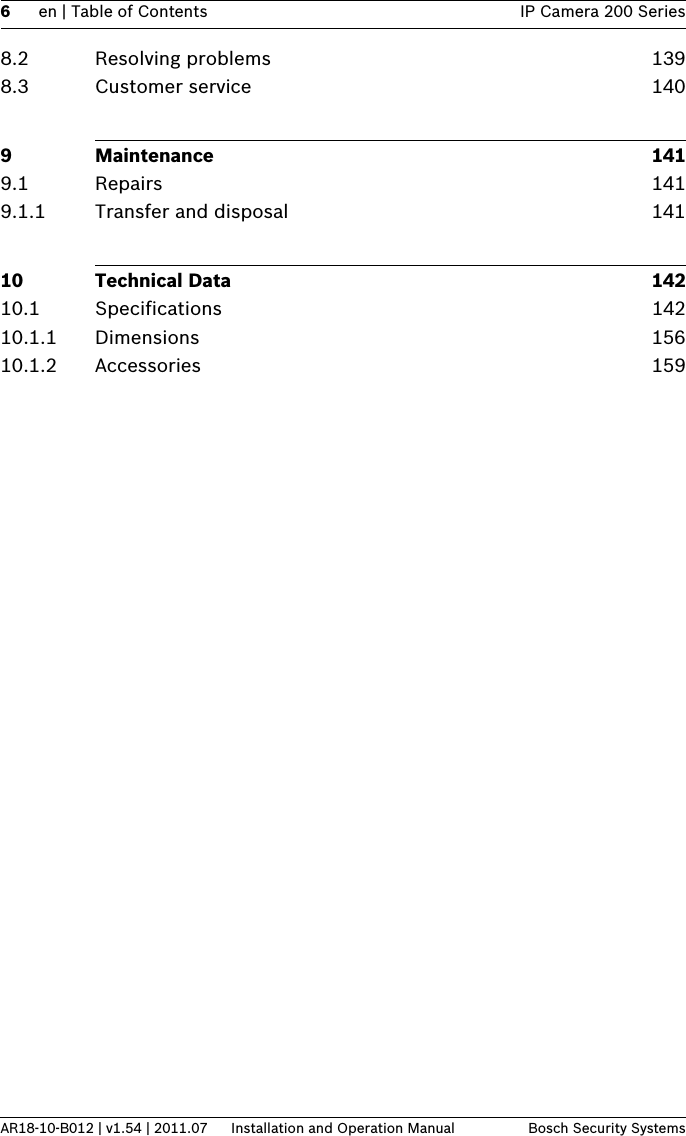

6en | Table of Contents IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems8.2 Resolving problems 1398.3 Customer service 1409 Maintenance 1419.1 Repairs 1419.1.1 Transfer and disposal 14110 Technical Data 14210.1 Specifications 14210.1.1 Dimensions 15610.1.2 Accessories 159

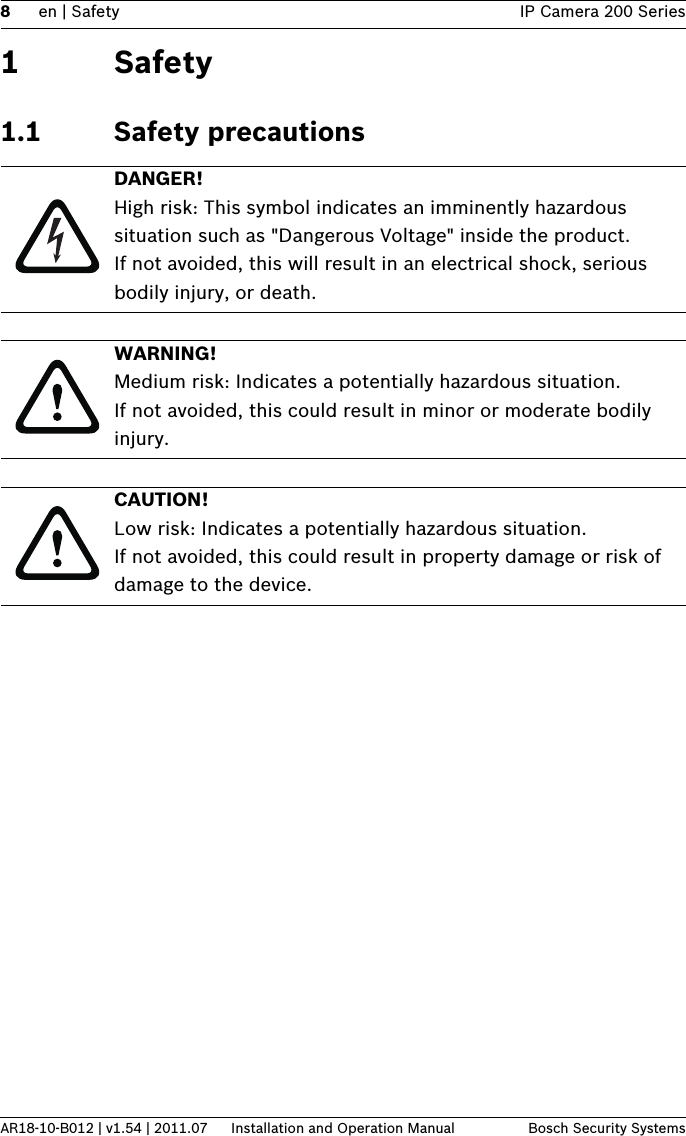

8en | Safety IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems1Safety1.1 Safety precautionsDANGER! High risk: This symbol indicates an imminently hazardous situation such as "Dangerous Voltage" inside the product.If not avoided, this will result in an electrical shock, serious bodily injury, or death.WARNING! Medium risk: Indicates a potentially hazardous situation.If not avoided, this could result in minor or moderate bodily injury.CAUTION! Low risk: Indicates a potentially hazardous situation.If not avoided, this could result in property damage or risk of damage to the device.

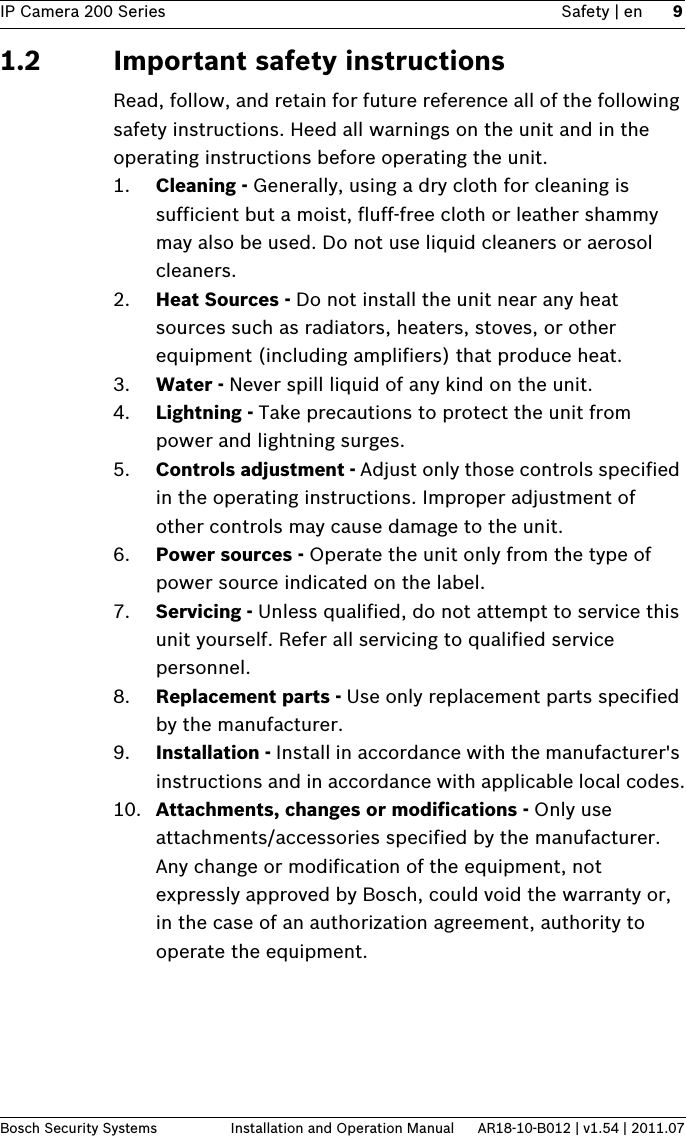

IP Camera 200 Series Safety | en 9Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.071.2 Important safety instructionsRead, follow, and retain for future reference all of the following safety instructions. Heed all warnings on the unit and in the operating instructions before operating the unit.1. Cleaning - Generally, using a dry cloth for cleaning is sufficient but a moist, fluff-free cloth or leather shammy may also be used. Do not use liquid cleaners or aerosol cleaners.2. Heat Sources - Do not install the unit near any heat sources such as radiators, heaters, stoves, or other equipment (including amplifiers) that produce heat.3. Water - Never spill liquid of any kind on the unit.4. Lightning - Take precautions to protect the unit from power and lightning surges.5. Controls adjustment - Adjust only those controls specified in the operating instructions. Improper adjustment of other controls may cause damage to the unit.6. Power sources - Operate the unit only from the type of power source indicated on the label.7. Servicing - Unless qualified, do not attempt to service this unit yourself. Refer all servicing to qualified service personnel.8. Replacement parts - Use only replacement parts specified by the manufacturer.9. Installation - Install in accordance with the manufacturer's instructions and in accordance with applicable local codes.10. Attachments, changes or modifications - Only use attachments/accessories specified by the manufacturer. Any change or modification of the equipment, not expressly approved by Bosch, could void the warranty or, in the case of an authorization agreement, authority to operate the equipment.

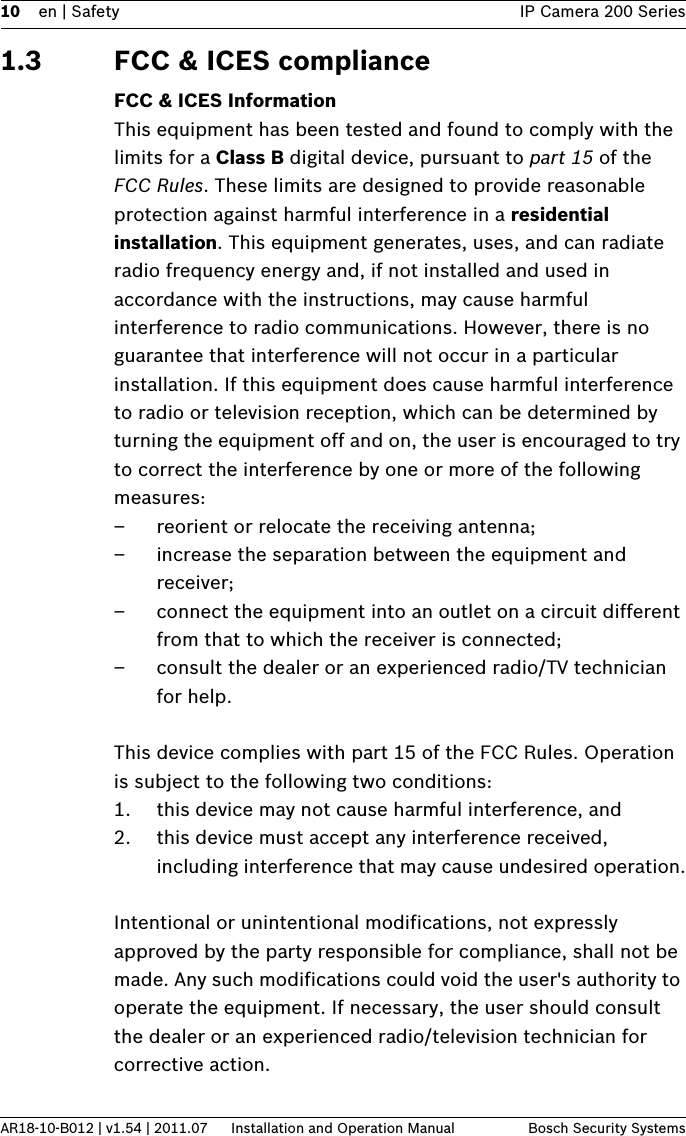

10 en | Safety IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems1.3 FCC & ICES complianceFCC & ICES InformationThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:– reorient or relocate the receiving antenna;– increase the separation between the equipment and receiver;– connect the equipment into an outlet on a circuit different from that to which the receiver is connected;– consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:1. this device may not cause harmful interference, and2. this device must accept any interference received, including interference that may cause undesired operation.Intentional or unintentional modifications, not expressly approved by the party responsible for compliance, shall not be made. Any such modifications could void the user's authority to operate the equipment. If necessary, the user should consult the dealer or an experienced radio/television technician for corrective action.

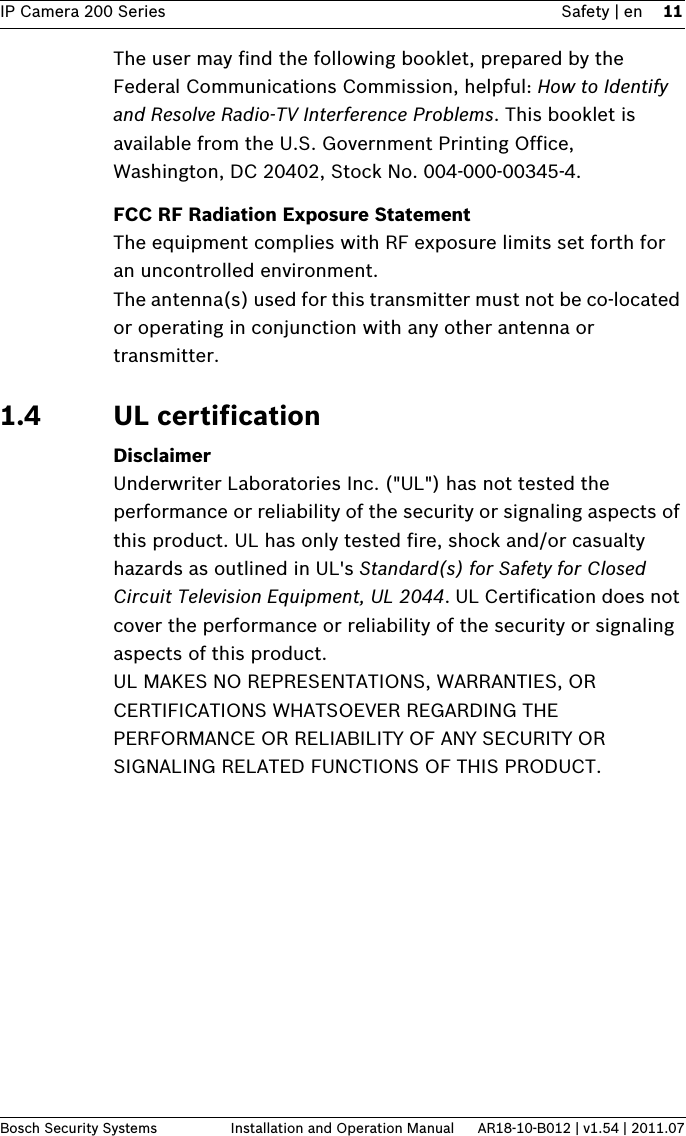

IP Camera 200 Series Safety | en 11Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.07The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.FCC RF Radiation Exposure StatementThe equipment complies with RF exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 1.4 UL certificationDisclaimerUnderwriter Laboratories Inc. ("UL") has not tested the performance or reliability of the security or signaling aspects of this product. UL has only tested fire, shock and/or casualty hazards as outlined in UL's Standard(s) for Safety for Closed Circuit Television Equipment, UL 2044. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product.UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.

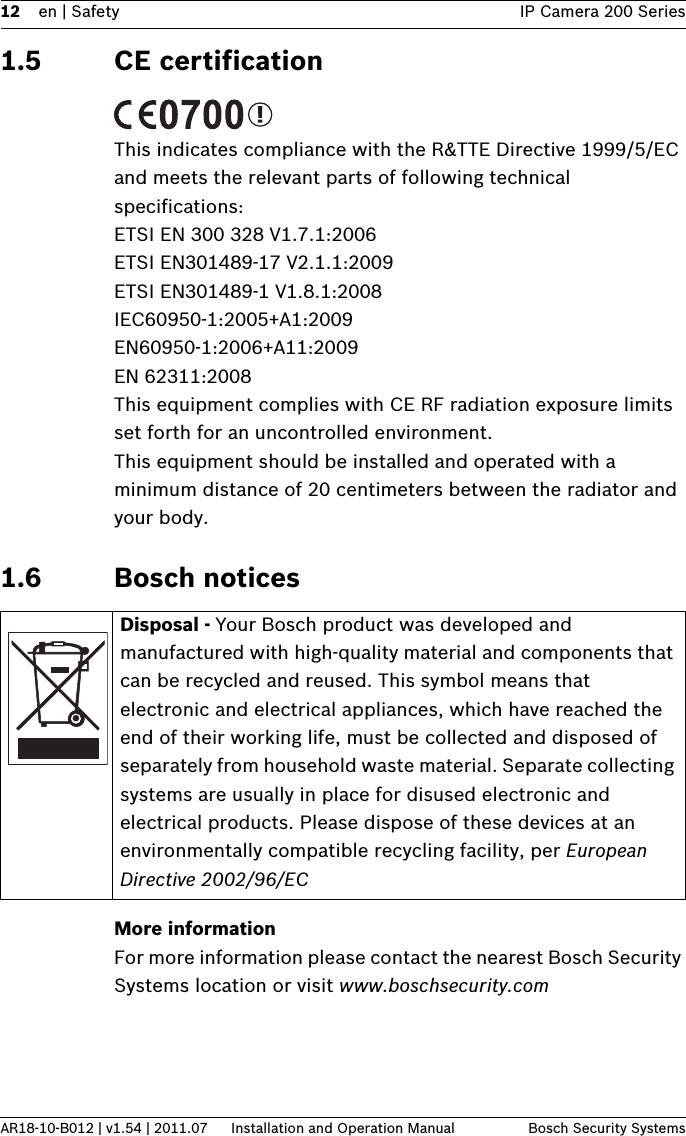

12 en | Safety IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems1.5 CE certificationThis indicates compliance with the R&TTE Directive 1999/5/EC and meets the relevant parts of following technical specifications: ETSI EN 300 328 V1.7.1:2006 ETSI EN301489-17 V2.1.1:2009 ETSI EN301489-1 V1.8.1:2008 IEC60950-1:2005+A1:2009 EN60950-1:2006+A11:2009 EN 62311:2008This equipment complies with CE RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.1.6 Bosch noticesMore informationFor more information please contact the nearest Bosch Security Systems location or visit www.boschsecurity.comDisposal - Your Bosch product was developed and manufactured with high-quality material and components that can be recycled and reused. This symbol means that electronic and electrical appliances, which have reached the end of their working life, must be collected and disposed of separately from household waste material. Separate collecting systems are usually in place for disused electronic and electrical products. Please dispose of these devices at an environmentally compatible recycling facility, per European Directive 2002/96/EC

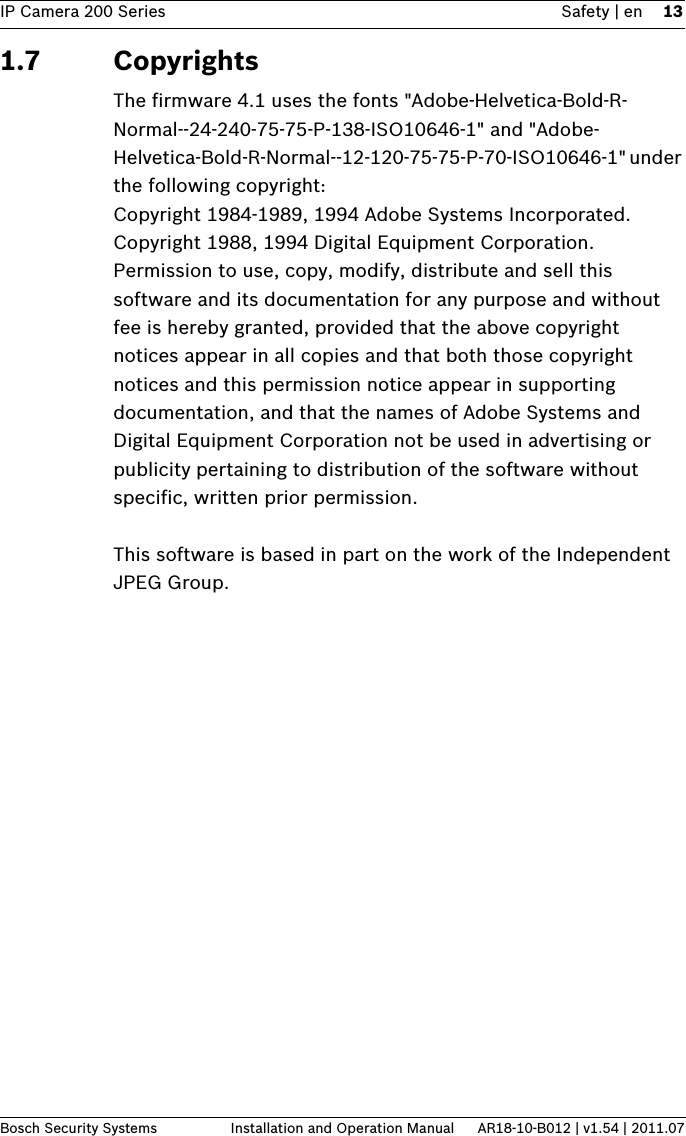

IP Camera 200 Series Safety | en 13Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.071.7 CopyrightsThe firmware 4.1 uses the fonts "Adobe-Helvetica-Bold-R-Normal--24-240-75-75-P-138-ISO10646-1" and "Adobe-Helvetica-Bold-R-Normal--12-120-75-75-P-70-ISO10646-1" under the following copyright:Copyright 1984-1989, 1994 Adobe Systems Incorporated.Copyright 1988, 1994 Digital Equipment Corporation.Permission to use, copy, modify, distribute and sell this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notices appear in all copies and that both those copyright notices and this permission notice appear in supporting documentation, and that the names of Adobe Systems and Digital Equipment Corporation not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission.This software is based in part on the work of the Independent JPEG Group.

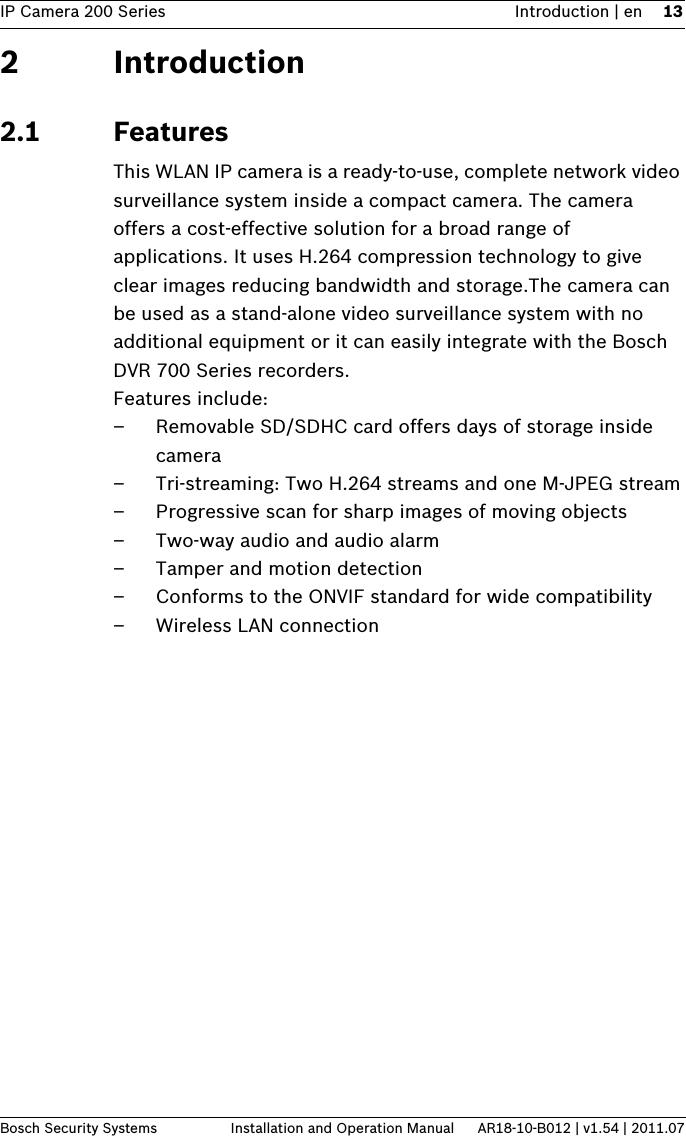

IP Camera 200 Series Introduction | en 13Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.072 Introduction2.1 FeaturesThis WLAN IP camera is a ready-to-use, complete network video surveillance system inside a compact camera. The camera offers a cost-effective solution for a broad range of applications. It uses H.264 compression technology to give clear images reducing bandwidth and storage.The camera can be used as a stand-alone video surveillance system with no additional equipment or it can easily integrate with the Bosch DVR 700 Series recorders. Features include:– Removable SD/SDHC card offers days of storage inside camera– Tri-streaming: Two H.264 streams and one M-JPEG stream– Progressive scan for sharp images of moving objects– Two-way audio and audio alarm– Tamper and motion detection – Conforms to the ONVIF standard for wide compatibility– Wireless LAN connection

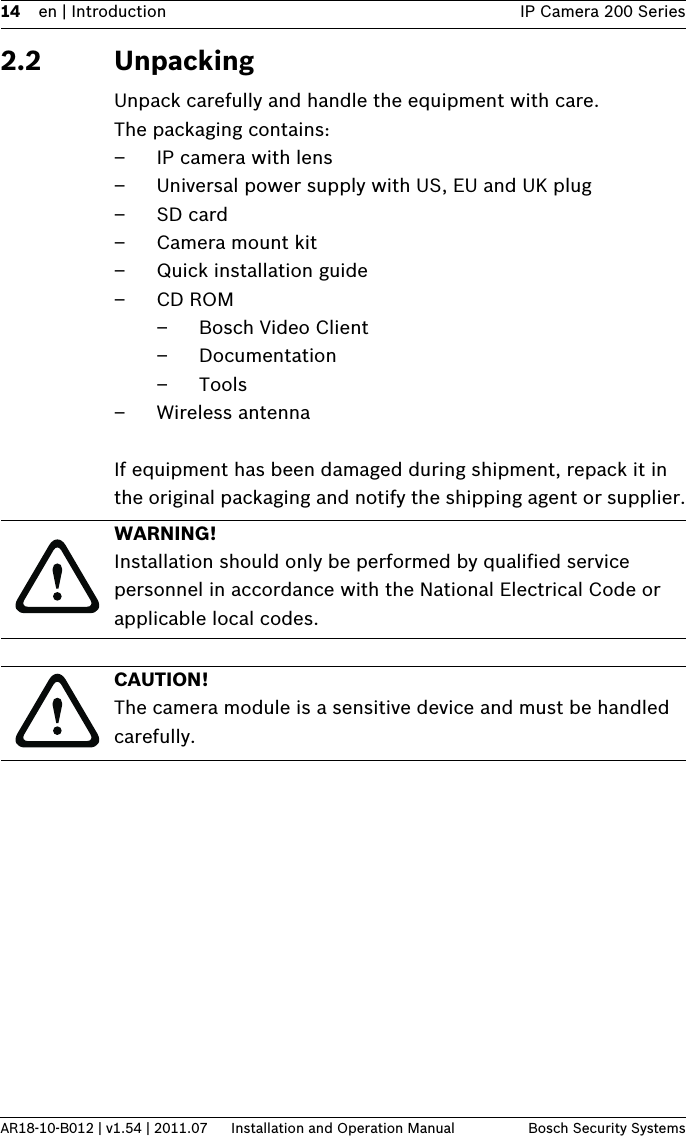

14 en | Introduction IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems2.2 UnpackingUnpack carefully and handle the equipment with care. The packaging contains:– IP camera with lens– Universal power supply with US, EU and UK plug– SD card– Camera mount kit– Quick installation guide–CD ROM– Bosch Video Client– Documentation–Tools– Wireless antennaIf equipment has been damaged during shipment, repack it in the original packaging and notify the shipping agent or supplier.WARNING! Installation should only be performed by qualified service personnel in accordance with the National Electrical Code or applicable local codes.CAUTION! The camera module is a sensitive device and must be handled carefully.

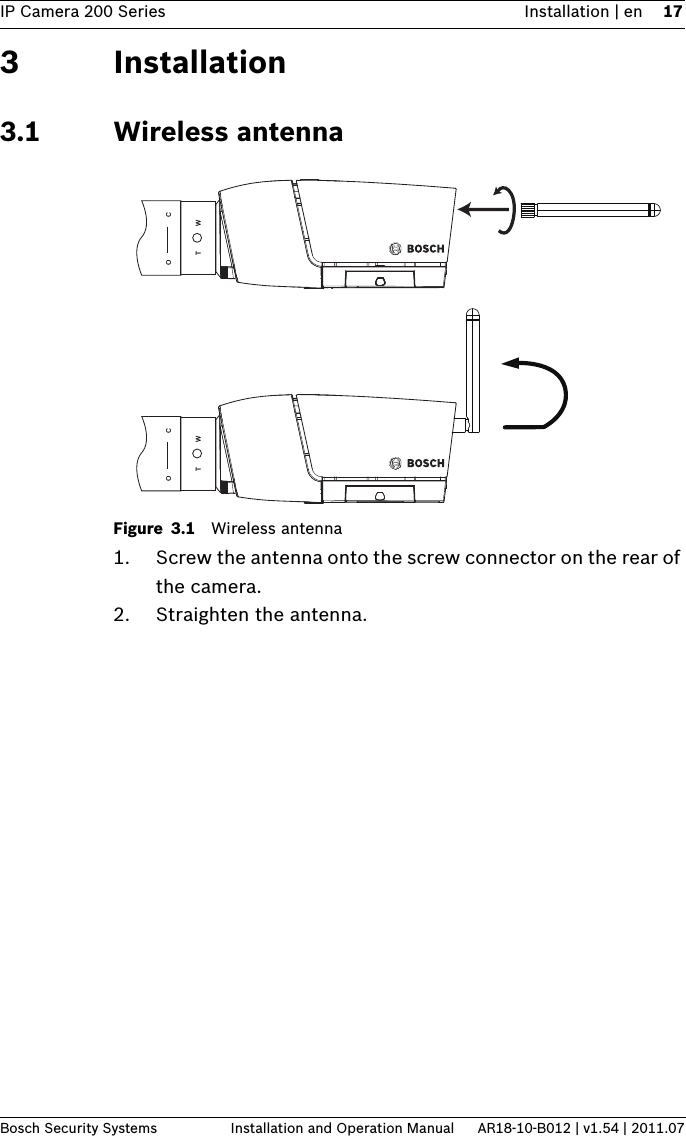

IP Camera 200 Series Installation | en 17Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.073 Installation3.1 Wireless antennaFigure 3.1 Wireless antenna1. Screw the antenna onto the screw connector on the rear of the camera. 2. Straighten the antenna. OTWC OTWC

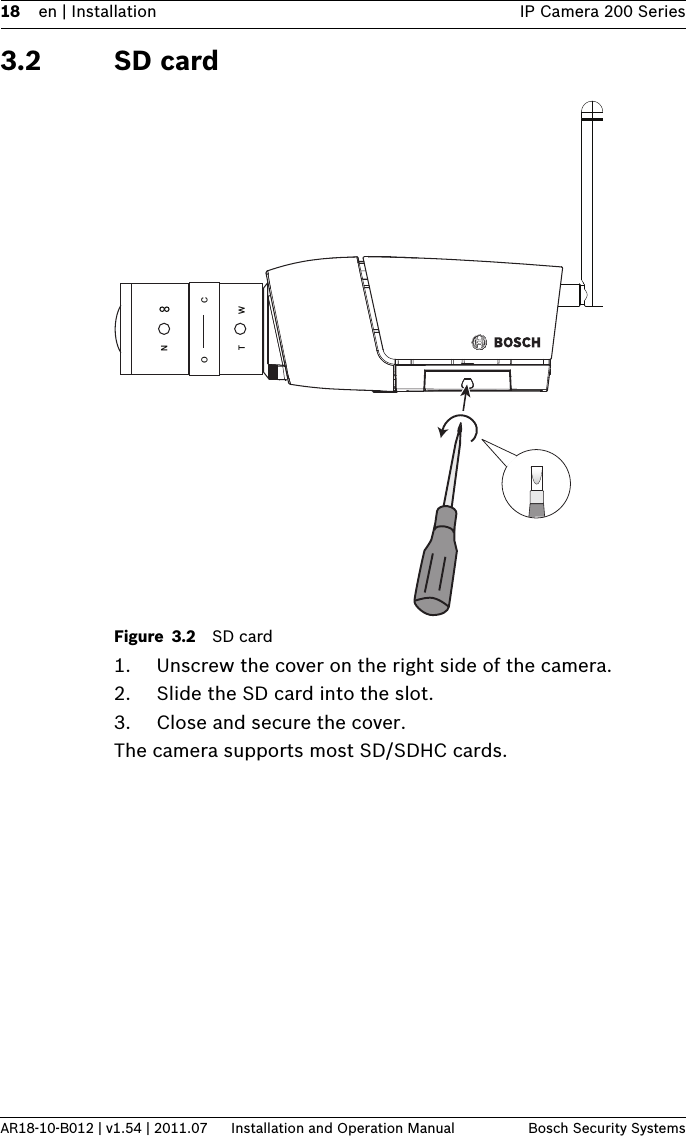

18 en | Installation IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems3.2 SD cardFigure 3.2 SD card1. Unscrew the cover on the right side of the camera. 2. Slide the SD card into the slot. 3. Close and secure the cover. The camera supports most SD/SDHC cards.NOTWC

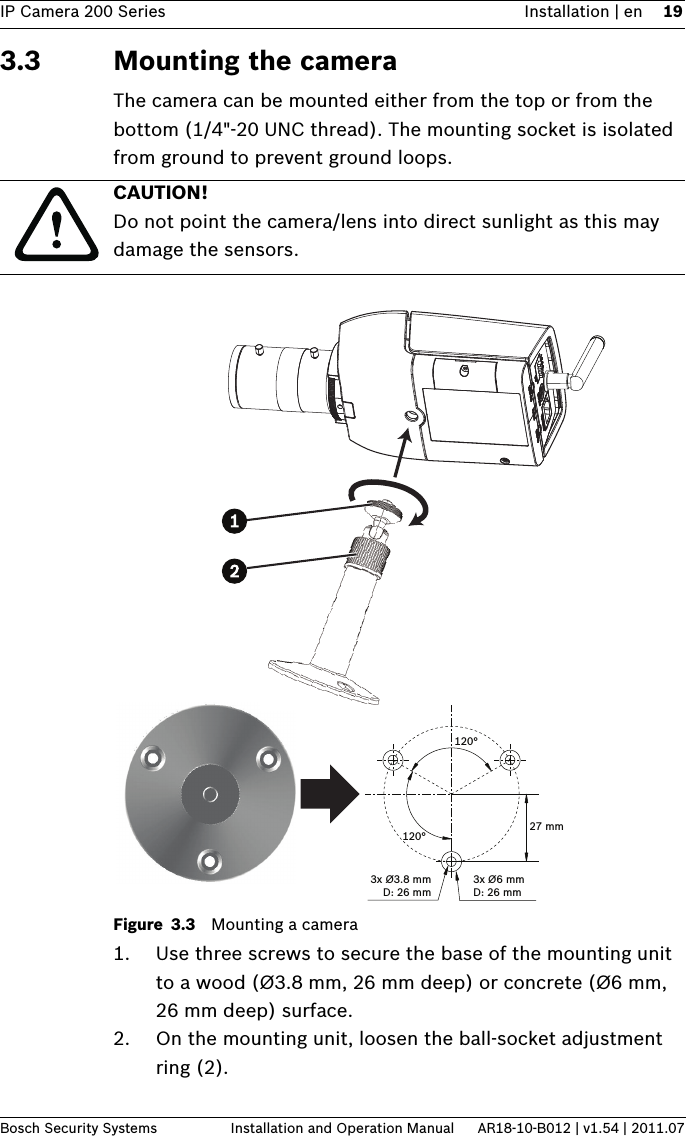

IP Camera 200 Series Installation | en 19Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.073.3 Mounting the camera The camera can be mounted either from the top or from the bottom (1/4"-20 UNC thread). The mounting socket is isolated from ground to prevent ground loops.Figure 3.3 Mounting a camera1. Use three screws to secure the base of the mounting unit to a wood (Ø3.8 mm, 26 mm deep) or concrete (Ø6 mm, 26 mm deep) surface. 2. On the mounting unit, loosen the ball-socket adjustment ring (2). CAUTION! Do not point the camera/lens into direct sunlight as this may damage the sensors.3x Ø3.8 mmD: 26 mm3x Ø6 mmD: 26 mm120°120°27 mm

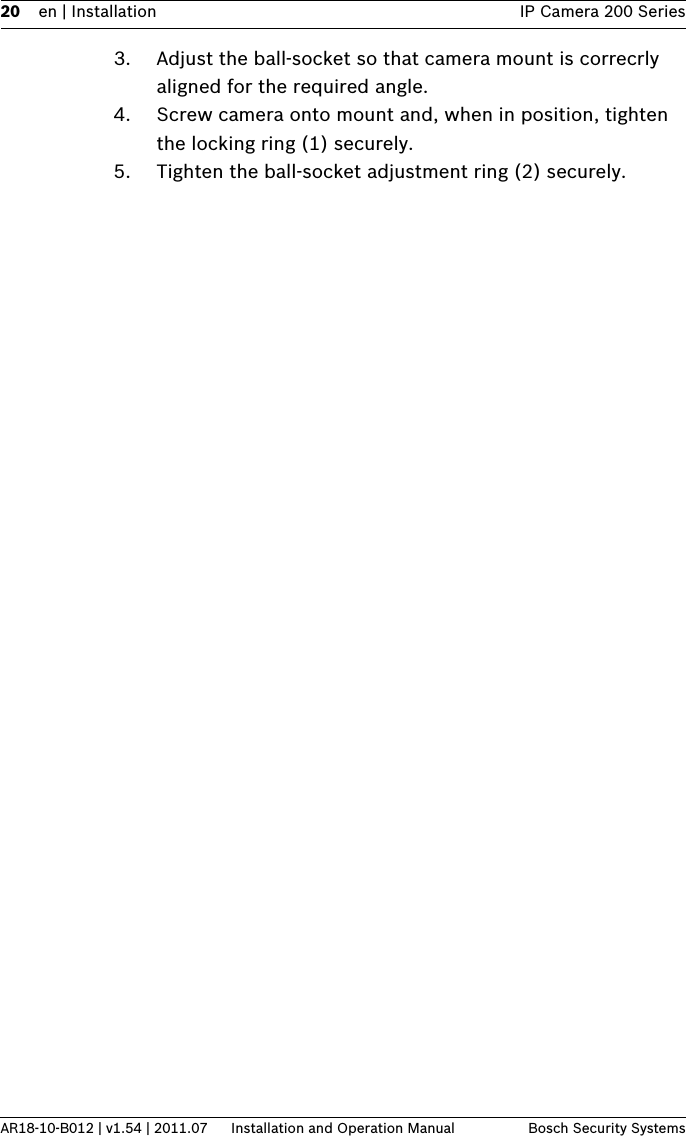

20 en | Installation IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems3. Adjust the ball-socket so that camera mount is correcrly aligned for the required angle.4. Screw camera onto mount and, when in position, tighten the locking ring (1) securely. 5. Tighten the ball-socket adjustment ring (2) securely.

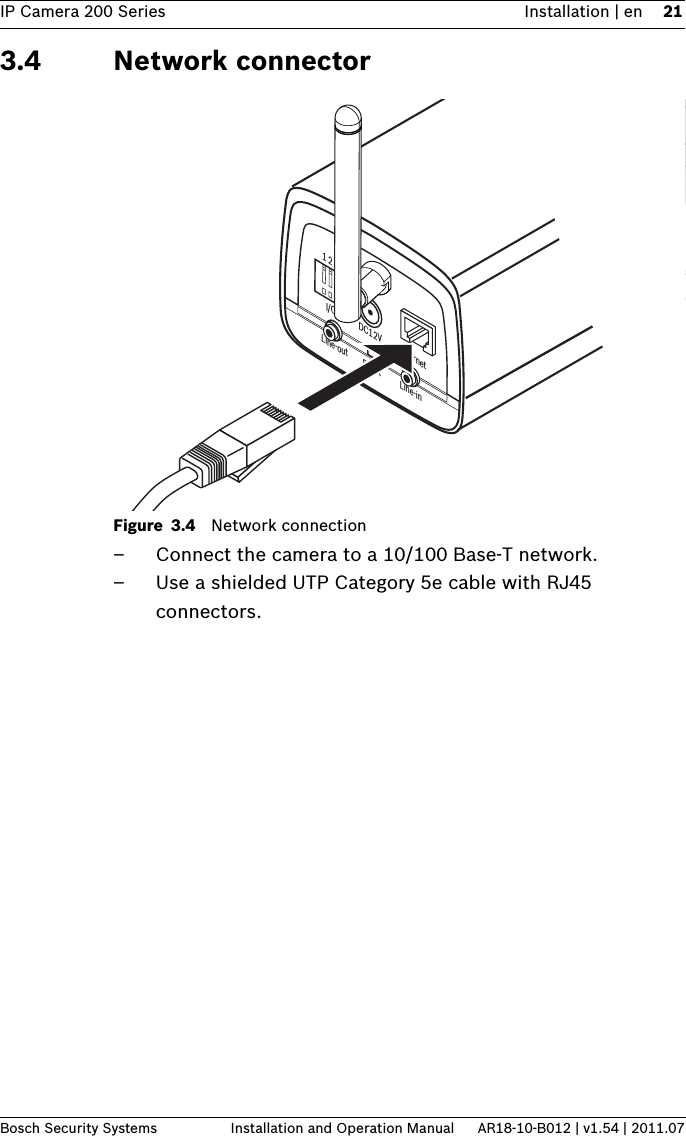

IP Camera 200 Series Installation | en 21Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.073.4 Network connectorFigure 3.4 Network connection– Connect the camera to a 10/100 Base-T network.– Use a shielded UTP Category 5e cable with RJ45 connectors.1 2 3 4DC12V EthernetLine-out Reset Line-inI/O

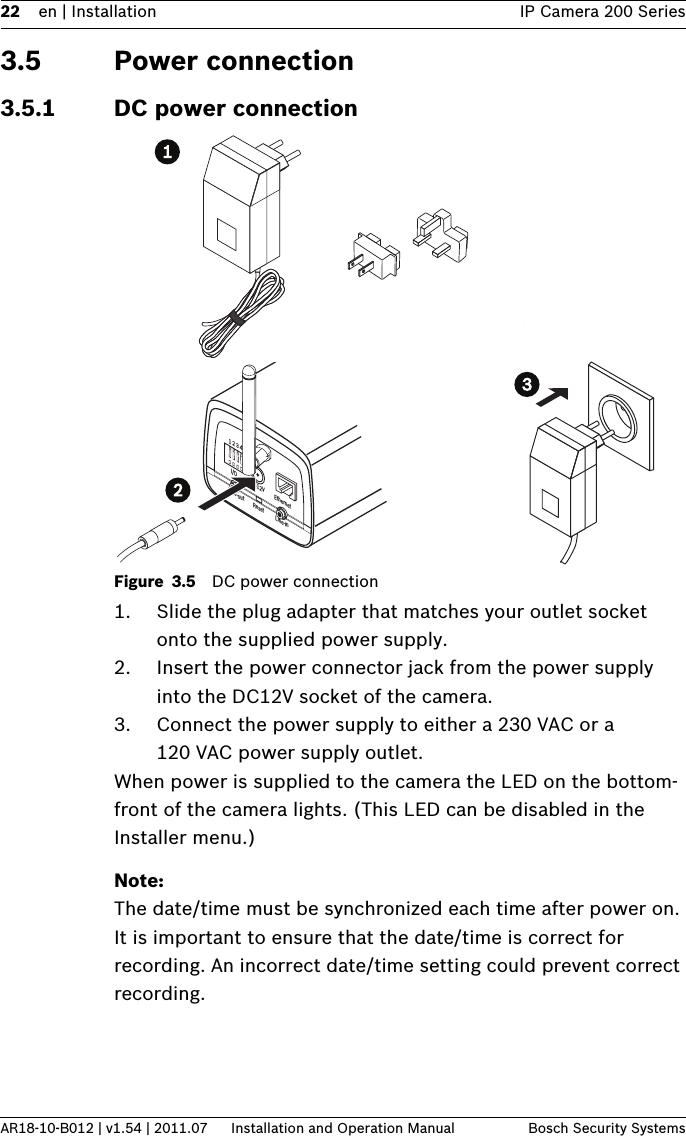

22 en | Installation IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems3.5 Power connection3.5.1 DC power connectionFigure 3.5 DC power connection1. Slide the plug adapter that matches your outlet socket onto the supplied power supply.2. Insert the power connector jack from the power supply into the DC12V socket of the camera.3. Connect the power supply to either a 230 VAC or a 120 VAC power supply outlet.When power is supplied to the camera the LED on the bottom-front of the camera lights. (This LED can be disabled in the Installer menu.)Note:The date/time must be synchronized each time after power on. It is important to ensure that the date/time is correct for recording. An incorrect date/time setting could prevent correct recording.1 2 3 4DC12V EthernetLine-out Reset Line-inI/O

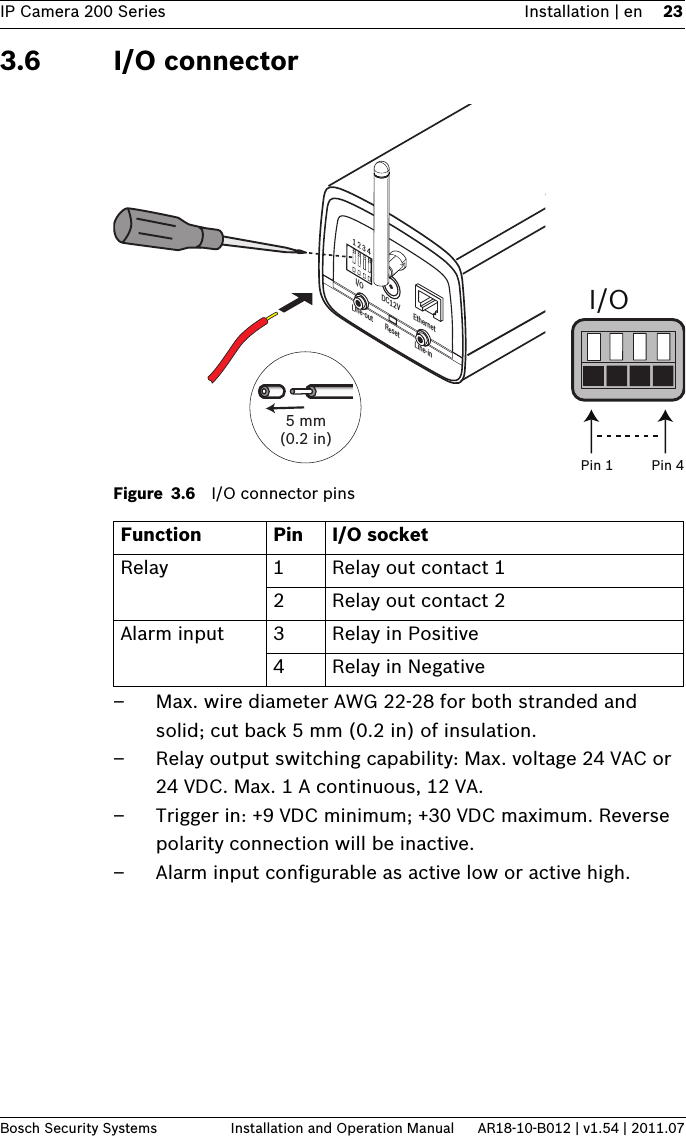

IP Camera 200 Series Installation | en 23Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.073.6 I/O connectorFigure 3.6 I/O connector pins– Max. wire diameter AWG 22-28 for both stranded and solid; cut back 5 mm (0.2 in) of insulation.– Relay output switching capability: Max. voltage 24 VAC or 24 VDC. Max. 1 A continuous, 12 VA.– Trigger in: +9 VDC minimum; +30 VDC maximum. Reverse polarity connection will be inactive.– Alarm input configurable as active low or active high.Function Pin I/O socketRelay 1 Relay out contact 12 Relay out contact 2Alarm input 3 Relay in Positive4 Relay in Negative1 2 3 4DC12V EthernetLine-out Reset Line-inI/O5 mm (0.2 in)I/OPin 1 Pin 4

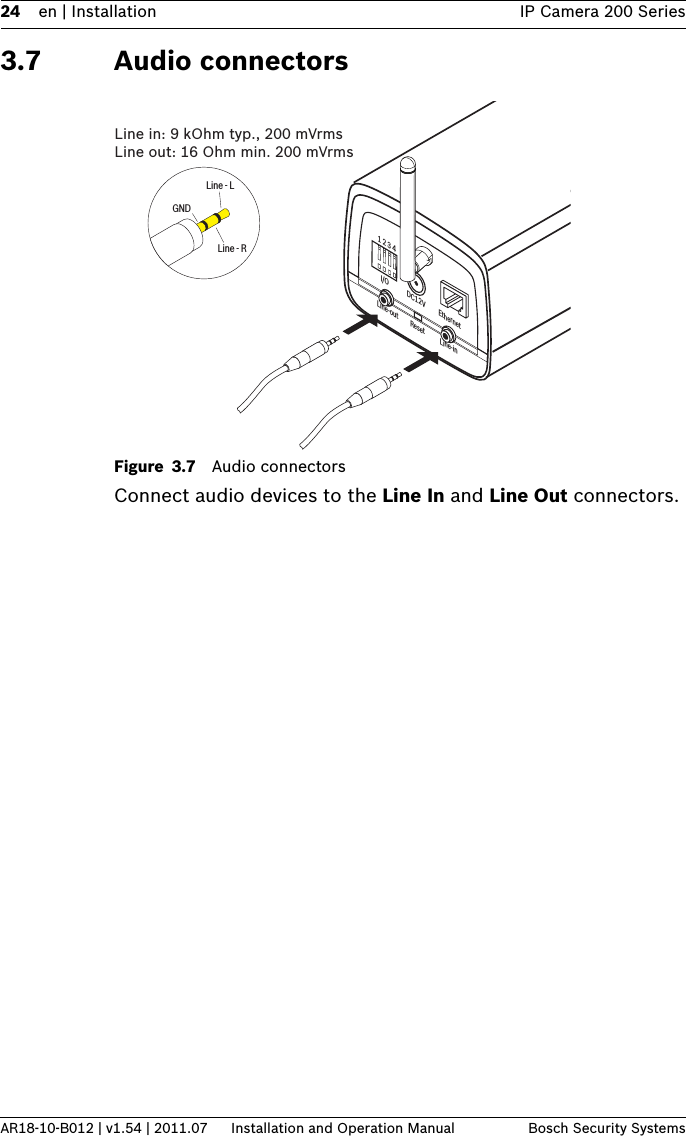

24 en | Installation IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems3.7 Audio connectorsFigure 3.7 Audio connectorsConnect audio devices to the Line In and Line Out connectors.1 2 3 4DC12V EthernetLine-out Reset Line-inI/OLine - RGNDLine - LLine in: 9 kOhm typ., 200 mVrmsLine out: 16 Ohm min. 200 mVrms

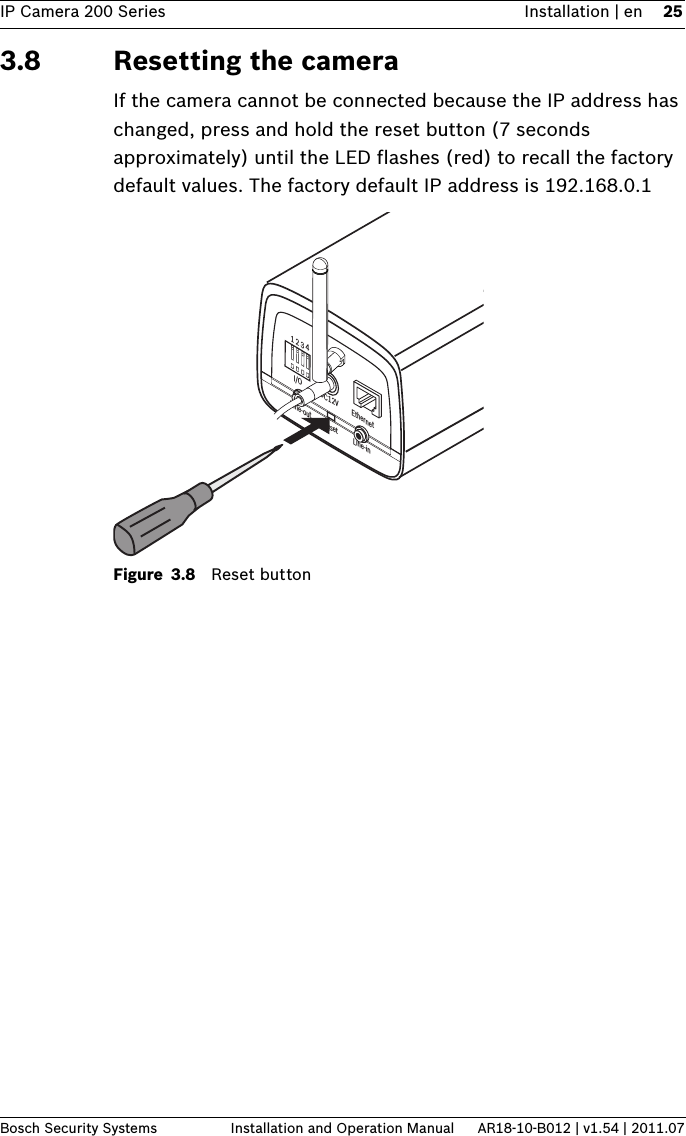

IP Camera 200 Series Installation | en 25Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.073.8 Resetting the camera If the camera cannot be connected because the IP address has changed, press and hold the reset button (7 seconds approximately) until the LED flashes (red) to recall the factory default values. The factory default IP address is 192.168.0.1Figure 3.8 Reset button1 2 3 4DC12V EthernetLine-out Reset Line-inI/O

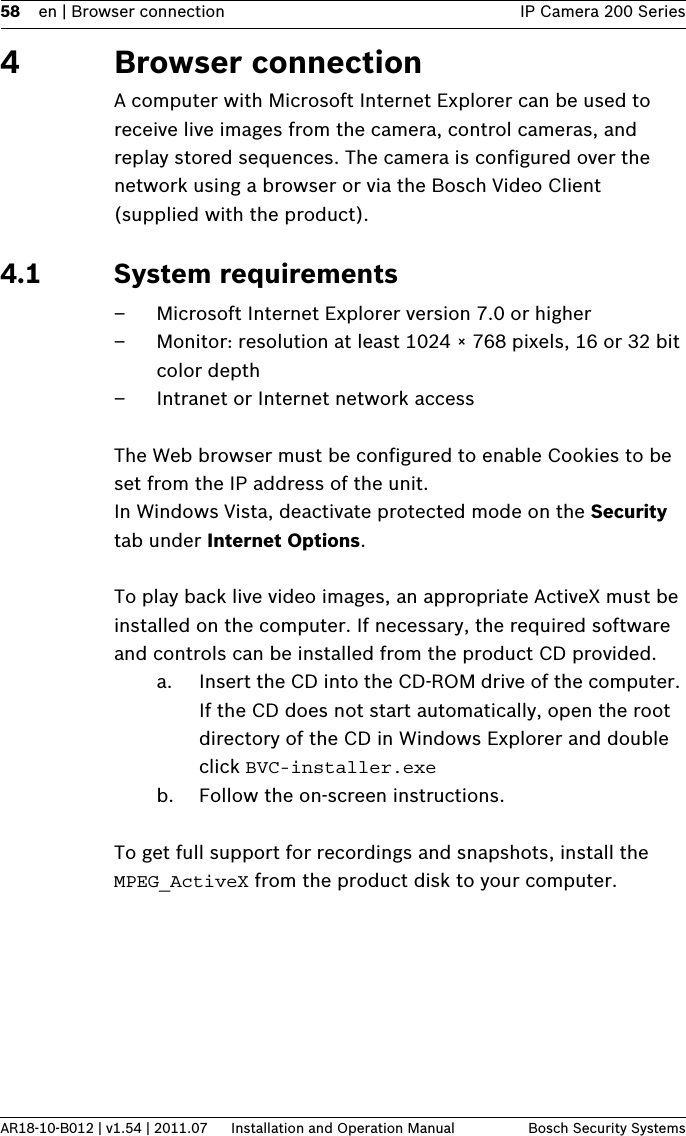

58 en | Browser connection IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems4 Browser connectionA computer with Microsoft Internet Explorer can be used to receive live images from the camera, control cameras, and replay stored sequences. The camera is configured over the network using a browser or via the Bosch Video Client (supplied with the product).4.1 System requirements– Microsoft Internet Explorer version 7.0 or higher– Monitor: resolution at least 1024 × 768 pixels, 16 or 32 bit color depth– Intranet or Internet network accessThe Web browser must be configured to enable Cookies to be set from the IP address of the unit.In Windows Vista, deactivate protected mode on the Security tab under Internet Options.To play back live video images, an appropriate ActiveX must be installed on the computer. If necessary, the required software and controls can be installed from the product CD provided.a. Insert the CD into the CD-ROM drive of the computer. If the CD does not start automatically, open the root directory of the CD in Windows Explorer and double click BVC-installer.exeb. Follow the on-screen instructions.To get full support for recordings and snapshots, install the MPEG_ActiveX from the product disk to your computer.

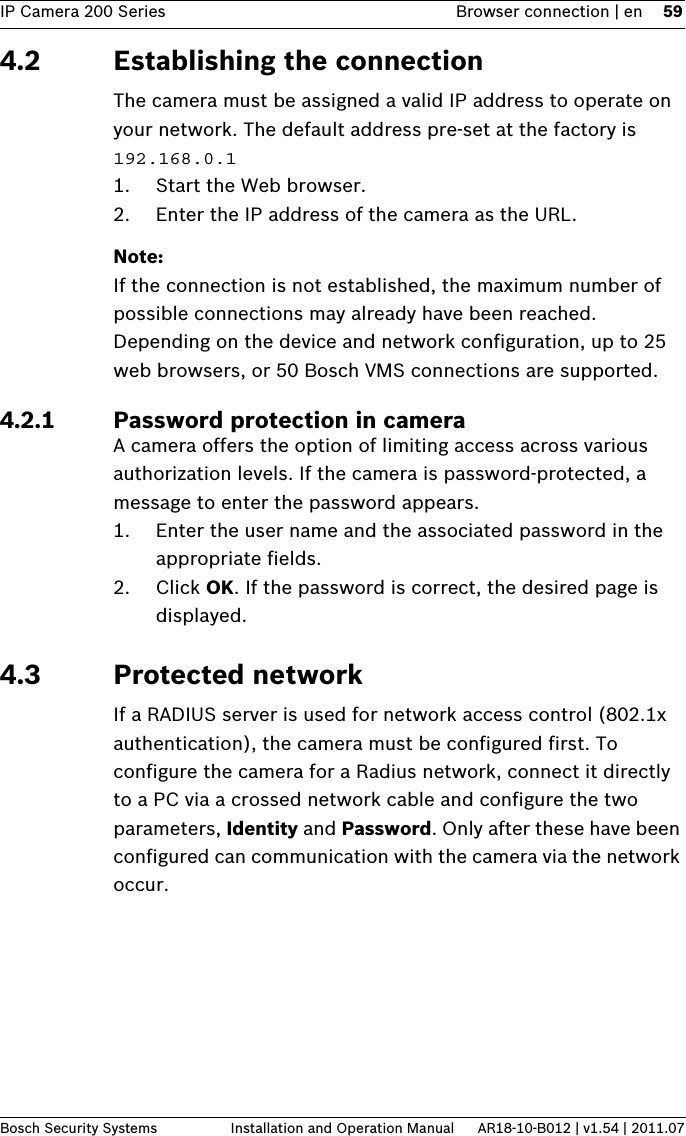

IP Camera 200 Series Browser connection | en 59Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.074.2 Establishing the connectionThe camera must be assigned a valid IP address to operate on your network. The default address pre-set at the factory is 192.168.0.11. Start the Web browser.2. Enter the IP address of the camera as the URL. Note:If the connection is not established, the maximum number of possible connections may already have been reached. Depending on the device and network configuration, up to 25 web browsers, or 50 Bosch VMS connections are supported.4.2.1 Password protection in cameraA camera offers the option of limiting access across various authorization levels. If the camera is password-protected, a message to enter the password appears. 1. Enter the user name and the associated password in the appropriate fields.2. Click OK. If the password is correct, the desired page is displayed.4.3 Protected networkIf a RADIUS server is used for network access control (802.1x authentication), the camera must be configured first. To configure the camera for a Radius network, connect it directly to a PC via a crossed network cable and configure the two parameters, Identity and Password. Only after these have been configured can communication with the camera via the network occur.

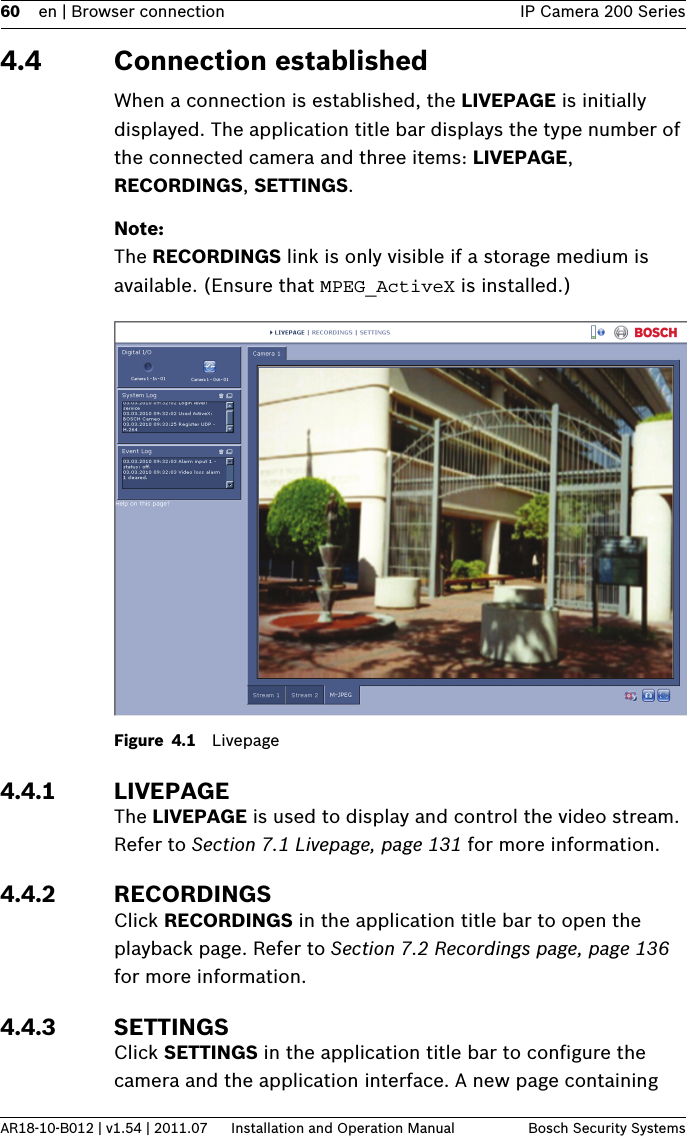

60 en | Browser connection IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems4.4 Connection establishedWhen a connection is established, the LIVEPAGE is initially displayed. The application title bar displays the type number of the connected camera and three items: LIVEPAGE, RECORDINGS, SETTINGS.Note:The RECORDINGS link is only visible if a storage medium is available. (Ensure that MPEG_ActiveX is installed.)Figure 4.1 Livepage4.4.1 LIVEPAGEThe LIVEPAGE is used to display and control the video stream. Refer to Section 7.1 Livepage, page 131 for more information.4.4.2 RECORDINGSClick RECORDINGS in the application title bar to open the playback page. Refer to Section 7.2 Recordings page, page 136 for more information.4.4.3 SETTINGSClick SETTINGS in the application title bar to configure the camera and the application interface. A new page containing

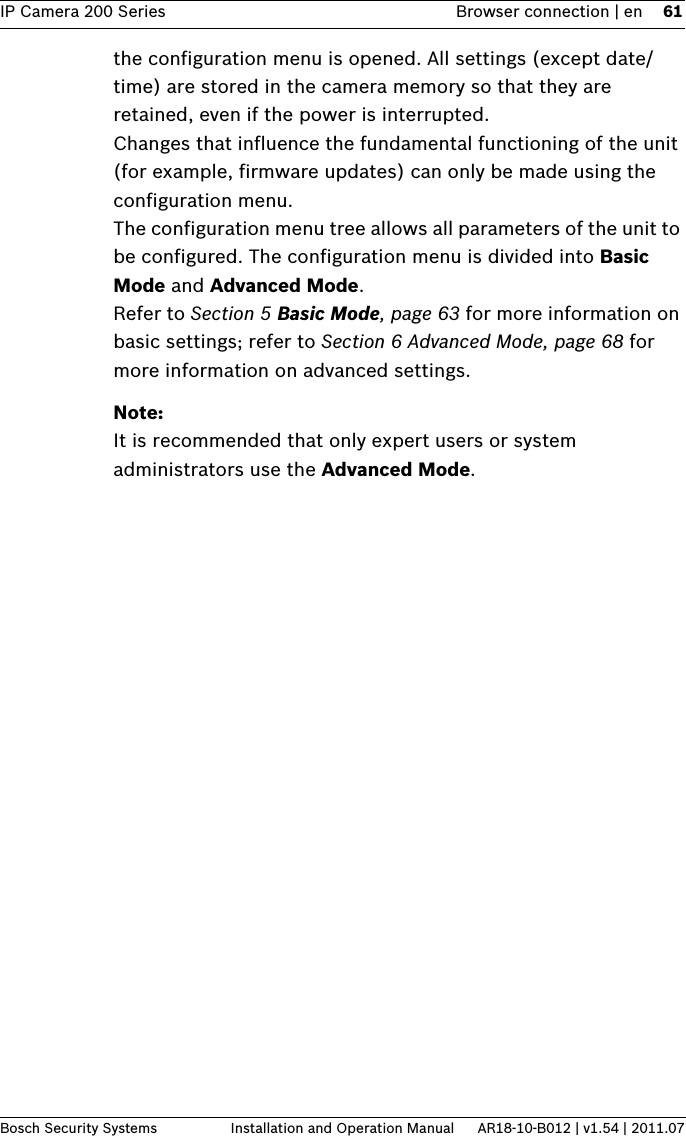

IP Camera 200 Series Browser connection | en 61Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.07the configuration menu is opened. All settings (except date/time) are stored in the camera memory so that they are retained, even if the power is interrupted.Changes that influence the fundamental functioning of the unit (for example, firmware updates) can only be made using the configuration menu.The configuration menu tree allows all parameters of the unit to be configured. The configuration menu is divided into Basic Mode and Advanced Mode. Refer to Section 5 Basic Mode, page 63 for more information on basic settings; refer to Section 6 Advanced Mode, page 68 for more information on advanced settings.Note:It is recommended that only expert users or system administrators use the Advanced Mode.

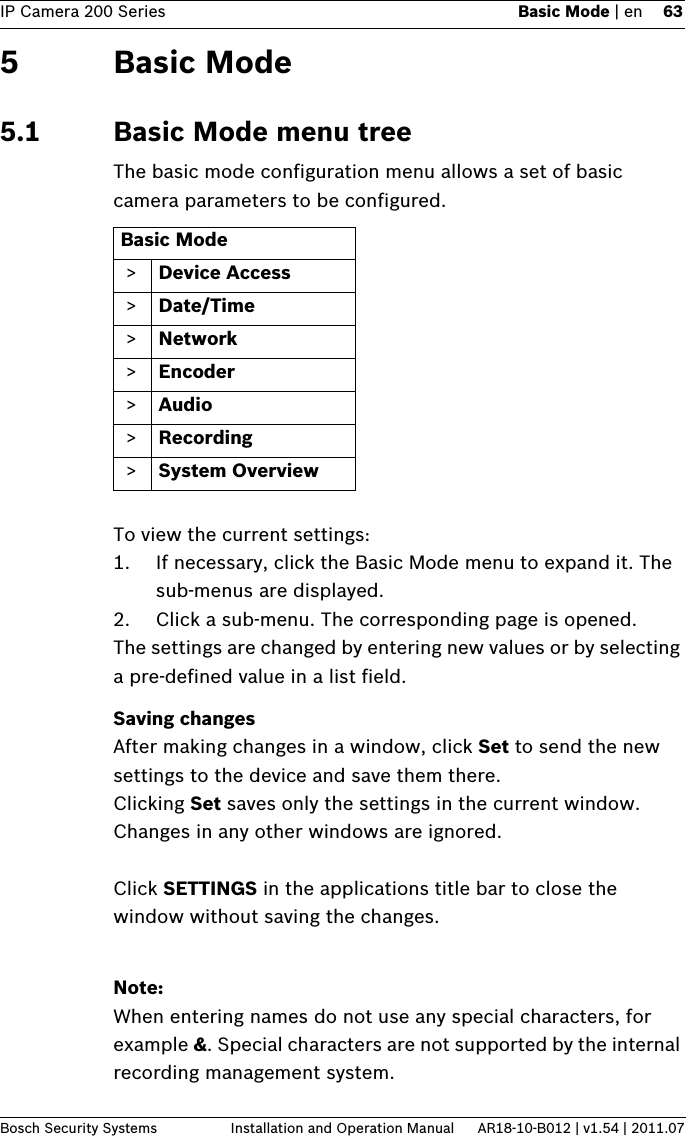

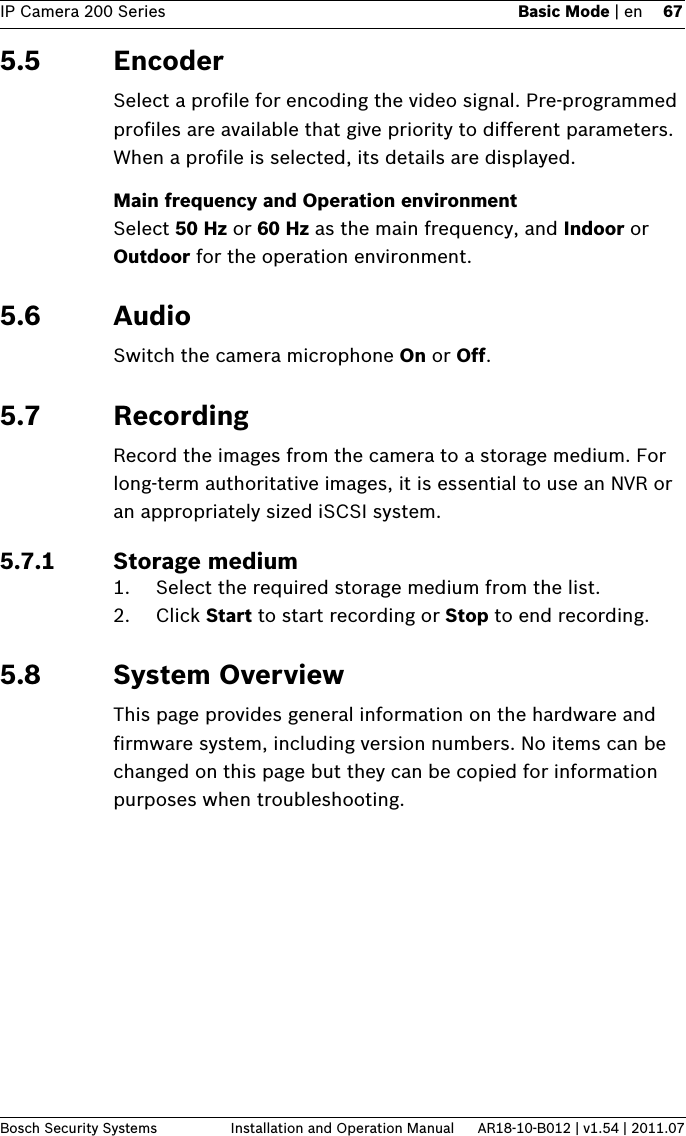

IP Camera 200 Series Basic Mode | en 63Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.075 Basic Mode5.1 Basic Mode menu treeThe basic mode configuration menu allows a set of basic camera parameters to be configured.To view the current settings:1. If necessary, click the Basic Mode menu to expand it. The sub-menus are displayed.2. Click a sub-menu. The corresponding page is opened.The settings are changed by entering new values or by selecting a pre-defined value in a list field.Saving changesAfter making changes in a window, click Set to send the new settings to the device and save them there.Clicking Set saves only the settings in the current window. Changes in any other windows are ignored.Click SETTINGS in the applications title bar to close the window without saving the changes.Note:When entering names do not use any special characters, for example &. Special characters are not supported by the internal recording management system.Basic Mode > Device Access > Date/Time > Network > Encoder > Audio > Recording > System Overview

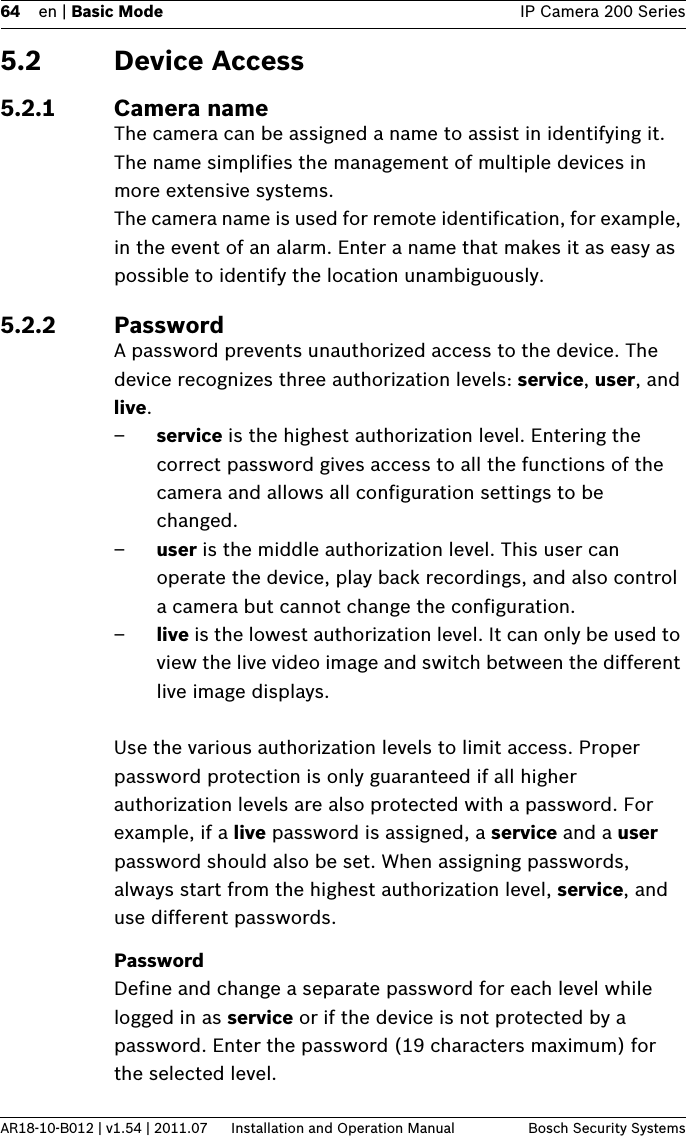

64 en | Basic Mode IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems5.2 Device Access5.2.1 Camera nameThe camera can be assigned a name to assist in identifying it. The name simplifies the management of multiple devices in more extensive systems.The camera name is used for remote identification, for example, in the event of an alarm. Enter a name that makes it as easy as possible to identify the location unambiguously.5.2.2 PasswordA password prevents unauthorized access to the device. The device recognizes three authorization levels: service, user, and live.–service is the highest authorization level. Entering the correct password gives access to all the functions of the camera and allows all configuration settings to be changed.–user is the middle authorization level. This user can operate the device, play back recordings, and also control a camera but cannot change the configuration.–live is the lowest authorization level. It can only be used to view the live video image and switch between the different live image displays.Use the various authorization levels to limit access. Proper password protection is only guaranteed if all higher authorization levels are also protected with a password. For example, if a live password is assigned, a service and a user password should also be set. When assigning passwords, always start from the highest authorization level, service, and use different passwords.PasswordDefine and change a separate password for each level while logged in as service or if the device is not protected by a password. Enter the password (19 characters maximum) for the selected level.

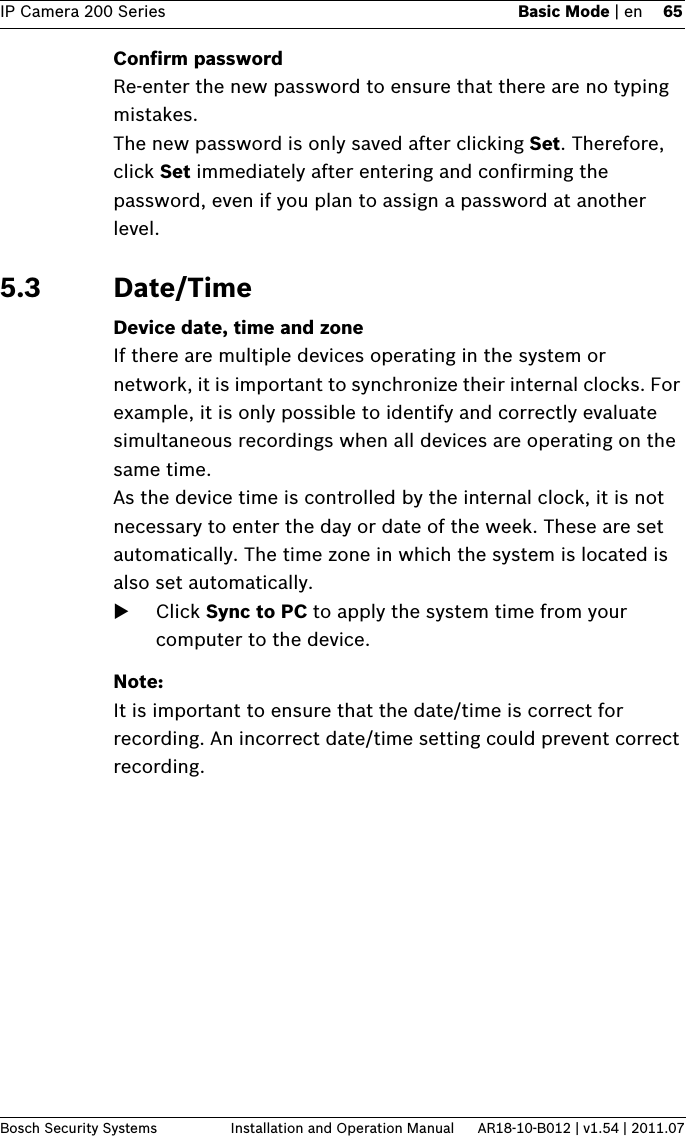

IP Camera 200 Series Basic Mode | en 65Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.07Confirm passwordRe-enter the new password to ensure that there are no typing mistakes.The new password is only saved after clicking Set. Therefore, click Set immediately after entering and confirming the password, even if you plan to assign a password at another level.5.3 Date/TimeDevice date, time and zoneIf there are multiple devices operating in the system or network, it is important to synchronize their internal clocks. For example, it is only possible to identify and correctly evaluate simultaneous recordings when all devices are operating on the same time.As the device time is controlled by the internal clock, it is not necessary to enter the day or date of the week. These are set automatically. The time zone in which the system is located is also set automatically.Click Sync to PC to apply the system time from your computer to the device.Note:It is important to ensure that the date/time is correct for recording. An incorrect date/time setting could prevent correct recording.

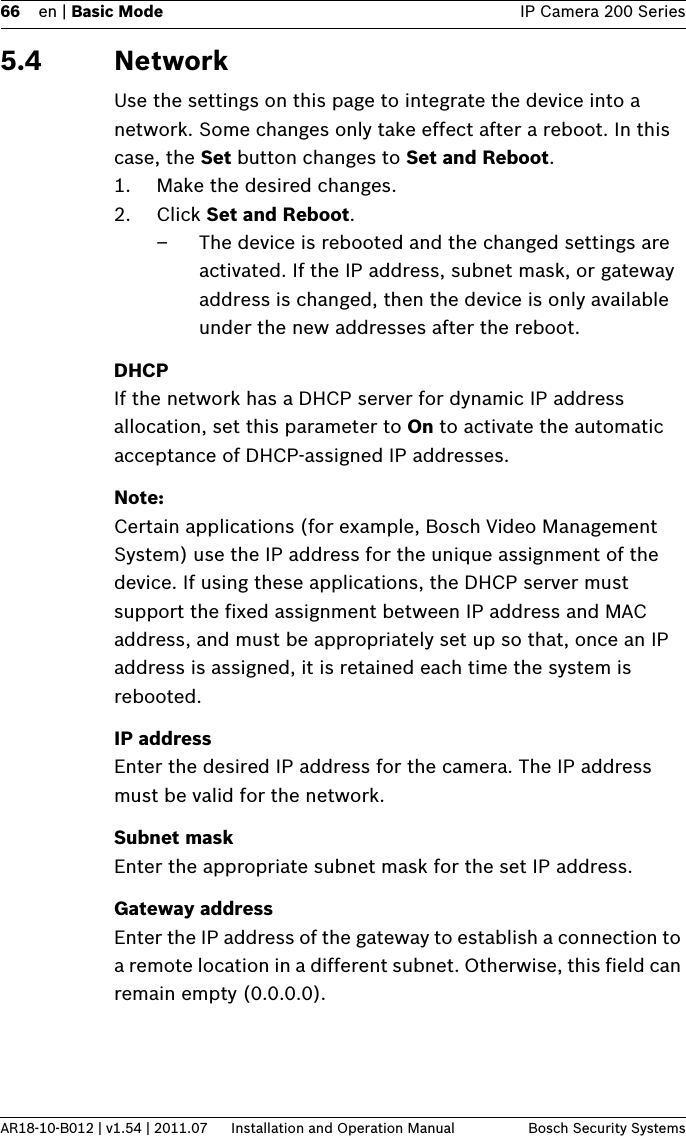

66 en | Basic Mode IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems5.4 NetworkUse the settings on this page to integrate the device into a network. Some changes only take effect after a reboot. In this case, the Set button changes to Set and Reboot.1. Make the desired changes.2. Click Set and Reboot.– The device is rebooted and the changed settings are activated. If the IP address, subnet mask, or gateway address is changed, then the device is only available under the new addresses after the reboot.DHCPIf the network has a DHCP server for dynamic IP address allocation, set this parameter to On to activate the automatic acceptance of DHCP-assigned IP addresses.Note:Certain applications (for example, Bosch Video Management System) use the IP address for the unique assignment of the device. If using these applications, the DHCP server must support the fixed assignment between IP address and MAC address, and must be appropriately set up so that, once an IP address is assigned, it is retained each time the system is rebooted.IP addressEnter the desired IP address for the camera. The IP address must be valid for the network.Subnet maskEnter the appropriate subnet mask for the set IP address.Gateway addressEnter the IP address of the gateway to establish a connection to a remote location in a different subnet. Otherwise, this field can remain empty (0.0.0.0).
IP Camera 200 Series Basic Mode | en 67Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.075.5 EncoderSelect a profile for encoding the video signal. Pre-programmed profiles are available that give priority to different parameters. When a profile is selected, its details are displayed.Main frequency and Operation environmentSelect 50 Hz or 60 Hz as the main frequency, and Indoor or Outdoor for the operation environment.5.6 AudioSwitch the camera microphone On or Off.5.7 RecordingRecord the images from the camera to a storage medium. For long-term authoritative images, it is essential to use an NVR or an appropriately sized iSCSI system.5.7.1 Storage medium1. Select the required storage medium from the list.2. Click Start to start recording or Stop to end recording.5.8 System OverviewThis page provides general information on the hardware and firmware system, including version numbers. No items can be changed on this page but they can be copied for information purposes when troubleshooting.

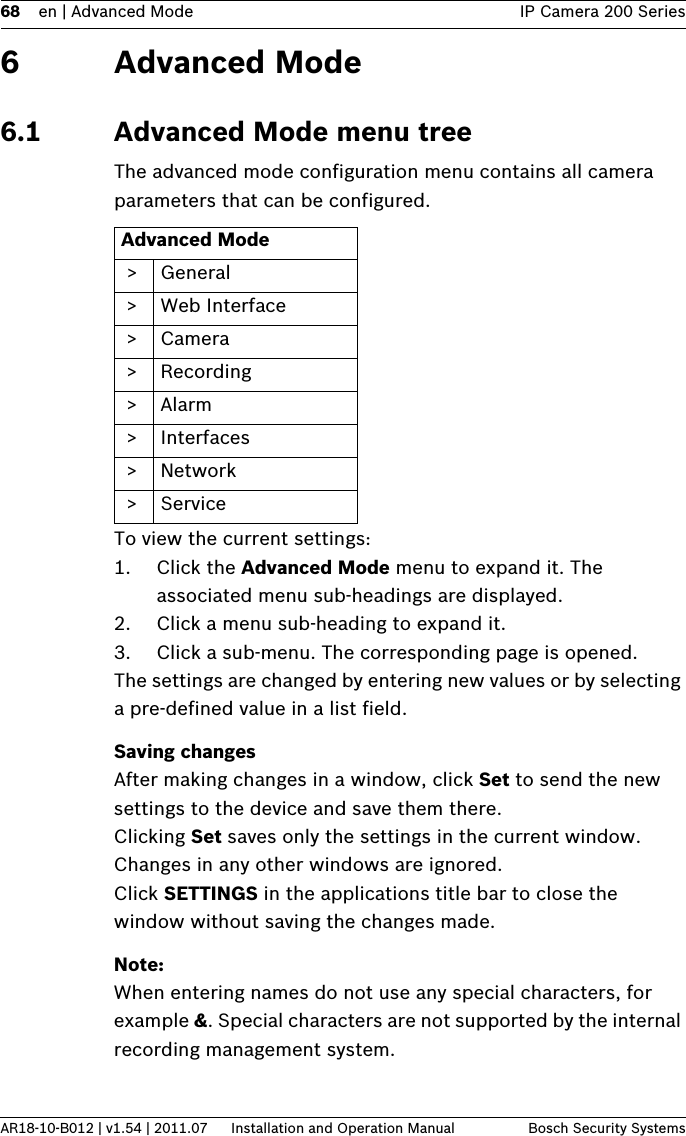

68 en | Advanced Mode IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems6 Advanced Mode6.1 Advanced Mode menu treeThe advanced mode configuration menu contains all camera parameters that can be configured.To view the current settings:1. Click the Advanced Mode menu to expand it. The associated menu sub-headings are displayed.2. Click a menu sub-heading to expand it.3. Click a sub-menu. The corresponding page is opened.The settings are changed by entering new values or by selecting a pre-defined value in a list field.Saving changesAfter making changes in a window, click Set to send the new settings to the device and save them there.Clicking Set saves only the settings in the current window. Changes in any other windows are ignored.Click SETTINGS in the applications title bar to close the window without saving the changes made.Note:When entering names do not use any special characters, for example &. Special characters are not supported by the internal recording management system.Advanced Mode > General > Web Interface > Camera >Recording >Alarm > Interfaces >Network > Service

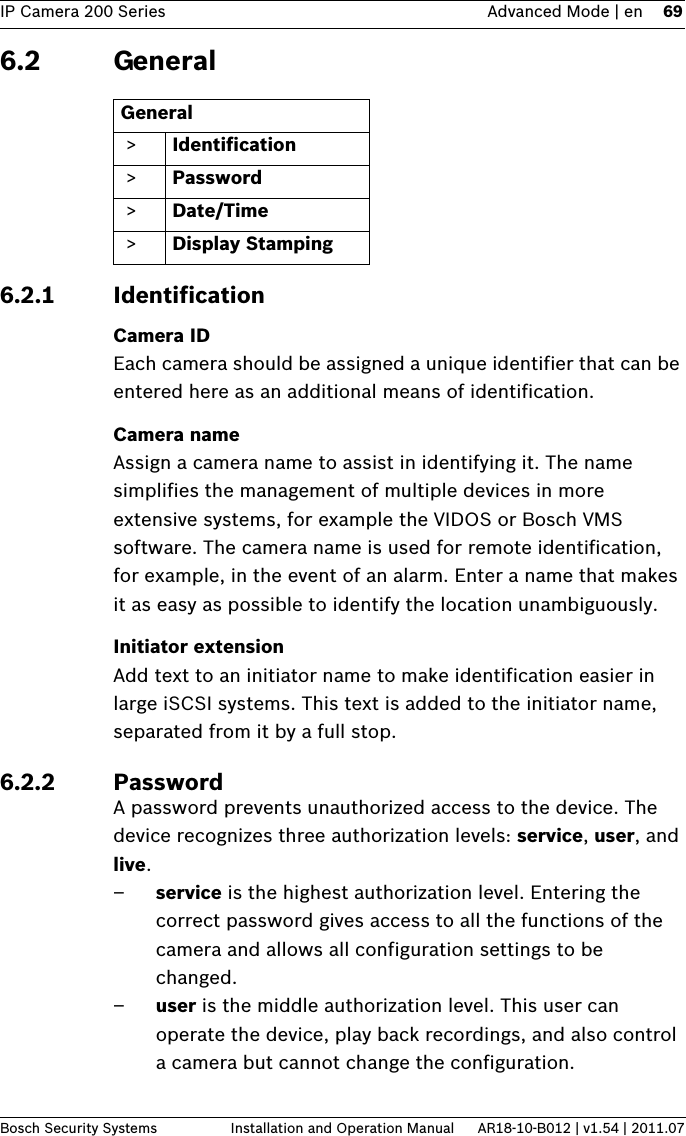

IP Camera 200 Series Advanced Mode | en 69Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.076.2 General6.2.1 IdentificationCamera IDEach camera should be assigned a unique identifier that can be entered here as an additional means of identification.Camera nameAssign a camera name to assist in identifying it. The name simplifies the management of multiple devices in more extensive systems, for example the VIDOS or Bosch VMS software. The camera name is used for remote identification, for example, in the event of an alarm. Enter a name that makes it as easy as possible to identify the location unambiguously.Initiator extensionAdd text to an initiator name to make identification easier in large iSCSI systems. This text is added to the initiator name, separated from it by a full stop.6.2.2 PasswordA password prevents unauthorized access to the device. The device recognizes three authorization levels: service, user, and live.–service is the highest authorization level. Entering the correct password gives access to all the functions of the camera and allows all configuration settings to be changed.–user is the middle authorization level. This user can operate the device, play back recordings, and also control a camera but cannot change the configuration.General > Identification > Password > Date/Time > Display Stamping

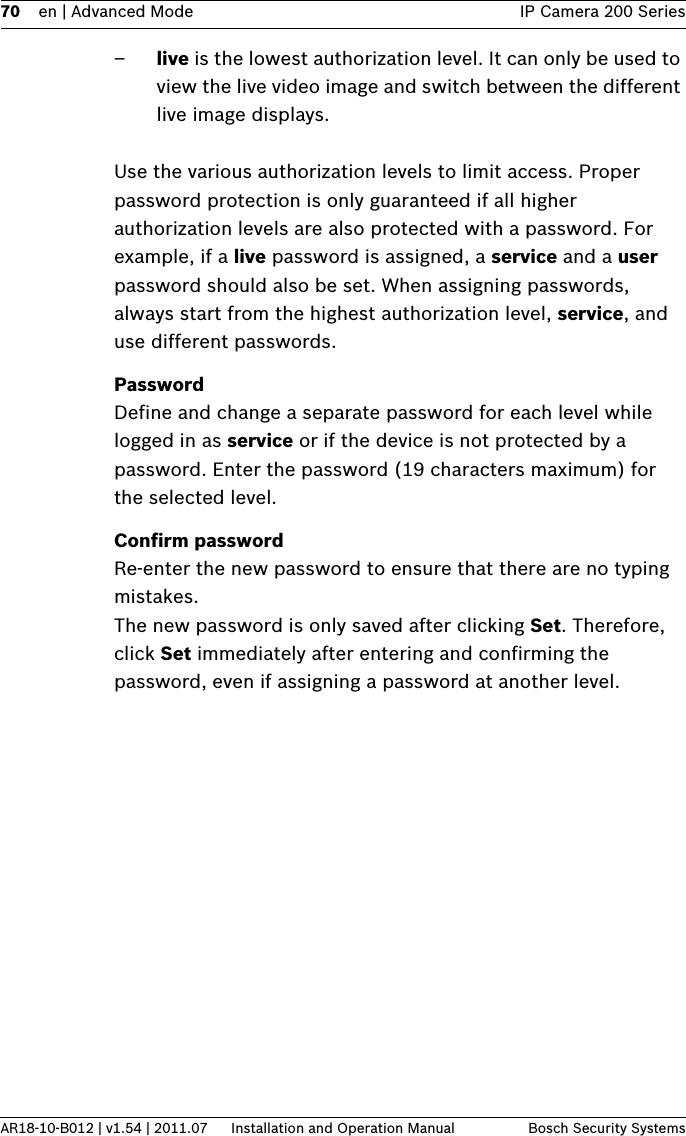

70 en | Advanced Mode IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems–live is the lowest authorization level. It can only be used to view the live video image and switch between the different live image displays.Use the various authorization levels to limit access. Proper password protection is only guaranteed if all higher authorization levels are also protected with a password. For example, if a live password is assigned, a service and a user password should also be set. When assigning passwords, always start from the highest authorization level, service, and use different passwords.PasswordDefine and change a separate password for each level while logged in as service or if the device is not protected by a password. Enter the password (19 characters maximum) for the selected level.Confirm passwordRe-enter the new password to ensure that there are no typing mistakes.The new password is only saved after clicking Set. Therefore, click Set immediately after entering and confirming the password, even if assigning a password at another level.

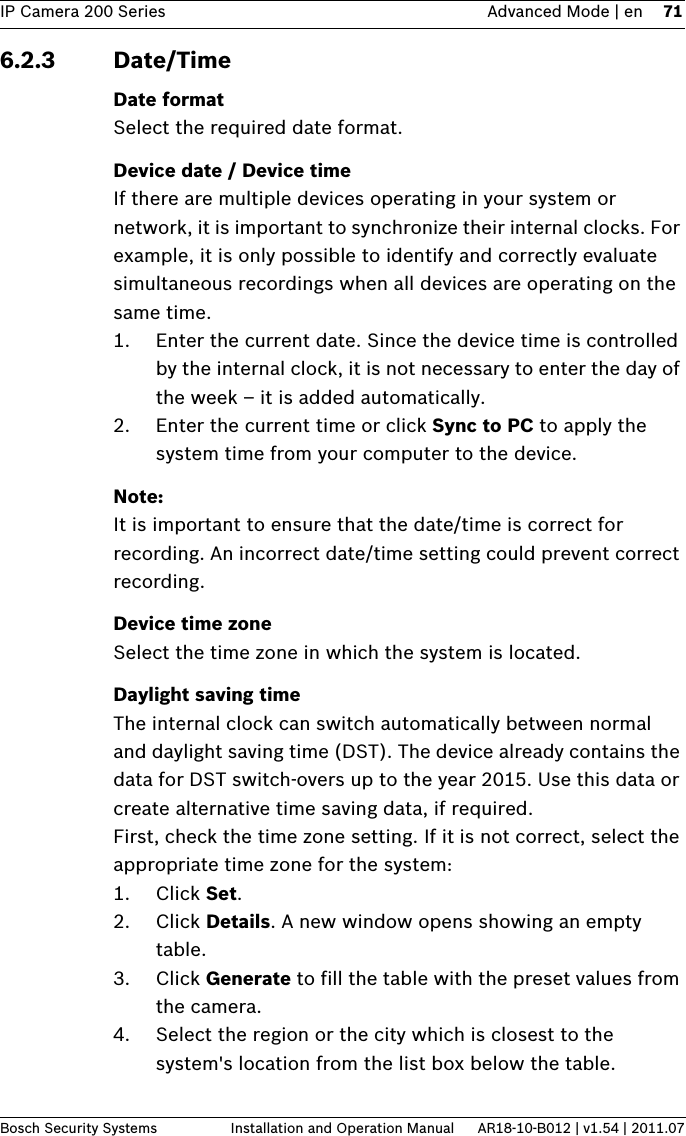

IP Camera 200 Series Advanced Mode | en 71Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.076.2.3 Date/TimeDate formatSelect the required date format.Device date / Device timeIf there are multiple devices operating in your system or network, it is important to synchronize their internal clocks. For example, it is only possible to identify and correctly evaluate simultaneous recordings when all devices are operating on the same time.1. Enter the current date. Since the device time is controlled by the internal clock, it is not necessary to enter the day of the week – it is added automatically.2. Enter the current time or click Sync to PC to apply the system time from your computer to the device.Note:It is important to ensure that the date/time is correct for recording. An incorrect date/time setting could prevent correct recording.Device time zoneSelect the time zone in which the system is located.Daylight saving timeThe internal clock can switch automatically between normal and daylight saving time (DST). The device already contains the data for DST switch-overs up to the year 2015. Use this data or create alternative time saving data, if required.First, check the time zone setting. If it is not correct, select the appropriate time zone for the system:1. Click Set.2. Click Details. A new window opens showing an empty table.3. Click Generate to fill the table with the preset values from the camera.4. Select the region or the city which is closest to the system's location from the list box below the table.

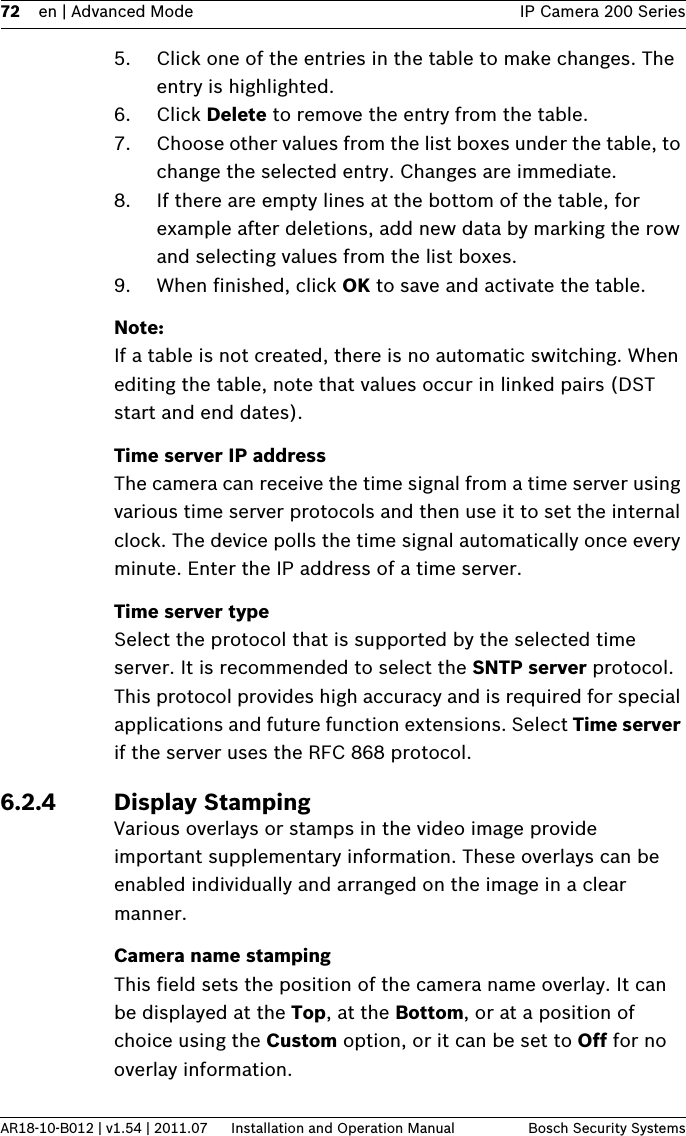

72 en | Advanced Mode IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems5. Click one of the entries in the table to make changes. The entry is highlighted.6. Click Delete to remove the entry from the table.7. Choose other values from the list boxes under the table, to change the selected entry. Changes are immediate.8. If there are empty lines at the bottom of the table, for example after deletions, add new data by marking the row and selecting values from the list boxes.9. When finished, click OK to save and activate the table.Note:If a table is not created, there is no automatic switching. When editing the table, note that values occur in linked pairs (DST start and end dates).Time server IP addressThe camera can receive the time signal from a time server using various time server protocols and then use it to set the internal clock. The device polls the time signal automatically once every minute. Enter the IP address of a time server.Time server typeSelect the protocol that is supported by the selected time server. It is recommended to select the SNTP server protocol. This protocol provides high accuracy and is required for special applications and future function extensions. Select Time server if the server uses the RFC 868 protocol.6.2.4 Display StampingVarious overlays or stamps in the video image provide important supplementary information. These overlays can be enabled individually and arranged on the image in a clear manner.Camera name stampingThis field sets the position of the camera name overlay. It can be displayed at the Top, at the Bottom, or at a position of choice using the Custom option, or it can be set to Off for no overlay information.

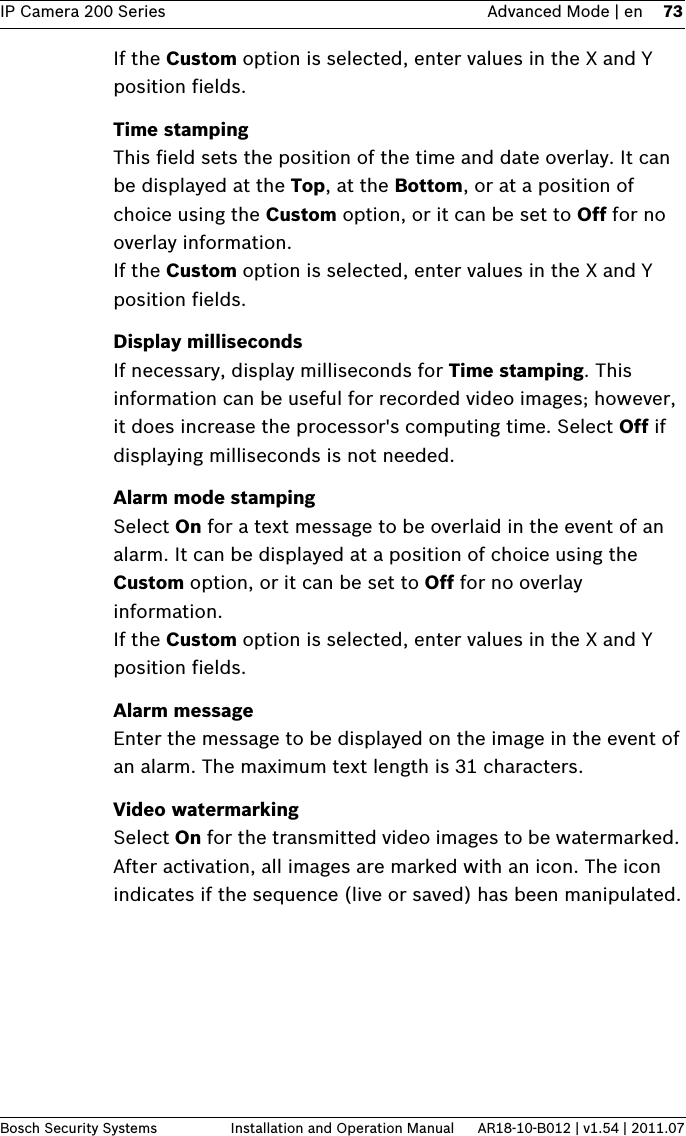

IP Camera 200 Series Advanced Mode | en 73Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.07If the Custom option is selected, enter values in the X and Y position fields.Time stampingThis field sets the position of the time and date overlay. It can be displayed at the Top, at the Bottom, or at a position of choice using the Custom option, or it can be set to Off for no overlay information.If the Custom option is selected, enter values in the X and Y position fields.Display millisecondsIf necessary, display milliseconds for Time stamping. This information can be useful for recorded video images; however, it does increase the processor's computing time. Select Off if displaying milliseconds is not needed.Alarm mode stampingSelect On for a text message to be overlaid in the event of an alarm. It can be displayed at a position of choice using the Custom option, or it can be set to Off for no overlay information.If the Custom option is selected, enter values in the X and Y position fields.Alarm messageEnter the message to be displayed on the image in the event of an alarm. The maximum text length is 31 characters.Video watermarkingSelect On for the transmitted video images to be watermarked. After activation, all images are marked with an icon. The icon indicates if the sequence (live or saved) has been manipulated.

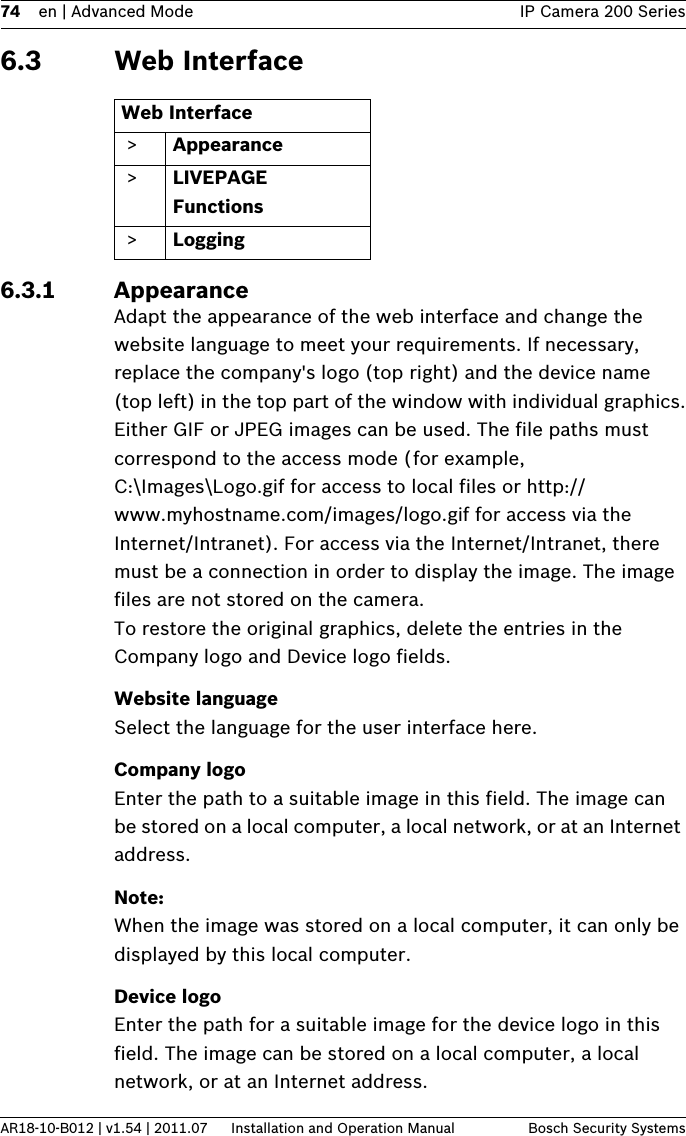

74 en | Advanced Mode IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems6.3 Web Interface6.3.1 AppearanceAdapt the appearance of the web interface and change the website language to meet your requirements. If necessary, replace the company's logo (top right) and the device name (top left) in the top part of the window with individual graphics.Either GIF or JPEG images can be used. The file paths must correspond to the access mode (for example, C:\Images\Logo.gif for access to local files or http://www.myhostname.com/images/logo.gif for access via the Internet/Intranet). For access via the Internet/Intranet, there must be a connection in order to display the image. The image files are not stored on the camera.To restore the original graphics, delete the entries in the Company logo and Device logo fields.Website languageSelect the language for the user interface here.Company logoEnter the path to a suitable image in this field. The image can be stored on a local computer, a local network, or at an Internet address. Note:When the image was stored on a local computer, it can only be displayed by this local computer.Device logoEnter the path for a suitable image for the device logo in this field. The image can be stored on a local computer, a local network, or at an Internet address.Web Interface > Appearance > LIVEPAGE Functions > Logging

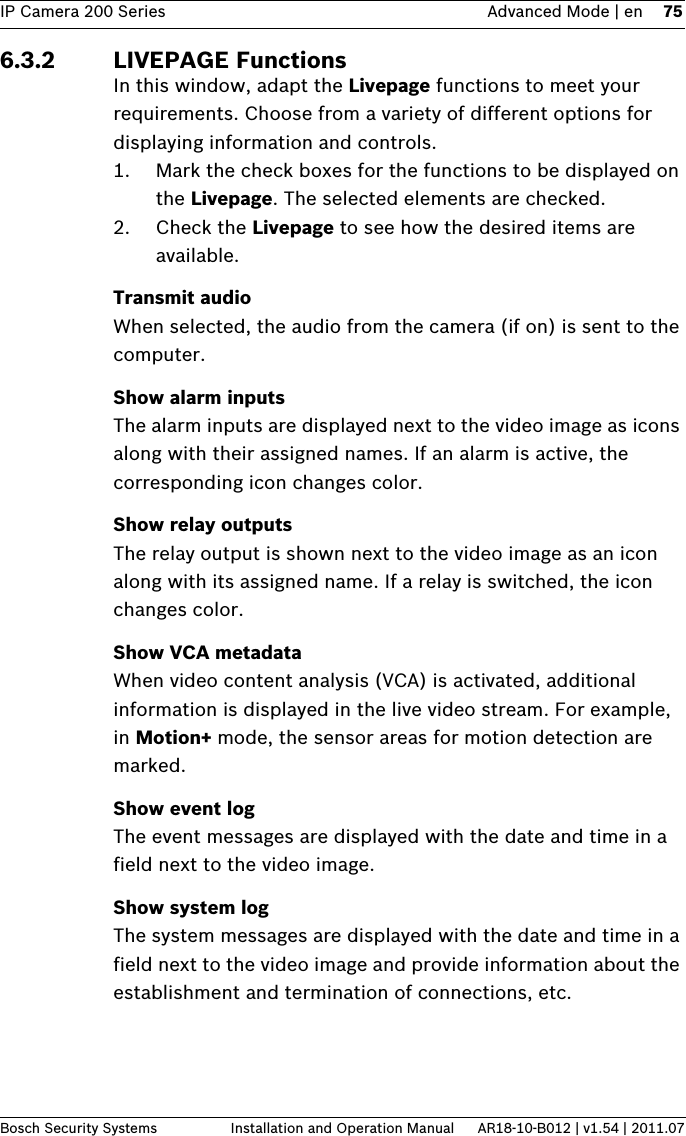

IP Camera 200 Series Advanced Mode | en 75Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.076.3.2 LIVEPAGE FunctionsIn this window, adapt the Livepage functions to meet your requirements. Choose from a variety of different options for displaying information and controls.1. Mark the check boxes for the functions to be displayed on the Livepage. The selected elements are checked.2. Check the Livepage to see how the desired items are available.Transmit audioWhen selected, the audio from the camera (if on) is sent to the computer.Show alarm inputsThe alarm inputs are displayed next to the video image as icons along with their assigned names. If an alarm is active, the corresponding icon changes color.Show relay outputsThe relay output is shown next to the video image as an icon along with its assigned name. If a relay is switched, the icon changes color.Show VCA metadataWhen video content analysis (VCA) is activated, additional information is displayed in the live video stream. For example, in Motion+ mode, the sensor areas for motion detection are marked.Show event logThe event messages are displayed with the date and time in a field next to the video image.Show system logThe system messages are displayed with the date and time in a field next to the video image and provide information about the establishment and termination of connections, etc.

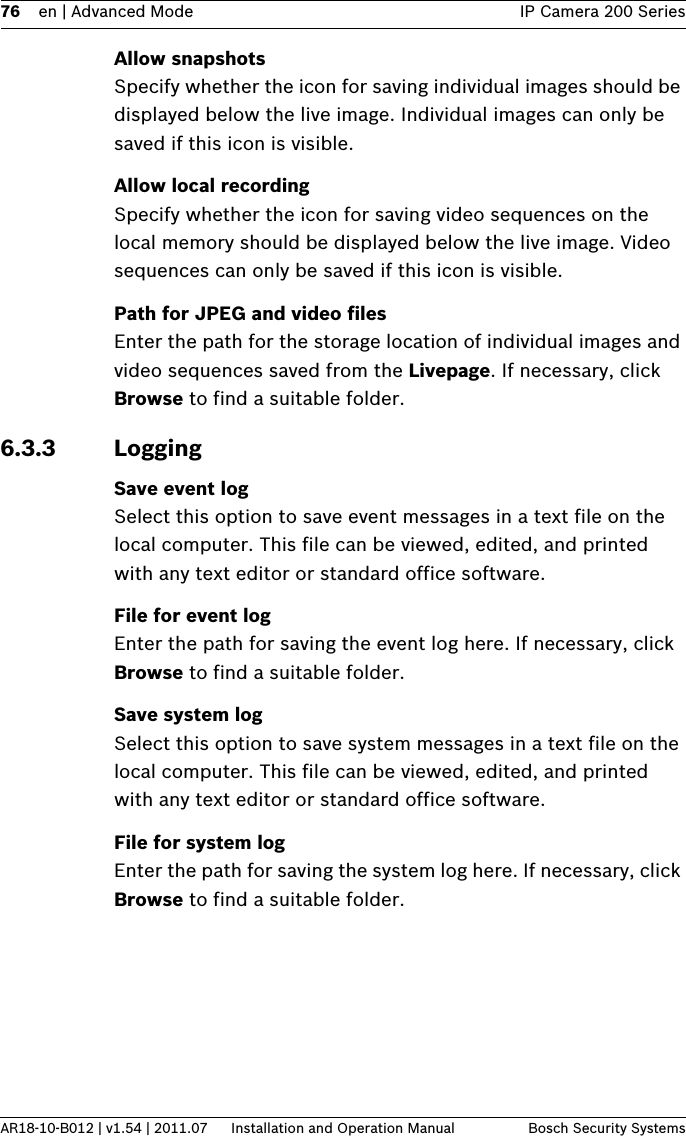

76 en | Advanced Mode IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security SystemsAllow snapshotsSpecify whether the icon for saving individual images should be displayed below the live image. Individual images can only be saved if this icon is visible.Allow local recordingSpecify whether the icon for saving video sequences on the local memory should be displayed below the live image. Video sequences can only be saved if this icon is visible.Path for JPEG and video filesEnter the path for the storage location of individual images and video sequences saved from the Livepage. If necessary, click Browse to find a suitable folder.6.3.3 LoggingSave event logSelect this option to save event messages in a text file on the local computer. This file can be viewed, edited, and printed with any text editor or standard office software.File for event logEnter the path for saving the event log here. If necessary, click Browse to find a suitable folder.Save system logSelect this option to save system messages in a text file on the local computer. This file can be viewed, edited, and printed with any text editor or standard office software.File for system logEnter the path for saving the system log here. If necessary, click Browse to find a suitable folder.

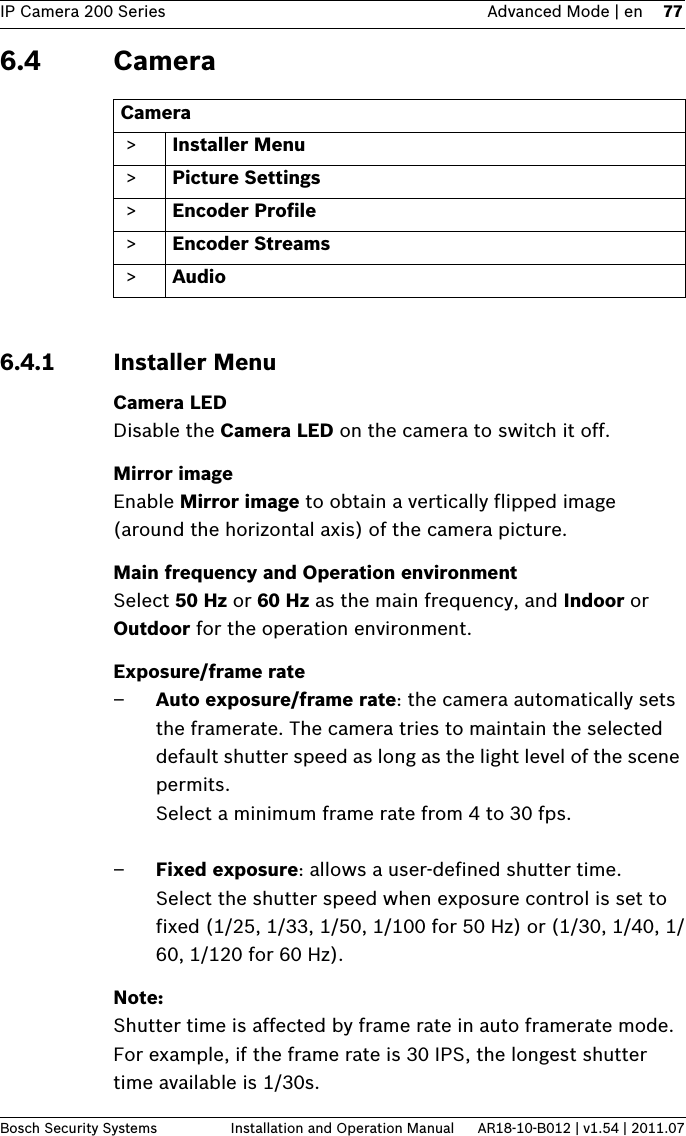

IP Camera 200 Series Advanced Mode | en 77Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.076.4 Camera6.4.1 Installer MenuCamera LEDDisable the Camera LED on the camera to switch it off.Mirror imageEnable Mirror image to obtain a vertically flipped image (around the horizontal axis) of the camera picture.Main frequency and Operation environmentSelect 50 Hz or 60 Hz as the main frequency, and Indoor or Outdoor for the operation environment.Exposure/frame rate–Auto exposure/frame rate: the camera automatically sets the framerate. The camera tries to maintain the selected default shutter speed as long as the light level of the scene permits.Select a minimum frame rate from 4 to 30 fps.–Fixed exposure: allows a user-defined shutter time.Select the shutter speed when exposure control is set to fixed (1/25, 1/33, 1/50, 1/100 for 50 Hz) or (1/30, 1/40, 1/60, 1/120 for 60 Hz).Note:Shutter time is affected by frame rate in auto framerate mode. For example, if the frame rate is 30 IPS, the longest shutter time available is 1/30s.Camera > Installer Menu > Picture Settings > Encoder Profile > Encoder Streams > Audio

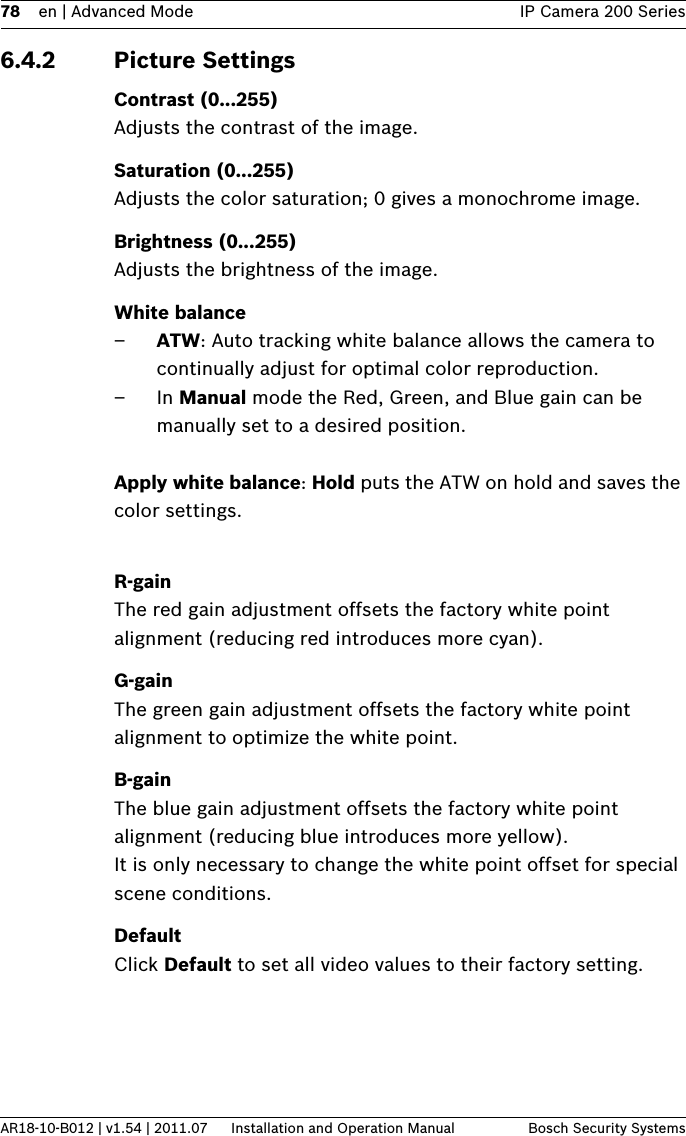

78 en | Advanced Mode IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security Systems6.4.2 Picture SettingsContrast (0...255)Adjusts the contrast of the image.Saturation (0...255)Adjusts the color saturation; 0 gives a monochrome image.Brightness (0...255)Adjusts the brightness of the image.White balance–ATW: Auto tracking white balance allows the camera to continually adjust for optimal color reproduction.–In Manual mode the Red, Green, and Blue gain can be manually set to a desired position.Apply white balance: Hold puts the ATW on hold and saves the color settings.R-gainThe red gain adjustment offsets the factory white point alignment (reducing red introduces more cyan).G-gainThe green gain adjustment offsets the factory white point alignment to optimize the white point.B-gainThe blue gain adjustment offsets the factory white point alignment (reducing blue introduces more yellow).It is only necessary to change the white point offset for special scene conditions.DefaultClick Default to set all video values to their factory setting.

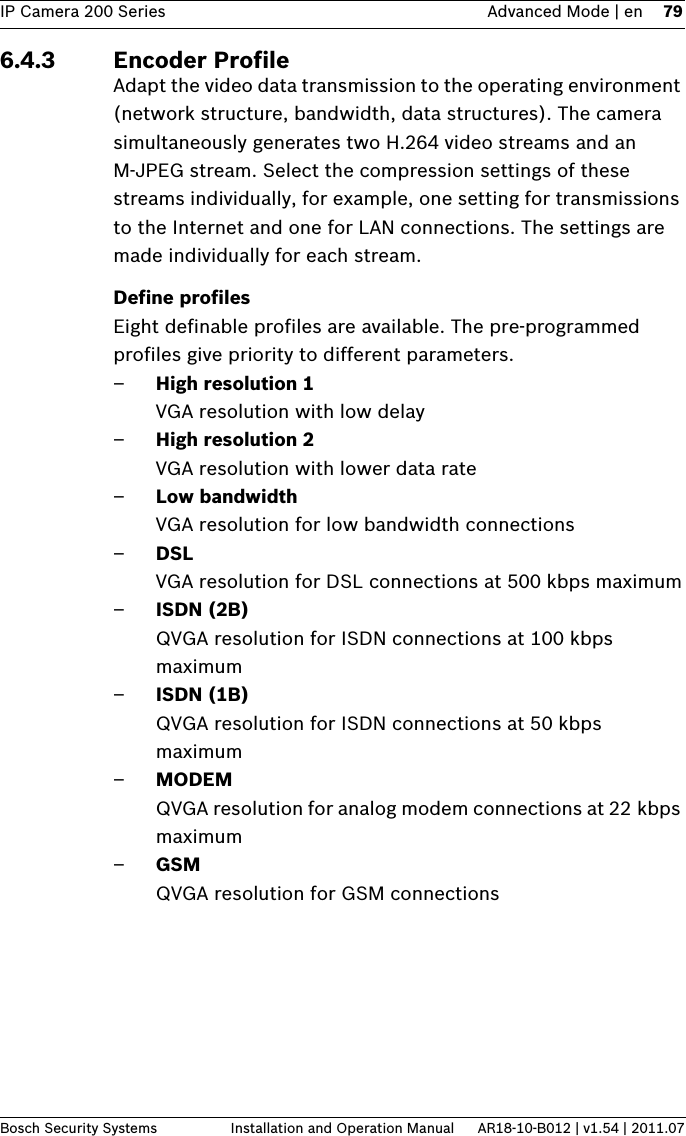

IP Camera 200 Series Advanced Mode | en 79Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.076.4.3 Encoder ProfileAdapt the video data transmission to the operating environment (network structure, bandwidth, data structures). The camera simultaneously generates two H.264 video streams and an M-JPEG stream. Select the compression settings of these streams individually, for example, one setting for transmissions to the Internet and one for LAN connections. The settings are made individually for each stream.Define profilesEight definable profiles are available. The pre-programmed profiles give priority to different parameters.–High resolution 1VGA resolution with low delay–High resolution 2VGA resolution with lower data rate–Low bandwidthVGA resolution for low bandwidth connections–DSLVGA resolution for DSL connections at 500 kbps maximum–ISDN (2B)QVGA resolution for ISDN connections at 100 kbps maximum–ISDN (1B)QVGA resolution for ISDN connections at 50 kbps maximum–MODEMQVGA resolution for analog modem connections at 22 kbps maximum–GSMQVGA resolution for GSM connections

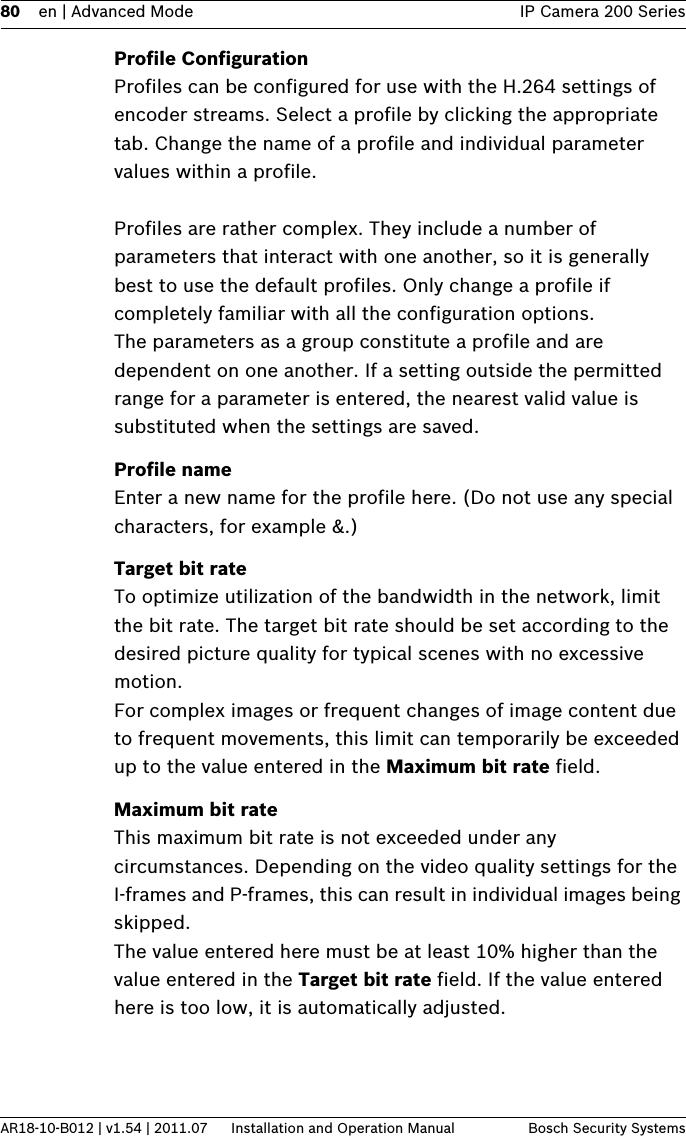

80 en | Advanced Mode IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security SystemsProfile ConfigurationProfiles can be configured for use with the H.264 settings of encoder streams. Select a profile by clicking the appropriate tab. Change the name of a profile and individual parameter values within a profile.Profiles are rather complex. They include a number of parameters that interact with one another, so it is generally best to use the default profiles. Only change a profile if completely familiar with all the configuration options.The parameters as a group constitute a profile and are dependent on one another. If a setting outside the permitted range for a parameter is entered, the nearest valid value is substituted when the settings are saved.Profile nameEnter a new name for the profile here. (Do not use any special characters, for example &.)Target bit rateTo optimize utilization of the bandwidth in the network, limit the bit rate. The target bit rate should be set according to the desired picture quality for typical scenes with no excessive motion.For complex images or frequent changes of image content due to frequent movements, this limit can temporarily be exceeded up to the value entered in the Maximum bit rate field.Maximum bit rateThis maximum bit rate is not exceeded under any circumstances. Depending on the video quality settings for the I-frames and P-frames, this can result in individual images being skipped.The value entered here must be at least 10% higher than the value entered in the Target bit rate field. If the value entered here is too low, it is automatically adjusted.

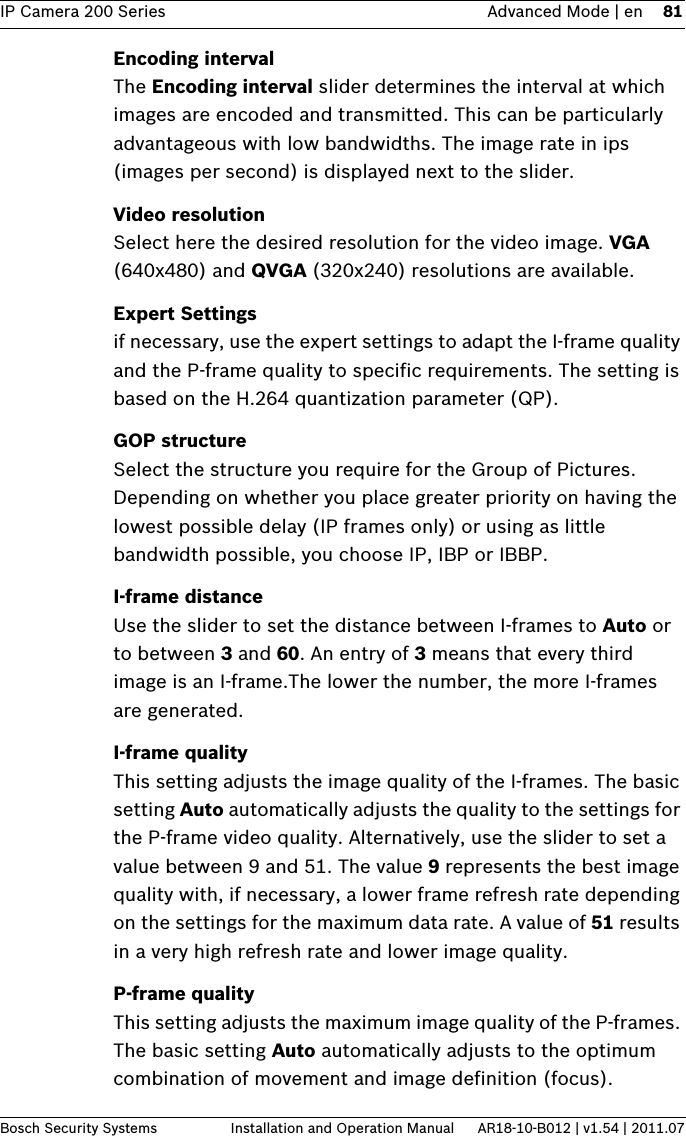

IP Camera 200 Series Advanced Mode | en 81Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.07Encoding intervalThe Encoding interval slider determines the interval at which images are encoded and transmitted. This can be particularly advantageous with low bandwidths. The image rate in ips (images per second) is displayed next to the slider.Video resolutionSelect here the desired resolution for the video image. VGA (640x480) and QVGA (320x240) resolutions are available.Expert Settingsif necessary, use the expert settings to adapt the I-frame quality and the P-frame quality to specific requirements. The setting is based on the H.264 quantization parameter (QP).GOP structureSelect the structure you require for the Group of Pictures. Depending on whether you place greater priority on having the lowest possible delay (IP frames only) or using as little bandwidth possible, you choose IP, IBP or IBBP.I-frame distanceUse the slider to set the distance between I-frames to Auto or to between 3 and 60. An entry of 3 means that every third image is an I-frame.The lower the number, the more I-frames are generated. I-frame qualityThis setting adjusts the image quality of the I-frames. The basic setting Auto automatically adjusts the quality to the settings for the P-frame video quality. Alternatively, use the slider to set a value between 9 and 51. The value 9 represents the best image quality with, if necessary, a lower frame refresh rate depending on the settings for the maximum data rate. A value of 51 results in a very high refresh rate and lower image quality.P-frame qualityThis setting adjusts the maximum image quality of the P-frames. The basic setting Auto automatically adjusts to the optimum combination of movement and image definition (focus).

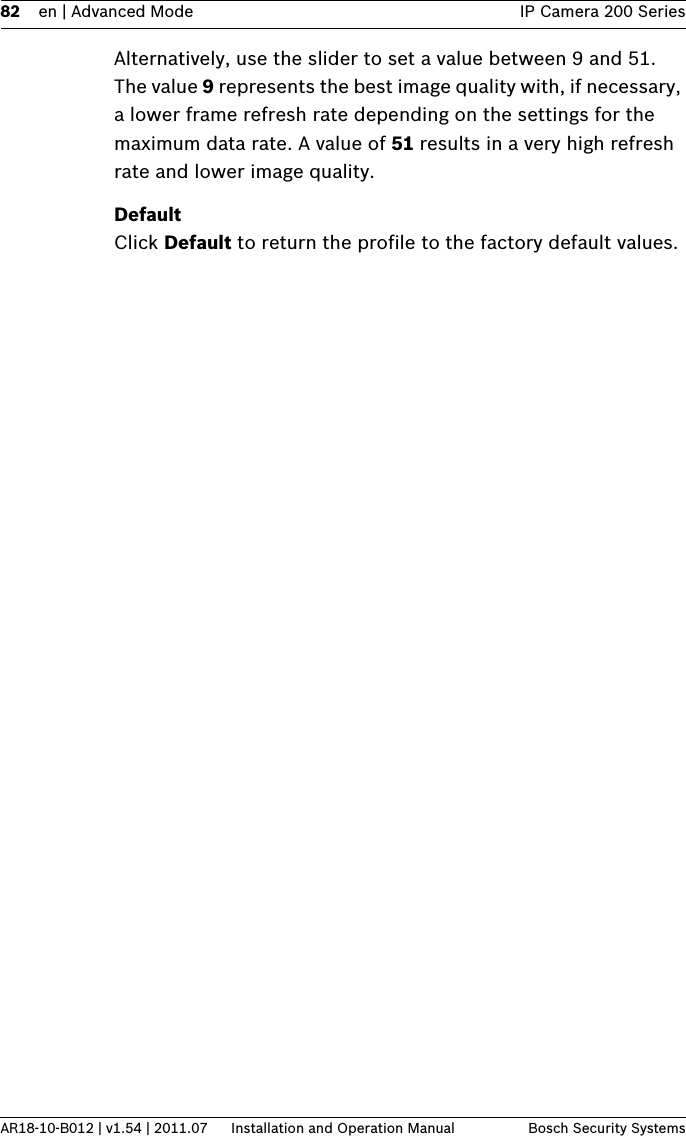

82 en | Advanced Mode IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security SystemsAlternatively, use the slider to set a value between 9 and 51. The value 9 represents the best image quality with, if necessary, a lower frame refresh rate depending on the settings for the maximum data rate. A value of 51 results in a very high refresh rate and lower image quality.DefaultClick Default to return the profile to the factory default values.

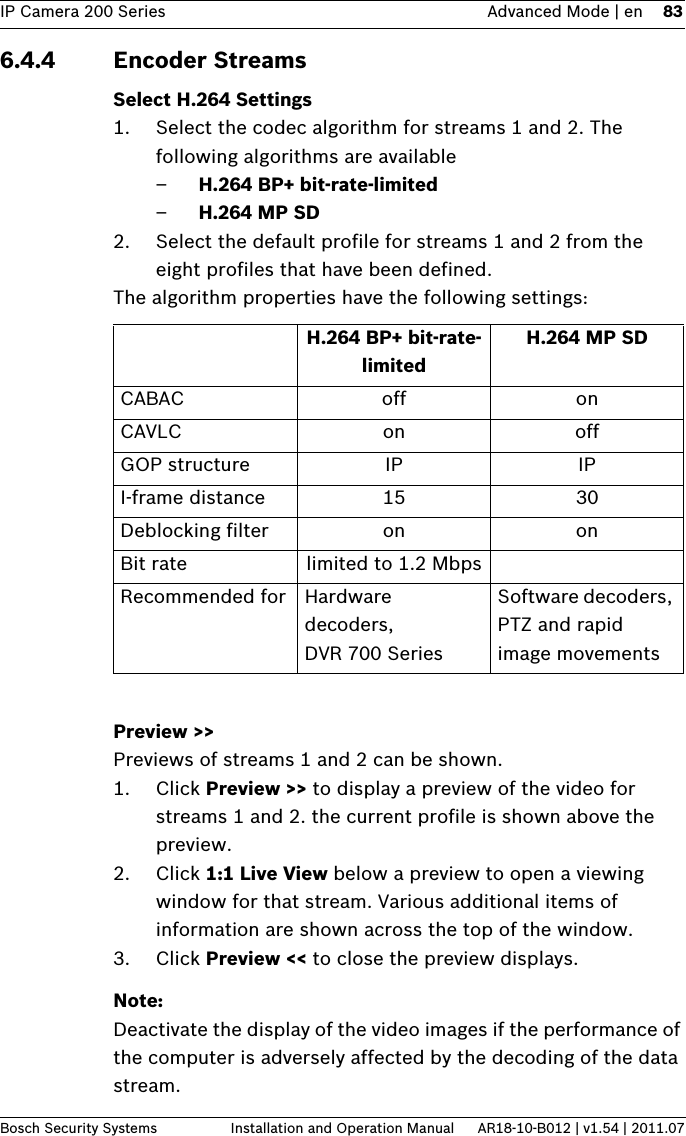

IP Camera 200 Series Advanced Mode | en 83Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.076.4.4 Encoder StreamsSelect H.264 Settings1. Select the codec algorithm for streams 1 and 2. The following algorithms are available–H.264 BP+ bit-rate-limited–H.264 MP SD2. Select the default profile for streams 1 and 2 from the eight profiles that have been defined.The algorithm properties have the following settings:Preview >>Previews of streams 1 and 2 can be shown. 1. Click Preview >> to display a preview of the video for streams 1 and 2. the current profile is shown above the preview.2. Click 1:1 Live View below a preview to open a viewing window for that stream. Various additional items of information are shown across the top of the window.3. Click Preview << to close the preview displays.Note:Deactivate the display of the video images if the performance of the computer is adversely affected by the decoding of the data stream.H.264 BP+ bit-rate-limitedH.264 MP SD CABAC off onCAVLC on offGOP structure IP IPI-frame distance 15 30Deblocking filter on onBit rate limited to 1.2 MbpsRecommended for Hardware decoders, DVR 700 SeriesSoftware decoders, PTZ and rapid image movements

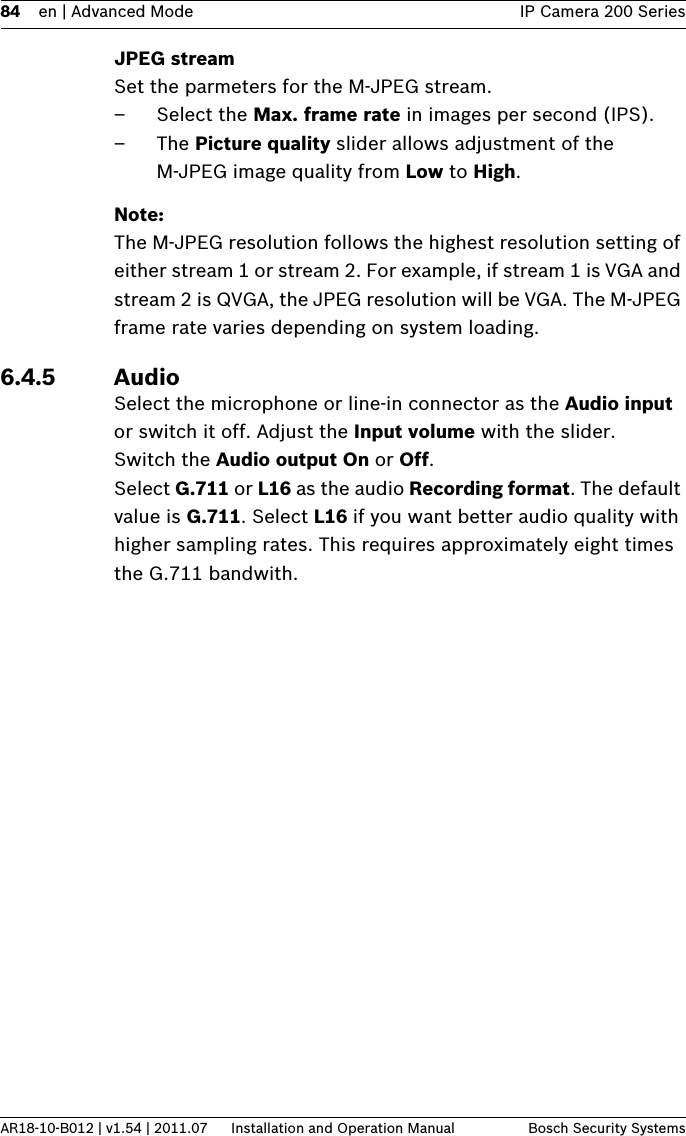

84 en | Advanced Mode IP Camera 200 SeriesAR18-10-B012 | v1.54 | 2011.07 Installation and Operation Manual Bosch Security SystemsJPEG streamSet the parmeters for the M-JPEG stream.– Select the Max. frame rate in images per second (IPS). – The Picture quality slider allows adjustment of the M-JPEG image quality from Low to High.Note:The M-JPEG resolution follows the highest resolution setting of either stream 1 or stream 2. For example, if stream 1 is VGA and stream 2 is QVGA, the JPEG resolution will be VGA. The M-JPEG frame rate varies depending on system loading.6.4.5 AudioSelect the microphone or line-in connector as the Audio input or switch it off. Adjust the Input volume with the slider.Switch the Audio output On or Off.Select G.711 or L16 as the audio Recording format. The default value is G.711. Select L16 if you want better audio quality with higher sampling rates. This requires approximately eight times the G.711 bandwith.

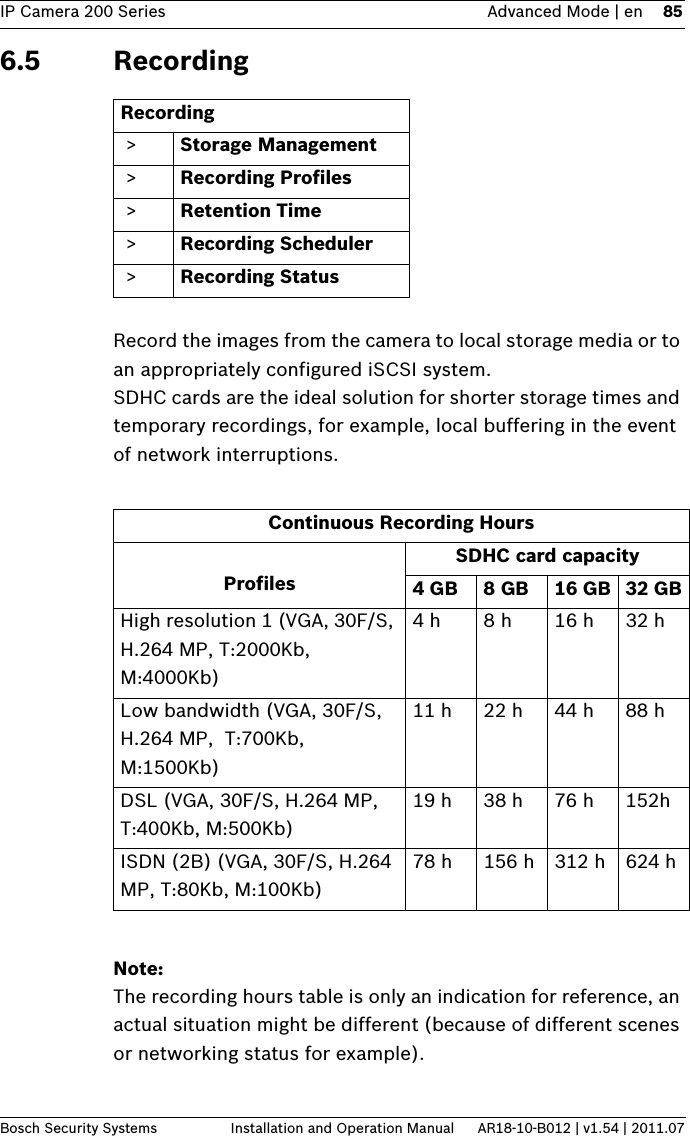

IP Camera 200 Series Advanced Mode | en 85Bosch Security Systems Installation and Operation Manual AR18-10-B012 | v1.54 | 2011.076.5 RecordingRecord the images from the camera to local storage media or to an appropriately configured iSCSI system. SDHC cards are the ideal solution for shorter storage times and temporary recordings, for example, local buffering in the event of network interruptions.Note:The recording hours table is only an indication for reference, an actual situation might be different (because of different scenes or networking status for example).Recording > Storage Management > Recording Profiles > Retention Time > Recording Scheduler > Recording StatusContinuous Recording HoursProfilesSDHC card capacity4GB 8GB 16 GB 32 GBHigh resolution 1 (VGA, 30F/S, H.264 MP, T:2000Kb, M:4000Kb)4 h 8 h 16 h 32 hLow bandwidth (VGA, 30F/S, H.264 MP, T:700Kb, M:1500Kb)11 h 22 h 44 h 88 hDSL (VGA, 30F/S, H.264 MP, T:400Kb, M:500Kb)19 h 38 h 76 h 152hISDN (2B) (VGA, 30F/S, H.264 MP, T:80Kb, M:100Kb)78 h 156 h 312 h 624 h
