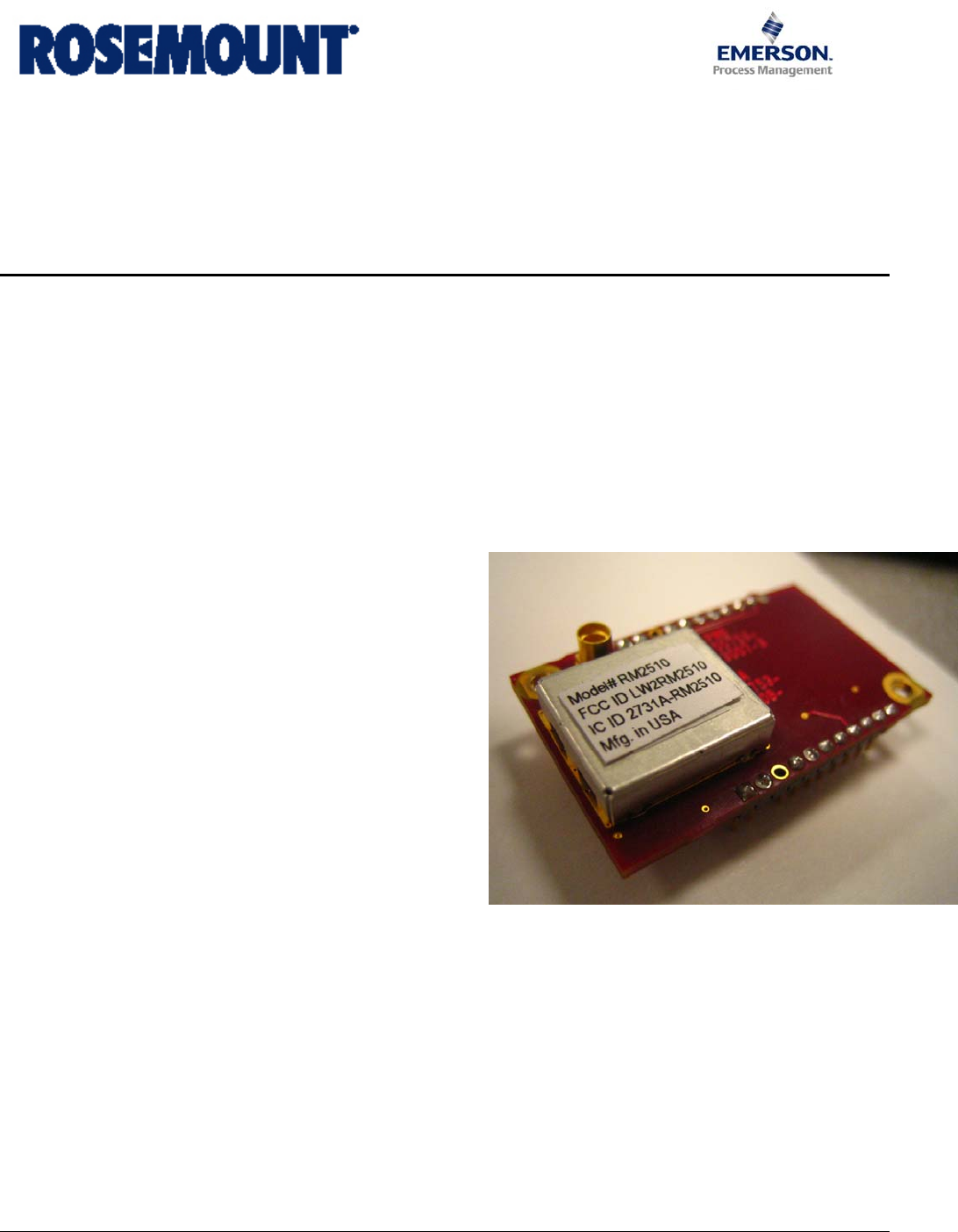

RM2510 Datasheet Rosemount Inc. 1
RM2510 Wireless HARTTM
2.4 GHz Radio Module
Product Description
Rosemount Inc.’s RM2510 Wireless HARTTM 2.4GHz Radio Module has been specifically designed to interface with industrial and
process control equipment designed and marketed by the Emerson family of companies. The RM2510 is designed to be fully compliant
with the wireless HARTTM specification. It uses a DSSS modulation type and multiple channel selection for optimum interference
rejection and >99% communication reliability. The RM2510 utilizes the global license-free 2.4GHz band at output power levels that are
compatible with government regulations throughout the world.
The RM2510’s very low power consumption characteristics make it perfect for battery powered equipment. The multi-functional interface
of the RM2510 is flexible enough for it to be integrated into many types of sensors. From pressure, temperature, and flow monitoring to
machinery health and valve position control, the RM2510 is the best choice for wireless HARTTM compatible communications.
Key Features
Reliable Networking
• Mesh networking for redundancy and high reliability (> 99.9%
typical network reliability)
• Dynamic channel selection for interference rejection
• Every RM2510 acts as both an endpoint and a router, increasing
network reliability.
• Automatic self-organizing mesh-networking capability built-in
Easy Integration
• Well-defined multi-functional interfaces
• High-level Data Link Control (HDLC) serial interface with
bidirectional flow control
• Industrial temperature range –40 °C to +85 °C
802.15.4 Standard Radio
• +8 dBm (6.3 mW) conducted RF output power
• –90 dBm receiver sensitivity
• 300 m outdoor range (typical)
Confidential
RM2510 Datasheet Rosemount Inc. 2 of 8
Table of Contents
1.0 Absolute Maximum Ratings................................................................................3
2.0 Normal Operating Conditions .............................................................................3
3.0 Electrical Specifications .....................................................................................4
4.0 Radio..................................................................................................................4
4.1 Detailed Radio Specifications ................................................................................ 4
4.2 Antenna Specifications......................................................................................... 5
5.0 Pinout ................................................................................................................5
6.0 Physical Drawing................................................................................................7
7.0 Regulatory and Standards Compliance...............................................................8
Confidential
RM2510 Datasheet Rosemount Inc. 3 of 8
1.0 Absolute Maximum Ratings
The absolute maximum ratings shown below should under no circumstances be violated. Permanent damage to the device may be caused by
exceeding one or more of these parameters.
Table 1 Absolute Maximum Ratings
Parameter Min Typ Max Units Comments
Supply voltage (VDD to VSS) –0.3 3.6 V
Voltage on any digital I/O pin –0.3 VDD + 0.3
up to 3.6
V
Input RF level 10 dBm Input power at antenna
connector
Storage temperature range –40 +85 °C
VSWR of antenna 3:1
ESD protection
Antenna pad ±250 V HBM
All other pads ±2 kV HBM
±200 V CDM
* All voltages are referenced to VSS
Caution! ESD sensitive device. Precaution should be used when handling the device in order to prevent permanent damage.
2.0 Normal Operating Conditions
Table 2 Normal Operating Conditions
Parameter Min Typ Max Units Comments
Operational supply voltage
range (between VDD and VSS) 2.75 3.0 3.3 V
Including noise and load
regulation
Voltage on analog input pins 0 1.8 V
Voltage supply noise 100 mVp-p 50 Hz to 2 MHz
Peak current
85 mA Flash write 35 ms max
18 mA TX, 5 ms maximum
6 mA
Searching for network, 60
minutes maximum
12 mA
RM2510 boot, see
section Error! Reference
source not found..
Operating temperature range –40 +85 °C
Maximum allowed temperature
ramp during operation 8 °C/min –40 °C to +85 °C
Operating relative humidity 10 90 % RH Non-condensing
Unless otherwise noted, Table 3 assume VDD is 3.0 V and temperature is 25 °C.
Table 3 RM2510 Current Consumption
Parameter Min Typ Max Units Comments
Transmit 18 mA
Receive 6 mA
Sleep 2.5 µA
Confidential
RM2510 Datasheet Rosemount Inc. 4 of 8
3.0 Electrical Specifications
Table 4 Device Load
Parameter Min Typ Max Units Comments
Total capacitance 0.5 µF
Unless otherwise noted, VDD is 3.0 V and temperature is –40 °C to +85 °C.
Table 5 Digital I/O Type 1
Digital Signal Min Typ Max Units Comments
VIL (low-level input voltage) –0.3 0.6 V
VIH (high-level input voltage) 0.8 x VDD V
DD + 0.3 V
VOL (low-level output voltage) 0.4 V
VOH (high-level output voltage) 2.4 V
Digital current*
Output source (single pin) 3.7 mA 25 °C
Output sink (single pin) 2.0 mA 25 °C
Input leakage current 50 nA
* This current level guarantees that the output voltage meets VOH and VOL specifications above.
Table 6 Digital I/O Type 2
Digital Signal Min Typ Max Units Comments
VIL (low-level input voltage) –0.3 0.6 V
VIH (high-level input voltage) 0.8 x VDD V
DD + 0.3 V
VOL (low-level output voltage, multi-
function I/O configured as
output)
0 0.6 V IOL < 0.6 mA, 85 °C
VOH low-level output voltage, multi-
function I/O configured as
output)
VDD – 0.6 VDD V IOH > –0.4 mA, 85 °C
Digital current*
Output source (single pin,
multifunction I/O configured as
output)
0.4 mA 25 °C
Output sink (single pin,
multifunction I/O configured as
output)
0.6 mA 25 °C
Input leakage current 50 nA
* This current level guarantees that the output voltage meets VOH and VOL specifications above.
4.0 Radio
4.1 Detailed Radio Specifications
Table 7 Radio Specifications
Parameter Min Typ Max Units Comments
Operating frequency 2.4000 2.4835 GHz
Number of channels 15
Channel separation 5 MHz
Occupied channel bandwidth 2.7 MHz At –20 dBc
Confidential
RM2510 Datasheet Rosemount Inc. 5 of 8
Parameter Min Typ Max Units Comments
Frequency Accuracy -50 +50 kHz
Modulation IEEE 802.15.4 DSSS
Raw data rate 250 kbps
Receiver operating maximum
input level 0 dBm
Receiver sensitivity –92.5 dBm
At 50% PER, VDD = 3 V,
25 °C
–90 dBm
At 1% PER, VDD = 3 V,
25 °C, (inferred from 50%
PER measurement)
Output power, conducted +8 dBm VDD = 3 V, 25 °C
Range*
Indoor 100 m
Outdoor 300 m
25 °C, 50% RH, 1 meter
above ground, +2 dBi
omni-directional antenna
* Actual RF range performance is subject to a number of installation-specific variables including, but not
restricted to ambient temperature, relative humidity, presence of active interference sources, line-of-sight
obstacles, near-presence of objects (for example, trees, walls, signage, and so on) that may induce
multipath fading. As a result, actual performance varies for each instance.
4.2 Antenna Specifications
The antenna must meet specifications in Table 8.
Table 8 Antenna Specifications
Parameter Value
Frequency range 2.4–2.4835 GHz
Impedance 50 Ω
Maximum VSWR 3:1
Antenna Connector MMCX
When the RM2510 is placed inside an enclosure, the antenna should be mounted such that the radiating portion of the antenna protrudes from the
enclosure, and connected using a coaxial cable. For optimum performance, allow the antenna to be positioned vertically when installed.
5.0 Pinout
The following is the pinout for the RM2510 module.
Table 9 Pinout Assignments for the RM2510
Pin Number Pin Description I/O (relative to radio)
1-1 Circuit Common/Ground Input
1-2 Power Supply (2.75 V to 3.3 V) Input
1-3 Keying Pin (no function) N/A
1-4 Data Transmit (Sensor Board to Radio) Input
1-5 Data Receive (Radio to Sensor Board) Output
1-6 Diagnostics LED Output
1-7 Radio Ready-to-Send (also DIM wake-up) Output
1-8 Radio Clear-to-Send Output
1-9 Sensor Board Clear-to-Send Input
1-10 Radio Time Packet Input
1-11 Radio Baud Rate Input Input
Confidential
RM2510 Datasheet Rosemount Inc. 6 of 8
2-1 Radio Reset Line Input
2-2 SPI Chip Select Input
2-3 Keying Pin (no function) N/A
2-4 SPI Bus (MISO) Output
2-5 SPI Bus (MOSI) Input
2-6 SPI Bus (Clock) Input
2-7 JTAG (TCK) Input
2-8 JTAG (TDO) Output
2-9 JTAG (TDI) Input
2-10 JTAG (TMS) Input
2-11 Flash Enable Input
Confidential
RM2510 Datasheet Rosemount Inc. 7 of 8
6.0 Physical Drawing

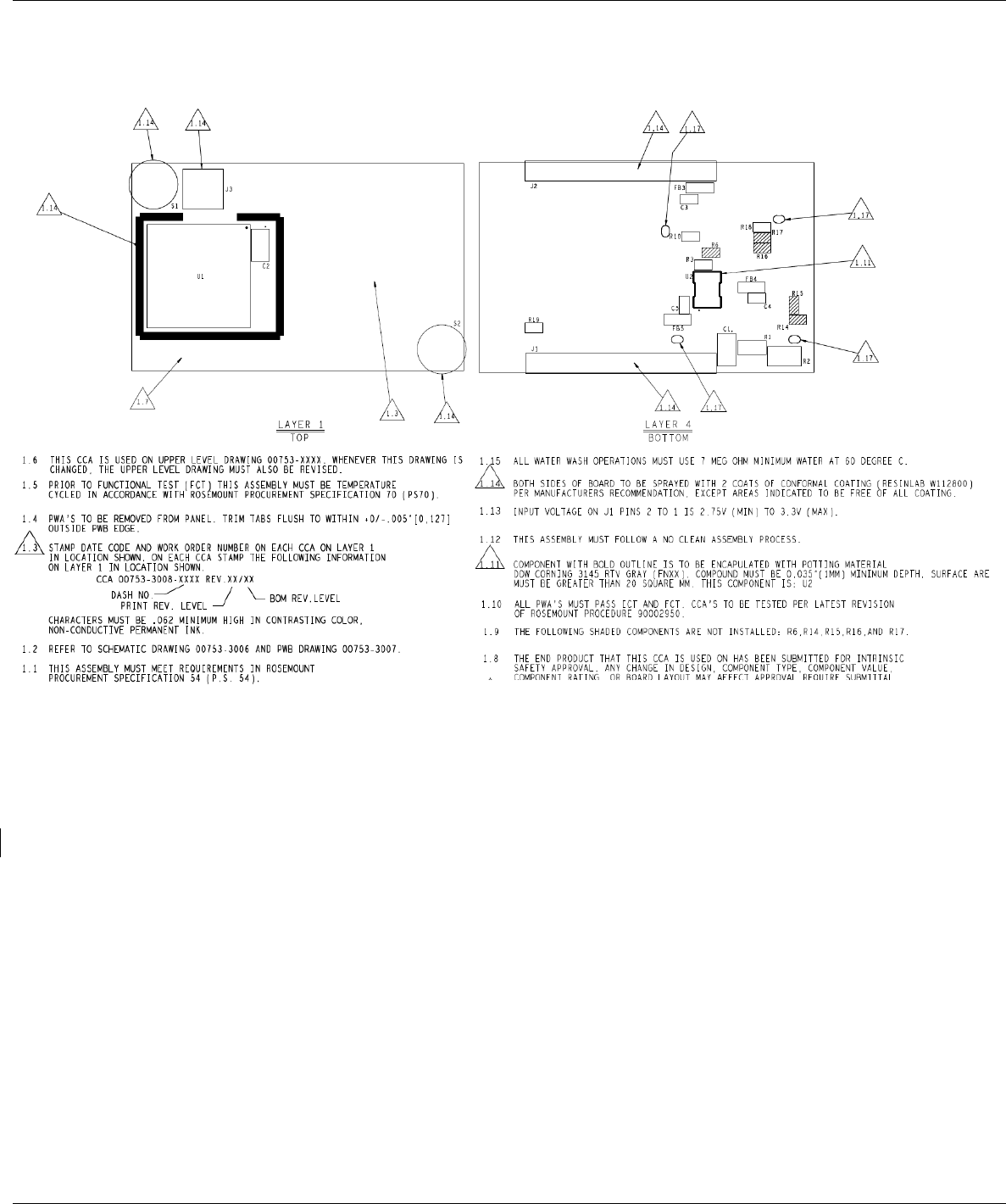

Figure 1 RM2510 Mechanical Drawing
Confidential
RM2510 Datasheet Rosemount Inc. 8 of 8
7.0 Regulatory and Standards Compliance
The RM2510 has achieved modular radio certification on a reference design for the United States, Canada and the Europe. The reference design
has been certified for Part 15.247 (Intentional Radiator) of the FCC rules an regulations, Industry Canada RSS-210, ETSI EN 300 328 and ETSI
EN 301-489-17.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
The RM2510 complies with Part 15.247 modular (Intentional Radiator) FCC rules and regulations. Changes or
modifications not expressly approved by Rosemount Inc. could void the user's authority to operate the equipment.
7.1 FCC Testing
In order to fulfill FCC certification requirements, products incorporating the RM2510 must comply with the following:
1. An external label must be provided on the outside of the final product enclosure specifying the FCC identifier as
described in 7.3 below.
2. The antenna must be electrically identical to the FCC-approved antenna specifications for the RM2510 as described in
7.2 with the exception that the gain may be lower than specified in Table 14.
3. The device integrating the RM2510 may not cause harmful interference, and must accept any interference received,
including interference that may cause undesired operation.
4. An unintentional radiator scan must be performed on the device integrating the RM2510, per FCC rules and
regulations, CFR Title 47, Part 15, Subpart B. See FCC rules for specifics on requirements for declaration of conformity.
7.2 FCC-approved Antenna
The FCC-approved antenna specifications for the RM2510 is an antenna with a Maximum gain of +2dBi, vertical polarization, and
frequency of 2.4 to 2.485GHz.
7.3 Final FCC Labeling Requirements
The outside of the final product enclosure must have a label with the following (or similar) text specifying the FCC identifier. The
FCC ID and
certification code must be in Latin letters and Arabic numbers and visible without magnification.
Contains transmitter module FCC ID: LW2RM2510
Or
Contains FCC ID: LW2RM2510
7.4 IC Testing
The RM2510 is certified for modular Industry Canada (IC) RSS-210 approval. The OEM is responsible for its product to
comply with IC ICES-003 and FCC Part 15, Sub. B - Unintentional Radiators. The requirements of ICES-003 are equivalent
to FCC Part 15 Sub. B and Industry Canada accepts FCC test reports or CISPR 22 test reports for compliance with ICES-003.
7.5 Final IC Labeling Requirements
The Original Equipment Manufacturer (OEM) must ensure that IC labeling requirements are met. The outside of the final
product enclosure must have a label with the following (or similar) text specifying the IC identifier. The IC ID and
certification code must be in Latin letters and Arabic numbers and visible without magnification
Contains IC: 2731A-RM2510
