1. Introduction
The DR-U955BT is an advanced desktop reader for MIFARE Classic®
EV1, MIFARE® DESFire® EV1, UHF, and BLE. It reads the ID data of
the credential, and transmits the relevant ID data to any connected
access control software, such as Rosslare’s AxTraxNG™.
It has a slim and attractive design and is built for convenience and
portability. With its USB computer interface, it is quick and easy to
install and runs without any additional power source.
Using the BLE-Admin or BLE-ID apps, the reader can function like
other Rosslare BLE readers and can transmit the BLE ID to the
reader.
The Hardware Configuration Tool (HCT) can be used to configure
the reader’s specifications, such as the Wiegand format used.
The reader reads the CSN ID of each credential (MIFARE, UHF, BLE)
and transmits it to the software with the bit length pre-configured by
the user.

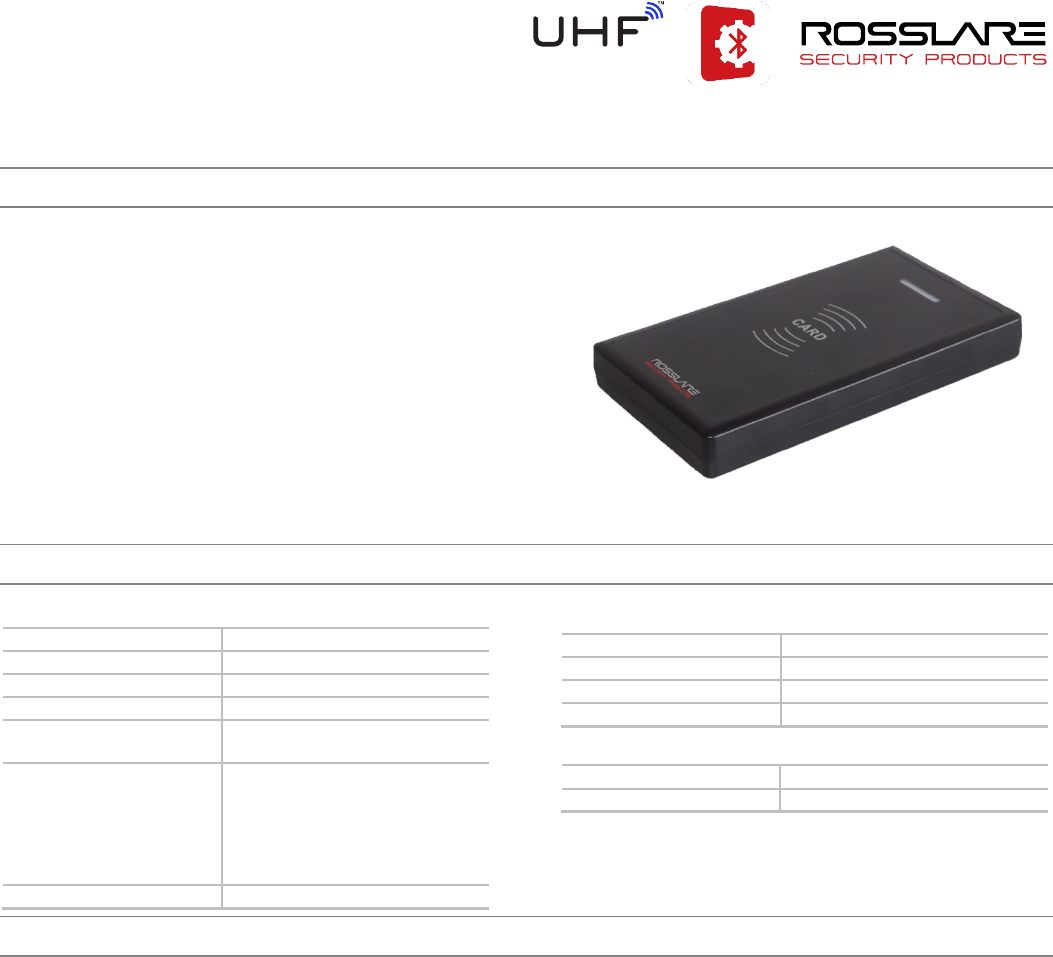

Figure 1: DR-U955BT
2. Technical Specifications
2.1 Electrical Characteristics
Operating Voltage Range 5 VDC (USB powered)
Standby Current 250 mA
Max. Operation Current 300 mA
Supported Transponders MIFARE, UHF, BLE
Read Card Distance UHF and MIFARE: Up to 5 cm (2 in.)
BLE: Up to 6 m (19.7 ft)
Operation Frequency • RFID: 13.56 MHz
• DR-U955BT US: 902–928 MHz
(America) RFID
• DR-U955BT EU: 865–868 MHz
(Europe) RFID
• Bluetooth: 2.402-2.480 GHz
Output Formats Supports Wiegand 26-Bit to 64-Bit
2.2 Environmental Characteristics
Operating Environment Indoor use
Operating Temperature Range
Storage Temperature Range -20°C to 63°C (-4°F to 145°F)
Relative Humidity Range 0 to 95% (non-condensing)
2.3 Physical Characteristics
Weight 130 g (4.6 oz)
Dimensions (L x W x H) 123 x 70 x 16.2 mm (4.9 x 2.8 x 0.6 in.)
3. Operation
The DR-U955BT appears as a COM port device when plugged in to a
PC and can be used for any application. When a card is presented to
the reader, the reader outputs the Wiegand ID data on the COM port
only once until a new card is presented.
You must use the AxTraxNG software to enroll cards. Please refer to
the relevant appendix in the AxTraxNG™ Software Installation and
User Manual.
For the enrollment reader to function in AxTraxNG, you must know
the COM port being used. The COM port can be found in Microsoft
Device Management’s driver details under ‘Ports (COM & LPT)’. The
port being used appears as “USB serial Port (COMx)”, where x is the
number of the port used.
SMART
-20°C to 63°C (-4°F to 145°F)
2 0706-0960664+00
