RoyalTek NS-4102 Portable Navigation Device User Manual NS4102T User s manual English
RoyalTek Company Ltd. Portable Navigation Device NS4102T User s manual English
RoyalTek >
User manual
1
RoyalTek
RN5 (NS-4102) / RN5 (NS-4102F) / RN5 (NS-4102B)
Portable Navigation Device
Reference Manual
2
Legal Notices
Copyright
RoyalTek RN5 Portable Navigation Device User’s Guide Original issue: September 2008.
RoyalTek and the RoyalTek logo are registered trademarks of RoyalTek Inc. Other products or
system names appearing in this document are trademarks or registered trademarks of their
respective owners. Further, the © or TM symbols are not used in the text.
Changes may be made periodically to the information in this publication without obligation to
notify any person of such revision or changes. Such changes will be incorporated in new
editions of this User’s Guide or supplementary documents and publications.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without
the prior written permission of RoyalTek Inc.
DISCLAIMER AND LIMITATION OF LIABILITY
RoyalTek and its subsidiaries make no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims the implied warranties of
merchantability or fitness for a particular purpose. RoyalTek and its subsidiaries assume no
responsibility for any damage or loss resulting from the use of this RoyalTek RN5 Portable
Navigator.
NOTE：
Record the device ID, serial number, purchase date, and place of purchase information
in the space provided below. The serial number is indicated on the label affixed to your
RoyalTek device. All correspondence concerning your unit should include the seri
al number,
device ID, and purchase information.
Revision:
1.00
September 2008
NOTE:
Information
in
this
manual
is
subject
to
change
without
notice.
3
Warnings and Notices
For your safety, do not operate the controls of the product while driving.
GPS satellite signals cannot typically pass through solid materials (except glass). GPS
location information is not typically available inside buildings, tunnels, or underground parking
lots.
A minimum of 4 GPS satellite signals is needed to calculate your GPS position. Signal
reception can be affected by weather events or overhead obstacles (e.g. dense foliage and tall
buildings).
Other wireless devices in the vehicle may interfere with the reception of satellite signals and
cause the reception to be unstable.
Adapter
Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is
damaged or exposed to excess moisture.
Do not use the adapter if the cord becomes damaged.
Connect the adapter to the proper power source. The voltage requirements are found on the
product case and/or packaging.
Battery
This unit contains a non-replaceable internal Li-polymer battery. The battery could be bursting
or exploding and releasing hazardous chemicals in case of over battery specification and
using in an abnormal conditions; disassemble, crush, puncture, or dispose of the battery in fire
or water. Abnormal operation could be dangerous to your human body. Please be aware.
Use only the specified charger approved by the manufacturer.
Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according
to the instructions.
WARNING: The Lithium-Ion battery in the device must be recycled or disposed of properly.
4
FCC COMPLIANCE
* This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user
’
s authority to operate the equipment.
CE Mark
This
equipment
complies
with
the
requirements
for
CE
marking
when
used
in
a residential,
commercial,
vehicular
or
light
industrial
environment.
R&TTE Directive.
Products
with
the
CE
marking
comply
with
Radio
&
Telecommunication
Terminal
Equipment
Directive
(R&TTE)
(1999/5/EEC),
the
Electromagnetic
Compatibility
Directive
(89/336/EEC)
and
the
Low
Voltage
Directive
(73/23/EEC)
–
as
amended
by
Directive
93/68/ECC
-
issued
by
the
Commission
of
the
European Community.
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
5
Contents
Chapter 1 Features and Specifications.....................................................................7
1.1. RoyalTek RN5 PND features .........................................................7
1.2. RN5 Specifications.........................................................................7
Chapter 2 Getting Started .........................................................................................9

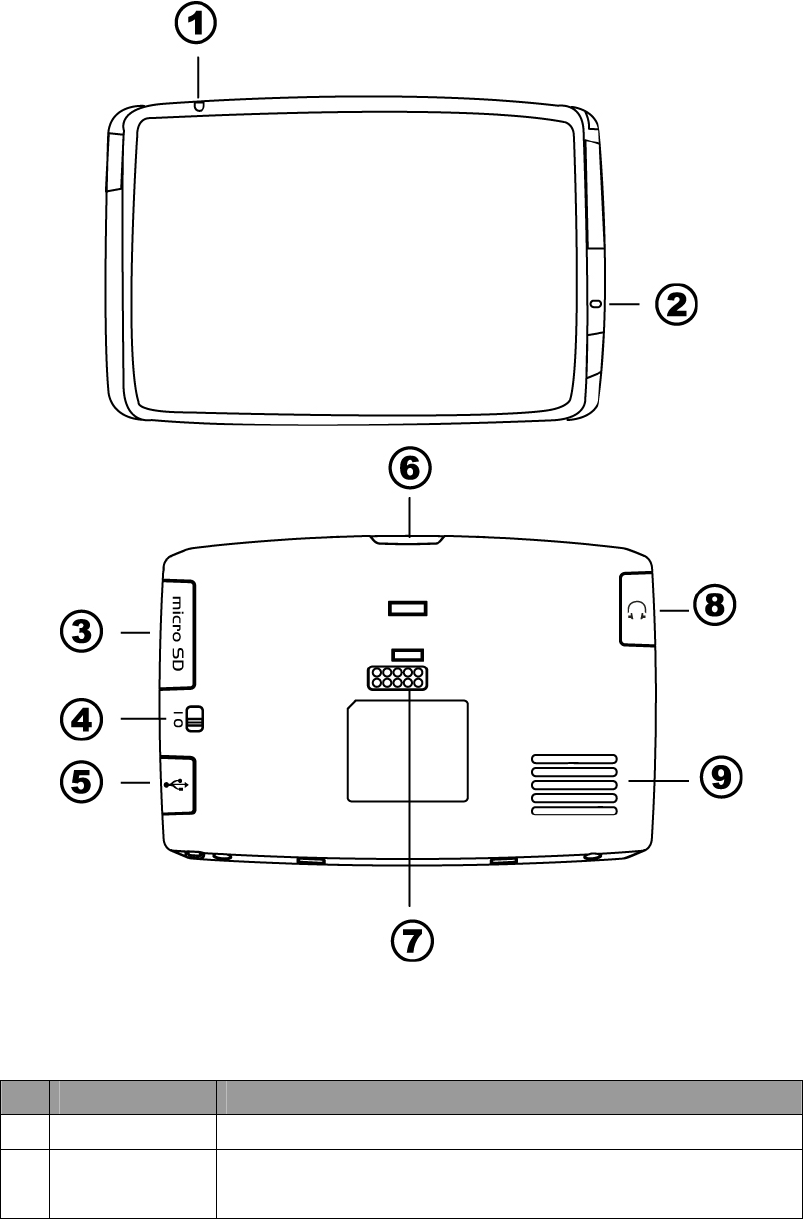

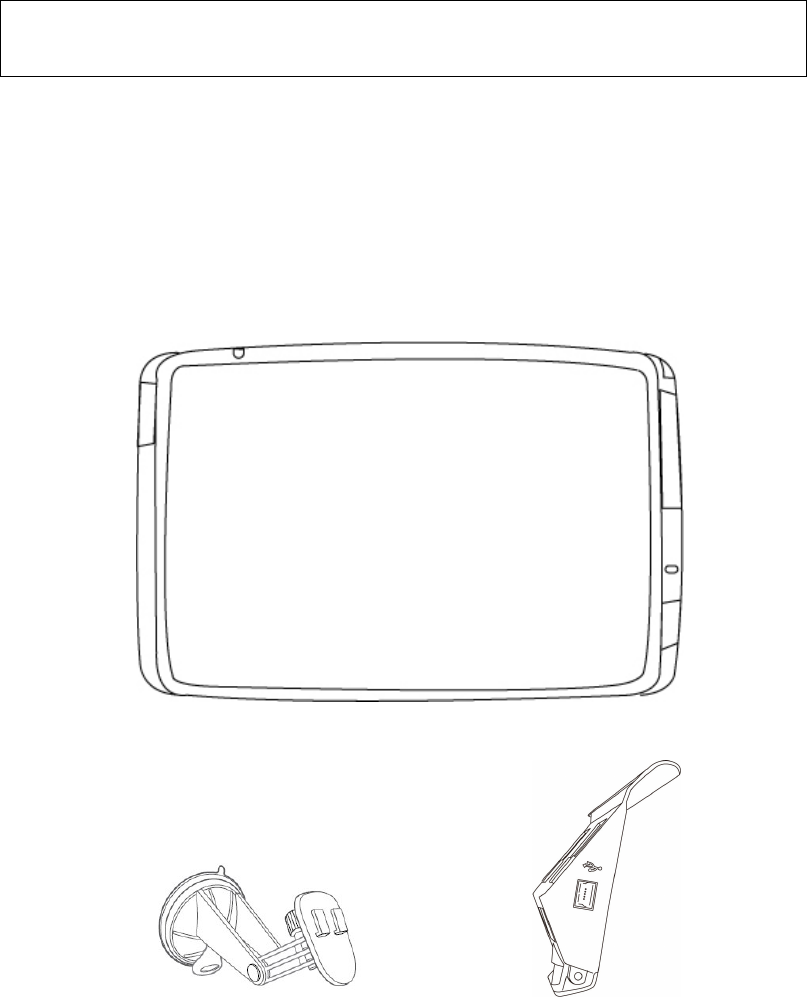

2.1. Hardware Overview........................................................................9
2.1.1

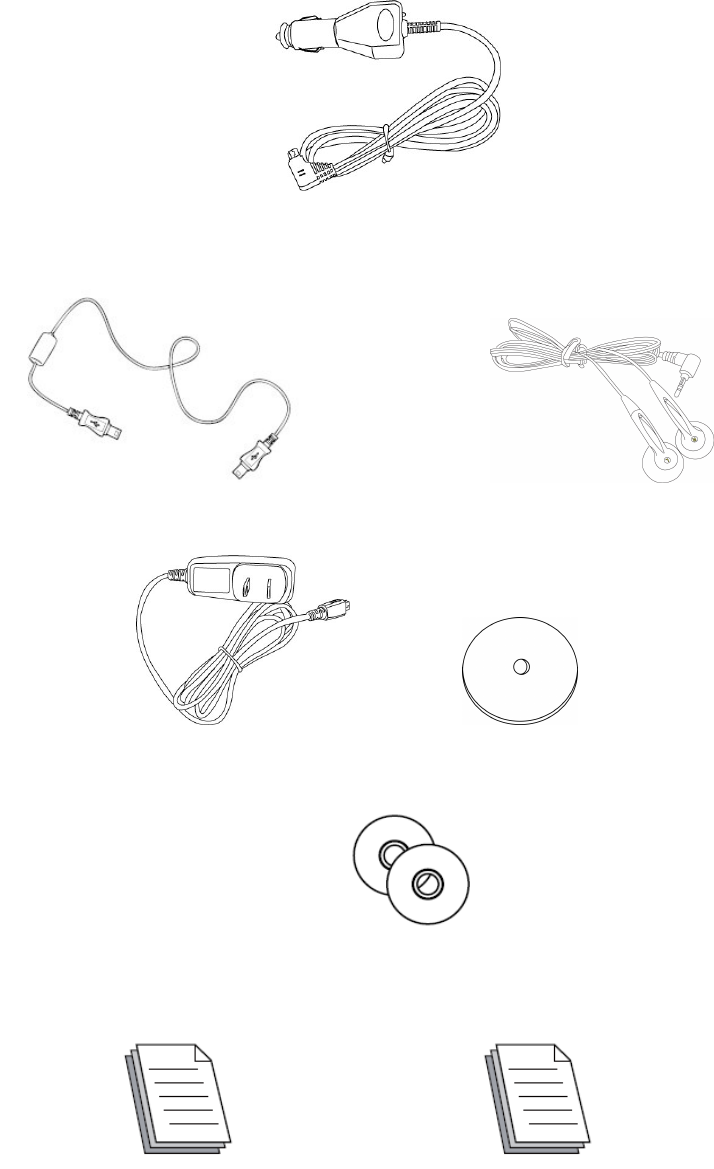

Packing list
..............................................................................9
2.1.2
Basical Introduction
...............................................................11
2.1.3

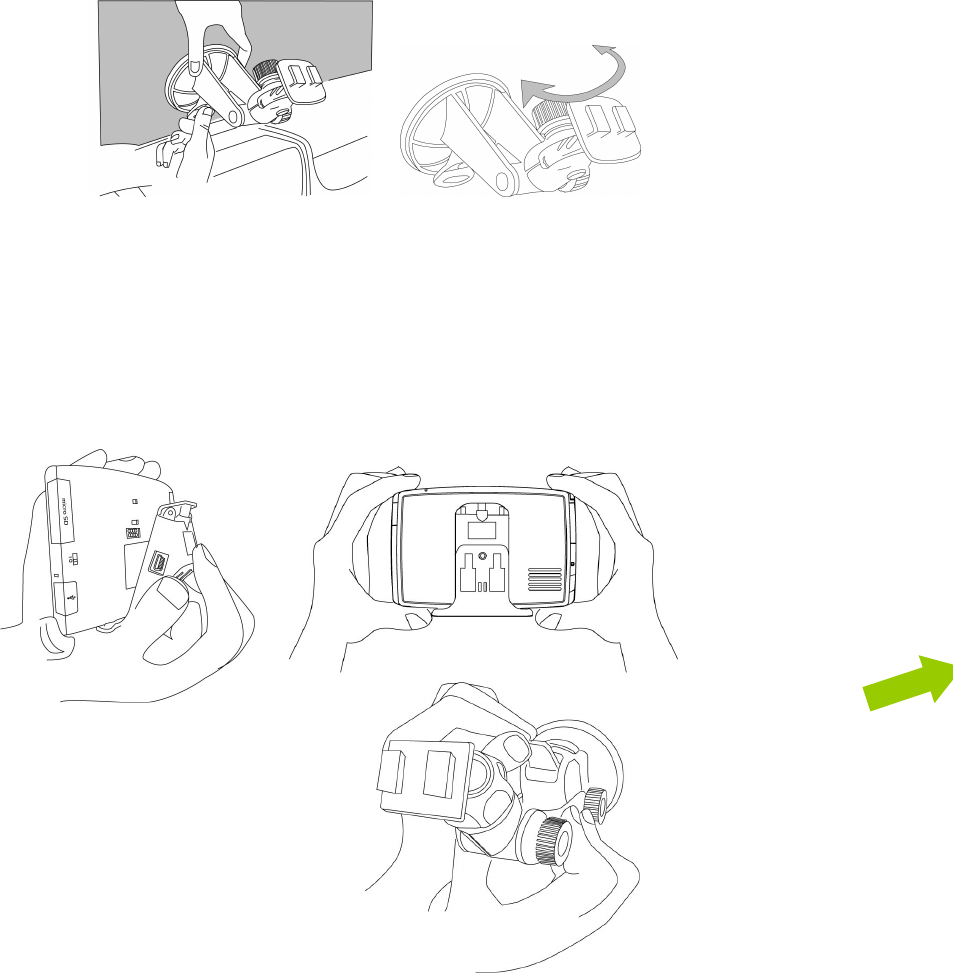

How to Use Car holder
..........................................................13

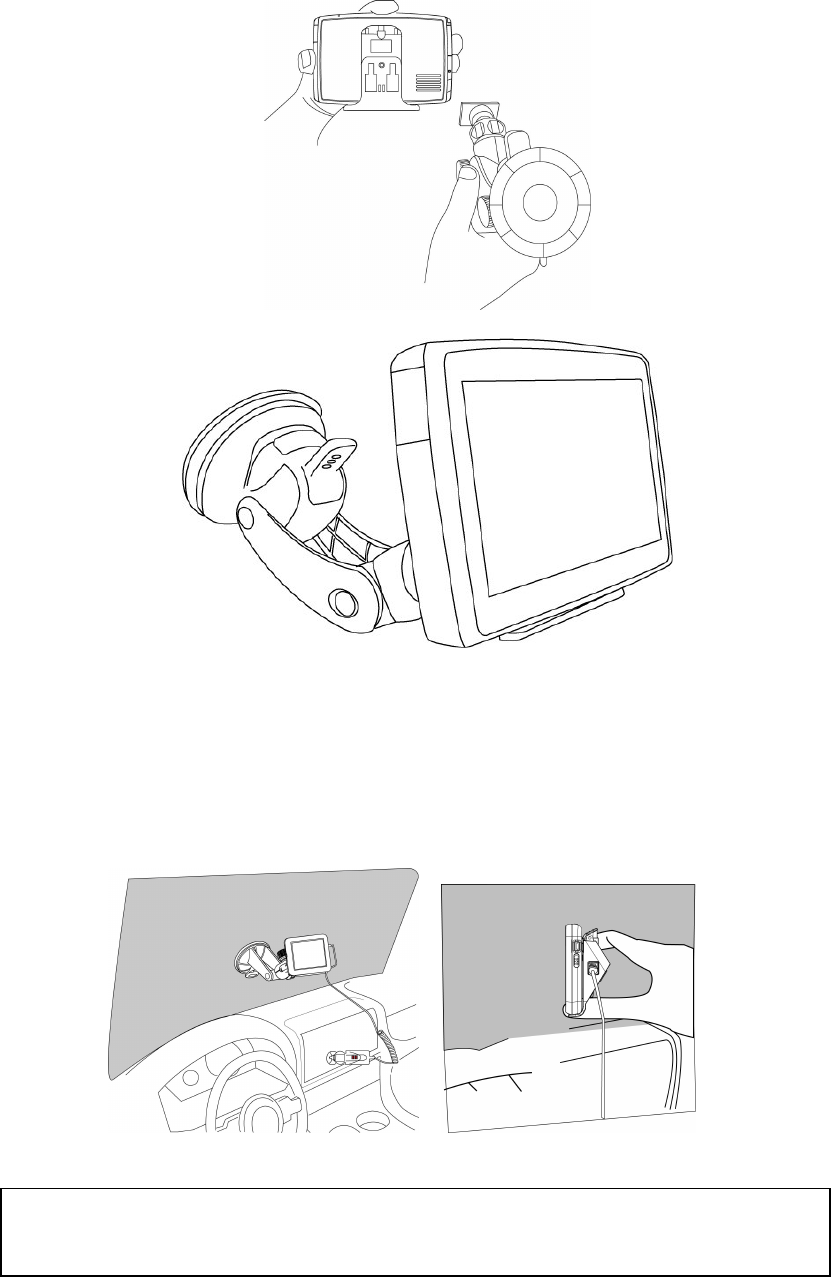

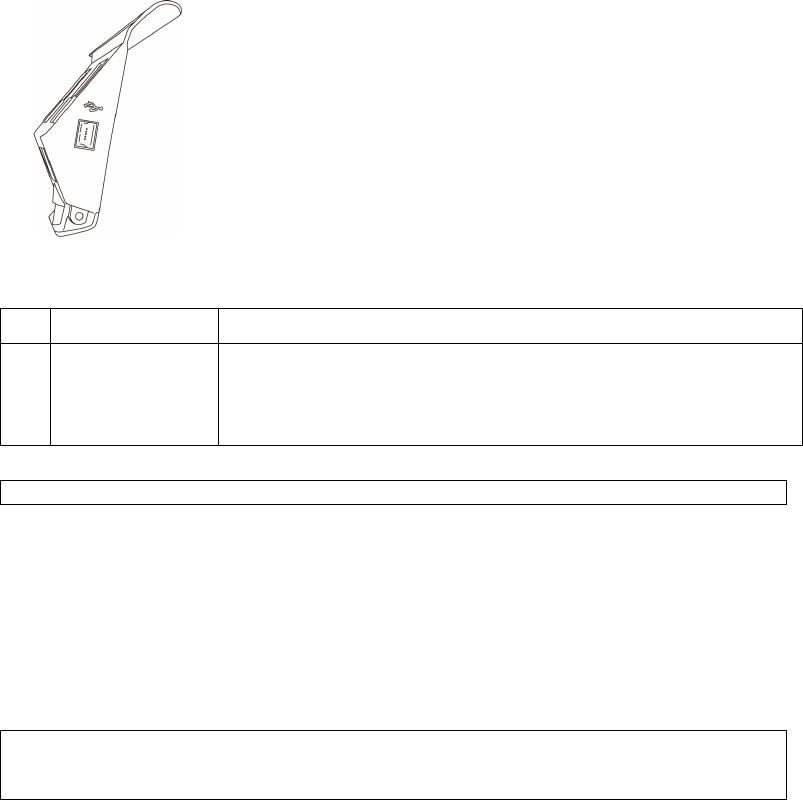

2.2. How to Use mounting bracket. .....................................................13
2.3. Resetting the RN5 Device............................................................16
Chapter 3 Start to Use RN5.....................................................................................17

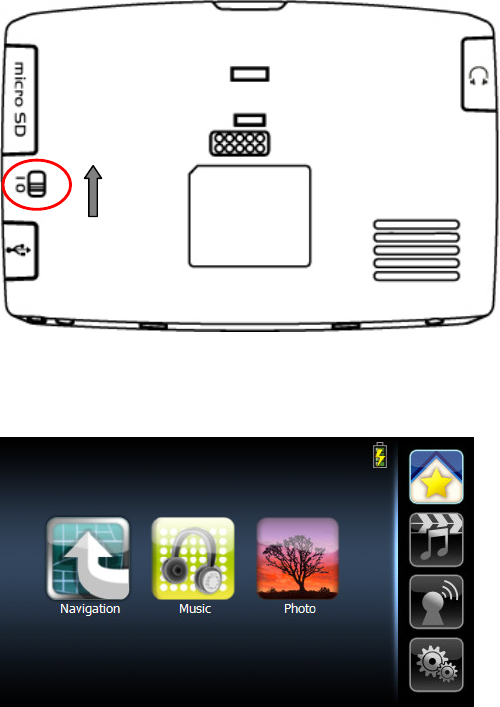

3.1. Turn on the device .......................................................................17
3.2. Configure system settings............................................................17
3.3. How to Use System settings ........................................................19

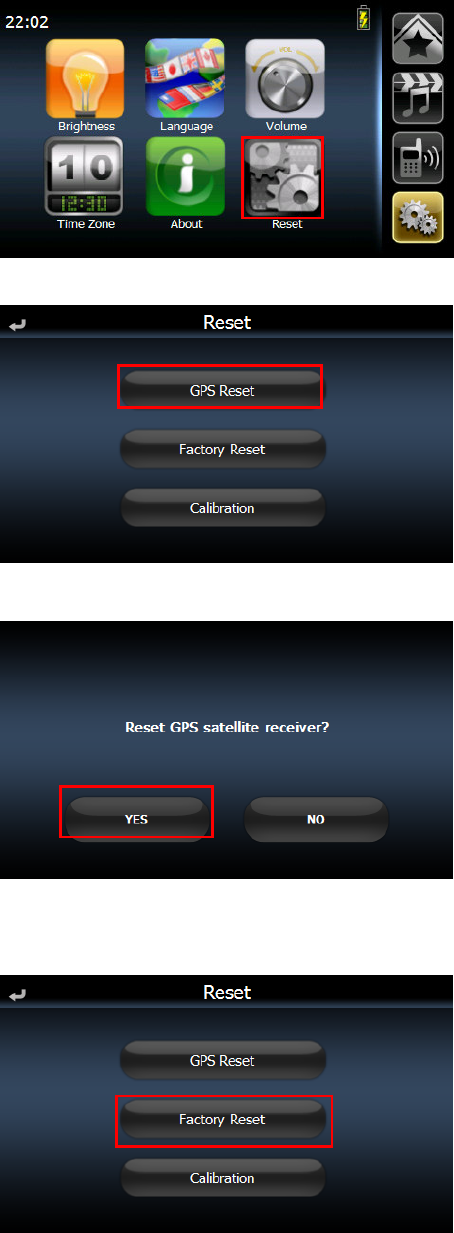

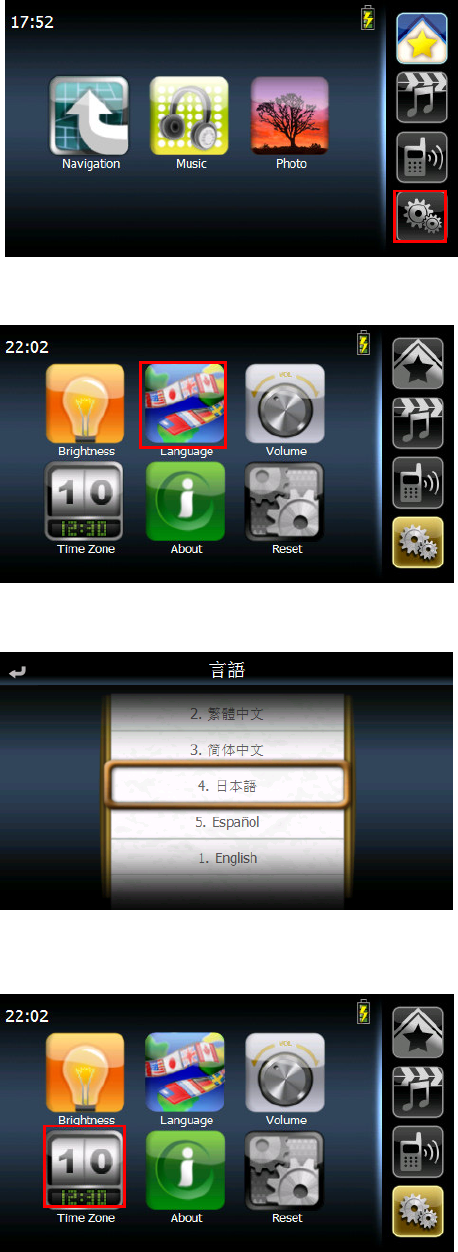

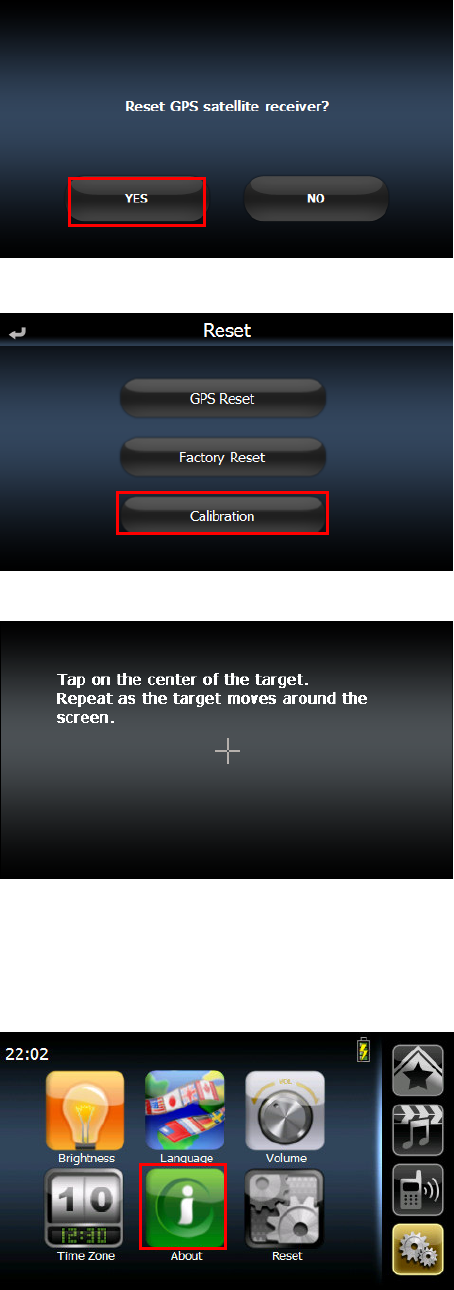

3.4. Reset............................................................................................19

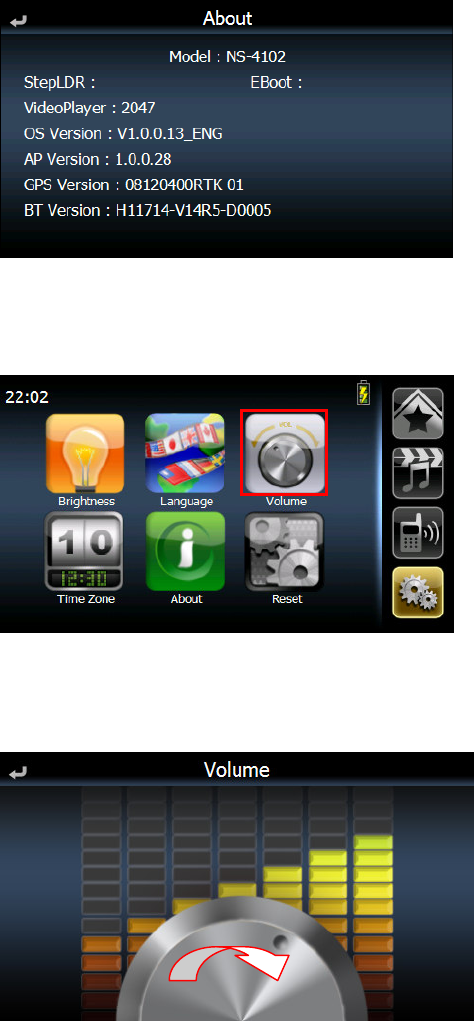

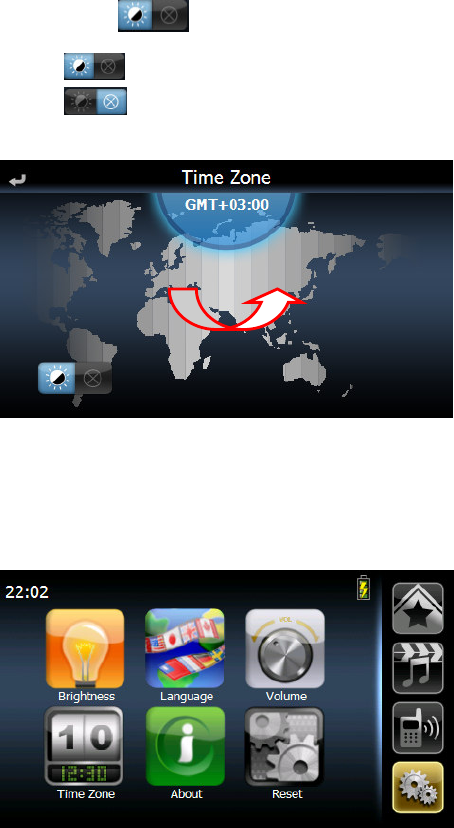

3.5. System Information ......................................................................21
3.6. Volume.........................................................................................22

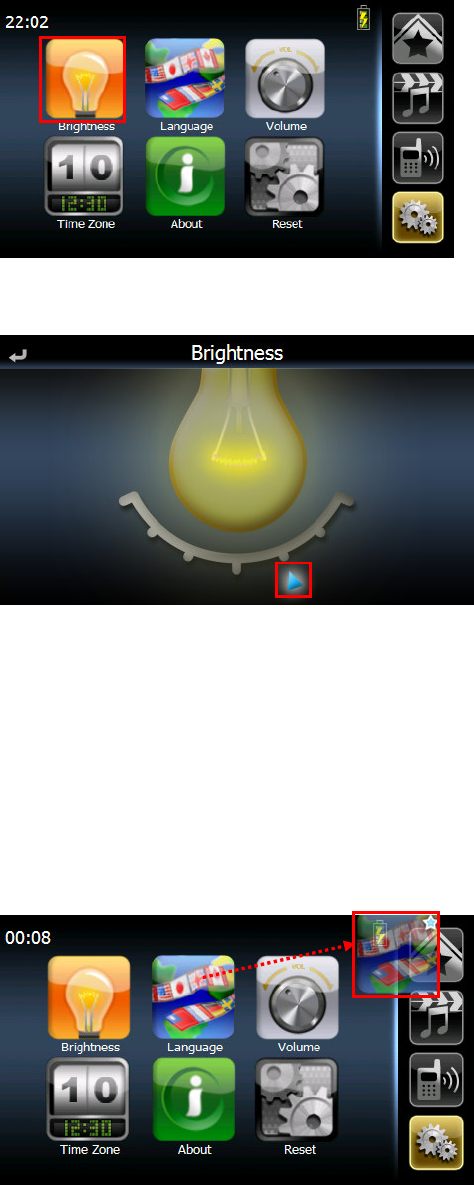

3.7. Backlight ......................................................................................22
3.8. Set a favorite application category: ..............................................23
3.8.1
Add icons to the favorite page
...............................................23
3.8.2

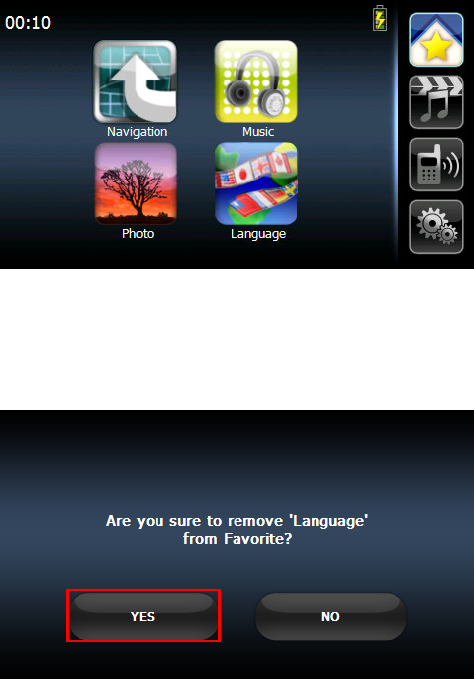

Delete icon to the favorite page
.............................................24

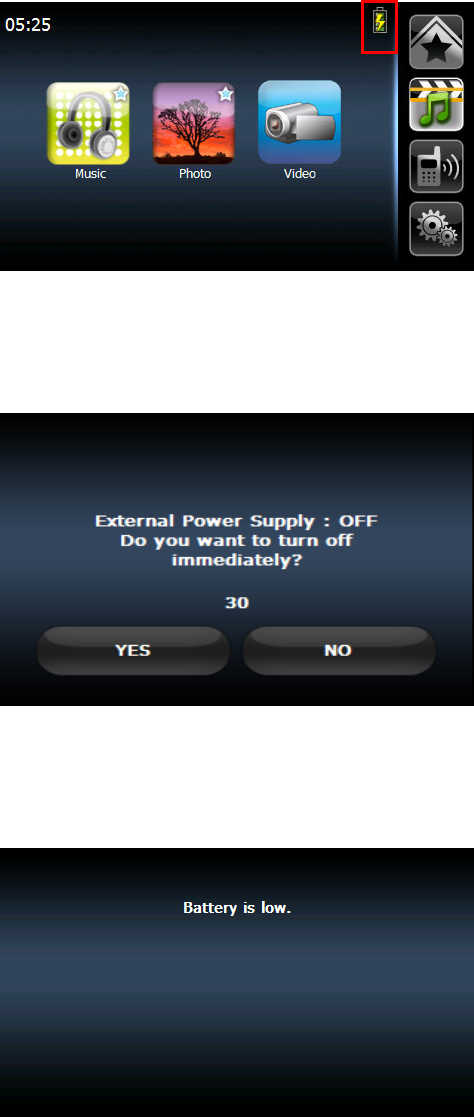

3.9. Power Supply...............................................................................24
3.9.1
Charge
..................................................................................24
3.9.2
Discharge
..............................................................................25
3.9.3
Power outage
........................................................................25
Chapter 4 Entertainment.........................................................................................26
4.1. RN5 Multimedia Player ................................................................26

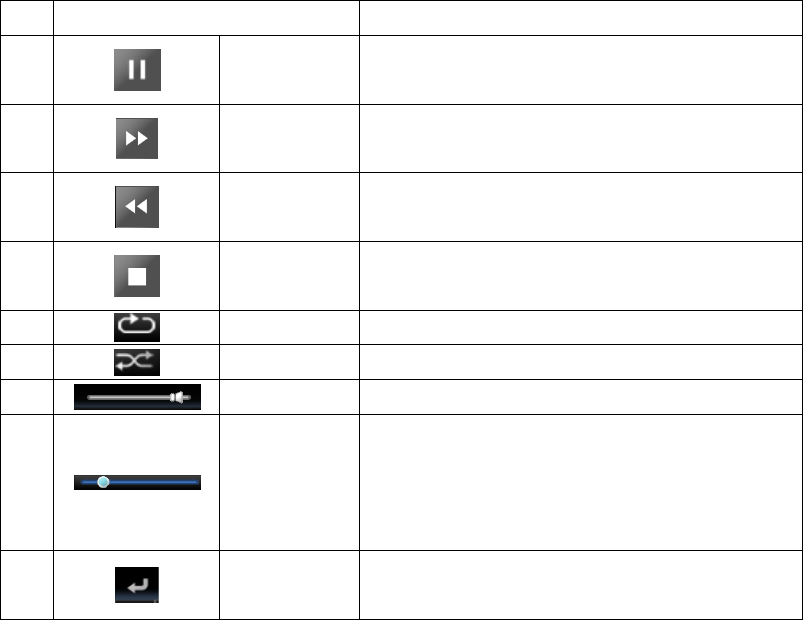

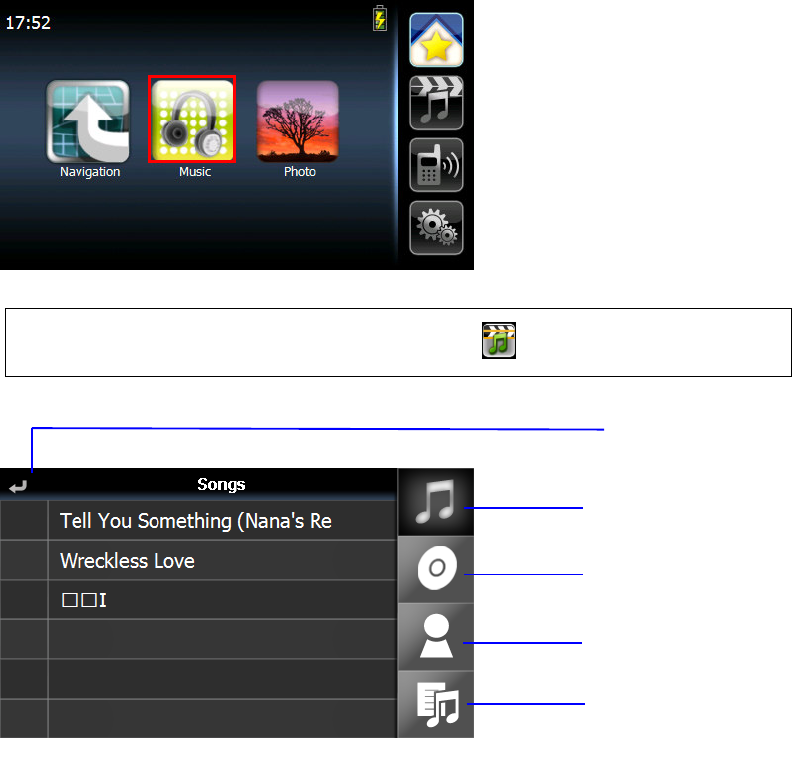

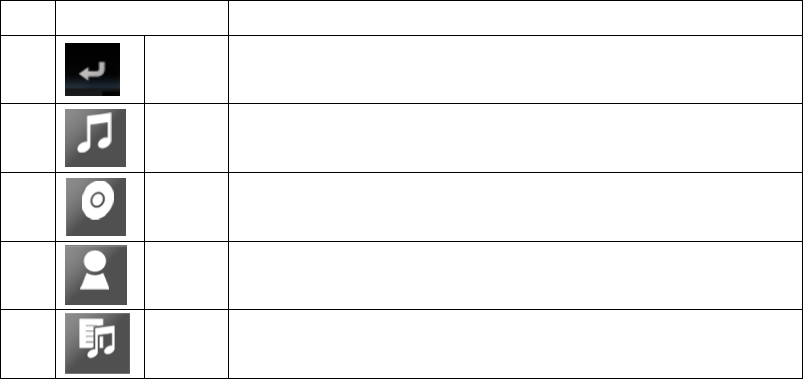

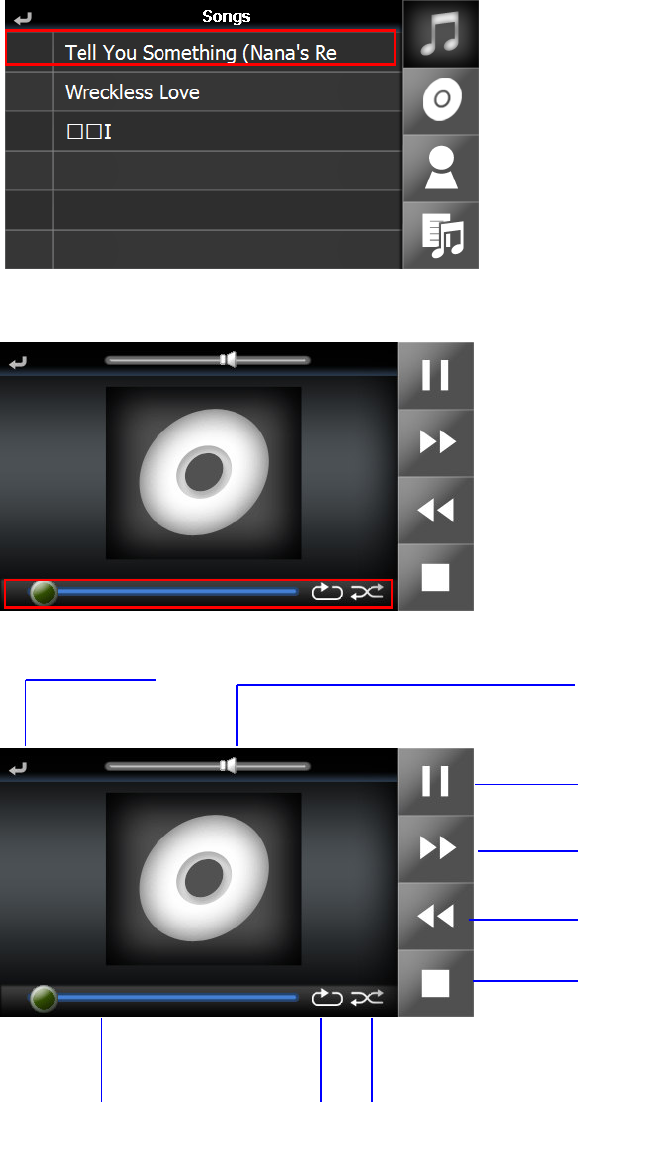

4.2. Music player.................................................................................27

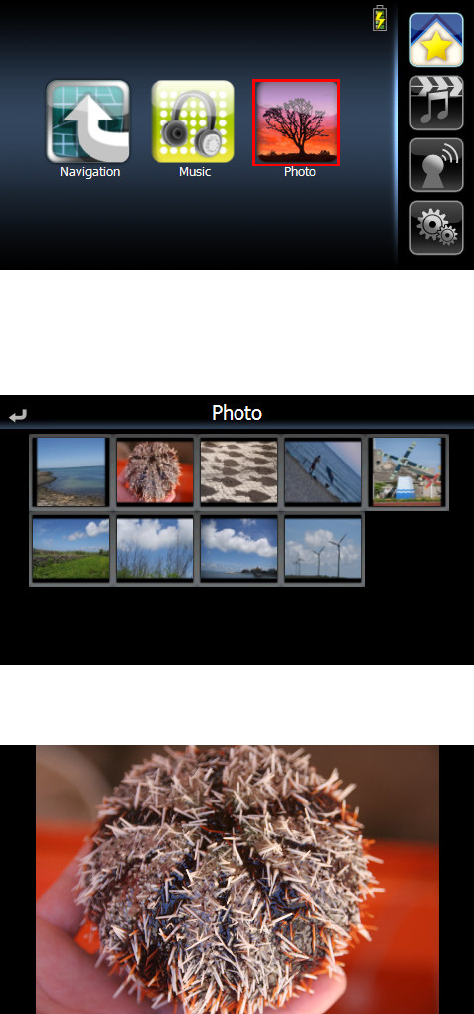

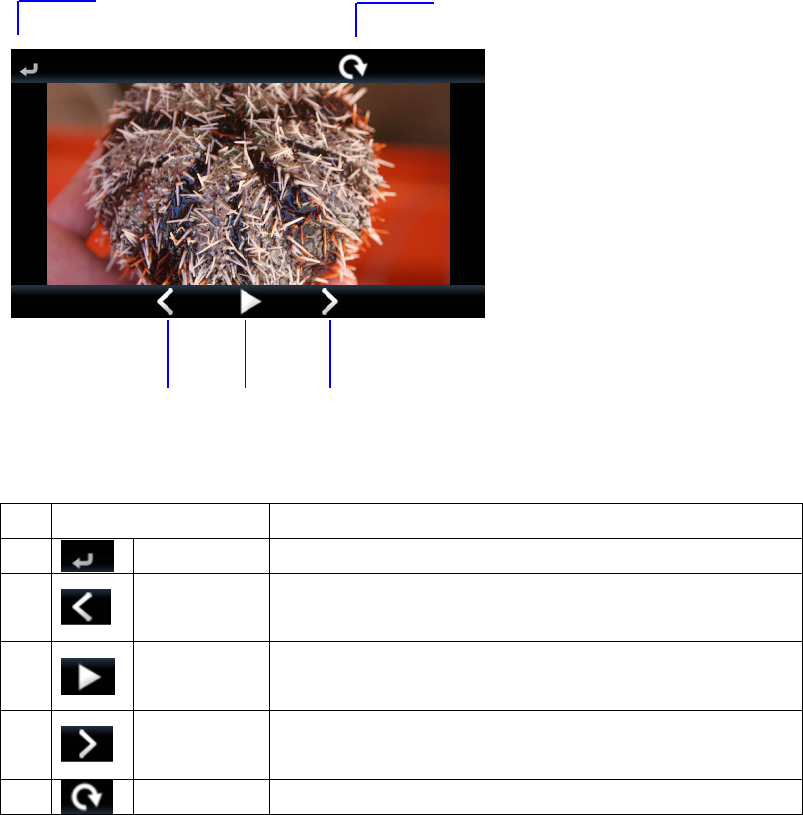

4.3. Photo Viewer................................................................................30

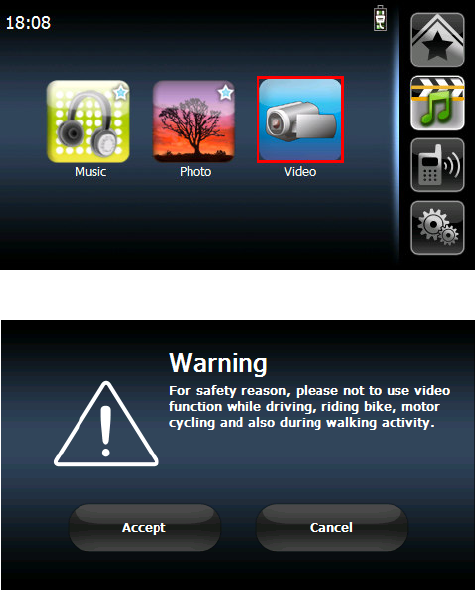

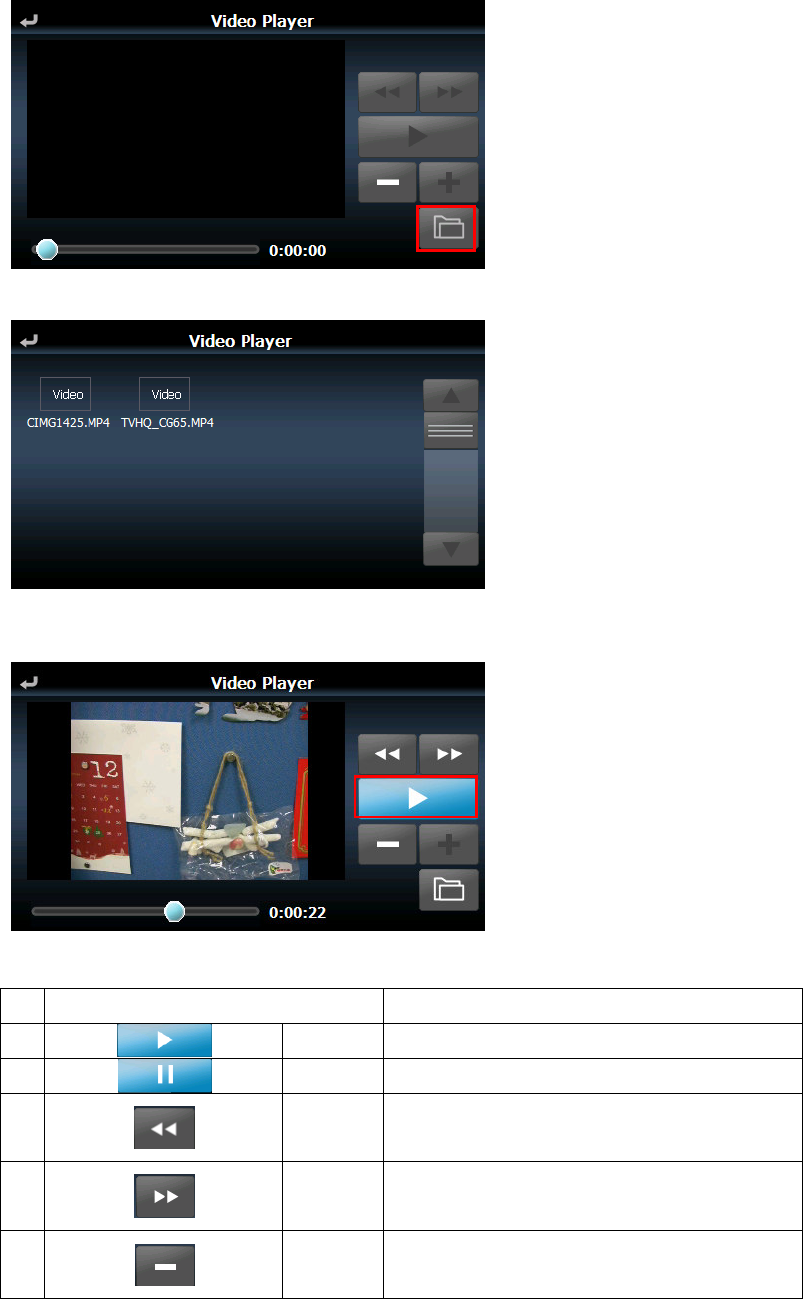

4.4. Video Player.................................................................................33

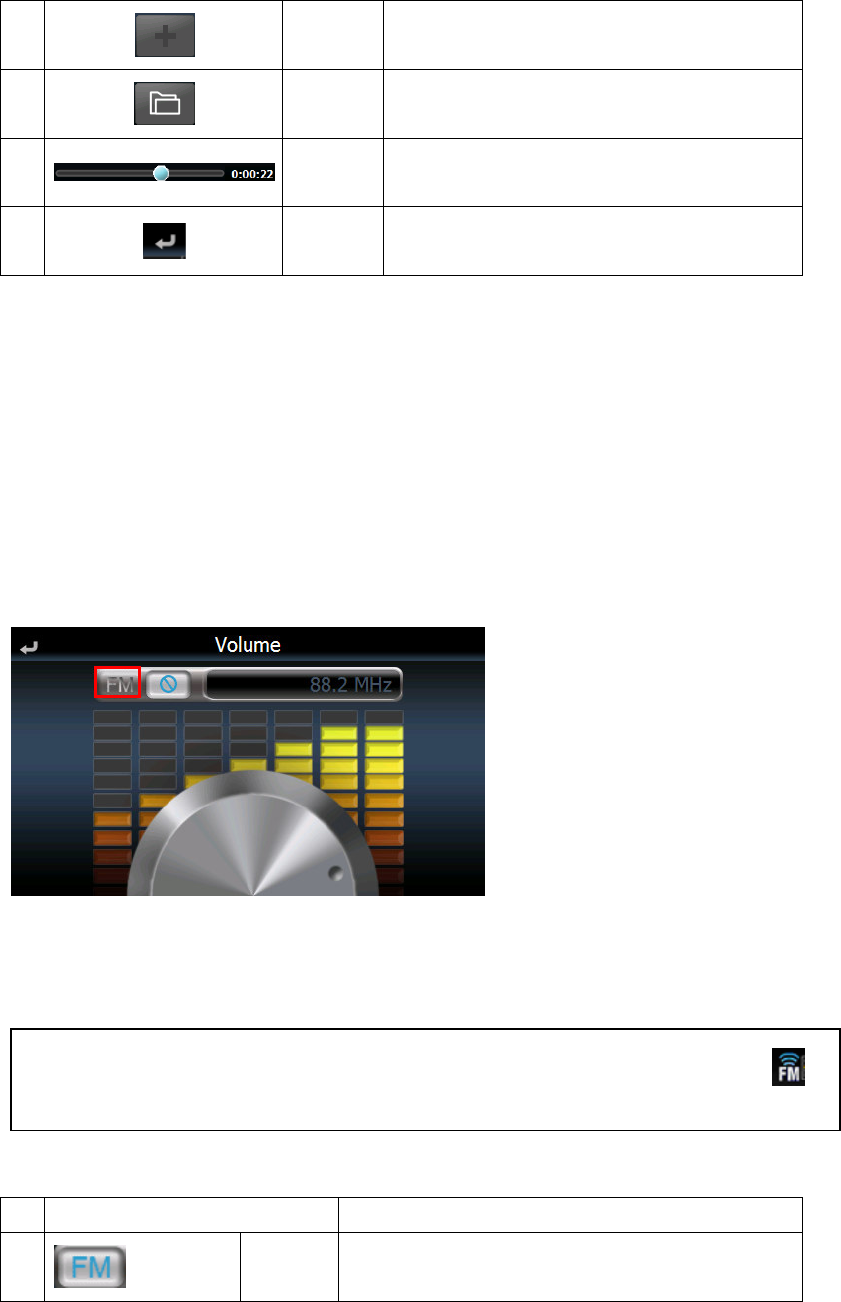

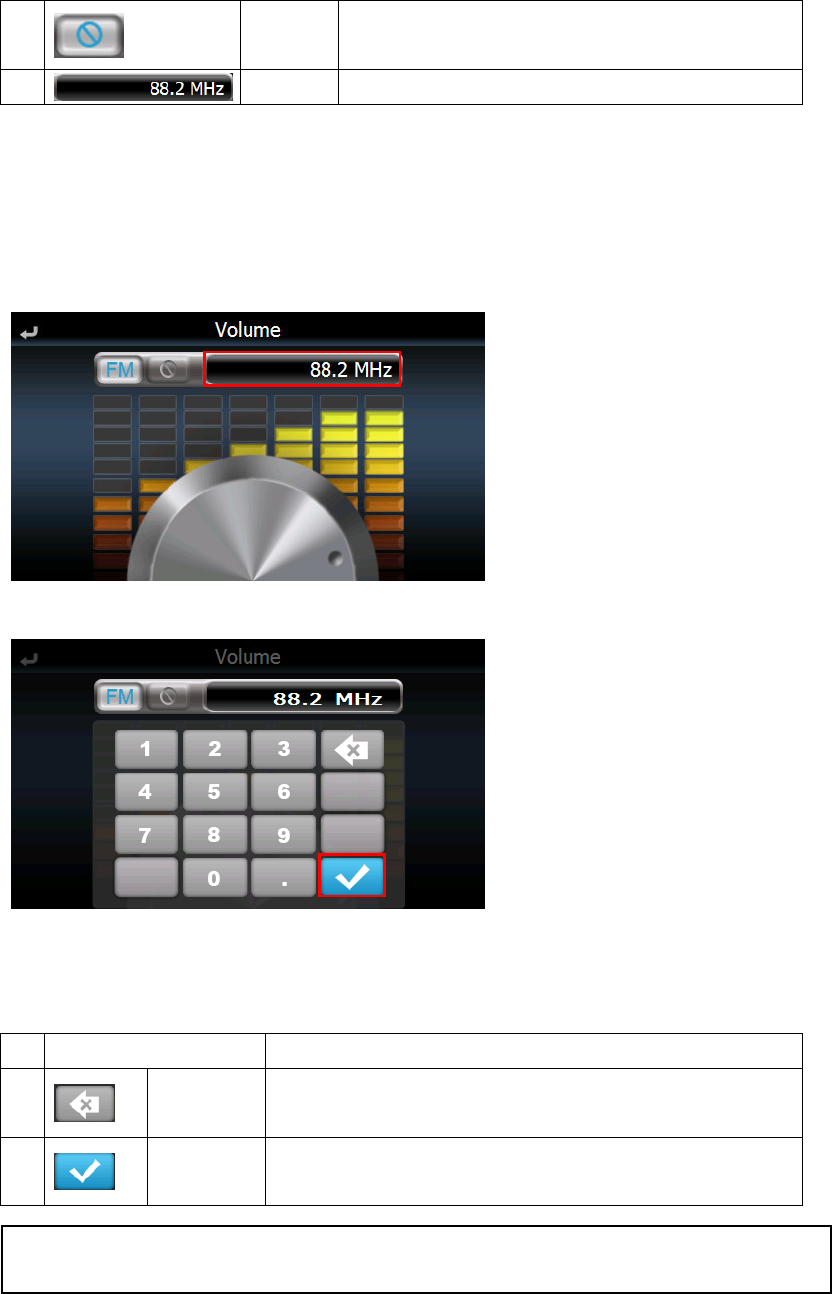

4.5. Listen MP3 via Car Audio/Stereo (FM Transmitter) .....................35
4.5.1
Turn on FM Transmitter frequency
........................................35
4.5.2
Change FM Transmitter frequency
........................................36
Chapter 5 Communications.....................................................................................37

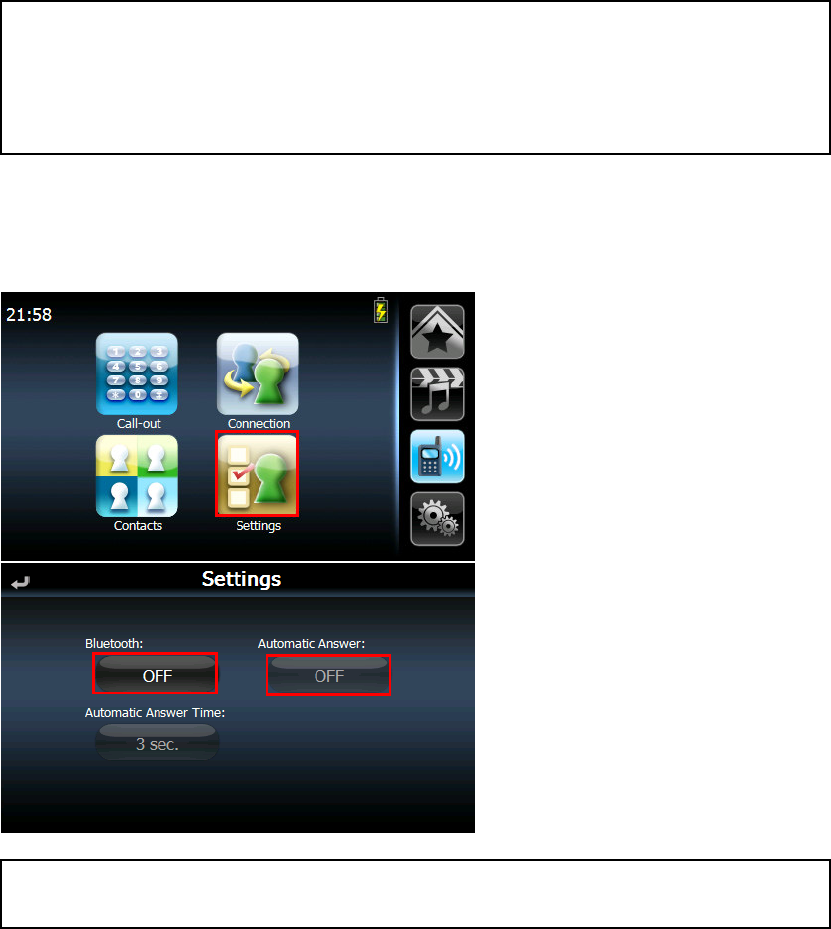

5.1. RN5 Bluetooth..............................................................................37

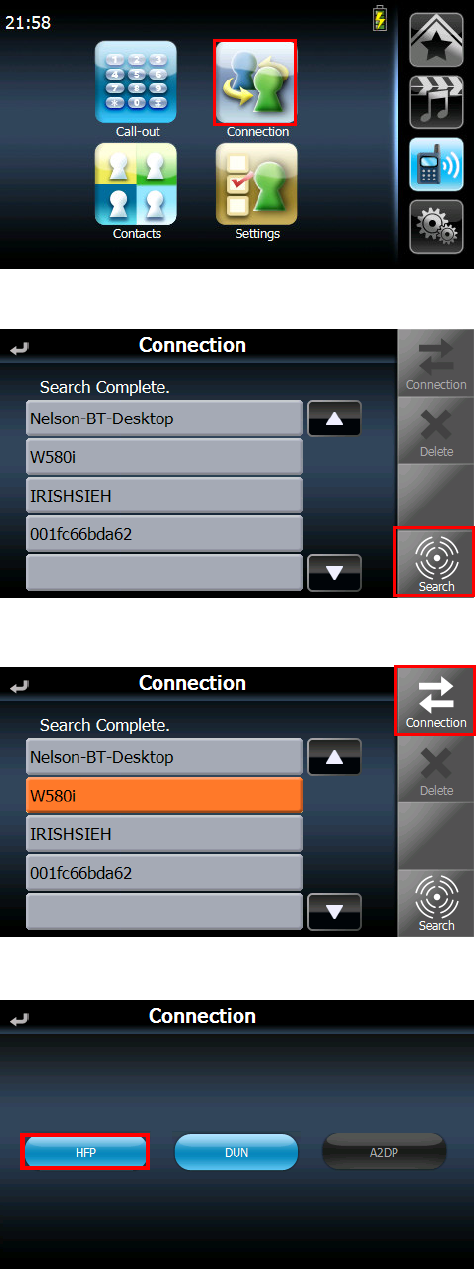

5.2. Connection...................................................................................37
6
5.3. Mobile phone connection .............................................................37

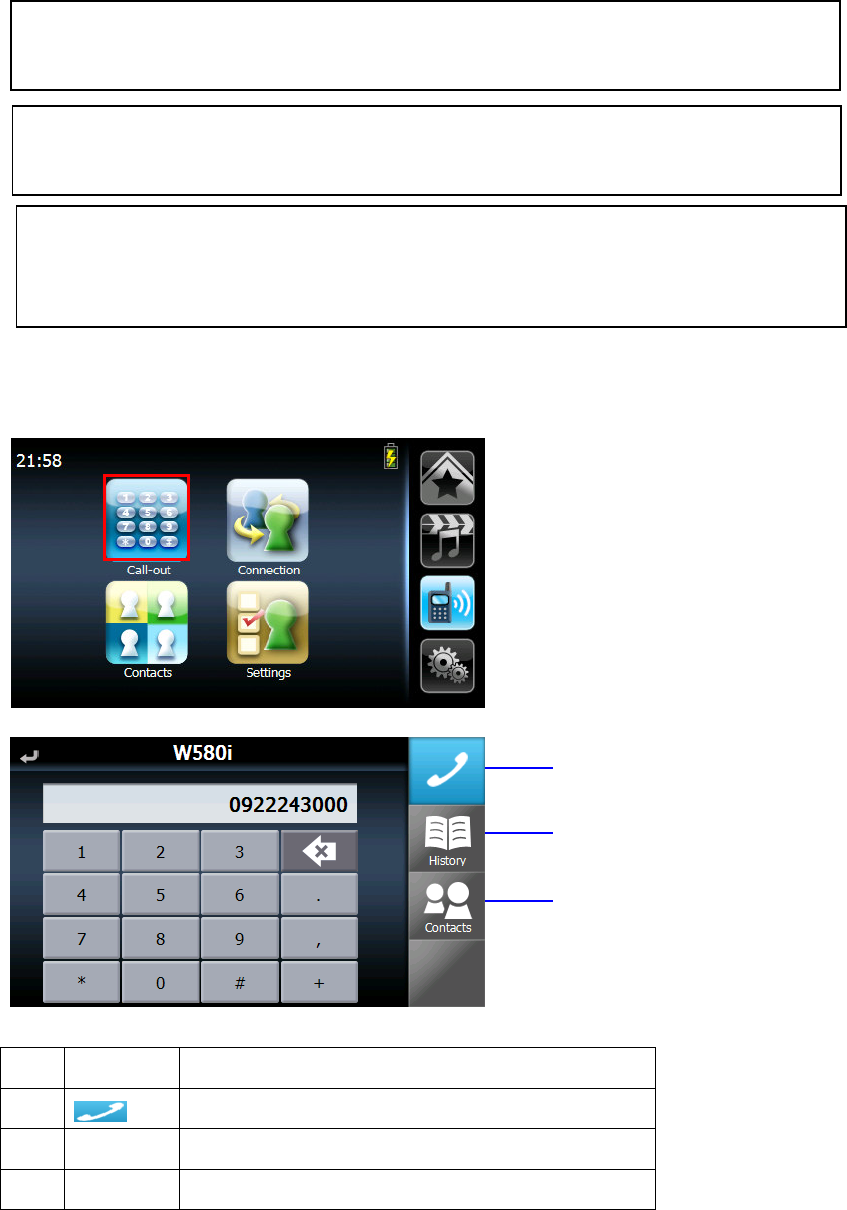

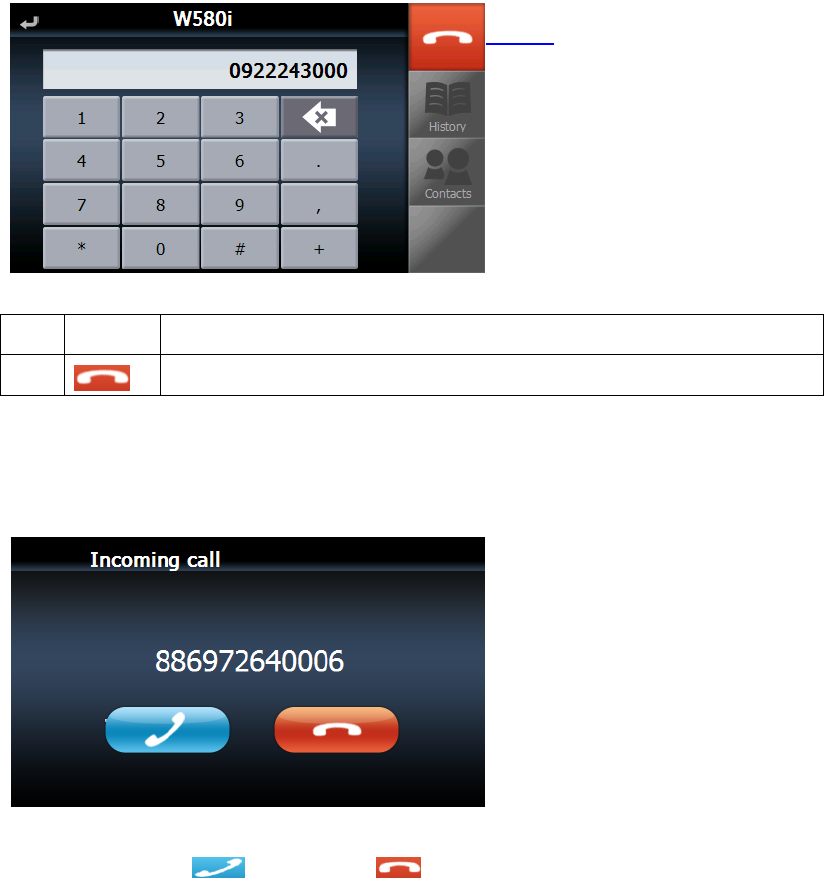

5.4. Call Out (Hands – free Calling) ....................................................39

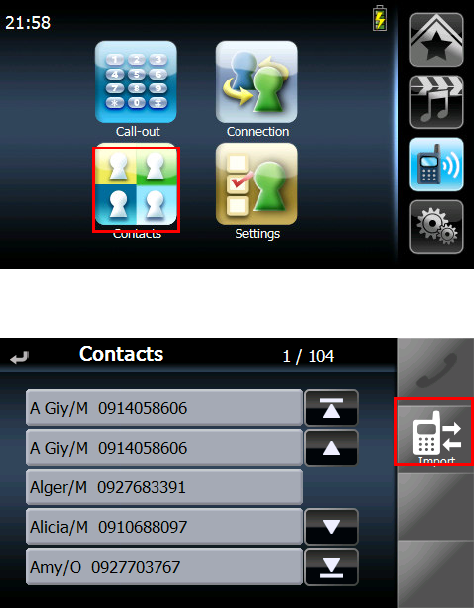

5.5. Contacts (Import phonebooks).....................................................40
Chapter 6 Troubleshooting and Maintenance........................................................42
6.1. General troubleshooting...............................................................42
6.1.1
If your device does not respond, do a “hard reset.”
...............42
6.1.2
Users can also perform a “system reset.”
..............................42
6.1.3
Screen responds slowly
........................................................42
6.1.4
Inaccurate response to tap on touch screen.
.........................42
6.1.5
Connection Problems with PC.
..............................................42
6.1.6
No GPS connection
...............................................................42
6.1.7
No sound coming from the device.
........................................43
6.1.8
Cannot see photos.
...............................................................43
6.1.9
Take longer than normal time to get a GPS fix.
.....................43
6.1.10
Factory reset does mean a GPS reset.
..............................43
6.2. Maintenance ................................................................................43
6.2.1
Storage precautions
..............................................................44
6.2.2
Accessories and repair precautions
.......................................44
7
Chapter 1 Features and Specifications

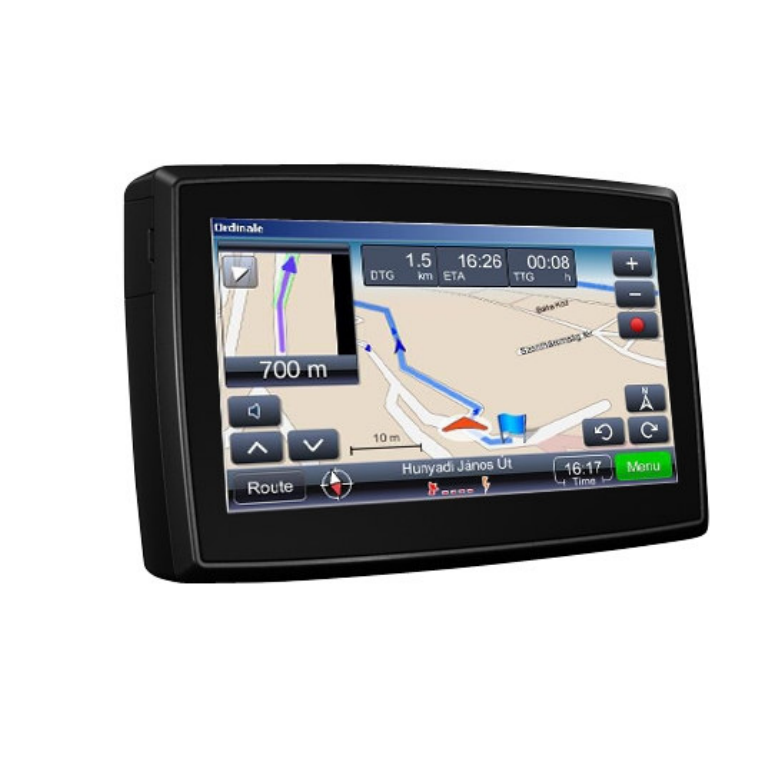

1.1. RoyalTek RN5 PND features
The
RoyalTek
RN5
Portable
Navigation
D
evice
is
a
powerful
multifunction
GPS/multimedia
navigation
and
entertainment
device.
•
Compact
size
and
lightweight
•
Integrated
GPS
receiver
for
GPS
navigation
•
High-resolution
color
LCD
•
4.3”
wide
touch
screen
with
480 x 272 x 16 bits
•
Multimedia
functionality
with
high
performance
processor
1.2. RN5 Specifications
Table
1:
RN5
dimensions
and
specifications
Category Item
Chassis
Dimension 123.5*81.9*14.8 mm
Weight 180g
Specifications
Operating Temperature: 0 ℃ to +55 ℃
Storage Temperature：-20 ℃ to + 70 ℃
Battery charge Temperature: 0 ℃ to +40 ℃
System
OS Windows CE 5.0 Core Version
Storage 2GB MLC NAND Flash
Memory 64MB Mobile DDR SDRAM
Display
Screen Type TFT, Touch Panel
Screen Size 4.3”
Resolution WQVGA 480* 272
Backlight Yes, brightness with TSP 280 nits typical
Touch Panel Yes, (Finger Tapped)
8
Category Item
Battery
General 930mAh, Li-ion Battery
Recharge Time
Power On (charged by Car Charger)
About 4 hours charge from empty to full.
Power OFF (charged by USB or Car Charger)
About 4 hours charge from empty to full.
Audio
Earphone Yes (option)
Speaker 1.0W mono speaker
Hardware Button\Slot
Micro SD Supports Micro SD
Battery switch On/ Off
USB
USB solution USB 2.0 device with supporting mass storage( High Speed)
9
Chapter 2 Getting Started
This
chapter
describes
the
hardware
interface
of
the
RoyalTek
RN5
and its
peripherals.
Instructions
for
setting
up
the
device
and
some
basic
system operations
are
also
discussed.
NOTE: Although the RN5 rechargeable Li-
Polymer battery comes approximately 30% charged,
before using, it is best to connect the AC adapter (Optional Accessory
) or USB cable by PC
connect and plug to power socket and fully charge the battery. The ON/OFF button will
be
orange when charging and green when change done.
2.1. Hardware Overview
This section introduces the RN5 PND external features and hardware components.
2.1.1 Packing list
The RoyalTek RN5 box contains all of the items listed below
：
RN5 Portable Navigation Device
Car mount Car holder
10
Car charger
USB cable (Option Accessory) Earphone (Option Accessory)
AC adaptor (Option Accessory) Dashboard (Option Accessory)
Portable Navigation Device Application Software DVD.
Portable Navigation Device Quick Start Guide. Portable Navigation Device Warranty
statement.
11
2.1.2 Basical Introduction
Figure
1:
Front/ Back View
Table
2-
1:
Top
and
Left/Right side
controls
NO
Function
1
Microphone
Receives your voice while using hands-free of Bluetooth function.
2
Charge status
LED
Indicated the battery charging status.
On: Charging
12
Off: Charging down
3 Micro SD
Accepts Micro SD storage cards, allows you to use audio, image files
stored in it for using internal applications.
4
Battery Switch
On/ Off
5
Mini-USB port
the mini-USB connector of the main device can be used to charge
power or upload files from computers.
6
Power Button
Standby mode by pressing the button for sleep/wake.
7
I/O port of Car
Holder
I/O port while connecting with car holders.
8 Earphone
Standard
stereo
headphone
jack.
13
2.1.3 How to Use Car holder
Figure
2:
Car
holder side views
Table
2-2:
Car holder
No
Function
1
USB
Port/Docking
connector
The mini-USB connector of car cradle can be used to charge power
only.
Warning:
The mini-USB connector is only for charging, not for files(data) transition.
2.2. How to Use mounting bracket.
The
RN5
comes
with
a
car
mount
kit
and
a
car
charger
to
help
install
your
device
in
your
vehicle.
The
car
mount
kit
uses
a
suction
cup
on
the
windshield to
offer
flexible
mounting
options
for
the
RN5.
Warning:
Some
countries
prohibit
the
mounting
of
any
electronic
device
on
the
vehicle
dashboard.
Be
sure
to
check
your
local
laws
for
acceptable
mounting
areas
before
installing
the
car
mount
bracket.
This section shows how to install the car mount kit in your vehicle’s windshield using the suction
cup. The RN5 uses a snap on mounting cradle to use when the device attaches to the car mount.
Below is the backside view of the RN5 in the cradle.
1.
Clean
the
mounting
surface
with
a
glass
cleaner
and
a
clean
cotton
cloth.
2.
If
the
ambient
temperature
is
below
+15°C
(60°F),
you
can
warm
the mounting
area
and
the
suction
cup
(e.g.
with
a
hair
dryer)
to
ensure
a strong
suction
bond.
3.
Install
the
car
mount
on
the
selected
area.
a. Press the suction cup of the car mount firmly against to the windshield. (See Figure
2-3-1)
b. Press down the lever to fix the suction cup in place.
14
c. Adjust the angles of the arm to your proper viewing position.
Figure
2-3-1
4.
Mounting the device holder with your RN5.
a. Fit RN5 down in the device holder first, and then lock it using the plugs on the bottom of
the device holder. (See Figure2-3-2)
b. Firmly lock the RN5 with device holder on the car mount which has been mounted to
your windscreen.(See Figure2-3-3)
Fig
ure
2-3-
2
15
Figure 2-3-3
5. Charging your RN5 device.
a. Plug the car charger to the 12 V outlet of your car and then connect the charger cable to
the Mini USB port of the RN5 car holder
；
Please make sure the battery switch status in
“ON” mode. (See Figure 2-3-4)
b. now You can let your RN5 have the continuous power by the car charger.
Figure 2-3-4
NOTE：
Your
car
may
be
required
to
switch
the
vehicle
ignition
into
the
accessories
position
to
power
the
cigarette
lighter.
Your
NS-4102
will
not charge
with
the
ignition
off.
16
6. Starting your RN5
a. Push the battery switch ON.(Default status OFF), and then the main menu screen
appears.
b. Tap Navigation, you will see the map screen displayed.
c. Please read the User’s Guide of Navigation software for the detail setting information.
Please be noted, the first time turning on your RN5 may take some time to obtain a valid GPS
fix.
2.3. Resetting the RN5 Device
In the normal situation, unnecessary to reset your RN5. However, in the event that a problem
cannot be corrected, you may reset the RN5 device by the following way
：
Hard reset：
• To do a “Hard reset” Disconnect all cables, including the AC adapter, from your device.
By sliding the hard reset switch on the primary ON/OFF switch on the back side of the device
from OFF to ON position.
NOTE：In some condition of charging NS-4102, if room temp. is over 35 degree C, PND might not be
charged because of internal heat protection. After a while, internal heat is decreasing, then NS-4102 can
be charged again.
17
Chapter 3 Start to Use RN5
After
fully
charging
the
RN5
it
is
ready
to
be
used.
You
can
now
turn
it on
and proceed
to
system
settings configuration.
3.1. Turn on the device
1. Sliding the battery switch to “ON”. (Default status OFF)
After turning on the device,
main page
will
display.
This
is
also
referred
to
the
Favorite page.
3.2. Configure system settings
If
you
intend
to
start
using
your
RN5
at
once,
we
recommend
that
you configure
the
language
and
time zone
settings
first.
The
rest
of
the
user
preferences
can
be
set
up
later.
1. Tap
“System”
in
the
right category bar
18
.
2. Tap “Language” on the System page.
3. It will display current language in central area.
4. To drag wheel scroll language tags.
5. To set the system time zone, tap “Time Zone” in System Menu.
19
6.
Tap the
icon to set up the function of daylight saving s time.
a. represent enable the function of daylight savings time.
b. represent disable the function of daylight savings time.
7. Drag the Map to adjust the time zone.
3.3. How to Use System settings
Other
system
settings
can
be
used
to
view
and
adjust
your
device
current
preferences.
Navigate
from
the
System
Menu.
3.4. Reset
GPS Reset:
：
When user wonder if GPS receiver perform properly or not .( ex : Change the region)
Factory Reset
：
The factory reset function not only resets the operating system settings to default factory
values, but also reset the GPS settings.
Calibration
：
When the touch screen does not respond well, calibrate the screen of your device.
1 Tap
the
“
Reset”
icon
in
the
System
Menu.
20
2 Tap
the
“GPS
Reset”
icon
in
the
Reset
Menu.
.
3 Tap
the “YES” to reset the GPS.
4 Tap
the
“Factory
Reset”
icon
in
the
Reset
Menu.
5 Tap
the “YES” to do the Factory Reset.
21
6 Tap
the
“Calibration
”
icon
in
the
Reset
Menu.
7 Tap on the center of the target. Repeat as the target moves around the screen.
3.5. System Information
1.
Tap
the
Sys
Info.
icon
in
the
System
Menu.
22
2. You can view the OS version, GPS firmware version and other system information..
3.6. Volume
1.
Tap
the
Volume
icon
in
the
System
Menu.
2. Adjust the volume by dragging the wheel.
3. Dragging to left will become mute, and opposite will become larger.
3.7. Backlight
1. Tap
the
Backlight
icon
in
the
System
Menu.
23
2. Adjust
the
Backlight
brightness by dragging triangle icon.
3. Dragging to left will become darker; dragging to right will become lighter.
3.8. Set a favorite application category:
In order to provide more organized and friendly application management interface for users
organizing their own favorite application category by drag-and-drop, but the maximum number
of favorite application shortcut is six.
3.8.1 Add icons to the favorite page
1. Drag the icon to the category bar of favorite category.
2. That will show the icon in favorite page.
24
3.8.2 Delete icon to the favorite page
1. Drag the icon from Favorite page to category bar and drop it. Confirm dialog will pop up, just tap “YES” to
delete.
3.9. Power Supply
RN5 has a completive power management system, and enhances its standby time. In
addition, it can make end-users more convenient to carry it for entertainment purpose,
not only using in cars but also at home, outdoor activities.
3.9.1 Charge
While end-users use our standard car charger or AC adapter to charge RN5, the main
screen would remind you.
25
3.9.2 Discharge
While end-users remove out our standard car charger or AC adapter, the main screen
would remind you to turn off RN5 or not.
3.9.3 Power outage
While battery capacity is lower than 20%, the main screen would remind end-users
the following message.
26
Chapter 4 Entertainment
4.1. RN5 Multimedia Player
RN5
is
a
fully
capable
multimedia
player
that
can
enhance
your
portable
entertainment.
In
addition
to
its
navigating
function,
RN5
is
also
a
mobile
entertainment
tool
to let
you
enjoy
digital
music,
view photos.
These
functions
make
RN5
a true
multimedia
device.
To
enable
access
of
multimedia
files
from
your
PC

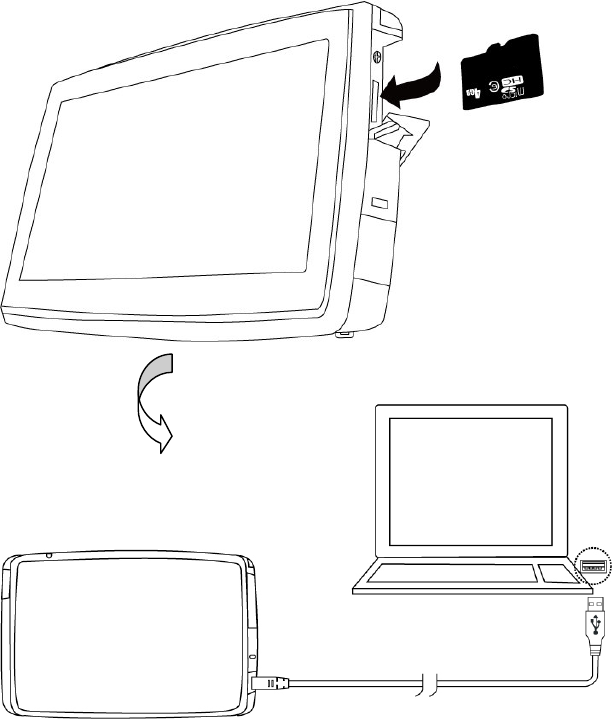

folders, there are two ways to do:
•
Copy multimedia files into a micro SD card from your PC, and then insert
this micro SD
card into RN5.
•
Insert micro SD card and connect USB cable from PC to RN5, and then directly copy
multimedia files from PC to RN5
27
It
is
recommended
to
organize
files
into
subfolders.
These
folders
will
make files
easier
to
find
and
play.
4.2. Music player
Enjoy
your
favorite
music
on
the
road.
The
program
features:
•
Support
to
MP3 files (MP3, WMA format)
•
Auto-scan
supported
files
in
the
device’s
Micro
SD
card
•
Separate
volume
control
enabling
you
to
adjust
the
playback
sound level
while
retaining
the
volume
level
set
for
system
sounds
Each
sub
directory
containing
compatible
music
files
is
treated
as
an
individual playlist.
For
a
more
organized
file
search,
it
is
advisable
to
name
sub
directories
based
on
listening
preferences.
1.
Tap
“Music”
icon
in
the
Main Menu.
NOTE:
You
can
also
enter
the
music
player
by
entering
○
1
○2
○3
○4
○
5
28
Table
4-2-1:
MP3
player
functions
NO
Function
1
Return Return to list page
2
Songs List all song by alphabet
3
Album List all albums by alphabet.
4
Artist List all Artists by alphabet
5
Search Current play list
29
2. Tap a song on the music list.
`
3. Tap bottom information bar will switch to song’s progress.
Table
4-3-2-2:
Play sound functions
○
1
○2
○3
○4
○5 ○6 ○7
○8
○
9
30
NO
Function
1 Play/Pause P/ay/Pause song
2 Forward Forward to next song.
3 Previous Reword to previous song
4 Stop Stop music play.
5 Repeat Repeat play songs.
6 Random Random play songs.
7 Sound bar To adjust the sound.
8 Bottom info. bar
No even: This place will scroll song’s name and total play
time.
Tap: Tap this bar. Will switch to song’s progress.
9 Return Return to list page.
4.3. Photo Viewer
RN5
has
a
great
viewer
option
that
makes
it
easy
to
share
and view
digital
photos
anywhere
you like.
The
program
features:
•
Support
for
JPEG
files (Support Max. 500 photos)
•
Auto-scanning
of
supported
files
in
the
device’s
Micro SD
card
•
Three
viewing
modes:
Thumbnail,
Full
Screen,
and
Slide
Show
•
Album
support
based
on
sub-directory
contents
Each
subdirectory
can
hold
multiple
images
and
be
used
as
an
individual
album.
For
a
more
organized
file
search,
it
is
advisable
to
sort
files
into sub
directories
based
on
meaningful
name
or
date.
An
example
could
be
“summer
vacation
pictures”
or
“New
baby”
or
“2005
Best.”
4.3.1. View files in Slide Show mode
You
have
the
option
to
view
images
in
a
slide
show
much
like
viewing
a
Power- Point
presentation
in
your
computer.
Images
are
adjusted
to
fit
the
entire
display
area
and
are
shown
in
a
5-second
interval.
4.3.2. Use the Photo Album
31
1.
Tap
“Photo”
icon
in
the
Main Menu.
2.
List all thumbnails in SD card.
3.
Dragging upward or downwards to make photo move to next or previous page.
4. Tap specific thumbnail will enlarge thumbnail.
5. Tap the screen will display control bar display
32
Table
4-3-4-1:
Album
Viewer
NO
Function
1 Return Return to thumbnail page
2 Previous page Display previous photo.
3 Auto Play mode
Auto play all photos.
4 Next page Display next photo.
5
Rotate
Rotate photo
○
1
○
5
○2 ○3 ○4
33
4.4. Video Player
Video Player is a very unique function in RN5, which can make end-users enjoy your DIY video
via this device.
The
program
features:
•
Support
MP4
files (including
mp4, mv4, 3gp, m4a and avi formate
, but Maximum
500 files)
•
Auto-scanning
of
supported
files
in
the
device’s
Micro SD
card
•
Three
viewing
modes:
Thumbnail,
Full
Screen,
and
Slide
Show
•
Album
support
based
on
sub-directory
contents
4.4.1. Use Video Player
1. Tap “Video” icon in the Main Menu.
2. Tap “Accept” icon to enter Video Player function screen, or tap “Cancel” not to enter into.
3. Tap “File Manager” to choose a file, which you would like to play.
34
4. Tap “Play” to play the file which you choose.
Table
4-4-1-1:
Video Player Display
NO
Function
1 Play Play a video file
2
Pause Pause to play a video file
3 Forward
4 Downward
5
Volume
down Turn down volume
35
6 Volume up
Turn up volume
7
File
Manager List video files
8
Progress
bar
Show playing progress (Tap or drag to control playing
progress)
9 Return Return to the previous page
4.5. Listen MP3 via Car Audio/Stereo (FM Transmitter)
RN5
has
a
great
music-player-supported function that
makes
you play MP3 files via your car
audio/stereo.
•
Set FM frequency range from 88.2 to 107.8Mhz
4.5.1 Turn on FM Transmitter frequency
1.
Tap
the
Volume
icon
in
the
System
Menu.
2.
Tap “FM”
to open FM Transmitter function
3.
Set FM frequency 88.2 MHz in your car radio.
4. Play “Music Player”, “Video player” or “Navigation”, and audio will be come out from your
car radio.
Table
4-4-1-1:
FM Transmitter Setting
NO
Function Description
1
FM
Transmitter
Open FM Transmitter function
NOTE：there is a sign to remind end-user that FM Transmitter function is open on the main menu.
36
2 Stop Stop FM Transmitter function
3
Frequency
Set frequency (Default: 88.2 MHz)
4.5.2 Change FM Transmitter frequency
1.
Tap
frequency entry
2.
Set the frequency number, and tap “Enter”
3.
Set the same frequency number to make your car radio receive audio from RN5.
Table
4-4-2-1:
FM Frequency Setting
NO
Function Description
1 Delete Delete frequency number
2 Enter Implement this frequency number
NOTE：FM Frequency can only set from 88.2 to 107.8Mhz.
37
Chapter 5 Communications
5.1. RN5 Bluetooth
Once
your
Bluetooth-enabled
mobile
phone
is
paired
with
your
RN5,
you can
make
hands-free
phone
calls
through
your
RN5’s
integrated
micro- phone
and
speaker.
RN5
makes
it
easy
to
make
and
receive
phones calls
with
ease
while
end-users
drive cars. Hands-free
calling
keeps
things
safe,
letting
you
keep
your
eyes
on
the
road, while
your
RN5
integrates
seamlessly
with
your
mobile
phone.
Easy
to connect
and
use,
just
follow
a
few
quick
steps
to
enjoy
the
benefits
of
Hands- free
calling. (That is option function)
5.2. Connection
5.3. Mobile phone connection
1.
Tap “Settings” to turn on Bluetooth function, and end-users can also turn on “Automatic
Answer” while the mobile phone is ringing.
1.
Back to “Communication” screen, and tap “Connection”
NOTE：Make sure the Bluetooth settings of your mobile phone.
- The Bluetooth switch is set to “ON” or “enable”.
- The visibility is set to “Discoverable”, “Show my phone”, (For more detailed information,
see your phone’s manual.)
NOTE：”Automatic Answer Time” can be set three mode “3sec.”, “10sec.”, and “30sec.”
38
2. Tap “Search” to look for Bluetooth on of mobile phones, and
3. Choose one which you want to connect to, and tap “Connection”
4. Choose “HFP”
5. The mobile phone will often require you to enter a password to connect the device. Enter
39
“0000” on the mobile phone in this case.
6. When the connection completes, the name of the connected phone is displayed on the title
bar of the “communications” screen.
5.4. Call Out (Hands – free Calling)
1. Tap “Call-out” screen is as follows:
2. Call-out
No. Name Description
1 Start to make a call.
2 History Call-out from the history of the incoming /outgoing call
3 Contacts Call-out from the contacts. In detail, refer to 4.3.
NOTE：If the connected mobile phone has the Bluetooth auto-accept function, set this function to “NO”
(For more detailed information, see your phone’s manual.
○1
○
2
○
3
NOTE：Bluetooth function has distance limitation. While the mobile phone is away, and make
Bluetooth function disconnect, NS-4102 would try to re-connect within 10 seconds.
NOTE： While end-user is turning on FM Transmitter and Bluetooth Hands-free function (connecting
with a cell phone), call conversation would still come out from NS-4102 speaker, not from car
audio/stereo.
40
3. Call-out (in a phone call)
No. Name Description
4 Close a phone call.
4. Receiving a call
(1) When the connected mobile phone receives a call, the caller’s phone number and two
buttons are displayed on the screen.
(2) Receive a call, tap ; Quit a call, tap .
5.5. Contacts (Import phonebooks)
1. Tap “Contacts” screen is as follows:
○
4
41
2. Tap “Import” to import the contact information from the connected mobile phone.
42
Chapter 6 Troubleshooting and Maintenance
6.1. General troubleshooting
6.1.1 If your device does not respond, do a “hard reset.”
Do
a
“hard
reset,”
Disconnect
all
cables,
including
the
AC
adapter, from
your
device.
Switch “Battery Switch” on the back side of the device form OFF to ON
position then tap the power button.
6.1.2 Users can also perform a “system reset.”
Do a “system reset,” in the Main menu, tap System, then tap System Info.
This will allow you to do a factory reset (restore to default set tings), reset
the GPS status and recalibrate the touch screen interface.
6.1.3 Screen responds slowly
Make sure you have enough battery power.
6.1.4 Inaccurate response to tap on touch screen.
Recalibrate the touch screen.
6.1.5 Connection Problems with PC.
Make sure that the cable is securely plugged into the USB port on your
computer and on the device. Connect the USB cable directly to your
computer—do not use the cable through a USB hub.
Reset your device before connecting the cable. Always disconnect your
device before you restart your computer.
6.1.6 No GPS connection
Make sure RN5 is put near car windshield or no obstacle on its top.
Note that the GPS reception can be affected by:
Bad weather
Dense overhead obstacles (e.g. trees and tall buildings)
Other wireless devices in the car
43
6.1.7 No sound coming from the device.
Make sure mute is not selected for Volume in system settings. The built-in
speaker turns off when the headphone jack is being used.
6.1.8 Cannot see photos.
Make sure you are using supported image formats JPG.
6.1.9 Take longer than normal time to get a GPS fix.
If the previous GPS fix position was more than 500 km or 12 hours apart
from your current position and time, it will also take significantly longer than
the standard TTFF time to get a GPS fix. This is due to the nature of the
GPS algorithm and rotational velocity between the satellites and planet
Earth, and deemed normal.
Perform a GPS reset in the main/system/system info menu to get a faster
GPS fix.
6.1.10 Factory reset does mean a GPS reset.
Yes. The Factory Reset function resets the OS settings to their default
factory values and it will reset the GPS settings.
6.2. Maintenance
Avoid exposing your device to direct sunlight or strong ultraviolet light for
extended periods of time.
Do not drop your device or subject it to severe shock.
Do not subject your device to sudden and severe temperature changes.
This could cause moisture condensation inside the unit, which could
damage your device. In the event of moisture condensation, allow the
device to dry out completely before use.
The screen surface can be easily scratched. Sharp objects may scratch
the screen. You may use non-adhesive generic screen protectors
designed specifically for use on portable devices with LCD panels to help
protect the screen from minor scratches.
Never clean your device with it powered on.
Never use organic solvents such as benzene or paint thinner to clean your
device. Use of these solvents can cause deformation or discoloration.
Use a soft, clean, lint-free cloth to clean the display screen. Moistened
LCD screen wipes could also be used as required.
44
Never attempt to disassemble, repair or make any modifications to your
device. Disassembly, modification or any attempt at repair could cause
damage to your device and even bodily injury or property damage and will
void any warranty.
6.2.1 Storage precautions
Do not store your device anywhere it may be exposed to water or in
conditions of high humidity.
When the device is not in use for an extended period of time, bring it
indoors and store it in cool dry area.
6.2.2 Accessories and repair precautions
Only authorized accessories should be use with the device. The use of
incompatible accessories could result in bodily injury and/or damage to the
device.
The use of unauthorized accessories will also void your warranty.
Never attempt to disassemble, repair or make any modification to your
device.
