User guideGuide de l'utilisateurGuía de usuariowww.isound.comFCC ID:2ADORBASSONIXISOUND-6770

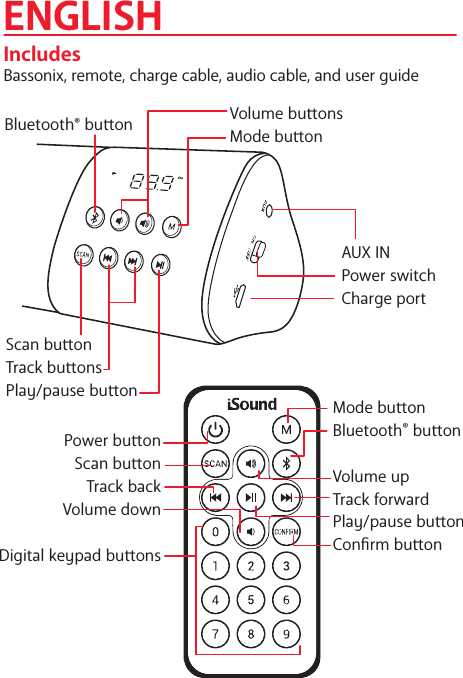

AUX INPower switchCharge portScan buonTrack buonsPlay/pause buonVolume buonsMode buonBluetooth® buonMode buonBluetooth® buonVolume upTrack forwardPlay/pause buonConrm buonPower buonScan buonTrack backVolume downDigital keypad buonsENGLISH                           IncludesBassonix, remote, charge cable, audio cable, and user guide

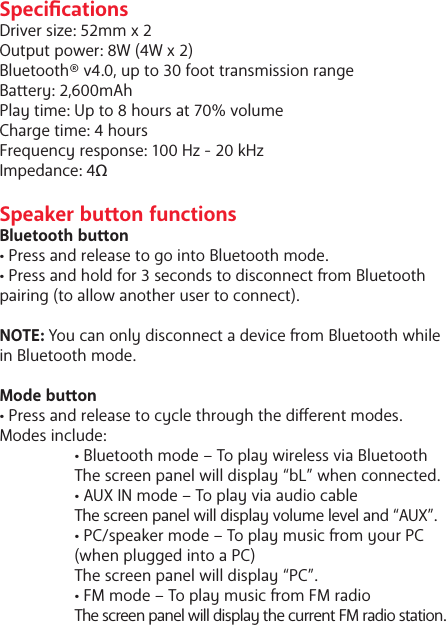

SpecicationsDriver size: 52mm x 2Output power: 8W (4W x 2)Bluetooth® v4.0, up to 30 foot transmission rangeBaery: 2,600mAhPlay time: Up to 8 hours at 70% volumeCharge time: 4 hoursFrequency response: 100 Hz - 20 kHzImpedance: 4ΩSpeaker buon functionsBluetooth buon• Press and release to go into Bluetooth mode. • Press and hold for 3 seconds to disconnect om Bluetooth pairing (to allow another user to connect).NOTE: You can only disconnect a device om Bluetooth while in Bluetooth mode. Mode buon• Press and release to cycle through the dierent modes. Modes include:   • Bluetooth mode – To play wireless via Bluetooth   The screen panel will display “bL” when connected.  • AUX IN mode – To play via audio cable The screen panel will display volume level and “AUX”.  • PC/speaker mode – To play music om your PC    (when plugged into a PC)  The screen panel will display “PC”.  • FM mode – To play music om FM radio The screen panel will display the current FM radio station.

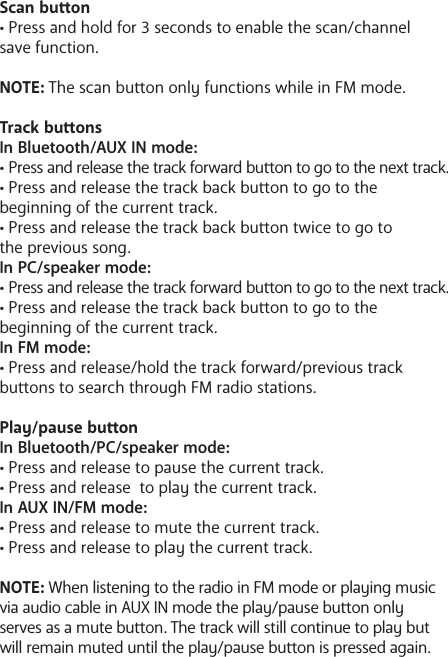

Scan buon• Press and hold for 3 seconds to enable the scan/channel save function. NOTE: The scan buon only functions while in FM mode.Track buonsIn Bluetooth/AUX IN mode:• Press and release the track forward buon to go to the next track.• Press and release the track back buon to go to the       beginning of the current track.• Press and release the track back buon twice to go to the previous song.In PC/speaker mode:• Press and release the track forward buon to go to the next track.• Press and release the track back buon to go to the       beginning of the current track.In FM mode:• Press and release/hold the track forward/previous track buons to search through FM radio stations. Play/pause buonIn Bluetooth/PC/speaker mode:• Press and release to pause the current track.• Press and release  to play the current track. In AUX IN/FM mode:• Press and release to mute the current track.• Press and release to play the current track. NOTE: When listening to the radio in FM mode or playing music via audio cable in AUX IN mode the play/pause buon only serves as a mute buon. The track will still continue to play but will remain muted until the play/pause buon is pressed again.

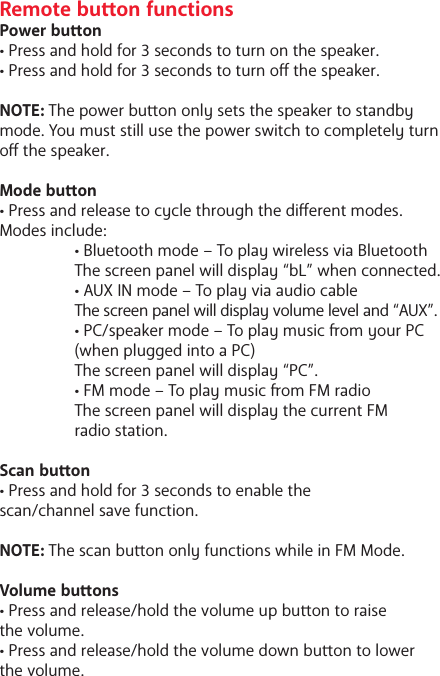

Remote buon functionsPower buon• Press and hold for 3 seconds to turn on the speaker.• Press and hold for 3 seconds to turn o the speaker.NOTE: The power buon only sets the speaker to standby mode. You must still use the power switch to completely turn o the speaker. Mode buon• Press and release to cycle through the dierent modes. Modes include:   • Bluetooth mode – To play wireless via Bluetooth   The screen panel will display “bL” when connected.  • AUX IN mode – To play via audio cable The screen panel will display volume level and “AUX”.  • PC/speaker mode – To play music om your PC   (when plugged into a PC)  The screen panel will display “PC”.  • FM mode – To play music om FM radio  The screen panel will display the current FM   radio station.Scan buon• Press and hold for 3 seconds to enable the scan/channel save function. NOTE: The scan buon only functions while in FM Mode.Volume buons• Press and release/hold the volume up buon to raise the volume.• Press and release/hold the volume down buon to lower the volume.

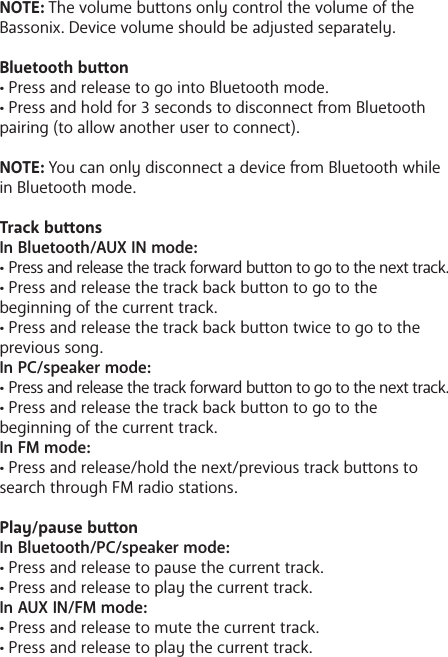

NOTE: The volume buons only control the volume of the Bassonix. Device volume should be adjusted separately.Bluetooth buon• Press and release to go into Bluetooth mode. • Press and hold for 3 seconds to disconnect om Bluetooth pairing (to allow another user to connect).NOTE: You can only disconnect a device om Bluetooth while in Bluetooth mode. Track buonsIn Bluetooth/AUX IN mode:• Press and release the track forward buon to go to the next track.• Press and release the track back buon to go to the       beginning of the current track.• Press and release the track back buon twice to go to the previous song.In PC/speaker mode:• Press and release the track forward buon to go to the next track.• Press and release the track back buon to go to the       beginning of the current track.In FM mode:• Press and release/hold the next/previous track buons to search through FM radio stations. Play/pause buonIn Bluetooth/PC/speaker mode:• Press and release to pause the current track.• Press and release to play the current track. In AUX IN/FM mode:• Press and release to mute the current track.• Press and release to play the current track.

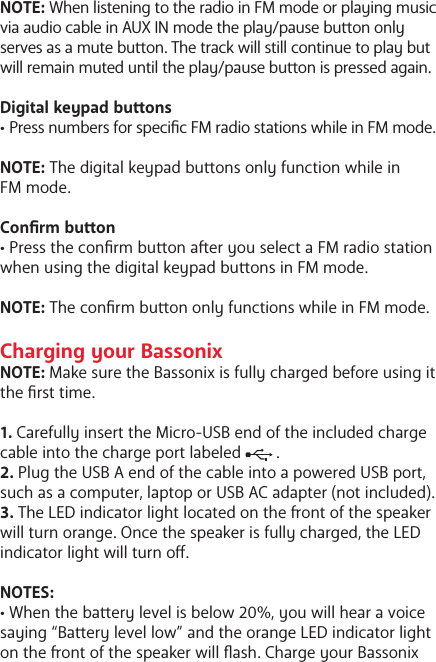

NOTE: When listening to the radio in FM mode or playing music via audio cable in AUX IN mode the play/pause buon only serves as a mute buon. The track will still continue to play but will remain muted until the play/pause buon is pressed again. Digital keypad buons• Press numbers for specic FM radio stations while in FM mode. NOTE: The digital keypad buons only function while in FM mode.Conrm buon• Press the conrm buon aer you select a FM radio station when using the digital keypad buons in FM mode.  NOTE: The conrm buon only functions while in FM mode.Charging your BassonixNOTE: Make sure the Bassonix is fully charged before using it the rst time.1. Carefully insert the Micro-USB end of the included charge cable into the charge port labeled        .2. Plug the USB A end of the cable into a powered USB port, such as a computer, laptop or USB AC adapter (not included).3. The LED indicator light located on the ont of the speaker will turn orange. Once the speaker is fully charged, the LED indicator light will turn o.NOTES:• When the baery level is below 20%, you will hear a voice saying “Baery level low” and the orange LED indicator light on the ont of the speaker will ash. Charge your Bassonix
with the included charge cable.Connecting via Bluetooth® (rst time set-up)1.  Move the power switch on the right side of the Bassonix to the “ON” position and the speaker will say what mode it is in. If the speaker is not in Bluetooth mode, press the mode buon until the speaker says “Bluetooth mode” and the screen panel will ash red dash lines. 2. Open the seings on your Bluetooth device (Bluetooth must be enabled).3. Select Bassonix om the list of Bluetooth devices. 4. Once paired, you will hear “Bluetooth paired” and the screen panel will show the leers “bL” and the Bluetooth symbol.5. Volume can be adjusted separately om your device or the speaker.NOTES: • Your device will automatically nd and pair with the Bassonix aer the initial pairing. If your device does not automatically pair, turn o the speaker and repeat steps 1-4.• Sound will not play via audio cable if the speaker is in Bluetooth mode. • The volume buons only control the volume of the Bassonix. Device volume should be adjusted separately.Connecting via audio cable1. Move the power switch on the right side of the Bassonix to the “ON” position and the speaker will say what mode it is in. If the speaker is not in AUX IN mode, press the mode buon until the speaker says “AUX IN mode” and the screen panel shows the volume level number and the word “AUX”. 2. Plug one end of the included audio cable into the AUX port located next to the power switch.

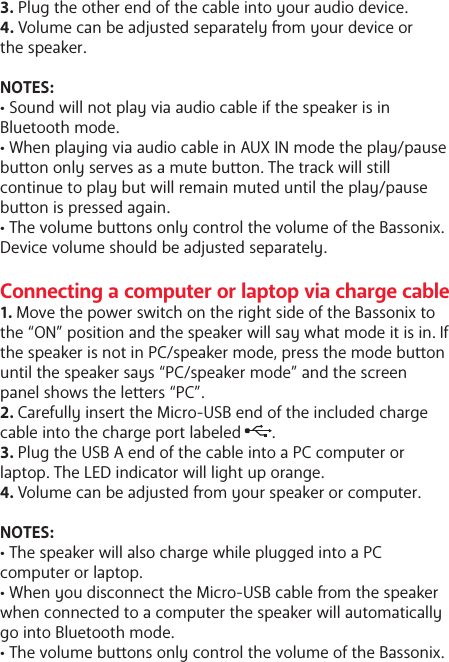

3. Plug the other end of the cable into your audio device.4. Volume can be adjusted separately om your device or the speaker. NOTES: • Sound will not play via audio cable if the speaker is in Bluetooth mode. • When playing via audio cable in AUX IN mode the play/pause buon only serves as a mute buon. The track will still continue to play but will remain muted until the play/pause buon is pressed again. • The volume buons only control the volume of the Bassonix. Device volume should be adjusted separately.Connecting a computer or laptop via charge cable1. Move the power switch on the right side of the Bassonix to the “ON” position and the speaker will say what mode it is in. If the speaker is not in PC/speaker mode, press the mode buon until the speaker says “PC/speaker mode” and the screen panel shows the leers “PC”.2. Carefully insert the Micro-USB end of the included charge cable into the charge port labeled       .3. Plug the USB A end of the cable into a PC computer or laptop. The LED indicator will light up orange.4. Volume can be adjusted om your speaker or computer. NOTES: • The speaker will also charge while plugged into a PC computer or laptop.• When you disconnect the Micro-USB cable om the speaker when connected to a computer the speaker will automatically go into Bluetooth mode. • The volume buons only control the volume of the Bassonix.

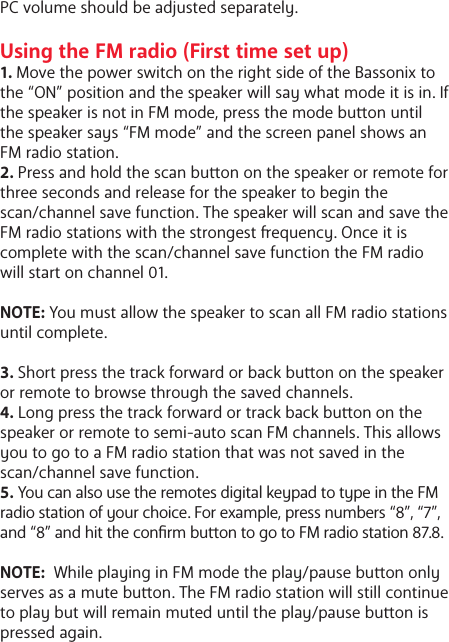

PC volume should be adjusted separately.Using the FM radio (First time set up)1. Move the power switch on the right side of the Bassonix to the “ON” position and the speaker will say what mode it is in. If the speaker is not in FM mode, press the mode buon until the speaker says “FM mode” and the screen panel shows an FM radio station.2. Press and hold the scan buon on the speaker or remote for three seconds and release for the speaker to begin the scan/channel save function. The speaker will scan and save the FM radio stations with the strongest equency. Once it is complete with the scan/channel save function the FM radio will start on channel 01.NOTE: You must allow the speaker to scan all FM radio stations until complete. 3. Short press the track forward or back buon on the speaker or remote to browse through the saved channels.4. Long press the track forward or track back buon on the speaker or remote to semi-auto scan FM channels. This allows you to go to a FM radio station that was not saved in the scan/channel save function.5. You can also use the remotes digital keypad to type in the FM radio station of your choice. For example, press numbers “8”, “7”, and “8” and hit the conrm buon to go to FM radio station 87.8. NOTE:  While playing in FM mode the play/pause buon only serves as a mute buon. The FM radio station will still continue to play but will remain muted until the play/pause buon is pressed again.

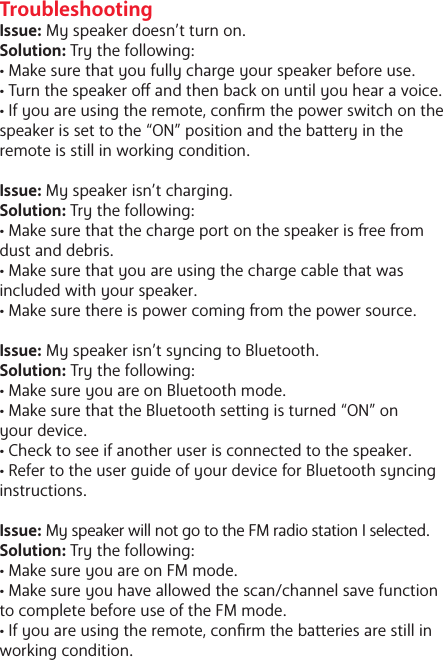

TroubleshootingIssue: My speaker doesn’t turn on.Solution: Try the following: • Make sure that you fully charge your speaker before use. • Turn the speaker o and then back on until you hear a voice.• If you are using the remote, conrm the power switch on the speaker is set to the “ON” position and the baery in the remote is still in working condition. Issue: My speaker isn’t charging.Solution: Try the following:• Make sure that the charge port on the speaker is ee om dust and debris. • Make sure that you are using the charge cable that was included with your speaker.• Make sure there is power coming om the power source. Issue: My speaker isn’t syncing to Bluetooth.Solution: Try the following: • Make sure you are on Bluetooth mode. • Make sure that the Bluetooth seing is turned “ON” on your device. • Check to see if another user is connected to the speaker.• Refer to the user guide of your device for Bluetooth syncing instructions.Issue: My speaker will not go to the FM radio station I selected.Solution: Try the following: • Make sure you are on FM mode.• Make sure you have allowed the scan/channel save function to complete before use of the FM mode. • If you are using the remote, conrm the baeries are still in working condition.

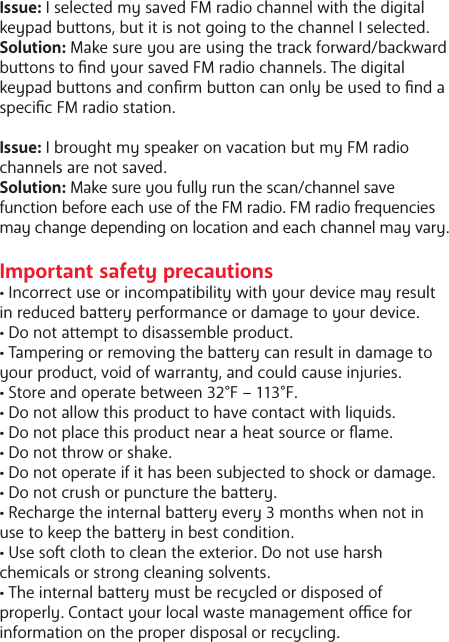

Issue: I selected my saved FM radio channel with the digital keypad buons, but it is not going to the channel I selected. Solution: Make sure you are using the track forward/backward buons to nd your saved FM radio channels. The digital keypad buons and conrm buon can only be used to nd a specic FM radio station. Issue: I brought my speaker on vacation but my FM radio channels are not saved. Solution: Make sure you fully run the scan/channel save function before each use of the FM radio. FM radio equencies may change depending on location and each channel may vary. Important safety precautions• Incorrect use or incompatibility with your device may result in reduced baery performance or damage to your device.• Do not aempt to disassemble product.• Tampering or removing the baery can result in damage to your product, void of warranty, and could cause injuries. • Store and operate between 32°F – 113°F.• Do not allow this product to have contact with liquids.• Do not place this product near a heat source or ame.• Do not throw or shake.• Do not operate if it has been subjected to shock or damage.• Do not crush or puncture the baery.• Recharge the internal baery every 3 months when not in use to keep the baery in best condition. • Use so cloth to clean the exterior. Do not use harsh chemicals or strong cleaning solvents.• The internal baery must be recycled or disposed of properly. Contact your local waste management oce for information on the proper disposal or recycling.

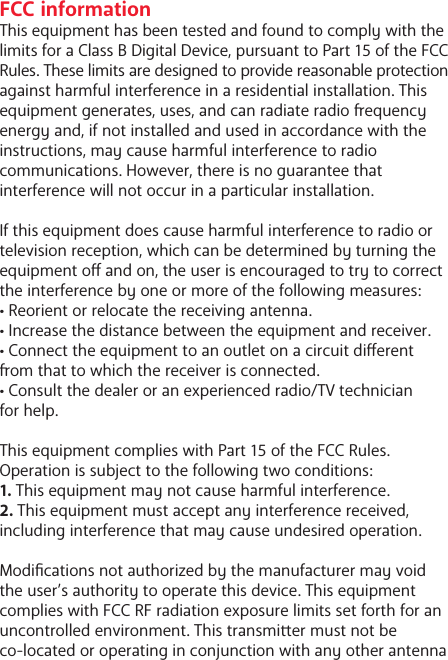

FCC informationThis equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio equency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the distance between the equipment and receiver.• Connect the equipment to an outlet on a circuit dierent om that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This equipment may not cause harmful interference.2. This equipment must accept any interference received, including interference that may cause undesired operation.Modications not authorized by the manufacturer may void the user’s authority to operate this device. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmier must not be co-located or operating in conjunction with any other antenna

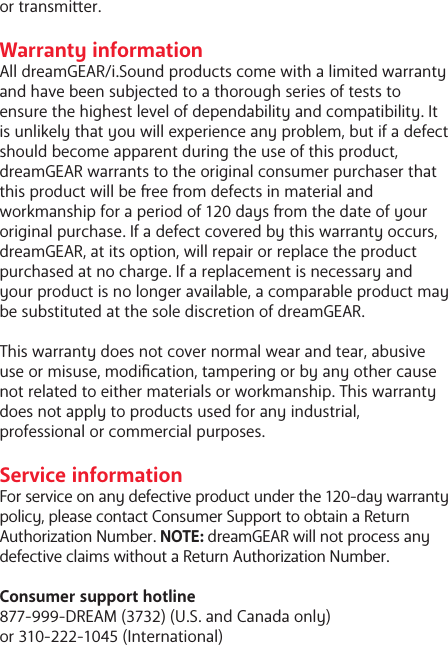

or transmier. Warranty informationAll dreamGEAR/i.Sound products come with a limited warranty and have been subjected to a thorough series of tests to ensure the highest level of dependability and compatibility. It is unlikely that you will experience any problem, but if a defect should become apparent during the use of this product, dreamGEAR warrants to the original consumer purchaser that this product will be ee om defects in material and workmanship for a period of 120 days om the date of your original purchase. If a defect covered by this warranty occurs, dreamGEAR, at its option, will repair or replace the product purchased at no charge. If a replacement is necessary and your product is no longer available, a comparable product may be substituted at the sole discretion of dreamGEAR.This warranty does not cover normal wear and tear, abusive use or misuse, modication, tampering or by any other cause not related to either materials or workmanship. This warranty does not apply to products used for any industrial, professional or commercial purposes. Service informationFor service on any defective product under the 120-day warranty policy, please contact Consumer Support to obtain a Return Authorization Number. NOTE: dreamGEAR will not process any defective claims without a Return Authorization Number.Consumer support hotline877-999-DREAM (3732) (U.S. and Canada only) or 310-222-1045 (International)

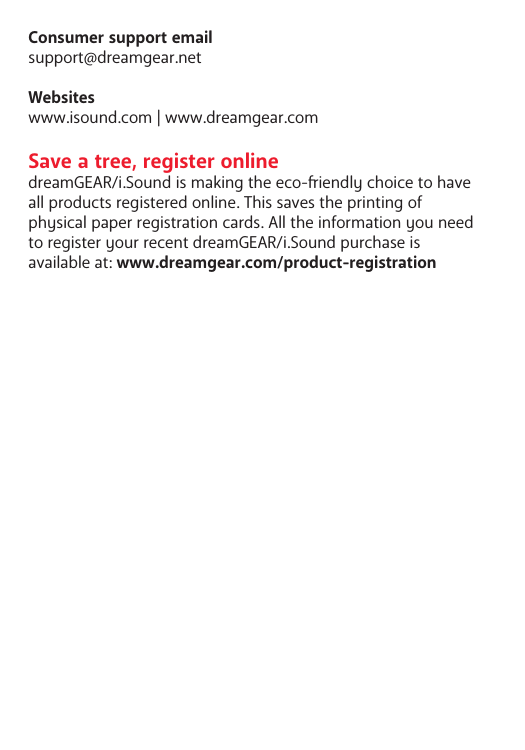

Consumer support emailsupport@dreamgear.netWebsiteswww.isound.com | www.dreamgear.comSave a tree, register onlinedreamGEAR/i.Sound is making the eco-iendly choice to have all products registered online. This saves the printing of physical paper registration cards. All the information you need to register your recent dreamGEAR/i.Sound purchase is available at: www.dreamgear.com/product-registration
www.isound.com
