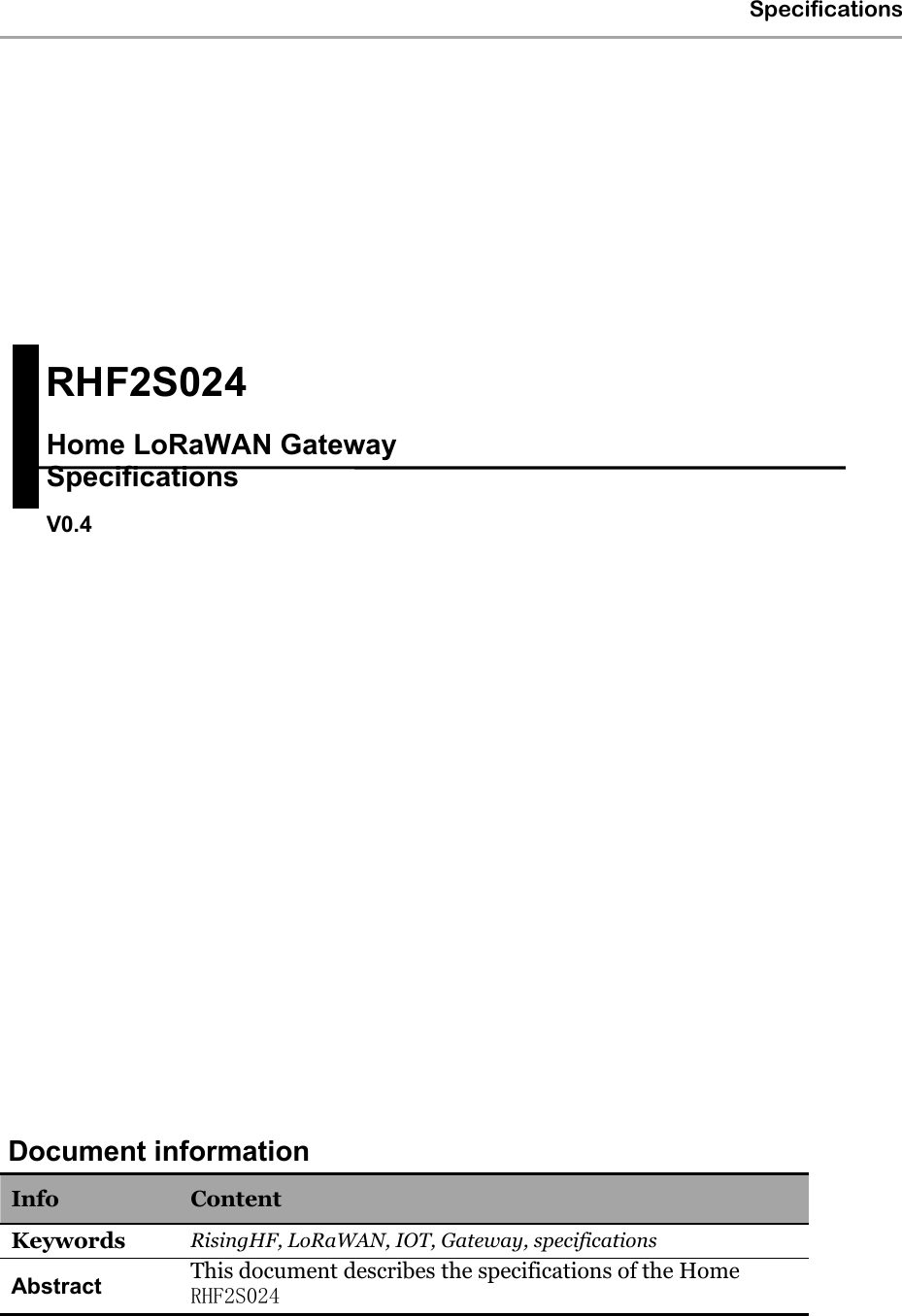

SpecificationsDocument informationInfo ContentKeywords RisingHF, LoRaWAN, IOT, Gateway, specificationsAbstract This document describes the specifications of the Home RHF2S024RHF2S024Home LoRaWAN Gateway SpecificationsV0.4

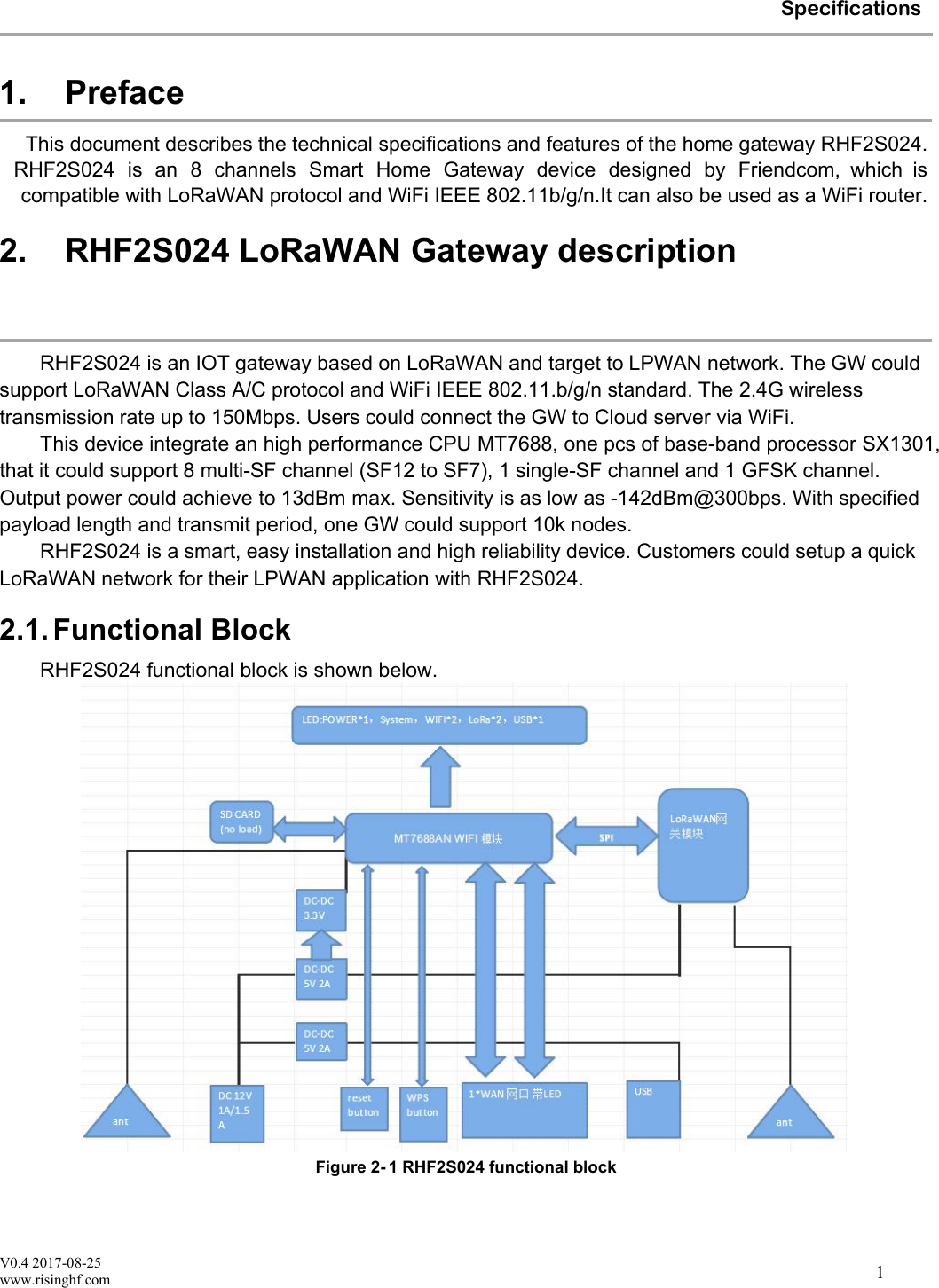

V0.4 2017-08-25www.risinghf.comSpecifications11. PrefaceThis document describes the technical specifications and features of the home gateway RHF2S024. RHF2S024 is an 8 channels Smart Home Gateway device designed by Friendcom, which is compatible with LoRaWAN protocol and WiFi IEEE 802.11b/g/n.It can also be used as a WiFi router.2. RHF2S024 LoRaWAN Gateway descriptionRHF2S024 is an IOT gateway based on LoRaWAN and target to LPWAN network. The GW could support LoRaWAN Class A/C protocol and WiFi IEEE 802.11.b/g/n standard. The 2.4G wireless transmission rate up to 150Mbps. Users could connect the GW to Cloud server via WiFi.This device integrate an high performance CPU MT7688, one pcs of base-band processor SX1301, that it could support 8 multi-SF channel (SF12 to SF7), 1 single-SF channel and 1 GFSK channel. Output power could achieve to 13dBm max. Sensitivity is as low as -142dBm@300bps. With specified payload length and transmit period, one GW could support 10k nodes.RHF2S024 is a smart, easy installation and high reliability device. Customers could setup a quick LoRaWAN network for their LPWAN application with RHF2S024.2.1.Functional BlockRHF2S024 functional block is shown below.Figure 2- 1 RHF2S024 functional block

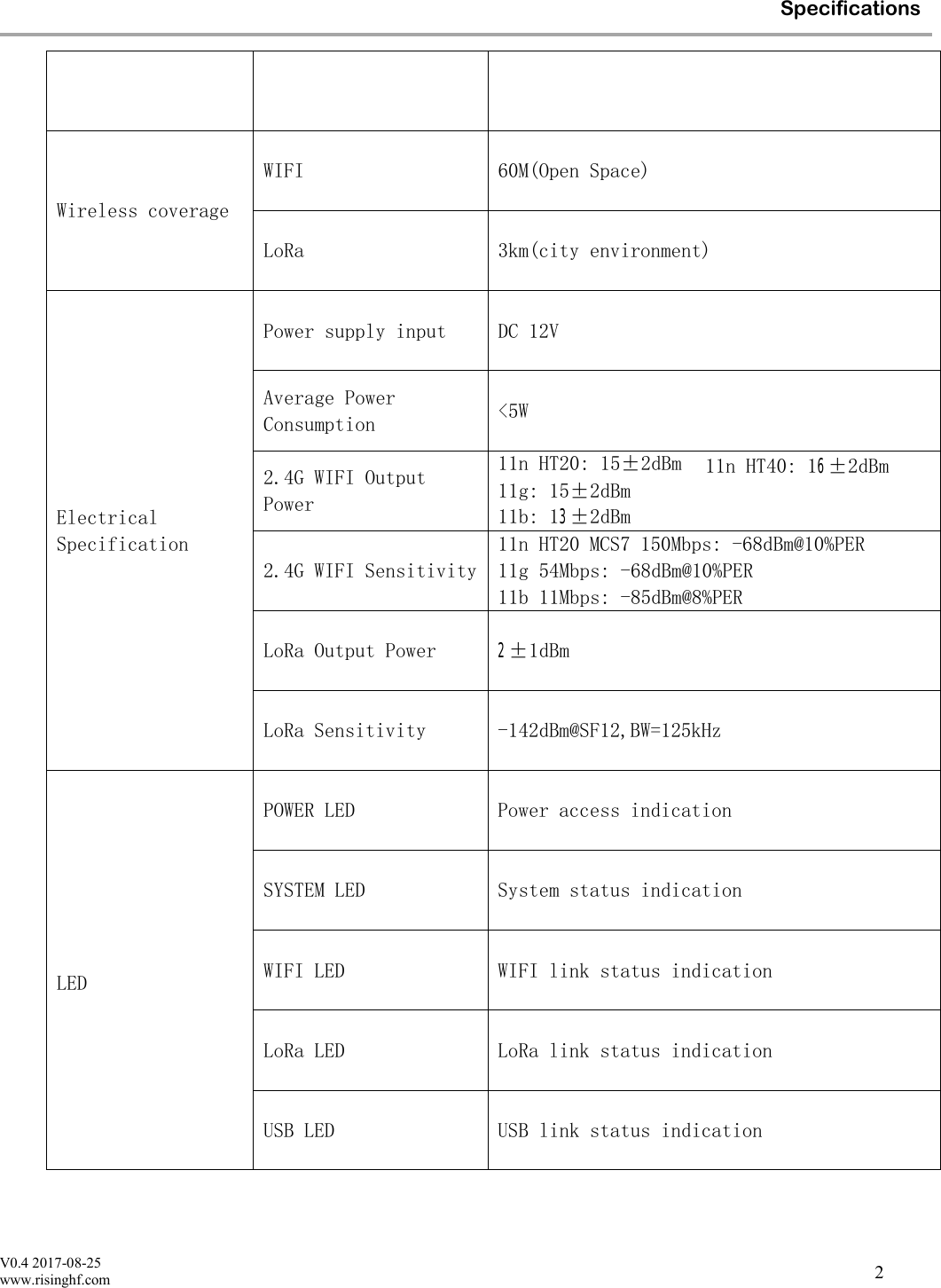

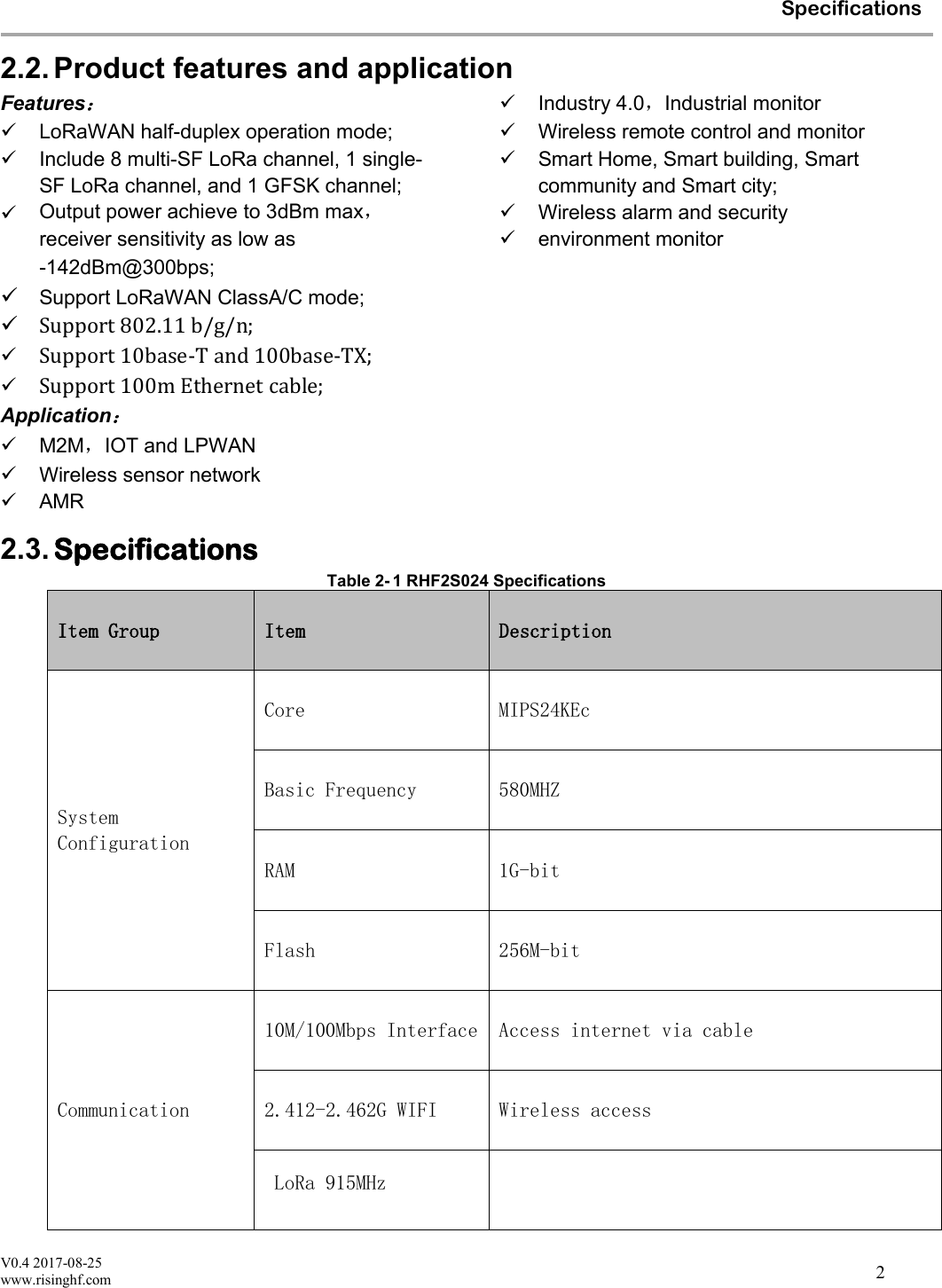

V0.4 2017-08-25www.risinghf.comSpecifications22.2. Product features and applicationFeatures:LoRaWAN half-duplex operation mode;Include 8 multi-SF LoRa channel, 1 single-SF LoRa channel, and 1 GFSK channel;Output power achieve to 3dBm max,receiver sensitivity as low as-142dBm@300bps;Support LoRaWAN ClassA/C mode;Support 802.11 b/g/n;Support 10base-T and 100base-TX;Support 100m Ethernet cable;Application:M2M,IOT and LPWANWireless sensor networkAMRIndustry 4.0,Industrial monitorWireless remote control and monitorSmart Home, Smart building, Smartcommunity and Smart city;Wireless alarm and securityenvironment monitor2.3. SpecificationsTable 2- 1 RHF2S024 SpecificationsItem Group Item DescriptionSystemConfigurationCore MIPS24KEcBasic Frequency 580MHZRAM 1G-bitFlash 256M-bitCommunication10M/100Mbps Interface Access internet via cable2.412-2.462G WIFI Wireless access  LoRa 915MHz
V0.4 2017-08-25www.risinghf.comSpecifications2Wireless coverageWIFI 60M(Open Space)LoRa 3km(city environment)ElectricalSpecificationPower supply input DC 12VAverage PowerConsumption <5W2.4G WIFI OutputPower2.4G WIFI Sensitivity11n HT20 MCS7 150Mbps: -68dBm@10%PER 11g 54Mbps: -68dBm@10%PER11b 11Mbps: -85dBm@8%PERLoRa Output Power 2±1dBmLoRa Sensitivity -142dBm@SF12,BW=125kHzLEDPOWER LED Power access indicationSYSTEM LED System status indicationWIFI LED WIFI link status indicationLoRa LED LoRa link status indicationUSB LED USB link status indication11n HT20: 15±2dBm 11n HT40: 16±2dBm 11g: 15±2dBm11b: 13±2dBm

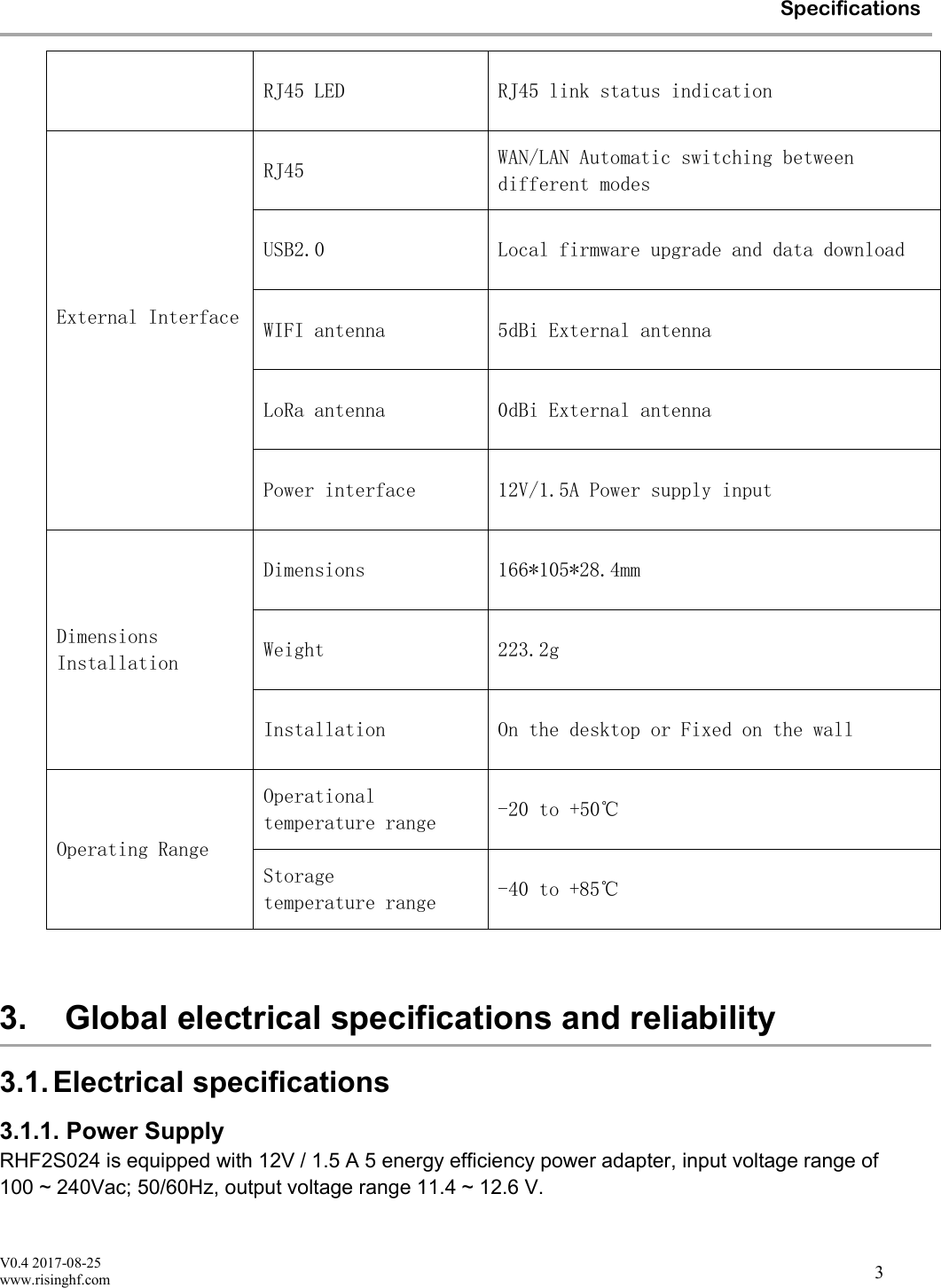

V0.4 2017-08-25www.risinghf.comSpecifications3RJ45 LEDRJ45 link status indicationExternal InterfaceRJ45WAN/LAN Automatic switching betweendifferent modesUSB2.0Local firmware upgrade and data downloadWIFI antenna5dBi External antennaLoRa antenna0dBi External antennaPower interface12V/1.5A Power supply inputDimensionsInstallationDimensions166*105*28.4mmWeight223.2gInstallationOn the desktop or Fixed on the wallOperating RangeOperationaltemperature range-20 to +50℃Storagetemperature range-40 to +85℃3. Global electrical specifications and reliability3.1.Electrical specifications3.1.1. Power SupplyRHF2S024 is equipped with 12V / 1.5 A 5 energy efficiency power adapter, input voltage range of 100 ~ 240Vac; 50/60Hz, output voltage range 11.4 ~ 12.6 V.

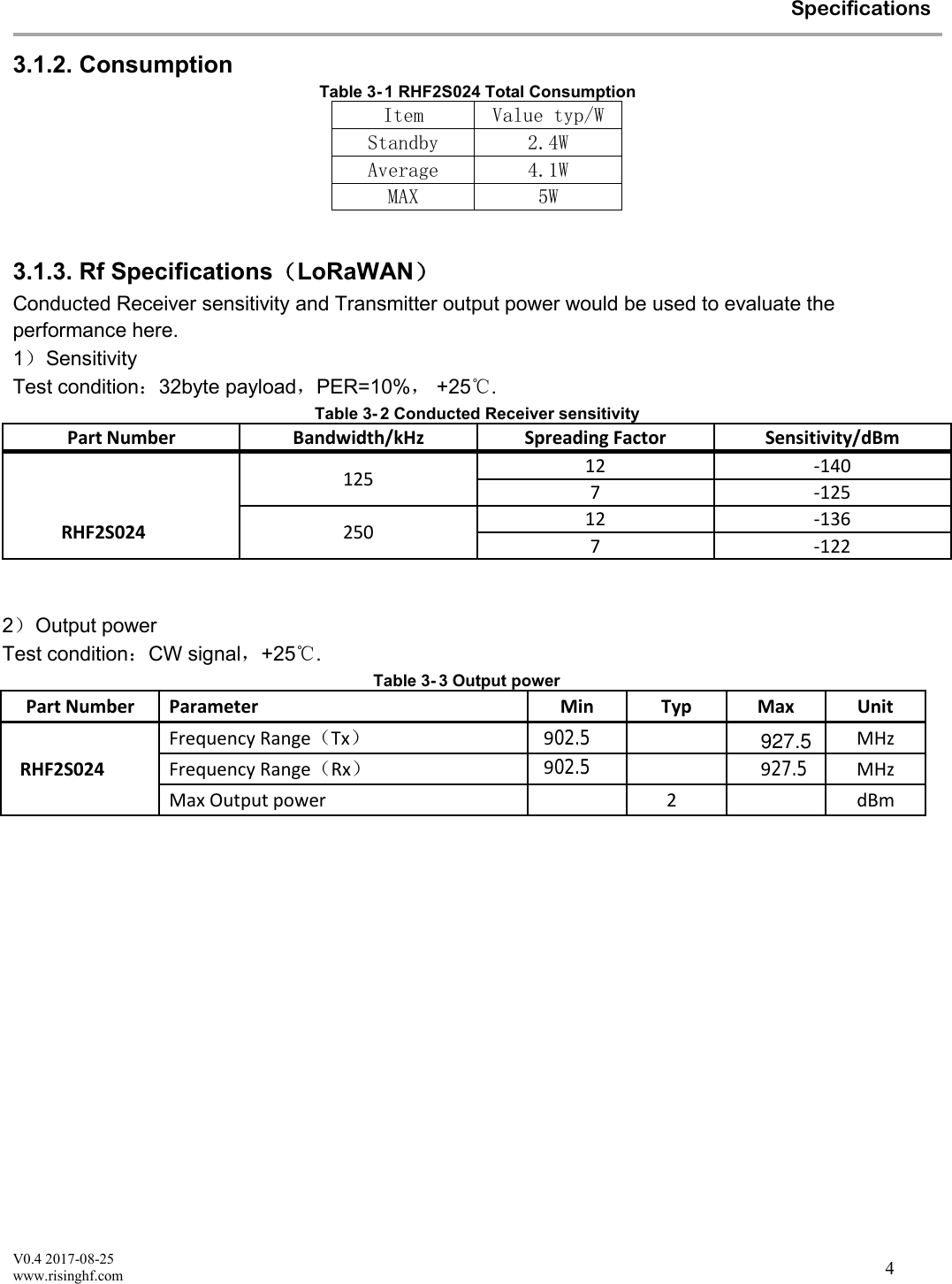

V0.4 2017-08-25www.risinghf.comSpecifications43.1.2. ConsumptionTable 3- 1 RHF2S024 Total ConsumptionItem Value typ/WStandby 2.4WAverage 4.1WMAX 5W3.1.3. Rf Specifications(LoRaWAN)Conducted Receiver sensitivity and Transmitter output power would be used to evaluate theperformance here.1)SensitivityTest condition:32byte payload,PER=10%,+25℃.Table 3- 2 Conducted Receiver sensitivityPart Number Bandwidth/kHz Spreading Factor Sensitivity/dBmRHF2S024125 12 -1407 -125250 12 -1367 -122500 12 -1337 -119RHF2S024-868125 12 -1397 -125250 12 -136-122500 -1337 -119RHF2S024-915125 12 -1397 -125250 12 -1367 -122500 12 -1337 -1192)Output powerTest condition:CW signal,+25℃.Table 3- 3 Output powerParameterPart Number UnitMaxTypMinRHF2S024Frequency Range(Tx)902.5 927.5 MHzFrequency Range(Rx)902.5 927.5 MHzMax Output power 2dBm

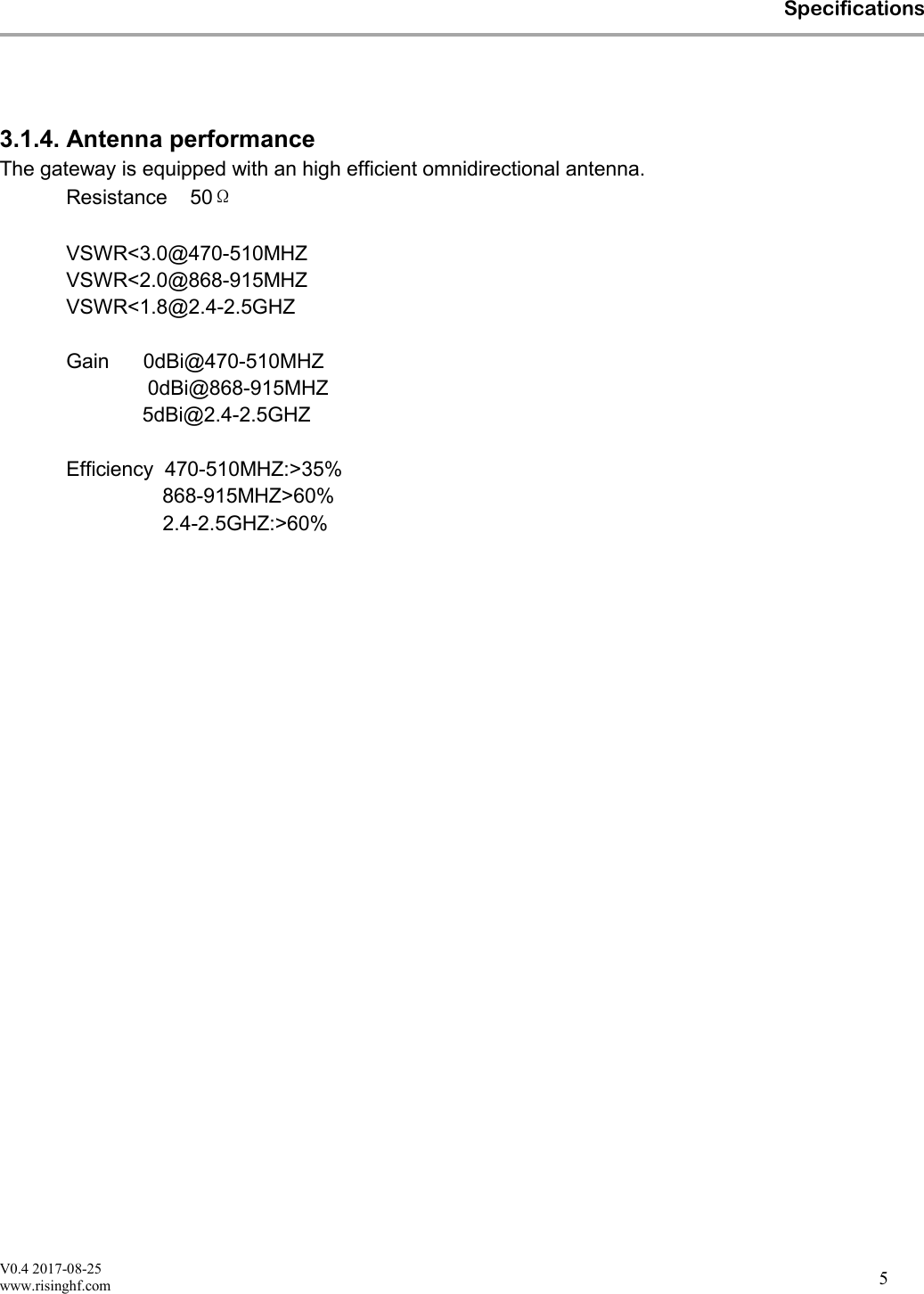

V0.4 2017-08-25www.risinghf.comSpecifications53.1.4. Antenna performanceThe gateway is equipped with an high efficient omnidirectional antenna.50Resistance ΩVSWR<3.0@470-510MHZVSWR<2.0@868-915MHZVSWR<1.8@2.4-2.5GHZGain 0dBi@470-510MHZ0dBi@868-915MHZ5dBi@2.4-2.5GHZEfficiency 470-510MHZ:>35%868-915MHZ>60%2.4-2.5GHZ:>60%

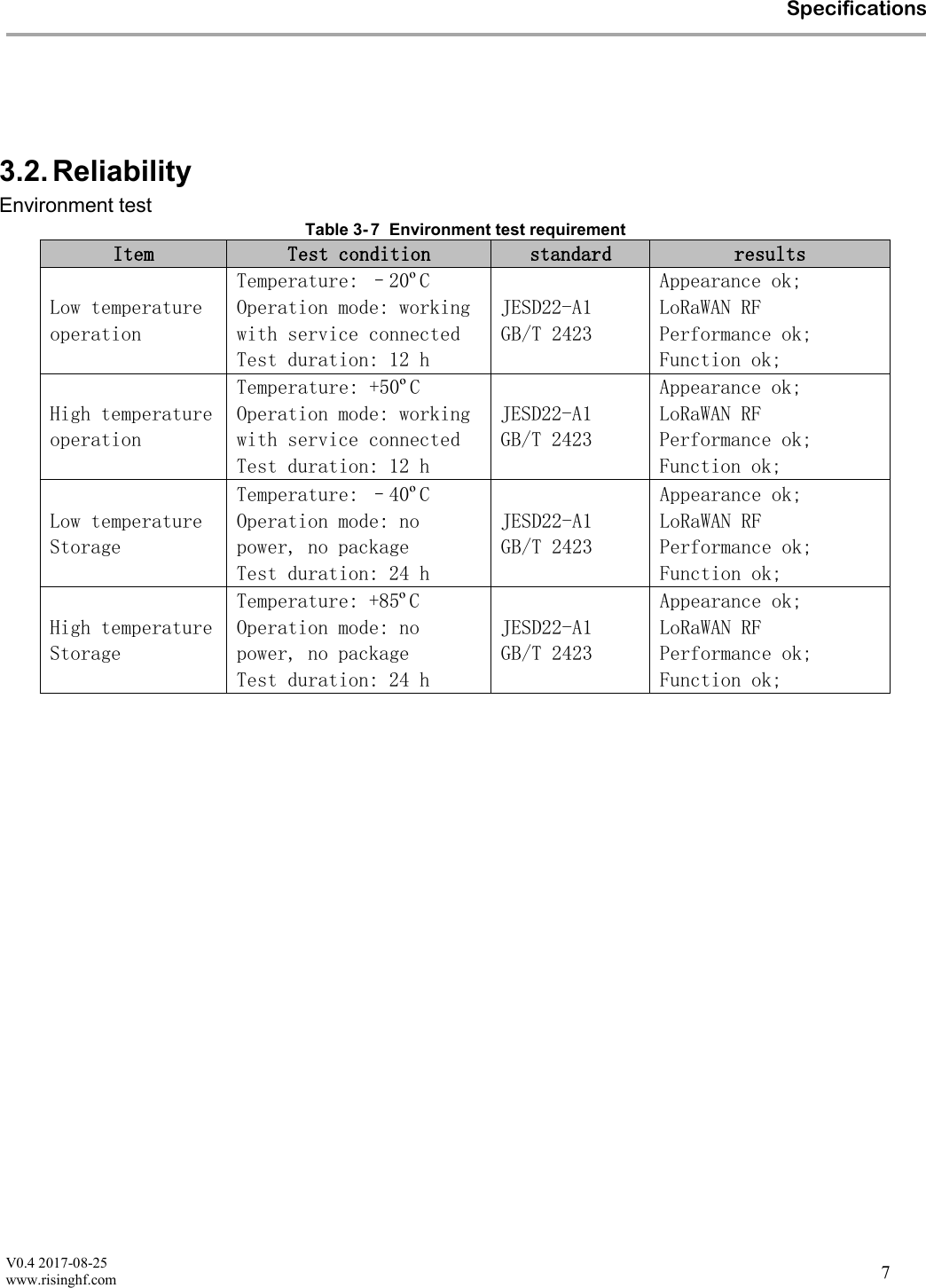

V0.4 2017-08-25www.risinghf.comSpecifications73.2. ReliabilityEnvironment testTable 3- 7 Environment test requirementItem Test condition standard resultsLow temperatureoperationTemperature: –20ºCOperation mode: workingwith service connectedTest duration: 12 hJESD22-A1GB/T 2423Appearance ok;LoRaWAN RFPerformance ok;Function ok;High temperatureoperationTemperature: +50ºC Operation mode: working with service connected Test duration: 12 hJESD22-A1GB/T 2423Appearance ok;LoRaWAN RFPerformance ok;Function ok;Low temperatureStorageTemperature: –40ºCOperation mode: nopower, no packageTest duration: 24 hJESD22-A1GB/T 2423Appearance ok;LoRaWAN RFPerformance ok;Function ok;High temperatureStorageTemperature: +85ºCOperation mode: nopower, no packageTest duration: 24 hJESD22-A1GB/T 2423Appearance ok;LoRaWAN RFPerformance ok;Function ok;

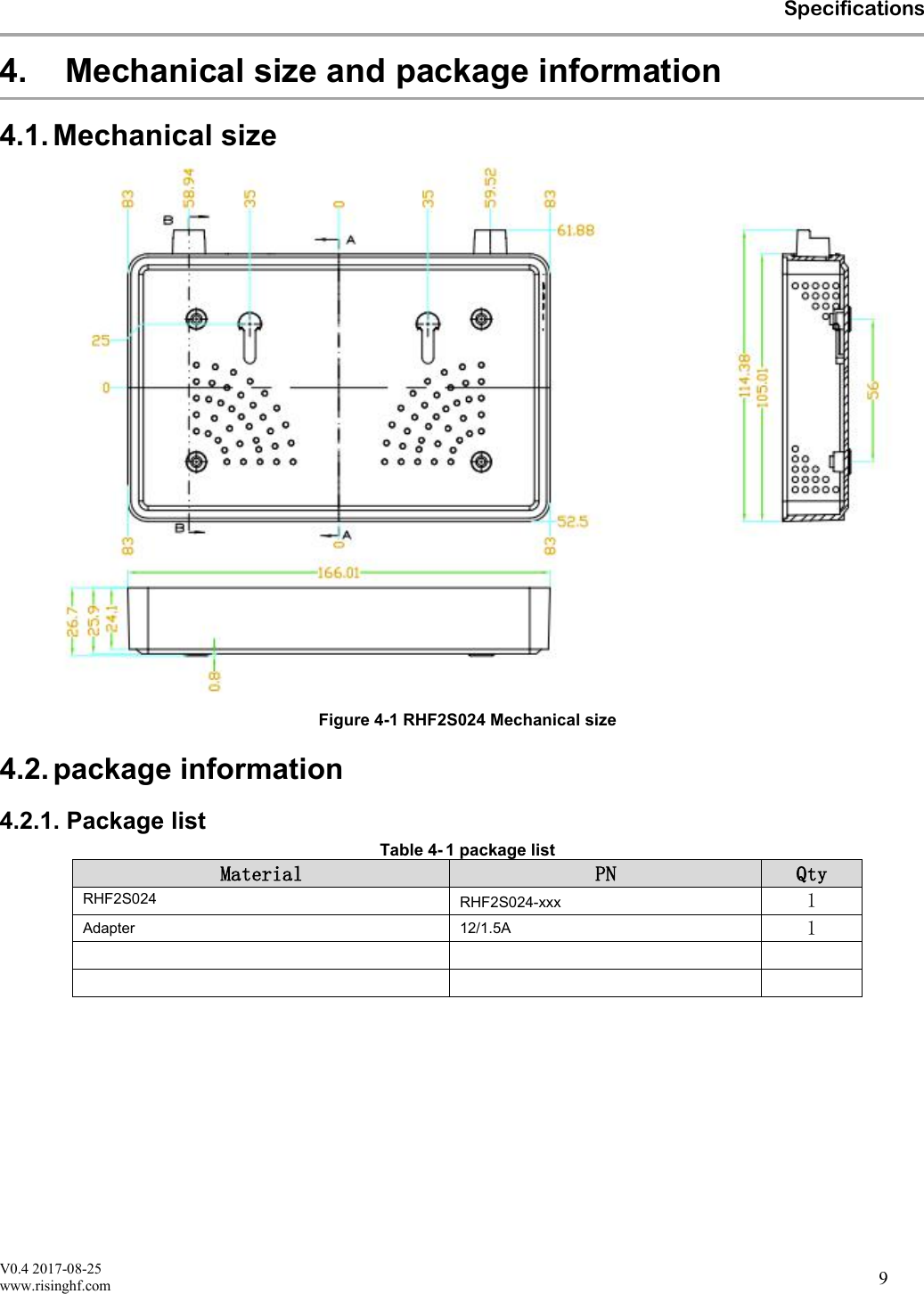

V0.4 2017-08-25www.risinghf.comSpecifications94. Mechanical size and package information4.1. Mechanical sizeFigure 4-1 RHF2S024 Mechanical size 4.2.package information4.2.1. Package listTable 4- 1 package listMaterialPNQtyRHF2S024 RHF2S024-xxx1Adapter12/1.5A1

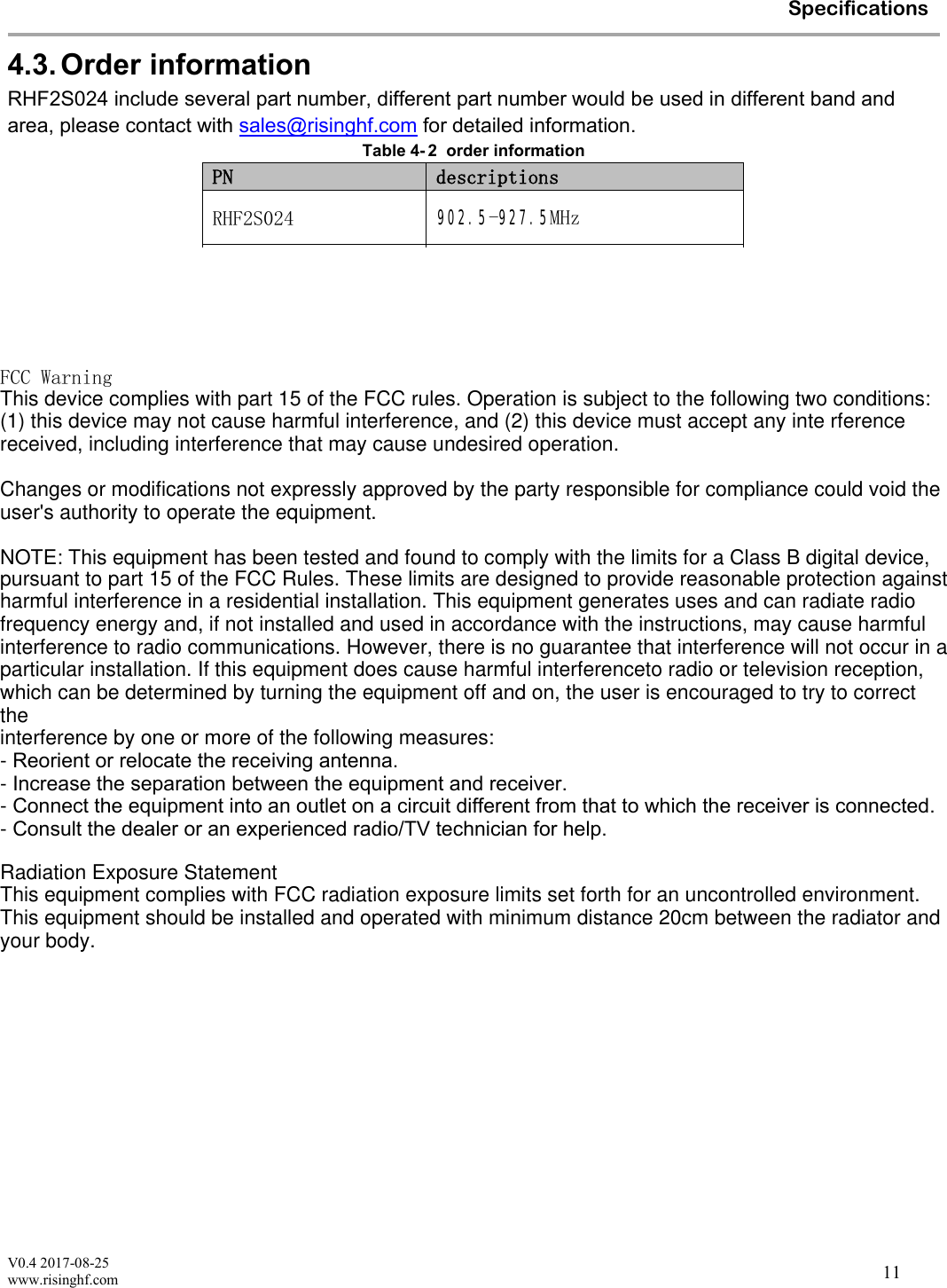

V0.4 2017-08-25www.risinghf.comSpecifications114.3. Order informationRHF2S024 include several part number, different part number would be used in different band and area, please contact with sales@risinghf.com for detailed information.Table 4- 2 order informationPN descriptionsRHF2S024 902.5-927.5MHzRHF2S024-868 859-871MHzRHF2S024-915 900-930MHzFCC WarningThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rferencereceived, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device , pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against  harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

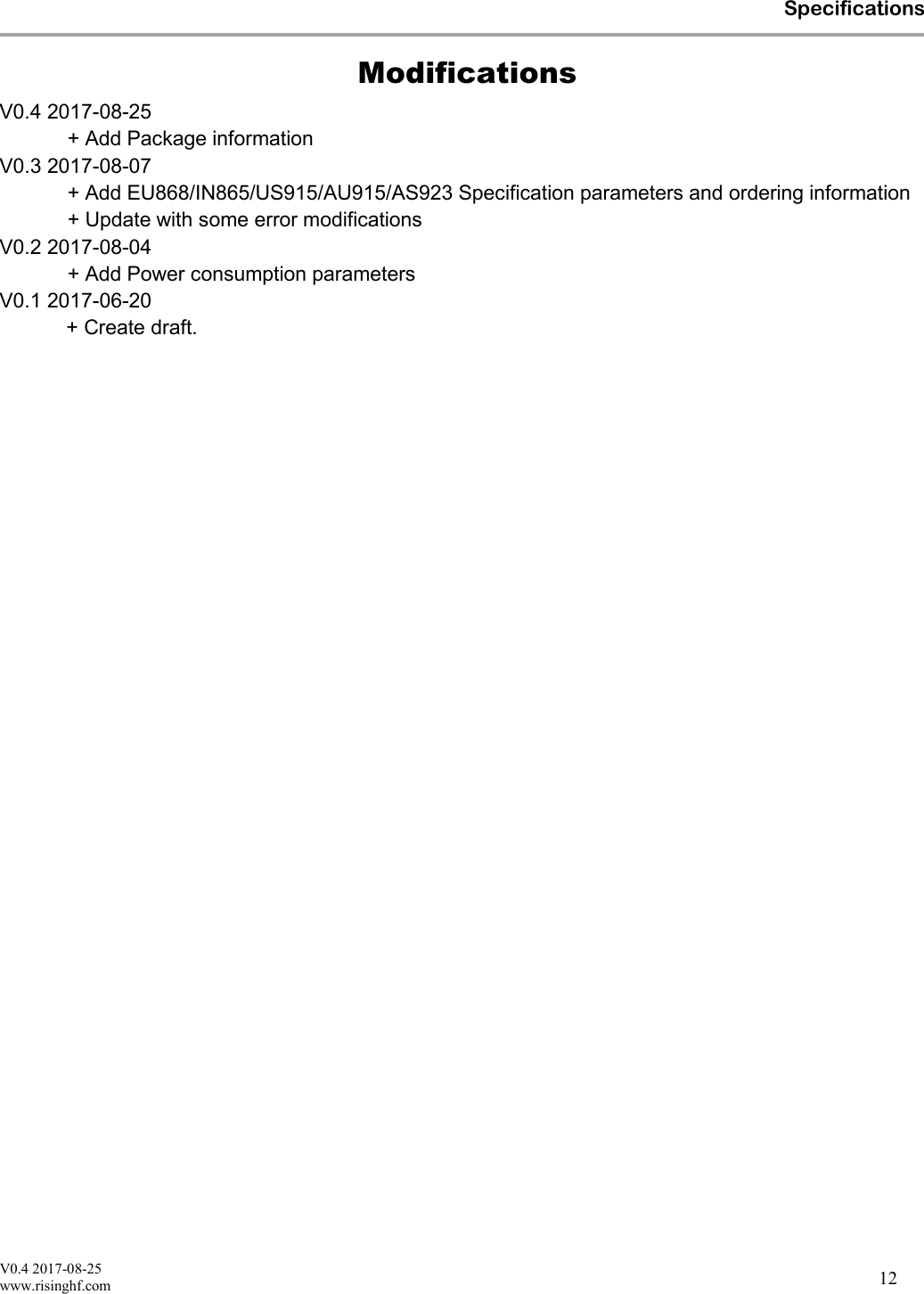

V0.4 2017-08-25www.risinghf.comSpecifications12ModificationsV0.4 2017-08-25+ Add Package informationV0.3 2017-08-07+ Add EU868/IN865/US915/AU915/AS923 Specification parameters and ordering information+ Update with some error modificationsV0.2 2017-08-04+ Add Power consumption parametersV0.1 2017-06-20+ Create draft.

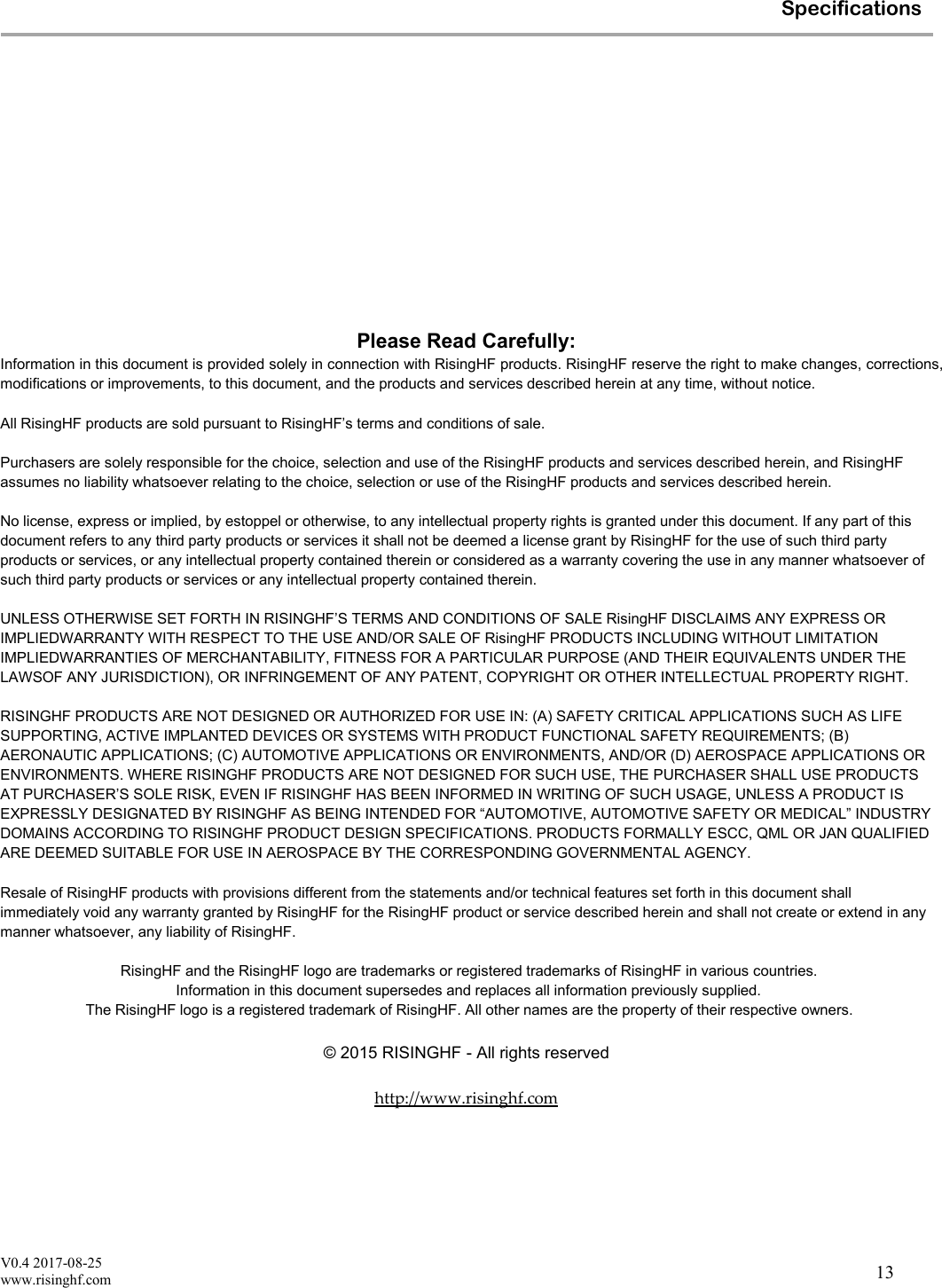

V0.4 2017-08-25www.risinghf.comSpecifications13Please Read Carefully:Information in this document is provided solely in connection with RisingHF products. RisingHF reserve the right to make changes, corrections,modifications or improvements, to this document, and the products and services described herein at any time, without notice.All RisingHF products are sold pursuant to RisingHF’s terms and conditions of sale.Purchasers are solely responsible for the choice, selection and use of the RisingHF products and services described herein, and RisingHFassumes no liability whatsoever relating to the choice, selection or use of the RisingHF products and services described herein.No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of thisdocument refers to any third party products or services it shall not be deemed a license grant by RisingHF for the use of such third partyproducts or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever ofsuch third party products or services or any intellectual property contained therein.UNLESS OTHERWISE SET FORTH IN RISINGHF’S TERMS AND CONDITIONS OF SALE RisingHF DISCLAIMS ANY EXPRESS ORIMPLIEDWARRANTY WITH RESPECT TO THE USE AND/OR SALE OF RisingHF PRODUCTS INCLUDING WITHOUT LIMITATIONIMPLIEDWARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THELAWSOF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.RISINGHF PRODUCTS ARE NOT DESIGNED OR AUTHORIZED FOR USE IN: (A) SAFETY CRITICAL APPLICATIONS SUCH AS LIFESUPPORTING, ACTIVE IMPLANTED DEVICES OR SYSTEMS WITH PRODUCT FUNCTIONAL SAFETY REQUIREMENTS; (B)AERONAUTIC APPLICATIONS; (C) AUTOMOTIVE APPLICATIONS OR ENVIRONMENTS, AND/OR (D) AEROSPACE APPLICATIONS ORENVIRONMENTS. WHERE RISINGHF PRODUCTS ARE NOT DESIGNED FOR SUCH USE, THE PURCHASER SHALL USE PRODUCTSAT PURCHASER’S SOLE RISK, EVEN IF RISINGHF HAS BEEN INFORMED IN WRITING OF SUCH USAGE, UNLESS A PRODUCT ISEXPRESSLY DESIGNATED BY RISINGHF AS BEING INTENDED FOR “AUTOMOTIVE, AUTOMOTIVE SAFETY OR MEDICAL” INDUSTRYDOMAINS ACCORDING TO RISINGHF PRODUCT DESIGN SPECIFICATIONS. PRODUCTS FORMALLY ESCC, QML OR JAN QUALIFIEDARE DEEMED SUITABLE FOR USE IN AEROSPACE BY THE CORRESPONDING GOVERNMENTAL AGENCY.Resale of RisingHF products with provisions different from the statements and/or technical features set forth in this document shallimmediately void any warranty granted by RisingHF for the RisingHF product or service described herein and shall not create or extend in anymanner whatsoever, any liability of RisingHF.RisingHF and the RisingHF logo are trademarks or registered trademarks of RisingHF in various countries.Information in this document supersedes and replaces all information previously supplied.The RisingHF logo is a registered trademark of RisingHF. All other names are the property of their respective owners.© 2015 RISINGHF - All rights reservedhttp://www.risinghf.com
