RuiXingHengFang Network RHF2S024 Home LoRaWAN Gateway User Manual
RuiXingHengFang Network(Shenzhen) Co., Ltd. Home LoRaWAN Gateway
User manual
Specifications
Document information
Info Content
Keywords RisingHF, LoRaWAN, IOT, Gateway, specifications
Abstract This document describes the specifications of the Home
RHF2S024
RHF2S024
Home LoRaWAN Gateway
Specifications
V0.4
V0.4 2017-08-25
www.risinghf.com
Specifications
1
1. Preface
This document describes the technical specifications and features of the home gateway RHF2S024.
RHF2S024 is an 8 channels Smart Home Gateway device designed by Friendcom, which is
compatible with LoRaWAN protocol and WiFi IEEE 802.11b/g/n.It can also be used as a WiFi router.
2. RHF2S024 LoRaWAN Gateway description
RHF2S024 is an IOT gateway based on LoRaWAN and target to LPWAN network. The GW could
support LoRaWAN Class A/C protocol and WiFi IEEE 802.11.b/g/n standard. The 2.4G wireless
transmission rate up to 150Mbps. Users could connect the GW to Cloud server via WiFi.
This device integrate an high performance CPU MT7688, one pcs of base-band processor SX1301,
that it could support 8 multi-SF channel (SF12 to SF7), 1 single-SF channel and 1 GFSK channel.
Output power could achieve to 13dBm max. Sensitivity is as low as -142dBm@300bps. With specified
payload length and transmit period, one GW could support 10k nodes.
RHF2S024 is a smart, easy installation and high reliability device. Customers could setup a quick
LoRaWAN network for their LPWAN application with RHF2S024.
2.1.Functional Block
RHF2S024 functional block is shown below.

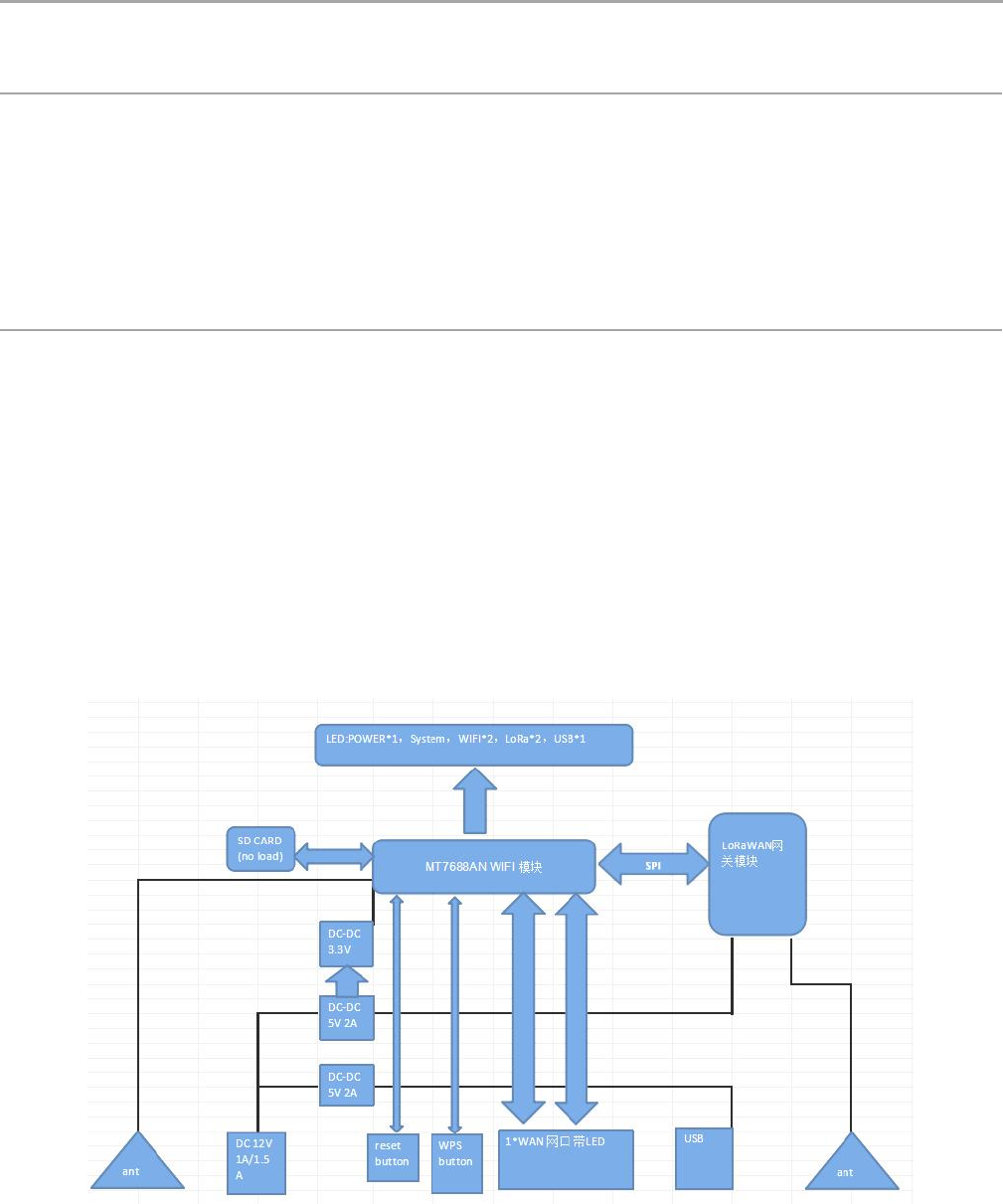

Figure 2- 1 RHF2S024 functional block
V0.4 2017-08-25
www.risinghf.com
Specifications
2
2.2. Product features and application
Features
：
LoRaWAN half-duplex operation mode;
Include 8 multi-SF LoRa channel, 1 single-
SF LoRa channel, and 1 GFSK channel;
Output power achieve to 3dBm max，
receiver sensitivity as low as
-142dBm@300bps;
Support LoRaWAN ClassA/C mode;
Support 802.11 b/g/n;
Support 10base-T and 100base-TX;
Support 100m Ethernet cable;
Application
：
M2M，IOT and LPWAN
Wireless sensor network
AMR
Industry 4.0，Industrial monitor
Wireless remote control and monitor
Smart Home, Smart building, Smart
community and Smart city;
Wireless alarm and security
environment monitor
2.3. Specifications
Table 2- 1 RHF2S024 Specifications
Item Group Item Description
System
Configuration
Core MIPS24KEc
Basic Frequency 580MHZ
RAM 1G-bit
Flash 256M-bit
Communication
10M/100Mbps Interface Access internet via cable
2.412-2.462G WIFI Wireless access
LoRa 915MHz
V0.4 2017-08-25
www.risinghf.com
Specifications
2
Wireless coverage
WIFI 60M(Open Space)
LoRa 3km(city environment)
Electrical
Specification
Power supply input DC 12V
Average Power
Consumption <5W
2.4G WIFI Output
Power
2.4G WIFI Sensitivity
11n HT20 MCS7 150Mbps: -68dBm@10%PER
11g 54Mbps: -68dBm@10%PER
11b 11Mbps: -85dBm@8%PER
LoRa Output Power 2±1dBm
LoRa Sensitivity -142dBm@SF12,BW=125kHz
LED
POWER LED Power access indication
SYSTEM LED System status indication
WIFI LED WIFI link status indication
LoRa LED LoRa link status indication
USB LED USB link status indication
11n HT20: 15±2dBm 11n HT40: 16±2dBm
11g: 15±2dBm
11b: 13±2dBm
V0.4 2017-08-25
www.risinghf.com
Specifications
3
RJ45 LED
RJ45 link status indication
External Interface
RJ45
WAN/LAN Automatic switching between
different modes
USB2.0
Local firmware upgrade and data download
WIFI antenna
5dBi External antenna
LoRa antenna
0dBi External antenna
Power interface
12V/1.5A Power supply input
Dimensions
Installation
Dimensions
166*105*28.4mm
Weight
223.2g
Installation
On the desktop or Fixed on the wall
Operating Range
Operational
temperature range
-20 to +50℃
Storage
temperature range
-40 to +85℃
3. Global electrical specifications and reliability
3.1.Electrical specifications
3.1.1. Power Supply
RHF2S024 is equipped with 12V / 1.5 A 5 energy efficiency power adapter, input voltage range of
100 ~ 240Vac; 50/60Hz, output voltage range 11.4 ~ 12.6 V.
V0.4 2017-08-25
www.risinghf.com
Specifications
4
3.1.2. Consumption
Table 3- 1 RHF2S024 Total Consumption
Item Value typ/W
Standby 2.4W
Average 4.1W
MAX 5W
3.1.3. Rf Specifications（LoRaWAN）
Conducted Receiver sensitivity and Transmitter output power would be used to evaluate the
performance here.
1）Sensitivity
Test condition：32byte payload，PER=10%，+25℃.
Table 3- 2 Conducted Receiver sensitivity
Part Number Bandwidth/kHz Spreading Factor Sensitivity/dBm
RHF2S024
125 12 -140
7 -125
250 12 -136
7 -122
500 12 -133
7 -119
RHF2S024-868
125 12 -139
7 -125
250 12 -136
-122
500 -133
7 -119
RHF2S024-915
125 12 -139
7 -125
250 12 -136
7 -122
500 12 -133
7 -119
2）Output power
Test condition：CW signal，+25℃.
Table 3- 3 Output power
ParameterPart Number UnitMaxTypMin
RHF2S024
Frequency Range（Tx）902.5 927.5 MHz
Frequency Range（Rx）902.5 927.5 MHz
Max Output power 2dBm
V0.4 2017-08-25
www.risinghf.com
Specifications
5
3.1.4. Antenna performance
The gateway is equipped with an high efficient omnidirectional antenna.
50Resistance Ω
VSWR<3.0@470-510MHZ
VSWR<2.0@868-915MHZ
VSWR<1.8@2.4-2.5GHZ
Gain 0dBi@470-510MHZ
0dBi@868-915MHZ
5dBi@2.4-2.5GHZ
Efficiency 470-510MHZ:>35%
868-915MHZ>60%
2.4-2.5GHZ:>60%
V0.4 2017-08-25
www.risinghf.com
Specifications
7
3.2. Reliability
Environment test
Table 3- 7 Environment test requirement
Item Test condition standard results
Low temperature
operation
Temperature: –20ºC
Operation mode: working
with service connected
Test duration: 12 h
JESD22-A1
GB/T 2423
Appearance ok;
LoRaWAN RF
Performance ok;
Function ok;
High temperature
operation
Temperature: +50ºC
Operation mode: working
with service connected
Test duration: 12 h
JESD22-A1
GB/T 2423
Appearance ok;
LoRaWAN RF
Performance ok;
Function ok;
Low temperature
Storage
Temperature: –40ºC
Operation mode: no
power, no package
Test duration: 24 h
JESD22-A1
GB/T 2423
Appearance ok;
LoRaWAN RF
Performance ok;
Function ok;
High temperature
Storage
Temperature: +85ºC
Operation mode: no
power, no package
Test duration: 24 h
JESD22-A1
GB/T 2423
Appearance ok;
LoRaWAN RF
Performance ok;
Function ok;
V0.4 2017-08-25
www.risinghf.com
Specifications
9
4. Mechanical size and package information
4.1. Mechanical size

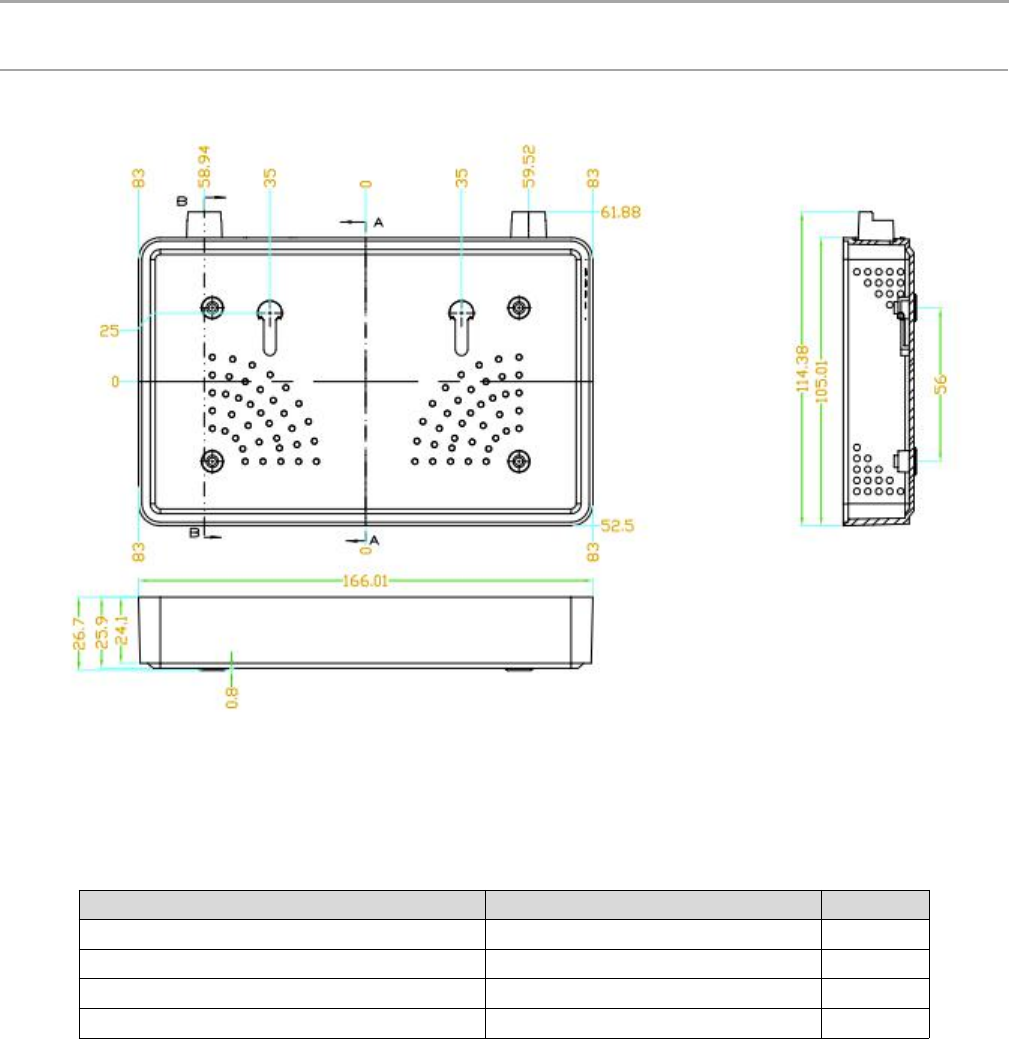

Figure 4-1 RHF2S024 Mechanical size
4.2.package information
4.2.1. Package list
Table 4- 1 package list
Material
PN
Qty
RHF2S024 RHF2S024-xxx
1
Adapter
12/1.5A
1
V0.4 2017-08-25
www.risinghf.com
Specifications
11
4.3. Order information
RHF2S024 include several part number, different part number would be used in different band and
area, please contact with sales@risinghf.com for detailed information.
Table 4- 2 order information
PN descriptions
RHF2S024 902.5-927.5MHz
RHF2S024-868 859-871MHz
RHF2S024-915 900-930MHz
FCC Warning
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any inte rference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device
,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interferenceto radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator and
your body.
V0.4 2017-08-25
www.risinghf.com
Specifications
12
Modifications
V0.4 2017-08-25
+ Add Package information
V0.3 2017-08-07
+ Add EU868/IN865/US915/AU915/AS923 Specification parameters and ordering information
+ Update with some error modifications
V0.2 2017-08-04
+ Add Power consumption parameters
V0.1 2017-06-20
+ Create draft.
