MARINE DSC VHF RADIO TELEPHONE
FOR GMDSS
OPERATING MANUAL
STR- 6000A
SAMYUNGENC CO.,LTD.
2
INSTRUCTIONS
Please read this operating manual with care before turning on power.
1. How to transmit and stop Distress Call
In performing Distress Call function, press button and hold it down for
3(three) seconds until DISTRESS MESSAGE is seen. Then the whole display
unit will start flashing with a strong alarm. In transmitting Distress Call, the
transmission must be made based on the judgment of a person on duty. The
test of this function MUST NOT be made at all times because the test may
cause heavy damages to near-going vessels and search & rescue authorities
concerned.
When the Distress Call is performed, the distress message will be
automatically transmitted and this transmission will be repeated at the
intervals of 3 minutes 30 seconds through 4 minutes 30 seconds. This
transmission will be repeated until the DSC (Digital Selective Calling) is
received by the authorities of the country to which the call is transmitted or
until any operation for ending the call is made. If any transmission is made by
accident, press
button to bring it to an end. Even though any operation for stop has
been made, it is necessary for operator to contact CH16 to inform that the
transmission was made by mistake as the message was automatically
transmitted more than one time at least.
When Distress Call is received, it is necessary to inform a person on duty
about this.
2. How to make the initial set-up in installation
For the below items, the initial set-up should be made in installation before its actual
operation. Please contact SAMYUNG ENC or any agent dealers for the information.
3
2-1 How to check out power supply
Input voltage in VHF main unit: Confirm that DC13.6V is supplied.
2-2 How to transmit and receive DSC
In order to use DSC function, make sure that any MMSI number available must be
input first.
3. Other instructions
3-1 In using Semi-Auto & Auto connection service with DSC, it is necessary to
check with the concerned authorities about the formalities of call charge because
the billing system has not yet been decided worldwide.
3-2 The paper used in DPU-414 PRINTER is a special one that is chromogenic with
thermo-chemistry reaction. Therefore, it is advisable to avoid the below-mentioned
cases as the paper tends to change its color or get discolored.
Keeping under any places with heat, humidity and light
Touching with sweat-wet hands
Rubbing with any hard things
Pasting with any organic solvents such as glue
Applying with any oiled tapes
Long time exposure to any vinyl chloride films
Contacting diazo immediately after printout
Contacting any wet copy
Contacting any oiled solvents
4
Chapter 1. Introduction.................................................................................... 6
1.1. Introduction ....................................................................................................... 6
1.2. Features ............................................................................................................ 6
Chapter 2. Configuration ................................................................................. 8
2.1. Standards.......................................................................................................... 8
2.2. Option................................................................................................................ 8
Chapter 3. Specifications................................................................................. 9
3.1. STR-6000A Standards ...................................................................................... 9
3.2. Transmitting Unit ............................................................................................... 9
3.3. Receiving Unit ................................................................................................. 10
3.4. Dedicated Receiving Unit................................................................................ 10
Chapter 4. How to Operation......................................................................... 11
4.1. Unit Description............................................................................................... 11
4.1.1. Front Panel ............................................................................................ 11
4.1.2. Microphone............................................................................................ 14
4.2. LCD Screen Description.................................................................................. 16
4.3. VHF Operation ................................................................................................ 17
4.3.1. Channel Selection ................................................................................. 17
4.3.1.1. Channel 16................................................................................... 17
4.3.1.2. Channel Mode Selection (ITU,USA,CAN).................................... 17
4.3.2. Weather Channel................................................................................... 18
4.3.3 Transmit and Receive............................................................................. 18
4.4. Menu Setup and Construction......................................................................... 20
4.4.1. Menu Construction ................................................................................ 20
4.4.2. Menu Screen Construction and Initialization ......................................... 22
4.4.3. Menu Setup ........................................................................................... 23
4.4.3.1. FRIENDS MMSI LIST .................................................................. 23
4.4.3.2. GROUP MMSI LIST..................................................................... 23
4.4.3.3. TELEPHONE LIST....................................................................... 24
4.4.3.4. LCD BACKLIGHT......................................................................... 24
4.4.3.5. LCD CONTRAST ......................................................................... 24
4.4.3.6. GPS FUNCTION SET .................................................................. 24
4.4.3.7. MANUAL GPS/TIME .................................................................... 25
4.4.3.8. DSC SET...................................................................................... 25
4.4.3.9. RADIO SET.................................................................................. 26
4.4.3.10. REAL TIME CLOCK(Current time change)................................ 26
4.4.3.11. FACTORY RESET(MENU SETUP INITIALIZATION)................ 26
4.4.3.12. SYSTEM TEST(System Test).................................................... 26
4.4.3.13. PRINT SETUP(Print Setup) ....................................................... 27
5
4.5. DIGITAL SELECTIVE CALLING (DSC) .......................................................... 27
4.5.1. Configuration of CALL Screen............................................................... 29
4.5.2. CALL Menu Description and Instruction ................................................ 29
4.5.2.1. DISTRESS CALL(Distress message SETUP and Call) ............... 30
4.5.2.2. ALL SHIPS MESSAGE SETUP AND CALL................................. 32
4.5.2.3. INDIVIDUAL MESSAGE SETUP AND CALL............................... 33
4.5.2.4. AUTO/SEMI-AUTO Message Edit and Call ................................. 35
4.5.2.5. TEST CALL.................................................................................. 35
4.5.2.6. GROUP MESSSAGE EDIT AND CALL ....................................... 36
4.5.2.7. POSITION MESSAGE EDIT AND CALL ..................................... 37
4.5.2.8. DISTRESS CALL RELAY ............................................................ 38
4.5.2.9. DISTRESS RELAY ACKNOWLEDGEMENT............................... 40
4.5.2.10. RESPONSE to DISTRES CALL................................................. 40
4.5.2.11. RESPONSE to THE OTHER CALL ........................................... 41
4.5.2.12. DIRECT RELAY......................................................................... 42
4.5.2.13. RECVEIVING DISTRESS READ ............................................... 45
4.5.2.14. OTHER RECEIVING MESSAGE READ .................................... 45
4.5.2.15. DSC Message Receiving ........................................................... 46
4.5.2.16. Auto Acknowledgement Setup................................................... 46
Chapter 5. Installation.................................................................................... 48
5.1. Unpacking Package and Inspection................................................................ 48
5.2. Selection of Installation Position for Main Units of STR-6000A ...................... 48
5.3. Installation for main unit of STR-6000A .......................................................... 48
5.4. Cabling ............................................................................................................ 50
5.4.1. Power Connection ................................................................................. 51
5.4.2. Connects to External Speaker............................................................... 51
5.4.3. How to setup Antenna ........................................................................... 51
5.4.4. GPS Connection.................................................................................... 51
5.5. Integrated Wiring............................................................................................. 51
Chapter 6. Channel List ................................................................................. 53
6.1. ITU Channel .................................................................................................... 53
6.2. USA Channel .................................................................................................. 55
6.3. CANADA Channel........................................................................................... 57
6.4. Weather Channel ............................................................................................ 59
Chapter 7. Position Information Interface .................................................... 60
Chapter 8. Packing List.................................................................................. 61
8.1. Oversea........................................................................................................... 61
8.2. Domestic ......................................................................................................... 63
Chapter 9. Block Diagram.............................................................................. 65
Chapter 10. Overall Drawing.......................................................................... 66
6
Chapter 1. Introduction
1.1. Introduction
STR-6000A includes DSC/VHF radio telephone and DSC receiver required by the Global
Maritime Distress and Safety System(GMDSS) and is designed to be compact and lightweight
for easy installation in any vessels engaged in international voyages and near-going vessels.
In addition to the conventional voice communication, STR-6000A is equipped with Digital
Selective Calling(DSC) functions for distress calls and routine calls as well. It also incorporates
all the necessary units for DSC services such as DSC unit, CH70 DSC receiver.
1.2. Features
The equipment meets the ITU Radio Regulations, IMO Performance Standards and
CCIR Recommendations.
The equipment contains all the channels designated by Radio Communication
Regulations of ITU Communications Treaty and it is also available to operate USA
channel, Weather channel and Canada channels that are used in the coast of North
America. (Weather alarm function. Available in the area of USA and Canada).
As the compact size includes the built-in transceiver, the dedicated CH70 DSC
receiver, it is easy for installation in any little space.
The adoption of wide sight graphic LCD allows user to see the display at every angle
and operate it with ease.
As the required operation mode is displayed in LCD according to the indication and
the purpose by MENU mode, it is easy to work on operating DSC in particular as well
as on the routine operation.
If the dedicated DPU-414 printer or normal SERIAL standard printer is used in
combination with the main unit, the messages of DSC transceiver is designed to be
automatically printed out. It is always available to manually print the received
message that is memorized inside, too.
As the lighting range of back-light in LCD and the operation key panels is wide, it
does not interfere any night shift.
Beside those channels designated by Radio Communications Regulations, it is
available to operate USA Channel, Weather Channel and Canada Channel which are
used in the coast of North America.
7
Such functions as TAG CHANNEL SCANNING, ALL CHANNEL SCANNING,
GROUP-CHANNEL SCANNING and DUAL WATCH allow user to listen to any
specific channel.
Besides the existing voice communications, it is available to work on communications
for distress, urgency, safety and other routines as well by using DSC function.
In case that the coast station is working on automatic connection service of public
communications network, it is available to auto-connect the general telephone
through the designation of the telephone number on the equipment.
The equipment has a function of automatically inputting the latitude/longitude data
coming out from navigational equipment such as GPS navigator. In transmitting
Distress Call, it is designed to automatically transmit the positional data coming out
from navigational equipment by inserting the positional data in the distress message.
In case of receiving any call from the coast area, it is designed to make an automatic
judgment by itself to see if the own ship is within the called area according to the
positional data coming out from the navigational equipment.
The equipment is designed for the daily waterproof.
User can select and automatically set up the transmission power of High(25W) or
Low(1W).
It is easy to use the dedicated CH16/19 buttons with which the access to the priority
channel can be easily made.
It includes the functions of Dual/Trial Watch and Tag Scan.
The DSC(Digital Selective Calling) function is compliant with Class A Standards.
‘FRIENDS list’ function allows user to easily call through DSC up to 20 favorite people.
It is available to set up 3 favorite groups.(For the purpose of Group DSC calling).
Both Group DSC calling and All Ship DSC calling available.
User can identify the position of friends through LL Position Polling.
8
Chapter 2. Configuration
The equipment consists of as follows;.
2.1. Standards

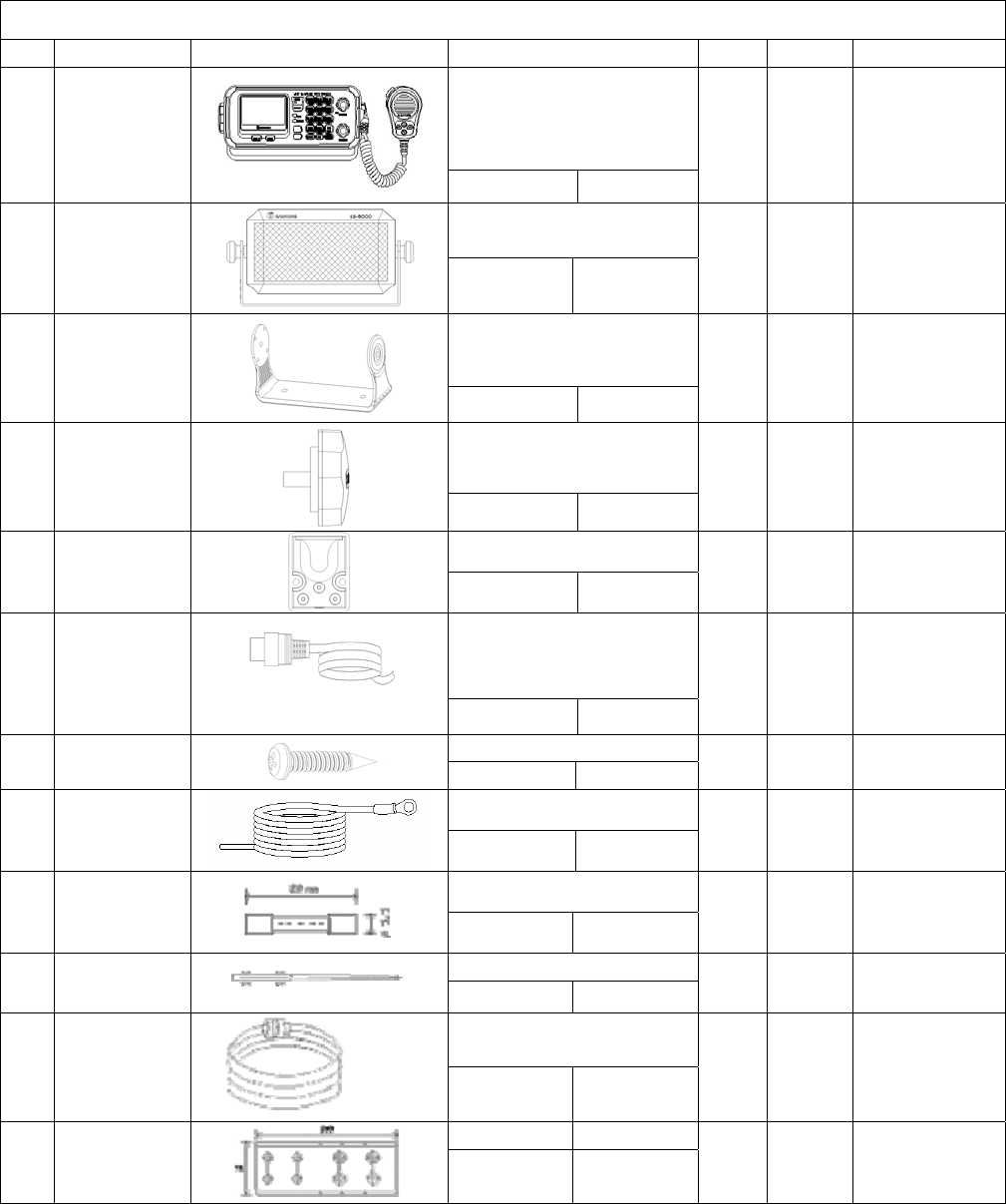

Name Model Quantity Remarks
VHF Radio Main Unit STR-6000A 1 Set Including HAND MIC
Operating Manual 1 Lot
2.2. Option
Name Model Remarks
SAN-150 (RX/TX) 3dBi
Antenna (3dBi)
SAN-150 (DSC WKR) 3dBi
Including
CABLE/BRACKET
Domestic : Standard
Overseas : Option
SP-580AD
AC/DC POWER
SUPPLY
SP-6000AD
Including CABLE
Domestic : Standard
Overseas : Option
VHF EMG LIGHT DC24V / 3W Stand Type
DSC/VHF PRINTER DPU-414 Including CABLE
9
Chapter 3. Specifications
3.1. STR-6000A Standards
TX Frequency 156.025MHz ~ 157.425MHz
RX Frequency 156.050MHz ~ 163.275MHz
Number of Channels 183
ITU Channel: 55
USA Channel: 57
CANADA Channel: 61
WEATHER Channel: 10
Radio Wave Mode FM(16K0G3E), DSC(16K0G2B)
Channel Interval 25kHz
Communication Mode Simplex and Semi-Duplex
Antenna impedance 50Ω(SO-239)
Audio Output Impedance 4Ω
Frequency Stability ±10 PPM(-20℃ to +60℃)
Voltage Supply 13.6V DC±10%(Negative Ground)
Consumption Currency (13.6V) TX High 5.5A max
Maximum Audio 1.5A max
Operating Temperature -15℃ ~ +55℃
Dimensions 85×172×170
Weight 1.1kg
3.2. Transmitting Unit
Output Power (ⓐ 13.8 V DC) 25W/1W(Low)
Frequency Deviation Within ±5ppm
Oscillation Mode Synthesizer Mode
Modulation Variable Reactance Frequency Modulation
Maximum Frequency Deviation ±5.0kHz
Occupied Bandwidth Within 16kHz
MIC Input Impedance 2kΩ
Audio Frequency Response 300Hz~3kHz 6dB/octave(+1 ~ -3dB)
Spurious Emissions Less than 70dB
Adjacent Channel Power Less than -70dBc
Audio Harmonic Distortion Less than 10%
Residual Modulation
(Signal/Noise Ratio) Over 40dB
Type of emition G2B
10
3.3. Receiving Unit
Receive System Double Conversation Super Heterodyne
1st 21.7MHz Intermediate Frequencies
2nd 450kHz
Local Oscillation Frequency Receiving Frequency - 21.7MHz
Local Oscillation Mode SYNTHESIZER Mode
Sensitivity 32uV (20dB SINAD)
0.22uV (12dB SINAD)
Audio Frequency Response -6dB/octave
Squelch Sensitivity 0.22uV
Co-Channel Rejection -10dB ~ 0dB
Adjacent Channel Selectivity Over 70dB
Spurious Response Rejection Ratio Over 70dB
Inter-modulation Rejection Ratio Over 68dB
Spurious Emission Less than 2nW(-56.9dBm)
Hum and Noise Less than -40dB
Audio Output Power (at 13.6 V DC) 4.5W / 4Ω(Distortion Rate: Less 10%)
3.4. Dedicated Receiving Unit
Operating Frequency 156.525MHz
Mode 16K0G2B
Receive System Double-Conversion Super Heterodyne
Intermediate Frequencies 1st 10.70 MHz
2nd 450 kHz
Inter-modulation Rejection Ratio Over 68dB
Adjacent Channel Selectivity Over 70dB
Spurious Response Rejection Ratio Over 70dB
Spurious Emission Less than 2nW(-56.9dBm)
DSC Modulation Speed 1200baud (±30ppm)
DSC Modulation Mode FSK
DSC Modulation Rate Within m=2±10%
MARK Frequency Within 1300Hz±10Hz
SPACE Frequency Within 2100Hz±10Hz
Maximum Sensitivity Available Bit Error Rate: Less than 10-2 in 0.25uv
DSC Operation ITU-R M.541-9
ITU-R M.689-2
DSC Protocol ITU-R M.493-11 class-A
DSC FILE Memory DISTRESS-Related Message Reception: 20
OTHERS-Related Message Reception : 20
11
Chapter 4. How to Operation
4.1. Unit Description

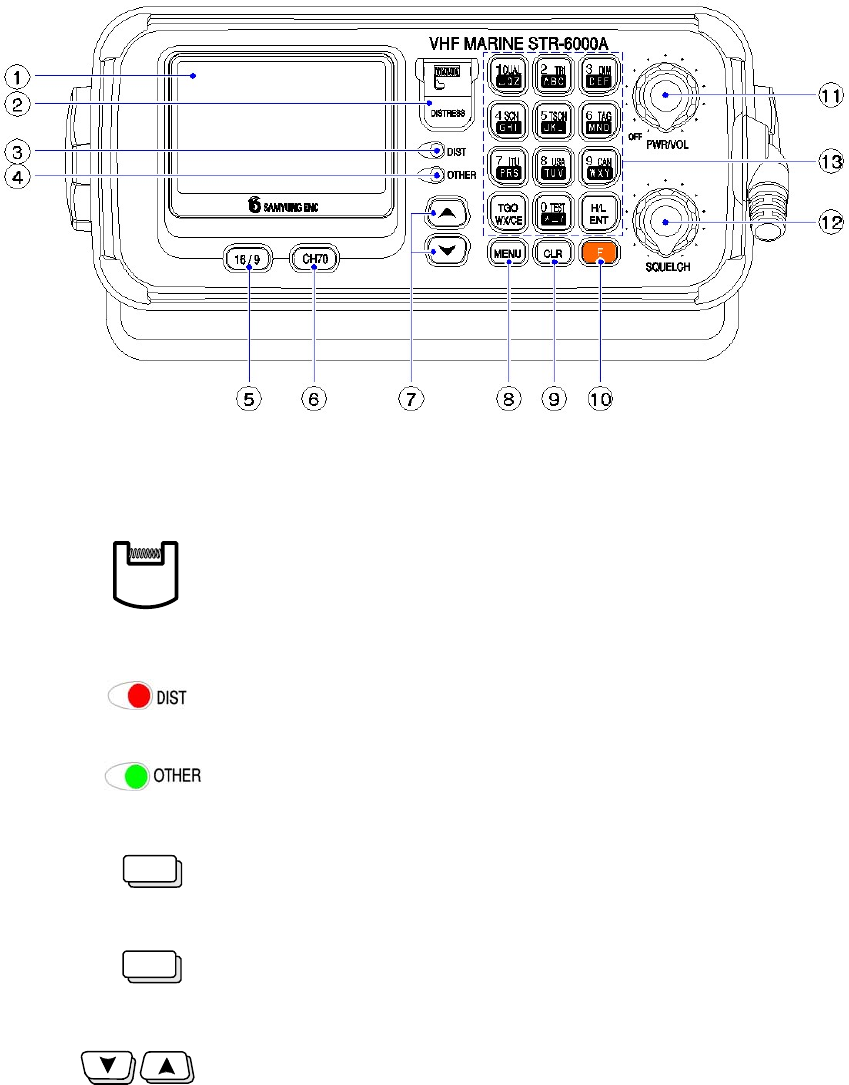

4.1.1. Front Panel
① LCD Front Display Screen.
②
Transmit distress call (Alert) MESSAGE.
(※ You MUST NOT make a test of the transmission !! )
Push and hold down for 3 seconds, then the distress call will
be activated.
③
Light will turn on in both receiving and transmitting DSC
distress call
④
Light will turn on in both receiving other DSC call message
other than distress call.
⑤
This is for either changing the existing channels to CH16 or
returning to TELEPHONE MODE from other CH or DSC
MENU.
⑥ Select channel 70
⑦
To convert CH or MENU.
(If press short one time, if press long time it is to be
continuous).
12
⑧
Short time press is for DSC Calling and long time press is for
MENU function.
⑨ This is ‘ESCAPE’ function in MENU mode.
⑩ It means this is being used as FUNCTION button.
⑪ PWR/VOL (Power Knob) Power ON/OFF and Volume Control.
⑫ SQUELCH Knob Squelch Control
⑬ Button description
Input “1” when selects CH and inputs digit.
When used this button, it works ON/OFF for dual watch
function. (It receives the message by switching over between the
existing CH and CH16 each other continuously.)
1 DUAL
QZ
]
When inputs character, convert from 1→ space → Q →to Z in order
and ENT.
When selects CH and inputs digit, input “2”.
When used this button, it works ON/OFF for triple watch
function. (It receives the message by switching over among the
existing CH, CH16 and CH09 each other continuously.)
2 TRI
ABC
When inputs character, convert from 2→ A → B →to C in order and
then ENT.
When selects CH and inputs digit, input “3”.
When used this button, it adjusts BACK-LIGHT(Internal Light)
in 4 steps.
3 DIM
DEF
When inputs character, convert from 3 → D → E → F in order and
ENT.
13
When selects CH and inputs digit, input “4”.
When used this button, it does scanning all channels with
converting “ALL” in screen (“CLR” when it finished)
4 SCN
GHI
When inputs character, convert from 4 → G → H → I in order and ENT
When selects CH and inputs digit, input “5”.
When used this button, it does scanning only selected CH by
TAG with converting “ALL” to “TAG” in screen
5 TSCN
JKL
When inputs character, convert from 5 → J → K → to L in order and
ENT
When selects CH and inputs digit, input “6”.
When used this button, it can set up TAG at selected CH.
6 TAG
When inputs character, convert from 6 → M → N → to O in order and
ENT
When selects CH and inputs digit, input “7”.
When used this button, it can set up to ITU MODE..
7 ITU
PRS
When inputs character, convert from 7 → P → R → to S in order and
then ENT
When selects CH and inputs digit, input “8”.
When used this button, it can set up to USA MODE.
8 USA
TUV
When inputs character, convert from 8 → T → U → to V in order and
then ENT
When selects CH and inputs digit, input “9”.
When used this button, it can set up CAN MODE.
9 CAN
WXY
When inputs character, convert from 9 → W → X →to Y in order and
ENT.
14
When selects CH and inputs digit, input “0”.
When used this button, it can execute self-test menu.
0 TEST
* - /
When inputs character, convert from 0 → * → _ → / in order and then
ENT.
TGO
WX/CE
When used this button, TAG is moving on the selected CH.
On the main screen, it can select weather CH, move a cursor to
forward for character input.
H/L
ENT
It is a function to switch-over Tx power between 25W and 1W each
other.
In DSC MENU, it can be used for Item selection and Input
confirmation.

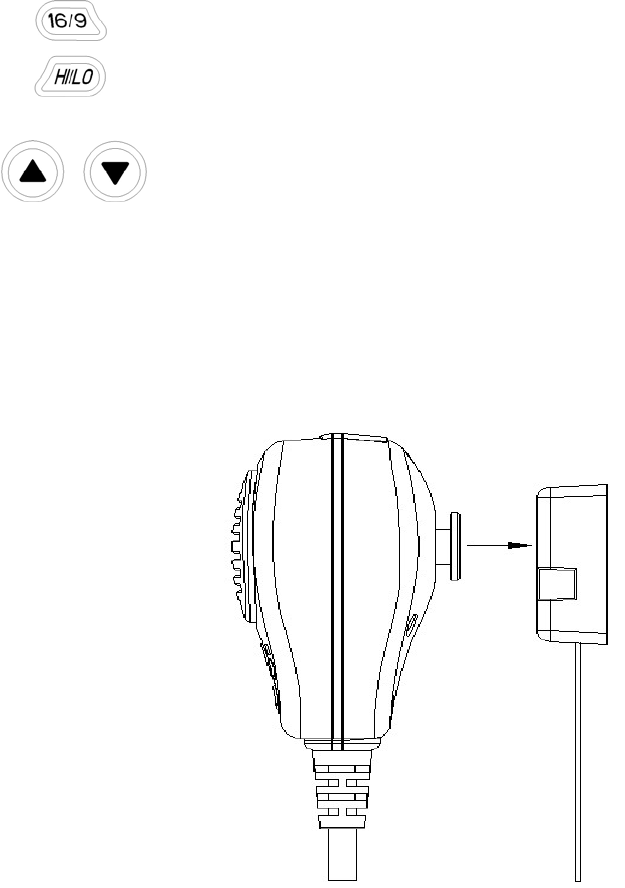

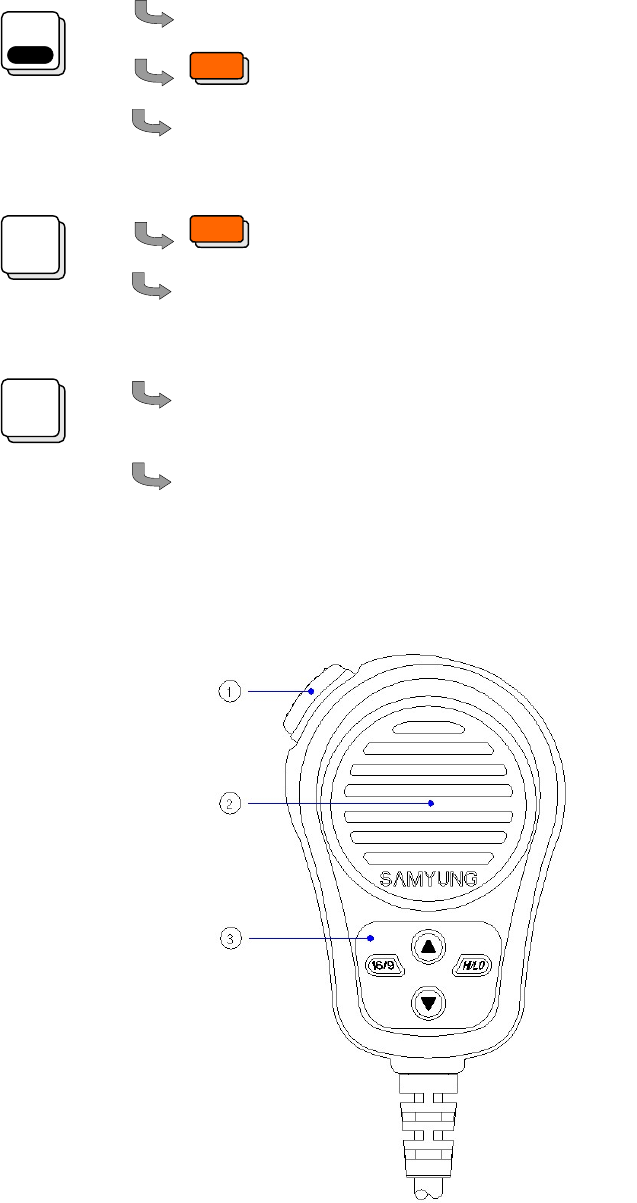

4.1.2. Microphone
① PTT : If pressed, it goes to transmission.
② MIC : Condenser Mic
15
③ Key Pad :
: To convert to the current CH and CH16.
: It is used as Enter button for setting-up input data in MENU mode, while
at normal times it is used for switching-over Tx power between 25W and 1W.
, : To convert CH.
(If pressed short it is to be one time, if pressed long time it is to be continuous).
Hook Switch④
If a Handmic is connected with Handmic Box a current CH ignored and go to common
CH(CH16) automatically.
Handmic Handmic Box
16

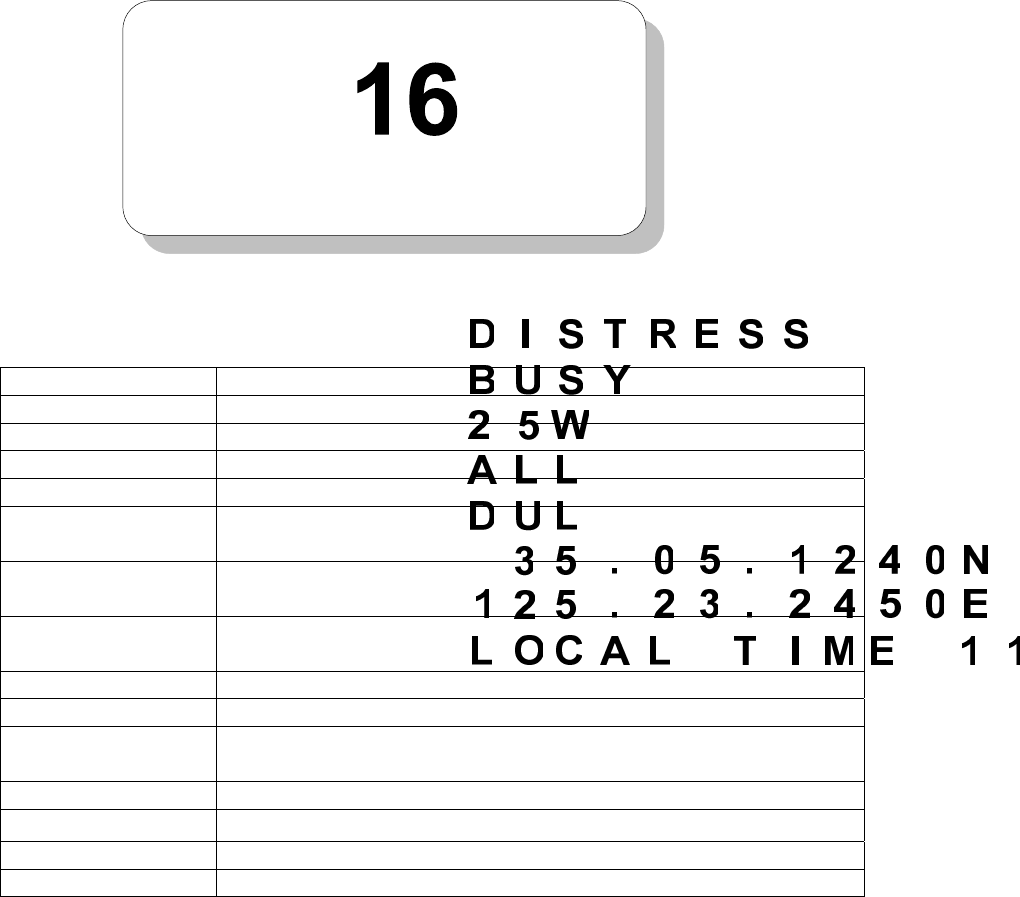

4.2. LCD Screen Description
Item Function Description
DISTRESS CH Name
BUSY It represents detecting the sensitivity signal in existing CH..
25W(01W) It represents Tx Power.
ALL It represents the kinds of SCAN.
DUL It plays multi-scan between the existing CH and CH16. (It will be
converted when scanning.)
35.05.1250N It indicates own ship’s latitude.
(As the current position, it indicates GPS antenna position)
129.04.2741E It indicates own ship’s longitude.
(As the current position, it indicates GPS antenna position)
12:15PM It represents the current time.
WXALT It is displayed when weather channel is set-up.
ITU(USA,CAN,
WEA) It represents the country channel mode currently set-up.
SIM(DUP) It represents whether current CH is Duplex or Simplex.
TAG It represents TAG which is setting-up at the current CH
RX(TX) It shows Rx when receiving, and Tx when transmitting.
16 It represents the current CH is Channel No.16.
17
4.3. VHF Operation
4.3.1. Channel Selection

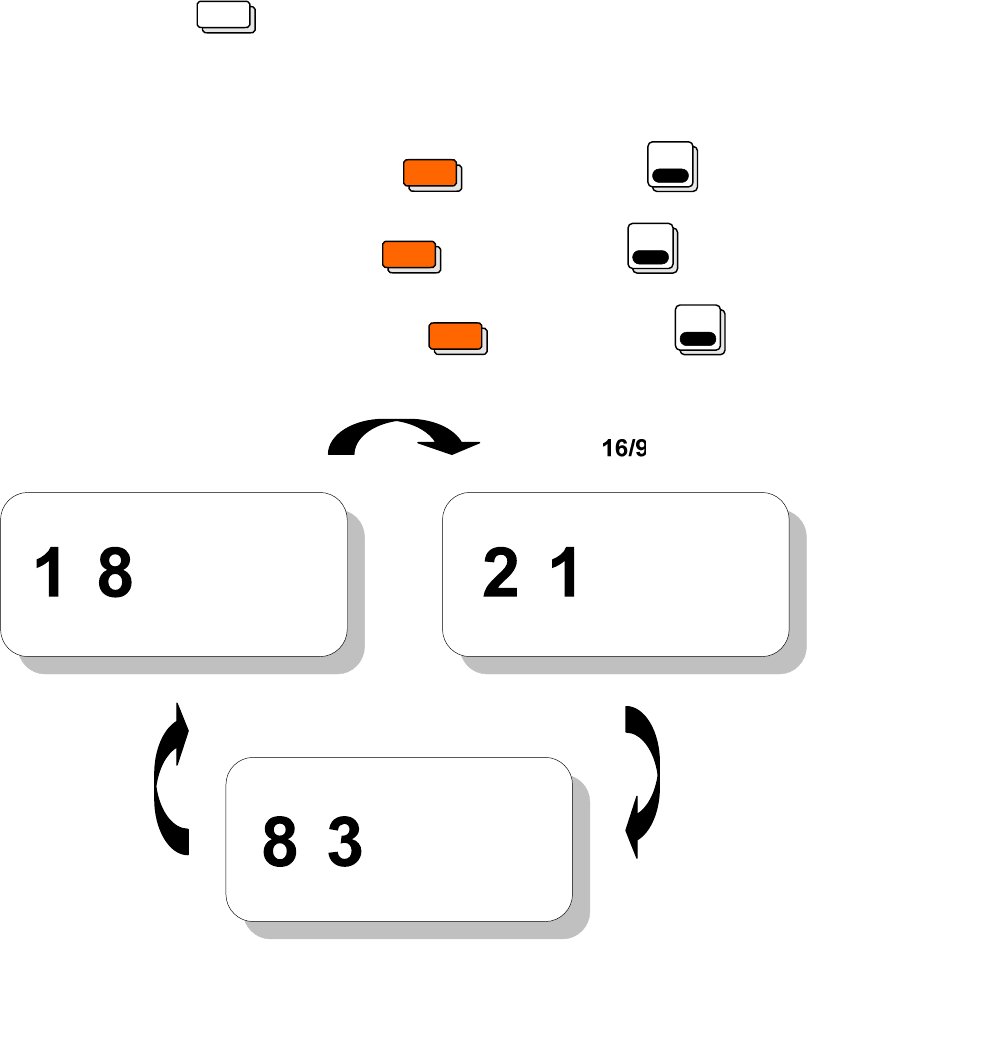

4.3.1.1. Channel 16
CH.16 is for distress and safety, and it should be monitored through dual-watch and
tri-watch.
Whenever selected key, it shifted from the current CH → CH 16 → CH 9 →
current CH.
4.3.1.2. Channel Mode Selection (ITU,USA,CAN)
How to select ITU CH : Press button and go to button.
How to select USA CH : Press button and go to button.
How to select CANADA CH : Press button and go to button.
18
4.3.2. Weather Channel
It can receive 10 numbers of weather channel provided by NOAA (National
Oceanographic and Atmospheric Administration).
STR-6000A can detect the alert sound of selected weather channel from the
regular channel or the one during the channel scanning
When selected it converts between weather channel and general
channel.
4.3.3 Transmit and Receive
① Power and Volume switch
It is operated by POWER ON switch and used for adjusting Sound volume.
If turned OFF-wise, power will be off.
It turned clock-wise, power will be on and volume can be adjusted.
② Squelch Knob
Place it in suitable position to eliminate the noise by SQUELCH volume.
③ After pressing button and select the wanted channel (ITU : ,
USA : , CANADA : ) and press.
④ Channel can be changed one by one by direction key in Main unit and Mic and
Channel will keep on changing if pressed long time. In addition, if inputs digit key,
channel can be changed.
⑤ Tx power can be selectable between 25W and 1W
⑥ Tx is possible if pressed PTT switch, while the status is Rx if it is released.
19

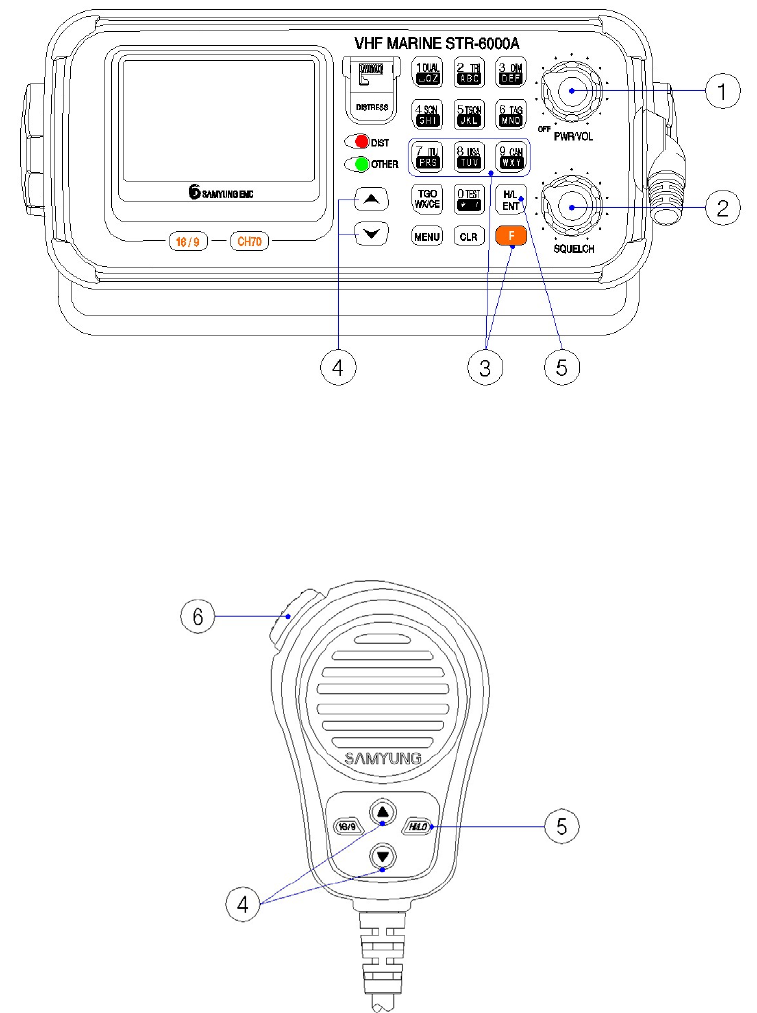

(STR-6000A Main Body)
(STR-6000A Microphone)
20
Menu Select
Press MENU
button long time
-- MENU ITEM SELECT--
4.4. Menu Setup and Construction

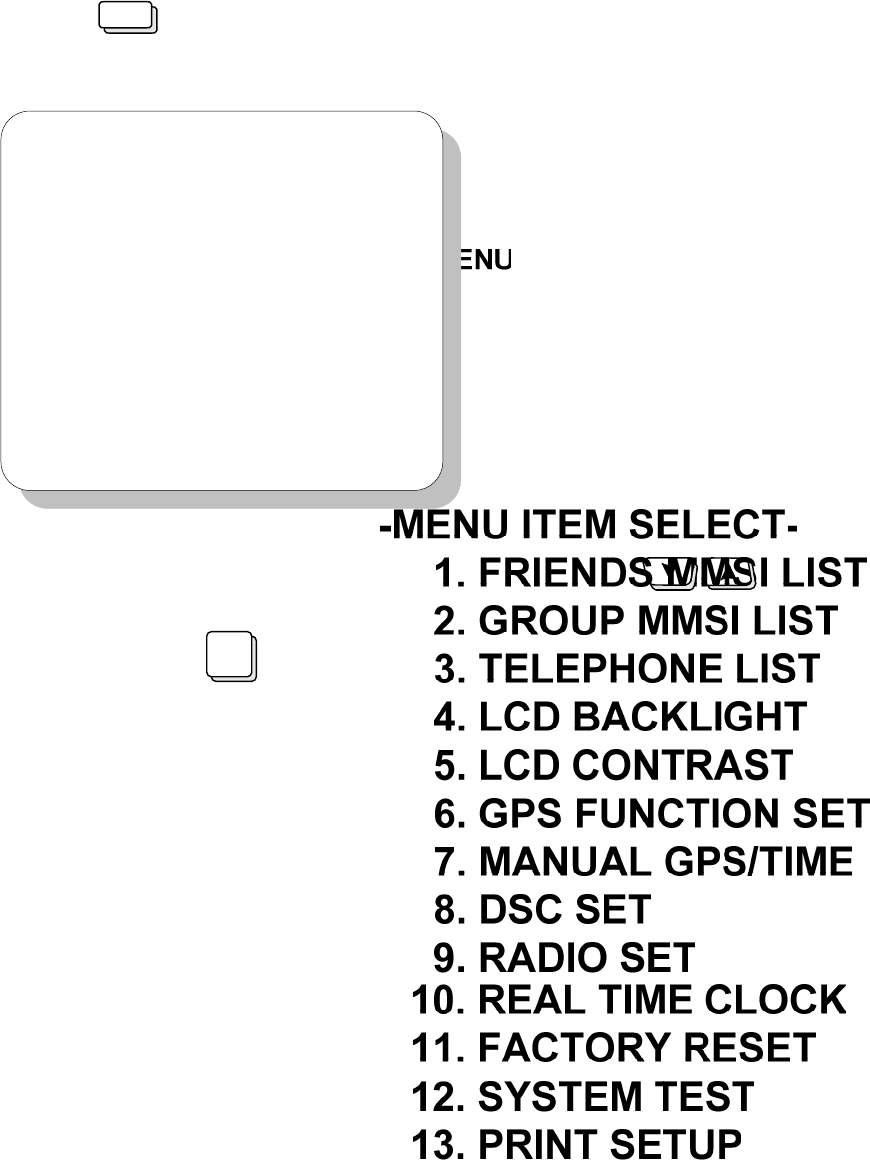

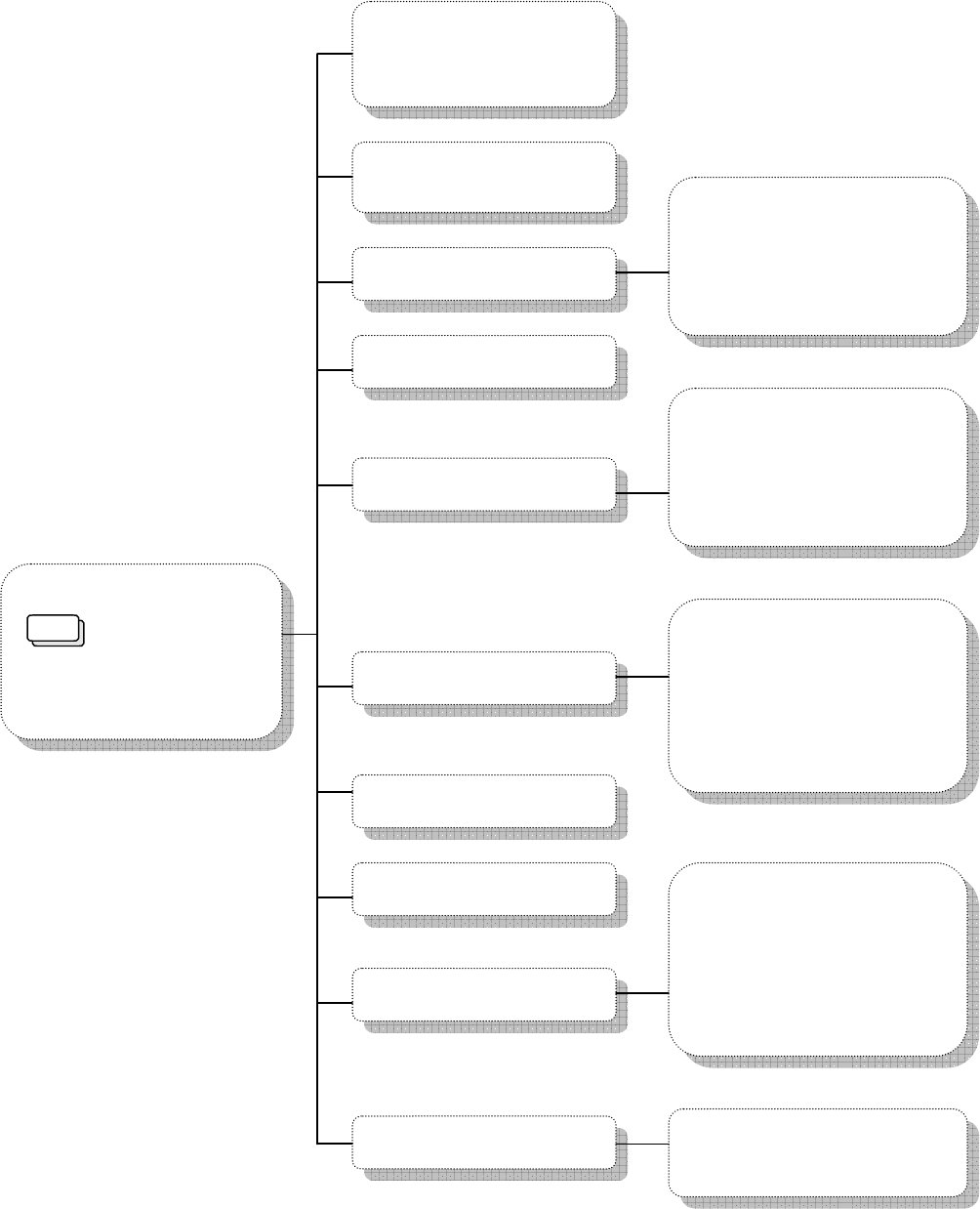

4.4.1. Menu Construction
4. LCD BACKLIGHT
5. LCD CONTRAST
6. GPS FUNCTION SET
7. MANUAL GPS/TIME
8. DSC SET
9. RADIO SET
CHANNEL NAME
CHANNEL ON/OFF
WEATHER ALERT
BEEP VOLUME
VDR ON/OFF
USE CH9
10. REAL TIME CLOCK
11. FACTORY RESET
12. SYSTEM TEST
13. PRINT SETUP
GPS TIME OFFSET
TIME DISPLAY FORMAT
TIME DISPLAY ON/OFF
LL DISPLAY ON/OFF
GPS ALERT ON/OFF
USER MMSI
INDIVIDUAL REPLAY
LAT/LONG REPLY
DSC FUNCTION DISABLE
MEDI/SHIP AIRCRAFT
PROGRAM VERSION
DISTRESS KEY
PLL TEST
DISPLAY DEVIATION
SOUND TEST
SUB CPU VERSION
DSC AUTO PRINT
SELF PRINT TEST
1. FRIENDS MMSI LIST
2. GROUP MMSI LIST
3. TELEPHONE LIST
21
Menu Select
Press MENU
button shortly

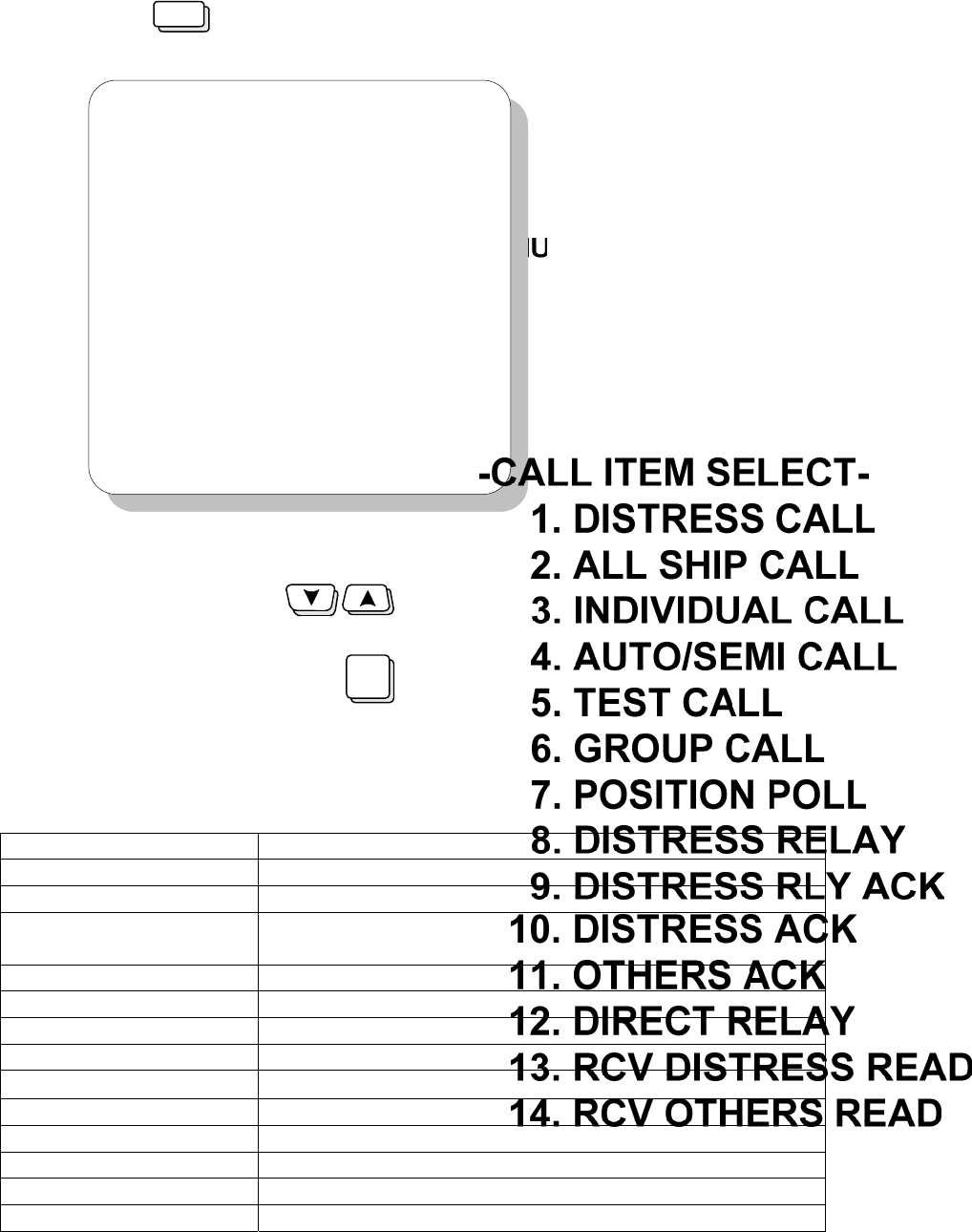

-- CALL ITEM SELECT--
1. DISTRESS CALL
2. ALL SHIP CALL
3. INDIVIDUAL CALL
4. AUTO/SEMI CALL
5. TEST CALL
6. GROUP CALL
7. POSITION POLL
8. DISTRESS RELAY
9. DISTRESS RLY ACK
10. DISTRESS ACK
11. OTHERS ACK
12. DIRECT RELAY
13. RCV DISTRESS READ
14. RCV OTHERS READ
22
4.4.2. Menu Screen Construction and Initialization
Press button over one (1) second to get into the various Menu.
1. FRIENDS MMSI LIST ADD NEW FRIEND Friend ID register
2. GROUP MMSI LIST ADD NEW GROUP Group ID register
3. TELEPHONE LIST ADD NEW TELEPHONE Call ID register
4. LCD BACKLIGHT LOW ~ HIGH(4 Steps/2) BACKLIGHT Control
5. LCD CONTRAST LOW ~ HIGH (16 Steps/10) CONTRAST Control
TIME OFFSET - 00:00 Time difference set-up
TIME DISPLAY FORMAT – 12H/24H Time Display
12HOURS/24HOURS
TIME DISPLAY ON/OFF Time Display ON/OFF
LL DISPLAY ON/OFF - ON/OFF Position Display
ON/OFF
6. GPS FUNCTION SET
GPS ALERT ON/OFF - ON/OFF GPS Alarm
7. MANUAL GPS/TIME LAT/LONG MANUAL SET Position manual input
USER MMSI – INPUT USER MMSI Own ship ID input
INDIVIDUAL REPLY - AUTO/MANUAL Automatic response
set-up
LAT/LONG REPLY
- MANUAL/AUTO/OFF
Position response set-
up
DSC FUNCTION DISABLE -YES/NO DSC ON/OFF Set-up
8. DSC SET
MEDI/SHIP_AIRCRAFT
CHANNEL NAME CH name change
CHANNEL ON/OFF CH ON/OFF
WEATHRE ALERT - ON/OFF Weather CH Alarm
BEEP VOLUME - HIGH/LOW/OFF Alarm Volume
VDR ON/OFF VDR ON/OFF
9. RADIO SET
USE CH9 CH9 ON/OFF
10. REAL TIME CLOCK YEAR, MONTH, DATE, HOUR, MINUTE,
SECOND Current time change.
11. FACTORY RESET RESET - YES/NO Menu set-up
Initialization
PROGRAM VERSION Program version
DISTRESS KEY Test distress key
PLL TEST Test PLL in Rx
DISPLAY DEVIATION Test LCD
SOUND TEST
BELL/URGENCY/ERROR/WARNING Test sound
12. SYSTEM TEST
SUB CPU VERSION SUB CPU Version
DSC AUTO PRINT – ON/OFF DSC Automatically
Printing Setup
13. PRINT SETUP
SELF PRINT TEST – YES/NO Printer Test
23
4.4.3. Menu Setup
Press button at greater length.
Overall construction of MENU Screen is as follows.
Item Selection : From above screen, shift the cursor by using
button and press button to select the current item.
4.4.3.1. FRIENDS MMSI LIST
It can add/edit/delete the preferred friend’s name and associated MMSI up to
20 numbers. (It can save maximum 20 numbers)
¾ To add name to FRIENDS LIST
¾ To edit FRIENDS
¾ To delete FRIENDS
4.4.3.2. GROUP MMSI LIST
It can add/edit/delete the preferred Group’s name and associated MMSI up to
3 numbers. (It can save maximum 3 numbers)
¾ To add name to GROUP LIST
¾ To edit GROUP
¾ To delete GROUP
24
4.4.3.3. TELEPHONE LIST
It can add/edit/delete the preferred Telephone name and associated MMSI up
to 10 numbers. (It can save maximum 10 numbers)
¾ To add name to TELEPHONE
¾ To edit TELEPHONE
¾ To delete TELEPHONE
4.4.3.4. LCD BACKLIGHT
Set-up backlight level to adjust the brightness of LCD and Key Pad.
4.4.3.5. LCD CONTRAST
It is used for setting-up suitable contrast of LCD.
4.4.3.6. GPS FUNCTION SET
If there is a GPS receiver on board, VHF radio can be updated with own
ship’s position and time. But if there is not GPS receiver available or not being
connected with it, own ship’s position and time can be input by means of GPS
SETUP menu manually. This is very important information for using DSC
distress call.
TIME OFFSET : Local time can be used for inputting time difference between
UTC and Local time.
TIME DISPLAY FORMAT (The kind of Time display) : Time can be displayed
in the type of 12 hour or 24 hour.
DISPLAY ON/OFF(Time Display Option) : If time is input manually, “M” can
be displayed in the right of time . But if ship’s position is updated through GPS
receiver, time display on screen can be turned ON/OFF.
DISPLAY ON/OFF(Position Display Option) : If ship’s position is input
manually, “M” can be displayed in the right of Lan./Lon. But if the position is
updated through GPS receiver, ship’s position can be turned ON/OFF.
GPS ALERT ON/OFF(GPS Alarm) : GPS is normally set in “ON” status, but if
there happened to disconnect with GPS receiver, alarm will be occurred.
25
4.4.3.7. MANUAL GPS/TIME
LAT/LONG MANUAL SET(Input position manually) : Ship’s position and
longitude is displayed on screen together with time. To display “MANUAL
SETUP”, value of latitude, longitude and time will be displayed in reverse
status. This display mode will be cancelled as soon as GPS receiver is
connected and come to display normal mode.
Warning : This function is only available when GPS receiver is disconnected.
TIME MANUAL SET(Input time manually):
Warning : This function is only available when GPS receiver is disconnected.
4.4.3.8. DSC SET
USER MMSI(Input own ship’s MMSI or Confirm MMSI)
¾ This mode can be executed only once. Be sure to input own ship’s MMSI
ID before using DSC function. MMSI ID once set can be read out
whenever it is wanted.
¾ By inputting USER MMSID once more, MMSI ID can be stored
permanently.
¾ Whenever it may be, stored MMSI ID can be seen through this MENU.
INDIVIDUAL REPLY(Automatic relay of individual call and manual setup)
SET(Group MMSI setup and edit) : Use GROUP SETUP to
produce/edit/delete GROUP of who are called quite often. GROUP MMSI ID
always begins with “0”.
¾ Setup GROUP
¾ Edit GROUP Name
¾ Delete GROUP NAME
LAT/LONG REPLY(Setup automatic response on request LL Polling) : 3
Items can be selectable in response to request of LL Polling.
¾ AUTO : Automatic response to any LL Polling coming from FRIENDS.
¾ MANUAL : Manual decision is to be made whether it is necessary to
response to the request of LL Polling from FRIENDS.
¾ OFF : Ignore all LL Polling coming from Friends.
26
DSC FUNCTION DISABLE
¾ Set Up DSC function use.
MEDI/SHIP_AIRCRAFT
¾ ON/OFF MEDIcal Transponder & SHIP and AIRCRAFT use.
4.4.3.9. RADIO SET
CHANNEL NAME (CH NAME)
¾ Channel name modification and deletion.
CHANNEL ON/OFF(CH ON/OFF)
¾ It is used for either permitting or stopping the use of current CH.
WEATHER ALERT(Weather Alarm Setup)
¾ NOAA provides with a variety weather information regarding USA or CAN
channel. NOAA Broadcasts 1050 Hz band weather alert if it forecasts
heavy storm or Hurricane. Setup this function to detect weather alert.
BEEP VOLUME(Adjust Beep Volume)
¾ It has a function either to change level of beef volume or to make it be
OFF.
VDR(Voyage Data Recorder) ON/OFF
¾ Display VDR function use or not.
USE CH9
¾ Display CH9 use or not.
4.4.3.10. REAL TIME CLOCK(Current time change)
YEAR, MONTH, DATE, HOUR, MINUTE, SECOND
4.4.3.11. FACTORY RESET(MENU SETUP INITIALIZATION)
RESET : Except all MMS ID and FRIEND LIST SETTING UP, all setup value
should be returned to initialization.
4.4.3.12. SYSTEM TEST(System Test)
System test can be executed in this MENU.
¾ PROGRAM VERSION : (Test program version and date)
¾ DISTRESS KEY : (Test DISTRESS button) : Press DISTRESS button for
27
3 seconds in order to check button condition.
¾ PLL TEST (Test PLL condition on Tx and Rx) : It will be tested from
minimum frequency to the maximum by 25KHz step.
¾ DISPLAY DEVIATION : LCD test (Display the character).
¾ SOUND TEST : Test on Bell, Emergency, Error and Alarm.
¾ SUB CPU Version : SUB CPU version check.
4.4.3.13. PRINT SETUP(Print Setup)
This menu is ready to set-up Printer.
¾ Set-up auto printer ON/OFF function when receiving DSC.
¾ SELF TEST ON/OFF
4.5. DIGITAL SELECTIVE CALLING (DSC)
Cautions in operating KEY
As the test of this function may cause huge damages to near-going vessels
and search & rescue authorities, therefore, the test MUST NOT be made at
all times. Once the call is operated, an alarm will come out from the speaker
and the message will be transmitted if the hand is off from the switch for 5
through 10 seconds. It is possible to stop the mistaken launch if the hand is
off from the [DISTRESS] KEY within 5 seconds but it is not possible to stop if
any stop work is performed in the middle of the transmission as the signal
speed is so fast. In particular, much attention should be paid because the
whole message may be transmitted.
How to transmit Distress Call
Press button for 3 seconds to transmit Distress Call message. The
Distress Call prioritizes all other performances and the alarm is output from
the speaker. And then non-modulated carrier will be followed after
transmission and the distress message will be automatically transmitted. The
message will be transmitted 5 times and then the transmission will be
repeated at the intervals of 3 minutes 30 seconds through 4 minutes 30
28
seconds until the reception is confirmed. In case that it is interfaced with any
navigational equipment, the data on time and position will be automatically
input. It is available to manually input the time when the position data and
position are decided.
If the transmission is made when it is not connected with any navigational
equipment or under the conditions where any single manual input has not
been made, it will transmit zero information. (But it transmits the ship ID)
How to receive Distress Call
If Distress Call is received on DSC, the alarm lamp of DISTRESS & OTHERS
on the operation panel will be turned on. At the same time, an alarm of “Beep,
Beep” will be output from the speaker. Press button to stop this alarm.
The distress call message from the transmitting country is included and
displayed on LCD.
As the equipment can record and store up to 20 memories inside, the
message can be checked out again even later.
And by connecting to printer, it is available to automatically output the
message received by DSC through printer. It is also possible to print the
notified message contents that are stored in the memory.
29

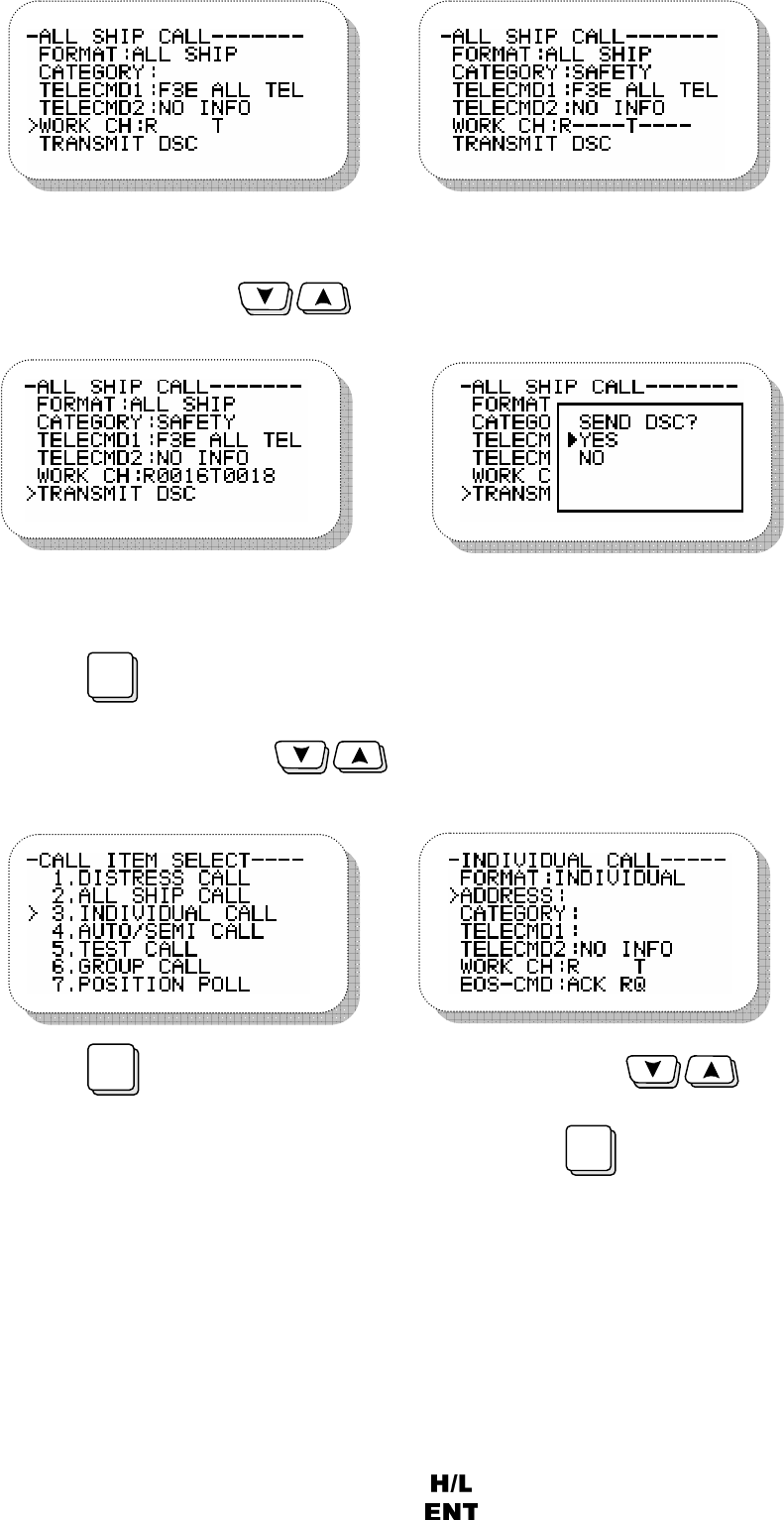

4.5.1. Configuration of CALL Screen
Press button in short.
The whole display configuration of DSC CALL MENU is as follows;
Item selection : Use buttons in the above Screen and move to
the wanted item and press button.

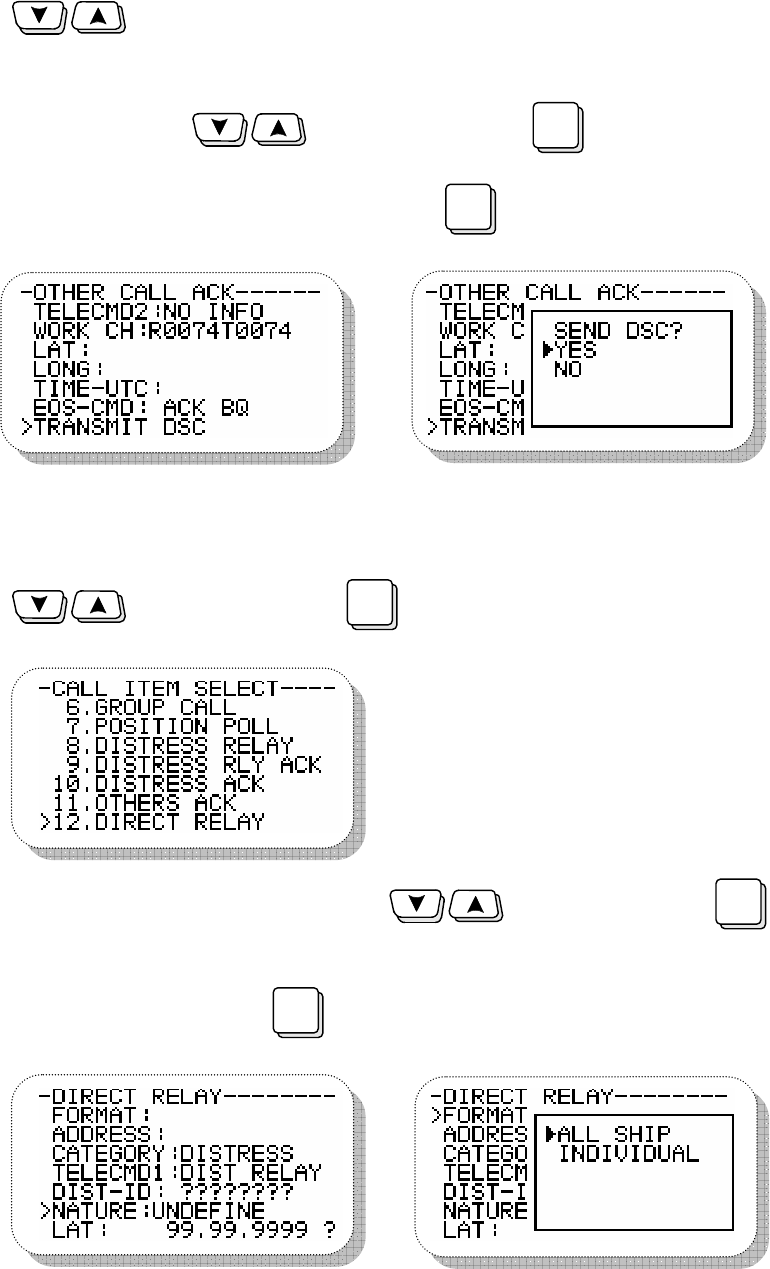

4.5.2. CALL Menu Description and Instruction
1. DISTRESS CALL Edit distress alarm message and transmit
2. ALL SHIP CALL Edit call message to all ships and transmit
3. INDIVIDUAL CALL Edit call message to individual ship and transmit
4. AUTO/SEMI CALL Edit call message/call number for Auto/Semi auto phone
connection and transmit
5. TEST CALL Test call
6. GROUP CALL Edit call message to Group ships and transmit

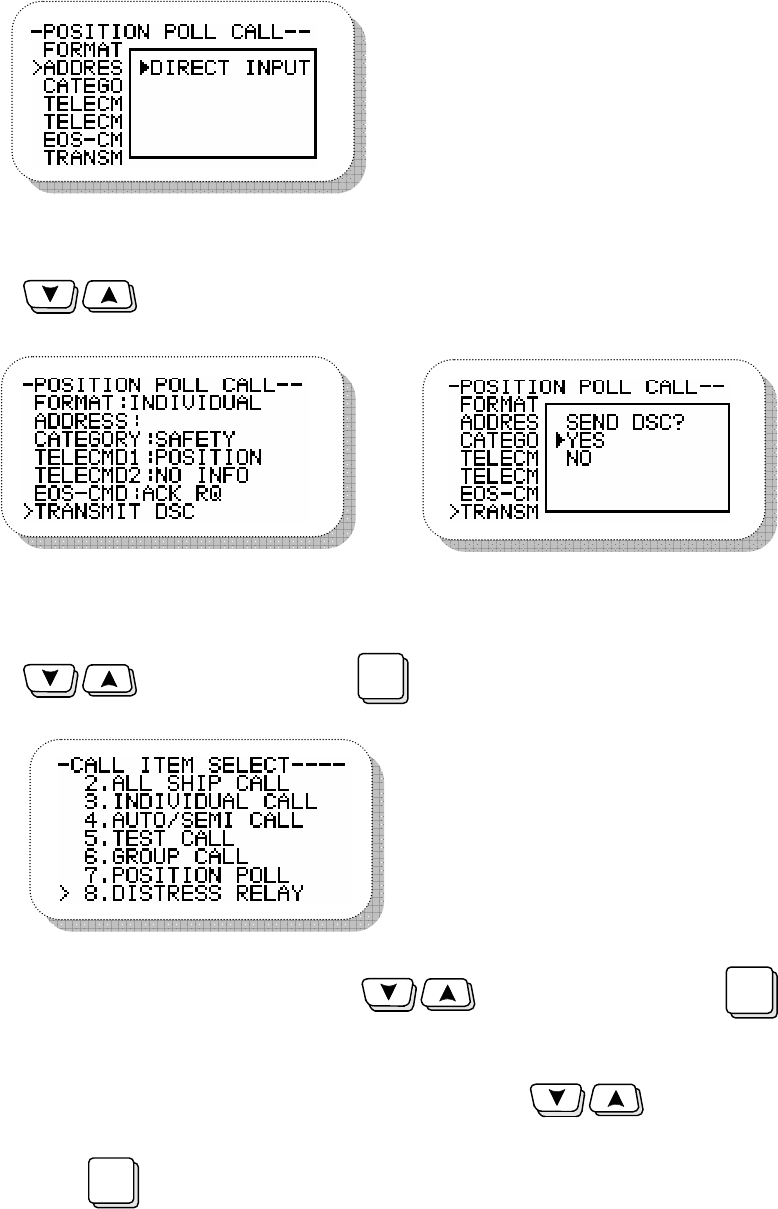

7. POSITION POLL Edit call message to the ship by the coordinates and transmit

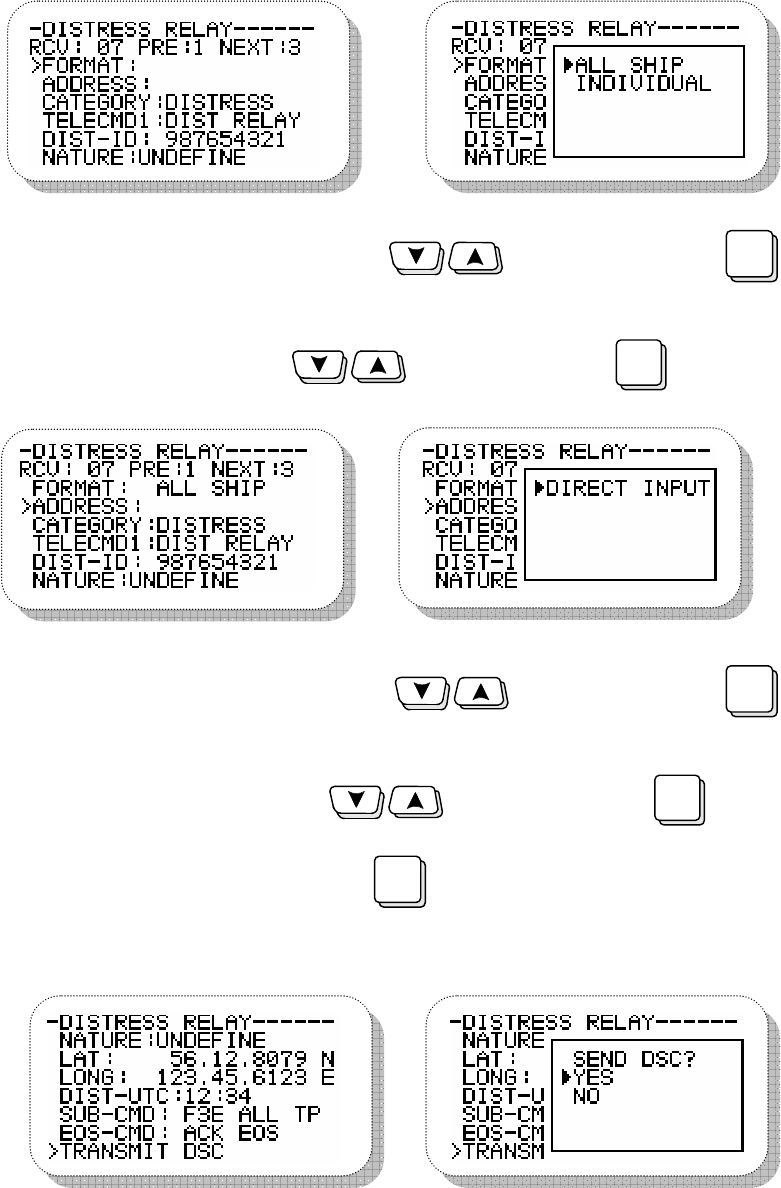

8. DISTRES RELAY Transmit to the Distress Call message received
9. DISTRES RLY ACK Transmit response to distress relay ack message received
10. DISTRES ACK Transmit response to distress ack message received

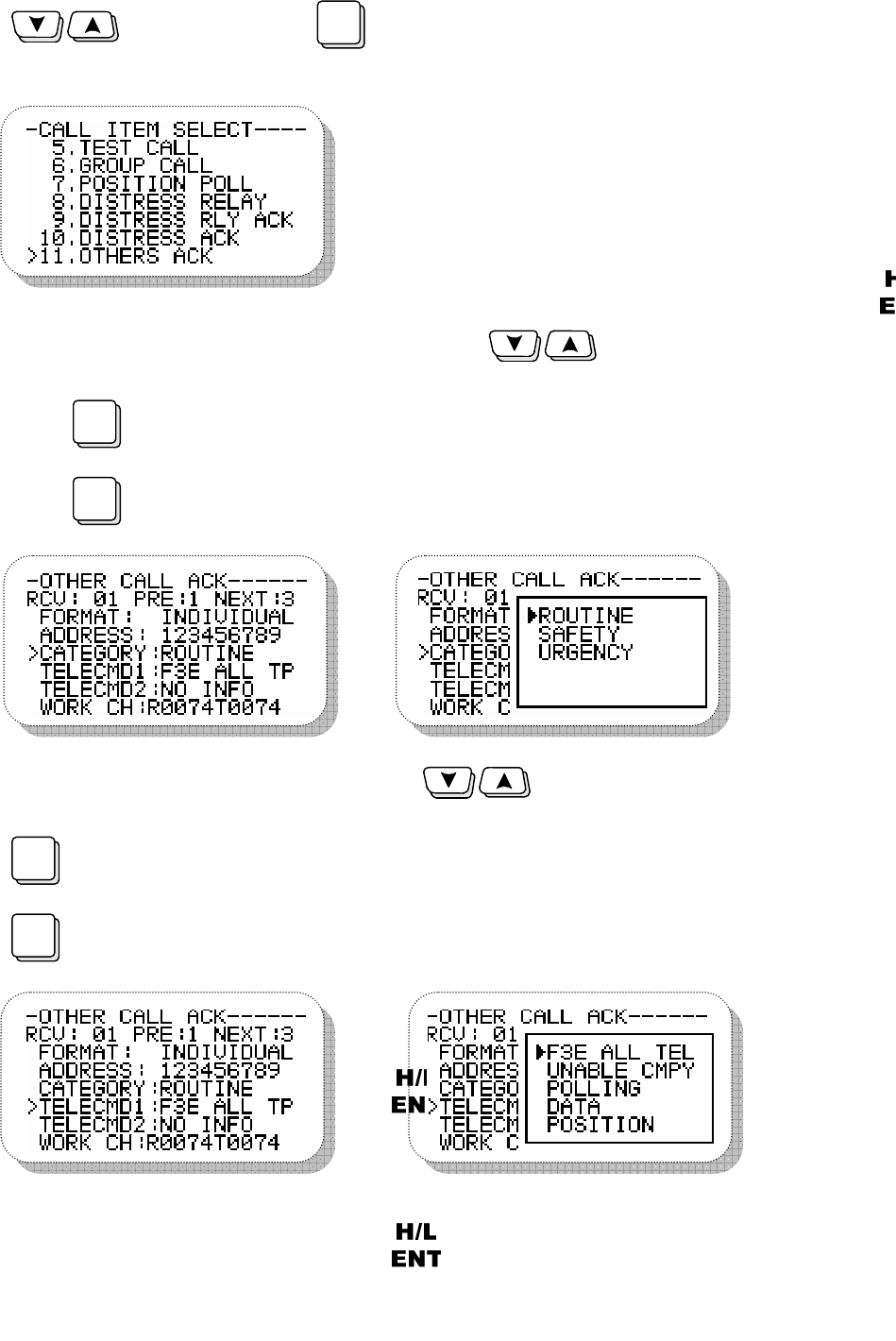

11. OTHERS ACK Response to other ack (expect distress message)

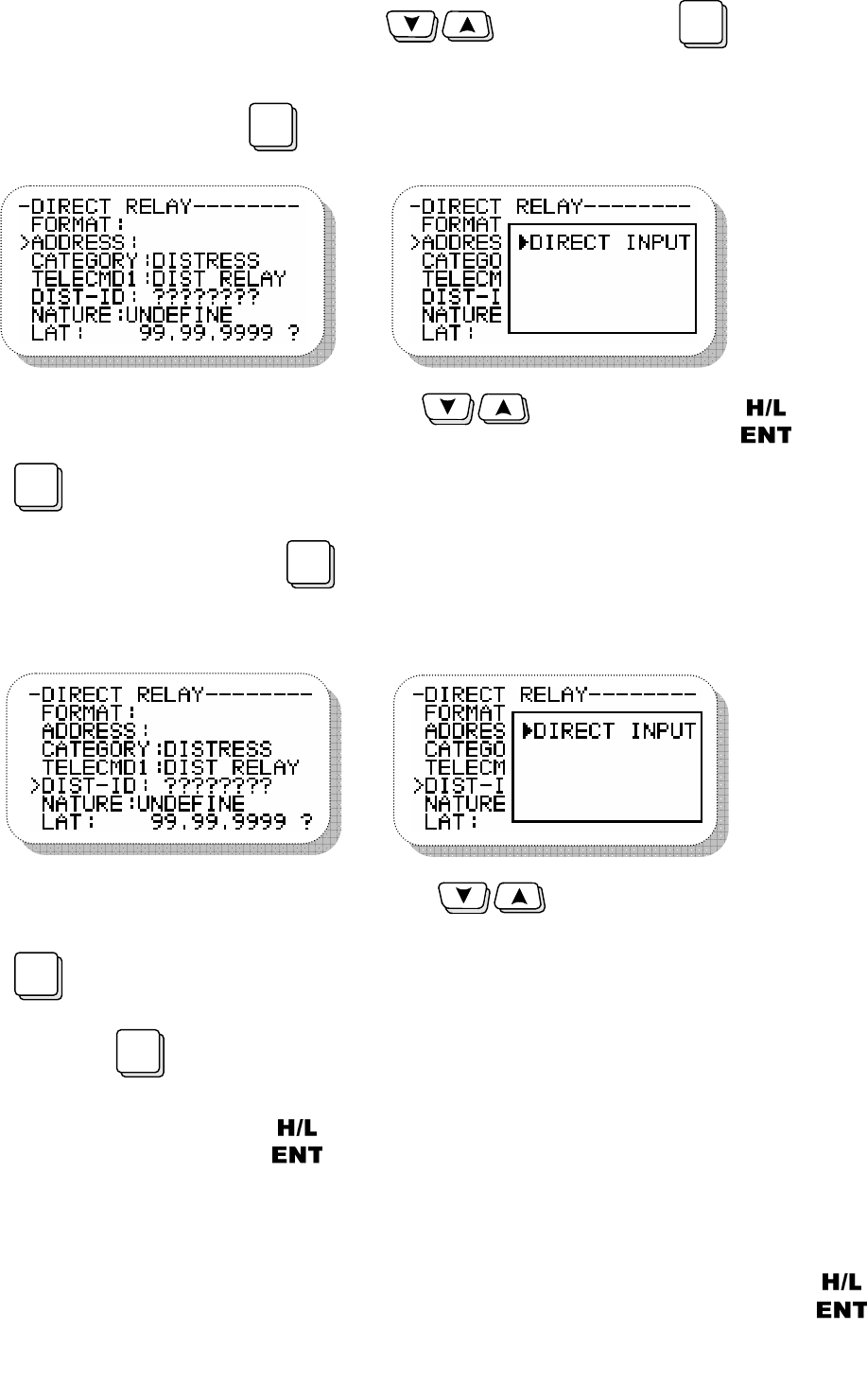

12. DIRECT RELAY Relay, edit and transmit to the Distress Call messages received
13. RCV DISTRESS READ Inquiry to distress ack message received and print out

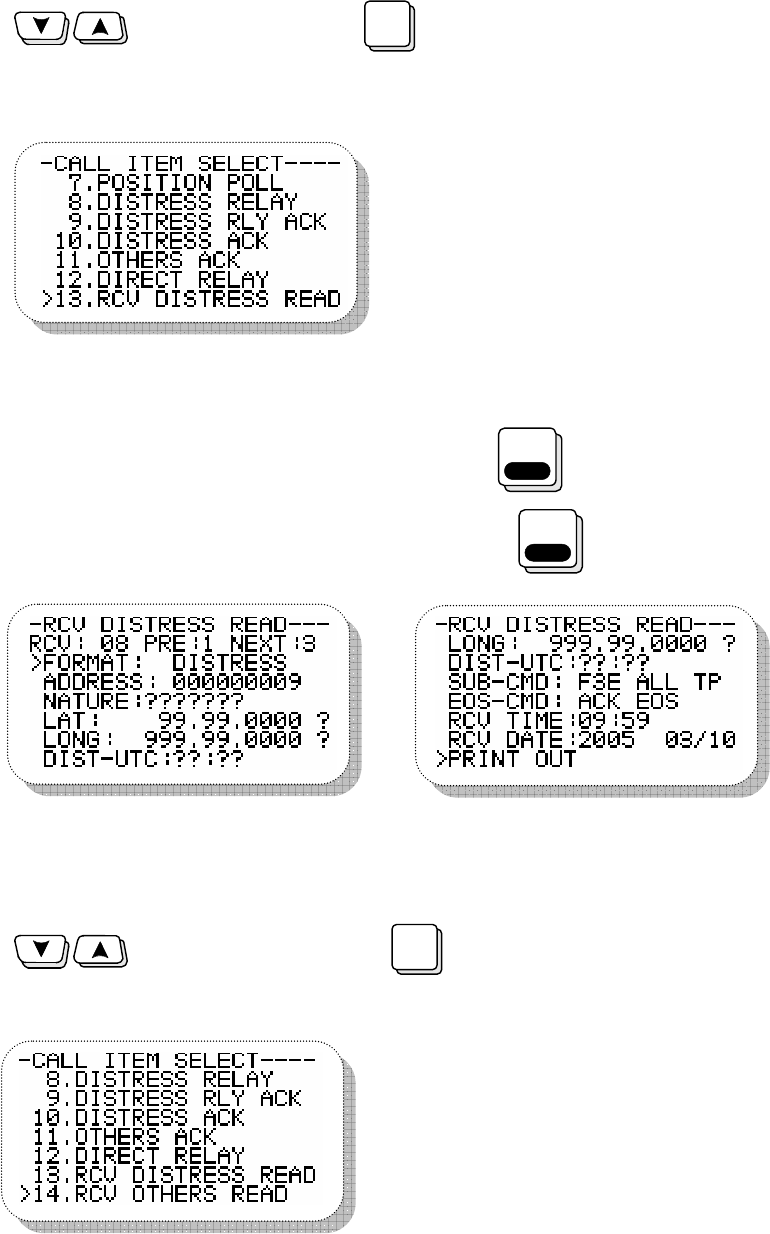

14. RCV OTHERS READ Inquiry to other receiving message and print out
30

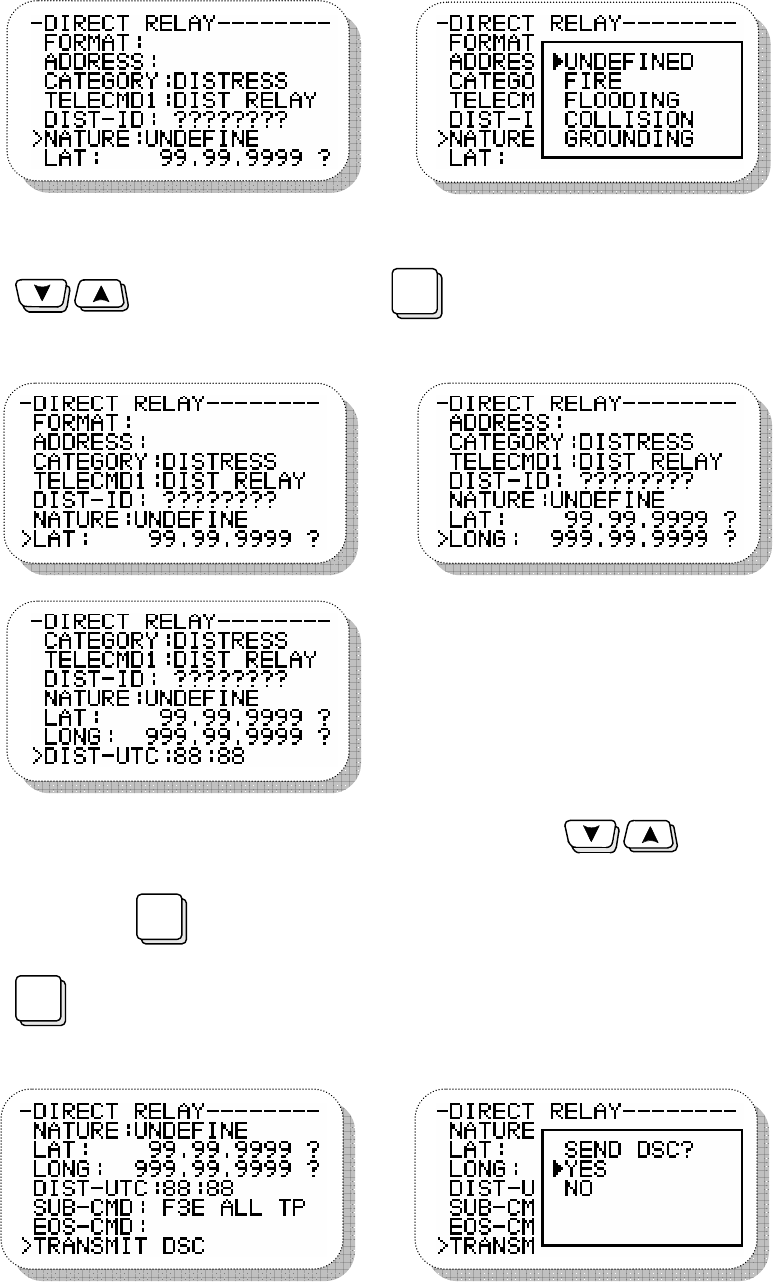

4.5.2.1. DISTRESS CALL(Distress message SETUP and Call)
On screen of CALL ITEM SELECT, select 1.DISTRESS CALL by using
buttons and then press button.

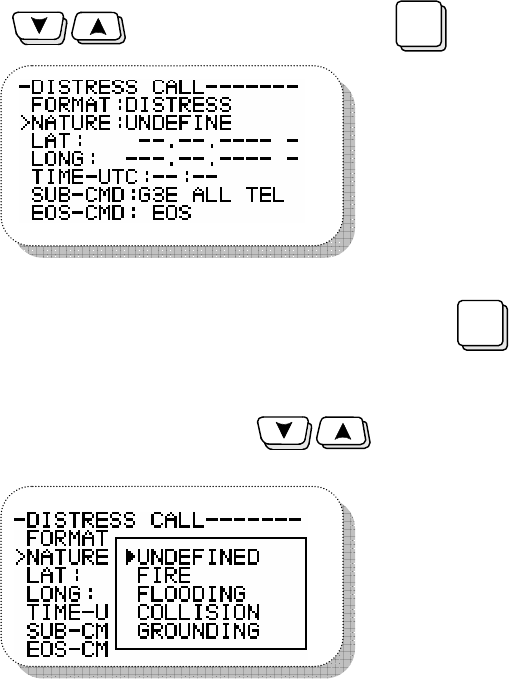

In order to select types of distress (Nature of Distress), select
> NATURE : UNDEFINE list and then press button. It shows relative
menu of types of distress such as following box on a small screen. Select a
wanted distress list by using buttons in this screen.
Calamity
¾ UNDEFINED – Undefined calamity
¾ FIRE – Explosion
¾ FLOODING – Flood
¾ COOLLISION – Collision
¾ GROUNDING – Grounding
¾ LISTING – Capsize
¾ SINKING – Sinking
¾ ADRIFT – Impossible to sail and go adrift
¾ ABANDON – Vessel abandonment
¾ PIRACH – Piracy
¾ OVERBOARD- Man over Board
31
In order to input distress position (POSITION), select >LAT / > LONG list by
using buttons and then press button. It makes cursor
blink and then input wanted longitude/latitude on the blinking cursor.
After select TIME-UTC buttons and then press button.
It makes cursor blink. After input UTC time on the blinking list and press
button.
Press button for 3 seconds to send out distress message. Non-
modulated carrier will be followed after transmission and the distress
message will be automatically transmitted. The message will be transmitted 1
time and then the transmission will be repeated at the intervals of 3 minutes
30 seconds through 4 minutes 30 seconds until the reception is confirmed.
32
4.5.2.2. ALL SHIPS MESSAGE SETUP AND CALL
Select 2.ALL SHIP CALL list on CALL ITEM SELECT screen by using
buttons and then press button.
‘CATEGORY' list is a function for selecting SAFETY or URGENCY, either and
press button after move the cursor to > CATEGORY list by using
buttons. Then, select one of SAFETY or URGENCY on the
following small screen and the small screen is disappeared when press
button after selecting a wanted list by using buttons.
'WORK CH' is input Tx/Rx CH according to the related regulation. Press
button after move the cursor to > WORK CH list by using
buttons. It shows following screens and make cursor blink. The
screen is going back to > WORK CH after input a wanted channel. However,
don’t set up CH70, CH75, CH76, which are exclusively used.
33
After going through the edition of MESSAGE, select > TRANSMIT DSC list
and transmit by suing buttons.
4.5.2.3. INDIVIDUAL MESSAGE SETUP AND CALL

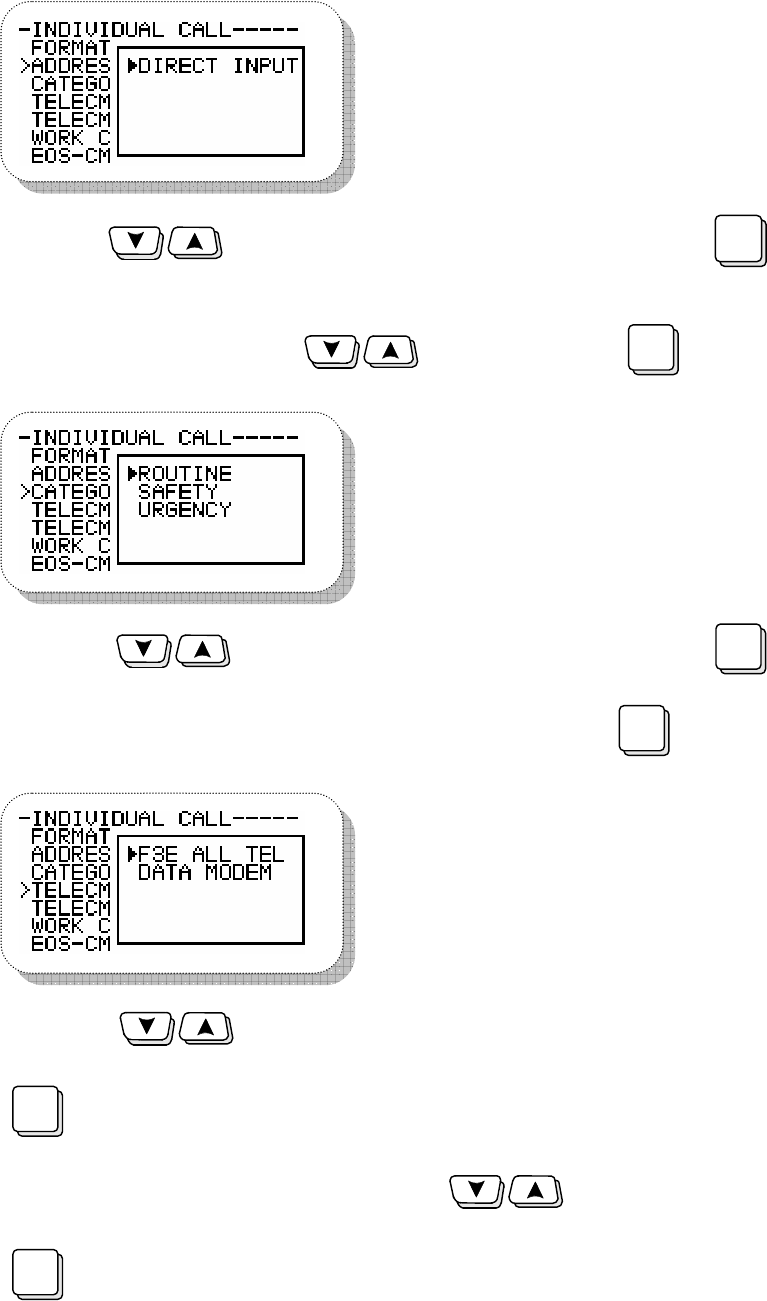

Press button after select 3. INDIVIDUAL CALL list on CALL ITEM
SELECT screen by using buttons. It makes following screens.
Press button after select > ADDRESS list by using
buttons. It shows following screens and then press button, again.
Then, input ADDRESS(MMSI) on the list cursor is blinking.
34
By using button, select and press > CATEGORY
button then following small screen shown up. Here on the item where the
cursor is flickering, by using button and press button.
By using button, select > TELECMD1 and press
button then following small screen comes up and again press button.
By using button, select > TRANSMIT DSC and press
button then following small screen comes up from which you may
choose YES if you want or NO by using button and press
button to send out message one time.
35
4.5.2.4. AUTO/SEMI-AUTO Message Edit and Call
This function as an option will be further realized soon.
4.5.2.5. TEST CALL

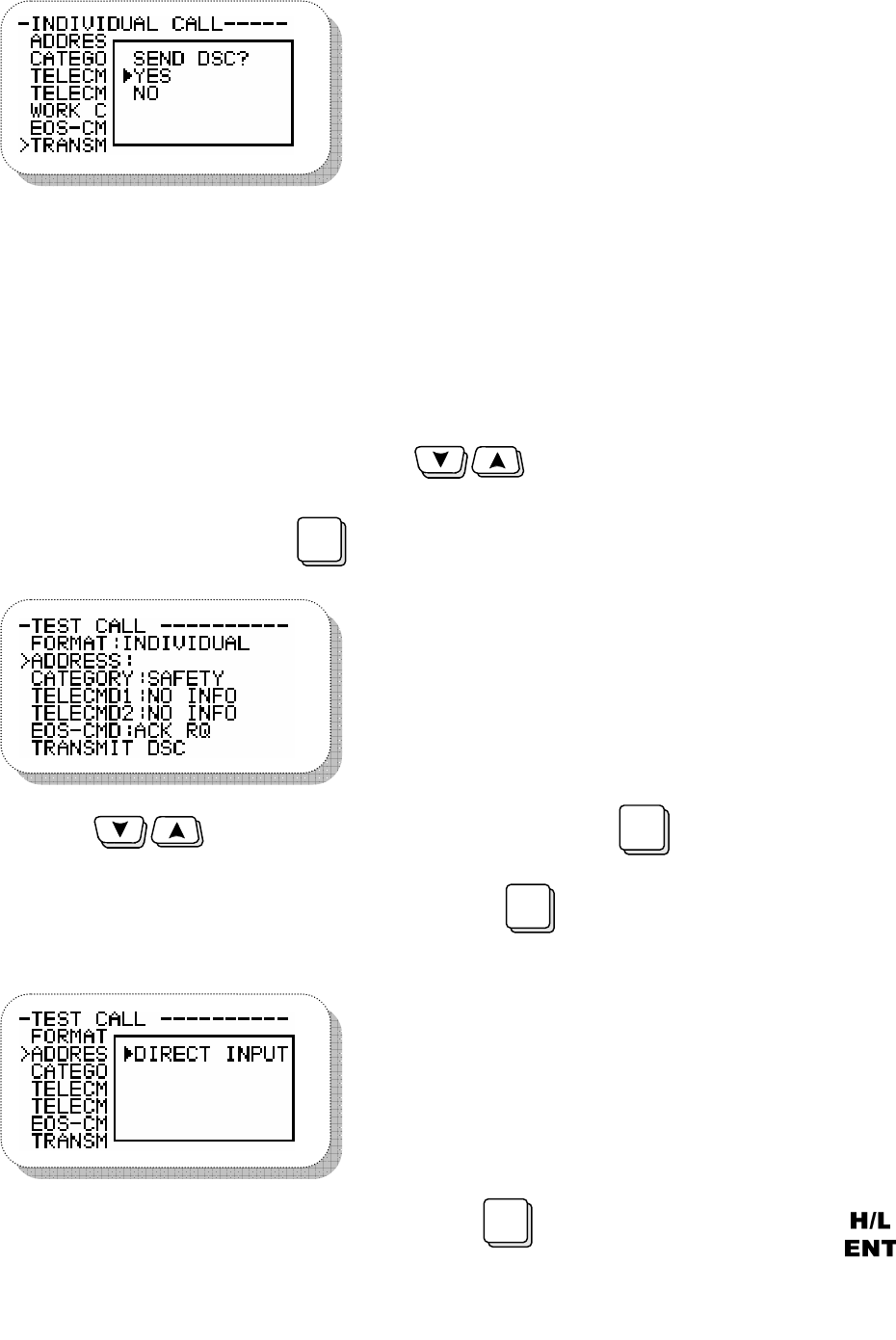

This function is used for testing call, following procedure in editing and calling
for position messages shall be done.
On CALL ITEM SELECT screen, by using button, select
5. TEST CALL item and press button.
By using button, select > ADDRESS and press button,
then following small screen comes up. Again press button. Then input
ADDRESS(MMSI) at the item on which the cursor is currently flickering.
After finishing the edition of MESSAGE, press key at > TRANSMIT
DSC then MESSAGE will be transmitted one time.
36
4.5.2.6. GROUP MESSSAGE EDIT AND CALL
On CALL ITEM SELECT screen, select the item 6. GROUP CALL by using
button, and press button.
This item 'GROUP ID' ready to input the opponent’s ID. From this item, press
button then following small screen comes up, press button then
cursor is flickering to be ready for inputting the wanted information.
In this 'WORK CH', input the wanted CH for transceiving according to the
applicable standard. Input method is to use button and select
> WORK CH item and press button then following screen comes up
and cursor is flickering. After inputting the wanted CH, screen will return to >
WORK CH.
Note : Currently using CH such as CH70, CH75, CH76 shall not be set-up.
37
After finishing message edit, select > TRANSMIT DSC item by using
button and send out the message.
4.5.2.7. POSITION MESSAGE EDIT AND CALL
On CALL ITEM SELECT screen, select item 7. POSITION CALL by using
button and press button.
Select > ADDRESS using button and press button then
following small screen comes up, then again press button. Input
ADDRESS(MMSI) on the item where the cursor is flickering.
38
After finishing the message edit, select the item > TRANSMIT DSC by using
button and send-out message.
4.5.2.8. DISTRESS CALL RELAY
Select item8. DISTRESS RELAY on CALL ITEM SELECT screen by using
button and press button.
After select > FORMAT using button and press
button then following small screen comes up. From this screen, select the
appropriate item (ALL SHIP or INDIVIDUAL) using button and
press button.
39
Select > ADDRESS(MMSI) using button and press
button then following screen comes up. From this screen, select the
appropriate item by using button and press button.
Select > TRANSMIT DSC by using button and press
button then following screen comes up. From this screen, select YES or NO
for sending Message by using button and press button.
After finishing Message edit, press button at TRANSMIT DSC to send
out message one time
Unless there have received any distress messages, this item won’t not be
selected.
40
4.5.2.9. DISTRESS RELAY ACKNOWLEDGEMENT
On “CALL ITEM SELECT” screen, select 9. DISTRESS RLY ACK by using
button and press button.
It is impossible to edit Message but only possible to response at
>TRANSMIT DSC after editing using button.
Acknowledgement to DISTRESS in Individual Call is only one time available
within 5 minutes.
4.5.2.10. RESPONSE to DISTRES CALL
On “CALL ITEM SELECT” Screen, select 10. DISTRESS ACK by using
button and press button.
Select >TRANSMIT DSC using button and press button
then small screen comes up and select YES or NO for sending message and
press button.
41
4.5.2.11. RESPONSE to THE OTHER CALL
On “CALL ITEM SELECT” screen, Select 11. OTHERS ACK using
button and press button.
Select > CATEGORY from the screen by using button and
press button to come up small screen where to select the item and
press button.
Select > TELECMD1 from screen using button and press
button then small screen comes up where to select the item and press
button.
42
Select > WORK/LAT/LONG/TIME-UTC from screen respectively by using
button and input the information.
After finishing all information, select > TRANSMIT DSC at the following
screen by using button and press button to decide
YES or NO for sending Message and press button.
4.5.2.12. DIRECT RELAY
On “CALL ITEM SELECT” screen, Select 12. DIRECT RELAY using
button and press button.
Select > FORMAT from screen using button and press
button. Afterwards make a decision whether to relay to all ships or individual
in small screen and press button.
43
Select > ADDRESS from screen using button and press
button. Afterwards select the methods of input for ADDRESS (MMSI) from
small screen and press button.
Select > DIST-ID from screen by using button and press
button. Afterwards select the methods of input for ADDRESS (MMSI)
from small screen and press button. If it is unknown ADDRESS(MMSI)
of the distressed ship, input ????????.
Select > NATURE from the screen using button and press
button. Afterwards select the distress related item from small screen
and press button.
44
Select > LAT/LONG/DIST-UTC respectively from screen using
button and press button and input appropriate
information.
After finishing edit, select >TRANSMIT DSC using button
and press button to decide YES or NO to send message and press
button.
45
4.5.2.13. RECVEIVING DISTRESS READ
On “CALL ITEM SELECT” screen, select 13. RCV DISTRESS READ using
button and press button. Then following message
related to receiving distress is seen..
Display RCV DISTRESS READ screen as follows ;
RCV : 08 : means for 8 received messages.
PRE : 1 : Display a message from 7 to 1 if press
1 DUAL
QZ
]
button.
NEXT : 3 : Display a message from 1 to 8 of press
3 DIM
DEF button.
4.5.2.14. OTHER RECEIVING MESSAGE READ

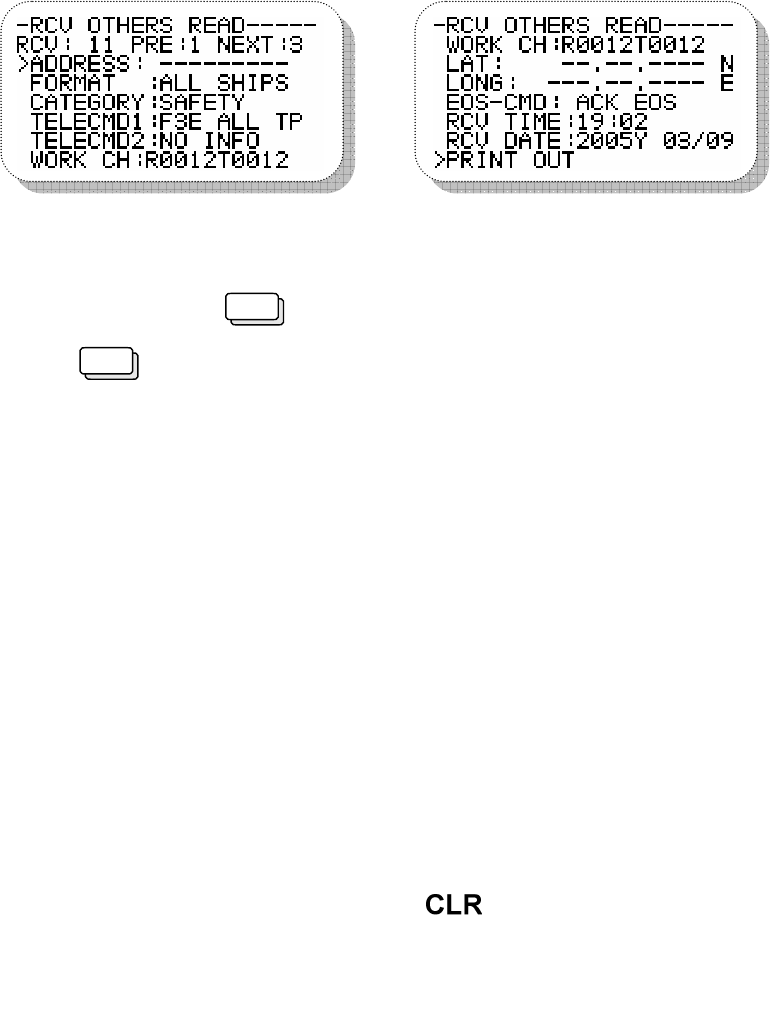

On “CALL ITEM SELECT” screen, Select 14. RCV OTHERS READ by using
button and press button. Then other receiving
messages is seen as following screen.
46
4.5.2.15. DSC Message Receiving
Display a message which is just received with alarm.
Stop a alarm if press CLR button and go back to main screen.
Press button over twice if received succession message are over two.
Select > RCV DISTRESS READ or > RCV OTHERS READ for received
message search.
Able to print out automatically printer connected with if a message received in
case of auto printer mode setup.
4.5.2.16. Auto Acknowledgement Setup
If received DSC call, available for automatic acknowledgement with following
conditions. If work Channel specified, available to standby automatically
following communication mode.
Auto Acknowledgement Conditions.
¾ Auto Acknowledgement should be ON(OFF when shipping).
¾ Should not be on editing a menu screen, DSC message.
¾ Received message format and category shouldn’t be distress contents.
¾ Received message’s TELECOMMAND contents shouldn’t be distress call
respond and distress relay.
¾ The specified communication mode of received message’s
TELECOMMAND must be right combined with the specified WORK
CHANNEL of WORK CH.
(Ex)It’s wrong combination with single mode and multi CHANNEL such as
the combination with TELECOMMAND : G3E SIMP TEL and WORK
CH : 25.
47
¾ END OF SEQUENCE contents among the received message should be
ACK RQ.
¾ No received ERROR(ECC ERROR)
48
Chapter 5. Installation
5.1. Unpacking Package and Inspection
When dismantling the package, please treat with great care in checking the contents
with order specification. Please observe external surface whether it is damaged during
transportation and if there find damaged parts, then install after proper treatment
made.
In case of handling difficulty, please contact SAMYUNG ENC for proper treatment.
This machine can be installed without technical difficulties, but it needs to keep basic
installation guide lines described hereunder, which helps preserve optimum
performance as it is in the factory.
5.2. Selection of Installation Position for Main Units of STR-6000A
Installation position is selected according to following instruction.
1. Select the place where there is space enough to operate, repair and maintain with
efficient ventilation.
2. Select the place where there is not directly exposed to rain and sea water. Dry area is the
best place for installation electronic equipment.
3. Select the place where there is not directly exposed to sunray and avoid from
heating element.
4. Select the place where there is of little vibration.
5. Select the place where there is of little electrical interference.
5.3. Installation for main unit of STR-6000A

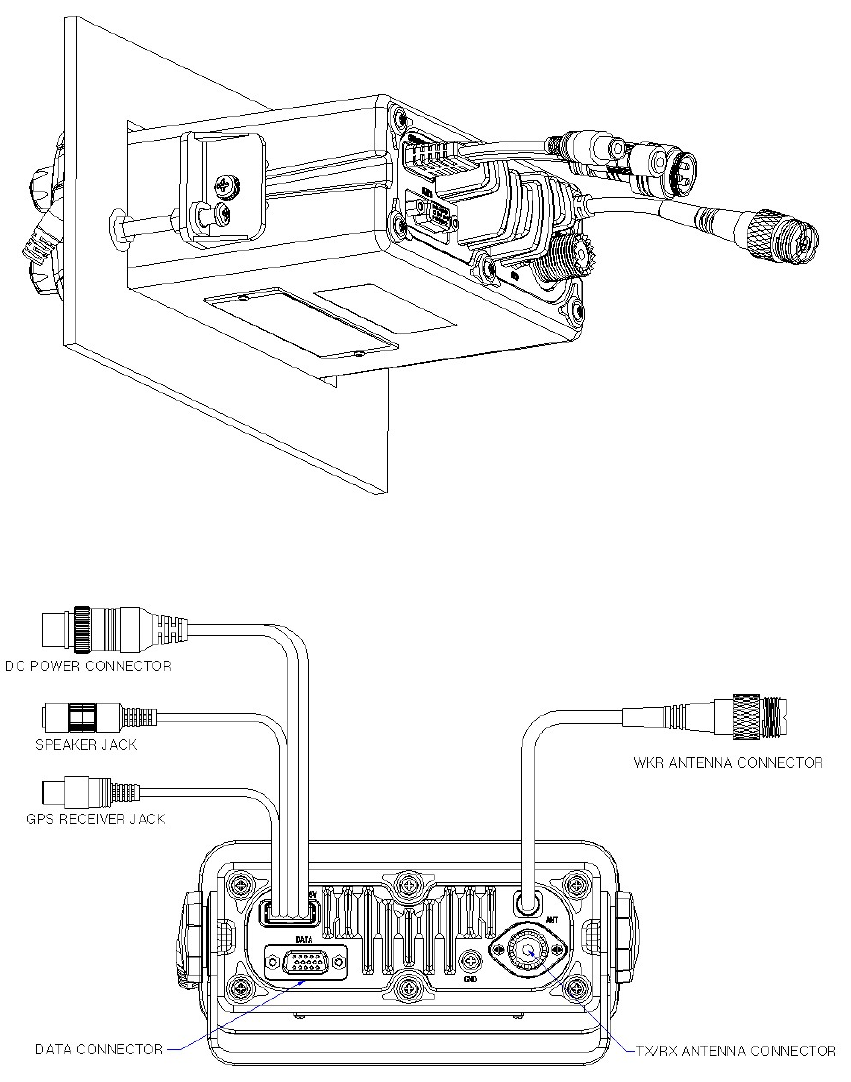

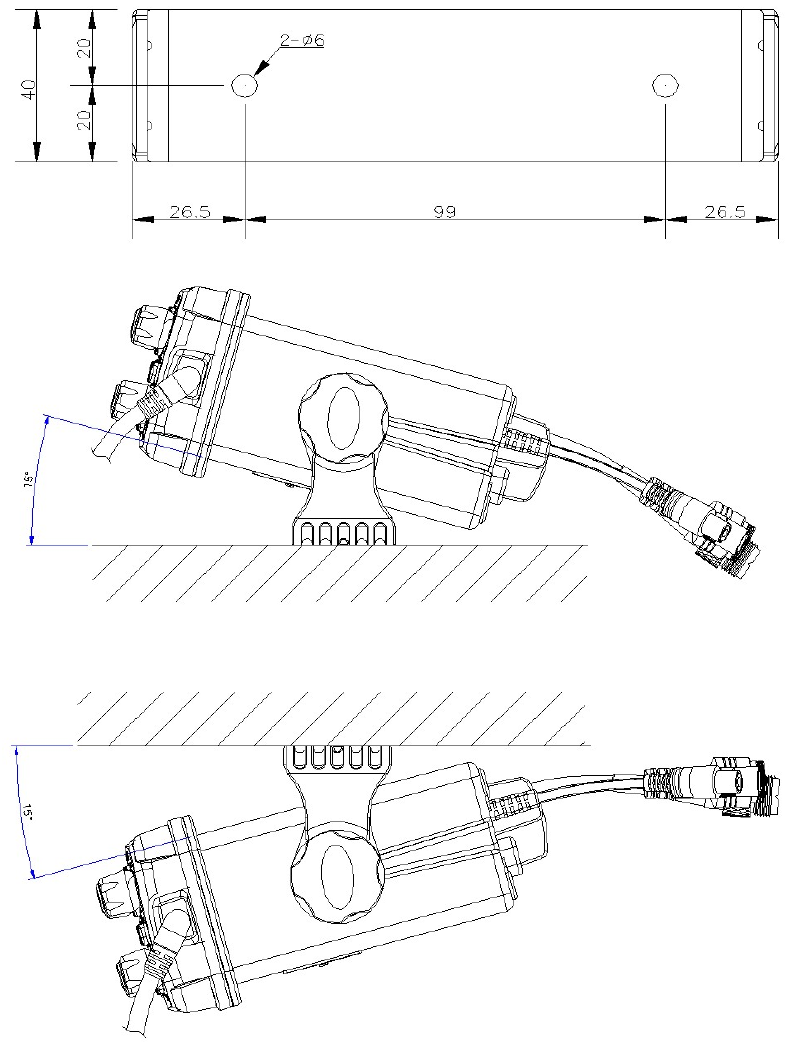

Main unit is to be installed referring to following drawing.
1. Fix the support plate by using screw to table, ceiling or wall. When pull the machine
into the wall, cut out the wall size 147 x 59 first and flush it into the wall.
2. Assemble the unit to the support using handle knob, and fix it at a convenient angle.
49
50
5.4. Cabling
Rear part of the unit has connectors, which can be efficiently interfaced with power,
antenna and other cables.
51
5.4.1. Power Connection
4 P connector located in the rear of the unit is used to supply power, of which Number
1 pin is ”+” and Number 2 pin is “-“ those can connect to Power supply [DC13.6V]
5.4.2. Connects to External Speaker
1P connector located in rear of the unit is a Speaker Connection Connector.
5.4.3. How to setup Antenna
FCC RF Radiation Exposure Statement:
The equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 90 centimeters between the radiator and your body.
This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
1) STANDARD ANTENNA SET-UP
Most easy method for installation is to set up two or several antennas vertically
having distance more than 4 meters one another.
2) CAUTION WHILE SETTING UP ANTENNA
Please use supplier’s type of Tx Rx Antenna if possible, when you happened to use
other brand antenna, please use 50Ω with 150MHz band.
Please use high quality antenna/power-cable than standard ones.
Please set up at high location, if possible.
Please keep the antenna away from another transmit antenna.
For example, keep 4 meters away from other VHF antenna.
Please ensure that installation should be made where there avoids from mechanic
vibration and a rainstorm and connector parts must be waterproofed by using
waterproof tape.
While installed number of antenna simultaneously, cooper cables should be isolated
by using steel pipe, if not, anyway keep the distance 30cm each other.
5.4.4. GPS Connection
One Pin connector on the back of main unit is for external GPS information that is IEC
61162(NMEA0183) data connection connector.
5.5. Integrated Wiring
Please refer to installation drawing for interconnecting machines each other.
1. In the case DC wiring, please use cable with SAMYUNG supply or the one, which
can be endurable for specific electric current.
2. Please tighten connectors of Tx/Rx antenna and speaker to stand for ship’s rolling
and pitching.
52
can be endurable for specific electric current.
2. Please tighten connectors of Tx/Rx antenna and speaker to stand for ship’s rolling
and pitching.
53
Chapter 6. Channel List
6.1. ITU Channel
CH Tx
(MHz)
Rx
(MHz) TRAFFIC TYPE
SHIP
TO
SHIP
SHIP
TO
SHORE
NAME TAG
01 156.050 160.650 Public Correspondence, Duplex NO YES TELEPHONE
02 156.100 160.700 Public Correspondence, Duplex NO YES TELEPHONE
03 156.150 160.750 Public Correspondence, Duplex NO YES TELEPHONE
04 156.200 160.800 Port Operations, Duplex NO YES PORT OPS
05 156.250 160.850 Port Operations, Selected VTS Area NO YES PORT
OPS/VTS
06 156.300 156.300 Inter-ship Safety YES NO SAFETY
07 156.350 160.950 Port Operations, Duplex NO YES PORT_OPS
08 156.400 156.400 Commercial(Inter-ship Only) YES NO COMMERCIAL
09 156.450 156.450 Recreational Calling Channel YES YES CALLING
10 156.500 156.500 Commercial YES YES COMMERCIAL
11 156.550 156.550 Commercial, VTS in Selected Area YES YES VTS
12 156.600 156.600 Port Operations, Selected VTS Areas YES YES PORT
OPS/VTS
13 156.650 156.650 Inter-ship Navigation Safety
(bridge-to-bridge) YES NO BRIDGE COM
14 156.700 156.700 Port Operations, Selected VTS Areas YES YES PORT
OPS/VTS
15(1) 156.750 156.750 Port Operations - 1W Only YES YES PORT OPS
16 156.800 156.800 International Distress, Safety, and
Calling YES YES DISTRESS
17(1) 156.850 156.850 State Controlled -1W Only YES YES SAR
18 156.900 161.500 Port Operations, Duplex NO YES PORT OPS
19 156.950 161.550 Commercial, Duplex NO YES SHIP-SHORE
20 157.000 161.600 Port Operations, Duplex NO YES PORT OPS
21 157.050 161.650 Port Operations, Duplex NO YES PORT OPS
22 157.100 161.700 Port Operations, Duplex NO YES PORT OPS
23 157.150 161.750 Public Correspondence, Duplex NO YES TELEPHONE
24 157.200 161.800 Public Correspondence, Duplex NO YES TELEPHONE
25 157.250 161.850 Public Correspondence, Duplex NO YES TELEPHONE
26 157.300 161.900 Public Correspondence, Duplex NO YES TELEPHONE
27 157.350 161.950 Public Correspondence, Duplex NO YES TELEPHONE
28 157.400 162.000 Public Correspondence, Duplex NO YES TELEPHONE
54
CH Tx
(MHz)
Rx
(MHz) TRAFFIC TYPE
SHIP
TO
SHIP
SHIP
TO
SHORE
NAME TAG
60 156.025 160.625 Public Correspondence, Duplex NO YES TELEPHONE
61 156.075 160.675 Port Operations, Duplex NO YES PORT OPS
62 156.125 160.725 Port Operations, Duplex NO YES PORT OPS
63 156.175 160.775 Port Operations, Duplex NO YES PORT OPS
64 156.225 160.825 Public Correspondence, Duplex NO YES TELEPHONE
65 156.275 160.875 Port Operations, Duplex NO YES PORT OPS
66 156.325 160.925 Port Operations, Duplex NO YES PORT OPS
67 156.375 156.375 Commercial, bridge-to-bridge YES NO BRIDGE COM
68 156.425 156.425 Boat Operations, Recreational YES NO SHIP-SHIP
69 156.475 156.475 Port Operations YES YES PORT OPS
70(2) 156.525 Digital Selective Calling for
distress safety and calling --- --- DSC
71 156.575 156.575 Port Operations YES YES PORT OPS
72 156.625 156.625 Inter-ship YES NO SHIP -SHIP
73 156.675 156.675 Port Operations YES YES PORT OPS
74 156.725 156.725 Port Operations YES YES PORT OPS
77 156.875 156.875 Inter-ship YES NO SHIP-SHIP
78 156.925 161.525 Non-Commercial, Duplex NO YES SHIP-SHORE
79 156.975 161.575 Commercial, Duplex NO YES SHIP-SHORE
80 157.025 161.625 Commercial, Duplex NO YES SHIP-SHORE
81 157.075 161.675 Port Operations, Duplex NO YES PORT OPS
82 157.125 161.725 Port Operations, Duplex NO YES PORT OPS
83 157.175 161.775 Public Correspondence, Duplex NO YES TELEPHONE
84 157.225 161.825 Public Correspondence, Duplex NO YES TELEPHONE
85 157.275 161.875 Public Correspondence, Duplex NO YES TELEPHONE
86 157.325 161.925 Public Correspondence, Duplex NO YES TELEPHONE
87 157.375 157.375 Port Operations YES YES SHIP-SHIP
88 157.425 157.425 Port Operations YES YES SHIP-SHIP
Note.
(1) CH15, CH17 are fixed with input power 1W.
(2) CH70 is exclusively used for DSC channel and voice transmission is prohibited.
CH75 and CH76 are prohibited from transmitting in order to prevent CH16 from dangerous
interference.
55
6.2. USA Channel
CH Tx
(MHz)
Rx
(MHz) TRAFFIC TYPE
SHIP
TO
SHIP
SHIP
TO
SHORE
NAME TAG
01A 156.050 156.050 Port Operations, Selected VTS Areas YES YES PORT
OPS/VTS
03A 156.150 156.150 US Government, Coast Guard YES YES UNAUTHORIZ
ED
05A 156.250 156.250 Port Operations, Selected VTS Areas YES YES PORT
OPS/VTS
06 156.300 156.300 Inter-ship Safety YES NO SAFETY
07A 156.350 156.350 Commercial YES YES COMMERCIAL
08 156.400 156.400 Commercial (Inter-ship Only) YES NO COMMERCIAL
09 156.450 156.450 Recreational Calling Channel YES YES CALLING
10 156.500 156.500 Commercial YES YES COMMERCIAL
11 156.550 156.550 Commercial, VTS in Selected Areas YES YES VTS
12 156.600 156.600 Port Operations, Selected VTS Areas YES YES PORT
OPS/VTS
13(2) 156.650 156.650 Inter-ship Navigation Safety
(bridge-to-bridge) YES NO BRIDGE COM
14 156.700 156.700 Port Operations, Selected VTS Areas YES YES PORT
OPS/VTS
15(4) RX Only 156.750 Environmental, RX Only --- --- ENVIROMENT
AL
16 156.800 156.800 International Distress, Safety, and Calling YES YES DISTRES
17(1) 156.850 156.850 State Controlled - 1W Only YES YES SAR
18A 156.900 156.900 Commercial YES YES COMMERCIAL
19A 156.950 156.950 Commercial YES YES COMMERCIA;
20 157.000 161.600
Port Operations, Canadian Coast Guard,
Duplex NO YES PORT OPS
20A 157.000 157.000 Port Operations YES YES PORT OPS
21A 157.050 157.050 U.S. Government, Canadian Coast Guard YES YES UNAUTHORIZ
ED
22A 157.100 157.100 Coast Guard Liaison YES YES COAST
GUARD
23A 157.150 157.150 U.S. Government, Coast Guard YES YES UNAUTHORIZ
ED
24 157.200 161.800 Public Correspondence, Marine Operator NO YES TELEPHONE
25 157.250 161.850 Public Correspondence, Marine Operator NO YES TELEPHONE
26 157.300 161.900 Public Correspondence, Marine Operator NO YES TELEPHONE
27 157.350 161.950 Public Correspondence, Marine Operator NO YES TELEPHONE
28 157.400 162.000 Public Correspondence, Marine Operator NO YES TELEPHONE
56
CH Tx
(MHz)
Rx
(MHz) TRAFFIC TYPE
SHIP
TO
SHIP
SHIP
TO
SHORE
NAME TAG
61A 156.075 156.075 U.S. Government, Canadian Coast Guard YES YES UNAUTHORIZED
63A 156.175 156.175 Port Operations, VTS in Selected Areas YES YES PORT OPS/VTS
64A 156.225 156.225 U.S. Government, Canadian Commercial
Fishing YES YES UNAUTHORIZED
65A 156.275 156.275 Port Operations YES YES PORT OPS
66A 156.325 156.325 Port Operations YES YES PORT OPS
67(2) 156.375 156.375 Commercial, bridge-to-bridge YES NO BRIDGE COM
68 156.425 156.425 Boat Operations, Recreational YES NO SHIP-SHIP
69 156.475 156.475 Boat Operations, Recreational YES YES PLEASURE
70(3) 156.525 Digital Selective Calling - DSC --- --- DSC
71 156.575 156.575 Boat Operations, Recreational YES YES PLEASURE
72 156.625 156.625 Boat Operations, Recreational YES NO SHIP-SHIP
73 156.675 156.675 Port Operations YES YES PORT OPS
74 156.725 156.725 Port Operations YES YES PORT OPS
75(1) 156.775 156.775 Port Operations - 1W Only YES YES PORT OPS
76(1) 156.825 156.825 Port Operations - 1W Only YES YES PORT OPS
77(1) 156.875 156.875 Port Operations - 1W Only YES YES PORT OPS
78A 156.925 156.925 Boat Operations, Recreational YES NO SHIP-SHIP
79A 156.975 156.975 Commercial YES YES COMMERCIAL
80A 157.025 157.025 Commercial YES YES COMMERCIAL
81A 157.075 157.075 U.S. Government, Environmental
Protection Agency Operations YES YES UNAUTHORIZED
82A 157.125 157.125 U.S. Government, Canadian Coast Guard YES YES UNAUTHORIZED
83A 157.175 157.175 U.S. Government, Canadian Coast Guard YES YES UNAUTHORIZED
84 157.225 161.825 Public Correspondence, Marine Operator NO YES TELEPHONE
84A 157.225 157.225 Public Correspondence, Marine Operator YES YES TELEPHONE
85 157.275 161.875 Public Correspondence, Marine Operator NO YES TELEPHONE
85A 157.275 157.275 Public Correspondence, Marine Operator YES YES TELEPHONE
86 157.325 161.925 Public Correspondence, Marine Operator NO YES TELEPHONE
86A 157.325 157.325 Public Correspondence, Marine Operator YES YES TELEPHONE
87 157.375 161.975 Public Correspondence, Marine Operator NO YES TELEPHONE
87A 157.375 157.375 Public Correspondence, Marine Operator YES YES TELEPHONE
88 157.425 162.025 Public Correspondence, Marine Operator NO YES TELEPHONE
88A 157.425 157.425 Commercial, Intership Only YES NO COMMERCIAL
Note.
(1) CH17, CH75, CH76 and CH77 are fixed with output power 1 W.
(2) CH13, CH67 are fixed with output power 1W. It is possible to change manually output
power 25W
(3) CH70 is exclusively DSC using channel and voice transmission is prohibited.
(4) CH15 is prohibited from transmission in order to prevent CH16 from harmful interferences.
57
6.3. CANADA Channel
CH Tx
(MHz)
Rx
(MHz) TRAFFIC TYPE SHIP TO
SHIP
SHIP TO
SHORE NAME TAG
01 156.050 160.650 Public Correspondence, Duplex NO YES TELEPHONE
02 156.100 160.700 Public Correspondence, Duplex NO YES TELEPHONE
03 156.150 160.750 Public Correspondence, Duplex NO YES TELEPHONE
04A 156.200 156.200 Canadian Coast Guard, SAR YES YES CANADIAN CG
05A 156.250 156.250 Port Operations, VTS in Selected Areas YES YES PORT OPS/VTS
06 156.300 156.300 Inter-ship Safety YES NO SAFETY
07A 156.350 156.350 Commercial YES YES COMMERCIAL
08 156.400 156.400 Commercial(Inter ship Only) YES NO COMMERCIAL
09 156.450 156.450 Recreational Calling Channel YES YES CALLING
10 156.500 156.500 Commercial YES YES COMMERCIAL
11 156.550 156.550 Commercial, VTS in Selected Area YES YES VTS
12 156.600 156.600 Port Operations, Selected VTS Areas YES YES PORT OPS/VTS
13(1) 156.650 156.650 Inter-ship Navigation Safety
(bridge-to-bridge) 1W Only YES NO BRIDGE COM
14 156.700 156.700 Port Operations, VTS in Selected Areas YES YES PORT OPS/VTS
15(1) 156.750 156.750 Commercial - 1W Only YES YES COMMERCIAL
16 156.800 156.800 International Distress, Safety, and
Calling YES YES DISTRESS
17(1) 156.850 156.850 State Controlled -1W Only YES YES SAR
18A 156.900 156.900 Commercial YES YES COMMERCIAL
19A 156.950 156.950 Canadian Coast Guard YES YES CANADIAN CG
20(1) 157.000 161.600 Canadian Coast Guard, Duplex-1W
Only NO YES CANADIAN CG
21 157.050 161.650 Port Operations, Duplex NO YES PORT OPS
21A 157.050 157.050 U.S. Government, Canadian Coast
Guard YES YES UNAUTHORIZED
21B RX Only 161.650 Port Operations, RX Only --- --- PORT OPS
22A 157.100 157.100 Canadian Coast Guard Liaison YES YES CANADIAN CG
23 157.150 161.750 Public Correspondence, Duplex NO YES TELEPHONE
24 157.200 161.800 Public Correspondence, Duplex NO YES TELEPHONE
25 157.250 161.850 Public Correspondence, Duplex NO YES TELEPHONE
25B RX Only 161.850 Public Correspondence, RX Only --- --- TELEPHONE
26 157.300 161.900 Public Correspondence, Duplex NO YES TELEPHONE
27 157.350 161.950 Public Correspondence, Duplex NO YES TELEPHONE
28 157.400 162.000 Public Correspondence, Duplex NO YES TELEPHONE
28B RX Only 162.000 Public Correspondence, RX Only --- --- TELEPHONE
58
CH Tx
(MHz)
Rx
(MHz) TRAFFIC TYPE SHIP TO
SHIP
SHIP TO
SHORE NAME TAG
60 156.025 160.625 Public Correspondence, Duplex NO YES TELEPHONE
61A 156.075 156.075 U.S. Government, Canadian Coast
Guard YES YES UNAUTHORIZED
62A 156.125 156.125 Canadian Coast Guard YES YES CANADIAN CG
64 156.225 160.825 Public Correspondence, Duplex NO YES TELEPHONE
64A 156.225 156.225 U.S. Government, Canadian
Commercial Fishing YES YES UNAUTHORIZED
65A 156.275 156.275 Port Operations YES YES PORT OPS
66A 156.325 156.325 Port Operations YES YES PORT OPS
67 156.375 156.375 Commercial, SAR YES NO COMMERCIAL
68 156.425 156.425 Boat Operations, Recreational YES NO SHIP-SHIP
69 156.475 156.475 Commercial Fishing Only YES YES COMMERCIAL
70(2) 156.525 Digital Selective Calling - DSC --- --- DSC
71 156.575 156.575 Boat Operations, Recreational YES YES PLEASURE
72 156.625 156.625 Inter-ship YES NO SHIP-SHIP
73 156.675 156.675 Commercial Fishing Only YES YES COMMERCIAL
74 156.725 156.725 Commercial Fishing Only YES YES COMMERCIAL
77 156.875 156.875 Port Operations YES YES PORT OPS
78A 156.925 156.925 Boat Operations, Recreational YES NO SHIP-SHIP
79A 156.975 156.975 Commercial YES YES COMMERCIAL
80A 157.025 157.025 Commercial YES YES COMMERCIAL
81A 157.075 157.075 U.S. Government Operations YES YES UNAUTHORIZED
82A 157.125 157.125 U.S. Government, Canadian Coast
Guard YES YES UNAUTHORIZED
83 157.175 161.775 Canadian Coast Guard YES YES CANADIAN CG
83A 157.175 157.175 U.S. Government, Canadian Coast
Guard YES YES UNAUTHORIZED
83B RX Only 161.775 Canadian Coast Guard, RX Only --- --- CANADIAN CG
84 157.225 161.825 Public Correspondence, Marine
Operator NO YES TELEPHONE
85 157.275 161.875 Public Correspondence, Marine
Operator NO YES TELEPHONE
86 157.325 161.925 Public Correspondence, Marine
Operator NO YES TELEPHONE
87 157.375 161.975 Public Correspondence, Marine
Operator NO YES TELEPHONE
88 157.425 162.025 Public Correspondence, Marine
Operator NO YES TELEPHONE
Note.
(1) CH13, CH15, CH17 and CH20 are fixed with output power 1W.
(2) CH70 is exclusively DSC using channel and voice transmission is prohibited.
(3) CH63, CH75 and CH76 are prohibited from transmitting.
* CH66, CH77 are basically 1W and are available for converting to 25W..
59
6.4. Weather Channel
WEATHER CH Rx(MHz) Type Channel Type
WX1 162.550 NOAA WEATHER CHANNEL NOAA WX
WX2 162.400 NOAA WEATHER CHANNEL NOAA WX
WX3 162.475 NOAA WEATHER CHANNEL NOAA WX
WX4 162.425 NOAA WEATHER CHANNEL NOAA WX
WX5 162.450 NOAA WEATHER CHANNEL NOAA WX
WX6 162.500 NOAA WEATHER CHANNEL NOAA WX
WX7 162.525 NOAA WEATHER CHANNEL NOAA WX
WX8 161.650 CANADIAN WEATHER CHANNEL CANADA WX
WX9 161.775 CANADIAN WEATHER CHANNEL CANADA WX
WX10 163.275 NOAA WEATHER CHANNEL NOAA WX
60
Chapter 7. Position Information Interface
This unit is effectively designed for convenient use, after receiving NMEA0183
FORMAT Typed GPS information that will interface internally and input automatically
with current own vessel’s latitude and longitude value when distress call is occurred.
It is available to input the time when determined with position information and position
by manual. In case not receiving position data from electronic position-determined
device, and/or in case position information conducted by manual input being delayed
more than 4 hours, alarm is ringing. Any position information, which is not updated
more than 23 hours should be deleted. Alarm will ring if GPS is not input more than 1
minute and alarm would stop when GPS is input again.
NMEA0183 input mode and type for this unit is as follows,
$GPGGA,065501,3506.3023,N,12905.6429,E,1,07,001.3,00005,M,0000,M,,*41
$GPGGA,032007,3505.10,N,12902.47,E,1,00,1,0,M,,M,,
$GPGGA,044610.00,3505.2139,N,12904.2867,E,1,06,05.4,,M,,M,,*63
$GPRMC,123456,A,3505.00,N,12902.00,E,1.0,0.0,221199,0.0,E*00
$GPRMC,123456,A,3505.0000,N,12902.0000,E,1.0,0.0,221199,0.0,E*00
$GPRMC,044610.00,A,3505.2139,N,12904.2867,E,00.2,229.1,180702,,*0D
$GPGLL,3504.2892,N,12900.2503,E,024950.00,V*14
$GPGLL,3505.09,N,12902.45,E*PCL
$GPZDA,025220.00,17,04,1999,00,00*6B
$GPZDA,050048,13,09,1998,+00
61
Chapter 8. Packing List
8.1. Oversea

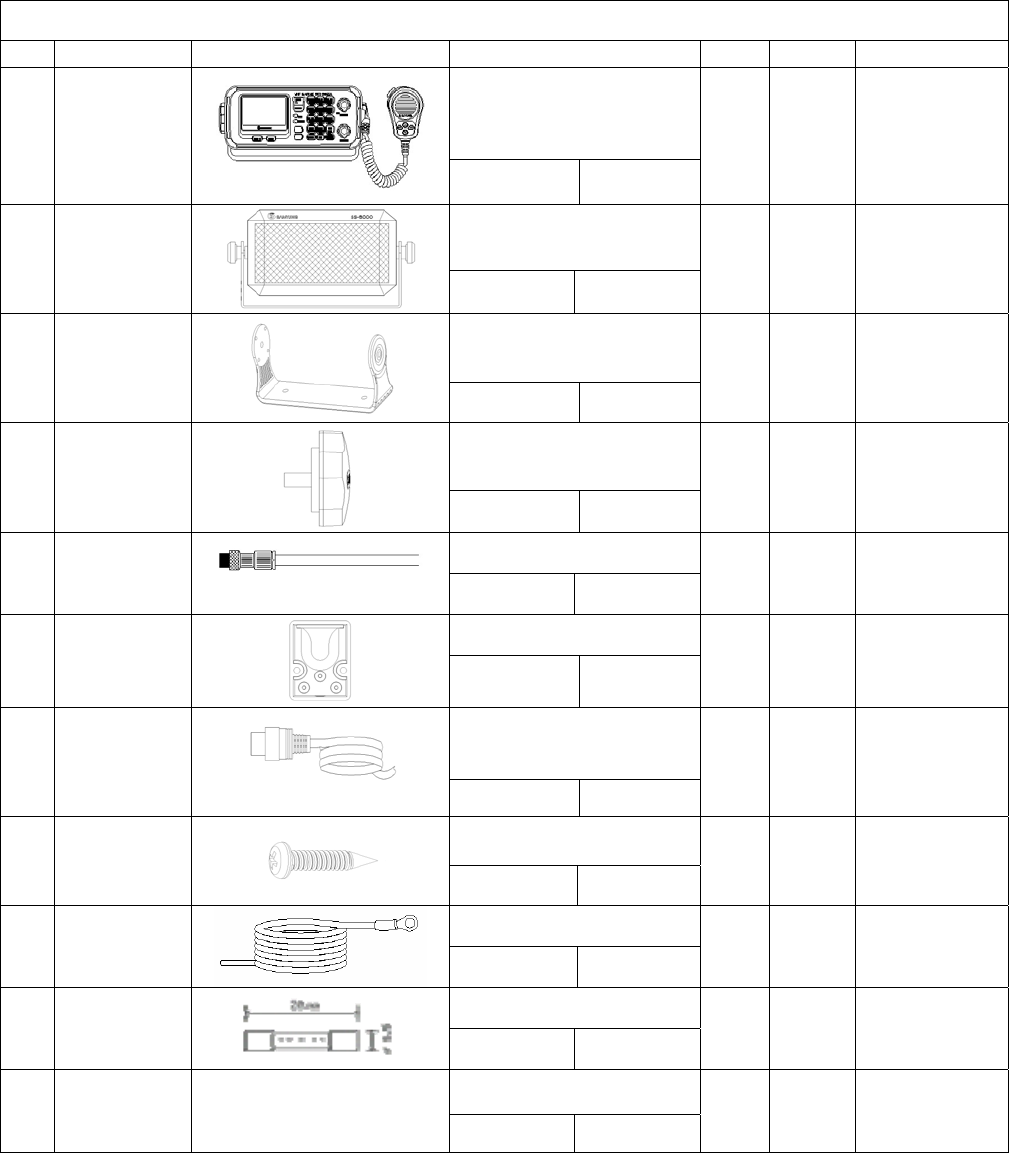

VHF STR-6000A Standard
NO Item Feature Dimension Q’ty Check Remark
STR-6000A
1 Main Unit
CODE NO. STR-6100
1
SM-6000
INCL. MIC
SS-6000
2 Speaker
CODE NO. STR-6101
1 A-04
ACC-6000D-001
3 Bracket
CODE NO. STR-6001
1
Ø5mm × 7
4 Fixing Bolt
CODE NO. STR-6002
2
Attached to
Main unit
CVV-SB 2C 1.25SQ
5 Power Cable
L=3m CODE NO. STR-6102
1 A-01
6 Mic Holder
CODE NO. STR-6103
1 A-07 Hook
INCL. Cable
RCA Plug
7 GPS Plug
L=2m CODE NO. STR-6003
1 A-03
Ø4 X 16
8 Steel Piece CODE NO. STR-594
20
KIV 5.5mm2
9 Ground
Cable CODE NO. STR-595
1 A-06
10A(20mm)
10 Fuse
CODE NO. STR-598
2
Spare Part
STR-6000A-ME
11 Manual
CODE NO. STR-6105
1
62
VHF STR-6000A Option
NO Item Feature Dimension Q’ty Check Remark
SAN-150
1 Antenna CODE NO. STR-585 2
RG-8U
2
VHF
Antenna
Cable L=15m CODE NO. STR-586
2 A-02 PL-259 x 4
78 X 200
3 Antenna
Bracket CODE NO STR-599
2
Ø63 X 80mm
4 U-Bolt
CODE NO. STR-601
4
SP-580AD
5 Power
Supply
CODE NO. STR-581
1
SP-6000AD
6 Power
Supply
CODE NO. STR-582
1
CVV-SB 2C 2SQ
7 AC Power
Cable
L=3m CODE NO. STR-588
1 B-01 SCN-20-2P
CVV-SB 2C 2SQ
8 DC Power
Cable
L=3m CODE NO. STR-589
1 B-02 SCN-20-3P
CVV-SB 4C 1.25SQ
9
DC Power
Cable/ B.K
Cable
L=3m CODE NO. STR-590
1 B-03
SCN-16-4P
SCN-20-4P
3A(20mm)
10 Power Fuse
CODE NO. STR-597
2 Spare Part
10A(20mm)
11 Power Fuse
CODE NO. STR-598
2
Spare Part
SMB-60
12 Flush Mount
(Bracket)
CODE NO. STR-6007
2 INCL. Bolt
KIV 5.5mm2
13 Ground
Cable CODE NO STR-595
1 A-06
63
8.2. Domestic
VHF STR-6000A Standard(1 of 2)
NO Item Feature Dimension Q’ty Check Remark
STR-6000A
1 Main Unit
CODE NO. STR-6100
1
SM-6000
INCL. MIC
SS-6000
2 Speaker
CODE NO. STR-6101
1 A-04
ACC-6000D-001
3 Bracket
CODE NO. STR-6001
1
Ø5mm × 7
4 Fixing Bolt
CODE NO. STR-6002
2
Attached to
Main unit
5 Mic Holder
CODE NO. STR-6103
1 A-07 Hook
INCL. Cable
RCA Plug
6 GPS Plug
L=2m CODE NO. STR-6003
1 A-03
Ø4 X 16
7 Steel Piece CODE NO. STR-594 20
KIV 5.5mm2
8 Ground
Cable CODE NO. STR-595
1 A-06
10A(20mm)
9 Fuse
CODE NO. STR-598
2
Spare Part
SAN-150
10 Antenna CODE NO. STR-585 2
RG-8U
11
VHF
Antenna
Cable L=15m CODE NO. STR-586
2 A-02 PL-259 x 4
78 X 200
12 Antenna
Bracket CODE NO STR-599 2
64

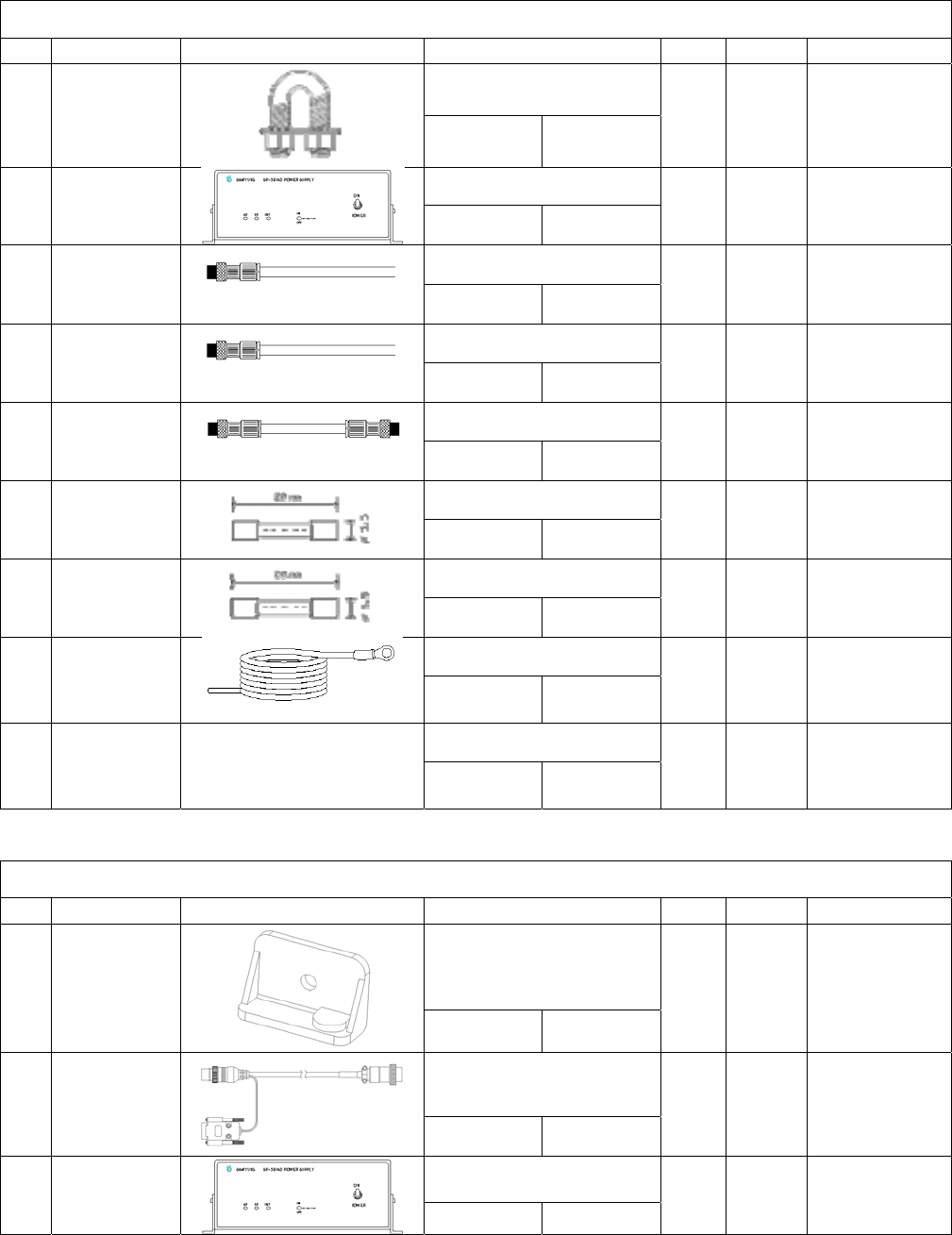

VHF STR-6000A Standard(2 of 2)
NO Item Feature Dimension Q’ty Check Remark
Ø63 X 80mm
13 U-Bolt
CODE NO. STR-601
4
SP-580AD
14 Power
Supply
CODE NO. STR-581
1
CVV-SB 2C 2SQ
15 AC Power
Cable
L=3m CODE NO. STR-588
1 B-01 SCN-20-2P
CVV-SB 2C 2SQ
16 DC Power
Cable
L=3m CODE NO. STR-589
1 B-02 SCN-20-3P
CVV-SB 4C 1.25SQ
17 DC Power
Cable
L=3m CODE NO. STR-590
1 B-03
SCN-16-4P
SCN-20-4P
3A(20mm)
18 Power Fuse
CODE NO. STR-597
2 Spare Part
10A(20mm)
19 Power Fuse
CODE NO. STR-598
2
Spare Part
KIV 5.5mm2
20 Ground
Cable CODE NO. STR-595
1 A-06
STR-6000A-MK
21 Manual
CODE NO. STR-6106
1
VHF STR-6000A Option
NO Item Feature Dimension Q’ty Check Remark
SMB-60
1 Flush Mount
(Bracket)
CODE NO. STR-6007
2 INCL. Bolt
CVV-SB 2C 2SQ
(AWG#24)
2
DC Power
Cable/ B.K
Cable CODE NO. STR-6190
1 B-03
SCN-16-4P
SCN-20-4P
D-SUB 15P
SP-6000AD
3 Power
Supply
CODE NO. STR-582
1
L=3m
65
Chapter 9. Block Diagram
66
Chapter 10. Overall Drawing
