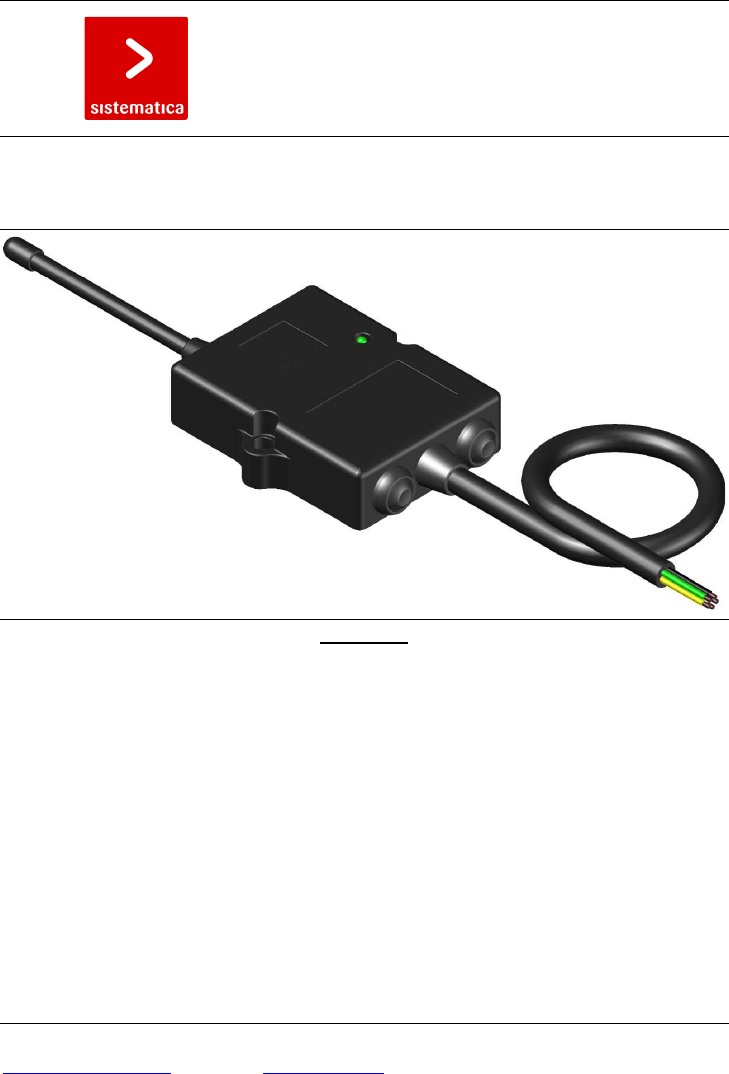

SISTEMATICA S p A NIMBLE Remote Controlled Outputs Actuator User Manual Receiver NIMBLE PLUS 868 REV 0

SISTEMATICA S.p.A. Remote Controlled Outputs Actuator Receiver NIMBLE PLUS 868 REV 0

manual

SISTEMATICA S.p.A.
SISTEMATICA S.p.A.SISTEMATICA S.p.A.
SISTEMATICA S.p.A.
Rev.0
Rev.0Rev.0
Rev.0
Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715
http://www.sistematica.it e-mail: info@sistematica.it 06/03/2013
RTX NIMBLE PLUS
RADIO REMOTE CONTROL 2 COMMAND WITH BUTTONS
USER AND MAINTENANCE MANUAL
WARNINGS
This manual is an essential part of the device and it should be thoroughly kept for later consultation.
Carefully read the warnings contained in this manual, concerning safety and a proper preservation of the
product. These warnings are always to be carefully read before using the device. SISTEMATICA S.p.A.
declines all responsibility for any trouble arising from the non-compliance with these warnings.
• DO NOT TRAVEL WITH THE DEVICE SWITCHED ON
• CONNECT THE SYSTEM ONLY TO THE VEHICLE’S BATTERY
• BEFORE CARRYING OUT ANY MECHANICAL MAINTENANCE OPERATION (WELDING) ON THE
VEHICLE, DISCONNECT THE BATTERY CLIPS
• AVOID ATTEMPTING TO REPAIR THE DEVICE BY YOURSELF. REPAIRS PERFORMED BY
UNSKILLED PEOPLE CAN CAUSE SERIOUS DAMAGES OR FAILURES. FOR ASSISTANCE,
APPLY TO YOUR LOCAL AUTHORIZED SERVICE CENTRE. USE ONLY ORIGINAL SPARE PARTS
• ALWAYS KEEP AT A SAFE DISTANCE FROM THE MOVING PARTS
SISTEMATICA S.p.A.
SISTEMATICA S.p.A.SISTEMATICA S.p.A.
SISTEMATICA S.p.A.
Pag. 2/4
Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715
http://www.sistematica.it e-mail: info@sistematica.it

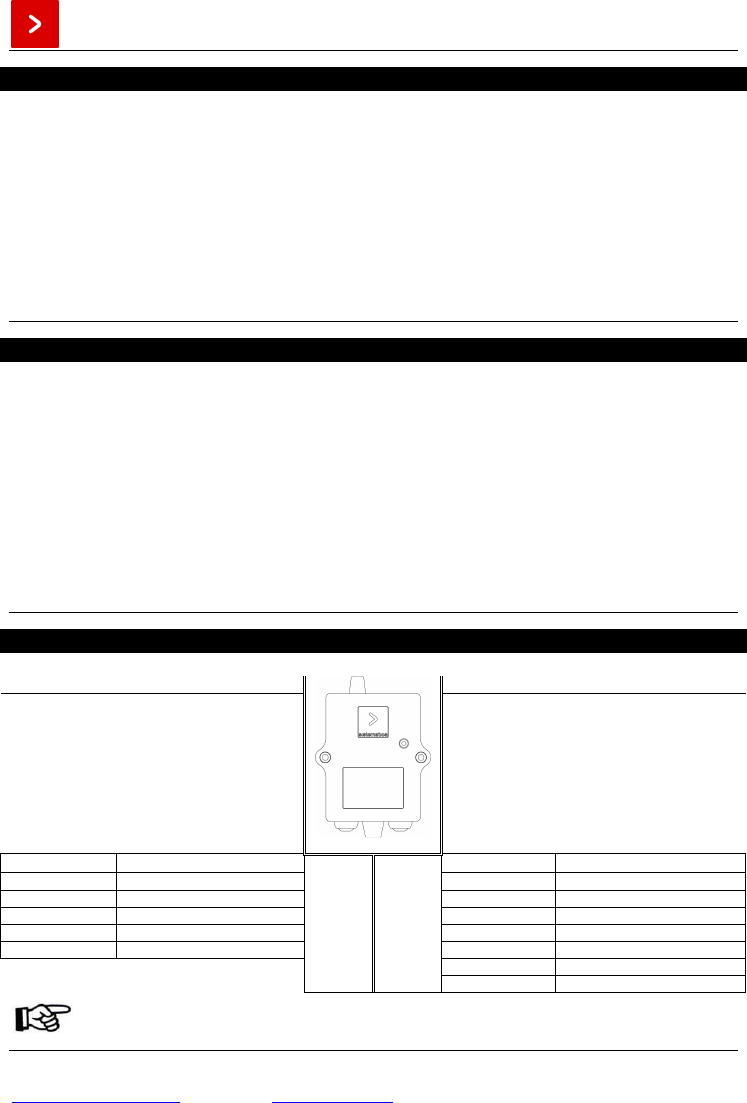

TECHNICAL FEATURES
• Number of outputs: 2;
• Frequency bands: ISM 868/915 MHz
• Microprocessor electronics control;
• Dimension: 190x83x22 (with antenna);
• Gradeo of enclosure: IP67;
• Protection of battery inversion polarity;
• 12/24 VDC (10-30 allowed) rating power supply through connection to the vehicle’s battery;
• Typical quiescent current:- 18 mA a 12 V;
- 14 mA a 24 V;
• Interal resettable fuse: 7 A
• Maximum suppliable current for each channel: 5 A
• Maximum total suppliable current: 7 A
• Receiver Category (EN 300-220-1): 2
SYSTEM CODING
It is necessary to code the system only if you have to replace the transmitter unit or if you want to use it with a
different receiver from the one it was purchased with. Follow the instructions to code the system.
1. Take the power supply off the receiver;
2. Disconnect the white or gray cable from negative pole of the battery and connect it to the positive pole of the
battery;
3. Put power into the receiver. The led on the receiver start to blink;
4. Press any 3 keys at the same time on the radio control transmitter within 15 seconds since it has been switched
on (also more times if it is necessary);
5. At this point, the coding occurred. The led on the receiver turn off;
6. Take the power supply off the receiver;
7. Disconnect the white or gray cable from positive pole of the battery and connect it to the negative pole of the
battery;
8. Put power into the receiver with the connector inserted to verify correct operation (press key START on the
transmitter and abilitate the outputs).
INSTRUCTION FOR USE
For correct use and in order to avoid damage to people or things, it is obligatory to follow these instructions:
5 WIRES VERSION
7 WIRES VERSION
1.
Power up the receiver and wait a few swconds
(the receiver takes a couple of seconds to be
able to operate a sit carries out an self-
diagnosis);
2.
Press the required button on the receiver to
activate the related output:
LEFT BUTTON → OUT 1
RIGHT BUTTON → OUT 2
3.
Turn off the receiver after finishing operations.
1.
Power up the receiver and wait a few swconds
(the receiver takes a couple of seconds to be
able to operate a sit carries out an self-
diagnosis);
2.
Press the required button on the receiver to
activate the related output:
LEFT BUTTON → OUT 1 + M.O. + OUT EM.
RIGHT BUTTON → OUT 2 + M.O. + OUT EM.
3.
Turn off the receiver after finishing operations.
LEFT RIGHT
WIRE FUNCTION
NOTE: is necessary
conncet white cable with
black cable to
the negative
pole of the battery.
NOTE: is necessary
conncet gray cable with
black cable to the negative
pole of the battery.
WIRE FUNCTION
GREEN OUT 1 GREEN OUT 1
YELLOW OUT 2 YELLOW OUT 2
WHITE PAIRING WHITE MASTER OUTPUT
RED + ALIMENTATION PINK EMERGENCY OUT
BLACK - ALIMENTATION GRAY PAIRING
RED + ALIMENTATION
BLACK - ALIMENTATION
To operate from the transmitter, consult the user manual of the transmitter coupled with the
receiver.
SISTEMATICA S.p.A.
SISTEMATICA S.p.A.SISTEMATICA S.p.A.
SISTEMATICA S.p.A.
Pag. 3/4
Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715
http://www.sistematica.it e-mail: info@sistematica.it

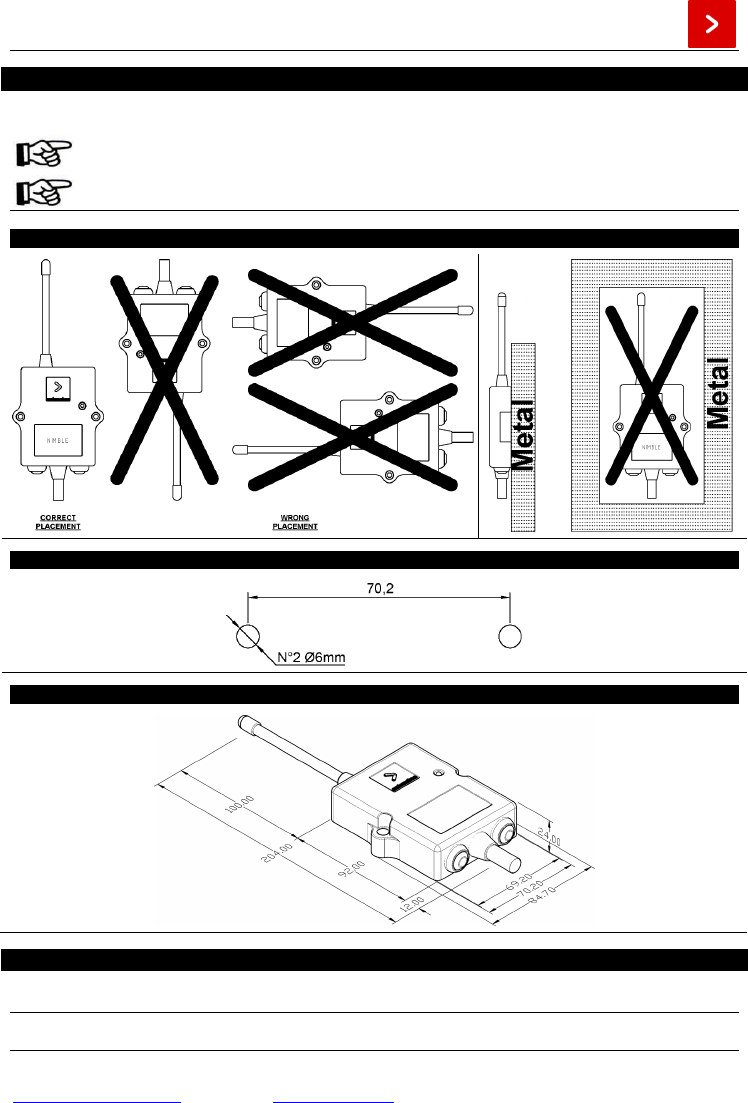

POSITIONING OF THE RECEIVER UNIT, DIMENSION AND DRILLING TEMPLATE
For a proper functioning, locate the receiver type NIMBLE with the cable output downwards, as shown in the picture
below:
The receiver is provided with an integrated antenna; be sure to locate it at sight, not inside any
metal box or screened by ferrous masses (ex. protection carter…)
For the receiver installation use supplied fixing screaw (or equivalent)
POSI
TIONING OF THE RECEIVER NIBLE
DIMENSION DRILLING TEMPLATE NIMBLE
DIMENSION BOX RECEIVER NIMBLE
FUSE
The system is automatically protected from power overload and from possible short-circuit on corresponding outputs
by an internal resettable fuse (7A).
SISTEMATICA S.p.A.
SISTEMATICA S.p.A.SISTEMATICA S.p.A.
SISTEMATICA S.p.A.
Pag. 4/4
Via S. Pertini, 17 – 12030 MANTA (CN) ITALY Tel. +39 0175 255.711 r.a. – Fax +39 0175 255.715
http://www.sistematica.it e-mail: info@sistematica.it

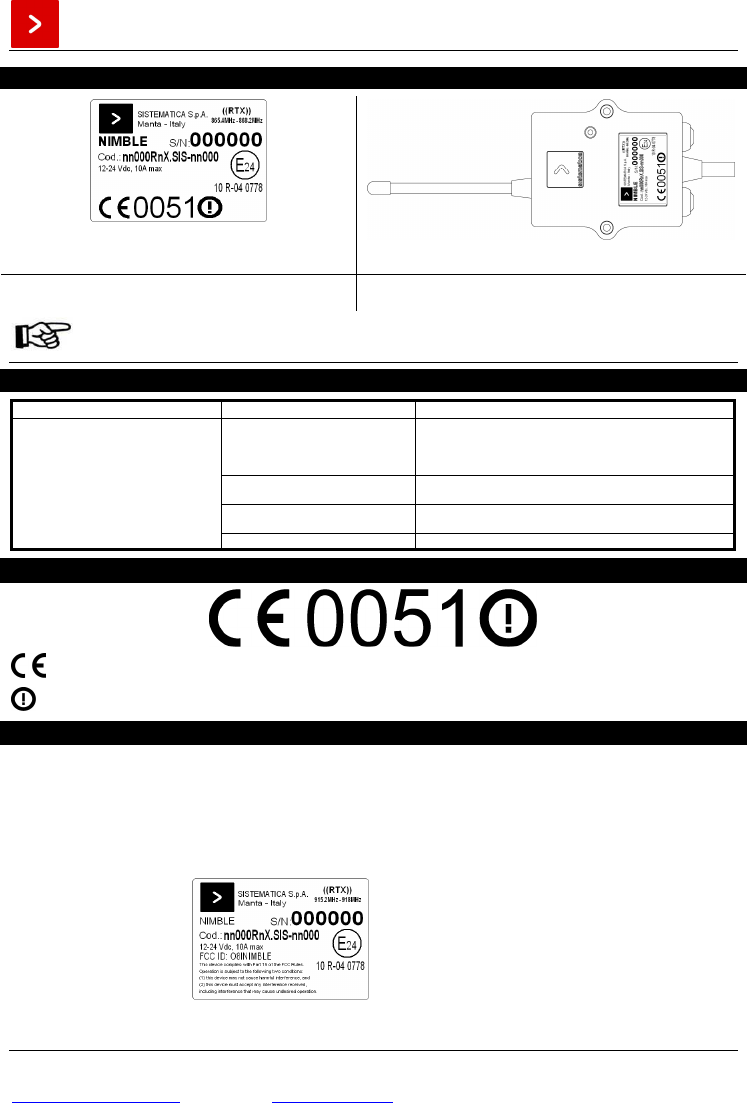

PRODUCT IDENTIFYING LABELS
NIMBLE: product model
S/N: product derial number
Cod.: product identification code
RECEIVER IDENTIFICATION LABEL POSITIONING ON THE RECEIVER OF THE IDENTIFICATION
LABEL
Removal of the identifying labels entails lapsing of the guarantee conditions and the
responsibility of SISTEMATICA S.p.A. with respect to competent bodies
PROBLEM IDENTIFICATION AND SOLUTION
P
ROBLEM
P
OSSIBLE
C
AUSES
S
OLUTIONS
The system does not respond to the
controls
Absence of power in the receiver
unit
-Check that the emergency mushroom button on the
transmitter is in the release position
-Check that the vehicle battery is correctly connected to
the receiver unit
Incorrect connection of the
cabling to the utilities -Check the cabling to the users (indicators, electro-valves
etc.)
Incorrect installation of the
receiver -The receiver must not be shielded by ferrous masses
(see “POSITIONING OF THE RECEIVER UNIT”)
System not coded -Re-code the system (see “CODING THE SYSTEM”)
CE MARK
Declaration of conformity for Sistematica S.p.A. products can be required at: info@sistematica.it
This product may be subjected to usage restriction. Please contact info@sistematica.it for any further questions.
FCC STATEMENTS
These devices complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) these devices may not cause harmful interference and
(2) these devices must accept any interference received, including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to
these equipment. Such modifications could void the user’s authority to operate the equipments.
SISTEMATICA S.p.A. Grantee Code: O8I
NIMBLE RTX label example
FCC ID: O8INIMBLE
