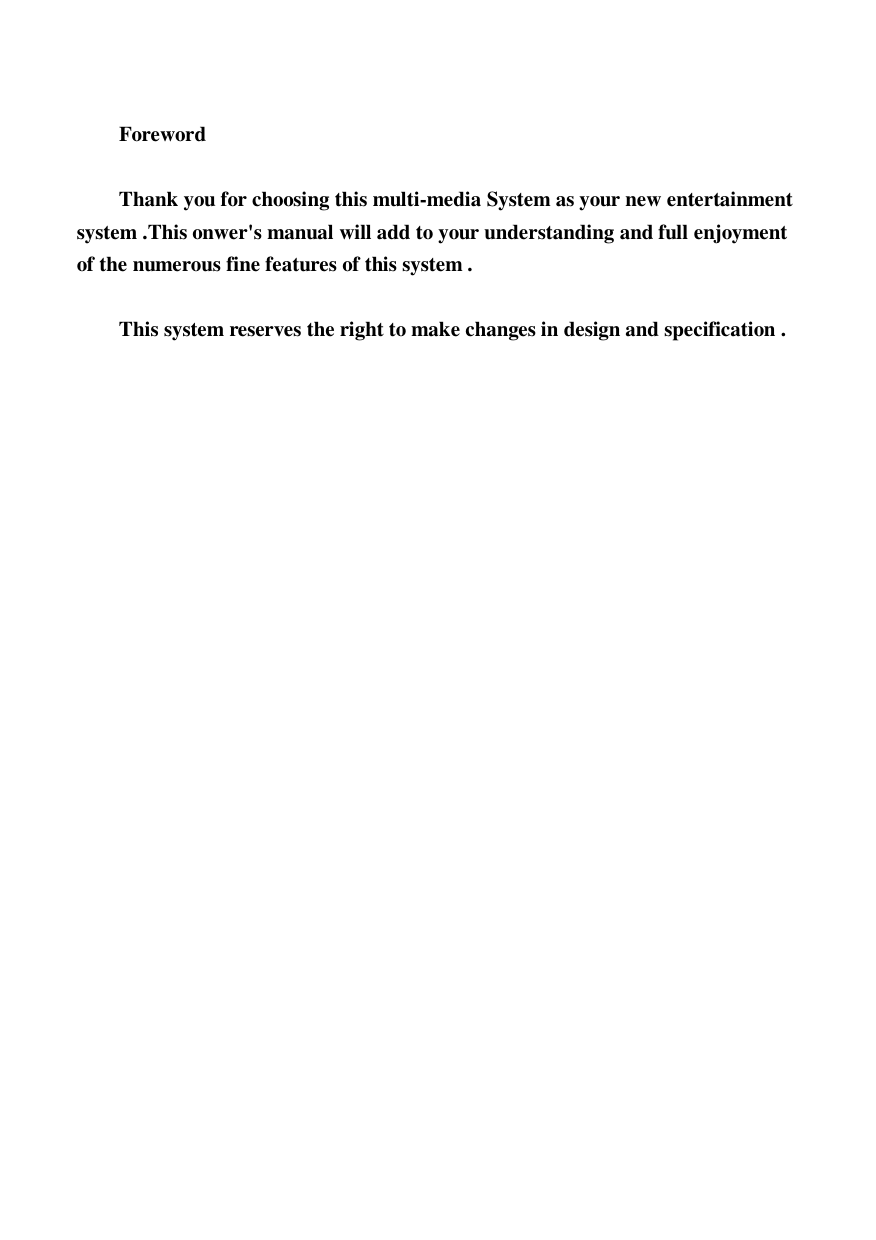

Foreword Thank you for choosing this multi-media System as your new entertainment system .This onwer's manual will add to your understanding and full enjoyment of the numerous fine features of this system . This system reserves the right to make changes in design and specification .

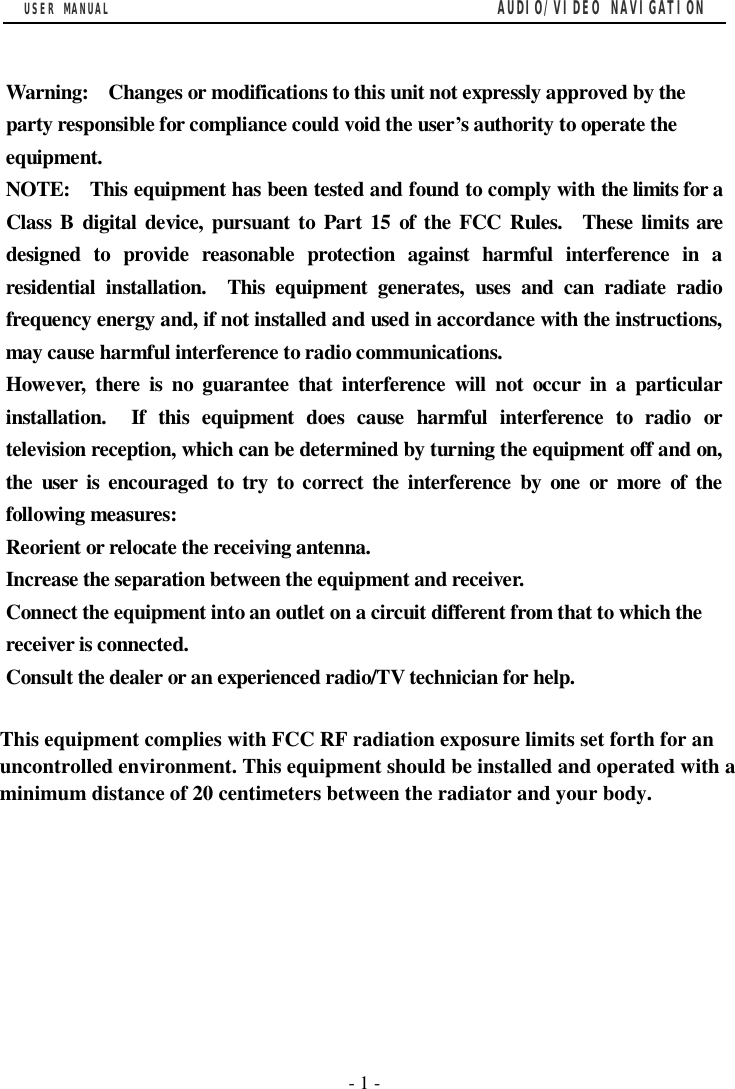

USER MANUAL AUDIO/VIDEO NAVIGATION - 1 - Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC RF radiation exposure limits set forth for anuncontrolled environment. This equipment should be installed and operated with aminimum distance of 20 centimeters between the radiator and your body.

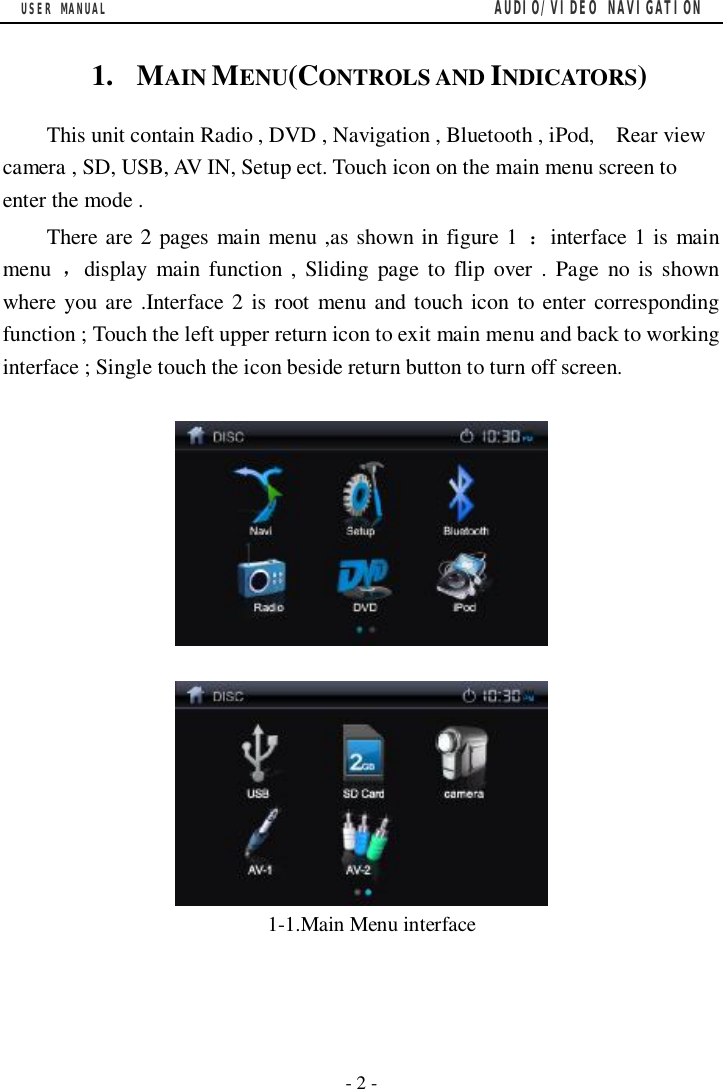

USER MANUAL AUDIO/VIDEO NAVIGATION - 2 - 1. MAIN MENU(CONTROLS AND INDICATORS) This unit contain Radio , DVD , Navigation , Bluetooth , iPod, Rear view camera , SD, USB, AV IN, Setup ect. Touch icon on the main menu screen to enter the mode . There are 2 pages main menu ,as shown in figure 1 ：interface 1 is main menu ，display main function , Sliding page to flip over . Page no is shown where you are .Interface 2 is root menu and touch icon to enter corresponding function ; Touch the left upper return icon to exit main menu and back to working interface ; Single touch the icon beside return button to turn off screen. 1-1.Main Menu interface

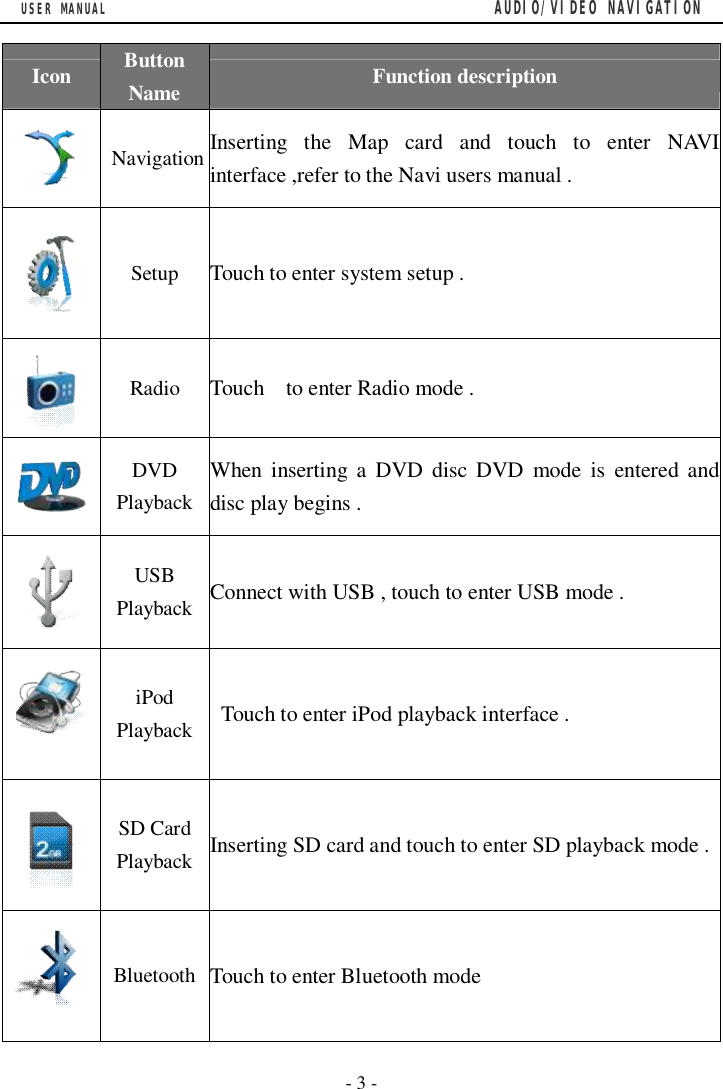

USER MANUAL AUDIO/VIDEO NAVIGATION - 3 - Icon Button Name Function description Navigation Inserting the Map card and touch to enter NAVI interface ,refer to the Navi users manual . Setup Touch to enter system setup . Radio Touch to enter Radio mode . DVD Playback When inserting a DVD disc DVD mode is entered and disc play begins . USB Playback Connect with USB , touch to enter USB mode . iPod Playback Touch to enter iPod playback interface . SD Card Playback Inserting SD card and touch to enter SD playback mode . Bluetooth Touch to enter Bluetooth mode

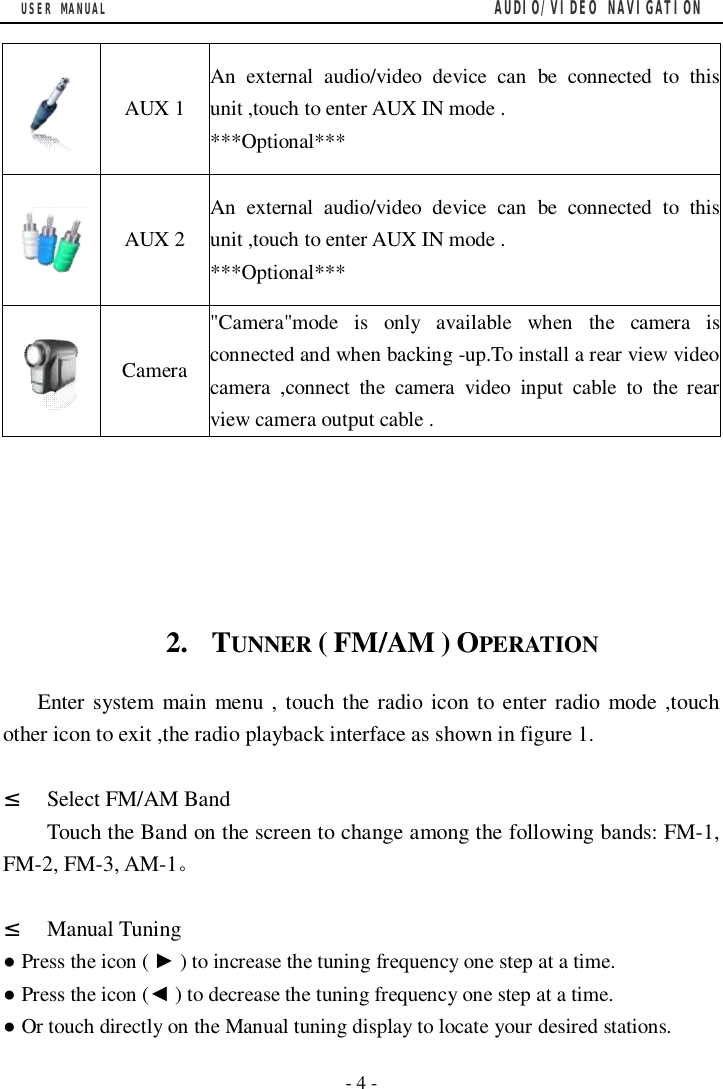

USER MANUAL AUDIO/VIDEO NAVIGATION - 4 - AUX 1 An external audio/video device can be connected to this unit ,touch to enter AUX IN mode . ***Optional*** AUX 2 An external audio/video device can be connected to this unit ,touch to enter AUX IN mode . ***Optional*** Camera "Camera"mode is only available when the camera is connected and when backing -up.To install a rear view video camera ,connect the camera video input cable to the rear view camera output cable . 2. TUNNER ( FM/AM ) OPERATION Enter system main menu , touch the radio icon to enter radio mode ,touch other icon to exit ,the radio playback interface as shown in figure 1. ² Select FM/AM Band Touch the Band on the screen to change among the following bands: FM-1, FM-2, FM-3, AM-1。 ² Manual Tuning ● Press the icon ( ► ) to increase the tuning frequency one step at a time. ● Press the icon (◄ ) to decrease the tuning frequency one step at a time. ● Or touch directly on the Manual tuning display to locate your desired stations.

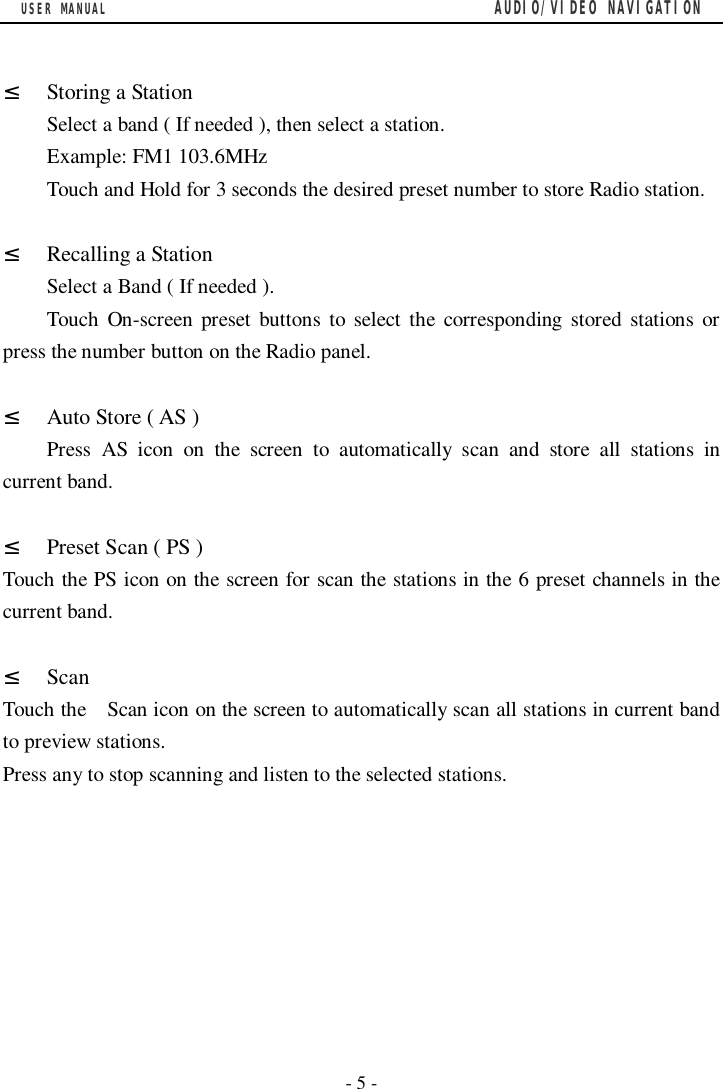

USER MANUAL AUDIO/VIDEO NAVIGATION - 5 - ² Storing a Station Select a band ( If needed ), then select a station. Example: FM1 103.6MHz Touch and Hold for 3 seconds the desired preset number to store Radio station. ² Recalling a Station Select a Band ( If needed ). Touch On-screen preset buttons to select the corresponding stored stations or press the number button on the Radio panel. ² Auto Store ( AS ) Press AS icon on the screen to automatically scan and store all stations in current band. ² Preset Scan ( PS ) Touch the PS icon on the screen for scan the stations in the 6 preset channels in the current band. ² Scan Touch the Scan icon on the screen to automatically scan all stations in current band to preview stations. Press any to stop scanning and listen to the selected stations.
USER MANUAL AUDIO/VIDEO NAVIGATION - 6 -

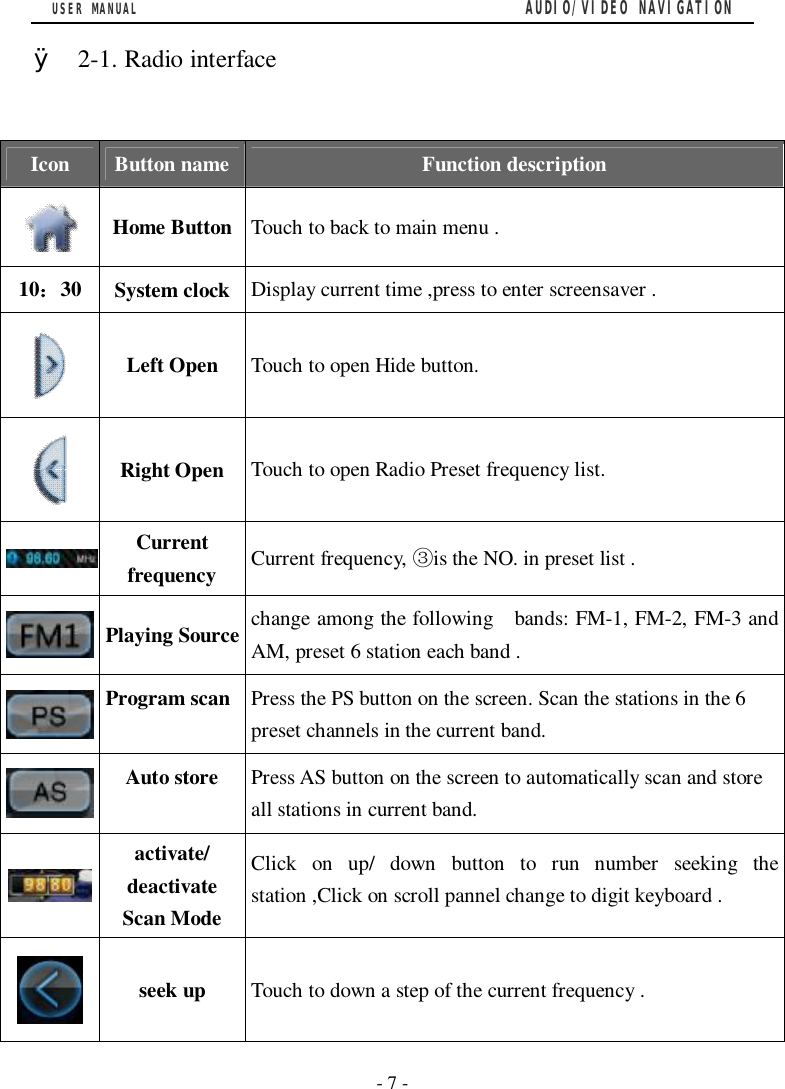

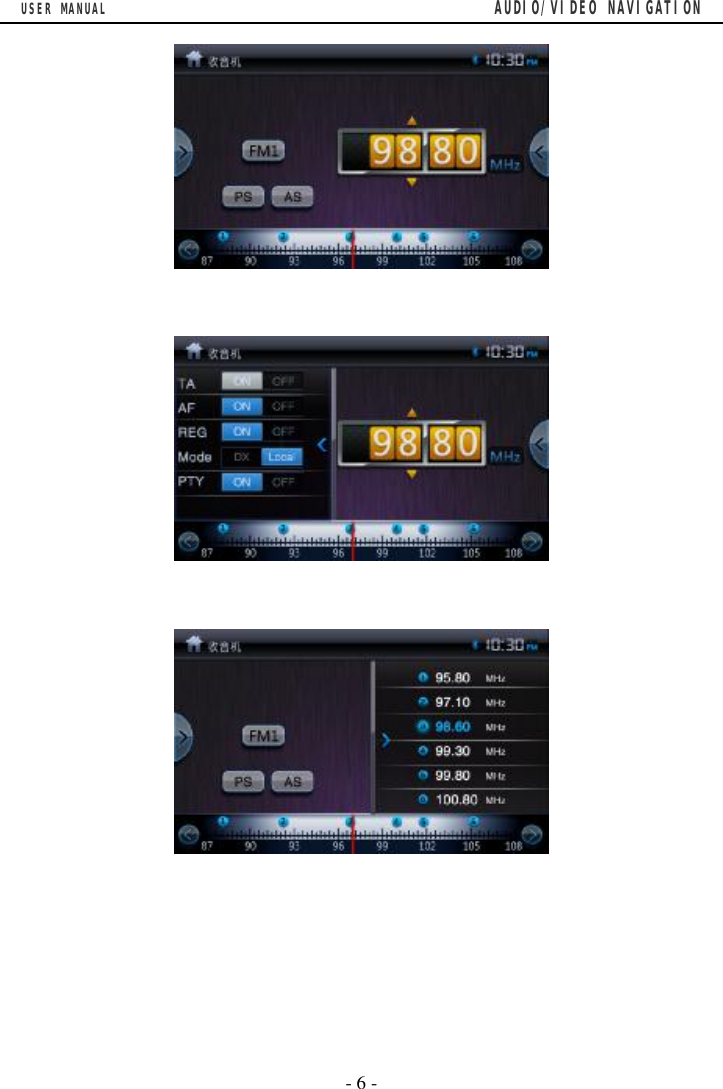

USER MANUAL AUDIO/VIDEO NAVIGATION - 7 - Ø 2-1. Radio interface Icon Button name Function description Home Button Touch to back to main menu . 10：30 System clock Display current time ,press to enter screensaver . Left Open Touch to open Hide button. Right Open Touch to open Radio Preset frequency list. Current frequency Current frequency, is the NO. in preset list .③ Playing Source change among the following bands: FM-1, FM-2, FM-3 and AM, preset 6 station each band . Program scan Press the PS button on the screen. Scan the stations in the 6 preset channels in the current band. Auto store Press AS button on the screen to automatically scan and store all stations in current band. activate/ deactivate Scan Mode Click on up/ down button to run number seeking the station ,Click on scroll pannel change to digit keyboard . seek up Touch to down a step of the current frequency .
USER MANUAL AUDIO/VIDEO NAVIGATION - 8 - Icon Button name Function description seek down Touch to up a step of the current frequency Frequency scale Display current frequency and touch to select a new station . 3. iPod Operation Please Fist make sure of that your ipod/iphone connect to the DVD machine via USB，Then switch current source to iPod source by touching iPod icon on main menu or using “SRC” panel button. IPod function can be showed by picture３-１,３-２. 3-1 3-2

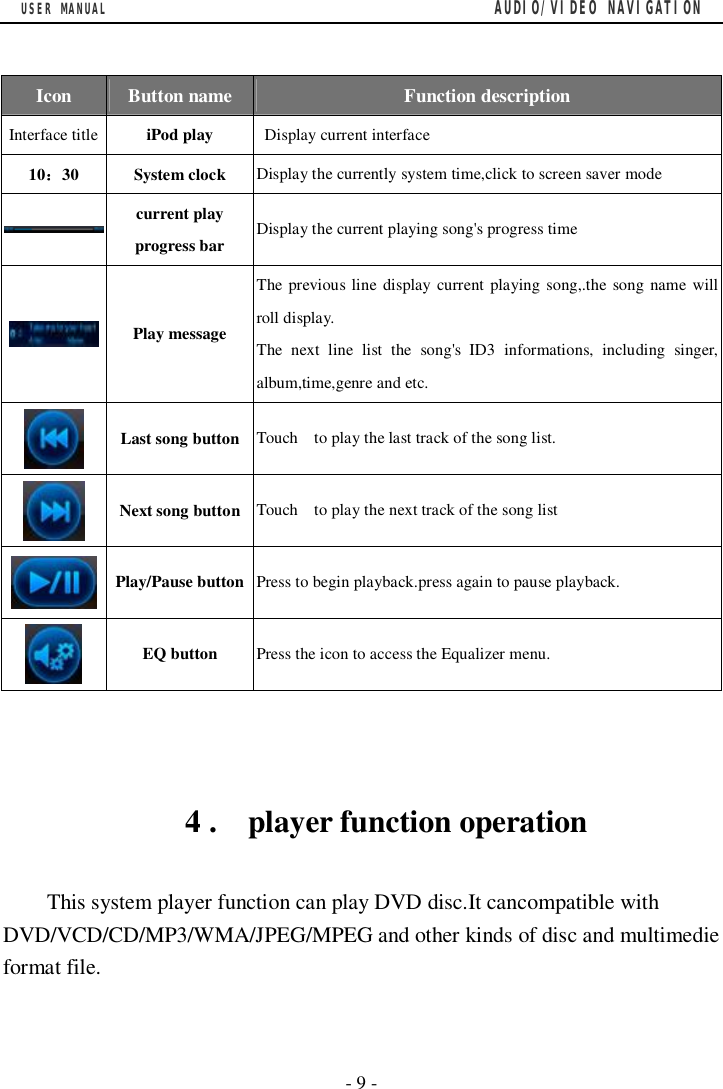

USER MANUAL AUDIO/VIDEO NAVIGATION - 9 - Icon Button name Function description Interface title iPod play Display current interface 10：30 System clock Display the currently system time,click to screen saver mode current play progress bar Display the current playing song's progress time Play message The previous line display current playing song,.the song name will roll display. The next line list the song's ID3 informations, including singer, album,time,genre and etc. Last song button Touch to play the last track of the song list. Next song button Touch to play the next track of the song list Play/Pause button Press to begin playback.press again to pause playback. EQ button Press the icon to access the Equalizer menu. 4 . player function operation This system player function can play DVD disc.It cancompatible with DVD/VCD/CD/MP3/WMA/JPEG/MPEG and other kinds of disc and multimedie format file.

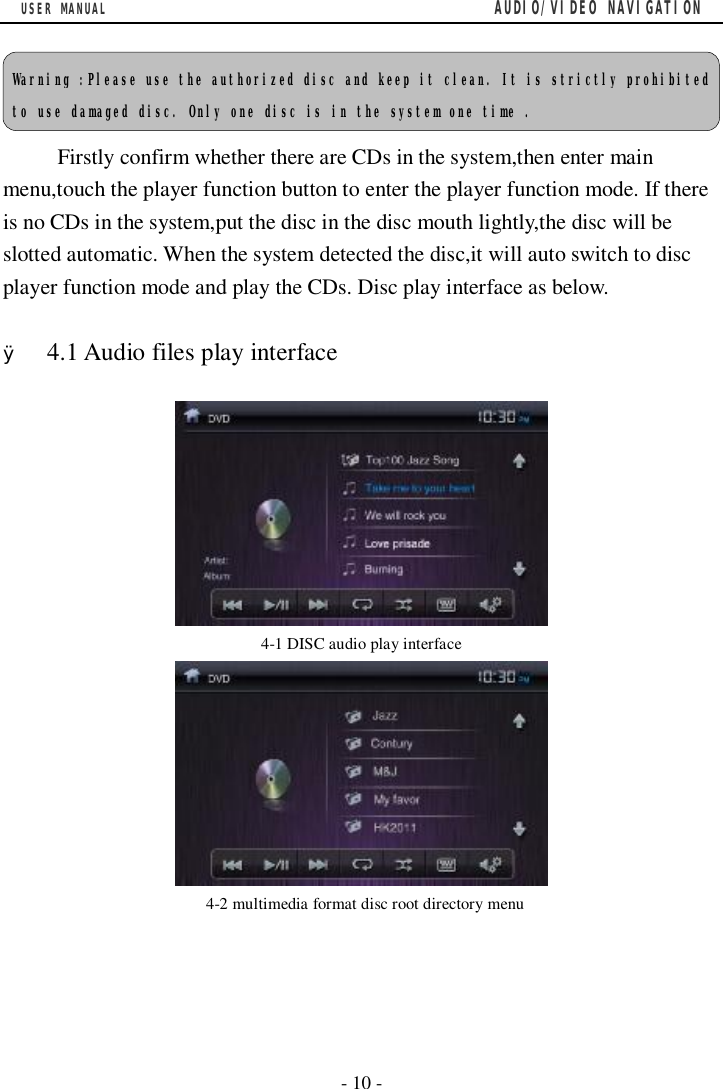

USER MANUAL AUDIO/VIDEO NAVIGATION - 10 - Firstly confirm whether there are CDs in the system,then enter main menu,touch the player function button to enter the player function mode. If there is no CDs in the system,put the disc in the disc mouth lightly,the disc will be slotted automatic. When the system detected the disc,it will auto switch to disc player function mode and play the CDs. Disc play interface as below. Ø 4.1 Audio files play interface 4-1 DISC audio play interface 4-2 multimedia format disc root directory menu Warning :Please use the authorized disc and keep it clean. It is strictly prohibited to use damaged disc. Only one disc is in the system one time .

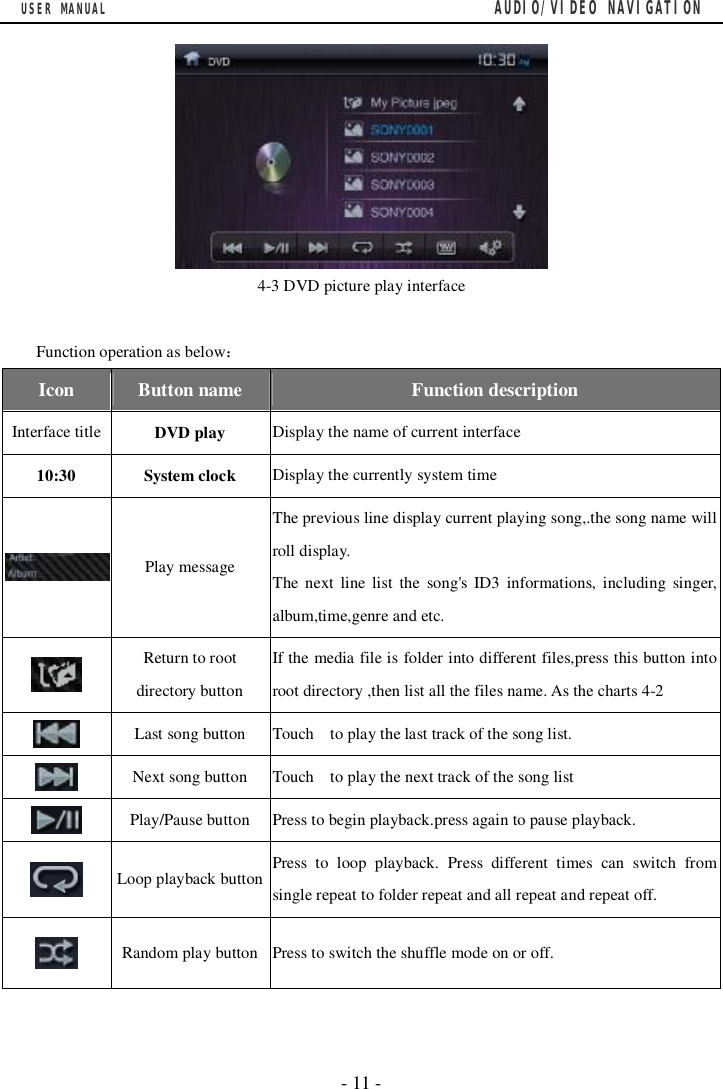

USER MANUAL AUDIO/VIDEO NAVIGATION - 11 - 4-3 DVD picture play interface Function operation as below： Icon Button name Function description Interface title DVD play Display the name of current interface 10:30 System clock Display the currently system time Play message The previous line display current playing song,.the song name will roll display. The next line list the song's ID3 informations, including singer, album,time,genre and etc. Return to root directory button If the media file is folder into different files,press this button into root directory ,then list all the files name. As the charts 4-2 Last song button Touch to play the last track of the song list. Next song button Touch to play the next track of the song list Play/Pause button Press to begin playback.press again to pause playback. Loop playback button Press to loop playback. Press different times can switch from single repeat to folder repeat and all repeat and repeat off. Random play button Press to switch the shuffle mode on or off.

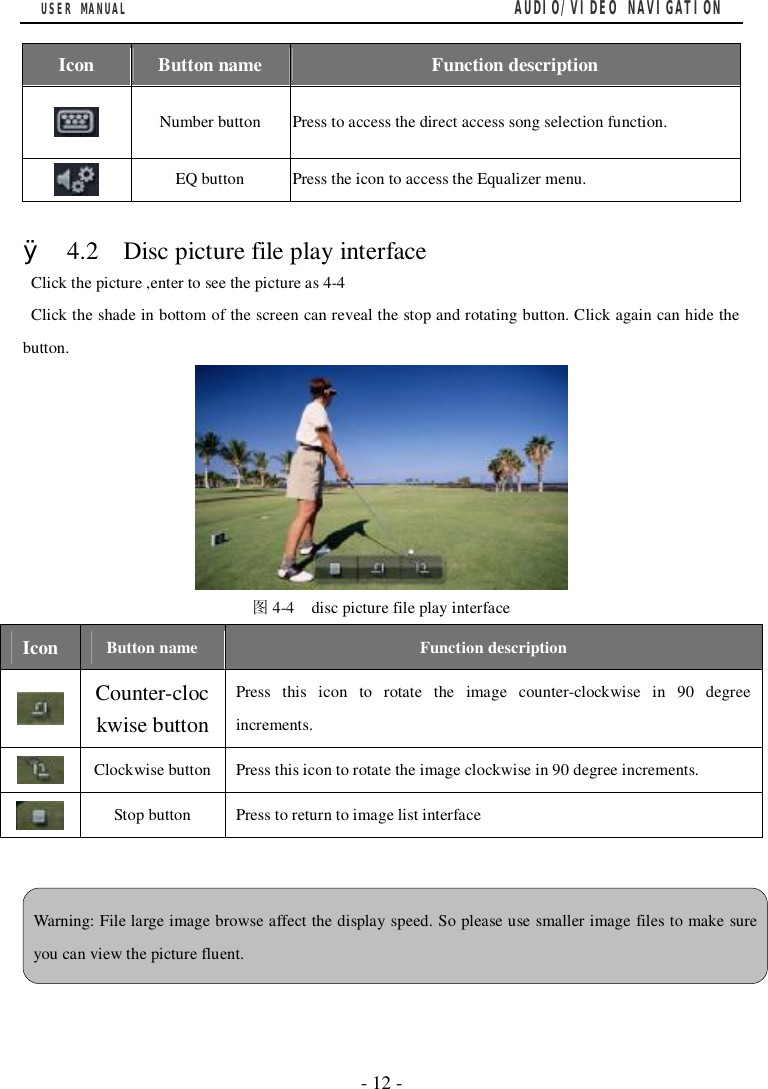

USER MANUAL AUDIO/VIDEO NAVIGATION - 12 - Icon Button name Function description Number button Press to access the direct access song selection function. EQ button Press the icon to access the Equalizer menu. Ø 4.2 Disc picture file play interface Click the picture ,enter to see the picture as 4-4 Click the shade in bottom of the screen can reveal the stop and rotating button. Click again can hide the button. 图4-4 disc picture file play interface Icon Button name Function description Counter-clockwise button Press this icon to rotate the image counter-clockwise in 90 degree increments. Clockwise button Press this icon to rotate the image clockwise in 90 degree increments. Stop button Press to return to image list interface Warning: File large image browse affect the display speed. So please use smaller image files to make sure you can view the picture fluent.
USER MANUAL AUDIO/VIDEO NAVIGATION - 13 - Ø 4.3 DVD video file play interface Under the media playing mode,touch can back to the DVD interface.(as the graph 4-3) 5. SD card and USB operation Make sure the SD card input and USB connected with the system before using SD card and USB function. The system would switch to USB playing interface directly when USB has connected well with the system. Ø 5.1 SD card/USB video file playing interface Enter the system main menu,click SD card/USB button to the corresponding function mode, click the other function button can exit this mode. The SD card and USB has the some playing interface as the 5-1 : 图5-1 USB/SD Audio interface For extend the service life of the SD card, we recommend to not extract SD card in use it.

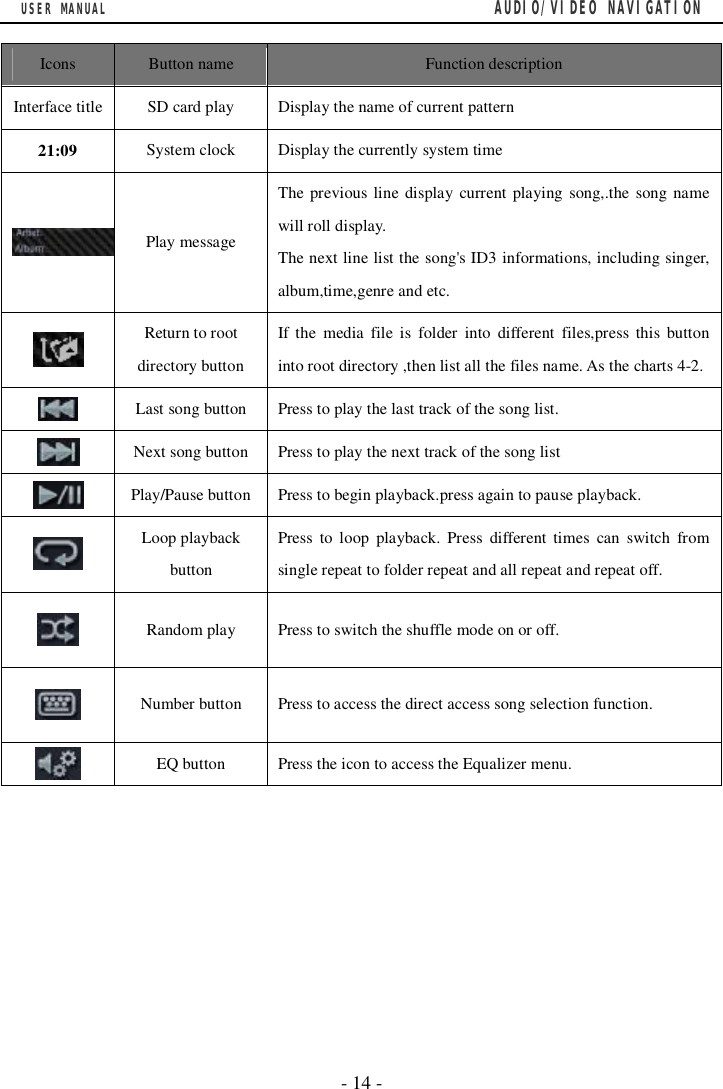

USER MANUAL AUDIO/VIDEO NAVIGATION - 14 - Icons Button name Function description Interface title SD card play Display the name of current pattern 21:09 System clock Display the currently system time Play message The previous line display current playing song,.the song name will roll display. The next line list the song's ID3 informations, including singer, album,time,genre and etc. Return to root directory button If the media file is folder into different files,press this button into root directory ,then list all the files name. As the charts 4-2. Last song button Press to play the last track of the song list. Next song button Press to play the next track of the song list Play/Pause button Press to begin playback.press again to pause playback. Loop playback button Press to loop playback. Press different times can switch from single repeat to folder repeat and all repeat and repeat off. Random play Press to switch the shuffle mode on or off. Number button Press to access the direct access song selection function. EQ button Press the icon to access the Equalizer menu.

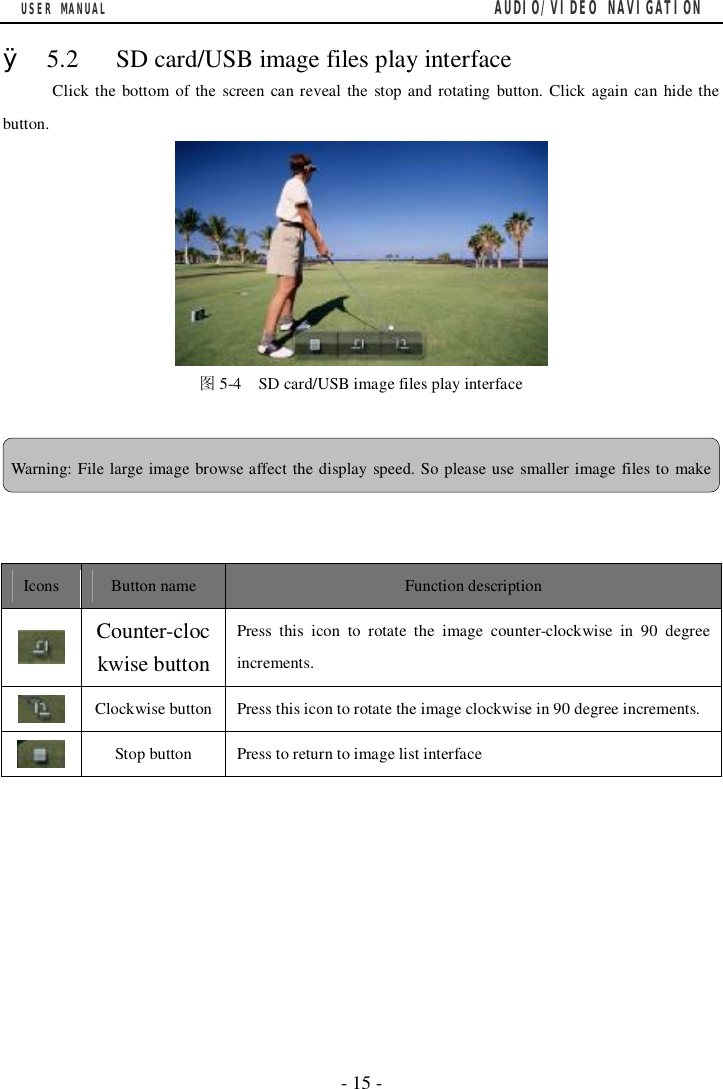

USER MANUAL AUDIO/VIDEO NAVIGATION - 15 - Ø 5.2 SD card/USB image files play interface Click the bottom of the screen can reveal the stop and rotating button. Click again can hide the button. 图5-4 SD card/USB image files play interface Icons Button name Function description Counter-clockwise button Press this icon to rotate the image counter-clockwise in 90 degree increments. Clockwise button Press this icon to rotate the image clockwise in 90 degree increments. Stop button Press to return to image list interface Warning: File large image browse affect the display speed. So please use smaller image files to make

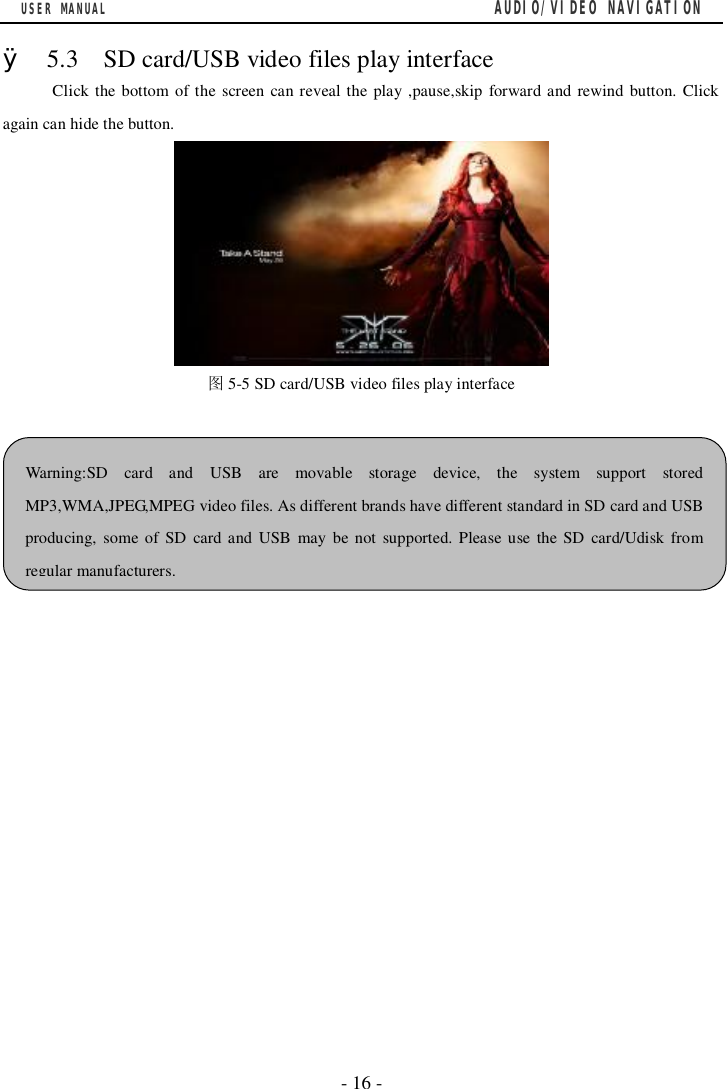

USER MANUAL AUDIO/VIDEO NAVIGATION - 16 - Ø 5.3 SD card/USB video files play interface Click the bottom of the screen can reveal the play ,pause,skip forward and rewind button. Click again can hide the button. 图5-5 SD card/USB video files play interface Warning:SD card and USB are movable storage device, the system support stored MP3,WMA,JPEG,MPEG video files. As different brands have different standard in SD card and USB producing, some of SD card and USB may be not supported. Please use the SD card/Udisk from regular manufacturers.

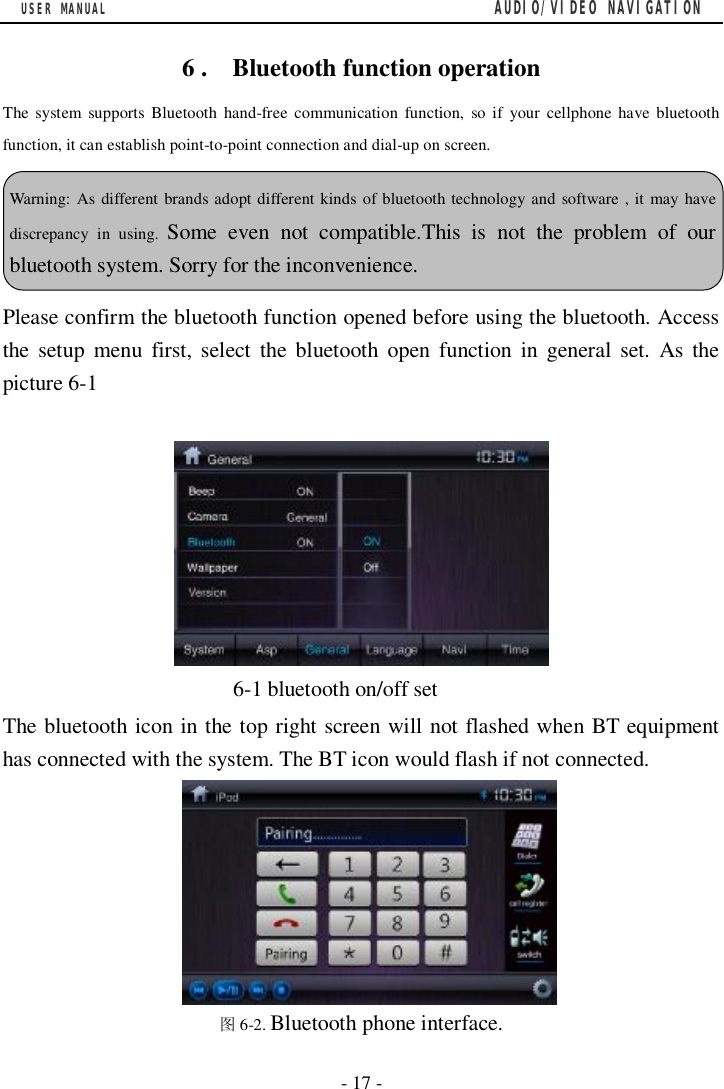

USER MANUAL AUDIO/VIDEO NAVIGATION - 17 - 6 . Bluetooth function operation The system supports Bluetooth hand-free communication function, so if your cellphone have bluetooth function, it can establish point-to-point connection and dial-up on screen. Please confirm the bluetooth function opened before using the bluetooth. Access the setup menu first, select the bluetooth open function in general set. As the picture 6-1 6-1 bluetooth on/off set The bluetooth icon in the top right screen will not flashed when BT equipment has connected with the system. The BT icon would flash if not connected. 图6-2. Bluetooth phone interface. Warning: As different brands adopt different kinds of bluetooth technology and software , it may have discrepancy in using. Some even not compatible.This is not the problem of our bluetooth system. Sorry for the inconvenience.

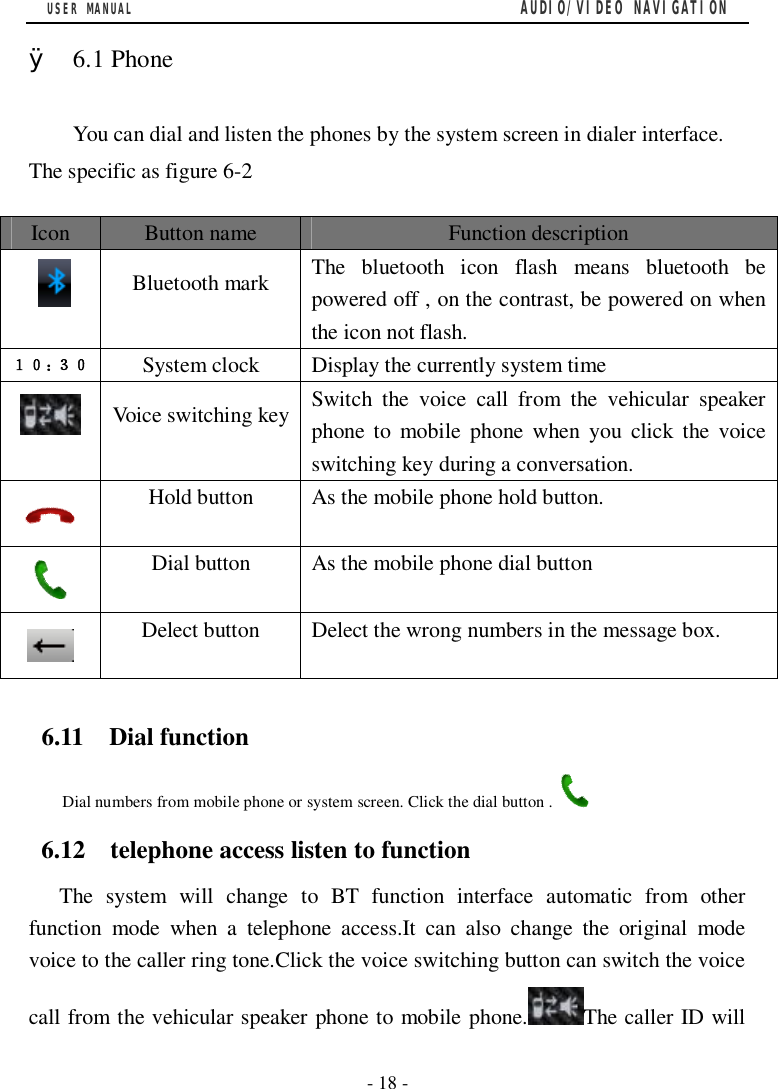

USER MANUAL AUDIO/VIDEO NAVIGATION - 18 - Ø 6.1 Phone You can dial and listen the phones by the system screen in dialer interface. The specific as figure 6-2 6.11 Dial function Dial numbers from mobile phone or system screen. Click the dial button . 6.12 telephone access listen to function The system will change to BT function interface automatic from other function mode when a telephone access.It can also change the original mode voice to the caller ring tone.Click the voice switching button can switch the voice call from the vehicular speaker phone to mobile phone. The caller ID will Icon Button name Function description Bluetooth mark The bluetooth icon flash means bluetooth be powered off , on the contrast, be powered on when the icon not flash. １０：３０ System clock Display the currently system time Voice switching key Switch the voice call from the vehicular speaker phone to mobile phone when you click the voice switching key during a conversation. Hold button As the mobile phone hold button. Dial button As the mobile phone dial button Delect button Delect the wrong numbers in the message box.

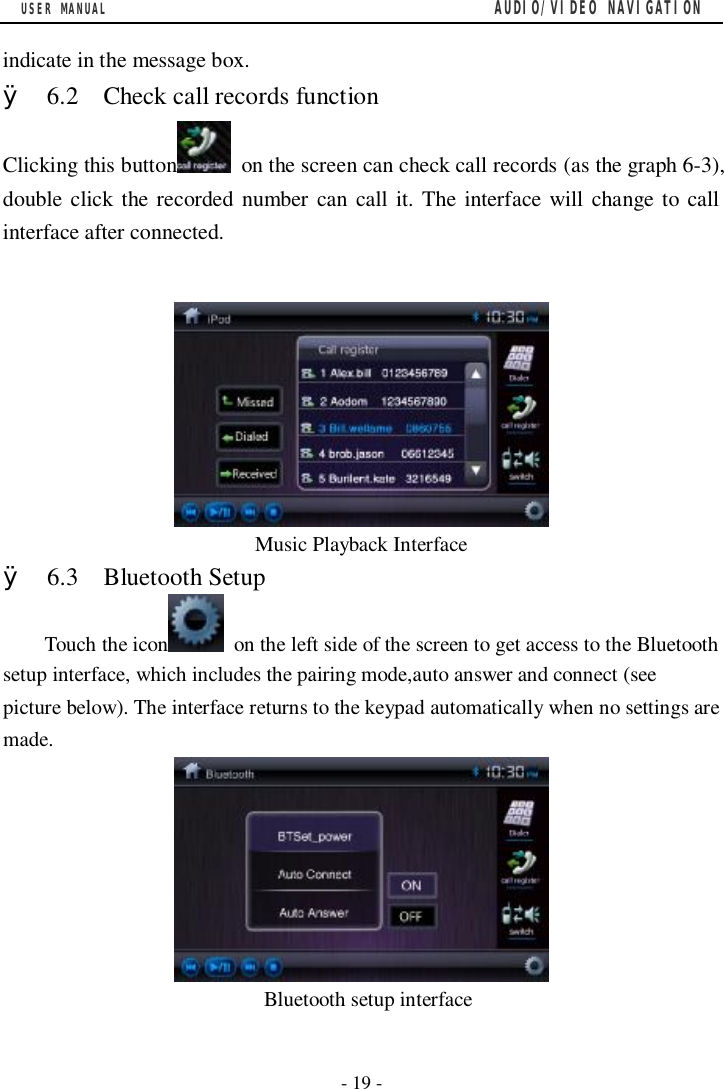

USER MANUAL AUDIO/VIDEO NAVIGATION - 19 - indicate in the message box. Ø 6.2 Check call records function Clicking this button on the screen can check call records (as the graph 6-3), double click the recorded number can call it. The interface will change to call interface after connected. Music Playback Interface Ø 6.3 Bluetooth Setup Touch the icon on the left side of the screen to get access to the Bluetooth setup interface, which includes the pairing mode,auto answer and connect (see picture below). The interface returns to the keypad automatically when no settings are made. Bluetooth setup interface
USER MANUAL AUDIO/VIDEO NAVIGATION - 20 - Ø 6.4 Bluetooth Streaming Music(A2DP) The bluetooth provides the Advanced Audio Distribution Profile (A2DP) for streaming music. Playback control are performed by the control bar in the transparent shade below. Icon Function description Pairing Press the on-screen pair button to initiate the pairing,then select yes or no. If your mobile phone pop up a prompt requesting a pass key or pairing code after you select "Yes",enter "1234" to connect.The Bluetooth will be disconnected when you select "No". Auto answer When the auto answer is on, the unit will answer the call automatically. Connect Touch options to specify how incoming calls are handled: Auto connect: the unit will automatically connect the previous mobile phone. Manual connect Icon Button Function Description Play/Pause Touch to play or pause the music playing Stop Touch to return to the audio play list interface Previous If the music starts playing for less than 2 seconds, touch it to play the previous file or you have to repeat the current music Next Touch to play the next file.

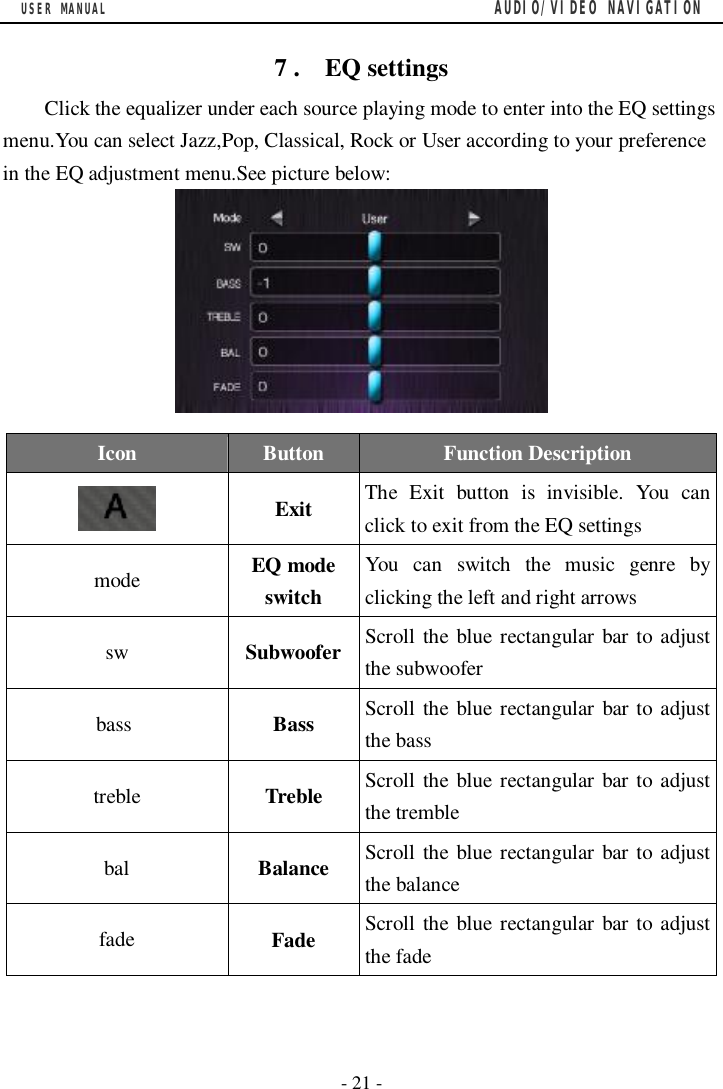

USER MANUAL AUDIO/VIDEO NAVIGATION - 21 - 7 . EQ settings Click the equalizer under each source playing mode to enter into the EQ settings menu.You can select Jazz,Pop, Classical, Rock or User according to your preference in the EQ adjustment menu.See picture below: EQ settings interface Icon Button Function Description Exit The Exit button is invisible. You can click to exit from the EQ settings mode EQ mode switch You can switch the music genre by clicking the left and right arrows sw Subwoofer Scroll the blue rectangular bar to adjust the subwoofer bass Bass Scroll the blue rectangular bar to adjust the bass treble Treble Scroll the blue rectangular bar to adjust the tremble bal Balance Scroll the blue rectangular bar to adjust the balance fade Fade Scroll the blue rectangular bar to adjust the fade

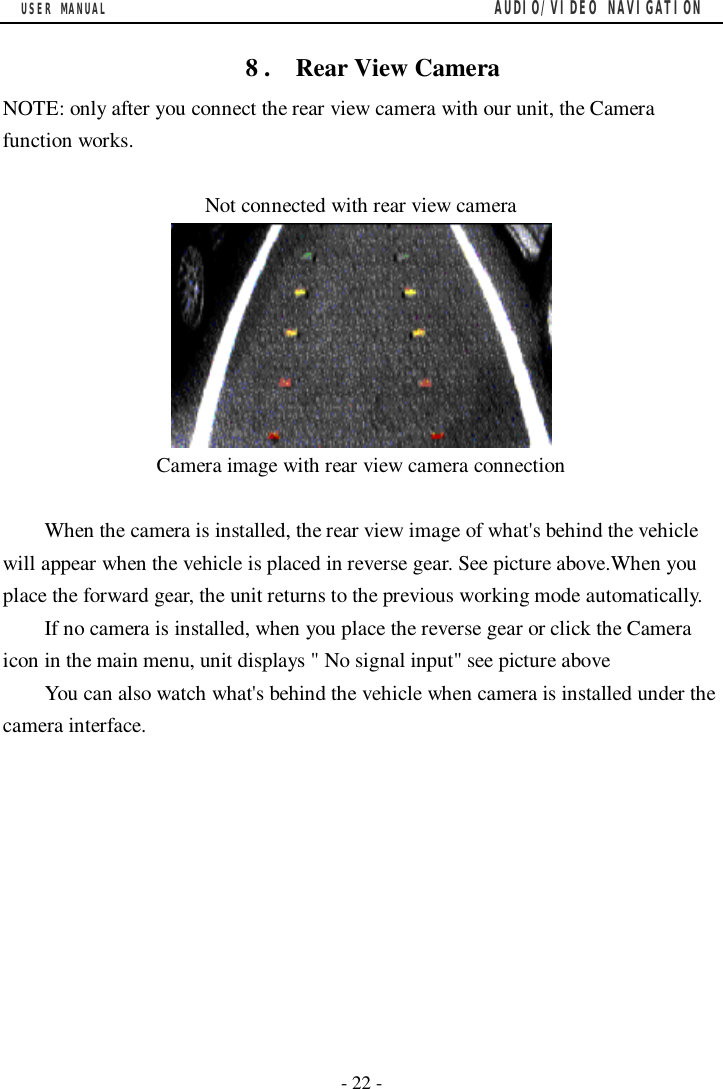

USER MANUAL AUDIO/VIDEO NAVIGATION - 22 - 8 . Rear View Camera NOTE: only after you connect the rear view camera with our unit, the Camera function works. Not connected with rear view camera Camera image with rear view camera connection When the camera is installed, the rear view image of what's behind the vehicle will appear when the vehicle is placed in reverse gear. See picture above.When you place the forward gear, the unit returns to the previous working mode automatically. If no camera is installed, when you place the reverse gear or click the Camera icon in the main menu, unit displays " No signal input" see picture above You can also watch what's behind the vehicle when camera is installed under the camera interface.

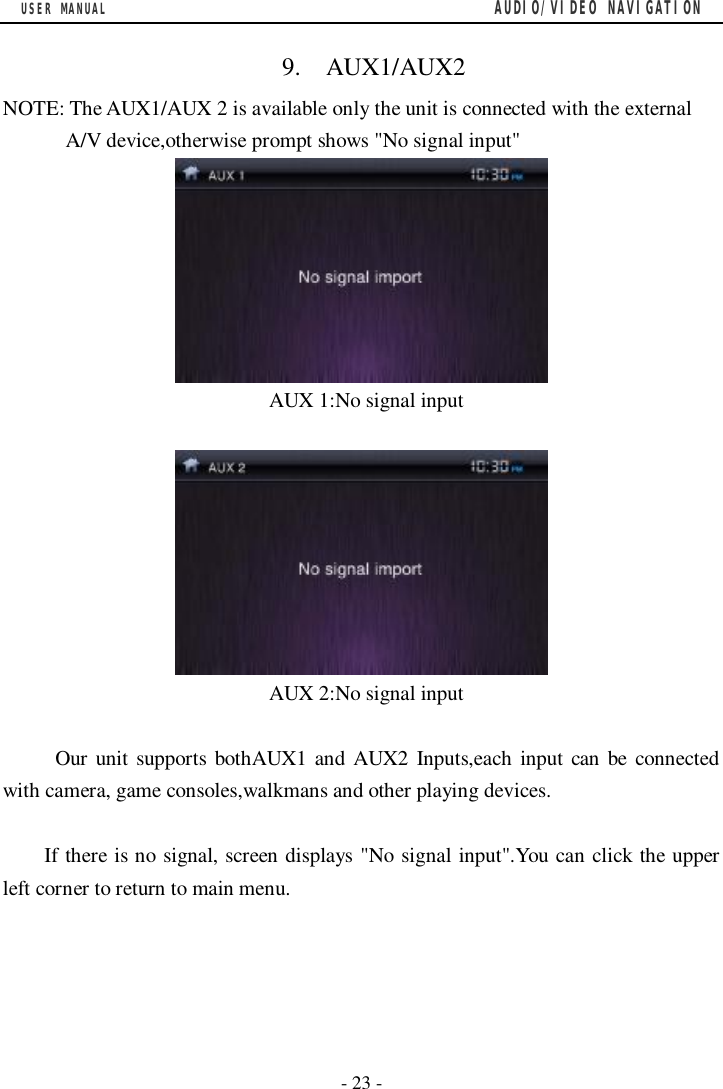

USER MANUAL AUDIO/VIDEO NAVIGATION - 23 - 9. AUX1/AUX2 NOTE: The AUX1/AUX 2 is available only the unit is connected with the external A/V device,otherwise prompt shows "No signal input" AUX 1:No signal input AUX 2:No signal input Our unit supports bothAUX1 and AUX2 Inputs,each input can be connected with camera, game consoles,walkmans and other playing devices. If there is no signal, screen displays "No signal input".You can click the upper left corner to return to main menu.

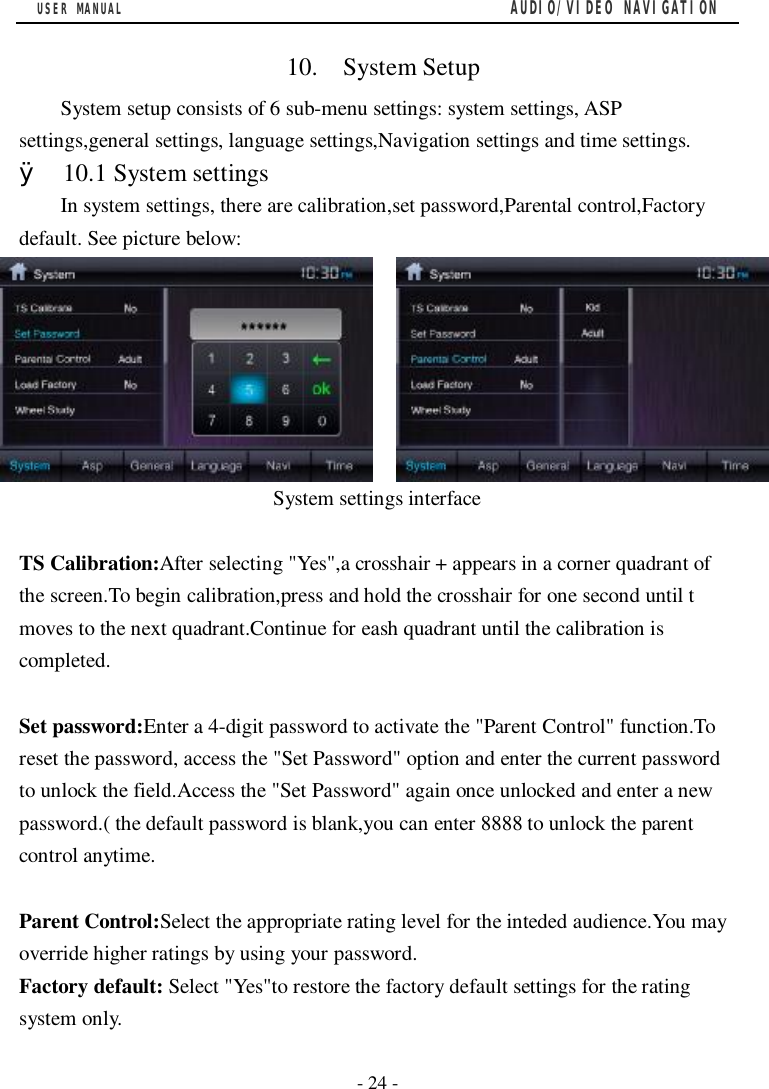

USER MANUAL AUDIO/VIDEO NAVIGATION - 24 - 10. System Setup System setup consists of 6 sub-menu settings: system settings, ASP settings,general settings, language settings,Navigation settings and time settings. Ø 10.1 System settings In system settings, there are calibration,set password,Parental control,Factory default. See picture below: System settings interface TS Calibration:After selecting "Yes",a crosshair + appears in a corner quadrant of the screen.To begin calibration,press and hold the crosshair for one second until t moves to the next quadrant.Continue for eash quadrant until the calibration is completed. Set password:Enter a 4-digit password to activate the "Parent Control" function.To reset the password, access the "Set Password" option and enter the current password to unlock the field.Access the "Set Password" again once unlocked and enter a new password.( the default password is blank,you can enter 8888 to unlock the parent control anytime. Parent Control:Select the appropriate rating level for the inteded audience.You may override higher ratings by using your password. Factory default: Select "Yes"to restore the factory default settings for the rating system only.

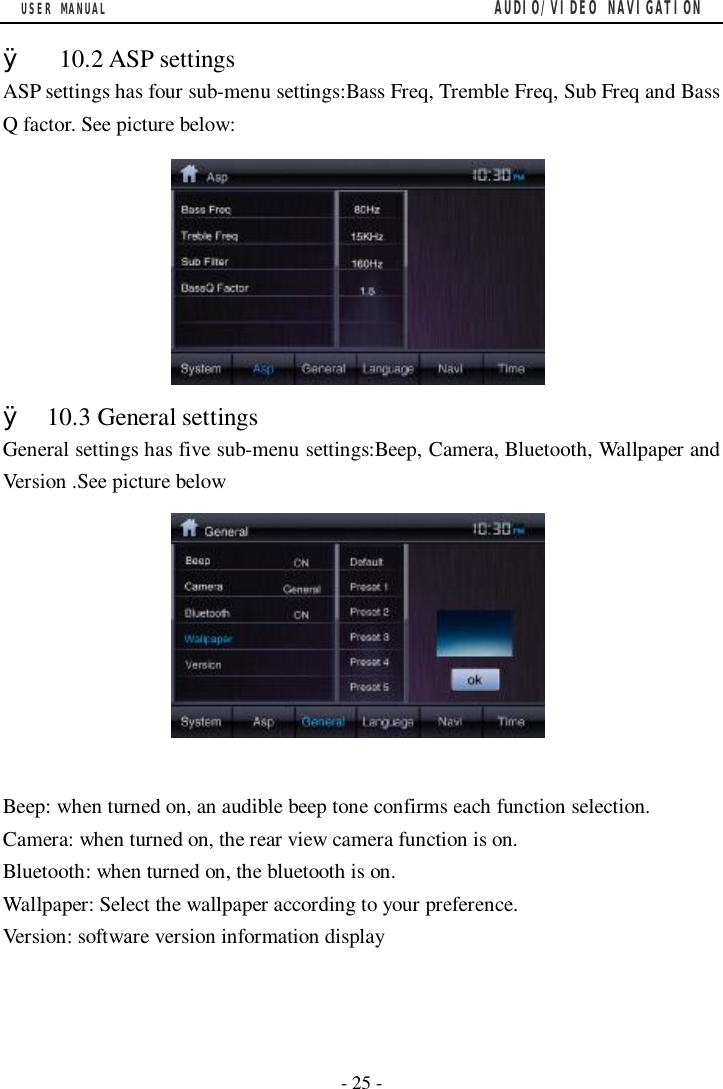

USER MANUAL AUDIO/VIDEO NAVIGATION - 25 - Ø 10.2 ASP settings ASP settings has four sub-menu settings:Bass Freq, Tremble Freq, Sub Freq and Bass Q factor. See picture below: Ø 10.3 General settings General settings has five sub-menu settings:Beep, Camera, Bluetooth, Wallpaper and Version .See picture below Beep: when turned on, an audible beep tone confirms each function selection. Camera: when turned on, the rear view camera function is on. Bluetooth: when turned on, the bluetooth is on. Wallpaper: Select the wallpaper according to your preference. Version: software version information display

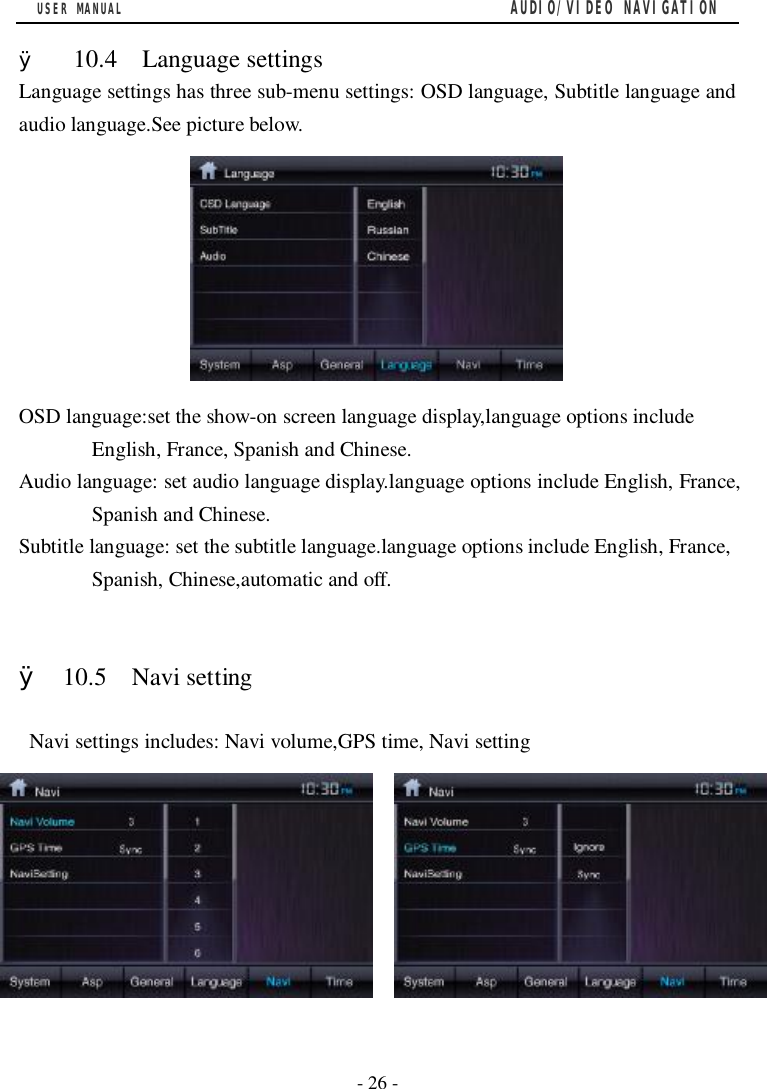

USER MANUAL AUDIO/VIDEO NAVIGATION - 26 - Ø 10.4 Language settings Language settings has three sub-menu settings: OSD language, Subtitle language and audio language.See picture below. OSD language:set the show-on screen language display,language options include English, France, Spanish and Chinese. Audio language: set audio language display.language options include English, France, Spanish and Chinese. Subtitle language: set the subtitle language.language options include English, France, Spanish, Chinese,automatic and off. Ø 10.5 Navi setting Navi settings includes: Navi volume,GPS time, Navi setting

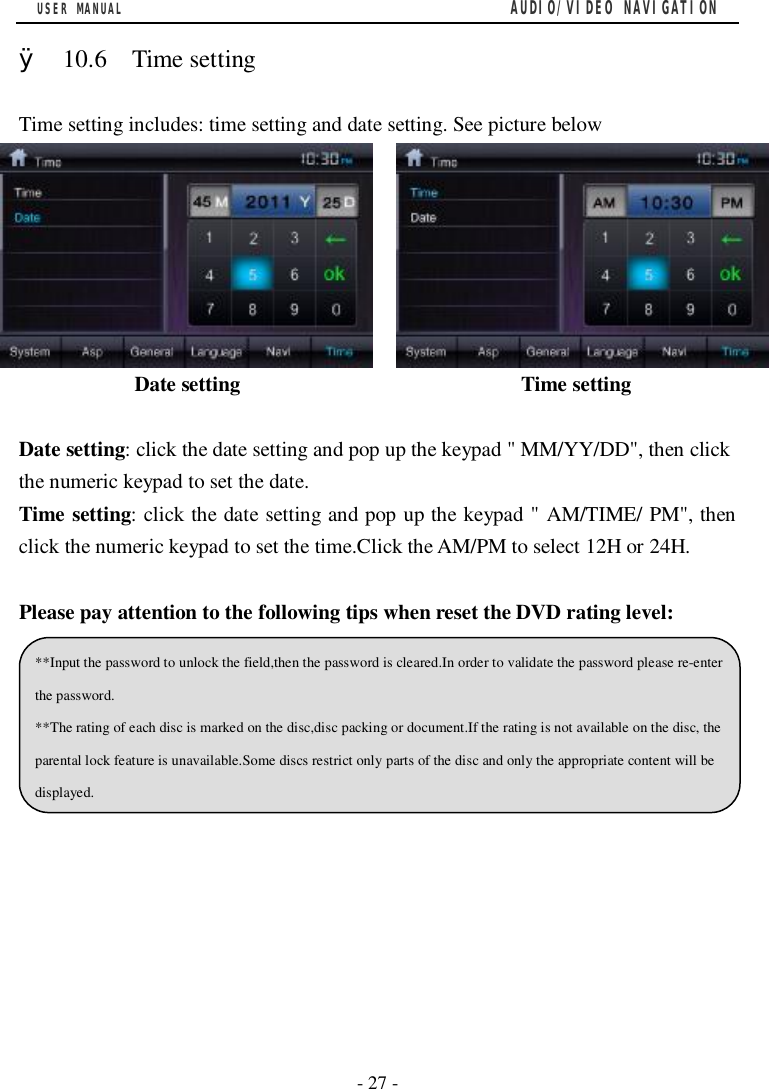

USER MANUAL AUDIO/VIDEO NAVIGATION - 27 - Ø 10.6 Time setting Time setting includes: time setting and date setting. See picture below Date setting Time setting Date setting: click the date setting and pop up the keypad " MM/YY/DD", then click the numeric keypad to set the date. Time setting: click the date setting and pop up the keypad " AM/TIME/ PM", then click the numeric keypad to set the time.Click the AM/PM to select 12H or 24H. Please pay attention to the following tips when reset the DVD rating level: **Input the password to unlock the field,then the password is cleared.In order to validate the password please re-enter the password. **The rating of each disc is marked on the disc,disc packing or document.If the rating is not available on the disc, the parental lock feature is unavailable.Some discs restrict only parts of the disc and only the appropriate content will be displayed.

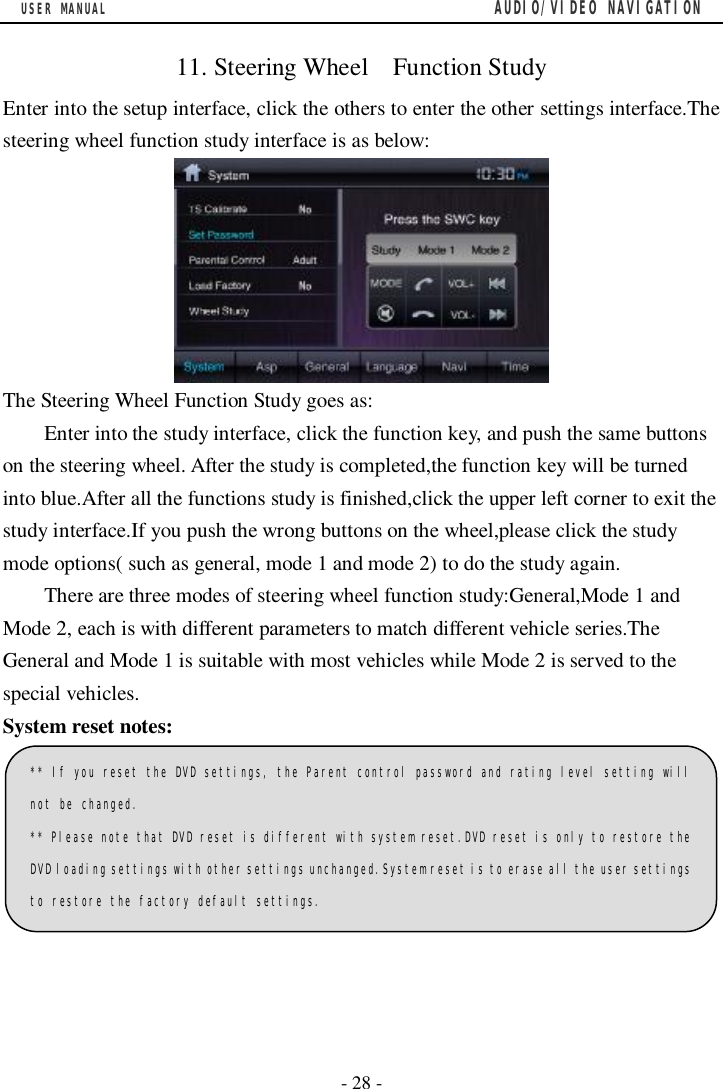

USER MANUAL AUDIO/VIDEO NAVIGATION - 28 - 11. Steering Wheel Function Study Enter into the setup interface, click the others to enter the other settings interface.The steering wheel function study interface is as below: The Steering Wheel Function Study goes as: Enter into the study interface, click the function key, and push the same buttons on the steering wheel. After the study is completed,the function key will be turned into blue.After all the functions study is finished,click the upper left corner to exit the study interface.If you push the wrong buttons on the wheel,please click the study mode options( such as general, mode 1 and mode 2) to do the study again. There are three modes of steering wheel function study:General,Mode 1 and Mode 2, each is with different parameters to match different vehicle series.The General and Mode 1 is suitable with most vehicles while Mode 2 is served to the special vehicles. System reset notes: ** If you reset the DVD settings, the Parent control password and rating level setting will not be changed. ** Please note that DVD reset is different with system reset.DVD reset is only to restore the DVD loading settings with other settings unchanged.System reset is to erase all the user settings to restore the factory default settings.
