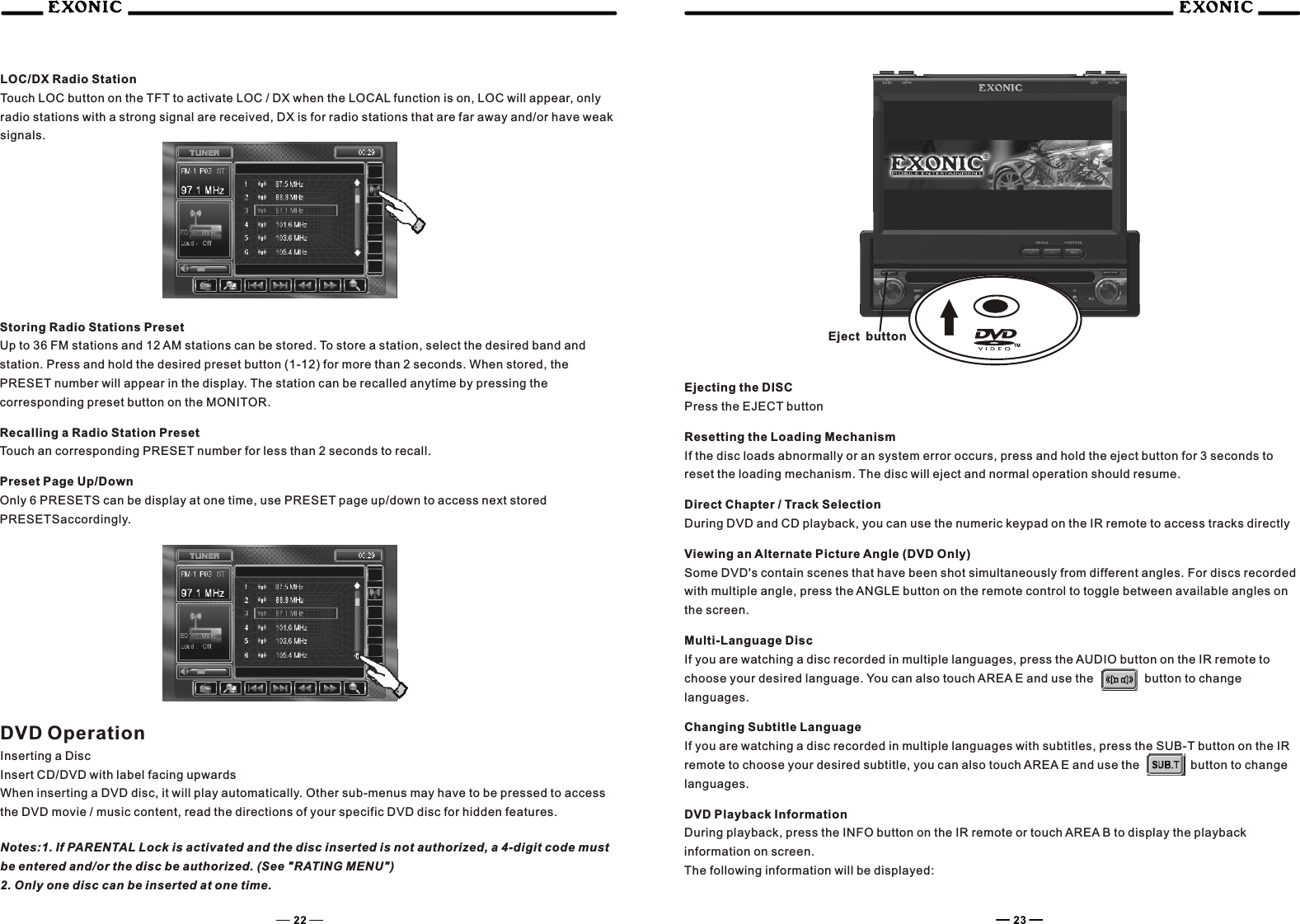

LOC/DX Radio StationTouch LOC button on the TFT to activate LOC / DX when the LOCAL function is on, LOC will appear, only radio stations with a strong signal are received, DX is for radio stations that are far away and/or have weak signals.Storing Radio Stations PresetUp to 36 FM stations and 12 AM stations can be stored. To store a station, select the desired band and station. Press and hold the desired preset button (1-12) for more than 2 seconds. When stored, the PRESET number will appear in the display. The station can be recalled anytime by pressing the corresponding preset button on the MONITOR.Recalling a Radio Station PresetTouch an corresponding PRESET number for less than 2 seconds to recall.Preset Page Up/DownOnly 6 PRESETS can be display at one time, use PRESET page up/down to access next stored PRESETSaccordingly.DVD OperationInserting a DiscInsert CD/DVD with label facing upwardsWhen inserting a DVD disc, it will play automatically. Other sub-menus may have to be pressed to access the DVD movie / music content, read the directions of your specific DVD disc for hidden features.Notes:1. If PARENTAL Lock is activated and the disc inserted is not authorized, a 4-digit code must be entered and/or the disc be authorized. (See "RATING MENU")2. Only one disc can be inserted at one time.Ejecting the DISCPress the EJECT buttonResetting the Loading MechanismIf the disc loads abnormally or an system error occurs, press and hold the eject button for 3 seconds to reset the loading mechanism. The disc will eject and normal operation should resume.Direct Chapter / Track SelectionDuring DVD and CD playback, you can use the numeric keypad on the IR remote to access tracks directlyViewing an Alternate Picture Angle (DVD Only)Some DVD's contain scenes that have been shot simultaneously from different angles. For discs recorded with multiple angle, press the ANGLE button on the remote control to toggle between available angles on the screen.Multi-Language DiscIf you are watching a disc recorded in multiple languages, press the AUDIO button on the IR remote to choose your desired language. You can also touch AREA E and use the button to change languages. Changing Subtitle LanguageIf you are watching a disc recorded in multiple languages with subtitles, press the SUB-T button on the IR remote to choose your desired subtitle, you can also touch AREA E and use the button to change languages.DVD Playback Information During playback, press the INFO button on the IR remote or touch AREA B to display the playback information on screen.The following information will be displayed: TMEject button

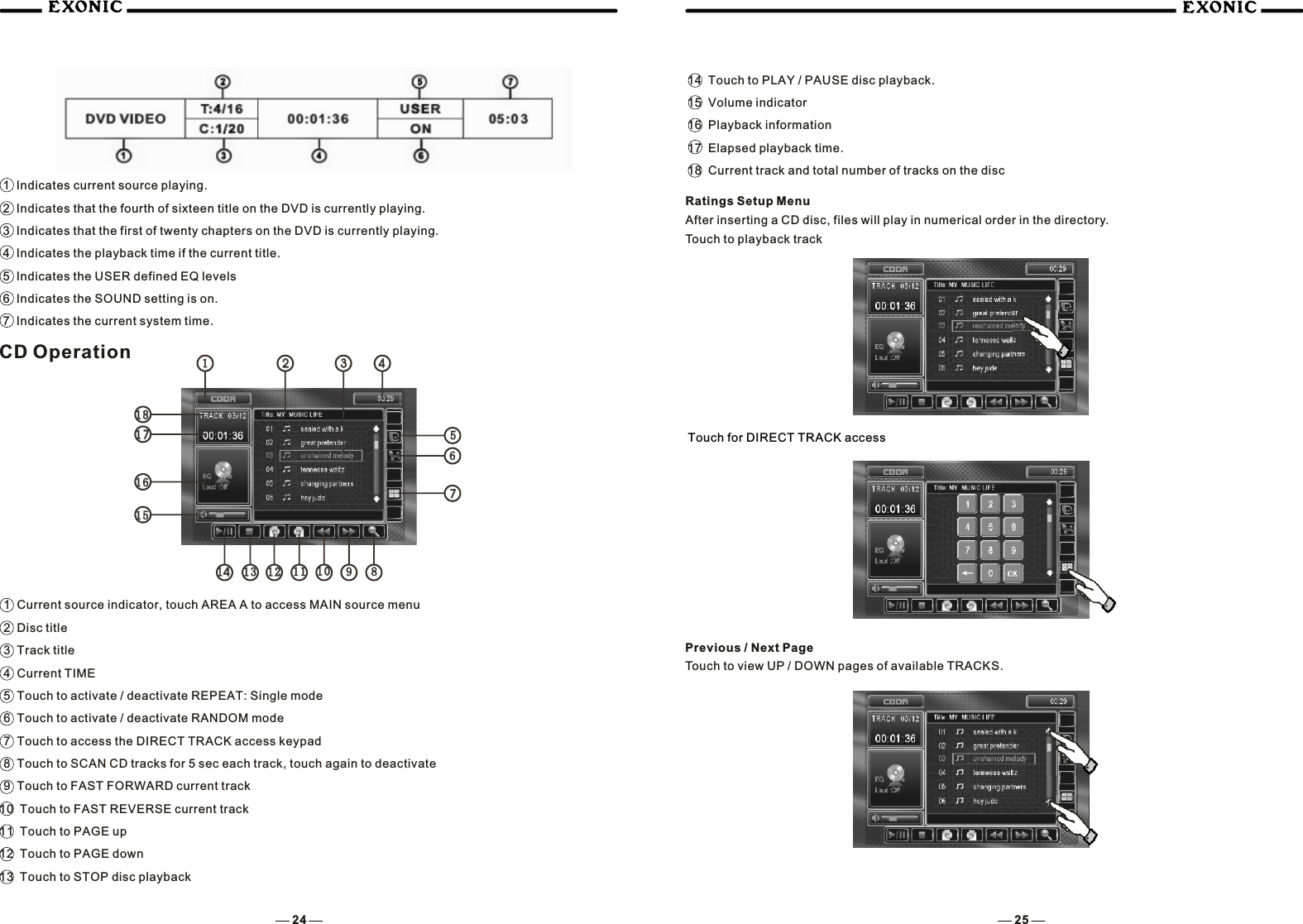

1 Indicates current source playing.2 Indicates that the fourth of sixteen title on the DVD is currently playing.3 Indicates that the first of twenty chapters on the DVD is currently playing.4 Indicates the playback time if the current title.5 Indicates the USER defined EQ levels6 Indicates the SOUND setting is on.7 Indicates the current system time. CD Operation1 Current source indicator, touch AREA A to access MAIN source menu2 Disc title3 Track title4 Current TIME5 Touch to activate / deactivate REPEAT: Single mode6 Touch to activate / deactivate RANDOM mode7 Touch to access the DIRECT TRACK access keypad8 Touch to SCAN CD tracks for 5 sec each track, touch again to deactivate9 Touch to FAST FORWARD current track10 Touch to FAST REVERSE current track11 Touch to PAGE up12 Touch to PAGE down13 Touch to STOP disc playback14 Touch to PLAY / PAUSE disc playback.15 Volume indicator16 Playback information17 Elapsed playback time.18 Current track and total number of tracks on the discRatings Setup MenuAfter inserting a CD disc, files will play in numerical order in the directory.Touch to playback trackTouch for DIRECT TRACK accessPrevious / Next PageTouch to view UP / DOWN pages of available TRACKS.24 251313 11111212 1010 99881414151516161717181811223344557766

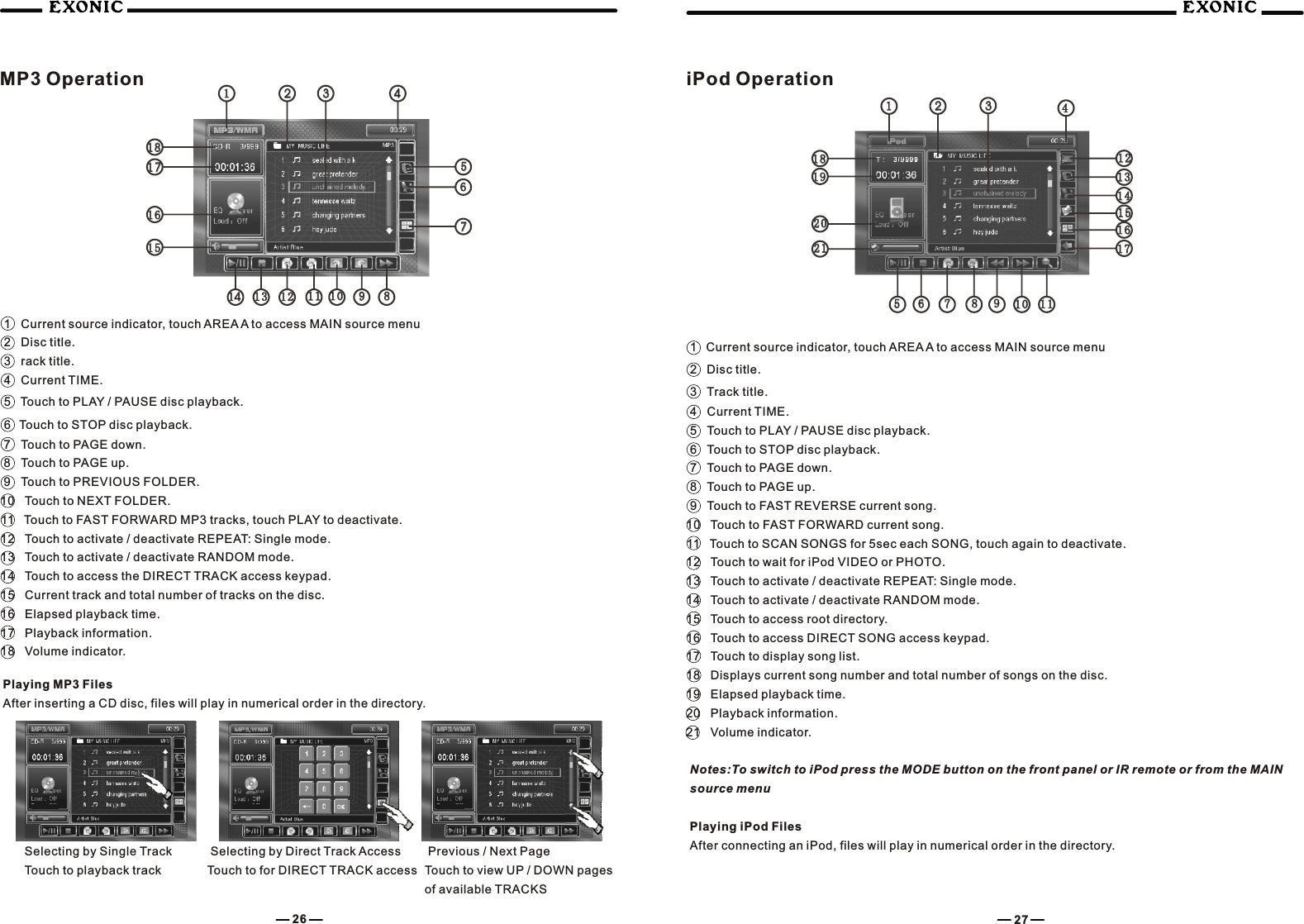

1 Current source indicator, touch AREA A to access MAIN source menu2 Disc title.3 rack title.4 Current TIME.5 Touch to PLAY / PAUSE disc playback.6 Touch to STOP disc playback.7 Touch to PAGE down.8 Touch to PAGE up.9 Touch to PREVIOUS FOLDER.10 Touch to NEXT FOLDER.11 Touch to FAST FORWARD MP3 tracks, touch PLAY to deactivate.12 Touch to activate / deactivate REPEAT: Single mode.13 Touch to activate / deactivate RANDOM mode.14 Touch to access the DIRECT TRACK access keypad.15 Current track and total number of tracks on the disc.16 Elapsed playback time.17 Playback information.18 Volume indicator. Previous / Next PageTouch to view UP / DOWN pages of available TRACKSSelecting by Single TrackTouch to playback track Selecting by Direct Track AccessTouch to for DIRECT TRACK access iPod Operation1 Current source indicator, touch AREA A to access MAIN source menu2 Disc title.3 Track title.4 Current TIME.5 Touch to PLAY / PAUSE disc playback.6 Touch to STOP disc playback.7 Touch to PAGE down.8 Touch to PAGE up.9 Touch to FAST REVERSE current song.10 Touch to FAST FORWARD current song.11 Touch to SCAN SONGS for 5sec each SONG, touch again to deactivate.12 Touch to wait for iPod VIDEO or PHOTO.13 Touch to activate / deactivate REPEAT: Single mode.14 Touch to activate / deactivate RANDOM mode.15 Touch to access root directory.16 Touch to access DIRECT SONG access keypad.17 Touch to display song list.18 Displays current song number and total number of songs on the disc.19 Elapsed playback time.20 Playback information.21 Volume indicator.Notes:To switch to iPod press the MODE button on the front panel or IR remote or from the MAIN source menuPlaying iPod FilesAfter connecting an iPod, files will play in numerical order in the directory.26 271313 661111 881212 771010 99991 01 0881 11 11414551515 21211616 202017171919181818181111222233334444557766151517171616121214141313MP3 OperationPlaying MP3 FilesAfter inserting a CD disc, files will play in numerical order in the directory.

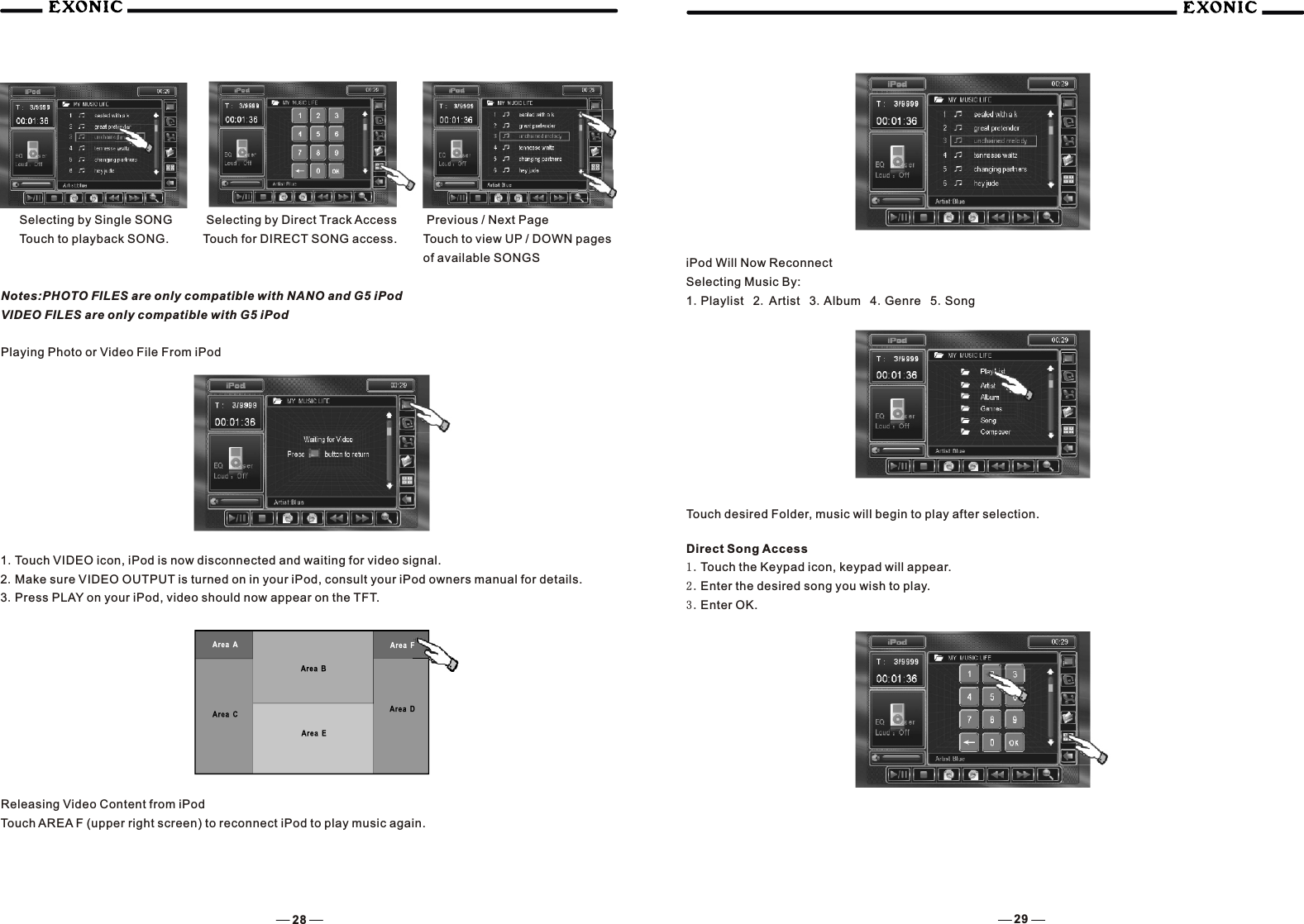

Previous / Next PageTouch to view UP / DOWN pagesof available SONGSSelecting by Single SONGTouch to playback SONG. Selecting by Direct Track AccessTouch for DIRECT SONG access.Notes:PHOTO FILES are only compatible with NANO and G5 iPodVIDEO FILES are only compatible with G5 iPodPlaying Photo or Video File From iPod1.Touch VIDEO icon, iPod is now disconnected and waiting for video signal.2.Make sure VIDEO OUTPUT is turned on in your iPod, consult your iPod owners manual for details.3.Press PLAY on your iPod, video should now appear on the TFT.Releasing Video Content from iPodTouch AREA F (upper right screen) to reconnect iPod to play music again.iPod Will Now ReconnectSelecting Music By:1.Playlist 2. Artist 3.Album 4.Genre 5.SongTouch desired Folder, music will begin to play after selection.Direct Song Access1.Touch the Keypad icon, keypad will appear.2.Enter the desired song you wish to play.3.Enter OK.28 29

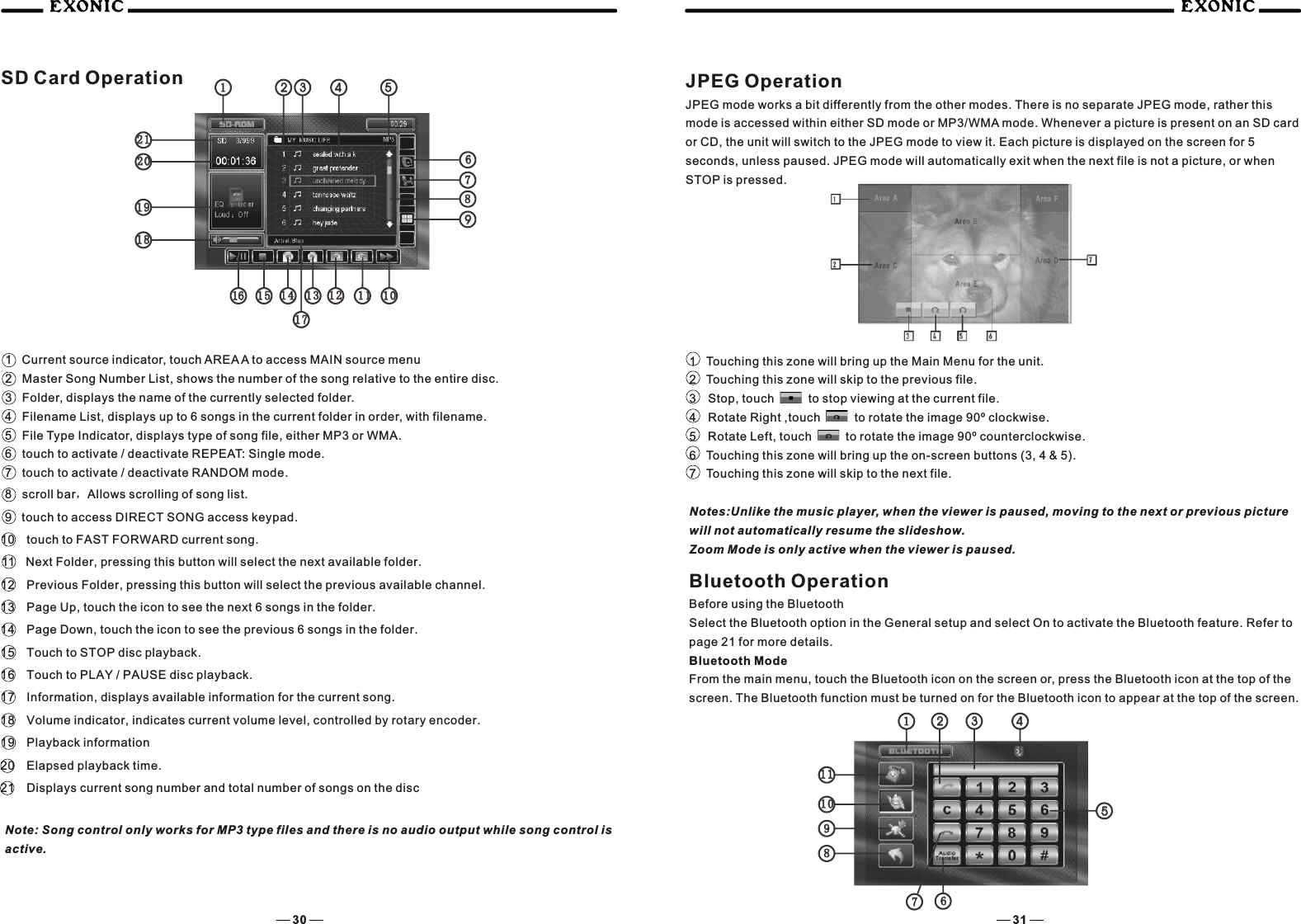

1 Current source indicator, touch AREA A to access MAIN source menu2 Master Song Number List, shows the number of the song relative to the entire disc.3 Folder, displays the name of the currently selected folder.4 Filename List, displays up to 6 songs in the current folder in order, with filename.5 File Type Indicator, displays type of song file, either MP3 or WMA.6 touch to activate / deactivate REPEAT: Single mode.7 touch to activate / deactivate RANDOM mode.8 scroll bar，Allows scrolling of song list.9 touch to access DIRECT SONG access keypad.10 touch to FAST FORWARD current song.11 Next Folder, pressing this button will select the next available folder.12 Previous Folder, pressing this button will select the previous available channel.13 Page Up, touch the icon to see the next 6 songs in the folder.14 Page Down, touch the icon to see the previous 6 songs in the folder.15 Touch to STOP disc playback.16 Touch to PLAY / PAUSE disc playback.17 Information, displays available information for the current song.18 Volume indicator, indicates current volume level, controlled by rotary encoder.19 Playback information20 Elapsed playback time.21 Displays current song number and total number of songs on the discNote: Song control only works for MP3 type files and there is no audio output while song control is active.JPEG Operation JPEG mode works a bit differently from the other modes. There is no separate JPEG mode, rather this mode is accessed within either SD mode or MP3/WMA mode. Whenever a picture is present on an SD card or CD, the unit will switch to the JPEG mode to view it. Each picture is displayed on the screen for 5 seconds, unless paused. JPEG mode will automatically exit when the next file is not a picture, or when STOP is pressed.1 Touching this zone will bring up the Main Menu for the unit.2 Touching this zone will skip to the previous file.3 Stop, touch to stop viewing at the current file. 4 Rotate Right ,touch to rotate the image 90º clockwise.5 Rotate Left, touch to rotate the image 90º counterclockwise.6 Touching this zone will bring up the on-screen buttons (3, 4 & 5).7 Touching this zone will skip to the next file.Notes:Unlike the music player, when the viewer is paused, moving to the next or previous picture will not automatically resume the slideshow.Zoom Mode is only active when the viewer is paused.Bluetooth OperationBefore using the BluetoothSelect the Bluetooth option in the General setup and select On to activate the Bluetooth feature. Refer to page 21 for more details.Bluetooth ModeFrom the main menu, touch the Bluetooth icon on the screen or, press the Bluetooth icon at the top of the screen. The Bluetooth function must be turned on for the Bluetooth icon to appear at the top of the screen.30 31131317171212 111177101066333344445566995577881515 14141616181888191999202010102121111111112222SD Card Operation

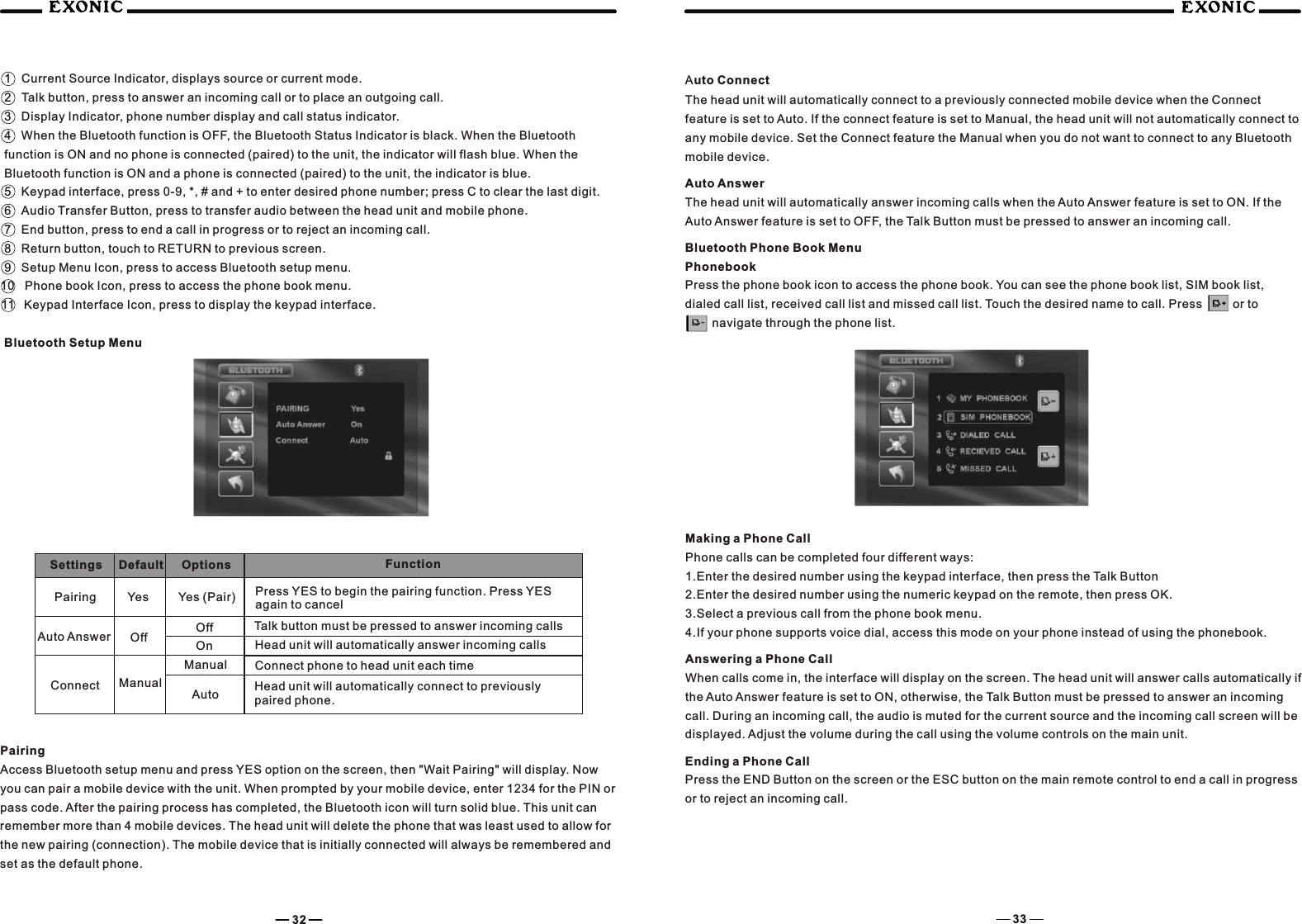

1 Current Source Indicator, displays source or current mode.2 Talk button, press to answer an incoming call or to place an outgoing call.3 Display Indicator, phone number display and call status indicator.4 When the Bluetooth function is OFF, the Bluetooth Status Indicator is black. When the Bluetooth function is ON and no phone is connected (paired) to the unit, the indicator will flash blue. When the Bluetooth function is ON and a phone is connected (paired) to the unit, the indicator is blue.5 Keypad interface, press 0-9, *, # and + to enter desired phone number; press C to clear the last digit.6 Audio Transfer Button, press to transfer audio between the head unit and mobile phone.7 End button, press to end a call in progress or to reject an incoming call.8 Return button, touch to RETURN to previous screen.9 Setup Menu Icon, press to access Bluetooth setup menu.10 Phone book Icon, press to access the phone book menu. Keypad Interface Icon, press to display the keypad interface.11Bluetooth Setup MenuSettings Default Options FunctionPairing Yes Yes (Pair) Press YES to begin the pairing function. Press YES again to cancelAuto Answer Off OffOnTalk button must be pressed to answer incoming callsHead unit will automatically answer incoming callsConnectManualManualConnect phone to head unit each timeHead unit will automatically connect to previously paired phone.AutoPairingAccess Bluetooth setup menu and press YES option on the screen, then "Wait Pairing" will display. Now you can pair a mobile device with the unit. When prompted by your mobile device, enter 1234 for the PIN or pass code. After the pairing process has completed, the Bluetooth icon will turn solid blue. This unit can remember more than 4 mobile devices. The head unit will delete the phone that was least used to allow for the new pairing (connection). The mobile device that is initially connected will always be remembered and set as the default phone.Auto ConnectThe head unit will automatically connect to a previously connected mobile device when the Connect feature is set to Auto. If the connect feature is set to Manual, the head unit will not automatically connect to any mobile device. Set the Connect feature the Manual when you do not want to connect to any Bluetooth mobile device.Auto AnswerThe head unit will automatically answer incoming calls when the Auto Answer feature is set to ON. If the Auto Answer feature is set to OFF, the Talk Button must be pressed to answer an incoming call.Bluetooth Phone Book MenuPhonebookPress the phone book icon to access the phone book. You can see the phone book list, SIM book list, dialed call list, received call list and missed call list. Touch the desired name to call. Press or to navigate through the phone list. Making a Phone CallPhone calls can be completed four different ways:1.Enter the desired number using the keypad interface, then press the Talk Button2.Enter the desired number using the numeric keypad on the remote, then press OK.3.Select a previous call from the phone book menu.4.If your phone supports voice dial, access this mode on your phone instead of using the phonebook.Answering a Phone CallWhen calls come in, the interface will display on the screen. The head unit will answer calls automatically if the Auto Answer feature is set to ON, otherwise, the Talk Button must be pressed to answer an incoming call. During an incoming call, the audio is muted for the current source and the incoming call screen will be displayed. Adjust the volume during the call using the volume controls on the main unit.Ending a Phone CallPress the END Button on the screen or the ESC button on the main remote control to end a call in progress or to reject an incoming call.32 33

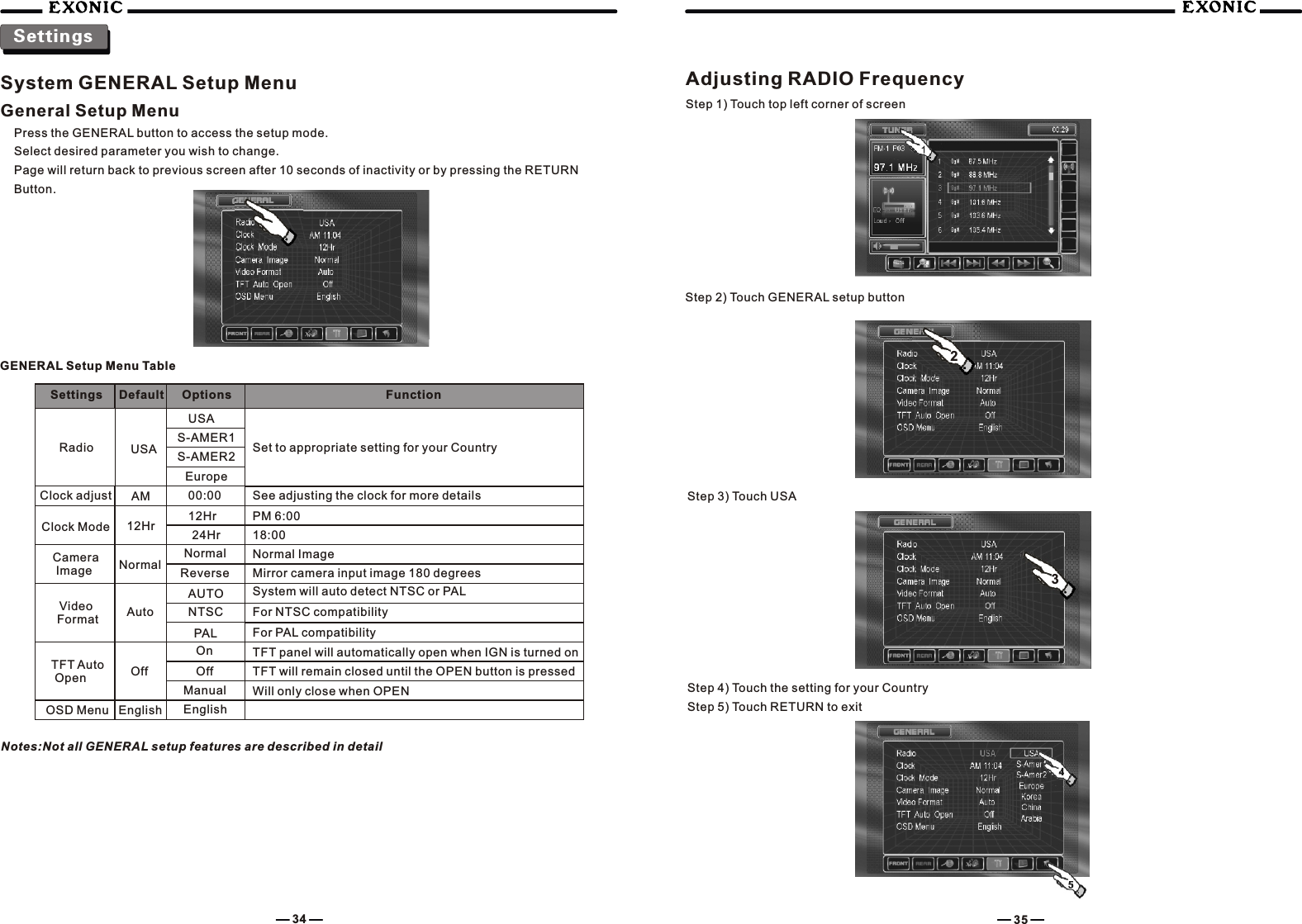

System GENERAL Setup MenuGeneral Setup MenuPress the GENERAL button to access the setup mode.Select desired parameter you wish to change.Page will return back to previous screen after 10 seconds of inactivity or by pressing the RETURN Button.SettingsGENERAL Setup Menu TableSettings Default Options FunctionRadio USAUSASet to appropriate setting for your CountryS-AMER1S-AMER2EuropeClock adjust AM 00:00 See adjusting the clock for more detailsClock Mode 12Hr 12Hr PM 6:0024Hr 18:00Camera Image NormalNormal Normal ImageReverse Mirror camera input image 180 degreesVideo Format AutoAUTONTSCPALSystem will auto detect NTSC or PALFor NTSC compatibilityFor PAL compatibilityTFT Auto Open Off OffOnManualTFT panel will automatically open when IGN is turned onTFT will remain closed until the OPEN button is pressedWill only close when OPENOSD Menu English EnglishNotes:Not all GENERAL setup features are described in detailAdjusting RADIO FrequencyStep 1) Touch top left corner of screenStep 2) Touch GENERAL setup buttonStep 3) Touch USA34 3523Step 4) Touch the setting for your Country Step 5) Touch RETURN to exit

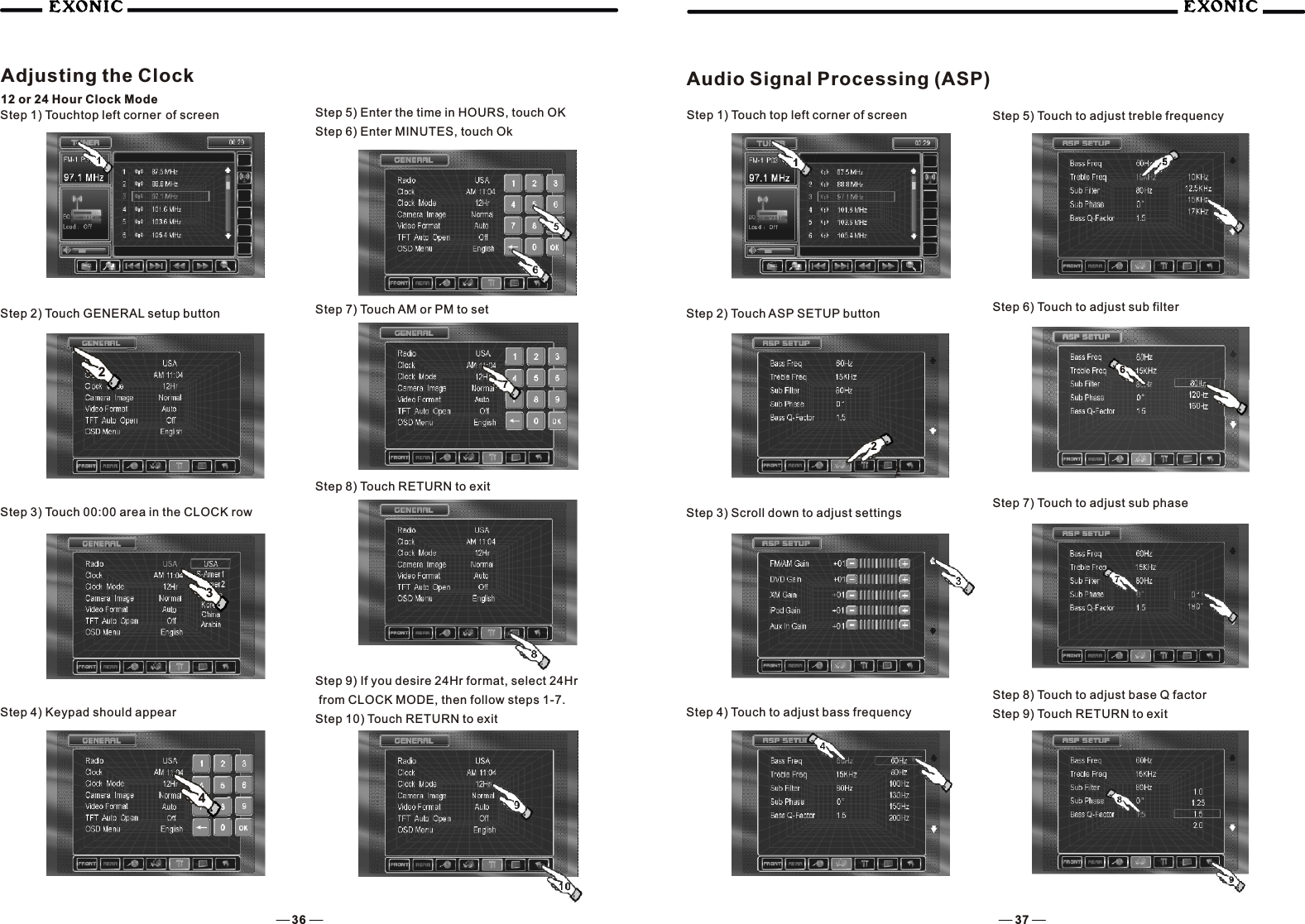

Adjusting the Clock12 or 24 Hour Clock ModeStep 2) Touch GENERAL setup buttonStep 3) Touch 00:00 area in the CLOCK rowStep 4) Keypad should appearStep 5) Enter the time in HOURS, touch OK Step 6) Enter MINUTES, touch Ok36 3732Step 7) Touch AM or PM to setStep 8) Touch RETURN to exitStep 9) If you desire 24Hr format, select 24Hr from CLOCK MODE, then follow steps 1-7.Step 10) Touch RETURN to exit7Step 1) Touchtop left corner of screenAudio Signal Processing (ASP)Step 2) Touch ASP SETUP buttonStep 3) Scroll down to adjust settingsStep 1) Touch top left corner of screen22Step 4) Touch to adjust bass frequencyStep 6) Touch to adjust sub filterStep 5) Touch to adjust treble frequencyStep 7) Touch to adjust sub phase Step 8) Touch to adjust base Q factorStep 9) Touch RETURN to exit64
