SOLiD 1900PAWS1 RDU MODULE(1900P/AWS-1) User Manual 1

SOLiD, Inc. RDU MODULE(1900P/AWS-1) Users Manual 1

Users Manual 1

Confidential & Proprietary 1/87
SMDR-NH124
Installation and Operation Manual
Document Reference:
Version: V1.0
Document Status: Release 1
Issue Date: Jan. 02, 2009
Author: K,E,HAN
Department: SOLiD Technology
Authorizing Manager: Youngshin Yeo
Confidential & Proprietary 2/87
REVISION HISTORY
Version Issue Date No. of
Pages Initials Details of Revision Changes
V 1.0 Jan. 02, 2009 Original
Technical Support
SOLiD serial numbers must be available to authorize technical support and/or to establish a
return authorization for defective units. The serial numbers are located on the back of the unit,
as well as on the box in which they were delivered. Additional support information may be
obtained by accessing the SOLiD Tehcnology, Inc. website at www.st.com or send email at
sjkim@st.co.kr.
This manual is produced by Global Business Division Business Team 1. Printed in Korea.
Confidential & Proprietary 3/87
Contents
Section1 Safety & Certification Notice................................................................... 8
Section2 System Overview ...................................................................................10
2.1 General overview ......................................................................................... 11
2.2 System overview.......................................................................................... 12
Section3 System Specifications........................................................................... 14
3.1 System specifications ................................................................................. 15
3.1.1 Physical Specifications......................................................................... 15
3.1.2 Optic wavelength and Laser power...................................................... 16
3.1.3 Environmental specifications ............................................................... 16
3.1.4 Operating Frequencies range............................................................... 16
3.1.5 Specifications Per band ........................................................................ 17
Section4 System Configuration and Functions.................................................. 20
4.1 BIU (BTS Interface Unit) .............................................................................. 21
4.1.1 Specifications of BIU............................................................................. 21
4.1.2 Block diagram of BIU............................................................................. 22
4.1.3 BIU parts ................................................................................................. 22
4.1.4 Function by unit..................................................................................... 23
4.1.5 Front/rear panels of BIU........................................................................ 27
4.2 ODU (Optic distribution Unit)...................................................................... 29
4.2.1 Specifications of ODU ........................................................................... 29
4.2.2 Block Diagram of ODU .......................................................................... 30
4.2.3 ODU parts ............................................................................................... 30
4.2.4 Function by unit..................................................................................... 30
4.2.5 Front/rear panels of MHU...................................................................... 30
4.2.6 Interface with BIU .................................................................................. 30
4.3 OEU (Optic Expansion Unit)........................................................................ 30
4.3.1 Specifications of OEU ........................................................................... 30
4.3.2 Block Diagram of OEU........................................................................... 30
4.3.3 OEU parts ............................................................................................... 30
4.3.4 Function by unit..................................................................................... 30
4.3.5 Front/rear panels of OEU ...................................................................... 30
4.4 ROU (Remote Optic Unit) ............................................................................ 30
Confidential & Proprietary 4/87
4.4.1 Specifications of ROU ........................................................................... 30
4.4.2 Block Diagram of ROU .......................................................................... 30
4.4.3 ROU parts ............................................................................................... 30
4.4.4 Function by unit..................................................................................... 30
4.4.5 Bottom of ROU....................................................................................... 30
Section5 System Installation & Operation........................................................... 30
5.1 BIU Installation............................................................................................. 30
5.1.1 BIU Shelf Installation............................................................................. 30
5.1.2 BIU Power Cabling................................................................................. 30
5.1.3 RF Interface at BIU................................................................................. 30
5.1.4 MDBU insertion...................................................................................... 30
5.1.5 ODU Interface......................................................................................... 30
5.1.6 Consumption Power of BIU .................................................................. 30
5.2 ODU Installation ........................................................................................... 30
5.2.1 ODU Shelf Installation ........................................................................... 30
5.2.2 ODU Power Cabling............................................................................... 30
5.2.3 ODU Optic Cabling................................................................................. 30
5.2.4 Insert DOU to ODU................................................................................. 30
5.2.5 Consumption Power of ODU................................................................. 30
5.3 ROU Installation ........................................................................................... 30
5.3.1 ROU Enclosure installation................................................................... 30
5.3.2 ROU Power Cabling............................................................................... 30
5.3.3 Optical Cabling ...................................................................................... 30
5.3.4 Insertion of RDU..................................................................................... 30
5.3.5 Consumption of RDU............................................................................. 30
5.4 OEU Installation ........................................................................................... 30
5.4.1 OEU Shelf installation ........................................................................... 30
5.4.2 OEU Power Cabling ............................................................................... 30
5.4.3 OEU Optic Cabling................................................................................. 30
5.4.4 Insert DOU to OEU................................................................................. 30
5.4.5 Consumption Power of OEU................................................................. 30
5.5 System Operation and Alarm Status.......................................................... 30
5.5.1 System setting and operation............................................................... 30
5.5.2 BIU Alarms.............................................................................................. 30
5.5.3 ODU Alarms............................................................................................ 30
5.5.4 OEU Alarms............................................................................................ 30
Confidential & Proprietary 5/87
5.5.5 ROU Alarms............................................................................................ 30
Confidential & Proprietary 6/87
Contents of Figure

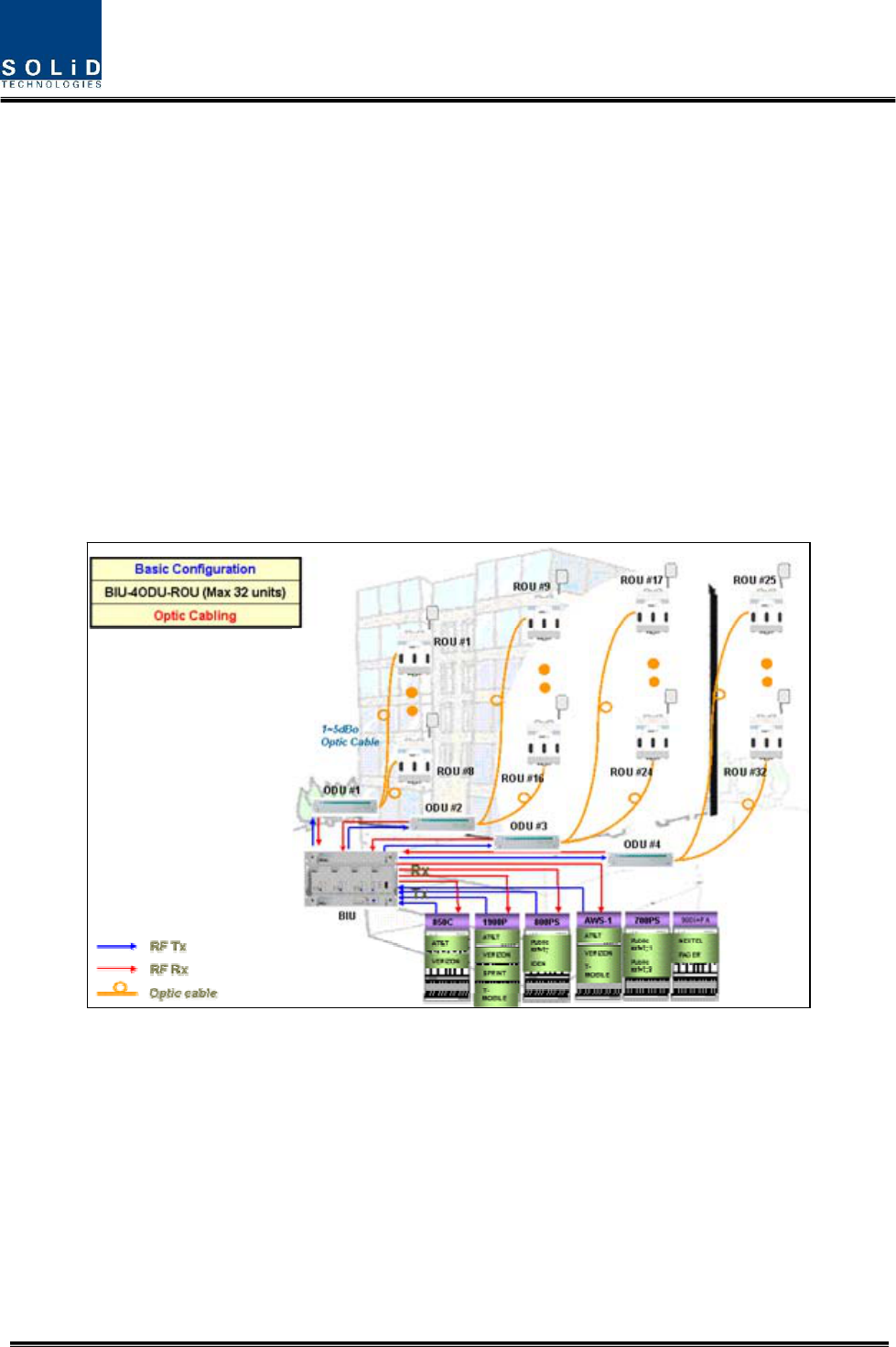

Figure 2.1 – Basic system topology ........................................................... 12

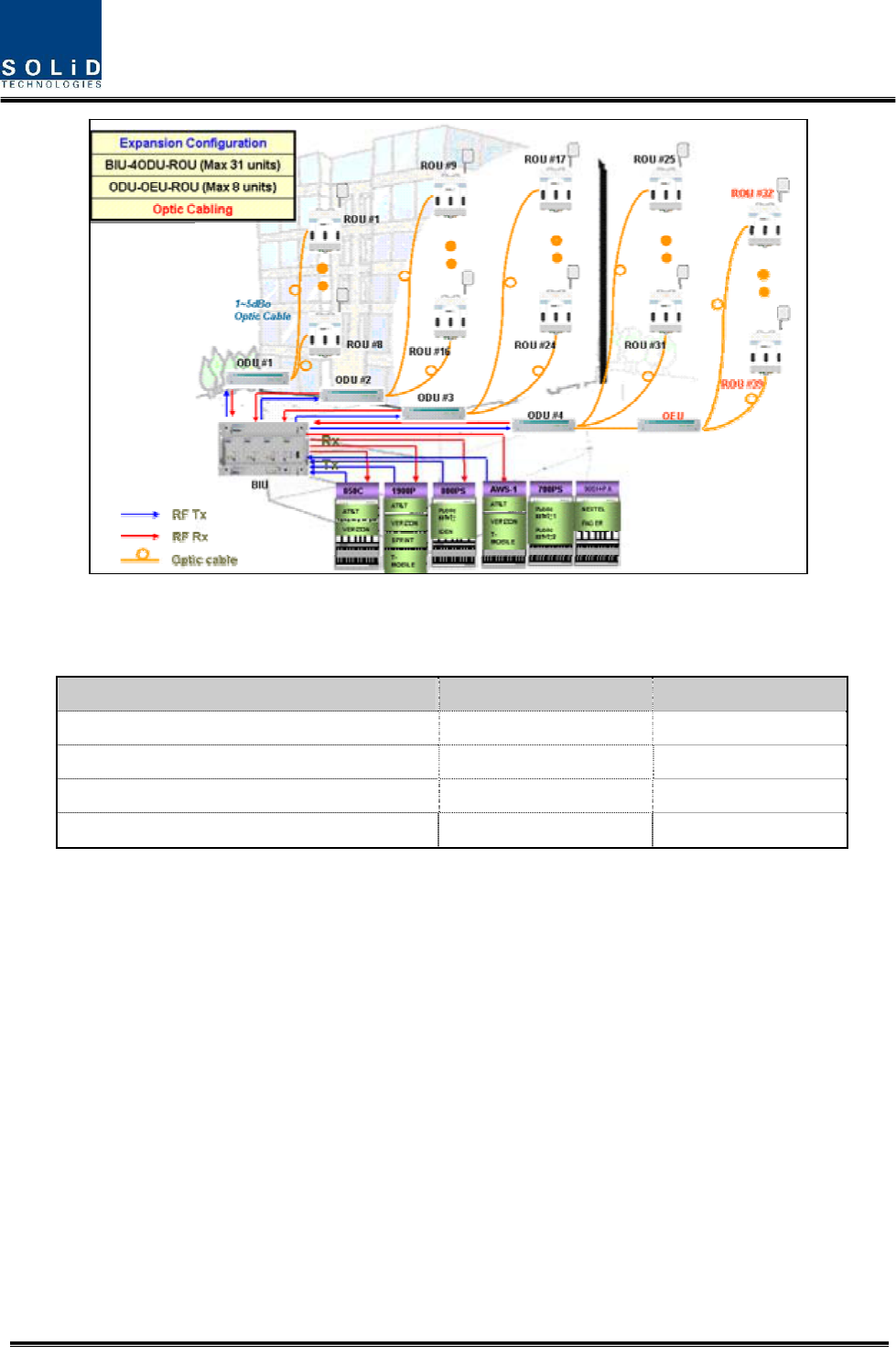

Figure 2.2 – Expansion system topology................................................... 13
Figure 4.1 – BIU outer view ......................................................................... 21
Figure 4.2 – BIU mounting diagram............................................................ 22
Figure 4.3 – MDBU Outer Look ................................................................... 25
Figure 4.4 – MDBU Outer Look ................................................................... 25
Figure 4.5 – MCCU Outer Look ................................................................... 26
Figure 4.6 – MPSU Outer Look.................................................................... 27
Figure 4.7 – BIU front panel Outer Look.....................................................27
Figure 4.8 – Rear panel Outer Look............................................................ 28
Figure 4.9 – ODU Outer Look ...................................................................... 29
Figure 4.10 – ODU Inner Look..................................................................... 30
Figure 4.11 – MDBU Outer Look.................................................................. 30
Figure 4.12 – 2Way Divider Outer Look...................................................... 30
Figure 4.13 – BIU front panel Outer Look...................................................30
Figure 4.14 – Rear panel Outer Look.......................................................... 30
Figure 4.15 – Interface between MHU and ODU ........................................30
Figure 4.16 – OEU Outer Look ....................................................................30
Figure 4.17 – OEU Inner Look ..................................................................... 30
Figure 4.18 – MDBU Outer Look .................................................................30
Figure 4.19 – EWDM Outer Look................................................................. 30
Figure 4.20 – ECPU Outer Look .................................................................. 30
Figure 4.21 – ERFM Outer Look.................................................................. 30
Figure 4.22 – ERFM Outer Look.................................................................. 30
Figure 4.23 – OEU front panel Outer Look................................................. 30
Figure 4.24 – Rear panel Outer Look.......................................................... 30
Figure 4.25 – ROU Outer Look .................................................................... 30
Figure 4.26 – ROU Inner Look..................................................................... 30
Figure 4.27 – RDU Outer Look ....................................................................30
Figure 4.28 – R OPTIC Outer Look.............................................................. 30
Figure 4.29 – RCPU Outer Look.................................................................. 30
Figure 4.30 – Multiplexer Outer Look ......................................................... 30
Figure 4.31 – RU Bottom Look.................................................................... 30
Figure 5.1 – RACK Installation .................................................................... 30
Confidential & Proprietary 7/87
Figure 5.2 – 800PS BDA Interface using Circulator .................................. 30
Figure 5.3 – 800PS BDA Interface using Duplexer....................................30
Figure 5.4 – Optical cable of SC/ACP Type................................................30
Figure 5.5 – How to install ROU ..................................................................30
Figure 5.6 – Dimension used to install ROU on the WALL....................... 30
Figure 5.7 – Optical cable of SC/ACP Type................................................30
Confidential & Proprietary 8/87
Section1
Safety & Certification Notice
Confidential & Proprietary 9/87
“Only qualified personnel are allowed to handle this unit. Read and obey all the
warning labels attached in this user manual”
Any personnel involved in installation, operation or service of the SOLiD Technology
repeaters must understand and obey the following:
- Obey all general and regional installation and safety regulations relating to work on high
voltage installations, as well as regulations covering correct use of tools and personal
protective equipment.
- The power supply unit in repeaters contains dangerous voltage level, which can cause electric
shock. Switch the mains off prior to any work in such a repeater. Any local regulations are to
be followed when servicing repeaters.
- The repeater cover should be (door) securely fastened in open position, e.g. by tying it up, at
outdoor work in order to prevent door from slamming due to wind causing bodily harm or
damage.
- Use this unit only for the purpose specified by the manufacturer. Do not carry out any
modifications or fit any spare parts which are not sold or recommended by the manufacturer.
This could cause fires, electric shock or other injuries.
- Any repeater, including this repeater, will generate radio signals and thereby give rise to
electromagnetic fields that may be hazardous to the health of any person who is extensively
exposed to the signals at the immediate proximity of the repeater and the repeater antennas.
- Due to power dissipation, repeater may reach a very high temperature. Do not operate this
unit on or close to flammable materials.
- Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or
abrasives.
- Certification
z FCC : This equipment complies with the applicable sections of Title 47 CFR Parts
15,22,24 and 90
- Any changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
z UL/CUL : This equipment complies with UL and CUL 1950-1 Standard for safety for
information technology equipment,including electrical business equipment
z FDA/CDRH : This equipment uses a Class 1 LASER according to FDA/CDRH Rules.This
product conforms to all applicable standards of 21 CFR Chapter 1, Subchaper J, Part
1040
Confidential & Proprietary 10/87
Section2
System Overview
2.1 General overview
2.2 System overview
Confidential & Proprietary 11/87
2.1 General overview
SMDR-NH124 is a coverage system for in-building services delivering voice and data in high
quality and for seamlessly.
As a distributed antenna system, it provides analog and digital phone systems that are served in
multiple bands through one antenna.
The system covers general public institutions and private facilities.
z Shopping malls
z Hotels
z Campus areas
z Airports
z Clinics
z Subways
z Multi-use stadiums, convention centers, etc.
The system helps improve in-building radio environments in poor condition and make better
poor RSSI and Ec/Io. By providing communication services at every corner of buildings, the
system enables users to make a call at any site of buildings.
The system uses both analog (AMPS) and digital (TDMA, CDMA and WCDMA) methods.
The SMDR-NH124 system supports communication standards and public interface protocols in
worldwide use.
z Frequencies: VHF,UHF, 700MHz, 800MHz,850MHz 900MHz,1900MHz,2100MHz, etc.
z Voice protocols: AMPS,TDMA, CDMA,GSM,IDEN, etc.
z Data protocols: EDGE,GPRS,WCDMA,CDMA2000,Paging, etc.
SMDR-NH124 is in modular structure per frequency. To provide desired frequency in a building,
all you need to do is to insert a corresponding frequency module into each unit. As it delivers
multiple signals with one optical cable, the system, in one-body type, does not require additional
facilities whenever new frequency is added.
The system is featured with the following:
z Flexibiltiy & Scalabiltiy
Support fiber-optic ports up to 39
Clustering multiple-buildings (campus) as one coverage
z Modular structures
Modular frequency upgrade
Plug-in type module
z Multi-Band, Multi Operator
Confidential & Proprietary 12/87
Signals with a plurality of service provider transmit simultaneously
Support multi-operator in a band
z Low OPEX / CAPEX
Compact design
Upgradable design
Easy installation and maintenance
Web Based SNMP or GSM Modem or UDP support (Optional)
2.2 System overview
SMDR-NH124 is composed of devices given below.
Basically, the system consists of BIU (BTS Interfcace Unit), ODU (Optic distribution Unit) and
ROU (Remote Optic Unit). For addition of more ROUs, it has OEU (Optic Expansion Unit).
Figure 2.1 – Basic system topology
Confidential & Proprietary 13/87
Figure 2.2 – Expansion system topology
Table 3.1 – System topology Charts
System elements Optical Loss [dBo] Max. RUs
BIU – ODU(DOUx1) – ROU 1~5dBo 4
BIU – ODU(DOUx2) – ROU 1~5dBo 8
BIU – 4ODU(DOUx2) – ROU 1~5dBo 32
BIU – 4ODU(DOUx2)-OEU(DOUx2) – ROU 1~5dBo 39
Confidential & Proprietary 14/87
Section3
System Specifications
3.1 System specifications
3.1.1 Physical Specifications
3.1.2 Optic wavelength and Laser power
3.1.3 Environmental specifications
3.1.4 Operating Frequencies range
3.1.5 Specifications Per band
Confidential & Proprietary 15/87
3.1 System specifications
3.1.1 Physical Specifications
Parameter BIU ODU OEU ROU
RF Connectors 4 SMA type, female
(Per MDBU)
2 SMA type, female
- 1N-type,female
External Alarm
connector
(Dry contacts)
Terminal block,3pcs - - -
Serial Interface
connector
1 RS-232 9-pin D-sub,
male 1 RS-232 9-pin
D-sub, male
1 RS-232 9-pin
D-sub, male
Fiber connector - 8pcs, SC/APC for
ROU
1 SC/APC for ODU
8 SC/APC for ROU 1 SC/APC for ODU
LED Alarm and
Status Indicator
MDBU Status
z Power On status
z ALM status
MCPU
z Power On status
z TX
Communication
z RX
Communication
z ALM status
MPSU
z Power On status
z DC ALM status
DOU1 Status
z LD status
z PD1/2/3/4
status
DOU2 Status
z LD status
z PD1/2/3/4
status
EWDM Status
z LD status
z PD status
DOU1 Status
z LD status
z PD1/2/3/4 status
DOU2 Status
z LD status
z PD1/2/3/4 status
System status
z Power on status
z TX
Communication
z RX
Communication
System status
z Power on status
z TX1
Communication
z RX1
Communication
z TX2
Communication
z RX2
Communication
z ALM status
AC Power - -
Normal Range :
120VAC 50/60Hz
Operating range
108~132VAC,50/60Hz
DC Power
Normal range: -48 VDC
Operating range:
-40.8 ~ -57.6VDC
-
Normal : -48 VDC
Operating range:
-40.8 ~ -57.6VDC
Power
consumption
168W
(Including ODU 4EA) - 48W
(Including DOU2EA)
265W
(Including RDU 3EA)
Enclosure
Dimensions
482.6(19”) x 221.5(5U)
x 450
482.6(19”) x
43.6(1U) x 450
482.6(19”)
x 88.1(2U) x 450 420 x 530 x 258
Weight[Full Load] 22.25Kg 5.7Kg 9.3Kg 35.45Kg
Confidential & Proprietary 16/87
3.1.2 Optic wavelength and Laser power
Parameter ODU OEU ROU
Wavelength
TX: 1310nm
RX: 1550nm
West optic
TX: 1550nm
RX: 1310nm
East optic
TX: 1310nm
RX: 1550nm
TX: 1550nm
RX: 1310nm
Output power 3dBm±1dBm to ROU,OEU
3dBm±1dBm to ROU
7dBm±1dBm to ODU
7dBm±1dBm to ODU
3.1.3 Environmental specifications
Parameter BIU, ODU, OEU ROU
Operating Temperature -10 to +50°C -10 to +50°C
Operating Humidity, non condensing - 5% to 90%
3.1.4 Operating Frequencies range
Frequency range
Standard Unit naming Description TX(MHz) RX(MHz)
iDEN 700P Public safety 764 to 776 794 to 806
iDEN 800P Public safety 851 to 869 806 to 824
Cellular 850C Cellular 869 to 894 824 to 849
Iden 900I SMR 929 to 940 896 to 902
Paging 900 PA Paging 929 to 930 896 to 902
PCS 1900P PCS 1930 to 1995 1850 to 1915
AWS-1 AWS-1 AWS-1 2110 to 2155 1710 to 1755
Confidential & Proprietary 17/87
3.1.5 Specifications Per band
700MHz Public safety
Typical Remarks
Parameters TX RX
Bandwidth 12MHz 12MHz
System ripple ≤4dB ≤4dB
Input Power level -20 to +10dBm ≤-50dBm
Output power +23dBm +0dBm Total
System Gain 43dB 50dB
Gain Control range 18 to 43dB 30 to 50dB
IMD 50dBc -
IP3 - +25dBm
Noise figure - 15dB 1ROU
800MHz Public safety
Typical Remarks
Parameters TX RX
Bandwidth 18MHz 18MHz
System ripple ≤4dB ≤4dB
Input Power level -20 to +10dBm ≤-50dBm
Output power +23dBm +0dBm Total
System Gain 43dB 50dB
Gain Control range 18 to 43dB 30 to 50dB
IMD 50dBc -
IP3 - +25dBm
Noise figure - 15dB 1ROU
Confidential & Proprietary 18/87
850MHz Cellular
Typical Remarks
Parameters TX RX
Bandwidth 25MHz 25MHz
System ripple ≤4dB ≤4dB
Input Power level -20 to +10dBm ≤-50dBm
Output power +23dBm +0dBm Total
System Gain 43dB 50dB
Gain Control range 18 to 43dB 30 to 50dB
IMD 50dBc -
IP3 - +25dBm
Noise figure - 15dB 1ROU
900MHz iDEN & Paging
Typical Remarks
Parameters TX RX
Bandwidth 12MHz 6MHz
System ripple ≤4dB ≤4dB
Input Power level -20 to +10dBm ≤-50dBm
Output power +23dBm +0dBm Total
System Gain 43dB 50dB
Gain Control range 18 to 43dB 30 to 50dB
IMD 50dBc -
IP3 - +25dBm
Noise figure - 15dB 1ROU
Confidential & Proprietary 19/87
1900MHz PCS
Typical Remarks
Parameters TX RX
Bandwidth 65MHz 65MHz
System ripple ≤5dB ≤5dB
Input Power level -20 to +10dBm ≤-50dBm
Output power +26dBm +0dBm Total
System Gain 46dB 50dB
Gain Control range 21 to 46dB 30 to 50dB
IMD 50dBc -
IP3 - +25dBm
Noise figure - 15dB 1ROU
1700MHz&2100MHz AWS-1
Typical Remarks
Parameters TX RX
Bandwidth 45MHz 45MHz
System ripple ≤5dB ≤5dB
Input Power level -20 to +10dBm ≤-50dBm
Output power +26dBm +0dBm Total
System Gain 46dB 50dB
Gain Control range 21 to 46dB 30 to 50dB
IMD 50dBc -
IP3 - +25dBm
Noise figure - 15dB 1ROU
Confidential & Proprietary 20/87
Section4
System Configuration and Functions
4.1 BIU (BTS Interface Unit)
4.2 ODU (Optic distribution Unit)
4.3 OEU (Optic Expansion Unit
4.4 ROU (Remote Optic Unit)
Confidential & Proprietary 21/87
4.1 BIU (BTS Interface Unit)
BIU provides TX signals from BTS or BDA for four ODUs (Optic Distribution Unit). This
unit separates RX signals given from ODUs from each other per frequency band.

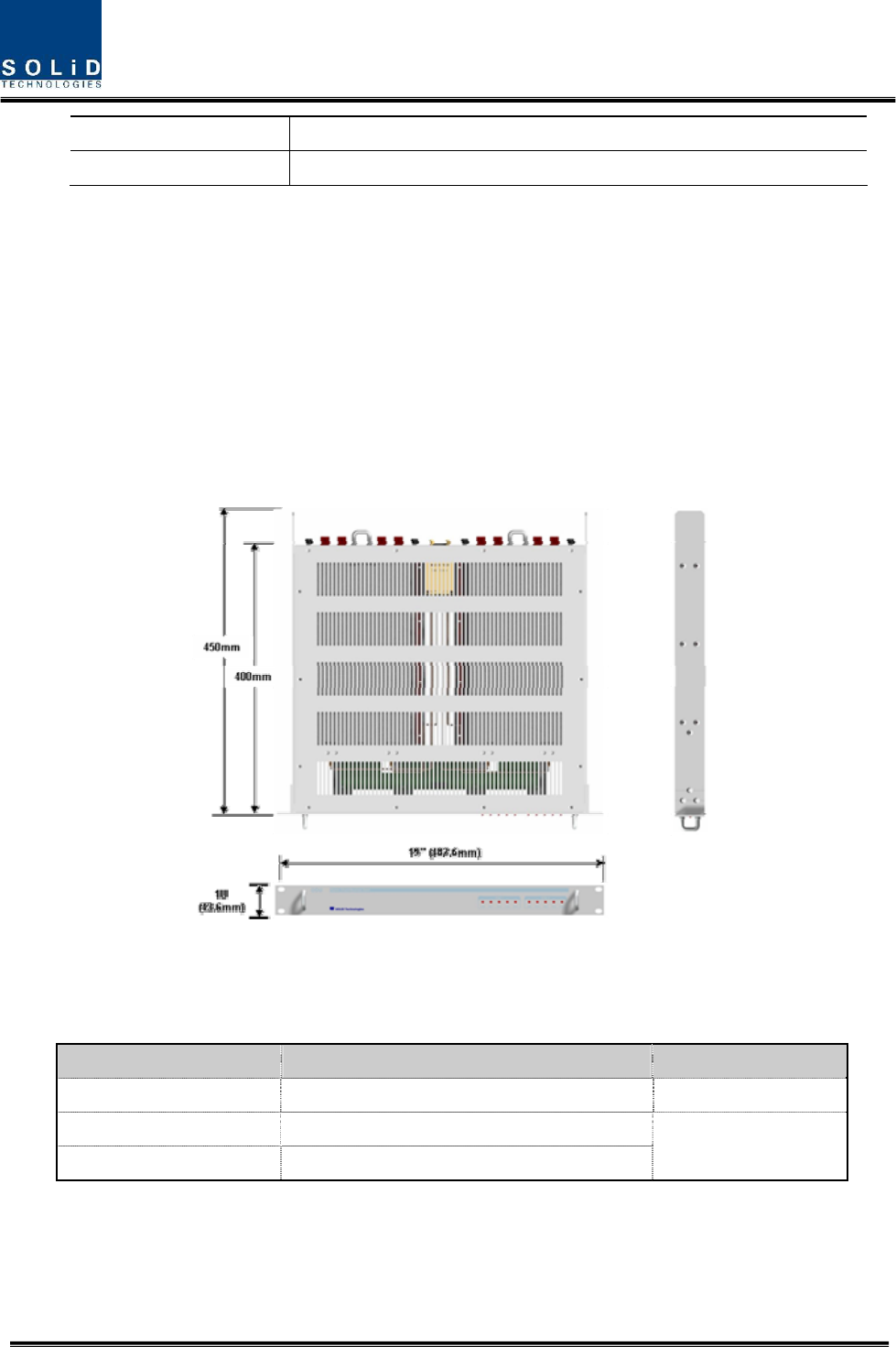

Figure 4.1 – BIU outer view
4.1.1 Specifications of BIU
Item Spec. Remark
Size 482.6(19”) x 221.5(5U) x 450 mm
Weight 22.35 Kg
Power consumption 168 W Full Load
Confidential & Proprietary 22/87

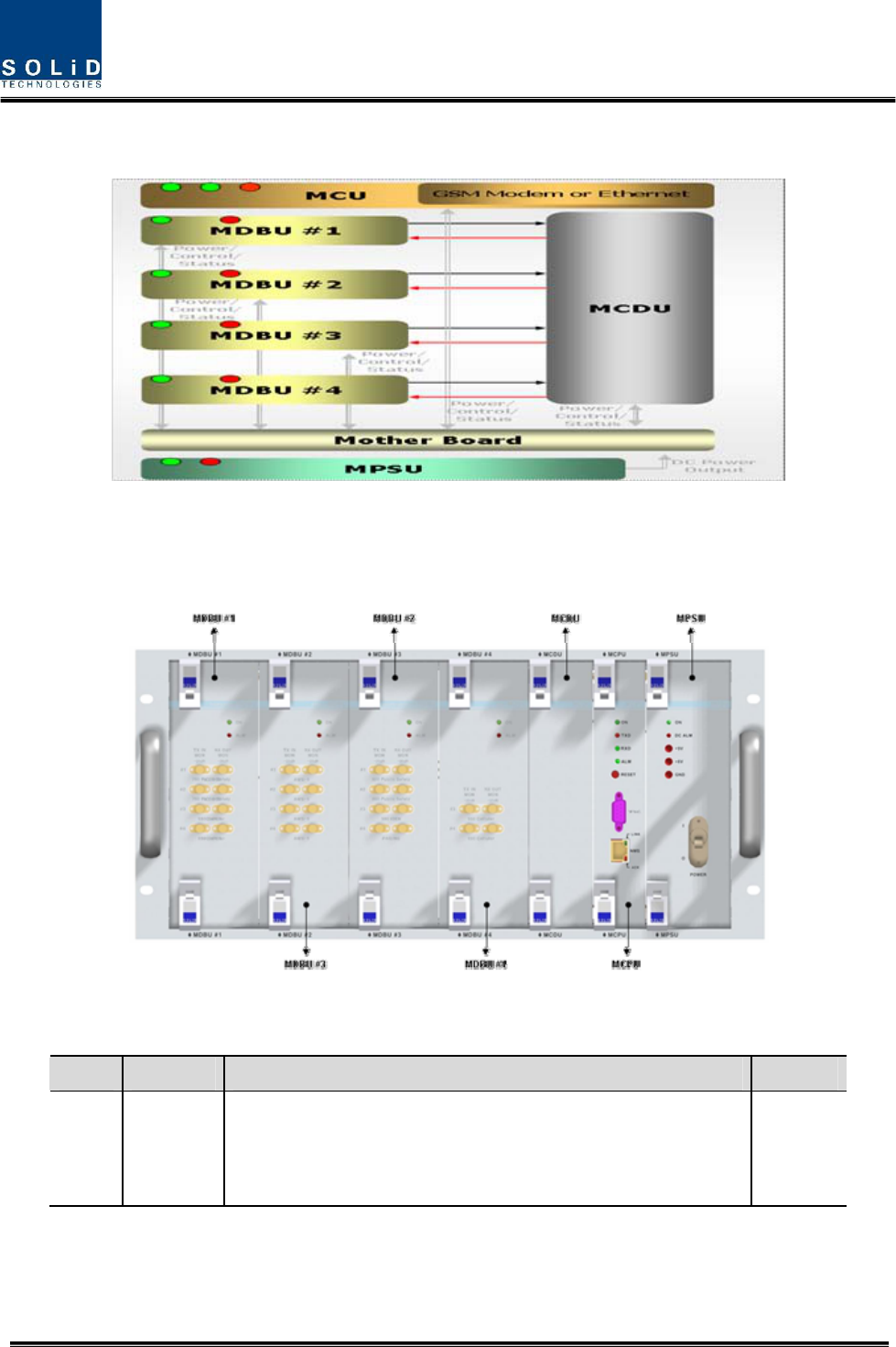

4.1.2 Block diagram of BIU
4.1.3 BIU parts
Figure 4.2 – BIU mounting diagram
No. Unit Description Remark
1 MDBU
Main Drive BTS Unit
Amplify & adjust downlink RF signal
Amplify & adjust uplink RF signal
Max 4EA
Confidential & Proprietary 23/87
2 MCDU
Main Com/Div Unit
Combine 4EA downlink signal and divide 4EA signal to ODU
Combine 4EA uplink signal and divide 4EA signal to MDBU
Support VHF/UHF interface port
3 MCPU
Main Central Processor Unit
Control and monitoring system status
Control and monitoring with RS232
Have an access to upper-level network through GSM or
Ethernet
4 MPSU Main Power Supply Unit
Input power: DC -48V, Output power: 9V, 6V
5 M/B
Mother Board
Provide signal interface and power for each unit
Provide three ports for dry contact
6 Shelf 19 inch, 5U
4.1.4 Function by unit
1) Main Drive BTS Unit (MDBU)
MDBU delivers TX signals of BTS or BDA to related devices and then delivers RX signals of the
devices to BTS or BDA. This unit can monitor TX input level. Using input AGC function, it
automatically adjusts input ATT. It also has ATT to adjust RX gain. MDBU is varied per
frequency band including the following:
In/out RF Port
No Unit naming Description TX RX
1 800PS Single Band 2 Port 2 Port
2 850C Single Band 2 Port 2 Port
3 1900P Single Band 4 Port 4 Port
4 AWS-1 Single Band 4 Port 4 Port
5 800PS+900I+PA Dual Band 4 Port 4 Port
6 850C+700PS Dual Band 4 Port 4 Port
7 TBD
Confidential & Proprietary 24/87
800PS 800PS+900I+Paging
1900PCS
A
WS-1
Confidential & Proprietary 25/87
Figure 4.3 – MDBU Outer Look
2) Main Com/Div Unit (MCDU)
MCDU combines TX signals that are delivered from MDBU per frequency band and delivers the
signals to four ODUs. This unit adds signals of FSK modem to the TX signals before sending
them to ROU. It also combines RX signals from up to four ODUs and sends them to up to four
MDBUs. In this case, the unit extracts signals of FSK modems, which are sent in a combined
form with RX signals, and then delivers the signals to MCU.
The unit has a port to interface with VHF&UHF signals. It has ATT for input monitoring and input
control.
Figure 4.4 – MDBU Outer Look
850C 850C+700PS
Confidential & Proprietary 26/87
3) Main Central Processor Unit (MCPU)
MCPU can inquire and control state of modules that are installed in BIU.
This unit can inquire and control state of four ODUs in total. Through communication, it also can
inquire and control ROU that is connected with lower parts.
In addition, the unit has RS-232C port for serial communication so that it can inquire and control
state of devices through PC. On the front panel, it has communication LED indicator to check
communication state with ROU. It also has ALM LED indicator to show whether a device gets
faulty.
For access to upper network, it has a port to insert Ethernet port and GSM modem in it.
Figure 4.5 – MCCU Outer Look
In the Main Central Processor Unit, a lithium battery is installed for RTC (Real Time Control)
function.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE
DIPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
[INSTRUCTION]
The equipment and accessories including inner lithium battery are to be disposed of safely after
the life span of them and national regulation must be observed. Do not attempt to replace the
lithium battery unless service personnel confirmation has first been obtained, to avoid any risk
of explosion.
4) Main Power Supply Unit (MPSU)
Confidential & Proprietary 27/87
MPSU receives -48V of input and outputs +6V and +9V of DC power.
On the front panel, this unit has an output test port and it also has DC ALM LED Indicator to
show whether output gets faulty.
Figure 4.6 – MPSU Outer Look

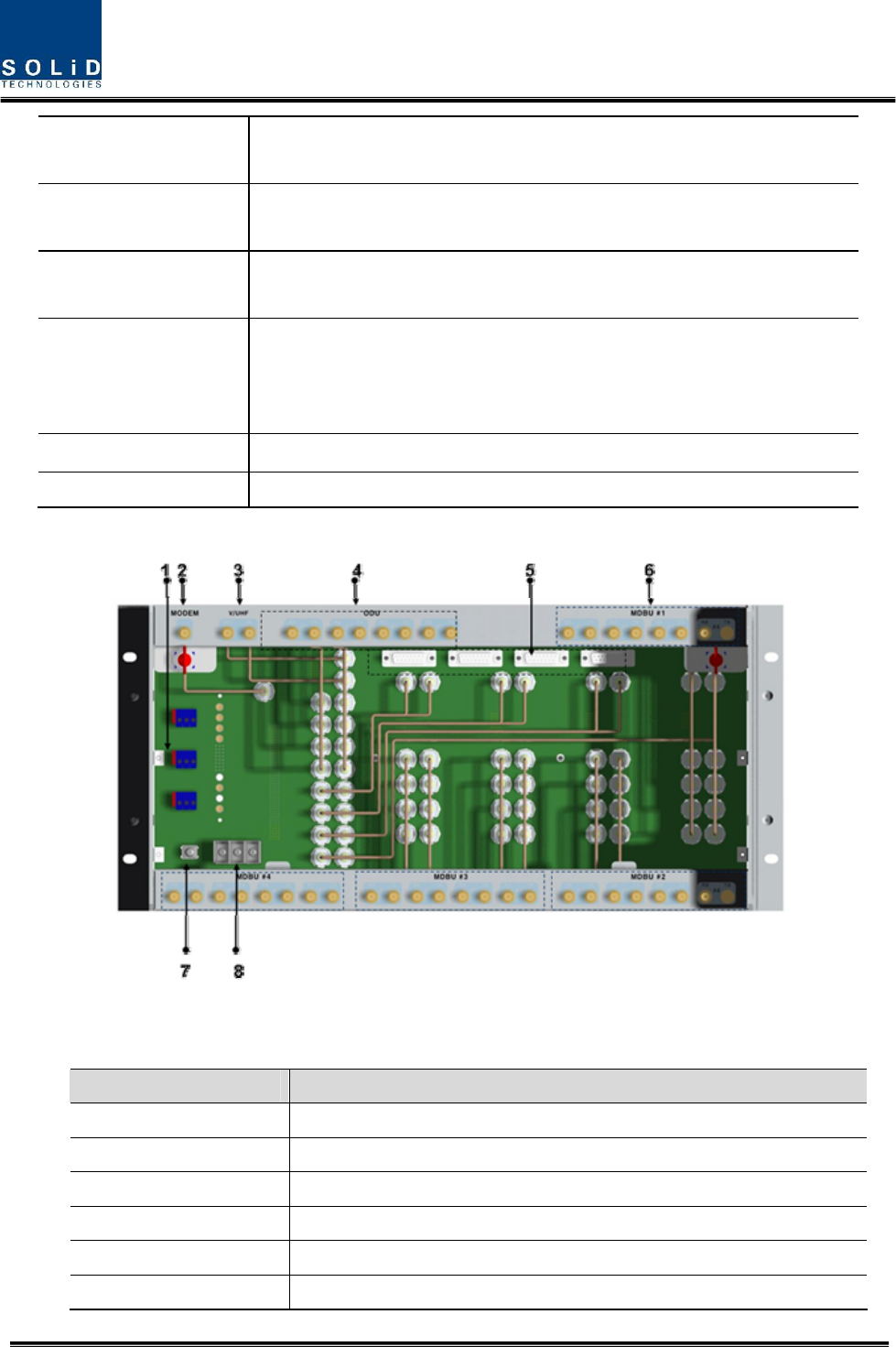

4.1.5 Front/rear panels of BIU
1) Front panel
Figure 4.7 – BIU front panel Outer Look
Item Description
1. MDBU LED LED to show whether MDBU is installed and gets faulty
Confidential & Proprietary 28/87
2. RF Monitor Port 20dB Coupling compared with TX Input Level
20dB Coupling compared with RX Output Level
3. Alarm LED & Reset Communication state with devices, alarm status of the system and reset
switch
4. NMS(RS-232C port) RS-232C port for communication and diagnosis of devices through
PC/laptop
5. NMS(Ethernet port)
Ethernet port for upper network
This equipment is indoor use and all the communication wirings are
limited to inside of the building
6. Pwr Test Port & ALM Output DC power test port and ALM LED to show abnormal state, if any
7. Power switch Power ON/OFF switch
2) Rear panel
Figure 4.8 – Rear panel Outer Look
Item Description
1. External ALM Port Input/output terminal for dry contact
2. GSM Modem Port GSM Modem terminal for upper network (Optional)
3. V/UHF I/O Port RF signal interface terminal of VHF&UHF
4. ODU I/O Port RF signal interface terminal for ODU
5. ODU signal Port Power and signal interface terminal for ODU
6. BTS/BDA I/O Port Input/output interface terminal of BTS/BDA
Confidential & Proprietary 29/87
7. GND Port System ground terminal
8. DC Input Port Input terminal for DC -48V
4.2 ODU (Optic distribution Unit)
ODU receives TX RF signals from upper BIU and converts them into optical signals. The optical
signals are sent to ROU through optical cables. This unit converts optical signals from ROU into
RF signals and sends the converted signals to BIU.
For each shelf of the ODU, up to two DOUs (Donor Optic Unit) can be installed in it.
One DOU is supported with four optical ports. Therefore, one ODU can be connected with eight
ROUs.
Up to four ODUs can be connected with BIU.
Figure 4.9 – ODU Outer Look
4.2.1 Specifications of ODU
Item Spec. Remark
Size 482.6(19”) x 43.6(1U) x 450 mm
Weight 5.7 Kg
Power consumption 27 W Full Load
Confidential & Proprietary 30/87

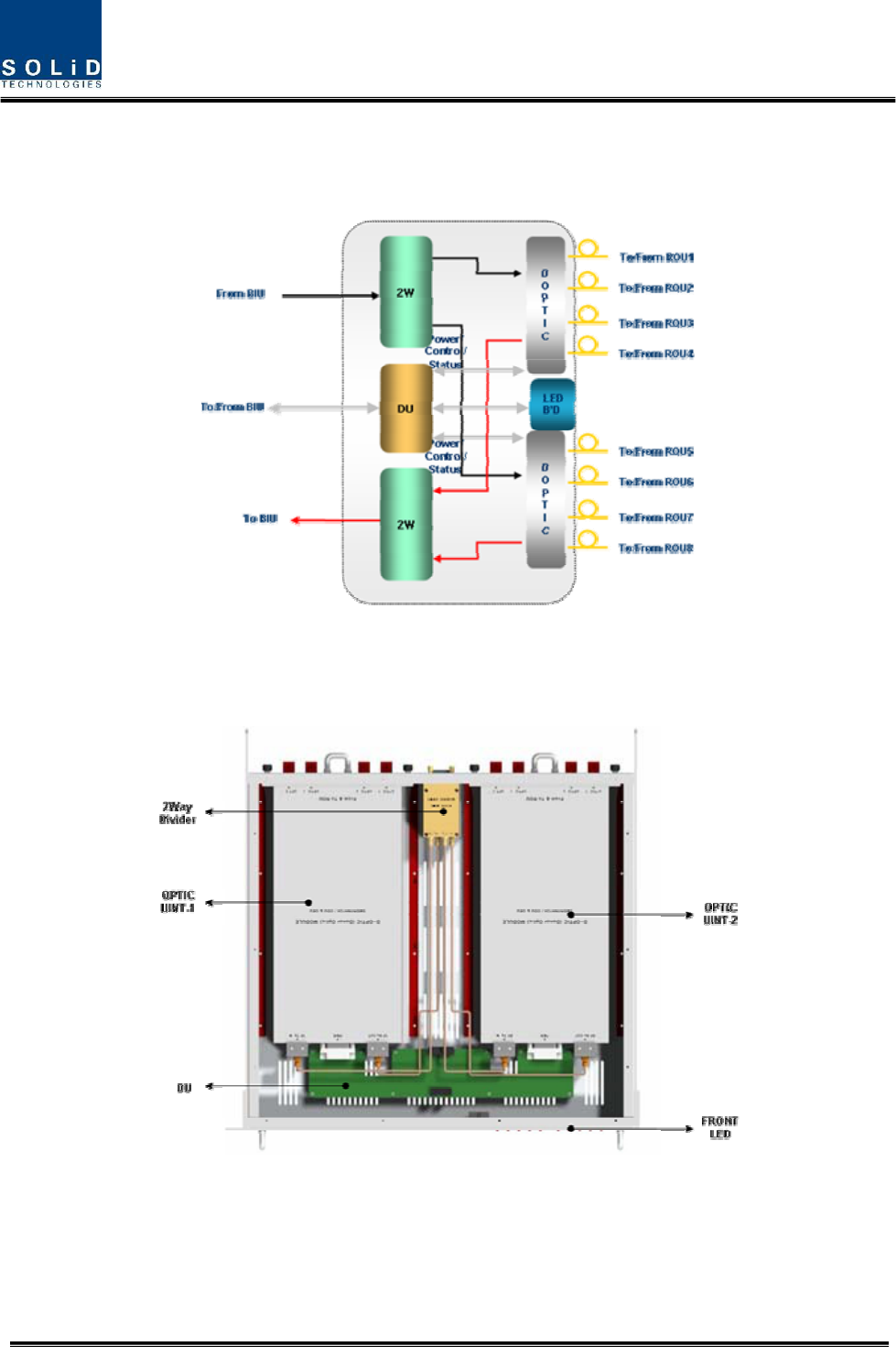

4.2.2 Block Diagram of ODU
4.2.3 ODU parts
Figure 4.10 – ODU Inner Look
