Section2
System Configuration and Functions
2.1 ROU (Remote Optic Unit)
ROU consist of two unit which one is MRU(Main Remote Unit) and the other is ARU(Add on Remote
Unit). We simply called as ROU combination of MRU and ARU
MRU receives TX optical signals from ODU or OEU and converts them into RF signals. The converted
RF signals are amplified through High Power Amp in a corresponding RU, combined with Multiplexer
and then radiated to the antenna port.
When receiving RX signals through the antenna port, this unit filters out-of-band signals in a
corresponding RU and sends the results to Remote Optic Module to make electronic-optical
conversion of them. After converted, the signals are sent to a upper device of ODU or OEU.
MRU and ARU are composed of maximal dual band
The most difference of MRU an ARU is whether existence of optical module is in it or not
Confidential & Proprietary 9/30 SC-DAS
(a)MRU (b)ARU

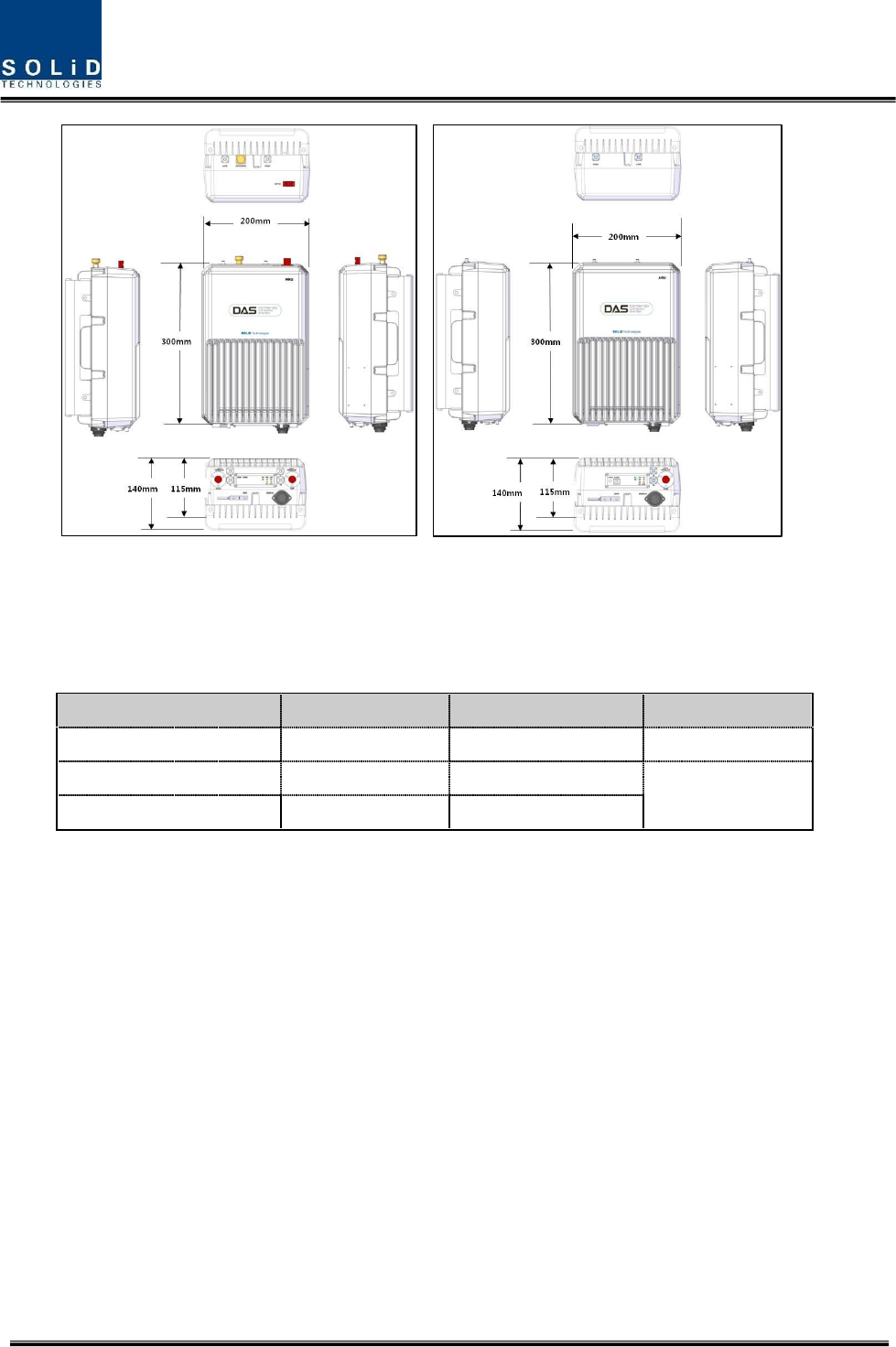

Figure 2.1 – ROU Outer Look
2.1.1 Specifications of ROU
Item
MRU Spec
ARU Spec.
Size(mm)
300 x 200 x 140
300 x 200 x 140
Weight
6.6kg
6.8 Kg
Power consumption
50W
40W
Confidential & Proprietary 10/30 SC-DAS

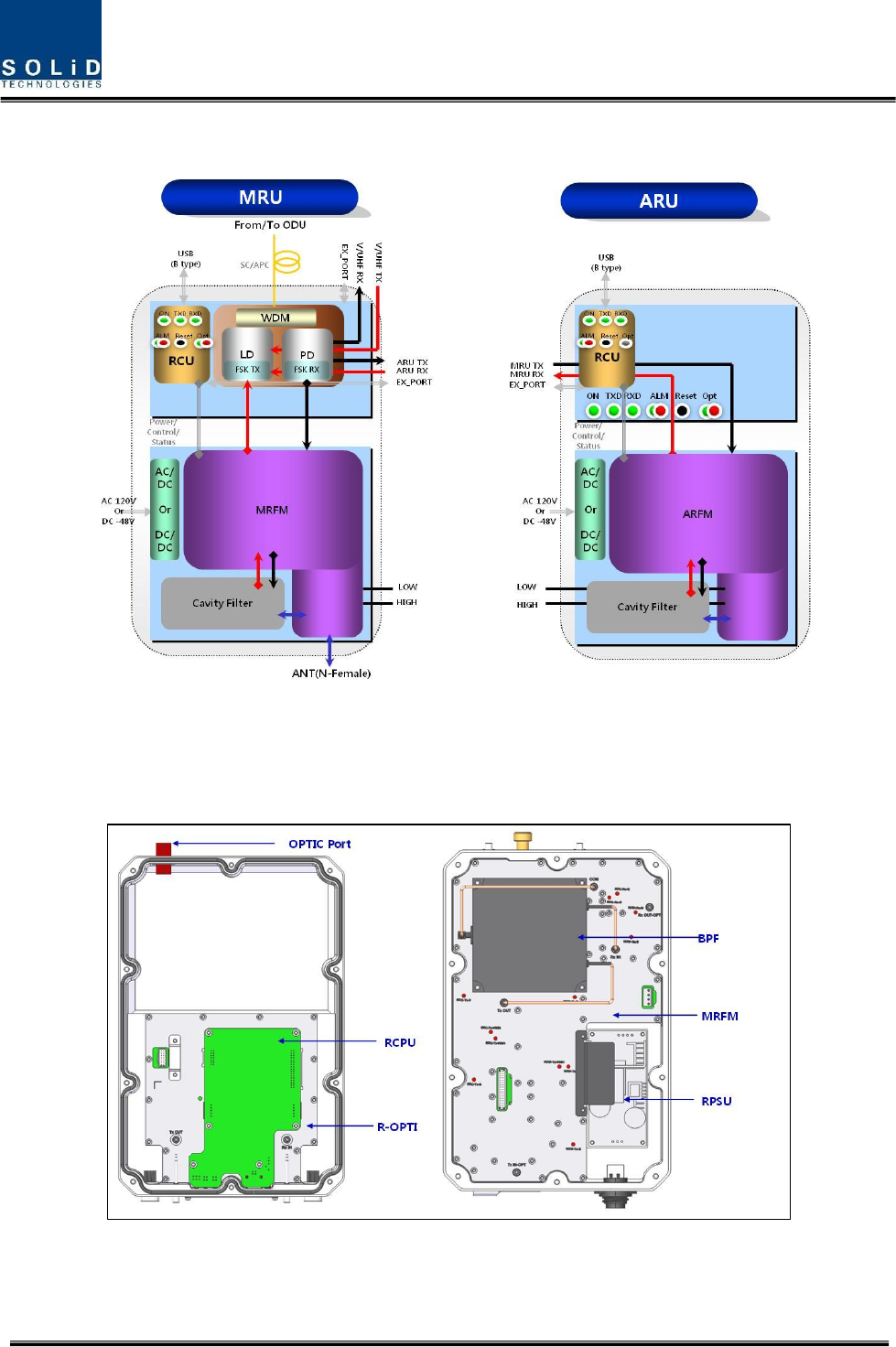

2.1.2 Block Diagram of ROU
Figure 2.2 – ROU block diagram
2.1.3 ROU parts
(a)MRU
Confidential & Proprietary 11/30 SC-DAS
(b)ARU

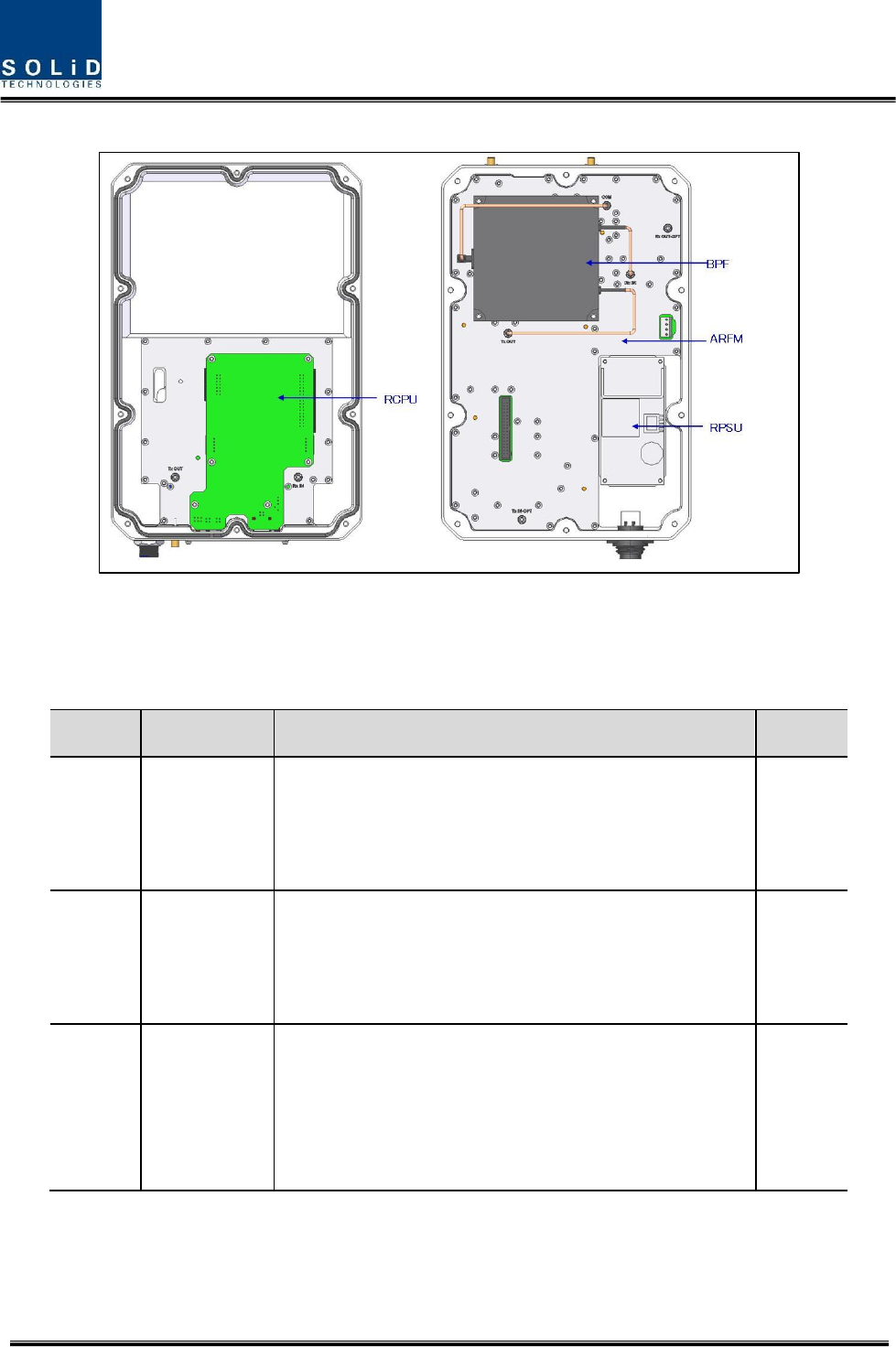

Figure 2.3 – ROU Inner Look
No.
Unit
Description
Remark
1
MRFM/ARFM
+BPF
Main/Add on RF Module
Filter and high amplify TX signals;
Filter and amplify RX signals;
Remove other signals through BPF
2
RPSU
Remote Power Supply Unit
Input power: DC -48V or AC120V, Output power: 25V
For 120V input of AC/DC;
For -48V input of DC/DC
3
R-OPT
Remote Optic
Make RF conversion of TX optical signals;
Convert RX RF signals into optical signals;
Compensates optical loss interval
Communicates with BIU or OEU though the FSK modem
Confidential & Proprietary 12/30 SC-DAS
4
RCPU
Remote Central Processor Unit
Controls signal of each unit
Monitors BIU/ODU/OEU status through FSK modem
communication
5
Enclosure
Enable Wall Mount;
Check if the system is normal, through the bottom panel
LED
2.1.4 Function by unit
1) Main RF Module/Add on RF Module (MRFM/ARFM)+BPF
When receiving TX signals from each band through R-Opt, MRFM/AFRM filters the signals and
amplifies them with High Power Ampifier. The unit also filters RX signals given through antenna and
amplifies them as low noise to send the signals to R-Opt.
In the unit, there is ATT to adjust gain. This devices are varied for each frequency band, including the
following:
No
Unit naming
Description
BPF
Cavity Filter
Ceramic Filter
1
MRFM 1900P+850C
Dual.
1900P
850C
2
ARFM 700LTE+AWS-1
Dual.
700LTE
AWS-1
3
To be Developed
2) Remote Power Supply Unit (RPSU)
RPSU receives -48V of input. This unit is divided into DC/DC type to output +25V of DC power and
AC/DC type to receive 120V of AC input and to output +25V of DC power.
Upon order, either of the two types should be decided. MS Connector, which uses ports to receive
inputs, is designed to different type of AC and DC. The input cable is different as power input
conditions.
RPSU don’t have switch to turn the power ON/OFF. If power receives, power is automatically
operated
Here, you should check for rang of input power as following:
No.
Unit
Range of input power
Remark
1
AC/DC
90 ~ 264VAC
2
DC/DC
-42V ~ -56VDC
Confidential & Proprietary 13/30 SC-DAS
(a)AC/DC (b)DC/DC

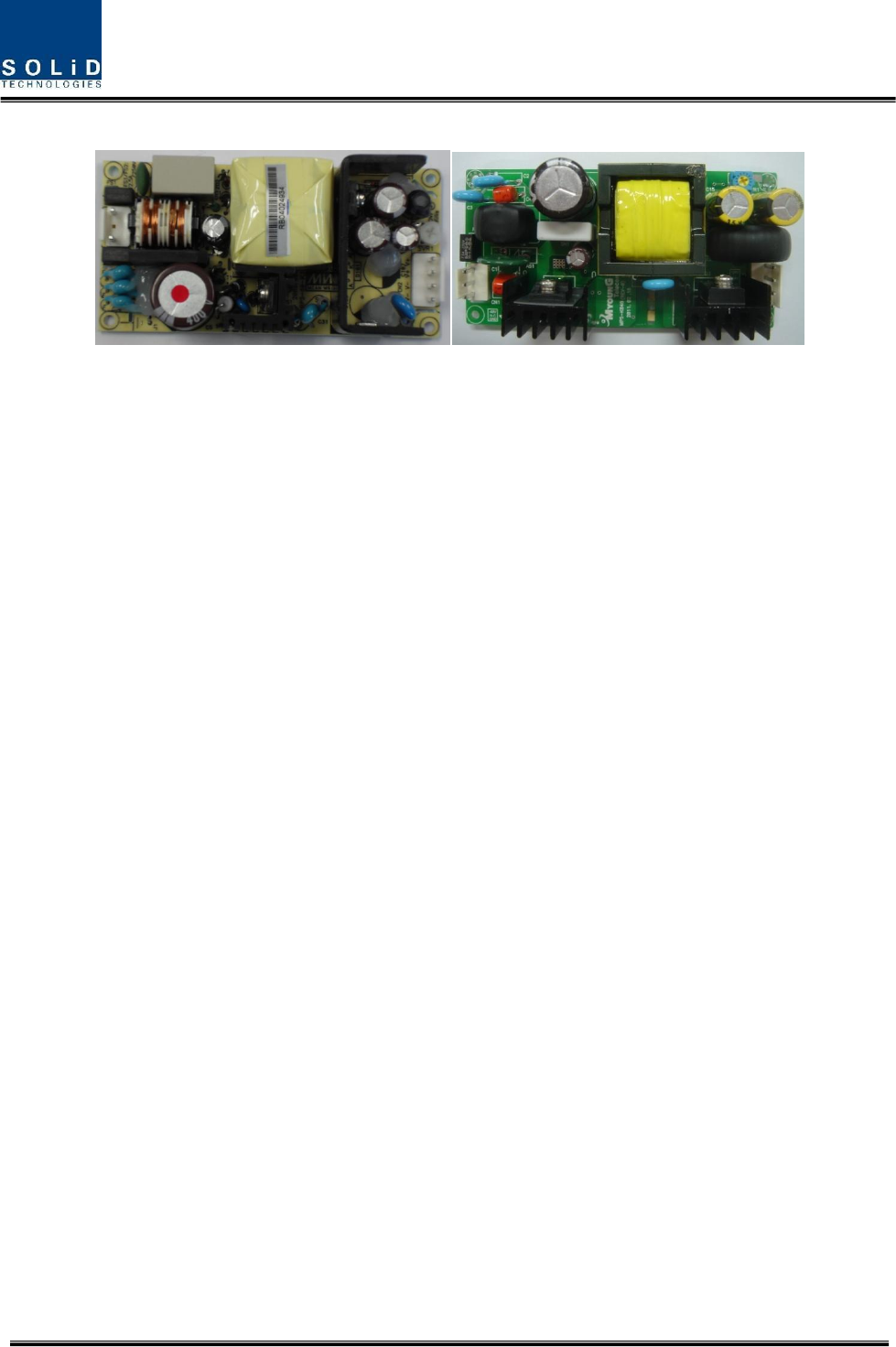

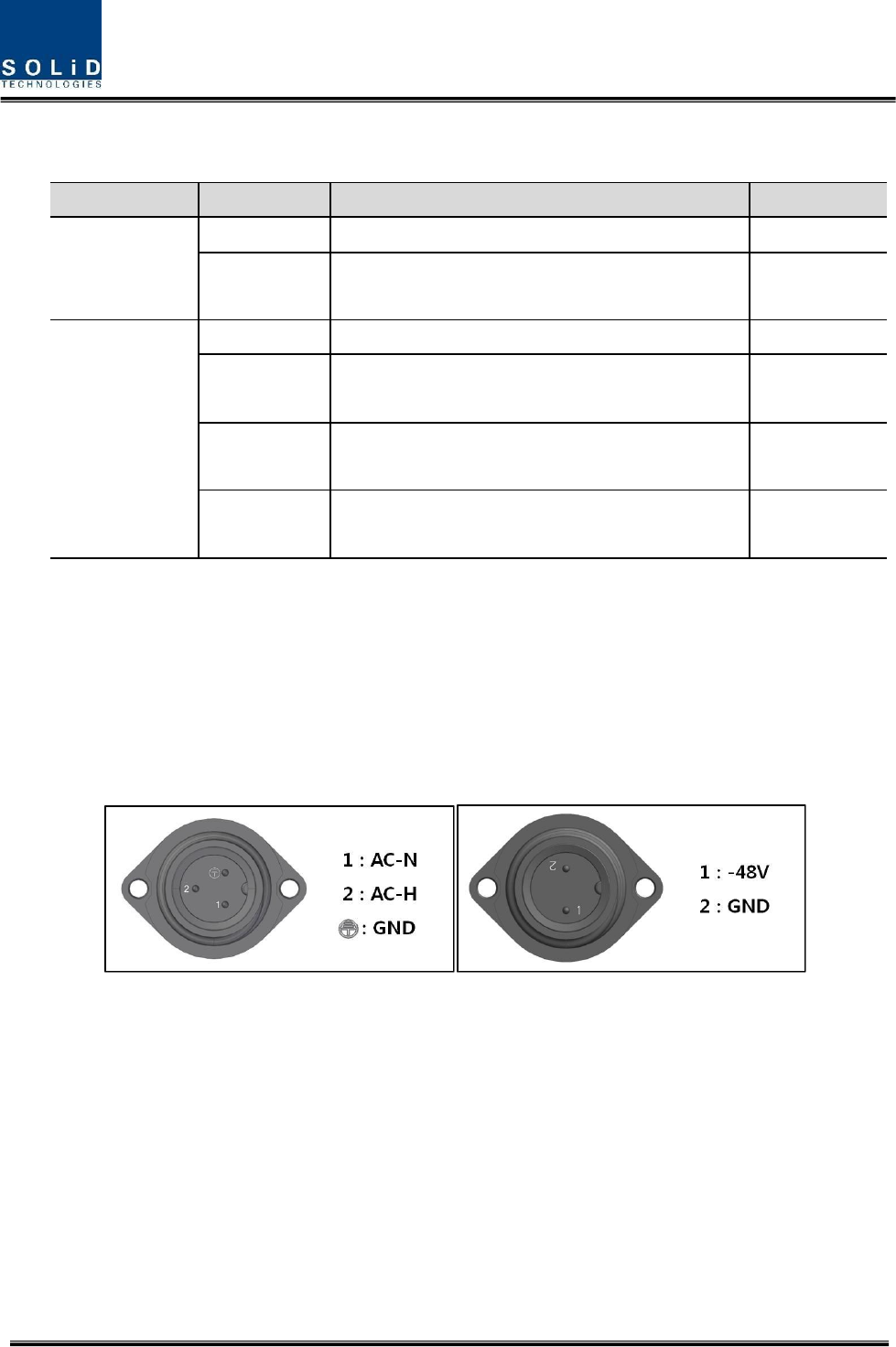

Figure 2.4– PSU Outer Look
3) Remote Optic(R-OPT)
Remote Optic converts optical signals into RF signals and performs vice versa. With an FSK modem
in it, the unit communicates with upper devices.
It also has internal ATT to compensate for optical cable loss. Optical wavelength for TX path is
1310nm, for Rx path is 1550nm. It can be transported by a optical strand using WDM(Wavelength
Division Multiplexing) technique
4) Remote Central Processor Unit (RCPU)
RCPU can monitor and control RU. This unit receives and analyzes upper communication data from
Remote Optic and reports the unit's own value to upper devices. At the bottom of the module, it has
LED indicator to show system status, letting you check any abnormalities at a time. At the same
pannel, it also has communication LED Indicators to show communication status with upper devices.
Through USB Port, the unit enables you to check and control device status through PC and laptop.
This equipment is indoor use and all the communication wirings are limited to inside of the building.
RCPU of MRU have two port to connect exteranl devices which one is for ARU and the other is for
VHF&UHF ARU. Using external interface cable, MRU can communicate with ARU/VHF&UHF ARU.
MRU collects status information from ARU/VHF&UHF ARU and then communicate with upper device
Confidential & Proprietary 14/30 SC-DAS
2.1.5 Bottom of ROU
1) Functions
(a)MRU (b)ARU
Figure 2.5– ROU Bottom Look
Item
Description
Remark
1. VHF/UHF ARU Port
Terminal for TX and RX RF ports of VHF and UHF
Terminal for signal port to interface with VHF and UHF
2.LED PANEL
Visible LED indicator panel for checking if status is abnormal
USB Port for check and control device status through PC and
laptop
3. Power Port
AC 120V input port or DC-48V input port
4.ARU/MRU Port
Terminal for TX and RX RF ports of MRU/ARU
Terminal for signal port to interface with MRU/ARU
5.GND LUG PORT
Terminal for system ground
Power Port
A different type of power ports are used for power-supplying of -48V DC or 120V AC, and
specific power cable should be applied to each different types of ROU power supply
(AC/DC or DC/DC). Below figure is naming of the power supply by type.
Confidential & Proprietary 15/30 SC-DAS
(a)AC/DC (b)DC/DC
Figure 2.6 – ROU Power Port Look
Confidential & Proprietary 16/30 SC-DAS
Top of ROU
1) Functions
(a)MRU (b)ARU

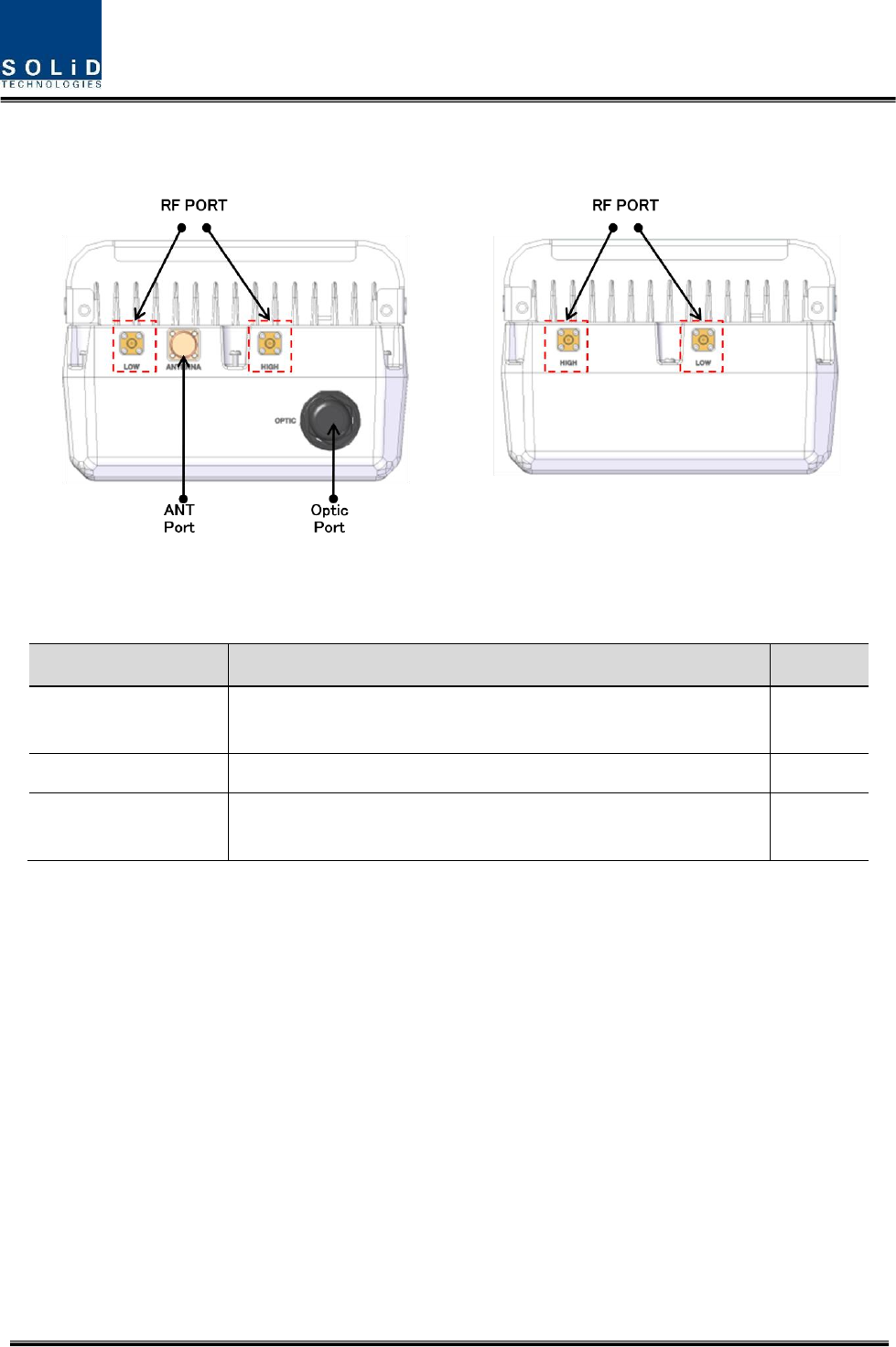

Figure 2.7 – ROU Bottom Look
Item
Description
Remark
1. RF Port
Terminal for Low RF port to connect between MRU and ARU RF
Terminal for HIGH RF port to connect between MRU and ARU RF
2. ANT Port
Terminal for RF port to connect with antenna
3. Optic Port
Termnial for Optical port to connect with optical cable
The supported optical connector type is SC/APC
Confidential & Proprietary 17/30 SC-DAS
Section3
System Installation & Operation
3.1 ROU Installation
3.1.1 ROU Enclosure installation
ROU enclosure have two optional. One meets with NEMA4 standard and the other does not meet
with NEMA4 which is water- and dirt-proof. ROU can be mounted on a Wall basically. Rack mounting
is also possible to use extra unit. Extra units have three type and those will be explained on later
chapter. ROU consist of MRU and ARU, their dimension is exactly same.
The following shows dimension of the fixing point for the Wall Mount Bracket.
Confidential & Proprietary 18/30 SC-DAS

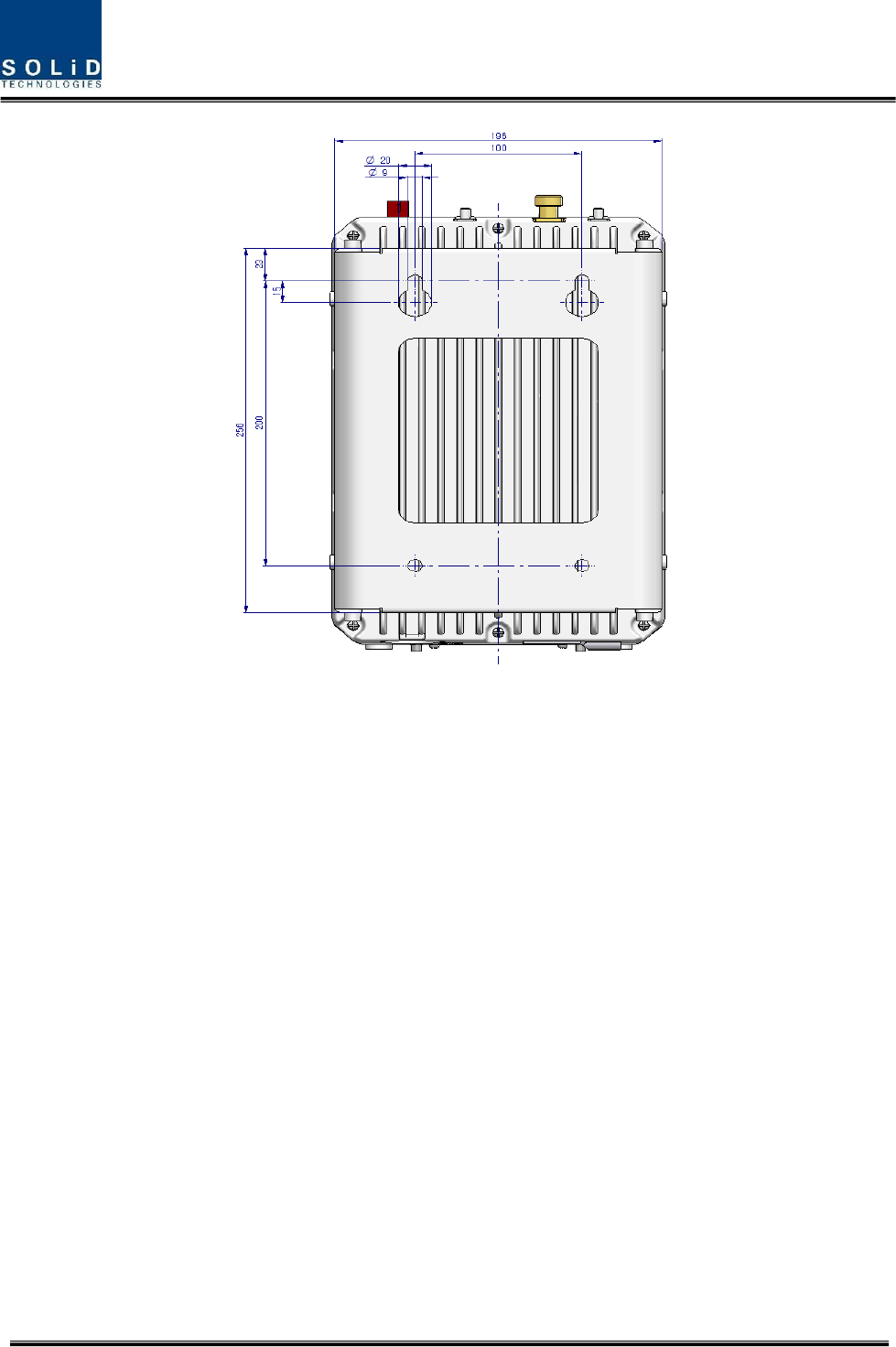

Figure 3.1 – Dimension used to install ROU on the WALL
ROU Wall Mount Installation
There are two way to install ROU on the wall. One is to install ROUs on the wall side by side, the
other is 2layer installation that ARU install above MROU directly
Type1 : Side by Side installation
Turn M8 Fixing Screws by half on the wall and fully fix the screw with a Wall Mount Bracket on it.
For convenience, the Wall Mount Bracket has fixing holes to let you easily mount an enclosure.
Turn the M6 Wrench Bolt by half at each side of the Heatsink of the enclosure.
Confidential & Proprietary 19/30 SC-DAS

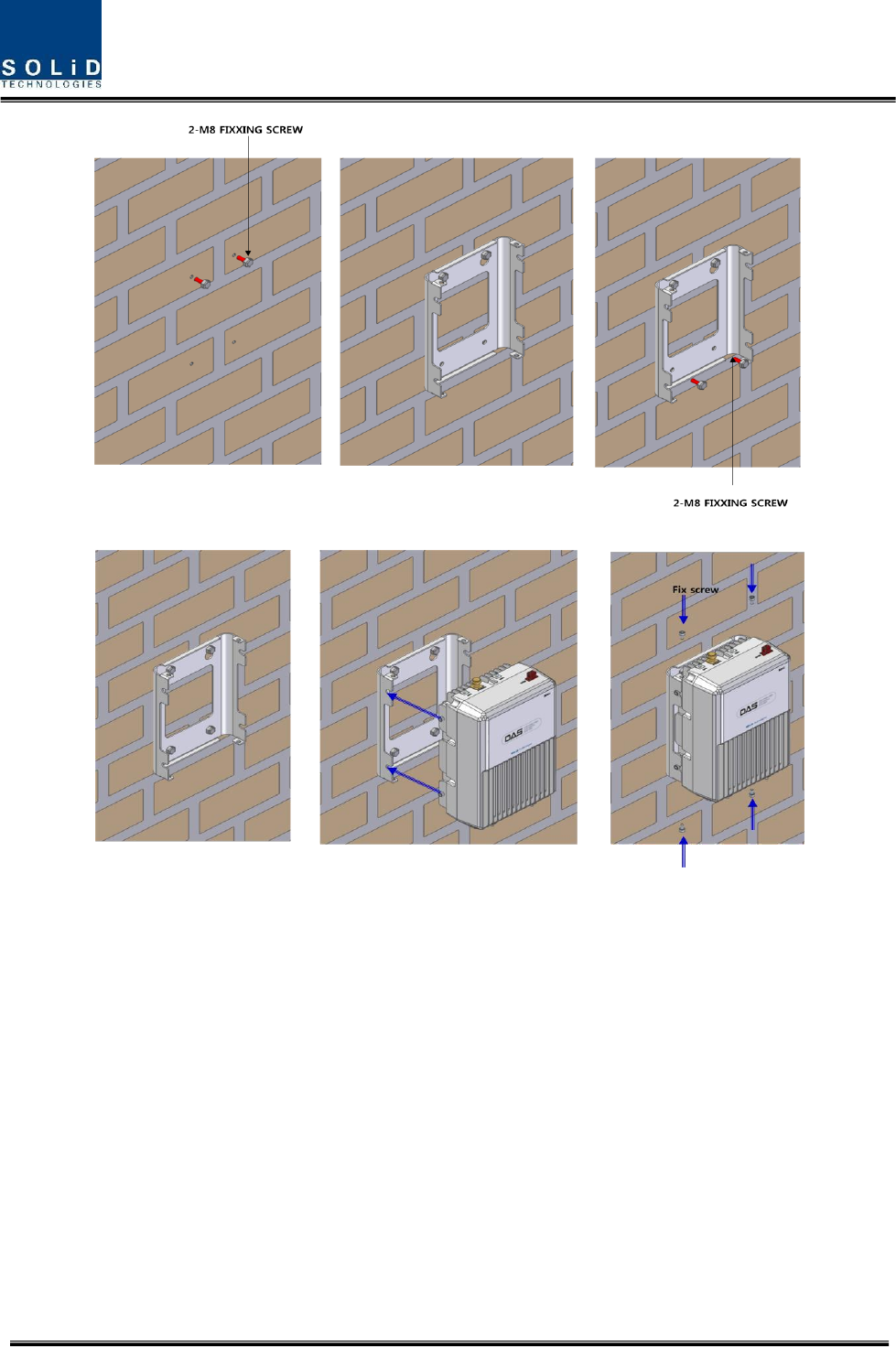

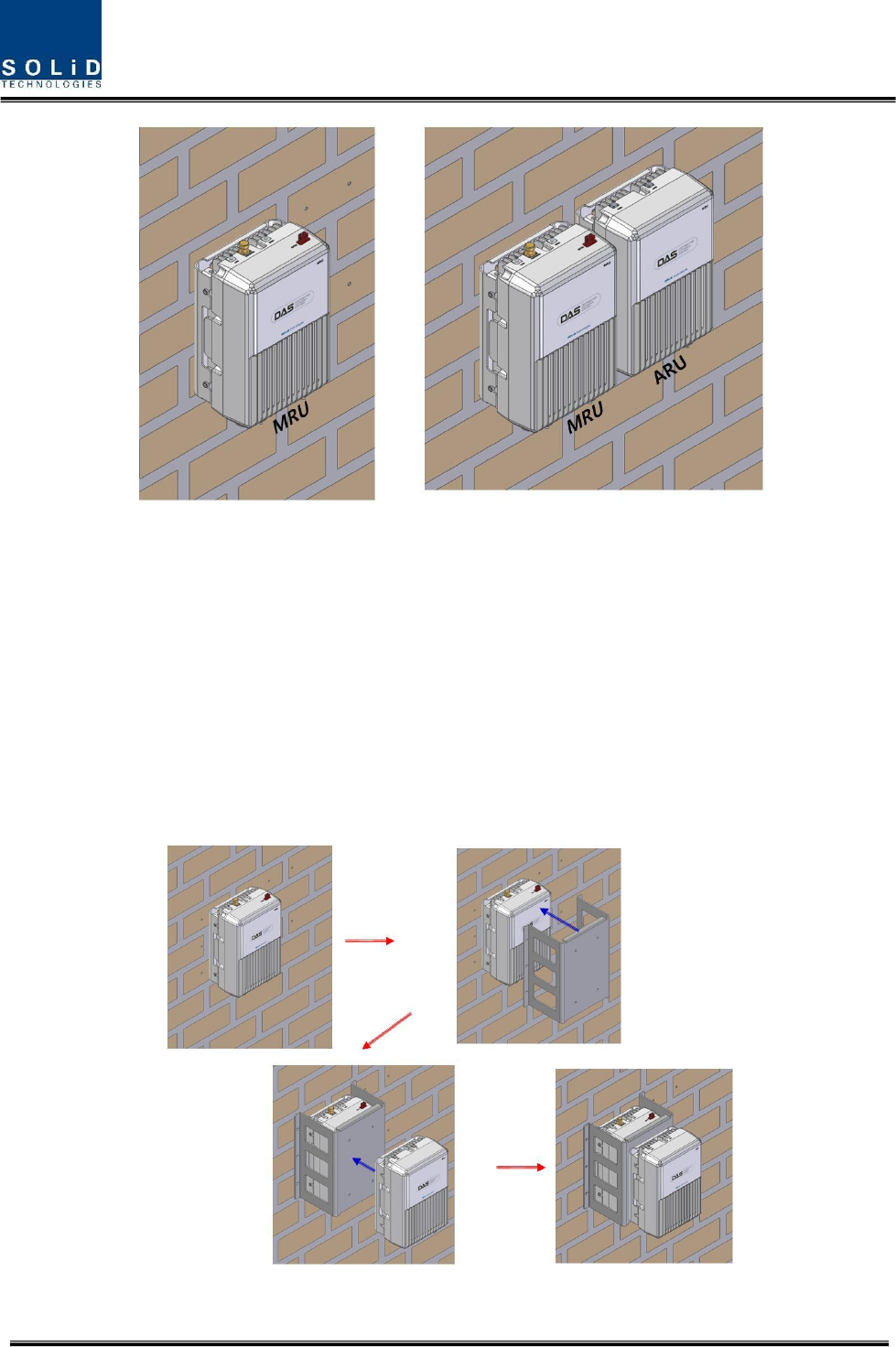

Figure 3.2 – ROU installation procedure side by side
Put the enclosure with the M6 Wrench Bolt fixed on the fixing groove and fix the M6 Wrench Bolts
into the remaining fixing holes.
In this case, you will use 4 M6 Wrench Bolts in total except bolts used for the fixing groove.
Confidential & Proprietary 20/30 SC-DAS
Figure 3.3 – ROU installation diagram side by side
For connecting cables between MRU and ARU conveniently, MRU should install on left side of ARU.
Type2 : 2Layer installation
In case of the narrow space to not install MRU and ARU side by side, we can install RUs into 2layer
To install into 2layer, it need baracket for 2layer installation
First, after installing MRU on the wall and then install the bracket for 2layer installation on the MRU
Second, on top of the installed bracket, install ARU
Completed installation diagram is as follows
Figure 3.4 – ROU installation procedure for 2layer
Confidential & Proprietary 21/30 SC-DAS
The following shows dimension of the fixing point for the 2layer bracket.

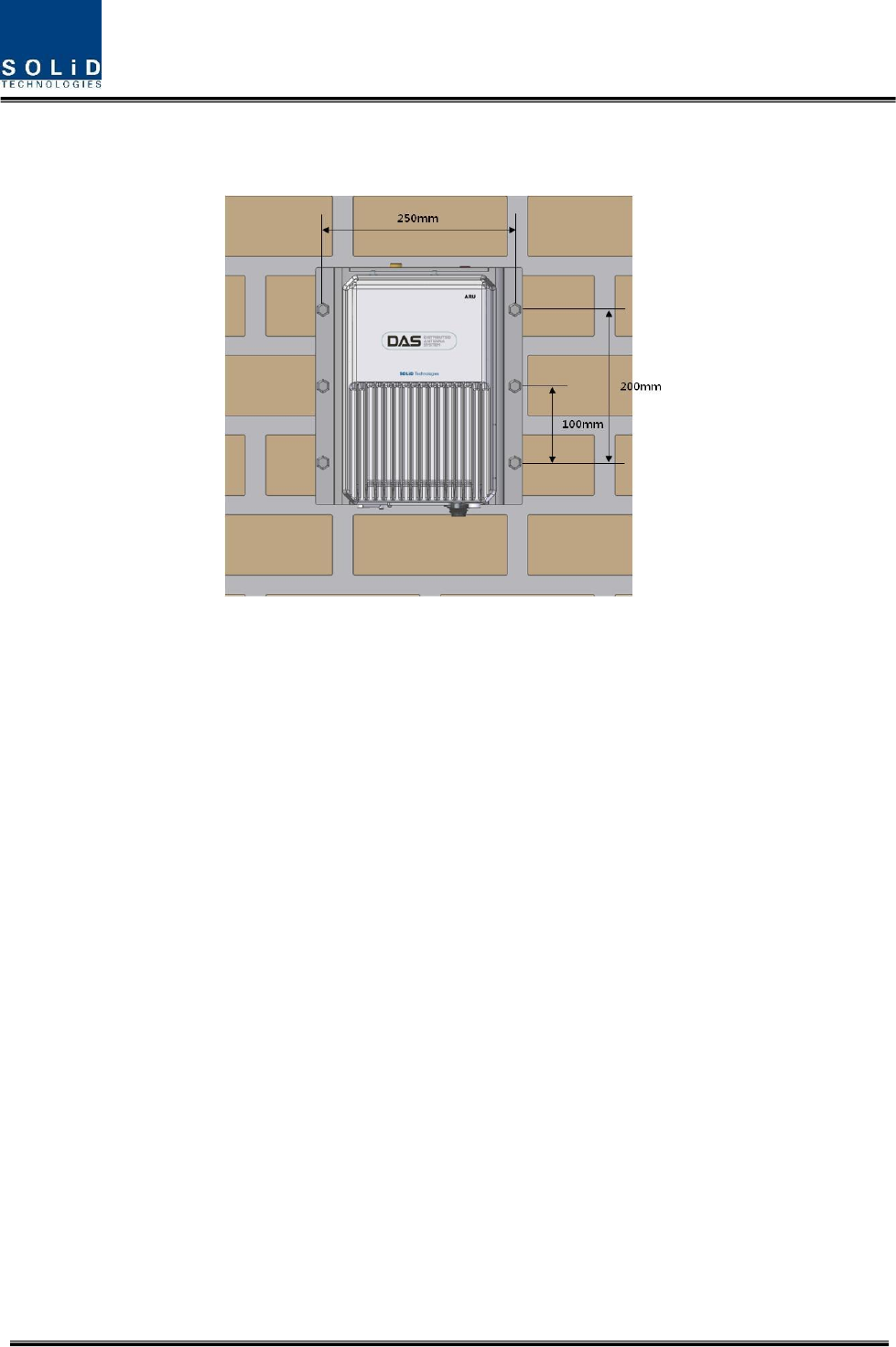

Figure 3.5 – ROU installation diagram for 2layer
Confidential & Proprietary 22/30 SC-DAS
ROU Rack Mount Installation
There are two way to install on a rack. One is to install ROUs on the rack vertically, the other is to
install ROUs on the rack horizontally
Type1 : Vertical installation on the rack
For vertcal installation, vertical bracket needs.
First, install bracket for vertical installation on the rack
Second, mount MRU on the left side of the installed bracket
Third, mount ARU on the right side of the installed bracket
Completed installation diagram is as follows

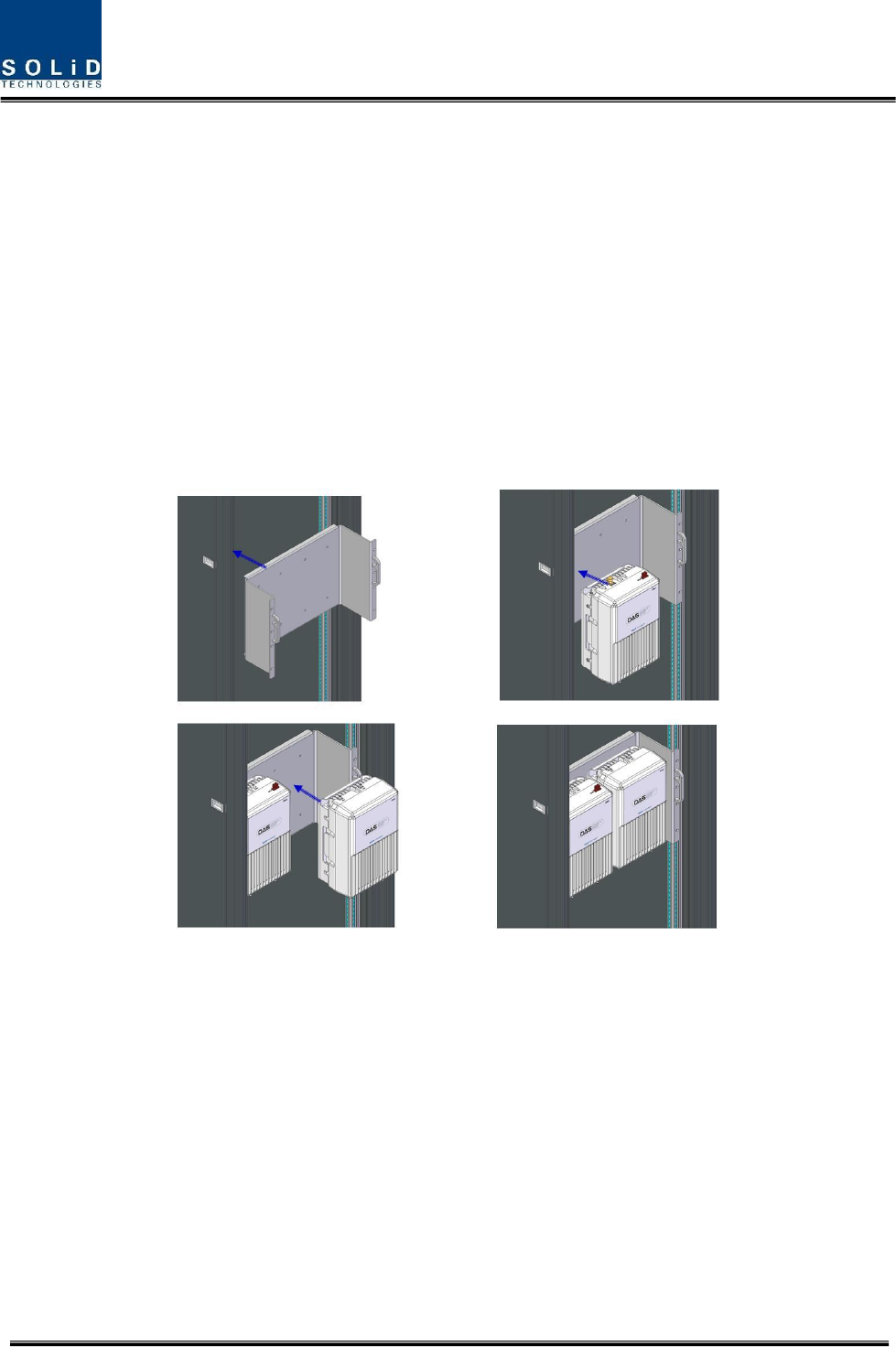

Figure 3.6 – ROU installation procedure for vertical rack
The following shows dimension of the fixing point for vertical installation
Confidential & Proprietary 23/30 SC-DAS
Figure 3.7 – ROU installation diagram for vertical rack
Type2 : Horizontal installation on the rack
For Horizontal installation, horizontal bracket needs. Unlike vertical installation, MRU is mounted on
the right of installed bracket first and then ARU is installed on ther left of MRU
First, install bracket for horizontal installation on the rack
Second, open the front cover of horizontal bracket
Third, mount MRU on the right side of the installed bracket
Fourth, mount ARU on the right side of the installed bracket
Fifthly, close the front cover of horizontal bracket
Completed installation diagram is as follows
Confidential & Proprietary 24/30 SC-DAS

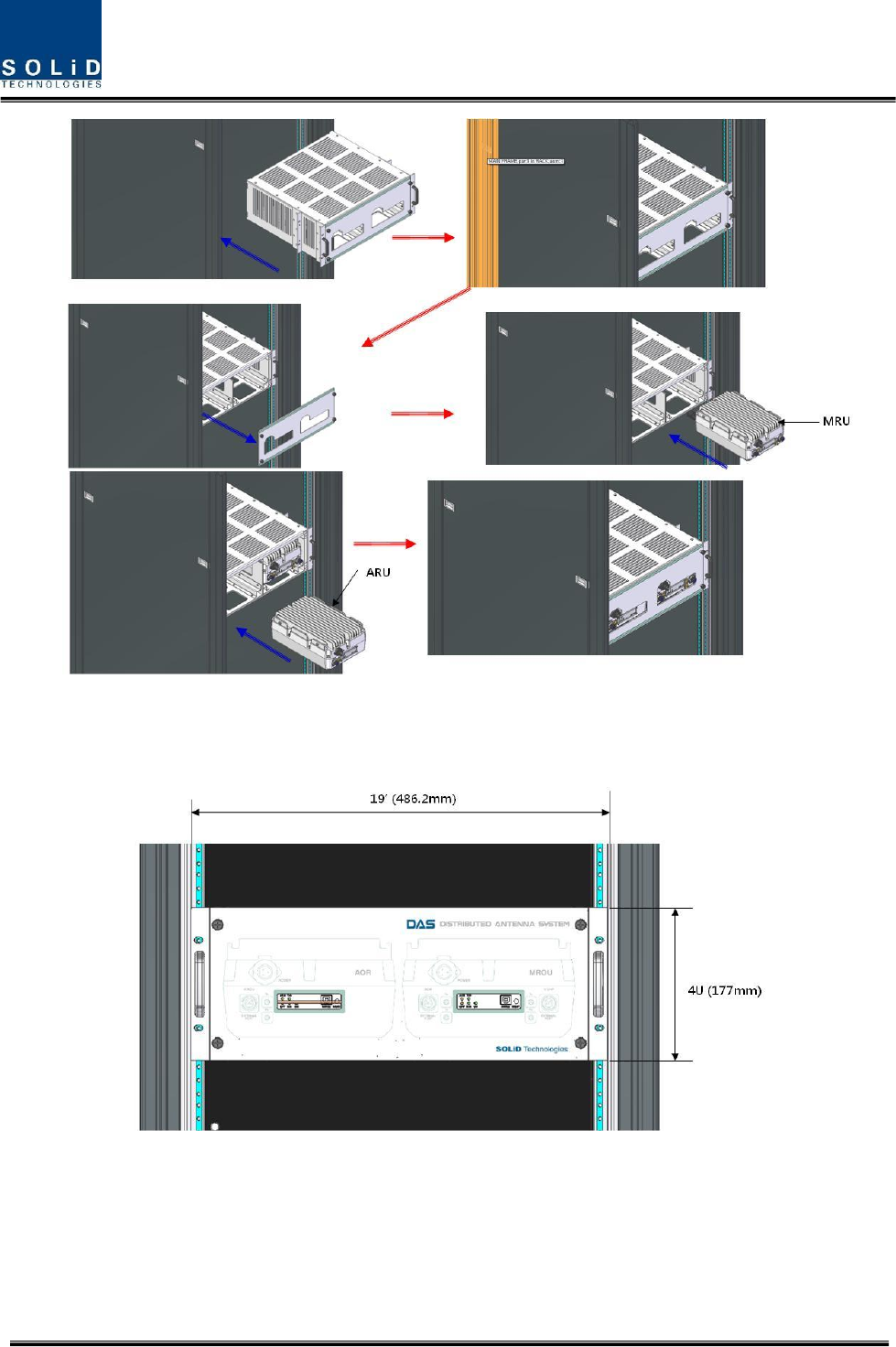

Figure 3.8 – ROU installation procedure for horizontal rack
The following shows dimension of the fixing point for vertical installation

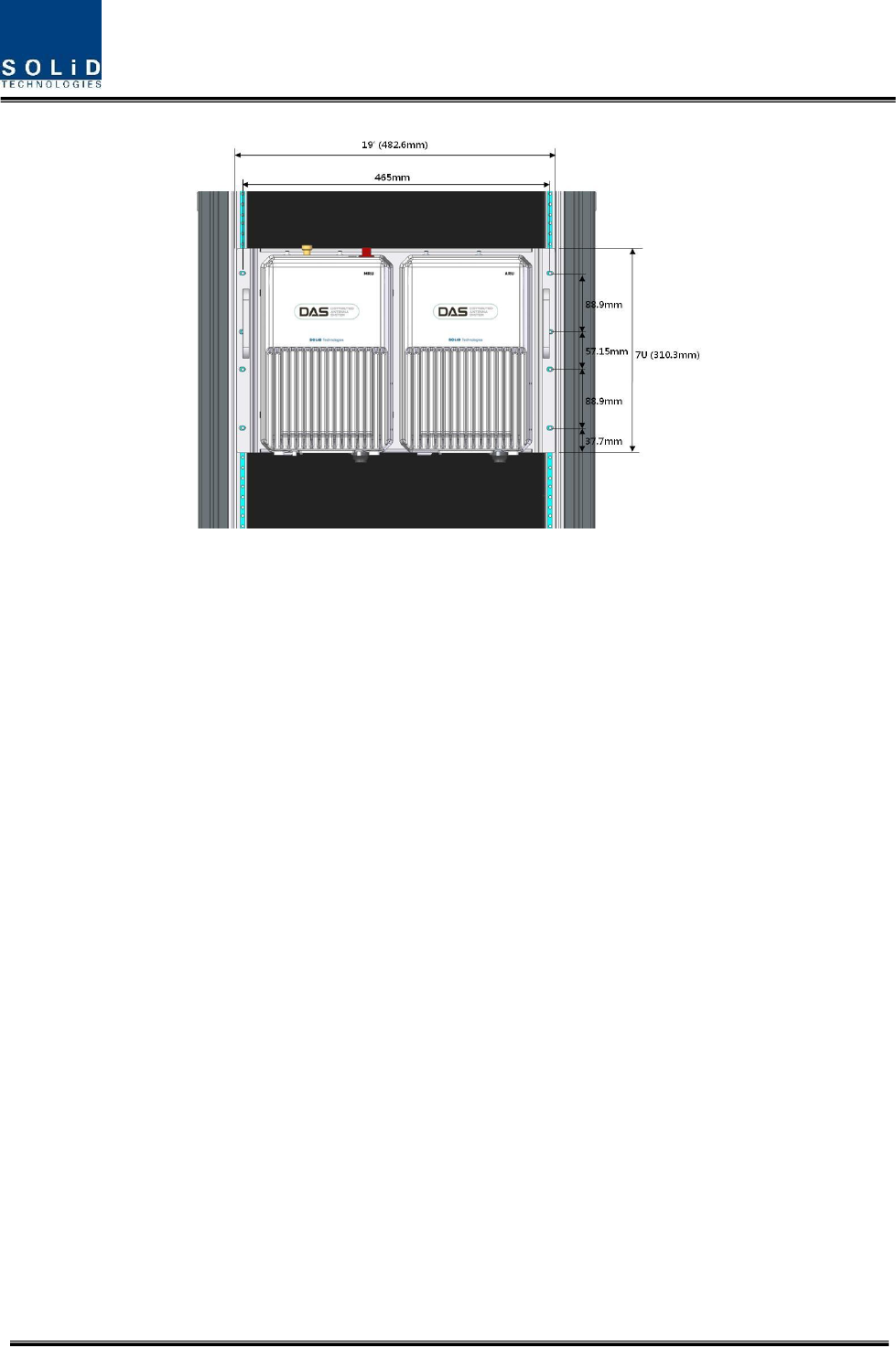

Figure 3.9 – ROU installation diagram for horizontal rack
Confidential & Proprietary 25/30 SC-DAS
ROU components
ROU has the following components:
No.
Unit
Description
Remark
MRU
Enclosure
Including Wall cradle
1EA
Power Cable
- Connector with 3 hole to AC 120 plug(AC)
- Connector with 2 lug termination(DC)
1EA(Optical for
AC or DC)
ARU
Enclosure
Including Wall cradle
1EA
Power Cable
- Connector with 3 hole to AC 120 plug(AC)
- Connector with 2 lug termination(DC)
1EA(Optical for
AC or DC)
RF cable for
optical
- Two RF cables and one signal cable
RF cable for
antenna
- Two RF cables
3.1.2 ROU Power Cabling
ROU supports both of DC-48V and AC120V of input power. The type of input power of ROU is
already determined when ROU produce. Therefore, the ROU has correct power cable in the package
box. See the UL name plate of ROU to distinguish the input power type of ROU easily or see the
power connector as blow picture. You should order the type of input power as your application.
(a)AC/DC (b)DC/DC

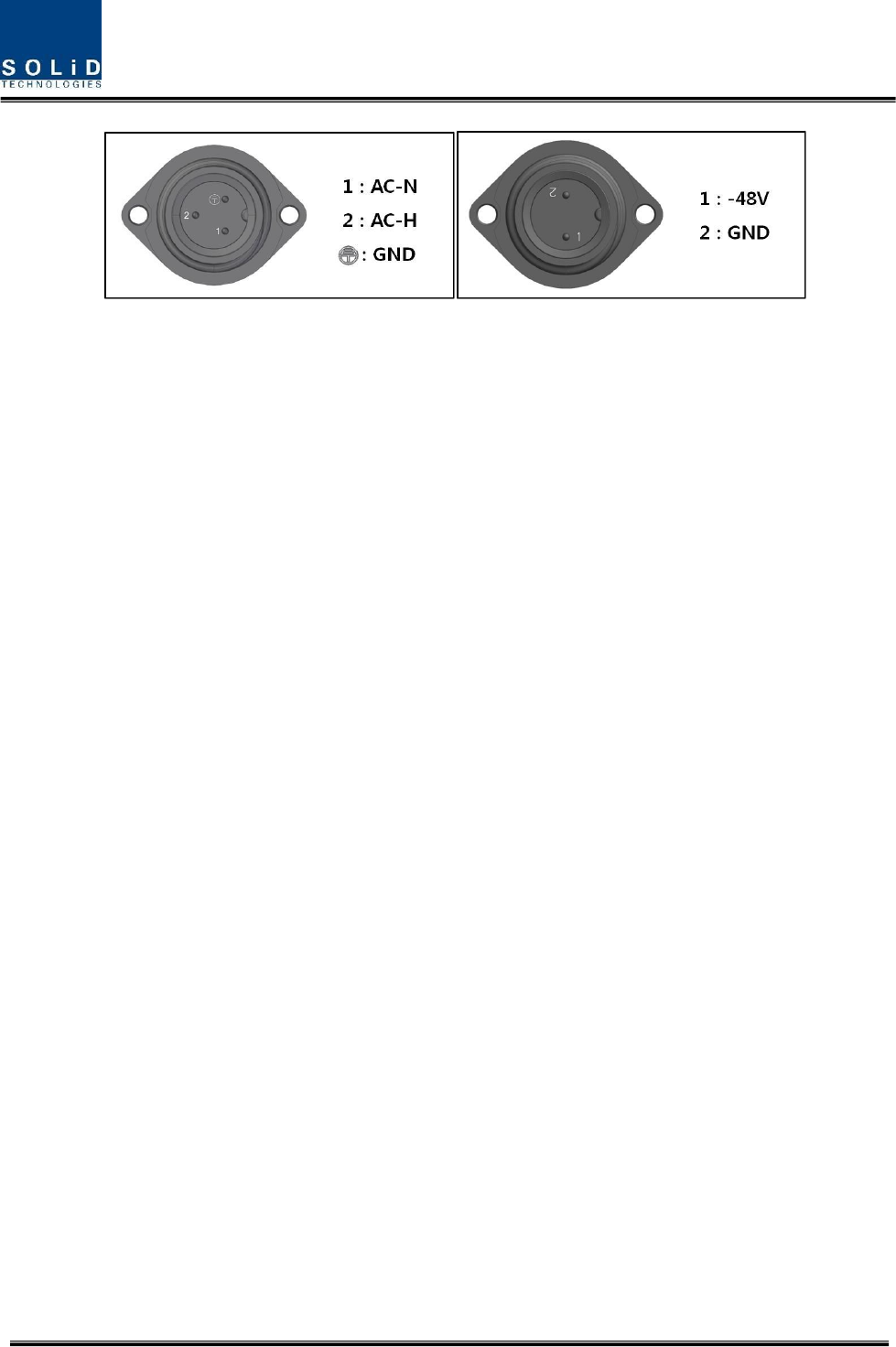

Figure 3.10 – ROU Power Port Look
Check if the connection is the same as one seen in the table above. ROU does not have power
switch to power on/off. If you power plug into concent of power, power supply is operated
automatically.
Confidential & Proprietary 26/30 SC-DAS
3.1.3 Optical Cabling
MRU makes optical-electronic conversion of TX signals from upper ODU and OEU and makes
electronic- optical conversion of RX signals. MRU has one optical module in it. As WDM is installed in
the R_OPT module, two pieces of wavelength (TX:1310nm, RX:1550nm) can be sent/received with
one optical strand at the same time. MRU has SC/APC of optical adaptor type.
For optical adaptor, SC/APC type can be used. To prevent the optical access part from being marred
with dirt, it should be covered with a cap during move. When devices are connected through optical
cables, you are recommended to clear them using alcohocol to remove dirt.

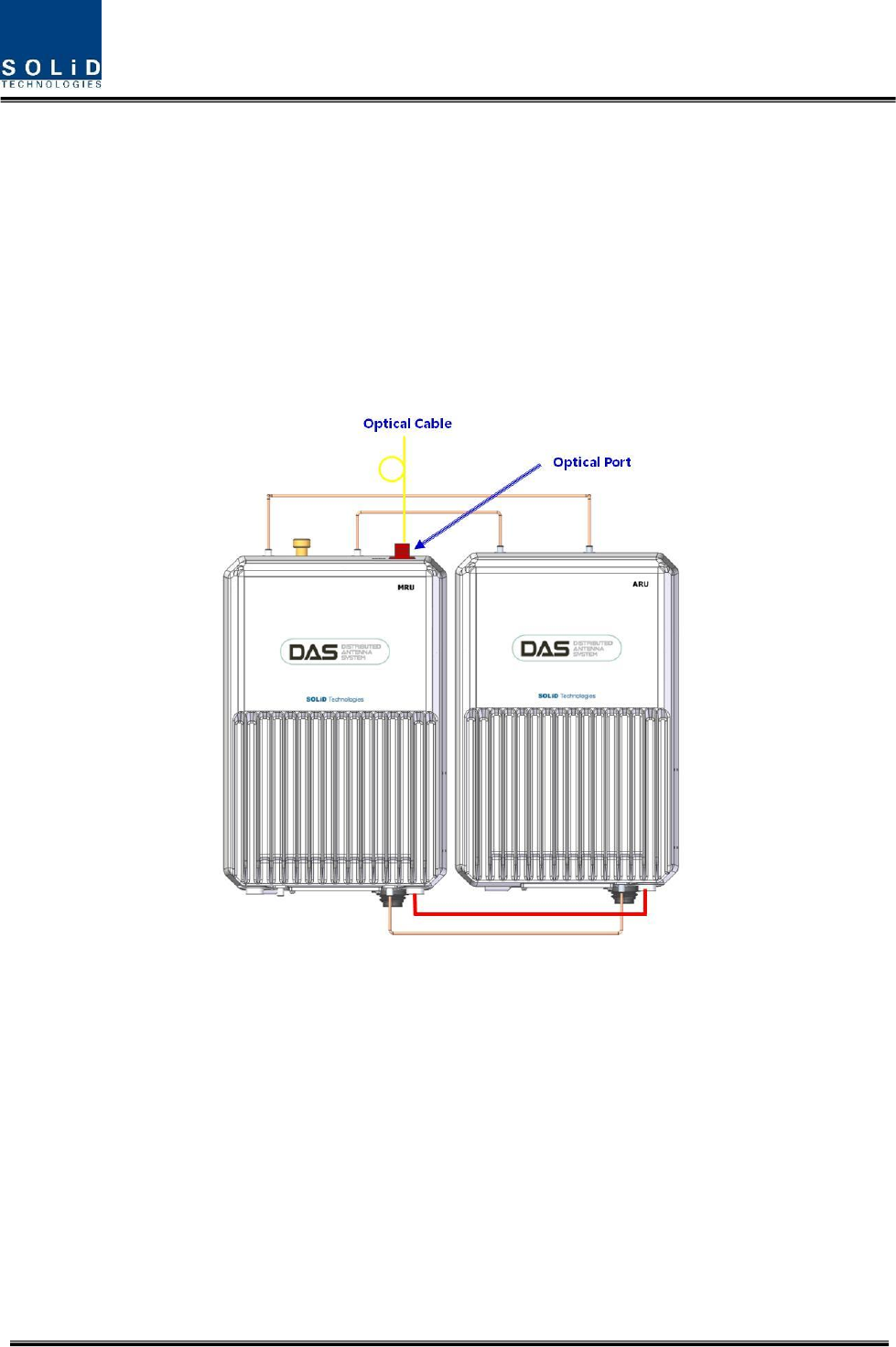

Figure 3.11 – ROU optical Port Look
Only MRU has optical port but ARU don’t have optical port
3.1.4 GND Terminal Connection
ROU has one GND terminal port where is on bottom side, like below
Confidential & Proprietary 27/30 SC-DAS

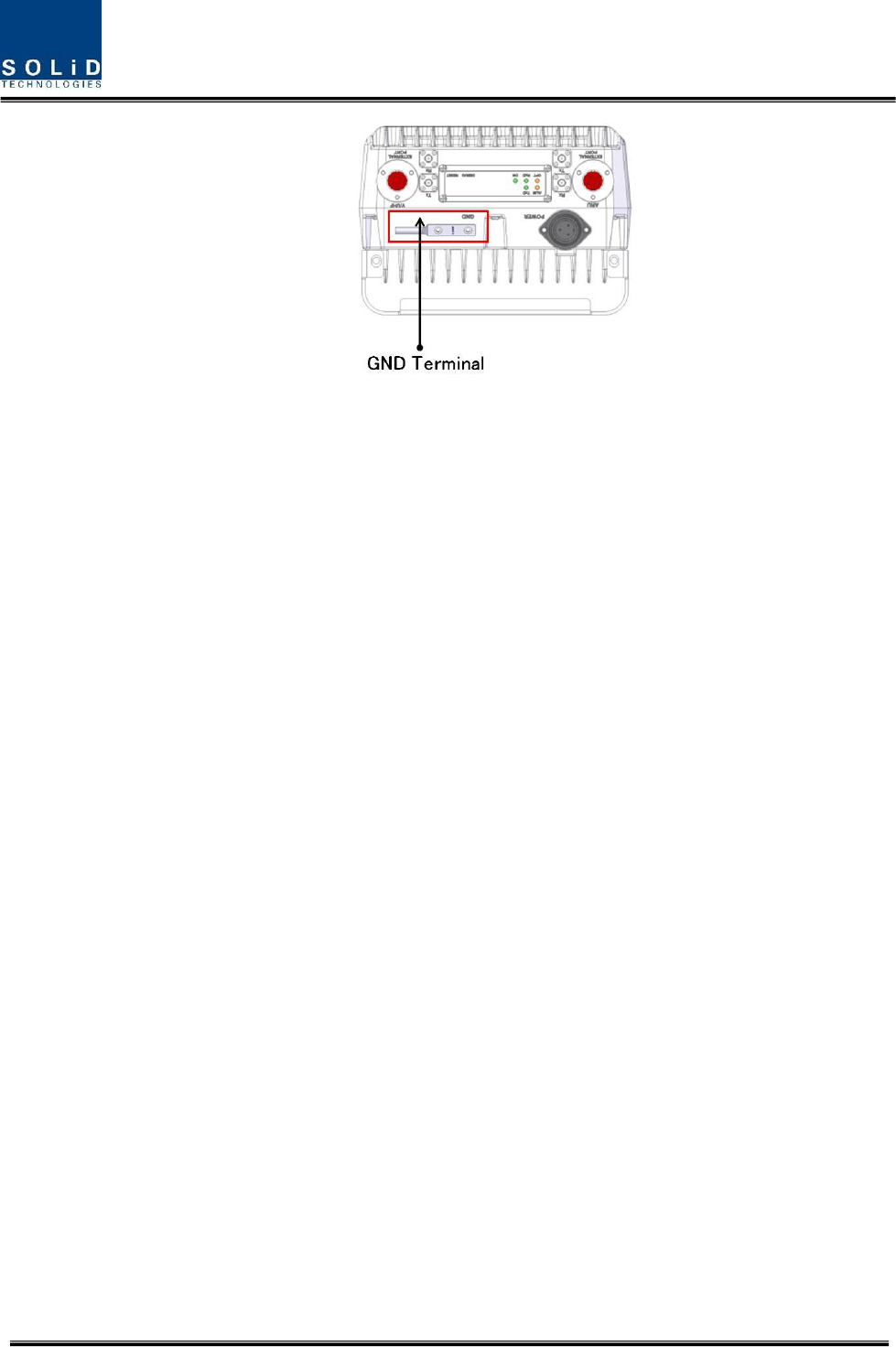

Figure 3.12 – ROU GND Port Look
- Take off the GND terminal port from enclosure and connect to ground cable, then fix it the
position of enclosure again
- The opposite end of the ground cable should connect to the communication GND of building
- The ground lug is designed meeting the SQ5.5 standard
3.1.5 Coaxial cable and Antenna Connection
- The coaxial cables which are connected to antenna distribued network connect to antenna
port of ROU. Before connection, check the VSWR value of coaxial cable whether it is within
specification using SITEMASTER .
- At this time, check if the Return loss have above 15Db or VSWR have below 1.5
- The part of antenna connection fasten to port not to be loosed and not to be injected the
dusty and insects
- The antenna connected to ROU is only serviced in inbuilding
- The ROU which have antenna port is only MRU, ARU transport their signal through RF
cable connected both MRU and ARU
Confidential & Proprietary 28/30 SC-DAS
3.1.6 Information of LED of ROU
ROU has LED pannel at the bottom of ROU. The LED indicator is as below

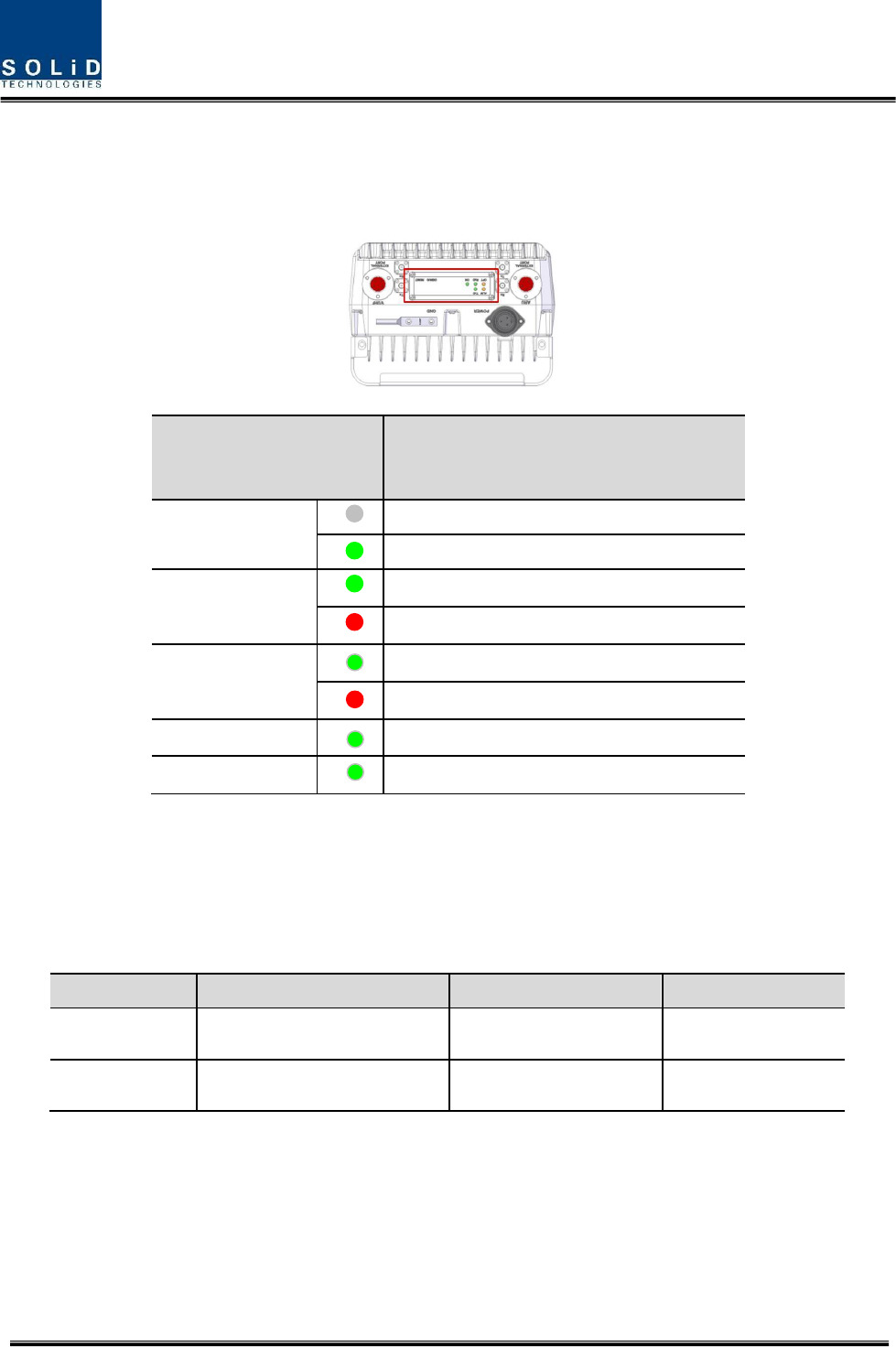

Figure 3.14 – ROU LED indicator information
3.1.7 Consumption of RDU
The following table shows power consumption of ROU
Part
Unit
Consumption Power
Remark
MRU
1900P+850C
50W
Dual Band
ARU
700LTE+AWS-1
40W
Dual Band
LED
Description
ON
Power is not supplied
Power is supplied.
ALM
Normal Operation
Abnormal Operation
OPT
R-OPT is normal operation
R-OPT is abnormal Operation
TXD
Twinkle when data send to upper unit
RXD
Twinkle when data receive from upper unit
Confidential & Proprietary 29/30 SC-DAS
3.1.8 Specifications Per band
Standard
Unit naming
Description
Frequency range
TX(MHz)
RX(MHz)
Cellular
850C
Cellular
869 to 894
824 to 849
PCS
1900P
PCS
1930 to 1995
1850 to 1915
AWS-1
AWS-1
AWS-1
2110 to 2155
1710 to 1755
LTE
700LTE
Long Term Evolution
728 to 757
699 to 716
777 to 787
850MHz Cellular
Parameters
Typical
Remarks
TX
RX
Bandwidth
25MHz
25MHz
Output power
+24dBm
+0dBm
Total
System Gain
44dB
50dB
input and output impedances
50 ohm
50 ohm
1900MHz PCS
Parameters
Typical
Remarks
TX
RX
Bandwidth
65MHz
65MHz
Output power
+28dBm
+0dBm
Total
System Gain
48dB
50dB
input and output impedances
50 ohm
50 ohm
AWS-1
Parameters
Typical
Remarks
TX
RX
Bandwidth
45MHz
45MHz
Output power
+28dBm
+0dBm
Total
System Gain
48dB
50dB
input and output impedances
50 ohm
50 ohm
Confidential & Proprietary 30/30 SC-DAS
700MHz Long Term Evolution
Parameters
Typical
Remarks
TX
RX
Bandwidth
29MHz
28MHz
Output power
+24dBm
+0dBm
Total
System Gain
44dB
50dB
input and output impedances
50 ohm
50 ohm

Navigation menu
