SPRINGCARDS PRNU11 RFID USB Smartcard Reader User Manual ESL84UP AD
Pro Active SAS RFID USB Smartcard Reader ESL84UP AD
Users Manual
ESL84UP-AD
20/03/2009
Headquarters, Europa
SpringCard
13 voie la Cardon
Parc Gutenberg
91120 Palaiseau
FRANCE
Phone : +33 (0) 164 53 20 10
Fax : +33 (0) 164 53 20 18
Americas
SpringCard
964 Fifth Avenue
Suite 235
San Diego, CA 92101
USA
Phone : +1 (619) 544 1450
Fax : +1 (619) 573 6867
www.springcard.com
SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.
All other brand names, product names, or trademarks belong to their respective holders.
Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.
PROXN ‘ROLL
U
SER MANUAL
ESL84UP-AB
2 / 10
SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.
All other brand names, product names, or trademarks belong to their respective holders.
Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.
DOCUMENT INFORMATION
Category : Studies & concept
Group :
product
Reference :
ESL84UP
Version :
AA
Status :
document1
saved 20/03/09 - printed 20/03/09
REVISION HISTORY
Valid. by
Ver. Date
Author Tech. Qual.
Approv.
by
Remarks :
AA 17/12/08 JCH XXX XXX XXX First release
AB 30/01/09 JCH Technical specification : Add
Device is powered by a limited power source
AC 05/03/09 JCH Adding FCC informations
AD 20/03/09 JCH Operational description upgraded
ESL84UP-AB
3 / 10
SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.
All other brand names, product names, or trademarks belong to their respective holders.
Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.
TABLE OF CONTENT
1.
PRODUCT DESCRIPTION........................ 4
1.1.
O
PERATIONAL DESCRIPTION
......................... 4
1.2.
T
ECHNICAL
D
ESCRIPTION
............................ 4
1.3.
C
AUTION TO USERS
................................... 5
1.4.
C
ONVENTIONNAL OPERATION
........................ 6
1.5.
I
NSTRUCTION
F
OR
T
EST
S
ETUP
..................... 7
1.6.
D
OCUMENT
L
IST
...................................... 8
ESL84UP-AB
4 / 10
SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.
All other brand names, product names, or trademarks belong to their respective holders.
Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.
1.
PRODUCT DESCRIPTION
1.1. O
PERATIONAL DESCRIPTION
Prox’N’Roll is a versatile 13.56 MHz contactless USB smartcard reader and encoder for PC/Laptop.
It reads and writes all ISO 14443 compliant contactless smartcards within a distance from 0 to 5 cm.
It supports USB full speed (12Mbps) and fastest smartcard baud rate (up
to 848kbps). Prox’N’Roll is directly powered by the PC/Laptop through its USB connection.
ProxN’Roll can be used with legacy (Prox’N’Roll isdetected as a serial communication port) or PC/SC
driver (Prox’N’Roll is detected as a USB smartcard reader).
Prox’n’Roll generates a RF field permanently and uses inductive coupling (magnetic field) to power
the smartcards and communicate with them using AM modulation. The ID tag answer is demodulated
and decoded by the Prox’N’Roll and sent to the PC/Laptop.
Prox’N’Roll has three different LED lightning circuits (blue, green, red) integrated. These LEDs are
used as status indicators :
Blue Led : Prox’N’Roll is fully operational, connected and recognized by laptop
Green Led : the TAG had been read successfully
Red Led : an error occurred during reading or writing operation of the tag
There is also a buzzer indicating the presence of a Tag the RF field.
1.2. T
ECHNICAL
D
ESCRIPTION
Name : ProxNRoll
Part Number : PRNU11
Power supply : USB Bus powered : 5V +/-10%
Device is powered by a limited power source
In accordance with EN 60950-1:2006.
Current consumtion : typ : 200mA - Max :250mA
Operating temperature : -20 / +70°C
Storage temperature: -40 / +85°C
Weight: 150gr
Length USB cable: 1.80m
Overload protection: Polyswitch 500mA, Transil 5V on USB power line
ESD protection: On USB power line and data line
15kV ( air discharge)
8kV (contact discharge)
Mechanical UL-HB class
RoHS compliance
ESL84UP-AB
5 / 10
SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.
All other brand names, product names, or trademarks belong to their respective holders.
Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.
Intentionnal Radiator informations
Frequency range : 13.56Mhz – AM modulation 106 – 848kbps
Antenna : integrated
Local oscillator: 13.56Mhz – 24Mhz .
Regulatory FCC Part 15 class B
FCC ID: TYQPRNU11
1.3. C
AUTION TO USERS
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference
(2)This device must accept any interference received, including interference that may cause undesired operation
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment
FCC Compliance Statement according to Section 15.105 (b):
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
ESL84UP-AB
6 / 10
SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.
All other brand names, product names, or trademarks belong to their respective holders.
Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.
1.4. C
ONVENTIONNAL OPERATION

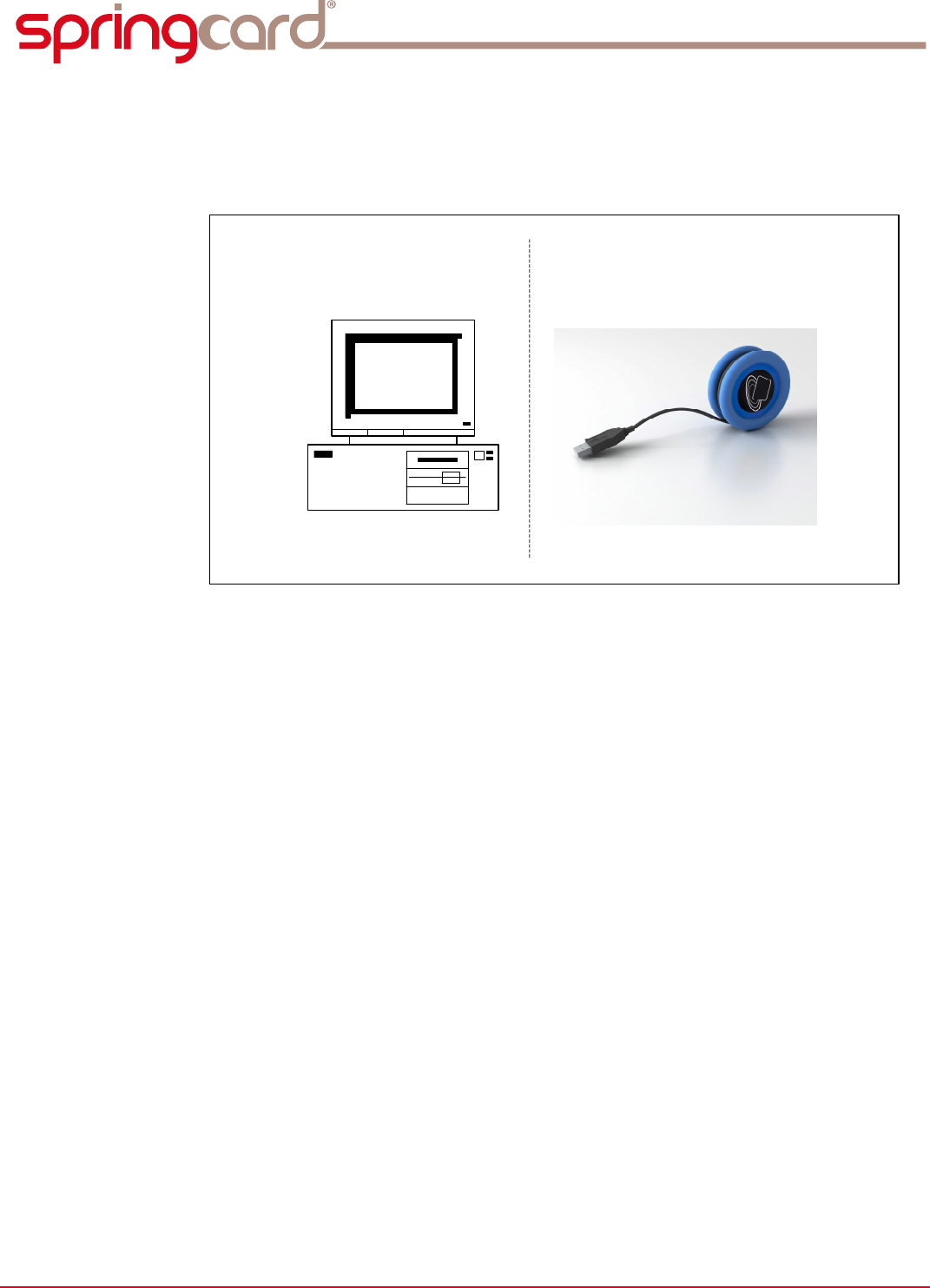

1.4.1. Arrangement Diagram
ProxN’Roll
PC or Laptop
with USB port
ESL84UP-AB
7 / 10
SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.
All other brand names, product names, or trademarks belong to their respective holders.
Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.
1.5. I
NSTRUCTION
F
OR
T
EST
S
ETUP
- Install CSB6 Familly legacy driver SDD470-BA.EXE
- Connect the reader to PC or Laptop
- In panel configuration Check for the Com Number used ( Comx).
- Launch HyperTerminal with settings ( 38400, 8, N, 1 without flow control)
- Put contactless Smartcard on the reader
- Type “tag” command
- Check contactless smartcard serial number response.
Example: contactless Smartcard found:
> tag
2375656 0004 28
OK
Example : cantactless Smartcard not found
> tag
err -1
In this way, after typing “tag” command the RF field is active all the time.
Close hyperterminal before unplug the reader from USB port.
There is no safety restriction for hot unplug the reader from USB port.
ESL84UP-AB
8 / 10
SPRINGCARD, the SPRINGCARD logo, PRO ACTIVE and the PRO ACTIVE logo are registered trademarks of PRO ACTIVE SAS.
All other brand names, product names, or trademarks belong to their respective holders.
Information in this document is subject to change without notice. Reproduction without written permission of PRO ACTIVE is forbidden.
1.6. D
OCUMENT
L
IST
Reference Version type
PFL8P7P AC PDF datasheet
EAS887P AB PDF schematic
EAN81CP AC PDF ProxNRoll RC632 based – Components list
EAN8I7P AA PDF ProxNRoll Blue mechanical list
EAN85LP AA PDF ProxNRoll usb cable list
PCB-EAS887P AB ZIP PCB layout
EAS887P AB FRP Components layouts ( netlist)
ESI895P AB PDF Top component placement
ESI896P AB PDF Bottom component placement
EPC8J0P AB PDF Usb cable placement
ESI85KP AB PDF ProxNRoll USB cable specification
EST85PP AA PDF Technical specification PCB
ESL85RP AA PDF Technical specification mechanical housing
PNA85MP AA PDF RoHS Compliance certificate
SDD470 AE EXE CSB6 Familly legacy driver
