Wall Mount Booster LG

Installation

Instructions

FCC ID: NTAWMLG

IC: 4732A-WMLG

14-Nov-11

101 REGENCY PARKWA

MANSFIELD, TX 76063

817-842-8000

FAX 817-842-8100

CAUTION

TheUserandtheInstallershouldbeawarethatchangesandmodificationstothe

equipmentnotexpresslyapprovedbyMasterMetercouldvoidwarrantyandthe

user'sauthoritytooperatetheequipment.

Professionallytrainedpersonnelshouldinstalltheequipment.



Theantennausedforthistransmittermustbeinstalledtonormallyprovideminimum

separationdistanceofatleast20cmfromallpersonsandmustnotbeco‐locatedor

operatinginconjunctionwithanyotherantennaortransmitter



ATTENTION

Thedigitalportionofthetransceiverhasbeentestedandfoundtocomplywiththe

limitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare

designedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential

installation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,

ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethatinterference

willnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful

interferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe

equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyone

ormoreofthefollowingmeasures:

1.)Reorientorrelocatethereceivingantenna.

2.)Increasetheseparationbetweentheequipmentandreceiver.

3.)Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

4.)Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



ThisdevicecomplieswithPart15ofFCCRulesandwithIndustryCanadalicence‐exempt

RSSstandard(s).Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and

(2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay

causeundesiredoperation.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux

appareils radio exempts de licence. L'exploitation est autorisée aux deux

conditions suivantes :

(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil

doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d'en compromettre le fonctionnement.

101 REGENCY PARKWA

MANSFIELD, TX 76063

817-842-8000

FAX 817-842-8100

INTRODUCTION

The2WM‐LGendunitforwatermetersprovidestwo‐waycommunicationcapabilities

overtheLandis&GyrGridstreamTMRFNetwork.



The2WM‐LGisbatteryoperatedunitintheunlicensed902‐928MHzband.Theunit

complieswithPart15oftheFCCrules



Followingarethemainfeaturesofthe2WM‐LGunit:



 Periodicallytransmissionofthewatermeterreadings(1‐4timesperday)

 Onrequestreadsforlast‐timemeterreads

 Alarmreport&datalogging

 Remote,over‐the‐airfirmwareupgrades

 Remoteunitconfigurations

 Confirmationofnetworkconnectivity



The2WM‐LGmaybeconnectedtothefollowingmeters(butnotlimitedto):



 SegentiaTM

 InvensysTM

 Hersey5/8"TM

 ABBTM

 NeptuneARB_VTM

 NeptuneARB‐2TM

 SensusTM

 SchlumbergerARB_VTM

 3GLCD(Aradtechnologies)TM

101 REGENCY PARKWA

MANSFIELD, TX 76063

817-842-8000

FAX 817-842-8100

1‐PlaceSetting



o The2WM‐LGunitcanbewallmountedinan

externalopensiteorwithinbuildings



Note:

The2WM‐LGdatatransmissionmaybeadversely

affectedifitisinstalledclosetoRForEMnoise

generators,forexample:airconditionerunits,

electricgenerator,radiotransmitter,carparking

andothers.

Ifyouencountersuchproblems,pleaseconsult

MasterMeterServicerepresentativefortechnical

assistance.



101 REGENCY PARKWA

MANSFIELD, TX 76063

817-842-8000

FAX 817-842-8100

2–KitContents

Quantity Name

1

2

1

2WM‐LGunit

SealCover

WallMountClip

Tappingscrew

Plasticmasonryinsert

IDlabelstickerformeteridentity



101 REGENCY PARKWA

MANSFIELD, TX 76063

817-842-8000

FAX 817-842-8100

2WM‐LGunit–Profile#1

101 REGENCY PARKWA

MANSFIELD, TX 76063

817-842-8000

FAX 817-842-8100

3–InstallationProcedure



The2WM‐LGisintendedforwallinstallationinopensitesandbuildings.



1.Markthelocationsofthetwoscrewsonthewall,accordingtotheholesinthewall

mountclipoftheunit.



2.Drill2holesandinsertthePlasticmasonryinserts.

3.Connectthewallmountclipwiththetwoscrewsupplied.



Mark

Location

Insert

screws

101 REGENCY PARKWA

MANSFIELD, TX 76063

817-842-8000

FAX 817-842-8100



4.Attachedthe2WMB‐LGunittotheclip.



5.Sealthecableholewiththesuppliedsealcover.



2WM‐LG

onthewall

SealCover

101 REGENCY PARKWA

MANSFIELD, TX 76063

817-842-8000

FAX 817-842-8100

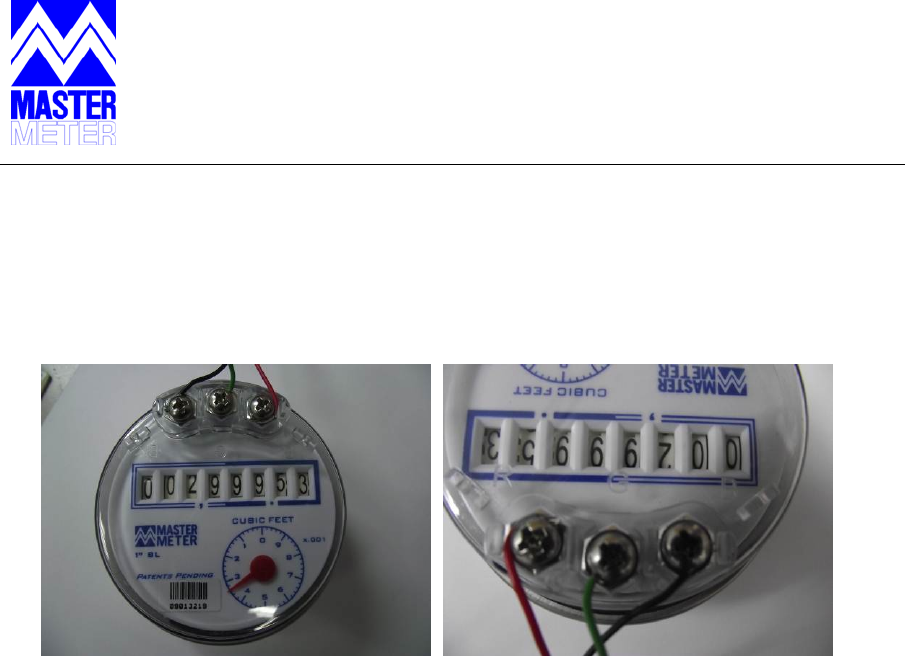

6.Connectthewireoftheunitaccordingtotheconnectionguideonthewaterunit,pay

attentiontoconnectitright.



101 REGENCY PARKWA

MANSFIELD, TX 76063

817-842-8000

FAX 817-842-8100

4–UnitActivation



1.FacetheMagnetonthe2WMB‐LGcase.

2.Removethemagnetafter5seconds.
