SZ PGST PG101 GSM anti-theft alarm controller User Manual
SZ PGST CO., LTD GSM anti-theft alarm controller
SZ PGST >
User Manual
GSM anti-theft alarm controller
User manual
App Store
Android
Scan here
download and install APP
QR code
99+8 DEFENSE ZONES
GSM anti-theft alarm controller
Preface..........................................
Function Introduction....................................................................................
Alarm Host Installation..................................................................................
Installation and Use of Infrared Detector......................................................
Installation and Use of Magnetic Door Sensor..............................................
Functions Setting...........................................................................................
1. Initialization...............................................................................................
2. System Setting...........................................................................................
3. Exit Setting.................................................................................................
4. Coding of Remote Controller Setting.........................................................
5. Remote Controller Deleting Setting...........................................................
6. Coding of Wireless Detector Setting ........................................................
7. Single Wireless Detector Deleting Setting ................................................
8. All Wireless Detectors Deleting Setting ....................................................
9. Alarm Type Setting ....................................................................................
10. Wireless Siren Coding Setting ...............................................................
11. Remotes Operation Voice Prompt Setting...............................................
12. Siren Ring Time Setting...........................................................................
13. Arm Time Delay Setting.......................................................................
14. Defense Zone Alarm Time Delay Setting.............................................
15. Telephone Dial-up Cycle Times Setting...................................................
16. Remote Call Ringing Times Setting.........................................................
17. Recording Setting....................................................................................
18. Password Change Setting.......................................................................
19. Host Keypad Lock Setting........................................................................
20. Host Timing Arm/Disarm Enable/Disable Setting ...................................
21. Host Timing Arm/Disarm Setting .............................................................
22. Host Reset Setting...................................................................................
23. Host Logs Inquires ..................................................................................
................................................................ 3
4
5
7
8
9
9
9
9
9
10
10
11
11
12
14
14
15
15
16
16
17
17
18
19
19
20
20
21
24. Host Logs Deleting ................................................. .
25. SMS Notification of Arm/Disarm..............................................................
26. System Clock Setting...............................................................................
27. SMS Phone Number Setting....................................................................
28. SMS Phone Number Deleting..................................................................
29. Alarm Phone Number Setting...................................................................
30. Alarm Phone Number Deleting.................................................................
31. Defense Zone Alarm Type Setting...........................................................
32. Host GSM Signal Checking......................................................................
33. LCD Backlight Duration Setting ...................................................................
34. Sound Volume Setting .............................................................................
35. Language Setting ....................................................................................
Mobile APP Operation ...................................................................................
Daily Operation ............................................................................................
Out Arm....................................................................................................
Stay Arm...................................................................................................
Disarm......................................................................................................
Answer Alarm Call....................................................................................
Remote Control by SMS...........................................................................
Remotely Control.....................................................................................
SOS..........................................................................................................
Maintenance..................................................................................................
Technical Parameters 1、2............................................................................
Technical Parameters 3 ................................................................................
...... .......................... 21
21
22
23
23
24
24
25
26
26
27
27
28
31
31
32
33
33
34
34
34
35
36
37
-2--1-
Contents
GSM anti-theft alarm controller GSM anti-theft alarm controller
Preface
Thank you for choosing the wireless alarm system product of our company.
Wireless alarm system adopts the most advanced digital sensing and controlling
technologies, it is the intelligent alarm control system containing burglar alarm, fire alarm, fire
fighting, gas leakage and SOS.
Wireless alarm system uses the most advanced multiple random selection technology, it
avoids the problems of interference and alarm missing which usually exist in the similar
systems. This system can be used widely in residence, shops, villa, small enterprise and so on.
For your safety, before installing and using, we suggest you read this manual carefully.
-4--3-
GSM anti-theft alarm controller GSM anti-theft alarm controller
Function Introduction
Apply advanced mobile communication technology, support SMS and dialing alarm, etc.
8 wired defense zones and 99 wireless defense zones.
At most 5 wireless remotes to be coded.
LCD display. Built-in clock. Operate easily.
Sound prompt for all operations.
Live voice installation setting and daily operations are much easier.
SMS prompt when AC power lost or recovered.
Built-in intercom horn, walkie talkie can be realized.
Built-in wireless transmitting module, could be coded with smart home appliance.
Arm and Disarm timing function.
Can store 6 groups of phone numbers: when alarming, system will make alarm call to these numbers
automatically.
Can store 2 groups of SMS numbers: when alarming, system will send alarming SMS automatically.
Can inquire host status by SMS
Can set 0-99 seconds delayed alarm for single defense zone
10-second recording, automatically play when alarm comes.
Built-in digital voice announcer, automatically broadcast the alert-situation during the alarm .
Built-in Chinese/English SMS message, can send out alarm message automatically when alarm.
Users can make calls by using keypad on alarm
Additional functions: can be used as a mobile, can realize the functions of dialing, bill query, and
phone recharge.
One-key-control function: Out Arm, Stay Arm, Remote Arm; with Real-time, 24 hours, bypass defense
zones programming function.
Wireless coding: easy and quick to add additional wireless accessories. Remote control Arm, Disarm,
Monitor, and Intercom by phone.
Remote control Arm, Disarm, Monitor, and Intercom by phone.
Event Log Query: host automatically records 10 pieces of alarm information
Multi-type of arm: Remote control arm, out arm, stay arm, timed arm, arm by phone remotely.
Built-in lithium polymer: make alarm when power off.
Compatible with the protocol of international normal Central Station Recivers, CID alarm
communication protocol.
GND
GND
GND
GND
MIC
Power adaptor port
Power switch
Wired defense zone
Built-in horn
GSM signal indicator

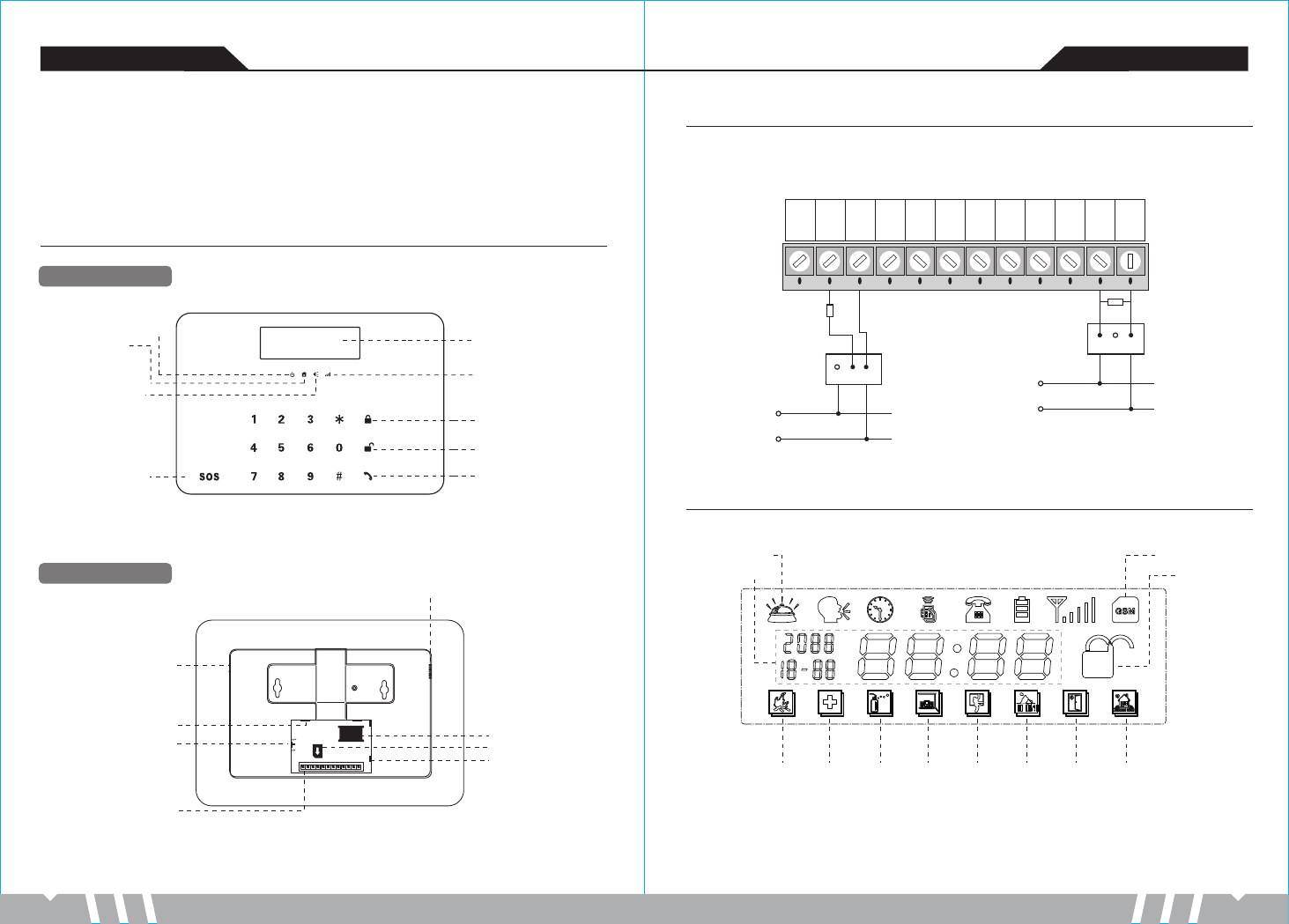

The host shall be installed in the center of the prevent site which could realize best
receiving effect from all wireless detectors. Please note that keep the host away from large-
sized metallic objects and home appliances producing high-frequency interference; Meanwhile
avoid steel-reinforced concrete and fire-proof doors.
Panel schemes:
-5- -6-
Z1
Z2
GND
Z3
Z4
GND
Z5
Z6
GND
Z7
Z8
GND
NO
+
-
+
-
Arm/Disarm
GSM anti-theft alarm controller GSM anti-theft alarm controller
Alarm Host Installation
Power indicator(light)
Arm indicator
Alarm indicator
SOS
LCD
Arm
Disarm
Dial-up key
SIM slot
TF slot
Wired siren port
wire connecting terminal：
LCD display:
ZONE 1
ZONE 2
ZONE 3
ZONE 4
ZONE 5
ZONE 6
ZONE 7
ZONE 8
For NC connection
Wired accessories A
Positive Negetive
Power supply
NC
COM
NO NC
COM
For NO connection
Wired accessories B
Positive Negetive
Power supply
Alarm icon
Clock/Defence
Status icon
Fire Alarm SOS Gas
Alarm
Hall
Alarm
Window
Alarm
Balcony
Alarm
Locks
Alarm
Perimeter
Alarm
Front of the host
Back of the host
Should pay attention to the following with infrared
detector installation:
1.Avoid the detector facing out of the window;
2.Within coverage of detection, there shall not be obstruction, such as shield, furniture, large
potted plants etc.
3.Avoid more than one detector in the same place, as they will possibly intervene with each
other by triggered simultaneously.
4.To avoid facing the window, cooling or warming machines, or other appliances that might
cause prompt temperature change and thus cause false alarm.
5.The detector needs about 3 minutes to perceive the surrounding environment after turn on,
then can arm or disarm by remote controller.
6.The detector needs several seconds to analyse and confirm when it detects the invasion
body, then release the alarm signals, thus can avoid false or missing alarm.
7.PIR detector is only for indoor use. ( Prohibit installing outdoors).
Installation and Use of Magnetic Door Sensor
Door sensor is installed on the door. First clean a right place of the door, take out the sensor
and then stick a double-sided adhesive at the bottom. Should pay attention to the following
when installing.
1.The transmitter(sensor body) and the magnetic bar should be installed separately, that is,
the body should be installed on the fixed frame and the magnetic bar should be installed on the
mobile door. (Notes: emitter indicator light nears the bar. ).
2.The magnet is installed apposite the transmitter, the distance between them should not be
more than 1 cm.
3.After installation, the indicator light flashes one second while opening the door which
means installation is available. Indicator light flashes 3 times which means the low power of the
battery, should replace the battery in time.
-7- -8-
GSM anti-theft alarm controller GSM anti-theft alarm controller
Please tear off the plastic insulating tape before use. Installation height is about 2.2 meters
from the ground, should be installed in a corner indoors to obtain the ideal detection range, at
the same time should be an angle with walking line indoors (The detection effect is best with
people’s walking direction into 90 - degree angle).
Installation method: Take out the bracket & base attached, insert the bracket into the slot of
the bottom of the PIR housing; fix the base firmly with two pieces of the screw, and insert the
bracket into the slot on the back of PIR detector and fix well.

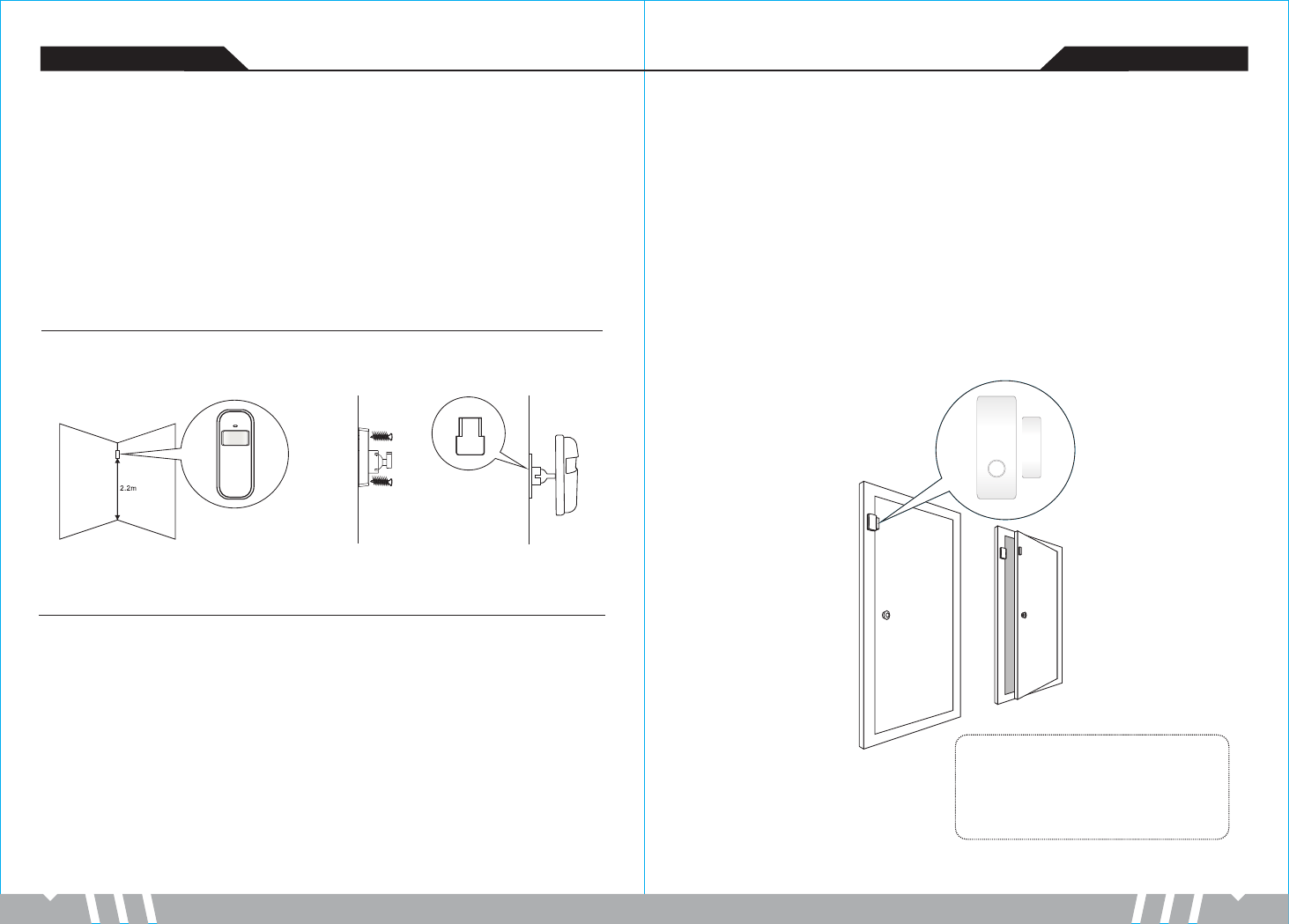

Installation and Use of Infrared Detector
The recommended installation height
is 2.2m from the ground.
As shown below:
1.To determine the installation location 2.To fix the PIR detector
Fix the mounting bracket into the wall with
screws, and insert the bracket into the slot
on the back of PIR detector and fix well.
Ground
Please check whether the signal between door sensor
and alarm host is OK or not before fix the device; if
install on a metal door, to block up the bottom of
sensor to avoid shielding the signal; this product is
not suitable with the roller shutter, please buy the
special device if you need.
Notes:
Please insert SIM card and power on the system by adapter, built-in speaker would make a
sound, and all icons display on the LCD, the time shows normally after all LED indicators are
ON. Signal mark with 5 grids on screen in 10 seconds means host starts up normally with
strong GSM signals. Also check whether the signal indicator flashes once every 2s; Finally,
move the backup battery switch to ON.
-9- -10-
GSM anti-theft alarm controller GSM anti-theft alarm controller
Function Setting
1.Initialization
Input 4-digit administrator password on the host and press [#] button to confirm. You will
hear a voice prompt: please enter instruction. At the same time,［- - - -］displays on the screen,
indicating the system enters setting status. You can perform different settings repeatedly as
long as the system keeps in setting status. The system will exit setting mode and return to
normal status in 35s once you stop doing any operations.

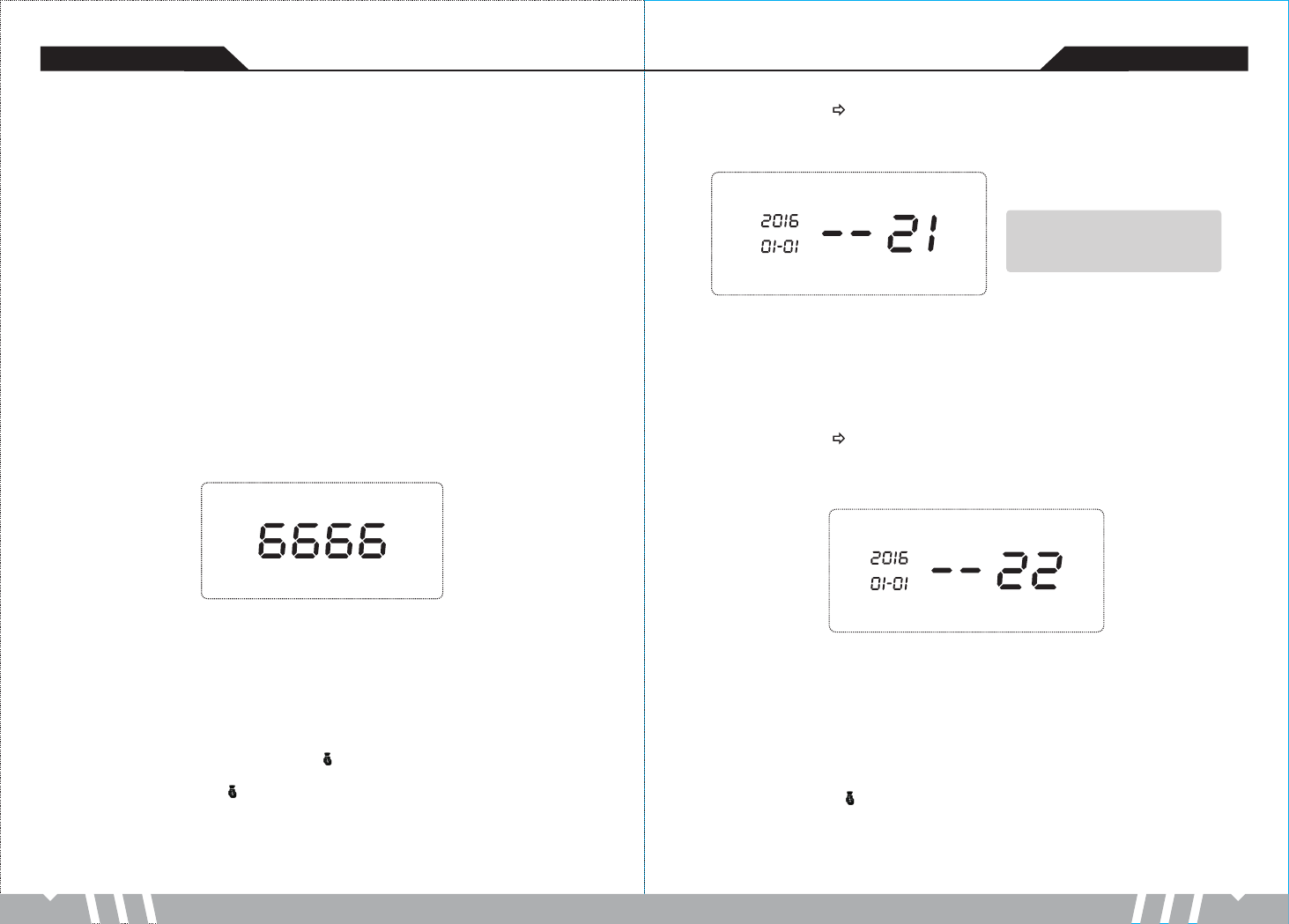

2.System Setting
Notes: The system default administrator password is [6666].
Operating method: [XXXX] [#]
X indicates: 4-digit admin password
LCD display：
3.Exit Setting
Press [*] button if you want to exit setting state after finishing setting or return to former
operation, the host would make a “tick” sound and setting is finished.
Operating method: press [*] button
4.Coding of Remote Controller Setting
In setup state, input number [21] , then press [#] to confirm. The host make a “tick” sound
and you will hear “remote control coding” .the [ ] indicator is on without flashing; Press any
button on the wireless remote controller, The host makes a “tick” sound, and then a voice
prompts “setting completed”. [ ] indicator goes out, indicating the remote controller succeeds
in coding. The code of next remote controller will be displayed on the LCD screen
automatically, when coding completed.
Operating method: [21] [#]
LCD display：
Notes: The same remote controller
could be coded just once.
You can add maximum 5 remote
controllers.
5.Remote Controller Deleting Setting
In setup state, use keypad to enter [22], then press [#] to confirm. The host makes a “tick”
sound, and then a voice prompts “setting completed”.
Operating method: [22] [#]
LCD display：
6.Coding of Wireless Detector Setting
In setup state, input number [23], and input the defense zone number you want to code
[02~99], and then press [#] to confirm. LCD would show the defense zone accordingly. You will
hear a voice prompt “detector coding”. Then trigger a wireless detector to emit a wireless
signal; after receiving the signal, the host makes a “tick” sound, and then a voice prompts
“setting completed”. , the [ ] indicator goes out at the same time.
7.Single Wireless Detector Deleting Setting
In setup state, enter number [24] and then press the [02~99] defense zone number which
needs to be deleted, finally press [#] to confirm. The host makes a “tick” sound, and then a
voice prompts “setting completed”. Notes: The deleted sensor for zone would be invalid, so
think it over before you want to delete.
-11- -12-
GSM anti-theft alarm controller GSM anti-theft alarm controller
Operating method: [23] [XX] [#]
XX Indicates：02~99 defense zones number
Example: Code defense zone 02
Operating method: [23] [02] [#]
LCD display：
Operating method: [24] [XX] [#]
XX indicates：02~99 defense zones number
Example：Delete defense zone 02
Operating method: [24] [02] [#]
LCD display：
8.All Wireless Detector Deleting Setting
In setup state, enter number [25], finally press [#] to confirm. The host makes a “tick” sound,
and then a voice prompts “setting completed”. Notes: The deleted sensor for zone would be
invalid, so think it over before deleting.
Operating method: [25] [#]
LCD display：
9.Alarm Type Setting
9.1 There are 4 Defense Types:
Detector alarm type is set to “0”: This detector will not trigger the host to alarm in any status.
Detector alarm type is set to “1”: This detector will trigger the host to alarm whether in Out
Arm or Stay Arm state.
Detector alarm type is set to “2”: This detector will trigger the host to alarm only in Out Arm
state; host is in Stay Arm state, the detector cannot trigger
the host to alarm.
Detector alarm type is set to “3”: This detector will trigger the host to alarm in any status.
9.2 Wireless Detector Alarm Type Setting
In setup state, input number [26], and then press the defense zone number [02~99] and then
input detector alarm type [0~3], finally press [#] to confirm.The host makes a “tick” sound, and
then a voice prompts “setting completed”.
Operating method: [26] [XX] [Y] [#]
XX indicates: two-digit defense zone number
Y indicates: one defense zone alarm type
Example: setting 02 defense zone alarm type to be Out Arm or Stay Arm
-13- -14-
GSM anti-theft alarm controller GSM anti-theft alarm controller
Operating method: [26] [02] [1] [#]
LCD display：
9.3 Wired Detector Alarm Type Setting
In setup state, input number [47], and press the defense zone number[81~88] and then input
[0~3] about detector alarm type, finally press [#] to confirm. The host makes a “tick” sound, and
then a voice prompts “setting completed”.
Operating method: [47] [XX] [Y] [#]
XX indicates: two-digit defense zone number
Y indicates: one defense zone alarm type
Notes: wired defense zone of Z1 is equal to zone of 81, wired defense zone of Z2 is equal
to zone of 82, wired defense zone of Z8 is equal to zone of 88 in turn
Example: alarm type about defense zone of Z2 is set to Out Arm or Stay Arm
Operating method: [47] [82] [1] [#]
LCD display：
10.Wireless Siren Coding Setting
In setup state, input [28]+8-digit wireless siren coding, then enter [#] to confirm. The host
makes a “tick” sound, and then a voice prompts “setting completed”.
Note: Wireless equipment coding includes sc2262 coding four data bits & 8 address bits.
Operating method：[28] [XXXXXXXX] [#]
XXXXXXXX indicates：8-digit wireless siren coding
Example: detailed operating of wireless equipment coding is“01020102”
Operating method：[28] [01020102] [#]
LCD display：
11. Remotes Operation Voice Prompt Setting
In setup state, input number [31], and then input 0/1 , finally press [#] to confirm. The host
makes a “tick” sound, and then a voice prompts “setting completed”. Factory defaults: turn on
the voice
[ ]
Operating method：31] [X] [#]
X =“0” indicates：Voice prompt turns off
X =“1” indicates：Voice prompt turns on
Example: Turn on remotes voice prompt
Operating method：[31] [1] [#]
[
LCD display：
-15- -16-
GSM anti-theft alarm controller GSM anti-theft alarm controller
12.Siren Ring Time Setting
In setup state, enter [32], then input time [00~15] minutes, finally press [#] to confirm; The
host makes a “tick” sound, and then a voice prompts “setting completed”. Default: 3 minutes
Operating method: [32] [XX] [#]
XX indicates: siren ring time, unit: minute
Example: Set 2 minutes of siren ring time
Operating method: [32] [02] [#]
LCD display：
14.Defense Zone Alarm Time Delay Setting
In setup state, enter [34], then input defense zone [02~99], last input delayed time [00~99]
seconds, press [#] to confirm; The host makes a “tick” sound, and then a voice prompts “setting
completed”. Default: no delay
Operating method: [34] [XX] [YY] [#]
XX indicates：Defense zone
YY indicates：Delayed alarm time, unit: second
Example: Detailed operating of 5 seconds delayed alarm time for defense zone 05
Operating method: [34] [05] [05] [#]
LCD display：
13.Arm Time Delay Setting
In setup status, enter [33], then input delayed time [00~99] seconds, finally press [#] to
confirm; The host makes a “tick” sound, and then a voice prompts “setting completed”. Thus
arm time delayed setting is finished
Operating method: [33] [XX] [#]
XX indicates：Arm delayed time, unit: second
Example: detailed operating of 2 seconds delayed time arm
Operating method: [33] [02] [#]
LCD display：
15.Telephone Dial-up Cycle Times Setting
In setup state, enter [35], then input dial-up times [00~09], finally press [#] to confirm; next
the host makes a “tick” sound, and then a voice prompts “setting completed”. Default: 9 times
Operating method: [35] [XX] [#]
XX indicates: Telephone dial-up cycle times
Example: Detailed operating about 2 cycle times
Operating method: [35] [02] [#]
LCD display：
16.Remote Call Ringing Times Setting
In setup state, enter [36], then input ringing times [0~9], finally press [#] to confirm; The host
makes a “tick” sound, and then a voice prompts “setting completed”. Default: 6 times
Operating method: [36] [X] [#]
X indicates：ring times;
Example: Detailed operating of 2 times remote call ringing
Operating method: [36] [2] [#]
Notes: The host remote control is closed, when ringing times is set to 0
LCD display：
-17- -18-
GSM anti-theft alarm controller GSM anti-theft alarm controller
18.Password Change Setting
18.1Change User Password
In setup state, use keypad to input [38], then input the 4- digit new password, finally press [#]
to confirm. The host makes a “tick” sound, and then a voice prompts “setting
completed”.Default:1234.
Operating:[38] [XXXX] [#]
XXXX indicates：the new 4-digit password
Example: change the system password to 1012
Operating: [38] [1012] [#]
LCD display：
18.2Change Administrator Password
In setup status, use keypad to input [39], then input the 4- digit new password, and then
press [#] to confirm. The host makes a “tick” sound, and then a voice prompts “setting
completed”.Default:6666
Operating: [39] [XXXX] [#]
XXXX indicates: the new 4-digit password
Example: change the system password to 2846
Operating: [39] [2846] [#]
LCD display：
17.Recording Setting
Operating method: [37] [#]
LCD display：
In setup state, use keypad to input [37], and then press[#] to confirm. The host will emit a
“tick” sound and the [ ] indicator is on, and after 10 seconds count down, recording starts:
record at 30cm away from the host with moderate tone; 10 seconds later, the host will make a
“tick”sound, indicating the recording finish. Meanwhile, the recorded voice will replay.
Notes: The user password and
the Administrator password
cannot be the same.
-19- -20-
GSM anti-theft alarm controller GSM anti-theft alarm controller

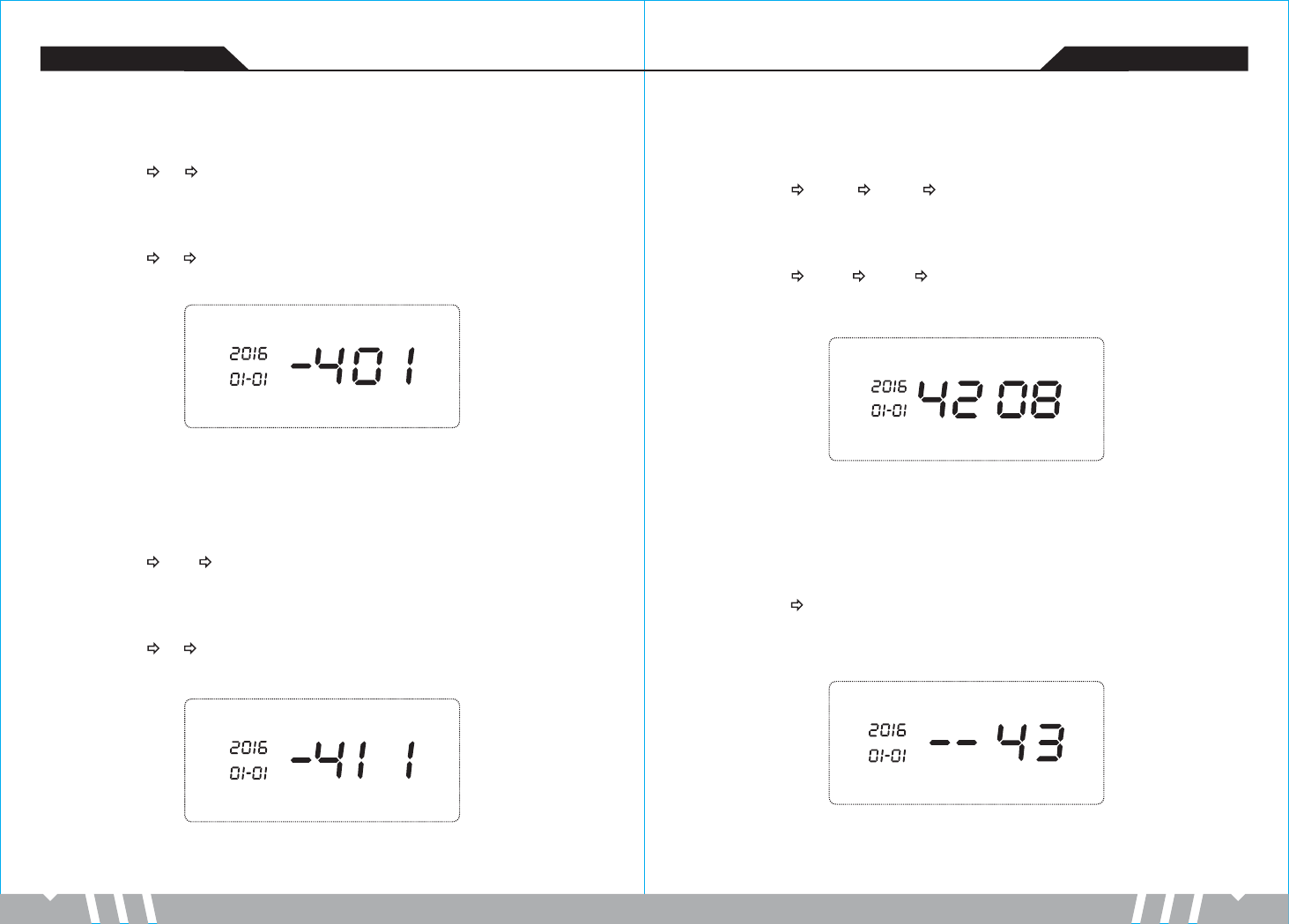

19.Host Keypad Lock Setting
In setup state, enter [40], then input [0/1], finally press [#] to confirm. The host makes a “tick”
sound, and then a voice prompts “setting completed”.
Operating: [40] [X] [#]
X=“0” indicates: off
X=“1” indicates: on
Example: Open the keypad lock
Operating: [40] [1] [#]
LCD display：
21. Host Timing Arm /Disarm Setting
In setup state, enter [42], and then input disarming time [AABB], and then input arming time
[XXYY], finally press [#] to confirm. The host makes a “tick” sound, and then a voice prompts
“setting completed”.
Operating: [42] [AABB] [XXYY] [#]
“AABB” indicates: disarming time—hour and minute
“XXYY” indicates: arming time—hour and minute
Example: set disarming to 8:20 and arming time to 20:30
Operating: [42] [0820] [2030] [#]
LCD display：
20.Host Timing Arm/Disarm Enable/Disable Setting
In setup state, enter [41], then choose on/off auto Arm or Disarm function key［1/0］, finally
press [#] to confirm. The host makes a “tick” sound, and then a voice prompts “setting
completed”. Factory default: off.
Operating: [41] [1/0] [#]
X=“0” indicates: off
X=“1” indicates: on
Example: Turn on timing Arm/Disarm function
Operating: [41] [1] [#]
LCD display：
22.Host Reset Setting
In setup status, first enter [43], then press [#] to confirm. The host makes a “tick” sound, and
then a voice prompts “setting completed”.(Remote controllers and detectors would not be
deleted).
Operating: [43] [#]
LCD display：
-21- -22-
GSM anti-theft alarm controller GSM anti-theft alarm controller

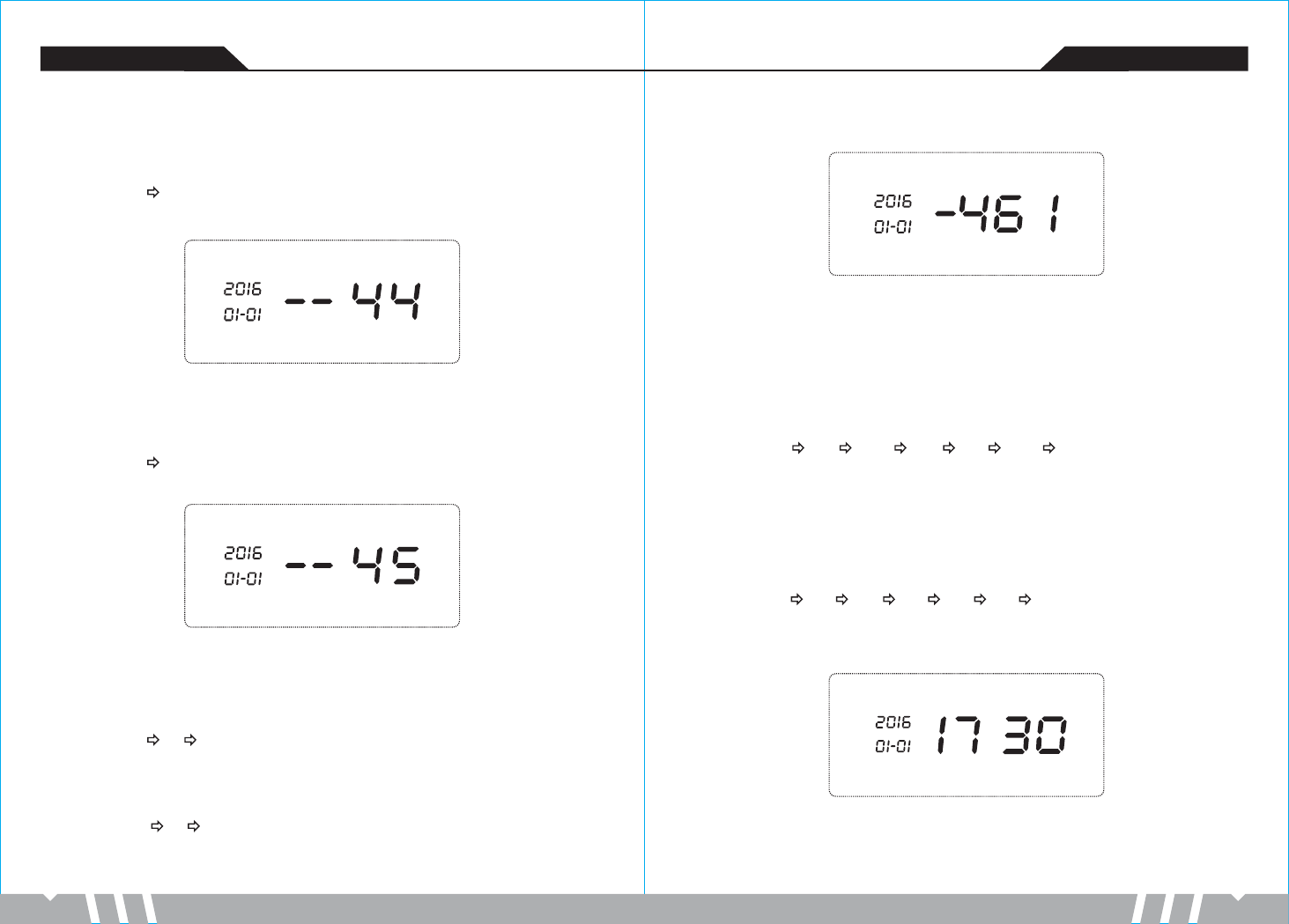

23. Host Logs Inquires
In setup state, first enter [44], then press [#] to confirm; The host will make a “tick” sound and
then enter into records list. Press “2” to page up and press “8” to page down. There are 10pcs of
alarm logs in total.
Operating: [44] [#]
LCD display：
24. Host Logs Deleting
In setup state, first enter [45], then press [#] to confirm. The host makes a “tick” sound, and
then a voice prompts “setting completed”. Thus host logs are removed.
Operating: [45] [#]
LCD display：
25.SMS Notification of Arm/Disarm
In setup state, first enter [46], then choose command key[0/1], that means whether to send
SMS to the user when Arm or Disarm, finally press [#] to confirm. The host makes a “tick”
sound, and then a voice prompts “setting completed”. Default: not send
Operating: [46] [X] [#]
“X=1” indicates: send.
“X=0” indicates: not send
Example: send out SMS to user's mobile phone
Operating: [46] [1] [#]
LCD display：
26. System Clock Setting
In setup state, use keypad to input [48], then input the last 2 digits [YY] of the present year,
and then the 2 digits [MM] of the month, and then the two digits [DD] of the date, and then the
two digits [hh] of the hour (24-hour system), and then the two digits [mm] of the minute, and
finally enter [#] to confirm. You will hear a “tick” sound and a voice prompt: “setting completed”.
Operating: [48] [YY] [MM] [DD] [hh] [mm] [#]
“YY” indicates: the last 2 digits of the present year
“MM” indicates: the 2 digits of the present month
“DD” indicates: the 2 digits of the present date
“hh” indicates: the 2 digits of the present hour(24 hour system)
“mm” indicates: the 2 digits of the present minute
Example: set the time as 17:30, June, 12th, 2012
Operating: [48] [12] [06] [12] [17] [30] [#]
LCD display：
-23- -24-
GSM anti-theft alarm controller GSM anti-theft alarm controller
27.SMS Phone Number Setting
In setup state, enter [49~50], then input phone number, finally press [#] to confirm. The host
makes a “tick” sound, and then a voice prompts “setting completed”.
Note: input [49] to set the first SMS phone number, input [50] to set the second SMS phone
Operating: [XX] [YY…YY] [#]
XX indicates: address code [49-50] of 1-2 group SMS alarm phone number
YY…YY Indicates: phone number
Example: set 13911112245 to be the first group alarm phone number
Operating: [49] [13911112245] [#]
LCD display：
28.SMS Phone Number Deleting
In setup state, enter [49~50], finally press [#] to confirm. The host makes a “tick” sound, and
then a voice prompts “setting completed”.
Operating: [49] [#]
Example: Deleting the first SMS alarm phone number
Operating: [49] [#]
LCD display：
29.Alarm Phone Number Setting
In setup state, enter [51] ~ [56], then input phone number, finally press [#] to confirm. The
host makes a “tick” sound, and then a voice prompts “setting completed”.
Operating: [XX] [YY…YY] [#]
XX indicates: address code [51] ~ [56] of 1-6 group alarm phone number
YY…YY indicates: phone number
Example: set 13811110751 to be the first group alarm phone number
Operating: [51] [13811110751] [#]
LCD display：
30.Alarm Phone Number Deleting
In setup state, enter [51] ~ [56], then press [#] to confirm. The host makes a “tick” sound, and
then a voice prompts “setting completed”.
Operating: [XX] [#]
XX indicates: address code [51] ~ [56] of 1-6 group alarm phone number
Notes: Only the pre-set alarm
phone number can realize
remote control.
-25- -26-
GSM anti-theft alarm controller GSM anti-theft alarm controller
Example: deleting the first group alarm phone number
Operating: [51] [#]
LCD display：
31.Defense Zone Alarm Type Setting
In setup state, first input address code [60] , choose the corresponding defense zone code
[02~99] , and then input [1~8] defense zone alarm type, finally press [#] key to confirm. Voice
prompts: setting completed.
Operating: 【60】 【XX】 【 A 】 【 # 】
XX indicates defense zone code: [02~99] matching 02 to 99 defense
zones correspondingly
A represents alarm type: [1] SOS Alarm, [2] fire alarm, [3] gas leak alarm,
[4] door lock alarm, [5] hall alarm, [6] window alarm,
[7] balcony alarm, [8] perimeter alarm.
Example: set defense zone 10 to be fire alarm type
Operating: 【60】 【 10 】 【 2 】 【 # 】
LCD display：
32. Host GSM Signal Checking
In setup state, enter [62] and then press [#] to confirm. The host makes a “tick” sound, and
then a voice prompts “setting completed”. GSM signal value is displayed.
Operating: [62] [#]
LCD display：
33. LCD Backlight Duration Setting
In setup state, enter [63] and input [00-99] seconds, then press [#] to confirm. The host
makes a “tick” sound, and then a voice prompts “setting completed”. Default time: 20 seconds.
Operating: [63] [XX] [#]
XX indicates: backlight lasting time
Example: set time to 49s
Operating: [63] [49] [#]
LCD display：

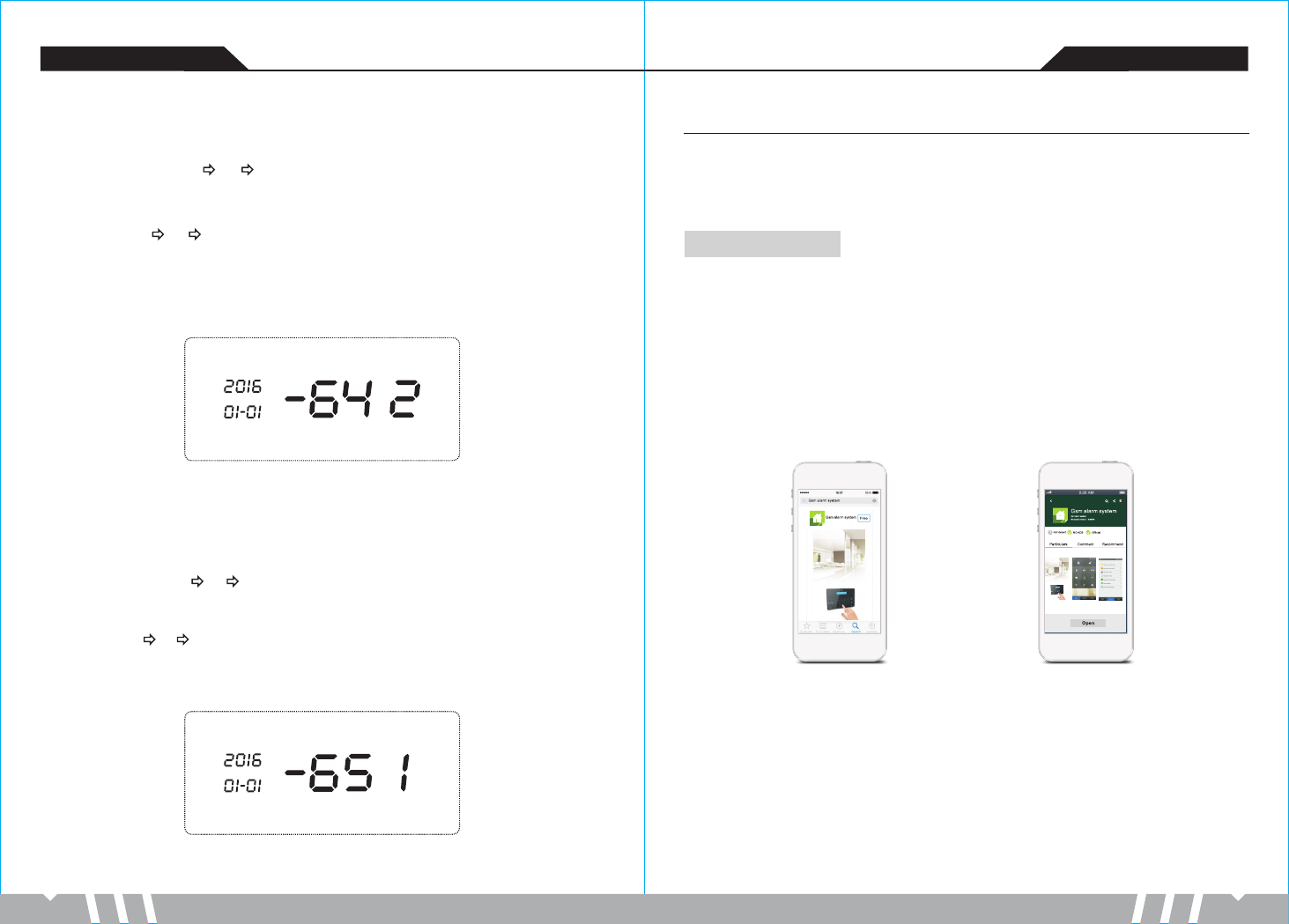

Download APP
iPhone user enter the APP Store, search "GSM alarm system"then download and install this
software.
Android user enter Google Play or Android market (China mainland), search “GSM alarm
system”,then download and install this software.
-27- -28-
GSM anti-theft alarm controller GSM anti-theft alarm controller
34.Sound Volume Setting
In setup status, enter [64]，then input volume level [0~9]，press [#]to confirm. Once the host
makes a “tick” sound, you will hear a voice prompt“setting completed”.Default level “6”.
Operating method: [64] [X] [#]
X indicates: volume level
Example: level 2
Operating：[64] [2] [#]
Note: If the volume level is set“0”,then no sound.
LCD display：
35. Language Setting
In setup status, enter [65]，then input [1~2], press [#]to confirm. Once the host makes a
“tick” sound, you will hear a voice prompt“setting completed”. Default language Chinese[2].
Operating method: [65] X] #
X indicates: Language
Example: English [1]
Operating：[65] [1] [#]
[ [ ]
LCD display：

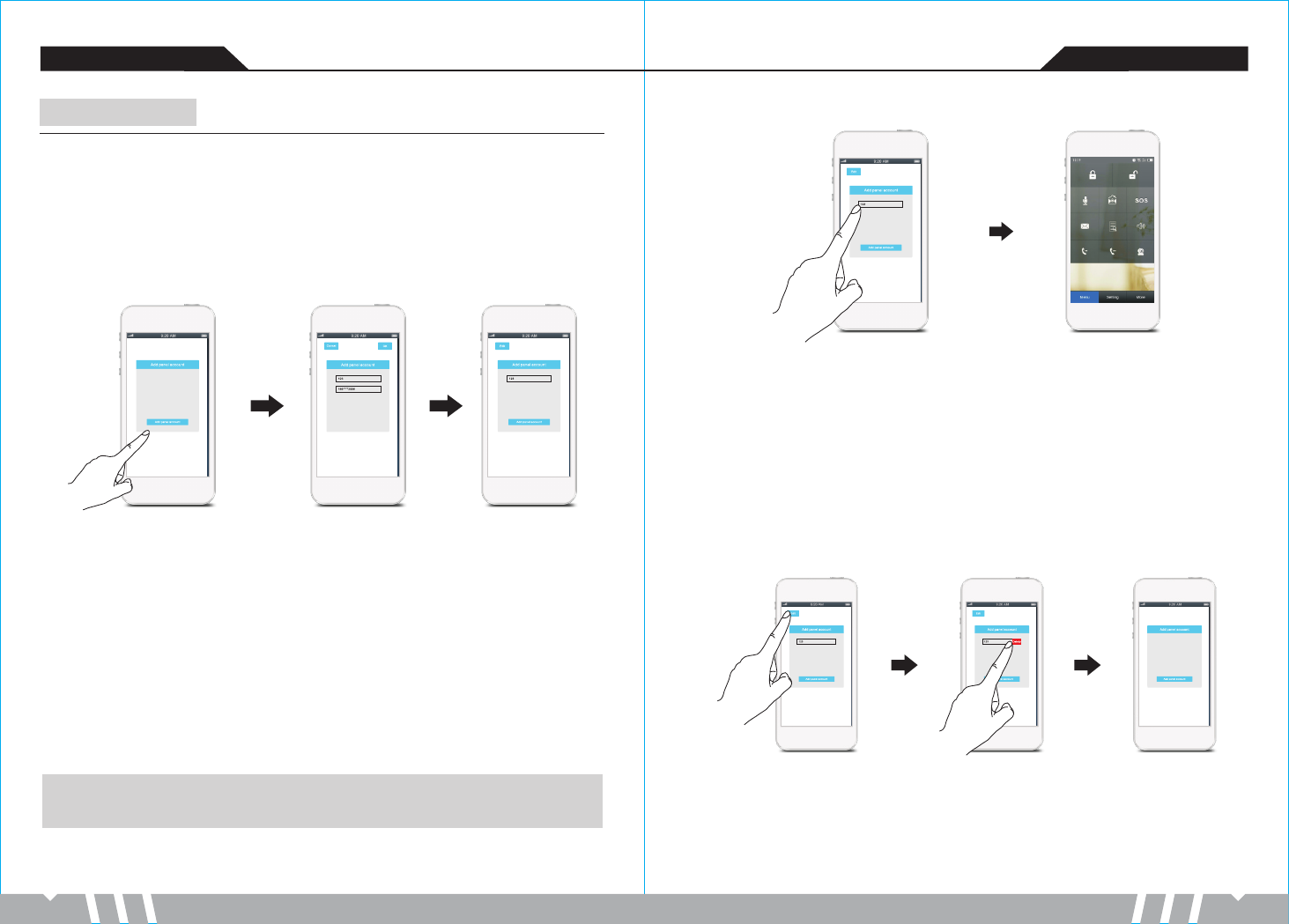

Mobile APP Operation
The system can be controlled by APP. iOS mobile will map to SMS interface, Android mobile
won’t map to SMS interface, but will finish the SMS operation in background.
iPhone APP interface Android APP interface
In the state of factory defaults, user can control the panel remotely on the SMS interface of
the APP from any mobile phone. The panel only receive the APP command from the pr-set
numbers which have been stored in it.
App Use
(1)Add host account
iOS mobile: Press [Edit], then press [Delete], the added host account will be deleted.
Android mobile: Press [Edit], long press the host account, then will come out the dialog
window of deleting account, press[Finish], the added account will be deleted.
-29- -30-
GSM anti-theft alarm controller GSM anti-theft alarm controller
(2)Main interface operation
Press the pr-set host account, enter into Main Menu,then user can operate the functions of
disarm,out arm, stay arm,dial back and monitor and so on.
Press the pr-set host account, enter "System Setting", then user can use app to remotely
setup the host parameter including "Host Alarm Phone Number Setting " (6 groups), "Host SMS
Number Setting”( 2 groups), “Naming Defense Zone", "Call Ringing Time", "Alarm Time Delay",
"Siren Ring Time Setting", "Host Timing Arm or Disarm Setting" and other operations.
Notes: For “Naming Defense Zone”,you can only change 2 zones. If naming in Chinese, the characters are
no more than 10. Naming in English, the characters are no more than 40. If operate by app,you must save
your phone number in host panel first or it will not work.
(3)Delete Account
Operating: press [Out Arm ] of remote controller.
The Host Operating: [Out Arm ] (keypad lock is closed or [Out Arm ] + [user
password] + [#] (keypad lock is open) .
SMS operation: Edit SMS “1” and send it to the SIM number of host with your mobile
phone.
Out Arm means the host’s whole defense zones are in Arm state. In other words, when no
one in the house, all detectors would work and detect all deleting areas, when there are
detection sources(thieves invasion fire,gas leakage,etc.)trigger detector,the system makes
alarms immediately.
If the function of the keypad lock is closed, press the Out Arm [ ], the host will go into Out
Arm state; If the function of the keypad lock is open, press the Out Arm[ ]while this operation
need to input user’s password then to realize Out Arm.
Emergency Alarm: No matter
in which status, press the
[ ]key of remote controller,
system will enter into alarm
state at once.
Stay Arm: press [ ]key,
host releases prompt:“system
armed”,Stay Arm indicator
LED on,all the defense zones
enter into Stay Arm state.
Disarm: Press [ ] key,host
releases prompt: “System
disarmed”, Disarm indicator
LED on, all the defense zones
enter into Disarm state.
Press[ ] key, host releases
prompt: “System armed”, Out
Arm indicator LED on, all the
defense zones enter into Out
Arm state.
-31- -32-
GSM anti-theft alarm controller GSM anti-theft alarm controller
Daily Operation
Remote controller is one kind of device which carries out mufti-function operation by radio.
Its function is convenient for user to control its state when he is at the door (outdoor) or long-
distance, such as Out Arm, Stay Arm , Emergency Alarm , Disarm functions etc.
Out Arm key
Stay Arm key
Disarm key
Emergency Alarm key
Out Arm
Stay Arm
Disarm
Emergency Alarm
1.Out Arm
It means, for the safety, while somebody is at home, you need to enable the peripheral: door,
window, balcony and boundary detectors of the alarm system while prevent from triggering the
indoor detectors, which may cause improper warning; then, you shall select Stay Arm, let just
part of the detectors work and disable the other parts.
2.Stay Arm
LCD display：
Remotes Operation: Just press [ ] once
SMS operation: Edit SMS “0” and send it to the SIM number of host with your mobile
phone.
LCD display：
To create SMS instructions to alarm host through the mobile phone, then to remote control the
host, make host enter into Arm or Disarm state; Also can open or close the Siren.
Detailed SMS instructions as follows:
Host Arm SMS instruction: Edit SMS “1” and send it to the SIM number of host with your
mobile phone, If you get back the message "Armed" from the
host which means the host has entered into Arm state.
Host Disarm SMS instruction: Edit SMS “2” and send it to the SIM number of host with
your mobile phone, If you get back the message "Disarmed"
from the host which means the host has entered into Disarm
state.
Open Siren SMS instruction: Edit SMS “6” and send it to the SIM number of host with
your mobile phone, If you get back the message "Siren On"
from the host which means the siren has sounded already.
Close Siren SMS instruction: Edit SMS “5” and send it to the SIM number of host with
your mobile phone, If you get back the message "Siren Off"
from the host which means the siren has been closed already.
5.Remote Control by SMS
Remotes Operation: Press [ ]button.
Host Operation: Press[ ]button
SMS operation: Edit SMS “2” and send it to the SIM number of host with your mobile phone.
Disarm means to make the alarming host into non-alert state. One is, to Disarm the host from
Arm state; the other is, to stop the alarm when the host is making alarms. After disarming, even
if you trigger the detector, the host would not sound alarm (excluding 24- hour defense areas).
If keypad lock is closed, press [ ]keypad directly to disarm. If keypad lock is open, press
[ ], and follow voice prompt enter [user password, finally press [#] to confirm. [Out home] or
[Home] signal light is off. Disarming operation is completed.
3.Disarm

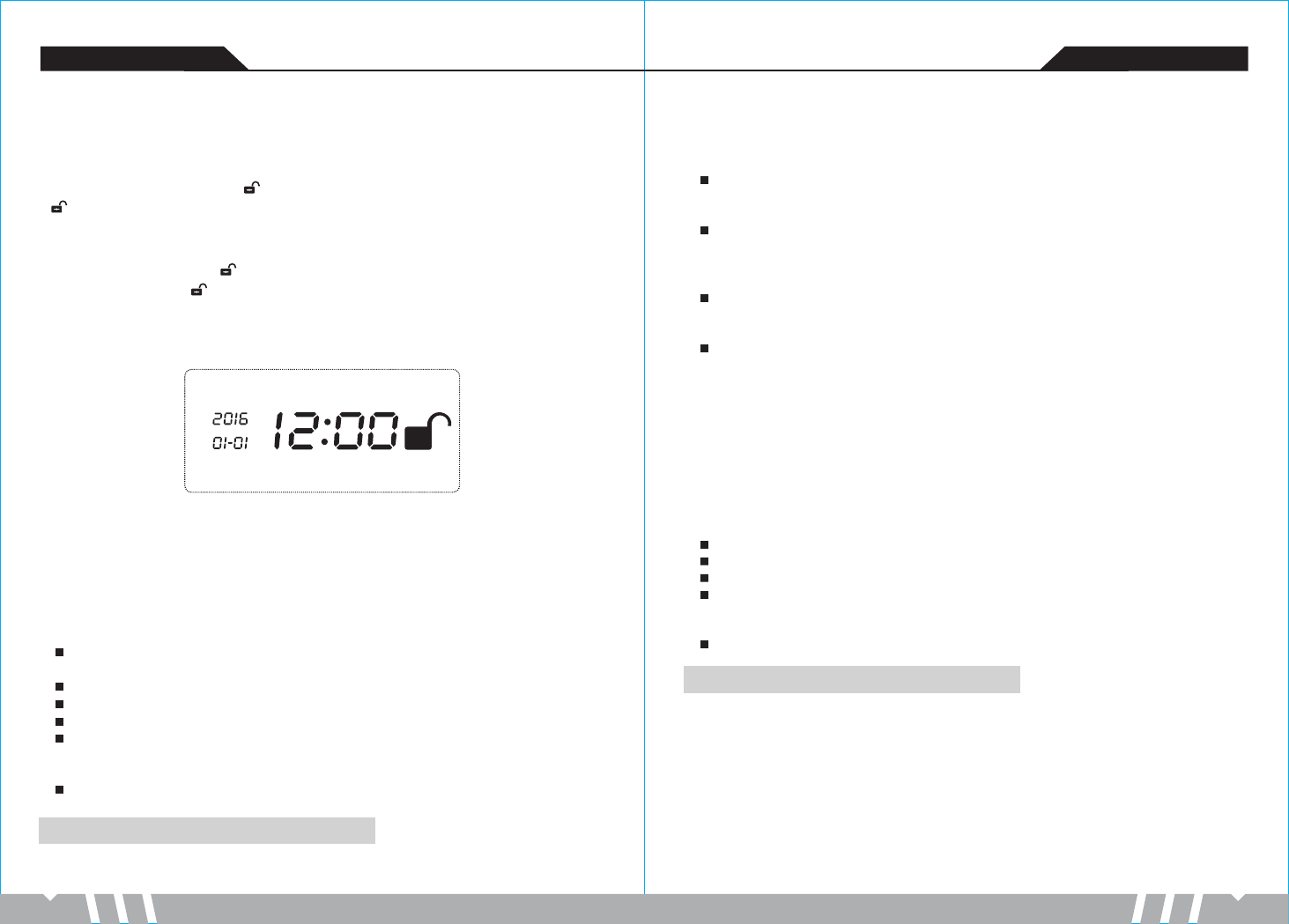

LCD display：
Note: Please press # to stop the calling of alarm.
-33- -34-
GSM anti-theft alarm controller GSM anti-theft alarm controller
When the host make alarms, siren releases voice prompt at once. First, it would send out
SMS, telling user which defense zone has alert, then it will dial the preset numbers to make
voice alarm. If no one answers the call, the system will call the next user number automatically.
The system will call each preset numbers for 3 times in order.
If you answer the call, you will hear the pre-record voice. You can set system to realize
various functions via your telephone or mobile phone keypad.
Hang up: If you hang-up directly without answering the call, system will call each preset
number circularly.
Press [*]: Play the recording.
Press [1]: The host stops alarming and to Arm; it stops calling users.
Press [2]: The host stops alarming and to Disarm; it stops calling users.
Press [3]: The host closes siren and monitors the scene for 30 seconds, for continuous
monitoring, press [3] again to monitor the abnormal sounds or a burglar intrusion
for another 30 seconds.
Press [4]: start talk-back 30s.
4. Answer Alarm Call
The telephone (mobile) is connected to alarm host number, and after setting of ringing times,
the telephone receiver prompts computer-generated voice: “Please enter password”. The
password is entered via telephone (mobile). For wrong password, the host gives prompt:
“wrong password, please enter password again”. For correct password, the telephone receiver
prompts “press ① to arm, press ② to disarm, press ③ to monitor, press ④to talk ”. And after
getting access of remote control, phone button could be used for remote control.
Press [*]: play the recording.
Press [1]: the host stops alarm and enter into Arm state
Press [2]: the host stops alarm and enter into Disarm state
Press [3]: the host closes the siren, enter into monitoring state for 30 seconds and press
[3] for another 30 seconds to monitor the abnormal sounds or a burglar
intrusion in case of continuous monitoring.
Press [4]: start talk-back 30s.
6.Remotely Control
Some special cases occur in the family: sudden illness for the elderly or children results in
first aid; in case of sudden fire, help is needed; in case of housebreaking, the alarm is required;
So please just press the host keypad “Emergency Alarm[SOS]” ,remote controller key [ SOS ].
Alarm system will immediately sound loudly and automatically call the pre-set phone number.
7.SOS
Notes: Please press “ #” to stop the calling of alarm.
Remotes operation: press [SOS]button
Host operation: press [SOS] button on keypad
Defense zone
1 defense zone
02-99 defense zone
SOS
Wired defense zone
Administrator password
User password
Siren sound time
Arm
effective
effective
effective
effective
Home
effective
effective
effective
ineffective
Type
24H
Real-time
24H
Real-time
Siren
Yes
Yes
Yes
Yes
6666
1234
According setting time
Remote control
Siren
Home appliance
On
Off
Optional
1.System detection
Although the alarm system is used every day, it still needs regular care and maintenance and
detection to ensure that the alarm system will be stable, reliable and safe. Normally the host
needs a thorough inspection every 3 months and the detectors need to be checked once a
month, at least once every 3 months in case of bad conditions.
2. Host detection
(1) Whether the host normally performs Arm or Disarm.
(2) Whether the host normally dials up the telephone numbers.
(3) Whether the detector signal is received or backup battery works
3.Sensor detection
(1) Manually trigger the detector to check whether it make alarms as usual.
(2) Check batteries of all detectors to check whether it is under-voltage.
(3) Check whether wireless detector is communicated with the host during emission testing
4.Notice
(1) Do not dismantle, repair and modify products privately, or accidents and failures may be
caused.
(2) Do not drop the product on the ground or hard objects to avoid strong impact with failure or
damage.
(3) Without permit and consent from relevant department, do not directly set "110", "119" or
alarm phone number of police station as alarm phone number of the host.
Technical Parameters 1、2
Appendix 1
-35- -36-
GSM anti-theft alarm controller GSM anti-theft alarm controller
Maintenance
Input power：
Standby current :
Alarm current
Wireless frequency
Encoded mode
GSM
Backup battery
Siren volume
DC12V/1A
<60mA
<450mA
433MHz/315MHz
1527/330K
850/900/1800/1900MHz
Li AAA*6 DC7.4V
110dB
Appendix 2
99
99
99
-37- -38-
Wireless intelligent security alarm system GSM anti-theft alarm controller
Technical Parameters 3

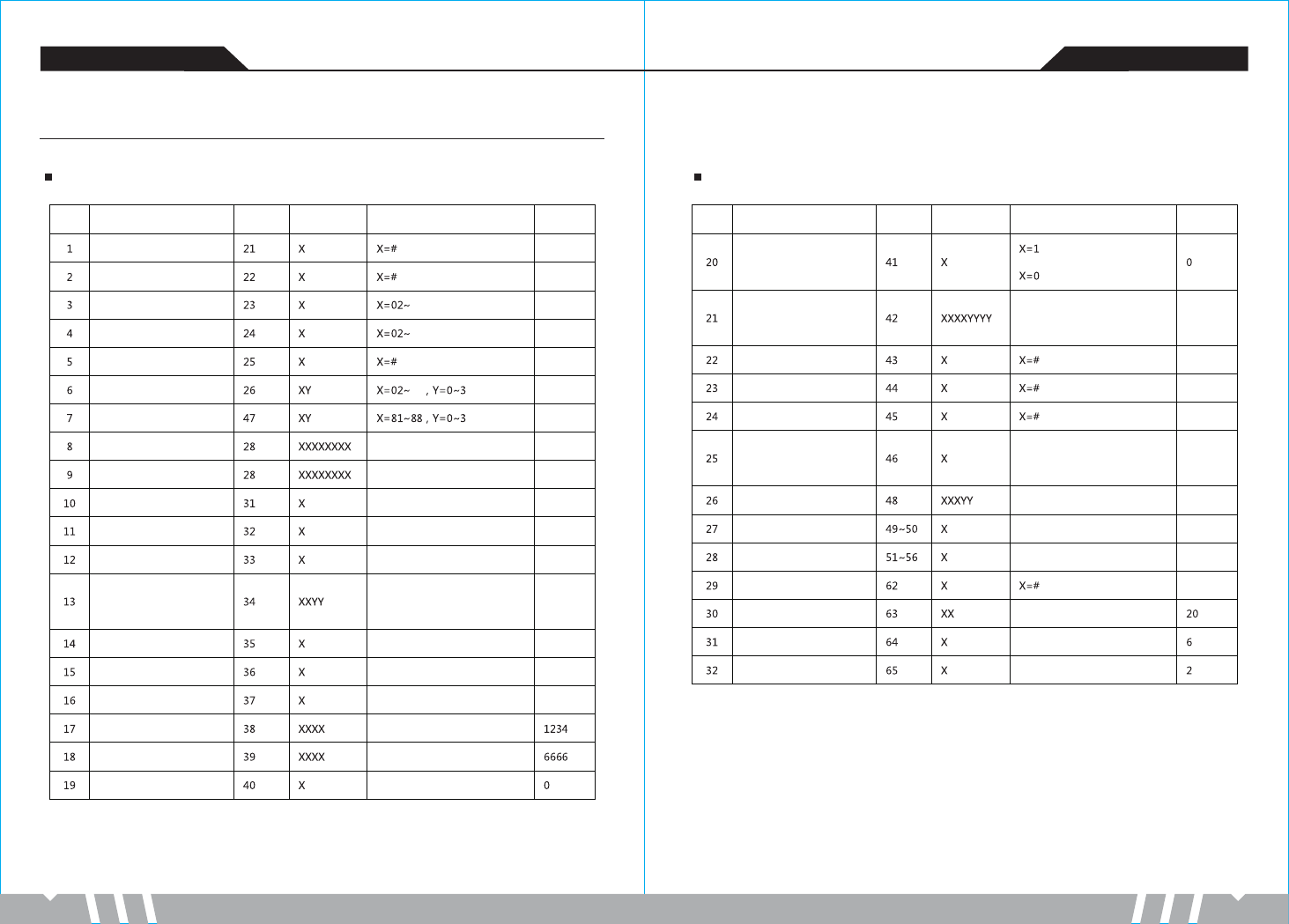

Appendix 3 :Administrator password system setup command table Appendix 3 :Administrator password system setup command table
No Setting item Data(XY) Remark
Coding of Remote Controller
Setting
Coding of Wireless Detector
Setting
Single Wireless Detector
Deleting Setting
All Wireless Detectors
Deleting Setting
Factory
Default
Wireless Alarm Type Setting
Wired Alarm Type Setting
Wireless Siren Coding Setting
Wireless Switch Coding
Setting
Remotes Operation Voice
Prompt Setting
Siren Ring Time Setting
Arm Time Delay Setting
Defense Zone Alarm Time
Delay Setting
Telephone Dial-up Cycle
Times Setting
Recording Setting
Host Keypad Lock Setting
Change Administrator
Password Setting
Host Timing Function Setting
Host Timing Arm /
Disarm Setting
Host Reset Setting
Host Logs Inquires
System Clock Setting
SMS Phone Number Setting
LCD Backlight Time Setting
Sound Volume Setting
Language Setting
Host Logs Deleting Setting
SMS Notification of Arm/
Disarm Setting
Alarm Phone Number Setting
XXXXXXXX=8-digit
wireless siren coding
XXXXXXXX=8-digit
wireless switch coding
X=1 On ,X=0 Off
X=00~15 minutes
X=00~99 seconds
X=02~99 defense zone
Y=00~99 seconds
X=00~09 times
X=0~9 times
X=#, play automatically after
recording
XXXX= 4-digit
XXXX= 4-digit
X=1 ON, X=0 OFF
XXXX= arm time
YYYY= disarm time
X=1 send SMS
X=0 don't send SMS Don't send
SMS
XXX=year, month，day,
YY= hour, minute
X= SMS number
X=alarm number
XX=00~99 seconds
X=0~9 level
X=1~2 1 English, 2 Chinese
No Setting item Address Data(XY) Remark Factory
Default
3 minutes
0 second
0 second
9 times
6 times
Remote Call Ring Times
Setting
Change User Password
Setting
Host GSM Signal Checking
Setting
ON
OFF
Address
All Remote Controller
Deleting Setting
Any changes or modifications not expressly approved by the
party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This
equipment should be installed and operated with minimum distance
between 20cm the radiator your body: Use only the supplied antenna.
FCC ID: 2AIT9-PG101
