Samsung Electro Mechanics UCLZD100P0S ZIGBEE LIGHTING DIMMER User Manual
Samsung Electro Mechanics ZIGBEE LIGHTING DIMMER Users Manual
Users Manual
DP
~~
~
Manual
for
Zigbee Lighting Dimmer
V1.0
Model Name UCLZD100P0S
P / N
USER P / N
TYPE
Description
Specification No
Issued Mechanical
checking
Electrical
checking
Approved
Contents
1 Document Revision ............................................................................................ 3
2 ZLD Pictures ....................................................................................................... 3
3 Features ............................................................................................................. 3
4 Components ....................................................................................................... 3
5 Mechanical Specifications .................................................................................. 4
5.1 General ................................................................................................................................. 4
5.2 Switch Configuration ............................................................................................................. 4
5.3 Use Condition ....................................................................................................................... 4
6 RF Specifications ............................................................................................... 4
6.1 General Performance Section .............................................................................................. 4

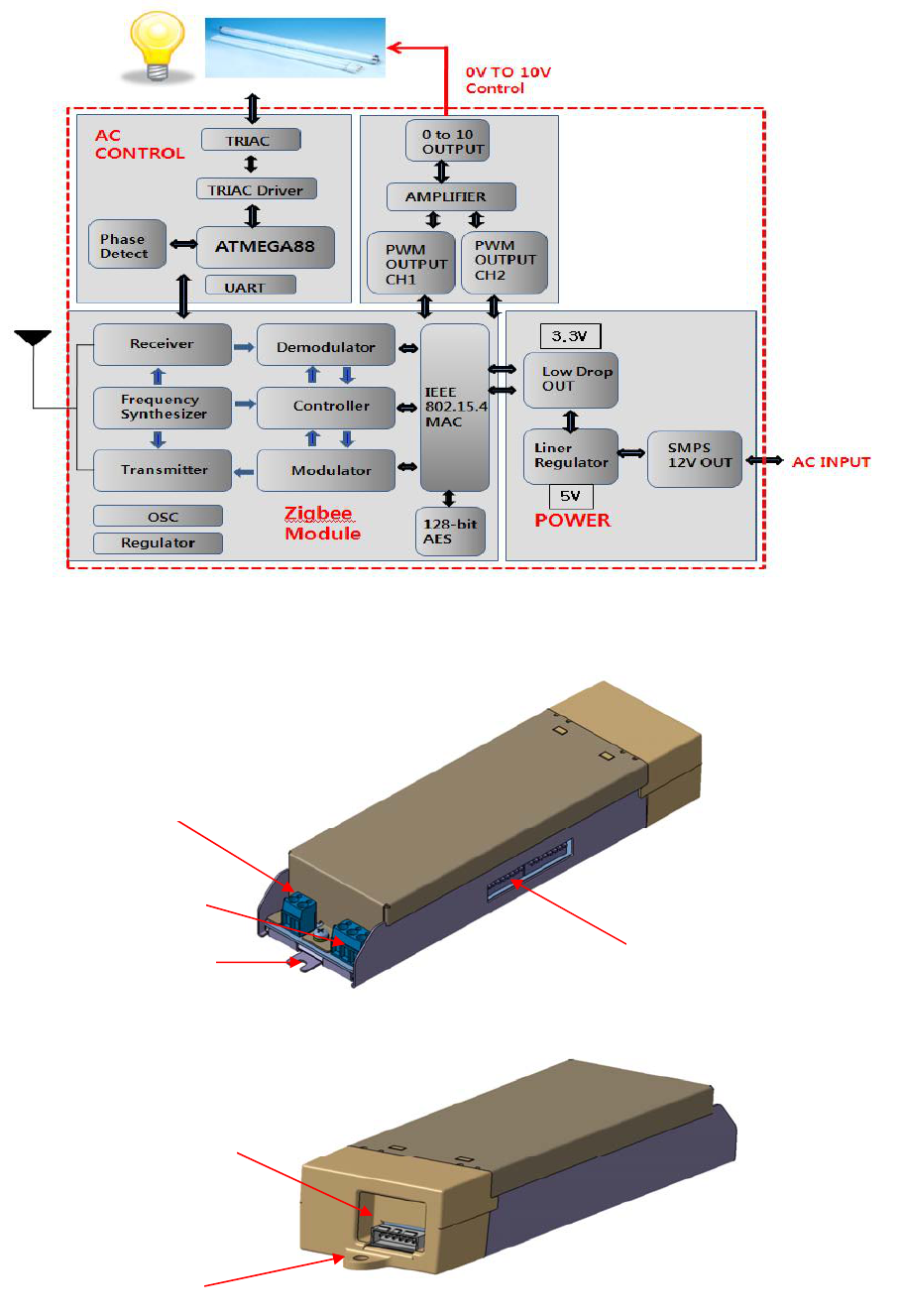

7 ZLD Black Diagram ............................................................................................ 5
8 ZLD Configuration .............................................................................................. 5
9 Product Label ..................................................................................................... 6
1 Document Revision
Rev. No Issued date & Descriptions Date Issued by Checked by
Ver 1.0 Initially released 2010-01-21 Sung-Jin, Kim
2 ZLD Pictures

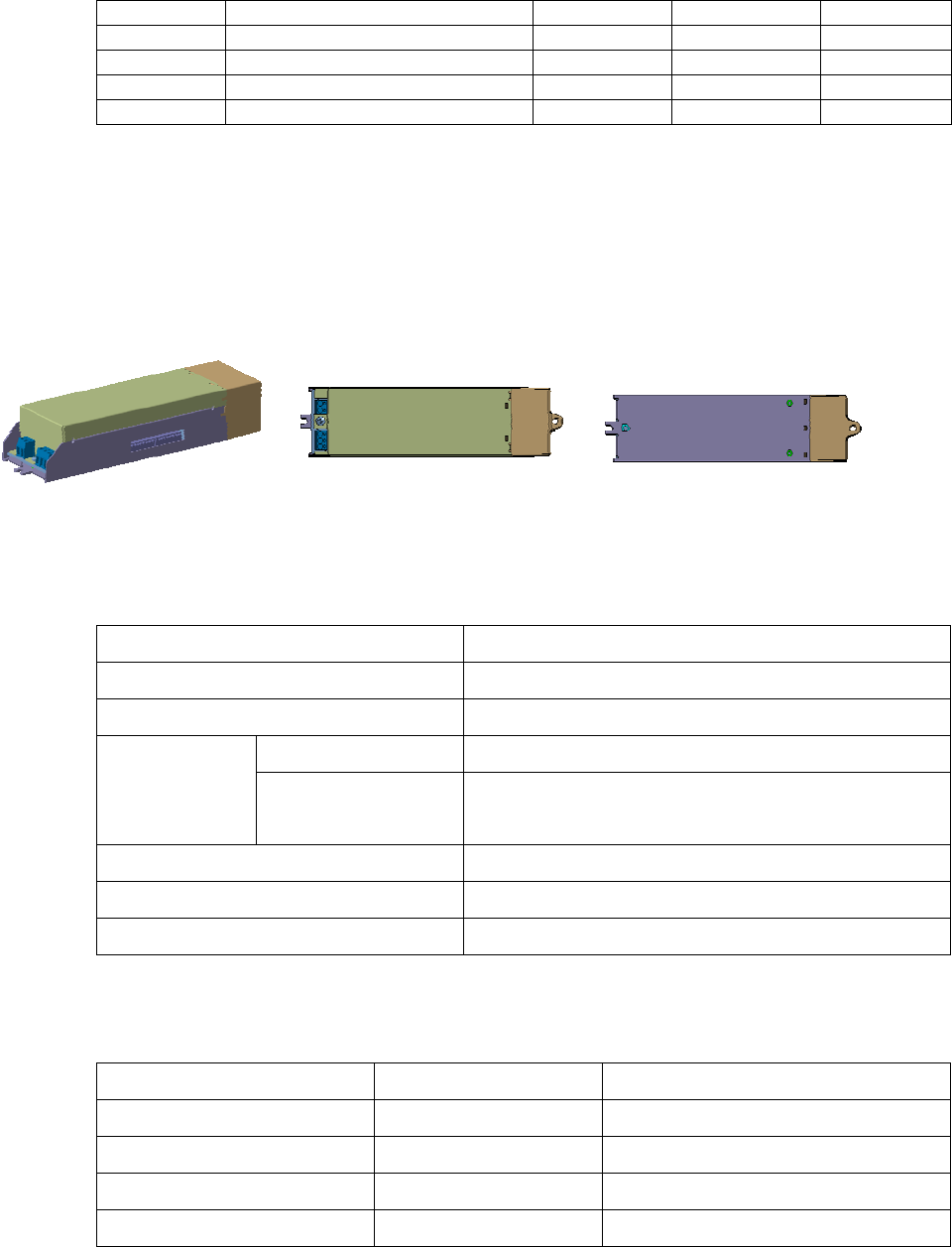

[SIDE] [Top] [Bottom]
3 Features
TYPE 2.4GHz / IEEE 802.15.4 / ZIGBEE
CHIP ICPZBS240,ATMEGA88
AC INPUT AC 110V -240V 50/60Hz
OUTPUT
0 – 10V 0 V to 10V 2CH
TRIAC Phase
Control
1CH 2A
DIP SWITCH PAN ID, Channel, MAC Address setting
COMUNICATHION UART, ZIGBEE WIRELESS COMUNICATION
Current TRIAC= MAX:2A , 0TO10 =MAX:13mA
4 Components
Case Upper Metal (1ea) Outer case
Case Bottom Metal (1ea) Outer case
Antenna Cover Plastic(1ea) Outer case
Insulator Plastic(1ea) Inner Insulation
Screw FH 3X6L (3ea) Fastened PCB & Case
5 Mechanical Specifications
5.1 General
Size 203.25(W) x 52.6(H) x 38.6(D)mm
Weight 180g
Switch KSD-82HS / 8CH x 2(16CH) / SMD TYPE
Connector 2Pin AC ,3Pin AC,4pin 0to10
Enclosure Metal, ABS

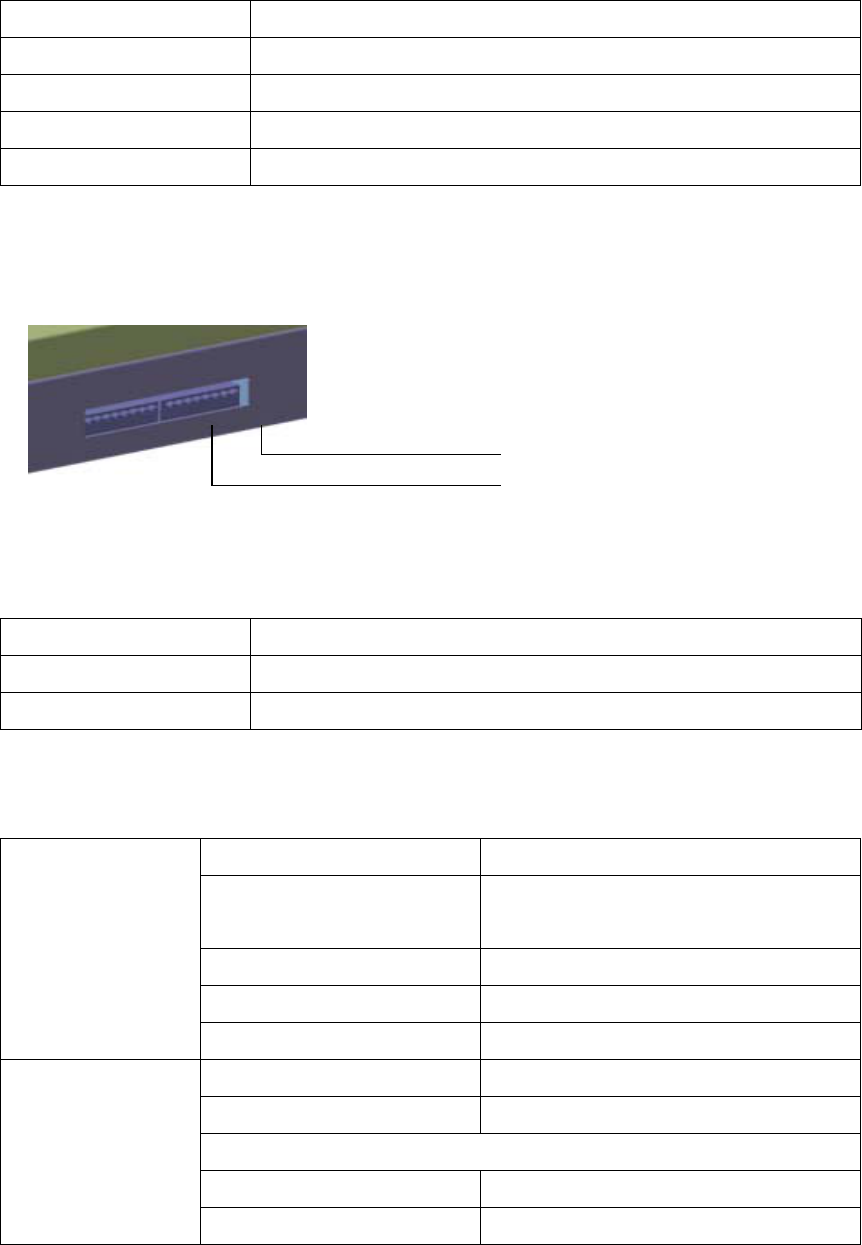

5.2 Switch Configuration
5.3 Use Condition
Working Temperature -20 ~ 55℃
Storage Temperature -25~80℃
Humidity Below 90%
6 RF Specifications
General Performance Section
Performance
Indoor/Urban Range Up to 30 m
Outdoor RF Line of sight
Range Up to 100 m
Transmit Power Output 10 mW (0dBm)
RF Data Rate 250,000 bps
Receiver Sensitivity -98 dBm (1% PER)
General
Frequency 2.4GHz
Antenna Options Chip Ant.
Point-Point, Point-Mulitpoint, Peer-Peer, Mesh
Channel / PAN ID / Source Address
Filtration Option Channal / PAN ID / Source Address
MAC Address Setting
PAN ID & Channel Setting
7 ZLD Black Diagram
8 ZLD Configuration
PAN ID
Se
ttin
g
Sw
it
c
h
TRIA
C
OU
TP
U
T
A
C
INP
U
T
Fa
s
t
e
nin
g
H
o
l
e
Fastenin
g
Hole
0 TO 10 2CH
9 Product Label
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator
and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
IMPORTANT Safety Instruction:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this equipment near water.
6) Do not using near any heat sources such as radiators, heat resisters, stove, or other equipment that produce
heat.
