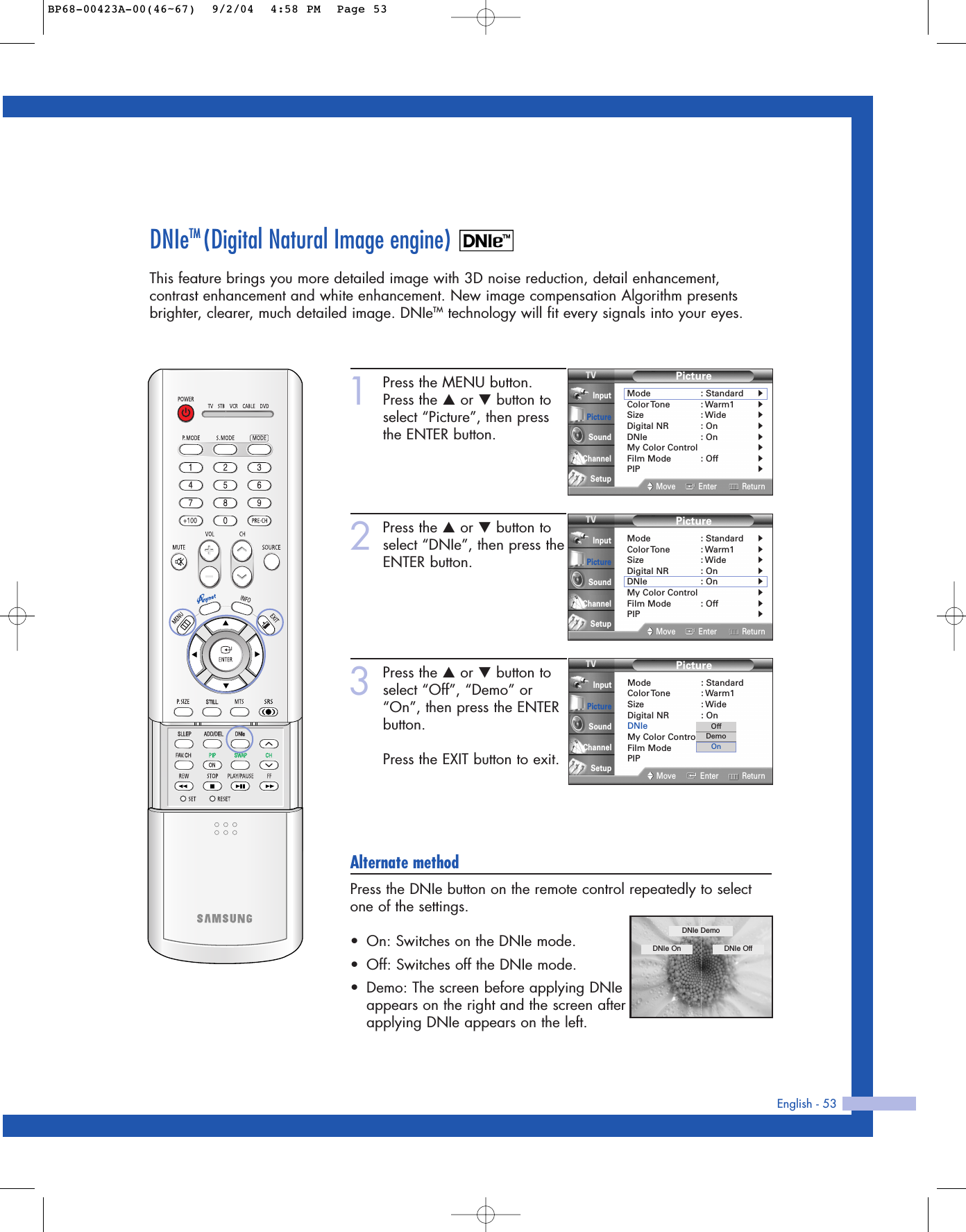

English - 53DNIeTM (Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement,contrast enhancement and white enhancement. New image compensation Algorithm presentsbrighter, clearer, much detailed image. DNIeTM technology will fit every signals into your eyes.1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the …or †button toselect “DNIe”, then press theENTER button.3Press the …or †button toselect “Off”, “Demo” or“On”, then press the ENTERbutton.Press the EXIT button to exit.Alternate methodPress the DNIe button on the remote control repeatedly to selectone of the settings.•On: Switches on the DNIe mode.•Off: Switches off the DNIe mode.•Demo: The screen before applying DNIeappears on the right and the screen afterapplying DNIe appears on the left.PictureMode : StandardColor Tone : Warm1Size : WideDigital NR : OnDNIe : OnMy Color ControlFilm Mode : OffPIPMove Enter ReturnInputPictureSoundChannelSetupOffDemoOnPictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupPictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupDNIe DemoDNIe On DNIe OffBP68-00423A-00(46~67) 9/2/04 4:58 PM Page 53

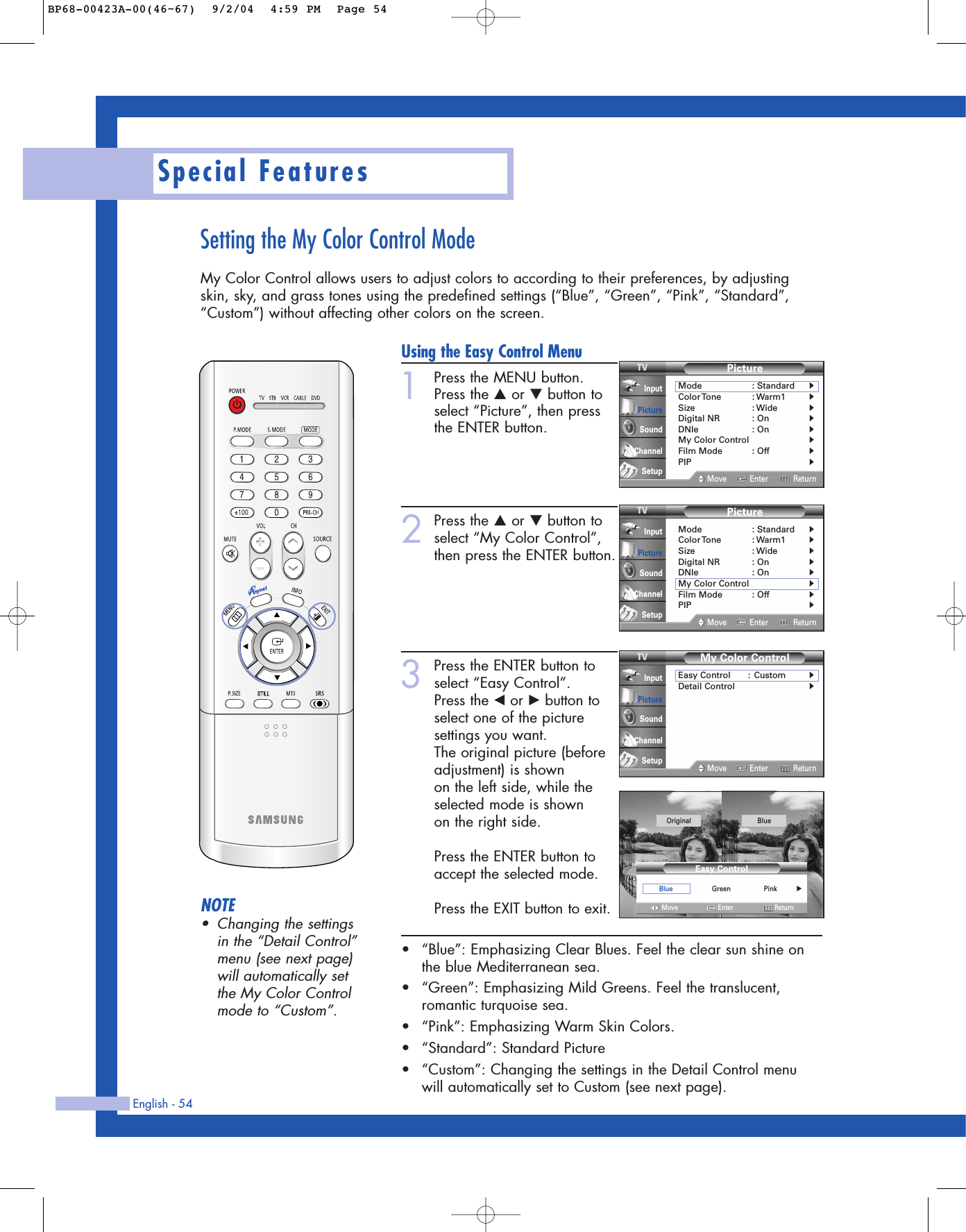

Special FeaturesSetting the My Color Control ModeMy Color Control allows users to adjust colors to according to their preferences, by adjustingskin, sky, and grass tones using the predefined settings (“Blue”, “Green”, “Pink”, “Standard”,“Custom”) without affecting other colors on the screen.Using the Easy Control Menu1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the …or †button toselect “My Color Control”,then press the ENTER button.3Press the ENTER button toselect “Easy Control”.Press the œor √button toselect one of the picturesettings you want.The original picture (beforeadjustment) is shownon the left side, while theselected mode is shownon the right side.Press the ENTER button toaccept the selected mode.Press the EXIT button to exit.•“Blue”: Emphasizing Clear Blues. Feel the clear sun shine onthe blue Mediterranean sea.•“Green”: Emphasizing Mild Greens. Feel the translucent,romantic turquoise sea.•“Pink”: Emphasizing Warm Skin Colors.•“Standard”: Standard Picture•“Custom”: Changing the settings in the Detail Control menuwill automatically set to Custom (see next page).PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupPictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupMy Color ControlEasy Control : Custom√Detail Control√Move Enter ReturnInputPictureSoundChannelSetupEnglish - 54NOTE•Changing the settingsin the “Detail Control”menu (see next page)will automatically setthe My Color Controlmode to “Custom”.Blue Green Pink √Easy ControlMove ReturnEnterOriginal BlueBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 54
English - 55Custom Settings1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.Press the …or †button toselect “My Color Control”,then press the ENTER button.2Press the …or †button toselect “Detail Control”, thenpress the ENTER button.3Press the …or †button toselect one of the My ColorControl color you want, thenpress the ENTER button.There are three My ColorControl colors:“Pink”, “Green” and “Blue”.Press the œor √button toadjust the value of a colorselected.Changing the adjustmentvalue will refresh theadjusted screen.Resetting the My Color Control Colors to the Factory DefaultsYou can return to the factorydefault settings for My ColorControl colors.4Press the MENU button todisplay the “Detail Control”menu.Press the …or †button toselect “Reset”, then press theENTER button.The previously adjusted MyColor Control Colors will bereset to the factory defaults.PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupMy Color ControlEasy Control : Custom√Detail Control√Move Enter ReturnInputPictureSoundChannelSetupDetail ControlPink 50Green 50Blue 100ResetMove Enter ReturnInputPictureSoundChannelSetupDetail ControlPink 50Green 50Blue 50ResetMove Enter ReturnInputPictureSoundChannelSetup▲Pink▼Detail ControlMove ReturnAdjustOriginal Adjusted50BP68-00423A-00(46~67) 9/2/04 4:59 PM Page 55

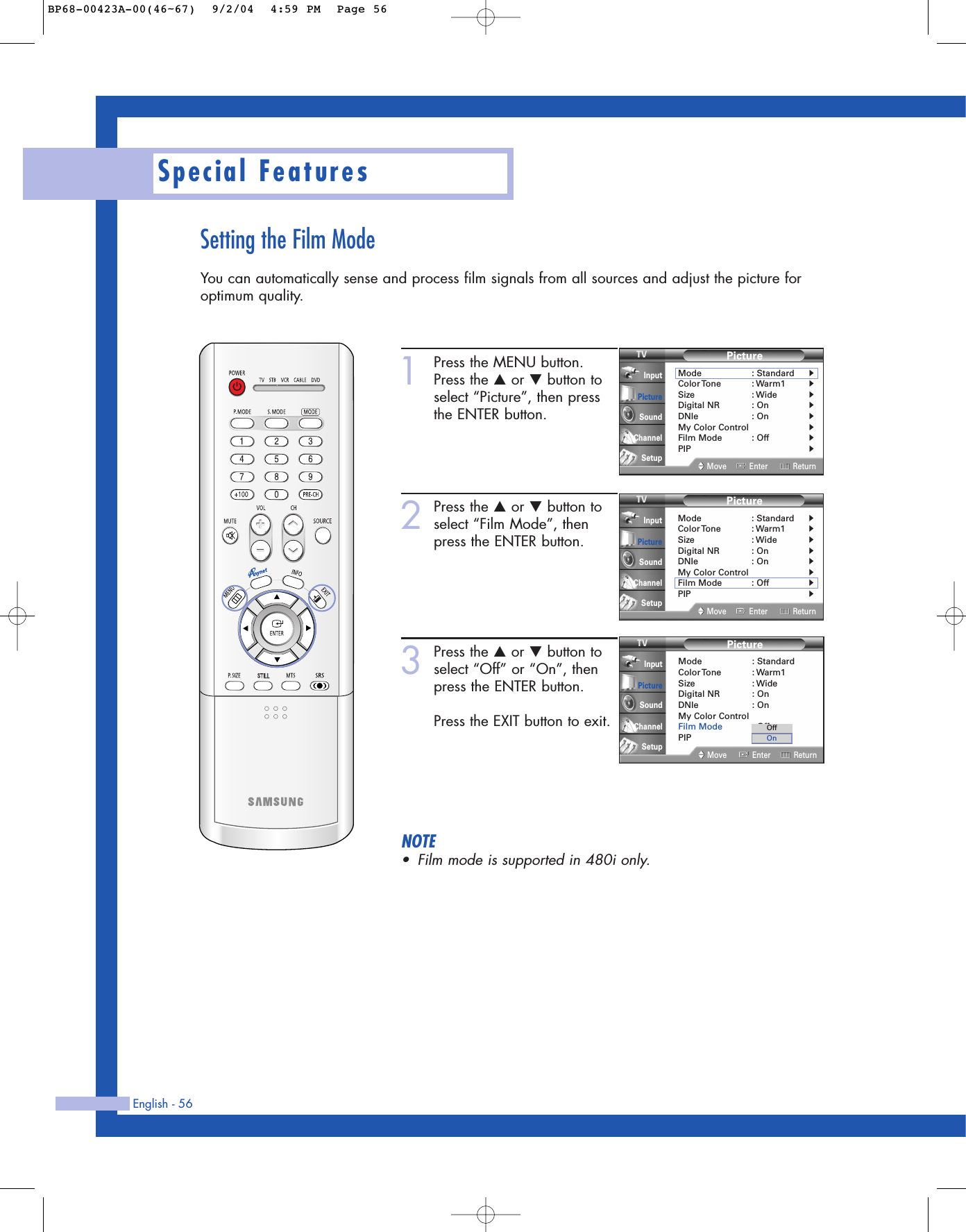

Setting the Film ModeYou can automatically sense and process film signals from all sources and adjust the picture foroptimum quality.English - 56Special Features1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the …or †button toselect “Film Mode”, thenpress the ENTER button.3Press the …or †button toselect “Off” or “On”, thenpress the ENTER button.Press the EXIT button to exit.NOTE•Film mode is supported in 480i only.PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupPictureMode : StandardColor Tone : Warm1Size : WideDigital NR : OnDNIe : OnMy Color ControlFilm Mode : OffPIPMove Enter ReturnInputPictureSoundChannelSetupOffOnPictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 56

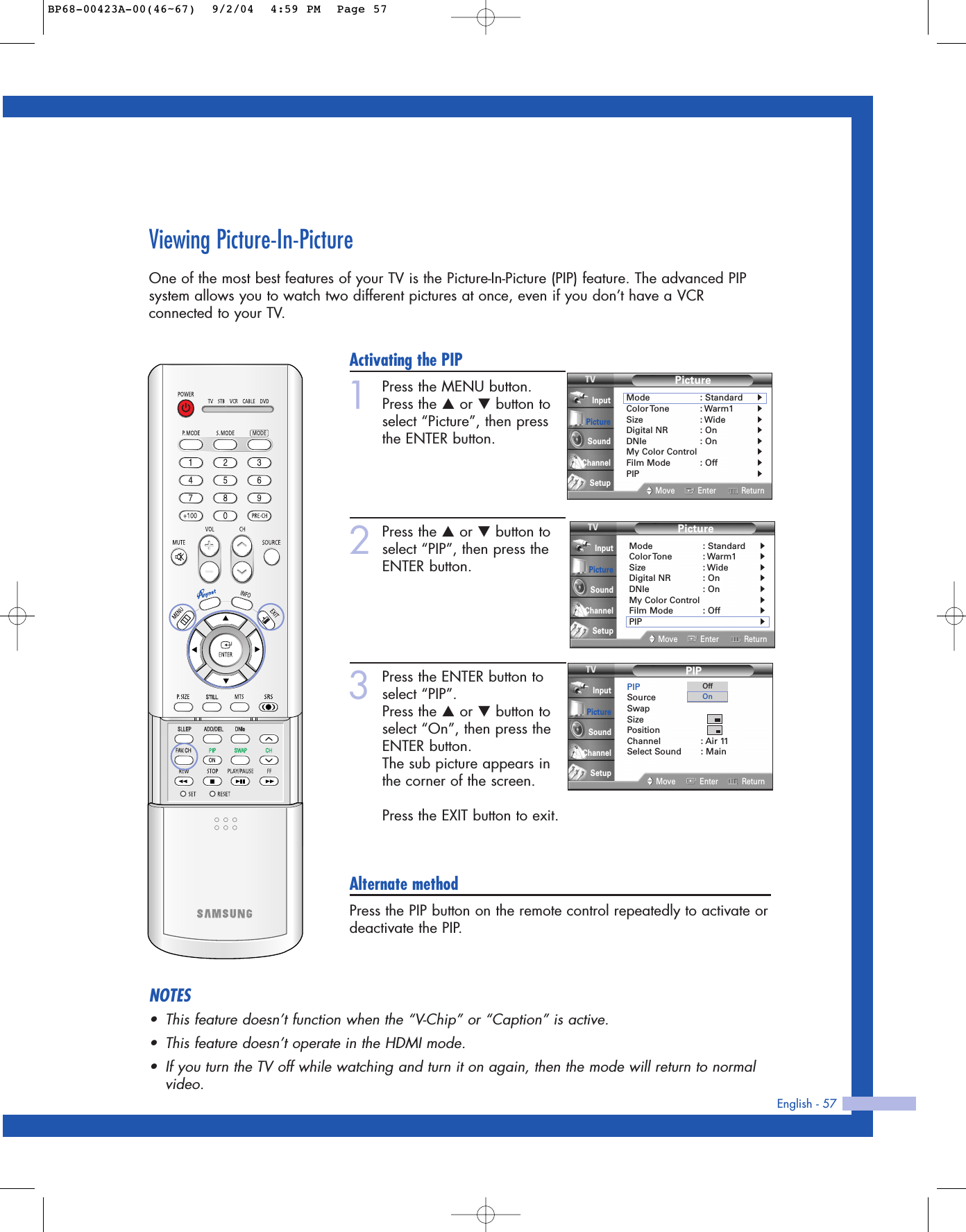

Viewing Picture-In-PictureOne of the most best features of your TV is the Picture-In-Picture (PIP) feature. The advanced PIPsystem allows you to watch two different pictures at once, even if you don’t have a VCRconnected to your TV.English - 57Activating the PIP1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the …or †button toselect “PIP”, then press theENTER button.3Press the ENTER button toselect “PIP”.Press the …or †button toselect “On”, then press theENTER button.The sub picture appears inthe corner of the screen.Press the EXIT button to exit.Alternate methodPress the PIP button on the remote control repeatedly to activate ordeactivate the PIP.PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupPictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupPIPPIP : OnSource : TVSwapSizePositionChannel : Air 11Select Sound : MainMove Enter ReturnInputPictureSoundChannelSetupOffOnNOTES•This feature doesn’t function when the “V-Chip” or “Caption” is active.•This feature doesn’t operate in the HDMI mode.•If you turn the TV off while watching and turn it on again, then the mode will return to normalvideo.BP68-00423A-00(46~67) 9/2/04 4:59 PM Page 57

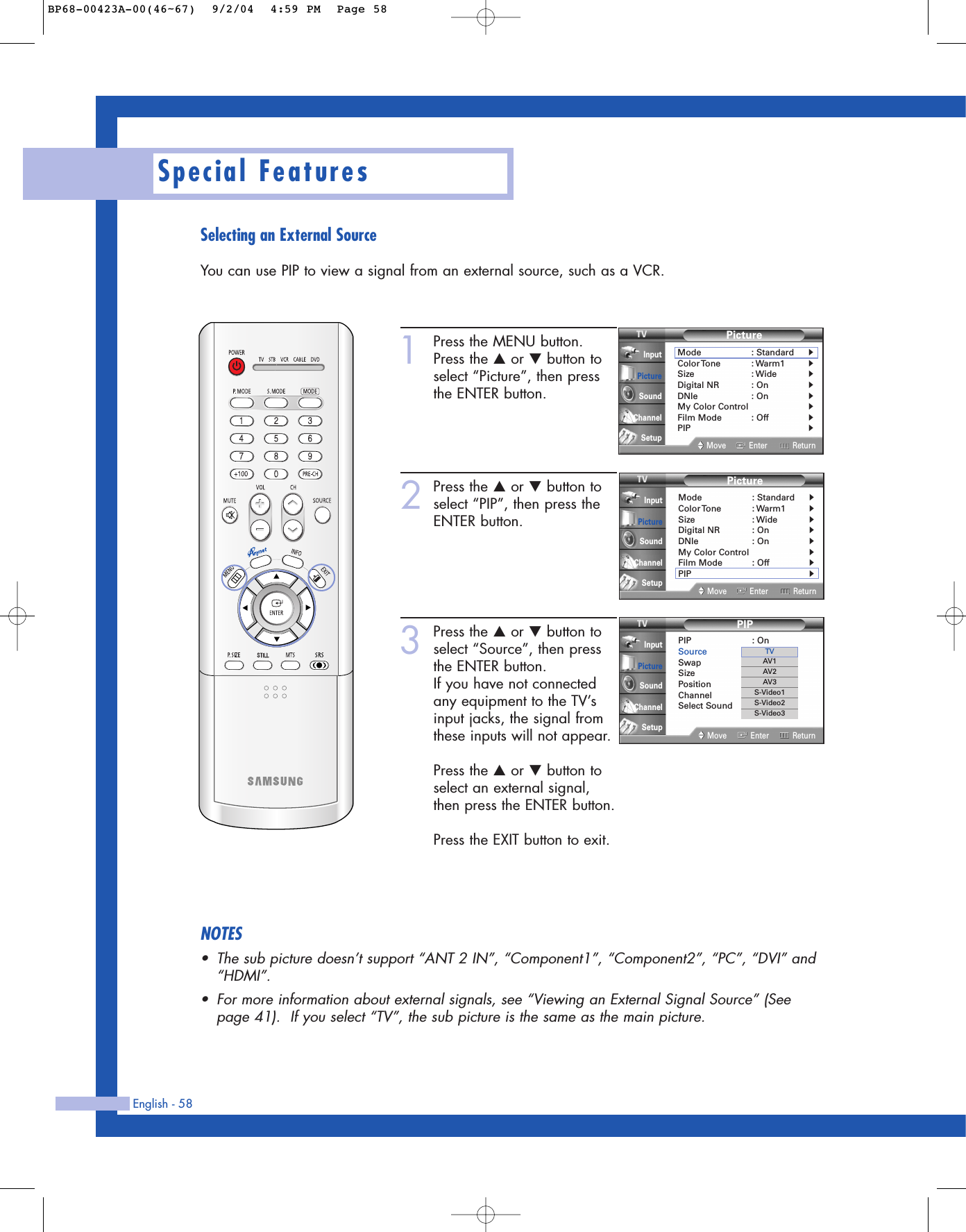

Selecting an External SourceYou can use PIP to view a signal from an external source, such as a VCR.English - 58Special Features1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the …or †button toselect “PIP”, then press theENTER button.3Press the …or †button toselect “Source”, then pressthe ENTER button.If you have not connectedany equipment to the TV’sinput jacks, the signal fromthese inputs will not appear.Press the …or †button toselect an external signal,then press the ENTER button.Press the EXIT button to exit.PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupNOTES•The sub picture doesn’t support “ANT 2 IN”, “Component1”, “Component2”, “PC”, “DVI” and“HDMI”.•For more information about external signals, see “Viewing an External Signal Source” (Seepage 41). If you select “TV”, the sub picture is the same as the main picture.PIPPIP : OnSource : TVSwapSizePositionChannel : Air 11Select Sound : MainMove Enter ReturnInputPictureSoundChannelSetupTVAV1AV2AV3S-Video1S-Video2S-Video3PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 58

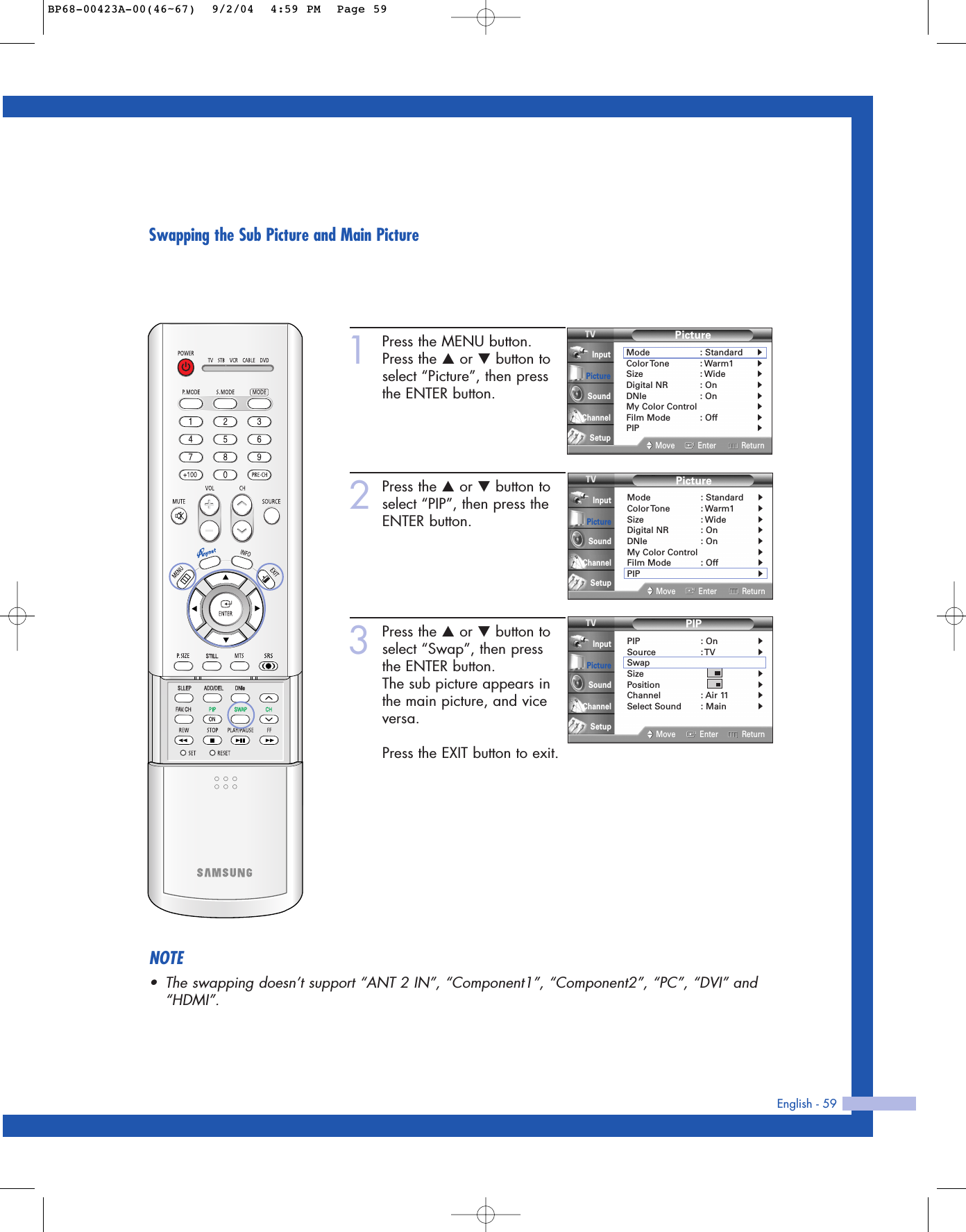

Swapping the Sub Picture and Main PictureEnglish - 591Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the …or †button toselect “PIP”, then press theENTER button.3Press the …or †button toselect “Swap”, then pressthe ENTER button.The sub picture appears inthe main picture, and viceversa.Press the EXIT button to exit.PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupNOTE•The swapping doesn’t support “ANT 2 IN”, “Component1”, “Component2”, “PC”, “DVI” and“HDMI”.PIPPIP : On√Source : TV√SwapSize√Position√Channel : Air 11√Select Sound : Main√Move Enter ReturnInputPictureSoundChannelSetupPictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 59

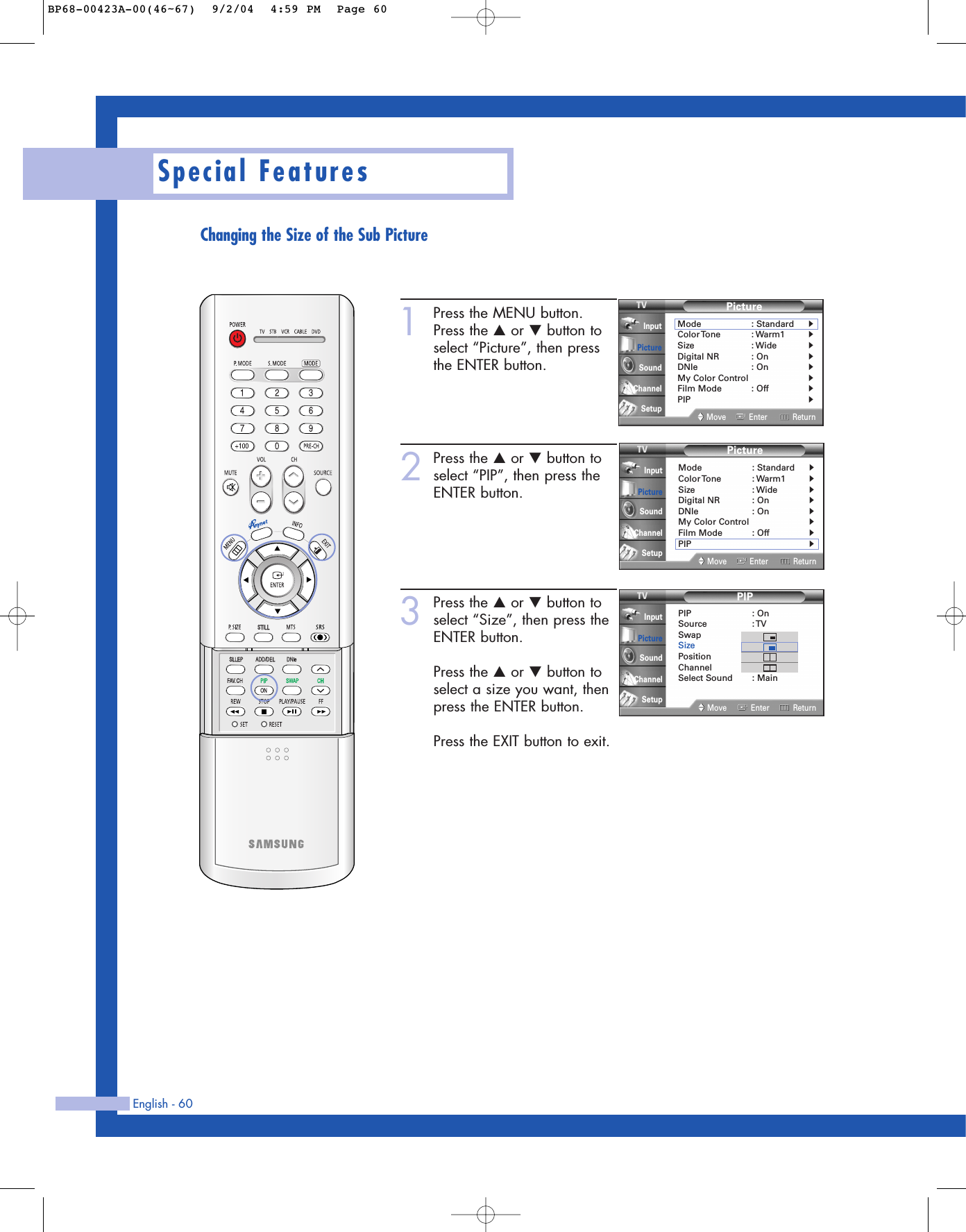

Changing the Size of the Sub PictureEnglish - 60Special Features1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the …or †button toselect “PIP”, then press theENTER button.3Press the …or †button toselect “Size”, then press theENTER button.Press the …or †button toselect a size you want, thenpress the ENTER button.Press the EXIT button to exit.PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupPIPPIP : OnSource : TVSwapSizePositionChannel : Air 11Select Sound : MainMove Enter ReturnInputPictureSoundChannelSetupPictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 60

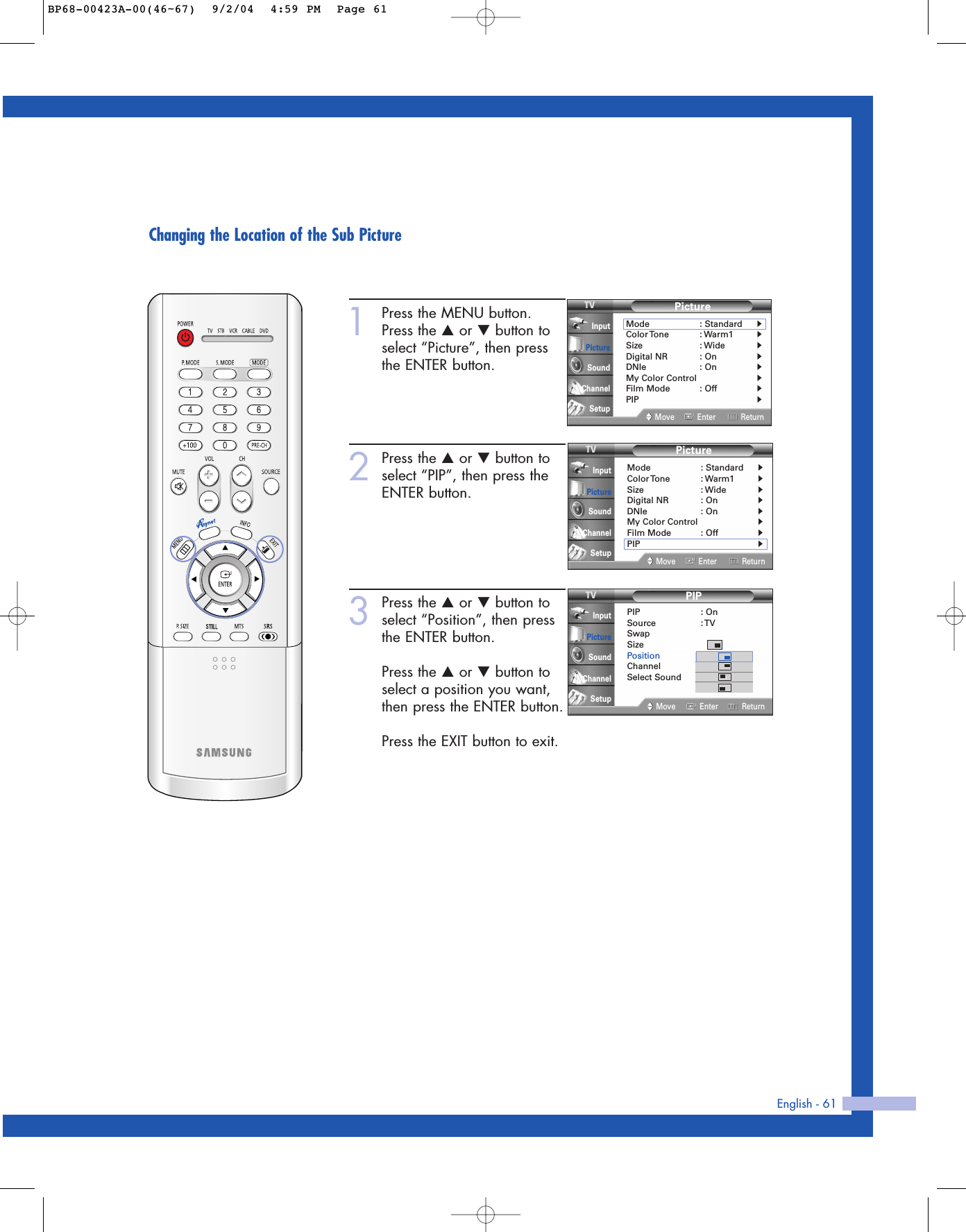

Changing the Location of the Sub PictureEnglish - 611Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the …or †button toselect “PIP”, then press theENTER button.3Press the …or †button toselect “Position”, then pressthe ENTER button.Press the …or †button toselect a position you want,then press the ENTER button.Press the EXIT button to exit.PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupPIPPIP : OnSource : TVSwapSizePositionChannel : Air 11Select Sound : MainMove Enter ReturnInputPictureSoundChannelSetupPictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 61

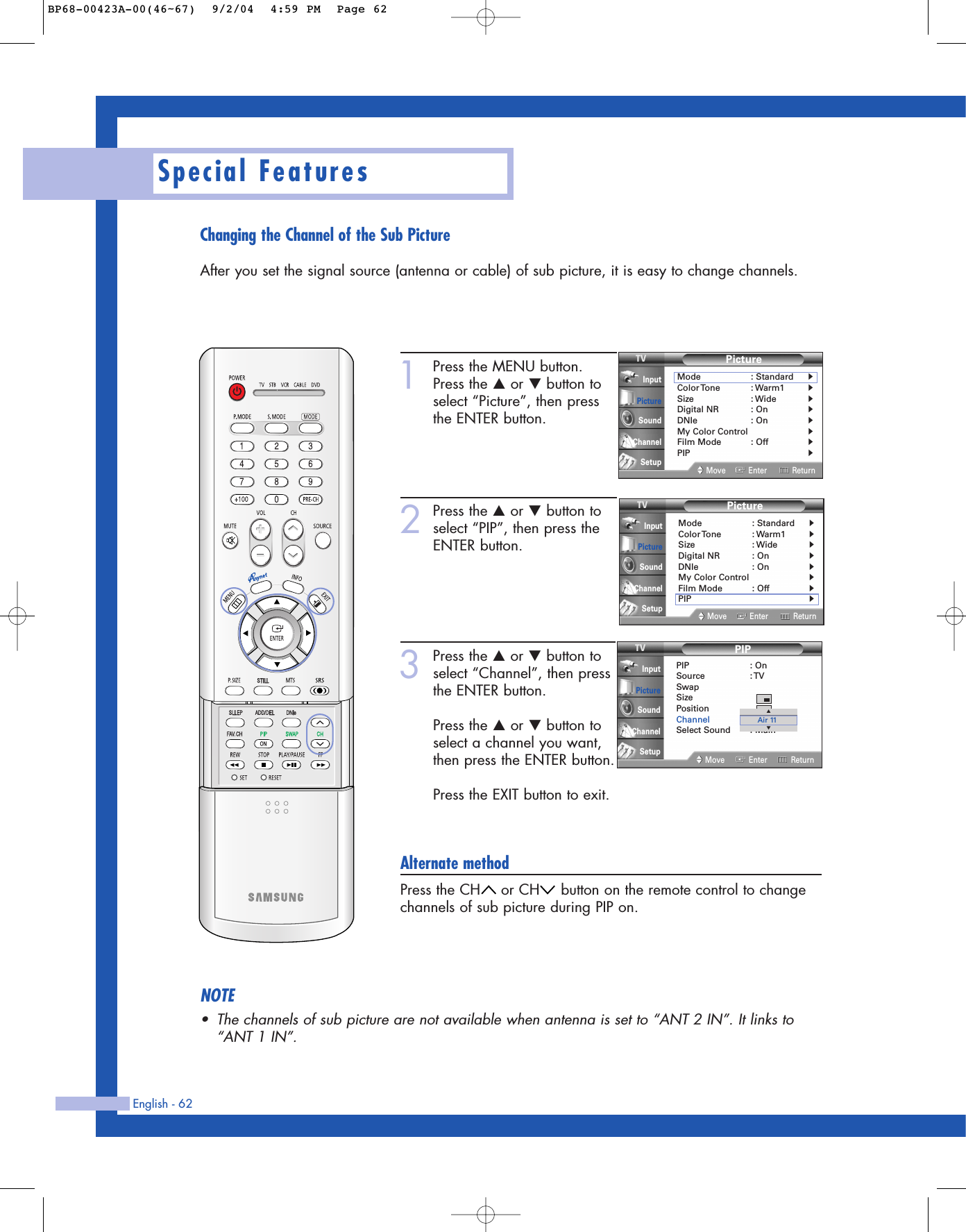

Changing the Channel of the Sub PictureAfter you set the signal source (antenna or cable) of sub picture, it is easy to change channels.English - 62Special Features1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the …or †button toselect “PIP”, then press theENTER button.3Press the …or †button toselect “Channel”, then pressthe ENTER button.Press the …or †button toselect a channel you want,then press the ENTER button.Press the EXIT button to exit.Alternate methodPress the CH or CH button on the remote control to changechannels of sub picture during PIP on.PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupPIPPIP : OnSource : TVSwapSizePositionChannel : Air 11Select Sound : MainMove Enter ReturnInputPictureSoundChannelSetup▲▼Air 11NOTE•The channels of sub picture are not available when antenna is set to “ANT 2 IN”. It links to“ANT 1 IN”.PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 62

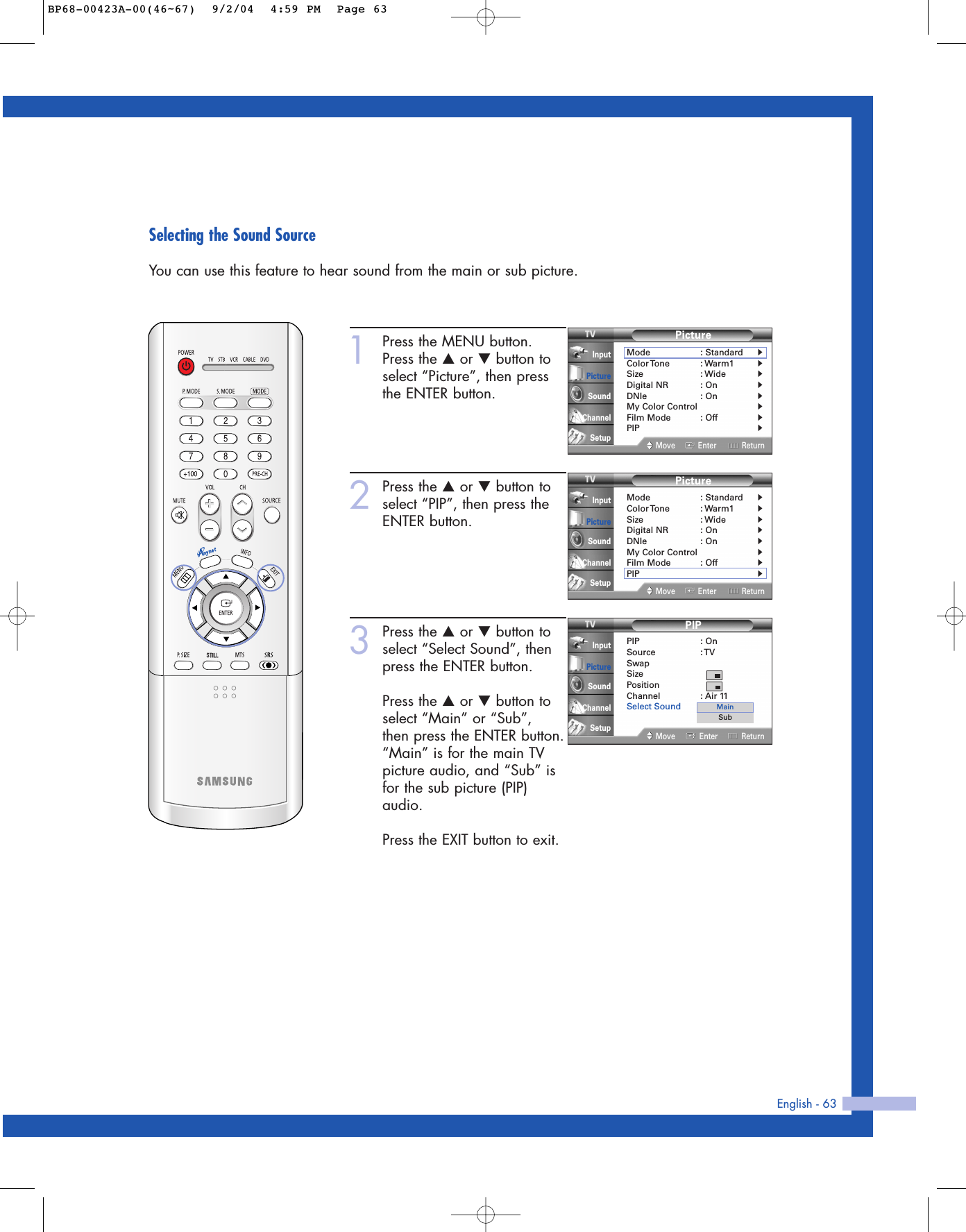

English - 63Selecting the Sound SourceYou can use this feature to hear sound from the main or sub picture.1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the …or †button toselect “PIP”, then press theENTER button.3Press the …or †button toselect “Select Sound”, thenpress the ENTER button.Press the …or †button toselect “Main” or “Sub”,then press the ENTER button.“Main” is for the main TVpicture audio, and “Sub” isfor the sub picture (PIP)audio.Press the EXIT button to exit.PictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupPIPPIP : OnSource : TVSwapSizePositionChannel : Air 11Select Sound : MainMove Enter ReturnInputPictureSoundChannelSetupMainSubPictureMode : Standard√Color Tone : Warm1√Size : Wide√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 63

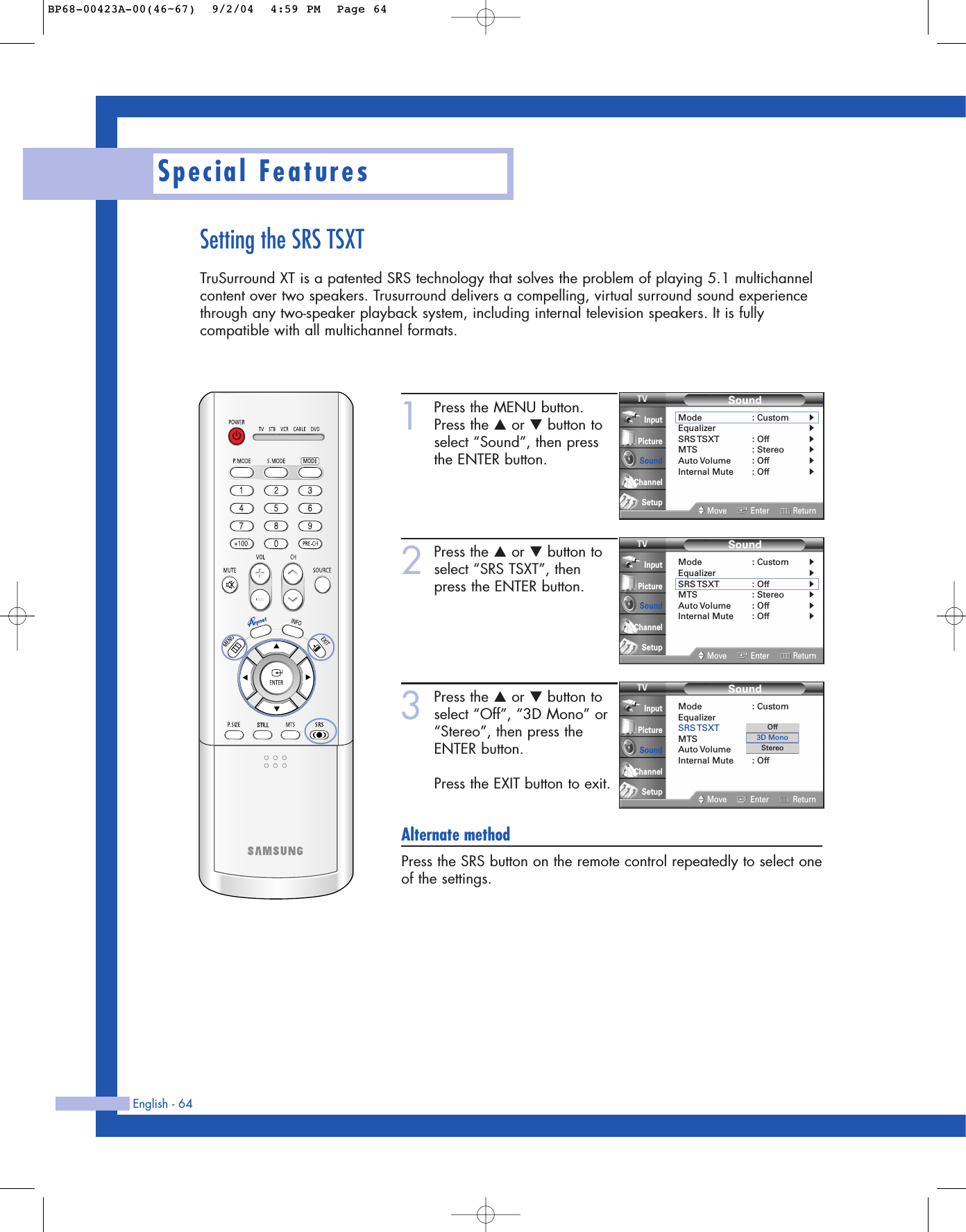

English - 64Special FeaturesSetting the SRS TSXTTruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannelcontent over two speakers. Trusurround delivers a compelling, virtual surround sound experiencethrough any two-speaker playback system, including internal television speakers. It is fullycompatible with all multichannel formats.1Press the MENU button.Press the …or †button toselect “Sound”, then pressthe ENTER button.2Press the …or †button toselect “SRS TSXT”, thenpress the ENTER button.3Press the …or †button toselect “Off”, “3D Mono” or“Stereo”, then press theENTER button.Press the EXIT button to exit.Alternate methodPress the SRS button on the remote control repeatedly to select oneof the settings.SoundMode : CustomEqualizerSRS TSXT : OffMTS : StereoAuto Volume : OffInternal Mute : OffMove Enter ReturnInputPictureSoundChannelSetupOff3D MonoStereoSoundMode : Custom√Equalizer√SRS TSXT : Off√MTS : Stereo√Auto Volume : Off√Internal Mute : Off√Move Enter ReturnInputPictureSoundChannelSetupSoundMode : Custom√Equalizer√SRS TSXT : Off√MTS : Stereo√Auto Volume : Off√Internal Mute : Off√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 64

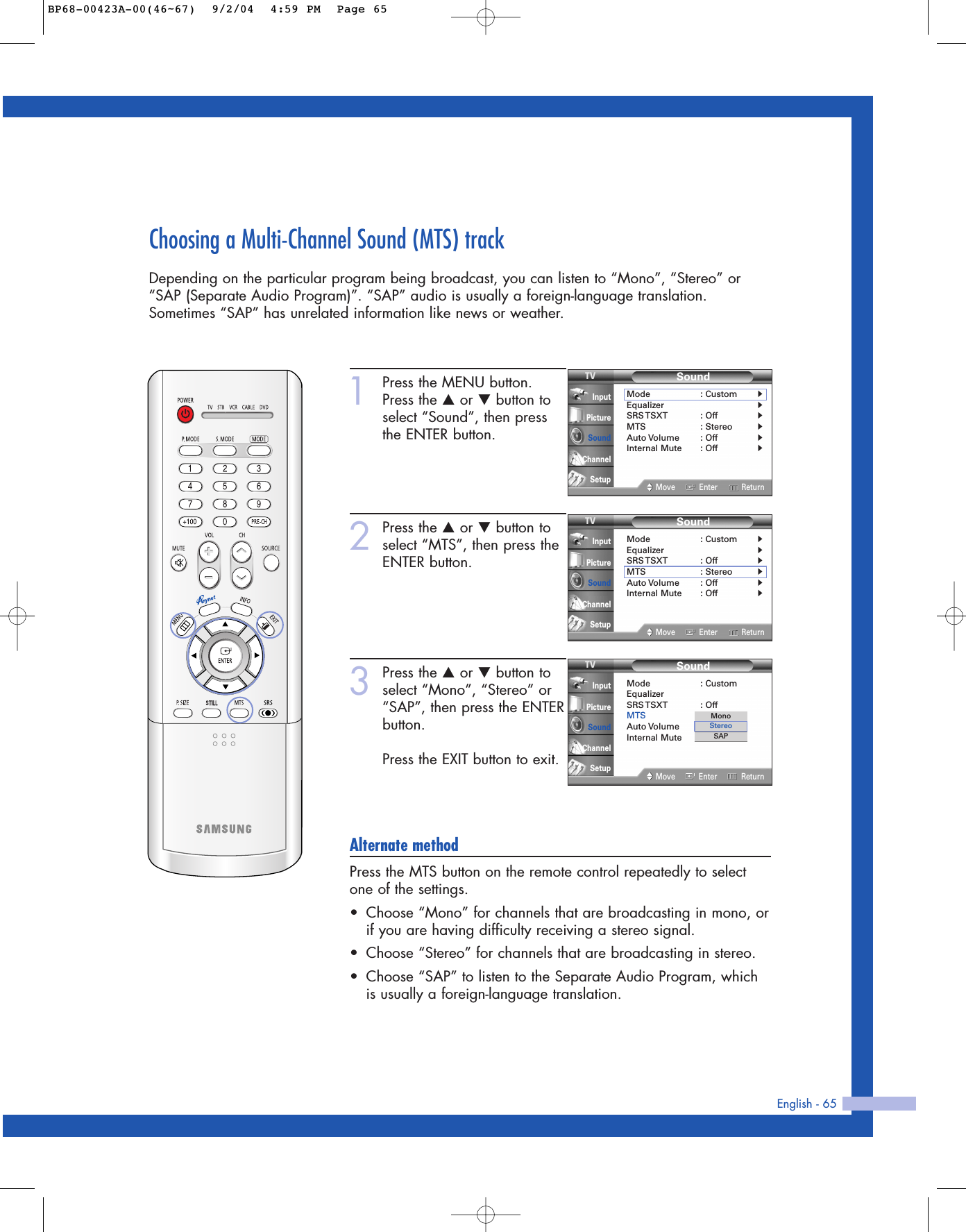

English - 65Choosing a Multi-Channel Sound (MTS) trackDepending on the particular program being broadcast, you can listen to “Mono”, “Stereo” or“SAP (Separate Audio Program)”. “SAP” audio is usually a foreign-language translation.Sometimes “SAP” has unrelated information like news or weather.1Press the MENU button.Press the …or †button toselect “Sound”, then pressthe ENTER button.2Press the …or †button toselect “MTS”, then press theENTER button.3Press the …or †button toselect “Mono”, “Stereo” or“SAP”, then press the ENTERbutton.Press the EXIT button to exit.Alternate methodPress the MTS button on the remote control repeatedly to selectone of the settings.•Choose “Mono” for channels that are broadcasting in mono, orif you are having difficulty receiving a stereo signal.•Choose “Stereo” for channels that are broadcasting in stereo.•Choose “SAP” to listen to the Separate Audio Program, whichis usually a foreign-language translation.SoundMode : CustomEqualizerSRS TSXT : OffMTS : StereoAuto Volume : OffInternal Mute : OffMove Enter ReturnInputPictureSoundChannelSetupMonoStereoSAPSoundMode : Custom√Equalizer√SRS TSXT : Off√MTS : Stereo√Auto Volume : Off√Internal Mute : Off√Move Enter ReturnInputPictureSoundChannelSetupSoundMode : Custom√Equalizer√SRS TSXT : Off√MTS : Stereo√Auto Volume : Off√Internal Mute : Off√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 65

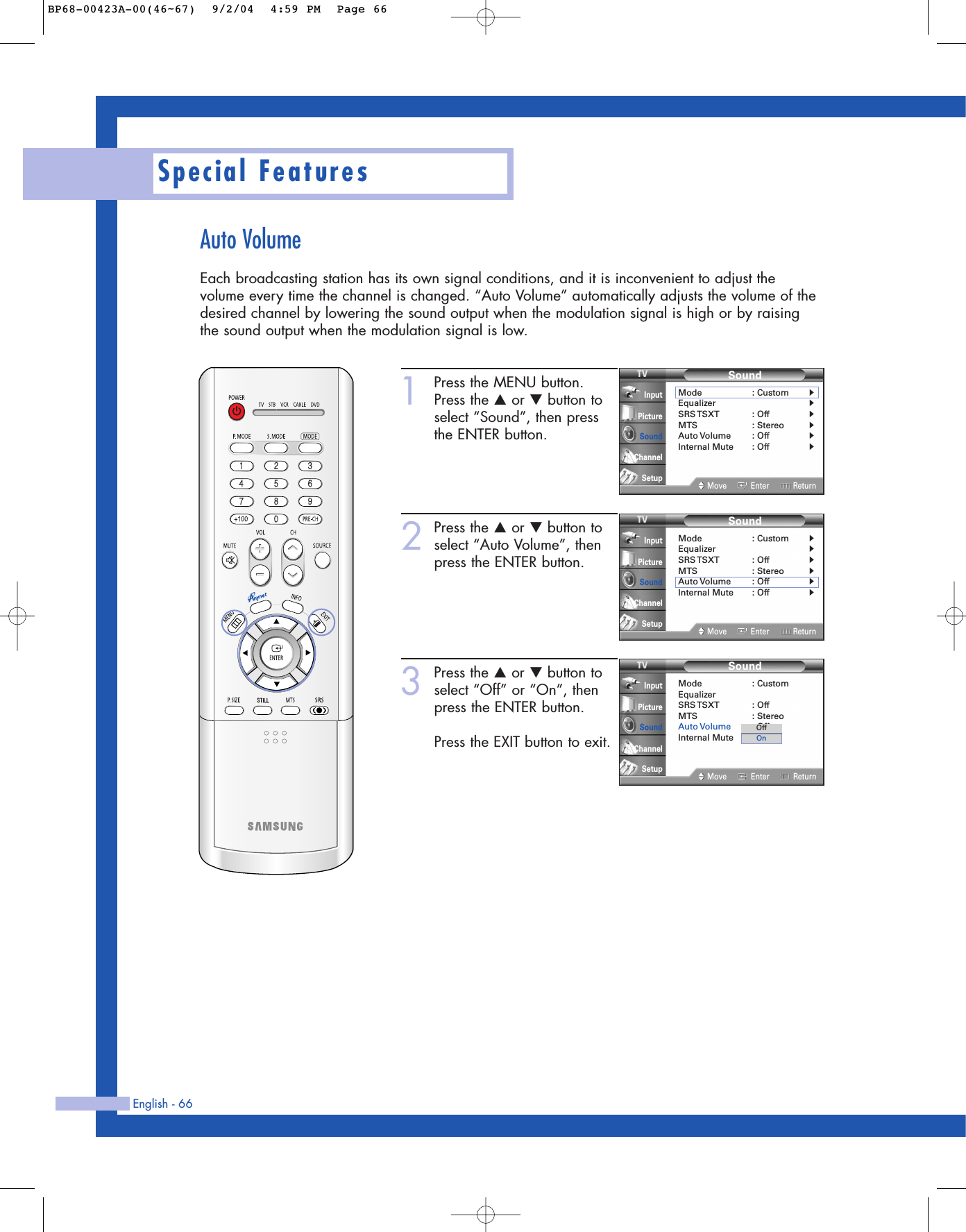

Special FeaturesEnglish - 66Auto VolumeEach broadcasting station has its own signal conditions, and it is inconvenient to adjust thevolume every time the channel is changed. “Auto Volume” automatically adjusts the volume of thedesired channel by lowering the sound output when the modulation signal is high or by raisingthe sound output when the modulation signal is low.1Press the MENU button.Press the …or †button toselect “Sound”, then pressthe ENTER button.2Press the …or †button toselect “Auto Volume”, thenpress the ENTER button.3Press the …or †button toselect “Off” or “On”, thenpress the ENTER button. Press the EXIT button to exit.SoundMode : CustomEqualizerSRS TSXT : OffMTS : StereoAuto Volume : OffInternal Mute : OffMove Enter ReturnInputPictureSoundChannelSetupOffOnSoundMode : Custom√Equalizer√SRS TSXT : Off√MTS : Stereo√Auto Volume : Off√Internal Mute : Off√Move Enter ReturnInputPictureSoundChannelSetupSoundMode : Custom√Equalizer√SRS TSXT : Off√MTS : Stereo√Auto Volume : Off√Internal Mute : Off√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 66

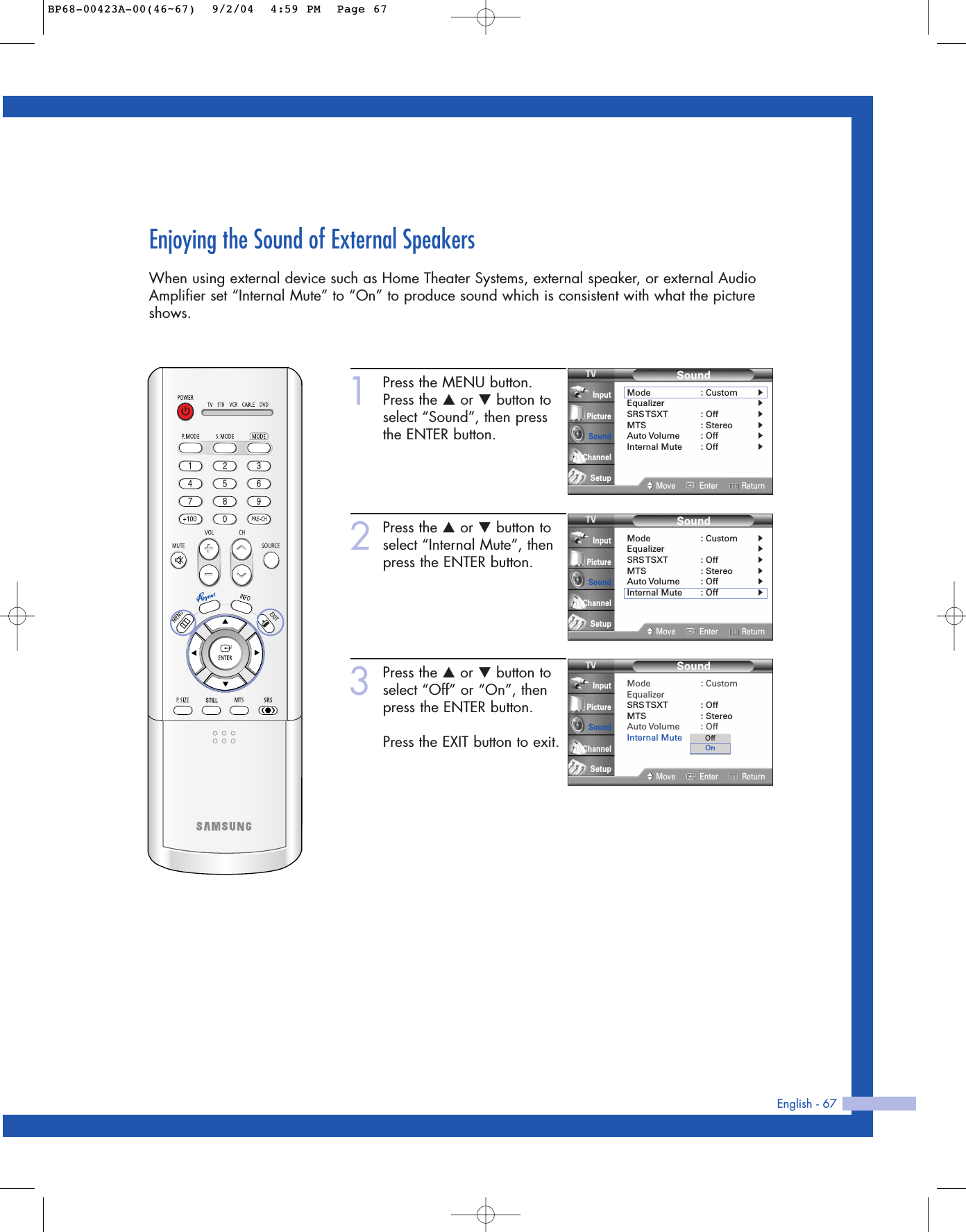

English - 67Enjoying the Sound of External SpeakersWhen using external device such as Home Theater Systems, external speaker, or external AudioAmplifier set “Internal Mute” to “On” to produce sound which is consistent with what the pictureshows.1Press the MENU button.Press the …or †button toselect “Sound”, then pressthe ENTER button.2Press the …or †button toselect “Internal Mute”, thenpress the ENTER button.3Press the …or †button toselect “Off” or “On”, thenpress the ENTER button. Press the EXIT button to exit.SoundMode : CustomEqualizerSRS TSXT : OffMTS : StereoAuto Volume : OffInternal Mute : OffMove Enter ReturnInputPictureSoundChannelSetupOffOnSoundMode : Custom√Equalizer√SRS TSXT : Off√MTS : Stereo√Auto Volume : Off√Internal Mute : Off√Move Enter ReturnInputPictureSoundChannelSetupSoundMode : Custom√Equalizer√SRS TSXT : Off√MTS : Stereo√Auto Volume : Off√Internal Mute : Off√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(46~67) 9/2/04 4:59 PM Page 67

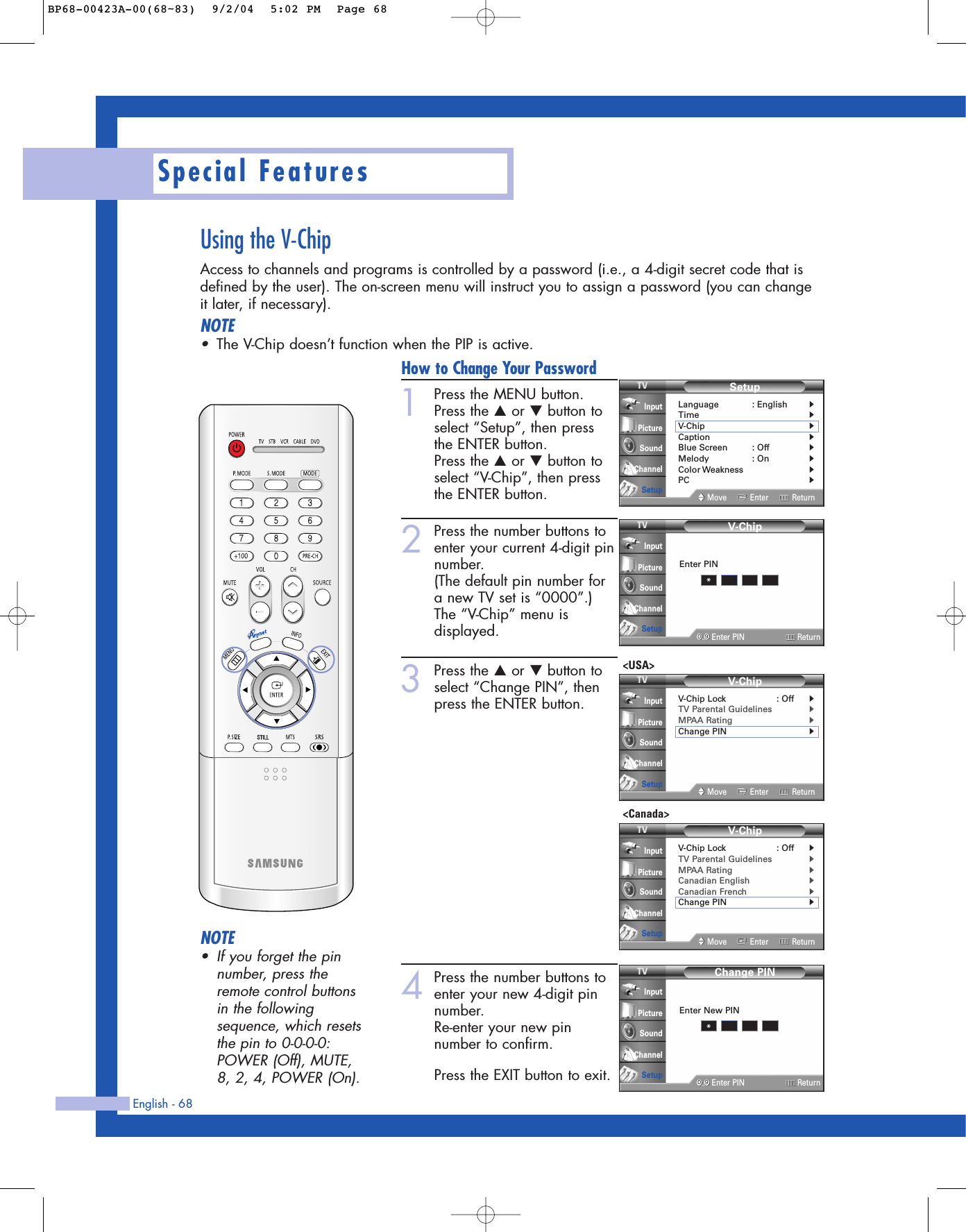

English - 68Special FeaturesUsing the V-ChipAccess to channels and programs is controlled by a password (i.e., a 4-digit secret code that isdefined by the user). The on-screen menu will instruct you to assign a password (you can changeit later, if necessary).NOTE•The V-Chip doesn’t function when the PIP is active.How to Change Your Password1Press the MENU button.Press the …or †button toselect “Setup”, then press the ENTER button.Press the …or †button toselect “V-Chip”, then pressthe ENTER button.2Press the number buttons toenter your current 4-digit pinnumber.(The default pin number fora new TV set is “0000”.)The “V-Chip” menu isdisplayed.3Press the …or †button toselect “Change PIN”, thenpress the ENTER button.4Press the number buttons toenter your new 4-digit pinnumber.Re-enter your new pinnumber to confirm.Press the EXIT button to exit.NOTE•If you forget the pinnumber, press theremote control buttonsin the followingsequence, which resetsthe pin to 0-0-0-0:POWER (Off), MUTE,8, 2, 4, POWER (On).SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupV-Chip0 9Enter PIN ReturnInputPictureSoundChannelSetupEnter PIN*V-ChipV-Chip Lock : Off√TV Parental Guidelines√MPAA Rating√Change PIN√Move Enter ReturnInputPictureSoundChannelSetupV-ChipV-Chip Lock : Off√TV Parental Guidelines√MPAA Rating√Canadian English√Canadian French√Change PIN√Move Enter ReturnInputPictureSoundChannelSetupChange PIN0 9Enter PIN ReturnInputPictureSoundChannelSetupEnter New PIN*<USA><Canada>BP68-00423A-00(68~83) 9/2/04 5:02 PM Page 68

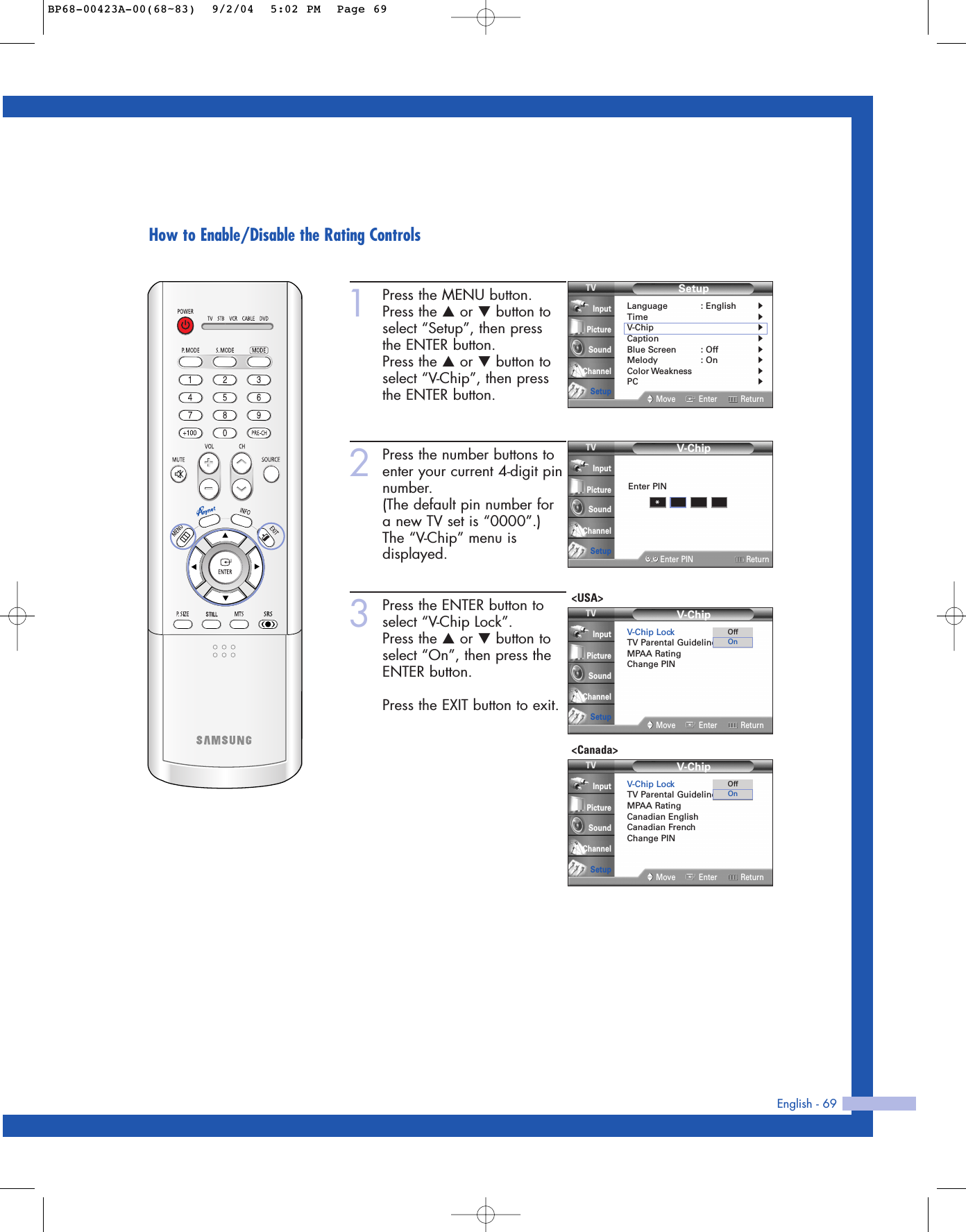

English - 69How to Enable/Disable the Rating Controls1Press the MENU button.Press the …or †button toselect “Setup”, then press the ENTER button.Press the …or †button toselect “V-Chip”, then pressthe ENTER button.2Press the number buttons toenter your current 4-digit pinnumber.(The default pin number fora new TV set is “0000”.)The “V-Chip” menu isdisplayed. 3Press the ENTER button toselect “V-Chip Lock”.Press the …or †button toselect “On”, then press theENTER button.Press the EXIT button to exit.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupV-Chip0 9Enter PIN ReturnInputPictureSoundChannelSetupEnter PIN*V-ChipV-Chip Lock : OffTV Parental GuidelinesMPAA RatingCanadian EnglishCanadian FrenchChange PINMove Enter ReturnInputPictureSoundChannelSetupOffOnV-ChipV-Chip Lock : OffTV Parental GuidelinesMPAA RatingChange PINMove Enter ReturnInputPictureSoundChannelSetupOffOn<Canada><USA>BP68-00423A-00(68~83) 9/2/04 5:02 PM Page 69

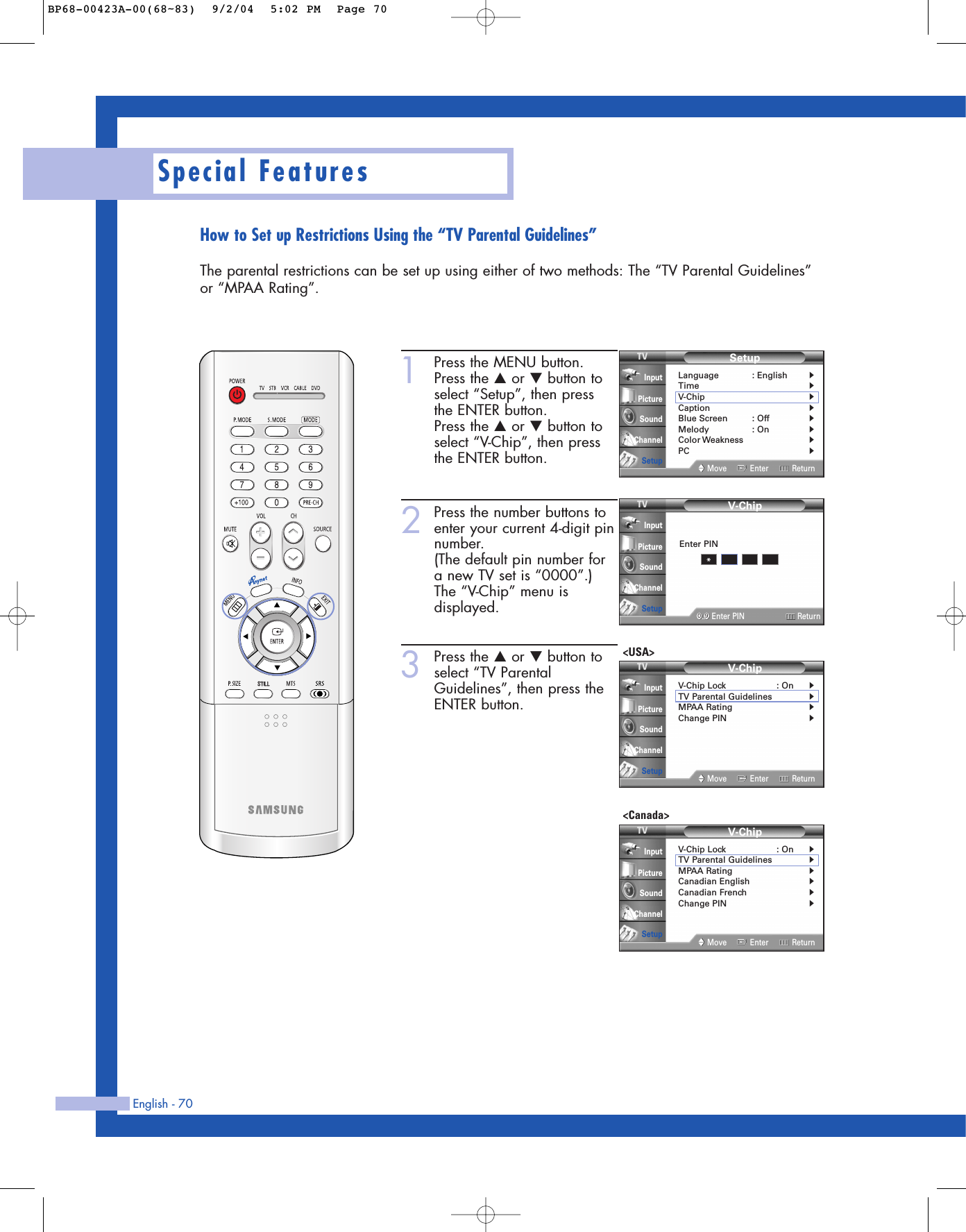

English - 70Special FeaturesHow to Set up Restrictions Using the “TV Parental Guidelines”The parental restrictions can be set up using either of two methods: The “TV Parental Guidelines”or “MPAA Rating”.1Press the MENU button.Press the …or †button toselect “Setup”, then press the ENTER button.Press the …or †button toselect “V-Chip”, then pressthe ENTER button.2Press the number buttons toenter your current 4-digit pinnumber.(The default pin number fora new TV set is “0000”.)The “V-Chip” menu isdisplayed.3Press the …or †button toselect “TV ParentalGuidelines”, then press theENTER button.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupV-Chip0 9Enter PIN ReturnInputPictureSoundChannelSetupEnter PIN*V-ChipV-Chip Lock : On√TV Parental Guidelines√MPAA Rating√Change PIN√Move Enter ReturnInputPictureSoundChannelSetupV-ChipV-Chip Lock : On√TV Parental Guidelines√MPAA Rating√Canadian English√Canadian French√Change PIN√Move Enter ReturnInputPictureSoundChannelSetup<USA><Canada>BP68-00423A-00(68~83) 9/2/04 5:02 PM Page 70

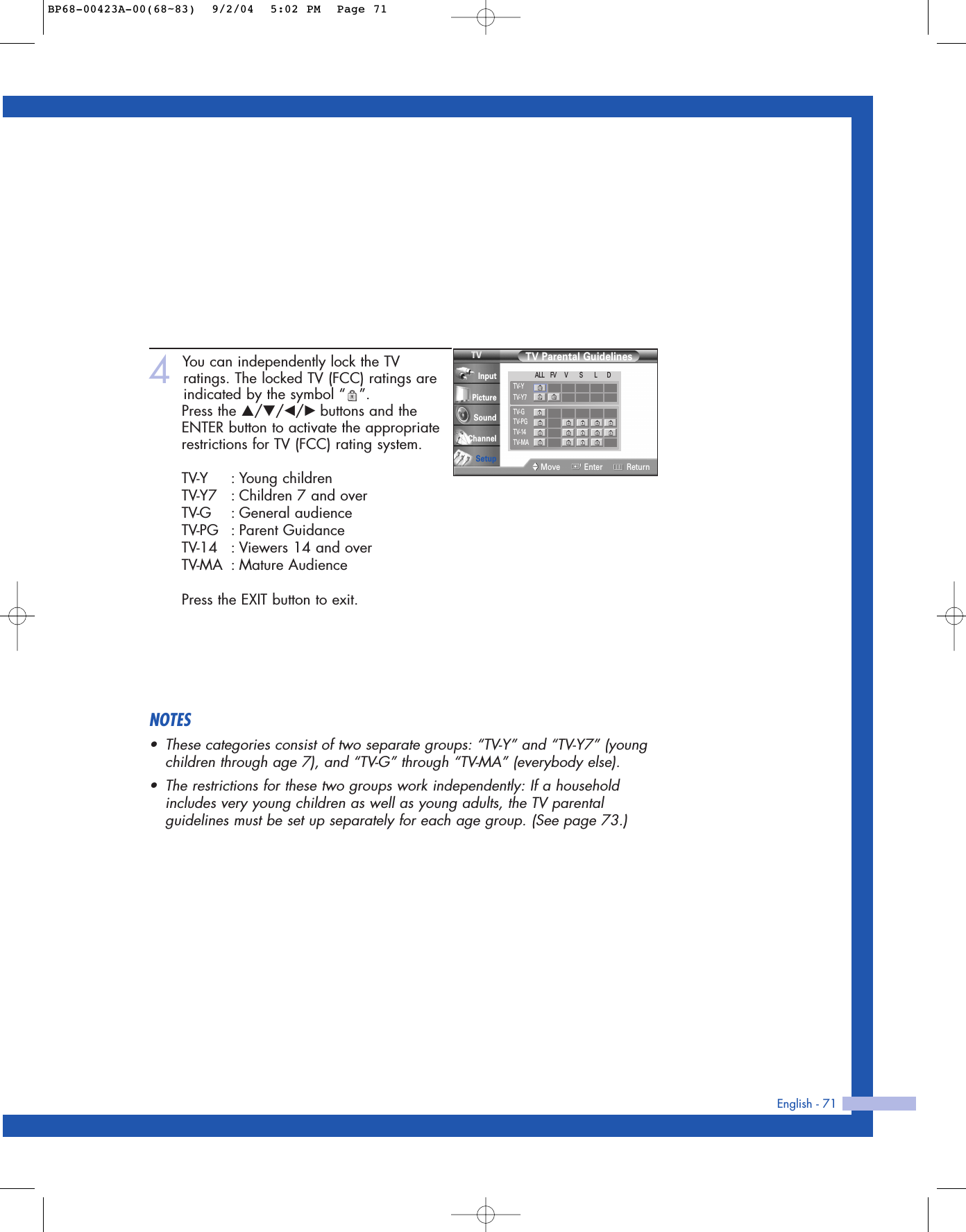

English - 714You can independently lock the TVratings. The locked TV (FCC) ratings areindicated by the symbol “ ”.Press the …/†/œ/√ buttons and theENTER button to activate the appropriaterestrictions for TV (FCC) rating system.TV-Y : Young childrenTV-Y7 : Children 7 and overTV-G : General audienceTV-PG : Parent GuidanceTV-14 : Viewers 14 and overTV-MA : Mature AudiencePress the EXIT button to exit.NOTES•These categories consist of two separate groups: “TV-Y” and “TV-Y7” (youngchildren through age 7), and “TV-G” through “TV-MA” (everybody else).•The restrictions for these two groups work independently: If a householdincludes very young children as well as young adults, the TV parentalguidelines must be set up separately for each age group. (See page 73.)TV Parental GuidelinesMove Enter ReturnInputPictureSoundChannelSetupALL FV V S L DTV-YTV-Y7TV-GTV-PGTV-14TV-MABP68-00423A-00(68~83) 9/2/04 5:02 PM Page 71

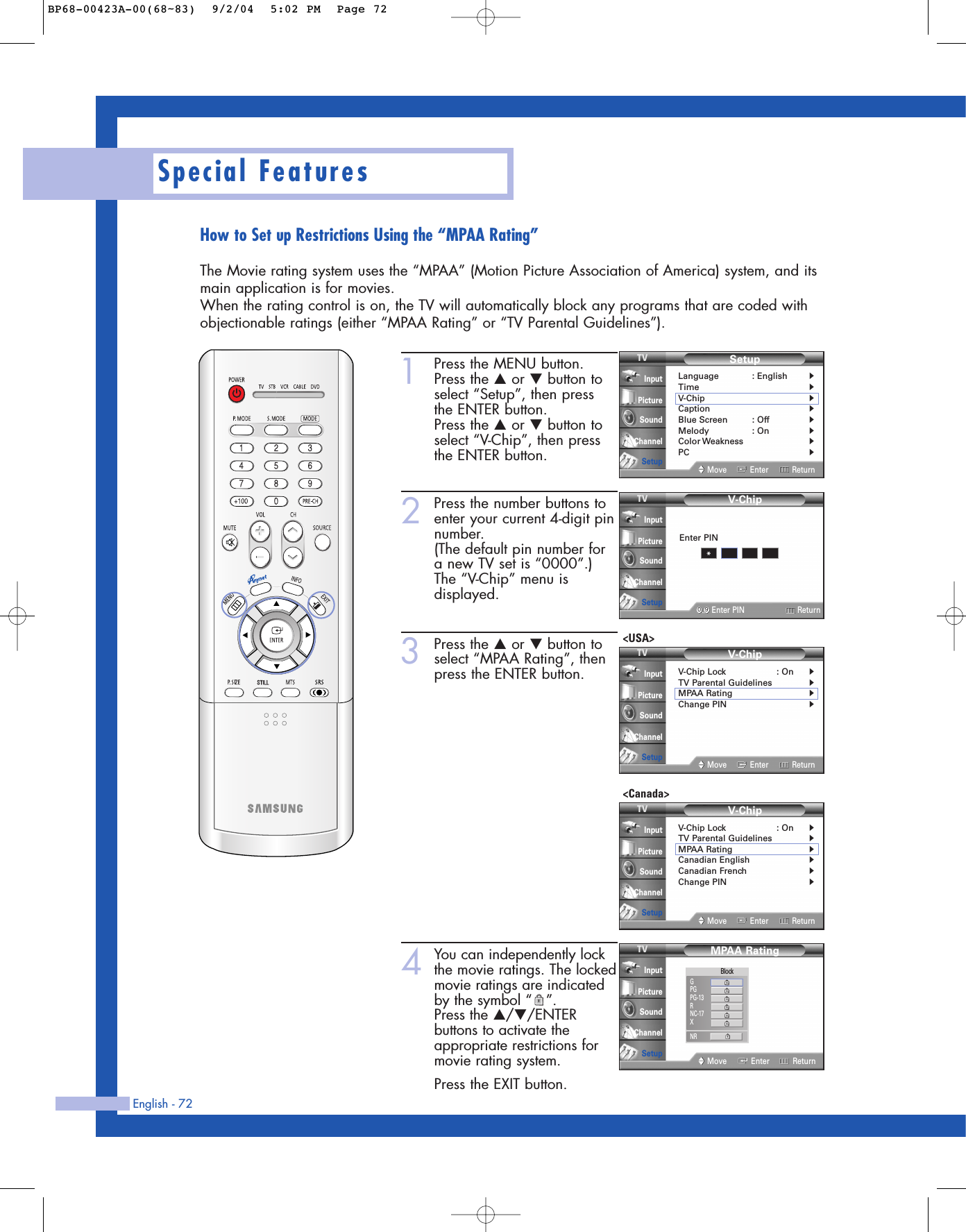

English - 72Special FeaturesHow to Set up Restrictions Using the “MPAA Rating”The Movie rating system uses the “MPAA” (Motion Picture Association of America) system, and itsmain application is for movies.When the rating control is on, the TV will automatically block any programs that are coded withobjectionable ratings (either “MPAA Rating” or “TV Parental Guidelines”).1Press the MENU button.Press the …or †button toselect “Setup”, then press the ENTER button.Press the …or †button toselect “V-Chip”, then pressthe ENTER button.2Press the number buttons toenter your current 4-digit pinnumber.(The default pin number fora new TV set is “0000”.)The “V-Chip” menu isdisplayed.3Press the …or †button toselect “MPAA Rating”, thenpress the ENTER button.4You can independently lockthe movie ratings. The lockedmovie ratings are indicatedby the symbol “ ”.Press the …/†/ENTERbuttons to activate theappropriate restrictions formovie rating system.Press the EXIT button.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupV-Chip0 9Enter PIN ReturnInputPictureSoundChannelSetupEnter PIN*MPAA RatingMove Enter ReturnInputPictureSoundChannelSetupBlockGPGPG-13RNC-17XNRV-ChipV-Chip Lock : On√TV Parental Guidelines√MPAA Rating√Change PIN√Move Enter ReturnInputPictureSoundChannelSetup<USA>V-ChipV-Chip Lock : On√TV Parental Guidelines√MPAA Rating√Canadian English√Canadian French√Change PIN√Move Enter ReturnInputPictureSoundChannelSetup<Canada>BP68-00423A-00(68~83) 9/2/04 5:02 PM Page 72

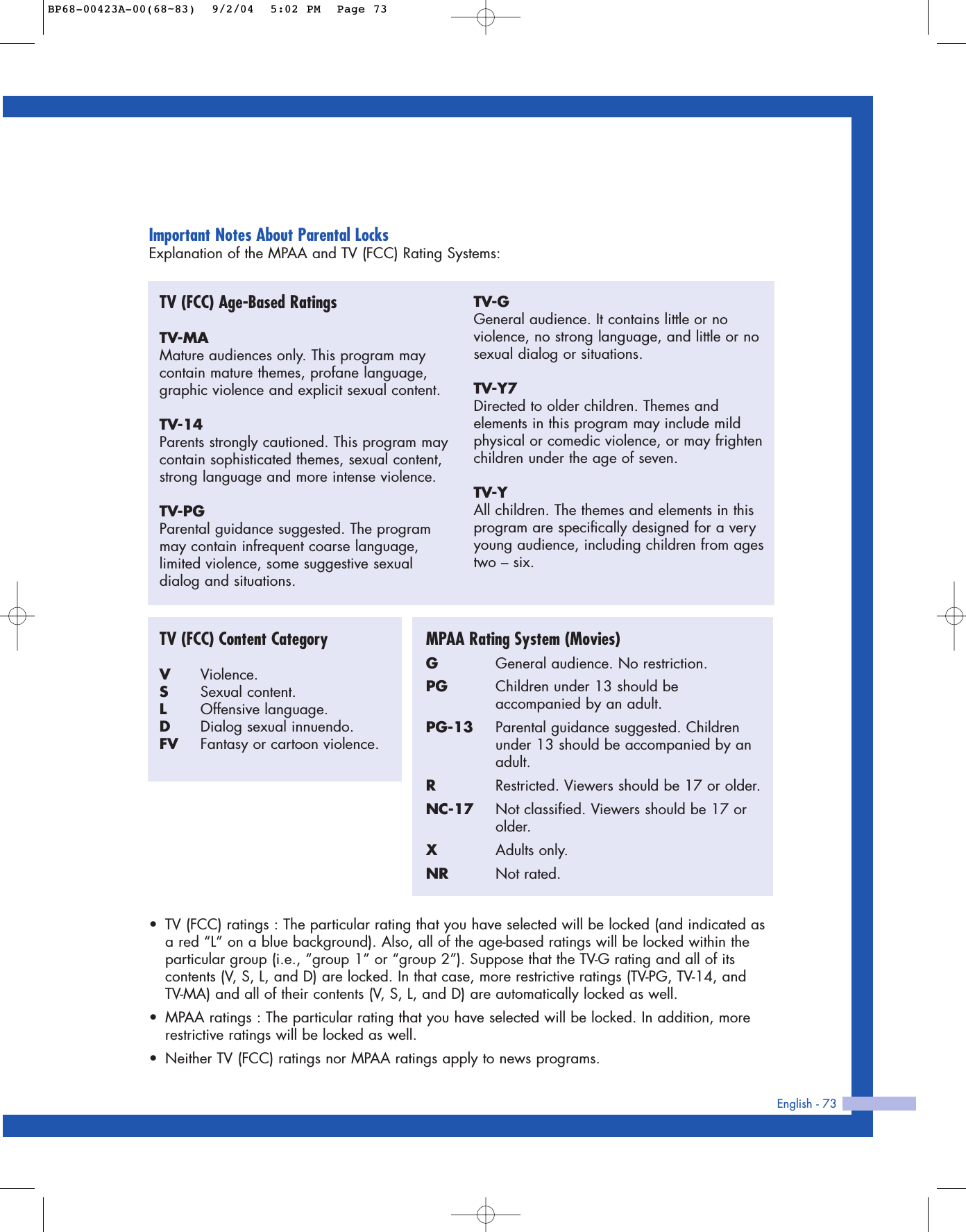

English - 73Important Notes About Parental LocksExplanation of the MPAA and TV (FCC) Rating Systems:TV (FCC) Age-Based RatingsTV-MAMature audiences only. This program maycontain mature themes, profane language,graphic violence and explicit sexual content.TV-14Parents strongly cautioned. This program maycontain sophisticated themes, sexual content,strong language and more intense violence.TV-PGParental guidance suggested. The programmay contain infrequent coarse language,limited violence, some suggestive sexualdialog and situations.TV-GGeneral audience. It contains little or noviolence, no strong language, and little or nosexual dialog or situations.TV-Y7Directed to older children. Themes andelements in this program may include mildphysical or comedic violence, or may frightenchildren under the age of seven.TV-YAll children. The themes and elements in thisprogram are specifically designed for a veryyoung audience, including children from agestwo – six.TV (FCC) Content CategoryVViolence.SSexual content.LOffensive language.DDialog sexual innuendo.FV Fantasy or cartoon violence.MPAA Rating System (Movies)GGeneral audience. No restriction.PG Children under 13 should beaccompanied by an adult.PG-13 Parental guidance suggested. Childrenunder 13 should be accompanied by anadult.RRestricted. Viewers should be 17 or older.NC-17 Not classified. Viewers should be 17 orolder.XAdults only.NR Not rated.•TV (FCC) ratings : The particular rating that you have selected will be locked (and indicated asa red “L” on a blue background). Also, all of the age-based ratings will be locked within theparticular group (i.e., “group 1” or “group 2”). Suppose that the TV-G rating and all of itscontents (V, S, L, and D) are locked. In that case, more restrictive ratings (TV-PG, TV-14, andTV-MA) and all of their contents (V, S, L, and D) are automatically locked as well.•MPAA ratings : The particular rating that you have selected will be locked. In addition, morerestrictive ratings will be locked as well.•Neither TV (FCC) ratings nor MPAA ratings apply to news programs.BP68-00423A-00(68~83) 9/2/04 5:02 PM Page 73

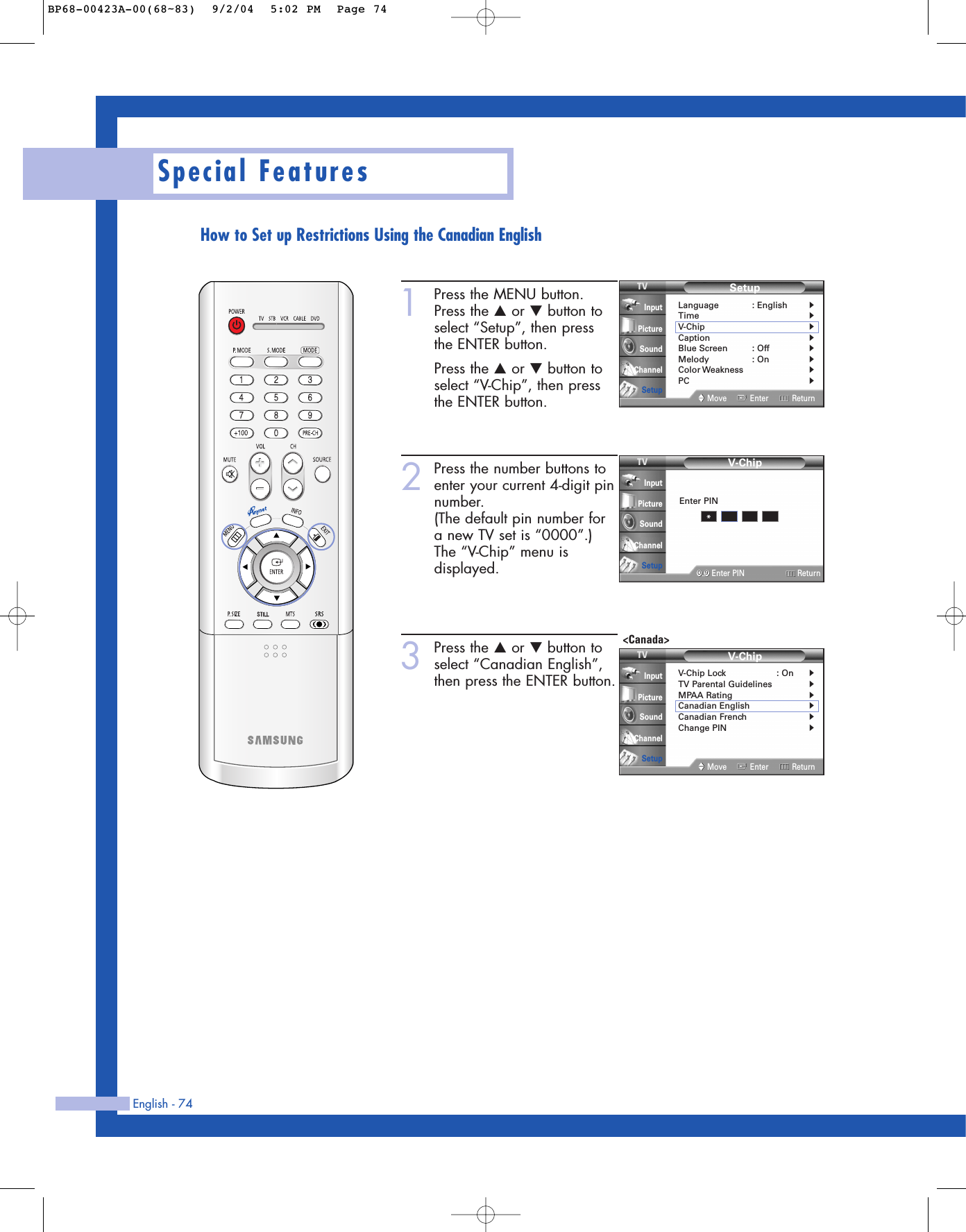

English - 74Special FeaturesHow to Set up Restrictions Using the Canadian English1Press the MENU button.Press the …or †button toselect “Setup”, then press the ENTER button.Press the …or †button toselect “V-Chip”, then pressthe ENTER button.2Press the number buttons toenter your current 4-digit pinnumber.(The default pin number fora new TV set is “0000”.)The “V-Chip” menu isdisplayed.3Press the …or †button toselect “Canadian English”,then press the ENTER button.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupV-Chip0 9Enter PIN ReturnInputPictureSoundChannelSetupEnter PIN*V-ChipV-Chip Lock : On√TV Parental Guidelines√MPAA Rating√Canadian English√Canadian French√Change PIN√Move Enter ReturnInputPictureSoundChannelSetup<Canada>BP68-00423A-00(68~83) 9/2/04 5:02 PM Page 74

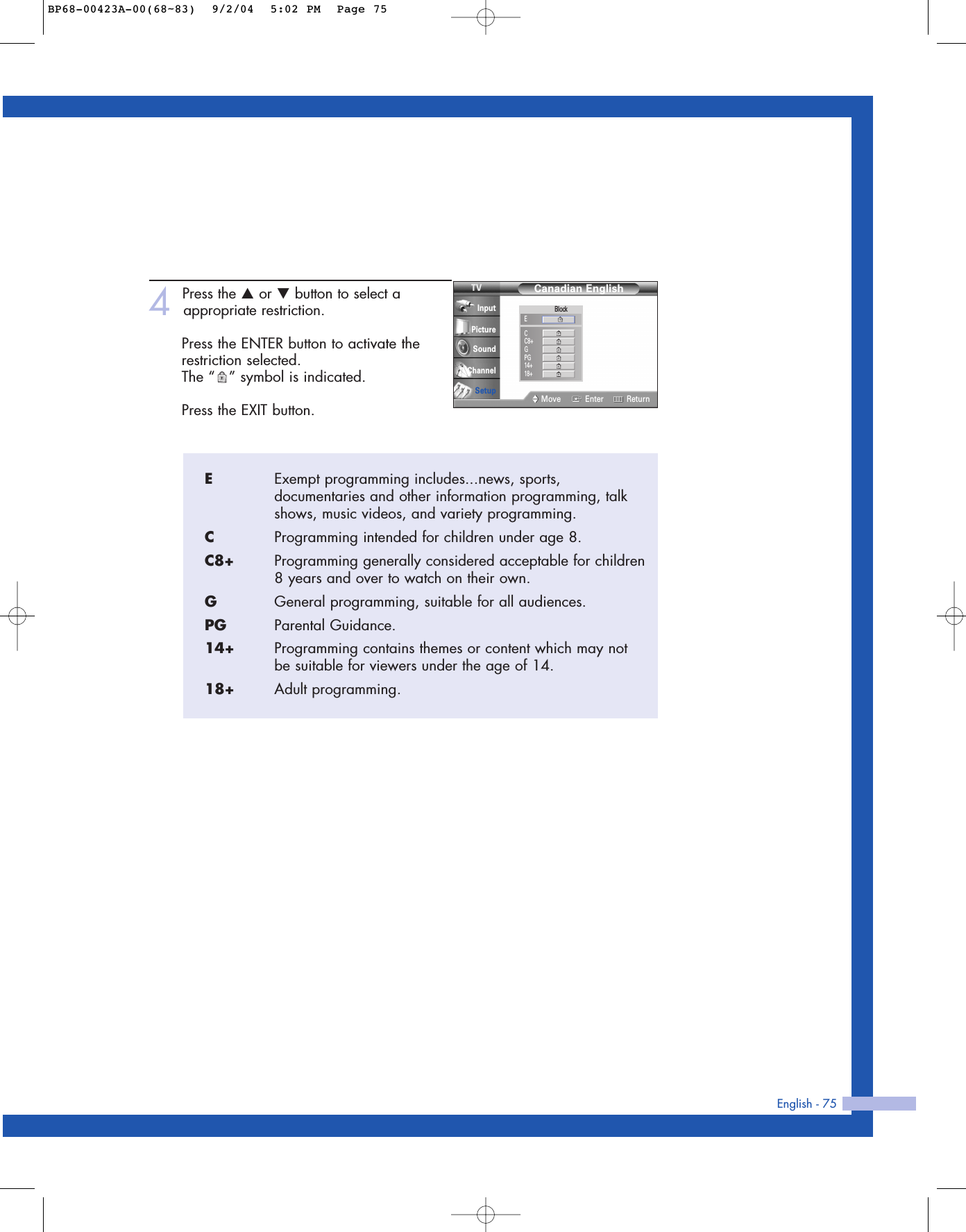

English - 754Press the …or †button to select aappropriate restriction.Press the ENTER button to activate therestriction selected.The “ ” symbol is indicated.Press the EXIT button.Canadian EnglishMove Enter ReturnBlockInputPictureSoundChannelSetupECC8+GPG14+18+EExempt programming includes...news, sports,documentaries and other information programming, talkshows, music videos, and variety programming.CProgramming intended for children under age 8.C8+ Programming generally considered acceptable for children8 years and over to watch on their own.GGeneral programming, suitable for all audiences.PG Parental Guidance.14+ Programming contains themes or content which may notbe suitable for viewers under the age of 14.18+ Adult programming.BP68-00423A-00(68~83) 9/2/04 5:02 PM Page 75

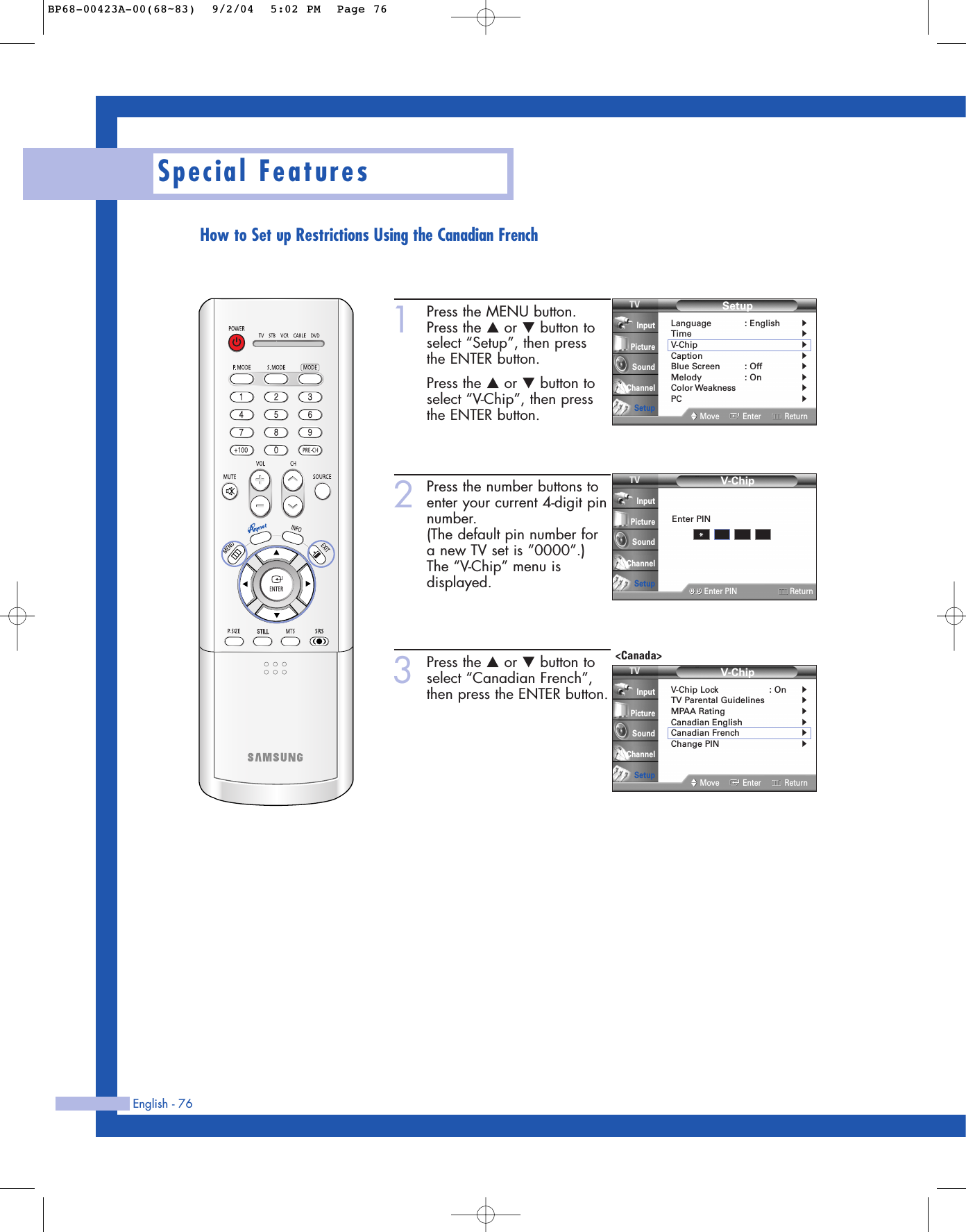

English - 76Special Features1Press the MENU button.Press the …or †button toselect “Setup”, then press the ENTER button.Press the …or †button toselect “V-Chip”, then pressthe ENTER button.2Press the number buttons toenter your current 4-digit pinnumber.(The default pin number fora new TV set is “0000”.)The “V-Chip” menu isdisplayed.3Press the …or †button toselect “Canadian French”,then press the ENTER button.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupV-Chip0 9Enter PIN ReturnInputPictureSoundChannelSetupEnter PIN*V-ChipV-Chip Lock : On√TV Parental Guidelines√MPAA Rating√Canadian English√Canadian French√Change PIN√Move Enter ReturnInputPictureSoundChannelSetup<Canada>How to Set up Restrictions Using the Canadian FrenchBP68-00423A-00(68~83) 9/2/04 5:02 PM Page 76

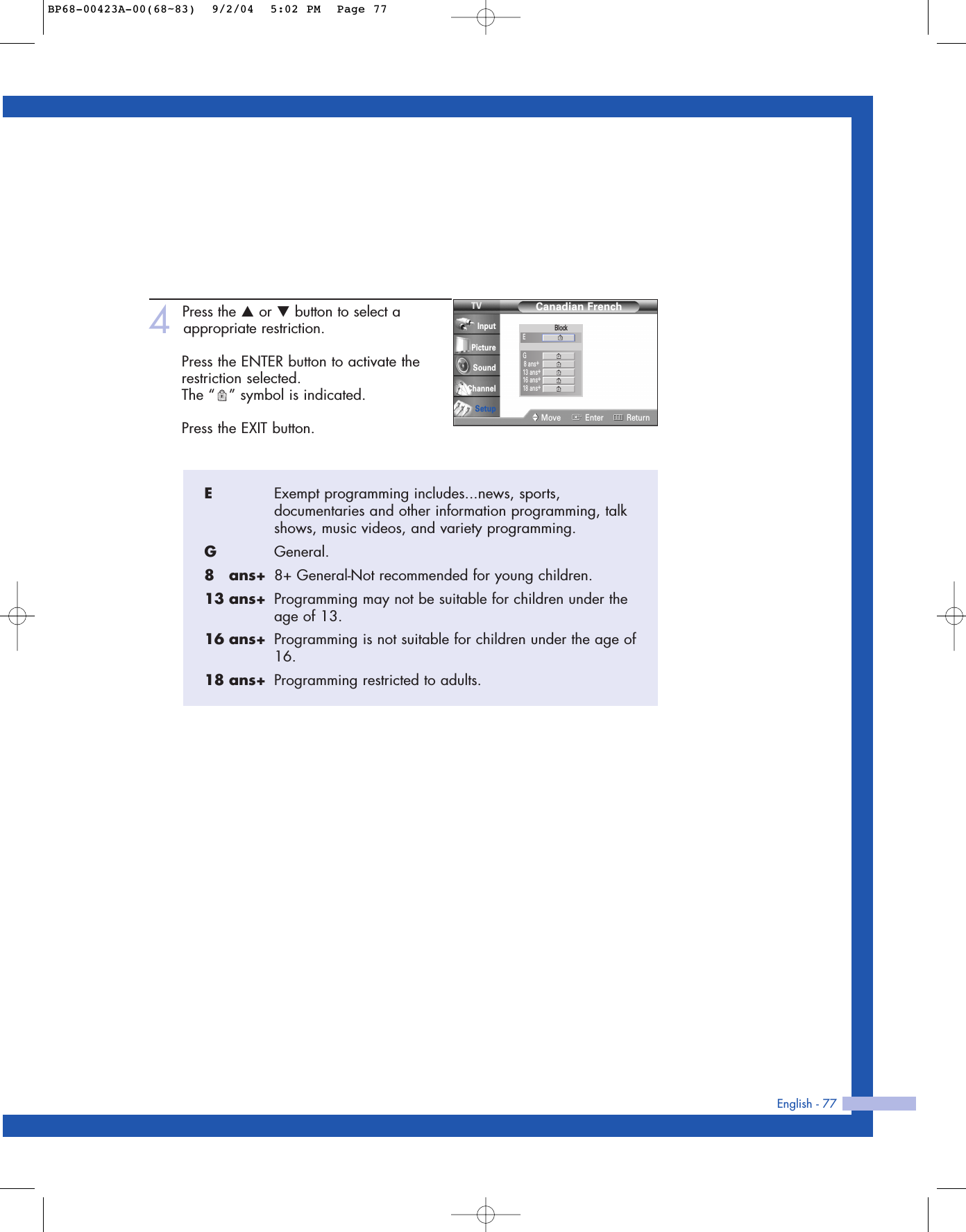

English - 774Press the …or †button to select aappropriate restriction.Press the ENTER button to activate therestriction selected.The “ ” symbol is indicated.Press the EXIT button.Canadian FrenchMove Enter ReturnBlockInputPictureSoundChannelSetupEG8 ans+13 ans+16 ans+18 ans+EExempt programming includes...news, sports,documentaries and other information programming, talkshows, music videos, and variety programming.GGeneral.8ans+ 8+ General-Not recommended for young children.13 ans+ Programming may not be suitable for children under theage of 13.16 ans+ Programming is not suitable for children under the age of16.18 ans+ Programming restricted to adults.BP68-00423A-00(68~83) 9/2/04 5:02 PM Page 77

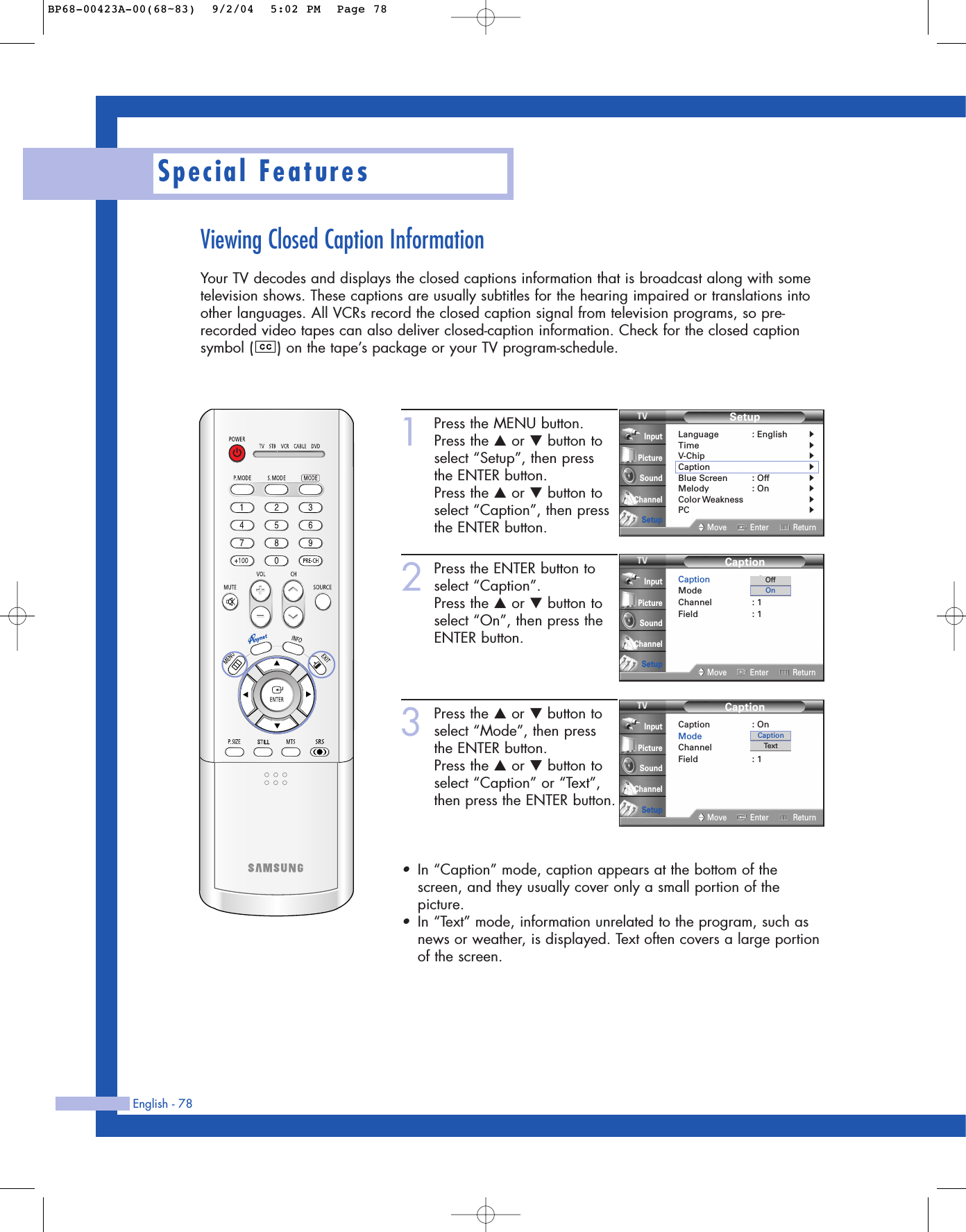

Special FeaturesEnglish - 78Viewing Closed Caption InformationYour TV decodes and displays the closed captions information that is broadcast along with sometelevision shows. These captions are usually subtitles for the hearing impaired or translations intoother languages. All VCRs record the closed caption signal from television programs, so pre-recorded video tapes can also deliver closed-caption information. Check for the closed captionsymbol ( ) on the tape’s package or your TV program-schedule.1Press the MENU button.Press the …or †button toselect “Setup”, then press the ENTER button.Press the …or †button toselect “Caption”, then pressthe ENTER button.2Press the ENTER button toselect “Caption”. Press the …or †button toselect “On”, then press theENTER button.3Press the …or †button toselect “Mode”, then pressthe ENTER button.Press the …or †button toselect “Caption” or “Text”,then press the ENTER button.•In “Caption” mode, caption appears at the bottom of thescreen, and they usually cover only a small portion of thepicture.•In “Text” mode, information unrelated to the program, such asnews or weather, is displayed. Text often covers a large portionof the screen.CaptionCaption : OnMode : CaptionChannel : 1Field : 1Move Enter ReturnInputPictureSoundChannelSetupCaptionCaption : OnMode : CaptionChannel : 1Field : 1Move Enter ReturnInputPictureSoundChannelSetupOffOnSetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupTextCaptionBP68-00423A-00(68~83) 9/2/04 5:02 PM Page 78

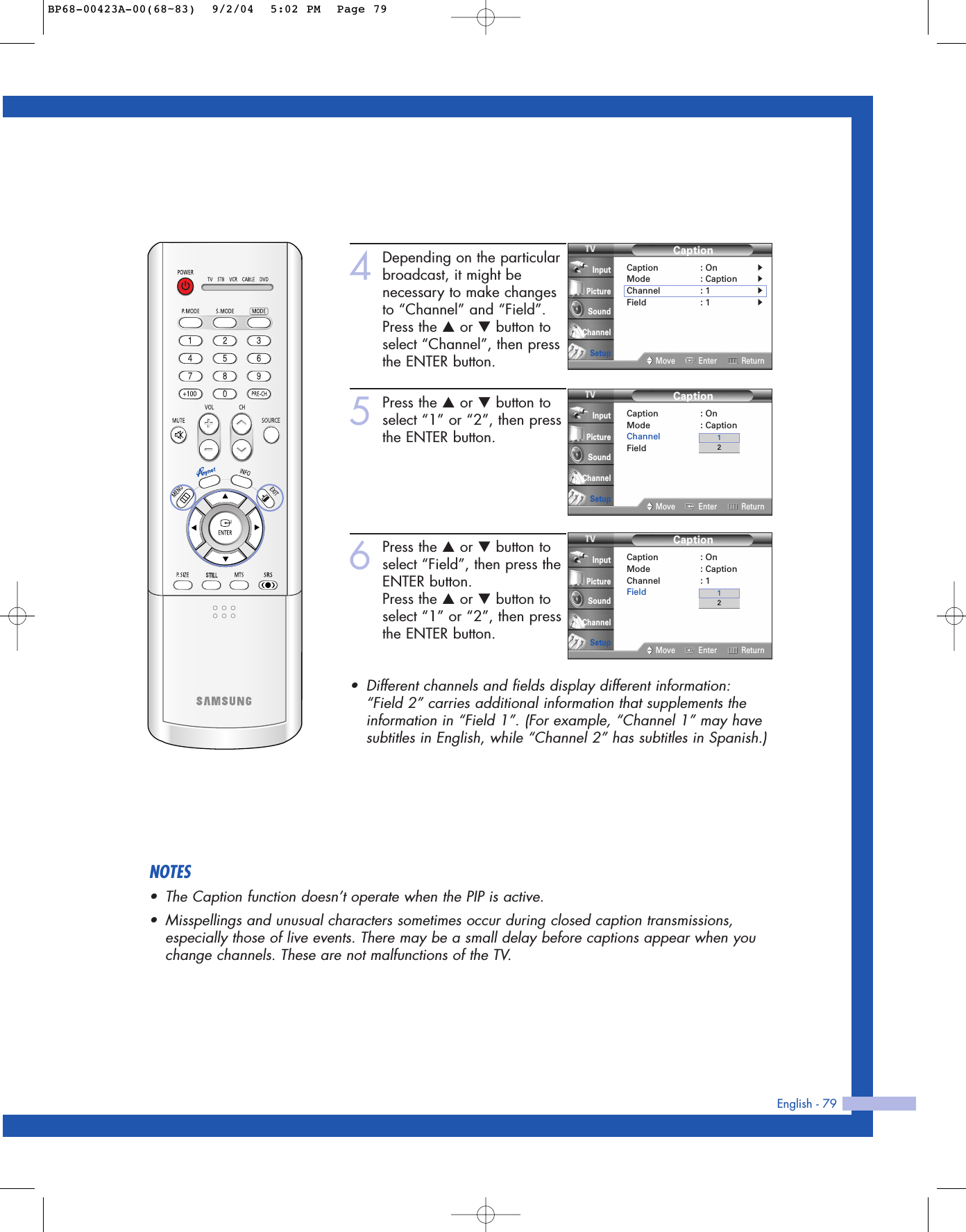

English - 794Depending on the particularbroadcast, it might benecessary to make changesto “Channel” and “Field”.Press the …or †button toselect “Channel”, then pressthe ENTER button.5Press the …or †button toselect “1” or “2”, then pressthe ENTER button.6Press the …or †button toselect “Field”, then press theENTER button.Press the …or †button toselect “1” or “2”, then pressthe ENTER button.•Different channels and fields display different information:“Field 2” carries additional information that supplements theinformation in “Field 1”. (For example, “Channel 1” may havesubtitles in English, while “Channel 2” has subtitles in Spanish.)CaptionCaption : OnMode : CaptionChannel : 1Field : 1Move Enter ReturnInputPictureSoundChannelSetup21CaptionCaption : On√Mode : Caption√Channel : 1√Field : 1√Move Enter ReturnInputPictureSoundChannelSetupCaptionCaption : OnMode : CaptionChannel : 1Field : 1Move Enter ReturnInputPictureSoundChannelSetup21NOTES•The Caption function doesn’t operate when the PIP is active.•Misspellings and unusual characters sometimes occur during closed caption transmissions,especially those of live events. There may be a small delay before captions appear when youchange channels. These are not malfunctions of the TV.BP68-00423A-00(68~83) 9/2/04 5:02 PM Page 79

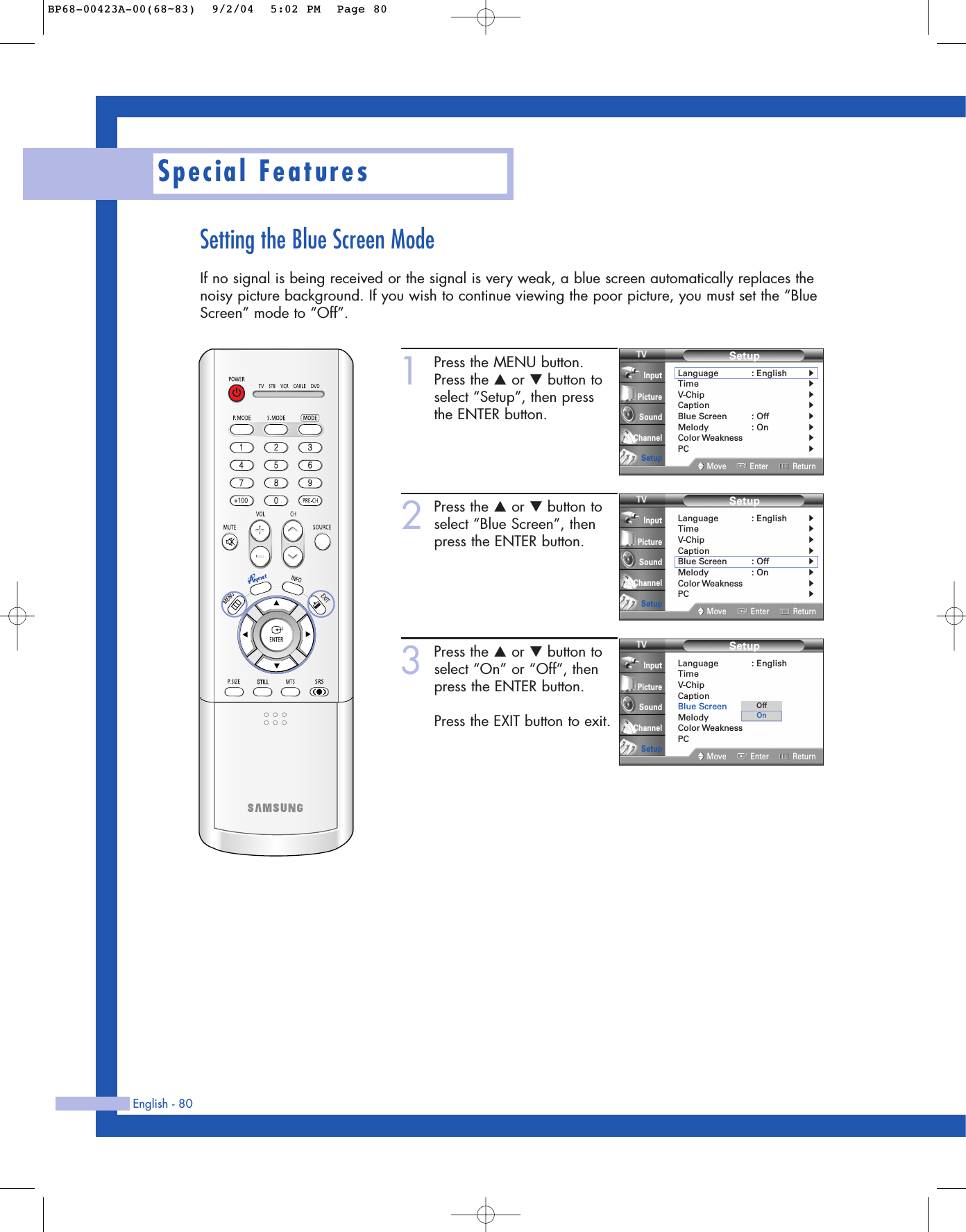

Setting the Blue Screen ModeIf no signal is being received or the signal is very weak, a blue screen automatically replaces thenoisy picture background. If you wish to continue viewing the poor picture, you must set the “BlueScreen” mode to “Off”.Special FeaturesEnglish - 801Press the MENU button.Press the …or †button toselect “Setup”, then pressthe ENTER button.2Press the …or †button toselect “Blue Screen”, thenpress the ENTER button.3Press the …or †button toselect “On” or “Off”, thenpress the ENTER button.Press the EXIT button to exit.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupSetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupSetupLanguage : EnglishTimeV-ChipCaptionBlue Screen : OffMelody : OnColor WeaknessPCMove Enter ReturnInputPictureSoundChannelSetupOffOnBP68-00423A-00(68~83) 9/2/04 5:02 PM Page 80

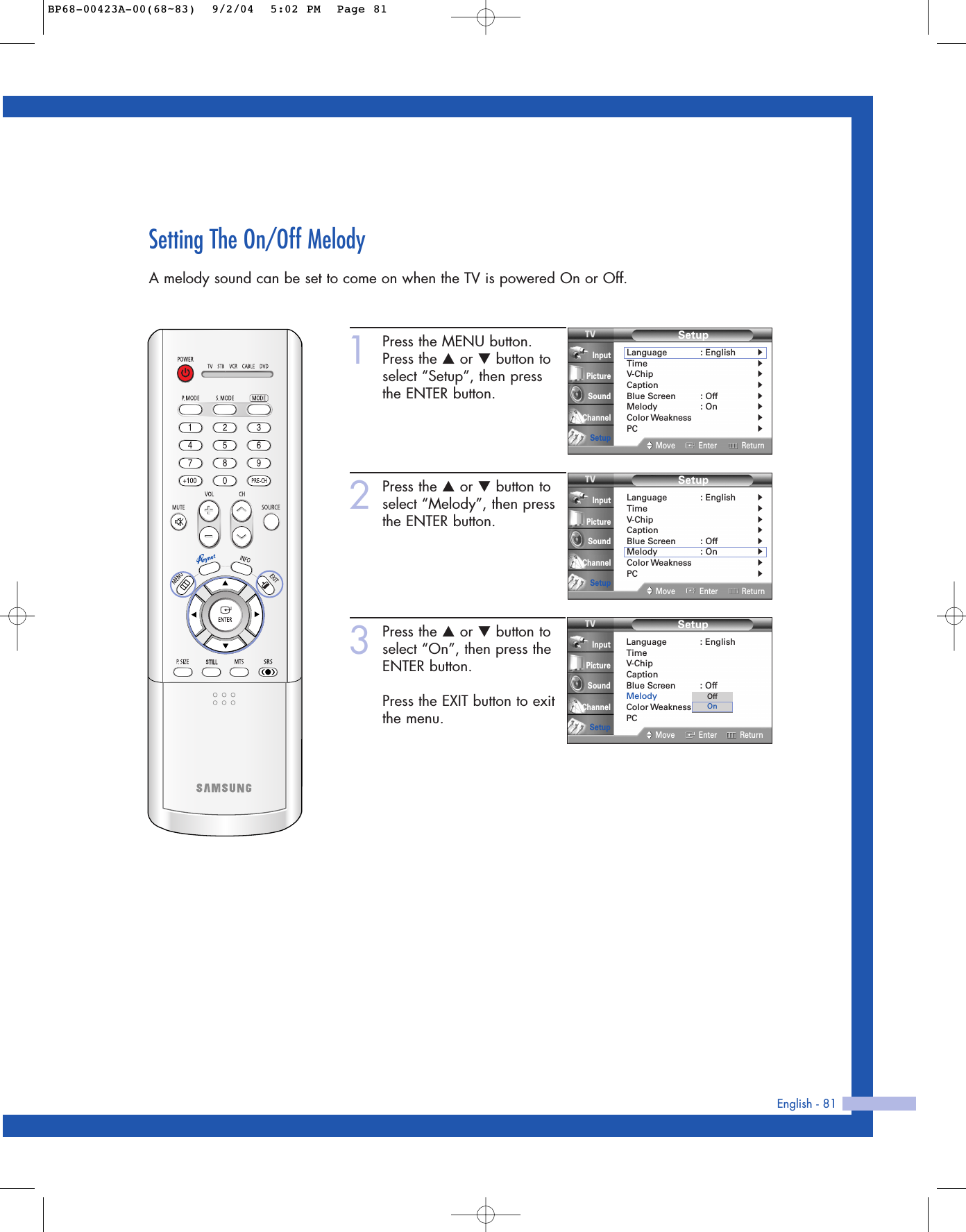

English - 81Setting The On/Off MelodyA melody sound can be set to come on when the TV is powered On or Off.1Press the MENU button.Press the …or †button toselect “Setup”, then press the ENTER button.2Press the …or †button toselect “Melody”, then pressthe ENTER button.3Press the …or †button toselect “On”, then press theENTER button.Press the EXIT button to exitthe menu.SetupLanguage : EnglishTimeV-ChipCaptionBlue Screen : OffMelody : OnColor WeaknessPCMove Enter ReturnInputPictureSoundChannelSetupOffOnSetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupSetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(68~83) 9/2/04 5:02 PM Page 81

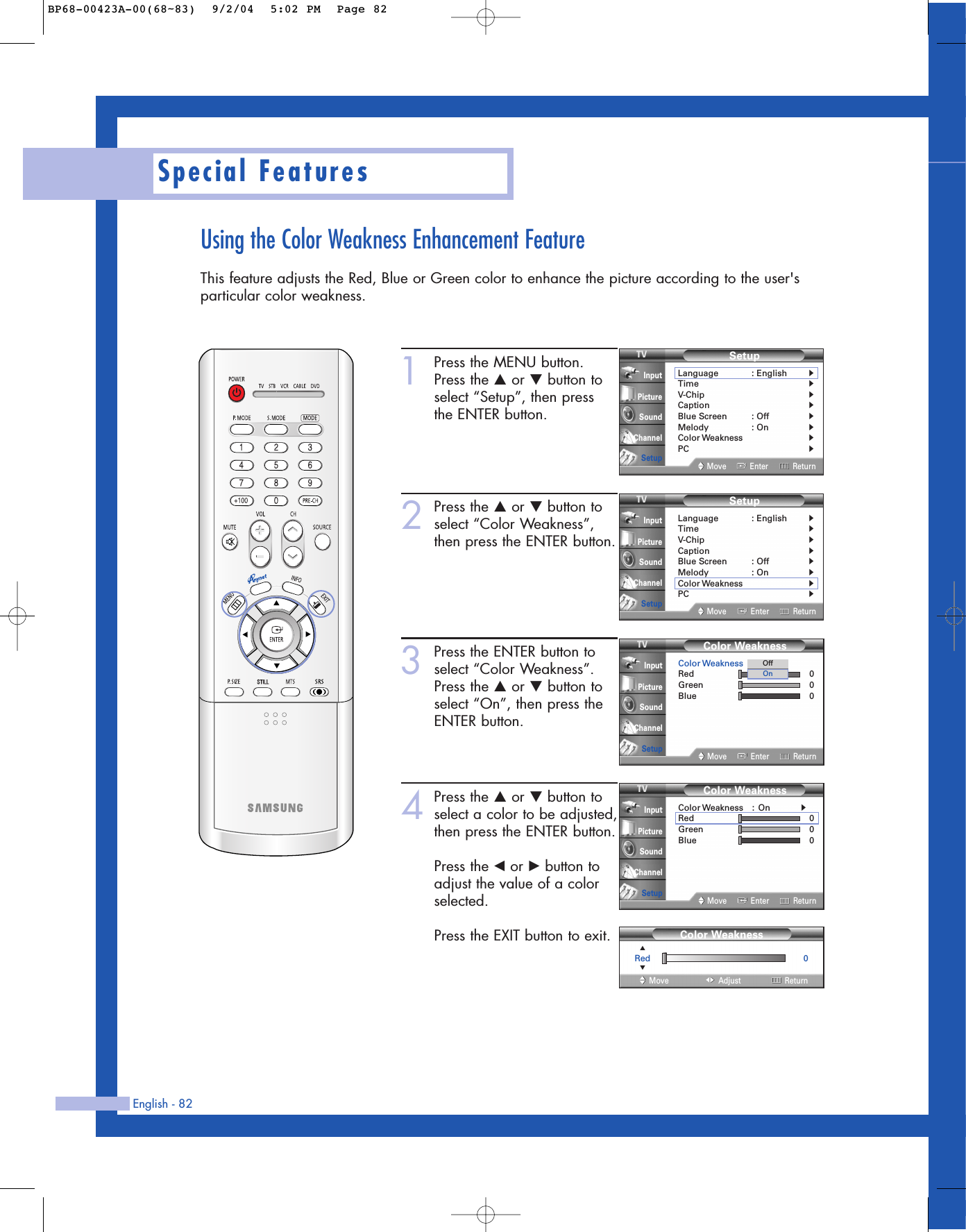

Using the Color Weakness Enhancement FeatureThis feature adjusts the Red, Blue or Green color to enhance the picture according to the user'sparticular color weakness.English - 82Special Features1Press the MENU button.Press the …or †button toselect “Setup”, then pressthe ENTER button.2Press the …or †button toselect “Color Weakness”,then press the ENTER button.3Press the ENTER button toselect “Color Weakness”.Press the …or †button toselect “On”, then press theENTER button.4Press the …or †button toselect a color to be adjusted,then press the ENTER button.Press the œor √button toadjust the value of a colorselected.Press the EXIT button to exit.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupSetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetup0Color WeaknessAdjustMove Return▲Red▼Color WeaknessColor Weakness : On√Red 0Green 0Blue 0Move Enter ReturnInputPictureSoundChannelSetupColor WeaknessColor Weakness : OnRed 0Green 0Blue 0Move Enter ReturnInputPictureSoundChannelSetupOffOnBP68-00423A-00(68~83) 9/2/04 5:02 PM Page 82
PC DisplayBP68-00423A-00(68~83) 9/2/04 5:02 PM Page 83

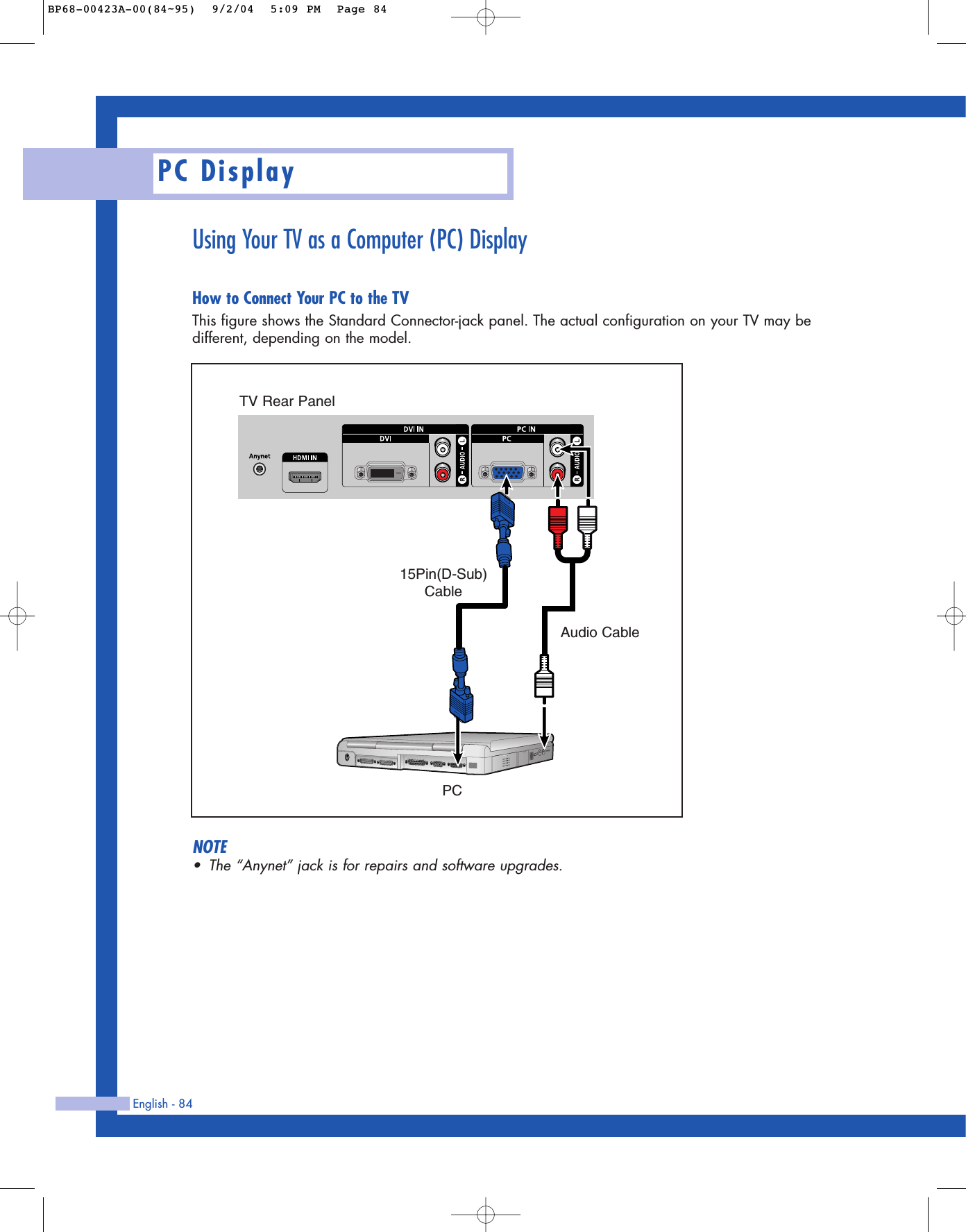

PC DisplayEnglish - 84Using Your TV as a Computer (PC) DisplayHow to Connect Your PC to the TVThis figure shows the Standard Connector-jack panel. The actual configuration on your TV may bedifferent, depending on the model.NOTE•The “Anynet” jack is for repairs and software upgrades.15Pin(D-Sub)CableTV Rear PanelPCAudio CableBP68-00423A-00(84~95) 9/2/04 5:09 PM Page 84

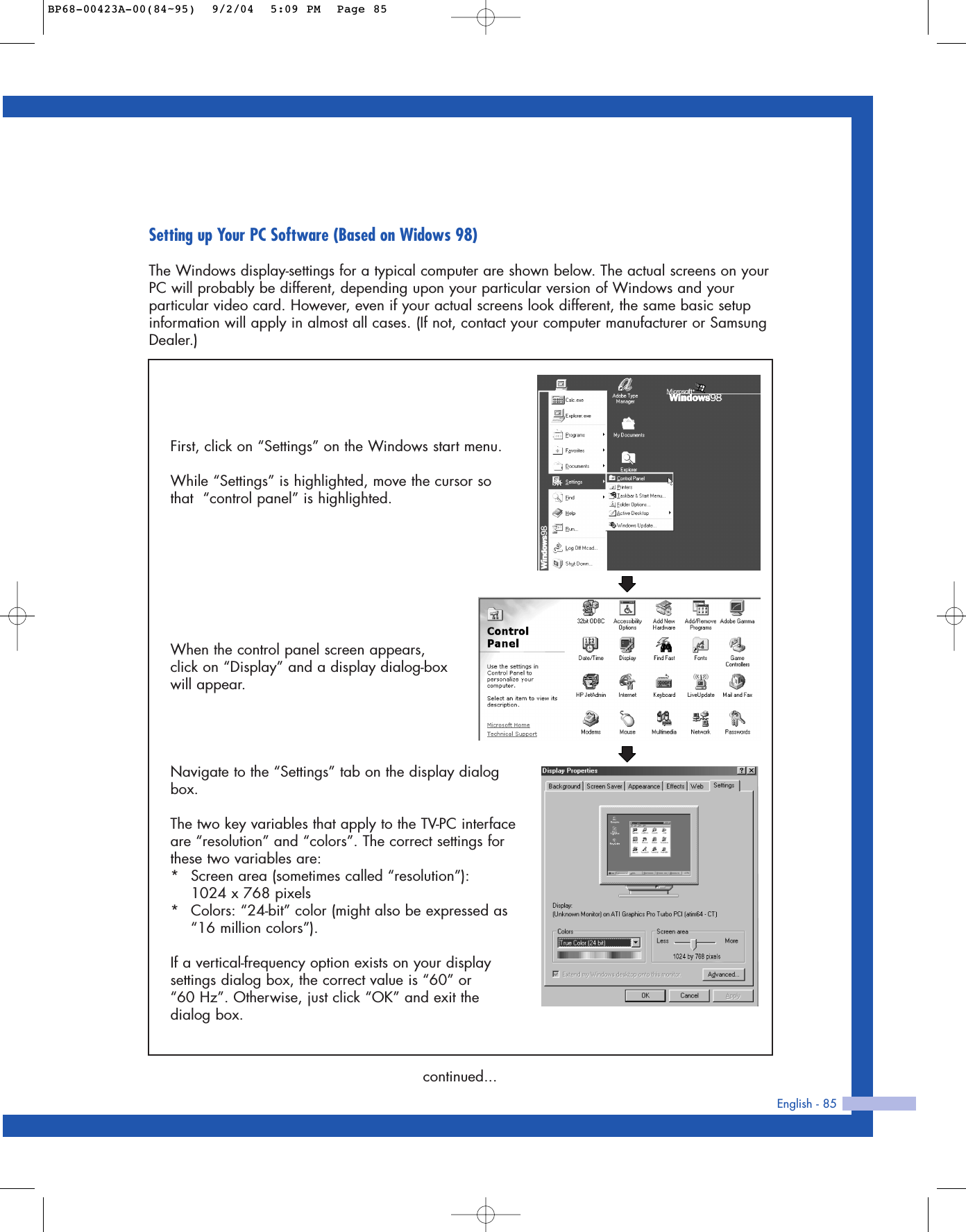

English - 85Setting up Your PC Software (Based on Widows 98)The Windows display-settings for a typical computer are shown below. The actual screens on yourPC will probably be different, depending upon your particular version of Windows and yourparticular video card. However, even if your actual screens look different, the same basic setupinformation will apply in almost all cases. (If not, contact your computer manufacturer or SamsungDealer.)First, click on “Settings” on the Windows start menu.While “Settings” is highlighted, move the cursor sothat “control panel” is highlighted.Navigate to the “Settings” tab on the display dialogbox.The two key variables that apply to the TV-PC interfaceare “resolution” and “colors”. The correct settings forthese two variables are:*Screen area (sometimes called “resolution”): 1024 x 768 pixels*Colors: “24-bit” color (might also be expressed as“16 million colors”). If a vertical-frequency option exists on your displaysettings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit thedialog box.continued...When the control panel screen appears,click on “Display” and a display dialog-boxwill appear.BP68-00423A-00(84~95) 9/2/04 5:09 PM Page 85

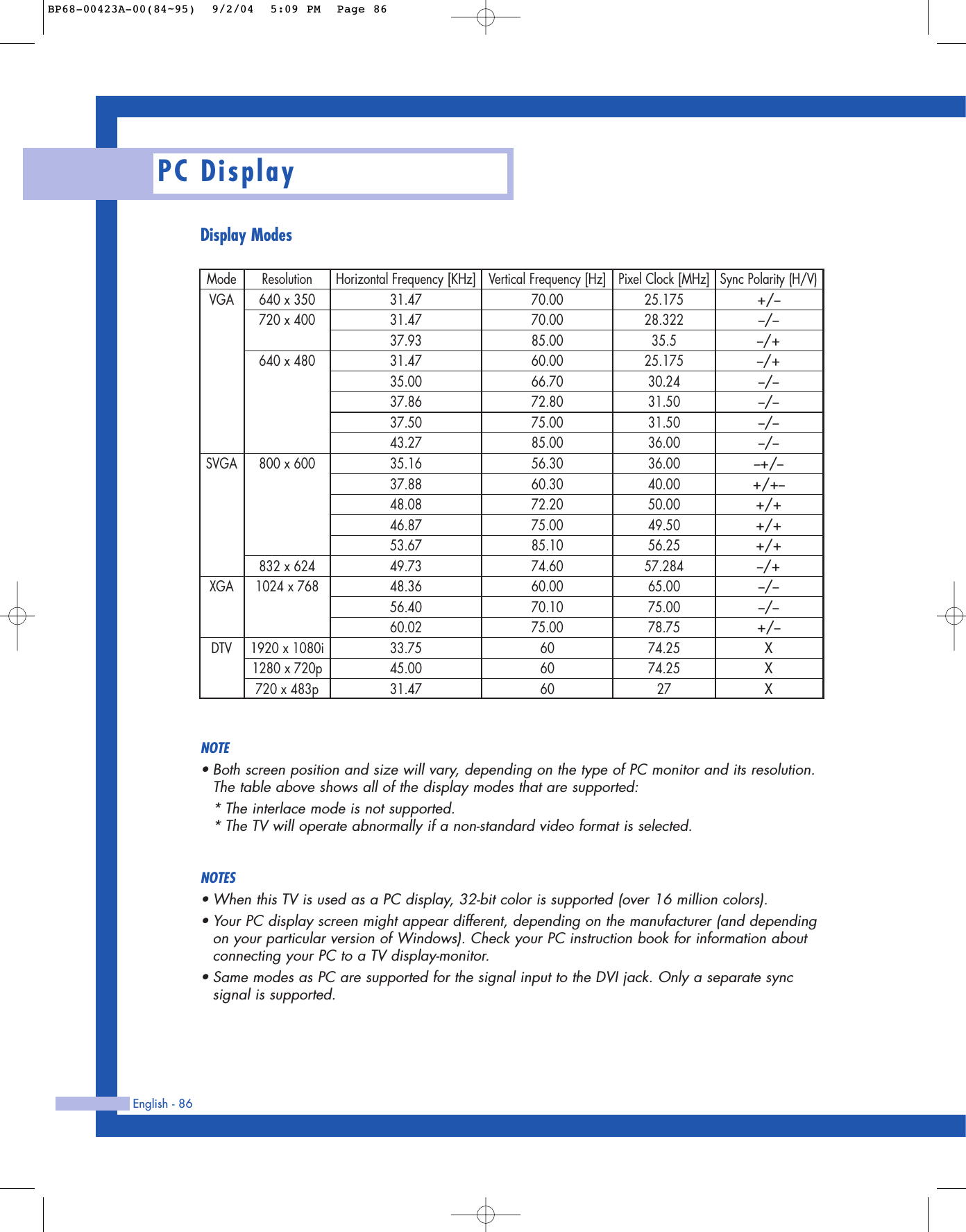

PC DisplayEnglish - 86NOTE•Both screen position and size will vary, depending on the type of PC monitor and its resolution.The table above shows all of the display modes that are supported:*The interlace mode is not supported.*The TV will operate abnormally if a non-standard video format is selected.NOTES•When this TV is used as a PC display, 32-bit color is supported (over 16 million colors).•Your PC display screen might appear different, depending on the manufacturer (and dependingon your particular version of Windows). Check your PC instruction book for information aboutconnecting your PC to a TV display-monitor.•Same modes as PC are supported for the signal input to the DVI jack. Only a separate sync signal is supported. Resolution640 x 350720 x 400640 x 480800 x 600832 x 6241024 x 7681920 x 1080i1280 x 720p720 x 483pHorizontal Frequency [KHz]31.4731.4737.9331.4735.0037.8637.5043.2735.1637.8848.0846.8753.6749.7348.3656.4060.0233.7545.0031.47Vertical Frequency [Hz]70.0070.0085.0060.0066.7072.8075.0085.0056.3060.3072.2075.0085.1074.6060.0070.1075.00606060Pixel Clock [MHz]25.17528.32235.525.17530.2431.5031.5036.0036.0040.0050.0049.5056.2557.28465.0075.0078.7574.2574.2527Sync Polarity (H/V)+/--/--/+-/+-/--/--/--/--+/-+/+-+/++/++/+-/+-/--/-+/-XXXModeVGASVGAXGADTVDisplay ModesBP68-00423A-00(84~95) 9/2/04 5:09 PM Page 86
Adjusting the Picture QualityThe purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is notremoved by fine tuning alone, then do the frequency adjustments to the utmost and fine tuneagain. After the noise has been reduced, re-adjust the picture so that it is aligned on the center ofscreen.English - 871Press the SOURCE button to select “PC”.2Press the MENU button.Press the …or †button toselect “Setup”, then press the ENTER button.3Press the …or †button toselect “PC”, then press theENTER button.4Press the …or †button toselect “Coarse” or “Fine”,then press the ENTER button.5Pressing the œor √buttonto remove the picture noise.Press the EXIT button to exit.NOTE•This feature may change the width of the image. If necessary, adjust the position to center.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupSetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetup▲Coarse▼1344PCCoarse√Fine√Position√Auto AdjustmentRecallMove Enter ReturnInputPictureSoundChannelSetup▲Fine▼0BP68-00423A-00(84~95) 9/2/04 5:09 PM Page 87

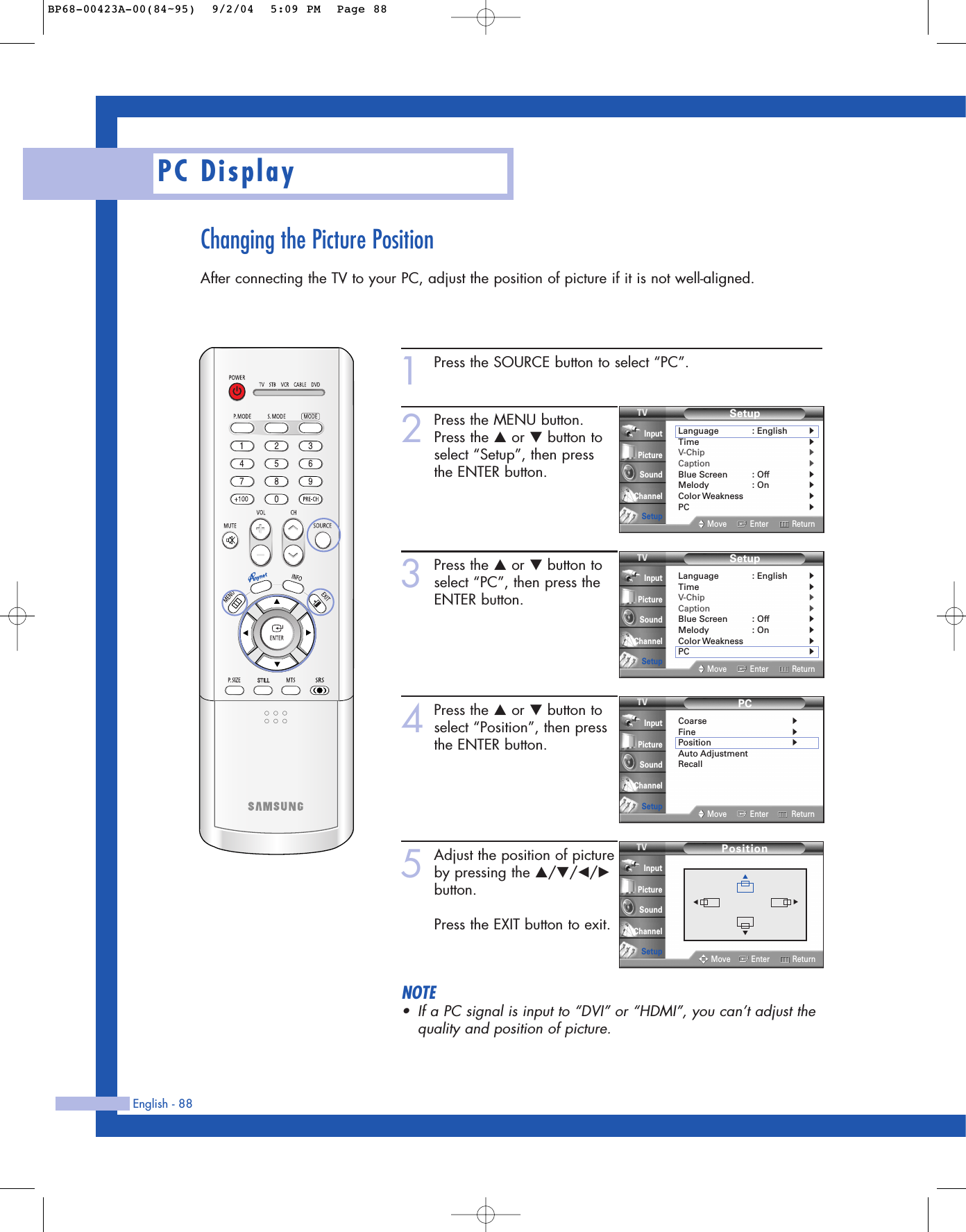

Changing the Picture PositionAfter connecting the TV to your PC, adjust the position of picture if it is not well-aligned.English - 88PC Display1Press the SOURCE button to select “PC”.2Press the MENU button.Press the …or †button toselect “Setup”, then press the ENTER button.3Press the …or †button toselect “PC”, then press theENTER button.4Press the …or †button toselect “Position”, then pressthe ENTER button.5Adjust the position of pictureby pressing the …/†/œ/√button.Press the EXIT button to exit.NOTE•If a PC signal is input to “DVI” or “HDMI”, you can’t adjust thequality and position of picture.PCCoarse√Fine√Position√Auto AdjustmentRecallMove Enter ReturnInputPictureSoundChannelSetupSetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupSetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupPositionMove Enter ReturnInputPictureSoundChannelSetup▲▼▼▼BP68-00423A-00(84~95) 9/2/04 5:09 PM Page 88

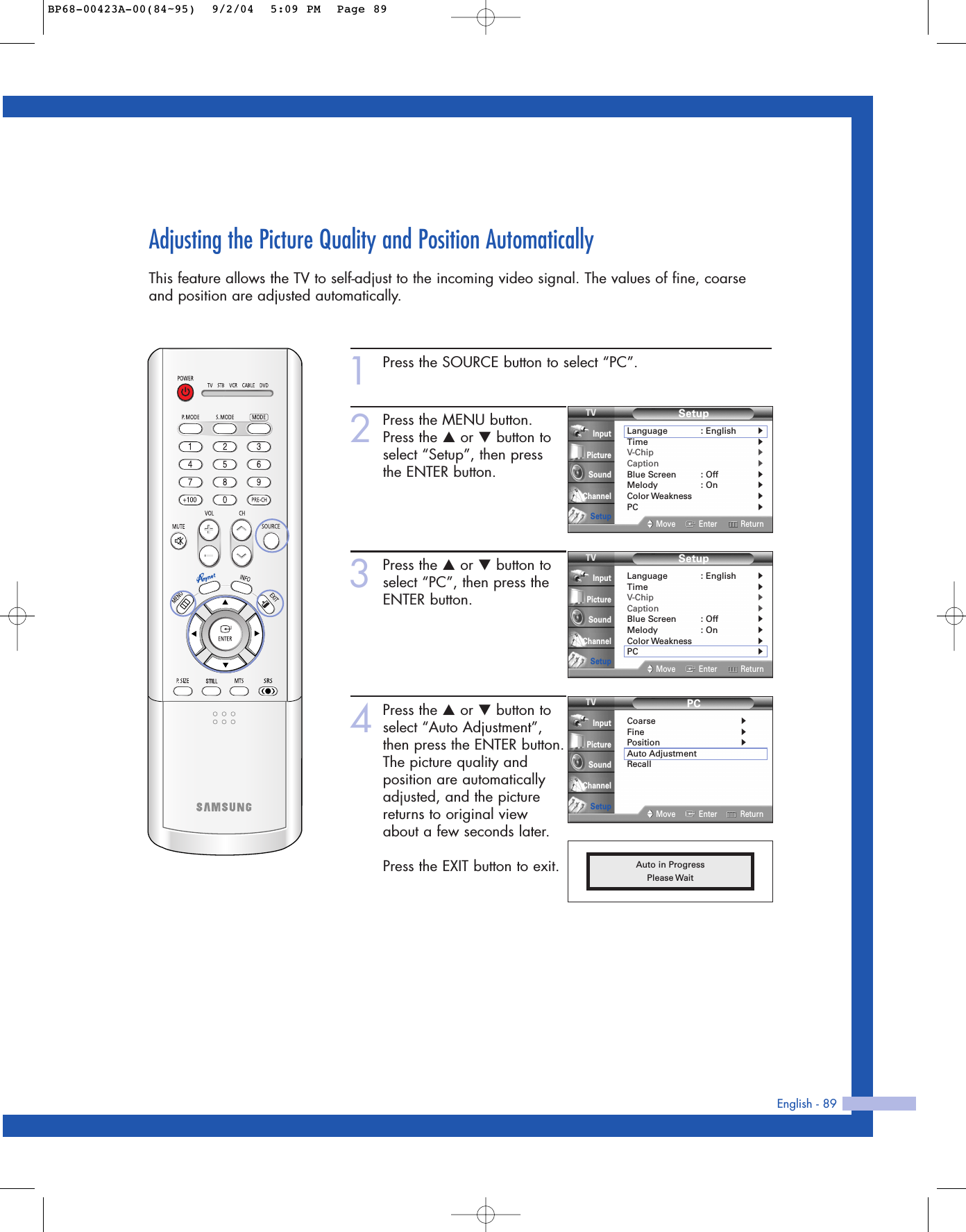

English - 89Adjusting the Picture Quality and Position AutomaticallyThis feature allows the TV to self-adjust to the incoming video signal. The values of fine, coarseand position are adjusted automatically.1Press the SOURCE button to select “PC”.2Press the MENU button.Press the …or †button toselect “Setup”, then press the ENTER button.3Press the …or †button toselect “PC”, then press theENTER button.4Press the …or †button toselect “Auto Adjustment”,then press the ENTER button.The picture quality andposition are automaticallyadjusted, and the picturereturns to original viewabout a few seconds later.Press the EXIT button to exit. Auto in ProgressPlease WaitPCCoarse√Fine√Position√Auto AdjustmentRecallMove Enter ReturnInputPictureSoundChannelSetupSetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupSetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(84~95) 9/2/04 5:09 PM Page 89

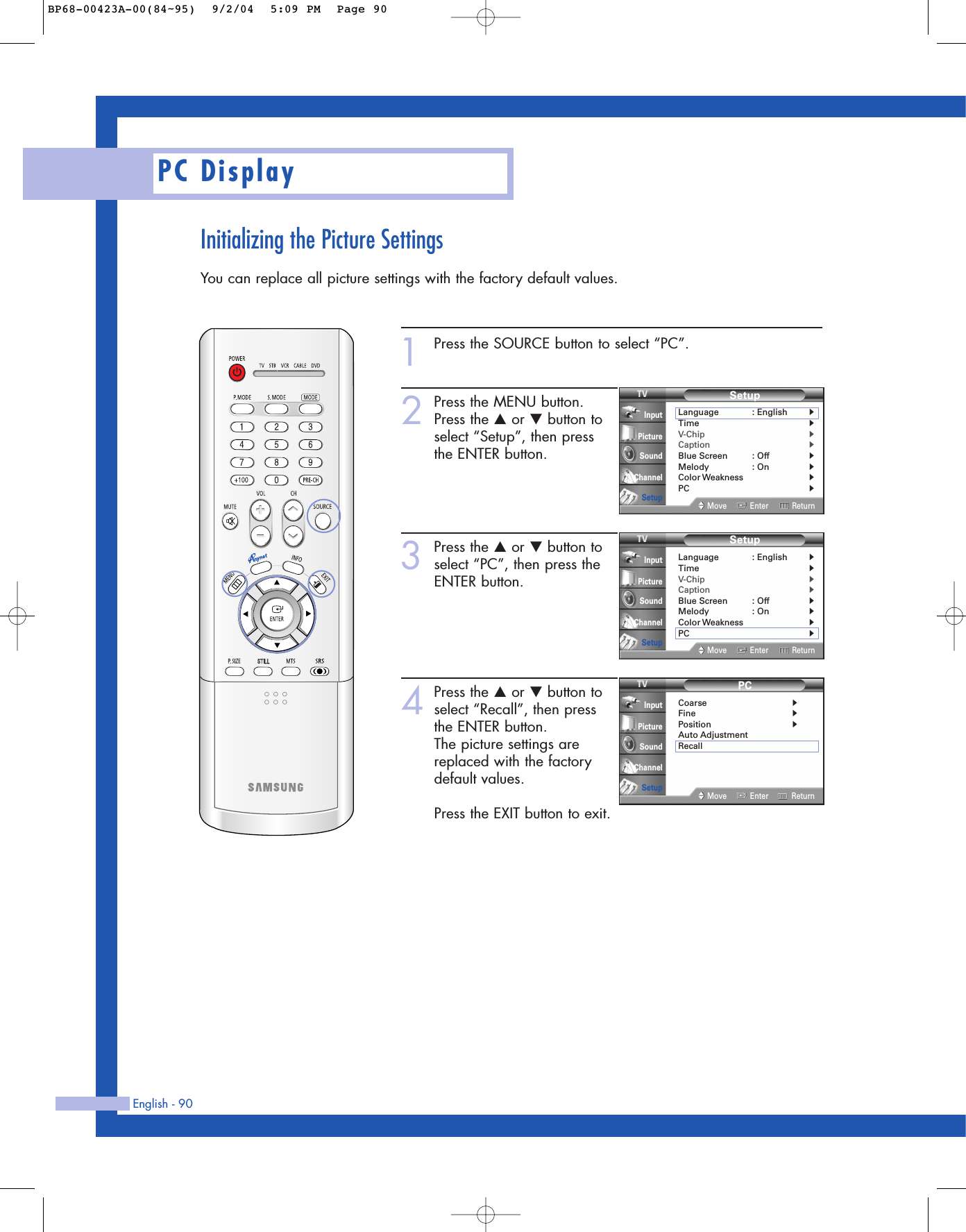

Initializing the Picture SettingsYou can replace all picture settings with the factory default values.English - 90PC Display1Press the SOURCE button to select “PC”.2Press the MENU button.Press the …or †button toselect “Setup”, then pressthe ENTER button.3Press the …or †button toselect “PC”, then press theENTER button.4Press the …or †button toselect “Recall”, then pressthe ENTER button.The picture settings arereplaced with the factorydefault values.Press the EXIT button to exit.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupSetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupPCCoarse√Fine√Position√Auto AdjustmentRecallMove Enter ReturnInputPictureSoundChannelSetupBP68-00423A-00(84~95) 9/2/04 5:09 PM Page 90

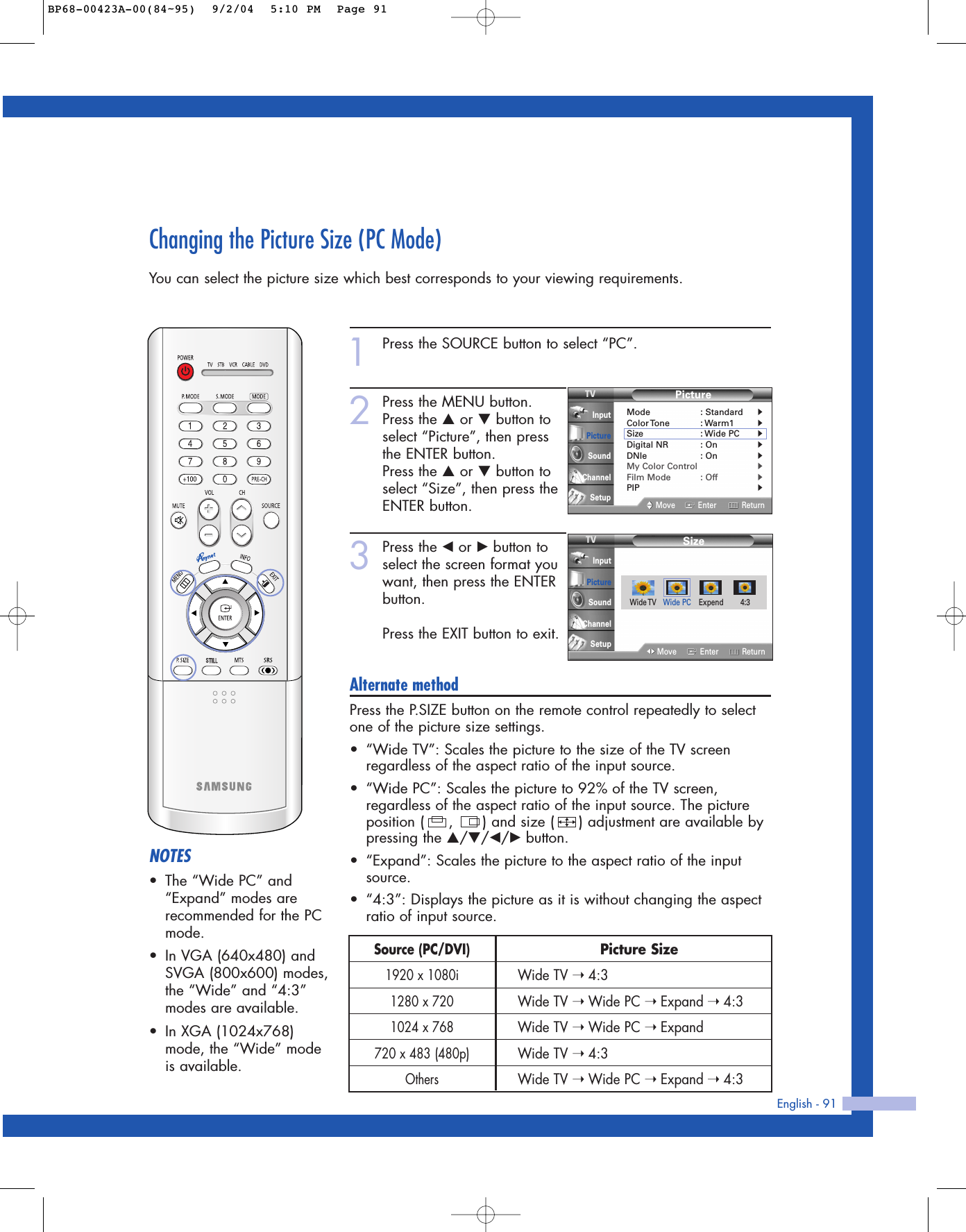

English - 91Changing the Picture Size (PC Mode)You can select the picture size which best corresponds to your viewing requirements.1Press the SOURCE button to select “PC”.2Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.Press the …or †button toselect “Size”, then press theENTER button.3Press the œor √button toselect the screen format youwant, then press the ENTERbutton.Press the EXIT button to exit.Alternate methodPress the P.SIZE button on the remote control repeatedly to selectone of the picture size settings.•“Wide TV”: Scales the picture to the size of the TV screenregardless of the aspect ratio of the input source.•“Wide PC”: Scales the picture to 92% of the TV screen,regardless of the aspect ratio of the input source. The pictureposition ( , ) and size ( ) adjustment are available bypressing the …/†/œ/√button.•“Expand”: Scales the picture to the aspect ratio of the inputsource.•“4:3”: Displays the picture as it is without changing the aspectratio of input source.NOTES•The “Wide PC” and“Expand” modes arerecommended for the PCmode.•In VGA (640x480) andSVGA (800x600) modes,the “Wide” and “4:3”modes are available.•In XGA (1024x768)mode, the “Wide” modeis available.SizeMove Enter ReturnInputPictureSoundChannelSetupPictureMode : Standard√Color Tone : Warm1√Size : Wide PC√Digital NR : On√DNIe : On√My Color Control√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupWide TV Wide PC Expend 4:3Picture SizeWide TV ➝ 4:3Wide TV ➝ Wide PC ➝ Expand ➝ 4:3Wide TV ➝ Wide PC ➝ ExpandWide TV ➝ 4:3Wide TV ➝ Wide PC ➝ Expand ➝ 4:3Source (PC/DVI)1920 x 1080i1280 x 7201024 x 768720 x 483 (480p)OthersBP68-00423A-00(84~95) 9/2/04 5:10 PM Page 91
SAMSUNGBP68-00423A-00(84~95) 9/2/04 5:10 PM Page 92
AppendixBP68-00423A-00(84~95) 9/2/04 5:10 PM Page 93

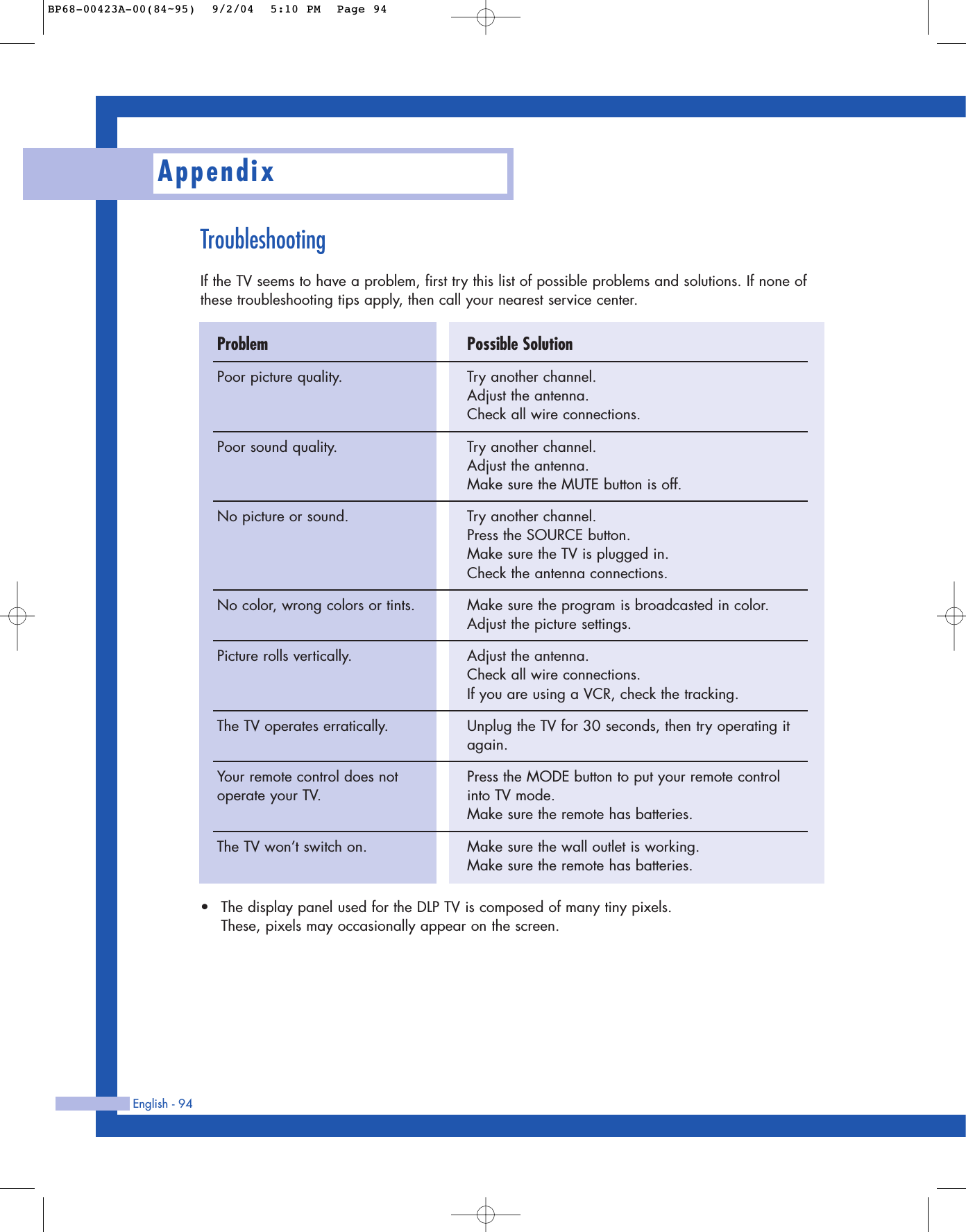

Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none ofthese troubleshooting tips apply, then call your nearest service center.English - 94AppendixPossible SolutionTry another channel.Adjust the antenna.Check all wire connections.Try another channel.Adjust the antenna.Make sure the MUTE button is off.Try another channel.Press the SOURCE button.Make sure the TV is plugged in.Check the antenna connections.Make sure the program is broadcasted in color.Adjust the picture settings.Adjust the antenna.Check all wire connections.If you are using a VCR, check the tracking.Unplug the TV for 30 seconds, then try operating itagain.Press the MODE button to put your remote controlinto TV mode.Make sure the remote has batteries.Make sure the wall outlet is working.Make sure the remote has batteries.•The display panel used for the DLP TV is composed of many tiny pixels.These, pixels may occasionally appear on the screen.ProblemPoor picture quality.Poor sound quality.No picture or sound.No color, wrong colors or tints.Picture rolls vertically.The TV operates erratically.Your remote control does notoperate your TV.The TV won’t switch on.BP68-00423A-00(84~95) 9/2/04 5:10 PM Page 94

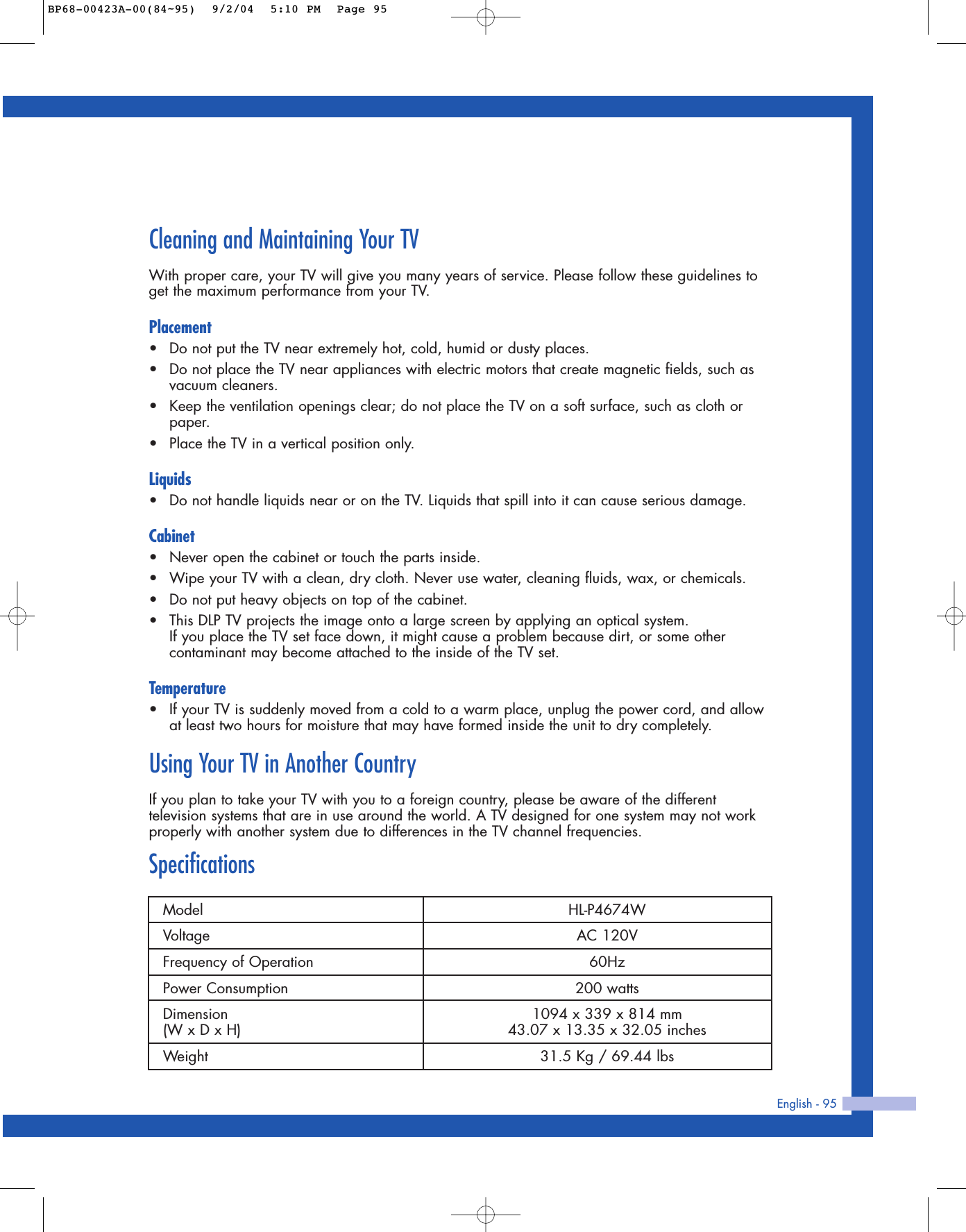

Cleaning and Maintaining Your TVWith proper care, your TV will give you many years of service. Please follow these guidelines toget the maximum performance from your TV.Placement•Do not put the TV near extremely hot, cold, humid or dusty places.•Do not place the TV near appliances with electric motors that create magnetic fields, such asvacuum cleaners.•Keep the ventilation openings clear; do not place the TV on a soft surface, such as cloth orpaper.•Place the TV in a vertical position only.Liquids•Do not handle liquids near or on the TV. Liquids that spill into it can cause serious damage.Cabinet•Never open the cabinet or touch the parts inside.•Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.•Do not put heavy objects on top of the cabinet.•This DLP TV projects the image onto a large screen by applying an optical system. If you place the TV set face down, it might cause a problem because dirt, or some othercontaminant may become attached to the inside of the TV set. Temperature•If your TV is suddenly moved from a cold to a warm place, unplug the power cord, and allowat least two hours for moisture that may have formed inside the unit to dry completely.Using Your TV in Another CountryIf you plan to take your TV with you to a foreign country, please be aware of the differenttelevision systems that are in use around the world. A TV designed for one system may not workproperly with another system due to differences in the TV channel frequencies.SpecificationsEnglish - 95ModelVoltageFrequency of OperationPower ConsumptionDimension(W x D x H)WeightHL-P4674WAC 120V60Hz200 watts1094 x 339 x 814 mm43.07 x 13.35 x 32.05 inches31.5 Kg / 69.44 lbsBP68-00423A-00(84~95) 9/2/04 5:10 PM Page 95
