Contents

Users Manual 1

SyncMaster 323T,403T
INDEXMain󰚟PageSafety󰚟InstructionsNotationalPowerInstallationCleaningOtherIntroduction󰚟󰚟󰚟󰚟󰚟Unpacking󰚟󰚟󰚟󰚟󰚟󰚟Front󰚟󰚟󰚟󰚟󰚟󰚟Rear󰚟󰚟󰚟󰚟󰚟󰚟Remote ControlSetup󰚟󰚟󰚟󰚟󰚟󰚟Installing Stand Kit󰚟󰚟󰚟󰚟󰚟󰚟󰚟Connecting Your Monitor󰚟󰚟󰚟󰚟󰚟󰚟 Multiple Display Control (MDC)Adjusting󰚟Your󰚟LCD󰚟Monitor󰚟󰚟󰚟󰚟󰚟󰚟󰚟User control buttons󰚟󰚟󰚟󰚟󰚟󰚟󰚟OSD Functions󰚟󰚟󰚟󰚟󰚟Troubleshooting󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟Check󰚟before󰚟Calling󰚟for󰚟Service󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟Problems󰚟and󰚟Solutions󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟Q󰚟&󰚟ASpecifications󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟General󰚟Specifications󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟PowerSaver󰚟󰚟󰚟󰚟󰚟󰚟󰚟Preset󰚟Timing󰚟ModesInformation󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟Service󰚟Center󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟Terms󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟Regulatory󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟Natural󰚟Color󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟For󰚟Better󰚟Display󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟󰚟Authority󰚟󰚟󰚟󰚟󰚟󰚟Mechanical Lay-out
Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment. Prohibited Important to read and understand at all timesDo not disassemble Disconnect the plug from the outletDo not touch Grounding to prevent an electric shock Notational
When not used for extended periods of time, set your PC to DPMS. If using a screen saver, set it to the active screen mode. Do not use a damaged or loose plug. zThis may cause an electric shock or fire. Do not pull the plug out by the wire nor touch the plug with wet hands. zThis may cause an electric shock or fire. Use only a properly grounded plug and receptacle. zAn improper ground may cause electric shock or equipment damage. Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage. zThis may cause an electric shock or fire. Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time. zFailure to do so may cause an electric shock or fire. Do not connect too many extension cords or plugs to an outlet. zThis may cause a fire. Power
Do not cover the vents on the monitor cabinet. zBad ventilation may cause a breakdown or fire. Put your monitor in a location with low humidity and a minimum of dust. zAn electric shock or fire could result inside the monitor. Do not drop the monitor when moving it. zThis may cause damage to the product or human body. Place the monitor on a flat and stable surface. zThe monitor can cause injury by falling. Set down the monitor carefully. zIt could be damaged or broken. Do not place the monitor face down. zThe TFT-LCD surface may be damaged. Installation
When cleaning the monitor case or the surface of the TFT-LCD, wipe with a slightly moistened, soft fabric.Do not spray detergent directly on the monitor.Use the recommended detergent with a smooth cloth. If the connector between the plug and the pin is dusty or dirty, clean it properly with a dry cloth. zA dirty connector can cause an electric shock or fire. Do not set a glass of water, chemicals or any small metal objects on the monitor. zThis may cause damage, electric shock or a fire. zIf a foreign substance gets into the monitor, disconnect the plug and then contact a service center. Cleaning
Do not remove cover(or back). No user serviceable parts inside. zThis may cause an electric shock or a fire. zRefer servicing to qualified service personnel. If your monitor does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service. zThis may cause an electric shock or fire. Do not place any heavy objects on the monitor. zThis may cause an electric shock or a fire. For each hour of looking at the monitor, you should let your eyes rest for 5 minutes. zThis will reduce eye fatigue. Do not use or store inflammable substances near the monitor. zThis may cause an explosion or fire. Do not try to move the monitor by pulling on the wire or the signal cable. zThis may cause a breakdown, electric shock or a fire due to damage to the cable. Do not move the monitor right or left by pulling only the wire or the signal cable. zThis may cause a breakdown, electric shock or a fire due to damage to the cable. Never insert anything metallic into the monitor openings. zThis may cause an electric shock, fire or injury. OtherIf you view a fixed screen for an extended period of time, residual image or blurriness may appear. zChange the mode to energy save or set a screensaver to moving picture when you need to be away from the monitor for an extended period of time.
Unpacking Please make sure the following items are included with your monitor. If any items are missing, contact your dealer.Remote Control / Batteries (AAA X 2)Monitor RS232C CABLEUser's Guide CDWarranty Card (Not available in all locations) Temporary StandSold separatelyPIVOT Installation CDContact a local Samsung Electronics service center to buy optional items.Wall Mount KIT Speaker Set Stand Kit Power Cord Cover-hole Signal Cable (15 pin D-Sub)
For detailed information concerning the monitor functions, refer to User Controls under Adjusting Your Monitor. The monitor's front configuration may vary slightly depending on the monitor model.1. Auto button 6. Menu button2. Source button 7. Power button3. Exit button 8. Power indicator4. Navigate button (Up-Down Button) 9. Remote Control Sensor5. Adjust button (Left-Right Button) Front / Volume button
Rear For detailed information concerning cable connections, refer to Connecting Cables under Setup. The monitor's rear configuration may vary slightly depending on the monitor model.1. Power On/Off Switch2. Power port3. EXTERNAL CONTROL (RS232C Serial PORT) : MDC(Multiple Device Control) Program Port 4. PC Video Connection Terminal : Using D-Sub Cable (15 pin D-Sub) - RGB 1 mode (Analog PC)5. PC Video Connection Terminal : Using DVI Cable (DVI-D to DVI-D) - RGB 2 mode (Digital PC)SyncMaster 403T
Rear 6. PC Video Connection Terminal / Component Connection Terminal : BNC cable (Input) - RGB 3 (Analog PC) Connection : connecting B, G, R, H, V port - Component Connection : connecting Pb, Y, Pr port7. PC Video Loopout Connection Terminal (RGB 3 (Analog PC)) / Component Loopout Connection Terminal (Component) - BNC cable(Output) 8. CVBS Video Connection Terminal : Video 1 mode (Input) 9. CVBS Video Loopout Connection Terminal (Output) 10. S-Video Connection Terminal : Video 2 mode (Input) 11. S-Video Loopout Connection Terminal (Output) 12. Component Audio Connection Terminal (Input) : When the input signal is connected to Terminal 6, the audio must be connect to this terminal only. 13. CVBS, S-Video Audio Connection Terminal (Input) : When the input signal is connected to Terminal 8 or 10, the audio must be connect to this terminal only. 14. Speaker Out 15. PC Stereo Connection Terminal (Input)16. Audio Line-out Connection Terminal (Output)17. Kensington LockLoopout Connection : Up to 5 monitors supported.
For detailed information concerning cable connections, refer to Connecting Cables under Setup. The monitor's rear configuration may vary slightly depending on the monitor model.1. Power On/Off Switch2. Power port3. EXTERNAL CONTROL (RS232C Serial PORT) : MDC(Multiple Device Control) Program Port 4. PC Video Connection Terminal : Using D-Sub Cable (15 pin D-Sub) - RGB 1 mode (Analog PC)5. PC Video Connection Terminal : Using DVI Cable (DVI-D to DVI-D) - RGB 2 mode (Digital PC) Rear SyncMaster 323T
6. PC Video Connection Terminal / Component Connection Terminal : BNC cable (Input) - RGB 3 (Analog PC) Connection : connecting B, G, R, H, V port - Component Connection : connecting Pb, Y, Pr port7. PC Video Loopout Connection Terminal (RGB 3 (Analog PC)) / Component Loopout Connection Terminal (Component) - BNC cable(Output) 8. CVBS Video Connection Terminal : Video 1 mode (Input) 9. CVBS Video Loopout Connection Terminal (Output) 10. S-Video Connection Terminal : Video 2 mode (Input) 11. S-Video Loopout Connection Terminal (Output) 12. Component Audio Connection Terminal (Input) : When the input signal is connected to Terminal 6, the audio must be connect to this terminal only. 13. CVBS, S-Video Audio Connection Terminal (Input) : When the input signal is connected to Terminal 8 or 10, the audio must be connect to this terminal only. Loopout Connection : Up to 5 monitors supported. 14. Speaker Out 15. PC Stereo Connection Terminal (Input)16. Audio Line-out Connection Terminal (Output)17. Kensington Lock Rear
Remote Control For detailed information of the Remote Control Unit functions, refer to Adjusting Your Monitor > User Controls > User Control Buttons > Remote Control buttons. The remote control's configuration may vary slightly depending on the monitor model. The Remote control may function within a range of 0.23 to 33 feet (7cm to 10m) and 30 degrees to the left and right of the monitor's Remote Control Reception sensor. Button Names | Replacing Batteries | Usage1. Button Names1. Power button2. Auto button3. Mute button4. VOL(Volume)and Up/Down buttons5. Source button6. Number buttons7. PIP button8. PIP Size button9. P.Size button10. Still button11. Display button12. Sleep button13. Menu button14. Exit button15. Swap button16. Location button2. Replacing Batteries1. Slide out the cover pressing part marked . 2. Insert the batteries matching their polarities (+, -). 3. Slide in the cover.
1. Mechanical Lay-out2. Monitor Head Mechanical Lay-out SyncMaster 403T
3. Stand4. Speaker Mechanical Lay-out

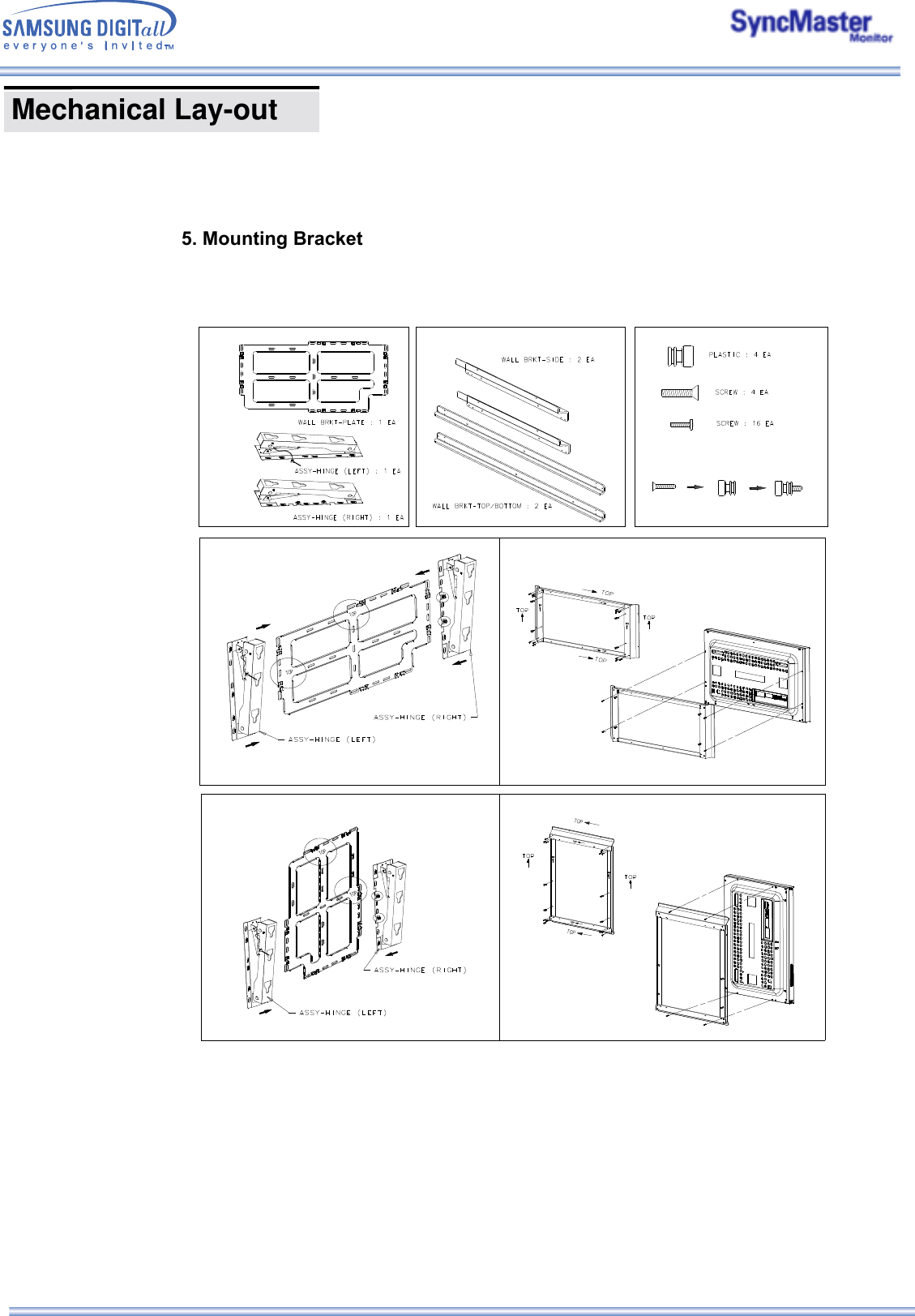

5. Mounting Bracket Mechanical Lay-out

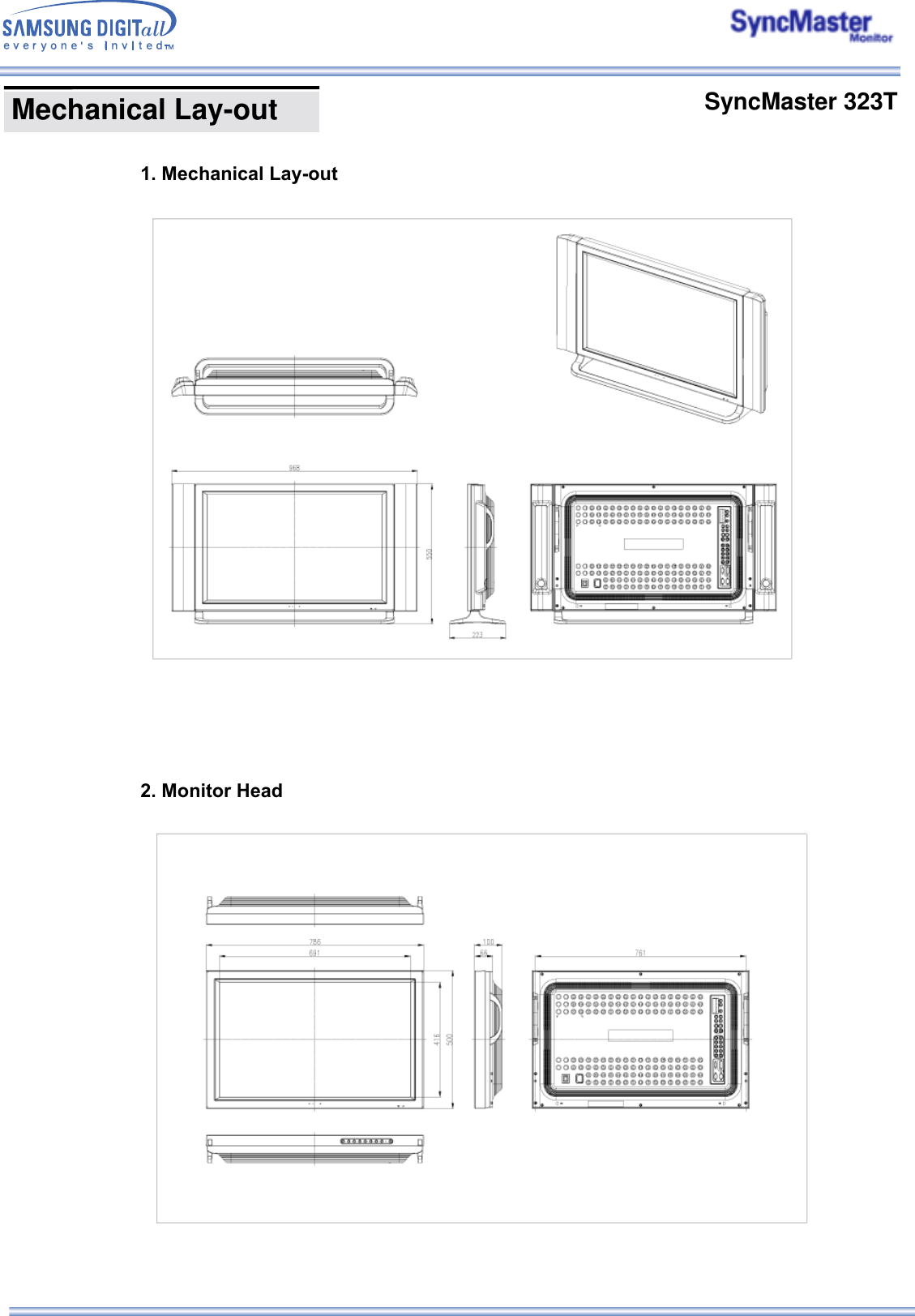

1. Mechanical Lay-out2. Monitor HeadSyncMaster 323T Mechanical Lay-out
3. Stand4. Speaker Mechanical Lay-out
5. Mounting Bracket Mechanical Lay-out
