Users Manual 1

BASICUser’s GuideCLP-41xN/CLP-41xNW SeriesCLP-68xND/CLP-68xDW SeriesBASICUser’s GuideThis guide provides information concerning installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries.
2BASIC1. IntroductionKey benefits 5Features by models 7Useful to know 9About this user’s guide 10Safety information 11Machine overview 16Control panel overview 19Turning on the machine 20Installing the driver locally 21Reinstalling the driver 222. Menu Overview and Basic SetupMenu overview 27Machine’s basic settings 30Media and tray 32Basic printing 44Using USB memory device 503. MaintenanceOrdering supplies and accessories 55Available consumables 56Available accessories 58Available maintenance parts 59Storing the toner cartridge 60Redistributing toner 62Replacing the toner cartridge 64Replacing the waste toner container 68Installing accessories 69Monitoring the supplies life 73Setting the toner low alert 74Cleaning the machine 75Tips for moving & storing your machine 794. TroubleshootingTips for avoiding paper jams 81Clearing paper jams 82Understanding the status LED 94Understanding display messages 96

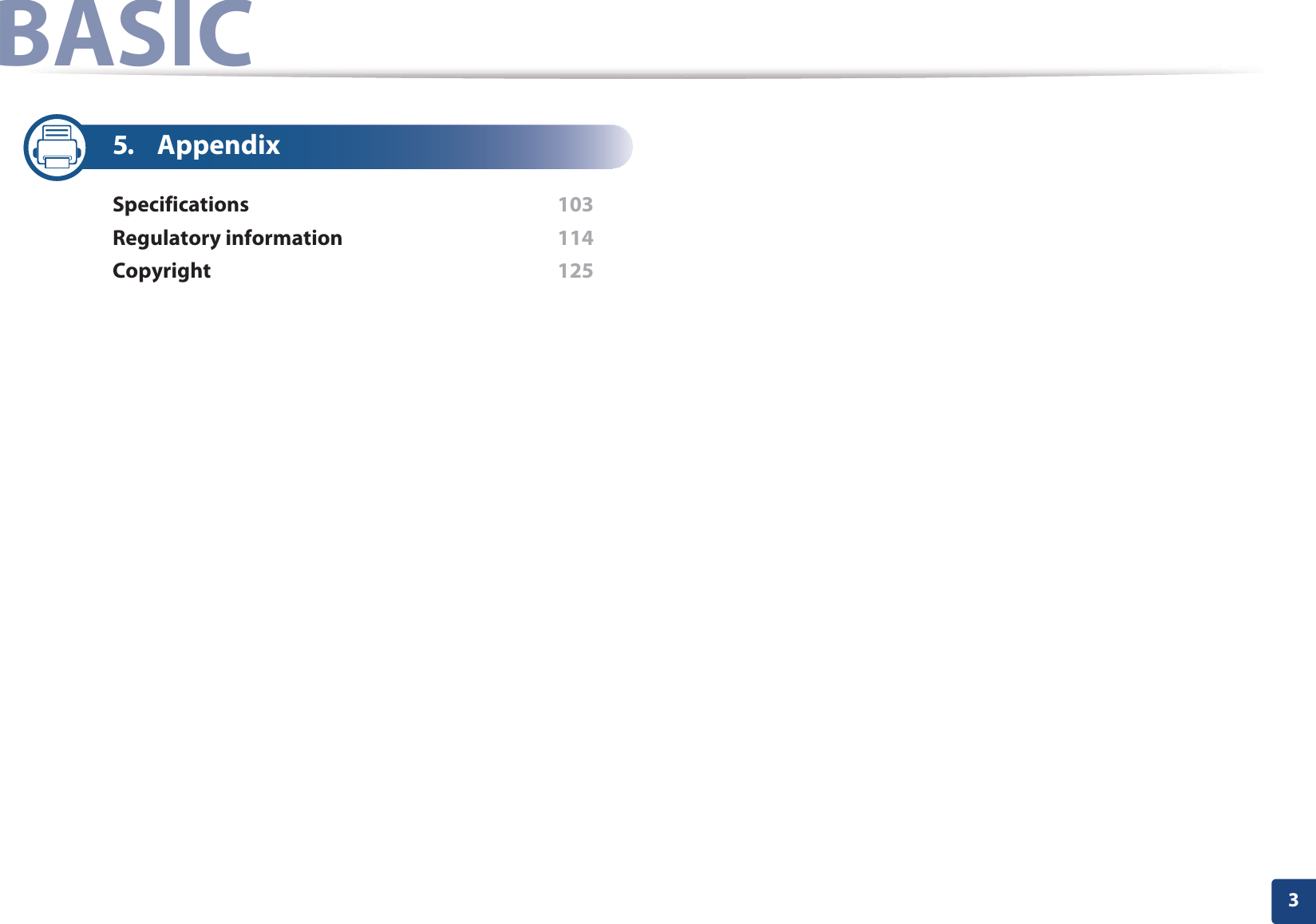

3BASIC5. AppendixSpecifications 103Regulatory information 114Copyright 125

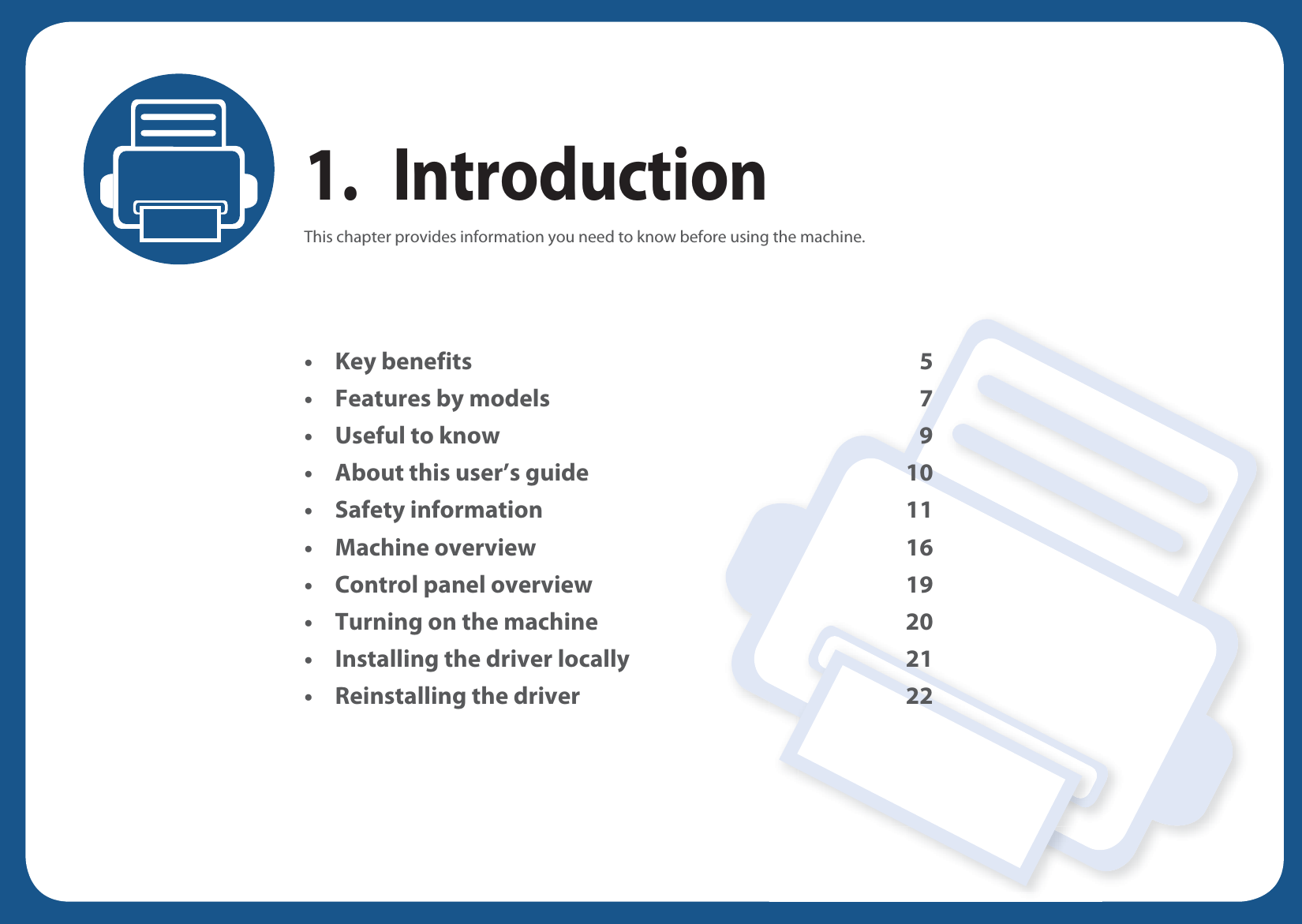

1. IntroductionThis chapter provides information you need to know before using the machine.• Key benefits 5• Features by models 7• Useful to know 9• About this user’s guide 10• Safety information 11• Machine overview 16• Control panel overview 19• Turning on the machine 20• Installing the driver locally 21• Reinstalling the driver 22
Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 48).• To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 207).• To save paper, you can print on both sides of the paper (double-sided printing) (or Manual) (see "Using advanced print features" on page 207).• To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use.Fast high resolution printing• You can print in a full range of colors using cyan, magenta, yellow, and black.• You can print with a resolution of up to 9,600 x 600 dpi effective output (600 x 600 x 4 bit).• Fast, on-demand printing.- CLP-41xN/CLP-41xNW SeriesƒFor single-side printing, 18 ppm (A4) or 19 ppm (Letter).- CLP-68xND/ CLP-68xDW SeriesƒFor single-side printing, 24 ppm (A4) or 25 ppm (Letter).ƒFor duplex printing, 12 ppm (A4) or 12 ppm (Letter).Convenience• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboardG(see "Easy Capture Manager" on page 224).• Samsung Easy Printer Manager and Printing Status is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Easy Printer Manager" on page 232 or "Using Samsung Printer Status" on page 235).• Samusng AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 225).• Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows.
Key benefits• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.Wide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 105).• Print watermark: You can customize your documents with words, such as “CONFIDENTIAL” (see "Using advanced print features" on page 207).• Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 207).• You can print in various operating systems (see "System requirements" on page 109).• Your machine is equipped with a USB interface and/or a network interface.Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button- You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router).• Using the USB cable or a network cable- You can connect and set various wireless network settings using a USB cable or a network cable.• Using the Wi-Fi Direct- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 151.
Features by modelsSome features and optional goods may not be available depending on model or country.Operating System(Ɣ: Included, Blank: Not available) Software(Ɣ: Included, Blank: Not available) Operating System CLP-41xN SeriesCLP-41xNW SeriesCLP-68xND SeriesCLP-68xDW SeriesWindows Ɣ ƔMacintosh Ɣ ƔLinux Ɣ ƔUnix Ɣ ƔSoftware CLP-41xN SeriesCLP-41xNW SeriesCLP-68xND SeriesCLP-68xDW SeriesSPL printer driver Ɣ ƔPCL printer driver Ɣ ƔPS printer driveraƔ ƔXPS printer driveraƔ ƔDirect Printing UtilitySamsung Easy Printer ManagerDevice SettingsƔ ƔSamsung Printer Status Ɣ ƔSamsung AnyWeb Print Ɣ ƔSyncThru™ Web Service Ɣ Ɣ SyncThru Admin Web ServiceƔ Ɣ Easy Eco Driver Ɣ ƔEasy Capture Manager Ɣ ƔSamsung Easy Color ManagerƔ Ɣa. For XPS/PS driver, You can install the XPS/PS printer driver in the Custom Installation window (Refer to Software CD that was provided with your machine).Software CLP-41xN SeriesCLP-41xNW SeriesCLP-68xND SeriesCLP-68xDW Series
Features by modelsVariety feature(Ɣ: Included, ż: optional, Blank: Not available ) Features CLP-41xN SeriesCLP-41xNW SeriesCLP-68xND SeriesCLP-68xDW SeriesHi-Speed USB 2.0 Ɣ ƔIEEE 1284 parallel connectoraa. If you use the parallel port, you cannot use the USB cable.żNetwork Interface Ethernet 10/100/1000 Base TX wired LANƔ Ɣ Network Interface 802.11b/g/n wireless LANbb. Depending on your country, wireless LAN card may not be available. For some counties, only 802.11 b/g can be applied. Contact your local Samsung dealer or the retailer where you bought your machine.Ɣ CLP-41xNW Series onlyƔ CLP-68xDW Series onlyEco printing Ɣ ƔDuplex (2-sided) printing ƔDuplex (2-sided) printing (manual)cc. Windows only.ƔUSB memory interface ƔMemory module ż żOptional tray (Tray2) żMass Storage DeviceGOHDD)

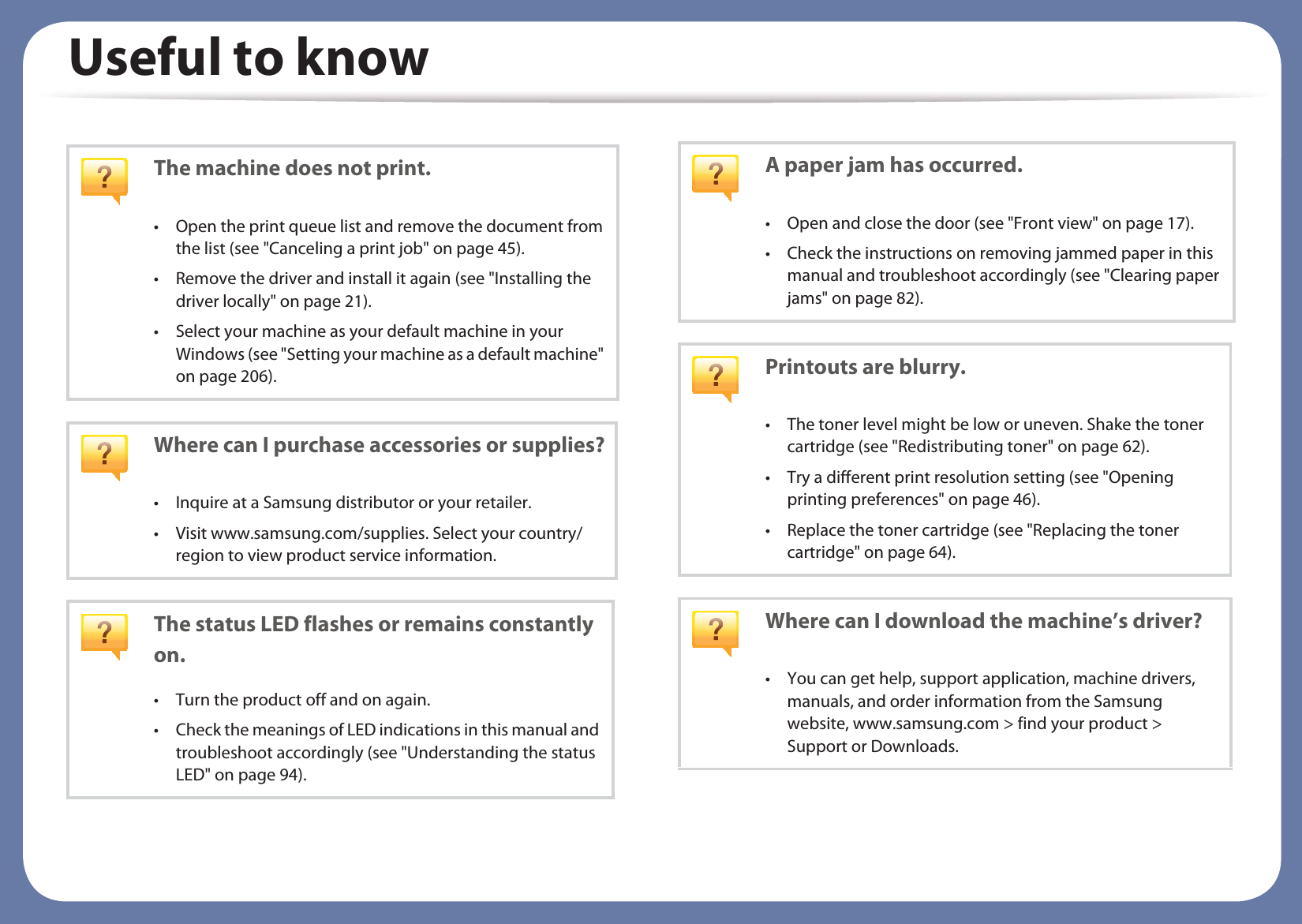

Useful to knowThe machine does not print.• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 45).• Remove the driver and install it again (see "Installing the driver locally" on page 21).• Select your machine as your default machine in your Windows (see "Setting your machine as a default machine" on page 206).Where can I purchase accessories or supplies?• Inquire at a Samsung distributor or your retailer.• Visit www.samsung.com/supplies. Select your country/region to view product service information.The status LED flashes or remains constantly on.• Turn the product off and on again.• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 94).A paper jam has occurred.• Open and close the door (see "Front view" on page 17).• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 82).Printouts are blurry.• The toner level might be low or uneven. Shake the toner cartridge (see "Redistributing toner" on page 62).• Try a different print resolution setting (see "Opening printing preferences" on page 46).• Replace the toner cartridge (see "Replacing the toner cartridge" on page 64).Where can I download the machine’s driver?• You can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.
101. IntroductionAbout this user’s guideThis user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.• Read the safety information before using the machine.• If you have a problem using the machine, refer to the troubleshooting chapter.• Terms used in this user’s guide are explained in the glossary chapter.• All illustrations in this user’s guide may differ from your machine depending on its options or model you purchased.• The screenshots in this administrator’s guide may differ from your machine depending on the machine’s firmware/driver version.• The procedures in this user’s guide are mainly based on Windows 7.1 ConventionsSome terms in this guide are used interchangeably, as below:• Document is synonymous with original.• Paper is synonymous with media, or print media.• Machine refers to printer or MFP.2 General iconsIcon Text DescriptionCaution Gives users information to protect the machine from possible mechanical damage or malfunction.Note Provides additional information or detailed specification of the machine function and feature.

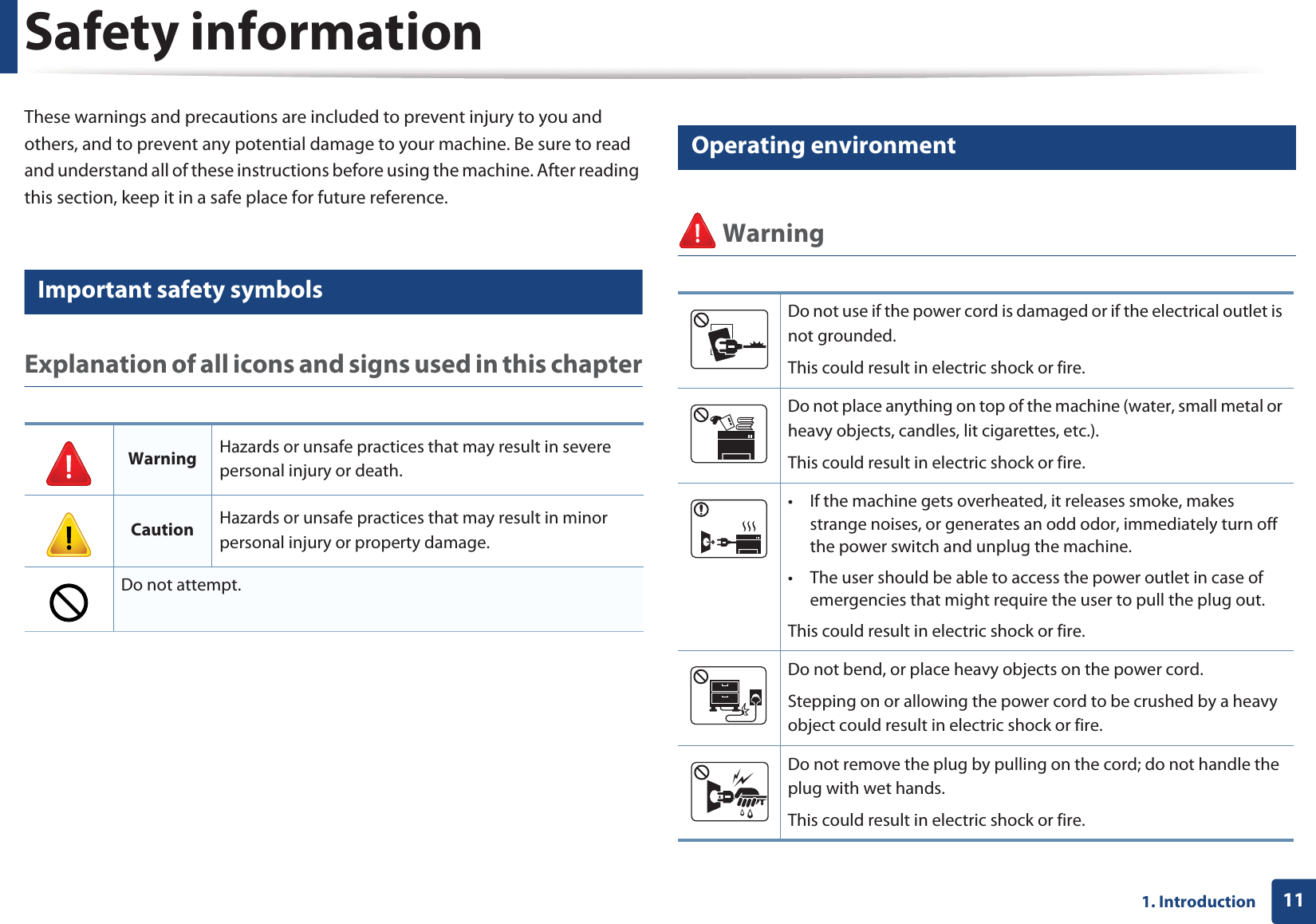

111. IntroductionSafety informationThese warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.3 Important safety symbolsExplanation of all icons and signs used in this chapter4 Operating environment WarningWarning Hazards or unsafe practices that may result in severe personal injury or death.Caution Hazards or unsafe practices that may result in minor personal injury or property damage.Do not attempt.Do not use if the power cord is damaged or if the electrical outlet is not grounded.This could result in electric shock or fire. Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).This could result in electric shock or fire. • If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine.• The user should be able to access the power outlet in case of emergencies that might require the user to pull the plug out.This could result in electric shock or fire. Do not bend, or place heavy objects on the power cord. Stepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire. Do not remove the plug by pulling on the cord; do not handle the plug with wet hands. This could result in electric shock or fire.
Safety information121. Introduction Caution5 Operating method CautionDuring an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet. This could result in electric shock or fire. Be careful, the paper output area is hot. Burns could occur. If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the plug does not easily enter the electrical outlet, do not attempt to force it in. Call an electrician to change the electrical outlet, or this could result in electric shock.Do not allow pets to chew on the AC power, telephone or PC interface cords.This could result in electric shock or fire and/or injury to your pet. Do not forcefully pull the paper out during printing. It can cause damage to the machine.Be careful not to put your hand between the machine and paper tray.You may get injured.Be care when replacing paper or removing jammed paper. New paper has sharp edges and can cause painful cuts.When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch. Burns can occur.When removing jammed paper, do not use tweezers or sharp metal objects. It can damage the machine.Do not allow too many papers to stack up in the paper output tray.It can damage the machine.
Safety information131. Introduction6 Installation / Moving Warning CautionDo not block or push objects into the ventilation opening.This could result in elevated component temperatures which can cause damage or fire.Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.This machine's power reception device is the power cord. To switch off the power supply, remove the power cord from the electrical outlet. Do not place the machine in an area with dust, humidity, or water leaks. This could result in electric shock or fire. Before moving the machine, turn the power off and disconnect all cords. The information below are only suggestions based on the units weight.If you have a medical condition that prevents you from lifting, do not lift the machine. Ask for help, and always use the appropriate amount of people to lift the device safety.Then lift the machine:• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift with 2 people.• If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or more people.The machine could fall, causing injury or machine damage.Do not place the machine on an unstable surface.The machine could fall, causing injury or machine damage.Use only No.26 AWGa or larger, telephone line cord, if necessary.Otherwise, it can cause damage to the machine.Make sure you plug the power cord into a grounded electrical outlet.Otherwise, this could result in electric shock or fire.
Safety information141. Introduction7 Maintenance / Checking CautionUse the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 110V machine, then the gauge should be 16 AWG or larger.Otherwise, it can cause damage to the machine, and could result in electric shock or fire.Do not put a cover over the machine or place it in an airtight location, such as a closet.If the machine is not well-ventilated, this could result in fire.Do not overload wall outlets and extension cords.This can diminish performance, and could result in electric shock or fire.The machine should be connected tothe power level which is specified on the label.If you are unsure and want to check the power level you are using, contact the electrical utility company.a. AWG: American Wire GaugeUnplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner or alcohol; do not spray water directly into the machine. This could result in electric shock or fire. When you are working inside the machine replacing supplies or cleaning the inside, do not operate the machine.You could get injured.Keep cleaning supplies away from children. Children could get hurt.Do not disassemble, repair or rebuild the machine by yourself. It can damage the machine. Call a certified technician when the machine needs repairing.To clean and operate the machine, strictly follow the user's guide provided with the machine.Otherwise, you could damage the machine.
Safety information151. Introduction8 Supply usage CautionKeep the power cable and the contact surface of the plug clean from dust or water.Otherwise, this could result in electric shock or fire. • Do not remove any covers or guards that are fastened with screws. • Fuser units should only be repaired by a certified service technician. Repair by non-certified technicians could result in fire or electric shock.• The machine should only be repaired by a Samsung service technician.Do not disassemble the toner cartridge.Toner dust can be dangerous if inhaled or ingested.Do not burn any of the supplies such as toner cartridge or fuser unit.This could cause an explosion or uncontrollable fire.When storing supplies such as toner cartridges, keep them away from children.Toner dust can be dangerous if inhaled or ingested.Using recycled supplies, such as toner, can cause damage to the machine.In case of damage due to the use of recycled supplies, a service fee will be charged.When toner gets on your clothing, do not use hot water to wash it.Hot water sets toner into fabric. Use cold water.When changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.Toner dust can be dangerous if inhaled or ingested.

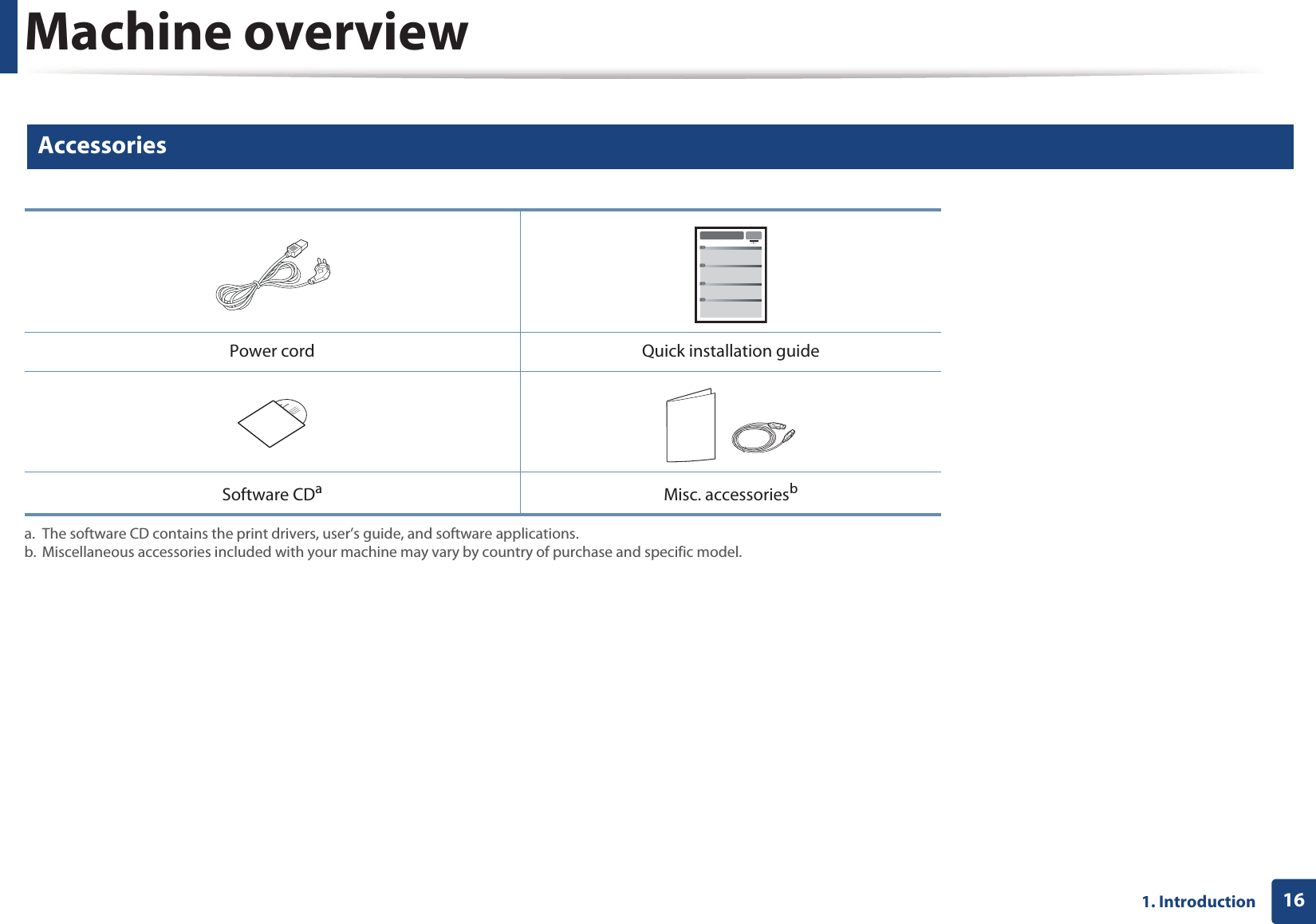

161. IntroductionMachine overview9 AccessoriesPower cord Quick installation guideSoftware CDaa. The software CD contains the print drivers, user’s guide, and software applications.Misc. accessoriesbb. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.
Machine overview171. Introduction10 Front view • This illustration may differ from your machine depending on your model. There are various types of machine.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). CLP-41xN Series/CLP-41xNW Series1 Output support 7 Front cover handle2 Output tray 8 Toner cartridges3 Control panel 9 Toner cartridge handle4 Control board cover 10 Intermediate Transfer Belt (ITB)5 Tray 1 11 Paper width guides on a manual feeder6 Front cover 12 Manual feeder1 23456711891012CLP-68xND Series/ CLP-68xDW Series1 Output support 9 Multi-purpose tray2 Output tray 10 Front cover3 Control panel 11 Front cover handle4 Control board cover 12 Toner cartridges5 USB memory port 13 Toner cartridge handle6Optional trayaa. This is an optional feature. CLP-68xND Series/CLP-68xDW Series only.14 Intermediate Transfer Belt (ITB)7Tray 1 15 Paper width guides on a multi-purpose tray8 Push-release of Multi-purpose tray16 Multi-purpose support tray1234658101112131415 16 79
Machine overview181. Introduction11 Rear view • This illustration may differ from your machine depending on your model. There are various types of machine.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). CLP-41xN Series/CLP-41xNW Series CLP-68xND Series/ CLP-68xDW Series1 Waster toner container 5 Power-switch2Rear cover 6USB portaa. The optional IEEE 1284 paraller connector can be used by plugging in both the USB port and the 5V output port.3 Rear cover handle 7 Network port4Power receptacle 85V output port for IEEE 1284 parallel connector a bb. This is an optional feature. CLP-68xND Series/CLP-68xDW Series only.235671423678145
191. IntroductionControl panel overview • This control panel may differ from your machine depending on its model. There are various types of control panels.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). CLP-41xN Series/CLP-41xNW Series CLP-68xND Series/ CLP-68xDW Series1Display screen Shows the current status and prompts during an operation. 28910476511313478911121065212Toner colorsShow the status of each toner cartridge. If the toner cartridge is low or needs to be replaced, the Status LED turns red and the display shows the message. However the arrow mark shows which color toner is of concern or may be installed with a new cartridge (see "Toner-related messages" on page 98).3Menu Enters menu mode and scrolls through the available menus (see "Accessing the menu" on page 27).4Arrow Navigates available values by moving to the next or previous options.5OK Confirms the selection on the screen. 6Back Sends you back to the upper menu level.7Cancel Stops current operation.8Power You can turn the power on and off with this button. Or wake up from the power save mode.9LEDIndicates the status of your machine (see "Understanding the status LED" on page 94). aIndicates the wireless status of your machine (see "Understanding the status LED" on page 94). 10WPSaConfigures the wireless network connection easily without a computer (see "Using the WPS button" on page 152).Demo pagePrints a demo page by pressing this button.11 Eco Enters eco mode to reduce toner consumption and paper usage (see "Eco printing" on page 48).12 Numeric keypad Use the keypad to enter numbers and characters (see "Keypad letters and numbers" on page 205).a. CLP-41xNW Series/CLP-68xDW Series only.

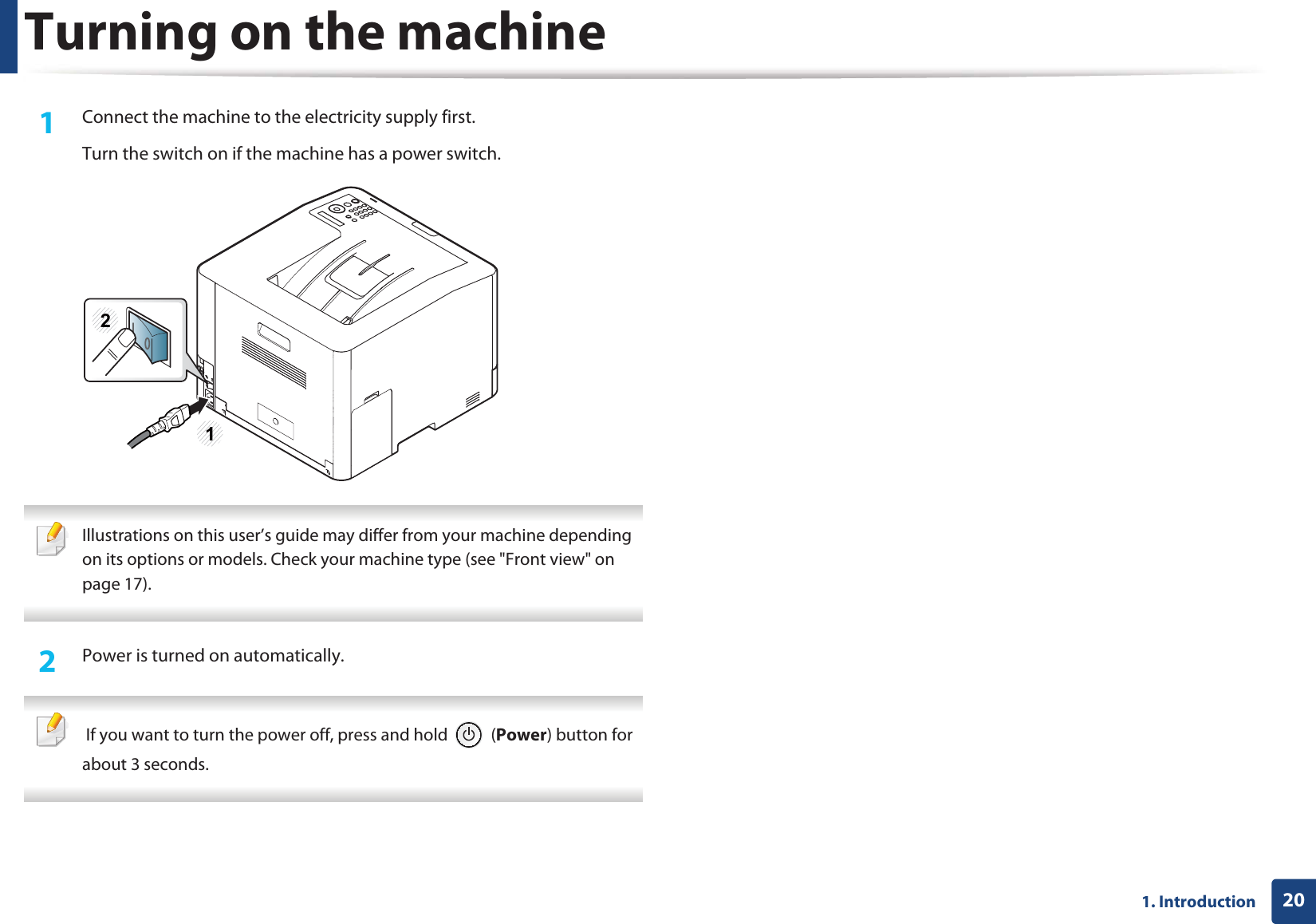

201. IntroductionTurning on the machine1Connect the machine to the electricity supply first.Turn the switch on if the machine has a power switch. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 17). 2 Power is turned on automatically. If you want to turn the power off, press and hold (Power) button for about 3 seconds. 12

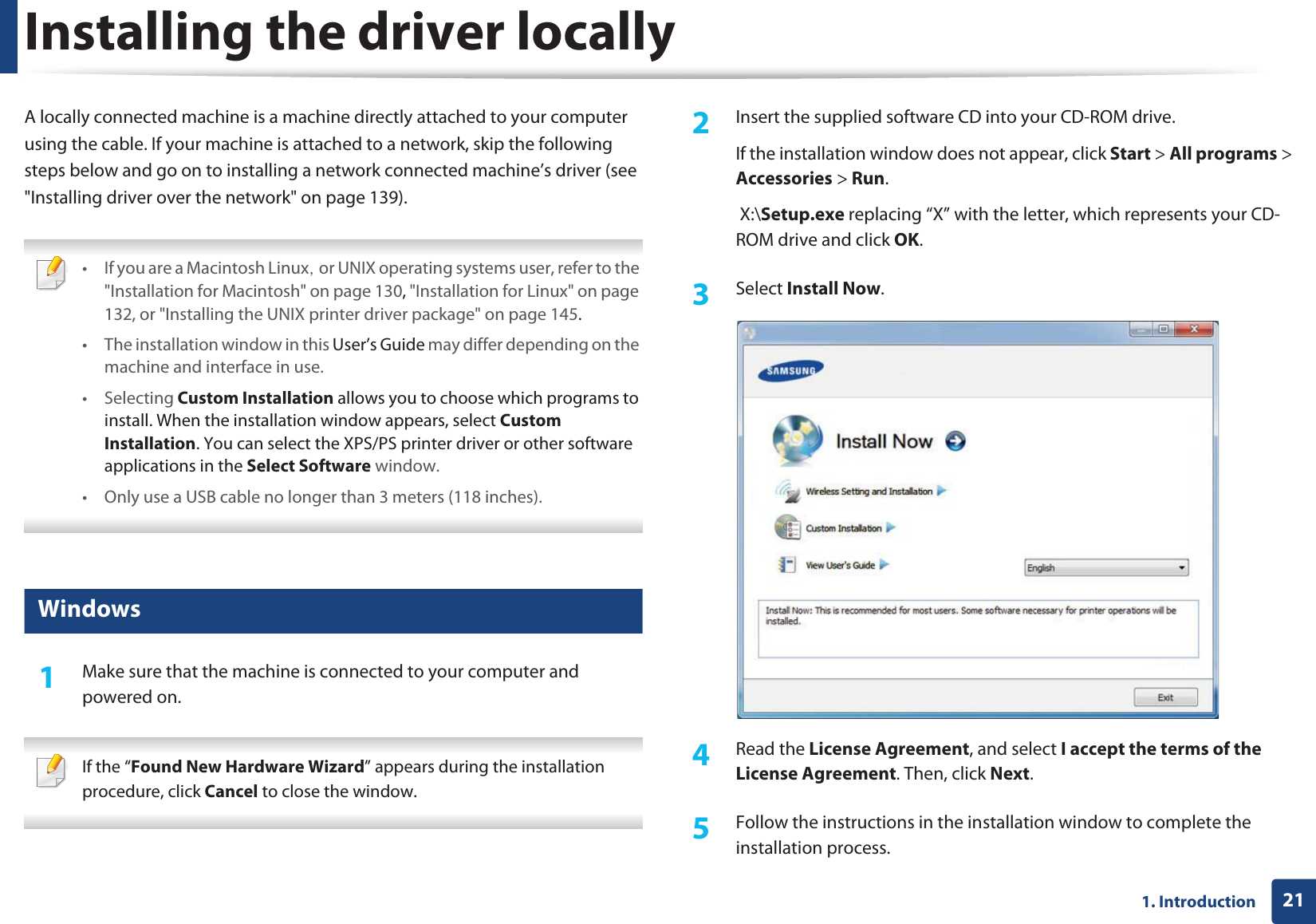

211. IntroductionInstalling the driver locallyA locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 139). • If you are a Macintosh LinuxSGor UNIX operating systems user, refer to the "Installation for Macintosh" on page 130, "Installation for Linux" on page 132, or "Installing the UNIX printer driver package" on page 145.• The installation window in this User’s Guide may differ depending on the machine and interface in use.• Selecting Custom Installation allows you to choose which programs to install. When the installation window appears, select Custom Installation. You can select the XPS/PS printer driver or other software applications in the Select Software window.• Only use a USB cable no longer than 3 meters (118 inches). 12 Windows1Make sure that the machine is connected to your computer and powered on. If the “Found New Hardware Wizard” appears during the installation procedure, click Cancel to close the window. 2 Insert the supplied software CD into your CD-ROM drive.If the installation window does not appear, click Start > All programs > Accessories > Run. X:\Setup.exe replacing “X” with the letter, which represents your CD-ROM drive and click OK.3 Select Install Now.4 Read the License Agreement, and select I accept the terms of the License Agreement. Then, click Next.5 Follow the instructions in the installation window to complete the installation process.
221. IntroductionReinstalling the driverIf the printer driver does not work properly, follow the steps below to reinstall the driver.13 Windows1Make sure that the machine is connected to your computer and powered on.2 From the Start menu, select Programs or All Programs > Samsung Printers > your printer driver name > Uninstall.3 Follow the instructions in the uninstall window.4 Insert the software CD into your CD-ROM drive and install the driver again (see "Installing the driver locally" on page 21).
Reinstalling the driver231. Introduction
Reinstalling the driver241. Introduction
Reinstalling the driver251. Introduction
2. Menu Overview and Basic SetupThis chapter provides information about the overall menu structure and the basic setup options.• Menu overview 27• Machine’s basic settings 30• Media and tray 32• Basic printing 44• Using USB memory device 50

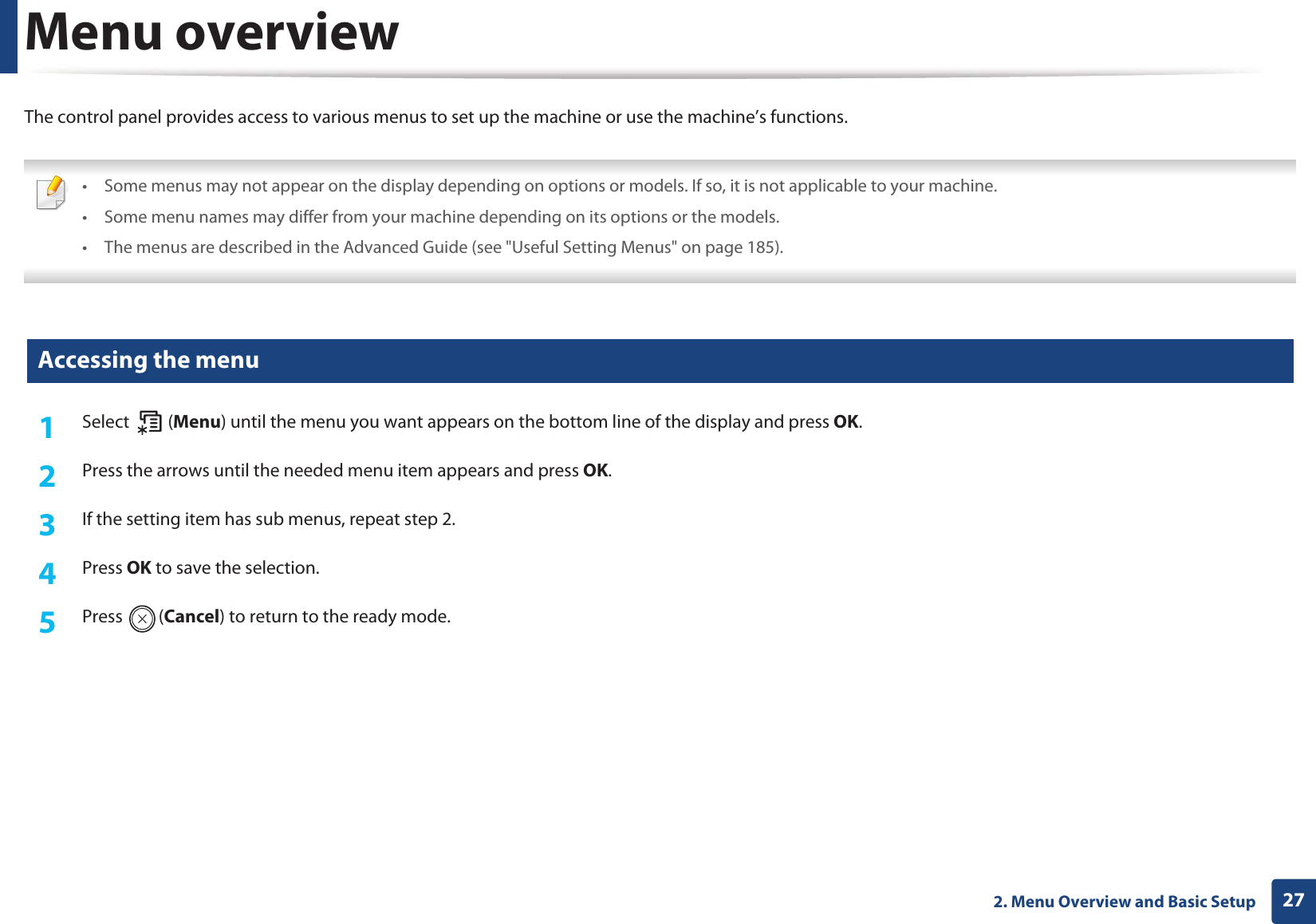

272. Menu Overview and Basic SetupMenu overviewThe control panel provides access to various menus to set up the machine or use the machine’s functions. • Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.• Some menu names may differ from your machine depending on its options or the models.• The menus are described in the Advanced Guide (see "Useful Setting Menus" on page 185). 1 Accessing the menu1Select (Menu) until the menu you want appears on the bottom line of the display and press OK.2 Press the arrows until the needed menu item appears and press OK.3 If the setting item has sub menus, repeat step 2.4 Press OK to save the selection.5 Press (Cancel) to return to the ready mode.
Menu overview282. Menu Overview and Basic Setup Information Layout Paper Graphic System SetupMenu MapConfigurationSupplies Info.Demo PagePCL FontPS FontUsage CounterAccountOrientationPortraitLandscapeMarginaCommon MarginMP Tray<Tray X>Emulation Mar.MarginbCommon MarginManual FeederEmulation Mar.DuplexaOffLong EdgeShort Edgea. CLP-68xND Series/CLP-68xDW Series only.b. CLP-41xN Series/CLP-41xNW Series only.CopiesMP Tray/ [Tray <x>]Paper SizePaper TypePaper SourceTray 1Tray 2aMP TrayaManual FeederbAutoResolutionNormalBestClear TextOffMinimumNormalMaximumEdge EnhanceOffNormalMaximumTrappingOffNormalMaximumScreenNormalEnhancedDetailedDate & TimeaClock ModeaLanguagePower SaveWakeup EventButton PressPrinterUSB HostaJob TimeoutImport SettingaExport SettingaAltitude Adj.NormalHigh 1High 2High 3Auto ContinueAuto CRAuto Tray Swi.aPaper SubstitUTray ProtectaSkip BlankPageMaintenanceCLR Empty Msg.cSupplies LifeTonerLow AlertEco SetupDefault ModeChange Temp.Clear Settingc. This option only appears when small amount of toner is left in the cartridge.
Menu overview292. Menu Overview and Basic Setup Emulation Image Mgr. Network Direct USBaa. CLP-68xND Series/CLP-68xDW Series only.Job ManageaCustombb. This menu appears only when the XOA (eXtensible Open Architecture) web application is installed.Emulation TypeSetupCustom ColorDefaultPrint DensityAuto Color RegTone Adjust.DefaultAuto Tone Adj.Cal. ID SensorTCP/IP (IPv4)DHCPBOOTPStaticTCP/IP (IPv6)IPv6 ActivateDHCPv6 ConfigEthernet SpeedAutomatic10Mbps Half10Mbps Full100Mbps Half100Mbps Full1Gbps Full802.1xWirelesscWi-Fi ON/OFFc. CLP-41xNW Series/CLP-68xDW Series only.Wi-Fi DirectOn/OffDevice NameIP AddressGroup OwnerNetwork KeyStatusWPS SettingPBCPINWLAN SettingdWizardCustomWLAN DefaultWLAN SignalExcellentVery GoodGoodLowVery LowNo Signald. CLP-68xDW Series only.Clear SettingsNetwork Conf.Net. ActivateHttp ActivateWINSSNMP V1/V2SNTPUPnP(SSDP)MDNSSetIPSLPUSB PrintFile ManageCheck SpaceActive JobSecured JobStored JobPrintDeleteFile PolicyRenameOverwrite

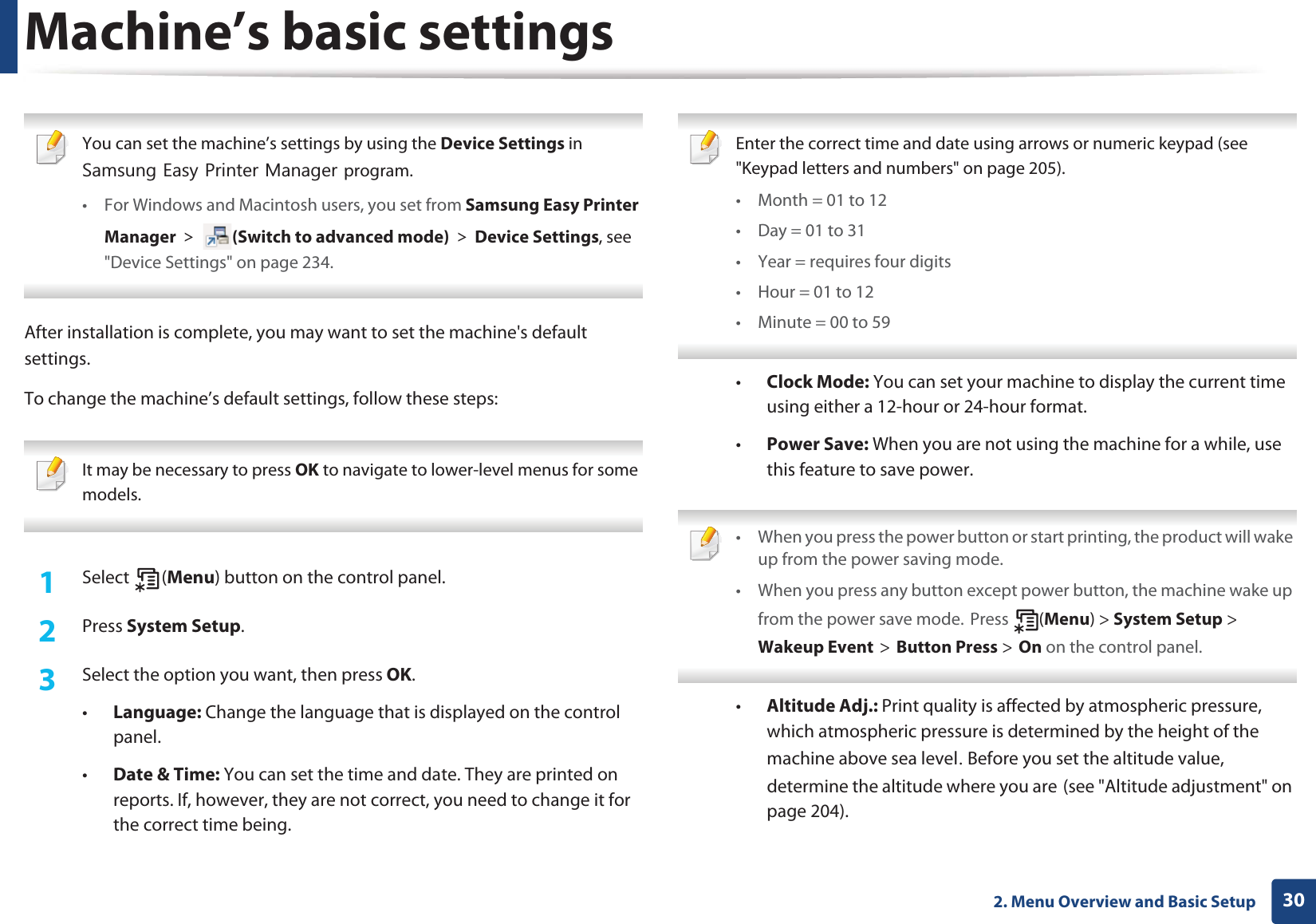

302. Menu Overview and Basic SetupMachine’s basic settings You can set the machine’s settings by using the Device Settings in 6DPVXQJ(DV\3ULQWHU0DQDJHUprogram.• For Windows and Macintosh users, you set from Samsung Easy Printer Manager! (Switch to advanced mode)!Device Settings, see "Device Settings" on page 234. After installation is complete, you may want to set the machine's default settings. To change the machine’s default settings, follow these steps: It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) button on the control panel.2 Press System Setup.3 Select the option you want, then press OK.•Language: Change the language that is displayed on the control panel.•Date & Time: You can set the time and date. They are printed on reports. If, however, they are not correct, you need to change it for the correct time being. Enter the correct time and date using arrows or numeric keypad (see "Keypad letters and numbers" on page 205).• Month = 01 to 12• Day = 01 to 31• Year = requires four digits• Hour = 01 to 12• Minute = 00 to 59 •Clock Mode: You can set your machine to display the current time using either a 12-hour or 24-hour format.•Power Save: When you are not using the machine for a while, use this feature to save power. • When you press the power button or start printing, the product will wake up from the power saving mode.• When you press any button except power button, the machine wake up from the power save mode.GPress (Menu) > System Setup > GWakeup EventG>GButton Press >GOn on the control panel. •Altitude Adj.: Print quality is affected by atmospheric pressure, which atmospheric pressure is determined by the height of the machine above sea levelU Before you set the altitude value, determine the altitude where you areG(see "Altitude adjustment" on page 204).

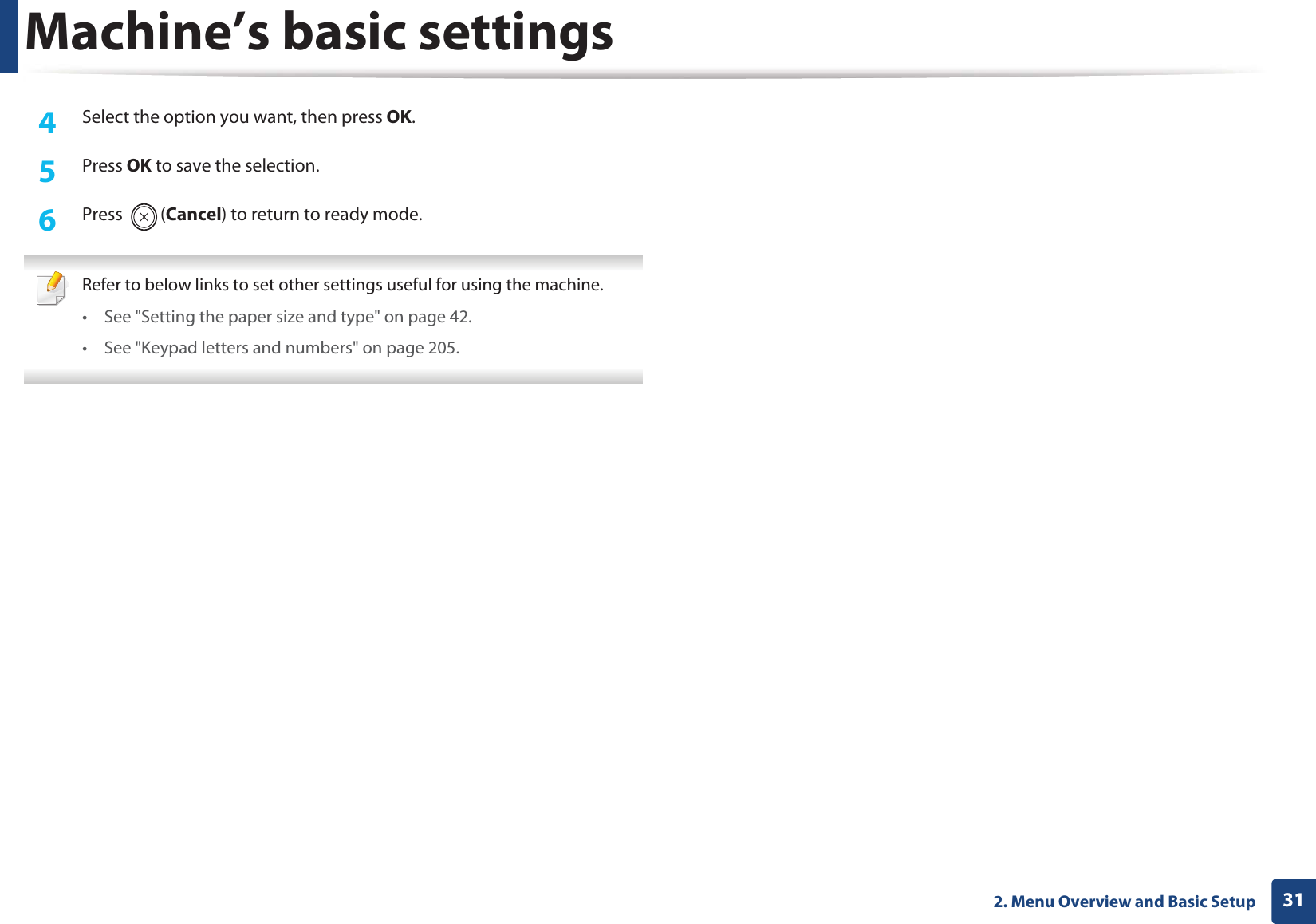

Machine’s basic settings312. Menu Overview and Basic Setup4 Select the option you want, then press OK.5 Press OK to save the selection.6 Press (Cancel) to return to ready mode. Refer to below links to set other settings useful for using the machine.• See "Setting the paper size and type" on page 42.• See "Keypad letters and numbers" on page 205.
322. Menu Overview and Basic SetupMedia and trayThis chapter provides information on how to load print media into your machine. • Using print media that does not meet these specifications may cause problems or require repairs. Such repairs are not covered by Samsung’s warranty or service agreements.• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine. • Using inflammable print media can cause a fire.• Use designated print mediaG(see "Print media specifications" on page 105).• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine. The use of inflammable media or foreign materials left in the printer may lead to overheating of the unit andS in rare cases may cause a fire. 2 Tray overviewTo change the size, you need to adjust the paper guides.1 Tray extend lever2 Paper length guide3 Paper width guide4 Paper width guides on a manual feederCLP-41xN Series/CLP-41xNW Series CLP-68xND Series/ CLP-68xDW Series2314231
Media and tray332. Menu Overview and Basic Setup For Legal-sized paper:Push button as shown and pull out the tray. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Tray overview" on page 32). If you do not adjust the guide, it may cause paper registration, image skew, or jamming of the paper. 3 Loading paper in the tray Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 17). Tray 1 / optional tray1Pull out the paper tray.LGL
Media and tray342. Menu Overview and Basic Setup2 Hold the tray with one hand, and with the other hand squeeze and slide the paper length guide to locate them in the correct paper size slot marked at the bottom of the tray (see "Tray overview" on page 32)U3 Flex or fan the edge of the paper stack to separate the pages before loading papers.4 After inserting paper into the tray, squeeze the paper width guides and paper length guide.1 Paper length guide2 Paper width guideCLP-41xN Series/CLP-47xNW Series CLP-68xND Series/ CLP-68xDW SeriesCLP-41xN Series/CLP-47xNW Series CLP-68xND Series/ CLP-68xDW Series2121

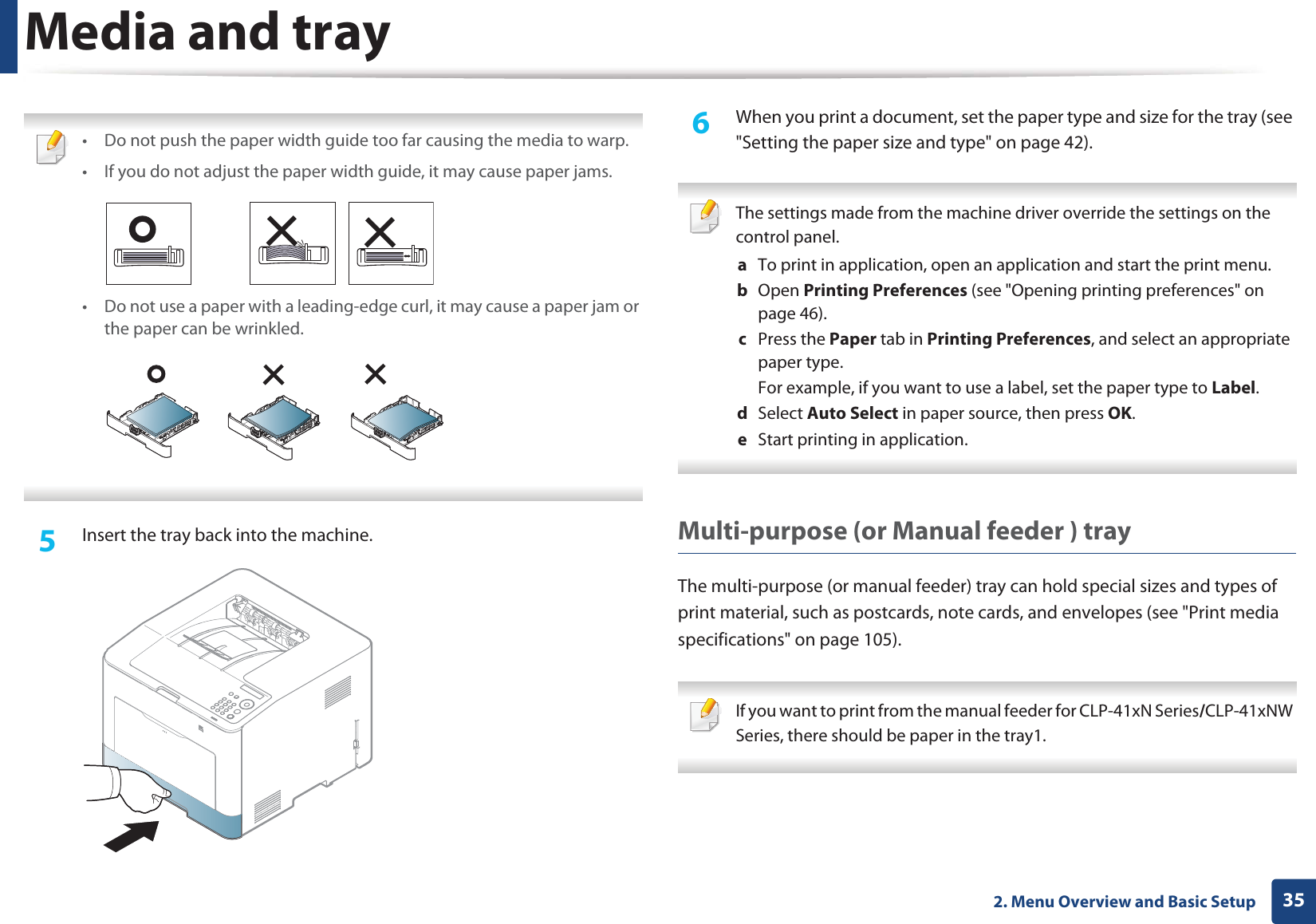

Media and tray352. Menu Overview and Basic Setup • Do not push the paper width guide too far causing the media to warp.• If you do not adjust the paper width guide, it may cause paper jams.• Do not use a paper with a leading-edge curl, it may cause a paper jam or the paper can be wrinkled. 5 Insert the tray back into the machine.6 When you print a document, set the paper type and size for the tray (see "Setting the paper size and type" on page 42). The settings made from the machine driver override the settings on the control panel.a To print in application, open an application and start the print menu.b Open Printing Preferences (see "Opening printing preferences" on page 46).c Press the Paper tab in Printing Preferences, and select an appropriate paper type. For example, if you want to use a label, set the paper type to Label.d Select Auto Select in paper source, then press OK.e Start printing in application. Multi-purpose (or Manual feeder ) trayThe multi-purpose (or manual feeder) tray can hold special sizes and types of print material, such as postcards, note cards, and envelopes (see "Print media specifications" on page 105). If you want to print from the manual feeder for CLP-41xN Series/CLP-41xNW Series, there should be paper in the tray1.
Media and tray362. Menu Overview and Basic SetupTips on using the multi-purpose (or manual feeder) tray• Load only one type, size and weight of print media at a time in the multi-purpose (or manual feeder) tray.• To prevent paper jams, do not add paper while printing when there is still paper in the multi-purpose (or manual feeder) tray. This also applies to other types of print media.• Always load the specified print media only to avoid paper jams and print quality problems (see "Print media specifications" on page 105). • Flatten any curl on postcards, envelopes, and labels before loading them into the multi-purpose (or manual feeder) tray.1Push-release of Multi-purpose tray and pull it down to open.ORPull out the paper tray for manual feeding.2 Load the paper.3 Squeeze the multi-purpose (or manual feeder) tray paper width guides and adjust them to the width of the paper. Do not force them too much, or the paper will bent resulting in a paper jam or skew.CLP-41xN Series/CLP-41xNW Series CLP-68xND Series/ CLP-68xDW SeriesCLP-41xN Series/CLP-41xNW Series CLP-68xND Series/ CLP-68xDW SeriesCLP-41xN Series/CLP-41xNW Series CLP-68xND Series/ CLP-68xDW Series 2 1
Media and tray372. Menu Overview and Basic Setup • When printing the special media, you must follow the loading guideline (See "Printing on special media" on page 37).• When papers overlap when printing using multi-purpose tray, open tray 1 and remove overlapping papers then try printing again. • When paper does not feed well while printing, push the paper in manually until it starts feeding automatically. 4 When you print a document, set the paper type and size for the multi-purpose (or manual feeder) trayG(see "Setting the paper size and type" on page 42). The settings made from the machine driver override the settings on the control panel.a To print in application, open an application and start the print menu.b Open Printing Preferences (See "Opening printing preferences" on page 46).c Press the Paper tab in Printing Preferences, and select an appropriate paper type. For example, if you want to use a label, set the paper type to Label.d Select MP Tray (or Manual Feeder) in paper source, then press OK.e Start printing in application.If your machine has multi-purpose tray,Gpress OK on the control panel each time you load a sheet of paper. 4 Printing on special mediaThe table below shows the special media usable in tray. The media is also shown in the Printing Preferences. To get the highest printing quality, select the proper media type from the Printing preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 46).For example, if you want to print on labels, select Labels for Paper Type. • When using special media, we recommend you feed one sheet at a time (see "Print media specifications" on page 105).• Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 17). To see for paper weights for each sheet, refer to "Print media specifications" on page 105.Types Tray 1 Optional trayaManual feeder/ Multi-purpose trayPlain ƔƔ ƔThick ƔƔ ƔThicker ƔƔ
