Instructions for Cleaning the LCD
Clean the LCD panel with a soft cloth lightly moistened with computer cleansing
detergent moving in one direction.
Cleaning the LCD panel with excessive force can damage the LCD.
102
BIOS Setup
The BIOS Setup enables you to congure your computer hardware according to your
needs.
Use the BIOS setup to dene a boot password, change the booting priority, or add a
new device.
Since incorrect settings may cause your system to malfunction or crash, take care
when conguring the BIOS.
The functions of the BIOS setup are subject to change for product function
enhancement purposes.
The BIOS Setup menus and items may differ depending on your computer model.
Entering the BIOS Setup
1 Turn the computer on.
2 When the booting screen (SAMSUNG
logo) appears, press the F2 key to
enter the BIOS Setup.
Press the F12 key while the booting
screen(SAMSUNG logo) appears,
the system will try to boot from the
network.
3 After a moment, the BIOS setup
screen appears.
The items in the BIOS setup may
differ depending on the product.
103

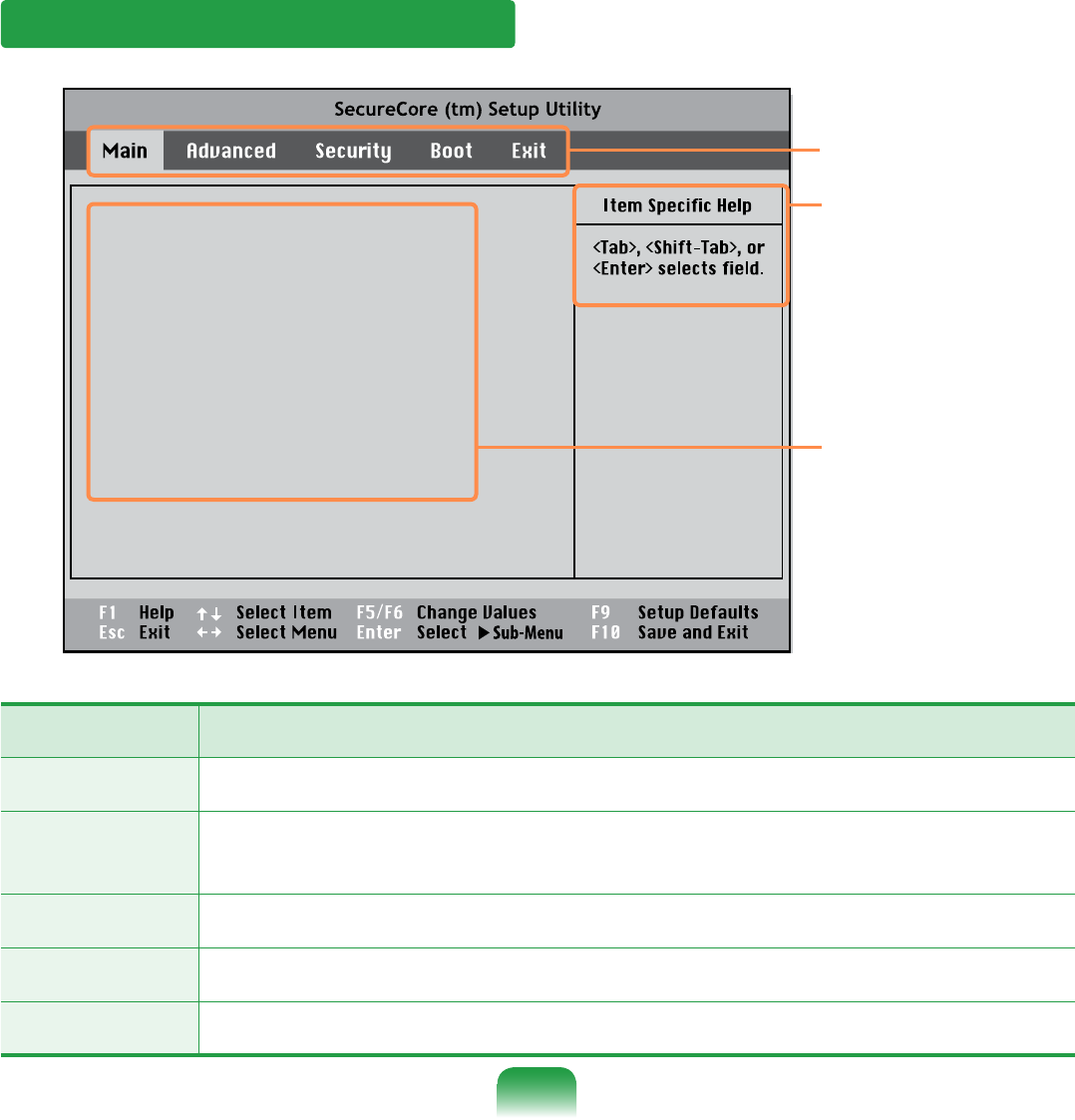

The BIOS Setup Screen
System Time [10:21:53]
System Date [07/30/200X]
SATA Port 1 XXXXXXXX
CPU Vendor
CPU Type XXXXXXXX
CPU Speed X.XX GHz
Total Memory XXX MB
BIOS Version XXXXXXXX
MICOM Version XXXXXXXX
XXXXXXXX
Setup Menu
Setup Items
Help
Help for the
selected
item appears
automatically.
Setup Menu Description
Main Used to change the basic system and environment settings.
Advanced Used to congure advanced functions on your computer for devices and
chipsets.
Security Used to congure security functions, including passwords.
Boot Used to set the boot priority and other boot options
Exit Used to exit the Setup either saving the changes or not.
104

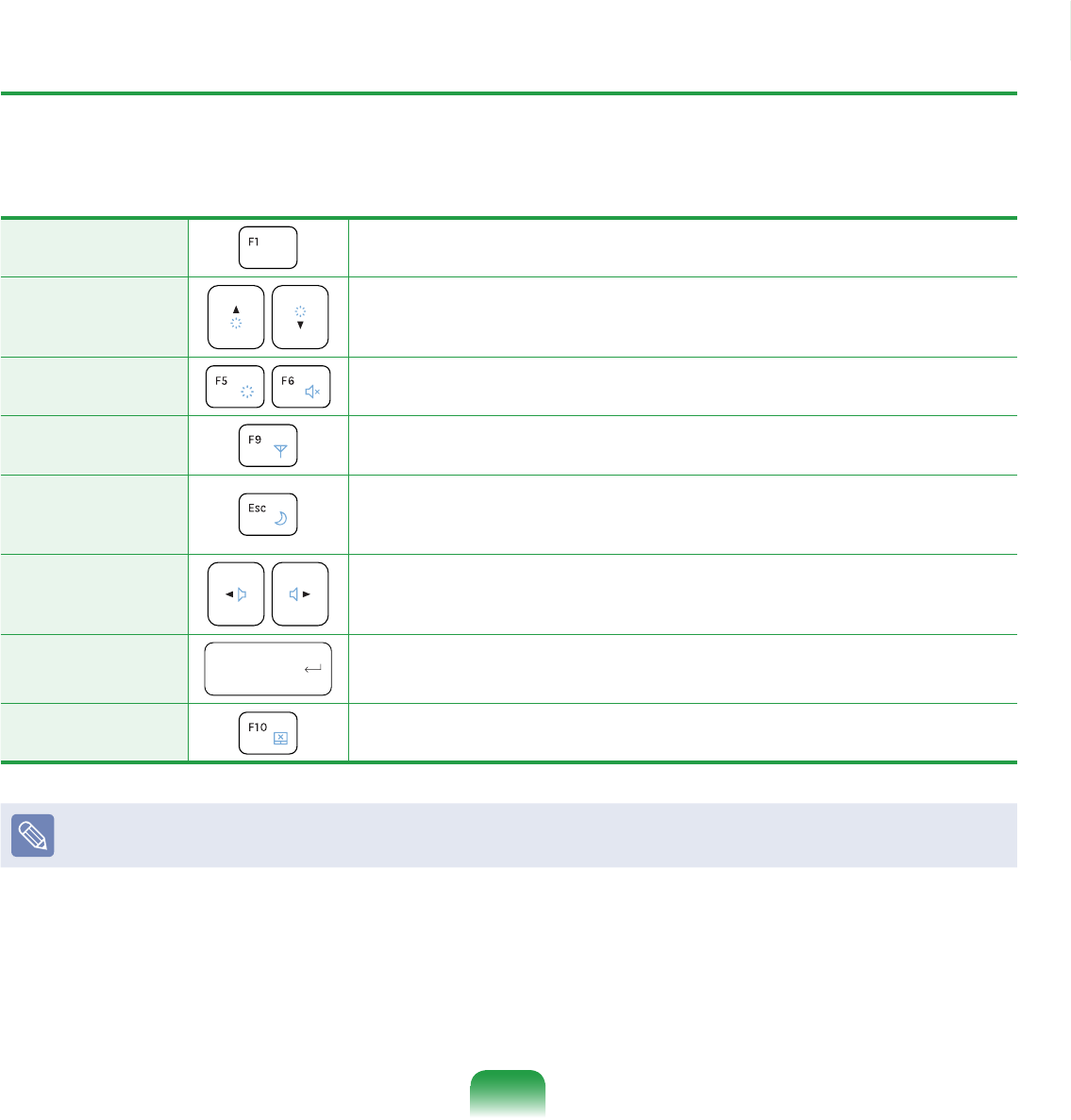

System Setup Keys
In the Setup, you have to use the keyboard.
F1 Press to view the Setup Help.
Up & Down
Keys Press to move up and down.
F5/F6 Press to change the item value.
F9 Press to load the default Setup settings.
ESC Press to return to a higher level menu or to move to the
Exit menu.
Left & Right
Keys Press to move to another menu.
Enter Press to select an item or to enter a sub menu.
F10 Press to save the changes and exit Setup.
The keyboard image and color may differ from the actual keyboard.
105
Setting a Supervisor Password
A Supervisor Password is required to turn
the computer on or to start the System
Setup.
When setting a Supervisor Password,
users other than supervisors cannot use
the computer.

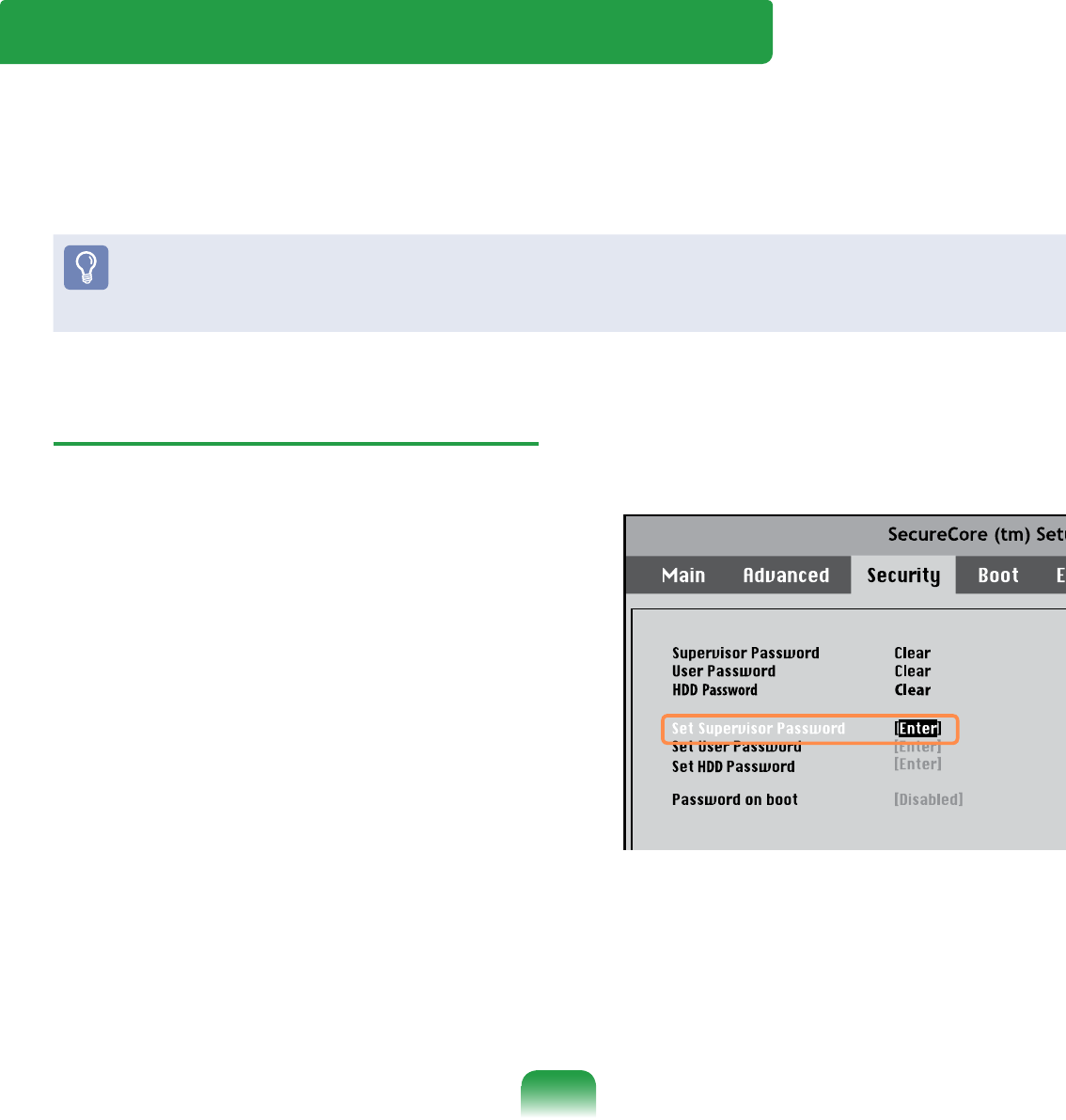

1 Select the Security menu in the BIOS
Setup.

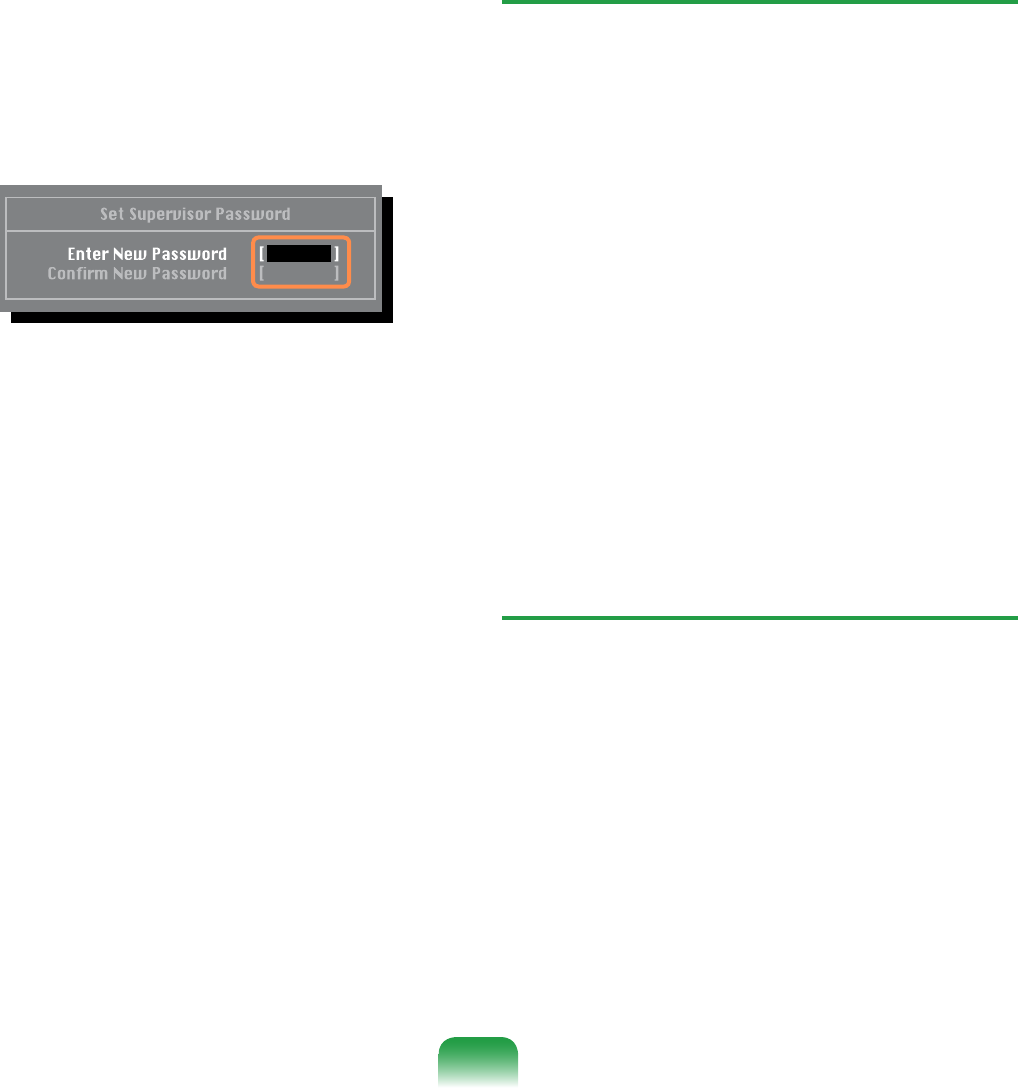

2 In the Set Supervisor Password
item, press <Enter>.
XXXXXXXX
Setting a Boot Password
When setting a password, you have to enter the password to use the computer or enter
the BIOS Setup.
By conguring a password, you can restrict system access to authorized users only and
protect data and les saved on the computer.
Do not lose or forget your password.
If you have forgotten your password, contact a Samsung service center. In this case, a
service fee will be charged.
106
3 Enter a password, press <Enter>, re-
enter the password for conrmation,
and press <Enter> again.
The password can be up to 8
alphanumeric characters. Special
characters are not allowed.
4 When a message conrming the
password conguration appears in
the Setup Notice window, press
<Enter>.
The supervisor password has been
set.
The supervisor password is required
to turn the computer on or to enter the
BIOS Setup.
Setting a User Password
The User Password restricts access
to the computer or for conguring the
BIOS Setup, like a Supervisor Password.
However, the Setup items that can
be congured with a User Password
are restricted, unlike for a Supervisor
Password.
Before conguring a user password, a
supervisor password must have been
congured. Deactivating the supervisor
password also deactivates the user
password.
In the Set User Password item, press
<Enter> and complete the procedures
from Step 3 of Setting a Supervisor
Password.
Setting Up a Boot Password
To setup a boot password, the
administrator password (Set Supervisor
Password) should be set in advance.
Set the Password on boot item to
Enabled.
Once a boot password is set, you have
to enter the password to boot up the
computer.
107
Setting up a Hard Disk Drive
Password (Optional)
A supervisor password must be set using
the Set Supervisor Password menu.
If you set a password for a hard disk
drive, it cannot be accessed from another
computer.
Press <Enter> in the Set HDD
Password item and dene a password as
described in Step 3 of the Setting up the
Supervisor Password.
The hard disk drive password setting
function is not provided for some
models.
Changing the hard disk drive
password
For security purposes, you can only
change a hard disk drive password
after restarting the computer by
pressing the computer Power button.
If you cannot change the hard
disk drive password or the HDD
Password Frozen message appears
when entering the BIOS Setup
and selecting Security > HDD
Password, press the Power button
to turn the computer on again.
Deactivating the Password
1 Press <Enter> on the password
to be deactivated. For example, to
deactivate a supervisor password in
the Set Supervisor Password item,
press <Enter>.
2 In the Enter Current Password
item, enter the currently congured
password and press <Enter>.
3 Leave the Enter New Password item
eld empty, and press <Enter>.
4 Leave the Conrm New Password
eld empty, and press <Enter>.
5 In the Setup Notice window, press
<Enter>.
The password is deactivated.
108

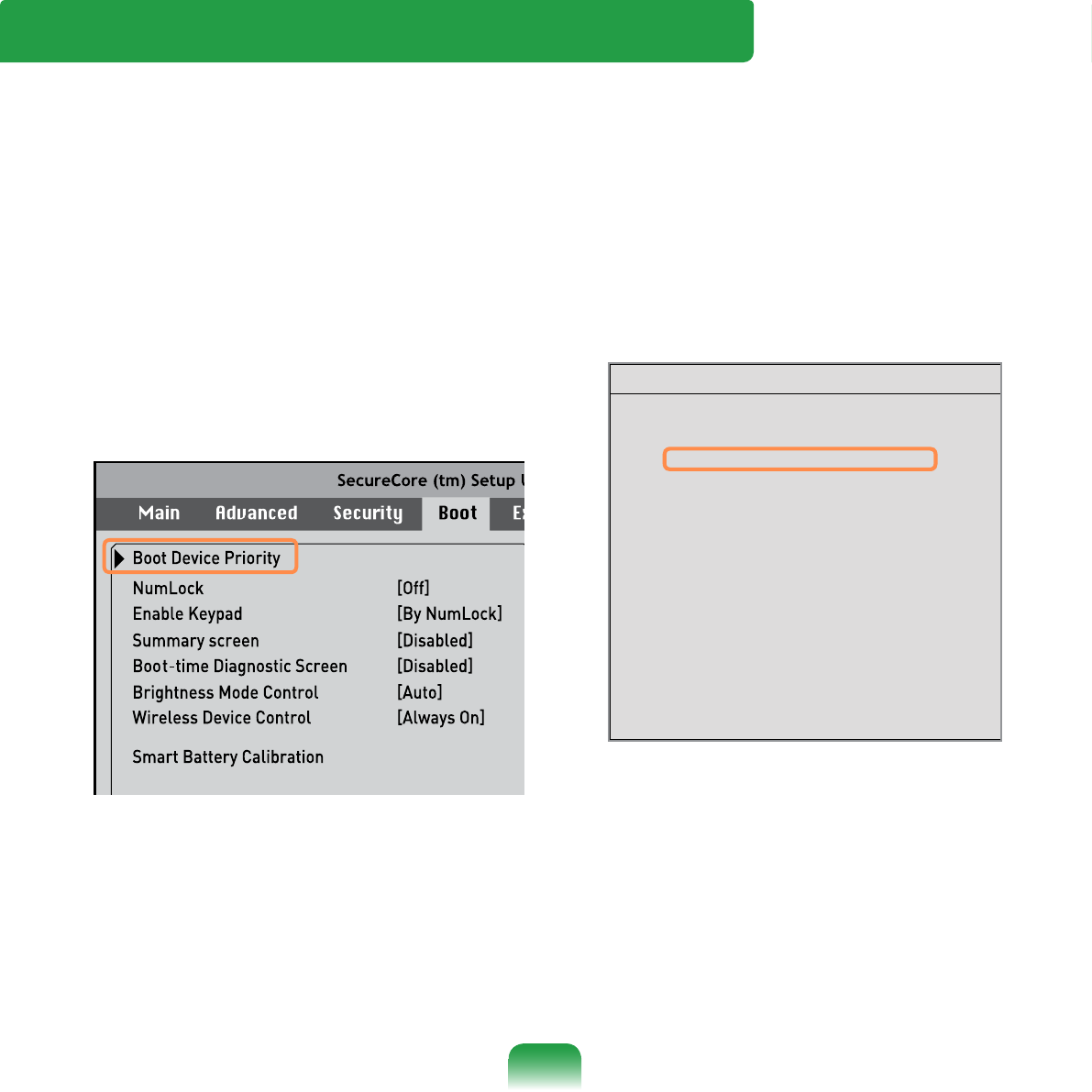

1 Select the Boot menu in the BIOS
Setup.
2 Press <Enter> on the Boot Device
Priority item.
XXXXXXXX
3 Press the down key (↓) to move to the
IDE HDD item and press the F6 key
to move the item to the top.
[Boot priority order]
1. USB CD : N/A
2. IDE HDD : XXXXXXXX
3. PCI BEV : N/A
4. USB FDD : N/A
5. USB KEY : N/A
6. USB HDD : XXXXXXXX
7.
8.
[Excluded from boot order]
- USB ZIP : N/A
- USB LS120 : N/A
- PCI SCSI : N/A
- Other USB : N/A
- PCI : N/A
Boot Device Priority
4 Press the F10 key to save the settings
and exit Setup.
The highest boot priority device is
now set to the Hard Drive.
Changing the Boot Priority
This computer is congured to boot from an external-type ODD rst.
This chapter describes how to change the boot priority so that the computer boots from
the hard disk drive rst.
109
Upgrading Memory
A memory is installed in the memory slot at the bottom of this computer. The
procedures to replace the memory are described below.
Replace new memory only after shutting the computer down completely. Do not
replace memory when the computer is in Sleep mode.
Disconnect main power plug and remove the battery before continuing.
Only use the same type of memory as specied in the Product Specication.
Replacing the Memory

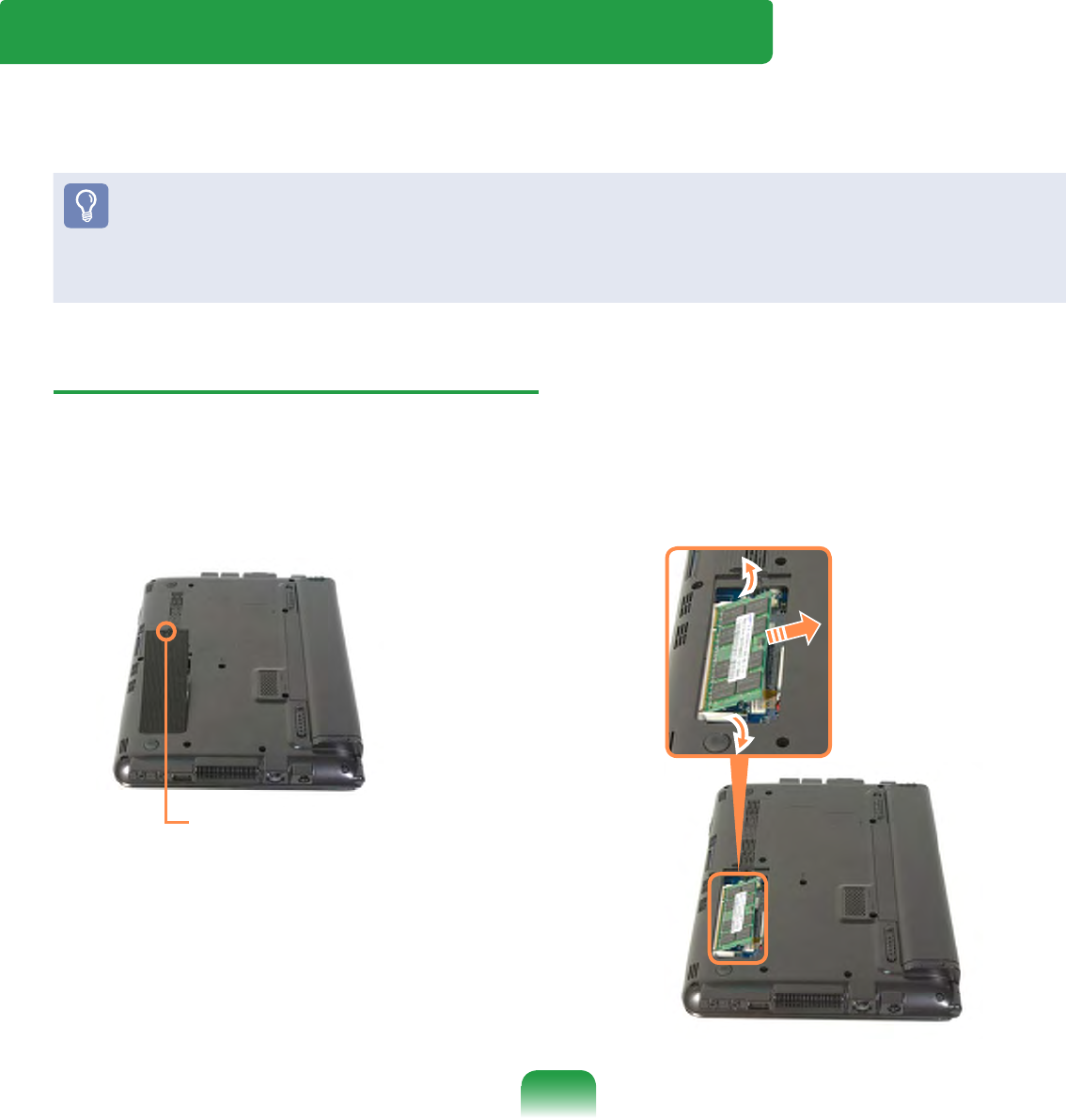

1 Remove the screw on the memory
compartment cover at the bottom of
the computer using a screw driver.
Fixing Screw
2 Pull the memory module latches
outward. The memory module will pop
up.
Remove the memory module out at
an angle of 30 degrees.
110
3 Insert a new memory module into
the memory slot at an angle of
approximately 30 degrees aligning it
to the angle of the memory slot.
Memory Slot

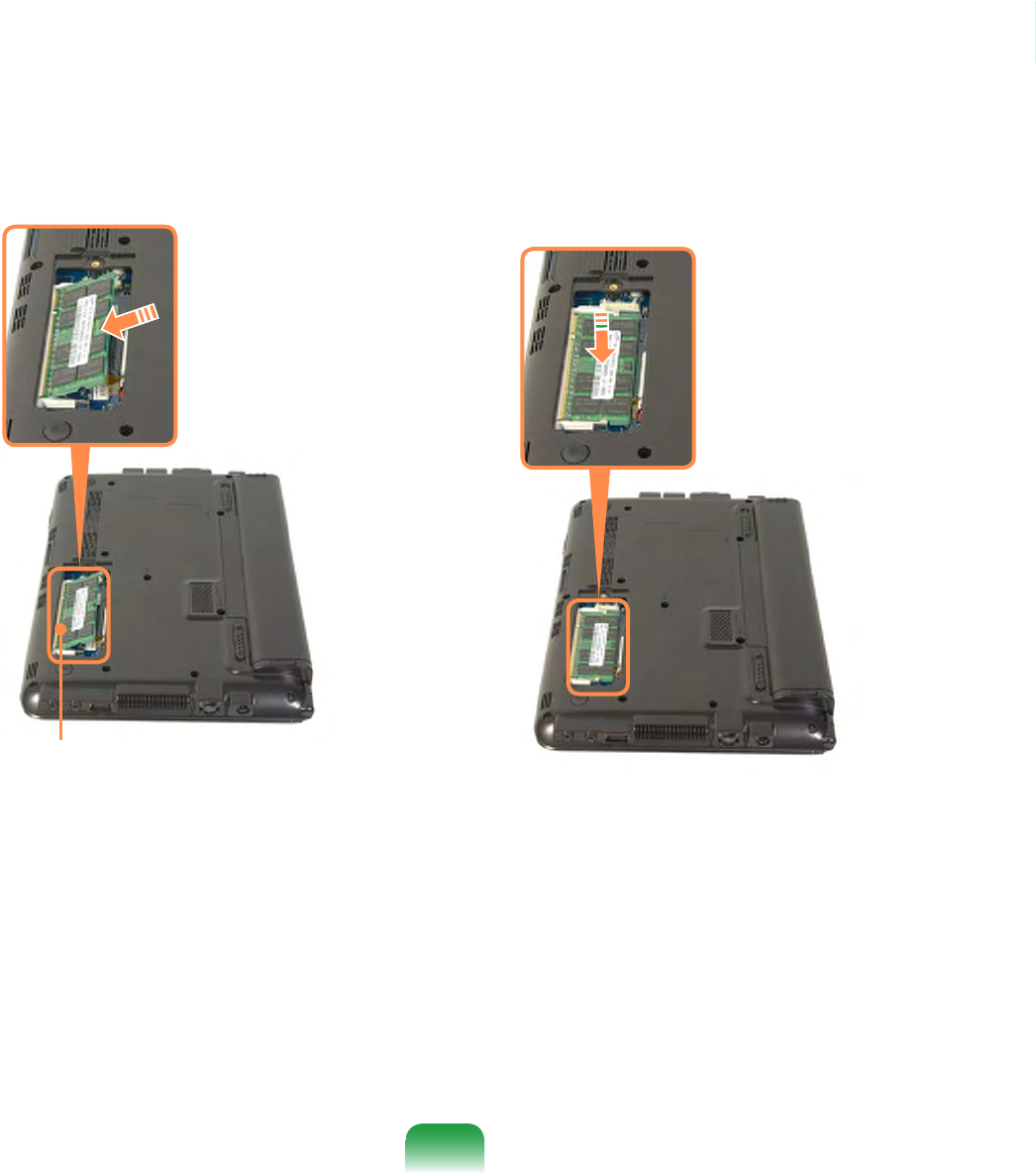

4 Push the memory module down
so that it is completely xed. If the
memory does not t easily, push the
memory module down while pulling
the memory module latches outward.
5 Close the memory compartment
cover and fasten the screw.
111
Battery
Please refer to the following instructions when running the computer on battery power
without connecting the AC power.
A Lithium-Ion smart battery is supplied with this computer.
Carefully read and follow the precautions printed on the battery before using the
battery.
Precautions
Use only chargers specied in the User Manual.
Never heat the battery pack, put it near or in a re or use at a temperature higher
than 60°C, as this may cause re.
Never cause a short circuit between the battery pack terminals or disassemble the
battery pack.
Carefully read and follow the precautions printed on the battery and the safety
instructions in the User Manual before using the battery.
Please refer to the system operation environment of this manual and operate and
store the battery at room temperature.
Installing/Removing the Battery
1 Shutdown the system, close the LCD panel and place the computer upside down on
a at surface.
112

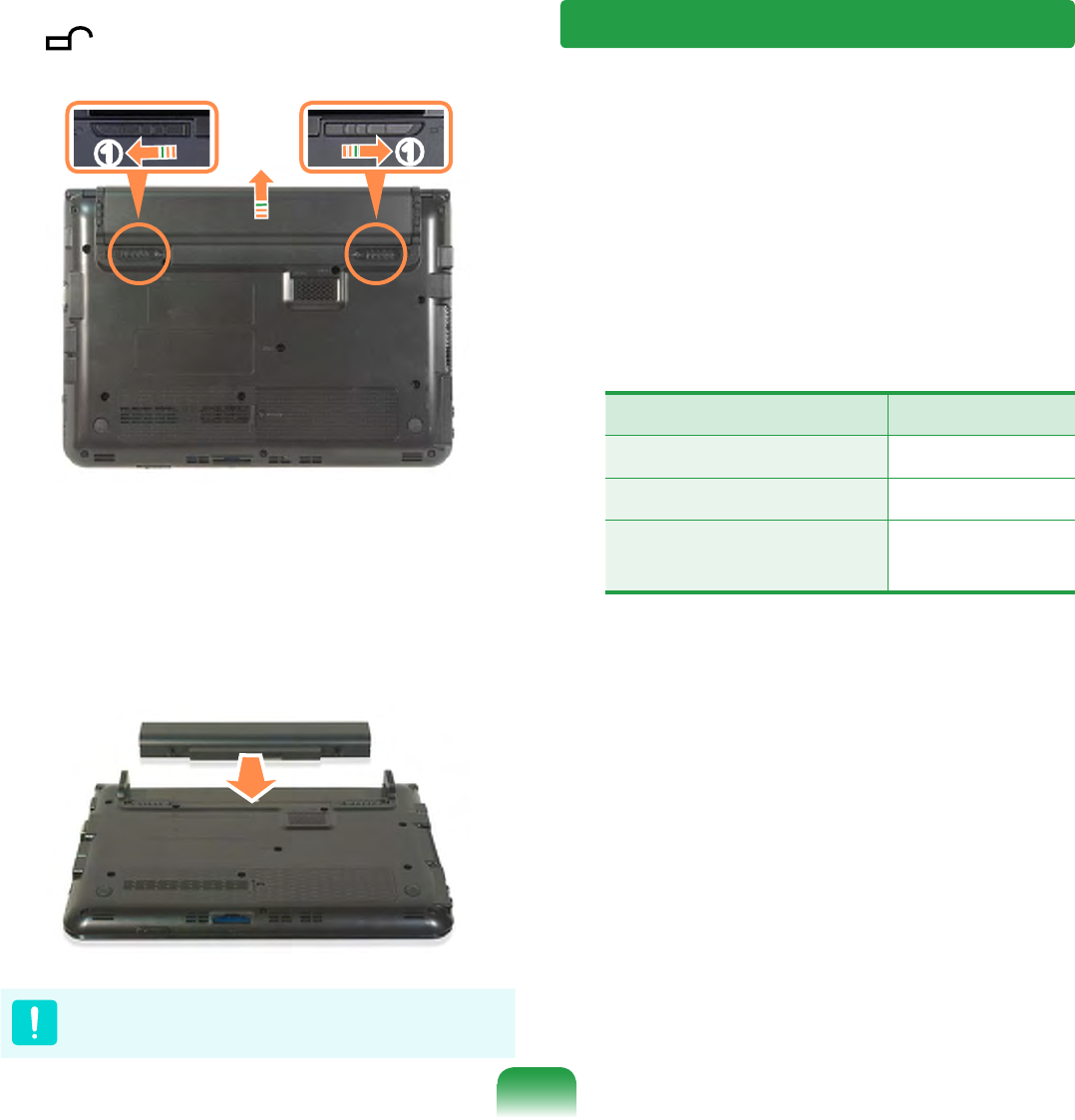

2 Pull the two battery latches outwards
, then remove the battery.
x
zz
3 To install the battery again, slide the
battery into the system.
The battery latches move inwards and
x the battery automatically.
Check if the battery latch has been
moved inwards.
Charging the Battery
1 Attach the battery and connect the
AC adapter to the DC-in jack of the
computer.
The battery will then start charging.
2 When charging is complete, the
Charge LED turns green.
Status Charge LED
Charging Amber
Charging complete Green
AC adapter not
connected Off
113
Measuring the Remaining Battery Charge
You can view the battery charge status by completing the following procedures.
To use the shortcut key to view
Press the Fn + keys on the
keyboard. The remaining battery charge
(%) will displayed for a moment.
You can only view the charge status in
this way when Easy Display Manager is
installed on your computer.
Battery Warning
If the battery residual amount is
3~5%, the computer automatically
shuts down after saving the data.
The battery residual amount may
vary depending on the computer
model.

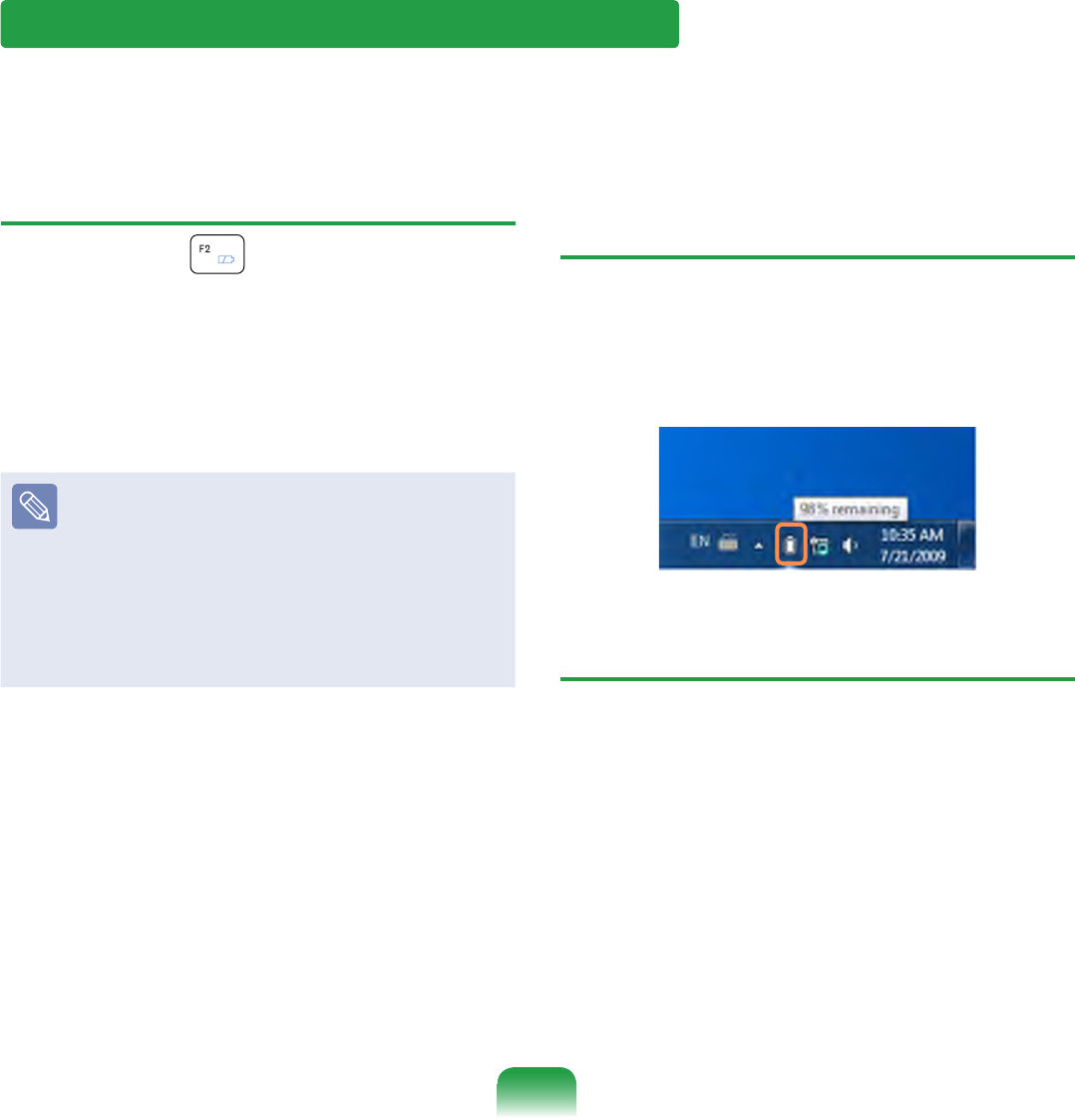

Conrming the battery charge in
the Taskbar
Disconnect the AC adapter and move the
mouse cursor over the battery icon in the
system tray of the Taskbar to conrm the
remaining battery charge.
Battery Lifetime Information
A battery is an expendable supply,
so when using it over a long time, the
capacity/battery life is shortened. If the
battery life is reduced to under half of its
initial time, we recommend purchasing a
new battery.
When not using the battery for a long
time, store the battery after charging it to
30-40% of its capacity. This extends the
battery life time.
114
Extending the Battery Usage Time
Decreasing the LCD Brightness
Press the Fn + keys on the keyboard
to decrease the LCD brightness to extend
the battery usage time.
Disabling Unused Devices
(Only for Windows XP)
If you turn off unused devices, battery
usage time will improve.
1 Click Device Manager from Start
> Control Panel > Performance
and Maintenance > Systems >
Hardware tab.
2 Right-click the devices that you are
not using and select Disable.

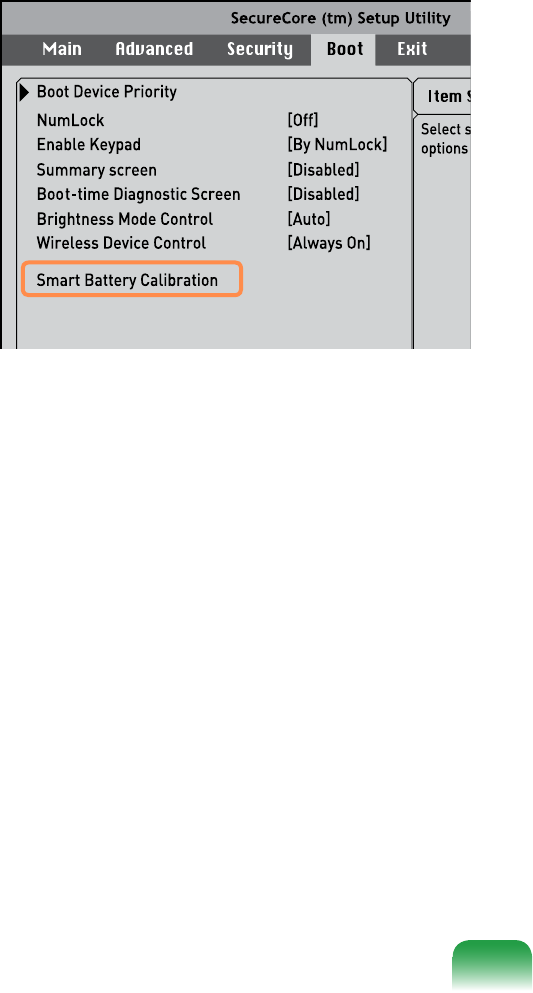

Using the Battery Calibration
Function
When charging/discharging the battery
repeatedly for a short time only, the
battery usage time may be reduced by
the difference between the actual battery
charge and the remaining charge display.
In this case, the actual battery charge
and the remaining charge display will
be the same by discharging the battery
completely using the Battery Calibration
function, and then recharging it again.
1 Disconnect the AC power adapter
after turning off the computer.
2 Restart your computer and press the
F2 button when the Samsung logo
appears, to start the BIOS Setup.
115
3 Move to the Boot > Smart Battery
Calibration item using the direction
keys and press <Enter>.
XXXXXXXX
4 Highlight Yes in the Battery
Calibration Conrmation window
and press <Enter>.
The Battery Calibration function is
activated and the battery is forcefully
discharged. To stop the operation,
press the <Esc> button.
This operation requires 3~5 hours
depending on the battery capacity
and the remaining battery charge.
116

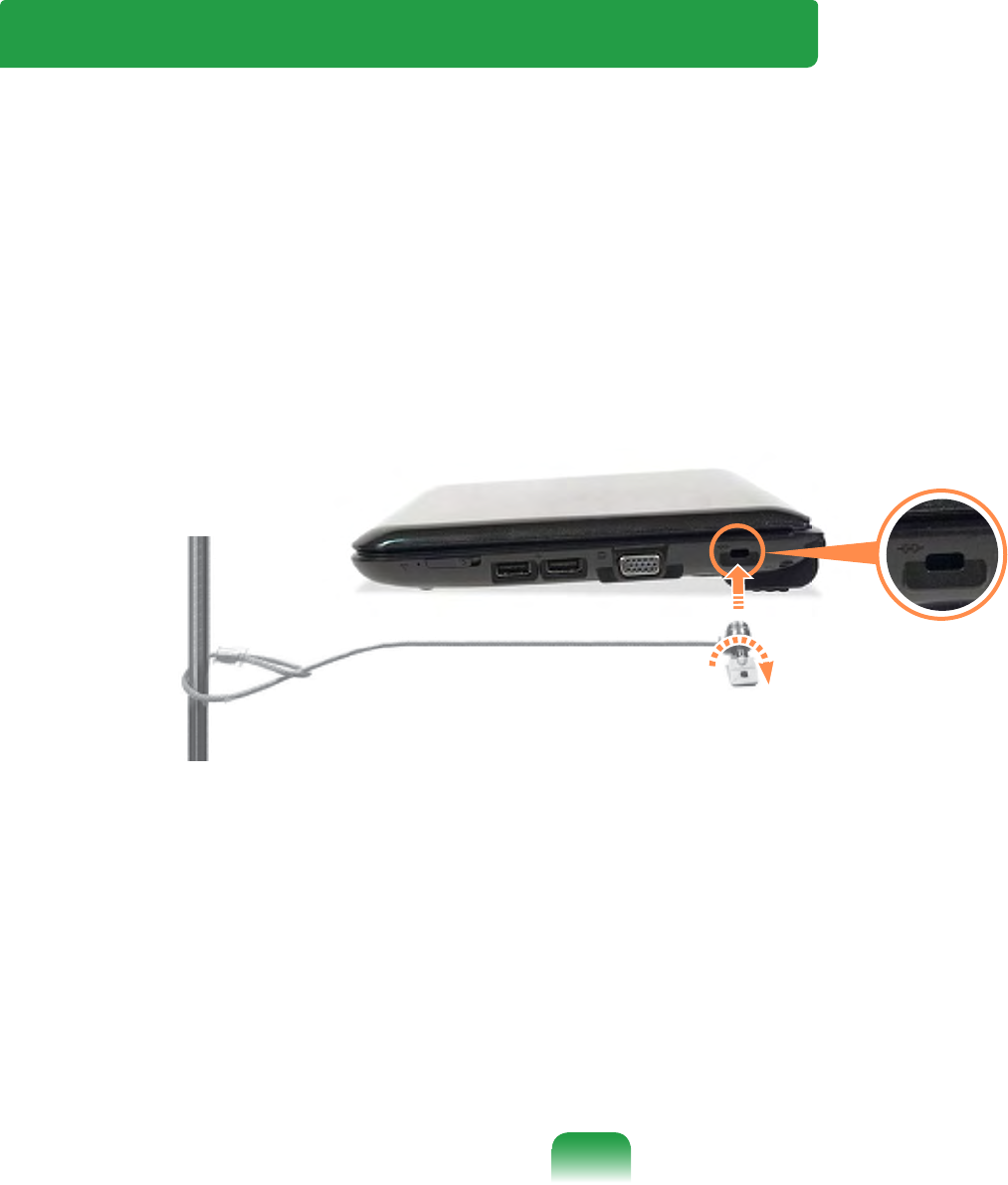

Using the Security Lock Port
You can connect a Kensington lock to the Security Lock port to prevent your computer
from being stolen when you need to use the computer in a public place.
To use this feature, you must purchase a Kensington lock additionally. To use the
Kensington lock, refer to the product manual.
Tie the Kensington lock cable to a xed object and install the other end of the cable to
the Security Lock port.
Chapter 4.
Troubleshooting
Using Samsung Recovery Solution
(Optional) 118
Reinstalling Windows 7
(For Windows 7. For supported models only) 132
Reinstalling Windows XP
(For Windows XP, For supported models only) 137
Questions and Answers 141
Windows Related 141
Display Related 144
Sound Related 146
Wired LAN Related 148
Wireless LAN Related 150
Games and Programs Related 154
Bluetooth 157
118

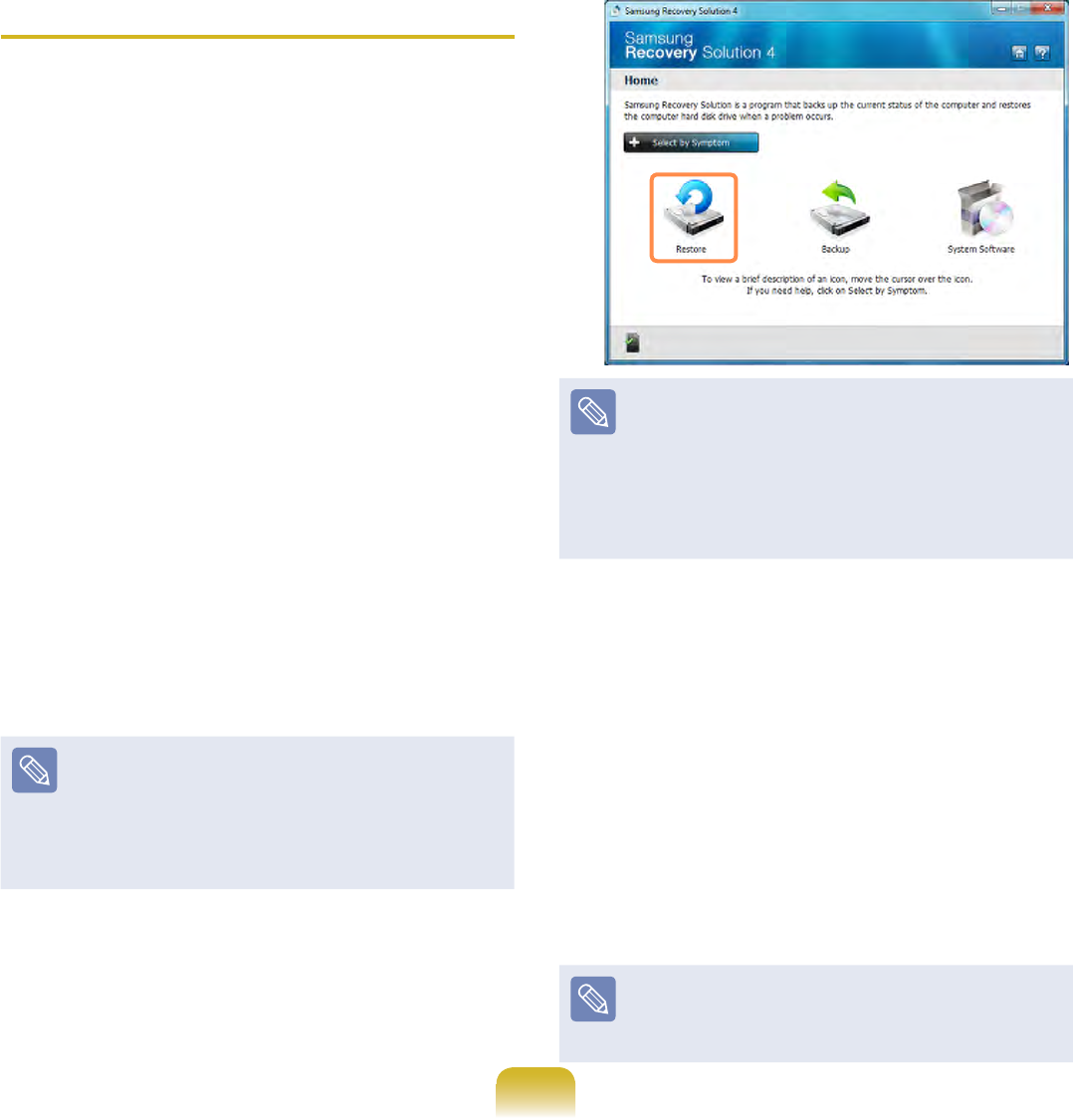

Using Samsung Recovery Solution (Optional)
Samsung Recovery Solution is a program that can backup your hard disk and
restores it later when a problem occurs with your computer. It also provides a System
Software function that enables you to install or backup device drivers and system
software programs needed for your system to function properly.
Samsung Recovery Solution may not be provided or the version may differ
depending on the model. In addition, some functions may not be provided or may
differ depending on the version. For more information on using Samsung Recovery
Solution, please refer to the online help of the program.
The screen images in this document may differ from actual product.
If your computer does not have an internal ODD, you need an external ODD
connected to your computer to use the Backup Function or Restore Function using
DVDs.
The System Software function may not be provided depending on the program
version.
119

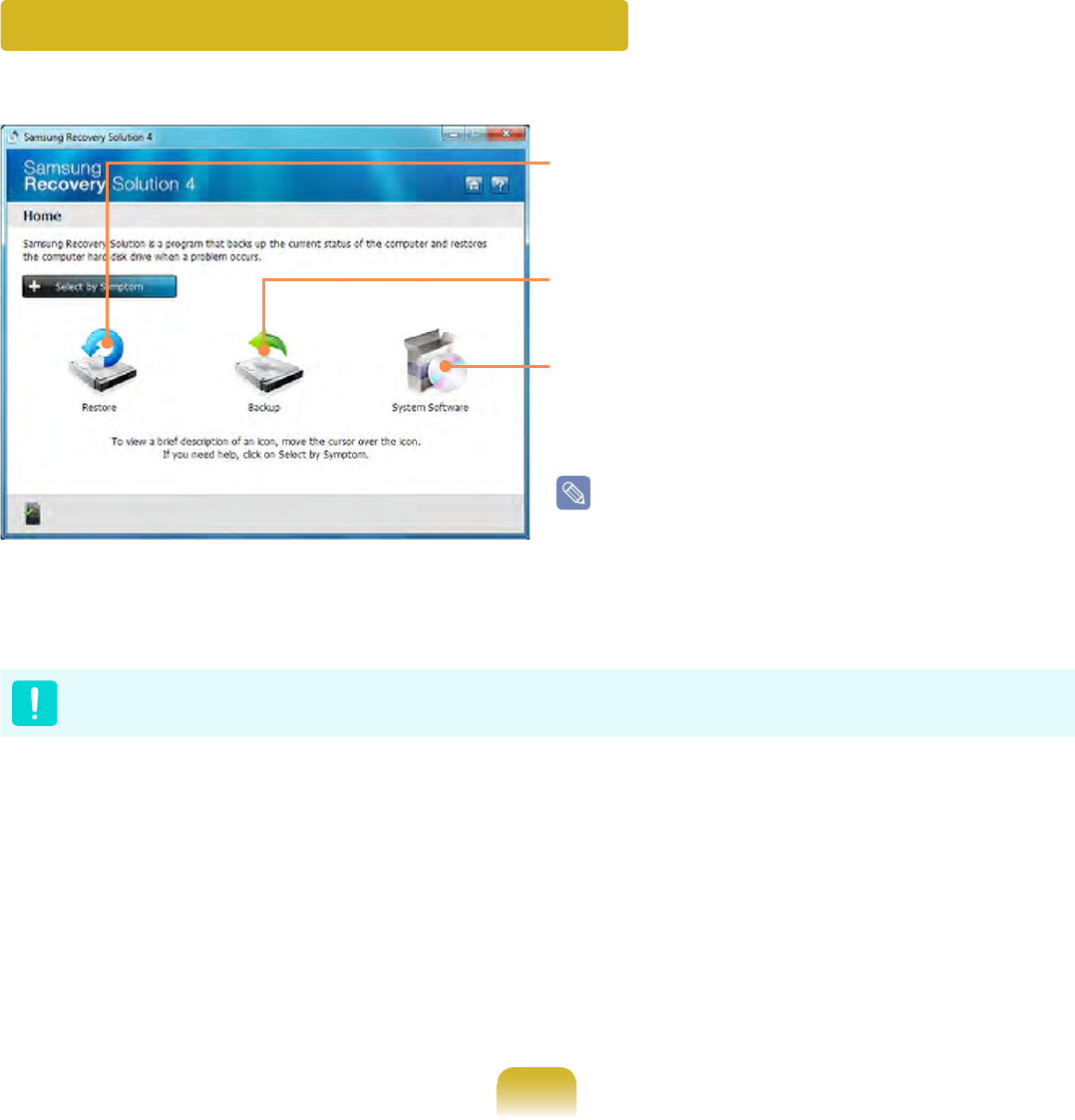

Samsung Recovery Solution Functions
Restore: A function that restores the
computer to a previous state after
a problem occurs
Backup :
A function that backs up the data
on the computer
System Software: A function that reinstalls
or backs up device drivers and application
programs needed for the system
The system software function is
supported by Samsung Recovery
Solution version 4 or later. Therefore, the
function may not be supported depending
on the version.
Please back up your important data as data loss may occur for the C drive while
restoring/backing up the computer through Samsung Recovery Solution.
120

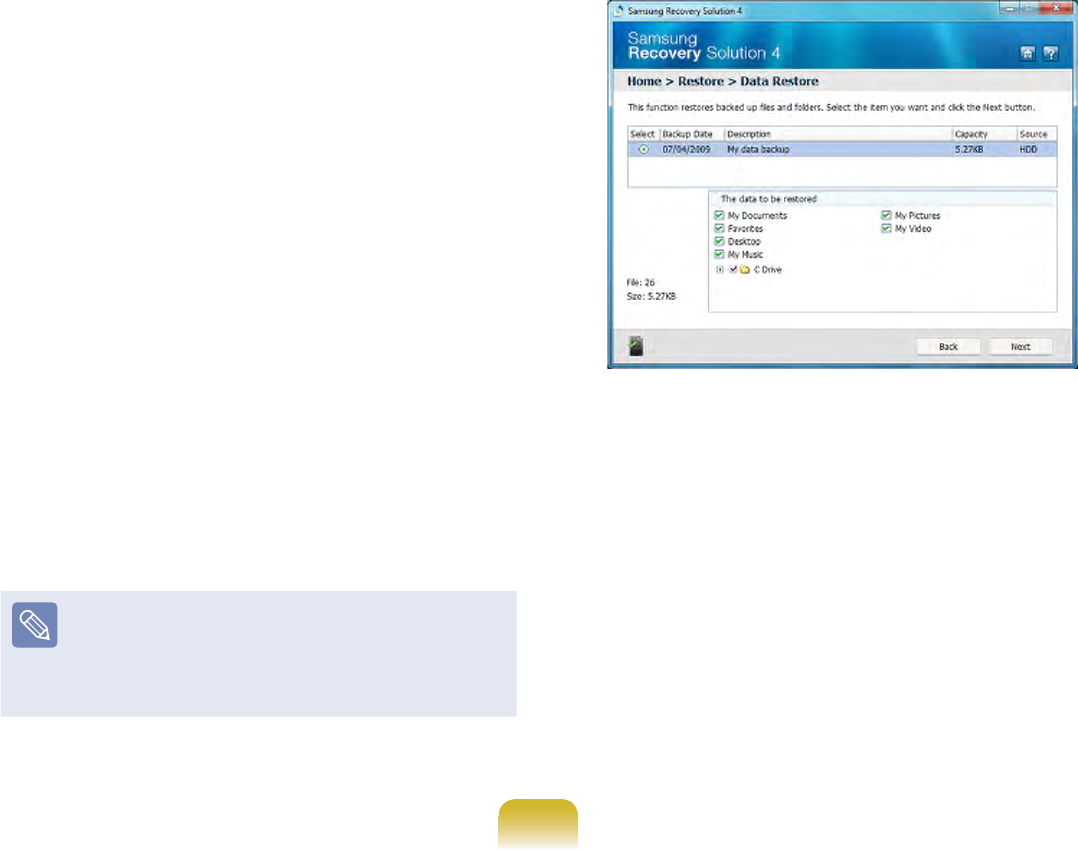

Restore Function
Using this function, you can easily restore your computer to a previous, stable state
when your computer no longer works properly or you are unable to boot up your
computer due to some problem. If you have backed up data, you can restore the
backup data.
Basic Restore Complete Restore Data Restore
This function quickly
restores major
Windows les (C:\
Windows) without
touching the user
conguration and
data on the C drive.
This function deletes the entire C
drive and then restores the contents
of the C drive completely.
This function
restores the user
data if the user
previously backed up
data.
Initial Status Restore
This function restores the computer
to the initial status saved when the
computer was run for the rst time
after it was purchased.
Complete Backup Restore
This function restores the computer
to the point where the user
performed a Complete Backup.
Restore Functions
Backup Function
You can backup the entire C drive or all your data to another hard disk drive or
DVD. You can restore the backed up drive or data using the Restore function.
121
Backup Functions
This function backs up
the initial status of the
computer.
Initial Status Backup
This function backs up
specic folders or les.
Data Backup
This function backs up
the entire drive C.
Complete Backup

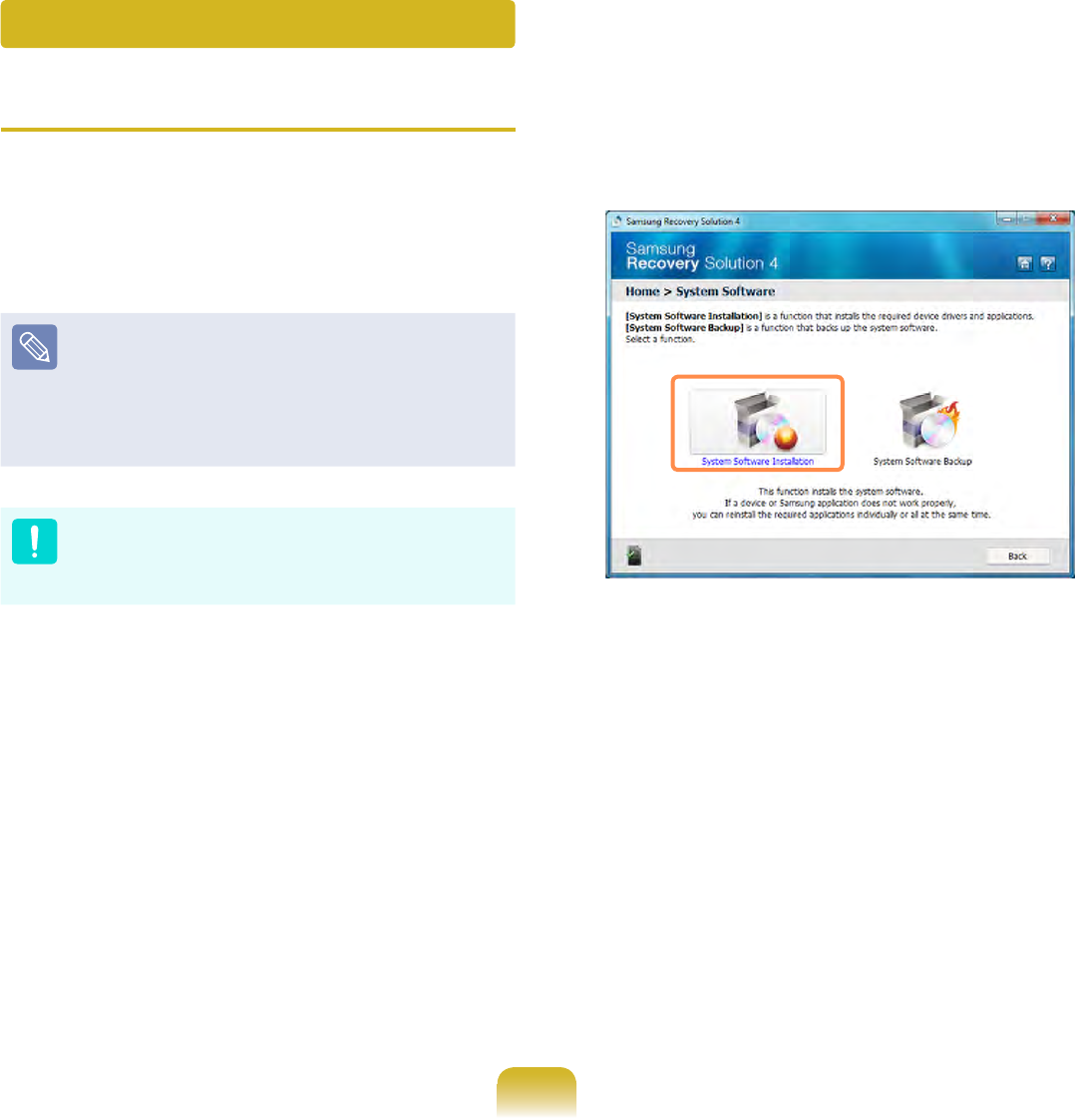

System Software function
You can back up the System Software saved on the hard disk to another hard disk
drive or DVD, and reinstall part or all software programs to your computer.
System Software function
This function installs the system
software programs needed for your
computer
System Software Installation
This function backs up all System
Software Programs
System Software Backup
The system software function is supported by Samsung Recovery Solution
version 4 or later. Therefore, the function may not be supported depending on the
version.
You can conrm the version of the current Samsung Recovery Solution in the
Samsung Recovery Solution screen.
Example) If the program name that appears in the Samsung Recovery Solution
screen is Samsung Recovery Solution 4, it indicates that the version of the
Recovery Solution is version 4. If the name is Samsung Recovery Solution III, it
indicates that the version of the Recovery Solution is version 3.
122
Restore Function
Not only can you use Samsung Recovery Solution when Windows is running, but
also when you are unable to boot up into Windows. Let’s learn how to use Samsung
Recovery Solution.
Partition Setup & Initial Status
Backup
If you turn your computer on for the rst
time, the Initial Status Backup function
is performed after registering Windows.
This function saves an image of the Initial
Status of the C drive to a secure location
so that users can restore the computer
to the Initial Status using the Complete
Restore function. An Initial Status Backup
is only performed once immediately after
the computer is purchased.
1 If you turn the power on for the rst
time, the Register Windows screen
appears. If you register Windows
according to the instructions on the
screen, the computer will be restarted.
2 After the computer has been
restarted, the Partition Setup screen
appears.
To resize the C and D drives, adjust
the partition size using the slide bar
and the click Next.
The Partition Setup function is only
available when the computer is
turned on for the rst time and will
not be available afterwards. Once
you have completed the partitioning,
it cannot be resized. Partition the
disk carefully.
3 The Initial Status Backup screen
appears.
To continue the Initial Status Backup,
click Restart Now. The computer will
restart.
4 The Initial Status Backup is performed
to backup the initial status of the
C drive to a secure location. This
backup image is used for the
Complete Restore function that
restores your computer to the initial
status.
5 When the Initial Status Backup is
complete, restart Windows.
123
Restoring the computer
Restore is a function that enables
restoring the computer to a saved point
when the computer was purchased or a
user-saved point.
The Restore function provides the Basic
Restore and Complete Restore options.
1 – When Windows is running:
Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
– When Windows does not start:
Turn the computer on and press
the F4 key when the boot screen
(SAMSUNG logo) appears. After a
moment, the computer boots up in
Restoration mode and the Samsung
Recovery Solution screen appears.
For computers supporting the touch
screen function, the touch screen
function does not work during
Restore Mode. In this case, please
use the touchpad or mouse.
2 If the initial menu screen appears,
click Restore.
If you click Select by Symptom,
the Select by Symptom menu
appears. If you select a symptom, a
recommended restoration option will
blink. Click the restoration option to
continue.
3 Select either Basic Restore or
Complete Restore from the Restore
menu.
A Basic Restore restores the major
Windows les only while maintaining
the user conguration and data on the
C drive in a short time.
A Complete Restore deletes the
entire C drive and then restores the
contents of the C drive.
Run Complete Restore if the
computer does not work even after
Basic Restore has been completed.
124
3-1 If you have selected Basic Restore:
In the Basic Restore screen, click
the Next button. The system will be
restarted.
3-2 If you have selected Complete
Restore:

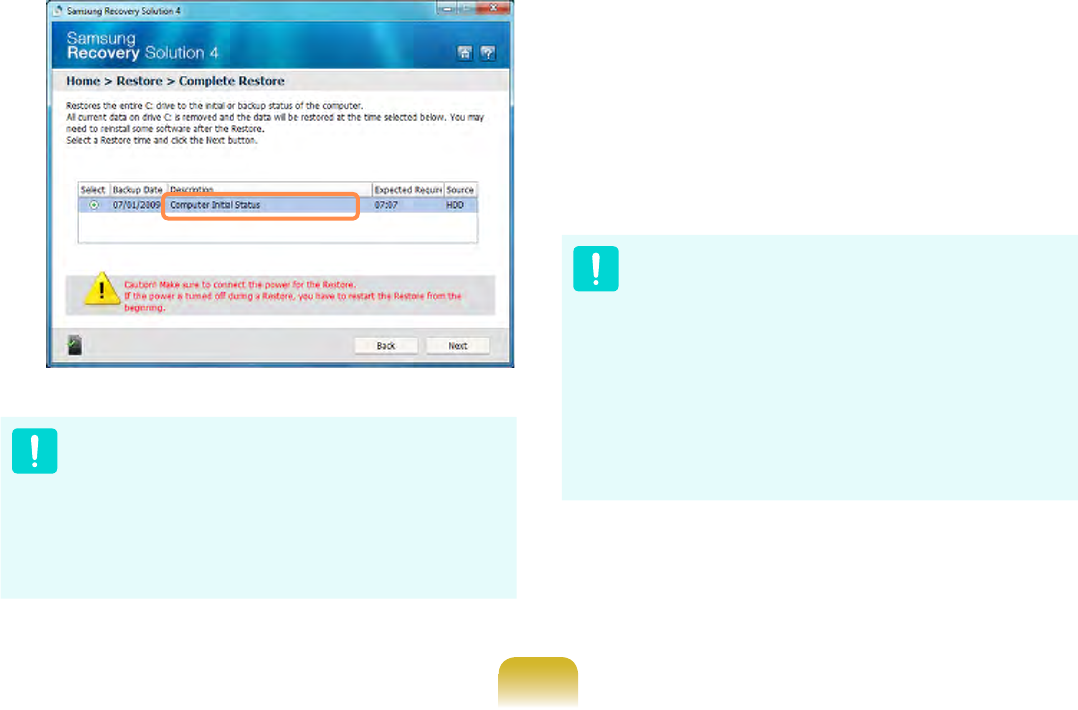

In the restoration point selection
screen, select the restoration point
described as ‘Computer Initial Status’
and click the Next button. The system
will be restarted.
Since a Complete Restore deletes
all user data as well as additionally
installed programs, please backup
your important data rst using the
Data Backup function, before running
Complete Restore.
4 If the Samsung Recovery Solution
program is launched for the rst time
after purchasing the computer, the
license agreement screen appears
before the restoration is started. Read
the agreement and click Agree to
continue.
5 The computer boots up into
restoration mode and the restoration
progress message appears. If you
click OK, the restoration begins. The
restoration may take some time,
please wait for a moment.
6 When the ‘Restart the System’
message appears after the restoration
is complete, click OK to restart the
system.
Make sure that the power cord is
connected while the restoration is in
process. The rst time the computer
boots up after a Complete Restore has
been performed, the speed of the boot
process may be slowed down due to
the system optimization process. At this
time, do not shut the computer down by
force.
125
Backup Function
Complete Backup/Restore
A Complete Backup saves the complete
image of the C drive onto another drive or
DVD. A Complete Restore restores the
image le saved by the Complete Backup
onto the C drive.
Complete Backup
If you run Complete Backup using a
DVD, you can restore the computer
even when a problem occurs with
the hard disk or when the restoration
area is removed.
1 Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
2 When the initial menu screen
appears, click Backup.
3 Click Complete Backup in the
backup menu.

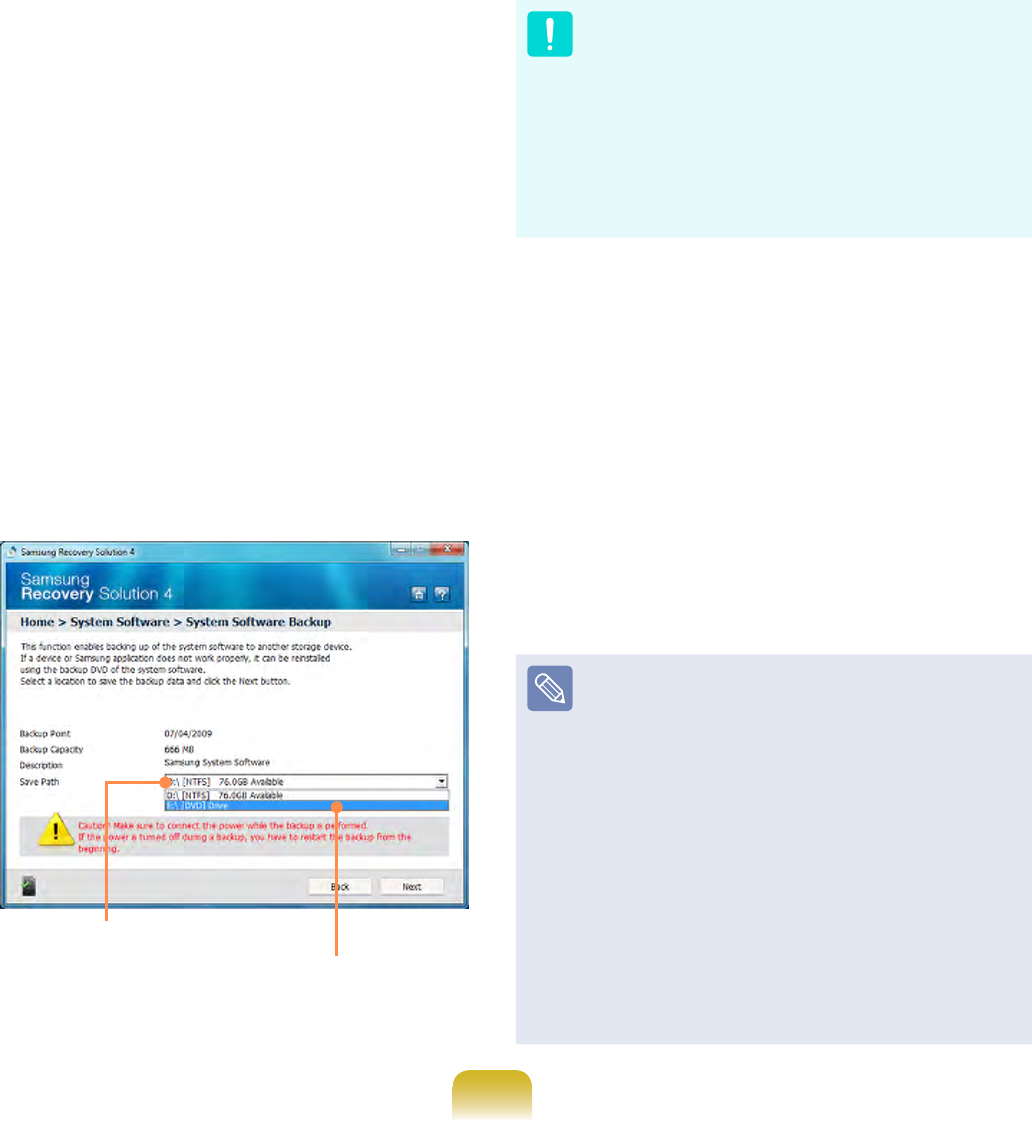

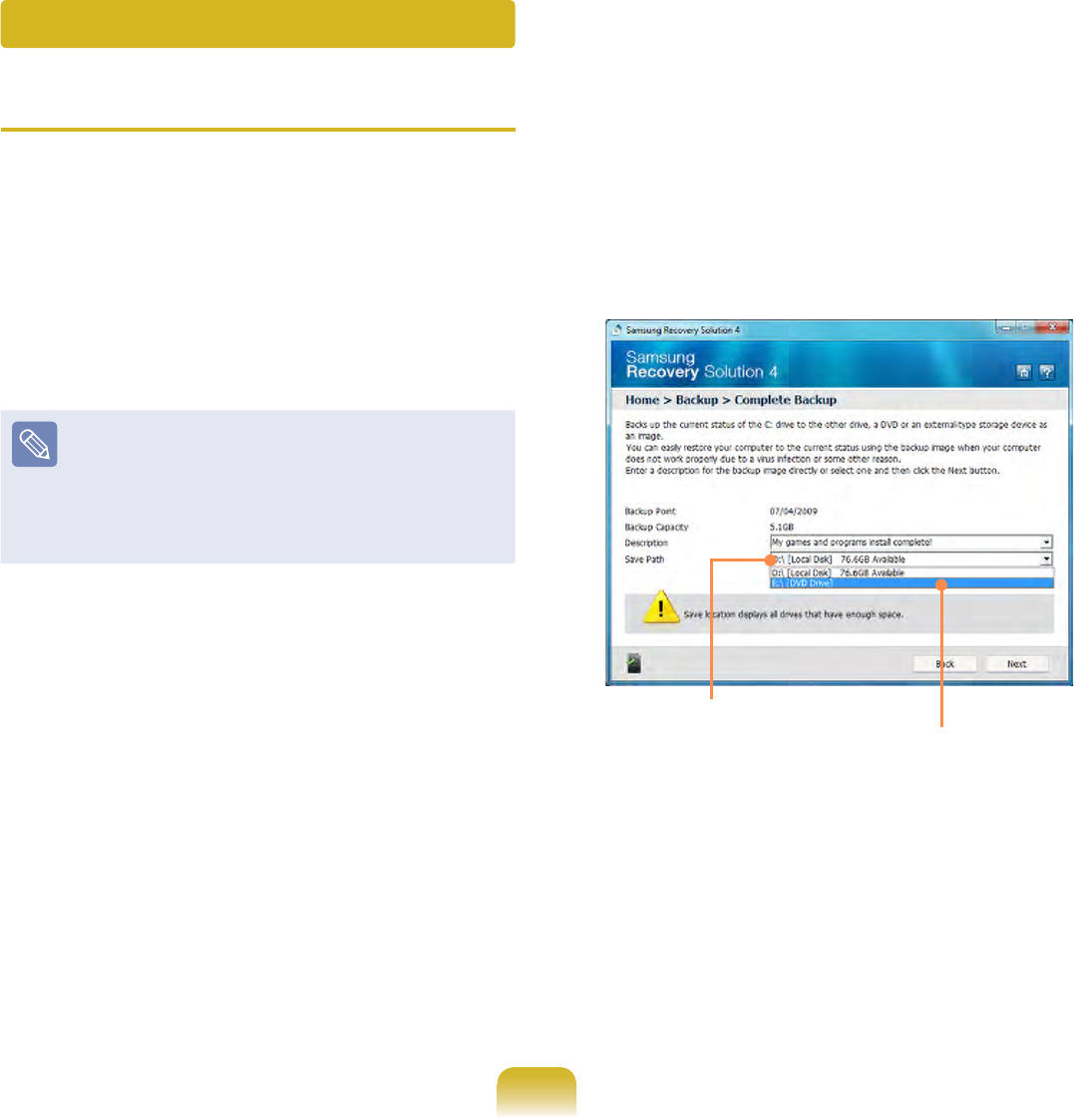

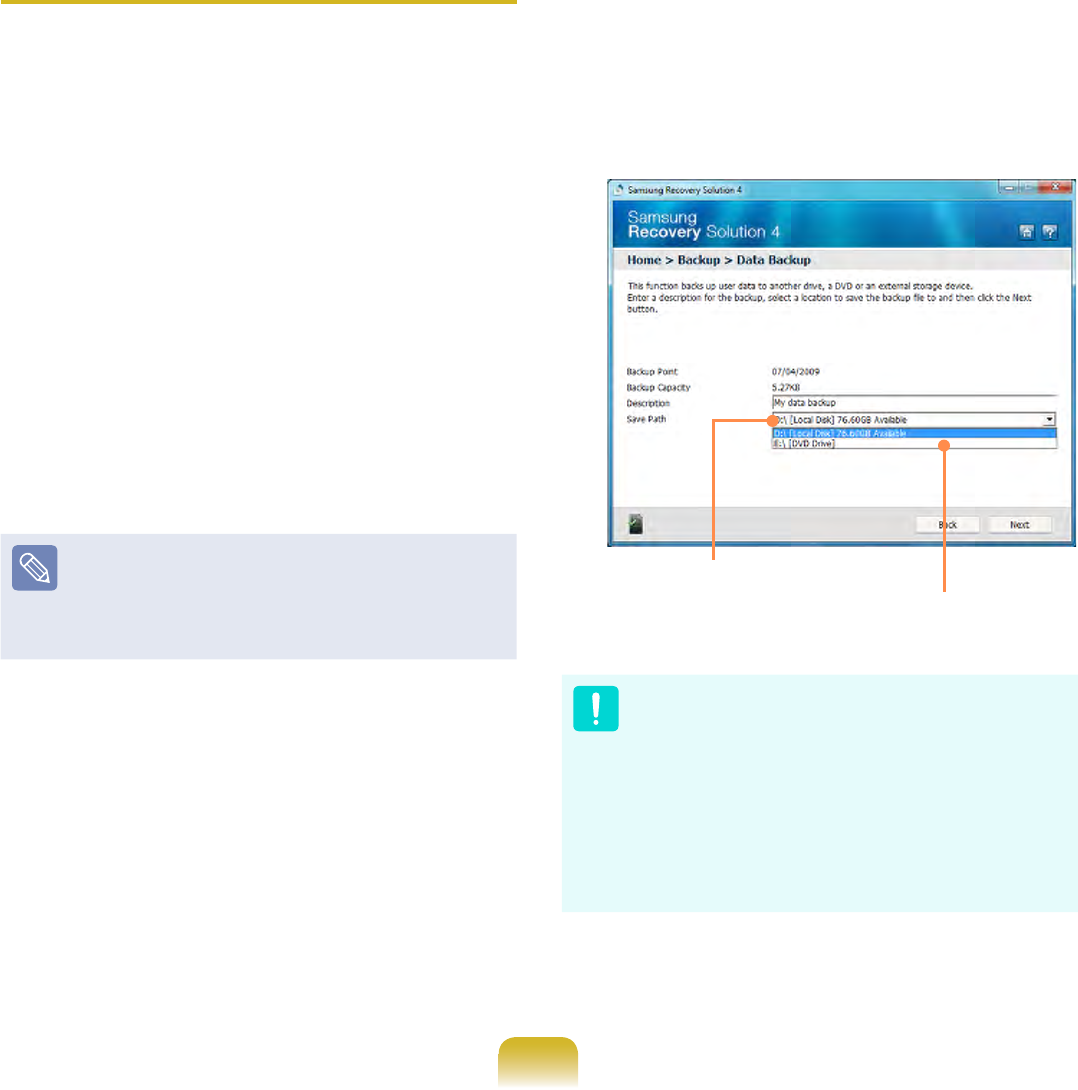

4 Enter a description for the backup
regarding the current computer status
in the Description eld so that you can
easily recognize it later, and specify
the Save Path. If your computer has a
DVD-Writer, you can specify the DVD
drive as the Save Path.
Select Drive D. Select the DVD drive.
126
5 If you click the Next button, the
system restarts in restoration mode
and the Complete Backup begins.
If you have selected the DVD drive
as the Save Path, the “Insert a blank
DVD” message appears. Insert a
blank DVD and click the OK button.
Samsung Recovery Solution
supports DVD+R, DVD-R, DVD+RW,
and DVD-RW, but does not support
CD-R, CD-RW, DVD-RAM, DVD-DL
(Dual Layer), HD-DVD, and Blu-Ray.
6 The Complete Backup begins.
If multiple DVDs are required,
the expected number of DVDs is
displayed in the progress screen.
Whenever burning a DVD is
completed, the “Insert the next DVD”
message will appear. Continue the
backup according to the instructions.
7 When the ‘Restart the System’
message appears after the backup
is complete, click OK to restart the
system.
127
Complete Restore
1 – When backing up onto DVD
Turn the computer on and insert the
backup DVD into the DVD drive.
If there are multiple backup DVDs,
insert the rst DVD.
– When backing up to another
drive
Proceed to Step 2.
2 Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
When you cannot start Windows,
turn the computer on and press the
F4 key in the boot screen to enter
restoration mode.
3 When the initial menu screen
appears, click Restore and then click
Complete Restore.

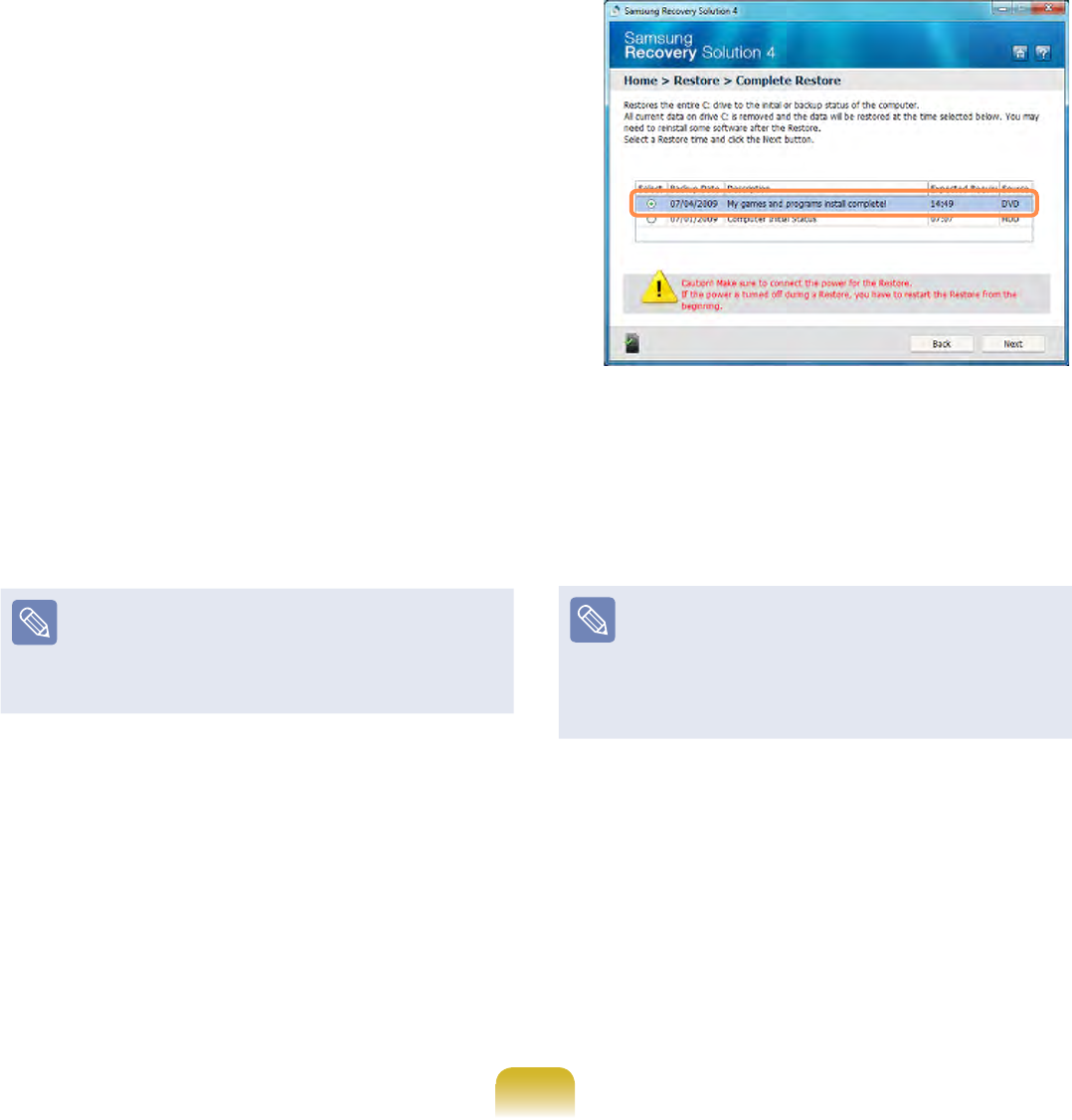

4 Select a Complete Backup
restoration point in the restoration
point selection screen and click the
Next button. The system is restarted.
5 The restoration progress message
appears after the computer boots up
in restoration mode. If you click OK,
the restoration begins.
If multiple DVDs have been used
for a Complete Backup, whenever
burning a DVD is completed, the
“Insert the next DVD” message will
appear.
6 When the ‘Restart the System’
message appears after the restoration
is complete, click OK to restart the
system. The Complete Restore has
been completed.
128
Data Backup/Restore
Data Backup enables you to save
specic les or folders onto another drive
or DVD. Data Restore enables you to
restore data using the data saved by
a Data Backup when data is lost. This
guide describes the Backup and Restore
procedures on the basis of backing up
and restoring by using DVD.
Data Backup
1 Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
When you cannot start Windows,
turn the computer on and press the
F4 key in the boot screen to enter
restoration mode.
2 When the initial menu screen
appears, click Backup and then click
Data Backup.
3 In the data selection screen, select
either Basic Selection or Select
from all, select a folder or le to be
backed up, and then click the Next
button.
4 Enter a description for the backup in
the Description eld so that you can
easily recognize it later and specify
the Save Path. If your computer has a
DVD-Writer, you can specify the DVD
drive as the Save Path.
Select Drive D. Select the DVD drive.
If you have specied a hard disk
drive or a removable disk as the
Save Path, the SamsungRecovery\
SamsungData folder is created on
the corresponding drive (e.g. D:\)
and the data is saved to the folder.
Take care to not delete the folder by
mistake or on purpose.
129
5 If you click the Next button, the Data
Backup begins. If you have selected
the DVD drive as the Save Path,
the “Insert a blank DVD” message
appears. Insert a blank DVD and click
the OK button.
6 The “Backup is completed” message
appears.
Data Restore
1 – When backing up onto DVD
Turn the computer on and insert the
backup DVD into the DVD drive.
– When backing up to another
drive
Proceed to Step 2.
2 Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
When you cannot start Windows,
turn the computer on and press the
F4 key in the boot screen to enter
restoration mode.
3 When the initial menu screen
appears, click Restore and then click
Data Restore.
4 Select a backup item to be restored
in the backup list and click the Next
button.
5 Select a folder for the restoration and
click the Next button. Data Restore
begins.
6 When Data Restore is completed,
check if the data has been restored to
the specied folder.
130
System Software Function
Using System Software
The System Software function is a
function that enables you to reinstall
device drivers and System Software
Programs or back up those programs.
The system software function is
supported by Samsung Recovery
Solution version 4 or later.
Therefore, the function may not be
supported depending on the version.
The System Software Installation
Function only works in Microsoft
Windows.
Installing System Software
1 Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
2 When the initial menu screen
appears, click System Software >
System Software Installation.
3 When the Samsung System
Software screen appears, check all
the device drivers and application
programs you want to install and then
click Install Now.
4 After the installation is complete, the
computer will restart.
131
System Software Backup
1 Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
2 When the initial menu screen
appears, click System Software >
System Software Backup.
3 Specify the Save Path. If your
computer has a DVD-Writer, you can
specify the DVD drive as the Save
Path.
Select Drive D. Select the DVD drive.
If you have specied a hard disk
drive or a removable disk as the
Save Path, the SamsungSoftware
folder is created on the
corresponding drive (e.g. D:\) and the
system software programs are saved
to that folder. Take care to not delete
the folder.
4 If you click the Next button, the
Software Backup begins. If you
have selected the DVD drive as the
Save Path, the “Insert a blank DVD”
message appears. Insert a blank DVD
and click the OK button.
5 After the backup, the “System
Software Backup is completed”
message appears.
If you want to install the
System Software Programs
backed up on the drive, run the
SoftwareMediaXX.exe le in the
SystemSoftware folder.
When installing System Software
Programs from the backed-up
DVD, insert the DVD and follow
the System Software Installation
directions.
To delete Samsung Recovery
Solution, refer to the Help section
of the program.
132
Reinstalling in Windows
1 Insert the SYSTEM RECOVERY
MEDIA into the DVD drive.

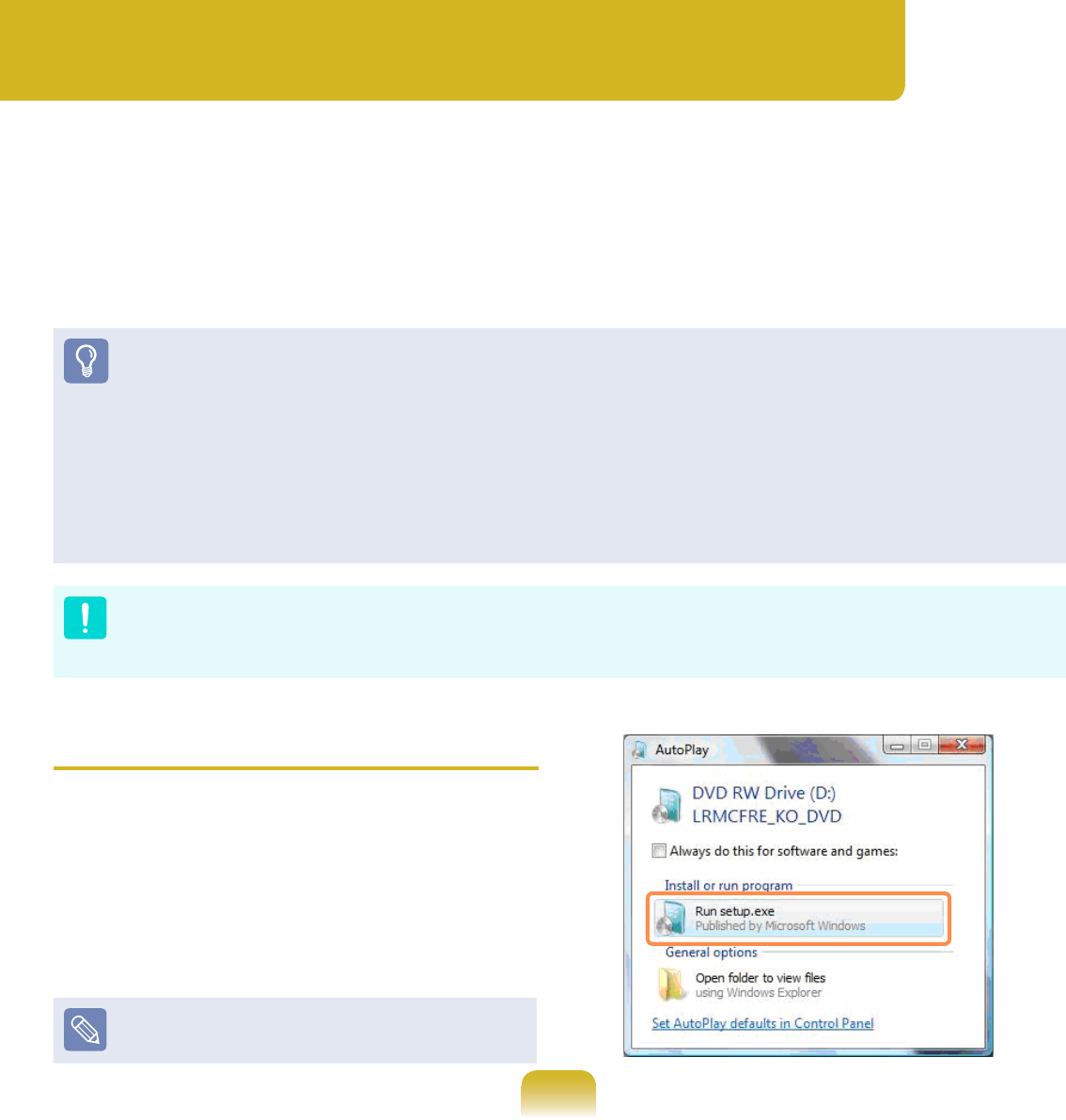

2 When the AutoPlay window appears,
select Run setup.exe and click
Allow.
This screen may not appear
depending on the security level.
Reinstalling Windows 7
(For Windows 7. For supported models only)
You can reinstall Windows using the SYSTEM RECOVERY MEDIA for Windows
when Windows is no longer working properly. (For models supplied with a SYSTEM
RECOVERY MEDIA.)
For models supplied with the Samsung Recovery Solution, you can reinstall Windows
using the Samsung Recovery Solution.
These descriptions are for Windows 7 and for supported models only.
A SYSTEM RECOVERY MEDIA may not be supplied depending on your computer
model.
If you cannot start Windows, or if you want to delete all existing data and reinstall
Windows, install Windows according to the descriptions in [Reinstalling when
Windows does not start].
To reinstall Windows using SYSTEM RECOVERY MEDIA, an external-type ODD
must be connected before turning the computer on. The following descriptions
assume that an external ODD is connected.
Reinstalling Windows may delete data (les and programs) saved on the hard disk
drive. Make sure to backup all important data. Samsung Electronics shall not be held
liable for any loss of data.
133

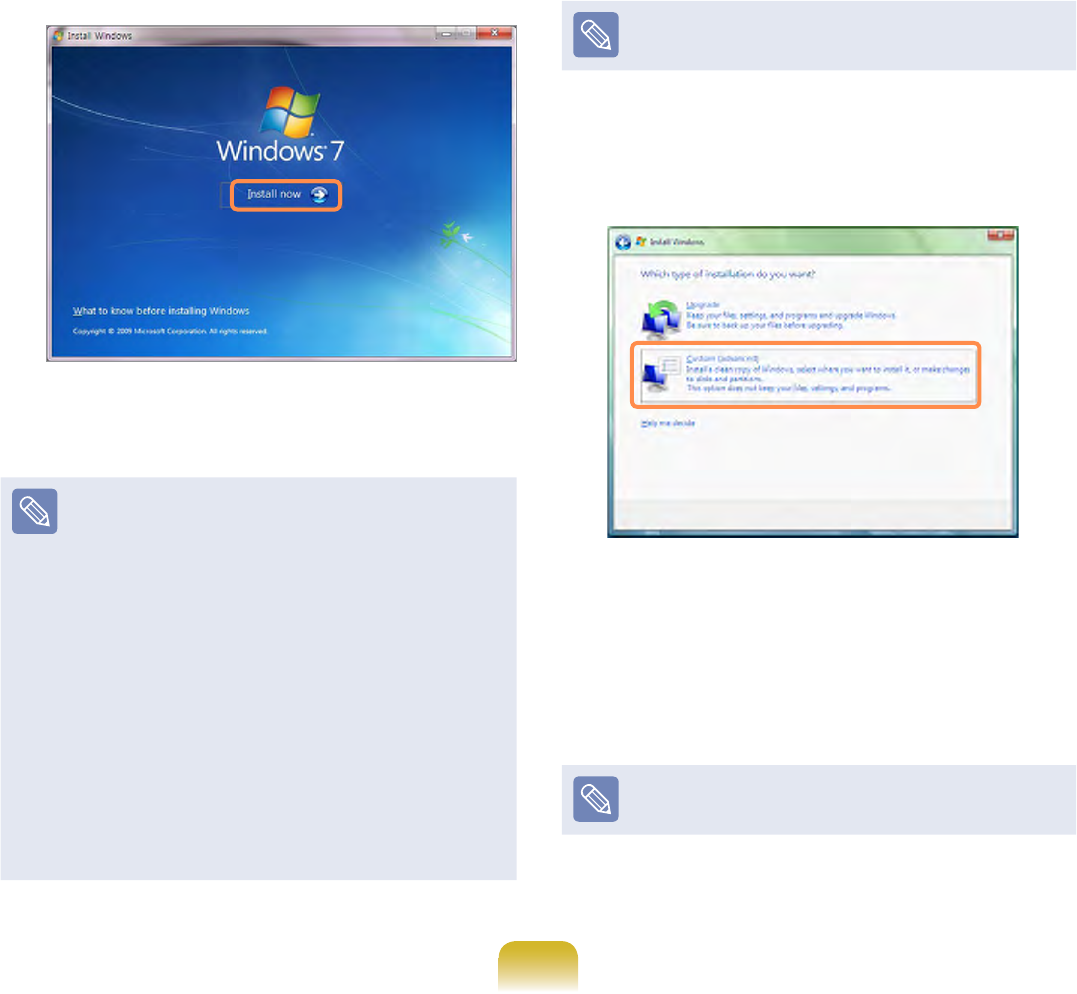

3 If the Select Windows Installation
window appears, click Install Now.
When the Select Update window
appears, click on the relevant item.
Windows 7 installation
selection window
If you select Go online to get the
latest updates for installation
in the Select Update window, the
latest updates are installed and
Step 4 follows. At this time, the
computer must be connected to
the Internet.
For Windows 7, the screen asking
for the operating system to be
installed may appear depending
on the version. If you click the
Next button, the screen of Step 4
appears.
4 If the User Agreement screen
appears, select I accept the license
terms and then click Next.
For Windows 7, this screen may not
appear depending on the version.
5 The following window appears, select
an installation option.
If you click Custom, the procedures
from Step 6 continue sequentially.
If you click Upgrade, the procedures
from Step 7 continue sequentially.
For Windows 7, this screen may not
appear depending on the version.
134
Custom
Select this option to Reinstall
Windows. You have to
reinstall all necessary device
drivers and programs after the
Custom installation. In addition,
unnecessary folders and les may
remain on the hard disk drives
after the installation (e.g. C:\
Windows.old, etc.).
Upgrade
Select this option to Upgrade
Windows while maintaining
current les, congurations and
programs. Although you therefore
do not need to reinstall the device
drivers and programs, some
programs may not work properly
after the upgrade.
6 When a window appears asking for
the location to install the operating
system to, select a disk drive partition
and click the Next button.
Drive D includes an area to save the
backup image used by Samsung
Recovery Solution. Installing
Windows to drive C is recommended.
When previous Windows installation
les are in the selected partition, a
message appears informing you that
the les and folders will be moved to
the Windows.old folder. Click the OK
button.
7 The Windows installation continues.
The computer will restart 3 times
during the installation. If the Press
any key to boot from CD or DVD...
message appears after a restart, do
not press any button.
8 Register a user according to the
instructions on the Windows screen.
9 When the registration is complete, the
Windows Desktop screen appears.
For a smooth computer operation,
installing the necessary software
installation is recommended.
135
Reinstalling when Windows does
not start
When Windows does not start, boot up
with the SYSTEM RECOVERY MEDIA
and from there you can reinstall Windows.
1 Insert the SYSTEM RECOVERY
MEDIA into the DVD drive and restart
the computer.

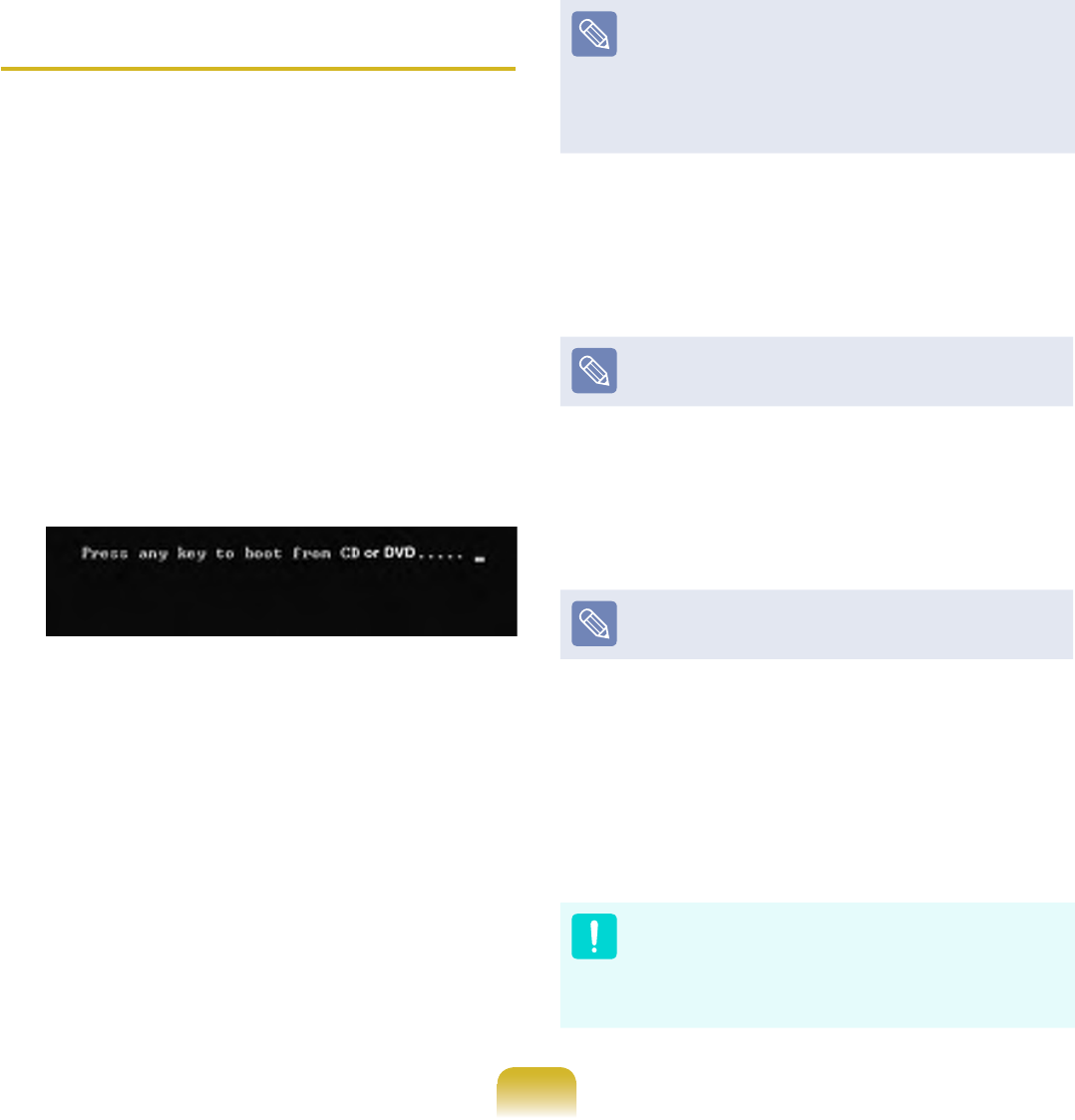

2 If the Press any key to boot from
CD or DVD... message appears
while booting, press any key on the
keyboard.
3 After a while, the Options windows
such as Language, Time, Keyboard,
etc. appear. Conrm the settings and
click the Next button.
4 If the Select Windows Installation
window appears, click Install Now.
For Windows 7, the screen asking for
the operating system to be installed
may appear depending on the
version. If you click the Next button,
the screen of Step 5 appears.
5 If the User Agreement screen
appears, select I accept the license
terms and then click Next.
For Windows 7, this screen may not
appear depending on the version.
6 When the window asking for the
installation type appears, click
Custom.
For Windows 7, this screen may not
appear depending on the version.
7 When a window appears asking for
the location to install the operating
system to, select the partition of the
disk drive and then click the Next
button.
Drive D includes an area to save the
backup image used by Samsung
Recovery Solution. Installing
Windows to drive C is recommended.
136
A If you click Drive Options
(Advanced), you can delete,
format, create or expand a
partition. Click on a function
and proceed according to the
instructions on the screen.
When previous Windows
installation les are in the selected
partition, a message appears
informing you that the les and
folders will be moved to the
Windows.old folder. Click the OK
button.
8 The subsequent steps are the same
as those from Step 7 of Installing in
Windows.
137
Reinstalling Windows XP
(For Windows XP, For supported models only)
You can reinstall Windows using the SYSTEM RECOVERY MEDIA when Windows
does not work properly. (For models supplied with a SYSTEM RECOVERY MEDIA.)
For models supplied with the Samsung Recovery Solution, you can reinstall Windows
using the Samsung Recovery Solution.
These descriptions are for Windows XP and for supported models only.
A SYSTEM RECOVERY MEDIA may not be supplied depending on your computer
model.
The SYSTEM RECOVERY MEDIA is supplied as a CD or DVD depending on your
model, and some models are printed as System Recovery CD.
To reinstall Windows using SYSTEM RECOVERY MEDIA, an external-type ODD
must be connected before turning the computer on. The following descriptions
assume that an external ODD is connected.
Reinstalling Windows may delete data (les and programs) saved on the hard disk
drive. Make sure to backup all important data. Samsung Electronics shall not be held
liable for any loss of data.
Running SYSTEM RECOVERY
MEDIA

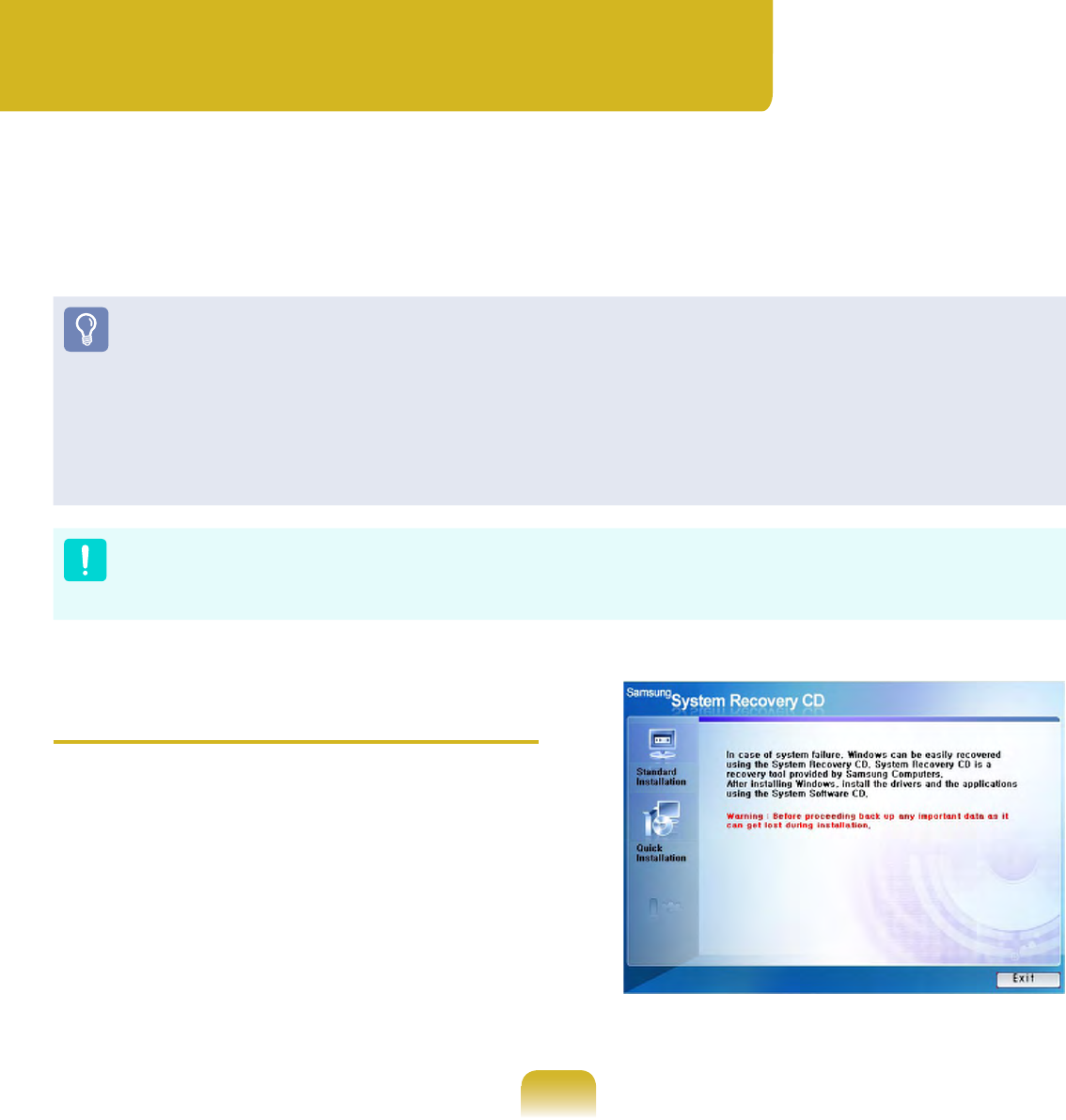

Insert the SYSTEM RECOVERY MEDIA
into the CD-ROM drive.
138
Standard Installation
You can change the settings for
partitioning, the installation folder,
etc. during the Windows installation.
However, reinstalling Windows may
delete the data on the hard disk drive
such as les, programs, etc. In order
to minimize damage from data loss,
please remember to always back up
data.
Quick Installation
This re-installs Windows with the user
data and the system conguration
intact. The user data in the already
existing Windows folders may be
preserved as the existing Windows
folders are overwritten.
Standard Installation
Explain Standard Installation option as a
standard.

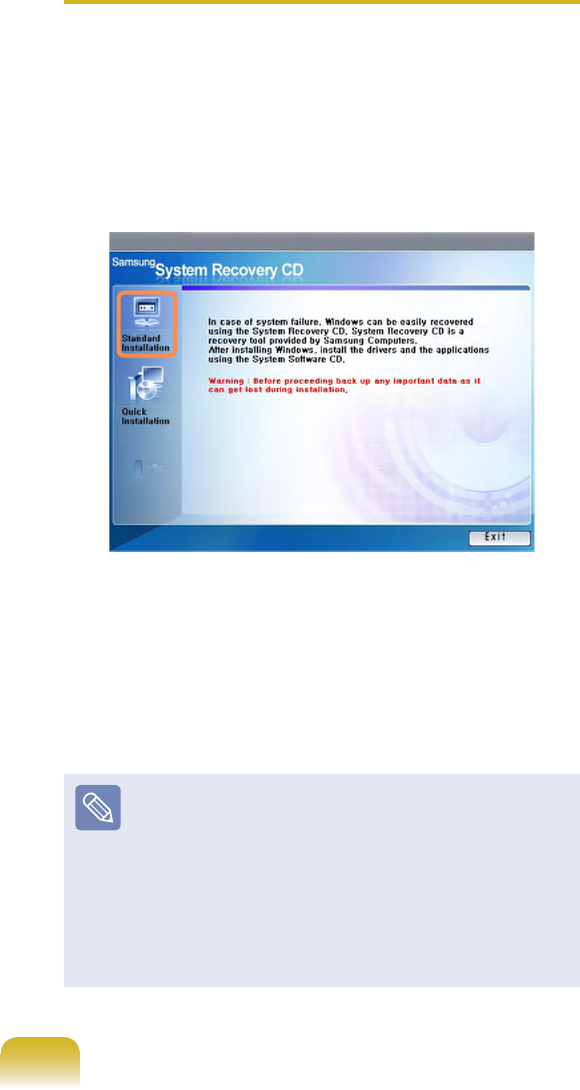

1 In the initial screen, click Standard
Installation.
2 The description for the Standard
Installation appears. Click Yes. The
installation starts, and the system will
be restarted after a while.
When Quick Installation is selected,
Setup proceeds with Step 3 before
automatically installing Windows.
Quick Installation overwrites the
existing Windows version, so that
drivers or applications do not need to
be reinstalled.
139
3 After the system has restarted, the
message ’Press any key to boot from
CD’ appears. Do not press any key
at this time. After a while the partition
conguration screen appears. To not
change the partition, press Enter.
What is partition conguration?
Partition conguration is a function
that divides the hard disk drive into
one or several partitions. Note that
changing the partition deletes all
of the data on the hard disk drive.
When installing Windows in the
standard installation, do not install
Windows XP in the Recovery
partition as this partition is used
as the recovery area in Samsung
Recovery Solution.
If Windows is reinstalled in the
Recovery partition, the system
recovery function cannot be
used since the recovery area is
damaged.
4 Select the folder to install the
Windows operating system. To delete
the previous version of Windows and
install in the current folder, press L on
the keyboard.
If you press ESC to select another
folder for the installation, new
Windows folders are created causing
a risk of dual booting.
5 After the installation process copies
the necessary folders for the
Windows installation, restart the
system, and the message “Press any
key to boot from CD” is displayed. You
do not need to enter anything. In a
moment, the Windows XP installation
screen will appear to proceed with the
installation.
6 When the Regional and Language
Options window appears, click Next.
7 When a window that requires your
name and organization pops up, enter
your name and the organization and
click Next.
8 When the Date and Time Settings
window appears, click Next. Setup
will continue.
9 When the system restarts to display
Press any key to boot from CD, do not
press any key.
When you see the Windows desktop,
this means that the installation process is
completed.
140
1 Insert the SYSTEM RECOVERY
MEDIA into the CD-ROM drive and
start the computer.
2 If the following message appears on
the screen, press any key from the
keyboard.
Press any key to boot from CD.....
3 Do not press any key at this time.
After a while the partition screen
appears. To not change the partition,
press Enter.
4 Select the desired le system (format).
To maintain the current le system,
press Enter.
5 Select the folder to install the
Windows operating system. To delete
the previous version of Windows and
install in the current folder, press L on
the keyboard.
6 After the installation process copies
the necessary folders for the
Windows installation, restart the
system, and the message “Press any
key to boot from CD” is displayed. You
do not need to enter anything. In a
moment, the Windows XP installation
screen will appear to proceed with the
installation.
7 Follow the instructions of the Windows
XP installation wizard to continue with
the installation.
8 When the installation is complete,
the computer will restart. When the
system has restarted, the Press
any key to boot from CD message
appears.
Ignore the message.
The system boots and the Windows
and Windows Registration screen
appears. Register Windows, following
the instructions to nish the Windows
installation. Remove the SYSTEM
RECOVERY MEDIA and install the
device drivers and application
programs using Standard Installation
from the System Software Media.
Reinstalling when Windows does not start
When Windows does not start, boot up with the SYSTEM RECOVERY MEDIA and from
there you can reinstall Windows.
141
Questions and Answers
This section provides information on possible problems, solutions and other references
for system use.
These descriptions are written based on Windows 7, the latest operating system.
Therefore, some descriptions and gures may differ from your operating system.
But as the usage is similar to other Windows operating systems, you can use these
descriptions for reference.
The path may differ depending on the operating system.
Q When unwanted conrmation
windows appear repeatedly while
installing or running a program,
connecting to the Internet, or when
you cannot use Internet banking
services.
(for the Windows 7 operating
system only)
A In Windows 7, the frequency of the
conrmation window that appears
during the program installation or
execution or after changing Windows
settings is determined by the security
level setting in the User Account
Control. This may occur when the
security level in the User Account
Control is set to Alarm always.
z Click Start > Control Panel
> User Accounts and Family
Protection > User Accounts >
Change User Accounts Control
Settings.
x Select a level and click the OK button
to nish the setting.
Windows Related
142
Q The Windows Firewall setting
according to the network location
(for the Windows 7 operating
system only)
A Windows 7 allows different Windows
rewall settings for each network
location.
The following network locations are
available: Home Network, Company
Network and Common Network.
You can determine whether to use the
Windows Firewall and select a rewall
security setting for each location.
z If the network setting window appears
in Windows 7 after setting up the IP
address, select a location.
x Click Start > Control Panel >
System and Security > Windows
Firewall > Activate or Deactivate
Windows Firewall.
c Set up a rewall for the Home
and Company (Private) Network
Location Settings and the Common
Network Location Settings, and
click the OK button.
Q What Is Virtual XP?
(For Windows 7 only,
For supported models only)
A Virtual XP refers to a virtual
operating system that allows you
to run Windows XP virtually in the
Windows 7 environment. By using
Virtual XP, you can use applications
that do not run on Windows 7.
▶ Requirements for Running Virtual
XP
z Virtual XP is only available on these
three operating systems: Windows
7 Professional, Ultimate, and
Enterprise.
x The memory must be 2 GB or more
and the virtualization function of the
BIOS must exist and be activated by
the CPU.
For more information, refer to the
Help section of the OS or visit
Microsoft’s website.
143
Q What are the restrictions of
Windows 7 Starter?
A z The DualView function is not
supported when an external display
device is connected.
x The Aero function of Windows 7 is
not supported.
c The Set as Background function to
change the wallpaper of the Desktop
is not supported.
v Functions that are not supported by
the operating system, may also not
be supported by related programs
such as Easy Display Manager, the
graphics driver and so on.
For more information, refer to the
Help section of the OS or visit
Microsoft’s website.
144
Q The LCD screen is too dark or too
bright.
A Turn on the LCD backlight or adjust
the screen brightness.
Press Fn + to turn on the LCD
backlight or press Fn + , Fn +
to adjust the screen brightness.
Q The screen saver disturbs screen
viewing during Media Player or
video le operation.
A ► For Windows 7
Unselect Library > More Options
> Player > Allow screen saver
during playback in the Media
Player.
► For Windows XP
Click Tools > Options > Player and
then clear the Allow screen saver
during playback in the Media
Center check box.
Q In the following cases, the screen
blinks or there is noise for a short
time.
Click the Graphics Related tab,
Change Resolution, Change
Display Device, Remove the AC
Adapter, Restart the System,
Change Power Scheme.
A This may happen while the video
driver is examining the connected
device. While the detection process is
busy, any connected display devices
may blink or some noise may occur.
Q When I connect an external
display and change the settings
to display the screen image on
both the LCD and the external
display by pressing the Fn +
key combination, the screen is not
displayed properly.
A Press Fn + key combination
again. If the screen is still not
displayed or only part of the screen
is displayed by doing this, that means
the LCD resolution is too low or too
wide and the external display does not
support the resolution.
Display Related
145
Right-click over the Desktop, select
Properties, select the Settings tab and
change the resolution to 800 x 600.
Q The Taskbar on the bottom of the
screen does not appear when a
projector is used as the display
device.
A This may happen, if the projector
does not support LCD resolution. In
this case change the resolution to
800 x 600 (recommended) on your
computer.
Q Switching the MS-DOS command
prompt to full screen mode or
Windows mode by pressing the
<Alt>+<Enter> keys does not
operate properly.
A Pressing the <Alt>+<Enter> keys
using an USB keyboard, may cause
the key input to be recognized as
multiple key inputs depending on the
keyboard input recognition time. In
this case, the MS-DOS command
prompt is repeatedly switched to full
screen and then to Windows several
times.
Please press the <Alt>+<Enter>
keys more quickly, or press the
<Alt>+<Enter> keys using the system
keyboard.
Q The shortcut icons are not
displayed on the screen even if I
press the shortcut key.
A The shortcut icons only appear when
the Easy Display Manager program is
installed.
Q The color is strange when the
picture is displayed on the
connected monitor (or projector).
A Check the monitor signal cable
connection and reconnect the cable.
146
Q How can I congure the sound for
video or audio chatting?
A1 Conguring the Realtek HD Audio
Manager
z Select Control Panel > Realtek HD
Audio Manager.
x Select the Mic tab.
c Select the Suppress noise and the
Remove sound echo items and click
the OK button.
► For Windows 7
When using the Remove sound
echo option, select the Play Device
> Speaker > Level tab and set the
Microphone to Mute.
► For Windows XP
Using Acoustic Echo Cancellation
option keeps the Microphone Volume
muted in the Playback Mixer.
A2 Playback Mixer Settings
z Double-click the Volume icon in
the Taskbar and select Options >
Properties from the menu.
x Select Realtek HD Audio Input in
the Mixer device eld, conrm that the
Microphone is selected in the Show
the following volume controls eld,
and click the OK button.
c Select the Microphone item in the
Record Control window and close
the window.
Q I cannot hear my voice with the
internal microphone.
A This is because the sound from the
internal microphone is removed so
that the sound is not delivered to the
speaker and causes feedback from
the internal microphone. However,
you can record the sound from the
microphone normally.
► For Windows 7
When using an external microphone,
select the Play Device > Speaker
> Level tab and deselect Mute
for the Microphone. Then you can
listen to the sound from the external
microphone through the speakers.
► For Windows XP
When using an external microphone,
if you disable the microphone channel
mute function of the play mixer, you
can hear the sound input into the
external microphone through the
speaker.
Sound Related
147
Q Sound is recorded abnormally
when I select the Remove sound
echo option, connect an external
microphone, select the Play Device
> Speaker > Level tab and then
deselect Mute for the Microphone.
A This occurs because the algorithm
used to remove the echo sound
regards some of the sound as an
echo and removes this, as the
recording is done by playing the
sound from the external microphone.
► For Windows 7
After selecting the Remove sound
echo option, please select the Play
Device > Speaker > Level tab and
select Mute for the Microphone for a
normal recording.
► For Windows XP
In this case, select Mute in the
Microphone Volume of the Playback
Mixer after selecting Acoustic Echo
Cancellation item.
Q How can I congure the Recording
Mixer while broadcasting music
in WinAMP? (for the Windows XP
operating system only)
A1 Playback Mixer Settings
z Double-click the Volume icon in
the Taskbar and select Options >
Properties from the menu.
x Select Realtek HD Audio Input in the
Mixer device eld, select Stereo Mix
in the Show the following volume
controls eld, and click the OK
button.
c Select the Stereo Mix item in the
Record Control window and close
the window.
A2 Realtek HD Sound Effect Manager
Settings
z Click Start > Control Panel >
Sounds, Speech, and Audio
Devices > Realtek HD Sound Effect
Manager.
x Click Microphone tab.
c Unselect Noise Suppression and
Acoustic Echo Cancellation and
Click OK.
148
Q
The <Wake On LAN> function
A <Wake On LAN> is a function that
activates the system from Sleep mode
when a signal (such as a ping or
magic packet command) arrives over
the network (wired LAN).
Using the <Wake On LAN>
Function
z ► For Windows 7
Click Start > Control Panel >
Network and Internet > Network
and Sharing Center and click on
Change adapter settings in the
left menu pane.
► For Windows XP
Click Start > Control Panel >
Performance and Maintenance
> System > Hardware > Device
Manager > Network Adapters.
x Right-click on the Local Area
Connection and select Properties.
c Click Congure > Power
Management tab. Select Allow this
device to bring the computer out of
standby, then click OK. Restart the
system.
- If the system wake up from Sleep
mode even though there is no
received signal, use the system
after disabling the <Wake On LAN>
function.
- The LAN LED may not be turned off if
System is shutdown without disabling
the WOL <Wake on LAN> option.
- Connecting a wired LAN while using
a wireless LAN may not activate the
<Wake On LAN> function. Set the
Wireless LAN to Disable to use the
<Wake On LAN> function.
For Windows 7, Wake On LAN is not
supported Ping.
Q When I am connected to a
100Mbps/1Gbps wired LAN and the
computer exits Sleep/hibernation
mode, a message appears
informing you of a connection to a
10Mbps/100Mbps wired LAN.
A When the computer exits standby/
hibernate mode, restoring the network
takes about 3 seconds.
When the network is restored, it
operates at 100Mbps/1Gbps.
Wired LAN Related
149
Q The Home Group function
(for the Windows 7 operating
system only)
A Home Group is a function that
enables connecting all the computers
at home allowing users to access the
data on all computers as if accessing
the data on the local computer.
If you set the rst computer to use a
Home Group as a Home Network,
you can create a Home Group. A
second (and more) computer can
participate in the created Home
Group. A password is required for
participation and you can conrm the
password on the rst computer.
This function is only available between
computers that have the Windows 7
operating system installed. If an older
operating system that Windows 7 is
installed on a computer, the computer
cannot create or participate in a
Home Group.
In addition, using the Home Group
function is restricted in the Windows
7 Starter version because of the
operating system properties.
150
Q
I cannot nd an AP.
A Verify whether the Wireless LAN LED
is on.
If it is turned off, turn it on by pressing
the Wireless LAN On/Off button
(Fn + ).
Q The Wireless LAN device is
operating properly, but I cannot
connect to the Internet or to
another computer.
This is due to an incorrect
conguration, or a conguration
error. Check the following:
A1 When connecting to a wireless Ad-
Hoc network, check if the network
name (SSID) is the same.
A2 If a network key (encryption key) is
used, the AP (Access Point) and
wireless Ad-Hoc network keys must
be the same.
The AP network key can be
congured using an AP management
program. For more detailed
information, ask your network
administrator or product provider.
A3 Check that the device driver is
installed properly. If the driver is
not properly installed, you will nd
a yellow exclamation mark on the
network icon by clicking Device
Manager > Network Adapter.
Q The signal strength is excellent,
but I cannot connect to the
network.
Even if the signal strength is
excellent, the network connection
may not operate properly if the
TCP/IP properties are not properly
congured, or the network key
(encryption key) is incorrect.
A1 Check that the TCP/IP properties
are congured properly. When
connecting to an AP, right-click the
Network Connections icon on
the taskbar and select Network and
Sharing Center. If you click the View
Status next to a connected wireless
network device and then click the
Detail button, you can view the IP
information.
Wireless LAN Related
151
For Windows XP, double-click the
icon and check if the IP address is
properly allocated on the Support
tab.
If the IP is not allocated properly, the
IP address will be displayed as follows
(e.g. 169.254.xxx.xxx).
If the network does not provide DHCP,
you have to specify the correct IP
address by asking your network
administrator.
Even if the network provides DHCP,
the server may not allocate an IP
address to the client properly, and the
client station cannot connect to the
network.
Check the AP Settings
For the AP settings, refer to the
User Guide provided by the AP
manufacturer.
A2 Verify whether the environment
is suitable for using a wireless
LAN. The use of a wireless LAN
may be restricted according to the
environment and distance. Obstacles
such as walls or doors affect the use
of a wireless LAN. Install the AP in a
high and open space, 50cm from the
wall and far removed from any other
radio signal sources.
A3 Verify whether the AP is operating
properly.
When the AP is not operating
normally, turn off the AP, wait a short
while, and turn it on again.
Verify whether the AP’s rmware is
the most recent version. (Contact the
AP manufacturer or the place where
you purchased the AP for details of
the AP rmware.)
A4 Verify whether the AP has been
properly connected to the network.
Verify whether the network is
operating normally by connecting
the wired network cable, which has
been connected to the AP, to your
computer.
A5 Check the network key settings
(encryption key) again. When
automatic code conversion (a
passphrase function) has been
selected and data communication
is not functioning even with a
normal wireless connection, it is
recommended entering the network
key (encryption key) manually.
152
A6 Check the AP settings as follows.
(The following is recommended for
a standard environment and thus
may differ according to the specic
wireless network environment.)
When several APs are present
simultaneously, check the channel
settings for each AP. When different
APs are using nearby channels,
interference may occur between the
electronic waves. Set the AP channels
further apart from each other. (Ex:
Ch1, Ch5, Ch9, Ch13)
When an AP’s SSID (Service Set ID)
option is set to “Hide”, you cannot
search for that AP on the computer.
We recommend unselecting the
“Hide” option for the AP. The SSID is
a name used for distinguishing one
wireless LAN from another wireless
LAN.
It is recommended using Long
Preamble. Preamble is a signal for
data transmission synchronization.
Short Preamble may be supported
by some types of APs but may cause
compatibility problems.
It is recommended using a static IP.
Since static channel selection is more
reliable than auto channel selection,
it is recommended using a static
channel.
Q I have set the same IP address
for both the wireless and wired
connections, but they do not work
properly.
A You cannot use wireless and wired
connections using the same IP
address. To sequentially use both the
wired and wireless connections with
the same IP address, you need to set
the currently not needed connection
to Do Not Use in the Network
Connections of the Control Panel.
153
Q The wireless LAN does not
work properly when there is a
device operating on an adjacent
frequency in the vicinity of the
product.
A1 Channel interference may occur when
a wireless video transceiver or a
microwave oven is being used. If you
experience channel interference from
other equipment, we recommended
changing the channel for connecting
to the AP. For more information about
AP settings, refer to the User Manual
supplied by the AP manufacturer.
A2 Since IEEE802.11g equipment
operates in hybrid mode when there
is active IEEE802.11b equipment, the
data rate may be degraded.
154
Q 3D game is not executed, or some
functions are not working.
A Change the graphic setting of the
game to “2D” or “Software Renderer,”
then execute the program again.
Q Game play is not displayed
smoothly on the screen.
A For 3D games, the texture data
for the 3D screen display is saved
to the system memory. If there is
insufcient system memory, the data
is saved to the hard disk drive and
loaded to memory when required.
This operation may temporarily stop
displaying the picture on the screen.
In this case, lower the game
resolution or the screen settings.
Q The picture on the screen is
displayed as a broken image for
some games.
A A part of the picture on the screen
may be broken when playing
some games that require a high-
specication graphics card.
In this case, set the 3D function
setting for the game to a lower value
or set the game resolution to a lower
value.
Q I launched a game right after
installing it, and the game is not
executed.
A This problem may occur when the
game is not compatible with Windows.
Launch the game again, and it will be
executed properly.
Games and Programs Related
Windows may not provide some functions properly when performing some applications
especially games, or may cause a problem due to a device driver compatibility issue.
For the latest device drivers and bug xes, please refer to the respective company’s
website.
155
Q Fn + Key combination does
not work.
A While displaying video of VCD or
MPEG, or the display setting is Dual
View, you cannot toggle display
devices. Also the installation of
NetWare Client 32 program disables
the function of Fn + .
Q While playing a game, pressing
the Fn + keys does not work
or the screen is not properly
displayed.
A Some games and 3D application
programs may change the display
device control. Therefore, pressing
the Fn + keys may terminate the
running program or may display an
abnormal screen.
Press the Fn + keys before
launching a program and do not press
them while running the program.
Q Running speed of a game is too
slow or fast.
(for the Windows XP operating
system only)
A Change the setting of Power
Schemes to “Always On.”
(Click Start > Control Panel >
Performance and Maintenance >
Power Options > Power Schemes
tab, then congure the Power
schemes eld to “Always On.”)
Q Some part of a game image is not
displayed or is displayed in black.
A This may happen when running a
game designed for DirecX 8.1 or
which has 1024 x 768 as the default
resolution, such as NHL 2003, MVP
Baseball 2003, Special Forces,
Hangame, Pmang etc.
156
Q The picture is not displayed
properly for some games.
A Some games may not display the
picture properly when the screen
resolution is set to 1024 × 600 and the
color quality is set to 32 bit.
For these games, set the screen
resolution to 1024 x 600 or 800 x 600,
and the color quality to 16bit.
157
Q How to view the Bluetooth help
information.
A ► For Windows 7
Press the Windows + F1 key
combination to launch Windows Help
and search for Bluetooth related
items in the Help section.
► For Windows XP
Double-click the My Bluetooth
Environment shortcut icon on the
Desktop to launch the program, and
then press the F1 key to view the
help information.
Q I cannot nd or connect the
headset.
A1 If the headset is connected to another
device and is currently being used,
you will not be able to locate it. In this
case, even if you locate the headset,
you will not be able to connect it.
Disconnect the headset from the
device and then try again.
A2 For some headset models, if the
headset is connected to the power
adapter, the headset cannot be
connected through the Bluetooth
wireless connection.
Disconnect the headset from the
power adapter and try again.
A3 A Bluetooth headset generally
provides On/Off and Pairing modes.
To connect the headset to another
Bluetooth device such as a computer
or cellphone, it must be in Pairing
mode. Switch the headset to Pairing
mode and try again.
In general, a Bluetooth headset
in Pairing mode is automatically
switched to On/ Off mode after a pre-
determined period of time.
Bluetooth
158
Usage Instructions
Generally, Bluetooth devices deliever
stable performance while connected
within a 3m(10 ft.) distance.
For Bluetooth to operate smoothly, use
the computer in an open environment
with no walls or obstacles in the way
and having low radio interference.
You can connect to only one
Bluetooth device at a time for a phone
connection, data syncing, electronic
business card exchange, FAX
transmission/reception, sound related
functions, and serial port functions.
It is recommended using only
one Bluetooth device at a time as
connecting multiple Bluetooth or other
wireless devices at the same time
may slow or destabilize the Bluetooth
connection.
Data communications via Bluetooth
may be poor when the CPU load is at
full capacity or there are insufcient
system resources.
The Bluetooth function of a Bluetooth
PDA, mobile phone, mouse or
keyboard may be turned off. To use
them in connection with a Samsung
computer supporting Bluetooth, you
must check if the Bluetooth function of
the device to connect to is turned on.
For the procedures on turning on the
Bluetooth function of a device, refer to
the relevant device manual.
The services provided by Bluetooth
devices may vary depending on their
capabilities. For the services provided
by the Bluetooth device, refer to the
device manual.
Chapter 5.
Appendix
Product Specications 160
Glossary 163
Index 168
160
Product Specications
The system specications may differ depending on the derived models. For detailed system
specications, refer to the product catalog.
CPU Intel ATOM™ Processor
Main Memory (Optional) Memory type: DDR2 SODIMM
Main Chipset Intel NM10 Express
Hard Disk Drive (Optional) 9.5mmH SATA HDD
Graphics Intel GMA 3150
Operating Environment Temperature : -5~40°C for storage, 10~32°C when operating
Humidity : 5~90% for storage, 20~80% when operating
Operating Voltage 100 - 240VAC
Frequency 50/60Hz
Output Power (Optional) 40W
Output Voltage (Optional) 19VDC 2.1A(40W)
Optional components may not be provided or different components may be provided
depending on the computer model.
The system specications are subject to change without notice.
161
Registered Trademarks
Samsung is a registered trademark of
Samsung Co., Ltd.
Intel, ATOM/ Pentium/Celeron are
registered trademarks of the Intel
Corporation.
Microsoft, MS-DOS, and Windows are
registered trademarks of the Microsoft
Corporation.
is a trademark of SRS Labs, Inc.
TruSurround XT technology is
incorporated under license from SRS
Labs, Inc.
SRS TruSurround XT™ processes
multichannel audio content to create
a truly immersive surround sound
experience with rich bass and clear dialog
from the laptop speakers or headphones.
is a trademark of SRS Labs, Inc.
WOW HD technology is incorporated
under license from SRS Labs, Inc.
SRS WOW HD™ signicantly improves
the playback quality of mono and
stereo audio, delivering a dynamic 3D
entertainment experience with deep bass
and high frequency clarity for crisp detail.
is a trademark of SRS Labs, Inc.
WOW XT technology is incorporated
under license from SRS Labs, Inc.
SRS WOW XT™ signicantly improves
the playback quality of audio, delivering
a dynamic 3D entertainment experience
with deep bass from even the smallest
and most closely spaced speakers.
is a trademark of SRS Labs, Inc.
CS Headphone technology is
incorporated under license from SRS
Labs, Inc.
CS Headphone™ delivers a 5.1 surround
sound experience over standard
headphones or earbuds when listening
to multichannel content, such as DVD
movies.
All other product or company names
mentioned herein are registered
trademarks of their respective companies.
162
HyperSpace software copyright
The copyright of each of software
program used in this product is owned by
the respective owners.
Software distributed under the GPL
or OSL license has been used for this
product.
You can receive the source code of the
following GPL and OSL software used
for this product, if you request them
from Samsung-Hyperspace-Support@
Phoenix.com.
For the license documents for each
software program, see the
C:\Program Files\HyperSpace\License
folder.
ENERGY STAR® Partner
As an ENERGY STAR® Partner,
SAMSUNG has determined that
this product meets the ENERGY
STAR® guidelines for energy
efciency.
163
Glossary
The Glossary lists the terminologies used in this User Guide.
For terminologies other than these, look in Windows Help.
Backup
A way to save the current data to restore
it later if necessary. A backup is a way
to restore computer data when the data
or computer is damaged.
Chargeable USB
This program enables supplying power
to a specic USB port when the system
is in power saving mode, hibernation
mode or off.
Client
This refers to a computer that uses a
shared network resource provided by a
server.
DDR SDRAM (Double Data Rate
Synchronous Dynamic Random Access
Memory)
DRAM is a memory type whose cells
consist of a capacitor and transistor
manufactured at a low price. SDRAM
is a memory type whose performance
has been improved by synchronizing
the clock with the external CPU clock.
DDR SDRAM is a memory type whose
performance has been improved by
doubling the operating speed of the
SDRAM and is widely used nowadays.
This computer uses DDR SDRAM.
Device Manager
An administrative tool used to manage
computer devices. You can add or
remove hardware or update a device
driver using the Device Manager.
Direct X
An application interface developed to
enable Windows application programs
to access hardware devices at a very
high speed. Since the operating speed
of graphics, memory and sound cards
must be very fast to provide high
quality video and sound for games,
Direct X enables faster control and
interaction between applications and
hardware devices. By using Direct X,
the multimedia performance of Windows
has been hugely improved.
164
Driver
Software that interacts between the
hardware and the operating system. An
operating system knows the hardware
information and controls the hardware.
In general, a driver is supplied with the
corresponding hardware device.
DVD (Digital Versatile Disk)
DVD was developed to replace CD
(compact disk). Although the shape and
size of the disc are the same as that of
a CD, the capacity of a DVD is at least
4.7GB while the capacity of a CD is
600MB. DVD video is digital unlike VHS
(analog) video and supports MPEG2
compression and digital audio. To play a
DVD, a DVD drive is required.
Firewall
A security system used to protect an
internal network or intranet from external
networks
through an authentication procedure.
Hibernation Mode
A power mode that saves all data in
memory to the hard disk and turns the
CPU and hard disk off. When canceling
Hibernation Mode, all application
programs that were running are restored
to their last state.
Icon
This refers to a small image that
represents a le that users can use.
LAN (Local Area Network)
A communications network connecting
computers, printers and other devices
within a local area such as within a
building. A LAN enables all connected
devices to interact with other devices
on the network. The current LAN uses
the Ethernet media access control
method developed in the early 1980s.
To connect to an Ethernet, a network
card called a LAN card, Ethernet card
or network interface card is required.
To exchange data between computers,
a protocol is required besides the
hardware equipment. Windows XP uses
TCP/IP as the default protocol.
165
LCD (Liquid Crystal Display)
There are Passive Matrix and Active
Matrix LCD types. This computer uses
the Active Matrix type LCD called a TFT
LCD. Since an LCD is implemented by
transistors instead of a cathode-ray tube
unlike a CRT, its size can be slim. And
because it does not blink, it reduces eye
strain.
Network
A group of computers and devices, such
as printers and scanners, connected
by a communications link. A network
can be either small or large and can be
connected permanently through cables
or temporarily through telephone lines
or wireless links. The biggest network is
the Internet, a worldwide network.
Notication Area
This refers to the right area of the
Taskbar including program icons such
as the volume control, the power options
and the time.
Power Schemes
This refers to a pre-determined power
management option group. For example,
you can set the time the computer waits
before entering Standby Mode, or before
the monitor or hard drive turns off. The
settings are saved as a power scheme.
Quick Launch
This refers to a toolbar that can be
congured so that you can launch a
program such as Internet Explorer or
display the Windows Desktop with one
click. You can add any icon to the quick
launch area of the Taskbar and launch
frequently used program by clicking that
icon.
Server
In general, a server refers to a computer
that provides shared resources for
network users.
Share
This refers to setting a resource of a
computer such as a folder or printer so
that other users can also use it.
166
Shared Folder
A folder that can be used by other users
on the network.
SSD (Solid State Disk)
This refers to a device that saves
information to semiconductors unlike a
normal hard disk drive (HDD). There are
two types of SSD. One saves data to
the DRAM and the other saves data to
the Flash Memory. Since there are no
mechanical parts, an SSD provides a
much better performance than an HDD.
Especially, a Flash Memory-Type SSD
provides high reliability and durability.
Network Administrator
A user who plans, congures and
manages network operations.
Sometimes, a network administrator is
called a system administrator.
Sleep Mode
A power mode that enables computers
to save power consumption when they
are not being used. When a computer
is in Sleep Mode, the data on the
computer memory is not saved to the
hard disk. If the power is turned off, the
data in memory will be lost.
System File
System Files refer to les that are read
and used by the Windows operating
system. In general, system les must not
be deleted or moved.
USB (Universal Serial Bus)
This refers to a serial interface standard
developed to replace the conventional
interface standards such as Serial and
PS/2. While USB 1.1 supports 12Mbps
(12 million bits per second), USB 2.0
supports a data rate that is 40 times
(480Mpbs) faster than that of USB 1.1.
The data rate of USB 2.0 is equivalent to
that of IEEE1394. Therefore USB 2.0 is
used for A/V devices supported by IEEE
1394 and a 2nd HDD and CDRW that
require a high data rate.
167
Virtual XP Mode
This is a virtual operating system that
enables running Windows XP programs
on the Windows 7 operating system.
Using this mode, you can run programs
that do not run on Windows 7.
Windows Media Player
A multimedia program included with
Windows. Using this program, you can
play a media le, create an audio CD,
listen to a radio broadcast, search and
manage media les, and copy les to a
portable device, etc.
168
Index
PC2XX_N / KS2XX_N
BN1XX_N / LN1XX_N
B
Battery 111
Battery Calibration 114
BIOS Setup 102
Booting Priority 108
C
CD Drive / Recording 68
Charge 112
Click 63
Connect / Output Monitor 73
D
Dual View 75
L
LCD Brightness 100
M
Memory 109
Multi Card Slot 70
P
Password 105
Product Specications 160
R
Recorder 81
Remaining Battery Charge 113
S
Safety Precautions 8
Security Lock Port 116
Shortcut Keys 59
Status Indicators 51
T
Touchpad 62
V
Volume Control 78
W
Wired Network 83
Wireless Network 87
