Host User Manual 2 of 2

1011 Click Start > All Programs > Samsung > Easy Network Manager > Easy Network Manager when connected to the Internet.2 Select an icon that represents the corresponding location from the Saved Locations window and then click Move.3 If the Internet connection is a wired LAN, you can immediately load the settings for the new location and the corresponding network connection information is displayed in the Current Location Information window.To connect to a wireless LAN, select the AP Setting from the menu. The available APs are represented as icons. If you double-click an AP icon to connect to, the computer is connected to the AP through the wireless LAN and you are moved to the corresponding location.Click the AP Setting menu item at the top of the screen and double-click one of the available APs.Available AP IconPC Icon The closer to the PC icon at the bottom of the screen, the stronger the signal from the AP is, while the further from the icon, the weaker the signal strength is. If a network key is required, request the key from your network administrator. AP Setting is supported in Windows XP SP3 or higher and Vista only.Using in Another LocationAnother LocationBy conguring the network settings (IP address, printer setting, etc.) for each location, you can immediately access the network in one click, without performing the network setting procedures regardless of your location.

1021 Launch Easy Network Manager.2 Select Diagnosis from the menu.3 The Network Connections window appears.Click Start to start the network diagnosis.4 When the diagnosis is complete, a device with a problem is marked by a X mark icon with a description of the problem at the bottom of the window.Diagnosing the Network StatusYou can diagnose the network state and nd solutions for why you cannot connect to the network.

104Electronic Business Card (Vcard)You can exchange electronic business cards with mobile phones, PDAs, notebook computers, etc. supporting Bluetooth.Sound OutputYou can listen to audio from the computer through another Bluetooth device or listen to audio of another Bluetooth device through the computer.HID ConnectionsYou can connect a keyboard, mouse, joystick, etc. supporting Bluetooth.For more information about using the Bluetooth function, see the online help of the Bluetooth Device.For more information about using the Bluetooth function, refer to the online help of the Bluetooth Device.

1063 If the driver installation is complete, the next step proceeds which searches for nearby Bluetooth devices. Since you do not have to search while setting up, click Skip and nish the settings.4 If the settings are complete, the My Bluetooth Environment window appears.

107Bluetooth HelpBluetooth Help provides detailed procedures on using Bluetooth functions.Double-click My Bluetooth Settings on the Desktop and press the <F1> key (Help).Select Start > Help and Support > Networking and the Web > Networking > Wireless networking > Bluetooth devices (wireless) to view Windows Help.Exchanging Files between Bluetooth computersThe procedures to exchange les and folders between Bluetooth computers are described below.1 On the computer that is sending a le (hereafter Computer A), right-click the Bluetooth icon in the notication area and select Quick Connection > File Transmission > Search for Device.Using BluetoothDescribes how to exchange les between computers supporting Bluetooth and how to use other Bluetooth devices.

1082 In the Select Device window, click a computer to be connected (hereafter Computer B).3 When the Bluetooth Security Setting window appears, enter the Bluetooth security code (or Bluetooth PIN) and click Start Pairing.The Bluetooth PIN Code is a password used for the connection between two Bluetooth devices, the user just enter the same PIN Code (for example, same numbers) on both Bluetooth devices to make a connection.4 After a short while, the Bluetooth PIN Code required dialog box appears on Computer B, enter the code that you have input in Step 3 above.5 If the FTP File Access Privilege Request window appears on Computer B, click the window. If the Select Access Permission window appears, click OK.

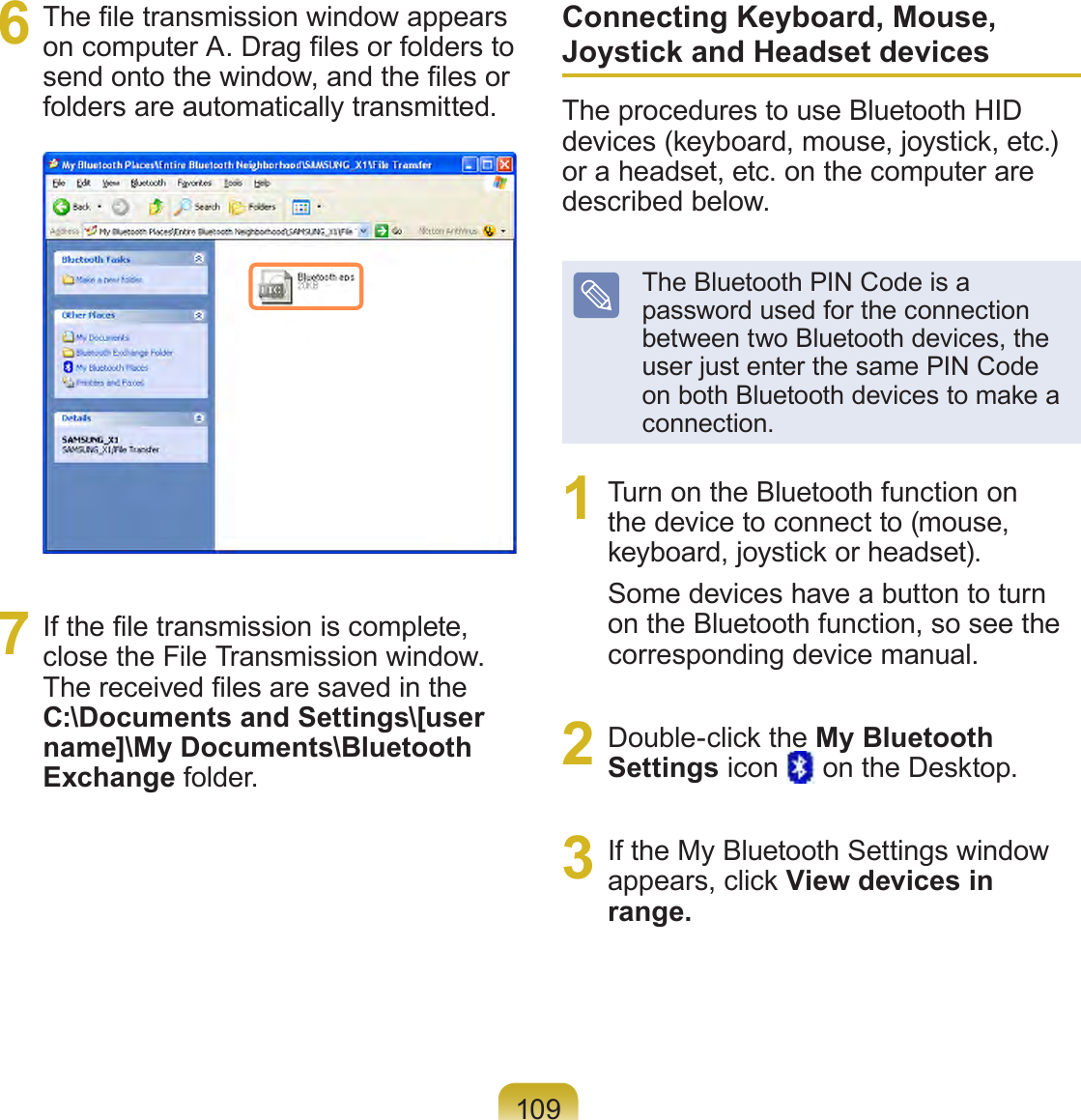

$1096 The le transmission window appears on computer A. Drag les or folders to send onto the window, and the les or folders are automatically transmitted.7 If the le transmission is complete, close the File Transmission window. The received les are saved in the C:\Documents and Settings\[user name]\My Documents\Bluetooth Exchange folder.Connecting Keyboard, Mouse, Joystick and Headset devicesThe procedures to use Bluetooth HID devices (keyboard, mouse, joystick, etc.) or a headset, etc. on the computer are described below.The Bluetooth PIN Code is a password used for the connection between two Bluetooth devices, the user just enter the same PIN Code on both Bluetooth devices to make a connection.1 Turn on the Bluetooth function on the device to connect to (mouse, keyboard, joystick or headset). Some devices have a button to turn on the Bluetooth function, so see the corresponding device manual.2 Double-click the My Bluetooth Settings icon on the Desktop.3 If the My Bluetooth Settings window appears, click View devices in range.$

110If the device to connect to appears, click the device. (for example, mouse)If the device does not appear, click View devices in range. If the device has not appeared yet, since this menu changes to Search devices in range, click Search devices in range to show the device.4 If the Bluetooth PIN Code input window appears, enter a PIN code referring to the manual of the corresponding device. The PIN code for an HID device is generally printed in the manual of the corresponding device.5 If you enter the PIN code, you can immediately use the device.A Bluetooth keyboard and mouse work only in Windows. They will not work in MS-DOS mode or in Hibernation mode.Connecting to the Internet via a Bluetooth mobile phoneIf you have a Bluetooth mobile phone, you can connect your computer to the Internet without a wired or wireless connection to an Internet service provider. Check if your mobile phone supports Bluetooth. To connect to the Internet through the Bluetooth mobile phone, you need the wireless operator account information such as the username, password, dial number and so on. For this information, contact your mobile phone operator.If you connect to the Internet through a Bluetooth mobile phone, the connection tariff may be very expensive. Please use this function only after ascertaining the connection cost or subscribing to a data communications plan that allows you to connect to the Internet directly.

1111 Double-click the My Bluetooth Environment icon on the Desktop.2 When the My Bluetooth Environment window appears, click Add Bluetooth device.3 If the Bluetooth Setup Wizard screen appears, click Next to start the device search.4 Select your mobile phone from the Select Device window and click Next.The following descriptions use a mobile phone called ‘V740’.

1125 If the Bluetooth Security Setup window appears, enter a Bluetooth security code (Bluetooth PIN) and then click Start Pairing.The Bluetooth security code (Bluetooth PIN) is a password used between two devices connected through Bluetooth. You can enter any number between 4 to 6 alphanumeric characters on the two devices.6 If the Pairing signal is delivered to the mobile phone, the Bluetooth security code input window appears in the mobile phone screen. Enter the same security code into the mobile phone that you entered in Step 4. For example, if you entered ‘1234’ on your computer, you must also enter ‘1234’ on the mobile phone.7 In the Select Bluetooth Service window, select the File Transfer and Dialup Networking services and then click Finish.

113 Depending on the mobile phone model, the service names and supported service types may differ. If you select only one service, one more Setup Wizard step appears. If you select Dialup Networking Service only, a Bluetooth Connection window appears. Click cancel and close the window.8 The Dialup Networking and File Transfer service icons are added to the My Bluetooth Environment window.9 Double-click V740 Dialup Networking in the My Bluetooth Environment window.10 If the Connect to Bluetooth window appears after a while, enter the Username, Password, and Dial (Dial Number) elds and click the Dial button. Then, when the Internet connection is established, you can use the Internet using Internet Explorer.If you check this option, the currently entered username and password are saved.If you click this button, enter the phone number in the Dial Number eld and click OK to save the phone number.

114 About the Username, Password, and Dial Number The username, password and dial number used here do not refer to the ones used by the mobile phone user. They refer to the unique username, password and phone number of the mobile phone operator that are required to make the connection. Ask your mobile phone operator about them. When an AP name is required to connect to the Internet An APN (AP Name) may be required depending on the mobile phone or mobile phone operator. In this case, click Start > Control Panel > Performance and Maintenance > System > Device Manager > Modem, double-click Bluetooth Modem, select the Advanced tab and then enter an APN in the format of +CGDCONT=1,“IP”,“APN” in the Miscellaneous Initialization Command eld (e.g. when the APN is ‘internet.com’). For detailed information, ask your mobile phone operator about this.  Disconnecting the Internet connectionz Double-click V740 Dialup Networking in the My Bluetooth Environment window.x Click the Disconnect button in the Bluetooth Connection Status window. Alternatively, press the Disconnect button on the mobile phone to disconnect the Internet connection.

115Stopping a Bluetooth deviceRight-click the Bluetooth icon on the Taskbar and select Stop the Bluetooth device.To use a Bluetooth device after stopping it, select Start Bluetooth device like above.Usage Instructions Generally, Bluetooth devices deliver stable performance while connected within a 3m(10 ft.) distance. For Bluetooth to operate smoothly, use the computer in an open environment with no walls or obstacles in the way and having low radio interference. You can connect to only one Bluetooth device at a time for a phone connection, data syncing, electronic business card exchange, FAX transmission/reception, sound related functions, and serial port functions. It is recommended using only one Bluetooth device at a time as connecting multiple Bluetooth or other wireless devices at the same time may slow or destabilize the Bluetooth connection. Data communications via Bluetooth may be poor when the CPU load is at full capacity or there are insufcient system resources. The Bluetooth function of a Bluetooth PDA, mobile phone, mouse or keyboard may be turned off. To use them in connection with a Samsung computer supporting Bluetooth, you must check if the Bluetooth function of the device to connect to is turned on. For the procedures on turning on the Bluetooth function of a device, refer to the relevant device manual. The services provided by Bluetooth devices may vary depending on their capabilities. For the services provided by the Bluetooth device, refer to the device manual.

Chapter 5.Using ApplicationsIntroducing Programs 117CyberLink YouCam (Optional) 121Samsung Update Plus (Optional) 123McAfee SecurityCenter (Optional) 125Using Samsung Magic Doctor (Optional) 130Reinstalling Software (Optional) 131

117Introducing ProgramsUsing the software supplied with the Samsung computer, you can easily use functions and troubleshoot problems.Try to use the software after learning about the basic use of the software. For detailed information, refer to the help section of the corresponding software.The software programs provider may vary, depending on your computer model.In addition, some pictures may differ from actual product depending on the computer model and software version.

118Multi Media Functions CyberLink YouCam (Optional) Using this program, you can easily capture photos and videos with your web camera. CyberLink YouCam makes it more fun to have online video chats or to record videos with live effects. 121Management Functions Samsung Update Plus (Optional) Samsung Update Plus is a software function that examines and updates the Samsung software and drivers installed on your Samsung computer to the most recent versions. 123 McAfee SecurityCenter (Optional) This is a security solution that detects and removes computer viruses and protects the computer from Internet threats. 125 Easy Network Manager (Optional) Easy Network Manager is a program that enables you to easily congure the network settings. You can congure the network settings for each location and you can also diagnose the network status. 99 Samsung Battery ManagerSamsung Battery Manager (Optional) Samsung Battery Manager is a powerSamsung Battery Manager is a power management program that provides easy-to-use power management and power saving settings so that the battery usage time can be extended. 149 Easy Display Manager (Optional) Easy Display Manager is a program that displays the changed setting on the screen when a setting is changed by pressing the shortcut keys, and enables changing the display mode through the Display Settings window. Example) The icon that appears when pressing the Fn + keys to change the screen brightness.

120Troubleshooting Functions SAMSUNG Magic Doctor (Optional) SAMSUNG Magic Doctor is troubleshooting software provided by Samsung Computer for system diagnosis, and restoring the system. The system diagnosis function enables users to diagnose system problems without assistance from others. Samsung Recovery Solution (Optional) Samsung Recovery Solution provides a Restore Function that enables you to easily restore your computer to a previous, normal state when a problem occurs with your computer, as well as a Backup Function that enables you to easily save your computer’s current status and your data. For models with an SSD (Solid State Disk), Samsung Recovery Solution is not provided.

121CyberLink YouCam (Optional)CyberLink YouCam makes it more fun to have online video chats or to record videos with live effects. The program versions described in this manual are subject to change and the screen images and terms in this manual may differ from actual product. For more information on how to use the program, refer to the online help. Do not take pictures or record video of someone without their permission. Do not take pictures or record video in locations where photography is prohibited. Do not take pictures or record video in locations where you could violate another person’s privacy.1 Double click the CyberLink YouCam icon on the Desktop. Or click Start > All programs > Samsung > CyberLink YouCam > CyberLink YouCam.Function buttonsAll captured contentAvatars, Frames, Filters and DistortionsEmotion effectsPreview Window

122If you click the settings button , you can congure the capture, display and document settings.2 Click the Snapshot or Capture button in front of the camera. A snapshot is taken or video starts recording. To stop a video recording, click the Stop button. The recording is stopped. By applying several effects or avatars to your photos or videos while capturing, you can make your own contents fun and interesting.3 You can view your captured photos and videos in the All captured content window.You can view a picture or watch a video by double-clicking it.

123Samsung Update Plus (Optional)Samsung Update Plus is software that examines and updates the Samsung software and drivers installed on your Samsung computer to the optimal version. To check for updates and update your computer using Samsung Update Plus, your computer must be connected to the Internet. The update search result may differ depending on your computer model.Samsung Update Plus does not provide updates for applications installed after purchasing the computer.To update the software and drivers1 Select Start > All Programs > Samsung > Samsung Update Plus > Samsung Update Plus.If this is the rst time you are running the program, a window will appear asking you if you agree to the agreement in the window.Click Agree to use this software.2 If you click on Check for updates, new updates are searched for.

1243 If there are available software or driver updates for your computer, the available updates will be listed. Select the required updates from the list and click Install Update to start the update. (The update list on the screen may differ depending on the computer model.)Updates that must be installed separately.If you select an update item that must be installed separately, a message appears informing you of this. Follow the instruction message to correctly install it.Automatic update items displayBy default, your computer is congured to automatically check for updates. If there is a new update available, this is notied in the notication area. Click the balloon help icon in the notication area. Here you will be able to nd the latest available updates.

125McAfee SecurityCenter (Optional)McAfee SecurityCenter (a virus/spyware detection and protection software that includes a rewall function. Hereafter, referred to as “McAfee”) is software that protects your PC from various Internet threats as well as detecting and removing viruses. For more detailed information on the program, refer to the McAfee help. You can register McAfee when connected to the Internet. McAfee software is optional. It may not be supplied for some models or it may be supplied through the McAfee installation icon. When the installation icon is provided, you have to install the program referring to the Installing McAfee section. A different anti-virus program may be provided depending on the computer model.Installing McAfee For some models, an Install McAfee Web Essentials icon is located on the Desktop. In this case, you can install the McAfee software according to the following procedures and then use the McAfee software.For some models, a McAfee Security Center icon is located on the Desktop, since the software is already installed, the installation step is not required.z Double click the Install McAfee Web Essentials icon on the Desktop. x The Chain Installer window opens and the installation begins automatically. Please wait for a moment. c When the installation is complete, the Chain Installer window disappears.

126User Registration1 The Program Setup screen appears while booting. Click Next. If the Program Setup screen does not appear, right-click over the McAfee icon in the Taskbar and then select Product Setup from the pop-up menu.2 The End User License Agreement appears. Check if the country has been correctly selected and then click Accept.3 The Create New McAfee Account item appears. Be sure to ll in all the elds and click Next. The Program Setup Completed window appears.If you have already registered with McAfee, click Login and enter the registered email address and password to login. The Program Setup Completed window appears.Using McAfeeTo use McAfee, user registration is required. If a user is not registered, even though virus inspection is supported, your PC will not be completely protected because the virus information will not be updated with the latest information. The procedures to inspect and heal viruses after the user registration will be described below.

127Inspecting and Healing VirusesThe procedures to check if the computer’s les or information have been infected by a virus and to heal viruses found by McAfee are described below.1 Click Start > All Programs > McAfee > McAfeeSecurityCenter. 2 Click the Scan button on the left side of the program. The Scan begins.At this time, if a virus is found, it is immediately healed during the inspection.3 If a virus has been found, click View Results. The viruses are listed. Since the corresponding viruses have already been removed, you can use your computer without any concern. For possible virus infections (where it is not completely certain), the Detected message appears. In this case, the items will be maintained or deleted depending on your decision. To deal with new viruses, please always keep McAfeeSecurityCenter up to date. In general, it is automatically updated when connected to the Internet. Alternatively, you can update it manually by clicking Update after connecting to the Internet.

128Conguring the McAfee FirewallThe McAfee Firewall is congured for the product when purchasing the product in order to protect the computer from viruses. However, if the rewall is activated, you may not connect to the network or the Internet properly. In this case, you have to change the settings as follows.Method 1) When you need to select Allow Access in the Server or Internet Access Request window.When you connect to a bank, stock market, or gaming website, an access request window appears. In this case, select Allow Access in the window and click OK. Then you can install the program normally or open the page.

129Method 2) When you need to deactivate the Firewall If you cannot connect to the Internet when using a broadband Internet service, you can connect to the Internal normally if you disable the McAfee Firewall. However, since it may cause a security problem, be careful when doing so.z Double-click the McAfee Security Center icon from the Desktop.x Click the Advanced menu at the bottom left and click Congure > Internet&Network.c Turn the Internet&Network at the right to Off, set the Select when to re-enable rewall to Never and then click OK.v Click Home in the left menu pane and click Ignore next to the ‘Firewall protection is disabled’ message.It is recommended activating the Windows Firewall for your computer's safety when you have disabled the McAfee Firewall. To activate the Windows Firewall, click Start > Control Panel > Windows Firewall > Change Settings > On(recommended).

130Using Samsung Magic Doctor (Optional)Magic Doctor is troubleshooting software provided by Samsung Computer. A user can diagnose system problems via one-click or by selecting diagnostic items.The screens used in this manual may differ from actual screens according to the program version.Diagnosing the System1 Select Start > All Programs > Samsung > Samsung Magic Doctor > Samsung Magic Doctor.2 Click the Diagnose the System icon.The system status diagnostics start.3 When the system status diagnostics are complete, the diagnostics result appears.If a problem has been found, click on Cure for Samsung Magic Doctor to cure the problem.

131Reinstalling Software (Optional)If you have reinstalled the Windows operating system, or the system and program do not operate properly, you can re-install the driver and program using the System Software Media. When software is not working properly, it is recommended removing the software using the Add or Remove Programs of the Control Panel and reinstalling the software using the System Software Media. The System Software Media is supplied as a CD or DVD depending on your computer model. To use the System Software Media, the external USB ODD must be connected to the computer. The following descriptions are supposing that the external USB ODD is connected. Some model is not supplied System Software Media depending on your computer model.Running the System Software MediaInsert the System Software Media into the CD-ROM drive. The initial screen appears automatically.Standard InstallationThis displays a list of drivers or programs that are not currently installed on your computer from the system software Media provided.All necessary components are installed using the factory defaults.Minimum InstallationThis displays the components (driver, Windows programs,etc) that, if not installed, may cause problems with the system performance.You can install only required components.Custom InstallationYou can customize the installation of drivers and programs.

132Installing drivers and programs1 Select Standard Installation in the System Software Media main screen.2 The system is scanned to display the drivers and programs that need to be installed.3 Click OK.The drivers and programs are automatically installed as factory defaults. 4 When done, restart the system.

Chapter 6.Settings and UpgradeLCD Brightness Control 134BIOS Setup 136Setting a Boot Password 140Changing the Boot Priority 143Upgrading Memory 144Battery 146Using the Security Lock Port 154

134LCD Brightness ControlYou can adjust the LCD brightness in 8 levels.Adjusting LCD Brightness Using KeyboardPress the Fn+ or Fn+ to adjust the brightness of LCD.The LCD brightness has eight levels of degree. By pressing the Fn+ , the LCD gets brighter by one level of degree. Adjusting LCD Brightness Using Samsung Battery ManagerAppropriate LCD brightness is set for each mode in Samsung Battery Manager. In user settings mode, you can select the brightness level.Click Start > All Programs > Samsung > Samsung Battery Manager > Samsung Battery Manager.(for example, in Customized mode)In this mode, you can change the brightness and device setting details.

1373 After a moment, the BIOS setup screen appears. The items in the BIOS setup may differ depending on the product.Setup MenuSetup ItemsHelpHelp for the selected item appears automatically.

138The BIOS Setup ScreenMenu DescriptionMain Used to change the basic system and environment settings.Advanced Used to congure advanced functions on your computer for devices and chipsets.Security Used to congure security functions, including passwords.Boot Used to set the boot priority and other boot optionsExit Used to exit the Setup either saving the changes or not.

139System Setup KeysIn the Setup, you have to use the keyboard.F1 Press to view the Setup Help.Up & Down Keys Press to move up and down.F5/F6 Press to change the item value.F9 Press to load the default Setup settings.ESC Press to return to a higher level menu or to move to the Exit menu.Left & Right Keys Press to move to another menu.Enter Press to select an item or to enter a sub menu.F10 Press to save the changes and exit Setup.The keyboard image and color may differ from the actual keyboard.

140Setting a Supervisor PasswordA Supervisor Password is required to turn the computer on or to start the System Setup.When setting a Supervisor Password, users other than a supervisor cannot use the computer.1 Select the Security menu in the BIOS Setup.2 In the Set Supervisor Password item, press <Enter>.Setting a Boot PasswordWhen setting a password, you have to enter a password to use the computer or enter the BIOS Setup. By conguring a password, you can restrict system access to authorized users only and protect data and les saved on the computer.Do not lose or forget your password. If you have forgotten your password, contact a Samsung service center. In this case, a service fee will be charged.

1413 Enter a password, press <Enter>, re-enter the password for conrmation, and press <Enter> again.The password can be up to 8 alphanumeric characters. Special characters are not allowed.4 When a message conrming the password conguration appears in the Setup Notice window, press <Enter>.The supervisor password has been set. The supervisor password is required to turn the computer on or to enter the BIOS Setup.Setting a User PasswordThe User Password restricts access to the computer or for conguring the BIOS Setup, like a Supervisor Password. However, the Setup items that can be congured with a User Password are restricted, unlike for a Supervisor Password.Before conguring a user password, a supervisor password must have been congured. Deactivating the supervisor password also deactivates the user password.In the Set User Password item, press <Enter> and complete the procedures from Step 3 of Setting a Supervisor Password.Setting Up a Boot PasswordTo setup a boot password, the administrator password (Set Supervisor Password) should be set in advance.Set the Password on boot item to Enabled. Once a boot password is set, you have to enter a password to boot up the computer.

142Setting up a Hard Disk Drive Password (Optional)A supervisor password must be set using the Set Supervisor Password menu.If you set a password for a hard disk drive, it cannot be accessed from another computer.Press <Enter> in the Set HDD Password item and dene a password as described in Step 3 of the Setting up the Supervisor Password.The hard disk drive password setting function is not provided for some models.Changing the hard disk drive passwordFor security purposes, you can only change a hard disk drive password after restarting the computer by pressing the computer Power button.If you cannot change the hard disk drive password or the HDD Password Frozen message appears when entering the BIOS Setup and then selecting Security > HDD Password, press the Power button to turn the computer on again.Deactivating the Password1 Press <Enter> on the password to be deactivated. For example, to deactivate a supervisor password in the Set Supervisor Password item, press <Enter>.2 In the Enter Current Password item, enter the currently congured password and press <Enter>.3 Leave the Enter New Password item eld empty, and press <Enter>.4 Leave the Conrm New Password eld empty, and press <Enter>.5 In the Setup Notice window, press <Enter>.The password is deactivated.

1431 Select the Boot menu in the BIOS Setup.2 Press <Enter> on the Boot Device Priority item.3 Press the down key (↓) to move to the IDE HDD item and press the F6 key to move up to the top item.4 Press the F10 key to save the settings and exit Setup. The highest boot priority device is now set to the Hard Drive.Changing the Boot PriorityThis computer is congured to boot from an external-type ODD rst.This chapter describes how to change the boot priority so that the computer boots from the hard disk drive rst.

144Upgrading MemoryA memory is installed in the memory slot at the bottom of this computer. The procedures to replace the memory are described below. Replace new memory only after shutting the computer down completely. Do not replace memory when the computer is in Sleep mode. Disconnect main power plug and remove the battery before continuing. Only use the same type of memory as specied in the Product Specication.Replacing the Memory1 Remove the screw on the memory compartment cover at the bottom of the computer using a screw driver.2 Pull the memory module latches outward. The memory module will pop up.Remove the memory module out at an angle of 30 degrees. Fixing Screw

1453 Insert a new memory module into the memory slot at an angle of approximately 30 degrees aligning it to the angle of the memory slot. 4 Push the memory module down so that it is completely xed. If the memory does not t easily, push the memory module down while pulling the memory module latches outward.5 Close the memory compartment cover and fasten the screw.Memory Slot

146BatteryPlease refer to the following instructions when running the computer on battery power without connecting the AC power. A Lithium-Ion smart battery is supplied with this computer.Carefully read and follow the precautions printed on the battery before using the battery.PrecautionsUse only chargers specied in the User Manual.Never heat the battery pack, put it near or in a re or use at a temperature higher than 60°C, as this may cause re.Never cause a short circuit between the battery pack terminals or disassemble the battery pack. Carefully read and follow the precautions printed on the battery and the safety instructions in the User Manual before using the battery.Please refer to the system operation environment ( 190) of this manual and operate and store the battery at room temperature.Installing/Removing the Battery1 Shutdown the system, close the LCD panel and place the computer upside down on a at surface.

1472 Slide the center battery latch into the UNLOCK position and then remove the battery.3 To install the battery again, slide the battery into the system. Charging the Battery1 Attach the battery and connect the AC adapter to the DC-in jack of the computer.The battery will then start charging.2 When charging is complete, the Charge LED turns green.Status Charge LEDCharging AmberCharging complete GreenAC adapter not connected Offxz

148Measuring the Remaining Battery ChargeYou can view the battery charge status by completing the following procedures.To use the shortcut key to viewPress the Fn + keys on the keyboard. The remaining battery charge (%) will displayed for a moment.You can only view the charge status in this way when Easy Display Manager is installed on your computer.Battery Warning You will hear an alarm when the remaining battery charge reaches below 10%. In this case, connect the AC adapter or turn off the computer and install a fully charged battery. If the battery residual amount is 3~5%, the computer automatically shuts down after saving the data. The battery residual amount may vary depending on the computer model.Battery Usage Time InformationA battery is an expendable supply, so when using it over a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of its initial time, we recommend purchasing a new battery.For long periods of not using the battery, keep the battery discharged. This extends the battery life time.

149Extending the Battery Usage TimeDecreasing the LCD BrightnessPress the Fn + keys on the keyboard to decrease the LCD brightness to extend the battery usage time.Using Samsung Battery ManagerBattery Manager is a management program that allows you to use the battery efciently. You can select the optimized power mode depending on the system environment.Click Start > All Programs > Samsung > Samsung Battery Manager > Samsung Battery Manager.Select Power ModePower-saving EffectMaximum Battery ModeThis mode is appropriate for the environment that requires maximum battery lifetime. The system performance may be degraded in this mode.General ModeThis mode is appropriate for the regular environment and it optimizes the performance of the system and battery.

150Maximum Performance ModeThis mode is appropriate for the environment that requires maximum system performance. The battery life may get shorter in this mode.User Settings ModeThis mode allows you to congure the detailed settings. You can set LCD brightness, power status, and color quality.What is the Power-saving Effect?This product displays the battery life in each power mode. The higher the power saving effect increases, the longer the graph bar is displayed.When Using Games or MultimediaThe system may not operate properly in maximum battery mode. It is recommended to connect the AC adapter to the system or to use the system in general mode.Usage Mode of Samsung Battery Manager The maximum battery mode optimizes the system operation speed to increase the battery run time, so the program execution time may get longer.  If you change the power settings, the properties in Power Options window will also be changed. Complete, install Samsung Battery Manager using the System Software Media in order to use the general mode.Disabling Unused DevicesIf you turn off unused devices, battery lifetime will improve.1 Click Device Manager from Start > Control Panel > Performance and Maintenance > Systems > Hardware tab.2 Right-click the devices that you are not using and select Disable.

151Extending the Battery Life (Optional)The Battery Life Extender is a battery power management program that enables extending the battery life. Users can change the settings depending on their requirements. The Battery Life Extender is optional and may not be supplied depending on the model. 1 Click Start > All Programs > Samsung > Battery Life Extender > Battery Life Extender. 2 When the following screen appears, select a mode and click the OK button. You can use the battery in the selected mode. Battery Normal ModeBattery Life Extension Mode Battery Life Extension Mode

154Using the Security Lock Port You can connect a Kensington lock to the Security Lock port to prevent your computer from being stolen when you have to use the computer in a public place.To use this feature, you have to purchase the Kensington lock additionally. To use the Kensington lock, refer to the product manual.Tie the Kensington lock cable to a xed object and install the other end of the cable to the Security Lock port.

Chapter 7.AppendixReinstalling Windows XP (Optional) 156Using Samsung Recovery Solution (Optional) 161Questions and Answers 170Windows Related 170Display Related 171Sound Related 173Wired LAN Related 176Wireless LAN Related 177Games and Programs Related 183Bluetooth 185Security Center 186Product Specications 190Glossary 202Index 206

156Reinstalling Windows XP (Optional)You can reinstall Windows using the System Recovery CD when Windows does not work properly. A System Recovery CD may not be supplied depending on your computer model. To reinstall Windows when Windows does not boot, refer to page 159. To reinstall Windows using System Recovery Media, an external-type ODD must be connected before turning the computer on. The following descriptions assume that an external ODD is connected.Reinstalling Windows may delete data (les and programs) saved on the hard disk drive. Make sure to backup all important data. Samsung Electronics shall not be held liable for any loss of data.Reinstalling WindowsExplain installation option as a standard.1 Insert the system recovery CD into the CD-ROM drive.2 In the initial screen, click Standard Installation. Standard installation You can change the settings for partitioning, the installation folder, etc. during the Windows installation. However, reinstalling Windows may delete the data on the hard disk drive such as les, programs, etc. In order to minimize damage from data loss, please remember to always back up data. Quick Installation This re-installs Windows with the user data and the system conguration intact. The user data in the already existing Windows folders may be preserved as the existing Windows folders are overwritten.

1573 The description for the standard installation appears. Click Yes. The installation starts, and the system will be restarted after a while.When Quick Installation is selected, Setup proceeds with Step 3 before automatically installing Windows. Quick Installation overwrites the existing Windows version, so that drivers or applications do not need to be reinstalled.4 After the system has restarted, the message ’Press any key to boot from CD’ appears. Do not press any key at this time. After a while the partition conguration screen appears. To not change the partition, press Enter.What is partition conguration?Partition conguration is a function that divides the hard disk drive into one or several partitions. Note that changing the partition deletes all of the data on the hard disk drive.5 Select the folder to install the Windows operating system. To delete the previous version of Windows and install in the current folder, press L on the keyboard.If you press ESC to select another folder for the installation, new Windows folders are created causing a risk of dual booting.6 After the installation process copies the necessary folders for the Windows installation, restart the system, and the message “Press any key to boot from CD” is displayed. You do not need to enter anything. In a moment, the Windows XP installation screen will appear to proceed with the installation.7 When the Regional and Language Options window appears, click Next.8 When a window that requires your name and organization pops up, enter your name and the organization and click Next.9 When the Date and Time Settings window appears, click Next. Setup will continue.

15810 When the system restarts to display Press any key to boot from CD, do not press any key.When you see the Windows desktop, this means that the installation process is completed.Remove the system recovery CD and install the device drivers and applications from the system software Media.

1591 Insert the system recovery CD into the CD-ROM drive and start the computer.2 If the following message appears on the screen, press any key from the keyboard.Press any key to boot from CD.....3 Do not press any key at this time. After a while the partition conguration screen appears. To not change the partition, press Enter.4 Select the desired le system (format). To maintain the current le system, press Enter.5 Select the folder to install the Windows operating system. To delete the previous version of Windows and install in the current folder, press L on the keyboard.6 After the installation process copies the necessary folders for the Windows installation, restart the system, and the message “Press any key to boot from CD” is displayed. You do not need to enter anything. In a moment, the Windows XP installation screen will appear to proceed with the installation.7 Follow the instructions of the Windows XP installation wizard to continue with the installation.Reinstalling when Windows does not startWhen Windows does not start, boot up with the System Recovery CD and from there you can reinstall Windows.

1608 When the installation is complete, the computer will restart. When the system has restarted, the Press any key to boot from CD.. message appears.Ignore the message.The system boots and the Windows and Windows Registration screen appears. Register Windows, following the instructions to nish the Windows installation. Remove the System Recovery CD and install the device drivers and application programs using Standard Installation from the System Software Media.

161Using Samsung Recovery Solution (Optional)Samsung Recovery Solution provides a Restore Function that enables you to easily restore your computer to a previous, normal state when a problem occurs with your computer, as well as a Backup Function that enables you to easily save your computer’s current status and your data. Samsung Recovery Solution may not be provided or the version may differ depending on your computer model and the usage procedures may differ depending on the version. The screen images in this document may differ from actual product. For models with an SSD (Solid State Disk), Samsung Recovery Solution is not provided. To use the backup and restore function to DVD, an external ODD must be connected. The following descriptions assume that an external ODD is connected.Samsung Recovery Solution Functions Restore Function Using this function, you can easily restore your computer to a previous, normal state without using the System Recovery Media or the Windows Installation CD, when your computer is no longer working properly or fails to boot up due to a problem. If you have backed up data, you can restore the backup data.

$162Basic Restore Complete Restore Data RestoreThis function quickly restores major Windows les (C:\Windows) without touching the user conguration and data on the C drive.This function deletes the entire C drive and then restores the contents of the C drive completely.This function restores the user data if the user previously backed up data. Initial Status Restore This function restores the computer to the initial status saved when the computer was run for the rst time after it was purchased. Complete Backup Restore This function restores the computer to the point where the user performed a Complete Backup.Restore Functions Backup Function You can backup the entire C drive or all your data to another hard disk drive or DVD. You can restore the backed up drive or data using the Restore function.Backup FunctionsThis function backs up the initial status of the computer.Initial Status BackupThis function backs up specic folders or les.Data BackupThis function backs up the entire drive C.Complete Backup$

163Using Samsung Recovery SolutionNot only can you use Samsung Recovery Solution when Windows is running, but also when you are unable to boot up into Windows. Let’s learn how to use Samsung Recovery Solution.Initial Status BackupIf you turn your computer on for the rst time, the Initial Status Backup function is performed after registering Windows. This function saves an image of the Initial Status of the C drive to a secure location so that users can restore the computer to the Initial Status using the Complete Restore function. An Initial Status Backup is only performed once immediately after the computer is purchased.1 If you turn the power on for the rst time, the Register Windows screen appears. If you register Windows according to the instructions on the screen, the computer will be restarted.2 When the computer has been restarted, the User Registration Complete message appears. Click OK. The computer will restart.3 The Initial Status Backup screen appears.To resize the C and D drives, click Advanced and partition the disk accordingly. Adjust the partition size using the slide bar and then click Next.The partition disk function is only available when the computer is turned on for the rst time and will not be available afterwards. Once you have completed the partitions, you cannot resize the partitions. Therefore partition the disk carefully.4 The Initial Status Backup is performed to backup the initial status of the C drive to a secure location. This backup image is used for the Complete Restore function that restores your computer to the initial status when the computer is not working properly.5 When the Initial Status Backup is complete, restart Windows.

165Run Complete Restore if the computer does not work even after Basic Restore has been completed. 4-1 If you have selected Basic Restore: In the Basic Restore screen, click the Next button. The system will be restarted. 4-2 If you have selected Complete Restore: In the restoration point selection screen, select the restoration point described as ‘Computer Initial Status’ and click the Next button. The system will be restarted.Since a Complete Restore deletes all user data as well as additionally installed programs, please backup your important data rst using the Data Backup function, before running Complete Restore.5 The computer boots up into restoration mode and the restoration progress message appears. If you click OK, the restoration begins. The restoration may take some time, please wait for a moment.6 When the ‘Restart the System’ message appears after the restoration is complete, click OK to restart the system.Make sure that the power cord is connected while the restoration is in progress. The rst time the computer boots up after a Complete Restore has been performed, the speed of the boot process may be slowed down due to the system optimization process. At this time, do not shut the computer down by force.User Complete Backup/RestoreA Complete Backup saves the complete image of the C drive onto another drive or DVD. A Complete Restore restores the image le saved by the Complete Backup onto the C drive. This guide describes the Complete Backup and Complete Restore procedures on the basis of backing up and restoring by using DVD.

166 Complete Backup If you run Complete Backup using a DVD, you can restore the computer even when a problem occurs with the hard disk or when the restoration area is removed. To perform a complete backup onto DVD, an external ODD that supports DVD burning must be connected.1 Click Start > All Programs > Samsung > Samsung Recovery Solution > Samsung Recovery Solution.When you cannot start Windows, turn the computer on and press the F4 key in the boot screen to enter restoration mode.2 When the initial menu screen appears, click Backup.3 Click Complete Backup in the backup menu.4 Enter a description for the backup regarding the current computer status in the Description eld so that you can easily recognize it later, and specify the Save Path. If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.Select Drive D.Select the DVD drive.5 If you click the Next button, the system restarts in restoration mode and the Complete Backup begins. If you have selected the DVD drive as the Save Path, the “Enter a blank DVD” message appears. Insert a blank DVD and click the OK button.Samsung Recovery Solution supports DVD+R, DVD-R, DVD+RW, and DVD-RW, but does not support CD-R, CD-RW, DVD-RAM, DVD-DL (Dual Layer), HD-DVD, and Blu-Ray.

1676 The Complete Backup begins. If multiple DVDs are required, the expected number of DVDs is displayed in the progress screen. Whenever burning a DVD is completed, the “Insert the next DVD” message will appear. Continue the backup according to the instructions.7 When the ‘Restart the System’ message appears after the backup is complete, click OK to restart the system. Complete Restore1 – When backing up onto DVD Turn the computer on and insert the backup DVD into the DVD drive. If there are multiple backup DVDs, insert the rst DVD. – When backing up to another drive Proceed to Step 2.2 Click Start > All Programs > Samsung > Samsung Recovery Solution > Samsung Recovery Solution.When you cannot start Windows, turn the computer on and press the F4 key in the boot screen to enter restoration mode.3 When the initial menu screen appears, click Restore and then click Complete Restore.4 Select a Complete Backup restoration point in the restoration point selection screen and click the Next button. The system is restarted.5 The restoration progress message appears after the computer boots up in restoration mode. If you click OK, the restoration begins.If multiple DVDs have been used for a Complete Backup, whenever burning a DVD is completed, the “Insert the next DVD” message will appear.6 When the ‘Restart the System’ message appears after the restoration is complete, click OK to restart the system. The Complete Restore has been completed.

$168User Data Backup/RestoreData Backup enables you to save specic les or folders onto another drive or DVD. Data Restore enables you to restore data using the data saved by a Data Backup when data is lost. This guide describes the Backup and Restore procedures on the basis of backing up and restoring by using DVD. Data Backup1 Click Start > All Programs > Samsung > Samsung Recovery Solution > Samsung Recovery Solution.When you cannot start Windows, turn the computer on and press the F4 key in the boot screen to enter restoration mode.2 When the initial menu screen appears, click Backup and then click Data Backup.3 In the data selection screen, select either Basic Selection or Select from all, select a folder or le to be backed up, and then click the Next button.4 Enter a description for the backup in the Description eld so that you can easily recognize it later and specify the Save Path. If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.If you have specied a hard disk drive or a removable disk as the Save Path, the SamsungRecovery\SamsungData folder is created on the corresponding drive (e.g. D:\) and the data is saved to the folder. Take care to not delete the folder by mistake or on purpose.5 If you click the Next button, the Data Backup begins. If you have selected the DVD drive as the Save Path, the “Enter a blank DVD” message appears. Insert a blank DVD and click the OK button.6 The “Backup is completed” message appears.$
