Host User Manual 2 of 2
101
1 Click Start > All Programs >
Samsung > Easy Network Manager
> Easy Network Manager when
connected to the Internet.
2 Select an icon that represents the
corresponding location from the
Saved Locations window and then
click Move.
3 If the Internet connection is a wired
LAN, you can immediately load the
settings for the new location and the
corresponding network connection
information is displayed in the Current
Location Information window.
To connect to a wireless LAN, select
the AP Setting from the menu.
The available APs are represented
as icons. If you double-click an AP
icon to connect to, the computer is
connected to the AP through the
wireless LAN and you are moved to
the corresponding location.

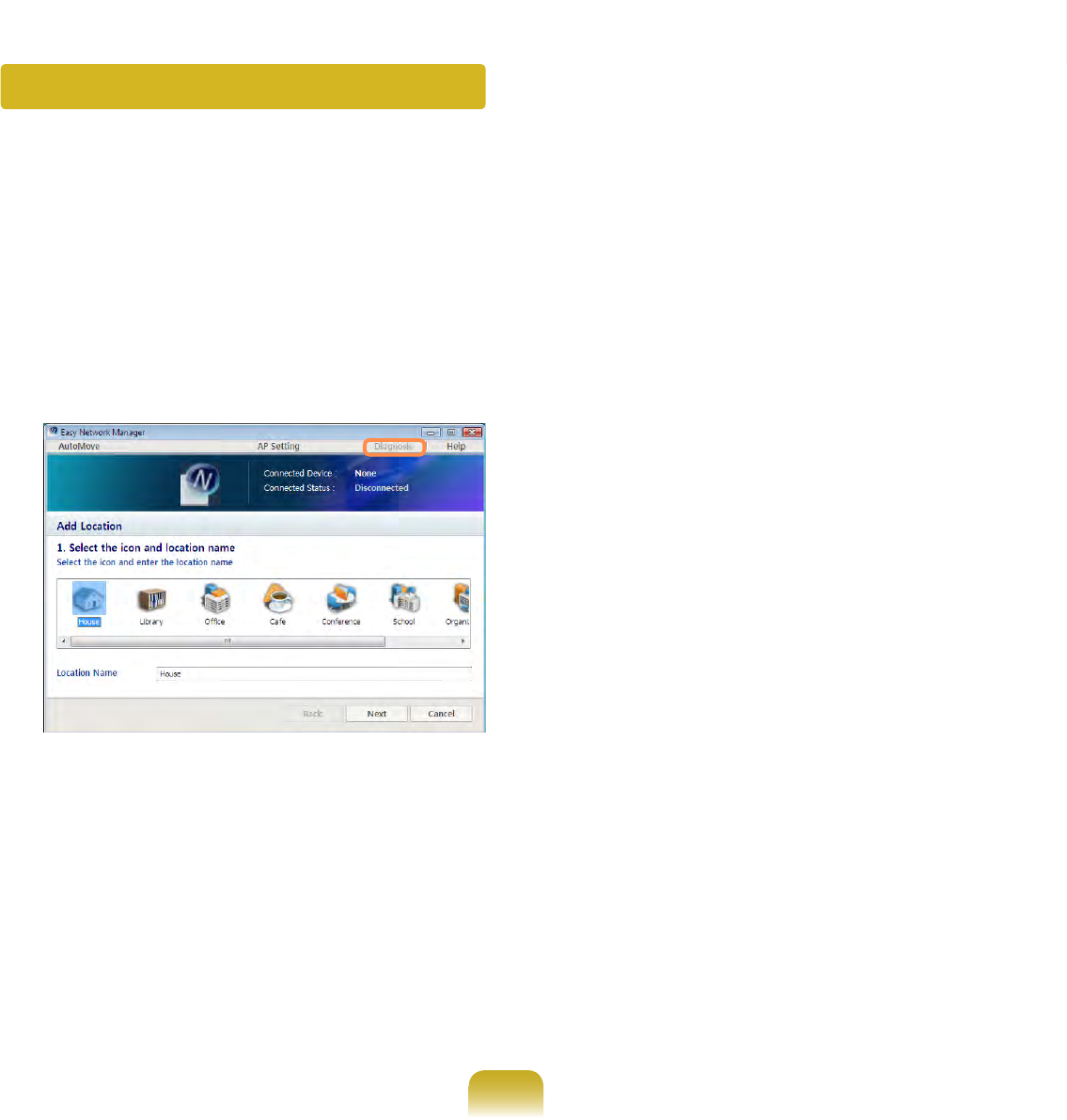

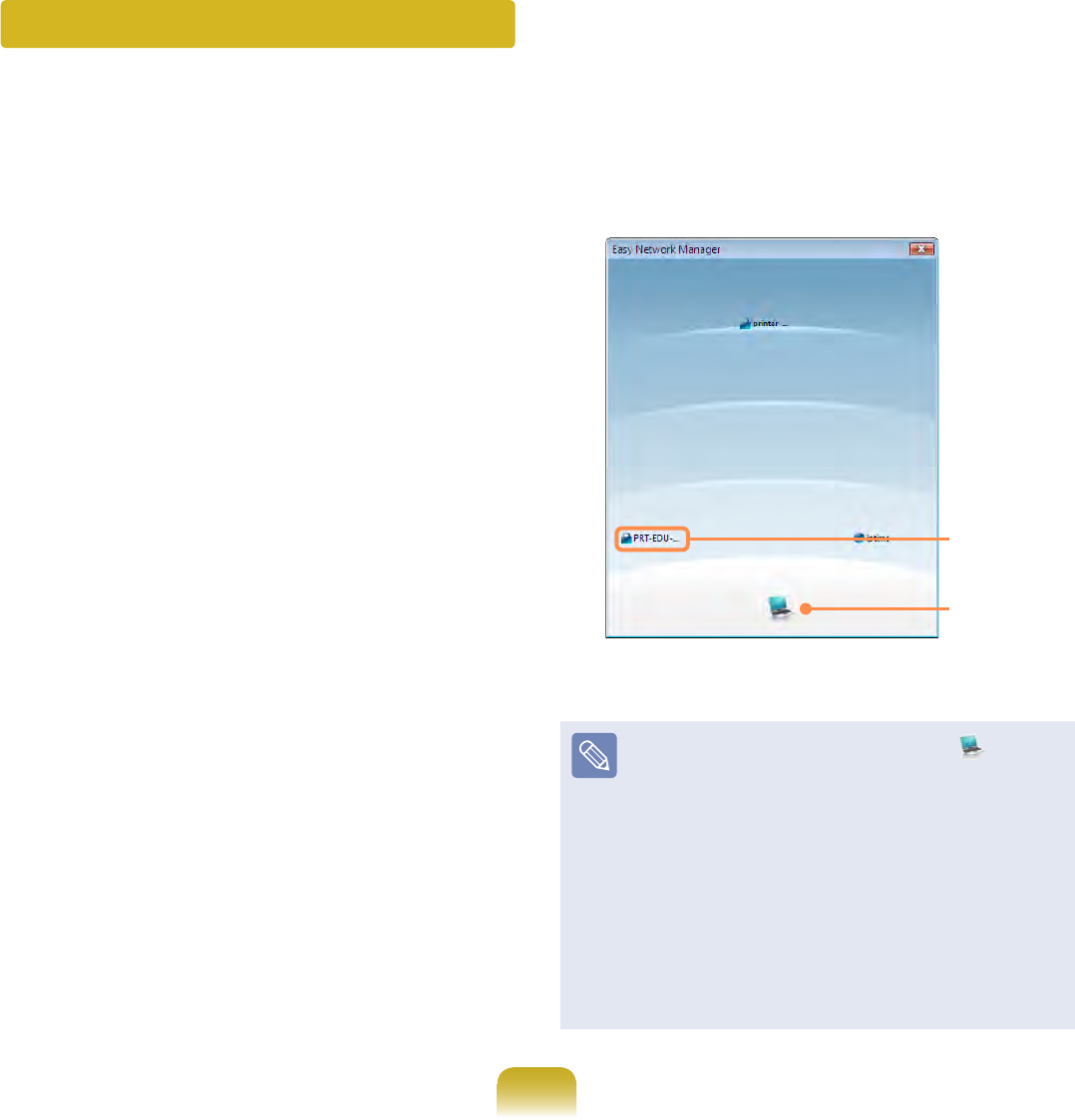

Click the AP Setting menu item at the
top of the screen and double-click one
of the available APs.
Available
AP Icon
PC Icon
The closer to the PC icon at the
bottom of the screen, the stronger
the signal from the AP is, while the
further from the icon, the weaker
the signal strength is.
If a network key is required,
request the key from your network
administrator.
AP Setting is supported in Windows
XP SP3 or higher and Vista only.
Using in Another LocationAnother Location
By conguring the network settings (IP address, printer setting, etc.) for each location,
you can immediately access the network in one click, without performing the network
setting procedures regardless of your location.
102
1 Launch Easy Network Manager.
2 Select Diagnosis from the menu.
3 The Network Connections window
appears.
Click Start to start the network
diagnosis.
4 When the diagnosis is complete, a
device with a problem is marked by a
X mark icon with a description of the
problem at the bottom of the window.
Diagnosing the Network Status
You can diagnose the network state and nd solutions for why you cannot connect to
the network.
103
Bluetooth (Optional)
Bluetooth is a wireless communication technology that allows access to devices
nearby such as a computer, mobile phone, printer, keyboard or mouse without a cable
connection.
Bluetooth enables le transmissions, Internet access, a private area network function,
and access to a keyboard, mouse and printer between devices supporting the Bluetooth
function without a cable connection.
The Bluetooth function is only available between devices supporting Bluetooth
(computers, mobile phones, PDAs, printers, etc.), and the function may be restricted
depending on the device prole.
The Bluetooth function is optional and may not be supported depending on your
model.
Compatibility with a Bluetooth device not certied by a Bluetooth certication or logo
is not guaranteed.
Bluetooth Functions
File Transmission
You can exchange les between 2 Bluetooth devices.
You can exchange les with other computers, mobile
phones, PDAs, etc.
Network Access
You can connect to another computer with the
Bluetooth function as you access a wireless LAN in
Ad-Hoc mode or connect to the Internet through an
AP or Internet Connecting Sharing Server.
Network Access through
a Phone Connection
You can connect to the Internet through a Bluetooth
mobile phone.
Data Sync
(Synchronization)
You can synchronize the PIMS data (Outlook E-mail
address data) with mobile phones, PDAs, notebook
computers, etc. supporting Bluetooth.
104
Electronic Business
Card (Vcard)
You can exchange electronic business cards with
mobile phones, PDAs, notebook computers, etc.
supporting Bluetooth.
Sound Output
You can listen to audio from the computer through
another Bluetooth device or listen to audio of another
Bluetooth device through the computer.
HID Connections
You can connect a keyboard, mouse, joystick, etc.
supporting Bluetooth.
For more information about using the Bluetooth
function, see the online help of the Bluetooth Device.
For more information about using the Bluetooth function, refer to the online help of the
Bluetooth Device.
105
Bluetooth Software Setup
Bluetooth software is installed on computers supporting Bluetooth.
For rst time use, set up the Bluetooth software as follows.

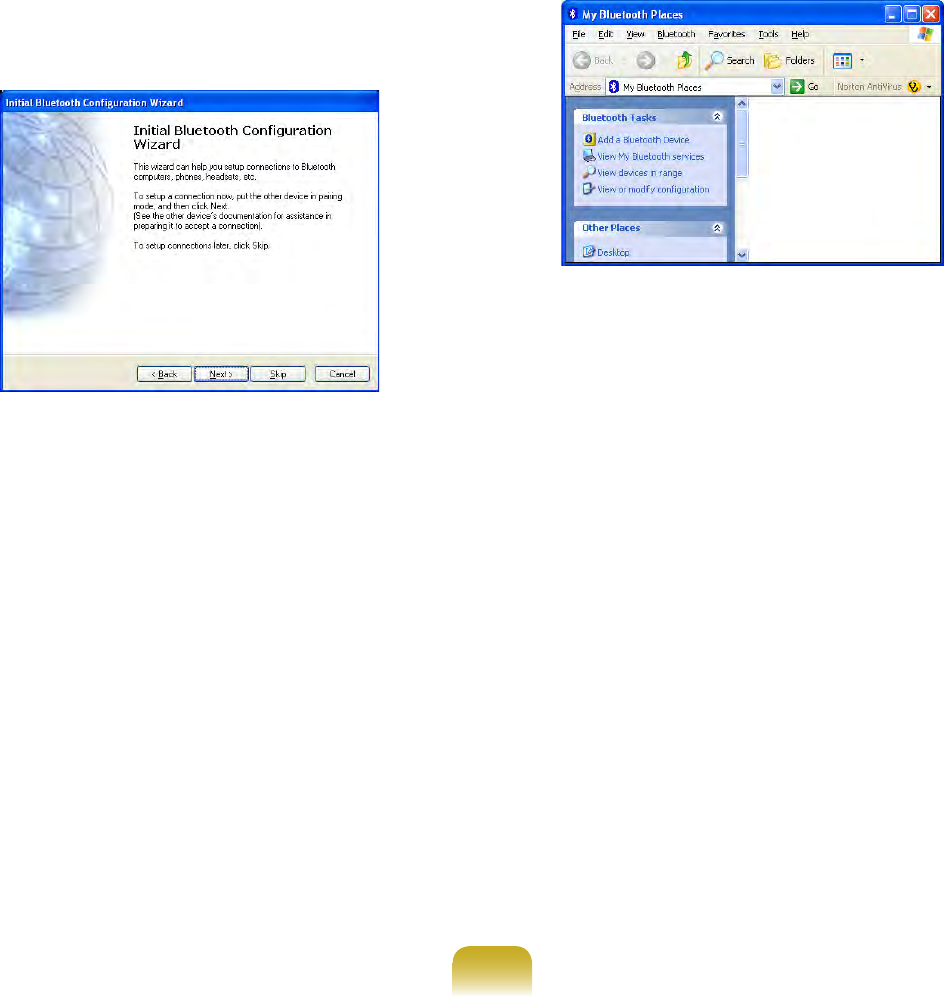

1 Double-click My Bluetooth Places
icon on the desktop.
2 Click the Next button to start setting
up.
In the setting up steps, enter a
device name to be displayed in the
Bluetooth Manager program. Enter
a name in the Computer Name
eld and select Laptop for the
Computer Type eld.

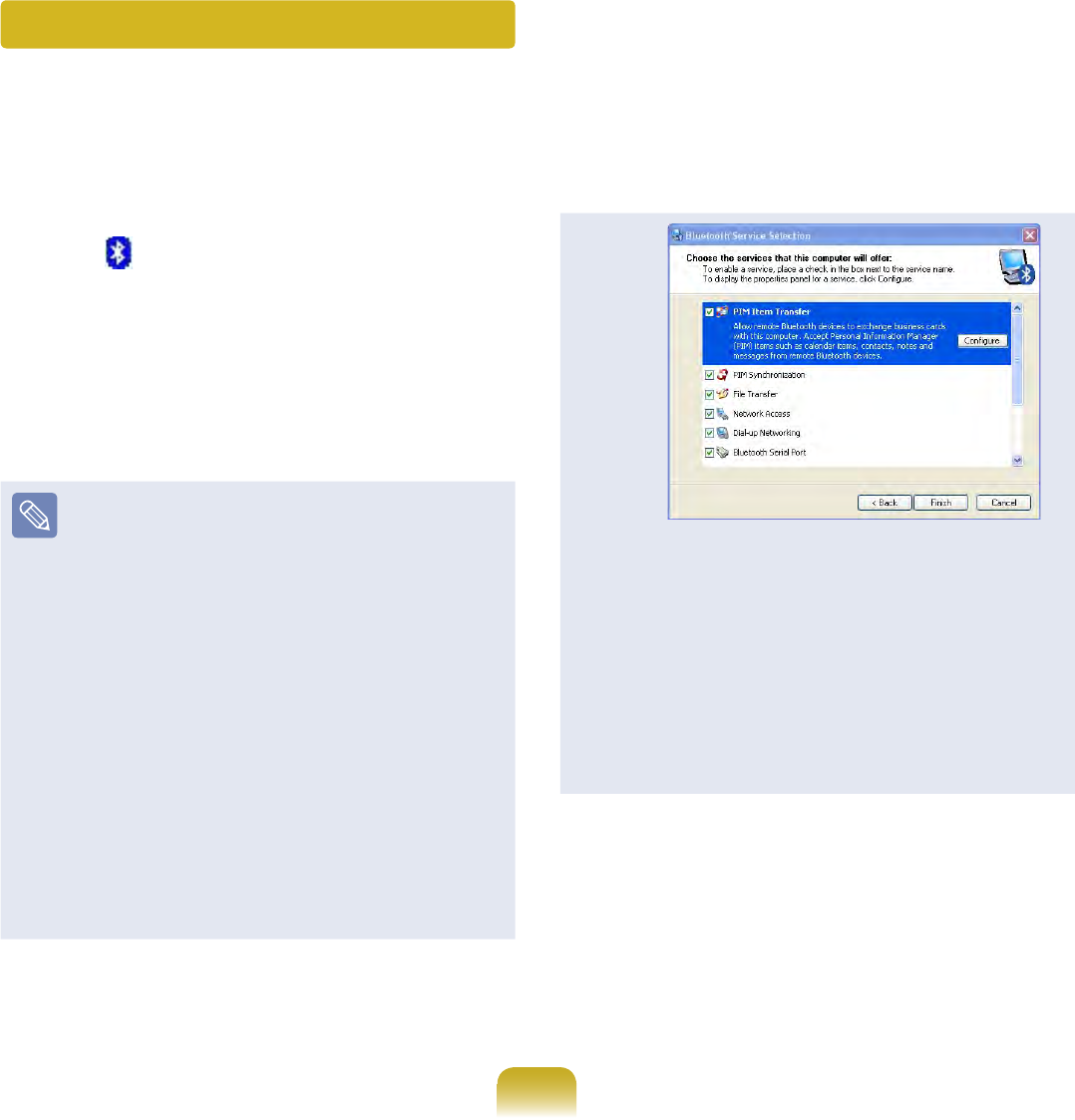

Also, a step appears for selecting
the services to be provided
by your Bluetooth device for
other Bluetooth devices. At this
point, the program automatically
detects available services and
displays them as selected. It is
recommended not to change the
default selection.
If you change the service settings,
the driver necessary for the
additionally selected services are
installed.
At this point, a warning message
may appear informing you that
there is no Microsoft logo. Since
it does not affect the operation,
continue the installation.
106
3 If the driver installation is complete,
the next step proceeds which
searches for nearby Bluetooth
devices. Since you do not have to
search while setting up, click Skip
and nish the settings.
4 If the settings are complete, the
My Bluetooth Environment window
appears.
107

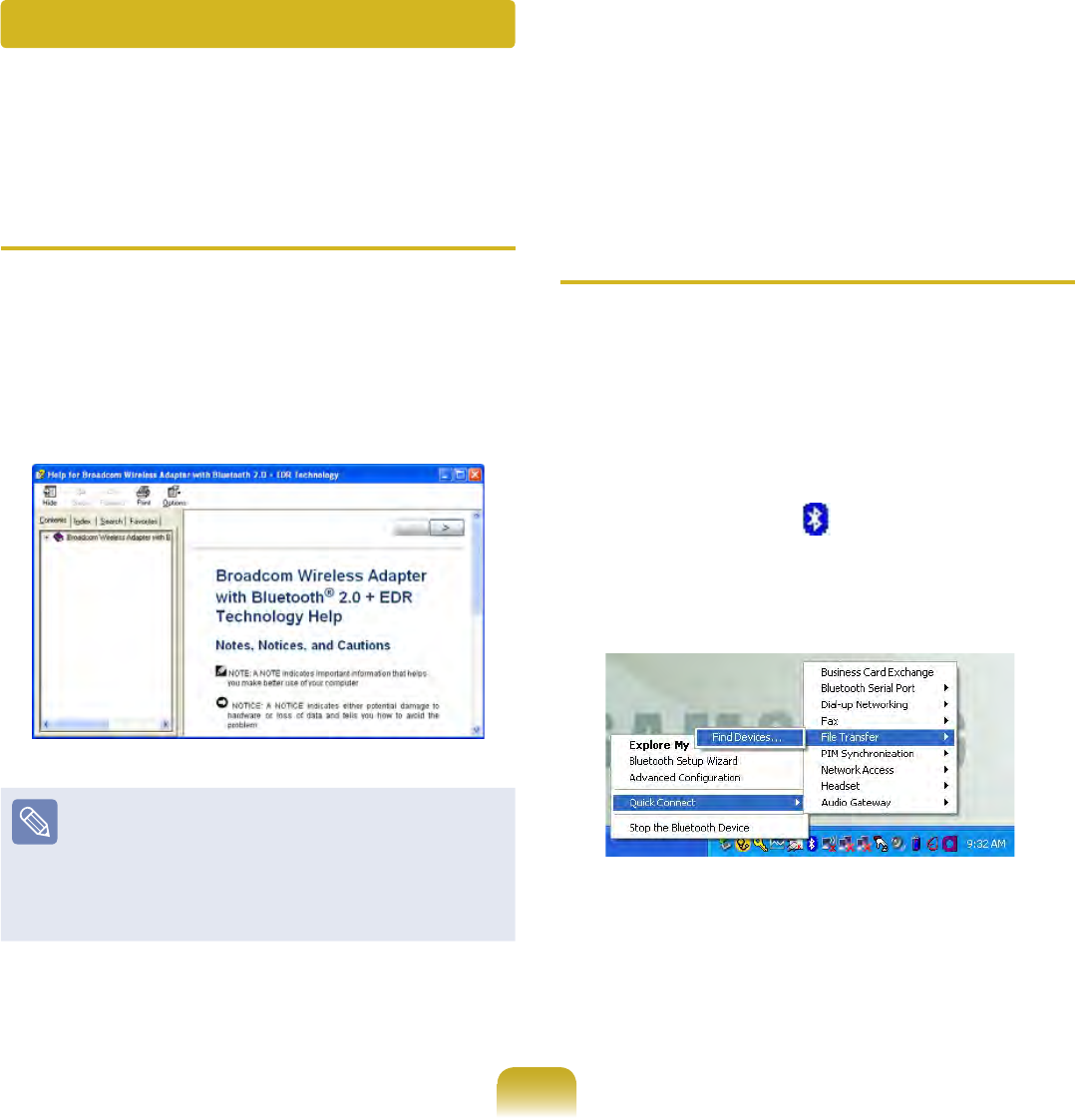

Bluetooth Help
Bluetooth Help provides detailed
procedures on using Bluetooth functions.
Double-click My Bluetooth Settings
on the Desktop and press the <F1> key
(Help).
Select Start > Help and Support
> Networking and the Web >
Networking > Wireless networking
> Bluetooth devices (wireless) to
view Windows Help.
Exchanging Files between
Bluetooth computers
The procedures to exchange les and
folders between Bluetooth computers are
described below.

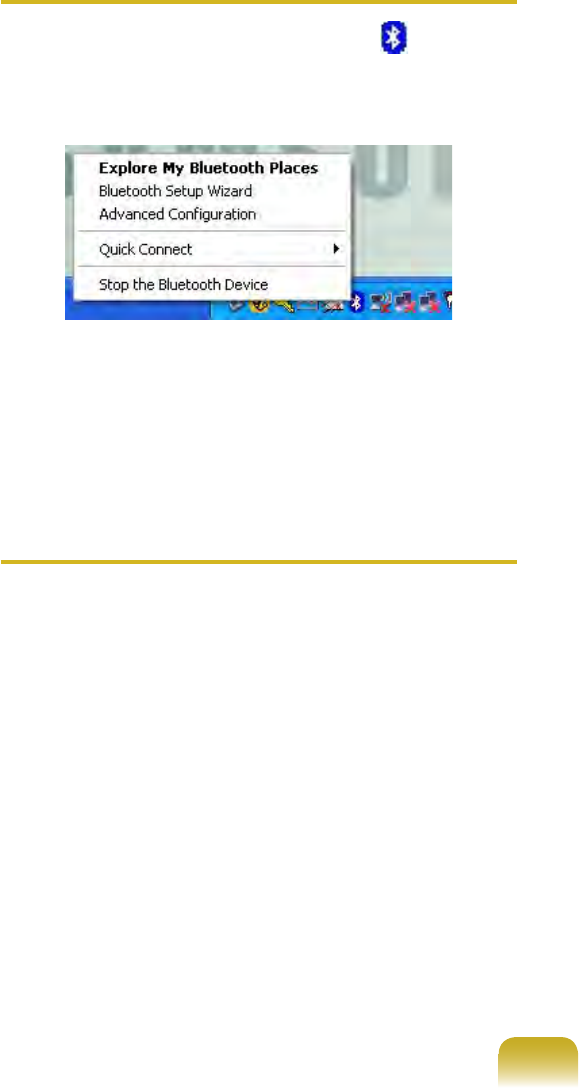

1 On the computer that is sending a le
(hereafter Computer A), right-click the
Bluetooth icon in the notication
area and select Quick Connection
> File Transmission > Search for
Device.
Using Bluetooth
Describes how to exchange les between computers supporting Bluetooth and how to
use other Bluetooth devices.
108
2 In the Select Device window, click a
computer to be connected (hereafter
Computer B).

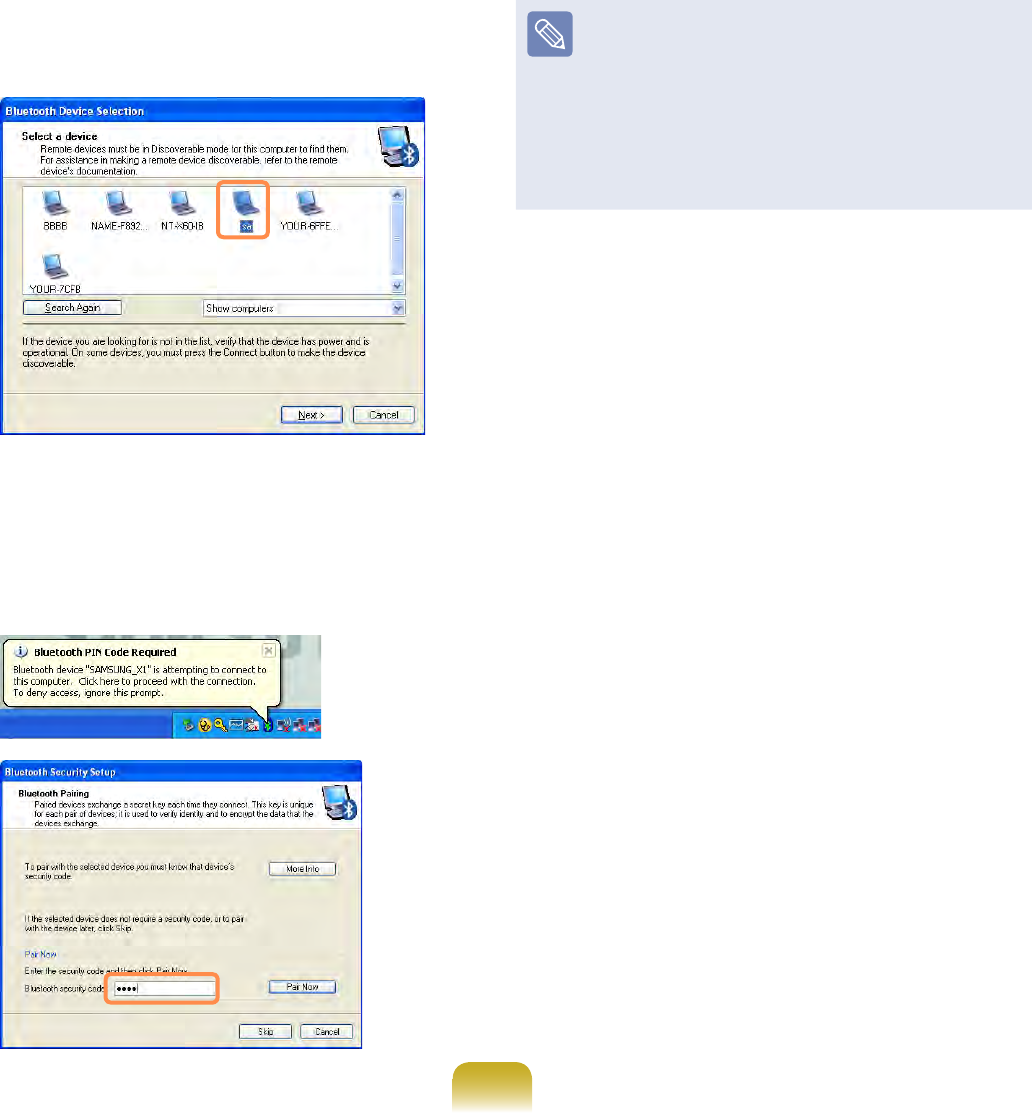

3 When the Bluetooth Security Setting
window appears, enter the Bluetooth
security code (or Bluetooth PIN) and
click Start Pairing.
The Bluetooth PIN Code is a
password used for the connection
between two Bluetooth devices, the
user just enter the same PIN Code
(for example, same numbers) on
both Bluetooth devices to make a
connection.
4 After a short while, the Bluetooth PIN
Code required dialog box appears on
Computer B, enter the code that you
have input in Step 3 above.
5 If the FTP File Access Privilege
Request window appears on
Computer B, click the window. If the
Select Access Permission window
appears, click OK.
109
6 The le transmission window appears
on computer A. Drag les or folders to
send onto the window, and the les or
folders are automatically transmitted.

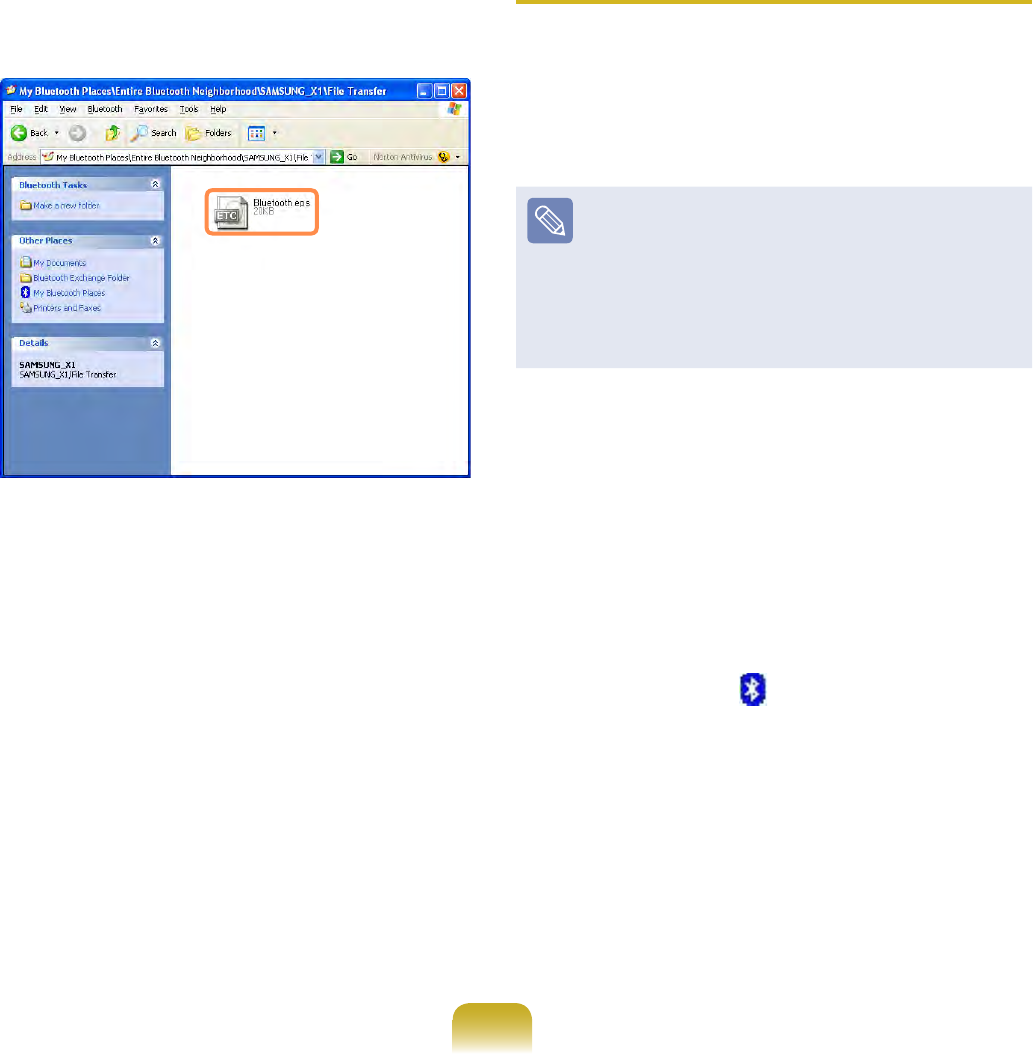

7 If the le transmission is complete,
close the File Transmission window.
The received les are saved in the
C:\Documents and Settings\[user
name]\My Documents\Bluetooth
Exchange folder.
Connecting Keyboard, Mouse,
Joystick and Headset devices
The procedures to use Bluetooth HID
devices (keyboard, mouse, joystick, etc.)
or a headset, etc. on the computer are
described below.
The Bluetooth PIN Code is a
password used for the connection
between two Bluetooth devices, the
user just enter the same PIN Code
on both Bluetooth devices to make a
connection.
1 Turn on the Bluetooth function on
the device to connect to (mouse,
keyboard, joystick or headset).
Some devices have a button to turn
on the Bluetooth function, so see the
corresponding device manual.
2 Double-click the My Bluetooth
Settings icon on the Desktop.

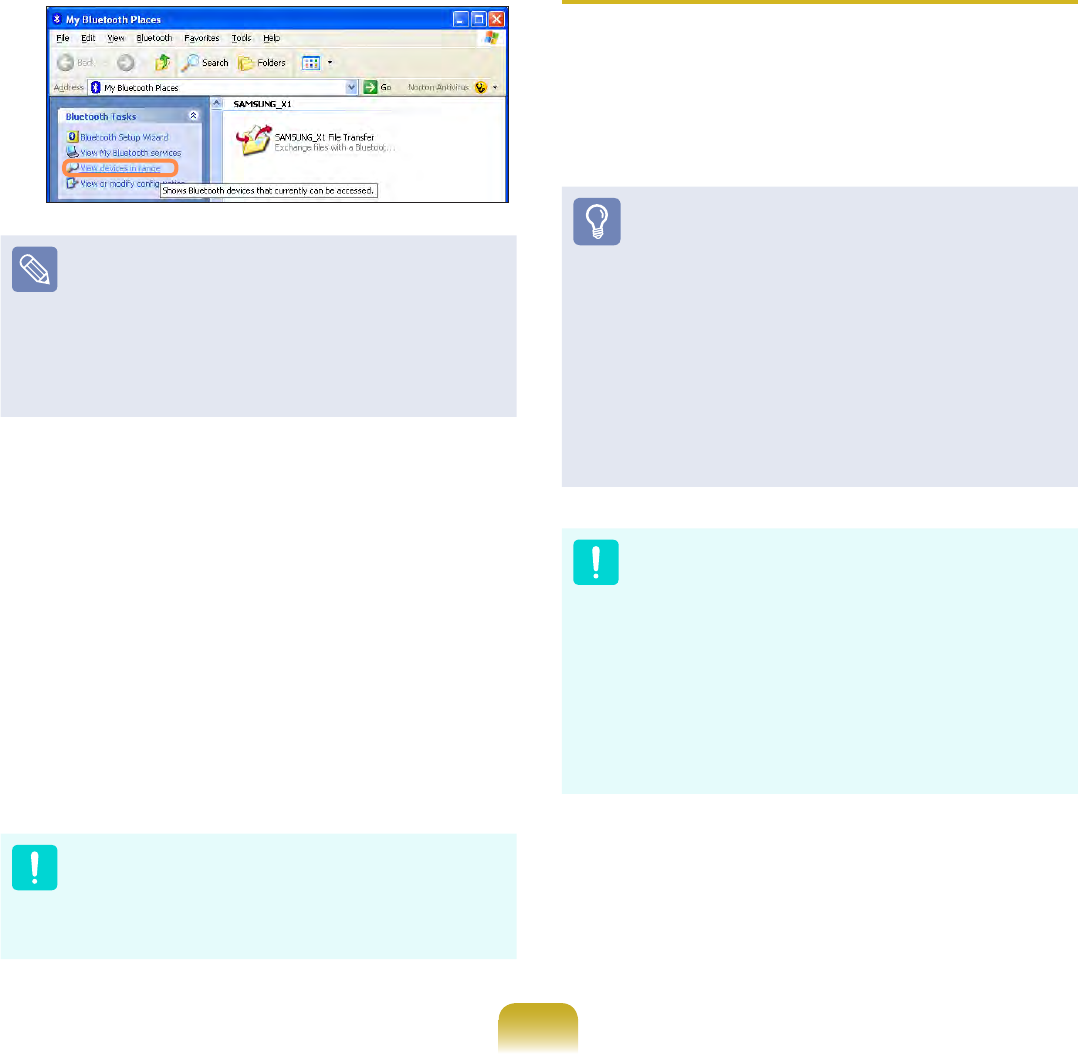

3 If the My Bluetooth Settings window
appears, click View devices in
range.
110
If the device to connect to appears,
click the device. (for example, mouse)
If the device does not appear, click
View devices in range. If the device
has not appeared yet, since this
menu changes to Search devices
in range, click Search devices in
range to show the device.
4 If the Bluetooth PIN Code input
window appears, enter a PIN code
referring to the manual of the
corresponding device. The PIN code
for an HID device is generally printed
in the manual of the corresponding
device.
5 If you enter the PIN code, you can
immediately use the device.
A Bluetooth keyboard and mouse
work only in Windows. They will
not work in MS-DOS mode or in
Hibernation mode.
Connecting to the Internet via a
Bluetooth mobile phone
If you have a Bluetooth mobile phone, you
can connect your computer to the Internet
without a wired or wireless connection to
an Internet service provider.
Check if your mobile phone
supports Bluetooth.
To connect to the Internet through
the Bluetooth mobile phone,
you need the wireless operator
account information such as
the username, password, dial
number and so on. For this
information, contact your mobile
phone operator.
If you connect to the Internet
through a Bluetooth mobile phone,
the connection tariff may be
very expensive. Please use this
function only after ascertaining the
connection cost or subscribing to
a data communications plan that
allows you to connect to the Internet
directly.
111
1 Double-click the My Bluetooth
Environment icon on the Desktop.
2 When the My Bluetooth
Environment window appears, click
Add Bluetooth device.

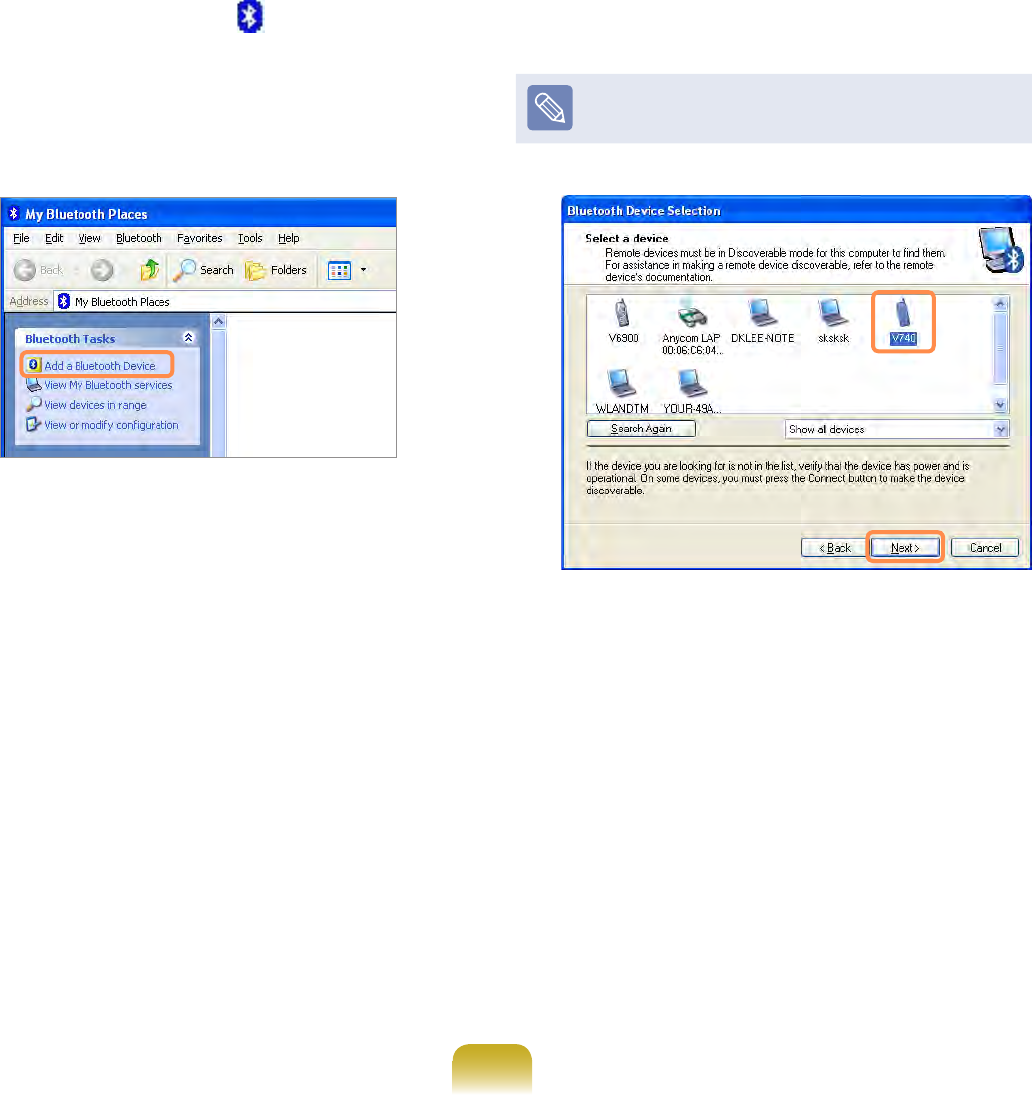

3 If the Bluetooth Setup Wizard
screen appears, click Next to start the
device search.
4 Select your mobile phone from the
Select Device window and click Next.
The following descriptions use a
mobile phone called ‘V740’.
112

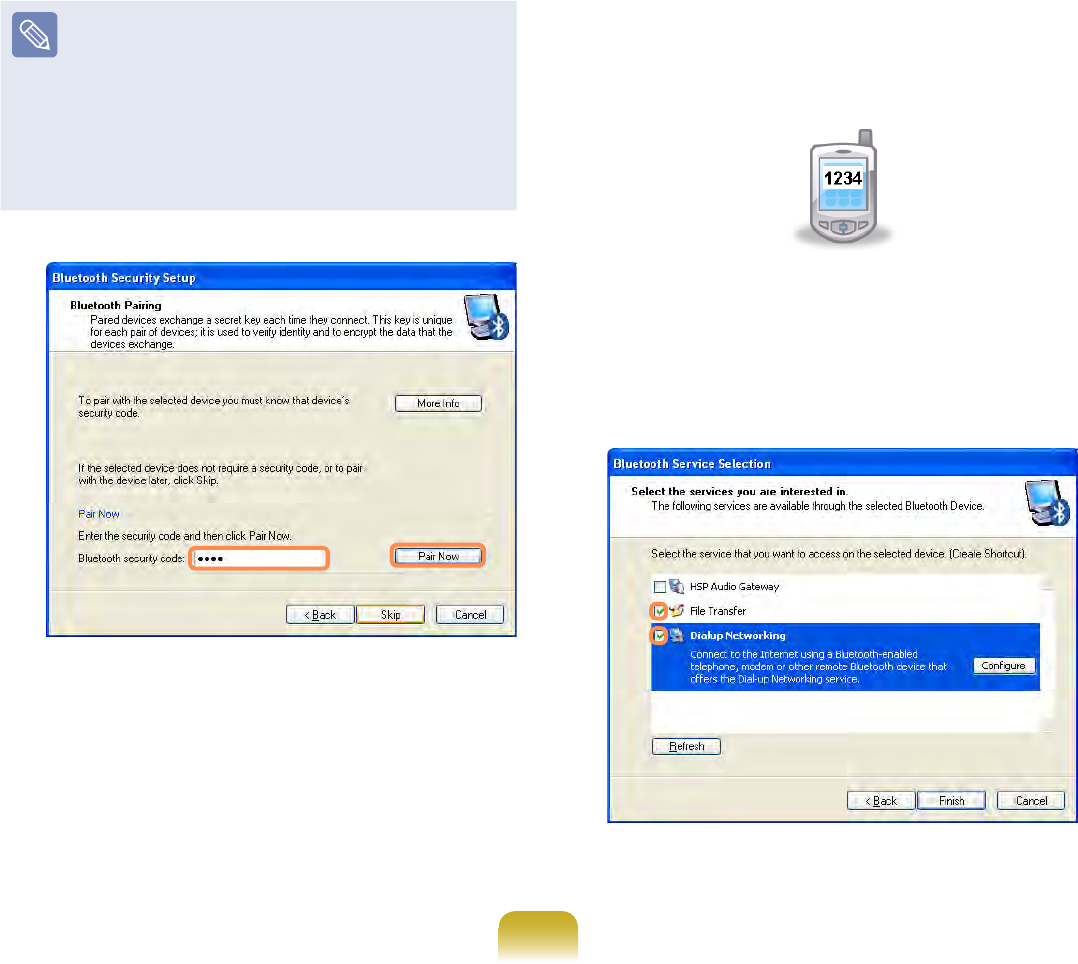

5 If the Bluetooth Security Setup
window appears, enter a Bluetooth
security code (Bluetooth PIN) and
then click Start Pairing.
The Bluetooth security code
(Bluetooth PIN) is a password used
between two devices connected
through Bluetooth. You can enter
any number between 4 to 6
alphanumeric characters on the two
devices.
6 If the Pairing signal is delivered to
the mobile phone, the Bluetooth
security code input window appears
in the mobile phone screen. Enter the
same security code into the mobile
phone that you entered in Step 4. For
example, if you entered ‘1234’ on your
computer, you must also enter ‘1234’
on the mobile phone.
7 In the Select Bluetooth Service
window, select the File Transfer and
Dialup Networking services and
then click Finish.
113
Depending on the mobile phone
model, the service names and
supported service types may
differ.
If you select only one service, one
more Setup Wizard step appears.
If you select Dialup Networking
Service only, a Bluetooth
Connection window appears. Click
cancel and close the window.
8 The Dialup Networking and File
Transfer service icons are added
to the My Bluetooth Environment
window.
9 Double-click V740 Dialup
Networking in the My Bluetooth
Environment window.
10 If the Connect to Bluetooth
window appears after a while, enter
the Username, Password, and
Dial (Dial Number) elds and click
the Dial button. Then, when the
Internet connection is established,
you can use the Internet using
Internet Explorer.
If you check this option, the
currently entered username
and password are saved.
If you click this button,
enter the phone number
in the Dial Number eld
and click OK to save
the phone number.
114
About the Username, Password,
and Dial Number
The username, password and
dial number used here do not
refer to the ones used by the
mobile phone user. They refer to
the unique username, password
and phone number of the mobile
phone operator that are required
to make the connection. Ask your
mobile phone operator about
them.
When an AP name is required
to connect to the Internet
An APN (AP Name) may be
required depending on the
mobile phone or mobile phone
operator. In this case, click Start
> Control Panel > Performance
and Maintenance > System
> Device Manager > Modem,
double-click Bluetooth Modem,
select the Advanced tab and

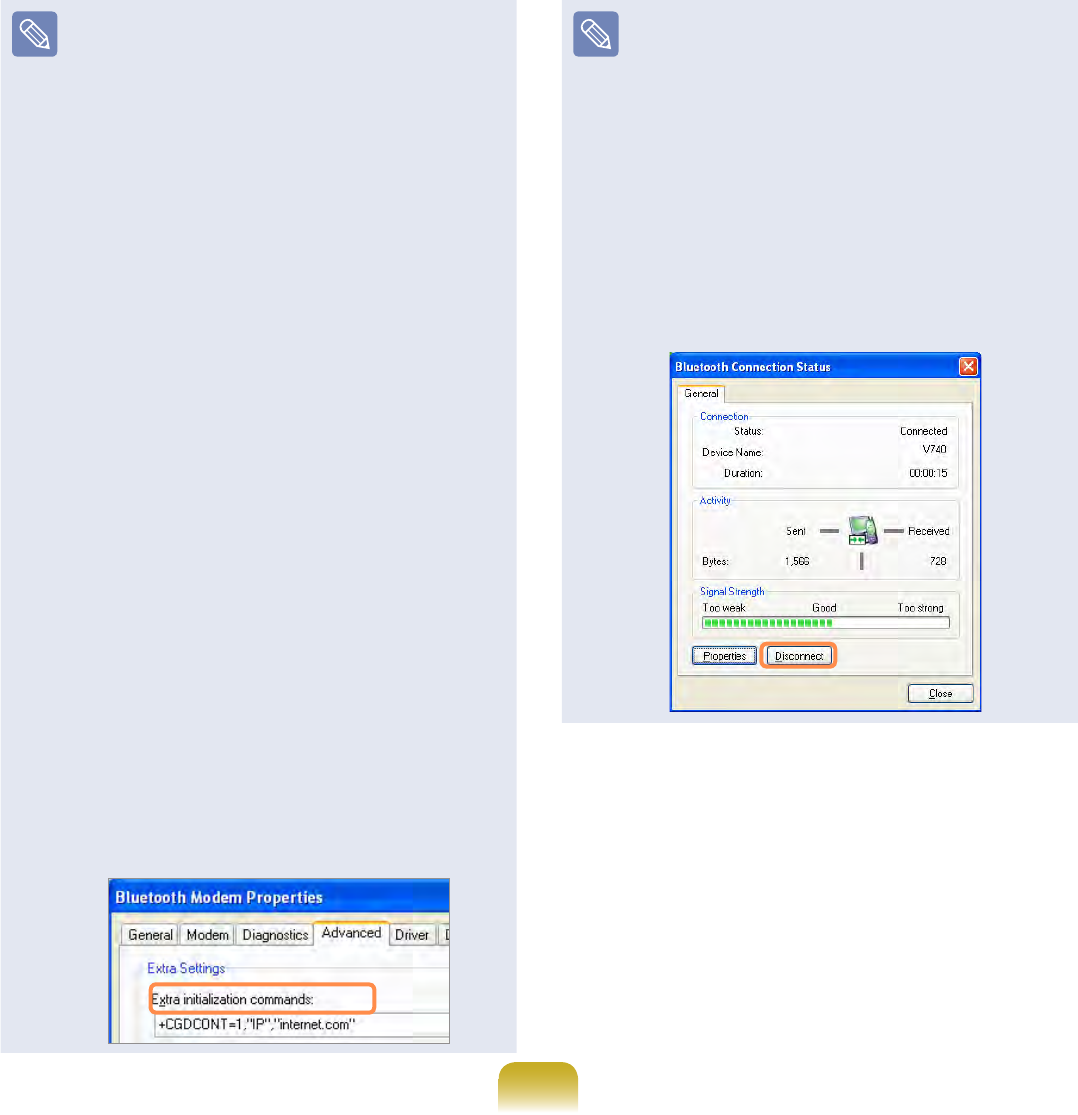

then enter an APN in the format
of +CGDCONT=1,“IP”,“APN” in
the Miscellaneous Initialization
Command eld (e.g. when the
APN is ‘internet.com’). For detailed
information, ask your mobile
phone operator about this.
Disconnecting the Internet
connection
z Double-click V740 Dialup
Networking in the My Bluetooth
Environment window.
x Click the Disconnect button in the
Bluetooth Connection Status
window. Alternatively, press the
Disconnect button on the mobile
phone to disconnect the Internet
connection.
115
Stopping a Bluetooth device
Right-click the Bluetooth icon on the
Taskbar and select Stop the Bluetooth
device.
To use a Bluetooth device after stopping
it, select Start Bluetooth device like
above.
Usage Instructions
Generally, Bluetooth devices deliver
stable performance while connected
within a 3m(10 ft.) distance.
For Bluetooth to operate smoothly, use
the computer in an open environment
with no walls or obstacles in the way
and having low radio interference.
You can connect to only one
Bluetooth device at a time for a phone
connection, data syncing, electronic
business card exchange, FAX
transmission/reception, sound related
functions, and serial port functions.
It is recommended using only
one Bluetooth device at a time as
connecting multiple Bluetooth or other
wireless devices at the same time
may slow or destabilize the Bluetooth
connection.
Data communications via Bluetooth
may be poor when the CPU load is at
full capacity or there are insufcient
system resources.
The Bluetooth function of a Bluetooth
PDA, mobile phone, mouse or
keyboard may be turned off. To use
them in connection with a Samsung
computer supporting Bluetooth, you
must check if the Bluetooth function of
the device to connect to is turned on.
For the procedures on turning on the
Bluetooth function of a device, refer to
the relevant device manual.
The services provided by Bluetooth
devices may vary depending on their
capabilities. For the services provided
by the Bluetooth device, refer to the
device manual.
Chapter 5.
Using Applications
Introducing Programs 117
CyberLink YouCam (Optional) 121
Samsung Update Plus (Optional) 123
McAfee SecurityCenter (Optional) 125
Using Samsung Magic Doctor (Optional) 130
Reinstalling Software (Optional) 131
117
Introducing Programs
Using the software supplied with the Samsung computer, you can easily use functions
and troubleshoot problems.
Try to use the software after learning about the basic use of the software. For detailed
information, refer to the help section of the corresponding software.
The software programs provider may vary, depending on your computer model.
In addition, some pictures may differ from actual product depending on the computer
model and software version.
118
Multi Media Functions
CyberLink YouCam (Optional)
Using this program, you can easily
capture photos and videos with your
web camera. CyberLink YouCam
makes it more fun to have online video
chats or to record videos with live
effects. 121
Management Functions
Samsung Update Plus (Optional)
Samsung Update Plus is a software
function that examines and updates the
Samsung software and drivers installed
on your Samsung computer to the most
recent versions. 123
McAfee SecurityCenter (Optional)
This is a security solution that detects
and removes computer viruses and
protects the computer from Internet
threats. 125
Easy Network Manager
(Optional)
Easy Network Manager is a program
that enables you to easily congure the
network settings.
You can congure the network settings
for each location and you can also
diagnose the network status. 99
Samsung Battery ManagerSamsung Battery Manager
(Optional)
Samsung Battery Manager is a powerSamsung Battery Manager is a power
management program that provides
easy-to-use power management and
power saving settings so that the
battery usage time can be extended.
149
Easy Display Manager (Optional)
Easy Display Manager is a program
that displays the changed setting on the
screen when a setting is changed by
pressing the shortcut keys, and enables
changing the display mode through the
Display Settings window.
Example) The icon that appears when
pressing the Fn +
keys to change the screen
brightness.
119
Easy SpeedUP Manager (Optional)
This program enables you to select
operation mode when you need
maximum system performance or low-
noise/low power consumption with one-
click. 59
For Windows XP model, Easy
SpeedUp Manager function is provided
in Magic Keyboard program.
If you reinstall Windows XP, you have
to install the Magic Keyboard program
additionally using the System Software
Media in order to use this function.
MS Live Skydrive (Optional)
If you double-click the Microsoft
Live icon when the computer is
connected to the Internet, you can visit
the website that allows you to use free
web storage provided by Microsoft.
If you sign up and log onto the website,
you can use the web storage for free.
For more information, refer to the help
center on the website.
Easy Resolution Manager
(Optional)
This program allows you to set a
resolution of 1024x768 pixels on a
computer that supports a resolution
less than 1024x768 pixels.
You can view the whole picture when
running a program or game that
supports a resolution of 1024x768
pixels.
However, when the resolution is set
to 1024x768 pixels, the picture on the
screen may be distorted.

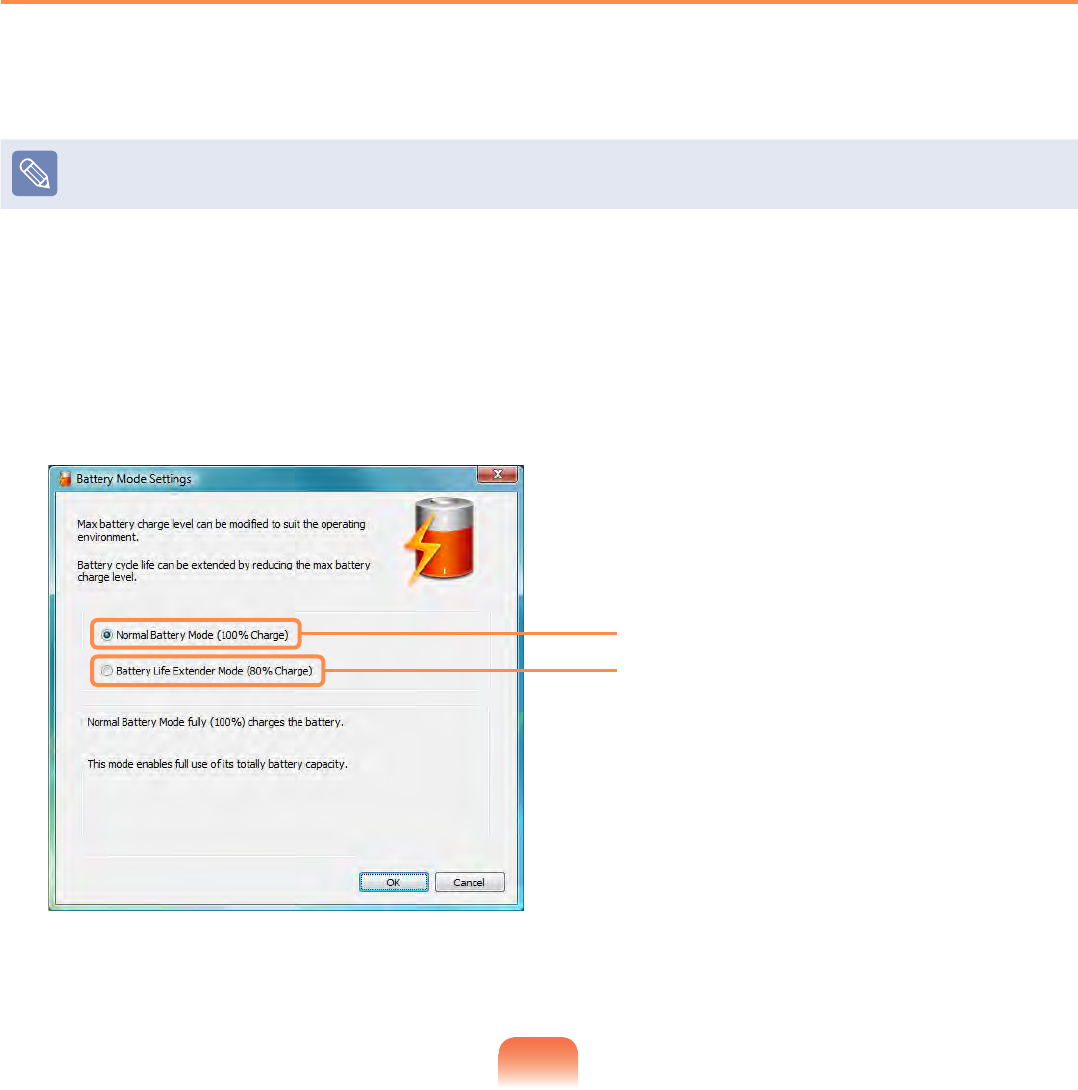

Battery Life Extender (Optional)
The Battery Life Extender is a battery
power management program that
enables extending the battery life.
151
Phoenix Failsafe (Optional)
Phoenix FailSafe is a program
developed by Phoenix Technologies
LTD, that enables PC users to protect
and track their PC via the FailSafe
website when their PC is lost or stolen.
For more information, please refer to
the online help of the software or the
FailSafe website.
120
Troubleshooting Functions
SAMSUNG Magic Doctor
(Optional)
SAMSUNG Magic Doctor is
troubleshooting software provided
by Samsung Computer for system
diagnosis, and restoring the system.
The system diagnosis function enables
users to diagnose system problems
without assistance from others.
Samsung Recovery Solution
(Optional)
Samsung Recovery Solution provides
a Restore Function that enables you
to easily restore your computer to a
previous, normal state when a problem
occurs with your computer, as well as
a Backup Function that enables you
to easily save your computer’s current
status and your data.
For models with an SSD (Solid State
Disk), Samsung Recovery Solution is
not provided.
121
CyberLink YouCam (Optional)
CyberLink YouCam makes it more fun to have online video chats or to record videos
with live effects.
The program versions described in this manual are subject to change and the
screen images and terms in this manual may differ from actual product.
For more information on how to use the program, refer to the online help.
Do not take pictures or record video of someone without their permission.
Do not take pictures or record video in locations where photography is prohibited.
Do not take pictures or record video in locations where you could violate another
person’s privacy.

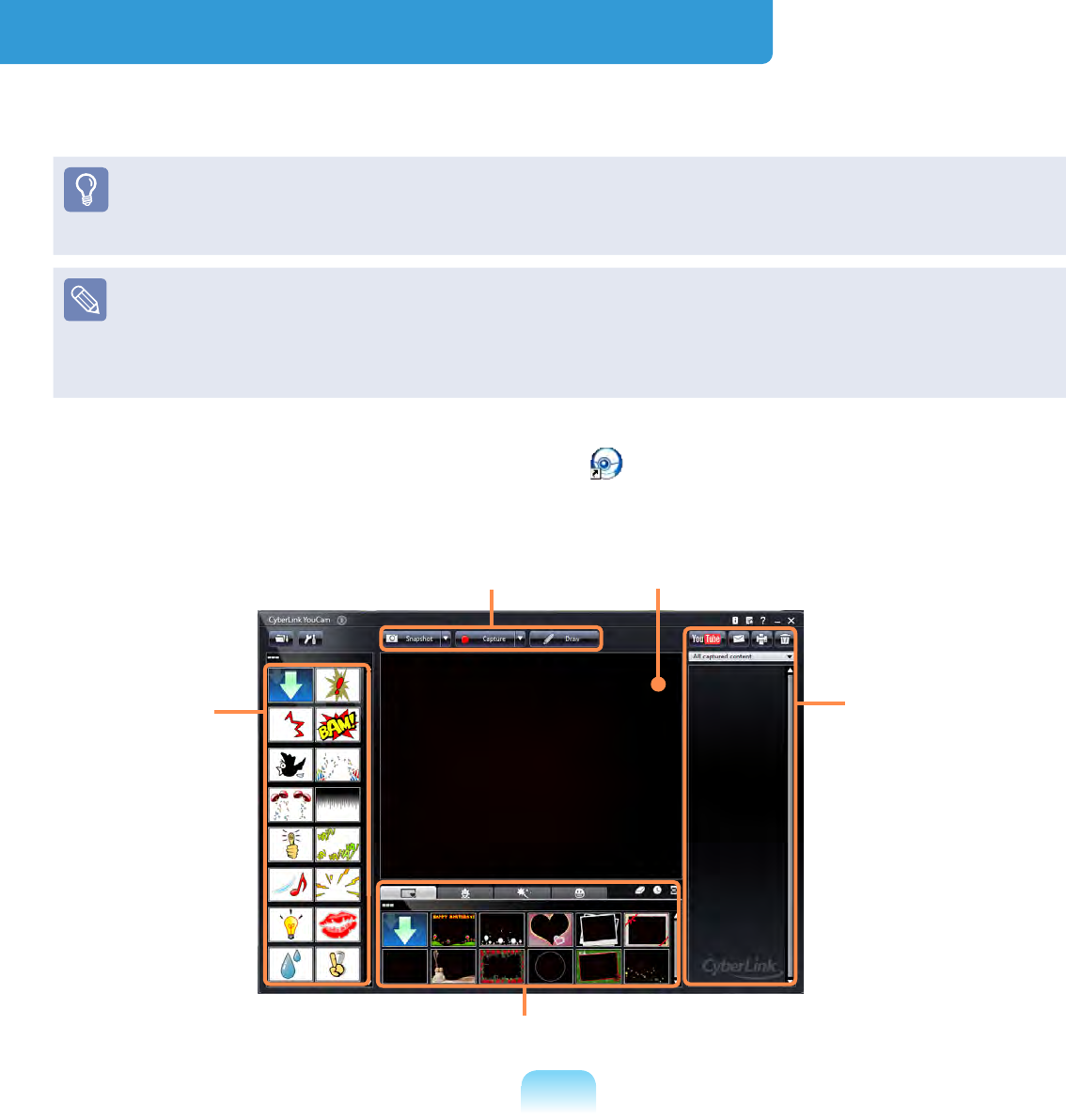

1 Double click the CyberLink YouCam icon on the Desktop. Or click Start > All
programs > Samsung > CyberLink YouCam > CyberLink YouCam.
Function buttons
All captured
content
Avatars, Frames, Filters and Distortions
Emotion
effects
Preview Window
122
If you click the settings button ,
you can congure the capture,
display and document settings.
2 Click the Snapshot or
Capture button in front of
the camera. A snapshot is taken or
video starts recording.
To stop a video recording, click
the Stop button. The
recording is stopped.
By applying several effects or
avatars to your photos or videos
while capturing, you can make
your own contents fun and
interesting.
3 You can view your captured photos
and videos in the All captured
content window.
You can view a picture or watch a
video by double-clicking it.
123
Samsung Update Plus (Optional)
Samsung Update Plus is software that examines and updates the Samsung software
and drivers installed on your Samsung computer to the optimal version.
To check for updates and update your computer using Samsung Update Plus, your
computer must be connected to the Internet.
The update search result may differ depending on your computer model.
Samsung Update Plus does not provide updates for applications installed after
purchasing the computer.
To update the software and drivers

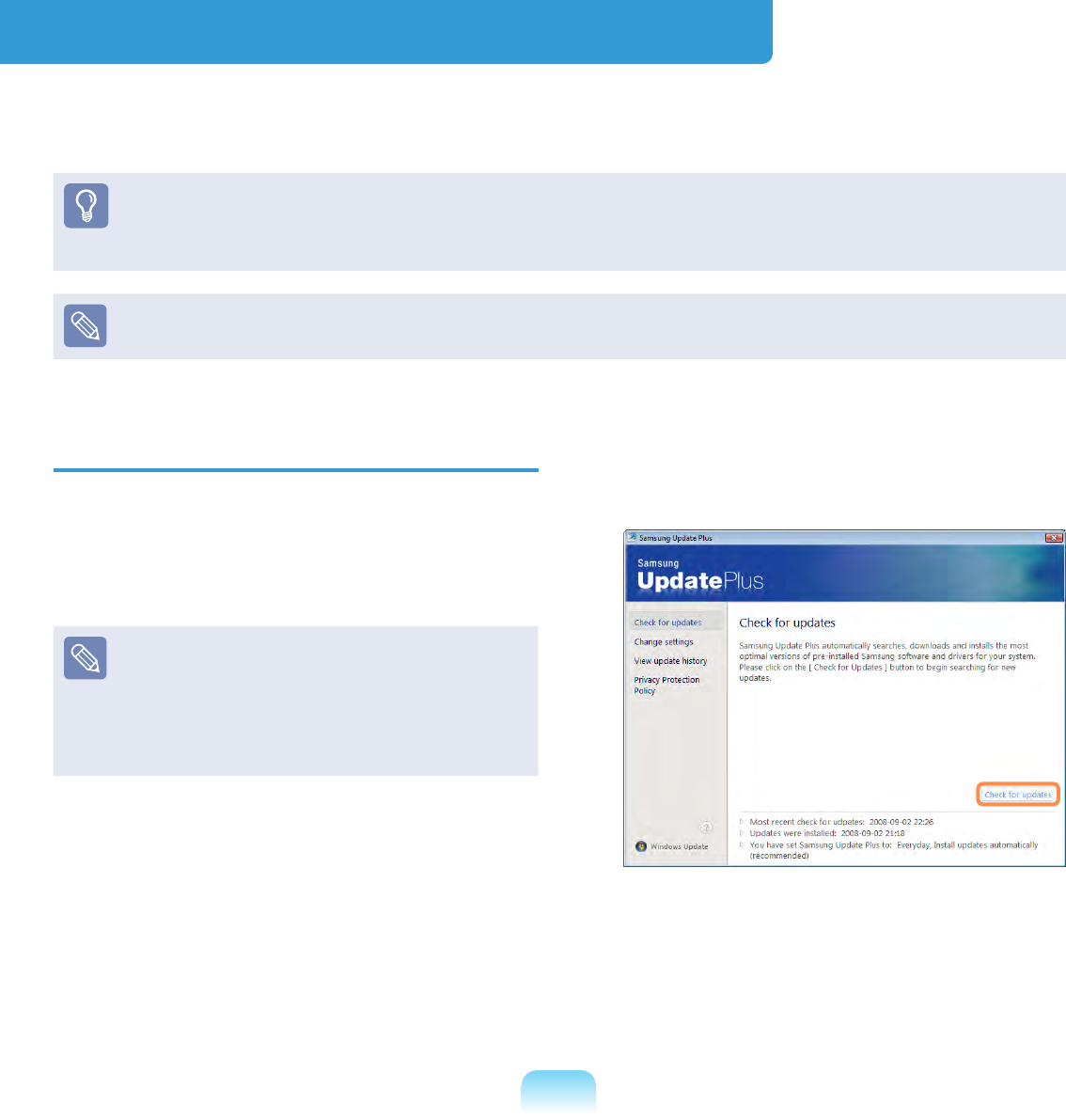

1 Select Start > All Programs >
Samsung > Samsung Update Plus
> Samsung Update Plus.
If this is the rst time you are running
the program, a window will appear
asking you if you agree to the
agreement in the window.
Click Agree to use this software.
2 If you click on Check for updates,
new updates are searched for.
124

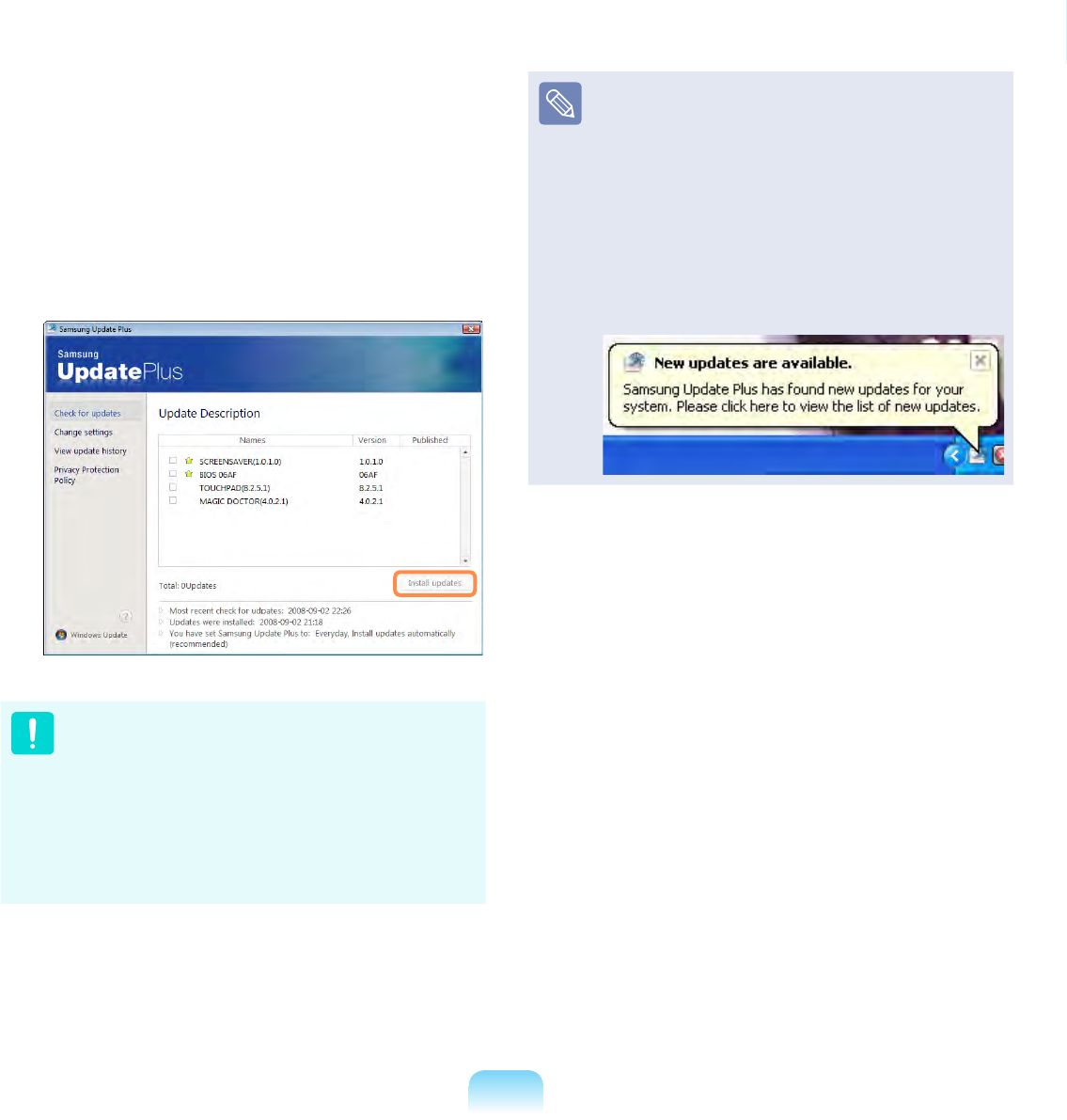

3 If there are available software or
driver updates for your computer, the
available updates will be listed. Select
the required updates from the list
and click Install Update to start the
update. (The update list on the screen
may differ depending on the computer
model.)
Updates that must be installed
separately.
If you select an update item that
must be installed separately, a
message appears informing you of
this. Follow the instruction message
to correctly install it.
Automatic update items display
By default, your computer is
congured to automatically check
for updates. If there is a new update
available, this is notied in the
notication area. Click the balloon
help icon in the notication area.
Here you will be able to nd the
latest available updates.
125

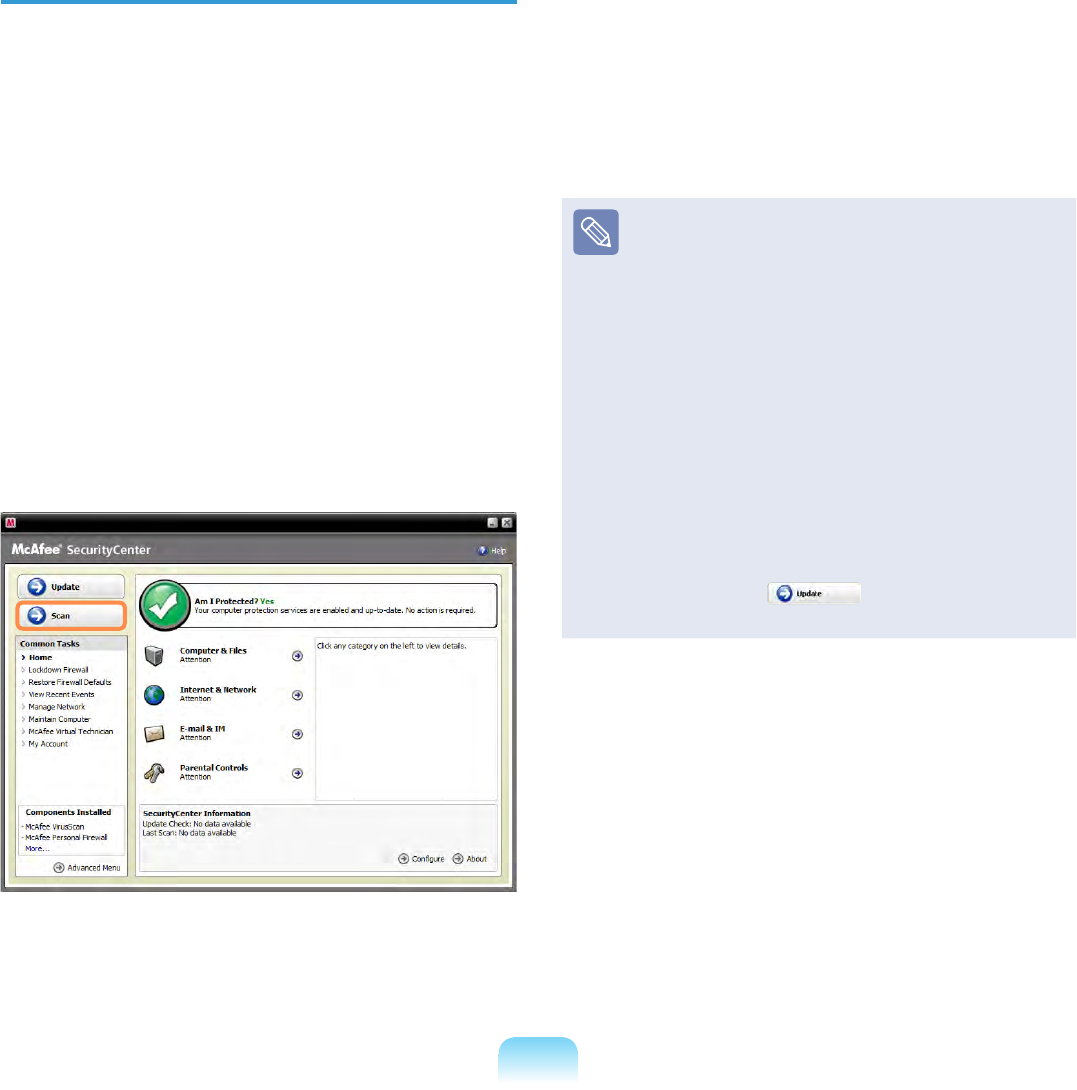

McAfee SecurityCenter (Optional)
McAfee SecurityCenter (a virus/spyware detection and protection software that includes
a rewall function. Hereafter, referred to as “McAfee”) is software that protects your PC
from various Internet threats as well as detecting and removing viruses.
For more detailed information on the program, refer to the McAfee help.
You can register McAfee when connected to the Internet.
McAfee software is optional. It may not be supplied for some models or it may be
supplied through the McAfee installation icon. When the installation icon is provided,
you have to install the program referring to the Installing McAfee section.
A different anti-virus program may be provided depending on the computer model.
Installing McAfee
For some models, an Install McAfee Web Essentials icon is located on the Desktop.
In this case, you can install the McAfee software according to the following procedures
and then use the McAfee software.
For some models, a McAfee Security Center icon is located on the Desktop, since
the software is already installed, the installation step is not required.

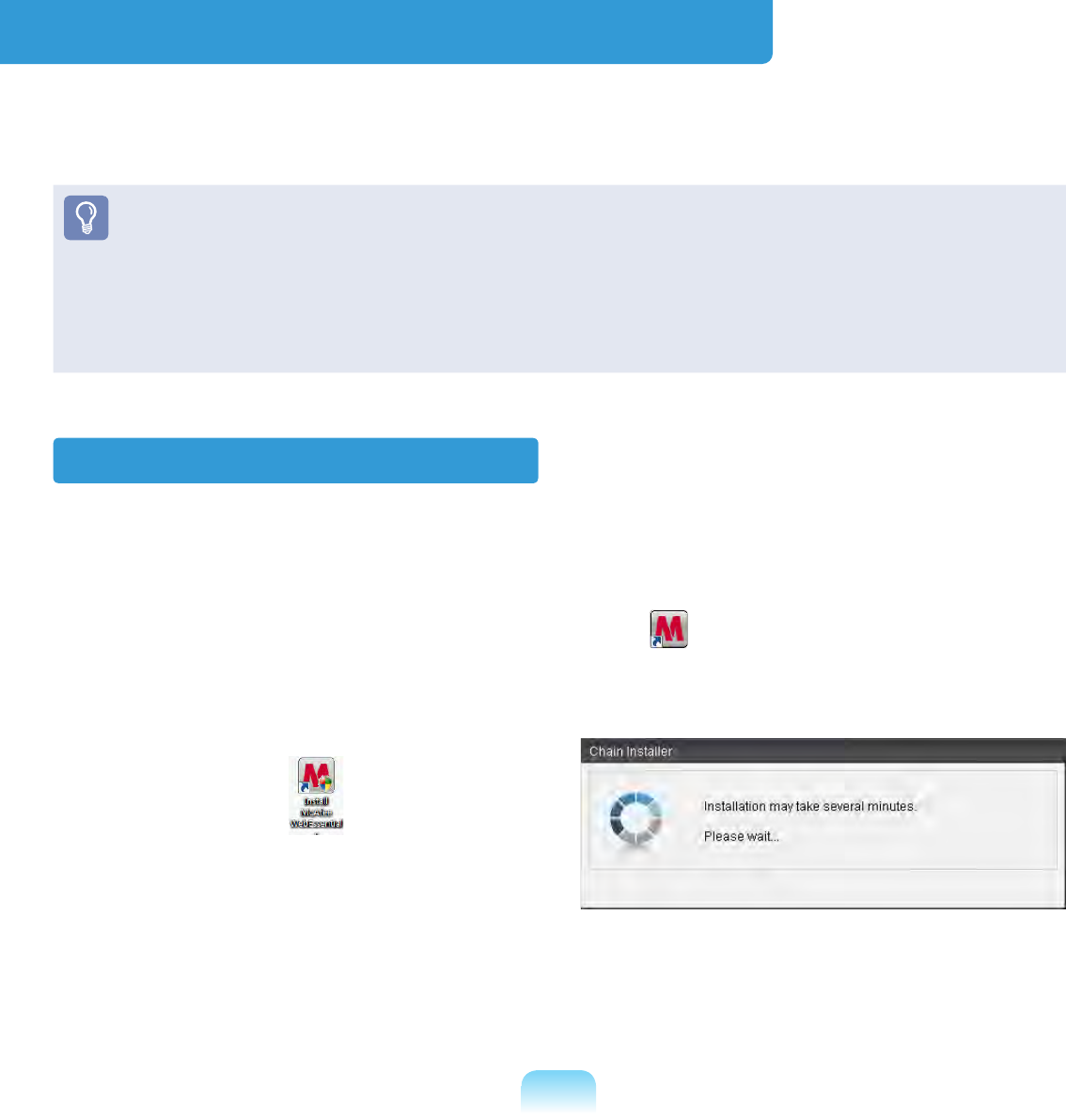

z Double click the Install McAfee Web
Essentials icon on the Desktop.
x The Chain Installer window
opens and the installation begins
automatically. Please wait for a
moment. c When the installation is complete, the
Chain Installer window disappears.
126
User Registration

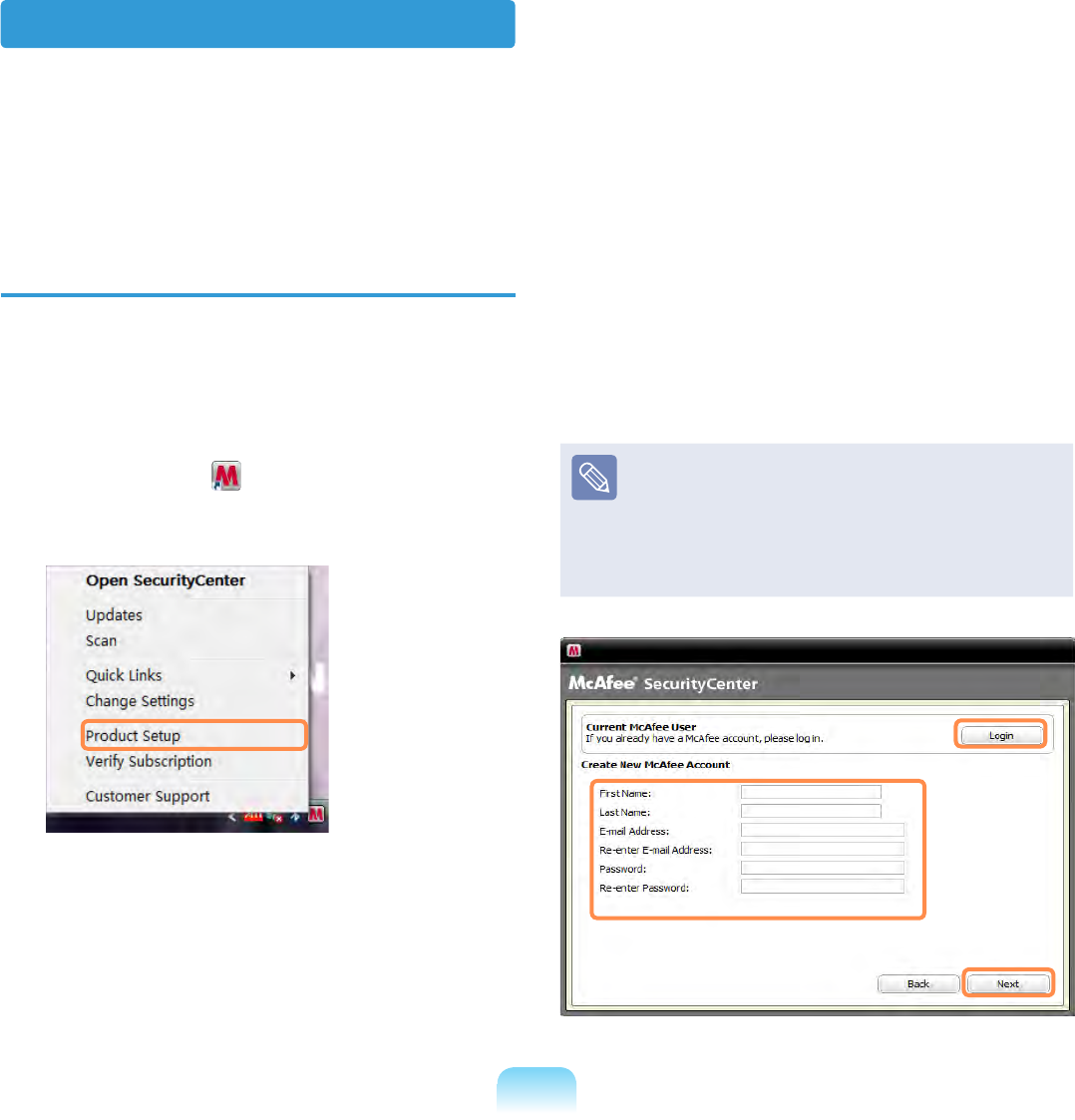

1 The Program Setup screen appears
while booting. Click Next.
If the Program Setup screen does
not appear, right-click over the
McAfee icon in the Taskbar and
then select Product Setup from the
pop-up menu.
2 The End User License Agreement
appears.
Check if the country has been
correctly selected and then click
Accept.
3 The Create New McAfee Account
item appears.
Be sure to ll in all the elds and
click Next. The Program Setup
Completed window appears.
If you have already registered with
McAfee, click Login and enter
the registered email address and
password to login. The Program
Setup Completed window appears.
Using McAfee
To use McAfee, user registration is required. If a user is not registered, even though
virus inspection is supported, your PC will not be completely protected because the
virus information will not be updated with the latest information. The procedures to
inspect and heal viruses after the user registration will be described below.
127
Inspecting and Healing Viruses
The procedures to check if the computer’s
les or information have been infected
by a virus and to heal viruses found by
McAfee are described below.
1 Click Start > All Programs > McAfee
> McAfeeSecurityCenter.
2 Click the Scan button on the left side
of the program. The Scan begins.
At this time, if a virus is found, it
is immediately healed during the
inspection.
3 If a virus has been found, click View
Results.
The viruses are listed. Since the
corresponding viruses have already
been removed, you can use your
computer without any concern.
For possible virus infections
(where it is not completely certain),
the Detected message appears.
In this case, the items will be
maintained or deleted depending
on your decision.
To deal with new viruses,
please always keep
McAfeeSecurityCenter up to date.
In general, it is automatically
updated when connected to the
Internet. Alternatively, you can
update it manually by clicking
Update after connecting
to the Internet.
128
Conguring the McAfee Firewall
The McAfee Firewall is congured
for the product when purchasing the
product in order to protect the computer
from viruses. However, if the rewall is
activated, you may not connect to the
network or the Internet properly. In this
case, you have to change the settings as
follows.
Method 1) When you need to select
Allow Access in the Server
or Internet Access Request
window.

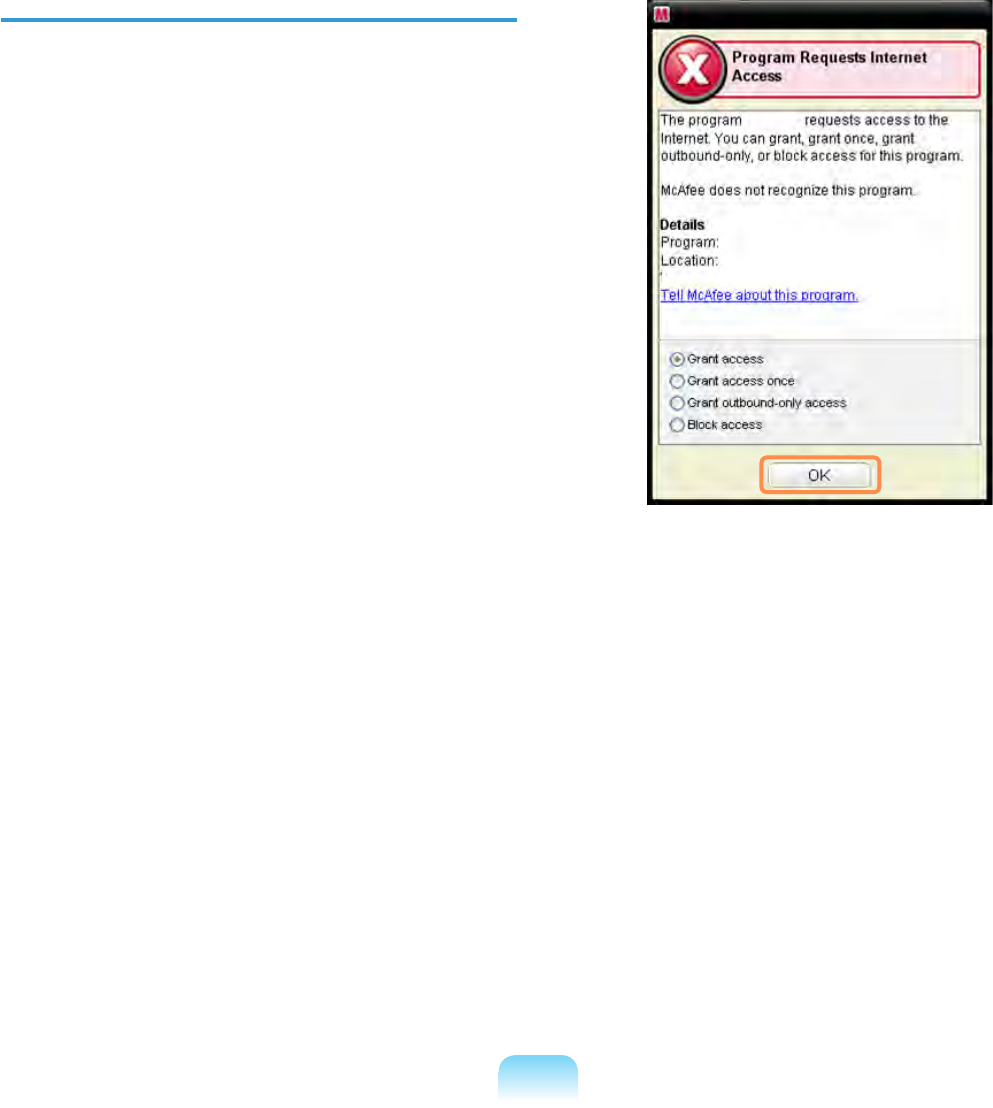

When you connect to a bank, stock
market, or gaming website, an access
request window appears. In this case,
select Allow Access in the window
and click OK. Then you can install the
program normally or open the page.
129
Method 2) When you need to
deactivate the Firewall
If you cannot connect to the Internet when
using a broadband Internet service, you
can connect to the Internal normally if you
disable the McAfee Firewall. However,
since it may cause a security problem, be
careful when doing so.
z Double-click the McAfee Security
Center icon from the Desktop.
x Click the Advanced menu at the
bottom left and click Congure >
Internet&Network.
c Turn the Internet&Network at the
right to Off, set the Select when to
re-enable rewall to Never and then
click OK.
v Click Home in the left menu pane
and click Ignore next to the ‘Firewall
protection is disabled’ message.
It is recommended activating
the Windows Firewall for your
computer's safety when you have
disabled the McAfee Firewall. To
activate the Windows Firewall, click
Start > Control Panel > Windows
Firewall > Change Settings >
On(recommended).
130
Using Samsung Magic Doctor (Optional)
Magic Doctor is troubleshooting software provided by Samsung Computer. A user can
diagnose system problems via one-click or by selecting diagnostic items.
The screens used in this manual may differ from actual screens according to the
program version.
Diagnosing the System

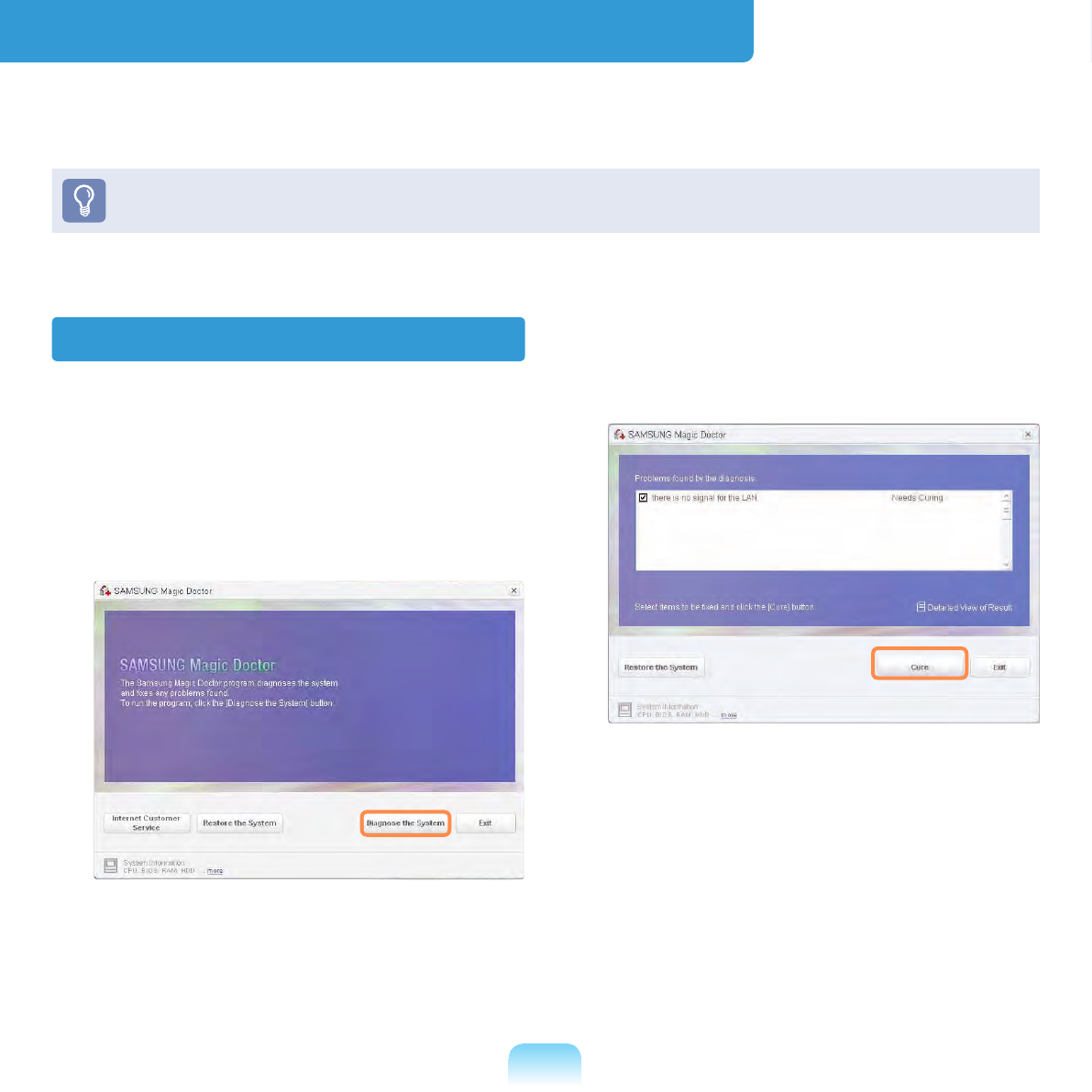

1 Select Start > All Programs >
Samsung > Samsung Magic Doctor
> Samsung Magic Doctor.
2 Click the Diagnose the System icon.
The system status diagnostics start.
3 When the system status diagnostics
are complete, the diagnostics result
appears.
If a problem has been found, click on
Cure for Samsung Magic Doctor to
cure the problem.
131
Reinstalling Software (Optional)
If you have reinstalled the Windows operating system, or the system and program
do not operate properly, you can re-install the driver and program using the System
Software Media.
When software is not working properly, it is recommended removing the software
using the Add or Remove Programs of the Control Panel and reinstalling the
software using the System Software Media.
The System Software Media is supplied as a CD or DVD depending on your
computer model.
To use the System Software Media, the external USB ODD must be connected to
the computer. The following descriptions are supposing that the external USB ODD
is connected.
Some model is not supplied System Software Media depending on your computer
model.
Running the System Software
Media

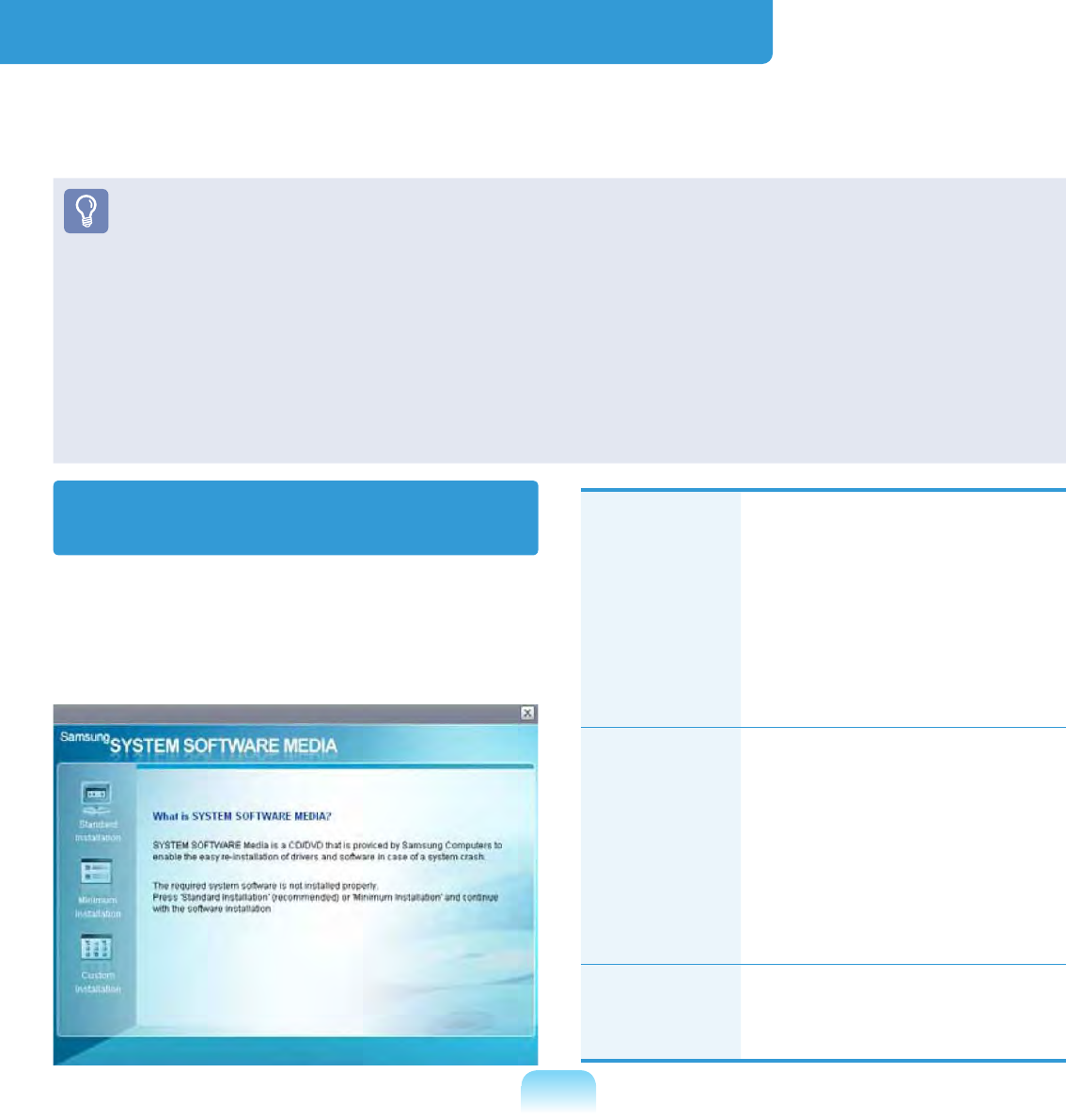

Insert the System Software Media into
the CD-ROM drive. The initial screen
appears automatically.
Standard
Installation
This displays a list of
drivers or programs that
are not currently installed
on your computer from the
system software Media
provided.All necessary
components are installed
using the factory defaults.
Minimum
Installation
This displays the
components (driver,
Windows programs,etc)
that, if not installed, may
cause problems with the
system performance.You
can install only required
components.
Custom
Installation
You can customize the
installation of drivers and
programs.
132

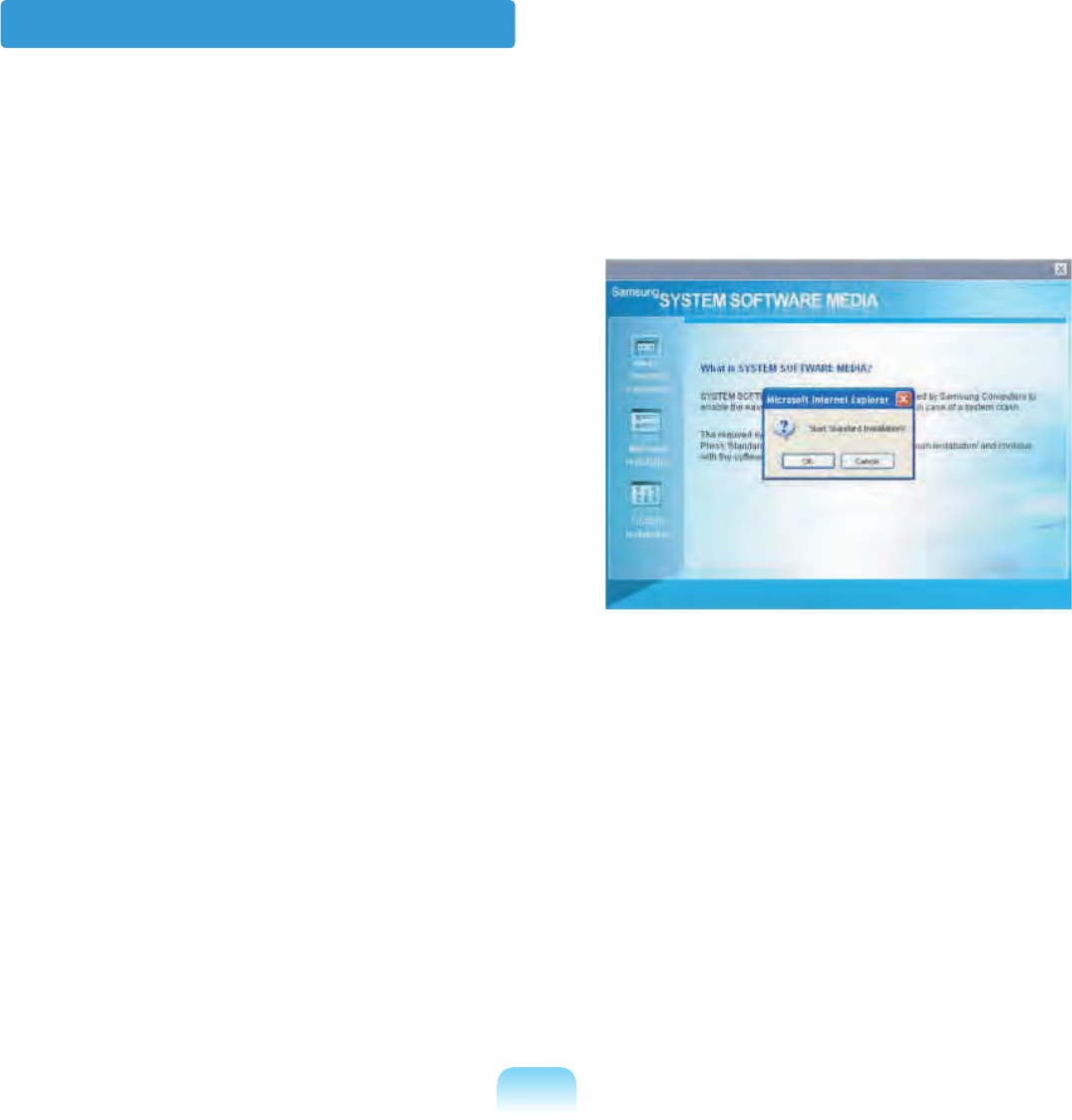

Installing drivers and programs
1 Select Standard Installation in
the System Software Media main
screen.
2 The system is scanned to display the
drivers and programs that need to be
installed.
3 Click OK.
The drivers and programs are
automatically installed as factory
defaults.
4 When done, restart the system.
Chapter 6.
Settings and Upgrade
LCD Brightness Control 134
BIOS Setup 136
Setting a Boot Password 140
Changing the Boot Priority 143
Upgrading Memory 144
Battery 146
Using the Security Lock Port 154
134
LCD Brightness Control
You can adjust the LCD brightness in 8 levels.
Adjusting LCD Brightness Using
Keyboard
Press the Fn+ or Fn+ to adjust
the brightness of LCD.
The LCD brightness has eight levels of
degree.
By pressing the Fn+ , the LCD gets
brighter by one level of degree.

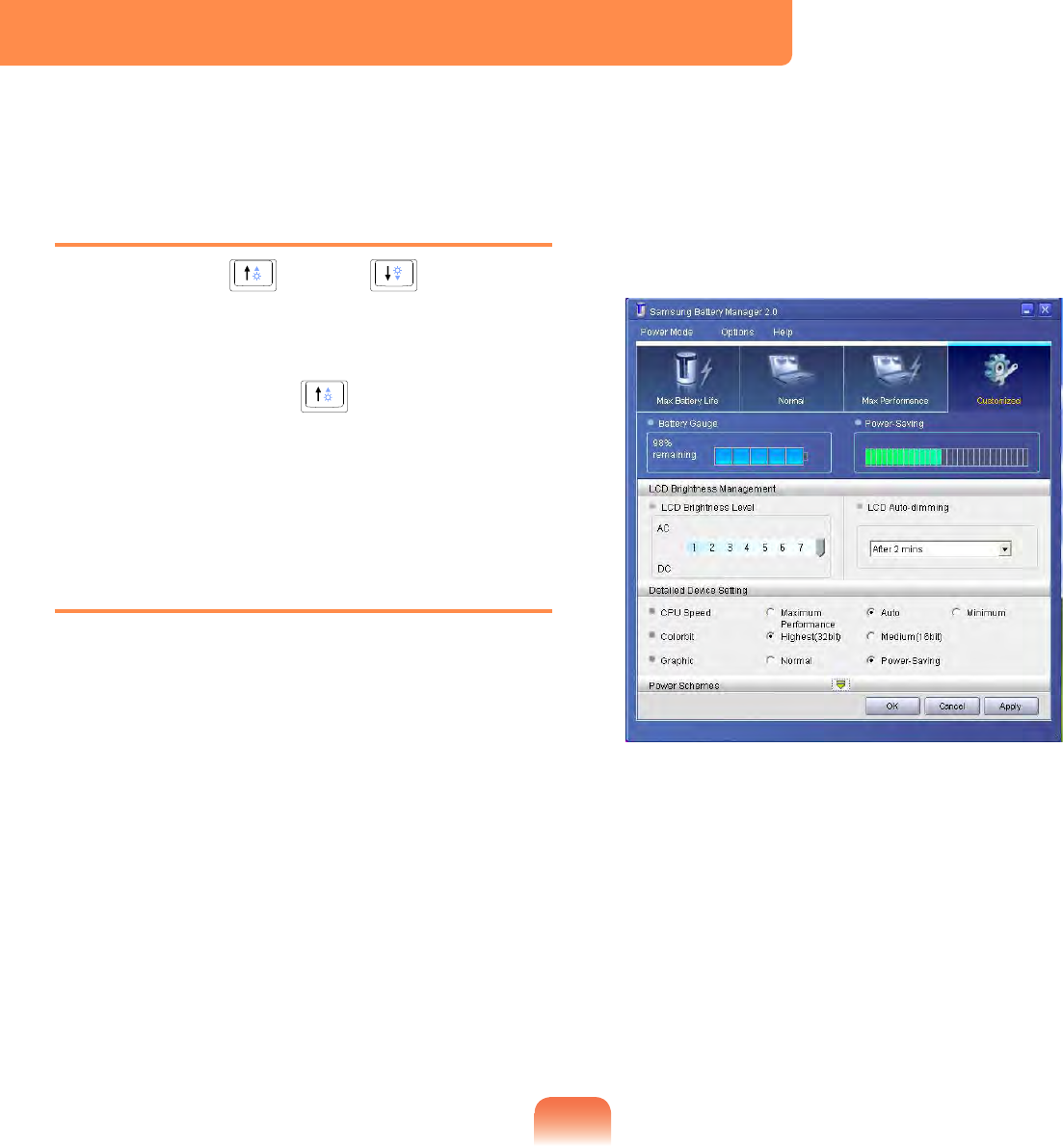

Adjusting LCD Brightness Using

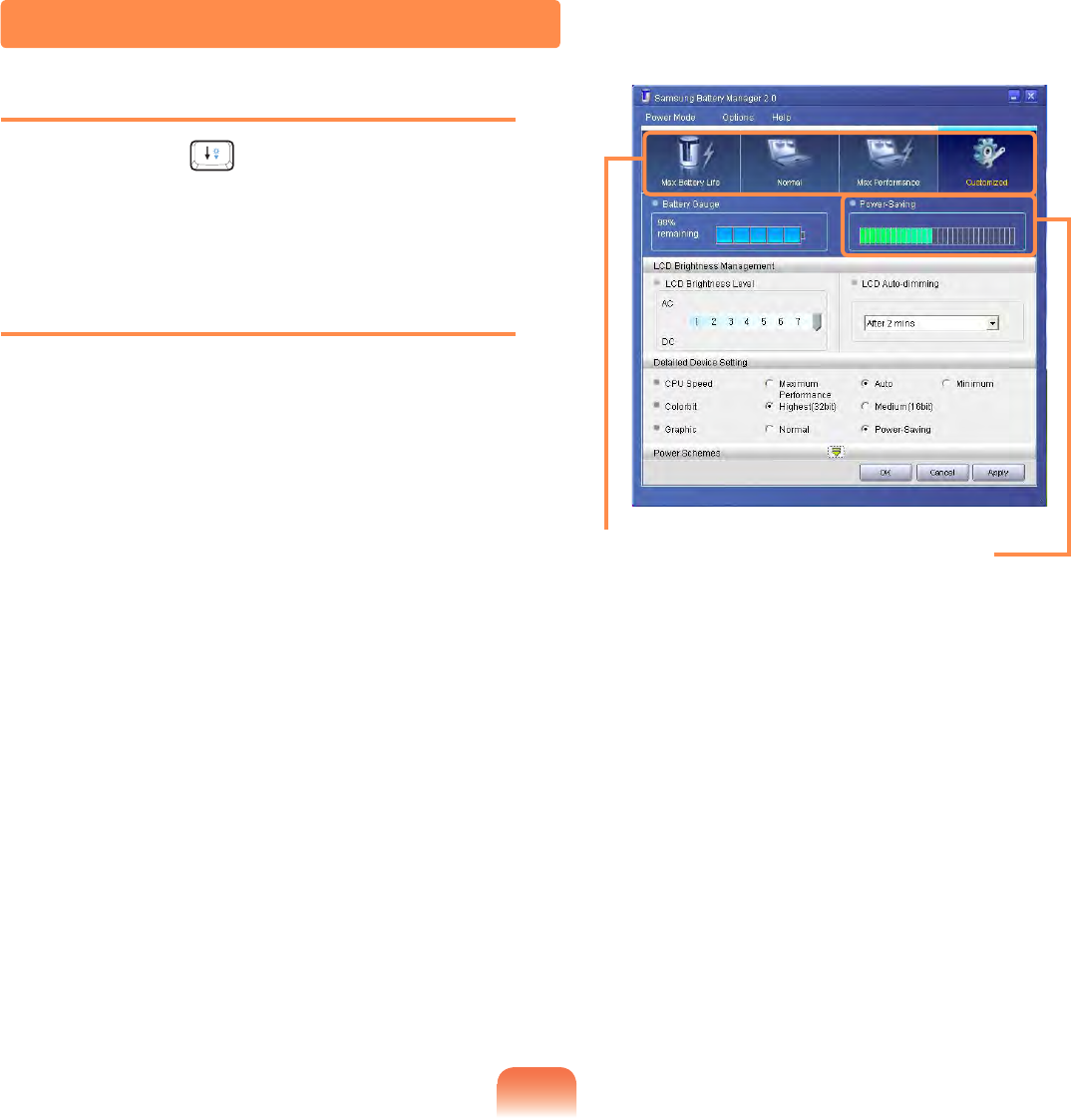

Samsung Battery Manager
Appropriate LCD brightness is set
for each mode in Samsung Battery
Manager. In user settings mode, you can
select the brightness level.
Click Start > All Programs > Samsung
> Samsung Battery Manager >
Samsung Battery Manager.
(for example, in Customized mode)
In this mode, you can change the
brightness and device setting details.
135
LCD Brightness
The LCD brightness settings for maximum battery mode, general mode, and maximum
performance mode in Samsung Battery Manager are not maintained when your
computer reboots.
Only the LCD brightness setting in the user settings mode is maintained once you
reboot the computer.
For information on the other features of Samsung Battery Manager, see the
description on batteries. 149
To Maintain the Changed LCD Brightness After Reboot
Congure the following settings to maintain the LCD brightness set using the screen
adjustment key or Samsung Battery Manager.
z Turn on the computer. If the SAMSUNG logo appears, press the F2 key.
Then, setup will start.
x Change the value of Brightness Mode Control on the Boot menu to User Control.
c Press the F10 key to save the change and complete setup.
How to Reduce Battery Consumption
Adjust the screen brightness to a darker value or select the maximum battery mode
in Samsung Battery Manager to reduce battery consumption.
Bad pixels of an LCD
The LCD may have less than 4 bad pixels but it does not affect the computer
performance. This product may have bad pixels of the same level as the products
made by other companies.
Caution for Cleaning up LCD
Wipe the LCD from the center to the outside with a soft cloth soaked in a computer-
dedicated detergent. If you wipe the LCD rmly, it may have damage.
136
BIOS Setup
The BIOS Setup enables you to congure your computer hardware according to your
needs.
Use the BIOS setup to dene a boot password, change the booting priority, or add a
new device.
Since incorrect settings may cause your system to malfunction or crash, take care
when conguring the BIOS.
The functions of the BIOS setup are subject to change for product function
enhancement purposes.
The BIOS Setup menus and items may differ depending on your computer model.
Entering the BIOS Setup
1 Turn the computer on.
2 When the booting screen (SAMSUNG logo) appears, press the F2 key to enter the
BIOS Setup.
Press the F12 key while the booting
screen(SAMSUNG logo) appears,
the system will try to boot from the
network.
137

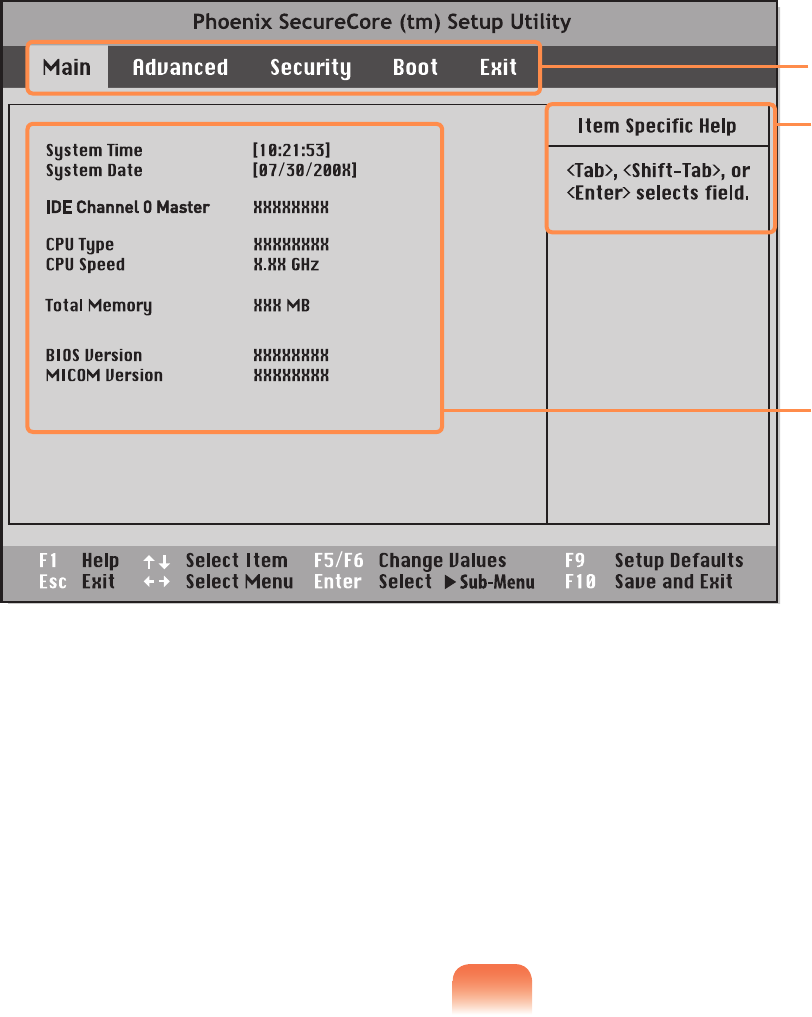

3 After a moment, the BIOS setup screen appears.
The items in the BIOS setup may differ depending on the product.
Setup Menu
Setup Items
Help
Help for the
selected
item appears
automatically.
138

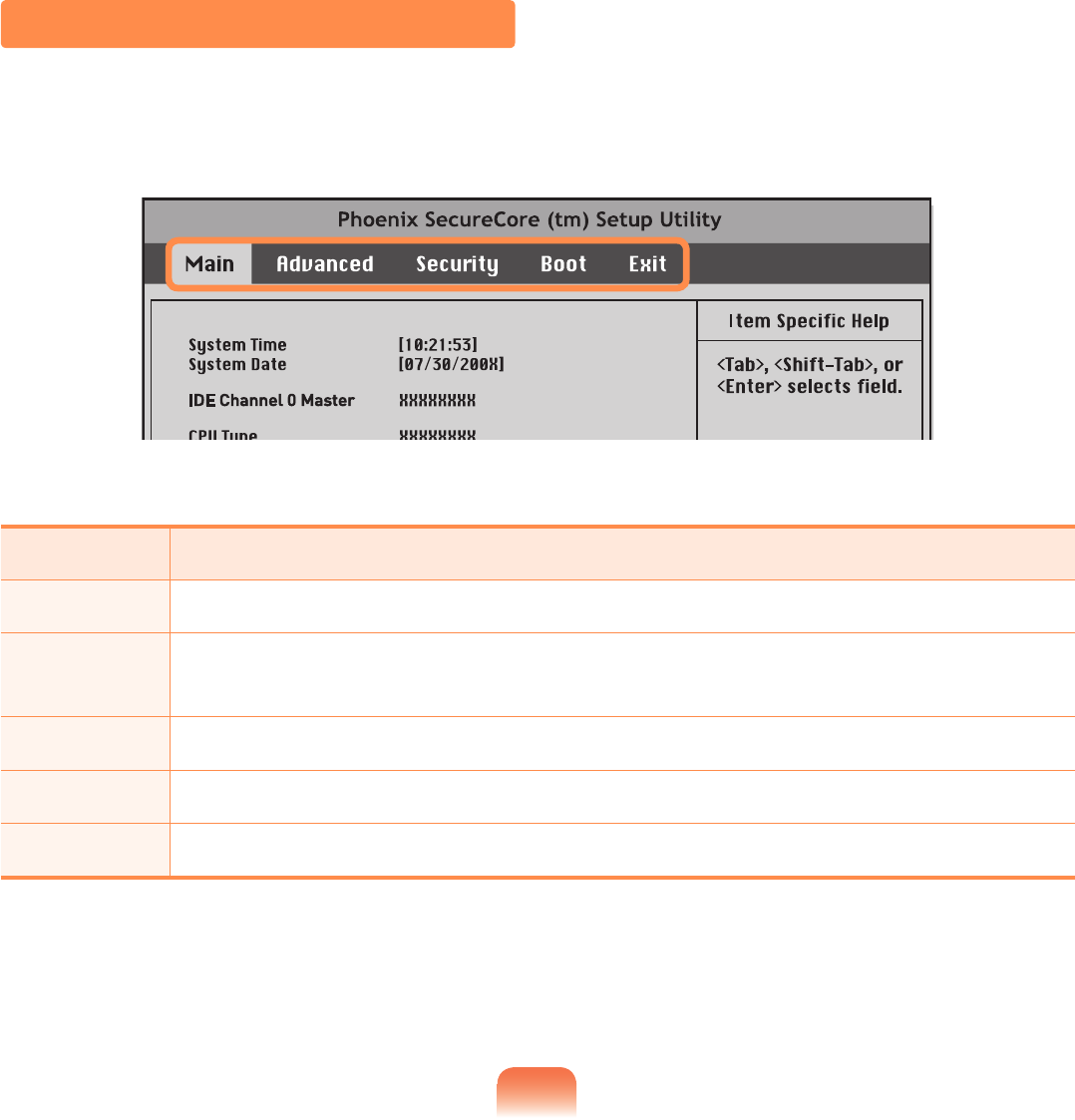

The BIOS Setup Screen
Menu Description
Main Used to change the basic system and environment settings.
Advanced Used to congure advanced functions on your computer for devices and
chipsets.
Security Used to congure security functions, including passwords.
Boot Used to set the boot priority and other boot options
Exit Used to exit the Setup either saving the changes or not.
139

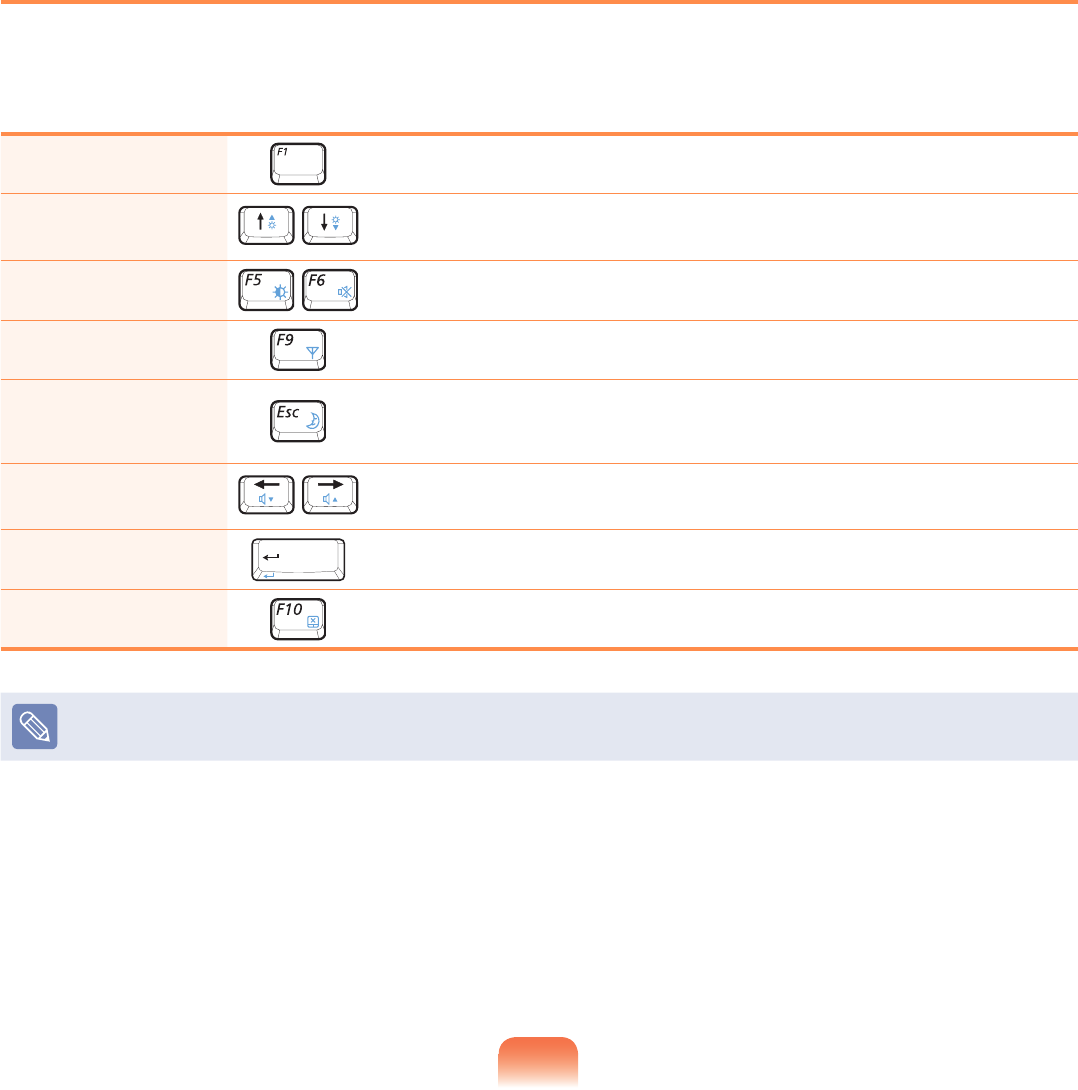

System Setup Keys
In the Setup, you have to use the keyboard.
F1 Press to view the Setup Help.
Up & Down
Keys Press to move up and down.
F5/F6 Press to change the item value.
F9 Press to load the default Setup settings.
ESC Press to return to a higher level menu or to move to the
Exit menu.
Left & Right
Keys Press to move to another menu.
Enter Press to select an item or to enter a sub menu.
F10 Press to save the changes and exit Setup.
The keyboard image and color may differ from the actual keyboard.
140

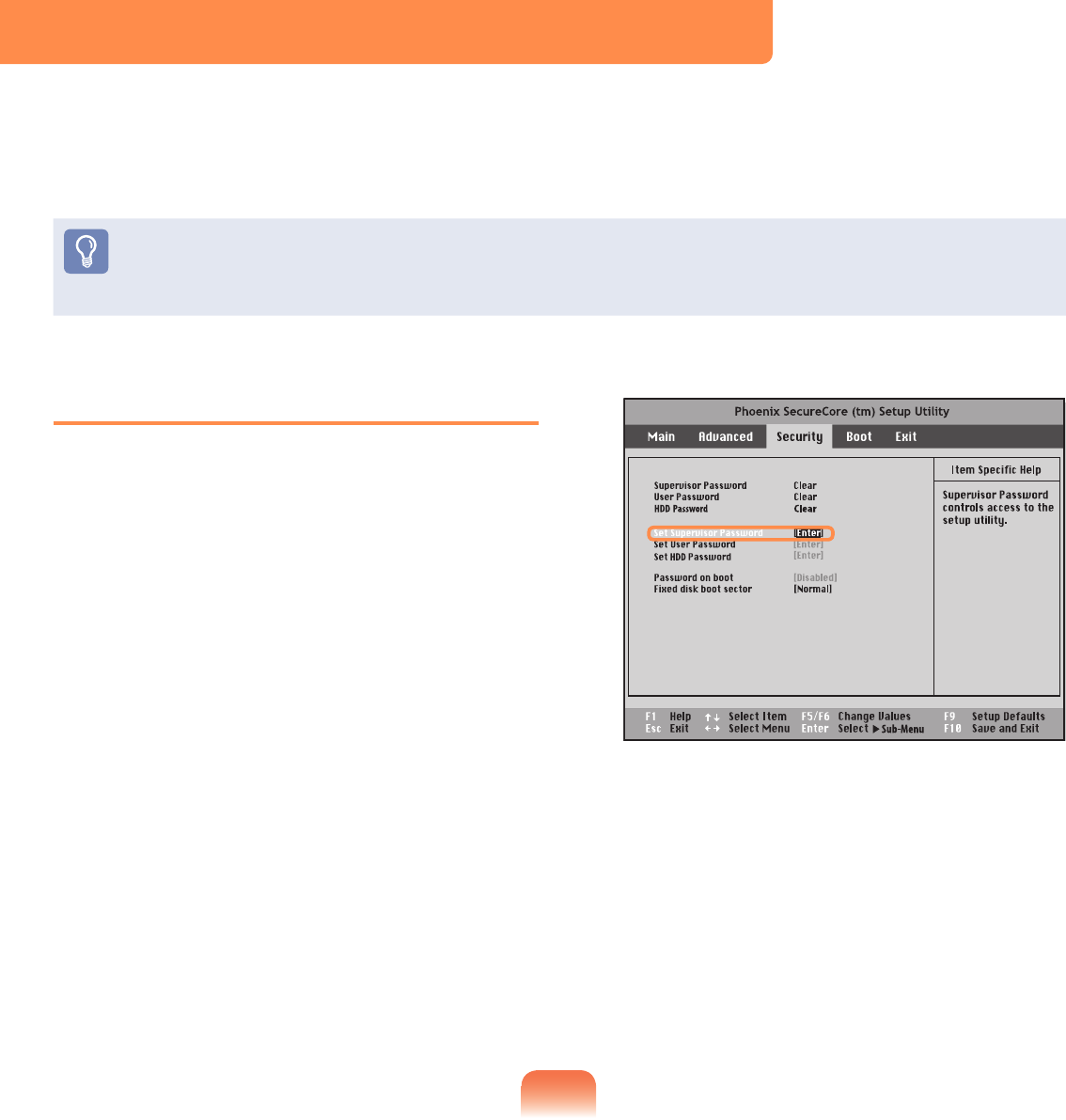

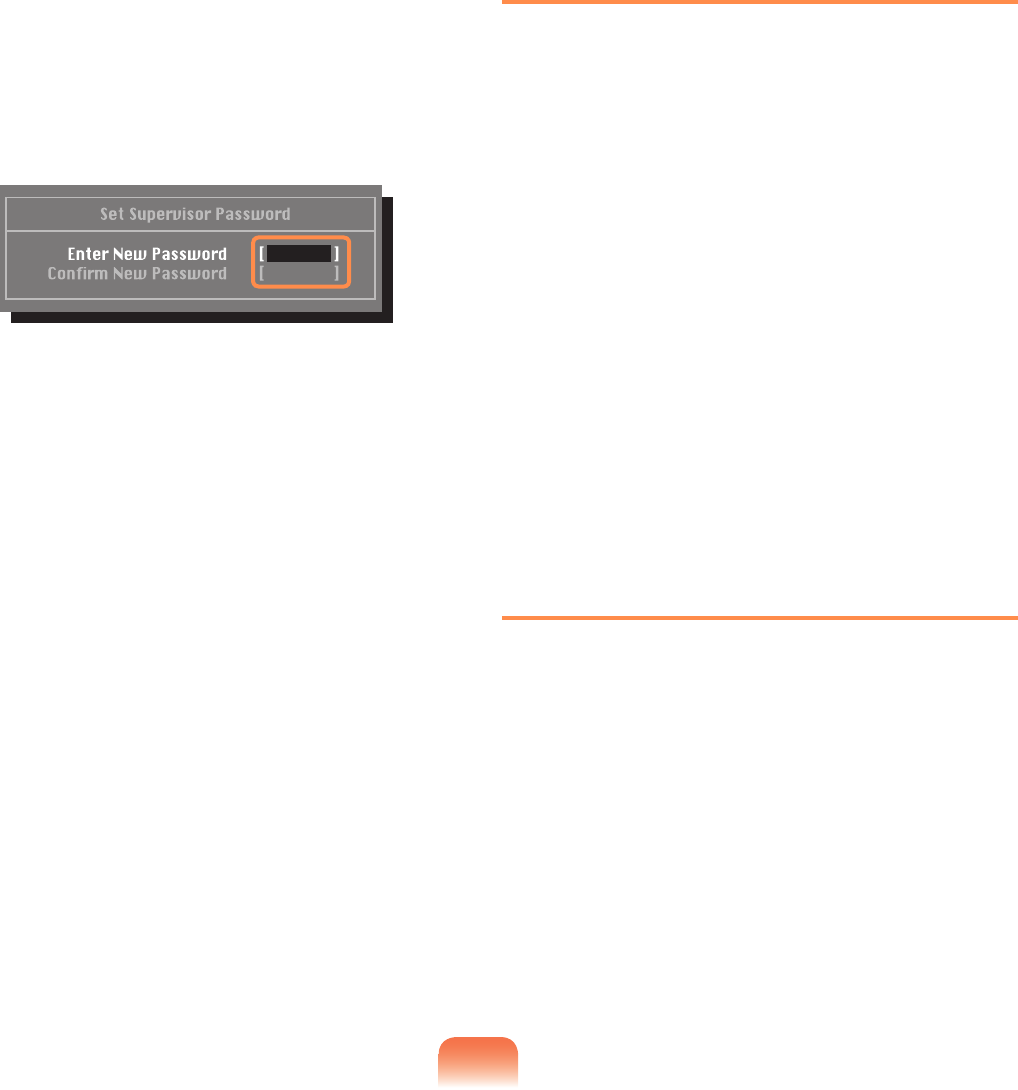

Setting a Supervisor Password
A Supervisor Password is required to turn
the computer on or to start the System
Setup.
When setting a Supervisor Password,
users other than a supervisor cannot use
the computer.
1 Select the Security menu in the BIOS
Setup.
2 In the Set Supervisor Password
item, press <Enter>.
Setting a Boot Password
When setting a password, you have to enter a password to use the computer or enter
the BIOS Setup.
By conguring a password, you can restrict system access to authorized users only and
protect data and les saved on the computer.
Do not lose or forget your password.
If you have forgotten your password, contact a Samsung service center. In this case, a
service fee will be charged.
141
3 Enter a password, press <Enter>, re-
enter the password for conrmation,
and press <Enter> again.
The password can be up to 8
alphanumeric characters. Special
characters are not allowed.
4 When a message conrming the
password conguration appears in
the Setup Notice window, press
<Enter>.
The supervisor password has been
set.
The supervisor password is required
to turn the computer on or to enter the
BIOS Setup.
Setting a User Password
The User Password restricts access
to the computer or for conguring the
BIOS Setup, like a Supervisor Password.
However, the Setup items that can
be congured with a User Password
are restricted, unlike for a Supervisor
Password.
Before conguring a user password, a
supervisor password must have been
congured. Deactivating the supervisor
password also deactivates the user
password.
In the Set User Password item, press
<Enter> and complete the procedures
from Step 3 of Setting a Supervisor
Password.
Setting Up a Boot Password
To setup a boot password, the
administrator password (Set Supervisor
Password) should be set in advance.
Set the Password on boot item to
Enabled.
Once a boot password is set, you have
to enter a password to boot up the
computer.
142
Setting up a Hard Disk Drive
Password (Optional)
A supervisor password must be set using
the Set Supervisor Password menu.
If you set a password for a hard disk
drive, it cannot be accessed from another
computer.
Press <Enter> in the Set HDD
Password item and dene a password as
described in Step 3 of the Setting up the
Supervisor Password.
The hard disk drive password setting
function is not provided for some
models.
Changing the hard disk drive
password
For security purposes, you can only
change a hard disk drive password
after restarting the computer by
pressing the computer Power button.
If you cannot change the hard
disk drive password or the HDD
Password Frozen message appears
when entering the BIOS Setup and
then selecting Security > HDD
Password, press the Power button
to turn the computer on again.
Deactivating the Password
1 Press <Enter> on the password
to be deactivated. For example, to
deactivate a supervisor password in
the Set Supervisor Password item,
press <Enter>.
2 In the Enter Current Password
item, enter the currently congured
password and press <Enter>.
3 Leave the Enter New Password item
eld empty, and press <Enter>.
4 Leave the Conrm New Password
eld empty, and press <Enter>.
5 In the Setup Notice window, press
<Enter>.
The password is deactivated.
143

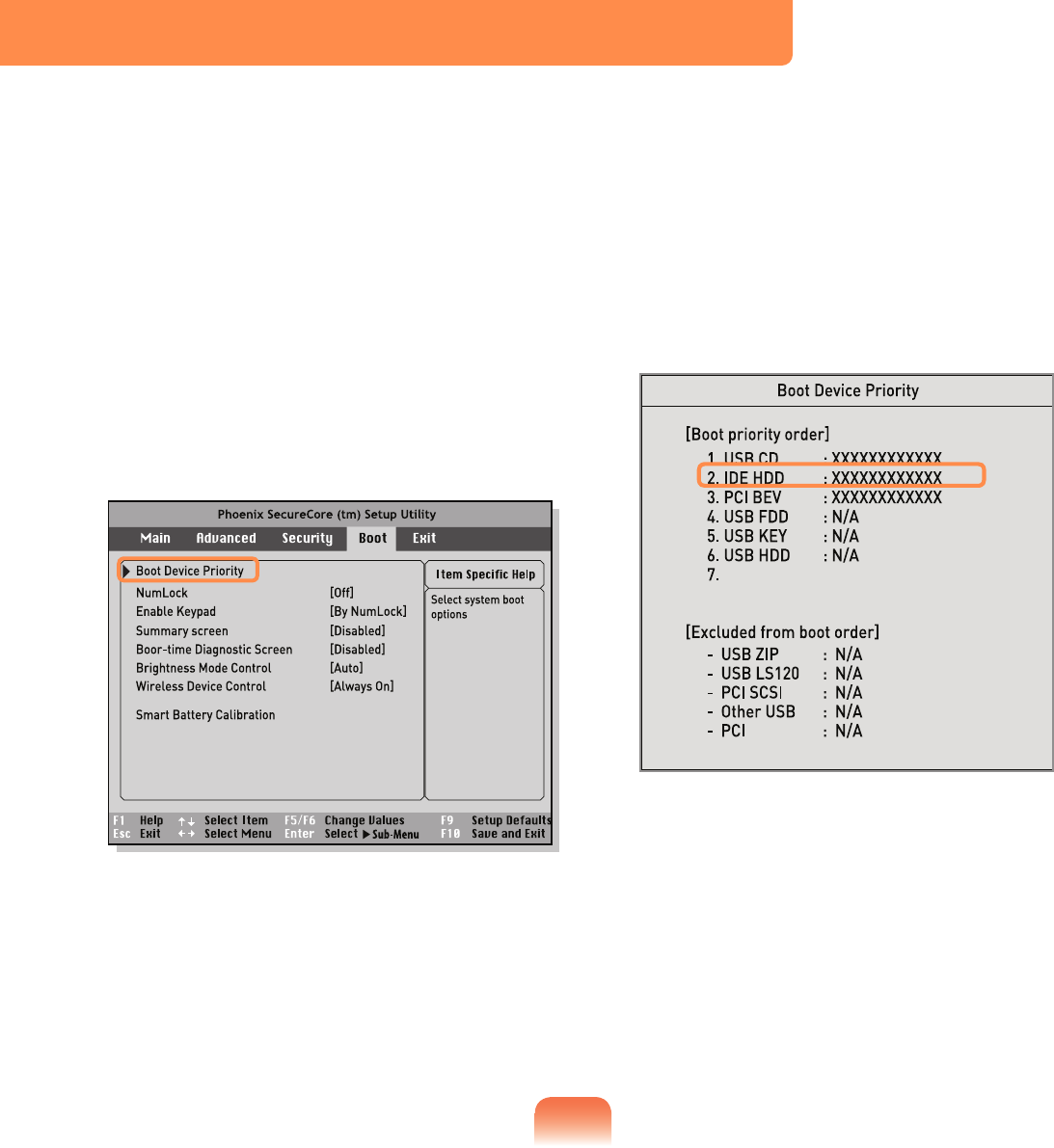

1 Select the Boot menu in the BIOS
Setup.
2 Press <Enter> on the Boot Device
Priority item.
3 Press the down key (↓) to move to the
IDE HDD item and press the F6 key
to move up to the top item.
4 Press the F10 key to save the settings
and exit Setup.
The highest boot priority device is
now set to the Hard Drive.
Changing the Boot Priority
This computer is congured to boot from an external-type ODD rst.
This chapter describes how to change the boot priority so that the computer boots from
the hard disk drive rst.
144
Upgrading Memory
A memory is installed in the memory slot at the bottom of this computer.
The procedures to replace the memory are described below.
Replace new memory only after shutting the computer down completely.
Do not replace memory when the computer is in Sleep mode.
Disconnect main power plug and remove the battery before continuing.
Only use the same type of memory as specied in the Product Specication.
Replacing the Memory

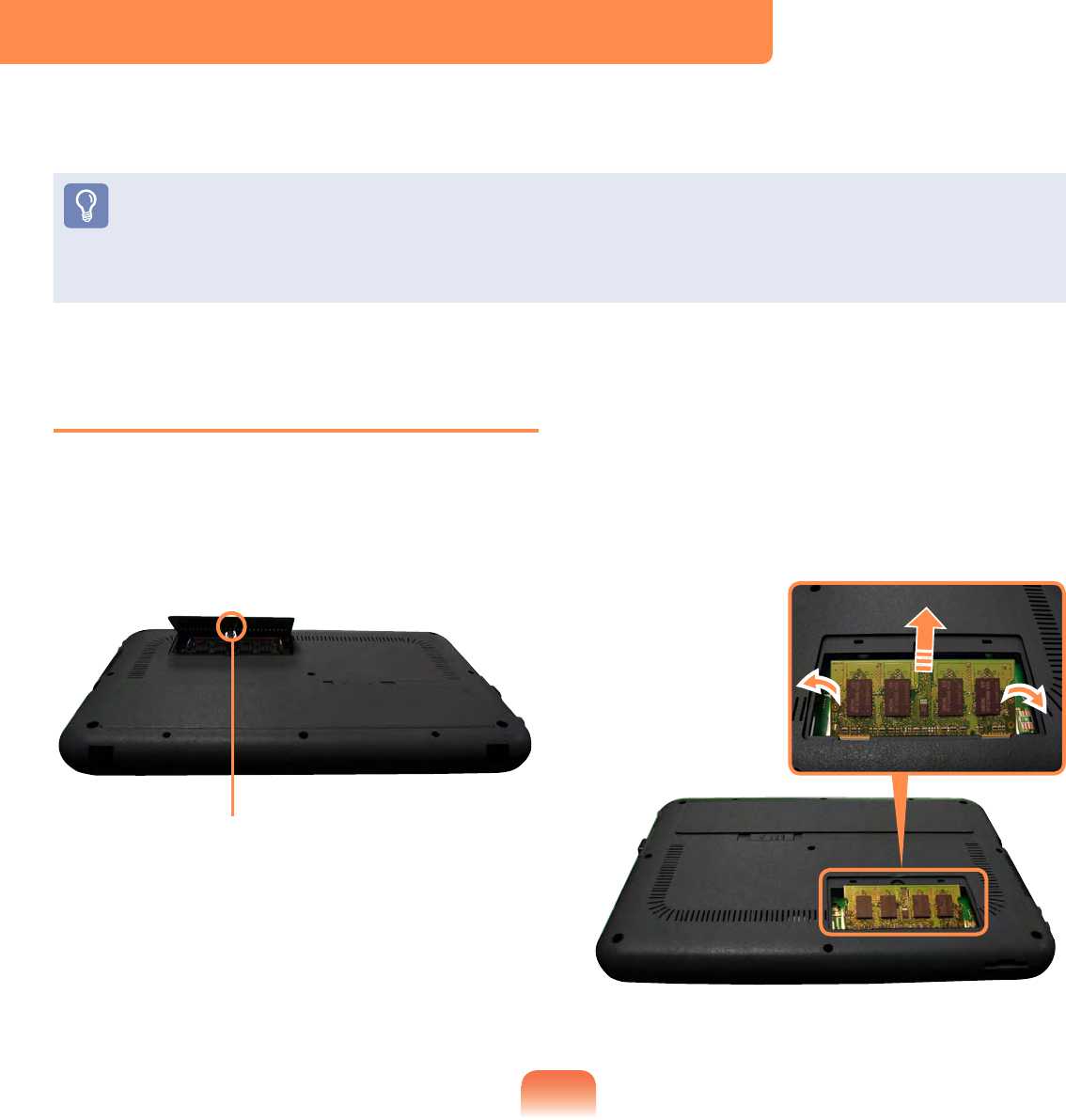

1 Remove the screw on the memory
compartment cover at the bottom of
the computer using a screw driver.
2 Pull the memory module latches
outward. The memory module will pop
up.
Remove the memory module out at
an angle of 30 degrees.
Fixing Screw
145

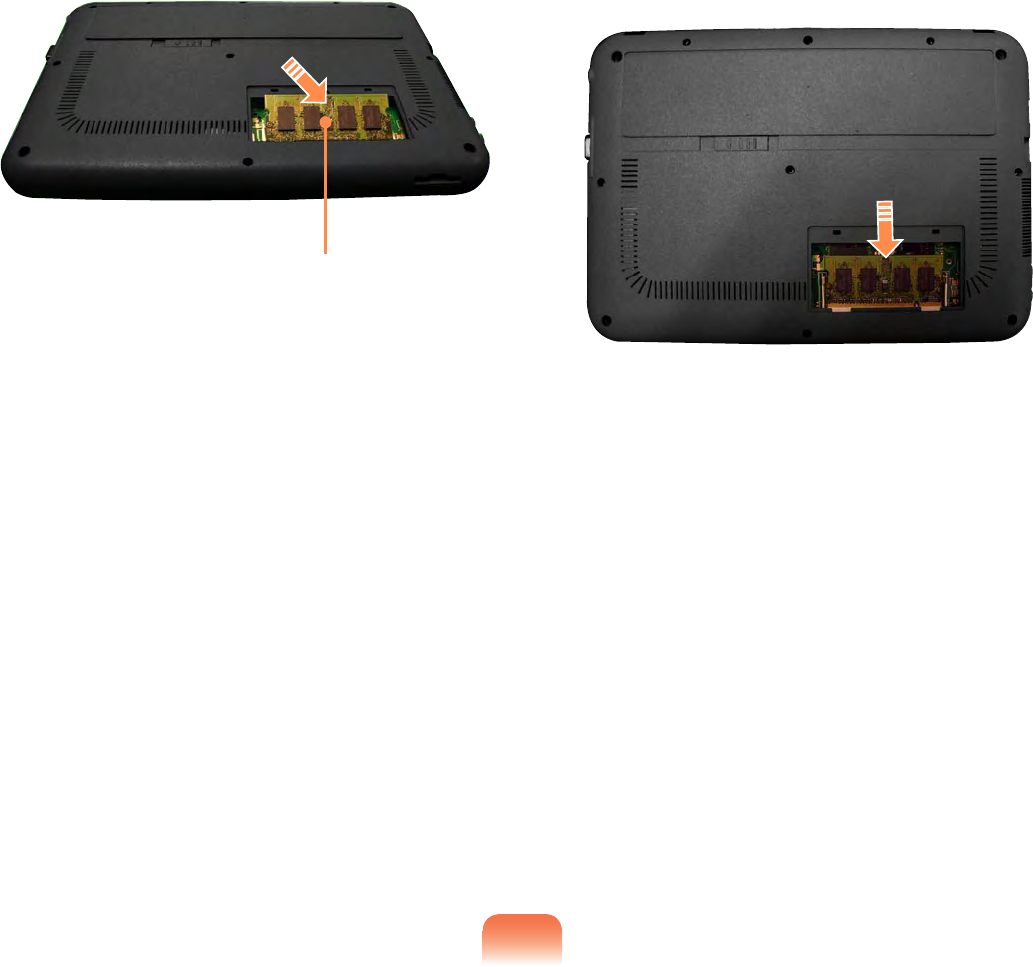

3 Insert a new memory module into
the memory slot at an angle of
approximately 30 degrees aligning it
to the angle of the memory slot.
4 Push the memory module down
so that it is completely xed. If the
memory does not t easily, push the
memory module down while pulling
the memory module latches outward.
5 Close the memory compartment
cover and fasten the screw.
Memory Slot
146
Battery
Please refer to the following instructions when running the computer on battery power
without connecting the AC power.
A Lithium-Ion smart battery is supplied with this computer.
Carefully read and follow the precautions printed on the battery before using the
battery.
Precautions
Use only chargers specied in the User Manual.
Never heat the battery pack, put it near or in a re or use at a temperature higher than
60°C, as this may cause re.
Never cause a short circuit between the battery pack terminals or disassemble the
battery pack.
Carefully read and follow the precautions printed on the battery and the safety
instructions in the User Manual before using the battery.
Please refer to the system operation environment ( 190) of this manual and operate
and store the battery at room temperature.
Installing/Removing the Battery
1 Shutdown the system, close the LCD panel and place the computer upside down on
a at surface.
147

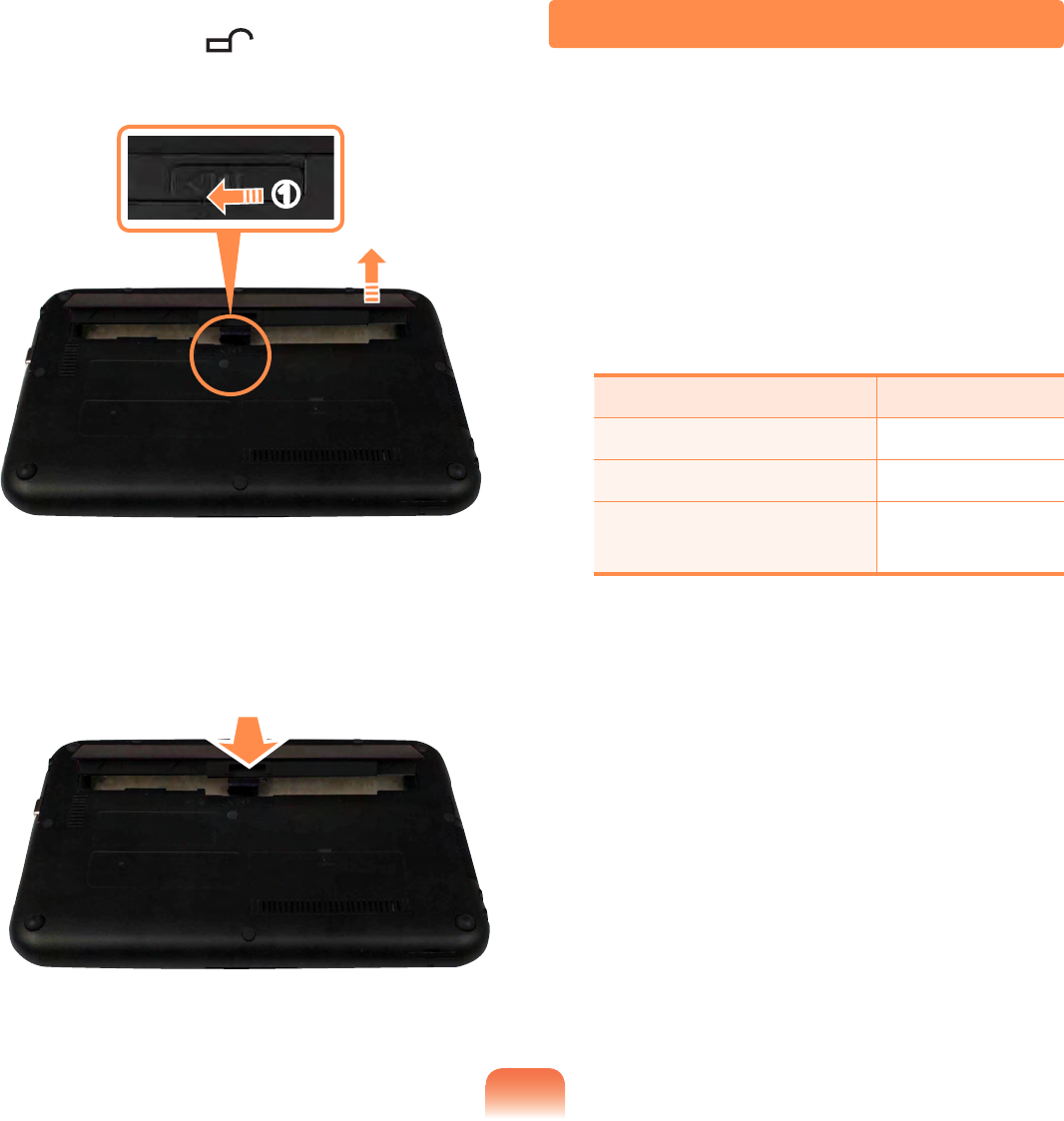

2 Slide the center battery latch into
the UNLOCK position and then
remove the battery.
3 To install the battery again, slide the
battery into the system.
Charging the Battery
1 Attach the battery and connect the
AC adapter to the DC-in jack of the
computer.
The battery will then start charging.
2 When charging is complete, the
Charge LED turns green.
Status Charge LED
Charging Amber
Charging complete Green
AC adapter not
connected Off
x
z
148
Measuring the Remaining Battery Charge
You can view the battery charge status by completing the following procedures.
To use the shortcut key to view
Press the Fn + keys on the keyboard.
The remaining battery charge (%) will
displayed for a moment.
You can only view the charge status in
this way when Easy Display Manager is
installed on your computer.
Battery Warning
You will hear an alarm when the
remaining battery charge reaches
below 10%.
In this case, connect the AC
adapter or turn off the computer
and install a fully charged battery.
If the battery residual amount is
3~5%, the computer automatically
shuts down after saving the data.
The battery residual amount may
vary depending on the computer
model.
Battery Usage Time Information
A battery is an expendable supply,
so when using it over a long time, the
capacity/battery life is shortened. If the
battery life is reduced to under half of its
initial time, we recommend purchasing a
new battery.
For long periods of not using the battery,
keep the battery discharged. This extends
the battery life time.
149
Extending the Battery Usage Time
Decreasing the LCD Brightness
Press the Fn + keys on the keyboard
to decrease the LCD brightness to extend
the battery usage time.
Using Samsung Battery Manager
Battery Manager is a management
program that allows you to use the battery
efciently. You can select the optimized
power mode depending on the system
environment.
Click Start > All Programs > Samsung
> Samsung Battery Manager >
Samsung Battery Manager.
Select Power
Mode
Power-saving
Effect
Maximum Battery Mode
This mode is appropriate for the
environment that requires maximum
battery lifetime. The system performance
may be degraded in this mode.
General Mode
This mode is appropriate for the regular
environment and it optimizes the
performance of the system and battery.
150
Maximum Performance Mode
This mode is appropriate for the
environment that requires maximum
system performance. The battery life may
get shorter in this mode.
User Settings Mode
This mode allows you to congure the
detailed settings. You can set LCD
brightness, power status, and color
quality.
What is the Power-saving Effect?
This product displays the battery life
in each power mode. The higher the
power saving effect increases, the
longer the graph bar is displayed.
When Using Games or Multimedia
The system may not operate properly
in maximum battery mode. It is
recommended to connect the AC
adapter to the system or to use the
system in general mode.
Usage Mode of Samsung Battery
Manager
The maximum battery mode
optimizes the system operation
speed to increase the battery run
time, so the program execution
time may get longer.
If you change the power settings,
the properties in Power Options
window will also be changed.
Complete, install Samsung Battery
Manager using the System
Software Media in order to use
the general mode.
Disabling Unused Devices
If you turn off unused devices, battery
lifetime will improve.
1 Click Device Manager from Start
> Control Panel > Performance
and Maintenance > Systems >
Hardware tab.
2 Right-click the devices that you are
not using and select Disable.
151
Extending the Battery Life (Optional)
The Battery Life Extender is a battery power management program that enables
extending the battery life. Users can change the settings depending on their
requirements.
The Battery Life Extender is optional and may not be supplied depending on the
model.
1 Click Start > All Programs > Samsung > Battery Life Extender > Battery Life
Extender.
2 When the following screen appears, select a mode and click the OK button. You can
use the battery in the selected mode.
Battery Normal Mode
Battery Life Extension Mode
Battery Life Extension Mode
152
Battery Normal
Mode
This mode maintains 100% of the battery charge when using the
computer on AC power. In this case, although the battery use time
increases, the battery life is reduced.
Battery Life
Extension Mode
This mode maintains 80% of the battery charge when using the
computer on AC power. In this case, although the battery use time
decreases, the battery life is extended.
Press the F2 key when the Samsung logo appears in the booting sequence to enter
the BIOS Setup, select Advanced > Battery Life Cycle Extension, and set it to
Enable. Then you can use the battery life cycle extension mode.
153

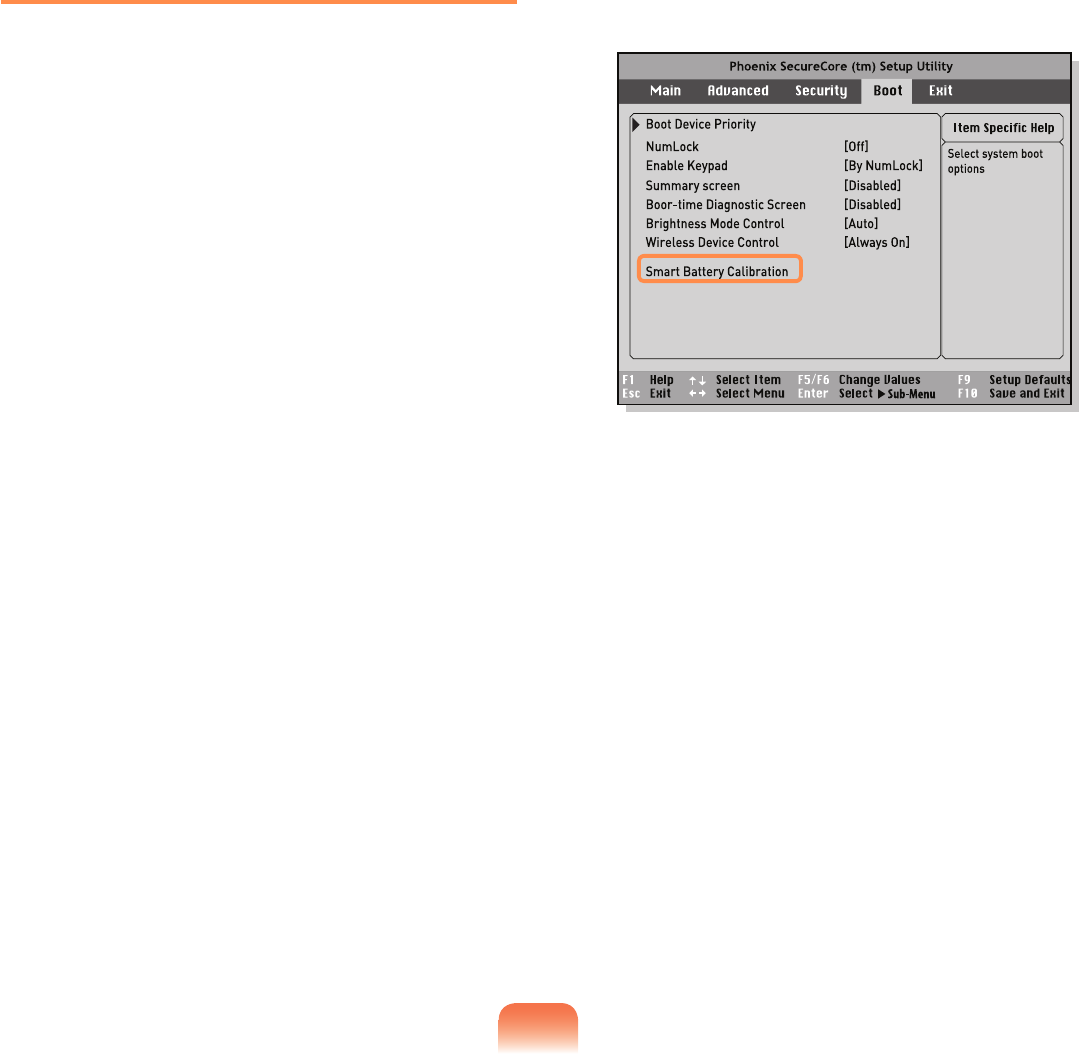

Using the Battery Calibration
Function
When charging/discharging the battery
repeatedly for a short time only, the
battery usage time may be reduced by
the difference between the actual battery
charge and the remaining charge display.
In this case, the actual battery charge
and the remaining charge display will
be the same by discharging the battery
completely using the Battery Calibration
function, and then recharging it again.
1 Disconnect the AC power adapter
after turning off the computer.
2 Restart your computer and press the
F2 button when the Samsung logo
appears, to start the BIOS Setup.
3 Move to the Boot > Smart Battery
Calibration item using the direction
keys and press <Enter>.
4 Highlight Yes in the Battery
Calibration Conrmation window
and press <Enter>.
The Battery Calibration function is
activated and the battery is forcefully
discharged. To stop the operation,
press the <Esc> button.
This operation requires 3~5 hours
depending on the battery capacity
and the remaining battery charge.
154

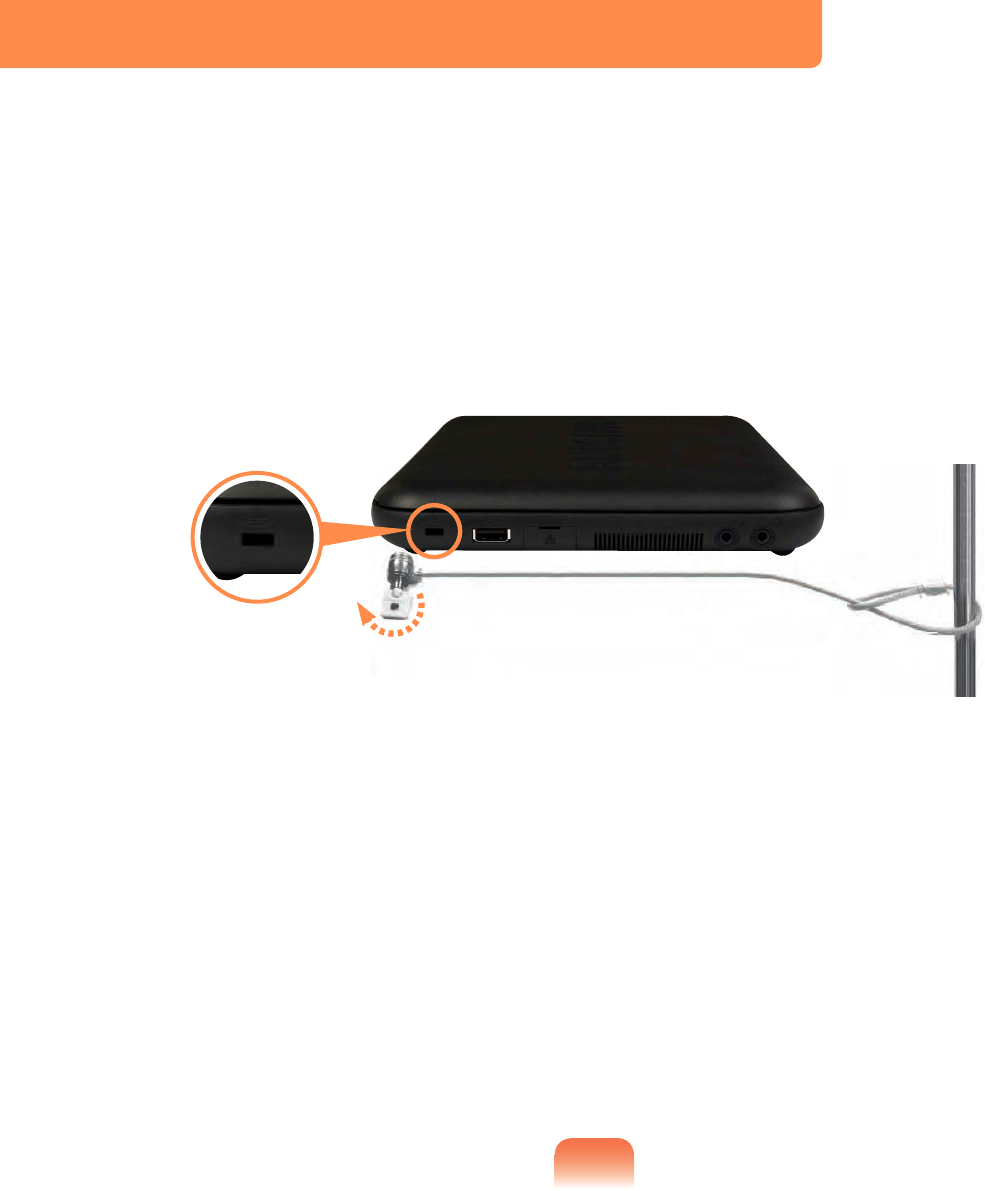

Using the Security Lock Port
You can connect a Kensington lock to the Security Lock port to prevent your computer
from being stolen when you have to use the computer in a public place.
To use this feature, you have to purchase the Kensington lock additionally. To use the
Kensington lock, refer to the product manual.
Tie the Kensington lock cable to a xed object and install the other end of the cable to
the Security Lock port.
Chapter 7.
Appendix
Reinstalling Windows XP (Optional) 156
Using Samsung Recovery Solution
(Optional) 161
Questions and Answers 170
Windows Related 170
Display Related 171
Sound Related 173
Wired LAN Related 176
Wireless LAN Related 177
Games and Programs Related 183
Bluetooth 185
Security Center 186
Product Specications 190
Glossary 202
Index 206
156

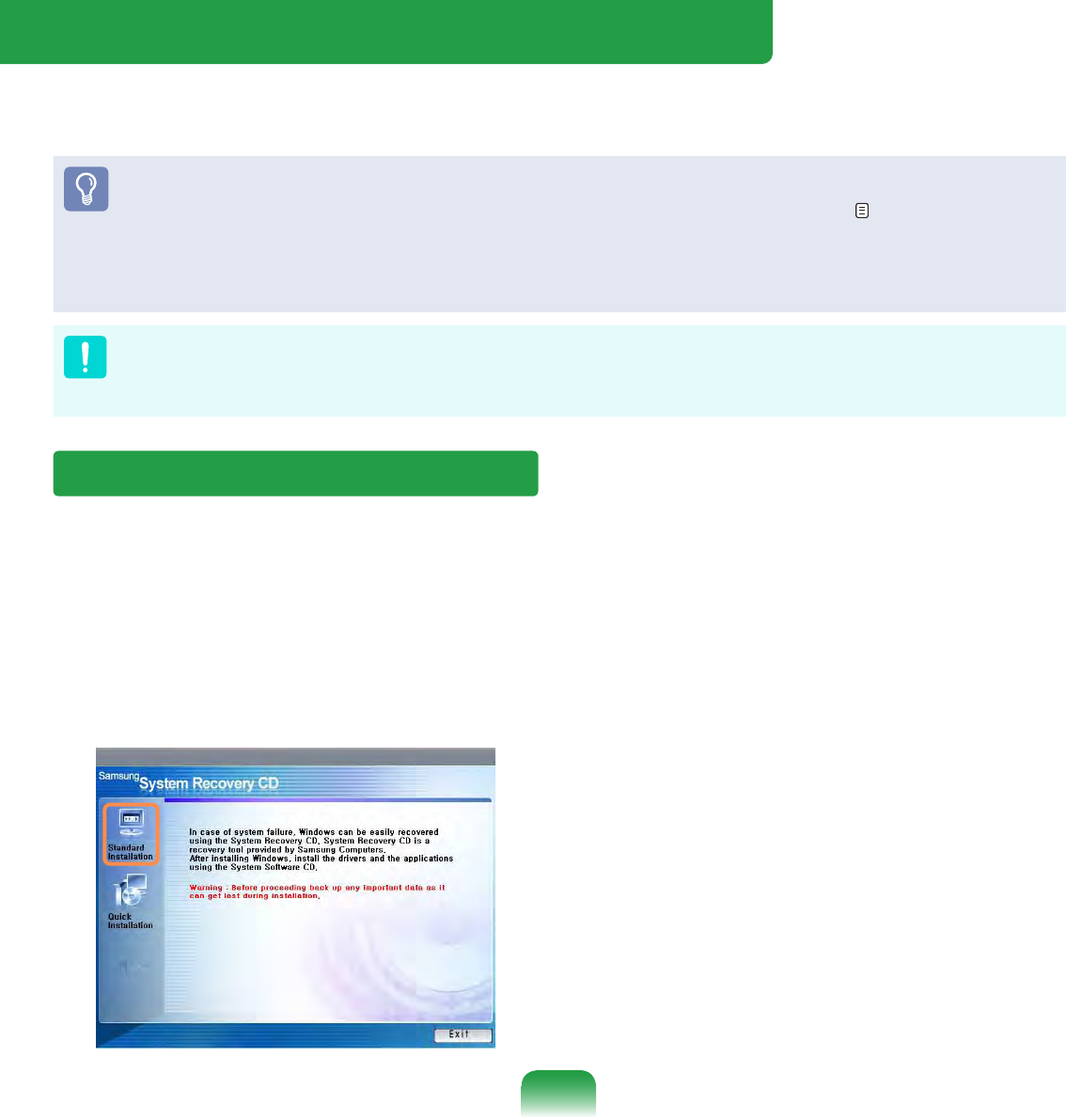

Reinstalling Windows XP (Optional)
You can reinstall Windows using the System Recovery CD when Windows does not
work properly.
A System Recovery CD may not be supplied depending on your computer model.
To reinstall Windows when Windows does not boot, refer to page 159.
To reinstall Windows using System Recovery Media, an external-type ODD must be
connected before turning the computer on. The following descriptions assume that
an external ODD is connected.
Reinstalling Windows may delete data (les and programs) saved on the hard disk
drive. Make sure to backup all important data. Samsung Electronics shall not be held
liable for any loss of data.
Reinstalling Windows
Explain installation option as a standard.
1 Insert the system recovery CD into
the CD-ROM drive.
2 In the initial screen, click Standard
Installation.
Standard installation
You can change the settings for
partitioning, the installation folder,
etc. during the Windows installation.
However, reinstalling Windows may
delete the data on the hard disk drive
such as les, programs, etc. In order
to minimize damage from data loss,
please remember to always back up
data.
Quick Installation
This re-installs Windows with the user
data and the system conguration
intact. The user data in the already
existing Windows folders may be
preserved as the existing Windows
folders are overwritten.
157
3 The description for the standard
installation appears. Click Yes. The
installation starts, and the system will
be restarted after a while.
When Quick Installation is selected,
Setup proceeds with Step 3 before
automatically installing Windows.
Quick Installation overwrites the
existing Windows version, so that
drivers or applications do not need to
be reinstalled.
4 After the system has restarted, the
message ’Press any key to boot from
CD’ appears. Do not press any key
at this time. After a while the partition
conguration screen appears. To not
change the partition, press Enter.
What is partition conguration?
Partition conguration is a function
that divides the hard disk drive into
one or several partitions. Note that
changing the partition deletes all of
the data on the hard disk drive.
5 Select the folder to install the
Windows operating system. To delete
the previous version of Windows and
install in the current folder, press L on
the keyboard.
If you press ESC to select another
folder for the installation, new
Windows folders are created causing
a risk of dual booting.
6 After the installation process copies
the necessary folders for the
Windows installation, restart the
system, and the message “Press any
key to boot from CD” is displayed. You
do not need to enter anything. In a
moment, the Windows XP installation
screen will appear to proceed with the
installation.
7 When the Regional and Language
Options window appears, click Next.
8 When a window that requires your
name and organization pops up, enter
your name and the organization and
click Next.
9 When the Date and Time Settings
window appears, click Next. Setup
will continue.
158
10 When the system restarts to display
Press any key to boot from CD, do
not press any key.
When you see the Windows desktop,
this means that the installation process is
completed.
Remove the system recovery CD
and install the device drivers and
applications from the system software
Media.
159
1 Insert the system recovery CD into
the CD-ROM drive and start the
computer.
2 If the following message appears on
the screen, press any key from the
keyboard.
Press any key to boot from CD.....
3 Do not press any key at this
time. After a while the partition
conguration screen appears. To not
change the partition, press Enter.
4 Select the desired le system (format).
To maintain the current le system,
press Enter.
5 Select the folder to install the
Windows operating system. To delete
the previous version of Windows and
install in the current folder, press L on
the keyboard.
6 After the installation process copies
the necessary folders for the
Windows installation, restart the
system, and the message “Press any
key to boot from CD” is displayed. You
do not need to enter anything. In a
moment, the Windows XP installation
screen will appear to proceed with the
installation.
7 Follow the instructions of the Windows
XP installation wizard to continue with
the installation.
Reinstalling when Windows does not start
When Windows does not start, boot up with the System Recovery CD and from there
you can reinstall Windows.
160
8 When the installation is complete,
the computer will restart. When the
system has restarted, the Press any
key to boot from CD.. message
appears.
Ignore the message.
The system boots and the Windows
and Windows Registration screen
appears. Register Windows, following
the instructions to nish the Windows
installation. Remove the System
Recovery CD and install the device
drivers and application programs using
Standard Installation from the System
Software Media.
161
Using Samsung Recovery Solution (Optional)
Samsung Recovery Solution provides a Restore Function that enables you to
easily restore your computer to a previous, normal state when a problem occurs with
your computer, as well as a Backup Function that enables you to easily save your
computer’s current status and your data.
Samsung Recovery Solution may not be provided or the version may differ
depending on your computer model and the usage procedures may differ depending
on the version. The screen images in this document may differ from actual product.
For models with an SSD (Solid State Disk), Samsung Recovery Solution is not
provided.
To use the backup and restore function to DVD, an external ODD must be
connected. The following descriptions assume that an external ODD is connected.
Samsung Recovery Solution Functions
Restore Function
Using this function, you can easily restore your computer to a previous, normal state
without using the System Recovery Media or the Windows Installation CD, when your
computer is no longer working properly or fails to boot up due to a problem. If you
have backed up data, you can restore the backup data.
162
Basic Restore Complete Restore Data Restore
This function quickly
restores major
Windows les (C:\
Windows) without
touching the user
conguration and
data on the C drive.
This function deletes the entire C
drive and then restores the contents
of the C drive completely.
This function
restores the user
data if the user
previously backed up
data.
Initial Status Restore
This function restores the computer
to the initial status saved when the
computer was run for the rst time
after it was purchased.
Complete Backup Restore
This function restores the computer
to the point where the user
performed a Complete Backup.
Restore Functions
Backup Function
You can backup the entire C drive or all your data to another hard disk drive or
DVD. You can restore the backed up drive or data using the Restore function.
Backup Functions
This function backs up
the initial status of the
computer.
Initial Status Backup
This function backs up
specic folders or les.
Data Backup
This function backs up
the entire drive C.
Complete Backup
163
Using Samsung Recovery Solution
Not only can you use Samsung Recovery Solution when Windows is running, but
also when you are unable to boot up into Windows. Let’s learn how to use Samsung
Recovery Solution.
Initial Status Backup
If you turn your computer on for the rst
time, the Initial Status Backup function
is performed after registering Windows.
This function saves an image of the Initial
Status of the C drive to a secure location
so that users can restore the computer
to the Initial Status using the Complete
Restore function. An Initial Status Backup
is only performed once immediately after
the computer is purchased.
1 If you turn the power on for the rst
time, the Register Windows screen
appears. If you register Windows
according to the instructions on the
screen, the computer will be restarted.
2 When the computer has been
restarted, the User Registration
Complete message appears. Click
OK. The computer will restart.
3 The Initial Status Backup screen
appears.
To resize the C and D drives, click
Advanced and partition the disk
accordingly. Adjust the partition size
using the slide bar and then click
Next.
The partition disk function is only
available when the computer is
turned on for the rst time and will
not be available afterwards. Once
you have completed the partitions,
you cannot resize the partitions.
Therefore partition the disk carefully.
4 The Initial Status Backup is performed
to backup the initial status of the
C drive to a secure location. This
backup image is used for the
Complete Restore function that
restores your computer to the initial
status when the computer is not
working properly.
5 When the Initial Status Backup is
complete, restart Windows.
164
Quick Restore
Quick Restore enables you to easily
restore your computer to a previous,
normal state when a problem occurs with
your computer. Quick Restore provides
Basic Restore and Complete Restore
(Computer Initial Status Restore) options.
1 – When Windows is running:
Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
– When Windows does not start:
Turn the computer on and press
the F4 key when the boot screen
(SAMSUNG logo) appears. After a
moment, the computer boots up in
Restoration mode and the Samsung
Recovery Solution screen appears.
The touch screen function is not
supported in this mode even if your
model supports a touch screen. In
this mode, please use the touchpad
or mouse instead of the touch
screen.
2 If the Samsung Recovery Solution
program is launched for the rst time
after purchasing the computer, the
license agreement screen appears
before the restoration is started. Read
the agreement and click Agree to
continue.
3 If the initial menu screen appears,
click Restore.
If you click Select by Symptom,
the Select by Symptom menu
appears. If you select a symptom, a
recommended restoration option will
blink. Click the restoration option to
continue.
4 Select either Basic Restore or
Complete Restore from the Restore
menu.
A Basic Restore restores the major
Windows les only while maintaining
the user conguration and data on the
C drive in a short time.
A Complete Restore deletes the
entire C drive and then restores the
contents of the C drive.
165
Run Complete Restore if the
computer does not work even after
Basic Restore has been completed.
4-1 If you have selected Basic Restore:
In the Basic Restore screen, click
the Next button. The system will be
restarted.
4-2 If you have selected Complete
Restore:
In the restoration point selection
screen, select the restoration point
described as ‘Computer Initial
Status’ and click the Next button.
The system will be restarted.
Since a Complete Restore deletes
all user data as well as additionally
installed programs, please backup
your important data rst using the
Data Backup function, before running
Complete Restore.
5 The computer boots up into
restoration mode and the restoration
progress message appears. If you
click OK, the restoration begins. The
restoration may take some time,
please wait for a moment.
6 When the ‘Restart the System’
message appears after the restoration
is complete, click OK to restart the
system.
Make sure that the power cord is
connected while the restoration is in
progress. The rst time the computer
boots up after a Complete Restore has
been performed, the speed of the boot
process may be slowed down due to
the system optimization process. At this
time, do not shut the computer down by
force.
User Complete Backup/Restore
A Complete Backup saves the complete
image of the C drive onto another drive or
DVD. A Complete Restore restores the
image le saved by the Complete Backup
onto the C drive. This guide describes the
Complete Backup and Complete Restore
procedures on the basis of backing up
and restoring by using DVD.
166
Complete Backup
If you run Complete Backup
using a DVD, you can restore the
computer even when a problem
occurs with the hard disk or when
the restoration area is removed.
To perform a complete backup
onto DVD, an external ODD that
supports DVD burning must be
connected.
1 Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
When you cannot start Windows,
turn the computer on and press the
F4 key in the boot screen to enter
restoration mode.
2 When the initial menu screen
appears, click Backup.
3 Click Complete Backup in the
backup menu.

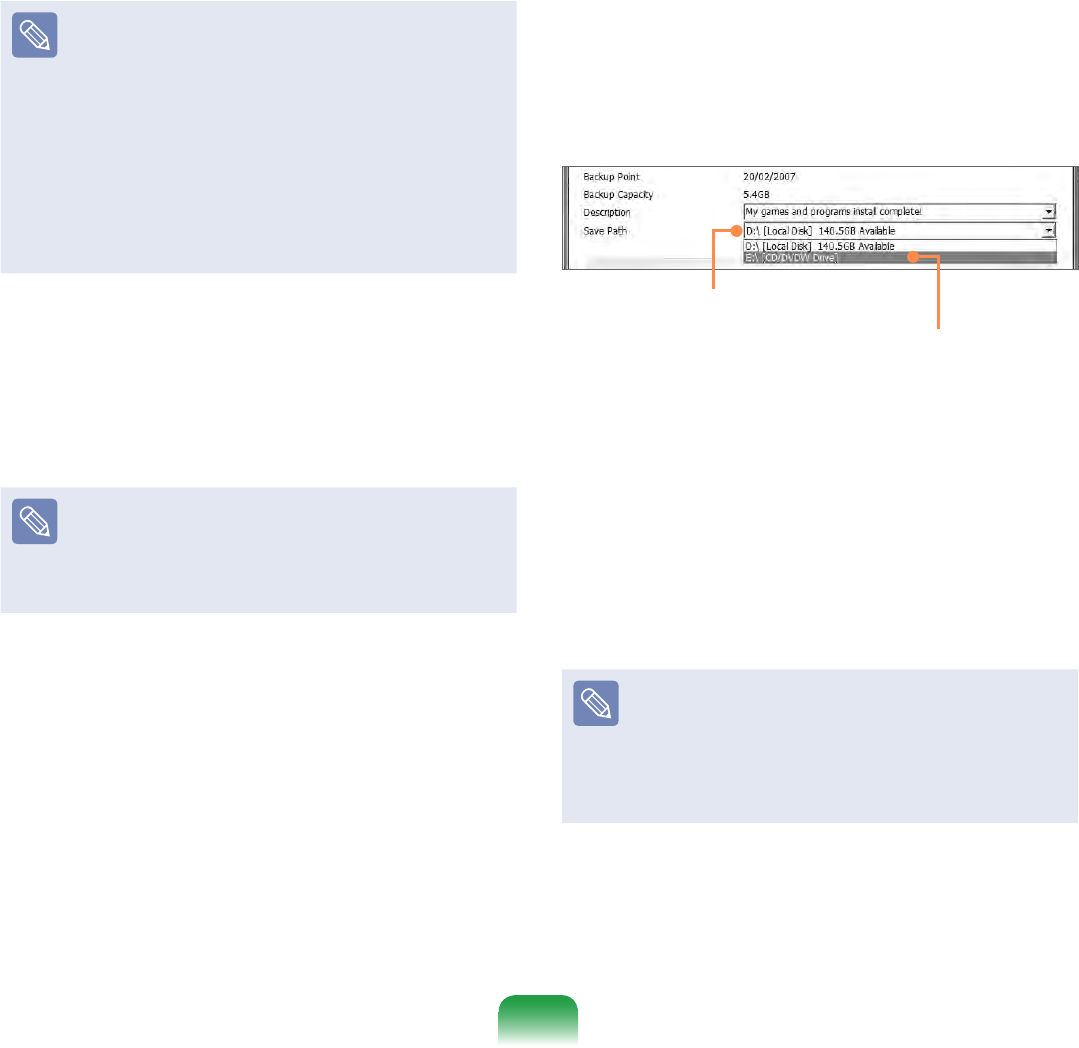

4 Enter a description for the backup
regarding the current computer status
in the Description eld so that you can
easily recognize it later, and specify
the Save Path. If your computer has a
DVD-Writer, you can specify the DVD
drive as the Save Path.
Select Drive D.
Select the DVD drive.
5 If you click the Next button, the
system restarts in restoration mode
and the Complete Backup begins.
If you have selected the DVD drive
as the Save Path, the “Enter a blank
DVD” message appears. Insert a
blank DVD and click the OK button.
Samsung Recovery Solution
supports DVD+R, DVD-R, DVD+RW,
and DVD-RW, but does not support
CD-R, CD-RW, DVD-RAM, DVD-DL
(Dual Layer), HD-DVD, and Blu-Ray.
167
6 The Complete Backup begins.
If multiple DVDs are required,
the expected number of DVDs is
displayed in the progress screen.
Whenever burning a DVD is
completed, the “Insert the next DVD”
message will appear. Continue the
backup according to the instructions.
7
When the ‘Restart the System’ message
appears after the backup is complete,
click OK to restart the system.
Complete Restore
1 – When backing up onto DVD
Turn the computer on and insert the
backup DVD into the DVD drive.
If there are multiple backup DVDs,
insert the rst DVD.
– When backing up to another
drive
Proceed to Step 2.
2 Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
When you cannot start Windows,
turn the computer on and press the
F4 key in the boot screen to enter
restoration mode.
3 When the initial menu screen
appears, click Restore and then click
Complete Restore.
4 Select a Complete Backup
restoration point in the restoration
point selection screen and click the
Next button. The system is restarted.
5 The restoration progress message
appears after the computer boots up
in restoration mode. If you click OK,
the restoration begins.
If multiple DVDs have been used
for a Complete Backup, whenever
burning a DVD is completed, the
“Insert the next DVD” message will
appear.
6 When the ‘Restart the System’
message appears after the restoration
is complete, click OK to restart the
system. The Complete Restore has
been completed.
168
User Data Backup/Restore
Data Backup enables you to save
specic les or folders onto another drive
or DVD. Data Restore enables you to
restore data using the data saved by
a Data Backup when data is lost. This
guide describes the Backup and Restore
procedures on the basis of backing up
and restoring by using DVD.
Data Backup
1 Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
When you cannot start Windows,
turn the computer on and press the
F4 key in the boot screen to enter
restoration mode.
2 When the initial menu screen
appears, click Backup and then click
Data Backup.
3 In the data selection screen, select
either Basic Selection or Select
from all, select a folder or le to be
backed up, and then click the Next
button.
4 Enter a description for the backup in
the Description eld so that you can
easily recognize it later and specify
the Save Path. If your computer has a
DVD-Writer, you can specify the DVD
drive as the Save Path.
If you have specied a hard disk
drive or a removable disk as the
Save Path, the SamsungRecovery\
SamsungData folder is created on
the corresponding drive (e.g. D:\)
and the data is saved to the folder.
Take care to not delete the folder by
mistake or on purpose.
5 If you click the Next button, the Data
Backup begins. If you have selected
the DVD drive as the Save Path,
the “Enter a blank DVD” message
appears. Insert a blank DVD and click
the OK button.
6 The “Backup is completed” message
appears.
169
Data Restore
1 – When backing up onto DVD
Turn the computer on and insert the
backup DVD into the DVD drive.
– When backing up to another
drive
Proceed to Step 2.
2 Click Start > All Programs >
Samsung > Samsung Recovery
Solution > Samsung Recovery
Solution.
When you cannot start Windows,
turn the computer on and press the
F4 key in the boot screen to enter
restoration mode.
3 When the initial menu screen
appears, click Restore and then click
Data Restore.
4 Select a backup item to be restored
in the backup list and click the Next
button.
5 Select a folder for the restoration and
click the Next button. Data Restore
begins.
6 When Data Restore is completed,
check if the data has been restored to
the specied folder.
170
Questions and Answers
This section provides information on possible problems, solutions and other references
for system use.
Q The system does not shutdown
properly.
A When the system does not shutdown
normally, press and hold the Power
button until the system manually
shuts off. If the Power-Saving Mode
is congured into the Power button,
press and hold for more than 4
seconds to shut the system off. When
the system is turned on after such
manual shutdown, Scandisk will run to
check errors in the system.
Q The system freezes during
program operation.
A1 There is an error with the program
currently being used. Press the
<Ctrl>, <Alt>, and <Delete> keys
simultaneously and click End Task in
the Windows Task Manager window.
A2 There is an error with the Windows
OS. Reboot the system by using the
Power button.
Windows Related
171
Q The LCD screen is too dark or too
bright.
A Turn on the LCD backlight or adjust
the screen brightness. Press Fn +
to turn on the LCD backlight or
press Fn + , Fn + to adjust the
screen brightness.
Q The screen saver disturbs screen
viewing during Media Player or
video le operation.
A Click Tools > Options > Player and
then clear the Allow screen saver
during playback in the Media
Center check box.
Q When I connect an external
display and change the settings
to display the screen image on
both the LCD and the external
display by pressing the Fn +
key combination, the screen is not
displayed properly.
A Press Fn + key combination
again. If the screen is still not
displayed or only part of the screen
is displayed by doing this, that means
the LCD resolution is too low or too
wide and the external display support
the resolution. Right-click over the
Desktop, select Properties, select
the Settings tab and change the
resolution to 800 x 600.
Q The Taskbar on the bottom of the
screen does not appear when a
projector is used as the display
device.
A This may happen, if the projector
does not support LCD resolution. In
this case change the resolution to
800 x 600 (recommended) on your
computer.
Display Related
172
Q Switching the MS-DOS command
prompt to full screen mode or
Windows mode by pressing the
<Alt>+<Enter> keys does not
operate properly.
A Pressing the <Alt>+<Enter> keys
using an USB keyboard, may cause
the key input to be recognized as
multiple key inputs depending on the
keyboard input recognition time. In
this case, the MS-DOS command
prompt is repeatedly switched to
full screen and then to Windows
several times. Please press the
<Alt>+<Enter> keys more quickly, or
press the <Alt>+<Enter> keys using
the system keyboard.
Q The shortcut icons are not
displayed on the screen even if I
press the shortcut key.
A The shortcut icons only appear when
the Easy Display Manager program is
installed.
Q The color is strange when the
picture is displayed on the
connected monitor (or projector).
A Check the monitor signal cable
connection and reconnect the cable.
173
Q How to install and uninstall the
sound driver.
A To install or uninstall the sound driver
from this system, please follow the
procedures below.
Sound Driver Components
The sound driver consists of the
following 2 components and the
2 components are automatically
installed during the installation.
–
Realtek High Denition Audio
Driver: Realtek High Denition Audio
– WOW XT and TSXT Filter Driver:
SRS
Uninstalling the Sound Driver
To remove the sound driver due to a
problem or for an update, follow the
procedures below.
If you do not follow the sequence
below, the sound driver may not be
removed or the reinstalled driver, or
may not work properly.
z Select Start > Control Panel > Add
or Remove Programs.
x Remove WOW XT and TSXT Filter
Driver rst.
c Remove Realtek High Denition
Audio Driver and restart the
computer.
Reinstalling the Sound Driver
If there is an already installed sound
driver, uninstall the driver according to
the procedures above.
The sound driver is included on the
System Software Media.
z Insert the System Software CD-
ROM into the CD-ROM drive.
x Select Sound Driver on either
Standard Installation or Custom
Installation, then the 2 components
of the sound driver are automatically
installed.
Sound Related
174
Q How can I congure the Recording
Mixer while I am video or audio
chatting?
A1 Playback Mixer Settings
z Double-click the Volume icon in
the Taskbar and select Options >
Properties from the menu.
x Select Realtek HD Audio Input in
the Mixer device eld, conrm that the
Microphone is selected in the Show
the following volume controls eld,
and click the OK button.
c Select the Microphone item in the
Record Control window and close
the window.
A2 Realtek HD Sound Effect Manager
Settings
z Click Start > Control Panel >
Sounds, Speech, and Audio
Devices > Realtek HD Sound Effect
Manager.
x Click Microphone tab.
c Select Noise Suppression and
Acoustic Echo Cancellation and
Click OK.
Using Acoustic Echo Cancellation
option keeps the Microphone Volume
muted in the Playback Mixer.
Q How can I congure the Recording
Mixer while broadcasting music in
WinAMP?
A1 Playback Mixer Settings
z Double-click the Volume icon in
the Taskbar and select Options >
Properties from the menu.
x Select Realtek HD Audio Input in the
Mixer device eld, select Stereo Mix
in the Show the following volume
controls eld, and click the OK
button.
c Select the Stereo Mix item in the
Record Control window and close
the window.
A2 Realtek HD Sound Effect Manager
Settings
z Click Start > Control Panel >
Sounds, Speech, and Audio
Devices > Realtek HD Sound Effect
Manager.
x Click Microphone tab.
c Unselect Noise Suppression and
Acoustic Echo Cancellation and
Click OK.
175
Q I cannot hear my voice through the
built-in microphone.
A This is because the setting is
congured so that sound from the
built-in microphone to the speaker is
muted to reduce the howling sound
effect. You can use the microphone
recording function normally, even in
this state.
When using an external microphone,
if you disable the microphone channel
mute function of the play mixer, you
can hear the sound input into the
external microphone through the
speaker.
Q I have a trouble with recording
after selecting ‘Acoustic Echo
Cancellation’ and unselecting Mute
in the Microphone volume of the
Playback Mixer.
A This is because the sound from the
external microphone is muted by
the Acoustic Echo Cancellation
Algorithm considering the sound as a
Acoustic Echo while the recording and
playing back is processed at the same
time. In this case, select Mute in the
Microphone Volume of the Playback
Mixer after selecting Acoustic Echo
Cancellation item.
176
Q
<Wake On LAN> function
A <Wake On LAN> is a function that
activates the system from Sleep mode
when a signal (such as a ping or
magic packet command) arrives over
the network (wired LAN).
S3 WOL (Wake On LAN)
z Select Start > Control Panel >
Performance and Maintenance
> System > Hardware > Device
Manager > Network Adapters.
x Double-click the Marvell Yukon
88E8040 PCI-E Fast Ethernet
Controller item.
The above driver name may be
different.
c From Power management tab, select
“Allow this device to bring the
computer out of standby”, then click
OK. Restart the system.
- If the system wake up from Sleep
mode even though there is no
received signal, use the system
after disabling the <Wake On LAN>
function.
- The LAN LED may not be turned off if
System is shutdown without disabling
the WOL <Wake on LAN> option.
- Connecting a wired LAN while using
a wireless LAN may not activate the
<Wake On LAN> function. Set the
Wireless LAN to Disable to use the
<Wake On LAN> function.
- When the computer exits standby/
hibernate mode a message informing
10Mbps wired LAN connection may
appear. It is because restoring the
network takes about 3 seconds. When
the network is restored, it operates in
100Mbps.
Wired LAN Related
177
Q
I cannot nd an AP.
Check the Wireless LAN LED.
A Check if the Wireless LAN LED is on.
If off, press the Wireless LAN On/Off
button <Fn>+<F9> to turn it on.
Reinstall the driver.
A Reinstall the driver using the software
media.
Check the Wireless Zero
Conguration (WZC) service.
A If the “Windows cannot make this
wireless connection” message
appears while searching for wireless
networks, it indicates that a program
other than Windows is set to manage
the wireless LAN settings.
To use the wireless LAN settings
using Windows:
A z Click Start > Control Panel
> Network and Internet
Connections > Network
Connections > Wireless LAN
Connection, right-click and check
if the “Windows manages wireless
network settings (W)” option is
selected in the Wireless Network
tab of the Properties window. If not,
select the option.
x Click Start > Control Panel >
Performance and Maintenance >
Administrative Tools > Computer
Management and click Services
and Applications > Services.
In the right pane, double-click
Wireless Zero Conguration
and check if the Startup Type is
Automatic and the Status is Started.
Wireless LAN Related
178
Q I cannot connect to an AP.
(The wireless connection is
disconnected frequently.)
Check the Network Key.
A Right-click the Wireless Network
Connections icon from the Taskbar
and click View available wireless
networks. If wireless networks are
found, it indicates that the device is
operating properly but the network
settings may have a problem. Please
check the Network Key (Encryption
Key) and the AP settings.
Check if there is a device nearby
using the same frequency band.
A1 If there is a device nearby using the
same frequency band such as another
wireless LAN device, wireless video
transceiver, microwave oven, plasma
bulb, etc., channel interference
may occur. If you experience
interference from another device, it
is recommended changing the AP
channel.
A2 When operating in EEE802.11g mode,
if there is a IEEE802.11b device
operating nearby, you may experience
low data rates or even disconnection
as it operates in Hybrid mode.
Check the authentication type.
A A connection may be disconnected
after a period of time if the “Use
IEEE 802.1x network authentication”
option is selected when IEEE 802.1x
authentication is not being used.
View the properties of the
corresponding AP in the Wireless
Network Properties. In the
Authentication tab, unselect the “Use
IEEE 802.1x authentication in this
network” option.
For detailed information on the
authentication server, ask your
network administrator.
Check the AP settings.
A1 Check if the surroundings are
appropriate for a wireless LAN.
A wireless LAN connection may
be limited by the surrounding
environment and distance. Obstacles
such as walls and door mats affect
the quality of the wireless LAN signal.
You have to install an AP in a high,
open position far away from any other
radio signal sources.
179
If the AP is excessively far away, or
is installed at the end of a building
and you are attempting to use the
wireless LAN from the other end, you
may not be able to use the wireless
communication normally because
the signal is blocked by obstacles
between you and the AP (such as a
wall).
A2 Check if the AP operates properly. If
the AP is not operating properly, turn
it off and on again and try again.
A3 Check if the AP rmware is the latest
version. (For more information on the
AP rmware, ask the AP manufacturer
or your product provider.)
A4 Check if the AP is properly connected
to the network. Connect the LAN
cable from the AP to a computer and
check if the network is connected
properly.
A5 Check the Network Key (Encryption
Key) settings again. If the automatic
password converting function
(passphrase function) is enabled and
the wireless connection is normal
but you cannot send data over the
connection, please enter the Network
Key (Encryption Key) manually.
A6 Check the AP settings as follows.
If there are multiple APs running at
the same time, check the channel
setting of each AP. If the interval
between the channels of the APs
is narrow, you may experience
electromagnetic interference. Set the
channel numbers of the APs so that
the internals between the channels
are maximized. (for example, Ch1,
Ch5, Ch9, Ch13) computer.
It is recommended unselecting the
Hide option of the AP. SSID (Service
Set ID) is a name used to distinguish
a wireless LAN from other wireless
LANs.
It is recommended using Long
Preamble. Preamble is a signal for
data transmission synchronization.
Although some APs support
Short Preamble, there might be a
compatibility problem.
Because “Fixed” channel selection
is more stable then ‘Auto’ channel
selection, “Fixed” channel selection
is recommended. It is recommended
not using the “Block Any” and “Any
Connection Block” functions. Although
these functions block connections
at the client side when the network
name is Any or Blank, it may cause a
compatibility problem.
180
For more information on the AP
settings, see the owner’s manual
supplied with the AP.
Q Although a connection has been
established, I cannot connect to
the Internet.
Check the TCP/IP settings.
A If you cannot connect to the Internet
but you are connected to an AP,
check if the TCP/IP settings are
congured properly.
When you are not connected to an
AP, an X mark appears over the
‘Wireless Network Connections’
icon in the Taskbar. If you
double-click the icon, the Search
for Wireless Connections window
appears. Reconnect to a wireless
network referring to the descriptions
of Connecting to a Wireless LAN in
the Using the Network section.
When you are connected to an AP, an
X mark appears over the “Wireless
Network Connections” icon in the
Taskbar. Double-click the icon and
check if the IP address is properly
allocated on the Support tab. If the
IP address is not properly allocated,
the IP address will be displayed as
follows; (for example, 169.254.xxx.
xxx).
If your network does not support
DHCP, you have to manually
congure an IP address by asking
your network administrator.
In addition, even if your network
supports DHCP, the Internet
connection may not be available if the
DHCP server fails to allocate an IP
address to your computer.
Q I have congured both wired and
wireless connections with the
same IP address, but the network
connections do not work properly.
A You cannot use the same IP address
for wired and wireless connections.
To use only one IP address for both
wired and wireless connections, you
must disable one of them according
to your requirements in Network
Connections in the Control Panel.
181
Q After installing the Wireless LAN
Setting program, the “AEGIS
Protocol (IEEE 802.1x)” protocol
appears in the [Local Area Connect
Properties] window.
A The protocol is a security
authentication protocol that is
automatically installed when the
Wireless LAN Settings program is
installed and does not affect the
program operation.
Q (For Intel PROSet) Although I have
turned the wireless LAN off using
the Turn Off Wireless LAN button
in PROSet, the Wireless LAN LED
is still on.
A This is normal. The Turn Off Wireless
LAN button in PROSet just turns
off the wireless LAN software. The
wireless LAN hardware is not affected
by this operation.
Q (For Intel PROSet) After installing
PROSet, I cannot manage my
wireless network in Windows.
A When clicking Use Microsoft Client
in the Tools menu of the PROSet,
you can manage wireless network in
Windows.
Thereafter, if you wish to manage your
wireless network, click Activate Intel
PROSet/Wireless in the Tools menu
of the PROSet.
Q Internet Connection or File Sharing
doesn’t work, when I use Internet
Connection Sharing or Ad Hoc.
A You have to register the IP address
allocated for Internet Connection
Sharing or Ad Hoc as a ‘Trusted IP’ in
McAfee SecurityCenter.
Click McAfee SecurityCenter >
Advanced menu > Congure >
Internet and Network > Advanced
> Trusted and Banned IPs, and
register the IP address or IP address
range as a Trusted IP address. The IP
address range for DHCP is 10.0.0.1 ~
10.255.255.254 if not specied.
182
Q Computer-to-computer(ADHOC)
wireless Network connection is
established but not detected on
the other wireless network.
A To enable peer-to-peer network
search under Windows XP SP3
environment, you have to select
additional options in the wireless
proles as follows:
z Right-click on the Wireless Network
Connection icon on the taskbar,
and select View Available Wireless
Networks.
x Click Change the order of preferred
networks on the left window.
c At the Preferred networks, select the
peer-to-peer network prole and click
Properties.
v Check Connect even if this network
is not broadcasting item.
b On the Connection tab, check
Connect when this network is in
range and click OK.
183
Q 3D game is not executed, or some
functions are not working.
A Change the graphic setting of the
game to “2D” or “Software Renderer,”
then execute the program again.
Q I launched a game right after
installing it, and the game is not
executed.
A This problem may occur when the
game is not compatible with Windows
XP. Launch the game again, and it will
be executed properly.
Q Fn + Key combination does not
work.
A While displaying video of VCD or
MPEG, or the display setting is Dual
View, you cannot toggle display
devices. Also the installation of
NetWare Client 32 program disables
the function of Fn + .
Q While playing a game, pressing the
Fn + keys does not work or the
screen is not properly displayed.
A Some games and 3D application
programs may change the display
device control. Therefore, pressing
the Fn + keys may terminate the
running program or may display an
abnormal screen.
Press the Fn + keys before
launching a program and do not press
them while running the program.
Q Running speed of a game is too
slow or fast.
A Change the setting of Power
Schemes to “Always On.”
(Click Start > Control Panel >
Performance and Maintenance >
Power Options > Power Schemes
tab, then congure the Power
schemes eld to “Always On.”)
Games and Programs Related
184
Q Some part of a game image is not
displayed or is displayed in black.
A This may happen when running a
game designed for DirecX 8.1 or
which has 1024 x 768 as the default
resolution, such as NHL 2003, MVP
Baseball 2003, Special Forces,
Hangame, Pmang etc.
Q The picture is not displayed
properly for some games.
A Some games may not display the
picture properly when the screen
resolution is set to 1024 × 600 and the
color quality is set to 32 bit.
For these games, set the screen
resolution to 1024 x 600 or 800 x 600,
and the color quality to 16bit.
Q Game play is not displayed
smoothly on the screen.
A For 3D games, the texture data
for the 3D screen display is saved
to the system memory. If there is
insufcient system memory, the data
is saved to the hard disk drive and
loaded to memory when required.
This operation may temporarily stop
displaying the picture on the screen.
In this case, lower the game
resolution or the screen settings.
In addition, some 3D games, such as
Dungeon and Fighter, RollerCoaster
Tycoon 3, Special Forces, Universe
at War, Transformer the Game etc,
take up lots of hardware resources so
upgrading system memory to 2G is
recommneded.
185
Q I cannot nd or connect the
headset.
A1 If the headset is connected to another
device and is currently being used,
you will not be able to locate it. In this
case, even if you locate the headset,
you will not be able to connect it.
Disconnect the headset from the
device and then try again.
A2 If the headset is connected to
the power adapter, the Bluetooth
wireless connection is not available.
Disconnect the headset from the
power adapter and try again.
A3 A Bluetooth headset generally
provides On/Off and Pairing modes.
To connect the headset to another
Bluetooth device such as a computer
or cellphone, it must be in Pairing
mode. Switch the headset to Pairing
mode and try again.
In general, a Bluetooth headset
in Pairing mode is automatically
switched to On/ Off mode after a pre-
determined period of time.
Q I have connected the headset, but I
cannot hear sound normally.
A1 If the Bluetooth headset is properly
connected to a computer, the Control
Pane Sound Playback Device
changes to Bluetooth Audio (for
a mono headset) or High Quality
Bluetooth Audio (for a stereo
headset). If the Sound Playback
Device in the Control Panel is not
changed properly, you may not hear
any sound. Check the audio settings
in the Control Panel according to the
procedures below.
Conguring Sounds and Audio
Devices in the Control Panel
z Double-Click Start > Control Panel >
Sounds and Audio Devices.
x Select the Audio tab in the Sounds
and Audio Devices Properties
window.
c Check if the Sound playback and
Sound recording device is set to
Bluetooth audio (for a mono headset)
or High Quality Bluetooth audio (for a
stereo headset).
A2 Check if the headset is properly
connected and is operating normally.
A3 Check the volume settings of the
headset and the computer.
Bluetooth
186
A4 If a multimedia application such as
Windows Media Player is running
when connecting the headset, the
headset may not be connected or
recognized properly. Connect the
headset rst and then launch a
multimedia application.
Q To change the popup window
display settings when connected
to the Internet. In the Windows
XP SP3 environment, you can
decide whether to display a popup
window when connected to the
Internet, for user convenience and
security.
A1 To display most of the popup windows
when connected to the Internet:
z Click Internet Options in Start >
Control Panel > Security Center >
Manage security settings for.
x In the Privacy tab of Internet
Properties, clear Block pop-ups.
A2 To display popup windows only from
the current site when connected to the
Internet:
Place the cursor on the notication
area at the bottom of the Internet
address bar and right-click to display
a menu, from which you can select
Temporarily Allow Pop-ups or Always
Allow Pop-ups from This Site.
Security Center
187
A3 To display popup windows from a
particular site:
z Click Internet Options in Start >
Control Panel > Security Center >
Manage security settings for.
x In the Privacy tab of Internet
Properties, click Settings from Block
pop-ups.
c Enter a URL to want to allow pop-ups
into Address of Web site to allow and
click Add.
v You will nd that the entered address
is added to the allowed sites list. The
next time you connect to the Web site,
you will see pop-ups appearing.
When you need to re-block a
permitted site, select the Web site
address that you want to block from
the Allowed Sites and click Remove.
Q When you connect to a Web site,
you see the message, “To help
protect your security, Internet
Explorer stopped this site from
installing an ActiveX control on
your computer” or “This site might
require the following ActiveX
control” below the address bar.
A Windows XP SP3 blocks unsigned
ActiveX controls from being installed
when connected to certain Web sites
for security reasons. On some Web
sites that have no ActiveX controls
installed, applications are not started
or do not display properly.
In this case, to install ActiveX controls,
right-click the notication area to
display a menu from which you can
select Install ActiveX control.
188
Q When you see a Windows Security
Alert icon appear on the right
part of the Taskbar. With the
Security Center feature added,
Windows XP SP3 checks the
Firewall, the automatic updates
conguration and installation
of virus-checking programs
to display a Windows Security
Alert icon on the right part of the
Taskbar when it judges that the
computer is vulnerable to attacks
from the Internet. In this case,
check the following to install the
necessary components.
A1 Set up the Windows Firewall.
When you set up the Windows
Firewall, you will be protected from
unauthorized access through the
Internet or the network.
z Click Windows Firewall in Start >
Control Panel > Security Center >
Manage security settings for.
x From the General tab of Windows
Firewall, select ON (recommended).
c If you want to allow a certain program
or service to gain access to your
computer using the Firewall, select
and check the program or service
that you want to allow access from,
in the Exceptions tab of the Windows
Firewall. If you want to add a program
to Programs and Services, click Add
Program and select it.
A2 Set up Windows Automatic Updates.
This automatically downloads and
installs critical updates via the Internet
to keep your computer up to date.
z Click Automatic Updates in Start >
Control Panel > Security Center >
Manage security settings for.
x From general tab of Automatic
Updates window, select Automatic
(recommended).
A3 Keep your computer current with
the latest virus updates. (ex: Norton
Antivirus) Even when you have
installed Norton AntiVirus on your
computer, Windows cannot recognize
the program until you congure the
settings, displaying a Security Alert
icon.
189
When you rst use or install Norton
AntiVirus for the rst time, follow the
Registration Wizard steps to congure
the registration settings.
To protect your computer from virus
attacks with the latest updates, click
Options to display the Norton
AntiVirus Options window. From
the left menu of the window, check
Run Automatic Protection to select
Automatic Protection and check Run
LiveUpdate to select LiveUpdate.
A4 Two virus scanning programs on one
computer may cause system conicts.
Remove one of the programs from the
system.
A5 If Windows does not recognize the
existence of an anti-virus program
even when it has been installed, your
computer could be vulnerable to
attacks from the Internet. You should
install an anti-virus program that your
computer is able to identify.
Check the following programs which
Windows can detect and select one
from the list.
A list of anti-virus programs that
Windows can detect:
- Symantec Norton Anti-Virus
- NetworkAssociates (McAfee)
- TrendMicro
- ComputerAssociates
- Panda
- Kaspersky
- Ahnlabs (AhnLab)
Visit the Microsoft Web site
(www.microsoft.com) regularly to
check the latest list.
190
Product Specications
The system specications may differ depending on the derived models. For detailed system
specications, refer to the product catalog.
CPU Intel ATOM™ Processor
Main Memory Memory type: DDR2 SODIMM
Main Chipset Intel 945GSE + ICH7M
Hard Disk Drive (Optional) 9.5mmH SATA HDD or 9.5mmH SATA SSD
Optical Disk Drive (Optional) External ODD: USB 2.0/9.5mm Super-multi
Graphics Intel 945GSE (Internal)
Sound Chipset ALC272-GR
Network (Optional)
Wired LAN: Marvell 88E8040
Wireless LAN: 802.11 b/g,802.11 b/g/n (Optional)
Bluetooth 2.0+EDR (Optional)
Multi Card Slot SD Card / SDHC Card / MMC
Ports (Optional)
USB 2.0 Port x 3, Video (Monitor) Port, Headphone
Jack, Microphone Jack, Wired LAN Port, Power IN Jack,
Kensington Lock
Dimensions 262 x 184.5 x 28.0 mm
LCD 10.1” WSVGA (1024 x 600)
Battery (Optional) Lithium-Ion Smart Battery: 4Cell/6Cell
Operating Environment Temperature : -5~40°C for storage, 10~32°C when operating
Humidity : 5~90% for storage, 20~80% when operating
Operating Voltage 100 - 240VAC
Frequency 50/60Hz
Output Power 40W
Output Voltage 19VDC 2.1A(40W)
The weight and dimension listed are approximate values and may vary a bit from
the actual product.
Optional components may not be provided or different components may be provided
depending on the computer model.
The system specications are subject to change without notice.
The hard disk drive capacity of a computer in which Samsung Recovery Solution is
installed, is represented as smaller than the product specication.
191
Wireless LAN Specications (802.11a/b/g, 802.11n Card)
Intel 802.11ABG WLAN
The Name of the Registered Equipment : Special Low Power Wireless Device for
Wireless Data Communication Systems.
Item Detailed Specications
Physical
Specications
Dimensions 30.0 × 50.95mm (Width X Height)
Operating
Temperature And
Humidity
Same as System Operations
Temperature: Bet. 0°C and 70°C,
Humidity: Less than 85%
Power
Specications Power 3.3V
Network
Specications
Compatibility IEEE 802.11a, IEEE 802.11b, IEEE 802.11g
Operating System Microsoft Windows XP/Vista
Media Access
Protocol (MAC)
CSMA/CA (Collision Avoidance) with
Acknowledgement (ACK)
Security Wired Equivalent Privacy support (WEP)
64bit/128bit WPA*
*This device supports the Wireless LAN Security Specications WPA (Wi-Fi Protected
Access) for Wi-Fi.
To connect to a WPA wireless network, you have to congure the settings according to
the network connection environment. For detailed setting information, ask your network
administrator.
192
Radio Specications
RF Band 2.4GHz, 5GHz
Supported Channels Channels allowed per country.
Device Transceiver
Standard Output Power MAX 10mW
Modulation Scheme
11a mode : OFDM
11b mode : DSSS
11g mode : OFDM
Data Rate (Mbps)*
11a mode** : MAX 54Mbps
11b mode : MAX 11Mbps
11g mode*** : MAX 54Mbps
Antenna Type Built-in Antenna
* The data rate may differ from the real data transmission rate.
** 11a mode is only supported when the device is connected to an IEEE 802.11a device.
(e.g. Access Point supporting IEEE 802.11a)
*** 11g mode is only supported when the device is connected to an IEEE 802.11g device.
(e.g. Access Point supporting IEEE 802.11g)
193
Intel 802.11AGN WLAN
The Name of the Registered Equipment : Special Low Power Wireless Device for
Wireless Data Communication Systems.
Item Detailed Specications
Physical
Specications
Dimensions 30.0 × 50.95mm (Width X Height)
Operating
Temperature And
Humidity
Same as System Operations
Temperature: Bet. 0°C and 70°C,
Humidity: Less than 85%
Power
Specications Power 3.3V
Network
Specications
Compatibility IEEE 802.11a, IEEE 802.11b, IEEE 802.11g,
IEEE 802.11n
Operating System Microsoft Windows XP/Vista
Media Access
Protocol (MAC)
CSMA/CA (Collision Avoidance) with
Acknowledgement (ACK)
Security Wired Equivalent Privacy support (WEP)
64bit/128bit WPA*
*This device supports the Wireless LAN Security Specications WPA (Wi-Fi Protected
Access) for Wi-Fi.
To connect to a WPA wireless network, you have to congure the settings according to
the network connection environment. For detailed setting information, ask your network
administrator.
194
Radio Specications
RF Band 2.4GHz, 5GHz
Supported Channels Channels allowed per country.
Device Transceiver
Standard Output Power MAX 10mW
Modulation Scheme
11a mode : OFDM
11b mode : DSSS
11g mode : OFDM
11n mode : MIMO
Data Rate (Mbps)*
11a mode** : MAX 54Mbps
11b mode : MAX 11Mbps
11g mode*** : MAX 54Mbps
11n mode**** : MAX 450Mbps, MAX 300Mbps
Antenna Type Built-in Antenna
* The data rate may differ from the real data transmission rate.
** 11a mode is only supported when the device is connected to an IEEE 802.11a device.
(e.g. Access Point supporting IEEE 802.11a)
*** 11g mode is only supported when the device is connected to an IEEE 802.11g device.
(e.g. Access Point supporting IEEE 802.11g)
**** 11n mode is only supported when it is connected to an IEEE802.11n device (e.g.
Access Point supporting IEEE802.11n).
195
Wireless LAN Specications (802.11BG Card)
Intel 802.11BG WLAN
The Name of the Registered Equipment : Special Low Power Wireless Device for
Wireless Data Communication Systems.
Item Detailed Specications
Physical
Specications
Dimensions 30.0 × 50.95mm (Width X Height)
Operating
Temperature And
Humidity
Same as System Operations
Temperature: Bet. 0°C and 70°C,
Humidity: Less than 85%
Power
Specications Power 3.3V
Network
Specications
Compatibility IEEE 802.11b, IEEE 802.11g
Operating System Microsoft Windows XP/Vista
Media Access
Protocol (MAC)
CSMA/CA (Collision Avoidance) with
Acknowledgement (ACK)
Security Wired Equivalent Privacy support (WEP)
64bit/128bit WPA*
*This device supports the Wireless LAN Security Specications WPA (Wi-Fi Protected
Access) for Wi-Fi.
To connect to a WPA wireless network, you have to congure the settings according to
the network connection environment. For detailed setting information, ask your network
administrator.
196
Radio Specications
RF Band 2.4GHz
Supported Channels Channels allowed per country.
Device Transceiver
Standard Output Power MAX 10mW
Modulation Scheme 11b mode : DSSS
11g mode : OFDM
Data Rate (Mbps)*11b mode : MAX 11Mbps
11g mode** : MAX 54Mbps
Antenna Type Built-in Antenna
* The data rate may differ from the real data transmission rate.
** 11g mode is only supported when the device is connected to an IEEE 802.11g device.
(e.g. Access Point supporting IEEE 802.11g)
197
Realtek 802.11BGN WLAN
Device Name for Formal Registration : Low Power Wireless Device for Wireless
Data Communication Systems.
Type Detailed Specications
Physical
Specications
Dimensions 30 x 26.65 mm (Width X Height)
Operating
Temperature
And Humidity
Temperature: Bet. 0°C and 70°C, Humidity:
Less than 85%
Power
Specications Power 3.3V
Network
Specications
Compatibility IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Operating
System Microsoft Windows XP/Vista
Media Access
Protocol
(MAC)
CSMA/CA (Collision Avoidance) with
Acknowledgement (ACK)
Security Wired Equivalent Privacy support (WEP) 64bit/128bit
WPA*
*This device supports the Wi-Fi wireless LAN security specications, WPA (Wi-Fi
Protected Access).
To connect to a network constructed with a WPA, the appropriate settings for the
network are required.
For detailed settings, ask your network administrator.
198
Radio Specications
RF Band 2.4GHz
Supported Channels The channels allowed for the country.
Device Transceiver
Standard Output Power MAX 10mW
Modulation Scheme
11b mode : DSSS
11g mode : OFDM
11n mode: MIMO
Data Rate (Mbps)*
11b mode : MAX 11Mbps
11g mode** : MAX 54Mbps
11g mode*** : Max. 300 Mbps
Antenna Type Built-in Antenna
* The data rate may differ from the actual data rate.
** 11g mode is only supported when this device is connected with an IEEE802.11g
device (E.g. An Access Point that supports IEEE802.11g).
*** 11n mode is only supported when this device is connected with an IEEE802.11n
device (E.g. An Access Point that supports IEEE802.11n).
199
Atheros 802.11BG WLAN
The Name of the Registered Equipment : Special Low Power Wireless Device for
Wireless Data Communication Systems.
Item Detailed Specications
Physical
Specications
Dimensions 30.0 × 50.95mm (Width X Height)
Operating
Temperature And
Humidity
Temperature: Between 0°C and 70°C,
Maximum Humidity: 85%
Power
Specications Power 3.3V
Network
Specications
Compatibility IEEE 802.11b, IEEE 802.11g
Operating System Microsoft Windows XP/Vista
Media Access
Protocol (MAC)
CSMA/CA (Collision Avoidance) with
Acknowledgement (ACK)
Security Wired Equivalent Privacy support (WEP)
64bit/128bit WPA*
*This device supports the Wireless LAN Security Specications WPA (Wi-Fi Protected
Access) for Wi-Fi.
To connect to a WPA wireless network, you have to congure the settings according to
the network connection environment. For detailed setting information, ask your network
administrator.
200
Radio Specications
RF Band 2.4GHz
Supported Channels Channels allowed per country.
Device Transceiver
Standard Output Power MAX 10mW
Modulation Scheme 11b mode : DSSS
11g mode : OFDM
Data Rate (Mbps)*11b mode : MAX 11Mbps
11g mode** : MAX 54Mbps
Antenna Type Built-in Antenna
* The data rate may differ from the real data transmission rate.
** 11g mode is supported only when you are connected to an IEEE 802.11g device (e.g. An
Access Point supporting IEEE 802.11g).
201
Registered Trademarks
Samsung is a registered trademark of
Samsung Co., Ltd.
SENS is a registered trademark of
Samsung Electronics Co., Ltd.
Intel, ATOM/ Pentium/Celeron are
registered trademarks of the Intel
Corporation.
Microsoft, MS-DOS, and Windows are
registered trademarks of the Microsoft
Corporation.
All other product or company names
mentioned herein are registered
trademarks of their respective companies.
is a trademark of SRS Labs, Inc.
TruSurround XT technology is
incorporated under license from SRS
Labs, Inc.
SRS TruSurround XT™ processes
multichannel audio content to create
a truly immersive surround sound
experience with rich bass and clear dialog
from the laptop speakers or headphones.
is a trademark of SRS Labs, Inc.
WOW XT technology is incorporated
under license from SRS Labs, Inc.
SRS WOW XT™ signicantly improves
the playback quality of audio, delivering
a dynamic 3D entertainment experience
with deep bass from even the smallest
and most closely spaced speakers.
ENERGY STAR® Partner
As an ENERGY STAR® Partner,
SAMSUNG has determined that
this product meets the ENERGY
STAR® guidelines for energy
efciency.
202
Glossary
The Glossary lists the terminologies used in this User Guide.
For terminologies other than these, look in Windows Help.
Backup
A way to save the current data to restore
it later if necessary. A backup is a way
to restore computer data when the data
or computer is damaged.
Client
This refers to a computer that uses a
shared network resource provided by a
server.
DDR SDRAM (Double Data Rate
Synchronous Dynamic Random Access
Memory)
DRAM is a memory type whose cells
consist of a capacitor and transistor
manufactured at a low price. SDRAM
is a memory type whose performance
has been improved by synchronizing
the clock with the external CPU clock.
DDR SDRAM is a memory type whose
performance has been improved by
doubling the operating speed of the
SDRAM and is widely used nowadays.
This computer uses DDR SDRAM.
Device Manager
An administrative tool used to manage
computer devices. You can add or
remove hardware or update a device
driver using the Device Manager.
Direct X
An application interface developed to
enable Windows application programs
to access hardware devices at a very
high speed. Since the operating speed
of graphics, memory and sound cards
must be very fast to provide high
quality video and sound for games,
Direct X enables faster control and
interaction between applications and
hardware devices. By using Direct X,
the multimedia performance of Windows
has been hugely improved.
Driver
Software that interacts between the
hardware and the operating system. An
operating system knows the hardware
information and controls the hardware.
In general, a driver is supplied with the
corresponding hardware device.
203
DVD (Digital Versatile Disk)
DVD was developed to replace CD
(compact disk). Although the shape and
size of the disc are the same as that of
a CD, the capacity of a DVD is at least
4.7GB while the capacity of a CD is
600MB. DVD video is digital unlike VHS
(analog) video and supports MPEG2
compression and digital audio. To play a
DVD, a DVD drive is required.
Firewall
A security system used to protect an
internal network or intranet from external
networks
through an authentication procedure.
Hibernation Mode
A power mode that saves all data in
memory to the hard disk and turns the
CPU and hard disk off. When canceling
Hibernation Mode, all application
programs that were running are restored
to their last state.
Icon
This refers to a small image that
represents a le that users can use.
LAN (Local Area Network)
A communications network connecting
computers, printers and other devices
within a local area such as within a
building. A LAN enables all connected
devices to interact with other devices
on the network. The current LAN uses
the Ethernet media access control
method developed in the early 1980s.
To connect to an Ethernet, a network
card called a LAN card, Ethernet card
or network interface card is required.
To exchange data between computers,
a protocol is required besides the
hardware equipment. Windows XP uses
TCP/IP as the default protocol.
LCD (Liquid Crystal Display)
There are Passive Matrix and Active
Matrix LCD types. This computer uses
the Active Matrix type LCD called a TFT
LCD. Since an LCD is implemented by
transistors instead of a cathode-ray tube
unlike a CRT, its size can be slim. And
because it does not blink, it reduces eye
strain.
204
Network
A group of computers and devices, such
as printers and scanners, connected
by a communications link. A network
can be either small or large and can be
connected permanently through cables
or temporarily through telephone lines
or wireless links. The biggest network is
the Internet, a worldwide network.
Notication Area
This refers to the right area of the
Taskbar including program icons such
as the volume control, the power options
and the time.
Power Schemes
This refers to a pre-determined power
management option group. For example,
you can set the time the computer waits
before entering Standby Mode, or before
the monitor or hard drive turns off. The
settings are saved as a power scheme.
Quick Launch
This refers to a toolbar that can be
congured so that you can launch a
program such as Internet Explorer or
display the Windows Desktop with one
click. You can add any icon to the quick
launch area of the Taskbar and launch
frequently used program by clicking that
icon.
Server
In general, a server refers to a computer
that provides shared resources for
network users.
Share
This refers to setting a resource of a
computer such as a folder or printer so
that other users can also use it.
Shared Folder
A folder that can be used by other users
on the network.
205
SSD (Solid State Disk)
This refers to a device that saves
information to semiconductors unlike a
normal hard disk drive (HDD). There are
two types of SSD. One saves data to
the DRAM and the other saves data to
the Flash Memory. Since there are no
mechanical parts, an SSD provides a
much better performance than an HDD.
Especially, a Flash Memory-Type SSD
provides high reliability and durability.
Network Administrator
A user who plans, congures and
manages network operations.
Sometimes, a network administrator is
called a system administrator.
Sleep Mode
A power mode that enables computers
to save power consumption when they
are not being used. When a computer
is in Sleep Mode, the data on the
computer memory is not saved to the
hard disk. If the power is turned off, the
data in memory will be lost.
System File
System Files refer to les that are read
and used by the Windows operating
system. In general, system les must not
be deleted or moved.
USB (Universal Serial Bus)
This refers to a serial interface standard
developed to replace the conventional
interface standards such as Serial and
PS/2. While USB 1.1 supports 12Mbps
(12 million bits per second), USB 2.0
supports a data rate that is 40 times
(480Mpbs) faster than that of USB 1.1.
The data rate of USB 2.0 is equivalent to
that of IEEE1394. Therefore USB 2.0 is
used for A/V devices supported by IEEE
1394 and a 2nd HDD and CDRW that
require a high data rate.
Windows Media Player
A multimedia program included with
Windows. Using this program, you can
play a media le, create an audio CD,
listen to a radio broadcast, search and
manage media les, and copy les to a
portable device, etc.
206
Index
B
Battery 146
Battery Calibration 153
BIOS Setup 136
Bluetooth 103
Booting Priority 143
C
CD Drive / Recording 65
Charge 147
Click 62
Connect / Output Monitor 70
Control Panel 84
D
Desktop / Change 80
Dual View 72
E
Easy Network Manager 99
H
Help 79
L
LCD Brightness 134
M
Memory 144
Multi Card Slot 67
N
Network 99
P
Password 140
Product Specications 190
Program 117
R
Recorder 76
Remaining Battery Charge 148
Resolution / Color 88
S
Safety Precautions 8
Samsung Battery Manager 149
Samsung Update Plus 123
Security Lock Port 154
Shortcut Keys 58
Status Indicators 51
T
Touchpad 61
U
User Accounts / Switch User 86
V
Volume Control 74
W
Windows XP 78
Wired Network 90
Wireless Network 93
PE3XX_N
