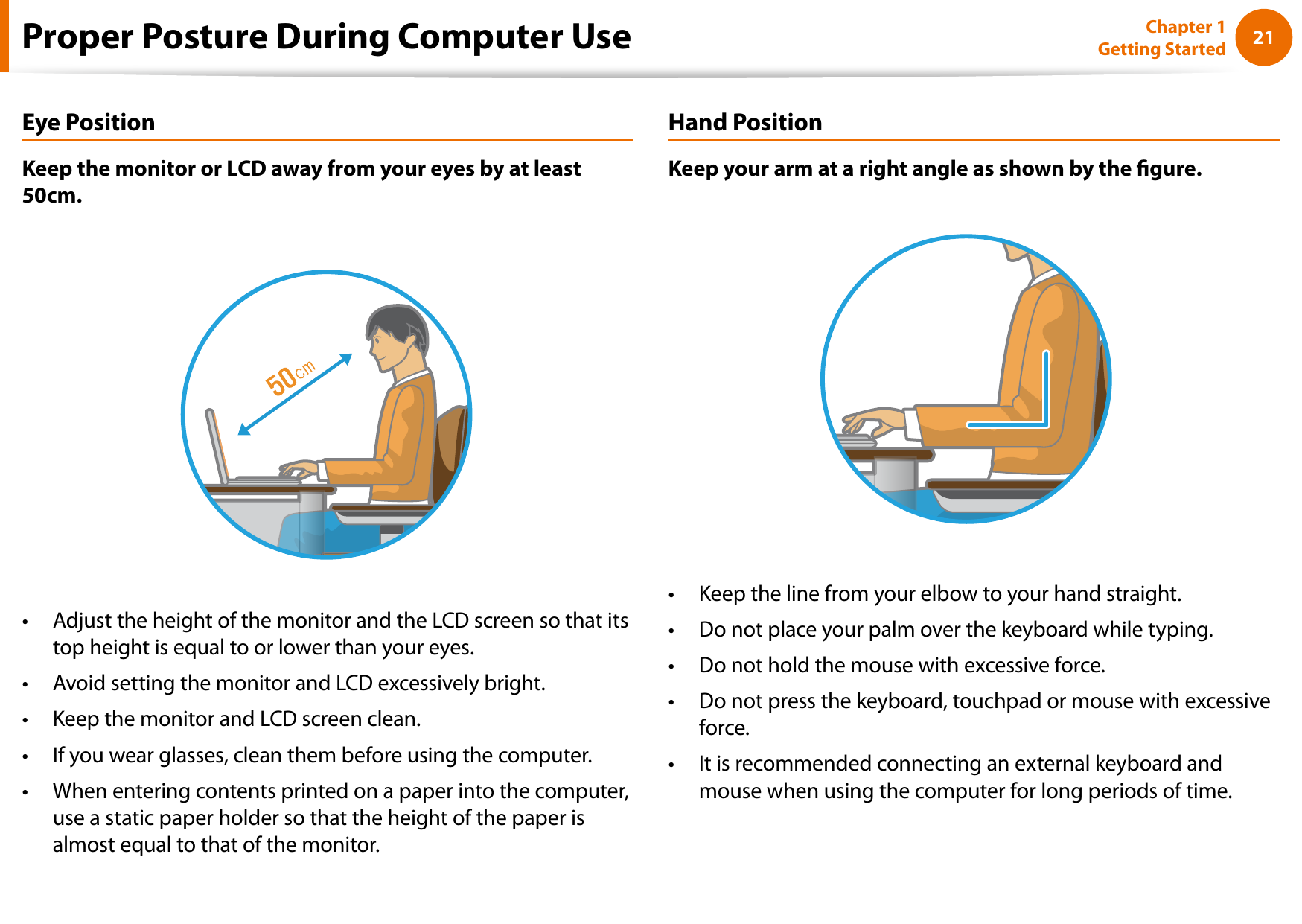

2021Chapter 1 Getting StartedProper Posture During Computer UseEye PositionKeep the monitor or LCD away from your eyes by at least 50cm.Adjust the height of the monitor and the LCD screen so that its • top height is equal to or lower than your eyes.Avoid setting the monitor and LCD excessively bright.• Keep the monitor and LCD screen clean.• If you wear glasses, clean them before using the computer.• When entering contents printed on a paper into the computer, • use a static paper holder so that the height of the paper is almost equal to that of the monitor.Hand PositionKeep your arm at a right angle as shown by the gure.Keep the line from your elbow to your hand straight.• Do not place your palm over the keyboard while typing.• Do not hold the mouse with excessive force.• Do not press the keyboard, touchpad or mouse with excessive • force.It is recommended connecting an external keyboard and • mouse when using the computer for long periods of time.

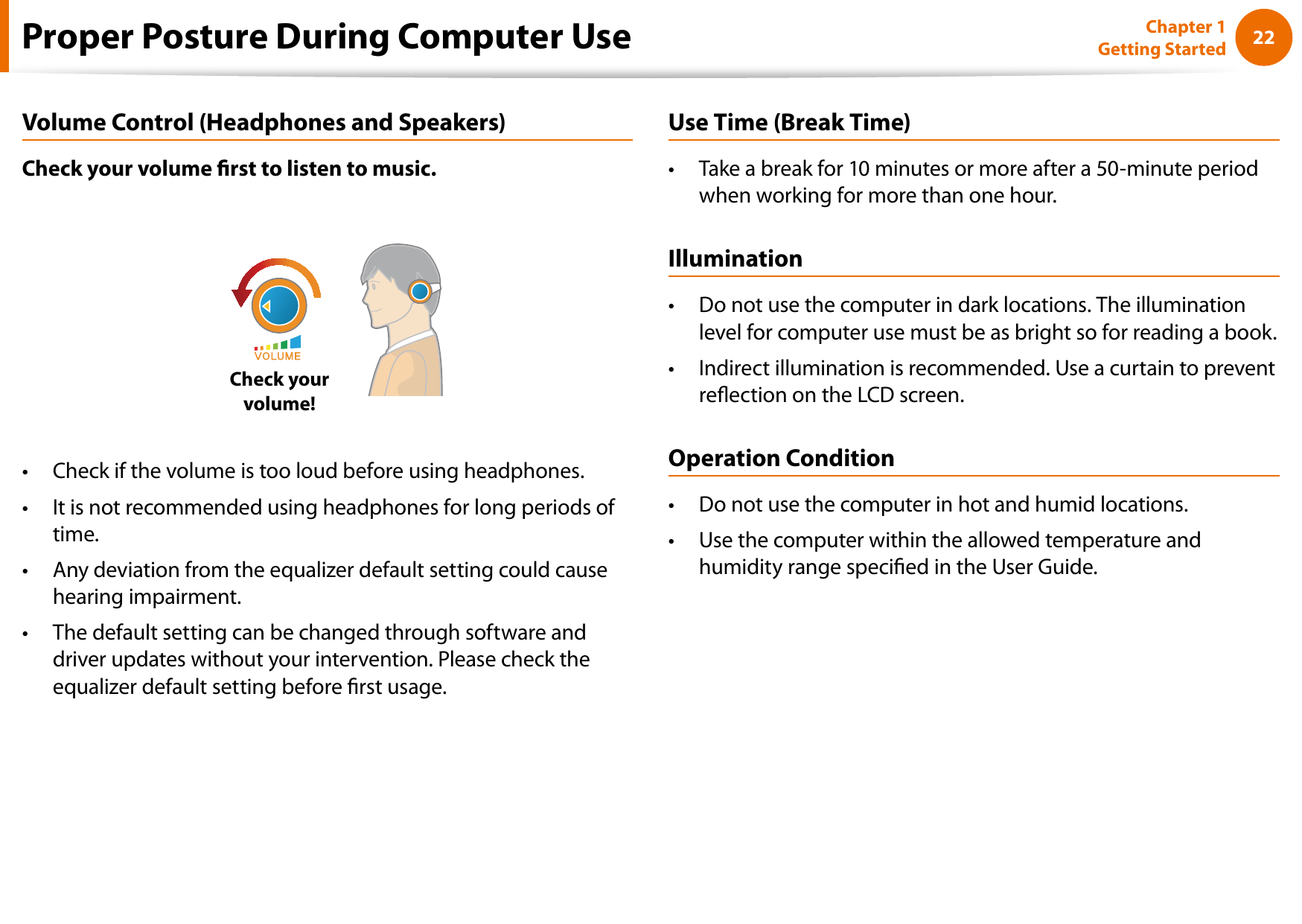

22Chapter 1 Getting StartedProper Posture During Computer UseVolume Control (Headphones and Speakers)Check your volume rst to listen to music.Check your volume!Check if the volume is too loud before using headphones.• It is not recommended using headphones for long periods of • time.Any deviation from the equalizer default setting could cause • hearing impairment.The default setting can be changed through software and • driver updates without your intervention. Please check the equalizer default setting before rst usage.Use Time (Break Time)Take a break for 10 minutes or more after a 50-minute period • when working for more than one hour.IlluminationDo not use the computer in dark locations. The illumination • level for computer use must be as bright so for reading a book.Indirect illumination is recommended. Use a curtain to prevent • reection on the LCD screen.Operation ConditionDo not use the computer in hot and humid locations.• Use the computer within the allowed temperature and • humidity range specied in the User Guide.

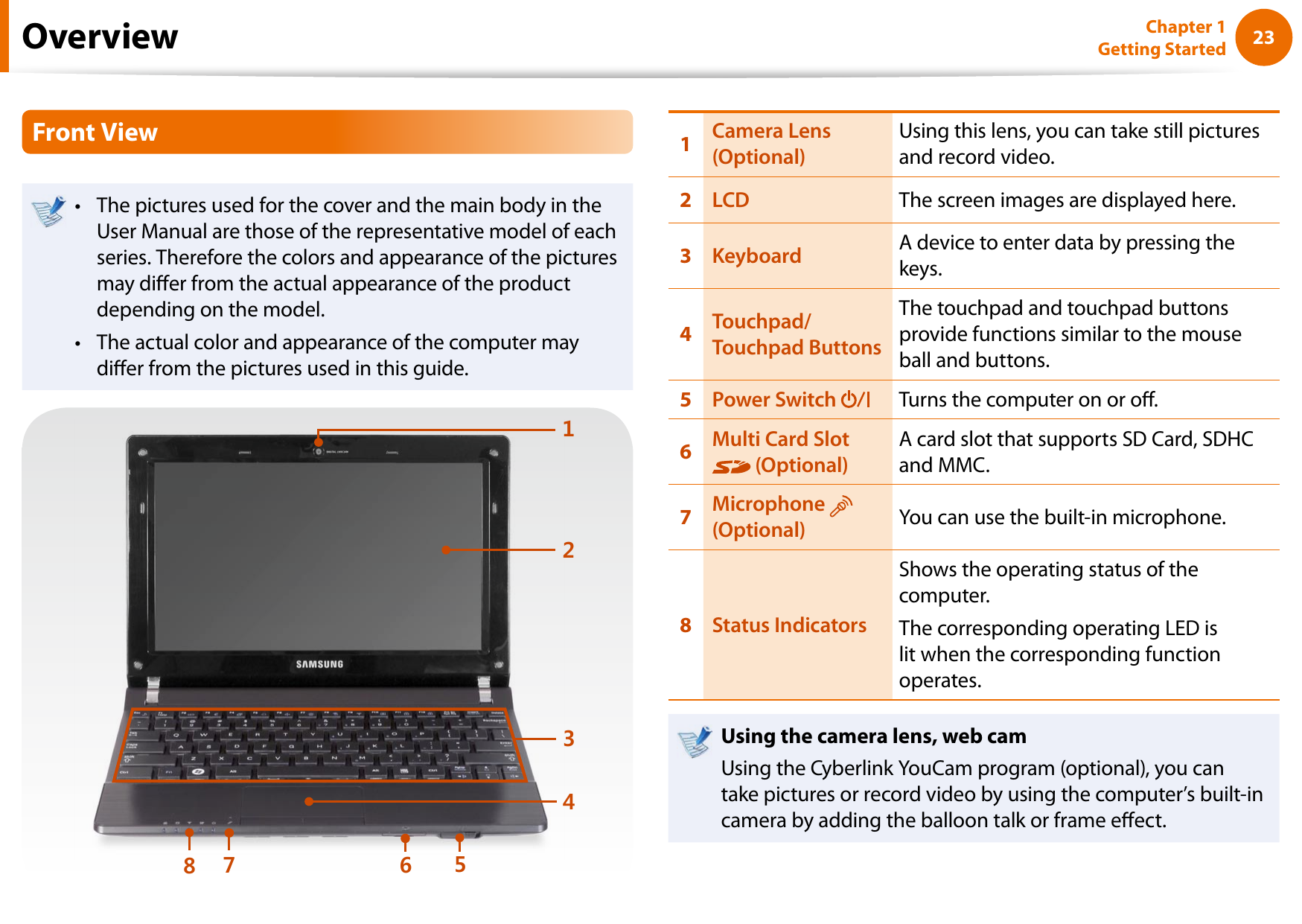

2223Chapter 1 Getting StartedOverviewFront ViewThe pictures used for the cover and the main body in the • User Manual are those of the representative model of each series. Therefore the colors and appearance of the pictures may dier from the actual appearance of the product depending on the model.The actual color and appearance of the computer may • dier from the pictures used in this guide.123457861Camera Lens (Optional)Using this lens, you can take still pictures and record video.2LCD The screen images are displayed here.3Keyboard A device to enter data by pressing the keys.4Touchpad/ Touchpad ButtonsThe touchpad and touchpad buttons provide functions similar to the mouse ball and buttons.5Power Switch Turns the computer on or o.6Multi Card Slot (Optional)A card slot that supports SD Card, SDHC and MMC.7Microphone (Optional) You can use the built-in microphone.8Status IndicatorsShows the operating status of the computer.The corresponding operating LED is lit when the corresponding function operates.Using the camera lens, web camUsing the Cyberlink YouCam program (optional), you can take pictures or record video by using the computer’s built-in camera by adding the balloon talk or frame eect.

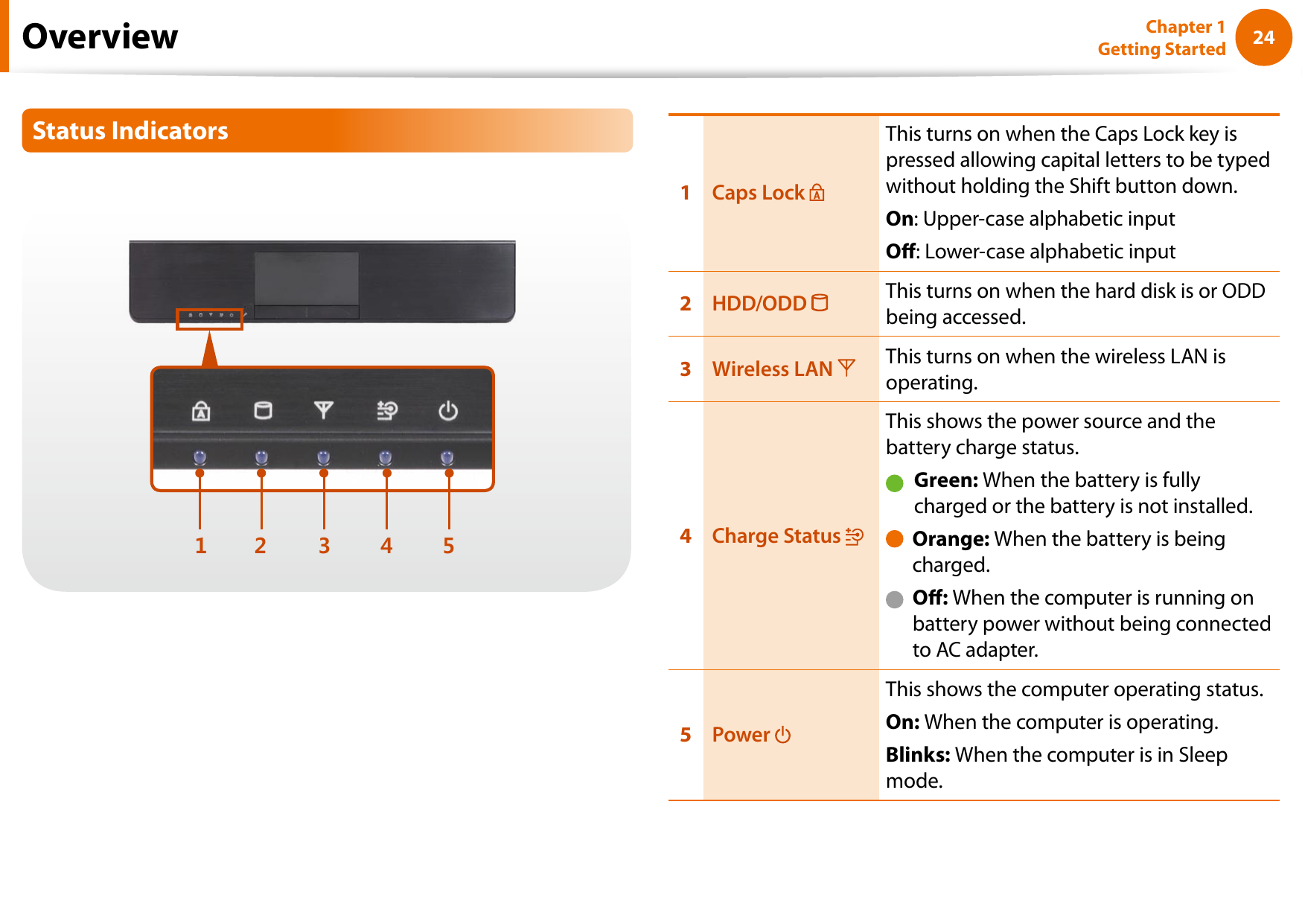

24Chapter 1 Getting StartedOverviewStatus Indicators1 2 3 4 51Caps Lock This turns on when the Caps Lock key is pressed allowing capital letters to be typed without holding the Shift button down.On: Upper-case alphabetic inputO: Lower-case alphabetic input2HDD/ODD This turns on when the hard disk is or ODD being accessed.3Wireless LAN This turns on when the wireless LAN is operating.4Charge Status This shows the power source and the battery charge status. Green: When the battery is fully charged or the battery is not installed. Orange: When the battery is being charged. O: When the computer is running on battery power without being connected to AC adapter.5Power This shows the computer operating status.On: When the computer is operating.Blinks: When the computer is in Sleep mode.
2425Chapter 1 Getting StartedOverviewRight View1 2 31USB Port You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.2Monitor Port A port used to connect a monitor, TV or projector supporting a 15pin D-SUB interface.3Security Lock Port You can connect a Kensington lock to the Security Lock Port to prevent the computer from being stolen.

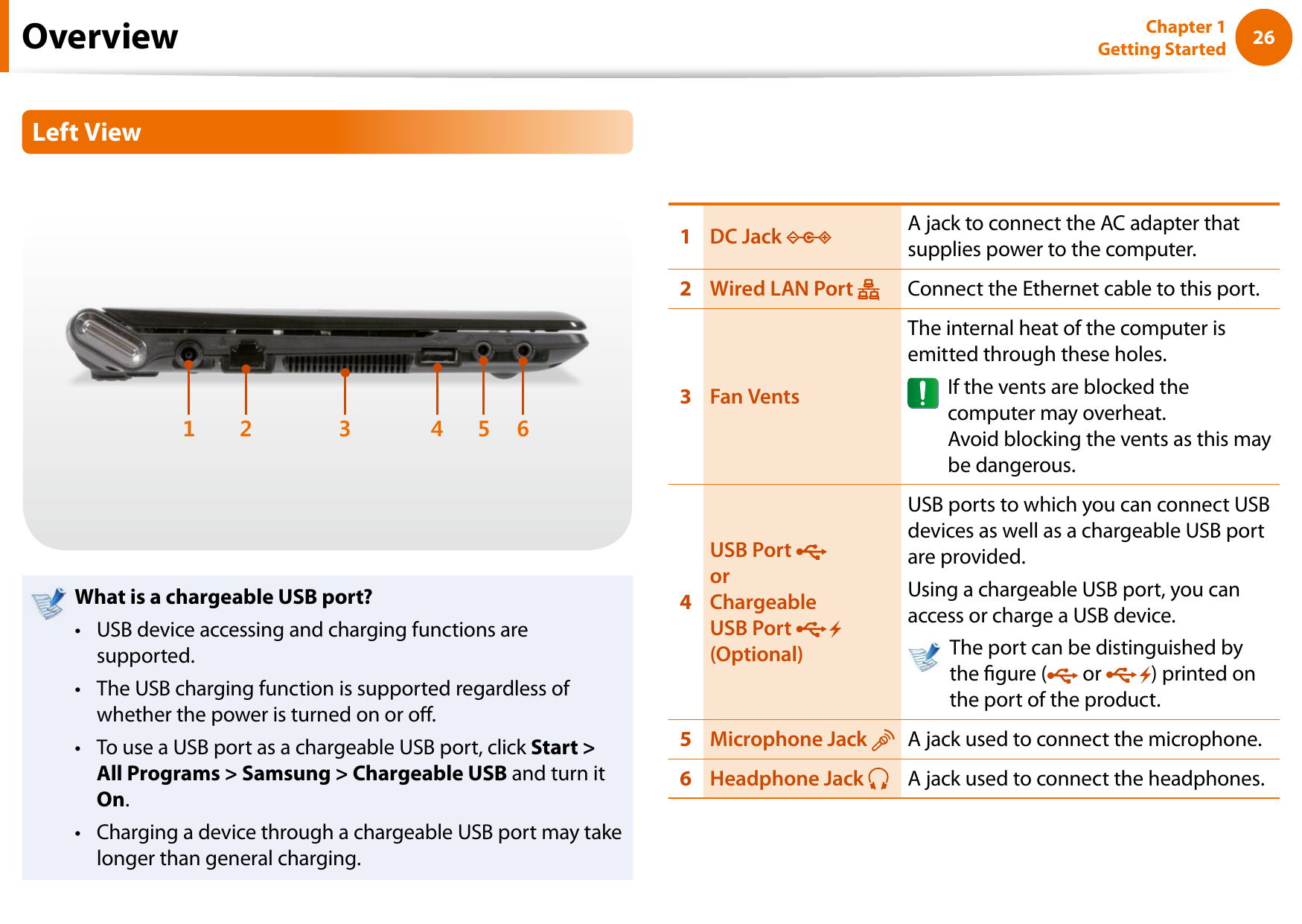

26Chapter 1 Getting StartedOverviewLeft View21 3 4 5 6What is a chargeable USB port?USB device accessing and charging functions are • supported.The USB charging function is supported regardless of • whether the power is turned on or o.To use a USB port as a chargeable USB port, click • Start > All Programs > Samsung > Chargeable USB and turn it On.Charging a device through a chargeable USB port may take • longer than general charging.1DC Jack A jack to connect the AC adapter that supplies power to the computer. 2Wired LAN Port Connect the Ethernet cable to this port.3Fan VentsThe internal heat of the computer is emitted through these holes. If the vents are blocked the computer may overheat. Avoid blocking the vents as this may be dangerous.4USB Port or Chargeable USB Port (Optional)USB ports to which you can connect USB devices as well as a chargeable USB port are provided.Using a chargeable USB port, you can access or charge a USB device. The port can be distinguished by the gure ( or ) printed on the port of the product.5Microphone Jack A jack used to connect the microphone.6Headphone Jack A jack used to connect the headphones.
2627Chapter 1 Getting StartedOverviewBack View11Battery This is a Lithium-Ion rechargeable battery that supplies power to the computer.Bottom View14321Battery Latches The latch used to remove or install the battery.2Speaker A device used to generate sound.3Memory Compartment CoverThe main memory is installed inside the cover.4Fan VentsThe internal heat of the computer is emitted through these holes. If the vents are blocked the computer may overheat. Avoid blocking the vents as this may be dangerous.

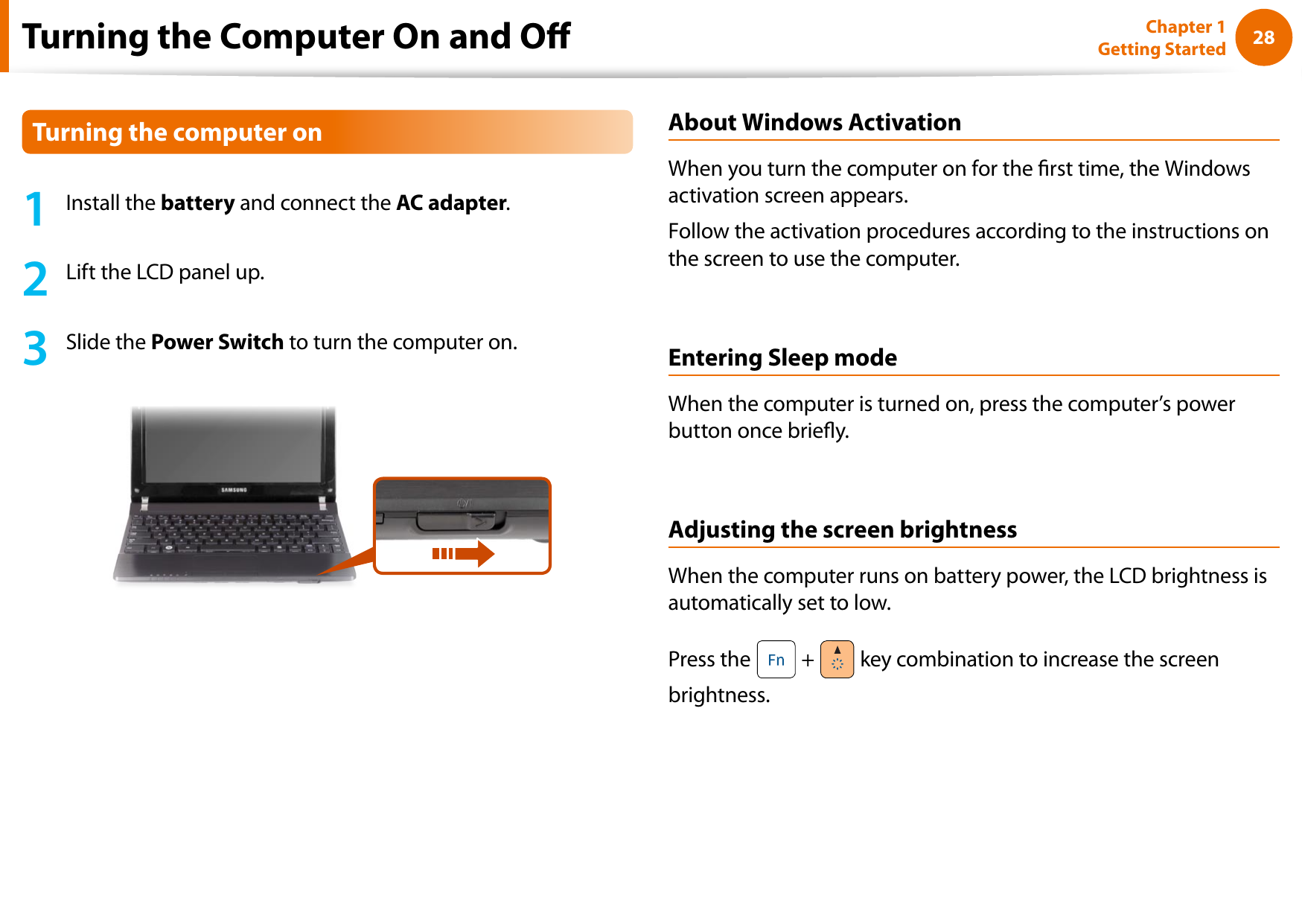

28Chapter 1 Getting StartedTurning the Computer On and O1 Install the battery and connect the AC adapter.2 Lift the LCD panel up.3 Slide the Power Switch to turn the computer on.About Windows ActivationWhen you turn the computer on for the rst time, the Windows activation screen appears.Follow the activation procedures according to the instructions on the screen to use the computer.Entering Sleep modeWhen the computer is turned on, press the computer’s power button once briey.Adjusting the screen brightnessWhen the computer runs on battery power, the LCD brightness is automatically set to low.Press the + key combination to increase the screen brightness.Turning the computer on

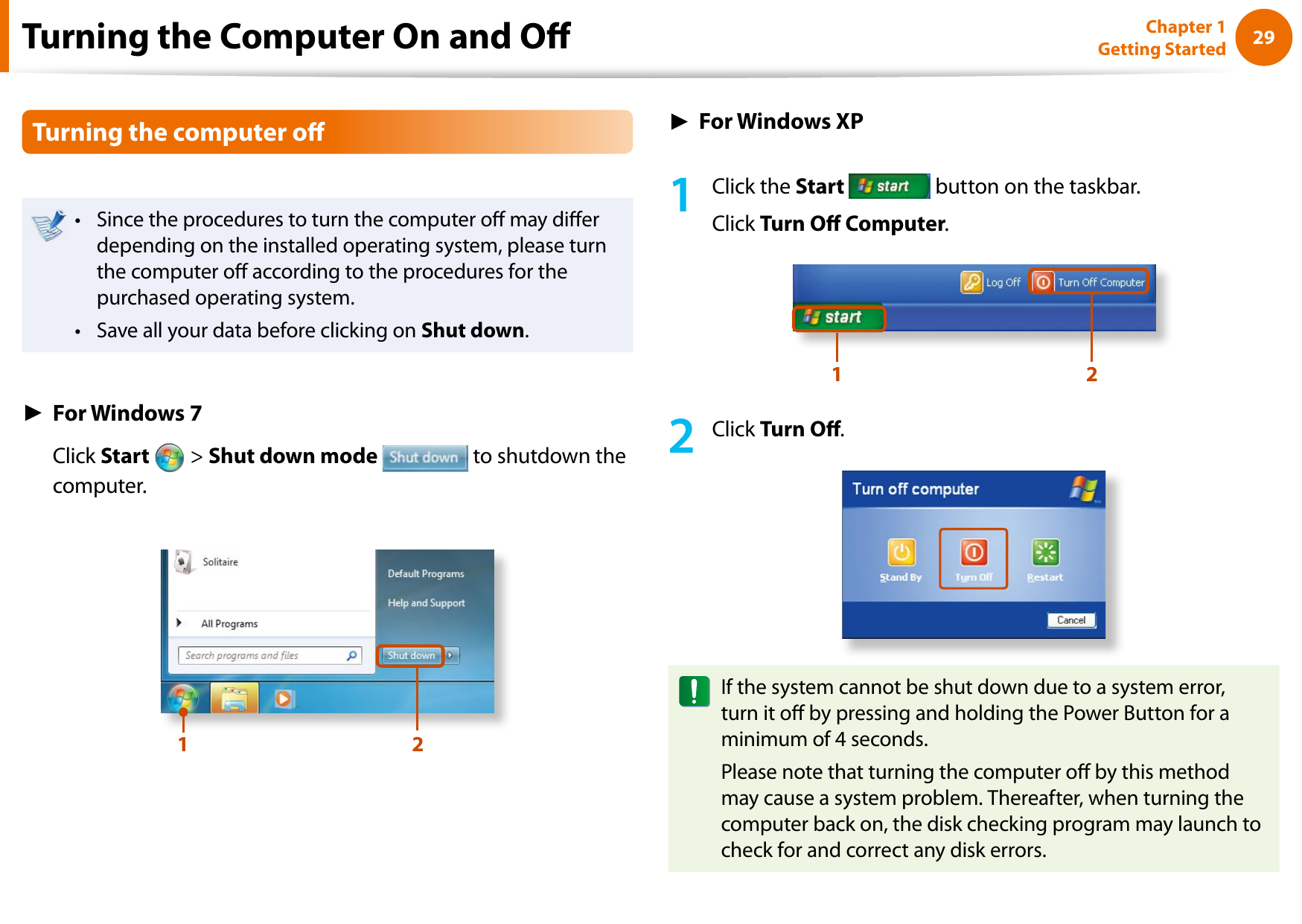

2829Chapter 1 Getting StartedTurning the computer oSince the procedures to turn the computer o may dier • depending on the installed operating system, please turn the computer o according to the procedures for the purchased operating system.Save all your data before clicking on • Shut down.► For Windows 7 Click Start > Shut down mode to shutdown the computer.1 2► For Windows XP1 Click the Start button on the taskbar.Click Turn O Computer.1 22 Click Turn O.If the system cannot be shut down due to a system error, turn it o by pressing and holding the Power Button for a minimum of 4 seconds.Please note that turning the computer o by this method may cause a system problem. Thereafter, when turning the computer back on, the disk checking program may launch to check for and correct any disk errors.Turning the Computer On and O

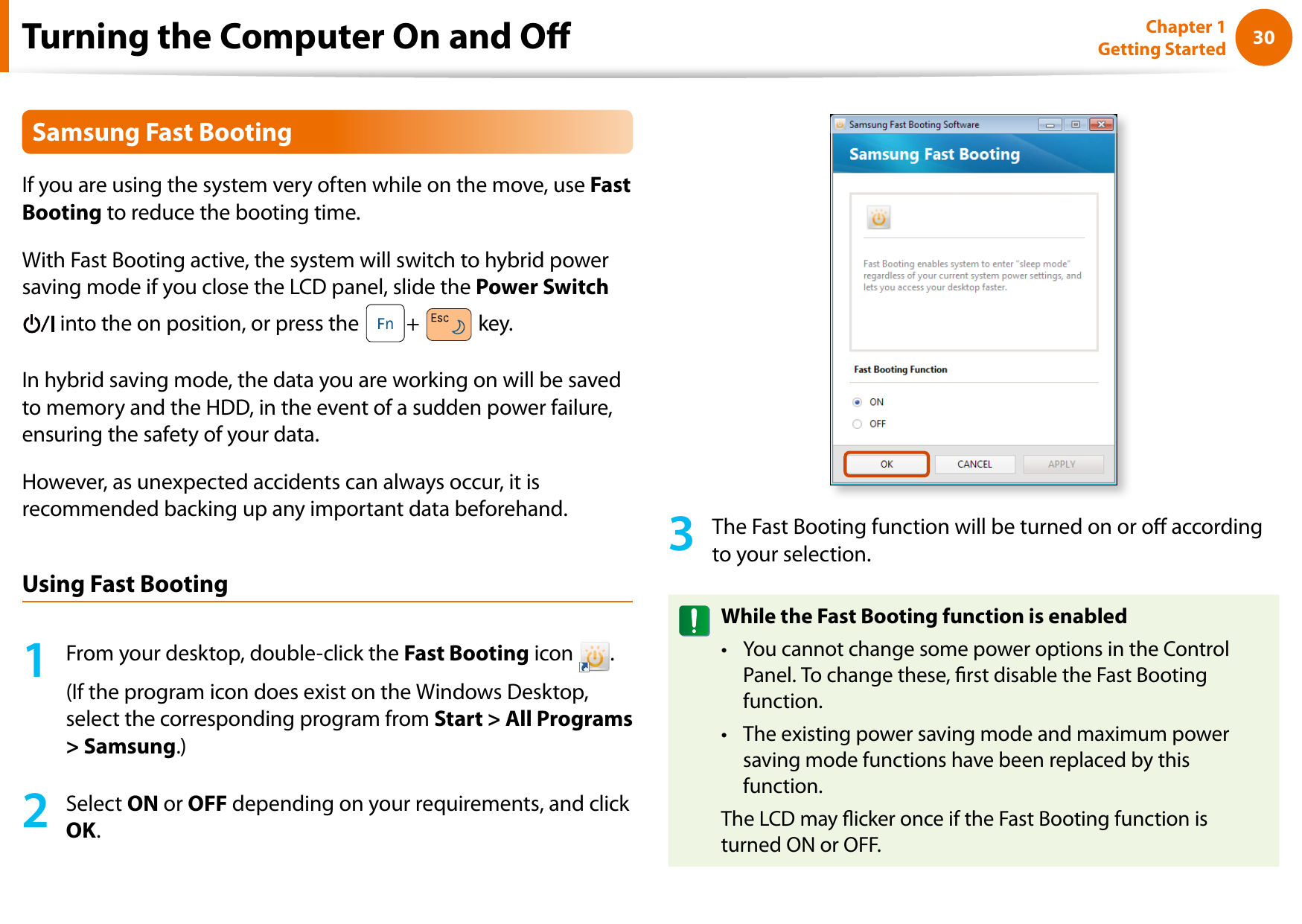

30Chapter 1 Getting StartedSamsung Fast BootingIf you are using the system very often while on the move, use Fast Booting to reduce the booting time.With Fast Booting active, the system will switch to hybrid power saving mode if you close the LCD panel, slide the Power Switch into the on position, or press the + key. In hybrid saving mode, the data you are working on will be saved to memory and the HDD, in the event of a sudden power failure, ensuring the safety of your data.However, as unexpected accidents can always occur, it is recommended backing up any important data beforehand.Using Fast Booting1 From your desktop, double-click the Fast Booting icon .(If the program icon does exist on the Windows Desktop, select the corresponding program from Start > All Programs > Samsung.)2 Select ON or OFF depending on your requirements, and click OK.3 The Fast Booting function will be turned on or o according to your selection.While the Fast Booting function is enabledYou cannot change some power options in the Control • Panel. To change these, rst disable the Fast Booting function.The existing power saving mode and maximum power • saving mode functions have been replaced by this function.The LCD may icker once if the Fast Booting function is turned ON or OFF.Turning the Computer On and O

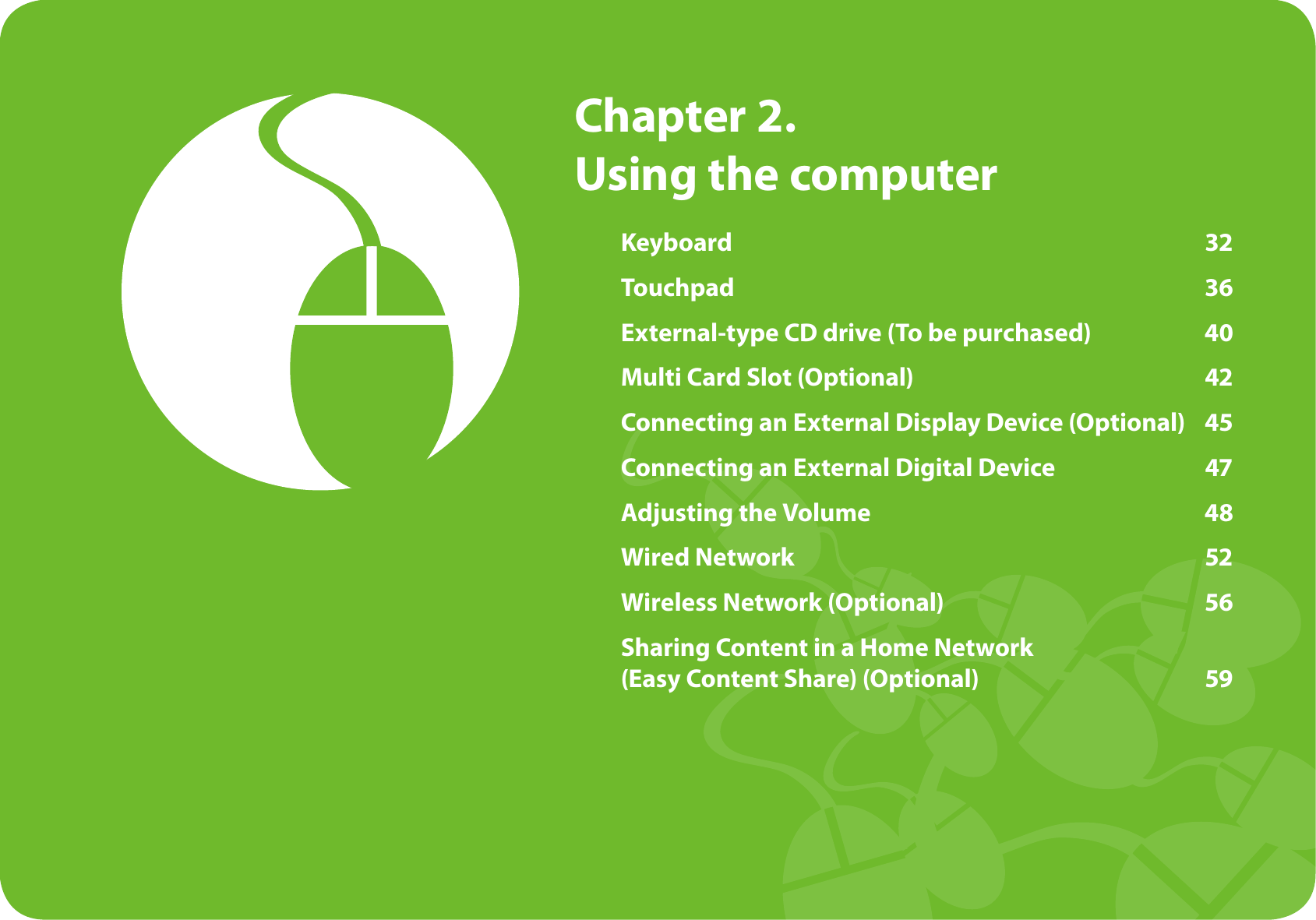

Keyboard 32Touchpad 36External-type CD drive (To be purchased) 40Multi Card Slot (Optional) 42Connecting an External Display Device (Optional) 45Connecting an External Digital Device 47Adjusting the Volume 48Wired Network 52Wireless Network (Optional) 56Sharing Content in a Home Network (Easy Content Share) (Optional) 59Chapter 2. Using the computer

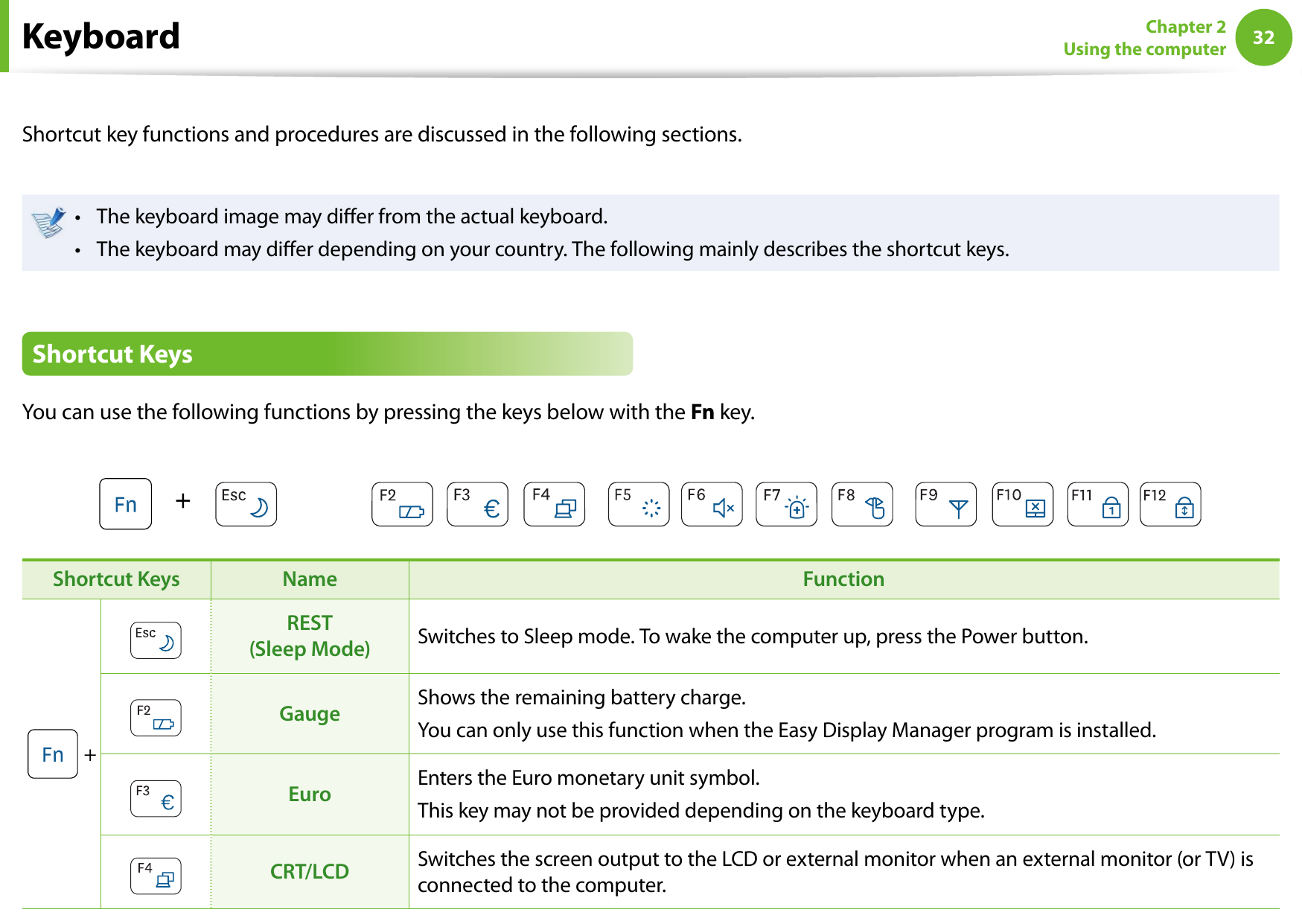

32Chapter 2 Using the computerKeyboardShortcut key functions and procedures are discussed in the following sections.The keyboard image may dier from the actual keyboard.• The keyboard may dier depending on your country. The following mainly describes the shortcut keys.• Shortcut KeysYou can use the following functions by pressing the keys below with the Fn key. + Shortcut Keys Name Function +REST (Sleep Mode) Switches to Sleep mode. To wake the computer up, press the Power button.Gauge Shows the remaining battery charge.You can only use this function when the Easy Display Manager program is installed.Euro Enters the Euro monetary unit symbol.This key may not be provided depending on the keyboard type.CRT/LCD Switches the screen output to the LCD or external monitor when an external monitor (or TV) is connected to the computer.

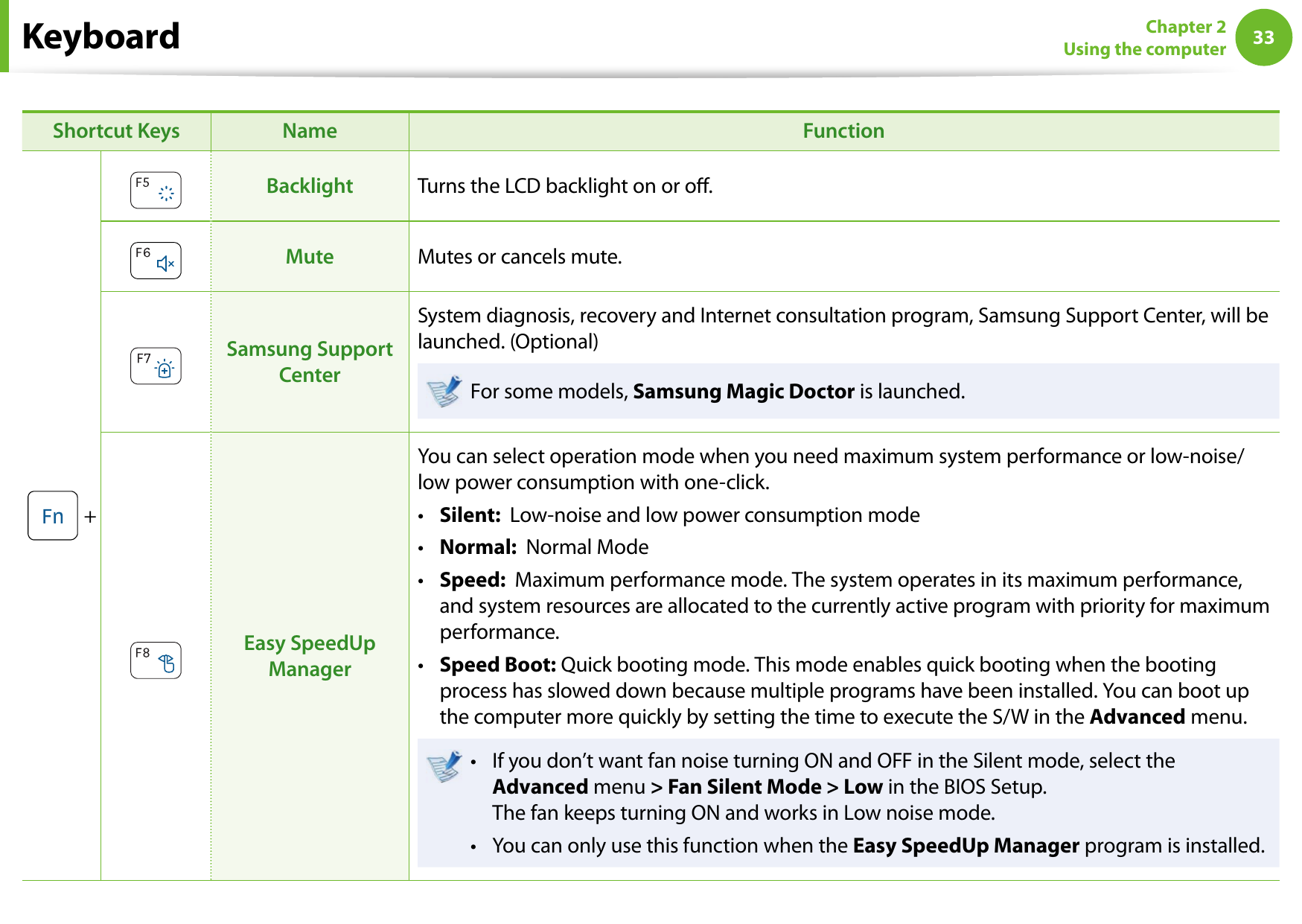

3233Chapter 2 Using the computerKeyboardShortcut Keys Name Function +Backlight Turns the LCD backlight on or o.Mute Mutes or cancels mute.Samsung Support CenterSystem diagnosis, recovery and Internet consultation program, Samsung Support Center, will be launched. (Optional)For some models, Samsung Magic Doctor is launched.Easy SpeedUp ManagerYou can select operation mode when you need maximum system performance or low-noise/low power consumption with one-click.Silent:• Low-noise and low power consumption modeNormal:• Normal ModeSpeed:• Maximum performance mode. The system operates in its maximum performance, and system resources are allocated to the currently active program with priority for maximum performance.Speed Boot:• Quick booting mode. This mode enables quick booting when the booting process has slowed down because multiple programs have been installed. You can boot up the computer more quickly by setting the time to execute the S/W in the Advanced menu.If you don’t want fan noise turning ON and OFF in the Silent mode, select the • Advanced menu > Fan Silent Mode > Low in the BIOS Setup. The fan keeps turning ON and works in Low noise mode.You can only use this function when the • Easy SpeedUp Manager program is installed.

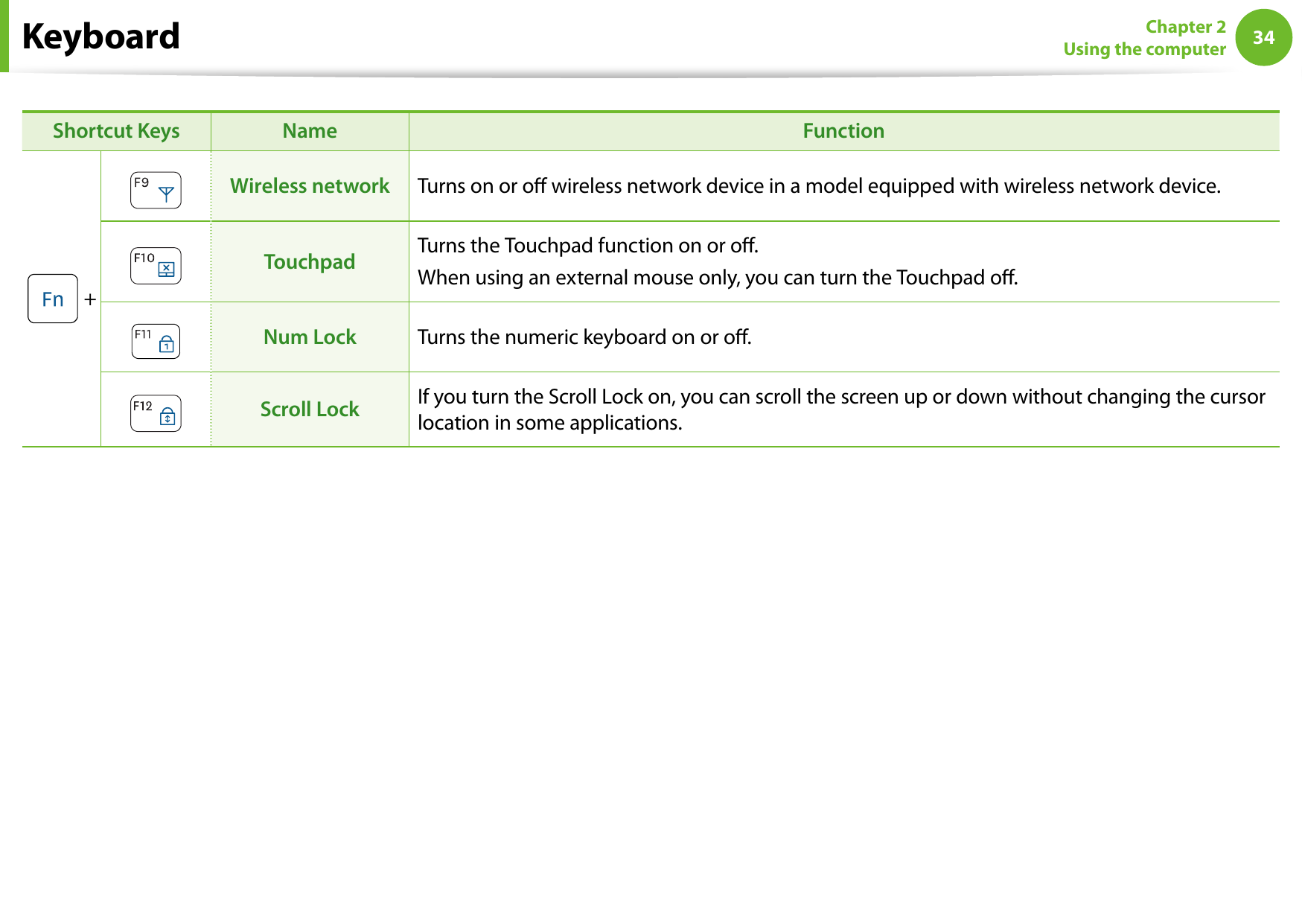

34Chapter 2 Using the computerKeyboardShortcut Keys Name Function +Wireless network Turns on or o wireless network device in a model equipped with wireless network device.Touchpad Turns the Touchpad function on or o.When using an external mouse only, you can turn the Touchpad o.Num Lock Turns the numeric keyboard on or o.Scroll Lock If you turn the Scroll Lock on, you can scroll the screen up or down without changing the cursor location in some applications.

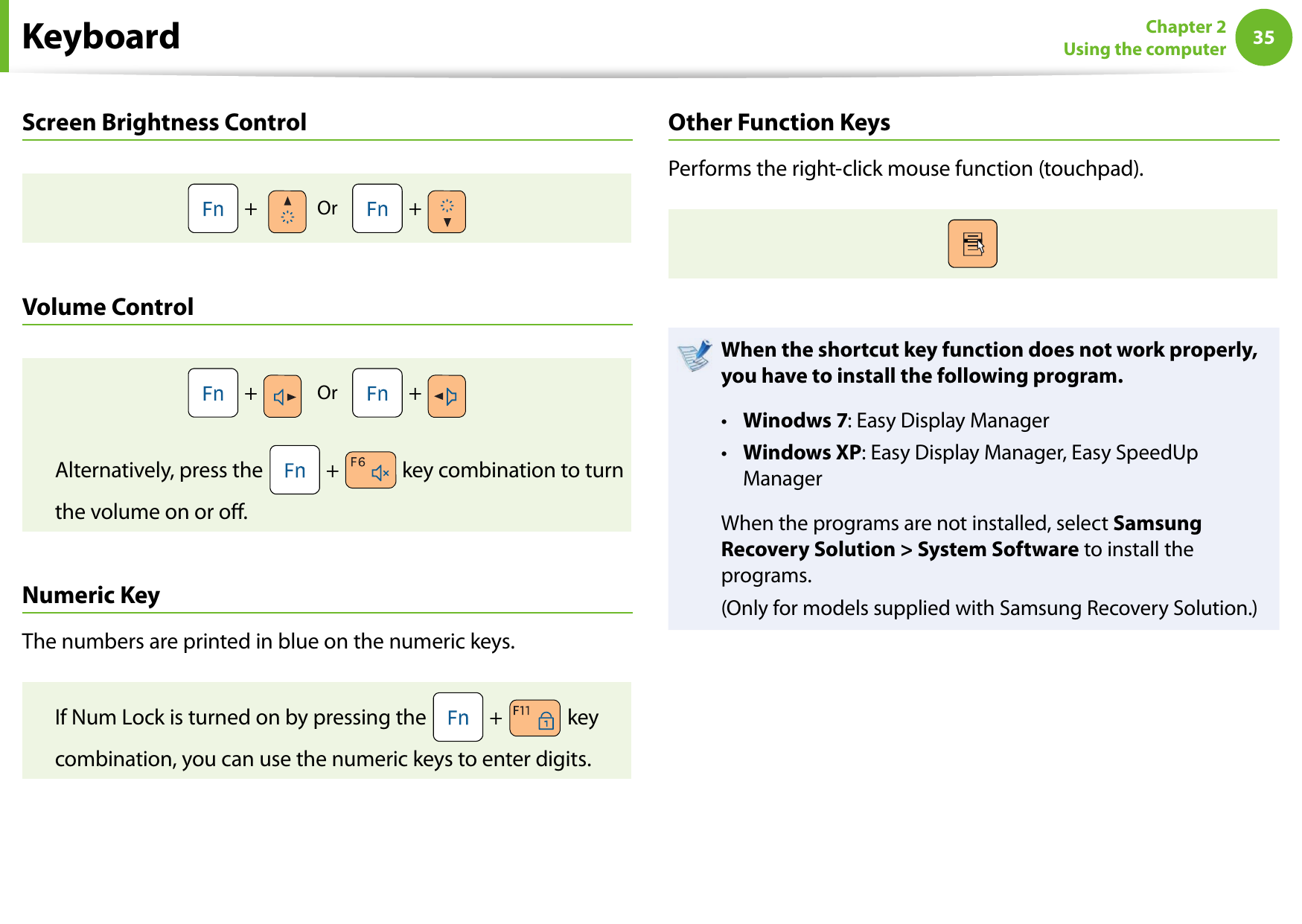

3435Chapter 2 Using the computerScreen Brightness Control + Or + Volume Control + Or + Alternatively, press the + key combination to turn the volume on or o.Numeric KeyThe numbers are printed in blue on the numeric keys. If Num Lock is turned on by pressing the + key combination, you can use the numeric keys to enter digits.Other Function KeysPerforms the right-click mouse function (touchpad).When the shortcut key function does not work properly, you have to install the following program.Winodws 7• : Easy Display ManagerWindows XP• : Easy Display Manager, Easy SpeedUp Manager When the programs are not installed, select Samsung Recovery Solution > System Software to install the programs.(Only for models supplied with Samsung Recovery Solution.)Keyboard

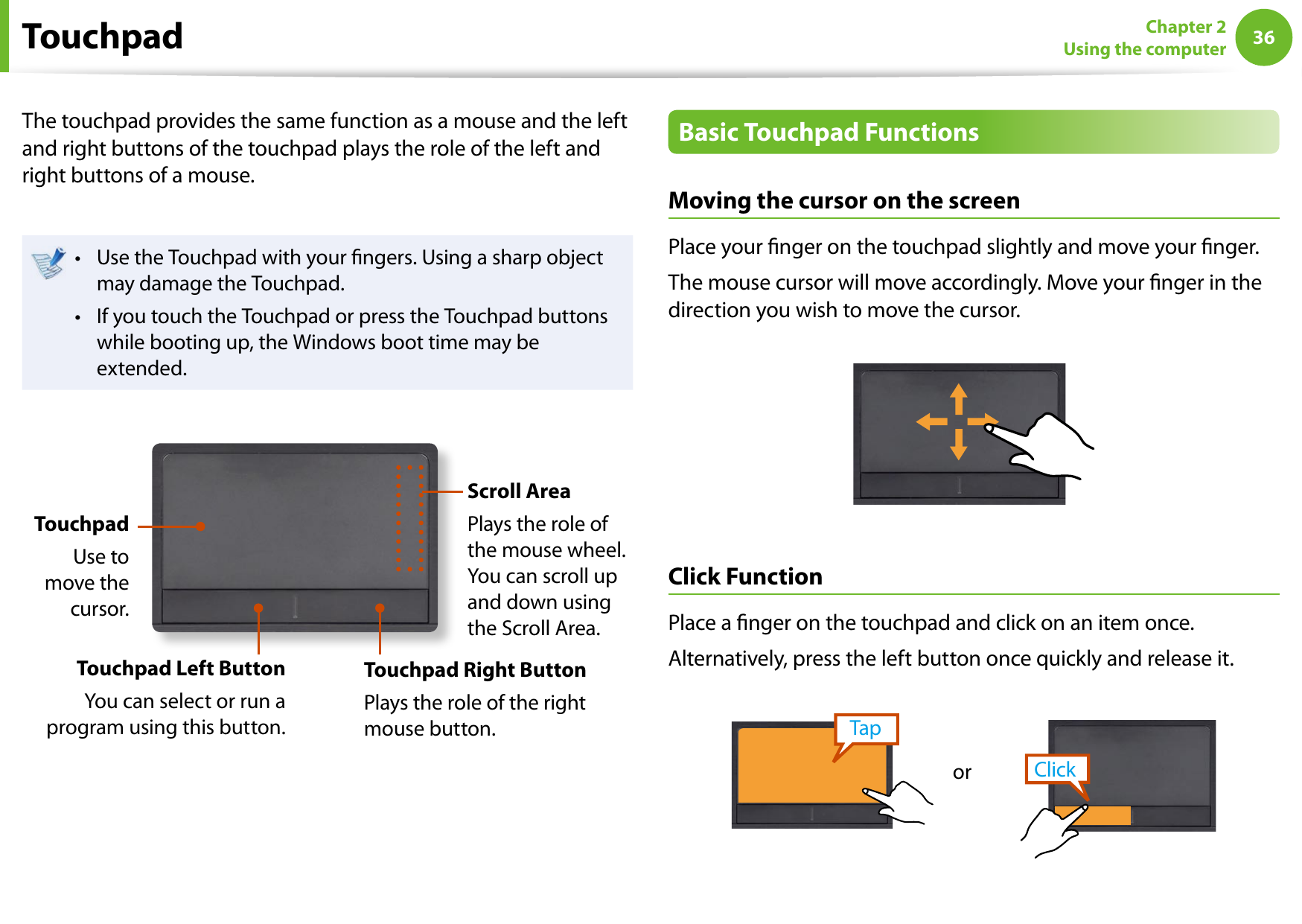

36Chapter 2 Using the computerTouchpadThe touchpad provides the same function as a mouse and the left and right buttons of the touchpad plays the role of the left and right buttons of a mouse.Use the Touchpad with your ngers. Using a sharp object • may damage the Touchpad.If you touch the Touchpad or press the Touchpad buttons • while booting up, the Windows boot time may be extended.TouchpadUse to move the cursor.Touchpad Left ButtonYou can select or run a program using this button.Scroll AreaPlays the role of the mouse wheel. You can scroll up and down using the Scroll Area.Touchpad Right ButtonPlays the role of the right mouse button.Basic Touchpad FunctionsMoving the cursor on the screenPlace your nger on the touchpad slightly and move your nger.The mouse cursor will move accordingly. Move your nger in the direction you wish to move the cursor.Click FunctionPlace a nger on the touchpad and click on an item once. Alternatively, press the left button once quickly and release it.TapClickor

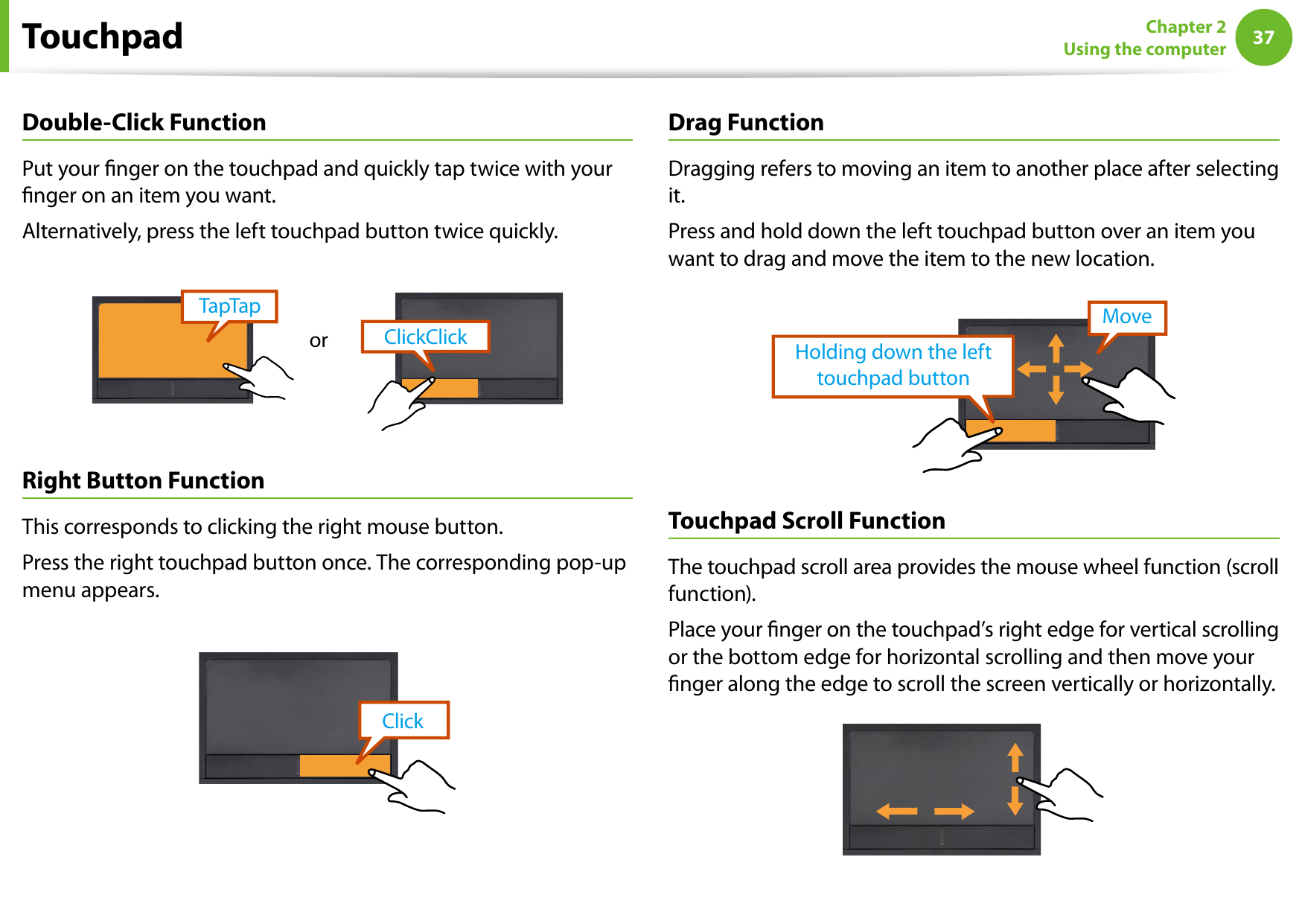

3637Chapter 2 Using the computerDouble-Click FunctionPut your nger on the touchpad and quickly tap twice with your nger on an item you want.Alternatively, press the left touchpad button twice quickly.ClickClickTapTaporRight Button FunctionThis corresponds to clicking the right mouse button.Press the right touchpad button once. The corresponding pop-up menu appears.ClickDrag FunctionDragging refers to moving an item to another place after selecting it.Press and hold down the left touchpad button over an item you want to drag and move the item to the new location.Holding down the left touchpad buttonMoveTouchpad Scroll FunctionThe touchpad scroll area provides the mouse wheel function (scroll function).Place your nger on the touchpad’s right edge for vertical scrolling or the bottom edge for horizontal scrolling and then move your nger along the edge to scroll the screen vertically or horizontally.Touchpad

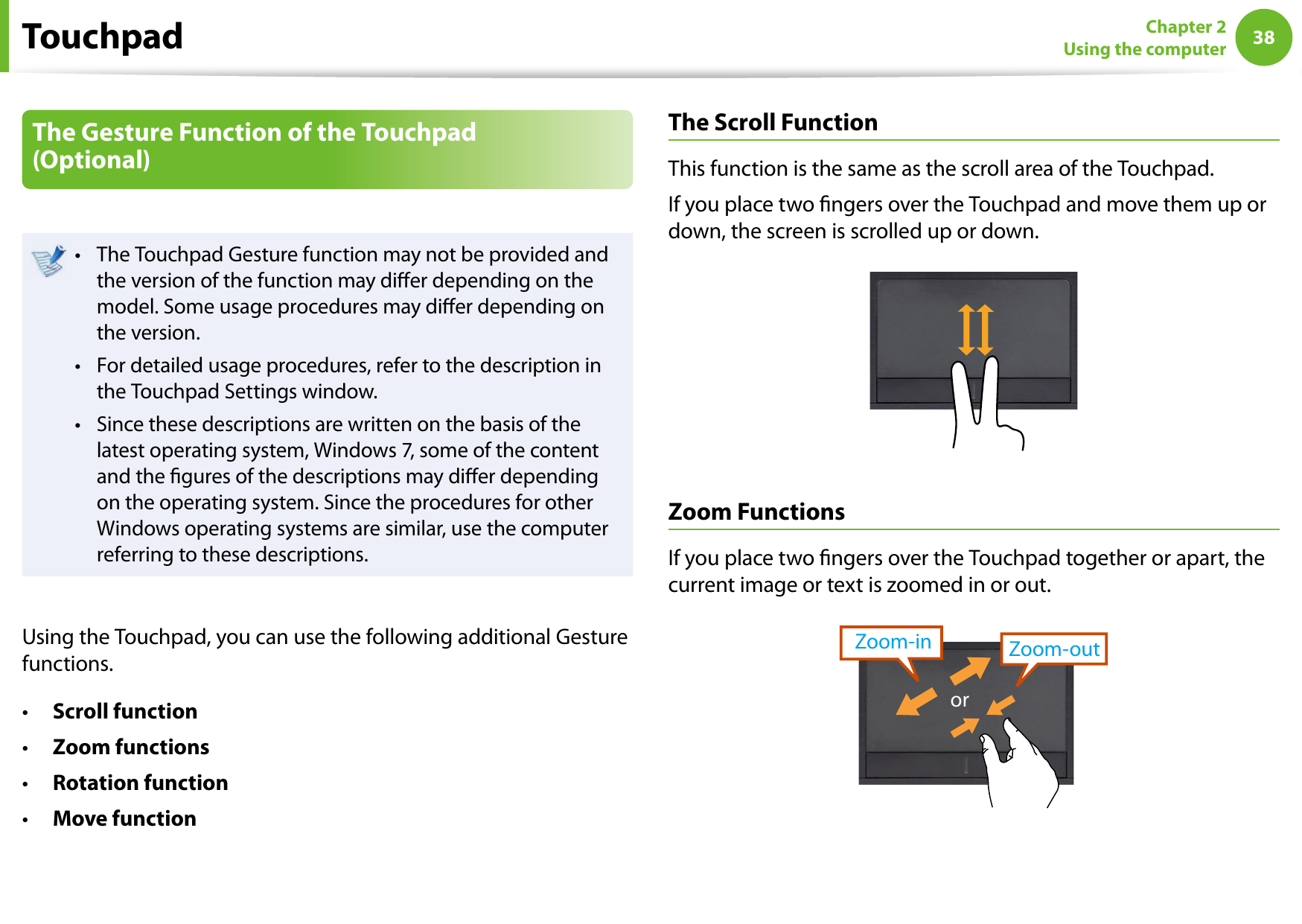

38Chapter 2 Using the computerThe Gesture Function of the Touchpad (Optional)The Touchpad Gesture function may not be provided and • the version of the function may dier depending on the model. Some usage procedures may dier depending on the version.For detailed usage procedures, refer to the description in • the Touchpad Settings window.Since these descriptions are written on the basis of the • latest operating system, Windows 7, some of the content and the gures of the descriptions may dier depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.Using the Touchpad, you can use the following additional Gesture functions.Scroll function• Zoom functions• Rotation function • Move function• The Scroll FunctionThis function is the same as the scroll area of the Touchpad.If you place two ngers over the Touchpad and move them up or down, the screen is scrolled up or down.Zoom FunctionsIf you place two ngers over the Touchpad together or apart, the current image or text is zoomed in or out.Zoom-outZoom-inorTouchpad

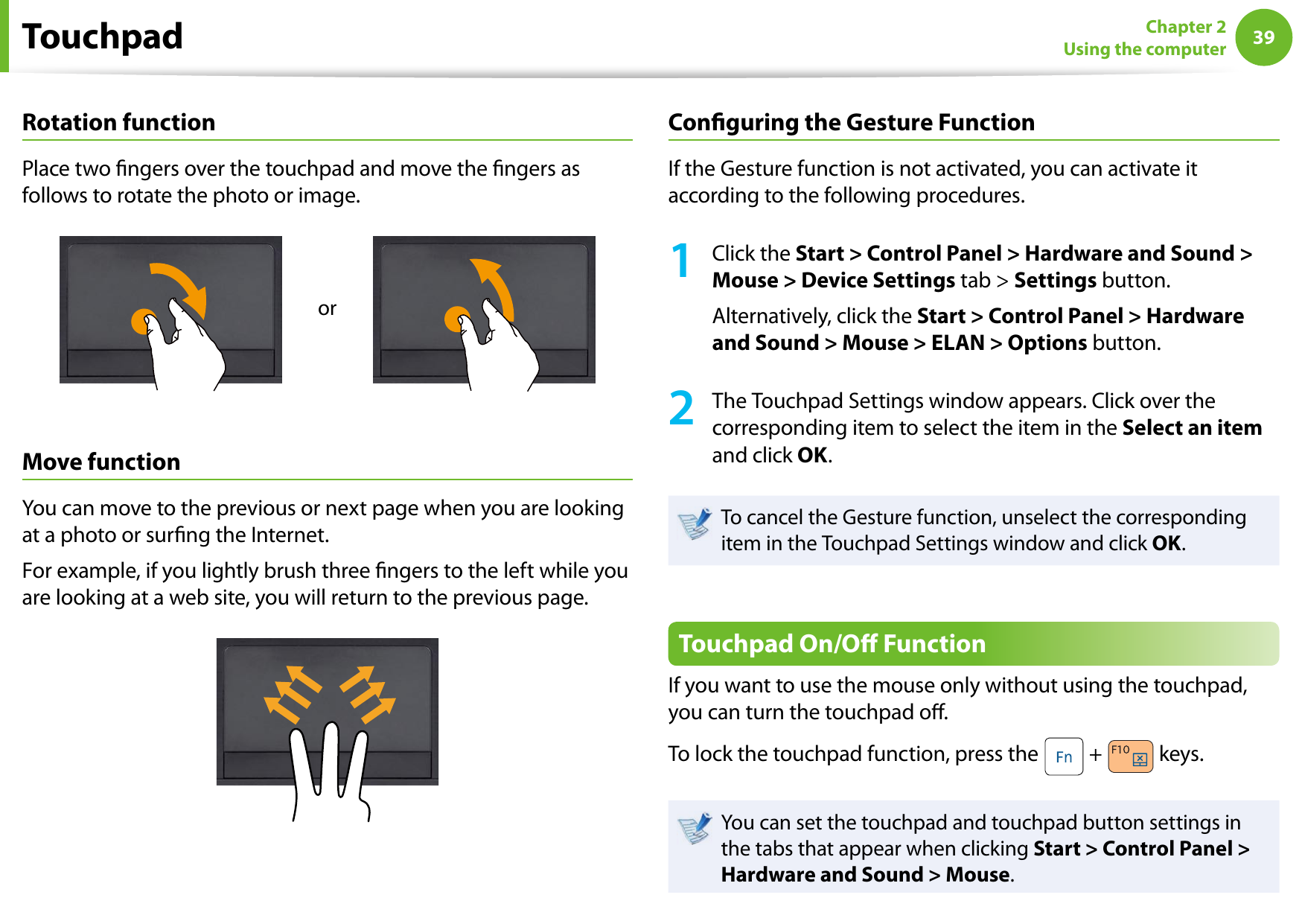

3839Chapter 2 Using the computerRotation functionPlace two ngers over the touchpad and move the ngers as follows to rotate the photo or image.orMove functionYou can move to the previous or next page when you are looking at a photo or surng the Internet.For example, if you lightly brush three ngers to the left while you are looking at a web site, you will return to the previous page.Conguring the Gesture FunctionIf the Gesture function is not activated, you can activate it according to the following procedures.1 Click the Start > Control Panel > Hardware and Sound > Mouse > Device Settings tab > Settings button.Alternatively, click the Start > Control Panel > Hardware and Sound > Mouse > ELAN > Options button.2 The Touchpad Settings window appears. Click over the corresponding item to select the item in the Select an item and click OK.To cancel the Gesture function, unselect the corresponding item in the Touchpad Settings window and click OK.Touchpad On/O FunctionIf you want to use the mouse only without using the touchpad, you can turn the touchpad o.To lock the touchpad function, press the + keys.You can set the touchpad and touchpad button settings in the tabs that appear when clicking Start > Control Panel > Hardware and Sound > Mouse.Touchpad

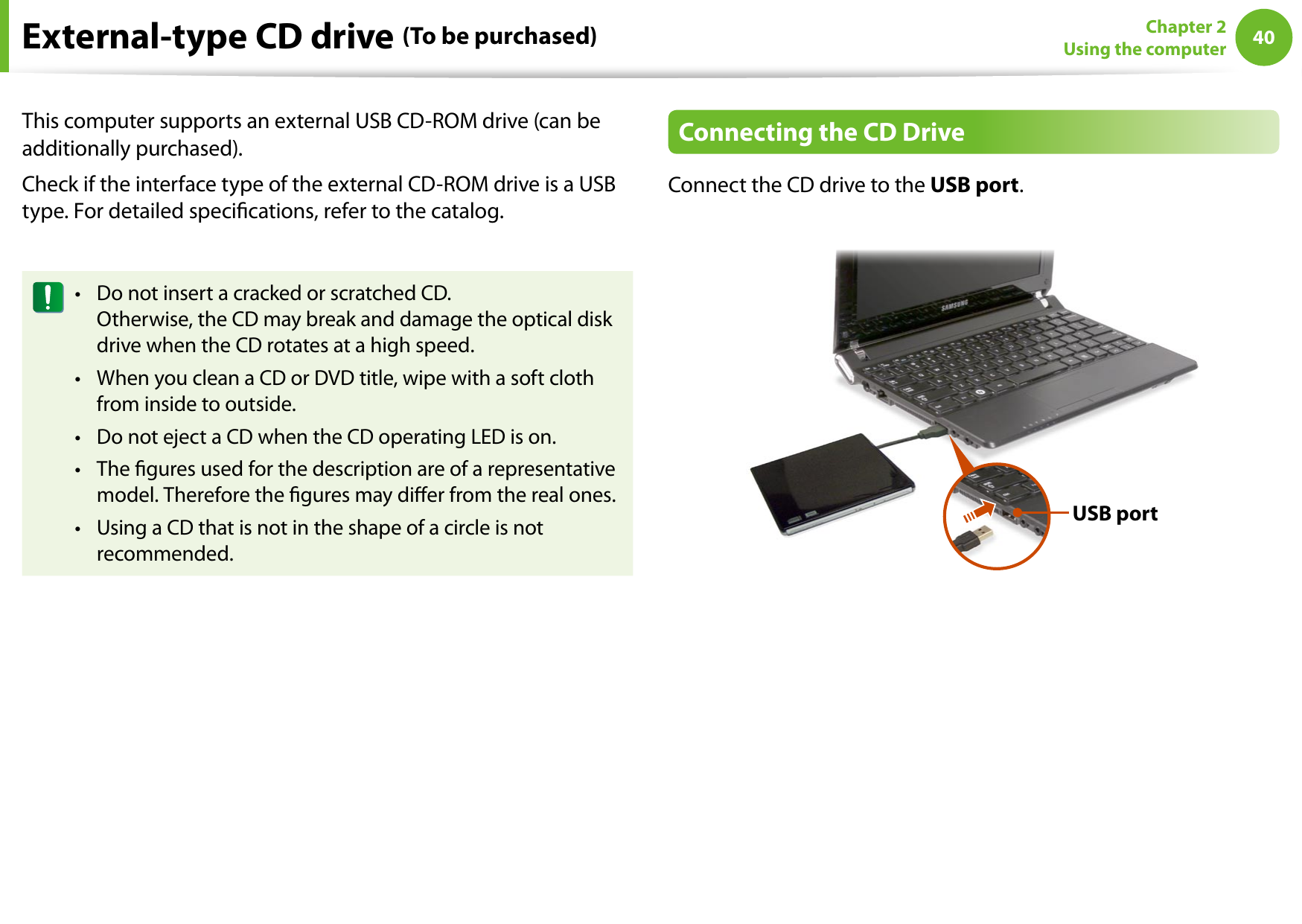

40Chapter 2 Using the computerExternal-type CD drive (To be purchased)This computer supports an external USB CD-ROM drive (can be additionally purchased).Check if the interface type of the external CD-ROM drive is a USB type. For detailed specications, refer to the catalog.Do not insert a cracked or scratched CD. • Otherwise, the CD may break and damage the optical disk drive when the CD rotates at a high speed.When you clean a CD or DVD title, wipe with a soft cloth • from inside to outside.Do not eject a CD when the CD operating LED is on.• The gures used for the description are of a representative • model. Therefore the gures may dier from the real ones.Using a CD that is not in the shape of a circle is not • recommended.Connecting the CD DriveConnect the CD drive to the USB port.USB port

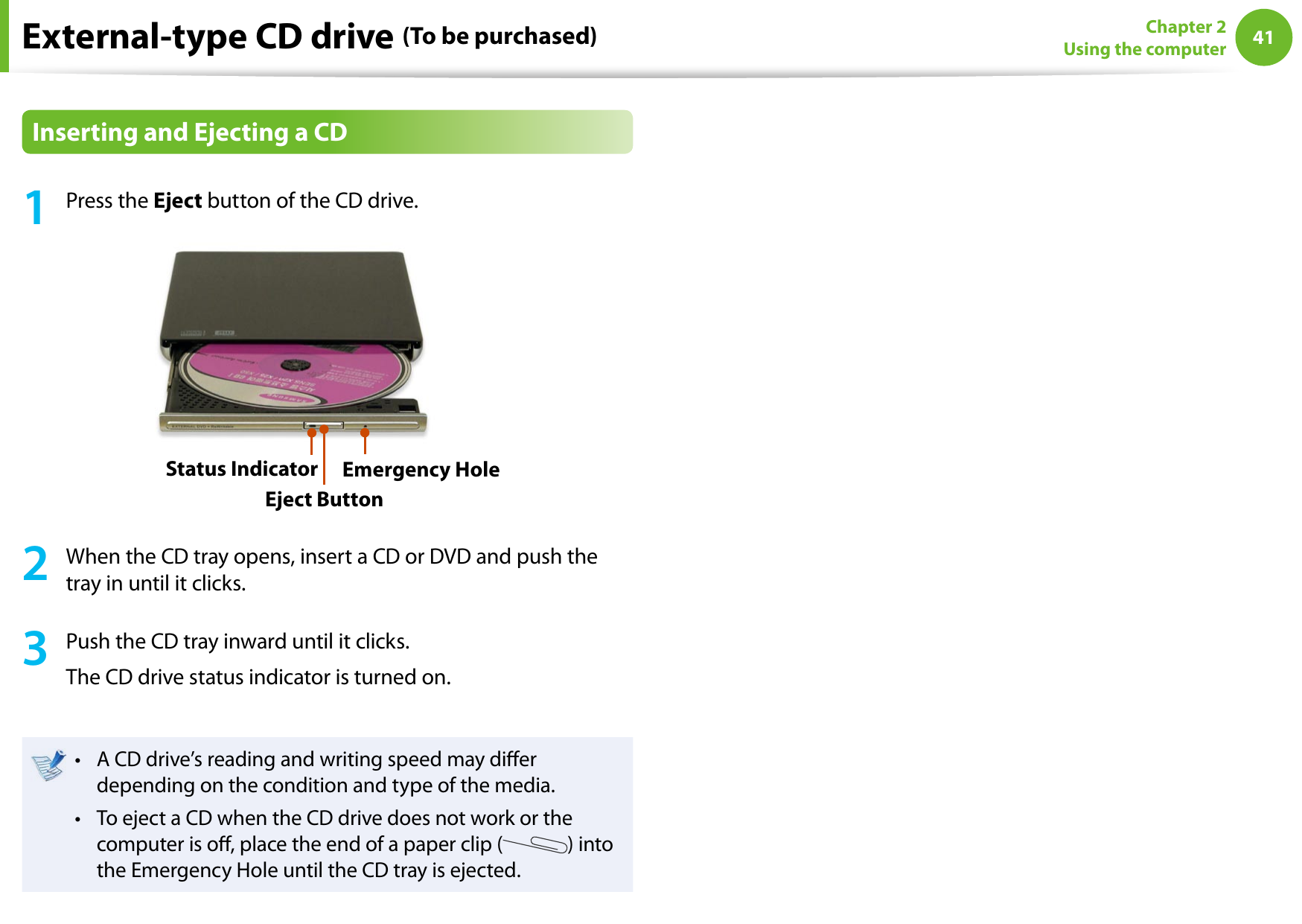

4041Chapter 2 Using the computerInserting and Ejecting a CD1 Press the Eject button of the CD drive.Status IndicatorEject ButtonEmergency Hole2 When the CD tray opens, insert a CD or DVD and push the tray in until it clicks.3 Push the CD tray inward until it clicks.The CD drive status indicator is turned on.A CD drive’s reading and writing speed may dier • depending on the condition and type of the media.To eject a CD when the CD drive does not work or the • computer is o, place the end of a paper clip ( ) into the Emergency Hole until the CD tray is ejected.External-type CD drive (To be purchased)

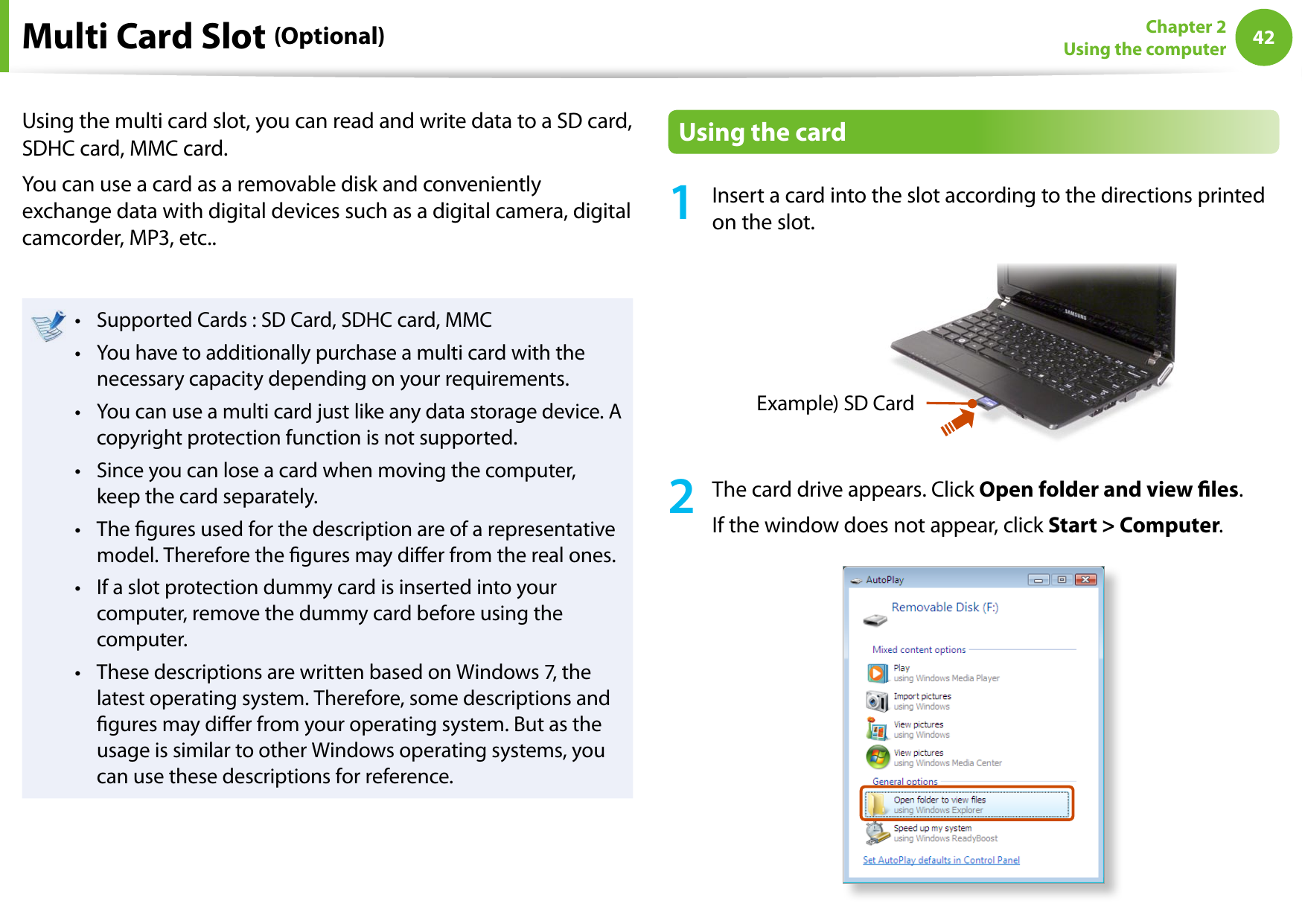

42Chapter 2 Using the computerMulti Card Slot (Optional)Using the multi card slot, you can read and write data to a SD card, SDHC card, MMC card.You can use a card as a removable disk and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc..Supported Cards : SD Card, SDHC card, MMC• You have to additionally purchase a multi card with the • necessary capacity depending on your requirements.You can use a multi card just like any data storage device. A • copyright protection function is not supported.Since you can lose a card when moving the computer, • keep the card separately.The gures used for the description are of a representative • model. Therefore the gures may dier from the real ones.If a slot protection dummy card is inserted into your • computer, remove the dummy card before using the computer.These descriptions are written based on Windows 7, the • latest operating system. Therefore, some descriptions and gures may dier from your operating system. But as the usage is similar to other Windows operating systems, you can use these descriptions for reference.Using the card1 Insert a card into the slot according to the directions printed on the slot.Example) SD Card2 The card drive appears. Click Open folder and view les.If the window does not appear, click Start > Computer.

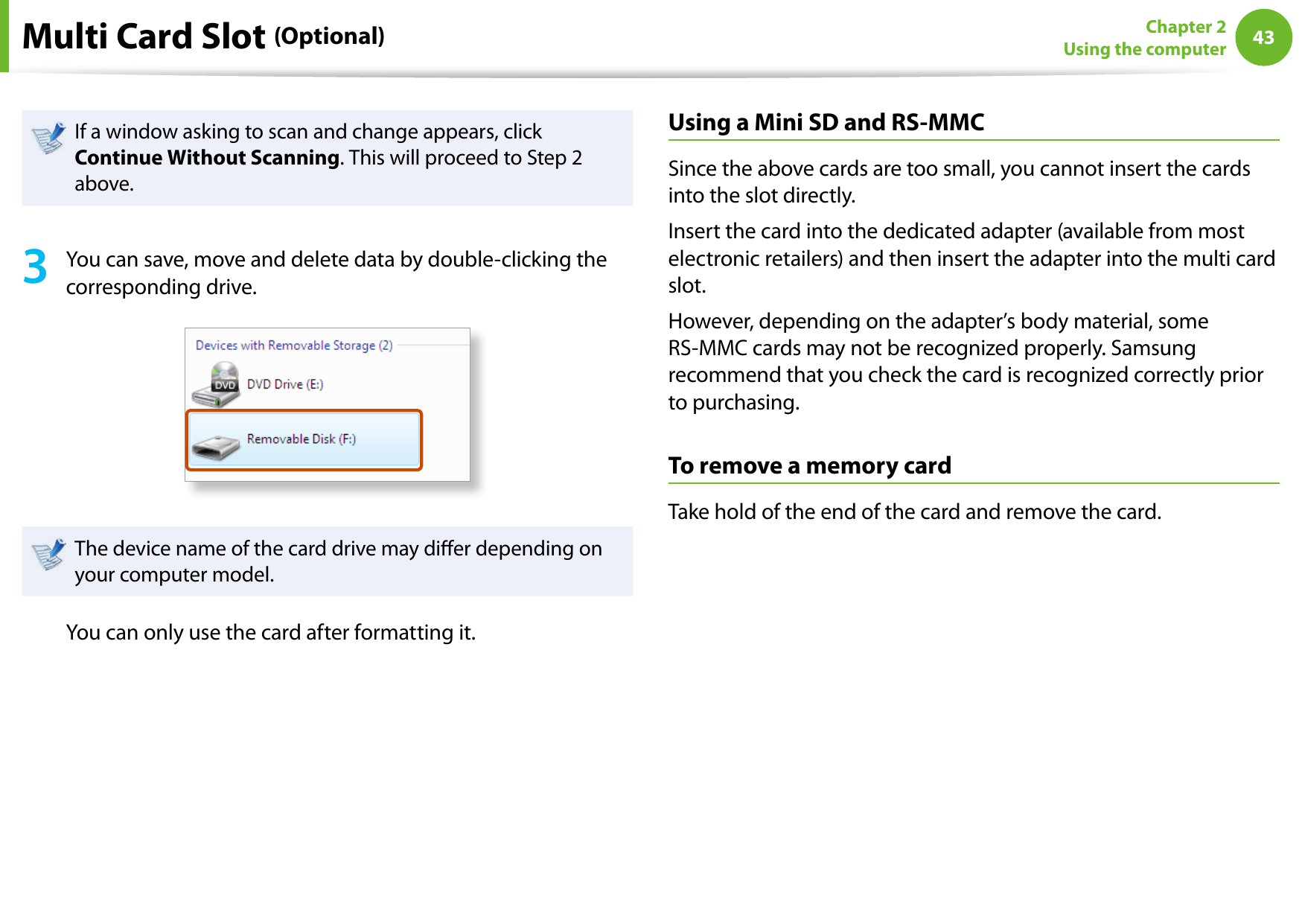

4243Chapter 2 Using the computerMulti Card Slot (Optional)If a window asking to scan and change appears, click Continue Without Scanning. This will proceed to Step 2 above.3 You can save, move and delete data by double-clicking the corresponding drive.The device name of the card drive may dier depending on your computer model.You can only use the card after formatting it.Using a Mini SD and RS-MMCSince the above cards are too small, you cannot insert the cards into the slot directly.Insert the card into the dedicated adapter (available from most electronic retailers) and then insert the adapter into the multi card slot.However, depending on the adapter’s body material, some RS-MMC cards may not be recognized properly. Samsung recommend that you check the card is recognized correctly prior to purchasing.To remove a memory cardTake hold of the end of the card and remove the card.

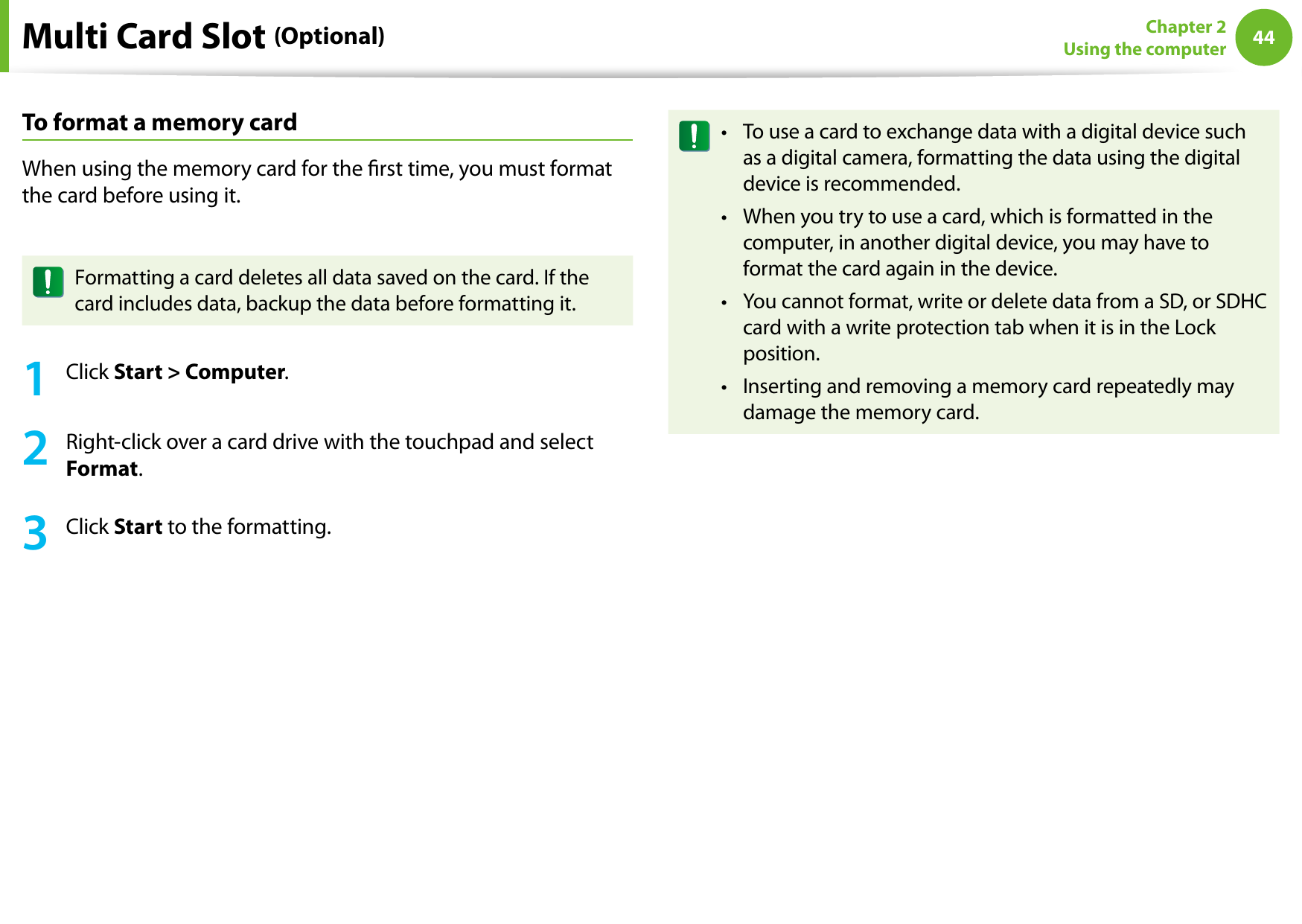

44Chapter 2 Using the computerMulti Card Slot (Optional)To format a memory cardWhen using the memory card for the rst time, you must format the card before using it.Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.1 Click Start > Computer.2 Right-click over a card drive with the touchpad and select Format.3 Click Start to the formatting.To use a card to exchange data with a digital device such • as a digital camera, formatting the data using the digital device is recommended.When you try to use a card, which is formatted in the • computer, in another digital device, you may have to format the card again in the device.You cannot format, write or delete data from a SD, or SDHC • card with a write protection tab when it is in the Lock position.Inserting and removing a memory card repeatedly may • damage the memory card.

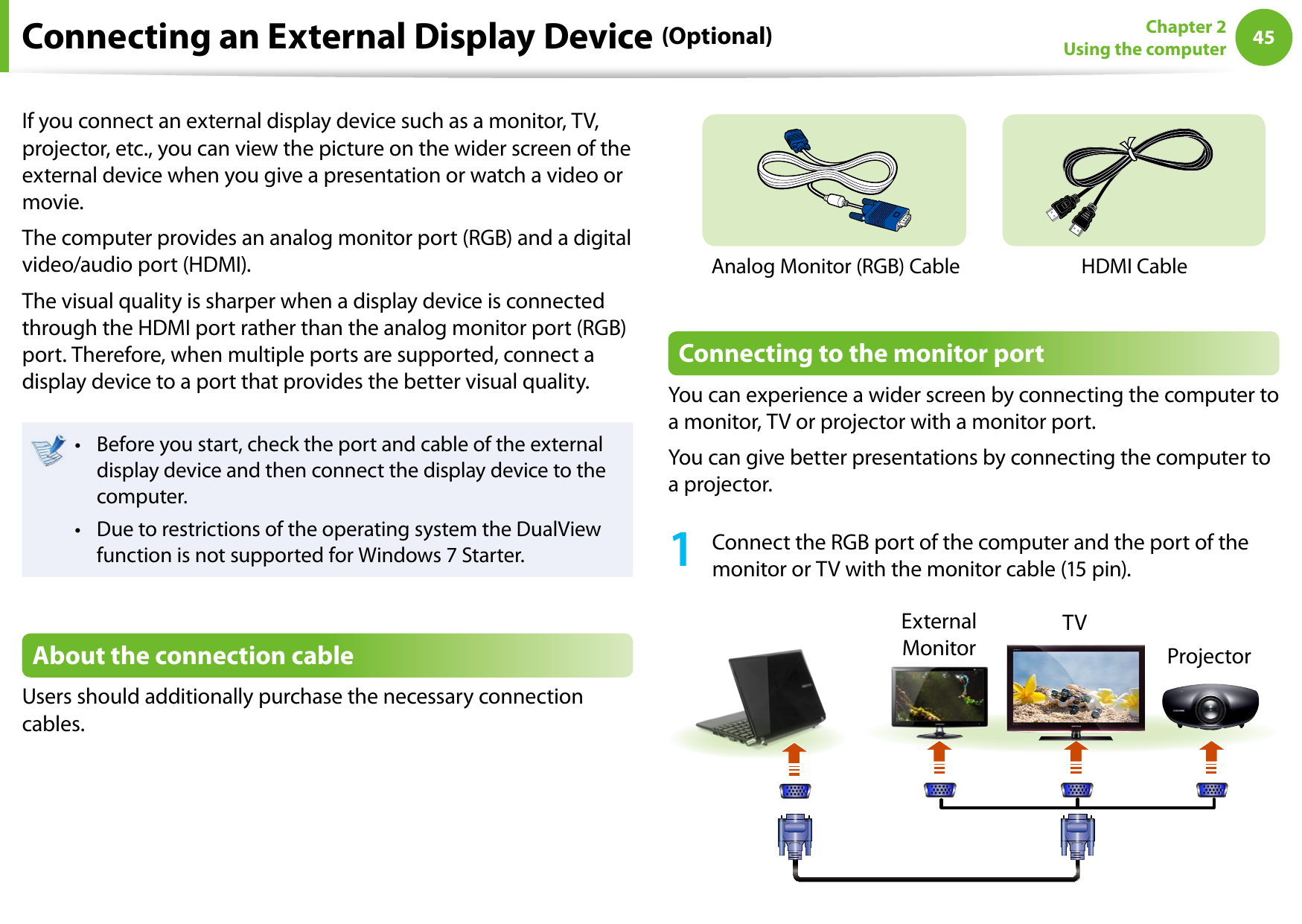

4445Chapter 2 Using the computerConnecting an External Display Device (Optional)If you connect an external display device such as a monitor, TV, projector, etc., you can view the picture on the wider screen of the external device when you give a presentation or watch a video or movie.The computer provides an analog monitor port (RGB) and a digital video/audio port (HDMI).The visual quality is sharper when a display device is connected through the HDMI port rather than the analog monitor port (RGB) port. Therefore, when multiple ports are supported, connect a display device to a port that provides the better visual quality.Before you start, check the port and cable of the external • display device and then connect the display device to the computer.Due to restrictions of the operating system the DualView • function is not supported for Windows 7 Starter.About the connection cableUsers should additionally purchase the necessary connection cables.Analog Monitor (RGB) Cable HDMI CableConnecting to the monitor portYou can experience a wider screen by connecting the computer to a monitor, TV or projector with a monitor port.You can give better presentations by connecting the computer to a projector.1 Connect the RGB port of the computer and the port of the monitor or TV with the monitor cable (15 pin).External MonitorTVProjector

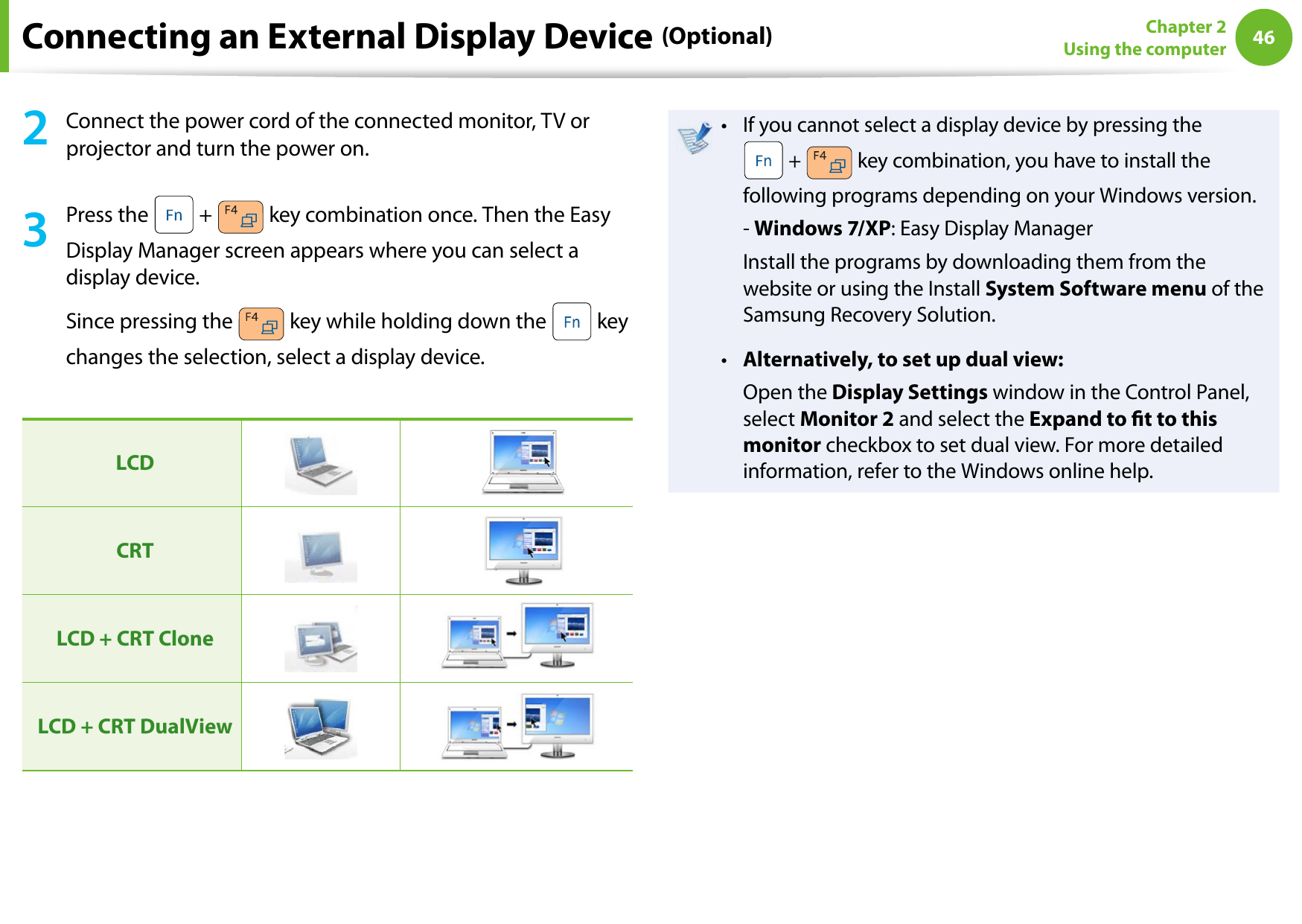

46Chapter 2 Using the computer2 Connect the power cord of the connected monitor, TV or projector and turn the power on.3 Press the + key combination once. Then the Easy Display Manager screen appears where you can select a display device.Since pressing the key while holding down the key changes the selection, select a display device.LCDCRTLCD + CRT CloneLCD + CRT DualViewIf you cannot select a display device by pressing the • + key combination, you have to install the following programs depending on your Windows version. - Windows 7/XP: Easy Display Manager Install the programs by downloading them from the website or using the Install System Software menu of the Samsung Recovery Solution.Alternatively, to set up dual view:• Open the Display Settings window in the Control Panel, select Monitor 2 and select the Expand to t to this monitor checkbox to set dual view. For more detailed information, refer to the Windows online help.Connecting an External Display Device (Optional)

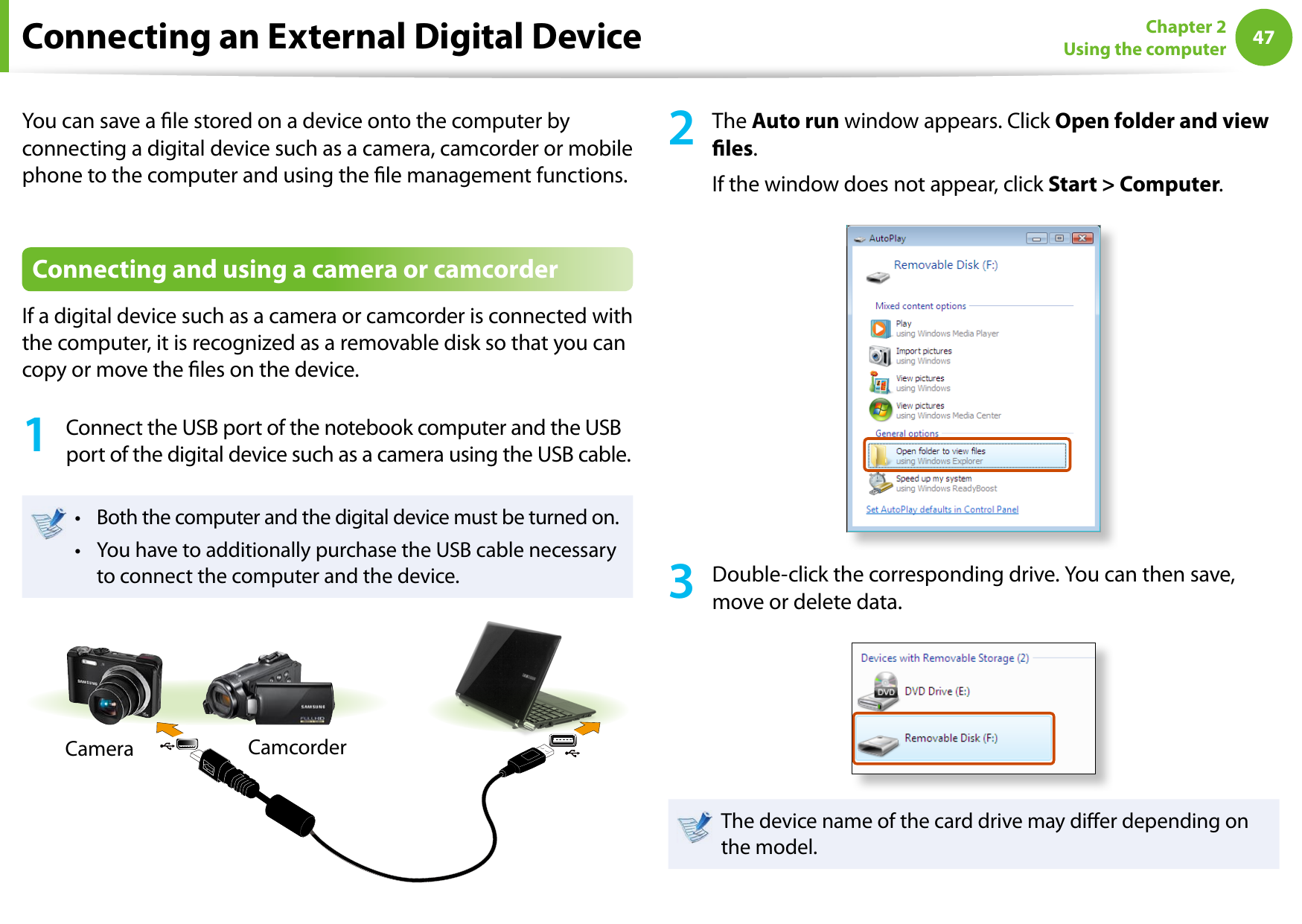

4647Chapter 2 Using the computerConnecting an External Digital DeviceYou can save a le stored on a device onto the computer by connecting a digital device such as a camera, camcorder or mobile phone to the computer and using the le management functions.Connecting and using a camera or camcorderIf a digital device such as a camera or camcorder is connected with the computer, it is recognized as a removable disk so that you can copy or move the les on the device.1 Connect the USB port of the notebook computer and the USB port of the digital device such as a camera using the USB cable.Both the computer and the digital device must be turned on. • You have to additionally purchase the USB cable necessary • to connect the computer and the device.Camera Camcorder2 The Auto run window appears. Click Open folder and view les.If the window does not appear, click Start > Computer.3 Double-click the corresponding drive. You can then save, move or delete data.The device name of the card drive may dier depending on the model.

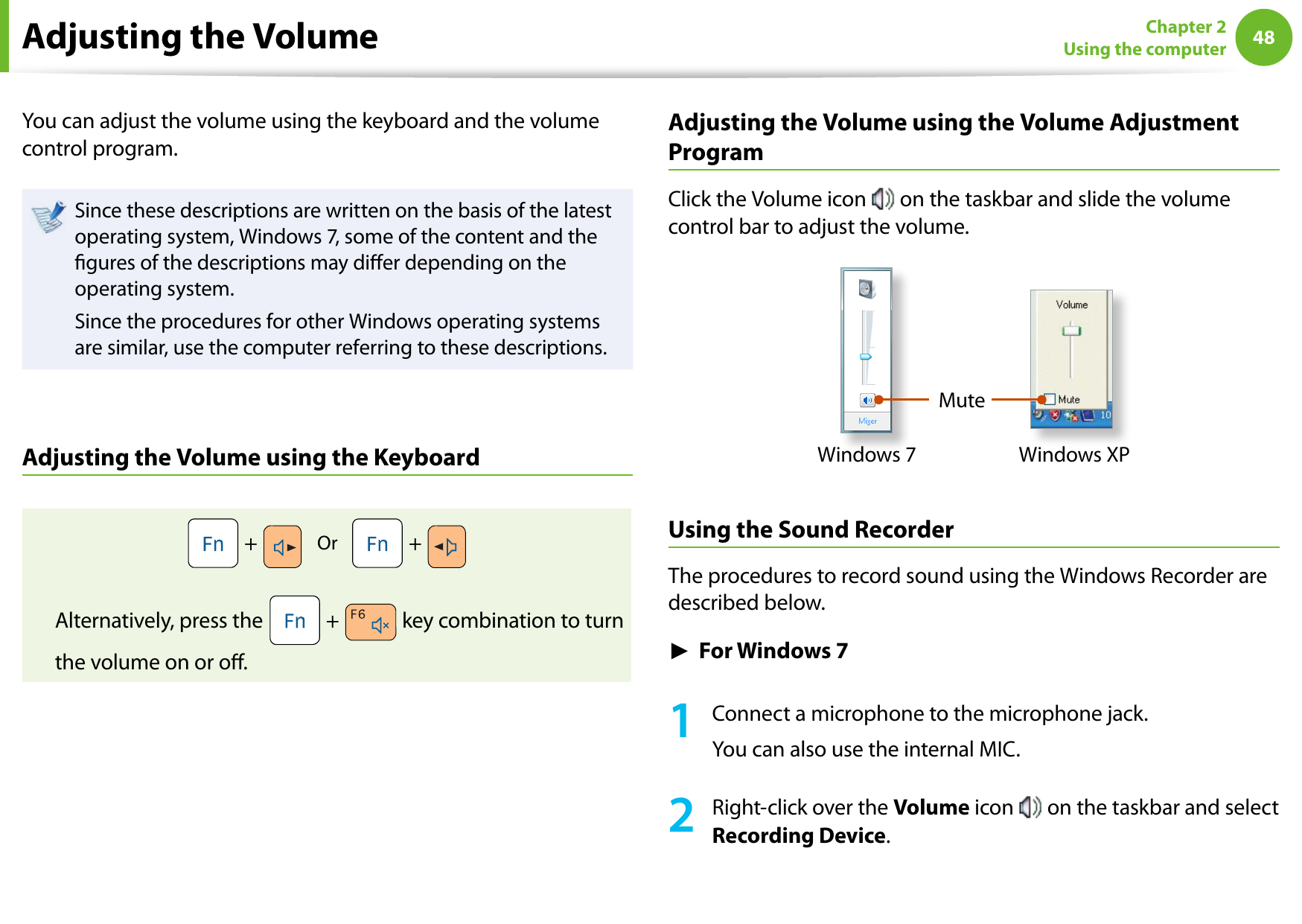

48Chapter 2 Using the computerAdjusting the VolumeYou can adjust the volume using the keyboard and the volume control program.Since these descriptions are written on the basis of the latest operating system, Windows 7, some of the content and the gures of the descriptions may dier depending on the operating system.Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.Adjusting the Volume using the Keyboard + Or + Alternatively, press the + key combination to turn the volume on or o.Adjusting the Volume using the Volume Adjustment ProgramClick the Volume icon on the taskbar and slide the volume control bar to adjust the volume.MuteWindows XPWindows 7Using the Sound RecorderThe procedures to record sound using the Windows Recorder are described below.► For Windows 71 Connect a microphone to the microphone jack.You can also use the internal MIC.2 Right-click over the Volume icon on the taskbar and select Recording Device.

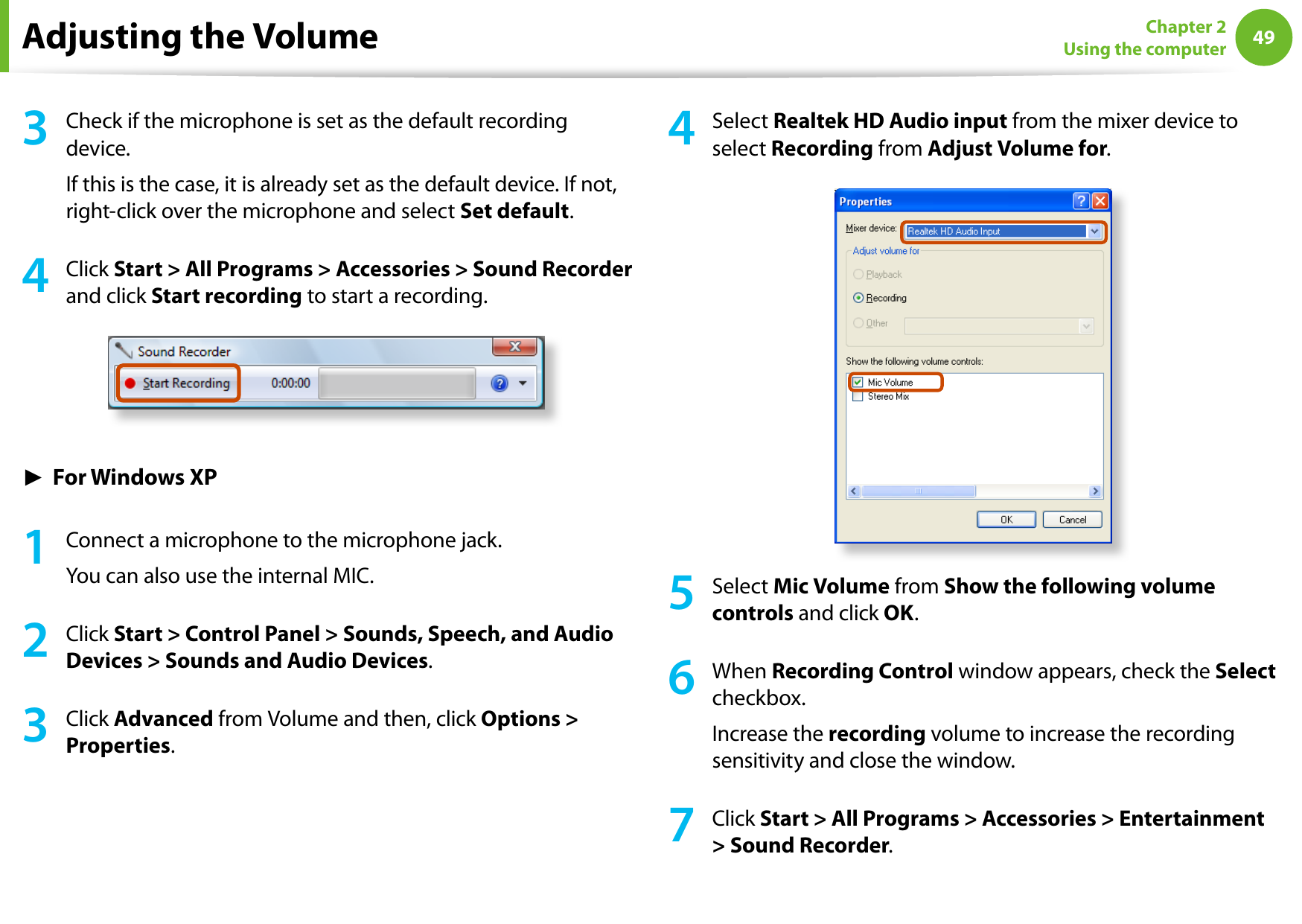

4849Chapter 2 Using the computer3 Check if the microphone is set as the default recording device.If this is the case, it is already set as the default device. If not, right-click over the microphone and select Set default.4 Click Start > All Programs > Accessories > Sound Recorder and click Start recording to start a recording.► For Windows XP1 Connect a microphone to the microphone jack.You can also use the internal MIC.2 Click Start > Control Panel > Sounds, Speech, and Audio Devices > Sounds and Audio Devices.3 Click Advanced from Volume and then, click Options > Properties.4 Select Realtek HD Audio input from the mixer device to select Recording from Adjust Volume for.5 Select Mic Volume from Show the following volume controls and click OK.6 When Recording Control window appears, check the Select checkbox.Increase the recording volume to increase the recording sensitivity and close the window.7 Click Start > All Programs > Accessories > Entertainment > Sound Recorder.Adjusting the Volume

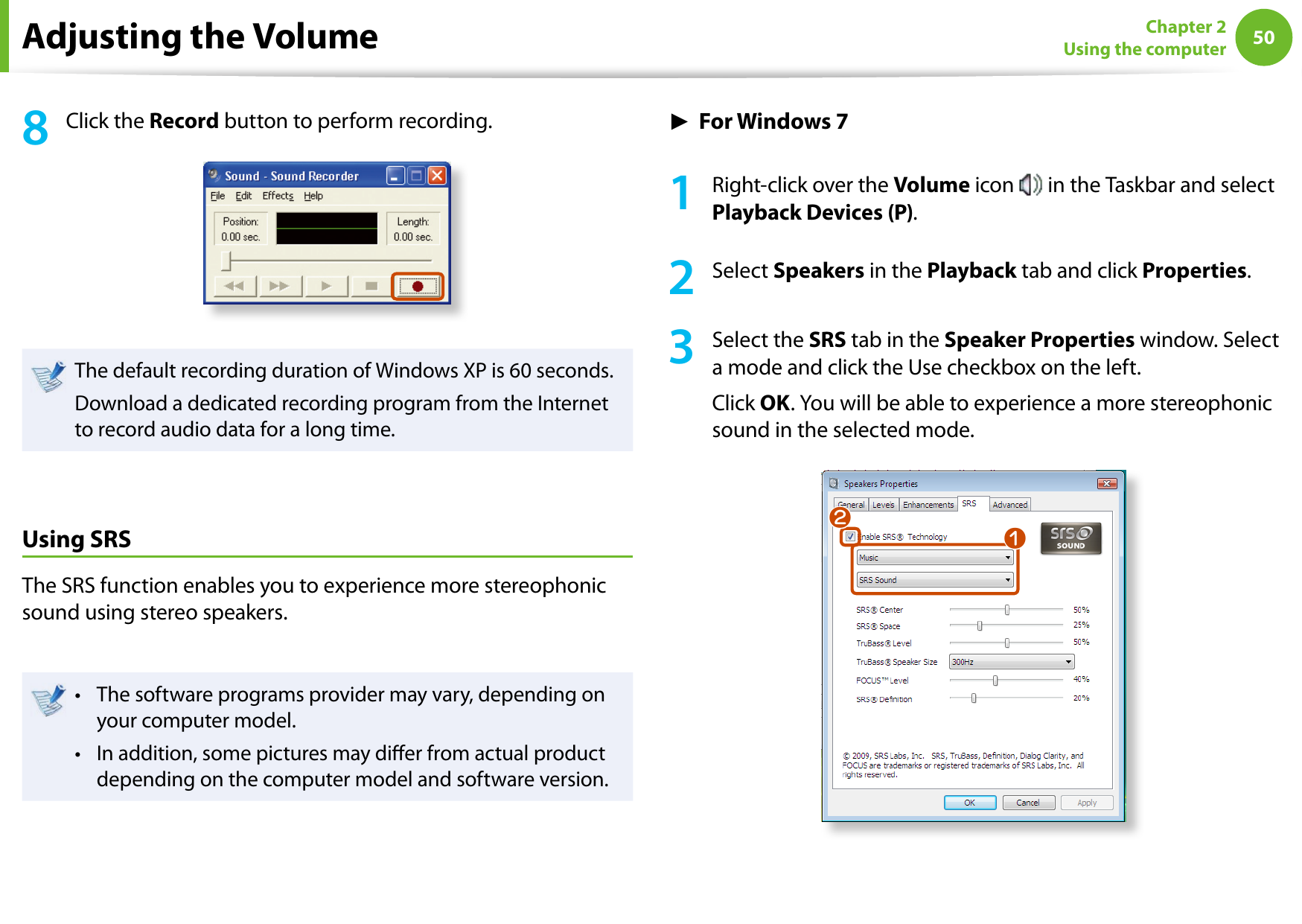

50Chapter 2 Using the computer8 Click the Record button to perform recording.The default recording duration of Windows XP is 60 seconds.Download a dedicated recording program from the Internet to record audio data for a long time.Using SRSThe SRS function enables you to experience more stereophonic sound using stereo speakers.The software programs provider may vary, depending on • your computer model.In addition, some pictures may dier from actual product • depending on the computer model and software version.► For Windows 71 Right-click over the Volume icon in the Taskbar and select Playback Devices (P).2 Select Speakers in the Playback tab and click Properties.3 Select the SRS tab in the Speaker Properties window. Select a mode and click the Use checkbox on the left.Click OK. You will be able to experience a more stereophonic sound in the selected mode.zxAdjusting the Volume
