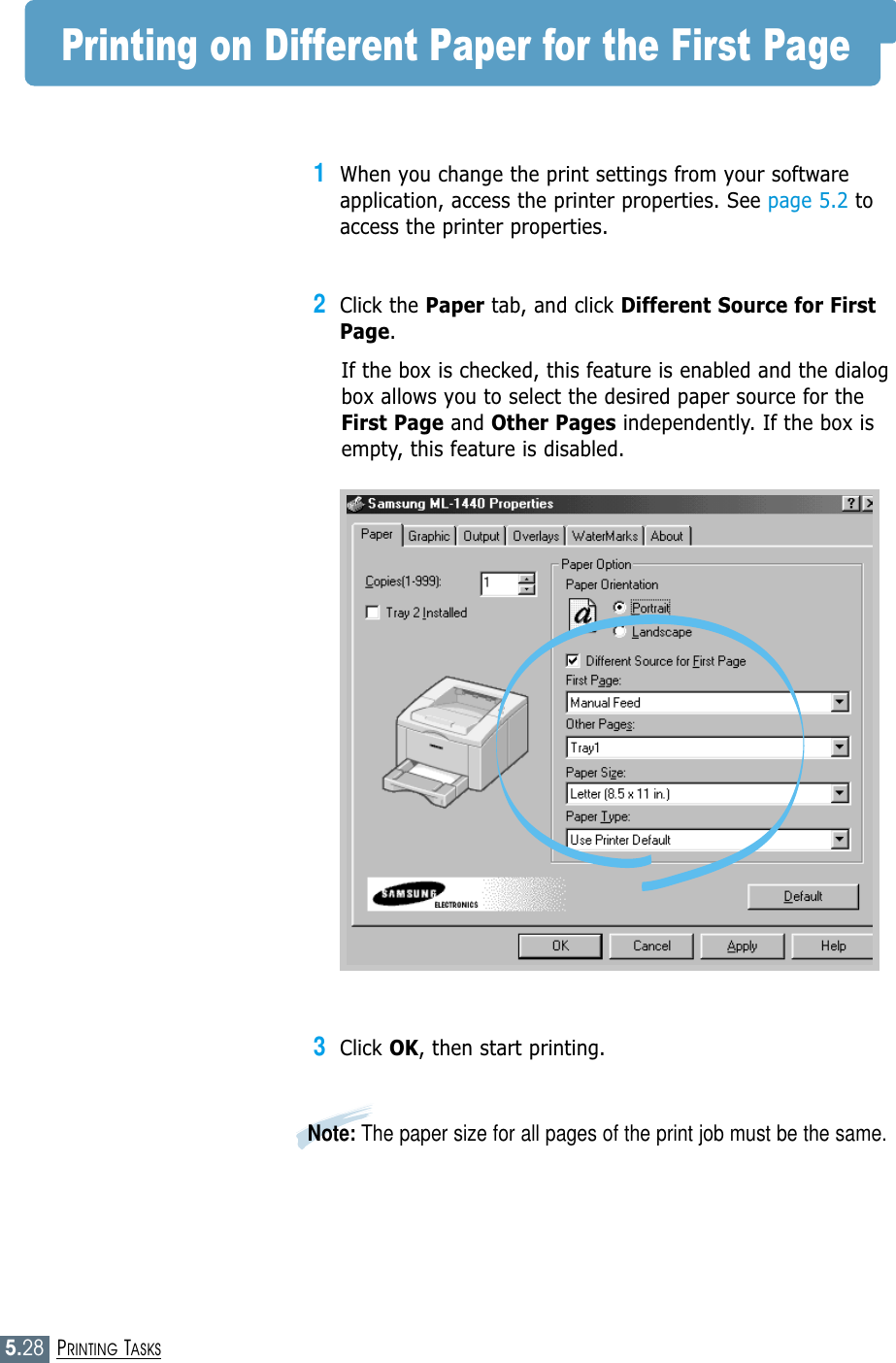

5.28PRINTING TASKSPrinting on Different Paper for the First Page1When you change the print settings from your softwareapplication, access the printer properties. See page 5.2 toaccess the printer properties.2Click the Paper tab, and click Different Source for FirstPage. If the box is checked, this feature is enabled and the dialogbox allows you to select the desired paper source for theFirst Page and Other Pages independently. If the box isempty, this feature is disabled. 3Click OK, then start printing. Note: The paper size for all pages of the print job must be the same.

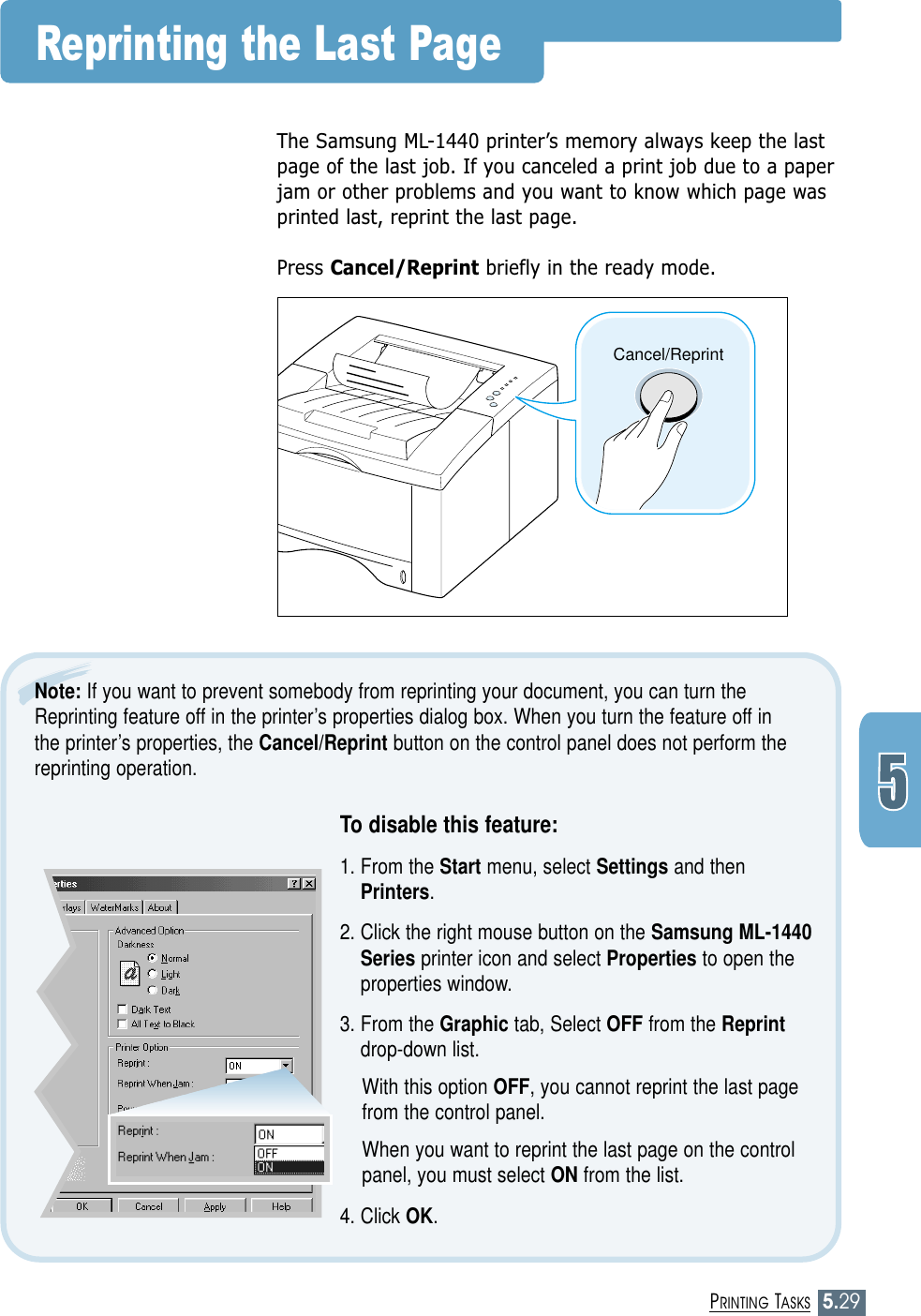

5.29PRINTING TASKSReprinting the Last PageThe Samsung ML-1440 printer’s memory always keep the lastpage of the last job. If you canceled a print job due to a paperjam or other problems and you want to know which page wasprinted last, reprint the last page.Press Cancel/Reprint briefly in the ready mode.Cancel/ReprintTo disable this feature:1. From the Start menu, select Settings and thenPrinters. 2. Click the right mouse button on the Samsung ML-1440Series printer icon and select Properties to open theproperties window.3. From the Graphic tab, Select OFF from the Reprintdrop-down list. With this option OFF, you cannot reprint the last pagefrom the control panel.When you want to reprint the last page on the controlpanel, you must select ON from the list.4. Click OK.Note: If you want to prevent somebody from reprinting your document, you can turn theReprinting feature off in the printer’s properties dialog box. When you turn the feature off inthe printer’s properties, the Cancel/Reprint button on the control panel does not perform thereprinting operation.

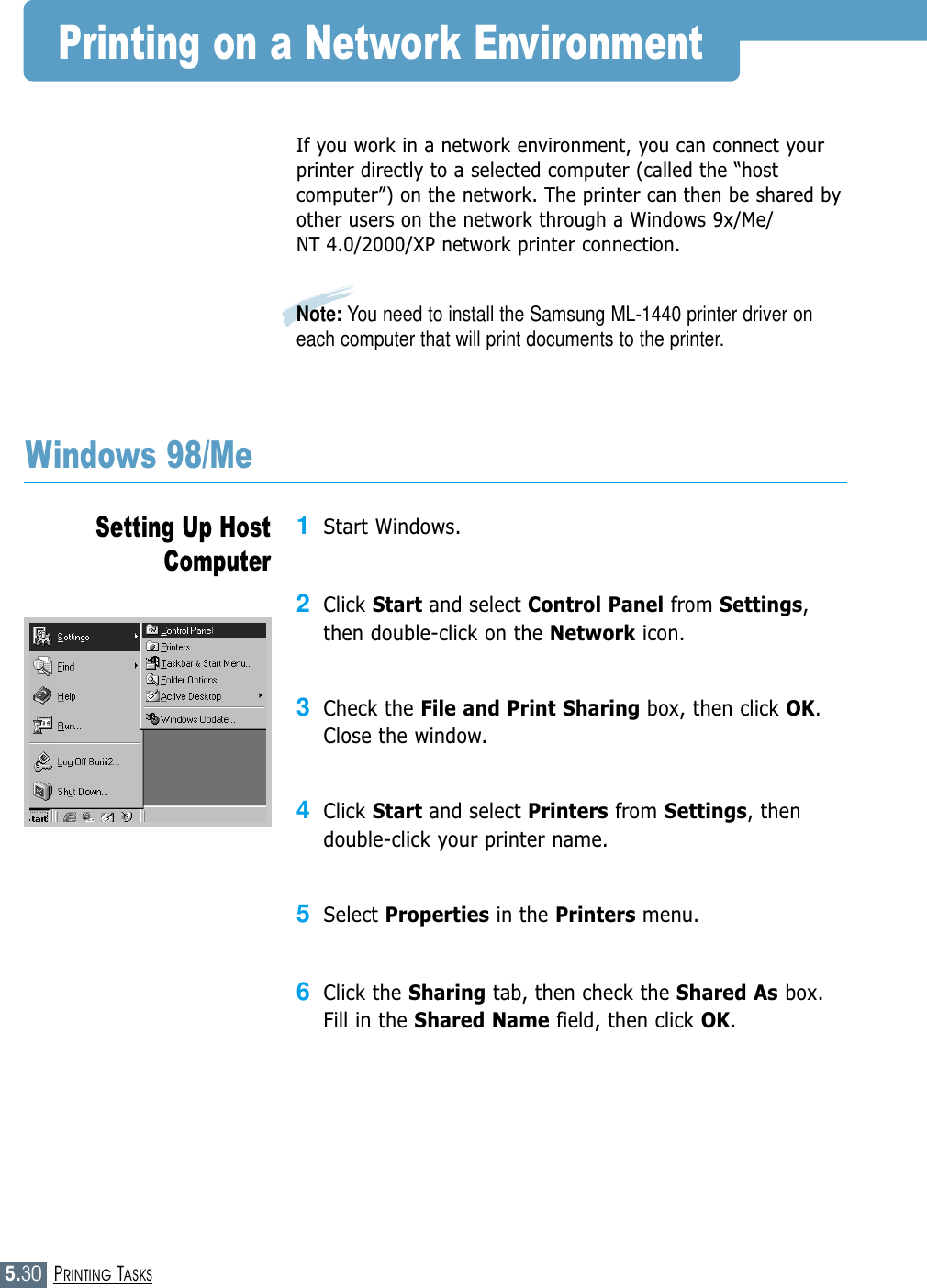

5.30PRINTING TASKSPrinting on a Network EnvironmentIf you work in a network environment, you can connect yourprinter directly to a selected computer (called the “hostcomputer”) on the network. The printer can then be shared byother users on the network through a Windows 9x/Me/NT 4.0/2000/XP network printer connection.Note: You need to install the Samsung ML-1440 printer driver oneach computer that will print documents to the printer.1Start Windows.2Click Start and select Control Panel from Settings,then double-click on the Network icon.3Check the File and Print Sharing box, then click OK.Close the window.4Click Start and select Printers from Settings, thendouble-click your printer name.5Select Properties in the Printers menu.6Click the Sharing tab, then check the Shared As box.Fill in the Shared Name field, then click OK.Windows 98/MeSetting Up HostComputer

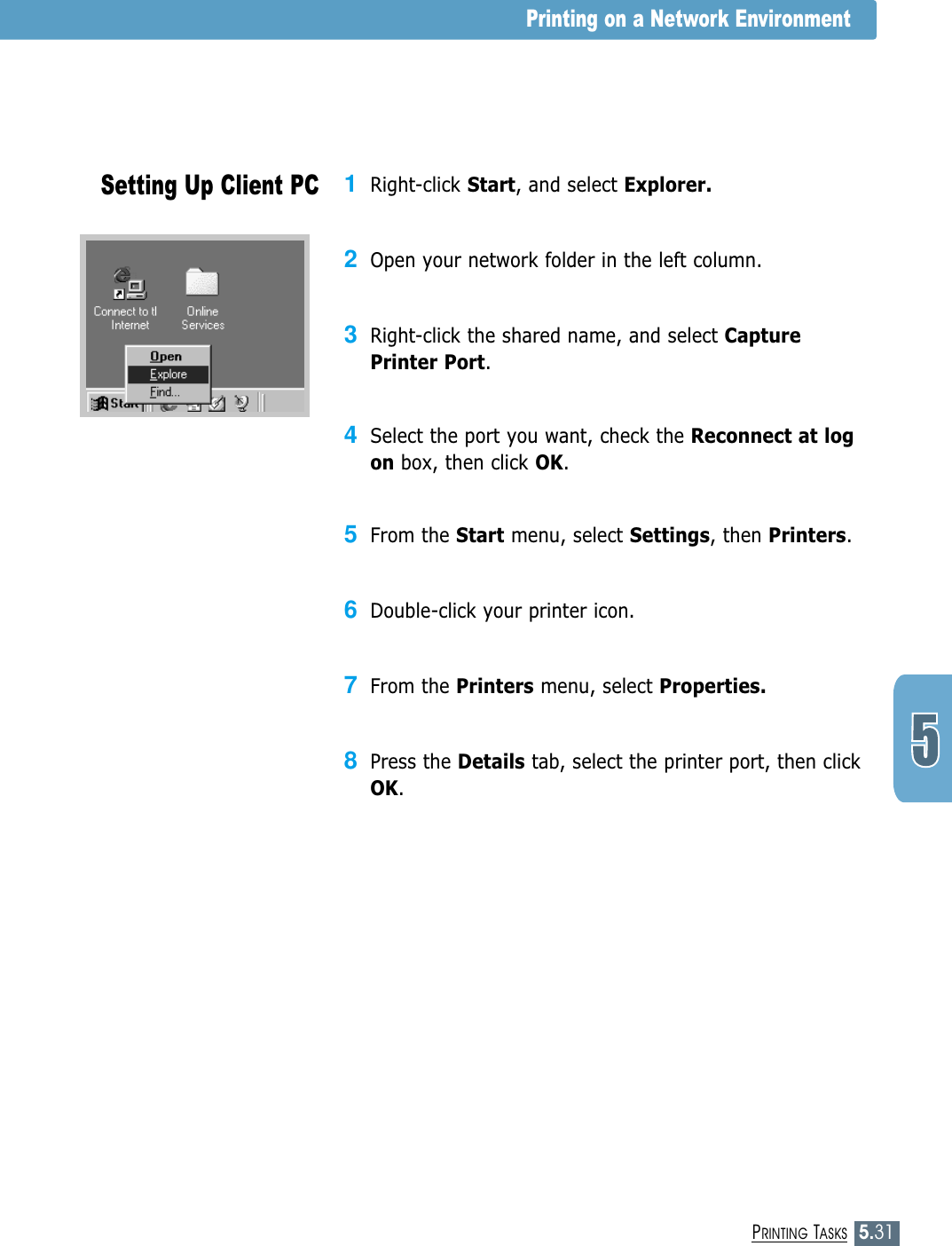

5.31PRINTING TASKS1Right-click Start, and select Explorer.2Open your network folder in the left column.3Right-click the shared name, and select CapturePrinter Port.4Select the port you want, check the Reconnect at logon box, then click OK.5From the Start menu, select Settings, then Printers.6Double-click your printer icon.7From the Printers menu, select Properties.8Press the Details tab, select the printer port, then clickOK.Printing on a Network EnvironmentSetting Up Client PC

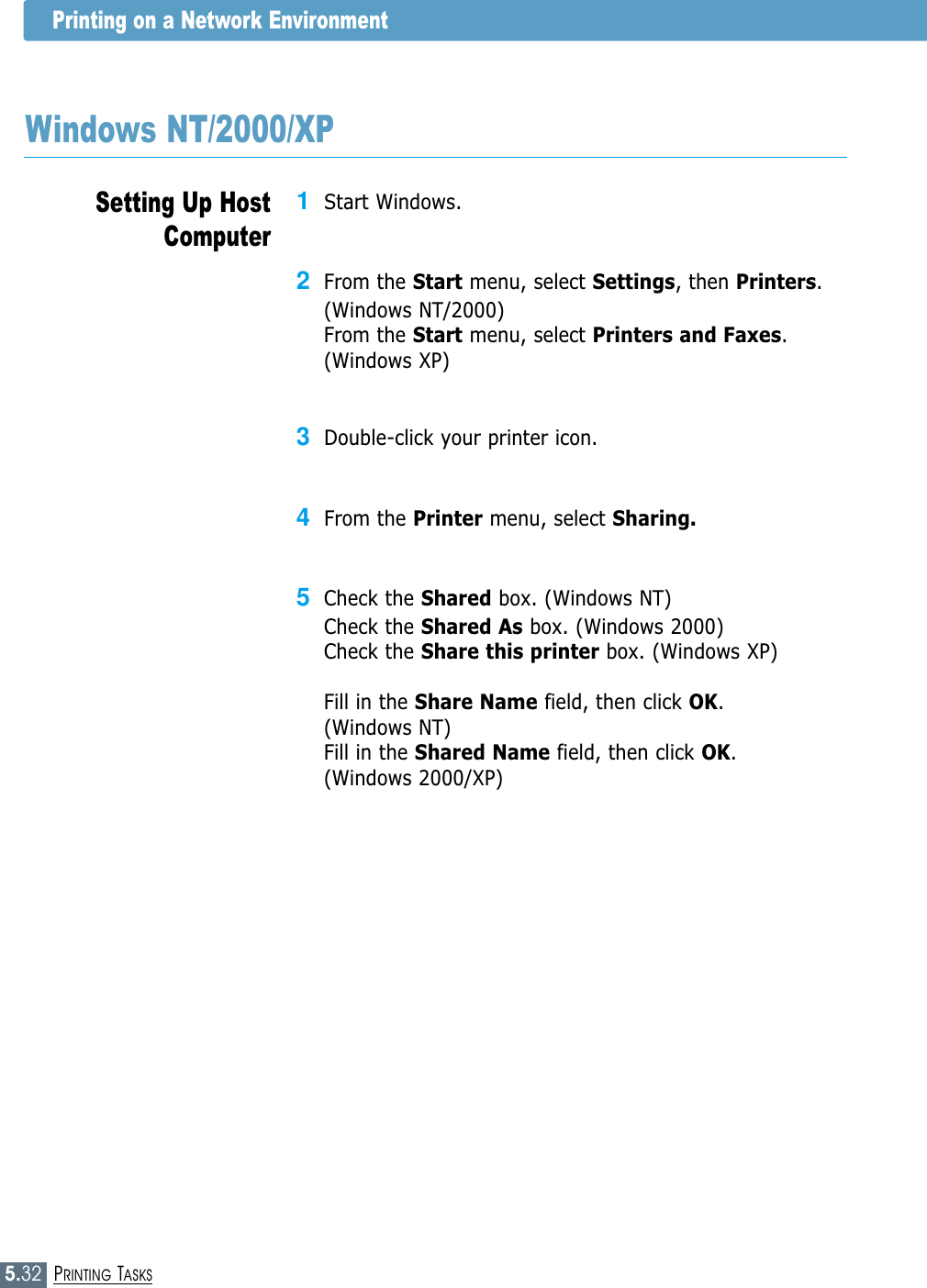

5.32PRINTING TASKS1Start Windows.2From the Start menu, select Settings, then Printers.(Windows NT/2000)From the Start menu, select Printers and Faxes.(Windows XP)3Double-click your printer icon.4From the Printer menu, select Sharing.5Check the Shared box. (Windows NT)Check the Shared As box. (Windows 2000)Check the Share this printer box. (Windows XP)Fill in the Share Name field, then click OK. (Windows NT)Fill in the Shared Name field, then click OK. (Windows 2000/XP)Windows NT/2000/XPSetting Up HostComputerPrinting on a Network Environment

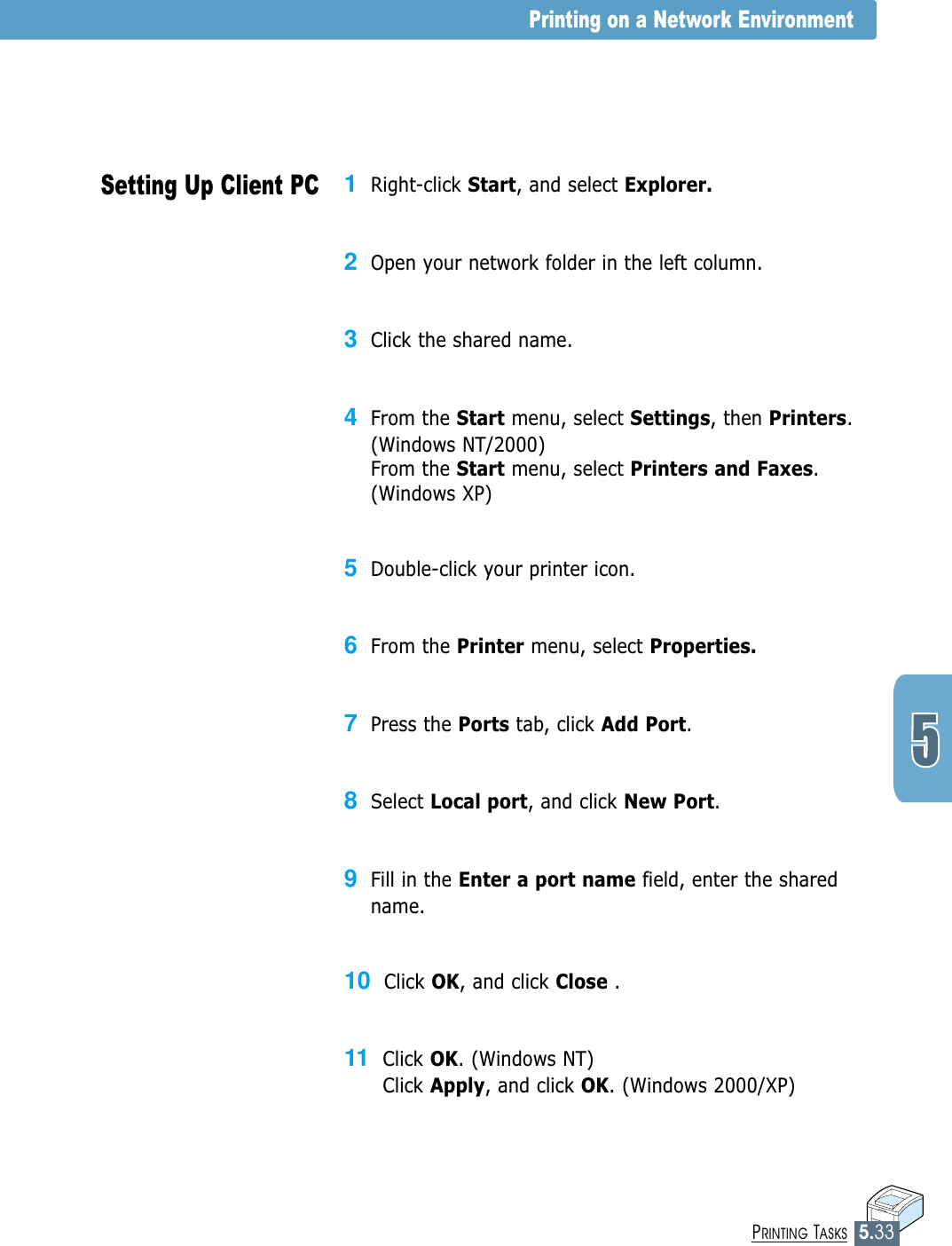

5.33PRINTING TASKSPrinting on a Network Environment1Right-click Start, and select Explorer.2Open your network folder in the left column.3Click the shared name.4From the Start menu, select Settings, then Printers.(Windows NT/2000)From the Start menu, select Printers and Faxes.(Windows XP)5Double-click your printer icon.6From the Printer menu, select Properties.7Press the Ports tab, click Add Port.8Select Local port, and click New Port.9Fill in the Enter a port name field, enter the sharedname.10Click OK, and click Close .11Click OK. (Windows NT)Click Apply, and click OK. (Windows 2000/XP)Setting Up Client PC

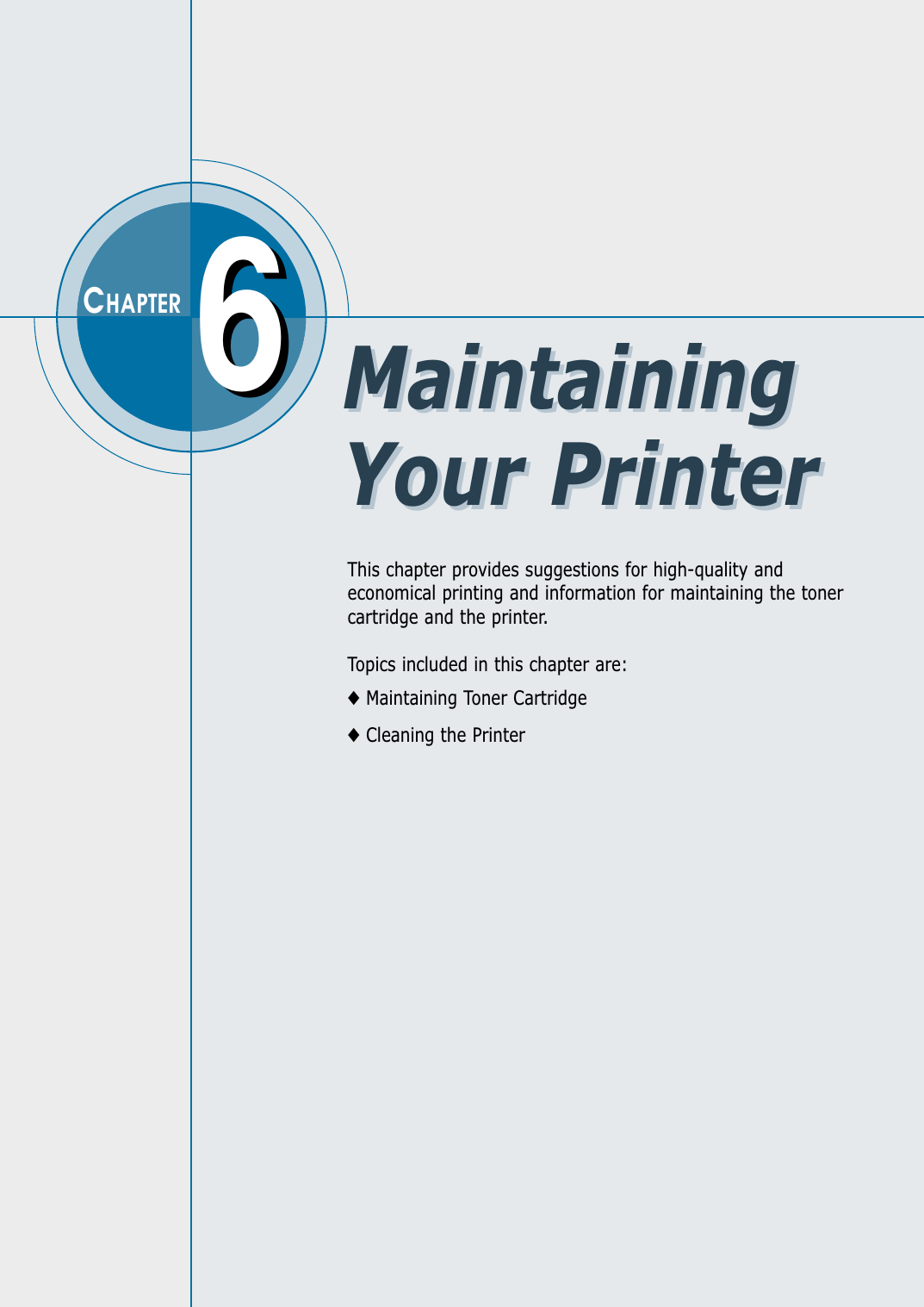

This chapter provides suggestions for high-quality andeconomical printing and information for maintaining the tonercartridge and the printer. Topics included in this chapter are:◆Maintaining Toner Cartridge◆Cleaning the Printer66CHAPTERMaintainingYour PrinterMaintainingYour Printer

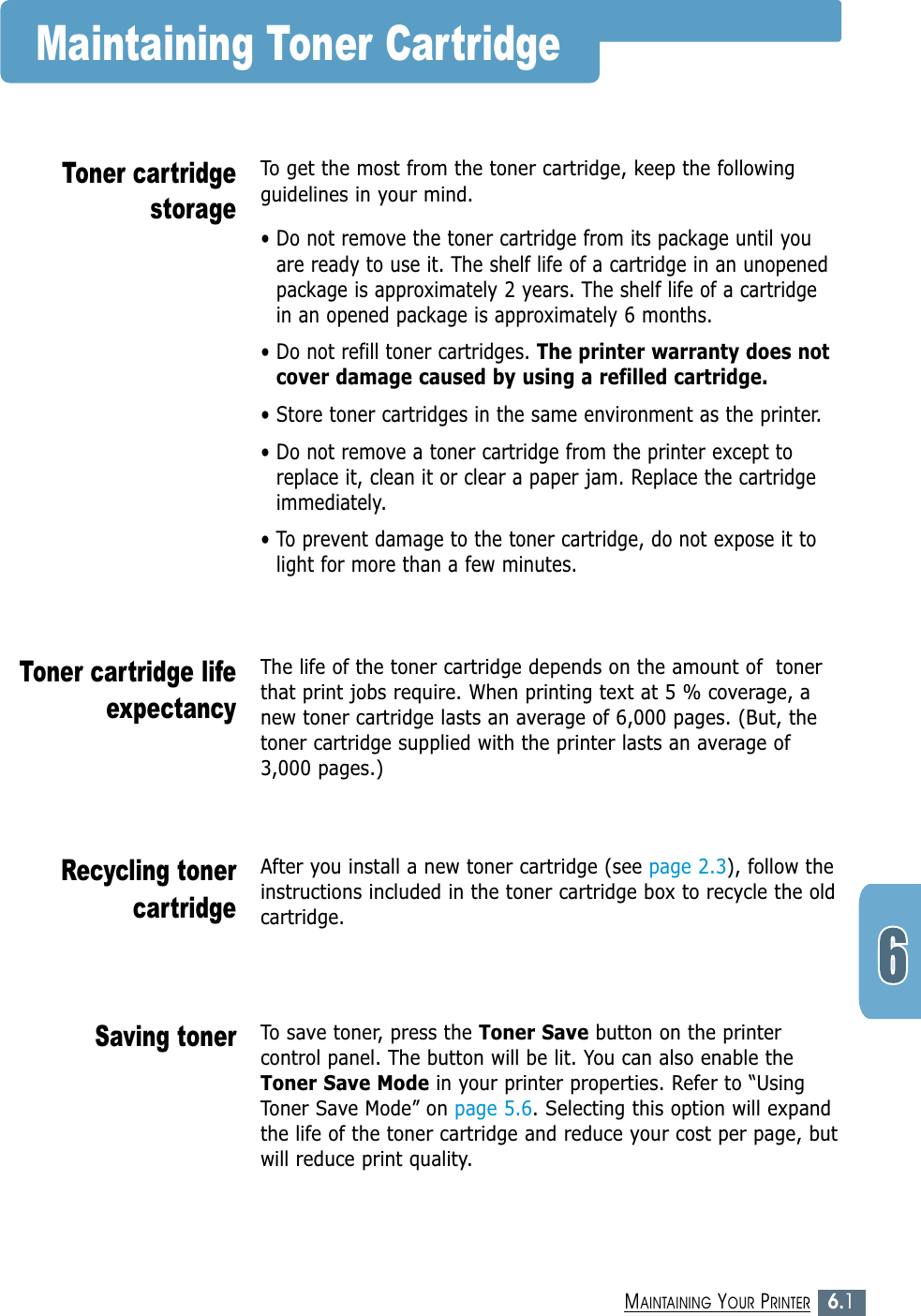

6.1MAINTAINING YOUR PRINTERMaintaining Toner CartridgeTo get the most from the toner cartridge, keep the followingguidelines in your mind.• Do not remove the toner cartridge from its package until youare ready to use it. The shelf life of a cartridge in an unopenedpackage is approximately 2 years. The shelf life of a cartridge in an opened package is approximately 6 months.• Do not refill toner cartridges. The printer warranty does notcover damage caused by using a refilled cartridge.• Store toner cartridges in the same environment as the printer.• Do not remove a toner cartridge from the printer except toreplace it, clean it or clear a paper jam. Replace the cartridgeimmediately.• To prevent damage to the toner cartridge, do not expose it tolight for more than a few minutes.Toner cartridgestorageThe life of the toner cartridge depends on the amount of tonerthat print jobs require. When printing text at 5 % coverage, anew toner cartridge lasts an average of 6,000 pages. (But, thetoner cartridge supplied with the printer lasts an average of3,000 pages.)Toner cartridge lifeexpectancyAfter you install a new toner cartridge (see page 2.3), follow theinstructions included in the toner cartridge box to recycle the oldcartridge.Recycling tonercartridgeTo save toner, press the Toner Save button on the printercontrol panel. The button will be lit. You can also enable theToner Save Mode in your printer properties. Refer to “UsingToner Save Mode” on page 5.6. Selecting this option will expandthe life of the toner cartridge and reduce your cost per page, butwill reduce print quality. Saving toner

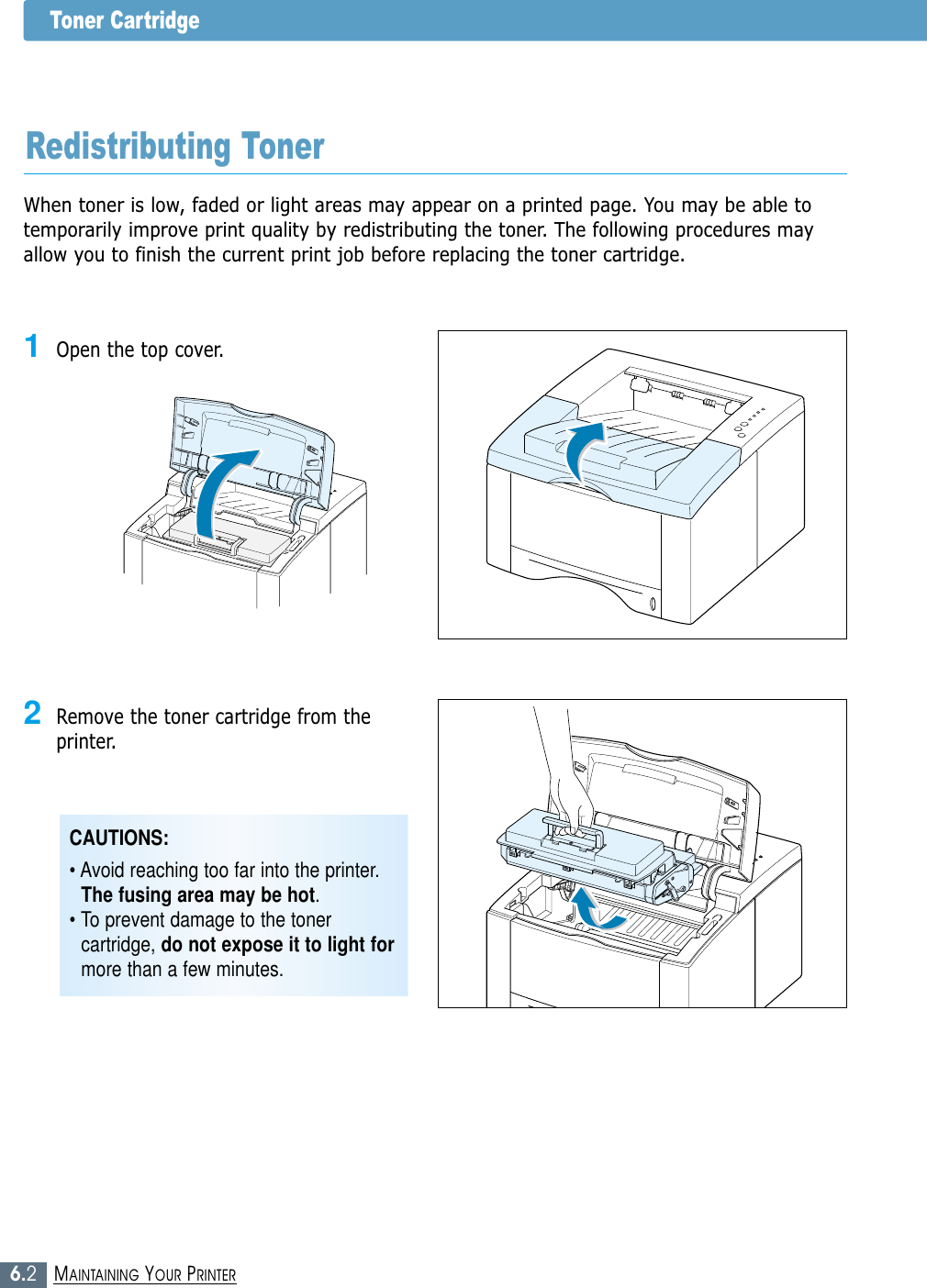

6.2MAINTAINING YOUR PRINTERToner CartridgeWhen toner is low, faded or light areas may appear on a printed page. You may be able totemporarily improve print quality by redistributing the toner. The following procedures mayallow you to finish the current print job before replacing the toner cartridge.Redistributing Toner1Open the top cover.2Remove the toner cartridge from theprinter.CAUTIONS: • Avoid reaching too far into the printer.The fusing area may be hot.• To prevent damage to the tonercartridge, do not expose it to light formore than a few minutes.

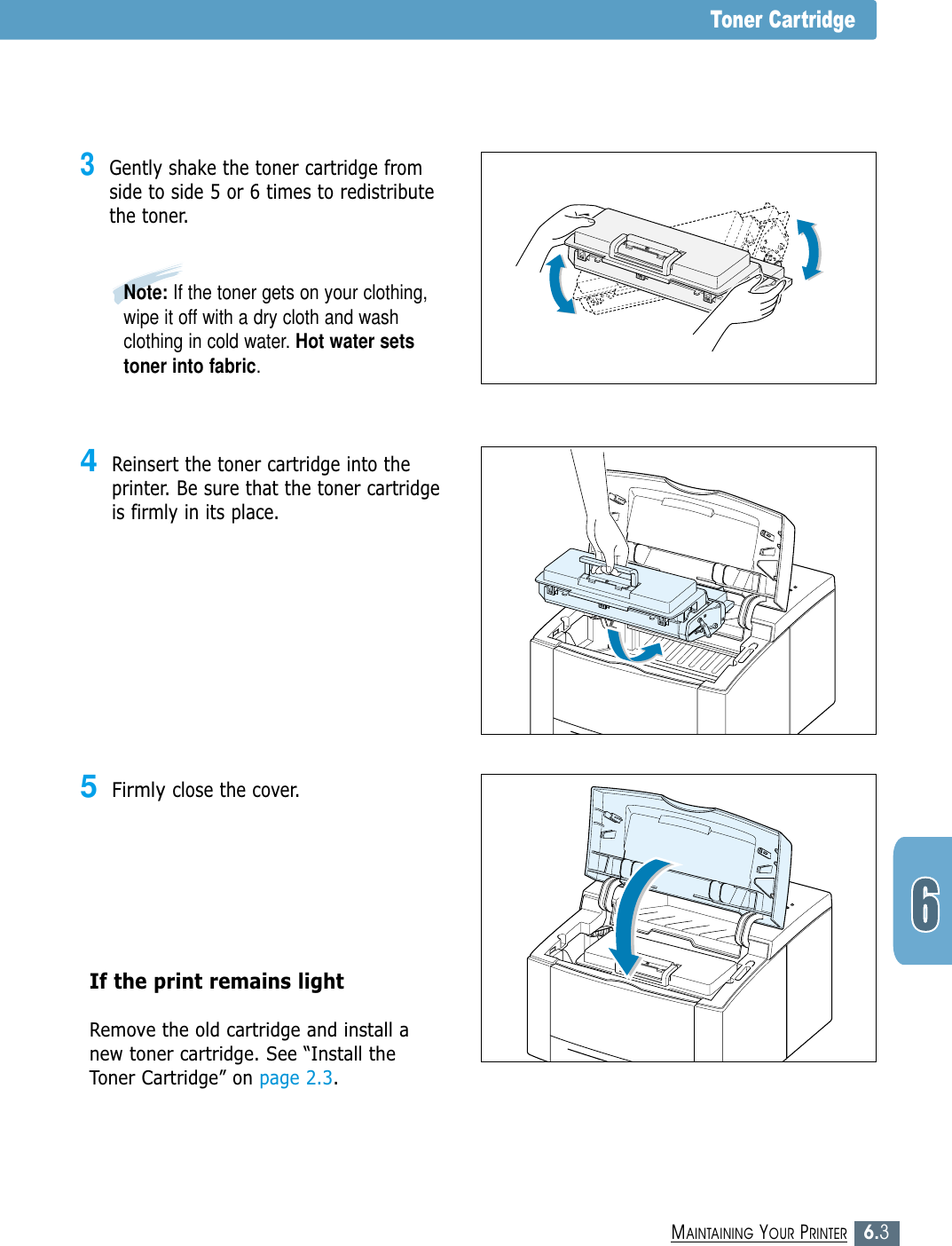

6.3MAINTAINING YOUR PRINTERToner Cartridge3Gently shake the toner cartridge fromside to side 5 or 6 times to redistributethe toner.4Reinsert the toner cartridge into theprinter. Be sure that the toner cartridgeis firmly in its place.5Firmly close the cover.If the print remains light Remove the old cartridge and install anew toner cartridge. See “Install theToner Cartridge” on page 2.3.Note: If the toner gets on your clothing,wipe it off with a dry cloth and washclothing in cold water. Hot water setstoner into fabric.

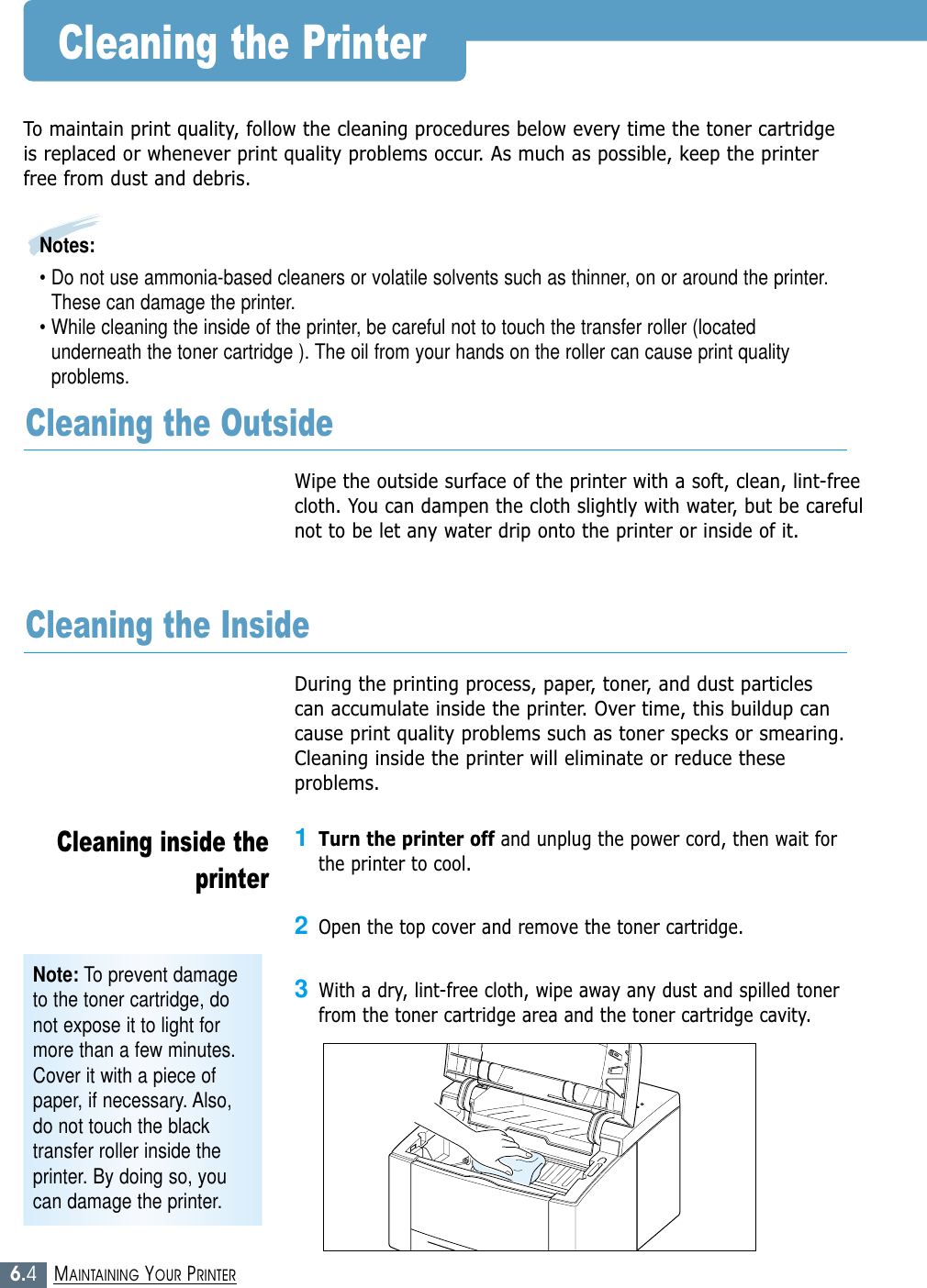

6.4MAINTAINING YOUR PRINTERCleaning the PrinterTo maintain print quality, follow the cleaning procedures below every time the toner cartridgeis replaced or whenever print quality problems occur. As much as possible, keep the printerfree from dust and debris.Notes: • Do not use ammonia-based cleaners or volatile solvents such as thinner, on or around the printer.These can damage the printer.• While cleaning the inside of the printer, be careful not to touch the transfer roller (locatedunderneath the toner cartridge ). The oil from your hands on the roller can cause print qualityproblems.Wipe the outside surface of the printer with a soft, clean, lint-freecloth. You can dampen the cloth slightly with water, but be carefulnot to be let any water drip onto the printer or inside of it.Cleaning the OutsideDuring the printing process, paper, toner, and dust particlescan accumulate inside the printer. Over time, this buildup cancause print quality problems such as toner specks or smearing.Cleaning inside the printer will eliminate or reduce theseproblems.Cleaning the Inside1Turn the printer off and unplug the power cord, then wait forthe printer to cool.2Open the top cover and remove the toner cartridge.3With a dry, lint-free cloth, wipe away any dust and spilled tonerfrom the toner cartridge area and the toner cartridge cavity.Cleaning inside theprinterNote: To prevent damageto the toner cartridge, donot expose it to light formore than a few minutes.Cover it with a piece ofpaper, if necessary. Also,do not touch the blacktransfer roller inside theprinter. By doing so, youcan damage the printer.

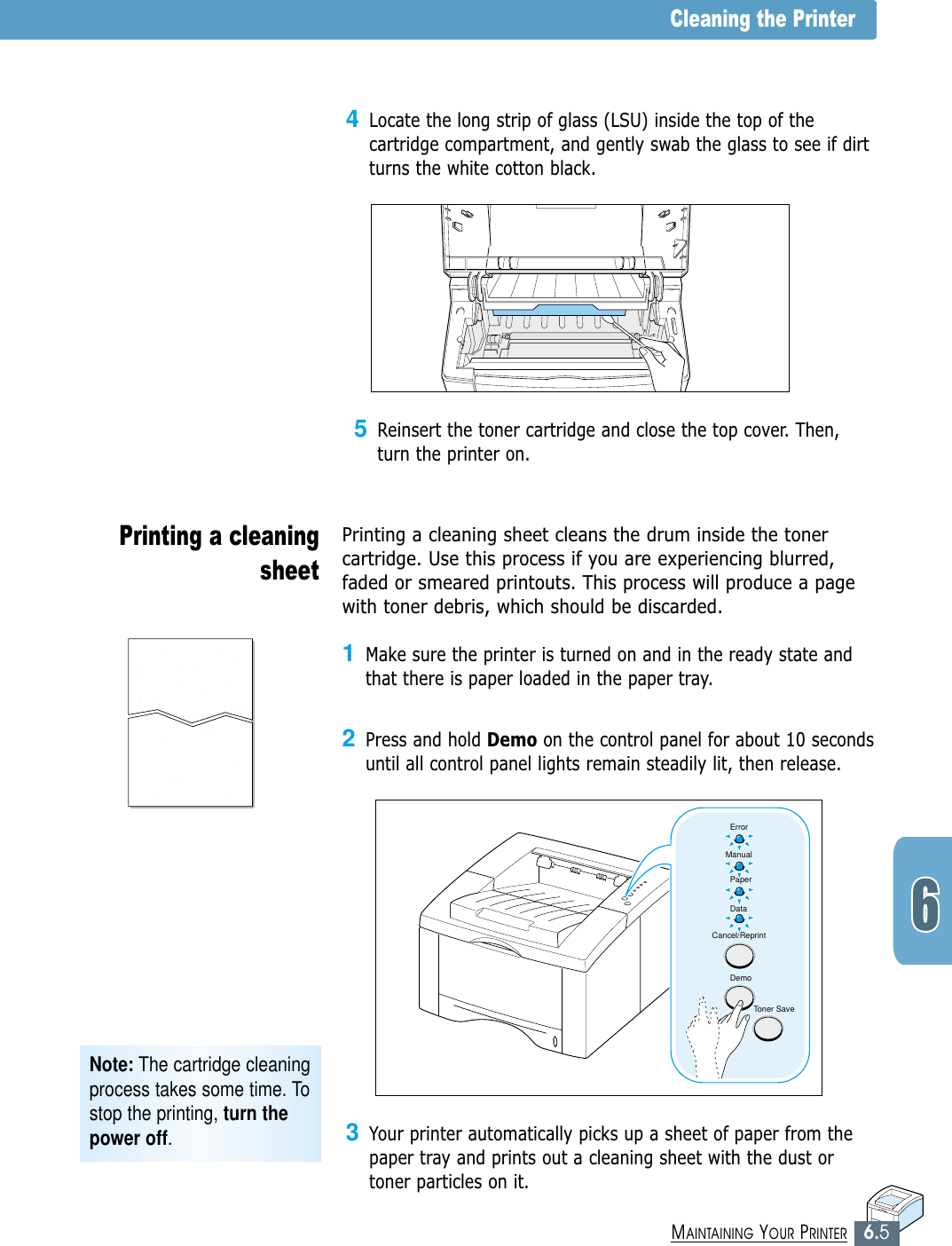

6.5MAINTAINING YOUR PRINTER3Your printer automatically picks up a sheet of paper from thepaper tray and prints out a cleaning sheet with the dust ortoner particles on it.5Reinsert the toner cartridge and close the top cover. Then,turn the printer on.Note: The cartridge cleaningprocess takes some time. Tostop the printing, turn thepower off.Cleaning the PrinterPrinting a cleaningsheet Printing a cleaning sheet cleans the drum inside the tonercartridge. Use this process if you are experiencing blurred,faded or smeared printouts. This process will produce a pagewith toner debris, which should be discarded.1Make sure the printer is turned on and in the ready state andthat there is paper loaded in the paper tray.2Press and hold Demo on the control panel for about 10 secondsuntil all control panel lights remain steadily lit, then release.4Locate the long strip of glass (LSU) inside the top of thecartridge compartment, and gently swab the glass to see if dirtturns the white cotton black.ErrorManualPaperDataCancel/ReprintDemoToner Save

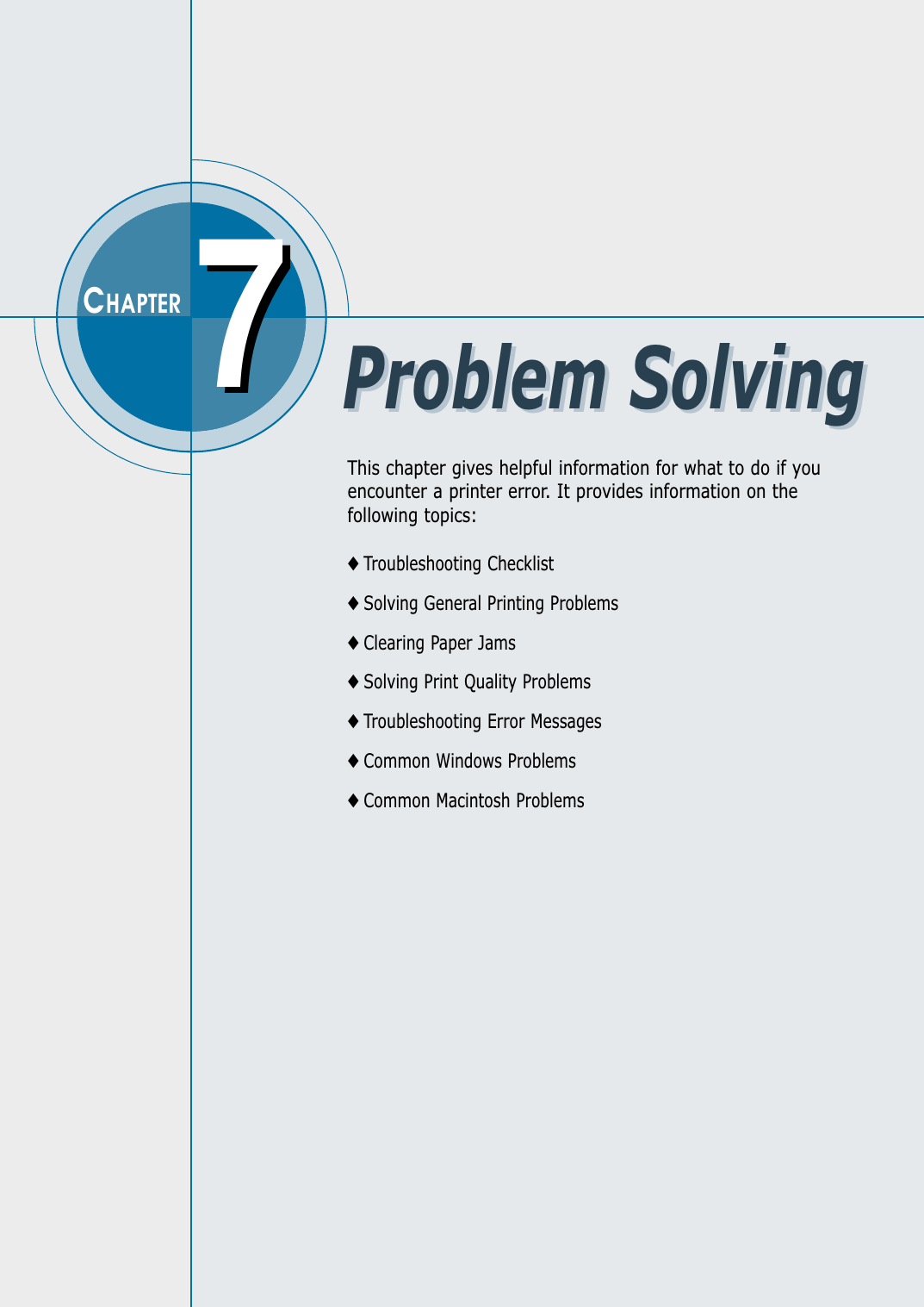

This chapter gives helpful information for what to do if youencounter a printer error. It provides information on thefollowing topics:◆ Troubleshooting Checklist◆ Solving General Printing Problems◆ Clearing Paper Jams◆ Solving Print Quality Problems◆ Troubleshooting Error Messages◆ Common Windows Problems◆ Common Macintosh Problems77CHAPTERProblem SolvingProblem Solving

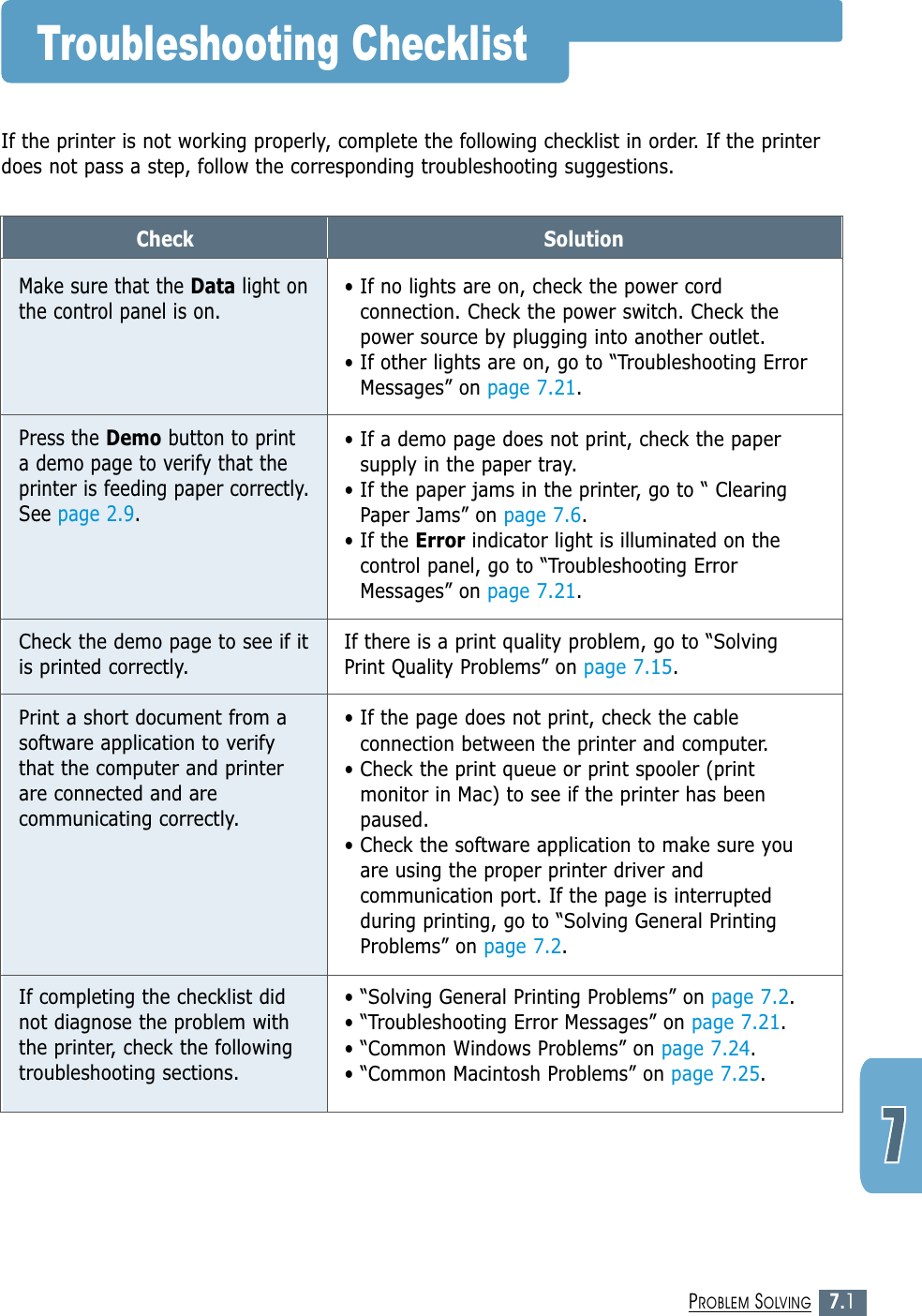

7.1PROBLEM SOLVINGTroubleshooting ChecklistIf the printer is not working properly, complete the following checklist in order. If the printerdoes not pass a step, follow the corresponding troubleshooting suggestions.CheckMake sure that the Data light onthe control panel is on.Press the Demo button to printa demo page to verify that theprinter is feeding paper correctly.See page 2.9.Check the demo page to see if itis printed correctly.Print a short document from asoftware application to verifythat the computer and printerare connected and arecommunicating correctly.If completing the checklist didnot diagnose the problem withthe printer, check the followingtroubleshooting sections.Solution• If no lights are on, check the power cordconnection. Check the power switch. Check thepower source by plugging into another outlet.• If other lights are on, go to “Troubleshooting ErrorMessages” on page 7.21.• If a demo page does not print, check the papersupply in the paper tray.• If the paper jams in the printer, go to “ ClearingPaper Jams” on page 7.6.• If the Error indicator light is illuminated on thecontrol panel, go to “Troubleshooting ErrorMessages” on page 7.21.If there is a print quality problem, go to “SolvingPrint Quality Problems” on page 7.15.• If the page does not print, check the cableconnection between the printer and computer. • Check the print queue or print spooler (printmonitor in Mac) to see if the printer has beenpaused.• Check the software application to make sure youare using the proper printer driver andcommunication port. If the page is interruptedduring printing, go to “Solving General PrintingProblems” on page 7.2.• “Solving General Printing Problems” on page 7.2.• “Troubleshooting Error Messages” on page 7.21.• “Common Windows Problems” on page 7.24.• “Common Macintosh Problems” on page 7.25.

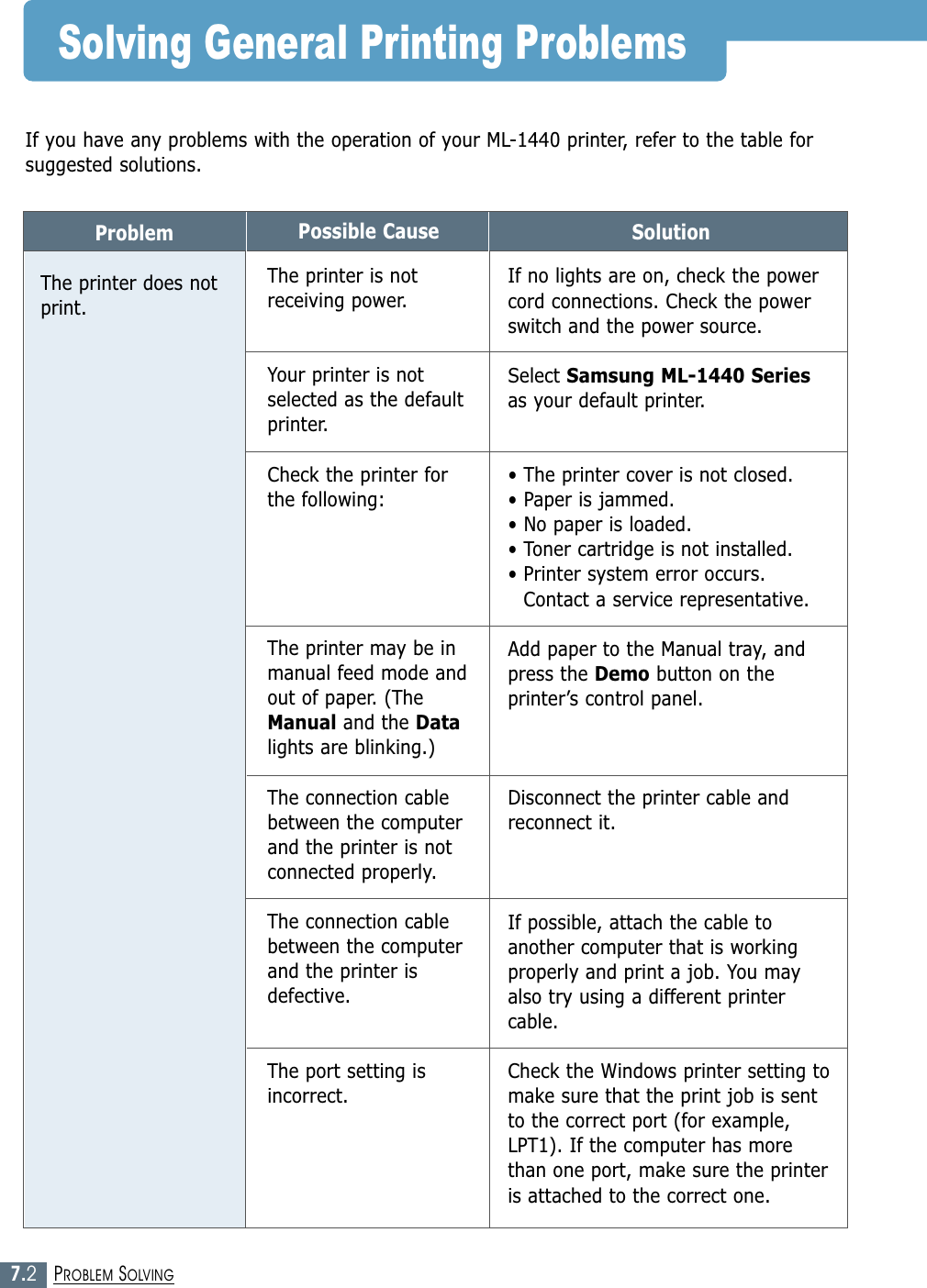

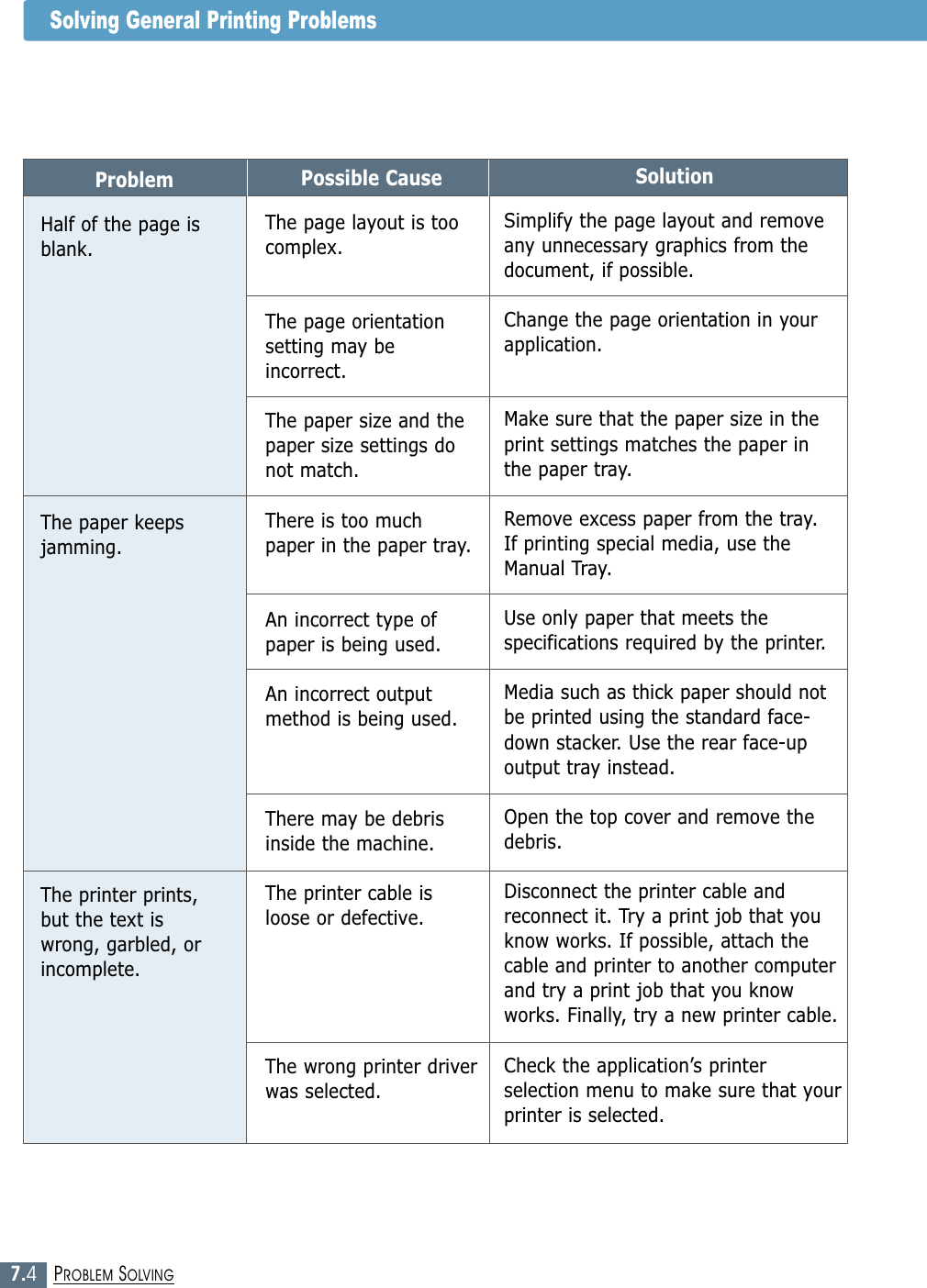

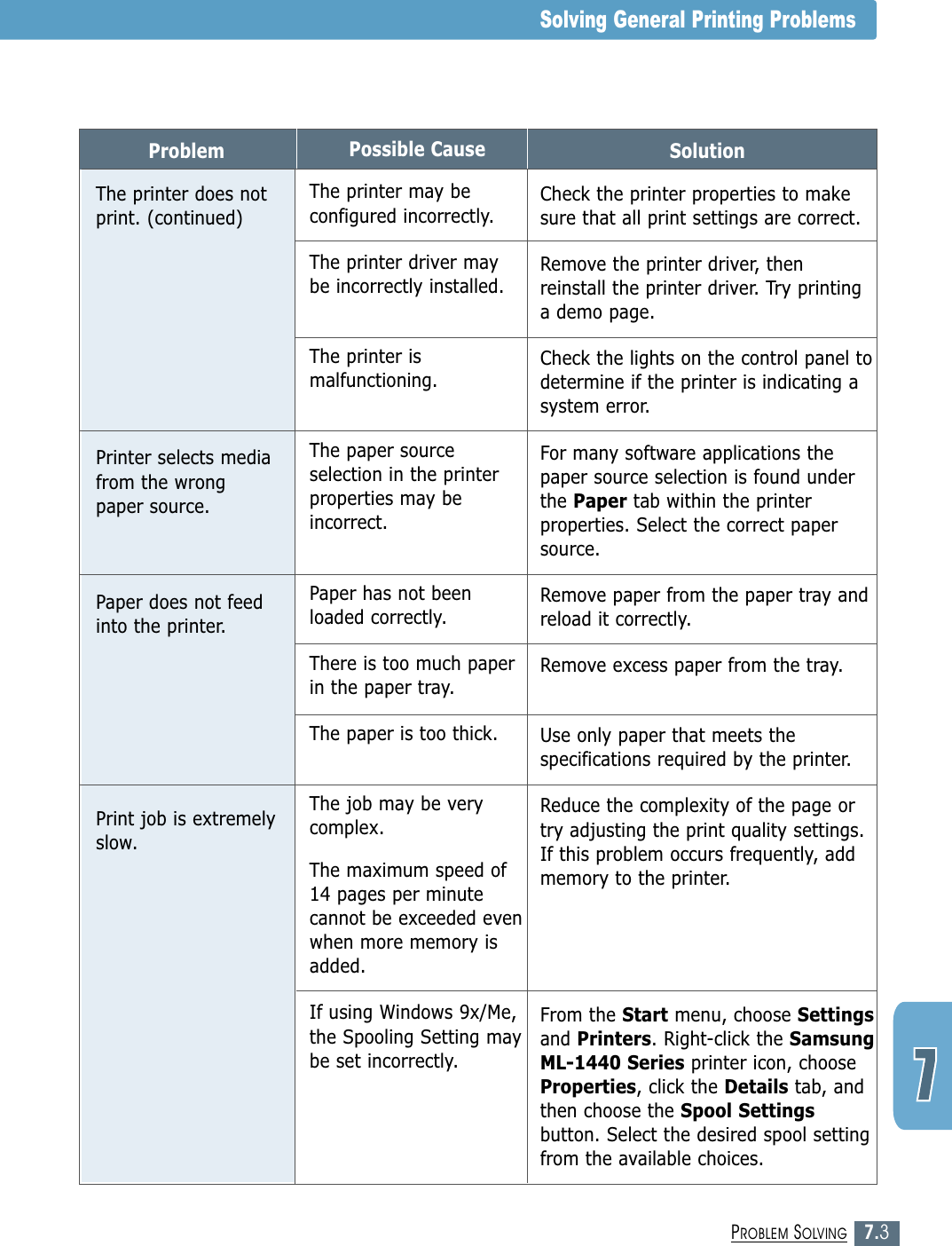

7.2PROBLEM SOLVINGSolving General Printing ProblemsProblemThe printer does notprint.Possible CauseThe printer is notreceiving power.Your printer is notselected as the defaultprinter.Check the printer forthe following: The printer may be inmanual feed mode andout of paper. (TheManual and the Datalights are blinking.)The connection cablebetween the computerand the printer is notconnected properly.The connection cablebetween the computerand the printer isdefective.The port setting isincorrect.SolutionIf no lights are on, check the powercord connections. Check the powerswitch and the power source.Select Samsung ML-1440 Seriesas your default printer. • The printer cover is not closed.• Paper is jammed.• No paper is loaded.• Toner cartridge is not installed.• Printer system error occurs.Contact a service representative.Add paper to the Manual tray, andpress the Demo button on theprinter’s control panel.Disconnect the printer cable andreconnect it.If possible, attach the cable toanother computer that is workingproperly and print a job. You mayalso try using a different printercable.Check the Windows printer setting tomake sure that the print job is sentto the correct port (for example,LPT1). If the computer has morethan one port, make sure the printeris attached to the correct one.If you have any problems with the operation of your ML-1440 printer, refer to the table forsuggested solutions.
7.3PROBLEM SOLVINGSolving General Printing ProblemsProblemThe printer does notprint. (continued)Printer selects mediafrom the wrongpaper source.Paper does not feedinto the printer.Print job is extremelyslow.Possible CauseThe printer may beconfigured incorrectly.The printer driver maybe incorrectly installed.The printer ismalfunctioning.The paper sourceselection in the printerproperties may beincorrect.Paper has not beenloaded correctly.There is too much paperin the paper tray.The paper is too thick.The job may be verycomplex.The maximum speed of14 pages per minutecannot be exceeded evenwhen more memory isadded.If using Windows 9x/Me,the Spooling Setting maybe set incorrectly. SolutionCheck the printer properties to makesure that all print settings are correct.Remove the printer driver, thenreinstall the printer driver. Try printinga demo page.Check the lights on the control panel todetermine if the printer is indicating asystem error.For many software applications thepaper source selection is found underthe Paper tab within the printerproperties. Select the correct papersource.Remove paper from the paper tray andreload it correctly.Remove excess paper from the tray.Use only paper that meets thespecifications required by the printer.Reduce the complexity of the page ortry adjusting the print quality settings.If this problem occurs frequently, addmemory to the printer.From the Start menu, choose Settingsand Printers. Right-click the SamsungML-1440 Series printer icon, chooseProperties, click the Details tab, andthen choose the Spool Settingsbutton. Select the desired spool settingfrom the available choices.
7.4PROBLEM SOLVINGSolving General Printing ProblemsProblemHalf of the page isblank.The paper keepsjamming.The printer prints,but the text iswrong, garbled, orincomplete.SolutionSimplify the page layout and removeany unnecessary graphics from thedocument, if possible.Change the page orientation in yourapplication.Make sure that the paper size in theprint settings matches the paper in the paper tray.Remove excess paper from the tray. If printing special media, use theManual Tray.Use only paper that meets thespecifications required by the printer.Media such as thick paper should notbe printed using the standard face-down stacker. Use the rear face-upoutput tray instead.Open the top cover and remove thedebris.Disconnect the printer cable andreconnect it. Try a print job that youknow works. If possible, attach thecable and printer to another computerand try a print job that you knowworks. Finally, try a new printer cable.Check the application’s printerselection menu to make sure that yourprinter is selected.Possible CauseThe page layout is toocomplex.The page orientationsetting may beincorrect.The paper size and thepaper size settings donot match.There is too muchpaper in the paper tray.An incorrect type ofpaper is being used.An incorrect outputmethod is being used.There may be debrisinside the machine.The printer cable isloose or defective.The wrong printer driverwas selected.

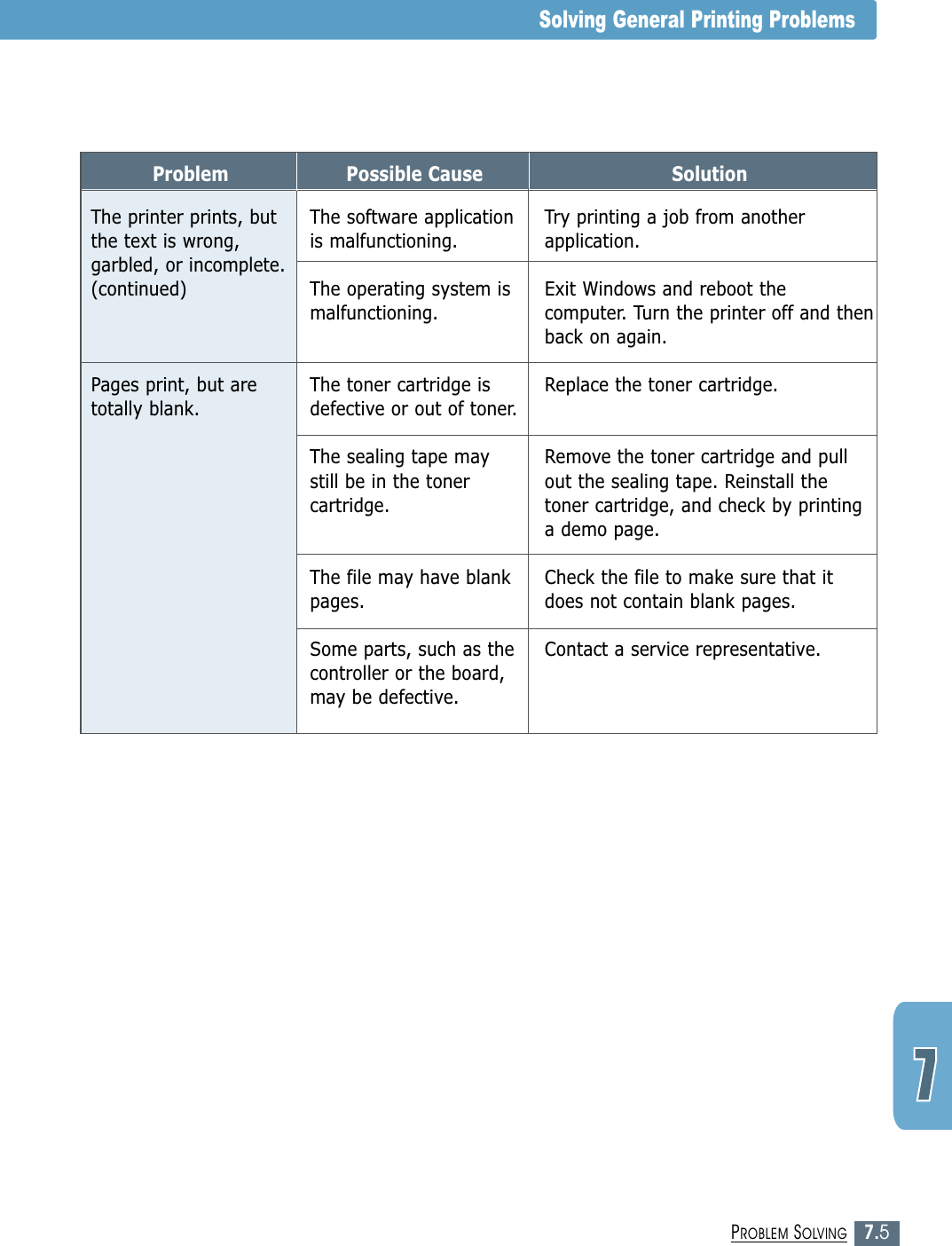

7.5PROBLEM SOLVINGProblemThe printer prints, butthe text is wrong,garbled, or incomplete.(continued) Pages print, but aretotally blank.Solving General Printing ProblemsSolutionTry printing a job from anotherapplication.Exit Windows and reboot thecomputer. Turn the printer off and thenback on again.Replace the toner cartridge.Remove the toner cartridge and pullout the sealing tape. Reinstall thetoner cartridge, and check by printinga demo page.Check the file to make sure that itdoes not contain blank pages.Contact a service representative.Possible CauseThe software applicationis malfunctioning.The operating system ismalfunctioning.The toner cartridge isdefective or out of toner.The sealing tape maystill be in the tonercartridge.The file may have blankpages.Some parts, such as thecontroller or the board,may be defective.

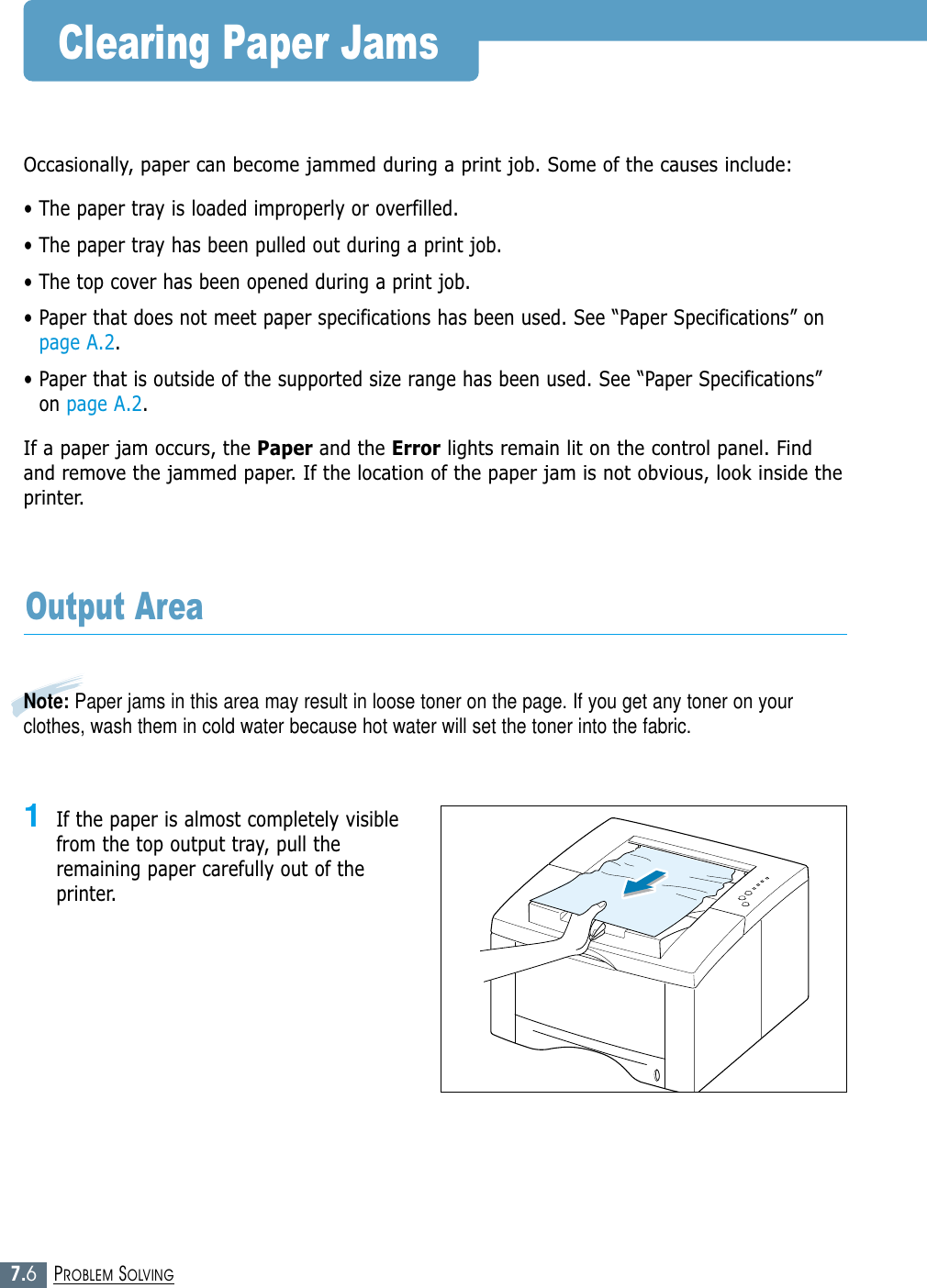

7.6PROBLEM SOLVINGClearing Paper JamsOccasionally, paper can become jammed during a print job. Some of the causes include:• The paper tray is loaded improperly or overfilled.• The paper tray has been pulled out during a print job.• The top cover has been opened during a print job.• Paper that does not meet paper specifications has been used. See “Paper Specifications” onpage A.2.• Paper that is outside of the supported size range has been used. See “Paper Specifications”on page A.2.If a paper jam occurs, the Paper and the Error lights remain lit on the control panel. Findand remove the jammed paper. If the location of the paper jam is not obvious, look inside theprinter.Note: Paper jams in this area may result in loose toner on the page. If you get any toner on yourclothes, wash them in cold water because hot water will set the toner into the fabric.Output Area1If the paper is almost completely visiblefrom the top output tray, pull theremaining paper carefully out of theprinter.

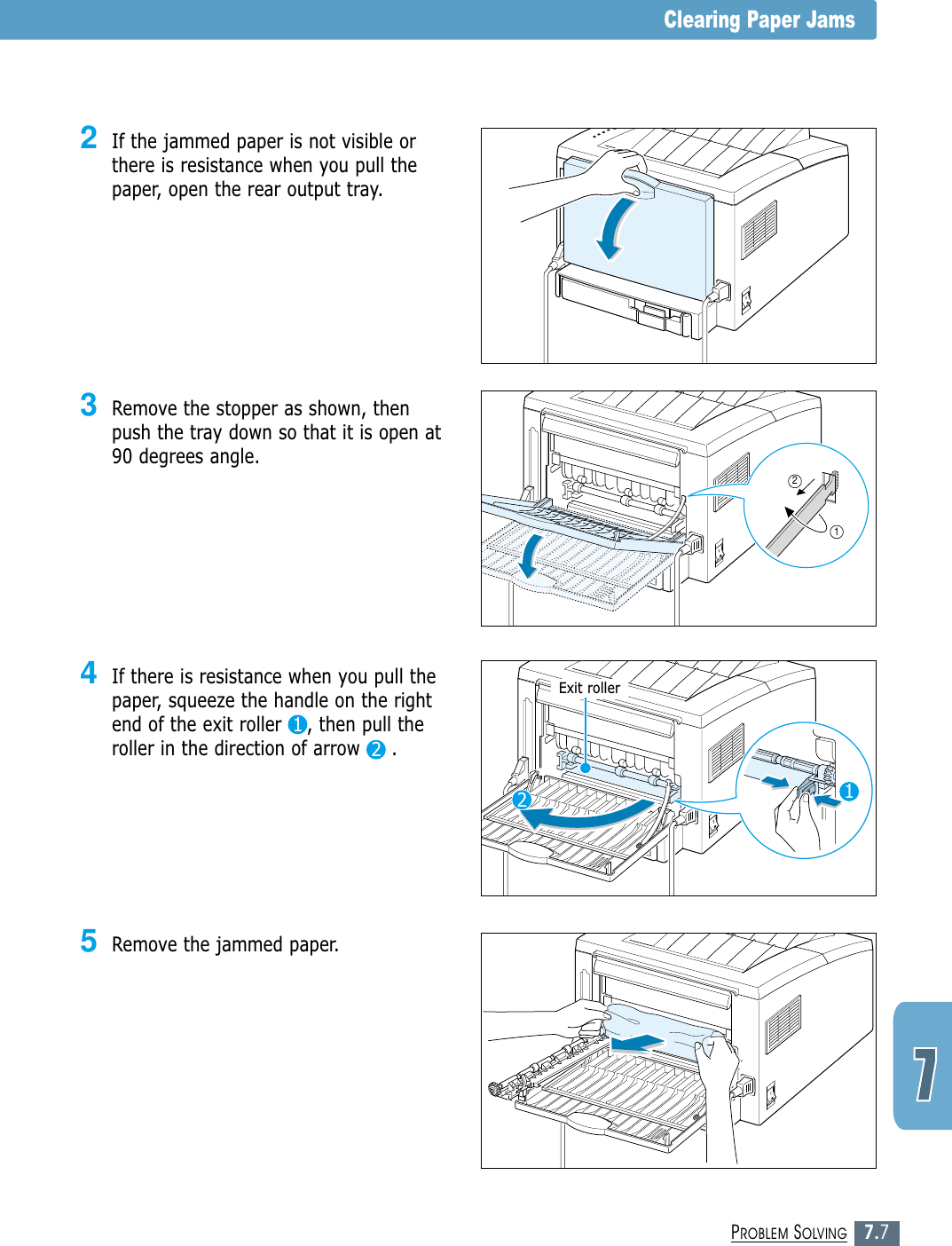

7.7PROBLEM SOLVINGClearing Paper Jams4If there is resistance when you pull thepaper, squeeze the handle on the rightend of the exit roller , then pull theroller in the direction of arrow .3Remove the stopper as shown, thenpush the tray down so that it is open at90 degrees angle.2If the jammed paper is not visible orthere is resistance when you pull thepaper, open the rear output tray.121122Exit roller5Remove the jammed paper.

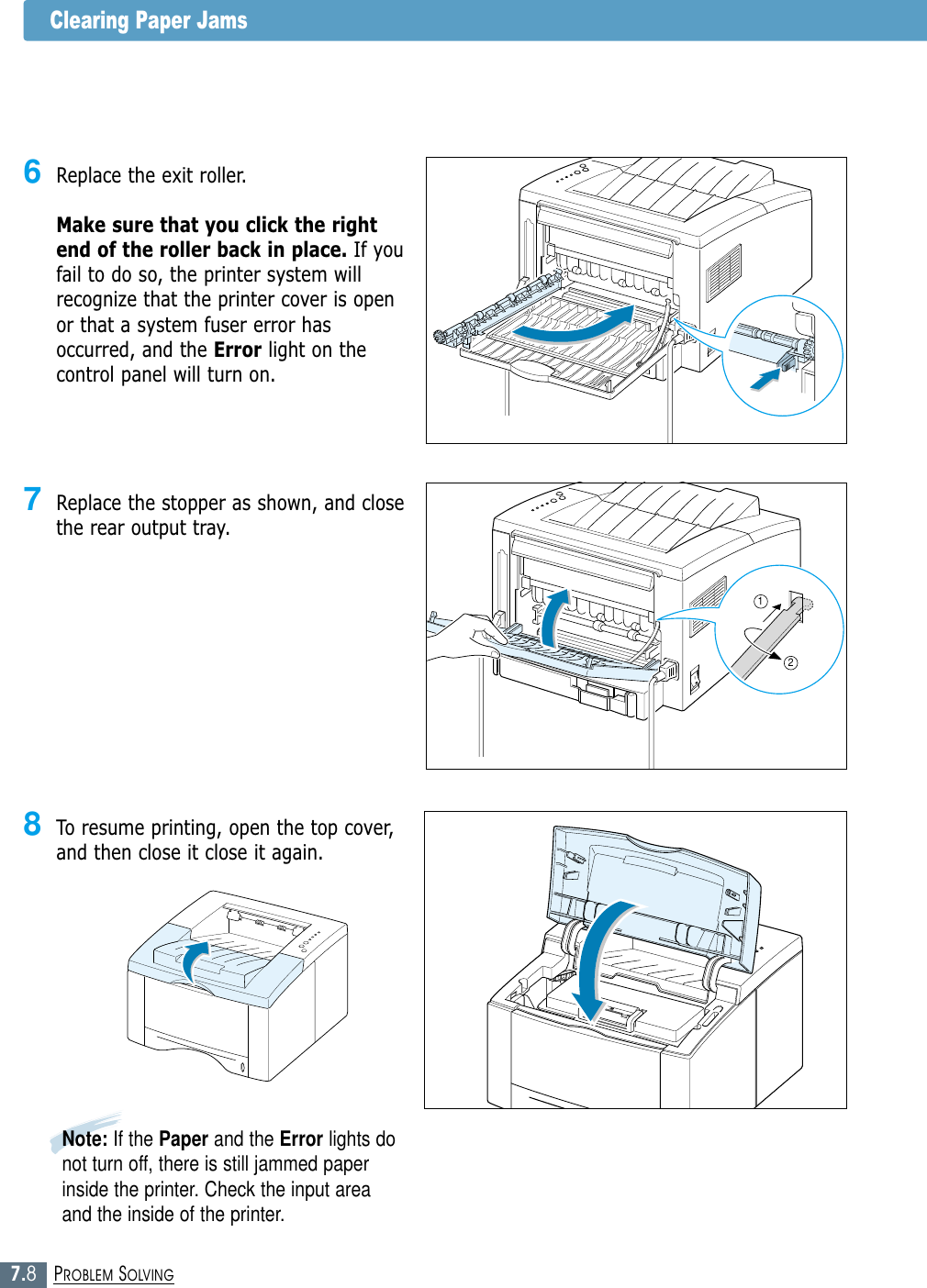

7.8PROBLEM SOLVINGClearing Paper Jams7Replace the stopper as shown, and closethe rear output tray.126Replace the exit roller. Make sure that you click the rightend of the roller back in place. If youfail to do so, the printer system willrecognize that the printer cover is openor that a system fuser error hasoccurred, and the Error light on thecontrol panel will turn on.8To resume printing, open the top cover,and then close it close it again.Note: If the Paper and the Error lights donot turn off, there is still jammed paperinside the printer. Check the input areaand the inside of the printer.

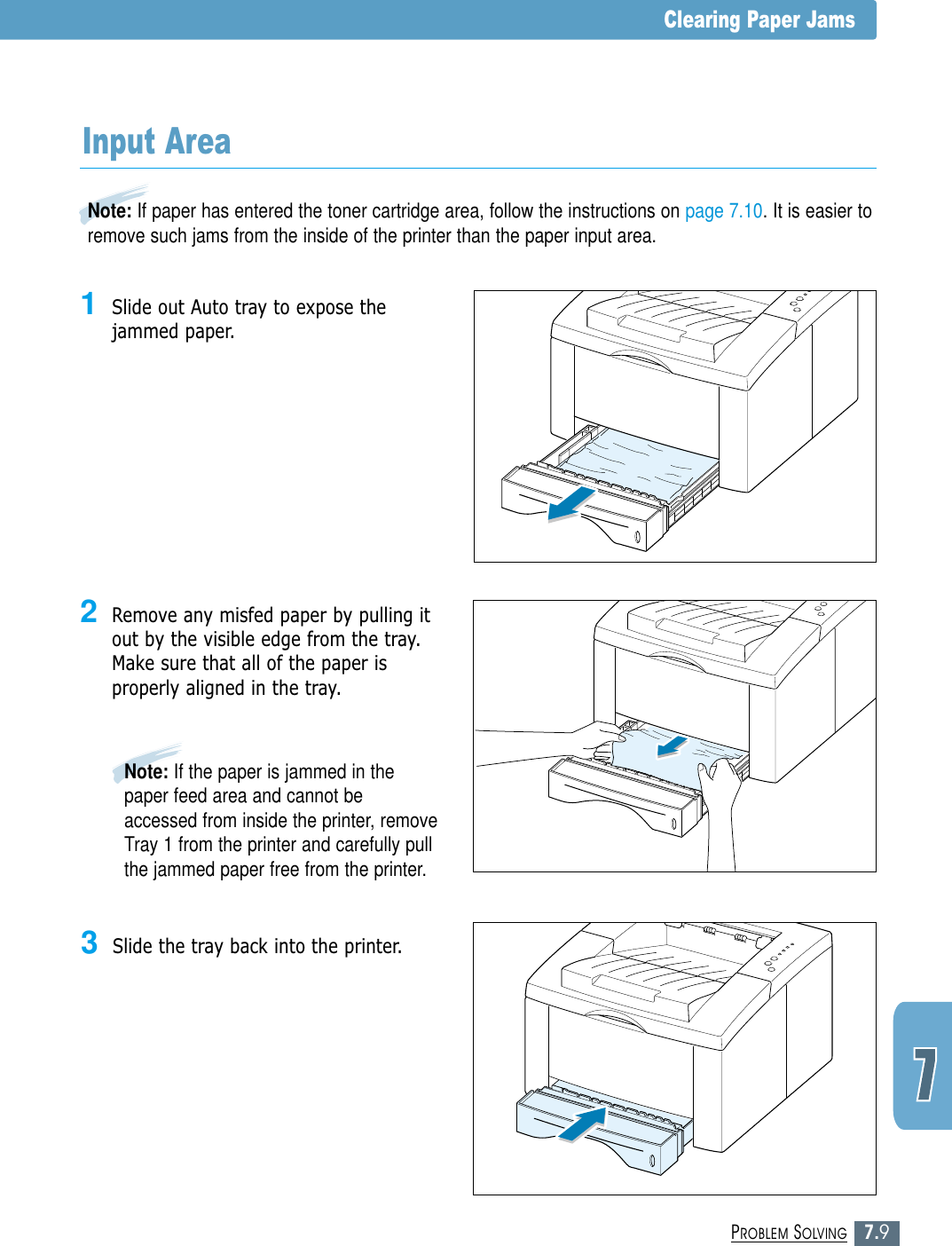

7.9PROBLEM SOLVINGClearing Paper Jams2Remove any misfed paper by pulling itout by the visible edge from the tray.Make sure that all of the paper isproperly aligned in the tray.Note: If paper has entered the toner cartridge area, follow the instructions on page 7.10. It is easier toremove such jams from the inside of the printer than the paper input area.Input Area1Slide out Auto tray to expose thejammed paper.Note: If the paper is jammed in thepaper feed area and cannot beaccessed from inside the printer, removeTray 1 from the printer and carefully pullthe jammed paper free from the printer.3Slide the tray back into the printer.

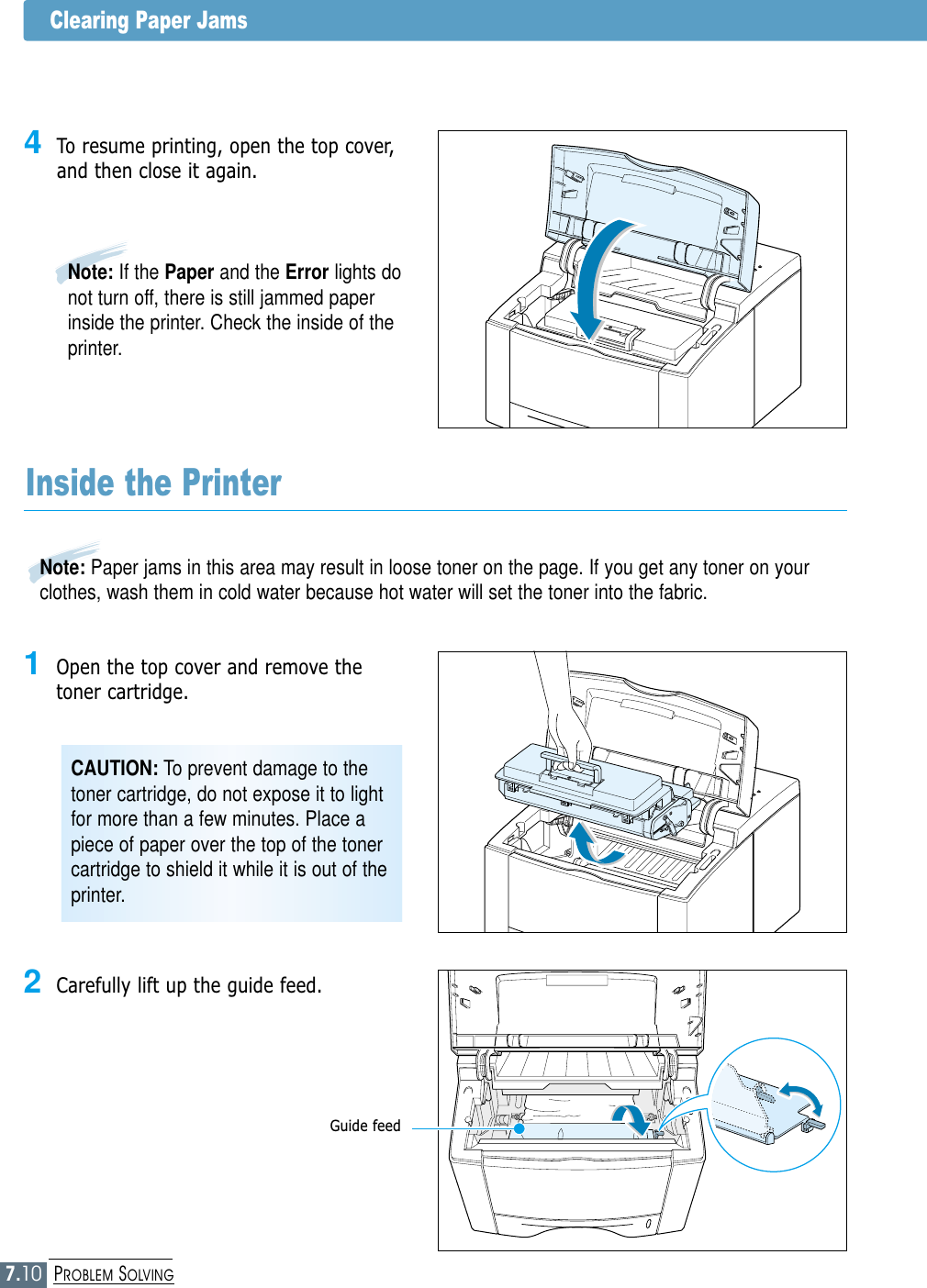

7.10PROBLEM SOLVINGClearing Paper Jams4To resume printing, open the top cover,and then close it again.Note: If the Paper and the Error lights donot turn off, there is still jammed paperinside the printer. Check the inside of theprinter.2Carefully lift up the guide feed.CAUTION: To prevent damage to thetoner cartridge, do not expose it to lightfor more than a few minutes. Place apiece of paper over the top of the tonercartridge to shield it while it is out of theprinter.Inside the Printer1Open the top cover and remove thetoner cartridge.Guide feedNote: Paper jams in this area may result in loose toner on the page. If you get any toner on yourclothes, wash them in cold water because hot water will set the toner into the fabric.

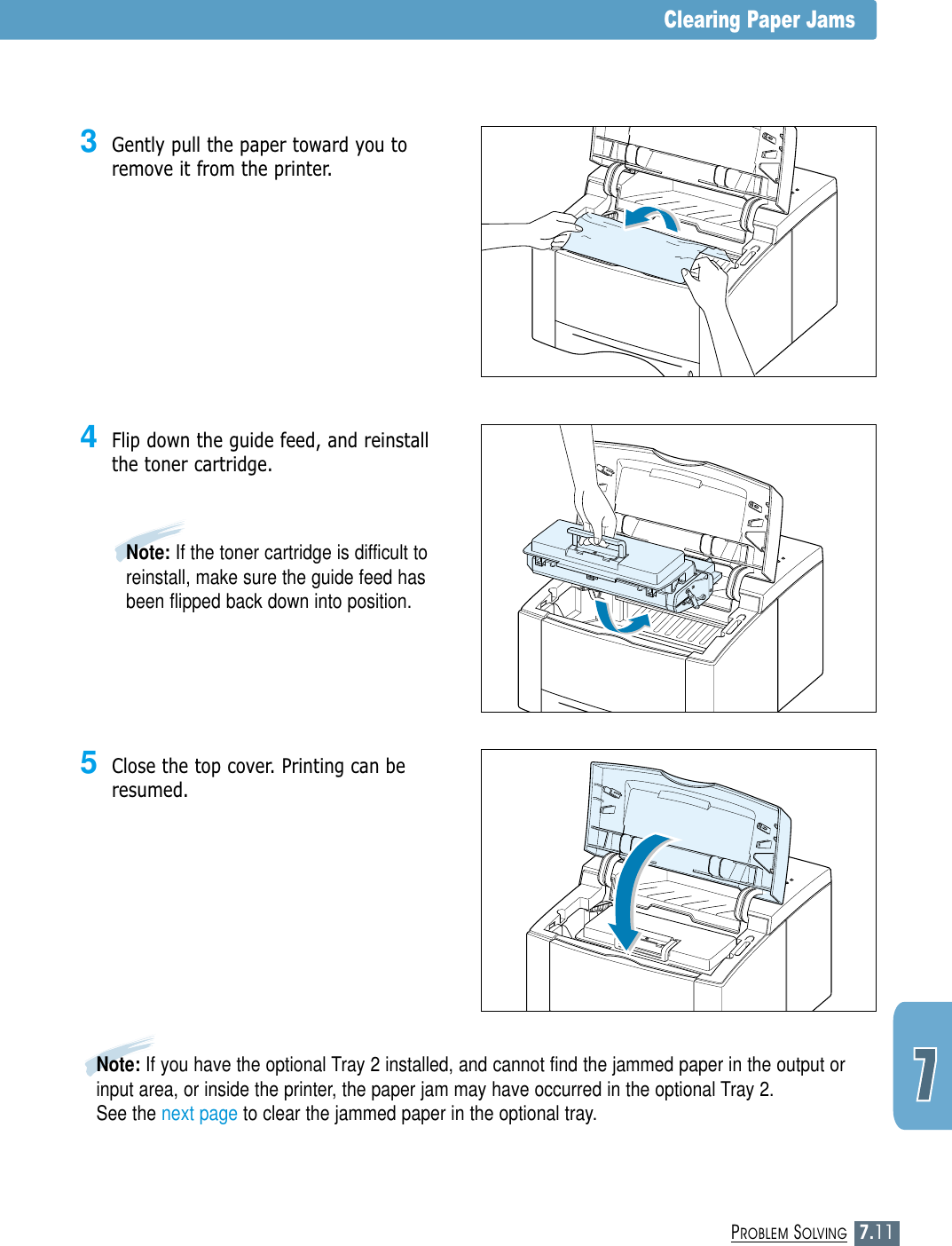

7.11PROBLEM SOLVINGClearing Paper Jams3Gently pull the paper toward you toremove it from the printer.4Flip down the guide feed, and reinstallthe toner cartridge.Note: If the toner cartridge is difficult toreinstall, make sure the guide feed hasbeen flipped back down into position.5Close the top cover. Printing can beresumed.Note: If you have the optional Tray 2 installed, and cannot find the jammed paper in the output orinput area, or inside the printer, the paper jam may have occurred in the optional Tray 2. See the next page to clear the jammed paper in the optional tray.

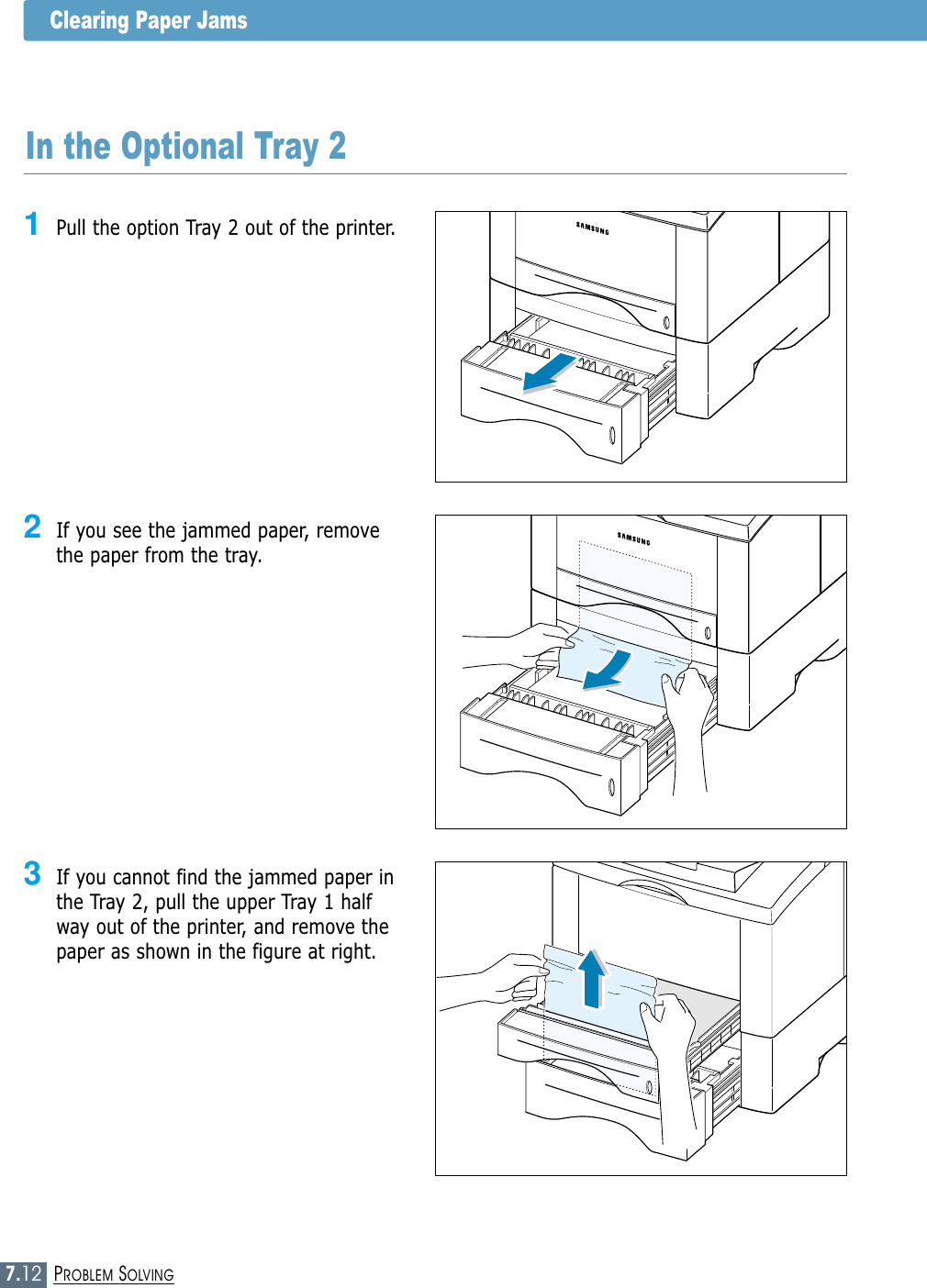

7.12PROBLEM SOLVINGClearing Paper JamsIn the Optional Tray 21Pull the option Tray 2 out of the printer.2If you see the jammed paper, removethe paper from the tray.3If you cannot find the jammed paper inthe Tray 2, pull the upper Tray 1 halfway out of the printer, and remove thepaper as shown in the figure at right.

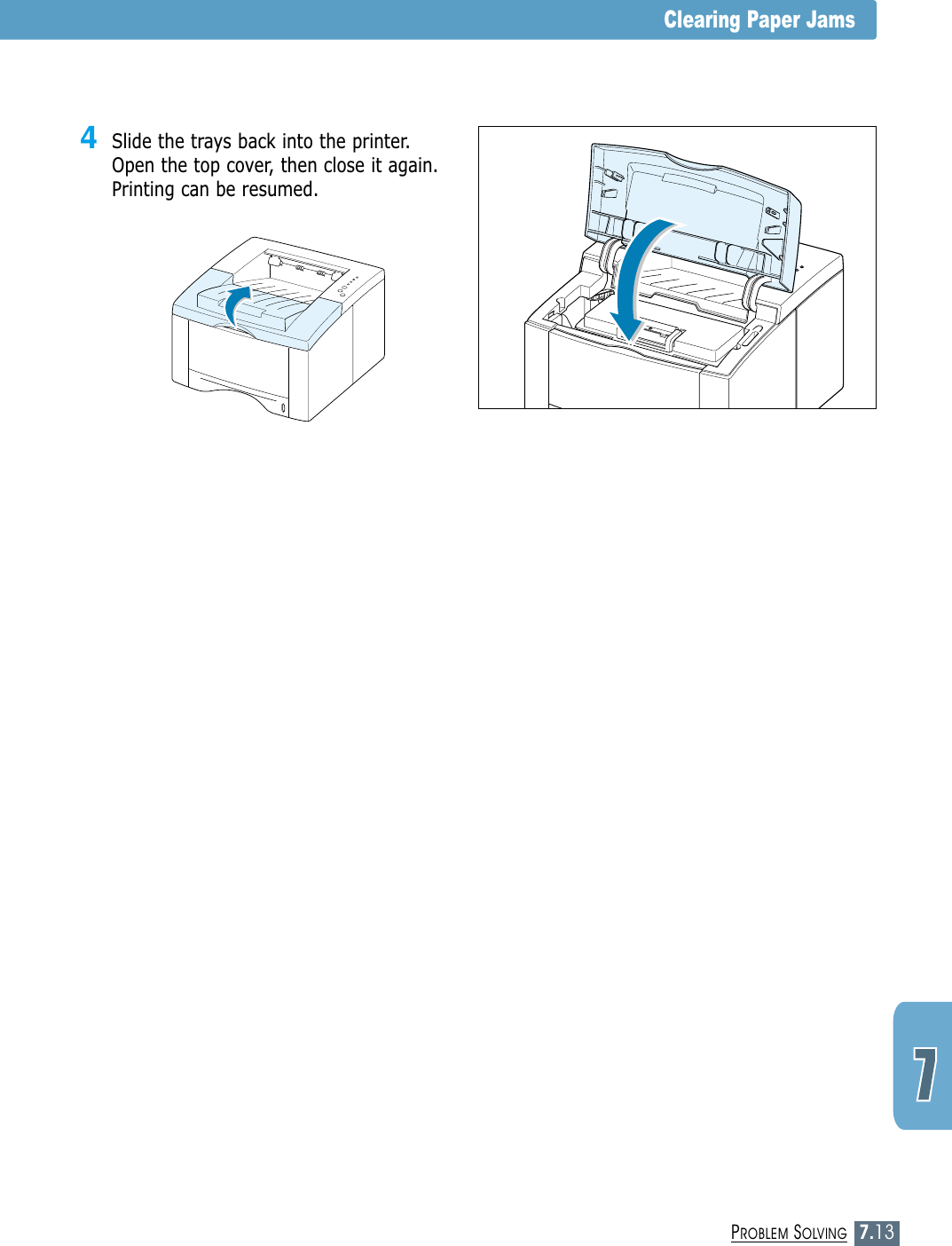

7.13PROBLEM SOLVINGClearing Paper Jams4Slide the trays back into the printer.Open the top cover, then close it again.Printing can be resumed.

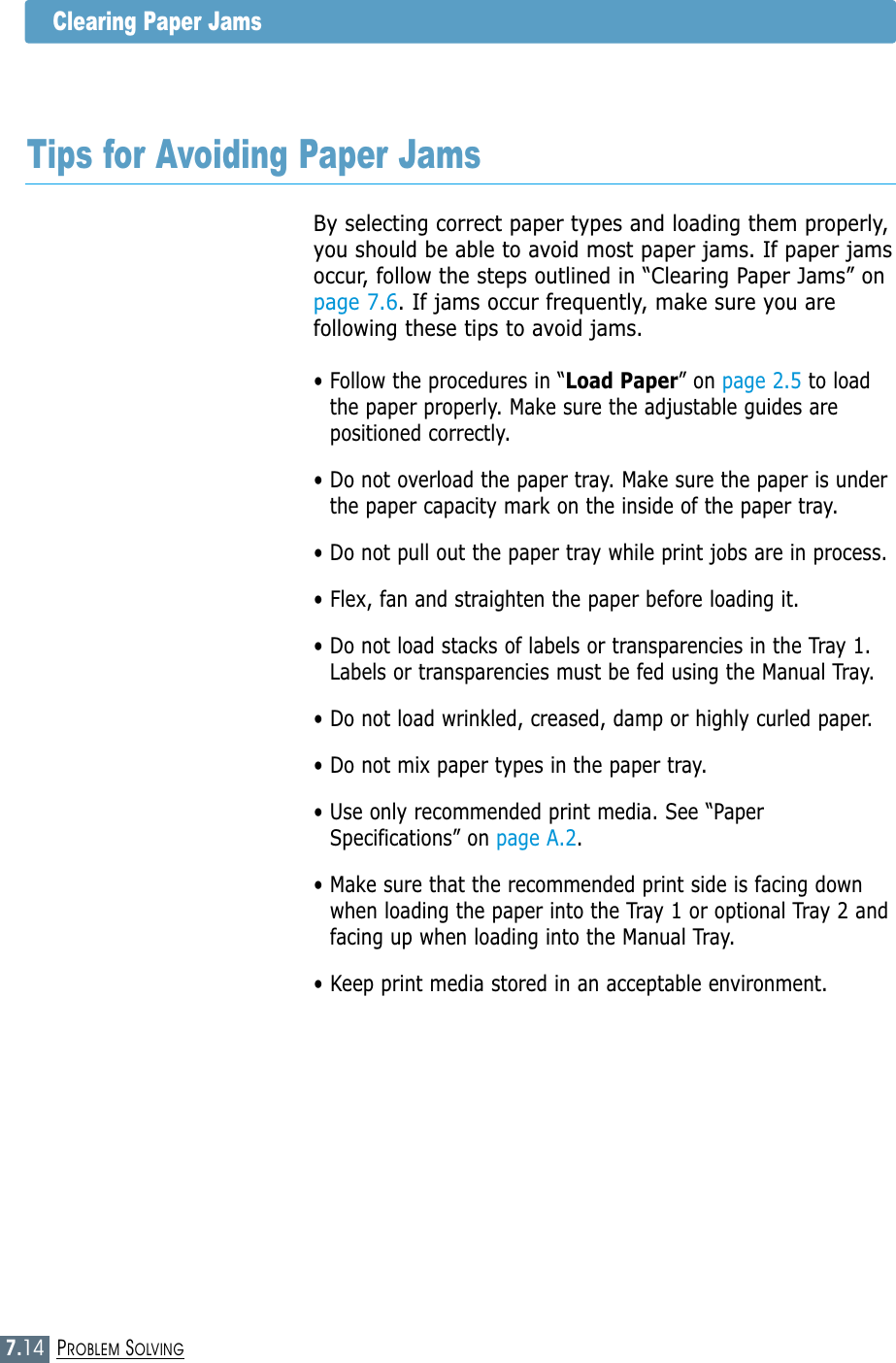

7.14PROBLEM SOLVINGClearing Paper JamsTips for Avoiding Paper JamsBy selecting correct paper types and loading them properly,you should be able to avoid most paper jams. If paper jamsoccur, follow the steps outlined in “Clearing Paper Jams” onpage 7.6. If jams occur frequently, make sure you arefollowing these tips to avoid jams.• Follow the procedures in “Load Paper” on page 2.5 to loadthe paper properly. Make sure the adjustable guides arepositioned correctly.• Do not overload the paper tray. Make sure the paper is underthe paper capacity mark on the inside of the paper tray.• Do not pull out the paper tray while print jobs are in process.• Flex, fan and straighten the paper before loading it. • Do not load stacks of labels or transparencies in the Tray 1.Labels or transparencies must be fed using the Manual Tray.• Do not load wrinkled, creased, damp or highly curled paper.• Do not mix paper types in the paper tray.• Use only recommended print media. See “PaperSpecifications” on page A.2.• Make sure that the recommended print side is facing downwhen loading the paper into the Tray 1 or optional Tray 2 andfacing up when loading into the Manual Tray.• Keep print media stored in an acceptable environment.

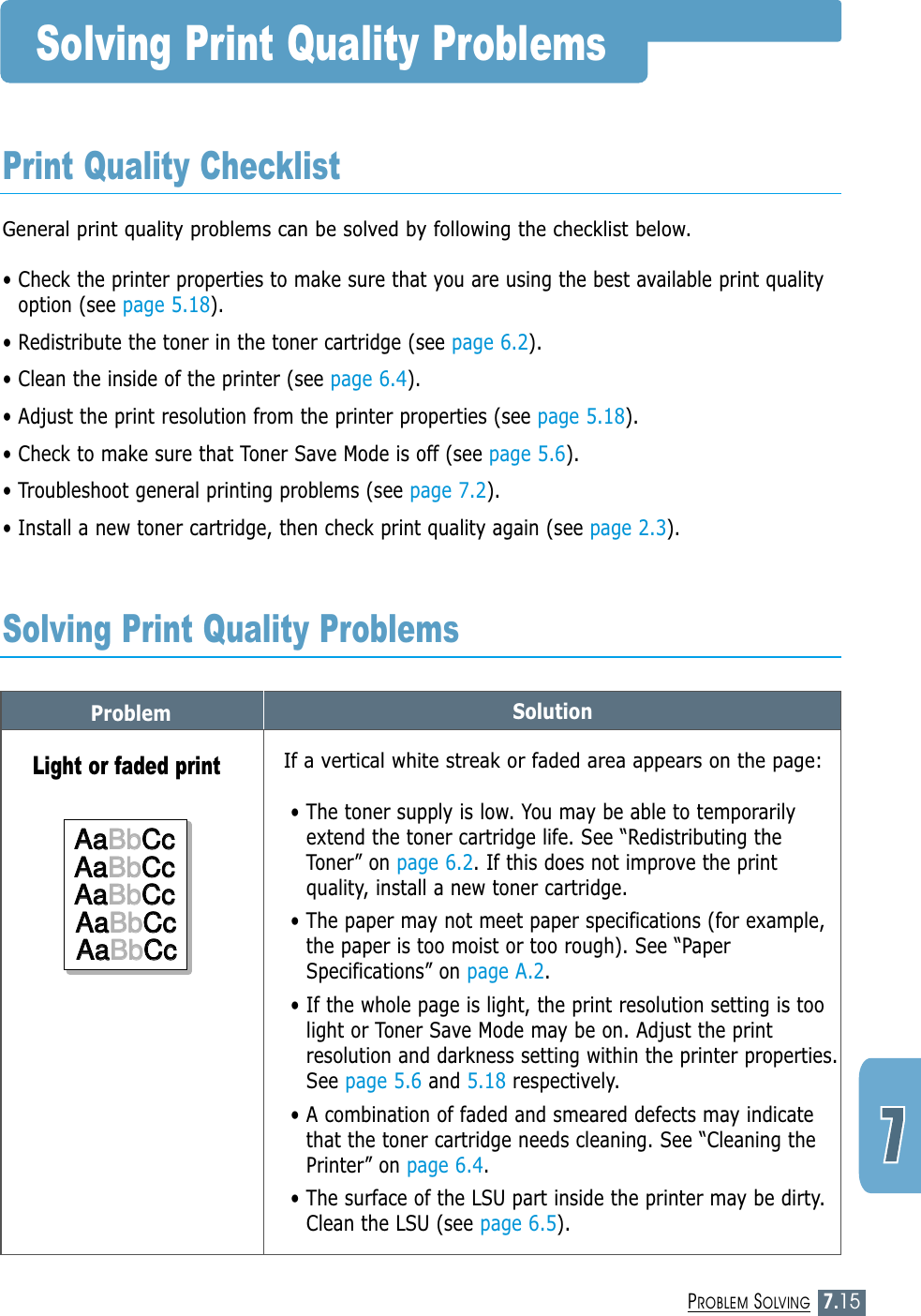

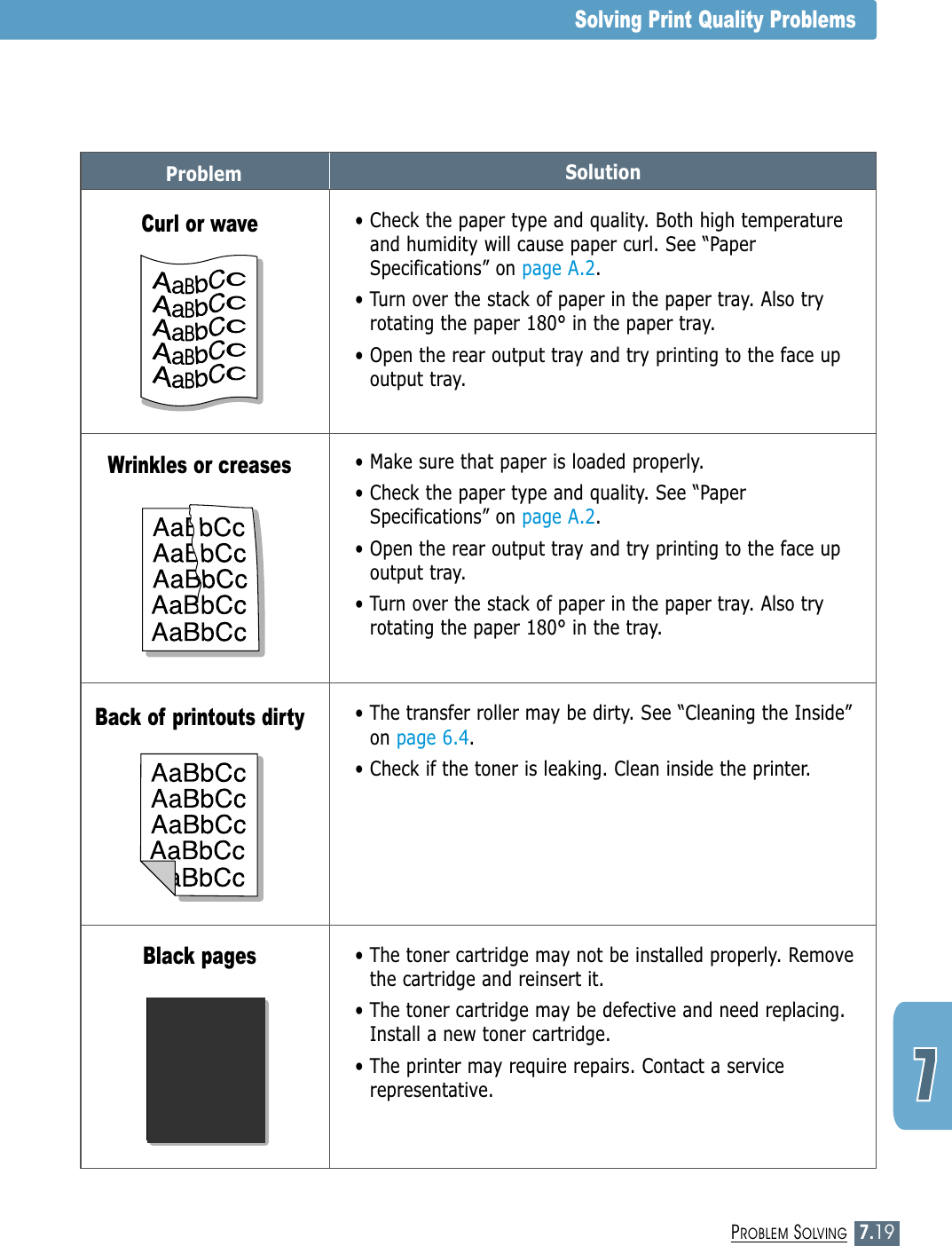

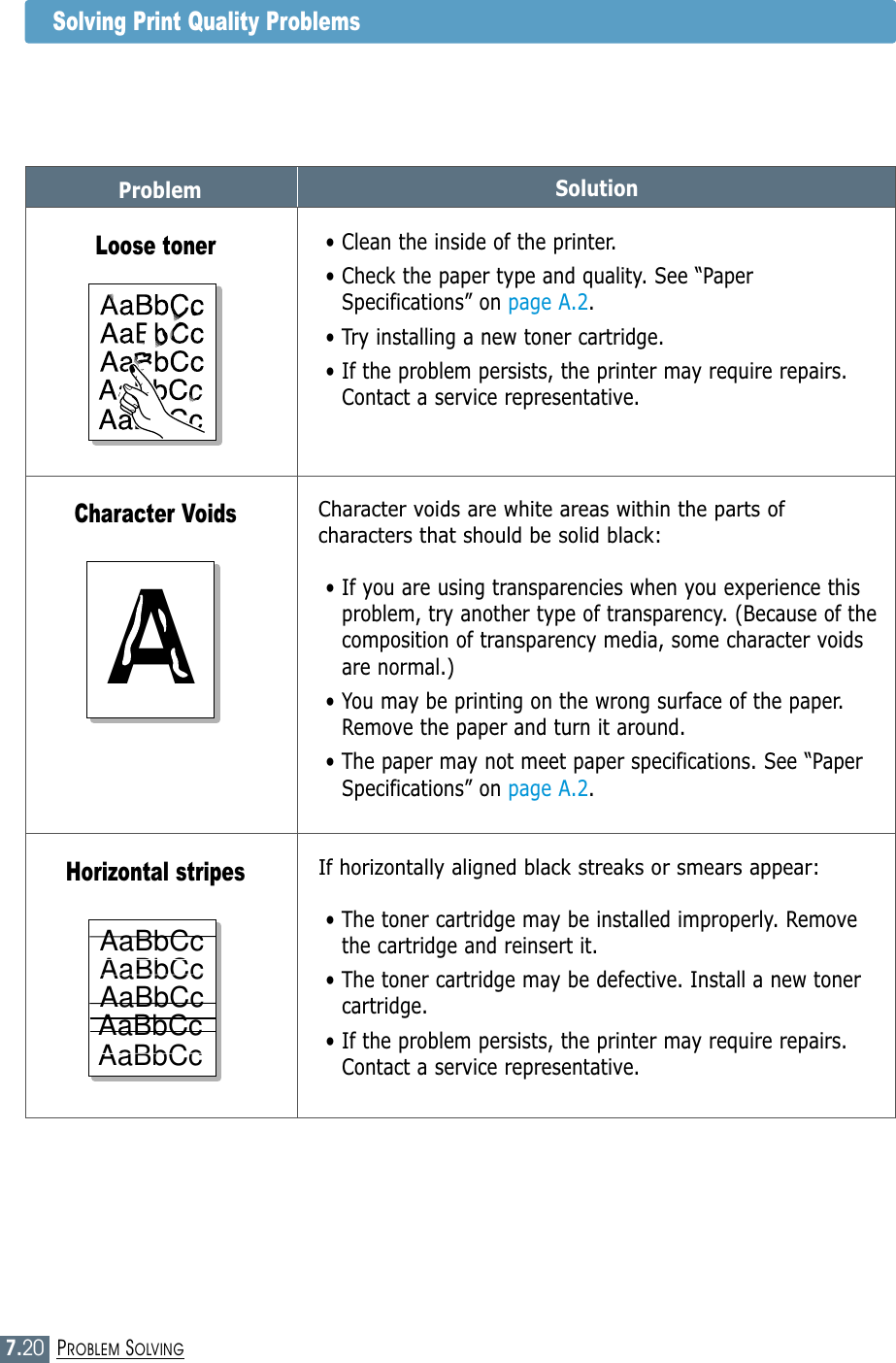

7.15PROBLEM SOLVINGProblem SolutionSolving Print Quality ProblemsGeneral print quality problems can be solved by following the checklist below.• Check the printer properties to make sure that you are using the best available print qualityoption (see page 5.18).• Redistribute the toner in the toner cartridge (see page 6.2).• Clean the inside of the printer (see page 6.4).• Adjust the print resolution from the printer properties (see page 5.18).• Check to make sure that Toner Save Mode is off (see page 5.6).• Troubleshoot general printing problems (see page 7.2).• Install a new toner cartridge, then check print quality again (see page 2.3). Print Quality ChecklistSolving Print Quality ProblemsIf a vertical white streak or faded area appears on the page:• The toner supply is low. You may be able to temporarilyextend the toner cartridge life. See “Redistributing theToner” on page 6.2. If this does not improve the printquality, install a new toner cartridge.• The paper may not meet paper specifications (for example,the paper is too moist or too rough). See “PaperSpecifications” on page A.2.• If the whole page is light, the print resolution setting is toolight or Toner Save Mode may be on. Adjust the printresolution and darkness setting within the printer properties.See page 5.6 and 5.18 respectively.• A combination of faded and smeared defects may indicatethat the toner cartridge needs cleaning. See “Cleaning thePrinter” on page 6.4.• The surface of the LSU part inside the printer may be dirty.Clean the LSU (see page 6.5).Light or faded printAaAaBbBbCcCcAaAaBbBbCcCcAaAaBbBbCcCcAaAaBbBbCcCcAaAaBbBbCcCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc

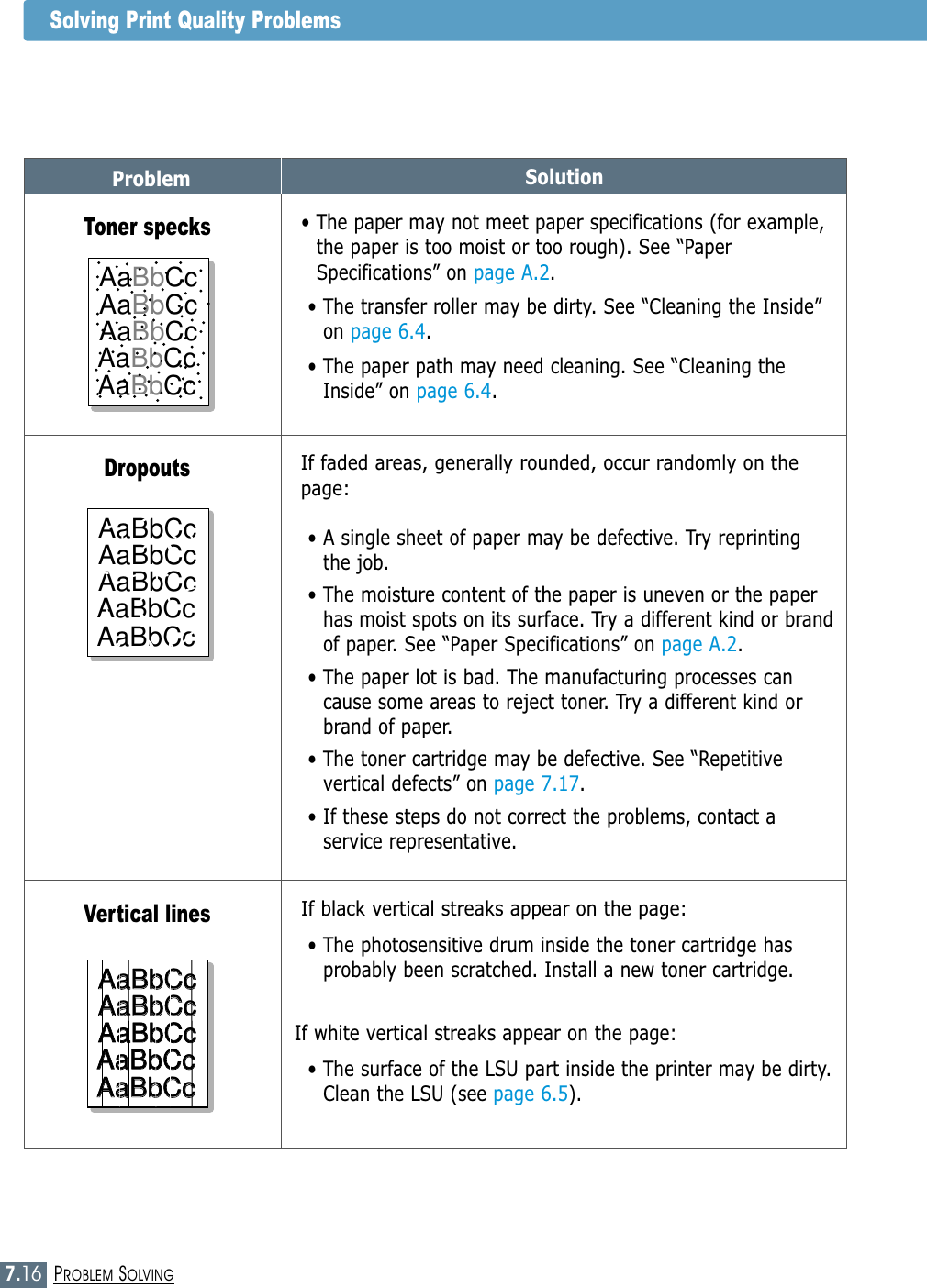

7.16PROBLEM SOLVINGProblem Solution• The paper may not meet paper specifications (for example,the paper is too moist or too rough). See “PaperSpecifications” on page A.2.• The transfer roller may be dirty. See “Cleaning the Inside”on page 6.4.• The paper path may need cleaning. See “Cleaning theInside” on page 6.4.Toner specksIf faded areas, generally rounded, occur randomly on thepage:• A single sheet of paper may be defective. Try reprintingthe job.• The moisture content of the paper is uneven or the paperhas moist spots on its surface. Try a different kind or brandof paper. See “Paper Specifications” on page A.2.• The paper lot is bad. The manufacturing processes cancause some areas to reject toner. Try a different kind orbrand of paper.• The toner cartridge may be defective. See “Repetitivevertical defects” on page 7.17.• If these steps do not correct the problems, contact aservice representative.DropoutsIf black vertical streaks appear on the page:• The photosensitive drum inside the toner cartridge hasprobably been scratched. Install a new toner cartridge. If white vertical streaks appear on the page:• The surface of the LSU part inside the printer may be dirty.Clean the LSU (see page 6.5).Vertical linesAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcSolving Print Quality Problems

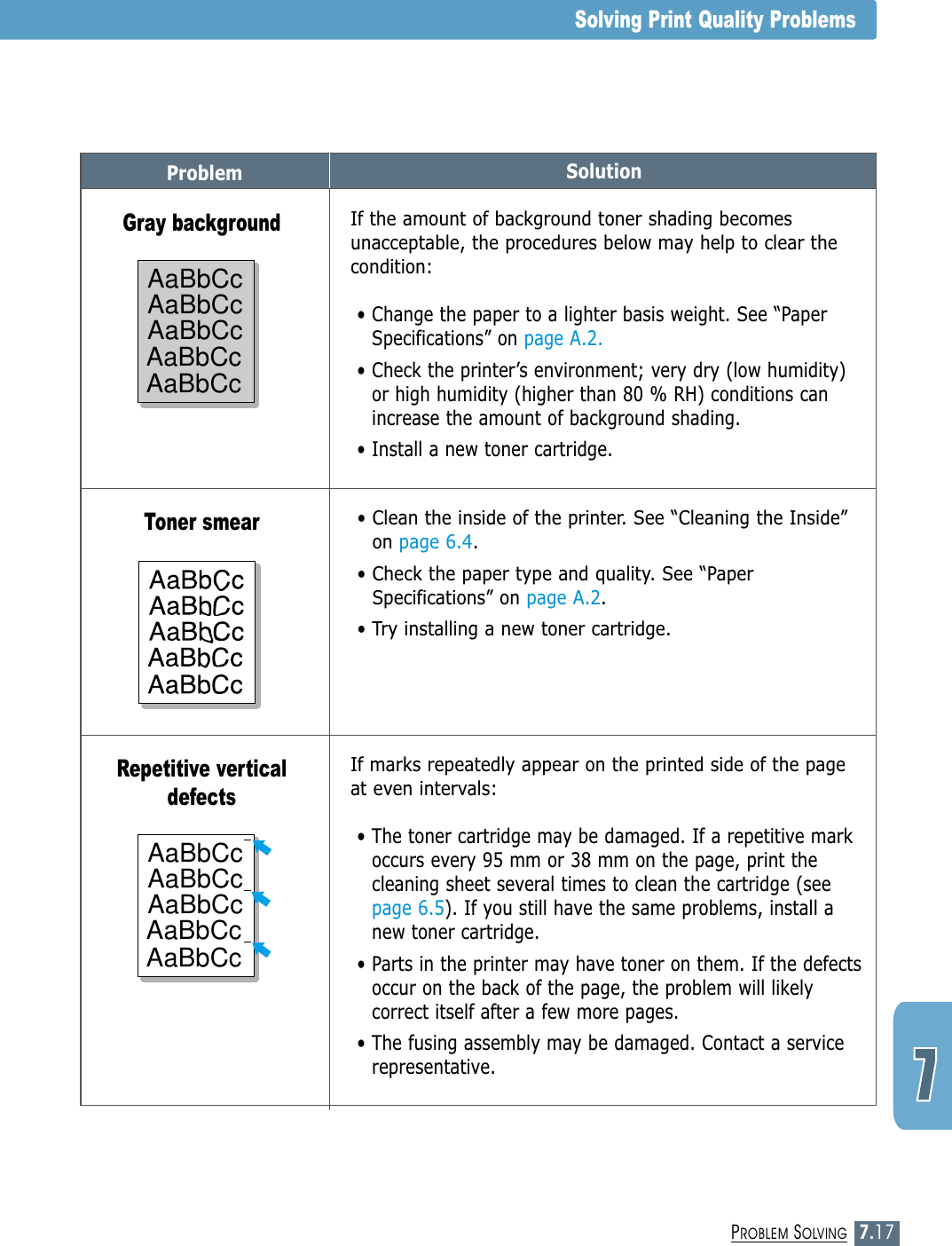

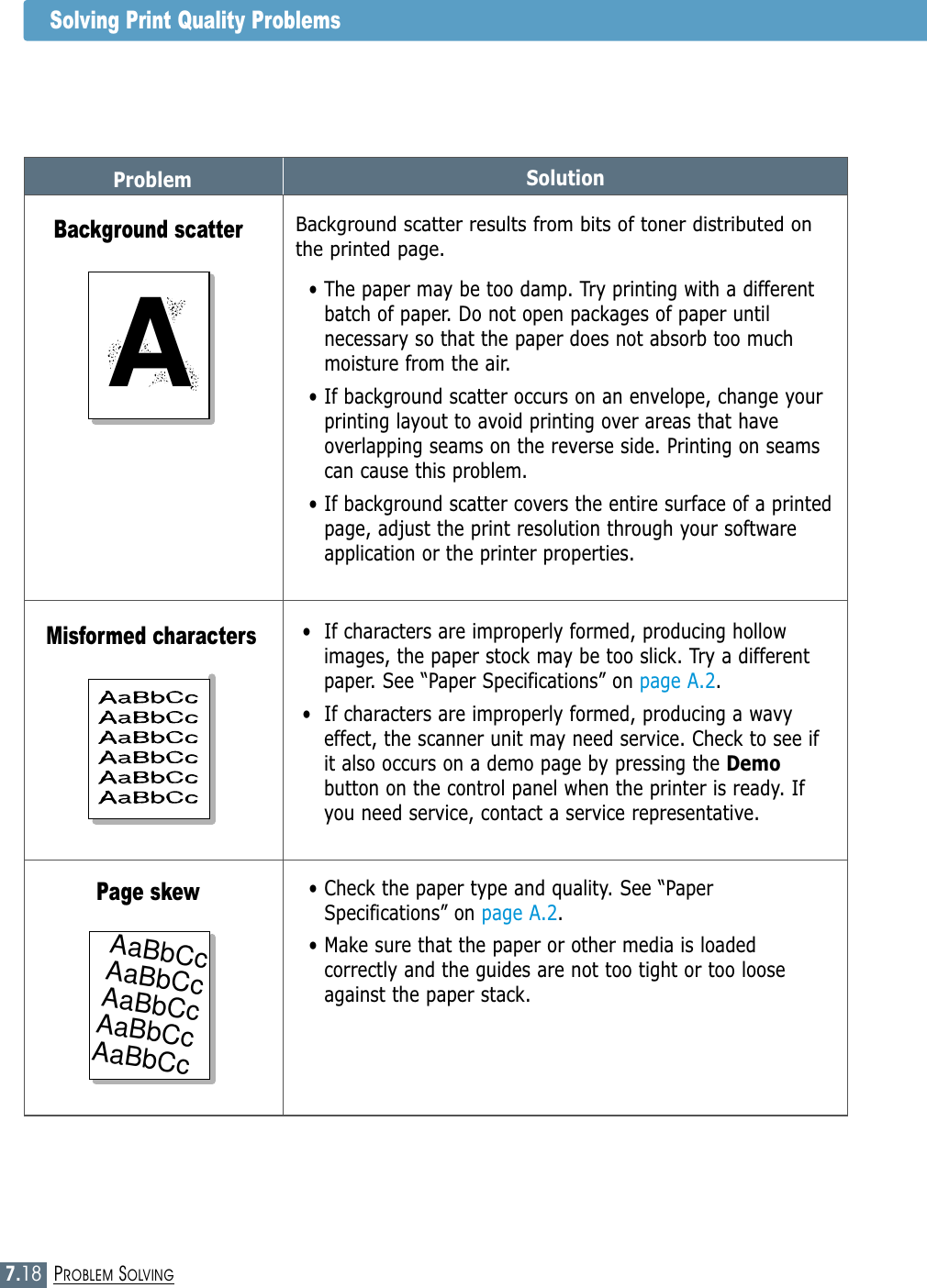

7.17PROBLEM SOLVINGSolving Print Quality ProblemsProblem SolutionIf the amount of background toner shading becomesunacceptable, the procedures below may help to clear thecondition:• Change the paper to a lighter basis weight. See “PaperSpecifications” on page A.2.• Check the printer’s environment; very dry (low humidity)or high humidity (higher than 80 % RH) conditions canincrease the amount of background shading.• Install a new toner cartridge.Gray background• Clean the inside of the printer. See “Cleaning the Inside”on page 6.4.• Check the paper type and quality. See “PaperSpecifications” on page A.2.• Try installing a new toner cartridge.Toner smearIf marks repeatedly appear on the printed side of the pageat even intervals:• The toner cartridge may be damaged. If a repetitive markoccurs every 95 mm or 38 mm on the page, print thecleaning sheet several times to clean the cartridge (seepage 6.5). If you still have the same problems, install anew toner cartridge.• Parts in the printer may have toner on them. If the defectsoccur on the back of the page, the problem will likelycorrect itself after a few more pages.• The fusing assembly may be damaged. Contact a servicerepresentative.Repetitive verticaldefectsAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc
7.18PROBLEM SOLVINGSolving Print Quality ProblemsProblem Solution• If characters are improperly formed, producing hollowimages, the paper stock may be too slick. Try a differentpaper. See “Paper Specifications” on page A.2.• If characters are improperly formed, producing a wavyeffect, the scanner unit may need service. Check to see ifit also occurs on a demo page by pressing the Demobutton on the control panel when the printer is ready. Ifyou need service, contact a service representative.Misformed characters• Check the paper type and quality. See “PaperSpecifications” on page A.2.• Make sure that the paper or other media is loadedcorrectly and the guides are not too tight or too looseagainst the paper stack.Page skewBackground scatter results from bits of toner distributed onthe printed page. • The paper may be too damp. Try printing with a differentbatch of paper. Do not open packages of paper untilnecessary so that the paper does not absorb too muchmoisture from the air.• If background scatter occurs on an envelope, change yourprinting layout to avoid printing over areas that haveoverlapping seams on the reverse side. Printing on seamscan cause this problem.• If background scatter covers the entire surface of a printedpage, adjust the print resolution through your softwareapplication or the printer properties.Background scatterAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc
7.19PROBLEM SOLVINGSolving Print Quality ProblemsProblem Solution• Check the paper type and quality. Both high temperatureand humidity will cause paper curl. See “PaperSpecifications” on page A.2.• Turn over the stack of paper in the paper tray. Also tryrotating the paper 180° in the paper tray.• Open the rear output tray and try printing to the face upoutput tray.Curl or wave• Make sure that paper is loaded properly.• Check the paper type and quality. See “PaperSpecifications” on page A.2.• Open the rear output tray and try printing to the face upoutput tray.• Turn over the stack of paper in the paper tray. Also tryrotating the paper 180° in the tray.Wrinkles or creases• The transfer roller may be dirty. See “Cleaning the Inside”on page 6.4.• Check if the toner is leaking. Clean inside the printer. Back of printouts dirty• The toner cartridge may not be installed properly. Removethe cartridge and reinsert it.• The toner cartridge may be defective and need replacing.Install a new toner cartridge.• The printer may require repairs. Contact a servicerepresentative.AaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcBlack pages
7.20PROBLEM SOLVINGSolving Print Quality ProblemsProblem SolutionCharacter voids are white areas within the parts ofcharacters that should be solid black:• If you are using transparencies when you experience thisproblem, try another type of transparency. (Because of thecomposition of transparency media, some character voidsare normal.) • You may be printing on the wrong surface of the paper.Remove the paper and turn it around. • The paper may not meet paper specifications. See “PaperSpecifications” on page A.2.Character Voids• Clean the inside of the printer. • Check the paper type and quality. See “PaperSpecifications” on page A.2.• Try installing a new toner cartridge.• If the problem persists, the printer may require repairs.Contact a service representative.Loose tonerIf horizontally aligned black streaks or smears appear:• The toner cartridge may be installed improperly. Removethe cartridge and reinsert it.• The toner cartridge may be defective. Install a new tonercartridge.• If the problem persists, the printer may require repairs.Contact a service representative.Horizontal stripesAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc

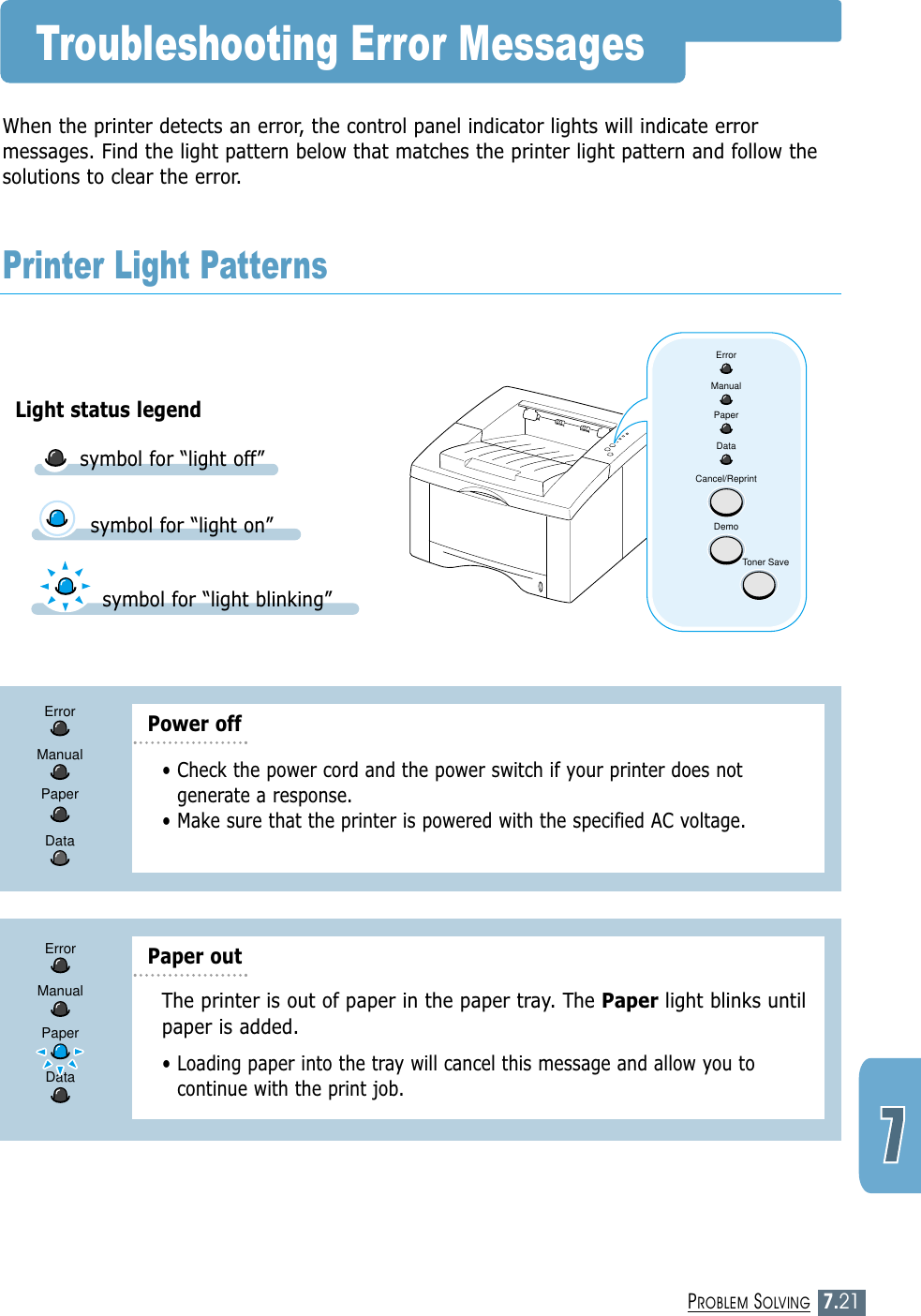

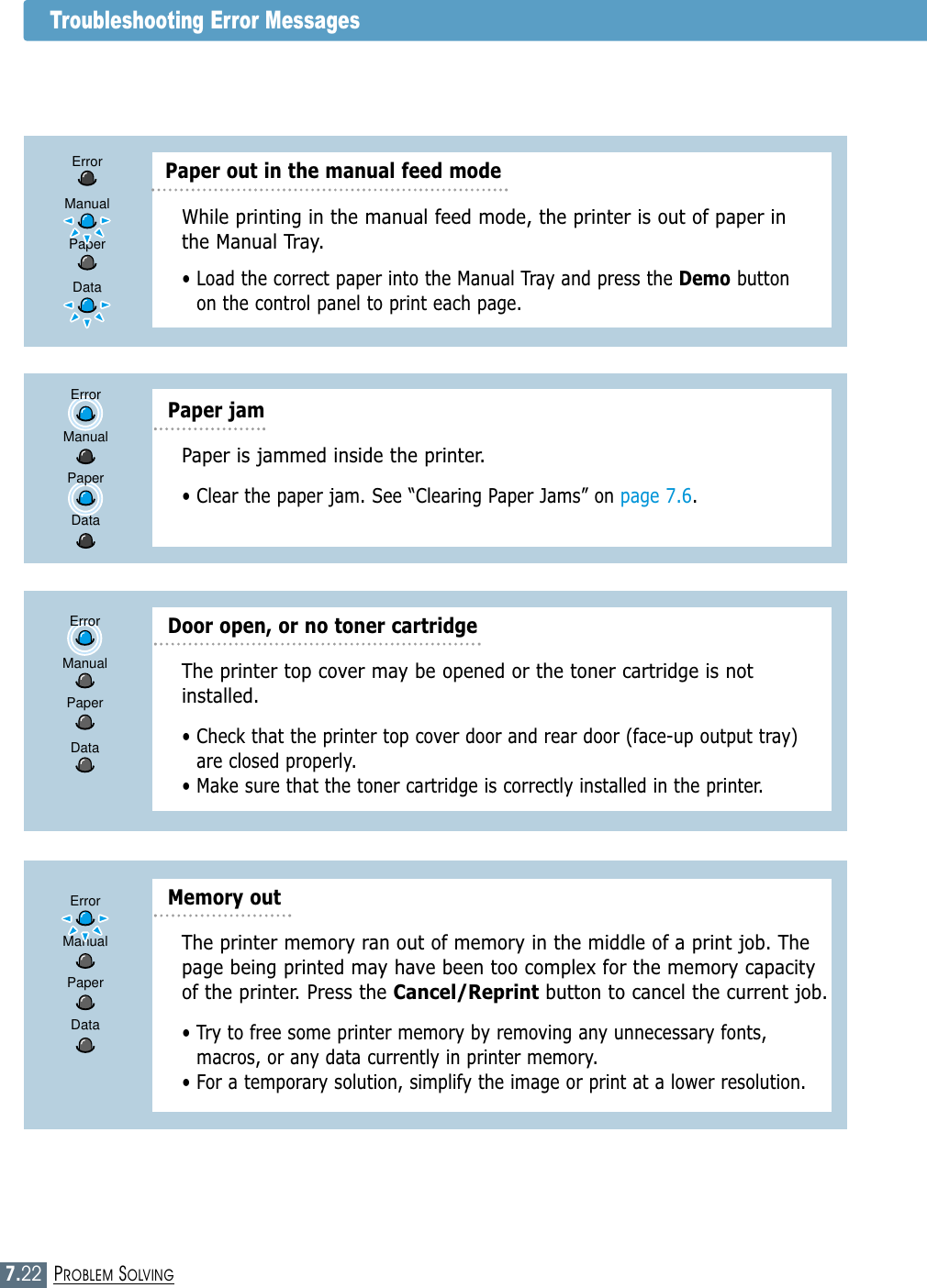

7.21PROBLEM SOLVINGErrorManualPaperDataCancel/ReprintDemoToner SaveWhen the printer detects an error, the control panel indicator lights will indicate errormessages. Find the light pattern below that matches the printer light pattern and follow thesolutions to clear the error.Troubleshooting Error MessagesPrinter Light PatternsLight status legendsymbol for “light on”• Check the power cord and the power switch if your printer does notgenerate a response.• Make sure that the printer is powered with the specified AC voltage.Power offErrorManualPaperDataThe printer is out of paper in the paper tray. The Paper light blinks untilpaper is added.• Loading paper into the tray will cancel this message and allow you tocontinue with the print job. Paper out DataErrorManualPapersymbol for “light blinking”symbol for “light off”
7.22PROBLEM SOLVINGPaper is jammed inside the printer. • Clear the paper jam. See “Clearing Paper Jams” on page 7.6.Paper jamErrorManualPaperDataThe printer memory ran out of memory in the middle of a print job. Thepage being printed may have been too complex for the memory capacityof the printer. Press the Cancel/Reprint button to cancel the current job.• Try to free some printer memory by removing any unnecessary fonts,macros, or any data currently in printer memory.• For a temporary solution, simplify the image or print at a lower resolution.Memory outErrorManualPaperDataThe printer top cover may be opened or the toner cartridge is notinstalled. • Check that the printer top cover door and rear door (face-up output tray)are closed properly. • Make sure that the toner cartridge is correctly installed in the printer.Door open, or no toner cartridgeErrorManualPaperDataTroubleshooting Error MessagesWhile printing in the manual feed mode, the printer is out of paper inthe Manual Tray. • Load the correct paper into the Manual Tray and press the Demo buttonon the control panel to print each page.ErrorManualPaperDataPaper out in the manual feed mode

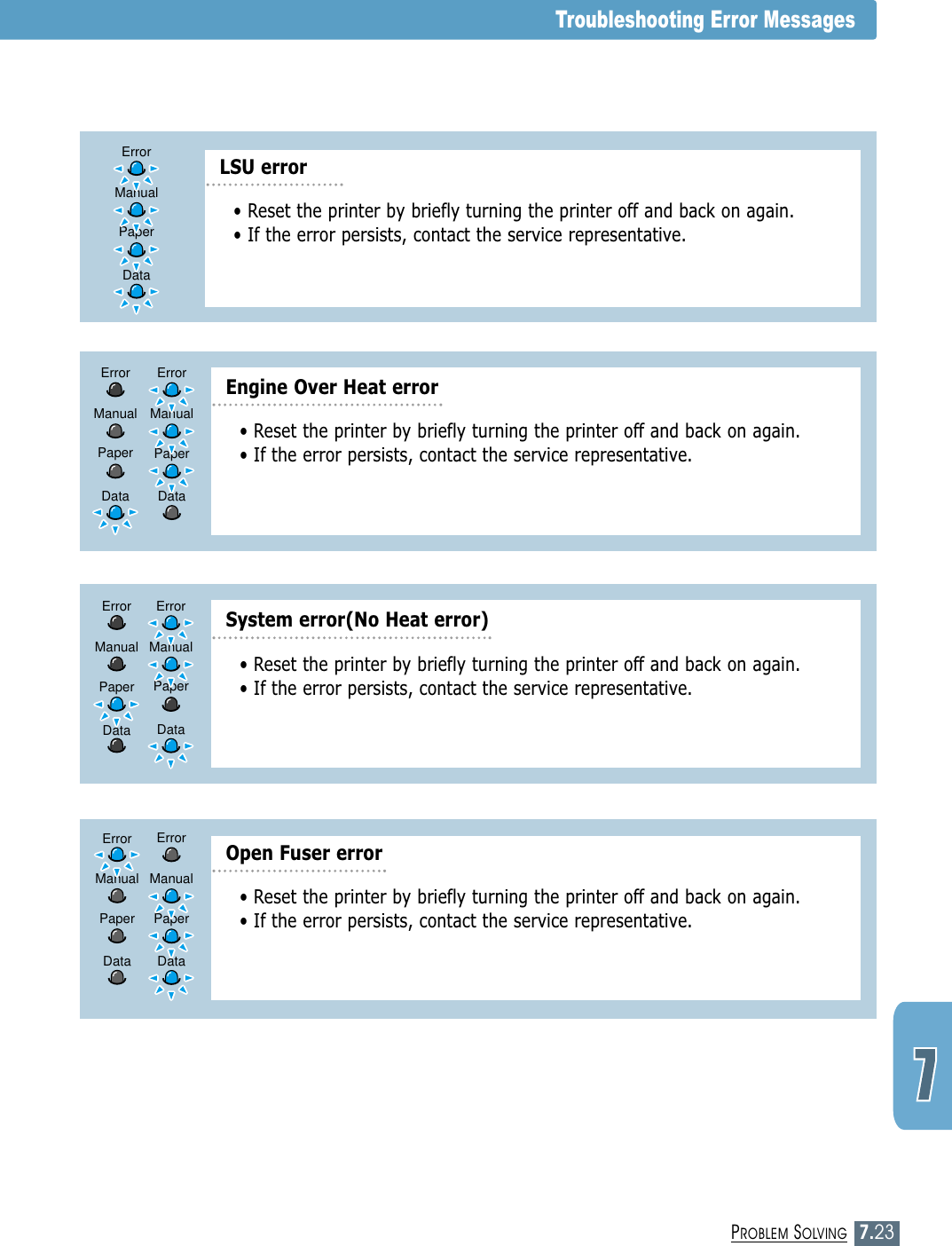

7.23PROBLEM SOLVINGTroubleshooting Error Messages• Reset the printer by briefly turning the printer off and back on again.• If the error persists, contact the service representative.Engine Over Heat error ErrorManualPaperDataErrorManualPaperData• Reset the printer by briefly turning the printer off and back on again.• If the error persists, contact the service representative.System error(No Heat error)ErrorManualPaperDataErrorManualPaperData• Reset the printer by briefly turning the printer off and back on again.• If the error persists, contact the service representative.Open Fuser errorErrorManualPaperDataErrorManualPaperData• Reset the printer by briefly turning the printer off and back on again.• If the error persists, contact the service representative.LSU error ErrorManualPaperData

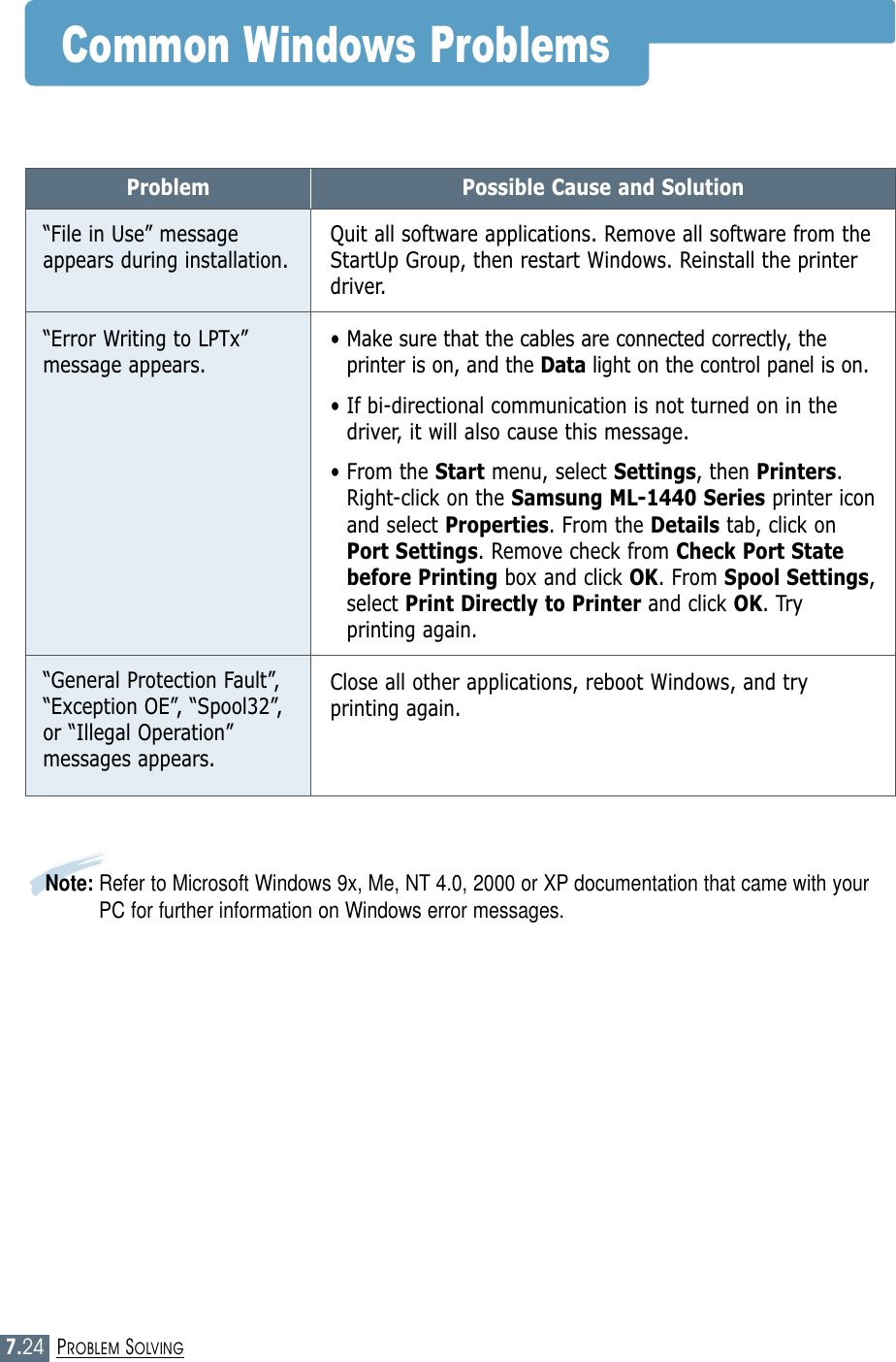

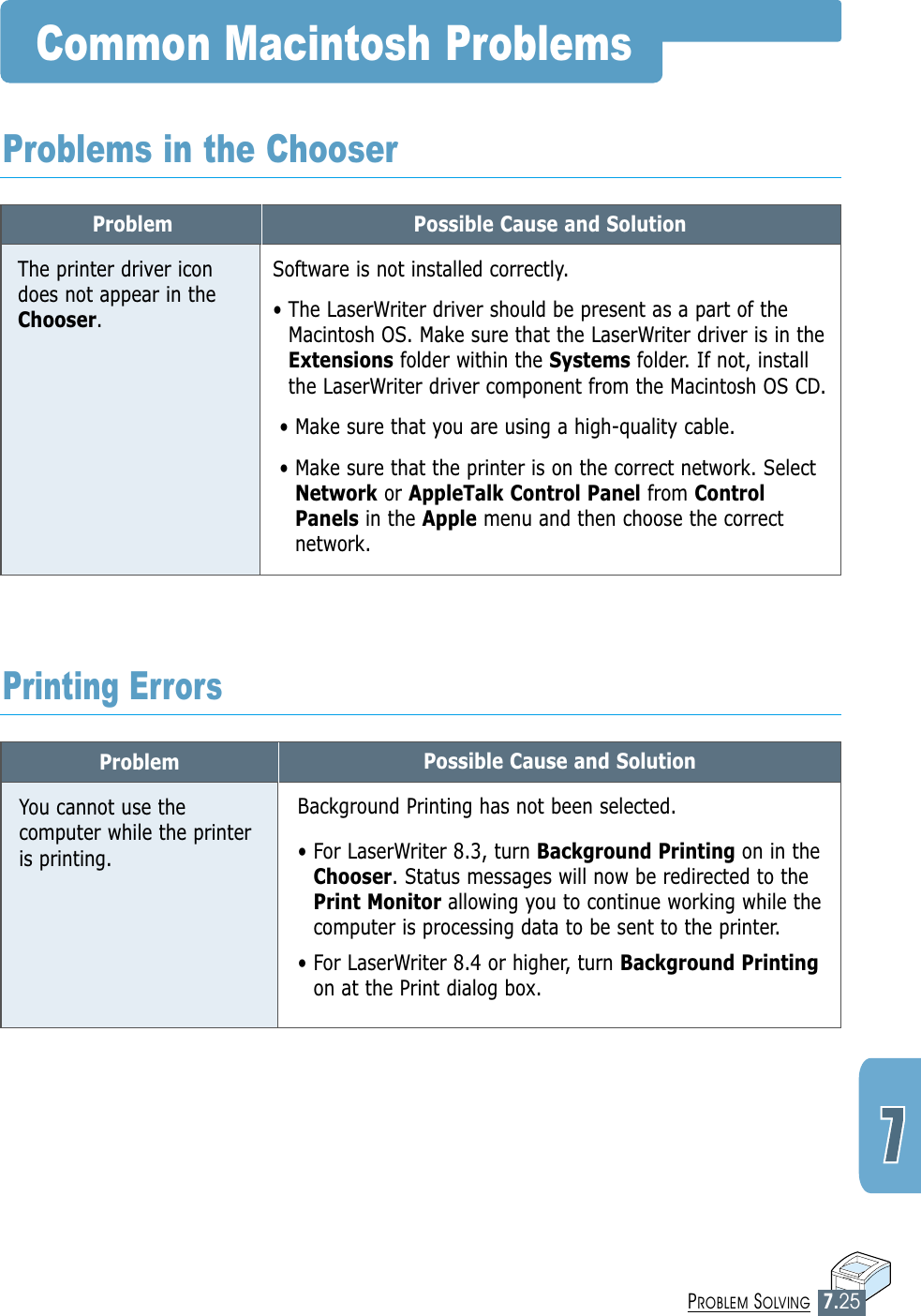

7.24PROBLEM SOLVINGCommon Windows ProblemsNote: Refer to Microsoft Windows 9x, Me, NT 4.0, 2000 or XP documentation that came with yourPC for further information on Windows error messages.Possible Cause and SolutionQuit all software applications. Remove all software from theStartUp Group, then restart Windows. Reinstall the printerdriver.• Make sure that the cables are connected correctly, theprinter is on, and the Data light on the control panel is on.• If bi-directional communication is not turned on in thedriver, it will also cause this message.• From the Start menu, select Settings, then Printers.Right-click on the Samsung ML-1440 Series printer iconand select Properties. From the Details tab, click onPort Settings. Remove check from Check Port Statebefore Printing box and click OK. From Spool Settings,select Print Directly to Printer and click OK. Tryprinting again.Close all other applications, reboot Windows, and tryprinting again.Problem“File in Use” messageappears during installation.“Error Writing to LPTx”message appears.“General Protection Fault”,“Exception OE”, “Spool32”,or “Illegal Operation”messages appears.
7.25PROBLEM SOLVINGProblemThe printer driver icondoes not appear in theChooser.Possible Cause and SolutionSoftware is not installed correctly.• The LaserWriter driver should be present as a part of theMacintosh OS. Make sure that the LaserWriter driver is in theExtensions folder within the Systems folder. If not, installthe LaserWriter driver component from the Macintosh OS CD.• Make sure that you are using a high-quality cable.• Make sure that the printer is on the correct network. SelectNetwork or AppleTalk Control Panel from ControlPanels in the Apple menu and then choose the correctnetwork.Common Macintosh ProblemsProblems in the ChooserProblemYou cannot use thecomputer while the printeris printing.Possible Cause and SolutionBackground Printing has not been selected.• For LaserWriter 8.3, turn Background Printing on in theChooser. Status messages will now be redirected to thePrint Monitor allowing you to continue working while thecomputer is processing data to be sent to the printer.• For LaserWriter 8.4 or higher, turn Background Printingon at the Print dialog box.Printing Errors

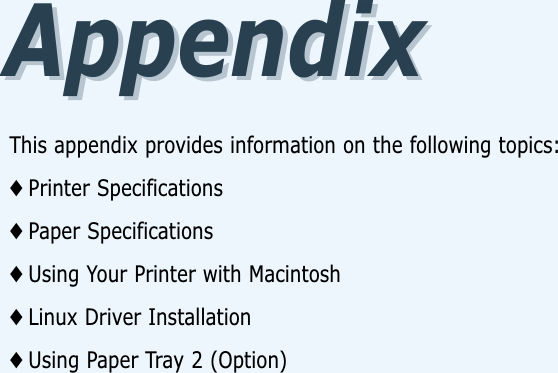

This appendix provides information on the following topics:◆ Printer Specifications◆ Paper Specifications◆ Using Your Printer with Macintosh◆ Linux Driver Installation◆ Using Paper Tray 2 (Option)AppendixAppendix

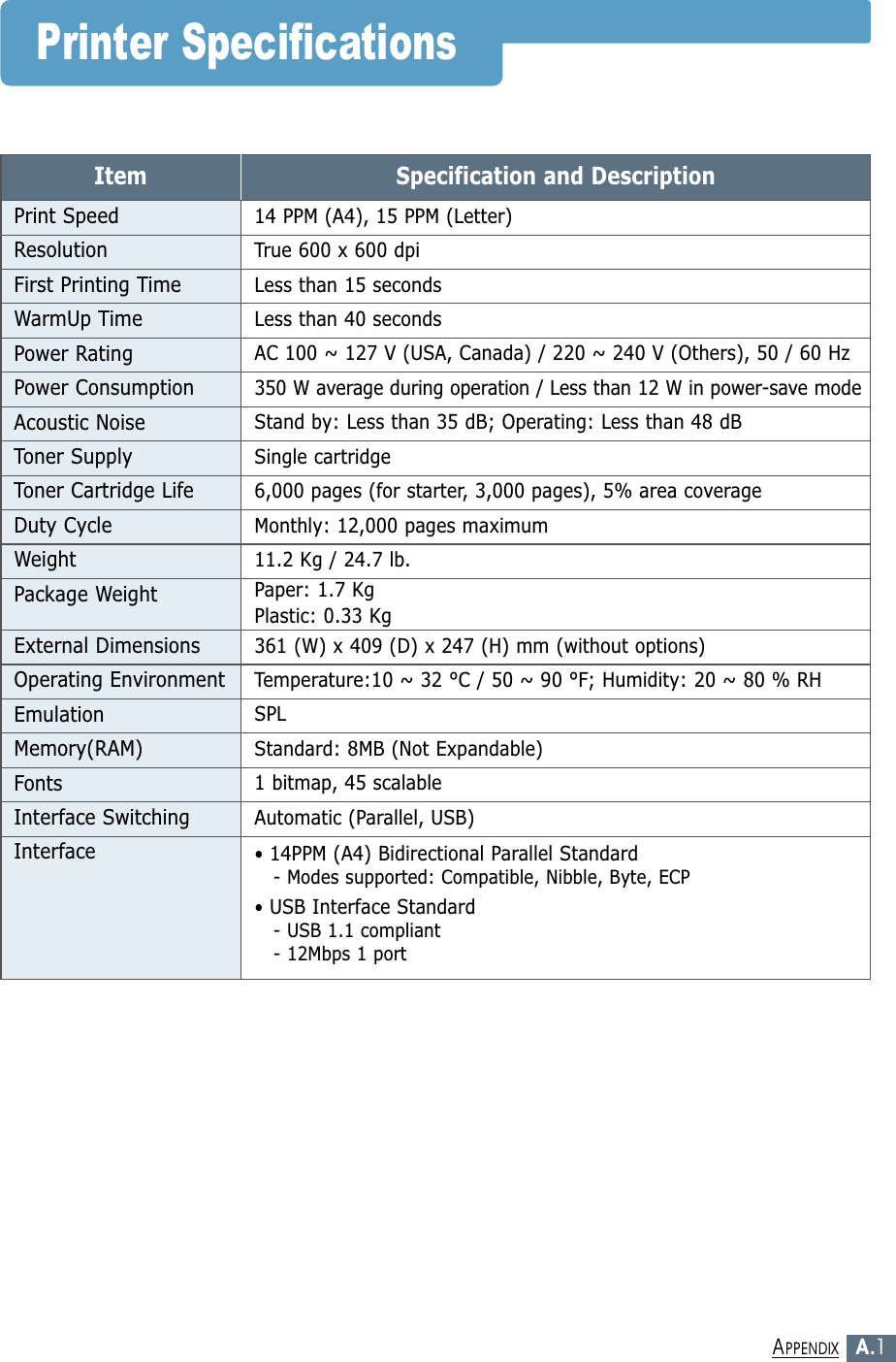

A.1APPENDIXPrinter SpecificationsItem Specification and DescriptionPrint Speed14 PPM (A4), 15 PPM (Letter)Resolution True 600 x 600 dpiFirst Printing TimeLess than 15 secondsWarmUp TimeLess than 40 secondsPower RatingAC 100 ~ 127 V (USA, Canada) / 220 ~ 240 V (Others), 50 / 60 HzPower Consumption350 W average during operation / Less than 12 W in power-save modeAcoustic NoiseStand by: Less than 35 dB; Operating: Less than 48 dBToner SupplySingle cartridgeToner Cartridge Life6,000 pages (for starter, 3,000 pages), 5% area coverageDuty CycleMonthly: 12,000 pages maximumWeight 11.2 Kg / 24.7 lb.External Dimensions361 (W) x 409 (D) x 247 (H) mm (without options)Operating Environment Temperature:10 ~ 32 °C / 50 ~ 90 °F; Humidity: 20 ~ 80 % RHEmulation SPLMemory(RAM)Standard: 8MB (Not Expandable)Fonts1 bitmap, 45 scalableInterface SwitchingAutomatic (Parallel, USB)Interface• 14PPM (A4) Bidirectional Parallel Standard- Modes supported: Compatible, Nibble, Byte, ECP• USB Interface Standard- USB 1.1 compliant- 12Mbps 1 portPackage WeightPaper: 1.7 KgPlastic: 0.33 Kg

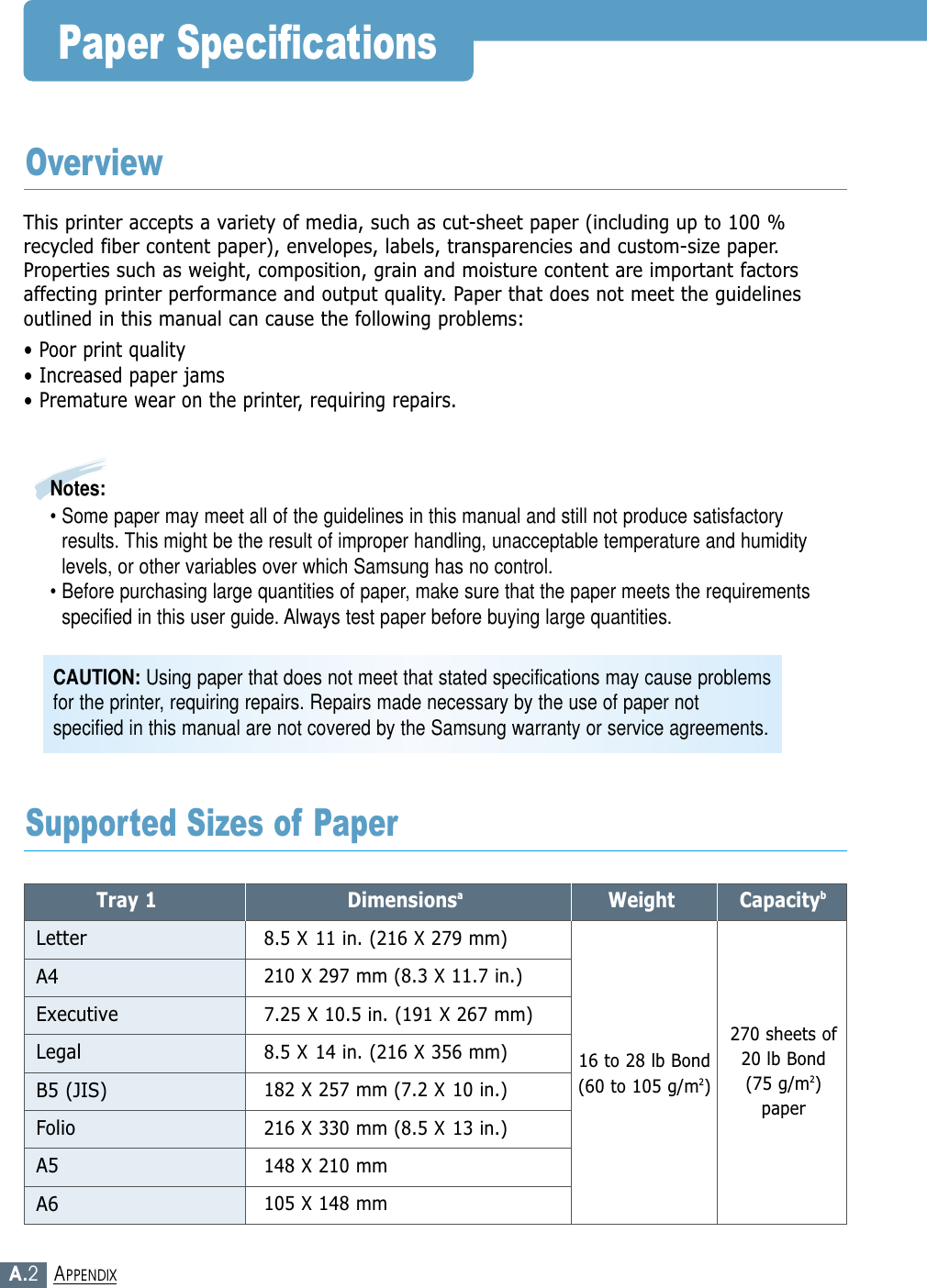

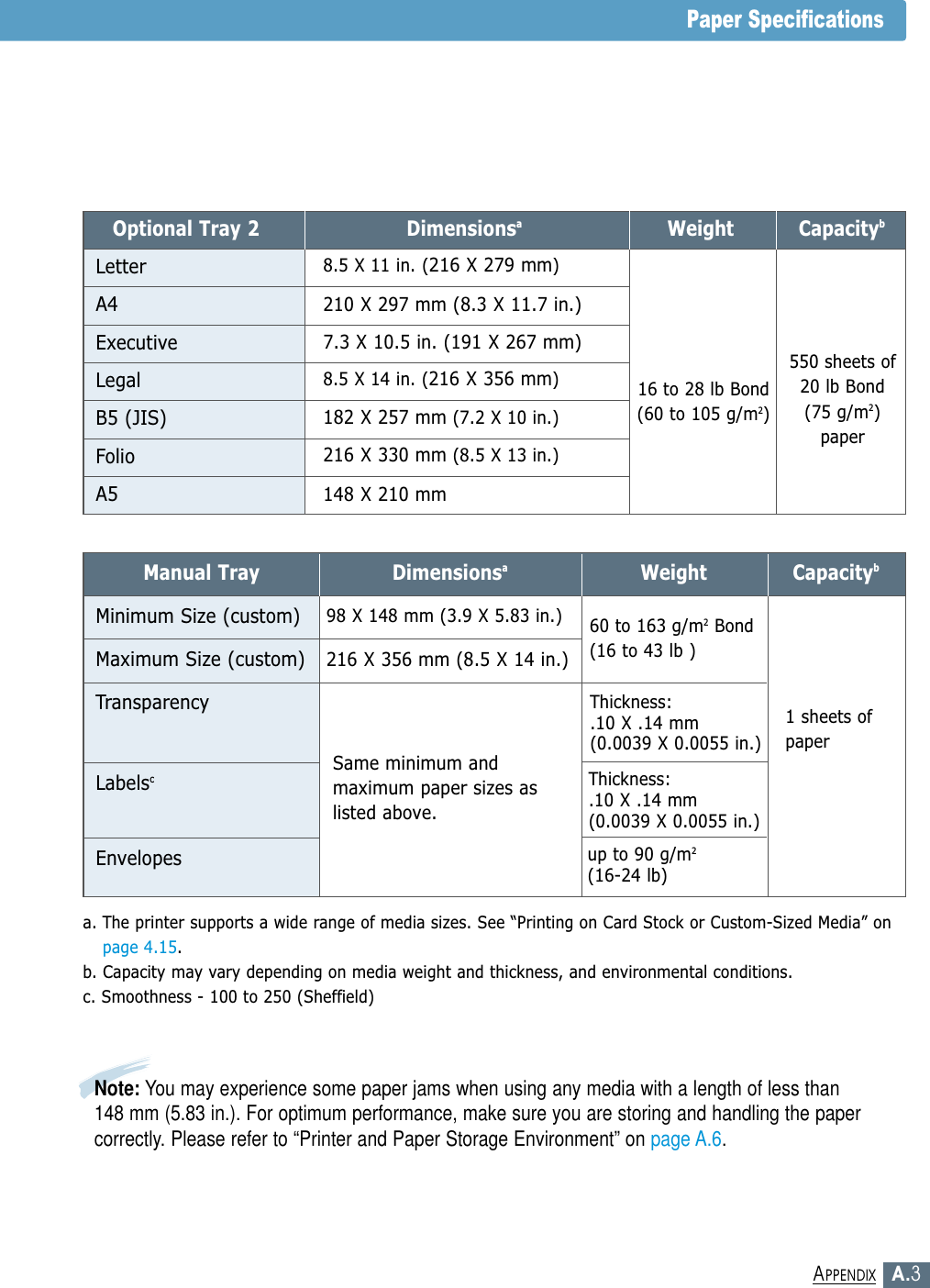

A.2APPENDIXPaper SpecificationsTray 1LetterDimensionsa8.5 X 11 in. (216 X 279 mm)16 to 28 lb Bond (60 to 105 g/m2)270 sheets of20 lb Bond (75 g/m2)paperWeight CapacitybA4210 X 297 mm (8.3 X 11.7 in.)ExecutiveLegalB5 (JIS)FolioA5A67.25 X 10.5 in. (191 X 267 mm)8.5 X 14 in. (216 X 356 mm)182 X 257 mm (7.2 X 10 in.)216 X 330 mm (8.5 X 13 in.)148 X 210 mm 105 X 148 mm This printer accepts a variety of media, such as cut-sheet paper (including up to 100 %recycled fiber content paper), envelopes, labels, transparencies and custom-size paper.Properties such as weight, composition, grain and moisture content are important factorsaffecting printer performance and output quality. Paper that does not meet the guidelinesoutlined in this manual can cause the following problems:• Poor print quality• Increased paper jams• Premature wear on the printer, requiring repairs.OverviewSupported Sizes of PaperNotes: • Some paper may meet all of the guidelines in this manual and still not produce satisfactoryresults. This might be the result of improper handling, unacceptable temperature and humiditylevels, or other variables over which Samsung has no control.• Before purchasing large quantities of paper, make sure that the paper meets the requirementsspecified in this user guide. Always test paper before buying large quantities.CAUTION: Using paper that does not meet that stated specifications may cause problemsfor the printer, requiring repairs. Repairs made necessary by the use of paper notspecified in this manual are not covered by the Samsung warranty or service agreements.
A.3APPENDIXOptional Tray 2LetterDimensionsa8.5 X 11 in. (216 X 279 mm)16 to 28 lb Bond (60 to 105 g/m2)550 sheets of20 lb Bond (75 g/m2)paperWeight CapacitybA4210 X 297 mm (8.3 X 11.7 in.)ExecutiveLegalB5 (JIS)FolioA57.3 X 10.5 in. (191 X 267 mm)8.5 X 14 in. (216 X 356 mm)182 X 257 mm(7.2 X 10 in.)216 X 330 mm(8.5 X 13 in.)148 X 210 mmManual TrayMinimum Size (custom)Dimensionsa98 X 148 mm (3.9 X 5.83 in.) 60 to 163 g/m2Bond (16 to 43 lb )1 sheets ofpaperWeight CapacitybMaximum Size (custom)216 X 356 mm (8.5 X 14 in.)TransparencyLabelscEnvelopesSame minimum andmaximum paper sizes aslisted above.Thickness:.10 X .14 mm(0.0039 X 0.0055 in.)Thickness:.10 X .14 mm(0.0039 X 0.0055 in.)up to 90 g/m2(16-24 lb)a. The printer supports a wide range of media sizes. See “Printing on Card Stock or Custom-Sized Media” onpage 4.15.b. Capacity may vary depending on media weight and thickness, and environmental conditions.c. Smoothness - 100 to 250 (Sheffield)Note: You may experience some paper jams when using any media with a length of less than 148 mm (5.83 in.). For optimum performance, make sure you are storing and handling the papercorrectly. Please refer to “Printer and Paper Storage Environment” on page A.6.Paper Specifications

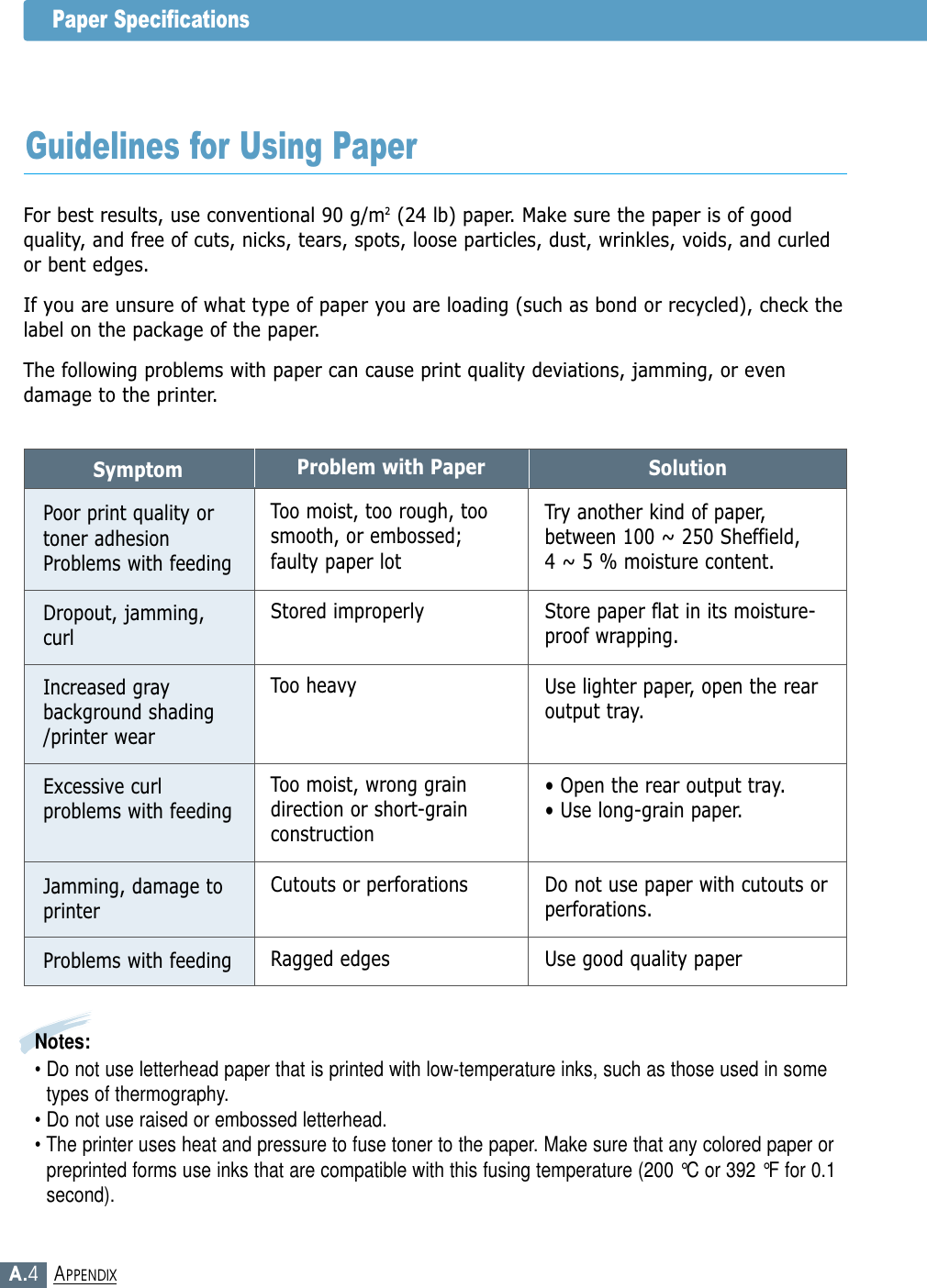

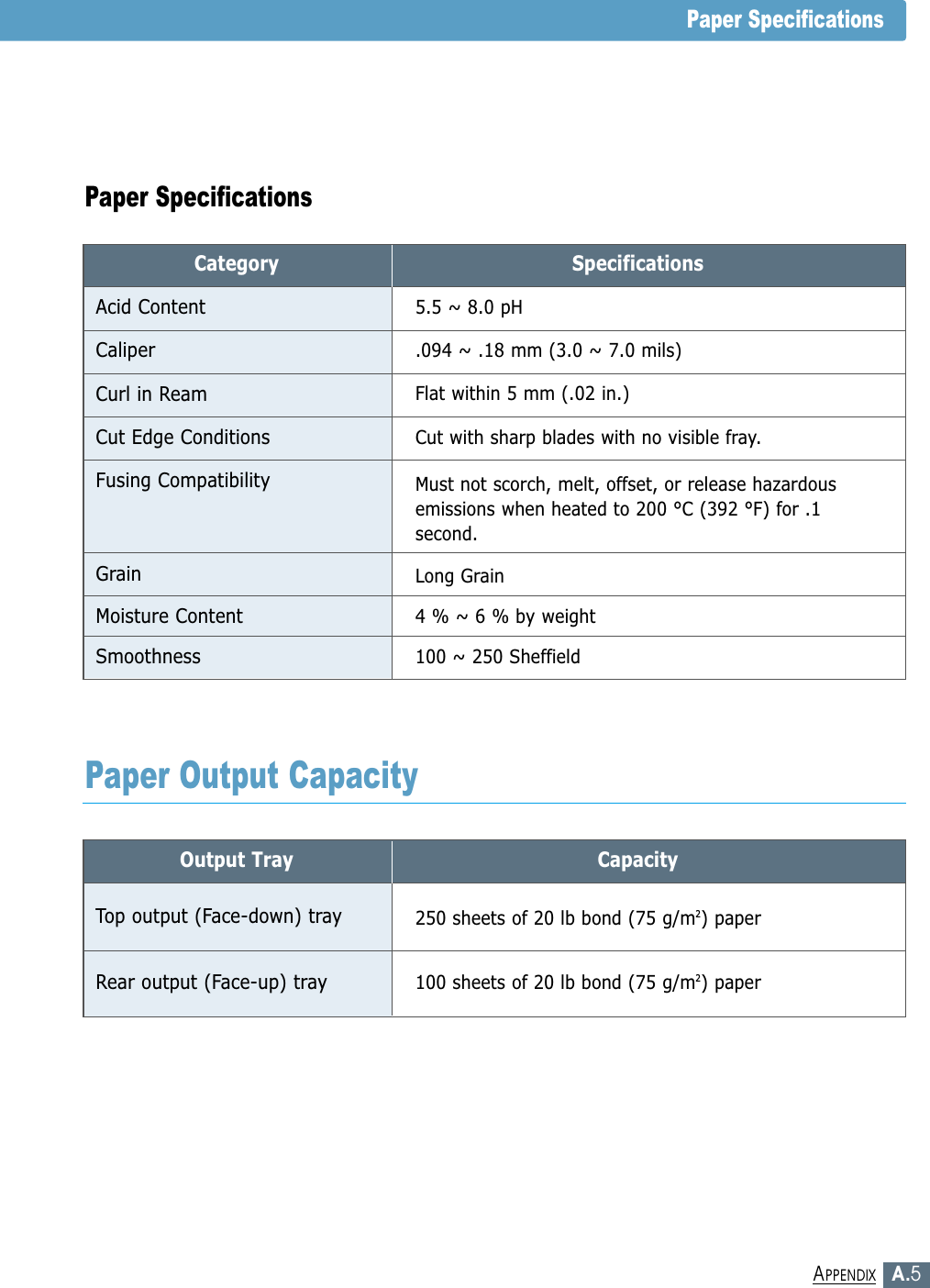

A.4APPENDIXPaper SpecificationsFor best results, use conventional 90 g/m2(24 lb) paper. Make sure the paper is of goodquality, and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, and curledor bent edges.If you are unsure of what type of paper you are loading (such as bond or recycled), check thelabel on the package of the paper.The following problems with paper can cause print quality deviations, jamming, or evendamage to the printer.SymptomPoor print quality ortoner adhesionProblems with feedingDropout, jamming,curlIncreased graybackground shading/printer wearExcessive curlproblems with feedingJamming, damage toprinterProblems with feedingProblem with PaperToo moist, too rough, toosmooth, or embossed;faulty paper lotStored improperlyToo heavyToo moist, wrong graindirection or short-grainconstructionCutouts or perforationsRagged edgesSolutionTry another kind of paper,between 100 ~ 250 Sheffield, 4 ~ 5 % moisture content.Store paper flat in its moisture-proof wrapping.Use lighter paper, open the rearoutput tray.• Open the rear output tray.• Use long-grain paper.Do not use paper with cutouts orperforations.Use good quality paperNotes: • Do not use letterhead paper that is printed with low-temperature inks, such as those used in sometypes of thermography.• Do not use raised or embossed letterhead.• The printer uses heat and pressure to fuse toner to the paper. Make sure that any colored paper orpreprinted forms use inks that are compatible with this fusing temperature (200 °C or 392 °F for 0.1second).Guidelines for Using Paper
A.5APPENDIXPaper SpecificationsCategoryAcid ContentSpecifications5.5 ~ 8.0 pHCaliper.094 ~ .18 mm (3.0 ~ 7.0 mils)Curl in ReamCut Edge ConditionsFusing CompatibilityGrainFlat within 5 mm (.02 in.)Cut with sharp blades with no visible fray.Moisture Content4 % ~ 6 % by weightSmoothness100 ~ 250 SheffieldMust not scorch, melt, offset, or release hazardousemissions when heated to 200 °C (392 °F) for .1second.Long GrainPaper SpecificationsOutput TrayTop output (Face-down) trayCapacity250 sheets of 20 lb bond (75 g/m2) paperRear output (Face-up) tray100 sheets of 20 lb bond (75 g/m2) paperPaper Output Capacity

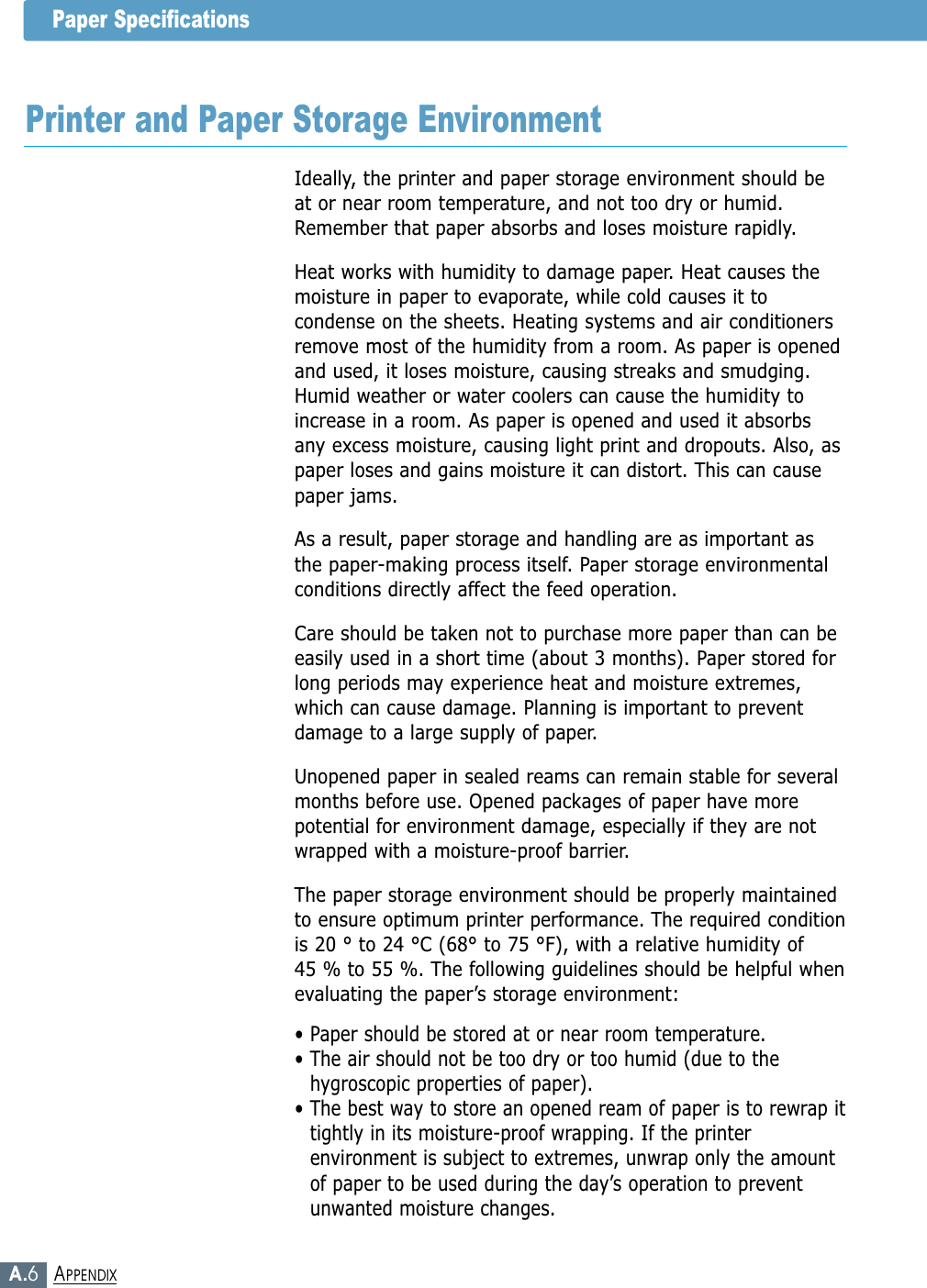

A.6APPENDIXIdeally, the printer and paper storage environment should beat or near room temperature, and not too dry or humid.Remember that paper absorbs and loses moisture rapidly.Heat works with humidity to damage paper. Heat causes themoisture in paper to evaporate, while cold causes it tocondense on the sheets. Heating systems and air conditionersremove most of the humidity from a room. As paper is openedand used, it loses moisture, causing streaks and smudging.Humid weather or water coolers can cause the humidity toincrease in a room. As paper is opened and used it absorbsany excess moisture, causing light print and dropouts. Also, aspaper loses and gains moisture it can distort. This can causepaper jams.As a result, paper storage and handling are as important asthe paper-making process itself. Paper storage environmentalconditions directly affect the feed operation.Care should be taken not to purchase more paper than can beeasily used in a short time (about 3 months). Paper stored forlong periods may experience heat and moisture extremes,which can cause damage. Planning is important to preventdamage to a large supply of paper.Unopened paper in sealed reams can remain stable for severalmonths before use. Opened packages of paper have morepotential for environment damage, especially if they are notwrapped with a moisture-proof barrier.The paper storage environment should be properly maintainedto ensure optimum printer performance. The required conditionis 20 ° to 24 °C (68° to 75 °F), with a relative humidity of 45 % to 55 %. The following guidelines should be helpful whenevaluating the paper’s storage environment:• Paper should be stored at or near room temperature.• The air should not be too dry or too humid (due to thehygroscopic properties of paper).• The best way to store an opened ream of paper is to rewrap ittightly in its moisture-proof wrapping. If the printerenvironment is subject to extremes, unwrap only the amountof paper to be used during the day’s operation to preventunwanted moisture changes.Paper SpecificationsPrinter and Paper Storage Environment

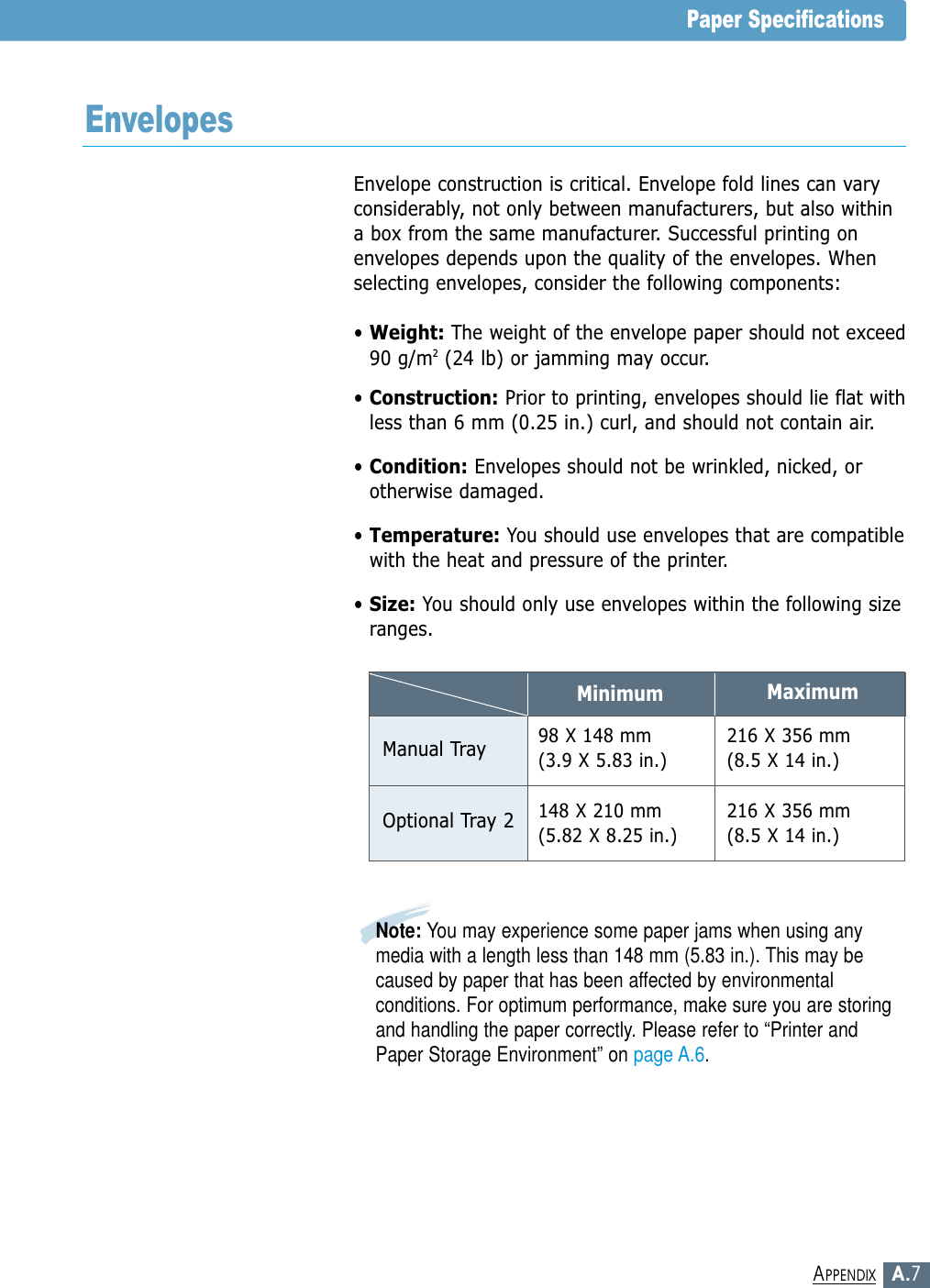

A.7APPENDIXEnvelope construction is critical. Envelope fold lines can varyconsiderably, not only between manufacturers, but also withina box from the same manufacturer. Successful printing onenvelopes depends upon the quality of the envelopes. Whenselecting envelopes, consider the following components:• Weight: The weight of the envelope paper should not exceed90 g/m2(24 lb) or jamming may occur.• Construction: Prior to printing, envelopes should lie flat withless than 6 mm (0.25 in.) curl, and should not contain air.• Condition: Envelopes should not be wrinkled, nicked, orotherwise damaged.• Temperature: You should use envelopes that are compatiblewith the heat and pressure of the printer.• Size: You should only use envelopes within the following sizeranges.Note: You may experience some paper jams when using anymedia with a length less than 148 mm (5.83 in.). This may becaused by paper that has been affected by environmentalconditions. For optimum performance, make sure you are storingand handling the paper correctly. Please refer to “Printer andPaper Storage Environment” on page A.6.Paper SpecificationsEnvelopesMinimumManual TrayMaximum216 X 356 mm(8.5 X 14 in.)98 X 148 mm(3.9 X 5.83 in.)Optional Tray 2216 X 356 mm(8.5 X 14 in.)148 X 210 mm(5.82 X 8.25 in.)

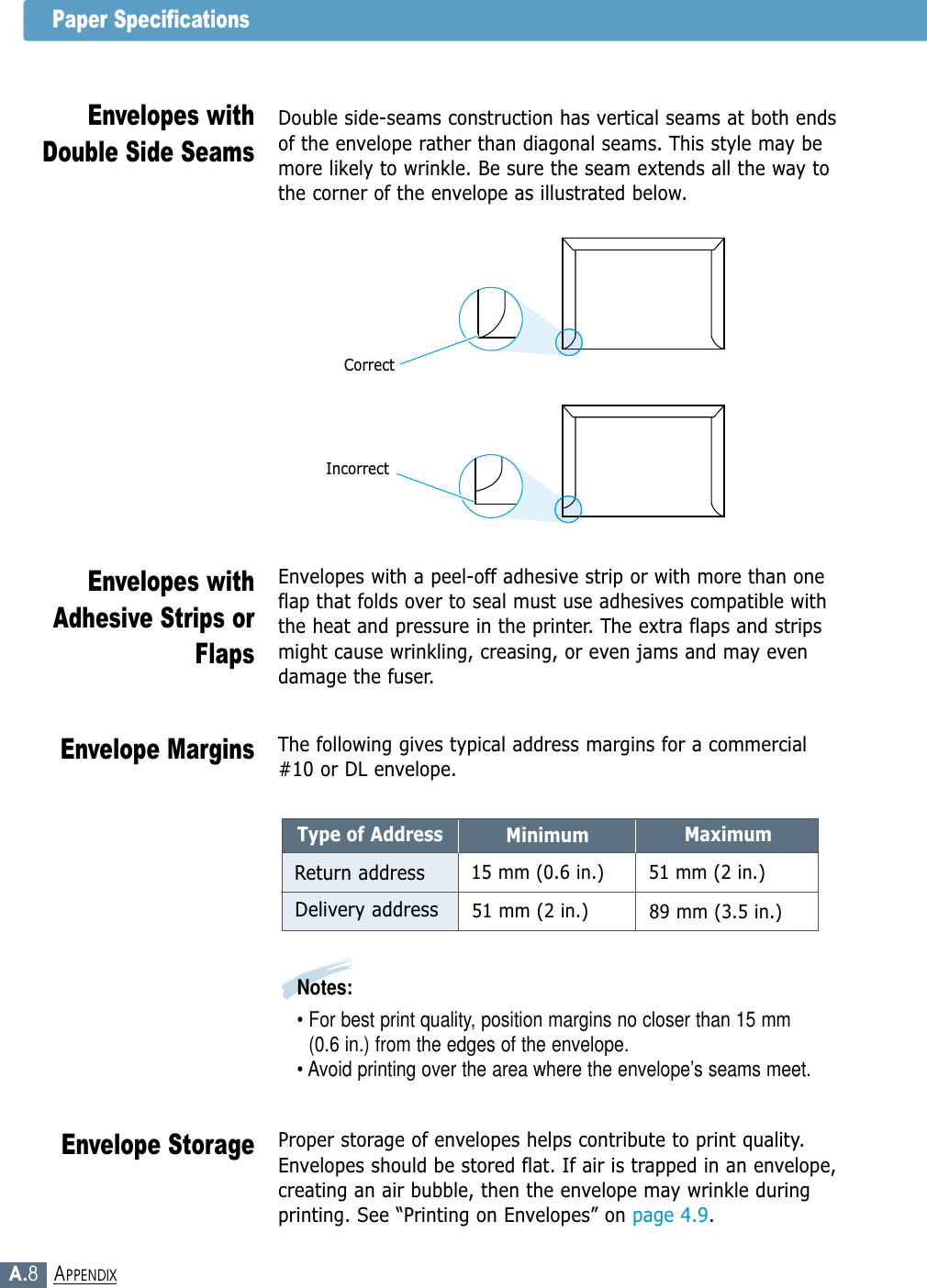

A.8APPENDIXDouble side-seams construction has vertical seams at both endsof the envelope rather than diagonal seams. This style may bemore likely to wrinkle. Be sure the seam extends all the way tothe corner of the envelope as illustrated below.Envelopes withDouble Side SeamsEnvelopes with a peel-off adhesive strip or with more than oneflap that folds over to seal must use adhesives compatible withthe heat and pressure in the printer. The extra flaps and stripsmight cause wrinkling, creasing, or even jams and may evendamage the fuser.Envelopes withAdhesive Strips orFlapsThe following gives typical address margins for a commercial#10 or DL envelope.Envelope MarginsProper storage of envelopes helps contribute to print quality.Envelopes should be stored flat. If air is trapped in an envelope,creating an air bubble, then the envelope may wrinkle duringprinting. See “Printing on Envelopes” on page 4.9.Envelope StorageCorrectIncorrectMinimumType of AddressReturn addressDelivery addressMaximum51 mm (2 in.)15 mm (0.6 in.)89 mm (3.5 in.)51 mm (2 in.)Notes: • For best print quality, position margins no closer than 15 mm(0.6 in.) from the edges of the envelope.• Avoid printing over the area where the envelope’s seams meet.Paper Specifications

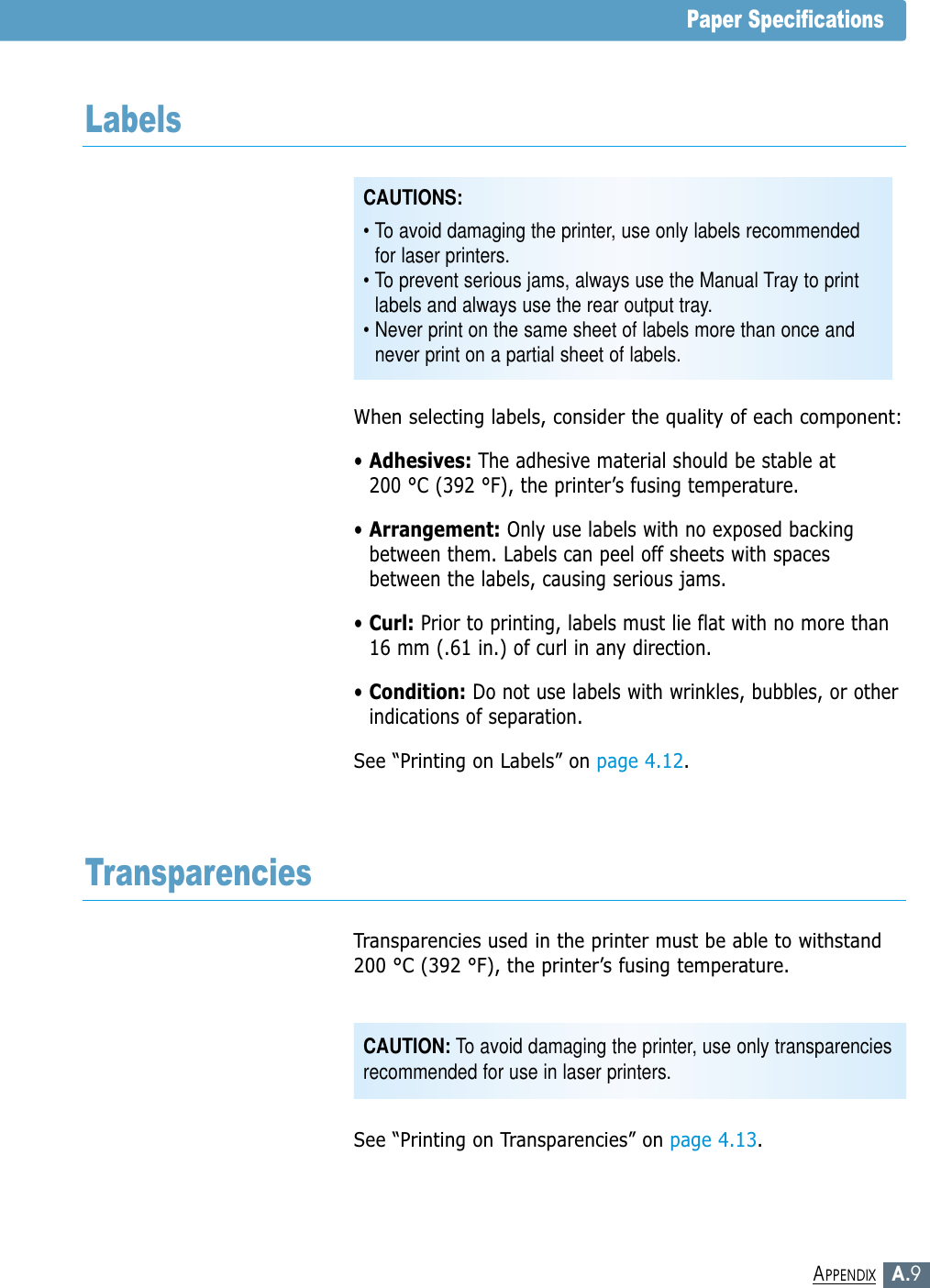

A.9APPENDIXWhen selecting labels, consider the quality of each component:• Adhesives: The adhesive material should be stable at 200 °C (392 °F), the printer’s fusing temperature.• Arrangement: Only use labels with no exposed backingbetween them. Labels can peel off sheets with spacesbetween the labels, causing serious jams.• Curl: Prior to printing, labels must lie flat with no more than16 mm (.61 in.) of curl in any direction.• Condition: Do not use labels with wrinkles, bubbles, or otherindications of separation.See “Printing on Labels” on page 4.12.Transparencies used in the printer must be able to withstand200 °C (392 °F), the printer’s fusing temperature.See “Printing on Transparencies” on page 4.13.CAUTIONS: • To avoid damaging the printer, use only labels recommendedfor laser printers.• To prevent serious jams, always use the Manual Tray to printlabels and always use the rear output tray.• Never print on the same sheet of labels more than once andnever print on a partial sheet of labels.CAUTION: To avoid damaging the printer, use only transparenciesrecommended for use in laser printers.Paper SpecificationsLabelsTransparencies

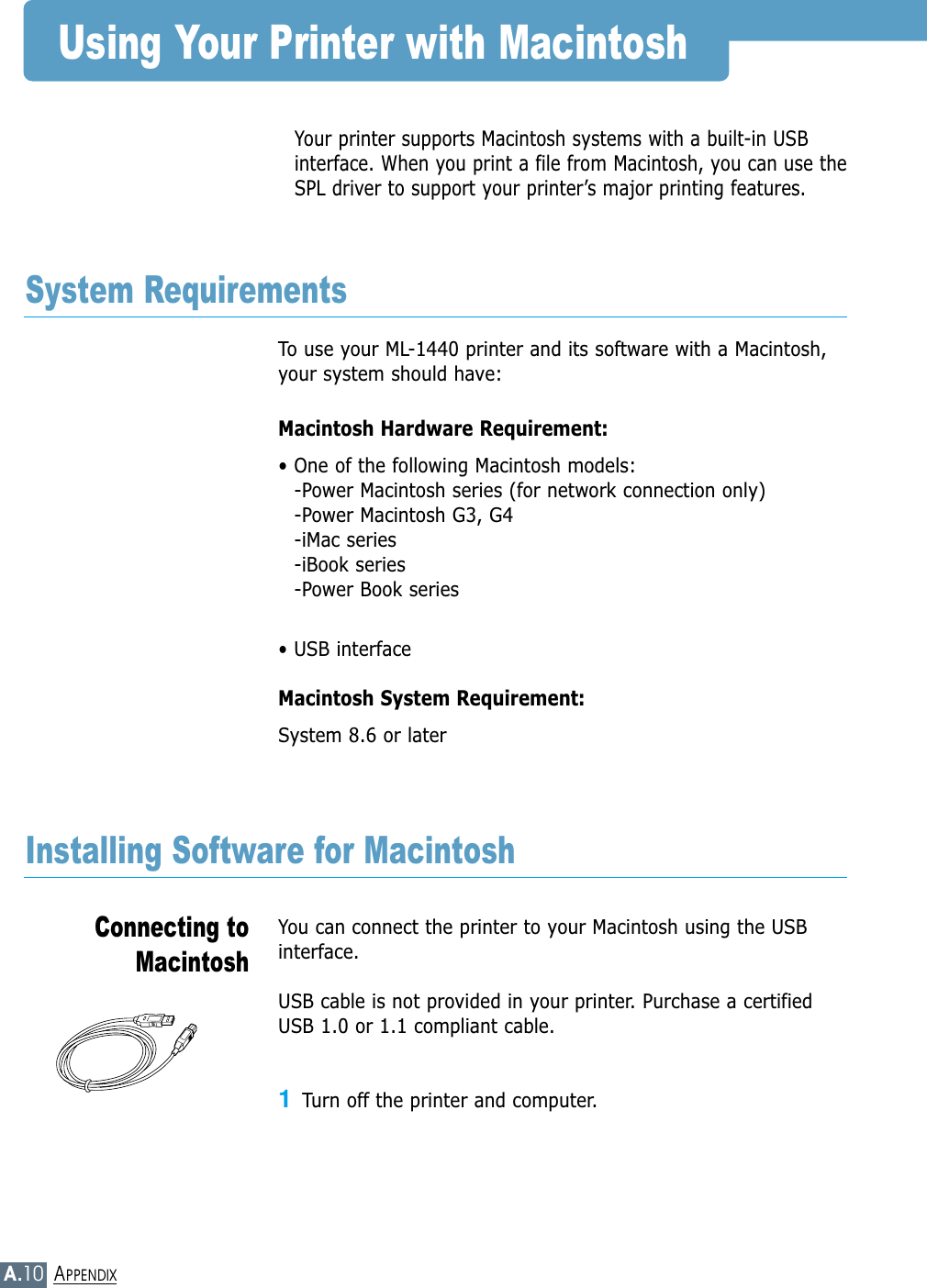

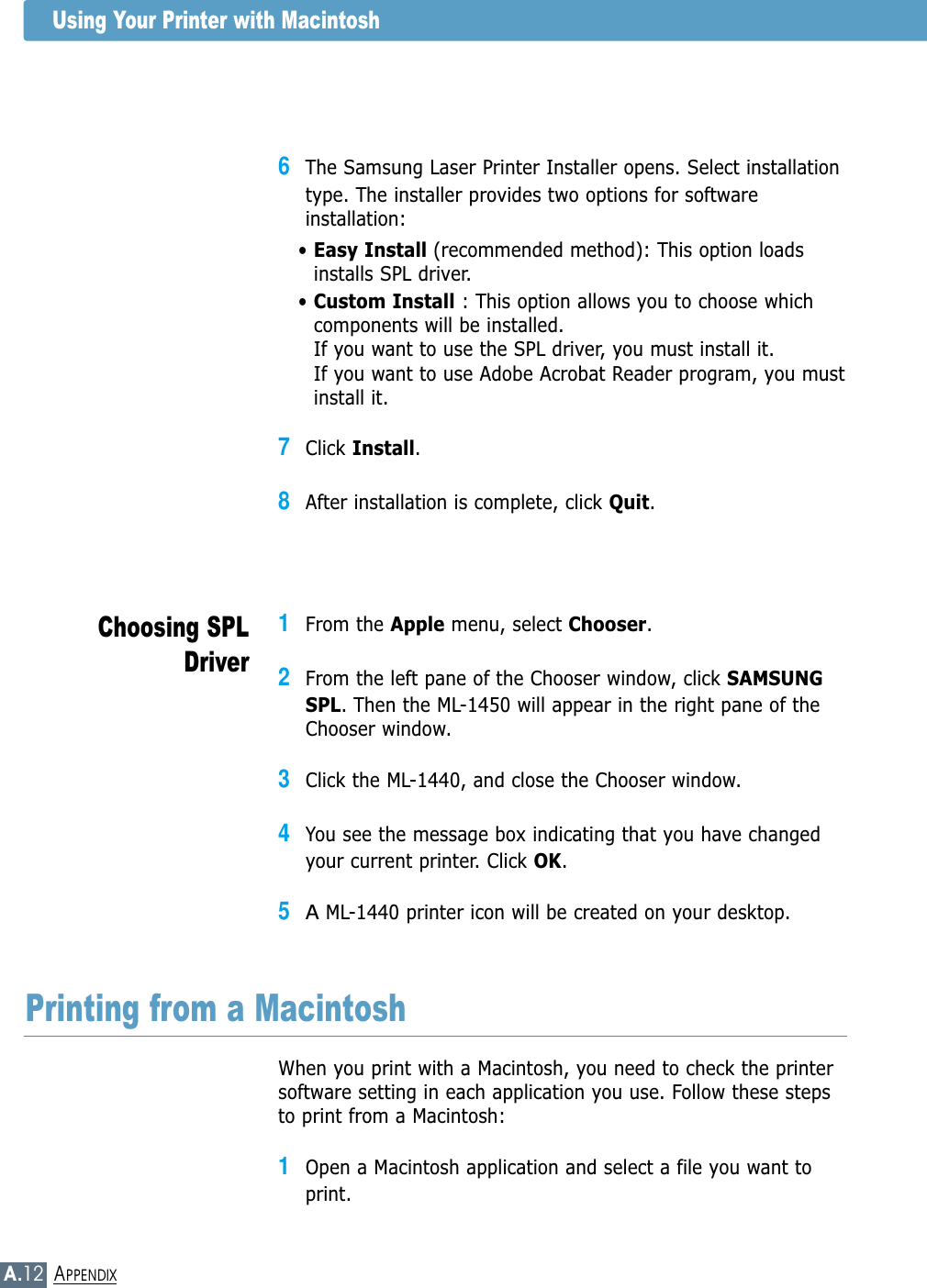

A.10APPENDIXYour printer supports Macintosh systems with a built-in USBinterface. When you print a file from Macintosh, you can use theSPL driver to support your printer’s major printing features. Using Your Printer with MacintoshTo use your ML-1440 printer and its software with a Macintosh,your system should have:Macintosh Hardware Requirement:• One of the following Macintosh models:-Power Macintosh series (for network connection only)-Power Macintosh G3, G4-iMac series-iBook series-Power Book series• USB interface Macintosh System Requirement:System 8.6 or laterSystem RequirementsYou can connect the printer to your Macintosh using the USBinterface.USB cable is not provided in your printer. Purchase a certifiedUSB 1.0 or 1.1 compliant cable. 1Turn off the printer and computer.Installing Software for MacintoshConnecting toMacintosh

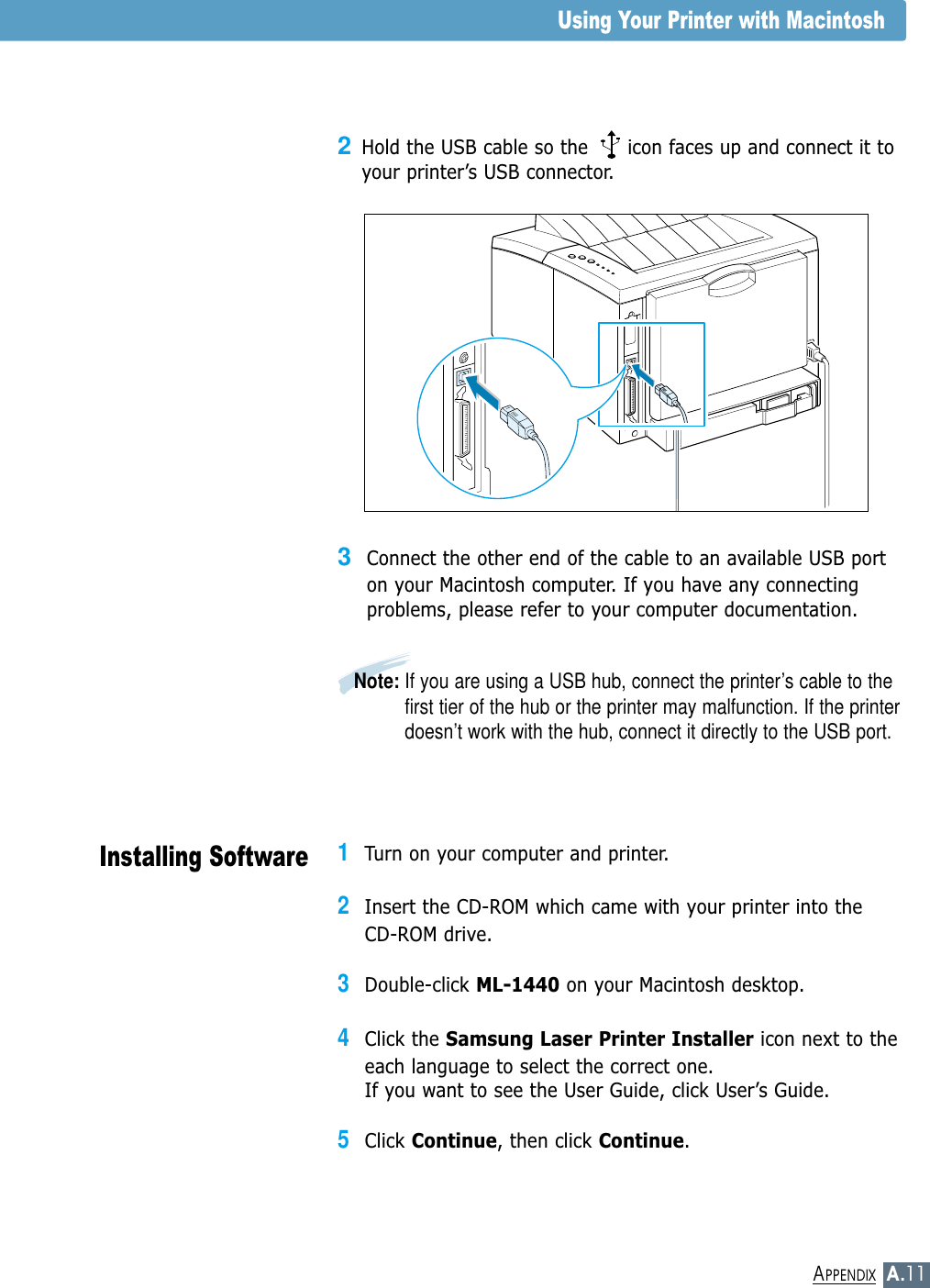

A.11APPENDIX2Hold the USB cable so the icon faces up and connect it toyour printer’s USB connector.3Connect the other end of the cable to an available USB porton your Macintosh computer. If you have any connectingproblems, please refer to your computer documentation.Note: If you are using a USB hub, connect the printer’s cable to thefirst tier of the hub or the printer may malfunction. If the printerdoesn’t work with the hub, connect it directly to the USB port. Using Your Printer with MacintoshInstalling Software1Turn on your computer and printer.2Insert the CD-ROM which came with your printer into the CD-ROM drive.3Double-click ML-1440 on your Macintosh desktop.4Click the Samsung Laser Printer Installer icon next to theeach language to select the correct one. If you want to see the User Guide, click User’s Guide.5Click Continue, then click Continue.
A.12APPENDIXUsing Your Printer with MacintoshWhen you print with a Macintosh, you need to check the printersoftware setting in each application you use. Follow these stepsto print from a Macintosh:1Open a Macintosh application and select a file you want toprint.Printing from a MacintoshChoosing SPLDriver1From the Apple menu, select Chooser.2From the left pane of the Chooser window, click SAMSUNGSPL. Then the ML-1450 will appear in the right pane of theChooser window.3Click the ML-1440, and close the Chooser window.4You see the message box indicating that you have changedyour current printer. Click OK. 5AML-1440 printer icon will be created on your desktop. 6The Samsung Laser Printer Installer opens. Select installationtype. The installer provides two options for softwareinstallation:• Easy Install (recommended method): This option loadsinstalls SPL driver. • Custom Install : This option allows you to choose whichcomponents will be installed. If you want to use the SPL driver, you must install it. If you want to use Adobe Acrobat Reader program, you mustinstall it.7Click Install.8After installation is complete, click Quit.
A.13APPENDIXUsing Your Printer with MacintoshChoose Watermark if you want to add a watermark to eachpage in your document to emphasize its purpose or indicatehow it should be handled. For details on the watermarkoption, see page 5.21.2Open the File menu, and click Page Setup (DocumentSetup in some applications). You will see the Page Setupdialog box.3Choose your paper size, orientation, paper type and otheroptions and click OK.

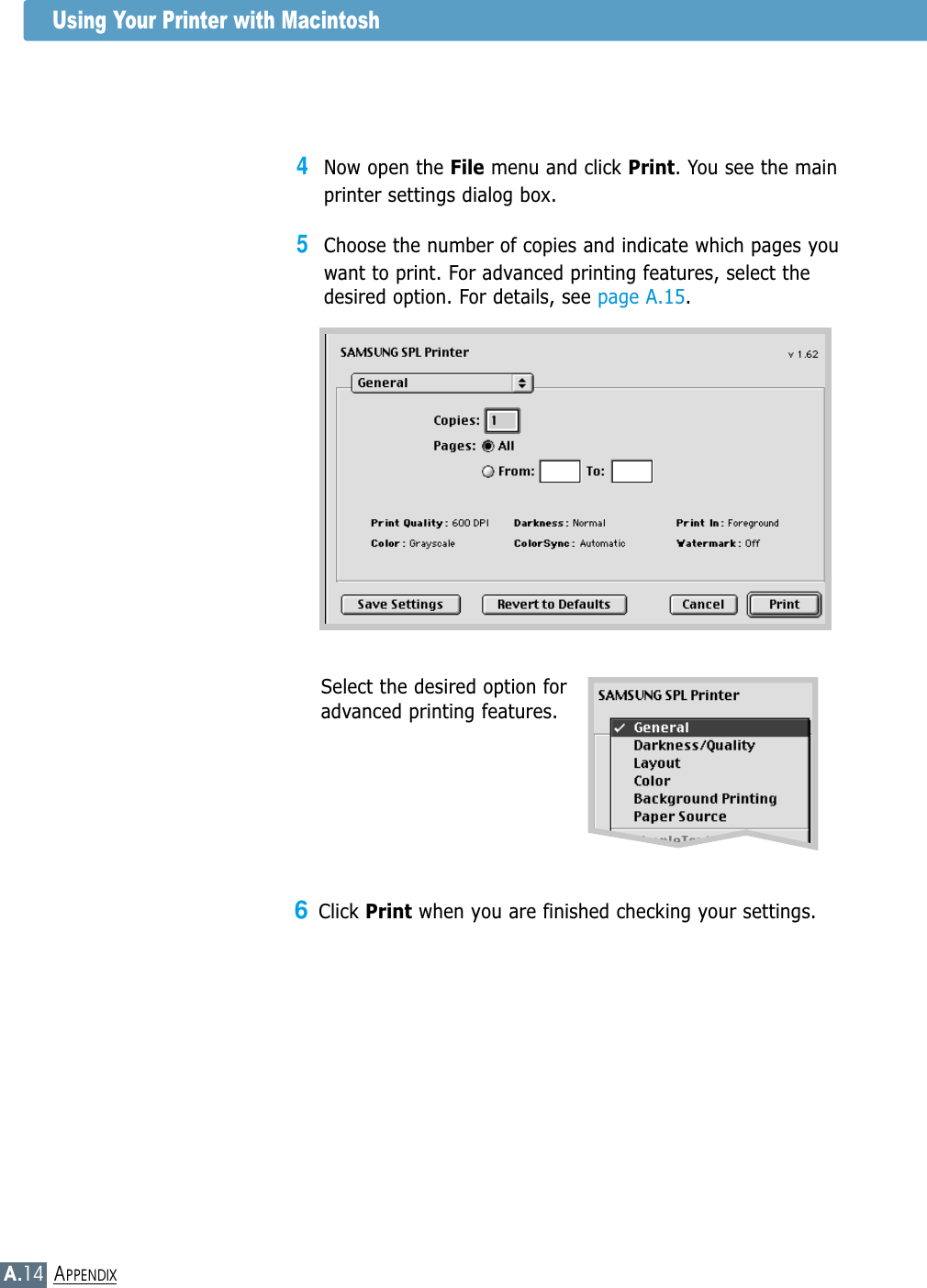

A.14APPENDIXUsing Your Printer with Macintosh4Now open the File menu and click Print. You see the mainprinter settings dialog box.5Choose the number of copies and indicate which pages youwant to print. For advanced printing features, select thedesired option. For details, see page A.15.6Click Print when you are finished checking your settings.Select the desired option foradvanced printing features.

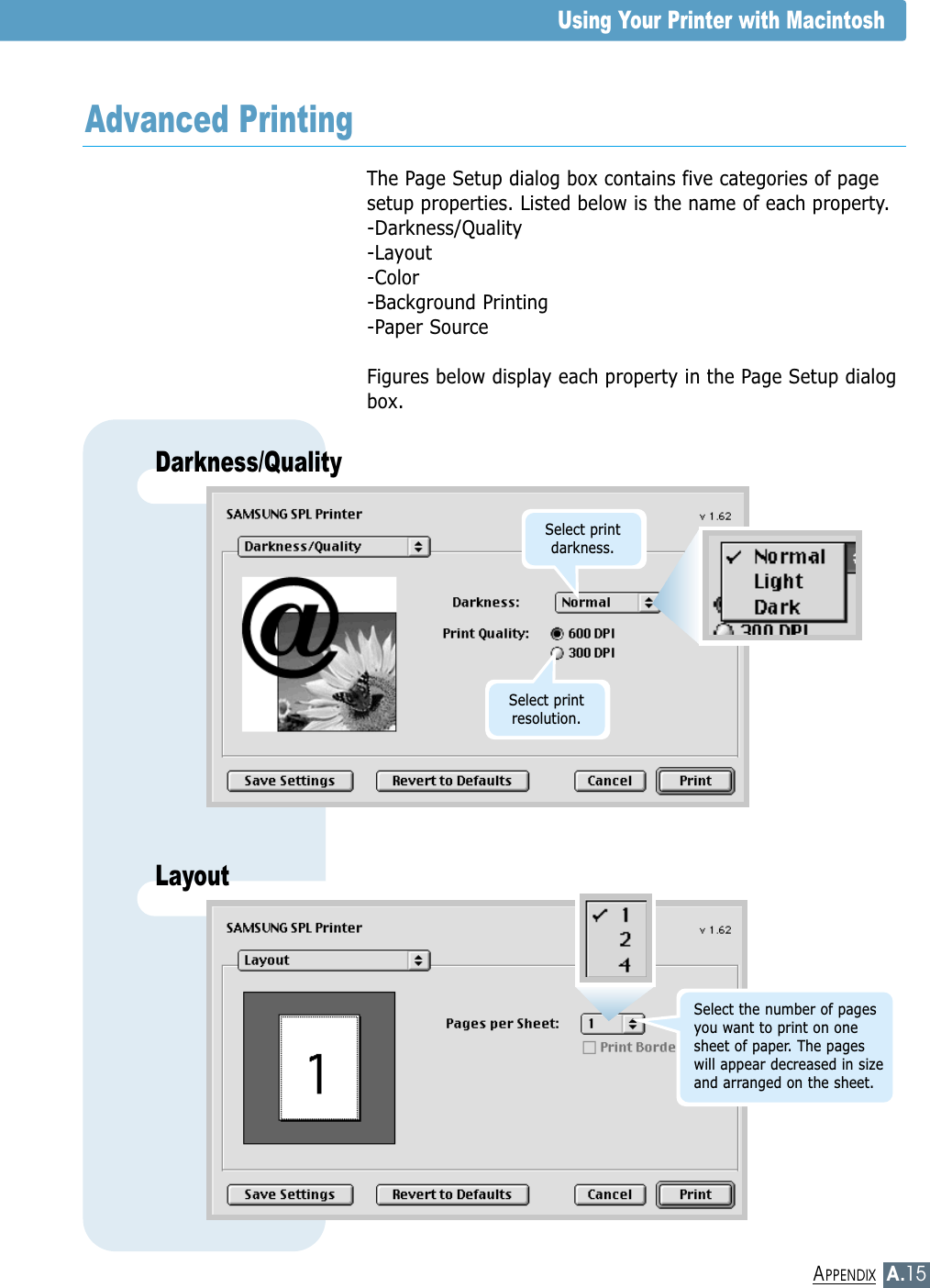

A.15APPENDIXUsing Your Printer with MacintoshThe Page Setup dialog box contains five categories of pagesetup properties. Listed below is the name of each property.-Darkness/Quality-Layout-Color-Background Printing-Paper SourceFigures below display each property in the Page Setup dialogbox.Advanced PrintingDarkness/QualityLayoutSelect print resolution.Select the number of pagesyou want to print on onesheet of paper. The pageswill appear decreased in sizeand arranged on the sheet.Select print darkness.

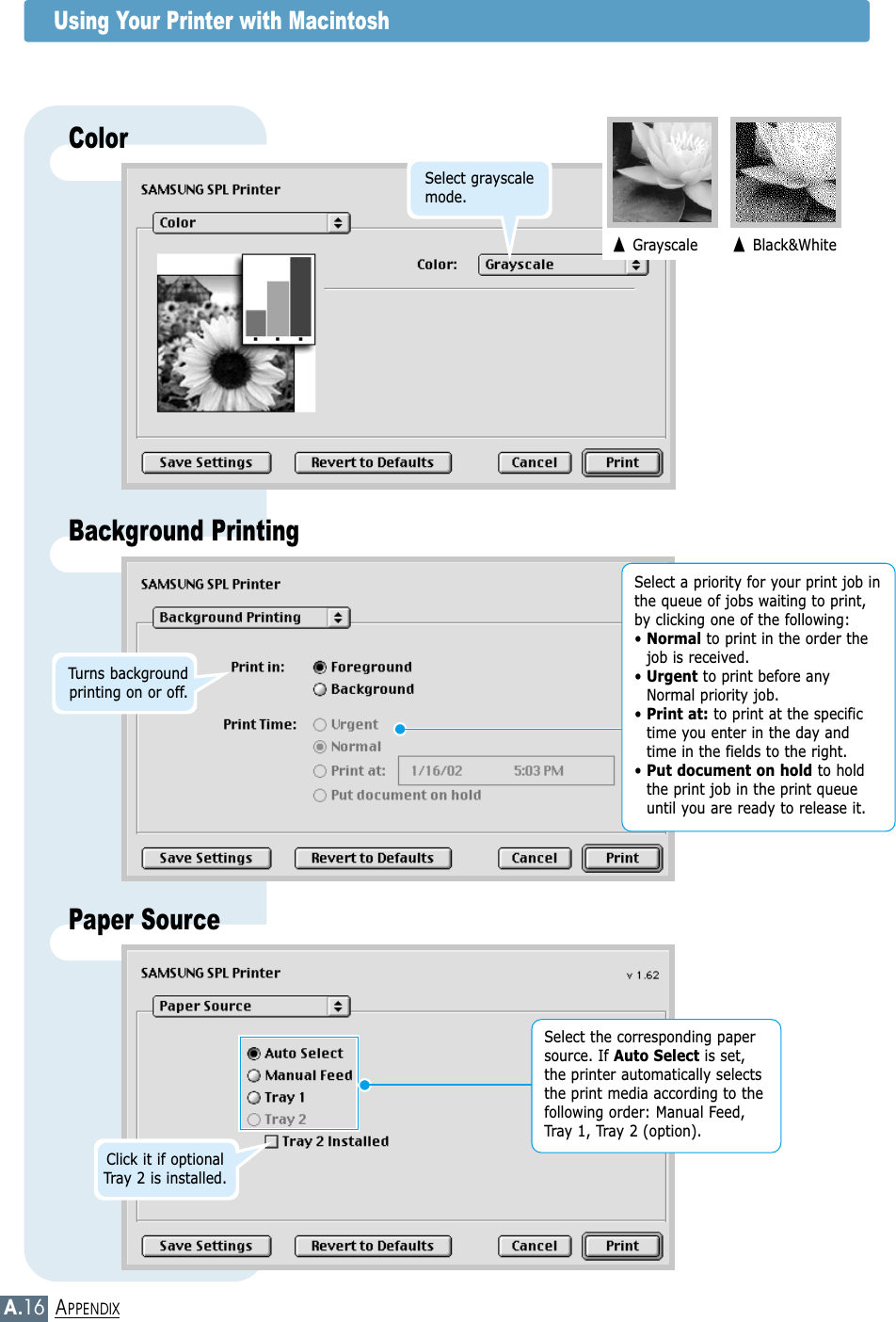

A.16APPENDIXColorBackground Printing➐Grayscale ➐Black&WhiteSelect a priority for your print job inthe queue of jobs waiting to print,by clicking one of the following:• Normal to print in the order thejob is received.• Urgent to print before anyNormal priority job.• Print at: to print at the specifictime you enter in the day andtime in the fields to the right.• Put document on hold to holdthe print job in the print queueuntil you are ready to release it.Paper SourceSelect the corresponding papersource. If Auto Select is set,the printer automatically selectsthe print media according to thefollowing order: Manual Feed,Tray 1, Tray 2 (option).Select grayscalemode.Turns backgroundprinting on or off.Using Your Printer with MacintoshClick it if optionalTray 2 is installed.

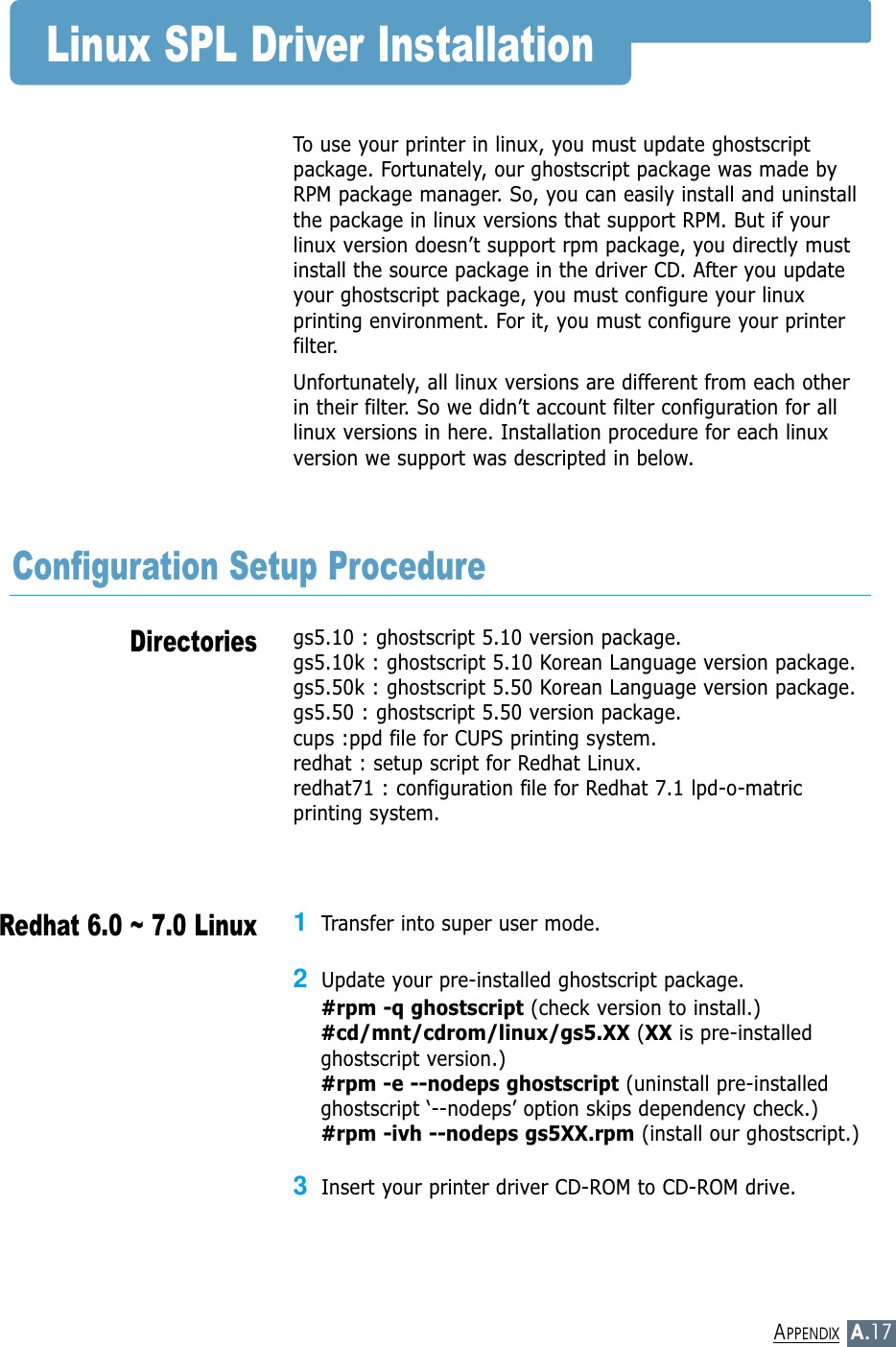

A.17APPENDIXTo use your printer in linux, you must update ghostscriptpackage. Fortunately, our ghostscript package was made byRPM package manager. So, you can easily install and uninstallthe package in linux versions that support RPM. But if yourlinux version doesn’t support rpm package, you directly mustinstall the source package in the driver CD. After you updateyour ghostscript package, you must configure your linuxprinting environment. For it, you must configure your printerfilter. Unfortunately, all linux versions are different from each otherin their filter. So we didn’t account filter configuration for alllinux versions in here. Installation procedure for each linuxversion we support was descripted in below. gs5.10 : ghostscript 5.10 version package. gs5.10k : ghostscript 5.10 Korean Language version package.gs5.50k : ghostscript 5.50 Korean Language version package. gs5.50 : ghostscript 5.50 version package. cups :ppd file for CUPS printing system.redhat : setup script for Redhat Linux. redhat71 : configuration file for Redhat 7.1 lpd-o-matricprinting system. 1Transfer into super user mode. 2Update your pre-installed ghostscript package. #rpm -q ghostscript (check version to install.)#cd/mnt/cdrom/linux/gs5.XX (XX is pre-installedghostscript version.)#rpm -e --nodeps ghostscript (uninstall pre-installedghostscript ‘--nodeps’ option skips dependency check.)#rpm -ivh --nodeps gs5XX.rpm (install our ghostscript.)3Insert your printer driver CD-ROM to CD-ROM drive. Configuration Setup ProcedureDirectoriesRedhat 6.0 ~ 7.0 LinuxLinux SPL Driver Installation

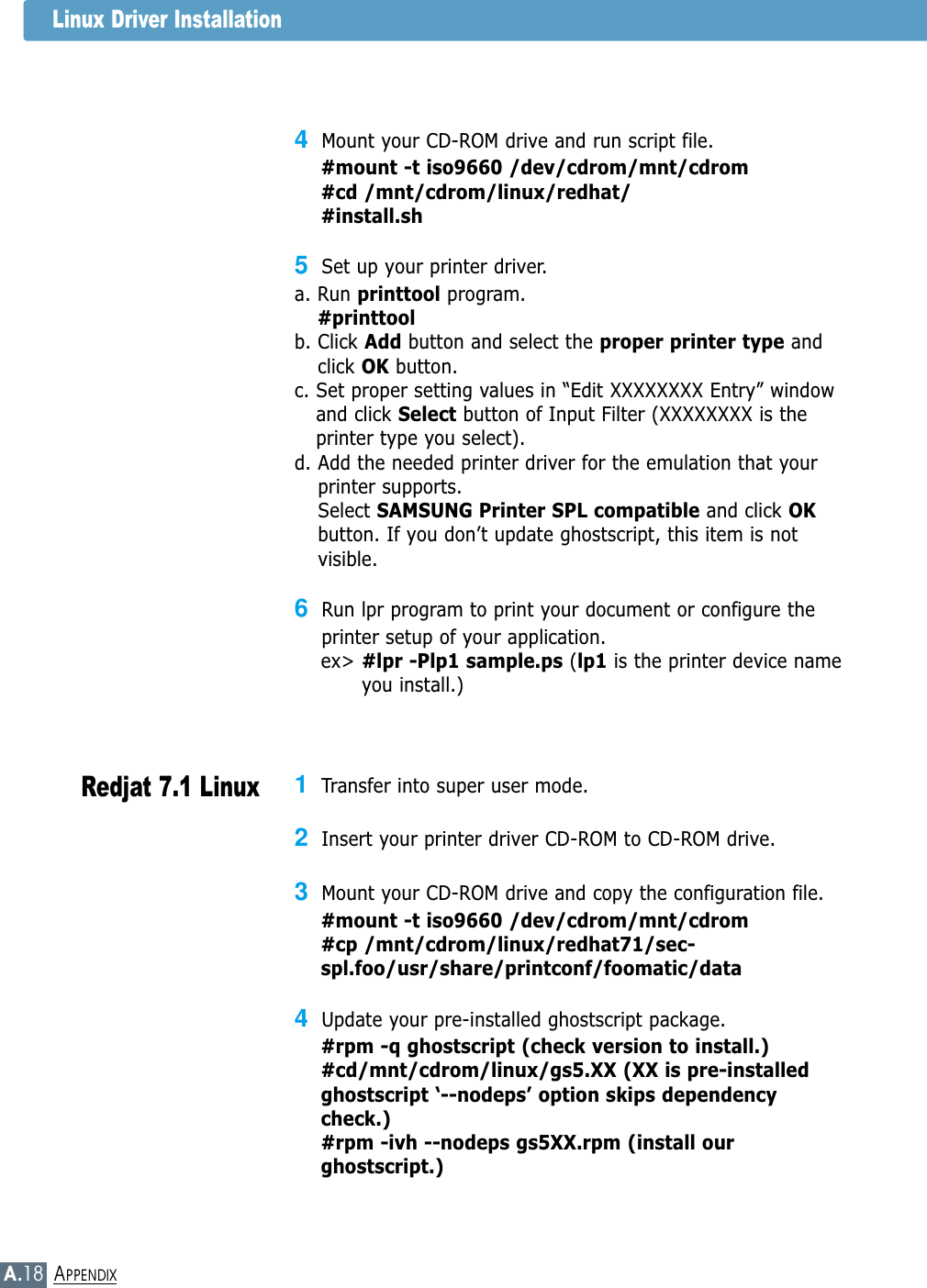

A.18APPENDIXLinux Driver Installation4Mount your CD-ROM drive and run script file. #mount -t iso9660 /dev/cdrom/mnt/cdrom#cd /mnt/cdrom/linux/redhat/#install.sh5Set up your printer driver. a. Run printtool program.#printtoolb. Click Add button and select the proper printer type andclick OK button. c. Set proper setting values in “Edit XXXXXXXX Entry” windowand click Select button of Input Filter (XXXXXXXX is theprinter type you select).d. Add the needed printer driver for the emulation that yourprinter supports. Select SAMSUNG Printer SPL compatible and click OKbutton. If you don’t update ghostscript, this item is notvisible.6Run lpr program to print your document or configure theprinter setup of your application. ex> #lpr -Plp1 sample.ps (lp1 is the printer device nameyou install.)1Transfer into super user mode. 2Insert your printer driver CD-ROM to CD-ROM drive. 3Mount your CD-ROM drive and copy the configuration file. #mount -t iso9660 /dev/cdrom/mnt/cdrom#cp /mnt/cdrom/linux/redhat71/sec-spl.foo/usr/share/printconf/foomatic/data4Update your pre-installed ghostscript package. #rpm -q ghostscript (check version to install.)#cd/mnt/cdrom/linux/gs5.XX (XX is pre-installedghostscript ‘--nodeps’ option skips dependencycheck.) #rpm -ivh --nodeps gs5XX.rpm (install ourghostscript.)Redjat 7.1 Linux

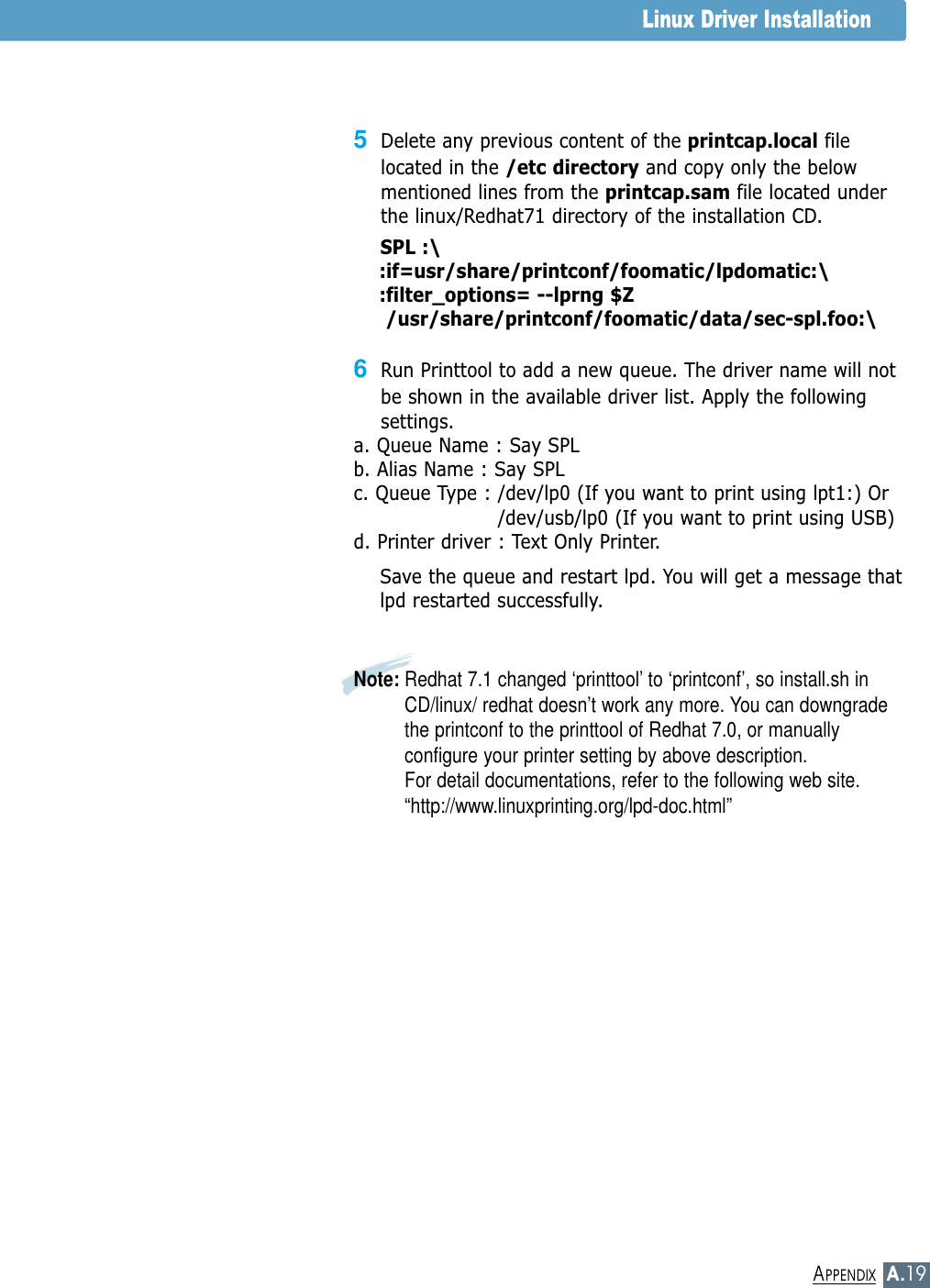

A.19APPENDIXLinux Driver Installation5Delete any previous content of the printcap.local filelocated in the /etc directory and copy only the belowmentioned lines from the printcap.sam file located underthe linux/Redhat71 directory of the installation CD. SPL :\ :if=usr/share/printconf/foomatic/lpdomatic:\:filter_options= --lprng $Z /usr/share/printconf/foomatic/data/sec-spl.foo:\6Run Printtool to add a new queue. The driver name will notbe shown in the available driver list. Apply the followingsettings. a. Queue Name : Say SPLb. Alias Name : Say SPLc. Queue Type : /dev/lp0 (If you want to print using lpt1:) Or/dev/usb/lp0 (If you want to print using USB)d. Printer driver : Text Only Printer. Save the queue and restart lpd. You will get a message thatlpd restarted successfully. Note: Redhat 7.1 changed ‘printtool’ to ‘printconf’, so install.sh inCD/linux/ redhat doesn’t work any more. You can downgradethe printconf to the printtool of Redhat 7.0, or manuallyconfigure your printer setting by above description. For detail documentations, refer to the following web site.“http://www.linuxprinting.org/lpd-doc.html”

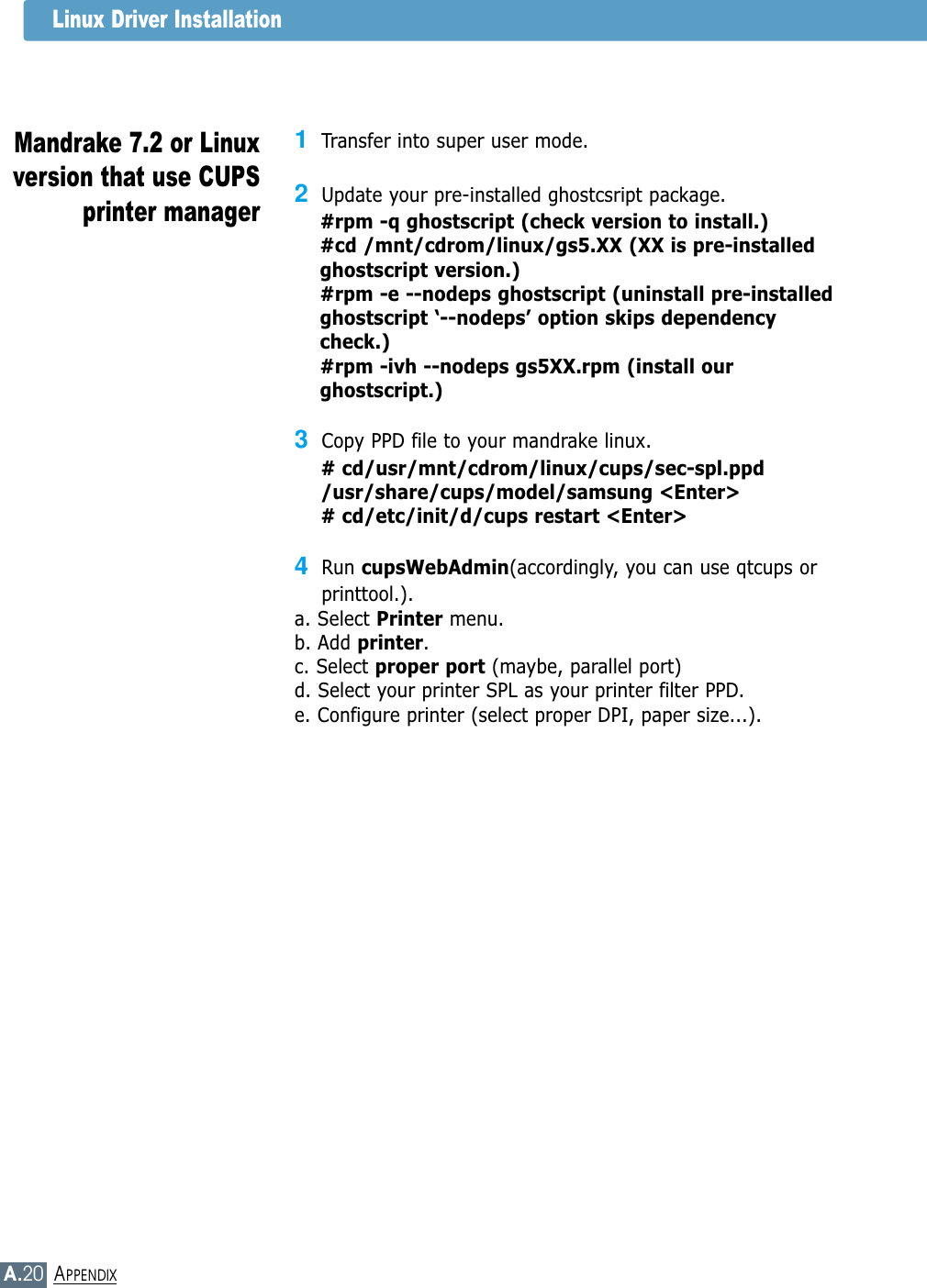

A.20APPENDIXLinux Driver Installation1Transfer into super user mode. 2Update your pre-installed ghostcsript package. #rpm -q ghostscript (check version to install.)#cd /mnt/cdrom/linux/gs5.XX (XX is pre-installedghostscript version.)#rpm -e --nodeps ghostscript (uninstall pre-installedghostscript ‘--nodeps’ option skips dependencycheck.)#rpm -ivh --nodeps gs5XX.rpm (install ourghostscript.)3Copy PPD file to your mandrake linux. # cd/usr/mnt/cdrom/linux/cups/sec-spl.ppd/usr/share/cups/model/samsung <Enter># cd/etc/init/d/cups restart <Enter>4Run cupsWebAdmin(accordingly, you can use qtcups orprinttool.).a. Select Printer menu.b. Add printer. c. Select proper port (maybe, parallel port)d. Select your printer SPL as your printer filter PPD. e. Configure printer (select proper DPI, paper size...).Mandrake 7.2 or Linuxversion that use CUPSprinter manager

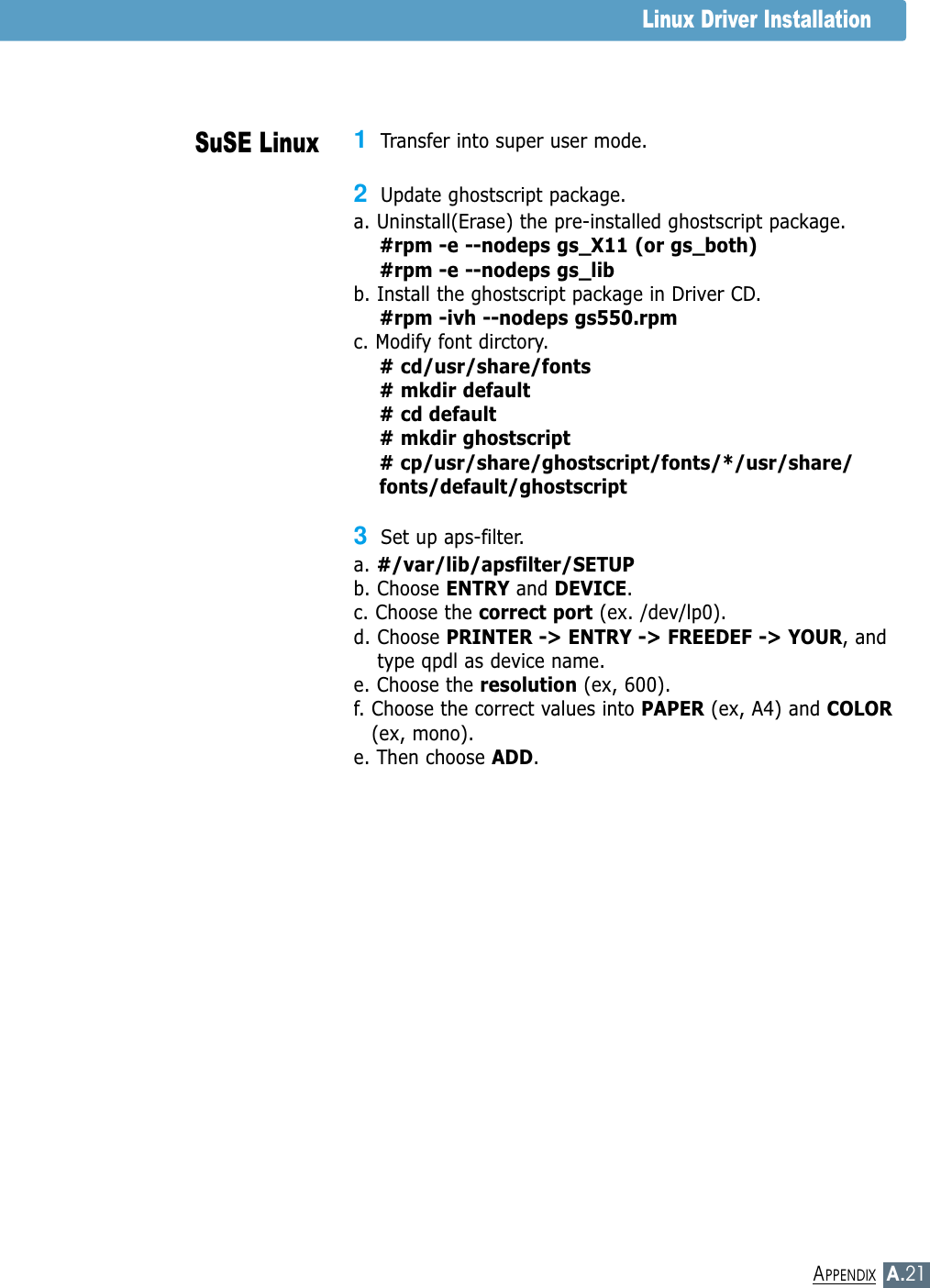

A.21APPENDIX1Transfer into super user mode. 2Update ghostscript package. a. Uninstall(Erase) the pre-installed ghostscript package. #rpm -e --nodeps gs_X11 (or gs_both)#rpm -e --nodeps gs_libb. Install the ghostscript package in Driver CD. #rpm -ivh --nodeps gs550.rpmc. Modify font dirctory. # cd/usr/share/fonts# mkdir default# cd default# mkdir ghostscript# cp/usr/share/ghostscript/fonts/*/usr/share/fonts/default/ghostscript3Set up aps-filter.a. #/var/lib/apsfilter/SETUPb. Choose ENTRY and DEVICE.c. Choose the correct port (ex. /dev/lp0).d. Choose PRINTER -> ENTRY -> FREEDEF -> YOUR, andtype qpdl as device name.e. Choose the resolution (ex, 600).f. Choose the correct values into PAPER (ex, A4) and COLOR(ex, mono).e. Then choose ADD. SuSE LinuxLinux Driver Installation

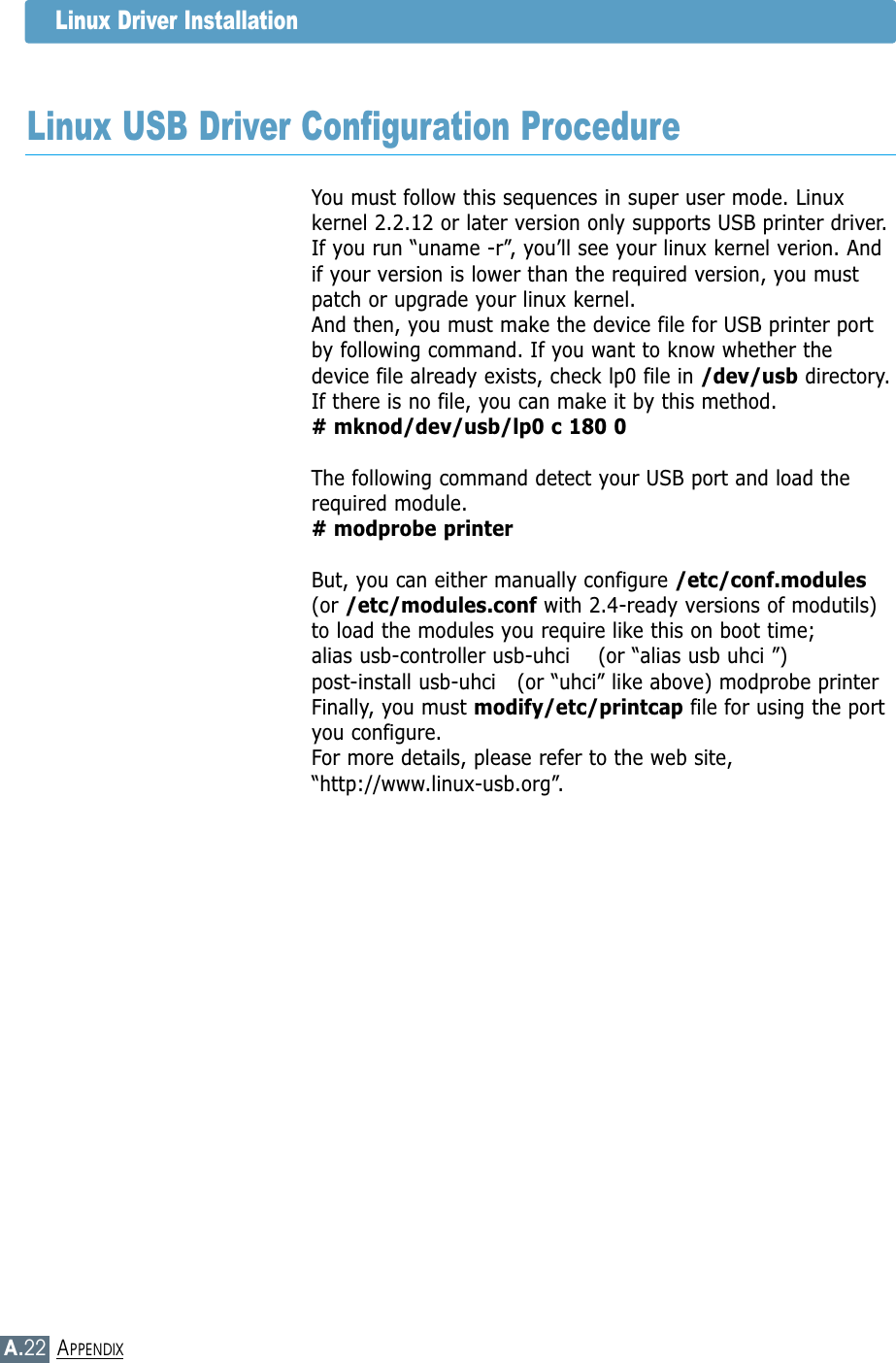

A.22APPENDIXYou must follow this sequences in super user mode. Linuxkernel 2.2.12 or later version only supports USB printer driver. If you run “uname -r”, you’ll see your linux kernel verion. Andif your version is lower than the required version, you mustpatch or upgrade your linux kernel. And then, you must make the device file for USB printer portby following command. If you want to know whether thedevice file already exists, check lp0 file in /dev/usb directory.If there is no file, you can make it by this method. # mknod/dev/usb/lp0 c 180 0The following command detect your USB port and load therequired module.# modprobe printerBut, you can either manually configure /etc/conf.modules(or /etc/modules.conf with 2.4-ready versions of modutils)to load the modules you require like this on boot time; alias usb-controller usb-uhci (or “alias usb uhci ”) post-install usb-uhci (or “uhci” like above) modprobe printerFinally, you must modify/etc/printcap file for using the portyou configure. For more details, please refer to the web site, “http://www.linux-usb.org”.Linux USB Driver Configuration ProcedureLinux Driver Installation

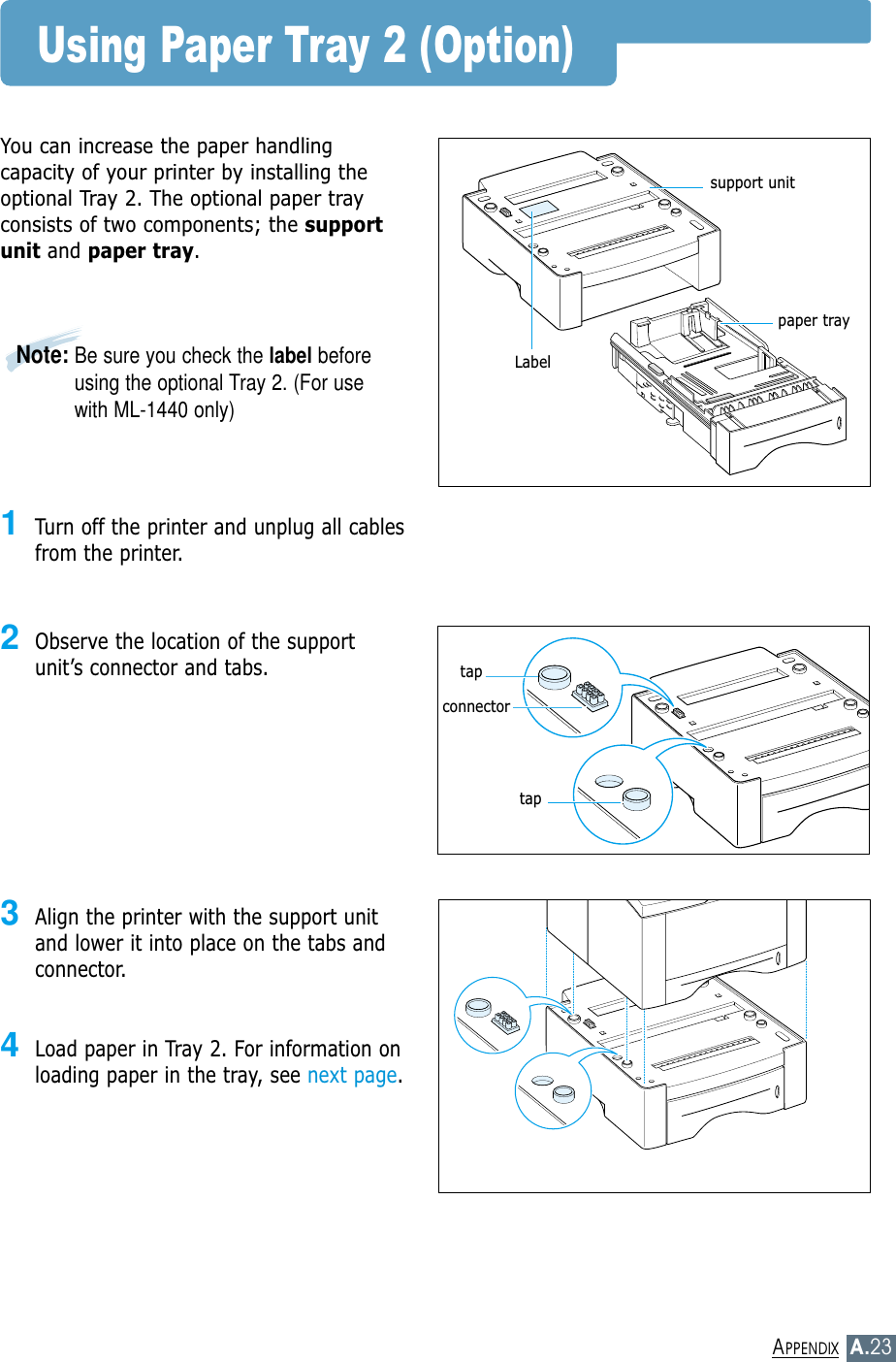

A.23APPENDIXUsing Paper Tray 2 (Option)You can increase the paper handlingcapacity of your printer by installing theoptional Tray 2. The optional paper trayconsists of two components; the supportunit and paper tray.1Turn off the printer and unplug all cablesfrom the printer.2Observe the location of the supportunit’s connector and tabs.3Align the printer with the support unitand lower it into place on the tabs andconnector.4Load paper in Tray 2. For information onloading paper in the tray, see next page.support unitpaper traytaptapconnectorNote: Be sure you check the label beforeusing the optional Tray 2. (For usewith ML-1440 only)Label

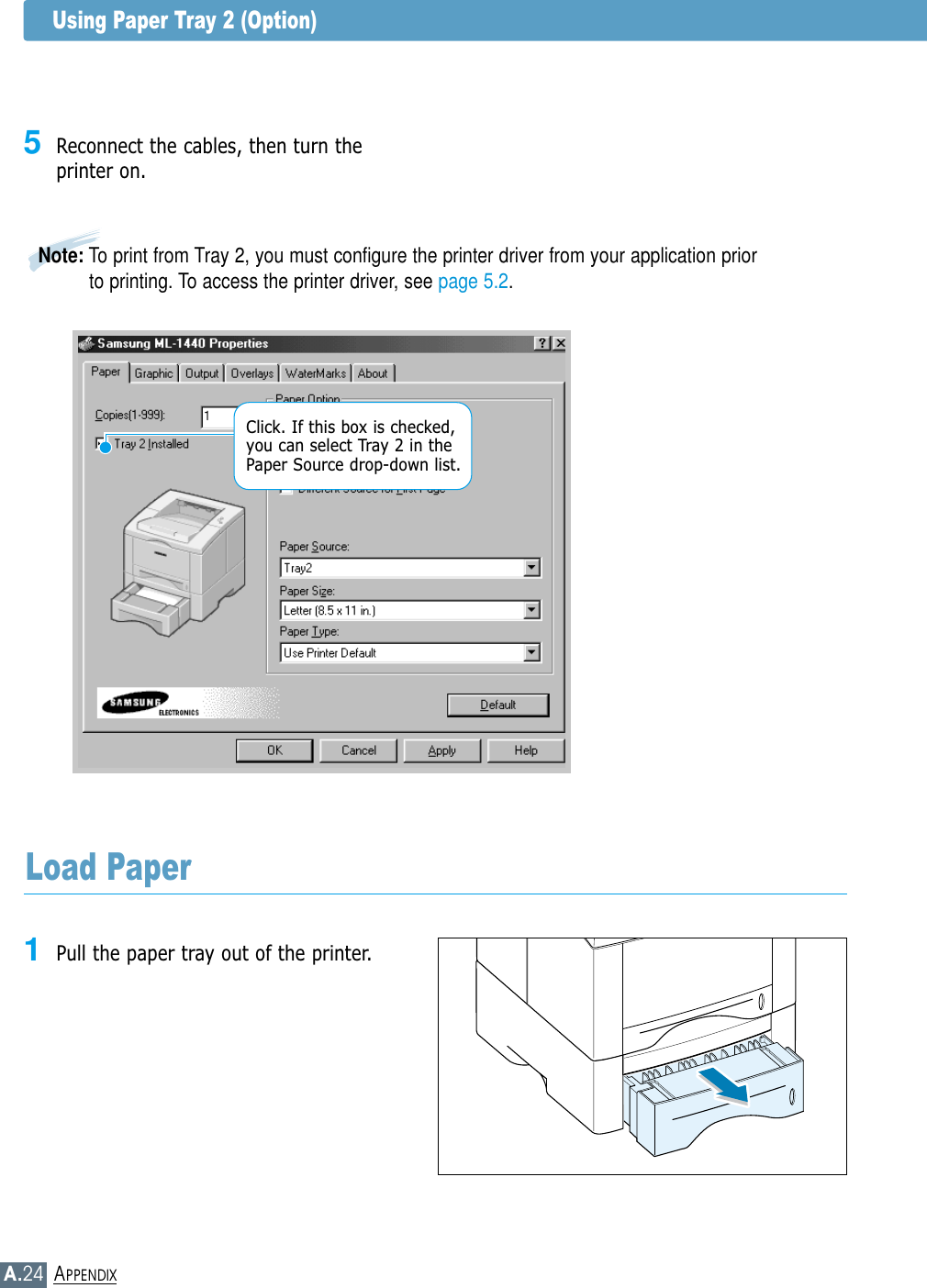

A.24APPENDIXUsing Paper Tray 2 (Option)Load Paper1Pull the paper tray out of the printer.5Reconnect the cables, then turn theprinter on.Note: To print from Tray 2, you must configure the printer driver from your application priorto printing. To access the printer driver, see page 5.2.Click. If this box is checked,you can select Tray 2 in thePaper Source drop-down list.

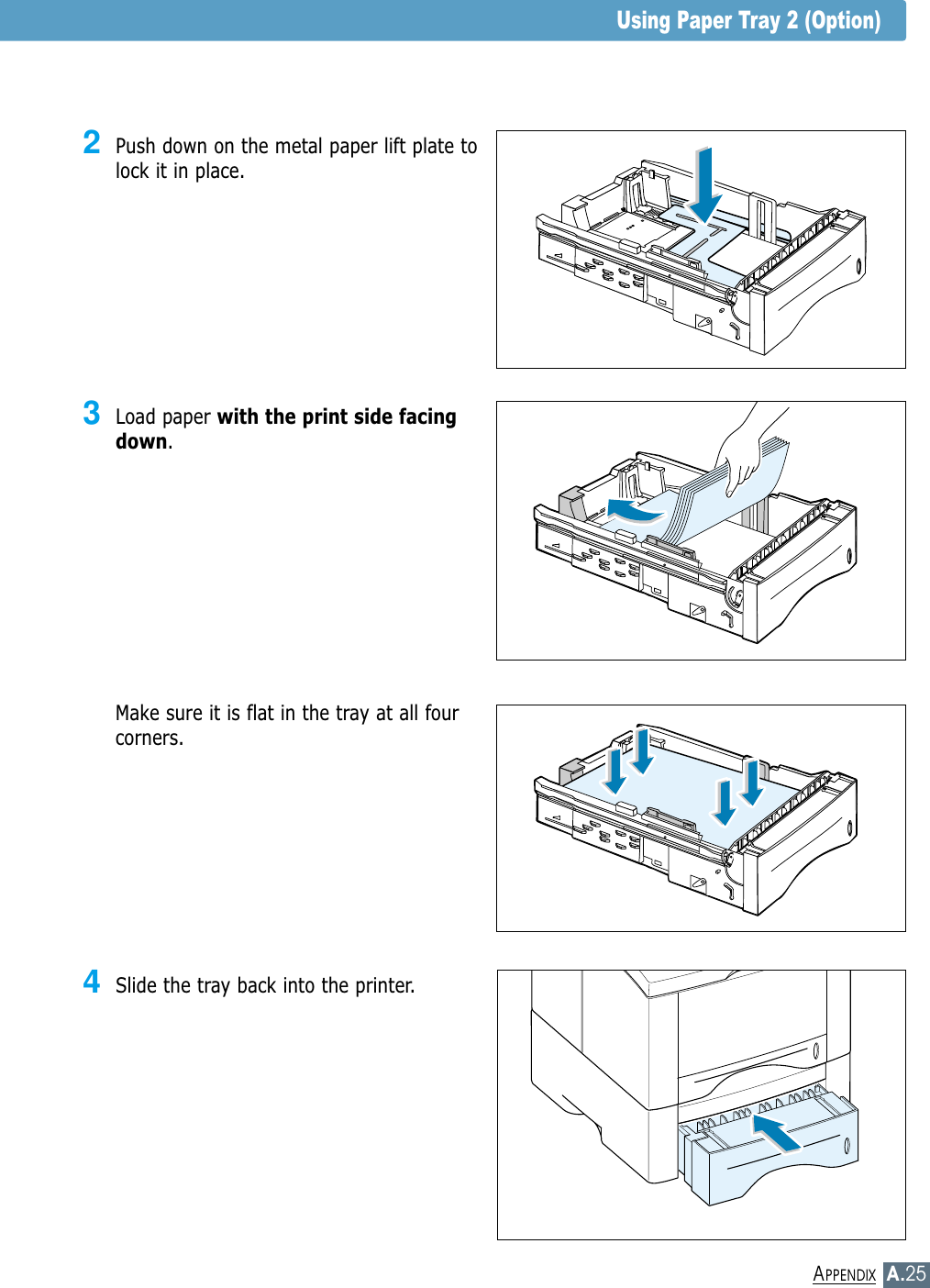

A.25APPENDIX4Slide the tray back into the printer.3Load paper with the print side facingdown.Make sure it is flat in the tray at all fourcorners.2Push down on the metal paper lift plate tolock it in place.Using Paper Tray 2 (Option)

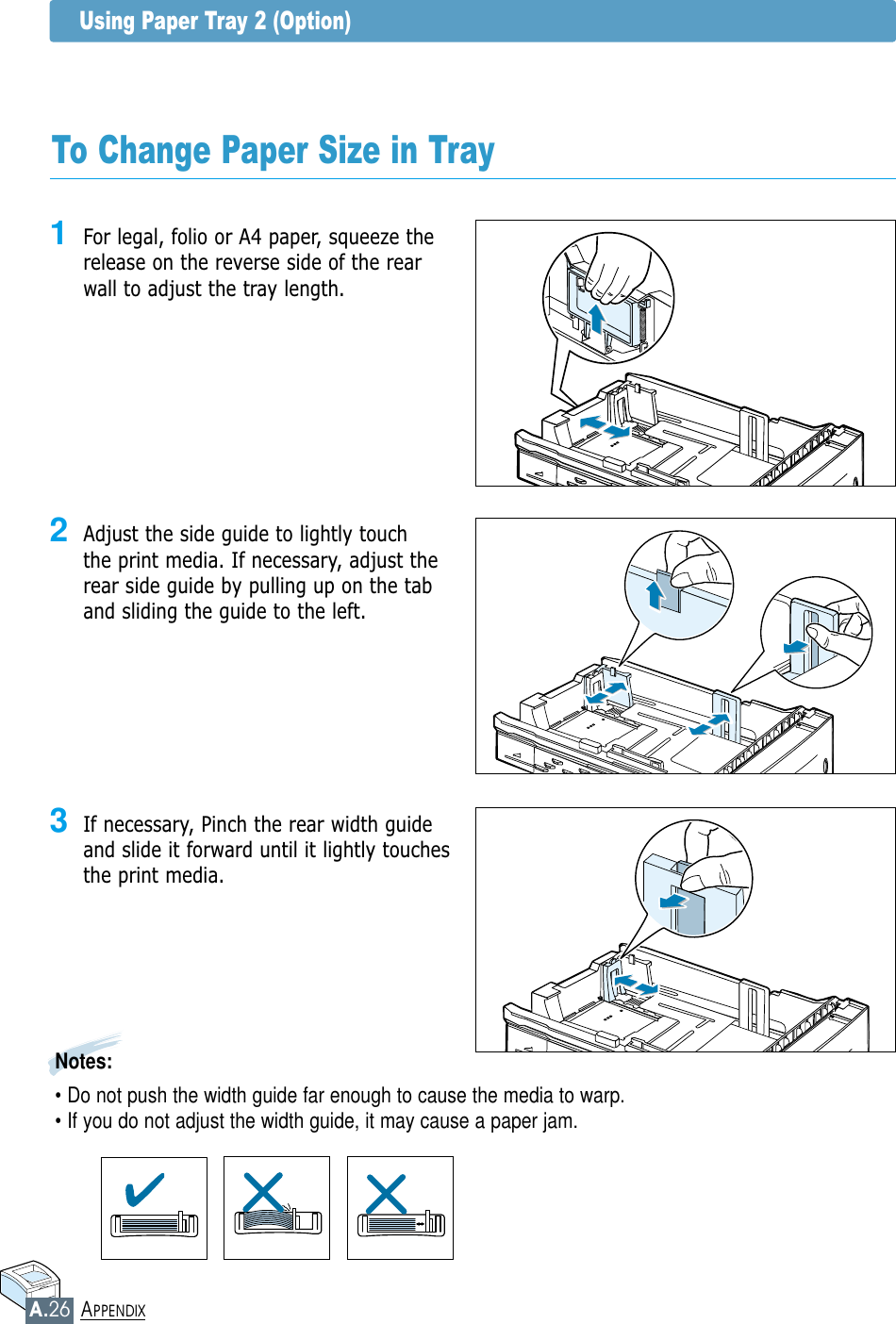

A.26APPENDIXUsing Paper Tray 2 (Option)To Change Paper Size in Tray1For legal, folio or A4 paper, squeeze therelease on the reverse side of the rearwall to adjust the tray length.2Adjust the side guide to lightly touchthe print media. If necessary, adjust therear side guide by pulling up on the taband sliding the guide to the left.3If necessary, Pinch the rear width guideand slide it forward until it lightly touchesthe print media.Notes: • Do not push the width guide far enough to cause the media to warp. • If you do not adjust the width guide, it may cause a paper jam.

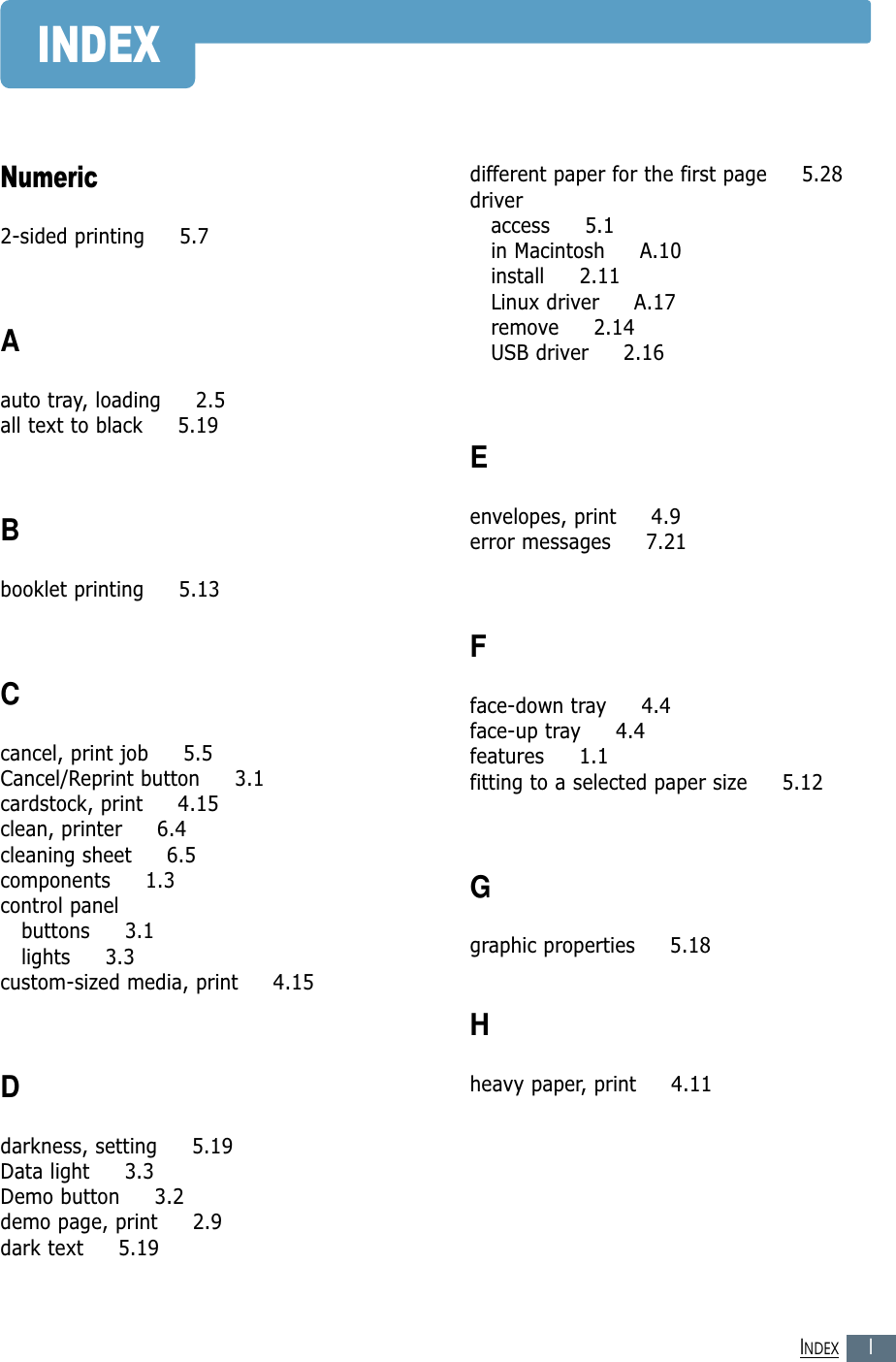

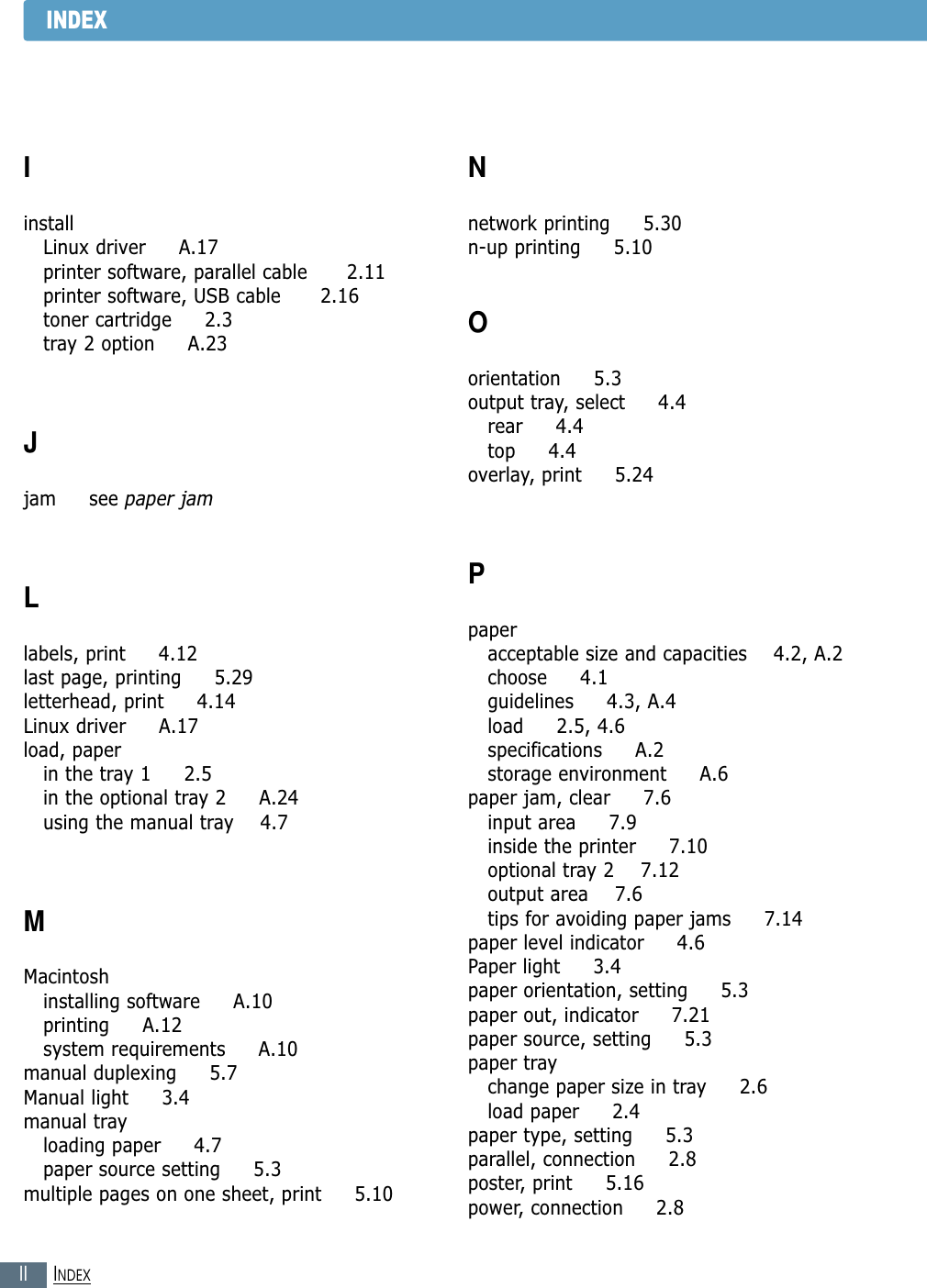

IINDEXINDEXNumeric2-sided printing 5.7Aauto tray, loading 2.5all text to black 5.19Bbooklet printing 5.13Ccancel, print job 5.5Cancel/Reprint button 3.1cardstock, print 4.15clean, printer 6.4cleaning sheet 6.5components 1.3control panelbuttons 3.1lights 3.3custom-sized media, print 4.15Ddarkness, setting 5.19Data light 3.3Demo button 3.2demo page, print 2.9dark text 5.19different paper for the first page 5.28driveraccess 5.1in Macintosh A.10install 2.11Linux driver A.17remove 2.14USB driver 2.16Eenvelopes, print 4.9error messages 7.21Fface-down tray 4.4face-up tray 4.4features 1.1fitting to a selected paper size 5.12Ggraphic properties 5.18Hheavy paper, print 4.11
IIINDEXIinstallLinux driver A.17printer software, parallel cable 2.11printer software, USB cable 2.16toner cartridge 2.3tray 2 option A.23Jjam see paper jamLlabels, print 4.12last page, printing 5.29letterhead, print 4.14Linux driver A.17load, paperin the tray 1 2.5in the optional tray 2 A.24using the manual tray 4.7MMacintoshinstalling software A.10printing A.12system requirements A.10manual duplexing 5.7Manual light 3.4manual trayloading paper 4.7paper source setting 5.3multiple pages on one sheet, print 5.10Nnetwork printing 5.30n-up printing 5.10Oorientation 5.3output tray, select 4.4rear 4.4top 4.4overlay, print 5.24Ppaperacceptable size and capacities 4.2, A.2choose 4.1guidelines 4.3, A.4load 2.5, 4.6specifications A.2storage environment A.6paper jam, clear 7.6input area 7.9inside the printer 7.10optional tray 2 7.12output area 7.6tips for avoiding paper jams 7.14paper level indicator 4.6Paper light 3.4paper orientation, setting 5.3paper out, indicator 7.21paper source, setting 5.3paper traychange paper size in tray 2.6load paper 2.4paper type, setting 5.3parallel, connection 2.8poster, print 5.16power, connection 2.8INDEX

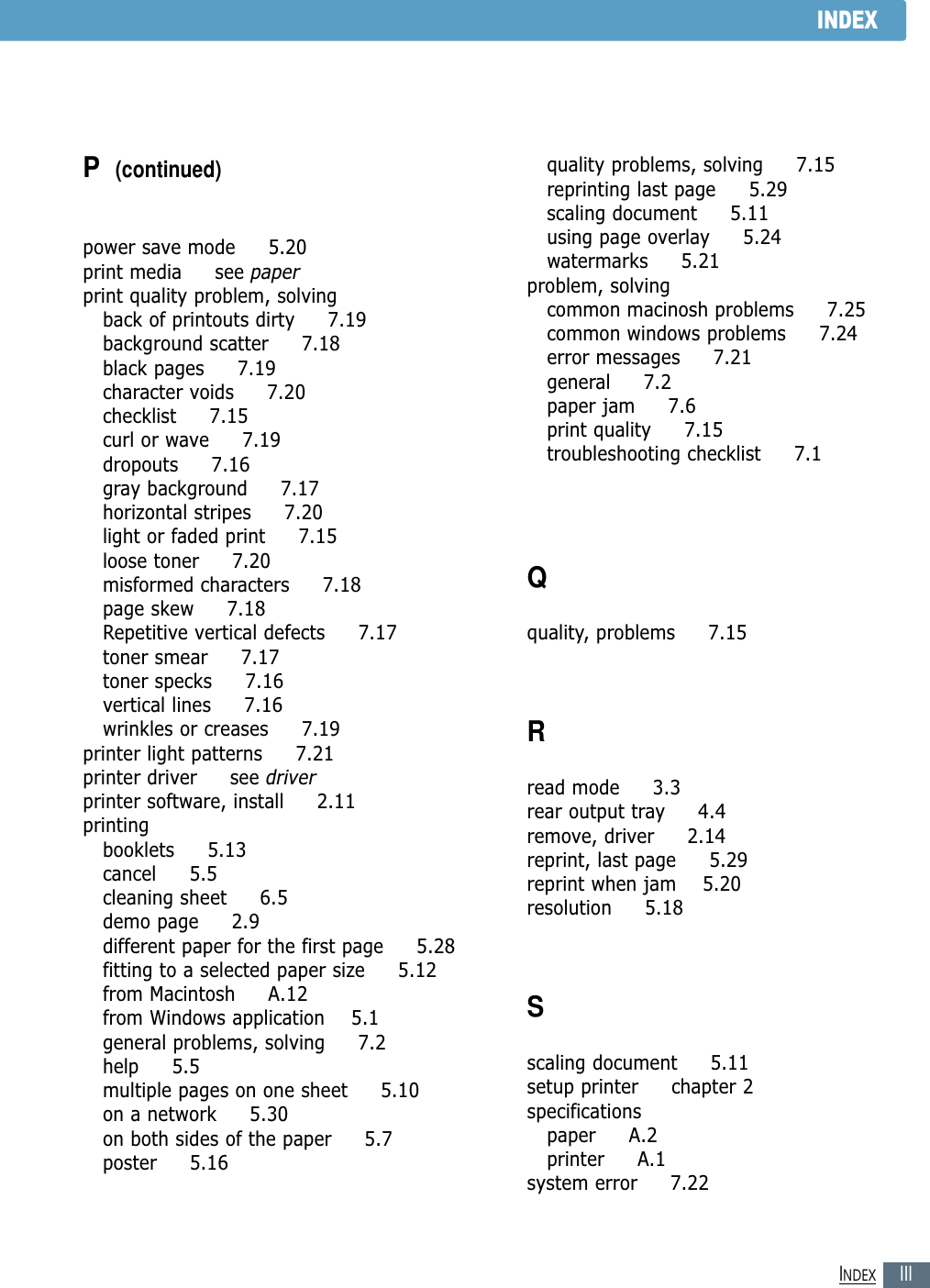

IIIINDEXP(continued)power save mode 5.20 print media see paperprint quality problem, solvingback of printouts dirty 7.19background scatter 7.18black pages 7.19character voids 7.20checklist 7.15curl or wave 7.19dropouts 7.16gray background 7.17horizontal stripes 7.20light or faded print 7.15loose toner 7.20misformed characters 7.18page skew 7.18Repetitive vertical defects 7.17toner smear 7.17toner specks 7.16vertical lines 7.16wrinkles or creases 7.19printer light patterns 7.21printer driver see driverprinter software, install 2.11printingbooklets 5.13cancel 5.5cleaning sheet 6.5demo page 2.9different paper for the first page 5.28fitting to a selected paper size 5.12from Macintosh A.12from Windows application 5.1general problems, solving 7.2help 5.5multiple pages on one sheet 5.10on a network 5.30on both sides of the paper 5.7poster 5.16quality problems, solving 7.15reprinting last page 5.29scaling document 5.11using page overlay 5.24watermarks 5.21problem, solvingcommon macinosh problems 7.25common windows problems 7.24error messages 7.21general 7.2paper jam 7.6print quality 7.15troubleshooting checklist 7.1Qquality, problems 7.15Rread mode 3.3rear output tray 4.4remove, driver 2.14reprint, last page 5.29reprint when jam 5.20resolution 5.18Sscaling document 5.11setup printer chapter 2specificationspaper A.2printer A.1system error 7.22INDEX

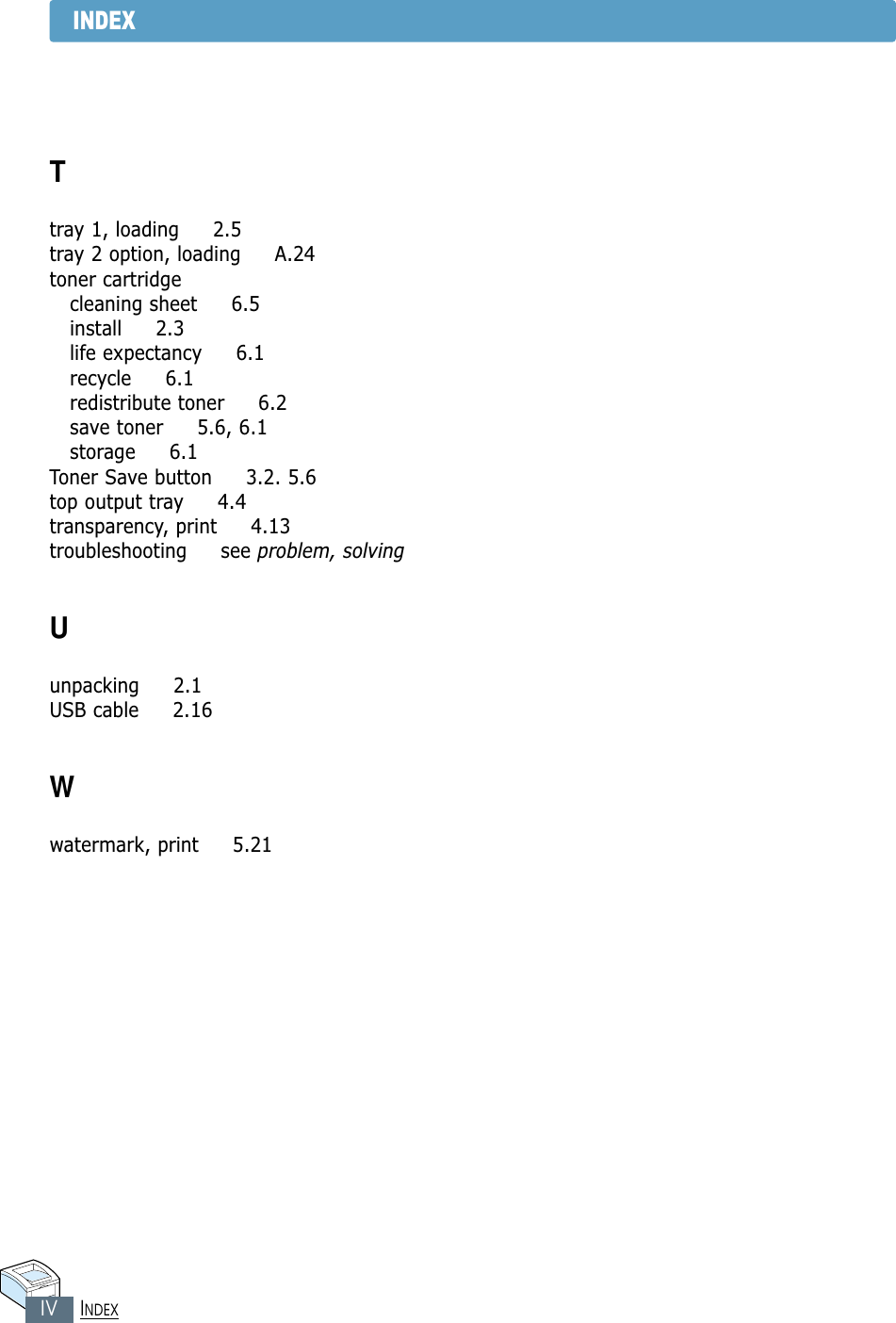

IVINDEXTtray 1, loading 2.5tray 2 option, loading A.24toner cartridgecleaning sheet 6.5install 2.3life expectancy 6.1recycle 6.1redistribute toner 6.2save toner 5.6, 6.1storage 6.1Toner Save button 3.2. 5.6top output tray 4.4transparency, print 4.13troubleshooting see problem, solvingUunpacking 2.1USB cable 2.16Wwatermark, print 5.21INDEX
