Users Manual2

5.4

PRINTING TASKS

Click other tabs on the top of the Properties dialog box to

access other features, if needed.

When you complete the print settings, click OK until the

Print dialog box is displayed.

Click OK to start printing.

• Most Windows applications will override set tings you specif y

in the printer driver. Change all print settings available in the

software application first, and change any remaining settings

using the printer driver.

• The settings you change remain in effect only while you are

using the current program. TToo mmaakkee yyoouurr cchhaannggeess

ppeerrmmaanneenntt, make them in the Printers folder. Follows this

procedure:

1. Click the Windows SSttaarrttbutton.

2. Select SSeettttiinnggss, then PPrriinntteerrss to open the Printers window.

Notes:

3. Select the SSaammssuunngg MMLL--11665500 SSeerriieess PPCCLL 66.

4. Click the right mouse button and select PPrrooppeerrttiieessto open

the properties window.

Printing a Document

5.5

PRINTING TASKS

There are two ways to stop a print job.

To stop a print job from the ML-1650 series printer

Press the Cancel/Reprint button on the control panel.

The printer will finish printing the page that is moving through

the printer and delete the rest of the print job. Pressing

Cancel/Reprint cancels only the current job in the printer. If

more than one print job is in printer memory, Cancel/Reprint

must be pressed once for each job.

To stop a print job from the Printers folder

1. From the Start menu, select Settings.

2. Select Printers to open the Printers window, then double-

click the Samsung ML-1650 Series PCL 6.

3. From the Document menu, select Cancel Printing

(Windows 9x) or Cancel (Windows NT 4.0).

The Samsung ML-1650 series printer has a help screen that can

be activated by the Help button in the printer Properties dialog

box. These help screens give detailed information about the

printer features provided by the ML-1650 series printer driver.

From the upper right hand corner, click ? then click on a

setting for more information.

If you want to restore the default printer properties settings

when you change the print settings, click Defaults in the

Properties dialog box.

Cancel/Reprint

Printing a Document

Canceling a Print Job

Printing Help

5.6

PRINTING TASKS

Toner Save

Using Toner Save Mode

Toner Save mode allows the printer to use less toner on each

page. Selecting this option will extend the life of your toner

cartridge and reduce your cost per page, but will reduce print

quality. This setting is not available with 1200 dpi settings.

There are two ways to enable the Toner Save mode.

To enable this feature from the ML-1650 series

printer

Press the Toner Save button on the control panel. The printer

must be in the ready mode (Data light is on).

• If the button backlight is on, toner save mode activates and

the printer uses less toner to print a page.

• If the button backlight is off, toner save mode is disabled

and the printer prints in the normal mode.

To enable this feature from the software application

1. When you change the print settings from your software

application, access the printer properties. See page 5.2 to

access the printer properties.

2. Click the Graphic tab, and select the Toner Save Mode

option. You can select from:

• Printer Setting: If you select this option, this feature is

determined by the setting you’ve made on the control

panel of the printer.

• Standard: If you don’t need to save toner to print a

document, select this option.

• Save: Select this option to allow the printer to use less

toner on each page.

3. Click OK.

5.7

PRINTING TASKS

Printing on Both Sides of the Paper (Manual Duplexing)

To print on both sides of the paper (manual duplexing), you

must run the paper through the printer twice. You can print

using the top output tray (face down tray) or the rear output

tray (face up tray). Samsung recommends using the top

output tray for light-weight paper. Use the rear output tray for

any heavy media or media that tends to curl when printed,

such as envelopes and card stock.

When you change the print settings from your software

application, access the printer properties. See page 5.2 to

access the printer properties.

From the Paper tab, select the paper orientation, source,

size and type.

Click the Output tab, then choose Long Edge or Short

Edge from the Type drop-down list in the Manual 2 Sided

Printing section.

Note: To print on both sides of the paper, yyoouu mmuusstt uussee tthhee

MMuullttii--PPuurrppoossee TTrraayyfor the paper input source. Load paper in

the Multi-Purpose Tray.

Note: If you can not see

LLoonngg EEddggeein the TTyyppeedrop-

down list, set the TTyyppeebox in

the OOuuttppuutt MMooddeesection to

MMuullttiippllee PPaaggeess ppeerr SSiiddeeor FFiitt

ttoo PPaaggee.

5.8

PRINTING TASKS

Select Face Down Tray (top output tray) or Face Up Tray

(rear output tray) in which the printed media is to be

stacked. According to this option, the printer will determine

the print page order when the second sides are printed.

If you want to print the instruction page which tells you

how to load the paper, click Printing Instruction Page. If

the box is checked, the printer prints the instruction page

before the duplexing job is printed. If the box is empty, this

feature is disabled.

Start printing. The printer automatically prints only the

odd-numbered pages.

Choosing Long Edge lets you place the binding orientation

along the long edge of the paper as in a magazine.

Choosing Short Edge lets you place the binding orientation

along the short edge of the paper, as in a calendar.

Printing on Both Sides of the Paper (Manual Duplexing)

➐➐

Long Edge in the

Landscape orientation

➐➐

Long Edge in the

Portrait orientation

➛➛☎☎☎☎

➛➛☎☎☎☎Short Edge in

the Portrait

orientation

➐➐

Short Edge in the

Landscape orientation

You are prompted to reinsert the paper into the Multi-

Purpose Tray. Click OK on the screen to start printing the

second side. The printer automatically prints only the even-

numbered pages.

5.9

PRINTING TASKS

After the first side has been printed, remove the remaining

paper from the Multi-Purpose Tray and set it aside until

after you finish your manual duplexing job.

Gather up the printed pages, flip the stack, and then

straighten the stack before placing it back in the Multi-

Purpose Tray.

The following illustrations show you how to put the printed

pages back into the printer.

Printing on Both Sides of the Paper (Manual Duplexing)

Long Edge in the

Landscape orientation

Long Edge in the

Portrait orientation

Short Edge in the

Landscape orientation

Short Edge in the

Portrait orientation

Note: If you have selected the FFaaccee UUpp TTrraayyoption in Step

3, the last page is placed on the top of the stack. DDoo nnoott

rearrange the pages before reloading them to print the

second side. Your printer knows the stacked page order

and will print the corresponding second side for each page.

(left edge toward

the printer)

(top edge toward

the printer)

(right edge toward

the printer)

(bottom edge

toward the printer)

Remove the printed

pages, and reload them

into the Multi-Purpose

Tray with the printed

side face down.

Note: Manual duplexing

can cause the printer to

become dirty more quickly

and can therefore reduce

print quality. See

“Cleaning the Printer” on

page 6.4 if the printer

becomes dirty.

5.10

PRINTING TASKS

1 2

3 4

You can select the number of pages that you want to print on

a single sheet of paper. If you choose to print more than one

page per sheet, the pages will appear decreased in size and

arranged on the sheet. You can specify up to 16 pages.

When you change the print settings from your software

application, access the printer properties. See page 5.2 to

access the printer properties.

From the Paper tab, select the paper orientation, source,

size and type.

Click the Output tab, and choose Multiple Pages per

Side in the Type drop-down list. Then select the number of

pages you want to print per sheet (1, 2, 4, 6, 9 or 16) in

the Pages per Sheet drop-down list.

Click Print Page Borders if you want to print a border

around each page on the sheet. Print Page Borders is

enabled only if Pages per Sheet is 2, 4, 6, 9, or 16.

➐☎

➐☎4 pages per sheet

1 2

➐☎

➐☎6 pages per sheet

Printing Multiple Pages on

One Sheet of Paper (N-Up Printing)

Click OK, then start printing.

PRINTING TASKS

5.11

➐➐

Portrait orientation

Printing Booklets

➐➐

Landscape orientation

The Booklet printing feature allows you to print your document

as a 2-sided (duplex) job and to arrange the pages so that the

paper can be folded in half after printing to produce a booklet.

When you change the print settings from your software

application, access the printer properties. See page 5.2 to

access the printer properties.

From the Paper tab, select the paper orientation, source,

size and type.

Click the Output tab, then choose Booklet Printing from

the Type drop-down list.

When you select Booklet Printing, the Manual 2 Sided

Printing option automatically changes to Short Edge. This

setting is required to format the printed pages correctly.

Note: For booklet printing, only four paper sizes are

supported: Letter, A4, Legal, and Executive.

Note: To print booklet, you mmuusstt uussee tthhee MMuullttii--PPuurrppoossee TTrraayyfor

the paper input source. Load paper in the Multi-Purpose Tray.

5.12

PRINTING TASKS

Printing Booklets

Select Face Down Tray (top output tray) or Face Up Tray

(rear output tray) in which the printed media will be

stacked. According to this option, the printer will determine

the print page order when the second sides are printed.

If you want the instruction page which tells you how to load

the paper, click Printing Instruction Page. If the box is

checked, the printer prints the instruction page before the

duplexing job is printed. If the box is empty, this feature is

disabled.

Print the document.

After side one has been printed, remove the remaining

paper from the Multi-Purpose Tray and set it aside until

your booklet job is complete.

The printer prints side one as shown below for an 8-page

document.

➐➐☎☎

➐➐☎☎8 page document

PRINTING TASKS

5.13

Printing Booklets

Gather up the printed pages, flip the stack, and then

straighten the stack before placing it back in the multi-

purpose tray. The following illustrations show how to put

the paper back into the printer.

Note: If you have selected

the FFaaccee UUpp ttrraayy option at

Step 3, the last page is

placed on the top of the

stack. DDoo nnoottrearrange

the pages before reloading

the pages. Your printer

knows the stacked page

order and will print the

corresponding second

side for each page.

You are prompted to reinsert the paper into the Multi-

Purpose Tray. Click OK on the screen. The printer will finish

printing.

Fold and staple the pages.

➐➐

➐➐Face Up Tray output ➐➐☎☎

➐➐☎☎Face Down Tray output

In Landscape orientation,

insert the pages with

bottom edge

toward the printer.

In Portrait orientation,

insert the pages with

left edge

toward the printer.

➐➐

➐➐Face Up Tray output ➐➐

➐➐Face Down Tray output

Remove the printed pages,

and reload them into the

Multi-Purpose Tray with

printed side face down.

5.14

PRINTING TASKS

Printing on Different Paper for the First Page

When you change the print settings from your software

application, access the printer properties. See page 5.2 to

access the printer properties.

Click the Paper tab, and click Different Source for First

Page.

If the box is checked, this feature is enabled and the dialog

box allows you to select the desired paper source for the

First Page and Other Pages independently. If the box is

empty, this feature is disabled.

Click OK, then start printing.

Note: The paper size for all pages of the print job must be

the same.

PRINTING TASKS

5.15

Fitting Your Document To a Selected Paper Size

This printer feature allows you to scale your print job to any

selected paper size regardless of the digital document size.

This can be useful when you want to check fine details on a

small document.

When you change the print settings from your software

application, access the printer properties. See page 5.2 to

access the printer properties.

Click the Output tab, and select Fit to Page in the Type

drop-down list.

You’ll see the Application page size and then you will be

prompted to select the Fit to Paper Size. Select the

correct size from the drop-down list.

Click OK, then start printing.

5.16

PRINTING TASKS

Printing Posters

This feature allows you to print a single-page document onto

4, 9, or 16 sheets of paper, for the purpose of pasting the

sheets together to form one poster-size document.

When you change the print settings from your software

application, access the printer properties. See page 5.2 for

more information on accessing printer properties.

From the Paper tab, select the paper orientation, source,

size and type.

Click the Output tab, and select Poster in the Type drop-

down list.

➐➐

Poster printing

with 2x2 style

PRINTING TASKS

5.17

Printing Poster

➛➛☎☎☎☎

➛➛☎☎☎☎2 x 2

➐➐☎☎☎☎

➐➐☎☎☎☎Overlap=0 ➐➐☎☎☎☎

➐➐☎☎☎☎Overlap=25

25 pixels

➛➛☎☎☎☎

➛➛☎☎☎☎Custom (150%)

Click OK, then start printing.

To determine the scaling factor, select the Style; 2x2, 3x3,

4x4 or Custom.

For example, if you select 2x2, the output will be

automatically stretched to cover 4 physical pages.

If you select Custom, you can adjust the scaling factor

manually. For example, if you specify 150%, the image will

be printed across 4 pages with 150% scaled.

You may specify an overlap in pixel to make it easier to

reconstruct the resulting poster.

5.18

PRINTING TASKS

Use the following options to adjust the print quality for your

specific printing needs when you access the printer properties.

See page 5.2 for mor infomation on accessing printer properties.

If necessary, click the Graphic tab to display the settings shown

below.

Setting Graphic Properties

5.18

PRINTING TASKS

5.19

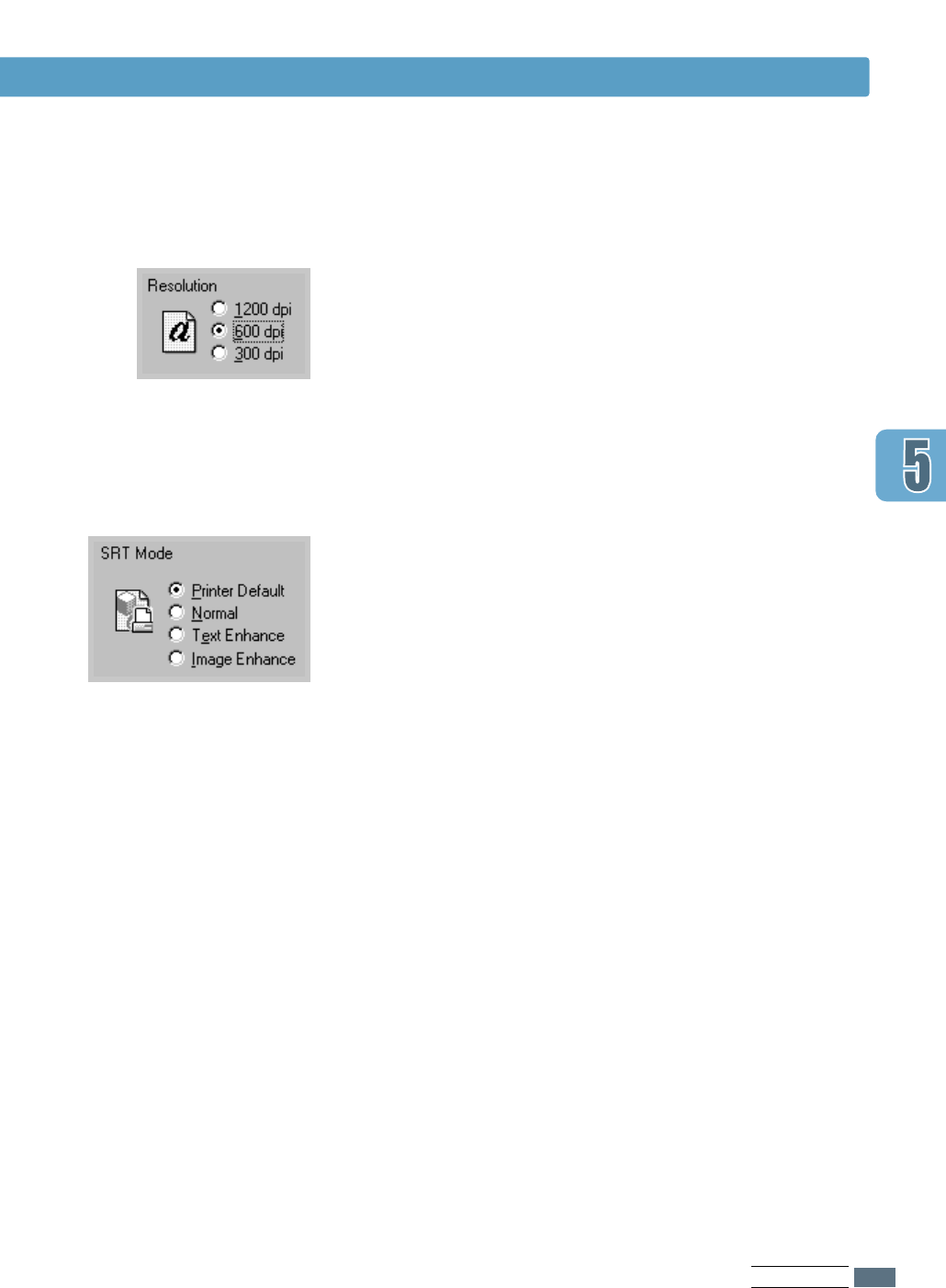

You can select the printing resolution; 1200 dpi, 600 dpi,

300 dpi. The higher the setting, the sharper the clarity of

printed characters and graphics. Higher settings may increase

the time it takes to print a document.

Some printed characters or images can appear to have jagged

or uneven edges. Set this Samsung Resolution enhancement

Technology (SRT) option to improve the print quality of your

text and image and make the characters and images appear

smoother.

Note: SRT Mode is disabled when the 1200 dpi settings are

selected.

• Printer Default – Choose this setting to use SRT that your

printer provides.

• Normal – SRT mode is disabled. Choose this setting if

graphics, particularly scanned images, are not

printing clearly.

• Text Enhance – This setting refines the print quality of

characters by smoothing out jagged edges

that can occur on the angles and curves of

each character.

• Image Enhance – This setting refines the print quality of

photo images using SRT.

Resolution

SRT Mode

Setting Graphic Properties

PRINTING TASKS

5.19

5.20

PRINTING TASKS

This option can be used for configuring the halftone of the

printed illustration. The best way to choose a Halftoning setting

for your graphic image is to experiment. Print a graphic image

at each setting and choose the one you like best.

• Device – Choose this setting for printed graphic image that

printer provides.

• Fine – Choose this setting for printed images that you want

to have a smooth, realistic and photographic

appearance. This setting provides soft contrasts

between various shades of gray. This setting also

works well for images originally designed with color.

• Coarse – Choose this setting if your graphic images were

originally scanned in through a scanner.

• Line art – Choose this setting for graphic images with

intricate lines and fine detail, like clip art graphics.

This setting provides solid lines and sharp

contrasts between shaded areas.

Halftoning

This option can be used for configuring the printer to process

graphics as raster or vector images. Setting this option tells

Windows how to send graphic images to the printer. All

graphics can be printed as raster images, however some

geometric shapes or patterns print faster if they are printed as

vector graphics.

• Vector – If you select the Vector setting, Windows will send

graphics to the printer as a mixture of vector and

bitmap images.

• Raster – When you select the Raster setting, Windows will

send all graphics to the printer as bit map images.

Graphic Mode

Note: Not all graphic images can print using the VVeeccttoorr

setting. If you are using the VVeeccttoorr setting, and your graphic

images do not print as they appear on your computer screen,

select the RRaasstteerrsetting and reprint your graphic.

Setting Graphic Properties

5.20

PRINTING TASKS

5.21

Printing Watermarks

The Watermark option allows you to print text over an existing

document. For example, you may want to have large gray

letters reading “Draft” or “Confidential” printed diagonally

across the first page or all pages of a document.

There are several predefined watermarks that come with the

ML-1650 series printer, and they can be modified or you can

add new ones to the list.

When you change the print settings from your software

application, access the printer properties. See page 5.2

for more information on accessing printer properties.

Click the Watermark tab, and select the desired

watermark in the Message drop-down list. You will see

the selected watermark in the preview window.

Click OK, then start printing.

To use an existing

watermark

preview

window

PRINTING TASKS

5.21

5.22

PRINTING TASKS

Printing Watermarks

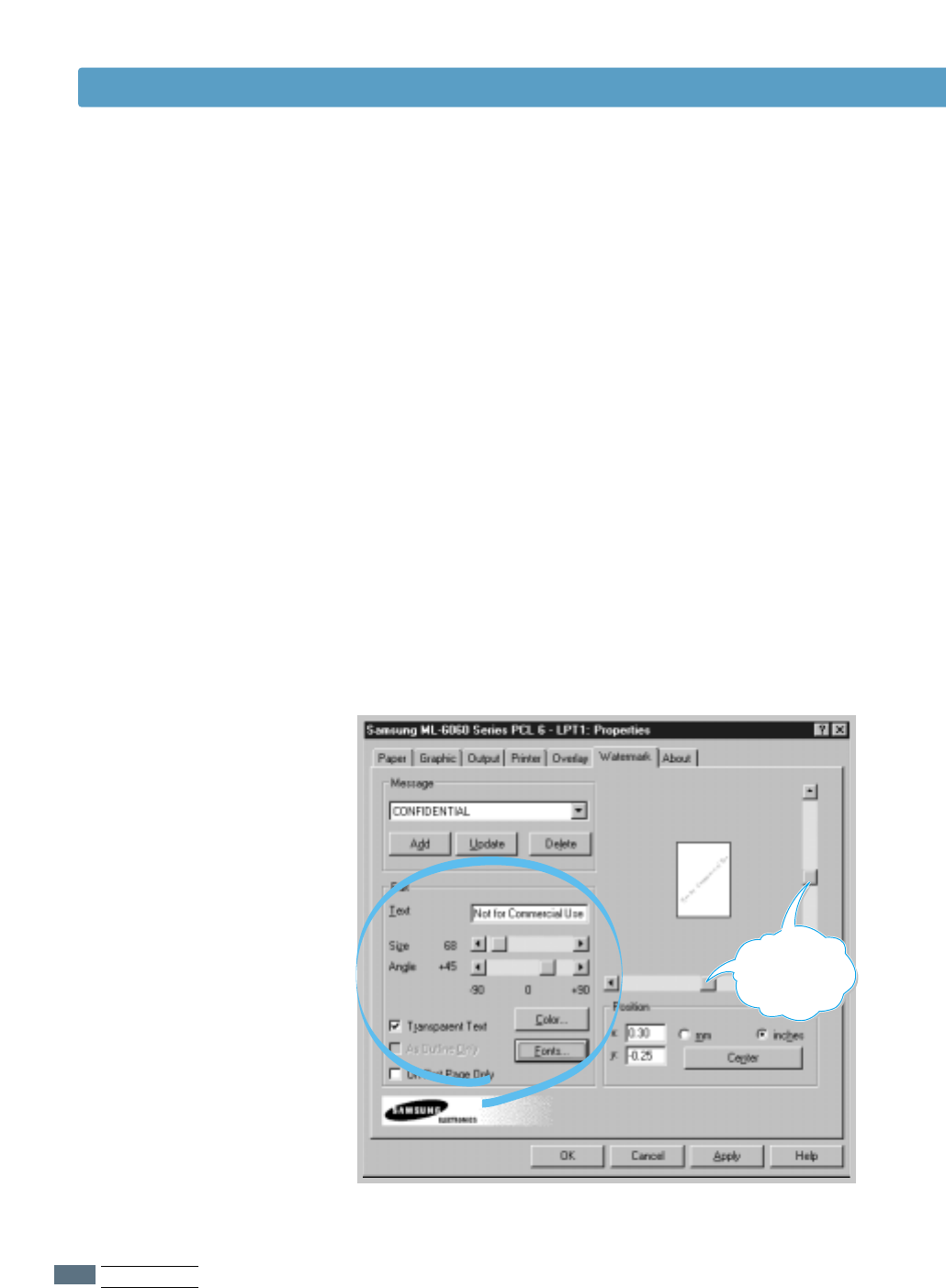

When you change the print settings from your software

application, access the printer properties. See page 5.2 for

more information on accessing the printer properties.

Click the Watermark tab, and enter the desired text

message in the Text field. This will be displayed in the

preview window. The preview window is provided so that you

can see how the watermark will appear on the printed page.

Select the desired watermark options. You can select the

font type and size, color and angle. There are three

checkboxes at the bottom of the dialog box:

• Transparent Text – Allows the document to show

through the watermark.

• As Outline Only – Prints the text outline of the

watermark. This setting globally effects

all watermarks in the list.

• On First Page Only – Prints the watermark only on the

first page.

To create or edit a

watermark

Use these scroll

bars to adjust

the position.

5.22

PRINTING TASKS

5.23

Printing Watermarks

If you have created a new or edited an existing watermark,

the Add and Update button is enabled.

To add a new watermark to the list, click Add.

If you want to edit, select the desired watermark from the

list, edit, then click Update.

When you complete the edit, click OK, then start printing.

To stop printing the watermark, select None in the Message

drop-down list.

When you change the print settings from your software

application, access the printer properties. See page 5.2 for

more information on accessing the printer properties.

From the Watermark tab, select the watermark you want

to delete in the Messages drop-down list.

Click Delete.

Click OK.

To delete a

watermark

PRINTING TASKS

5.23

5.24

PRINTING TASKS

Using Page Overlay

An overlay is text and/or images stored in the computer HDD

as a special file format that can be printed on any document

you choose. Overlays are often used to take the place of

preprinted forms and letterhead paper. Rather than using

preprinted letterhead, for example, you can create an overlay

containing the exact same information that is currently on

your letterhead. Then when you want to print a letter with

your company’s letterhead, you do not need to load preprinted

letterhead paper in the printer. You need only to tell the

printer to print the letterhead overlay on your document.

What is an Overlay?

WORLD BEST

Dear ABC

Regards

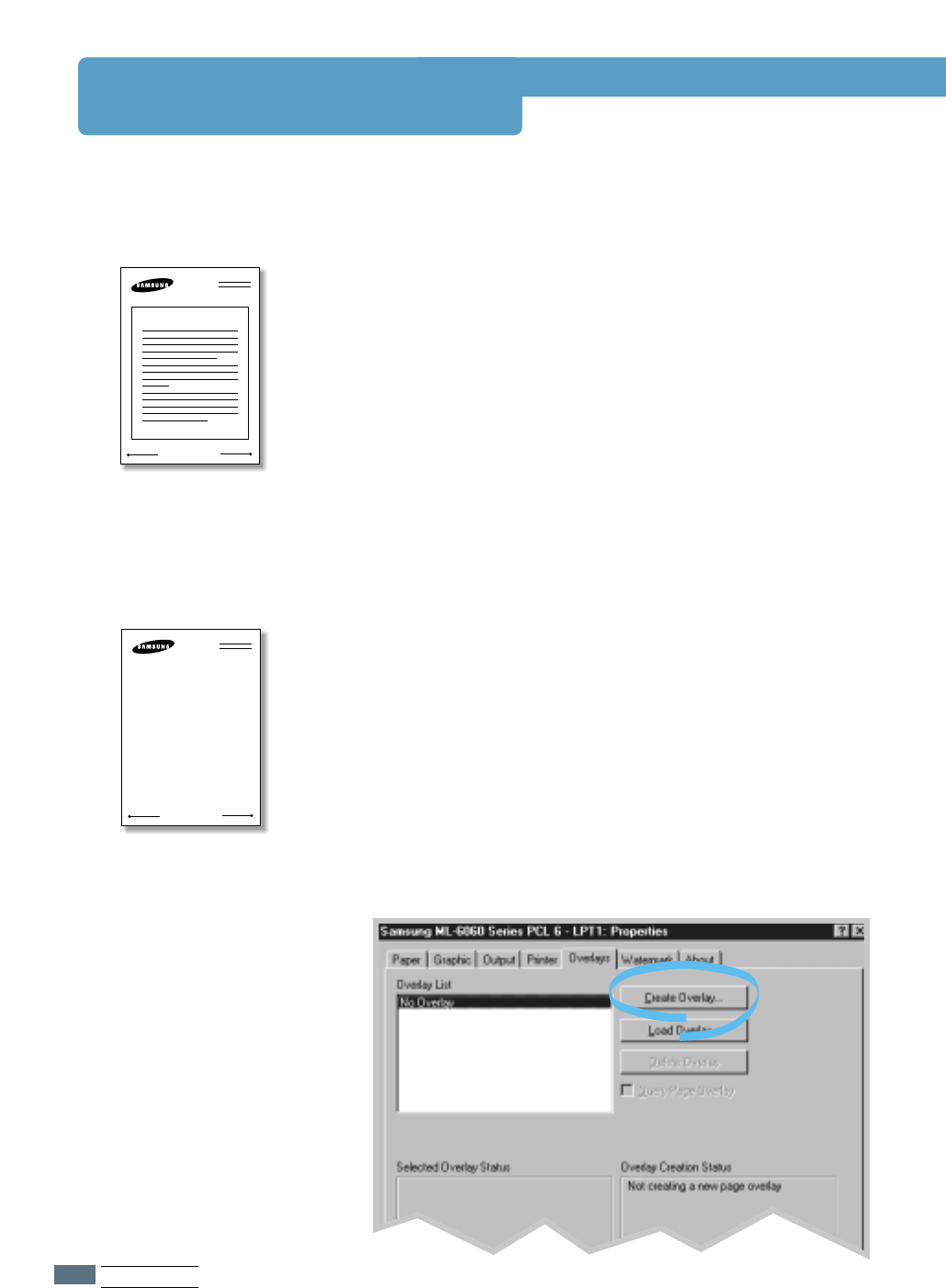

To use a page overlay, you must create a new page overlay

containing your logo or image.

Create or open a document containing a text or image you

want to use for page overlay. Position the items exactly as

you wish them to appear when printed as an overlay. If

needed, save the file for later use.

Select Print from the File menu. Then click Properties in

the application’s Print dialog box to access the printer

properties. For details, see page 5.2.

Click the Overlays tab, and click Create Overlay.

Creating a New Page

Overlay

WORLD BEST

5.24

PRINTING TASKS

5.25

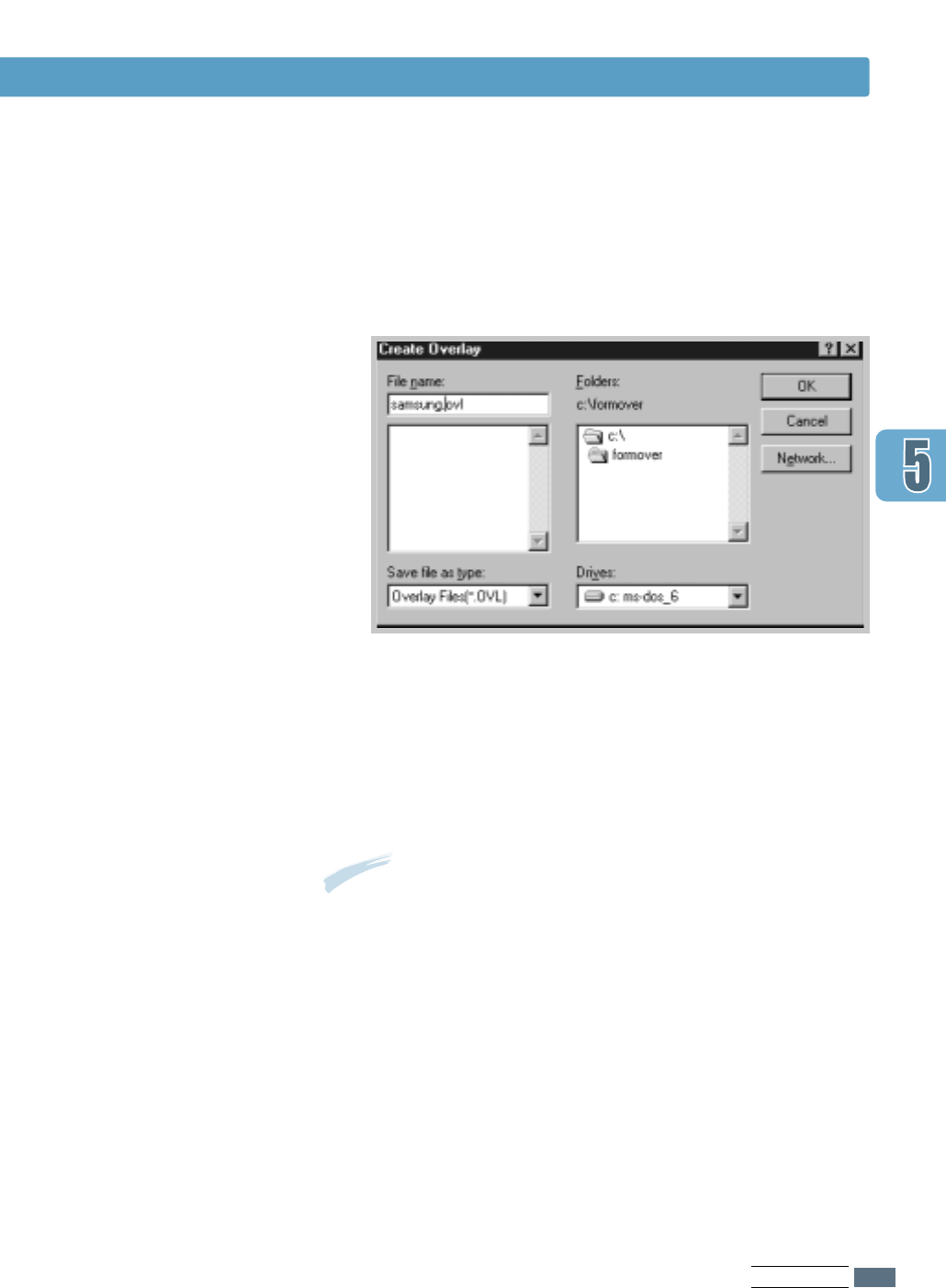

In the Create Overlay dialog box, type a name of up to

eight characters in the File name box. Select the

destination path if necessary. (The default is

C:\FORMOVER).

Click OK. You will see the name in the Overlay List box.

Click OK or Yes until you complete the creation.

The file is not printed out. Instead it will be stored on your

computer HDD disk.

Note: The overlay document size must be the same as

documents you will print with the overlay.

Using Page Overlay

After an overlay has been created, it is ready to be printed

with your document. To print an overlay with a document:

Create or open the document you want to print.

When you change the print settings from your software

application, access the printer properties. See page 5.2 to

access the printer properties.

Click the Overlays tab, and select the desired overlay from

the Overlay List box.

PRINTING TASKS

5.25

5.26

PRINTING TASKS

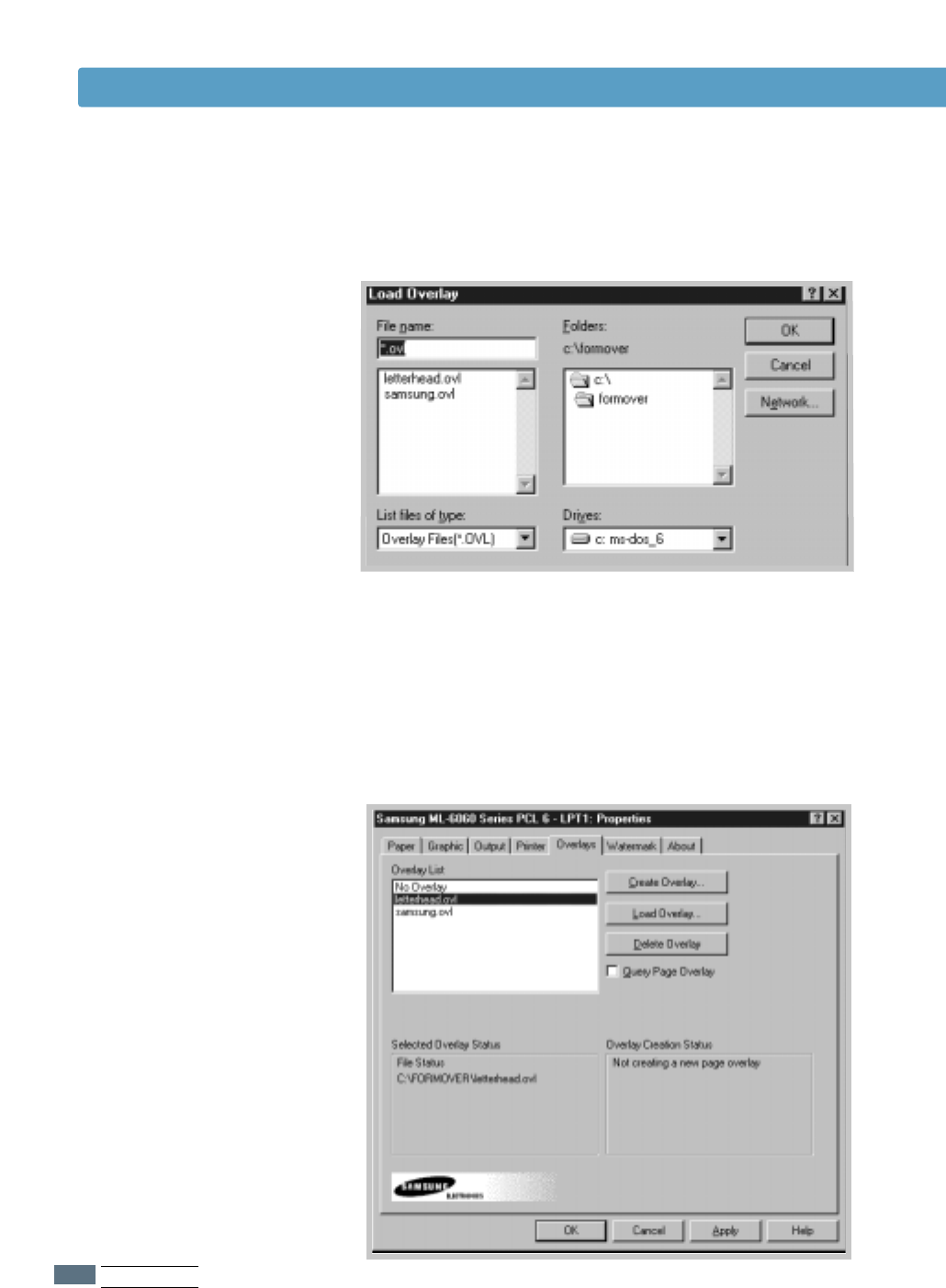

If the desired overlay file does not appear in the Overlay

List box, click Load Overlay, and select the overlay file.

If you have stored the overlay file you want to use into an

external source, you can also load the file when you access

this Load Overlay window.

After you select the file, click OK. The file is now shown in

the Overlay List box and is available for printing. Select

the overlay from the Overlay List box.

Using Page Overlay

5.26

PRINTING TASKS

5.27

You can delete page overlays that are no longer used.

In the printer properties dialog box, click the Overlays tab.

Select the overlay you want to delete from the Overlay

List box.

Click Delete Overlay.

Click OK until you exit the Print dialog box.

Deleting a Page

Overlay

If necessary, click Query Page Overlay. If this box is

checked, a message box will appear each time you submit a

document for printing, asking you to confirm your wish to

print an overlay on your document.

Answering Yes to the message box means that the selected

overlay will be printed with your document.

Answering No to the message box cancels overlay printing.

If this box is empty, and an overlay has been selected, the

overlay will be automatically printed with your document.

Click OK or Yes until the printing starts.

The selected overlay will be downloaded with your print job

and printed on your document.

Using Page Overlay

PRINTING TASKS

5.27

chapter

Maintaining

Your Printer

Maintaining⇤

Your Printer

6.2

MAINTAINING YOUR PRINTER

This chapter provides suggestions for high-quality and

economical printing and information for maintaining the toner

cartridge and the printer.

Topics included in this chapter are:

◆Maintaining Toner Cartridge

◆Cleaning the Printer

6.1

MAINTAINING YOUR PRINTER

Maintaining Toner Cartridge

To get the most from the toner cartridge, keep the following

guidelines in your mind.

• Do not remove the toner cartridge from its package until you

are ready to use it. The shelf life of a cartridge in an unopened

package is approximately 2 years. The shelf life of a cartridge

in an opened package is approximately 6 months.

• Do not refill toner cartridges. The printer warranty does not

cover damage caused by using a refilled cartridge.

• Store toner cartridges in the same environment as the printer.

• Do not remove a toner cartridge from the printer except to

replace it, clean it or clear a paper jam. Replace the cartridge

immediately.

• To prevent damage to the toner cartridge, do not expose it to

light for more than a few minutes.

Toner cartridge

storage

The life of the toner cartridge depends on the amount of toner

that print jobs require. When printing text at 5 % coverage, a

new toner cartridge lasts an average of 8,000 pages. (But, the

toner cartridge supplied with the printer lasts an average of

4,000 pages.)

Toner cartridge life

expectancy

After you install a new toner cartridge (see page 2.2), follow the

instructions included in the toner cartridge box to recycle the old

cartridge.

Recycling toner

cartridge

To save toner, press the Toner Save button on the printer

control panel. The button will be lit. You can also enable the

Toner Save Mode in your printer properties. Refer to “Using

Toner Save Mode” on page 5.6. Selecting this option will expand

the life of the toner cartridge and reduce your cost per page, but

will reduce print quality.

Saving toner

6.2

MAINTAINING YOUR PRINTER

Toner Cartridge

When toner is low, faded or light areas may appear on a printed page. You may be able to

temporarily improve print quality by redistributing the toner. The following procedures may

allow you to finish the current print job before replacing the toner cartridge.

Redistributing Toner

Open the top cover.

Remove the toner cartridge from the

printer.

Gently shake the toner cartridge from

side to side 5 or 6 times to redistribute

the toner.

Note: If the toner gets on your

clothing, wipe it of f with a dry cloth

and wash clothing in cold water. HHoott

wwaatteerr sseettss ttoonneerr iinnttoo ffaabbrriicc.

CAUTIONS:

• Avoid reaching too far into the

printer. TThhee ffuussiinngg aarreeaa mmaayy bbee hhoott.

• To prevent damage to the toner

cartridge, ddoo nnoott eexxppoossee iitt ttoo lliigghhtt

ffoorrmore than a few minutes.

6.3

MAINTAINING YOUR PRINTER

Toner Cartridge

Reinsert the toner cartridge into the

printer. Be sure that the toner cartridge

is firmly in its place.

Firmly

close the cover.

If the print remains light

Remove the old cartridge and install a

new toner cartridge. See “Install the

Toner Cartridge” on page 2.2.

6.4

MAINTAINING YOUR PRINTER

Cleaning the Printer

To maintain print quality, follow the cleaning procedures below every time the toner cartridge

is replaced or whenever print quality problems occur. As much as possible, keep the printer

free from dust and debris.

Notes:

• Do not use ammonia-based cleaners or volatile solvents such as thinner, on or around the

printer. These can damage the printer.

• While cleaning the inside of the printer, be careful not to touch the transfer roller (located

underneath the toner cartridge ). The oil from your hands on the roller can cause print

quality problems.

Wipe the outside surface of the printer with a soft, clean, lint-

free cloth. You can dampen the cloth slightly with water, but be

careful not to be let any water drip onto the printer or inside of

it.

Cleaning the Outside

During the printing process, paper, toner, and dust particles

can accumulate inside the printer. Over time, this buildup can

cause print quality problems such as toner specks or smearing.

Cleaning inside the printer will eliminate or reduce these

problems.

Cleaning the Inside

Turn the printer off and unplug the power cord, then wait for

the printer to cool.

Open the top cover and remove the toner cartridge.

With a dry, lint-free cloth, wipe away any dust and spilled toner

from the toner cartridge area and the toner cartridge cavity.

Cleaning inside the

printer

Note: To prevent damage

to the toner cartridge, do

not expose it to light for

more than a few minutes.

Cover it with a piece of

paper, if necessary. Also,

do not touch the black

transfer roller inside the

printer. By doing so, you

can damage the printer.

Your printer automatically picks up a sheet of paper from the

paper tray and prints out a cleaning sheet with the dust or toner

particles on it.

6.5

MAINTAINING YOUR PRINTER

Reinsert the toner cartridge and close the top cover. Then, turn

the printer on.

Cleaning the Printer

Printing a cleaning

sheet

Printing a cleaning sheet cleans the drum inside the toner

cartridge. Use this process if you are experiencing blurred,

faded or smeared printouts. This process will produce a page

with toner debris, which should be discarded.

Make sure the printer is turned on and in the ready state and

that there is paper loaded in the paper tray.

Press and hold Demo on the control panel for about 10 seconds

until all control panel lights remain steadily lit, then release.

Locate the long strip of glass (LSU) inside the top of the

cartridge compartment, and gently swab the glass to see if dirt

turns the white cottom black.

Error

Manual

Paper

Data

Cancel/Reprint

Demo

Toner Save

chapter

This chapter gives helpful information for what to do if you

encounter a printer error. It provides information on the

following topics:

◆ Troubleshooting Checklist

◆ Solving General Printing Problems

◆ Printing Special Pages

◆ Clearing Paper Jams

◆ Solving Print Quality Problems

◆ Troubleshooting Error Messages

◆ Common Windows Problems

◆ Common Macintosh Problems

◆ Troubleshooting PS Errors

Problem Solving

7.1

PROBLEM SOLVING

Troubleshooting Checklist

If the printer is not working properly, complete the following checklist in order. If the printer

does not pass a step, follow the corresponding troubleshooting suggestions.

Check

Make sure that the Data light on

the control panel is on.

Press the Demo button to print

a demo page to verify that the

printer is feeding paper correctly.

See page 7.6.

Check the demo page to see if it

is printed correctly.

Print a short document from a

software application to verify

that the computer and printer

are connected and are

communicating correctly.

If completing the checklist did

not diagnose the problem with

the printer, check the following

troubleshooting sections.

Solution

• If no lights are on, check the power cord

connection. Check the power switch. Check the

power source by plugging into another outlet.

• If other lights are on, go to “Troubleshooting Error

Messages” on page 7.22.

• If a demo page does not print, check the paper

supply in the paper tray.

• If the paper jams in the printer, go to “ Clearing

Paper Jams” on page 7.7.

• If the Error indicator light is illuminated on the

control panel, go to “Troubleshooting Error

Messages” on page 7.22.

If there is a print quality problem, go to “Solving

Print Quality Problems” on page 7.16.

• If the page does not print, check the cable

connection between the printer and computer.

• Check the print queue or print spooler (print

monitor in Mac) to see if the printer has been

paused.

• Check the software application to make sure you

are using the proper printer driver and

communication port. If the page is interrupted

during printing, go to “Solving General Printing

Problems” on page 7.2.

• “Solving General Printing Problems” on page 7.2.

• “Troubleshooting Error Messages” on page 7.22.

• “Common Windows Problems” on page 7.24.

• “Common Macintosh Problems” on page 7.25.

• “Troubleshooting PS Errors” on page 7.27.

7.1

PROBLEM SOLVING

7.2

PROBLEM SOLVING

Solving General Printing Problems

Problem

The printer does not

print.

Possible Cause

The printer is not

receiving power.

Your printer is not

selected as the default

printer.

Check the printer for

the following:

The printer may be in

manual feed mode and

out of paper. (The

Manual and the Data

lights are blinking.)

The connection cable

between the computer

and the printer is not

connected properly.

The connection cable

between the computer

and the printer is

defective.

The port setting is

incorrect.

Solution

If no lights are on, check the power

cord connections. Check the power

switch and the power source.

Select Samsung ML-1650 Series

PCL 6 or Samsung ML-1650

Series PS as your default printer.

• The printer cover is not closed.

• Paper is jammed.

• No paper is loaded.

• Toner cartridge is not installed.

• Printer system error occurs.

Contact a service representative.

Add paper to the Multi-Purpose tray,

and press the Demo button on the

printer’s control panel.

Disconnect the printer cable and

reconnect it.

If possible, attach the cable to

another computer that is working

properly and print a job. You may

also try using a different printer

cable.

Check the Windows printer setting to

make sure that the print job is sent

to the correct port (for example,

LPT1). If the computer has more

than one port, make sure the printer

is attached to the correct one.

If you have any problems with the operation of your ML-1650 series printer, refer to the table

for suggested solutions.

7.2

PROBLEM SOLVING

7.3

PROBLEM SOLVING

Solving General Printing Problems

Problem

The printer does not

print. (continued)

Printer selects media

from the wrong

paper source.

Paper does not feed

into the printer.

Print job is extremely

slow.

Possible Cause

The printer may be

configured incorrectly.

The printer driver may

be incorrectly installed.

The printer is

malfunctioning.

The paper source

selection in the printer

properties may be

incorrect.

Paper has not been

loaded correctly.

There is too much paper

in the paper tray.

The paper is too thick.

The job may be very

complex.

The maximum speed of

16 pages per minute

cannot be exceeded even

when more memory is

added.

If using Windows 95, the

Spooling Setting may be

set incorrectly.

Solution

Check the printer properties to make

sure that all print settings are correct.

Uninstall the printer driver, then

reinstall the printer driver. Try printing

a demo page.

Check the lights on the control panel to

determine if the printer is indicating a

system error.

For many software applications the

paper source selection is found under

the Paper tab within the printer

properties. Select the correct paper

source.

Remove paper from the paper tray and

reload it correctly.

Remove excess paper from the tray .

Use only paper that meets the

specifications required by the printer.

Reduce the complexity of the page or

try adjusting the print quality settings.

If this problem occurs frequently, add

memory to the printer.

From the Start menu, choose Settings

and Printers. Right-click the Samsung

ML-1650 series printer icon, choose

Properties, click the Details tab, and

then choose the Spool Settings

button. Select the desired spool setting

from the available choices.

7.4

PROBLEM SOLVING

Solving General Printing Problems

Problem

Print job is extremely

slow. (continued)

Half of the page is

blank.

The paper keeps

jamming.

Possible Cause

The computer may have

insufficient random-

access memory (RAM).

The page layout is too

complex.

The page orientation

setting may be

incorrect.

The paper size and the

paper size settings do

not match.

There is too much

paper in the paper tray.

An incorrect type of

paper is being used.

An incorrect output

method is being used.

There may be debris

inside the machine.

Solution

Install more random-access memory

(RAM) in your computer. See “Memory

and PostScript DIMMs” on page H.2.

Simplify the page layout and remove

any unnecessary graphics from the

document, if possible. Install more

memory. See “Memory and PostScript

DIMMs” on page H.2.

Change the page orientation in your

application.

Make sure that the paper size in the

print settings matches the paper in

the paper tray.

Remove excess paper from the tray.

If printing special media, use the

Multi-Purpose Tray.

Use only paper that meets the

specifications required by the printer.

Media such as thick paper should not

be printed using the standard face-

down stacker. Use the rear face-up

output tray instead.

Open the top cover and remove the

debris.

7.5

PROBLEM SOLVING

Solving General Printing Problems

Problem

The printer prints, but

the text is wrong,

garbled, or incomplete.

Pages print, but are

totally blank.

Possible Cause

The printer cable is

loose or defective.

The wrong printer driver

was selected.

The software application

is malfunctioning.

The operating system is

malfunctioning.

The toner cartridge is

defective or out of toner.

The sealing tape may

still be in the toner

cartridge.

The file may have blank

pages.

Some parts, such as the

controller or the board

may be defective.

Solution

Disconnect the printer cable and

reconnect it. Try a print job that you

know works. If possible, attach the

cable and printer to another computer

and try a print job that you know

works. Finally, try a new printer cable.

Check the application’s printer

selection menu to make sure that your

printer is selected.

Try printing a job from another

application.

If printing from Windows (any

version), exit to a Dos prompt and

verify functionality with the following

command: At a C:\ prompt, type Dir

LPT1, then press Enter. (This

assumes you are connected to LPT1.)

Exit Windows and reboot the

computer. Turn the printer off and then

back on again.

Replace the toner cartridge.

Remove the toner cartridge and pull

out the sealing tape. Reinstall the

toner cartridge, and check by printing

a demo page.

Check the file to make sure that it

does not contain blank pages.

Contact a service representative.

7.6

PROBLEM SOLVING

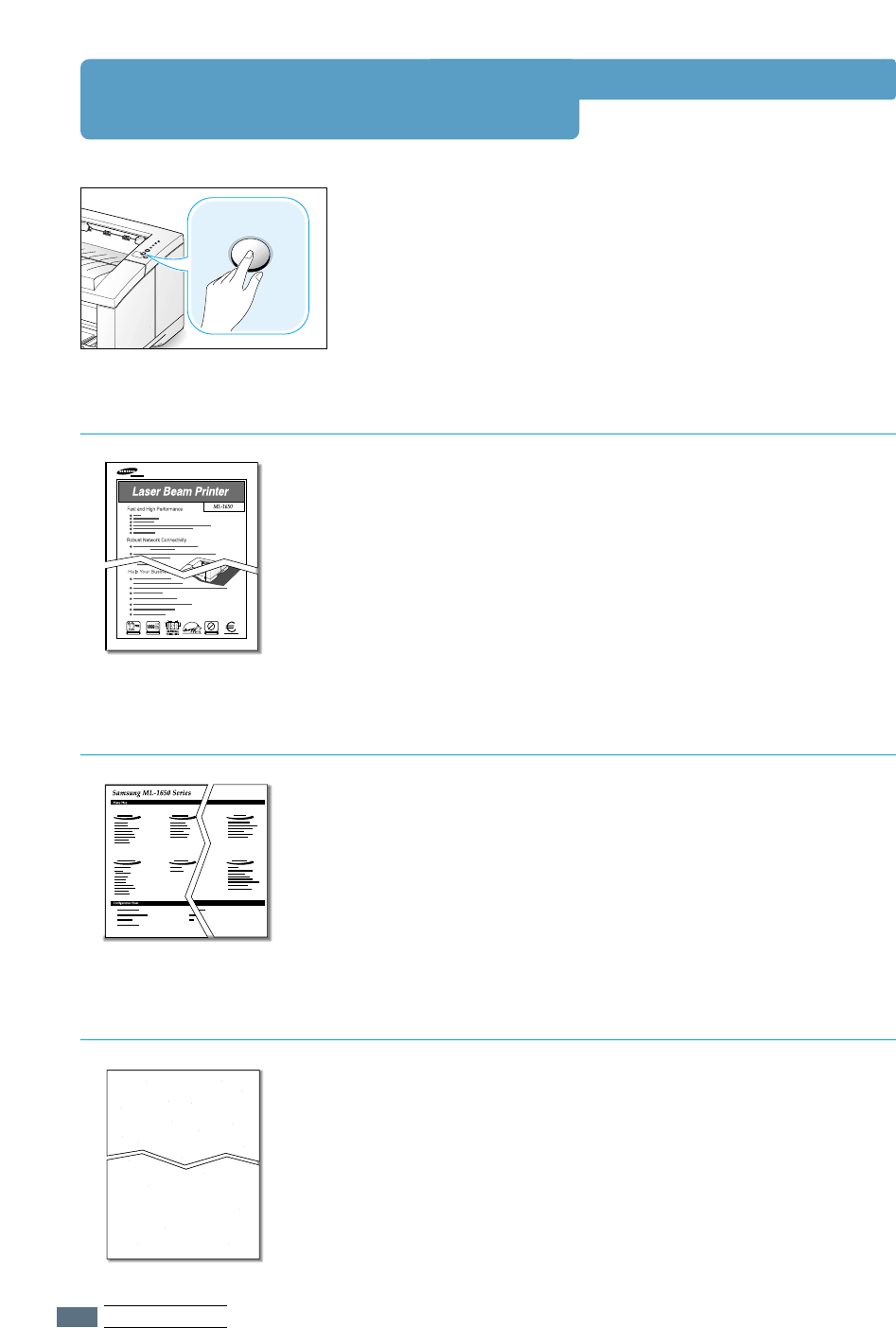

Printing Special Pages

There are special pages within the memory of the printer that

will help you to diagnose and learn about problems with your

printer.

Use the Demo button on the printer control panel to print

these special pages. The printer must be in the ready mode.

Printing the demo page will help you check if the printer is

properly working.

Press and hold Demo for about 2 seconds until the control

panel lights blink slowly.

Demo Page

The configuration sheet lists many of the current settings and

properties of the printer.

To print the configuration sheet, press and hold Demo for

about 6 seconds until the control panel lights blink rapidly.

Configuration Sheet

This printing cleans the drum of the toner cartridge. Use this

process if you are experiencing blurred, faded or smeared

printouts.

Press and hold Demo for about 10 seconds until the control

panel lights remain illuminated. Discard the blank page

produced from the cleaning process.

Note: The cartridge cleaning process takes some time. To stop

the printing, ttuurrnn tthhee ppoowweerr ooffff.

Cleaning Sheet

Demo

OZONE

7.7

PROBLEM SOLVING

Clearing Paper Jams

Occasionally, paper can become jammed during a print job. Some of the causes include:

• The paper tray is loaded improperly or overfilled.

• The paper tray has been pulled out during a print job.

• The top cover has been opened during a print job.

• Paper that does not meet paper specifications has been used. See “Paper Specifications” on

page A.2.

• Paper that is outside of the supported size range has been used. See “Paper Specifications”

on page A.2.

If a paper jam occurs, the Paper and the Error lights remain lit on the control panel. Find

and remove the jammed paper. If the location of the paper jam is not obvious, look inside the

printer.

Note: Paper jams in this area may result in loose toner on the page. If you get any toner on

your clothes, wash them in cold water because hot water will set the toner into the fabric.

Output Area

If the paper is almost completely visible

from the top output tray, pull the

remaining paper carefully out of the

printer.

7.8

PROBLEM SOLVING

Clearing Paper Jams

If there is resistance when you pull the

paper, squeeze the handle on the right

end of the exit roller , then pull the

roller in the direction of arrow .

Remove the stopper fastening the rear

output tray, and push the tray down so

that it is open at 90 degrees angle.

If the jammed paper is not visible or

there is resistance when you pull the

paper, open the rear output tray.

Exit roller

Remove the jammed paper.

7.9

PROBLEM SOLVING

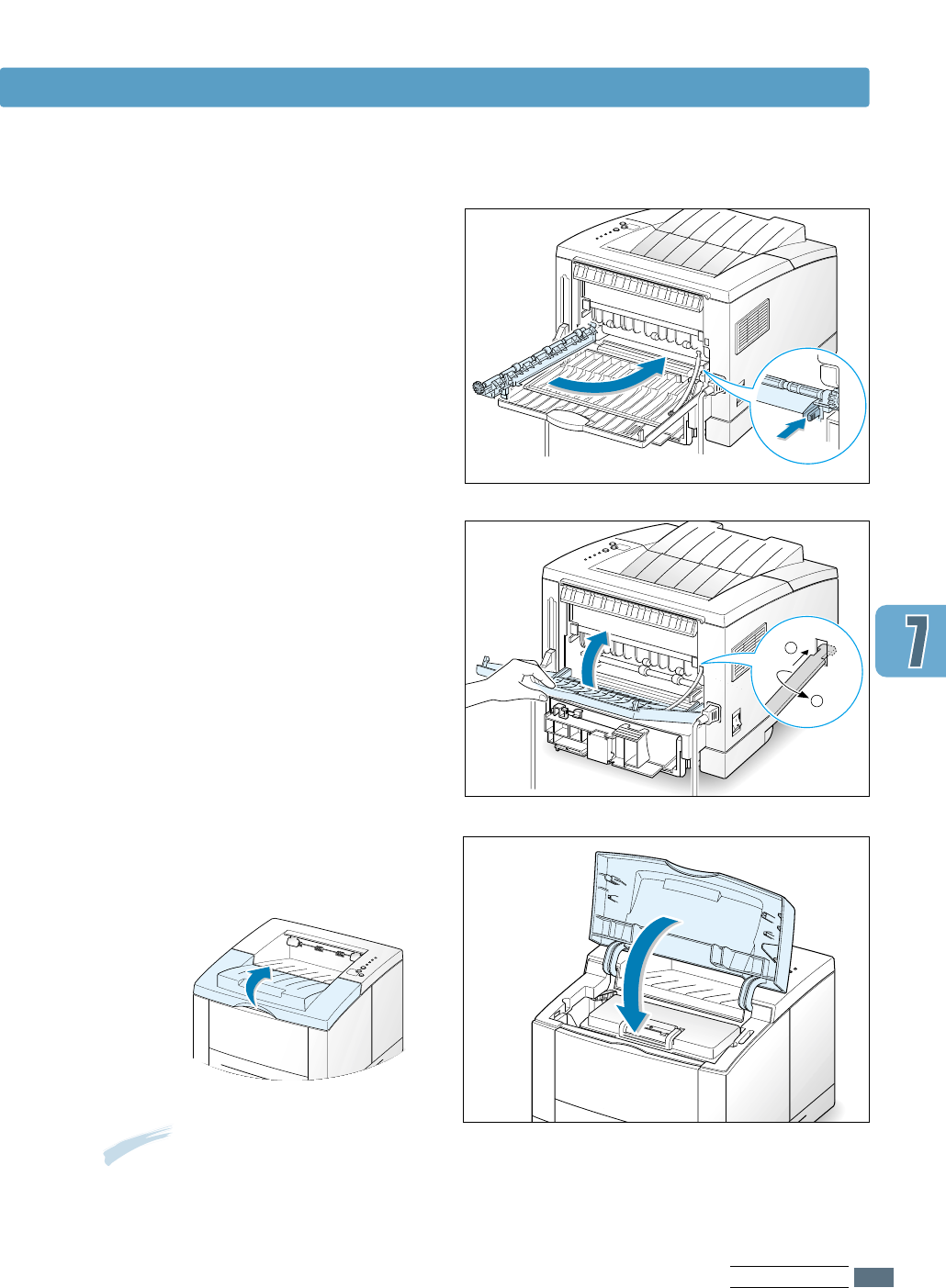

Clearing Paper Jams

Replace the stopper and close the rear

output tray.

Replace the exit roller.

Make sure that you click the right

end of the roller back in place. If you

fail to do so, the printer system will

recognizes that the printer cover is open

or that a system fuser error has

occurred, and the Error light on the

control panel will turn on.

To resume printing, open the top cover,

and then close it close it again.

Note: If the PPaappeerrand the EErrrroorrlights

do not turn of f, there is still jammed

paper inside the printer. Check the input

area and the inside of the printer.

PROBLEM SOLVING

Clearing Paper Jams

Remove any misfed paper by pulling it

out by the visible edge from the tray.

Make sure that all of the paper is

properly aligned in the tray.

Note: If paper has entered the toner cartridge area, follow the instructions on page 7.12. It is

easier to remove such jams from the inside of the printer than the paper input area.

Input Area

Slide out Tray 1 to expose the jammed

paper.

Note: If the paper is jammed in the

paper feed area and cannot be

accessed from inside the printer,

remove Tray 1 from the printer and

carefully pull the jammed paper free

from the printer.

7.10

PROBLEM SOLVING

Clearing Paper Jams

Slide the tray back into the printer.

To resume printing, open the top cover,

and then close in again.

Note: If the PPaappeerr and the EErrrroorrlights

do not turn of f, there is still jammed

paper inside the printer. Check the

inside of the printer.

7.11

PROBLEM SOLVING

Clearing Paper Jams

Carefully lift up the guide feed.

Gently pull the paper toward you to

remove it from the printer.

CAUTION: To prevent damage to the

toner cartridge, do not expose it to

light for more than a few minutes.

Place a piece of paper over the top of

the toner cartridge to shield it while it

is out of the printer.

Inside the Printer

Open the top cover and remove the

toner cartridge.

Guide feed

Note: Paper jams in this area may result in loose toner on the page. If you get any toner on

your clothes, wash them in cold water because hot water will set the toner into the fabric.

7.12

Clearing Paper Jams

Close the top cover. Printing can be

resumed.

Flip down the guide feed, and reinstall

the toner cartridge.

Note:

If the toner cartridge is

difficult to reinstall, make sure the

guide feed has been flipped back

down into position.

Note: If you have the optional Tray 2 installed, and cannot find the jammed paper in the

output or input area, or inside the printer, the paper jam may have occurred in the optional

Tray 2. See the next page to clear the jammed paper in the optional tray.

PROBLEM SOLVING

7.13

PROBLEM SOLVING

Clearing Paper Jams

If you cannot find the jammed paper in

the Tray 2, pull the upper Tray 1 half

way out of the printer, and remove the

paper as shown in the figure at right.

In the Optional Tray 2

Pull the option Tray 2 out of the printer.

If you see the jammed paper, remove

the paper from the tray.

Slide the trays back into the printer.

Open the top cover, then close it again.

Printing can be resumed.

7.14

Clearing Paper Jams

Tips for Avoiding Paper Jams

By selecting correct paper types and loading them properly,

you should be able to avoid most paper jams. If paper jams

occur, follow the steps outlined in “Clearing Paper Jams” on

page 7.7. If jams occur frequently, make sure you are

following these tips to avoid jams.

• Follow the procedures in “Load Paper” on page 2.4 to load

the paper properly. Make sure the adjustable guides are

positioned correctly.

• Do not overload the paper tray. Make sure the paper is under

the paper capacity mark on the inside of the paper tray.

• Do not pull out the paper tray while print jobs are in process.

• Flex, fan and straighten the paper before loading it.

• Do not load stacks of labels or transparencies in Tray 1.

Labels or transparencies must be fed using the Multi-Purpose

Tray.

• Do not load wrinkled, creased, damp or highly curled paper.

• Do not mix paper types in the paper tray.

• Use only recommended print media. See “Paper

Specifications” on page A.2.

• Make sure that the recommended print side is facing down

when loading the paper into Tray 1 or optional Tray 2 and

facing up when loading into the Multi-Purpose Tray.

• Keep print media stored in an acceptable environment.

PROBLEM SOLVING

7.15

PROBLEM SOLVING

7.16

Problem Solution

Solving Print Quality Problems

General print quality problems can be solved by following the checklist below.

• Check the printer properties to make sure that you are using the best available print quality

option (see page 5.18).

• Redistribute the toner in the toner cartridge (see page 6.2).

• Clean the inside of the printer (see page 6.4).

• Adjust the print resolution from the printer properties (see page 5.19).

• Check to make sure that Toner Save Mode is off (see page 5.6).

• Troubleshoot general printing problems (see page 7.2).

• Install a new toner cartridge, then check print quality again (see page 2.2).

Print Quality Checklist

Solving Print Quality Problems

If a vertical white streak or faded area appears on the page:

• The toner supply is low. You may be able to temporarily

extend the toner cartridge life. See “Redistributing Toner” on

page 6.2. If this does not improve the print quality, install a

new toner cartridge.

• The paper may not meet paper specifications (for example,

the paper is too moist or too rough). See “Paper

Specifications” on page A.2.

• If the whole page is light, the print resolution setting is too

light or Toner Save Mode may be on. Adjust the print

resolution and Toner Save Mode within the printer

properties. See page 5.18.

• A combination of faded and smeared defects may indicate

that the toner cartridge needs cleaning. See “Cleaning the

Printer” on page 6.4.

• The surface of the LSU part inside the printer may be dirty.

Clean the LSU (see page 6.5).

Light or feded print

AaAaBbBbCcCc

AaBbCc

Problem Solution

PROBLEM SOLVING

7.17

Solving Print Quality Problems

• The paper may not meet paper specifications (for example,

the paper is too moist or too rough). See “Paper

Specifications” on page A.2.

• The transfer roller may be dirty. See “Cleaning the Inside”

on page 6.4.

• The paper path may need cleaning. See “Cleaning the

Inside”.

Toner specks

If faded areas, generally rounded, occur randomly on the

page:

• A single sheet of paper may be defective. Try reprinting the

job.

• The moisture content of the paper is uneven or the paper

has moist spots on its surface. Try a different kind or brand

of paper. See “Paper Specifications” on page A.2.

• The paper lot is bad. The manufacturing processes can

cause some areas to reject toner. Try a different kind or

brand of paper.

• The toner cartridge may be defective. See Repetitive vertical

defects” on page 7.18.

• If these steps do not correct the problems, contact a

service representative.

Dropouts

If black vertical streaks appear on the page:

• The photosensitive drum inside the toner cartridge has

probably been scratched. Install a new toner cartridge.

If white vertical streaks appear on the page:

• The surface of the LSU part inside the printer may be dirty.

Clean the LSU (see page 6.5).

Vertical lines

AaBbCc

AaBbCcAaBbCc

PROBLEM SOLVING

7.18

Problem Solution

If the amount of background toner shading becomes

unacceptable, the procedures below may help to clear the

condition:

• Change the paper to a lighter basis weight. See “Paper

Specifications” on page A.2.

• Check the printer’s environment; very dry (low humidity)

or high humidity (higher than 80 % RH) conditions can

increase the amount of background shading.

• Install a new toner cartridge.

Gray background

• Clean the inside of the printer. See “Cleaning the Inside”

on page 6.4.

• Check the paper type and quality. See “Paper

Specifications” on page A.2.

• Try installing a new toner cartridge.

Toner smear

If marks repeatedly appear on the printed side of the page

at even intervals:

• The toner cartridge may be damaged. If a repetitive mark

occurs every 95 mm or 38 mm on the page, print the

cleaning sheet several times to clean the cartridge (see

page 6.5). If you still have the same problems, install a

new toner cartridge.

• Parts in the printer may have toner on them. If the defects

occur on the back of the page, the problem will likely

correct itself after a few more pages.

• The fusing assembly may be damaged. Contact a service

representative.

Repetitive vertical

defects

Solving Print Quality Problems

AaBbCc

Problem Solution

PROBLEM SOLVING

7.19

• If characters are improperly formed, producing hollow

images, the paper stock may be too slick. Try a different

paper. See “Paper Specifications” on page A.2.

• If characters are improperly formed, producing a wavy

effect, the scanner unit may need service. Check to see if it

also occurs on a demo page by pressing the Demo button

on the control panel when the printer is ready. If you need

service, contact a service representative.

Misformed characters

• Check the paper type and quality. See “Paper

Specifications” on page A.2.

• Make sure that the paper or other media is loaded correctly

and the guides are not too tight or too loose against the

paper stack.

Page skew

Solving Print Quality Problems

Background scatter results from bits of toner distributed on

the printed page.

• The paper may be too damp. Try printing with a different

batch of paper. Do not open packages of paper until

necessary so that the paper does not absorb too much

moisture from the air.

• If background scatter occurs on an envelope, change your

printing layout to avoid printing over areas that have

overlapping seams on the reverse side. Printing on seams

can cause this problem.

• If background scatter covers the entire surface of a printed

page, adjust the print resolution through your software

application or the printer properties.

Background scatter

AaBbCc

PROBLEM SOLVING

7.20

Problem Solution

Solving Print Quality Problems

• Check the paper type and quality. Both high temperature

and humidity will cause paper curl. See “Paper

Specifications” on page A.2.

• Turn over the stack of paper in the paper tray. Also try

rotating the paper 180° in the paper tray.

• Open the rear output tray and try printing to the face up

output tray.

Curl or wave

• Make sure that paper is loaded properly.

• Check the paper type and quality. See “Paper

Specifications” on page A.2.

• Open the rear output tray and try printing to the face up

output tray.

• Turn over the stack of paper in the paper tray. Also try

rotating the paper 180° in the tray.

Wrinkles or creases

• The transfer roller may be dirty. See “Cleaning the Inside”

on page 6.4.

• Check if the toner is leaking. Clean inside the printer.

Back of printouts dirty

• The toner cartridge may not be installed properly. Remove

the cartridge and reinsert it.

• The toner cartridge may be defective and need replacing.

Install a new toner cartridge.

• The printer may require repairs. Contact a service

representative.

AaBbCc

Black pages

Problem Solution

PROBLEM SOLVING

7.21

Solving Print Quality Problems

Character voids are white areas within the parts of

characters that should be solid black:

• If you are using transparencies when you experience this

problem, try another type of transparency. (Because of the

composition of transparency media, some character voids

are normal.)

• You may be printing on the wrong surface of the paper.

Remove the paper and turn it around.

• The paper may not meet paper specifications. See “Paper

Specifications” on page A.2.

Character Voids

• Clean the inside of the printer.

• Check the paper type and quality. See “Paper

Specifications” on page A.2.

• Try installing a new toner cartridge.

• If the problem persists, the printer may require repairs.

Contact a service representative.

Loose toner

If horizontally aligned black streaks or smears appear:

• The toner cartridge may be installed improperly. Remove

the cartridge and reinsert it.

• The toner cartridge may be defective. Install a new toner

cartridge.

• If the problem persists, the printer may require repairs.

Contact a service representative.

Horizontal stripes

AaBbCc

PROBLEM SOLVING

7.22

Error

Manual

Paper

Data

Cancel/Reprint

Demo

Toner Save

When the printer detects an error, the control panel indicator lights will indicate error

messages. Find the light pattern below that matches the printer light pattern and follow the

solutions to clear the error.

Troubleshooting Error Messages

Printer Light Patterns

Light status legend

symbol for “light on”

• Check the power cord and the power switch if your printer does not

generate a response.

• Make sure that the printer is powered with the specified AC voltage.

Power off

Error

Manual

Paper

Data

The printer is out of paper in the paper tray. The Paper light blinks until

paper is added.

• Loading paper into the tray will cancel this message and allow you to

continue with the print job.

Paper out

Error

Manual

Paper

Data

symbol for “light blinking”

symbol for “light off”

PROBLEM SOLVING

7.23

Troubleshooting Error Messages

Paper is jammed inside the printer.

• Clear the paper jam. See “Clearing Paper Jams” on page 7.7.

Paper jam

Error

Manual

Paper

Data

The printer ran out of memory in the middle of a print job. The page

being printed may have been too complex for the memory capacity of the

printer. Press the Cancel/Reprint button to cancel the current job.

• Turn the printer power off and back on to remove any unnecessary fonts,

macros, or any data currently in printer memory.

• Add more printer memory. See “Memory and PostScript DIMMs” on page H.2.

• For a temporary solution, simplify the image or print at a lower resolution.

Memory out (Insufficient Memory)

Error

Manual

Paper

Data

The printer top cover may be opened or the toner cartridge is not

installed.

• Check that the printer top cover door and rear door (face-up output tray)

are closed properly.

• Make sure that the toner cartridge is correctly installed in the printer.

• Remove the printed papers, if overstacked, from the top output tray.

Door open, no toner cartridge, or outputbin full

Error

Manual

Paper

Data

While printing in the manual feed mode, the printer is out of paper in

the Multi-Purpose Tray.

• Load the correct paper into the Multi-Purpose Tray and press the Demo

button on the control panel to print each page.

Error

Manual

Paper

Data

Paper out in the manual feed mode

PROBLEM SOLVING

7.24

Solving Print Quality Problems

• Reset the printer by briefly turning the printer off and back on again.

• If the error persists, contact the service representative.

System error

Error

Manual

Paper

Data

The size of the paper in the input tray is mismatched to the Paper Size

setting in printer's properties. Remove the paper from the tray and load the

paper of same size as you have set in the properties. Press the Demo

button to ignore the message and feed paper from the corresponding input

tray.

Paper Mismatch

Error

Manual

Paper

Data

PROBLEM SOLVING

7.25

Common Windows Problems

Note: Refer to Microsof t Windows 9x or NT 4.0 documentation that came with your PC for

further information on Windows error messages.

Problem

“File in Use” message

appears during installation.

“Error Writing to LPTx”

message appears.

“General Protection Fault”,

“Exception OE”, “Spool32”,

or “Illegal Operation”

messages appears.

Possible Cause and Solution

Quit all software applications. Remove all software from the

StartUp Group, then restart Windows. Reinstall the printer

driver.

• Make sure that the cables are connected correctly, the

printer is on, and the Data light on the control panel is

on.

• If bi-directional communication is not turned on in the

driver, it will also cause this message.

• From the Start menu, select Settings, then Printers.

Right-click on the Samsung ML-1650 series printer icon

and select Properties. From the Details tab, click on

Port Settings. Remove check from Check Port State

before Printing box and click OK. From Spool

Settings, select Print Directly to Printer and click OK.

Try printing again.

• Close all other applications, reboot Windows, and try

printing again.

• Delete all temp files from the Temp sub-directory. You

can determine the name of the directory by editing the

AUTOEXEC.BAT file and locking for the statement, “Set

Temp =”. The name after this statement is the temp

directory. It is usually C:\temp by default, but can be

redefined.

PROBLEM SOLVING

7.26

Problem

You cannot use the

computer while the printer

is printing.

Possible Cause and Solution

Background Printing has not been selected.

• For LaserWriter 8.3, turn Background Printing on in the

Chooser. Status messages will now be redirected to the

Print Monitor allowing you to continue working while the

computer is processing data to be sent to the printer.

• For LaserWriter 8.4 or higher, turn Background Printing

on at the Print dialog box.

Printing Errors

Problem

The printer driver icon

does not appear in the

Chooser.

The printer name does

not appear in the Select

a PostScript Printer box

in the Chooser.

Possible Cause and Solution

Software is not installed correctly.

• The LaserWriter driver should be present as a part of the

Macintosh OS. Make sure that the LaserWriter driver is in the

Extensions folder within the Systems folder. If not, install

the LaserWriter driver component from the Macintosh OS CD.

• Make sure that you are using a high-quality cable.

• Make sure that the printer is on the correct network. Select

Network or AppleTalk Control Panel from Control

Panels in the Apple menu and then choose the correct

network.

• Make sure that the cables are connected correctly, the printer

is on, and the Data light is on.

• Make sure that the correct printer driver has been selected in

the Chooser.

• If the printer resides on a network with multiple zones, make

sure that the correct zone is selected in the AppleTalk

Zones box in the Chooser.

• Make sure AppleTalk is on. (The button next to Active is

selected in the Chooser.) You may need to restart the

computer to activate the change.

Common Macintosh Problems

Problems in the Chooser

PROBLEM SOLVING

7.27

The following situations are PS language specific and may occur when several printer

languages are being used.

Note: To receive a printed or screen displayed message when PS errors occur, open the Print

Options dialog box and click the desired selection nex t to the PPoossttSSccrriipptt eerrrroorrsssection.

Problem

PostScript file can not

be printed.

“This job contains

binary data...”

message appears.

A PS error page

prints.

The optional Tray 2 is

not selected in the

driver.

Possible Cause

The PostScript option may

not be installed.

The pure binary data

option is not supported by

the PostScript driver.

Print job may not be PS.

The printer driver has not

been configured to

recognize the optional Tray

Solution

• Print a configuration page and

verify that the PS version is

available for printing.

Open the Properties of the

PostScript driver, click on

PostScript, and click on

Advanced button. The pure

binary data option is not

supported. Choose another.

Make sure that the print job is a

PS job. Check to see whether the

software application expected a

setup or PS header file to be sent

to the printer.

Open the PostScript driver

properties and set the Option Tray

item of Device option to

Installed.

Troubleshooting PS Errors

Appendix

This appendix provides information on the following topics:

◆

Printer Specifications

◆

Paper Specifications

Specifications

Printer Specifications

Item Specification and Description

Print Speed

16 PPM (A4), 17 PPM (Letter)

Resolution

1200 dpi

First Printing Time

WarmUp Time

Less than 14 seconds

Power Consumption

300 W average during operation / Less than 20 W in power-save mode

Power Rating

AC 100 ~ 127 V (USA, Canada) / 220 ~ 240 V (Others), 50 / 60 Hz

Acoustic Noise

Stand by: Less than 35 dB; Operating: Less than 49 dB

Toner Supply

Single cartridge

Toner Cartridge Life

8,000 pages (for starter, 4,000 pages), 5% area coverage

Emulation

PCL6, PostScript Level 3 optional

Random Access

Memory (RAM)

Interface Switching

Standard 16 MB

Expandable to 144 MB

: 100 pin, SDRAM, 3.3V;

16 MB, 32 MB, 64 MB, or 128 MB available

Less than 40 seconds

Automatic (Parallel, USB, Network)

Interface

•

16PPM (A4) Bidirectional Parallel Standard

- Modes supported: Compatible, Nibble, Byte, ECP

•

USB Interface Standard

- USB 1.1 compliant

- 12Mbps 1 port

•

Network Optional

- Ethernet 10/100M Base T

- Novell

- TCP/IP and AppleTalk

- LPD

Weight

12.4 Kg / 27.3 lb.

External Dimensions

361 (W) x 409 (D) x 294.5 (H) mm (without options)

Temperature:10 ~ 32 °C / 50 ~ 90 °F; Humidity: 20 ~ 80 % RH

Package Weight

Paper: 1.83 Kg

Plastic: 0.33 Kg

Duty Cycle

Monthly: 40,000 pages maximum

Operating Environment

Fonts

1 bitmap, 45 scalable (Type 1 136 PS fonts)

A.1

SPECIFICATIONS

Samsung Electronics Co ML1650 Laser Printer User Manual2

Samsung Electronics Co Ltd Laser Printer Users Manual2

Contents

Users Manual2

Navigation menu

Namespaces

Views

Navigation
