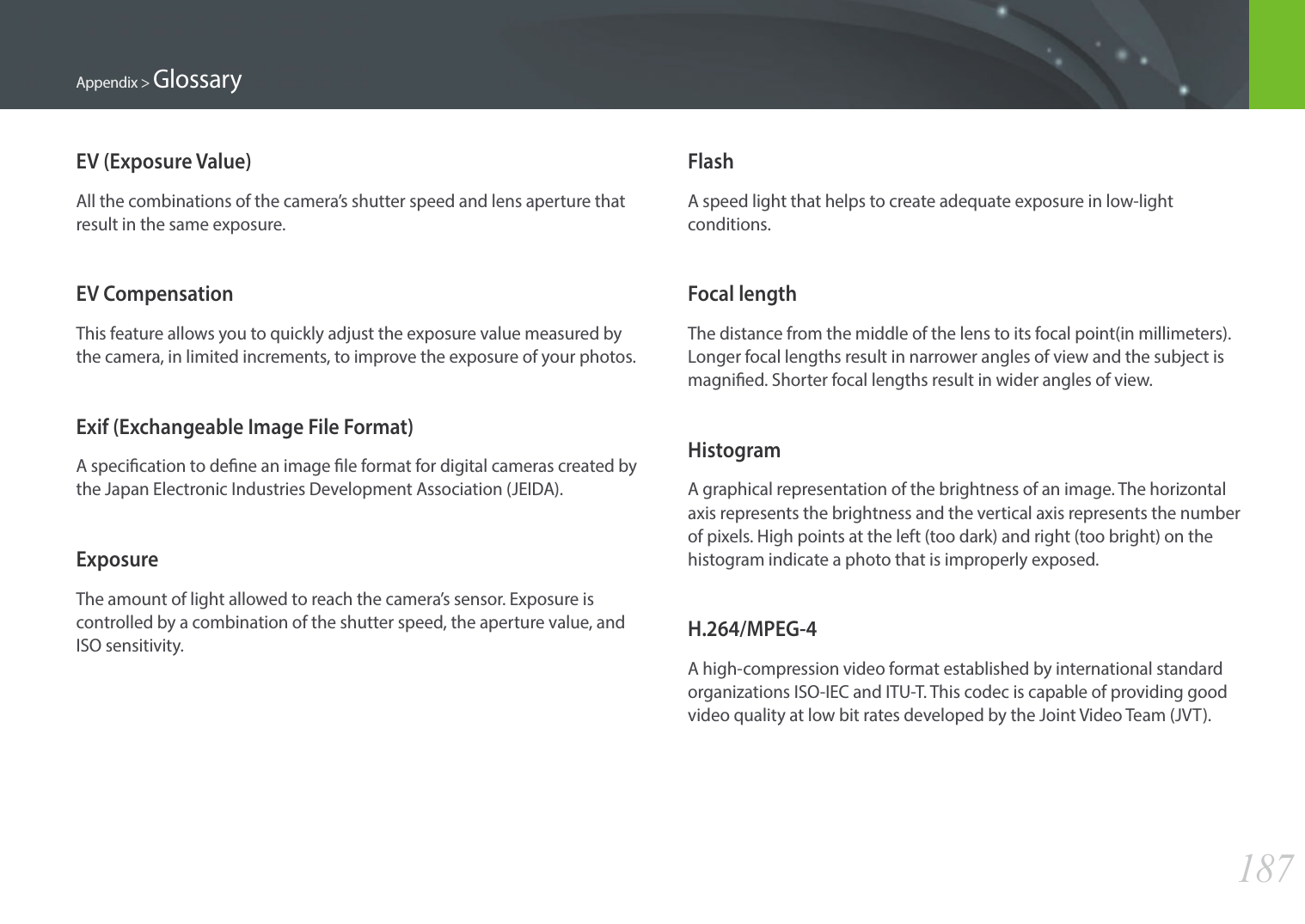

187Appendix > GlossaryFlashA speed light that helps to create adequate exposure in low-light conditions.Focal lengthThe distance from the middle of the lens to its focal point(in millimeters). Longer focal lengths result in narrower angles of view and the subject is magnied. Shorter focal lengths result in wider angles of view.HistogramA graphical representation of the brightness of an image. The horizontal axis represents the brightness and the vertical axis represents the number of pixels. High points at the left (too dark) and right (too bright) on the histogram indicate a photo that is improperly exposed.H.264/MPEG-4A high-compression video format established by international standard organizations ISO-IEC and ITU-T. This codec is capable of providing good video quality at low bit rates developed by the Joint Video Team (JVT).EV (Exposure Value)All the combinations of the camera’s shutter speed and lens aperture that result in the same exposure. EV CompensationThis feature allows you to quickly adjust the exposure value measured by the camera, in limited increments, to improve the exposure of your photos.Exif (Exchangeable Image File Format)A specication to dene an image le format for digital cameras created by the Japan Electronic Industries Development Association (JEIDA).ExposureThe amount of light allowed to reach the camera’s sensor. Exposure is controlled by a combination of the shutter speed, the aperture value, and ISO sensitivity.

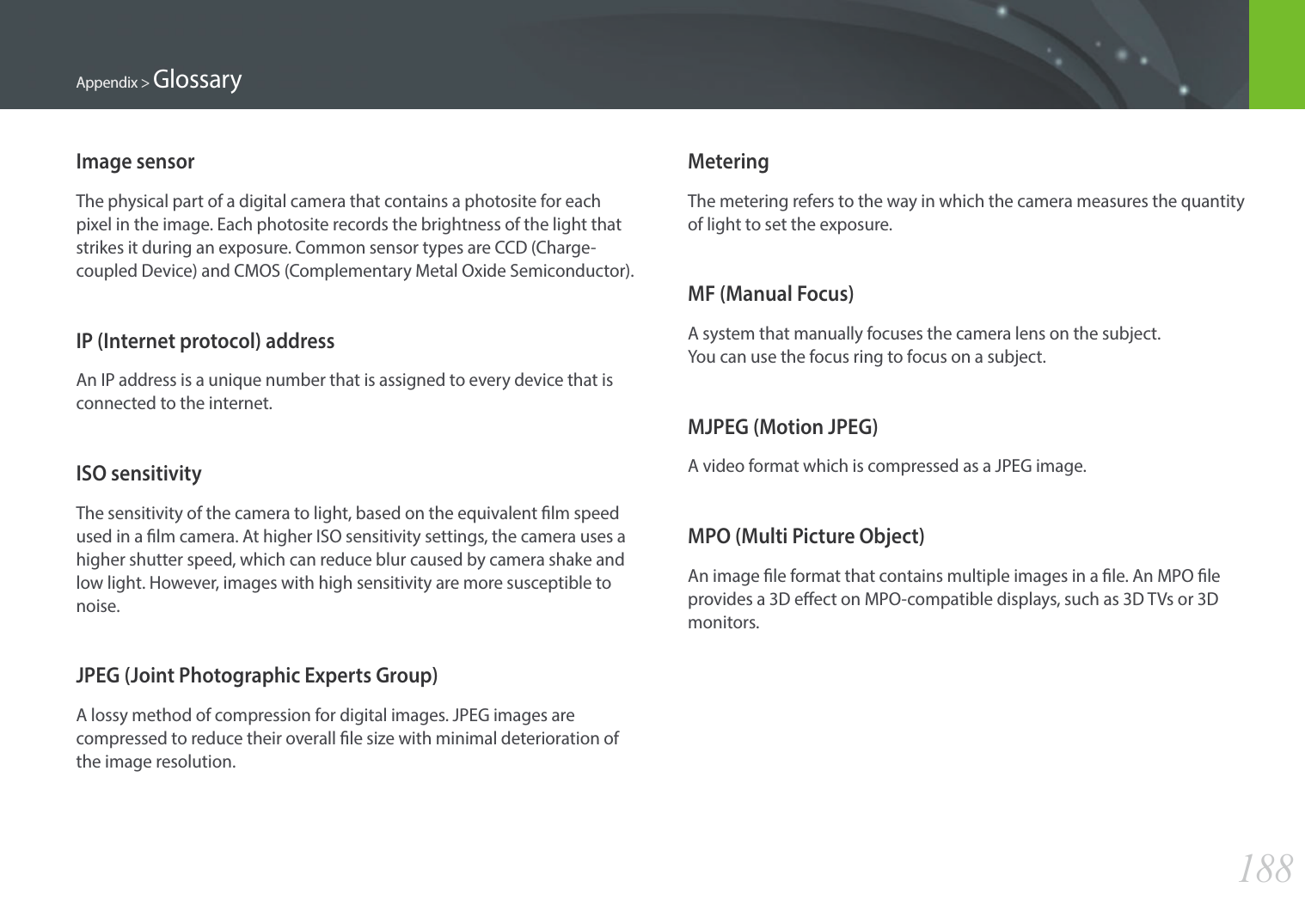

188Appendix > GlossaryMeteringThe metering refers to the way in which the camera measures the quantity of light to set the exposure.MF (Manual Focus)A system that manually focuses the camera lens on the subject. You can use the focus ring to focus on a subject.MJPEG (Motion JPEG)A video format which is compressed as a JPEG image.MPO (Multi Picture Object)An image le format that contains multiple images in a le. An MPO le provides a 3D eect on MPO-compatible displays, such as 3D TVs or 3D monitors.Image sensorThe physical part of a digital camera that contains a photosite for each pixel in the image. Each photosite records the brightness of the light that strikes it during an exposure. Common sensor types are CCD (Charge-coupled Device) and CMOS (Complementary Metal Oxide Semiconductor).IP (Internet protocol) addressAn IP address is a unique number that is assigned to every device that is connected to the internet.ISO sensitivityThe sensitivity of the camera to light, based on the equivalent lm speed used in a lm camera. At higher ISO sensitivity settings, the camera uses a higher shutter speed, which can reduce blur caused by camera shake and low light. However, images with high sensitivity are more susceptible to noise.JPEG (Joint Photographic Experts Group)A lossy method of compression for digital images. JPEG images are compressed to reduce their overall le size with minimal deterioration of the image resolution.

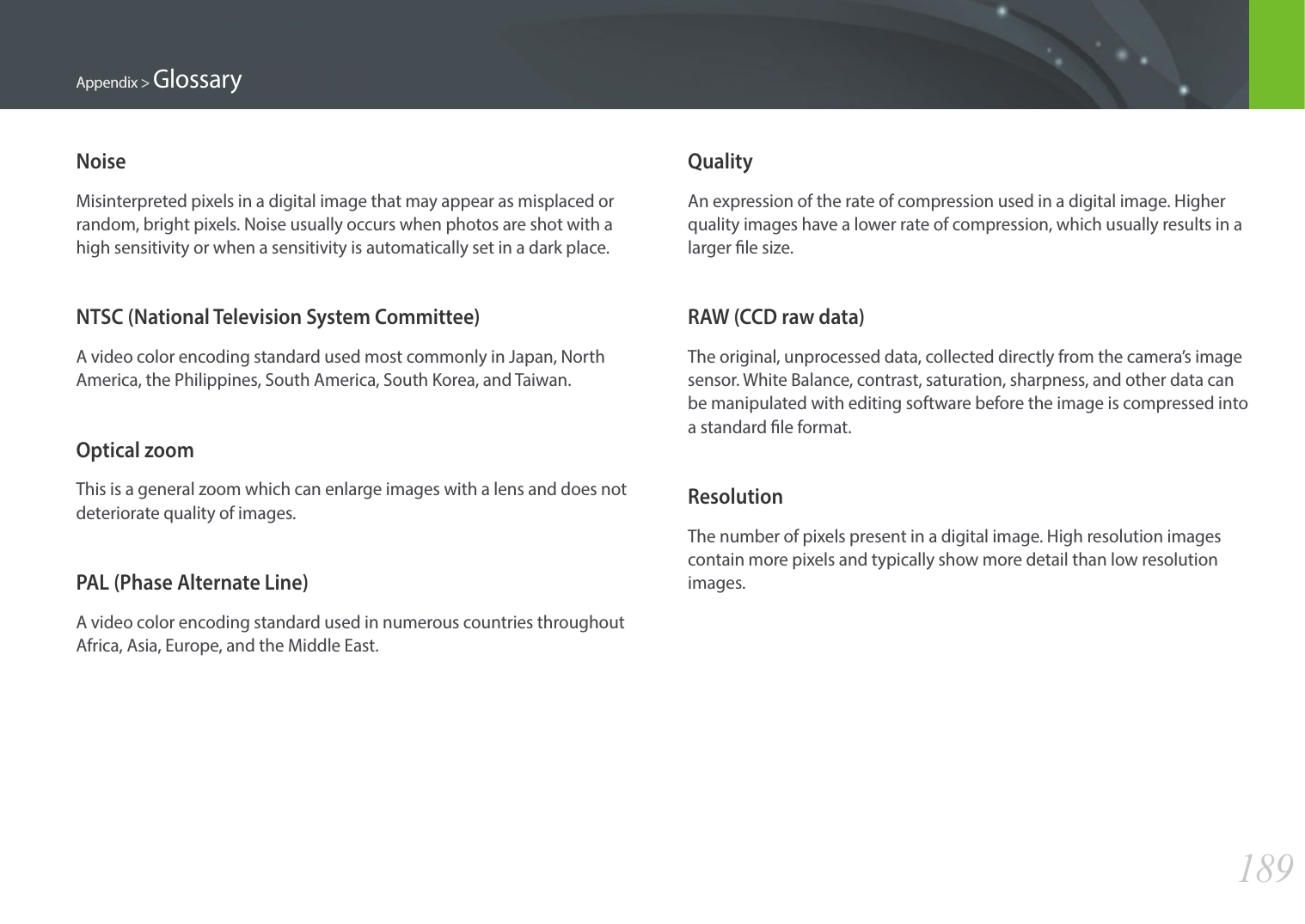

189Appendix > GlossaryQualityAn expression of the rate of compression used in a digital image. Higher quality images have a lower rate of compression, which usually results in a larger le size.RAW (CCD raw data)The original, unprocessed data, collected directly from the camera’s image sensor. White Balance, contrast, saturation, sharpness, and other data can be manipulated with editing software before the image is compressed into a standard le format.ResolutionThe number of pixels present in a digital image. High resolution images contain more pixels and typically show more detail than low resolution images.NoiseMisinterpreted pixels in a digital image that may appear as misplaced or random, bright pixels. Noise usually occurs when photos are shot with a high sensitivity or when a sensitivity is automatically set in a dark place.NTSC (National Television System Committee) A video color encoding standard used most commonly in Japan, North America, the Philippines, South America, South Korea, and Taiwan.Optical zoomThis is a general zoom which can enlarge images with a lens and does not deteriorate quality of images.PAL (Phase Alternate Line)A video color encoding standard used in numerous countries throughout Africa, Asia, Europe, and the Middle East.

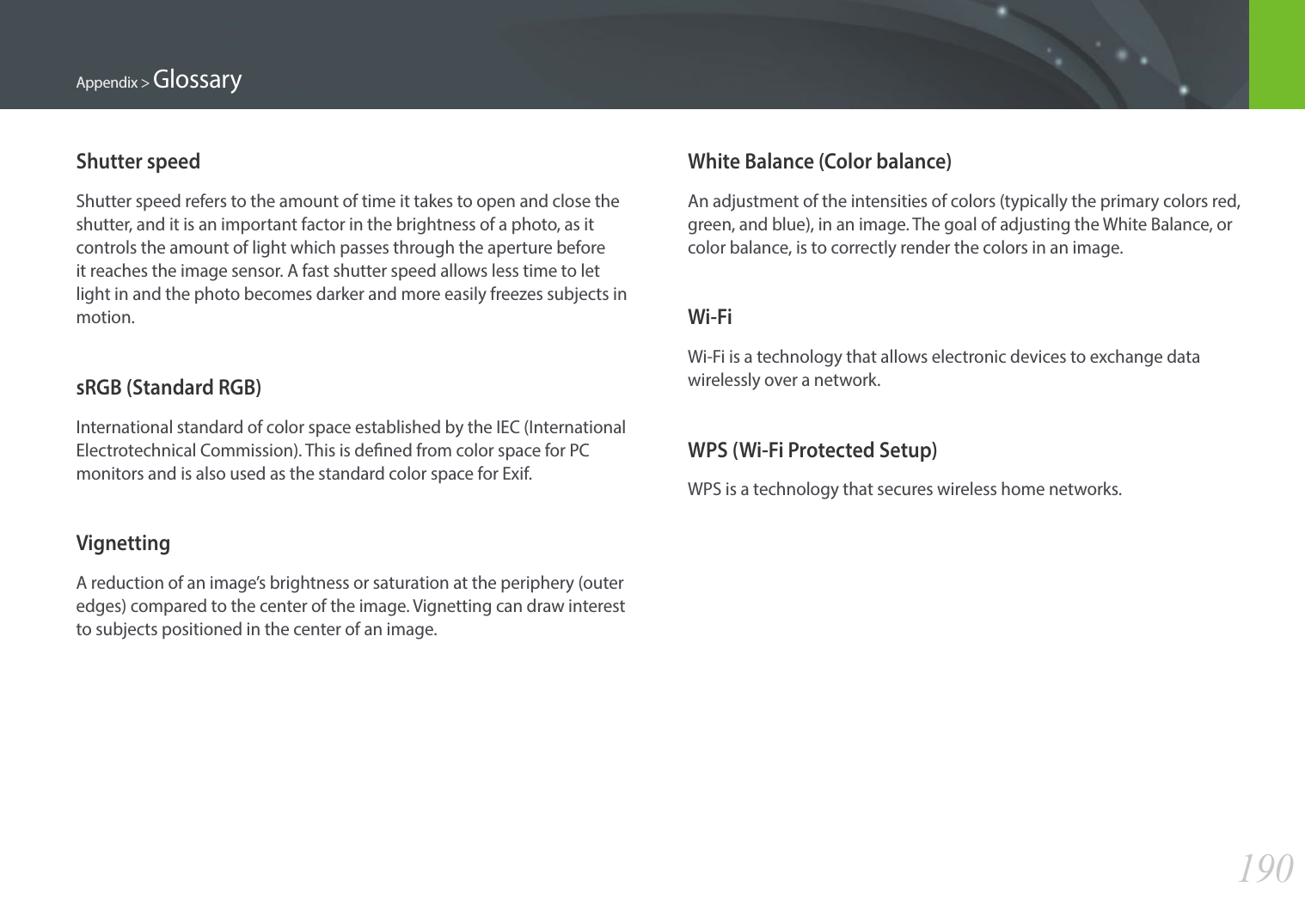

190Appendix > GlossaryShutter speedShutter speed refers to the amount of time it takes to open and close the shutter, and it is an important factor in the brightness of a photo, as it controls the amount of light which passes through the aperture before it reaches the image sensor. A fast shutter speed allows less time to let light in and the photo becomes darker and more easily freezes subjects in motion.sRGB (Standard RGB)International standard of color space established by the IEC (International Electrotechnical Commission). This is dened from color space for PC monitors and is also used as the standard color space for Exif.VignettingA reduction of an image’s brightness or saturation at the periphery (outer edges) compared to the center of the image. Vignetting can draw interest to subjects positioned in the center of an image.White Balance (Color balance)An adjustment of the intensities of colors (typically the primary colors red, green, and blue), in an image. The goal of adjusting the White Balance, or color balance, is to correctly render the colors in an image.Wi-FiWi-Fi is a technology that allows electronic devices to exchange data wirelessly over a network.WPS (Wi-Fi Protected Setup)WPS is a technology that secures wireless home networks.

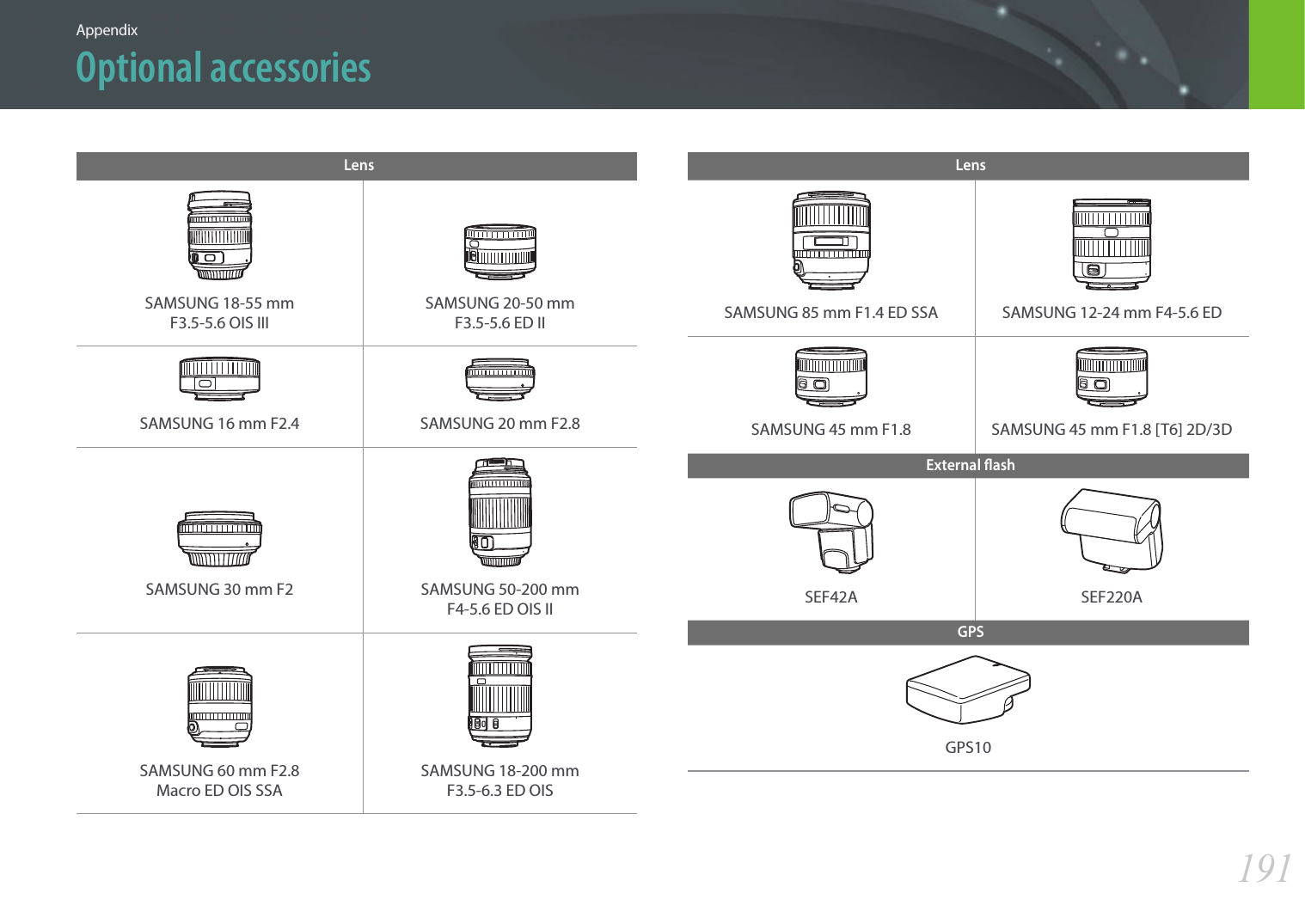

191AppendixOptional accessoriesLensSAMSUNG 18-55 mm F3.5-5.6 OIS IIISAMSUNG 20-50 mm F3.5-5.6 ED IISAMSUNG 16 mm F2.4 SAMSUNG 20 mm F2.8SAMSUNG 30 mm F2 SAMSUNG 50-200 mm F4-5.6 ED OIS IISAMSUNG 60 mm F2.8 Macro ED OIS SSASAMSUNG 18-200 mm F3.5-6.3 ED OISLensSAMSUNG 85 mm F1.4 ED SSA SAMSUNG 12-24 mm F4-5.6 EDSAMSUNG 45 mm F1.8 SAMSUNG 45 mm F1.8 [T6] 2D/3DExternal ashSEF42A SEF220AGPSGPS10

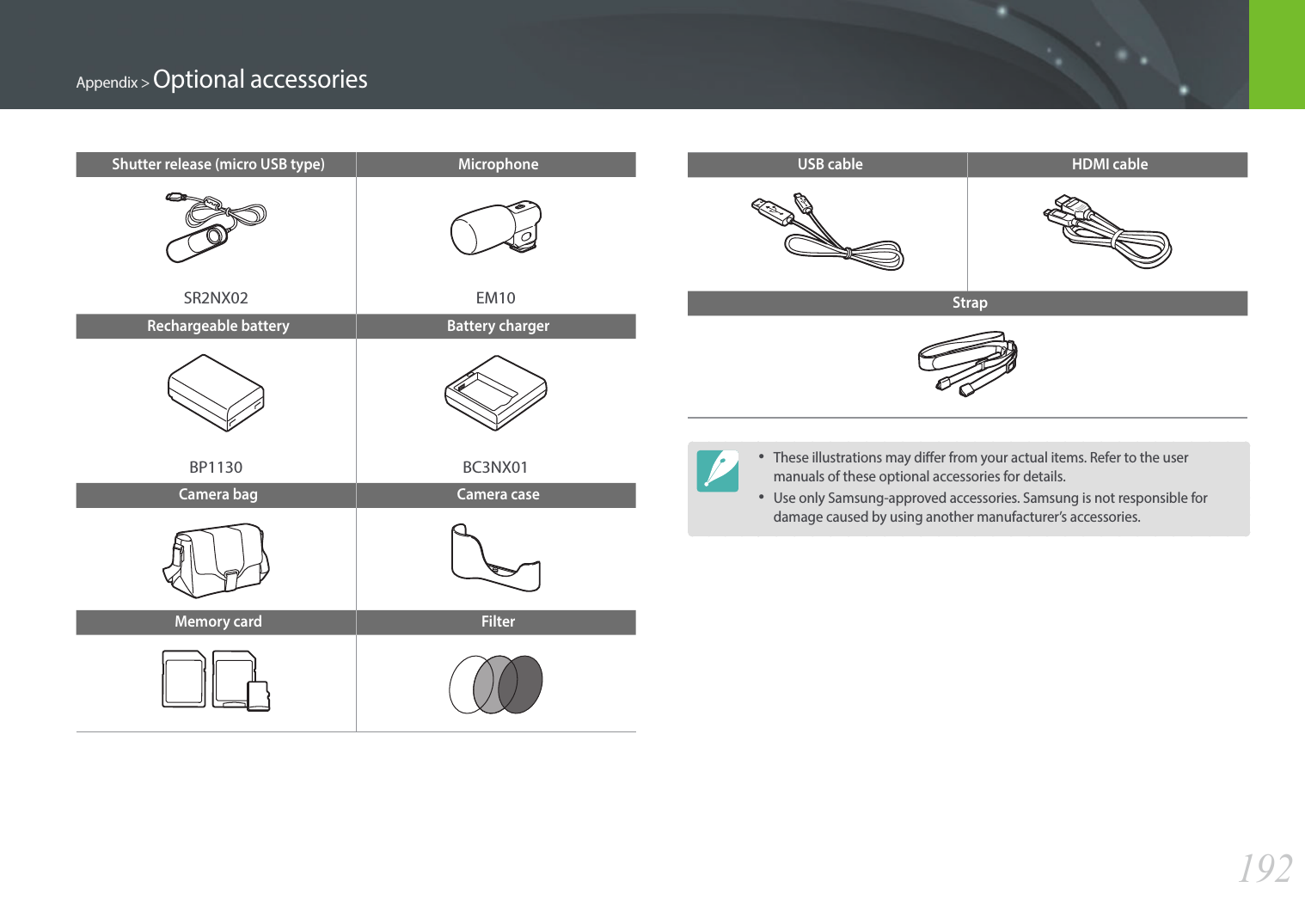

192Appendix > Optional accessoriesShutter release (micro USB type) MicrophoneSR2NX02 EM10Rechargeable battery Battery chargerBP1130 BC3NX01Camera bag Camera caseMemory card FilterUSB cable HDMI cableStrap• These illustrations may dier from your actual items. Refer to the user manuals of these optional accessories for details. • Use only Samsung-approved accessories. Samsung is not responsible for damage caused by using another manufacturer’s accessories.

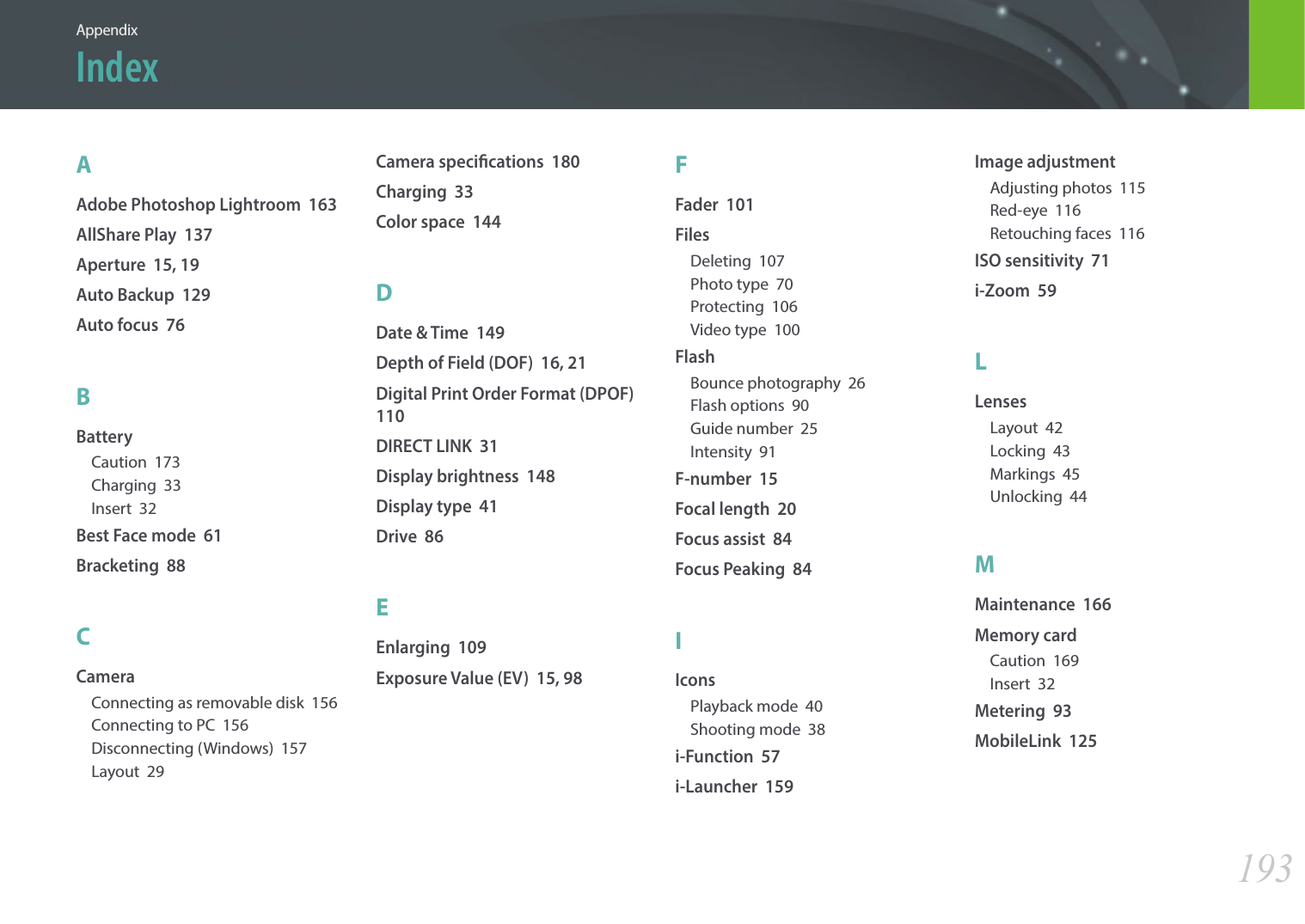

193AppendixAAdobe Photoshop Lightroom 163AllShare Play 137Aperture 15, 19Auto Backup 129Auto focus 76BBatteryCaution 173Charging 33Insert 32Best Face mode 61Bracketing 88CCameraConnecting as removable disk 156Connecting to PC 156Disconnecting (Windows) 157Layout 29Camera specications 180Charging 33Color space 144DDate & Time 149Depth of Field (DOF) 16, 21Digital Print Order Format (DPOF) 110DIRECT LINK 31Display brightness 148Display type 41Drive 86EEnlarging 109Exposure Value (EV) 15, 98FFader 101FilesDeleting 107Photo type 70Protecting 106Video type 100FlashBounce photography 26Flash options 90Guide number 25Intensity 91F-number 15Focal length 20Focus assist 84Focus Peaking 84IIconsPlayback mode 40Shooting mode 38i-Function 57i-Launcher 159Image adjustmentAdjusting photos 115Red-eye 116Retouching faces 116ISO sensitivity 71i-Zoom 59LLensesLayout 42Locking 43Markings 45Unlocking 44MMaintenance 166Memory cardCaution 169Insert 32Metering 93MobileLink 125Index

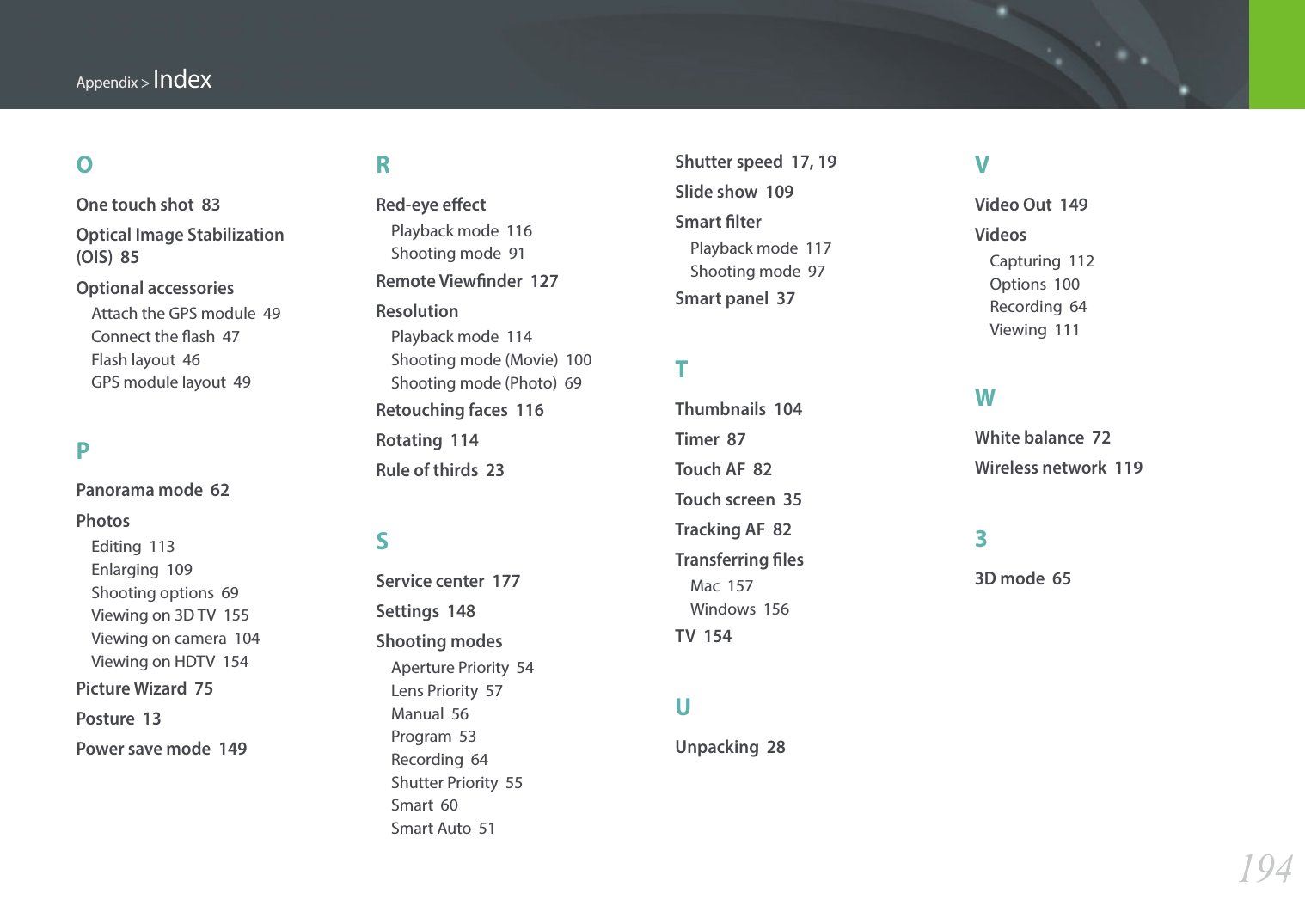

194Appendix > IndexOOne touch shot 83Optical Image Stabilization (OIS) 85Optional accessoriesAttach the GPS module 49Connect the ash 47Flash layout 46GPS module layout 49PPanorama mode 62PhotosEditing 113Enlarging 109Shooting options 69Viewing on 3D TV 155Viewing on camera 104Viewing on HDTV 154Picture Wizard 75Posture 13Power save mode 149RRed-eye eectPlayback mode 116Shooting mode 91Remote Viewnder 127ResolutionPlayback mode 114Shooting mode (Movie) 100Shooting mode (Photo) 69Retouching faces 116Rotating 114Rule of thirds 23SService center 177Settings 148Shooting modesAperture Priority 54Lens Priority 57Manual 56Program 53Recording 64Shutter Priority 55Smart 60Smart Auto 51Shutter speed 17, 19Slide show 109Smart lterPlayback mode 117Shooting mode 97Smart panel 37TThumbnails 104Timer 87Touch AF 82Touch screen 35Tracking AF 82Transferring lesMac 157Windows 156TV 154UUnpacking 28VVideo Out 149VideosCapturing 112Options 100Recording 64Viewing 111WWhite balance 72Wireless network 11933D mode 65

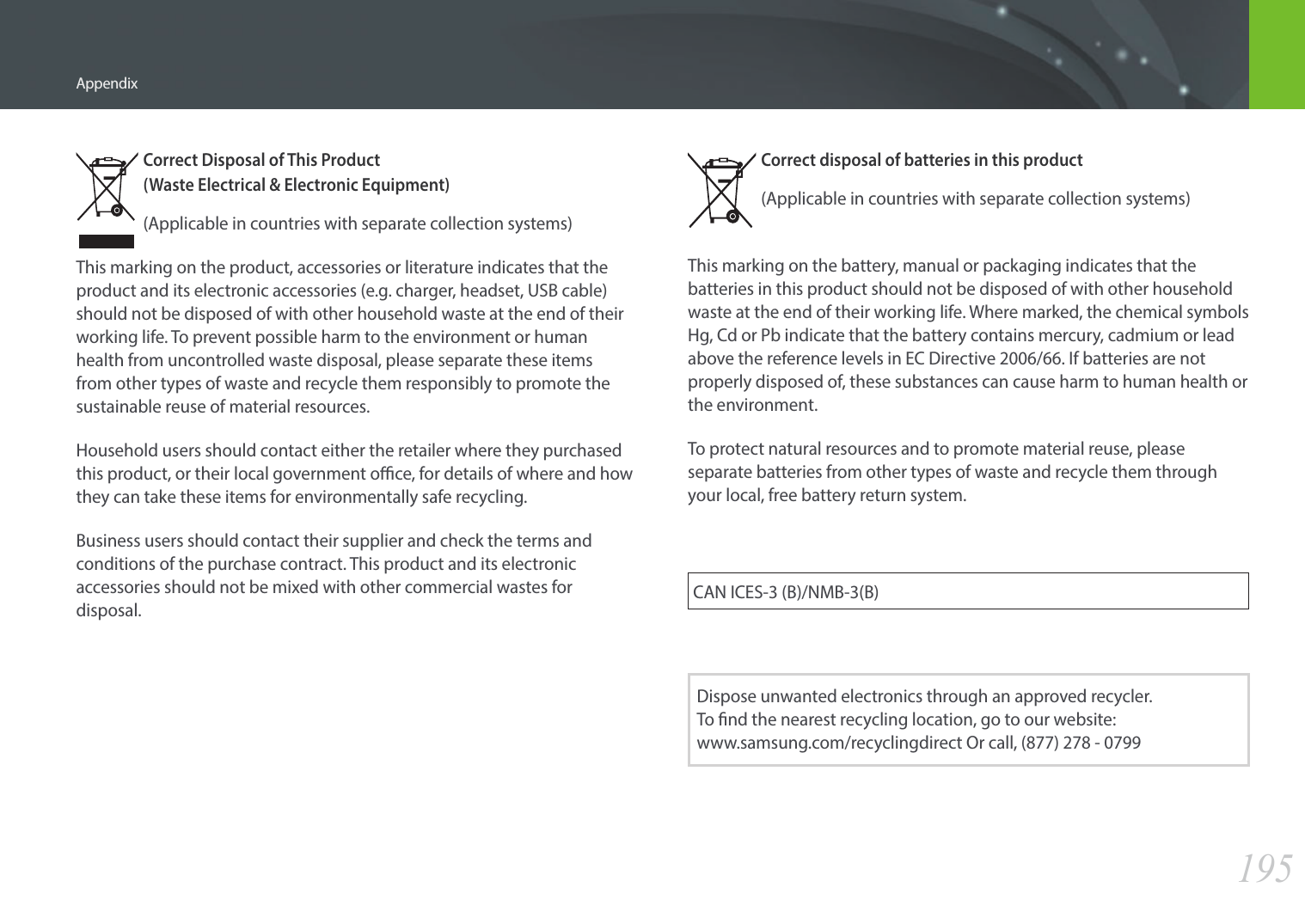

195Correct Disposal of This Product (Waste Electrical & Electronic Equipment)(Applicable in countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.Correct disposal of batteries in this product(Applicable in countries with separate collection systems) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.CAN ICES-3 (B)/NMB-3(B)Dispose unwanted electronics through an approved recycler. To nd the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 0799Appendix

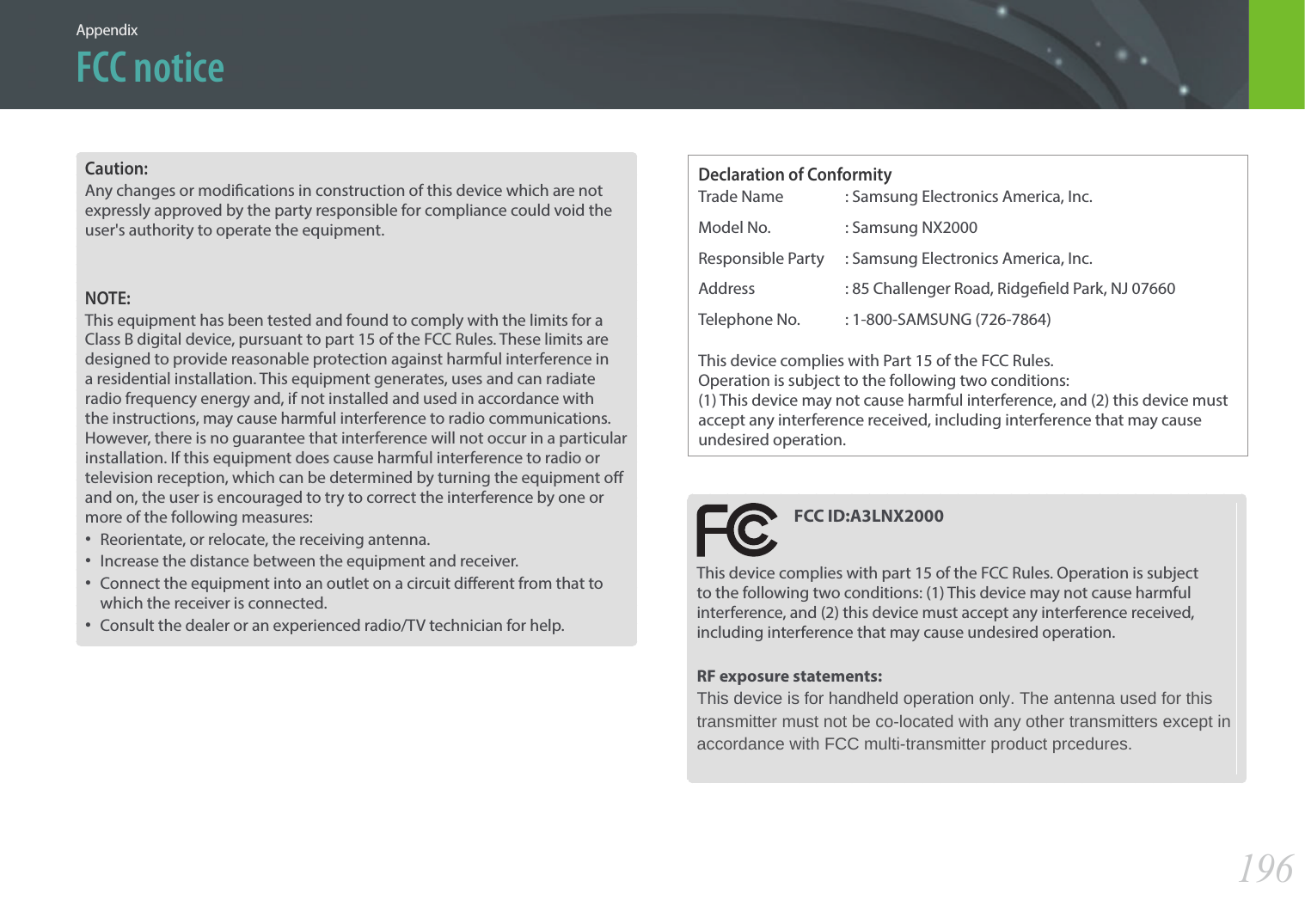

196AppendixFCC noticeCaution:Any changes or modications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorientate, or relocate, the receiving antenna.• Increase the distance between the equipment and receiver.• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Declaration of Conformity Trade Name : Samsung Electronics America, Inc. Model No. : Samsung NX2000Responsible Party : Samsung Electronics America, Inc.Address : 85 Challenger Road, Ridgeeld Park, NJ 07660 Telephone No. : 1-800-SAMSUNG (726-7864)This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.RF exposure statements:This device is for handheld operation only. The antenna used for this transmitter must not be colocated with any other transmitters except inaccordance with FCC multitransmitter product prcedures. FCC ID:A3LNX2000

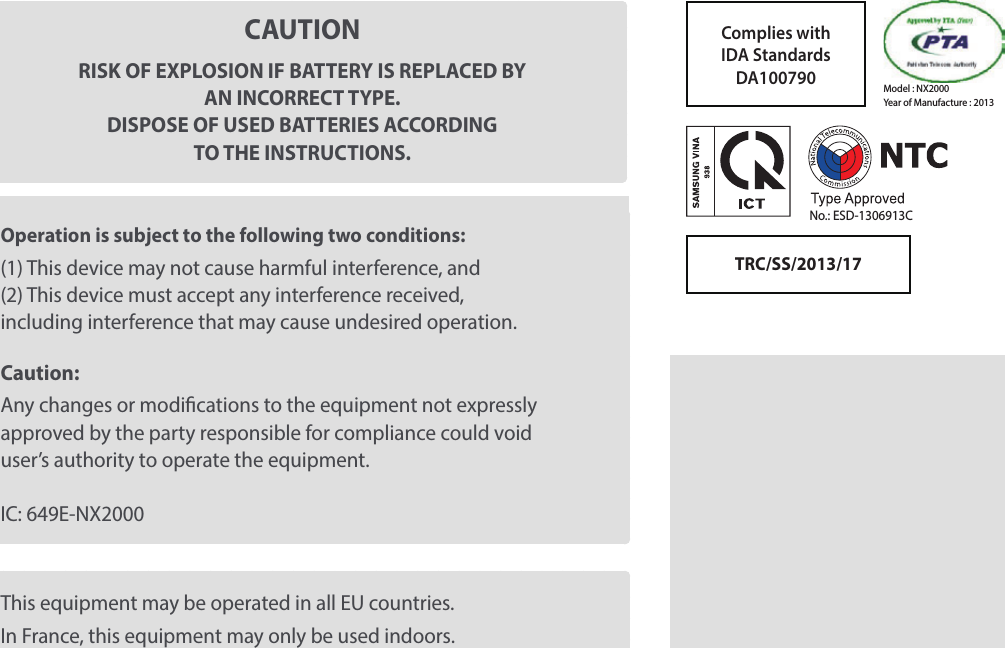

197 Model : NX2000Year of Manufacture : 2013CAUTIONRISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.Caution:Any changes or modications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. IC: 649E-NX2000This equipment may be operated in all EU countries.In France, this equipment may only be used indoors.Complies with IDA Standards DA100790No.: ESD-1306913CTRC/SS/2013/17

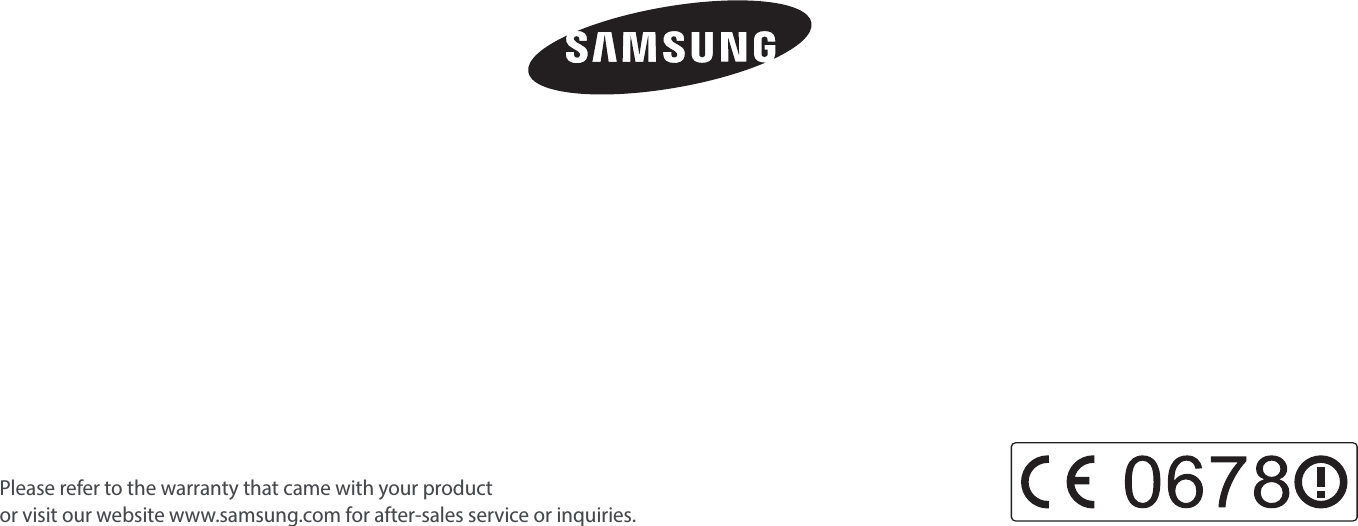

Please refer to the warranty that came with your product or visit our website www.samsung.com for after-sales service or inquiries.
