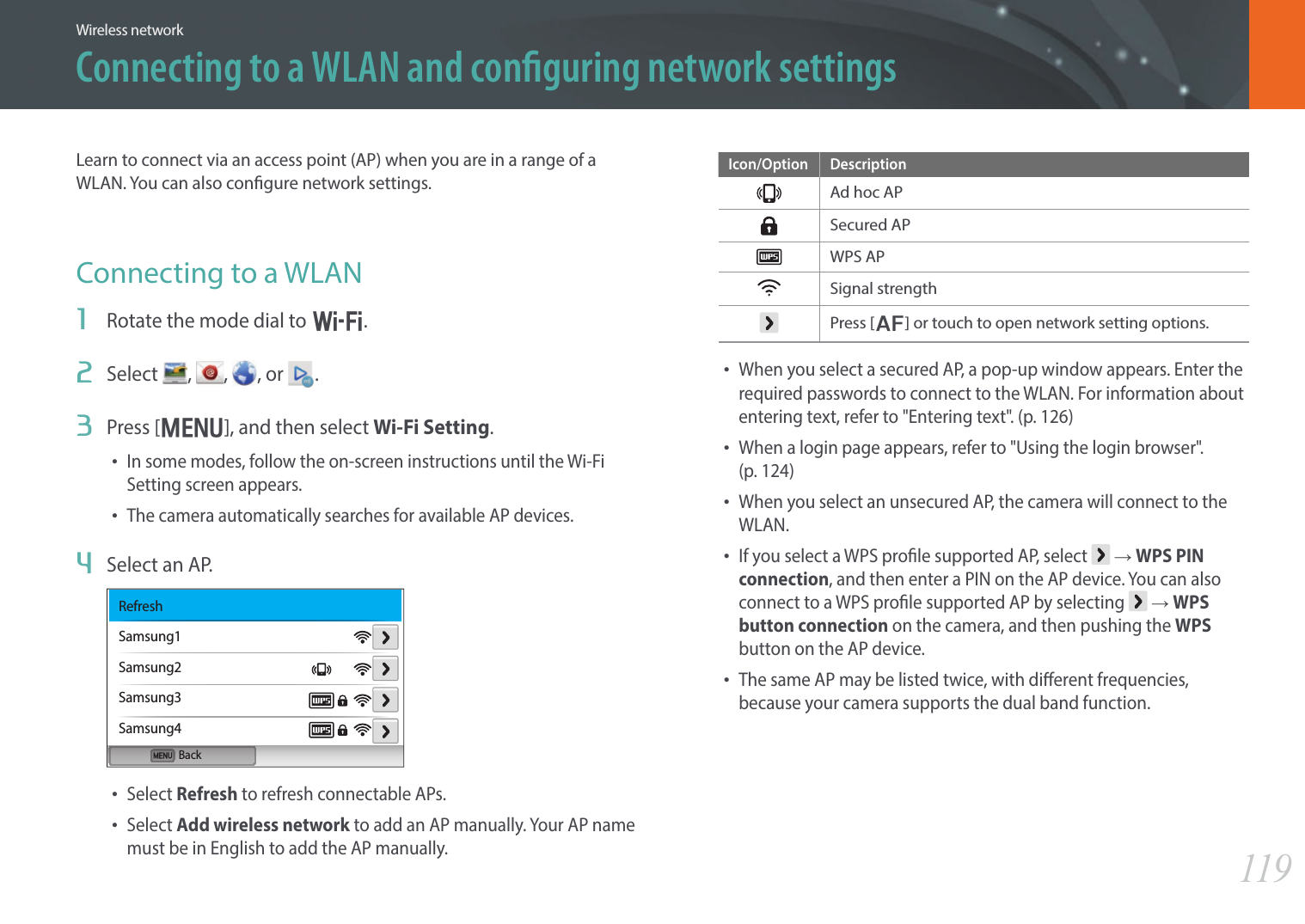

119Wireless networkConnecting to a WLAN and conguring network settingsLearn to connect via an access point (AP) when you are in a range of a WLAN. You can also congure network settings.Connecting to a WLAN1 Rotate the mode dial to B.2 Select , , , or .3 Press [m], and then select Wi-Fi Setting.• In some modes, follow the on-screen instructions until the Wi-Fi Setting screen appears.• The camera automatically searches for available AP devices.4 Select an AP.BackRefreshSamsung1Samsung2Samsung3Samsung4• Select Refresh to refresh connectable APs.• Select Add wireless network to add an AP manually. Your AP name must be in English to add the AP manually.Icon/Option DescriptionAd hoc APSecured APWPS APSignal strengthPress [F] or touch to open network setting options.• When you select a secured AP, a pop-up window appears. Enter the required passwords to connect to the WLAN. For information about entering text, refer to "Entering text". (p. 126)• When a login page appears, refer to "Using the login browser". (p. 124)• When you select an unsecured AP, the camera will connect to the WLAN.• If you select a WPS prole supported AP, select → WPS PIN connection, and then enter a PIN on the AP device. You can also connect to a WPS prole supported AP by selecting → WPS button connection on the camera, and then pushing the WPS button on the AP device.• The same AP may be listed twice, with dierent frequencies, because your camera supports the dual band function.

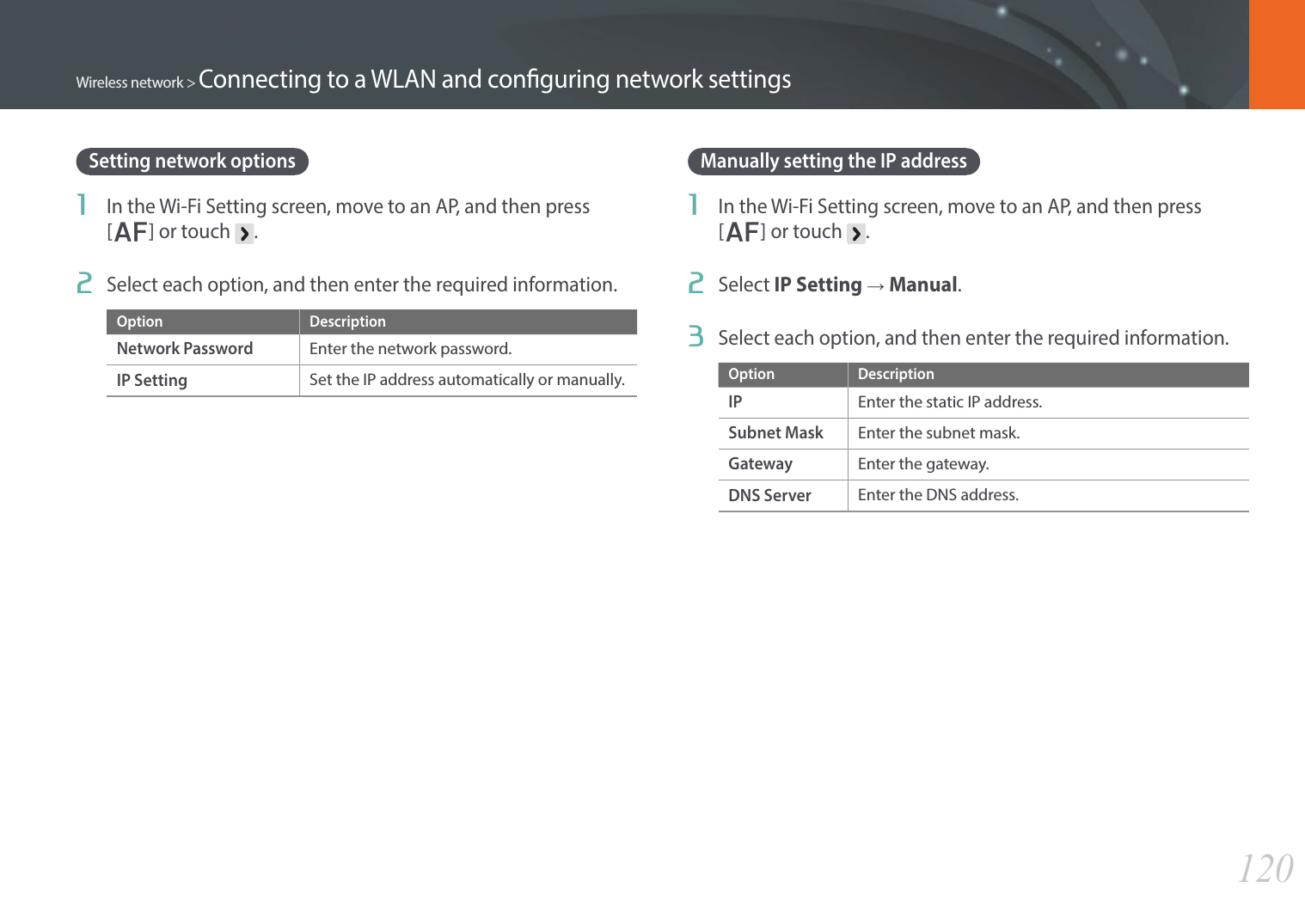

120Wireless network > Connecting to a WLAN and conguring network settingsSetting network options1 In the Wi-Fi Setting screen, move to an AP, and then press [F] or touch .2 Select each option, and then enter the required information.Option DescriptionNetwork PasswordEnter the network password.IP SettingSet the IP address automatically or manually.Manually setting the IP address1 In the Wi-Fi Setting screen, move to an AP, and then press [F] or touch .2 Select IP Setting → Manual.3 Select each option, and then enter the required information.Option DescriptionIPEnter the static IP address.Subnet MaskEnter the subnet mask.GatewayEnter the gateway.DNS ServerEnter the DNS address.

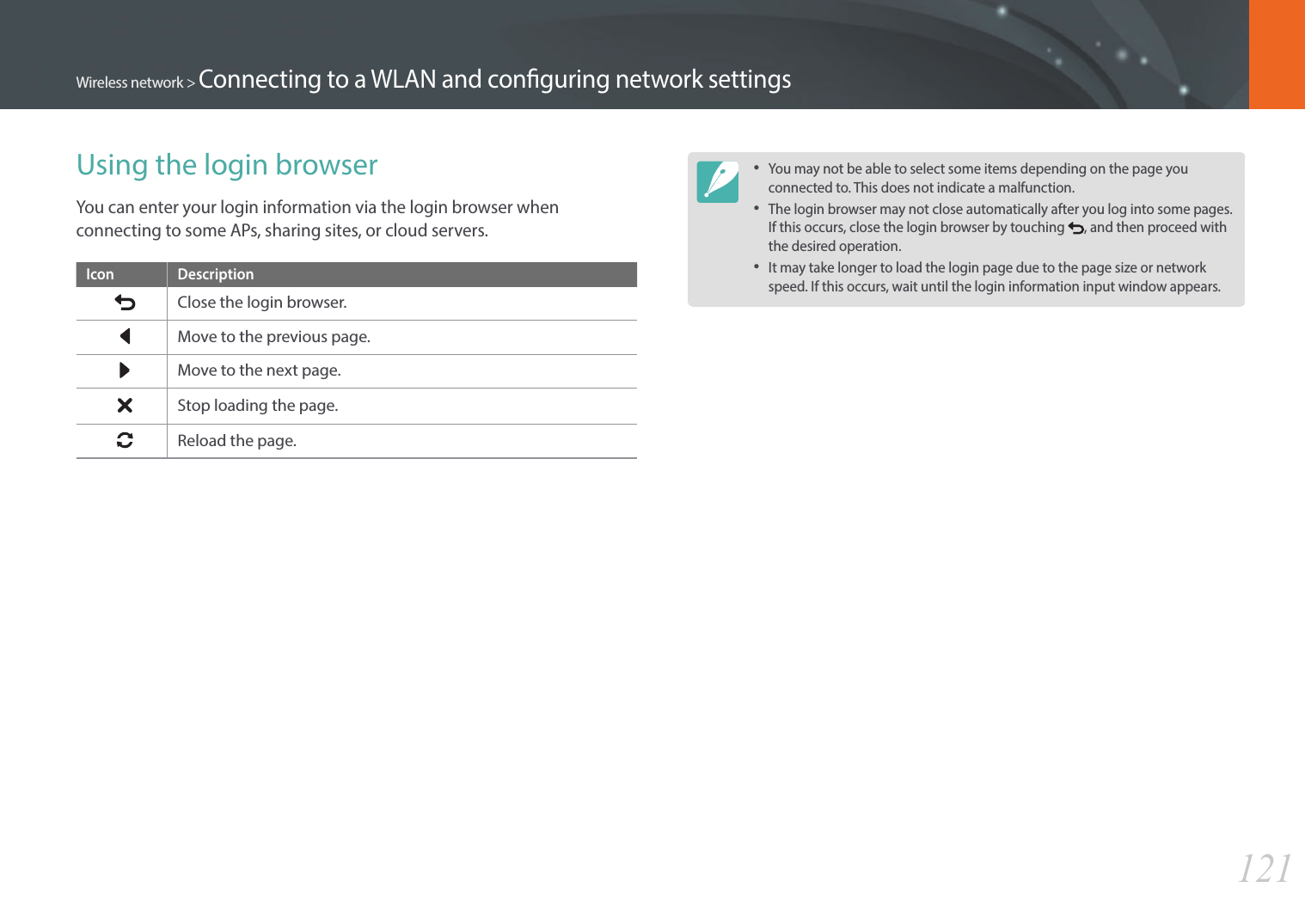

121Wireless network > Connecting to a WLAN and conguring network settingsUsing the login browserYou can enter your login information via the login browser when connecting to some APs, sharing sites, or cloud servers.Icon DescriptionClose the login browser.Move to the previous page.Move to the next page.Stop loading the page.Reload the page.• You may not be able to select some items depending on the page you connected to. This does not indicate a malfunction.• The login browser may not close automatically after you log into some pages. If this occurs, close the login browser by touching , and then proceed with the desired operation.• It may take longer to load the login page due to the page size or network speed. If this occurs, wait until the login information input window appears.

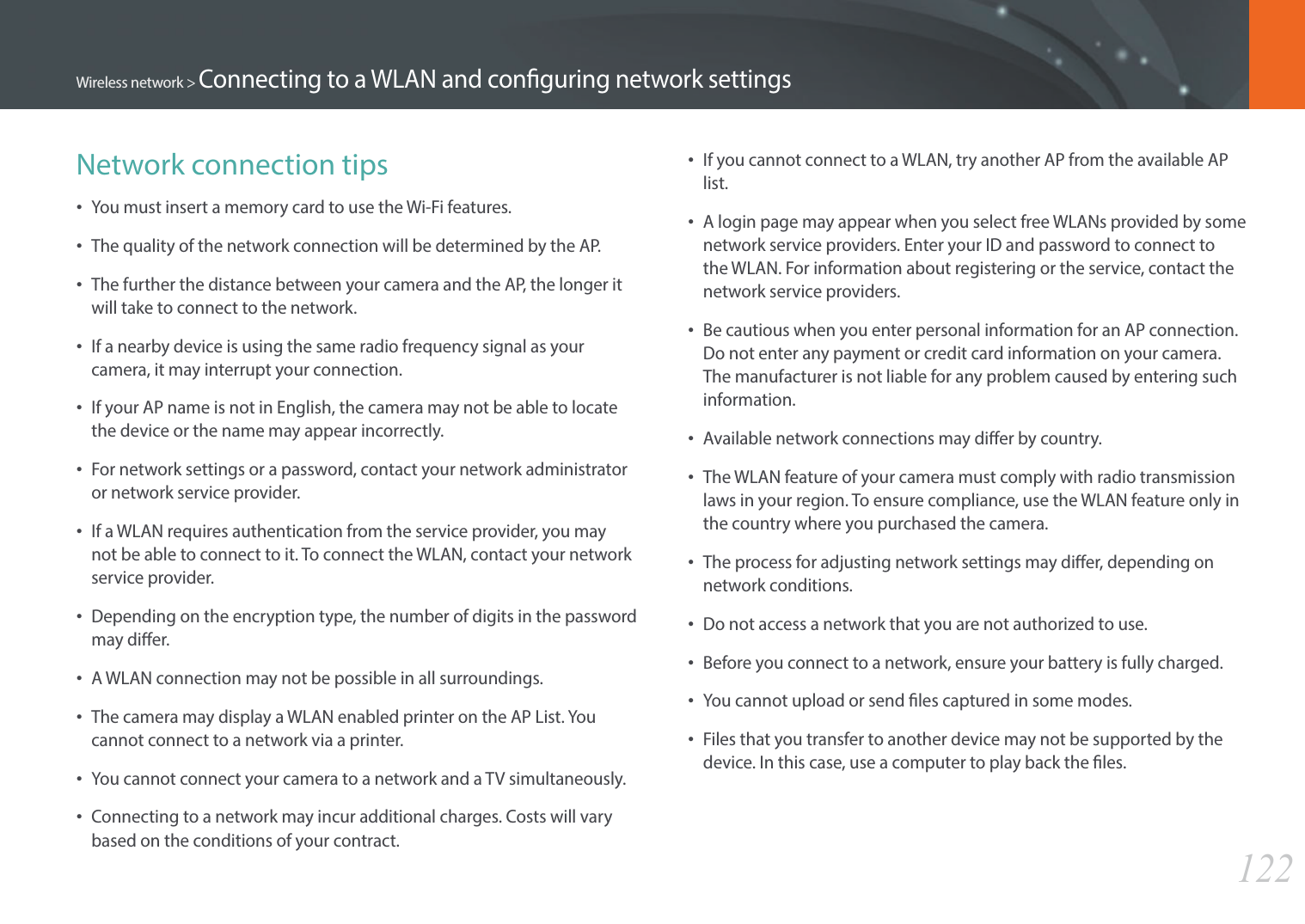

122Wireless network > Connecting to a WLAN and conguring network settingsNetwork connection tips• You must insert a memory card to use the Wi-Fi features.• The quality of the network connection will be determined by the AP.• The further the distance between your camera and the AP, the longer it will take to connect to the network.• If a nearby device is using the same radio frequency signal as your camera, it may interrupt your connection.• If your AP name is not in English, the camera may not be able to locate the device or the name may appear incorrectly.• For network settings or a password, contact your network administrator or network service provider.• If a WLAN requires authentication from the service provider, you may not be able to connect to it. To connect the WLAN, contact your network service provider.• Depending on the encryption type, the number of digits in the password may dier.• A WLAN connection may not be possible in all surroundings.• The camera may display a WLAN enabled printer on the AP List. You cannot connect to a network via a printer.• You cannot connect your camera to a network and a TV simultaneously.• Connecting to a network may incur additional charges. Costs will vary based on the conditions of your contract.• If you cannot connect to a WLAN, try another AP from the available AP list.• A login page may appear when you select free WLANs provided by some network service providers. Enter your ID and password to connect to the WLAN. For information about registering or the service, contact the network service providers.• Be cautious when you enter personal information for an AP connection. Do not enter any payment or credit card information on your camera. The manufacturer is not liable for any problem caused by entering such information.• Available network connections may dier by country.• The WLAN feature of your camera must comply with radio transmission laws in your region. To ensure compliance, use the WLAN feature only in the country where you purchased the camera.• The process for adjusting network settings may dier, depending on network conditions.• Do not access a network that you are not authorized to use.• Before you connect to a network, ensure your battery is fully charged.• You cannot upload or send les captured in some modes.• Files that you transfer to another device may not be supported by the device. In this case, use a computer to play back the les.

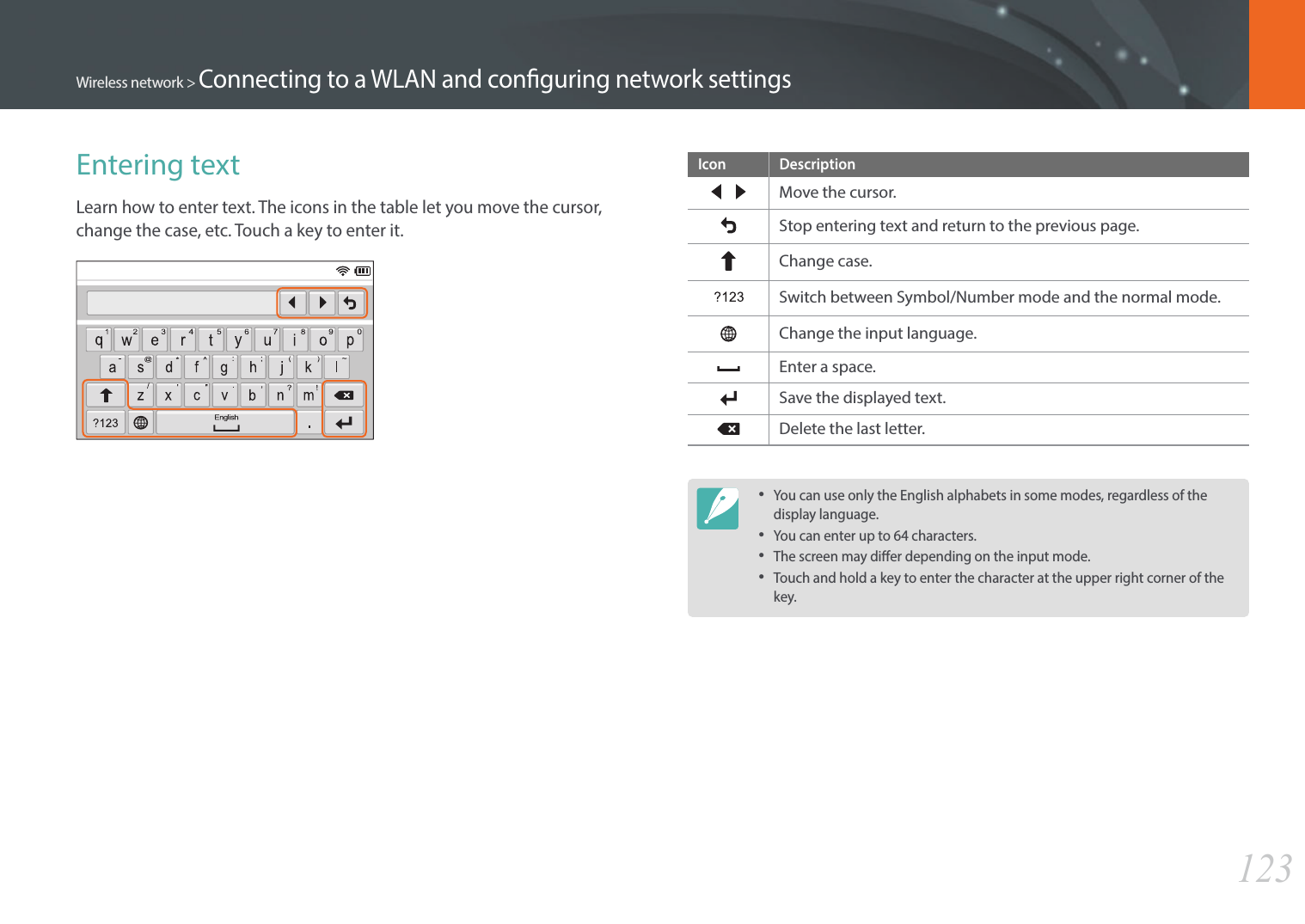

123Wireless network > Connecting to a WLAN and conguring network settingsEntering textLearn how to enter text. The icons in the table let you move the cursor, change the case, etc. Touch a key to enter it.Icon DescriptionMove the cursor.Stop entering text and return to the previous page.Change case.Switch between Symbol/Number mode and the normal mode.Change the input language.Enter a space.Save the displayed text.Delete the last letter.• You can use only the English alphabets in some modes, regardless of the display language.• You can enter up to 64 characters.• The screen may dier depending on the input mode.• Touch and hold a key to enter the character at the upper right corner of the key.

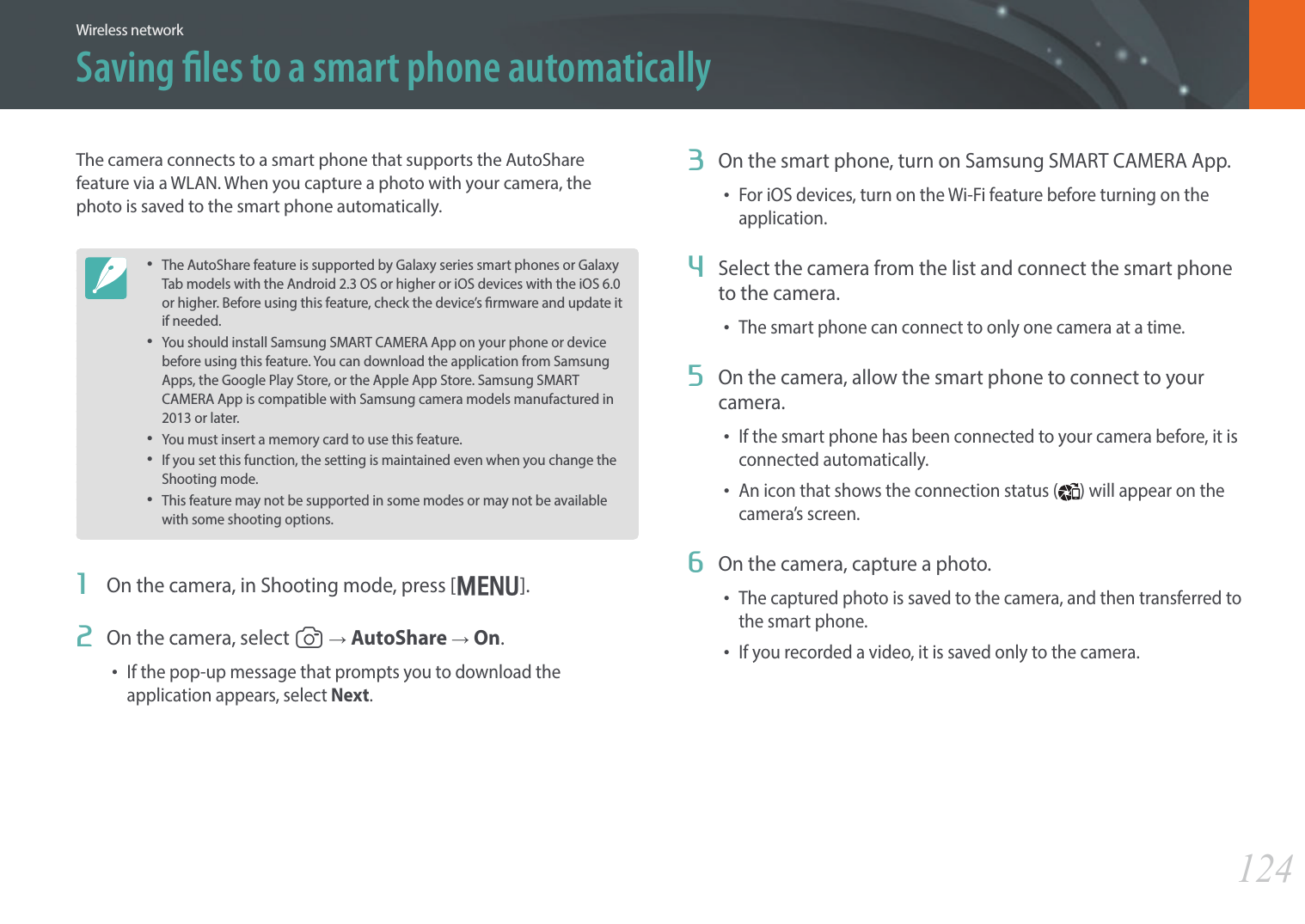

124Wireless networkSaving les to a smart phone automaticallyThe camera connects to a smart phone that supports the AutoShare feature via a WLAN. When you capture a photo with your camera, the photo is saved to the smart phone automatically.• The AutoShare feature is supported by Galaxy series smart phones or Galaxy Tab models with the Android 2.3 OS or higher or iOS devices with the iOS 6.0 or higher. Before using this feature, check the device’s rmware and update it if needed.• You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.• You must insert a memory card to use this feature.• If you set this function, the setting is maintained even when you change the Shooting mode.• This feature may not be supported in some modes or may not be available with some shooting options.1 On the camera, in Shooting mode, press [m].2 On the camera, select 1 → AutoShare → On.• If the pop-up message that prompts you to download the application appears, select Next.3 On the smart phone, turn on Samsung SMART CAMERA App.• For iOS devices, turn on the Wi-Fi feature before turning on the application.4 Select the camera from the list and connect the smart phone to the camera.• The smart phone can connect to only one camera at a time.5 On the camera, allow the smart phone to connect to your camera.• If the smart phone has been connected to your camera before, it is connected automatically.• An icon that shows the connection status ( ) will appear on the camera’s screen.6 On the camera, capture a photo.• The captured photo is saved to the camera, and then transferred to the smart phone.• If you recorded a video, it is saved only to the camera.

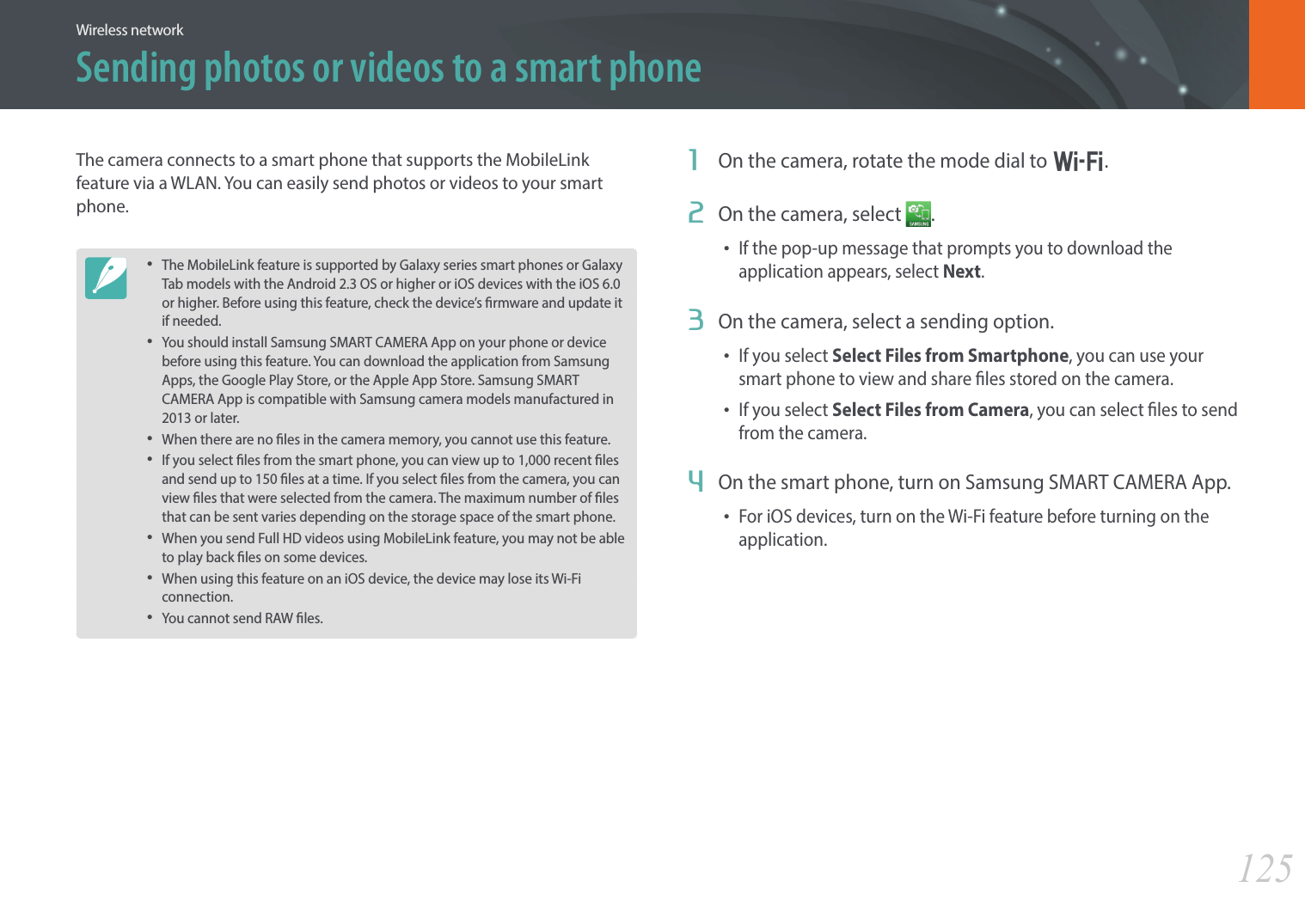

125Wireless networkThe camera connects to a smart phone that supports the MobileLink feature via a WLAN. You can easily send photos or videos to your smart phone.• The MobileLink feature is supported by Galaxy series smart phones or Galaxy Tab models with the Android 2.3 OS or higher or iOS devices with the iOS 6.0 or higher. Before using this feature, check the device’s rmware and update it if needed.• You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.• When there are no les in the camera memory, you cannot use this feature.• If you select les from the smart phone, you can view up to 1,000 recent les and send up to 150 les at a time. If you select les from the camera, you can view les that were selected from the camera. The maximum number of les that can be sent varies depending on the storage space of the smart phone.• When you send Full HD videos using MobileLink feature, you may not be able to play back les on some devices.• When using this feature on an iOS device, the device may lose its Wi-Fi connection.• You cannot send RAW les.1 On the camera, rotate the mode dial to B.2 On the camera, select .• If the pop-up message that prompts you to download the application appears, select Next.3 On the camera, select a sending option.• If you select Select Files from Smartphone, you can use your smart phone to view and share les stored on the camera.• If you select Select Files from Camera, you can select les to send from the camera.4 On the smart phone, turn on Samsung SMART CAMERA App.• For iOS devices, turn on the Wi-Fi feature before turning on the application.Sending photos or videos to a smart phone

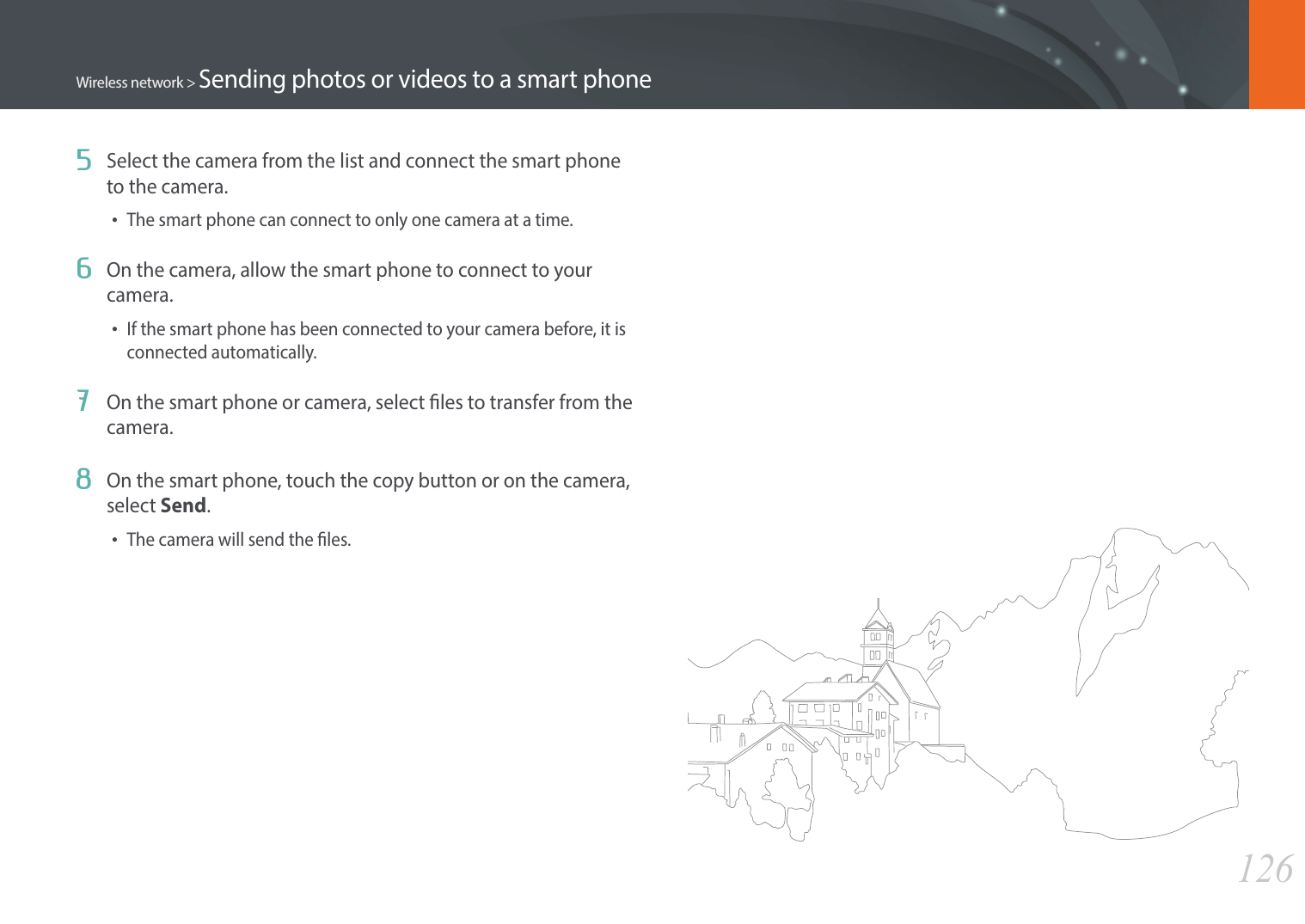

126Wireless network > Sending photos or videos to a smart phone5 Select the camera from the list and connect the smart phone to the camera.• The smart phone can connect to only one camera at a time.6 On the camera, allow the smart phone to connect to your camera.• If the smart phone has been connected to your camera before, it is connected automatically.7 On the smart phone or camera, select les to transfer from the camera.8 On the smart phone, touch the copy button or on the camera, select Send.• The camera will send the les.

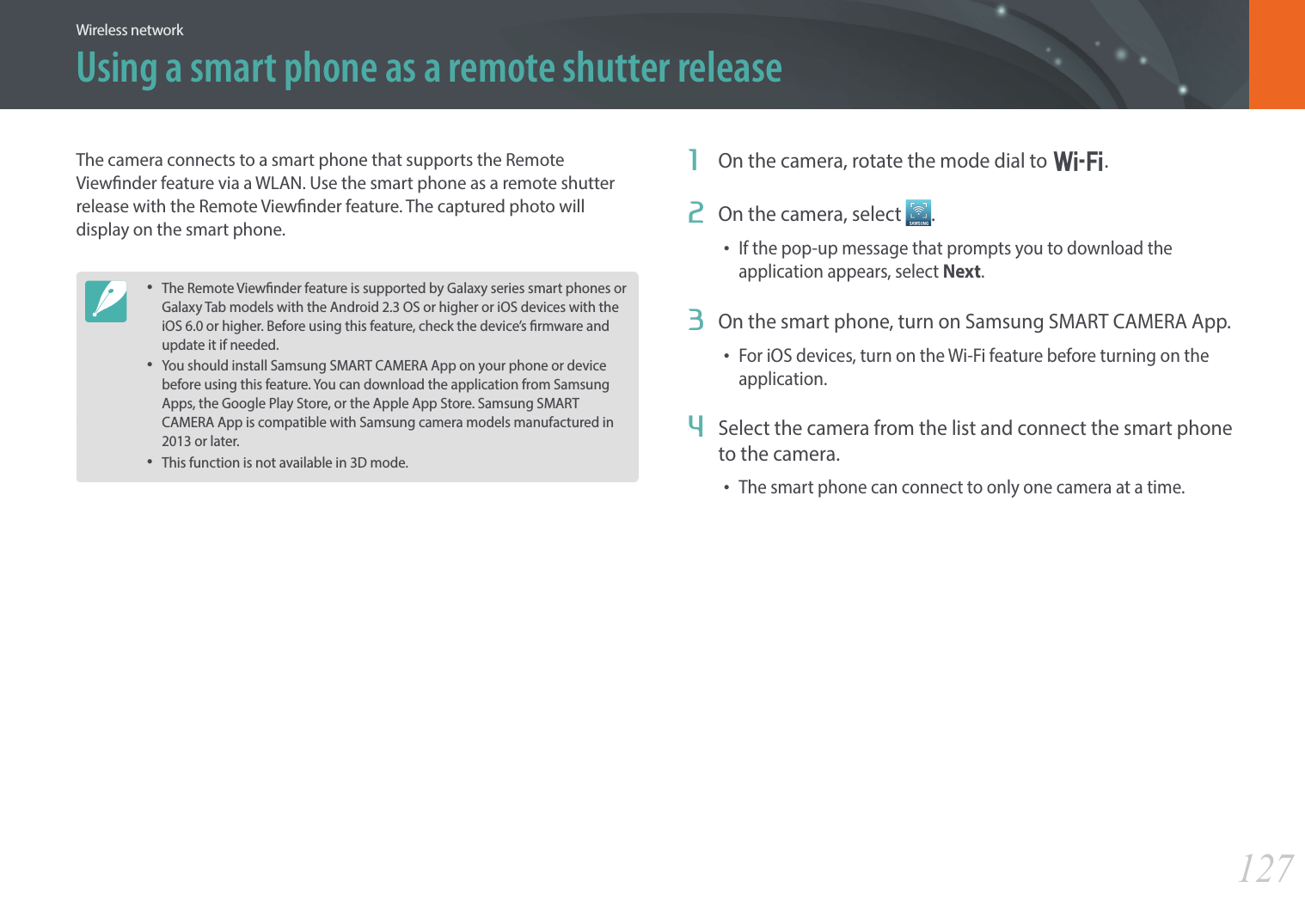

127Wireless networkThe camera connects to a smart phone that supports the Remote Viewnder feature via a WLAN. Use the smart phone as a remote shutter release with the Remote Viewnder feature. The captured photo will display on the smart phone.• The Remote Viewnder feature is supported by Galaxy series smart phones or Galaxy Tab models with the Android 2.3 OS or higher or iOS devices with the iOS 6.0 or higher. Before using this feature, check the device’s rmware and update it if needed.• You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.• This function is not available in 3D mode.1 On the camera, rotate the mode dial to B.2 On the camera, select .• If the pop-up message that prompts you to download the application appears, select Next.3 On the smart phone, turn on Samsung SMART CAMERA App.• For iOS devices, turn on the Wi-Fi feature before turning on the application.4 Select the camera from the list and connect the smart phone to the camera.• The smart phone can connect to only one camera at a time.Using a smart phone as a remote shutter release

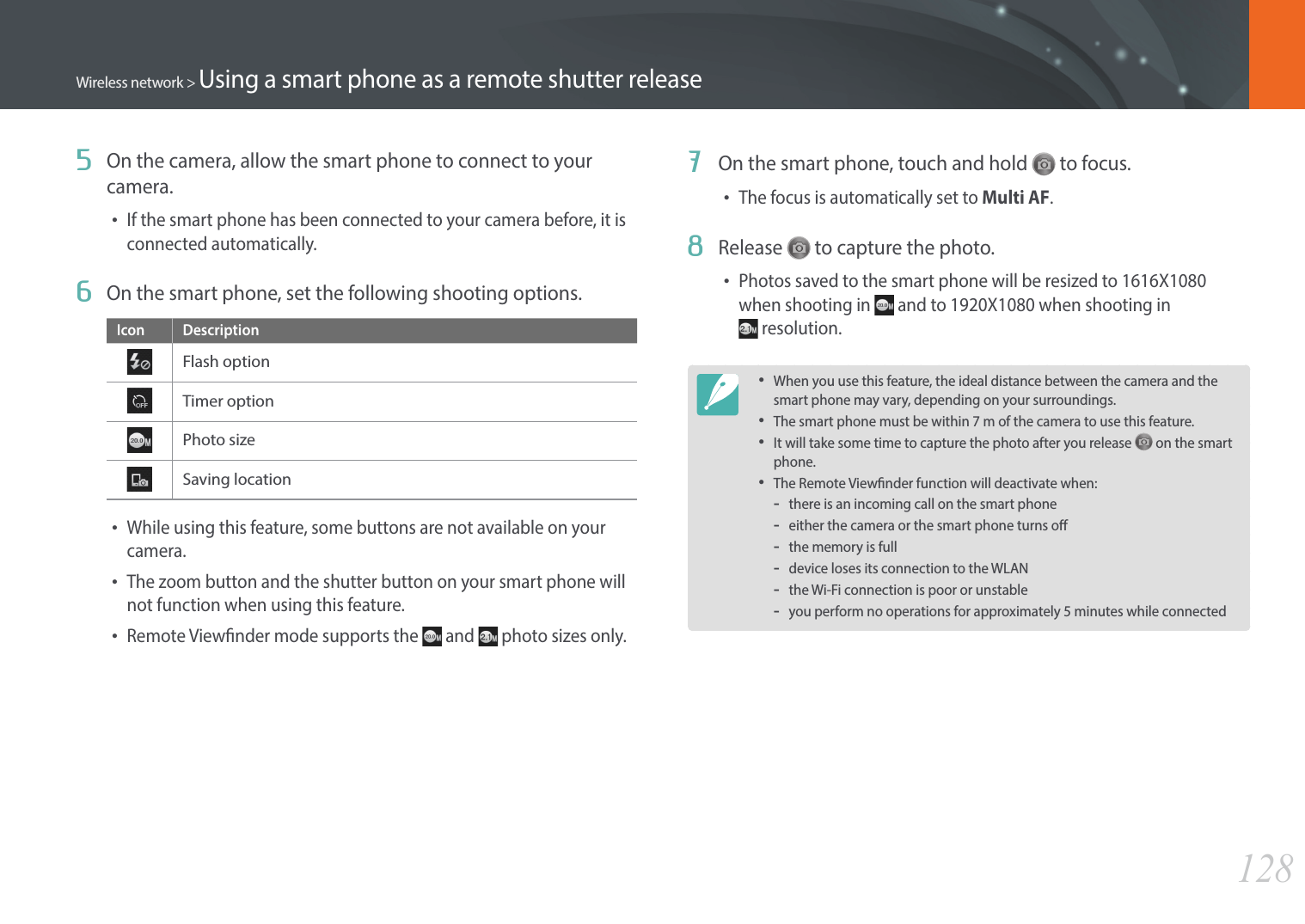

128Wireless network > Using a smart phone as a remote shutter release5 On the camera, allow the smart phone to connect to your camera.• If the smart phone has been connected to your camera before, it is connected automatically.6 On the smart phone, set the following shooting options.Icon DescriptionFlash optionTimer optionPhoto sizeSaving location• While using this feature, some buttons are not available on your camera.• The zoom button and the shutter button on your smart phone will not function when using this feature.• Remote Viewnder mode supports the and photo sizes only.7 On the smart phone, touch and hold to focus.• The focus is automatically set to Multi AF.8 Release to capture the photo.• Photos saved to the smart phone will be resized to 1616X1080 when shooting in and to 1920X1080 when shooting in resolution.• When you use this feature, the ideal distance between the camera and the smart phone may vary, depending on your surroundings.• The smart phone must be within 7 m of the camera to use this feature.• It will take some time to capture the photo after you release on the smart phone.• The Remote Viewnder function will deactivate when: -there is an incoming call on the smart phone -either the camera or the smart phone turns o -the memory is full -device loses its connection to the WLAN -the Wi-Fi connection is poor or unstable -you perform no operations for approximately 5 minutes while connected

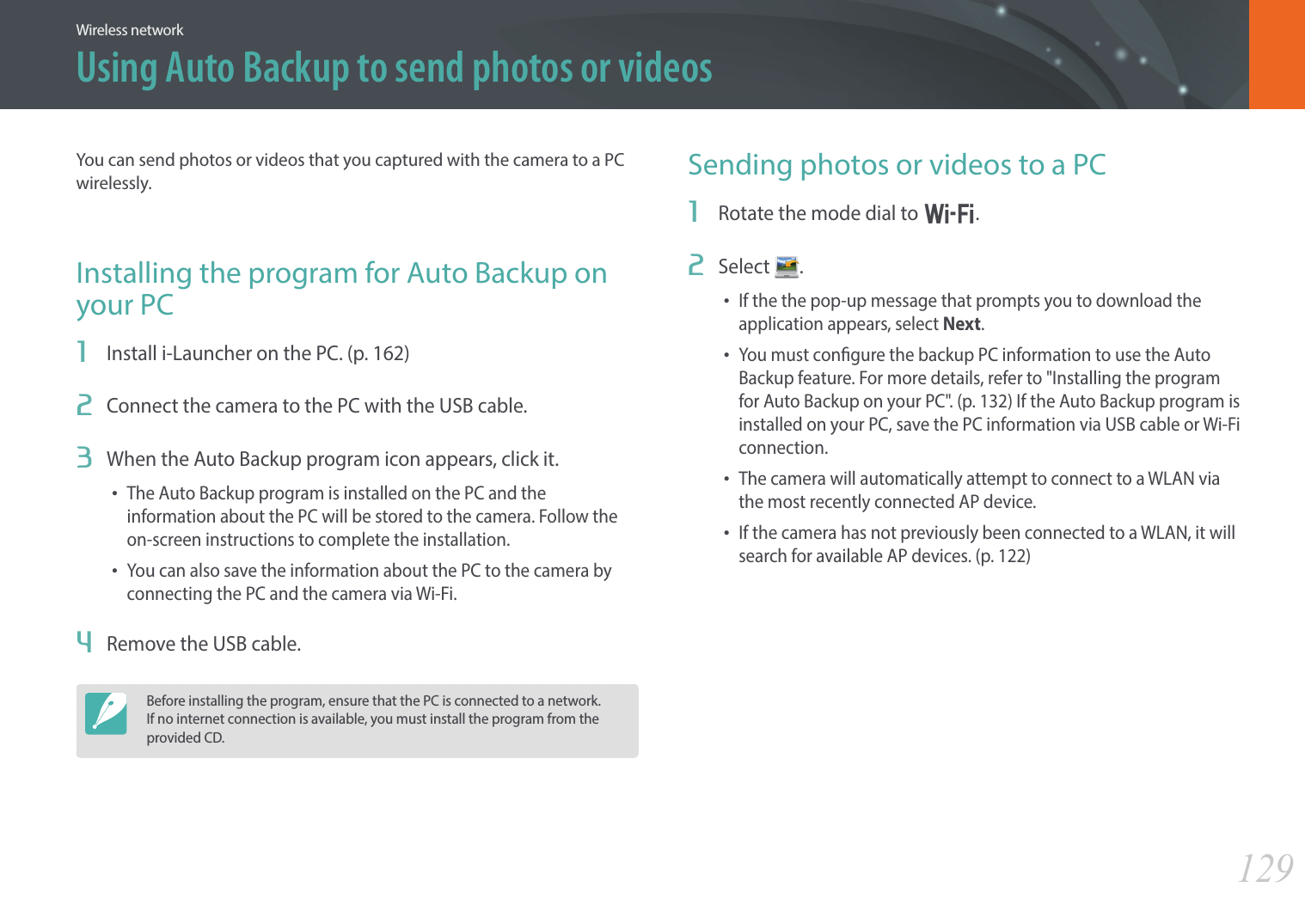

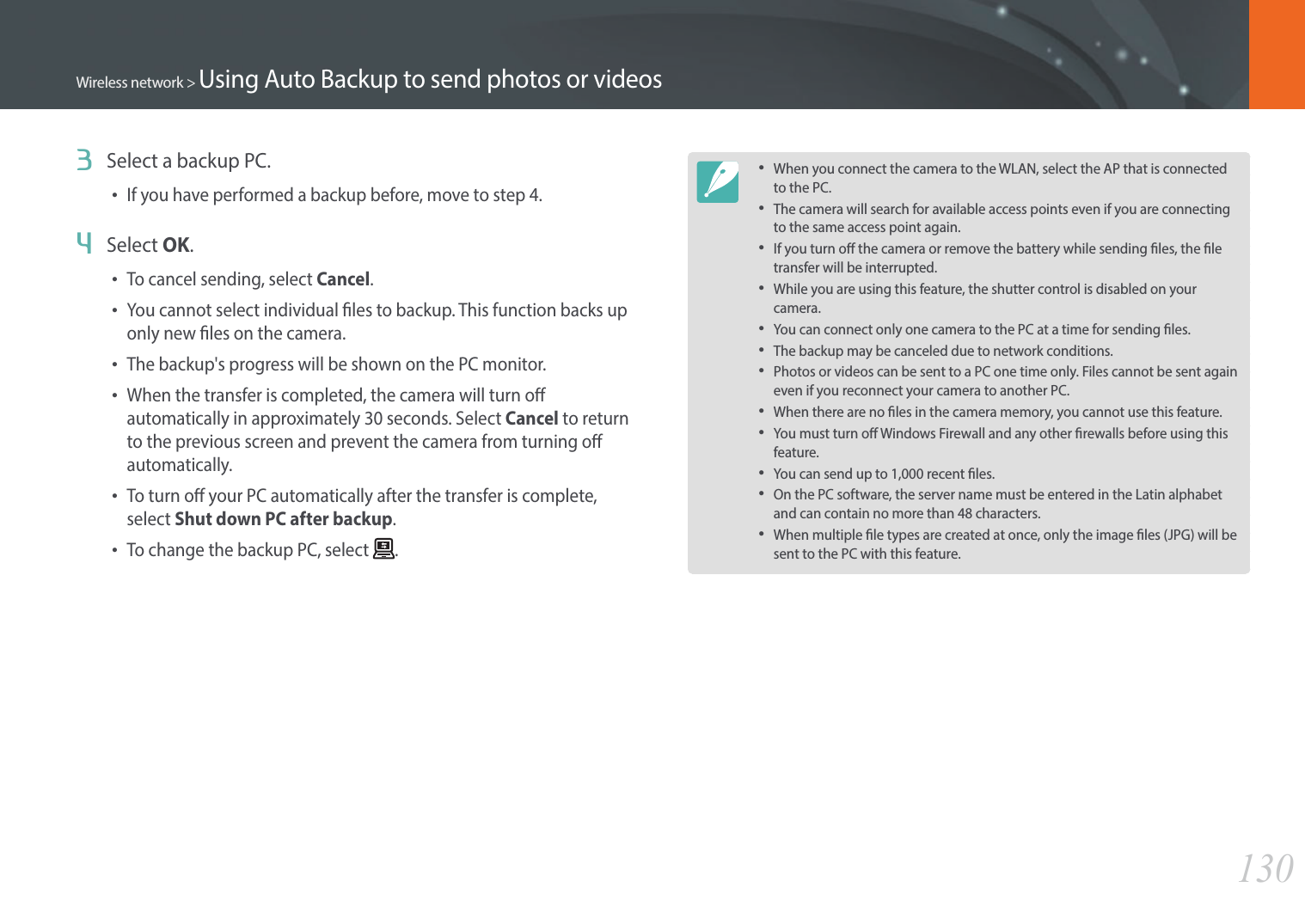

129Wireless networkUsing Auto Backup to send photos or videosYou can send photos or videos that you captured with the camera to a PC wirelessly.Installing the program for Auto Backup on your PC1 Install i-Launcher on the PC. (p. 162)2 Connect the camera to the PC with the USB cable.3 When the Auto Backup program icon appears, click it.• The Auto Backup program is installed on the PC and the information about the PC will be stored to the camera. Follow the on-screen instructions to complete the installation.• You can also save the information about the PC to the camera by connecting the PC and the camera via Wi-Fi.4 Remove the USB cable.Before installing the program, ensure that the PC is connected to a network. If no internet connection is available, you must install the program from the provided CD.Sending photos or videos to a PC1 Rotate the mode dial to B.2 Select .• If the the pop-up message that prompts you to download the application appears, select Next.• You must congure the backup PC information to use the Auto Backup feature. For more details, refer to "Installing the program for Auto Backup on your PC". (p. 132) If the Auto Backup program is installed on your PC, save the PC information via USB cable or Wi-Fi connection.• The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.• If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 122)
130Wireless network > Using Auto Backup to send photos or videos3 Select a backup PC.• If you have performed a backup before, move to step 4.4 Select OK.• To cancel sending, select Cancel.• You cannot select individual les to backup. This function backs up only new les on the camera.• The backup's progress will be shown on the PC monitor.• When the transfer is completed, the camera will turn o automatically in approximately 30 seconds. Select Cancel to return to the previous screen and prevent the camera from turning o automatically.• To turn o your PC automatically after the transfer is complete, select Shut down PC after backup.• To change the backup PC, select .• When you connect the camera to the WLAN, select the AP that is connected to the PC.• The camera will search for available access points even if you are connecting to the same access point again.• If you turn o the camera or remove the battery while sending les, the le transfer will be interrupted.• While you are using this feature, the shutter control is disabled on your camera.• You can connect only one camera to the PC at a time for sending les.• The backup may be canceled due to network conditions.• Photos or videos can be sent to a PC one time only. Files cannot be sent again even if you reconnect your camera to another PC.• When there are no les in the camera memory, you cannot use this feature.• You must turn o Windows Firewall and any other rewalls before using this feature.• You can send up to 1,000 recent les.• On the PC software, the server name must be entered in the Latin alphabet and can contain no more than 48 characters.• When multiple le types are created at once, only the image les (JPG) will be sent to the PC with this feature.

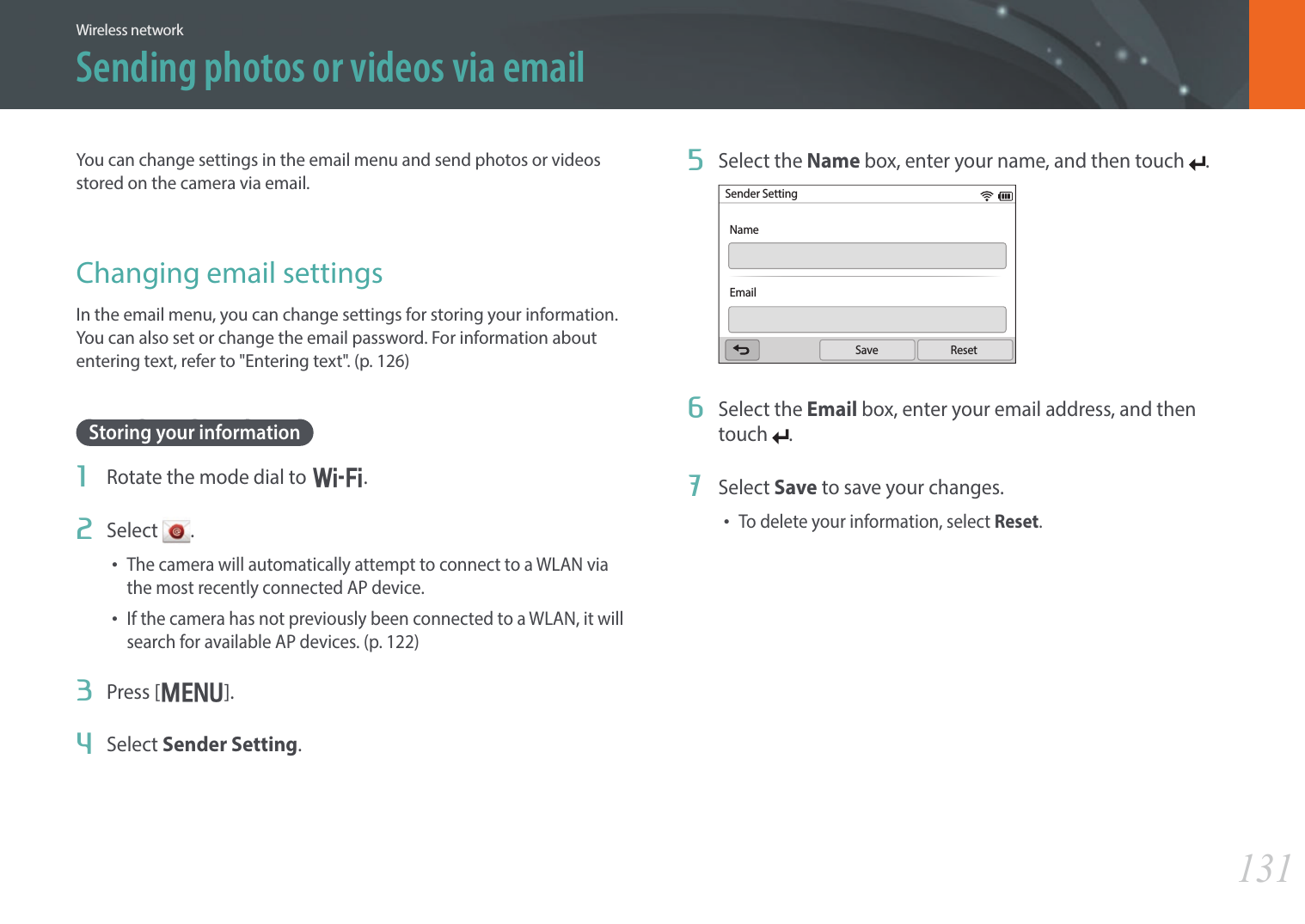

131Wireless network5 Select the Name box, enter your name, and then touch .Sender SettingNameSaveEmailReset6 Select the Email box, enter your email address, and then touch .7 Select Save to save your changes.• To delete your information, select Reset.You can change settings in the email menu and send photos or videos stored on the camera via email.Changing email settingsIn the email menu, you can change settings for storing your information. You can also set or change the email password. For information about entering text, refer to "Entering text". (p. 126)Storing your information1 Rotate the mode dial to B.2 Select .• The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.• If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 122)3 Press [m].4 Select Sender Setting.Sending photos or videos via email

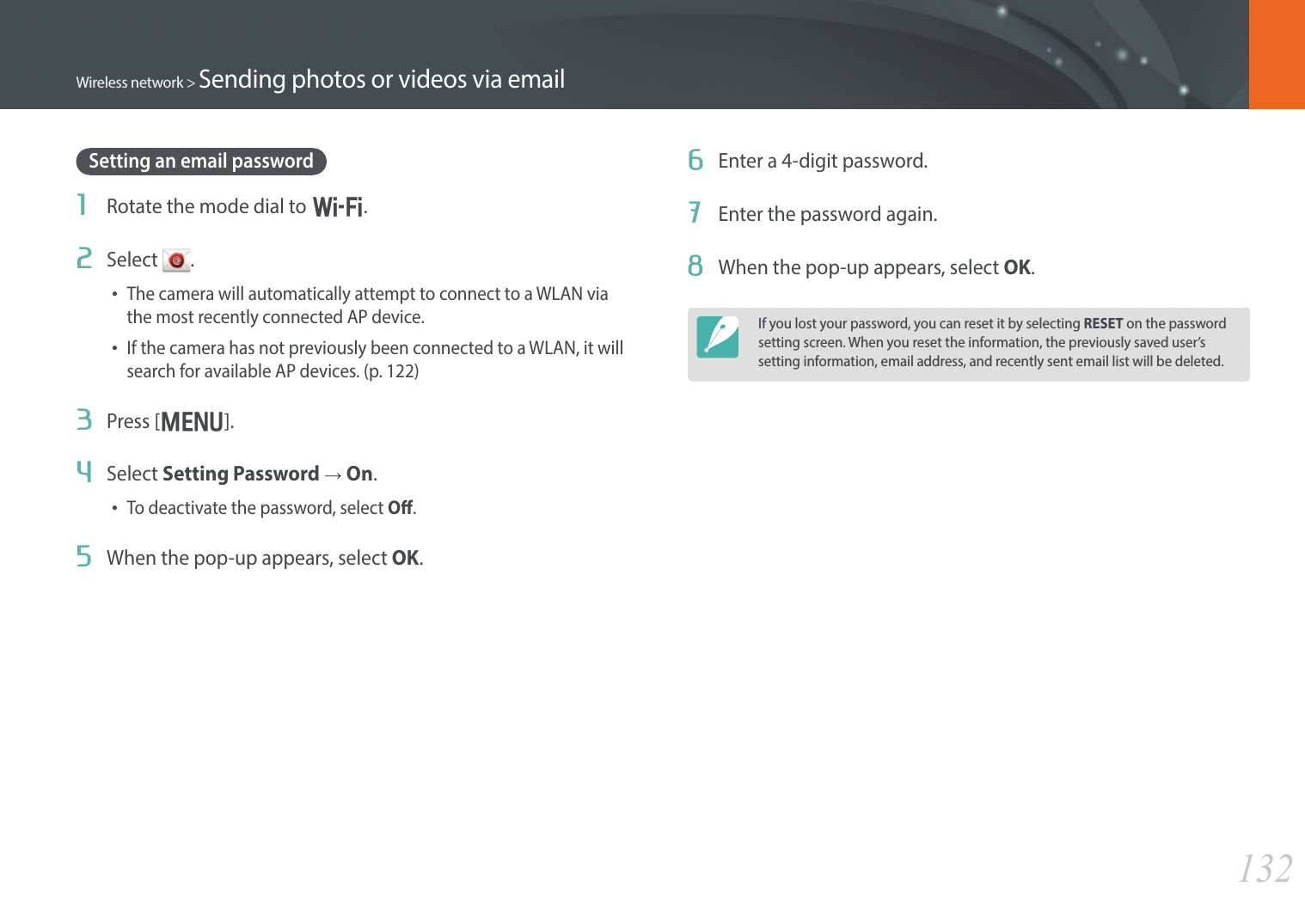

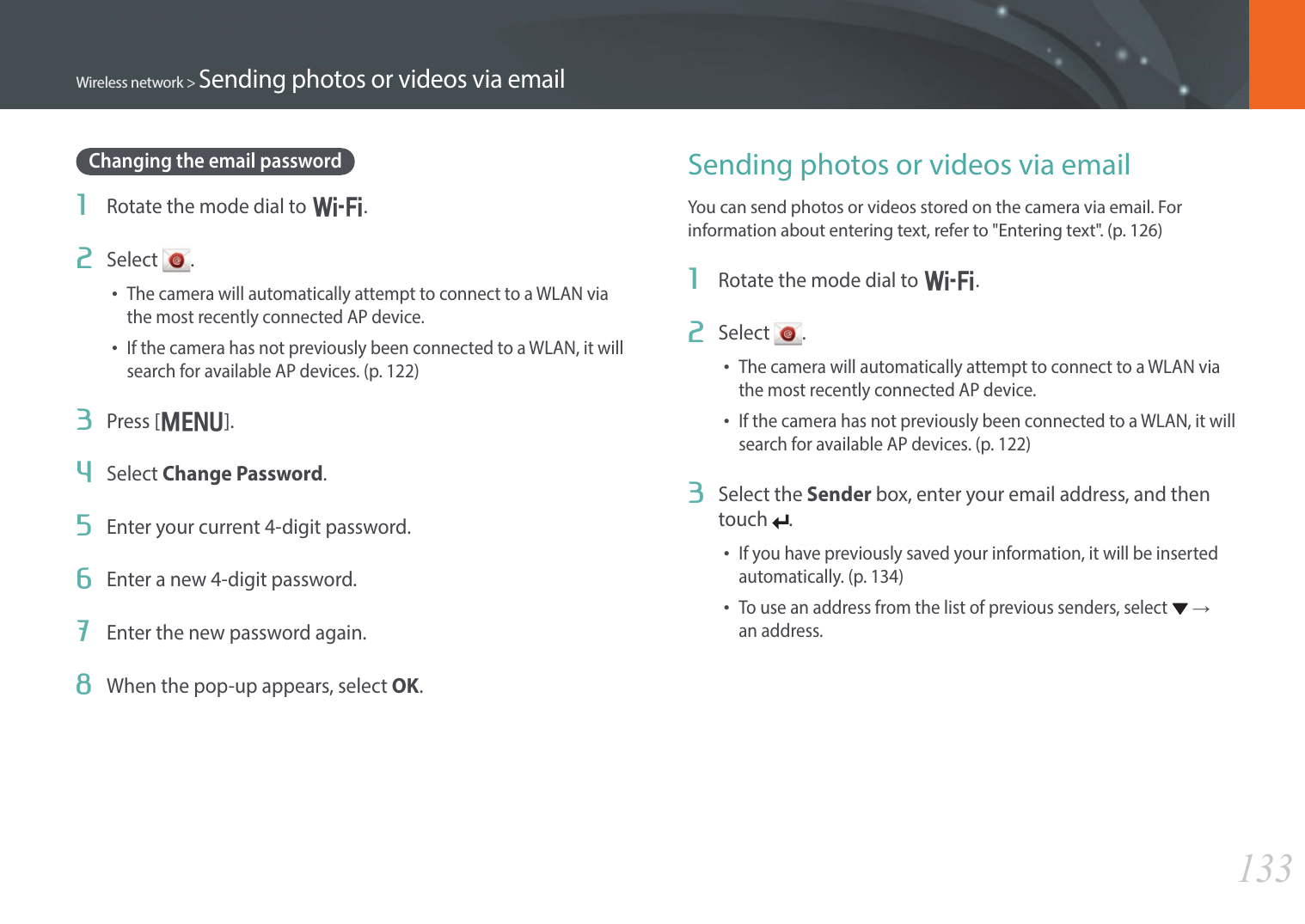

132Wireless network > Sending photos or videos via emailSetting an email password1 Rotate the mode dial to B.2 Select .• The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.• If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 122)3 Press [m].4 Select Setting Password → On.• To deactivate the password, select O.5 When the pop-up appears, select OK.6 Enter a 4-digit password.7 Enter the password again.8 When the pop-up appears, select OK.If you lost your password, you can reset it by selecting RESET on the password setting screen. When you reset the information, the previously saved user’s setting information, email address, and recently sent email list will be deleted.
133Wireless network > Sending photos or videos via emailChanging the email password1 Rotate the mode dial to B.2 Select .• The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.• If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 122)3 Press [m].4 Select Change Password.5 Enter your current 4-digit password.6 Enter a new 4-digit password.7 Enter the new password again.8 When the pop-up appears, select OK.Sending photos or videos via emailYou can send photos or videos stored on the camera via email. For information about entering text, refer to "Entering text". (p. 126)1 Rotate the mode dial to B.2 Select .• The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.• If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 122)3 Select the Sender box, enter your email address, and then touch .• If you have previously saved your information, it will be inserted automatically. (p. 134)• To use an address from the list of previous senders, select → an address.

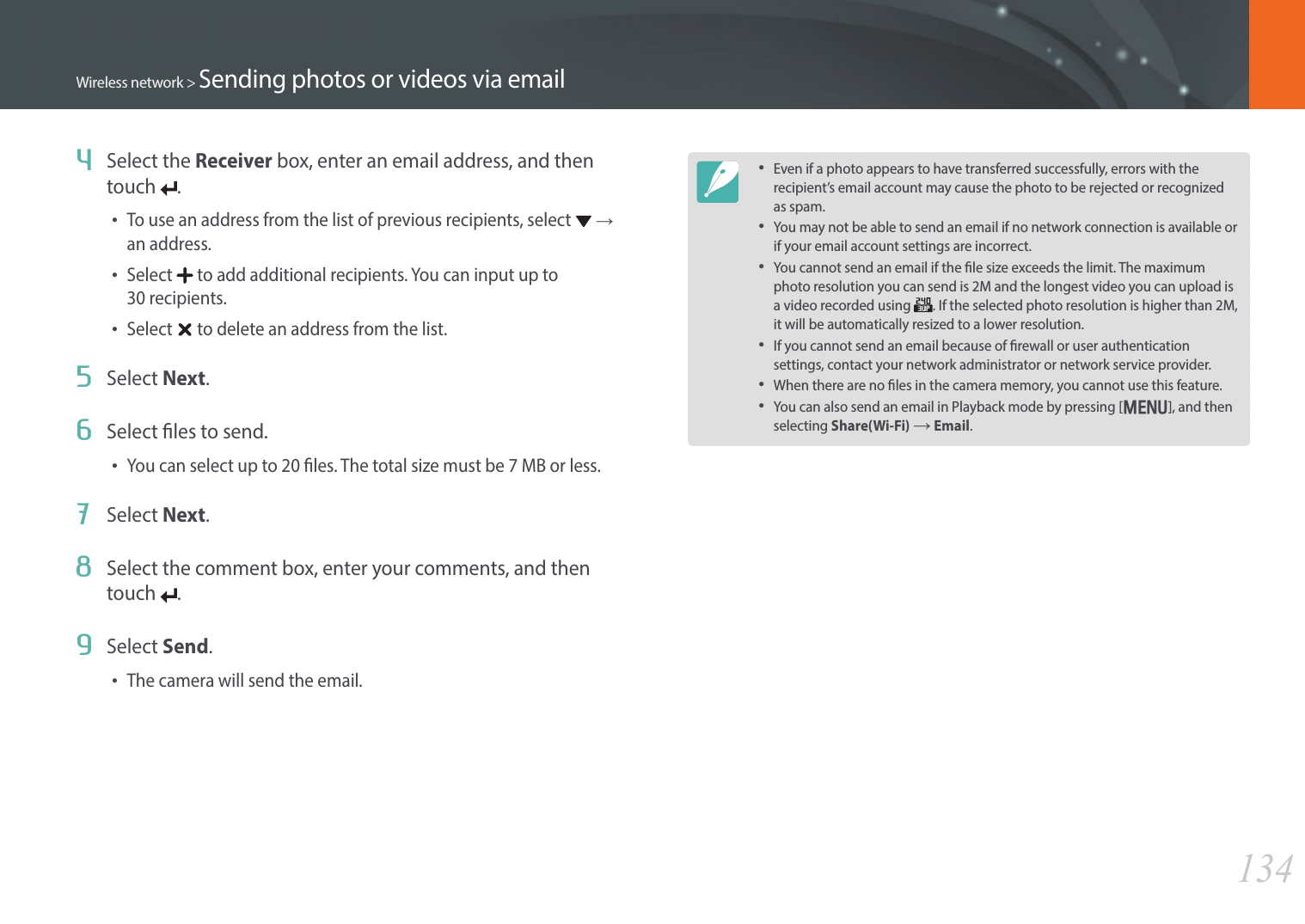

134Wireless network > Sending photos or videos via email4 Select the Receiver box, enter an email address, and then touch .• To use an address from the list of previous recipients, select → an address.• Select to add additional recipients. You can input up to 30 recipients.• Select to delete an address from the list.5 Select Next.6 Select les to send.• You can select up to 20 les. The total size must be 7 MB or less.7 Select Next.8 Select the comment box, enter your comments, and then touch .9 Select Send.• The camera will send the email.• Even if a photo appears to have transferred successfully, errors with the recipient’s email account may cause the photo to be rejected or recognized as spam.• You may not be able to send an email if no network connection is available or if your email account settings are incorrect.• You cannot send an email if the le size exceeds the limit. The maximum photo resolution you can send is 2M and the longest video you can upload is a video recorded using . If the selected photo resolution is higher than 2M, it will be automatically resized to a lower resolution.• If you cannot send an email because of rewall or user authentication settings, contact your network administrator or network service provider.• When there are no les in the camera memory, you cannot use this feature.• You can also send an email in Playback mode by pressing [m], and then selecting Share(Wi-Fi) → Email.

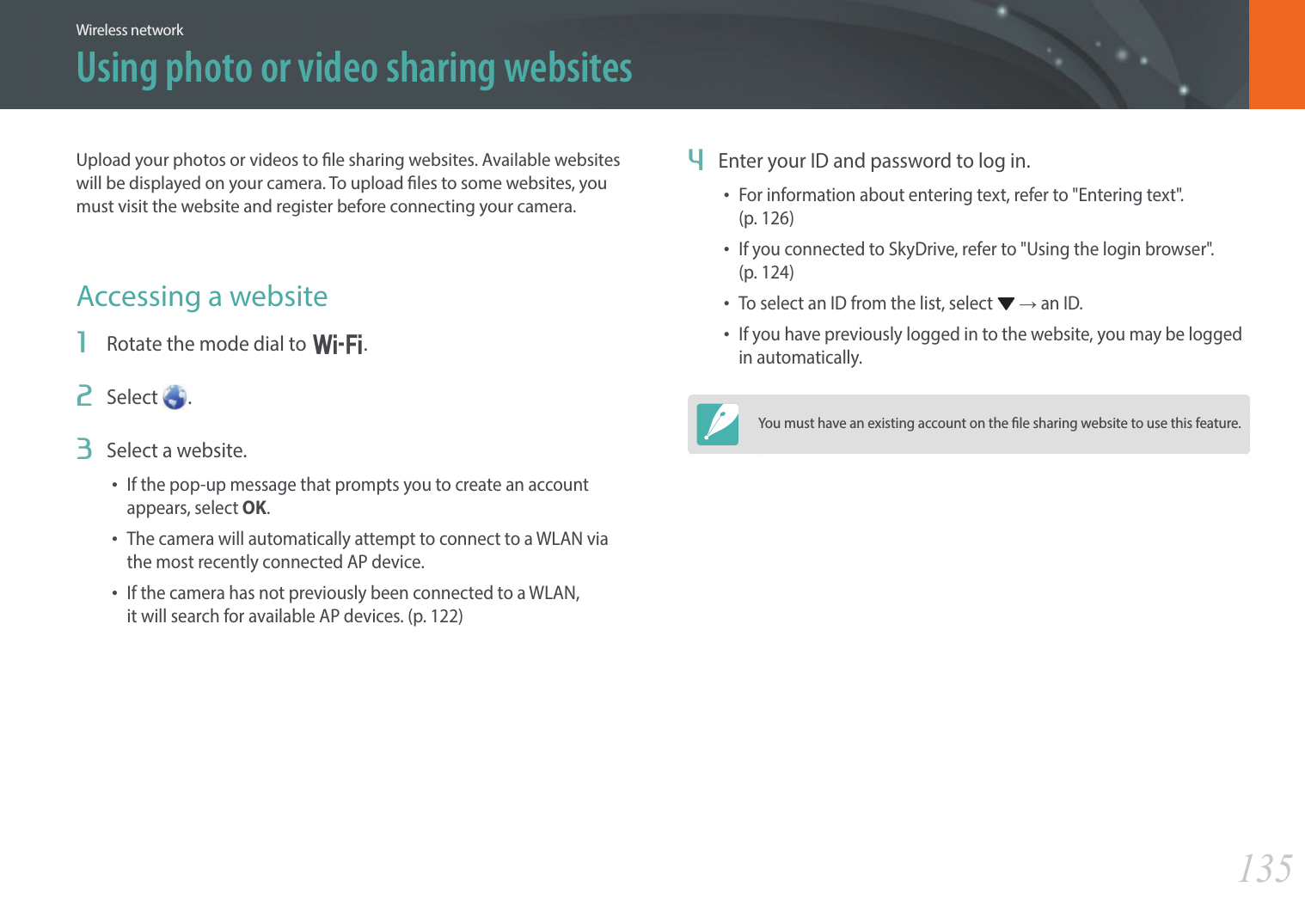

135Wireless networkUpload your photos or videos to le sharing websites. Available websites will be displayed on your camera. To upload les to some websites, you must visit the website and register before connecting your camera.Accessing a website1 Rotate the mode dial to B.2 Select .3 Select a website.• If the pop-up message that prompts you to create an account appears, select OK.• The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.• If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 122)4 Enter your ID and password to log in.• For information about entering text, refer to "Entering text". (p. 126)• If you connected to SkyDrive, refer to "Using the login browser". (p. 124)• To select an ID from the list, select → an ID.• If you have previously logged in to the website, you may be logged in automatically.You must have an existing account on the le sharing website to use this feature.Using photo or video sharing websites

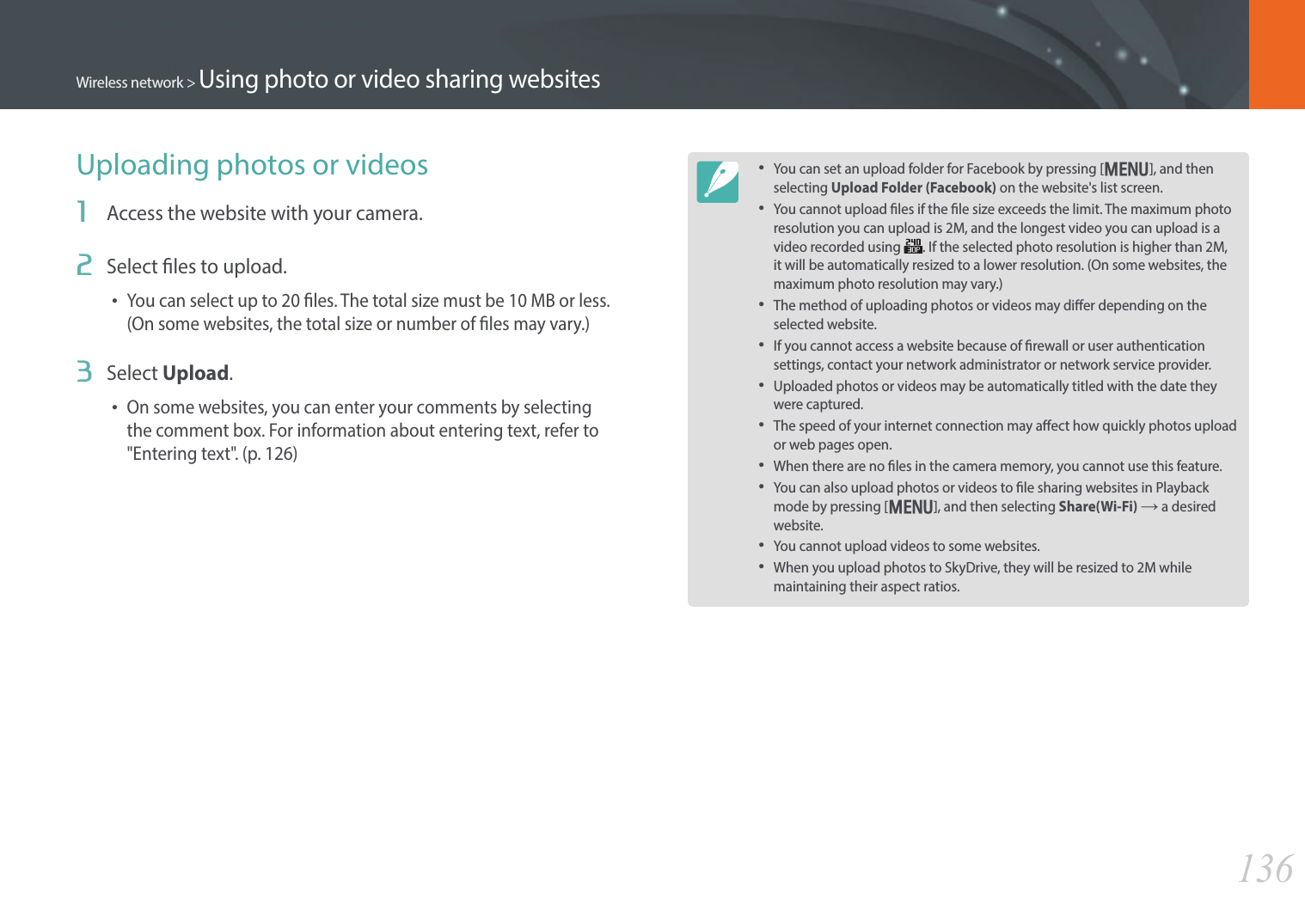

136Wireless network > Using photo or video sharing websitesUploading photos or videos1 Access the website with your camera.2 Select les to upload.• You can select up to 20 les. The total size must be 10 MB or less. (On some websites, the total size or number of les may vary.)3 Select Upload.• On some websites, you can enter your comments by selecting the comment box. For information about entering text, refer to "Entering text". (p. 126)• You can set an upload folder for Facebook by pressing [m], and then selecting Upload Folder (Facebook) on the website's list screen.• You cannot upload les if the le size exceeds the limit. The maximum photo resolution you can upload is 2M, and the longest video you can upload is a video recorded using . If the selected photo resolution is higher than 2M, it will be automatically resized to a lower resolution. (On some websites, the maximum photo resolution may vary.)• The method of uploading photos or videos may dier depending on the selected website.• If you cannot access a website because of rewall or user authentication settings, contact your network administrator or network service provider.• Uploaded photos or videos may be automatically titled with the date they were captured.• The speed of your internet connection may aect how quickly photos upload or web pages open.• When there are no les in the camera memory, you cannot use this feature.• You can also upload photos or videos to le sharing websites in Playback mode by pressing [m], and then selecting Share(Wi-Fi) → a desired website.• You cannot upload videos to some websites.• When you upload photos to SkyDrive, they will be resized to 2M while maintaining their aspect ratios.

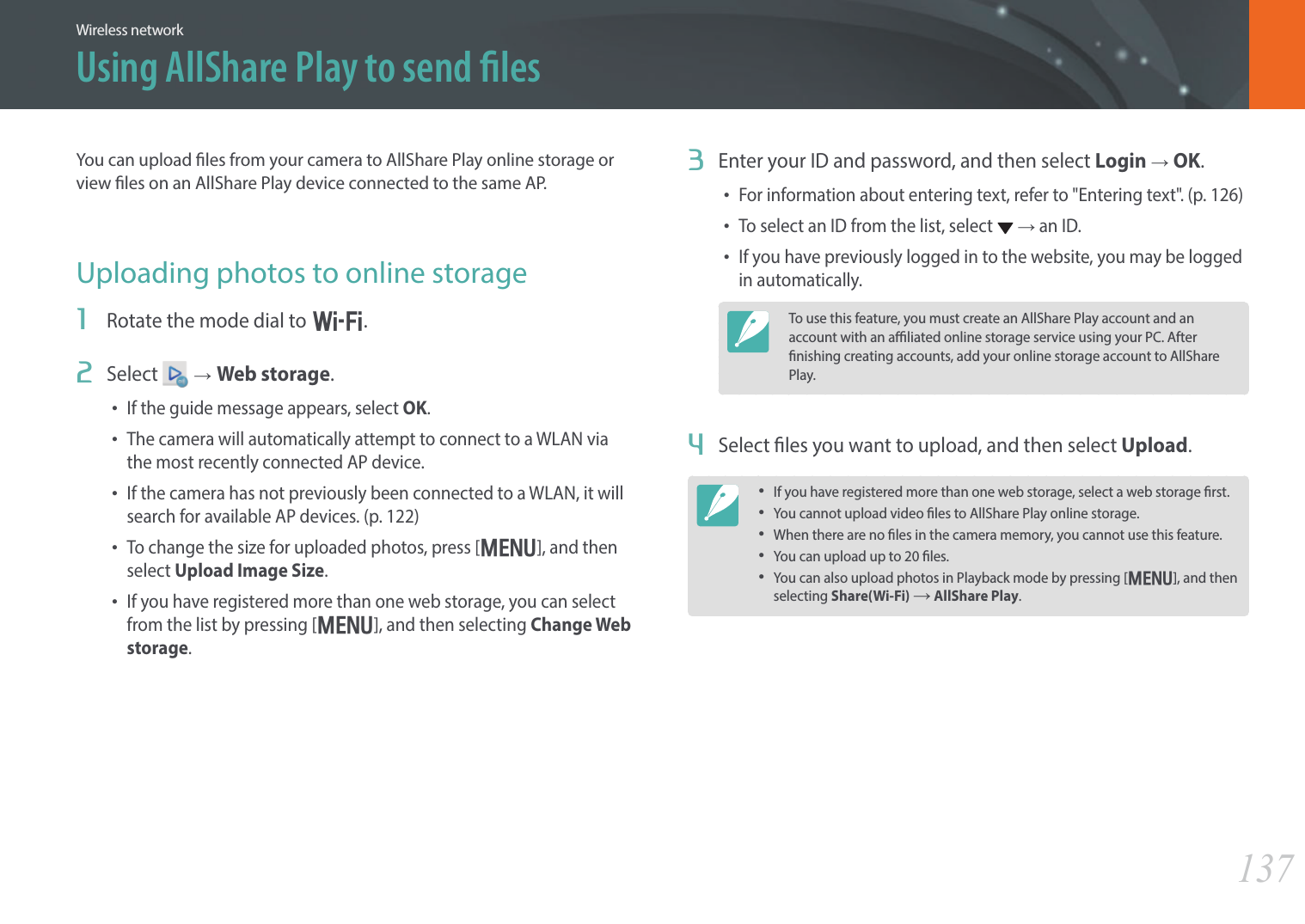

137Wireless networkUsing AllShare Play to send lesYou can upload les from your camera to AllShare Play online storage or view les on an AllShare Play device connected to the same AP.Uploading photos to online storage1 Rotate the mode dial to B.2 Select → Web storage.• If the guide message appears, select OK.• The camera will automatically attempt to connect to a WLAN via the most recently connected AP device.• If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 122)• To change the size for uploaded photos, press [m], and then select Upload Image Size.• If you have registered more than one web storage, you can select from the list by pressing [m], and then selecting Change Web storage.3 Enter your ID and password, and then select Login → OK.• For information about entering text, refer to "Entering text". (p. 126)• To select an ID from the list, select → an ID.• If you have previously logged in to the website, you may be logged in automatically.To use this feature, you must create an AllShare Play account and an account with an aliated online storage service using your PC. After nishing creating accounts, add your online storage account to AllShare Play.4 Select les you want to upload, and then select Upload.• If you have registered more than one web storage, select a web storage rst.• You cannot upload video les to AllShare Play online storage.• When there are no les in the camera memory, you cannot use this feature.• You can upload up to 20 les.• You can also upload photos in Playback mode by pressing [m], and then selecting Share(Wi-Fi) → AllShare Play.

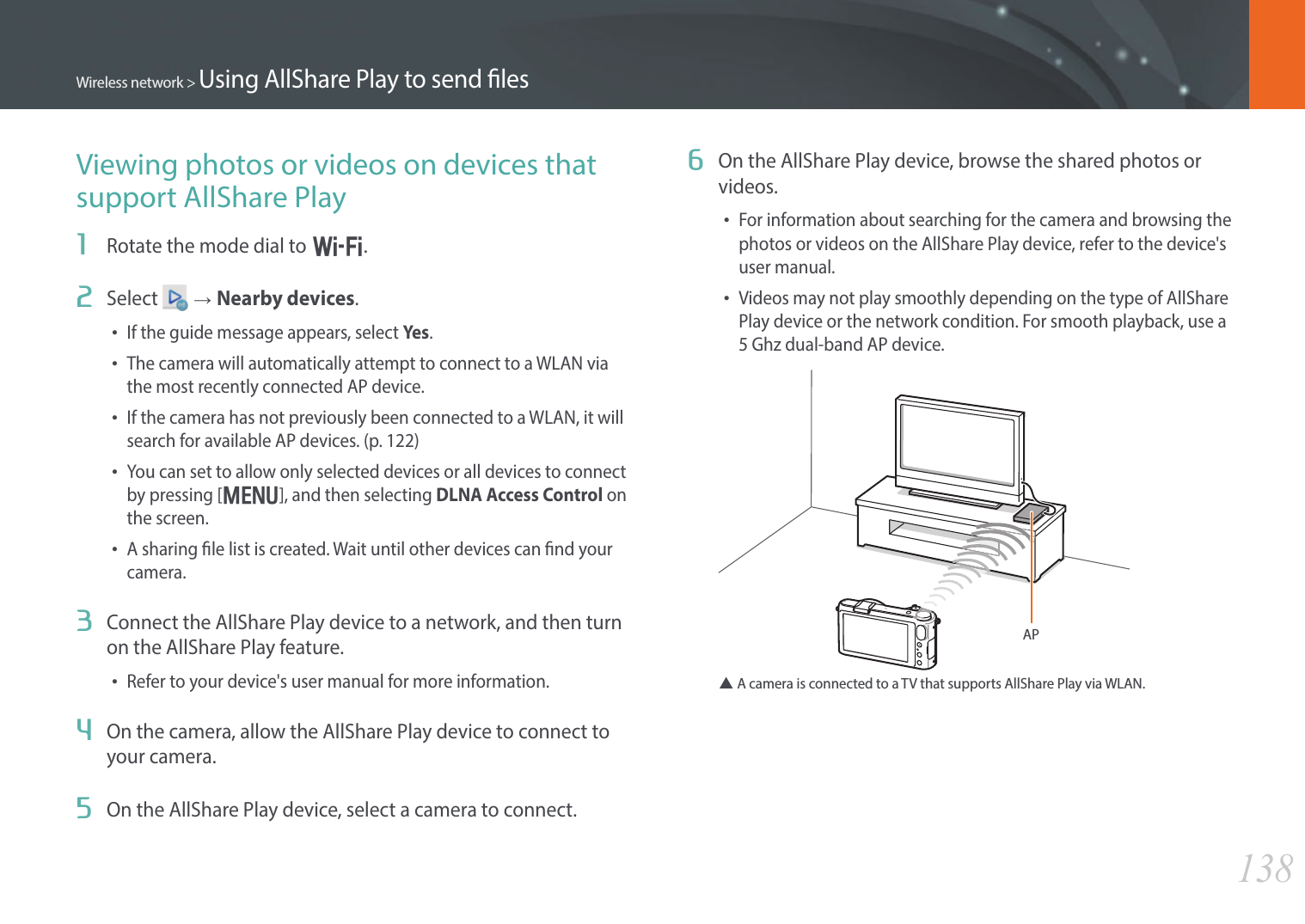

138Wireless network > Using AllShare Play to send lesViewing photos or videos on devices that support AllShare Play1 Rotate the mode dial to B.2 Select → Nearby devices.• If the guide message appears, select Ye s.• The camera will automatically attempt to connect to a WLAN via the most recently connected AP device. • If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 122)• You can set to allow only selected devices or all devices to connect by pressing [m], and then selecting DLNA Access Control on the screen.• A sharing le list is created. Wait until other devices can nd your camera.3 Connect the AllShare Play device to a network, and then turn on the AllShare Play feature.• Refer to your device's user manual for more information.4 On the camera, allow the AllShare Play device to connect to your camera.5 On the AllShare Play device, select a camera to connect.6 On the AllShare Play device, browse the shared photos or videos.• For information about searching for the camera and browsing the photos or videos on the AllShare Play device, refer to the device's user manual.• Videos may not play smoothly depending on the type of AllShare Play device or the network condition. For smooth playback, use a 5 Ghz dual-band AP device.APS A camera is connected to a TV that supports AllShare Play via WLAN.

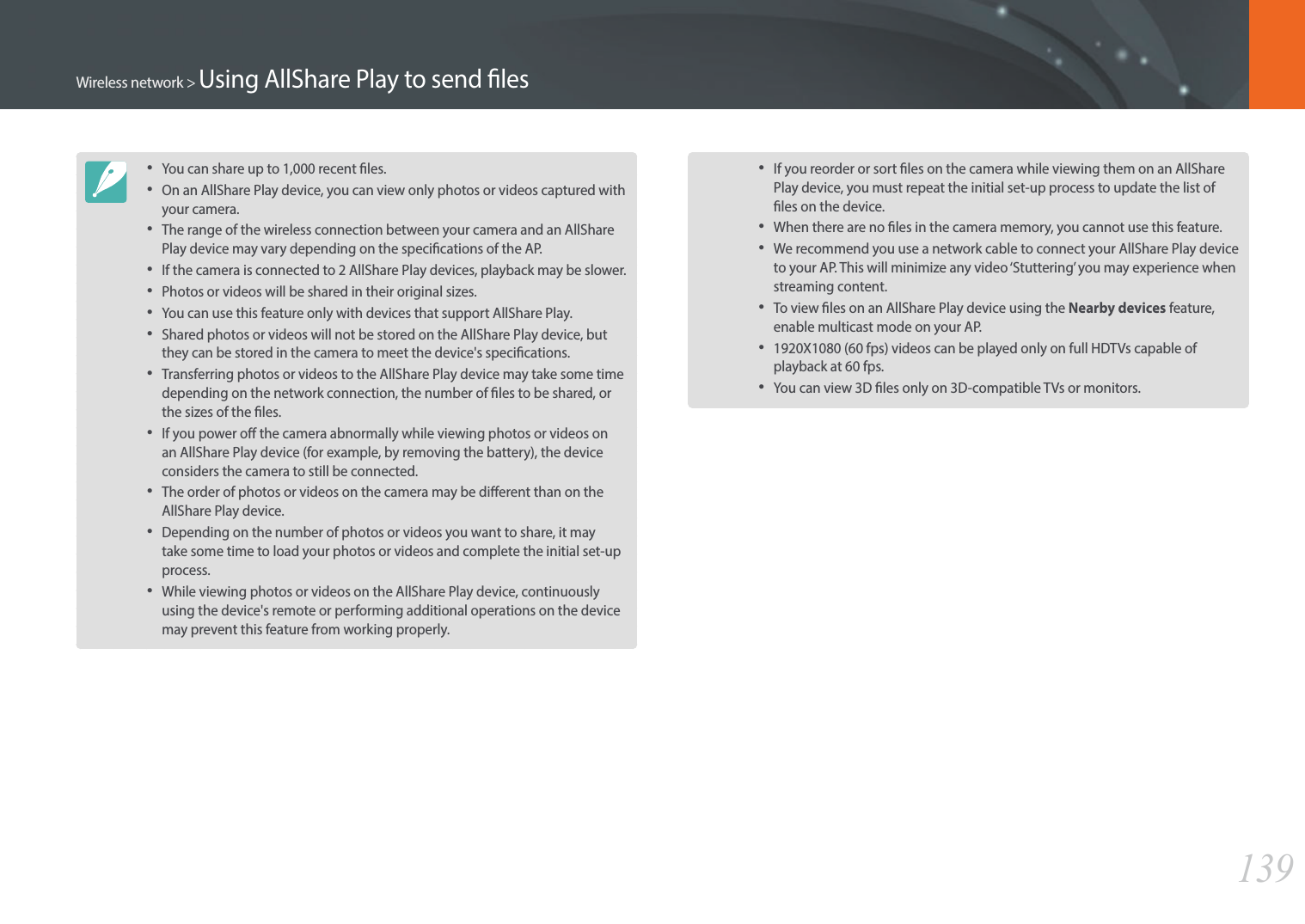

139Wireless network > Using AllShare Play to send les• You can share up to 1,000 recent les.• On an AllShare Play device, you can view only photos or videos captured with your camera.• The range of the wireless connection between your camera and an AllShare Play device may vary depending on the specications of the AP.• If the camera is connected to 2 AllShare Play devices, playback may be slower.• Photos or videos will be shared in their original sizes.• You can use this feature only with devices that support AllShare Play.• Shared photos or videos will not be stored on the AllShare Play device, but they can be stored in the camera to meet the device's specications.• Transferring photos or videos to the AllShare Play device may take some time depending on the network connection, the number of les to be shared, or the sizes of the les.• If you power o the camera abnormally while viewing photos or videos on an AllShare Play device (for example, by removing the battery), the device considers the camera to still be connected.• The order of photos or videos on the camera may be dierent than on the AllShare Play device.• Depending on the number of photos or videos you want to share, it may take some time to load your photos or videos and complete the initial set-up process.• While viewing photos or videos on the AllShare Play device, continuously using the device's remote or performing additional operations on the device may prevent this feature from working properly.• If you reorder or sort les on the camera while viewing them on an AllShare Play device, you must repeat the initial set-up process to update the list of les on the device.• When there are no les in the camera memory, you cannot use this feature.• We recommend you use a network cable to connect your AllShare Play device to your AP. This will minimize any video ‘Stuttering’ you may experience when streaming content.• To view les on an AllShare Play device using the Nearby devices feature, enable multicast mode on your AP.• 1920X1080 (60 fps) videos can be played only on full HDTVs capable of playback at 60 fps.• You can view 3D les only on 3D-compatible TVs or monitors.

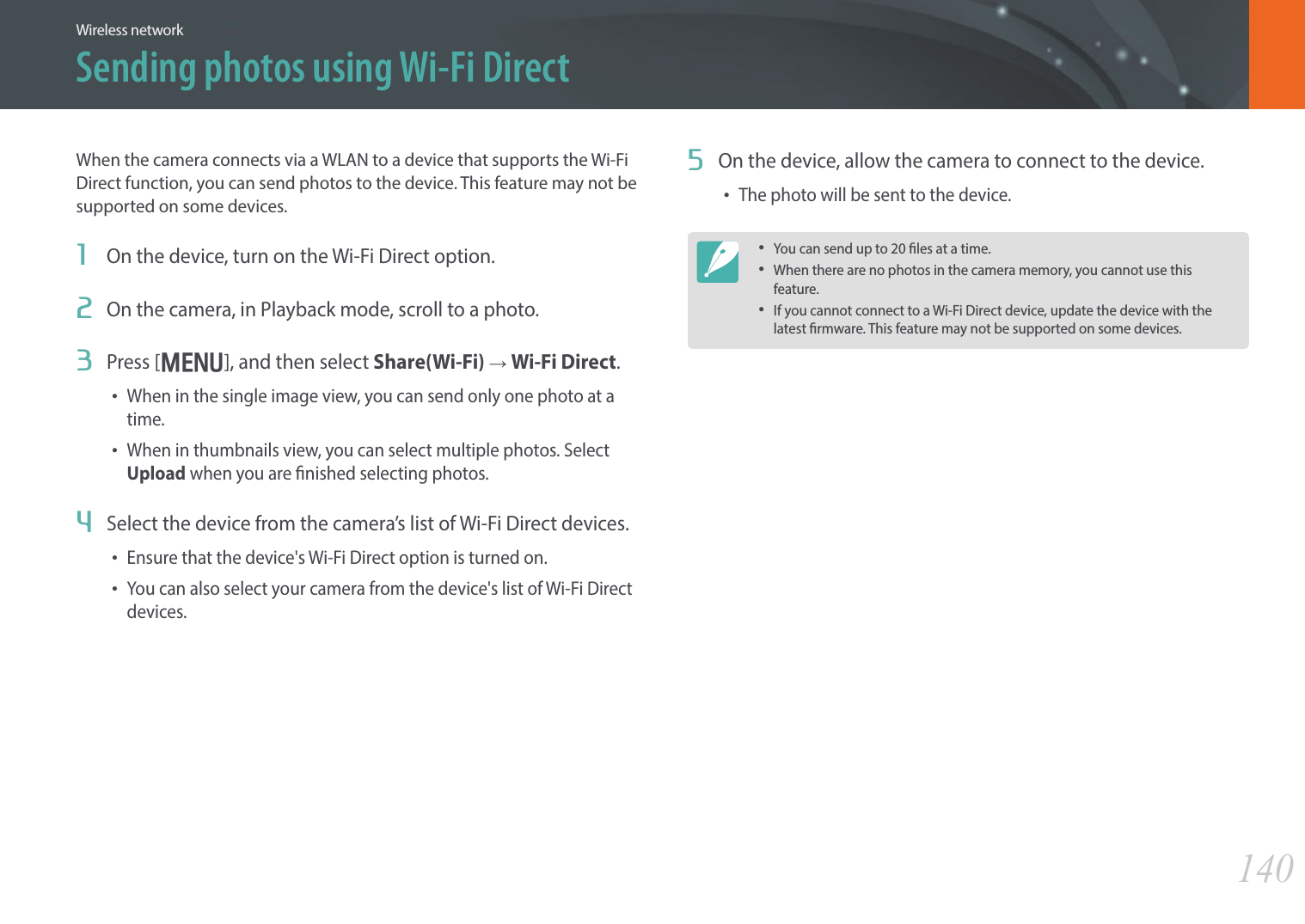

140Wireless networkSending photos using Wi-Fi DirectWhen the camera connects via a WLAN to a device that supports the Wi-Fi Direct function, you can send photos to the device. This feature may not be supported on some devices.1 On the device, turn on the Wi-Fi Direct option.2 On the camera, in Playback mode, scroll to a photo.3 Press [m], and then select Share(Wi-Fi) → Wi-Fi Direct.• When in the single image view, you can send only one photo at a time.• When in thumbnails view, you can select multiple photos. Select Upload when you are nished selecting photos.4 Select the device from the camera’s list of Wi-Fi Direct devices.• Ensure that the device's Wi-Fi Direct option is turned on.• You can also select your camera from the device's list of Wi-Fi Direct devices.5 On the device, allow the camera to connect to the device.• The photo will be sent to the device.• You can send up to 20 les at a time.• When there are no photos in the camera memory, you cannot use this feature.• If you cannot connect to a Wi-Fi Direct device, update the device with the latest rmware. This feature may not be supported on some devices.

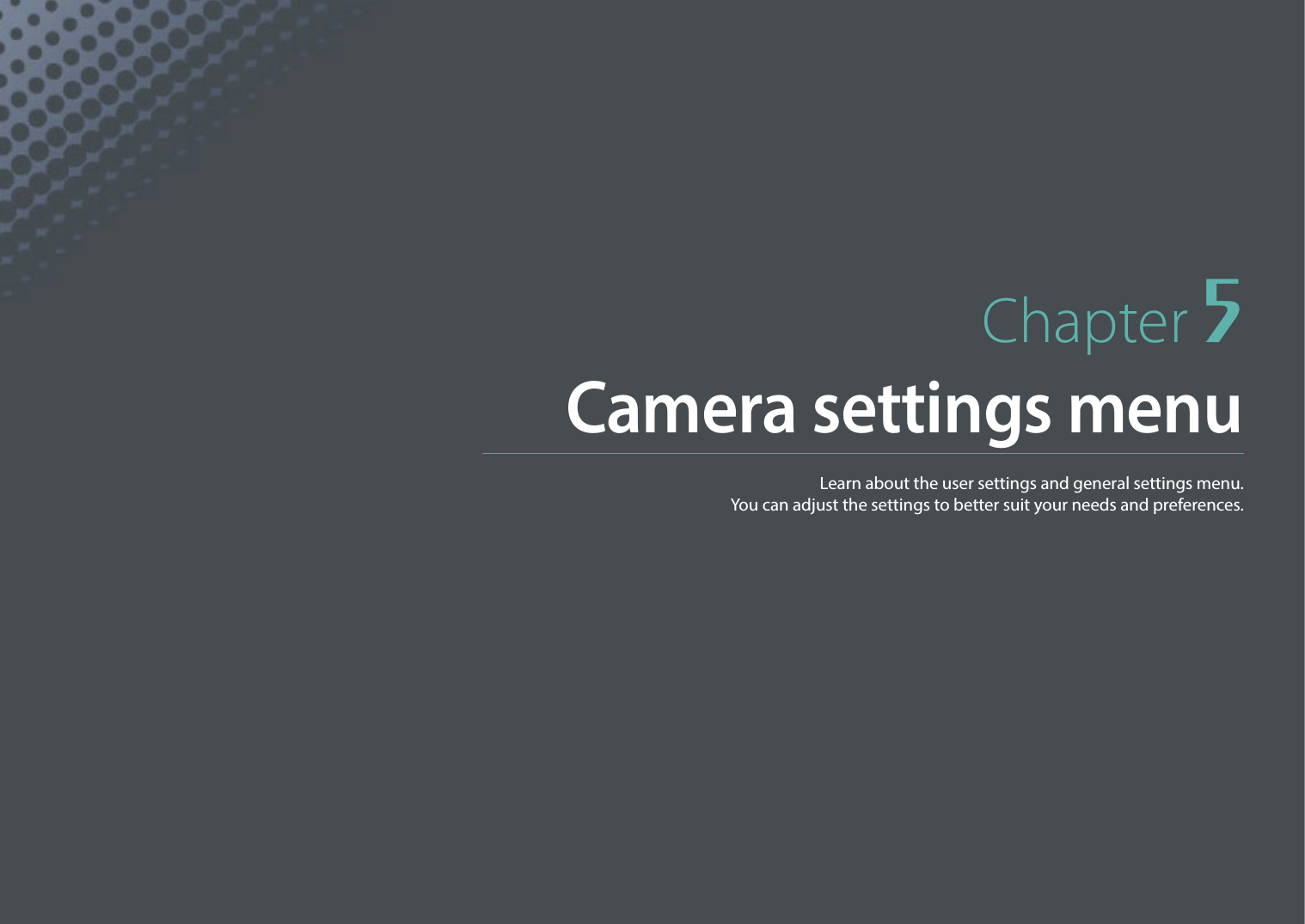

Chapter 5Camera settings menuLearn about the user settings and general settings menu. You can adjust the settings to better suit your needs and preferences.

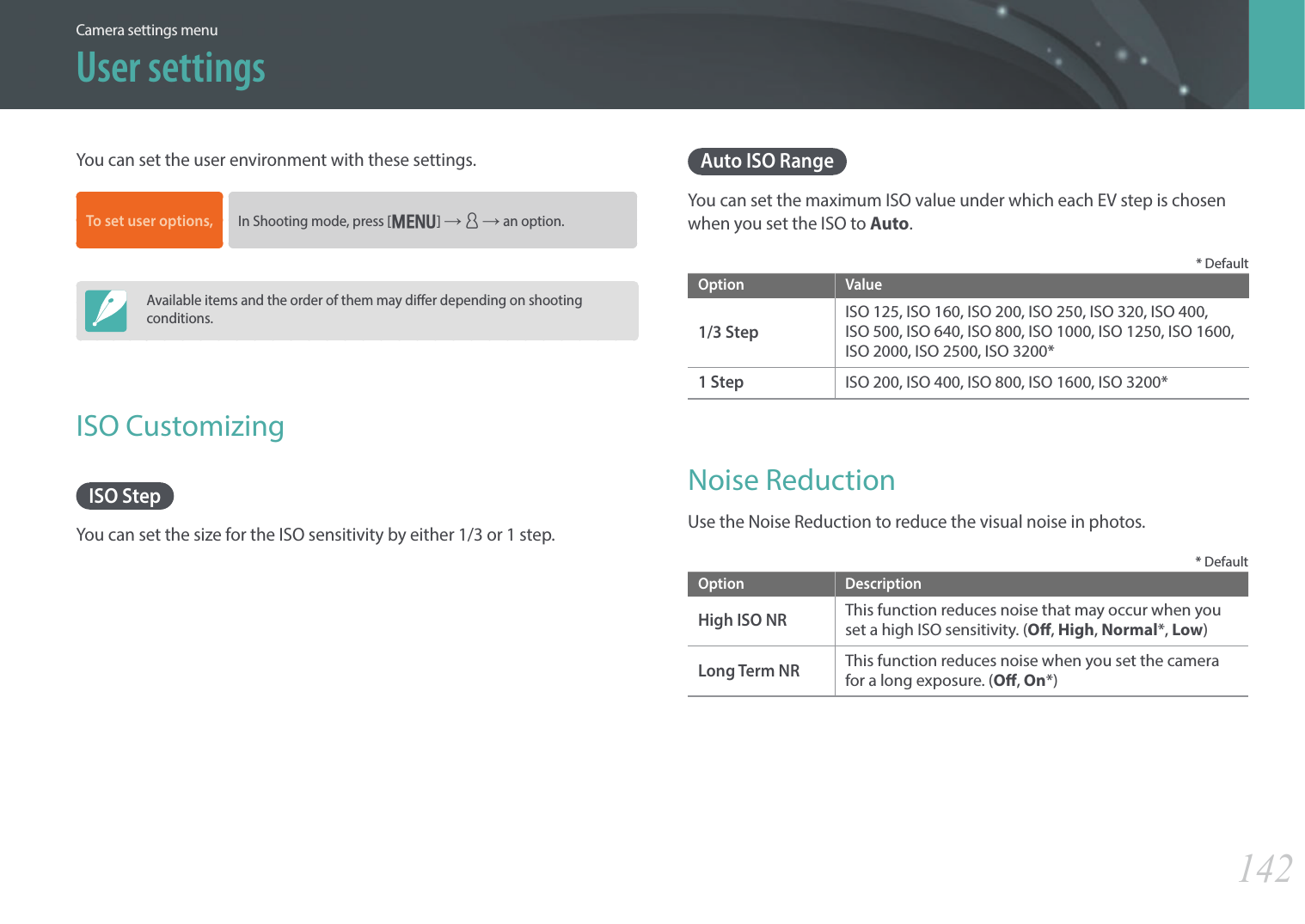

142Camera settings menuYou can set the user environment with these settings.To set user options, In Shooting mode, press [m] → 5 → an option.Available items and the order of them may dier depending on shooting conditions.ISO CustomizingISO StepYou can set the size for the ISO sensitivity by either 1/3 or 1 step.Auto ISO RangeYou can set the maximum ISO value under which each EV step is chosen when you set the ISO to Auto.* DefaultOption Value1/3 StepISO 125, ISO 160, ISO 200, ISO 250, ISO 320, ISO 400, ISO 500, ISO 640, ISO 800, ISO 1000, ISO 1250, ISO 1600, ISO 2000, ISO 2500, ISO 3200*1 StepISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200*Noise ReductionUse the Noise Reduction to reduce the visual noise in photos.* DefaultOption DescriptionHigh ISO NRThis function reduces noise that may occur when you set a high ISO sensitivity. (O, High, Normal*, Low)Long Term NRThis function reduces noise when you set the camera for a long exposure. (O, On*)User settings

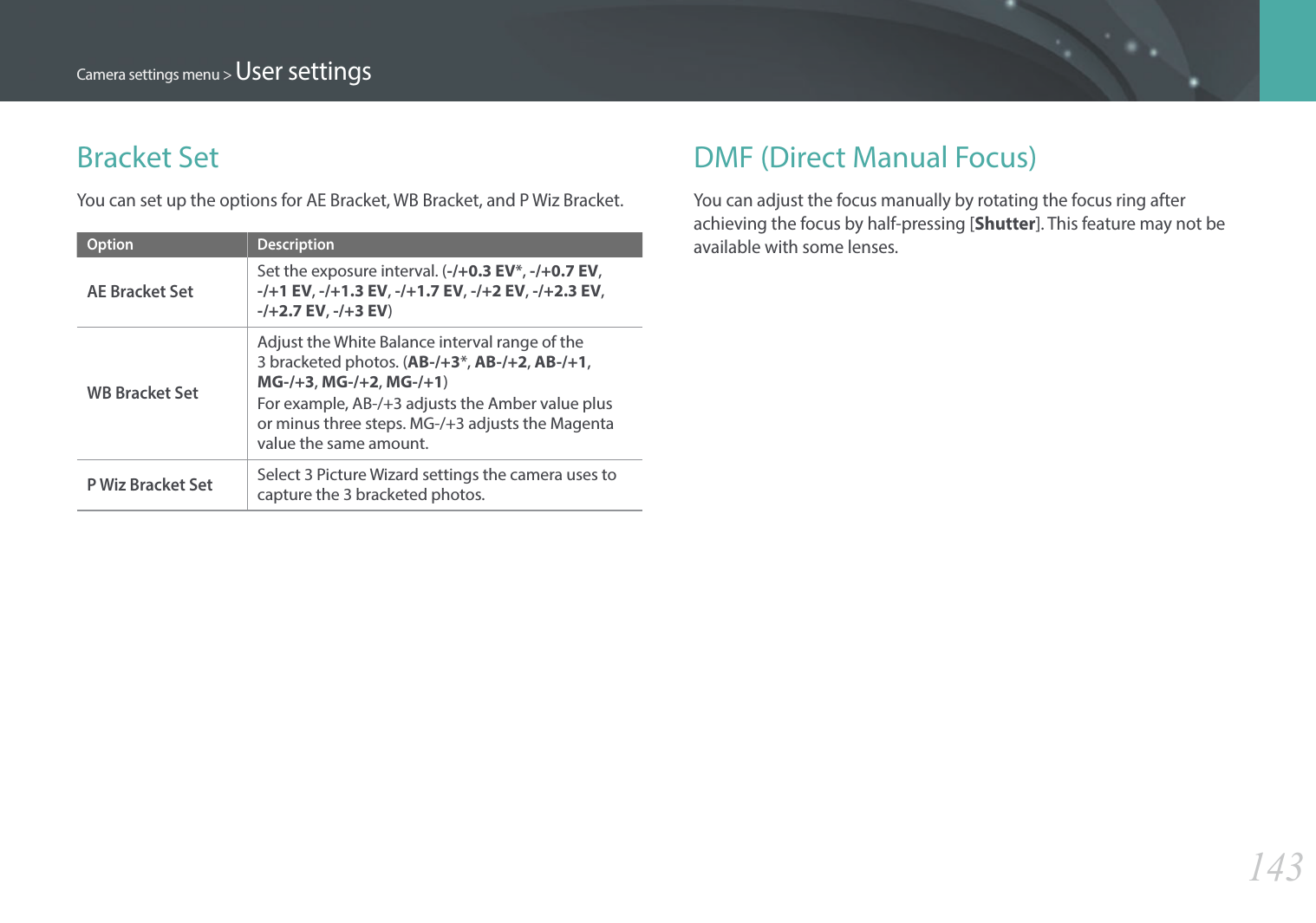

143Camera settings menu > User settingsBracket SetYou can set up the options for AE Bracket, WB Bracket, and P Wiz Bracket.Option DescriptionAE Bracket SetSet the exposure interval. (-/+0.3 EV*, -/+0.7 EV, -/+1 EV, -/+1.3 EV, -/+1.7 EV, -/+2 EV, -/+2.3 EV, -/+2.7 EV, -/+3 EV)WB Bracket SetAdjust the White Balance interval range of the 3 bracketed photos. (AB-/+3*, AB-/+2, AB-/+1, MG-/+3, MG-/+2, MG-/+1)For example, AB-/+3 adjusts the Amber value plus or minus three steps. MG-/+3 adjusts the Magenta value the same amount.P Wiz Bracket SetSelect 3 Picture Wizard settings the camera uses to capture the 3 bracketed photos.DMF (Direct Manual Focus)You can adjust the focus manually by rotating the focus ring after achieving the focus by half-pressing [Shutter]. This feature may not be available with some lenses.

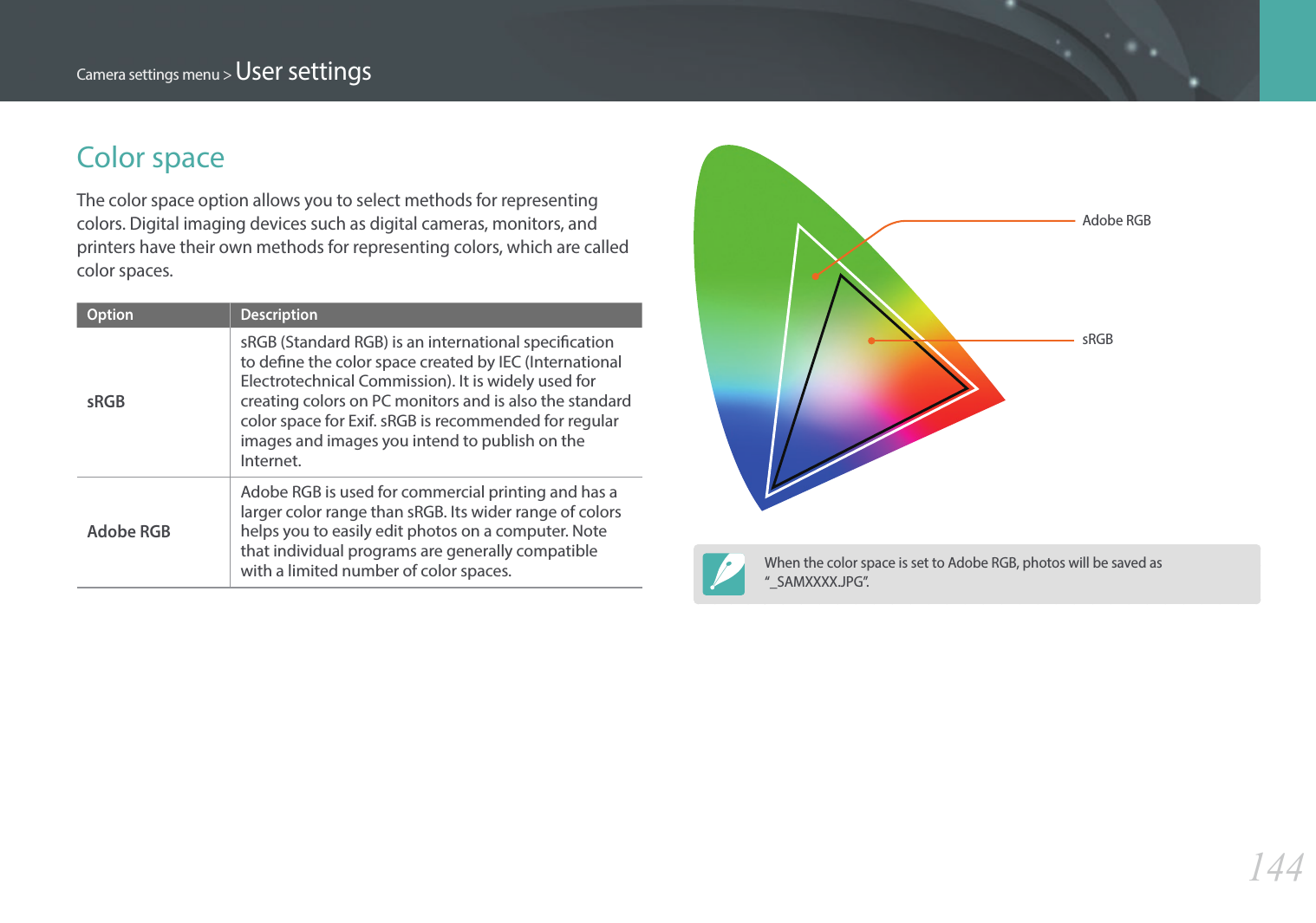

144Camera settings menu > User settingsColor spaceThe color space option allows you to select methods for representing colors. Digital imaging devices such as digital cameras, monitors, and printers have their own methods for representing colors, which are called color spaces.Option DescriptionsRGBsRGB (Standard RGB) is an international specication to dene the color space created by IEC (International Electrotechnical Commission). It is widely used for creating colors on PC monitors and is also the standard color space for Exif. sRGB is recommended for regular images and images you intend to publish on the Internet.Adobe RGBAdobe RGB is used for commercial printing and has a larger color range than sRGB. Its wider range of colors helps you to easily edit photos on a computer. Note that individual programs are generally compatible with a limited number of color spaces.Adobe RGBsRGBWhen the color space is set to Adobe RGB, photos will be saved as “_SAMXXXX.JPG”.

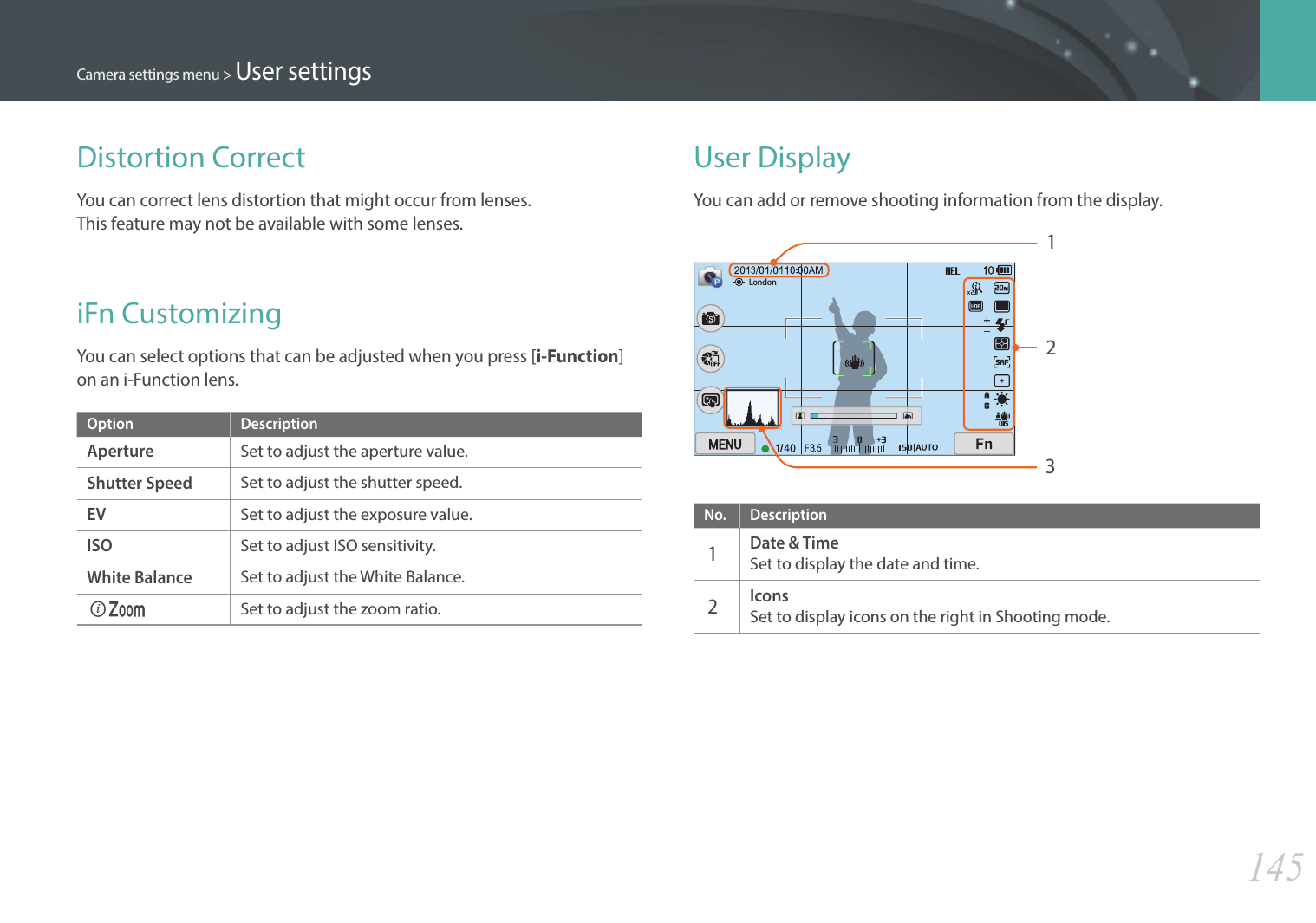

145Camera settings menu > User settingsDistortion CorrectYou can correct lens distortion that might occur from lenses. This feature may not be available with some lenses.iFn CustomizingYou can select options that can be adjusted when you press [i-Function] on an i-Function lens.Option DescriptionApertureSet to adjust the aperture value.Shutter SpeedSet to adjust the shutter speed.EVSet to adjust the exposure value.ISOSet to adjust ISO sensitivity.White BalanceSet to adjust the White Balance.ZSet to adjust the zoom ratio.User DisplayYou can add or remove shooting information from the display.123LondonNo. Description1 Date & TimeSet to display the date and time.2 IconsSet to display icons on the right in Shooting mode.

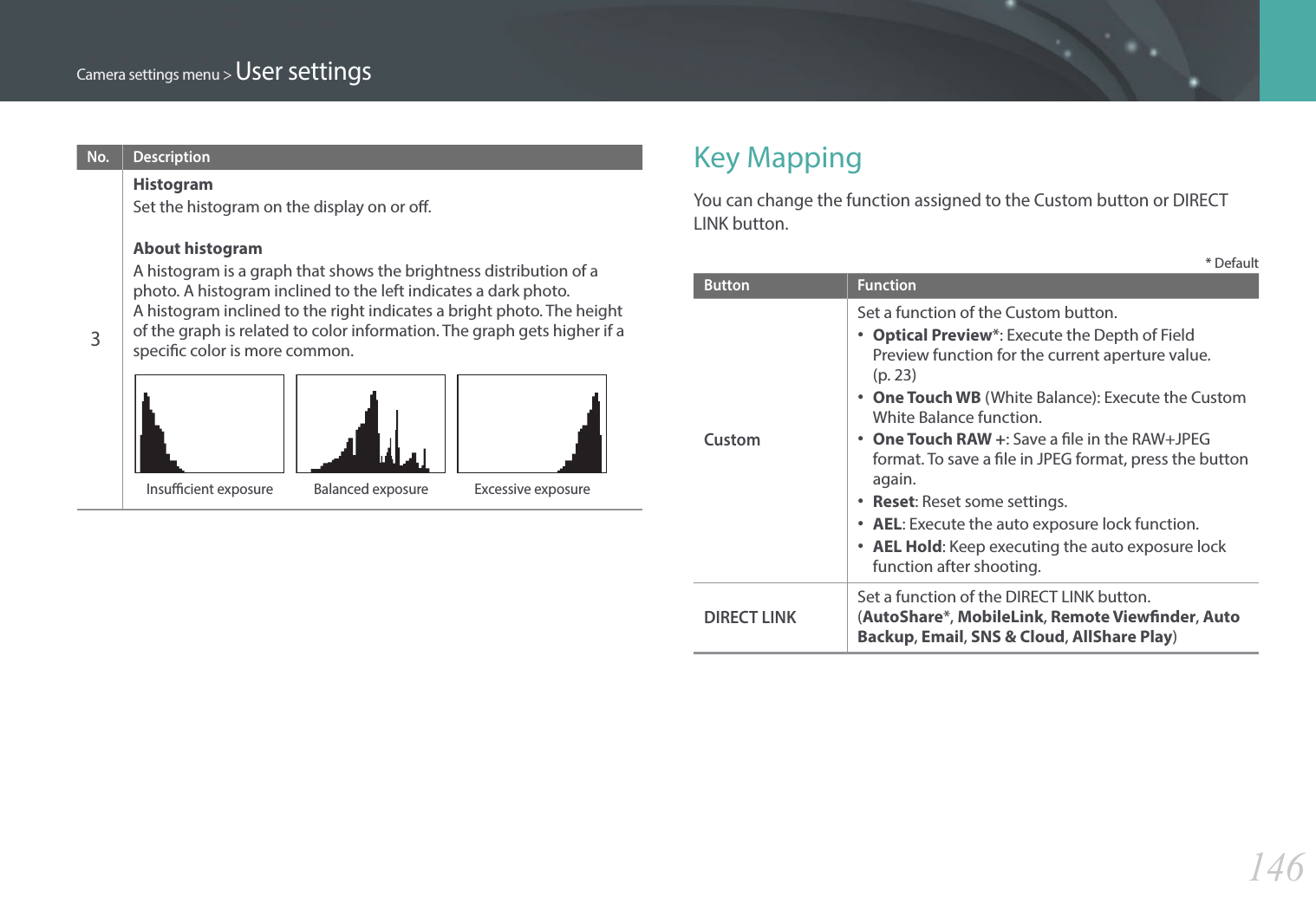

146Camera settings menu > User settingsNo. Description3 HistogramSet the histogram on the display on or o. About histogramA histogram is a graph that shows the brightness distribution of a photo. A histogram inclined to the left indicates a dark photo. A histogram inclined to the right indicates a bright photo. The height of the graph is related to color information. The graph gets higher if a specic color is more common.Insucient exposure Balanced exposure Excessive exposureKey MappingYou can change the function assigned to the Custom button or DIRECT LINK button.* DefaultButton FunctionCustomSet a function of the Custom button.• Optical Preview*: Execute the Depth of Field Preview function for the current aperture value. (p. 23)• One Touch WB (White Balance): Execute the Custom White Balance function.• One Touch RAW +: Save a le in the RAW+JPEG format. To save a le in JPEG format, press the button again.• Reset: Reset some settings.• AEL: Execute the auto exposure lock function.• AEL Hold: Keep executing the auto exposure lock function after shooting.DIRECT LINKSet a function of the DIRECT LINK button. (AutoShare*, MobileLink, Remote Viewnder, Auto Backup, Email, SNS & Cloud, AllShare Play)

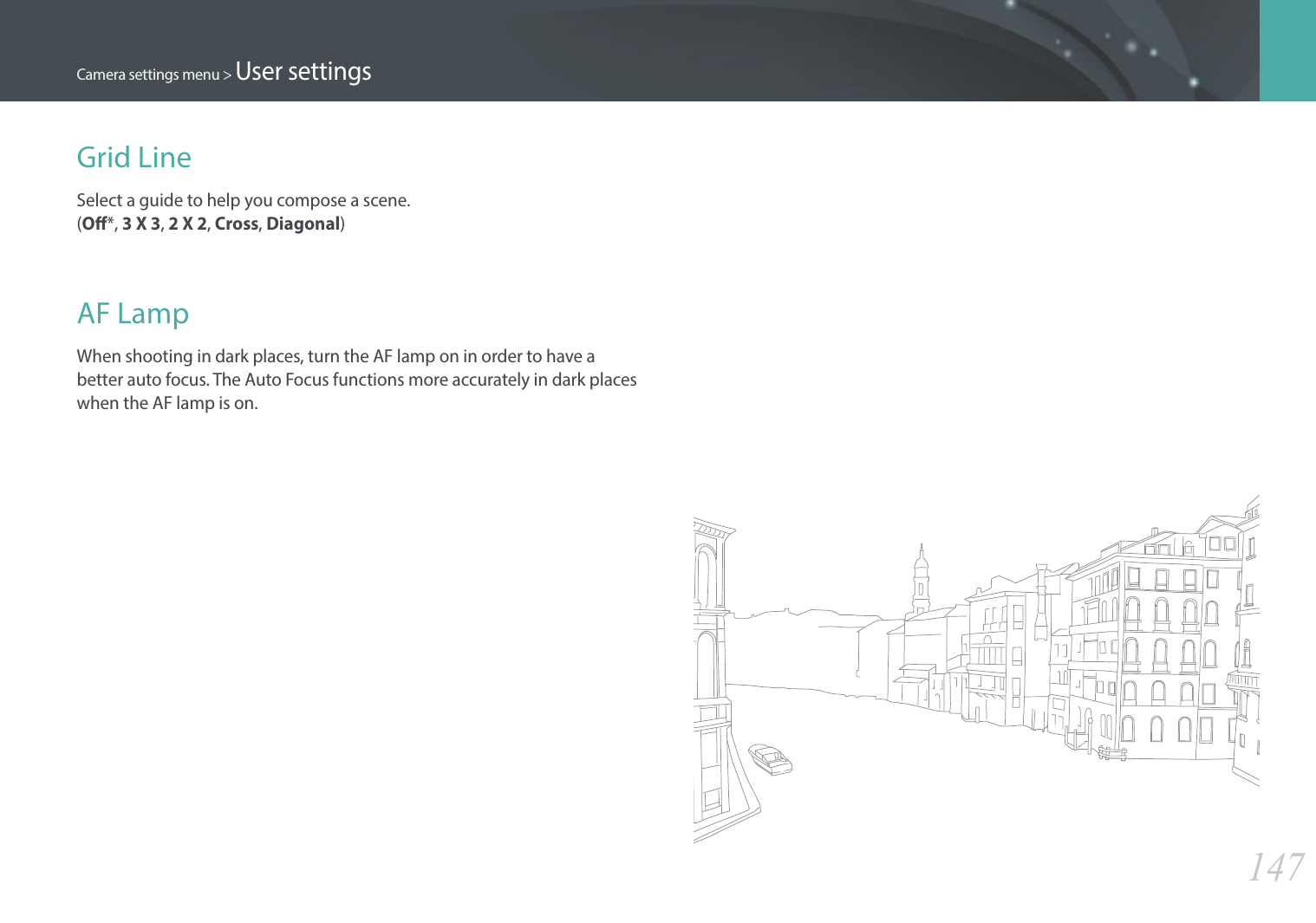

147Camera settings menu > User settingsGrid LineSelect a guide to help you compose a scene. (O*, 3 X 3, 2 X 2, Cross, Diagonal)AF LampWhen shooting in dark places, turn the AF lamp on in order to have a better auto focus. The Auto Focus functions more accurately in dark places when the AF lamp is on.

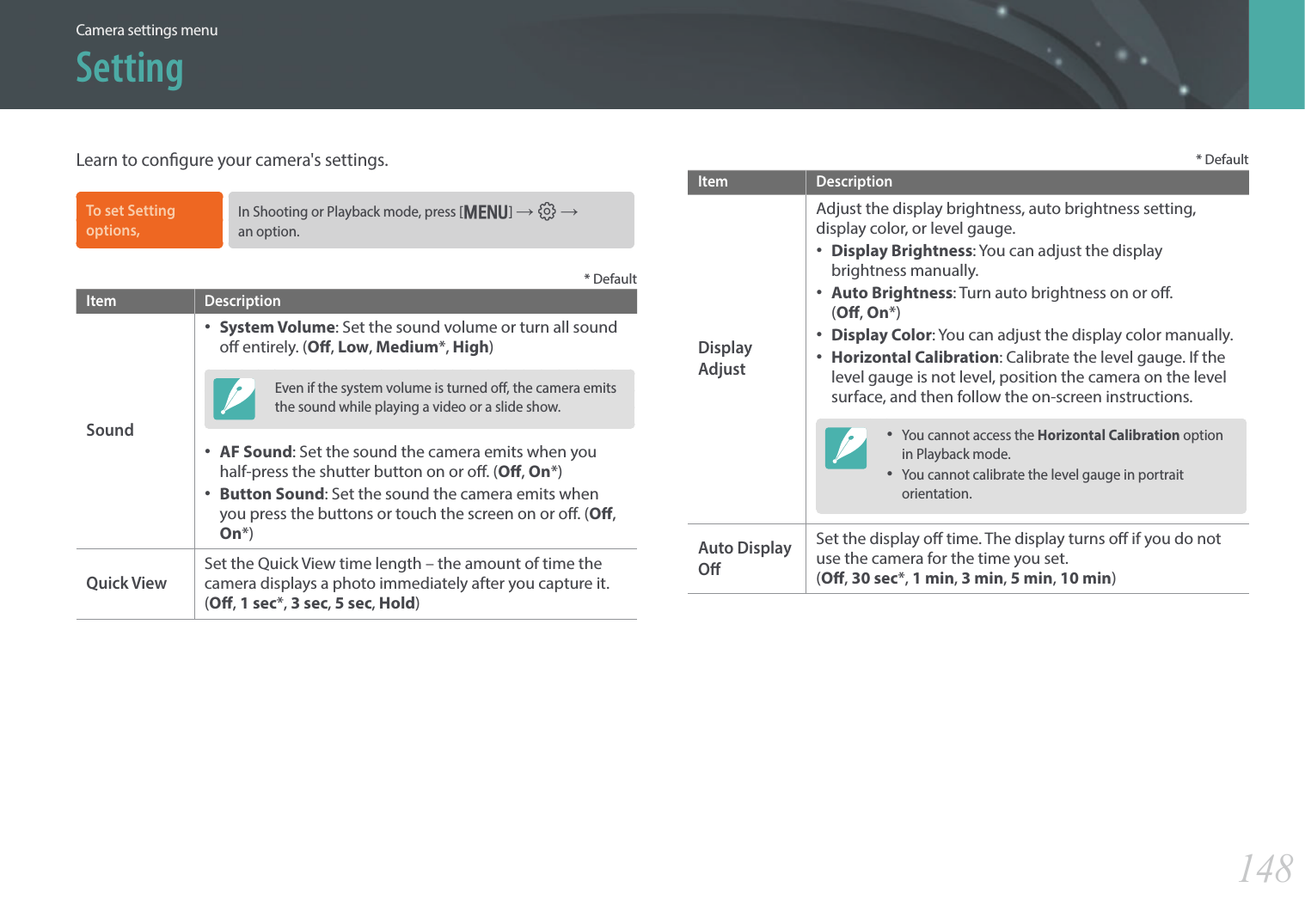

148Camera settings menuLearn to congure your camera's settings.To set Setting options, In Shooting or Playback mode, press [m] → q → an option.* DefaultItem DescriptionSound• System Volume: Set the sound volume or turn all sound o entirely. (O, Low, Medium*, High)Even if the system volume is turned o, the camera emits the sound while playing a video or a slide show.• AF Sound: Set the sound the camera emits when you half-press the shutter button on or o. (O, On*)• Button Sound: Set the sound the camera emits when you press the buttons or touch the screen on or o. (O, On*)Quick ViewSet the Quick View time length – the amount of time the camera displays a photo immediately after you capture it. (O, 1 sec*, 3 sec, 5 sec, Hold)* DefaultItem DescriptionDisplay AdjustAdjust the display brightness, auto brightness setting, display color, or level gauge.• Display Brightness: You can adjust the display brightness manually.• Auto Brightness: Turn auto brightness on or o. (O, On*)• Display Color: You can adjust the display color manually.• Horizontal Calibration: Calibrate the level gauge. If the level gauge is not level, position the camera on the level surface, and then follow the on-screen instructions.• You cannot access the Horizontal Calibration option in Playback mode.• You cannot calibrate the level gauge in portrait orientation.Auto Display OSet the display o time. The display turns o if you do not use the camera for the time you set. (O, 30 sec*, 1 min, 3 min, 5 min, 10 min)Setting

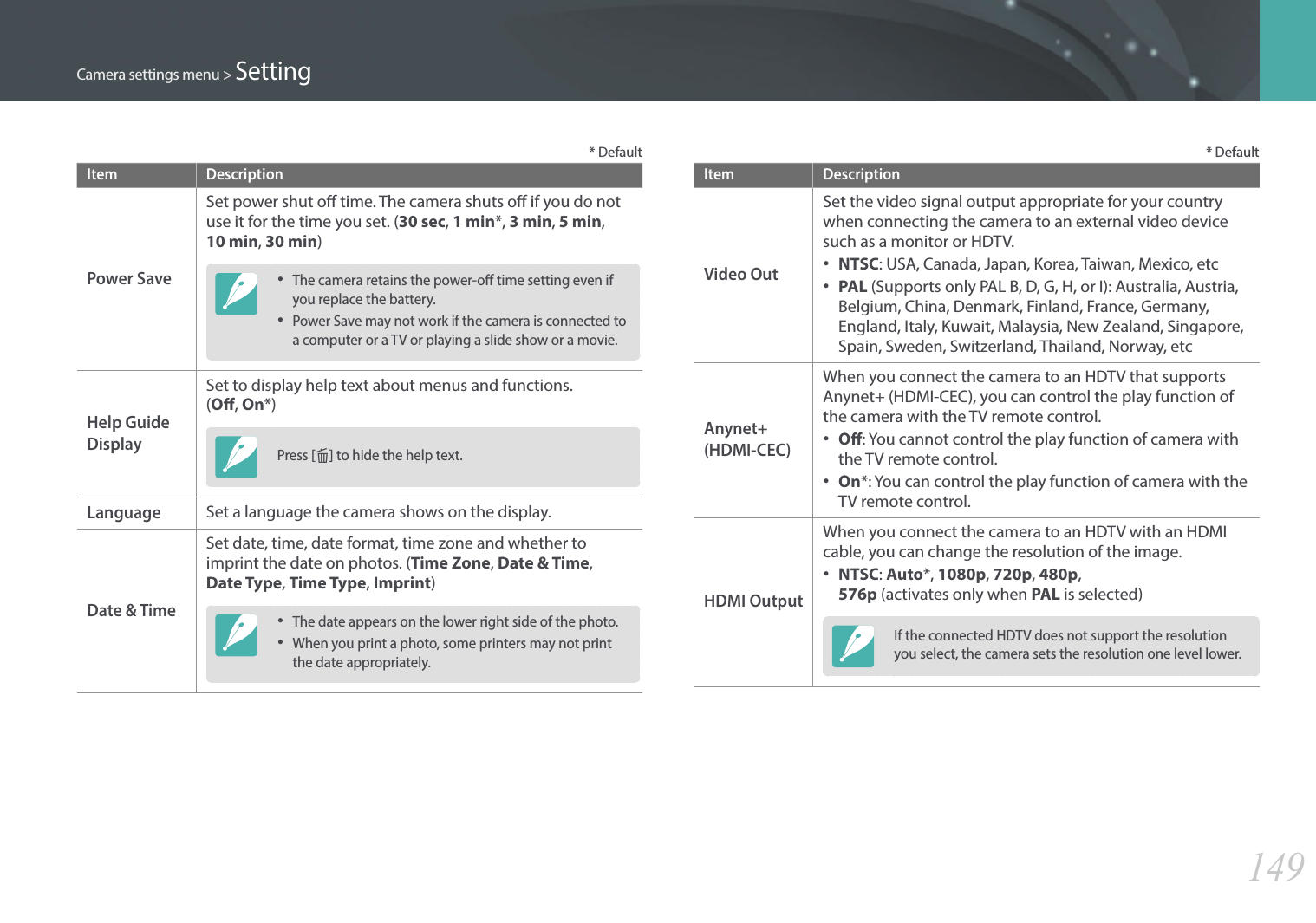

149Camera settings menu > Setting* DefaultItem DescriptionPower SaveSet power shut o time. The camera shuts o if you do not use it for the time you set. (30 sec, 1 min*, 3 min, 5 min, 10 min, 30 min)• The camera retains the power-o time setting even if you replace the battery.• Power Save may not work if the camera is connected to a computer or a TV or playing a slide show or a movie.Help Guide DisplaySet to display help text about menus and functions. (O, On*)Press [n] to hide the help text.LanguageSet a language the camera shows on the display.Date & TimeSet date, time, date format, time zone and whether to imprint the date on photos. (Time Zone, Date & Time, Date Type, Time Type, Imprint)• The date appears on the lower right side of the photo.• When you print a photo, some printers may not print the date appropriately. * DefaultItem DescriptionVideo OutSet the video signal output appropriate for your country when connecting the camera to an external video device such as a monitor or HDTV.• NTSC: USA, Canada, Japan, Korea, Taiwan, Mexico, etc• PAL (Supports only PAL B, D, G, H, or I): Australia, Austria, Belgium, China, Denmark, Finland, France, Germany, England, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway, etcAnynet+ (HDMI-CEC)When you connect the camera to an HDTV that supports Anynet+ (HDMI-CEC), you can control the play function of the camera with the TV remote control.• O: You cannot control the play function of camera with the TV remote control.• On*: You can control the play function of camera with the TV remote control.HDMI OutputWhen you connect the camera to an HDTV with an HDMI cable, you can change the resolution of the image.• NTSC: Auto*, 1080p, 720p, 480p, 576p (activates only when PAL is selected)If the connected HDTV does not support the resolution you select, the camera sets the resolution one level lower.

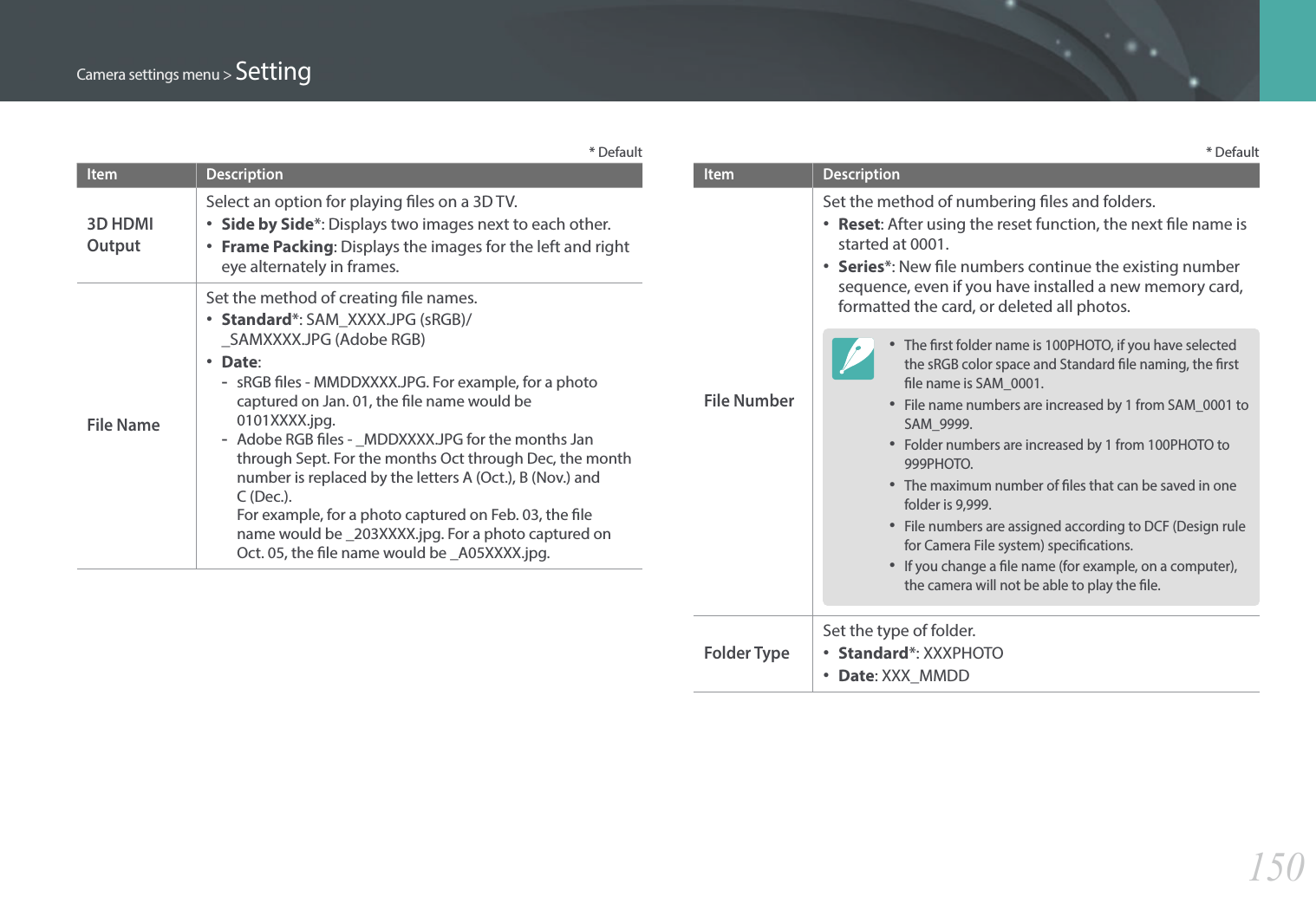

150Camera settings menu > Setting* DefaultItem Description3D HDMI OutputSelect an option for playing les on a 3D TV.• Side by Side*: Displays two images next to each other.• Frame Packing: Displays the images for the left and right eye alternately in frames.File NameSet the method of creating le names.• Standard*: SAM_XXXX.JPG (sRGB)/ _SAMXXXX.JPG (Adobe RGB)• Date: - sRGB les - MMDDXXXX.JPG. For example, for a photo captured on Jan. 01, the le name would be 0101XXXX.jpg. - Adobe RGB les - _MDDXXXX.JPG for the months Jan through Sept. For the months Oct through Dec, the month number is replaced by the letters A (Oct.), B (Nov.) and C (Dec.). For example, for a photo captured on Feb. 03, the le name would be _203XXXX.jpg. For a photo captured on Oct. 05, the le name would be _A05XXXX.jpg. * DefaultItem DescriptionFile NumberSet the method of numbering les and folders.• Reset: After using the reset function, the next le name is started at 0001.• Series*: New le numbers continue the existing number sequence, even if you have installed a new memory card, formatted the card, or deleted all photos.• The rst folder name is 100PHOTO, if you have selected the sRGB color space and Standard le naming, the rst le name is SAM_0001.• File name numbers are increased by 1 from SAM_0001 to SAM_9999.• Folder numbers are increased by 1 from 100PHOTO to 999PHOTO.• The maximum number of les that can be saved in one folder is 9,999.• File numbers are assigned according to DCF (Design rule for Camera File system) specications.• If you change a le name (for example, on a computer), the camera will not be able to play the le.Folder TypeSet the type of folder.• Standard*: XXXPHOTO• Date: XXX_MMDD

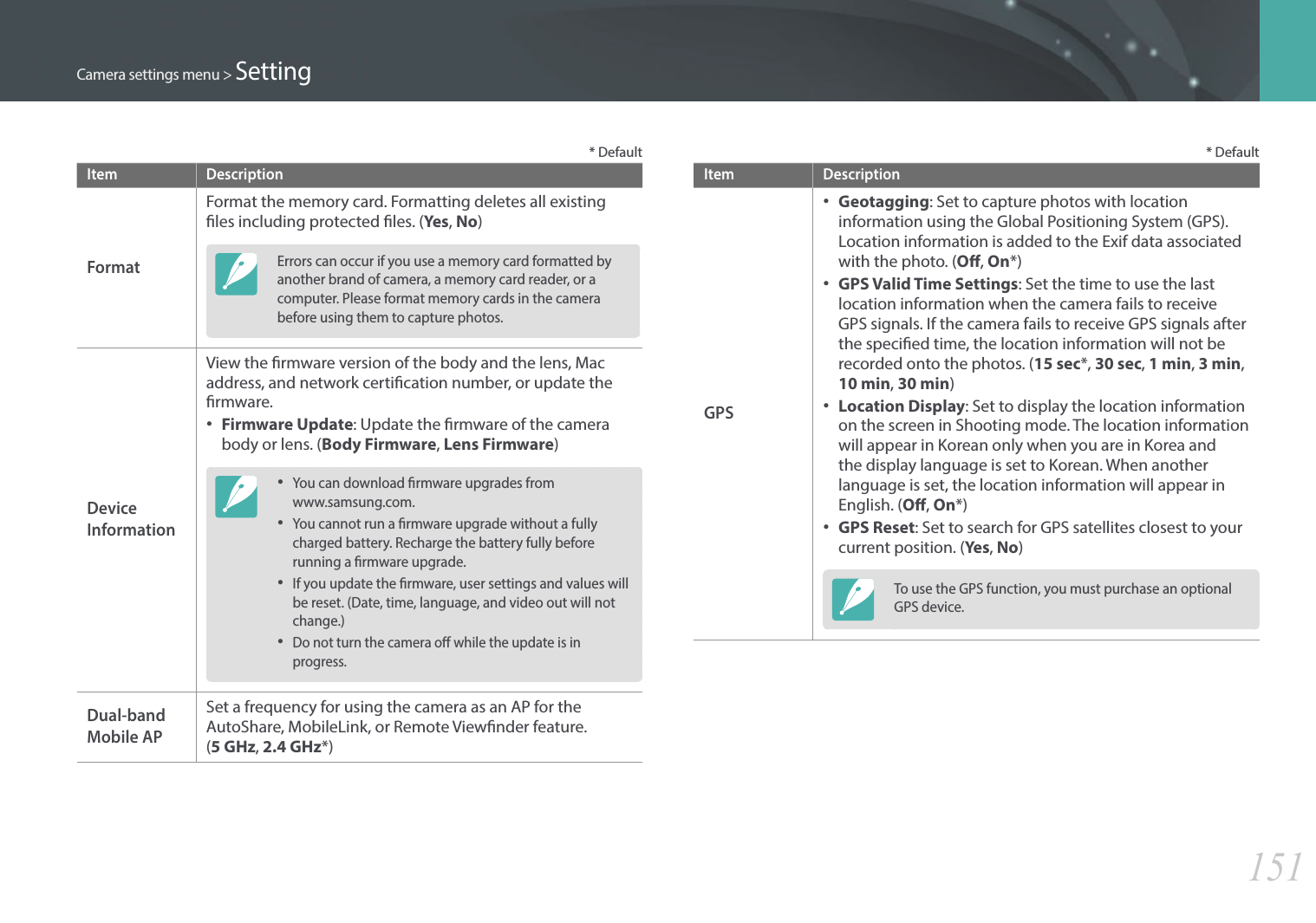

151Camera settings menu > Setting* DefaultItem DescriptionFormatFormat the memory card. Formatting deletes all existing les including protected les. (Yes , No)Errors can occur if you use a memory card formatted by another brand of camera, a memory card reader, or a computer. Please format memory cards in the camera before using them to capture photos.Device InformationView the rmware version of the body and the lens, Mac address, and network certication number, or update the rmware.• Firmware Update: Update the rmware of the camera body or lens. (Body Firmware, Lens Firmware)• You can download rmware upgrades from www.samsung.com.• You cannot run a rmware upgrade without a fully charged battery. Recharge the battery fully before running a rmware upgrade.• If you update the rmware, user settings and values will be reset. (Date, time, language, and video out will not change.)• Do not turn the camera o while the update is in progress.Dual-band Mobile APSet a frequency for using the camera as an AP for the AutoShare, MobileLink, or Remote Viewnder feature. (5 GHz, 2.4 GHz*)* DefaultItem DescriptionGPS• Geotagging: Set to capture photos with location information using the Global Positioning System (GPS). Location information is added to the Exif data associated with the photo. (O, On*)• GPS Valid Time Settings: Set the time to use the last location information when the camera fails to receive GPS signals. If the camera fails to receive GPS signals after the specified time, the location information will not be recorded onto the photos. (15 sec*, 30 sec, 1 min, 3 min, 10 min, 30 min)• Location Display: Set to display the location information on the screen in Shooting mode. The location information will appear in Korean only when you are in Korea and the display language is set to Korean. When another language is set, the location information will appear in English. (O, On*)• GPS Reset: Set to search for GPS satellites closest to your current position. (Yes , No)To use the GPS function, you must purchase an optional GPS device.

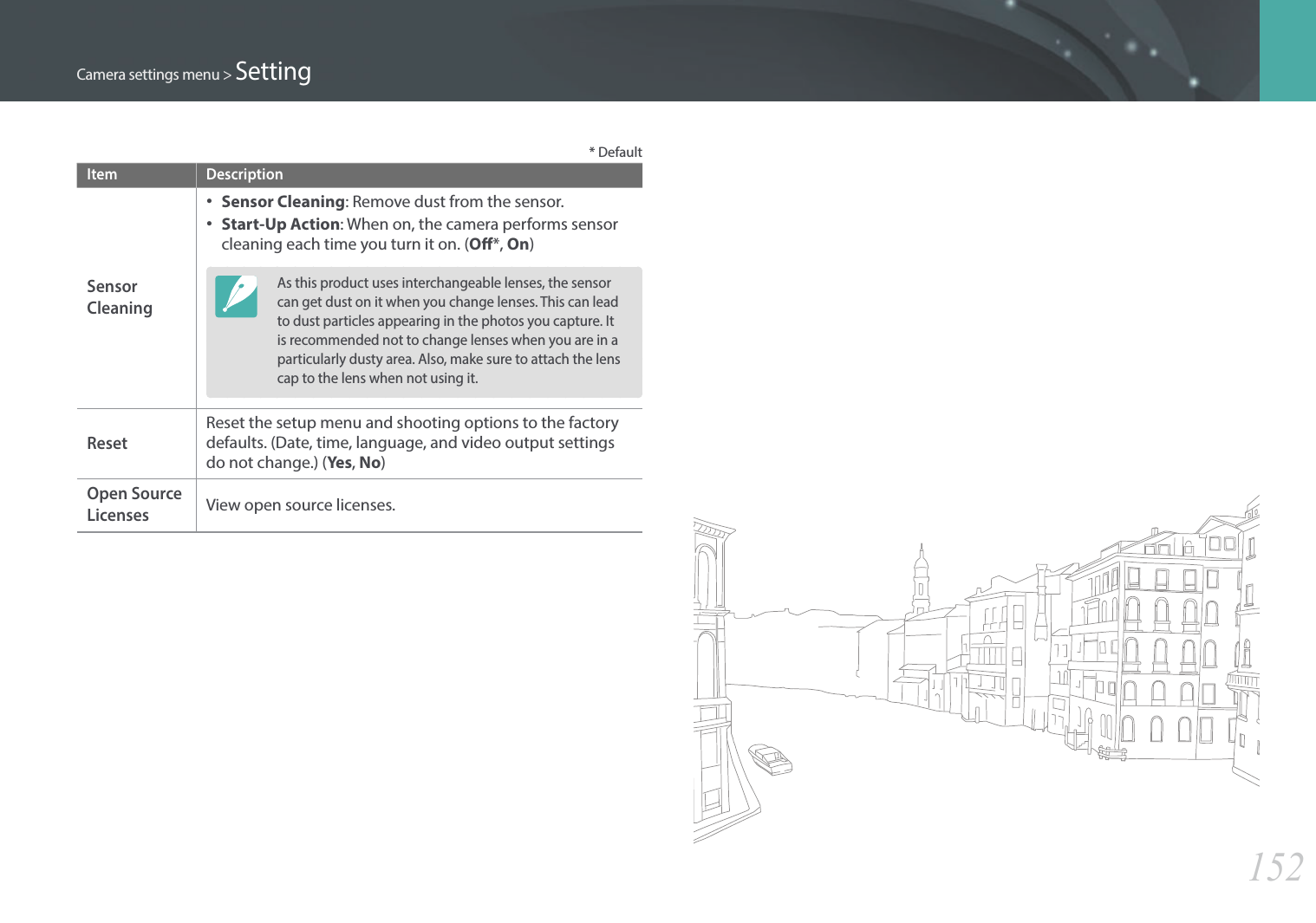

152Camera settings menu > Setting* DefaultItem DescriptionSensor Cleaning• Sensor Cleaning: Remove dust from the sensor.• Start-Up Action: When on, the camera performs sensor cleaning each time you turn it on. (O*, On)As this product uses interchangeable lenses, the sensor can get dust on it when you change lenses. This can lead to dust particles appearing in the photos you capture. It is recommended not to change lenses when you are in a particularly dusty area. Also, make sure to attach the lens cap to the lens when not using it.ResetReset the setup menu and shooting options to the factory defaults. (Date, time, language, and video output settings do not change.) (Yes , No)Open Source LicensesView open source licenses.

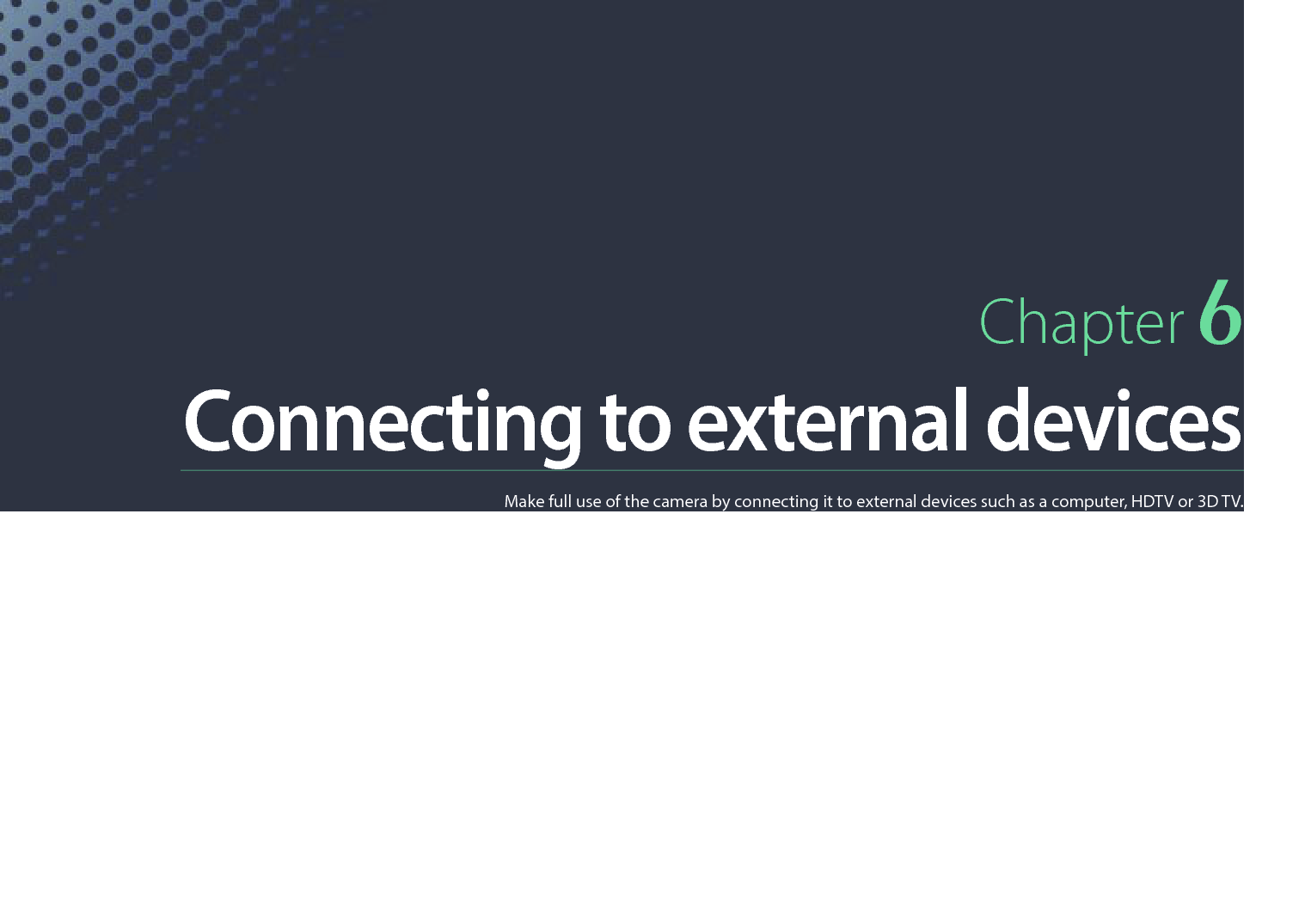

Chapter 6Connecting to external devicesMake full use of the camera by connecting it to external devices such as a computer, HDTV or 3D TV.

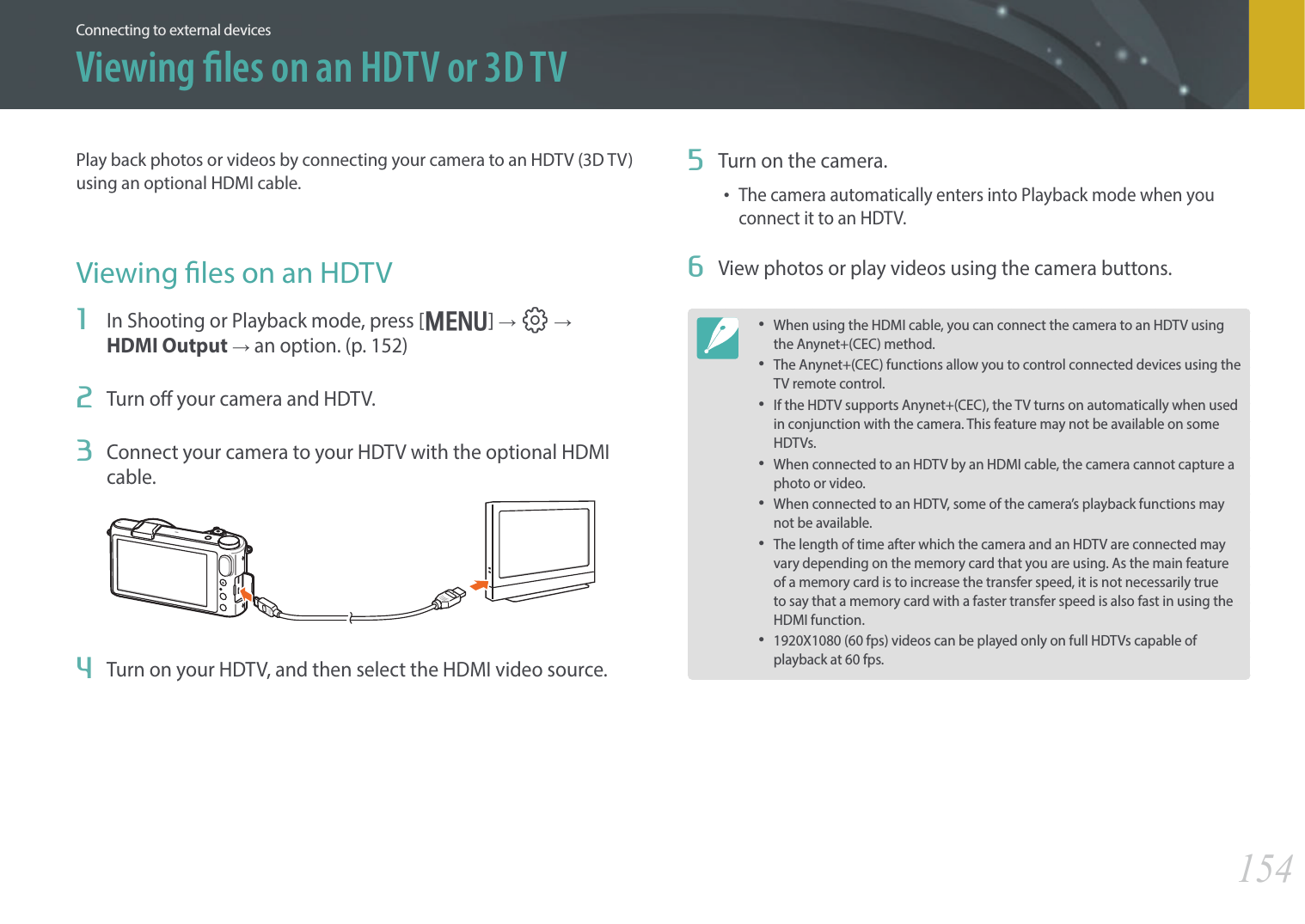

154Connecting to external devicesPlay back photos or videos by connecting your camera to an HDTV (3D TV) using an optional HDMI cable.Viewing les on an HDTV1 In Shooting or Playback mode, press [m] → q → HDMI Output → an option. (p. 152)2 Turn o your camera and HDTV.3 Connect your camera to your HDTV with the optional HDMI cable.4 Turn on your HDTV, and then select the HDMI video source.5 Turn on the camera.• The camera automatically enters into Playback mode when you connect it to an HDTV.6 View photos or play videos using the camera buttons.• When using the HDMI cable, you can connect the camera to an HDTV using the Anynet+(CEC) method. • The Anynet+(CEC) functions allow you to control connected devices using the TV remote control.• If the HDTV supports Anynet+(CEC), the TV turns on automatically when used in conjunction with the camera. This feature may not be available on some HDTVs.• When connected to an HDTV by an HDMI cable, the camera cannot capture a photo or video.• When connected to an HDTV, some of the camera’s playback functions may not be available.• The length of time after which the camera and an HDTV are connected may vary depending on the memory card that you are using. As the main feature of a memory card is to increase the transfer speed, it is not necessarily true to say that a memory card with a faster transfer speed is also fast in using the HDMI function.• 1920X1080 (60 fps) videos can be played only on full HDTVs capable of playback at 60 fps.Viewing les on an HDTV or 3D TV

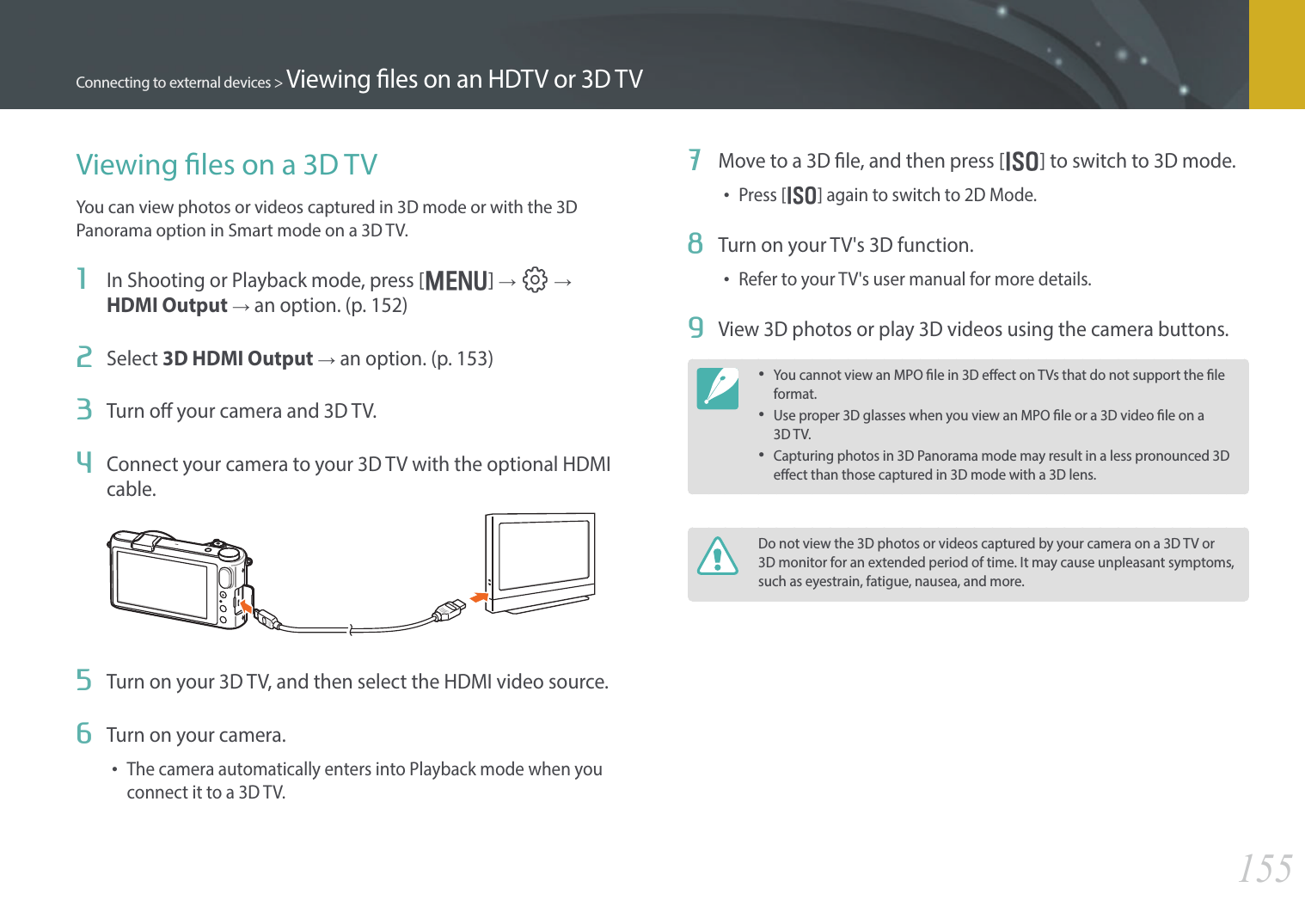

155Connecting to external devices > Viewing les on an HDTV or 3D TVViewing les on a 3D TVYou can view photos or videos captured in 3D mode or with the 3D Panorama option in Smart mode on a 3D TV.1 In Shooting or Playback mode, press [m] → q → HDMI Output → an option. (p. 152)2 Select 3D HDMI Output → an option. (p. 153)3 Turn o your camera and 3D TV.4 Connect your camera to your 3D TV with the optional HDMI cable.5 Turn on your 3D TV, and then select the HDMI video source.6 Turn on your camera.• The camera automatically enters into Playback mode when you connect it to a 3D TV.7 Move to a 3D le, and then press [I] to switch to 3D mode.• Press [I] again to switch to 2D Mode.8 Turn on your TV's 3D function.• Refer to your TV's user manual for more details.9 View 3D photos or play 3D videos using the camera buttons.• You cannot view an MPO le in 3D eect on TVs that do not support the le format.• Use proper 3D glasses when you view an MPO le or a 3D video le on a 3D TV.• Capturing photos in 3D Panorama mode may result in a less pronounced 3D eect than those captured in 3D mode with a 3D lens.Do not view the 3D photos or videos captured by your camera on a 3D TV or 3D monitor for an extended period of time. It may cause unpleasant symptoms, such as eyestrain, fatigue, nausea, and more.

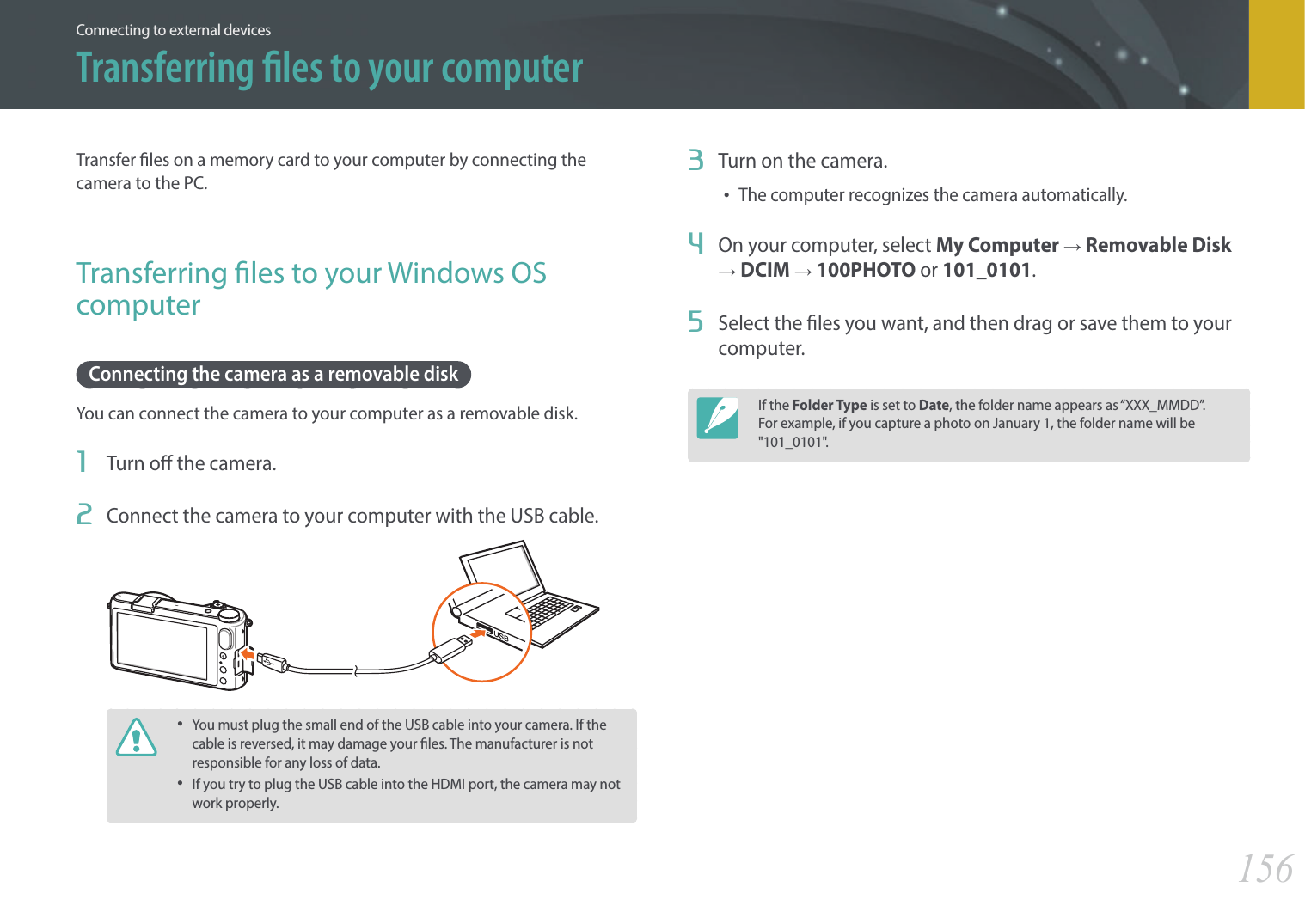

156Connecting to external devicesTransfer les on a memory card to your computer by connecting the camera to the PC.Transferring les to your Windows OS computerConnecting the camera as a removable diskYou can connect the camera to your computer as a removable disk.1 Turn o the camera.2 Connect the camera to your computer with the USB cable.• You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your les. The manufacturer is not responsible for any loss of data.• If you try to plug the USB cable into the HDMI port, the camera may not work properly.3 Turn on the camera.• The computer recognizes the camera automatically.4 On your computer, select My Computer → Removable Disk → DCIM → 100PHOTO or 101_0101.5 Select the les you want, and then drag or save them to your computer.If the Folder Type is set to Date, the folder name appears as “XXX_MMDD”. For example, if you capture a photo on January 1, the folder name will be "101_0101".Transferring les to your computer

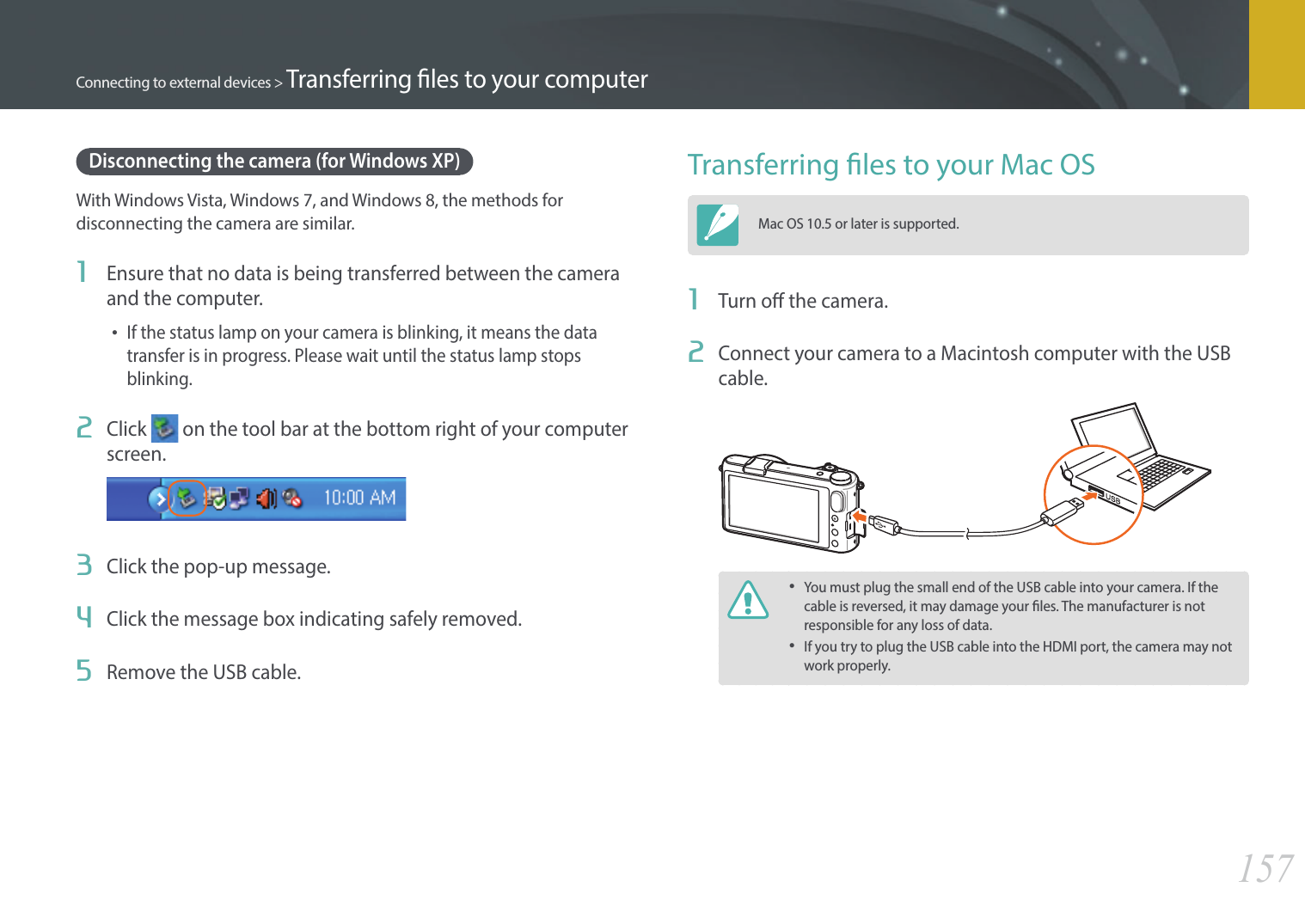

157Connecting to external devices > Transferring les to your computerDisconnecting the camera (for Windows XP)With Windows Vista, Windows 7, and Windows 8, the methods for disconnecting the camera are similar.1 Ensure that no data is being transferred between the camera and the computer.• If the status lamp on your camera is blinking, it means the data transfer is in progress. Please wait until the status lamp stops blinking.2 Click on the tool bar at the bottom right of your computer screen.3 Click the pop-up message.4 Click the message box indicating safely removed.5 Remove the USB cable.Transferring les to your Mac OSMac OS 10.5 or later is supported.1 Turn o the camera.2 Connect your camera to a Macintosh computer with the USB cable.• You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your les. The manufacturer is not responsible for any loss of data.• If you try to plug the USB cable into the HDMI port, the camera may not work properly.

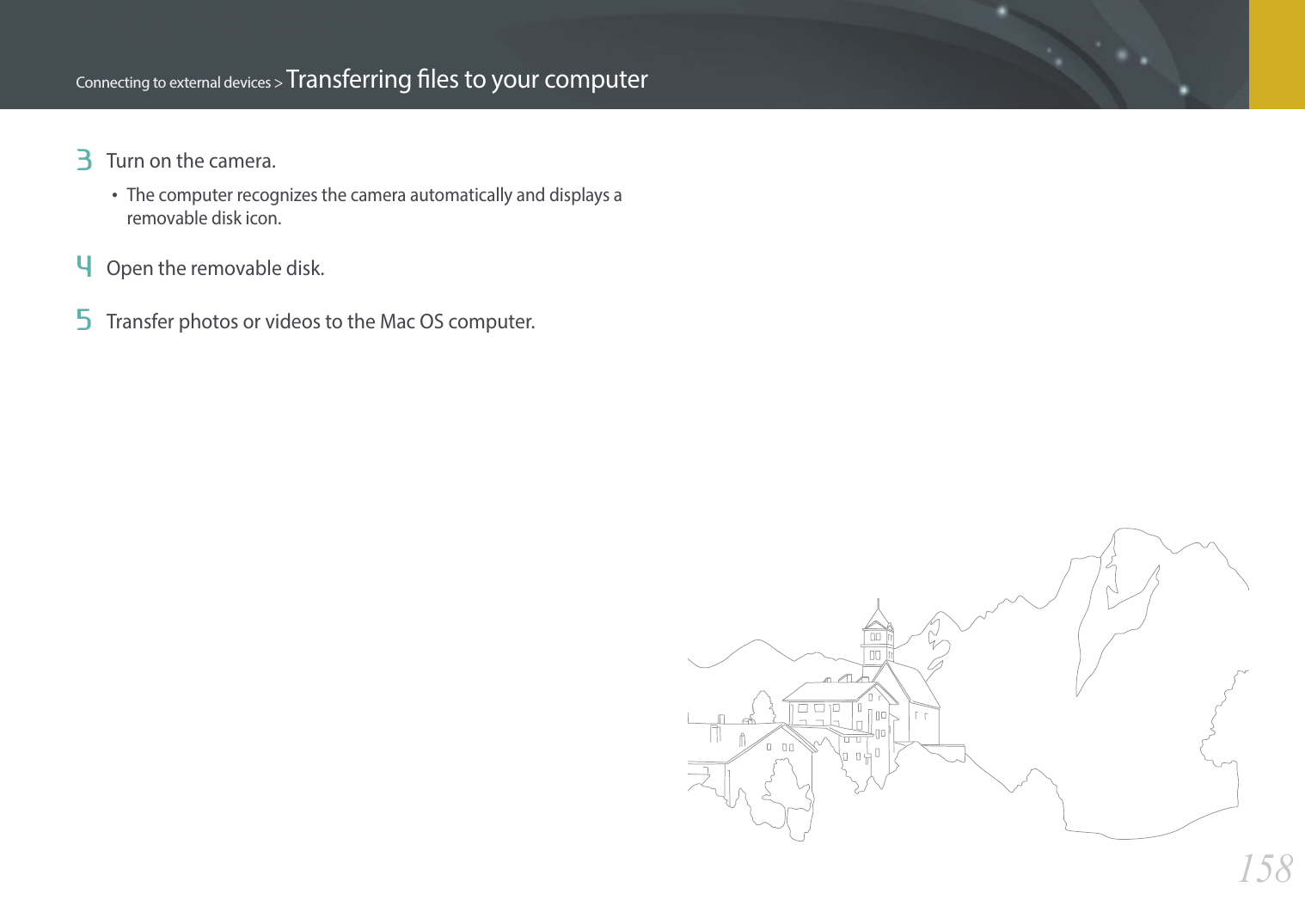

158Connecting to external devices > Transferring les to your computer3 Turn on the camera.• The computer recognizes the camera automatically and displays a removable disk icon.4 Open the removable disk.5 Transfer photos or videos to the Mac OS computer.

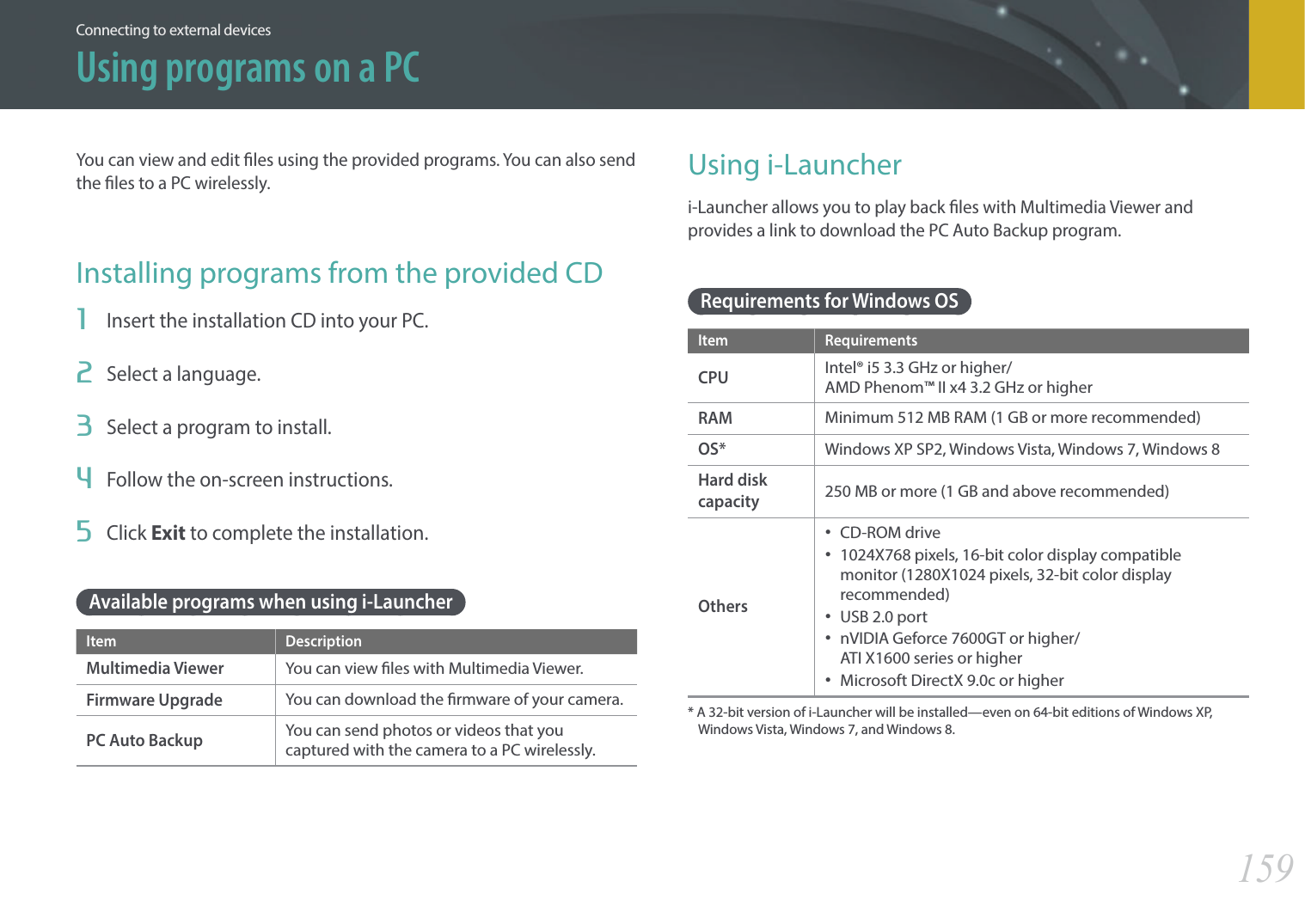

159Connecting to external devicesYou can view and edit les using the provided programs. You can also send the les to a PC wirelessly.Installing programs from the provided CD1 Insert the installation CD into your PC.2 Select a language.3 Select a program to install.4 Follow the on-screen instructions.5 Click Exit to complete the installation.Available programs when using i-LauncherItem DescriptionMultimedia ViewerYou can view les with Multimedia Viewer.Firmware UpgradeYou can download the rmware of your camera.PC Auto BackupYou can send photos or videos that you captured with the camera to a PC wirelessly.Using i-Launcheri-Launcher allows you to play back les with Multimedia Viewer and provides a link to download the PC Auto Backup program.Requirements for Windows OSItem RequirementsCPUIntel® i5 3.3 GHz or higher/ AMD Phenom™ II x4 3.2 GHz or higherRAMMinimum 512 MB RAM (1 GB or more recommended)OS*Windows XP SP2, Windows Vista, Windows 7, Windows 8Hard disk capacity250 MB or more (1 GB and above recommended)Others• CD-ROM drive• 1024X768 pixels, 16-bit color display compatible monitor (1280X1024 pixels, 32-bit color display recommended)• USB 2.0 port• nVIDIA Geforce 7600GT or higher/ ATI X1600 series or higher• Microsoft DirectX 9.0c or higher* A 32-bit version of i-Launcher will be installed—even on 64-bit editions of Windows XP, Windows Vista, Windows 7, and Windows 8.Using programs on a PC

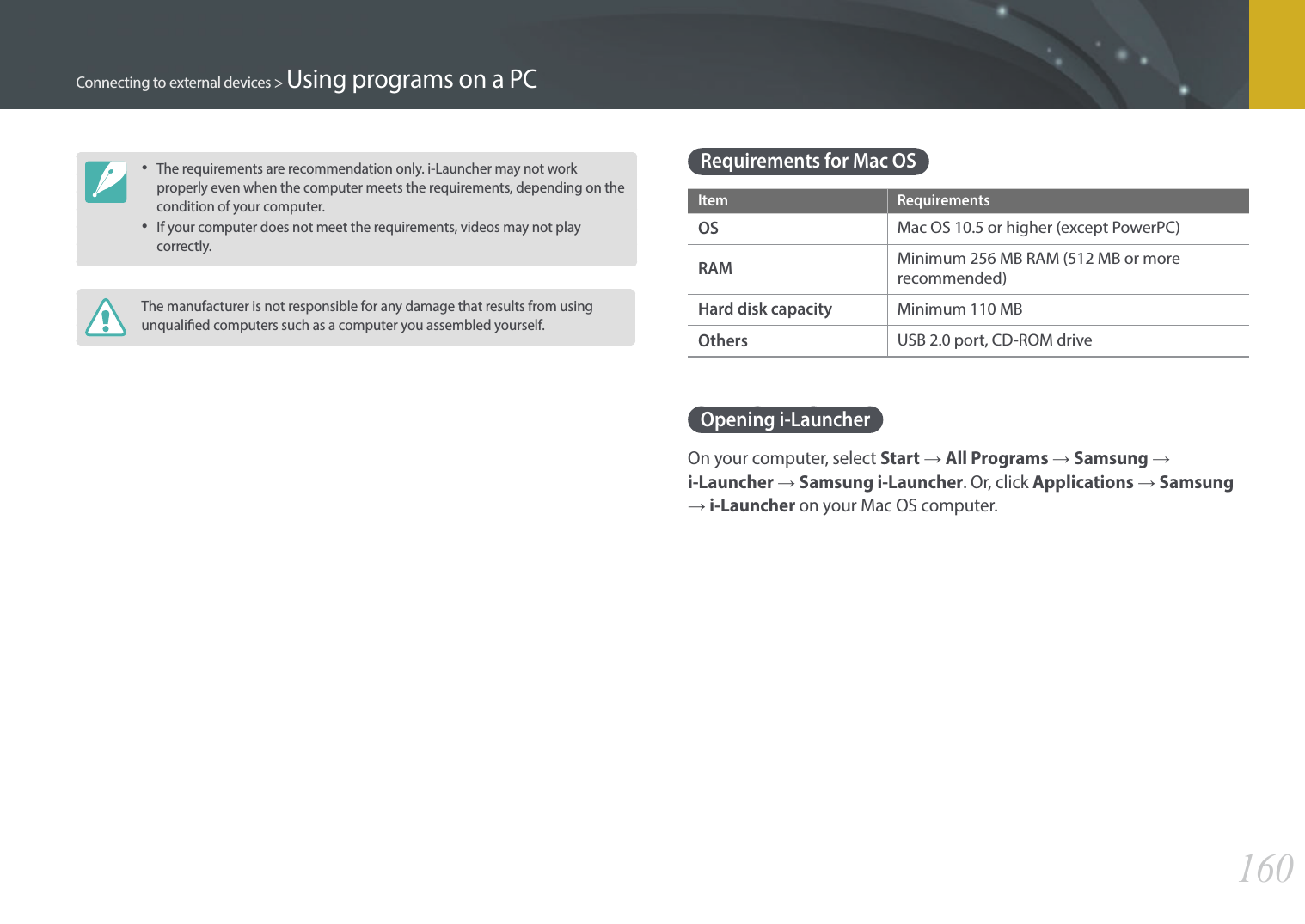

160Connecting to external devices > Using programs on a PC• The requirements are recommendation only. i-Launcher may not work properly even when the computer meets the requirements, depending on the condition of your computer.• If your computer does not meet the requirements, videos may not play correctly.The manufacturer is not responsible for any damage that results from using unqualied computers such as a computer you assembled yourself.Requirements for Mac OSItem RequirementsOSMac OS 10.5 or higher (except PowerPC)RAMMinimum 256 MB RAM (512 MB or more recommended)Hard disk capacityMinimum 110 MBOthersUSB 2.0 port, CD-ROM driveOpening i-LauncherOn your computer, select Start → All Programs → Samsung → i-Launcher → Samsung i-Launcher. Or, click Applications → Samsung → i-Launcher on your Mac OS computer.

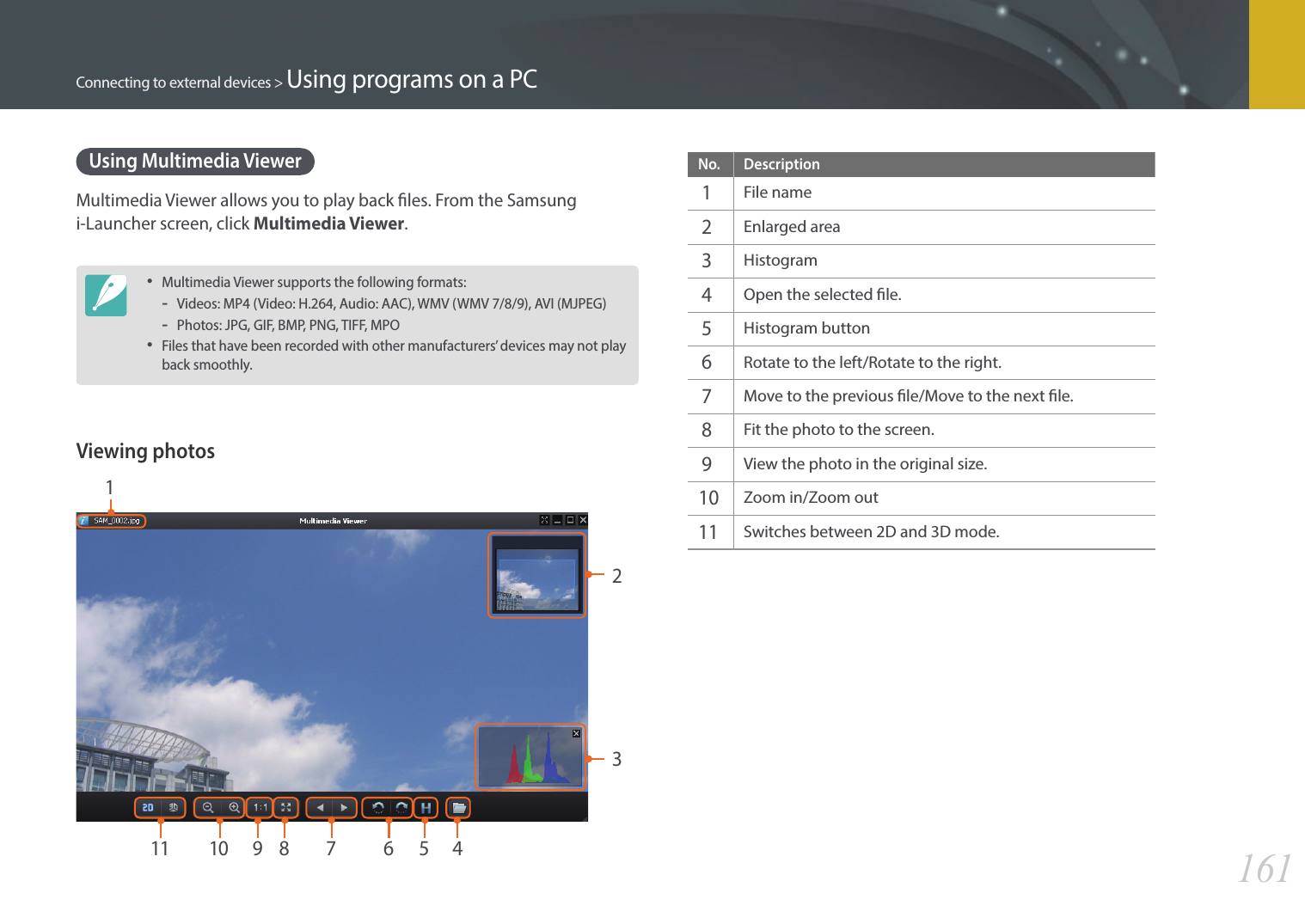

161Connecting to external devices > Using programs on a PCUsing Multimedia ViewerMultimedia Viewer allows you to play back les. From the Samsung i-Launcher screen, click Multimedia Viewer.• Multimedia Viewer supports the following formats: -Videos: MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9), AVI (MJPEG) -Photos: JPG, GIF, BMP, PNG, TIFF, MPO• Files that have been recorded with other manufacturers’ devices may not play back smoothly.Viewing photos1234567891011No. Description1 File name2 Enlarged area3 Histogram4 Open the selected le.5 Histogram button6 Rotate to the left/Rotate to the right.7 Move to the previous le/Move to the next le.8 Fit the photo to the screen.9 View the photo in the original size.10Zoom in/Zoom out11 Switches between 2D and 3D mode.

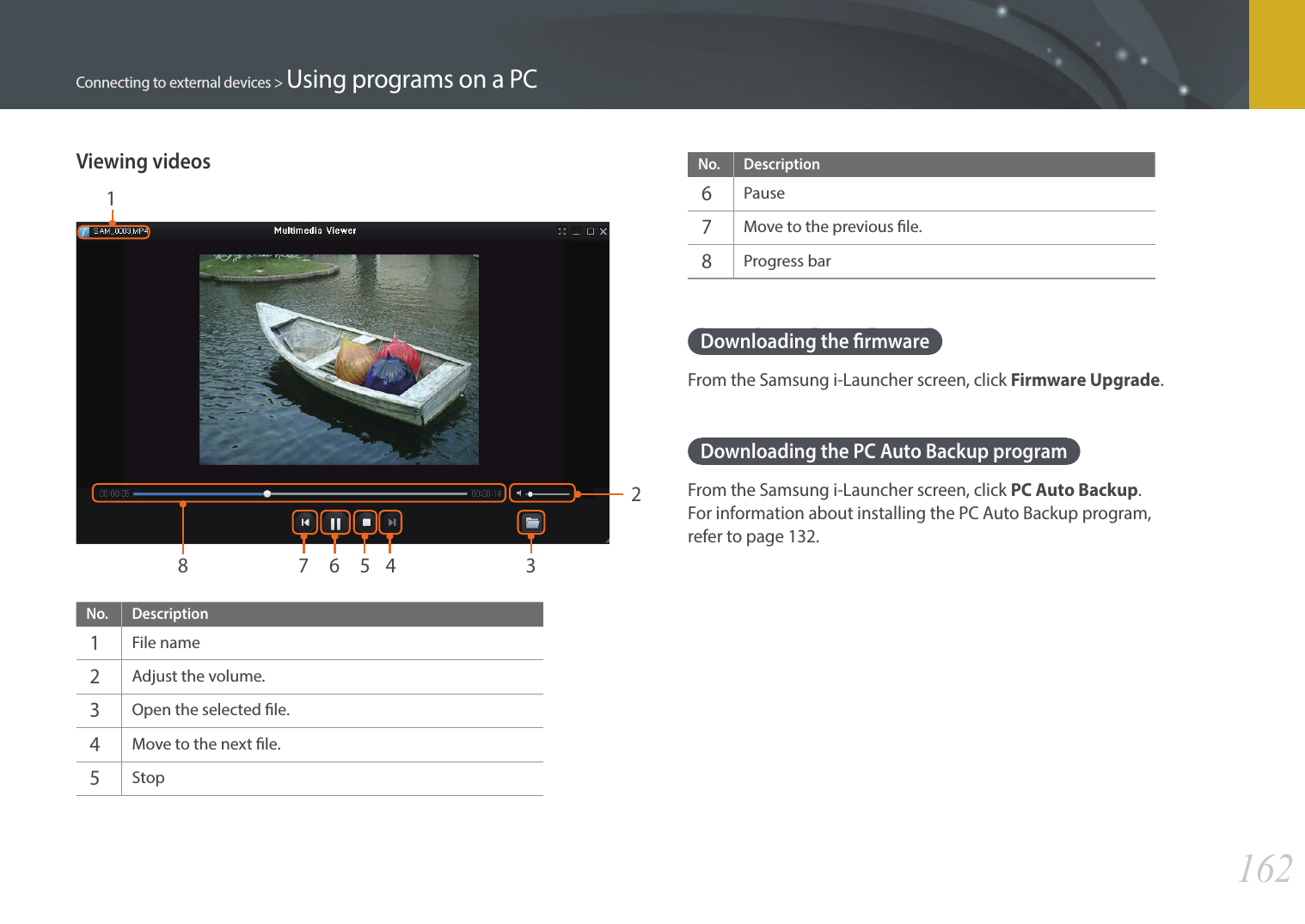

162Connecting to external devices > Using programs on a PCViewing videos12345678No. Description1 File name2 Adjust the volume.3 Open the selected le.4 Move to the next le.5 StopNo. Description6 Pause7 Move to the previous le.8 Progress barDownloading the rmwareFrom the Samsung i-Launcher screen, click Firmware Upgrade. Downloading the PC Auto Backup programFrom the Samsung i-Launcher screen, click PC Auto Backup. For information about installing the PC Auto Backup program, refer to page 132.

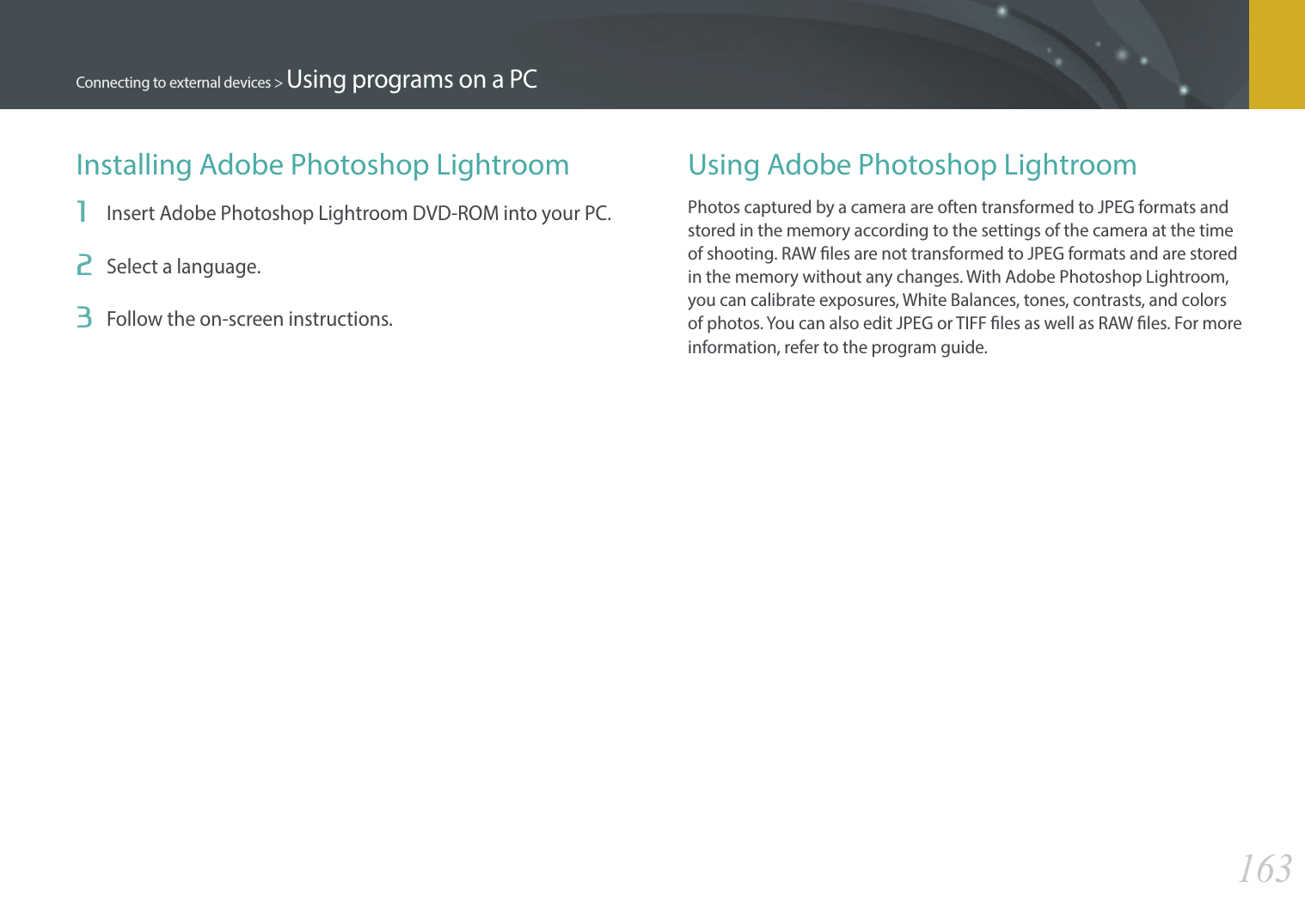

163Connecting to external devices > Using programs on a PCInstalling Adobe Photoshop Lightroom1 Insert Adobe Photoshop Lightroom DVD-ROM into your PC. 2 Select a language. 3 Follow the on-screen instructions. Using Adobe Photoshop LightroomPhotos captured by a camera are often transformed to JPEG formats and stored in the memory according to the settings of the camera at the time of shooting. RAW files are not transformed to JPEG formats and are stored in the memory without any changes. With Adobe Photoshop Lightroom, you can calibrate exposures, White Balances, tones, contrasts, and colors of photos. You can also edit JPEG or TIFF les as well as RAW les. For more information, refer to the program guide.
Chapter 7AppendixGet information about error messages, camera maintenance, trouble shooting tips, specications, and optional accessories.

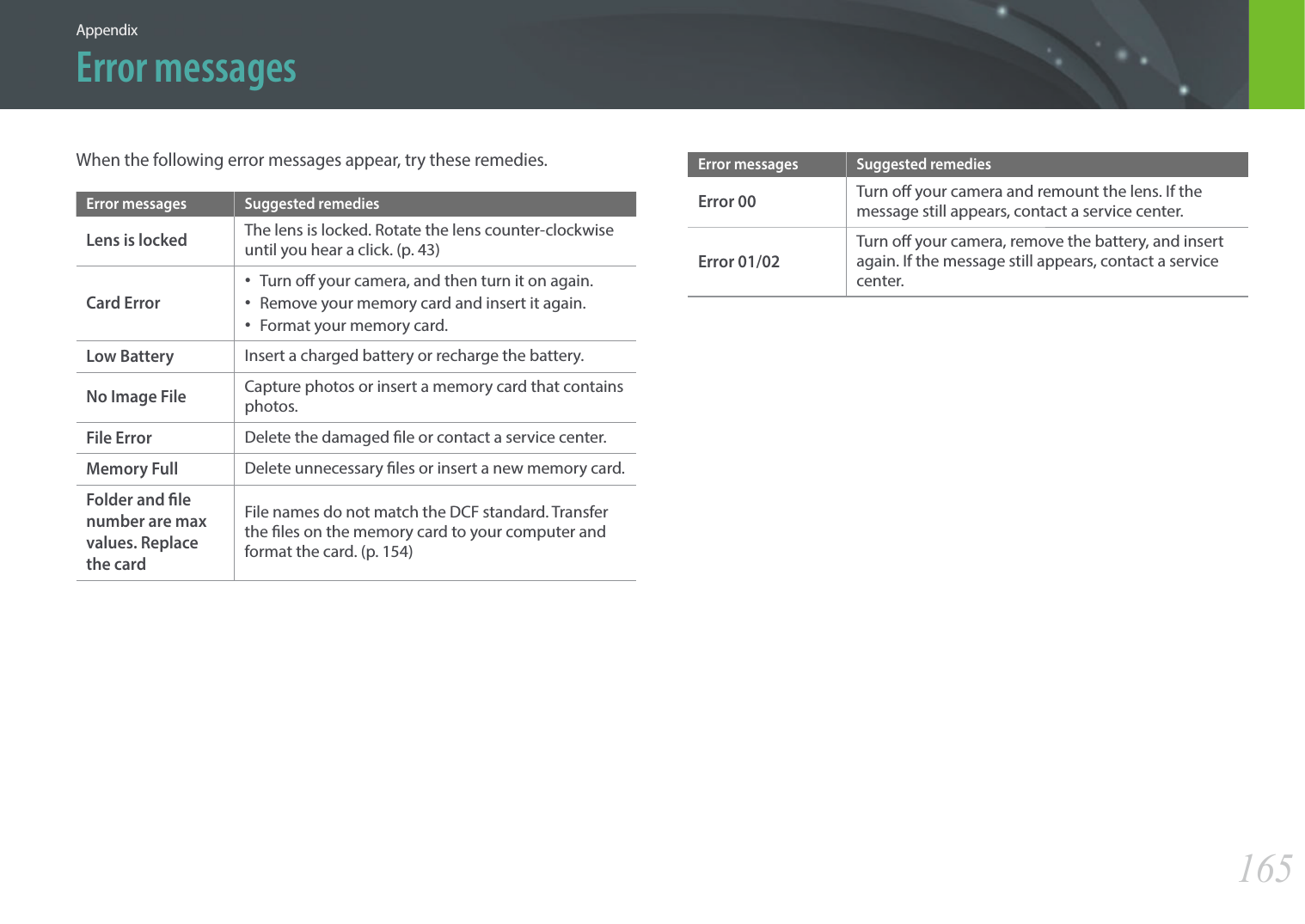

165AppendixWhen the following error messages appear, try these remedies.Error messages Suggested remediesLens is lockedThe lens is locked. Rotate the lens counter-clockwise until you hear a click. (p. 43)Card Error• Turn o your camera, and then turn it on again.• Remove your memory card and insert it again.• Format your memory card.Low BatteryInsert a charged battery or recharge the battery.No Image FileCapture photos or insert a memory card that contains photos.File ErrorDelete the damaged le or contact a service center.Memory FullDelete unnecessary les or insert a new memory card.Folder and le number are max values. Replace the cardFile names do not match the DCF standard. Transfer the les on the memory card to your computer and format the card. (p. 154)Error messages Suggested remediesError 00Turn o your camera and remount the lens. If the message still appears, contact a service center.Error 01/02Turn o your camera, remove the battery, and insert again. If the message still appears, contact a service center.Error messages

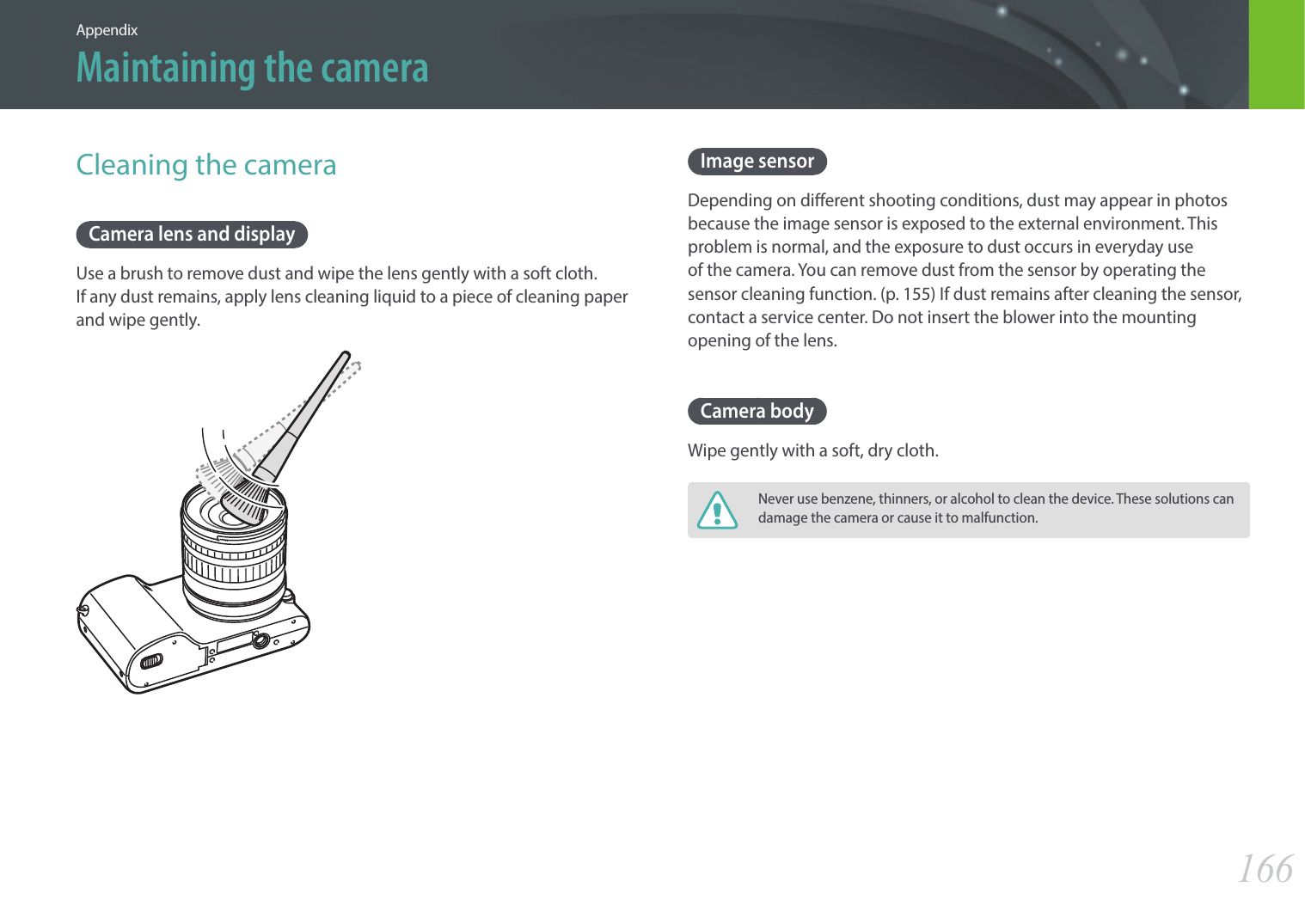

166AppendixCleaning the cameraCamera lens and displayUse a brush to remove dust and wipe the lens gently with a soft cloth. If any dust remains, apply lens cleaning liquid to a piece of cleaning paper and wipe gently.Image sensorDepending on dierent shooting conditions, dust may appear in photos because the image sensor is exposed to the external environment. This problem is normal, and the exposure to dust occurs in everyday use of the camera. You can remove dust from the sensor by operating the sensor cleaning function. (p. 155) If dust remains after cleaning the sensor, contact a service center. Do not insert the blower into the mounting opening of the lens.Camera bodyWipe gently with a soft, dry cloth.Never use benzene, thinners, or alcohol to clean the device. These solutions can damage the camera or cause it to malfunction.Maintaining the camera

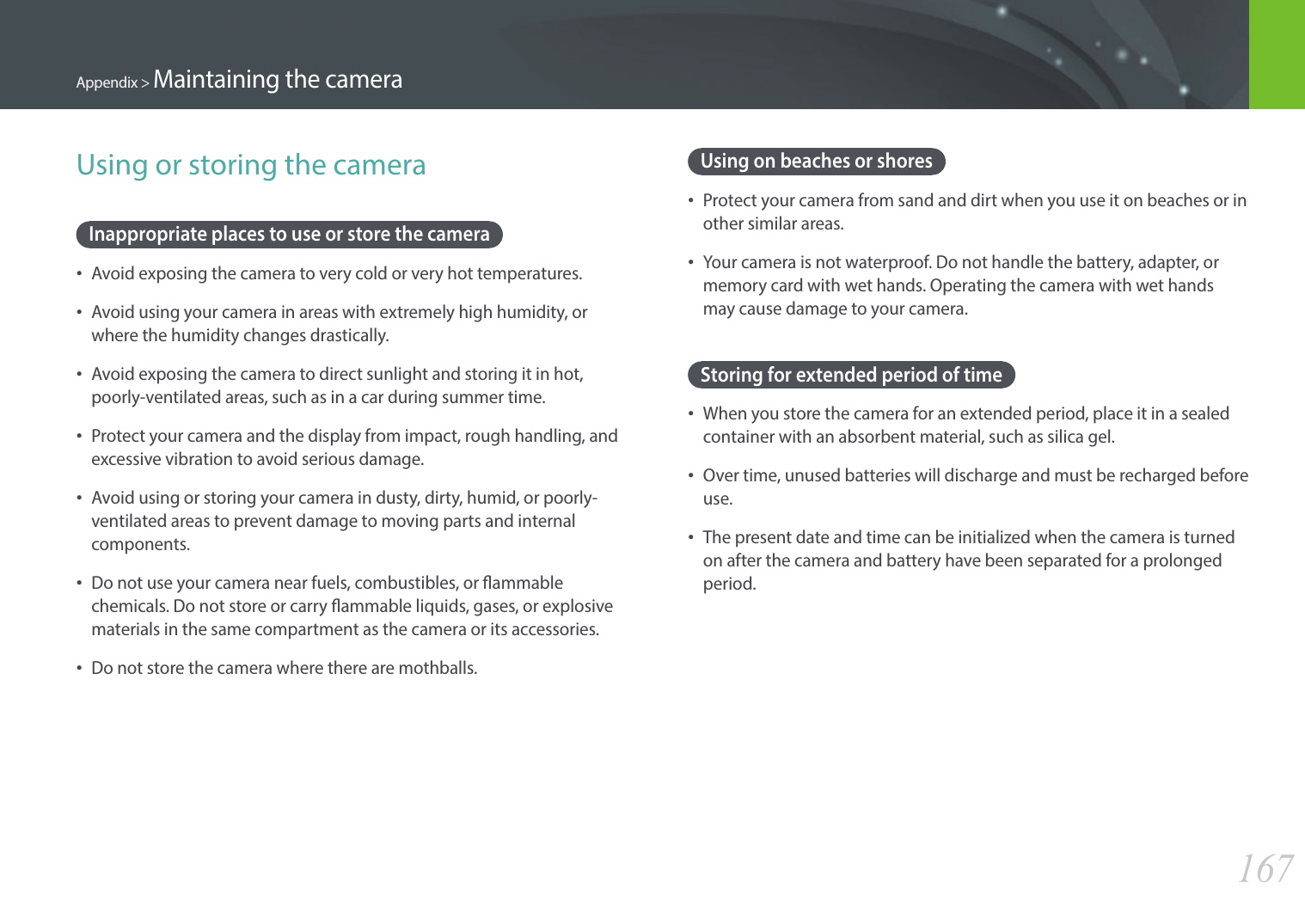

167Appendix > Maintaining the cameraUsing on beaches or shores• Protect your camera from sand and dirt when you use it on beaches or in other similar areas.• Your camera is not waterproof. Do not handle the battery, adapter, or memory card with wet hands. Operating the camera with wet hands may cause damage to your camera.Storing for extended period of time• When you store the camera for an extended period, place it in a sealed container with an absorbent material, such as silica gel.• Over time, unused batteries will discharge and must be recharged before use.• The present date and time can be initialized when the camera is turned on after the camera and battery have been separated for a prolonged period.Using or storing the cameraInappropriate places to use or store the camera• Avoid exposing the camera to very cold or very hot temperatures.• Avoid using your camera in areas with extremely high humidity, or where the humidity changes drastically.• Avoid exposing the camera to direct sunlight and storing it in hot, poorly-ventilated areas, such as in a car during summer time.• Protect your camera and the display from impact, rough handling, and excessive vibration to avoid serious damage.• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.• Do not use your camera near fuels, combustibles, or ammable chemicals. Do not store or carry ammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.• Do not store the camera where there are mothballs.

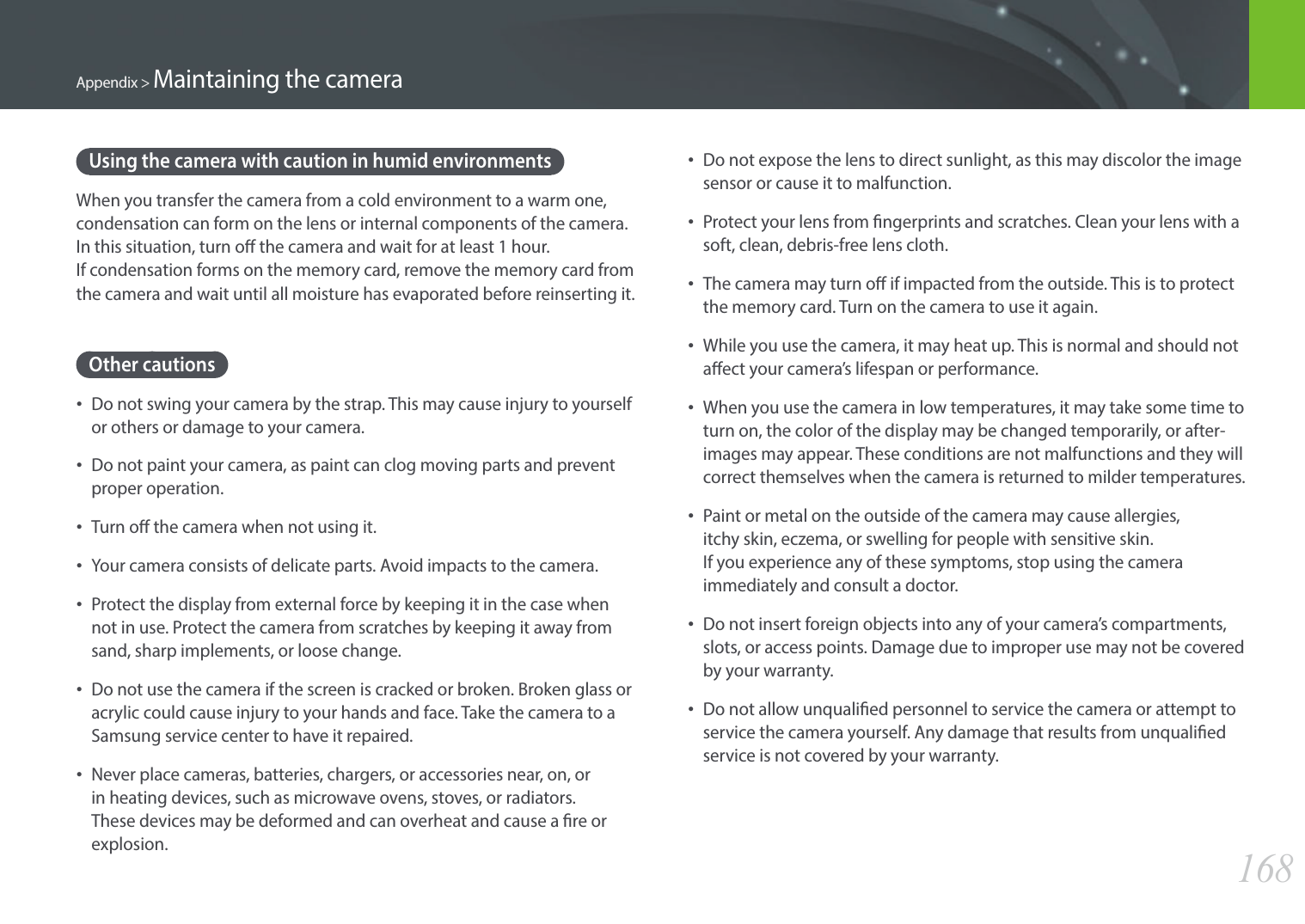

168Appendix > Maintaining the cameraUsing the camera with caution in humid environmentsWhen you transfer the camera from a cold environment to a warm one, condensation can form on the lens or internal components of the camera. In this situation, turn o the camera and wait for at least 1 hour. If condensation forms on the memory card, remove the memory card from the camera and wait until all moisture has evaporated before reinserting it.Other cautions• Do not swing your camera by the strap. This may cause injury to yourself or others or damage to your camera.• Do not paint your camera, as paint can clog moving parts and prevent proper operation.• Turn o the camera when not using it.• Your camera consists of delicate parts. Avoid impacts to the camera.• Protect the display from external force by keeping it in the case when not in use. Protect the camera from scratches by keeping it away from sand, sharp implements, or loose change.• Do not use the camera if the screen is cracked or broken. Broken glass or acrylic could cause injury to your hands and face. Take the camera to a Samsung service center to have it repaired.• Never place cameras, batteries, chargers, or accessories near, on, or in heating devices, such as microwave ovens, stoves, or radiators. These devices may be deformed and can overheat and cause a re or explosion.• Do not expose the lens to direct sunlight, as this may discolor the image sensor or cause it to malfunction.• Protect your lens from ngerprints and scratches. Clean your lens with a soft, clean, debris-free lens cloth.• The camera may turn o if impacted from the outside. This is to protect the memory card. Turn on the camera to use it again.• While you use the camera, it may heat up. This is normal and should not aect your camera’s lifespan or performance.• When you use the camera in low temperatures, it may take some time to turn on, the color of the display may be changed temporarily, or after-images may appear. These conditions are not malfunctions and they will correct themselves when the camera is returned to milder temperatures.• Paint or metal on the outside of the camera may cause allergies, itchy skin, eczema, or swelling for people with sensitive skin. If you experience any of these symptoms, stop using the camera immediately and consult a doctor.• Do not insert foreign objects into any of your camera’s compartments, slots, or access points. Damage due to improper use may not be covered by your warranty.• Do not allow unqualied personnel to service the camera or attempt to service the camera yourself. Any damage that results from unqualied service is not covered by your warranty.

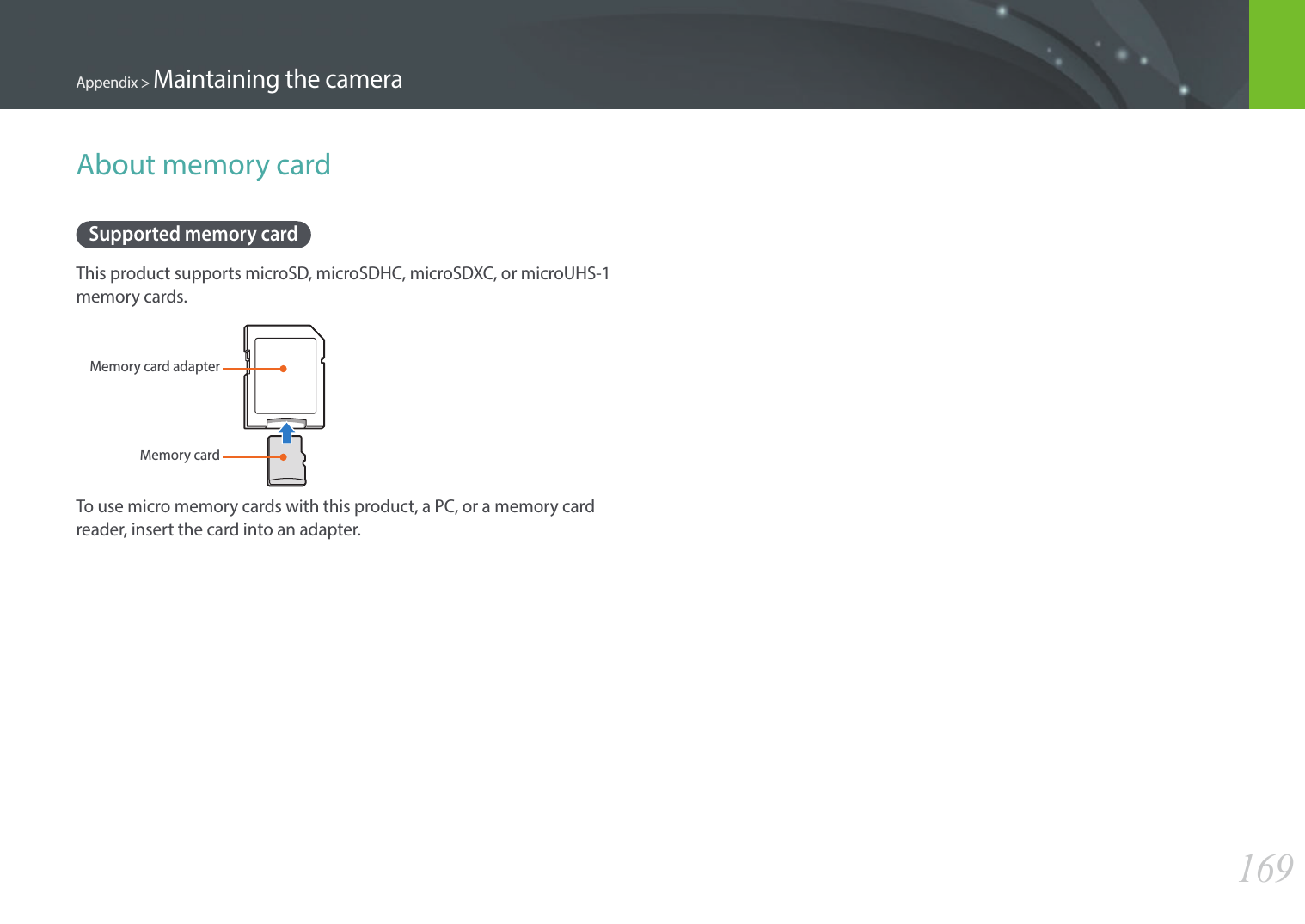

169Appendix > Maintaining the cameraAbout memory cardSupported memory cardThis product supports microSD, microSDHC, microSDXC, or microUHS-1 memory cards.Memory card adapterMemory cardTo use micro memory cards with this product, a PC, or a memory card reader, insert the card into an adapter.

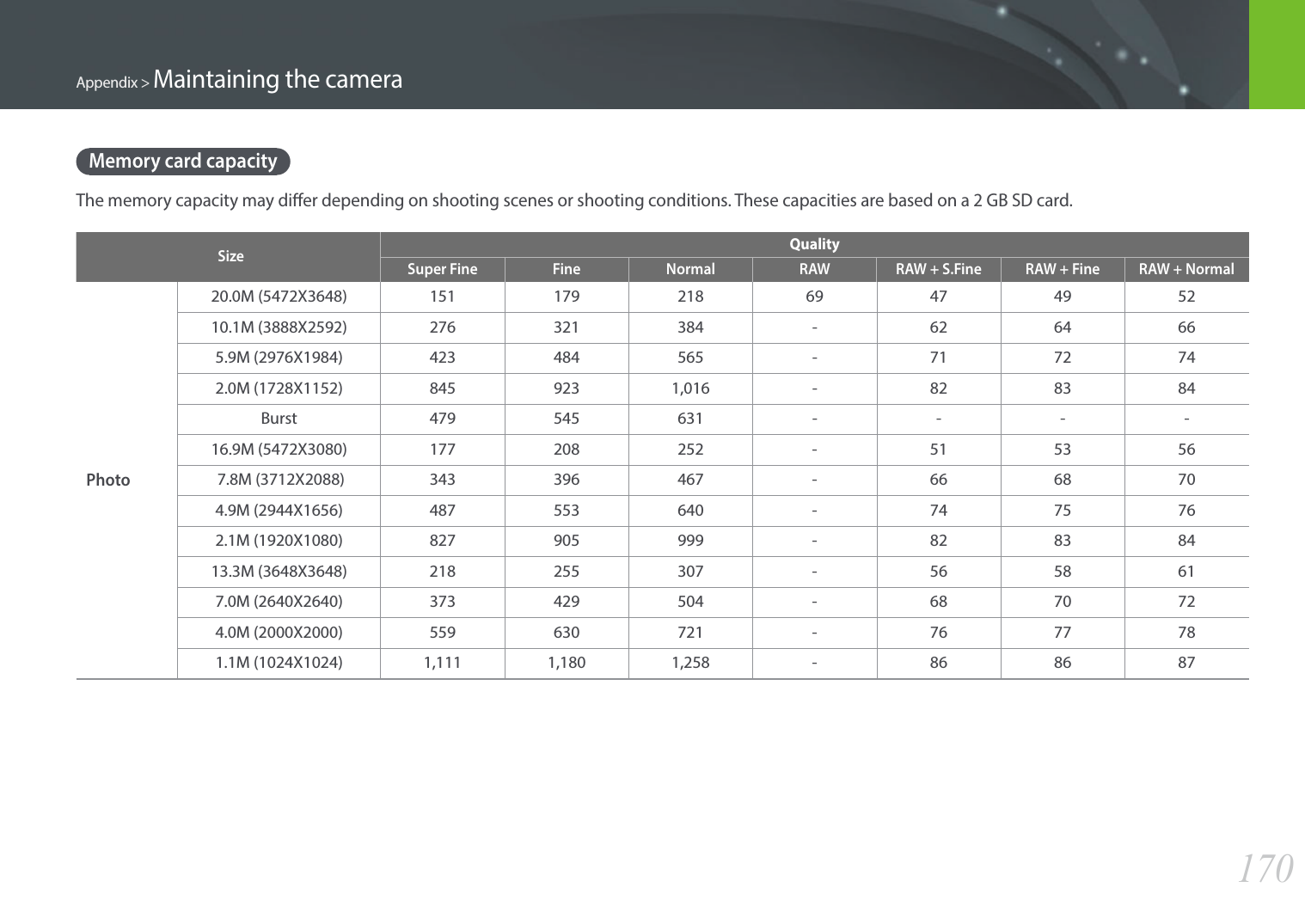

170Appendix > Maintaining the cameraMemory card capacityThe memory capacity may dier depending on shooting scenes or shooting conditions. These capacities are based on a 2 GB SD card.Size QualitySuper Fine Fine Normal RAW RAW + S.Fine RAW + Fine RAW + NormalPhoto20.0M (5472X3648) 151 179 218 69 47 49 5210.1M (3888X2592) 276 321 384 - 62 64 665.9M (2976X1984) 423 484 565 - 71 72 742.0M (1728X1152) 845 923 1,016 - 82 83 84Burst 479 545 631 - - - -16.9M (5472X3080) 177 208 252 - 51 53 567.8M (3712X2088) 343 396 467 - 66 68 704.9M (2944X1656) 487 553 640 - 74 75 762.1M (1920X1080) 827 905 999 - 82 83 8413.3M (3648X3648) 218 255 307 - 56 58 617.0M (2640X2640) 373 429 504 - 68 70 724.0M (2000X2000) 559 630 721 - 76 77 781.1M (1024X1024) 1,111 1,180 1,258 - 86 86 87

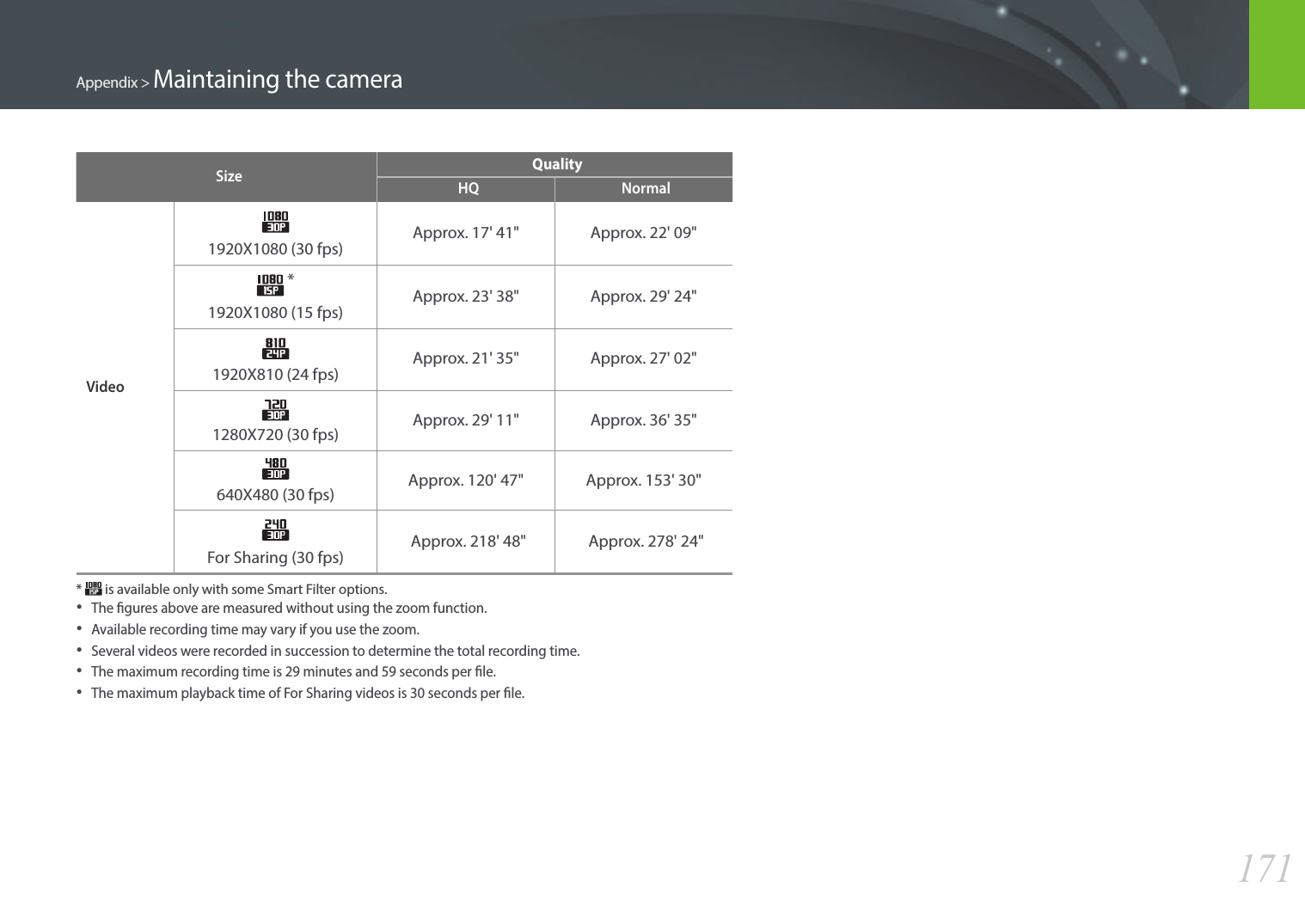

171Appendix > Maintaining the cameraSize QualityHQ NormalVideo 1920X1080 (30 fps)Approx. 17' 41" Approx. 22' 09" * 1920X1080 (15 fps)Approx. 23' 38" Approx. 29' 24" 1920X810 (24 fps) Approx. 21' 35" Approx. 27' 02" 1280X720 (30 fps) Approx. 29' 11" Approx. 36' 35" 640X480 (30 fps) Approx. 120' 47" Approx. 153' 30" For Sharing (30 fps)Approx. 218' 48" Approx. 278' 24"* is available only with some Smart Filter options.• The gures above are measured without using the zoom function. • Available recording time may vary if you use the zoom. • Several videos were recorded in succession to determine the total recording time.• The maximum recording time is 29 minutes and 59 seconds per le.• The maximum playback time of For Sharing videos is 30 seconds per le.

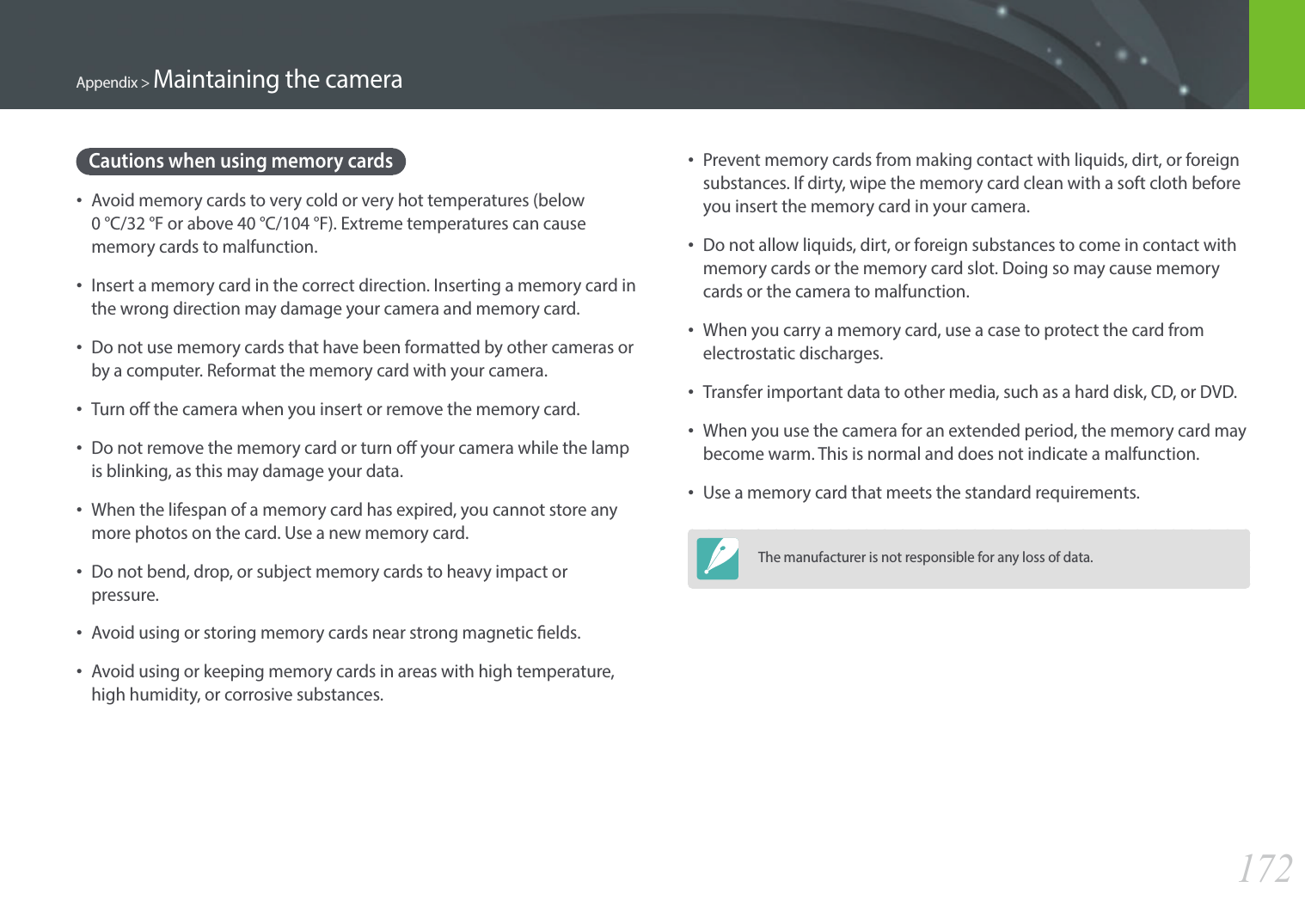

172Appendix > Maintaining the camera• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before you insert the memory card in your camera.• Do not allow liquids, dirt, or foreign substances to come in contact with memory cards or the memory card slot. Doing so may cause memory cards or the camera to malfunction.• When you carry a memory card, use a case to protect the card from electrostatic discharges.• Transfer important data to other media, such as a hard disk, CD, or DVD.• When you use the camera for an extended period, the memory card may become warm. This is normal and does not indicate a malfunction.• Use a memory card that meets the standard requirements.The manufacturer is not responsible for any loss of data.Cautions when using memory cards• Avoid memory cards to very cold or very hot temperatures (below 0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can cause memory cards to malfunction.• Insert a memory card in the correct direction. Inserting a memory card in the wrong direction may damage your camera and memory card.• Do not use memory cards that have been formatted by other cameras or by a computer. Reformat the memory card with your camera.• Turn o the camera when you insert or remove the memory card.• Do not remove the memory card or turn o your camera while the lamp is blinking, as this may damage your data.• When the lifespan of a memory card has expired, you cannot store any more photos on the card. Use a new memory card.• Do not bend, drop, or subject memory cards to heavy impact or pressure.• Avoid using or storing memory cards near strong magnetic elds.• Avoid using or keeping memory cards in areas with high temperature, high humidity, or corrosive substances.
173Appendix > Maintaining the camera• Do not rest the device on ammable surfaces, such as bedding, carpets, or electric blankets for a prolonged period.• When the device is switched on, do not leave it in any conned space for a prolonged period.• Do not allow battery terminals to come in contact with metallic objects, such as necklaces, coins, keys, or watches.• Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries.• Do not disassemble the battery or puncture the battery with any sharp object.• Avoid exposing the battery to high pressure or crushing forces.• Avoid exposing the battery to major impacts, such as dropping it from high places.• Do not expose the battery to temperatures of 60 °C (140 °F) or above.• Do not allow the battery to come in contact with moisture or liquids.• Battery shall not be exposed to excessive heat such as sunshine, re or the like.Disposal guidelines• Dispose of the battery with care.• Do not dispose of the battery in a re.• Disposal regulations may dier by country or region. Dispose of the battery in accordance with all local and federal regulations.Guidelines for charging the batteryCharge the battery only by the method described in this user manual. The battery can ignite or explode if not charged properly.About the batteryUse only Samsung-approved batteries.Battery specicationsItem DescriptionModelBP1130TypeLithium-ion batteryCell capacity1,130 mAhVoltage7.6 VCharging time (When the battery is completely discharged)Approx. 210 minPersonal injury or death can occur if the battery is handled carelessly or improperly. For your safety, follow these instructions for proper battery handling:• The battery can ignite or explode if not handled properly. If you notice any deformities, cracks, or other abnormalities in the battery, immediately discontinue use of the battery and contact your manufacturer.• Use only authentic, manufacturer-recommend battery chargers and charge the battery only by the method described in this user manual.• Do not place the battery near heating devices or expose to excessively warm environments, such as the inside of an enclosed car in the summertime.• Do not place the battery in a microwave oven.• Avoid storing or using the battery in hot, humid places, such as spas or shower enclosures.

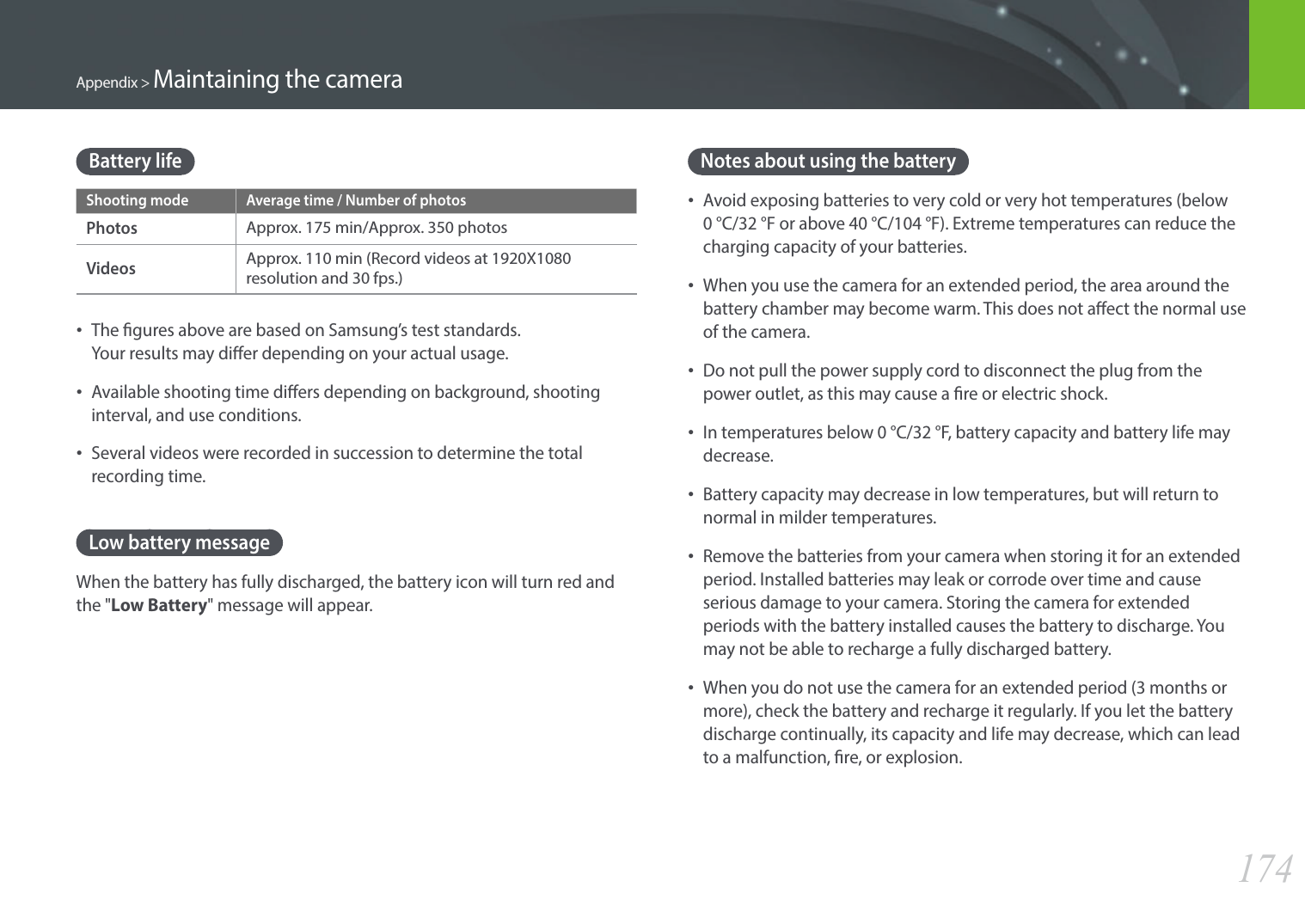

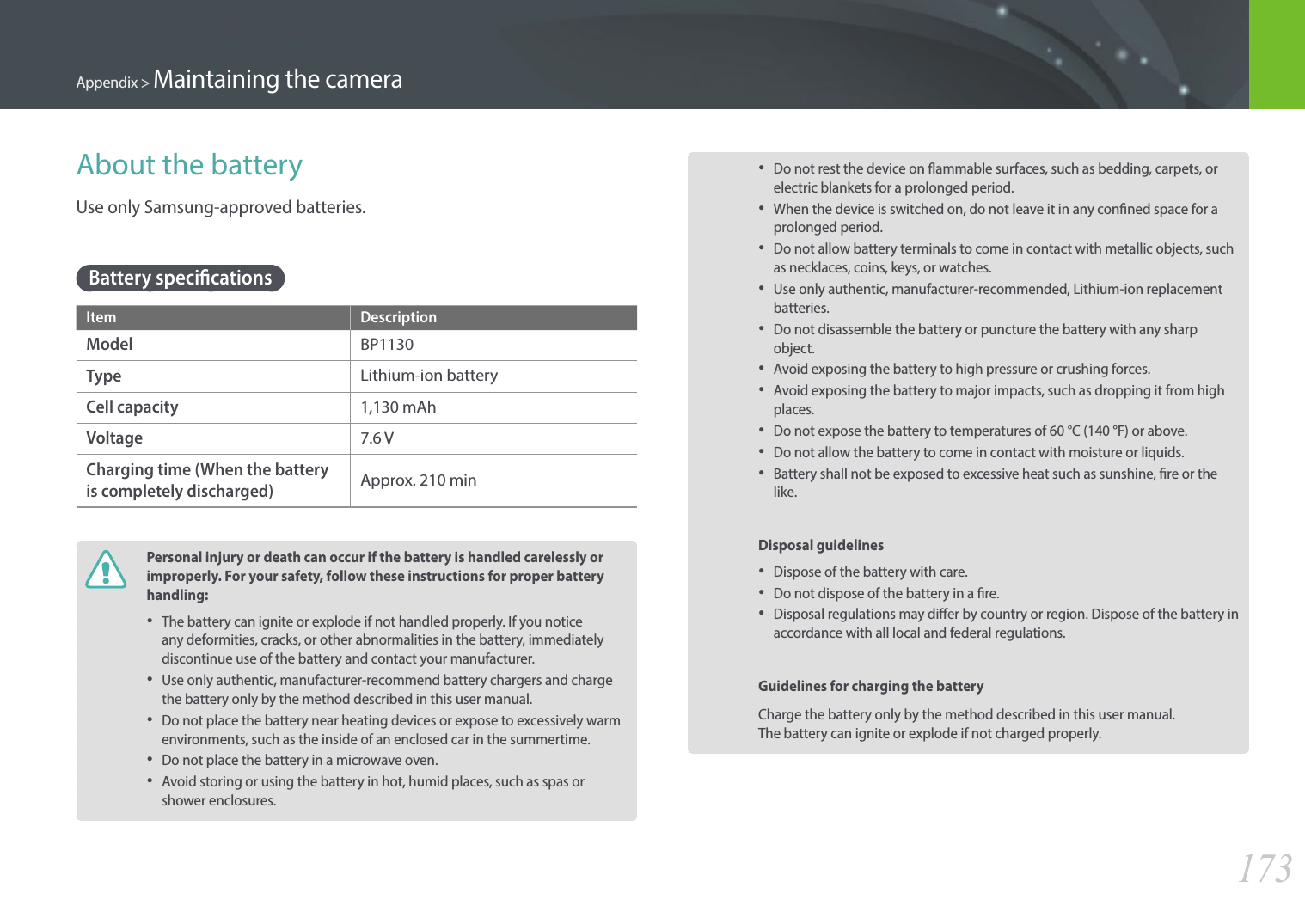

174Appendix > Maintaining the cameraBattery lifeShooting mode Average time / Number of photosPhotosApprox. 175 min/Approx. 350 photosVideosApprox. 110 min (Record videos at 1920X1080 resolution and 30 fps.)• The gures above are based on Samsung’s test standards. Your results may dier depending on your actual usage.• Available shooting time diers depending on background, shooting interval, and use conditions.• Several videos were recorded in succession to determine the total recording time.Low battery messageWhen the battery has fully discharged, the battery icon will turn red and the "Low Battery" message will appear.Notes about using the battery• Avoid exposing batteries to very cold or very hot temperatures (below 0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can reduce the charging capacity of your batteries.• When you use the camera for an extended period, the area around the battery chamber may become warm. This does not aect the normal use of the camera.• Do not pull the power supply cord to disconnect the plug from the power outlet, as this may cause a re or electric shock.• In temperatures below 0 °C/32 °F, battery capacity and battery life may decrease.• Battery capacity may decrease in low temperatures, but will return to normal in milder temperatures.• Remove the batteries from your camera when storing it for an extended period. Installed batteries may leak or corrode over time and cause serious damage to your camera. Storing the camera for extended periods with the battery installed causes the battery to discharge. You may not be able to recharge a fully discharged battery.• When you do not use the camera for an extended period (3 months or more), check the battery and recharge it regularly. If you let the battery discharge continually, its capacity and life may decrease, which can lead to a malfunction, re, or explosion.

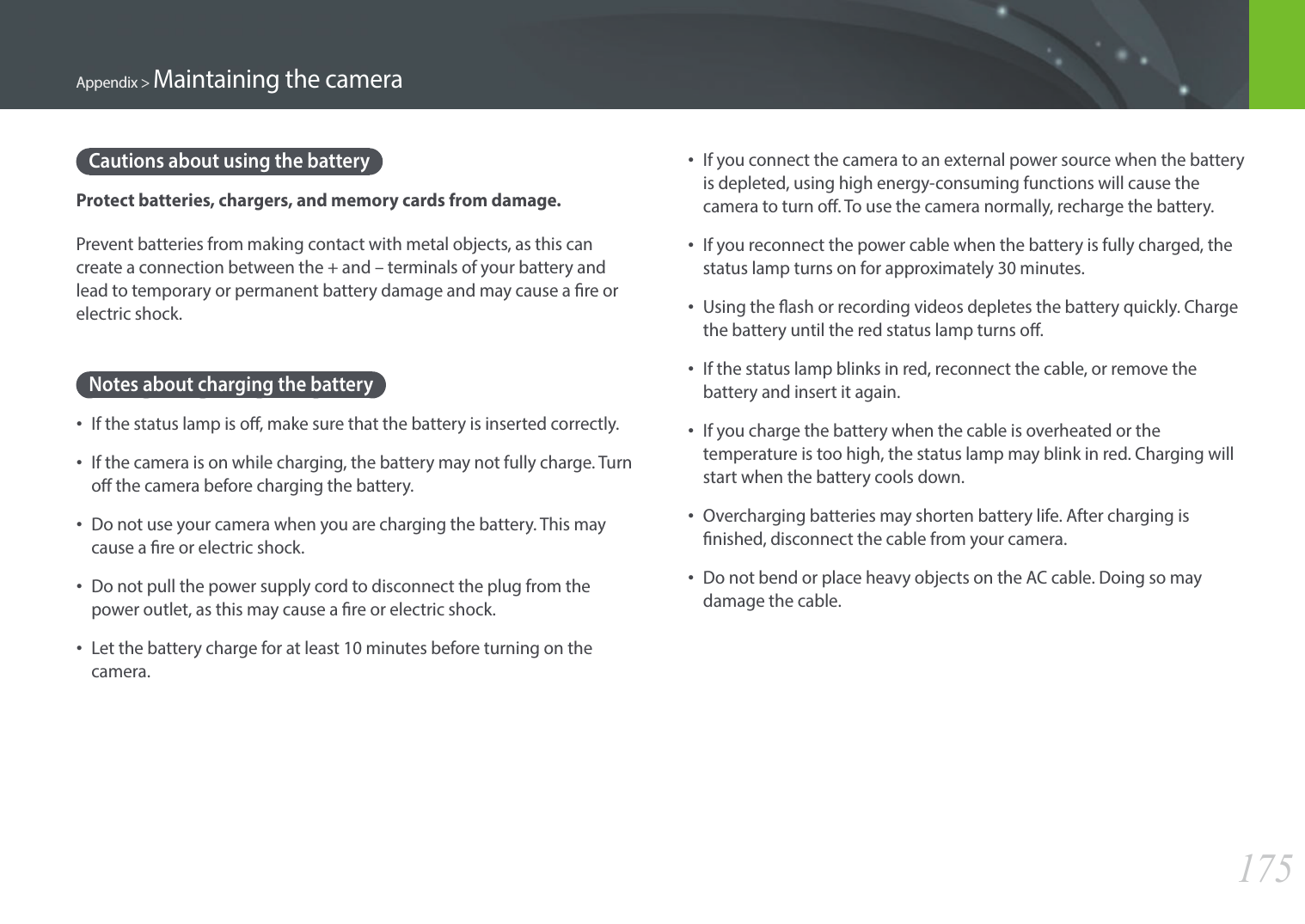

175Appendix > Maintaining the cameraCautions about using the batteryProtect batteries, chargers, and memory cards from damage.Prevent batteries from making contact with metal objects, as this can create a connection between the + and – terminals of your battery and lead to temporary or permanent battery damage and may cause a re or electric shock.Notes about charging the battery• If the status lamp is o, make sure that the battery is inserted correctly.• If the camera is on while charging, the battery may not fully charge. Turn o the camera before charging the battery.• Do not use your camera when you are charging the battery. This may cause a re or electric shock.• Do not pull the power supply cord to disconnect the plug from the power outlet, as this may cause a re or electric shock.• Let the battery charge for at least 10 minutes before turning on the camera.• If you connect the camera to an external power source when the battery is depleted, using high energy-consuming functions will cause the camera to turn o. To use the camera normally, recharge the battery.• If you reconnect the power cable when the battery is fully charged, the status lamp turns on for approximately 30 minutes.• Using the ash or recording videos depletes the battery quickly. Charge the battery until the red status lamp turns o.• If the status lamp blinks in red, reconnect the cable, or remove the battery and insert it again.• If you charge the battery when the cable is overheated or the temperature is too high, the status lamp may blink in red. Charging will start when the battery cools down.• Overcharging batteries may shorten battery life. After charging is nished, disconnect the cable from your camera.• Do not bend or place heavy objects on the AC cable. Doing so may damage the cable.

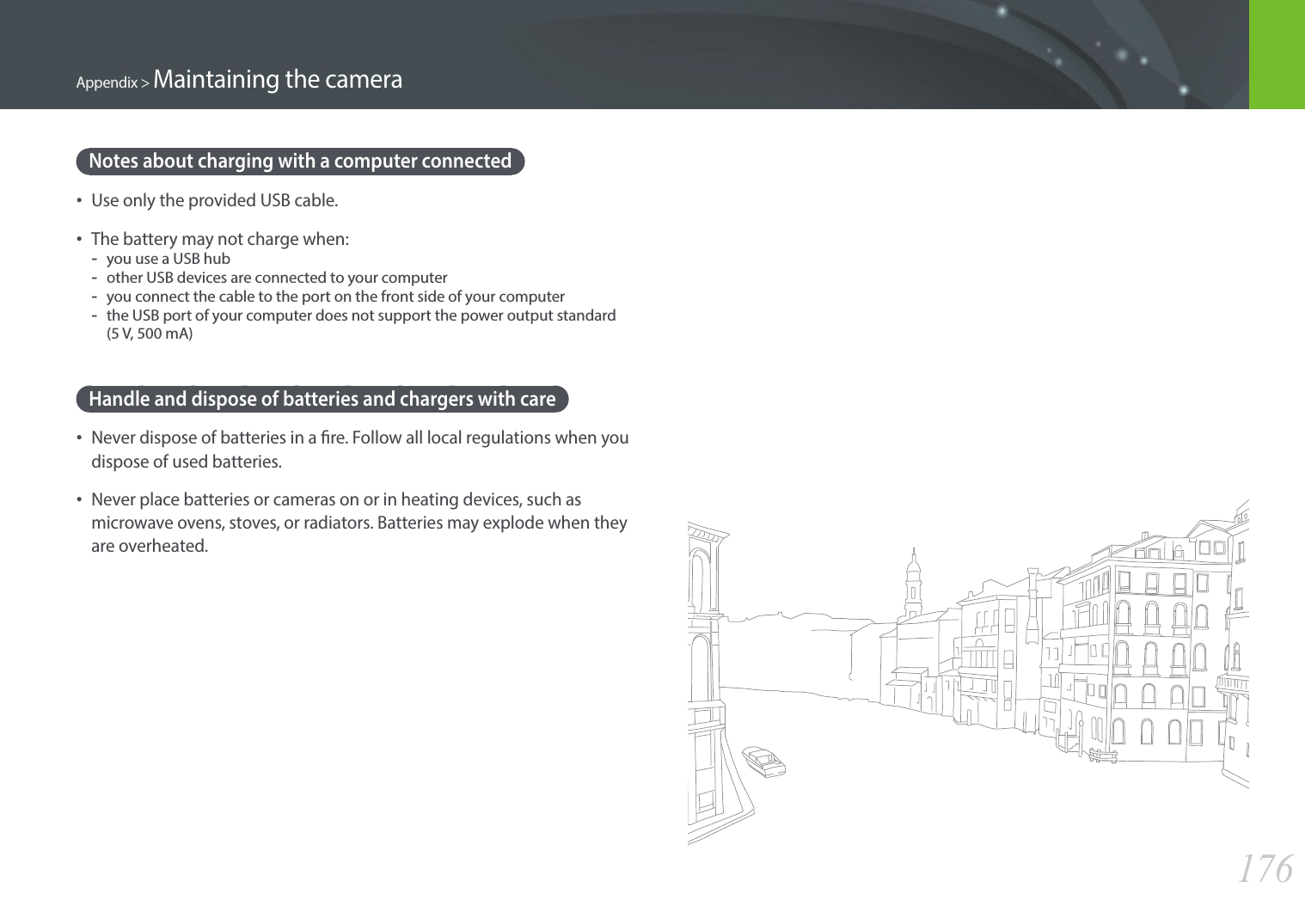

176Appendix > Maintaining the cameraNotes about charging with a computer connected• Use only the provided USB cable.• The battery may not charge when: - you use a USB hub - other USB devices are connected to your computer - you connect the cable to the port on the front side of your computer - the USB port of your computer does not support the power output standard (5 V, 500 mA)Handle and dispose of batteries and chargers with care• Never dispose of batteries in a re. Follow all local regulations when you dispose of used batteries.• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when they are overheated.

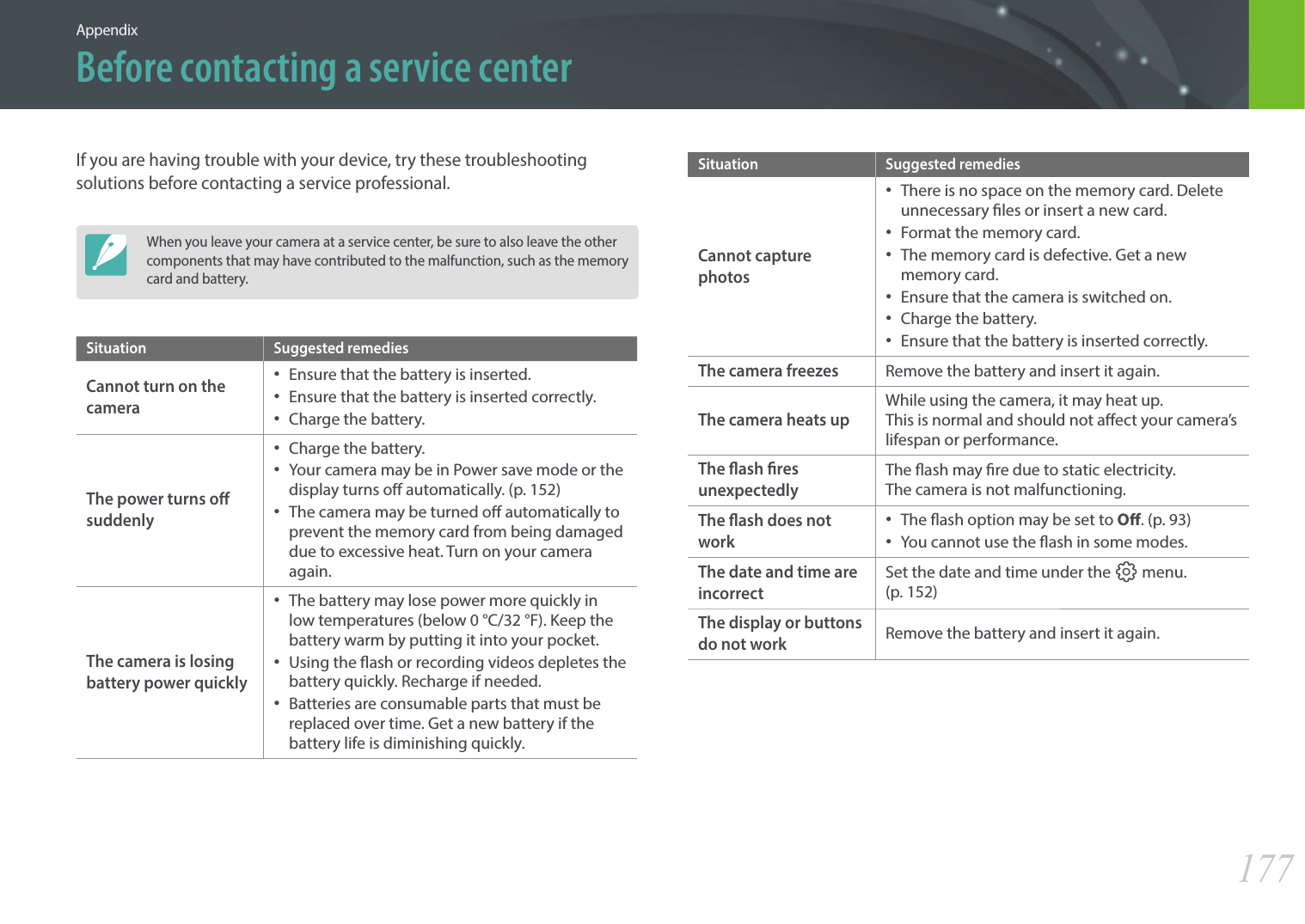

177AppendixBefore contacting a service centerIf you are having trouble with your device, try these troubleshooting solutions before contacting a service professional.When you leave your camera at a service center, be sure to also leave the other components that may have contributed to the malfunction, such as the memory card and battery. Situation Suggested remediesCannot turn on the camera• Ensure that the battery is inserted.• Ensure that the battery is inserted correctly.• Charge the battery.The power turns o suddenly• Charge the battery.• Your camera may be in Power save mode or the display turns o automatically. (p. 152)• The camera may be turned o automatically to prevent the memory card from being damaged due to excessive heat. Turn on your camera again.The camera is losing battery power quickly• The battery may lose power more quickly in low temperatures (below 0 °C/32 °F). Keep the battery warm by putting it into your pocket. • Using the ash or recording videos depletes the battery quickly. Recharge if needed.• Batteries are consumable parts that must be replaced over time. Get a new battery if the battery life is diminishing quickly.Situation Suggested remediesCannot capture photos• There is no space on the memory card. Delete unnecessary les or insert a new card.• Format the memory card.• The memory card is defective. Get a new memory card.• Ensure that the camera is switched on.• Charge the battery.• Ensure that the battery is inserted correctly.The camera freezesRemove the battery and insert it again.The camera heats upWhile using the camera, it may heat up. This is normal and should not aect your camera’s lifespan or performance.The ash res unexpectedlyThe ash may re due to static electricity. The camera is not malfunctioning. The ash does not work• The ash option may be set to O. (p. 93)• You cannot use the ash in some modes.The date and time are incorrectSet the date and time under the q menu. (p. 152)The display or buttons do not workRemove the battery and insert it again.
178Appendix > Before contacting a service centerSituation Suggested remediesThe memory card has an error• Turn o your camera, and then turn it on again.• Remove your memory card, and then insert it again.• Format your memory card.See "Cautions when using memory cards" for more details. (p. 175)Your computer does not recognize an microSDXC or microUHS-1 memory cardmicroSDXC and microUHS-1 memory cards use the exFAT le system. To use microSDXC or microUHS-1 memory cards on a Windows XP computer, download and update the exFAT le system driver from the Microsoft website.Your TV or computer cannot display photos and videos that are stored on an microSDXC or microUHS-1 memory cardmicroSDXC and microUHS-1 memory cards use the exFAT le system. Ensure that the external device is compatible with the exFAT le system before connecting the camera to the device.Cannot display lesIf you change the name of a le, your camera may not play the le (the name of the le should meet the DCF standard). If you encounter this situation, display les on your computer.Situation Suggested remediesThe photo is blurry• Ensure that the focus option you set is suitable for the kind of shot you are capturing.• Use a tripod to prevent your camera from shaking.• Ensure that the lens is clean. If not, clean the lens. (p. 169)The colors in the photo do not match the actual sceneAn incorrect White Balance can create unrealistic color. Select the proper White Balance option to suit the light source. (p. 75)The photo is too bright or too dark.Your photo is overexposed or underexposed.• Adjust the aperture value or the shutter speed.• Adjust the ISO sensitivity. (p. 74)• Turn o or on the ash. (p. 93)• Adjust the exposure value. (p. 101)Photos are distortedThis camera can have minute distortion when using a wide-angle lens that enables shooting with a wide angle of view. This is normal, and does not cause malfunction.Playback screen does not appear on the connected external device• Ensure that HDMI cable is properly connected to the external monitor.• Ensure that the memory card is properly recorded.Your computer does not recognize your camera• Ensure that the USB cable is connected correctly.• Ensure that your camera is switched on.• Ensure that you are using a supported operating system.
179Appendix > Before contacting a service centerSituation Suggested remediesYour computer disconnects the camera while transferring lesThe le transfer may be interrupted by static electricity. Disconnect the USB cable and connect it again. Your computer cannot play videosVideos may not play on some video player programs. To play video les captured with your camera, use the Multimedia Viewer program that you can install with the i-Launcher program on your computer.i-Launcher is not functioning properly• End i-Launcher and restart the program.• Depending on your computer's specications and environment, the program may not launch automatically. In this case, click Start → All Programs → Samsung → i-Launcher → Samsung i-Launcher on your Windows computer. (For Windows 8, open Start screen, and then select All apps → Samsung i-Launcher.) Or, click Applications → Samsung → i-Launcher on your Mac OS computer.Cannot set the DPOF for RAW lesYou cannot set the DPOF for RAW les.Situation Suggested remediesAuto Focus does not work• Subject is not in focus. When the subject is outside the AF area, shoot by moving the subject inside the AF area and half-pressing [Shutter].• Subject is too close. Step back from the subject and shoot.• The focus mode is set to MF. Switch the mode to AF.AEL feature does not workAEL feature does not work in t, M, i, and s modes. Select another mode to use this feature.Lens does not work• Ensure that the lens is properly mounted. • Remove the lens from the camera and re-mount it.External ash or GPS does not workEnsure that the external device is properly mounted and turned on.The date & time settings screen appears when you power on the camera• Set the date and time again.• This screen appears when the camera’s internal power source is completely discharged. Insert a fully charged battery and wait at least 72 hours in power o status for the internal power source to be recharged.

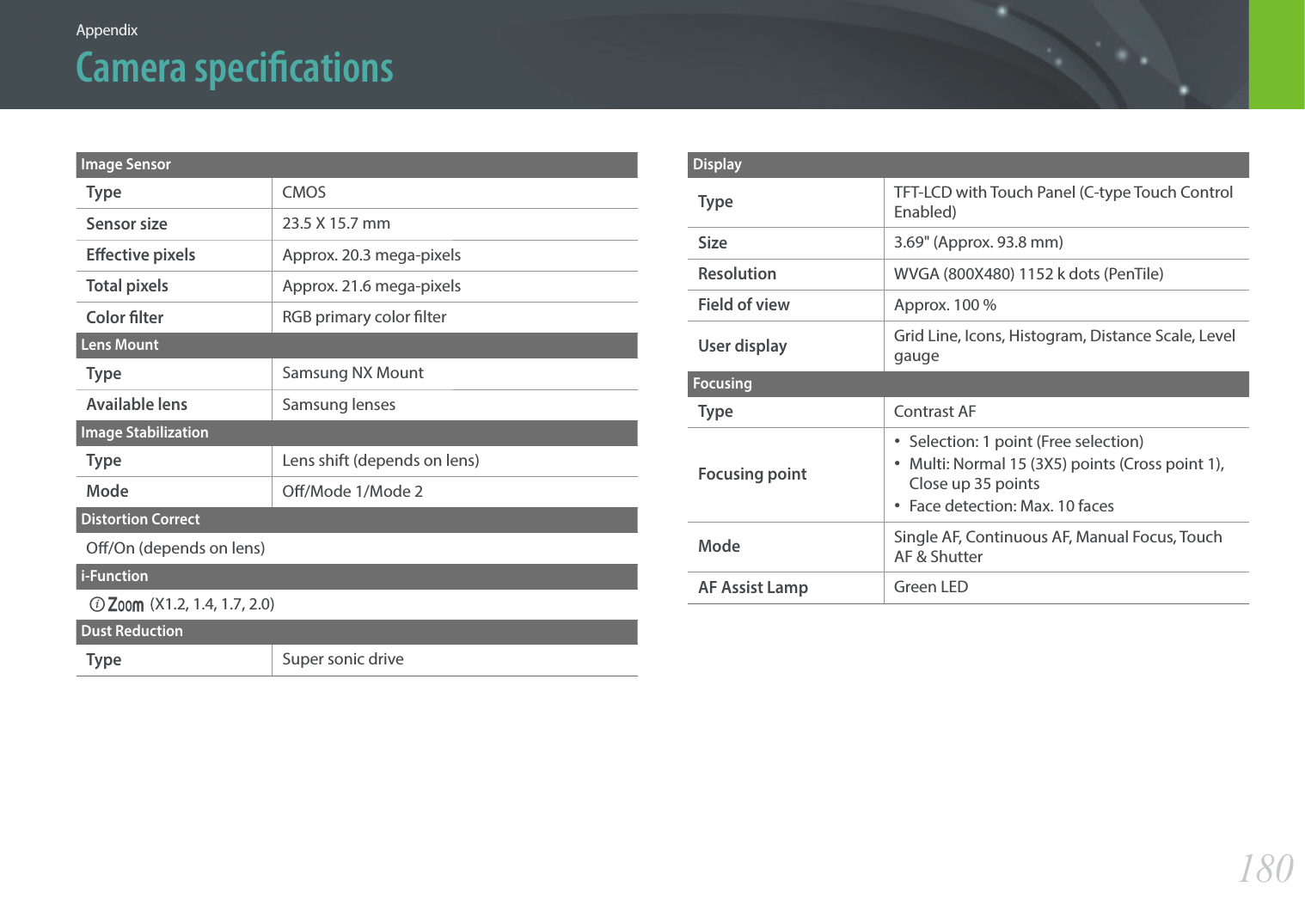

180AppendixCamera specicationsImage SensorTypeCMOSSensor size23.5 X 15.7 mmEective pixels Approx. 20.3 mega-pixelsTotal pixels Approx. 21.6 mega-pixelsColor lter RGB primary color lterLens MountTypeSamsung NX MountAvailable lensSamsung lensesImage StabilizationTypeLens shift (depends on lens)ModeO/Mode 1/Mode 2Distortion CorrectO/On (depends on lens)i-FunctionZ (X1.2, 1.4, 1.7, 2.0)Dust ReductionType Super sonic driveDisplayTypeTFT-LCD with Touch Panel (C-type Touch Control Enabled)Size3.69" (Approx. 93.8 mm)ResolutionWVGA (800X480) 1152 k dots (PenTile)Field of viewApprox. 100 %User displayGrid Line, Icons, Histogram, Distance Scale, Level gaugeFocusingType Contrast AFFocusing point• Selection: 1 point (Free selection)• Multi: Normal 15 (3X5) points (Cross point 1), Close up 35 points• Face detection: Max. 10 faces Mode Single AF, Continuous AF, Manual Focus, Touch AF & ShutterAF Assist LampGreen LED

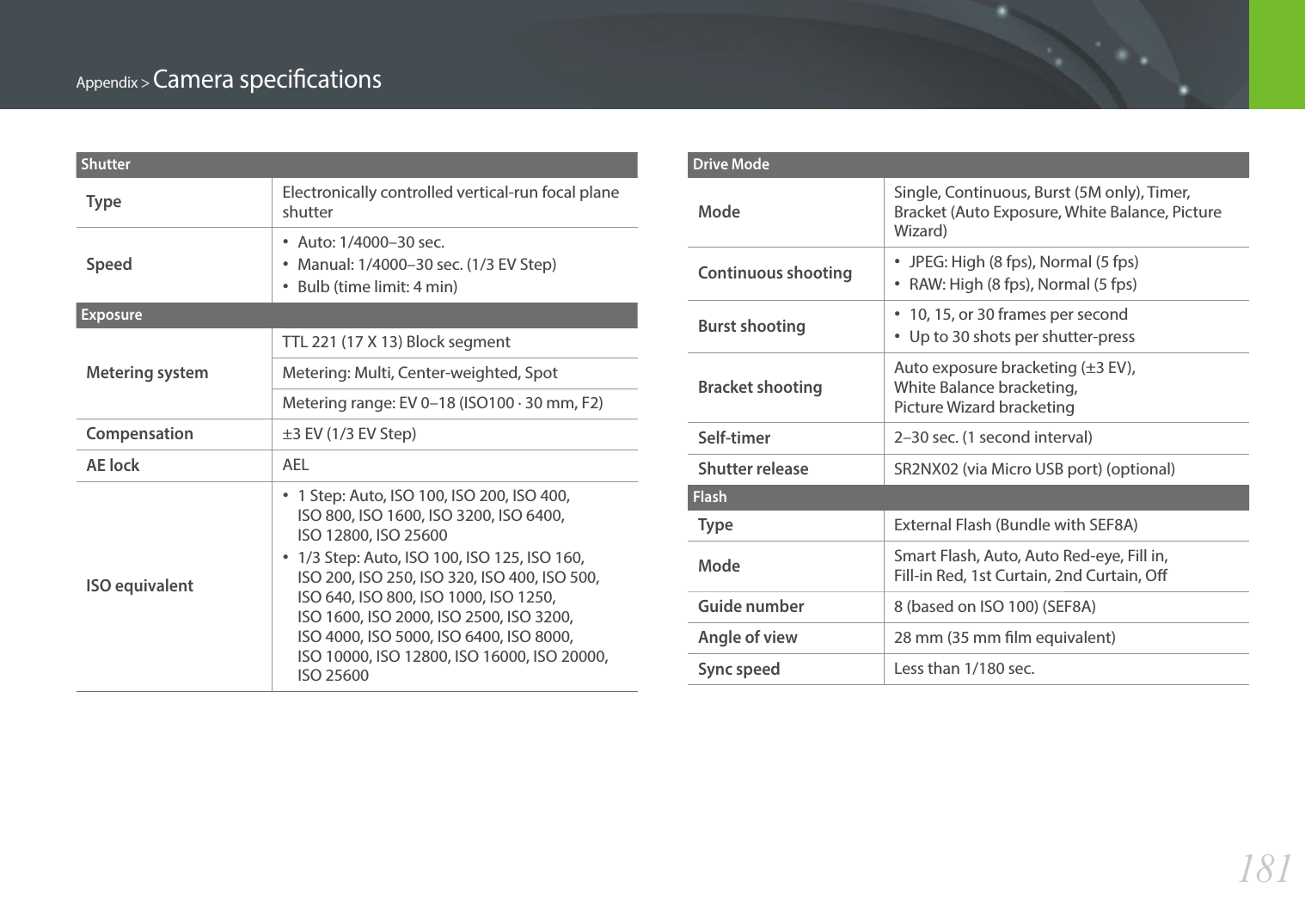

181Appendix > Camera specicationsShutterType Electronically controlled vertical-run focal plane shutterSpeed• Auto: 1/4000–30 sec.• Manual: 1/4000–30 sec. (1/3 EV Step)• Bulb (time limit: 4 min)ExposureMetering systemTTL 221 (17 X 13) Block segmentMetering: Multi, Center-weighted, SpotMetering range: EV 0–18 (ISO100 · 30 mm, F2)Compensation±3 EV (1/3 EV Step)AE lockAELISO equivalent• 1 Step: Auto, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200, ISO 6400, ISO 12800, ISO 25600• 1/3 Step: Auto, ISO 100, ISO 125, ISO 160, ISO 200, ISO 250, ISO 320, ISO 400, ISO 500, ISO 640, ISO 800, ISO 1000, ISO 1250, ISO 1600, ISO 2000, ISO 2500, ISO 3200, ISO 4000, ISO 5000, ISO 6400, ISO 8000, ISO 10000, ISO 12800, ISO 16000, ISO 20000, ISO 25600Drive ModeModeSingle, Continuous, Burst (5M only), Timer, Bracket (Auto Exposure, White Balance, Picture Wizard)Continuous shooting• JPEG: High (8 fps), Normal (5 fps)• RAW: High (8 fps), Normal (5 fps)Burst shooting• 10, 15, or 30 frames per second• Up to 30 shots per shutter-pressBracket shootingAuto exposure bracketing (±3 EV), White Balance bracketing, Picture Wizard bracketingSelf-timer2–30 sec. (1 second interval)Shutter releaseSR2NX02 (via Micro USB port) (optional)FlashTypeExternal Flash (Bundle with SEF8A)ModeSmart Flash, Auto, Auto Red-eye, Fill in, Fill-in Red, 1st Curtain, 2nd Curtain, OGuide number8 (based on ISO 100) (SEF8A)Angle of view28 mm (35 mm lm equivalent)Sync speedLess than 1/180 sec.

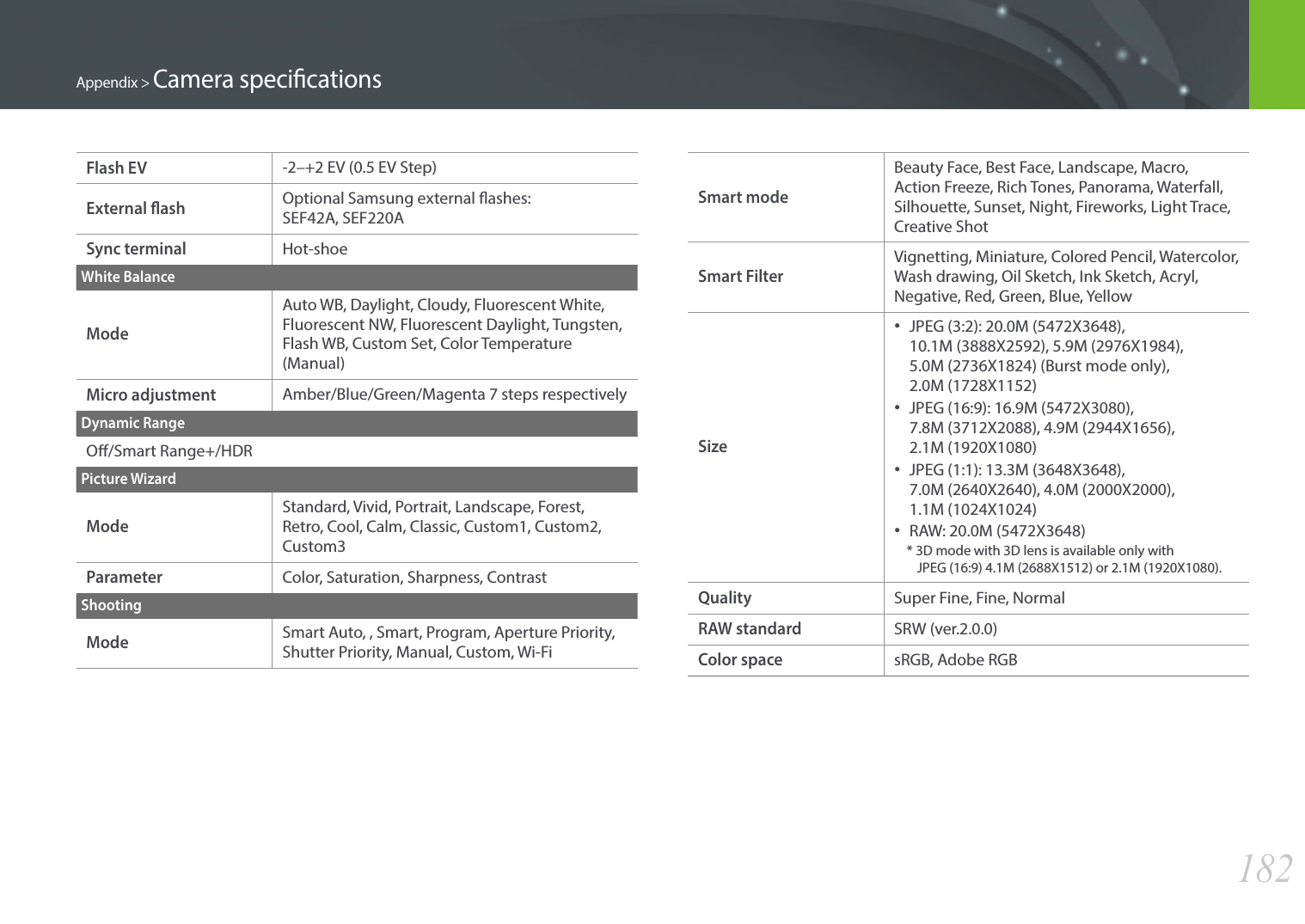

182Appendix > Camera specicationsFlash EV-2–+2 EV (0.5 EV Step)External ashOptional Samsung external ashes: SEF42A, SEF220ASync terminalHot-shoeWhite BalanceModeAuto WB, Daylight, Cloudy, Fluorescent White, Fluorescent NW, Fluorescent Daylight, Tungsten, Flash WB, Custom Set, Color Temperature (Manual)Micro adjustmentAmber/Blue/Green/Magenta 7 steps respectivelyDynamic RangeO/Smart Range+/HDRPicture WizardModeStandard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom1, Custom2, Custom3ParameterColor, Saturation, Sharpness, ContrastShootingModeSmart Auto, , Smart, Program, Aperture Priority, Shutter Priority, Manual, Custom, Wi-FiSmart modeBeauty Face, Best Face, Landscape, Macro, Action Freeze, Rich Tones, Panorama, Waterfall, Silhouette, Sunset, Night, Fireworks, Light Trace, Creative ShotSmart FilterVignetting, Miniature, Colored Pencil, Watercolor, Wash drawing, Oil Sketch, Ink Sketch, Acryl, Negative, Red, Green, Blue, YellowSize• JPEG (3:2): 20.0M (5472X3648), 10.1M (3888X2592), 5.9M (2976X1984), 5.0M (2736X1824) (Burst mode only), 2.0M (1728X1152)• JPEG (16:9): 16.9M (5472X3080), 7.8M (3712X2088), 4.9M (2944X1656), 2.1M (1920X1080)• JPEG (1:1): 13.3M (3648X3648), 7.0M (2640X2640), 4.0M (2000X2000), 1.1M (1024X1024)• RAW: 20.0M (5472X3648)* 3D mode with 3D lens is available only with JPEG (16:9) 4.1M (2688X1512) or 2.1M (1920X1080). QualitySuper Fine, Fine, NormalRAW standardSRW (ver.2.0.0)Color spacesRGB, Adobe RGB

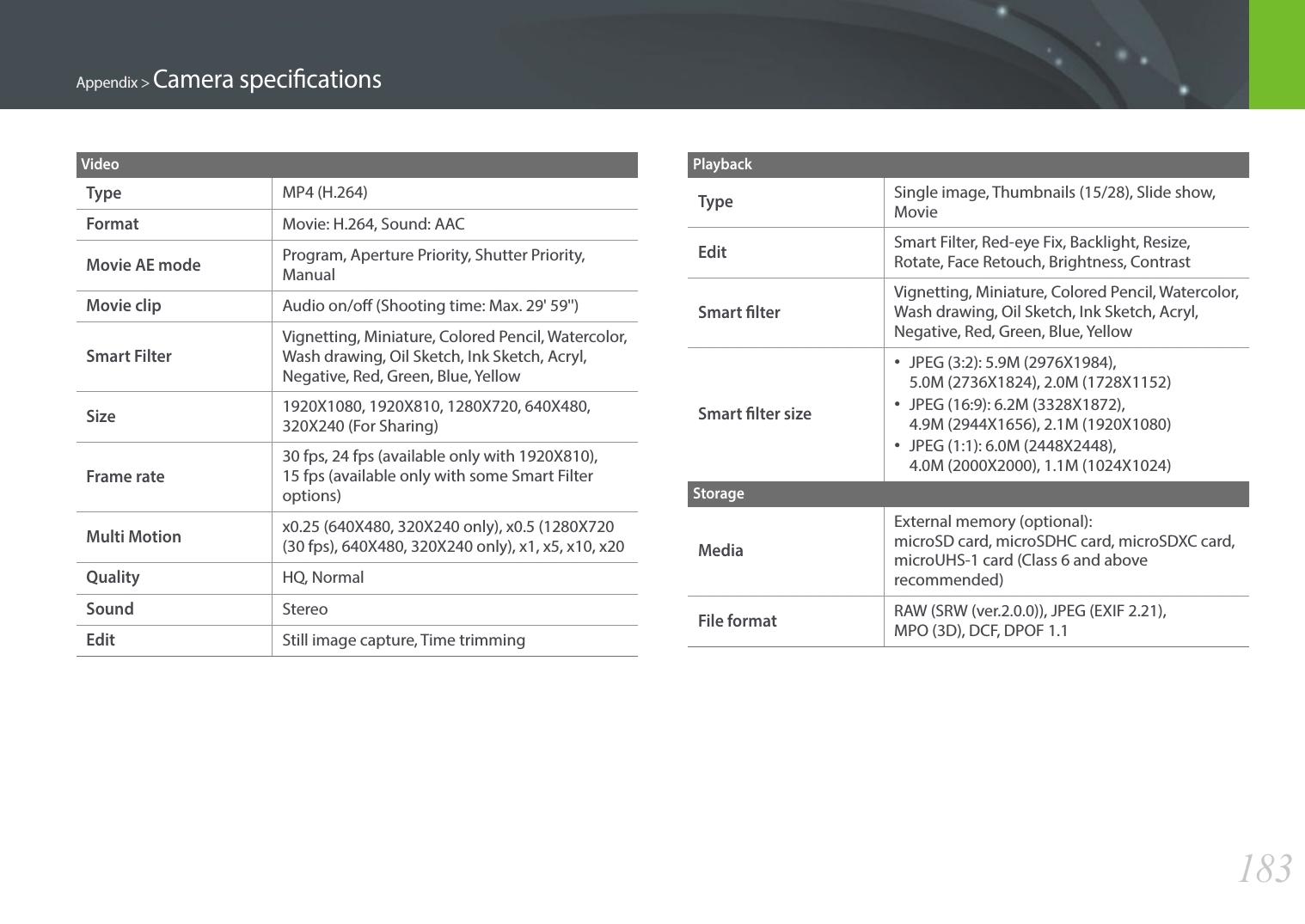

183Appendix > Camera specicationsVideoTypeMP4 (H.264)FormatMovie: H.264, Sound: AACMovie AE modeProgram, Aperture Priority, Shutter Priority, Manual Movie clipAudio on/o (Shooting time: Max. 29' 59'')Smart FilterVignetting, Miniature, Colored Pencil, Watercolor, Wash drawing, Oil Sketch, Ink Sketch, Acryl, Negative, Red, Green, Blue, YellowSize1920X1080, 1920X810, 1280X720, 640X480, 320X240 (For Sharing)Frame rate30 fps, 24 fps (available only with 1920X810), 15 fps (available only with some Smart Filter options)Multi Motionx0.25 (640X480, 320X240 only), x0.5 (1280X720 (30 fps), 640X480, 320X240 only), x1, x5, x10, x20 QualityHQ, NormalSoundStereo EditStill image capture, Time trimmingPlaybackTypeSingle image, Thumbnails (15/28), Slide show, MovieEditSmart Filter, Red-eye Fix, Backlight, Resize, Rotate, Face Retouch, Brightness, ContrastSmart lterVignetting, Miniature, Colored Pencil, Watercolor, Wash drawing, Oil Sketch, Ink Sketch, Acryl, Negative, Red, Green, Blue, YellowSmart lter size• JPEG (3:2): 5.9M (2976X1984), 5.0M (2736X1824), 2.0M (1728X1152)• JPEG (16:9): 6.2M (3328X1872), 4.9M (2944X1656), 2.1M (1920X1080)• JPEG (1:1): 6.0M (2448X2448), 4.0M (2000X2000), 1.1M (1024X1024)StorageMediaExternal memory (optional): microSD card, microSDHC card, microSDXC card, microUHS-1 card (Class 6 and above recommended)File formatRAW (SRW (ver.2.0.0)), JPEG (EXIF 2.21), MPO (3D), DCF, DPOF 1.1

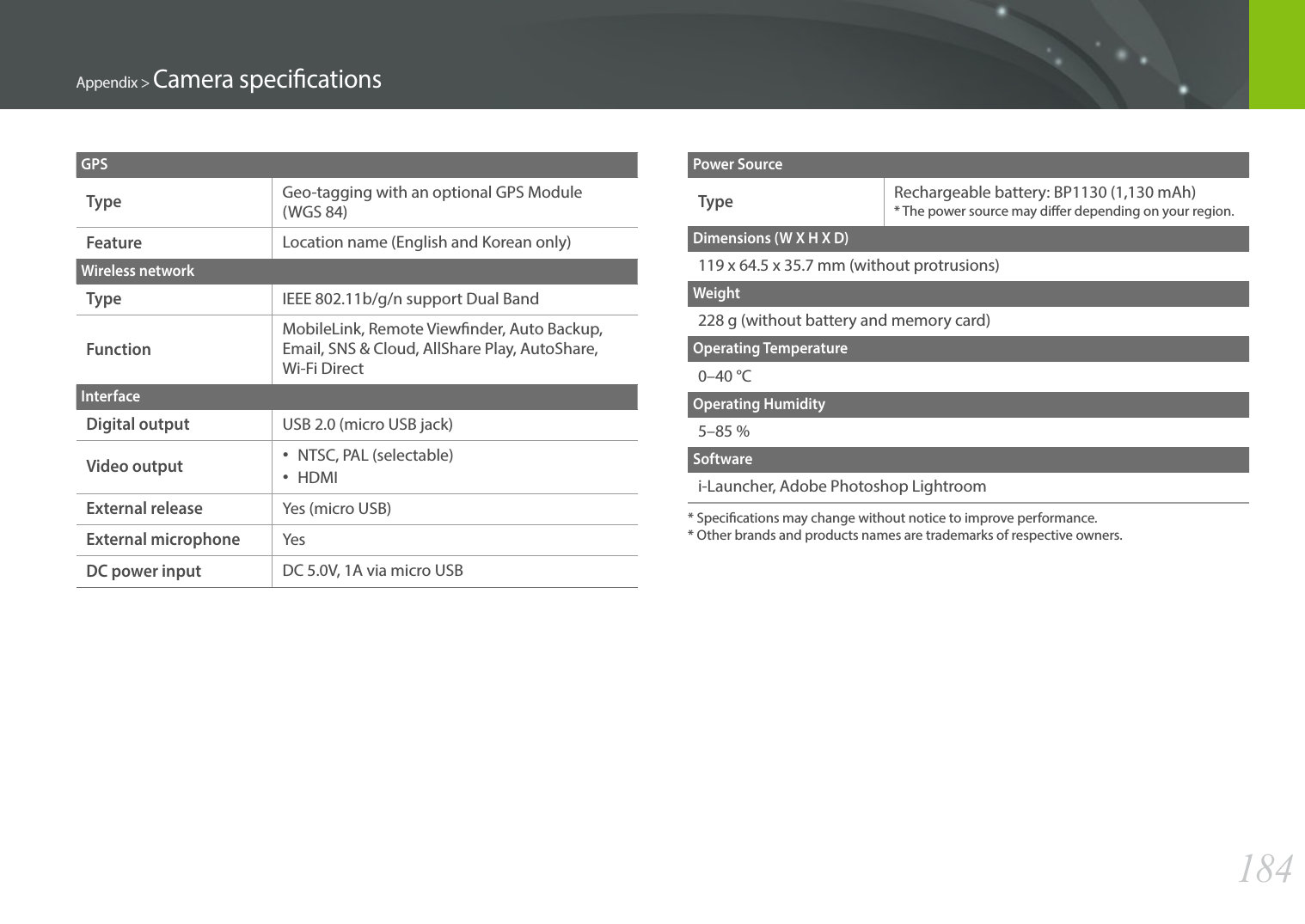

184Appendix > Camera specicationsGPSTypeGeo-tagging with an optional GPS Module (WGS 84)FeatureLocation name (English and Korean only)Wireless networkTypeIEEE 802.11b/g/n support Dual BandFunctionMobileLink, Remote Viewnder, Auto Backup, Email, SNS & Cloud, AllShare Play, AutoShare, Wi-Fi DirectInterfaceDigital outputUSB 2.0 (micro USB jack)Video output• NTSC, PAL (selectable)• HDMIExternal release Yes (micro USB)External microphoneYesDC power inputDC 5.0V, 1A via micro USBPower SourceTypeRechargeable battery: BP1130 (1,130 mAh)* The power source may dier depending on your region.Dimensions (W X H X D)119 x 64.5 x 35.7 mm (without protrusions)Weight228 g (without battery and memory card)Operating Temperature0–40 °COperating Humidity5–85 %Softwarei-Launcher, Adobe Photoshop Lightroom* Specications may change without notice to improve performance.* Other brands and products names are trademarks of respective owners.

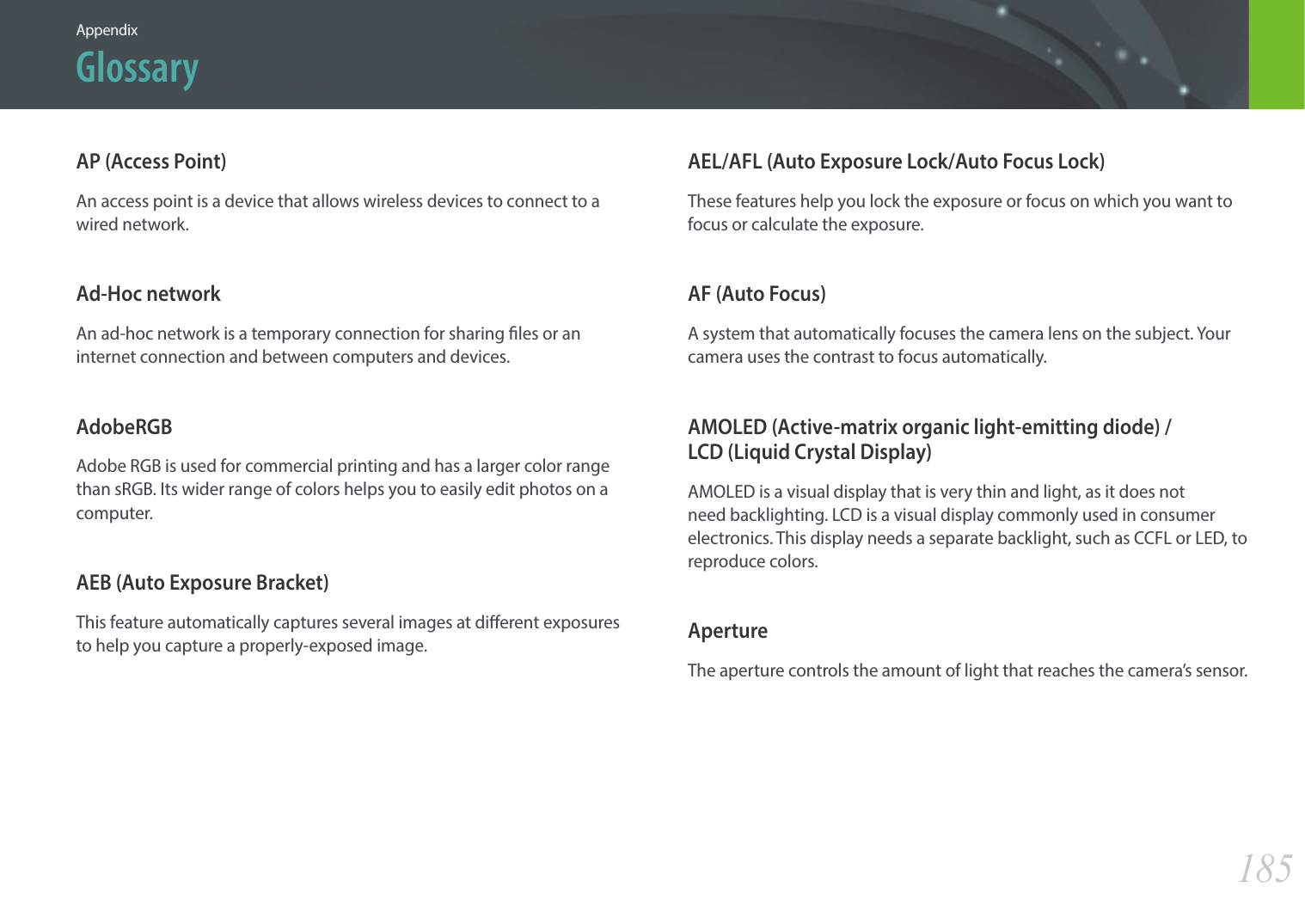

185AppendixGlossaryAP (Access Point)An access point is a device that allows wireless devices to connect to a wired network.Ad-Hoc networkAn ad-hoc network is a temporary connection for sharing les or an internet connection and between computers and devices.AdobeRGBAdobe RGB is used for commercial printing and has a larger color range than sRGB. Its wider range of colors helps you to easily edit photos on a computer.AEB (Auto Exposure Bracket)This feature automatically captures several images at dierent exposures to help you capture a properly-exposed image.AEL/AFL (Auto Exposure Lock/Auto Focus Lock)These features help you lock the exposure or focus on which you want to focus or calculate the exposure.AF (Auto Focus)A system that automatically focuses the camera lens on the subject. Your camera uses the contrast to focus automatically.AMOLED (Active-matrix organic light-emitting diode) / LCD (Liquid Crystal Display)AMOLED is a visual display that is very thin and light, as it does not need backlighting. LCD is a visual display commonly used in consumer electronics. This display needs a separate backlight, such as CCFL or LED, to reproduce colors.ApertureThe aperture controls the amount of light that reaches the camera’s sensor.
186Appendix > GlossaryCompositionComposition in photography means arranging objects in a photo. Usually, abiding by the rule of thirds leads to a good composition.DCF (Design rule for Camera File system)A specication to dene a le format and le system for digital cameras created by the Japan Electronics and Information Technology Industries Association (JEITA). Depth of eldThe distance between the nearest and farthest points that can be acceptably focused in a photograph. Depth of eld varies with lens aperture, focal length, and distance from the camera to the subject. Selecting a smaller aperture, for example, will increase the depth of eld and blur the background of a composition.DPOF (Digital Print Order Format)A format for writing printing information, such as selected images and number of prints, on a memory card. DPOF-compatible printers, sometimes available at photo shops, can read the information from the card for convenient printing.Camera shake (Blur)If the camera is moved while the shutter is open, the entire image may appear blurred. This occurs more often when the shutter speed is slow. Prevent camera shake by raising the sensitivity, using the ash, or using a faster shutter speed. Alternatively, use a tripod or the OIS function to stabilize the camera.Cloud ComputingCloud computing is a technology that allows you to store data on remote servers and to use them from a device with internet access. Color spaceThe range of colors that the camera can see.Color temperatureColor Temperature is a measurement in degrees Kelvin (K) that indicates the hue of a specic type of light source. As the color temperature increases, the color of the light source has a more bluish quality. As the color temperature decreases, the color of the light source has a more reddish quality. At 5,500 degrees Kelvin, the color of the light source is similar to the sun at midday.
