Samsung Electronics Co PRSE0609 RFID Multifunction Printer User Manual SCX6345N EN

Samsung Electronics Co Ltd RFID Multifunction Printer SCX6345N EN

Contents

Users Manual 2

10.2 <Troubleshooting>Exit Misfeed1Remove the remaining documents from the DADF.2Open the document input tray upward and pull the document gently out of the DADF.3Close the document input tray. Then place the documents back into the DADF.Roller misfeed1Open the scanner lid.2Seize the misfed paper, and remove the paper from the feed area by carefully pulling it to the right using both hands.3Close the scanner lid. Then load the removed pages back into the DADF.1scanner lid1Clearing paper jamsWhen a paper jam occurs, Paper Jam appears on the display. Refer to the table below to locate and clear the paper jam.CautionTo avoid tearing the paper, pull out the jammed paper gently and slowly. Follow the instructions in the following sections to clear the jam. In the tray 11Pull out the paper Tray to open. After you pull it out completely, lift the front part of the Tray slightly up to release the Tray from the machine. Message Location of jam Go to[Paper Jam 0] Open/Close DoorIn the paper feed area (tray 1, optional tray 2, or multi-purpose tray)below and page 10.3, 10.4[Paper Jam 1]Open/Close DoorIn the fuser area or around the toner cartridgepage 10.5[Paper Jam 2]Check InsideIn the paper exit area page 10.5Duplex JamOpen/Close DoorIn the duplex unit page 10.7

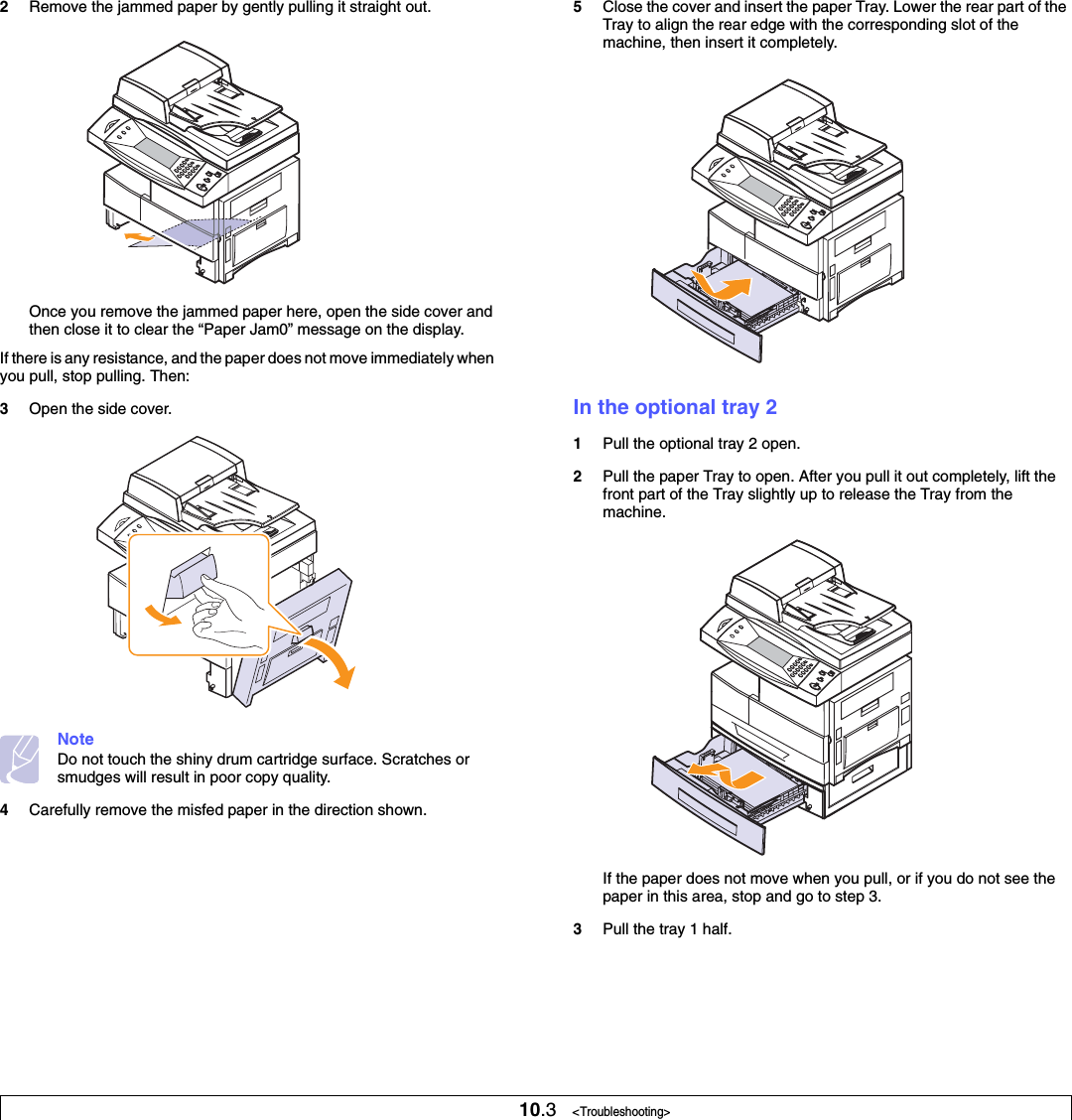

10.3 <Troubleshooting>2Remove the jammed paper by gently pulling it straight out.Once you remove the jammed paper here, open the side cover and then close it to clear the “Paper Jam0” message on the display.If there is any resistance, and the paper does not move immediately when you pull, stop pulling. Then:3Open the side cover.NoteDo not touch the shiny drum cartridge surface. Scratches or smudges will result in poor copy quality.4Carefully remove the misfed paper in the direction shown.5Close the cover and insert the paper Tray. Lower the rear part of the Tray to align the rear edge with the corresponding slot of the machine, then insert it completely.In the optional tray 21Pull the optional tray 2 open.2Pull the paper Tray to open. After you pull it out completely, lift the front part of the Tray slightly up to release the Tray from the machine.If the paper does not move when you pull, or if you do not see the paper in this area, stop and go to step 3.3Pull the tray 1 half.
10.4 <Troubleshooting>4Remove the paper in the direction shown. To avoid the paper torn, pull it out gently and slowly.If you cannot find the jammed paper, or if there is any resistance removing the paper, stop pulling and continue to step 5.5Open the outer jam cover in tray2.6Open the inner cover of tray2.7Pull the jammed paper out in the direction shown. To avoid tearing the paper, pull it out gently and slowly. 8Close the two jam covers.To clear paper jam in Tray 2, follow the instructions on page 10.3.In the multi-purpose tray
10.5 <Troubleshooting>1If the paper is not feeding properly, pull the paper out of the machine.2Open and close the front cover to resume printing.In the fuser area or around the toner cartridgeNoteThe fuser area is hot. Take care when removing paper from the machine.1Open the side cover.1Open the side cover.2Pull down on the fuser lever as shown below.This will release pressure on the paper.If paper is not seen in this area, skip to the Exit Area.NoteDo not pull paper up through the fusing unit. Unfused toner may adhere to the area, resulting in smudged copies.3Remove the jammed paper, in the direction shown.4Push the fuser lever up, and then close the side cover.5Open and close the front cover to resume printing.In the paper exit area1Open the side cover.
10.6 <Troubleshooting>2Open the front cover.3Turn the Jam Remove Lever in the direction of the arrow to move the paper to the exit area, then gently pull the paper out through the exit area.4Turn the Jam Remove Lever back to the original position.5Close the front cover n and the side cover o. Printing automatically resumes.

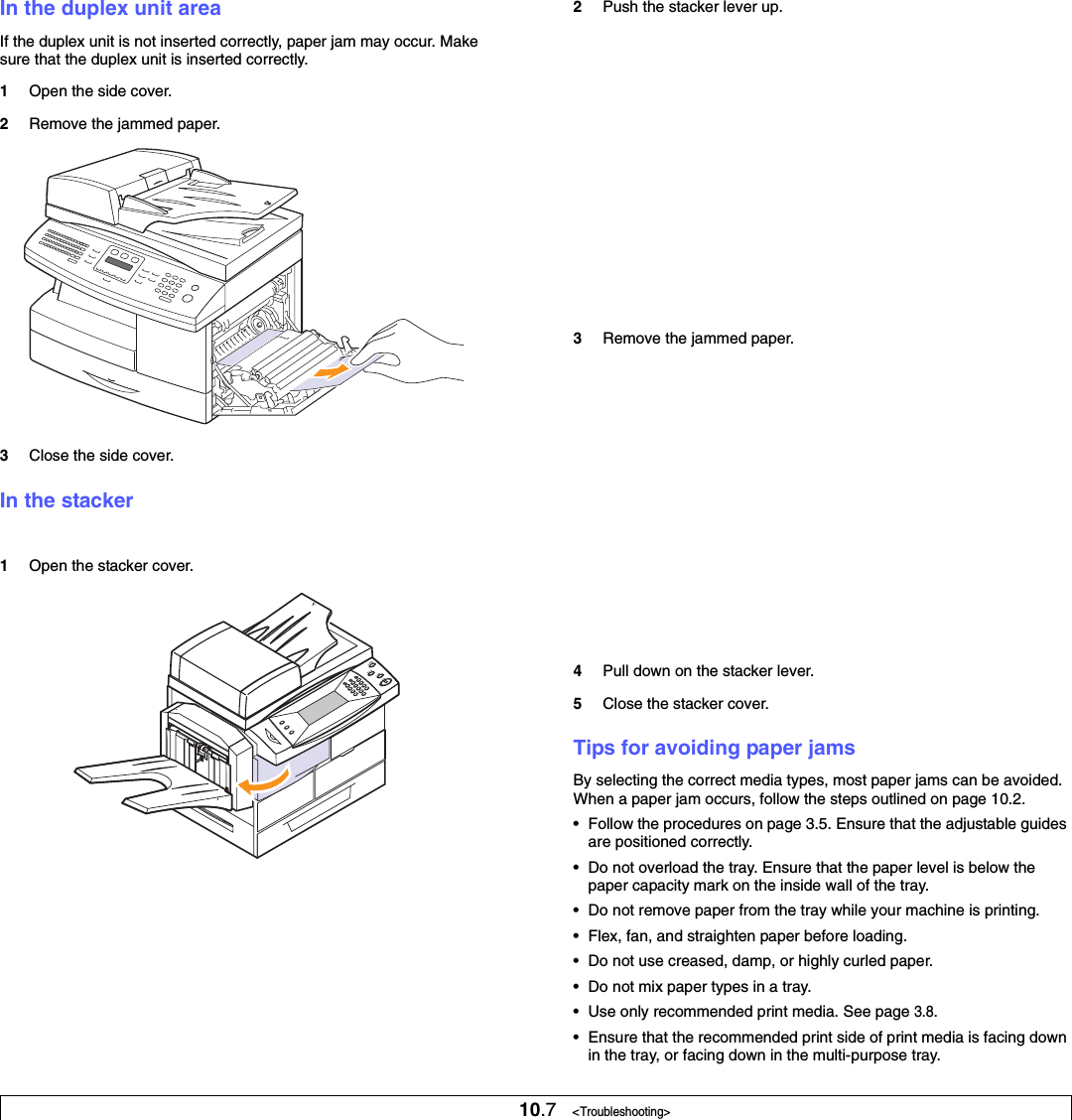

10.7 <Troubleshooting>In the duplex unit areaIf the duplex unit is not inserted correctly, paper jam may occur. Make sure that the duplex unit is inserted correctly.1Open the side cover.2Remove the jammed paper. 3Close the side cover. In the stacker1Open the stacker cover. 2Push the stacker lever up.3Remove the jammed paper. 4Pull down on the stacker lever.5Close the stacker cover.Tips for avoiding paper jamsBy selecting the correct media types, most paper jams can be avoided. When a paper jam occurs, follow the steps outlined on page 10.2. • Follow the procedures on page 3.5. Ensure that the adjustable guides are positioned correctly.• Do not overload the tray. Ensure that the paper level is below the paper capacity mark on the inside wall of the tray.• Do not remove paper from the tray while your machine is printing.• Flex, fan, and straighten paper before loading. • Do not use creased, damp, or highly curled paper.• Do not mix paper types in a tray.• Use only recommended print media. See page 3.8.• Ensure that the recommended print side of print media is facing down in the tray, or facing down in the multi-purpose tray.
10.8 <Troubleshooting>Understanding display messagesMessages appear on the Smart Panel program window or the control panel display to indicate the machine’s status or errors. Refer to the tables below to understand the messages’ meaning and correct the problem if necessary. Messages and their meanings are listed in alphabetical order.NoteWhen you call for service, it is very convenient to tell the service representative the display message. Message Meaning Suggested solutionsFeed Jam at MPT Paper Misfed from multi-purpose trayClear the jam. See page 10.4.Feed Jam at Tray 1 Paper Misfed from trayClear the jam. See page 10.2 and 10.3.Feed Jam at Tray 2Feed Jam at Tray 3Feed Jam at Tray 4Registration Jam Paper has jammed in the registration areaJam at Fuser Paper has jammed in the fuser area.Clear the jam. See page 10.5.Jam at Tray 2 Paper has jammed in the feeding area of the tray.Clear the jam. See page 10.2 and page 10.3.Jam at Tray 3Jam at Tray 4Duplex Jam 0 Paper has jammed during duplex printing.Clear the jam. See page 10.7.Duplex Jam 1 Paper has jammed during duplex printing.Clear the jam. See page 10.7.Duplex Jam 2 Paper has jammed during duplex printing.Clear the jam. See page 10.7.Output Bin full Printed papers are full on the finisher.Remove printed papers from the finisher.Check Tray 2 Feed AreaPaper has jammed in the tray feed area.Clear the jam. See page 10.3.Check Tray 3 Feed AreaCheck Tray 4 Feed AreaFuser error There is a problem in the fuser unit.Unplug the power cord and plug it back in. If the problem still persisters, please call for service.Fuser Low ErrorFuser High ErrorFuser unit errorMain motor failure There is a problem in the motor unit.Unplug the power cord and plug it back in. If the problem still persists, please call for service.Duplex Fan 1 failureThere is a problem in the duplex Fan 1.Unplug the power cord and plug it back in. If the problem still persists, please call for service.SMPS Fan failure There is a problem in the SMPW Fan failure.Unplug the power cord and plug it back in. If the problem still persists, please call for service.LSU Motor Error A problem has occurred in the LSU (Laser Scanning Unit).Unplug the power cord and plug it back inches. If the problem persists, please call for service.LSU H sync ErrorTray2 I/F Error Tray is installed, but has problem in I/FTray3 I/F ErrorTray4 I/F ErrorToner Low The toner cartridge is almost empty.Ensure a replacement cartridge is in stock. Toner Empty The toner in the cartridge has run out.Install a new genuine toner cartridge. You can keep printing but the quality cannot be guaranteed, and the product support is no longer provided. ??Message Meaning Suggested solutions
10.9 <Troubleshooting>Invalid Toner CartridgeThe toner cartridge you have installed is not for your printer.Install a Samsung-genuine toner cartridge, designed for your printer.Toner Supply error Not supplied toner to the developer before arrivRemove the seal tape from the toner cartridge, and check the lever for the shutter on the toner cartridge. ??Toner Page Count ReachedToner Page Count is expired.Toner Cartridge Write ErrorWriting the toner cartridge information to the crum has failed.Replace the toner cartridge.Toner Cartridge Communication ErrorCommunication between the toner cartridge and the machine has failed. The toner cartridge is invalid.Install a Samsung-genuine toner cartridge, designed for your machine.Drum Warning The drum cartridge is near the end of its life.Ensure a replacement cartridge in stock.Replace Drum The drum cartridge is at the end of its life.Replace the drum cartridge. See page 9.5.Install Developer-Drum Cartridge.The developer-drum cartridge is not installed, or the CRUM in cartridge is not connected.Install he developer-drum cartridge. When it is already installed, reinstall the cartridge again. If the problem persists, please call for service.Toner Sensor ErrorA toner cartridge is not installed.Install a toner cartridge.Drum Lock The drum cartridge has some mechanical problem.Replace the drum cartridge.Drum Cartridge Write ErrorWriting the drum cartridge information to the crum has failed.Replace the drum cartridge.Message Meaning Suggested solutionsDrum Communication ErrorCommunication between the drum cartridge and the machine has failed. The drum cartridge is invalid.Install a Samsung-genuine drum cartridge, designed for your machine.Invalid Drum cartridgeThe drum cartridge is invalid.Install a Samsung-genuine drum cartridge, designed for your machine.Toner Cartridge Read ErrorDrum Cartridge Read ErrorMix Installed Toner For increase the mixing time when installing the new drum cru up to 120 secFinisher Jam 0 Paper jammed in finisher.Open the finisher door and remove jammed paper by lowering the guide 1 or 2.Finisher Jam 1Finisher Jam 2 Paper jammed in finisher exit part.Pull jammed paper from the finisher exit.Finisher Duplex JamPaper jammed in finisher.Open the finisher door and remove jammed paper by lowering the guide 1 or 2.Finisher Bin Full Printed papers are full on the finisher.Remove printed papers from the finisher.Install Staple CartridgeThe staple cartridge is not installed.Install the staple cartridge following the steps explained on the back of the finisher door. ??Finisher Interface ErrorCommunication error has occurred between the finisher and the machine.Please, call for service.Paddle Fault Paddle unit is not operationalMessage Meaning Suggested solutions

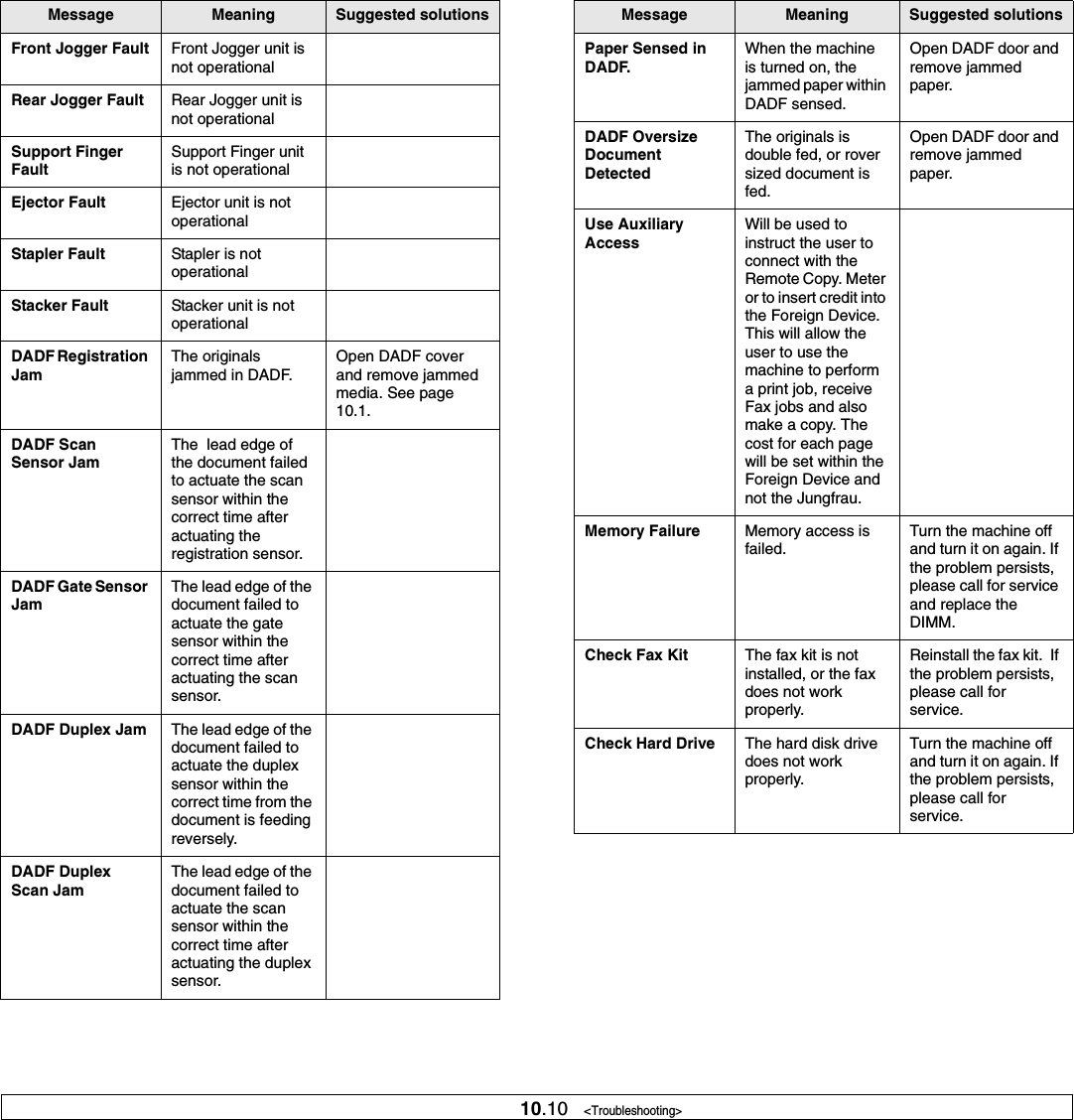

10.10 <Troubleshooting>Front Jogger Fault Front Jogger unit is not operationalRear Jogger Fault Rear Jogger unit is not operationalSupport Finger FaultSupport Finger unit is not operationalEjector Fault Ejector unit is not operationalStapler Fault Stapler is not operationalStacker Fault Stacker unit is not operationalDADF Registration JamThe originals jammed in DADF.Open DADF cover and remove jammed media. See page 10.1.DADF Scan Sensor JamThe lead edge of the document failed to actuate the scan sensor within the correct time after actuating the registration sensor.DADF Gate Sensor JamThe lead edge of the document failed to actuate the gate sensor within the correct time after actuating the scan sensor.DADF Duplex Jam The lead edge of the document failed to actuate the duplex sensor within the correct time from the document is feeding reversely.DADF Duplex Scan JamThe lead edge of the document failed to actuate the scan sensor within the correct time after actuating the duplex sensor. Message Meaning Suggested solutionsPaper Sensed in DADF.When the machine is turned on, the jammed paper within DADF sensed.Open DADF door and remove jammed paper.DADF Oversize Document DetectedThe originals is double fed, or rover sized document is fed.Open DADF door and remove jammed paper.Use Auxiliary AccessWill be used to instruct the user to connect with the Remote Copy. Meter or to insert credit into the Foreign Device. This will allow the user to use the machine to perform a print job, receive Fax jobs and also make a copy. The cost for each page will be set within the Foreign Device and not the Jungfrau.Memory Failure Memory access is failed.Turn the machine off and turn it on again. If the problem persists, please call for service and replace the DIMM.Check Fax Kit The fax kit is not installed, or the fax does not work properly.Reinstall the fax kit. If the problem persists, please call for service.Check Hard Drive The hard disk drive does not work properly.Turn the machine off and turn it on again. If the problem persists, please call for service.Message Meaning Suggested solutions
10.11 <Troubleshooting>GUI to MCB Communications FaultThe communication error has occurred.Please, call for service.MCB to NIC Communications FaultMCB to DADF Communications FaultMCB to Tray 2 Communications FaultMCB to Tray 3 Communications FaultMCB to Tray 4 Communications FaultMCB Watchdog Detects Software FailureMCB software has stopped responding.Turn the machine off and turn it on again. If the problem persists, please call for service.Ambient Temperature Sensor FaultCCC LockIP address conflict The IP address is used in other place. Check the IP address or obtain new IP address.Network cable is disconnectedThe network cable is disconnected.Connect the network cable properly.Network card is not installedThe network card is not installed.Install the network card.BOOTP server error.An Auto IP address has been established.BOOTP server does not work. The machine is working on setting IP by auto IP setting function.Set the network setting again or input the new static IP address.BOOTP server error.An Auto IP is not workingThe BOOTP server does not work, and the setting IP by auto IP setting function is failed. Set the network setting again or input the new static IP address.Message Meaning Suggested solutionsDHCP server error.An Auto IP address has been established.DHCP server does not work. The machine is working on setting IP by auto IP setting function.Set the network setting again or input the new static IP address.DHCP server error.An Auto IP is not workingThe DHCP server does not work, and the setting IP by auto IP setting function is failed. Set the network setting again or input the new static IP address.Maching cloning is in process. This will take a few minutes to complete Job will be blocked during Machine CloningCloning process is updating the system configurationMachine cloning completed successfullyCloning processing canceled by CRC checksum failureCloning processing canceled by Firmware version check failureFax Memory is low.Fax Memory is empty.Group Name has no assigned Email addressesEmail Send FailedInvalid Recipient Email AddressMessage Meaning Suggested solutions

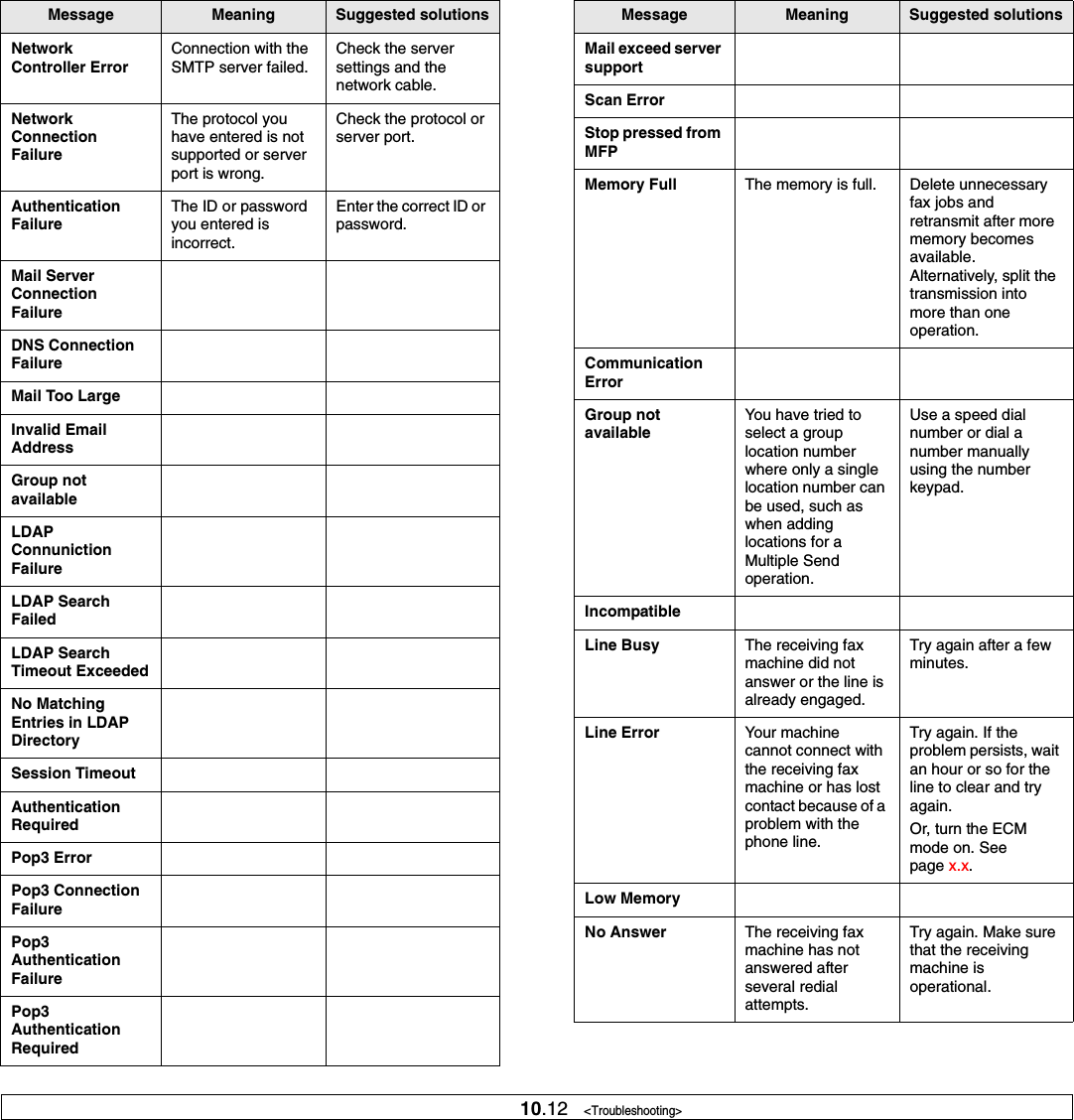

10.12 <Troubleshooting>Network Controller ErrorConnection with the SMTP server failed.Check the server settings and the network cable.Network Connection FailureThe protocol you have entered is not supported or server port is wrong.Check the protocol or server port.Authentication FailureThe ID or password you entered is incorrect.Enter the correct ID or password.Mail Server Connection FailureDNS Connection FailureMail Too LargeInvalid Email AddressGroup not availableLDAPConnuniction FailureLDAP Search FailedLDAP Search Timeout ExceededNo Matching Entries in LDAP DirectorySession TimeoutAuthentication RequiredPop3 ErrorPop3 Connection FailurePop3Authentication FailurePop3Authentication RequiredMessage Meaning Suggested solutionsMail exceed server supportScan ErrorStop pressed from MFPMemory Full The memory is full. Delete unnecessary fax jobs and retransmit after more memory becomes available. Alternatively, split the transmission into more than one operation.Communication ErrorGroup not availableYou have tried to select a group location number where only a single location number can be used, such as when adding locations for a Multiple Send operation.Use a speed dial number or dial a number manually using the number keypad.IncompatibleLine Busy The receiving fax machine did not answer or the line is already engaged.Try again after a few minutes.Line Error Your ma chine cannot connect with the receiving fax machine or has lost contact because of a problem with the phone line.Try again. If the problem persists, wait an hour or so for the line to clear and try again.Or, turn the ECM mode on. See page x.x.Low MemoryNo Answer The receiving fax machine has not answered after several redial attempts.Try again. Make sure that the receiving machine is operational.Message Meaning Suggested solutions
10.13 <Troubleshooting>Solving other problemsThe following chart lists some conditions that may occur and the recommended solutions. Follow the suggested solutions until the problem is corrected. If the problem persists, please call for service.Paper feeding problemsNumber Not AssignedPower Failure Power has turned off then on and the machine’s memory has not been back up.The job which you were trying to do before the power failure must be completely re-done.Retry Redial? The machine is waiting for a specified time interval to redial a previously busy station.You can press OK to immediately redial, or Stop/Clear to cancel the redial operation.Mailbox ErrorScanning ErrorCondition Suggested solutionsPaper is jammed during printing.Clear the paper jam. See page 10.2.Paper sticks together.• Ensure that there is not too much paper in the tray. The tray can hold up to 550 sheets of paper, depending on the thickness of your paper.• Make sure that you are using the correct type of paper. See page 3.3.• Remove paper from the tray and flex or fan the paper.• Humid conditions may cause some paper to stick together.Multiple sheets of paper do not feed.• Different types of paper may be stacked in the tray. Load paper of only one type, size, and weight.• If multiple sheets have caused a paper jam, clear the paper jam. See page 10.2.Message Meaning Suggested solutionsPaper does not feed into the machine.• Remove any obstructions from inside the machine.• Paper has not been loaded correctly. Remove paper from the tray and reload it correctly.• There is too much paper in the tray. Remove excess paper from the tray.• The paper is too thick. Use only paper that meets the specifications required by the machine. See page 3.3.• If an original does not feed into the machine, the DADF rubber pad may require to be replaced. Contact a service representative.The paper keeps jamming.• There is too much paper in the tray. Remove excess paper from the tray. If you are printing on special materials, use the multi-purpose tray.• An incorrect type of paper is being used. Use only paper that meets the specifications required by the machine. See page 3.3.• There may be debris inside the machine. Open the front cover and remove the debris.• If an original does not feed into the machine, the DADF rubber pad may require to be replaced. Contact a service representative.Transparencies stick together in the paper exit.Use only transparencies specifically designed for laser printers. Remove each transparency as it exits from the machine.Envelopes skew or fail to feed correctly.Ensure that the paper guides are against both sides of the envelopes.Condition Suggested solutions

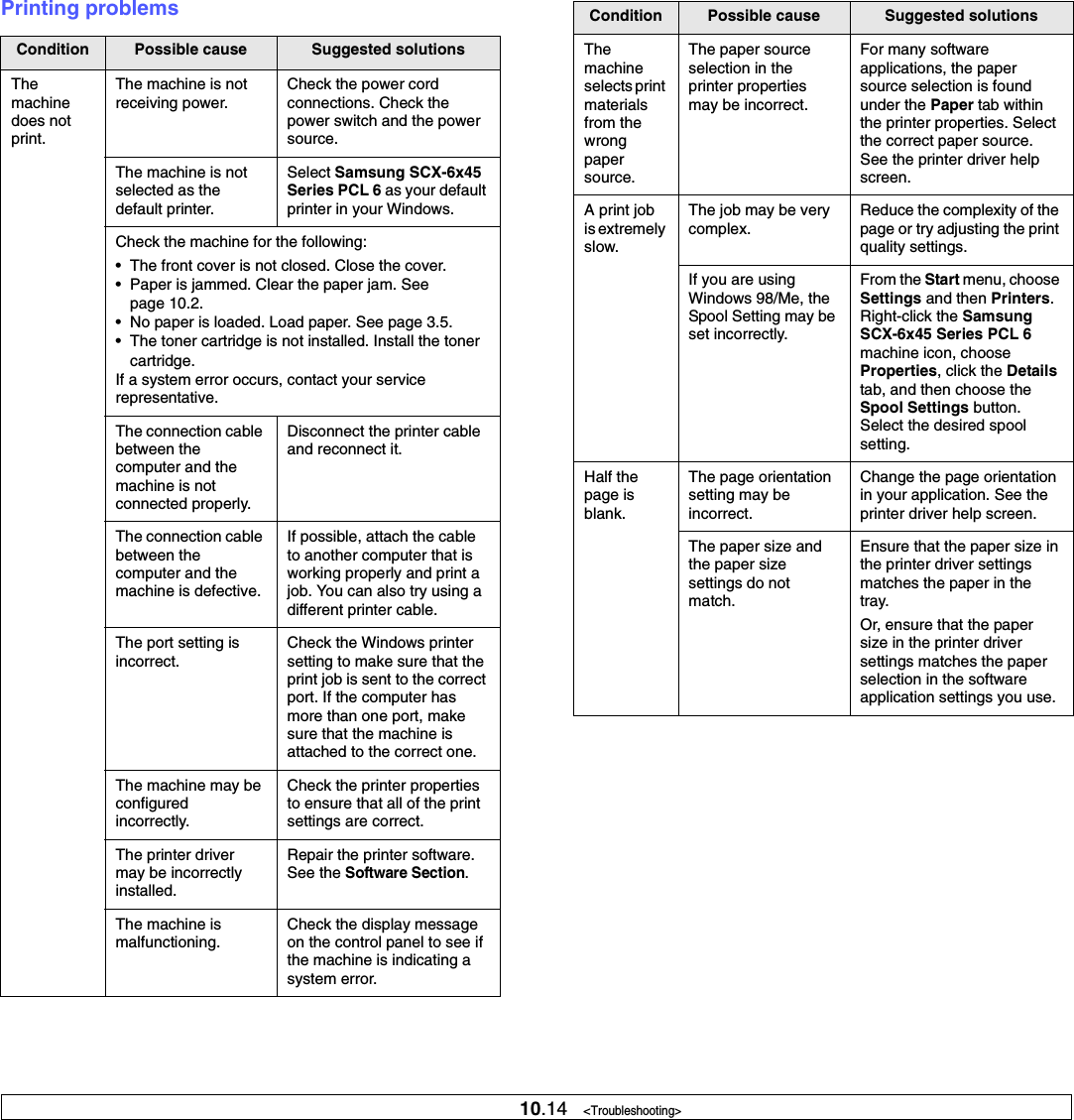

10.14 <Troubleshooting>Printing problemsCondition Possible cause Suggested solutionsThe machine does not print.The machine is not receiving power.Check the power cord connections. Check the power switch and the power source.The machine is not selected as the default printer.Select Samsung SCX-6x45 Series PCL 6 as your default printer in your Windows.Check the machine for the following:• The front cover is not closed. Close the cover.• Paper is jammed. Clear the paper jam. See page 10.2.• No paper is loaded. Load paper. See page 3.5.• The toner cartridge is not installed. Install the toner cartridge.If a system error occurs, contact your service representative.The connection cable between the computer and the machine is not connected properly.Disconnect the printer cable and reconnect it.The connection cable between the computer and the machine is defective.If possible, attach the cable to another computer that is working properly and print a job. You can also try using a different printer cable.The port setting is incorrect.Check the Windows printer setting to make sure that the print job is sent to the correct port. If the computer has more than one port, make sure that the machine is attached to the correct one.The machine may be configured incorrectly. Check the printer properties to ensure that all of the print settings are correct. The printer driver may be incorrectly installed.Repair the printer software. See the Software Section.The machine is malfunctioning.Check the display message on the control panel to see if the machine is indicating a system error.Themachine selects print materials from the wrong paper source.The paper source selection in the printer properties may be incorrect.For many software applications, the paper source selection is found under the Paper tab within the printer properties. Select the correct paper source. See the printer driver help screen.A print job is extremely slow.The job may be very complex.Reduce the complexity of the page or try adjusting the print quality settings.If you are using Windows 98/Me, the Spool Setting may be set incorrectly. From the Start menu, choose Settings and then Printers.Right-click the Samsung SCX-6x45 Series PCL 6machine icon, choose Properties, click the Detailstab, and then choose the Spool Settings button. Select the desired spool setting.Half the page is blank.The page orientation setting may be incorrect.Change the page orientation in your application. See the printer driver help screen.The paper size and the paper size settings do not match.Ensure that the paper size in the printer driver settings matches the paper in the tray.Or, ensure that the paper size in the printer driver settings matches the paper selection in the software application settings you use.Condition Possible cause Suggested solutions
10.15 <Troubleshooting>The machine prints, but the text is wrong, garbled, or incomplete.The printer cable is loose or defective.Disconnect the printer cable and reconnect. Try a print job that you have already printed successfully. If possible, attach the cable and the machine to another computer and try a print job that you know works. Finally, try a new printer cable.The wrong printer driver was selected.Check the application’s printer selection menu to ensure that your machine is selected.The software application is malfunctioning.Try printing a job from another application.The operating system is malfunctioning.Exit Windows and reboot the computer. Turn the machine off and then back on again.Pages print, but are blank.The toner cartridge is defective or out of toner.Redistribute the toner, if necessary. See page 9.3.If necessary, replace the toner cartridge.The file may have blank pages.Check the file to ensure that it does not contain blank pages.Some parts, such as the controller or the board, may be defective.Contact a service representative.When you are using Windows 98, the illustrations print incorrectly from Adobe Illustrator.The setting in the software application is wrong.Select Download as Bit Image in the Advanced Options window of the graphic properties and print the document again.PDF file does not print correctly-some parts are missing in graphics, text or illustrations.Incompatibility between the PDF file and the Acrobat products.Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options.Note: It Will take longer to print when you print a PDF file as an image.Condition Possible cause Suggested solutions Printing quality problemsIf the inside of the machine is dirty or paper has been loaded improperly, you may notice a reduction in print quality. See the table below to clear the problem. Condition Suggested solutionsLight or faded printIf a vertical white streak or faded area appears on the page:• The toner supply is low. You may be able to temporarily extend the toner cartridge life. See page 9.3. If this does not improve the print quality, install a new toner cartridge.• The paper may not meet paper specifications; for example, the paper is too moist or too rough. See page 3.3.• If the entire page is light, the print resolution setting is too low or the toner save mode is on. Adjust the print resolution and turn the toner save mode off. See the help screen of the printer driver and page x.x, respectively.• A combination of faded or smeared defects may indicate that the toner cartridge needs cleaning. Contact a service representative.• The surface of the LSU part inside the machine may be dirty. Clean the LSU, contact a service representative. Toner specks• The paper may not meet specifications; for example, the paper is too moist or too rough. See page 3.3.• The transfer roller may be dirty. Clean the inside of your machine. Contact a service representative.• The paper path may need cleaning. Contact a service representative.DropoutsIf faded areas, generally rounded, occur randomly on the page:• A single sheet of paper may be defective. Try reprinting the job.• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper. See page 3.3.• The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.• If these steps do not correct the problem, contact a service representative.
10.16 <Troubleshooting>Vertical linesIf black vertical streaks appear on the page:• The drum inside the printer has probably been scratched. Remove the drum cartridge and install a new one. See page 9.5.If white vertical streaks appear on the page:• The surface of the LSU part inside the machine may be dirty. Clean the LSU. Contact a service representative.Gray backgroundIf the amount of background shading becomes unacceptable:• Change to a lighter weight paper. See page 3.3.• Check the machine’s environment: very dry (low humidity) or high humidity (higher than 80% RH) conditions can increase the amount of background shading.• Remove the old drum and toner cartridge and then, install a new one. See page 9.4.Toner smear• Clean the inside of the machine. Contact a service representative.• Check the paper type and quality. See page 3.3.• Remove the drum and toner cartridge and then, install a new one. See page 9.4.Vertical repetitive defectsIf marks repeatedly appear on the printed side of the page at even intervals:• The drum and toner cartridge may be damaged. If a repetitive mark occurs on the page, print a cleaning sheet several times to clean the cartridge; contact a service representative. After the printout, if you still have the same problems, remove the drum and toner cartridge and then, install a new one. See page 9.4.• Parts of the machine may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.• The fusing assembly may be damaged. Contact a service representative.Condition Suggested solutionsBackground scatterBackground scatter results from bits of toner randomly distributed on the printed page. • The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.• If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems.• If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application or the printer properties.Misformed characters• If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try a different paper. See page 3.3.• If characters are improperly formed and producing a wavy effect, the scanner unit may need service. For service, contact a service representative.Page skew• Ensure that the paper is loaded properly.• Check the paper type and quality. See page 3.3.• Ensure that the paper or other material is loaded correctly and the guides are not too tight or too loose against the paper stack.Curl or wave• Ensure that the paper is loaded properly.• Check the paper type and quality. Both high temperature and humidity can cause paper curl. See page 3.3.• Turn over the stack of paper in the tray. Also try rotating the paper 180° in the tray.Condition Suggested solutions
10.17 <Troubleshooting>Wrinkles or creases• Ensure that the paper is loaded properly.• Check the paper type and quality. See page 3.3.• Turn over the stack of paper in the tray. Also try rotating the paper 180° in the tray.Back of printouts are dirtyCheck for leaking toner. Clean the inside of the machine. Contact a service representative.Black pages• The drum cartridge may not be installed properly. Remove the cartridge and reinsert it.• The drum cartridge may be defective and need replacing. Remove the drum cartridge and install a new one. See page 9.4.• The machine may require repair. Contact a service representative.Loose toner• Clean the inside of the machine. Contact a service representative.• Check the paper type and quality. See page 3.3.• Remove the drum and toner cartridge and then, install a new one. See page 9.4.• If the problem persists, the machine may require repair. Contact a service representative.Character VoidsCharacter voids are white areas within parts of characters that should be solid black:• If you are using transparencies, try another type of transparency. Because of the composition of transparencies, some character voids are normal. • You may be printing on the wrong surface of the paper. Remove the paper and turn it around. • The paper may not meet paper specifications. See page 3.3.Condition Suggested solutionsCopying problemsHorizontal stripesIf horizontally aligned black streaks or smears appear:• The drum and toner cartridge may be installed improperly. Remove the cartridge and reinsert it.• The drum and toner cartridge may be defective. Remove the toner cartridge and install a new one. See page 9.4.• If the problem persists, the machine may require repair. Contact a service representative.CurlIf the printed paper is curled or paper does not feed into the machine:• Turn over the stack of paper in the tray. Also try rotating the paper 180° in the tray. An unknown image repetitively appears on a next few sheets or loose toner, light print, or contamination occurs. You printer is probably being used at an altitude of 2,500 m(8,200 ft)or above. The high altitude may affect the print quality such as loose toner or light imaging. You can set this option through Printer Settings Utility or Printer Tab in printer driver’s properties. Refer to the Software Section for detail.Condition Suggested solutionsCopies are too light or too dark.Use Darkness to darken or lighten the background of the copies.Smears, lines, marks, or spots appears on copies.• If defects are on the original, press Darkness to lighten the background of your copies.• If no defects are on the original, clean the scan unit. See page 9.2.Copy image is skewed.• Ensure that the original is face down on the scanner glass or face up in the DADF.• Check that the copy paper is loaded correctly.Blank copies print out.Ensure that the original is face down on the scanner glass or face up in the DADF.Condition Suggested solutions
10.18 <Troubleshooting>Scanning problemsImage rubs off the copy easily.• Replace the paper in the tray with paper from a new package.• In high humidity areas, do not leave paper in the machine for extended periods of time.Frequent copy paper jams occur.• Fan the stack of paper, then turn it over in the tray. Replace the paper in the tray with a fresh supply. Check/adjust the paper guides, if necessary.• Ensure that the paper is the proper paper weight. 75 g/m2 bond paper is recommended.• Check for copy paper or pieces of copy paper remaining in the machine after a paper jam has been cleared.Toner cartridge produces fewer copies than expected before running out of toner.• Your originals may contain pictures, solids, or heavy lines. For example, your originals may be forms, newsletters, books, or other documents that use more toner. • The machine may be turned on and off frequently. • The scanner lid may be left open while copies are being made.Condition Suggested solutionsThe scanner does not work.• Make sure that you place the original to be scanned face down on the scanner glass, or face up in the DADF.• There may not be enough available memory to hold the document you want to scan. Try the Prescan function to see if that works. Try lowering the scan resolution rate.• Check that the USB or parallel cable is connected properly.• Make sure that the USB or parallel cable is not defective. Switch the cable with a known good cable. If necessary, replace the cable.• If you are using a parallel cable, ensure that it is compliant with IEEE 1284 standards.• Check that the scanner is configured correctly. Check scan setting in the SmarThru Configuration or the application you want to use to make certain that the scanner job is being sent to the correct port.Condition Suggested solutionsThe unit scans very slowly.• Check if the machine is printing received data. If so, scan the document after the received data has been printed.• Graphics are scanned more slowly than text.• Communication speed slows in scan mode because of the large amount of memory required to analyze and reproduce the scanned image. Set your computer to the ECP printer mode through BIOS setting. It will help to increase the speed. For details about how to set BIOS, refer to your computer user’s guide.Message appears on your computer screen:• “Device can't be set to the H/W mode you want.”• “Port is being used by another program.”•“Port is Disabled.”• “Scanner is busy receiving or printing data. When the current job is completed, try again.”• “Invalid handle.”• “Scanning has failed.”• There may be a copying or printing job in progress. When that job is complete, try your job again.• The Selected port is currently being used. Restart your computer and try again.• The printer cable may be improperly connected or the power may be off. You must use a parallel cable that supports IEEE 1284 bi-directional communications.• The scanner driver is not installed or the operating environment is not set up properly.• Ensure that the machine is properly connected and the power is on, Then restart your computer.• The USB cable may be improperly connected or the power may be off.• Do not use parallel and USB cables at the same time.Condition Suggested solutions
10.19 <Troubleshooting>Network Scan problemsFax problemsCondition Suggested solutionsI cannot find a scanned image file. You can check the scanned file’s destination in the Advanced page in the Network Scanprogram’s Properties screen. I cannot find the scanned image file after scanning.• Check if the scanned file’s application is on your computer.•Check Send image immediately to the specified folder using an associated default application in the Advanced page in the Network Scan program’s Properties screen to open the scanned image immediately after scanning. I forgot my ID and PIN.Check your ID and PIN in the Server page in the Network Scan program’s Properties screen. I cannot view the Help file. To view the Help file, you need to have Internet Explorer 4 service pack 2 or above. I cannot use the Samsung Network Scan ManagerCheck your operating system. Supporting operating systems are Windows 98/Me/NT 4.0/2000/XP/2003.Condition Suggested solutionsThe machine is not working, there is no display and the buttons are not working.• Unplug the power cord and plug it in again. • Ensure that there is power to the electrical outlet.No dial tone sounds.• Check that the phone line is connected properly.• Check that the phone socket in the wall is working by plugging in another phone.The numbers stored in memory do not dial correctly.Make sure that the numbers are stored in memory correctly. Print a Phone Book list, referring to page x.x.The original does not feed into the machine.• Make sure that the paper is not wrinkled and you are putting it in correctly. Check that the original is the right size, not too thick or thin • Make sure that the DADF is firmly closed.• The DADF rubber pad may need to be replaced. Contact a service representative.Faxes are not received automatically.• The receiving mode should be set to Fax.• Make sure that there is paper in the tray.• Check to see if the display shows any error message. If it does, clear the problem.The machine does not send.• Make sure that the original is loaded in the DADF or on the scanner glass. •Sending should show up on the display. • Check the fax machine you are sending to, to see if it can receive your fax.The incoming fax has blank spaces or is of poor-quality.• The fax machine sending you the fax may be faulty. • A noisy phone line can cause line errors. • Check your machine by making a copy. • The toner cartridge may be empty. Replace the toner cartridge, referring to page 9.4. Some of the words on an incoming fax are stretched.The fax machine sending you the fax had a temporary document jam. There are lines on the originals you send.Check your scan unit for marks and clean it. See page 9.2.The machine dials a number, but a connection with the other fax machine fails.The other fax machine may be turned off, out of paper, or cannot answer incoming calls. Speak with the other machine operator and ask her/him to sort out the problem.Faxes do not store in memory. There may not be enough memory space to store the fax. If the display shows the Memory Full message, delete from memory any faxes you no longer need and then try again to store the fax.Blank areas appear at the bottom of each page or on other pages, with a small strip of text at the top.You may have chosen the wrong paper settings in the user option setting. For details about paper settings, see page 3.8.Condition Suggested solutions
10.20 <Troubleshooting>Common Windows problemsNoteRefer to Microsoft Windows 98/Me/NT 4.0/2000/XP User’s Guide that came with your PC for further information on Windows error messages.Condition Suggested solutions“File in Use” message appears during installation.Exit all software applications. Remove all software from the StartUp Group, then restart Windows. Reinstall the printer driver.“Error Writing to LPTx” message appears.• Ensure that the cables are connected correctly, the machine is on.• If bi-directional communication is not turned on in the driver, it will also cause this message.“General Protection Fault”, “Exception OE”, “Spool32”, or “Illegal Operation” messages appear.Close all other applications, reboot Windows and try printing again.“Fail To Print”, “A printer timeout error occurred.” messages appear.These messages may appear during printing. Just keep waiting until the machine finishes printing. If the message appears in standby mode or after printing has been completed, check the connection and/or whether an error has occurred.Common PostScript problemsThe following situations are PS language specific and may occur when several printer languages are being used.NoteTo receive a printed or screen-displayed message when PostScript errors occur, open the Print Options window and click the desired selection next to the PostScript errors section.Problem Possible Cause SolutionPostScript file cannot be printed.The PostScript driver may not be installed correctly.• Install the PostScript driver, referring to the Software Section.• Print a configuration page and verify that the PS version is available for printing.• If the problem persists, contact a service representative.“Limit Check Error” message appears.The print job was too complex.You might need to reduce the complexity of the page or install more memory.A PostScript error page prints.The print job may not be PostScript.Make sure that the print job is a PostScript job. Check to see whether the software application expected a setup or PostScript header file to be sent to the machine.The optional tray 2 is not selected in the driver.The printer driver has not been configured to recognize the optional tray 2.Open the PostScript driver properties, select the Device Settings tab, and set the Tray2 option of the Installable Options section to Installed.When print a document in Macintosh with Acrobat Reader 6.0 or higher, colors print incorrectly.The resolution setting in the printer driver may not be matched with that in Acrobat Reader.Make sure that the resolution setting in your printer driver matches that in Acrobat Reader.
10.21 <Troubleshooting>Common Linux problemsProblem Possible Cause and SolutionThe machine does not print• Check if the printer driver is installed in your system. Open Unified Driver configurator and switch to the Printers tab in Printers configuration window to look at the list of available printers. Make sure that your machine is displayed on the list. If not, please, invoke Add new printer wizard to set up your device.• Check if the printer is started. Open Printers configuration and select your machine on the printers list. Look at the description in the Selected printer pane. If its status contains “(stopped)” string, please, press the Start button. After that normal operation of the printer should be restored. The “stopped” status might be activated when some problems in printing occurred. For instance, this could be an attempt to print document when port is claimed by a scanning application.• Check if the port is not busy. Since functional components of MFP (printer and scanner) share the same I/O interface (port), the situation of simultaneous access of different “consumer” application to the same port is possible. To avoid possible conflicts, only one of them at a time is allowed to gain control over the device. The other “consumer” will encounter “device busy” response. You should open ports configuration and select the port assigned to your printer. In the Selected port pane you can see if the port is occupied by some other application. If this is the case, you should wait for completion of the current job or should press Release port button, if you are sure that the present owner is not functioning properly.• Check if your application has special print option such as “-oraw”. If “-oraw” is specified in the command line parameter then remove it to print properly. For Gimp front-end, select “print” -> “Setup printer” and edit command line parameter in the command item.The machine does not appear on the scanners list• Check if your machine is attached to your computer. Make sure that it is connected properly via the USB port and is turned on.• Check if the scanner driver for your machine is installed in your system. Open Unified Driver configurator, switch to Scanners configuration, then press Drivers. Make sure that driver with a name corresponding to your machine's name is listed in the window. Check if the port is not busy. Since functional components of MFP (printer and scanner) share the same I/O interface (port), the situation of simultaneous access of different “consumer” application to the same port is possible. To avoid possible conflicts, only one of them at a time is allowed to gain control over the device. The other “consumer” will encounter “device busy” response. This can usually happen while starting scan procedure, and appropriate message box appears.• To identify the source of the problem, you should open ports configuration and select the port assigned to your scanner. port's symbol /dev/mfp0 corresponds to LP:0 designation displayed in the scanners’ options, /dev/mfp1 relates to LP:1 and so on. USB ports start at /dev/mfp4, so scanner on USB:0 relates to /dev/mfp4 respectively and so forth sequentially. In the Selected port pane you can see if the port is occupied by some other application. If this is the case, you should wait for completion of the current job or should press Release port button, if you are sure that the present port's owner is not functioning properly.Problem Possible Cause and Solution

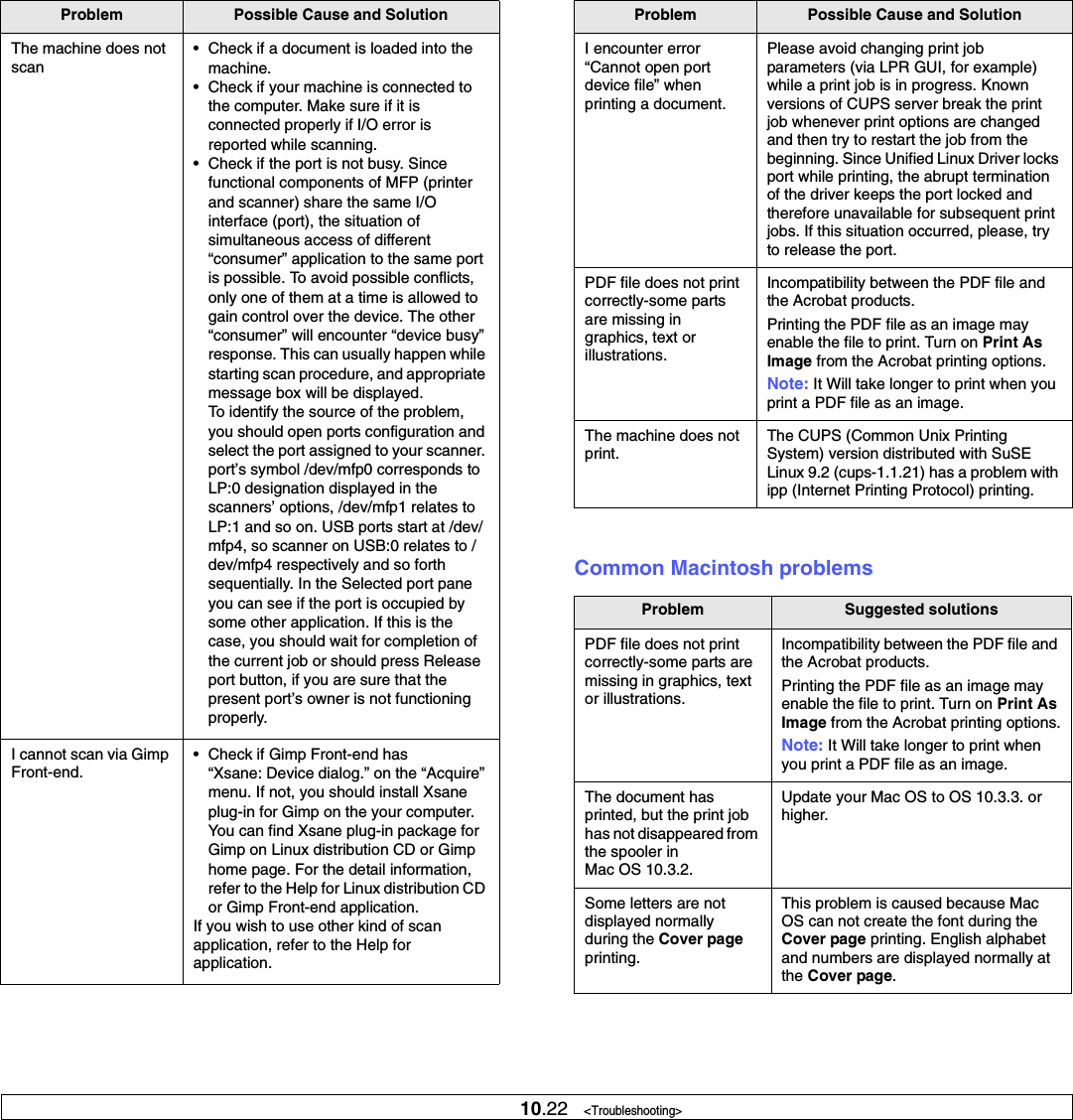

10.22 <Troubleshooting>The machine does not scan• Check if a document is loaded into the machine.• Check if your machine is connected to the computer. Make sure if it is connected properly if I/O error is reported while scanning.• Check if the port is not busy. Since functional components of MFP (printer and scanner) share the same I/O interface (port), the situation of simultaneous access of different “consumer” application to the same port is possible. To avoid possible conflicts, only one of them at a time is allowed to gain control over the device. The other “consumer” will encounter “device busy” response. This can usually happen while starting scan procedure, and appropriate message box will be displayed.To identify the source of the problem, you should open ports configuration and select the port assigned to your scanner. port’s symbol /dev/mfp0 corresponds to LP:0 designation displayed in the scanners’ options, /dev/mfp1 relates to LP:1 and so on. USB ports start at /dev/mfp4, so scanner on USB:0 relates to /dev/mfp4 respectively and so forth sequentially. In the Selected port pane you can see if the port is occupied by some other application. If this is the case, you should wait for completion of the current job or should press Release port button, if you are sure that the present port’s owner is not functioning properly.I cannot scan via Gimp Front-end.• Check if Gimp Front-end has “Xsane: Device dialog.” on the “Acquire” menu. If not, you should install Xsane plug-in for Gimp on the your computer. You can find Xsane plug-in package for Gimp on Linux distribution CD or Gimp home page. For the detail information, refer to the Help for Linux distribution CD or Gimp Front-end application. If you wish to use other kind of scan application, refer to the Help for application.Problem Possible Cause and SolutionCommon Macintosh problemsI encounter error “Cannot open port device file” when printing a document.Please avoid changing print job parameters (via LPR GUI, for example) while a print job is in progress. Known versions of CUPS server break the print job whenever print options are changed and then try to restart the job from the beginning. Since Unified Linux Driver locks port while printing, the abrupt termination of the driver keeps the port locked and therefore unavailable for subsequent print jobs. If this situation occurred, please, try to release the port. PDF file does not print correctly-some parts are missing in graphics, text or illustrations.Incompatibility between the PDF file and the Acrobat products.Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options.Note: It Will take longer to print when you print a PDF file as an image.The machine does not print.The CUPS (Common Unix Printing System) version distributed with SuSE Linux 9.2 (cups-1.1.21) has a problem with ipp (Internet Printing Protocol) printing.Problem Suggested solutionsPDF file does not print correctly-some parts are missing in graphics, text or illustrations.Incompatibility between the PDF file and the Acrobat products.Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options.Note: It Will take longer to print when you print a PDF file as an image.The document has printed, but the print job has not disappeared from the spooler in Mac OS 10.3.2.Update your Mac OS to OS 10.3.3. or higher.Some letters are not displayed normally during the Cover pageprinting.This problem is caused because Mac OS can not create the font during the Cover page printing. English alphabet and numbers are displayed normally at the Cover page.Problem Possible Cause and Solution
11.1 <Ordering supplies and accesso-11 Ordering supplies and accessoriesThis chapter provides information on purchasing toner cartridges and accessories available for your machine.This chapter includes:• Toner cartridge• Drum cartridge• Accessories• How to purchaseToner cartridgeWhen the toner runs out, you can order the following type of toner cartridge for your machine:Drum cartridgeWhen the drum runs out, you can order the following type of drum cartridge for your machine:AccessoriesYou can purchase and install accessories to enhance your machine’s performance and capacity.The following accessories are available for your machine:Type Yieldaa. ISO 19752 5% coveragePart numberStandard yield 20,000 pages SCX-D6345AType Yieldaa. ISO 19752 5% coveragePart numberStandard yield 60,000 pages SCX-R6345AAccessory Description Part numberOptional tray 2/3/4If you are experiencing frequent paper supply problems, you can attach an additional 550 sheet tray. You can print documents on various sizes and types of print materials.SCX-S6345AHow to purchaseTo order Samsung-authorized supplies or accessories, contact your local Samsung dealer or the retailer where you purchased your machine, or visit www.samsungprinter.com and select your country/region for information on calling for technical support.Paper Stand You can place the machine on the cabinet in ergonomic design which lets you reach the machine conveniently. Also you can easily move the cabinet with its wheels in case of need and store miscellaneous stuffs like papers into the cabinet.• Tall Stand: SCX-DSK10T• Short Stand: SCX-DSK10SStacker & Stapler550 sheets SCX-FIN105Finishing Cartridge3,000 staples per cartridge, 20 sheets maximun, 1staple positionSCX-STP000Memory DIMMExtends your machine’s memory capacity.ML-MEM140: 256 MBFax option kit • Serial Type: SCX-FAX100• Parallel Type: SCX-FAX101Network Scan kitSCX-KIT10SSmarThru WorfflowWindows 2000/XP/2003 SCX-KIT11SAccessory Description Part number
12.1 <Installing accessories>12 Installing accessoriesYour machine is a full-featured one that has been optimized to meet most of your printing needs. Recognizing that each user may have different requirements, however, Samsung makes several accessories available to enhance your machine’s capabilities.This chapter includes:• Precautions when installing accessories• Installing a memory DIMMPrecautions when installing accessoriesDisconnect the power cordNever remove the control board cover while the power is being supplied.To avoid the possibility of an electrical shock, always disconnect the power cord when installing or removing ANY internal or external accessories.Discharge static electricityThe control board and internal accessories (network interface card or memory DIMM) are sensitive to static electricity. Before installing or removing an internal accessories, discharge static electricity from your body by touching something metal, such as the metal back plate on any device plugged into a grounded power source. If you walk round before finishing installation, discharge any static electricity once again.Installing a memory DIMMYour machine has a dual in-line memory module (DIMM) slot. Use this DIMM slot to install additional memory.Your machine has 256 MB of memory. Both can be expanded to 256 MB. However, users must remove the preinstalled memory DIMM before upgrading the memory. For order information for optional memory DIMMs, see page 11.1.1Turn the machine off and unplug all cables from the machine.2Grasp the control board cover and slide toward you to open it.3Completely open the latch on each side of the DIMM slot. Remove the preinstalled memory DIMM.4Take out a new memory DIMM from the plastic bag.5Holding the memory DIMM by the edges, align the notches on the memory DIMM with the grooves on the memory DIMM slot.NoteThe notches and grooves illustrated above may not match those on an actual DIMM and the slot.1control board cover11latch2memory DIMM12
12.2 <Installing accessories>6Push the DIMM straight into the DIMM slot until it snaps into place. Make sure the latches fit over the notches located on either side of the DIMM.7Replace the control board cover. 8Reconnect the power cord and printer cable, and turn the machine on.Activating the added memory in the PS printer propertiesAfter installing the memory DIMM, you need to select it in the printer properties of the PostScript printer driver so that you can use it.1Make sure that the PostScript printer driver is installed on your computer. For details about installing the PS printer driver, see the Software Section.2Click the Windows Start menu.3For Windows 98/Me/NT 4.0/2000, select Settings and then Printers.For Windows XP/2003, select Printers and Faxes.4Select the Samsung SCX-6x45 Series PS printer.5Click the right mouse button on the machine icon and select Properties.6For Windows 98/Me, select Device Options.For Windows NT 4.0/2000/XP/2003, select Device Settings.7Select the amount of memory you installed from Printer Memory in the Installable Options section.For Windows 98, select Installable Options > VMOption > change setting for:VMOption > change memory.8Click OK.
13.1 <Specifications>13 SpecificationsThis chapter includes:• General specifications• Printer specifications• Copier specifications• Scanner specifications• Facsimile specifications (optional)General specificationsItem DescriptionDADF Up to 50 sheets (75 g/m2 bond)DADF document size Width:174 to 216 mmLength: 128 to 356 mm for single page scan 128 to 356 mm for multi pages scanPaper input capacity • Tray 1: 520 multi-pages for plain paper (75 g/m2 bond), 30 pages for transparencies, labels, card stock, and envelopes (60 to 90 g/m2 bond)• Multi-purpose tray: 100 multi-pages for plain paper (75 g/m2 bond), 10 pages for transparencies, labels, card stock, and envelopes (60 to 90 g/m2 bond)• optional tray 2/3/4: 550 multi-pages for plain paper (75 g/m2 bond), 30 pages for transparencies, labels, and card stockPaper output capacity• 500 sheet (face down)• 500 sheet (optional stacker)Consumables 2-piece toner/drum cartridge systemPower rating 110 - 127 VAC, 50/60 Hz, 9 A or220 - 240 VAC, 50/60 Hz, 4.5 A Power consumption Average operation mode: Less than 900 WPower save mode: Less than 50 WStand by mode: Less than 170 WNoise levelaStandby mode: Less than 43 dBAPrinting mode: Less than 60 dBACopying mode: Less than 62 dBAWarm-up time Less than 30 seconds (from sleep mode)Operating environmentTemperature: 10 °C to 32 °CHumidity: 20% to 80% RHPrinter specificationsDisplay 1/2 VGA (640 x 240)Toner cartridge lifeb20,000 pages at ISO 19752 5% coverageDrum cartridge lifeb60,000 pages at ISO 19752 5% coverageMemory 256 MB (max. 384 MB)External dimension (W x D x H)606 x 443 x 610mm (without tray 2/3/4), 22 x 17x 19.5 inchesWeight 45 Kg (including consumables)Package weight Paper: 2.8 Kg, Plastic: 0.7 KgDuty cycle Monthly print: Up to 100,000 pagesa. Sound Pressure Level, ISO 7779b. The number of pages may be affected by operating environment, printing interval, media type, and media size.Item DescriptionPrinting method Laser Beam PrintingPrinting speedaa. Print speed will be affected by operating system used, computing performance, application software, connecting method, media type, media size, and job complexity.Up to 43 ppm in A4 (45 ppm in Letter)Duplex printing speedUp to 41 ipm in A4 (42.7 ipm in Letter)First print out time 8 seconds (from ready)Print resolution Up to 600 x 600 dpi Printer language PCL 6, PS 3OS Compatibilitybb. Please visit www.samsungprinter.com to download the latest software version.• PCL Driver: Windows 98/Me/NT 4.0/2000/XP/2003• PS Driver: Windows 98/Me/NT 4.0/2000/XP/2003, Various Linux OS (USB only), Macintosh 8.6 ~ 9.2/10.1 ~ 10.4Interface High Speed USB 2.0Ethernet 10/100 Base TX Item Description
13.2 <Specifications>Copier specificationsItem DescriptionCopy speedaa. Copy Speed is based on Single Document Multiple Copy.Up to 43 ppm in A4 (45 cpm in Letter)Duplex Copy speed • Simplex to Duplex(1-2): Approx. 41 ipmb in A4 (43 ipm in Letter)• Duplex to Duplex(2-2): 14 ipm in A4 (17 ipm in Letter)b. images per minuteCopy resolution Scan: up to 600 x 300 (text, text/photo)up to 600 x 600 (photo using platen)up to 600 x 300 (photo using DADF)Print: up to 600 x 600 (text, text/photo, photo)Zoom rate Scanner glass: 25 to 200%DADF: 25 to 100%Multiple copies 1 to 999 pagesScanner specificationsItem DescriptionCompatibility TWAIN standard / WIA standardScanning method DADF and Flat-bed Color CCD (Charge Coupled Device) module Resolution Optical: 600 x 600 dpi (mono and color)Enhanced: 4,800 x 4,800 dpiEffective scanning lengthScanner glass: 348 mmDADF: 348 mmEffective scanning widthMax 208 mmColor bit depth Internal: 36 bitExternal: 24 bitMono bit depth 1 bit for Black & White mode8 bit for Gray modeGrayscale 256 levels

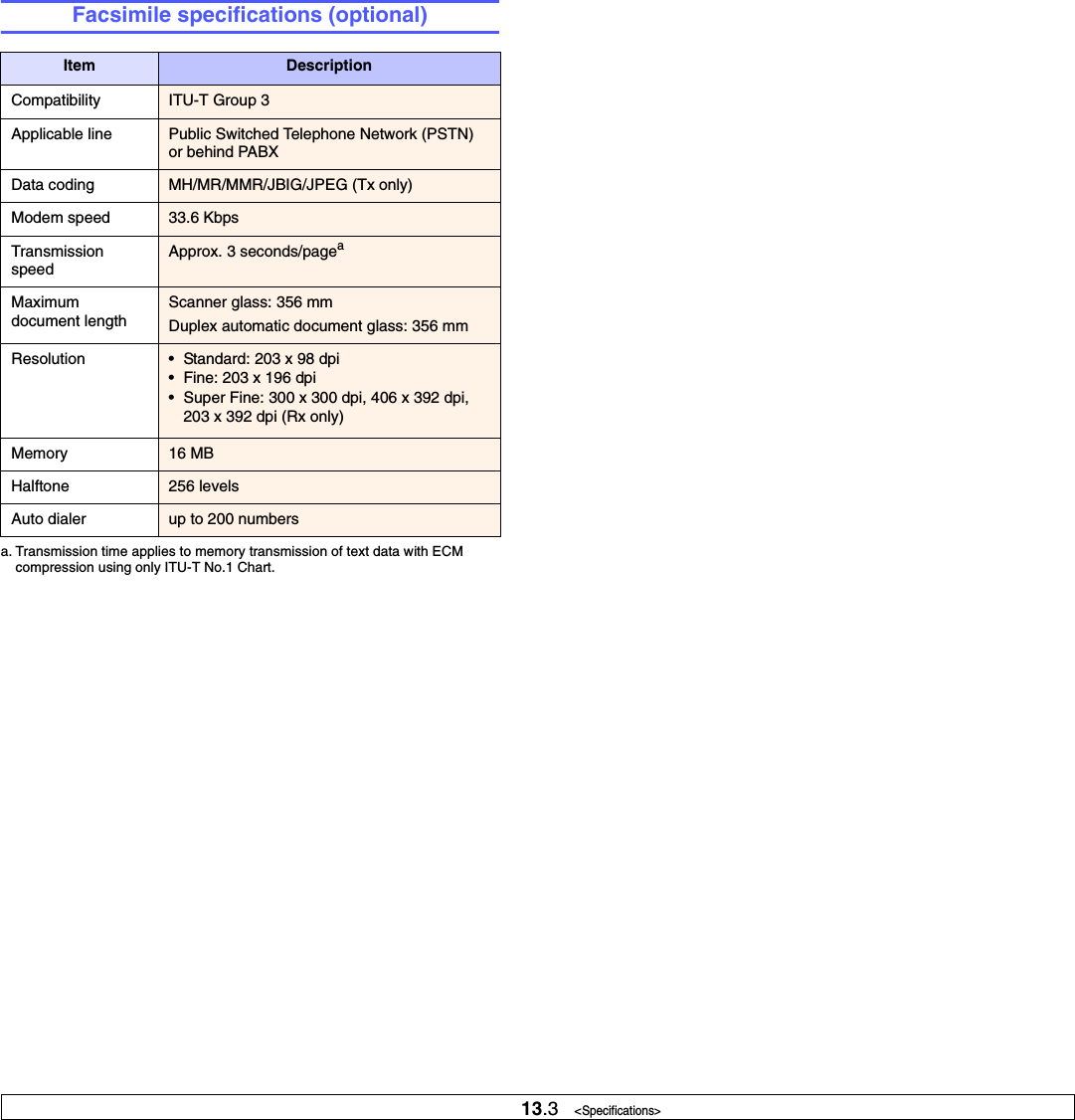

13.3 <Specifications>Facsimile specifications (optional)Item DescriptionCompatibility ITU-T Group 3Applicable line Public Switched Telephone Network (PSTN) or behind PABXData coding MH/MR/MMR/JBIG/JPEG (Tx only)Modem speed 33.6 KbpsTransmission speedApprox. 3 seconds/pageaa. Transmission time applies to memory transmission of text data with ECM compression using only ITU-T No.1 Chart.Maximum document lengthScanner glass: 356 mmDuplex automatic document glass: 356 mmResolution • Standard: 203 x 98 dpi• Fine: 203 x 196 dpi• Super Fine: 300 x 300 dpi, 406 x 392 dpi, 203 x 392 dpi (Rx only)Memory 16 MBHalftone 256 levelsAuto dialer up to 200 numbers
1INDEXAaccessoriesinstallingmemory DIMM 12.1order information 11.1Address Book, use 6.7ADF, load 3.1Ccleaningdrum 9.6inside 9.2outside 9.2scan unit 9.2component location 1.2control panel 1.3DDADF 1.2DADF, load 3.1DIMM, install 12.1drum cartridgereplacing 9.5drum, clean 9.6Eerror messages 10.8Iinstalling accessoriesmemory 12.1Jjam, cleardocument 10.1paper 10.2LLinux problems 10.21loading originalsADF 3.1DADF 3.1scanner glass 3.1loading papermulti-purpose tray 3.6tray 1/optional tray2 3.5MMacintosh problems 10.22memory DIMM, install 12.1memory, clear 9.1multi-purpose tray 3.6Nnetwork scanscanning 6.5timeout, set 6.5Network Scan programadding scanners 6.3problems 10.19network setupoperating systems 2.3new toner notification, send 9.7Ooriginalsjam, clear 10.1loading 3.1Ppaper guidelines 3.4paper jam, clearduplex area 10.7fuser area or around toner cartridge10.5multi-purpose tray 10.4,10.7optional tray 2 10.3paper exit area 10.5tray 1 10.2paper loadmulti-purpose tray 3.6tray 1/optional tray 2 3.5paper sizesetting 3.8specifications 3.3paper typesetting 3.8specifications 3.3PostScript problems 10.20print quality problems, solve 10.15printingreports 9.1problem, solvecopying 10.17error messages 10.8faxing 10.19Linux 10.21Macintosh 10.22Network Scan 10.19paper feeding 10.13PostScript errors 10.20printing 10.14printing quality 10.15scanning 10.18Windows 10.20Rreceiving a faxin the memory 6.9replacement parts 9.8replacingdrum cartridge 9.5toner cartridge 9.4replacing, toner cartridge 9.7reports, print 9.1Sscanner glass
2cleaning 9.2loading documents 3.1scanningdefault setting, change 6.7scan settings 6.6to application 6.3to email 6.5to FTP server 6.6to network computer 6.5to SMB server 6.6special print media, guidelines 3.4specificationscopier 13.2facsimile 13.3general 13.1paper 3.3printer 13.1scanner 13.2supplieschecking life 9.7order information 11.1Ttoner cartridgechecking remaining toner 9.7cleaning 9.6maintaining 9.3redistributing 9.3replacing 9.4WWindows problems 10.20
Rev. 0.01
Samsung PrinterSoftware section
1SOFTWARE SECTIONCONTENTSChapter 1: INSTALLING PRINTER SOFTWARE IN WINDOWSInstalling Printer Software ........................................................................................................ 4Installing Software for Local Printing ................................................................................. 4Installing Software for Network Printing ............................................................................. 7Reinstalling Printer Software ................................................................................................... 10Removing Printer Software ..................................................................................................... 11Chapter 2: BASIC PRINTINGPrinting a Document .............................................................................................................. 12Printing to a file (PRN) .......................................................................................................... 12Printer Settings ..................................................................................................................... 13Layout Tab .................................................................................................................. 13Paper Tab .................................................................................................................... 14Graphics Tab ............................................................................................................... 15Extras Tab ................................................................................................................... 16About Tab ................................................................................................................... 16Printer Tab .................................................................................................................. 16Using a Favorite Setting ................................................................................................ 17Using Help ................................................................................................................... 17Chapter 3: ADVANCED PRINTINGPrinting Multiple Pages on One Sheet of Paper (N-Up Printing) ..................................................... 18Printing Posters ..................................................................................................................... 19Printing Booklets .................................................................................................................. 19Printing on Both Sides of Paper ............................................................................................... 20Printing a Reduced or Enlarged Document ................................................................................ 20Fitting Your Document to a Selected Paper Size ......................................................................... 20Using Watermarks ................................................................................................................. 21Using an Existing Watermark ......................................................................................... 21
2Creating a Watermark ................................................................................................... 21Editing a Watermark ..................................................................................................... 21Deleting a Watermark ................................................................................................... 21Using Overlays ...................................................................................................................... 22What is an Overlay? ...................................................................................................... 22Creating a New Page Overlay ......................................................................................... 22Using a Page Overlay .................................................................................................... 22Deleting a Page Overlay ................................................................................................ 22Chapter 4: USING WINDOWS POSTSCRIPT DRIVERPrinter Settings ..................................................................................................................... 23Advanced .................................................................................................................... 23Using Help ................................................................................................................... 23Chapter 5: SHARING THE PRINTER LOCALLYSetting Up a Host Computer ................................................................................................... 24Setting Up a Client Computer .................................................................................................. 24Chapter 6: USING SMART PANELUnderstanding Smart Panel .................................................................................................... 25Opening the Troubleshooting Guide ......................................................................................... 26Using Printer Settings Utility ................................................................................................... 26Using Onscreen Help File ............................................................................................... 26Changing the Smart Panel Program Settings ............................................................................. 26Chapter 7: SCANNINGScanning Using Samsung SmarThru Office ................................................................................ 27Using Samsung SmarThru Office .................................................................................... 27Uninstalling Samsung SmarThru Office ............................................................................ 29Using Onscreen Help File ............................................................................................... 29Scanning Process with TWAIN-enabled Software ........................................................................ 29Scanning Using the WIA ......................................................................................................... 29

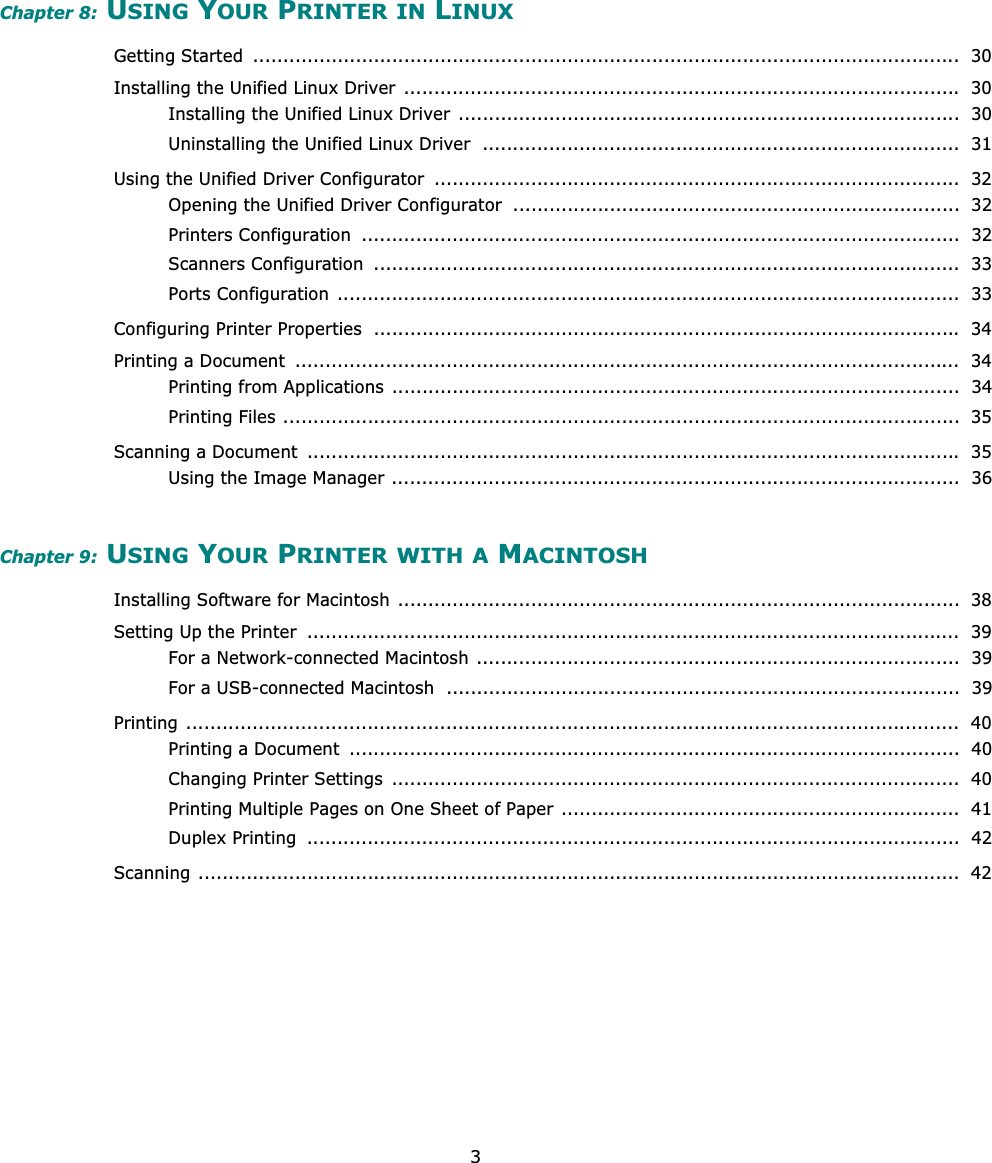

3Chapter 8: USING YOUR PRINTER IN LINUXGetting Started ..................................................................................................................... 30Installing the Unified Linux Driver ............................................................................................ 30Installing the Unified Linux Driver ................................................................................... 30Uninstalling the Unified Linux Driver ............................................................................... 31Using the Unified Driver Configurator ....................................................................................... 32Opening the Unified Driver Configurator .......................................................................... 32Printers Configuration ................................................................................................... 32Scanners Configuration ................................................................................................. 33Ports Configuration ....................................................................................................... 33Configuring Printer Properties ................................................................................................. 34Printing a Document .............................................................................................................. 34Printing from Applications .............................................................................................. 34Printing Files ................................................................................................................ 35Scanning a Document ............................................................................................................ 35Using the Image Manager .............................................................................................. 36Chapter 9: USING YOUR PRINTER WITH A MACINTOSHInstalling Software for Macintosh ............................................................................................. 38Setting Up the Printer ............................................................................................................ 39For a Network-connected Macintosh ................................................................................ 39For a USB-connected Macintosh ..................................................................................... 39Printing ................................................................................................................................ 40Printing a Document ..................................................................................................... 40Changing Printer Settings .............................................................................................. 40Printing Multiple Pages on One Sheet of Paper .................................................................. 41Duplex Printing ............................................................................................................ 42Scanning .............................................................................................................................. 42
Installing Printer Software in Windows41Installing Printer Software in WindowsThis chapter includes:• Installing Printer Software• Reinstalling Printer Software•Removing Printer SoftwareInstalling Printer SoftwareYou can install the printer software for local printing or network printing. To install the printer software on the computer, perform the appropriate installation procedure depending on the printer in use.A printer driver is software that lets your computer communicate with your printer. The procedure to install drivers may differ depending on the operating system you are using.All applications should be closed on your PC before beginning installation. Installing Software for Local PrintingA local printer is a printer directly attached to your computer using the printer cable supplied with your printer, such as a USB or parallel cable. If your printer is attached to a network, skip this step and go to “Installing Software for Network Printing” on page 7.You can install the printer software using the typical or custom method.NOTE: If the “New Hardware Wizard” window appears during the installation procedure, click in the upper right corner of the box to close the window, or click Cancel.Typical InstallationThis is recommended for most users. All components necessary for printer operations will be installed.1Make sure that the printer is connected to your computer and powered on.2Insert the supplied CD-ROM into your CD-ROM drive.The CD-ROM should automatically run, and an installation window appears.If the installation window does not appear, click Start and then Run. Type X:\Setup.exe, replacing “X” with the letter which represents your drive and click OK.3Click Next.• If necessary, select a language from the drop-down list.•View User’s Guide: Allows you to view the User’s Guide. If your computer doesn’t have Adobe Acrobat, click on this option and it will automatically install Adobe Acrobat Reader for you.4Select Typical installation for a local printer. Click Next.
Installing Printer Software in Windows5NOTE: If your printer is not already connected to the computer, the following window will appear.• After connecting the printer, click Next.• If you don’t want to connect the printer at this time, click Next, and No on the following screen. Then the installation will start and a test page will not be printed at the end of the installation.• The installation window that appears in this User’s Guide may differ depending on the printer and interface in use.5After the installation is finished, a window asking you to print a test page appears. If you choose to print a test page, select the checkbox and click Next.Otherwise, just click Next and skip to step 7.6If the test page prints out correctly, click Yes.If not, click No to reprint it.7To register yourself as a user of Samsung Printers in order to receive information from Samsung, select the checkbox and click Finish. You are now sent to the Samsung web site.Otherwise, just click Finish.NOTE: After setup is complete, if your printer driver doesn’t work properly, reinstall the printer driver. See “Reinstalling Printer Software” on page 10.Custom InstallationYou can choose individual components to install.1Make sure that the printer is connected to your computer and powered on.2Insert the supplied CD-ROM into your CD-ROM drive.The CD-ROM should automatically run, and an installation window appears.If the installation window does not appear, click Start and then Run. Type X:\Setup.exe, replacing “X” with the letter which represents your drive and click OK.
Installing Printer Software in Windows63Click Next.• If necessary, select a language from the drop-down list.•View User’s Guide: Allows you to view the User’s Guide. If your computer doesn’t have Adobe Acrobat, click on this option and it will automatically install Adobe Acrobat Reader for you.4Select Custom installation. Click Next.5Select your printer and click Next.NOTE: If your printer is not already connected to the computer, the following window will appear.• After connecting the printer, click Next.• If you don’t want to connect the printer at this time, click Next, and No on the following screen. Then the installation will start and a test page will not be printed at the end of the installation.• The installation window that appears in this User’s Guide may differ depending on the printer and interface in use.6Select the components to be installed and click Next.NOTE: You can change the desired installation folder by clicking [Browse].7After the installation is finished, a window asking you to print a test page appears. If you choose to print a test page, select the checkbox and click Next.Otherwise, just click Next and skip to step 9.8If the test page prints out correctly, click Yes.If not, click No to reprint it.
Installing Printer Software in Windows79To register yourself as a user of Samsung Printers in order to receive information from Samsung, select the checkbox and click Finish. You are now sent to the Samsung web site.Otherwise, just click Finish.Installing Software for Network PrintingWhen you connect your printer to a network, you must first configure the TCP/IP settings for the printer. After you have assigned and verified the TCP/IP settings, you are ready to install the software on each computer on the network.You can install the printer software using the typical or custom method.Typical InstallationThis is recommended for most users. All components necessary for printer operations will be installed.1Make sure that the printer is connected to your network and powered on. For details about connecting to the network, see the supplied printer’s User’s Guide.2Insert the supplied CD-ROM into your CD-ROM drive.The CD-ROM should automatically run, and an installation window appears.If the installation window does not appear, click Start and then Run. Type X:\Setup.exe, replacing “X” with the letter which represents your drive and click OK.3Click Next.• If necessary, select a language from the drop-down list.•View User’s Guide: Allows you to view the User’s Guide. If your computer doesn’t have Adobe Acrobat, click on this option and it will automatically install Adobe Acrobat Reader for you.4Select Typical installation for a network printer. Click Next.
Installing Printer Software in Windows85The list of printers available on the network appears. Select the printer you want to install from the list and then click Next.• If you do not see your printer on the list, click Update to refresh the list, or select Add TCP/IP Port to add your printer to the network. To add the printer to the network, enter the port name and the IP address for the printer.To verify your printer’s IP address or the MAC address, print a Network Configuration page.• To find a shared network printer (UNC Path), select Shared Printer [UNC] and enter the shared name manually or find a shared printer by clicking the Browsebutton.6After the installation is finished, a window appears asking you to print a test page and to register yourself as a user of Samsung Printers in order to receive information from Samsung. If you so desire, select the corresponding checkbox(es) and click Finish.Otherwise, just click Finish.NOTE: After setup is complete, if your printer driver doesn’t work properly, reinstall the printer driver. See “Reinstalling Printer Software” on page 10.Custom InstallationYou can choose individual components to install and set a specific IP address.1Make sure that the printer is connected to your network and powered on. For details about connecting to the network, see the supplied printer’s User’s Guide.2Insert the supplied CD-ROM into your CD-ROM drive.The CD-ROM should automatically run, and an installation window appears.If the installation window does not appear, click Start and then Run. Type X:\Setup.exe, replacing “X” with the letter which represents your drive and click OK.3Click Next.• If necessary, select a language from the drop-down list.•View User’s Guide: Allows you to view the User’s Guide. If your computer doesn’t have Adobe Acrobat, click on this option and it will automatically install Adobe Acrobat Reader for you.4Select Custom installation. Click Next.

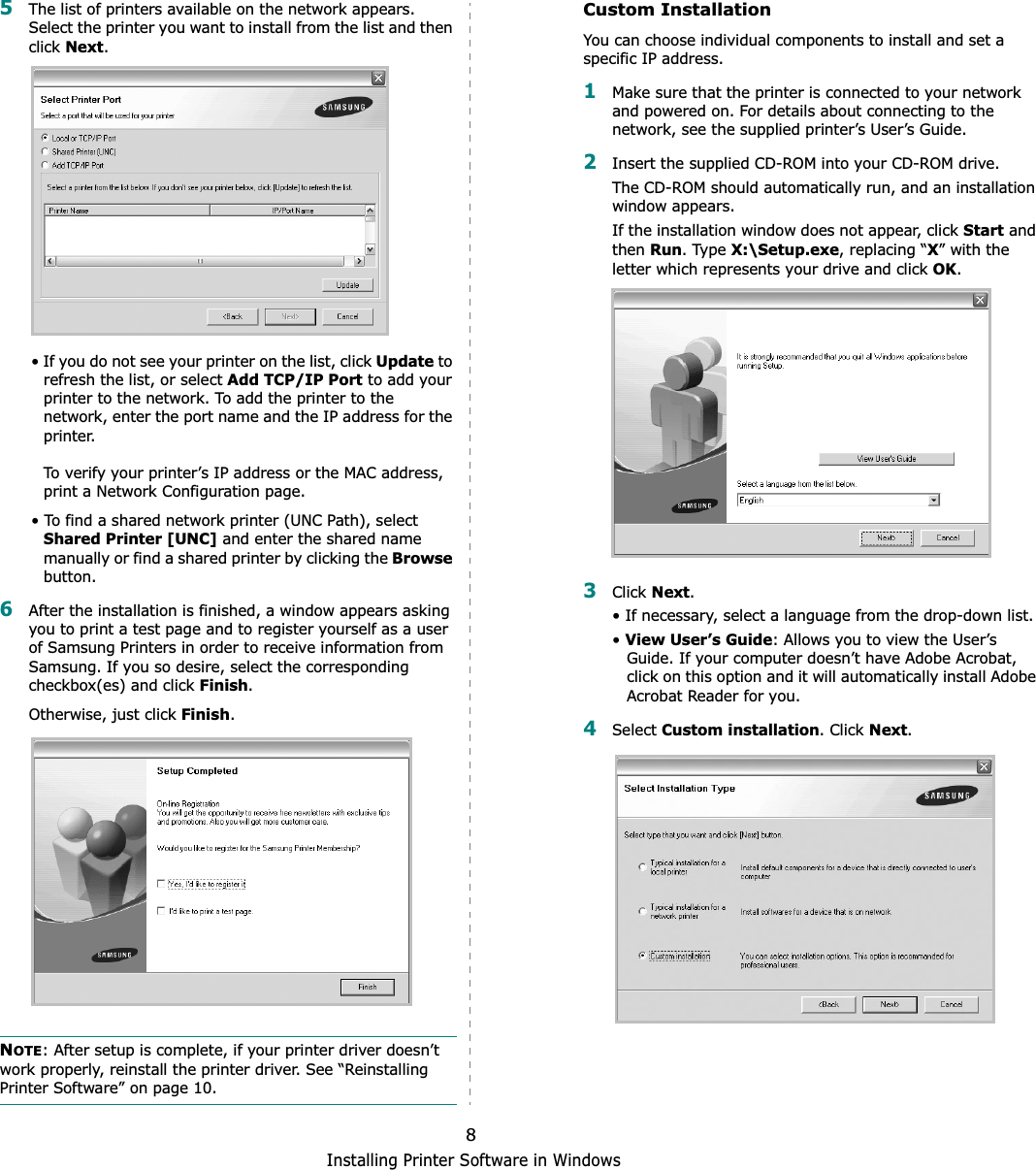

Installing Printer Software in Windows95The list of printers available on the network appears. Select the printer you want to install from the list and then click Next.• If you do not see your printer on the list, click Update to refresh the list, or select Add TCP/IP Port to add your printer to the network. To add the printer to the network, enter the port name and the IP address for the printer.To verify your printer’s IP address or the MAC address, print a Network Configuration page.• To find a shared network printer (UNC Path), select Shared Printer [UNC] and enter the shared name manually or find a shared printer by clicking the Browsebutton.TIP: If you want to set a specific IP address on a specific network printer, click the Set IP Address button. The Set IP Address window appears. Do as follows:a. Select a printer to be set with a specific IP address from the list.b. Configure an IP address, subnet mask, and gateway for the printer manually and click Configure to set the specific IP address for the network printer.c. Click Next.6Select the components to be installed. After selecting the components, the following window appears. You can also change the printer name, set the printer to be shared on the network, set the printer as the default printer, and change the port name of each printer. Click Next.To install this software on a server, select the Setting up this printer on a server checkbox.7After the installation is finished, a window appears asking you to print a test page and to register yourself as a user of Samsung Printers in order to receive information from Samsung. If you so desire, select the corresponding checkbox(es) and click Finish.Otherwise, just click Finish.NOTE: After setup is complete, if your printer driver doesn’t work properly, reinstall the printer driver. See “Reinstalling Printer Software” on page 10.
Installing Printer Software in Windows10Reinstalling Printer SoftwareYou can reinstall the software if installation fails.1Start Windows.2From the Start menu select Programs or All Programs→your printer driver name → Maintenance.3Select Repair and click Next.4The list of printers available on the network appears. Select the printer you want to install from the list and then click Next.• If you do not see your printer on the list, click Update to refresh the list, or select Add TCP/IP Port to add your printer to the network. To add the printer to the network, enter the port name and the IP address for the printer.• To find a shared network printer (UNC Path), select Shared Printer [UNC] and enter the shared name manually or find a shared printer by clicking the Browsebutton.You will see a component list so that you can reinstall any item individually.NOTE: If your printer is not already connected to the computer, the following window will appear.• After connecting the printer, click Next.• If you don’t want to connect the printer at this time, click Next, and No on the following screen. Then the installation will start and a test page will not be printed at the end of the installation.• The reinstallation window that appears in this User’s Guide may differ depending on the printer and interface in use.5Select the components you want to reinstall and click Next.If you installed the printer software for local printing and you select your printer driver name, the window asking you to print a test page appears. Do as follows:a. To print a test page, select the check box and click Next.b. If the test page prints out correctly, click Yes.If it doesn’t, click No to reprint it.6When the reinstallation is done, click Finish.

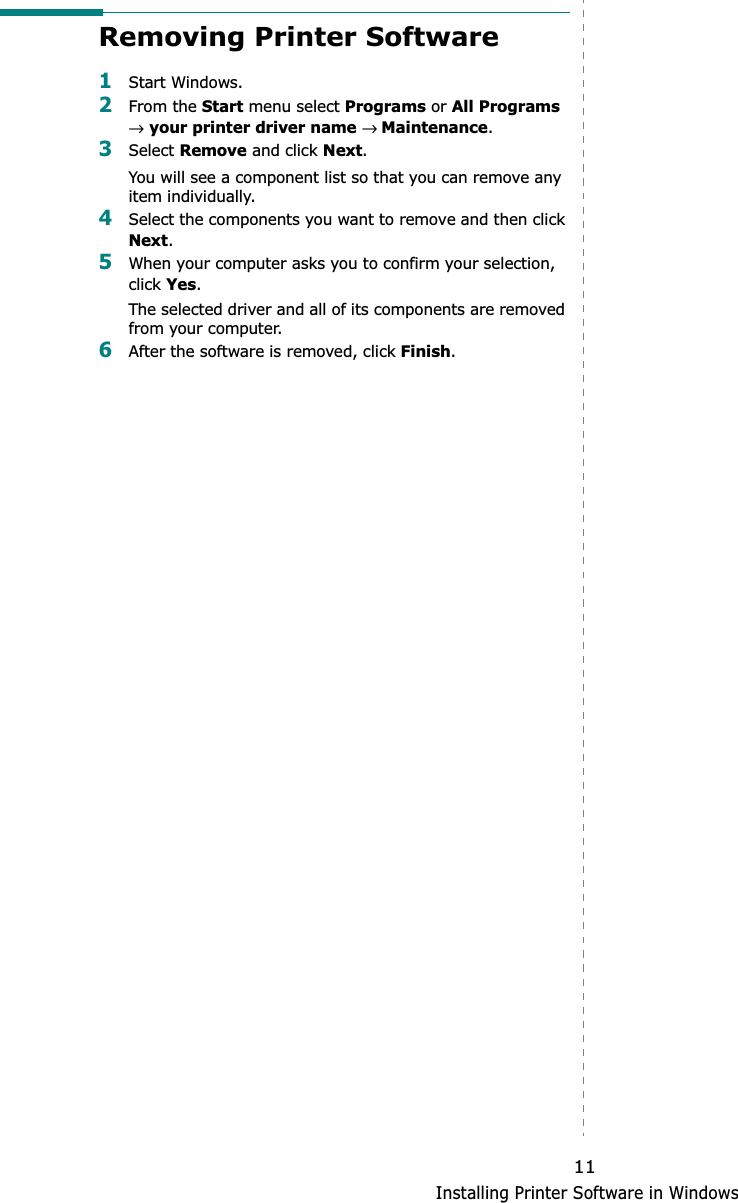

Installing Printer Software in Windows11Removing Printer Software1Start Windows.2From the Start menu select Programs or All Programs→your printer driver name → Maintenance.3Select Remove and click Next.You will see a component list so that you can remove any item individually.4Select the components you want to remove and then click Next.5When your computer asks you to confirm your selection, click Yes.The selected driver and all of its components are removed from your computer.6After the software is removed, click Finish.
Basic Printing122Basic Printing This chapter explains the printing options and common printing tasks in Windows. This chapter includes:• Printing a Document• Printing to a file (PRN)• Printer Settings- Layout Tab- Paper Tab- Graphics Tab- Extras Tab- About Tab- Printer Tab- Using a Favorite Setting- Using HelpPrinting a DocumentNOTES:• Your printer driver Properties window that appears in this User’s Guide may differ depending on the printer in use. However the composition of the printer properties window is similar.• Check the Operating System(s) that are compatible with your printer. Please refer to the OS Compatibility section of Printer Specifications in your Printer User’s Guide.• If you need to know the exact name of your printer, you can check the supplied CD-ROM.The following procedure describes the general steps required for printing from various Windows applications. The exact steps for printing a document may vary depending on the application program you are using. Refer to the User’s Guide of your software application for the exact printing procedure.1Open the document you want to print.2Select Print from the File menu. The Print window is displayed. It may look slightly different depending on your application. The basic print settings are selected within the Print window. These settings include the number of copies and print range.3Select your printer driver from the Name drop-down list.To take advantage of the printer features provided by your printer driver, click Properties or Preferences in the application’s Print window. For details, see “Printer Settings” on page 13.If you see Setup,Printer, or Options in your Print window, click it instead. Then click Properties on the next screen.Click OK to close the printer properties window.4To start the print job, click OK or Print in the Print window.Printing to a file (PRN) You will sometimes need to save the print data as a file for your purpose. To create a file:1Check the Print to file box at the Print window.2Select the folder and assign a name of the file and then click OK.Make sure that your printer is selected.
Basic Printing13Printer SettingsYou can use the printer properties window, which allows you to access all of the printer options you need when using your printer. When the printer properties are displayed, you can review and change the settings needed for your print job. Your printer properties window may differ, depending on your operating system. This Software User’s Guide shows the Properties window for Windows XP.Your printer driver Properties window that appears in this User’s Guide may differ depending on the printer in use.If you access printer properties through the Printers folder, you can view additional Windows-based tabs (refer to your Windows User’s Guide) and the Printer tab (see “Printer Tab” on page 16).NOTES:• Most Windows applications will override settings you specify in the printer driver. Change all print settings available in the software application first, and change any remaining settings using the printer driver. • The settings you change remain in effect only while you are using the current program. To make your changes permanent, make them in the Printers folder. • The following procedure is for Windows XP. For other Windows OS, refer to the corresponding Windows User's Guide or online help.1. Click the Windows Start button.2. Select Printers and Faxes.3. Select your printer driver icon.4. Right-click on the printer driver icon and select Printing Preferences.5. Change the settings on each tab, click OK.Layout TabThe Layout tab provides options to adjust how the document appears on the printed page. The Layout Options includes Multiple Pages per Side and Poster Printing. See “Printing a Document” on page 12 for more information on accessing printer properties. Paper OrientationPaper Orientation allows you to select the direction in which information is printed on a page. •Portrait prints across the width of the page, letter style. •Landscape prints across the length of the page, spreadsheet style. •Rotate allows you to rotate the page the selected degrees.Layout OptionsLayout Options allows you to select advanced printing options. You can choose Multiple Pages per Side and Poster Printing.•For details, see “Printing Multiple Pages on One Sheet of Paper (N-Up Printing)” on page 18.•For details, see “Printing Posters” on page 19Double-sided PrintingDouble-sided Printing allows you to print on both sides of paper. If this option does not appear, your printer does not have this feature.•For details, see “Printing on Both Sides of Paper” on page 20. Landscape Portrait

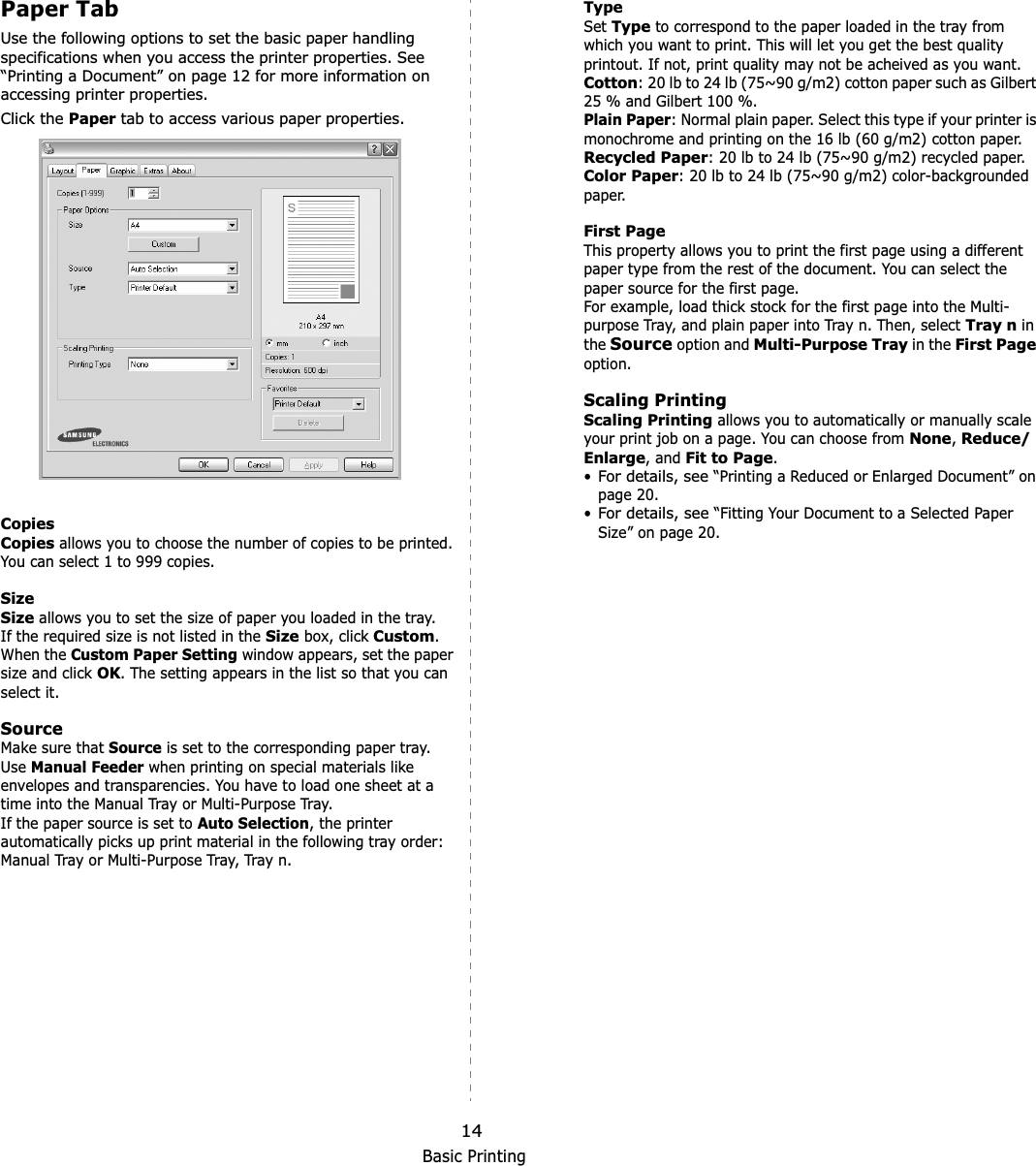

Basic Printing14Paper TabUse the following options to set the basic paper handling specifications when you access the printer properties. See “Printing a Document” on page 12 for more information on accessing printer properties. Click the Paper tab to access various paper properties. CopiesCopies allows you to choose the number of copies to be printed. You can select 1 to 999 copies. SizeSize allows you to set the size of paper you loaded in the tray. If the required size is not listed in the Size box, click Custom.When the Custom Paper Setting window appears, set the paper size and click OK. The setting appears in the list so that you can select it. SourceMake sure that Source is set to the corresponding paper tray.Use Manual Feeder when printing on special materials like envelopes and transparencies. You have to load one sheet at a time into the Manual Tray or Multi-Purpose Tray.If the paper source is set to Auto Selection, the printer automatically picks up print material in the following tray order: Ma nual Tray or Multi- Purpos e Tray, Tray n.TypeSet Type to correspond to the paper loaded in the tray from which you want to print. This will let you get the best quality printout. If not, print quality may not be acheived as you want.Cotton: 20 lb to 24 lb (75~90 g/m2) cotton paper such as Gilbert 25 % and Gilbert 100 %. Plain Paper: Normal plain paper. Select this type if your printer is monochrome and printing on the 16 lb (60 g/m2) cotton paper. Recycled Paper: 20 lb to 24 lb (75~90 g/m2) recycled paper.Color Paper: 20 lb to 24 lb (75~90 g/m2) color-backgrounded paper. First PageThis property allows you to print the first page using a different paper type from the rest of the document. You can select the paper source for the first page. For example, load thick stock for the first page into the Multi-purpose Tray, and plain paper into Tray n. Then, select Tray n in the Source option and Multi-Purpose Tray in the First Pageoption. Scaling PrintingScaling Printing allows you to automatically or manually scale your print job on a page. You can choose from None,Reduce/Enlarge, and Fit to Page.•For details, see “Printing a Reduced or Enlarged Document” on page 20.•For details, see “Fitting Your Document to a Selected Paper Size” on page 20.
Basic Printing15Graphics TabUse the following Graphic options to adjust the print quality for your specific printing needs. See “Printing a Document” on page 12 for more information on accessing printer properties. Click the Graphic tab to display the properties shown below.ResolutionThe Resolution options you can select may vary depending on your printer model. The higher the setting, the sharper the clarity of printed characters and graphics. The higher setting also may increase the time it takes to print a document. Image ModeThe available options are Normal and Text Enhance. Some printers do not support this feature. •Printer Setting: If you select this option, this feature is determined by the setting you’ve made on the control panel of the printer. •Normal: This setting is for normal documents.•Text Enhancement: Image Mode allows the user to enhance printouts. Toner Save ModeSelecting this option extends the life of your toner cartridge and reduces your cost per page without a significant reduction in print quality. Some printers do not support this feature. •Printer Setting: If you select this option, this feature is determined by the setting you’ve made on the control panel of the printer. •On: Select this option to allow the printer to use less toner on each page.•Off: If you don’t need to save toner when printing a document, select this option.Advanced OptionsYou can set advanced settings by clicking the Advanced Options button. •TrueType Options: This option determines what the driver tells the printer about how to image the text in your document. Select the appropriate setting according to the status of your document. This option may be available only in Windows 9x/Me, depending on your particular printer model.-Download as Outline: When this option is selected, the driver will download any TrueType fonts that are used in your document not already stored (resident) on your printer. If, after printing a document, you find that the fonts did not print correctly, choose Download as bit image and resubmit your print job. The Download as bit image setting is often useful when printing Adobe. This feature is available only when you use the PCL printer driver.-Download as Bitmap: When this option is selected, the driver will download the font data as bitmap images. Documents with complicated fonts, such as Korean or Chinese, or various other fonts, will print faster in this setting. -Print as Graphics: When this option is selected, the driver will download any fonts as graphics. When printing documents with high graphic content and relatively few TrueType fonts, printing performance (speed) may be enhanced in this setting.•Print All Text To Black: When the Print All Text To Black option is checked, all text in your document prints solid black, regardless of the color it appears on the screen.
Basic Printing16Extras TabYou can select output options for your document. See “Printing a Document” on page 12 for more information about accessing the printer properties.Click the Extras tab to access the following feature: WatermarkYou can create a background text image to be printed on each page of your document. For details, see “Using Watermarks” on page 21.OverlayOverlays are often used to take the place of preprinted forms and letterhead paper. For details, see “Using Overlays” on page 22.Output Options•Print Subset: You can set the sequence in which the pages print. Select the print order from the drop-down list.-Normal (1,2,3): Your printer prints all pages from the first page to the last page.-Reverse All Pages (3,2,1): Your printer prints all pages from the last page to the first page.-Print Odd Pages: Your printer prints only the odd numbered pages of the document.-Print Even Pages: Your printer prints only the even numbered pages of the document.•Use Printer Fonts: When Use Printer Fonts is checked, the printer uses the fonts that are stored in its memory (resident fonts) to print your document, rather than downloading the fonts used in your document. Because downloading fonts takes time, selecting this option can speed up your printing time. When using Printer fonts, the printer will try to match the fonts used in your document to those stored in its memory. If, however, you use fonts in your document that are very different from those resident in the printer, your printed output will appear very different from what it looks like on the screen. This feature is available only when you use the PCL printer driver.About TabUse the About tab to display the copyright notice and the version number of the driver. If you have an Internet browser, you can connect to the Internet by clicking on the web site icon. See “Printing a Document” on page 12 for more information about accessing printer properties.Printer TabIf you access printer properties through the Printers folder, you can view the Printer tab. You can set the printer configuration.The following procedure is for Windows XP. For other Windows OS, refer to the corresponding Windows User's Guide or online help.1Click the Windows Start menu. 2Select Printers and Faxes.3Select your printer driver icon. 4Right-click on the printer driver icon and select Properties.5Click the Printer tab and set the options.
Basic Printing17Using a Favorite Setting The Favorites option, which is visible on each properties tab, allows you to save the current properties settings for future use. To s ave a Favorites item:1Change the settings as needed on each tab. 2Enter a name for the item in the Favorites input box. 3Click Save.When you save Favorites, all current driver settings are saved.To use a saved setting, select the item from the Favorites drop down list. The printer is now set to print according to the Favorites setting you selected. To delete a Favorites item, select it from the list and click Delete.You can also restore the printer driver’s default settings by selecting Printer Default from the list. Using HelpYour printer has a help screen that can be activated by clicking the Help button in the printer properties window. These help screens give detailed information about the printer features provided by the printer driver.You can also click from the upper right corner of the window, and then click on any setting.

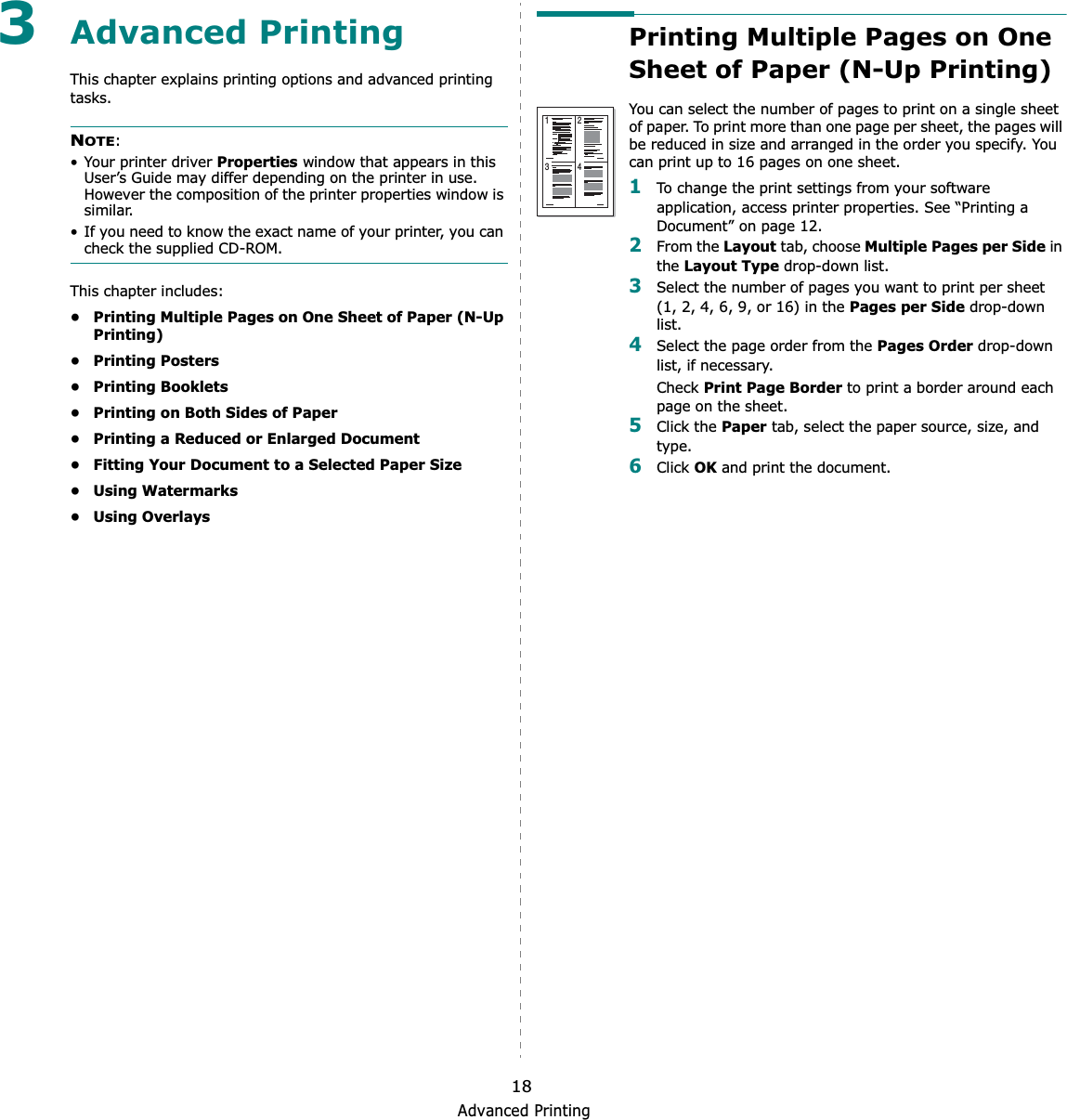

Advanced Printing183Advanced PrintingThis chapter explains printing options and advanced printing tasks. NOTE:• Your printer driver Properties window that appears in this User’s Guide may differ depending on the printer in use. However the composition of the printer properties window is similar.• If you need to know the exact name of your printer, you can check the supplied CD-ROM.This chapter includes:• Printing Multiple Pages on One Sheet of Paper (N-Up Printing)•Printing Posters• Printing Booklets• Printing on Both Sides of Paper• Printing a Reduced or Enlarged Document• Fitting Your Document to a Selected Paper Size•Using Watermarks•Using OverlaysPrinting Multiple Pages on One Sheet of Paper (N-Up Printing) You can select the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages will be reduced in size and arranged in the order you specify. You can print up to 16 pages on one sheet. 1To change the print settings from your software application, access printer properties. See “Printing a Document” on page 12.2From the Layout tab, choose Multiple Pages per Side in the Layout Type drop-down list. 3Select the number of pages you want to print per sheet (1, 2, 4, 6, 9, or 16) in the Pages per Side drop-down list.4Select the page order from the Pages Order drop-down list, if necessary.Check Print Page Border to print a border around each page on the sheet. 5Click the Paper tab, select the paper source, size, and type.6Click OK and print the document. 1 23 4
Advanced Printing19Printing PostersThis feature allows you to print a single-page document onto 4, 9, or 16 sheets of paper, for the purpose of pasting the sheets together to form one poster-size document.1To change the print settings from your software application, access printer properties. See “Printing a Document” on page 12.2Click the Layout tab, select Poster Printing in the Layout Type drop-down list.3Configure the poster option:You can select the page layout from Poster<2x2>,Poster<3x3>, or Poster<4x4>. If you select Poster<2x2>, the output will be automatically stretched to cover 4 physical pages. Specify an overlap in millimeters or inches to make it easier to pasting the sheets together. 4Click the Paper tab, select the paper source, size, and type.5Click OK and print the document. You can complete the poster by pasting the sheets together. 0.15 inches0.15 inchesPrinting Booklets This printer feature allows you to print your document on both sides of the paper and arranges the pages so that the paper can be folded in half after printing to produce a booklet. 1To change the print settings from your software application, access the printer properties. See “Printing a Document” on page 12.2From the Layout tab, choose Booklet Printing from the Type drop-down list. NOTE: The booklet printing option is available when A4, Letter, Legal, Oficio, or Folio size is selected in the Size option on the Paper tab.3Click the Paper tab, and select the paper source, size, and type.4Click OK and print the document.5After printing, fold and staple the pages. 8989

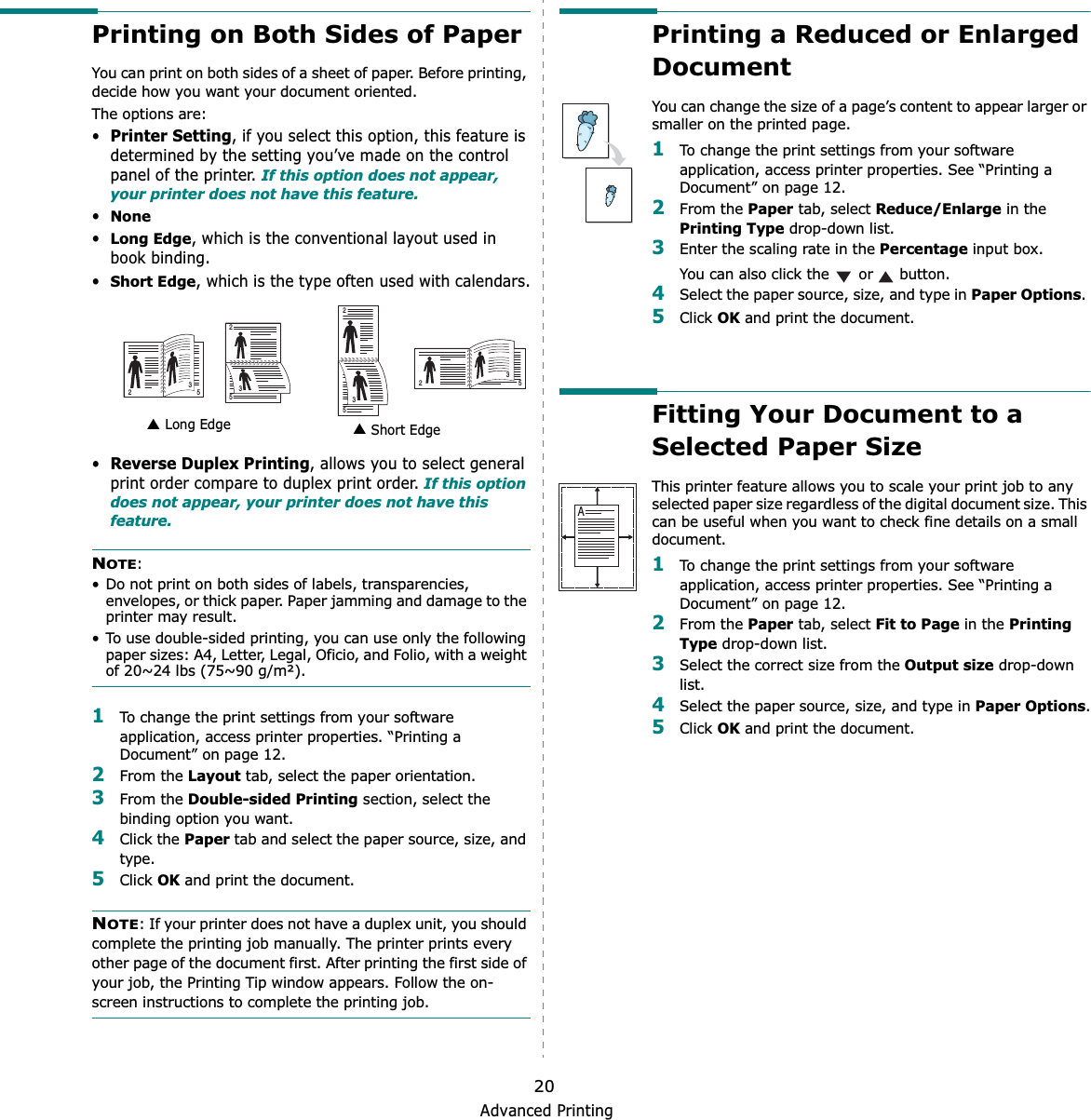

Advanced Printing20Printing on Both Sides of PaperYou can print on both sides of a sheet of paper. Before printing, decide how you want your document oriented.The options are:•Printer Setting, if you select this option, this feature is determined by the setting you’ve made on the control panel of the printer. If this option does not appear, your printer does not have this feature.•None•Long Edge, which is the conventional layout used in book binding.•Short Edge, which is the type often used with calendars.•Reverse Duplex Printing, allows you to select general print order compare to duplex print order. If this option does not appear, your printer does not have this feature.NOTE:• Do not print on both sides of labels, transparencies, envelopes, or thick paper. Paper jamming and damage to the printer may result. • To use double-sided printing, you can use only the following paper sizes: A4, Letter, Legal, Oficio, and Folio, with a weight of 20~24 lbs (75~90 g/m²). 1To change the print settings from your software application, access printer properties. “Printing a Document” on page 12.2From the Layout tab, select the paper orientation.3From the Double-sided Printing section, select the binding option you want. 4Click the Paper tab and select the paper source, size, and type.5Click OK and print the document.NOTE: If your printer does not have a duplex unit, you should complete the printing job manually. The printer prints every other page of the document first. After printing the first side of your job, the Printing Tip window appears. Follow the on-screen instructions to complete the printing job. Long Edge▲ Short Edge▲253253253253Printing a Reduced or Enlarged Document You can change the size of a page’s content to appear larger or smaller on the printed page. 1To change the print settings from your software application, access printer properties. See “Printing a Document” on page 12. 2From the Paper tab, select Reduce/Enlarge in the Printing Type drop-down list. 3Enter the scaling rate in the Percentage input box.You can also click the or button.4Select the paper source, size, and type in Paper Options.5Click OK and print the document. Fitting Your Document to a Selected Paper SizeThis printer feature allows you to scale your print job to any selected paper size regardless of the digital document size. This can be useful when you want to check fine details on a small document. 1To change the print settings from your software application, access printer properties. See “Printing a Document” on page 12.2From the Paper tab, select Fit to Page in the Printing Type drop-down list. 3Select the correct size from the Output size drop-down list.4Select the paper source, size, and type in Paper Options.5Click OK and print the document.A
Advanced Printing21Using WatermarksThe Watermark option allows you to print text over an existing document. For example, you may want to have large gray letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all pages of a document. There are several predefined watermarks that come with the printer, and they can be modified, or you can add new ones to the list. Using an Existing Watermark1To change the print settings from your software application, access printer properties. See “Printing a Document” on page 12. 2Click the Extras tab, and select the desired watermark from the Watermark drop-down list. You will see the selected watermark in the preview image. 3Click OK and start printing. NOTE: The preview image shows how the page will look when it is printed.Creating a Watermark1To change the print settings from your software application, access printer properties. See “Printing a Document” on page 12. 2Click the Extras tab, and click the Edit button in the Watermark section. The Edit Watermarks window appears. 3Enter a text message in the Watermark Message box. You can enter up to 40 characters. The message displays in the preview window.When the First Page Only box is checked, the watermark prints on the first page only.4Select watermark options. You can select the font name, style, size, or grayscale level from the Font Attributes section and set the angle of the watermark from the Message Angle section. 5Click Add to add a new watermark to the list. 6When you have finished editing, click OK and start printing. To stop printing the watermark, select (No Watermark) from the Watermark drop-down list. Editing a Watermark1To change the print settings from your software application, access printer properties. See “Printing a Document” on page 12. 2Click the Extras tab and click the Edit button in the Watermark section. The Edit Watermarks window appears.3Select the watermark you want to edit from the Current Watermarks list and change the watermark message and options. 4Click Update to save the changes.5Click OK until you exit the Print window. Deleting a Watermark1To change the print settings from your software application, access printer properties. See “Printing a Document” on page 12.2From the Extras tab, click the Edit button in the Watermark section. The Edit Watermarks window appears. 3Select the watermark you want to delete from the Current Watermarks list and click Delete.4Click OK until you exit the Print window.

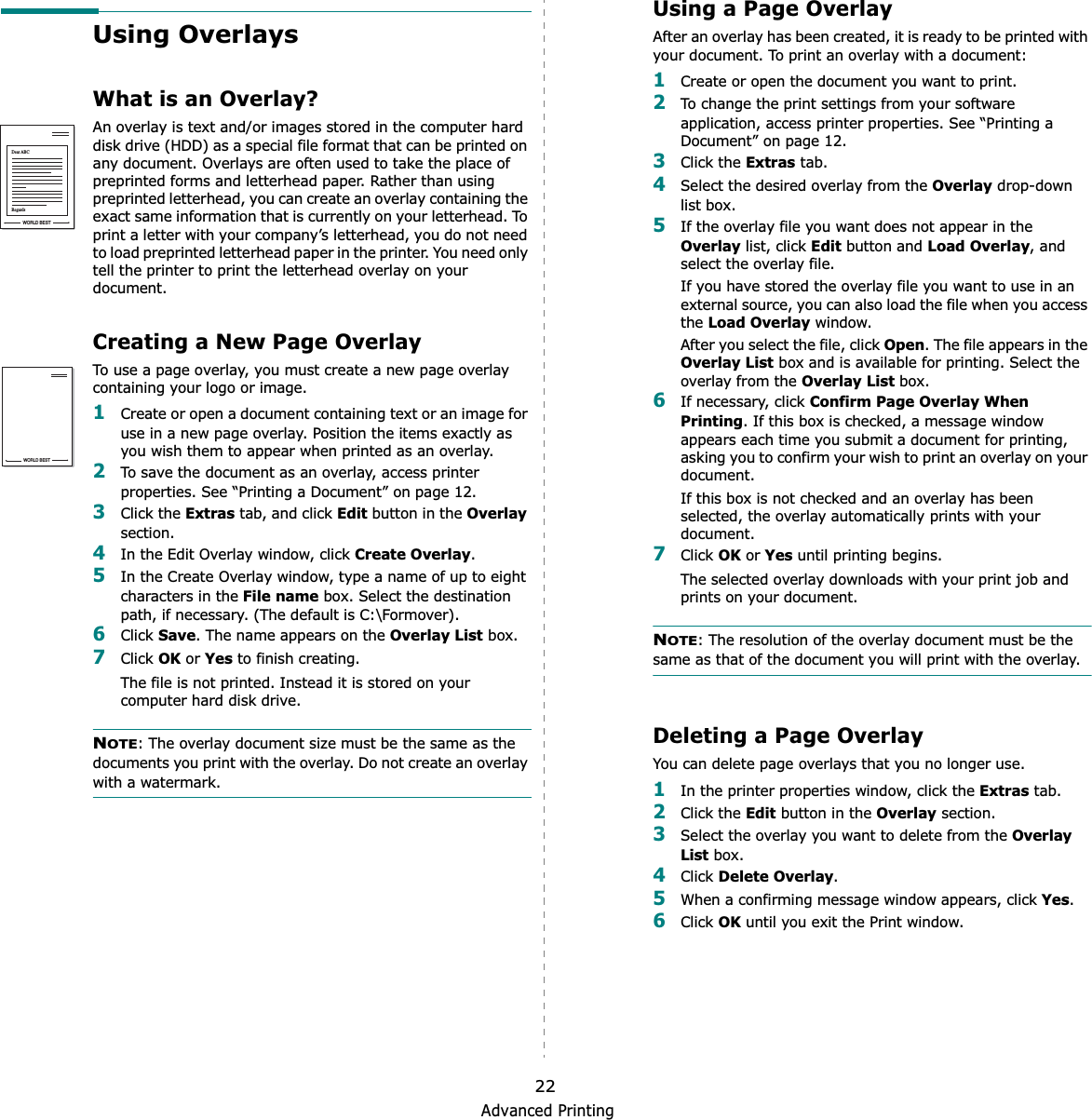

Advanced Printing22Using OverlaysWhat is an Overlay?An overlay is text and/or images stored in the computer hard disk drive (HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of preprinted forms and letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing the exact same information that is currently on your letterhead. To print a letter with your company’s letterhead, you do not need to load preprinted letterhead paper in the printer. You need only tell the printer to print the letterhead overlay on your document.Creating a New Page OverlayTo use a page overlay, you must create a new page overlay containing your logo or image.1Create or open a document containing text or an image for use in a new page overlay. Position the items exactly as you wish them to appear when printed as an overlay.2To save the document as an overlay, access printer properties. See “Printing a Document” on page 12.3Click the Extras tab, and click Edit button in the Overlaysection. 4In the Edit Overlay window, click Create Overlay.5In the Create Overlay window, type a name of up to eight characters in the File name box. Select the destination path, if necessary. (The default is C:\Formover).6Click Save. The name appears on the Overlay List box. 7Click OK or Yes to finish creating. The file is not printed. Instead it is stored on your computer hard disk drive. NOTE: The overlay document size must be the same as the documents you print with the overlay. Do not create an overlay with a watermark. WORLD BESTDear ABCRegardsWORLD BESTUsing a Page OverlayAfter an overlay has been created, it is ready to be printed with your document. To print an overlay with a document:1Create or open the document you want to print. 2To change the print settings from your software application, access printer properties. See “Printing a Document” on page 12. 3Click the Extras tab. 4Select the desired overlay from the Overlay drop-down list box. 5If the overlay file you want does not appear in the Overlay list, click Edit button and Load Overlay, and select the overlay file. If you have stored the overlay file you want to use in an external source, you can also load the file when you access the Load Overlay window. After you select the file, click Open. The file appears in the Overlay List box and is available for printing. Select the overlay from the Overlay List box. 6If necessary, click Confirm Page Overlay When Printing. If this box is checked, a message window appears each time you submit a document for printing, asking you to confirm your wish to print an overlay on your document. If this box is not checked and an overlay has been selected, the overlay automatically prints with your document. 7Click OK or Yes until printing begins. The selected overlay downloads with your print job and prints on your document. NOTE: The resolution of the overlay document must be the same as that of the document you will print with the overlay. Deleting a Page OverlayYou can delete page overlays that you no longer use. 1In the printer properties window, click the Extras tab. 2Click the Edit button in the Overlay section. 3Select the overlay you want to delete from the Overlay List box. 4Click Delete Overlay.5When a confirming message window appears, click Yes.6Click OK until you exit the Print window.
Using Windows PostScript Driver234Using Windows PostScript DriverIf you want to use the PostScript driver provided with your system CD-ROM to print a document.PPDs, in combination with the PostScript driver, access printer features and allow the computer to communicate with the printer. An installation program for the PPDs is provided on the supplied software CD-ROM. This chapter includes:Printer SettingsYou can use the printer properties window, which allows you to access all of the printer options you need when using your printer. When the printer properties are displayed, you can review and change the settings needed for your print job. Your printer properties window may differ, depending on your operating system. This Software User’s Guide shows the Properties window for Windows XP.Your printer driver Properties window that appears in this User’s Guide may differ depending on the printer in use.NOTES:• Most Windows applications will override settings you specify in the printer driver. Change all print settings available in the software application first, and change any remaining settings using the printer driver. • The settings you change remain in effect only while you are using the current program. To make your changes permanent, make them in the Printers folder. • The following procedure is for Windows XP. For other Windows OS, refer to the corresponding Windows User's Guide or online help.1. Click the Windows Start button.2. Select Printers and Faxes.3. Select your printer driver icon.4. Right-click on the printer driver icon and select Printing Preferences.5. Change the settings on each tab, click OK.AdvancedYou can use advanced settings by clicking the Advancedbutton.•Paper/Output this option allows you to select the size of the paper loaded in the tray.•Graphicthis option allows you to adjust the print quality for your specific printing needs.•Document Optionsthis options allow you to set the PostScript options or printer features.Using HelpYou can click from the upper right corner of the window, and then click on any setting.
Sharing the Printer Locally245Sharing the Printer LocallyYou can connect the printer directly to a selected computer, which is called “host computer,” on the network. The following procedure is for Windows XP. For other Windows OS, refer to the corresponding Windows User's Guide or online help.NOTES:• Check the Operating System(s) that are compatible with your printer. Please refer to the OS Compatibility section of Printer Specifications in your Printer User’s Guide.• If you need to know the exact name of your printer, you can check the supplied CD-ROM.Setting Up a Host Computer1Start Windows. 2From the Start menu select Printers and Faxes.3Double-click your printer driver icon.4From the Printer menu, select Sharing.5Check the Share this printer box.6Fill in the Shared Name field, and then click OK.Setting Up a Client Computer1Right-click the Windows Start button and select Explorer.2Open your network folder in the left column. 3Click the shared name. 4From the Start menu select Printers and Faxes.5Double-click your printer driver icon.6From the Printer menu, select Properties.7From the Ports tab, click Add Port.8Select Local Port and click New Port.9Fill in the Enter a port name field with the shared name. 10Click OK and click Close.11Click Apply and click OK.
Using Smart Panel256Using Smart PanelSmart Panel is a program that monitors and informs you of the status of the printer, and allows you to customize the printer’s settings. Smart Panel is installed automatically when you install the printer software.NOTES:• To use this program, you need:- Windows 98 or higher (Windows NT 4.0 can be used only for network-supported printers.) To check for Operating System(s) that are compatible with your printer, refer to Printer Specifications in your Printer User’s Guide.- Mac OS X 10.3 or higher- Linux. To check for Linux systems that are compatible with your printer, refer to Printer Specifications in your Printer User’s Guide.- Internet Explorer version 5.0 or higher for flash animation in HTML Help.• If you need to know the exact name of your printer, you can check the supplied CD-ROM.Understanding Smart PanelIf an error occurs while printing, Smart Panel appears automatically, showing the error.You can also launch Smart Panel manually. Double-click the Smart Panel icon on the Windows task bar (in Windows), or Notification Area (in Linux). You can also click it on the status bar (in Mac OS X).Double-click this icon in Windows.Click this icon in Mac OS X.Click this icon in Linux.If you are a Windows user, from the Start menu, select Programs or All Programs→ your printer driver name→ Smart Panel.NOTES:• If you have already installed more than one Samsung printer, first select the printer model you want in order to use the corresponding Smart Panel. Right-click (in Windows or Linux) or click (in Mac OS X) the Smart Panel icon and select your printer name.• The Smart Panel window and its contents shown in this Software User’s Guide may differ depending on the printer or Operating System in use.The Smart Panel program displays the current status of the printer, the level of toner remaining in the toner cartridge(s) and various other information. You can also change settings.Toner LevelYou can view the level of toner remaining in the toner cartridge(s). The printer and the number of toner cartridge(s) shown in the above window may differ depending on the printer in use. Any printers do not have this feature.Buy NowYou can order replacement toner cartridge(s) online.Troubleshooting GuideYou can view Help to solve problems.Printer SettingYou can configure various printer settings in the Printer Settings Utility window. Any printers do not have this feature.NOTE: If your printer is connected to a network and you are a Windows user, the SyncThru Web Service window appears instead of the Printer Settings Utility window. Mac OS X and Linux do not support network environments.241531234
Using Smart Panel26Driver Setting (Only for Windows)You can use the printer properties window, which allows you to access all of the printer options you need for using your printer. For details, See “Printer Settings” on page 13.Opening the Troubleshooting GuideUsing the troubleshooting guide, you can view solutions for error status problems.Right-click (in Windows or Linux) or click (in Mac OS X) the Smart Panel icon and select Troubleshooting Guide.Using Printer Settings UtilityUsing the Printer Settings Utility, you can configure and check print settings. 1Right-click (in Windows or Linux) or click (in Mac OS X) the Smart Panel icon and select Printer Setting.2Change the settings. 3To send the changes to the printer, click the Apply button.NOTES: If your printer is connected to a network, the SyncThru Web Service window appears instead of the Printer Settings Utility window.Using Onscreen Help FileFor more information about Printer Settings Utility, click . 5Changing the Smart Panel Program SettingsRight-click (in Windows or Linux) or click (in Mac OS X) the Smart Panel icon and select Options.The following window opens.•Display when job is finished for network printer: The computer shows the Smart Panel popup window or balloon when your job is complete in Windows. (Only for Windows network-supported printers.)•Display when error occurs during printing: The computer shows the Smart Panel popup window or balloon when an error occurs during printing.•Display with: You can select how the computer shows you a message. If you select Popup window (smart panel), the message appears in the Smart Panel popup window in Windows and Mac OS X.•Launch Job Monitor when the job is saved in the printer: If you store print jobs on the printer’s hard disk, the computer opens the Job Monitor window in Windows. (Only for Windows network-supported printers with built-in hard disks.)•Schedule an automatic status checking every: The computer updates the printer status regularly. Setting the value close to 1 second causes the computer to check the printer status more frequently, thereby allowing a faster response to any printer error.
Scanning277ScanningScanning with your machine lets you turn pictures and text into digital files on your computer. Then you can fax or e-mail the files, display them on your web site or use them to create projects that you can print using Samsung SmarThru software or the WIA driver.This chapter includes:• Scanning Using Samsung SmarThru Office• Scanning Process with TWAIN-enabled Software• Scanning Using the WIANOTES:• Check the Operating System(s) that are compatible with your printer. Please refer to the OS Compatibility section of Printer Specifications in your Printer User’s Guide.• You can check your printer name in the supplied CD-ROM.• The maximum resolution that can be achieved depends upon various factors, including computer speed, available disk space, memory, the size of the image being scanned, and bit depth settings. Thus, depending on your system and what you are scanning, you may not be able to scan at certain resolutions, especially using enhanced dpi.Scanning Using Samsung SmarThru OfficeSamsung SmarThru Office is the accompanying software for your machine. You can use SmarThru Office to scan images or documents from local or network scanners.NOTE: You can use indexing and searching functions using SmarThru Office supported by Microsoft Indexing Service. This service is supported in Windows 2000 or above, so that Windows 98/ Me/ NT user can not use these functions.Using Samsung SmarThru OfficeFollow these steps to start scanning using the SmarThru Office:1Make sure that your machine and computer are turned on and properly connected to each other. 2Place your photograph or page on the document glass or ADF.3Once you have installed Samsung SmarThru, you will see the SmarThru Office icon on your desktop. Double-click the SmarThru Office icon.The SmarThru Office window opens.•Tool bar: Allows you to use shortcut icons which activate the certain functions such as Scan,Search, etc.Double-click this icon.Tool barWorking areaSend to bar
Scanning28•Working area-SmarThru Desktop: Created within the standard Windows folder My Documents.-Sort on Disk: Files of the folders which are not indexed will not be displayed in the Sort on Disk section. Sort type are Date, File Types, Latest Used. To add a folder for indexing, press Edit menu →Preferences→Index.NOTE: It may take longer time to show the added file folders according to the computer performance and the number of added file folders.-Windows Folders: Allow user to navigate through all the user’s files and folders.- The right panel: Reflects the content of a selected folder.•Send to bar: Run the corresponding application directly. Drag and drop selected files to the appropriate application button.-Send by E-mail: To send documents by E-mail while working within the SmarThru Office.NOTE: To send scanned images or documents by e-mail, you must have a mail client program, like Outlook Express, which has been set up with your e-mail account.-Send by FTP: To upload a document file to server while working within the SmarThru Office.-Send by Fax: To send documents by Local or Network fax machine while working within the SmarThru Office.4Click Scan on the tool bar of SmarThru Office window.Adjust the scan settings.Click to start scanning.NOTES:• In Windows XP operating system, you can use SmarThru Office launcher, which is on the right end of taskbar, to open the Scan Setting window easily.• In other operating systems beside Windows XP, click the SmarThru icon in the tray area of the windows taskbar to activate the SmarThru Office launcher.Scan Setting lets you use the following services:•Select Scanner: Select the Local or Network scanner. - Local Scan: After scanning with parallel port or USB port, you can store the scanned output in image or document file.- Network Scan: After scanning via network, you can store the scanned output in jpeg, tiff, or pdf file.NOTE: To use network scanner, your computer should install the Network Scan Manager and register the scanner within that program. Refer to Scanning chapter in user's guide.•Scan SettingAllows you to customize settings for Image type, Resolution, Scan Size, Paper Source.•Scan ToAllows you to customize settings for File Name, File Format, OCR Language.5To start scanning, click Scan.NOTE: If you want to cancel the scan job, click Cancel.
Scanning29Uninstalling Samsung SmarThru OfficeNOTE: Before beginning uninstallation, ensure that all applications are closed on your computer. 1From the Start menu, select Programs.2Select SmarThru Office, and then select Uninstall SmarThru Office.3When your computer asks you to confirm, read the statement and click OK.4Click Finish.Using Onscreen Help FileFor more information about SmarThru, click Help menu at the top right corner of the window. The SmarThru Help window opens and allows you to view onscreen help supplied on the SmarThru program.Scanning Process with TWAIN-enabled Software If you want to scan documents using other software, you will need to use TWAIN-compliant software, such as Adobe PhotoDeluxe or Adobe Photoshop. The first time you scan with your machine, select it as your TWAIN source in the application you use. The basic scanning process involves a number of steps:1Make sure that your machine and computer are turned on and properly connected to each other.2Load originals face up into the ADF, or place a single original face down on the scanner glass.3Open an application, such as PhotoDeluxe or Photoshop. 4Open the TWAIN window and set the scan options.5Scan and save your scanned image.NOTE: You need to follow the program’s instructions for acquiring an image. Please refer to the user’s guide of the application.Scanning Using the WIAYour machine also supports the Windows Image Acquisition (WIA) driver for scanning images. WIA is one of the standard components provided by Microsoft£ Windows£ XP and works with digital cameras and scanners. Unlike the TWAIN driver, the WIA driver allows you to scan and easily manipulate images without using additional software.NOTE: The WIA driver works only on Windows XP with USB port. 1Load the document(s) face up into the ADF.ORPlace a single document face down on the document glass.2From the Start menu on your desktop window, select Settings,Control Panel, and then Scanners and Cameras.3Double click your scanner driver icon. The Scanner and Camera Wizard launches.4Choose your scanning preferences and click Preview to see how your preferences affect the picture.5Click Next.6Enter a picture name, and select a file format and destination to save the picture.7Follow the on-screen instructions to edit the picture after it is copied to your computer.NOTE: If you want to cancel the scan job, press the Cancel button on the Scanner and Camera Wizard.
Using Your Printer in Linux308Using Your Printer in LinuxYou can use your machine in a Linux environment. This chapter includes:• Getting Started• Installing the Unified Linux Driver• Using the Unified Driver Configurator• Configuring Printer Properties• Printing a Document• Scanning a DocumentGetting StartedThe supplied CD-ROM provides you with Samsung’s Unified Linux Driver package for using your machine with a Linux computer.Samsung’s Unified Linux Driver package contains printer and scanner drivers, providing the ability to print documents and scan images. The package also delivers powerful applications for configuring your machine and further processing of the scanned documents.After the driver is installed on your Linux system, the driver package allows you to monitor a number of machine devices via fast ECP parallel ports and USB simultaneously. The acquired documents can then be edited, printed on the same local or network machine devices, sent by e-mail, uploaded to an FTP site, or transferred to an external OCR system.The Unified Linux Driver package is supplied with a smart and flexible installation program. You don't need to search for additional components that might be necessary for the Unified Linux Driver software: all required packages will be carried onto your system and installed automatically; this is possible on a wide set of the most popular Linux clones.Installing the Unified Linux DriverInstalling the Unified Linux Driver1Make sure that you connect your machine to your computer. Turn both the computer and the machine on.2When the Administrator Login window appears, type in root in the Login field and enter the system password.NOTE: You must log in as a super user (root) to install the printer software. If you are not a super user, ask your system administrator.3Insert the printer software CD-ROM. The CD-ROM will automatically run.If the CD-ROM does not automatically run, click the icon at the bottom of the desktop. When the Terminal screen appears, type in:If the CD-ROM is secondary master and the location to mount is /mnt/cdrom,[root@localhost root]#mount -t iso9660 /dev/hdc /mnt/cdrom[root@localhost root]#cd /mnt/cdrom/Linux[root@localhost root]#./install.sh NOTE: The installation program runs automatically if you have an autorun software package installed and configured.4When the welcome screen appears, click Next.
Using Your Printer in Linux315When the installation is complete, click Finish.The installation program has added the Unified Driver Configurator desktop icon and Samsung Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the onscreen help that is available through your system menu or can otherwise be called from the driver package windows applications, such as Unified Driver Configurator or Image Manager.Uninstalling the Unified Linux Driver1When the Administrator Login window appears, type in root in the Login field and enter the system password.NOTE: You must log in as a super user (root) to install the printer software. If you are not a super user, ask your system administrator.2Insert the printer software CD-ROM. The CD-ROM will automatically run.If the CD-ROM does not automatically run, click the icon at the bottom of the desktop. When the Terminal screen appears, type in:If the CD-ROM is secondary master and the location to mount is /mnt/cdrom,[root@localhost root]#mount -t iso9660 /dev/hdc /mnt/cdrom[root@localhost root]#cd /mnt/cdrom/Linux[root@localhost root]#./uninstall.sh NOTE: The installation program runs automatically if you have an autorun software package installed and configured.3Click Uninstall.4Click Next.5Click Finish.
Using Your Printer in Linux32Using the Unified Driver ConfiguratorUnified Linux Driver Configurator is a tool primarily intended for configuring Printer or MFP devices. Since an MFP device combines the printer and scanner, the Unified Linux Driver Configurator provides options logically grouped for printer and scanner functions. There is also a special MFP port option responsible for the regulation of access to an MFP printer and scanner via a single I/O channel.After installing the Unified Linux driver, the Unified Linux Driver Configurator icon will automatically be created on your desktop.Opening the Unified Driver Configurator1Double-click Unified Driver Configurator on the desktop.You can also click the Startup Menu icon and select Samsung Unified Driver and then Unified Driver Configurator.2Press each button on the Modules pane to switch to the corresponding configuration window.You can use the onscreen help by clicking Help.3After changing the configurations, click Exit to close the Unified Driver Configurator.Printers Configuration buttonScanners Configuration button (for MFP device only)Ports Configuration buttonPrinters ConfigurationPrinters configuration has the two tabs: Printers and Classes.Printers TabYou can see the current system’s printer configuration by clicking on the printer icon button on the left side of the Unified Driver Configurator window.You can use the following printer control buttons:•Refresh: renews the available printers list.•Add Printer: allows you to add a new printer.•Remove Printer: removes the selected printer.•Set as Default: sets the current printer as a default printer.•Stop/Start: stops/starts the printer.•Test: allows you to print a test page to check if the machine is working properly.•Properties: allows you to view and change the printer properties. For details, see page 34.Shows all of the installed printer.Switches to Printer configuration.Shows the status, model name and URI of your printer.
Using Your Printer in Linux33Classes TabThe Classes tab shows a list of available printer classes.•Refresh : Renews the classes list.•Add Class... : Allows you to add a new printer class.•Remove Class : Removes the selected printer class.Scanners ConfigurationIn this window, you can monitor the activity of scanner devices, view a list of installed Samsung MFP devices, change device properties, and scan images.•Properties... : Allows you to change the scan properties and scan a document. See page 35.•Drivers... : Allows you to monitor the activity of the scan drivers.Shows the status of the class and the number of printers in the class.Shows all of the printer classes.Switches to Scanners configuration. Shows all of the installed scanners.Shows the vendor, model name and type of your scanner. Ports ConfigurationIn this window, you can view the list of available ports, check the status of each port and release a port that is stalled in busy state when its owner is terminated for any reason.•Refresh : Renews the available ports list.•Release port : Releases the selected port.Sharing Ports Between Printers and Scanners Your machine may be connected to a host computer via the parallel port or USB port. Since the MFP device contains more than one device (printer and scanner), it is necessary to organize proper access of “consumer” applications to these devices via the single I/O port.The Samsung Unified Linux Driver package provides an appropriate port sharing mechanism that is used by Samsung printer and scanner drivers. The drivers address their devices via so-called MFP ports. The current status of any MFP port can be viewed via the Ports Configuration. The port sharing prevents you from accessing one functional block of the MFP device, while another block is in use.When you install a new MFP device onto your system, it is strongly recommended you do this with the assistance of an Unified Driver Configurator. In this case you will be asked to choose I/O port for the new device. This choice will provide the most suitable configuration for MFP’s functionality. For MFP scanners I/O ports are being chosen by scanner drivers automatically, so proper settings are applied by default.Switches to ports configuration.Shows the port type, device connected to the port and statusShows all of the available ports.
Using Your Printer in Linux34Configuring Printer PropertiesUsing the properties window provided by the Printers configuration, you can change the various properties for your machine as a printer.1Open the Unified Driver Configurator.If necessary, switch to Printers configuration.2Select your machine on the available printers list and click Properties.3The Printer Properties window opens.The following five tabs display at the top of the window:•General: allows you to change the printer location and name. The name entered in this tab displays on the printer list in Printers configuration.•Connection: allows you to view or select another port. If you change the printer port from USB to parallel or vice versa while in use, you must re-configure the printer port in this tab.•Driver: allows you to view or select another printer driver. By clicking Options, you can set the default device options.•Jobs: shows the list of print jobs. Click Cancel job to cancel the selected job and select the Show completed jobs check box to see previous jobs on the job list.•Classes: shows the class that your printer is in. Click Add to Class to add your printer to a specific class or click Remove from Class to remove the printer from the selected class.4Click OK to apply the changes and close the Printer Properties Window.Printing a DocumentPrinting from ApplicationsThere are a lot of Linux applications that you are allowed to print from using Common UNIX Printing System (CUPS). You can print on your machine from any such application.1From the application you are using, select Print from the File menu.2Select Print directly using lpr.3In the LPR GUI window, select the model name of your machine from the Printer list and click Properties.4Change the printer and print job properties.Click.

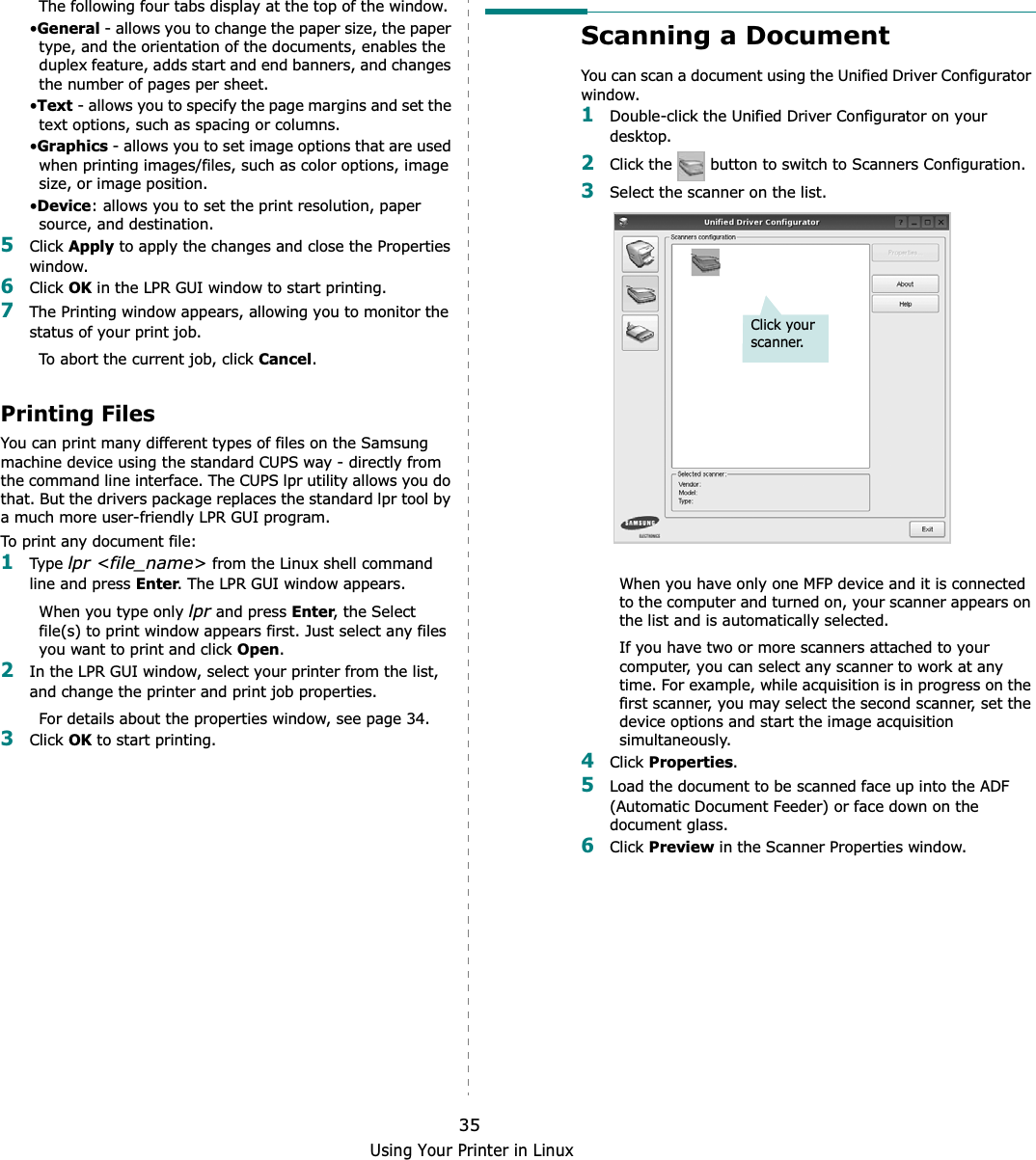

Using Your Printer in Linux35The following four tabs display at the top of the window.•General - allows you to change the paper size, the paper type, and the orientation of the documents, enables the duplex feature, adds start and end banners, and changes the number of pages per sheet.•Text - allows you to specify the page margins and set the text options, such as spacing or columns.•Graphics - allows you to set image options that are used when printing images/files, such as color options, image size, or image position.•Device: allows you to set the print resolution, paper source, and destination.5Click Apply to apply the changes and close the Properties window. 6Click OK in the LPR GUI window to start printing.7The Printing window appears, allowing you to monitor the status of your print job.To abort the current job, click Cancel.Printing FilesYou can print many different types of files on the Samsung machine device using the standard CUPS way - directly from the command line interface. The CUPS lpr utility allows you do that. But the drivers package replaces the standard lpr tool by a much more user-friendly LPR GUI program.To print any document file:1Type lpr <file_name> from the Linux shell command line and press Enter. The LPR GUI window appears.When you type only lpr and press Enter, the Select file(s) to print window appears first. Just select any files you want to print and click Open.2In the LPR GUI window, select your printer from the list, and change the printer and print job properties.For details about the properties window, see page 34.3Click OK to start printing.Scanning a DocumentYou can scan a document using the Unified Driver Configurator window.1Double-click the Unified Driver Configurator on your desktop.2Click the button to switch to Scanners Configuration.3Select the scanner on the list. When you have only one MFP device and it is connected to the computer and turned on, your scanner appears on the list and is automatically selected.If you have two or more scanners attached to your computer, you can select any scanner to work at any time. For example, while acquisition is in progress on the first scanner, you may select the second scanner, set the device options and start the image acquisition simultaneously.4Click Properties.5Load the document to be scanned face up into the ADF (Automatic Document Feeder) or face down on the document glass.6Click Preview in the Scanner Properties window.Click your scanner.

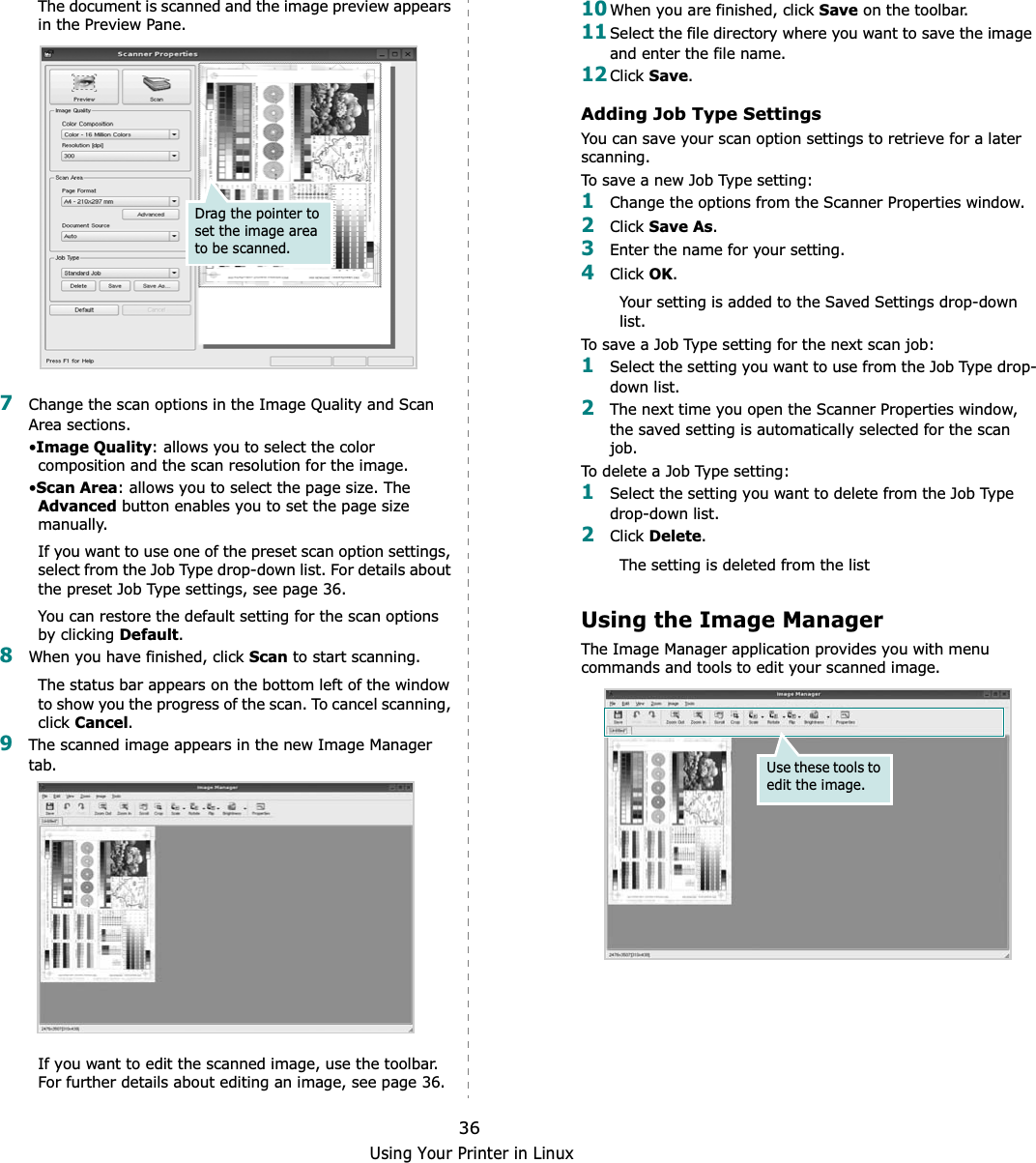

Using Your Printer in Linux36The document is scanned and the image preview appears in the Preview Pane.7Change the scan options in the Image Quality and Scan Area sections.•Image Quality: allows you to select the color composition and the scan resolution for the image.•Scan Area: allows you to select the page size. The Advanced button enables you to set the page size manually.If you want to use one of the preset scan option settings, select from the Job Type drop-down list. For details about the preset Job Type settings, see page 36.You can restore the default setting for the scan options by clicking Default.8When you have finished, click Scan to start scanning.The status bar appears on the bottom left of the window to show you the progress of the scan. To cancel scanning, click Cancel.9The scanned image appears in the new Image Manager tab.If you want to edit the scanned image, use the toolbar. For further details about editing an image, see page 36.Drag the pointer to set the image area to be scanned.10When you are finished, click Save on the toolbar.11Select the file directory where you want to save the image and enter the file name. 12Click Save.Adding Job Type SettingsYou can save your scan option settings to retrieve for a later scanning.To save a new Job Type setting:1Change the options from the Scanner Properties window.2Click Save As.3Enter the name for your setting.4Click OK.Your setting is added to the Saved Settings drop-down list.To save a Job Type setting for the next scan job:1Select the setting you want to use from the Job Type drop-down list.2The next time you open the Scanner Properties window, the saved setting is automatically selected for the scan job.To delete a Job Type setting:1Select the setting you want to delete from the Job Type drop-down list.2Click Delete.The setting is deleted from the listUsing the Image ManagerThe Image Manager application provides you with menu commands and tools to edit your scanned image.Use these tools to edit the image.
Using Your Printer in Linux37You can use the following tools to edit the image:For further details about the Image Manager application, refer to the onscreen help.Tools FunctionSaves the image.Cancels your last action.Restores the action you canceled.Allows you to scroll through the image.Crops the selected image area.Zooms the image out.Zooms the image in.Allows you to scale the image size; you can enter the size manually, or set the rate to scale proportionally, vertically, or horizontally.Allows you to rotate the image; you can select the number of degrees from the drop-down list.Allows you to flip the image vertically or horizontally. Allows you to adjust the brightness or contrast of the image, or to invert the image.Shows the properties of the image.
Using Your Printer with a Macintosh389Using Your Printer with a MacintoshYour machine supports Macintosh systems with a built-in USB interface or a 10/100 Base-TX network interface card. When you print a file from a Macintosh computer, you can use the PostScript driver by installing the PPD file.NOTE:Some printers do not support a network interface. Make sure that your printer supports a network interface by referring to Printer Specifications in your Printer User’s Guide.This chapter includes:• Installing Software for Macintosh• Setting Up the Printer•Printing•ScanningInstalling Software for MacintoshThe PostScript driver CD-ROM that came with your machine provides you with the PPD file to use the PS driver, Apple LaserWriter driver, for printing on a Macintosh computer.Also, it provides you with the Twain driver for scanning on a Macintosh computer.1Connect your machine to the computer using the USB cable or the Ethernet cable. 2Turn on your computer and the machine.3Insert the CD-ROM which came with your printer into the CD-ROM drive.4Double-click the Samsung MFP on your Macintosh desktop. 5Double-click the MAC_Installer folder.6Double-click the MAC_Printer folder.7For Mac OS 10.3 or higher, double-click the Samsung MFP Installer OSX icon.8Click Continue.9Click Install.10After the installation is finished, click Quit.Uninstalling the printer driver1Insert the CD-ROM which came with your printer into the CD-ROM drive.2Double-click CD-ROM icon that appears on your Macintosh desktop.3Double-click the Samsung MFP on your Macintosh desktop. 4Double-click the MAC_Installer folder.5Double-click the MAC_Printer folder.6Double-click the Samsung MFP Installer OSX icon.7Select Uninstall from the Installation Type and then Click Uninstall.8Click Continue.9When the uninstallation is done, click Quit.
Using Your Printer with a Macintosh39Install the Scan driver1Make sure that you connect your printer to the computer. Turn on your computer and printer.2Insert the CD-ROM which came with your printer into the CD-ROM drive.3Double-click CD-ROM icon that appears on your Macintosh desktop.4Double-click the MAC_Installer folder.5Double-click the MAC_Twain folder.6Double-click the Samsung ScanThru Installer icon.7Enter the password and click OK.8Click Continue.9Click Install.10Click Continue.11After the installation is finished, click Quit.Uninstalling the Scan driver1Insert the CD-ROM which came with your printer into the CD-ROM drive.2Double-click CD-ROM icon that appears on your Macintosh desktop.3Double-click the MAC_Installer folder.4Double-click the MAC_Twain folder.5Double-click the Samsung ScanThru Installer icon.6Enter the password and click OK.7Click Continue.8Select Uninstall from the Installation Type and then Click Uninstall.9Click Continue.10When the uninstallation is done, click Quit.Setting Up the Printer Set up for your printer will be different depending on which cable you use to connect the printer to your computer—the network cable or the USB cable.For a Network-connected MacintoshNOTE:Some printers do not support a network interface. Before connecting your printer, make sure that your printer supports a network interface by referring to Printer Specifications in your Printer User’s Guide.1Follow the instructions on “Installing Software for Macintosh” on page 38 to install the PPD file on your computer.2OpenPrint Center or Printer Setup Utility from the Utilities folder.3Click Add on the Printer List.4Select the AppleTalk tab.The name of your machine appears on the list. Select SEC000xxxxxxxxx from the printer box, where the xxxxxxxxx varies depending on your machine.5Click Add.6If Auto Select does not work properly, select Samsung in Printer Model and your printer name in Model Name.Your machine appears on the Printer List and is set as the default printer.For a USB-connected Macintosh1Follow the instructions on “Installing Software for Macintosh” on page 38 to install the PPD file on your computer.2OpenPrint Center or Printer Setup Utility from the Utilities folder.3Click Add on the Printer List.4Select the USB tab.5Select your printer name and click Add.6If Auto Select does not work properly, select Samsung in Printer Model and your printer name in Model Name.Your machine appears on the Printer List and is set as the default printer.
40Printing NOTES:• The Macintosh printer’s properties window that appears in this User’s Guide may differ depending on the printer in use. However the composition of the printer properties window is similar.• You can check your printer name in the supplied CD-ROM.Printing a DocumentWhen you print with a Macintosh, you need to check the printer software setting in each application you use. Follow these steps to print from a Macintosh.1Open a Macintosh application and select the file you want to print.2Open the File menu and click Page Setup (Document Setup in some applications). 3Choose your paper size, orientation, scaling, and other options and click OK.4Open the File menu and click Print.5Choose the number of copies you want and indicate which pages you want to print. 6Click Print when you finish setting the options.▲ Mac OS 10.3Make sure that your printer is selected.Changing Printer SettingsYou can use advanced printing features when using your printer. From your Macintosh application, select Print from the Filemenu. The printer name which appears in the printer properties window may differ depending on the printer in use. Except for the name, the composition of the printer properties window is similar.Layout SettingThe Layout tab provides options to adjust how the document appears on the printed page. You can print multiple pages on one sheet of paper.Select Layout from the Presets drop-down list to access the following features. For details, see “Printing Multiple Pages on One Sheet of Paper” on the next column.▲ Mac OS 10.3
41Printer Features SettingThe Printer Features tab provides options for selecting the paper type and adjusting print quality.Select Printer Features from the Presets drop-down list to access the following features:Image ModeImage Mode allows the user to enhance printouts. The available options are Normal and Text Enhance. Fit to PageThis printer feature allows you to scale your print job to any selected paper size regardless of the digital document size. This can be useful when you want to check fine details on a small document. Paper TypeSet Type to correspond to the paper loaded in the tray from which you want to print. This will let you get the best quality printout. If you load a different type of print material, select the corresponding paper type. Resolution(Quality)The Resolution options you can select may vary depending on your printer model. You can select the printing resolution. The higher the setting, the sharper the clarity of printed characters and graphics. The higher setting also may increase the time it takes to print a document. ▲ Mac OS 10.3Printing Multiple Pages on One Sheet of PaperYou can print more than one page on a single sheet of paper. This feature provides a cost-effective way to print draft pages.1From your Macintosh application, select Print from the File menu. 2Select Layout.3Select the number of pages you want to print on one sheet of paper on the Pages per Sheet drop-down list.4Select the page order from the Layout Direction option.To print a border around each page on the sheet, select the option you want from the Border drop-down list.5Click Print, and the printer prints the selected number of pages on one side of each page.▲ Mac OS 10.3

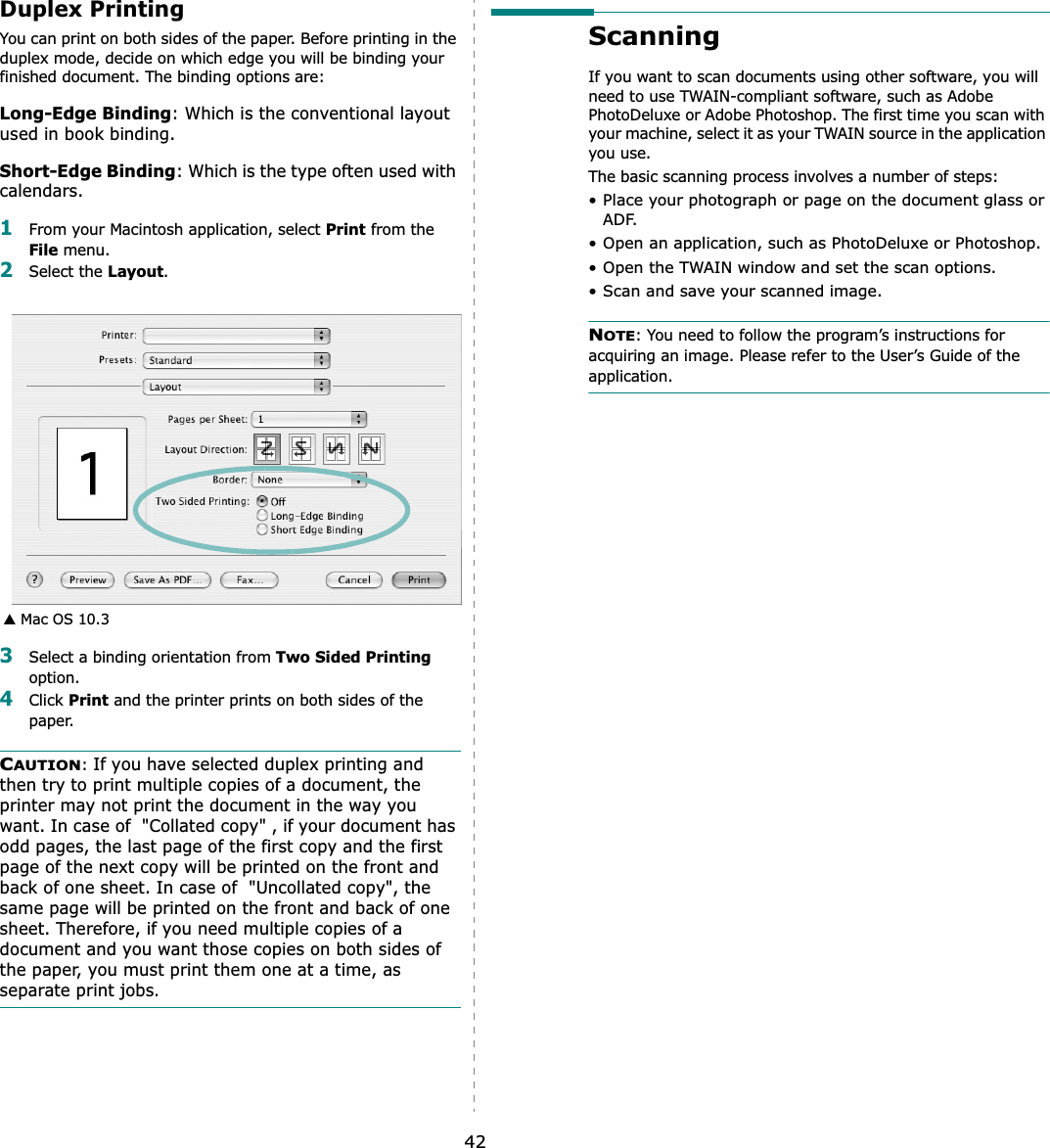

42Duplex PrintingYou can print on both sides of the paper. Before printing in the duplex mode, decide on which edge you will be binding your finished document. The binding options are:Long-Edge Binding: Which is the conventional layout used in book binding.Short-Edge Binding: Which is the type often used with calendars. 1From your Macintosh application, select Print from the File menu. 2Select the Layout.3Select a binding orientation from Two Sided Printingoption.4Click Print and the printer prints on both sides of the paper. CAUTION:If you have selected duplex printing and then try to print multiple copies of a document, the printer may not print the document in the way you want. In case of "Collated copy" , if your document has odd pages, the last page of the first copy and the first page of the next copy will be printed on the front and back of one sheet. In case of "Uncollated copy", the same page will be printed on the front and back of one sheet. Therefore, if you need multiple copies of a document and you want those copies on both sides of the paper, you must print them one at a time, as separate print jobs.▲ Mac OS 10.3Scanning If you want to scan documents using other software, you will need to use TWAIN-compliant software, such as Adobe PhotoDeluxe or Adobe Photoshop. The first time you scan with your machine, select it as your TWAIN source in the application you use. The basic scanning process involves a number of steps:• Place your photograph or page on the document glass or ADF.• Open an application, such as PhotoDeluxe or Photoshop. • Open the TWAIN window and set the scan options.• Scan and save your scanned image.NOTE: You need to follow the program’s instructions for acquiring an image. Please refer to the User’s Guide of the application.
43SOFTWARE SECTIONINDEXAadvanced printing, use18Bbooklet printing19Ccancelingscan29Ddocument, printMacintosh40Windows12double-sided printing20EExtras properties, set16Ffavorites settings, use17GGraphics properties, set15Hhelp, use17,23Iinstallprinter driverMacintosh38Windows4installingLinux software30LLayout properties, setMacintosh40Windows13Linuxdriver, install30printer properties34printing34scanning35MMacintoshdriverinstall38printing40scanning42setting up the printer39MFP driver, installLinux30Nn-up printingMacintosh41Windows18Oorientation, print35Windows13overlaycreate22delete22print22PPaper properties, set14paper size, set14print35paper source, set35Windows14paper type, setMacintosh41print35poster, print19PostScript driverinstalling23printdocument12fit to page20from Macintosh40from Windows12N-upMacintosh41Windows18overlay22poster21PRN12scaling20watermark21print resolution35printer driver, installLinux30printer propertiesLinux34printer properties, setMacintosh40Windows13,23printer resolution, setMacintosh41Windows15printer softwareinstallMacintosh38Windows4uninstallWindows11printingbooklets19double-sided20from Linux34Rresolutionprinting35

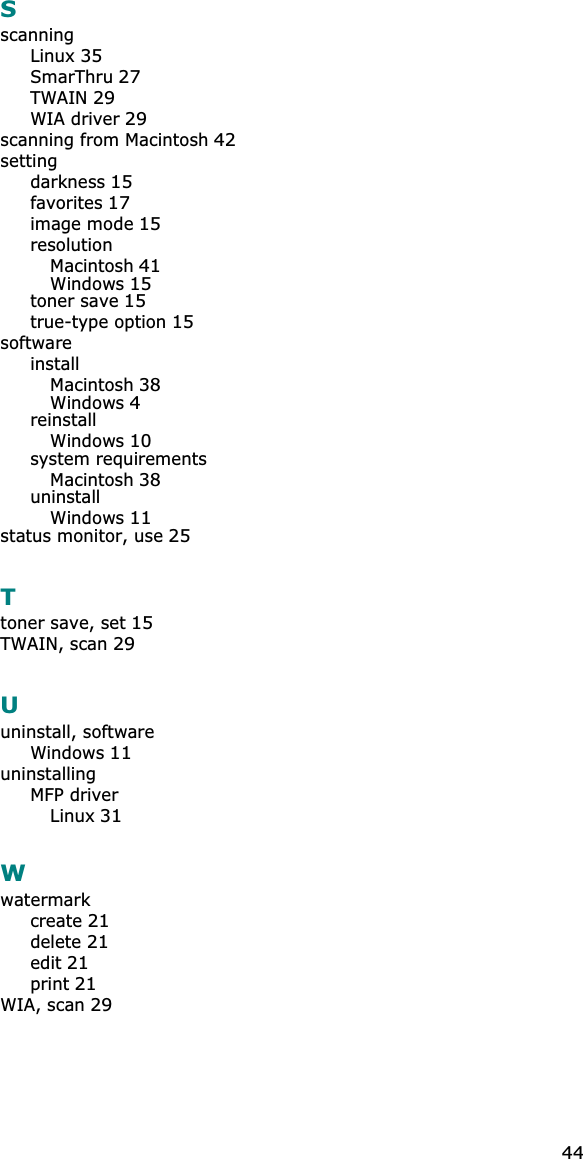

44SscanningLinux35SmarThru27TWAIN29WIA driver29scanning from Macintosh42settingdarkness15favorites17image mode15resolutionMacintosh41Windows15toner save15true-type option15softwareinstallMacintosh38Windows4reinstallWindows10system requirementsMacintosh38uninstallWindows11status monitor, use25Ttoner save, set15TWAIN, scan29Uuninstall, softwareWindows11uninstallingMFP driverLinux31Wwatermarkcreate21delete21edit21print21WIA, scan29
