SCX3200 User Manual

Users Manual

SCX-3200 SeriesMulti-Functional Mono PrinterUser’s Guideimagine the possibilitiesThank you for purchasing a Samsung product.

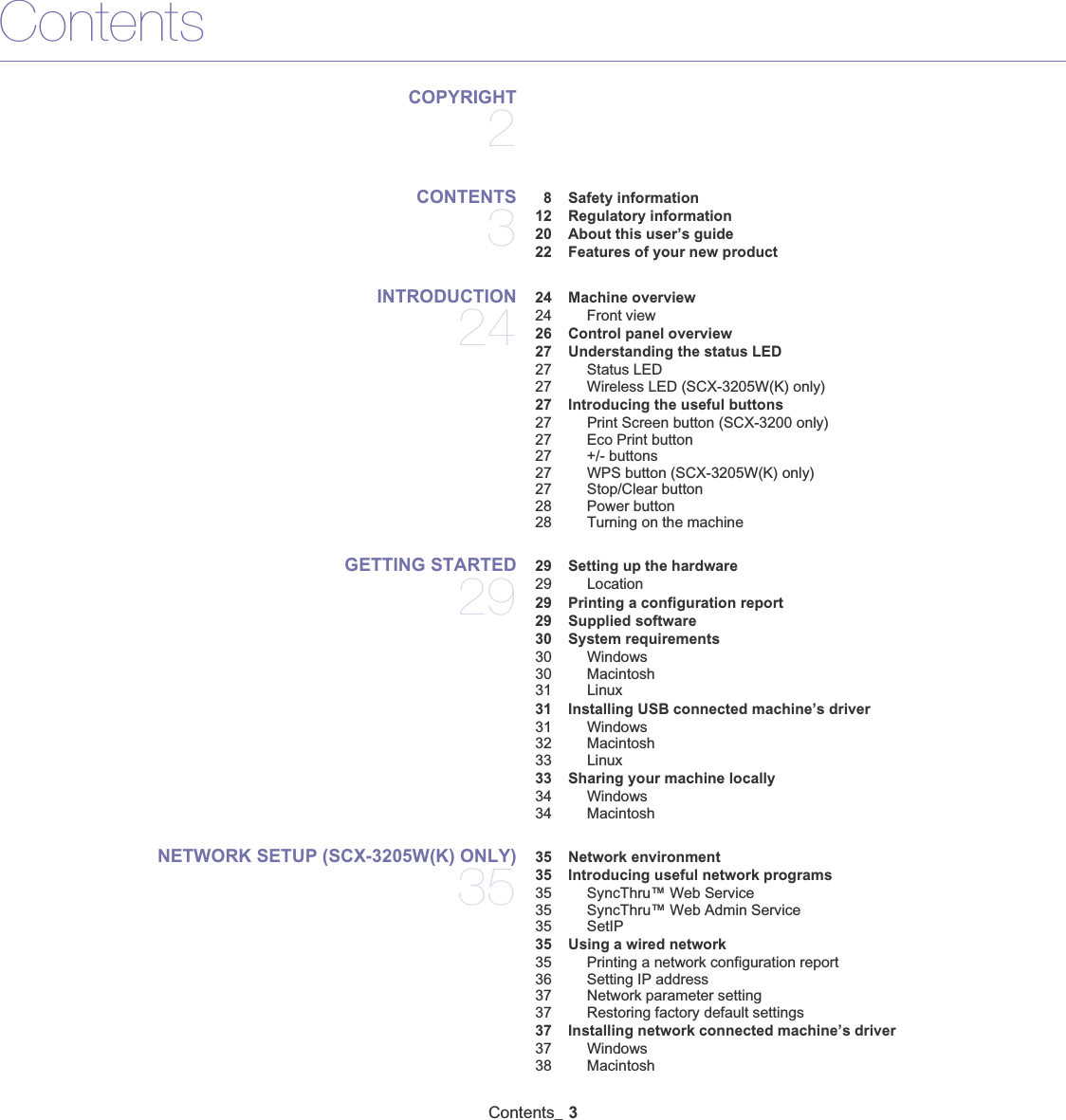

Contents_ 3ContentsCOPYRIGHT2CONTENTS 38 Safety information12 Regulatory information20 About this user’s guide22 Features of your new productINTRODUCTION24 24 Machine overview24 Front view 26 Control panel overview 27 Understanding the status LED27 Status LED27 Wireless LED (SCX-3205W(K) only) 27 Introducing the useful buttons27 Print Screen button (SCX-3200 only)27 Eco Print button27 +/- buttons27 WPS button (SCX-3205W(K) only)27 Stop/Clear button28 Power button28 Turning on the machineGETTING STARTED 29 29 Setting up the hardware29 Location 29 Printing a configuration report 29 Supplied software 30 System requirements30 Windows30 Macintosh31 Linux 31 Installing USB connected machine’s driver31 Windows32 Macintosh33 Linux 33 Sharing your machine locally34 Windows34 MacintoshNETWORK SETUP (SCX-3205W(K) ONLY) 35 35 Network environment 35 Introducing useful network programs35 SyncThru™ Web Service35 SyncThru™ Web Admin Service35 SetIP 35 Using a wired network35 Printing a network configuration report36 Setting IP address37 Network parameter setting37 Restoring factory default settings 37 Installing network connected machine’s driver37 Windows38 Macintosh

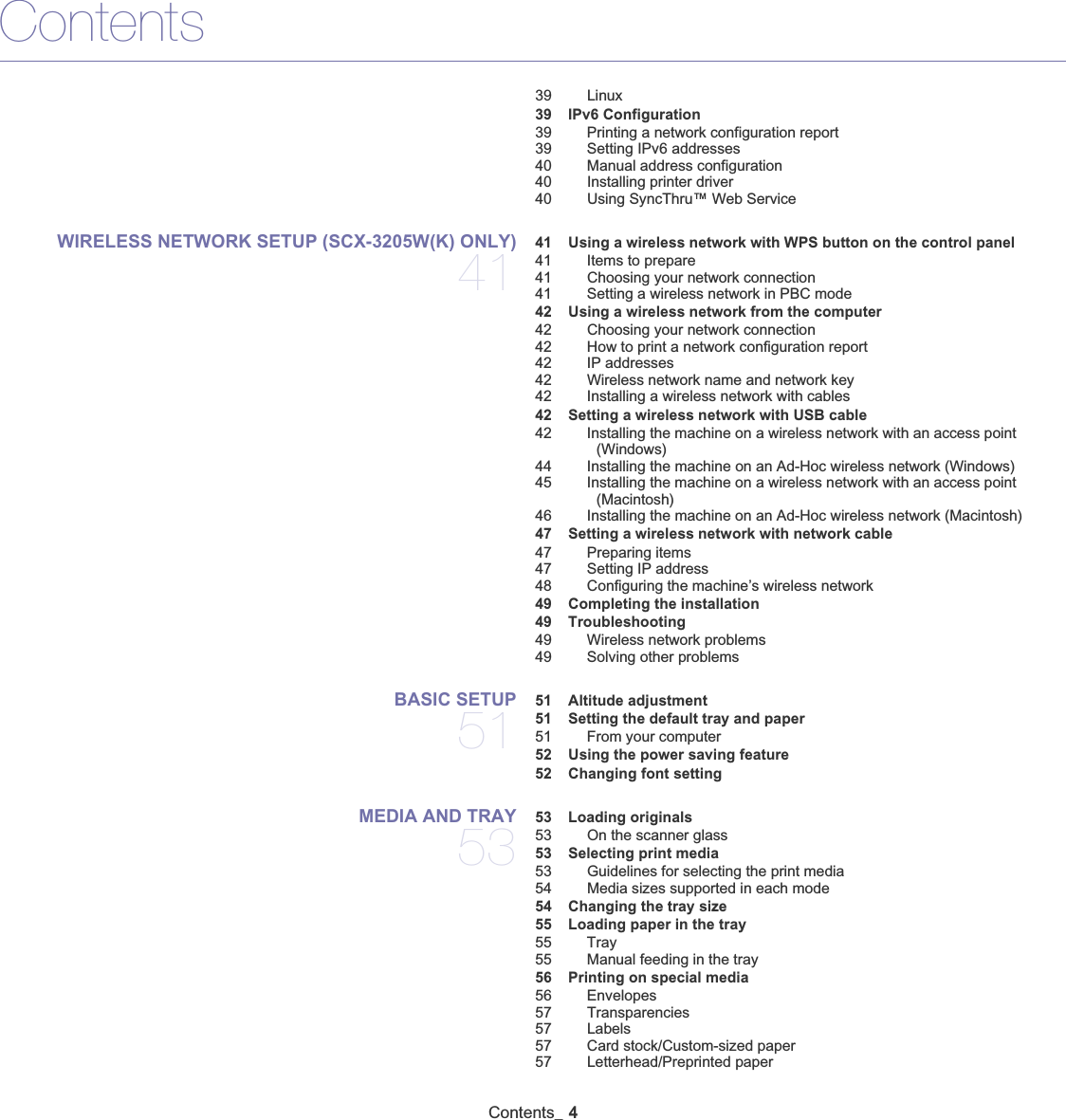

ContentsContents_ 439 Linux 39 IPv6 Configuration39 Printing a network configuration report39 Setting IPv6 addresses40 Manual address configuration40 Installing printer driver40 Using SyncThru™ Web ServiceWIRELESS NETWORK SETUP (SCX-3205W(K) ONLY) 41 41 Using a wireless network with WPS button on the control panel41 Items to prepare41 Choosing your network connection41 Setting a wireless network in PBC mode 42 Using a wireless network from the computer42 Choosing your network connection42 How to print a network configuration report42 IP addresses42 Wireless network name and network key42 Installing a wireless network with cables 42 Setting a wireless network with USB cable42 Installing the machine on a wireless network with an access point (Windows)44 Installing the machine on an Ad-Hoc wireless network (Windows)45 Installing the machine on a wireless network with an access point (Macintosh)46 Installing the machine on an Ad-Hoc wireless network (Macintosh) 47 Setting a wireless network with network cable47 Preparing items47 Setting IP address48 Configuring the machine’s wireless network 49 Completing the installation 49 Troubleshooting49 Wireless network problems49 Solving other problemsBASIC SETUP 51 51 Altitude adjustment 51 Setting the default tray and paper51 From your computer 52 Using the power saving feature 52 Changing font settingMEDIA AND TRAY 53 53 Loading originals53 On the scanner glass 53 Selecting print media53 Guidelines for selecting the print media54 Media sizes supported in each mode 54 Changing the tray size 55 Loading paper in the tray55 Tray55 Manual feeding in the tray 56 Printing on special media56 Envelopes57 Transparencies57 Labels57 Card stock/Custom-sized paper57 Letterhead/Preprinted paper

ContentsContents_ 5 58 Using the output supportPRINTING59 59 Introducing useful software program59 Samsung AnyWeb Print 59 Printer driver features59 Printer driver 59 Basic printing60 Canceling a print job 60 Opening printing preferences60 Using Presets setting 61 Using help 61 Using special print features61 Printing multiple pages on one sheet of paper61 Printing posters61 Printing booklets (Manual)61 Printing on both sides of the paper (Manual)62 Change percentage of your document62 Fitting your document to a selected paper size62 Using watermarks63 Using overlays63 Print quality options 64 Changing the default print settings 64 Setting your machine as a default machine 64 Printing to a file (PRN) 64 Macintosh printing64 Printing a document65 Changing printer settings65 Printing multiple pages on one sheet of paper 65 Linux printing65 Printing from applications66 Printing files66 Configuring printer propertiesCOPYING67 67 Basic copying 67 Changing the settings for each copy67 Original Type67 Darkness67 Erasing background images67 Setting the copy scan size 67 ID card copyingSCANNING 69 69 Basic scanning method 69 Scanning originals and sending to your computer (Scan to PC)69 For USB connected machine 69 Using Samsung Scan and Fax manager70 Set Scan Button tab70 Change Port tab 70 Scanning with TWAIN-enabled software 71 Scanning using the WIA driver71 Windows XP71 Windows Vista71 Windows 7 71 Macintosh scanning71 Scanning with USB71 Scanning with network (SCX-3205W(K) only)

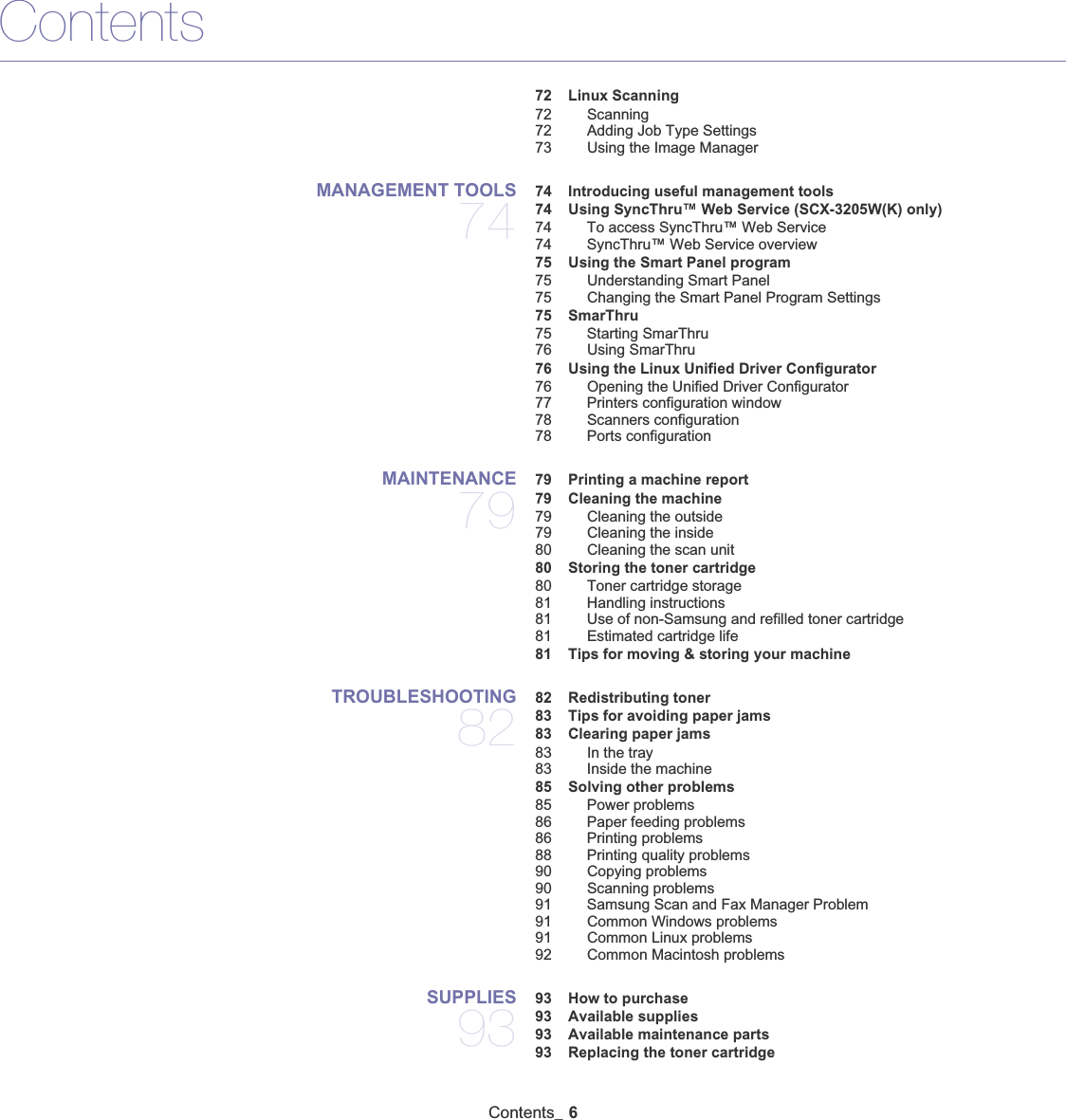

ContentsContents_ 6 72 Linux Scanning72 Scanning72 Adding Job Type Settings73 Using the Image ManagerMANAGEMENT TOOLS 74 74 Introducing useful management tools 74 Using SyncThru™ Web Service (SCX-3205W(K) only)74 To access SyncThru™ Web Service74 SyncThru™ Web Service overview 75 Using the Smart Panel program75 Understanding Smart Panel75 Changing the Smart Panel Program Settings 75 SmarThru75 Starting SmarThru76 Using SmarThru 76 Using the Linux Unified Driver Configurator76 Opening the Unified Driver Configurator77 Printers configuration window78 Scanners configuration78 Ports configurationMAINTENANCE 79 79 Printing a machine report 79 Cleaning the machine79 Cleaning the outside79 Cleaning the inside80 Cleaning the scan unit 80 Storing the toner cartridge80 Toner cartridge storage81 Handling instructions81 Use of non-Samsung and refilled toner cartridge81 Estimated cartridge life 81 Tips for moving & storing your machineTROUBLESHOOTING82 82 Redistributing toner 83 Tips for avoiding paper jams 83 Clearing paper jams83 In the tray 83 Inside the machine 85 Solving other problems85 Power problems86 Paper feeding problems86 Printing problems88 Printing quality problems90 Copying problems90 Scanning problems91 Samsung Scan and Fax Manager Problem91 Common Windows problems91 Common Linux problems92 Common Macintosh problemsSUPPLIES 93 93 How to purchase 93 Available supplies 93 Available maintenance parts 93 Replacing the toner cartridge

ContentsContents_ 7SPECIFICATIONS 95 95 Hardware specifications 95 Environmental specifications 95 Electrical specifications 97 Print media specificationsCONTACT SAMSUNG WORLDWIDE 98GLOSSARY 100INDEX 105

Safety information_ 8safety informationThese warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine.Use common sense for operating any electrical appliance and whenever using your machine. Also, follow all warnings and instructions marked on the machine and in the accompanying literature. After reading this section, keep it in a safe place for future reference.IMPORTANT SAFETY SYMBOLSThis section explains the meanings of all icons and signs in the user's guide. These safety symbols are in order, according to the degree of danger.Explanation of all icons and signs used in the user’s guide:Warning Hazards or unsafe practices that may result in severe personal injury or death.Caution Hazards or unsafe practices that may result in minor personal injury or property damage.Do not attempt.Do not disassemble.Do not touch.Unplug the power cord from the wall socket.Make sure the machine is grounded to prevent electric shock.Call the service center for help.Follow directions explicitly.OPERATING ENVIRONMENT WarningDo not use if the power cord is damaged or if the electrical outlet is not grounded.ŹThis could result in electric shock or fire. Do not bend, or place heavy objects on the power cord. ŹStepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire. Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).ŹThis could result in electric shock or fire. Do not remove the plug by pulling on the cord; do not handle the plug with wet hands. ŹThis could result in electric shock or fire.

Safety information_ 9 CautionDuring an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet. ŹThis could result in electric shock or fire. If the plug does not easily enter the electrical outlet, do not attempt to force it in. ŹCall an electrician to change the electrical outlet, or this could result in electric shock.Be careful, the paper output area is hot. ŹBurns could occur. Do not allow pets to chew on the AC power, telephone or PC interface cords.ŹThis could result in electric shock or fire and/or injury to your pet. If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.ŹOtherwise, this could result in electric shock or fire.If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.ŹOtherwise, this could result in electric shock or fire.If the machine exhibits a sudden and distinct change in performance, unplug the machine from all interface connections and request assistance from qualified service personnel.ŹOtherwise, this could result in electric shock or fire.OPERATING METHOD CautionDo not forcefully pull the paper out during printing. ŹIt can cause damage to the machine.When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch. ŹBurns can occur.Be careful not to put your hand between the machine and paper tray.ŹYou may get injured.When removing jammed paper, do not use tweezers or sharp metal objects. ŹIt can damage the machine.Do not block or push objects into the ventilation opening.ŹThis could result in elevated component temperatures which can cause damage or fire.Do not allow too many papers to stack up in the paper output tray.ŹIt can damage the machine. Be care when replacing paper or removing jammed paper. ŹNew paper has sharp edges and can cause painful cuts.This machine's power interception device is the power cord. ŹTo switch off the power supply, remove the power cord from the electrical outlet. If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine.ŹThis could result in electric shock or fire.

Safety information_ 10INSTALLATION / MOVING WarningDo not place the machine in an area with dust, humidity or water leaks. ŹThis could result in electric shock or fire. CautionBefore moving the machine, turn the power off and disconnect all cords.Then lift the machine:•If the machine weighs under 20 kg (44.09lb), lift with 1 person.• If the machine weighs 20 kg (44.09lb) - 40kg (88.18lb), lift with 2 people.• If the machine weighs more than 40 kg (88.18lb), lift with 4 or more people.ŹThe machine could fall, causing injury or machine damage.Do not put a cover over the machine or place it in an airtight location, such as a closet.ŹIf the machine is not well-ventilated, this could result in fire.Do not place the machine on an unstable surface.ŹThe machine could fall, causing injury or machine damage.Make sure you plug the power cord into a grounded electrical outlet.ŹOtherwise, this could result in electric shock or fire.The machine should be connected to the power level which is specified on the label.ŹIf you are unsure and want to check the power level you are using, contact the electrical utility company.Do not overload wall outlets and extension cords.ŹThis can diminish performance, and could result in electric shock or fire.Use only No.26 AWGaa. AWG: American Wire Gauge or larger, telephone line cord, if necessary.ŹOtherwise, it can cause damage to the machine.Use the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 140V machine, then the gauge should be 16 AWG or larger.Ź Otherwise, it can cause damage to the machine, and could result in electric shock or fire.MAINTENANCE / CHECKING CautionUnplug this product from the wall outlet before cleaning the inside of the machine. Do not clean themachine with benzene, paint thinner or alcohol; do not spray water directly into the machine. ŹThis could result in electric shock or fire. Keep cleaning supplies away from children. ŹChildren could get hurt.

Safety information_ 11SUPPLY USAGE CautionDo not disassemble the toner cartridge.ŹToner dust can be dangerous if inhaled or ingested.When storing supplies such as toner cartridges, keep them away from children.ŹToner dust can be dangerous if inhaled or ingested.Do not burn any of the supplies such as toner cartridge or fuser unit.ŹThis could cause an explosion or uncontrollable fire.Using recycled supplies, such as toner, can cause damage to the machine.ŹIn case of damage due to the use of recycled supplies, a service fee will be charged.When changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.ŹToner dust can be dangerous if inhaled or ingested.When toner gets on your clothing, do not use hot water to wash it.ŹHot water sets toner into fabric. Use cold water. When you are working inside the machine replacing supplies or cleaning the inside, do not operate the machine.ŹYou could get injured.Do not disassemble, repair or rebuild the machine by yourself. ŹIt can damage the machine. Call a certified technician when the machine needs repair.Keep the power cable and the contact surface of the plug clean from dust or water.ŹOtherwise, this could result in electric shock or fire.To clean and operate the machine, strictly follow the user's guide provided with the machine.ŹOtherwise, you could damage the machine.Do not remove any covers or guards that are fastened with screws.ŹThe machine should only be repaired by a Samsung service technician.

Regulatory information_ 12regulatory informationThis machine is designed for a normal work environment and certified with several regulatory statements.LASER SAFETY STATEMENTThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1:1993 + A1:1997 + A2:2001.Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.•Wavelength: 800 nm•Beam divergence-Paraller: 13 degrees-Perpendicular: 35 degrees•Maximum power or energy output: 12 mWWARNINGNever operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible, can damage your eyes.When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:OZONE SAFETYDuring normal operation, this machine produces ozone. The ozone produced does not present a hazard to the operator. However, it is advisable that the machine be operated in a well ventilated area.If you need additional information about ozone, contact your local Samsung dealer.

Regulatory information_ 13POWER SAVEThis printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the printer does not receive data for an extended period of time, power consumption is automatically lowered. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.gov.RECYCLINGRecycle or dispose of the packaging material for this product in an environmentally responsible manner.CHINA ONLYCORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)(Applicable in the European Union and other European countries with separate collection systems)This marking shown on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.RADIO FREQUENCY EMISSIONSFCC Information to the UserThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: •This device may not cause harmful interference, and•This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Regulatory information_ 14•Reorient or relocate the receiving antenna.•Increase the separation between the equipment and receiver.•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•Consult the dealer or experienced radio TV technician for help.Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority tooperate the equipment.Canadian Radio Interference RegulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.UNITED STATES OF AMERICAFederal Communications Commission (FCC)Intentional emitter per FCC Part 15Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.FCC Statement for Wireless LAN use:While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device cannot be colocated with another transmitter and transmitting antenna.TURKEY ONLYGERMANY ONLY

Regulatory information_ 15RUSSIA ONLYREPLACING THE FITTED PLUG (FOR UK ONLY)ImportantThe mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover. Contact the people from you purchased the machine.The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.If you cut off the moulded plug, get rid of it straight away.You cannot rewire the plug and you may receive an electric shock if you plug it into a socket.Important warning: You must earth this machine.The wires in the mains lead have the following color code:•Green and Yellow: Earth•Blue: Neutral•Brown: LiveIf the wires in the mains lead do not match the colors marked in your plug, do the following:You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.You must connect the blue wire to the pin which is marked with the letter “N” or colored black.You must connect the brown wire to the pin which is marked with the letter “L” or colored red.You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.DECLARATION OF CONFORMITY (EUROPEAN COUNTRIES)Approvals and CertificationsThe CE marking applied to this product symbolizes Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable 93/68/EEC Directives of the European Union as of the dates indicated:SCX-3200 Series: Low Voltage Directive (2006/95/EC), EMC Directive (2004/108/EC)SCX-3205W(K): R&TTE Directive (1999/5/EC)The declaration of conformity may be consulted at www.samsung.com/printer, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC. January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.January 1, 1996: Council Directive 2004/108/EC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic compatibility.March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.

Regulatory information_ 16EC CertificationCertification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.European Radio Approval Information (for products fitted with EU-approved radio devices)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.European States qualified under wireless approvals:EUAustria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France (with frequency restrictions), Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, The Netherlands, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden and the U.K.EEA/EFTA countriesIceland, Liechtenstein, Norway and SwitzerlandEuropean States with restrictions on use:EUIn France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wirelessEEA/EFTA countriesNo limitations at this timeREGULATORY COMPLIANCE STATEMENTSWireless GuidanceLow power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.

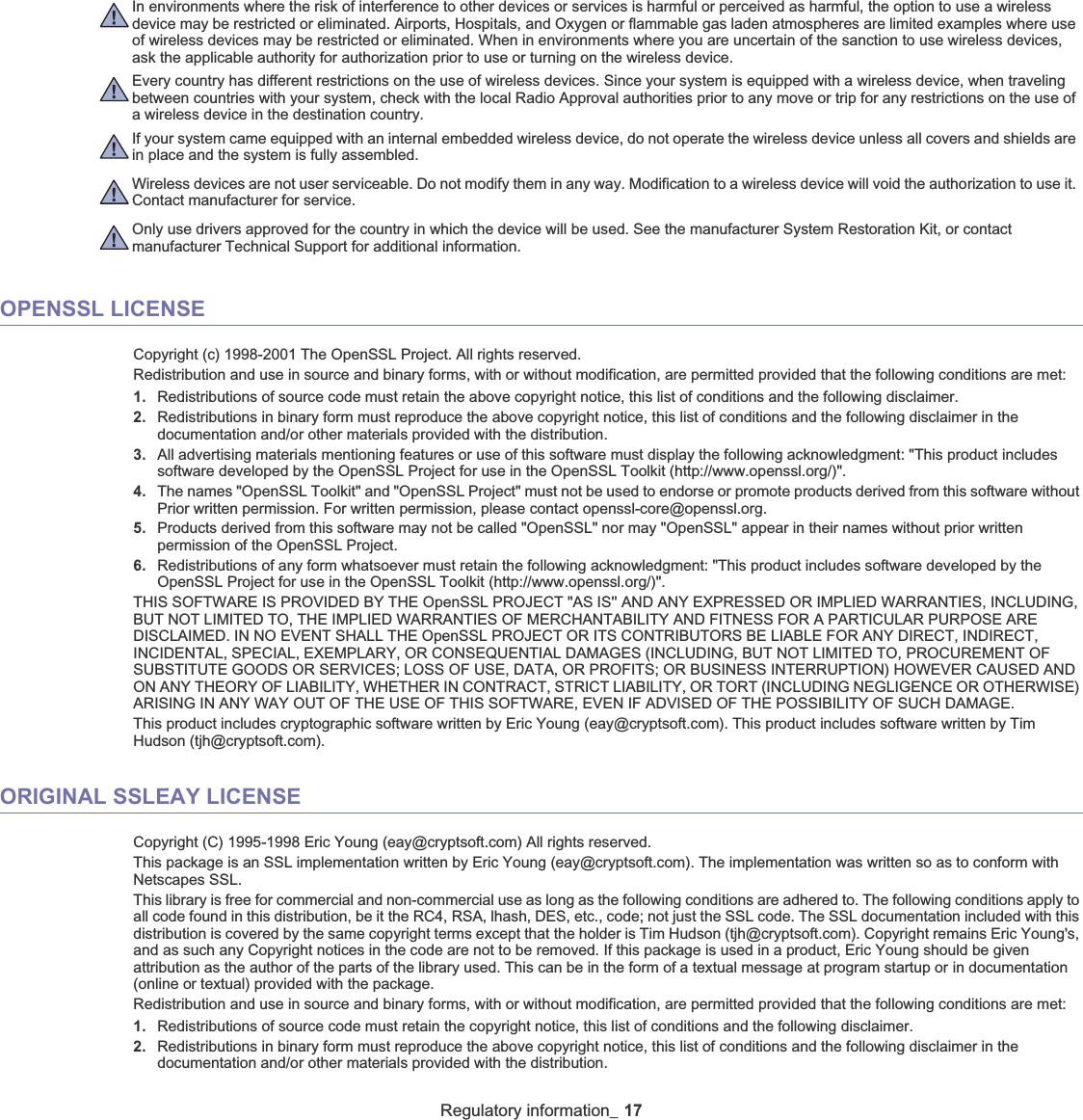

Regulatory information_ 17OPENSSL LICENSECopyright (c) 1998-2001 The OpenSSL Project. All rights reserved.Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)".4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without Prior written permission. For written permission, please contact openssl-core@openssl.org.5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)".THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written by Tim Hudson (tjh@cryptsoft.com).ORIGINAL SSLEAY LICENSECopyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved.This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL.This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com). Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contactmanufacturer Technical Support for additional information.

Regulatory information_ 183. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)" The word 'cryptographic' can be left out if the routines from the library being used are not cryptographic related.4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include anacknowledgement: "This product includes software written by Tim Hudson (tjh@cryptsoft.com)".THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.

About this user’s guide_ 20about this user’s guideThis user’s guide provides information about basic understanding of the machine as well as detailed explanation on each step during actual usage. It is a valuable resource for both novice and professional users for the proper installation and use of the machine.•Read the safety information before using the machine.•If you have a problem using the machine, refer to the troubleshooting chapter (See "Troubleshooting" on page 82).•Terms used in this user’s guide are explained in the glossary chapter (See "Glossary" on page 100).•Illustrations in this user’s guide may differ from your machine depending on its options or models.•The procedures in this user’s guide are mainly based on Windows XP.CONVENTIONSome terms in this guide are used interchangeably, as below:•Document is synonymous with original.•Paper is synonymous with media, or print media.•Machine refers to printer or MFP.The following table offers the conventions of this guide:CONVENTION DESCRIPTION EXAMPLEBold For texts on the display or button names on the machine. CancelNote Provides additional information or details for the machine function and feature. The date format may differ from country to country.Caution Contains information you can use to protect the machine from possible mechanical damage or malfunction.Do not touch the surface of the drum located in the toner cartridge or imaging unit.Footnote Provides additional information on certain words or a phrases. a. pages per minute(“Cross-reference”) Refers you to additional detailed information. (See "Finding more information" on page 21).

About this user’s guide_ 21FINDING MORE INFORMATIONYou can find information about setting up and using your machine in the following resources, either as a print-out or on screen.MATERIAL NAME DESCRIPTIONQuick Installation GuideThis guide provides information on setting up your machine. This guide is provided in the box with the printer.User’s Guide This guide provides you with step-by-step instructions for using your machine’s full features, maintaining your machine, troubleshooting, and replacing supplies. Machine Driver Help This help provides you with information about the printer driver and instructions for setting up the options for printing (See "Using help" on page 61).Samsung website If you have Internet access, you can get help, support, machine drivers, manuals, and order information from the Samsung website,www.samsung.com/printer.Downloadable softwareYou can download useful software programs from the Samsung website.•Samsung AnyWeb Print: helps personal users to screen-capture the website screen in Windows Internet Explorer easily. (http://solution.samsungprinter.com/personal/anywebprint)•SyncThru™ Web Admin Service: provides convenient tools for network administrators who need to manage many machines simultaneously. This program is for network model only. (http://solution.samsungprinter.com)

Features of your new product_ 22features of your new productYour new machine is equipped with a number of special features that improve the quality of the documents you print.SPECIAL FEATURESPrint with excellent quality and speed•You can print with a resolution of up to 1200 x 1200 dpi effective output.•Your machine prints A4-sized paper at up to 16 ppm and letter-sized paper at up to 17 ppm.Handle many different types of printable material•The 150-sheet tray supports plain paper in various sizes, letterhead, envelopes, labels, custom-sized media, postcards, and heavy paper.Create professional documents•Print Watermarks. You can customize your documents with words, such as “Confidential” (See "Using watermarks" on page 62).•Print Posters. The text and pictures of each page of your document are magnified and printed across the sheet of paper and can then be taped together to form a poster (See "Printing posters" on page 61).•You can use preprinted forms and letterhead with plain paper (See "Using overlays" on page 63).Save time and money•To save paper, you can print multiple pages on one single sheet of paper (See "Printing multiple pages on one sheet of paper" on page 61).•This machine automatically conserves electricity by substantially reducing power consumption when not in use.•To save paper, you can print on both sides of the paper manually (See "Printing on both sides of the paper (Manual)" on page 61).Print in various environments•You can print with various operating systems such as Windows, Linux, and Macintosh OS systems.•Your machine is equipped with a Hi-Speed USB 2.0 interface.•Your machine comes with a built-in network interface, Ethernet 10/100 BaseTX. SCX-3205W(K) only)•Your machine comes with a built-in network interface 802.11 b/g/n wireless LAN. (SCX-3205W(K) only)Copy the original in high quality•You can copy the original and print them in enhanced image quality and size.Scan the originals•Scan in color and use the precise compressions of BMP, JPEG, TIFF and PDF formats.•Use one button to scan your original to the connected computer.Eco Print•You can cut toner consumption and paper usage (See "EcoPrint button" on page 27).IPv6 (SCX-3205W(K) only)•The machine supports IPv6 (See "IPv6 Configuration" on page 39).DLNA (SCX-3205W(K) only)•The machine supports DLNA printing as a DMP (Digital Media Printer). You can easily print by the DLNA device including Printing Control Capability on the home network.

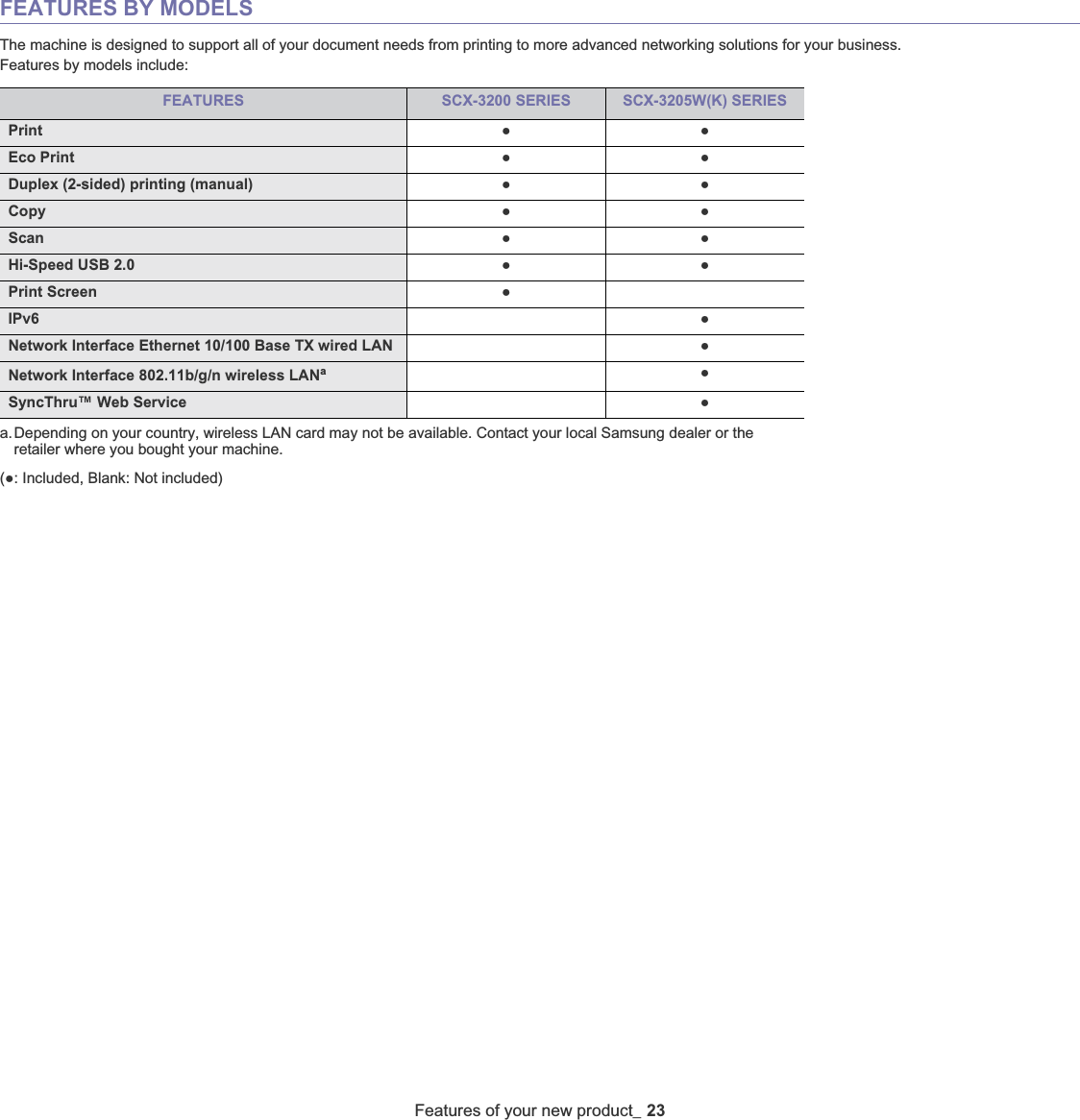

Features of your new product_ 23FEATURES BY MODELSThe machine is designed to support all of your document needs from printing to more advanced networking solutions for your business.Features by models include:FEATURES SCX-3200 SERIES SCX-3205W(K) SERIESPrint ƔƔEco Print ƔƔDuplex (2-sided) printing (manual) ƔƔCopy ƔƔScan ƔƔHi-Speed USB 2.0 ƔƔPrint Screen ƔIPv6 ƔNetwork Interface Ethernet 10/100 Base TX wired LAN ƔNetwork Interface 802.11b/g/n wireless LANaa.Depending on your country, wireless LAN card may not be available. Contact your local Samsung dealer or the retailer where you bought your machine.ƔSyncThru™ Web Service Ɣ(Ɣ: Included, Blank: Not included)

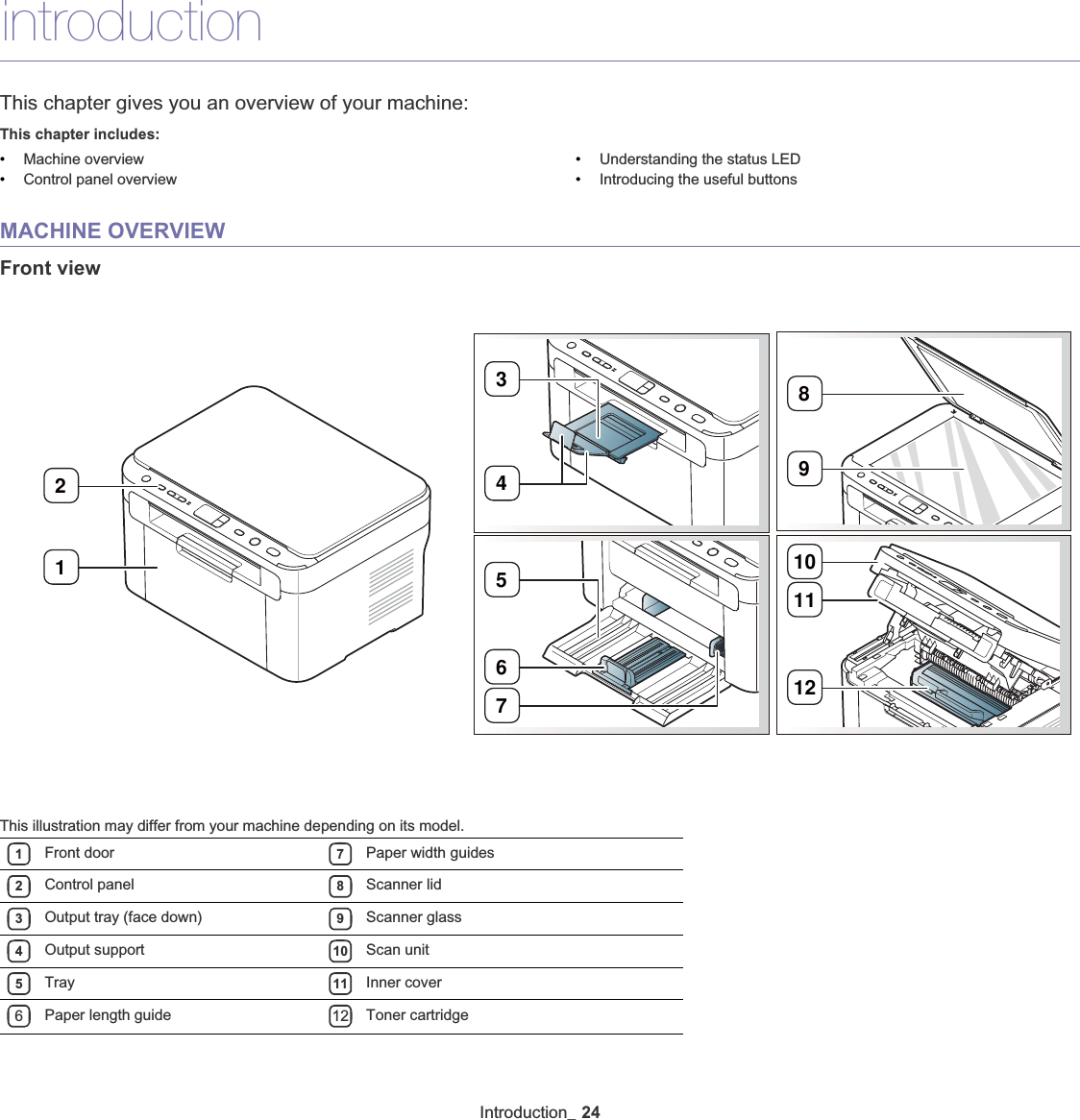

Introduction_ 241.introductionThis chapter gives you an overview of your machine:This chapter includes:•Machine overview•Control panel overview•Understanding the status LED•Introducing the useful buttonsMACHINE OVERVIEWFront view213489101112756This illustration may differ from your machine depending on its model.1Front door 7Paper width guides2Control panel 8Scanner lid3Output tray (face down) 9Scanner glass4Output support 10 Scan unit5Tray 11 Inner cover6Paper length guide 12 Toner cartridge

Introduction_ 25Rear view2 31This illustration may differ from your machine depending on its model.1USB port2Power cord receptacle3Network portaa.SCX-3205W(K) only

Introduction_ 26CONTROL PANEL OVERVIEWThis control panel may differ from your machine depending on its model.11 9 10 112 3 4 5 6 7 812131Power ( )Allows you to turn the power on or off (See "Power button" on page 28).2Eco Print Turn the Eco mode on or off (See "Eco Print button" on page 27).3Scan to Sends scanned data (See "Scanning originals and sending to your computer (Scan to PC)" on page 69).4ID Copy Allows you to copy both sides the ID card like a driver’s license to a single side of paper (See "ID card copying" on page 67).5Front LED When the LED lights on, place the front side of an ID card facing down on the scanner glass (See "ID card copying" on page 67).6Back LED When the LED lights on, place the back side of an ID card facing down on the scanner glass (See "ID card copying" on page 67).7Display Shows the number of pages you want to copy.8+/- Buttons Allows you to increase/decrease the number of page you want to copy (See "+/- buttons" on page 27).9Print Screen (SCX-3200 only) Prints the displayed screen of your monitor (See "Print Screen button (SCX-3200 only)" on page 27).WPS (SCX-3205W(K) only) Allows you to turn on or off the wireless network connection (See "WPS button (SCX-3205W(K) only)" on page 27).10 Stop/Clear ( )Stops an operation at any time and there are more functions (See "Stop/Clear button" on page 27).11 Start ( )Begins a printing, copying or scanning job depending on which function you are using.12 Wireless LED (SCX-3205W(K) only) Shows the current status of the wireless network connection (See "Understanding the status LED" on page 27).13 Status LED Shows the status of your machine (See "Understanding the status LED" on page 27).

Introduction_ 27UNDERSTANDING THE STATUS LEDStatus LEDThe color of the LED indicates the machine's current status.STATUS LED DESCRIPTIONOff •The machine is off-line.•The machine is in sleep mode.Green On •The machine is in ready mode or warming up.Blinking •When the LED blinks slowly, the machine is receiving data from the computer or printing documents.•When the LED blinks rapidly, the machine is operating special functions.Red On •The inner cover is opened. Close the inner cover completely.•There is no paper in the tray. Load paper in the tray.•The machine has stopped due to a major error.•Your system has some problems. If this problem occurs, contact a service representative.•A toner cartridge has almost reached its estimated cartridge lifeaa.Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19752. The number of pages may be affected by operating environment, printing interval, media type, and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing.. It is recommended to replace the toner cartridge (See "Replacing the toner cartridge" on page 93).Blinking •A small amount of toner is left in the cartridge. The estimated cartridge lifea of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (See "Redistributing toner" on page 82).•The machine is printing in manual feed mode or in manual duplex mode. Orange On A paper jam has occurred (See "Clearing paper jams" on page 83).Samsung does not recommend using a non-genuine Samsung toner cartridge such as one that is refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty. All printing errors will appear in the Smart Panel program window. If the problem persists, contact a service representative.Wireless LED (SCX-3205W(K) only)WIRELESS LED STATUS DESCRIPTIONBlue Off ( )Wireless network is disconnected.On ( )Wireless network is connectedUSlowly blinks ()The machine starts connecting to a wireless network.Fast blinks ()•The machine is connecting to access point (or wireless router).•Wireless network connection is being disconnected.INTRODUCING THE USEFUL BUTTONSPrint Screen button (SCX-3200 only)If you press Print Screen button for more than two seconds, the green light blinks fast on the Status LED, and then machine prints an active screen displayed in the monitor.If you press Print Screen button for less than two seconds, the Status LEDlights on green, and then the machine prints the whole screen displayed in the monitor.•The page will be printed on the default page like A4 or Letter.•Print Screen can only be used in the Windows and Macintosh operating systems.•You can only use this function with a USB-connected machine.•You can use this function only when the Smart Panel program is installed and runned.Eco Print buttonYou can turn the Eco Print mode on or off by simply pressing the button.1. Press Eco Print button on the control panel.2. Eco Print LED lights on. Then, Eco Print mode is on.To turn off Eco Print mode, press Eco Print button one more time.The default option is 2-UP/Toner Save.+/- buttonsYou can determine the number of pages (up to 99 pages) you want to copy by pressing +/- buttons. The default setting value is 1.•If you press +/- buttons short, the number appeared on the display continues to increase or decrease one by one. •If you press +/- buttons long, the number of ten’s place appeared on the display cycles between zero to nine.WPS button (SCX-3205W(K) only)This feature automatically detects which WPS (Wi-Fi Protected Setup™) mode your access point uses. By pushing a button on the wireless LAN router/access point and the machine, you can setup the wireless network and security settings (See "Wireless network setup (SCX-3205W(K) only)" on page 41).Stop/Clear buttonBy pressing Stop/Clear button, you can do the following functions.

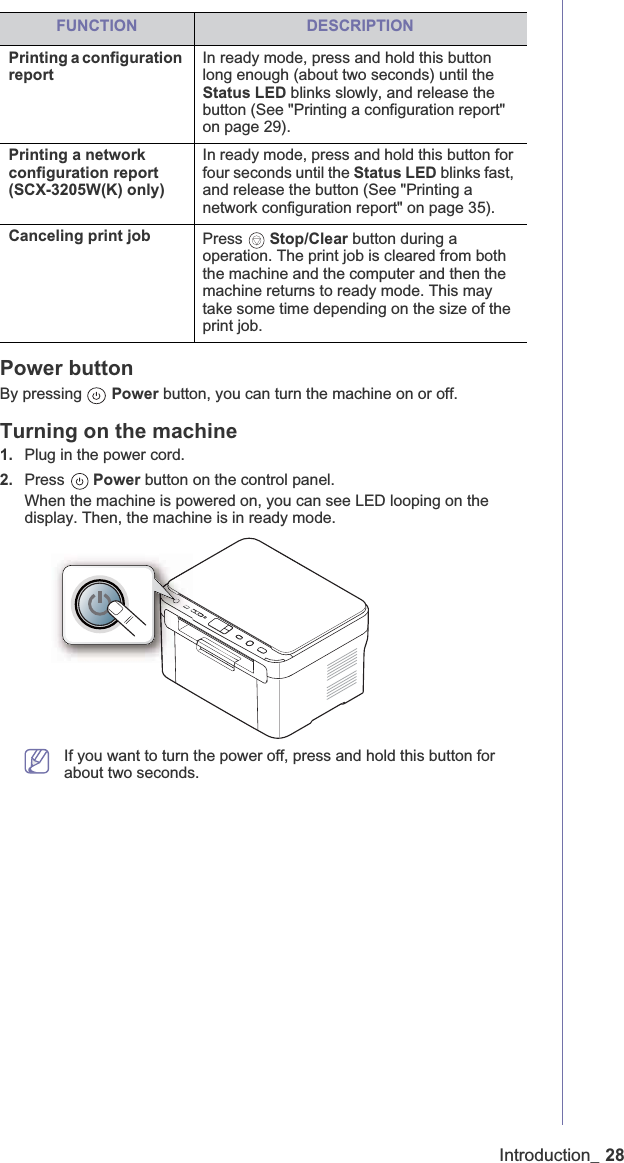

FUNCTION DESCRIPTIONPrinting a configuration reportIn ready mode, press and hold this button long enough (about two seconds) until the Status LED blinks slowly, and release the button (See "Printing a configuration report" on page 29).Printing a network configuration report (SCX-3205W(K) only)In ready mode, press and hold this button for four seconds until the Status LED blinks fast, and release the button (See "Printing a network configuration report" on page 35).Canceling print job Press Stop/Clear button during a operation. The print job is cleared from both the machine and the computer and then the machine returns to ready mode. This may take some time depending on the size of the print job.Introduction_ 28Power buttonBy pressing Power button, you can turn the machine on or off.Turning on the machine1. Plug in the power cord.2. Press Power button on the control panel.When the machine is powered on, you can see LED looping on the display. Then, the machine is in ready mode.If you want to turn the power off, press and hold this button for about two seconds.

Getting started_ 292.getting startedThis chapter gives you step-by-step instructions for setting up the USB connected machine and software.This chapter includes:•Setting up the hardware•Printing a configuration report•Supplied software•System requirements•Installing USB connected machine’s driver•Sharing your machine locallySETTING UP THE HARDWAREThis section shows the steps to set up the hardware, as is explained in the Quick Installation Guide. Make sure you read the Quick Installation Guide first and follow the steps below:Location1. Select a stable location.Select a level, stable place with adequate space for air circulation. Allow extra space for opening cover(s) and tray(s). The area should be well ventilated and away from direct sunlight or sources of heat, cold, and humidity. Do not set the machine close to the edge of your desk or table.Printing is suitable for altitudes under 1,000 m (3,281 ft). Refer to the altitude setting to optimize your printing (See "Altitude adjustment" on page 51).Place the machine on a flat, stable surface so that there is no incline greater than 2 mm (0.08 inch). Otherwise, printing quality may be affected.2mm(0.08 in)2mm(0.08 in)2. Unpack the machine and check all the enclosed items.3. Remove tape holding the machine securely.4. Install the toner cartridge.5. Load paper (See "Loading originals" on page 53).6. Make sure that all cables are connected to the machine. 7. Turn the machine on (See "Turning on the machine" on page 28).This machine will not operate when the power main fails.PRINTING A CONFIGURATION REPORTPrint a configuration page to make sure that the machine is operating properly.To print a configuration reportIn the ready mode, press and hold Stop/Clear button on the control panel for long enough (about two seconds) until the Status LED blinks slowly, and release.For SCX-3205W(K), you can print a network configuration report (See "Printing a network configuration report" on page 35).SUPPLIED SOFTWAREAfter you have set up your machine and connected it to your computer, you must install the printer software. If you are a Windows or Macintosh OS user, install the software from the supplied CD and if you are a Linux OS user, download the software from the Samsung website (www.samsung.com/printer) and install.Machine software is occasionally updated for reasons like the release of new operating system and etc. If needed, download the latestversion from the Samsung website (www.samsung.com/printer).

OS CONTENTSWindows •Printer driver: Use this driver to take full advantage of your machine’s features.•Scanner driver: TWAIN and Windows Image Acquisition (WIA) drivers are available for scanning documents on your machine.•Smart Panel:This program allows you to monitor the machine’s status and alerts you when an error occurs during printing (See "Using the Smart Panel program" on page 75).•SmarThrua:a.Allows you to edit a scanned image in various ways using a powerful image editor and to send the image by email. You can also open another image editor program such as Adobe Photoshop, from SmarThru. For details, refer to the on-screen help supplied on the SmarThru program (See "SmarThru" on page 75).This program is the accompanying Windows-based software for your multifunctional machine.•Samsung Scan and Fax Manager: You can find out about Samsung Scan and Fax Manager program information and installed scan driver's condition.•Printer Settings Utility: This program allows you to set up printer’s other options from your computer.•SetIP:Use this program to set your machine’s TCP/IP addresses. (SCX-3205W(K) only)Macintosh •Printer Driver:Use this driver to take full advantage of your machine’s features.•Scanner driver: TWAIN driver is available for scanning documents on your machine.•Smart Panel:This program allows you to monitor the machine’s status and alerts you when an error occurs during printing (See "Using the Smart Panel program" on page 75).•Samsung Scan and Fax Manager: You can find out about Samsung Scan and Fax Manager program information and installed scan driver's condition.•Printer Settings Utility: This program allows you to set up printer’s other options from your computer.•SetIP:Use this program to set your machine’s TCP/IP addresses. (SCX-3205W(K) only)Linux •Unified Linux Driver: Use this driver to take full advantage of your machine’s features.•SANE:Use this driver to scan documents.•Smart Panel: This program allows you to monitor the machine’s status and alerts you when an error occurs during printing (See "Using the Smart Panel program" on page 75).•Printer Settings Utility: This program allows you to set up printer’s other options from your computer.•SetIP:Use this program to set your machine’s TCP/IP addresses. (SCX-3205W(K) only)Getting started_ 30SYSTEM REQUIREMENTSBefore you begin, ensure that your system meets the following requirements:WindowsYour machine supports the following Windows operating systems.OPERATING SYSTEMREQUIREMENT (RECOMMENDED)CPU RAMFREEHDDSPACEWindows® 2000Intel® Pentium® II 400 MHz (Pentium III 933 MHz)64 MB (128 MB)600 MBWindows® XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz)128 MB (256 MB)1.5 GBWindows Server® 2003Intel® Pentium® III 933 MHz (Pentium IV 1 GHz)128 MB (512 MB)1.25 GB to 2 GBWindows Server®G2008Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz)512 MB (2 GB)10 GBWindows Vista®Intel® Pentium® IV 3 GHz 512 MB (1 GB)15 GBWindows® 7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher1 GB(2 GB)16 GB•Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).•DVD-R/W DriveWindows Server® 2008 R2Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster)512 MB (2 GB)10 GB•Internet Explorer 5.0 or higher is the minimum requirement for all Windows operating systems.•Windows Terminal Services is compatible with your machine.MacintoshOPERATING SYSTEMREQUIREMENTS (RECOMMENDED)CPU RAMFREEHDDSPACEMac OS X 10.3 ~ 10.4•Intel® Processors•PowerPC G4/ G5•128 MB for a PowerPC basedMac (512 MB)•512 MB for a Intel-based Mac (1 GB)1 GBMac OS X 10.5•Intel® Processors•867 MHz or faster Power PC G4/ G5512 MB (1 GB) 1 GBMac OS X 10.6•Intel® Processors1 GB (2 GB) 1 GB

$Getting started_ 31LinuxITEM REQUIREMENTSOperating systemRedHat® Enterprise Linux WS 4, 5 (32/64 bit)Fedora 4, 5, 6, 7, 8, 9, 10, 11, 12 (32/64 bit)SuSE Linux 10.0, 10.1 (32 bit)OpenSuSE® 10.2S 10.3, 11.0, 11.1, 11.2 (32.64 bit) Mandrake 10.0, 10.1 (32/64 bit)Mandriva 2005, 2006, 2007, 2008, 2009, 2009.1 (32/64 bit) Ubuntu 5.04, 5.10, 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10 (32/64 bit)SuSE Linux Enterprise Desktop 10, 11 (32/64 bit)Debian 4.0, 5.0 (32/64 bit) CPU Pentium IV 2.4 GHz (Intel Core™2)RAM 512 MB (1 GB)Free HDD space 1 GB (2 GB)INSTALLING USB CONNECTED MACHINE’S DRIVERA locally connected machine is a machine directly connected to your computer by a USB cable.Only use a USB cable no longer than 3 m (10 ft.).WindowsYou can install the machine software using the typical or custom method.The following steps are recommended for most users who use a machine directly connected to your computer. All components necessary for machine operations will be installed.1. Make sure that the machine is connected to the computer and powered on.If the “Found New Hardware Wizard” window appears during the installation procedure, click Cancel to close the window.2. Insert the supplied software CD into your CD-ROM drive.•The software CD should automatically run and an installation window will appear.•If the installation window does not appear, click Start and then Run.Type X:\Setup.exe, replacing “X” with the letter which represents your CD-ROM Drive. Click OK.•If you use Windows Vista, Windows 7 or Windows 2008 Server R2 click Start > All programs > Accessories > Run.Type X:\Setup.exe replacing “X” with the letter which represents your CD-ROM Drive and click OK.•If the AutoPlay window appears in Windows Vista, Windows 7 or Windows 2008 Server R2, click Run Setup.exe in Install or run program field, and click Continue or Yes in the User Account Control window.3. Select Install now.If necessary, select a language from the drop-down list.•For SCX-3205W(K), you can access the Wireless Setting and Installation menu. The menu allows you to install a wireless network to connect to the machine with an USB cable (See "Wireless network setup (SCX-3205W(K) only)" on page 41).•The Advanced Installation has two options, Custom Installation and Install Software Only. The Custom Installation allows you to select the machine’s connection and choose individual component to install. The Install Software Only allows you to install the supplied software, such as Smart Panel. Follow the instruction on the window.4. Read the License Agreement, and select I accept the terms of the License Agreement. Then, click Next.The software searches for the machine.If your machine is not connected to the computer, the following$

Getting started_ 32window will appear.•After connecting the machine, click Next.•Check if you want to install the software without connection of the printer.-Check this option to install the software without a machine connected. In this case, the print a test page window will be skipped, and completes the installation.•Search againWhen you press this button, the firewall notice windowappears.-Turn off the firewall and Search again. For Windows operating system, click Start > Control Panel > Windows Firewall, and inactivate this option.-Turn off the firewall from the third party's program beside the operating system. Refer to the manual provided by individual programs.•Direct InputThe Direct Input allows you to search a specific machine on the network.-Search by IP address: Enter the IP address or the host name. Then click Next.To verify your machine’s IP address, print a network configuration report (See "Printing a network configuration report" on page 35).-Search by network path: To find a shared machine (UNC Path), enter the shared name manually or find a shared printer by clicking the Browse button. Then click Next.•Help-This help button gives you the detailed information about how to connect the machine.5. The searched machines will be shown on the screen. Select the one you wish to use and click Next.If the software searched only one machine, the confirmation window appears.6. After the installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.Otherwise, just click Next and skip to step 8.7. If the test page prints out correctly, click Yes.If not, click No to reprint it.8. If you want to register your machine on Samsung web site, click On-line Registration.If your machine is not connected yet to the network or computer, click How to connect?.How to connect? gives detailed information about how to connect the machine. Follow the instructions in the window.9. Click Finish.If the printer driver does not work properly, follow the steps below to repair or reinstall the driver. a) Make sure that the machine is connected to your machine and powered on.b) From the Start menu, select Programs or All Programs > Samsung Printers > your printer driver name > Maintenance.c) Select the option you wish to execute, then follow the instruction on the window.MacintoshThe software CD that came with your machine provides you with the Driver files that allows you to use the CUPS driver or PostScript driver (only available when you use a machine, which supports the PostScript driver) for printing on a Macintosh computer. Also, it provides you with TWAIN driver for scanning on a Macintosh computer.1. Make sure that the machine is connected to your computer and powered on.2. Insert the supplied software CD into your CD-ROM drive.3. Double-click the CD-ROM icon that appears on your Macintosh desktop.4. Double-click the MAC_Installer folder.5. Double-click the Installer OS X icon.6. Enter the password and click OK.7. The Samsung Installer window opens. Click Continue.8. Read the license agreement and click Continue.9. Click Agree to agree to the license agreement.10. Select Easy Install and click Install.Easy Install is recommended for most users. All components necessary for machine operations will be installed. If you select Custom Install, you can choose individual components to install.11. When the message which warns that all applications will close on your computer appears, click Continue.12. Select Typical installation for a network printer for a network printer and then click OK.13. After the installation is finished, click Restart.14. Open the Applications folder > Utilities > Print Setup Utility.•For Mac OS X 10.5 ~ 10.6, open the Applications folder > System Preferences and click Print & Fax.15. Click Add onthe Printer List.•For Mac OS X 10.5 ~ 10.6, click the “+” icon; a display window will pop up. 16. For Mac OS X 10.3, select the USB tab.•For Mac OS X10.4, click Default Browser and find the USB connection.•For Mac OS X 10.5 ~ 10.6, click Default and find the USB connection.17. For Mac OS X 10.3, if Auto Select does not work properly, select Samsung in Printer Model and your machine name in Model Name.•For Mac OS X 10.4, if Auto Select does not work properly, select Samsung in Print Using and your machine name in Model.

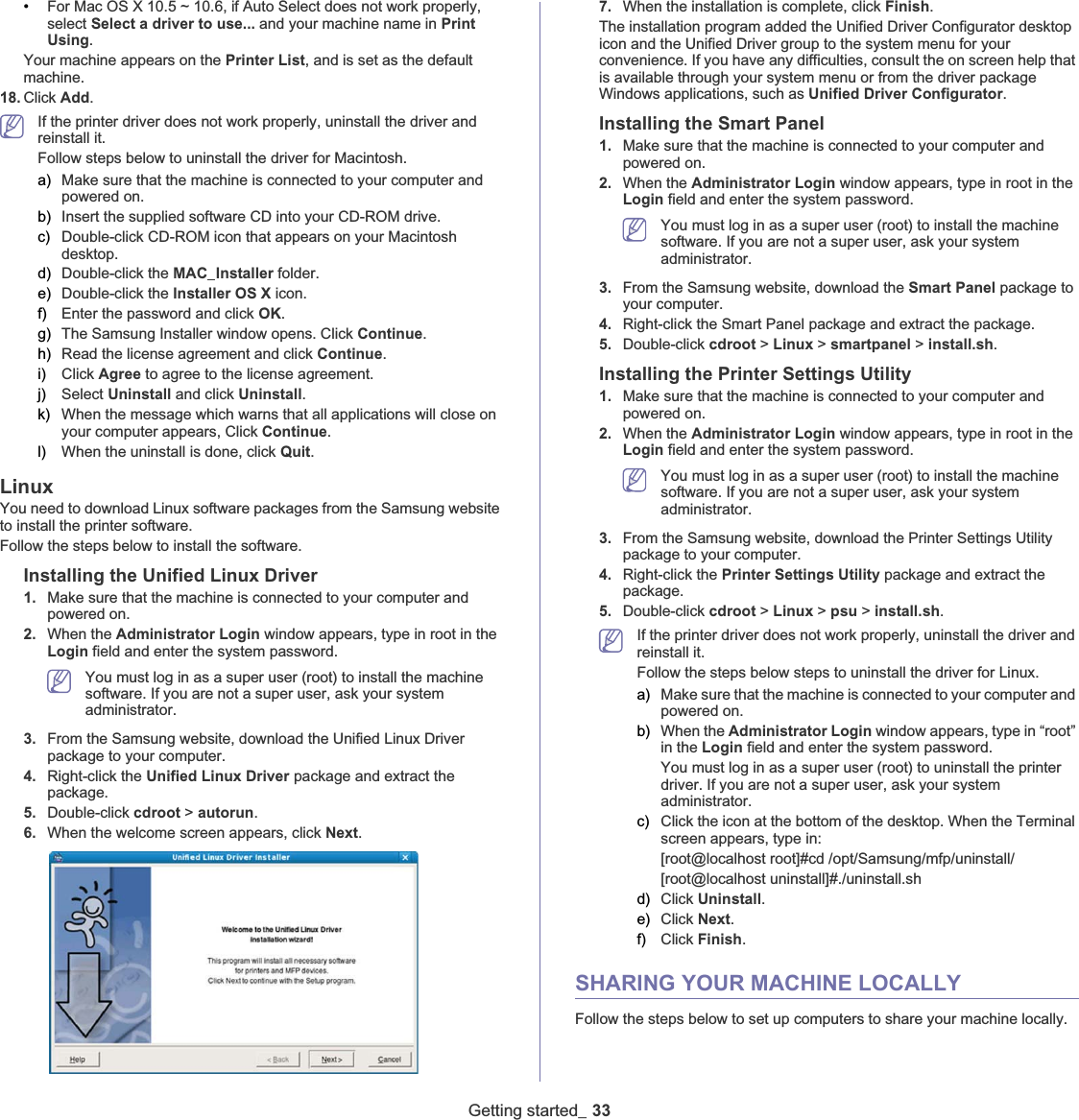

Getting started_ 33•For Mac OS X 10.5 ~ 10.6, if Auto Select does not work properly, select Select a driver to use... and your machine name in PrintUsing.Your machine appears on the Printer List, and is set as the default machine.18. Click Add.If the printer driver does not work properly, uninstall the driver and reinstall it. Follow steps below to uninstall the driver for Macintosh.a) Make sure that the machine is connected to your computer and powered on.b) Insert the supplied software CD into your CD-ROM drive.c) Double-click CD-ROM icon that appears on your Macintosh desktop.d) Double-click the MAC_Installer folder.e) Double-click the Installer OS X icon.f) Enter the password and click OK.g) The Samsung Installer window opens. Click Continue.h) Read the license agreement and click Continue.i) Click Agree to agree to the license agreement.j) Select Uninstall and click Uninstall.k) When the message which warns that all applications will close on your computer appears, Click Continue.l) When the uninstall is done, click Quit.LinuxYou need to download Linux software packages from the Samsung website to install the printer software. Follow the steps below to install the software.Installing the Unified Linux Driver1. Make sure that the machine is connected to your computer and powered on.2. When the Administrator Login window appears, type in root in the Login field and enter the system password.You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator.3. From the Samsung website, download the Unified Linux Driver package to your computer.4. Right-click the Unified Linux Driver package and extract the package. 5. Double-click cdroot > autorun.6. When the welcome screen appears, click Next.7. When the installation is complete, click Finish.The installation program added the Unified Driver Configurator desktop icon and the Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the on screen help that is available through your system menu or from the driver package Windows applications, such as Unified Driver Configurator.Installing the Smart Panel1. Make sure that the machine is connected to your computer and powered on.2. When the Administrator Login window appears, type in root in the Login field and enter the system password.You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator.3. From the Samsung website, download the Smart Panel package to your computer.4. Right-click the Smart Panel package and extract the package. 5. Double-click cdroot > Linux > smartpanel >install.sh.Installing the Printer Settings Utility1. Make sure that the machine is connected to your computer and powered on.2. When the Administrator Login window appears, type in root in the Login field and enter the system password.You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator.3. From the Samsung website, download the Printer Settings Utility package to your computer.4. Right-click the Printer Settings Utility package and extract the package.5. Double-click cdroot > Linux > psu >install.sh.If the printer driver does not work properly, uninstall the driver and reinstall it. Follow the steps below steps to uninstall the driver for Linux.a) Make sure that the machine is connected to your computer and powered on.b) When the Administrator Login window appears, type in “root” in the Login field and enter the system password.You must log in as a super user (root) to uninstall the printer driver. If you are not a super user, ask your system administrator.c) Click the icon at the bottom of the desktop. When the Terminal screen appears, type in:[root@localhost root]#cd /opt/Samsung/mfp/uninstall/[root@localhost uninstall]#./uninstall.shd) Click Uninstall.e) Click Next.f) Click Finish.SHARING YOUR MACHINE LOCALLYFollow the steps below to set up computers to share your machine locally.

Getting started_ 34If the Host computer is directly connected to the machine by a USB cable and is also connected to the local network environment, the client computer connected to the local network can use the shared machine through the host computer to print. 211Host computer A computer which is directly connected to the machine by USB cable.2Client computers Computers which use the machine shared through the host computer. WindowsSetting up a host computer1. Install your printer driver (See "Installing USB connected machine’s driver" on page 31).2. Click the Windows Start menu. 3. For Windows 2000, select Settings >Printers.•For Windows XP/Server 2003, select Printers and Faxes.•For Windows Server 2008/Vista, select Control Panel > Hardware and Sound >Printers.•For Windows 7, select Control Panel > Hardware and Sound >Devices and Printers.•For Windows Server 2008 R2, select Control Panel > Hardware >Devices and Printers.4. Right-click the printer icon. 5. For Windows XP/Vista/Server 2003/Server 2008, press Properties.For Windows 7/Windows Server 2008 R2, from context menus, select the Printer properties.If Printer properties item has a Ź mark, you can select other printer drivers connected with the selected printer.6. Select the Sharing tab.7. Check the Change Sharing Options.8. Check the Share this printer checkbox.9. Fill in the Share Name field. Click OK.Setting up a client computer1. Install your printer driver (See "Installing USB connected machine’s driver" on page 31).2. Click the Windows Start menu. 3. Select All programs > Accessories >Windows Explorer.4. Enter the IP address of the host computer in the address bar and press Enter in your keyboard. In case host computer requires a User name and Password,fill in User ID and password of the host computer account.5. Right-click the printer icon you want to share and select Connect.6. If a set up complete message appears, click OK.7. Open the file you want to print and start printing. MacintoshThe following steps are for Mac OS X 10.5~10.6. Refer to Mac Help for other OS versions. Setting up a host computer1. Install your printer driver (See "Macintosh" on page 32).2. Open the Applications folder > System Preferences and click Print & Fax.3. Select the printer to share in the Printers list.4. Select Share this printer.Setting up a client computer1. Install your printer driver (See "Macintosh" on page 32).2. Open the Applications folder > System Preferences and click Print & Fax.3. Click the “+” icon. A display window showing the name of your shared printer appears.4. Select your machine and click Add.

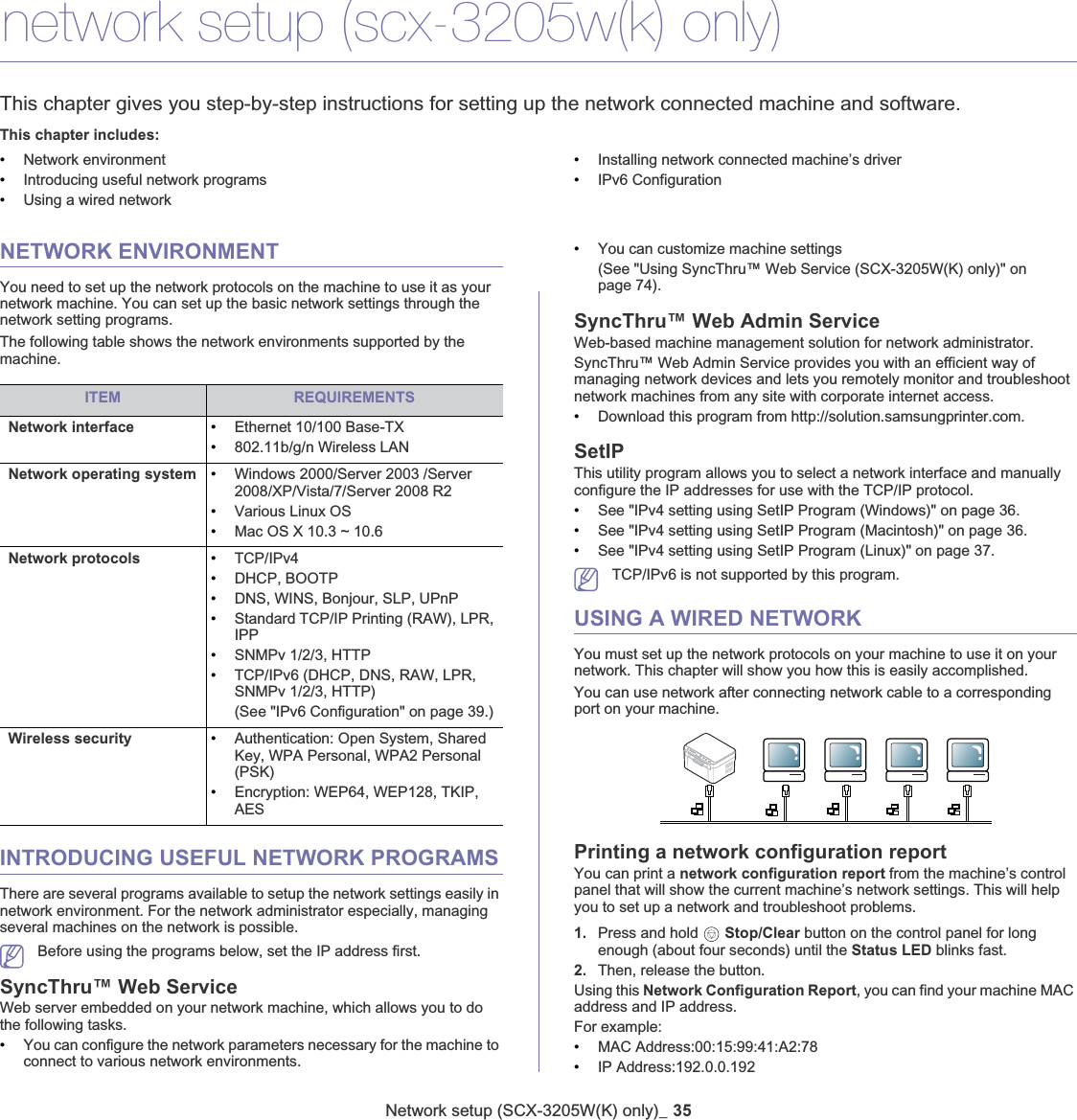

Network setup (SCX-3205W(K) only)_ 353.network setup (scx-3205w(k) only)This chapter gives you step-by-step instructions for setting up the network connected machine and software.This chapter includes:•Network environment•Introducing useful network programs•Using a wired network•Installing network connected machine’s driver•IPv6 ConfigurationNETWORK ENVIRONMENTYou need to set up the network protocols on the machine to use it as your network machine. You can set up the basic network settings through the network setting programs.The following table shows the network environments supported by the machine.ITEM REQUIREMENTSNetwork interface •Ethernet 10/100 Base-TX•802.11b/g/n Wireless LANNetwork operating system •Windows 2000/Server 2003 /Server 2008/XP/Vista/7/Server 2008 R2•Various Linux OS•Mac OS X 10.3 ~ 10.6Network protocols •TCP/IPv4•DHCP, BOOTP•DNS, WINS, Bonjour, SLP, UPnP•Standard TCP/IP Printing (RAW), LPR, IPP•SNMPv 1/2/3, HTTP•TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP)(See "IPv6 Configuration" on page 39.)Wireless security •Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)•Encryption: WEP64, WEP128, TKIP, AESINTRODUCING USEFUL NETWORK PROGRAMSThere are several programs available to setup the network settings easily in network environment. For the network administrator especially, managing several machines on the network is possible. Before using the programs below, set the IP address first.SyncThru™ Web ServiceWeb server embedded on your network machine, which allows you to do the following tasks.•You can configure the network parameters necessary for the machine to connect to various network environments.•You can customize machine settings(See "Using SyncThru™ Web Service (SCX-3205W(K) only)" on page 74).SyncThru™ Web Admin ServiceWeb-based machine management solution for network administrator.SyncThru™ Web Admin Service provides you with an efficient way of managing network devices and lets you remotely monitor and troubleshoot network machines from any site with corporate internet access.•Download this program from http://solution.samsungprinter.com.SetIPThis utility program allows you to select a network interface and manually configure the IP addresses for use with the TCP/IP protocol.•See "IPv4 setting using SetIP Program (Windows)" on page 36.•See "IPv4 setting using SetIP Program (Macintosh)" on page 36.•See "IPv4 setting using SetIP Program (Linux)" on page 37.TCP/IPv6 is not supported by this program.USING A WIRED NETWORKYou must set up the network protocols on your machine to use it on your network. This chapter will show you how this is easily accomplished.You can use network after connecting network cable to a corresponding port on your machine. Printing a network configuration reportYou can print a network configuration report from the machine’s control panel that will show the current machine’s network settings. This will help you to set up a network and troubleshoot problems.1. Press and hold Stop/Clear button on the control panel for long enough (about four seconds) until the Status LED blinks fast.2. Then, release the button.Using this Network Configuration Report, you can find your machine MAC address and IP address.For example:•MAC Address:00:15:99:41:A2:78•IP Address:192.0.0.192

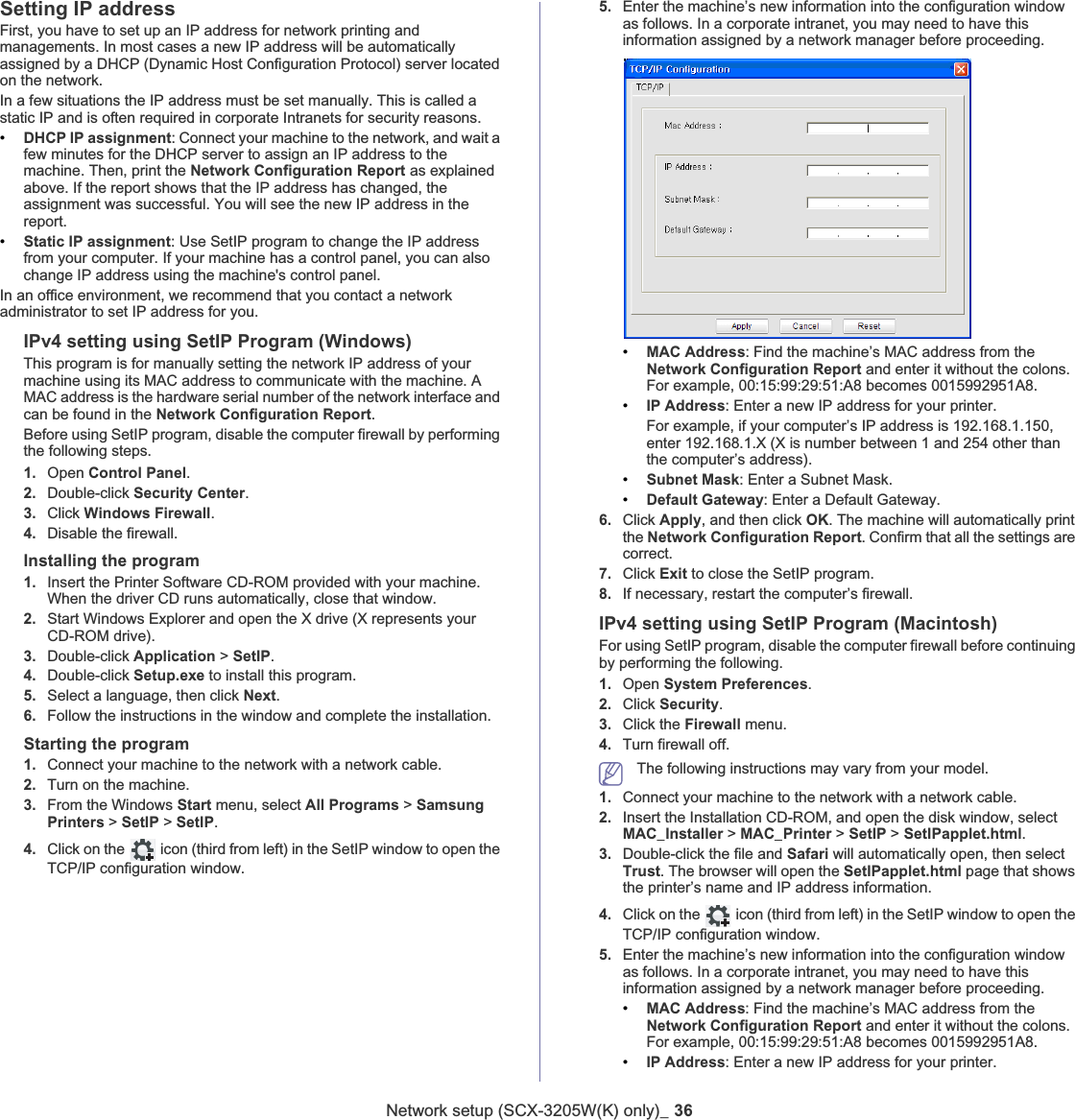

Network setup (SCX-3205W(K) only)_ 36Setting IP addressFirst, you have to set up an IP address for network printing and managements. In most cases a new IP address will be automatically assigned by a DHCP (Dynamic Host Configuration Protocol) server located on the network.In a few situations the IP address must be set manually. This is called a static IP and is often required in corporate Intranets for security reasons.•DHCP IP assignment: Connect your machine to the network, and wait a few minutes for the DHCP server to assign an IP address to the machine. Then, print the Network Configuration Report as explained above. If the report shows that the IP address has changed, the assignment was successful. You will see the new IP address in the report.•Static IP assignment: Use SetIP program to change the IP address from your computer. If your machine has a control panel, you can also change IP address using the machine's control panel.In an office environment, we recommend that you contact a network administrator to set IP address for you.IPv4 setting using SetIP Program (Windows)This program is for manually setting the network IP address of your machine using its MAC address to communicate with the machine. A MAC address is the hardware serial number of the network interface and can be found in the Network Configuration Report.Before using SetIP program, disable the computer firewall by performing the following steps.1. Open Control Panel.2. Double-click Security Center.3. Click Windows Firewall.4. Disable the firewall.Installing the program1. Insert the Printer Software CD-ROM provided with your machine. When the driver CD runs automatically, close that window.2. Start Windows Explorer and open the X drive (X represents your CD-ROM drive).3. Double-click Application > SetIP.4. Double-click Setup.exe to install this program.5. Select a language, then click Next.6. Follow the instructions in the window and complete the installation.Starting the program1. Connect your machine to the network with a network cable.2. Turn on the machine.3. From the Windows Start menu, select All Programs > Samsung Printers > SetIP > SetIP.4. Click on the icon (third from left) in the SetIP window to open the TCP/IP configuration window.5. Enter the machine’s new information into the configuration window as follows. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.•MAC Address: Find the machine’s MAC address from the Network Configuration Report and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8.•IP Address: Enter a new IP address for your printer.For example, if your computer’s IP address is 192.168.1.150, enter 192.168.1.X (X is number between 1 and 254 other than the computer’s address).•Subnet Mask: Enter a Subnet Mask.•Default Gateway: Enter a Default Gateway.6. Click Apply, and then click OK. The machine will automatically print the Network Configuration Report. Confirm that all the settings are correct.7. Click Exit to close the SetIP program.8. If necessary, restart the computer’s firewall.IPv4 setting using SetIP Program (Macintosh)For using SetIP program, disable the computer firewall before continuing by performing the following.1. Open System Preferences.2. Click Security.3. Click the Firewall menu.4. Turn firewall off.The following instructions may vary from your model.1. Connect your machine to the network with a network cable.2. Insert the Installation CD-ROM, and open the disk window, select MAC_Installer > MAC_Printer > SetIP > SetIPapplet.html.3. Double-click the file and Safari will automatically open, then select Trust. The browser will open the SetIPapplet.html page that shows the printer’s name and IP address information. 4. Click on the icon (third from left) in the SetIP window to open the TCP/IP configuration window.5. Enter the machine’s new information into the configuration window as follows. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.•MAC Address: Find the machine’s MAC address from the Network Configuration Report and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8.•IP Address: Enter a new IP address for your printer.

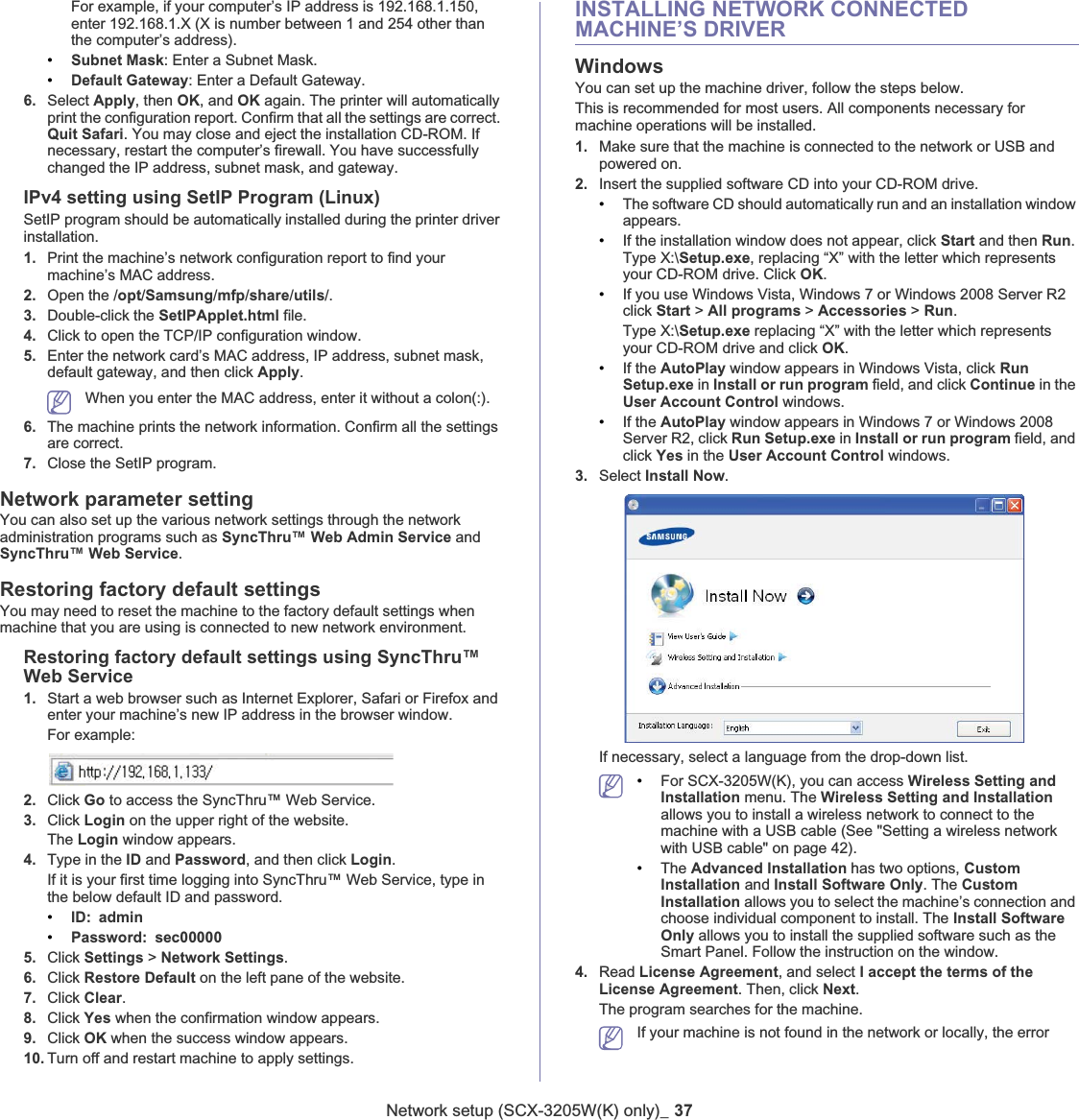

$Network setup (SCX-3205W(K) only)_ 37For example, if your computer’s IP address is 192.168.1.150, enter 192.168.1.X (X is number between 1 and 254 other than the computer’s address).•Subnet Mask:Enter a Subnet Mask.•Default Gateway:Enter a Default Gateway.6. Select Apply, then OK, and OK again. The printer will automatically print the configuration report. Confirm that all the settings are correct. Quit Safari. You may close and eject the installation CD-ROM. If necessary, restart the computer’s firewall. You have successfully changed the IP address, subnet mask, and gateway.IPv4 setting using SetIP Program (Linux)SetIP program should be automatically installed during the printer driver installation.1. Print the machine’s network configuration report to find your machine’s MAC address.2. Open the /opt/Samsung/mfp/share/utils/.3. Double-click the SetIPApplet.html file.4. Click to open the TCP/IP configuration window. 5. Enter the network card’s MAC address, IP address, subnet mask, default gateway, and then click Apply.When you enter the MAC address, enter it without a colon(:).6. The machine prints the network information. Confirm all the settings are correct. 7. Close the SetIP program. Network parameter settingYou can also set up the various network settings through the network administration programs such as SyncThru™ Web Admin Service and SyncThru™ Web Service.Restoring factory default settingsYou may need to reset the machine to the factory default settings when machine that you are using is connected to new network environment.Restoring factory default settings using SyncThru™ Web Service1. Start a web browser such as Internet Explorer, Safari or Firefox and enter your machine’s new IP address in the browser window.For example:2. Click Go to access the SyncThru™ Web Service.3. Click Login on the upper right of the website.The Login window appears. 4. Type in the ID and Password, and then click Login.If it is your first time logging into SyncThru™ Web Service, type in the below default ID and password.•ID: admin•Password: sec000005. Click Settings > Network Settings.6. Click Restore Default on the left pane of the website.7. Click Clear.8. Click Yes when the confirmation window appears.9. Click OK when the success window appears.10. Turn off and restart machine to apply settings.INSTALLING NETWORK CONNECTED MACHINE’S DRIVERWindowsYou can set up the machine driver, follow the steps below. This is recommended for most users. All components necessary for machine operations will be installed. 1. Make sure that the machine is connected to the network or USB and powered on.2. Insert the supplied software CD into your CD-ROM drive.•The software CD should automatically run and an installation window appears.•If the installation window does not appear, click Start and then Run.Type X:\Setup.exe, replacing “X” with the letter which represents your CD-ROM drive. Click OK.•If you use Windows Vista, Windows 7 or Windows 2008 Server R2 click Start > All programs > Accessories > Run.Type X:\Setup.exe replacing “X” with the letter which represents your CD-ROM drive and click OK.•If the AutoPlay window appears in Windows Vista, click RunSetup.exe in Install or run program field, and click Continue in the User Account Control windows.•If the AutoPlay window appears in Windows 7 or Windows 2008 Server R2, click Run Setup.exe in Install or run program field, and click Yes in the User Account Control windows.3. Select Install Now.If necessary, select a language from the drop-down list.•For SCX-3205W(K), you can access Wireless Setting and Installation menu. The Wireless Setting and Installation allows you to install a wireless network to connect to the machine with a USB cable (See "Setting a wireless network with USB cable" on page 42).•The Advanced Installation has two options, Custom Installation and Install Software Only. The Custom Installation allows you to select the machine’s connection and choose individual component to install. The Install Software Only allows you to install the supplied software such as the Smart Panel. Follow the instruction on the window.4. Read License Agreement, and select I accept the terms of the License Agreement. Then, click Next.The program searches for the machine.If your machine is not found in the network or locally, the error$

Network setup (SCX-3205W(K) only)_ 38message appears.•Check if you want to install the software without connection of the printer.-Check this option to install this program without a machine connected. In this case, the print a test page window will be skipped, and completes the installation.•Search againWhen you press this button, the firewall notice windowappears.-Turn off the firewall and Search again. For Windows operating system, click Start > Control Panel > Windows Firewall, and inactivate this option.-Turn off the firewall from the third party's program beside the operating system. Refer to the manual provided by individual programs.•Direct InputThe Direct Input allows you to search a specific machine on the network.-Search by IP address: Enter the IP address or the host name. Then click Next.To verify your machine’s IP address, print a network configuration report (See "Printing a network configuration report" on page 35).-Search by network path: To find a shared machine (UNC Path), enter the shared name manually or find a shared printer by clicking the Browse button. Then click Next.•HelpIf your machine is not connected to the computer or network, this help button gives detailed information about the how to connect the machine.5. The searched machine will be shown on the screen. Select the one you wish to use and click Next.If the driver searched only one machine, the confirmation window appears.6. After the installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.Otherwise, just click Next and go to step 8.7. If the test page prints out correctly, click Yes.If not, click No to reprint it.8. To register as a user of the machine in order to receive information from Samsung website, click On-line Registration.If your machine is not connected yet to the network, click How to connect?.How to connect? gives you the detailed information about the how to connect the machine. Follow the instructions in the window.9. Click Finish.•After the driver setup is completed, you may enable firewall.•If your printer driver does not work properly, follow the step below to repair or reinstall the driver.a) Make sure that the machine is connected to your machine and powered on.b) From theStart menu, select Programs or All Programs > Samsung Printers > your printer driver name > Maintenance.c) Select the option as you wish, follow the instruction on the window.Macintosh1. Make sure that the machine is connected to your network and powered on. Also, your machine’s IP address should have been set. 2. Insert the supplied software CD into your CD-ROM drive.3. Double-click the CD-ROM icon that appears on your Macintosh desktop.4. Double-click the MAC_Installer folder.5. Double-click the Installer OS X icon.6. Enter the password and click OK.7. The Samsung Installer window opens. Click Continue.8. Read the license agreement and click Continue.9. Click Agree to agree to the license agreement.10. Select Easy Install and click Install.Easy Install is recommended for most users. All components necessary for machine operations will be installed. If you select Custom Install, you can choose individual components to install.11. When the message which warns that all applications will close on your computer appears. Click Continue.12. Select Typical installation for a network printer for a network printer and then click OK.13. The SetIP program automatically runs. If the machine has already configured network information, close the SetIP program.14. Click OK to continue the installation.15.After the installation is finished, click Restart.16. Open the Applications folder > Utilities > Print Setup Utility.•For Mac OS X 10.5~10.6, open the Applications folder > SystemPreferences and click Print & Fax.17. Click Add on the Printer List.•For Mac OS X 10.5~10.6, click the “+” icon. A display window will pop up. 18. For Mac OS X 10.3, select the IP Printing tab.•For Mac OS X 10.4, click IP Printer.•For Mac OS X 10.5~10.6, click IP.19. Select HP Jetdirect - Socket in Protocol.When printing a document containing many pages, printing performance may be enhanced by choosing Socket for PrinterType option.20. Enter the machine’s IP address in the Address input field.

Network setup (SCX-3205W(K) only)_ 3921. Enter the queue name in the Queue input field. If you cannot determine the queue name for your machine server, try using the default queue first.22. For Mac OS X 10.3, if Auto Select does not work properly, select Samsung in Printer Model and your machine name in Model Name.•For Mac OS X 10.4, if Auto Select does not work properly, select Samsung in Print Using and your machine name in Model.•For Mac OS X 10.5~10.6, if Auto Select does not work properly, choose Select Printer Software and your machine name in PrintUsing.Your machine appears on the Printer List,and is set as the default machine.23. Click Add.If the printer driver does not work properly, uninstall the driver and reinstall it. Follow steps below to uninstall the driver for Macintosh.a) Make sure that the machine is connected to your computer and powered on.b) Insert the supplied software CD into your CD-ROM drive.c) Double-click CD-ROM icon that appears on your Macintosh desktop.d) Double-click the MAC_Installer folder.e) Double-click the Installer OS X icon.f) Enter the password and click OK.g) The Samsung Installer window opens. Click Continue.h) Read the license agreement and click Continue.i) Click Agree to agree to the license agreement.j) Select Uninstall and click Uninstall.k) When the message which warns that all applications will close on your computer appears, click Continue.l) When the uninstall is done, click Quit.LinuxInstall Linux Driver and add network Printer1. Make sure that the machine is connected to your network and powered on. Also, your machine’s IP address should have been set. 2. Download the Unified Linux Driver package from the Samsung website.3. Extract the UnifiedLinuxDriver.tar.gz file and open the new directory.4. Double-click the Linux folder.5. Double-click the install.sh icon.6. The Samsung Installer window opens. Click Continue.7. The Add printer wizard window opens. Click Next.8. Select Network printer and click Search button.9. The Printer’s IP address and model name appears on list field.10. Select your machine and click Next.11. Input the printer description and Next12. When the add printer is done, click Finish13. When the install is done, click FinishAdd network Printer1. Double-click the Unified Driver Configurator.2. Click Add Printer…3. The Add printer wizard window opens. Click Next.4. Select Network printer and click theSearch button.5. The printer’s IP address and model name appears on list field.6. Select your machine and click Next.7. Input the printer description and Next8. When the add printer is done, click Finish.IPV6 CONFIGURATIONTCP/IPv6 is supported properly only in Windows Vista or higher.If the IPv6 network seems to not be working, set all the network setting to the factory defaults and try again (See "Restoring factory default settings" on page 37).In the IPv6 network environment, follow the next procedure to use the IPv6 address.1. Connect your machine to the network with a network cable.2. Turn on the machine.3. Print a Network Configuration Report from the machine’s control panel that will check IPv6 addresses (See "Printing a network configuration report" on page 35).4. Select Start > Control Panel > Hardware and Sound > Printer > AddPrinter.5. Click Add a local printer on the Add Printer windows.6. Follow the instruction on the window.7. The Add PrinterWizard window appears. Follow the instruction on the window.If the machine does not work in the network environment, activate IPv6. Refer to the next section followed by.Printing a network configuration reportYou can print a network configuration report from the machine’s control panel that will show the current machine’s network settings. This will help you to set up a network and troubleshoot problems.1. In ready mode, press and hold Stop/Clear button on the control panel for long enough (about four seconds) until the Status LED blinks fast.2. Then, release the button.Using this Network Configuration Report, you can find your machine MAC address and IP address.For example:•MAC Address:00:15:99:41:A2:78•IP Address:192.0.0.192Setting IPv6 addressesMachine supports the following IPv6 addresses for network printing and managements.•Link-local Address: Self-configured local IPv6 address (Address starts with FE80).•Stateless Address:Automatically configured IPv6 address by a network router.•Stateful Address: IPv6 address configured by a DHCPv6 server.•Manual Address: Manually configured IPv6 address by a user.

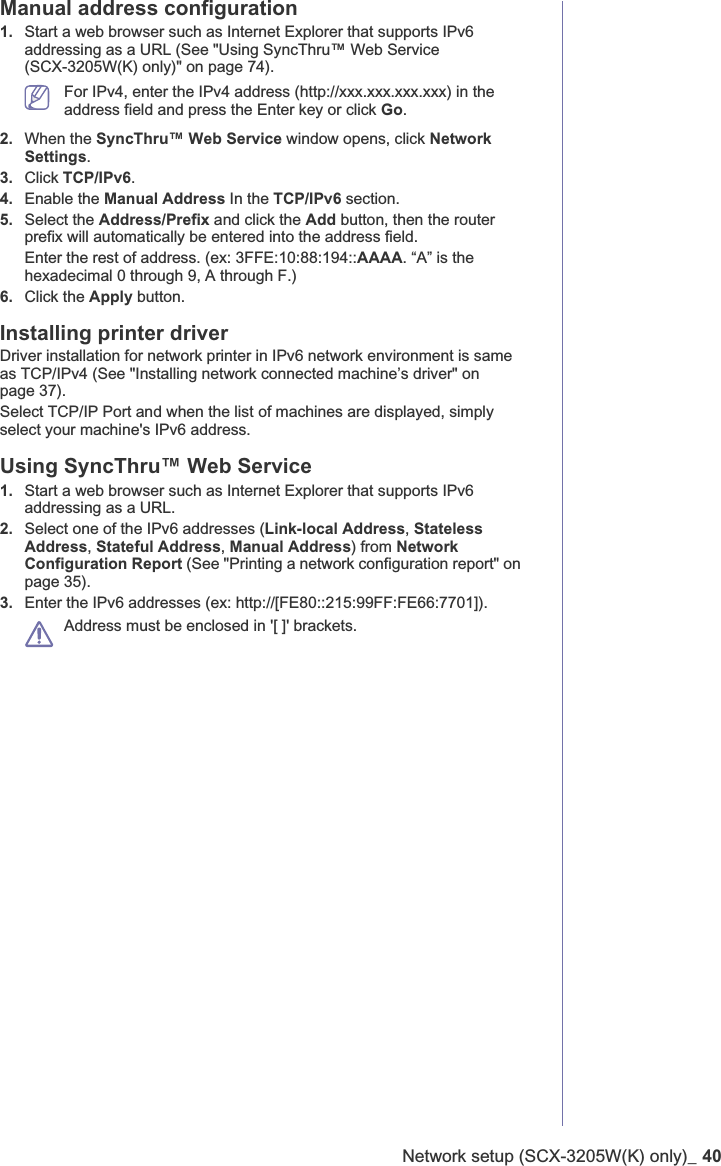

Network setup (SCX-3205W(K) only)_ 40Manual address configuration1. Start a web browser such as Internet Explorer that supports IPv6 addressing as a URL (See "Using SyncThru™ Web Service (SCX-3205W(K) only)" on page 74).For IPv4, enter the IPv4 address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2. When the SyncThru™ Web Service window opens, click Network Settings.3. Click TCP/IPv6.4. Enable the Manual Address In the TCP/IPv6 section.5. Select the Address/Prefix and click the Add button, then the router prefix will automatically be entered into the address field. Enter the rest of address. (ex: 3FFE:10:88:194::AAAA. “A” is the hexadecimal 0 through 9, A through F.)6. Click theApply button.Installing printer driverDriver installation for network printer in IPv6 network environment is same as TCP/IPv4 (See "Installing network connected machine’s driver" on page 37).Select TCP/IP Port and when the list of machines are displayed, simply select your machine's IPv6 address.Using SyncThru™ Web Service1. Start a web browser such as Internet Explorer that supports IPv6 addressing as a URL.2. Select one of the IPv6 addresses (Link-local Address,Stateless Address,Stateful Address,Manual Address) from Network Configuration Report (See "Printing a network configuration report" on page 35).3. Enter the IPv6 addresses (ex: http://[FE80::215:99FF:FE66:7701]).Address must be enclosed in '[ ]' brackets.

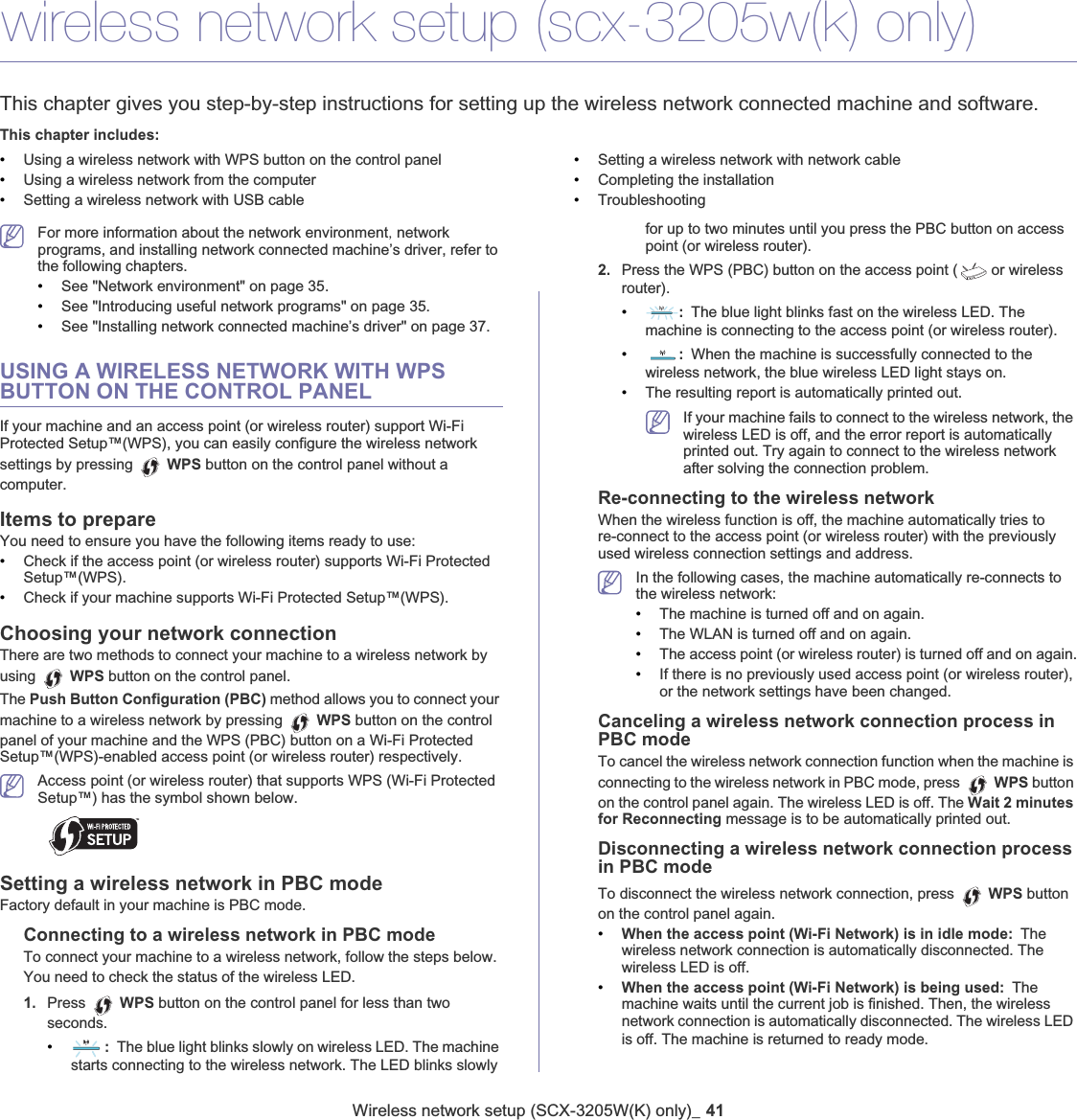

Wireless network setup (SCX-3205W(K) only)_ 414.wireless network setup (scx-3205w(k) only)This chapter gives you step-by-step instructions for setting up the wireless network connected machine and software.This chapter includes:•Using a wireless network with WPS button on the control panel•Using a wireless network from the computer•Setting a wireless network with USB cable•Setting a wireless network with network cable•Completing the installation•TroubleshootingFor more information about the network environmentS network programs, and installing network connected machine’s driver, refer to the following chapters. •See "Network environment" on page 35.•See "Introducing useful network programs" on page 35.•See "Installing network connected machine’s driver" on page 37.USING A WIRELESS NETWORK WITH WPS BUTTON ON THE CONTROL PANELIf your machine and an access point (or wireless router) support Wi-Fi Protected Setup™(WPS), you can easily configure the wireless network settings by pressing WPS button on the control panel without a computer.Items to prepareYou need to ensure you have the following items ready to use:•Check if the access point (or wireless router) supports Wi-Fi Protected Setup™(WPS).•Check if your machine supports Wi-Fi Protected Setup™(WPS).Choosing your network connectionThere are two methods to connect your machine to a wireless network by using WPS button on the control panel.The Push Button Configuration (PBC) method allows you to connect your machine to a wireless network by pressing WPS button on the control panel of your machine and the WPS (PBC) button on a Wi-Fi Protected Setup™(WPS)-enabled access point (or wireless router) respectively.Access point (or wireless router) that supports WPS (Wi-Fi Protected Setup™) has the symbol shown below.Setting a wireless network in PBC modeFactory default in your machine is PBC mode.Connecting to a wireless network in PBC modeTo connect your machine to a wireless network, follow the steps below. You need to check the status of the wireless LED.1. Press WPS button on the control panel for less than two seconds.•:The blue light blinks slowly on wireless LED. The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on access point (or wireless router).2. Press the WPS (PBC) button on the access point ( or wireless router).•:The blue light blinks fast on the wireless LED. The machine is connecting to the access point (or wireless router). •:When the machine is successfully connected to the wireless network, the blue wireless LED light stays on.•The resulting report is automatically printed out.If your machine fails to connect to the wireless network, the wireless LED is off, and the error report is automatically printed out. Try again to connect to the wireless network after solving the connection problem.Re-connecting to the wireless networkWhen the wireless function is off, the machine automatically tries to re-connect to the access point (or wireless router) with the previously used wireless connection settings and address.In the following cases, the machine automatically re-connects to the wireless network:•The machine is turned off and on again.•The WLAN is turned off and on again.•The access point (or wireless router) is turned off and on again.•If there is no previously used access point (or wireless router), or the network settings have been changed.Canceling a wireless network connection process in PBC modeTo cancel the wireless network connection function when the machine is connecting to the wireless network in PBC mode, press WPS button on the control panel again. The wireless LED is off. The Wait 2 minutesfor Reconnecting message is to be automatically printed out.Disconnecting a wireless network connection process in PBC modeTo disconnect the wireless network connection, press WPS button on the control panel again.•When the access point (Wi-Fi Network) is in idle mode: The wireless network connection is automatically disconnected. The wireless LED is off.•When the access point (Wi-Fi Network) is being used: Themachine waits until the current job is finished. Then, the wireless network connection is automatically disconnected. The wireless LED is off. The machine is returned to ready mode.

$Wireless network setup (SCX-3205W(K) only)_ 42USING A WIRELESS NETWORK FROM THE COMPUTERChoosing your network connectionTypically, you can only have one connection between your computer and the machine at a time. There are types of network connections to consider. •Wireless network without access point (Ad-Hoc mode) •Wireless network with an access point (Infrastructure mode) How to print a network configuration reportYou can identify the network settings of your machine by printing a network configuration report.To print the report:1. In ready mode, press and hold Stop/Clear button on the control panel for long enough (about four seconds) until the Status LED blinks fast.2. Then, release the button.Using this Network Configuration Report, you can find your machine MAC address and IP address.For example:•MAC Address:00:15:99:41:A2:78•IP Address:192.0.0.192IP addressesEvery device in a network has a unique numerical address called an IPAddress. Your machine came with a Default IP address of 192.0.0.192, which you can verify by printing out a Network Configuration Report or Configuration Report.•DHCP IP assignment: Connect your machine to the network, and wait a few minutes for the DHCP server to assign an IP address to the machine. Then, print the Network Configuration Report as explained above. If the report shows that the IP address has changed, the assignment was successful. You will see the new IP address in the report.•Static IP assignment: Use the SetIP program to change the IP address from your computer (See "Setting IP address" on page 36).In an office environment, we recommend that you contact a network administrator to set this address for you.Wireless network name and network keyWireless networks require higher security, so when an access point is first set up, a network name (SSID), the type of security used, and a Network Key are created for the network. Locate this information before proceeding with the machine installation.Infrastructure modeThis is an environment generally used for homes and SOHOs. This mode uses an access point to communicate with the wireless machine.•See "Installing the machine on a wireless network with an access point (Windows)" on page 42.•See "Installing the machine on a wireless network with an access point (Macintosh)" on page 45.Ad-Hoc modeThis mode does not use an access point. The wireless computer and wireless machine communicates directly. •See "Installing the machine on an Ad-Hoc wireless network (Windows)" on page 44.•See "Installing the machine on an Ad-Hoc wireless network (Macintosh)" on page 46.After choosing your configuration, follow the simple directions for your computer operating system, but first locate the software CD supplied with the machine before proceeding.Installing a wireless network with cablesYou can install a wireless network to connect to the machine with either a USB cable or a network cable. For most users, we recommend using a USB cable with the program provided in the supplied software CD. The following are two ways to install a wireless network with cables.•With a USB cable: You can simply set up a wireless network using the program in the supplied software CD. Only Windows and Macintosh operating system are supported (See "Setting a wireless network with USB cable" on page 42).You can also install a wireless network in Printer Settings Utility with USB cable after installing driver. (Windows and Macintosh operating system are supported.)•With a network cable: You can set up a wireless network using the SyncThru™ Web Service program (See "Setting a wireless network with network cable" on page 47).SETTING A WIRELESS NETWORK WITH USB CABLERefer to your network administrator, or the person that set up your wireless network, for information about your network configuration.Installing the machine on a wireless network with an access point (Windows)Items to prepareEnsure you have next items ready.•Access point•Network-connected computer•Software CD that provided with your machine•The machine installed with a wireless interface•USB cableCreating the infrastructure network in WindowsWhen the items are ready, follow below steps:1. Check whether the USB cable is connected to the machine.2. Turn on your computer, access point and machine.3. Insert the supplied software CD into your CD-ROM drive.•The software CD should automatically run and an installation window appears.•If the installation window does not appear, click Start and thenRun. Type X:\Setup.exe, replacing “X” with the letter which represents your CD-ROM drive. Click OK.•If you use Windows Vista, Windows 7 or Windows Server 2008 R2 click Start > All programs > Accessories > Run.$

$Wireless network setup (SCX-3205W(K) only)_ 43Type X:\Setup.exe replacing “X” with the letter which represents your CD-ROM and click OK.•If the AutoPlay window appears in Windows Vista, Windows 7 or Windows Server 2008 R2, click Run Setup.exe in Install or run program field, and click Continue or Yes in the User Account Control windows.4. Select the Wireless Setting and Installation option.•Install Now: First you must configure the wireless network settings of your printer to print through wireless.•Wireless Setting and Installation: Configure the wireless network settings of your printer with a USB cable then install the printer driver. Press this button to set up the wireless connection if you have not set up the wireless connection before. 5. ReadLicense Agreement, and select I accept the terms of the License Agreement. Then, click Next.6. The software searches the wireless network.If the searching has failed, you may check if the USB cable is connected between the computer and machine properly, and follow the instruction on the window.7. After searching, the window shows the wireless network devices. Select the name (SSID) of access point you are using and click Next.If you cannot find out the network name you want to choose, or if you want to set the wireless configuration manually, click Advanced Setting.•Enter the wireless Network Name: Type the SSID of access point you want (SSID is case-sensitive).•Operation Mode: Select Infrastructure.•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase) which is manually configured on the access point and each of its clients.•Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES, TKIP AES)•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using the WEP Encryption, select the appropriate WEP Key Index.The wireless network security window does appear when the access point has security setting.The wireless network security window appears. The window may differ according to its security mode, WEP or WPA.•In case of WEPSelect Open System or Shared Key for the authentication and enter WEP security key. Click Next.WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.•In case of WPAEnter the WPA shared key and click Next.WPA authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA also uses TKIP (Temporal Key Integrity Protocol) and AES (Advanced Encryption Standard) for data encryption.8. The window shows the wireless network setting and check if settings are right. Click Next.•For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the window. However, if it shows Static, click Change TCP/IP to change the assignment method to DHCP.•For the Static methodIf the IP address assignment method is Static, check if Static is shown in the window. However, if it shows DHCP, click ChangeTCP/IP to enter the IP address and other network configuration values for the machine. Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer is set to DHCP, you must contact the network administrator to get the static IP address.Example)If computer’s network information is as below:-IP address: 169.254.133.42-Subnet Mask: 255.255.0.0Machine’s network information should be as below:-IP address: 169.254.133. 43 (Use computer’s IP address,with changed last three digits.)-Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)-Gateway: 169.254.133.1 (Change the last three digits from IP address of your machine to 1.)9. When the wireless network setting is completed, disconnect the USB cable between the computer and machine. Click Next.10. Wireless Network Setting Complete window appears. Then, click Next.Select Yesif you accept the current settings and continue the setup procedure.Select No if you want to return to the beginning screen.Then, click Next.11. Click Next when theConfirm Printer Connection window appears.12. Select the components to be installed. Click Next.After selecting the components, you can also change the machine name, set the machine to be shared on the network, set the machine$

$Wireless network setup (SCX-3205W(K) only)_ 44as the default machine, and change the port name of each machine. Click Next.13. After the installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.Otherwise, just click Next and skip to step 15.14. If the test page prints out correctly, click Yes.If not, click No to reprint it.15. To register as a user of the machine in order to receive information from Samsung, click On-line Registration.16. Click Finish.Installing the machine on an Ad-Hoc wireless network (Windows)If you do not have an access point (AP), you may still connect the machine wirelessly to your computer by setting up an Ad-Hoc wireless network by following the simple steps below.Items to prepareEnsure you have next items ready.•Wireless network computer•Software CD provided with your machine•Wireless network machine•USB cableCreating the Ad-Hoc network in WindowsWhen the items are ready, follow below steps:1. Check whether the USB cable is connected to the machine.2. Turn on your computer and the wireless network machine.3. Insert the supplied software CD into your CD-ROM drive.•The software CD should automatically run and an installation window appear.•If the installation window does not appear, click Start and then Run. Type X:\Setup.exe, replacing “X” with the letter which represents your drive. Click OK.•If you use Windows Vista, Windows 7 or Windows Server 2008 R2 click Start > All programs > Accessories > Run.Type X:\Setup.exe replacing “X” with the letter which represents your drive and click OK.•If the AutoPlay window appears in Windows Vista, Windows 7 or Windows Server 2008 R2, click Run Setup.exe in Install or run program field, and click Continue or Yes in the User Account Control windows.4. Select the Wireless Setting and Installation option.•Install Now: First you must configure the wireless network settings of your printer to print through wireless.•Wireless Setting and Installation: Configure the wireless network settings of your printer with a USB cable then install the printer driver. Press this button to set up the wireless connection if you have not set up the wireless connection before. 5. Read the License Agreement, and select I accept the terms of the License Agreement. Then, click Next.6. The software searches the wireless network.If the software has failed to search the network, check if the USB cable is connected properly between the computer and machine, and follow the instruction on the window.7. After searching the wireless network,Ga list of wireless network your machine has searched appears. If you want to use the Samsung default ad-hoc setting, select the last wireless network on the list, which Network Name(SSID) is airportthru and Signal is Printer Self Network.Then, click Next.If you want to use other ad-hoc settings, select other wireless network from the list. If you want to change ad-hoc settings click the Advanced Setting buttonU•Enter the wireless Network Name: Type in the SSID name you want (SSID is case-sensitive).•Operation Mode: Select Ad-hoc.•Channel: Select the channel.•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP keyGcan access the network.•Encryption: Select the encryption. (None, WEP64, WEP128)•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using the WEP Encryption, select the appropriate WEP Key Index.The wireless network security window appears when the ad-hoc network has security setting.The wireless network security window appears. Select Open System or Shared Key for the authentication and click Next.•WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.8. The window which shows the wireless network setting appears.Check the settings and click Next.Before entering the IP address for the machine, you must know the computer’s network configuration information.GIf the computer’s network configuration is set to DHCP, the wireless network setting should also be DHCP. Likewise, if the computer’s network configuration is set to Static, the wireless network setting should also be Static.$

Wireless network setup (SCX-3205W(K) only)_ 45If your computer is set to DHCP and you want to use Static wireless network setting, you must contact the network administrator to get the static IP address.•For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirmwindow. However, if it shows Static, click Change TCP/IPto change the assignment method to Receive IP address automatically (DHCP).•For the Static methodIf the IP address assignment method is Static, check if Static is shown in the Wireless Network Setting Confirm window. However, if it shows DHCP, click Change TCP/IPto enter the IP address and other network configuration values for the machine.Example)If computer’s network information is as below:-IP address: 169.254.133.42-Subnet Mask: 255.255.0.0Machine’s network information should be as below:-IP address: 169.254.133. 43 (Use computer’s IP address, with changed last three digits.)-Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)-Gateway: 169.254.133.1 (Change the last three digits from IP address of your machine to 1.)9. When the wireless network setting is completed, disconnect the USB cable between the computer and machine. Click Next.If the Change PC Network Setting window appears, follow the steps on the window.Click Nextif you are finished the computer’s wireless network settings.If you set the computer’s wireless network as DHCP, it will take several minutes to receive the IP address. 10. The Wireless Network Setting Complete window appears.Select Yes if you accept the current settings and continue the setup procedure.Select No if you want to return to the beginning screen. Then, click Next.11. Click Next when the Confirm Printer Connection window appears.12. Select the components to be installed. Click Next.After selecting the components, you can also change the machine name, set the machine to be shared on the network, set the machine as the default machine and change the port name of each machine. Click Next.13. After the installation is finished, a window asking you to print a test page appears. If you want to print a test page, click Print a test page.Otherwise, just click Next and skip to step 15.14. If the test page prints out correctly, click Yes.If not, click No to reprint it.15. To register as a user of the machine in order to receive information from Samsung, click On-line Registration.16. Click Finish.Installing the machine on a wireless network with an access point (Macintosh)Items to prepareEnsure you have next items ready.•Access point•Network-connected computer•Software CD that provided with your machine•The machine installed with a wireless network interface•USB cableCreating the infrastructure network in MacintoshWhen the items are ready, follow below steps:1. Check whether the USB cable is connected to the machine.2. Turn on your computer, access point and machine.3. Insert the supplied software CD into your CD-ROM drive.4. Double-click the CD-ROM icon that appears on your Macintosh desktop.5. Double-click the MAC_Installer folder.6. Double-click the Installer OS X icon.7. Enter the password and click OK.8. The Samsung Installer window opens. Click Continue.9. Read the license agreement and click Continue.10.Click Agree to agree to the license agreement.11. Select Easy Install and click Install.Easy Install is recommended for most users. All components necessary for machine operations will be installed. If you select Custom Install, you can choose individual operations will be installed.12. Select the Wireless Setting and Installation option.13. The software searches the wireless network.If the searching has failed, you may check if the USB cable is connected between the computer and machine properly, and follow the instruction on the window.14. After searching, the window shows the wireless network devices. Select the name (SSID) of access point you are using and click Next.When you set the wireless configuration manually, click Advanced Setting.•Enter the wireless Network Name: Type the SSID of access point you want (SSID is case-sensitive).•Operation Mode: Select Infrastructure.•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase) which is manually configured on the access point and each of its clients.•Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES, TKIP AES)•Network Key: Enter the encryption network key value.

Wireless network setup (SCX-3205W(K) only)_ 46•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using the WEP Encryption, select the appropriate WEP Key Index.The wireless network security window does appear when the access point has security setting.The wireless network security window appears. The window may differ according to its security mode, WEP or WPA.•In case of WEPSelect Open System or Shared Key for the authentication and enter WEP security key. Click Next.WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.•In case of WPAEnter the WPA shared key and click Next.WPA authorizes and identifies users based on a secret key that changes automatically at regular intervals. WPA also uses TKIP (Temporal Key Integrity Protocol) and AES (Advanced Encryption Standard) for data encryption.15. The window shows the wireless network setting and check if settings are right. Click Next.•For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the window. However, if it shows Static, click Change TCP/IP to change the assignment method to DHCP.•For the Static methodIf the IP address assignment method is Static, check if Static is shown in the window. However, if it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine. Before entering the IP address for the machine, you must know the computer’s network configuration information. If the computer is set to DHCP, you must contact the network administrator to get the static IP address.Example)If computer’s network information is as below:-IP address: 169.254.133.42-Subnet Mask: 255.255.0.0Machine’s network information should be as below:-IP address: 169.254.133. 43 (Use computer’s IP address, with changed last three digits.)-Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)-Gateway: 169.254.133.1 (Change the last three digits from IP address of your machine to 1.)16. The wireless network is connecting according to the network configuration.17. When the wireless network setting is completed, disconnect the USB cable between the computer and machine. 18. After the installation is finished, click Restart.Installing the machine on an Ad-Hoc wireless network (Macintosh)If you do not have a access point (AP), you may still connect the machine wirelessly to your computer by setting up an Ad-Hoc wireless network by following these simple directions.Items to prepareEnsure you have next items ready.•Wireless network-connected computer•Software CD that provided with your machine•The machine installed with a wireless network interface•USB cableCreating the Ad-Hoc network in MacintoshWhen the items are ready, follow below steps:1. Check whether the USB cable is connected to the machine.2. Turn on your computer and machine.3. Insert the supplied software CD into your CD-ROM drive.4. Double-click the CD-ROM icon that appears on your Macintosh desktop.5. Double-click the MAC_Installer folder.6. Double-click the Installer OS X icon.7. Enter the password and click OK.8. The Samsung Installer window opens. Click Continue.9. Read the license agreement and click Continue.10.Click Agree to agree to the license agreement.11. Select Easy Install and click Install.Easy Install is recommended for most users. All components necessary for machine operations will be installed. If you select Custom Install, you can choose individual operations will be installed.12. Click Wireless Setting and Installation.13.The software searches the wireless network devices.If the searching has failed, you may check if the USB cable is connected between the computer and machine properly, and follow the instruction on the window.14. After searching the wireless network,Ga list of wireless network your machine has searched appears. If you want to use the Samsung default ad-hoc setting, select the lastwireless network on the list, which Network Name(SSID) is airportthru and Signal is Printer Self Network.Then, click Next.If you want to use other ad-hoc settings, select other wireless network from the list. If you want to change ad-hoc settings click the Advanced Setting buttonU•Enter the wireless Network Name: Type in the SSID name you want (SSID is case-sensitive).•Operation Mode: Select Ad-hoc.•Channel: Select the channel.•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP keyGcan access the network.•Encryption: Select the encryption. (None, WEP64, WEP128)•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.

Wireless network setup (SCX-3205W(K) only)_ 47•WEP Key Index: If you are using the WEP Encryption, select the appropriate WEP Key Index.The wireless network security window appears when the ad-hoc network has security setting.The wireless network security window appears. Select OpenSystem or Shared Key for the authentication and click Next.•WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.15. The window which shows the wireless network setting appears. Check the settings and click Next.Before entering the IP address for the machine, you must know the computer’s network configuration information.GIf the computer’s network configuration is set to DHCP, the wireless network setting should also be DHCP. Likewise, if the computer’s network configuration is set to Static, the wireless network setting should also be Static.If your computer is set to DHCP and you want to use Static wireless network setting, you must contact the network administrator to get the static IP address.•For the DHCP methodIf the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirm window. However, if it shows Static, click Change TCP/IPto change the assignment method to Receive IP address automatically (DHCP).•For the Static methodIf the IP address assignment method is Static, check if Static is shown in the Wireless Network Setting Confirm window. However, if it shows DHCP, click Change TCP/IPto enter the IP address and other network configuration values for the machine.Example)If computer’s network information is as below:-IP address: 169.254.133.42-Subnet Mask: 255.255.0.0Machine’s network information should be as below:-IP address: 169.254.133. 43 (Use computer’s IP address, with changed last three digits.)-Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)-Gateway: 169.254.133.1 (Change the last three digits from IP address of your machine to 1.)16. The wireless network is connecting according to the network configuration.17. When the wireless network setting is completed, disconnect the USB cable between the computer and machine. 18. After the installation is finished, click Restart.SETTING A WIRELESS NETWORK WITH NETWORK CABLEYour machine is a network compatible machine. To enable your machine to work with your network you will need to perform some configuration procedures.Refer to your network administrator, or the person that set up your wireless network, for information about your network configuration.Preparing itemsEnsure you have next items ready.•Access point•Network-connected computer•Software CD that provided with your machine•The machine installed with a wireless network interface•Network cableSetting IP addressFirstly, you have to set up an IP address for network printing and managements. In most cases a new IP address will be automatically assigned by a DHCP (Dynamic Host Configuration Protocol) server located on the network.In a few situations the IP address must be set manually. This is called a static IP and is often required in corporate Intranets for security reasons.•DHCP IP assignment: Connect your machine to the network, and wait a few minutes for the DHCP server to assign an IP address to the machine. Then, print the Network Configuration Report as explained above. If the report shows that the IP address has changed, the assignment was successful. You will see the new IP address in the reportG(See "How to print a network configuration report" on page 42).•Static IP assignment: Use SetIP program to change the IP address from your computer.In an office environment, we recommend that you contact a network administrator to set this address for you.IP setting using SetIP Program (Windows)This program is for manually setting the network IP address of your machine using its MAC address to communicate with the machine. A MAC address is the hardware serial number of the network interface and can be found in the Network Configuration Report.For using SetIP program, disable the computer firewall before continuing byperforming the following:1. Open Start > All programs > Control Panel.2. Double-click Security Center.3. Click Windows Firewall.4. Disable the firewall.Installing the program1. Insert the Printer Software CD-ROM provided with your machine. When the driver CD runs automatically, close that window.2. Start Windows Explorer and open the X drive. (X represents your CD-ROM drive.)3. Double-click Application > SetIP.4. Double-click Setup.exe to install this program.5. Click OK. If necessary, select a language from the drop-down list.6. Follow the instructions in the window and complete the installation.Starting the program1. Connect your machine to the network with a network cable.2. Turned on the machine.3. From the Windows Start menu, select All Programs > Samsung Printers > SetIP > SetIP.4. Click on the icon (third from left) in the SetIP window to open the TCP/IP configuration window.

Wireless network setup (SCX-3205W(K) only)_ 485. Enter the machine’s new information into the configuration window as follows. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.•MAC Address: Find the machine’s MAC address from the Network Configuration Report and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8.•IP Address: Enter a new IP address for your printer.For example, if your computer’s IP address is 192.168.1.150, enter 192.168.1.X. (X is number between 1 and 254 other than the computer’s address.)•Subnet Mask: Enter a Subnet Mask.•Default Gateway:Enter a Default Gateway.6. Click Apply,and then click OK. The machine will automatically print the Network Configuration Report. Confirm that all the settings are correct.7. Click Exit to close the SetIP program.8. If necessary, restart the computer’s firewall.IP setting using SetIP Program (Macintosh)For using SetIP program, disable the computer firewall before continuing by performing the following:The path and UIs may differ by Mac OS version. Refer to the Mac OS manual.1. Open System Preferences.2. Click Security.3. Click the Firewall menu.4. Turn firewall off.The following instructions may vary for your model.1. Connect your machine to the network with a network cable.2. Insert the Installation CD-ROM, and open the disk window, select MAC_Installer > MAC_Printer > SetIP > SetIPApplet.html.3. Double-click the file and Safari will automatically open, then select Trust. The browser will open the SetIPApplet.html page that shows the printer’s name and IP address information. 4. Click on the icon (third from left) in the SetIP window to open the TCP/IP configuration window.5. Enter the machine’s new information into the configuration window as follows. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.•MAC Address: Find the machine’s MAC address from the Network Configuration Report and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8.•IP Address: Enter a new IP address for your printer.For example, if your computer’s IP address is 192.168.1.150, enter 192.168.1.X. (X is number between 1 and 254 other than the computer’s address.)•Subnet Mask: Enter a Subnet Mask.•Default Gateway: Enter a Default Gateway.6. Select Apply, then OK, and OK again. The printer will automatically print the configuration report. Confirm that all the settings are correct. Quit Safari. You may close and eject the installation CD-ROM. If necessary, restart the computer’s firewall. You have successfully changed the IP address, subnet mask, and gateway.Configuring the machine’s wireless networkBefore starting you will need to know the network name(SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who has set up your network.To configure wireless parameters, you can use SyncThru™ Web Service.Using SyncThru™ Web ServiceBefore starting wireless parameter configuration, make sure cable connection status. 1. Check whether the network cable is connected to the machine. If not, connect the machine with a standard network cable.2. Start a web browser such as Internet Explorer, Safari or Firefox and enter your machine’s new IP address in the browser window.For example,3. Click Login on the upper right of the SyncThru™ Web Service website.The Login window appears. 4. Type in the ID and Password then click Login.If it’s your first time logging into SyncThru™ Web Service, type in the below default ID and password.•ID: admin•Password: sec000005. When the SyncThru™ Web Service window opens, click Network Settings.6. Click Wireless > Wizard.Wizard will help you setup the wireless network configuration. However, if you want to set the wireless network directly, select Custom.7. Select the one Network Name(SSID) in the list.•SSID: SSID (Service Set Identifier) is a name that identifies a wireless network. access points and wireless devices attempting to connect to a specific wireless network must use the same SSID. The SSID is case-sensitive.•Operation Mode:Operation Mode refers to the type of wireless connections (See "Wireless network name and network key" on page 42).-Ad-hoc: Allows wireless devices to communicate directly with each other in a peer-to-peer environment.-Infrastructure: Allows wireless devices to communicate with each other through an access point.

Wireless network setup (SCX-3205W(K) only)_ 49If your network’s Operation Mode is Infrastructure, select the SSID of the access point. If the Operation Mode is Ad-hoc,select the machine’s SSID. Note that “airportthru” is the default SSID of your machine.8. Click Next.If wireless security setting window appears, enter the registered password (network key) and click Next.9. The confirmation window appears, please check your wireless setup. If the setup is right, click Apply.Disconnect the network cable (standard or network). Your machine should then start communicating wirelessly with the network. In case of Ad-hoc mode, you can use a wireless LAN and wired LAN simultaneously.COMPLETING THE INSTALLATIONAfter you have installed your Samsung wireless network printer, print another copy of the Network Configuration Report and keep it for future reference. You are now ready to use your new Samsung wireless printer on your network. TROUBLESHOOTINGSolve problems that might occur during wireless setting and installing the machine driver.Wireless network problemsIf problems occur while using the machine on a network, check the followings.Printers Not Found•Your machine may not be turned on. Turn on your computer and the machine.•USB cable is not connected between your computer and machine. Connect machine to your computer using the USB cable.•The machine does not support wireless network. Check the machine's user's guide included on the software CD supplied with your machine and prepare a wireless network machine.Connecting Failure - Not found SSID•The machine is unable to search network name (SSID) which you have selected or typed in. Check the network name (SSID) on your access point and try connecting again. •Your access point is not turned on. Turn on your access point.Connecting Failure - Invalid Security•You configured security incorrectly. Check the configured security on your access point and machine.Connecting Failure - General Connection Error•Your computer is not receiving a signal form your machine. Check the USB cable and your machine power.Connecting Failure - Connected Wired Network•Your machine is connected with wired network cable. Remove the wired network cable from your machine.PC Connection Error•The configured network address is unable to connect between your computer and machine.-For DHCP network environmentThe print receives the IP address automatically (DHCP) when computer is configured to DHCP.-For Static network environmentThe machine uses the static address when computer is configured to static address.If you computer has following addresses,-IP address: 192.168.1.100-Subnet address: 255.255.255.0-Gateway address: 192.168.1.1Type in the following address for your machine,-IP address: 192.168.1.101-Subnet address: 255.255.255.0-Gateway address: 192.168.1.1Solving other problemsIf problems occur while using the machine on a network, check the followings. For information on access point (or wireless router), refer to its own user's guide. •Your computer, access point or machine may not be turned on.•Check the wireless reception around the machine. If the reception is far from the machine or there is an obstacle, you might have difficulty receiving the signal. •Cycle the power for access point (or wireless router), machine and computer. Sometimes cycling the power can recover network communication.•Check whether firewall software (V3 or Norton) is blocking the communication. If the computer and the machine is connected on a same network it cannot be searched, firewall software might be blocking the communication. Refer to the user's guide for the software to turn it off and try searching the machine again.•Check whether the machine's IP address is allocated correctly. You can check the IP address by printing the network configuration report.•Check whether access point (or wireless router) has a configured security (password). If it has a password, refer to the access point (or wireless router) administrator.•Check whether the machine's IP address. Reinstall the machine driver and change the settings to connect to the machine on the network. Due to the characteristics of DHCP, the allocated IP address could change if the machine is not used for a long time or if the access point has been reset.•Check the wireless environment. You might not be able to connect to the network in the infrastructure environment where you need to type in a user's information before connecting to access point (or wireless router).•This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless communication (Bluetooth) is not supported.•When using the Ad-hoc mode, for operating systems such as Windows Vista, you might need to set the wireless connection setting every time you use the wireless machine. •You cannot use infrastructure mode and Ad-hoc mode at the same time for Samsung wireless network machine.•The machine is within the range of the wireless network.For most networks, the machine should be within 30 meters (100 feet) of the wireless access point (or wireless router).

Wireless network setup (SCX-3205W(K) only)_ 50•The machine is located away from obstacles that could block the wireless signal.Remove any large metal objects between the access point (or wireless router) and the machine.Make sure the machine and wireless access point (or wireless router) are not separated by poles, walls, or support columns containing metal or concrete.•The machine is located away from other electronic devices that may interfere with the wireless signal.Many devices can interfere with the wireless signal, including baby monitors, motors, cordless phones, security system cameras, other wireless networks, and some Bluetooth devices.

Basic setup_ 515.basic setupAfter installation is complete, you may want to set the machine’s default settings. Refer to the next section if you would liketo set or change values. This chapter gives you step-by-step instructions for setting up the machine.This chapter includes:•Altitude adjustment•Setting the default tray and paper•Using the power saving feature•Changing font settingALTITUDE ADJUSTMENTThe print quality is affected by atmospheric pressure, which is determined by the height of the machine above sea level. The following information will guide you on how to set your machine to the best print quality or best quality of print.Before you set the altitude value, determine the altitude where you are.04,000 m(13,123 ft) 3,000 m(9,842 ft) 2,000 m(6,561 ft) 1,000 m(3,280 ft) 43211High 12High 23High 34NormalYou can altitude adjustment in Printer Settings Utility.1. Double-click the Smart Panel icon on the Windows task bar (or Notification Area in Linux). You can also click Smart Panel on the status bar in Mac OS X (See "Using the Smart Panel program" on page 75).Or, if you are a Windows user, you can launch it from the Start menu, select Programs or All Programs > Samsung Printers > your printer driver name > Smart Panel.2. Click Printer Setting.3. Click Setting > Altitude Adjustment. Select necessary options from the drop-down list.4. Click the Apply button.If your machine is connected to a network, SyncThru™ Web Service screen appears automatically. This can be also adjusted via SyncThru™ Web Service.SETTING THE DEFAULT TRAY AND PAPERYou can select the tray and paper you would like to keep using for printing job.From your computerWindows1. Click the Windows Start menu. 2. For Windows 2000, select Settings >Printers.•For Windows XP/Server 2003, select Printer and Faxes.•For Windows Server 2008/Vista, select Control Panel > Hardware and Sound >Printers.•For Windows 7, select Control Panel > Hardware and Sound >Devices and Printers.•For Windows Server 2008 R2, select Control Panel > Hardware >Devices and Printers.3. Right-click on your machine.4. For Windows XP/Server 2003/Server 2008/Vista, press PrintingPreferences.For Windows 7/Windows Server 2008 R2, from context menus, select the Printing Preferences.If Printing Preferences item has a Ź mark, you can select other printer drivers connected with the selected printer.5. Click Paper tab. 6. Select tray and its options, such as paper size and type.7. Press OK.If you want to use special-sized paper such as a billing paper, select Edit... in the Paper tab in the Printing Preferences (See "Opening printing preferences" on page 60).MacintoshMacintosh does not support this function. Macintosh users need to change the default setting manually each time they want to print using other settings. 1. Open a Macintosh application and select the file you want to print.2. Open the File menu and click Print.3. Go to Paper Feed pane.4. Set appropriate tray from which you want to print.5. Go to Paper pane.6. Set paper type to correspond to the paper loaded in the tray from which you want to print.7. Click Print to print. Linux1. Open Terminal Program.2. When the Terminal screen appears, type in the following: [root@localhost root]# lpr <FileName>

Basic setup_ 523. Select Printer and click Properties…4. Click on the Advanced tab.5. Select the tray (source) and its options, such as paper size and type.6. Press OK.USING THE POWER SAVING FEATUREWhen you will not be using the machine for a while, you can use this feature to save power.You change power save in Printer Settings Utility.1. Double-click the Smart Panel icon on the Windows task bar (or Notification Area in Linux). You can also click Smart Panel on the status bar in Mac OS X.Or, if you are a Windows user, you can launch it from the Start menu, select Programs or All Programs > Samsung Printers > your printer driver name > Smart Panel.2. Click Printer Setting.3. Click Setting > Power Save. Select the appropriate value from the drop-down list, and then click Apply.CHANGING FONT SETTINGYour machine has preset font setting depending on your region or country.If you want to change the font or set the font for special condition, such as the DOS environment, you can change the font setting as follows:1. Double-click the Smart Panel icon on the Windows task bar (or Notification Area in Linux). You can also click Smart Panel on the status bar in Mac OS X. Or, if you are a Windows user, you can launch it from the Start menu, select Programs or All Programs > Samsung Printers >your printer driver name > Smart Panel.2. Click Printer Setting.3. Click Emulation.4. Confirm if PCL is selected in Emulation Setting.5. Click Setting.6. Select your preferred font in the Symbol set list.7. Click Apply.Following information shows the proper font list for corresponding languages.•Russian: CP866, ISO 8859/5 Latin Cyrillic•Hebrew: Hebrew 15Q, Hebrew-8, Hebrew-7 (Israel only)•Greek: ISO 8859/7 Latin Greek, PC-8 Latin/Greek•Arabic & Farsi: HP Arabic-8, Windows Arabic, Code Page 864, Farsi, ISO 8859/6 Latin Arabic•OCR:OCR-A, OCR-B

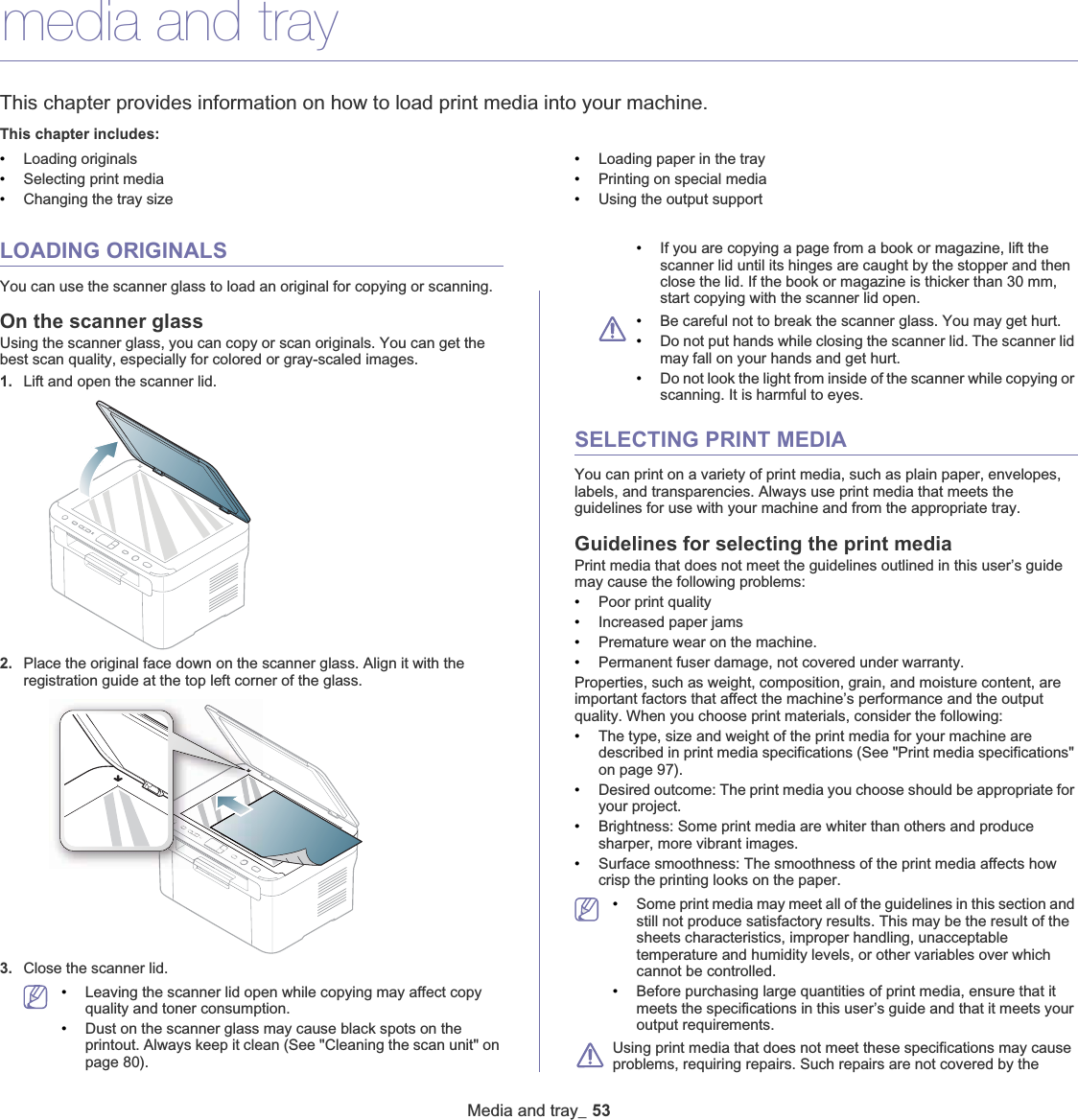

Media and tray_ 536.media and trayThis chapter provides information on how to load print media into your machine.This chapter includes:•Loading originals•Selecting print media•Changing the tray size•Loading paper in the tray•Printing on special media•Using the output supportLOADING ORIGINALSYou can use the scanner glass to load an original for copying or scanning.On the scanner glassUsing the scanner glass, you can copy or scan originals. You can get the best scan quality, especially for colored or gray-scaled images.1. Lift and open the scanner lid.2. Place the original face down on the scanner glass. Align it with the registration guide at the top left corner of the glass.3. Close the scanner lid.•Leaving the scanner lid open while copying may affect copy quality and toner consumption.•Dust on the scanner glass may cause black spots on the printout. Always keep it clean (See "Cleaning the scan unit" on page 80).•If you are copying a page from a book or magazine, lift the scanner lid until its hinges are caught by the stopper and then close the lid. If the book or magazine is thicker than 30 mm, start copying with the scanner lid open.•Be careful not to break the scanner glass. You may get hurt.•Do not put hands while closing the scanner lid. The scanner lid may fall on your hands and get hurt.•Do not look the light from inside of the scanner while copying or scanning. It is harmful to eyes.SELECTING PRINT MEDIAYou can print on a variety of print media, such as plain paper, envelopes, labels, and transparencies. Always use print media that meets the guidelines for use with your machine and from the appropriate tray. Guidelines for selecting the print mediaPrint media that does not meet the guidelines outlined in this user’s guide may cause the following problems:•Poor print quality•Increased paper jams•Premature wear on the machine.•Permanent fuser damage, not covered under warranty.Properties, such as weight, composition, grain, and moisture content, are important factors that affect the machine’s performance and the output quality. When you choose print materials, consider the following:•The type, size and weight of the print media for your machine are described in print media specifications (See "Print media specifications" on page 97).•Desired outcome: The print media you choose should be appropriate for your project.•Brightness: Some print media are whiter than others and produce sharper, more vibrant images.•Surface smoothness: The smoothness of the print media affects how crisp the printing looks on the paper.•Some print media may meet all of the guidelines in this section and still not produce satisfactory results. This may be the result of the sheets characteristics, improper handling, unacceptable temperature and humidity levels, or other variables over which cannot be controlled.•Before purchasing large quantities of print media, ensure that it meets the specifications in this user’s guide and that it meets your output requirements. Using print media that does not meet these specifications may cause problems, requiring repairs. Such repairs are not covered by the

Media and tray_ 54warranty or service agreements.The amount of paper put into the tray may differ according to media type used (See "Print media specifications" on page 97).Media sizes supported in each modeMODE SIZE TYPE SOURCECopy mode Letter, A4, Legal, Oficio, US Folio, Executive, JIS B5, A5For details about paper type, click the following link ("Print media specifications" on page 97).TraySimplex printingFor details about paper size, click the following link ("Print media specifications" on page 97).For details about paper type, click the following link ("Print media specifications" on page 97).TrayDuplex printing (Manual)aa.75 to 90 g/m2 (20~24 lbs bond) only (See "Print media specifications" on page 97).Letter, A4, Legal, US Folio, OficioPlain, Color, Preprinted, Recycled, Bond, ArchiveManual feeding in the trayCHANGING THE TRAY SIZEThe tray is preset to Letter or A4 size, depending on your country. To change the size, you need to adjust the paper guides.3121Tray2Paper length guide3Paper width guide1. Open front door and pinch the paper length guide and pull it out to extend the tray.Because the machine is very light, it can move when you open and close the tray or install and remove the toner cartridge. Be careful not to move the machine when performing these tasks.2. Flex or fan the edge of the paper stack to separate the pages before loading the paper. Insert the paper into the tray.3. Load paper with the print side facing up. Make sure that all four corners are flat in the tray.Do not overload the tray with paper. Otherwise, it may cause paper jams.

Media and tray_ 554. Pinch the paper length guide to adjust the guide so that it is flush up against the rear edge of the paper; then pinch the paper width guides so they are flush against the sides of the paper.•Do not push the paper width guide too far causing the media to warp.•Do not use a paper with more than 6 mm (0.24 inch.) curl.•If you do not adjust the paper width guides, it may cause paper jams.LOADING PAPER IN THE TRAYTray1. Open the front door, pinch the paper length guide and pull it out to extend the tray. Then, adjust the tray size to the media size you are loading (See "Changing the tray size" on page 54).2. Flex or fan the edge of the paper stack to separate the pages before loading papers.3. Place the paper with the side you want to print facing up.When you print a document, set the paper type and size for the tray.For information about setting the paper type and size on the control panel (See "Setting the default tray and paper" on page 51).•If you experience problems with paper feeding, check whether the paper meets the media specifications. Then, try placing one sheet at a time in tray (See "Print media specifications" on page 97, and "Printing on special media" on page 56).•The settings made from the machine driver override the settings on the control panel.Manual feeding in the trayThe tray can hold special sizes and types of print material, such as postcards, note cards, and envelopes. It is useful for single page printing on letterhead or colored paper.Tips on using the manual feeding method•If you select Paper > Source > Manual Feeder from your printer driver, you need to press Start button each time you print a page.Load only one type, size and weight of print media at a time in the tray.•To prevent paper jams, do not add media while printing. •Print media should be loaded face up with the top edge going into the tray first and be placed in the center of the tray.•Always load the use recommended print media to avoid paper jams and print quality problems (See "Print media specifications" on page 97).•Flatten any curl on postcards, envelopes, and labels before loading them into the tray.1. Load the paper in the tray.•When printing on special media, you must follow the loading guideline (See "Printing on special media" on page 56).•When paper does not feed well while printing, gently push the paper in manually until it starts feeding automatically. 2. Squeeze the tray paper width guides and adjust them to the width of the paper. Do not force them too much, or the paper will bend resulting in a paper jam or skew.3. Open the output tray and support. 4. To print from an application, open the application and open the print menu.5. Open Printing Preferences (See "Opening printing preferences" on page 60).6. Click on the Paper tab in Printing Preferences, and select an appropriate paper type.For example, if you want to use a label, set the paper type to Label.7. Select Manual Feeder in paper source, then press OK.8. Start printing.

Media and tray_ 56If you are printing multiple pages, load the next sheet after the first page prints out, and press Start button. Repeat this step for every page to be printed.PRINTING ON SPECIAL MEDIAThe table below shows the available special media for printing. When printing on a special media, we recommend you feed one paper at a time. Check the maximum input number of media for tray (See "Print media specifications" on page 97).TYPES TRAY MANUAL FEEDING IN TRAYAa.Load one paper at a time.Plain ƔƔThick ƔƔThin ƔƔCotton ƔColor ƔPreprinted ƔRecycled ƔƔEnvelope ƔTransparency ƔLabels ƔCardStock ƔBond ƔArchive ƔƔ(Ɣ: supported, Blank: Not supported) The following media types are shown in the Printing Preferences. This paper type option allows you to set the type of paper to be loaded in the tray. Selecting the appropriate media will let you get the best printout quality. Selecting inappropriate media can result in poor print quality.•Plain: Normal plain paper. Select this type if your printing on 60 to 120 g/m2 (16 to 32 lbs bond).•Thick: 90 to 163 g/m2 (24 to 43 lbs bond) thick paper.•Thin: 60 to 70 g/m2 (16 to 19 lbs bond) thin paper.•Cotton: 75 to 90 g/m2 (20 to 24 lbs bond) cotton paper.•Color: 75 to 90 g/m2 (20 to 24 lbs bond) color-back grounded paper.•Preprinted: 75 to 90 g/m2 (20 to 24 lbs bond) preprinted/letterhead paper.•Recycled: 60 to 90 g/m2 (16 to 24 lbs bond) recycled paper.When you use recycled paper, printouts might be wrinkled and/or jamming may occur due to excessive curl. •CardStock: 105 to 163 g/m2 (28 to 43 lbs bond) cardstock. •Envelope: 75 to 90 g/m2 (20 to 24 lbs bond) envelope.•Transparency: 138 to 146 g/m2 (37 to 39 lbs bond) transparency paper. •Labels: 120 to 150 g/m2 (32 to 40 lbs bond) labels. •Bond: 105 to 120 g/m2 (28 to 32 lbs bond) bond. •Archive: 70 to 90 g/m2 (19 to 24 lbs bond) If you need to keep the print-out for a long time, such as for archives. EnvelopesSuccessful printing on envelopes depends upon the quality of the envelopes.To print on an envelope, the stamp area should be on the left side and the end of the envelope with the stamp area should enter the printer first in the center of the tray.•When selecting envelopes, consider the following factors:-Weight: The weight of the envelope paper should not exceed 90 g/m2 otherwise, jams may occur.-Construction: Prior to printing, envelopes should lie flat with less than 6 mm ( 0.24 inch.) of curl, and should not contain air.-Condition: Envelopes should not be wrinkled, nicked, either damaged.-Temperature: Use envelopes that are compatible with the heat andpressure of the machine during operation.•Use only well-constructed envelopes with sharp-and well-creased folds.•Do not use stamped envelopes.•Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials.•Do not use damaged or poorly made envelopes.•Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.1 Acceptable2 Unacceptable•Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature about 170°C (338 °F) for 0.1 second. The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.•For the best print quality, position margins no closer than 15 mm ( 0.59inch.) from the edges of the envelope.•Avoid printing over the area where the envelope’s seams meet.

Media and tray_ 57TransparenciesTo avoid damaging the machine, use only transparencies designed for laser printers.•Transparencies used in the machine must be able to withstand machine’s fusing temperature.•Place them on a flat surface after removing them from the machine.•Do not leave unused transparencies on the paper tray for long periods of time. Dust and dirt may accumulate on them, resulting in spotty printing.•To avoid smudging caused by fingerprints, handle transparencies carefully.•To avoid fading, do not expose printed transparencies to prolonged sunlight.•Ensure that transparencies are not wrinkled, curled, or have any torn edges.•Do not use transparencies that separate from the backing sheet.•To prevent transparencies from sticking to each other, do not let the printed sheets stack up as they are begin printed out. LabelsTo avoid damaging the machine, use only labels designed for laser machines.•When selecting labels, consider the following factors:-Adhesives: The adhesive material should be stable at your machine’s fusing temperature (about 170°C (338 °F)). -Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams.-Curl: Prior to printing, labels must lie flat with no more than 13 mm (0.51 inch.) of curl in any direction.-Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.•Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.•Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine.•Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.Card stock/Custom-sized paperPostcards, cards and other custom-sized materials can be printed with this machine.•Do not print on media smaller than 76 mm (3.00 inches) wide or 183 mm (7.20 inches) long.•In software applications, set the margins at least 6.4 mm (0.25 inches) away from the edges of the material.Letterhead/Preprinted paperSINGLE-SIDED DOUBLE-SIDEDFace up Face down•Letterhead/ Preprinted paper must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine’s fusing temperature about 170°C(338 °F) for 0.1 second. •Letterhead/ Preprinted paper ink must be non-flammable and should not adversely affect machine rollers.•Forms and letterhead should be sealed in a moisture-proof wrapping to prevent changes during storage.•Before you load letterhead/preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.

Media and tray_ 58USING THE OUTPUT SUPPORTThe surface of the output tray may become hot if you print a large number of pages at once. Make sure that you do not touch the surface, and do not allow children near it.The printed pages stack on the output tray, and the output support will help the printed pages to align. The machine sends printouts to the output tray by default.

Printing_ 597.printingThis chapter explains common printing tasks.This chapter includes:•Introducing useful software program•Printer driver features•Basic printing•Opening printing preferences•Using help•Using special print features•Changing the default print settings•Setting your machine as a default machine•Printing to a file (PRN)•Macintosh printing•Linux printingThe procedures in this chapter are mainly based on Windows XP.INTRODUCING USEFUL SOFTWARE PROGRAMSamsung AnyWeb PrintThis tool helps you to screen-capture, preview, scrap and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program. Click Start > All programs > Samsung Printers > Samsung AnyWeb Print > Download the latest version to link the website where the tool is available for the download. This tool is available only for Windows operating systems.PRINTER DRIVER FEATURESYour printer drivers support the following standard features:•Paper orientation, size, source, and media type selection•Number of copiesIn addition, you can use various special printing features. The following table shows a general overview of features supported by your printer driver:Some models or operating systems may not support some of the feature(s) in the following table.Printer driverFEATURE WINDOWSPrint quality option ƔPoster printing ƔMultiple pages per sheet ƔBooklet printing (manual) ƔFit to page printing ƔReduce and enlarge printing ƔDifferent source for first page ƔWatermark ƔOverlay ƔDouble-sided printing (manual) Ɣ(Ɣ: supported) BASIC PRINTINGYour machine allows you to print from various Windows, Macintosh, or Linux applications. The exact steps for printing a document may vary depending on the application you use.•Your Printing Preferences window that appears in this user’s guide may differ depending on the machine in use. However, the composition of the Printing Preferences window is similar. Check the operating system(s) that are compatible with your machine. Refer to the OS compatibility section of Printer Specifications (See "System requirements" on page 30).•When you select an option in Printing Preferences, you may see a warning mark, , or . An exclamation mark ( ) means you can select that certain option but it is not recommended, and ( )mark means you cannot select that option due to the machine’s settings or environment.The following procedure describes the general steps required for printing from various Windows applications. •Macintosh basic printing (See "Macintosh printing" on page 64).•Linux basic printing (See "Linux printing" on page 65).The following Printing Preferences window is for Notepad in Windows XP. Your Printing Preferences window may differ, depending on your operating system or the application you are using. 1. Open the document you want to print.2. Select Print from the File menu. The Print window appears. 3. Select your machine from the Select Printer list.

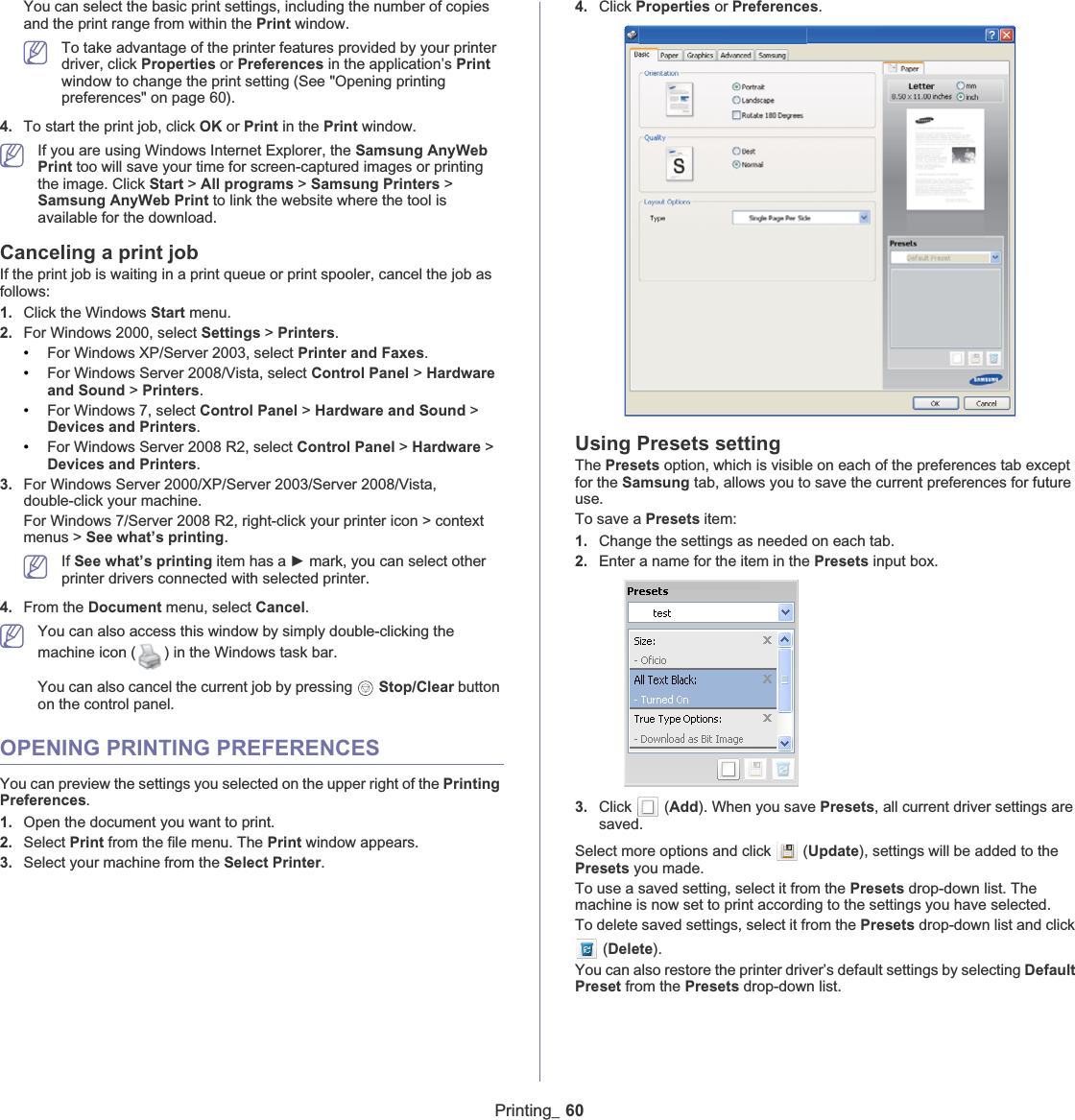

Printing_ 60You can select the basic print settings, including the number of copies and the print range from within the Print window. To take advantage of the printer features provided by your printer driver, click Properties or Preferences in the application’s Printwindow to change the print setting (See "Opening printing preferences" on page 60).4. To start the print job, click OK or Print in the Print window.If you are using Windows Internet Explorer, the Samsung AnyWeb Print too will save your time for screen-captured images or printing the image. Click Start > All programs > Samsung Printers > Samsung AnyWeb Print to link the website where the tool is available for the download.Canceling a print jobIf the print job is waiting in a print queue or print spooler, cancel the job as follows:1. Click the Windows Start menu.2. For Windows 2000, select Settings >Printers.•For Windows XP/Server 2003, select Printer and Faxes.•For Windows Server 2008/Vista, select Control Panel > Hardware and Sound >Printers.•For Windows 7, select Control Panel > Hardware and Sound >Devices and Printers.•For Windows Server 2008 R2, select Control Panel > Hardware >Devices and Printers.3. For Windows Server 2000/XP/Server 2003/Server 2008/Vista, double-click your machine.For Windows 7/Server 2008 R2, right-click your printer icon > context menus > See what’s printing.If See what’s printing item has a Ź mark, you can select other printer drivers connected with selected printer.4. From the Document menu, select Cancel.You can also access this window by simply double-clicking the machine icon ( ) in the Windows task bar. You can also cancel the current job by pressing Stop/Clear button on the control panel.OPENING PRINTING PREFERENCESYou can preview the settings you selected on the upper right of the PrintingPreferences.1. Open the document you want to print.2. Select Print from the file menu. The Print window appears. 3. Select your machine from the Select Printer.4. Click Properties or Preferences.Using Presets settingThe Presets option, which is visible on each of the preferences tab except for the Samsung tab, allows you to save the current preferences for future use. To save a Presets item:1. Change the settings as needed on each tab. 2. Enter a name for the item in the Presets input box.3. Click (Add). When you save Presets, all current driver settings are saved.Select more options and click (Update), settings will be added to the Presets you made.To use a saved setting, select it from the Presets drop-down list. The machine is now set to print according to the settings you have selected.To delete saved settings, select it from the Presets drop-down list and click (Delete). You can also restore the printer driver’s default settings by selecting DefaultPreset from the Presets drop-down list.

Printing_ 61USING HELPClick the question mark on the upper-right corner of the window and click on the topic you want to know about. Then a pop up window appears with information about that option's feature which is provided from the driver. If you want to search information via a keyword, click the Samsung tab in the Printing Preferences window, and enter a keyword in the input line of the Help option. To get information about supplies, driver updates or registration and so on, click appropriate buttons.USING SPECIAL PRINT FEATURESSpecial print features include:•"Printing multiple pages on one sheet of paper" on page 61.•"Printing posters" on page 61.•"Printing booklets (Manual)" on page 61.•"Change percentage of your document" on page 62.•"Fitting your document to a selected paper size" on page 62.•"Using watermarks" on page 62.•"Using overlays" on page 63.•"Print quality options" on page 63.Printing multiple pages on one sheet of paperYou can select the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages will be reduced in size and arranged in the order you specify. You can print up to 16 pages on one sheet. 1. To change the print settings from your software application, access Printing Preferences (See "Opening printing preferences" on page 60).2. Click theBasic tab, select Multiple Pages Per Side in the Typedrop-down list.3. Select the number of pages you want to print per sheet (2, 4, 6, 9, or 16) in the Pages per Side drop-down list.4. Select the page order from the Page Order drop-down list, if necessary. 5. Check Print Page Border to print a border around each page on the sheet.6. Click thePaper tab, select the Size,Source, and Type.7. Click OK or Print until you exit the Print window.Printing postersThis feature allows you to print a single-page document onto 4, 9, or 16 sheets of paper, for the purpose of pasting the sheets together to form one poster-size document.1. To change the print settings from your software application, access Printing Preferences (See "Opening printing preferences" on page 60).2. Click theBasic tab, select Poster Printing in the Type drop-down list.3. Select the page layout you want.Available layouts:•Poster 2x2: Document will be enlarged and be divided into 4 pages.•Poster 3x3: Document will be enlarged and be divided into 9 pages.•Poster 4x4: Document will be enlarged and be divided into 16 pages.4. Select the Poster Overlap value. Specify Poster Overlap in millimeters or inches by selecting the radio button on the upper right of Basic tab to make it easier to paste the sheets together.5. Click the Paper tab, select the Size,Source, and Type.6. Click OK or Print until you exit the Print window.7. You can complete the poster by pasting the sheets together.Printing booklets (Manual)This feature prints your document on both sides of a paper and arranges the pages so that the paper can be folded in half after printing to produce a booklet.If you want to make a booklet, you need to print on Letter, Legal, A4, US Folio, or Oficio sized print media. 891. To change the print settings from your software application, access the Printing Preferences (See "Opening printing preferences" on page 60).2. Click the Basic tab, select Booklet Printing from the Type drop-down list.3. Click the Paper tab, select the Size,Source, and Type.The Booklet Printing option is not available for all paper sizes. In order to find out the available paper size for this feature, select the available paper size in the Size option on the Paper tab.If you select an unavailable paper size, this option can be automatically canceled. Select only available paper. (paper without or mark).4. Click OK or Print until you exit the Print window.5. After printing, fold and staple the pages.Printing on both sides of the paper (Manual)You can print on both sides of a paper (duplex). Before printing, decide how you want your document oriented. You can use this feature with Letter, Legal, A4, US Folio, or Oficio sized paper (See "Print media specifications" on page 97).We recommend not to print on both sides of special media, such as labels, envelopesS or thick paper. It may cause a paper jam or damage the machine. 1. To change the print settings from your software application, access Printing Preferences (See "Opening printing preferences" on page 60).2. Click the Advanced tab.

Printing_ 623. From the Double-Sided Printing (Manual) section, select the binding option you want. •None•Long Edge: This option is the conventional layout used in bookbinding.•Short Edge: This option is the conventional layout used in calendars.4. Click the Paper tab, select the Size,Source, and Type.5. Click OK or Print until you exit the Print windowUIf your machine does not have a duplex unit, you should complete the printing job manually. The machine prints every other page of the document first. AfterGthat, a message appears on your computer. Follow the on-screen instructions to complete the printing job.Change percentage of your documentYou can change the size of a document to appear larger or smaller on the printed page by typing in a percentage you want.1. To change the print settings from your software application, access Printing Preferences (See "Opening printing preferences" on page 60).2. Click thePaper tab.3. Enter the scaling rate in the Percentage input box.You can also click the up/down arrows to select the scaling rate. 4. Select the Size,Source, and Type in Paper Options.5. Click OK or Print until you exit the Print windowUFitting your document to a selected paper sizeThis feature allows you to scale your print job to any selected paper size regardless of the document size. This can be useful when you want to check fine details on a small document. A1. To change the print settings from your software application, access Printing Preferences (See "Opening printing preferences" on page 60).2. Click thePaper tab.3. Select the paper size you want from the Fit to Page.4. Select the Size,Source, and Type in Paper Options.5. Click OK or Print until you exit the Print windowUUsing watermarksThe watermark option allows you to print text over an existing document. For example, you use it when you want to have large gray letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all pages of a document. There are several predefined watermarks that come with the machine. They can be modified, or you can add new ones to the list. Using an existing watermark1. To change the print settings from your software application, access Printing Preferences (See "Opening printing preferences" on page 60).2. Click the Advanced tab, and select the desired watermark from the Watermark drop-down list. You will see the selected watermark in the preview image. 3. Click OK or Print until you exit the print window. Creating a watermark1. To change the print settings from your software application, access Printing Preferences (See "Opening printing preferences" on page 60).2. From the Advanced tab, select Edit from the Watermark drop-down list. The Edit Watermarks window appears. 3. Enter a text message in the Watermark Message box. You can enter up to 256 characters. The message displays in the preview window.When the First Page Only box is checked, the watermark prints on the first page only.4. Select watermark options.You can select the font name, style, size, and shade from the Font Attributes section, as well as set the angle of the watermark from the Message Angle section. 5. Click Add to add a new watermark to the Current Watermarks list.6. When you have finished, click OK or Print until you exit the Printwindow.To stop printing the watermark, select None from the Watermarkdrop-down list. Editing a watermark1. To change the print settings from your software application, access Printing Preferences (See "Opening printing preferences" on page 60).2. Click the Advanced tab, select Edit from the Watermark drop-down list. The Edit Watermarks window appears. 3. Select the watermark you want to edit from the Current Watermarkslist and change the watermark message and options. 4. Click Update to save the changes.5. Click OK or Print until you exit the Print window.

$Printing_ 63Deleting a watermark1. To change the print settings from your software application, access Printing Preferences (See "Opening printing preferences" on page 60).2. Click the Advanced tab, select Edit from the Watermarkdrop-down list. The Edit Watermarks window appears. 3. Select the watermark you want to delete from the CurrentWatermarks list and click Delete.4. Click OK or Print until you exit the Print window.Using overlaysAn overlay is content you store on your hard disk drive that can be superimposed over any document you print. An overlay is often used to take the place of letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing exactly the same information that is currently on your letterhead. To print a letter with your company’s letterhead, you do not need to load preprinted letterhead paper in the machine, instead you can just print the letterhead overlay on your document.Creating a new overlayTo use a page overlay, you must create a new page overlay file containing your content.1. Create or open a document containing the content you want to use in a new page overlay. Position the items exactly where you want them to appear when they are added to the original.2. To save the document as an overlay, access Printing Preference.(See "Opening printing preferences" on page 60).3. Click the Advanced tab, and select Edit from the Text drop-down list. The Edit Overlay window appears.4. In the Edit Overlay window, click Create.5. In the Save As window, type a name of up to eight characters in the File name box. Select the destination path, if necessary. (The default is C:\Formover.)6. Click Save. The name appears on the Overlay List.7. Click OK or Print until you exit the Print window.8. The file is not printed. Instead, it is stored on your computer hard disk drive.The overlay document size must match same as the document you print. Do not create an overlay with a watermark.Using an overlayAfter an overlay has been created, it is ready to be printed with your document. To print an overlay on your document:1. Create or open the document you want to print.2. To change the print settings from your software application, access Printing Preferences (See "Opening printing preferences" on page 60).3. Click the Advanced tab. 4. Select the desired overlay from the Text drop-down list. 5. If the overlay file you want does not appear in the Text drop-down list, select Edit from the list and click Load. Select the overlay file you want to use. If you have stored the overlay file you want to use in an external source, you can also load the file when you access the Openwindow. After you select the file, click Open.The file appears in the Overlay List box and is available for printing. Select the overlay from the Overlay List box. 6. If necessary, check Confirm Page Overlay When Printing box. If this box is checked, a message window appears each time you submit a document for printing, asking you to confirm that you wish to print an overlay over your document. If this box is not checked and an overlay has been selected, the overlay automatically prints with your document. 7. Click OK or Print until you exit the Print window. The selected overlay prints over your document. The resolution of the overlay document must match the resolution of the original print job.Deleting an overlayYou can delete page overlays that you no longer use. 1. In the Printing Preferences window, click the Advanced tab. 2. Select Edit in the Overlay drop down list. 3. Select the overlay you want to delete from the Overlay List box. 4. Click Delete.5. When the confirmation message window appears, click Yes.6. Click OK or Print until you exit the Print window.Print quality optionsUse the following Graphics options to adjust the print quality for your specific printing needs.1. To change the print settings from your software application, access Printing Preferences (See "Opening printing preferences" on page 60).2. Click the Graphics tab.•The options you can select may vary depending on your printer model. •Refer to the help for each option’s information provided from the Printing Preferences.•Font/Text: Select Clear Text to print text sharper than on a normal document. Use All Text Black to print solid black, regardless of the color it appears on the screen.•Graphic Controller: Fine Edge allows you to emphasize edges of texts and fine lines for improving readability.•Advanced: Click this button, you can select Darkness and Toner Save features.-Darkness: The option adjusts the toner density on print output. The values are Normal,Light and Dark.-Toner Save: Selecting this option extends the life of your toner cartridge and reduces your cost per page without a significant reduction in print quality.On: Select this option to allow the machine to use less toner on each page.Off: Select this option if you do not wan to save toner when printing a document.3. Click OK or Print until you exit thePrint window.$

$Printing_ 64CHANGING THE DEFAULT PRINT SETTINGSMost Windows applications will override settings you specify in the printer driver. Change all print settings available in the software application first, and change any remaining settings using the printer driver. 1. Click the Windows Start menu. 2. For Windows 2000, select Settings >Printers.•For Windows XP/Server 2003, select Printers and Faxes.•For Windows Server 2008/Vista, select Control Panel > Hardware and Sound >Printers.•For Windows 7, select Control Panel > Hardware and Sound >Devices and Printers.•For Windows Server 2008 R2, select Control Panel > Hardware >Devices and Printers.3. Right-click your machine.4. For Windows XP/Server 2003/Server 2008/Vista, press PrintingPreferences.For Windows 7 and Windows Server 2008 R2, from context menus, select the Printing preferences.If Printing preferences item has a Ź mark, you can select other printer drivers connected with the selected printer.5. Change the settings on each tab. 6. Click OK.If you want to change the settings for each print job, change it in Printing Preferences.SETTING YOUR MACHINE AS A DEFAULT MACHINE1. Click the Windows Start menu.2. For Windows 2000, select Settings >Printers.•For Windows XP/Server 2003, select Printers and Faxes.•For Windows Server 2008/Vista, select Control Panel > Hardware and Sound >Printers.•For Windows 7, select Control Panel > Hardware and Sound >Devices and Printers.•For Windows Server 2008 R2, select Control Panel > Hardware >Devices and Printers.3. Select your machine.4. Right-click your machine and select Set as Default Printer.For Windows 7 and Windows Server 2008 R2If Set as default printer item has a Ź mark, you can select other printer drivers connected with the selected printer.PRINTING TO A FILE (PRN)You will sometimes need to save the print data as a file. You can print the document to a file instead of routing it directly to a printer. The document is saved with the printer formatting, such as font selection and color specifications, in a .prn file that can be printed on another printer.To save a print job as a file1. Check the Print to file box at the Print window.2. Click Print.3. Type in the destination path and the file name, and then click OK.For example C:\Temp\file name.If you type in only the file name, the file is automatically saved in My Documents.MACINTOSH PRINTINGThis chapter explains how to print using a Macintosh. You need to set the print environment before printing. •USB connected (See "Macintosh" on page 32)UPrinting a documentWhen you print with a Macintosh, you need to check the printer driver setting in each application you use. Follow the steps below to print from a Macintosh:1. Open an application and select the file you want to print.2. Open the File menu and click Page Setup (Document Setup in some applications).3. Choose your paper size, orientation, scaling, other options, and make sure that your machine is selected. Click OK.4. Open the File menu and click Print.5. Choose the number of copies you want and indicate which pages you want to print. 6. Click Print.$
