Samsung Electronics Co SCX3200 Laser Printer User Manual bluemt english
Samsung Electronics Co Ltd Laser Printer bluemt english
Users Manual
SCX-3200 Series
Multi-Functional Mono Printer
User’s Guide
imagine the possibilities
Thank you for purchasing a Samsung product.
Copyright_ 2
copyright
© 2010 Samsung Electronics Co., Ltd. All rights reserved.
This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.
Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.
•Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.
•Microsoft, Windows, Windows Vista, Windows 7, and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation.
•TrueType, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc.
•All other brand or product names are trademarks of their respective companies or organizations.
Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.
REV. 0.95
Contents_ 3
Contents
COPYRIGHT
2
CONTENTS
3
8 Safety information
12 Regulatory information
20 About this user’s guide
22 Features of your new product
INTRODUCTION
24

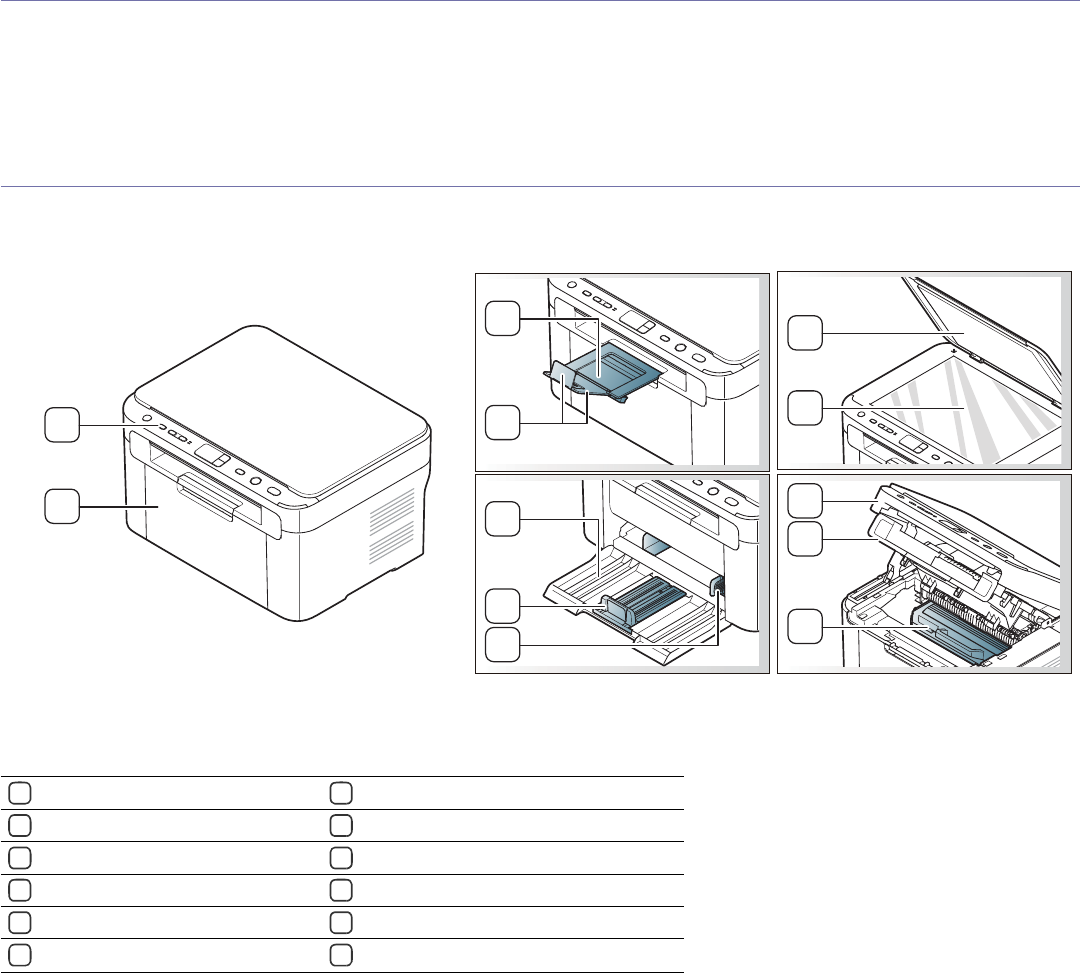

24 Machine overview
24 Front view
26 Control panel overview
27 Understanding the status LED
27 Status LED
27 Wireless LED (SCX-3205W(K) only)
27 Introducing the useful buttons
27 Print Screen button (SCX-3200 only)
27 Eco Print button
27 +/- buttons
27 WPS button (SCX-3205W(K) only)
27 Stop/Clear button
28 Power button
28 Turning on the machine
GETTING STARTED
29
29 Setting up the hardware
29 Location
29 Printing a configuration report
29 Supplied software
30 System requirements
30 Windows
30 Macintosh
31 Linux
31 Installing USB connected machine’s driver
31 Windows
32 Macintosh
33 Linux
33 Sharing your machine locally
34 Windows
34 Macintosh
NETWORK SETUP (SCX-3205W(K) ONLY)
35
35 Network environment
35 Introducing useful network programs
35 SyncThru™ Web Service
35 SyncThru™ Web Admin Service
35 SetIP
35 Using a wired network
35 Printing a network configuration report
36 Setting IP address
37 Network parameter setting
37 Restoring factory default settings
37 Installing network connected machine’s driver
37 Windows
38 Macintosh
Contents
Contents_ 4
39 Linux
39 IPv6 Configuration
39 Printing a network configuration report
39 Setting IPv6 addresses
40 Manual address configuration
40 Installing printer driver
40 Using SyncThru™ Web Service
WIRELESS NETWORK SETUP (SCX-3205W(K) ONLY)
41
41 Using a wireless network with WPS button on the control panel
41 Items to prepare
41 Choosing your network connection
41 Setting a wireless network in PBC mode
42 Using a wireless network from the computer
42 Choosing your network connection
42 How to print a network configuration report
42 IP addresses
42 Wireless network name and network key
42 Installing a wireless network with cables
42 Setting a wireless network with USB cable
42 Installing the machine on a wireless network with an access point
(Windows)
44 Installing the machine on an Ad-Hoc wireless network (Windows)
45 Installing the machine on a wireless network with an access point
(Macintosh)
46 Installing the machine on an Ad-Hoc wireless network (Macintosh)
47 Setting a wireless network with network cable
47 Preparing items
47 Setting IP address
48 Configuring the machine’s wireless network
49 Completing the installation
49 Troubleshooting
49 Wireless network problems
49 Solving other problems
BASIC SETUP
51
51 Altitude adjustment
51 Setting the default tray and paper
51 From your computer
52 Using the power saving feature
52 Changing font setting
MEDIA AND TRAY
53
53 Loading originals
53 On the scanner glass
53 Selecting print media
53 Guidelines for selecting the print media
54 Media sizes supported in each mode
54 Changing the tray size
55 Loading paper in the tray
55 Tray
55 Manual feeding in the tray
56 Printing on special media
56 Envelopes
57 Transparencies
57 Labels
57 Card stock/Custom-sized paper
57 Letterhead/Preprinted paper
Contents
Contents_ 5
58 Using the output support
PRINTING
59
59 Introducing useful software program
59 Samsung AnyWeb Print
59 Printer driver features
59 Printer driver
59 Basic printing
60 Canceling a print job
60 Opening printing preferences
60 Using Presets setting
61 Using help
61 Using special print features
61 Printing multiple pages on one sheet of paper
61 Printing posters
61 Printing booklets (Manual)
61 Printing on both sides of the paper (Manual)
62 Change percentage of your document
62 Fitting your document to a selected paper size
62 Using watermarks
63 Using overlays
63 Print quality options
64 Changing the default print settings
64 Setting your machine as a default machine
64 Printing to a file (PRN)
64 Macintosh printing
64 Printing a document
65 Changing printer settings
65 Printing multiple pages on one sheet of paper
65 Linux printing
65 Printing from applications
66 Printing files
66 Configuring printer properties
COPYING
67
67 Basic copying
67 Changing the settings for each copy
67 Original Type
67 Darkness
67 Erasing background images
67 Setting the copy scan size
67 ID card copying
SCANNING
69
69 Basic scanning method
69 Scanning originals and sending to your computer (Scan to PC)
69 For USB connected machine
69 Using Samsung Scan and Fax manager
70 Set Scan Button tab
70 Change Port tab
70 Scanning with TWAIN-enabled software
71 Scanning using the WIA driver
71 Windows XP
71 Windows Vista
71 Windows 7
71 Macintosh scanning
71 Scanning with USB
71 Scanning with network (SCX-3205W(K) only)
Contents
Contents_ 6
72 Linux Scanning
72 Scanning
72 Adding Job Type Settings
73 Using the Image Manager
MANAGEMENT TOOLS
74
74 Introducing useful management tools
74 Using SyncThru™ Web Service (SCX-3205W(K) only)
74 To access SyncThru™ Web Service
74 SyncThru™ Web Service overview
75 Using the Smart Panel program
75 Understanding Smart Panel
75 Changing the Smart Panel Program Settings
75 SmarThru
75 Starting SmarThru
76 Using SmarThru
76 Using the Linux Unified Driver Configurator
76 Opening the Unified Driver Configurator
77 Printers configuration window
78 Scanners configuration
78 Ports configuration
MAINTENANCE
79
79 Printing a machine report
79 Cleaning the machine
79 Cleaning the outside
79 Cleaning the inside
80 Cleaning the scan unit
80 Storing the toner cartridge
80 Toner cartridge storage
81 Handling instructions
81 Use of non-Samsung and refilled toner cartridge
81 Estimated cartridge life
81 Tips for moving & storing your machine
TROUBLESHOOTING
82
82 Redistributing toner
83 Tips for avoiding paper jams
83 Clearing paper jams
83 In the tray
83 Inside the machine
85 Solving other problems
85 Power problems
86 Paper feeding problems
86 Printing problems
88 Printing quality problems
90 Copying problems
90 Scanning problems
91 Samsung Scan and Fax Manager Problem
91 Common Windows problems
91 Common Linux problems
92 Common Macintosh problems
SUPPLIES
93
93 How to purchase
93 Available supplies
93 Available maintenance parts
93 Replacing the toner cartridge
Contents
Contents_ 7
SPECIFICATIONS
95
95 Hardware specifications
95 Environmental specifications
95 Electrical specifications
97 Print media specifications
CONTACT SAMSUNG WORLDWIDE
98
GLOSSARY
100
INDEX
105
Safety information_ 8
safety information
These warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to
your machine. Be sure to read and understand all of these instructions before using the machine.
Use common sense for operating any electrical appliance and whenever using your machine. Also, follow all warnings and
instructions marked on the machine and in the accompanying literature. After reading this section, keep it in a safe place
for future reference.

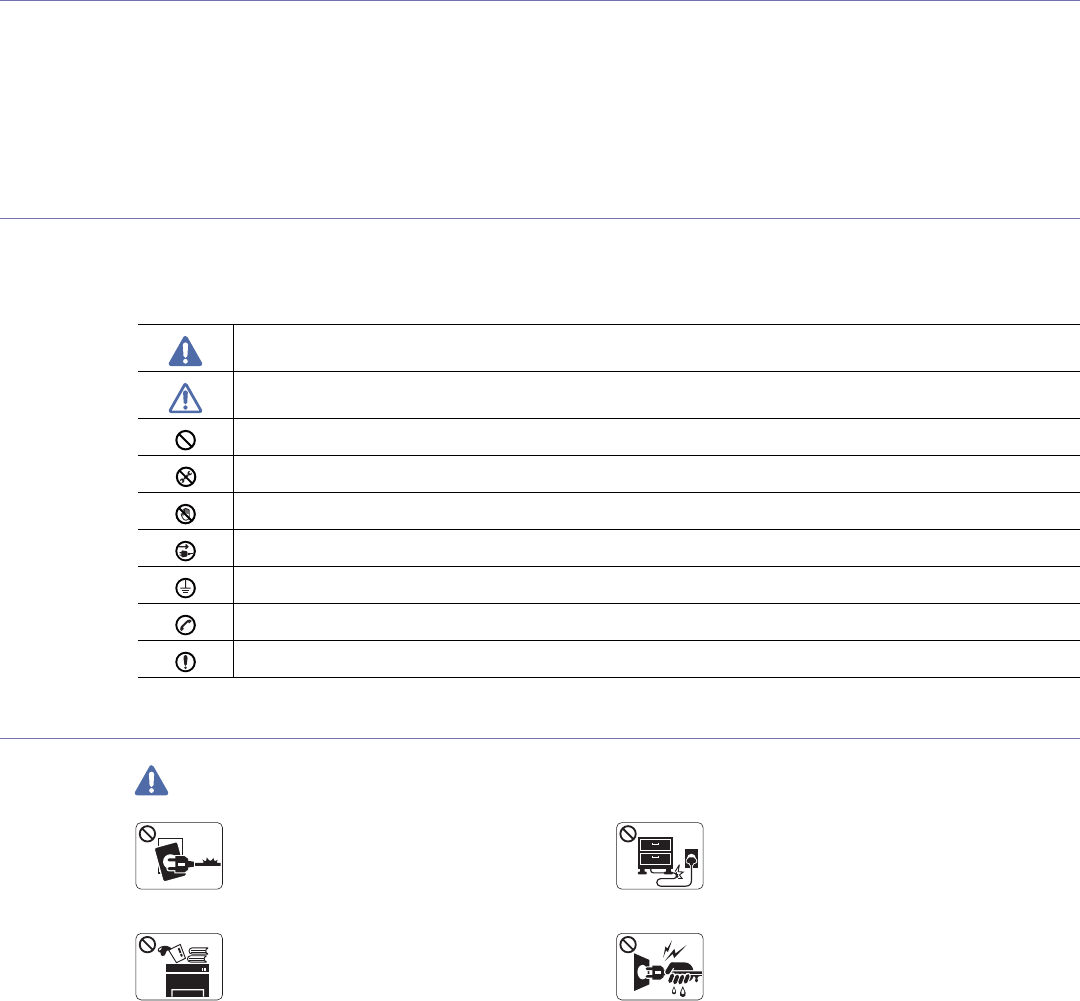

IMPORTANT SAFETY SYMBOLS
This section explains the meanings of all icons and signs in the user's guide. These safety symbols are in order, according to the degree of
danger.
Explanation of all icons and signs used in the user’s guide:
Warning Hazards or unsafe practices that may result in severe personal injury or death.
Caution Hazards or unsafe practices that may result in minor personal injury or property damage.
Do not attempt.
Do not disassemble.
Do not touch.
Unplug the power cord from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Follow directions explicitly.
OPERATING ENVIRONMENT
Warning
Do not use if the power cord is damaged or if the
electrical outlet is not grounded.
ŹThis could result in electric shock or fire.
Do not bend, or place heavy objects on the power
cord.
ŹStepping on or allowing the power cord to be
crushed by a heavy object could result in electric
shock or fire.
Do not place anything on top of the machine (water,
small metal or heavy objects, candles, lit cigarettes,
etc.).
ŹThis could result in electric shock or fire.
Do not remove the plug by pulling on the cord; do not
handle the plug with wet hands.
ŹThis could result in electric shock or fire.
Safety information_ 9
Caution
During an electrical storm or for a period of
non-operation, remove the power plug from the
electrical outlet.
ŹThis could result in electric shock or fire.
If the plug does not easily enter the electrical outlet, do not
attempt to force it in.
ŹCall an electrician to change the electrical outlet, or this
could result in electric shock.
Be careful, the paper output area is hot.
ŹBurns could occur.
Do not allow pets to chew on the AC power, telephone or PC
interface cords.
ŹThis could result in electric shock or fire and/or injury to your
pet.
If the machine has been dropped, or if the cabinet appears
damaged, unplug the machine from all interface connections
and request assistance from qualified service personnel.
ŹOtherwise, this could result in electric shock or fire.
If the machine does not operate properly after these
instructions have been followed, unplug the machine from all
interface connections and request assistance from qualified
service personnel.
ŹOtherwise, this could result in electric shock or fire.
If the machine exhibits a sudden and distinct change in
performance, unplug the machine from all interface
connections and request assistance from qualified service
personnel.
ŹOtherwise, this could result in electric shock or fire.
OPERATING METHOD
Caution
Do not forcefully pull the paper out during printing.
ŹIt can cause damage to the machine.
When printing large quantities, the bottom part of the
paper output area may get hot. Do not allow children
to touch.
ŹBurns can occur.
Be careful not to put your hand between the machine
and paper tray.
ŹYou may get injured.
When removing jammed paper, do not use tweezers
or sharp metal objects.
ŹIt can damage the machine.
Do not block or push objects into the ventilation opening.
ŹThis could result in elevated component temperatures which
can cause damage or fire.
Do not allow too many papers to stack up in the paper output
tray.
ŹIt can damage the machine.
Be care when replacing paper or removing jammed paper.
ŹNew paper has sharp edges and can cause painful cuts.
This machine's power interception device is the power cord.
ŹTo switch off the power supply, remove the power cord from
the electrical outlet.
If the machine gets overheated, it releases smoke,
makes strange noises, or generates an odd odor,
immediately turn off the power switch and unplug the
machine.
ŹThis could result in electric shock or fire.
Safety information_ 10
INSTALLATION / MOVING
Warning

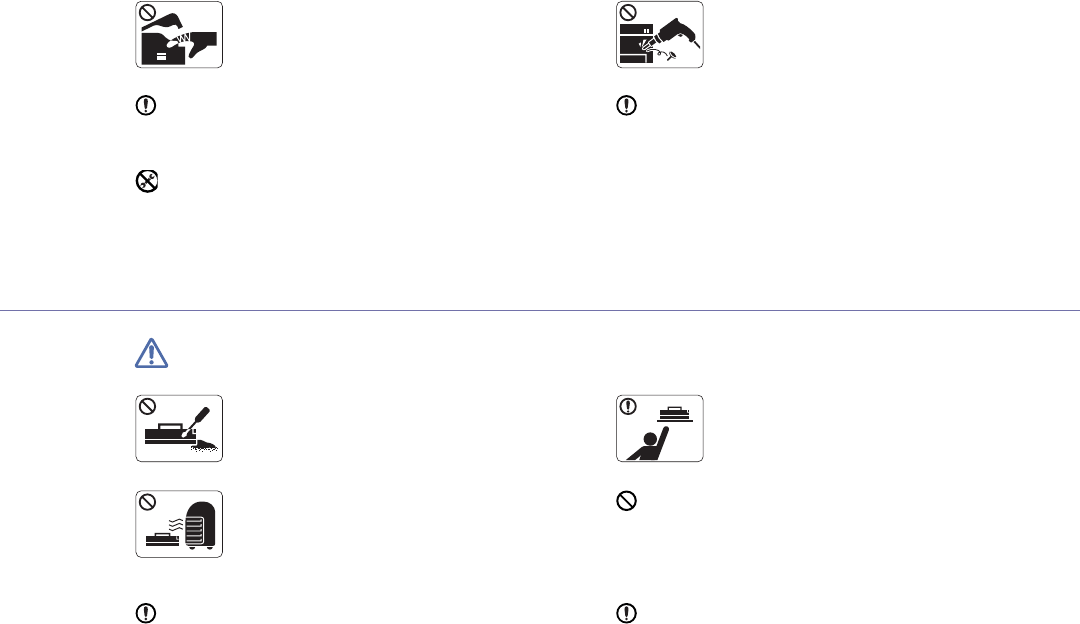

Do not place the machine in an area with dust,
humidity or water leaks.
ŹThis could result in electric shock or fire.
Caution
Before moving the machine, turn the power off and
disconnect all cords.
Then lift the machine:
•If the machine weighs under 20 kg (44.09lb), lift with
1 person.
• If the machine weighs 20 kg (44.09lb) - 40kg
(88.18lb), lift with 2 people.
• If the machine weighs more than 40 kg (88.18lb), lift
with 4 or more people.
ŹThe machine could fall, causing injury or machine damage.
Do not put a cover over the machine or place it in an airtight
location, such as a closet.
ŹIf the machine is not well-ventilated, this could result in fire.
Do not place the machine on an unstable surface.
ŹThe machine could fall, causing injury or machine damage.
Make sure you plug the power cord into a grounded electrical
outlet.
ŹOtherwise, this could result in electric shock or fire.
The machine should be connected to
the power level which is specified on the label.
ŹIf you are unsure and want to check the power level you are
using, contact the electrical utility company.
Do not overload wall outlets and extension cords.
ŹThis can diminish performance, and could result in electric
shock or fire.
Use only No.26 AWGa
a. AWG: American Wire Gauge
or larger, telephone line cord, if
necessary.
ŹOtherwise, it can cause damage to the machine.
Use the power cord supplied with your machine for safe
operation. If you are using a cord which is longer than 2 meters
(6 feet) with a 140V machine, then the gauge should be 16
AWG or larger.
Ź Otherwise, it can cause damage to the machine, and could
result in electric shock or fire.
MAINTENANCE / CHECKING
Caution
Unplug this product from the wall outlet before
cleaning the inside of the machine. Do not clean the
machine with benzene, paint thinner or alcohol; do
not spray water directly into the machine.
ŹThis could result in electric shock or fire.
Keep cleaning supplies away from children.
ŹChildren could get hurt.
Safety information_ 11
SUPPLY USAGE
Caution
Do not disassemble the toner cartridge.
ŹToner dust can be dangerous if inhaled or
ingested.
When storing supplies such as toner cartridges, keep
them away from children.
ŹToner dust can be dangerous if inhaled or
ingested.
Do not burn any of the supplies such as toner
cartridge or fuser unit.
ŹThis could cause an explosion or uncontrollable
fire.
Using recycled supplies, such as toner, can cause damage to
the machine.
ŹIn case of damage due to the use of recycled supplies, a
service fee will be charged.
When changing the toner cartridge or removing jammed paper,
be careful not to let toner dust touch your body or clothes.
ŹToner dust can be dangerous if inhaled or ingested.
When toner gets on your clothing, do not use hot water to wash
it.
ŹHot water sets toner into fabric. Use cold water.
When you are working inside the machine replacing
supplies or cleaning the inside, do not operate the
machine.
ŹYou could get injured.
Do not disassemble, repair or rebuild the machine by
yourself.
ŹIt can damage the machine. Call a certified
technician when the machine needs repair.
Keep the power cable and the contact surface of the plug clean
from dust or water.
ŹOtherwise, this could result in electric shock or fire.
To clean and operate the machine, strictly follow the user's
guide provided with the machine.
ŹOtherwise, you could damage the machine.
Do not remove any covers or guards that are fastened with
screws.
ŹThe machine should only be repaired by a Samsung service
technician.
Regulatory information_ 12
regulatory information
This machine is designed for a normal work environment and certified with several regulatory statements.

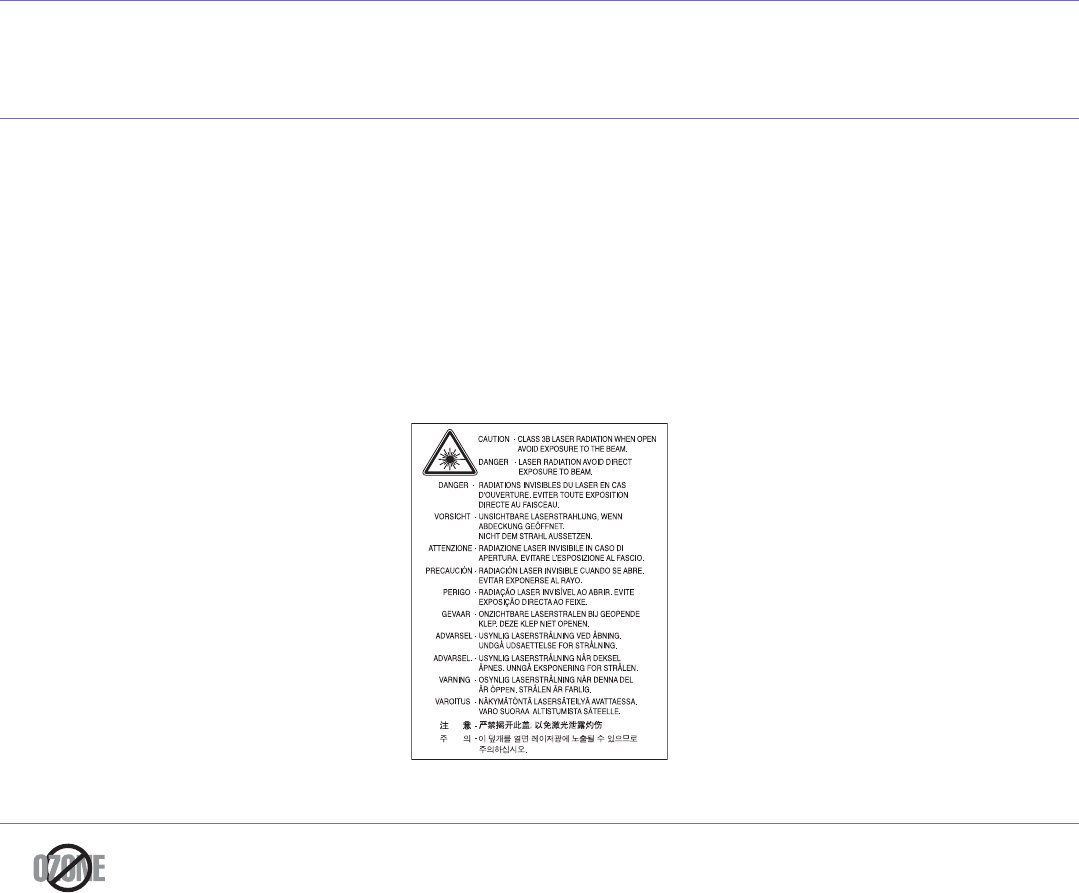

LASER SAFETY STATEMENT
The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and
elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1:1993 + A1:1997 + A2:2001.
Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to
laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.
•Wavelength: 800 nm
•Beam divergence
-Paraller: 13 degrees
-Perpendicular: 35 degrees
•Maximum power or energy output: 12 mW
WARNING
Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible,
can damage your eyes.
When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:
OZONE SAFETY
During normal operation, this machine produces ozone. The ozone produced does not present a hazard to the operator. However, it is
advisable that the machine be operated in a well ventilated area.
If you need additional information about ozone, contact your local Samsung dealer.
Regulatory information_ 13
POWER SAVE
This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.
When the printer does not receive data for an extended period of time, power consumption is automatically lowered.
ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.
For more information on the ENERGY STAR program see http://www.energystar.gov.
RECYCLING
Recycle or dispose of the packaging material for this product in an environmentally responsible manner.
CHINA ONLY
CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset,
USB cable) should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and
how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed
with other commercial wastes for disposal.
RADIO FREQUENCY EMISSIONS
FCC Information to the User
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
•This device may not cause harmful interference, and
•This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Regulatory information_ 14
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or experienced radio TV technician for help.
Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to
operate the equipment.
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing
equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la
norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.
UNITED STATES OF AMERICA
Federal Communications Commission (FCC)
Intentional emitter per FCC Part 15
Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be
present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the
presence of wireless devices.
Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system
label.
The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the
body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on.
The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by
the FCC.
This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.
Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation of the device.
Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to
use it. Contact manufacturer for service.
FCC Statement for Wireless LAN use:
While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be
exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at
all times. This device cannot be colocated with another transmitter and transmitting antenna.
TURKEY ONLY
GERMANY ONLY
Regulatory information_ 15
RUSSIA ONLY
REPLACING THE FITTED PLUG (FOR UK ONLY)
Important
The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the
fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until
you have another fuse cover.
Contact the people from you purchased the machine.
The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal
13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.
If you cut off the moulded plug, get rid of it straight away.
You cannot rewire the plug and you may receive an electric shock if you plug it into a socket.
Important warning:
You must earth this machine.
The wires in the mains lead have the following color code:
•Green and Yellow: Earth
•Blue: Neutral
•Brown: Live
If the wires in the mains lead do not match the colors marked in your plug, do the following:
You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or
green.
You must connect the blue wire to the pin which is marked with the letter “N” or colored black.
You must connect the brown wire to the pin which is marked with the letter “L” or colored red.
You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.
DECLARATION OF CONFORMITY (EUROPEAN COUNTRIES)
Approvals and Certifications
The CE marking applied to this product symbolizes Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable
93/68/EEC Directives of the European Union as of the dates indicated:
SCX-3200 Series: Low Voltage Directive (2006/95/EC), EMC Directive (2004/108/EC)
SCX-3205W(K): R&TTE Directive (1999/5/EC)
The declaration of conformity may be consulted at www.samsung.com/printer, go to Support > Download center and enter your printer (MFP)
name to browse the EuDoC.
January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.
January 1, 1996: Council Directive 2004/108/EC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic
compatibility.
March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of
their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics
Co., Ltd. representative.
Regulatory information_ 16
EC Certification
Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)
This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched
telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and
compatible PBXs of the European countries:
In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.
The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the
European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional
requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the
relevant advisory notes contained in this document.
European Radio Approval Information (for products fitted with EU-approved radio devices)
Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be
present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present.
Refer to the system label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark
with a Notified Body Registration Number and the Alert Symbol is on the system label.
The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the
European Commission through the R&TTE directive.
European States qualified under wireless approvals:
EU
Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France (with frequency restrictions), Germany, Greece, Hungary,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, The Netherlands, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden and the U.K.
EEA/EFTA countries
Iceland, Liechtenstein, Norway and Switzerland
European States with restrictions on use:
EU
In France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wireless
EEA/EFTA countries
No limitations at this time
REGULATORY COMPLIANCE STATEMENTS
Wireless Guidance
Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be
present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.
Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The
wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If
the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices
are closely regulated and use may not be allowed.
The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this
time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety
standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken
to minimize human contact during normal operation.
As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body
(this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are
on and transmitting.
This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.
Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:
Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless
devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices
are examples of devices that provide wireless communication.
Regulatory information_ 17
OPENSSL LICENSE
Copyright (c) 1998-2001 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes
software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)".
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without
Prior written permission. For written permission, please contact openssl-core@openssl.org.
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written
permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the
OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)".
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written by Tim
Hudson (tjh@cryptsoft.com).
ORIGINAL SSLEAY LICENSE
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with
Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to
all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this
distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com). Copyright remains Eric Young's,
and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given
attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation
(online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless
device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use
of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices,
ask the applicable authority for authorization prior to use or turning on the wireless device.
Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling
between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of
a wireless device in the destination country.
If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are
in place and the system is fully assembled.
Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it.
Contact manufacturer for service.
Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact
manufacturer Technical Support for additional information.
Regulatory information_ 18
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes
cryptographic software written by Eric Young (eay@cryptsoft.com)" The word 'cryptographic' can be left out if the routines from the library
being used are not cryptographic related.
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an
acknowledgement: "This product includes software written by Tim Hudson (tjh@cryptsoft.com)".
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply
be copied and put under another distribution licence [including the GNU Public Licence.
Regulatory information_ 19

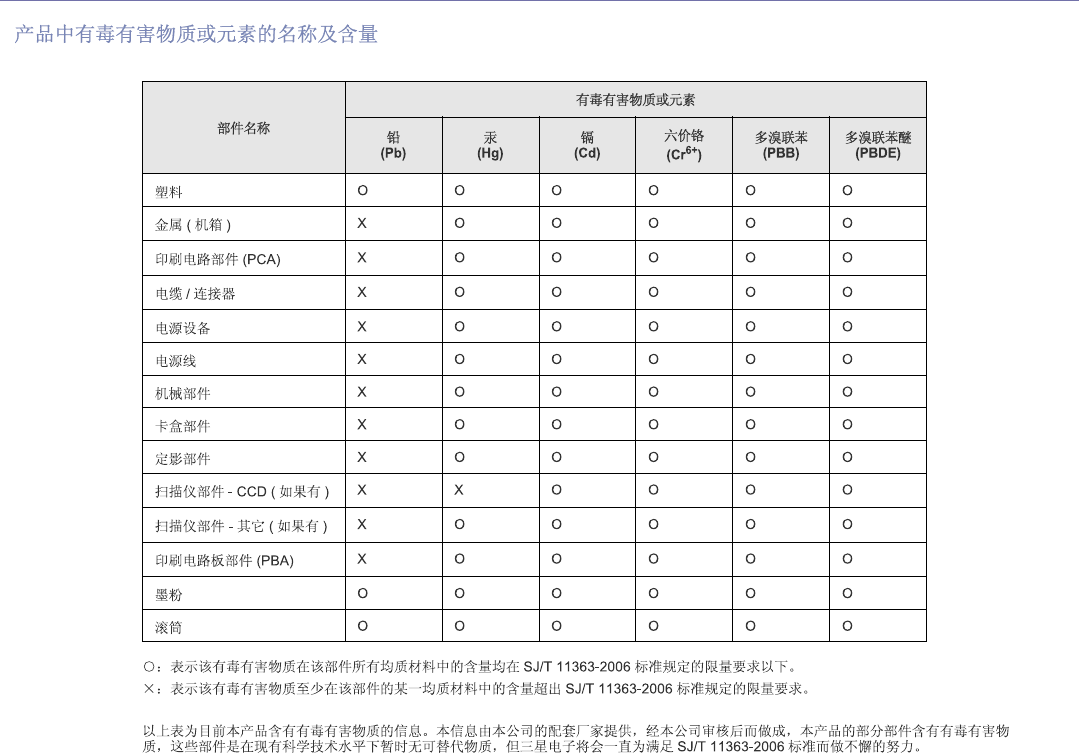

CHINA ONLY
About this user’s guide_ 20
about this user’s guide
This user’s guide provides information about basic understanding of the machine as well as detailed explanation on each
step during actual usage. It is a valuable resource for both novice and professional users for the proper installation and
use of the machine.
•Read the safety information before using the machine.
•If you have a problem using the machine, refer to the troubleshooting chapter (See "Troubleshooting" on page 82).
•Terms used in this user’s guide are explained in the glossary chapter (See "Glossary" on page 100).
•Illustrations in this user’s guide may differ from your machine depending on its options or models.
•The procedures in this user’s guide are mainly based on Windows XP.
CONVENTION
Some terms in this guide are used interchangeably, as below:
•Document is synonymous with original.
•Paper is synonymous with media, or print media.
•Machine refers to printer or MFP.
The following table offers the conventions of this guide:
CONVENTION DESCRIPTION EXAMPLE
Bold For texts on the display or button names on the machine. Cancel
Note Provides additional information or details for the machine function and feature. The date format may differ from country
to country.
Caution Contains information you can use to protect the machine from possible
mechanical damage or malfunction.
Do not touch the surface of the drum
located in the toner cartridge or imaging
unit.
Footnote Provides additional information on certain words or a phrases. a. pages per minute
(“Cross-reference”) Refers you to additional detailed information. (See "Finding more information" on
page 21).
About this user’s guide_ 21
FINDING MORE INFORMATION
You can find information about setting up and using your machine in the following resources, either as a print-out or on screen.
MATERIAL NAME DESCRIPTION
Quick Installation
Guide
This guide provides information on setting up your machine. This guide is provided in the box with the printer.
User’s Guide This guide provides you with step-by-step instructions for using your machine’s full features, maintaining your machine,
troubleshooting, and replacing supplies.
Machine Driver Help This help provides you with information about the printer driver and instructions for setting up the options for printing (See "Using help"
on page 61).
Samsung website If you have Internet access, you can get help, support, machine drivers, manuals, and order information from the Samsung website,
www.samsung.com/printer.
Downloadable
software
You can download useful software programs from the Samsung website.
•Samsung AnyWeb Print: helps personal users to screen-capture the website screen in Windows Internet Explorer easily.
(http://solution.samsungprinter.com/personal/anywebprint)
•SyncThru™ Web Admin Service: provides convenient tools for network administrators who need to manage many machines
simultaneously. This program is for network model only. (http://solution.samsungprinter.com)
Features of your new product_ 22
features of your new product
Your new machine is equipped with a number of special features that improve the quality of the documents you print.
SPECIAL FEATURES
Print with excellent quality and speed
•You can print with a resolution of up to 1200 x 1200 dpi
effective output.
•Your machine prints A4-sized paper at up to 16 ppm and
letter-sized paper at up to 17 ppm.
Handle many different types of printable material
•The 150-sheet tray supports plain paper in various sizes,
letterhead, envelopes, labels, custom-sized media,
postcards, and heavy paper.
Create professional documents
•Print Watermarks. You can customize your documents with
words, such as “Confidential” (See "Using watermarks" on
page 62).
•Print Posters. The text and pictures of each page of your
document are magnified and printed across the sheet of
paper and can then be taped together to form a poster (See
"Printing posters" on page 61).
•You can use preprinted forms and letterhead with plain
paper (See "Using overlays" on page 63).
Save time and money
•To save paper, you can print multiple pages on one single
sheet of paper (See "Printing multiple pages on one sheet of
paper" on page 61).
•This machine automatically conserves electricity by
substantially reducing power consumption when not in use.
•To save paper, you can print on both sides of the paper
manually (See "Printing on both sides of the paper (Manual)"
on page 61).
Print in various environments
•You can print with various operating systems such as
Windows, Linux, and Macintosh OS systems.
•Your machine is equipped with a Hi-Speed USB 2.0
interface.
•Your machine comes with a built-in network interface,
Ethernet 10/100 BaseTX. SCX-3205W(K) only)
•Your machine comes with a built-in network interface 802.11
b/g/n wireless LAN. (SCX-3205W(K) only)
Copy the original in high quality
•You can copy the original and print them in enhanced image
quality and size.
Scan the originals
•Scan in color and use the precise compressions of BMP,
JPEG, TIFF and PDF formats.
•Use one button to scan your original to the connected
computer.
Eco Print
•You can cut toner consumption and paper usage (See "Eco
Print button" on page 27).
IPv6 (SCX-3205W(K) only)
•The machine supports IPv6 (See "IPv6 Configuration" on
page 39).
DLNA (SCX-3205W(K) only)
•The machine supports DLNA printing as a DMP (Digital
Media Printer). You can easily print by the DLNA device
including Printing Control Capability on the home network.
Features of your new product_ 23
FEATURES BY MODELS
The machine is designed to support all of your document needs from printing to more advanced networking solutions for your business.
Features by models include:
FEATURES SCX-3200 SERIES SCX-3205W(K) SERIES
Print ƔƔ
Eco Print ƔƔ
Duplex (2-sided) printing (manual) ƔƔ
Copy ƔƔ
Scan ƔƔ
Hi-Speed USB 2.0 ƔƔ
Print Screen Ɣ
IPv6 Ɣ
Network Interface Ethernet 10/100 Base TX wired LAN Ɣ
Network Interface 802.11b/g/n wireless LANa
a.Depending on your country, wireless LAN card may not be available. Contact your local Samsung dealer or the
retailer where you bought your machine.
Ɣ
SyncThru™ Web Service Ɣ
(Ɣ: Included, Blank: Not included)
Introduction_ 24
1.introduction
This chapter gives you an overview of your machine:
This chapter includes:
•Machine overview
•Control panel overview
•Understanding the status LED
•Introducing the useful buttons
MACHINE OVERVIEW
Front view
2
1
3
4
8
9
10
11
12
7
5
6
This illustration may differ from your machine depending on its model.
1Front door 7Paper width guides
2Control panel 8Scanner lid
3Output tray (face down) 9Scanner glass
4Output support 10 Scan unit
5Tray 11 Inner cover
6Paper length guide 12 Toner cartridge
Introduction_ 25

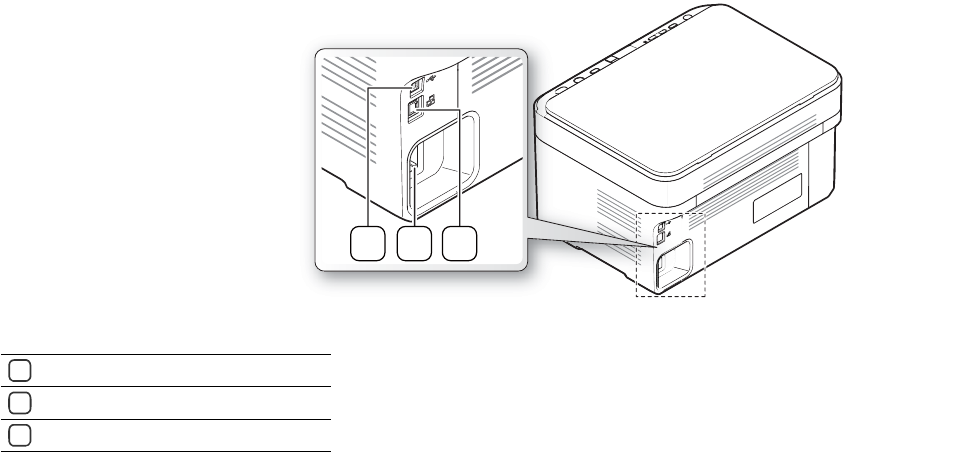

Rear view
2 31
This illustration may differ from your machine depending on its model.
1USB port
2Power cord receptacle
3Network porta
a.SCX-3205W(K) only
Introduction_ 26

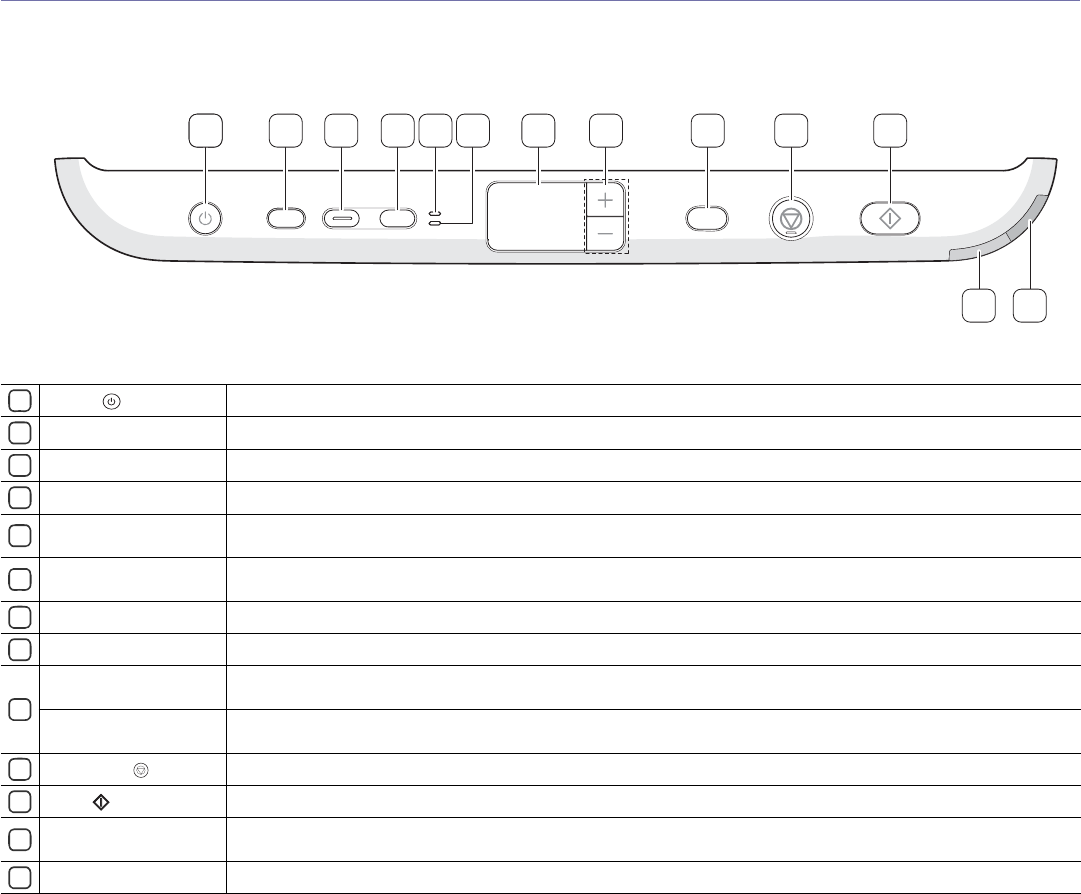

CONTROL PANEL OVERVIEW
This control panel may differ from your machine depending on its model.
11 9 10 112 3 4 5 6 7 8
1213
1Power ( )Allows you to turn the power on or off (See "Power button" on page 28).
2Eco Print Turn the Eco mode on or off (See "Eco Print button" on page 27).
3Scan to Sends scanned data (See "Scanning originals and sending to your computer (Scan to PC)" on page 69).
4ID Copy Allows you to copy both sides the ID card like a driver’s license to a single side of paper (See "ID card copying" on page 67).
5Front LED When the LED lights on, place the front side of an ID card facing down on the scanner glass (See "ID card copying" on
page 67).
6Back LED When the LED lights on, place the back side of an ID card facing down on the scanner glass (See "ID card copying" on
page 67).
7Display Shows the number of pages you want to copy.
8+/- Buttons Allows you to increase/decrease the number of page you want to copy (See "+/- buttons" on page 27).
9
Print Screen (SCX-3200
only) Prints the displayed screen of your monitor (See "Print Screen button (SCX-3200 only)" on page 27).
WPS (SCX-3205W(K)
only) Allows you to turn on or off the wireless network connection (See "WPS button (SCX-3205W(K) only)" on page 27).
10 Stop/Clear ( )Stops an operation at any time and there are more functions (See "Stop/Clear button" on page 27).
11 Start ( )Begins a printing, copying or scanning job depending on which function you are using.
12 Wireless LED
(SCX-3205W(K) only) Shows the current status of the wireless network connection (See "Understanding the status LED" on page 27).
13 Status LED Shows the status of your machine (See "Understanding the status LED" on page 27).
Introduction_ 27
UNDERSTANDING THE STATUS LED
Status LED
The color of the LED indicates the machine's current status.
STATUS LED DESCRIPTION
Off •The machine is off-line.
•The machine is in sleep mode.
Green On •The machine is in ready mode or warming up.
Blinking •When the LED blinks slowly, the machine is
receiving data from the computer or printing
documents.
•When the LED blinks rapidly, the machine is
operating special functions.
Red On •The inner cover is opened. Close the inner
cover completely.
•There is no paper in the tray. Load paper in the
tray.
•The machine has stopped due to a major error.
•Your system has some problems. If this
problem occurs, contact a service
representative.
•A toner cartridge has almost reached its
estimated cartridge lifea
a.Estimated cartridge life means the expected or estimated toner
cartridge life, which indicates the average capacity of print-outs and is
designed pursuant to ISO/IEC 19752. The number of pages may be
affected by operating environment, printing interval, media type, and
media size. Some amount of toner may remain in the cartridge even
when red LED is on and the printer stops printing.
. It is recommended to
replace the toner cartridge (See "Replacing the
toner cartridge" on page 93).
Blinking •A small amount of toner is left in the cartridge.
The estimated cartridge lifea of toner is close.
Prepare a new cartridge for replacement. You
may temporarily increase the printing quality by
redistributing the toner (See "Redistributing
toner" on page 82).
•The machine is printing in manual feed mode or
in manual duplex mode.
Orange On A paper jam has occurred (See "Clearing paper
jams" on page 83).
Samsung does not recommend using a non-genuine Samsung toner
cartridge such as one that is refilled or remanufactured. Samsung
cannot guarantee a non-genuine Samsung toner cartridge's quality.
Service or repair required as a result of using non-genuine Samsung
toner cartridges will not be covered under the machine warranty.
All printing errors will appear in the Smart Panel program window. If
the problem persists, contact a service representative.
Wireless LED (SCX-3205W(K) only)
WIRELESS LED STATUS DESCRIPTION
Blue Off ( )Wireless network is disconnected.
On ( )Wireless network is connectedU
Slowly blinks
()
The machine starts connecting to a
wireless network.
Fast blinks
()
•The machine is connecting to
access point (or wireless router).
•Wireless network connection is
being disconnected.
INTRODUCING THE USEFUL BUTTONS
Print Screen button (SCX-3200 only)
If you press Print Screen button for more than two seconds, the green light
blinks fast on the Status LED, and then machine prints an active screen
displayed in the monitor.
If you press Print Screen button for less than two seconds, the Status LED
lights on green, and then the machine prints the whole screen displayed in
the monitor.
•The page will be printed on the default page like A4 or Letter.
•Print Screen can only be used in the Windows and Macintosh
operating systems.
•You can only use this function with a USB-connected machine.
•You can use this function only when the Smart Panel program is
installed and runned.
Eco Print button
You can turn the Eco Print mode on or off by simply pressing the button.
1. Press Eco Print button on the control panel.
2. Eco Print LED lights on. Then, Eco Print mode is on.
To turn off Eco Print mode, press Eco Print button one more time.
The default option is 2-UP/Toner Save.
+/- buttons
You can determine the number of pages (up to 99 pages) you want to copy
by pressing +/- buttons. The default setting value is 1.
•If you press +/- buttons short, the number appeared on the display
continues to increase or decrease one by one.
•If you press +/- buttons long, the number of ten’s place appeared on the
display cycles between zero to nine.
WPS button (SCX-3205W(K) only)
This feature automatically detects which WPS (Wi-Fi Protected Setup™)
mode your access point uses. By pushing a button on the wireless LAN
router/access point and the machine, you can setup the wireless network
and security settings (See "Wireless network setup (SCX-3205W(K) only)"
on page 41).
Stop/Clear button
By pressing Stop/Clear button, you can do the following functions.
FUNCTION DESCRIPTION
Printing a configuration
report
In ready mode, press and hold this button
long enough (about two seconds) until the
Status LED blinks slowly, and release the
button (See "Printing a configuration report"
on page 29).
Printing a network
configuration report
(SCX-3205W(K) only)
In ready mode, press and hold this button for
four seconds until the Status LED blinks fast,
and release the button (See "Printing a
network configuration report" on page 35).
Canceling print job Press Stop/Clear button during a
operation. The print job is cleared from both
the machine and the computer and then the
machine returns to ready mode. This may
take some time depending on the size of the
print job.
Introduction_ 28

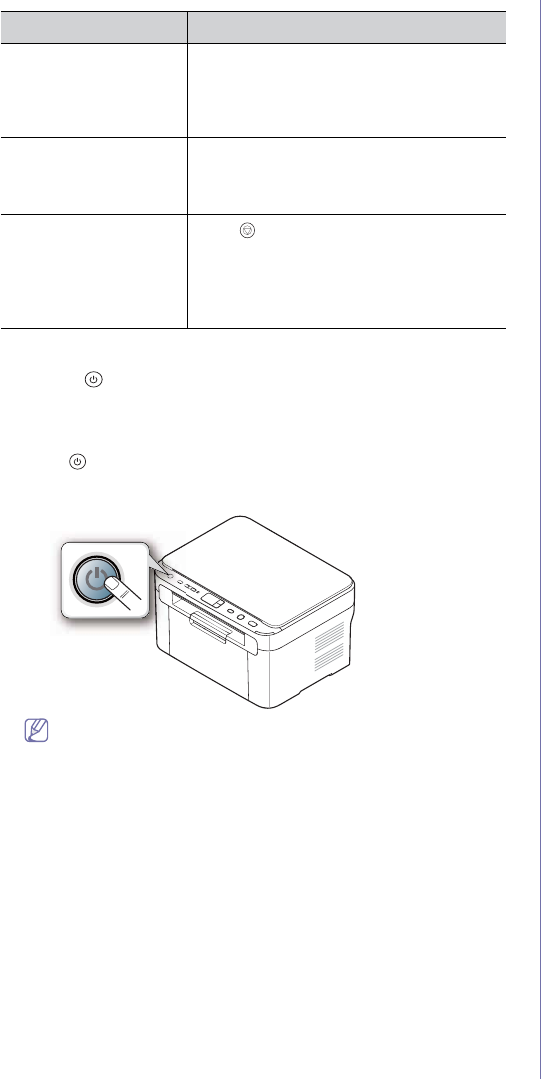

Power button
By pressing Power button, you can turn the machine on or off.
Turning on the machine
1. Plug in the power cord.
2. Press Power button on the control panel.
When the machine is powered on, you can see LED looping on the
display. Then, the machine is in ready mode.
If you want to turn the power off, press and hold this button for
about two seconds.
Getting started_ 29
2.getting started
This chapter gives you step-by-step instructions for setting up the USB connected machine and software.
This chapter includes:
•Setting up the hardware
•Printing a configuration report
•Supplied software
•System requirements
•Installing USB connected machine’s driver
•Sharing your machine locally
SETTING UP THE HARDWARE
This section shows the steps to set up the hardware, as is explained in the
Quick Installation Guide. Make sure you read the Quick Installation Guide
first and follow the steps below:
Location
1. Select a stable location.
Select a level, stable place with adequate space for air circulation. Allow
extra space for opening cover(s) and tray(s).
The area should be well ventilated and away from direct sunlight or
sources of heat, cold, and humidity. Do not set the machine close to the
edge of your desk or table.
Printing is suitable for altitudes under 1,000 m (3,281 ft). Refer to the
altitude setting to optimize your printing (See "Altitude adjustment" on
page 51).

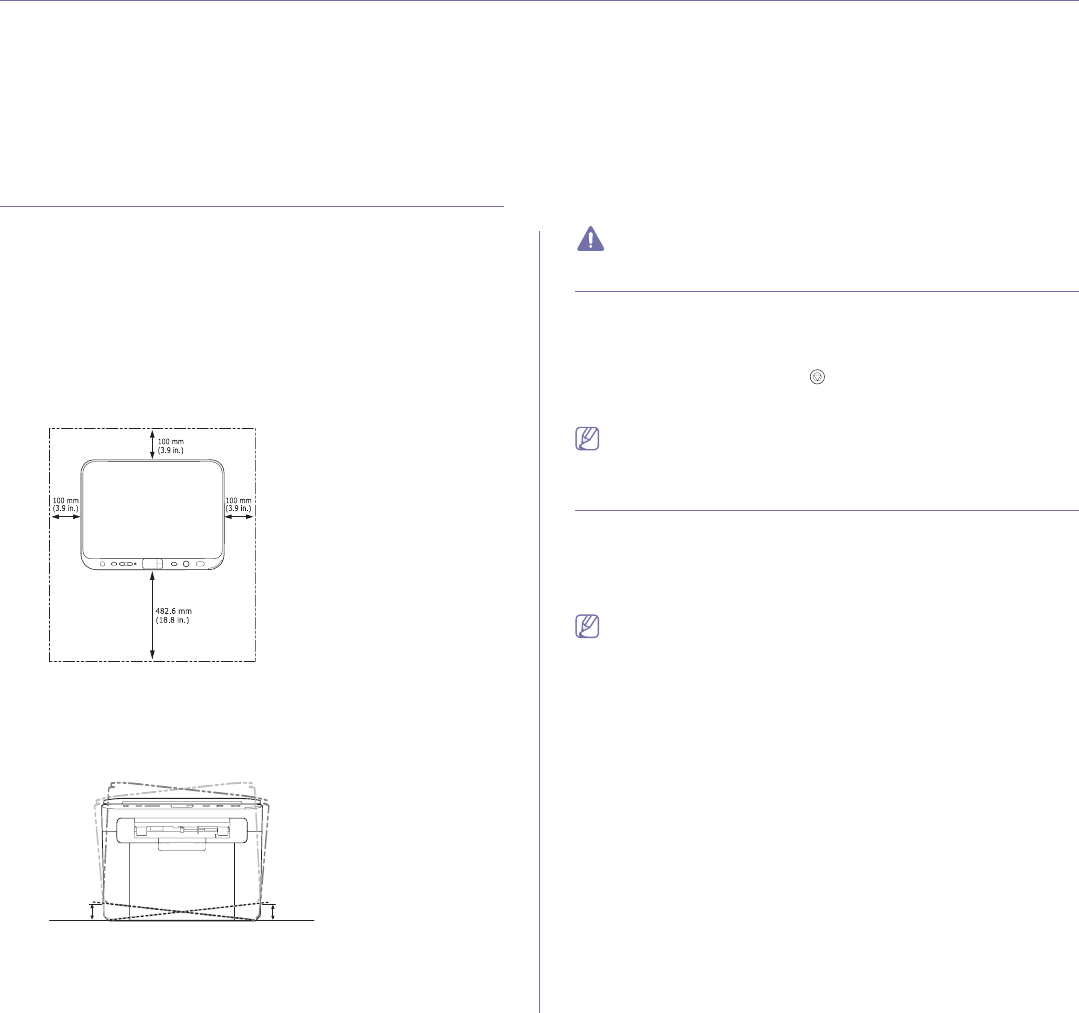

Place the machine on a flat, stable surface so that there is no incline
greater than 2 mm (0.08 inch). Otherwise, printing quality may be
affected.
2mm
(0.08 i
n)
2mm
(0.08 in)
2. Unpack the machine and check all the enclosed items.
3. Remove tape holding the machine securely.
4. Install the toner cartridge.
5. Load paper (See "Loading originals" on page 53).
6. Make sure that all cables are connected to the machine.
7. Turn the machine on (See "Turning on the machine" on page 28).
This machine will not operate when the power main fails.
PRINTING A CONFIGURATION REPORT
Print a configuration page to make sure that the machine is operating
properly.
To print a configuration report
In the ready mode, press and hold Stop/Clear button on the control
panel for long enough (about two seconds) until the Status LED blinks
slowly, and release.
For SCX-3205W(K), you can print a network configuration report (See
"Printing a network configuration report" on page 35).
SUPPLIED SOFTWARE
After you have set up your machine and connected it to your computer, you
must install the printer software. If you are a Windows or Macintosh OS
user, install the software from the supplied CD and if you are a Linux OS
user, download the software from the Samsung website
(www.samsung.com/printer) and install.
Machine software is occasionally updated for reasons like the release
of new operating system and etc. If needed, download the latest
version from the Samsung website (www.samsung.com/printer).
OS CONTENTS
Windows •Printer driver: Use this driver to take full advantage of
your machine’s features.
•Scanner driver: TWAIN and Windows Image
Acquisition (WIA) drivers are available for scanning
documents on your machine.
•Smart Panel:This program allows you to monitor the
machine’s status and alerts you when an error occurs
during printing (See "Using the Smart Panel program" on
page 75).
•SmarThrua:
a.Allows you to edit a scanned image in various ways using a powerful
image editor and to send the image by email. You can also open
another image editor program such as Adobe Photoshop, from
SmarThru. For details, refer to the on-screen help supplied on the
SmarThru program (See "SmarThru" on page 75).
This program is the accompanying
Windows-based software for your multifunctional
machine.
•Samsung Scan and Fax Manager: You can find out
about Samsung Scan and Fax Manager program
information and installed scan driver's condition.
•Printer Settings Utility: This program allows you to set
up printer’s other options from your computer.
•SetIP:Use this program to set your machine’s TCP/IP
addresses. (SCX-3205W(K) only)
Macintosh •Printer Driver:Use this driver to take full advantage of
your machine’s features.
•Scanner driver: TWAIN driver is available for scanning
documents on your machine.
•Smart Panel:This program allows you to monitor the
machine’s status and alerts you when an error occurs
during printing (See "Using the Smart Panel program" on
page 75).
•Samsung Scan and Fax Manager: You can find out
about Samsung Scan and Fax Manager program
information and installed scan driver's condition.
•Printer Settings Utility: This program allows you to set
up printer’s other options from your computer.
•SetIP:Use this program to set your machine’s TCP/IP
addresses. (SCX-3205W(K) only)
Linux •Unified Linux Driver: Use this driver to take full
advantage of your machine’s features.
•SANE:Use this driver to scan documents.
•Smart Panel: This program allows you to monitor the
machine’s status and alerts you when an error occurs
during printing (See "Using the Smart Panel program" on
page 75).
•Printer Settings Utility: This program allows you to set
up printer’s other options from your computer.
•SetIP:Use this program to set your machine’s TCP/IP
addresses. (SCX-3205W(K) only)
Getting started_ 30
SYSTEM REQUIREMENTS
Before you begin, ensure that your system meets the following
requirements:
Windows
Your machine supports the following Windows operating systems.
OPERATING
SYSTEM
REQUIREMENT (RECOMMENDED)
CPU RAM
FREE
HDD
SPACE
Windows®
2000
Intel® Pentium® II 400
MHz (Pentium III 933
MHz)
64 MB
(128 MB)
600 MB
Windows® XP Intel® Pentium® III 933
MHz (Pentium IV 1 GHz)
128 MB
(256 MB)
1.5 GB
Windows
Server® 2003
Intel® Pentium® III 933
MHz (Pentium IV 1 GHz)
128 MB
(512 MB)
1.25 GB to
2 GB
Windows
Server®
G
2008
Intel® Pentium® IV 1 GHz
(Pentium IV 2 GHz)
512 MB
(2 GB)
10 GB
Windows
Vista®
Intel® Pentium® IV 3 GHz 512 MB
(1 GB)
15 GB
Windows® 7 Intel® Pentium® IV 1 GHz
32-bit or 64-bit processor
or higher
1 GB
(2 GB)
16 GB
•Support for DirectX® 9 graphics with 128 MB
memory (to enable the Aero theme).
•DVD-R/W Drive
Windows
Server® 2008
R2
Intel® Pentium® IV 1 GHz
(x86) or 1.4 GHz (x64)
processors (2 GHz or
faster)
512 MB
(2 GB)
10 GB
•Internet Explorer 5.0 or higher is the minimum requirement for all
Windows operating systems.
•Windows Terminal Services is compatible with your machine.
Macintosh
OPERATING
SYSTEM
REQUIREMENTS (RECOMMENDED)
CPU RAM
FREE
HDD
SPACE
Mac OS X
10.3 ~ 10.4
•Intel®
Processors
•PowerPC G4/ G5
•128 MB for a
PowerPC based
Mac (512 MB)
•512 MB for a
Intel-based Mac
(1 GB)
1 GB
Mac OS X
10.5
•Intel®
Processors
•867 MHz or
faster Power PC
G4/ G5
512 MB (1 GB) 1 GB
Mac OS X
10.6
•Intel®
Processors
1 GB (2 GB) 1 GB
Getting started_ 31
Linux
ITEM REQUIREMENTS
Operating
system
RedHat® Enterprise Linux WS 4, 5 (32/64 bit)
Fedora 4, 5, 6, 7, 8, 9, 10, 11, 12 (32/64 bit)
SuSE Linux 10.0, 10.1 (32 bit)
OpenSuSE® 10.2S 10.3, 11.0, 11.1, 11.2 (32.64 bit)
Mandrake 10.0, 10.1 (32/64 bit)
Mandriva 2005, 2006, 2007, 2008, 2009, 2009.1
(32/64 bit)
Ubuntu 5.04, 5.10, 6.06, 6.10, 7.04, 7.10, 8.04, 8.10,
9.04, 9.10 (32/64 bit)
SuSE Linux Enterprise Desktop 10, 11 (32/64 bit)
Debian 4.0, 5.0 (32/64 bit)
CPU Pentium IV 2.4 GHz (Intel Core™2)
RAM 512 MB (1 GB)
Free HDD space 1 GB (2 GB)
INSTALLING USB CONNECTED MACHINE’S
DRIVER
A locally connected machine is a machine directly connected to your
computer by a USB cable.
Only use a USB cable no longer than 3 m (10 ft.).
Windows
You can install the machine software using the typical or custom method.
The following steps are recommended for most users who use a machine
directly connected to your computer. All components necessary for machine
operations will be installed.
1. Make sure that the machine is connected to the computer and powered
on.
If the “Found New Hardware Wizard” window appears during the
installation procedure, click Cancel to close the window.
2. Insert the supplied software CD into your CD-ROM drive.
•The software CD should automatically run and an installation window
will appear.
•If the installation window does not appear, click Start and then Run.
Type X:\Setup.exe, replacing “X” with the letter which represents
your CD-ROM Drive. Click OK.
•If you use Windows Vista, Windows 7 or Windows 2008 Server R2
click Start > All programs > Accessories > Run.
Type X:\Setup.exe replacing “X” with the letter which represents
your CD-ROM Drive and click OK.
•If the AutoPlay window appears in Windows Vista, Windows 7 or
Windows 2008 Server R2, click Run Setup.exe in Install or run
program field, and click Continue or Yes in the User Account
Control window.

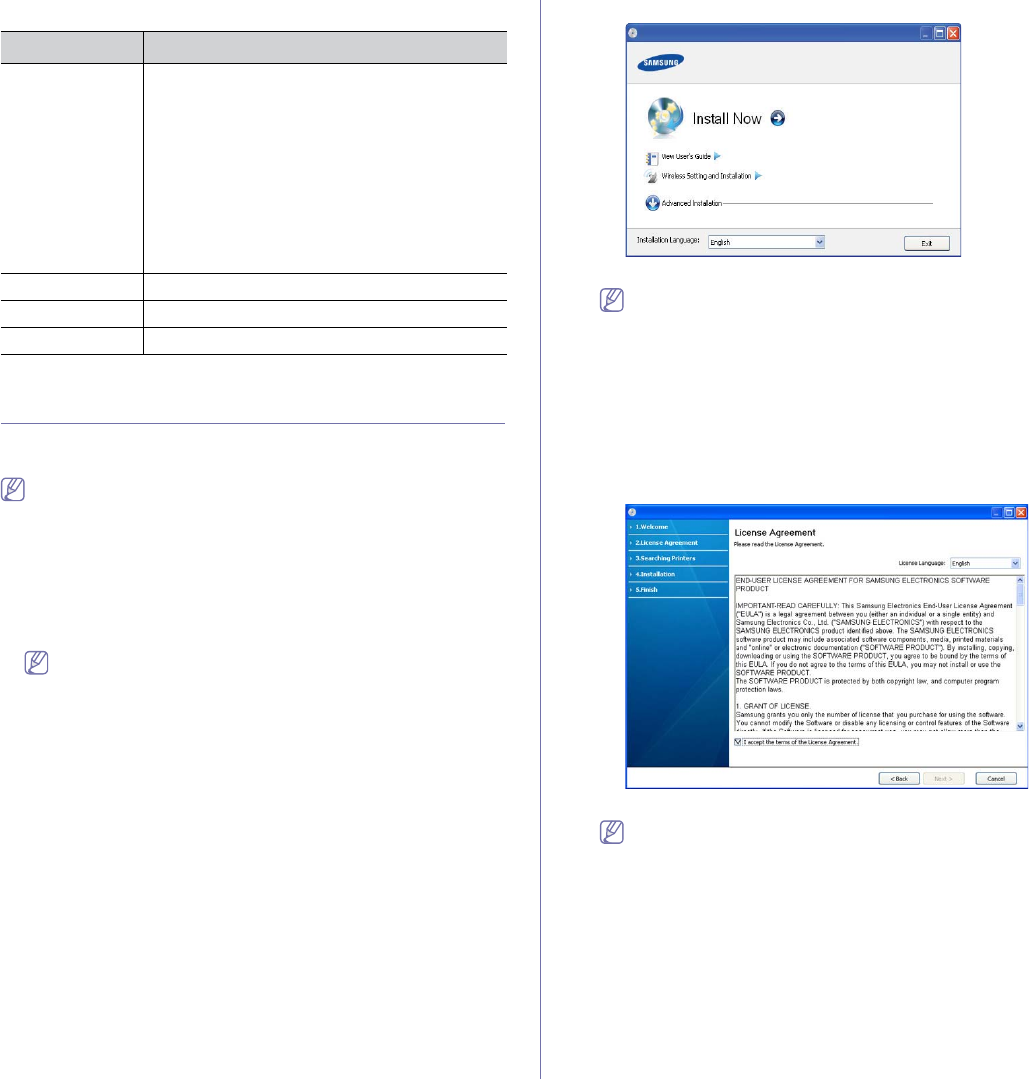

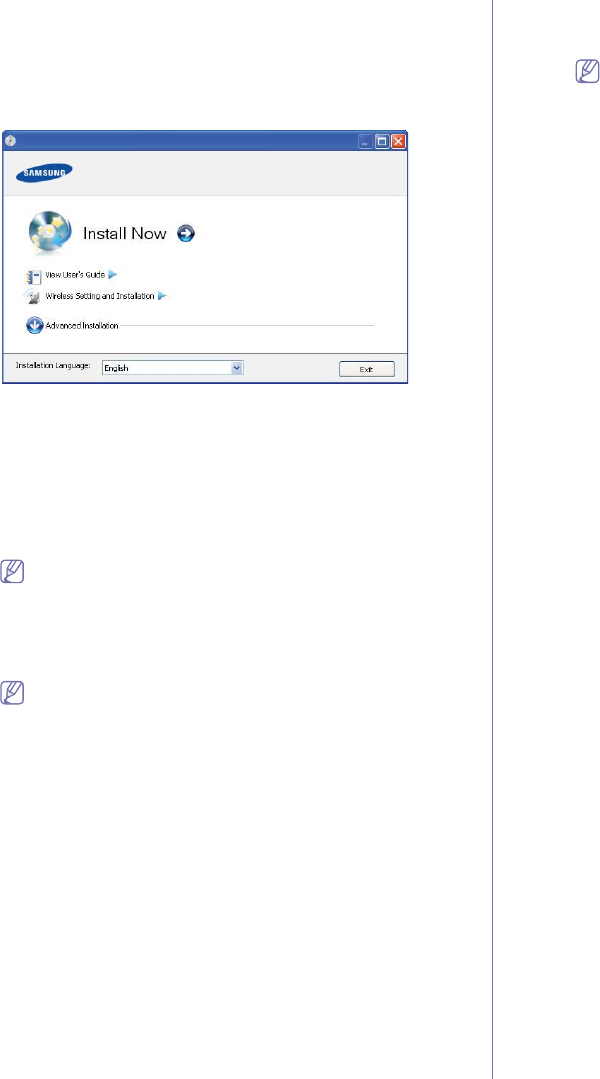

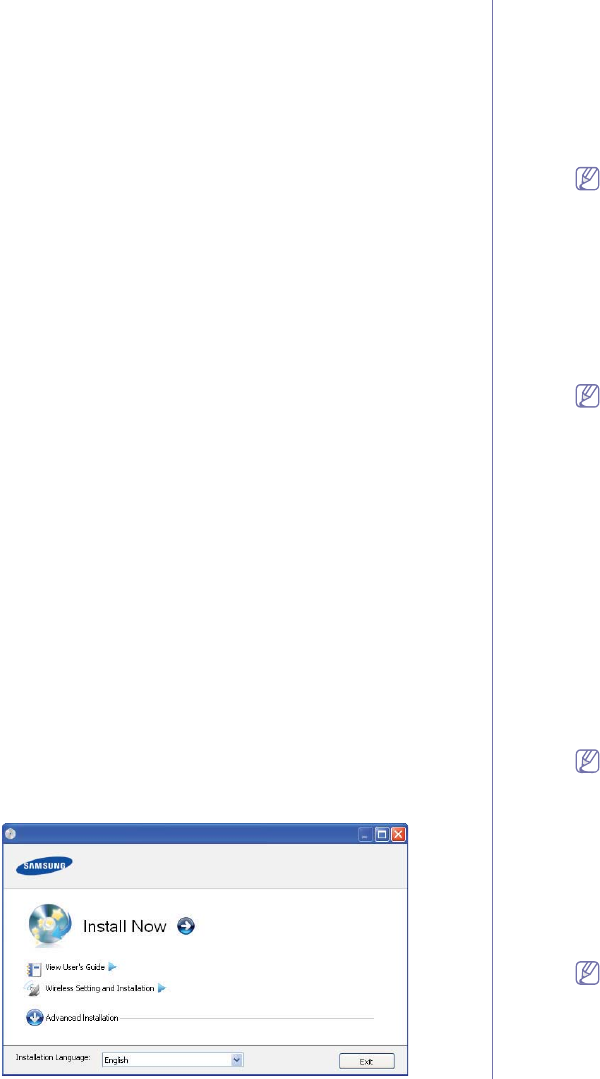

3. Select Install now.
If necessary, select a language from the drop-down list.
•For SCX-3205W(K), you can access the Wireless Setting and
Installation menu. The menu allows you to install a wireless
network to connect to the machine with an USB cable (See
"Wireless network setup (SCX-3205W(K) only)" on page 41).
•The Advanced Installation has two options, Custom
Installation and Install Software Only. The Custom
Installation allows you to select the machine’s connection and
choose individual component to install. The Install Software
Only allows you to install the supplied software, such as Smart
Panel. Follow the instruction on the window.
4. Read the License Agreement, and select I accept the terms of the
License Agreement. Then, click Next.
The software searches for the machine.
If your machine is not connected to the computer, the following
Getting started_ 32

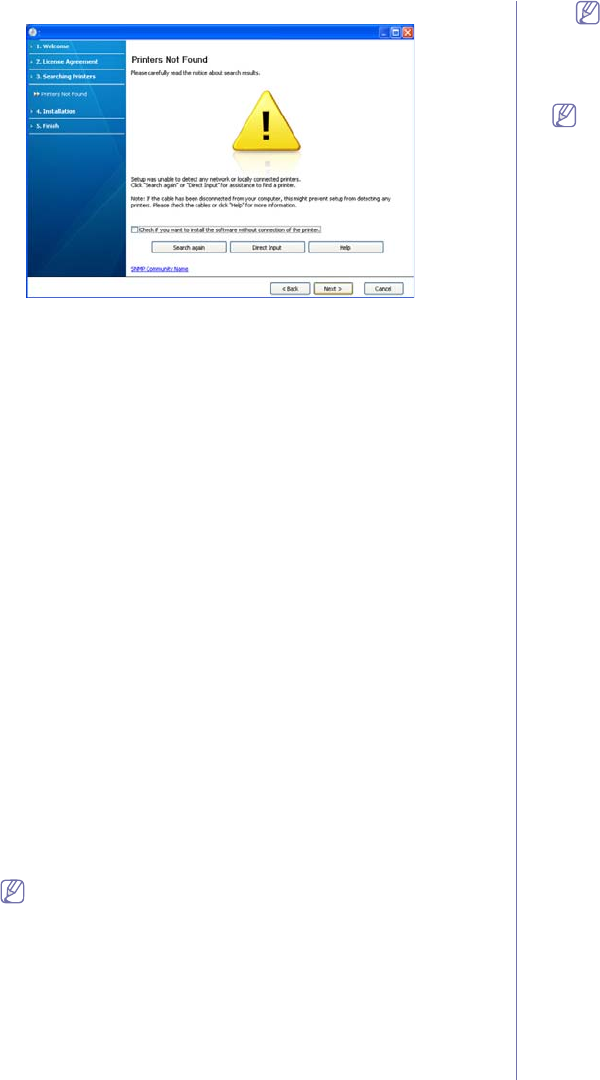

window will appear.
•After connecting the machine, click Next.
•Check if you want to install the software without
connection of the printer.
-Check this option to install the software without a machine
connected. In this case, the print a test page window will be
skipped, and completes the installation.
•Search again
When you press this button, the firewall notice window
appears.
-Turn off the firewall and Search again. For Windows
operating system, click Start > Control Panel > Windows
Firewall, and inactivate this option.
-Turn off the firewall from the third party's program beside
the operating system. Refer to the manual provided by
individual programs.
•Direct Input
The Direct Input allows you to search a specific machine on
the network.
-Search by IP address: Enter the IP address or the host
name. Then click Next.
To verify your machine’s IP address, print a network
configuration report (See "Printing a network configuration
report" on page 35).
-Search by network path: To find a shared machine (UNC
Path), enter the shared name manually or find a shared
printer by clicking the Browse button. Then click Next.
•Help
-This help button gives you the detailed information about
how to connect the machine.
5. The searched machines will be shown on the screen. Select the one you
wish to use and click Next.
If the software searched only one machine, the confirmation
window appears.
6. After the installation is finished, a window asking you to print a test page
appears. If you want to print a test page, click Print a test page.
Otherwise, just click Next and skip to step 8.
7. If the test page prints out correctly, click Yes.
If not, click No to reprint it.
8. If you want to register your machine on Samsung web site, click On-line
Registration.
If your machine is not connected yet to the network or computer,
click How to connect?.How to connect? gives detailed
information about how to connect the machine. Follow the
instructions in the window.
9. Click Finish.
If the printer driver does not work properly, follow the steps below to
repair or reinstall the driver.
a) Make sure that the machine is connected to your machine and
powered on.
b) From the Start menu, select Programs or All Programs >
Samsung Printers > your printer driver name > Maintenance.
c) Select the option you wish to execute, then follow the instruction
on the window.
Macintosh
The software CD that came with your machine provides you with the Driver
files that allows you to use the CUPS driver or PostScript driver (only
available when you use a machine, which supports the PostScript driver) for
printing on a Macintosh computer.
Also, it provides you with TWAIN driver for scanning on a Macintosh
computer.
1. Make sure that the machine is connected to your computer and powered
on.
2. Insert the supplied software CD into your CD-ROM drive.
3. Double-click the CD-ROM icon that appears on your Macintosh desktop.
4. Double-click the MAC_Installer folder.
5. Double-click the Installer OS X icon.
6. Enter the password and click OK.
7. The Samsung Installer window opens. Click Continue.
8. Read the license agreement and click Continue.
9. Click Agree to agree to the license agreement.
10. Select Easy Install and click Install.Easy Install is recommended for
most users. All components necessary for machine operations will be
installed.
If you select Custom Install, you can choose individual components to
install.
11. When the message which warns that all applications will close on your
computer appears, click Continue.
12. Select Typical installation for a network printer for a network printer
and then click OK.
13. After the installation is finished, click Restart.
14. Open the Applications folder > Utilities > Print Setup Utility.
•For Mac OS X 10.5 ~ 10.6, open the Applications folder > System
Preferences and click Print & Fax.
15. Click Add onthe Printer List.
•For Mac OS X 10.5 ~ 10.6, click the “+” icon; a display window will
pop up.
16. For Mac OS X 10.3, select the USB tab.
•For Mac OS X10.4, click Default Browser and find the USB
connection.
•For Mac OS X 10.5 ~ 10.6, click Default and find the USB
connection.
17. For Mac OS X 10.3, if Auto Select does not work properly, select
Samsung in Printer Model and your machine name in Model Name.
•For Mac OS X 10.4, if Auto Select does not work properly, select
Samsung in Print Using and your machine name in Model.
Getting started_ 33
•For Mac OS X 10.5 ~ 10.6, if Auto Select does not work properly,
select Select a driver to use... and your machine name in Print
Using.
Your machine appears on the Printer List, and is set as the default
machine.
18. Click Add.
If the printer driver does not work properly, uninstall the driver and
reinstall it.
Follow steps below to uninstall the driver for Macintosh.
a) Make sure that the machine is connected to your computer and
powered on.
b) Insert the supplied software CD into your CD-ROM drive.
c) Double-click CD-ROM icon that appears on your Macintosh
desktop.
d) Double-click the MAC_Installer folder.
e) Double-click the Installer OS X icon.
f) Enter the password and click OK.
g) The Samsung Installer window opens. Click Continue.
h) Read the license agreement and click Continue.
i) Click Agree to agree to the license agreement.
j) Select Uninstall and click Uninstall.
k) When the message which warns that all applications will close on
your computer appears, Click Continue.
l) When the uninstall is done, click Quit.
Linux
You need to download Linux software packages from the Samsung website
to install the printer software.
Follow the steps below to install the software.
Installing the Unified Linux Driver
1. Make sure that the machine is connected to your computer and
powered on.
2. When the Administrator Login window appears, type in root in the
Login field and enter the system password.
You must log in as a super user (root) to install the machine
software. If you are not a super user, ask your system
administrator.
3. From the Samsung website, download the Unified Linux Driver
package to your computer.
4. Right-click the Unified Linux Driver package and extract the
package.
5. Double-click cdroot > autorun.

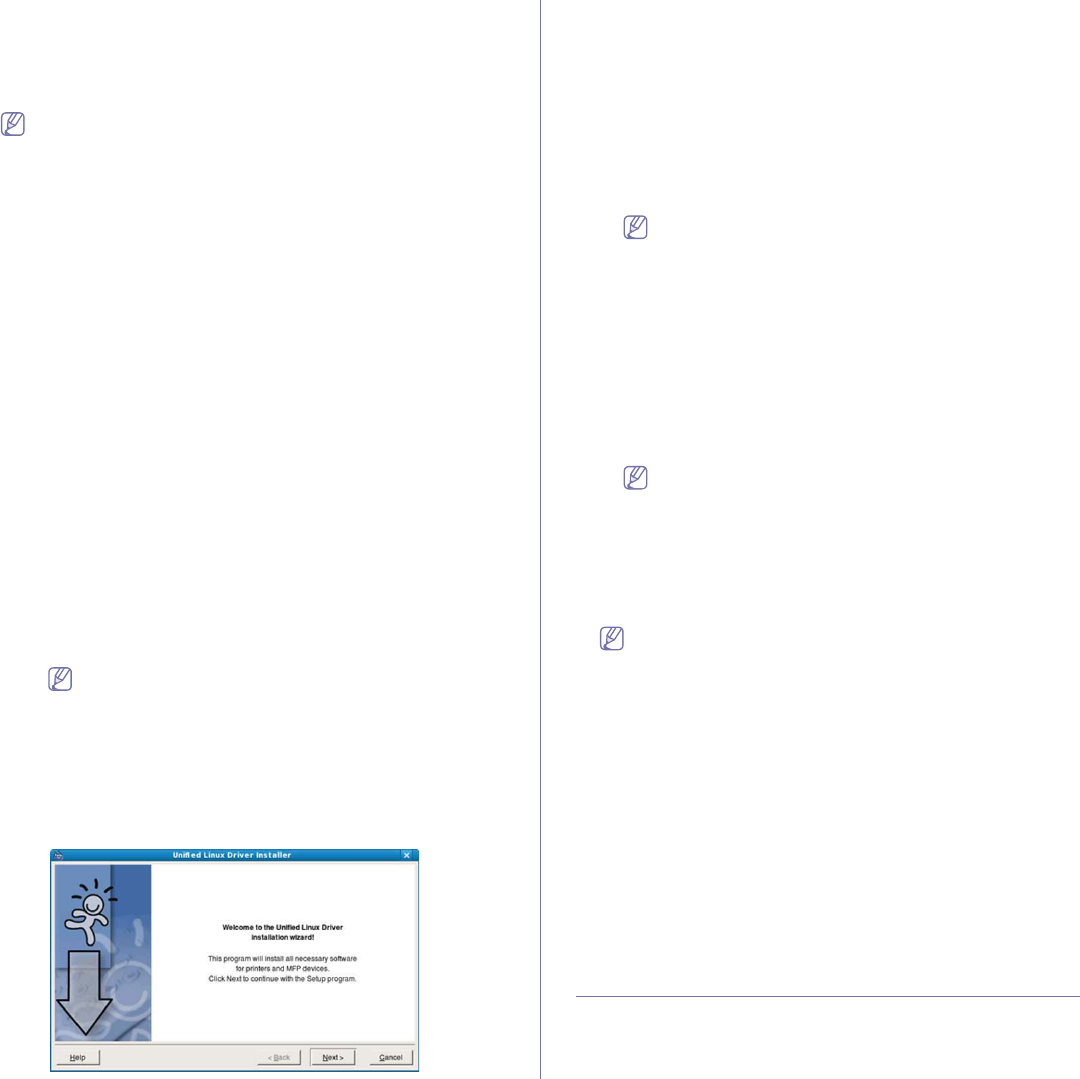

6. When the welcome screen appears, click Next.
7. When the installation is complete, click Finish.
The installation program added the Unified Driver Configurator desktop
icon and the Unified Driver group to the system menu for your
convenience. If you have any difficulties, consult the on screen help that
is available through your system menu or from the driver package
Windows applications, such as Unified Driver Configurator.
Installing the Smart Panel
1. Make sure that the machine is connected to your computer and
powered on.
2. When the Administrator Login window appears, type in root in the
Login field and enter the system password.
You must log in as a super user (root) to install the machine
software. If you are not a super user, ask your system
administrator.
3. From the Samsung website, download the Smart Panel package to
your computer.
4. Right-click the Smart Panel package and extract the package.
5. Double-click cdroot > Linux > smartpanel >install.sh.
Installing the Printer Settings Utility
1. Make sure that the machine is connected to your computer and
powered on.
2. When the Administrator Login window appears, type in root in the
Login field and enter the system password.
You must log in as a super user (root) to install the machine
software. If you are not a super user, ask your system
administrator.
3. From the Samsung website, download the Printer Settings Utility
package to your computer.
4. Right-click the Printer Settings Utility package and extract the
package.
5. Double-click cdroot > Linux > psu >install.sh.
If the printer driver does not work properly, uninstall the driver and
reinstall it.
Follow the steps below steps to uninstall the driver for Linux.
a) Make sure that the machine is connected to your computer and
powered on.
b) When the Administrator Login window appears, type in “root”
in the Login field and enter the system password.
You must log in as a super user (root) to uninstall the printer
driver. If you are not a super user, ask your system
administrator.
c) Click the icon at the bottom of the desktop. When the Terminal
screen appears, type in:
[root@localhost root]#cd /opt/Samsung/mfp/uninstall/
[root@localhost uninstall]#./uninstall.sh
d) Click Uninstall.
e) Click Next.
f) Click Finish.
SHARING YOUR MACHINE LOCALLY
Follow the steps below to set up computers to share your machine locally.
Getting started_ 34
If the Host computer is directly connected to the machine by a USB cable
and is also connected to the local network environment, the client computer
connected to the local network can use the shared machine through the
host computer to print.

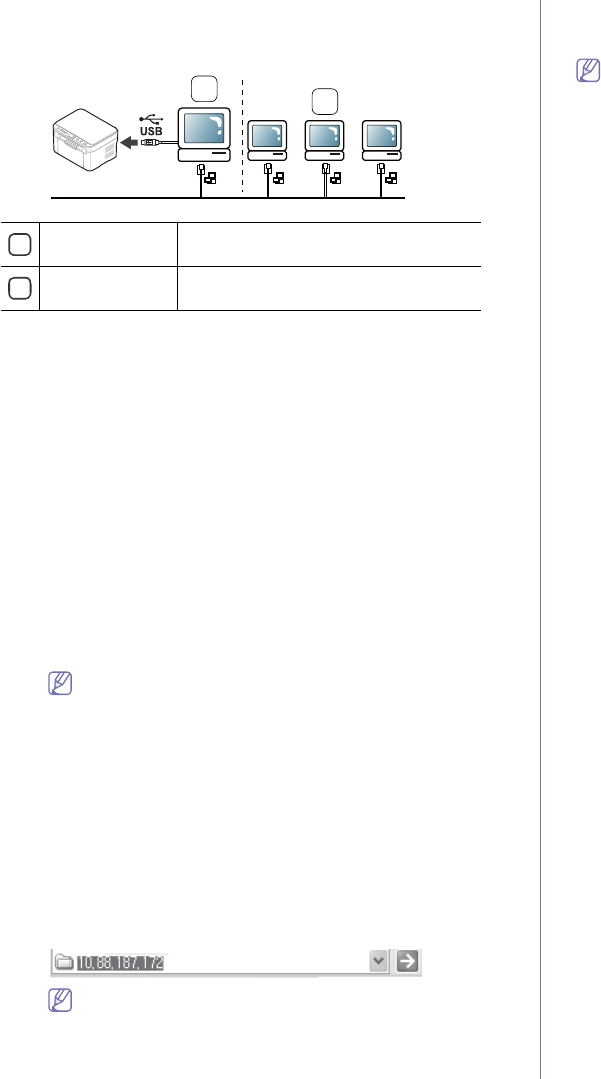

2
1
1Host computer A computer which is directly connected to
the machine by USB cable.
2Client computers Computers which use the machine shared
through the host computer.
Windows
Setting up a host computer
1. Install your printer driver (See "Installing USB connected machine’s
driver" on page 31).
2. Click the Windows Start menu.
3. For Windows 2000, select Settings >Printers.
•For Windows XP/Server 2003, select Printers and Faxes.
•For Windows Server 2008/Vista, select Control Panel >
Hardware and Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware
>Devices and Printers.
4. Right-click the printer icon.
5. For Windows XP/Vista/Server 2003/Server 2008, press Properties.
For Windows 7/Windows Server 2008 R2, from context menus,
select the Printer properties.
If Printer properties item has a Ź mark, you can select other
printer drivers connected with the selected printer.
6. Select the Sharing tab.
7. Check the Change Sharing Options.
8. Check the Share this printer checkbox.
9. Fill in the Share Name field. Click OK.
Setting up a client computer
1. Install your printer driver (See "Installing USB connected machine’s
driver" on page 31).
2. Click the Windows Start menu.
3. Select All programs > Accessories >Windows Explorer.
4. Enter the IP address of the host computer in the address bar and
press Enter in your keyboard.
In case host computer requires a User name and Password,
fill in User ID and password of the host computer account.
5. Right-click the printer icon you want to share and select Connect.
6. If a set up complete message appears, click OK.
7. Open the file you want to print and start printing.
Macintosh
The following steps are for Mac OS X 10.5~10.6. Refer to Mac Help
for other OS versions.
Setting up a host computer
1. Install your printer driver (See "Macintosh" on page 32).
2. Open the Applications folder > System Preferences and click
Print & Fax.
3. Select the printer to share in the Printers list.
4. Select Share this printer.
Setting up a client computer
1. Install your printer driver (See "Macintosh" on page 32).
2. Open the Applications folder > System Preferences and click
Print & Fax.
3. Click the “+” icon.
A display window showing the name of your shared printer appears.
4. Select your machine and click Add.

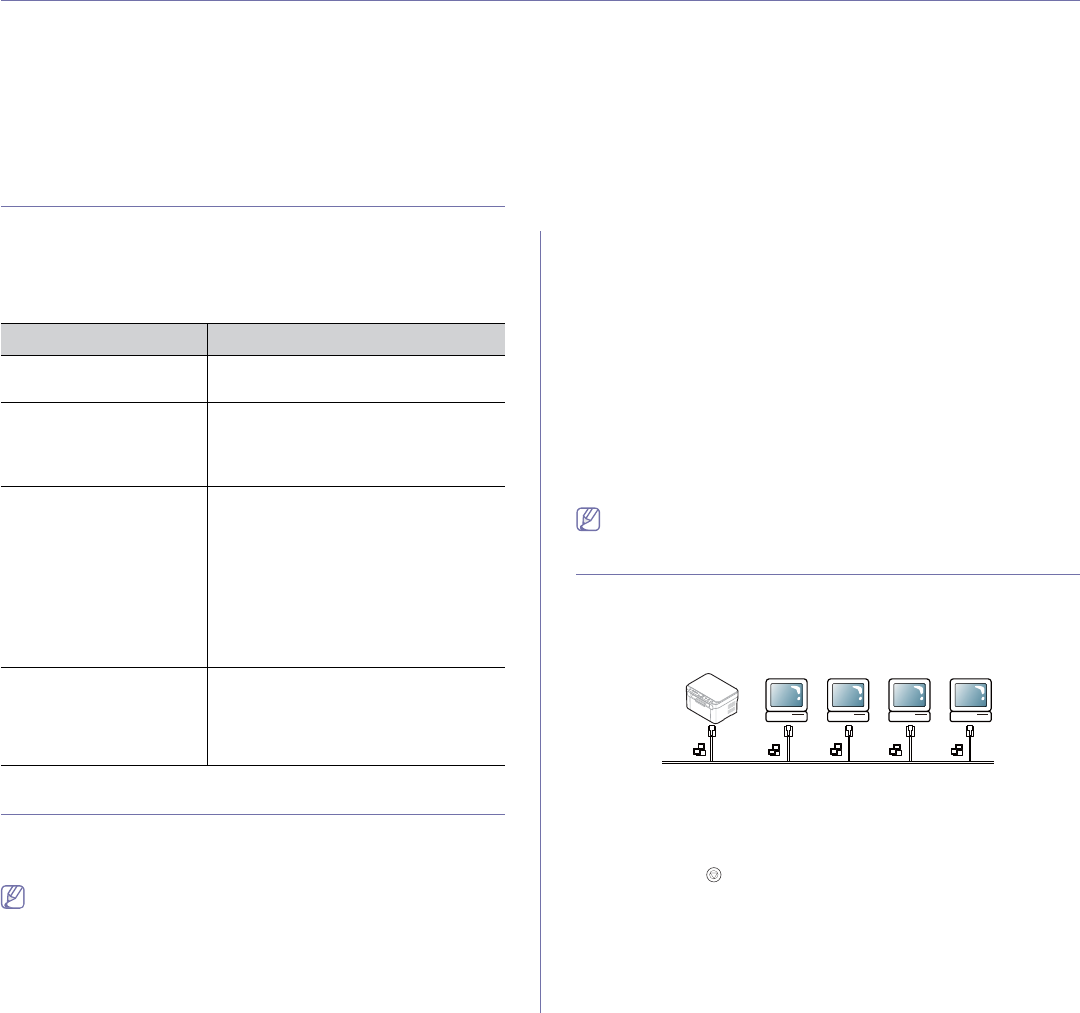

Network setup (SCX-3205W(K) only)_ 35
3.network setup (scx-3205w(k) only)
This chapter gives you step-by-step instructions for setting up the network connected machine and software.
This chapter includes:
•Network environment
•Introducing useful network programs
•Using a wired network
•Installing network connected machine’s driver
•IPv6 Configuration
NETWORK ENVIRONMENT
You need to set up the network protocols on the machine to use it as your
network machine. You can set up the basic network settings through the
network setting programs.
The following table shows the network environments supported by the
machine.
ITEM REQUIREMENTS
Network interface •Ethernet 10/100 Base-TX
•802.11b/g/n Wireless LAN
Network operating system •Windows 2000/Server 2003 /Server
2008/XP/Vista/7/Server 2008 R2
•Various Linux OS
•Mac OS X 10.3 ~ 10.6
Network protocols •TCP/IPv4
•DHCP, BOOTP
•DNS, WINS, Bonjour, SLP, UPnP
•Standard TCP/IP Printing (RAW), LPR,
IPP
•SNMPv 1/2/3, HTTP
•TCP/IPv6 (DHCP, DNS, RAW, LPR,
SNMPv 1/2/3, HTTP)
(See "IPv6 Configuration" on page 39.)
Wireless security •Authentication: Open System, Shared
Key, WPA Personal, WPA2 Personal
(PSK)
•Encryption: WEP64, WEP128, TKIP,
AES
INTRODUCING USEFUL NETWORK PROGRAMS
There are several programs available to setup the network settings easily in
network environment. For the network administrator especially, managing
several machines on the network is possible.
Before using the programs below, set the IP address first.
SyncThru™ Web Service
Web server embedded on your network machine, which allows you to do
the following tasks.
•You can configure the network parameters necessary for the machine to
connect to various network environments.
•You can customize machine settings
(See "Using SyncThru™ Web Service (SCX-3205W(K) only)" on
page 74).
SyncThru™ Web Admin Service
Web-based machine management solution for network administrator.
SyncThru™ Web Admin Service provides you with an efficient way of
managing network devices and lets you remotely monitor and troubleshoot
network machines from any site with corporate internet access.
•Download this program from http://solution.samsungprinter.com.
SetIP
This utility program allows you to select a network interface and manually
configure the IP addresses for use with the TCP/IP protocol.
•See "IPv4 setting using SetIP Program (Windows)" on page 36.
•See "IPv4 setting using SetIP Program (Macintosh)" on page 36.
•See "IPv4 setting using SetIP Program (Linux)" on page 37.
TCP/IPv6 is not supported by this program.
USING A WIRED NETWORK
You must set up the network protocols on your machine to use it on your
network. This chapter will show you how this is easily accomplished.
You can use network after connecting network cable to a corresponding
port on your machine.
Printing a network configuration report
You can print a network configuration report from the machine’s control
panel that will show the current machine’s network settings. This will help
you to set up a network and troubleshoot problems.
1. Press and hold Stop/Clear button on the control panel for long
enough (about four seconds) until the Status LED blinks fast.
2. Then, release the button.
Using this Network Configuration Report, you can find your machine MAC
address and IP address.
For example:
•MAC Address:00:15:99:41:A2:78
•IP Address:192.0.0.192
Network setup (SCX-3205W(K) only)_ 36
Setting IP address
First, you have to set up an IP address for network printing and
managements. In most cases a new IP address will be automatically
assigned by a DHCP (Dynamic Host Configuration Protocol) server located
on the network.
In a few situations the IP address must be set manually. This is called a
static IP and is often required in corporate Intranets for security reasons.
•DHCP IP assignment: Connect your machine to the network, and wait a
few minutes for the DHCP server to assign an IP address to the
machine. Then, print the Network Configuration Report as explained
above. If the report shows that the IP address has changed, the
assignment was successful. You will see the new IP address in the
report.
•Static IP assignment: Use SetIP program to change the IP address
from your computer. If your machine has a control panel, you can also
change IP address using the machine's control panel.
In an office environment, we recommend that you contact a network
administrator to set IP address for you.
IPv4 setting using SetIP Program (Windows)
This program is for manually setting the network IP address of your
machine using its MAC address to communicate with the machine. A
MAC address is the hardware serial number of the network interface and
can be found in the Network Configuration Report.
Before using SetIP program, disable the computer firewall by performing
the following steps.
1. Open Control Panel.
2. Double-click Security Center.
3. Click Windows Firewall.
4. Disable the firewall.
Installing the program
1. Insert the Printer Software CD-ROM provided with your machine.
When the driver CD runs automatically, close that window.
2. Start Windows Explorer and open the X drive (X represents your
CD-ROM drive).
3. Double-click Application > SetIP.
4. Double-click Setup.exe to install this program.
5. Select a language, then click Next.
6. Follow the instructions in the window and complete the installation.
Starting the program
1. Connect your machine to the network with a network cable.
2. Turn on the machine.
3. From the Windows Start menu, select All Programs > Samsung
Printers > SetIP > SetIP.

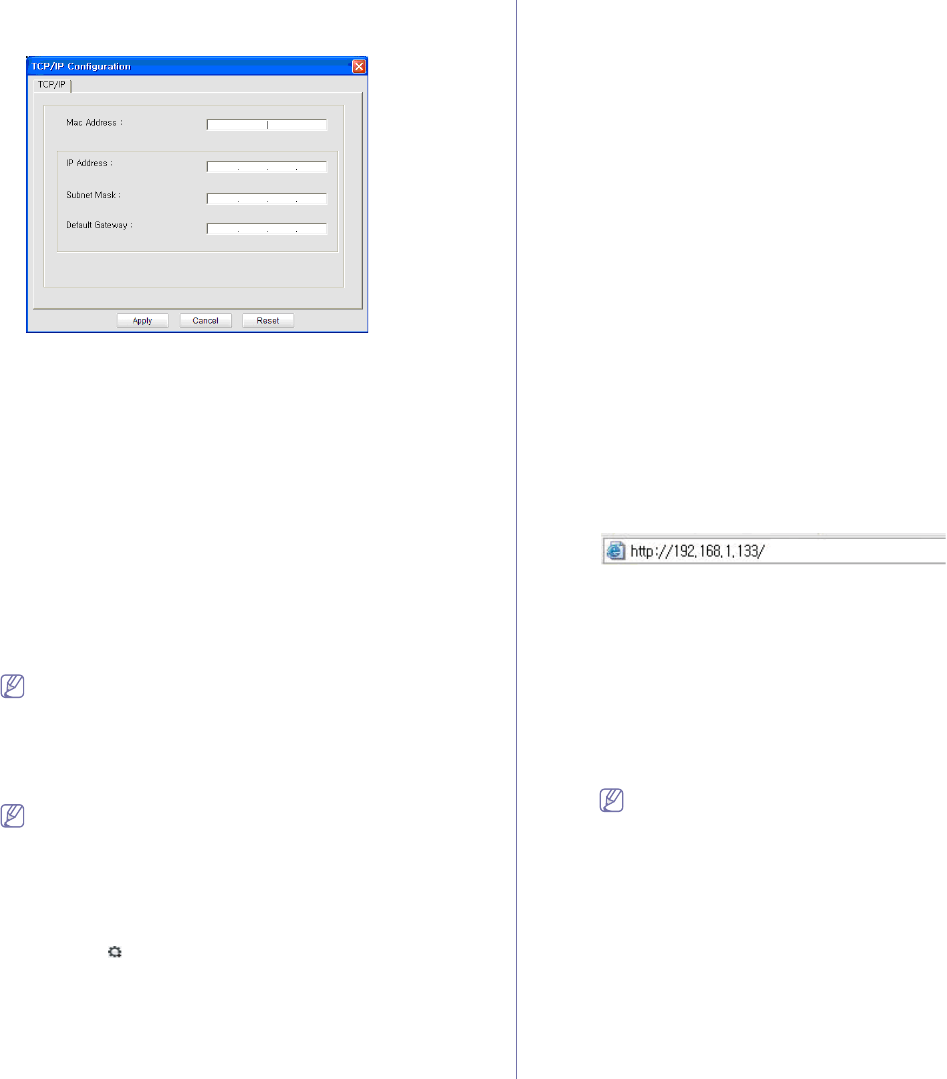

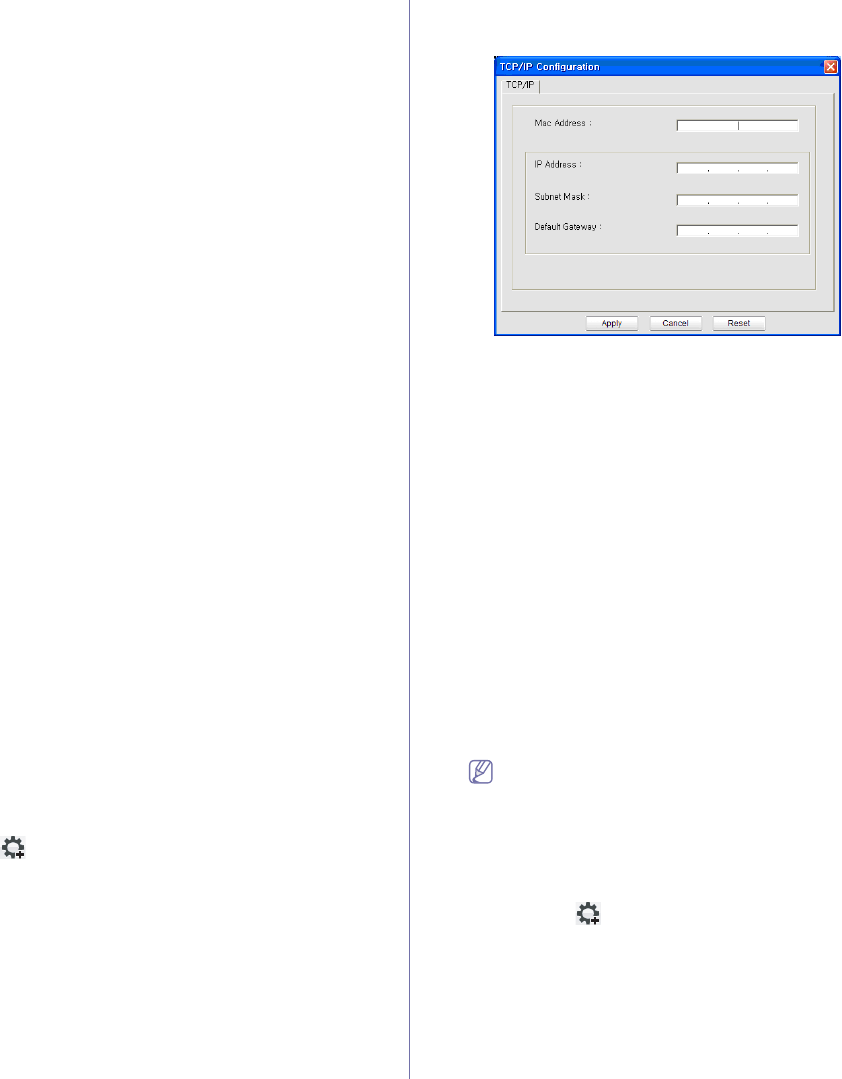

4. Click on the icon (third from left) in the SetIP window to open the
TCP/IP configuration window.
5. Enter the machine’s new information into the configuration window
as follows. In a corporate intranet, you may need to have this
information assigned by a network manager before proceeding.
•MAC Address: Find the machine’s MAC address from the
Network Configuration Report and enter it without the colons.
For example, 00:15:99:29:51:A8 becomes 0015992951A8.
•IP Address: Enter a new IP address for your printer.
For example, if your computer’s IP address is 192.168.1.150,
enter 192.168.1.X (X is number between 1 and 254 other than
the computer’s address).
•Subnet Mask: Enter a Subnet Mask.
•Default Gateway: Enter a Default Gateway.
6. Click Apply, and then click OK. The machine will automatically print
the Network Configuration Report. Confirm that all the settings are
correct.
7. Click Exit to close the SetIP program.
8. If necessary, restart the computer’s firewall.
IPv4 setting using SetIP Program (Macintosh)
For using SetIP program, disable the computer firewall before continuing
by performing the following.
1. Open System Preferences.
2. Click Security.
3. Click the Firewall menu.
4. Turn firewall off.
The following instructions may vary from your model.
1. Connect your machine to the network with a network cable.
2. Insert the Installation CD-ROM, and open the disk window, select
MAC_Installer > MAC_Printer > SetIP > SetIPapplet.html.
3. Double-click the file and Safari will automatically open, then select
Trust. The browser will open the SetIPapplet.html page that shows
the printer’s name and IP address information.
4. Click on the icon (third from left) in the SetIP window to open the
TCP/IP configuration window.
5. Enter the machine’s new information into the configuration window
as follows. In a corporate intranet, you may need to have this
information assigned by a network manager before proceeding.
•MAC Address: Find the machine’s MAC address from the
Network Configuration Report and enter it without the colons.
For example, 00:15:99:29:51:A8 becomes 0015992951A8.
•IP Address: Enter a new IP address for your printer.
Network setup (SCX-3205W(K) only)_ 37
For example, if your computer’s IP address is 192.168.1.150,
enter 192.168.1.X (X is number between 1 and 254 other than
the computer’s address).
•Subnet Mask:En
ter a Subnet Mask.
•Default Gateway:Enter a Default Gateway.
6. Select Apply, then OK, and OK again. The printer will automatically
print the configuration report. Confirm that all the settings are correct.
Quit Safari. You may close and eject the installation CD-ROM. If
necessary, restart the computer’s firewall. You have successfully
changed the IP address, subnet mask, and gateway.
IPv4 setting using SetIP Program (Linux)
SetIP program should be automatically installed during the printer driver
installation.
1. Print the machine’s network configuration report to find your
machine’s MAC address.
2. Open the /opt/Samsung/mfp/share/utils/.
3. Double-click the SetIPApplet.html file.
4. Click to open the TCP/IP configuration window.
5. Enter the network card’s MAC address, IP address, subnet mask,
default gateway, and then click Apply.
When you enter the MAC address, enter it without a colon(:).
6. The machine prints the network information. Confirm all the settings
are correct.
7. Close the SetIP program.
Network parameter setting
You can also set up the various network settings through the network
administration programs such as SyncThru™ Web Admin Service and
SyncThru™ Web Service.
Restoring factory default settings
You may need to reset the machine to the factory default settings when
machine that you are using is connected to new network environment.
Restoring factory default settings using SyncThru™
Web Service
1. Start a web browser such as Internet Explorer, Safari or Firefox and
enter your machine’s new IP address in the browser window.
For example:
2. Click Go to access the SyncThru™ Web Service.
3. Click Login on the upper right of the website.
The Login window appears.
4. Type in the ID and Password, and then click Login.
If it is your first time logging into SyncThru™ Web Service, type in
the below default ID and password.
•ID: admin
•Password: sec00000
5. Click Settings > Network Settings.
6. Click Restore Default on the left pane of the website.
7. Click Clear.
8. Click Yes when the confirmation window appears.
9. Click OK when the success window appears.
10. Turn off and restart machine to apply settings.
INSTALLING NETWORK CONNECTED
MACHINE’S DRIVER
Windows
You can set up the machine driver, follow the steps below.
This is recommended for most users. All components necessary for
machine operations will be installed.
1. Make sure that the machine is connected to the network or USB and
powered on.
2. Insert the supplied software CD into your CD-ROM drive.
•The software CD should automatically run and an installation window
appears.
•If the installation window does not appear, click Start and then Run.
Type X:\Setup.exe, replacing “X” with the letter which represents
your CD-ROM drive. Click OK.
•If you use Windows Vista, Windows 7 or Windows 2008 Server R2
click Start > All programs > Accessories > Run.
Type X:\Setup.exe replacing “X” with the letter which represents
your CD-ROM drive and click OK.
•If the AutoPlay window appears in Windows Vista, click Run
Setup.exe in Install or run program field, and click Continue in the
User Account Control windows.
•If the AutoPlay window appears in Windows 7 or Windows 2008
Server R2, click Run Setup.exe in Install or run program field, and
click Yes in the User Account Control windows.
3. Select Install Now.
If necessary, select a language from the drop-down list.
•For SCX-3205W(K), you can access Wireless Setting and
Installation menu. The Wireless Setting and Installation
allows you to install a wireless network to connect to the
machine with a USB cable (See "Setting a wireless network
with USB cable" on page 42).
•The Advanced Installation has two options, Custom
Installation and Install Software Only. The Custom
Installation allows you to select the machine’s connection and
choose individual component to install. The Install Software
Only allows you to install the supplied software such as the
Smart Panel. Follow the instruction on the window.
4. Read License Agreement, and select I accept the terms of the
License Agreement. Then, click Next.
The program searches for the machine.
If your machine is not found in the network or locally, the error
Network setup (SCX-3205W(K) only)_ 38
message appears.
•Check if you want to install the software without
connection of the printer.
-Check this option to install this program without a machine
connected. In this case, the print a test page window will be
skipped, and completes the installation.
•Search again
When you press this button, the firewall notice window
appears.
-Turn off the firewall and Search again. For Windows
operating system, click Start > Control Panel > Windows
Firewall, and inactivate this option.
-Turn off the firewall from the third party's program beside
the operating system. Refer to the manual provided by
individual programs.
•Direct Input
The Direct Input allows you to search a specific machine on
the network.
-Search by IP address: Enter the IP address or the host
name. Then click Next.
To verify your machine’s IP address, print a network
configuration report (See "Printing a network configuration
report" on page 35).
-Search by network path: To find a shared machine (UNC
Path), enter the shared name manually or find a shared
printer by clicking the Browse button. Then click Next.
•Help
If your machine is not connected to the computer or network,
this help button gives detailed information about the how to
connect the machine.
5. The searched machine will be shown on the screen. Select the one you
wish to use and click Next.
If the driver searched only one machine, the confirmation window
appears.
6. After the installation is finished, a window asking you to print a test page
appears. If you want to print a test page, click Print a test page.
Otherwise, just click Next and go to step 8.
7. If the test page prints out correctly, click Yes.
If not, click No to reprint it.
8. To register as a user of the machine in order to receive information from
Samsung website, click On-line Registration.
If your machine is not connected yet to the network, click How to
connect?.How to connect? gives you the detailed information
about the how to connect the machine. Follow the instructions in
the window.
9. Click Finish.
•After the driver setup is completed, you may enable firewall.
•If your printer driver does not work properly, follow the step below
to repair or reinstall the driver.
a) Make sure that the machine is connected to your machine and
powered on.
b) From theStart menu, select Programs or All Programs >
Samsung Printers > your printer driver name >
Maintenance.
c) Select the option as you wish, follow the instruction on the
window.
Macintosh
1. Make sure that the machine is connected to your network and powered
on. Also, your machine’s IP address should have been set.
2. Insert the supplied software CD into your CD-ROM drive.
3. Double-click the CD-ROM icon that appears on your Macintosh desktop.
4. Double-click the MAC_Installer folder.
5. Double-click the Installer OS X icon.
6. Enter the password and click OK.
7. The Samsung Installer window opens. Click Continue.
8. Read the license agreement and click Continue.
9. Click Agree to agree to the license agreement.
10. Select Easy Install and click Install.Easy Install is recommended for
most users. All components necessary for machine operations will be
installed.
If you select Custom Install, you can choose individual components to
install.
11. When the message which warns that all applications will close on your
computer appears. Click Continue.
12. Select Typical installation for a network printer for a network printer
and then click OK.
13. The SetIP program automatically runs. If the machine has already
configured network information, close the SetIP program.
14. Click OK to continue the installation.
15.After the installation is finished, click Restart.
16. Open the Applications folder > Utilities > Print Setup Utility.
•For Mac OS X 10.5~10.6, open the Applications folder > System
Preferences and click Print & Fax.
17. Click Add on the Printer List.
•For Mac OS X 10.5~10.6, click the “+” icon. A display window will
pop up.
18. For Mac OS X 10.3, select the IP Printing tab.
•For Mac OS X 10.4, click IP Printer.
•For Mac OS X 10.5~10.6, click IP.
19. Select HP Jetdirect - Socket in Protocol.
When printing a document containing many pages, printing
performance may be enhanced by choosing Socket for Printer
Type option.
20. Enter the machine’s IP address in the Address input field.
Network setup (SCX-3205W(K) only)_ 39
21. Enter the queue name in the Queue input field. If you cannot determine
the queue name for your machine server, try using the default queue
first.
22. For Mac OS X 10.3, if Auto Select does not work properly, select
Samsung in Printer Model and your machine name in Model Name.
•For Mac OS X 10.4, if Auto Select does not work properly, select
Samsung in Print Using and your machine name in Model.
•For Mac OS X 10.5~10.6, if Auto Select does not work properly,
choose Select Printer Software and your machine name in Print
Using.
Your machine appears on the Printer List,and is set as the default
machine.
23. Click Add.
If the printer driver does not work properly, uninstall the driver and
reinstall it.
Follow steps below to uninstall the driver for Macintosh.
a) Make sure that the machine is connected to your computer and
powered on.
b) Insert the supplied software CD into your CD-ROM drive.
c) Double-click CD-ROM icon that appears on your Macintosh
desktop.
d) Double-click the MAC_Installer folder.
e) Double-click the Installer OS X icon.
f) Enter the password and click OK.
g) The Samsung Installer window opens. Click Continue.
h) Read the license agreement and click Continue.
i) Click Agree to agree to the license agreement.
j) Select Uninstall and click Uninstall.
k) When the message which warns that all applications will close on
your computer appears, click Continue.
l) When the uninstall is done, click Quit.
Linux
Install Linux Driver and add network Printer
1. Make sure that the machine is connected to your network and
powered on. Also, your machine’s IP address should have been set.
2. Download the Unified Linux Driver package from the Samsung
website.
3. Extract the UnifiedLinuxDriver.tar.gz file and open the new directory.
4. Double-click the Linux folder.
5. Double-click the install.sh icon.
6. The Samsung Installer window opens. Click Continue.
7. The Add printer wizard window opens. Click Next.
8. Select Network printer and click Search button.
9. The Printer’s IP address and model name appears on list field.
10. Select your machine and click Next.
11. Input the printer description and Next
12. When the add printer is done, click Finish
13. When the install is done, click Finish
Add network Printer

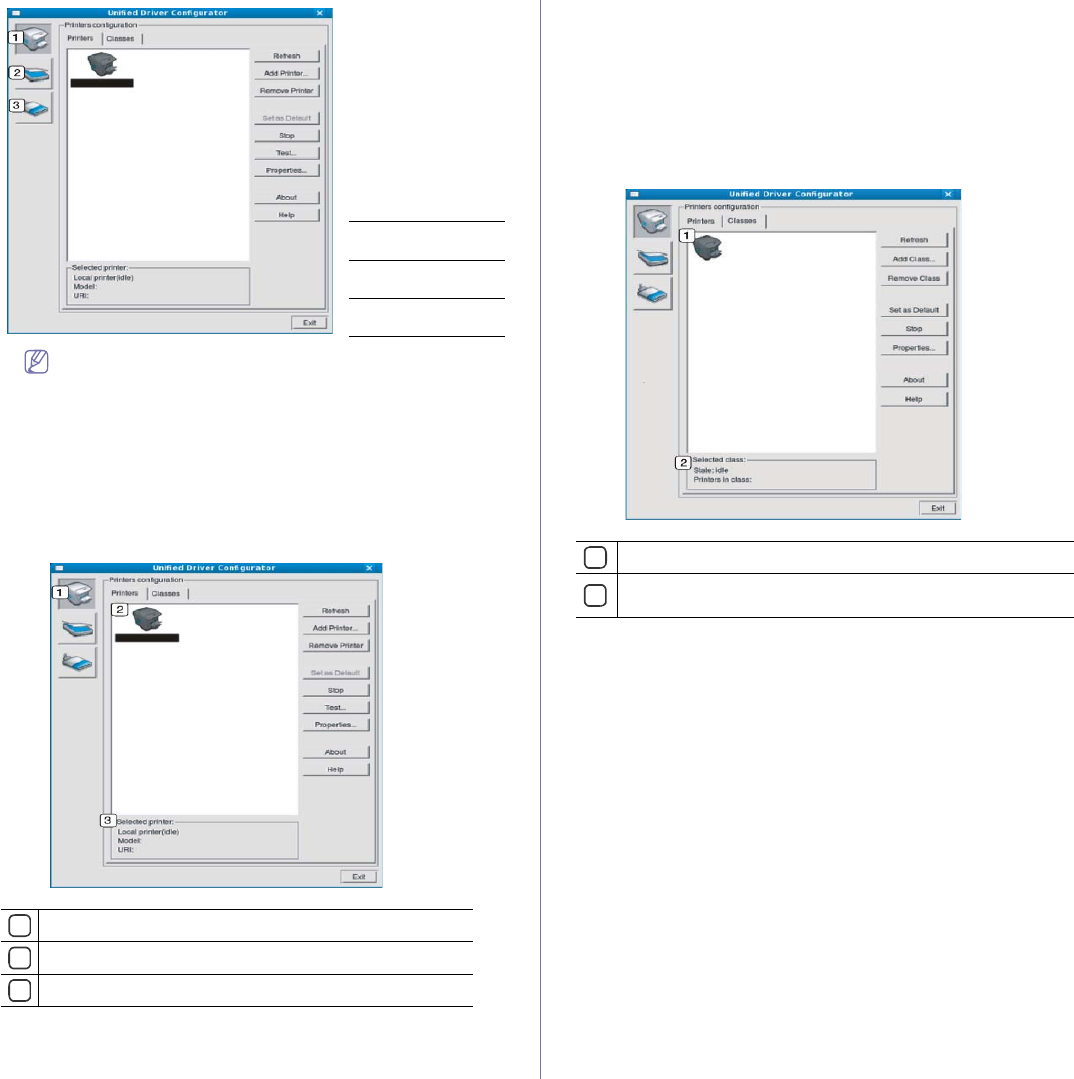

1. Double-click the Unified Driver Configurator.
2. Click Add Printer…
3. The Add printer wizard window opens. Click Next.
4. Select Network printer and click theSearch button.
5. The printer’s IP address and model name appears on list field.
6. Select your machine and click Next.
7. Input the printer description and Next
8. When the add printer is done, click Finish.
IPV6 CONFIGURATION
TCP/IPv6 is supported properly only in Windows Vista or higher.
If the IPv6 network seems to not be working, set all the network setting
to the factory defaults and try again (See "Restoring factory default
settings" on page 37).
In the IPv6 network environment, follow the next procedure to use the IPv6
address.
1. Connect your machine to the network with a network cable.
2. Turn on the machine.
3. Print a Network Configuration Report from the machine’s control
panel that will check IPv6 addresses (See "Printing a network
configuration report" on page 35).
4. Select Start > Control Panel > Hardware and Sound > Printer > Add
Printer.
5. Click Add a local printer on the Add Printer windows.
6. Follow the instruction on the window.
7. The Add PrinterWizard window appears. Follow the instruction on the
window.
If the machine does not work in the network environment, activate
IPv6. Refer to the next section followed by.
Printing a network configuration report
You can print a network configuration report from the machine’s control
panel that will show the current machine’s network settings. This will help
you to set up a network and troubleshoot problems.
1. In ready mode, press and hold Stop/Clear button on the control
panel for long enough (about four seconds) until the Status LED blinks
fast.
2. Then, release the button.
Using this Network Configuration Report, you can find your machine MAC
address and IP address.
For example:
•MAC Address:00:15:99:41:A2:78
•IP Address:192.0.0.192
Setting IPv6 addresses
Machine supports the following IPv6 addresses for network printing and
managements.
•Link-local Address: Self-configured local IPv6 address (Address starts
with FE80).
•Stateless Address:Au
tomatically configured IPv6 address by a
network router.
•Stateful Address: IPv6 address configured by a DHCPv6 server.
•Manual Address: Manually configured IPv6 address by a user.
Network setup (SCX-3205W(K) only)_ 40
Manual address configuration
1. Start a web browser such as Internet Explorer that supports IPv6
addressing as a URL (See "Using SyncThru™ Web Service
(SCX-3205W(K) only)" on page 74).
For IPv4, enter the IPv4 address (http://xxx.xxx.xxx.xxx) in the
address field and press the Enter key or click Go.
2. When the SyncThru™ Web Service window opens, click Network
Settings.
3. Click TCP/IPv6.
4. Enable the Manual Address In the TCP/IPv6 section.
5. Select the Address/Prefix and click the Add button, then the router
prefix will automatically be entered into the address field.
Enter the rest of address. (ex: 3FFE:10:88:194::AAAA. “A” is the
hexadecimal 0 through 9, A through F.)
6. Click theApply button.
Installing printer driver
Driver installation for network printer in IPv6 network environment is same
as TCP/IPv4 (See "Installing network connected machine’s driver" on
page 37).
Select TCP/IP Port and when the list of machines are displayed, simply
select your machine's IPv6 address.
Using SyncThru™ Web Service
1. Start a web browser such as Internet Explorer that supports IPv6
addressing as a URL.
2. Select one of the IPv6 addresses (Link-local Address,Stateless
Address,Stateful Address,Manual Address) from Network
Configuration Report (See "Printing a network configuration report" on
page 35).
3. Enter the IPv6 addresses (ex: http://[FE80::215:99FF:FE66:7701]).
Address must be enclosed in '[ ]' brackets.
Wireless network setup (SCX-3205W(K) only)_ 41
4.wireless network setup (scx-3205w(k) only)
This chapter gives you step-by-step instructions for setting up the wireless network connected machine and software.
This chapter includes:
•Using a wireless network with WPS button on the control panel
•Using a wireless network from the computer
•Setting a wireless network with USB cable
•Setting a wireless network with network cable
•Completing the installation
•Troubleshooting
For more information about the network environmentS network
programs, and installing network connected machine’s driver, refer to
the following chapters.
•See "Network environment" on page 35.
•See "Introducing useful network programs" on page 35.
•See "Installing network connected machine’s driver" on page 37.
USING A WIRELESS NETWORK WITH WPS
BUTTON ON THE CONTROL PANEL
If your machine and an access point (or wireless router) support Wi-Fi
Protected Setup™(WPS), you can easily configure the wireless network
settings by pressing WPS button on the control panel without a
computer.
Items to prepare
You need to ensure you have the following items ready to use:
•Check if the access point (or wireless router) supports Wi-Fi Protected
Setup™(WPS).
•Check if your machine supports Wi-Fi Protected Setup™(WPS).
Choosing your network connection
There are two methods to connect your machine to a wireless network by
using WPS button on the control panel.
The Push Button Configuration (PBC) method allows you to connect your
machine to a wireless network by pressing WPS button on the control
panel of your machine and the WPS (PBC) button on a Wi-Fi Protected
Setup™(WPS)-enabled access point (or wireless router) respectively.
Access point (or wireless router) that supports WPS (Wi-Fi Protected
Setup™) has the symbol shown below.
Setting a wireless network in PBC mode
Factory default in your machine is PBC mode.
Connecting to a wireless network in PBC mode
To connect your machine to a wireless network, follow the steps below.
You need to check the status of the wireless LED.
1. Press WPS button on the control panel for less than two
seconds.
•:The blue light blinks slowly on wireless LED. The machine
starts connecting to the wireless network. The LED blinks slowly
for up to two minutes until you press the PBC button on access
point (or wireless router).
2. Press the WPS (PBC) button on the access point ( or wireless
router).
•:The blue light blinks fast on the wireless LED. The
machine is connecting to the access point (or wireless router).
•:When the machine is successfully connected to the
wireless network, the blue wireless LED light stays on.
•The resulting report is automatically printed out.
If your machine fails to connect to the wireless network, the
wireless LED is off, and the error report is automatically
printed out. Try again to connect to the wireless network
after solving the connection problem.
Re-connecting to the wireless network
When the wireless function is off, the machine automatically tries to
re-connect to the access point (or wireless router) with the previously
used wireless connection settings and address.
In the following cases, the machine automatically re-connects to
the wireless network:
•The machine is turned off and on again.
•The WLAN is turned off and on again.
•The access point (or wireless router) is turned off and on again.
•If there is no previously used access point (or wireless router),
or the network settings have been changed.
Canceling a wireless network connection process in
PBC mode
To cancel the wireless network connection function when the machine is
connecting to the wireless network in PBC mode, press WPS button
on the control panel again. The wireless LED is off. The Wait 2 minutes
for Reconnecting message is to be automatically printed out.
Disconnecting a wireless network connection process
in PBC mode
To disconnect the wireless network connection, press WPS button
on the control panel again.
•When the access point (Wi-Fi Network) is in idle mode: The
wireless network connection is automatically disconnected. The
wireless LED is off.
•When the access point (Wi-Fi Network) is being used: The
machine waits until the current job is finished. Then, the wireless
network connection is automatically disconnected. The wireless LED
is off. The machine is returned to ready mode.
Wireless network setup (SCX-3205W(K) only)_ 42
USING A WIRELESS NETWORK FROM THE
COMPUTER
Choosing your network connection
Typically, you can only have one connection between your computer and
the machine at a time. There are types of network connections to consider.
•Wireless network without access point (Ad-Hoc mode)
•Wireless network with an access point (Infrastructure mode)
How to print a network configuration report
You can identify the network settings of your machine by printing a network
configuration report.
To print the report:
1. In ready mode, press and hold Stop/Clear button on the control
panel for long enough (about four seconds) until the Status LED blinks
fast.
2. Then, release the button.
Using this Network Configuration Report, you can find your machine MAC
address and IP address.
For example:
•MAC Address:00:15:99:41:A2:78
•IP Address:192.0.0.192
IP addresses
Every device in a network has a unique numerical address called an IP
Address. Your machine came with a Default IP address of 192.0.0.192,
which you can verify by printing out a Network Configuration Report or
Configuration Report.
•DHCP IP assignment: Connect your machine to the network, and wait a
few minutes for the DHCP server to assign an IP address to the
machine. Then, print the Network Configuration Report as explained
above. If the report shows that the IP address has changed, the
assignment was successful. You will see the new IP address in the
report.
•Static IP assignment: Use the SetIP program to change the IP address
from your computer (See "Setting IP address" on page 36).
In an office environment, we recommend that you contact a network
administrator to set this address for you.
Wireless network name and network key
Wireless networks require higher security, so when an access point is first
set up, a network name (SSID), the type of security used, and a Network
Key are created for the network. Locate this information before proceeding
with the machine installation.

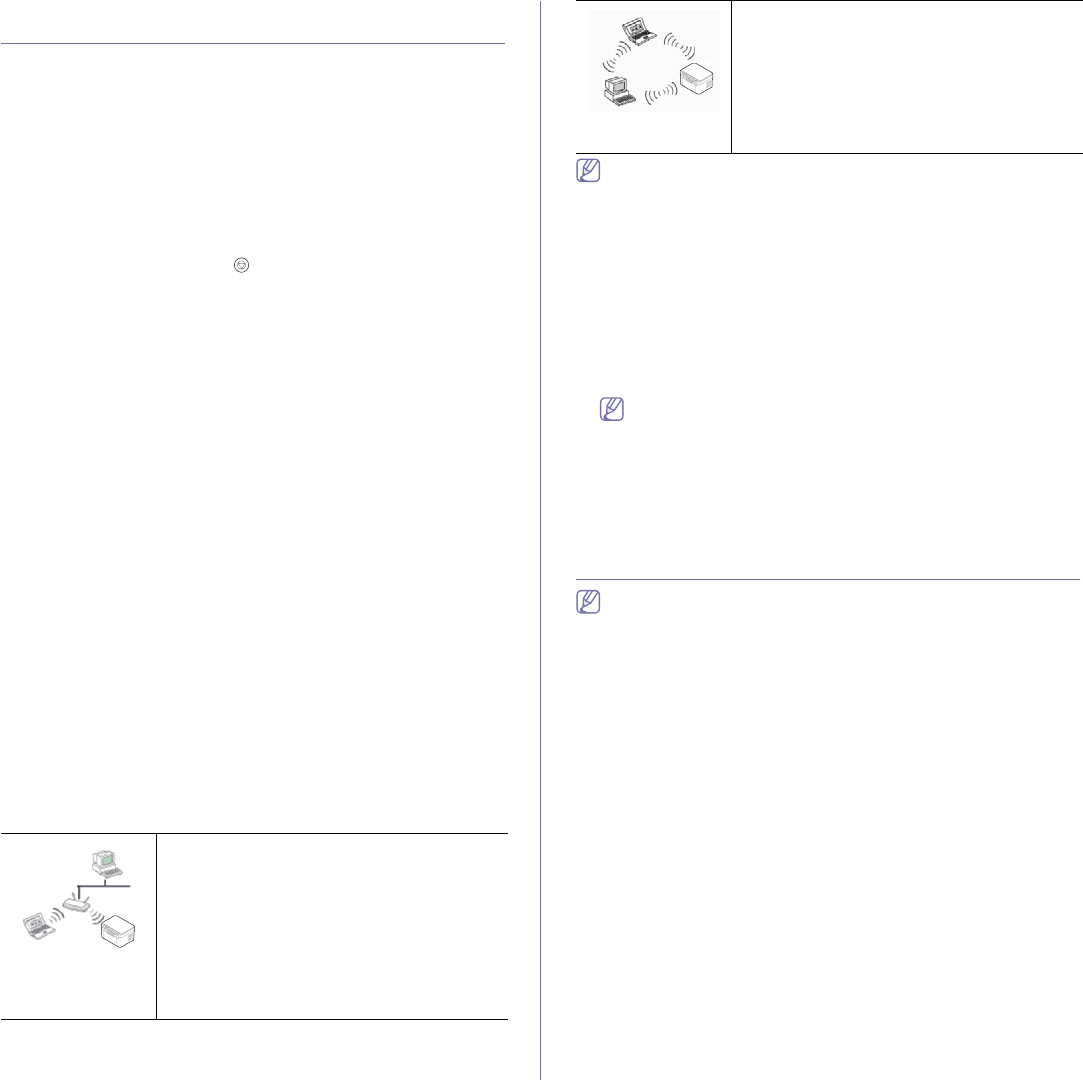

Infrastructure mode
This is an environment generally used for homes
and SOHOs. This mode uses an access point to
communicate with the wireless machine.
•See "Installing the machine on a wireless
network with an access point (Windows)" on
page 42.
•See "Installing the machine on a wireless
network with an access point (Macintosh)" on
page 45.
Ad-Hoc mode
This mode does not use an access point. The
wireless computer and wireless machine
communicates directly.
•See "Installing the machine on an Ad-Hoc
wireless network (Windows)" on page 44.
•See "Installing the machine on an Ad-Hoc
wireless network (Macintosh)" on page 46.
After choosing your configuration, follow the simple directions for your
computer operating system, but first locate the software CD supplied
with the machine before proceeding.
Installing a wireless network with cables
You can install a wireless network to connect to the machine with either a
USB cable or a network cable. For most users, we recommend using a USB
cable with the program provided in the supplied software CD.
The following are two ways to install a wireless network with cables.
•With a USB cable: You can simply set up a wireless network using the
program in the supplied software CD. Only Windows and Macintosh
operating system are supported (See "Setting a wireless network with
USB cable" on page 42).
You can also install a wireless network in Printer Settings Utility
with USB cable after installing driver. (Windows and Macintosh
operating system are supported.)
•With a network cable: You can set up a wireless network using the
SyncThru™ Web Service program (See "Setting a wireless network with
network cable" on page 47).
SETTING A WIRELESS NETWORK WITH USB
CABLE
Refer to your network administrator, or the person that set up your
wireless network, for information about your network configuration.
Installing the machine on a wireless network with an
access point (Windows)
Items to prepare
Ensure you have next items ready.
•Access point
•Network-connected computer
•Software CD that provided with your machine
•The machine installed with a wireless interface
•USB cable
Creating the infrastructure network in Windows
When the items are ready, follow below steps:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer, access point and machine.
3. Insert the supplied software CD into your CD-ROM drive.
•The software CD should automatically run and an installation
window appears.
•If the installation window does not appear, click Start and then
Run. Type X:\Setup.exe, replacing “X” with the letter which
represents your CD-ROM drive. Click OK.
•If you use Windows Vista, Windows 7 or Windows Server 2008
R2 click Start > All programs > Accessories > Run.
Wireless network setup (SCX-3205W(K) only)_ 43
Type X:\Setup.exe replacing “X” with the letter which represents
your CD-ROM and click OK.
•If the AutoPlay window appears in Windows Vista, Windows 7 or
Windows Server 2008 R2, click Run Setup.exe in Install or run
program field, and click Continue or Yes in the User Account
Control windows.
4. Select the Wireless Setting and Installation option.
•Install Now: First you must configure the wireless network
settings of your printer to print through wireless.
•Wireless Setting and Installation: Configure the wireless
network settings of your printer with a USB cable then install the
printer driver. Press this button to set up the wireless connection
if you have not set up the wireless connection before.
5. ReadLicense Agreement, and select I accept the terms of the
License Agreement. Then, click Next.
6. The software searches the wireless network.
If the searching has failed, you may check if the USB cable is
connected between the computer and machine properly, and
follow the instruction on the window.
7. After searching, the window shows the wireless network devices.
Select the name (SSID) of access point you are using and click
Next.
If you cannot find out the network name you want to choose, or
if you want to set the wireless configuration manually, click
Advanced Setting.
•Enter the wireless Network Name: Type the SSID of
access point you want (SSID is case-sensitive).
•Operation Mode: Select Infrastructure.
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP key can access the network.
WPA Personal or WPA2 Personal: Select this option to
authenticate the print server based on WPA Pre-Shared
Key. This uses a shared secret key (generally called Pre
Shared Key pass phrase) which is manually configured on
the access point and each of its clients.
•Encryption: Select the encryption. (None, WEP64,
WEP128, TKIP, AES, TKIP AES)
•Network Key: Enter the encryption network key value.
•Confirm Network Key: Confirm the encryption network
key value.
•WEP Key Index: If you are using the WEP Encryption,
select the appropriate WEP Key Index.
The wireless network security window does appear when the
access point has security setting.
The wireless network security window appears. The window
may differ according to its security mode, WEP or WPA.
•In case of WEP
Select Open System or Shared Key for the authentication
and enter WEP security key. Click Next.
WEP (Wired Equivalent Privacy) is a security protocol
preventing unauthorized access to your wireless network.
WEP encrypts the data portion of each packet exchanged
on a wireless network using a 64-bit or 128-bit WEP
encryption key.
•In case of WPA
Enter the WPA shared key and click Next.
WPA authorizes and identifies users based on a secret key
that changes automatically at regular intervals. WPA also
uses TKIP (Temporal Key Integrity Protocol) and AES
(Advanced Encryption Standard) for data encryption.
8. The window shows the wireless network setting and check if settings
are right. Click Next.
•For the DHCP method
If the IP address assignment method is DHCP, check if DHCP is
shown in the window. However, if it shows Static, click Change
TCP/IP to change the assignment method to DHCP.
•For the Static method
If the IP address assignment method is Static, check if Static is
shown in the window. However, if it shows DHCP, click Change
TCP/IP to enter the IP address and other network configuration
values for the machine. Before entering the IP address for the
machine, you must know the computer’s network configuration
information. If the computer is set to DHCP, you must contact the
network administrator to get the static IP address.
Example)
If computer’s network information is as below:
-IP address: 169.254.133.42
-Subnet Mask: 255.255.0.0
Machine’s network information should be as below:
-IP address: 169.254.133. 43 (Use computer’s IP address,
with changed last three digits.)
-Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
-Gateway: 169.254.133.1 (Change the last three digits from IP
address of your machine to 1.)
9. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine. Click Next.
10. Wireless Network Setting Complete window appears. Then, click
Next.
Select Yesif you accept the current settings and continue the setup
procedure.
Select No if you want to return to the beginning screen.
Then, click Next.
11. Click Next when theConfirm Printer Connection window appears.
12. Select the components to be installed. Click Next.
After selecting the components, you can also change the machine
name, set the machine to be shared on the network, set the machine
Wireless network setup (SCX-3205W(K) only)_ 44
as the default machine, and change the port name of each machine.
Click Next.
13. After the installation is finished, a window asking you to print a test
page appears. If you want to print a test page, click Print a test
page.
Otherwise, just click Next and skip to step 15.
14. If the test page prints out correctly, click Yes.
If not, click No to reprint it.
15. To register as a user of the machine in order to receive information
from Samsung, click On-line Registration.
16. Click Finish.
Installing the machine on an Ad-Hoc wireless
network (Windows)
If you do not have an access point (AP), you may still connect the machine
wirelessly to your computer by setting up an Ad-Hoc wireless network by
following the simple steps below.
Items to prepare
Ensure you have next items ready.
•Wireless network computer
•Software CD provided with your machine
•Wireless network machine
•USB cable
Creating the Ad-Hoc network in Windows
When the items are ready, follow below steps:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer and the wireless network machine.
3. Insert the supplied software CD into your CD-ROM drive.
•The software CD should automatically run and an installation
window appear.
•If the installation window does not appear, click Start and then
Run. Type X:\Setup.exe, replacing “X” with the letter which
represents your drive. Click OK.
•If you use Windows Vista, Windows 7 or Windows Server 2008
R2 click Start > All programs > Accessories > Run.
Type X:\Setup.exe replacing “X” with the letter which represents
your drive and click OK.
•If the AutoPlay window appears in Windows Vista, Windows 7 or
Windows Server 2008 R2, click Run Setup.exe in Install or run
program field, and click Continue or Yes in the User Account
Control windows.
4. Select the Wireless Setting and Installation option.
•Install Now: First you must configure the wireless network
settings of your printer to print through wireless.
•Wireless Setting and Installation: Configure the wireless
network settings of your printer with a USB cable then install the
printer driver. Press this button to set up the wireless connection
if you have not set up the wireless connection before.
5. Read the License Agreement, and select I accept the terms of the
License Agreement. Then, click Next.
6. The software searches the wireless network.
If the software has failed to search the network, check if the
USB cable is connected properly between the computer and
machine, and follow the instruction on the window.
7. After searching the wireless network,Ga list of wireless network your
machine has searched appears.
If you want to use the Samsung default ad-hoc setting, select the last
wireless network on the list, which Network Name(SSID) is
airportthru and Signal is Printer Self Network.
Then, click Next.
If you want to use other ad-hoc settings, select other wireless
network from the list.
If you want to change ad-hoc settings click the Advanced
Setting buttonU
•Enter the wireless Network Name: Type in the SSID
name you want (SSID is case-sensitive).
•Operation Mode: Select Ad-hoc.
•Channel: Select the channel.
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP keyGcan access the network.
•Encryption: Select the encryption. (None, WEP64,
WEP128)
•Network Key: Enter the encryption network key value.
•Confirm Network Key: Confirm the encryption network
key value.
•WEP Key Index: If you are using the WEP Encryption,
select the appropriate WEP Key Index.
The wireless network security window appears when the
ad-hoc network has security setting.
The wireless network security window appears. Select Open
System or Shared Key for the authentication and click Next.
•WEP (Wired Equivalent Privacy) is a security protocol
preventing unauthorized access to your wireless network.
WEP encrypts the data portion of each packet exchanged
on a wireless network using a 64-bit or 128-bit WEP
encryption key.
8. The window which shows the wireless network setting appears.
Check the settings and click Next.
Before entering the IP address for the machine, you must know
the computer’s network configuration information.GIf the
computer’s network configuration is set to DHCP, the wireless
network setting should also be DHCP. Likewise, if the
computer’s network configuration is set to Static, the wireless
network setting should also be Static.
Wireless network setup (SCX-3205W(K) only)_ 45
If your computer is set to DHCP and you want to use Static
wireless network setting, you must contact the network
administrator to get the static IP address.
•For the DHCP method
If the IP address assignment method is DHCP, check if
DHCP is shown in the Wireless Network Setting Confirm
window. However, if it shows Static, click Change TCP/IP
to change the assignment method to Receive IP address
automatically (DHCP).
•For the Static method
If the IP address assignment method is Static, check if
Static is shown in the Wireless Network Setting Confirm
window. However, if it shows DHCP, click Change TCP/IP
to enter the IP address and other network configuration
values for the machine.
Example)
If computer’s network information is as below:
-IP address: 169.254.133.42
-Subnet Mask: 255.255.0.0
Machine’s network information should be as below:
-IP address: 169.254.133. 43 (Use computer’s IP
address, with changed last three digits.)
-Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
-Gateway: 169.254.133.1 (Change the last three digits
from IP address of your machine to 1.)
9. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine. Click Next.
If the Change PC Network Setting window appears, follow
the steps on the window.
Click Nextif you are finished the computer’s wireless network
settings.
If you set the computer’s wireless network as DHCP, it will take
several minutes to receive the IP address.
10. The Wireless Network Setting Complete window appears.
Select Yes if you accept the current settings and continue the setup
procedure.
Select No if you want to return to the beginning screen.
Then, click Next.
11. Click Next when the Confirm Printer Connection window appears.
12. Select the components to be installed. Click Next.
After selecting the components, you can also change the machine
name, set the machine to be shared on the network, set the machine
as the default machine and change the port name of each machine.
Click Next.
13. After the installation is finished, a window asking you to print a test
page appears. If you want to print a test page, click Print a test
page.
Otherwise, just click Next and skip to step 15.
14. If the test page prints out correctly, click Yes.
If not, click No to reprint it.
15. To register as a user of the machine in order to receive information
from Samsung, click On-line Registration.
16. Click Finish.
Installing the machine on a wireless network with an
access point (Macintosh)
Items to prepare
Ensure you have next items ready.
•Access point
•Network-connected computer
•Software CD that provided with your machine
•The machine installed with a wireless network interface
•USB cable
Creating the infrastructure network in Macintosh
When the items are ready, follow below steps:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer, access point and machine.
3. Insert the supplied software CD into your CD-ROM drive.
4. Double-click the CD-ROM icon that appears on your Macintosh
desktop.
5. Double-click the MAC_Installer folder.
6. Double-click the Installer OS X icon.
7. Enter the password and click OK.
8. The Samsung Installer window opens. Click Continue.
9. Read the license agreement and click Continue.
10.Click Agree to agree to the license agreement.
11. Select Easy Install and click Install.
Easy Install is recommended for most users. All components
necessary for machine operations will be installed. If you select
Custom Install, you can choose individual operations will be
installed.
12. Select the Wireless Setting and Installation option.
13. The software searches the wireless network.
If the searching has failed, you may check if the USB cable is
connected between the computer and machine properly, and
follow the instruction on the window.
14. After searching, the window shows the wireless network devices.
Select the name (SSID) of access point you are using and click
Next.
When you set the wireless configuration manually, click
Advanced Setting.
•Enter the wireless Network Name: Type the SSID of
access point you want (SSID is case-sensitive).
•Operation Mode: Select Infrastructure.
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP key can access the network.
WPA Personal or WPA2 Personal: Select this option to
authenticate the print server based on WPA Pre-Shared
Key. This uses a shared secret key (generally called Pre
Shared Key pass phrase) which is manually configured on
the access point and each of its clients.
•Encryption: Select the encryption. (None, WEP64,
WEP128, TKIP, AES, TKIP AES)
•Network Key: Enter the encryption network key value.
Wireless network setup (SCX-3205W(K) only)_ 46
•Confirm Network Key: Confirm the encryption network
key value.
•WEP Key Index: If you are using the WEP Encryption,
select the appropriate WEP Key Index.
The wireless network security window does appear when the
access point has security setting.
The wireless network security window appears. The window
may differ according to its security mode, WEP or WPA.
•In case of WEP
Select Open System or Shared Key for the authentication
and enter WEP security key. Click Next.
WEP (Wired Equivalent Privacy) is a security protocol
preventing unauthorized access to your wireless network.
WEP encrypts the data portion of each packet exchanged
on a wireless network using a 64-bit or 128-bit WEP
encryption key.
•In case of WPA
Enter the WPA shared key and click Next.
WPA authorizes and identifies users based on a secret key
that changes automatically at regular intervals. WPA also
uses TKIP (Temporal Key Integrity Protocol) and AES
(Advanced Encryption Standard) for data encryption.
15. The window shows the wireless network setting and check if settings
are right. Click Next.
•For the DHCP method
If the IP address assignment method is DHCP, check if DHCP is
shown in the window. However, if it shows Static, click Change
TCP/IP to change the assignment method to DHCP.
•For the Static method
If the IP address assignment method is Static, check if Static is
shown in the window. However, if it shows DHCP, click Change
TCP/IP to enter the IP address and other network configuration
values for the machine. Before entering the IP address for the
machine, you must know the computer’s network configuration
information. If the computer is set to DHCP, you must contact the
network administrator to get the static IP address.
Example)
If computer’s network information is as below:
-IP address: 169.254.133.42
-Subnet Mask: 255.255.0.0
Machine’s network information should be as below:
-IP address: 169.254.133. 43 (Use computer’s IP address,
with changed last three digits.)
-Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
-Gateway: 169.254.133.1 (Change the last three digits from IP
address of your machine to 1.)
16. The wireless network is connecting according to the network
configuration.
17. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine.
18. After the installation is finished, click Restart.
Installing the machine on an Ad-Hoc wireless
network (Macintosh)
If you do not have a access point (AP), you may still connect the machine
wirelessly to your computer by setting up an Ad-Hoc wireless network by
following these simple directions.
Items to prepare
Ensure you have next items ready.
•Wireless network-connected computer
•Software CD that provided with your machine
•The machine installed with a wireless network interface
•USB cable
Creating the Ad-Hoc network in Macintosh
When the items are ready, follow below steps:
1. Check whether the USB cable is connected to the machine.
2. Turn on your computer and machine.
3. Insert the supplied software CD into your CD-ROM drive.
4. Double-click the CD-ROM icon that appears on your Macintosh
desktop.
5. Double-click the MAC_Installer folder.
6. Double-click the Installer OS X icon.
7. Enter the password and click OK.
8. The Samsung Installer window opens. Click Continue.
9. Read the license agreement and click Continue.
10.Click Agree to agree to the license agreement.
11. Select Easy Install and click Install.
Easy Install is recommended for most users. All components
necessary for machine operations will be installed. If you select
Custom Install, you can choose individual operations will be
installed.
12. Click Wireless Setting and Installation.
13.The software searches the wireless network devices.
If the searching has failed, you may check if the USB cable is
connected between the computer and machine properly, and
follow the instruction on the window.
14. After searching the wireless network,Ga list of wireless network your
machine has searched appears.
If you want to use the Samsung default ad-hoc setting, select the last
wireless network on the list, which Network Name(SSID) is
airportthru and Signal is Printer Self Network.
Then, click Next.
If you want to use other ad-hoc settings, select other wireless
network from the list.
If you want to change ad-hoc settings click the Advanced
Setting buttonU
•Enter the wireless Network Name: Type in the SSID
name you want (SSID is case-sensitive).
•Operation Mode: Select Ad-hoc.
•Channel: Select the channel.
•Authentication: Select an authentication type.
Open System: Authentication is not used, and encryption
may or may not be used, depending on the need for data
security.
Shared Key: Authentication is used. A device that has a
proper WEP keyGcan access the network.
•Encryption: Select the encryption. (None, WEP64,
WEP128)
•Network Key: Enter the encryption network key value.
•Confirm Network Key: Confirm the encryption network
key value.
Wireless network setup (SCX-3205W(K) only)_ 47
•WEP Key Index: If you are using the WEP Encryption,
select the appropriate WEP Key Index.
The wireless network security window appears when the
ad-hoc network has security setting.
The wireless network security window appears. Select Open
System or Shared Key for the authentication and click Next.
•WEP (Wired Equivalent Privacy) is a security protocol
preventing unauthorized access to your wireless network.
WEP encrypts the data portion of each packet exchanged
on a wireless network using a 64-bit or 128-bit WEP
encryption key.
15. The window which shows the wireless network setting appears.
Check the settings and click Next.
Before entering the IP address for the machine, you must know
the computer’s network configuration information.GIf the
computer’s network configuration is set to DHCP, the wireless
network setting should also be DHCP. Likewise, if the
computer’s network configuration is set to Static, the wireless
network setting should also be Static.
If your computer is set to DHCP and you want to use Static
wireless network setting, you must contact the network
administrator to get the static IP address.
•For the DHCP method
If the IP address assignment method is DHCP, check if
DHCP is shown in the Wireless Network Setting Confirm
window. However, if it shows Static, click Change TCP/IP
to change the assignment method to Receive IP address
automatically (DHCP).
•For the Static method
If the IP address assignment method is Static, check if
Static is shown in the Wireless Network Setting Confirm
window. However, if it shows DHCP, click Change TCP/IP
to enter the IP address and other network configuration
values for the machine.
Example)
If computer’s network information is as below:
-IP address: 169.254.133.42
-Subnet Mask: 255.255.0.0
Machine’s network information should be as below:
-IP address: 169.254.133. 43 (Use computer’s IP
address, with changed last three digits.)
-Subnet Mask: 255.255.0.0 (Use the computer’s subnet
mask.)
-Gateway: 169.254.133.1 (Change the last three digits
from IP address of your machine to 1.)
16. The wireless network is connecting according to the network
configuration.
17. When the wireless network setting is completed, disconnect the USB
cable between the computer and machine.
18. After the installation is finished, click Restart.
SETTING A WIRELESS NETWORK WITH
NETWORK CABLE
Your machine is a network compatible machine. To enable your machine to
work with your network you will need to perform some configuration
procedures.
Refer to your network administrator, or the person that set up your
wireless network, for information about your network configuration.
Preparing items
Ensure you have next items ready.
•Access point
•Network-connected computer
•Software CD that provided with your machine
•The machine installed with a wireless network interface
•Network cable
Setting IP address
Firstly, you have to set up an IP address for network printing and
managements. In most cases a new IP address will be automatically
assigned by a DHCP (Dynamic Host Configuration Protocol) server located
on the network.
In a few situations the IP address must be set manually. This is called a
static IP and is often required in corporate Intranets for security reasons.
•DHCP IP assignment: Connect your machine to the network, and wait a
few minutes for the DHCP server to assign an IP address to the
machine. Then, print the Network Configuration Report as explained
above. If the report shows that the IP address has changed, the
assignment was successful. You will see the new IP address in the
reportG(See "How to print a network configuration report" on page 42).
•Static IP assignment: Use SetIP program to change the IP address
from your computer.
In an office environment, we recommend that you contact a network
administrator to set this address for you.
IP setting using SetIP Program (Windows)
This program is for manually setting the network IP address of your
machine using its MAC address to communicate with the machine. A
MAC address is the hardware serial number of the network interface and
can be found in the Network Configuration Report.
For using SetIP program, disable the computer firewall before continuing
byperforming the following:
1. Open Start > All programs > Control Panel.
2. Double-click Security Center.
3. Click Windows Firewall.
4. Disable the firewall.
Installing the program
1. Insert the Printer Software CD-ROM provided with your machine.
When the driver CD runs automatically, close that window.
2. Start Windows Explorer and open the X drive. (X represents your
CD-ROM drive.)
3. Double-click Application > SetIP.
4. Double-click Setup.exe to install this program.
5. Click OK. If necessary, select a language from the drop-down list.
6. Follow the instructions in the window and complete the installation.
Starting the program
1. Connect your machine to the network with a network cable.
2. Turned on the machine.
3. From the Windows Start menu, select All Programs > Samsung
Printers > SetIP > SetIP.
4. Click on the icon (third from left) in the SetIP window to open the
TCP/IP configuration window.
Wireless network setup (SCX-3205W(K) only)_ 48
5. Enter the machine’s new information into the configuration window
as follows. In a corporate intranet, you may need to have this
information assigned by a network manager before proceeding.
•MAC Address: Find the machine’s MAC address from the
Network Configuration Report and enter it without the colons.
For example, 00:15:99:29:51:A8 becomes 0015992951A8.
•IP Address: Enter a new IP address for your printer.
For example, if your computer’s IP address is 192.168.1.150,
enter 192.168.1.X. (X is number between 1 and 254 other than
the computer’s address.)
•Subnet Mask: Enter a Subnet Mask.
•Default Gateway:Enter a Default Gateway.
6. Click Apply,a
nd then click OK. The machine will automatically print
the Network Configuration Report. Confirm that all the settings are
correct.
7. Click Exit to close the SetIP program.
8. If necessary, restart the computer’s firewall.
IP setting using SetIP Program (Macintosh)
For using SetIP program, disable the computer firewall before continuing
by performing the following:
The path and UIs may differ by Mac OS version. Refer to the Mac
OS manual.
1. Open System Preferences.
2. Click Security.
3. Click the Firewall menu.
4. Turn firewall off.
The following instructions may vary for your model.
1. Connect your machine to the network with a network cable.
2. Insert the Installation CD-ROM, and open the disk window, select
MAC_Installer > MAC_Printer > SetIP > SetIPApplet.html.
3. Double-click the file and Safari will automatically open, then select
Trust. The browser will open the SetIPApplet.html page that shows
the printer’s name and IP address information.
4. Click on the icon (third from left) in the SetIP window to open the
TCP/IP configuration window.
5. Enter the machine’s new information into the configuration window
as follows. In a corporate intranet, you may need to have this
information assigned by a network manager before proceeding.
•MAC Address: Find the machine’s MAC address from the
Network Configuration Report and enter it without the colons.
For example, 00:15:99:29:51:A8 becomes 0015992951A8.
•IP Address: Enter a new IP address for your printer.
For example, if your computer’s IP address is 192.168.1.150,
enter 192.168.1.X. (X is number between 1 and 254 other than
the computer’s address.)
•Subnet Mask: Enter a Subnet Mask.
•Default Gateway: Enter a Default Gateway.
6. Select Apply, then OK, and OK again. The printer will automatically
print the configuration report. Confirm that all the settings are correct.
Quit Safari. You may close and eject the installation CD-ROM. If
necessary, restart the computer’s firewall. You have successfully
changed the IP address, subnet mask, and gateway.
Configuring the machine’s wireless network
Before starting you will need to know the network name(SSID) of your
wireless network and the network key if it is encrypted. This information was
set when the access point (or wireless router) was installed. If you do not
know about your wireless environment, please ask the person who has set
up your network.
To configure wireless parameters, you can use SyncThru™ Web Service.
Using SyncThru™ Web Service
Before starting wireless parameter configuration, make sure cable
connection status.
1. Check whether the network cable is connected to the machine. If not,
connect the machine with a standard network cable.
2. Start a web browser such as Internet Explorer, Safari or Firefox and
enter your machine’s new IP address in the browser window.
For example,
3. Click Login on the upper right of the SyncThru™ Web Service
website.
The Login window appears.
4. Type in the ID and Password then click Login.
If it’s your first time logging into SyncThru™ Web Service, type in the
below default ID and password.
•ID: admin
•Password: sec00000
5. When the SyncThru™ Web Service window opens, click Network
Settings.
6. Click Wireless > Wizard.
Wizard will help you setup the wireless network configuration.
However, if you want to set the wireless network directly, select
Custom.
7. Select the one Network Name(SSID) in the list.
•SSID: SSID (Service Set Identifier) is a name that identifies a
wireless network. access points and wireless devices attempting
to connect to a specific wireless network must use the same
SSID. The SSID is case-sensitive.
•Operation Mode:Operation Mode refers to the type of wireless
connections (See "Wireless network name and network key" on
page 42).
-Ad-hoc: Allows wireless devices to communicate directly with
each other in a peer-to-peer environment.
-Infrastructure: Allows wireless devices to communicate with
each other through an access point.
Wireless network setup (SCX-3205W(K) only)_ 49
If your network’s Operation Mode is Infrastructure, select the
SSID of the access point. If the Operation Mode is Ad-hoc,
select the machine’s SSID. Note that “airportthru” is the default
SSID of your machine.
8. Click Next.
If wireless security setting window appears, enter the registered
password (network key) and click Next.
9. The confirmation window appears, please check your wireless setup.
If the setup is right, click Apply.
Disconnect the network cable (standard or network). Your
machine should then start communicating wirelessly with the
network. In case of Ad-hoc mode, you can use a wireless LAN
and wired LAN simultaneously.
COMPLETING THE INSTALLATION
After you have installed your Samsung wireless network printer, print
another copy of the Network Configuration Report and keep it for future
reference. You are now ready to use your new Samsung wireless printer on
your network.
TROUBLESHOOTING
Solve problems that might occur during wireless setting and installing
the machine driver.
Wireless network problems
If problems occur while using the machine on a network, check the
followings.
Printers Not Found
•Your machine may not be turned on. Turn on your computer and the
machine.
•USB cable is not connected between your computer and machine.
Connect machine to your computer using the USB cable.
•The machine does not support wireless network. Check the
machine's user's guide included on the software CD supplied with
your machine and prepare a wireless network machine.
Connecting Failure - Not found SSID
•The machine is unable to search network name (SSID) which you
have selected or typed in. Check the network name (SSID) on your
access point and try connecting again.
•Your access point is not turned on. Turn on your access point.
Connecting Failure - Invalid Security
•You configured security incorrectly. Check the configured security on
your access point and machine.
Connecting Failure - General Connection Error
•Your computer is not receiving a signal form your machine. Check
the USB cable and your machine power.
Connecting Failure - Connected Wired Network
•Your machine is connected with wired network cable. Remove the
wired network cable from your machine.
PC Connection Error
•The configured network address is unable to connect between your
computer and machine.
-For DHCP network environment
The print receives the IP address automatically (DHCP) when
computer is configured to DHCP.
-For Static network environment
The machine uses the static address when computer is
configured to static address.
If you computer has following addresses,
-IP address: 192.168.1.100
-Subnet address: 255.255.255.0
-Gateway address: 192.168.1.1
Type in the following address for your machine,
-IP address: 192.168.1.101
-Subnet address: 255.255.255.0
-Gateway address: 192.168.1.1
Solving other problems
If problems occur while using the machine on a network, check the
followings.
For information on access point (or wireless router), refer to its own
user's guide.
•Your computer, access point or machine may not be turned on.
•Check the wireless reception around the machine. If the reception is far
from the machine or there is an obstacle, you might have difficulty
receiving the signal.
•Cycle the power for access point (or wireless router), machine and
computer. Sometimes cycling the power can recover network
communication.
•Check whether firewall software (V3 or Norton) is blocking the
communication.
If the computer and the machine is connected on a same network it
cannot be searched, firewall software might be blocking the
communication. Refer to the user's guide for the software to turn it off
and try searching the machine again.
•Check whether the machine's IP address is allocated correctly. You can
check the IP address by printing the network configuration report.
•Check whether access point (or wireless router) has a configured
security (password). If it has a password, refer to the access point (or
wireless router) administrator.
•Check whether the machine's IP address. Reinstall the machine driver
and change the settings to connect to the machine on the network. Due
to the characteristics of DHCP, the allocated IP address could change if
the machine is not used for a long time or if the access point has been
reset.
•Check the wireless environment. You might not be able to connect to the
network in the infrastructure environment where you need to type in a
user's information before connecting to access point (or wireless router).
•This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless
communication (Bluetooth) is not supported.
•When using the Ad-hoc mode, for operating systems such as Windows
Vista, you might need to set the wireless connection setting every time
you use the wireless machine.
•You cannot use infrastructure mode and Ad-hoc mode at the same time
for Samsung wireless network machine.
•The machine is within the range of the wireless network.
For most networks, the machine should be within 30 meters (100 feet) of
the wireless access point (or wireless router).
Wireless network setup (SCX-3205W(K) only)_ 50
•The machine is located away from obstacles that could block the
wireless signal.
Remove any large metal objects between the access point (or wireless
router) and the machine.
Make sure the machine and wireless access point (or wireless router)
are not separated by poles, walls, or support columns containing metal
or concrete.
•The machine is located away from other electronic devices that may
interfere with the wireless signal.
Many devices can interfere with the wireless signal, including baby
monitors, motors, cordless phones, security system cameras, other
wireless networks, and some Bluetooth devices.
Basic setup_ 51
5.basic setup
After installation is complete, you may want to set the machine’s default settings. Refer to the next section if you would like
to set or change values. This chapter gives you step-by-step instructions for setting up the machine.
This chapter includes:
•Altitude adjustment
•Setting the default tray and paper
•Using the power saving feature
•Changing font setting
ALTITUDE ADJUSTMENT
The print quality is affected by atmospheric pressure, which is determined
by the height of the machine above sea level. The following information will
guide you on how to set your machine to the best print quality or best quality
of print.
Before you set the altitude value, determine the altitude where you are.

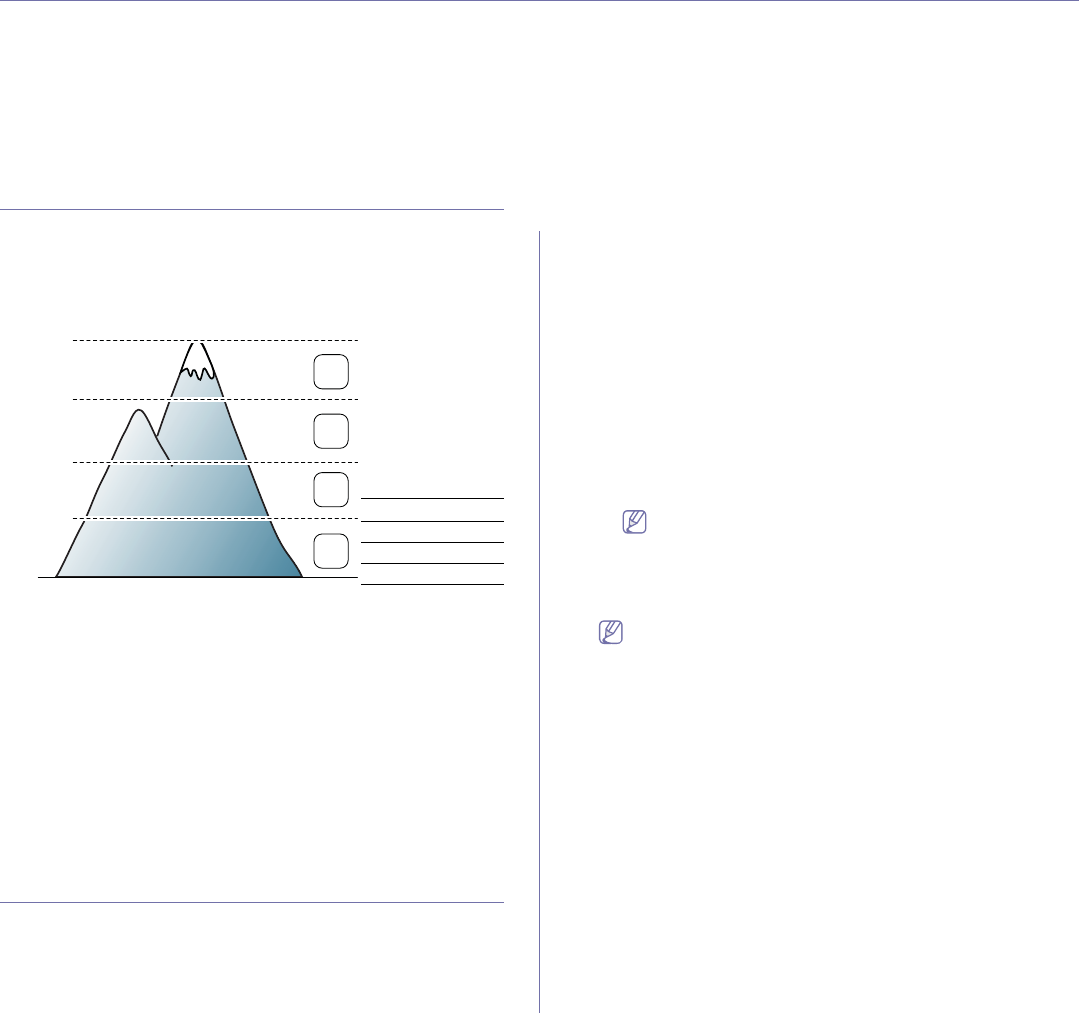

0
4,000 m
(
13,123 ft)
3,000 m
(9,842 ft)
2,000 m
(6,561 ft)
1,000 m
(3,280 ft) 4
3
2
1
1High 1
2High 2
3High 3
4Normal
You can altitude adjustment in Printer Settings Utility.
1. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the status
bar in Mac OS X (See "Using the Smart Panel program" on page 75).
Or, if you are a Windows user, you can launch it from the Start menu,
select Programs or All Programs > Samsung Printers > your printer
driver name > Smart Panel.
2. Click Printer Setting.
3. Click Setting > Altitude Adjustment. Select necessary options from the
drop-down list.
4. Click the Apply button.
If your machine is connected to a network, SyncThru™ Web Service
screen appears automatically. This can be also adjusted via SyncThru™
Web Service.
SETTING THE DEFAULT TRAY AND PAPER
You can select the tray and paper you would like to keep using for printing
job.
From your computer
Windows
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/Server 2003, select Printer and Faxes.
•For Windows Server 2008/Vista, select Control Panel >
Hardware and Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware
>Devices and Printers.
3. Right-click on your machine.
4. For Windows XP/Server 2003/Server 2008/Vista, press Printing
Preferences.
For Windows 7/Windows Server 2008 R2, from context menus,
select the Printing Preferences.
If Printing Preferences item has a Ź mark, you can select
other printer drivers connected with the selected printer.
5. Click Paper tab.
6. Select tray and its options, such as paper size and type.
7. Press OK.
If you want to use special-sized paper such as a billing paper,
select Edit... in the Paper tab in the Printing Preferences (See
"Opening printing preferences" on page 60).
Macintosh
Macintosh does not support this function. Macintosh users need to
change the default setting manually each time they want to print using
other settings.
1. Open a Macintosh application and select the file you want to print.
2. Open the File menu and click Print.
3. Go to Paper Feed pane.
4. Set appropriate tray from which you want to print.
5. Go to Paper pane.
6. Set paper type to correspond to the paper loaded in the tray from
which you want to print.
7. Click Print to print.

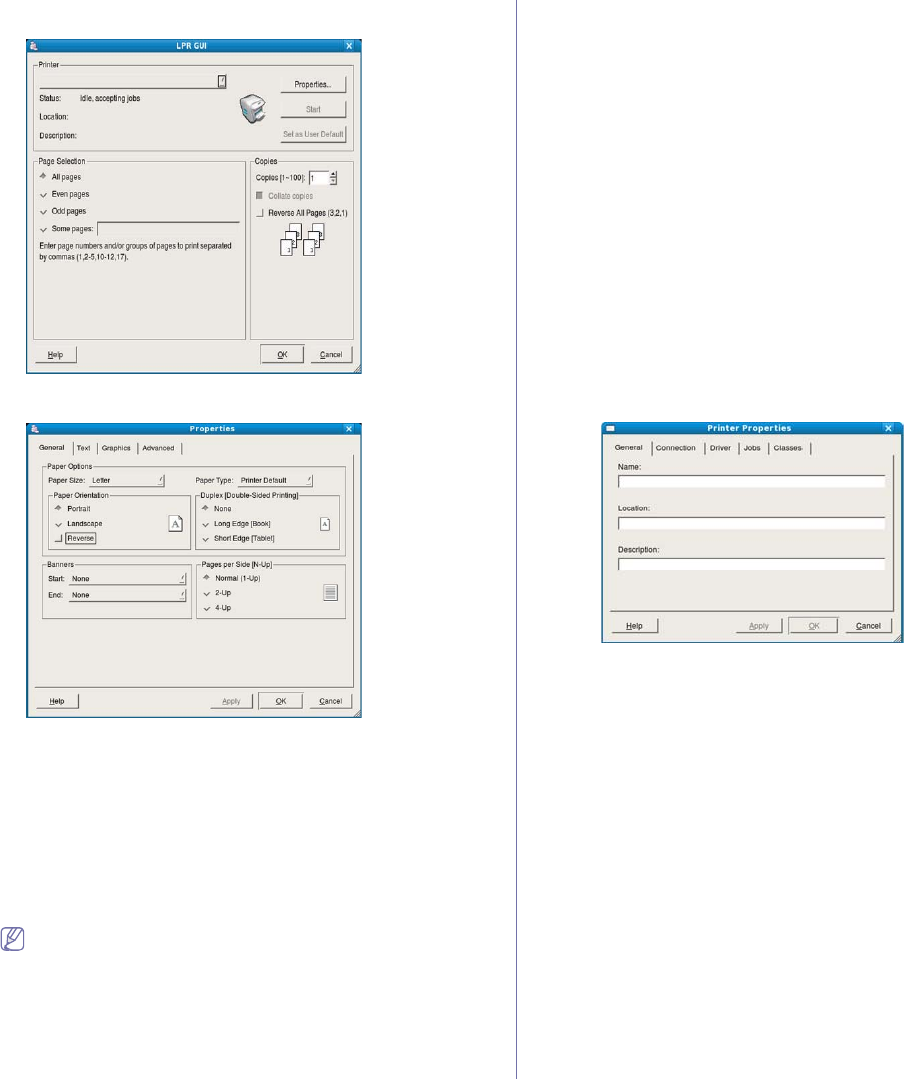

Linux
1. Open Terminal Program.
2. When the Terminal screen appears, type in the following:
[root@localhost root]# lpr <FileName>
Basic setup_ 52
3. Select Printer and click Properties…
4. Click on the Advanced tab.
5. Select the tray (source) and its options, such as paper size and type.
6. Press OK.
USING THE POWER SAVING FEATURE
When you will not be using the machine for a while, you can use this feature
to save power.
You change power save in Printer Settings Utility.
1. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the status
bar in Mac OS X.
Or, if you are a Windows user, you can launch it from the Start menu,
select Programs or All Programs > Samsung Printers > your printer
driver name > Smart Panel.
2. Click Printer Setting.
3. Click Setting > Power Save. Select the appropriate value from the
drop-down list, and then click Apply.
CHANGING FONT SETTING
Your machine has preset font setting depending on your region or country.
If you want to change the font or set the font for special condition, such as
the DOS environment, you can change the font setting as follows:
1. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the status
bar in Mac OS X.
Or, if you are a Windows user, you can launch it from the Start menu,
select Programs or All Programs > Samsung Printers >your printer
driver name > Smart Panel.
2. Click Printer Setting.
3. Click Emulation.
4. Confirm if PCL is selected in Emulation Setting.
5. Click Setting.
6. Select your preferred font in the Symbol set list.
7. Click Apply.
Following information shows the proper font list for corresponding
languages.
•Russian: CP866, ISO 8859/5 Latin Cyrillic
•Hebrew: Hebrew 15Q, Hebrew-8, Hebrew-7 (Israel only)
•Greek: ISO 8859/7 Latin Greek, PC-8 Latin/Greek
•Arabic & Farsi: HP Arabic-8, Windows Arabic, Code Page 864,
Farsi, ISO 8859/6 Latin Arabic
•OCR:OCR-A, OCR-B
Media and tray_ 53
6.media and tray
This chapter provides information on how to load print media into your machine.
This chapter includes:
•Loading originals
•Selecting print media
•Changing the tray size
•Loading paper in the tray
•Printing on special media
•Using the output support
LOADING ORIGINALS
You can use the scanner glass to load an original for copying or scanning.

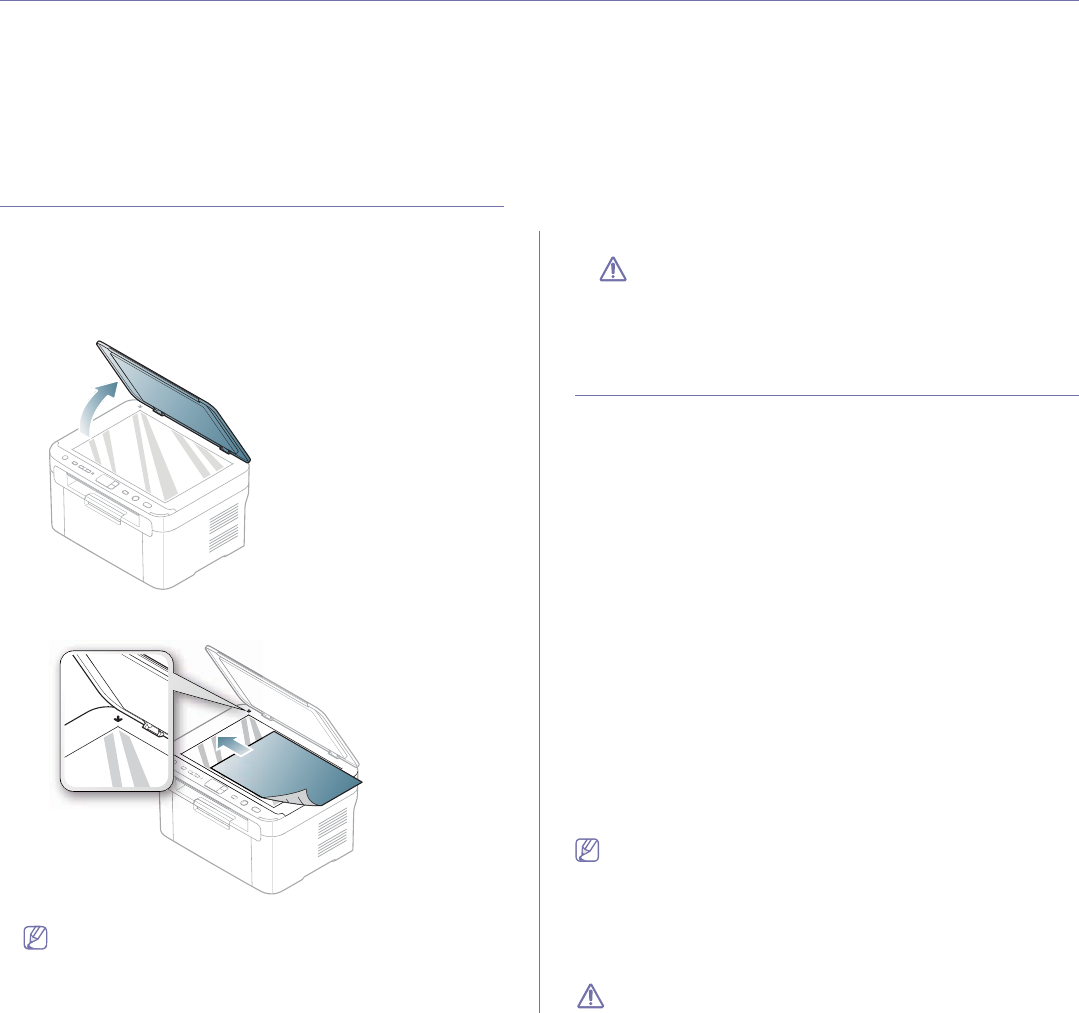

On the scanner glass
Using the scanner glass, you can copy or scan originals. You can get the
best scan quality, especially for colored or gray-scaled images.
1. Lift and open the scanner lid.
2. Place the original face down on the scanner glass. Align it with the
registration guide at the top left corner of the glass.
3. Close the scanner lid.
•Leaving the scanner lid open while copying may affect copy
quality and toner consumption.
•Dust on the scanner glass may cause black spots on the
printout. Always keep it clean (See "Cleaning the scan unit" on
page 80).
•If you are copying a page from a book or magazine, lift the
scanner lid until its hinges are caught by the stopper and then
close the lid. If the book or magazine is thicker than 30 mm,
start copying with the scanner lid open.
•Be careful not to break the scanner glass. You may get hurt.
•Do not put hands while closing the scanner lid. The scanner lid
may fall on your hands and get hurt.
•Do not look the light from inside of the scanner while copying or
scanning. It is harmful to eyes.
SELECTING PRINT MEDIA
You can print on a variety of print media, such as plain paper, envelopes,
labels, and transparencies. Always use print media that meets the
guidelines for use with your machine and from the appropriate tray.
Guidelines for selecting the print media
Print media that does not meet the guidelines outlined in this user’s guide
may cause the following problems:
•Poor print quality
•Increased paper jams
•Premature wear on the machine.
•Permanent fuser damage, not covered under warranty.
Properties, such as weight, composition, grain, and moisture content, are
important factors that affect the machine’s performance and the output
quality. When you choose print materials, consider the following:
•The type, size and weight of the print media for your machine are
described in print media specifications (See "Print media specifications"
on page 97).
•Desired outcome: The print media you choose should be appropriate for
your project.
•Brightness: Some print media are whiter than others and produce
sharper, more vibrant images.
•Surface smoothness: The smoothness of the print media affects how
crisp the printing looks on the paper.
•Some print media may meet all of the guidelines in this section and
still not produce satisfactory results. This may be the result of the
sheets characteristics, improper handling, unacceptable
temperature and humidity levels, or other variables over which
cannot be controlled.
•Before purchasing large quantities of print media, ensure that it
meets the specifications in this user’s guide and that it meets your
output requirements.
Using print media that does not meet these specifications may cause
problems, requiring repairs. Such repairs are not covered by the
Media and tray_ 54
warranty or service agreements.
The amount of paper put into the tray may differ according to media
type used (See "Print media specifications" on page 97).
Media sizes supported in each mode
MODE SIZE TYPE SOURCE
Copy mode Letter, A4,
Legal, Oficio, US
Folio, Executive,
JIS B5, A5
For details about
paper type, click
the following link
("Print media
specifications"
on page 97).
Tray
Simplex
printing
For details about
paper size, click
the following link
("Print media
specifications"
on page 97).
For details about
paper type, click
the following link
("Print media
specifications"
on page 97).
Tray
Duplex
printing
(Manual)a
a.75 to 90 g/m2 (20~24 lbs bond) only (See "Print media specifications"
on page 97).
Letter, A4,
Legal, US Folio,
Oficio
Plain, Color,
Preprinted,
Recycled, Bond,
Archive
Manual feeding
in the tray

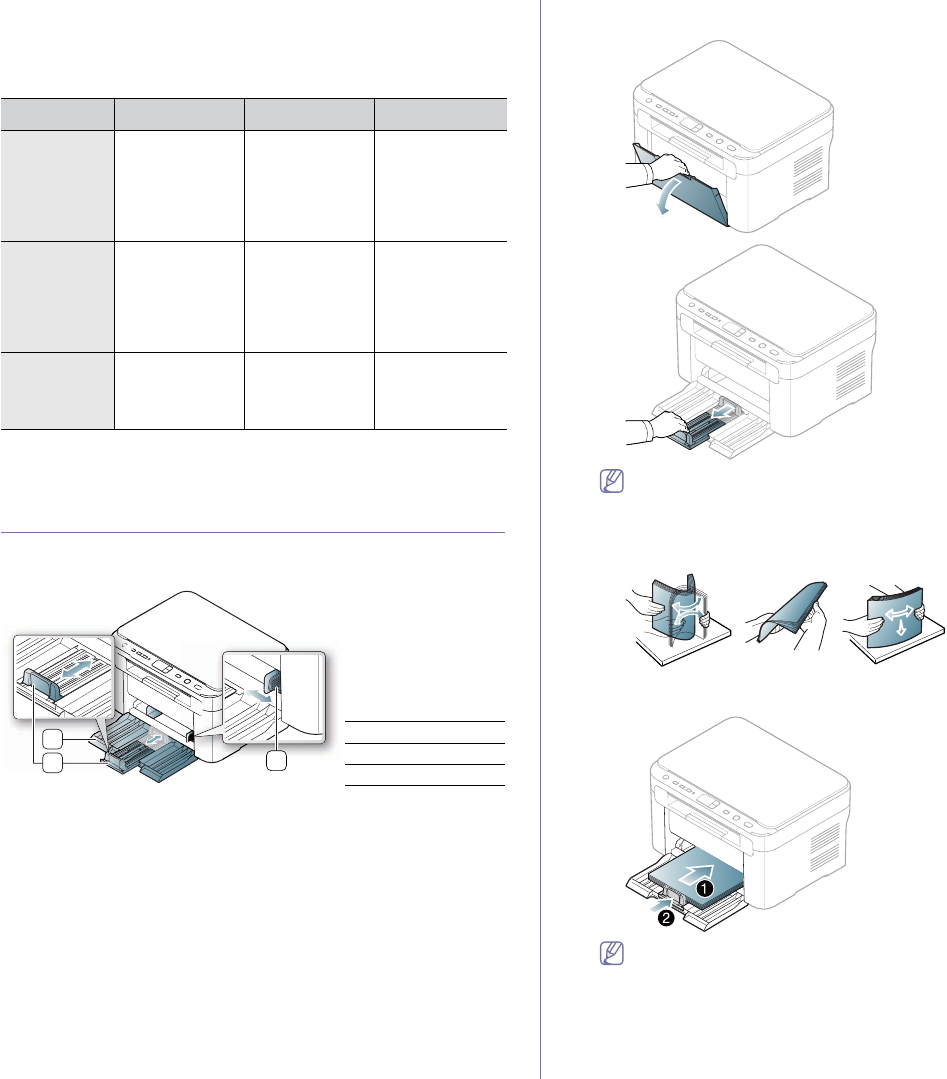

CHANGING THE TRAY SIZE
The tray is preset to Letter or A4 size, depending on your country. To
change the size, you need to adjust the paper guides.
3
1
2
1Tray
2Paper length guide
3Paper width guide
1. Open front door and pinch the paper length guide and pull it out to
extend the tray.
Because the machine is very light, it can move when you open and
close the tray or install and remove the toner cartridge. Be careful
not to move the machine when performing these tasks.
2. Flex or fan the edge of the paper stack to separate the pages before
loading the paper. Insert the paper into the tray.
3. Load paper with the print side facing up. Make sure that all four corners
are flat in the tray.
Do not overload the tray with paper. Otherwise, it may cause paper
jams.
Media and tray_ 55

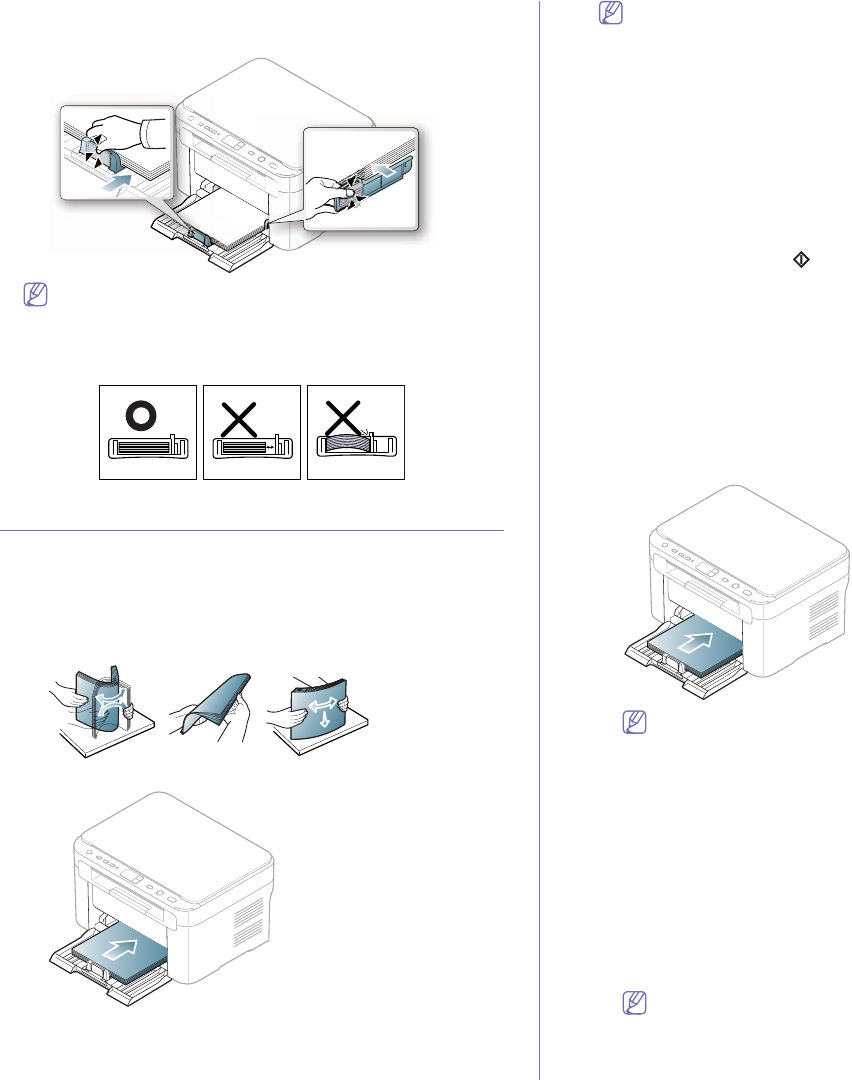

4. Pinch the paper length guide to adjust the guide so that it is flush up
against the rear edge of the paper; then pinch the paper width guides so
they are flush against the sides of the paper.
•Do not push the paper width guide too far causing the media to
warp.
•Do not use a paper with more than 6 mm (0.24 inch.) curl.
•If you do not adjust the paper width guides, it may cause paper
jams.
LOADING PAPER IN THE TRAY
Tray
1. Open the front door, pinch the paper length guide and pull it out to
extend the tray. Then, adjust the tray size to the media size you are
loading (See "Changing the tray size" on page 54).
2. Flex or fan the edge of the paper stack to separate the pages before
loading papers.
3. Place the paper with the side you want to print facing up.
When you print a document, set the paper type and size for the tray.
For information about setting the paper type and size on the control
panel (See "Setting the default tray and paper" on page 51).
•If you experience problems with paper feeding, check whether
the paper meets the media specifications. Then, try placing
one sheet at a time in tray (See "Print media specifications" on
page 97, and "Printing on special media" on page 56).
•The settings made from the machine driver override the
settings on the control panel.
Manual feeding in the tray
The tray can hold special sizes and types of print material, such as
postcards, note cards, and envelopes. It is useful for single page printing on
letterhead or colored paper.
Tips on using the manual feeding method
•If you select Paper > Source > Manual Feeder from your printer
driver, you need to press Start button each time you print a page.
Load only one type, size and weight of print media at a time in the
tray.
•To prevent paper jams, do not add media while printing.
•Print media should be loaded face up with the top edge going into
the tray first and be placed in the center of the tray.
•Always load the use recommended print media to avoid paper jams
and print quality problems (See "Print media specifications" on
page 97).
•Flatten any curl on postcards, envelopes, and labels before loading
them into the tray.
1. Load the paper in the tray.
•When printing on special media, you must follow the
loading guideline (See "Printing on special media" on
page 56).
•When paper does not feed well while printing, gently push
the paper in manually until it starts feeding automatically.
2. Squeeze the tray paper width guides and adjust them to the width of
the paper. Do not force them too much, or the paper will bend
resulting in a paper jam or skew.
3. Open the output tray and support.
4. To print from an application, open the application and open the print
menu.
5. Open Printing Preferences (See "Opening printing preferences" on
page 60).
6. Click on the Paper tab in Printing Preferences, and select an
appropriate paper type.
For example, if you want to use a label, set the paper type to
Label.
7. Select Manual Feeder in paper source, then press OK.
8. Start printing.
Media and tray_ 56
If you are printing multiple pages, load the next sheet after the first
page prints out, and press Start button. Repeat this step for
every page to be printed.

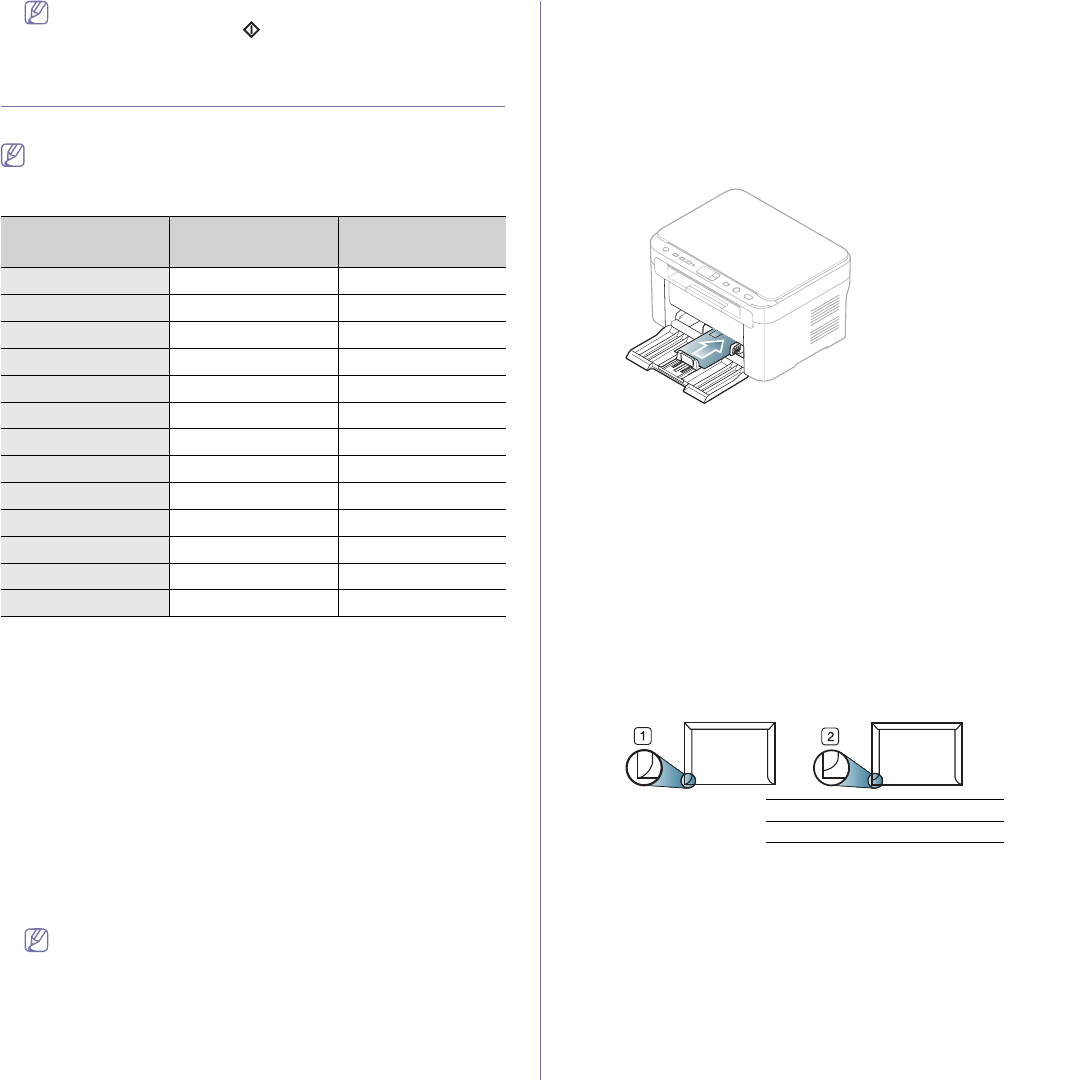

PRINTING ON SPECIAL MEDIA
The table below shows the available special media for printing.
When printing on a special media, we recommend you feed one paper
at a time. Check the maximum input number of media for tray (See
"Print media specifications" on page 97).
TYPES TRAY MANUAL FEEDING
IN TRAYA
a.Load one paper at a time.
Plain ƔƔ
Thick ƔƔ
Thin ƔƔ
Cotton Ɣ
Color Ɣ
Preprinted Ɣ
Recycled ƔƔ
Envelope Ɣ
Transparency Ɣ
Labels Ɣ
CardStock Ɣ
Bond Ɣ
Archive ƔƔ
(Ɣ: supported, Blank: Not supported)
The following media types are shown in the Printing Preferences. This
paper type option allows you to set the type of paper to be loaded in the
tray. Selecting the appropriate media will let you get the best printout
quality. Selecting inappropriate media can result in poor print quality.
•Plain: Normal plain paper. Select this type if your printing on 60 to 120
g/m2 (16 to 32 lbs bond).
•Thick: 90 to 163 g/m2 (24 to 43 lbs bond) thick paper.
•Thin: 60 to 70 g/m2 (16 to 19 lbs bond) thin paper.
•Cotton: 75 to 90 g/m2 (20 to 24 lbs bond) cotton paper.
•Color: 75 to 90 g/m2 (20 to 24 lbs bond) color-back grounded paper.
•Preprinted: 75 to 90 g/m2 (20 to 24 lbs bond) preprinted/letterhead
paper.
•Recycled: 60 to 90 g/m2 (16 to 24 lbs bond) recycled paper.
When you use recycled paper, printouts might be wrinkled and/or
jamming may occur due to excessive curl.
•CardStock: 105 to 163 g/m2 (28 to 43 lbs bond) cardstock.
•Envelope: 75 to 90 g/m2 (20 to 24 lbs bond) envelope.
•Transparency: 138 to 146 g/m2 (37 to 39 lbs bond) transparency
paper.
•Labels: 120 to 150 g/m2 (32 to 40 lbs bond) labels.
•Bond: 105 to 120 g/m2 (28 to 32 lbs bond) bond.
•Archive: 70 to 90 g/m2 (19 to 24 lbs bond) If you need to keep the
print-out for a long time, such as for archives.
Envelopes
Successful printing on envelopes depends upon the quality of the
envelopes.
To print on an envelope, the stamp area should be on the left side and the
end of the envelope with the stamp area should enter the printer first in the
center of the tray.
•When selecting envelopes, consider the following factors:
-Weight: The weight of the envelope paper should not exceed
90 g/m2 otherwise, jams may occur.
-Construction: Prior to printing, envelopes should lie flat with less
than 6 mm ( 0.24 inch.) of curl, and should not contain air.
-Condition: Envelopes should not be wrinkled, nicked, either
damaged.
-Temperature: Use envelopes that are compatible with the heat and
pressure of the machine during operation.
•Use only well-constructed envelopes with sharp-and well-creased folds.
•Do not use stamped envelopes.
•Do not use envelopes with clasps, snaps, windows, coated lining,
self-adhesive seals, or other synthetic materials.
•Do not use damaged or poorly made envelopes.
•Be sure the seam at both ends of the envelope extends all the way to
the corner of the envelope.
1 Acceptable
2 Unacceptable
•Envelopes with a peel-off adhesive strip or with more than one flap that
folds over to seal must use adhesives compatible with the machine’s
fusing temperature about 170°C (338 °F) for 0.1 second. The extra flaps
and strips might cause wrinkling, creasing, or jams, and may even
damage the fuser.
•For the best print quality, position margins no closer than 15 mm ( 0.59
inch.) from the edges of the envelope.
•Avoid printing over the area where the envelope’s seams meet.
Media and tray_ 57

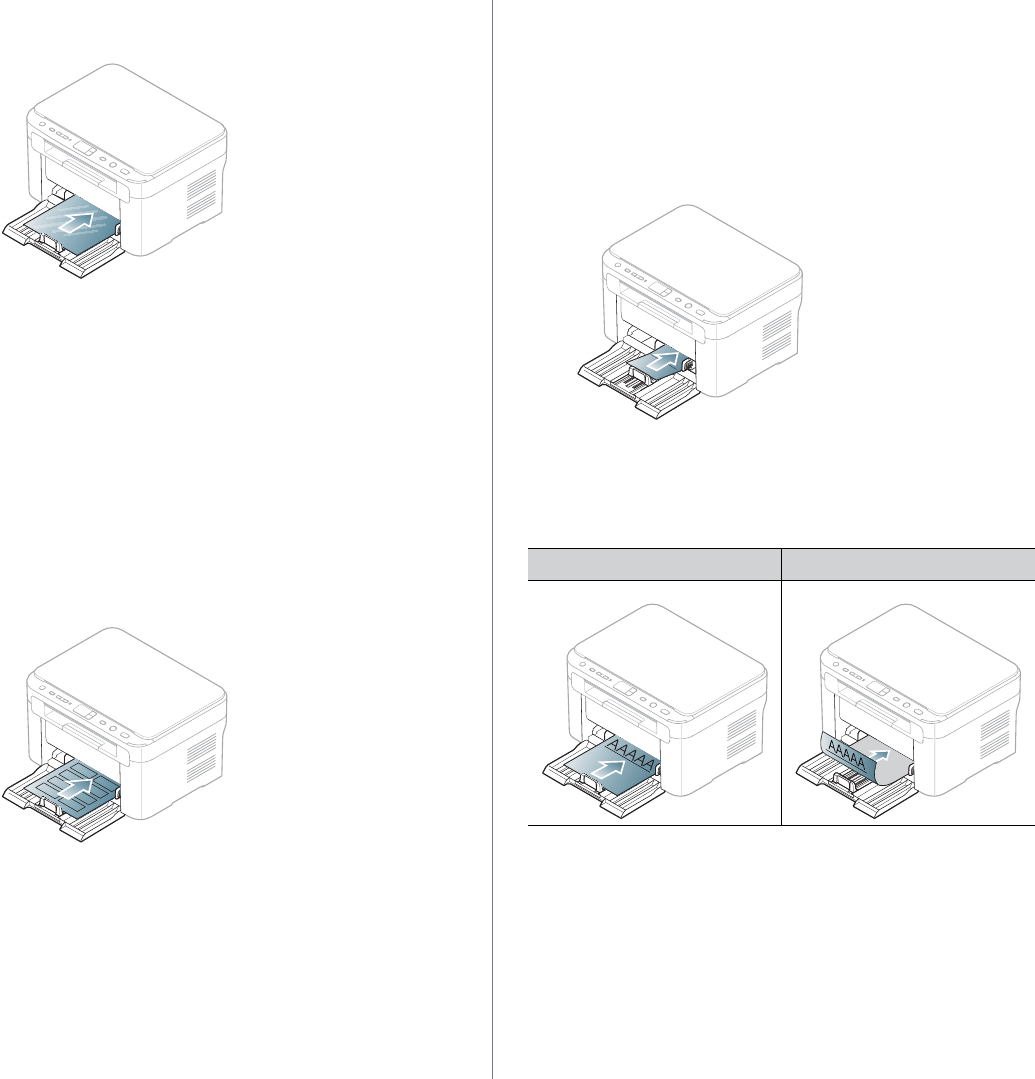

Transparencies
To avoid damaging the machine, use only transparencies designed for laser
printers.
•Transparencies used in the machine must be able to withstand
machine’s fusing temperature.
•Place them on a flat surface after removing them from the machine.
•Do not leave unused transparencies on the paper tray for long periods of
time. Dust and dirt may accumulate on them, resulting in spotty printing.
•To avoid smudging caused by fingerprints, handle transparencies
carefully.
•To avoid fading, do not expose printed transparencies to prolonged
sunlight.
•Ensure that transparencies are not wrinkled, curled, or have any torn
edges.
•Do not use transparencies that separate from the backing sheet.
•To prevent transparencies from sticking to each other, do not let the
printed sheets stack up as they are begin printed out.
Labels
To avoid damaging the machine, use only labels designed for laser
machines.
•When selecting labels, consider the following factors:
-Adhesives: The adhesive material should be stable at your
machine’s fusing temperature (about 170°C (338 °F)).
-Arrangement: Only use labels with no exposed backing between
them. Labels can peel off sheets that have spaces between the
labels, causing serious jams.
-Curl: Prior to printing, labels must lie flat with no more than 13 mm
(0.51 inch.) of curl in any direction.
-Condition: Do not use labels with wrinkles, bubbles, or other
indications of separation.
•Make sure that there is no exposed adhesive material between labels.
Exposed areas can cause labels to peel off during printing, which can
cause paper jams. Exposed adhesive can also cause damage to
machine components.
•Do not run a sheet of labels through the machine more than once. The
adhesive backing is designed for only a single pass through the
machine.
•Do not use labels that are separating from the backing sheet or are
wrinkled, bubbled, or otherwise damaged.
Card stock/Custom-sized paper
Postcards, cards and other custom-sized materials can be printed with this
machine.
•Do not print on media smaller than 76 mm (3.00 inches) wide or 183 mm
(7.20 inches) long.
•In software applications, set the margins at least 6.4 mm (0.25 inches)
away from the edges of the material.
Letterhead/Preprinted paper
SINGLE-SIDED DOUBLE-SIDED
Face up Face down
•Letterhead/ Preprinted paper must be printed with heat-resistant ink that
will not melt, vaporize, or release hazardous emissions when subjected
to the machine’s fusing temperature about 170°C(338 °F) for 0.1
second.
•Letterhead/ Preprinted paper ink must be non-flammable and should not
adversely affect machine rollers.
•Forms and letterhead should be sealed in a moisture-proof wrapping to
prevent changes during storage.
•Before you load letterhead/preprinted paper, verify that the ink on the
paper is dry. During the fusing process, wet ink can come off preprinted
paper, reducing print quality.
Media and tray_ 58

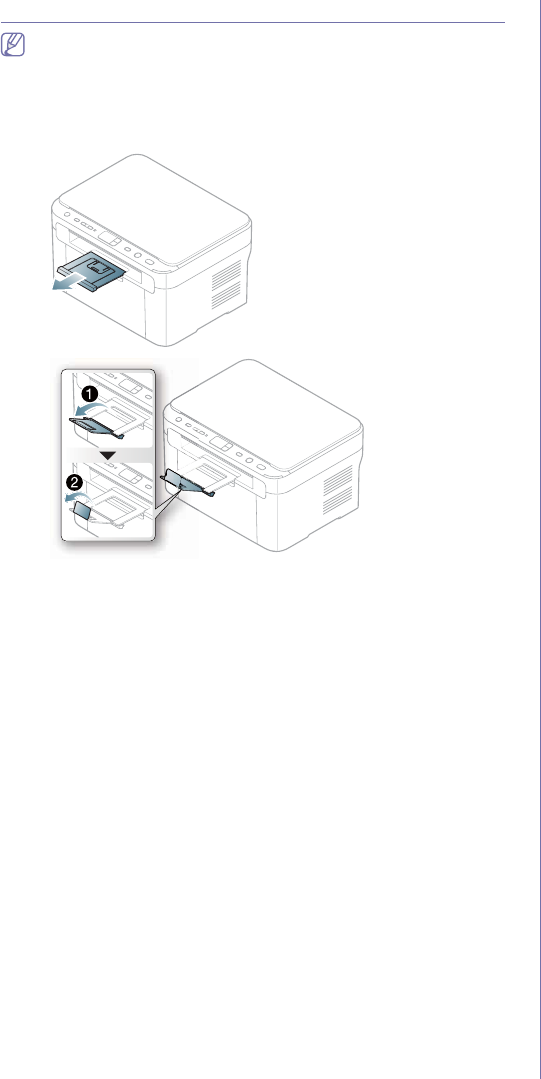

USING THE OUTPUT SUPPORT
The surface of the output tray may become hot if you print a large
number of pages at once. Make sure that you do not touch the
surface, and do not allow children near it.
The printed pages stack on the output tray, and the output support will help
the printed pages to align. The machine sends printouts to the output tray by
default.
Printing_ 59

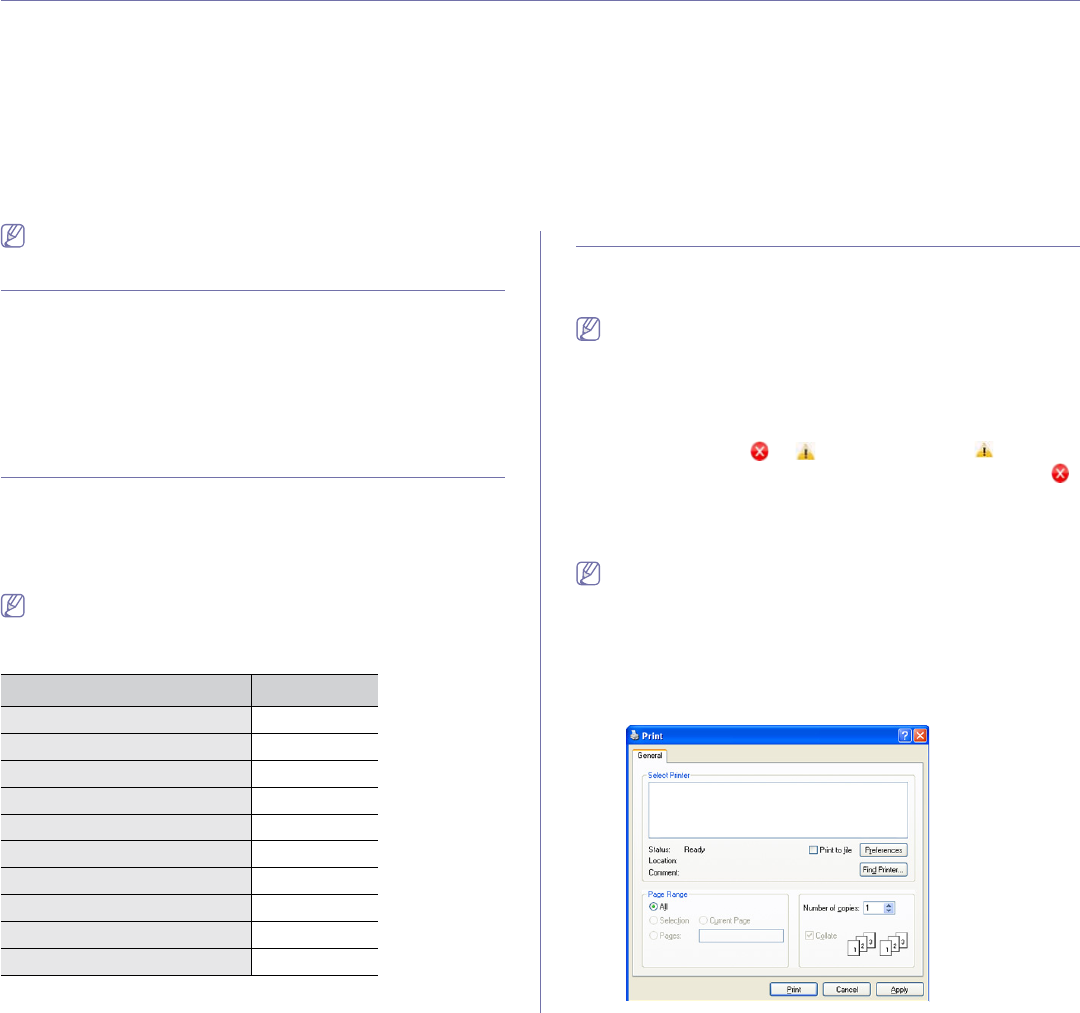

7.printing
This chapter explains common printing tasks.
This chapter includes:
•Introducing useful software program
•Printer driver features
•Basic printing
•Opening printing preferences
•Using help
•Using special print features
•Changing the default print settings
•Setting your machine as a default machine
•Printing to a file (PRN)
•Macintosh printing
•Linux printing
The procedures in this chapter are mainly based on Windows XP.
INTRODUCING USEFUL SOFTWARE PROGRAM
Samsung AnyWeb Print
This tool helps you to screen-capture, preview, scrap and print the screen of
Windows Internet Explorer more easily, than when you use the ordinary
program. Click Start > All programs > Samsung Printers > Samsung
AnyWeb Print > Download the latest version to link the website where
the tool is available for the download. This tool is available only for Windows
operating systems.
PRINTER DRIVER FEATURES
Your printer drivers support the following standard features:
•Paper orientation, size, source, and media type selection
•Number of copies
In addition, you can use various special printing features. The following
table shows a general overview of features supported by your printer driver:
Some models or operating systems may not support some of the
feature(s) in the following table.
Printer driver
FEATURE WINDOWS
Print quality option Ɣ
Poster printing Ɣ
Multiple pages per sheet Ɣ
Booklet printing (manual) Ɣ
Fit to page printing Ɣ
Reduce and enlarge printing Ɣ
Different source for first page Ɣ
Watermark Ɣ
Overlay Ɣ
Double-sided printing (manual) Ɣ
(Ɣ: supported)
BASIC PRINTING
Your machine allows you to print from various Windows, Macintosh, or
Linux applications. The exact steps for printing a document may vary
depending on the application you use.
•Your Printing Preferences window that appears in this user’s
guide may differ depending on the machine in use. However, the
composition of the Printing Preferences window is similar. Check
the operating system(s) that are compatible with your machine.
Refer to the OS compatibility section of Printer Specifications (See
"System requirements" on page 30).
•When you select an option in Printing Preferences, you may see
a warning mark, , or . An exclamation mark ( ) means you
can select that certain option but it is not recommended, and ( )
mark means you cannot select that option due to the machine’s
settings or environment.
The following procedure describes the general steps required for printing
from various Windows applications.
•Macintosh basic printing (See "Macintosh printing" on page 64).
•Linux basic printing (See "Linux printing" on page 65).
The following Printing Preferences window is for Notepad in Windows XP.
Your Printing Preferences window may differ, depending on your
operating system or the application you are using.
1. Open the document you want to print.
2. Select Print from the File menu. The Print window appears.
3. Select your machine from the Select Printer list.
Printing_ 60
You can select the basic print settings, including the number of copies
and the print range from within the Print window.
To take advantage of the printer features provided by your printer
driver, click Properties or Preferences in the application’s Print
window to change the print setting (See "Opening printing
preferences" on page 60).
4. To start the print job, click OK or Print in the Print window.
If you are using Windows Internet Explorer, the Samsung AnyWeb
Print too will save your time for screen-captured images or printing
the image. Click Start > All programs > Samsung Printers >
Samsung AnyWeb Print to link the website where the tool is
available for the download.
Canceling a print job
If the print job is waiting in a print queue or print spooler, cancel the job as
follows:
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/Server 2003, select Printer and Faxes.
•For Windows Server 2008/Vista, select Control Panel > Hardware
and Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware >
Devices and Printers.
3. For Windows Server 2000/XP/Server 2003/Server 2008/Vista,
double-click your machine.
For Windows 7/Server 2008 R2, right-click your printer icon > context
menus > See what’s printing.
If See what’s printing item has a Ź mark, you can select other
printer drivers connected with selected printer.
4. From the Document menu, select Cancel.
You can also access this window by simply double-clicking the
machine icon ( ) in the Windows task bar.
You can also cancel the current job by pressing Stop/Clear button
on the control panel.

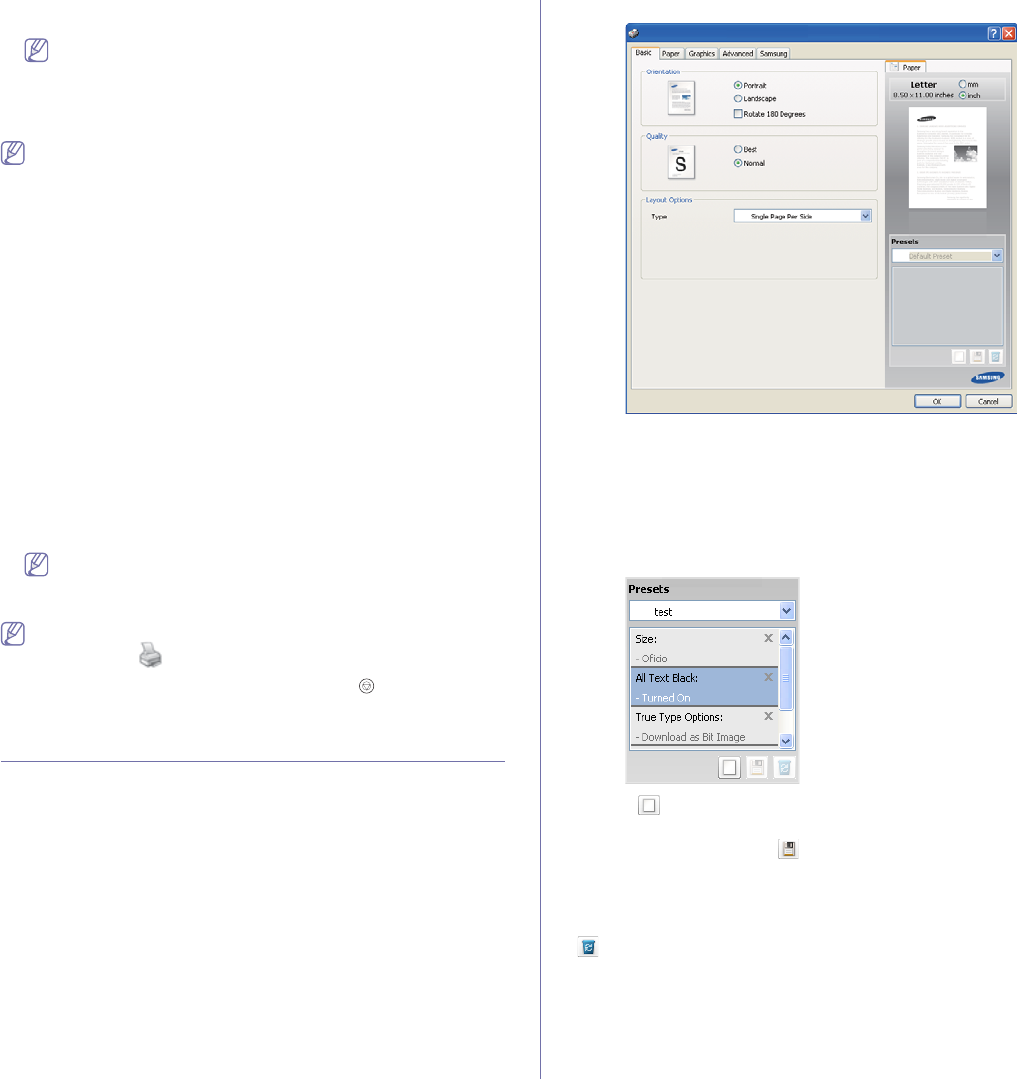

OPENING PRINTING PREFERENCES
You can preview the settings you selected on the upper right of the Printing
Preferences.
1. Open the document you want to print.
2. Select Print from the file menu. The Print window appears.
3. Select your machine from the Select Printer.
4. Click Properties or Preferences.
Using Presets setting
The Presets option, which is visible on each of the preferences tab except
for the Samsung tab, allows you to save the current preferences for future
use.
To save a Presets item:
1. Change the settings as needed on each tab.
2. Enter a name for the item in the Presets input box.
3. Click (Add). When you save Presets, all current driver settings are
saved.
Select more options and click (Update), settings will be added to the
Presets you made.
To use a saved setting, select it from the Presets drop-down list. The
machine is now set to print according to the settings you have selected.
To delete saved settings, select it from the Presets drop-down list and click
(Delete).
You can also restore the printer driver’s default settings by selecting Default
Preset from the Presets drop-down list.
Printing_ 61

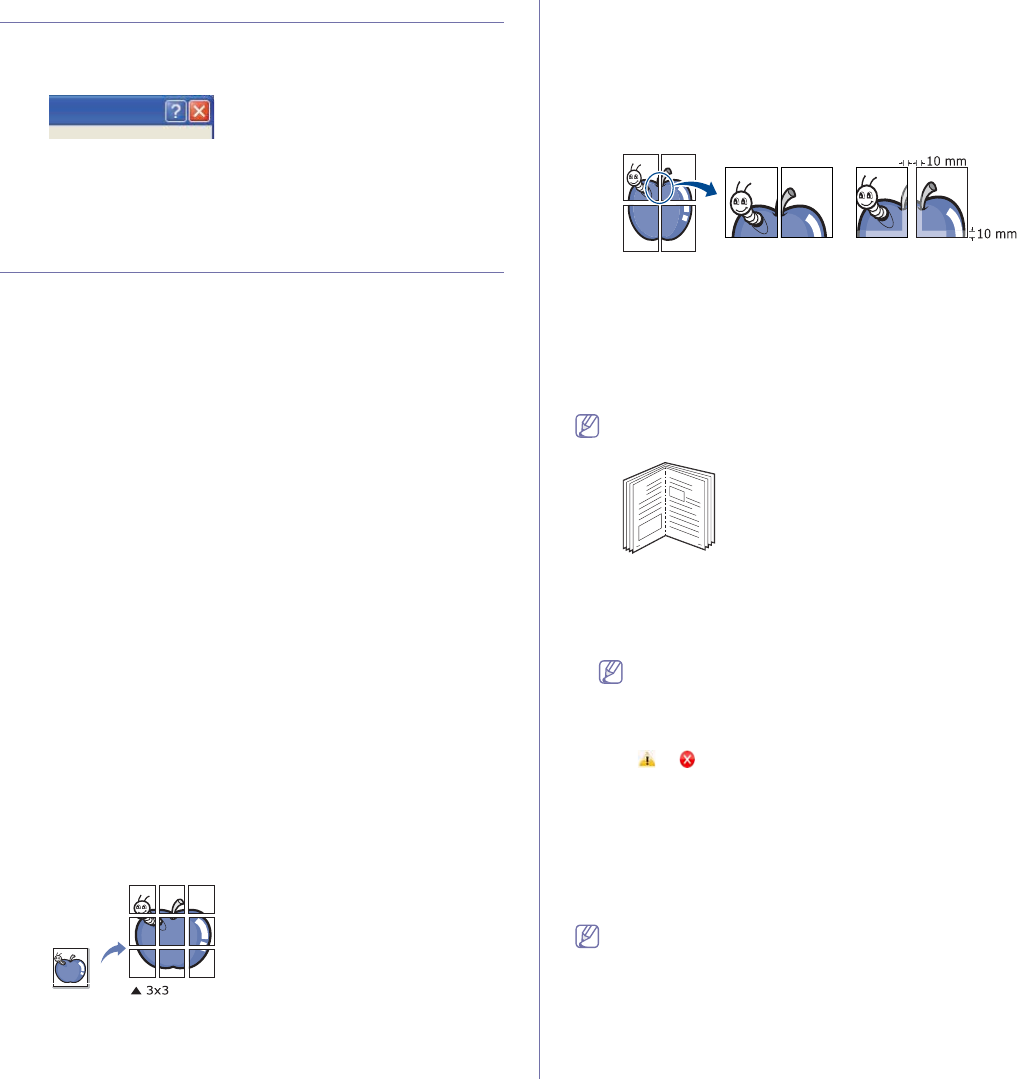

USING HELP
Click the question mark on the upper-right corner of the window and click on
the topic you want to know about. Then a pop up window appears with
information about that option's feature which is provided from the driver.
If you want to search information via a keyword, click the Samsung tab in
the Printing Preferences window, and enter a keyword in the input line of
the Help option. To get information about supplies, driver updates or
registration and so on, click appropriate buttons.
USING SPECIAL PRINT FEATURES
Special print features include:
•"Printing multiple pages on one sheet of paper" on page 61.
•"Printing posters" on page 61.
•"Printing booklets (Manual)" on page 61.
•"Change percentage of your document" on page 62.
•"Fitting your document to a selected paper size" on page 62.
•"Using watermarks" on page 62.
•"Using overlays" on page 63.
•"Print quality options" on page 63.
Printing multiple pages on one sheet of paper
You can select the number of pages to print on a single sheet of paper. To
print more than one page per sheet, the pages will be reduced in size and
arranged in the order you specify. You can print up to 16 pages on one
sheet.
1. To change the print settings from your software application, access
Printing Preferences (See "Opening printing preferences" on page 60).
2. Click theBasic tab, select Multiple Pages Per Side in the Type
drop-down list.
3. Select the number of pages you want to print per sheet (2, 4, 6, 9, or 16)
in the Pages per Side drop-down list.
4. Select the page order from the Page Order drop-down list, if necessary.
5. Check Print Page Border to print a border around each page on the
sheet.
6. Click thePaper tab, select the Size,Source, and Type.
7. Click OK or Print until you exit the Print window.
Printing posters
This feature allows you to print a single-page document onto 4, 9, or 16
sheets of paper, for the purpose of pasting the sheets together to form one
poster-size document.
1. To change the print settings from your software application, access
Printing Preferences (See "Opening printing preferences" on page 60).
2. Click theBasic tab, select Poster Printing in the Type drop-down list.
3. Select the page layout you want.
Available layouts:
•Poster 2x2: Document will be enlarged and be divided into 4 pages.
•Poster 3x3: Document will be enlarged and be divided into 9 pages.
•Poster 4x4: Document will be enlarged and be divided into 16
pages.
4. Select the Poster Overlap value. Specify Poster Overlap in millimeters
or inches by selecting the radio button on the upper right of Basic tab to
make it easier to paste the sheets together.
5. Click the Paper tab, select the Size,Source, and Type.
6. Click OK or Print until you exit the Print window.
7. You can complete the poster by pasting the sheets together.
Printing booklets (Manual)
This feature prints your document on both sides of a paper and arranges the
pages so that the paper can be folded in half after printing to produce a
booklet.
If you want to make a booklet, you need to print on Letter, Legal, A4,
US Folio, or Oficio sized print media.
8
9
1. To change the print settings from your software application, access the
Printing Preferences (See "Opening printing preferences" on page 60).
2. Click the Basic tab, select Booklet Printing from the Type drop-down
list.
3. Click the Paper tab, select the Size,Source, and Type.
The Booklet Printing option is not available for all paper sizes. In
order to find out the available paper size for this feature, select the
available paper size in the Size option on the Paper tab.
If you select an unavailable paper size, this option can be
automatically canceled. Select only available paper. (paper without
or mark).
4. Click OK or Print until you exit the Print window.
5. After printing, fold and staple the pages.
Printing on both sides of the paper (Manual)
You can print on both sides of a paper (duplex). Before printing, decide how
you want your document oriented. You can use this feature with Letter,
Legal, A4, US Folio, or Oficio sized paper (See "Print media specifications"
on page 97).
We recommend not to print on both sides of special media, such as
labels, envelopesS or thick paper. It may cause a paper jam or damage
the machine.
1. To change the print settings from your software application, access
Printing Preferences (See "Opening printing preferences" on page 60).
2. Click the Advanced tab.
Printing_ 62

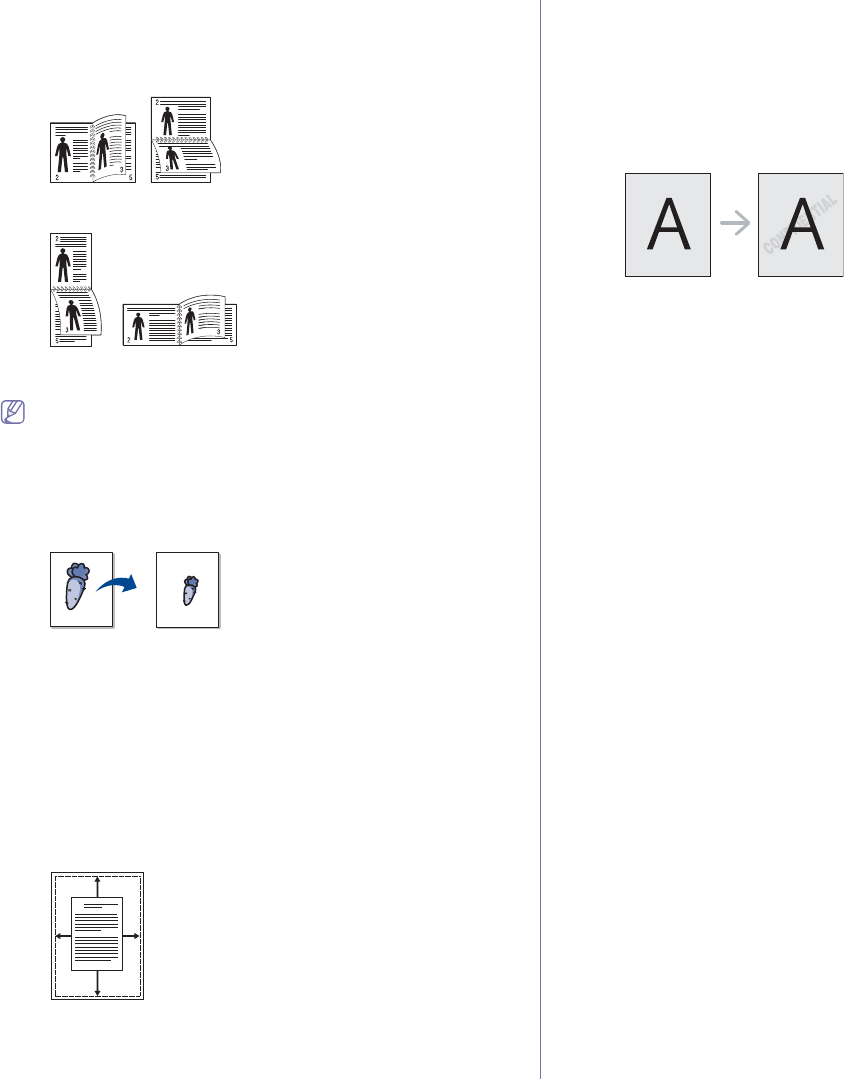

3. From the Double-Sided Printing (Manual) section, select the binding
option you want.
•None
•Long Edge: This option is the conventional layout used in
bookbinding.
•Short Edge: This option is the conventional layout used in
calendars.
4. Click the Paper tab, select the Size,Source, and Type.
5. Click OK or Print until you exit the Print windowU
If your machine does not have a duplex unit, you should complete the
printing job manually. The machine prints every other page of the
document first. AfterGthat, a message appears on your computer.
Follow the on-screen instructions to complete the printing job.
Change percentage of your document
You can change the size of a document to appear larger or smaller on the
printed page by typing in a percentage you want.
1. To change the print settings from your software application, access
Printing Preferences (See "Opening printing preferences" on page 60).
2. Click thePaper tab.
3. Enter the scaling rate in the Percentage input box.
You can also click the up/down arrows to select the scaling rate.
4. Select the Size,Source, and Type in Paper Options.
5. Click OK or Print until you exit the Print windowU
Fitting your document to a selected paper size
This feature allows you to scale your print job to any selected paper size
regardless of the document size. This can be useful when you want to
check fine details on a small document.
A
1. To change the print settings from your software application, access
Printing Preferences (See "Opening printing preferences" on page 60).
2. Click thePaper tab.
3. Select the paper size you want from the Fit to Page.
4. Select the Size,Source, and Type in Paper Options.
5. Click OK or Print until you exit the Print windowU
Using watermarks
The watermark option allows you to print text over an existing document.
For example, you use it when you want to have large gray letters reading
“DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all
pages of a document.
There are several predefined watermarks that come with the machine. They
can be modified, or you can add new ones to the list.
Using an existing watermark
1. To change the print settings from your software application, access
Printing Preferences (See "Opening printing preferences" on
page 60).
2. Click the Advanced tab, and select the desired watermark from the
Watermark drop-down list. You will see the selected watermark in
the preview image.
3. Click OK or Print until you exit the print window.
Creating a watermark
1. To change the print settings from your software application, access
Printing Preferences (See "Opening printing preferences" on
page 60).
2. From the Advanced tab, select Edit from the Watermark drop-down
list. The Edit Watermarks window appears.
3. Enter a text message in the Watermark Message box. You can
enter up to 256 characters. The message displays in the preview
window.
When the First Page Only box is checked, the watermark prints on
the first page only.
4. Select watermark options.
You can select the font name, style, size, and shade from the Font
Attributes section, as well as set the angle of the watermark from
the Message Angle section.
5. Click Add to add a new watermark to the Current Watermarks list.
6. When you have finished, click OK or Print until you exit the Print
window.
To stop printing the watermark, select None from the Watermark
drop-down list.
Editing a watermark
1. To change the print settings from your software application, access
Printing Preferences (See "Opening printing preferences" on
page 60).
2. Click the Advanced tab, select Edit from the Watermark drop-down
list. The Edit Watermarks window appears.
3. Select the watermark you want to edit from the Current Watermarks
list and change the watermark message and options.
4. Click Update to save the changes.
5. Click OK or Print until you exit the Print window.
Printing_ 63
Deleting a watermark
1. To change the print settings from your software application, access
Printing Preferences (See "Opening printing preferences" on
page 60).
2. Click the Advanced tab, select Edit from the Watermark
drop-down list. The Edit Watermarks window appears.
3. Select the watermark you want to delete from the Current
Watermarks list and click Delete.
4. Click OK or Print until you exit the Print window.

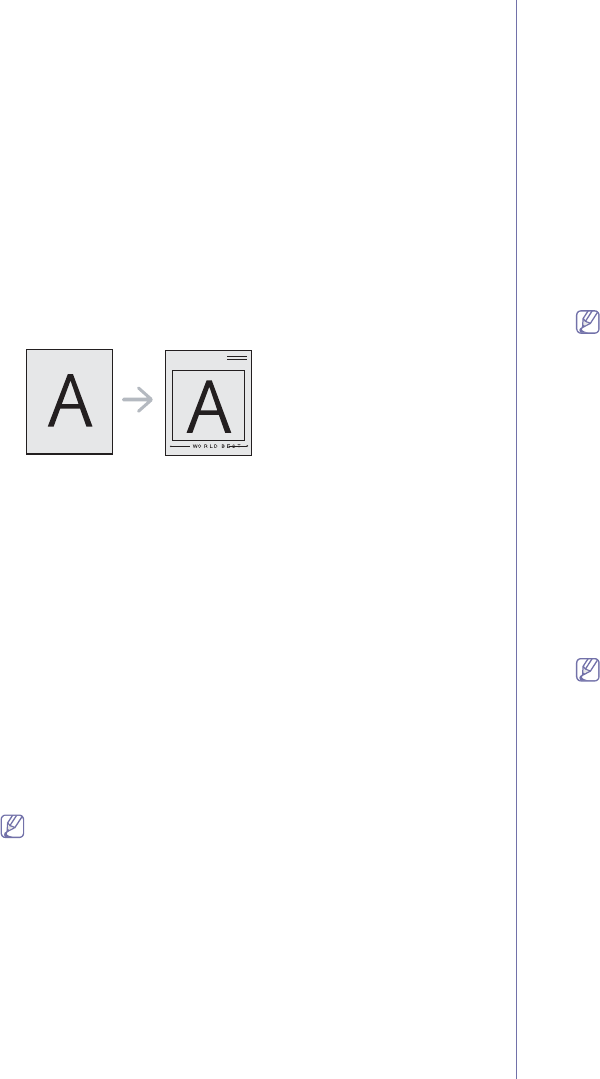

Using overlays
An overlay is content you store on your hard disk drive that can be
superimposed over any document you print. An overlay is often used to take
the place of letterhead paper. Rather than using preprinted letterhead, you
can create an overlay containing exactly the same information that is
currently on your letterhead. To print a letter with your company’s
letterhead, you do not need to load preprinted letterhead paper in the
machine, instead you can just print the letterhead overlay on your
document.
Creating a new overlay
To use a page overlay, you must create a new page overlay file
containing your content.
1. Create or open a document containing the content you want to use in
a new page overlay. Position the items exactly where you want them
to appear when they are added to the original.
2. To save the document as an overlay, access Printing Preference.
(See "Opening printing preferences" on page 60).
3. Click the Advanced tab, and select Edit from the Text drop-down
list. The Edit Overlay window appears.
4. In the Edit Overlay window, click Create.
5. In the Save As window, type a name of up to eight characters in the
File name box. Select the destination path, if necessary. (The
default is C:\Formover.)
6. Click Save. The name appears on the Overlay List.
7. Click OK or Print until you exit the Print window.
8. The file is not printed. Instead, it is stored on your computer hard disk
drive.
The overlay document size must match same as the document
you print. Do not create an overlay with a watermark.
Using an overlay
After an overlay has been created, it is ready to be printed with your
document. To print an overlay on your document:
1. Create or open the document you want to print.
2. To change the print settings from your software application, access
Printing Preferences (See "Opening printing preferences" on
page 60).
3. Click the Advanced tab.
4. Select the desired overlay from the Text drop-down list.
5. If the overlay file you want does not appear in the Text drop-down
list, select Edit from the list and click Load. Select the overlay file
you want to use.
If you have stored the overlay file you want to use in an external
source, you can also load the file when you access the Open
window.
After you select the file, click Open.T
he file appears in the Overlay
List box and is available for printing. Select the overlay from the
Overlay List box.
6. If necessary, check Confirm Page Overlay When Printing box. If
this box is checked, a message window appears each time you
submit a document for printing, asking you to confirm that you wish
to print an overlay over your document.
If this box is not checked and an overlay has been selected, the
overlay automatically prints with your document.
7. Click OK or Print until you exit the Print window.
The selected overlay prints over your document.
The resolution of the overlay document must match the resolution
of the original print job.
Deleting an overlay
You can delete page overlays that you no longer use.
1. In the Printing Preferences window, click the Advanced tab.
2. Select Edit in the Overlay drop down list.
3. Select the overlay you want to delete from the Overlay List box.
4. Click Delete.
5. When the confirmation message window appears, click Yes.
6. Click OK or Print until you exit the Print window.
Print quality options
Use the following Graphics options to adjust the print quality for your
specific printing needs.
1. To change the print settings from your software application, access
Printing Preferences (See "Opening printing preferences" on page 60).
2. Click the Graphics tab.
•The options you can select may vary depending on your printer
model.
•Refer to the help for each option’s information provided from
the Printing Preferences.
•Font/Text: Select Clear Text to print text sharper than on a normal
document. Use All Text Black to print solid black, regardless of the
color it appears on the screen.
•Graphic Controller: Fine Edge allows you to emphasize edges of
texts and fine lines for improving readability.
•Advanced: Click this button, you can select Darkness and Toner
Save features.
-Darkness: The option adjusts the toner density on print output.
The values are Normal,Light and Dark.
-Toner Save: Selecting this option extends the life of your toner
cartridge and reduces your cost per page without a significant
reduction in print quality.
On: Select this option to allow the machine to use less toner on
each page.
Off: Select this option if you do not wan to save toner when
printing a document.
3. Click OK or Print until you exit thePrint window.
Printing_ 64
CHANGING THE DEFAULT PRINT SETTINGS
Most Windows applications will override settings you specify in the
printer driver. Change all print settings available in the software
application first, and change any remaining settings using the printer
driver.
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/Server 2003, select Printers and Faxes.
•For Windows Server 2008/Vista, select Control Panel > Hardware
and Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware >
Devices and Printers.
3. Right-click your machine.
4. For Windows XP/Server 2003/Server 2008/Vista, press Printing
Preferences.
For Windows 7 and Windows Server 2008 R2, from context menus,
select the Printing preferences.
If Printing preferences item has a Ź mark, you can select other
printer drivers connected with the selected printer.
5. Change the settings on each tab.
6. Click OK.
If you want to change the settings for each print job, change it in
Printing Preferences.
SETTING YOUR MACHINE AS A DEFAULT
MACHINE
1. Click the Windows Start menu.
2. For Windows 2000, select Settings >Printers.
•For Windows XP/Server 2003, select Printers and Faxes.
•For Windows Server 2008/Vista, select Control Panel > Hardware
and Sound >Printers.
•For Windows 7, select Control Panel > Hardware and Sound >
Devices and Printers.
•For Windows Server 2008 R2, select Control Panel > Hardware >
Devices and Printers.
3. Select your machine.
4. Right-click your machine and select Set as Default Printer.
For Windows 7 and Windows Server 2008 R2
If Set as default printer item has a Ź mark, you can select other
printer drivers connected with the selected printer.

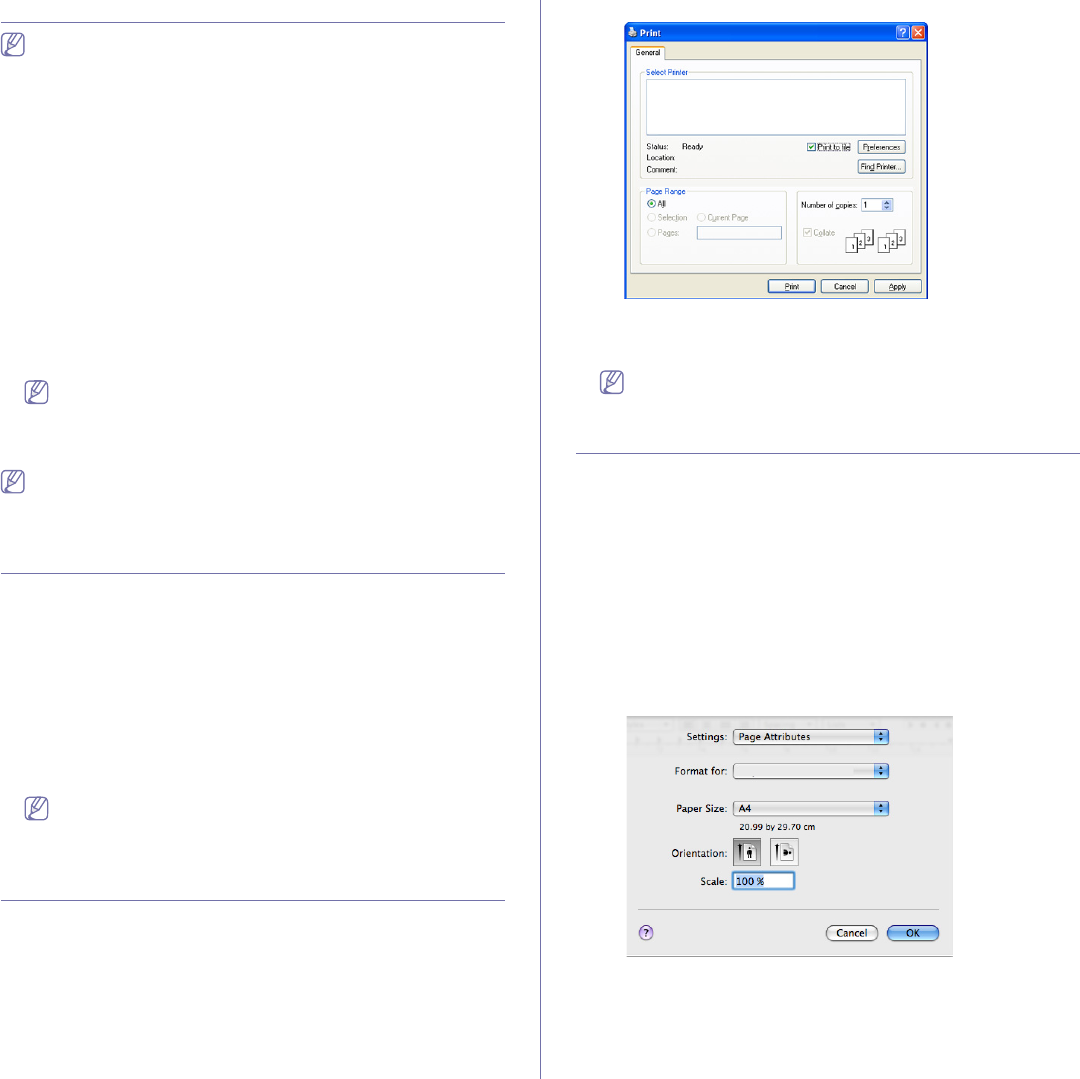

PRINTING TO A FILE (PRN)
You will sometimes need to save the print data as a file. You can print the
document to a file instead of routing it directly to a printer. The document is
saved with the printer formatting, such as font selection and color
specifications, in a .prn file that can be printed on another printer.
To save a print job as a file
1. Check the Print to file box at the Print window.
2. Click Print.
3. Type in the destination path and the file name, and then click OK.
For example C:\Temp\file name.
If you type in only the file name, the file is automatically saved in
My Documents.
MACINTOSH PRINTING
This chapter explains how to print using a Macintosh. You need to set the
print environment before printing.
•USB connected (See "Macintosh" on page 32)U
Printing a document
When you print with a Macintosh, you need to check the printer driver
setting in each application you use. Follow the steps below to print from a
Macintosh:
1. Open an application and select the file you want to print.
2. Open the File menu and click Page Setup (Document Setup in some
applications).
3. Choose your paper size, orientation, scaling, other options, and make
sure that your machine is selected. Click OK.
4. Open the File menu and click Print.
5. Choose the number of copies you want and indicate which pages you
want to print.
6. Click Print.
Printing_ 65

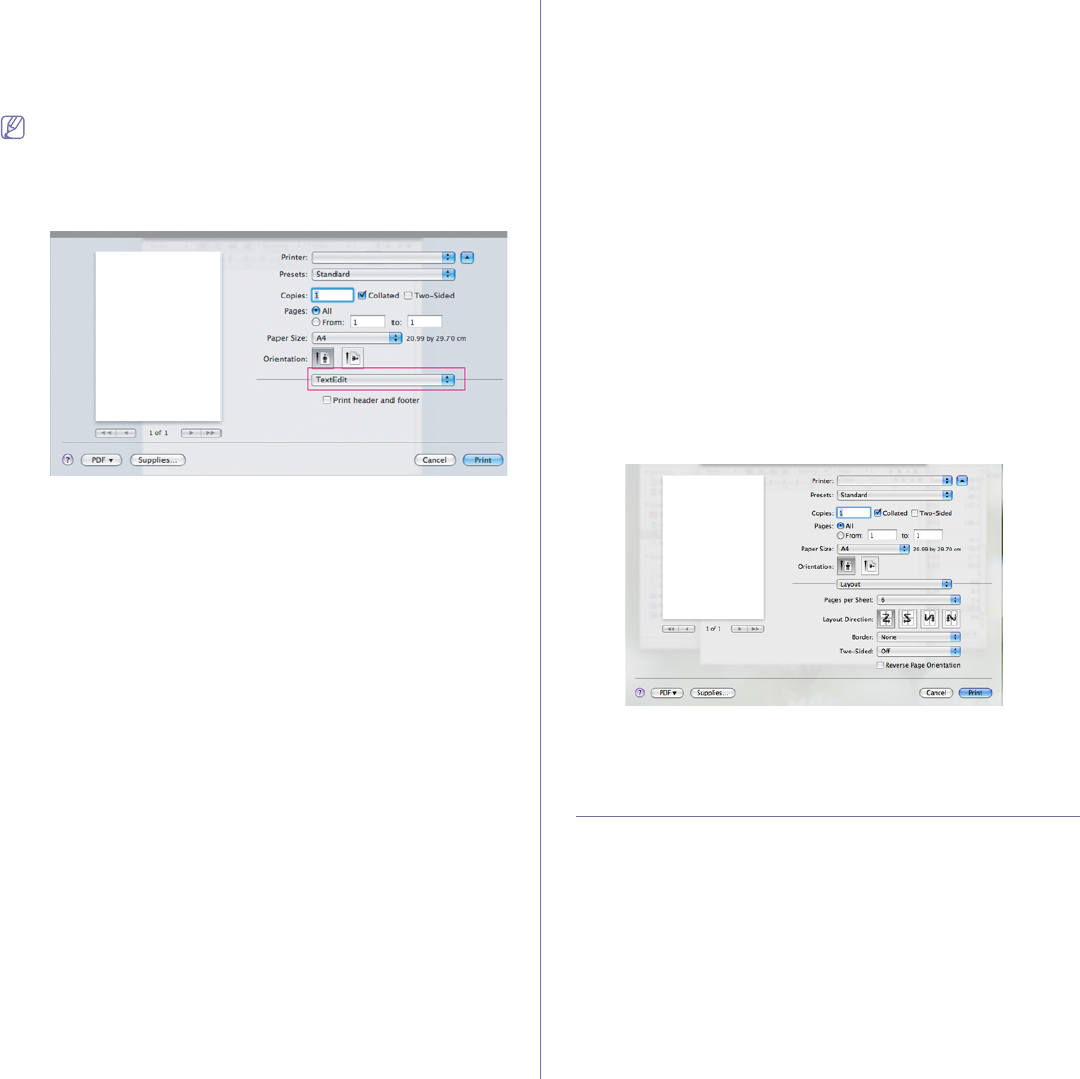

Changing printer settings
You can use advanced printing features provided by your machine.
Open an application and select Print from the File menu. The machine
name, which appears in the printer properties window may differ depending
on the machine in use. Except for the name, the composition of the printer
properties pane is similar to the following.
•The setting options may differ depending on models and
Macintosh OS versions.
•The following panes may differ, depending on your operating
system or the application you are using.
The following pane is the first pane you will see when you open the printer
properties pane. Select other advanced features from the drop down list.
Layout
The Layout dialog provides options to adjust how the document
appears on the printed page. You can print multiple pages on one sheet
of paper. Select Layout from the drop-down list under Orientation to
access the following features.
•Pages per Sheet: This option determines how many pages to be
printed on one page (See "Printing multiple pages on one sheet of
paper" on page 65).
•Layout Direction: This option allows you to select the printing
direction on a page similar to the examples on UI.
•Border: This option allows you to print a border around each page
on the sheet.
•Reverse Page Orientation: This option allows you to rotate paper
180 degrees.
Graphics
The Graphics dialog provides options for selecting Resolution. Select
Graphics from the drop-down list under Orientation to access the
graphic features.
•Resolution (Quality): This option allows you to select the printing
resolution. The higher the setting, the sharper the clarity of printed
characters and graphics. A higher setting will also increase the time
it takes to print a document.
•Darkness: This option allows you to enhance the darkness of the
printouts. The available options are Normal,Light, and Dark.
Paper
Set Paper Type to correspond to the paper loaded in the tray from
which you want to print. This will let you get the best quality printout. If
you load a different type of print material, select the corresponding paper
type.
Printer Settings
The Printer Settings dialog provides Toner Save Mode,Reprint When
Jammed, and Power Save options. Select Printer Settings from the
drop-down list under Orientation to access the following features:
•Toner Save Mode: Selecting this option extends the life of your
toner cartridge and reduces your cost per page without a significant
reduction in print quality.
-Printer Setting: If you select this option, this feature is
determined by the setting you’ve made from the machine (For
some models, you cannot change the setting from the machine.
In this case, the default setting is Off).
-On:Select this option to allow the printer to use less toner on
each page.
-Off: Set this option if you do not need to save toner when printing
a document.
•Power Save: When this option is checked, the switches to the
power save mode after a predetermined amount of time.
Printing multiple pages on one sheet of paper
You can print more than one page on a single sheet of paper. This feature
provides a cost-effective way to print draft pages.
1. Open an application, and select Print from the File menu.
2. Select Layout from the drop-down list under Orientation. In the Pages
per Sheet drop-down list, select the number of pages you want to print
on one sheet of paper.
3. Select the other options you want to use.
4. Click Print, then the machine prints the selected the number of pages
you want to print on one sheet of paper.
LINUX PRINTING
Printing from applications
There are several Linux applications that allow you to print using the
Common UNIX Printing System (CUPS). You can print using any of these
applications.
1. Open an application, and select Print from the File menu.
2. Select Print directly using LPR.
Printing_ 66
3. From the LPR GUI window, select the model name of your machine from
the printer list and click Properties.
4. Change the print job properties using the following four tabs displayed at
the top of the window.
•General: This option allows you to change the paper size, the paper
type, and the orientation of the documents. It enables the duplex
feature, adds start and end banners, and changes the number of
pages per sheet.
•Text: This option allows you to specify the page margins and set the
text options, such as spacing or columns.
•Graphics: This option allows you to set image options that are used
when printing images/files, such as color options, image size, or
image position.
•Advanced: This option allows you to set the print resolution, paper
source and special print features.
If an option is grayed out, it means that the grayed out option is not
supported by your machine.
5. Click Apply to apply the changes and close the Properties window.
6. Click OK in the LPR GUI window to start printing.
7. The Printing window appears, allowing you to monitor the status of your
print job.
To abort the current job, click Cancel.
Printing files
You can print many different types of files on your machine using the
standard CUPS way, directly from the command line interface. The CUPS
LPR utility allows you to do that. But the drivers package replaces the
standard LPR tool by a much more user-friendly LPR GUI program.
To print any document file:
1. Type lpr <file_name> from the Linux shell command line and press
Enter. The LPR GUI window appears.
When you type only lpr and press Enter, the Select file(s) to print
window appears first. Just select any files you want to print and click
Open.
2. From the LPR GUI window, select your machine from the list, and
change the print job properties.
3. Click OK to start printing.
Configuring printer properties
Using the Printer Properties window provided by the Printers
configuration, you can change the various properties for your printer.
1. Open the Unified Driver Configurator.
If necessary, switch to Printers configuration.
2. Select your machine from the available printers list and click Properties.
3. The Printer Properties window opens.
The following five tabs display at the top of the window:
•General: This option allows you to change the printer location and
name. The name entered in this tab displays on the printer list in
Printers configuration.
•Connection: This option allows you to view or select another port. If
you change the machine port from USB to parallel or vice versa
while in use, you must re-configure the machine port in this tab.
•Driver: Allows you to view or select another printer driver. By
clicking Options, you can set the default device options.
•Jobs: This option shows the list of print jobs. Click Cancel job to
cancel the selected job and select the Show completed jobs check
box to see previous jobs on the job list.
•Classes: This option shows the class that your machine is in. Click
Add to Class to add your machine to a specific class or click
Remove from Class to remove the machine from the selected
class.
4. Click OK to apply the changes and close the Printer Properties
window.
Copying_ 67
8.copying
This chapter gives you step-by-step instructions for copying documents.
This chapter includes:
•Basic copying
•Changing the settings for each copy
•ID card copying
BASIC COPYING
The following is the normal procedure for copying your originals.
1. Place a single original face down on the scanner glass (See "Loading
originals" on page 53).
2. Enter the number of copies using the +/- buttons if necessary.
You can copy an original up to 99 pages at a time.
•If you press +/- buttons short, the number of one’s place
appeared on the display increases or decreases one by one.
•If you press +/-buttons long, the number of ten’s place
appeared on the display increases or decreases one by one.
3. If you want to customize the copy settings including Darkness,Original
Type and more by using the Printer Settings Utility (See "Changing the
settings for each copy" on page 67).
4. Press Start button to begin copying.
If you need to cancel the copying job during the operation, press
Stop/Clear button and the copying will stop.
CHANGING THE SETTINGS FOR EACH COPY
Your machine provides default settings for copying so that you can quickly
and easily make a copy. However, if you want to change the options for
each copy, use the Printer Settings Utility.
If you press Stop/Clear button on the control panel while setting
the copy options, all of the options you have set for the current copy
job will be canceled and returned to their default status. Or, they will
automatically return to their default status after the machine completes
the copy in progressU
Original Type
The original type setting is used to improve the copy quality by selecting the
document type for the current copy job.
1. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the status
bar in Mac OS X. Or, if you are a Windows user, you can launch it from
the Start menu, select Programs or All Programs > Samsung
Printers > your printer driver name > Smart Panel.
2. Click Printer Settings.
3. Click Copy > Original Type. Select the appropriate value from the
drop-down list, and then click Apply.
•Text: Use for originals containing mostly text.
•Text/Photo: Use for originals with mixed text and photographs.
•Photo: Use when the originals are photographs.
Darkness
If you have an original containing faint marking and dark images, you can
adjust the brightness to make a copy that is easier to read.
1. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the status
bar in Mac OS X. Or, if you are a Windows user, you can launch it from
the Start menu, select Programs or All Programs > Samsung
Printers > your printer driver name > Smart Panel.
2. Click Printer Setting.
3. Click Copy > Darkness. Select the appropriate value from the
drop-down list, and then click Apply.
•Lightest: Works well with lightest print.
•Light: Works well with light print.
•Normal: Works well with standard typed or printed originals.
•Dark: Works well with dark print.
•Darkest: Works well with darkest print.
Erasing background images
You can set the machine to print an image without its background. This
copy feature removes the background color and can be helpful when
copying an original containing color in the background such as a newspaper
or a catalog.
1. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the Status
bar in Mac OS X. Or, if you are a Windows user, you can launch it from
the Start menu, select Programs or All Programs > Samsung
Printers > your printer driver name > Smart Panel.
2. Click Printer Setting.
3. Click Copy > Auto Suppress Background. Select the appropriate
value from the drop-down list, and then click Apply.
•Off: Does not use this feature.
•Auto: Optimizes the background.
Setting the copy scan size
1. Double-click the Smart Panel icon on the Windows task bar (or
Notification Area in Linux). You can also click Smart Panel on the status
bar in Mac OS X. Or, if you are a Windows user, you can launch it from
the Start menu, select Programs or All Programs > Samsung
Printers > your printer driver name > Smart Panel.
2. Click Printer Setting.
3. Click Copy > Copy Scan Size. Select the appropriate value from the
drop-down list, and then click Apply.

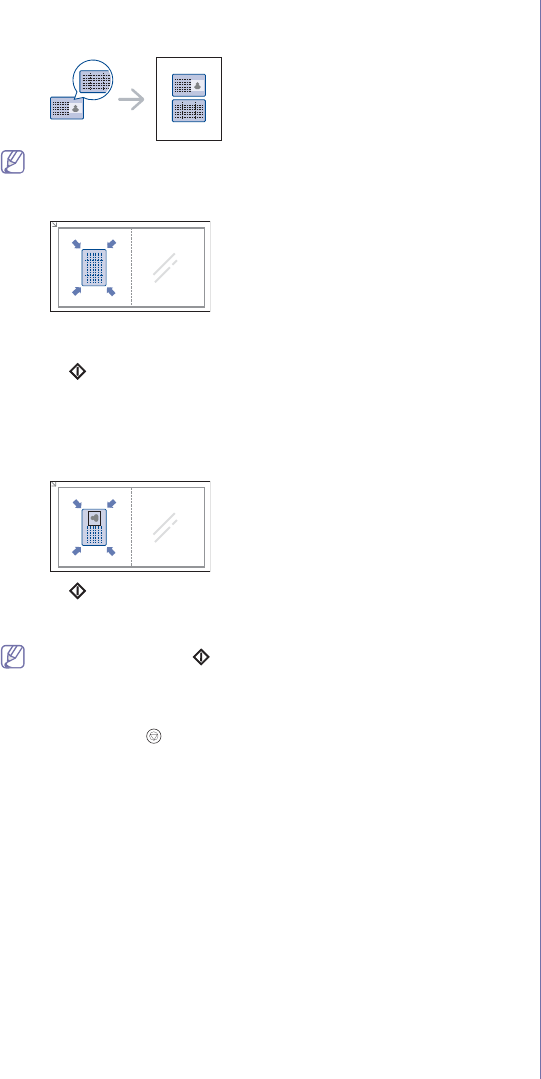

ID CARD COPYING
Your machine can print 2-sided originals on one sheet.
Copying_ 68
The machine prints one side of the original on the upper half of the paper
and the other side on the lower half without reducing the size of the original.
This feature is helpful for copying a small-sized item such as business card.
The original must be placed on the scanner glass to use this feature.
1. Place the front side of an original facing down on the scanner glass
where arrows indicate as shown. Then, close the scanner lid.
2. Press ID Copy button on the control panel.
Then, the Front LED on the control panel lights on.
3. Press Start button on the control panel. Your machine begins
scanning the front side of an original.
When scanning the front side of an original is finished the Back LED on
the control panel lights on.
4. Turn the original over and place it on the scanner glass where arrows
indicate as shown. Then, close the scanner lid.
5. Press Start button on the control panel to begin scanning the back
side of an original.
6. The machine prints both sides of an original without reducing its size.
•If you do not press Start button, only the front side will be
copied.
•If the original is larger than the printable area, some portions may
not be printed.
•If you press Stop/Clear button, the copy job is canceled.
Scanning_ 69
9.scanning
Scanning with your machine lets you turn pictures and text into digital files that can be stored on your computer.
This chapter includes:
•Basic scanning method
•Scanning originals and sending to your computer (Scan to PC)
•Using Samsung Scan and Fax manager
•Scanning with TWAIN-enabled software
•Scanning using the WIA driver
•Macintosh scanning
•Linux Scanning
The maximum resolution that can be achieved depends upon various
factors, including a computer speed, available disk space, memory,
the size of the image being scanned and color bit depth settings.
Thus, depending on your system and what you are scanning, you may
not be able to scan at a certain resolution, especially using enhanced
resolution.
Supported optional devices and features may differ according to your
model. Check your model name (See "Features by Models" on
page 23).
BASIC SCANNING METHOD
You can scan the originals with your machine via an USB cable or the
network.
•Samsung Scan and Fax Manager: Scan the originals from the control
panelU Then, the scanned data will be stored in the connected
computers My Documents folder. When you install all the software in
the supplied CD, the Samsung Scan and Fax Manager is also
automatically installed on your computer. This feature can be used via
the local connection or the network connection (See "Using Samsung
Scan and Fax manager" on page 69).
•TWAIN: TWAIN is the one of a preset imaging applications. Scanning
an image launches the selected application, enabling you to control the
scanning process. This feature can be used via the local connection or
the network connection (See "Scanning with TWAIN-enabled software"
on page 70).
•SmarThru: This program is the accompanying software for your
machine. You can use this program to scan images or documents. This
feature can be used via the local connection or the network connection
(See "SmarThru" on page 75).
•WIA: WIA stands for Windows Images Acquisition. To use this feature,
your computer must be connected directly with the machine via an USB
cable (See "Scanning using the WIA driver" on page 71).
SCANNING ORIGINALS AND SENDING TO
YOUR COMPUTER (SCAN TO PC)
You can scan an image on the machine via the Samsung Scan and Fax
Manager program that is installed in your USB- or network-connected
computer.
For USB connected machine
This is a basic scanning method for USB-connected machine.
1. Make sure that the machine is connected to your computer and powered
on.
2. Place a single original face down on the scanner glass (See "Loading
originals" on page 53).
3. PressScan to button on the control panel.
4. Press Start button on the control panel to begin scanning.
•Scanned image is saved in computer’s My Documents > My
Pictures > Samsung folder.
•You can use Twain driver to scan quickly in Samsung Scan and
Fax Manager program.
•From the Start menu, select Programs or All Programs >
Samsung Printers > Scan and Fax Manager > Scan and Fax
Manager > Quick Scan.
USING SAMSUNG SCAN AND FAX MANAGER
If you have installed the printer driver, the Samsung Scan and Fax Manager
program is installed too. For program information and the scanner's status,
start Samsung Scan and Fax Manager. With this program, you can change
scan settings and add or delete the folders where scanned documents are
saved in your computer.
The Samsung Scan and Fax Manager program can only be used in
the Windows and Mac OS system. If you use the Macintosh, click the
following link ("Setting scan information in Scan and Fax Manager" on
page 72).
1. From the Start menu, select Programs or All Programs > Samsung
Printers > Scan and Fax Manager > Scan and Fax Manager > Quick
Scan.
You can open Samsung Scan and Fax Manager by right-clicking
the Smart Panel icon in the Windows task bar and selecting Scan
and Fax Manager.
2. Select the appropriate machine from the Samsung Scan and Fax
ManagerGwindow.
3. Press Properties.
4. The Set Scan Button tab allows you to change the file saving
destination and scan settings, to add or delete application program, and
to change the file format to be saved.
You can change the scanning machine by using the Change Port tab
(Local or Network).
5. When setting is done, press OK.
Scanning_ 70
Set Scan Button tab
Scan Destination
•Available Destination List: Shows the list of applications currently
linked to scanned images in the PC’s registry. Select the program
you want to use and click the right arrow and add to Front Panel
Destination List.
•Front Panel Destination List: Shows the list of applications to
open scanned image.
You can choose only one application to open scanned image from
the Available Destination List.
•Add Application: Allows you to add application you want to use to
Available Destination List.
•Remove Application: Allows you to remove an item added by the
user in the Available Destination List.
•File Format: Allows you to select the form of scanned data to be
saved. You can choose among BMP,JPEG,PDFGand TIFF.
Scan Property
•Computer ID: Shows the ID of your computer.
•Save Location: Allows you to choose the location of the default
saving folder.
•Resolution: Allows you to choose the scan resolution.
•Scan Color: Allows you to choose the scan color.
•Scan Size: Allows you to choose the scan size.
•ADF Duplex: Automatically scans both sides. If your model does
not support this option, it will be grayed out.
•Show Preview: Checking this box allows you to preview applied
scan options. You can modify the options before scanning.
•Default: Allows you to go back to default options.
Change Port tab
Local Scanner
Select when your machine is connected via USB port.
Network Scanner
Select when your machine is connected via network port.
•Auto detection on the network: Automatically detects your
machine.
•IP or Host name: Enter in your machine’s IP address to detect your
machine.
Scan Assistant
When you press Quick Scan in Samsung Scan and Fax Manager, the
Scan Assistant window appears. Scan Assistant allows you to adjust
scan settings and start the scanning process.
•Favorites: Allows you to save the current preferences settings for
future use. When you save Favorites, all current scan settings are
saved. To use a saved setting, select it from the Favorites drop
down list. The machine is now set to scan according to the setting
you selected. To delete saved setting, select it from the Favorites
drop down list and click Delete. To set a favorite as startup, select
the favorite you want to set as startup, then click the Set as default
button.
•Scan settings: The following scan options are available.
-Image Type: Allows you to chose the proper color settings for
image scanning.
-Resolution:Allows you to choose the image resolution.
-Document Size: Allows you to choose the proper size of the
scanned image.
-Document Source: Allows you to choose the device (scan
glass) you want to scan with.
-Prompt for additional pages: If this check box is checked, you
can scan pages continuously. This option is useful when you
scan multi-page documents and/or when Document Source is
set to Flatbed (platen glass). In this case a sequence of scanned
images is processed as a single document.
-Pages to Scan: Allows you to specify how many pages are to be
scanned. This option is available when Document Source is set
to ADF(Document feeder).
•Preference: The following scan options are available.
-Auto crop image after preview: If this option is checked, the
scanning area will be automatically adjusted to the image size.
-Preview on program start: If this option is checked, the
scanning area will be selected automatically as shown in the
preview.
-Blank page detection: This operation automatically detects
whether the scanned image is blank or not.
-Delete page:Blank pages will be deleted at the end of the
scanning process.
-Separate files: Blank page will work as a scan job separator.
That is, when multiple pages are scanned at once a blank
page will divide scanned image sequence into parts. Each
part will be treated as a separate document (group).
-Start from scanner: If this option is checked, scanning process
is managed using scanner touch screen rather than from the
computer. The option is not available for some scanner models.
•Advanced: In the Advanced mode, additional options such as
Image Adjustment,Image Enhancement, and Additional
Settings are available.
-Image Adjustment: Allows you to perform some transformations
of the scanned image. These transformations include automatic
adjustment of image size, straightening and rotation.
-Image Enhancement: Allows you to remove various defects of
the image and improve its quality.
-Additional settings: Allows special processing of scanned
images. These transformations include stitching several partial
image scans into a single image, processing of scanned books
and watermark stamping.
Click the Help button from the lower-left corner of the window and
click on any option you want to know about. Then a pop up window
appears with information about that option's feature which is
provided from the Scan Assistant.
SCANNING WITH TWAIN-ENABLED SOFTWARE
If you want to scan documents using other software, you will need to use
TWAIN-compliant software such as Adobe Photoshop.
Follow the steps below to scan with TWAIN-compliant software.
1. Make sure that the machine is connected to your computer and powered
on.
2. Place a single original face down on the scanner glass (See "Loading
originals" on page 53).
3. Open an application such as Adobe Photoshop.
4. Open the TWAIN window and set the scan options.
5. Scan and save your scanned image.
Scanning_ 71
SCANNING USING THE WIA DRIVER
Your machine also supports the Windows Image Acquisition (WIA) driver for
scanning images. WIA is one of the standard components provided by
Microsoft Windows XP and works with digital cameras and scanners. Unlike
the TWAIN driver, the WIA driver allows you to scan and easily adjust
images without using additional software.
The WIA driver works only on Windows XP/Vista/7 with a USB port.
Windows XP
1. Make sure that the machine is connected to your computer and powered
on.
2. Place a single original face down on the scanner glass (See "Loading
originals" on page 53).
3. From the Start menu, select Control Panel > Scanners and Cameras.
4. Double-click your scanner driver icon. The Scanner and Camera
wizard appears.
5. Click Next.
6. Set the option in Choose scanning preferences window and click
Preview to see how your options affect the picture.
7. Click Next.
8. Enter a picture name, and select a file format and destination to save the
picture.
9. Your picture has been successfully copied to your computer. Choose
one of the options on screen.
10. Click Next.
11. Click Finish.
Windows Vista
1. Make sure that the machine is connected to your computer and powered
on.
2. Place a single original face down on the scanner glass (See "Loading
originals" on page 53).
3. From theStart menu select Control Panel > Hardware and Sound >
Scanners and Cameras.
4. Double-click Scan a document or picture.Windows Fax and Scan
application appears.
•You can click on View scanners and cameras to view
scanners,
•If there is no Scan a document or picture, open the MS paint
program and from the File click From Scanner or Camera...
5. Click New Scan. Scan driver appears.
6. Choose your scanning preferences and click Preview to see your
preferences affect the picture.
7. Click Scan.
If you want to cancel the scan job, press Cancel button on the
Scanner and Camera wizard.
Windows 7
1. Make sure that the machine is connected to your computer and powered
on.
2. Place a single original face down on the scanner glass (See "Loading
originals" on page 53).
3. From theStart menu select Control Panel > Hardware and Sound >
Devices and Printers.
4. Click right button of mouse on device driver icon in Printers and Faxes
>Start Scan.New Scan application appears.
5. Choose your scanning preferences and click Preview to see your
preferences affect the picture.
6. Click Scan.
MACINTOSH SCANNING
You can scan documents using Image Capture program. Mac OS offers
Image Capture program.
Scanning with USB
1. Make sure that the machine is connected to your computer and powered
on.
2. Place a single original face down on the scanner glass (See "Loading
originals" on page 53).
3. Start Applications and click Image Capture.
If No camera or scanner connected message appears,
disconnect the USB cable and reconnect it. If the problem persists,
refer to the Image Capture’s help.
4. Set the scan options on this program.
5. Scan and save your scanned image.
•For more information about using Image Capture, refer to the
Image Capture’s help.
•Use TWAIN-compliant software to apply more scan options.
•You can also scan using TWAIN-compliant software, such as
Adobe Photoshop.
•Scan process differ according to TWAIN-compliant software.
Please refer to the user’s guide of the software.
•If scanning does not operate in Image Capture, update Mac OS to
the latest version. Image Capture operates properly in Mac OS X
10.3.9 or higher and Mac OS X 10.4.7 or higher.
Scanning with network (SCX-3205W(K) only)
1. Make sure that the machine is connected to your computer and powered
on.
2. Place a single original face down on the scanner glass (See "Loading
originals" on page 53).
3. Start Applications and click Image Capture.
4. For Mac OS X 10.4 ~ 10.5
Click Devices and click Browse Devices.
For Mac OS X 10.6
Select your device below SHARED. Skip to step 7.
5. For Mac OS X 10.4
Select your machine in TWAIN devices option. Make sure that Use
TWAIN software check box is checked, and click Connect.
•If a warning message appears, click Change Port.. to select port.
•If TWAIN UI appears, from the Preference tab, click Change Port..
to select port.
Refer to scan manager for Change port.. use (See "Setting
scan information in Scan and Fax Manager" on page 72).
For Mac OS X 10.5
Make sure that Connected check box is checked beside your machine
in Bonjour Devices.
If you want to scan using TWAIN, refer to the Mac OS X 10.4 steps
above.
6. Set the scan options on this program.
Scanning_ 72
7. Scan and save your scanned image.
•For Mac OS X 10.3, use TWAIN-compliant software.
•For more information about using Image Capture, refer to the
Image Capture’s help.
•Use TWAIN-compliant software to apply more scan options.
•You can also scan using TWAIN-compliant software, such as
Adobe Photoshop.
•Scan process differ according to TWAIN-compliant software.
Please refer to the user’s guide of the software.
•If scanning does not operate in Image Capture, update Mac OS to
the latest version. Image Capture operates properly in Mac OS X
10.4.7 or higher.
Setting scan information in Scan and Fax Manager
When you want to find out about Scan and Fax Manager program
information, to check the installed scan driver's condition, to change
scan settings and to add or delete the folders where scanned
documents to computer are saved in Scan and Fax Manager program,
follow the below steps.
1. From the Smart Panel menu on Status bar, click Scan and Fax
Manager.
2. Select the appropriate machine from the Scan and Fax Manager.
3. Press Properties.
4. Use Set Scan Button to change the file destination or scan settings,
to add or delete application programs, and to format files. You can
change the scanning machine by using Change Port (Local or
Network).
5. When done, press OK.
LINUX SCANNING
You can scan a document using the Unified Driver Configurator window.
Scanning
1. Double-click the Unified Driver Configurator on your desktop.
2. Click the button to switch to Scanners configuration.
3. Select the scanner on the list.
If you use only one machine device and it is connected to the computer
and turned on, your scanner appears on the list and is automatically
selected.
If you have two or more scanners connected to your computer, you can
select any scanner to work at any time. For example, while acquisition is
in progress on the first scanner, you may select the second scanner, set
the device options and start the image acquisition simultaneously.
4. Click Properties.
5. Place a single original face down on the scanner glass (See "Loading
originals" on page 53).
6. From the Scanner Properties window, click Preview.
The document is scanned and the image preview appears in the
Preview Pane.
7. Drag the pointer to set the image area to be scanned in the Preview
Pane.
8. Change the scan options in the Image Quality and Scan Area sections.
•Image Quality: This option allows you to select the color
composition and the scan resolution for the image.
•Scan Area: This option allows you to select the page size. The
Advanced button enables you to set the page size manually.
If you want to use one of the preset scan option settings, select the
option from the Job Type drop-down list (See "Adding Job Type
Settings" on page 72).
Click Default to restore the default setting for the scan options.
9. When you have finished, click Scan to start scanning.
The status bar appears on the bottom left of the window to show you the
progress of the scan. To cancel scanning, click Cancel.
10. The scanned image appears.
If you want to edit the scanned image, use the toolbar (See "Using the
Image Manager" on page 73).
11. When you are finished, click Save on the toolbar.
12. Select the file directory where you want to save the image and enter the
file name.
13. Click Save.
Adding Job Type Settings
You can save your scan option settings for later use.
To save a new Job Type setting
1. Change the options from the Scanner Properties window.
2. Click Save As.
3. Enter the name for your setting.
4. Click OK.
Scanning_ 73
Your setting is added to the Saved Settings drop-down list.
To save a Job Type setting for the next scan job
1. Select the setting you want to use from the Job Type drop-down list.
2. The next time you open the Scanner Properties window, the saved
setting is automatically selected for the scan job.
To delete a Job Type setting
1. Select the setting you want to delete from the Job Type drop-down
list.
2. Click Delete.
The setting is deleted from the list.
Using the Image Manager
The Image Manager application provides you with menu commands and
tools to edit your scanned image.
Use the following tools to edit the image.
TOOLS NAME FUNCTION
Save Saves the image.
Undo Cancels your last action.
Redo Restores the action you canceled.
Scroll Allows you to scroll through the image.
Crop Crops the selected image area.
Zoom Out Zooms the image out.
Zoom In Zooms the image in.
Scale Allows you to scale the image size; you can
enter the size manually, or set the rate to
scale proportionally, vertically, or horizontally.
Rotate Allows you to rotate the image; you can select
the number of degrees from the drop-down
list.
Flip Allows you to flip the image vertically or
horizontally.
Brightness Allows you to adjust the brightness or contrast
of the image, or to invert the image.
Properties Shows the properties of the image.
For further details about the Image Manager application, refer to the on
screen help.
Management tools_ 74
10.management tools
This chapter introduces management tools provided to help you make full use of your machine.
This chapter includes:
•Introducing useful management tools
•Using SyncThru™ Web Service (SCX-3205W(K) only)
•Using the Smart Panel program
•SmarThru
•Using the Linux Unified Driver Configurator
Supported optional devices and features may differ according to your
model. Check your model name (See "Features by Models" on
page 23).
INTRODUCING USEFUL MANAGEMENT TOOLS
The programs below help you to use your machine conveniently.
•"Using SyncThru™ Web Service (SCX-3205W(K) only)" on page 74.
•"Using the Smart Panel program" on page 75.
•"SmarThru" on page 75.
•"Using the Linux Unified Driver Configurator" on page 76.
USING SYNCTHRU™ WEB SERVICE
(SCX-3205W(K) ONLY)
Internet Explorer 6.0 or higher is the minimum requirement for
SyncThru™ Web Service.
If you have connected your machine to a network and set up TCP/IP
network parameters correctly, you can manage the machine via SyncThru™
Web Service, an embedded web server. Use SyncThru™ Web Service to:
•View the machine’s device information and check its current status.
•Change TCP/IP parameters and set up other network parameters.
•Change printer preference.
•Set the email notifications advising of the machine’s status.
•Get support for using the machine.
To access SyncThru™ Web Service
1. Access a web browser, such as Internet Explorer, from Windows.
Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address
field and press the Enter key or click Go.
2. Your machine’s embedded website opens.
Logging into SyncThru™ Web Service
Before configuring options in SyncThru™ Web Service, you need to
log-in as an administrator. You can still use SyncThru™ Web Service
without logging in but you won’t have access to Settings tab and
Security tab.
1. Click Login on the upper right of the SyncThru™ Web Service
website.
The Login window appears.
2. Type in the ID and Password then click Login.
If it’s your first time logging into SyncThru™ Web Service, type in the
below default ID and password.
•ID: admin
•Password: sec00000
SyncThru™ Web Service overview
Some tabs may not appear depending on your model.
Information tab
This tab gives you general information about your machine. You can
check things, such as remaining amount of toner. You can also print
reports such as an error report and so on.
•Active Alerts:This item allows you to check the alerts occurred in
the machine and their severity.
•Supplies: This item allows you to check how many pages are
printed and amount of toner left in the cartridge.
•Usage Counters: This item allows you to check the usage count by
print types: simplex, duplexU
•Current Settings: This item allows you to check the machine and
network information.
•Print information: This item allows you to print reports such as
system related reports, e-mail address and font reports.
Settings tab
This tab allows you to set configurations provided by your machine and
network. You need to log-in as an administrator to view this tab.
•Machine Settings tab: This tab allows you to set options provided
by your machine.
-System: You can set settings related to your machine.
-Printer: You can set settings related to printing jobs.
-Copy:You can set settings related to copying jobs.
•Network Settings tab: This tab allows you to view and change the
network environment. You can set things, such as TCP/IP, network
protocols and so on.
-Restore Default: You can restore default network settings.
Security tab
This tab allows you to set system and network security information. You
need to log-in as an administrator to view this tab.
•System Security: You can set the systemGadministrator’s
informationU
•Network Security: You can set settings for IPv4/IPv6 filtering,
802.1x, Authentication serversU
Management tools_ 75
Maintenance tab
This tab allows you to maintain your machine by upgrading firmware and
setting contact information for sending emails. You can also connect to
Samsung website or download drivers by selecting the Link menu.
•Firmware Upgrade: You can upgrade your machine’s firmware.
•Contact Information: You can view the contact information.
•Link: You can view the links to useful sites where you can download
or check information.
USING THE SMART PANEL PROGRAM
The Smart Panel is a program that monitors and informs you of the machine
status, and allows you to customize the machine’s settings. For Windows
and Macintosh, Smart Panel is installed automatically when you install the
machine software. For Linux, you can download Smart Panel from the
Samsung website and install (See "Installing the Smart Panel" on page 33).
To use this program, your computer has to meet the following system
requirements:
•Windows. Check that your computer’s CPU, RAM and HDD meet
or exceed specification (See "System requirements" on page 30).
•Mac OS X 10.3 or higher. Check that your computer’s CPU, RAM
and HDD meet or exceed specification (See "System
requirements" on page 30).
•Linux. Check that your computer’s CPU, RAM and HDD meet or
exceed specification (See "System requirements" on page 30).
•Internet Explorer version 5.0 or higher for flash animation in HTML
Help.
If you need to know the exact model name of your machine, you can
check the supplied software CD.
Understanding Smart Panel
If an error occurs while operating, you can check the error from the Smart
Panel.
You can also launch Smart Panel manually. Double-click the Smart Panel
icon on the Windows task bar (in Windows), or Notification Area (in Linux).
You can also click it on the status bar (in Mac OS X).
Windows Double-click this icon in Windows.
Macintosh Click this icon in Mac OS X.
Linux Click this icon in Linux.
Or, if you are a Windows user, you can launch it from the Start menu, select
Programs or All Programs > Samsung Printers > your printer driver
name > Smart Panel.
•If you have already installed more than one Samsung machine,
first select the correct machine model you want in order to access
the corresponding Smart Panel.
Right-click (in Windows or Linux) or click (in Mac OS X) the Smart
Panel icon and select your machine.
•The Smart Panel window and its contents shown in this user’s
guide may differ depending on the machine or operating system in
use.
The Smart Panel program displays the current status of the machine, the
estimated level of toner remaining in each toner cartridge, and various other
types of information. You can also change settings.
1
Toner Level You can view the level of toner remaining in each
toner cartridge. The machine and the number of
toner cartridge(s) shown in the above window may
differ depending on the machine in use. Some
machines do not have this feature.
2Buy Now You can order replacement toner cartridge(s) from
online.
3
User’s Guide You can view the online User’s Guide.
This button changes to Troubleshooting
Guide when error occurs. You can directly
open the troubleshooting sectionGin the
user’s guide.
4
Printer
Setting
You can configure various machine settings in the
Printer Settings Utility window. Some machines do
not have this feature.
If you connect your machine to a network,
the SyncThru™ Web Service window
appears instead of the Printer Settings Utility
window.
5
Driver Setting You can set all of the machine options you need in
the Printing Preferences window. This feature is
available only for Windows (See "Opening printing
preferences" on page 60).
Changing the Smart Panel Program Settings
Right-click (in Windows or Linux) or click (in Mac OS X) the Smart Panel
icon and select Options. Select the settings you want from the Options
window.
SMARTHRU
The supplied software CD provides you withGSmarThru. SmarThruGoffers
you convenient features to use with your machine.
Starting SmarThru
Follow the steps below to start SmarThru.
1. Make sure that your machine and computer are turned on and properly
connected to each other.
2. Once you have installed SmarThru, you will see the SmarThru icon on
your desktop.
Management tools_ 76
3. Double-click the SmarThru icon.
4. The SmarThru appears.
•Scan to: Allows you to scan an image and save it to an application
or folder, email it, or publish it on a website.
•Image: Allows you to edit an image you have saved as a graphic file
and send it to a selected application or folder, email it, or publish it on
a website.
•Print: Allows you to print images you have saved. You can print
images in black and white or color mode if your machine supports it.
For more information about SmarThru, click at the top right corner
of the window. The SmarThru help window appears; you can view on
screen help supplied on the SmarThru program.
Follow the steps below to uninstall SmarThru. Before you begin the
uninstall, ensure that all applications are closed on your computer.
a) From the Start menu, select ProgramsGor All Programs.
b) Select Samsung Printers > SmarThru 4 > Uninstall SmarThru
4.
c) When your computer asks you to confirm your selection, read the
statement and click OK.
d) Click Finish.
Using SmarThru
Scanning
1. Click Scan To.
•Application: Scanning an image and placing it in an image editor
application such as Paint or Adobe Photoshop.
•E-mail: Scanning an image and emailing it. Allows you to scan
an image, preview it, and email it.
To send an image by e-mail, you must have a mail client
program, like Outlook Express, which has been set up with
your e-mail account.
•Folder: Scanning an image and saving it to a folder. Allows you
to scan an image, preview it, and save it to the folder of your
choice.
•OCR: Scanning an image and performing text recognition. Allows
you to scan an image, preview it, and send it to the OCR program
for text recognition.
-Recommended scan option for OCR.
-Resolution: 200 or 300 dpi.
-Image type: grayscale or black & white.
•Web: Scanning an image, previewing it, and publishing it on a
website, using the specified file format for the image you want to
publish.
•Settings: Customizing settings of Scan To basic functions.
Allows you to customize settings for Application,E-mail,OCR,
and Web functions.
2. Set scan settings and click Scan.
Printing
1. Click Print.
2. Select the file you want to print.
3. Select the machine you want to use for printing.
4. Click Print to start the job.
USING THE LINUX UNIFIED DRIVER
CONFIGURATOR
The Unified Driver Configurator is a tool primarily intended for configuring
machine devices. You need to install Unified Linux Driver to use Unified
Driver Configurator (See "Installing the Unified Linux Driver" on page 33).
After the driver is installed on your Linux system, the Unified Driver
Configurator icon will automatically be created on your desktopU
Opening the Unified Driver Configurator
1. Double-click the Unified Driver Configurator on the desktop.
You can also click the Startup Menu icon and select Samsung Unified
Driver > Unified Driver Configurator.
2. Click each button on the left to switch to the corresponding configuration
window.
1Printers
Configuration
2Scanners
Configuration
3Ports
Configuration
Management tools_ 77
To use the on screen help, click Help.
3. After changing the configurations, click Exit to close the Unified Driver
Configurator.
Printers configuration window
Printers configuration has the two tabs: Printers and Classes.
Printers tab
View the current system’s printer configuration by clicking on the
machine icon button on the left side of the Unified Driver Configurator
window.
1Switches to Printers configuration.
2Shows all of the installed machine.
3Shows the status, model name and URL of your machine.
The printer control buttons are as follows:
•Refresh: Renews the available machines list.
•Add Printer: Allows you to add a new machines.
•Remove Printer: Removes the selected machine.
•Set as Default: Sets the current selected machine as a default
machine.
•Stop/Start: Stops/starts the machine.
•Test: Allows you to print a test page to ensure the machine is
working properly.
•Properties: Allows you to view and change the printer properties.
Classes tab
The Classes tab shows a list of available machine classes.
1Shows all of the machine classes.
2Shows the status of the class and the number of machines in the
class.
•Refresh: Renews the classes list.
•Add Class: Allows you to add a new machine class.
•Remove Class: Removes the selected machine class.
Management tools_ 78
Scanners configuration
In this window, you can monitor the activity of scanner devices, view a list of
installed Samsung machine devices, change device properties, and scan
images.
1Switches to Scanners configuration.
2Shows all of the installed scanners.
3Shows the vendor, model name and type of your scanner.
•Properties: Allows you to change the scan properties and scan a
document.
Ports configuration
In this window, you can view the list of available ports, check the status of
each port, and release a port that is stalled in a busy state when its owner
has terminated the job for any reason.
1Switches to Ports configuration.
2Shows all of the available ports.
3Shows the port type, device connected to the port, and status.
•Refresh: Renews the available ports list.
•Release port: Releases the selected port.
Sharing Ports Between Printers and Scanners
Your machine may be connected to a host computer via a parallel port
or USB port. Since the machine device contains more than one device
(printer and scanner), it is necessary to organize proper access of
“consumer” applications to these devices via the single I/O port.
The Unified Linux Driver package provides an appropriate port sharing
mechanism that is used by Samsung printer and scanner drivers. The
drivers talk to their devices via so-called machine ports. The current
status of any machine port can be viewed via the Ports configuration.
The port sharing prevents you from accessing one functional block of
the machine device, while another block is in use.
When you install a new machine device onto your system, it is strongly
recommended you do this with the assistance of an Unified Driver
Configurator. In this case you will be asked to choose I/O port for the
new device. This choice will provide the most suitable configuration for
machine’s functionality. For machine scanners, I/O ports are being
chosen by scanner drivers automatically, so proper settings are applied
by default.
Maintenance_ 79
11.maintenance
This chapter provides information about maintaining your machine and the toner cartridge.
This chapter includes:
•Printing a machine report
•Cleaning the machine
•Storing the toner cartridge
•Tips for moving & storing your machine
PRINTING A MACHINE REPORT
You can print a configuration page to view current printer settings, or to help
troubleshoot printer problems.
In ready mode, press and hold Stop/Clear button for about two seconds,
then release.
A configuration page prints out.
CLEANING THE MACHINE
If printing quality problems occur or if you use your machine in a dusty
environment, you need to clean your machine regularly to keep the most
optimum print quality.
•Cleaning the cabinet of the machine with cleaning materials
containing large amounts of alcohol, solvent or other strong
substances can discolor or distort the cabinet.
•If your machine or the surrounding area is contaminated with
toner, we recommend that you use a cloth or tissue dampened
with water to clean it. If you use a vacuum cleaner, toner blows in
the air and might be harmful if inhaled.
Cleaning the outside
Clean the machine cabinet with a soft and lint-free cloth. Dampen the cloth
slightly with water, but be careful not to let any water drip onto or into the
machine.
Cleaning the inside
During the printing process, paper, toner and dust particles can accumulate
inside the machine. This buildup can cause print quality problems such as
toner specks or smearing. Cleaning the inside of the machine clears and
reduces these problems.
1. Turn the machine off and unplug the power cord. Wait for the machine to
cool down.
2. Open the scan unit.
3. Open the inner cover.
4. Pull the toner cartridge out.
•To prevent damage to the toner cartridge, do not expose it to
light for more than few minutes. Cover it with a piece of paper,
if necessary.
Maintenance_ 80
•Do not touch the green surface of the drum located in the toner
cartridge or imaging unit. Use the handle on the cartridge to
avoid touching this area.
5. With a dry and lint-free cloth, wipe away any dust and spilled toner from
the toner cartridges area.
While cleaning the inside of the machine, be careful not to damage
the transfer roller or any other inside parts. Do not use solvents
such as benzene or thinner to clean. Printing quality problems can
occur and cause damage to the machine.
After cleaning, let the machine to dry completely.
6. Reinsert the toner cartridge.
7. Close the inner cover and the scan unit completely in order.
8. Plug in the power cord and turn the machine on.
Cleaning the scan unit
Keeping the scan unit clean helps ensure the best possible copies. We
suggest that you clean the scan unit at the start of each day and during the
day as needed.
1. Slightly dampen a soft, lint-free cloth or paper towel with water.
2. Open the scanner lid.
3. Wipe the surface of the scanner glass until it is clean and dry.
4. Close the scanner lid.
STORING THE TONER CARTRIDGE
Toner cartridge storage
Toner cartridges contain components that are sensitive to light,
temperature, and humidity. Samsung suggests users follow the
recommendations to ensure the optimum performance, highest quality, and
longest life from your new Samsung toner cartridge.
Store this cartridge in the same environment as the printer it will be used in;
this should be in controlled office temperature and humidity conditions. The
toner cartridge should remain in its original, unopened package until
installation – If original packaging is not available, cover the top opening of
the cartridge with paper and store in a dark cabinet.
Opening the cartridge package prior to use dramatically shortens its useful
shelf and operating life. Do not store on the floor. If the toner cartridge is
removed from the printer, always store the cartridge according to the
following guidelines:
•Inside the protective bag from the original package.
•Store lying flat (not standing on end) with the same side facing up as if
was installed in the machine.
•Do not store consumable in any of the following conditions:
-Temperature greater than 40°C (104°F).
-Humidity range less than 20% and not greater than 80%.
-An environment with extreme changes in humidity or temperature.
-Direct sunlight or room light.
Maintenance_ 81
-Dusty places.
-A car for a long period of time.
-An environment where corrosive gases are present.
-An environment with salty air.
Handling instructions
•Do not touch the surface of the photoconductive drum in the cartridge.
•Do not expose the cartridge to unnecessary vibrations or shock.
•Never manually rotate the drum, especially in the reverse direction; this
can cause internal damage and toner spillage.
Use of non-Samsung and refilled toner cartridge
Samsung Electronics does not recommend or approve the use of
non-Samsung brand toner cartridges in your printer including generic, store
brand, refilled, or remanufactured toner cartridges.
Samsung’s printer warranty does not cover damage to the machine
caused by the use of a refilled, remanufactured, or non-Samsung
brand toner cartridge.
Estimated cartridge life
Estimated cartridge life (the life of the toner cartridge yield) depends on the
amount of toner that print jobs require. The actual print yield may vary
depending on the print density of the pages you print on, operating
environment, printing interval, media type, and/or media size. For example,
if you print a lot of graphics, the consumption of the toner is high and you
may need to change the cartridge more often.
TIPS FOR MOVING & STORING YOUR MACHINE
•When moving the machine, do not tilt or turn it upside down. Otherwise,
the inside of the machine may be contaminated by toner, which can
cause damage to the machine or reduce print quality.
Troubleshooting_ 82
12.troubleshooting
This chapter gives helpful information for what to do if you encounter an error.
This chapter includes:
•Redistributing toner
•Tips for avoiding paper jams
•Clearing paper jams
•Solving other problems
REDISTRIBUTING TONER
When the toner cartridge is near the end of its life:
•White streaks or light printing occurs.
•The Status LED blinks red.
If this happens, you can temporarily improve print quality by redistributing
the remaining toner in the cartridge. In some cases, white streaks or light
printing will still occur even after you have redistributed the toner.
1. Open the scan unit.
2. Open the inner cover.
3. Pull the toner cartridge out.
4. Thoroughly roll the cartridge five or six times to distribute the toner
evenly inside the cartridge.
If toner gets on your clothing, wipe it off with a dry cloth and wash
clothing in cold water. Hot water sets toner into fabric.
Do not touch the drum in the toner cartridge or imaging unit. Use
the handle on the cartridge to avoid touching this area.
5. Hold the toner cartridge by the handle and slowly insert the cartridge into
the opening in the machine.
The tabs on the sides of the cartridge and corresponding grooves within
the machine will guide the cartridge into the correct position until it locks
Troubleshooting_ 83
into place completely.
6. Close the inner cover and the scan unit completely in order. Ensure that
they are securely closed.
TIPS FOR AVOIDING PAPER JAMS
By selecting the correct media types, most paper jams can be avoided.
When a paper jam occurs, refer to the guidelines below:
•Ensure that the adjustable guides are positioned correctly (See "Loading
paper in the tray" on page 55).
•Do not overload the tray. Ensure that the paper level is below the paper
capacity mark on the inside of the tray.
•Do not remove paper from the tray while your machine is printing.
•Flex, fan, and straighten paper before loading.
•Do not use creased, damp, or highly curled paper.
•Do not mix paper types in a tray.
•Use only recommended print media.
•Ensure that the recommended side of the print media is facing the right
side (See "Loading paper in the tray" on page 55).
•If duplexing, print one sheet at a time using Start button (See
"Printing on both sides of the paper (Manual)" on page 61).
•If you are printing on a special paper, print one sheet at a time using
Start button (See "Manual feeding in the tray" on page 55).
CLEARING PAPER JAMS
If a paper jam occurs, the Status LED on the control panel lights orange.
Find and remove the jammed paper.
To avoid tearing the paper, pull the jammed paper out slowly and
carefully. Follow the instructions in the following sections to clear the
jam.
2
1
1Scan unit
2Inner cover
In the tray
Click this link to open an animation about clearing a jam.
1. Open the scan unit first, and then the inner cover.
2. Close the inner cover.The jammed paper is automatically ejected from
the machine.
If the paper does not eject, go to the next step.
3. Remove the jammed paper by gently pulling it straight out.
If the paper does not move when you pull, or if you do not see the paper
in this area, check inside the machine (See "Inside the machine" on
page 83).
Inside the machine
Click this link to open an animation about clearing a jam.
The fuser area is hot. Be careful when removing paper from this area
to prevent getting your fingers burnt.
Troubleshooting_ 84
1. Open the scan unit first, and then the inner cover.
2. Close the inner cover. The jammed paper is automatically ejected from
the machine.
If the paper does not eject, go to the next step.
3. Open the scan unit.
4. Remove the jammed paper by gently pulling it straight out.
If you do not see the paper in this area, go to the next step.
5. Open the inner cover.
6. Open the fuser unit cover.
7. Remove the jammed paper by gently pulling it straight out.
If you do not see the jammed paper, go to the next step.
8. Pull the toner cartridge out.
Troubleshooting_ 85
9. Remove the jammed paper by gently pulling it straight out.
10. Insert the toner cartridge back into the machine.
11. Close the inner cover and the scan unit in order. Printing automatically
resumes.
SOLVING OTHER PROBLEMS
The following chart lists some trouble conditions that may occur and the
recommended solutions. Follow the suggested solutions until the problem is
corrected. If the problem persists, contact a service representative.
Other problems include:
•See "Power problems" on page 85.
•See "Paper feeding problems" on page 86.
•See "Printing problems" on page 86.
•See "Printing quality problems" on page 88.
•See "Copying problems" on page 90.
•See "Scanning problems" on page 90.
•See "Samsung Scan and Fax Manager Problem" on page 91.
•See "Common Windows problems" on page 91.
•See "Common Linux problems" on page 91.
•See "Common Macintosh problems" on page 92.
Power problems
Click this link to open an animation about solving power problems.
CONDITION SUGGESTED SOLUTIONS
The machine is
not receiving
power,
or the connection
cable between the
computer and the
machine is not
connected
properly.
•Plug in the power cord and press Power
button on the control panel.
•Disconnect the machine cable and reconnect it.
-For Local Printing
-For Network Printing (SCX-3205W(K) only)
Troubleshooting_ 86
Paper feeding problems
CONDITION SUGGESTED SOLUTIONS
Paper jams during
printing.
Clear the paper jam (See "Clearing paper jams"
on page 83).
Paper sticks
together.
•Check the maximum paper capacity of the
tray (See "Print media specifications" on
page 97).
•Make sure that you are using the correct type
of paper (See "Print media specifications" on
page 97).
•Remove paper from the tray and flex or fan
the paper.
•Humid conditions may cause some paper to
stick together, replace with a new stack.
Multiple sheets of
paper do not feed.
Different types of paper may be stacked in the
tray. Load paper of only one type, size, and
weight.
Paper does not feed
into the machine.
•Remove any obstructions from inside the
machine.
•Paper has not been loaded correctly.
Remove paper from the tray and reload it
correctly.
•There is too much paper in the tray. Remove
excess paper from the tray.
•The paper is too thick. Use only paper that
meets the specifications required by the
machine (See "Print media specifications" on
page 97).
The paper keeps
jamming.
•There is too much paper in the tray. Remove
excess paper from the tray. If you are printing
on special materials, use the manual feeder.
•An incorrect type of paper is being used. Use
only paper that meets the specifications
required by the machine (See "Print media
specifications" on page 97).
•There may be debris inside the machine.
Clean the machine inside (See Cleaning the
inside).
Transparencies stick
together in the paper
exit.
Use only transparencies specifically designed
for laser printers. Remove each transparency as
it exits from the machine.
Envelopes skew or
fail to feed correctly.
Ensure that the paper guides are against both
sides of the envelopes.
Printing problems
CONDITION POSSIBLE
CAUSE SUGGESTED SOLUTIONS
The machine
does not print.
The machine is
not receiving
power.
Check the power cord
connections.
The machine is
not selected as
the default
machine.
Select your machine as your
default machine in your Windows.
Check the machine for the followings:
•The scan unit is not closed. Close the scan unit.
•Paper is jammed. Clear the paper jam (See
"Clearing paper jams" on page 83).
•No paper is loaded. Load paper (See "Loading
paper in the tray" on page 55).
•The toner cartridge is not installed. Install the toner
cartridge.
If a system error occurs, contact a service
representative.
The connection
cable between
the computer and
the machine is
not connected
properly.
Disconnect the machine cable and
reconnect it.
The connection
cable between
the computer and
the machine is
defective.
If possible, attach the cable to
another computer that is working
properly and print a job. You can
also try using a different machine
cable.
The port setting is
incorrect.
Check the Windows printer
settingsto
make sure that the print
job is sent to the correct port. If the
computer has more than one port,
make sure that the machine is
attached to the correct one.
The machine may
be configured
incorrectly.
Check the Printing Preferences
to ensure that all of the print
settings are correct (See "Opening
printing preferences" on page 60).
The printer driver
may be
incorrectly
installed.
Repair the machine software (See
"Installing USB connected
machine’s driver" on page 31).
The machine is
malfunctioning.
•Check the LEDs on the control
panel to see if the machine is
indicating a system error. If the
error cannot be cleared, contact
a service representative.
•Checking an error message is
also possible from the Smart
Panel on your computer (See
"Using the Smart Panel
program" on page 75).
Troubleshooting_ 87
The machine
does not print.
The document
size is so big that
the hard disk
space of the
computer is
insufficient to
access the print
job.
Allocate more hard disk space on
your computer for spooling, and try
printing.
The output tray is
full. It can hold up to 50 (80 g/m2)
sheets of plain paper. Once the
paper is removed from the output
tray, the machine resumes
printing.
The machine
selects print
materials from
the wrong paper
source.
The paper option
that was selected
in the Printing
Preferences may
be incorrect.
For many software applications,
the paper source selection is
found under the Paper tab within
the Printing Preferences. Select
the correct paper source. See the
printer driver help scree. (See
"Opening printing preferences" on
page 60).
A print job is
extremely slow.
The job may be
very complex.
Reduce the complexity of the page
or try adjusting the print quality
settings.
Half the page is
blank.
The page
orientation setting
may be incorrect.
Change the page orientation in
your application. See the printer
driver help screen.
The paper size
and the paper
size settings do
not match.
Ensure that the paper size in the
printer driver settings matches the
paper in the tray.
Or, ensure that the paper size in
the printer driver settings matches
the paper selection in the software
application settings you use.
The machine
prints, but the
text is wrong,
garbled, or
incomplete.
The machine
cable is loose or
defective.
Disconnect the machine cable and
reconnect. Try a print job that you
have already printed successfully.
If possible, attach the cable and
the machine to another computer
that you know works and try a print
job. Finally, try a new machine
cable.
The wrong printer
driver was
selected.
Check the application’s printer
selection menu to ensure that your
machine is selected.
The software
application is
malfunctioning.
Try printing a job from another
application.
The operating
system is
malfunctioning.
Exit Windows and reboot the
computer. Turn the machine off
and back on again.
CONDITION POSSIBLE
CAUSE SUGGESTED SOLUTIONS
The machine
prints, but the
text is wrong,
garbled, or
incomplete.
If you are in a
DOS
environment, the
font setting for
your machine
may be set
incorrectly.
See "Changing font setting" on
page 52.
Pages print, but
they are blank.
The toner
cartridge is
defective or out of
toner.
Redistribute the toner, if
necessary.
If necessary, replace the toner
cartridge.
The file may have
blank pages.
Check the file to ensure that it
does not contain blank pages.
Some parts, such
as the controller
or the board, may
be defective.
Contact a service representative.
The machine
does not print
PDF files
correctly. Some
graphics, text,
or illustrations
are missing.
Incompatibility
between the PDF
file and the
Acrobat products.
Printing the PDF file as an image
may enable the file to print. Turn
on Print As Image from the
Acrobat printing options.
It will take longer to print
when you print a PDF file as
an image.
The print quality
of photos is not
good. Images
are not clear.
The resolution of
the photo is very
low.
Reduce the photo size. If you
increase the photo size in the
software application, the resolution
will be reduced.
Before printing,
the machine
emits vapor
near the output
tray.
Using damp
paper can cause
vapor during
printing.
This is not a problem. Just keep
printing.
The machine
does not print
special- sized
paper, such as
billing paper.
Paper size and
paper size setting
do not match.
Set the correct paper size in the
Edit... in the Paper tab in the
Printing Preferences (See
"Opening printing preferences" on
page 60).
CONDITION POSSIBLE
CAUSE SUGGESTED SOLUTIONS
Troubleshooting_ 88
Printing quality problems
If the inside of the machine is dirty or paper has been loaded improperly,
there might be a reduction in print quality. See the table below to clear the
problem.
CONDITION SUGGESTED SOLUTIONS
Light or faded print •If a vertical white streak or faded area appears on
the page, the toner supply is low. You may be able
to temporarily extend the toner cartridge life (See
"Redistributing toner" on page 82). If this does not
improve the print quality, install a new toner
cartridge.
•The paper may not meet paper specification; for
example, the paper may be too moist or rough
(See "Print media specifications" on page 97).
•If the entire page is light, the print resolution
setting is too low or the toner save mode is on.
Adjust the print resolution and turn the toner save
mode off. See the help screen of the printer driver.
•A combination of faded or smeared defects may
indicate that the toner cartridge needs cleaning
(See "Cleaning the inside" on page 79).
Toner specks •The paper may not meet specification; for
example, the paper may be too moist or rough
(See "Print media specifications" on page 97).
•The transfer roller may be dirty. Clean the inside
of your machine. Contact a service representative.
•The paper path may need cleaning. Contact a
service representative.
Dropouts If faded areas, generally rounded, occur randomly on
the page:
•A single sheet of paper may be defective. Try
reprinting the job.
•The moisture content of the paper is uneven or
the paper has moist spots on its surface. Try a
different brand of paper (See "Print media
specifications" on page 97).
•The paper lot is bad. The manufacturing
processes can cause some areas to reject toner.
Try a different kind or brand of paper.
•Change the printer option and try again. Go to
Printing Preferences, click Paper tab, and set
type to Thick (See "Opening printing
preferences" on page 60).
•If these steps do not correct the problem, contact
a service representative.
White Spots If white spots appear on the page:
•The paper is too rough and a lot of dirt from a
paper falls to the inner devices within the
machine, so the transfer roller may be dirty.
Clean the inside of your machine (See "Cleaning
the inside" on page 79).
•The paper path may need cleaning (See
"Cleaning the inside" on page 79).
Vertical lines
G
If black vertical streaks appear on the page:
•The surface (drum part) of the toner cartridge
inside the machine has probably been scratched.
Remove the toner cartridge and install a new one
(See "Replacing the toner cartridge" on page 93).
If white vertical streaks appear on the page:
•The surface of the LSU part inside the machine
may be dirty (See "Cleaning the inside" on
page 79).
Black background If the amount of background shading becomes
unacceptable:
•Change to a lighter weight paper (See "Print
media specifications" on page 97).
•Check the environmental conditions: very dry
conditions or a high level of humidity (higher than
80% RH) can increase the amount of background
shading.
•Remove the old toner cartridge and, install a new
one (See "Replacing the toner cartridge" on
page 93).
Toner smear If toner smears on the page:
•Clean the inside of the machine (See "Cleaning
the inside" on page 79).
•Check the paper type and quality (See "Print
media specifications" on page 97).
•Remove the toner cartridge and then, install a
new one (See "Replacing the toner cartridge" on
page 93).
Vertical repetitive
defects
If marks repeatedly appear on the printed side of the
page at even intervals:
•The toner cartridge may be damaged. If you still
have the same problem, remove the toner
cartridge and, install a new one (See "Replacing
the toner cartridge" on page 93).
•Parts of the machine may have toner on them. If
the defects occur on the back of the page, the
problem will likely correct itself after a few more
pages.
•The fusing assembly may be damaged. Contact
a service representative.
CONDITION SUGGESTED SOLUTIONS
Troubleshooting_ 89
Background
scatter
A
Background scatter results from bits of toner
randomly distributed on the printed page.
•The paper may be too damp. Try printing with a
fresh ream of paper. Do not open packages of
paper until necessary so that the paper does not
absorb too much moisture.
•If background scatter occurs on an envelope,
change the printing layout to avoid printing over
areas that have overlapping seams on the
reverse side. Printing on seams can cause
problems.
•If background scatter covers the entire surface
area of a printed page, adjust the print quality
through your software application or in Printing
Preferences (See "Opening printing
preferences" on page 60).
Misformed
characters
•If characters are improperly formed and producing
hollow images, the paper stock may be too slick.
Try different paper (See "Print media
specifications" on page 97).
Page skew
A
aBb
C
AaBb
C
AaBb
C
AaBb
Cc
A
aBbC
c
•Ensure that the paper is loaded properly.
•Check the paper type and quality (See "Print
media specifications" on page 97).
•Ensure that the guides are not too tight or too
loose against the paper stack.
Curl or wave •Ensure that the paper is loaded properly.
•Check the paper type and quality. Both high
temperature and humidity can cause paper curl
(See "Print media specifications" on page 97).
•Turn the stack of paper over in the tray. Also try
rotating the paper 180° in the tray.
CONDITION SUGGESTED SOLUTIONS
Wrinkles or
creases
•Ensure that the paper is loaded properly.
•Check the paper type and quality (See "Print
media specifications" on page 97).
•Turn the stack of paper over in the tray. Also try
rotating the paper 180° in the tray.
Back of printouts
are dirty
Check for leaking toner. Clean the inside of the
machine (See "Cleaning the inside" on page 79).
Solid Color or
Black pages
A
•The toner cartridge may not be installed properly.
Remove the cartridge and reinsert it.
•The toner cartridge may be defective. Remove the
toner cartridge and install a new one (See
"Replacing the toner cartridge" on page 93).
•The machine may require repair. Contact a
service representative.
Loose toner •Clean the inside of the machine (See "Cleaning
the inside" on page 79).
•Check the paper type and quality (See "Print
media specifications" on page 97).
•Remove the toner cartridge and then, install a new
one (See "Replacing the toner cartridge" on
page 93).
•If the problem persists, the machine may require
repair. Contact a service representative.
Character Voids
A
Character voids are white areas within parts of
characters that should be solid black:
•If you are using transparencies, try another type
of transparency. Because of the composition of
transparencies, some character voids are
normal.
•You may be printing on the wrong surface of the
paper. Remove the paper and turn it over.
•The paper may not meet paper specifications
(See "Print media specifications" on page 97).
CONDITION SUGGESTED SOLUTIONS
Troubleshooting_ 90
Copying problems
CONDITION SUGGESTED SOLUTION
Copies are too light
or too dark.
Use Darkness in Copy feature to lighten or darken
the backgrounds of copies (See "Changing the
settings for each copy" on page 67).
Smears, lines,
marks, or spots
appear on copies.
G
•If the defects are on the original, use Darkness
in Copy feature to lighten the background of
your copies (See "Changing the settings for each
copy" on page 67).
•If there are no defects on the original, clean the
scan unit (See "Cleaning the scan unit" on
page 80).
Copy image is
skewed.
•Ensure that the original is face down on the
scanner glass.
•Check that the copy paper is loaded correctly.
Blank copies print
out.
Ensure that the original is face down on the scanner
glass.
Image rubs off the
copy easily.
•Replace the paper in the tray with paper from a
new package.
•In high humidity areas, do not leave paper in the
machine for extended periods of time.
Frequent copy paper
jams occur.
•Fan the stack of paper, then turn it over in the
tray. Replace the paper in the tray with a fresh
supply. Check/adjust the paper guides, if
necessary.
•Ensure that the paper is the proper paper weight.
•Check for copy paper or pieces of copy paper
remaining in the machine after a paper jam has
been cleared.
Toner cartridge
produces fewer
copies than
expected before
running out of toner.
•Your originals may contain pictures, solids, or
heavy lines. For example, your originals may be
forms, newsletters, books, or other documents
that use more toner.
•The scanner lid may be left open while copies
are being made.
•Turn the machine off and back on.
Scanning problems
Horizontal stripes
AaBbC
AaBbC
AaBbC
AaBbC
AaBbC
If horizontally aligned black streaks or smears
appear:
•The toner cartridge may be installed improperly.
Remove the cartridge and reinsert it.
•The toner cartridge may be defective. Remove
the toner cartridge and install a new one (See
"Replacing the toner cartridge" on page 93).
•If the problem persists, the machine may require
repair. Contact a service representative.
Curl If the printed paper is curled or paper does not feed
into the machine:
•Turn the stack of paper over in the tray. Also try
rotating the paper 180° in the tray.
•Change the printer option and try again. Go to
Printing Preferences, click Paper tab, and set
type to Thin (See "Opening printing preferences"
on page 60).
An unknown image
repetitively
appears on a few
sheets or loose
toner, light print, or
contamination
occurs.
Your machine is probably being used at an altitude of
1,000 m (3,281 ft.) or above.
The high altitude may affect the print quality such as
loose toner or light imaging. You can select a correct
altitude of your machine location (See "Altitude
adjustment" on page 51).
CONDITION SUGGESTED SOLUTIONS
CONDITION SUGGESTED SOLUTIONS
The scanner does not
work.
•Make sure that you place the original to be
scanned face down on the scanner glass.
•There may not be enough available memory to
hold the document you want to scan. Try the
Prescan function to see if that works. Try
lowering the scan resolution rate.
•Check that the machine cable is connected
properly.
•Make sure that thema
chine cable is not
defective. Switch the cable with a known good
cable. If necessary, replace the cable.
•Check that the scanner is configured correctly.
Check scan setting in the SmarThru or the
application you want to use to make certain that
the scanner job is being sent to the correct port
(for example, USB001).
The unit scans very
slowly.
•Check if the machine is printing received data.
If so, scan the document after the received data
has been printed.
•Graphics are scanned more slowly than text.
•Communication speed slows in scan mode
because of the large amount of memory
required to analyze and reproduce the scanned
image. Set your computer to the ECP printer
mode through BIOS setting. It will help to
increase the speed. For details about how to
set BIOS, refer to your computer user’s guide.
CONDITION SUGGESTED SOLUTION
Troubleshooting_ 91
Samsung Scan and Fax Manager Problem
CONDITION SUGGESTED SOLUTION
Samsung Scan and
Fax Manager does
not work.
Check your system requirements. Samsung Scan
and Fax Manager works in Windows and Mac OS
(See "System requirements" on page 30).
Common Windows problems
CONDITION SUGGESTED SOLUTIONS
“File in Use”
message appears
during installation.
Exit all software applications. Remove all software
from the startup group, then restart Windows.
Reinstall the printer driver.
“General Protection
Fault”, “Exception
OE”, “Spool 32”, or
“Illegal Operation”
messages appear.
Close all other applications, reboot Windows and
try printing again.
“Fail To Print”, “A
printer timeout error
occurred” messages
appear.
These messages may appear during printing. Just
keep waiting until the machine finishes printing. If
the message appears in ready mode or after
printing has been completed, check the connection
and/or whether an error has occurred.
Refer to the Microsoft Windows User’s Guide that came with your
computer for further information on Windows error messages.
Common Linux problems
Message appears on
your computer
screen:
•Device can’t be
set to the H/W
mode you want.
•Port is being used
by another
program.
•Port is Disabled.
•Scanner is busy
receiving or
printing data.
When the current
job is completed,
try again.
•Invalid handle.
•Scanning has
failed.
•There may be a copying or printing job in
progress. Try your job again when that job is
finished.
•The selected port is currently being used.
Restart your computer and try again.
•The machine cable may be improperly
connected or the power may be off.
•The scanner driver is not installed or the
operating environment is not set up properly.
•Ensure that the machine is properly connected
and the power is on, then restart your
computer.
•The USB cable may be improperly connected
or the power may be off.
CONDITION SUGGESTED SOLUTIONS
CONDITION SUGGESTED SOLUTIONS
The machine does
not print.
•Check if the printer driver is installed in your
system. Open Unified Driver Configurator and
switch to the Printers tab in Printers
configuration window to look at the list of
available machines. Make sure that your
machine is displayed on the list. If not, open
Add new printer wizard to set up your device.
•Check if the machine is started. Open Printers
configuration and select your machine on the
printers list. Look at the description in the
Selected printer pane. If its status contains
Stopped string, press Start button. After
that normal operation of the machine should be
restored. The “stopped” status might be
activated when some problems in printing
occurred. For instance, this could be an
attempt to print a document when the port is
claimed by a scanning application.
•Ensure the port is not busy. Since functional
components of machine (printer and scanner)
share the same I/O interface (port), the
situation of simultaneous access of different
user applications to the same port is possible.
To avoid possible conflicts, only one of them at
a time is allowed to gain control over the
device. The other user will encounter “device
busy” response. You should open ports
configuration and select the port assigned to
your machine. In the Selected port pane you
can see if the port is occupied by some other
application. If this is the case, you should either
wait for completion of the current job or press
the Release port button, if you are sure that
the present application is not functioning
properly.
•Check if your application has special print
option such as “-oraw”. If “-oraw” is specified in
the command line parameter, then remove it to
print properly. For Gimp front-end, select “print”
-> “Setup printer” and edit command line
parameter in the command item.
•The CUPS (Common Unix Printing System)
version distributed with SuSE Linux 9.2
(cups-1.1.21) has a problem with ipp (Internet
Printing Protocol) printing.Use the socket
printing instead of ipp or install a later version
of CUPS (cups-1.1.22 or higher).
The machine does
not print whole
pages, and output is
printed on half the
page.
It is a known problem that occurs when a color
machine is used on version 8.51 or earlier of
Ghostscript, 64-bit Linux OS, and has been
reported to bugs.ghostscript.com as Ghostscript
Bug 688252.The problem is solved in AFPL
Ghostscript v. 8.52 or above. Download the latest
version of AFPL Ghostscript from
http://sourceforge.net/projects/ghostscript/ and
install it to solve this problem.
Troubleshooting_ 92
Refer to the Linux User’s Guide that came with your computer for
further information on Linux error messages.
Common Macintosh problems
CONDITION SUGGESTED SOLUTIONS
The machine does
not print PDF files
correctly. Some
parts of graphics,
text, or illustrations
are missing.
Printing the PDF file as an image may enable the
file to print. Turn on Print As Image from the
Acrobat printing options.
It will take longer to print when you print a
PDF file as an image.
The document has
printed, but the print
job has not
disappeared from
the spooler in Mac
OS X 10.3.2.
Update your Mac OS to Mac OS X 10.3.3. or
higher.
Some letters are not
displayed normally
during the Cover
page printing.
Mac OS cannot create the font during the Cover
page printing. The English alphabet and numbers
are displayed normally on the Cover page.
When printing a
document in
Macintosh with
Acrobat Reader 6.0
or higher, colors
print incorrectly.
Make sure that the resolution setting in your
machine driver matches the one in Acrobat
Reader.
Refer to the Macintosh User’s Guide that came with your computer for
further information on Macintosh error messages.
I cannot scan via
Gimp Front-end.
Check if Gimp Front-end has Xsane: Device
dialog on the Acquire menu. If not, you should
install Xsane plug-in for Gimp on the your
computer. You can find Xsane plug-in package for
Gimp on Linux distribution CD or Gimp home
page. For the detailed information, refer to the
Help for Linux distribution CD or Gimp Front-end
application.
If you wish to use another kind of scan
application, refer to application’s Help.
I encounter the
“Cannot open port
device file” error
when printing a
document.
Avoid changing print job parameters (via LPR
GUI, for example) while a print job is in progress.
Known versions of CUPS server break the print
job whenever print options are changed and then
try to restart the job from the beginning. Since
Unified Linux Driver locks the port while printing,
the abrupt termination of the driver keeps the port
locked and unavailable for subsequent print jobs.
If this situation occurs, try to release the port by
selecting Release port in Port configuration
window.
The machine does
not appear on the
scanners list.
•Ensure your machine is attached to your
computer, connected properly via the USB port,
and is turned on.
•Ensure the scanner driver for your machine is
installed in your system. Open Unified Linux
Driver configurator, switch to Scanners
configuration, then press Drivers. Make sure
that driver with a name corresponding to your
machine's name is listed in the window.
•Ensure the port is not busy. Since functional
components of machine (printer and scanner)
share the same I/O interface (port), the
situation of simultaneous access of different
user applications to the same port is possible.
To avoid possible conflicts, only one of them at
a time is allowed to gain control over the
device. The other user will encounter “device
busy” response. This usually happens when
starting a scan procedure. An appropriate
message box appears.
To identify the source of the problem, open the
Ports configuration and select the port
assigned to your scanner, port's symbol
/dev/mfp0 corresponds to LP:0 designation
displayed in the scanners’ options, /dev/mfp1
relates to LP:1, and so on. USB ports start at
/dev/mfp4, so scanner on USB:0 relates to
/dev/mfp4 respectively and so forth
sequentially. In the Selected port pane, you
can see if the port is occupied by another
application. If this is the case, you should either
wait for completion of the current job or press
the Release port button, if you are sure that
the present port application is not functioning
properly.
CONDITION SUGGESTED SOLUTIONS
The machine does
not scan.
•Ensure a document is loaded into the machine,
ensure your machine is connected to the
computer.
•If there is an I/O error while scanning.
CONDITION SUGGESTED SOLUTIONS
Supplies_ 93
13.supplies
This chapter provides information about purchasing supplies and maintenance parts available for your machine.
This chapter includes:
•How to purchase
•Available supplies
•Available maintenance parts
•Replacing the toner cartridge
Available accessories may differ from country to country. Contact your
sales representatives to obtain the list of available accessories.
HOW TO PURCHASE
To order Samsung-authorized supplies, accessories, and maintenance
parts, contact your local Samsung dealer or the retailer where you
purchased your machine. You can also visit www.samsung.com/supplies,
select your country/region, and obtain information on calling for service.
AVAILABLE SUPPLIES
When supplies reach their lifespan, you can order the following types of
supplies for your machine:
TYPE AVERAGE
YIELDA
a.Declared yield value in accordance with ISO/IEC 19752.
Standard yield
toner cartridge
Approx. 1,500
pages
•104 (MLT-D104S)
•Region Ab: 1042 (MLT-D1042S)
b.Region A: Albania, Austria, Belgium, Bosnia, Bulgaria, Croatia, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece,
Hungary, Italy, Latvia, Lithuania, Macedonia, Netherlands, Norway,
Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, UK.
•Region Bc: 1043 (MLT-D1043S)
c. Region B: Bangladesh, China, India, Nepal, Vietnam.
To replace a toner cartridge, see "Replacing the toner cartridge" on
page 93.
Depending on the options and job mode used, the toner cartridge’s
lifespan may differ.
You must purchase supplies, including toner cartridges, in the same
country where you purchased your machine. Otherwise, supplies will
be incompatible with your machine since the system configuration of
these vary from country to country.
Samsung does not recommend using non-genuine Samsung toner
cartridge such as refilled or remanufactured. Samsung cannot
guarantee non-genuine Samsung toner cartridge's quality. Service or
repair required as a result of using non-genuine Samsung toner
cartridges will not be covered under the machine warranty.
AVAILABLE MAINTENANCE PARTS
To purchase maintenance parts, contact the source where you bought the
machine.
Replacing maintenance parts can be performed only by an authorized
service provider, dealer, or the retailer where you bought the machine. The
warranty does not cover the replacement of any maintenance parts once it
has reached its “Average Yield”.
Maintenance parts are replaced at specific intervals to avoid print quality
and paper feed problems resulting from worn parts, see table below. The
purpose of which is to maintain your machine in top working condition. The
maintenance parts below should be replaced when the life span of each
item has been met.
PARTS AVERAGE YIELDA
a.Yield is affected by operating system used, computing performance,
application software, connecting method, media type, media size, and
job complexity.
Transfer roller Approx. 30,000 pages
Fuser unit Approx. 30,000 pages
Pickup roller Approx. 30,000 pages
Cassette unit Approx. 30,000 pages
REPLACING THE TONER CARTRIDGE
Click this link to open an animation about replacing a toner cartridge.
When the toner cartridge reaches its estimated cartridge life,
•The Smart Panel program window appears on the computer telling you
the toner cartridge needs to be replaced.
•The machine stops printing.
At this stage, the toner cartridge needs to be replaced. Check the model
number for the toner cartridge used in your machine (See "Available
supplies" on page 93).
MODEL NUMBER
Supplies_ 94
1. Turn the machine off, then wait a few minutes for the machine to cool.
2. Open the scan unit.
3. Open the inner cover.
4. Pull the toner cartridge out.
5. Take a new toner cartridge out of its package.
6. Remove the cap protecting the toner cartridge.
7. Slowly shake the cartridge side to side five or six times to distribute the
toner evenly inside the cartridge. It will assure maximum copies per
cartridge.
If toner gets on your clothing, wipe it off with a dry cloth and wash
clothing in cold water. Hot water sets toner into fabric.
Do not touch the drum located in the toner cartridge or imaging
unit. Use the handle on the cartridge to avoid touching this area.
8. Hold the toner cartridge by the handle and slowly insert the cartridge into
the opening in the machine.
Tabs on the sides of the cartridge and corresponding grooves within the
machine will guide the cartridge into the correct position until it locks into
place completely.
9. Close the inner cover and the scan unit completely in order.
10. Turn the machine on.
Specifications_ 95
14.specifications
This chapter covers the machines primary specifications.
This chapter includes:
•Hardware specifications
•Environmental specifications
•Electrical specifications
•Print media specifications
The specification values are listed below: specifications are subject to change without notice: See www.samsung.com/printer for possible changes in
information.
HARDWARE SPECIFICATIONS
ITEM DESCRIPTION
Dimension Height 234 mm (9.21 inches)
Depth 299 mm (11.77 inches)
Width 388 mm (15.28 inches)
Weight Machine with consumables 4.72 kg (10.41 lbs)
Package weight Paper 1 kg (2.21 lbs)
Plastic 0.19 kg (0.42 lbs)
ENVIRONMENTAL SPECIFICATIONS
ITEM DESCRIPTION
Noise Levela
a.Sound Pressure Level, ISO 7779. Configuration tested: machine basic installation, A4 paper, simplex printing.
Ready mode 26 dB(A)
Printing mode 49 dB(A)
Copying mode 49 dB(A)
Temperature Operation 10 to 32 °C (50 to 90 °F)
Storage (unpacked) 0 to 40 °C (32 to 104 °F)
Humidity Operation 10 to 80% RH
Storage (unpacked) 20 to 80% RH
ELECTRICAL SPECIFICATIONS
Power requirements are based on the country/region where the device is sold. Do not convert operating voltages. Doing so might damage the device and
void the product warranty.
ITEM DESCRIPTION
Power ratinga
a.See the rating label on the machine for the correct voltage (V), frequency (hertz) and type of current (A) for your machine.
110 volt models AC 110 - 127 V
220 volt models AC 220 - 240 V
Power consumption Average operating mode Less than 270 W
Ready mode Less than 36 W
Power save mode •SCX-3200: 3.8 W
•SCX-3205W(K): 5.6 W
Power off mode Less than 0.45 W
Specifications_ 96
_ 97
PRINT MEDIA SPECIFICATIONS
TYPE SIZE DIMENSIONS
PRINT MEDIA WEIGHT BA
.20
232 .
/CAPACITY
Plain paper 26 27 8.0 .00 60 20 2632
080
220
60 63 263
26 36 8.0 .00
2 6 330 8. 0 3.00
20 27 8.27 .6
26 33 8.0 3.0
82 2 7 7. 7 0. 2
76 2 0 6. 3 .8
8 267 7.2 0
8 2 0 .83 8.27
Envelope 8 3.87 7. 0 70
220 2
.0 0 2 .2 .0
0 220 .33 8.66
62 22 6.38 .02
Thick paper 022
0
063223
Thin paper 60 70 26
Transparency 38 6 237 3
Labelsc
.0020.
20 0 232 0
Card stock 063
228 3
Minimum size (custom) 76 6 3.00 7.70 60 63 263
Maximum size (custom) 26 36 8.0 .02
. .
TRAY MANUAL FEEDING IN THE
TRAY
_ 98
contact samsung worldwide
.
COUNTRY/REG
ION
CUSTOMER CARE
CENTER WEB SITE
ARGENTINE 0800 333 3733 . .
ARMENIA 08000
AUSTRALIA 300 362 603 . .
AUSTRIA 08 0 726786
€ 0.07
..
AZERBAIJAN 088
BAHRAIN 8000 726
BELARUS 8 0 800 00 00 . .
..
BELGIUM 02 20 2 8 . .
..
BRAZIL 0800 2 2
00 0000
..
CANADA 800
726 786
..
CHILE 800 726 786 . .
CHINA 0080 88
0067 880
..
COLOMBIA 0 8000 2 2 . .
COSTA RICA 0 800 07 7267 . .
CZECH
REPUBLIC
800
800 726786
..
.þáþíž
á3 7 80 00 8
DENMARK 70 70 70 . .
ECUADOR 800 0 7267 . .
EGYPT 0800 726786
EIRE 08 8 7 7 00 . .
EL SALVADOR 800 622 . .
ESTONIA 800 7267 . .
KAZAKHSTAN 8 0 800 00 00 . .
KYRGYZSTAN 00 800 00 00
FINLAND 030 6227 . .
FRANCE 0 8 63 00 00 . .
GERMANY 080
726 786 € 0
..
GEORGIA 8800
GUATEMALA 800 2 00 3 . .
HONDURAS 800 7 267 . .
HONG KONG 82368 68 . .
..
HUNGARY 06 80
726 786
..
INDIA 3030 8282
800 00
800 3000 8282
800 266 8282
..
INDONESIA 0800 2 8888
02 6 7777
..
ITALIA 800 726 786 . .
JAMAICA 800 23 7267 . .
JAPAN 020327 27 . .
JORDAN 800 22273
KSA 200 2 230 . .
BAHRAIN 8000 726
LATVIA 8000 7267 . .
LITHUANIA 8 800 77777 . .
LUXEMBURG 26 03 7 0 . .
MALAYSIA 800 88 . .
MEXICO 0800
726 786
..
MOLDOVA 00 800 00 00 . .
..
NETHERLANDS 000
0 00 726786 €
00
..
NEW ZEALAND 0800 0800 726
786
..
NICARAGUA 00 800 077267 . .
NORWAY 8680 . .
PANAMA 800 7267 . .
COUNTRY/REG
ION
CUSTOMER CARE
CENTER WEB SITE
_ 99
PHILIPPINES 800 0
726 786
800 3
726786
800 8
726786
02 80 777
..
POLAND 080
72678
022 607 3 33
..
PORTUGAL 80820
726 786
..
PUERTO RICO 800 682 3 80 . .
QATAR 800 22
REP. DOMINICA 800 7 2676 . .
RUSSIA 8800 . .
SINGAPORE 800
726 786
..
SLOVAKIA 0800
726 786
..
SOUTH AFRICA 0860
726 786
..
SPAIN 02 02 72
678
..
SWEDEN 077 726 786 . .
SWITZERLAND 08 8 726786
0.08
..
SYRIA 82 22 73
TADJIKISTAN 8 0 800 00 00
TAIWAN 0800 32 . .
THAILAND 800 2 3232
02 68 3232
..
TRINIDAD &
TOBAGO
800
726 786
..
TURKEY 77 . .
U.A.E 800 726 786 . .
U.K 08
726 786
..
U.S.A 800
726 786
..
UKRAINE 8 800 02 000 . .
..
COUNTRY/REG
ION
CUSTOMER CARE
CENTER WEB SITE
UZBEKISTAN 8 0 800 00 00 . .
VENEZUELA 0 800 00 303 . .
VIETNAM 800 88 88 . .
COUNTRY/REG
ION
CUSTOMER CARE
CENTER WEB SITE
_ 100
glossary
.
802.11
802.
802 .
802.11b/g
802. 2. .
802. 802. .
802.
.
Access point
.
ADF
.
AppleTalk
.8
.
BIT Depth
.
.
.
.
BMP
.
BOOTP
.
.
.
.
.
CCD
.
.
Collation
.
.
Control Panel
.
.
Coverage
.
.
.
CSV
.
.
.
DADF
.
Default
.
DHCP
.
.
.
DIMM
.
.
_ 101
DLNA
.
DNS
.
Dot Matrix Printer
.
DPI
.
.
DRPD
.
.
Duplex
.
.
Duty Cycle
.
.
.
8 000 20
200 .
ECM
.
.
Emulation
.
.
.
Ethernet
.
.
802.3.
0.
EtherTalk
.8
.
FDI
..
FTP
.
Fuser Unit
.
.
.
Gateway
.
.
Grayscale
.
Halftone
.
.
HDD
.
IEEE
.
_ 102
IEEE 1284
28
.28
.
Intranet
.
.
IP address
.
IPM
.
.
IPP
.
.
IPX/SPX
.
.
.
.
ISO
.
.
ITU-T
.
..
ITU-T No. 1 chart
.
JBIG
.
JPEG
.
.
LDAP
.
LED
.
MAC address
.8
2..
00 00 0 3 .
.
MFP
.
MH
..
.
.
MMR
.6.
Modem
.
_ 103
MR
.. .
.
NetWare
.
.
.
OPC
.
.
Originals
.
OSI
.
.
.
PABX
.
PCL
.
.
PDF
.
PostScript
.
.
Printer Driver
.
Print Media
.
PPM
.
PRN file
.
Protocol
.
PS
.
PSTN
.
RADIUS
.
.
Resolution
.
.
SMB
.
.
SMTP
.
.
.
_ 104
SSID
.
.
32 .
Subnet Mask
.
TCP/IP
.
TCR
.
.
TIFF
.
.
.
.
Toner Cartridge
.
.
.
TWAIN
.
.
.
UNC Path
.
URL
.
.
USB
..
.
Watermark
.
282
.
WEP
802. .
.
WIA
.
.
WPA
.
WPA-PSK
.
.
.
WPS
.
.
XPS
.
.
_ 105
index
A
B
6
6
27
C
62
7
7
80
7
26
20
67
D
6
F
60
22
2
7
2
2
2
G
00
I
67
J
83
83
L
27
3
33
66
6
72
30
3
76
37
3
6
M
2
38
32
6
7
3
30
30
36 8
3
6
N
3
38
37
3
3
63
36 37 7 8
3
2
6
6
O
3
8
63
63
63
P
2
2
6
2
7
6
3
7
7
7
7
7
_ 106
66
6
66
6
62
6
6
6
6
6
6
6
6
6
7
0
86
88
R
2
2
S
8
8
3
3
3
6
6
72
7
70
7
8
36 37 7 8
2
7
7
3
8
3
3
7
T
8
8
8
82
3
80
28
70
U
27
3
6
63
62
W
62
63
62
62
7
27
37
3
6
3
30
30
36 7
7
7
