Users Manual 1

Digital Laser MFPSCX-4100
About the User’s GuidesYour machine comes with the two user’s guides:This Laser MFP User’s Guide provides information you need for setting up your machine and installing the supplied software. It also provides all of the detailed instructions for using your machine as a printer, a scanner and a copier and information for maintaining and troubleshooting the machine.The SmarThru 4 User’s Guide provides the basic description about using the multi-function application. Samsung SmarThru allows you to scan and edit images, and to scan for copying, faxing and sending an e-mail on your computer. You can also find a brief description on the automatic text recognition program, AnyPage.This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any changes, direct or indirect, arising from or related to the use of this manual.© 2004 Samsung Electronics Co., Ltd. All rights reserved.• SCX-4100 and Samsung logo are trademarks of Samsung Electronics Co., Ltd.• PCL and PCL 6 are trademarks of Hewlett-Packard Company.•Microsoft, Windows, Windows 9x, Window Me, Windows 2000, Windows NT 4.0 and Windows XP are registered trademarks of Microsoft Corporation.• Apple, AppleTalk, TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc.• PostScrip 3, Adobe Acrobat Reader, Adobe PhotoDeluxe and Adobe Photoshop are trademarks of Adobe System, Inc.• All other brand or product names are trademarks of their respective companies or organizations.
iiCONTENTSChapter 1: GETTING STARTEDUnpacking .................................................................... 1.2Selecting a Location ................................................. 1.3Understanding the Component Location ........................... 1.4Front View .............................................................. 1.4Rear View ............................................................... 1.4Control Panel Functions ............................................ 1.5 Installing the Toner Cartridge ........................................ 1.6Loading Paper .............................................................. 1.8Changing the Paper Size in the Paper Tray ................ 1.10Making Connections .................................................... 1.11Turning the Machine On ............................................... 1.12About Samsung Software ............................................. 1.13Printer Driver Features ........................................... 1.14Installing Samsung Software in Windows ....................... 1.15System Requirements ............................................ 1.15Installing Samsung Software ................................... 1.16Installing Samsung SmarThru ................................. 1.19Repairing Software ...................................................... 1.22Removing Software ..................................................... 1.23Uninstalling the MFP Driver ..................................... 1.23Uninstalling Samsung SmarThru .............................. 1.24Changing the Display Language .................................... 1.25Setting the Paper Size and Type ................................... 1.26Using the Save Modes ................................................. 1.27Toner Save Mode .................................................. 1.27Power Save Mode .................................................. 1.27Chapter 2: PAPER HANDLINGSelecting Print Materials ................................................. 2.2Type, Input Sources and Capacities ........................... 2.2Guidelines for Paper and Special Materials .................. 2.3Selecting an Output Location .......................................... 2.4Printing to the Front Output Tray (Face down) ............. 2.5Printing to the Rear Output Slot (Face up) .................. 2.5Loading Paper in the Paper Tray ...................................... 2.7Using the Manual Feeder ................................................ 2.8Setting the Paper Type and Size for the Manual Feeder 2.10Chapter 3: PRINTINGPrinting a Document in Windows ..................................... 3.2Canceling a Print Job ................................................ 3.5Using a Favorite Setting ........................................... 3.6Using Help .............................................................. 3.6Setting Paper Properties ................................................ 3.7Setting Graphic Properties .............................................. 3.8Printing Multiple Pages on One Sheet of the Paper ........... 3.10Printing a Reduced or Enlarged Document ...................... 3.12Fitting Your Document to a Selected Paper Size .............. 3.13
iiiPrinting Posters .......................................................... 3.14Using Watermarks ...................................................... 3.15Using an Existing Watermark .................................. 3.15Creating a Watermark ............................................ 3.16Editing a Watermark .............................................. 3.17Deleting a Watermark ............................................ 3.17Using Overlays ........................................................... 3.18What is an Overlay? ............................................... 3.18Creating a New Page Overlay .................................. 3.18Using a Page Overlay ............................................. 3.20Deleting a Page Overlay ......................................... 3.21Setting Up the Locally Shared Printer ............................. 3.22In Windows 9x/Me ................................................. 3.22In Windows NT 4.0/2000/XP ................................... 3.23Chapter 4: COPYINGLoading Paper for Copying ............................................. 4.2Preparing a Document ................................................... 4.2Making a Copy .............................................................. 4.2Setting Copy Options ..................................................... 4.4Darkness ................................................................ 4.4Number of Copies .................................................... 4.5Reduced/Enlarged Copying ....................................... 4.5Original Type .......................................................... 4.6Using Special Copy Features ........................................... 4.7Clone Copying ......................................................... 4.7Auto Fit Copying ...................................................... 4.82 sided in 1 page Copying ......................................... 4.82-up Copying .......................................................... 4.9Poster Copying ...................................................... 4.10Changing the Default Settings ...................................... 4.11Setting the Time Out Option ......................................... 4.12Chapter 5: SCANNINGScanning Basics ............................................................ 5.2Scanning Using Samsung SmarThru ................................ 5.2Scanning Process with TWAIN-enabled Software ............... 5.6Chapter 6: USING OTHER OPERATING SYSTEMSInstalling Software in Macintosh ...................................... 6.2System Requirements .............................................. 6.2Installing Software .................................................. 6.3Setting Up Your Printer .................................................. 6.6Printing a Document ...................................................... 6.7Using Advanced Printing Features ................................... 6.9Mac OS 8.6 ~ 9.x .................................................... 6.9Mac OS 10.x ......................................................... 6.12Getting Started ........................................................... 6.14Installing the MFP Driver .............................................. 6.15System Requirements ............................................ 6.15Installing the MFP Driver ........................................ 6.16Uninstalling the MFP Driver ..................................... 6.17Using the MFP Configurator .......................................... 6.18Opening the MFP Configurator ................................. 6.18Printers Configuration ............................................ 6.19
ivScanners Configuration .......................................... 6.20MFP Ports Configuration ......................................... 6.21Configuring Printer Properties ....................................... 6.22Printing a Document .................................................... 6.23Printing from Applications ....................................... 6.23Printing Files ......................................................... 6.24Scanning a Document .................................................. 6.25Using the Image Editor .......................................... 6.29Printing from DOS Applications ..................................... 6.31About the Remote Control Panel .............................. 6.31Installing the Remote Control Panel ......................... 6.31Selecting Print Settings .......................................... 6.33Chapter 7: MAINTENANCEPrinting the System Data List ......................................... 7.2Clearing the Memory ..................................................... 7.2Cleaning Your Machine ................................................... 7.3Cleaning the Outside ................................................ 7.3Cleaning the Inside .................................................. 7.3Cleaning the Document Glass .................................... 7.5Maintaining the Toner Cartridge ...................................... 7.6Redistributing Toner ................................................ 7.7Replacing the Toner Cartridge ................................... 7.8Cleaning the Drum .................................................. 7.9Consumables and Replacement Parts ............................. 7.10Chapter 8: TROUBLESHOOTINGClearing Paper Jams ...................................................... 8.2In the Paper Tray .................................................... 8.2In the Paper Exit Area .............................................. 8.3In the Fuser Area or Around the Toner Cartridge .......... 8.4In the Manual Feeder ............................................... 8.5Tips for Avoiding Paper Jams ..................................... 8.5Clearing LCD Error Messages .......................................... 8.7Solving Problems .......................................................... 8.9Paper Feeding Problems ........................................... 8.9Printing Problems .................................................. 8.10Printing Quality Problems ....................................... 8.13Copying Problems .................................................. 8.18Scanning Problems ................................................ 8.19Common Macintosh Problems .................................. 8.20Common Linux Problems ........................................ 8.21Appendix A: SPECIFICATIONSGeneral Specifications ................................................... A.2Scanner and Copier Specifications ................................... A.3Printer Specifications ..................................................... A.4Paper Specifications ...................................................... A.5Overview ................................................................ A.5Supported Sizes of Paper .......................................... A.5Guidelines for Using Paper ........................................ A.6Paper Specifications ................................................. A.7Paper Output Capacity ............................................. A.7Paper Storage Environment ...................................... A.8Envelopes ............................................................... A.8Labels .................................................................. A.10Transparencies ...................................................... A.10
viiImportant Precautions and Safety InformationWhen using this machine, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to people:1. Read and understand all instructions.2. Use common sense whenever operating electrical appliances.3. Follow all warnings and instructions marked on the machine and in the literature accompanying the machine.4. If an operating instruction appears to conflict with safety information, heed the safety information. You may have misunderstood the operating instruction. If you cannot resolve the conflict, contact your sales or service representative for assistance.5. Unplug the machine from the AC wall socket and/or telephone jack before cleaning. Do not use liquid or aerosol cleaners. Use only a damp cloth for cleaning.6. Do not place the machine on an unstable cart, stand or table. It may fall, causing serious damage.7. Your machine should never be placed on, near or over a radiator, heater, air conditioner or ventilation duct.8. Do not allow anything to rest on the power cable. Do not locate your machine where the cords will be abused by persons walking on them.9. Do not overload wall outlets and extension cords. This can diminish performance, and may result in the risk of fire or electric shock.10. Do not allow pets to chew on the AC power, telephone or PC interface cords.11. Never push objects of any kind into the machine through case or cabinet openings. They may touch dangerous voltage points, creating a risk of fire or shock. Never spill liquid of any kind onto or into the machine.12. You machine may have a heavy cover for optimal pressure on the document for the best scanning and/or faxing. In this case, replace the cover after placing document on the scan glass, by holding and moving it down slowly until it seats on its location.13. To reduce the risk of electric shock, do not disassemble the machine. Take it to a qualified service technician when repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly could cause electric shock when the unit is subsequently used. 14. Unplug the machine from the telephone jack, PC and AC wall outlet, and refer servicing to qualified service personnel under the following conditions:• When any part of the power cord, plug, or connecting cable is damaged or frayed.• If liquid has been spilled into the machine.
viii• If the machine has been exposed to rain or water.• If the machine does not operate properly after instructions have been followed.• If the machine has been dropped, or the cabinet appears damaged.• If the machine exhibits a sudden and distinct change in performance.15. Adjust only those controls covered by the operating instructions. Improper adjustment of other controls may result in damage, and may require extensive work by a qualified service technician to restore the machine to normal operation.16. Avoid using this machine during a lightning storm. There may be a remote risk of electric shock from lightning. If possible, unplug the AC power and telephone cord for the duration of the lightning storm.17. SAVE THESE INSTRUCTIONS.Laser Safety StatementThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 825.Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance, or prescribed service condition.WARNING Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible, can damage your eyes.
ixOzone SafetyDuring normal operation, this machine produces ozone. The ozone produced does not present a hazard to the operator. However, it is advisable that the machine be operated in a well ventilated area.If you need additional information about ozone, please request your nearest Samsung dealer.Power SaverThis machine contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the machine does not receive data for an extended period of time, power consumption is automatically lowered. The energy star emblem does not represent EPA endorsement of any machine or service.RecyclingPlease recycle or dispose of the packaging material for this product in an environmentally responsible manner.
xRadio Frequency EmissionsFCC Information to the UserThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or experienced radio TV technician for help.CAUTION: Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.Canadian Radio Interference RegulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.Fax BrandingThe Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone facsimile machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission the following information:(1) the date and time of transmission(2) identification of either business, business entity or individual sending the message; and(3) telephone number of either the sending machine, business, business entity or individual.
xiThe Telephone Company may make changes in its communications facilities, equipment operations, or procedures where such action is reasonably required in the operation of its business and is not inconsistent with the rules and regulations in FCC Part 68. If such changes can be reasonably expected to render any customer terminal equipment incompatible with telephone company communications facilities, or require modification or alteration of such terminal equipment, or otherwise materially affect its use or performance, the customer shall be given adequate notice in writing, to allow the customer an opportunity to maintain uninterrupted service.Ringer Equivalence NumberThe Ringer Equivalence Number and FCC Registration Number for this machine may be found on the label located on the bottom or rear of the machine. In some instances you may need to provide these numbers to the telephone company.The Ringer Equivalence Number (REN) is a measure of the electrical load placed on the telephone line, and is useful for determining whether you have “overloaded” the line. Installing several types of equipment on the same telephone line may result in problems making and receiving telephone calls, especially ringing when your line is called. The sum of all Ringer Equivalence Numbers of the equipment on your telephone line should be less than five in order to assure proper service from the telephone company. In some cases, a sum of five may not be usable on your line. If any of your telephone equipment is not operating properly, you should immediately remove it from your telephone line, as it may cause harm to the telephone network.WARNING:FCC Regulations state that changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. In the event that terminal equipment causes harm to the telephone network, the telephone company should notify the customer that service may be stopped. However, where prior notice is impractical, the company may temporarily cease service, providing that they:a) promptly notify the customer.b) give the customer an opportunity to correct the equipment problem.c) inform the customer of the right to bring a complaint to the Federal Communication Commission pursuant to procedures set out in FCC Rules and Regulations Subpart E of Part 68.
xiiYou should also know that:• Your machine is not designed to be connected to a digital PBX system.• If you intend to use a computer modem or fax modem on the same phone line as your machine, you may experience transmission and reception problems with all the equipment. It is recommended that no other equipment, except for a regular telephone, share the line with your machine.• If your area experiences a high incidence of lightning or power surges, we recommend that you install surge protectors for both the power and the telephone lines. Surge protectors can be purchased from your dealer or telephone and electronic specialty stores.• When programming emergency numbers and/or making test calls to emergency numbers, use a non-emergency number to advise the emergency service dispatcher of your intentions. The dispatcher will give you further instructions on how to actually test the emergency number.• This machine may not be used on coin service or party lines.• This machine provides magnetic coupling to hearing aids.• You may safely connect this equipment to the telephone network by means of a standard modular jack, USOC RJ-11C.
xiiiDeclaration of Conformity (European Countries)Approvals and CertificationsThe CE marking applied to this product symbolizes Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable 93/68/EEC Directives of the European Union as of the dates indicated:January 1, 1995: Council Directive 73/23/EEC Approximation of the laws of the member states related to low voltage equipment.January 1, 1996: Council Directive 89/336/EEC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic compatibility.March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.EC CertificationCertification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of European countries.In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.
xivReplacing the Fitted Plug (for UK Only)IMPORTANTThe mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover. Please contact the company from where the machine was purchased.The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.WARNINGIf you cut off the moulded plug, get rid of it straight away.You cannot rewire the plug and you may receive an electric shock if you plug it into a socket.IMPORTANT WARNING: You must earth this machine.The wires in the mains lead have the following color code:• Green and Yellow: Earth• Blue: Neutral• Brown: LiveIf the wires in the mains lead do not match the colors marked in your plug, do the following:You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety `Earth symbol' or colored green and yellow or green.You must connect the blue wire to the pin which is marked with the letter “N” or colored black.You must connect the brown wire to the pin which is marked with the letter “L” or colored red.You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.
xvPosition Only
xviDifferences Between British and American EnglishWARNING• Do not disassemble the machine as it may give you an electric shock.• If you print large amount of copies, the surface of the output tray may become hot. Be careful not to touch the surface, and keep children away from the surface.British English American English(Re)dialling(Re)dialingColourColorEmphasiseEmphasizeRecogniseRecognizeOrganiseOrganizeAuthoriseAuthorizeCancellingCancelingCustomiseCustomizeSocketJackLabellingLabeling
1GETTING STARTEDThank you for purchasing this multifunctional product. Your machine provides you with printing, copying, and scanning functions!This chapter gives you step-by-step instructions for setting up your machine.This chapter includes:•Unpacking• Understanding the Component Location• Installing the Toner Cartridge• Loading Paper•Making Connections• Turning the Machine On• About Samsung Software• Installing Samsung Software in Windows• Repairing Software• Removing Software• Changing the Display Language• Setting the Paper Size and Type• Using the Save Modes
GETTING STARTED1.2UnpackingRemove the machine and all accessories from the packing carton. Make sure that the machine has been packed with the following items. If there is a missing item, contact the retailer where you bought the machine:Remove the packing tape from the front, back and sides of the machine.Starter Toner Cartridge AC Power Cord** The appearance of the power cord may differ according to your country’s specifications.Quick Install Guide CD-ROM**** The CD-ROM contains the MFP driver, SmarThru software, the user’s guides and the Adobe Acrobat Reader program.NOTES: • The power cord must be plugged into a grounded power socket.• Components may differ from one country to another.Tape
GETTING STARTED1.31Selecting a LocationSelect a level, stable place with adequate space for air circulation. Allow extra space for opening covers and trays. The area should be well-ventilated and away from direct sunlight or sources of heat, cold and humidity. Do not set the machine close to the edge of your desk or table. Clearance Space•Front: 482.6 mm (enough space so that the paper trays can be removed)•Back: 250 mm (enough space for ventilation)•Right: 100 mm•Left: 100 mm (enough space for ventilation)
GETTING STARTED1.4Understanding the Component LocationThese are the main components of your machine:Front ViewRear ViewPaper TrayFront Output Tray(Face down)Control Panel (see the page 1.5)Manual FeederManual FeederGuidesFront PaperOutputExtensionToner CartridgeDocumentGlassDocument CoverFront CoverParallel ConnectorUSB ConnectorRear CoverAC Power Cord ConnectorRear Output Slot (Face up)Power SwitchPaper Length Guide
GETTING STARTED1.51Control Panel Functions1COPYAdjusts the brightness of the documents for the current copy job. Selects the number of copies.2Displays the current status and prompts during an operation. 3Scrolls through the options available for the selected menu item.Enters Menu mode and scrolls through the menus available and sends you back to the upper menu level.4Stops an operation at any time.In Standby mode, clears/cancels the copy options, such as the darkness and the number of copies. 5Confirms the selection on the display and starts a job.
GETTING STARTED1.6 Installing the Toner Cartridge1Open the front cover.2Remove the starter toner cartridge from its bag. Don’t use a knife or other sharp object as it might scratch the drum of the cartridge.3Gently roll the cartridge 5 or 6 times to distribute the toner evenly inside the cartridge.Thoroughly rolling the cartridge will assure the maximum copies per cartridge.CAUTIONS:• To prevent damage, do not expose the toner cartridge to light for more than a few minutes. Cover it with a piece of paper if left exposed for more than a few minutes, and keep it flat and clean place.• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into the fabric.
GETTING STARTED1.714Slide the toner cartridge into the machine until it locks into place completely.5Close the front cover. Make sure that the cover is securely closed.NOTE: When printing text at 5% coverage, you can expect a toner cartridge life of approximately 3,000 pages (1,000 pages for the toner cartridge that is shipped with the printer).
GETTING STARTED1.8Loading PaperYou can load approximately 250 sheets.To load a stack of Letter-sized paper:1Pull open the paper tray and remove it from the machine.2Push down on the pressure plate until it locks into place.3Fan the edges of the paper stack to separate the pages. Then tap the stack on a flat surface to even it up.
GETTING STARTED1.914Insert the paper stack into the paper tray with the side you want to print on facing down.You can load previously printed paper. The printed side should be facing up with an uncurled edge on top. If you experience problems with paper feed, turn the paper around.5Pay attention to the paper limit mark on the left inside wall of the tray. Paper overloading may cause paper jams.6Insert and slide the paper tray back into the machine.
GETTING STARTED1.10NOTE: After you load the paper, you need to set up your machine for the paper type and size you loaded. See page 1.26 for copying, or page 3.7 for PC-printing.Changing the Paper Size in the Paper TrayTo load longer sizes of paper, such as Legal-sized paper, you need to adjust the paper guides to extend the paper tray.1After pressing and unlatching the guide lock, slide the paper length guide outward as far as it will go. This extends the length of the tray.2After inserting paper into the tray, slide in the guide until it lightly touches the end of the paper stack. For paper smaller than letter, adjust the paper length guide accordingly.3Pinching the paper width guide as shown, move it toward the stack of paper until it lightly touches the side of the stack.
GETTING STARTED1.111NOTES:• Do not push the paper width guide far enough to cause the materials to warp.• If you do not adjust the paper width guide, it may cause paper jams.Making Connections1Connect a USB cable to the USB connector on your machine.You must purchase a USB 1.1 compliant cable that is no more than 3 m in length.2If you want to use a parallel printer cable, purchase only an IEEE 1284 compliant parallel cable and connect it to the parallel connector on your machine.Push the metal clips down to fit inside the notches on the cable plug.
GETTING STARTED1.12NOTES:• You only need to connect one of the cables mentioned above. Do not use the parallel and the USB cables at the same time.• If you are using a USB cable, you must be running Windows 98/Me/2000/XP. • When using the USB connection, your machine provides two USB modes; Fast and Slow. Fast is the default mode. Some PC users may experience poor USB function in the default mode. If this occurs, select the Slow mode to achieve successful results. For details about changing the USB mode, see page 8.12.Turning the Machine On 1Plug one end of the supplied three-pronged electrical type cord into the AC socket on the machine and the other end into a properly grounded AC outlet. 2Press the power switch to turn the machine on. “Warming Up Please Wait” appears on the display indicating that the machine is now on. To view your display text in another language, see page 1.25.CAUTIONS:• The fusing area inside the rear part of your machine becomes hot once the machine is turned on. Be careful when you access this area.• Do not disassemble the machine when it is turned on as it may give you an electric shock. ➜ To the AC walljack
GETTING STARTED1.131Installing SoftwareAbout Samsung SoftwareYou must install software using the supplied CD-ROM after you have set up your machine and connected it to your computer. The CD-ROM includes:• Samsung software• User’s Guides• Adobe Acrobat ReaderThe CD-ROM provides you with the following software:Windows GDI Driver To use your machine as a printer and scanner in Windows, you must install the GDI driver. For information about installing the GDI driver in Windows, see page 1.15.Macintosh Printer DriverYou can use your machine with Macintosh. For information about installing the printer driver from Macintosh, see page 6.2.Linux DriverYou can print and scan in Linux using your machine. For information about installing the printer driver in Linux, see page 6.15. Remote Control PanelThis Windows-based program is automatically installed when you install the GDI driver. For information about using the program, see page 6.31.SmarThru SoftwareSmarThru is the accompanying Windows-based software for your multifunctional machine. SmarThru contains a powerful image editor that allows you to edit images in many ways and also includes powerful Internet mail client software. With SmarThru, you can save the scanned images in a dedicated storage area for subsequent editing, sending via e-mail or fax, printing and processing by other programs of your choice.
GETTING STARTED1.14OCR Software (AnyPage Lite)AnyPage Lite, the OCR (Optical Character Recognition) program, is Windows-based software that has the ability to recognize most character formats so that a scanned document can be read and edited with word processing software. NOTES: • In case of Chinese, it does not support the OCR function.• OCR is available only for languages supported by AnyPage Lite. Supported languages are Africans, Albanian, Basque, Bulgarian, Byelorussian, Catalan, Croatian, Czech, Danish, Digits, Dutch, English, Estonian, Finnish, French, German, Hungarian, Icelandic, Indonesian, Irish, Italian, Latvian, Lithuanian, Macedonian, Norwegian (Bokmal), Norwegian (Nynorsk), Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Spanish, Swahili, Swedish, Tagalog, Turkish, Ukrainian, Korean.• Recommended Scan Option for OCRResolution: 200 or 300 dpiImage Type: Mono(Black & White)Printer Driver FeaturesYour printer drivers support the following standard features:• Paper source selection• Paper size, orientation and media type• number of copiesThe following table lists a general overview of features supported by your printer drivers. NOTES:• Some of feature are not supported on Mac OS 10.X such as Paper Type, Grayscale and Black&White.• The Watermark feature is not supported on Mac OS 9.1 or higher.Feature Printer DriverWin9x/Me Win2000/XP WinNT4.0 Macintosh LinuxToner Save Y Y Y N YPrint quality option Y Y Y Y YPoster printing Y Y Y N NMultiple pages per sheet (N-up) Y Y Y Y Y(2,4)Fit to page printing Y Y Y N YScale printing Y Y Y Y YWatermark Y Y Y Y NOverlay Y Y Y N N
GETTING STARTED1.151Installing Samsung Software in WindowsSystem RequirementsBefore you begin, ensure that your system meets the minimum requirements.Supported Operating System•Windows 95 OSR2• Windows 98/Windows 98 SE•Windows Me• Windows NT 4 Workstation or Server with Service Pack 3• Windows 2000 Professional or Advanced Server• Windows XP Home edition or Professional.Minimal Requirements• Disk space: 120 MB for installation • Memory: 64 MB • CPU: Pentium II 233 or higher• Required software: Internet Explorer 4.01Recommended• Disk space: 300 MB for installation• Memory: 128 MB• CPU: Pentium II 400 or higher• Required software: Internet Explorer 5.5NOTES:• For Windows NT 4.0/2000/XP, the system administrator should install the software.• Windows 95 versions prior to OSR2 are not recommended due to incompatibility with OLE/COM libraries.
GETTING STARTED1.16Installing Samsung SoftwareNOTES: •Cancel the “New Hardware Found” window when your computer boots up.• Make sure that your machine is turned on and connected to your computer’s parallel port or USB port before installing software. Windows 95 and Windows NT 4.0 do not support the USB connection.1Insert the supplied CD-ROM into your CD-ROM drive.The CD-ROM should automatically run and an installation window appears.If the installation window does not appear, click Start and then Run. Type X:\Setup.exe, replacing “X” with the letter of your drive and click OK.2When the following window opens, connect your machine to the computer and turn the printer on. Then click Next.If the machine is already connected and turned on, this screen does not appear. Skip to the next step.NOTE: If you click Next and the machine is not connected to the computer, an alert message window appears. After connecting the machine and turning it on, click Yes. Or, if you want to install the software without the machine, Click No.
GETTING STARTED1.1713Choose the installation type. •Typical: Installs the common software for your printer, such as printer driver, Twain driver, Remote Control Panel. This is recommeded for most users.•Custom: Allows you to choose the language of the software and the components you want to install. After selecting the language and the component(s), click Next.•Install SmarThru: Installs the SmarThru program. If you select to install SmarThru on this screen, follow from step 3 on page 1.19. •View User’s Guide: Allows you to view this User’s Guide or SmarThru User’s Guide. If your computer doesn’t have Adobe Acrobat, click on this option and it will automatically install Adobe Acrobat for you.4After the installation is finished, the window asking you to print a test page appears. If you choose to print a test page, select the check box and click Next.Otherwise, Skip to step 6.
GETTING STARTED1.185When the test page prints out correctly, click Yes.If not, click No to reprint it.6To register yourself as a user of Samsung Printers, select the check box and click Finish. You are now accessed to the Samsung web site.Otherwise, just click Finish.NOTES:• When you want to use your machine with the parallel cable, remove the USB cable and connect the parallel cable. Then reinstall the printer driver; select Start → Programs → Samsung SCX-4100 Series → Maintenance → Repair → Printer. If you have replaced the parallel cable with the USB cable, do the same to reinstall the driver.• If your printer doesn’t work properly, reinstall the printer driver.
GETTING STARTED1.191Installing Samsung SmarThru1Insert the supplied CD-ROM into your CD-ROM drive.2Click Install SmarThru.3Click Next.4Follow the on-screen instructions and click Next.5Click Next.6Select the installation type and click Next.
GETTING STARTED1.20The software installation supports two types of setup:•Typical: Program will be installed with the most common options and is recommended for most users.•Custom: You may choose the options you want to install.7Choosing the SmarThru networking option allows you to share the modems on other computer in your network, and the scan device or to access similar devices on other computers. If you select the Custom installation, you may choose the components you want to install.• SmarThru Software: to scan and edit images and to work with electronic documents.• OCR Software: AnyPage Lite software to enable OCR.
GETTING STARTED1.211Stand-alone configuration does not allow you to use any networking features, such as Remote Fax or Remote Scan service.When you select SmarThru networking, you can elect to install it as a Server, a Client or both. The Server option allows you to share a local fax modem and/or a scanner over a LAN. You can control sharing by managing a remote service user. The Client option allows you to use Remote Fax or Remote Scan services provided by a SmarThru Server over a LAN. You need to have a client account provided by the server. For details about Remote Fax/Scan Services, refer to the SmarThru User’s Guide.8Follow the on-screen instructions to complete the installation.9When the installation is finished, click Finish.
GETTING STARTED1.22Repairing SoftwareRepairing is required if your installation fails or the software does not work properly. This Repairing procedure does not repair SmarThru software.1You can select Start → Programs → Samsung SCX-4100 Series →Maintenance.Otherwise, Insert the supplied D-ROM into your CD-ROM drive. 2Click Repair.NOTE: If your machine is not connected to the computer, the Connect Samsung SCX-4100 Series window opens. After connecting the machine, click Next.3Select the components you want to reinstall and click Next.If you choose to repair the printer software, the window asking you to print a test page appears. Do as follows:a. To print a test page, select the check box and click Next.b. When the test page prints out correctly, click Yes. If not, click No to reprint it.4When the reinstallation is done, click Finish.
GETTING STARTED1.231Removing SoftwareUninstall is required if you are upgrading the software or if your installation fails. You can uninstall the item you want using the Windows uninstallShield.Uninstalling the MFP Driver1You can select Start → Programs → Samsung SCX-4100 Series → Maintenance.Otherwise, Insert the supplied D-ROM into your CD-ROM drive. 2Click Remove.Then you will see a component list so that you can remove any of them individually.If you want to uninstall the printer driver, check Printer.If you want to uninstall the twain driver, check Twain. If you want to uninstall the Remote Control Panel, check Remote Control Panel.3After selecting items you wish to remove, click Next.4When your computer asks you to confirm your selection, click Yes. The selected driver and all of its components are removed from your computer. 5When the uninstallation is done, click Finish.
GETTING STARTED1.24Uninstalling Samsung SmarThruNOTE: Before beginning uninstallation, ensure that all applications are closed on your computer. A system reboot is required after the software is uninstalled.1From the Start menu, select Programs.2Select Samsung SmarThru, and then select SmarThru 4 Uninstall.3When your computer asks you to confirm your selection, click Ok. The Uninstall Options window appears.Uninstall options are:•Backup and delete: Backs up all your data and options to a safe place. It then removes the SmarThru system including the data.•Delete: Deletes all the SmarThru data and options. No backup or copying takes place. Be careful while using this option as you can easily lose your data.•Leave intact: Uninstalls SmarThru software leaving data and options intact. This can be useful, if, for example, you decide to install the Stand Alone configuration over the SmarThru Networking. In this case, uninstall Samsung SmarThru having the Leave intact option set and install the SmarThru Stand Alone configuration.4After selecting the uninstall option, click Next.5When the uninstallation is done, the message window recommends restarting your computer. Click OK.6Click Finish.When your computer doesn’t shut down and restart automatically, you must shut it down manually and restart it before the changes are saved.
GETTING STARTED1.251Setting Up the Machine SystemChanging the Display LanguageTo change the language that displays on the display of the control panel, follow these steps:1Press Menu/Exit until "Machine Setup" appears on the top line of the display.2Press the scroll button ( or ) until "Language" appears on the bottom line of the display.3Press Start/Copy. The current setting appears on the bottom line of the display.4Press the scroll button ( or ) until the language you want appears on the display.5Press Start/Copy to save the selection. 6To return to Standby mode, press Stop/Clear.
GETTING STARTED1.26Setting the Paper Size and TypeAfter loading paper in the paper tray, you need to set the paper type and size using the control panel buttons. These settings will apply to Copy modes. For PC-printing, you need to select the paper type and size in the application program you use.1Press Menu/Exit until "Paper Setting" appears on the top line.The first menu item, "Paper Size", appears on the bottom line.2Press Start/Copy to access the menu item.3Press Start/Copy when "Tray Paper" displays on the bottom line. 4Use the scroll button ( or ) to find the paper size you are using and press Start/Copy to save it. 5Press Menu/Exit to return to the upper menu level.6Press the  button to scroll to "Paper Type" and press Start/Copy to access the menu item.7Use the scroll button ( or ) to find the paper type you are using and press Start/Copy to save it. 8To return to Standby mode, press Stop/Clear.
GETTING STARTED1.271Using the Save ModesToner Save ModeToner Save mode allows your machine to use less toner on each page. Activating this mode extends the life of the toner cartridge longer than normal, but it reduces the print quality.To turn the toner save mode on or off:1Press Menu/Exit until "Toner Save" appears on top line of the display.2Press the scroll button ( or ) to display "On" on the bottom line and press Start/Copy.Selecting "Off" means that toner save mode turns off.NOTE: For PC-printing, you can also turn toner save mode on or off, in the printer properties. See page 3.9.Power Save ModePower Save mode allows your machine to reduce power consumption when it is not in actual use. You can turn this mode on by selecting the length of time for which the machine waits after a job is printed before it switches to a reduced power state.1Press Menu/Exit until "Machine Setup" appears on top line of the display.2Press the scroll button ( or ) until "Power Save" appears on the bottom line. Press Start/Copy.3Press the scroll button ( or ) to display "On" on the bottom line and press Start/Copy.Selecting "Off" means that Power Save mode turns off.4Press the scroll button ( or ) until the time settings you want appears.The available options are 5, 10, 15, 30 and 45 (minutes). 5Press Start/Copy to save the selection.6To return to Standby mode, press Stop/Clear.
GETTING STARTED1.28MEMO
2PAPER HANDLINGThis chapter introduces you to the basics of selecting print materials and loading them into your machine.This chapter includes:• Selecting Print Materials• Selecting an Output Location• Loading Paper in the Paper Tray• Using the Manual Feeder
PAPER HANDLING2.2Selecting Print MaterialsYou can print on a variety of print materials, such as plain paper, envelopes, labels, transparencies, and so on. Always use print materials that meet the guidelines for use with this machine. See “Paper Specifications” on page A.5. To get the best possible print quality, use only high-quality copier-grade paper.When you choose print materials, consider the following:• Desired outcome: The paper you choose should be appropriate for your project.• Size: You can use any size paper that fits easily within the paper adjusters of the paper tray.• Weight: Your machine supports paper weights as follows:- 16 ~ 24 lbs (60 ~ 90 g/m2) bond for the paper tray- 16 ~ 43 lbs (60 ~ 163 g/m2) bond for the manual feeder• Brightness: Some papers are whiter than others and produce sharper, more vibrant images.• Surface smoothness: The smoothness of the paper affects how crisp the printing looks on the paper.CAUTION: Using print materials that dose not conform to the specifications listed on page A.5 may cause problems that may require service. This service is not covered by the warranty or service agreements.Type, Input Sources and Capacities Paper Type Input Source/Capacity** Maximum capacity may be reduced depending on the paper thickness.Paper Tray Manual FeederPlain paper250 1Envelopes- 1Labels**** If you experience excessive jamming, load one sheet at a time through the manual feeder.- 1Transparency films**-1Card stocks**-1
PAPER HANDLING2.32Guidelines for Paper and Special MaterialsWhen selecting or loading paper, envelopes, or other special material, keep these guidelines in mind:• Always use paper and other materials that conform with the specifications listed under “Paper Specifications” on page A.5.• Attempting to print on damp, curled, wrinkled, or torn paper can cause paper jams and the poor print quality.• Use only high quality copier grade paper for the best print quality. • Avoid paper with embossed lettering, perforations, or a texture that is too smooth or too rough. Paper jams may occur.• Store paper in its ream wrapper until you are ready to use. Place cartons on pallets or shelves, not on the floor. Do not place heavy objects on top of the paper, whether it is packaged or unpackaged. Keep it away from moisture, or other conditions that can cause it to wrinkle or curl.• Store unused materials at temperatures between 15 oC and 30 oC (59 oF to 86 oF). The relative humidity should be between 10 % and 70 %.• During storage, you should use moisture-proof wrap, such as any plastic container or bag, to prevent dust and moisture from contaminating your paper.• Load special paper types one sheet at a time.• Only use materials specifically recommended for use in laser printers.• To prevent special materials, such as transparencies and label sheets from sticking together, remove them as they prints out.•For envelopes:- Use only well-constructed envelopes with sharp, well creased folds.- Do not use envelopes with clasps and snaps.- Do not use envelopes with windows, coated lining, self-adhesive seals, or other synthetic materials.- Do not use damaged or poorly made envelopes.• For transparencies:- Place them on a flat surface after removing them from the machine.- Do not leave them in the paper tray for long periods of time. Dust and dirt may accumulate on them resulting in spotty printing.
PAPER HANDLING2.4- To avoid smudging caused by fingerprints, handle them and coated paper carefully.- To avoid fading, do not expose the printed transparencies to prolonged sunlight.•For labels:- Verify that their adhesive material can tolerate fusing temperature of 200 oC (392o F) for 0.1 second.- Make sure that there is no exposed adhesive material between them. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.- Do not load a sheet of them through the machine more than once. The adhesive backing is designed for one pass through the machine.- Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.• Do not use Carbonless paper and Tracing paper. They could make smell of chemicals and damage your machine. Selecting an Output LocationThe machine has two output locations; the rear output slot (face up) and the front output tray (face down). To use the front output tray, make sure that the rear cover is closed. To use the rear output slot, open the rear cover.NOTES: • If paper coming out of the front output tray has problems, such as excessive curl, try printing to the rear output slot.• To avoid paper jams, do not open or close the rear cover while the machine is printing.
PAPER HANDLING2.52Printing to the Front Output Tray (Face down)The front output tray collects printed paper face-down in the order in which it was printed. The tray should be used for most print jobs.NOTE: • If you continuously print many pages, the surface of the output tray may become hot. Be careful not to touch the surface, and especially keep children away from the surface.• The front output tray can hold up to 50 sheets of paper. Remove the pages so that the tray is not overloaded.Printing to the Rear Output Slot (Face up)Using the rear output slot, paper comes out of the machine face up.Printing from the manual feeder to the rear output slot provides a straight paper path. Using the rear output slot might improve the output quality with the following:•envelopes•labels• small custom-sized paper• postcards• transparencies
PAPER HANDLING2.6To use the rear output slot:1Open the rear cover by pulling it upward. CAUTION: The fusing area inside the rear part of your machine becomes hot once the machine is turned on. Be careful when you access this area.2If you do not want to use the rear output slot, close the rear cover. The pages stack on the front output tray.
PAPER HANDLING2.72Loading Paper in the Paper TrayThe paper tray can hold a maximum of 250 sheets of 20 lb(75g/m2) plain paper. For copying, you can use A4-, Letter- or Legal-sized paper only. For PC-printing, you can use many different sizes of paper; see page A.5.The paper level indicator on the front of the paper tray shows the amount of paper currently left in the tray. When the tray is empty, the indicator drops to the bottom.To load paper, pull open the paper tray and load paper with the print side face down.You can load letterhead paper with the design side face down. The top edge of the sheet with the logo should be placed at the front side of the tray.For details about loading paper in the paper tray, see “Loading Paper” on page 1.8.NOTES: • If you experience problems with paper feed, place the paper in the manual feeder.• You can load up to 150 sheets of previously printed paper. The printed side should be facing up with an uncurled edge on top.If you experience problems with paper feed, turn the paper around. Note that the print quality is not guaranteed.Paper empty Paper full
PAPER HANDLING2.8Using the Manual FeederUse the manual feeder to print transparencies, labels, envelopes or postcards in addition to making quick runs of paper types or sizes that are not currently loaded in the paper tray.Postcards, 3.5 by 5.83 in.(index) cards and other custom-sized materials can be printed with this printer. The minimum size is 76 by 127 mm (3.0 by 5.0 in.) and the maximum size is 216 by 356 mm (8.5 by 14 in.).Acceptable print materials are plain paper with sizes ranging from 100 x 148 mm (3.9 x 5.8 in.) to Legal, 216 x 356 mm (8.5 x 14 in.), the largest size acceptable, and weighing between 16 lb and 32 lb.NOTES: • Always load only the print materials specified in the Specifications on page A.5 to avoid paper jams and print quality problems.• Flatten any curl on postcards, envelopes and labels before loading them into the manual feeder.• When you print on 76 mm X 127 mm (3 X 5 in.) sized media with loading into the tray, open the rear output tray.1Load a sheet of the print material with the print side face up into the center of the manual feeder.For envelopes, load a sheet with the flap side face down and with the stamp area on the top left side.For transparencies, hold them by the edges and avoid touching the print side. Oils from your fingers can cause print quality problems. For letterhead, load a sheet with the design face up, top edge towards the printer.
PAPER HANDLING2.92CAUTION: You must open the rear output slot when you print on transparencies. If not, they may tear while exiting the machine.2Adjust the paper guide to the width of the print material.NOTE: When printing on previously printed paper from the manual feeder, the printed side should be facing down with an uncurled edge to the machine. If you experience problems with paper feed, turn the paper around.3Open the rear cover to use the rear output slot. 4After printing, close the rear cover.
PAPER HANDLING2.10Setting the Paper Type and Size for the Manual FeederAfter loading paper in the manual feeder, you need to set the correct paper type and size using the control panel buttons. These settings will apply to Copy mode. For PC-printing, you need to select the paper size in the application program you use.To set the paper size for the manual feeder:1Press Menu/Exit until "Paper Setting" appears on the top line of the display.The first item, "Paper Size", displays on the bottom line.2Press Start/Copy to access the menu item.3Use the scroll button ( or ) to display "Manual Feed" on the bottom line. Press Start/Copy to access the menu item.4Use the scroll button ( or ) to find the paper size you are using and press Start/Copy to save it. 5Press Menu/Exit to return to the upper menu level.6Press the  button to scroll to "Paper Type" and press Start/Copy to access the menu item.7Use the scroll button ( or ) to find the paper type you are using and press Start/Copy to save it.8To return to Standby mode, press Stop/Clear.
3PRINTINGThis chapter explains how to print your documents in Windows and how to use the print settings. This chapter includes:• Printing a Document in Windows• Setting Paper Properties• Setting Graphic Properties• Printing Multiple Pages on One Sheet of the Paper• Printing a Reduced or Enlarged Document• Fitting Your Document to a Selected Paper Size•Printing Posters•Using Watermarks• Using Overlays• Setting Up the Locally Shared Printer
PRINTING3.2Printing a Document in WindowsThe following procedure describes the general steps required for printing from various Windows applications. The exact steps for printing a document may vary depending on the application program you are using. Refer to your software application’s user’s guide for the exact printing procedure. NOTE: For detailed information about printing from Macintosh or Linux, see Chapter 6, Using Other Operating Systems.1Open the document you want to print.2Select Print from the File menu.The Print window opens. It may look slightly different depending on your application.You can select the basic print settings within the Print window. These settings include the number of copies and the print range.3To take advantage of the printer features provided by your machine, click Properties or Preferences in the application’s print window and go to step 4. If you see a Setup, Printer or Options button, click it instead. Then click Properties on the next screen. Windows 98Make sure that your machine is selected.
PRINTING3.334Now you see the Samsung SCX-4100 Series Properties window, which allows you to access all of information you need when using your machine. The Layout tab first displays. If necessary, select the Orientation option. The Orientation option allows you to select the direction in which information is printed on a page. •Portrait prints across the width of the page, letter style. •Landscape prints across the length of the page, spreadsheet style. •If you want to turn the page upside down, select 180 from the Rotate drop-down list.5From the Paper tab, select the paper source, size and type. For further details, see page 3.7. The preview image shows the sample page with the settings you specified.LandscapePortrait
PRINTING3.46If necessary, you can set the sequence for the pages to print from the Extra tab. Select the print order you want to use from the Printer Order drop-down list.•Normal: Your machine prints from the first page to the last page.•Reverse All Pages: Your machine prints from the last page to the first page.•Print Odd Pages: Your machine prints only the odd pages of the document.•Print Even Pages: Your machine prints only the even pages of the document.7Click other tabs on the top of the Samsung SCX-4100 Series Properties window to access other features, if needed. 8When you finish setting the properties, click OK until the Print window displays. 9Click OK to start printing. The printer’s Properties window may differ, depending on your operating system. This User’s Guide shows the Properties window on windows 98.NOTES: • Most Windows applications overrides the settings you specified in the printer driver. Change all of the print settings available in the software application first, and change any remaining settings using the printer driver. • The settings you change remain in effect only while you are using the current program. To make your changes permanent, make them in the Printers folder. Follow these steps:1. Click the Windows Start menu.2. For Windows 95/98/Me/NT 4.0/2000, select Settings and then Printers.For Windows XP, select Printers and Faxes.3. Select the Samsung SCX-4100 Series printer.4. Click the right mouse button on the printer icon and: • For Windows 95/98/Me, select Properties.• For Windows 2000/XP, select Printing Preferences.• For Windows NT 4.0, select Document Default.5. Change the settings on each tab and click OK.
PRINTING3.53Canceling a Print JobThere are two ways to cancel a print job:To stop a print job from the control panel:Press the Stop/Clear button. Your machine finishes printing the page that is moving through the machine and deletes the rest of the print job. Pressing the button cancels only the current job. If more than one print job is in the machine’s memory, you need to press the button once for each job.To stop a print job from the Printers folder:If the print job is waiting in a print queue or print spooler, such as the Printer group in Windows, delete the job as follows: 1Click the Windows Start menu.2For Windows 9x/NT4.0/2000/Me, Select Settings and then Printers.For Windows XP, select Printers and Faxes. 3Double-click the Samsung SCX-4100 Series icon.4From the Document menu:For Windows 9x/Me, select Cancel Printing.For Windows NT4.0/2000/XP, select Cancel.NOTE: You can access this window simply by double-clicking the printer icon at the bottom right corner of the Windows desktop. Windows 98
PRINTING3.6Using a Favorite SettingThe Favorites option, which is visible on each tab, allows you to save the current properties settings for future use. To save a Favorites item:1Change the settings on each tab, as needed. 2Enter a name for the item in the Favorites input box. 3Click Save. To use a saved setting, select it from the Favorites drop-down list. To delete a favorite setting item, select it from the list and click Delete. You can also restore the printer driver’s default settings by selecting <Printer Default> from the list. Using HelpYour machine has a help screen that can be activated using the Help button in the printer’s Properties window. The help screen gives detailed information about the printer features provided by the printer driver.You can also click in the upper right hand corner, and then click on any setting.
PRINTING3.73Setting Paper PropertiesUse the following options for paper handling. See page 3.2 for more information about accessing printer’s Properties. Click the Paper tab to access many paper properties. Property DescriptionCopiesCopies allows you to choose the number of copies to be printed. You can enter up to 999. SizeSize allows you to choose the size of the paper loaded in the tray. If the required size is not listed in the Size box, click Add Custom. When the Custom Page Size window appears, set the size and click Ok. The setting appears on the list so that you can select it. 123412Enter the custom name you want to use. Enter the paper size.
PRINTING3.8Setting Graphic PropertiesUse the following graphic options to adjust the print quality for your specific printing needs. See page 3.2 for more information about accessing printer properties.Click the Graphics tab to display the properties shown below. SourceMake sure that Source is set to the corresponding paper tray.Use the Manual Feed source when printing to special material. You need to load one sheet at a time into the manual feeder. See page 2.8.If the paper source is set to Auto Select, the machine automatically picks up print material in the following order: the manual feeder and the paper tray.TypeMake sure that Type is set to Printer Default. If you load a different type of print material, select the corresponding paper type. For more information about print materials, see Chapter 2, Paper Handling.If you use cotton paper, set the paper type to Thick for the best printing.To use recycled paper, which weighs from 75g/m2 to 90g/m2 (20lb to 24lb), or colored paper, select Color Paper.Property Description34132
PRINTING3.93Property DescriptionResolutionYou can select the printing resolution by choosing from 600 dpi (Normal) or 300 dpi (Draft). The higher the setting, the sharper the printed characters and graphics. Higher settings may increase the time it takes to print a document.Toner SaveSelecting this option extends the life of your toner cartridge and reduces your cost per page without a significant reduction in the print quality. •Printer Setting: When you select this option, the Toner Save feature is determined by the setting you’ve made on the control panel of the machine.•On: Select this option to allow the machine to use less toner on each page.•Off: When you do not need to save toner to print a document, select this option.Advanced Options You can make advanced settings by clicking the Advanced Options button. 123DarknessUse this option to lighten or darken the image appearance in your print.• Normal: This setting is for normal documents.• Light: This setting is for bolder line widths or darker grayscale images.• Dark: This setting is for finer line width, higher definition in graphics and lighter grayscale images.When the Darken Text option is checked, all text in your document prints darker than normal.
PRINTING3.10Printing Multiple Pages on One Sheet of the Paper You can select the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages are smaller and arranged in the order you specified on the sheet. You can print up to 16 pages on one sheet.1To change the print settings from your software application, access the printer’s Properties. See page 3.2.2From the Layout tab, choose Multiple Pages per Side from the Type drop-down list. Advanced Options (continued)Property Description3True Type OptionsThis option determines what the driver tells the machine about how to image the text in your document. Select the appropriate setting according to the status of your document. • Download as Bit Image: When this option is selected, the driver downloads the font data as bitmap images. Documents with complicated fonts, such as Korean or Chinese, or various types of fonts print faster in this setting. •Print as Graphics: When this option is selected, the driver downloads any fonts as graphics. When printing documents with high graphic content and relatively few TrueType fonts, printing performance (speed) may be enhanced in this setting.Print All Text BlackWhen the Print All Text Black option is checked, all text in your document prints in solid black, regardless of the color it appears on the screen. When it is not checked, colored text prints in shades of gray.
PRINTING3.1133Select the number of pages you want to print per sheet (1, 2, 4, 9 or 16) on the Pages per Side drop-down list.4Select the page order on the Page Order drop-down list, if necessary.Check Print Page Border to print a border around each page on the sheet. NOTE: Page Order and Print Page Border are enabled only when the number of pages per side is 2, 4, 9 or 16.5Click the Paper tab and select the paper source, size, and type.6Click OK and print the document.Preview imageRight, Then Down Down, Then Right Left, Then Down Down, Then Left
PRINTING3.12Printing a Reduced or Enlarged DocumentYou can scale your print job on a page. 1When you change the print settings from your software application, access the printer’s Properties. See page 3.2.2From the Layout tab, select Reduce/Enlarge on the Type drop-down list. 3Enter the scaling rate in the Percentage input box.You can also click the  or  button.4Click the Paper tab and select the paper source, size and type. 5Click OK and print the document. Preview image
PRINTING3.133Fitting Your Document to a Selected Paper SizeYou can scale your print job to any paper size regardless of the digital document size. This can be useful when you want to check the fine details on a small document. 1To change the print settings from your software application, access the printer’s Properties. See page 3.2.2From the Layout tab, select Fit to Page on the Type drop-down list. 3Select the correct size from the Target Page drop-down list.4Click the Paper tab and select the paper source and type.5Click OK and print the document. APreview image
PRINTING3.14Printing PostersYou can print a single-page document onto 4, 9 or 16 sheets of paper, for the purpose of pasting the sheets together to form one poster-sized document.1To change the print settings from your software application, access the printer’s Properties. See page 3.2.2From the Layout tab, select Poster on the Type drop-down list. 3Configure the poster option:You can select the page layout from 2x2, 3x3 or 4x4. If you select 2x2, the image is automatically stretched to cover 4 physical pages. Specify an overlap in millimeters or inches to make it easier to reconstruct the resulting poster. Preview image2 x 2 3 x 30.15 inches0.15 inches
PRINTING3.1534Click the Paper tab and select the paper source, size and type.5Click OK and print the document. You can complete the poster by posting the sheets together. Using WatermarksThe Watermark option allows you to print text over an existing document. For example, you may want to have large gray letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all of the pages of a document. There are several predefined watermarks that come with your machine, and they can be modified or you can add new ones to the list. Using an Existing Watermark1To change the print settings from your software application, access the printer’s Properties. See page 3.2. 2Click the Extras tab and select a watermark on the Watermark drop-down list. It appears in the preview image window. 3Click Ok and start printing. Preview image
PRINTING3.16Creating a Watermark1To change the print settings from your software application, access the printer’s Properties. See page 3.2. 2Click the Extras tab and click Edit in the Watermark section. The Edit Watermarks window appears. 3Enter text message you want to print in the Watermark Message box. The message displays in the preview image window.When the First Page Only box is checked, the watermark prints on the first page only.4Select the watermark options. You can select the font name, style, and size, and gray scale level from the Font Attributes section and set the angle of the watermark from the Message Angle section. 5Click Add to add a new watermark to the list. 6When you finish creating, click Ok and start printing. To stop printing the watermark, select <No Watermark> on the Watermark drop-down list.
PRINTING3.173Editing a Watermark1To change the print settings from your software application, access the printer properties. See page 3.2.2Click the Extras tab and click Edit in the Watermark section. The Edit Watermarks window appears.3Select the watermark you want to edit on the Current Watermarks list, to change the watermark message and the options. Refer to page 3.16.4Click Update to save the changes.5Click Ok.Deleting a Watermark1To change the print settings from your software application, access the printer’s Properties. See page 3.2.2From the Extras tab, click Edit in the Watermark section. The Edit Watermarks window appears.3Select the watermark you want to delete on the Current Watermarks list and click Delete.4When a confirming message window appears, click Yes.5Click Ok.
PRINTING3.18Using OverlaysWhat is an Overlay?An overlay is text and/or images stored on the computer hard disk drive (HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of preprinted forms and letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing the exact same information that is currently on your letterhead. To print a letter with your company’s letterhead, you need only tell the machine to print the letterhead overlay on your document.Creating a New Page OverlayTo use a page overlay, you must create a new page overlay containing your logo or image.1Create or open a document containing text or an image for use in a new page overlay. Position the items exactly as you wish them to appear when printed as an overlay. If needed, save the file for later use.2To change the print settings from your software application, access the printer’s Properties. See page 3.2.3Click the Extras tab and click Edit in the Overlay section. WORLD BESTDear ABCRegards
PRINTING3.1934In the Edit Overlays window, click Create Overlay. 5In the Create Overlay window, type a name of up to eight characters in the File name box. Select the destination path, if necessary. (The default is C:\Formover).6Click Save. The name appears on the Overlay List. 7Click Ok or Yes to finish creating. The file is not printed out. Instead it is stored in your computer HDD disk. NOTE: The overlay document size must be the same as the documents you print with the overlay. Do not create an overlay with a watermark.
PRINTING3.20Using a Page OverlayAfter an overlay has been created, it is ready to be printed with your document. To print an overlay with a document:1Create or open the document you want to print. 2To change the print settings from your software application, access the printer’s Properties. See page 3.2. 3Click the Extras tab. 4Select the overlay you want to print from the Overlay drop-down list box. 5When the overlay file you want doesn’t appear on the Overlay List, click Edit and Load Overlay, and select the overlay file. If you have stored the overlay file you want to use in an external source, you can also load the file when you access this Load Overlay window. After you select the file, click Open. The file appears on the Overlay List and is available for printing. Select the overlay from the Overlay List box.
PRINTING3.2136If necessary, click Confirm Page Overlay When Printing. When this box is checked, a message window appears each time you submit a document for printing, asking you to confirm your wish to print an overlay on your document.Answering Yes to the window means that the selected overlay prints with your document. Answering No to the window cancels overlay printing.If this box is empty and an overlay has been selected, the overlay will be automatically printed with your document.7Click OK or Yes until the printing starts.The overlay downloads with your print job and prints on your document.NOTE: The resolution of the overlay document must be the same as that of the document you will print with the overlay.Deleting a Page OverlayYou can delete page overlays that you no longer use.1In the printer’s properties window, click the Extras tab.2Click Edit in the Overlay section.3Select the overlay you want to delete from the Overlay List box.4Click Delete Overlay.5When a confirming message window appears, click Yes.6Click OK until you exit the Print window.
PRINTING3.22Setting Up the Locally Shared PrinterYou can connect the machine directly to a selected computer, which is called “host computer,” on the network. Your machine can be shared by other users on the network through a Windows 9x, Me, 2000, XP or NT 4.0 network printer connection. NOTE: Whether the printer is locally connected or network-connected, you need to install the printer software on each computer that will print documents to the printer.In Windows 9x/MeSetting Up the Host Computer1Start Windows.2From the Start menu, select Control Panel and double-click on the Network icon. 3Check the File and Print Sharing box and click OK. 4Click Start and select Printers from Settings. Double-click your printer icon. 5Select Properties in the Printer menu. 6Click the Sharing tab and check the Shared As box. Fill in the Share Name field and then click OK.
PRINTING3.233Setting Up the Client Computer1Right-click Start and select Explorer. 2Open your network folder in the left column. 3Right-click the shared name and select Capture Printer Port. 4Select the port you want, check the Reconnect at log on box and then click OK.5From the Start menu, select Settings and then Printers. 6Double-click your printer icon. 7From the Printer menu, select Properties. 8From the Details tab, select the printer port and click OK.In Windows NT 4.0/2000/XPSetting Up the Host Computer1Start Windows. 2For Windows NT 4.0/2000, from the Start menu, select Settings and then Printers. For Windows XP, from the Start menu, select Printers and Faxes. 3Double-click your printer icon. 4From the Printer menu, select Sharing. 5For Windows NT 4.0, check the Shared box. For Windows 2000, check the Shared As box.For Windows XP, check the Share this printer box. 6For Windows NT 4.0, fill in the Share Name field and click OK. For Windows 2000/XP, fill in the Shared Name field and click OK.
PRINTING3.24Setting Up the Client Computer1Right-click Start and select Explorer. 2Open your network folder in the left column. 3Click the shared name. 4For Windows NT 4.0/2000, from the Start menu, select Settings and Printers. For Windows XP, from the Start menu, select Printers and Faxes.5Double-click your printer icon. 6From the Printer menu, select Properties. 7Press the Ports tab and click Add Port. 8Select Local Port and click New Port. 9Fill in the Enter a port name field and enter the shared name. 10Click OK and click Close. 11For Windows NT 4.0, click OK.For Windows 2000/XP, click Apply and click OK.
4COPYINGThis chapter gives you step-by-step instructions for copying documents.This chapter includes:• Loading Paper for Copying• Preparing a Document• Making a Copy• Setting Copy Options• Using Special Copy Features• Changing the Default Settings• Setting the Time Out Option
COPYING4.2Loading Paper for CopyingThe instructions for loading print materials are the same whether you are printing, or copying. For coping, you can use Letter-, A4-, Legal-sized print materials. For further details, see page 1.8 for loading in the paper tray and page 2.8 for loading in the manual feeder.Preparing a DocumentYou can use an original document for copying and scanning.Load booklet, pamphlet, or documents having unusual characteristics on the document glass one sheet at a time. On the document glass, you can load the following types of documents:• Thick paper• Document with uneven surface•Photographs• Small documents (e.g. business cards, postcards)• Special types of paperMaking a Copy1Lift and open the document cover.
COPYING4.342Place the document face down on the document glass.3Align it with the registration guide on the top left corner of the glass.4Close the document cover. Be careful not to move the document.NOTES:• Leaving the cover open while copying may affect the copy quality and toner consumption.• If you are copying a page from a book or magazine which is thicker than 30 mm, lift the cover straight up to remove it and start copying with the cover open.

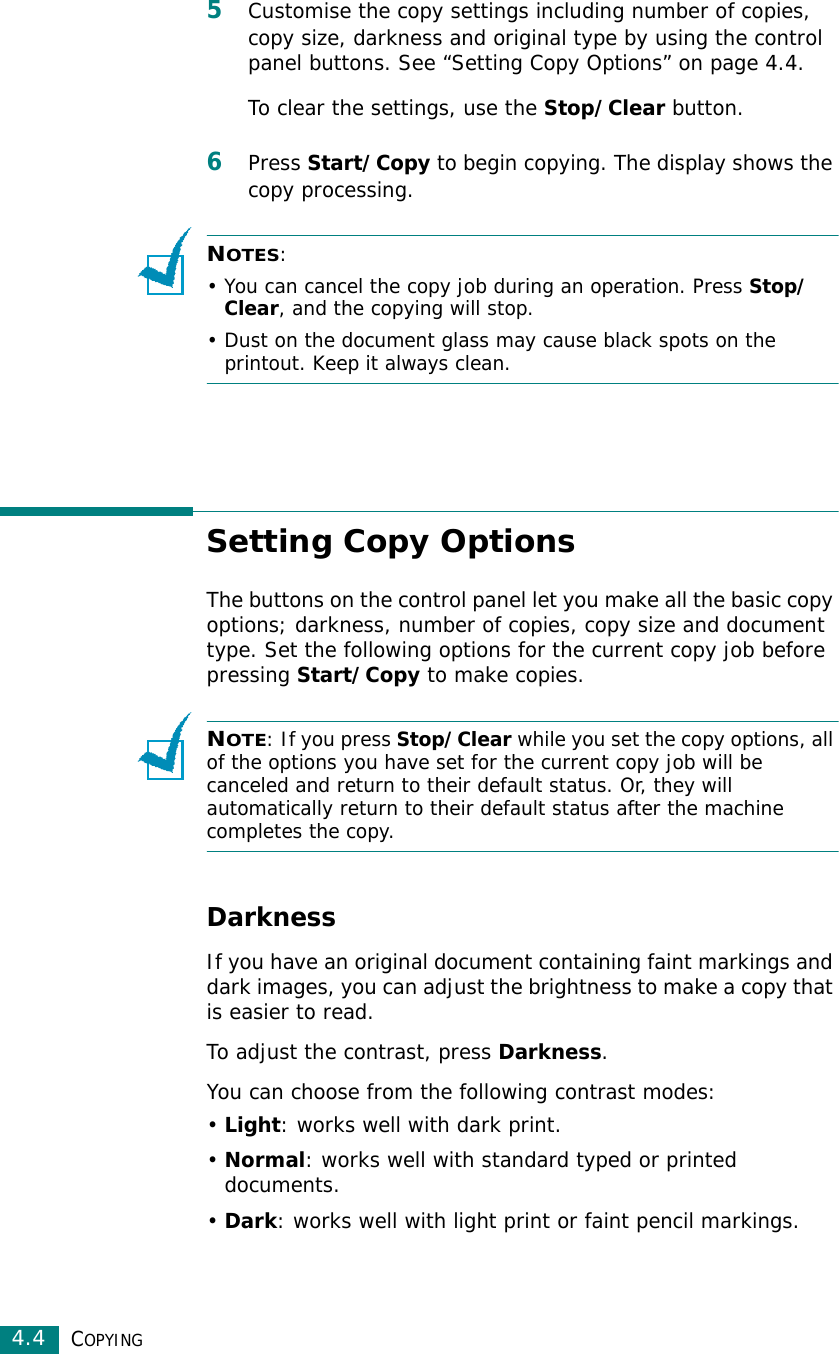

COPYING4.45Customise the copy settings including number of copies, copy size, darkness and original type by using the control panel buttons. See “Setting Copy Options” on page 4.4.To clear the settings, use the Stop/Clear button.6Press Start/Copy to begin copying. The display shows the copy processing.NOTES:• You can cancel the copy job during an operation. Press Stop/Clear, and the copying will stop.• Dust on the document glass may cause black spots on the printout. Keep it always clean.Setting Copy OptionsThe buttons on the control panel let you make all the basic copy options; darkness, number of copies, copy size and document type. Set the following options for the current copy job before pressing Start/Copy to make copies.NOTE: If you press Stop/Clear while you set the copy options, all of the options you have set for the current copy job will be canceled and return to their default status. Or, they will automatically return to their default status after the machine completes the copy. DarknessIf you have an original document containing faint markings and dark images, you can adjust the brightness to make a copy that is easier to read. To adjust the contrast, press Darkness. You can choose from the following contrast modes:•Light: works well with dark print.•Normal: works well with standard typed or printed documents.•Dark: works well with light print or faint pencil markings.
COPYING4.54Number of CopiesUsing the No. of Copies button, you can select the number of copies from 1 to 99. 1Press No. of Copies.2Press the scroll button ( or ) until the number you want appears on the display.Pressing and holding the buttons allows you to quickly increase and decrease in increments of 5.3Press Start/Copy to save the selection.Reduced/Enlarged CopyingYou can reduce or enlarge the size of a copied image from 50% to 200%.To select from the predefined copy sizes:1Press Menu/Exit on the control panel. "Reduce/Enlarge" appears on the top line of the display.2Press the scroll button ( or ) to find the size setting you want. 3Press Start/Copy to save the selection.To fine-tune the size of copies:1Press Menu/Exit on the control panel. "Reduce/Enlarge" appears on the top line of the display.2Press the scroll button ( or ) until "Custom:50-200%" displays on the bottom line. Press Start/Copy.3Press the scroll button ( or ) until the copy size you want appears on the display. Pressing and holding the buttons allows you to quickly increase and decrease in increments of 5.
COPYING4.64Press Start/Copy to save the selection.NOTE: When you make a reduced copy, black lines may appear at the bottom of your copy.Original TypeThe Original Type setting is used to improve the copy quality by selecting the document for the current copy job. To select the document type:1Press Menu/Exit on the control panel until "Original Type" appears on the top line of the display2Press Start/Copy to access the menu item. 3Press the scroll button ( or ) to scroll through the document type. You can choose from the following image modes:•Text: Use for documents containing mostly text.•Text/Photo: Use for documents with mixed text and graphics.•Photo: Use when the originals are photographs.NOTE: When you copy a document containing color on the background, such as a newspaper or a catalog, you can get the background on your copy. If you want to reduce the background, change the Darkness setting to Light and/or the Original Type setting to Text.
COPYING4.74Using Special Copy FeaturesYou can use the following copy features using the "Special Copy" menu:•Off: Prints in normal mode.•Clone: Prints multiple image copies from the original document on a single page. The number of images is automatically determined by the original image and paper size. See page 4.7.•Auto Fit: Automatically reduces or enlarges the original image to fit on the paper currently loaded in the machine. See page 4.8.•2 Sides in 1 pg: Prints 2-sided original document on one sheet of paper. See page 4.8.•2 Up: Prints 2 original images reduced to fit onto one sheet of paper. See page 4.9.•Poster: Prints an image onto 9 sheets of paper (3x3). You can paste the printed pages together to make one poster-size document. See page 4.10.Clone Copying1Load the document to be copied on the document glass, and close the cover. 2Press Menu/Exit until "Special Copy" appears on the top line of the display. 3Press the scroll button ( or ) until "Clone" displays on the bottom line.4Press Start/Copy to save the selection.5Customise the copy settings including number of copies, copy size, darkness and original type by using the control panel buttons. See “Setting Copy Options” on page 4.4.NOTE: You cannot adjust the copy size using the "Reduce/Enlarge" feature while making a clone copy.6Press Start/Copy to begin copying.
COPYING4.8Auto Fit Copying1Load the document to be copied on the document glass, and close the cover. 2Press Menu/Exit until "Special Copy" appears on the top line of the display. 3Press the scroll button ( or ) until "Auto Fit" appears on the bottom line.4Press Start/Copy to save the selection.5Customise the copy settings including number of copies, copy size, darkness and original type by using the control panel buttons. See “Setting Copy Options” on page 4.4.NOTE: You cannot adjust the copy size using the "Reduce/Enlarge" feature while the Auto Fit copying is enabled.6Press Start/Copy to begin copying.2 sided in 1 page CopyingYou can copy a 2-sided document on one page of A4, Letter or Legal-sized paper. When you copy using this feature, the machine prints one side on the upper half of the paper and the other side on the lower half without reducing the original. This feature is helpful for copying a small-sized document, such as a name card. If the original document is larger than the printable area, some portions may not be printed.1Load the document to be copied on the document glass, and close the cover. 2Press Menu/Exit until "Special Copy" appears on the top line of the display. 3Press the scroll button ( or ) until "2 Sides in 1 pg" displays on the bottom line.4Press Start/Copy to save the selection.A
COPYING4.945Customise the copy settings including number of copies, copy size, darkness and original type by using the control panel buttons. See “Setting Copy Options” on page 4.4.6Press Start/Copy to begin copying.Your machine begins scanning the front side.7When "Set Backside" displays on the bottom line, open the document cover and flip the document over. Close the cover.NOTE: If you press the Stop/Clear button or if no buttons are pressed for about 30 seconds, the machine cancels the copy job and returns to Standby Mode.8Press Start/Copy again.NOTE: You cannot adjust the copy size using the "Reduce/Enlarge" feature for making a 2-side Copying.2-up Copying1Load the document to be copied on the document glass, and close the cover. 2Press Menu/Exit until "Special Copy" appears on the top line of the display. 3Press the scroll button ( or ) until "2 UP" displays on the bottom line.4Press Start/Copy to save the selection.5Customise the copy settings including number of copies, copy size, darkness and original type by using the control panel buttons. See “Setting Copy Options” on page 4.4.NOTE: You cannot adjust the copy size using the "Reduce/Enlarge" feature for making a 2-up copy.6Press Start/Copy to begin copying. 2-up copying
COPYING4.10NOTE: 2-up copy reduces your original document by 50%. Poster Copying1Load the documents to be copied on the document glass and close the cover.2Press Menu/Exit until "Special Copy" appears on the top line of the display. 3Press the scroll button ( or ) until "Poster" displays on the bottom line.4Press Start/Copy to save the selection.5Customise the copy settings including number of copies, copy size, darkness and original type by using the control panel buttons. See “Setting Copy Options” on page 4.4.NOTE: You cannot adjust the copy size using the "Reduce/Enlarge" feature for making a poster.6Press Start/Copy to begin copying.Your original document is divided into 9 portions. Each portion is scanned and printed one by one in the following order:
COPYING4.114Changing the Default SettingsCopy options, including darkness, original type, copy size and number of copies, can be set to the most frequently used modes. When you copy a document, the default settings are used unless they are changed by using the corresponding buttons on the control panel.To create your own default settings:1Press Menu/Exit on the control panel until "Copy Setup" appears on the top line of the display. The first menu item, "Change Default", appears on the bottom line.2Press Start/Copy to access the menu item. The first setup option, "Darkness", appears on the bottom line.3Press the scroll button ( or ) to scroll through the setup options.4When the option you want to set appears, press Start/Copy to access the option.5Change the setting using the scroll button ( or ).6Press Start/Copy to save the selection.7Repeat steps 3 through 6, as needed.8To return to Standby mode, press Stop/Clear.NOTE: While you set copy options, pressing Stop/Clear cancels the changed settings and restores their default status.
COPYING4.12Setting the Time Out OptionYou can set the time the machine waits before it restores the default copy settings, if you do not start copying after changing them on the control panel.1Press Menu/Exit on the control panel until "Copy Setup" appears on the top line of the display. 2Press the scroll button ( or ) to display "Timeout" on the bottom line.3Press Start/Copy to access the menu item.4Press the scroll button ( or ) until the status you want appears on the display.You can select from 15, 30, 60 and 180 (seconds). Selecting "Off" means that the machine does not restore the default settings until you press Start/Copy to start copying, or Stop/Clear to cancel.5Press Start/Copy to save the selection.6To return to Standby mode, press Stop/Clear.
5SCANNINGScanning with your machine lets you turn pictures and text into digital files on your computer. Then you can e-mail the files, display them on your web site or use them to create projects that you can print using Samsung SmarThru software.This chapter includes:• Scanning Basics• Scanning Using Samsung SmarThru• Scanning Process with TWAIN-enabled Software
