Digital Laser MFP

SCX-4100

About the User’s Guides

Your machine comes with the two user’s guides:

This Laser MFP User’s Guide

provides information you need for setting up your machine

and installing the supplied software. It also provides all of the detailed instructions for using

your machine as a printer, a scanner and a copier and information for maintaining and

troubleshooting the machine.

The SmarThru 4 User’s Guide

provides the basic description about using the multi-function

application. Samsung SmarThru allows you to scan and edit images, and to scan for copying,

faxing and sending an e-mail on your computer. You can also find a brief description on the

automatic text recognition program, AnyPage.

This manual is provided for information purposes only. All information included herein is

subject to change without notice. Samsung Electronics is not responsible for any changes,

direct or indirect, arising from or related to the use of this manual.

• SCX-4100 and Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• PCL and PCL 6 are trademarks of Hewlett-Packard Company.

•Microsoft, Windows, Windows 9x, Window Me, Windows 2000, Windows NT 4.0

and Windows XP are registered trademarks of Microsoft Corporation.

• Apple, AppleTalk, TrueType, LaserWriter and Macintosh are trademarks of Apple

Computer, Inc.

• PostScrip 3, Adobe Acrobat Reader, Adobe PhotoDeluxe and Adobe Photoshop are

trademarks of Adobe System, Inc.

• All other brand or product names are trademarks of their respective companies or

organizations.

CONTENTS

Chapter 1:

GETTING STARTED

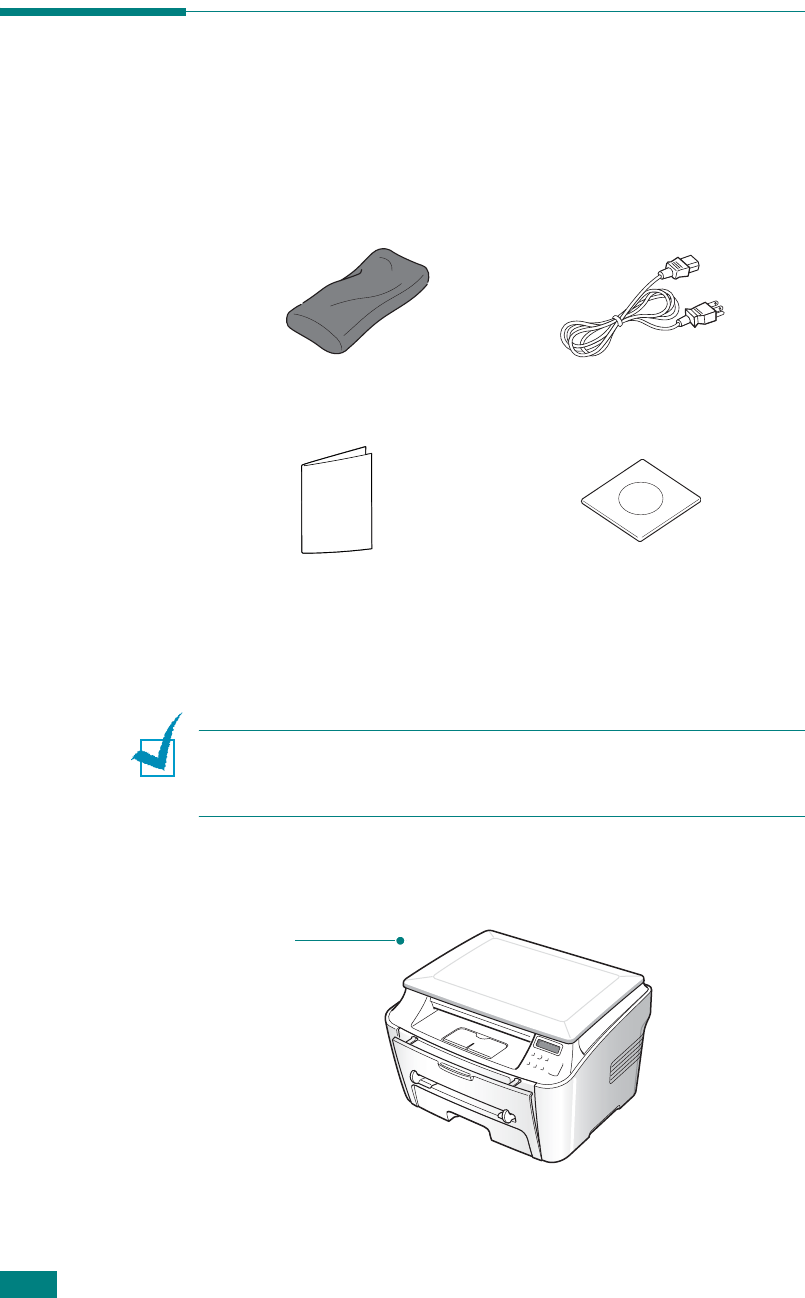

Unpacking .................................................................... 1.2

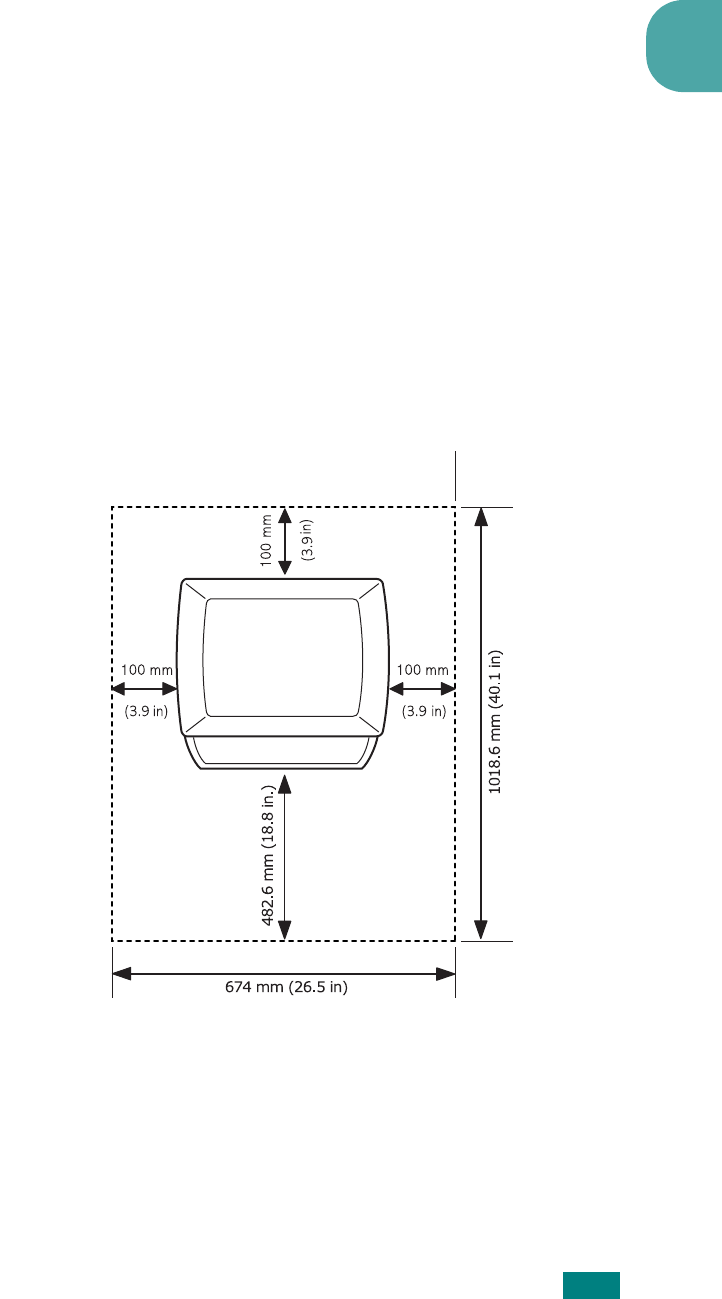

Selecting a Location ................................................. 1.3

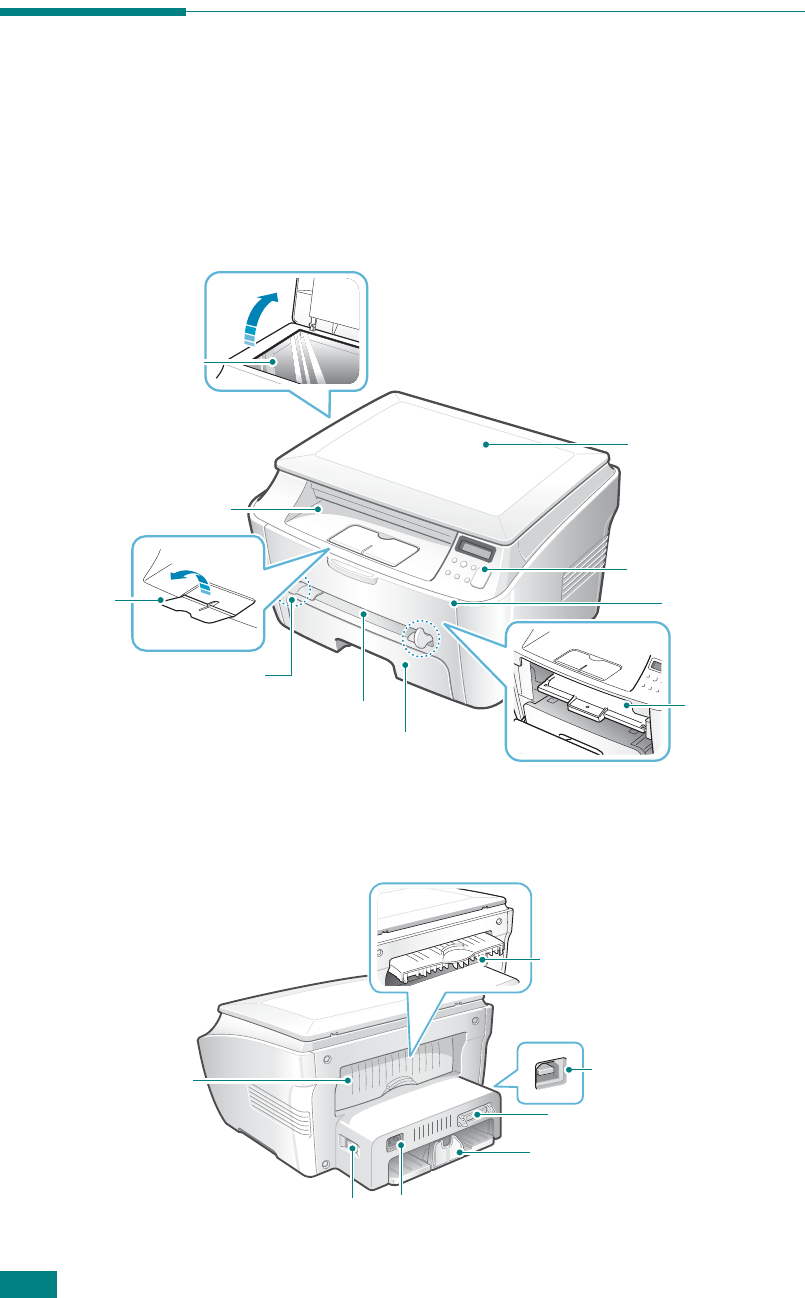

Understanding the Component Location ........................... 1.4

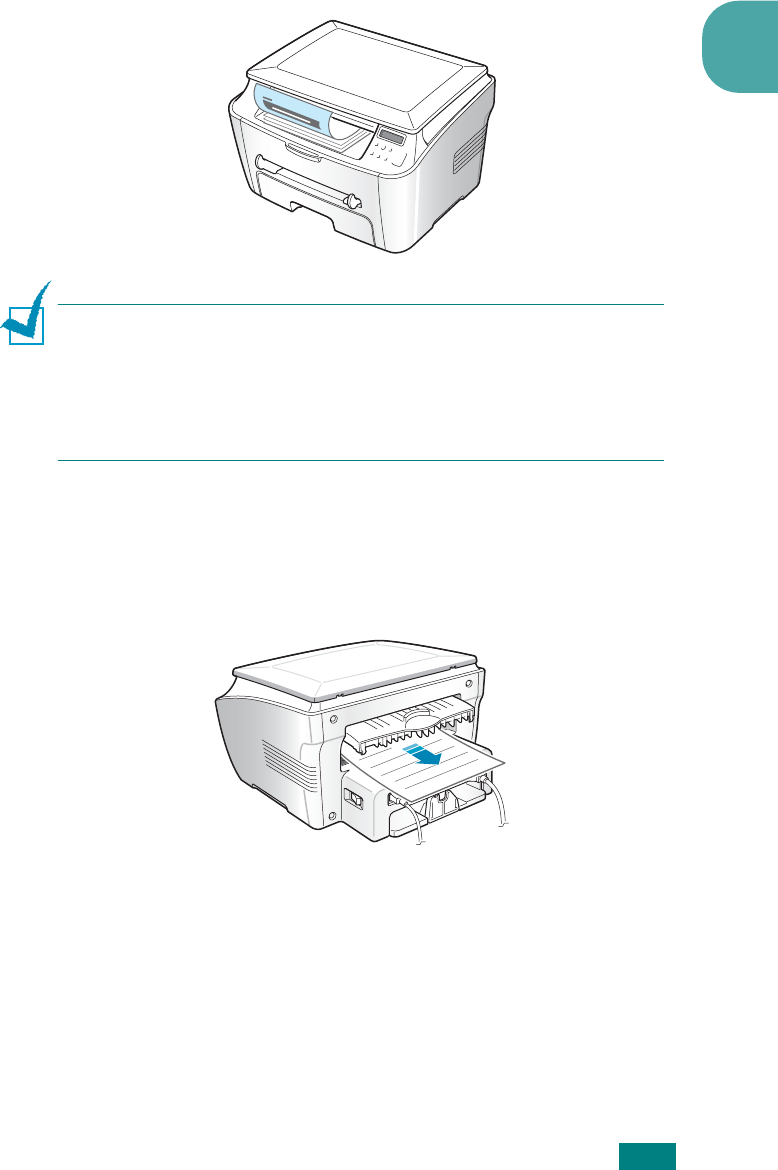

Front View .............................................................. 1.4

Rear View ............................................................... 1.4

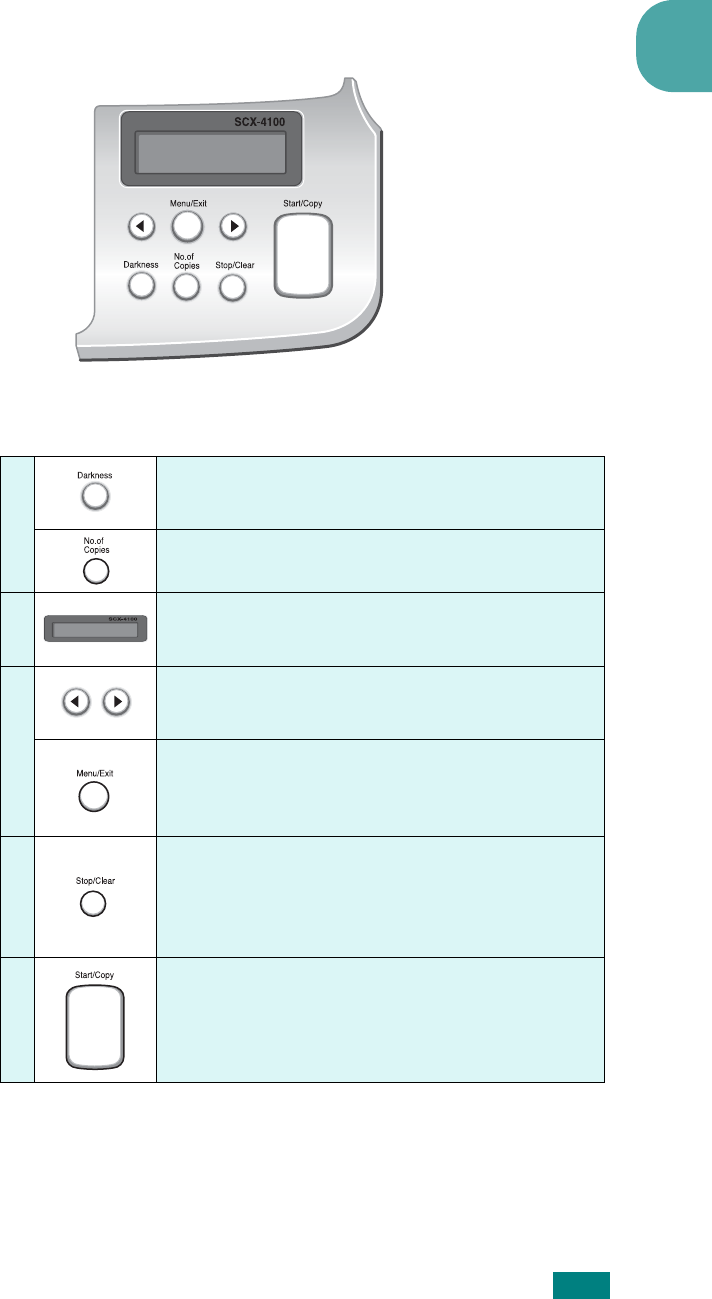

Control Panel Functions ............................................ 1.5

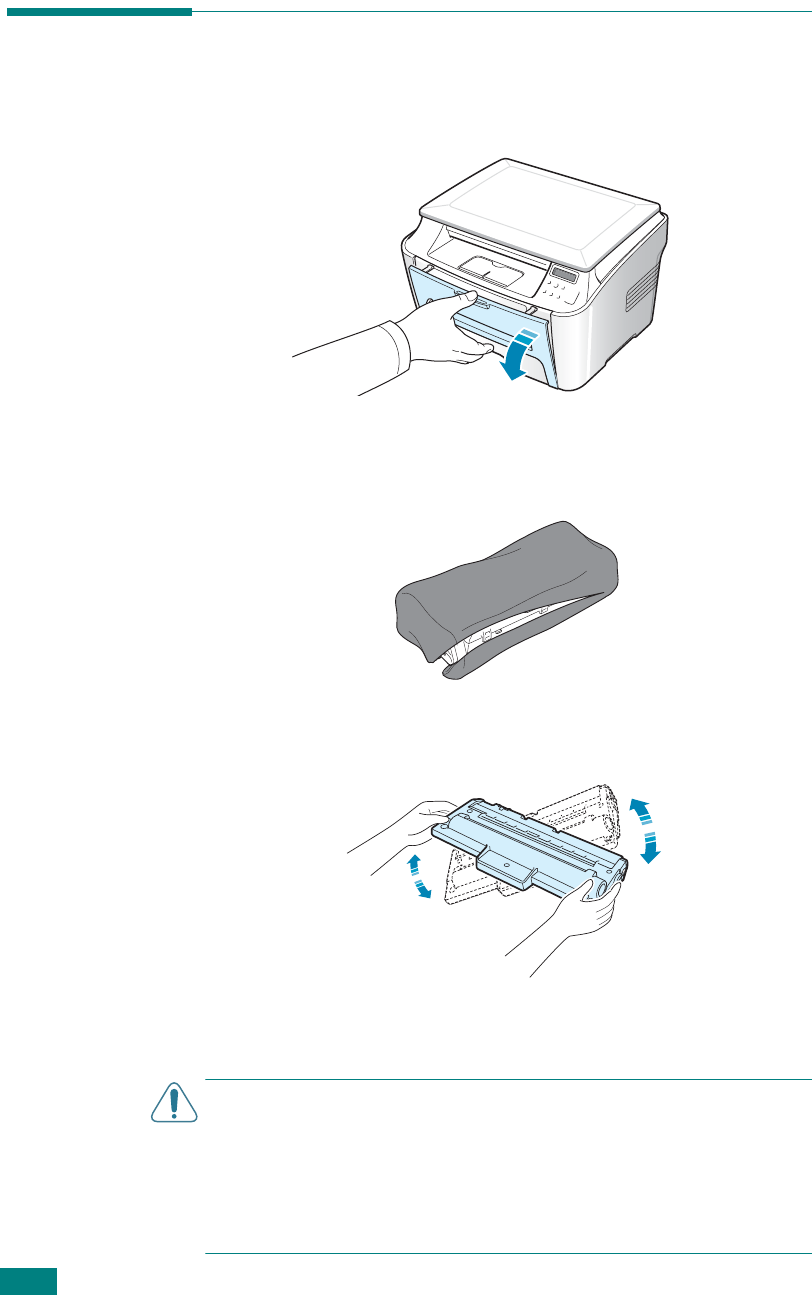

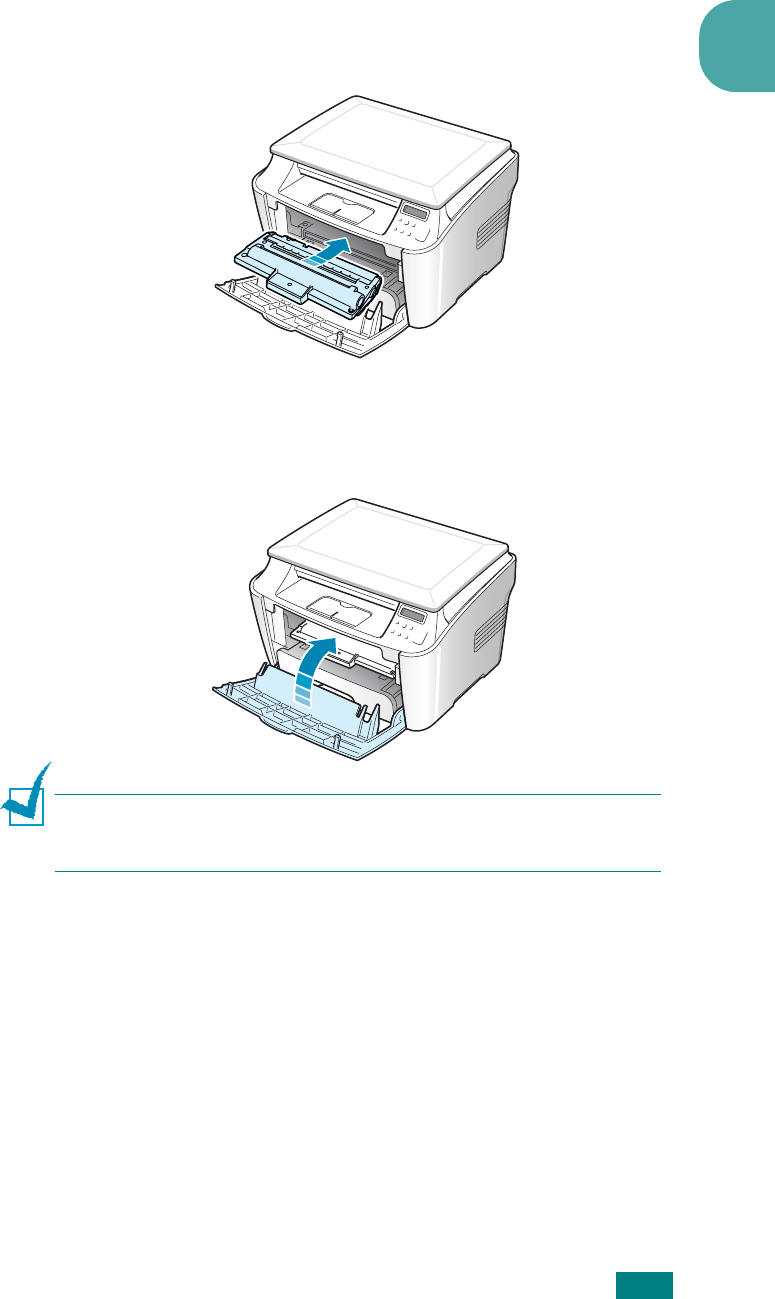

Installing the Toner Cartridge ........................................ 1.6

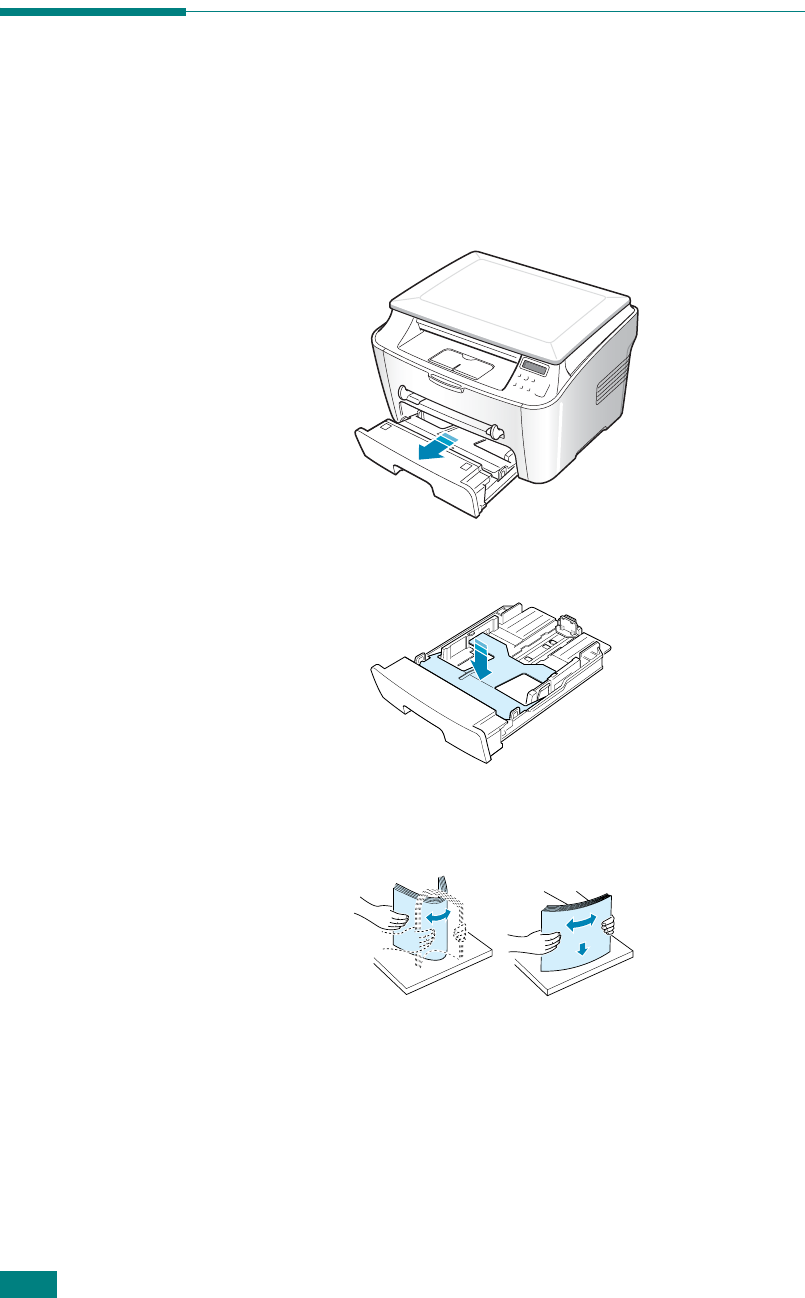

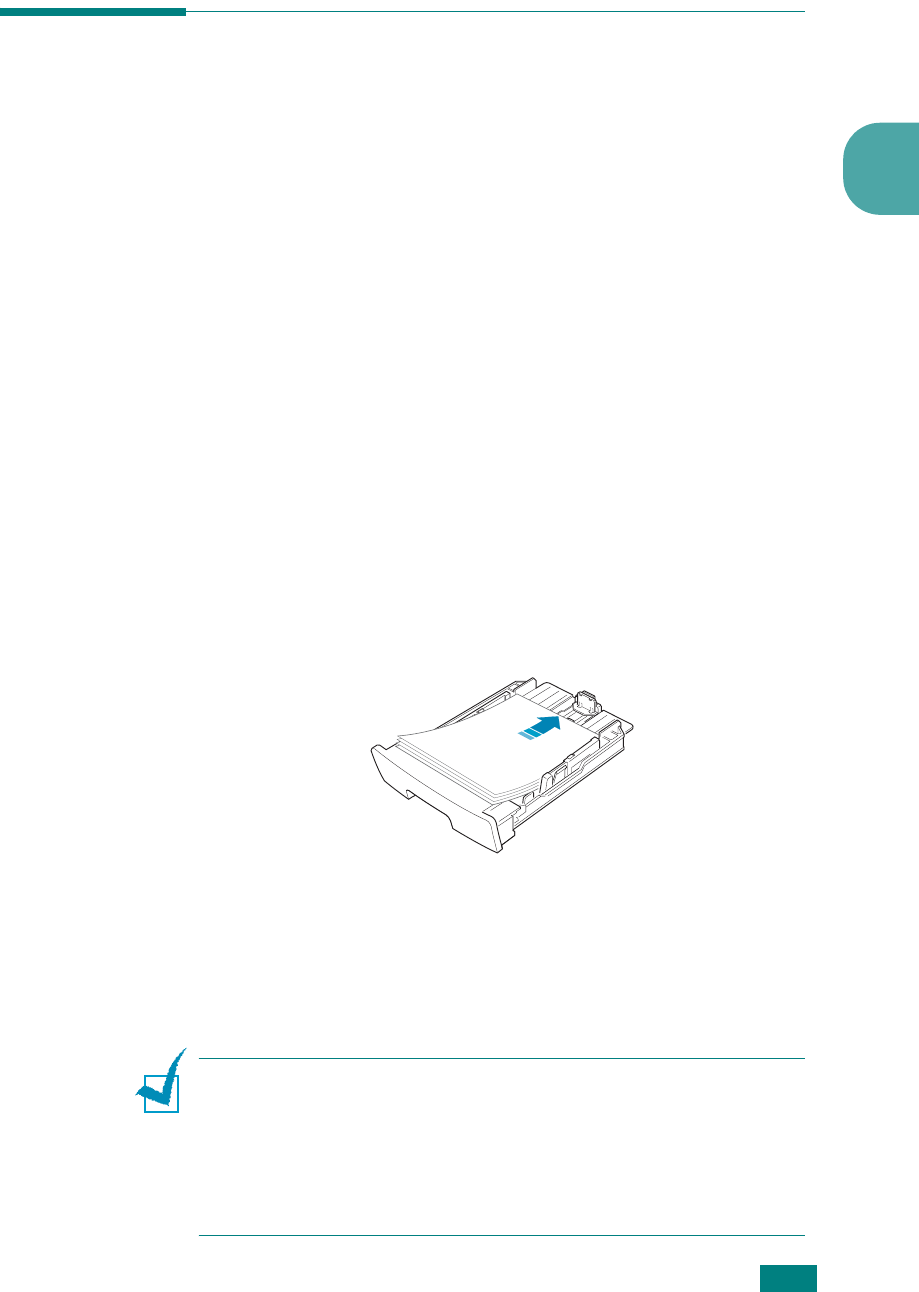

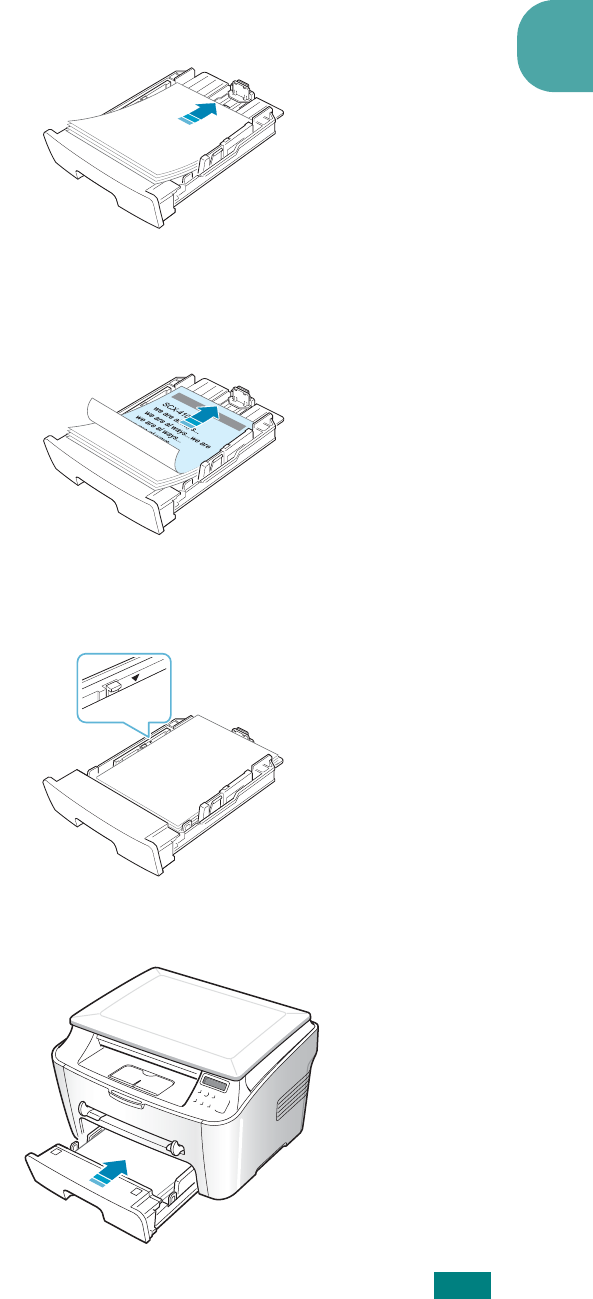

Loading Paper .............................................................. 1.8

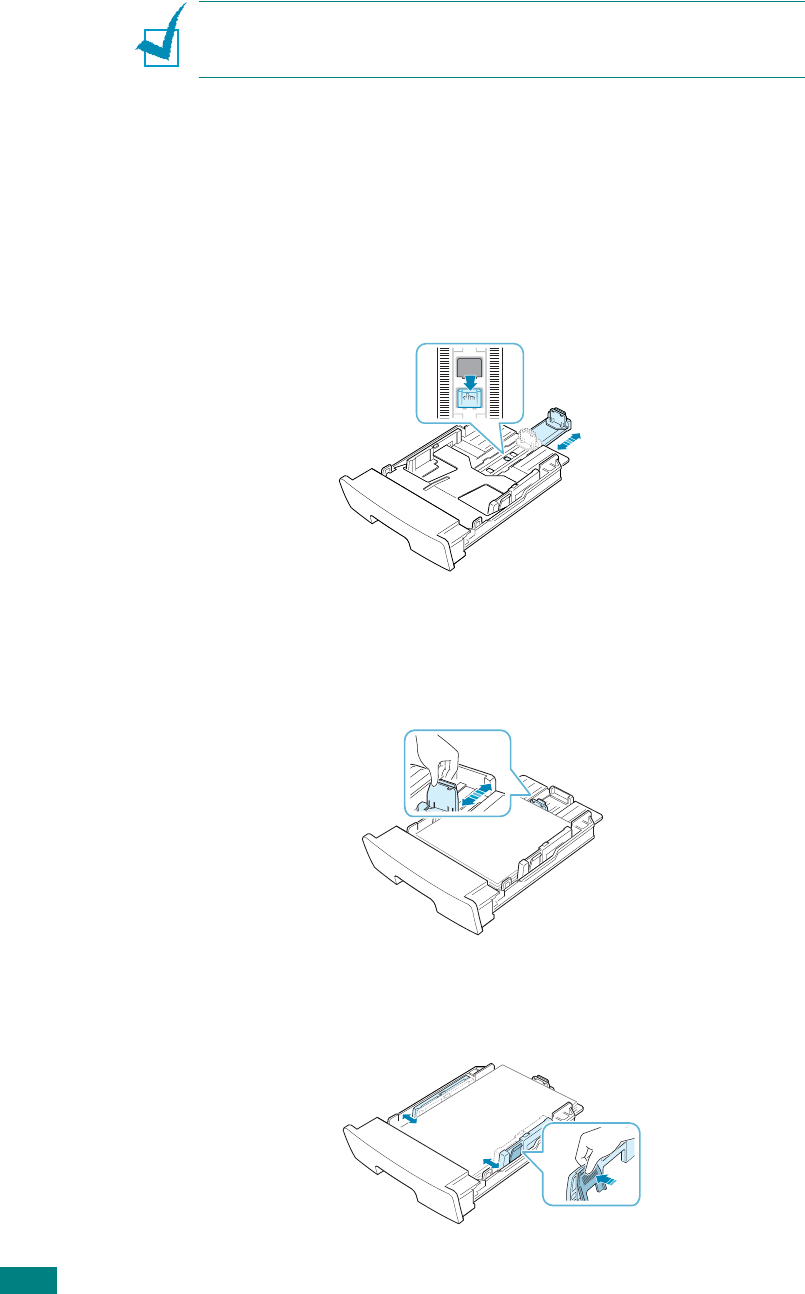

Changing the Paper Size in the Paper Tray ................ 1.10

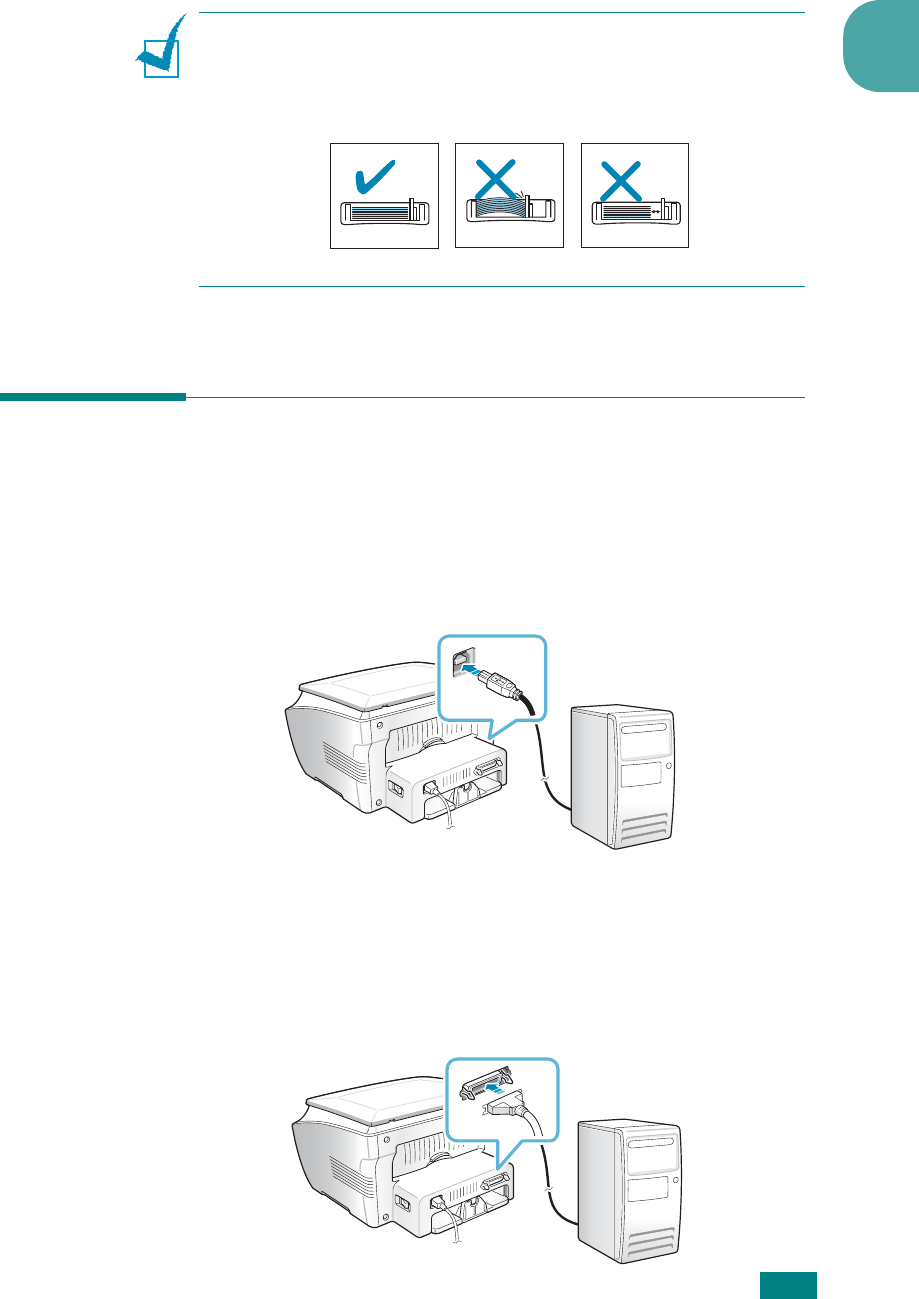

Making Connections .................................................... 1.11

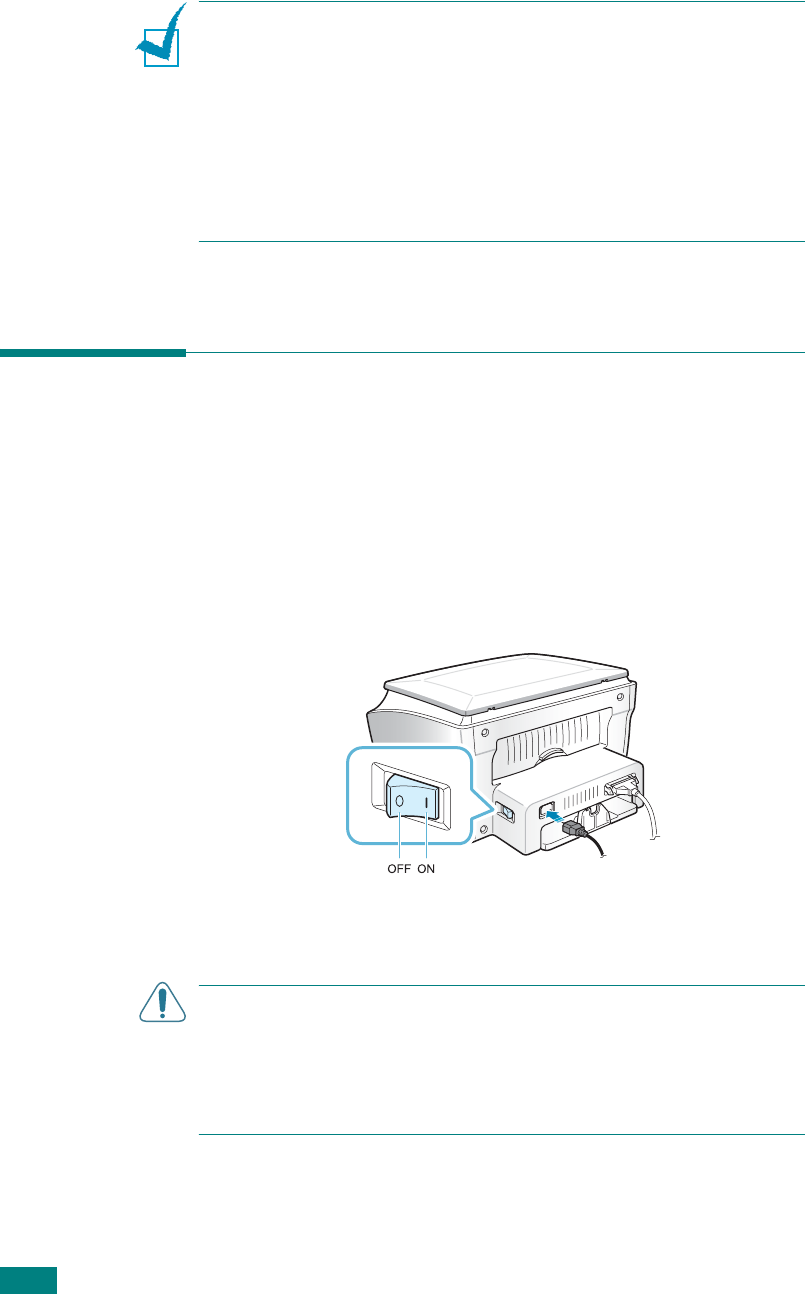

Turning the Machine On ............................................... 1.12

About Samsung Software ............................................. 1.13

Printer Driver Features ........................................... 1.14

Installing Samsung Software in Windows ....................... 1.15

System Requirements ............................................ 1.15

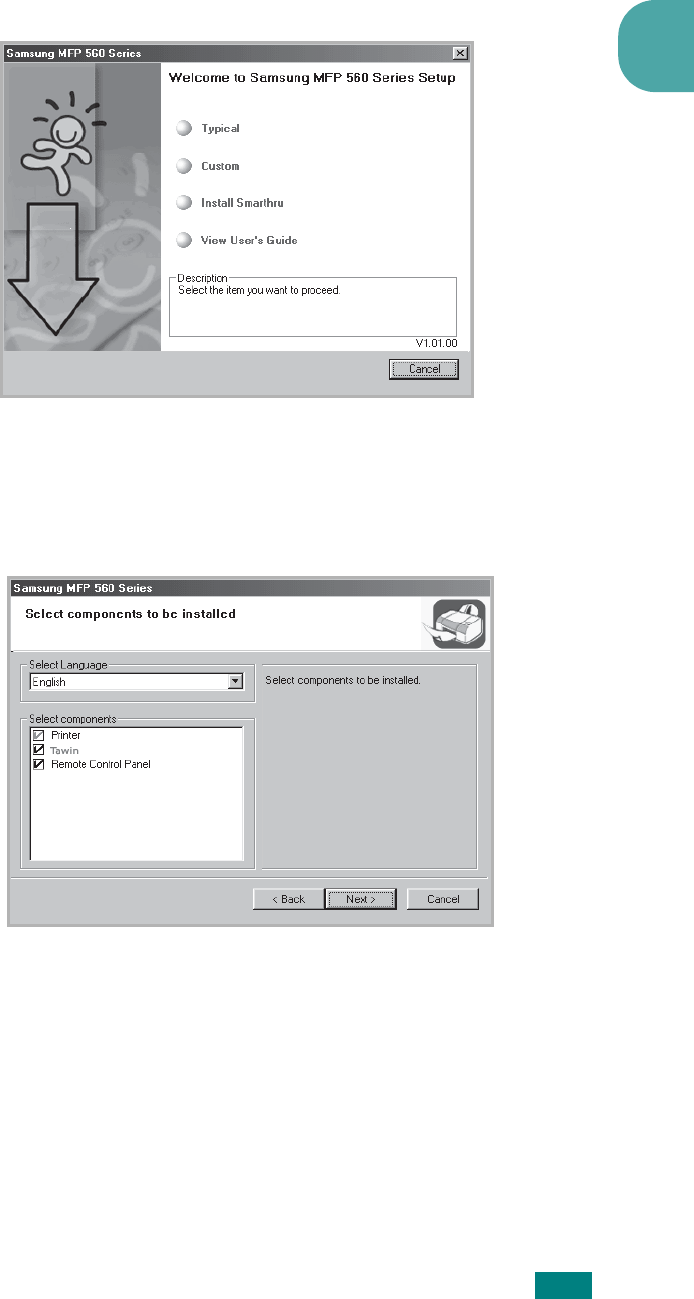

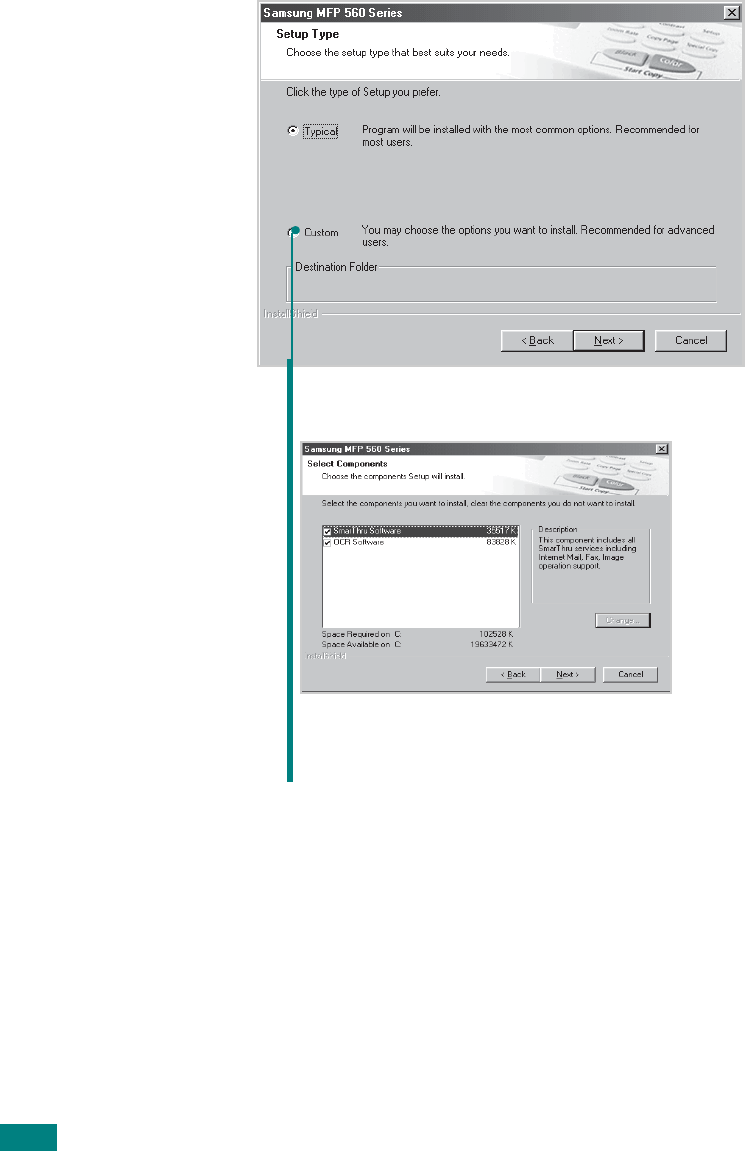

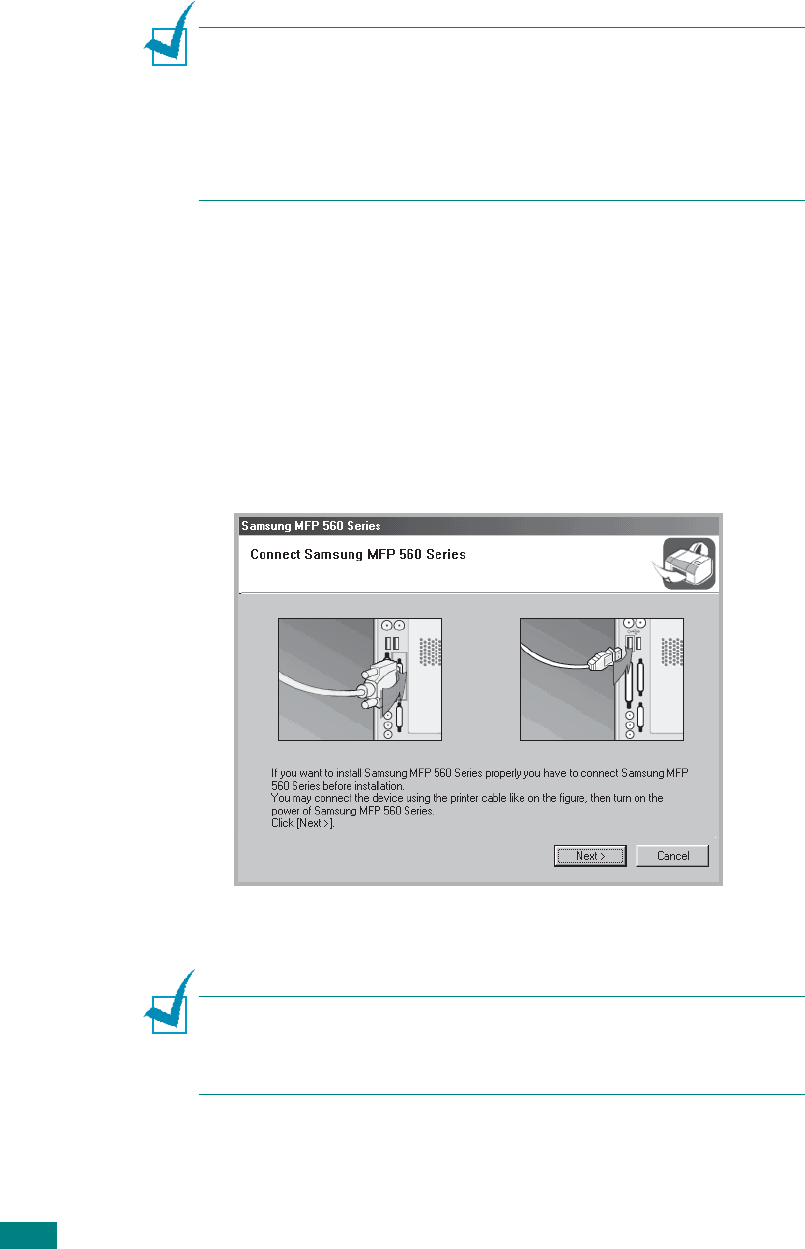

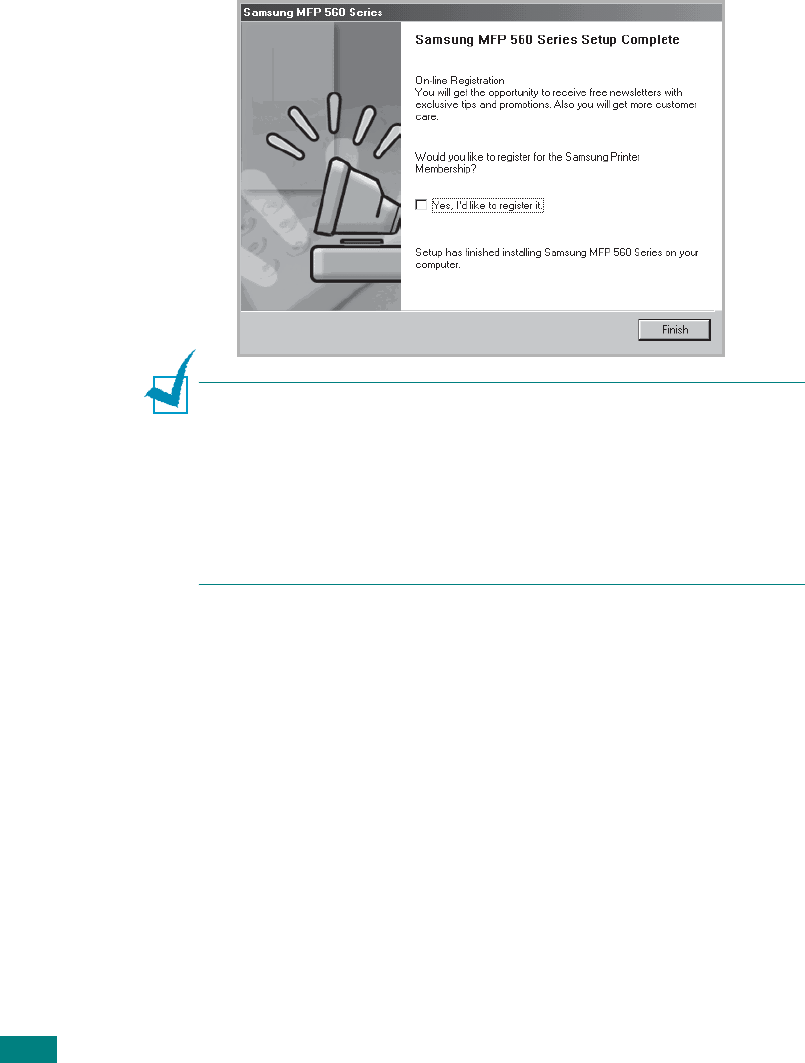

Installing Samsung Software ................................... 1.16

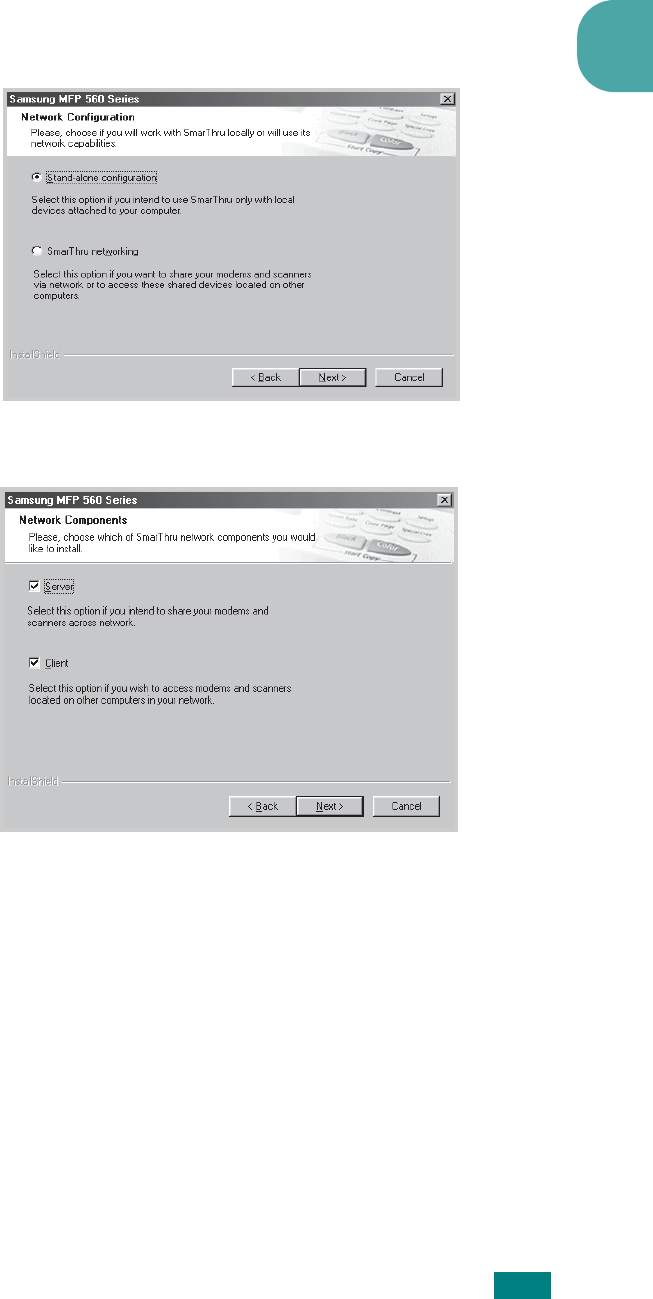

Installing Samsung SmarThru ................................. 1.19

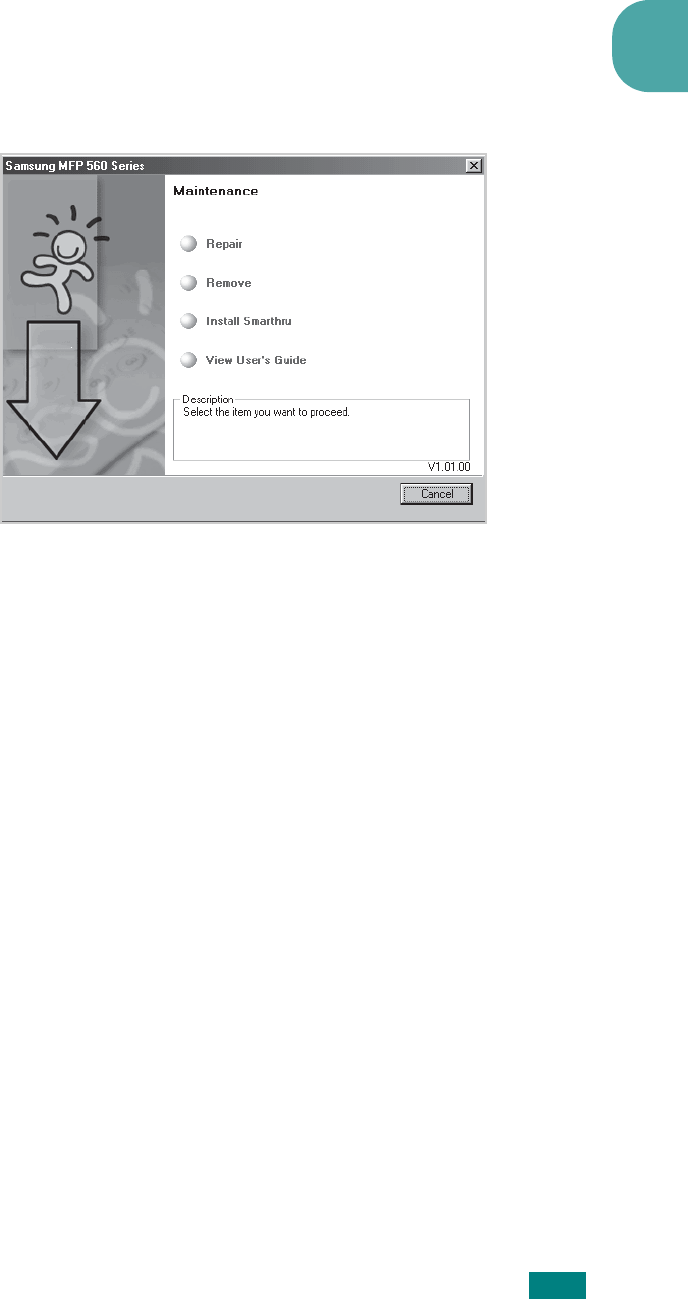

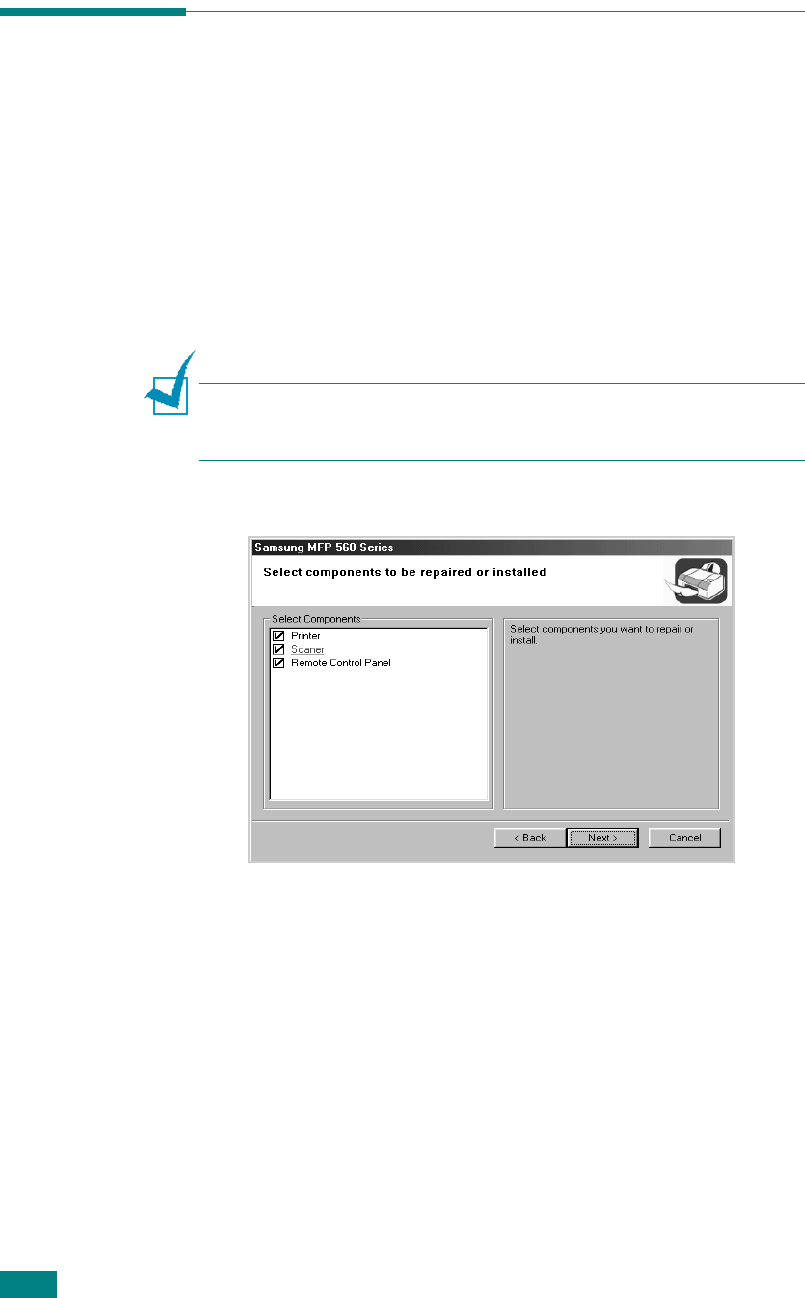

Repairing Software ...................................................... 1.22

Removing Software ..................................................... 1.23

Uninstalling the MFP Driver ..................................... 1.23

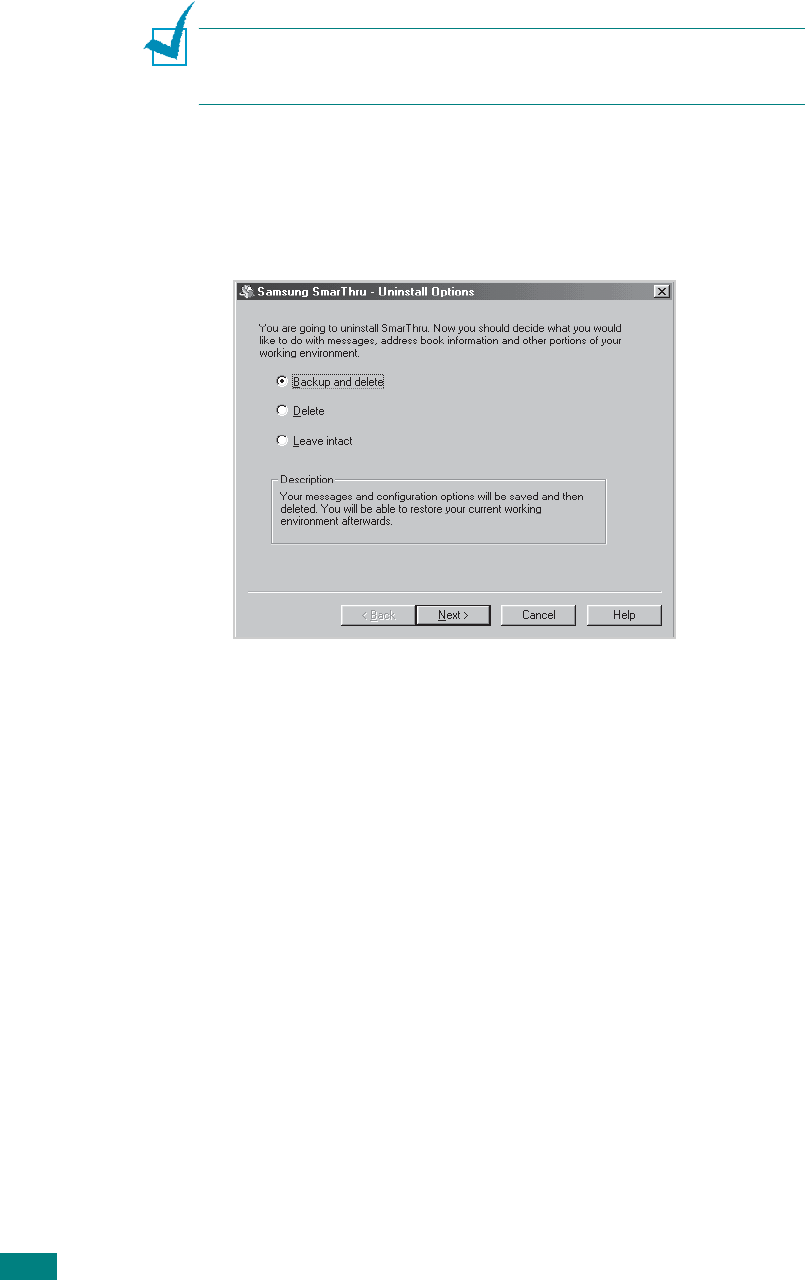

Uninstalling Samsung SmarThru .............................. 1.24

Changing the Display Language .................................... 1.25

Setting the Paper Size and Type ................................... 1.26

Using the Save Modes ................................................. 1.27

Toner Save Mode .................................................. 1.27

Power Save Mode .................................................. 1.27

Chapter 2:

PAPER HANDLING

Selecting Print Materials ................................................. 2.2

Type, Input Sources and Capacities ........................... 2.2

Guidelines for Paper and Special Materials .................. 2.3

Selecting an Output Location .......................................... 2.4

Printing to the Front Output Tray (Face down) ............. 2.5

Printing to the Rear Output Slot (Face up) .................. 2.5

Loading Paper in the Paper Tray ...................................... 2.7

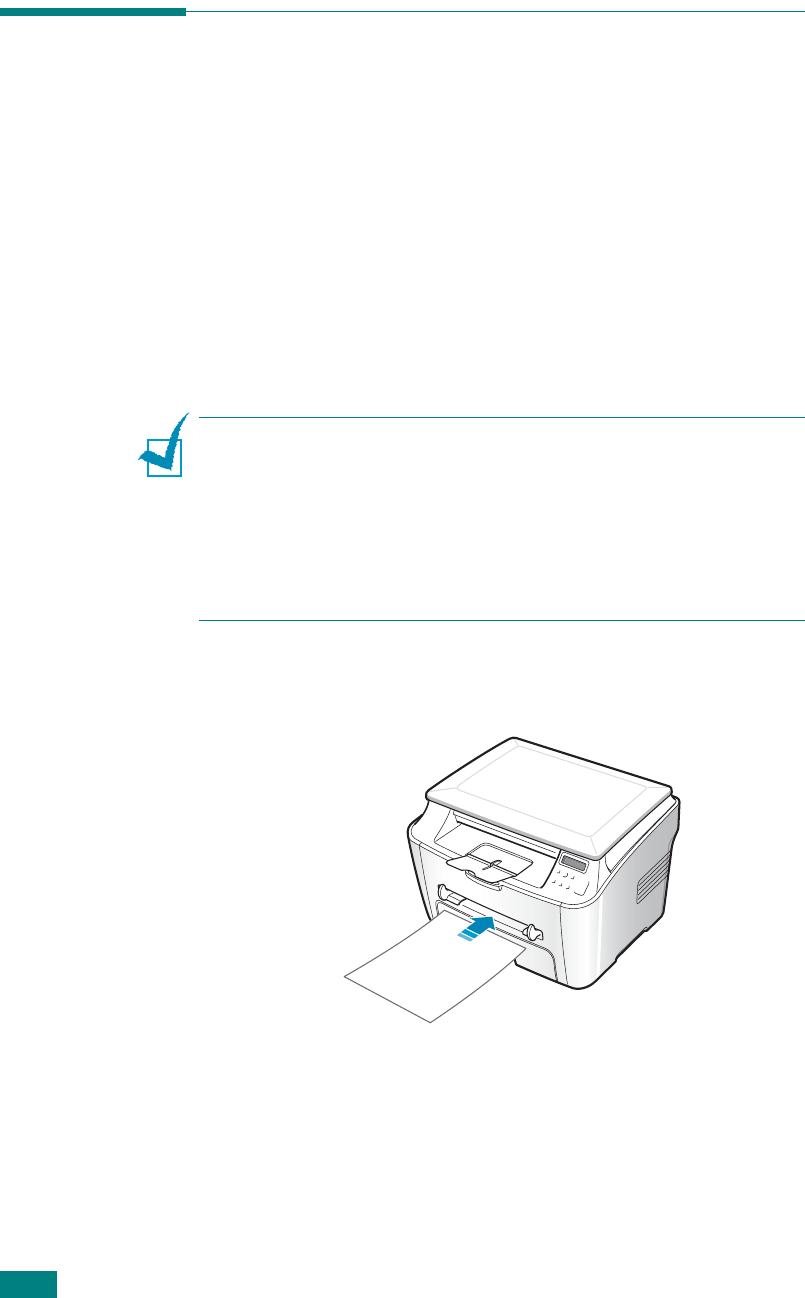

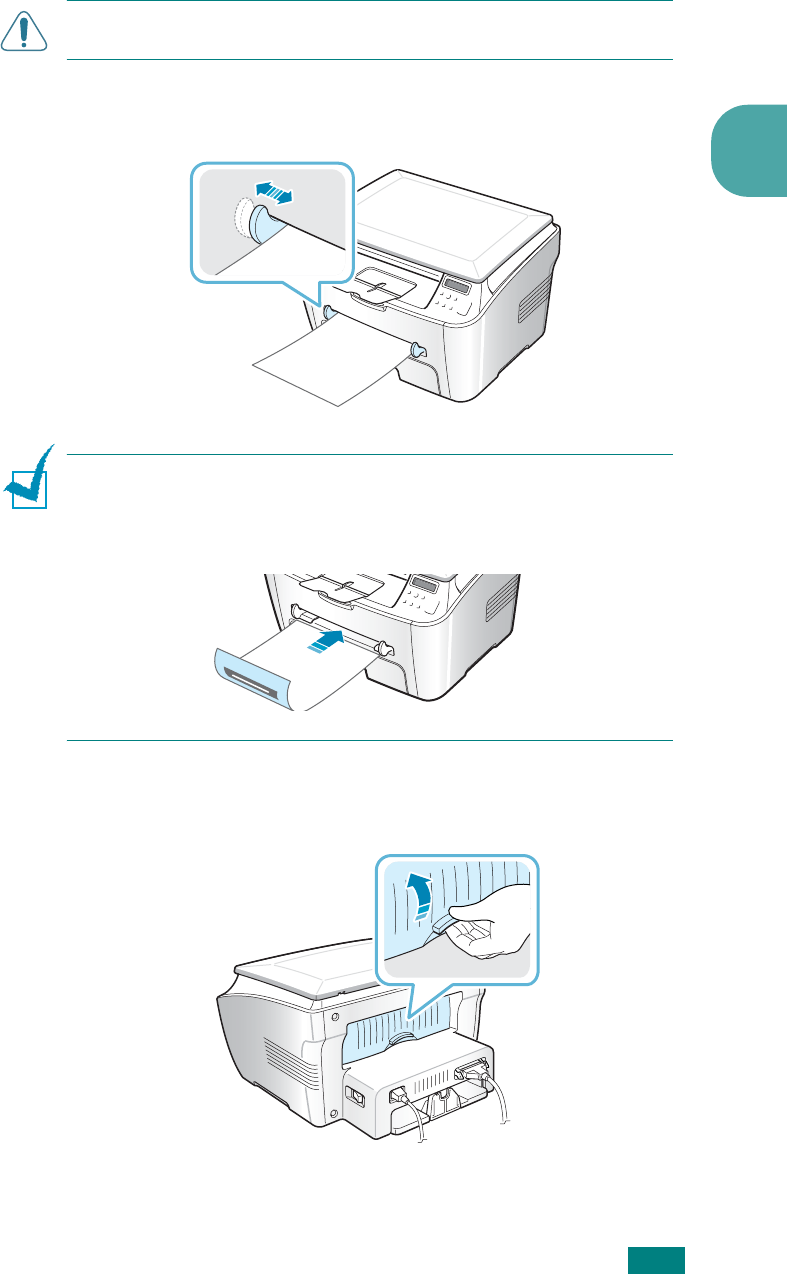

Using the Manual Feeder ................................................ 2.8

Setting the Paper Type and Size for the Manual Feeder 2.10

Chapter 3:

PRINTING

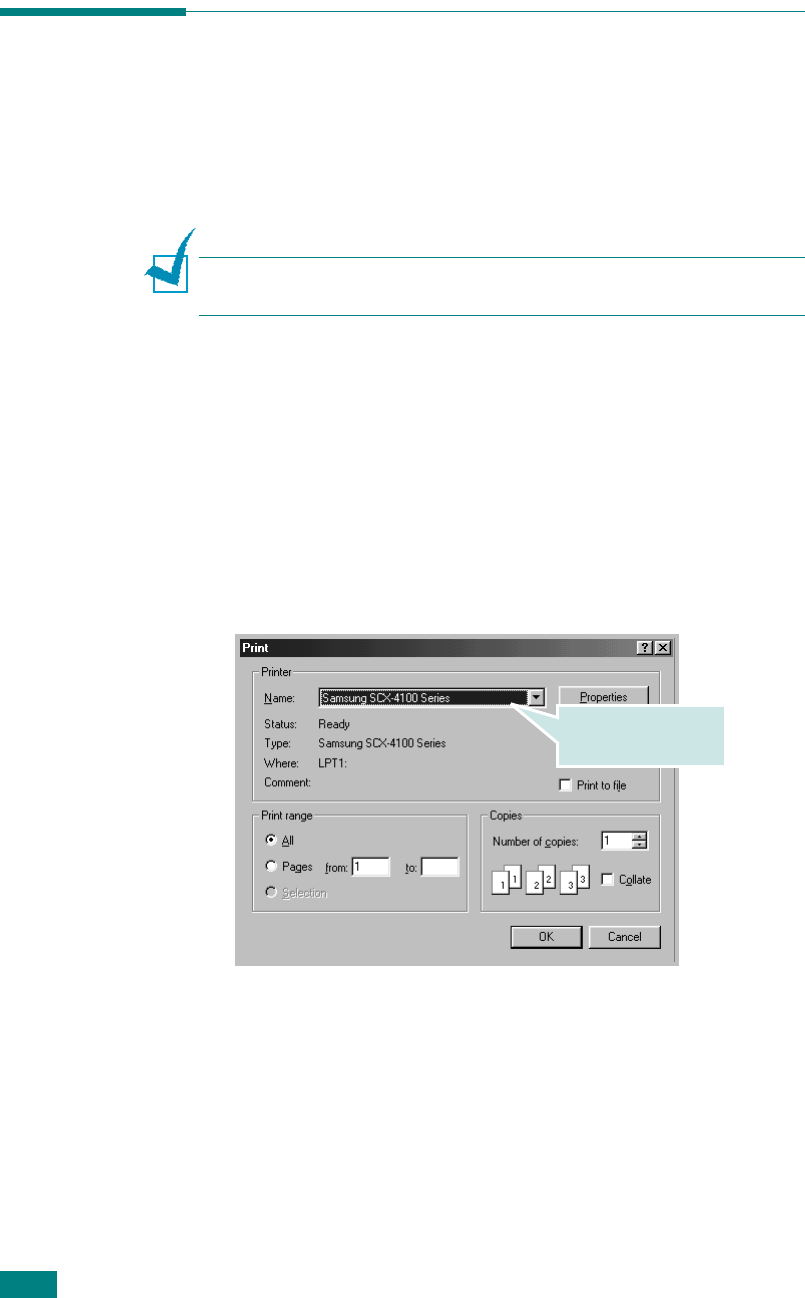

Printing a Document in Windows ..................................... 3.2

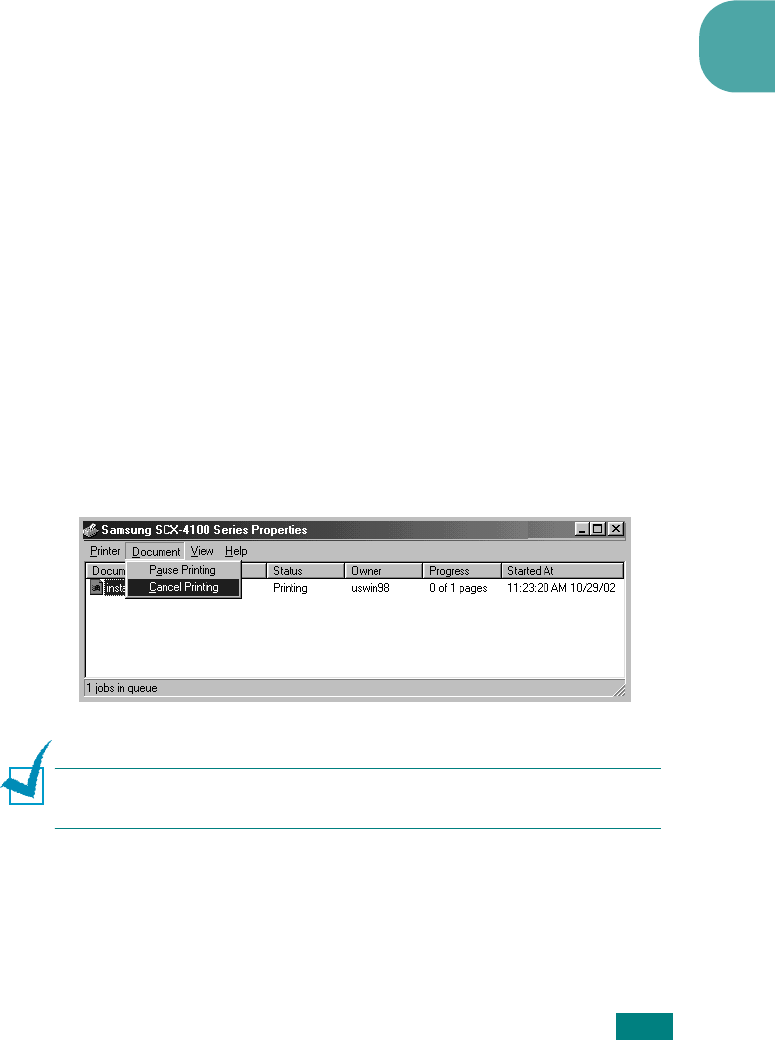

Canceling a Print Job ................................................ 3.5

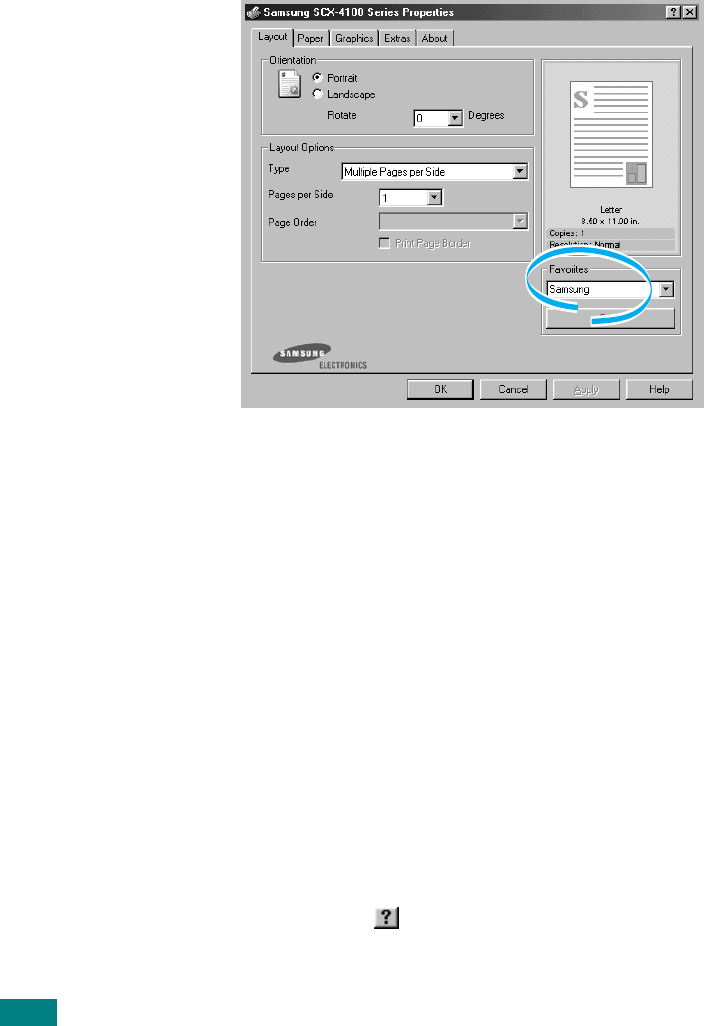

Using a Favorite Setting ........................................... 3.6

Using Help .............................................................. 3.6

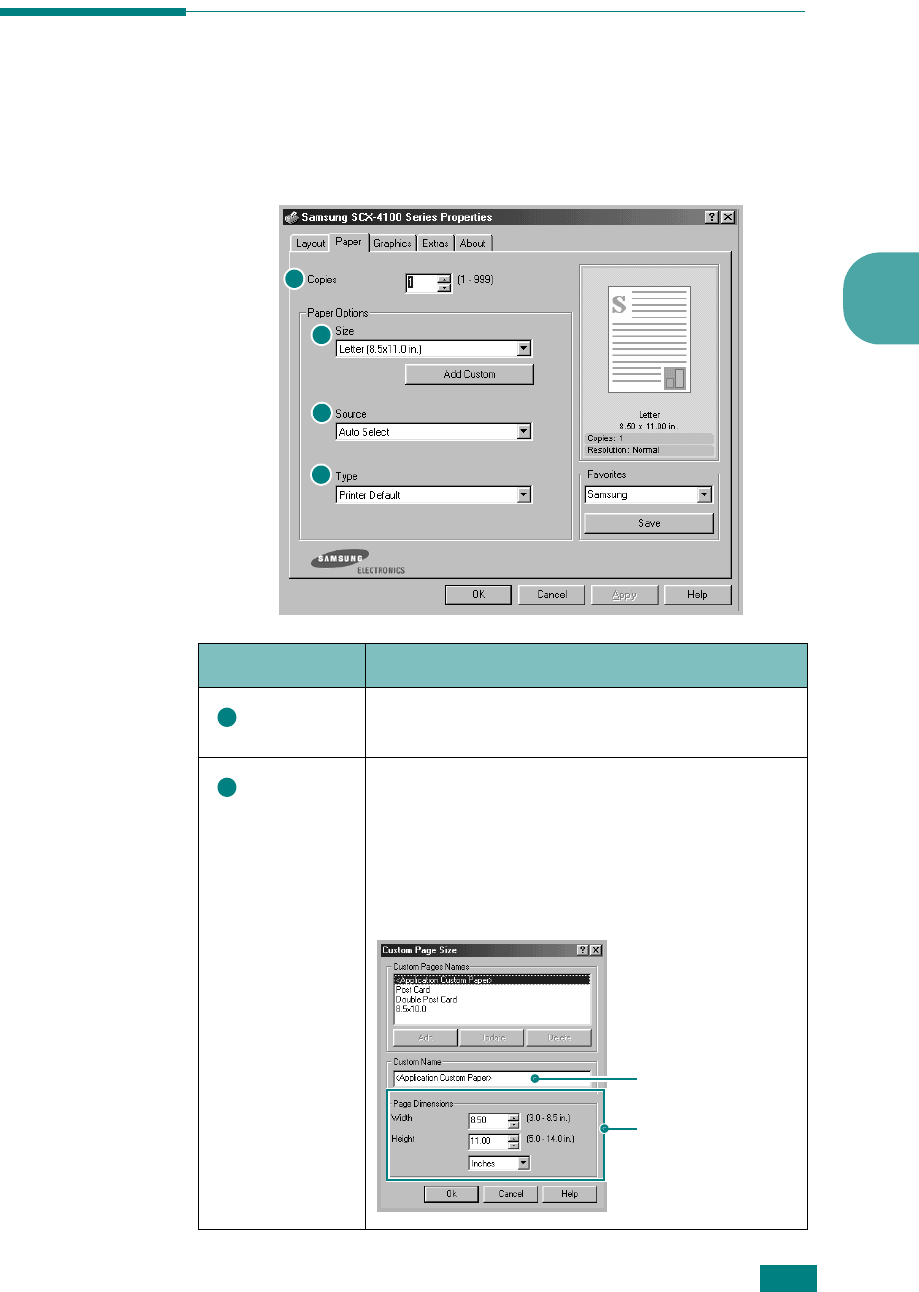

Setting Paper Properties ................................................ 3.7

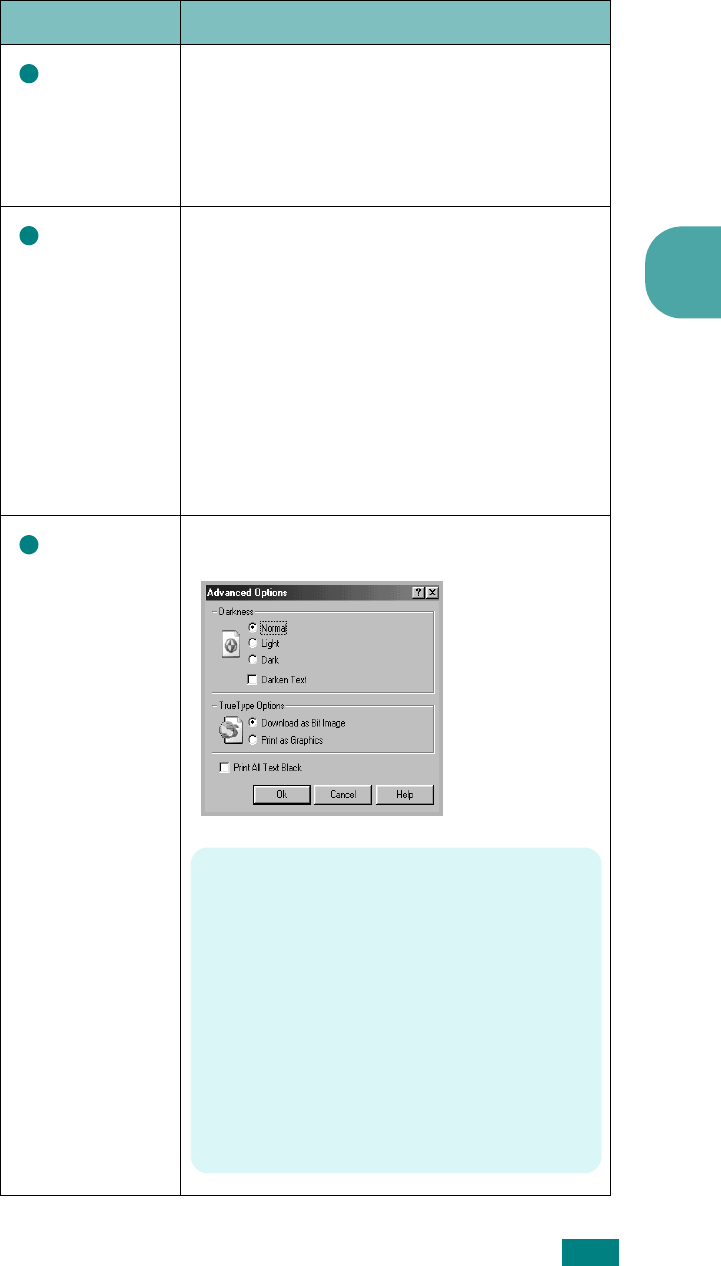

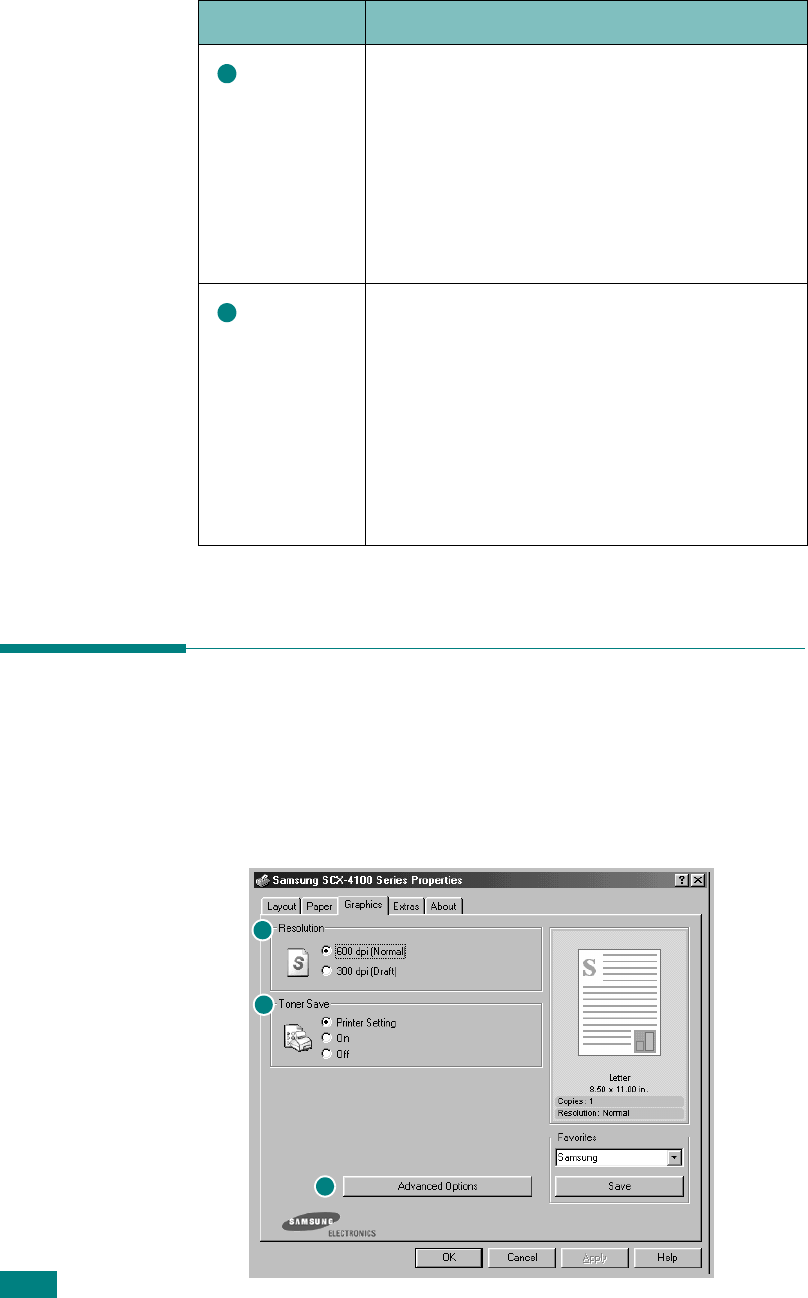

Setting Graphic Properties .............................................. 3.8

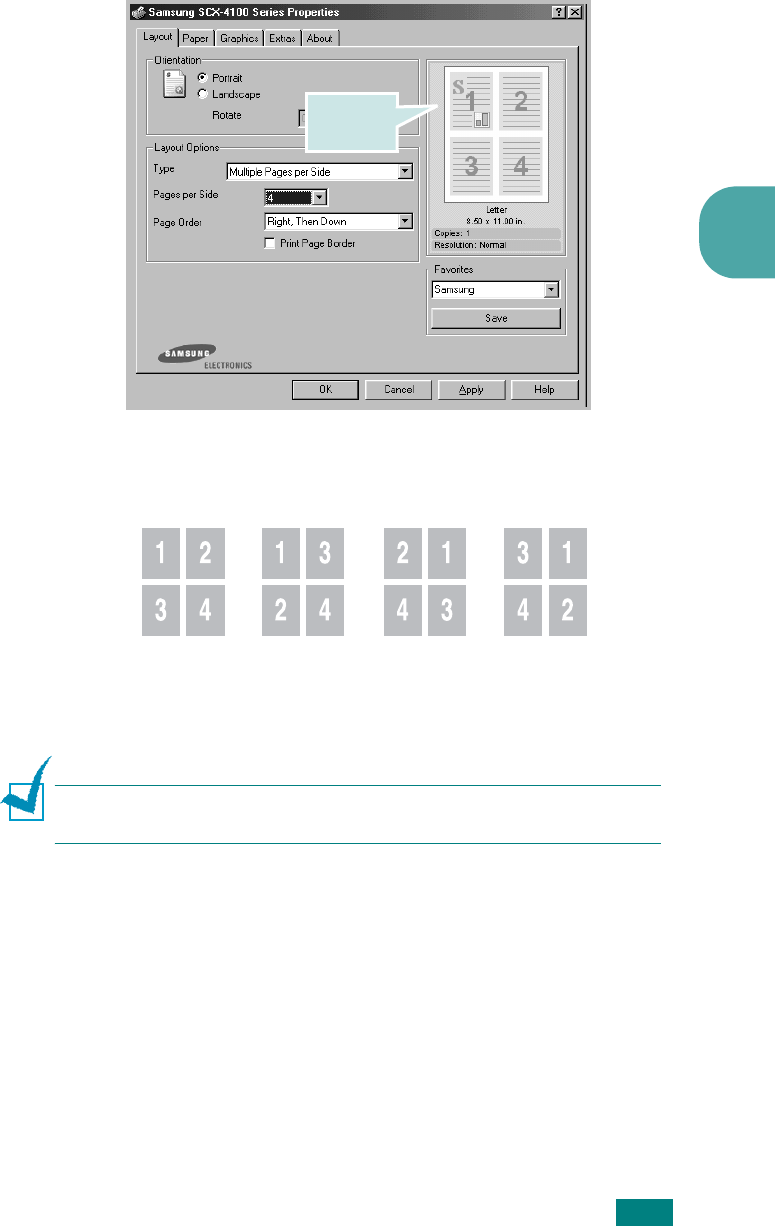

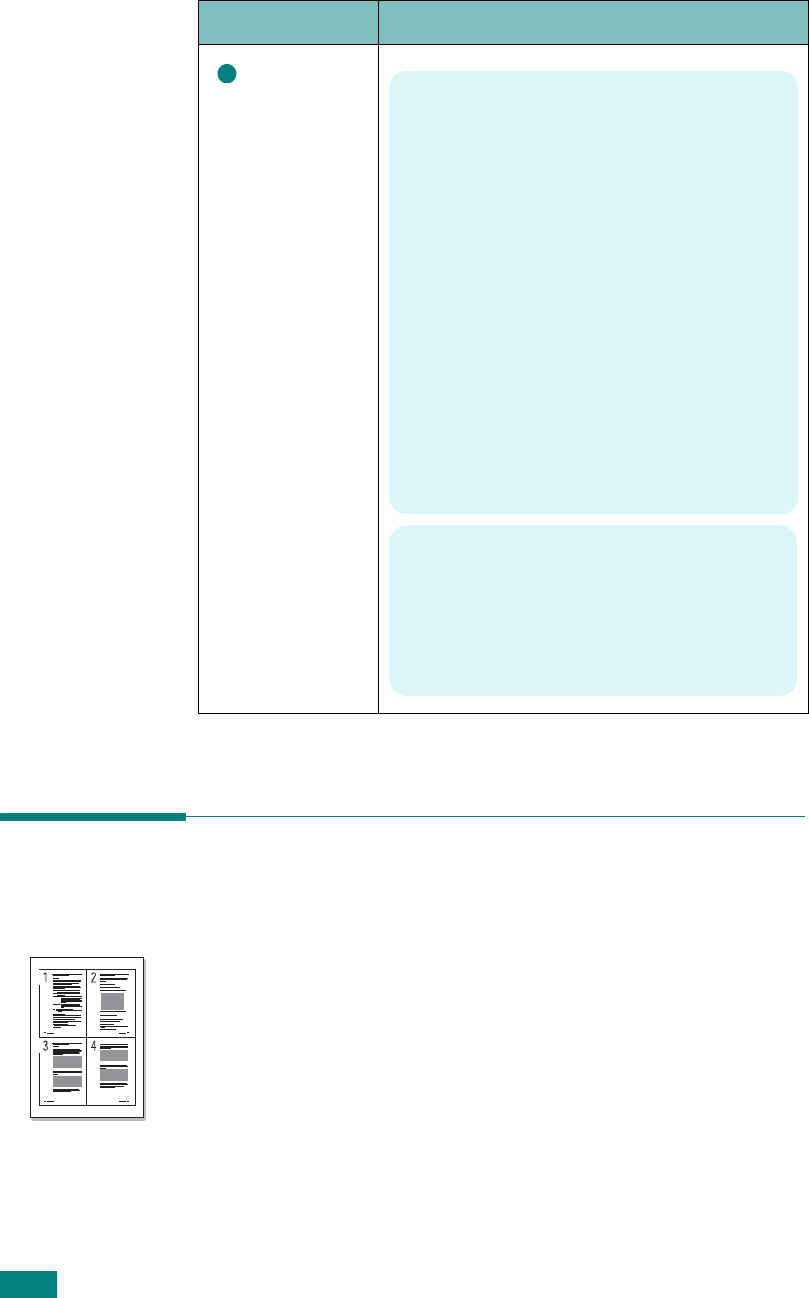

Printing Multiple Pages on One Sheet of the Paper ........... 3.10

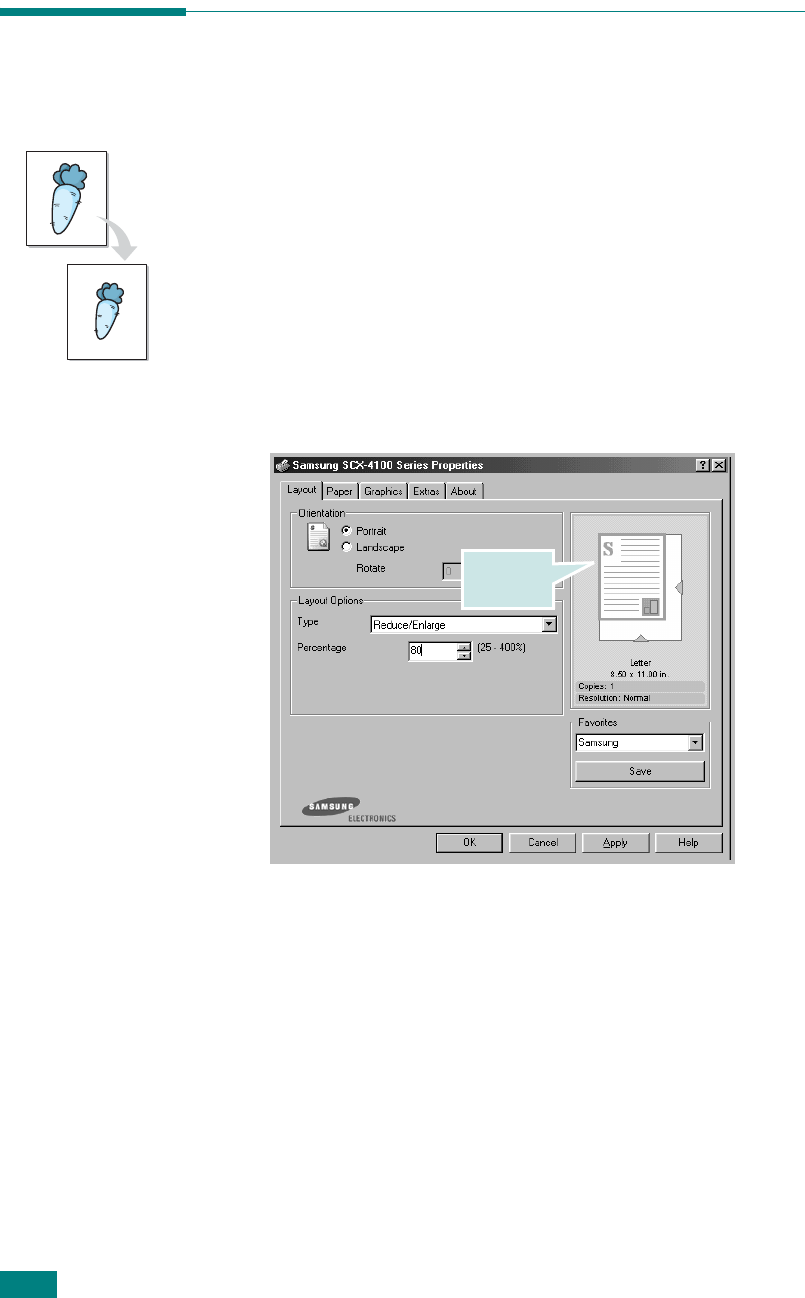

Printing a Reduced or Enlarged Document ...................... 3.12

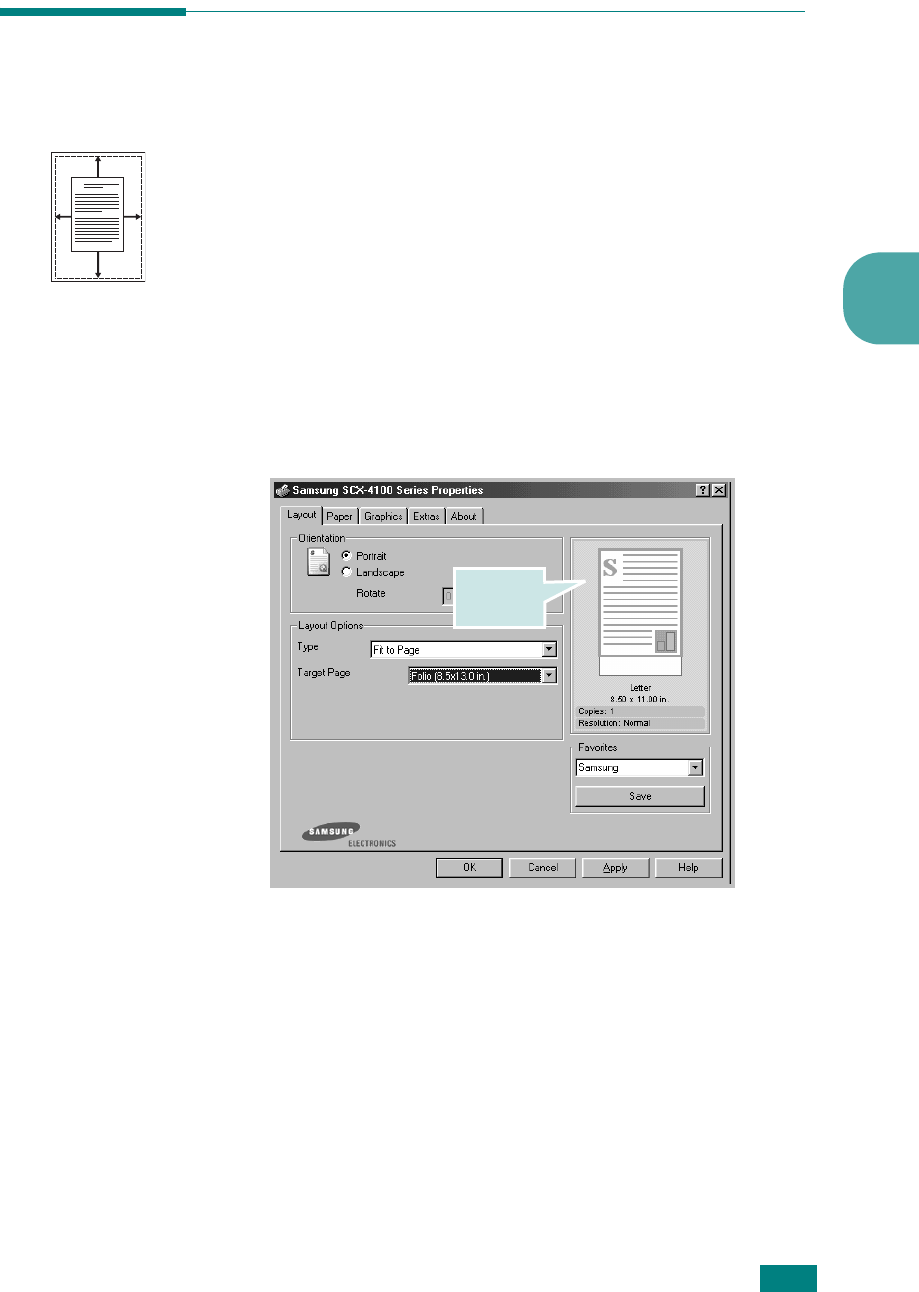

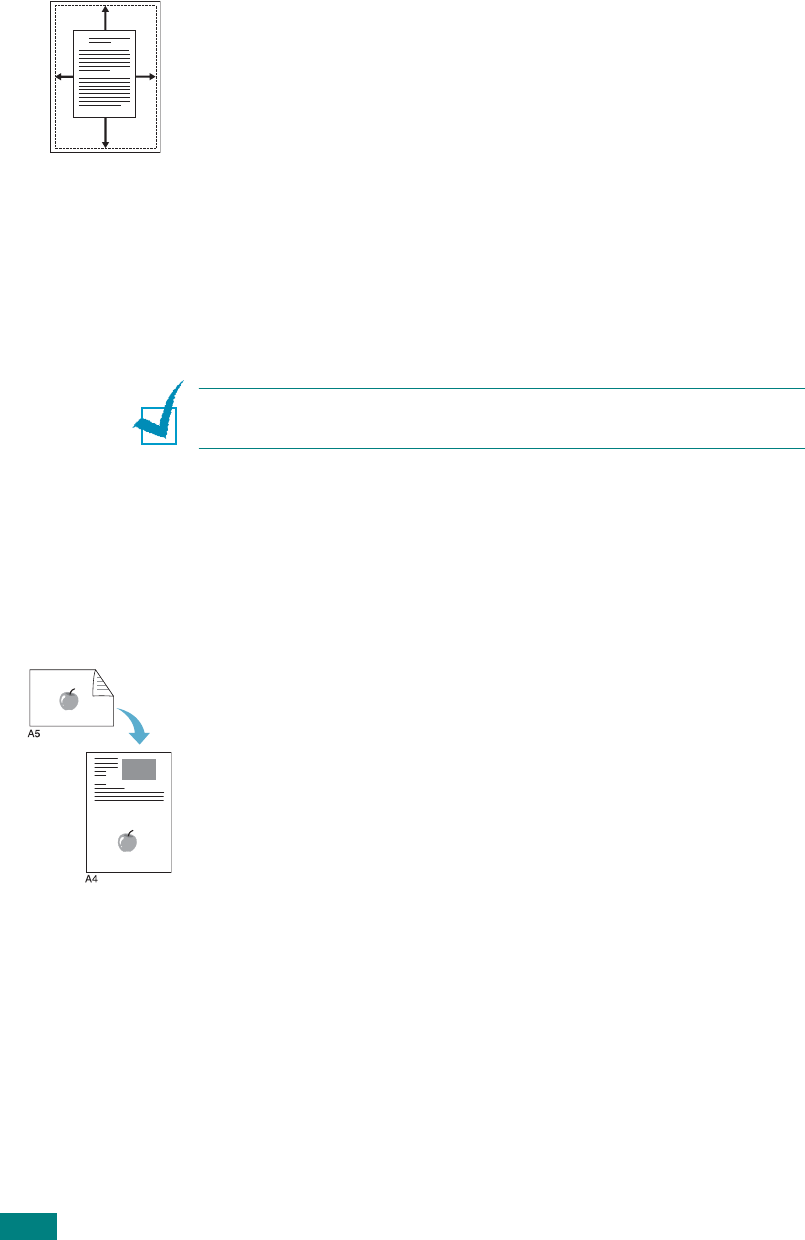

Fitting Your Document to a Selected Paper Size .............. 3.13

iii

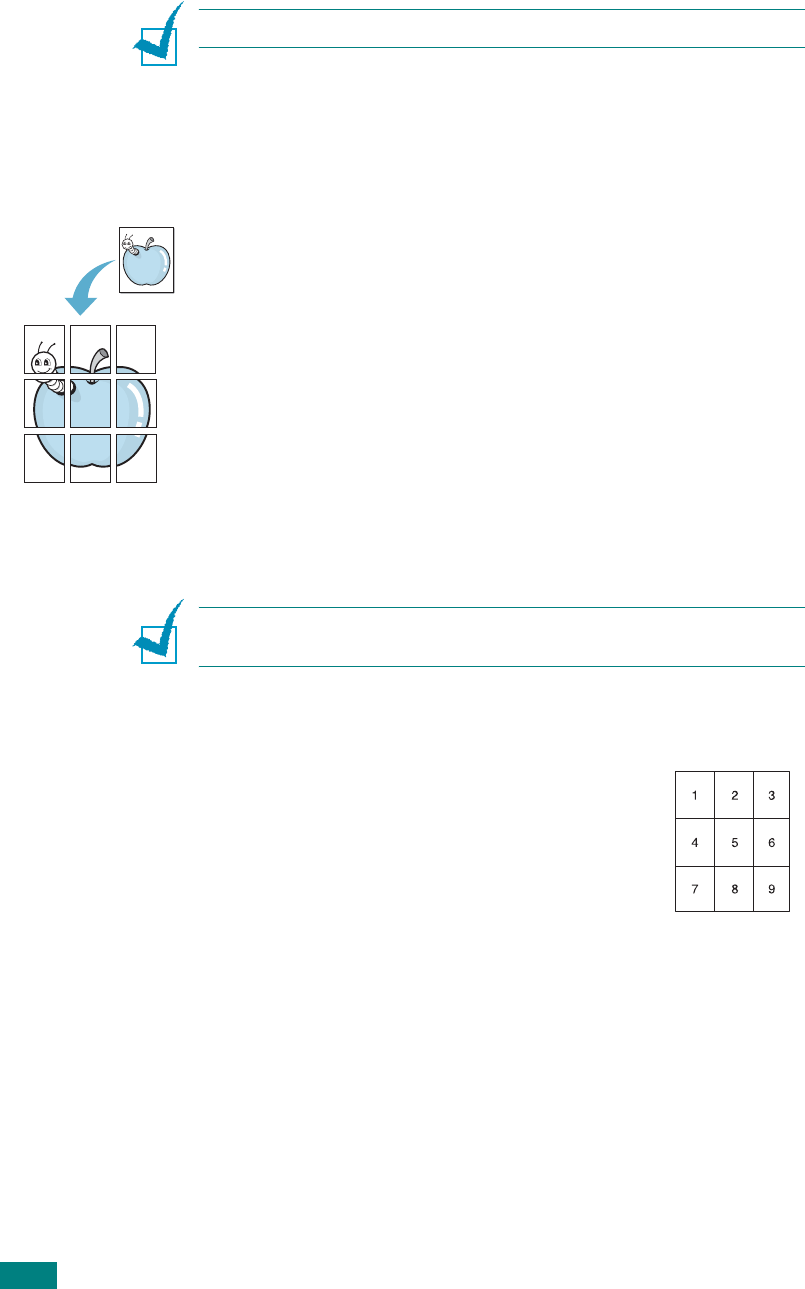

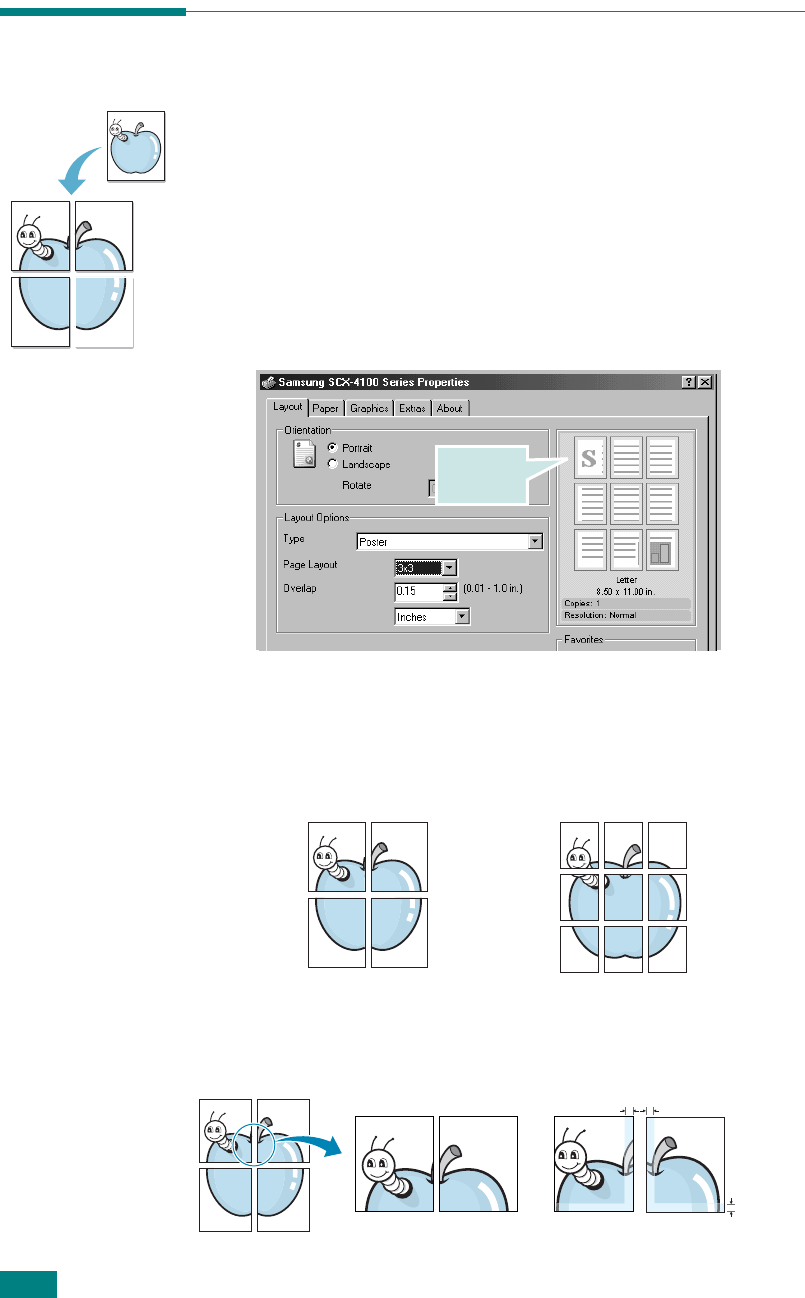

Printing Posters .......................................................... 3.14

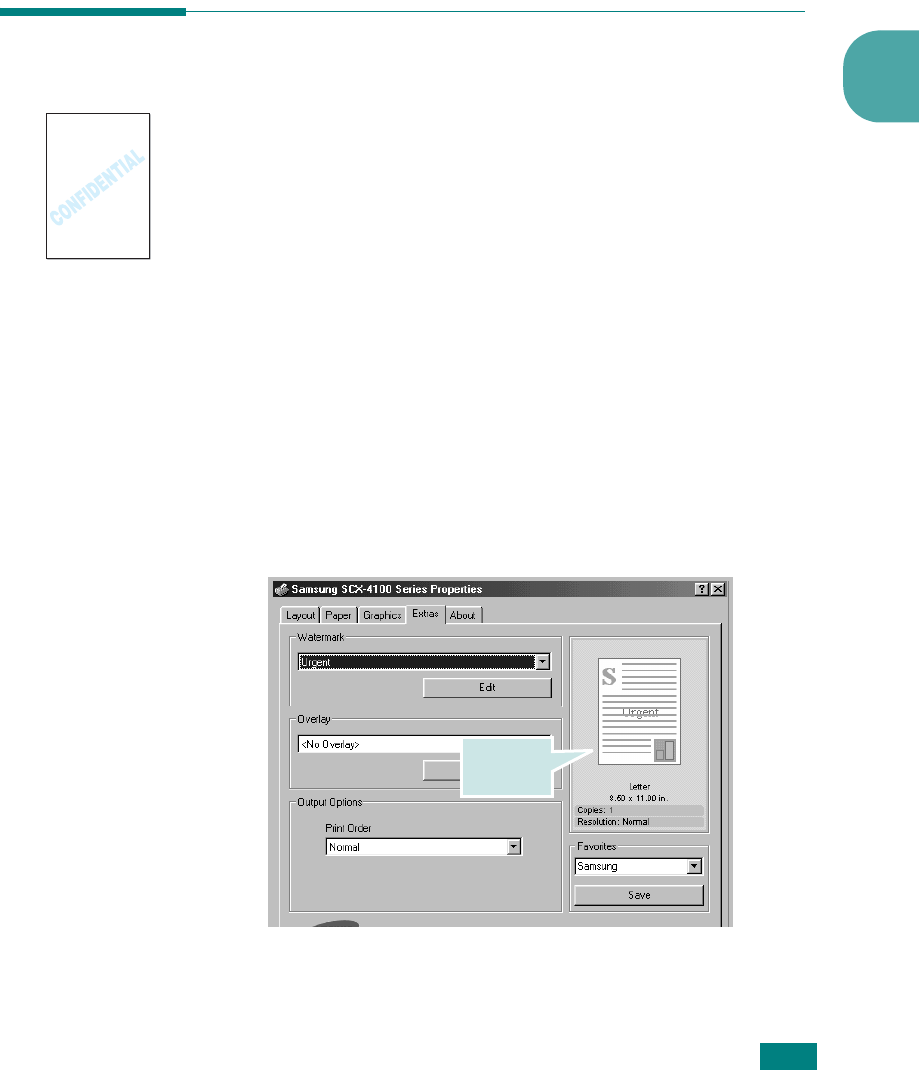

Using Watermarks ...................................................... 3.15

Using an Existing Watermark .................................. 3.15

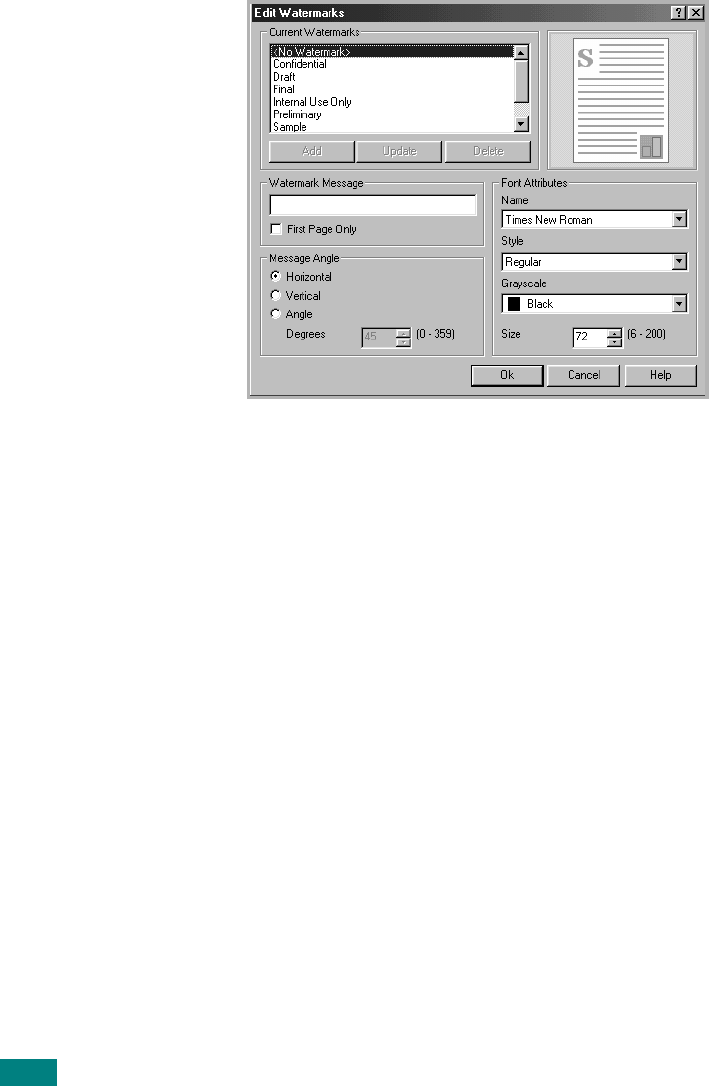

Creating a Watermark ............................................ 3.16

Editing a Watermark .............................................. 3.17

Deleting a Watermark ............................................ 3.17

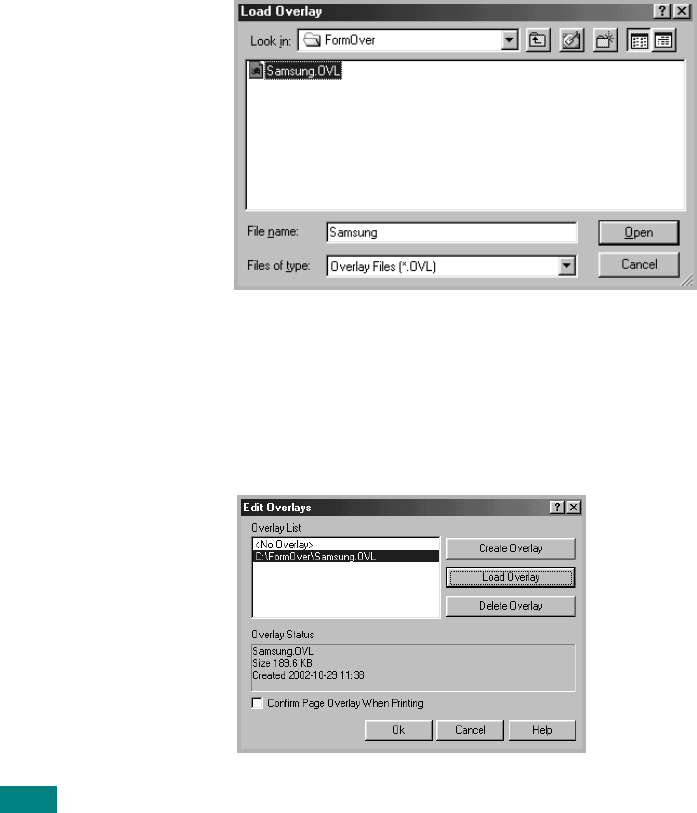

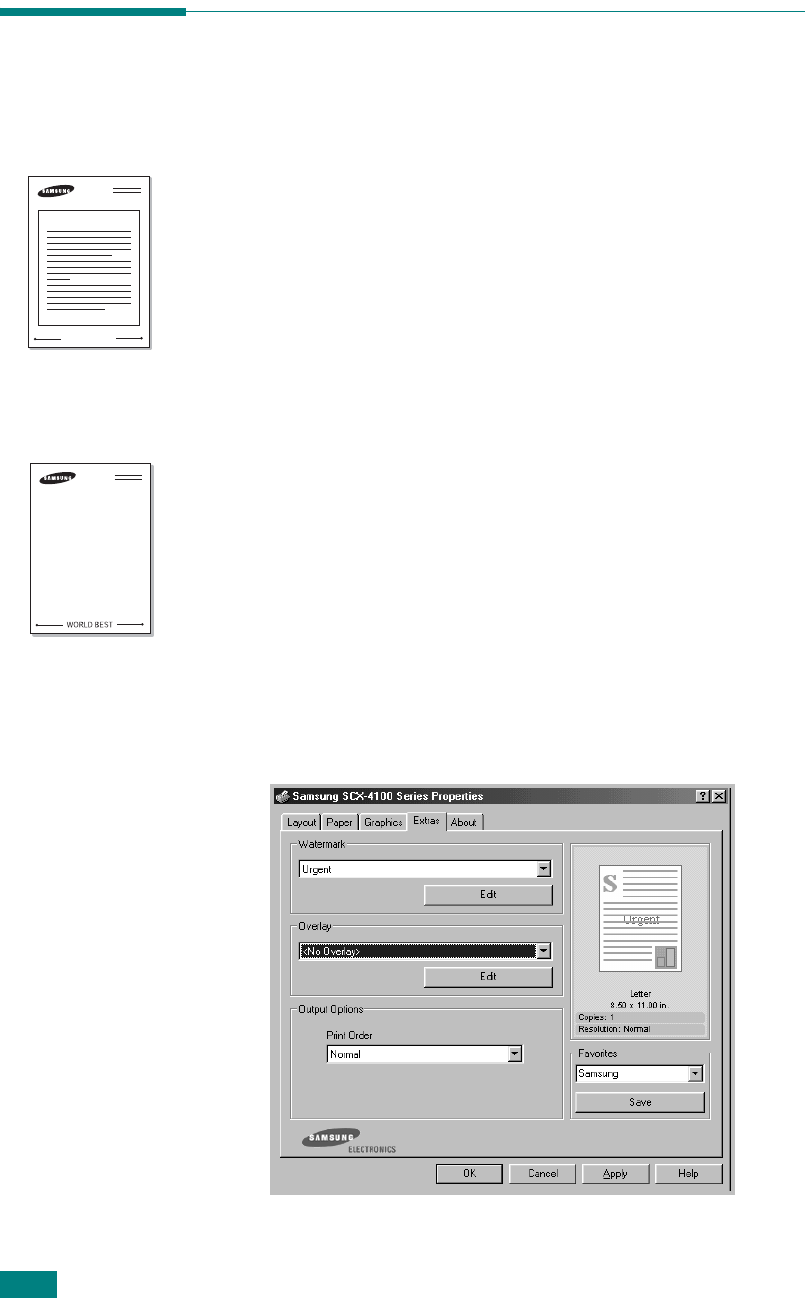

Using Overlays ........................................................... 3.18

What is an Overlay? ............................................... 3.18

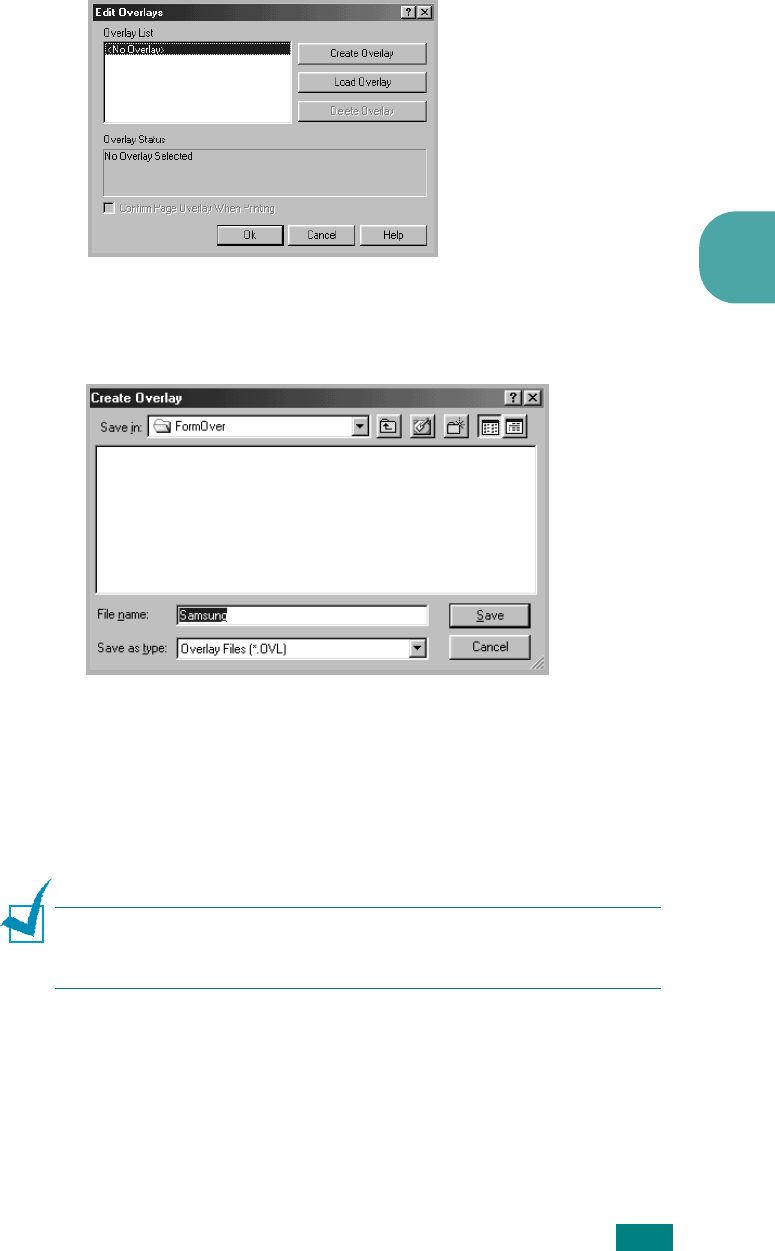

Creating a New Page Overlay .................................. 3.18

Using a Page Overlay ............................................. 3.20

Deleting a Page Overlay ......................................... 3.21

Setting Up the Locally Shared Printer ............................. 3.22

In Windows 9x/Me ................................................. 3.22

In Windows NT 4.0/2000/XP ................................... 3.23

Chapter 4:

COPYING

Loading Paper for Copying ............................................. 4.2

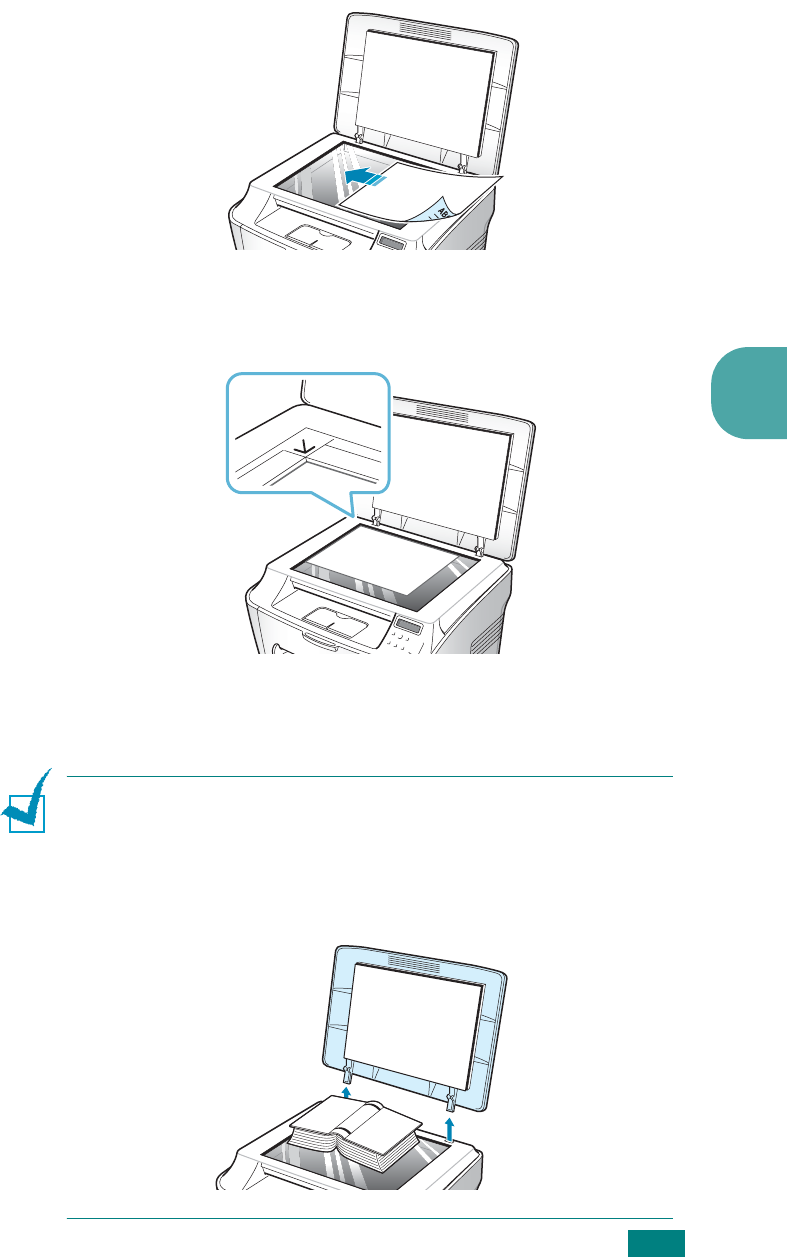

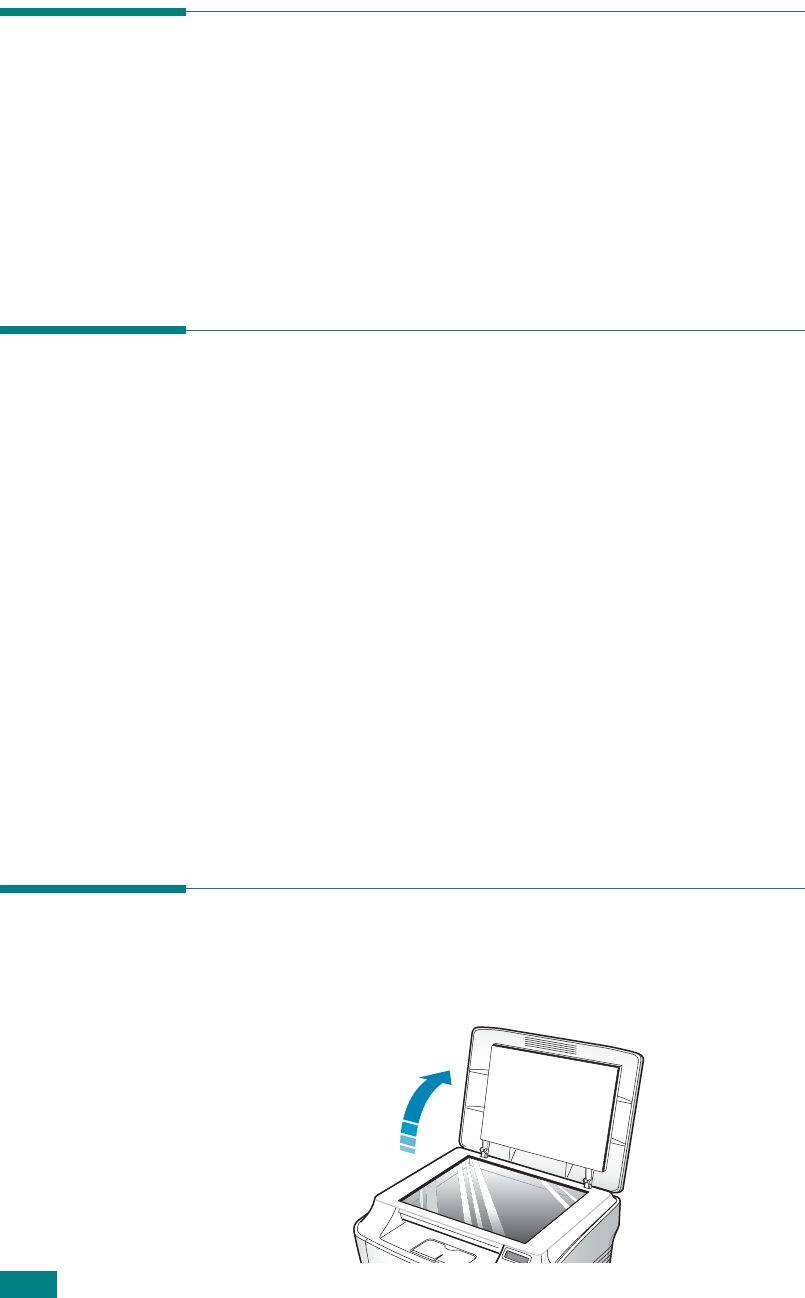

Preparing a Document ................................................... 4.2

Making a Copy .............................................................. 4.2

Setting Copy Options ..................................................... 4.4

Darkness ................................................................ 4.4

Number of Copies .................................................... 4.5

Reduced/Enlarged Copying ....................................... 4.5

Original Type .......................................................... 4.6

Using Special Copy Features ........................................... 4.7

Clone Copying ......................................................... 4.7

Auto Fit Copying ...................................................... 4.8

2 sided in 1 page Copying ......................................... 4.8

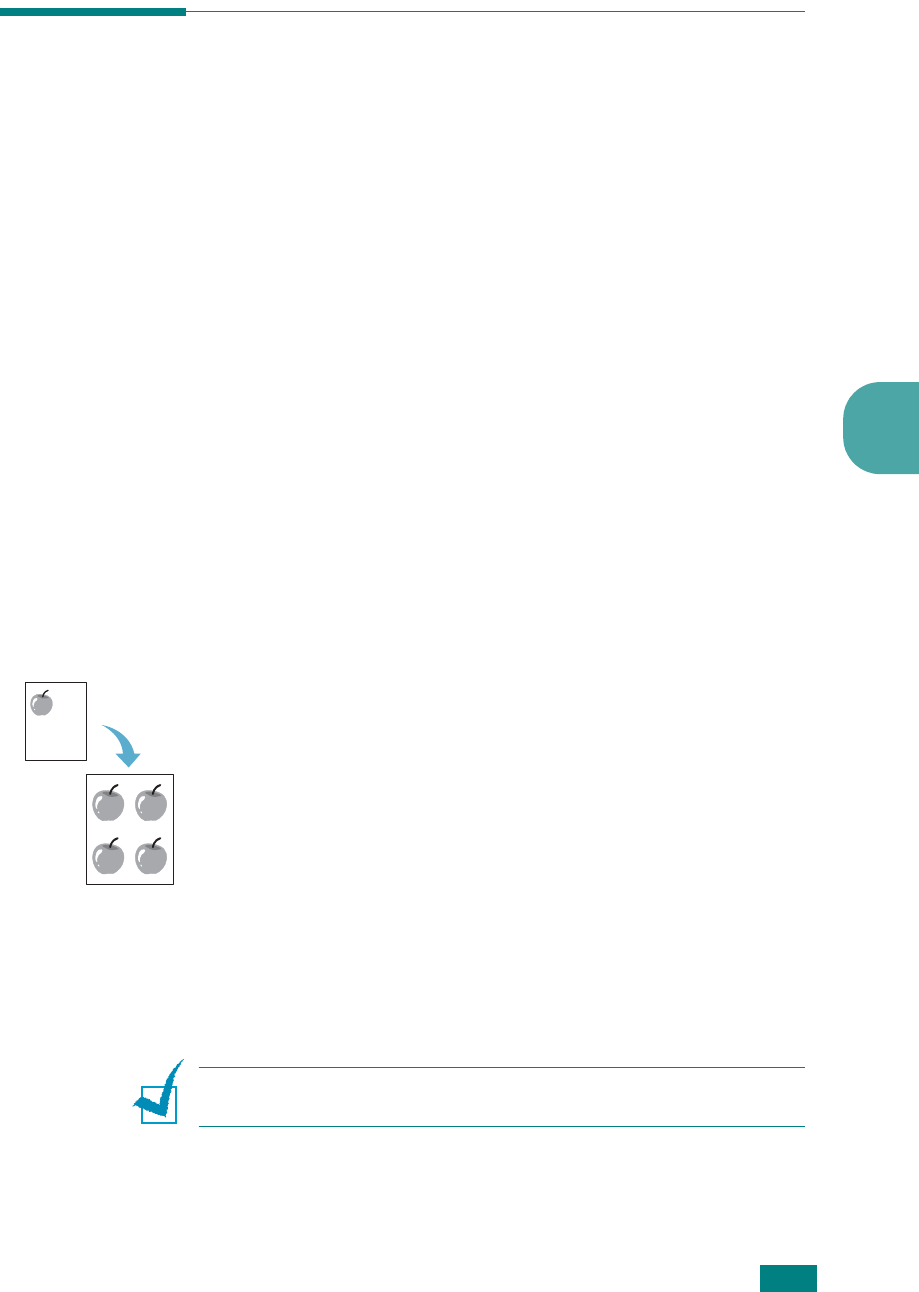

2-up Copying .......................................................... 4.9

Poster Copying ...................................................... 4.10

Changing the Default Settings ...................................... 4.11

Setting the Time Out Option ......................................... 4.12

Chapter 5:

SCANNING

Scanning Basics ............................................................ 5.2

Scanning Using Samsung SmarThru ................................ 5.2

Scanning Process with TWAIN-enabled Software ............... 5.6

Chapter 6:

USING OTHER OPERATING SYSTEMS

Installing Software in Macintosh ...................................... 6.2

System Requirements .............................................. 6.2

Installing Software .................................................. 6.3

Setting Up Your Printer .................................................. 6.6

Printing a Document ...................................................... 6.7

Using Advanced Printing Features ................................... 6.9

Mac OS 8.6 ~ 9.x .................................................... 6.9

Mac OS 10.x ......................................................... 6.12

Getting Started ........................................................... 6.14

Installing the MFP Driver .............................................. 6.15

System Requirements ............................................ 6.15

Installing the MFP Driver ........................................ 6.16

Uninstalling the MFP Driver ..................................... 6.17

Using the MFP Configurator .......................................... 6.18

Opening the MFP Configurator ................................. 6.18

Printers Configuration ............................................ 6.19

Scanners Configuration .......................................... 6.20

MFP Ports Configuration ......................................... 6.21

Configuring Printer Properties ....................................... 6.22

Printing a Document .................................................... 6.23

Printing from Applications ....................................... 6.23

Printing Files ......................................................... 6.24

Scanning a Document .................................................. 6.25

Using the Image Editor .......................................... 6.29

Printing from DOS Applications ..................................... 6.31

About the Remote Control Panel .............................. 6.31

Installing the Remote Control Panel ......................... 6.31

Selecting Print Settings .......................................... 6.33

Chapter 7:

MAINTENANCE

Printing the System Data List ......................................... 7.2

Clearing the Memory ..................................................... 7.2

Cleaning Your Machine ................................................... 7.3

Cleaning the Outside ................................................ 7.3

Cleaning the Inside .................................................. 7.3

Cleaning the Document Glass .................................... 7.5

Maintaining the Toner Cartridge ...................................... 7.6

Redistributing Toner ................................................ 7.7

Replacing the Toner Cartridge ................................... 7.8

Cleaning the Drum .................................................. 7.9

Consumables and Replacement Parts ............................. 7.10

Chapter 8:

TROUBLESHOOTING

Clearing Paper Jams ...................................................... 8.2

In the Paper Tray .................................................... 8.2

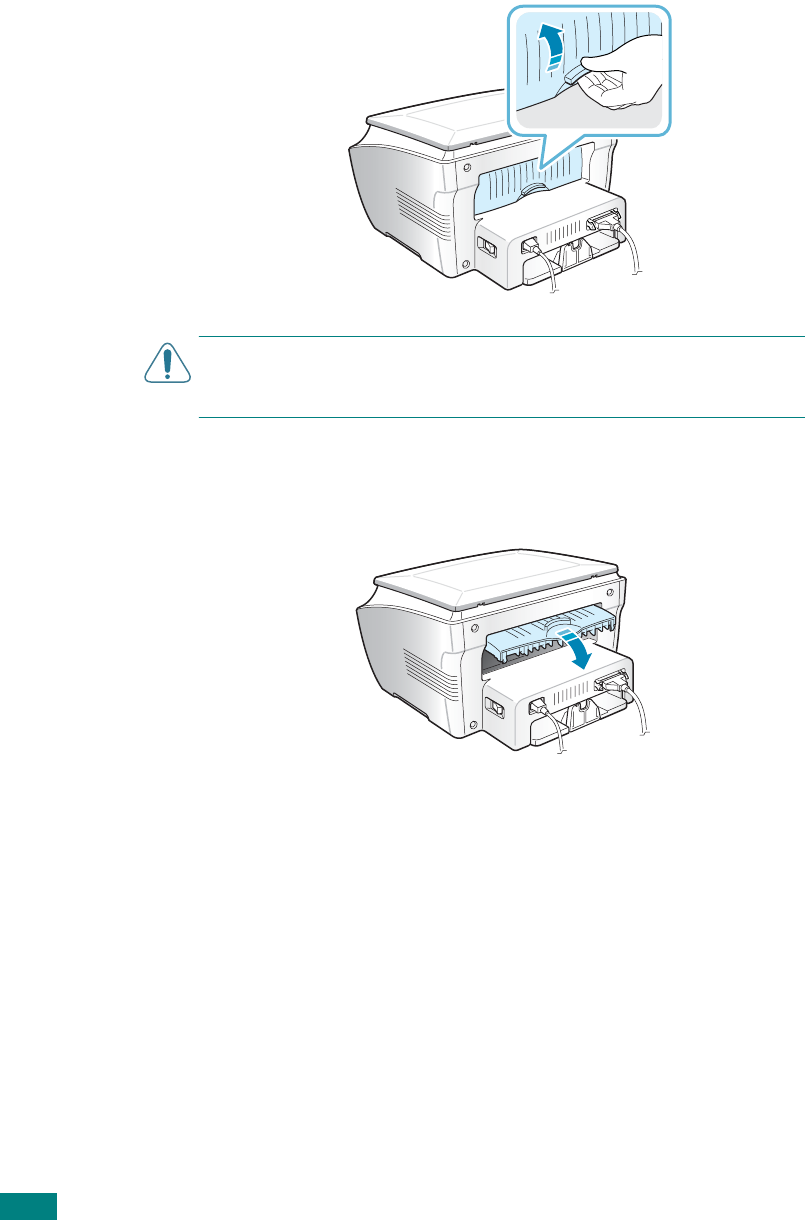

In the Paper Exit Area .............................................. 8.3

In the Fuser Area or Around the Toner Cartridge .......... 8.4

In the Manual Feeder ............................................... 8.5

Tips for Avoiding Paper Jams ..................................... 8.5

Clearing LCD Error Messages .......................................... 8.7

Solving Problems .......................................................... 8.9

Paper Feeding Problems ........................................... 8.9

Printing Problems .................................................. 8.10

Printing Quality Problems ....................................... 8.13

Copying Problems .................................................. 8.18

Scanning Problems ................................................ 8.19

Common Macintosh Problems .................................. 8.20

Common Linux Problems ........................................ 8.21

Appendix A:

SPECIFICATIONS

General Specifications ................................................... A.2

Scanner and Copier Specifications ................................... A.3

Printer Specifications ..................................................... A.4

Paper Specifications ...................................................... A.5

Overview ................................................................ A.5

Supported Sizes of Paper .......................................... A.5

Guidelines for Using Paper ........................................ A.6

Paper Specifications ................................................. A.7

Paper Output Capacity ............................................. A.7

Paper Storage Environment ...................................... A.8

Envelopes ............................................................... A.8

Labels .................................................................. A.10

Transparencies ...................................................... A.10

vii

Important Precautions and Safety Information

When using this machine, these basic safety precautions should always be followed

to reduce risk of fire, electric shock, and injury to people:

1. Read and understand all instructions.

2. Use common sense whenever operating electrical appliances.

3. Follow all warnings and instructions marked on the machine and in the literature

accompanying the machine.

4. If an operating instruction appears to conflict with safety information, heed the

safety information. You may have misunderstood the operating instruction. If you

cannot resolve the conflict, contact your sales or service representative for

assistance.

5. Unplug the machine from the AC wall socket and/or telephone jack before

cleaning. Do not use liquid or aerosol cleaners. Use only a damp cloth for

cleaning.

6. Do not place the machine on an unstable cart, stand or table. It may fall, causing

serious damage.

7. Your machine should never be placed on, near or over a radiator, heater, air

conditioner or ventilation duct.

8. Do not allow anything to rest on the power cable. Do not locate your machine

where the cords will be abused by persons walking on them.

9. Do not overload wall outlets and extension cords. This can diminish performance,

and may result in the risk of fire or electric shock.

10. Do not allow pets to chew on the AC power, telephone or PC interface cords.

11. Never push objects of any kind into the machine through case or cabinet

openings. They may touch dangerous voltage points, creating a risk of fire or

shock. Never spill liquid of any kind onto or into the machine.

12. You machine may have a heavy cover for optimal pressure on the document for

the best scanning and/or faxing. In this case, replace the cover after placing

document on the scan glass, by holding and moving it down slowly until it seats

on its location.

13. To reduce the risk of electric shock, do not disassemble the machine. Take it to a

qualified service technician when repair work is required. Opening or removing

covers may expose you to dangerous voltages or other risks. Incorrect

reassembly could cause electric shock when the unit is subsequently used.

14. Unplug the machine from the telephone jack, PC and AC wall outlet, and refer

servicing to qualified service personnel under the following conditions:

• When any part of the power cord, plug, or connecting cable is damaged or

frayed.

• If liquid has been spilled into the machine.

viii

• If the machine has been exposed to rain or water.

• If the machine does not operate properly after instructions have been followed.

• If the machine has been dropped, or the cabinet appears damaged.

• If the machine exhibits a sudden and distinct change in performance.

15. Adjust only those controls covered by the operating instructions. Improper

adjustment of other controls may result in damage, and may require extensive

work by a qualified service technician to restore the machine to normal operation.

16. Avoid using this machine during a lightning storm. There may be a remote risk of

electric shock from lightning. If possible, unplug the AC power and telephone cord

for the duration of the lightning storm.

17. SAVE THESE INSTRUCTIONS.

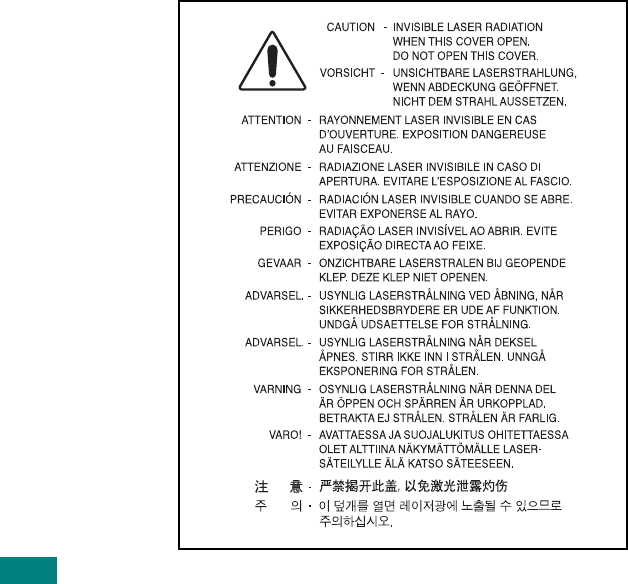

Laser Safety Statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR,

chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a

Class I laser product conforming to the requirements of IEC 825.

Class I laser products are not considered to be hazardous. The laser system and

printer are designed so there is never any human access to laser radiation above a

Class I level during normal operation, user maintenance, or prescribed service

condition.

WARNING

Never operate or service the printer with the protective cover removed from Laser/

Scanner assembly. The reflected beam, although invisible, can damage your eyes.

Ozone Safety

During normal operation, this machine produces ozone.

The ozone produced does not present a hazard to the

operator. However, it is advisable that the machine be

operated in a well ventilated area.

If you need additional information about ozone, please

request your nearest Samsung dealer.

Power Saver

This machine contains advanced energy conservation

technology that reduces power consumption when it is not

in active use.

When the machine does not receive data for an extended

period of time, power consumption is automatically

lowered.

The energy star emblem does not represent EPA

endorsement of any machine or service.

Recycling

Please recycle or dispose of the packaging material for this

product in an environmentally responsible manner.

Radio Frequency Emissions

FCC Information to the User

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or experienced radio TV technician for help.

AUTION

Change or modifications not expressly approved by the manufacturer

responsible for compliance could void the user's authority to operate the equipment.

Canadian Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio noise emissions

from digital apparatus as set out in the interference-causing equipment standard

entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux

appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur:

“Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.

Fax Branding

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to

use a computer or other electronic device to send any message via a telephone

facsimile machine unless such message clearly contains in a margin at the top or

bottom of each transmitted page or on the first page of the transmission the following

information:

(1) the date and time of transmission

(2) identification of either business, business entity or individual sending the

message; and

(3) telephone number of either the sending machine, business, business entity or

individual.

The Telephone Company may make changes in its communications facilities,

equipment operations, or procedures where such action is reasonably required in the

operation of its business and is not inconsistent with the rules and regulations in FCC

Part 68. If such changes can be reasonably expected to render any customer terminal

equipment incompatible with telephone company communications facilities, or

require modification or alteration of such terminal equipment, or otherwise materially

affect its use or performance, the customer shall be given adequate notice in writing,

to allow the customer an opportunity to maintain uninterrupted service.

Ringer Equivalence Number

The Ringer Equivalence Number and FCC Registration Number for this machine may

be found on the label located on the bottom or rear of the machine. In some instances

you may need to provide these numbers to the telephone company.

The Ringer Equivalence Number (REN) is a measure of the electrical load placed on

the telephone line, and is useful for determining whether you have “overloaded” the

line. Installing several types of equipment on the same telephone line may result in

problems making and receiving telephone calls, especially ringing when your line is

called. The sum of all Ringer Equivalence Numbers of the equipment on your

telephone line should be less than five in order to assure proper service from the

telephone company. In some cases, a sum of five may not be usable on your line. If

any of your telephone equipment is not operating properly, you should immediately

remove it from your telephone line, as it may cause harm to the telephone network.

WARNING:

FCC Regulations state that changes or modifications to this equipment not expressly

approved by the manufacturer could void the user’s authority to operate this

equipment. In the event that terminal equipment causes harm to the telephone

network, the telephone company should notify the customer that service may be

stopped. However, where prior notice is impractical, the company may temporarily

cease service, providing that they:

a) promptly notify the customer.

b) give the customer an opportunity to correct the equipment problem.

c) inform the customer of the right to bring a complaint to the Federal Communication

Commission pursuant to procedures set out in FCC Rules and Regulations Subpart

E of Part 68.

xii

You should also know that:

• Your machine is not designed to be connected to a digital PBX system.

• If you intend to use a computer modem or fax modem on the same phone line as

your machine, you may experience transmission and reception problems with all

the equipment. It is recommended that no other equipment, except for a regular

telephone, share the line with your machine.

• If your area experiences a high incidence of lightning or power surges, we

recommend that you install surge protectors for both the power and the telephone

lines. Surge protectors can be purchased from your dealer or telephone and

electronic specialty stores.

• When programming emergency numbers and/or making test calls to emergency

numbers, use a non-emergency number to advise the emergency service

dispatcher of your intentions. The dispatcher will give you further instructions on

how to actually test the emergency number.

• This machine may not be used on coin service or party lines.

• This machine provides magnetic coupling to hearing aids.

• You may safely connect this equipment to the telephone network by means of a

standard modular jack, USOC RJ-11C.

xiii

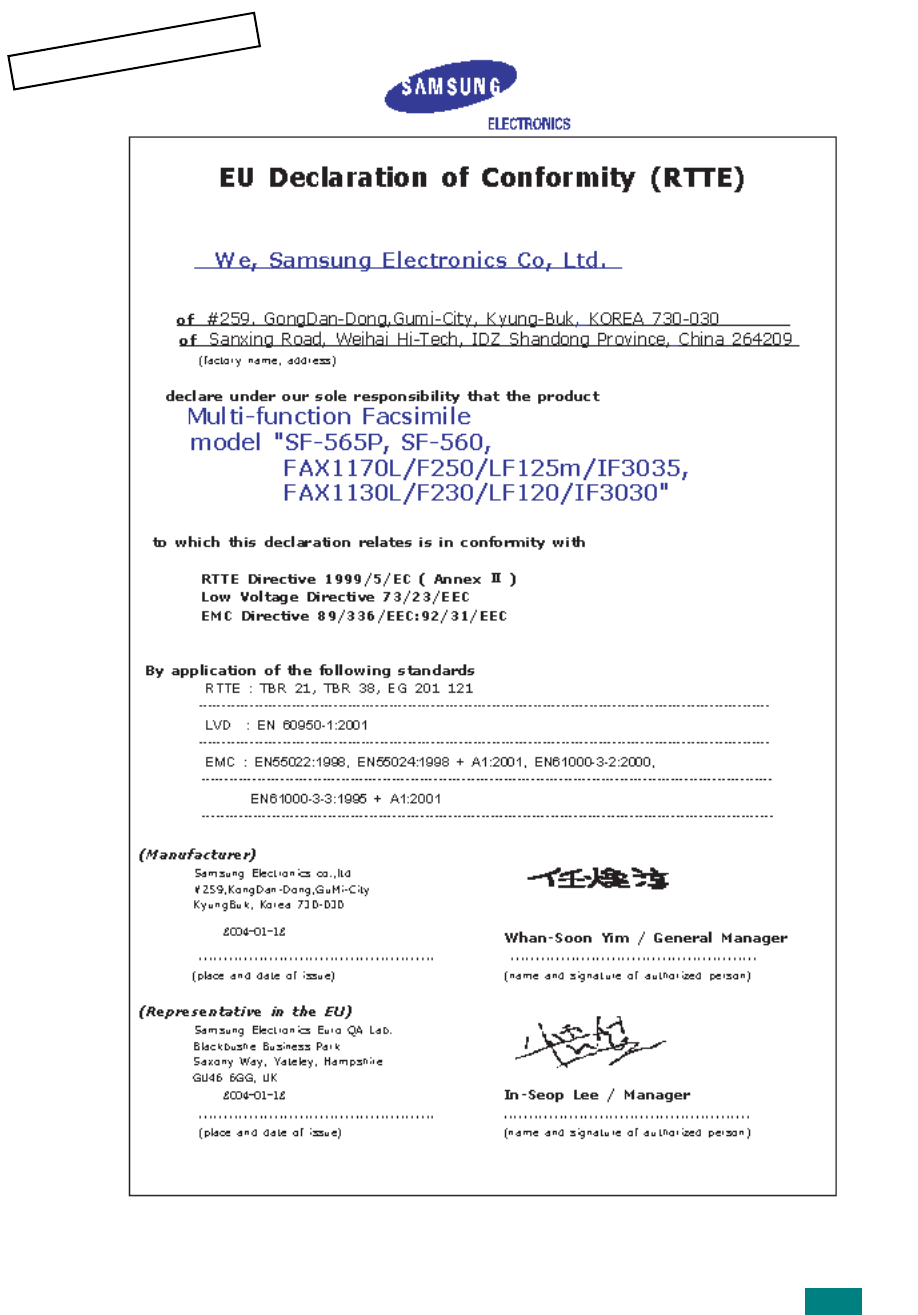

Declaration of Conformity (European Countries)

Approvals and Certifications

The CE marking applied to this product symbolizes Samsung

Electronics Co., Ltd. Declaration of Conformity with the following

applicable 93/68/EEC Directives of the European Union as of the

dates indicated:

January 1, 1995

: Council Directive 73/23/EEC Approximation of the laws of the

member states related to low voltage equipment.

January 1, 1996

: Council Directive 89/336/EEC (92/31/EEC), approximation of the

laws of the Member States related to electromagnetic compatibility.

March 9, 1999

: Council Directive 1999/5/EC on radio equipment and

telecommunications terminal equipment and the mutual recognition of their

conformity.

A full declaration, defining the relevant Directives and referenced standards can be

obtained from your Samsung Electronics Co., Ltd. representative.

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications

Terminal Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European single

terminal connection to the analogue public switched telephone network (PSTN) in

accordance with Directive 1999/5/EC. The product has been designed to work with

the national PSTNs and compatible PBXs of European countries.

In the event of problems, you should contact the Euro QA Lab of Samsung Electronics

Co., Ltd. in the first instance.

The product has been tested against TBR21. To assist in the use and application of

terminal equipment which complies with this standard, the European

Telecommunication Standards Institute (ETSI) has issued an advisory document (EG

201 121) which contains notes and additional requirements to ensure network

compatibility of TBR21 terminals. The product has been designed against, and is fully

compliant with, all of the relevant advisory notes contained in this document.

xiv

Replacing the Fitted Plug (for UK Only)

MPORTANT

The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and

has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct

13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover,

do not use the plug until you have another fuse cover.

Please contact the company from where the machine was purchased.

The 13 amp plug is the most widely used type in the UK and should be suitable.

However, some buildings (mainly old ones) do not have normal 13 amp plug sockets.

You need to buy a suitable plug adaptor. Do not remove the moulded plug.

ARNING

If you cut off the moulded plug, get rid of it straight away.

You cannot rewire the plug and you may receive an electric shock if you plug

it into a socket.

MPORTANT

WARNING

: You must earth this machine.

The wires in the mains lead have the following color code:

• Green and Yellow: Earth

• Blue: Neutral

• Brown: Live

If the wires in the mains lead do not match the colors marked in your plug, do the

following:

You must connect the green and yellow wire to the pin marked by the letter “E” or by

the safety `Earth symbol' or colored green and yellow or green.

You must connect the blue wire to the pin which is marked with the letter “N” or

colored black.

You must connect the brown wire to the pin which is marked with the letter “L” or

colored red.

You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.

Position Only

xvi

Differences Between British and American English

WARNING

• Do not disassemble the machine as it may give you an electric shock.

• If you print large amount of copies, the surface of the output tray may become

hot. Be careful not to touch the surface, and keep children away from the surface.

British English American English

(Re)dialling

(Re)dialing

Colour

Color

Emphasise

Emphasize

Recognise

Recognize

Organise

Organize

Authorise

Authorize

Cancelling

Canceling

Customise

Customize

Socket

Jack

Labelling

Labeling

1GETTING STARTED

Thank you for purchasing this multifunctional product.

Your machine provides you with printing, copying, and

scanning functions!

This chapter gives you step-by-step instructions for

setting up your machine.

This chapter includes:

•Unpacking

• Understanding the Component Location

• Installing the Toner Cartridge

• Loading Paper

•Making Connections

• Turning the Machine On

• About Samsung Software

• Installing Samsung Software in Windows

• Repairing Software

• Removing Software

• Changing the Display Language

• Setting the Paper Size and Type

• Using the Save Modes

ETTING

TARTED

1.2

Unpacking

Remove the machine and all accessories from the packing

carton. Make sure that the machine has been packed with the

following items. If there is a missing item, contact the retailer

where you bought the machine:

Remove the packing tape from the front, back and sides of the

machine.

Starter Toner Cartridge AC Power Cord

* The appearance of the power cord may differ according to your country’s

specifications.

Quick Install Guide CD-ROM

** The CD-ROM contains the MFP driver, SmarThru software, the user’s guides

and the Adobe Acrobat Reader program.

OTES

• The power cord must be plugged into a grounded power socket.

• Components may differ from one country to another.

Tape

ETTING

TARTED

1.3

Selecting a Location

Select a level, stable place with adequate space for air

circulation. Allow extra space for opening covers and trays.

The area should be well-ventilated and away from direct sunlight

or sources of heat, cold and humidity. Do not set the machine

close to the edge of your desk or table.

Clearance Space

•

Front

: 482.6 mm

(enough space so that the paper trays can be

removed)

•

Back

: 250 mm (enough space for ventilation)

•

Right

: 100 mm

•

Left

: 100 mm (enough space for ventilation)

ETTING

TARTED

1.4

Understanding the Component

Location

These are the main components of your machine:

Front View

Rear View

Paper Tray

Front Output Tray

(Face down)

Control Panel

(see the page 1.5)

Manual Feeder

Guides

Front Paper

Output

Extension

Toner

Cartridge

Document

Glass

Document Cover

Front Cover

Parallel Connector

USB Connector

Rear Cover

AC Power Cord Connector

Rear Output Slot

(Face up)

Power Switch

Paper Length Guide

ETTING

TARTED

1.5

Control Panel Functions

Adjusts the brightness of the documents for

the current copy job.

Selects the number of copies.

Displays the current status and prompts

during an operation.

Scrolls through the options available for the

selected menu item.

Enters Menu mode and scrolls through the

menus available and sends you back to the

upper menu level.

Stops an operation at any time.

In Standby mode, clears/cancels the copy

options, such as the darkness and the number

of copies.

Confirms the selection on the display and

starts a job.

ETTING

TARTED

1.6

Installing the Toner Cartridge

Open the front cover.

Remove the starter toner cartridge from its bag. Don’t use

a knife or other sharp object as it might scratch the drum of

the cartridge.

Gently roll the cartridge 5 or 6 times to distribute the toner

evenly inside the cartridge.

Thoroughly rolling the cartridge will assure the maximum

copies per cartridge.

AUTIONS

• To prevent damage, do not expose the toner cartridge to light for

more than a few minutes. Cover it with a piece of paper if left

exposed for more than a few minutes, and keep it flat and clean

place.

• If toner gets on your clothing, wipe it off with a dry cloth and

wash clothing in cold water. Hot water sets toner into the fabric.

ETTING

TARTED

1.7

Slide the toner cartridge into the machine until it locks into

place completely.

Close the front cover. Make sure that the cover is securely

closed.

OTE

: When printing text at 5% coverage, you can expect a toner

cartridge life of approximately 3,000 pages (1,000 pages for the

toner cartridge that is shipped with the printer).

ETTING

TARTED

1.8

Loading Paper

You can load approximately 250 sheets.

To load a stack of Letter-sized paper:

Pull open the paper tray and remove it from the machine.

Push down on the pressure plate until it locks into place.

Fan the edges of the paper stack to separate the pages.

Then tap the stack on a flat surface to even it up.

ETTING

TARTED

1.9

Insert the paper stack into the paper tray with the side you

want to print on

facing down

You can load previously printed paper. The printed side

should be facing up with an uncurled edge on top. If you

experience problems with paper feed, turn the paper

around.

Pay attention to the paper limit mark on the left inside wall

of the tray. Paper overloading may cause paper jams.

Insert and slide the paper tray back into the machine.

ETTING

TARTED

1.10

OTE

: After you load the paper, you need to set up your machine

for the paper type and size you loaded. See page 1.26 for copying,

or page 3.7 for PC-printing.

Changing the Paper Size in the Paper Tray

To load longer sizes of paper, such as Legal-sized paper, you

need to adjust the paper guides to extend the paper tray.

After pressing and unlatching the guide lock, slide the

paper length guide outward as far as it will go. This extends

the length of the tray.

After inserting paper into the tray, slide in the guide until it

lightly touches the end of the paper stack. For paper

smaller than letter, adjust the paper length guide

accordingly.

Pinching the paper width guide as shown, move it toward

the stack of paper until it lightly touches the side of the

stack.

ETTING

TARTED

1.11

OTES

• Do not push the paper width guide far enough to cause the

materials to warp.

• If you do not adjust the paper width guide, it may cause paper

jams.

Making Connections

Connect a USB cable to the USB connector on your

machine.

You must purchase a USB 1.1 compliant cable that is no

more than 3 m in length.

If you want to use a parallel printer cable, purchase only an

IEEE 1284 compliant parallel cable and connect it to the

parallel connector on your machine.

Push the metal clips down to fit inside the notches on the

cable plug.

ETTING

TARTED

1.12

OTES

• You only need to connect one of the cables mentioned above. Do

not use the parallel and the USB cables at the same time.

• If you are using a USB cable, you must be running Windows 98/

Me/2000/XP.

• When using the USB connection, your machine provides two USB

modes; Fast and Slow. Fast is the default mode. Some PC users

may experience poor USB function in the default mode. If this

occurs, select the Slow mode to achieve successful results. For

details about changing the USB mode, see page 8.12.

Turning the Machine On

Plug one end of the supplied three-pronged electrical type

cord into the AC socket on the machine and the other end

into a properly grounded AC outlet.

Press the power switch to turn the machine on. “Warming

Up Please Wait” appears on the display indicating that the

machine is now on.

To view your display text in another language, see

page 1.25.

AUTIONS

• The fusing area inside the rear part of your machine becomes hot

once the machine is turned on. Be careful when you access this

area.

• Do not disassemble the machine when it is turned on as it may

give you an electric shock.

➜

To the AC walljack

ETTING

TARTED

1.13

Installing Software

About Samsung Software

You must install software using the supplied CD-ROM after you

have set up your machine and connected it to your computer.

The CD-ROM includes:

• Samsung software

• User’s Guides

• Adobe Acrobat Reader

The CD-ROM provides you with the following software:

Windows GDI Driver

To use your machine as a printer and scanner in Windows, you

must install the GDI driver. For information about installing the

GDI driver in Windows, see page 1.15.

Macintosh Printer Driver

You can use your machine with Macintosh. For information about

installing the printer driver from Macintosh, see page 6.2.

Linux Driver

You can print and scan in Linux using your machine. For

information about installing the printer driver in Linux, see

page 6.15.

Remote Control Panel

This Windows-based program is automatically installed when

you install the GDI driver. For information about using the

program, see page 6.31.

SmarThru Software

SmarThru is the accompanying Windows-based software for

your multifunctional machine. SmarThru contains a powerful

image editor that allows you to edit images in many ways and

also includes powerful Internet mail client software. With

SmarThru, you can save the scanned images in a dedicated

storage area for subsequent editing, sending via e-mail or fax,

printing and processing by other programs of your choice.

ETTING

TARTED

1.14

OCR Software

(AnyPage Lite)

AnyPage Lite, the OCR (Optical Character Recognition) program,

is Windows-based software that has the ability to recognize

most character formats so that a scanned document can be read

and edited with word processing software.

OTES

• In case of Chinese, it does not support the OCR function.

• OCR is available only for languages supported by AnyPage Lite.

Supported languages are Africans, Albanian, Basque, Bulgarian,

Byelorussian, Catalan, Croatian, Czech, Danish, Digits, Dutch,

English, Estonian, Finnish, French, German, Hungarian,

Icelandic, Indonesian, Irish, Italian, Latvian, Lithuanian,

Macedonian, Norwegian (Bokmal), Norwegian (Nynorsk), Polish,

Portuguese, Romanian, Russian, Serbian, Slovak, Spanish,

Swahili, Swedish, Tagalog, Turkish, Ukrainian, Korean.

• Recommended Scan Option for OCR

Resolution: 200 or 300 dpi

Image Type: Mono(Black & White)

Printer Driver Features

Your printer drivers support the following standard features:

• Paper source selection

• Paper size, orientation and media type

• number of copies

The following table lists a general overview of features

supported by your printer drivers.

OTES

• Some of feature are not supported on Mac OS 10.X such as

Paper Type, Grayscale and Black&White.

• The Watermark feature is not supported on Mac OS 9.1 or higher.

Feature Printer Driver

Win9x/Me Win2000/XP WinNT4.0 Macintosh Linux

Toner Save Y Y Y N Y

Print quality option Y Y Y Y Y

Poster printing Y Y Y N N

Multiple pages per

sheet (N-up) Y Y Y Y Y(2,4)

Fit to page printing Y Y Y N Y

Scale printing Y Y Y Y Y

Watermark Y Y Y Y N

Overlay Y Y Y N N

ETTING

TARTED

1.15

Installing Samsung Software in

Windows

System Requirements

Before you begin, ensure that your system meets the minimum

requirements.

Supported Operating System

•Windows 95 OSR2

• Windows 98/Windows 98 SE

•Windows Me

• Windows NT 4 Workstation or Server with Service Pack 3

• Windows 2000 Professional or Advanced Server

• Windows XP Home edition or Professional.

Minimal Requirements

• Disk space: 120 MB for installation

• Memory: 64 MB

• CPU: Pentium II 233 or higher

• Required software: Internet Explorer 4.01

Recommended

• Disk space: 300 MB for installation

• Memory: 128 MB

• CPU: Pentium II 400 or higher

• Required software: Internet Explorer 5.5

OTES

• For Windows NT 4.0/2000/XP, the system administrator should

install the software.

• Windows 95 versions prior to OSR2 are not recommended due to

incompatibility with OLE/COM libraries.

ETTING

TARTED

1.16

Installing Samsung Software

OTES

•Cancel the “

New Hardware Found

” window when your

computer boots up.

• Make sure that your machine is turned on and connected to your

computer’s parallel port or USB port

before installing

software

. Windows 95 and Windows NT 4.0 do not support the

USB connection.

Insert the supplied CD-ROM into your CD-ROM drive.

The CD-ROM should automatically run and an installation

window appears.

If the installation window does not appear, click

Start

and

then

Run

. Type

X:\Setup.exe

, replacing “

” with the

letter of your drive and click

When the following window opens, connect your machine to

the computer and turn the printer on. Then click

If the machine is already connected and turned on, this

screen does not appear. Skip to the next step.

OTE

: If you click

and the machine is not connected to the

computer, an alert message window appears. After connecting the

machine and turning it on, click

Yes

. Or, if you want to install the

software without the machine, Click

ETTING

TARTED

1.17

Choose the installation type.

•

Typical

: Installs the common software for your printer,

such as printer driver, Twain driver, Remote Control Panel.

This is recommeded for most users.

•

Custom

: Allows you to choose the language of the

software and the components you want to install. After

selecting the language and the component(s), click

•

Install SmarThru

: Installs the SmarThru program. If you

select to install SmarThru on this screen, follow from step

3 on page 1.19.

•

View User’s Guide

: Allows you to view this User’s Guide

or SmarThru User’s Guide. If your computer doesn’t have

Adobe Acrobat, click on this option and it will automatically

install Adobe Acrobat for you.

After the installation is finished, the window asking you to

print a test page appears. If you choose to print a test

page, select the check box and click

Otherwise, Skip to step 6.

ETTING

TARTED

1.18

When the test page prints out correctly, click

Yes

If not, click

to reprint it.

To register yourself as a user of Samsung Printers, select

the check box and click

Finish

. You are now accessed to the

Samsung web site.

Otherwise, just click

Finish

OTES

• When you want to use your machine with the parallel cable,

remove the USB cable and connect the parallel cable. Then

reinstall the printer driver; select

Start

→

Programs

→

Samsung SCX-4100 Series

→

Maintenance

→

Repair

→

Printer

. If you have replaced the parallel cable with the USB

cable, do the same to reinstall the driver.

• If your printer doesn’t work properly, reinstall the printer driver.

ETTING

TARTED

1.19

Installing Samsung SmarThru

Insert the supplied CD-ROM into your CD-ROM drive.

Click

Install SmarThru

Click

Follow the on-screen instructions and click

Click

Select the installation type and click

ETTING

TARTED

1.20

The software installation supports two types of setup:

•

Typical

: Program will be installed with the most common

options and is recommended for most users.

•

Custom

: You may choose the options you want to install.

Choosing the

SmarThru networking

option allows you to

share the modems on other computer in your network, and

the scan device or to access similar devices on other

computers.

If you select the Custom installation, you may choose the

components you want to install.

•

SmarThru Software:

to scan and edit images

and to work with electronic documents.

•

OCR Software:

AnyPage Lite software to enable OCR.

ETTING

TARTED

1.21

Stand-alone configuration

does not allow you to use any

networking features, such as Remote Fax or Remote Scan

service.

When you select

SmarThru networking

, you can elect to

install it as a Server, a Client or both.

The

Server

option allows you to share a local fax modem

and/or a scanner over a LAN. You can control sharing by

managing a remote service user. The

Client

option allows

you to use Remote Fax or Remote Scan services provided

by a SmarThru Server over a LAN. You need to have a

client account provided by the server. For details about

Remote Fax/Scan Services, refer to the SmarThru User’s

Guide.

Follow the on-screen instructions to complete the

installation.

When the installation is finished, click

Finish

ETTING

TARTED

1.22

Repairing Software

Repairing is required if your installation fails or the software

does not work properly. This Repairing procedure does not

repair SmarThru software.

You can select

Start

→

Programs

→

Samsung SCX-4100

Series

→

Maintenance

Otherwise, Insert the supplied D-ROM into your CD-ROM

drive.

Click

Repair

OTE

: If your machine is not connected to the computer, the

Connect Samsung SCX-4100 Series window opens. After

connecting the machine, click

Select the components you want to reinstall and click

If you choose to repair the printer software, the window

asking you to print a test page appears. Do as follows:

a. To print a test page, select the check box and click

b. When the test page prints out correctly, click

Yes

If not, click

to reprint it.

When the reinstallation is done, click

Finish

ETTING

TARTED

1.23

Removing Software

Uninstall is required if you are upgrading the software or if your

installation fails. You can uninstall the item you want using the

Windows uninstallShield.

Uninstalling the MFP Driver

You can select

Start

→

Programs

→

Samsung SCX-4100

Series

→

Maintenance

Otherwise, Insert the supplied D-ROM into your CD-ROM

drive.

Click

Remove

Then you will see a component list so that you can remove

any of them individually.

If you want to uninstall the printer driver, check

Printer

If you want to uninstall the twain driver, check

Twain

If you want to uninstall the Remote Control Panel, check

Remote Control Panel

After selecting items you wish to remove, click

When your computer asks you to confirm your selection,

click

Yes

The selected driver and all of its components are removed

from your computer.

When the uninstallation is done, click

Finish

ETTING

TARTED

1.24

Uninstalling Samsung SmarThru

OTE

: Before beginning uninstallation, ensure that all applications

are closed on your computer. A system reboot is required after the

software is uninstalled.

From the

Start

menu, select

Programs

Select

Samsung SmarThru

, and then select

SmarThru 4

Uninstall

When your computer asks you to confirm your selection,

click

. The Uninstall Options window appears.

Uninstall options are:

•

Backup and delete

: Backs up all your data and options

to a safe place. It then removes the SmarThru system

including the data.

•

Delete

: Deletes all the SmarThru data and options. No

backup or copying takes place. Be careful while using this

option as you can easily lose your data.

•

Leave intact

: Uninstalls SmarThru software leaving data

and options intact. This can be useful, if, for example,

you decide to install the Stand Alone configuration over

the SmarThru Networking. In this case, uninstall

Samsung SmarThru having the

Leave intact

option set

and install the SmarThru Stand Alone configuration.

After selecting the uninstall option, click

When the uninstallation is done, the message window

recommends restarting your computer. Click

Click

Finish

When your computer doesn’t shut down and restart

automatically, you must shut it down manually and restart

it before the changes are saved.

ETTING

TARTED

1.25

Setting Up the Machine

System

Changing the Display Language

To change the language that displays on the display of the

control panel, follow these steps:

Press

Menu/Exit

until "Machine Setup" appears on the top

line of the display.

Press

the scroll button (





) until "Language" appears

on the bottom line of the display.

Press

Start/Copy

. The current setting appears on the

bottom line of the display.

Press

the scroll button (





)

until the language you want

appears on the display.

Press

Start/Copy

to save the selection.

To return to Standby mode, press

Stop/Clear

ETTING

TARTED

1.26

Setting the Paper Size and Type

After loading paper in the paper tray, you need to set the paper

type and size using the control panel buttons. These settings will

apply to Copy modes. For PC-printing, you need to select the

paper type and size in the application program you use.

Press

Menu/Exit

until "Paper Setting"

appears on the top

line.

The first menu item, "Paper Size", appears on the bottom

line.

Press

Start/Copy

to access the menu item.

Press

Start/Copy

when "Tray Paper" displays on the

bottom line.

Use

the scroll button (





)

to find the paper size you are

using and press

Start/Copy

to save it.

Press

Menu/Exit

to return to the upper menu level.

Press the



button to scroll to "Paper Type" and press

Start/Copy

to access the menu item.

Use

the scroll button (





)

to find the paper type you

are using and press

Start/Copy

to save it.

To return to Standby mode, press

Stop/Clear

ETTING

TARTED

1.27

Using the Save Modes

Toner Save Mode

Toner Save mode allows your machine to use less toner on each

page. Activating this mode extends the life of the toner cartridge

longer than normal, but it reduces the print quality.

To turn the toner save mode on or off:

Press

Menu/Exit

until "Toner Save" appears on top line of

the display.

Press the scroll button (





) to display "On" on the

bottom line and press

Start/Copy

Selecting "Off" means that toner save mode turns off.

OTE

: For PC-printing, you can also turn toner save mode on or

off, in the printer properties. See page 3.9.

Power Save Mode

Power Save mode allows your machine to reduce power

consumption when it is not in actual use. You can turn this mode

on by selecting the length of time for which the machine waits

after a job is printed before it switches to a reduced power state.

Press

Menu/Exit

until "Machine Setup" appears on top line

of the display.

Press the scroll button (





)

until "Power Save" appears

on the bottom line. Press

Start/Copy

Press the scroll button (





) to display "On" on the

bottom line and press

Start/Copy

Selecting "Off" means that Power Save mode turns off.

Press the scroll button (





) until the time settings you

want appears.

The available options are 5, 10, 15, 30 and 45 (minutes).

Press

Start/Copy

to save the selection.

To return to Standby mode, press

Stop/Clear

ETTING

TARTED

1.28

EMO

2PAPER HANDLING

This chapter introduces you to the basics of selecting

print materials and loading them into your machine.

This chapter includes:

• Selecting Print Materials

• Selecting an Output Location

• Loading Paper in the Paper Tray

• Using the Manual Feeder

APER

ANDLING

2.2

Selecting Print Materials

You can print on a variety of print materials, such as plain paper,

envelopes, labels, transparencies, and so on. Always use print

materials that meet the guidelines for use with this machine.

See “Paper Specifications” on page A.5. To get the best possible

print quality, use only high-quality copier-grade paper.

When you choose print materials, consider the following:

• Desired outcome: The paper you choose should be

appropriate for your project.

• Size: You can use any size paper that fits easily within the

paper adjusters of the paper tray.

• Weight: Your machine supports paper weights as follows:

- 16 ~ 24 lbs (60 ~ 90 g/m

) bond for the paper tray

- 16 ~ 43 lbs (60 ~ 163 g/m

) bond for the manual feeder

• Brightness: Some papers are whiter than others and produce

sharper, more vibrant images.

• Surface smoothness: The smoothness of the paper affects

how crisp the printing looks on the paper.

AUTION

: Using print materials that dose not conform to the

specifications listed on page A.5 may cause problems that may

require service. This service is not covered by the warranty or

service agreements.

Type, Input Sources and Capacities

Paper Type Input Source/Capacity

Maximum capacity may be reduced depending on the paper thickness.

Paper Tray Manual Feeder

Plain paper

250 1

Envelopes

- 1

Labels

** If you experience excessive jamming, load one sheet at a time through the

manual feeder.

- 1

Transparency films

Card stocks

APER

ANDLING

2.3

Guidelines for Paper and Special Materials

When selecting or loading paper, envelopes, or other special

material, keep these guidelines in mind:

• Always use paper and other materials that conform with the

specifications listed under “Paper Specifications” on page A.5.

• Attempting to print on damp, curled, wrinkled, or torn paper

can cause paper jams and the poor print quality.

• Use only high quality copier grade paper for the best print

quality.

• Avoid paper with embossed lettering, perforations, or a

texture that is too smooth or too rough. Paper jams may

occur.

• Store paper in its ream wrapper until you are ready to use.

Place cartons on pallets or shelves, not on the floor. Do not

place heavy objects on top of the paper, whether it is

packaged or unpackaged. Keep it away from moisture, or

other conditions that can cause it to wrinkle or curl.

• Store unused materials at temperatures between 15

C and

C (59

F to 86

F). The relative humidity should be

between 10 % and 70 %.

• During storage, you should use moisture-proof wrap, such as

any plastic container or bag, to prevent dust and moisture

from contaminating your paper.

• Load special paper types one sheet at a time.

• Only use materials specifically recommended for use in laser

printers.

• To prevent special materials, such as transparencies and label

sheets from sticking together, remove them as they prints

out.

•For envelopes:

- Use only well-constructed envelopes with sharp, well

creased folds.

- Do not use envelopes with clasps and snaps.

- Do not use envelopes with windows, coated lining, self-

adhesive seals, or other synthetic materials.

- Do not use damaged or poorly made envelopes.

• For transparencies:

- Place them on a flat surface after removing them from the

machine.

- Do not leave them in the paper tray for long periods of time.

Dust and dirt may accumulate on them resulting in spotty

printing.

APER

ANDLING

2.4

- To avoid smudging caused by fingerprints, handle them and

coated paper carefully.

- To avoid fading, do not expose the printed transparencies to

prolonged sunlight.

•For labels:

- Verify that their adhesive material can tolerate fusing

temperature of 200

C (392

F) for 0.1 second.

- Make sure that there is no exposed adhesive material

between them. Exposed areas can cause labels to peel off

during printing, which can cause paper jams. Exposed

adhesive can also cause damage to machine components.

- Do not load a sheet of them through the machine more than

once. The adhesive backing is designed for one pass

through the machine.

- Do not use labels that are separating from the backing

sheet or are wrinkled, bubbled, or otherwise damaged.

• Do not use

Carbonless

paper and

Tracing

paper. They could

make smell of chemicals and damage your machine.

Selecting an Output Location

The machine has two output locations; the rear output slot (face

up) and the front output tray (face down).

To use the front output tray, make sure that the rear cover is

closed. To use the rear output slot, open the rear cover.

OTES

• If paper coming out of the front output tray has problems, such

as excessive curl, try printing to the rear output slot.

• To avoid paper jams, do not open or close the rear cover while

the machine is printing.

APER

ANDLING

2.5

Printing to the Front Output Tray

(Face down)

The front output tray collects printed paper face-down in the

order in which it was printed. The tray should be used for most

print jobs.

OTE

• If you continuously print many pages, the surface of the output

tray may become hot. Be careful not to touch the surface, and

especially keep children away from the surface.

• The front output tray can hold up to 50 sheets of paper. Remove

the pages so that the tray is not overloaded.

Printing to the Rear Output Slot

(Face up)

Using the rear output slot, paper comes out of the machine face

up.

Printing from the manual feeder to the rear output slot provides

straight paper path

. Using the rear output slot might

improve the output quality with the following:

•envelopes

•labels

• small custom-sized paper

• postcards

• transparencies

APER

ANDLING

2.6

To use the rear output slot:

Open the rear cover by pulling it upward.

AUTION

: The fusing area inside the rear part of your machine

becomes hot once the machine is turned on. Be careful when you

access this area.

If you do not want to use the rear output slot, close the

rear cover. The pages stack on the front output tray.

APER

ANDLING

2.7

Loading Paper in the Paper Tray

The paper tray can hold a maximum of 250 sheets of 20 lb(75g/

) plain paper. For copying, you can use A4-, Letter- or Legal-

sized paper only. For PC-printing, you can use many different

sizes of paper; see page A.5.

The paper level indicator on the front of the paper tray shows

the amount of paper currently left in the tray. When the tray is

empty, the indicator drops to the bottom.

To load paper, pull open the paper tray and load paper with the

print side

face down

You can load letterhead paper with the design side face down.

The top edge of the sheet with the logo should be placed at the

front side of the tray.

For details about loading paper in the paper tray, see “Loading

Paper” on page 1.8.

OTES

• If you experience problems with paper feed, place the paper in

the manual feeder.

• You can load up to 150 sheets of previously printed paper. The

printed side should be facing up with an uncurled edge on top.

If you experience problems with paper feed, turn the paper

around. Note that the print quality is not guaranteed.

Paper empty

Paper full

APER

ANDLING

2.8

Using the Manual Feeder

Use the manual feeder to print transparencies, labels, envelopes

or postcards in addition to making quick runs of paper types or

sizes that are not currently loaded in the paper tray.

Postcards, 3.5 by 5.83 in.(index) cards and other custom-sized

materials can be printed with this printer. The minimum size is

76 by 127 mm (3.0 by 5.0 in.) and the maximum size is 216 by

356 mm (8.5 by 14 in.).

Acceptable print materials are plain paper with sizes ranging

from 100 x 148 mm (3.9 x 5.8 in.) to Legal, 216 x 356 mm (8.5

x 14 in.), the largest size acceptable, and weighing between 16

lb and 32 lb.

OTES

• Always load only the print materials specified in the

Specifications on page A.5 to avoid paper jams and print quality

problems.

• Flatten any curl on postcards, envelopes and labels before

loading them into the manual feeder.

• When you print on 76 mm X 127 mm (3 X 5 in.) sized media with

loading into the tray, open the rear output tray.

Load a sheet of the print material with the print side

face

into the center of the manual feeder.

For envelopes, load a sheet with the flap side face down

and with the stamp area on the top left side.

For transparencies, hold them by the edges and avoid

touching the print side. Oils from your fingers can cause

print quality problems.

For letterhead, load a sheet with the design face up, top

edge towards the printer.

APER

ANDLING

2.9

AUTION

: You must open the rear output slot when you print on

transparencies. If not, they may tear while exiting the machine.

Adjust the paper guide to the width of the print material.

OTE

: When printing on previously printed paper from the

manual feeder, the printed side should be facing down with an

uncurled edge to the machine. If you experience problems with

paper feed, turn the paper around.

Open the rear cover to use the rear output slot.

After printing, close the rear cover.

APER

ANDLING

2.10

Setting the Paper Type and Size for the

Manual Feeder

After loading paper in the manual feeder, you need to set the

correct paper type and size using the control panel buttons.

These settings will apply to Copy mode. For PC-printing, you

need to select the paper size in the application program you use.

To set the paper size for the manual feeder:

Press

Menu/Exit

until "Paper Setting" appears on the top

line of the display.

The first item, "Paper Size", displays on the bottom line.

Press

Start/Copy

to access the menu item.

Use

the scroll button (





)

to display "Manual Feed" on

the bottom line. Press

Start/Copy

to access the menu

item.

Use

the scroll button (





)

to find the paper size you are

using and press

Start/Copy

to save it.

Press

Menu/Exit

to return to the upper menu level.

Press the



button to scroll to "Paper Type" and press

Start/Copy

to access the menu item.

Use

the scroll button (





)

to find the paper type you

are using and press

Start/Copy

to save it.

To return to Standby mode, press

Stop/Clear

3PRINTING

This chapter explains how to print your documents in

Windows and how to use the print settings.

This chapter includes:

• Printing a Document in Windows

• Setting Paper Properties

• Setting Graphic Properties

• Printing Multiple Pages on One Sheet of the Paper

• Printing a Reduced or Enlarged Document

• Fitting Your Document to a Selected Paper Size

•Printing Posters

•Using Watermarks

• Using Overlays

• Setting Up the Locally Shared Printer

RINTING

3.2

Printing a Document in Windows

The following procedure describes the general steps required for

printing from various Windows applications. The exact steps for

printing a document may vary depending on the application

program you are using. Refer to your software application’s

user’s guide for the exact printing procedure.

OTE

: For detailed information about printing from Macintosh or

Linux, see Chapter 6, Using Other Operating Systems.

Open the document you want to print.

Select

from the

File

menu.

The Print window opens. It may look slightly different

depending on your application.

You can select the basic print settings within the Print

window. These settings include the number of copies and

the print range.

To take advantage of the printer features provided by your

machine, click

Properties

Preferences

in the

application’s print window and go to step 4.

If you see a

Setup

Printer

Options

button, click it

instead. Then click

Properties

on the next screen.



Windows 98

Make sure that your

machine is selected.

RINTING

3.3

Now you see the Samsung SCX-4100 Series Properties

window, which allows you to access all of information you

need when using your machine.

The

Layout

tab first displays.

If necessary, select the

Orientation

option.

The

Orientation

option allows you to select the direction in

which information is printed on a page.

•

Portrait

prints across the width of the page, letter style.

•

Landscape

prints across the length of the page,

spreadsheet style.

•

If you want to turn the page upside down, select

180

from

the

Rotate

drop-down list.

From the

Paper

tab, select the paper source, size and type.

For further details, see page 3.7.

The preview image

shows the sample page

with the settings you

specified.



Landscape



Portrait

RINTING

3.4

If necessary, you can set the sequence for the pages to

print from the

Extra

tab. Select the print order you want to

use from the

Printer Order

drop-down list.

•

Normal

: Your machine prints from the first page to the

last page.

•

Reverse All Pages

: Your machine prints from the last

page to the first page.

•

Print Odd Pages

: Your machine prints only the odd

pages of the document.

•

Print Even Pages

: Your machine prints only the even

pages of the document.

Click other tabs on the top of the Samsung SCX-4100

Series Properties window to access other features, if

needed.

When you finish setting the properties, click

until the

Print window displays.

Click

to start printing.

The printer’s Properties window may differ, depending on your

operating system. This User’s Guide shows the Properties

window on windows 98.

OTES

• Most Windows applications overrides the settings you specified in

the printer driver. Change all of the print settings available in the

software application first, and change any remaining settings

using the printer driver.

• The settings you change remain in effect only while you are

using the current program. To make your changes permanent,

make them in the

Printers

folder. Follow these steps:

1. Click the Windows

Start

menu.

2. For Windows 95/98/Me/NT 4.0/2000, select

Settings

and then

Printers

For Windows XP, select

Printers and Faxes

3. Select the

Samsung SCX-4100 Series

printer.

4. Click the right mouse button on the printer icon and:

• For Windows 95/98/Me, select

Properties

• For Windows 2000/XP, select

Printing Preferences

• For Windows NT 4.0, select

Document Default

5. Change the settings on each tab and click

RINTING

3.5

Canceling a Print Job

There are two ways to cancel a print job:

To stop a print job from the control panel:

Press the

Stop/Clear

button.

Your machine finishes printing the page that is moving through

the machine and deletes the rest of the print job. Pressing the

button cancels only the current job. If more than one print job

is in the machine’s memory, you need to press the button once

for each job.

To stop a print job from the Printers folder:

If the print job is waiting in a print queue or print spooler, such

as the Printer group in Windows, delete the job as follows:

Click the Windows

Start

menu.

For Windows 9x/NT4.0/2000/Me, Select

Settings

and then

Printers

For Windows XP, select

Printers and Faxes

Double-click the

Samsung SCX-4100 Series

icon.

From the

Document

menu:

For Windows 9x/Me, select

Cancel Printing

For Windows NT4.0/2000/XP, select

Cancel

OTE

: You can access this window simply by double-clicking the

printer icon at the bottom right corner of the Windows desktop.



Windows 98

RINTING

3.6

Using a Favorite Setting

The

Favorites

option, which is visible on each tab, allows you

to save the current properties settings for future use.

To save a Favorites item:

Change the settings on each tab, as needed.

Enter a name for the item in the

Favorites

input box.

Click

Save

To use a saved setting, select it from the

Favorites

drop-down

list.

To delete a favorite setting item, select it from the list and click

Delete

You can also restore the printer driver’s default settings by

selecting

from the list.

Using Help

Your machine has a help screen that can be activated using the

Help

button in the printer’s Properties window. The help screen

gives detailed information about the printer features provided

by the printer driver.

You can also click in the upper right hand corner, and then

click on any setting.

RINTING

3.7

Setting Paper Properties

Use the following options for paper handling. See page 3.2 for

more information about accessing printer’s Properties.

Click the

Paper

tab to access many paper properties.

Property Description

Copies

allows you to choose the number of

copies to be printed. You can enter up to 999.

Size

allows you to choose the size of the paper

loaded in the tray.

If the required size is not listed in the Size box,

click

Add Custom

. When the Custom Page

Size window appears, set the size and click

The setting appears on the list so that you can

select it.

Enter the custom

name you want to

use.

Enter the paper

size.

RINTING

3.8

Setting Graphic Properties

Use the following graphic options to adjust the print quality for

your specific printing needs. See page 3.2 for more information

about accessing printer properties.

Click the

Graphics

tab to display the properties shown below.

Source

Make sure that

Source

is set to the

corresponding paper tray.

Use the

Manual Feed

source when printing to

special material. You need to load one sheet at a

time into the manual feeder. See page 2.8.

If the paper source is set to

Auto Select

, the

machine automatically picks up print material in

the following order: the manual feeder and the

paper tray.

Type

Make sure that

Type

is set to

Printer

Default

. If you load a different type of print

material, select the corresponding paper type.

For more information about print materials, see

Chapter 2, Paper Handling.

If you use cotton paper, set the paper type to

Thick

for the best printing.

To use recycled paper, which weighs from 75g/

to 90g/m

(20lb to 24lb), or colored paper,

select

Color Paper

Property Description

RINTING

3.9

Property Description

Resolution

You can select the printing resolution by

choosing from

600 dpi (Normal)

300

dpi (Draft)

. The higher the setting, the

sharper the printed characters and graphics.

Higher settings may increase the time it takes

to print a document.

Toner Save

Selecting this option extends the life of your

toner cartridge and reduces your cost per page

without a significant reduction in the print

quality.

•

Printer Setting

: When you select this

option, the Toner Save feature is

determined by the setting you’ve made

on the control panel of the machine.

•

: Select this option to allow the

machine to use less toner on each page.

•

Off

: When you do not need to save toner

to print a document, select this option.

Advanced

Options

You can make advanced settings by clicking

the

Advanced Options

button.

Darkness

Use this option to lighten or darken the image

appearance in your print.

•

Normal

: This setting is for normal

documents.

•

Light

: This setting is for bolder line widths

or darker grayscale images.

•

Dark

: This setting is for finer line width,

higher definition in graphics and lighter

grayscale images.

When the

Darken Text

option is checked, all

text in your document prints darker than

normal.

RINTING

3.10

Printing Multiple Pages on One

Sheet of the Paper

You can select the number of pages to print on a single sheet of

paper. To print more than one page per sheet, the pages are

smaller and arranged in the order you specified on the sheet.

You can print up to 16 pages on one sheet.

To change the print settings from your software application,

access the printer’s Properties. See page 3.2.

From the

Layout

tab, choose

Multiple Pages per Side

from the

Type

drop-down list.

Advanced

Options

(continued)

Property Description

True Type Options

This option determines what the driver tells

the machine about how to image the text in

your document. Select the appropriate

setting according to the status of your

document.

•

Download as Bit Image

: When this

option is selected, the driver downloads

the font data as bitmap images.

Documents with complicated fonts, such as

Korean or Chinese, or various types of

fonts print faster in this setting.

•

Print as Graphics

: When this option is

selected, the driver downloads any fonts as

graphics. When printing documents with

high graphic content and relatively few

TrueType fonts, printing performance

(speed) may be enhanced in this setting.

Print All Text Black

When the

Print All Text Black

option is

checked, all text in your document prints in

solid black, regardless of the color it appears

on the screen. When it is not checked,

colored text prints in shades of gray.

RINTING

3.11

Select the number of pages you want to print per sheet (1,

2, 4, 9 or 16) on the

Pages per Side

drop-down list.

Select the page order on the

Page Order

drop-down list, if

necessary.

Check

Print Page Border

to print a border around each

page on the sheet.

OTE

Page Order

and

Print Page Border

are enabled only

when the number of pages per side is 2, 4, 9 or 16.

Click the

Paper

tab and select the paper source, size, and

type.

Click

and print the document.

Preview


Right, Then

Down Down, Then

Right Left, Then

Down Down, Then

Left

RINTING

3.12

Printing a Reduced or Enlarged

Document

You can scale your print job on a page.

When you change the print settings from your software

application, access the printer’s Properties. See page 3.2.

From the

Layout

tab, select

Reduce/Enlarge

on the

Type

drop-down list.

Enter the scaling rate in the

Percentage

input box.

You can also click the





button.

Click the

Paper

tab and select the paper source, size and

type.

Click

and print the document.

Preview


RINTING

3.13

Fitting Your Document to a Selected

Paper Size

You can scale your print job to any paper size regardless of the

digital document size. This can be useful when you want to

check the fine details on a small document.

To change the print settings from your software application,

access the printer’s Properties. See page 3.2.

From the

Layout

tab, select

Fit to Page

on the

Type

drop-

down list.

Select the correct size from the

Target Page

drop-down

list.

Click the

Paper

tab and select the paper source and type.

Click

and print the document.

Preview


RINTING

3.14

Printing Posters

You can print a single-page document onto 4, 9 or 16 sheets of

paper, for the purpose of pasting the sheets together to form

one poster-sized document.

To change the print settings from your software application,

access the printer’s Properties. See page 3.2.

From the

Layout

tab, select

Poster

on the

Type

drop-

down list.

Configure the poster option:

You can select the page layout from

2x2

3x3

4x4

. If

you select

2x2

, the image is automatically stretched to

cover 4 physical pages.

Specify an overlap in millimeters or inches to make it easier

to reconstruct the resulting poster.

Preview




2 x 2



3 x 3

0.15 inches

RINTING

3.15

Click the

Paper

tab and select the paper source, size and

type.

Click

and print the document. You can complete the

poster by posting the sheets together.

Using Watermarks

The Watermark option allows you to print text over an existing

document. For example, you may want to have large gray letters

reading “DRAFT” or “CONFIDENTIAL” printed diagonally across

the first page or all of the pages of a document.

There are several predefined watermarks that come with your

machine, and they can be modified or you can add new ones to

the list.

Using an Existing Watermark

To change the print settings from your software application,

access the printer’s Properties. See page 3.2.

Click the

Extras

tab and select a watermark on the

Watermark

drop-down list. It appears in the preview

image window.

Click

and start printing.

Preview


RINTING

3.16

Creating a Watermark

To change the print settings from your software application,

access the printer’s Properties. See page 3.2.

Click the

Extras

tab and click

Edit

in the

Watermark

section. The Edit Watermarks window appears.

Enter text message you want to print in the

Watermark

Message

box.

The message displays in the preview image window.

When the

First Page Only

box is checked, the watermark

prints on the

first page

only

Select the watermark options.

You can select the font name, style, and size, and gray

scale level from the

Font Attributes

section and set the

angle of the watermark from the

Message Angle

section.

Click

Add

to add a new watermark to the list.

When you finish creating, click

and start printing.

To stop printing the watermark, select

the

Watermark

drop-down list.

RINTING

3.17

Editing a Watermark

To change the print settings from your software application,

access the printer properties. See page 3.2.

Click the

Extras

tab and click

Edit

in the

Watermark

section. The Edit Watermarks window appears.

Select the watermark you want to edit on the

Current

Watermarks

list, to change the watermark message and

the options. Refer to page 3.16.

Click

Update

to save the changes.

Click

Deleting a Watermark

To change the print settings from your software application,

access the printer’s Properties. See page 3.2.

From the

Extras

tab, click

Edit

in the

Watermark

section.

The Edit Watermarks window appears.

Select the watermark you want to delete on the

Current

Watermarks

list and click

Delete

When a confirming message window appears, click

Yes

Click

RINTING

3.18

Using Overlays

What is an Overlay?

An overlay is text and/or images stored on the computer hard

disk drive (HDD) as a special file format that can be printed on

any document. Overlays are often used to take the place of

preprinted forms and letterhead paper. Rather than using

preprinted letterhead, you can create an overlay containing the

exact same information that is currently on your letterhead. To

print a letter with your company’s letterhead, you need only tell

the machine to print the letterhead overlay on your document.

Creating a New Page Overlay

To use a page overlay, you must create a new page overlay

containing your logo or image.

Create or open a document containing text or an image for

use in a new page overlay. Position the items exactly as you

wish them to appear when printed as an overlay. If needed,

save the file for later use.

To change the print settings from your software application,

access the printer’s Properties. See page 3.2.

Click the

Extras

tab and click

Edit

in the

Overlay

section.

WORLD BEST

Dear ABC

Regards

RINTING

3.19

In the Edit Overlays window, click

Create Overlay

In the Create Overlay window, type a name of up to eight

characters in the

File name

box. Select the destination

path, if necessary. (The default is C:\Formover).

Click

Save

. The name appears on the Overlay List.

Click

Yes

to finish creating.

The file is not printed out. Instead it is stored in your

computer HDD disk.

OTE

: The overlay document size must be the same as the

documents you print with the overlay. Do not create an overlay

with a watermark.

RINTING

3.20

Using a Page Overlay

After an overlay has been created, it is ready to be printed with

your document. To print an overlay with a document:

Create or open the document you want to print.

To change the print settings from your software application,

access the printer’s Properties. See page 3.2.

Click the

Extras

tab.

Select the overlay you want to print from the

Overlay

drop-down list box.

When the overlay file you want doesn’t appear on the

Overlay List, click

Edit

and

Load Overlay

, and select the

overlay file.

If you have stored the overlay file you want to use in an

external source, you can also load the file when you access

this Load Overlay window.

After you select the file, click

Open

. The file appears on the

Overlay List and is available for printing. Select the overlay

from the

Overlay List

box.

RINTING

3.21

If necessary, click

Confirm Page Overlay When

Printing

. When this box is checked, a message window

appears each time you submit a document for printing,

asking you to confirm your wish to print an overlay on your

document.

Answering

Yes

to the window means that the selected

overlay prints with your document. Answering

to the

window cancels overlay printing.

If this box is empty and an overlay has been selected, the

overlay will be automatically printed with your document.

Click

Yes

until the printing starts.

The overlay downloads with your print job and prints on

your document.

OTE

: The resolution of the overlay document must be the same

as that of the document you will print with the overlay.

Deleting a Page Overlay

You can delete page overlays that you no longer use.

In the printer’s properties window, click the

Extras

tab.

Click

Edit

in the Overlay section.

Select the overlay you want to delete from the Overlay List

box.

Click

Delete Overlay

When a confirming message window appears, click

Yes

Click

until you exit the Print window.

RINTING

3.22

Setting Up the Locally Shared Printer

You can connect the machine directly to a selected computer,

which is called “host computer,” on the network. Your machine

can be shared by other users on the network through a Windows

9x, Me, 2000, XP or NT 4.0 network printer connection.

OTE

Whether the printer is locally connected or network-

connected, you need to install the printer software on each

computer that will print documents to the printer.

In Windows 9x/Me

Setting Up the Host Computer

Start Windows.

From the

Start

menu, select

Control Panel

and

double-click on the

Network

icon.

Check the

File and Print Sharing

box and click

Click

Start

and select

Printers

from

Settings

. Double-

click your printer icon.

Select

Properties

in the

Printer

menu.

Click the

Sharing

tab and check the

Shared As

box. Fill in

the

Share Name

field and then click

RINTING

3.23

Setting Up the Client Computer

Right-click

Start

and select

Explorer

Open your network folder in the left column.

Right-click the shared name and select

Capture Printer

Port

Select the port you want, check the

Reconnect at log on

box and then click

From the

Start

menu, select

Settings

and then

Printers

Double-click your printer icon.

From the

Printer

menu, select

Properties

From the

Details

tab, select the printer port and click

In Windows NT 4.0/2000/XP

Setting Up the Host Computer

Start Windows.

For Windows NT 4.0/2000, from the

Start

menu, select

Settings

and then

Printers

For Windows XP, from the

Start

menu, select

Printers and

Faxes

Double-click your printer icon.

From the

Printer

menu, select

Sharing

For Windows NT 4.0, check the

Shared

box.

For Windows 2000, check the

Shared As

box.

For Windows XP, check the

Share this printer

box.

For Windows NT 4.0, fill in the

Share Name

field and click

For Windows 2000/XP, fill in the

Shared Name

field and

click

RINTING

3.24

Setting Up the Client Computer

Right-click

Start

and select

Explorer

Open your network folder in the left column.

Click the shared name.

For Windows NT 4.0/2000, from the

Start

menu, select

Settings

and

Printers

For Windows XP,

from the

Start

menu, select

Printers and

Faxes

Double-click your printer icon.

From the

Printer

menu, select

Properties

Press the

Ports

tab and click

Add Port

Select

Local Port

and click

New Port

Fill in the

Enter a port name

field and enter the shared

name.

Click

and click

For Windows NT 4.0, click

For Windows 2000/XP, click

Apply

and click

4COPYING

This chapter gives you step-by-step instructions for copying

documents.

This chapter includes:

• Loading Paper for Copying

• Preparing a Document

• Making a Copy

• Setting Copy Options

• Using Special Copy Features

• Changing the Default Settings

• Setting the Time Out Option

OPYING

4.2

Loading Paper for Copying

The instructions for loading print materials are the same

whether you are printing, or copying. For coping, you can use

Letter-, A4-, Legal-sized print materials. For further details, see

page 1.8 for loading in the paper tray and page 2.8 for loading

in the manual feeder.

Preparing a Document

You can use an original document for copying and scanning.

Load booklet, pamphlet, or documents having unusual

characteristics on the document glass one sheet at a time. On

the document glass, you can load the following types of

documents:

• Thick paper

• Document with uneven surface

•Photographs

• Small documents (e.g. business cards, postcards)

• Special types of paper

Making a Copy

Lift and open the document cover.

OPYING

4.3

Place the document

face down

on the document glass.

Align it with the registration guide on the top left corner of

the glass.

Close the document cover. Be careful not to move the

document.

OTES

• Leaving the cover open while copying may affect the copy quality

and toner consumption.

• If you are copying a page from a book or magazine which is

thicker than 30 mm, lift the cover straight up to remove it and

start copying with the cover open.

OPYING

4.4

Customise the copy settings including number of copies,

copy size, darkness and original type by using the control

panel buttons. See “Setting Copy Options” on page 4.4.

To clear the settings, use the

Stop/Clear

button.

Press

Start/Copy

to begin copying. The display shows the

copy processing.

OTES

• You can cancel the copy job during an operation. Press

Stop/

Clear

, and the copying will stop.

• Dust on the document glass may cause black spots on the

printout. Keep it always clean.

Setting Copy Options

The buttons on the control panel let you make all the basic copy

options; darkness, number of copies, copy size and document

type. Set the following options for the current copy job before

pressing

Start/Copy

to make copies.

OTE

: If you press

Stop/Clear

while you set the copy options, all

of the options you have set for the current copy job will be

canceled and return to their default status. Or, they will

automatically return to their default status after the machine

completes the copy.

Darkness

If you have an original document containing faint markings and

dark images, you can adjust the brightness to make a copy that

is easier to read.

To adjust the contrast, press

Darkness

You can choose from the following contrast modes:

•

Light

: works well with dark print.

•

Normal

: works well with standard typed or printed

documents.

•

Dark

: works well with light print or faint pencil markings.

OPYING

4.5

Number of Copies

Using the

No. of Copies

button, you can select the number of

copies from 1 to 99.

Press

No. of Copies

Press the scroll button (





) until the number you want

appears on the display.

Pressing and holding the buttons allows you to quickly

increase and decrease in increments of 5.

Press

Start/Copy

to save the selection.

Reduced/Enlarged Copying

You can reduce or enlarge the size of a copied image from 50%

to 200%.

To select from the predefined copy sizes:

Press

Menu/Exit

on the control panel.

"Reduce/Enlarge" appears on the top line of the display.

Press the scroll button (





) to find the size setting you

want.

Press

Start/Copy

to save the selection.

To fine-tune the size of copies:

Press

Menu/Exit

on the control panel.

"Reduce/Enlarge" appears on the top line of the display.

Press the scroll button (





) until "Custom:50-200%"

displays on the bottom line. Press

Start/Copy

Press the scroll button (





) until the copy size you want

appears on the display.

Pressing and holding the buttons allows you to quickly

increase and decrease in increments of 5.

OPYING

4.6

Press

Start/Copy

to save the selection.

OTE

: When you make a reduced copy, black lines may appear at

the bottom of your copy.

Original Type

The Original Type setting is used to improve the copy quality by

selecting the document for the current copy job.

To select the document type:

Press

Menu/Exit

on the control panel until "Original Type"

appears on the top line of the display

Press

Start/Copy

to access the menu item.

Press the scroll button (





) to scroll through the

document type.

You can choose from the following image modes:

•

Text

: Use for documents containing mostly text.

•

Text/Photo

: Use for documents with mixed text and

graphics.

•


: Use when the originals are photographs.

OTE

: When you copy a document containing color on the

background, such as a newspaper or a catalog, you can get the

background on your copy. If you want to reduce the background,

change the

Darkness

setting to

Light

and/or the

Original Type

setting to

Text

OPYING

4.7

Using Special Copy Features

You can use the following copy features using the "Special Copy"

menu:

•

Off

: Prints in normal mode.

•

Clone

Prints multiple image copies from the original

document on a single page. The number of images is

automatically determined by the original image and paper

size. See page 4.7.

•

Auto Fit

: A

utomatically reduces or enlarges the original

image to fit on the paper currently loaded in the machine.

See page 4.8.

•

2 Sides in 1 pg

Prints 2-sided original document on one

sheet of paper. See page 4.8.

•

: Prints 2 original images reduced to fit onto one

sheet of paper. See page 4.9.

•

Poster

: Prints an image onto 9 sheets of paper (3x3). You

can paste the printed pages together to make one poster-

size document. See page 4.10.

Clone Copying

Load the document to be copied on the document glass,

and close the cover.

Press

Menu/Exit

until "Special Copy" appears on the top

line of the display.

Press the scroll button (





) until "Clone" displays on

the bottom line.

Press

Start/Copy

to save the selection.

Customise the copy settings including number of copies,

copy size, darkness and original type by using the control

panel buttons. See “Setting Copy Options” on page 4.4.

OTE

: You cannot adjust the copy size using the "Reduce/

Enlarge" feature while making a clone copy.

Press

Start/Copy

to begin copying.

OPYING

4.8

Auto Fit Copying

Load the document to be copied on the document glass,

and close the cover.

Press

Menu/Exit

until "Special Copy" appears on the top

line of the display.

Press the scroll button (





) until "Auto Fit" appears on

the bottom line.

Press

Start/Copy

to save the selection.

Customise the copy settings including number of copies,

copy size, darkness and original type by using the control

panel buttons. See “Setting Copy Options” on page 4.4.

OTE

: You cannot adjust the copy size using the "Reduce/

Enlarge" feature while the Auto Fit copying is enabled.

Press

Start/Copy

to begin copying.

2 sided in 1 page Copying

You can copy a 2-sided document on one page of A4, Letter or

Legal-sized paper.

When you copy using this feature, the machine prints one side

on the upper half of the paper and the other side on the lower

half without reducing the original. This feature is helpful for

copying a small-sized document, such as a name card.

If the original document is larger than the printable area, some

portions may not be printed.

Load the document to be copied on the document glass,

and close the cover.

Press

Menu/Exit

until "Special Copy" appears on the top

line of the display.

Press the scroll button (





) until "2 Sides in 1 pg"

displays on the bottom line.

Press

Start/Copy

to save the selection.

OPYING

4.9

Customise the copy settings including number of copies,

copy size, darkness and original type by using the control

panel buttons. See “Setting Copy Options” on page 4.4.

Press

Start/Copy

to begin copying.

Your machine begins scanning the front side.

When "Set Backside" displays on the bottom line, open the

document cover and flip the document over. Close the

cover.

OTE

: If you press the

Stop/Clear

button or if no buttons are

pressed for about 30 seconds, the machine cancels the copy job

and returns to Standby Mode.

Press

Start/Copy

again.

OTE

: You cannot adjust the copy size using the "Reduce/

Enlarge" feature for making a 2-side Copying.

2-up Copying

Load the document to be copied on the document glass,

and close the cover.

Press

Menu/Exit

until "Special Copy" appears on the top

line of the display.

Press the scroll button (





) until "2 UP" displays on the

bottom line.

Press

Start/Copy

to save the selection.

Customise the copy settings including number of copies,

copy size, darkness and original type by using the control

panel buttons. See “Setting Copy Options” on page 4.4.

OTE

: You cannot adjust the copy size using the "Reduce/

Enlarge" feature for making a 2-up copy.

Press

Start/Copy

to begin copying.

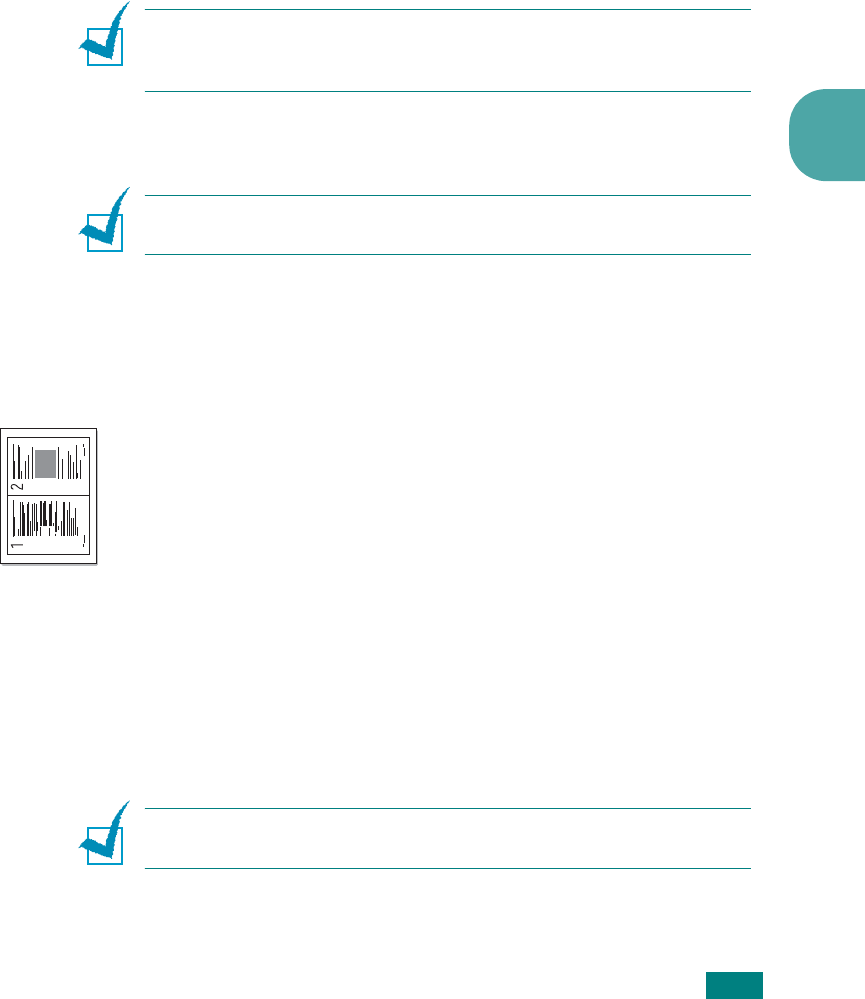

2-up copying

OPYING

4.10

OTE

: 2-up copy reduces your original document by 50%.

Poster Copying

Load the documents to be copied on the document glass

and close the cover.

Press

Menu/Exit

until "Special Copy" appears on the top

line of the display.

Press the scroll button (





) until "Poster" displays on

the bottom line.

Press

Start/Copy

to save the selection.

Customise the copy settings including number of copies,

copy size, darkness and original type by using the control

panel buttons. See “Setting Copy Options” on page 4.4.

OTE

: You cannot adjust the copy size using the "Reduce/

Enlarge" feature for making a poster.

Press

Start/Copy

to begin copying.

Your original document is divided into 9

portions. Each portion is scanned and

printed one by one in the following order:

OPYING

4.11

Changing the Default Settings

Copy options, including darkness, original type, copy size and

number of copies, can be set to the most frequently used

modes. When you copy a document, the default settings are

used unless they are changed by using the corresponding

buttons on the control panel.

To create your own default settings:

Press

Menu/Exit

on the control panel until "Copy Setup"

appears on the top line of the display.

The first menu item, "Change Default", appears on the

bottom line.

Press

Start/Copy

to access the menu item. The first setup

option, "Darkness", appears on the bottom line.

Press the scroll button (





) to scroll through the setup

options.

When the option you want to set appears, press

Start/

Copy

to access the option.

Change the setting using the scroll button (





Press

Start/Copy

to save the selection.

Repeat steps 3 through 6, as needed.

To return to Standby mode, press

Stop/Clear

OTE

: While you set copy options, pressing

Stop/Clear

cancels

the changed settings and restores their default status.

OPYING

4.12

Setting the Time Out Option

You can set the time the machine waits before it restores the

default copy settings, if you do not start copying after changing

them on the control panel.

Press

Menu/Exit

on the control panel until "Copy Setup"

appears on the top line of the display.

Press the scroll button (





) to display "Timeout" on the

bottom line.

Press

Start/Copy

to access the menu item.

Press the scroll button (





) until the status you want

appears on the display.

You can select from 15, 30, 60 and 180 (seconds).

Selecting "Off" means that the machine does not restore

the default settings until you press

Start/Copy

to start

copying, or

Stop/Clear

to cancel.

Press

Start/Copy

to save the selection.

To return to Standby mode, press

Stop/Clear

5SCANNING

Scanning with your machine lets you turn pictures and

text into digital files on your computer. Then you can e-

mail the files, display them on your web site or use them

to create projects that you can print using Samsung

SmarThru software.

This chapter includes:

• Scanning Basics

• Scanning Using Samsung SmarThru

• Scanning Process with TWAIN-enabled Software
