Samsung Electronics Co SF555P Multi Function Printer User Manual 01 Getting Started

Samsung Electronics Co Ltd Multi Function Printer 01 Getting Started

Contents

Users Manual 3

4.14 PrintingSetting Paper PropertiesUse the following options to set the basic paper handling needs whenyou access the printer properties. See page 4.9 for more information onaccessing printer properties.Click the Paper tab to access various paper propertiesProperty Description❶Copies❷ SizeCopies allows you to choose the number ofcopies to be printed. You can enter up to999.The Size option allows you to choose thesize of paper loaded in the tray.❶❷❸❹
4.15PrintingProperty Description❸ Source❹ TypeMake sure that Source is set to thecorresponding paper tray.The Manual Feed source is used whenprinting to special materials. You have toload one sheet at a time into the BypassTray. If the paper source is set to Auto Select,the machine automatically picks up printmaterials according to the following order:the Bypass tray and the paper tray.Make sure that Type is set to PrinterDefault. If you load a different type of printmaterials, select the correspondingpaper type. Using the Toner Save ModeToner Save mode allows the machine to use less toner on each page.Using this mode will extend the life of your toner cartridge and reduceyour cost per page, but will reduce print quality.Using the control panel buttonYou can turn on or off the Toner Save mode by pressing the Toner Savebutton.

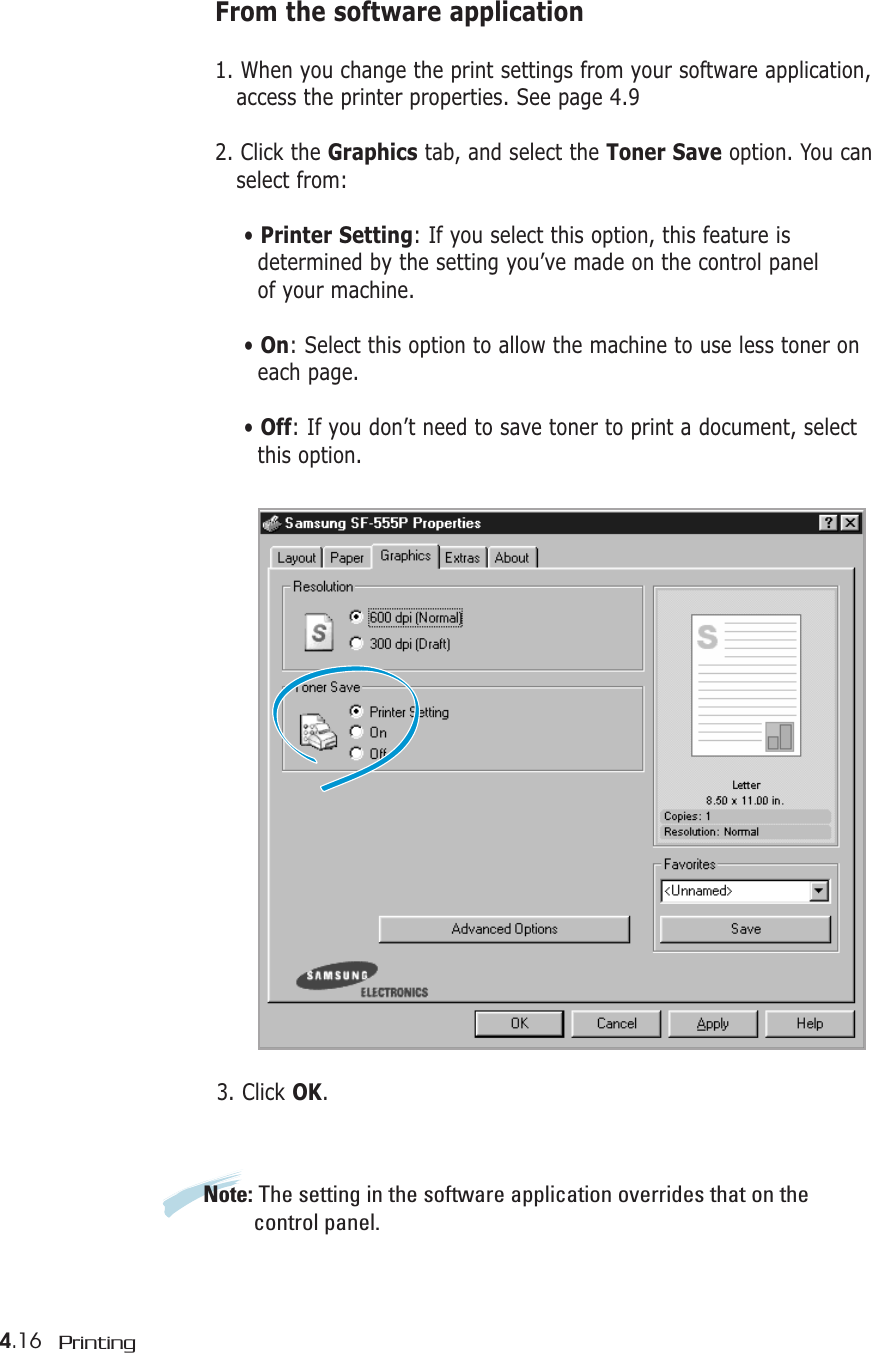

4.16 PrintingFrom the software application1. When you change the print settings from your software application, access the printer properties. See page 4.92. Click the Graphics tab, and select the Toner Save option. You can select from:• Printer Setting: If you select this option, this feature is determined by the setting you’ve made on the control panelof your machine.• On: Select this option to allow the machine to use less toner oneach page.• Off: If you don’t need to save toner to print a document, selectthis option.3. Click OK.Note: The setting in the software application overrides that on the control panel.
4.17Printing4.17Printing Multiple Pages on One Sheet ofPaper (N-Up Printing)You can select the number of pages to print on a single sheet of paper.To print more than one page per sheet, the pages will appear decreasedin size and arranged on the sheet. You can print up to 16 pages on onesheet.1. To change the print settings from your software application, access the printer properties. See page 4.92. From the Layout tab, choose Multiple Pages per Side in the Type drop-down list.3. Select the number of pages you want to print per sheet (1, 2, 4, 9 or 16) in the Pages per Side drop-down list.1 23 44. Select the page order in the Page Order drop-down list., if necessary.1324123424133412Right, ThenDownDown, ThenRightLeft, ThenDownDown, ThenLeftCheck Print Page Border to print a border around each page on the sheet. Print Page Border is enabled only, if the pages per sheet is 2, 4, 9, or 16.
4.18 Printing 4.184. Click the Paper tab and select the paper source, size and type.5. Click OK and print the document.Printing a Reduced or Enlarged DocumentYou can scale your print job on a page. 1. When you change the print settings from your software application,access the printer properties. See page 4.92. From the Layout tab, select Reduce/Enlarge in the Typedrop-down list. 3. Enter the desired scaling rate in the Persentage input box. You can also click the ▲or ▼button.5. Click the Paper tab and select the paper source, size and type.6. Click OK and print the document.
4.19Printing4.194. Click the Paper tab and select the paper source, size and type.5. Click OK and print the document. Fitting Your Document to a Selected PaperSizeYou can scale your print job to any selected paper size regardless of thedigital document size. This can be useful when you want to check finedetails on a small document. 1. When you change the print settings from your software application,access the printer properties. See page 4.92. From the Layout tab, select Fit to Page in the Typedrop-down list. 3. Select the correct size from the Target Paper drop-down list.A

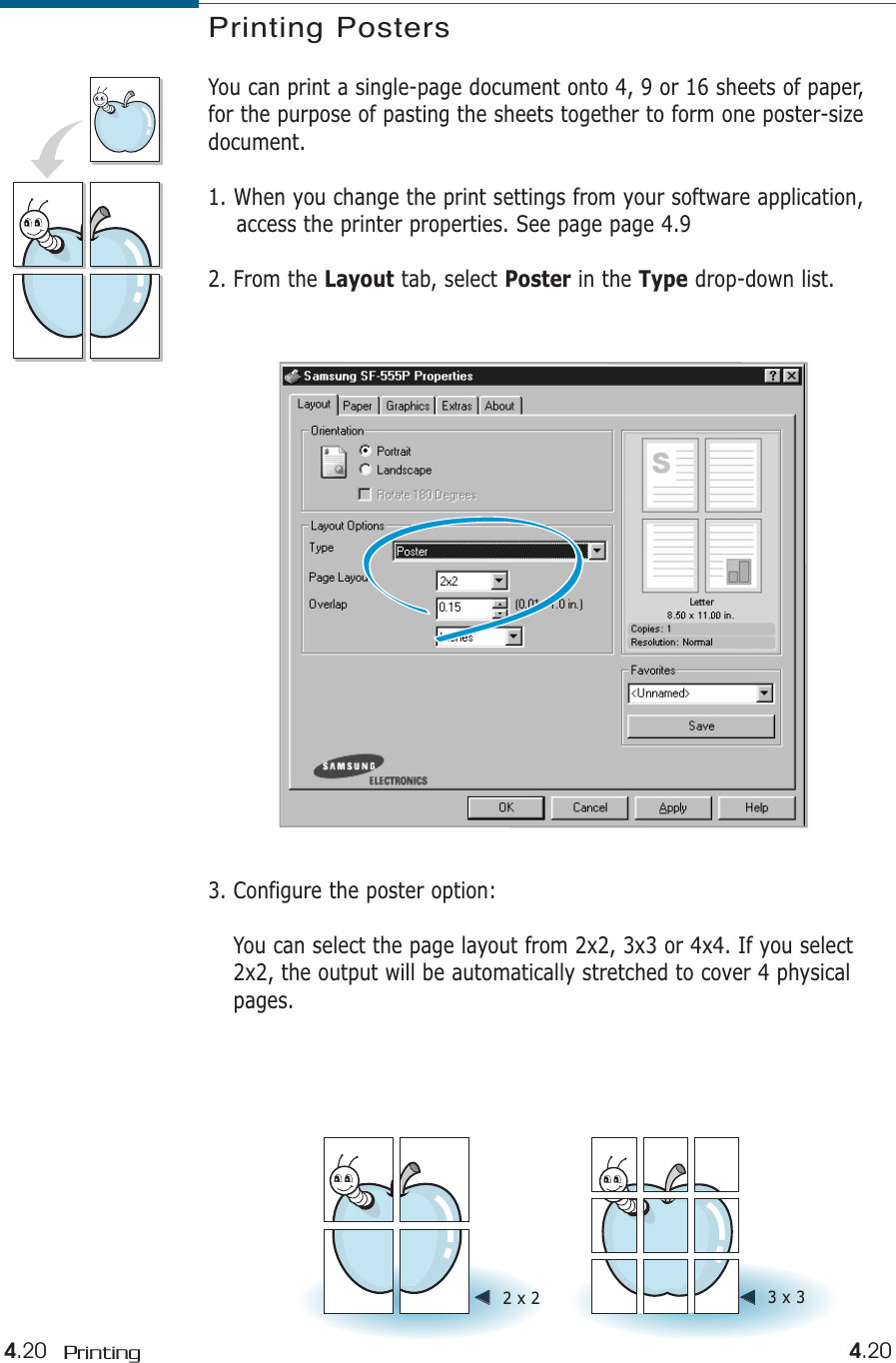

4.20 Printing 4.20Printing PostersYou can print a single-page document onto 4, 9 or 16 sheets of paper,for the purpose of pasting the sheets together to form one poster-sizedocument.1. When you change the print settings from your software application,access the printer properties. See page page 4.92. From the Layout tab, select Poster in the Type drop-down list.➛➛☎☎☎☎➛➛☎☎☎☎2 x 2 ➛➛☎☎☎☎➛➛☎☎☎☎3 x 33. Configure the poster option:You can select the page layout from 2x2, 3x3 or 4x4. If you select2x2, the output will be automatically stretched to cover 4 physicalpages.
4.21Printing4.21➐➐☎☎☎☎➐➐☎☎☎☎Overlap=0 ➐➐☎☎☎☎➐➐☎☎☎☎Overlap=5mm5 mm5 mm4. Click the Paper tab and select the paper source, size and type.5. Click OK and print the document. You can complete the posterby reconstructing the results.Specify an overlap in millimeters or inches to make it easier toreconstruct the resulting poster.Using WatermarksThe Watermark option allows you to print text over an existingdocument. For example, you may want to have large gray letters reading“DRAFT” or “CONFIDENTIAL” printed diagonally across the first page orall pages of a document. There are several predefined watermarks that come with your printer,and they can be modified or you can add new ones to the list. Using an Existing Watermark1. When you change the print settings from your software application,access the printer properties. See page 4.92. Click the Extras tab, and select the desired watermark in theWatermark drop-down list. You will see the selected watermark inthe preview image. 3 Click OK, then start printing.Preview image.
4.22 PrintingCreating a Watermark1.When you change the print settings from your software application, access the printer properties. See page 4.92. Click the Extras tab, and click the Edit button in the Watermark section. The Edit Watermarks window appears.3. Enter the desired text message in the Watermark Message box.This will be displayed in the preview window. The preview image is provided so that you can see how the watermark will appear on the printed page.If the First Page Only box is checked, the watermark will be printed on the first page only.4. Select the desired watermark options.You can select the font name, style and size and grayscale level from the Font Attributes section and set the angle of the watermark from the Message Angle section. 5. Click Add to add a new watermark to the list. 6. When you finish editing, click Ok and start printing.To stop printing the watermark, select <No Watermark> in the Watermark drop-down list.
4.23PrintingEditing a Watermark1.When you change the print settings from your software application,access the printer properties. See page 4.9. 2. Click the Extras tab, and click the Edit button in the Watermarksection. The Edit Watermarks window appears.3. Select the watermark you want to edit in the Current Watermarkslist, and change the watermark message and the options. Refer to “Creating a Watermark” on page 4.22. 4. Click Update to save the changes.5. Click Ok.Deleting a Watermark1. When you change the print settings from your software application, access the printer properties. See page 4.92. From the Extras tab, click the Edit button in the Watermark section. The Edit Watermarks window appears.3. Select the watermark you want to delete in the Current Watermarks list and click Delete.4. Click Ok.
4.24 PrintingWORLD BESTDear ABCRegardsUsing Page OverlaysWhat is an Overlay?An overlay is text and/or images stored in the computer HDD as aspecial file format that can be printed on any document you choose.Overlays are often used to take the place of preprinted forms andletterhead paper. Rather than using preprinted letterhead, for example,you can create an overlay containing the exact same information as iscurrently on your letterhead. Then when you want to print a letter withyour company’s letterhead, you do not need to load preprintedletterhead paper in the printer. You need only to tell the printer to printthe letterhead overlay on your document.Creating a New Page OverlayTo use a page overlay, you must create a new page overlay containingyour logo or image.1. Create or open a document containing text or an image for use ina new page overlay. Position the items exactly as you wish them to appear when printed as an overlay. If needed, save the file forlater use.2. When you change the print settings from your software application, access the printer properties. See page 4.93. Click the Extras tab, and click Edit button in the Overlay section. WORLD BEST

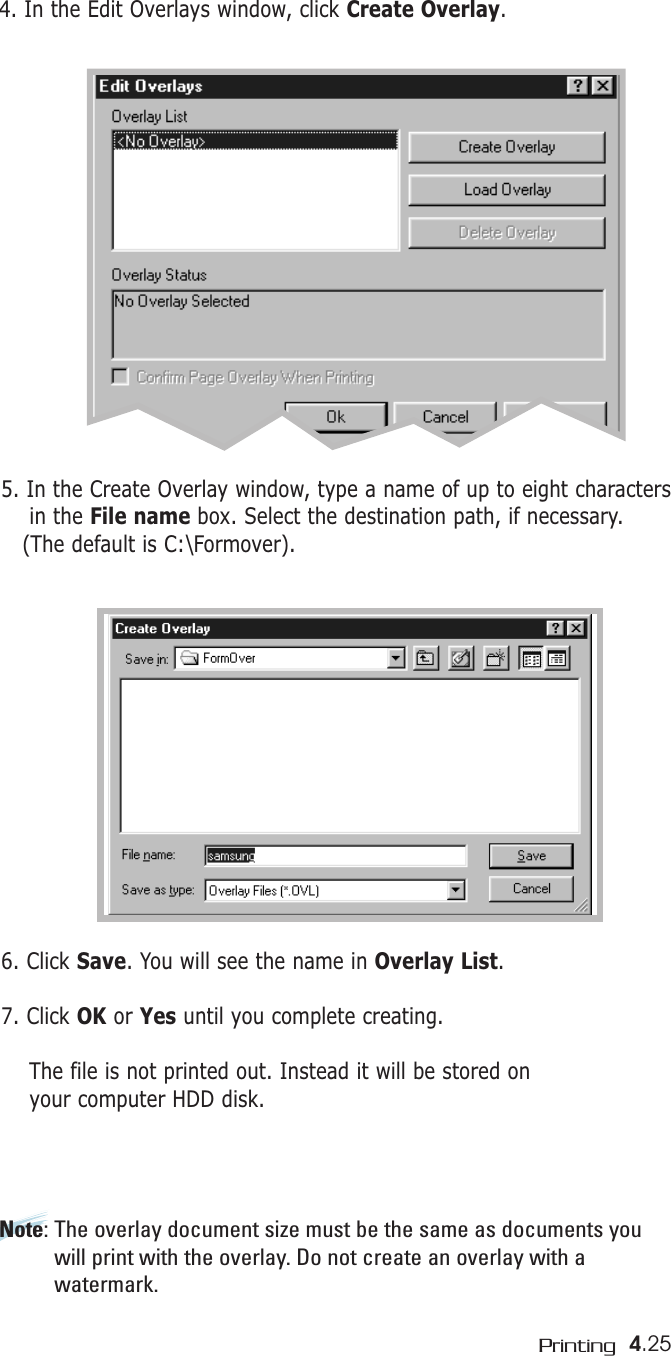

4.25Printing4. In the Edit Overlays window, click Create Overlay.5. In the Create Overlay window, type a name of up to eight charactersin the File name box. Select the destination path, if necessary. (The default is C:\Formover).6. Click Save. You will see the name in Overlay List.7. Click OK or Yes until you complete creating. The file is not printed out. Instead it will be stored on your computer HDD disk. Note: The overlay document size must be the same as documents youwill print with the overlay. Do not create an overlay with awatermark.
4.26 PrintingUsing a Page OverlayAfter an overlay has been created, it is ready to be printed with yourdocument. To print an overlay with a document:1. Create or open the document you want to print. 2. When you change the print settings from your software application, access the printer properties. See page 4.93. Click the Extras tab.4. Select the desired overlay from the Overlay drop-down list box. 5. If the desired overlay file does not appear in the Overlay list, click the Edit button and Load Overlay, and select the overlay file.If you have stored the overlay file you want to use into an externalsource, you can also load the file when you access this Load Overlaywindow. After you select the file, click Open. The file is now shown in the OverlayList box and is available for printing. Select the overlay from the OverlayList box.
4.27Printing6. If necessary, click Confirm Page Overlay When Printing. If this box is checked, a message window will appear each time you submit a document for printing, asking you to confirmyour wish to print an overlay on your document. Answering Yes to the window means that the selected overlay will be printed with your document. Answering No to the window cancels overlay printing. If this box is empty and an overlay has been selected, the overlay will be automatically printed with your document. 7. Click OK or Yes until the printing starts. The selected overlay will be downloaded with your print joband printed on your document. Note: The resolution of the overlay document must be the same as thatof the document you will print with the overlay.Deleting a Page OverlayYou can delete page overlays that are no longer used.1. In the printer properties window, click the Extras tab.2. Click Edit in the Overlay section. 3. Select the overlay you want to delete from the Overlay List box. 4. Click Delete Overlay.5. Click OK until you exit the Print window.
4.28 PrintingSetting Graphic PropertiesUse the following graphic options to adjust the print quality for yourspecific printing needs. See page 4.9 for more information aboutaccessing printer properties.Click the Graphics tab to display the properties shown below.Property Description❶ Resolution❷ Toner SaveYou can select the printing resolution bychoosing from 600 dpi (Normal) or 300 dpi (Draft). The higher the setting,the sharper the clarity of printed charactersand graphics. Higher settings may increasetime it takes to print a document.Selecting this option will extend the life ofyour toner cartridge and reduce your costper page without a significant reduction inprint quality. For detailed information about this mode,see page 4.15❶❷❸

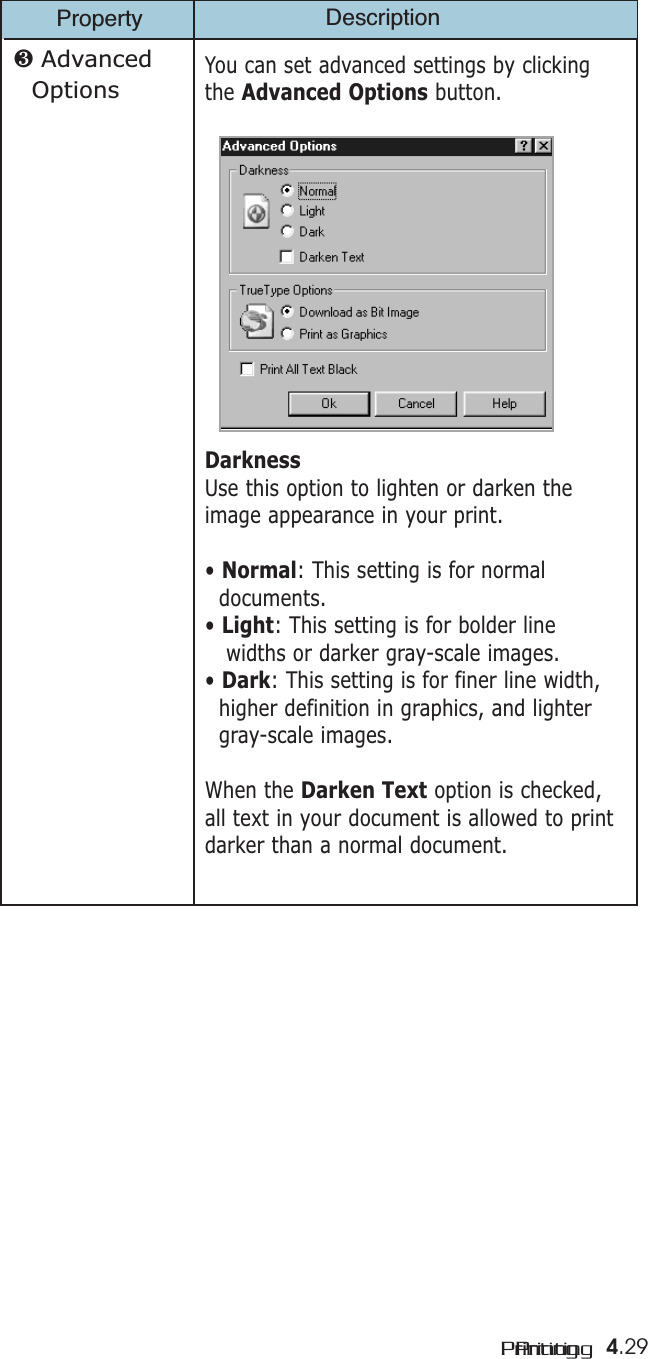

4.29PrintingPrintingProperty Description❸ Advanced OptionsYou can set advanced settings by clickingthe Advanced Options button. DarknessUse this option to lighten or darken theimage appearance in your print.• Normal: This setting is for normal documents.• Light: This setting is for bolder line widths or darker gray-scale images.• Dark: This setting is for finer line width, higher definition in graphics, and lighter gray-scale images.When the Darken Text option is checked,all text in your document is allowed to printdarker than a normal document.

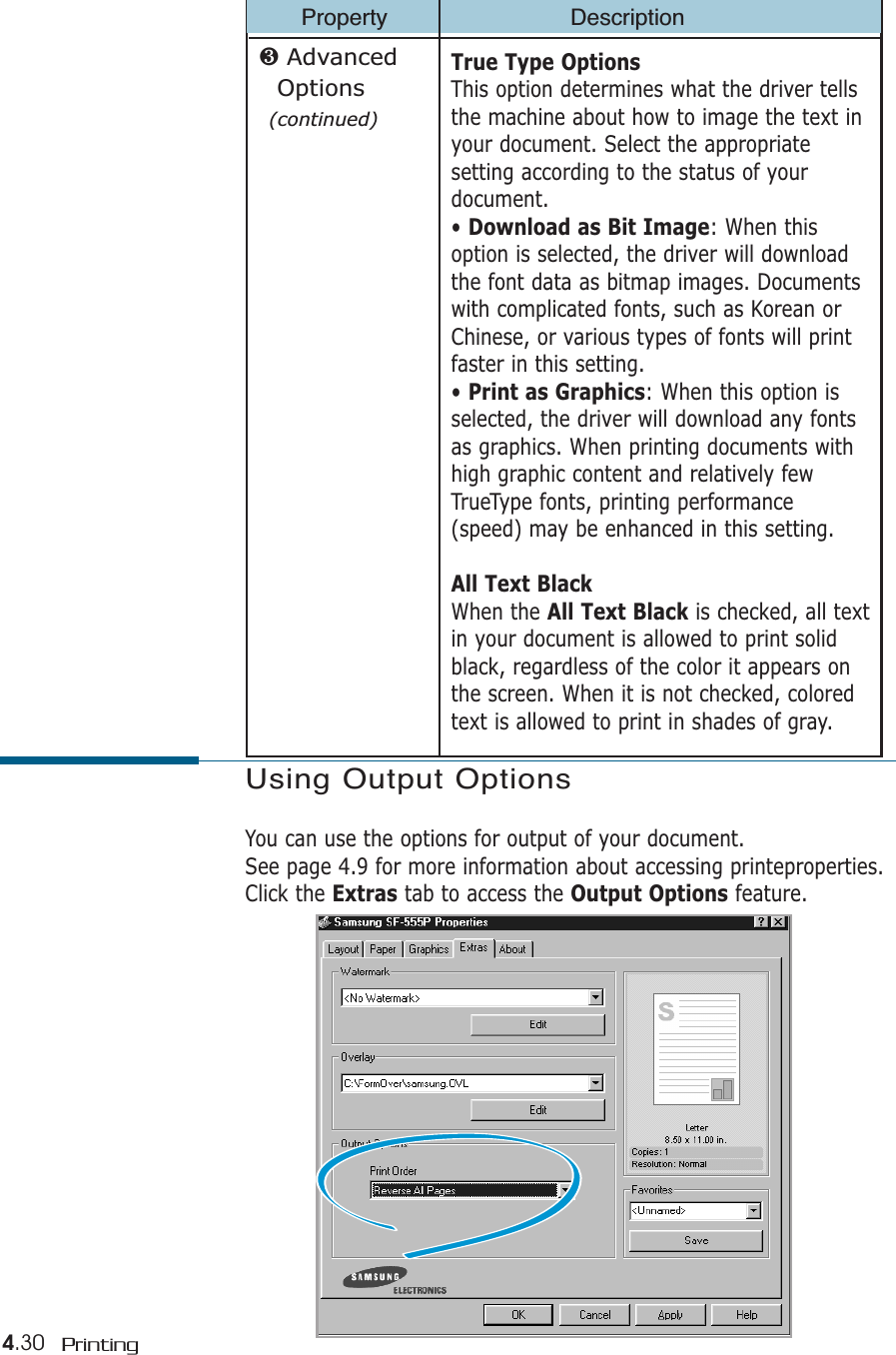

4.30 PrintingProperty DescriptionTrue Type OptionsThis option determines what the driver tellsthe machine about how to image the text inyour document. Select the appropriatesetting according to the status of yourdocument. • Download as Bit Image: When thisoption is selected, the driver will downloadthe font data as bitmap images. Documentswith complicated fonts, such as Korean orChinese, or various types of fonts will printfaster in this setting. • Print as Graphics: When this option isselected, the driver will download any fontsas graphics. When printing documents withhigh graphic content and relatively fewTrueType fonts, printing performance(speed) may be enhanced in this setting.All Text BlackWhen the All Text Black is checked, all textin your document is allowed to print solidblack, regardless of the color it appears onthe screen. When it is not checked, coloredtext is allowed to print in shades of gray.❸ Advanced Options(continued)Using Output OptionsYou can use the options for output of your document.See page 4.9 for more information about accessing printeproperties.Click the Extras tab to access the Output Options feature.

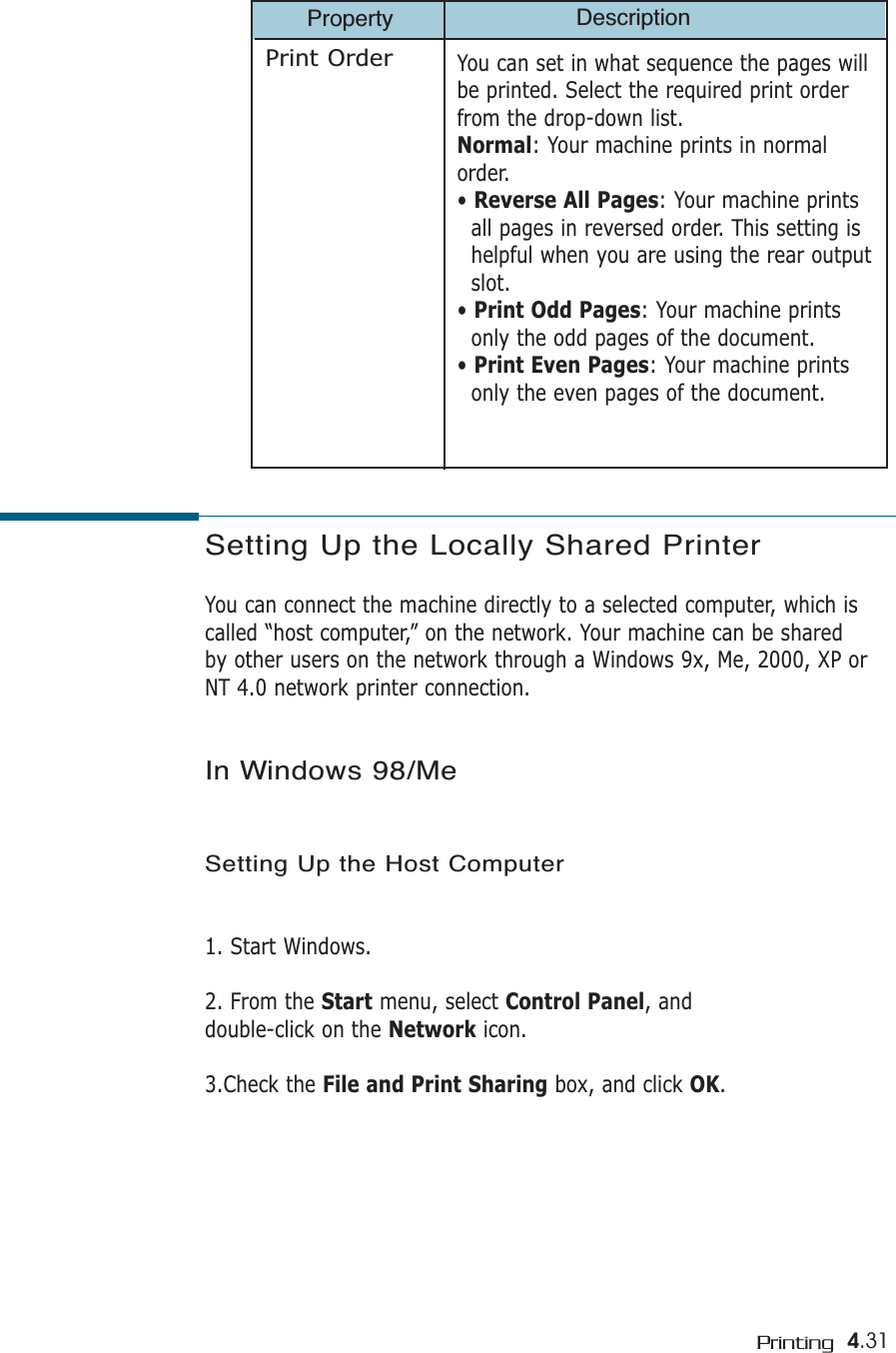

4.31PrintingProperty DescriptionYou can set in what sequence the pages willbe printed. Select the required print orderfrom the drop-down list.Normal: Your machine prints in normalorder.• Reverse All Pages: Your machine prints all pages in reversed order. This setting is helpful when you are using the rear outputslot.• Print Odd Pages: Your machine prints only the odd pages of the document.• Print Even Pages: Your machine prints only the even pages of the document.Print OrderSetting Up the Locally Shared PrinterYou can connect the machine directly to a selected computer, which iscalled “host computer,” on the network. Your machine can be shared by other users on the network through a Windows 9x, Me, 2000, XP orNT 4.0 network printer connection.In Windows 98/MeSetting Up the Host Computer1. Start Windows.2. From the Start menu, select Control Panel, and double-click on the Network icon.3.Check the File and Print Sharing box, and click OK.
4.32 Printing4. Click Start and select Printers from Settings, and double-click your printer name.5. Select Properties in the Printer menu. 6. Click the Sharing tab, and check the Shared As box. Fill in the Shared Name field, and then click OK. Setting Up the Client Computer1. Right-click Start, and select Explorer. 2. Open your network folder in the left column. 3. Right-click the shared name, and select Capture Printer Port. 4. Select the port you want, check the Reconnect at log on box, and then click OK.5. From the Start menu, select Settings and Printers. 6. Double-click your printer icon.7. From the Printer menu, select Properties.8. Press the Details tab, select the printer port, and click OK.In Windows NT 4.0/2000/XPSetting Up the Host Computer1. Start Windows.2. For Windows NT 4.0/2000, from the Start menu, select Settings and Printers.For Windows XP, from the Start menu, select Printers and Faxes.3. Double-click your printer icon.4. From the Printer menu, select Sharing.
4.33Printing5. For Windows NT 4.0, check the Shared box. For Windows 2000, check the Shared As box.For Windows XP, check the Share this printer box. 6. For Windows NT 4.0, fill in the Share Name field and click OKFor Windows 2000/XP, fill in the Shared Name field and click OK. Setting Up the Client Computer1. Right-click Start, and select Explorer. 2. Open your network folder in the left column. 3. Click the shared name. 4. For Windows NT 4.0/2000, select Settings and Printers from the Start menu. For Windows XP, select Printers and Faxes from the Start menu.5. Double-click your printer icon. 6. From the Printer menu, select Properties.7. Press the Ports tab, and click Add Port. 8. Select Local Port, and click New Port. 9. Fill in the Enter a port name field, and enter the shared name. 10. Click OK, and click Close. 11. For Windows NT 4.0, click OK.For Windows 2000/XP, click Apply, and click OK.
chapter This chapter provides suggestions for high-quality andeconomical operating and information for maintaining thetoner cartridge and the machine. The topics included in this chapter are:◆ Guidelines for Maintenance◆ Clearing Memory◆ Cleaning the OPC Drum◆ Adjusting Shading◆ Setting the Machine to be checked by Phone◆ Sending Toner Low Information to the Service Company◆ Cleaning the Machine◆ Managing the Toner Cartridge◆ Automatic Document Feeder Rubber Pad Replacement55Maintenance
5.1MaintenanceGuidelines for Maintenance For optimal performance of the SF-555P, follow these guidelines:• Place the machine on a stable surface. • Do not install your machine near devices that contain magnets orgenerate magnetic fields, such as speakers.• Keep your machine clean. Dust accumulation can prevent the unit fromoperating properly.• For your safety, unplug the power cord from the machine duringelectrical storms.• Lift the machine from the bottom only. Do not lift the unit by the frontpanel or any of the trays.Clearing MemoryYou can selectively clear information stored in your machine’s memory.1. Press Setup on the control panel. The display shows the first menu;FAX NUMBER/NAME.2. Press ➛or ❿until ‘MEMORY CLEAR’ appears, then press Start/Enter.The display shows the items you can clear.• FAX NUMBER/NAME: your fax number and name are cleared fromthe machine’s memory.• DIAL/SCHEDULE: clears the one-touch, speed dial, or group dialnumbers stored in the memory. In addition, allthe Schedule Job operations you have reservedare also cancelled.• JOURNAL: clears all records of transmissions & receptions.• DEFAULT SETUP: restores all the option settings to factory default.3. Press ➛or ❿until you find the item you want to clear, then pressStart/Enter. The display asks you to confirm your selection.4. Press Start/Enter to confirm. The selected memory is cleared, thenthe display asks you to continue clearing the next item.5. Repeat steps 3 through 5 to clear another item. Or, to return to Standby mode, press Stop.
5.2MaintenanceAdjusting Shading The scanning unit becomes dirty, it can alter the shading value. If yourprint has black lines or is blurred, adjust the shading setting. Take thefollowing steps:1. Load a sheet of white paper into the document feeder.2. Press Setup on the front panel.The display shows the first setup menu; FAX NUMBER/NAME.3. Press ➛or ❿until ‘MAINTENANCE’ appears,then press Start/Enter.The display shows the first menu; CLEAN DRUM.4. Press ➛or ❿until you find ‘ADJUST SHADING’, then pressStart/Enter.The white paper is scanned through the document feeder.Cleaning the OPC Drum If you are getting streaks or spots on your print, you may clean the OPCdrum. 1. Make sure that the paper is loaded in the automatic input tray.2. Press Setup on the control panel.The display shows the first setup menu; FAX NUMBER/NAME.3. Press ➛☎or ❿until ‘MAINTENANCE’ appears, then press Start/Enter.4. The display shows the first menu, ‘CLEAN DRUM’, then pressStart/Enter.The machine automatically pulls in a sheet of paper, and prints it out. The toner particles on the OPC drum surface are fixed to the paper.5. Press Stop to return to Standby mode.
5.3MaintenanceSetting the Machine to be Checked by Phone The Remote Test feature allows your machine to be checked out by aservice company at a remote place by phone.1. Press Setup on the control panel.The display shows the first setup menu; FAX NUMBER/NAME.2. Press ➛or ❿until ‘MAINTENANCE’ appears, then press Start/Enter.The display shows the first menu; CLEAN DRUM.3. Press ➛or ❿until you find ‘REMOTE TEST’, then press Start/Enter.4. Press ➛or ❿to turn this feature ON or OFF, then press Start/Enter.If you want to protect your machine from being opened by an unauthorized person, select OFF. 5. Press Stop to return to Standby mode.Sending Toner Low Information to theService CompanyIf you have set this Notify Toner Low menu option to ON, when the tonercartridge needs to be replaced, your machine automatically sends a faxto your service company or the dealer to notify them that your machinerequires a new toner cartridge. This feature will be activated only whenthe phone number of the service company or the dealer is stored in yourmachine’s memory by technician. Ask your dealer for more information.1. Press Setup on the control panel.The display shows the first setup menu; FAX NUMBER/NAME.2. Press ➛or ❿until ‘MAINTENANCE’ appears, then press Start/Enter.The display shows the first menu; CLEAN DRUM.3. Press ➛☎or ❿until you find ‘NOTIFY TONER LOW’, then pressStart/Enter.4. Press ➛☎or ❿to turn this feature ON or OFF, then press Start/Enter.5. Press Stop to return to Standby mode.
5.4MaintenanceCleaning the Machine To maintain print quality, follow the cleaning procedures below everytime the toner cartridge is replaced or whenever print quality problemsoccur. As much as possible, keep your machine free from dust anddebris.Note:• Do not use ammonia-based sprays or volatile solvents such as thinner toclean the machine, as these can damage the machine’s surface.• While cleaning the inside of the machine, be careful no to touch thetransfer roller (located underneath the toner cartridge). The oil from yourhands on the roller can cause print quality problems.Cleaning the OutsideWipe the outside surfaces of your machine with a soft, clean, and lint-free cloth. You can dampen the cloth slightly with water, but be carefulnot to let any water drip onto the machine or inside it.Cleaning the InsideDuring the printing process, paper, toner, and dust particles canaccumulate inside the machine. Over time, this buildup can cause printquality problems such as toner specks or smearing. Cleaning inside theprinter will eliminate or reduce these problems.1. Turn the machine off and unplug the power cord, then wait for themachine to be cool.2. Pulling the cover release buttons toward you, open the cover andremove the toner cartridge.Note: To prevent damage to the toner cartridge, do not expose it tolight for more than a few minute. Cover it with a piece of paper, ifnecessary.3. With a dry, lint-free cloth, wipe away any dust and spiled toner fromthe toner cartridge area and the toner cartridge cavity.
5.5MaintenanceCleaning the Document Scanner To keep your machine working properly, occasionally clean the whiteroller, ADF rubber, and the scanning glass. Note: Do not turn the power off to clean the scanner, as documents storedin the memory will be lost.1. Lift the front panel by grabbing the panel along the top edge andopen the cover.2. Disassemble the white roller as follows:Pull the handle of the bushing on the end of the roller slightlyoutward(A), rotate it until it reaches a slot(B), then pull the rollerupward. ABbushing3. Wipe the roller surface with a soft cloth dampened with water.
5.6Maintenance4. Clean the ADF rubber piece. 0000000000000000000000000000000000000000000000000000000000000000000005. Carefully wipe the scanning glass with a soft, dry cloth. If the glass is very dirty, first wipe it with a slightly dampened cloth,then with a dry cloth. Be very careful not to scratch the glass surface. 0000000000000000000000000000000000000000000000000000000000000000000006. Replace the roller in reverse order, and then close the front panelfirmly until it clicks into place.
5.7MaintenanceManaging the Toner CartridgeExpected Cartridge LifeThe life of your toner cartridge depends on the amount of toner used ineach print job. For instance, when you print a typical business letter withabout 5% page coverage, you can expect a toner cartridge life ofapproximately 2,500 pages (1,000 pages only for the toner cartridgeshipped with your machine). The actual number may vary according tothe print density of the page you print. If you print a lot of graphics, youmay need to change the cartridge more often.You can extend the life of your toner cartridge by using Toner Save Mode on the printer properties (page 4.15) or on the front panel (page 1.22).The Toner Save Mode uses less toner than normal printing. The printedimage is much lighter, and is adequate for printing drafts or proofs.Redistributing the Toner CartridgeWhen the toner cartridge is near the end of its life, white streaks or huechanges will occur. You can temporarily re-establish the print quality byre-distributing the remaining toner in the cartridge.1. Open the cover and remove the toner cartridge.2. Gently shake the cartridge to distribute the toner evenly inside thecartridge.3. Reinstall the cartridge and close the cover.This is typically successful one time only. When the toner eventually runsout, only blank pages will print when a print job is sent, or when a fax is received. At this stage, the toner cartridge needs to be replaced.See the following page.
5.8Maintenance2. Remove the old toner cartridge. Follow the instructions printed on thecartridge box to recycle the used cartridge.3. Unpack a new toner cartridge from its plastic bag, and then removethe paper rolled the cartridge. Take the following steps to replace the toner cartridge:1. Pulling the cover release buttons toward you, open the cover.

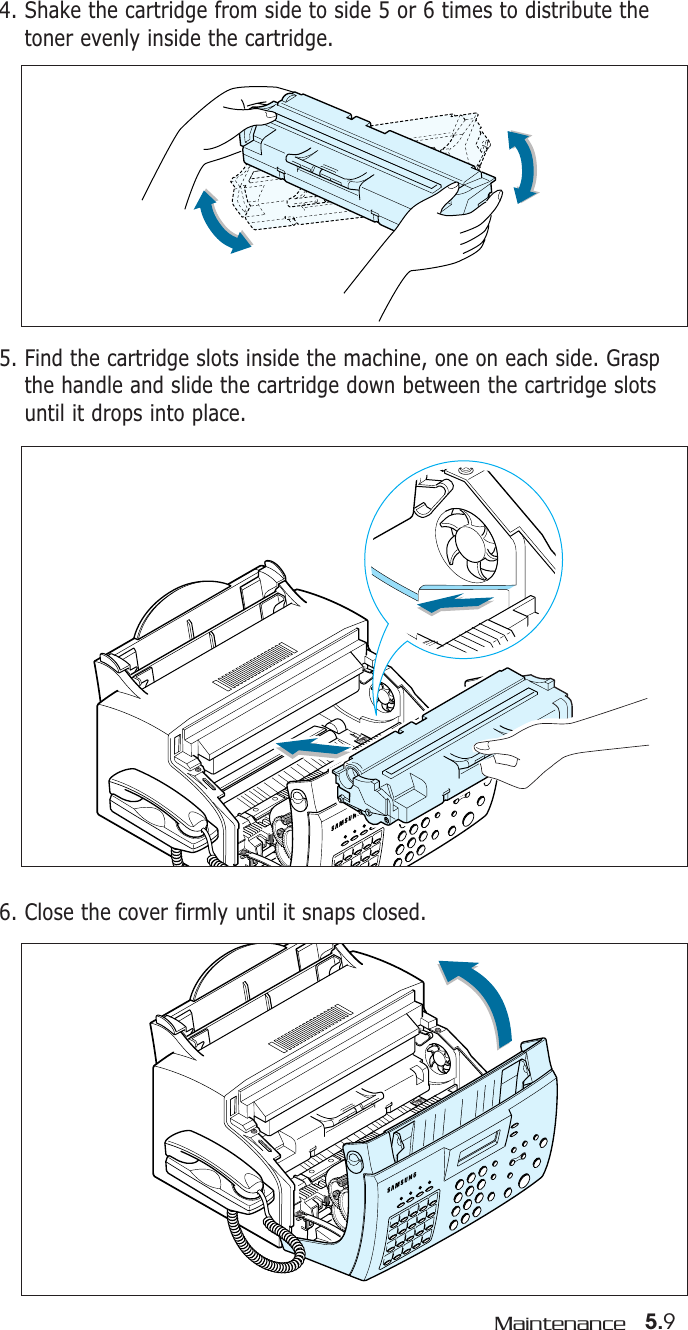

5.9Maintenance5. Find the cartridge slots inside the machine, one on each side. Graspthe handle and slide the cartridge down between the cartridge slotsuntil it drops into place.4. Shake the cartridge from side to side 5 or 6 times to distribute thetoner evenly inside the cartridge.6. Close the cover firmly until it snaps closed.
5.10 MaintenanceAutomatic Document Feeder Rubber PadReplacement You can purchase the ADF rubber from an authorized service center1. Open the Control Panel Cover.2. Insert a small flat blade screwdriver under the right and left sides ofthe ADF Holder.3. Apply upward pressure to release the two locking tabs on each side ofthe assembly.4. Remove the assembly and replace the ADF Rubber.5. Reassemble the components in the order shown in the diagram above.6. Place the assembly back onto the ADF Holder.7. Press down on the assembly until it locks into position.8. Close the Control Panel.000000000000000000000000000000000000000000000000000000000000000000000ADF Holder ADF Rubber

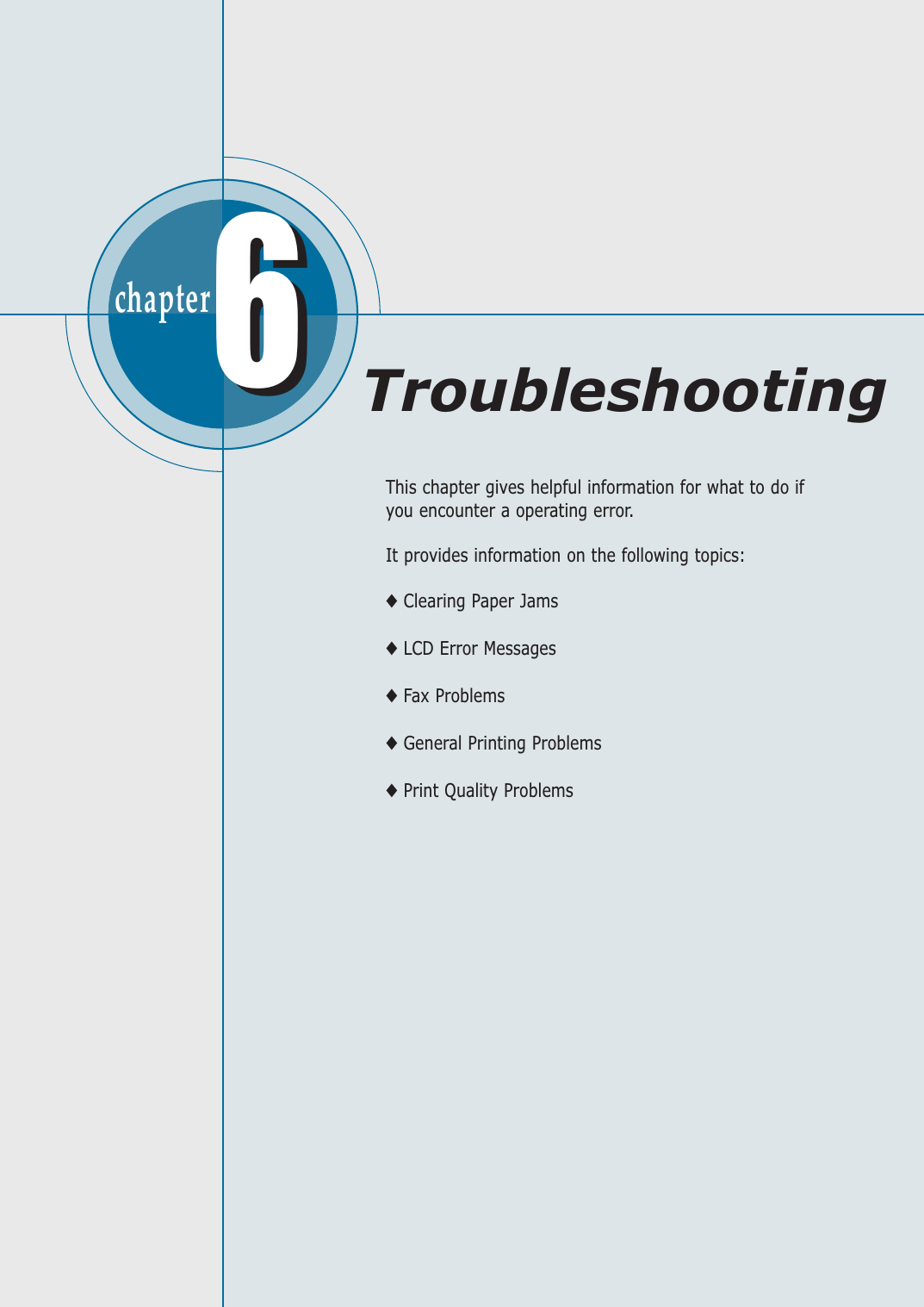

chapter 66This chapter gives helpful information for what to do ifyou encounter a operating error. It provides information on the following topics:◆Clearing Paper Jams◆LCD Error Messages◆Fax Problems◆General Printing Problems◆Print Quality ProblemsTroubleshooting
6.1TroubleshootingClearing Paper JamsDocument Jams While Sending a FaxIf a document jams while you are sending it, ‘DOCUMENT JAM’ appearson the display. Do not pull the document out of the slot. If you do this, itcould harm your machine.1. Lift the front panel by grabbing the panel along the top edge.0000000000000000000000000000000000000000000000000000000000000000000002. Carefully remove the jammed document. 0000000000000000000000000000000000000000000000000000000000000000000003. Close the front panel firmly until it clicks into place.
6.2 TroubleshootingPaper Jams While the Machine is Printing By carefully selecting the paper type and loading them properly, youshould be able to avoid most paper jams. If paper jams occur, an errormessage appears on the display. Follow the steps below to clear the jam.To avoid tearing the paper, pull the jammed paper out gently and slowly.IF JAMMED IN THE PAPER INPUT TRAY1. Remove the jammed paper by carefully pulling it out of the tray.2. After you have removed the jammed paper, load the paper with theprint side facing you.IF JAMMED IN THE PAPER OUTPUT AREAIf the paper jams as it exits to the paper output tray and a long portionof the paper is visible, pull the paper straight out.If there is any resistance, and the paper does not move immediatelywhen you pull, stop pulling. Continue with the next step.
6.3TroubleshootingIF JAMMED INSIDE THE MACHINE1. Pulling the cover release buttons toward you, open the cover.2. Remove the toner cartridge.4. Check that there is no other paper inside the machine.5. Replace the toner cartridge and close the cover.3. Remove the jammed paper by carefully pulling it out of the machine.
6.4 TroubleshootingTips for Avoiding Paper JamsBy carefully selecting print materials and loading them properly, youshould be able to avoid most paper jams. If jams do occur, follow thesteps outlined in “Clearing Paper Jams” starting on page 6.1. If jamsoccur frequently, make sure that you are following these preventativetips:• Follow the procedures in “Loading Paper” on page 1.15 to load paperproperly. Make sure that the adjustable guides are positioned correctly.• Do not overload the paper. Up to 150 sheets can be loaded in theautomatic paper input tray at a time and the manual input tray holdsonly one sheet at a time.• If you are needed to add more sheets of paper while printing, removethe remaining paper from the tray at first. Then, reinsert them with thenew paper. Note that adding new paper into the remains in the traymay cause paper jams or multiple feeding.• Envelopes with self-stick adhesives may cause wrinkling, creasing, oreven jams and may even damage your machine.• Fan stacks of labels or transparencies before loading them into theautomatic paper input tray. If jams occur when using the paper inputtray, try feeding one sheet at a time in the manual input tray.• Do not load wrinkled, creased, damp, or highly curled paper.• Do not mix paper sizes in the paper input tray.• Use only recommended print media. • Make sure that the recommended print side is facing up when loadingit in the paper input tray.• Keep print media stored in a suitable environment.
6.5TroubleshootingLCD Error MessagesDisplay Meaning SolutionDOCUMENT JAMDOOR OPEN LINE ERRORLOAD DOCUMENTLSU ERRORThe loaded document has jammedin the feeder.Clear the document jam.The front cover is not securelylatched.Press down on the cover untilit clicks in place.Your unit cannot connect with theremote machine, or has lostcontact because of a problem onthe phone line.Try again. If failure persists,wait an hour or so for the lineto clear, then try again. Or, turn the ECM mode on. See‘Setting User-Selectable SystemOptions’ on page 3.2.You have attempted to set up asending operation with nodocument loaded.Load a document and try again.A problem has occurred in theLSU (Laser Scanning Unit).Unplug the power cord and plugit back in. If the problem stillpersists, please call for service.FUSER ERRORThere occurs a problem in thefuser unit.Unplug the power code andplug it back in. If the problemstill persists, please call forservice.MEMORY FULLThe memory is full. Either delete unnecessarydocuments, or retransmit aftermore memory becomesavailable, or split thetransmission into more thanone operation.JAM/NOCARTRIDGERecording paper has jammedinside the unit, or the toner cartridge is not installed.Clear the jam, or install thecartridgeNO ANSWERThe remote machine has notanswered after all the redialattempts.Try again. Make sure theremote machine is operational.NO. NOTASSIGNEDThe one-touch or speed diallocation you tried to use has nonumber assigned to it.Dial the number manually withthe keypad, or assign a number.
6.6 TroubleshootingDisplay Meaning SolutionPAPER JAM 2POLLING ERRORPOWER FAILUREWARMING UPJammed paper still remainsinside the unit.Clear the jam. See page 6.1.The remote fax machine youwant to poll is not ready torespond to your poll.OrWhen setting up to poll anotherfax machine, you have used anincorrect poll code.The remote operator should knowin advance that you are pollingand have their fax unit loadedwith the original document.Enter the correct poll code.A power failure has occurred. If documents have been stored inthe memory, a ‘Power FailureReport’ will be automaticallyprinted when the power isrestored.TONER EMPTYThe printer is warming up andis off-line.Wait until the machine is on-line.The toner cartridge has run out.The machine stops.Replace with a new toner cartridge.TONER LOWThe toner is almost empty. Take out the toner cartridge andgently shake it. By doing this,you can temporarily re-establishprinting operations.RETRY REDIAL ?The machine is waiting for aspecified time interval to rediala previously busy station.You can press Start/Enter toimmediately redial, or Stop tocancel the redial operation.RECEIVE ERRORA fax has not been received successfully.A problem with the facsimilecommunications has occurred.Try again.SEND ERRORYour fax has not gone throughsuccessfully.A problem with the facsimilecommunications has occurred.Ask the sender to try again.PAPER JAM 0Recording paper has jammed inthe paper feeding area.Press Stop and clear the jam.See page 6.1.NO PAPERThe recording paper has runout.Load the recording paper.OVER HEATThe printer part in your unithas overheated. Please wait until it cools down. If you cannot solve the problem,please call for service.
6.7TroubleshootingSymptomThe machine is not working,there is no display and thebuttons are not working. Cause and Solution• Unplug the power cord and plug it in again. • Check that your socket is active.No dial tone. • Check that the phone line is connected properly.• Check that the phone socket in the wall by plugging inanother phone. The numbers stored in thememory do not dial correctly. • Make sure that the numbers are stored in the memorycorrectly.• Print a Phonebook list. See page 3.38.The document does not feedinto the machine.• Make sure that the document is not wrinkled and youare putting it in correctly. Check the document is theright size, not too thick or thin. • Make sure that the cover is firmly closed.You cannot receive faxesautomatically. • The FAX mode should be selected. • Is there paper in the machine?• Check if the display shows ‘MEMORY FULL.’Your machine will not sendanything. • Make sure that the document is loaded face down. • ‘TX’ should show up on the display. • Check the other machine you are sending to, to see ifit can receive your fax.Your machine cannot receivefaxes manually. • Did you hang up the handset of the machine before youpressed Start/Enter?Fax Problems
6.8 TroubleshootingSymptomYou cannot poll anothermachine.Cause and Solution• The fax machine you are polling may be using a pollcode. The incoming fax has blankspaces or you received apoor-quality copy.• The machine sending you the fax may be faulty. • The fax machine sending you a fax may have a dirty scanglass.• A noisy phone line can cause line errors. • Check your machine by making a copy. • The toner cartridge may be empty.Are some of the words onthe incoming fax stretched?• The machine sending you the fax had a temporarydocument jam. There are lines on the copiesor documents you send. • Check your scan glass for marks, and clean it. See page 5.5.The machine dials a number,but fails to make aconnection with another faxmachine.• The other fax machine may be turned off, out of paper,or cannot answer incoming calls. Speak with the othermachine operator and ask them to sort out the problem.You cannot store a documentin the memory. • There may not be enough memory to store thedocument. If the display shows a ‘MEMORY FULL’message, delete any documents you no longer need fromthe memory, then restore the document.Blank areas appear at thebottom of each page or onother pages, with only asmall strip of text printed atthe top.• You may have chosen the wrong paper settings in theuser option setting. See page 3.3 to choose a properpaper size.
6.9TroubleshootingProblem Possible Cause and Remedy• A paper jam has occurred. Remove the jammed paper. See page 6.1.• The toner cartridge is not installed properly. Remove andreinsert the toner cartridge.• The printer cable is not connected properly. Check theprinter cable connection.• The printer cable is defective. Swap the cable with oneknown to work. • The port setting is incorrect. Check the Windows printersettings to make sure that the print job is being sent tothe correct port (for example, LPT1).• The printer properties may be configured incorrectly.Check the application to make sure that all print settingsare correct.• The printer driver may be incorrectly installed. Uninstallthe MFP driver and reinstall the MFP driver. Then tryprinting a test page. Refer to ‘Uninstalling SmarThruSoftware’ on page 2.11.• Paper has not been inserted correctly. Remove andreinsert the paper correctly. See ‘Using Automatic PaperInput Tray’ on page 4.3 or ‘Using Manual Paper Input Tray’on page 4.5.• There is too much paper in the paper input tray.Remove some of the paper from the input tray.• There is too much paper in the paper input tray. Removesome of the paper from the tray. (If printing ontoenvelopes or labels, insert them one at a time in themanual paper input tray.)• The paper setting method may be incorrect. If printingonto envelopes, insert the envelopes so that there is a gapof approximately 1 mm (1/32”) between the left and rightedge of the envelopes at the paper guide.Your machine does notprint.General Printing Problems The paper is not fed intothe machine.The paper keeps jamming.
6.10 TroubleshootingProblem Possible Cause and Remedy• The page layout is too complex. Simplify the page layoutand remove any unnecessary graphics from the documentif possible.• The page orientation setting may be incorrect. Change thepage orientation in the Printer Properties dialogue box.• The paper size and the software paper size settings do notmatch. Insert the correct paper into the machine or changethe software paper size settings.• Scaling may be set to less than 100%. Change the Scalingsetting in the Printer Properties dialogue box.• The printer cable specifications may be incorrect. Use orreplace the cable with an IEEE-1284 rated cable.Your machine prints thewrong data, or it printsincorrect characters.Half of the page is blank.• The printer cable might not be connected properly. Checkthe printer cable connection.• There may be a problem with the printer driver software.Exit Windows and reboot the computer. Turn the printer offand then back on again.• The printer cable specifications may be incorrect. Use orreplace the cable with an IEEE-1284 rated cable.• If using Windows 95/98/Me, the Spooling Setting may beset incorrectly. From the Start menu, select Settings andPrinters. Click your printer icon with the right mousebutton, select Properties, click the Details tab, and thenclick the Spool Settings button. Select the desired spoolsetting from the available choices.• If you are using Windows NT/2000/XP, the Schedulingsetting may be set incorrectly. From the Start menu,select Settings and Printers. Click your printer icon withthe right mouse button, select Properties, click theScheduling tab. Then, select the desired schedulingsetting from the available choices.Printing is too slow.Scanner is busy receivingor printing data. When thecurrent job is completed,tray again.There may be a copying or printing job in progress. When thecurrent job is completed, try the job again.
6.11TroubleshootingPrint Quality ProblemsProblem Possible Cause and RemedyIf a vertical white streak or faded area appears on the page:• The toner supply is low. You may be able to temporarilyextend the toner cartridge life. See “Redistributing theToner” on page 5.7. If this does not improve the printquality, install a new toner cartridge.• The paper may not meet paper specifications (forexample, the paper is too moist or too rough). See “PaperType and Size” for faxing on page 1.17 and “SelectingPrint Media” for PC printing on page 4.1.• If the whole page is light, Toner Save Mode may be on.Turn the Toner Save Mode option off on front panel orwithin the printer properties as your setting. See page1.22 and 4.16 respectively.• A combination of faded and smeared defects may indicatethat the toner cartridge needs cleaning. See “Cleaning theOPC Drum” on page 5.2.• The surface of scanner parts inside the machine may bedirty. See “Cleaning the Document Scanner” on page 5.5.Light or faded printAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc• The paper may not meet paper specifications. See “PaperType and Size” for faxing on page 1.17 and “Selecting PrintMedia” for PC printing on page 4.1.• The transfer roller area may be dirty. See “Cleaning theInside” on page 5.4.• The paper path may need cleaning. See “Cleaning theInside”.• The surface of scanner parts may need cleaning. See“Cleaning the Document Scanner” on page 5.5.Toner specksIf black vertical streaks appear on the page:• The photosensitive drum inside the toner cartridge hasprobably been scratched. Install a new toner cartridge. Vertical linesAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc
6.12 TroubleshootingProblem Possible Cause and RemedyIf faded areas, generally rounded, occur randomly on thepage:• A single sheet of paper may be defective. Try reprintingthe job.• The moisture content of the paper is uneven or the paperhas moist spots on its surface. Try a different kind orbrand of paper. See “Paper Type and Size” for faxing onpage 1.17 and “Selecting Print Media” for PC printing onpage 4.1.• The paper lot is bad. The manufacturing processes cancause some areas to reject toner. Try a different kind orbrand of paper.• The toner cartridge may be defective. See “Verticalrepetitive defects” on page 6.13.• If these steps do not correct the problems, contact aservice representative.DropoutsAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcIf the amount of background toner shading becomesunacceptable, the procedures below may help to clear thecondition:• Change the paper to a lighter basis weight. See “PaperType and Size” for faxing on page 1.17 and “Selecting PrintMedia” for PC printing on page 4.1.• Check the printer’s environment; very dry (low humidity)or high humidity (higher than 80 % RH) conditions canincrease the amount of background shading.• Install a new toner cartridge.• Adjust the shading setting. See “Adjusting Shading” onpage 5.2.Gray background• Clean the inside of the printer. See “Cleaning the Inside” onpage 5.4.• Check the paper type and quality. See “Paper Type andSize” for faxing on page 1.17 and “Selecting Print Media”for PC printing on page 4.1.• Try installing a new toner cartridge.Toner smearAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc
6.13TroubleshootingProblem Possible Cause and RemedyIf marks repeatedly appear on the printed side of the page ateven intervals:• The toner cartridge may be damaged. Print a cleaningsheet several times by cleaning the OPC drum (see page5.2). After the printout, if you still have the sameproblems, install a new toner cartridge.• Parts in the machine may have toner on them. If thedefects occur on the back of the page, the problem willlikely correct itself after a few more pages.• The fusing assembly may be damaged. Contact a servicerepresentative.Vertical repetitive defectsAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcBackground scatter results from bits of toner distributed onthe printed page. • The paper may be too damp. Try printing with a differentbatch of paper. Do not open packages of paper untilnecessary so that the paper does not absorb too muchmoisture from the air.• If background scatter occurs on an envelope, change yourprinting layout to avoid printing over areas that haveoverlapping seams on the reverse side. Printing on seamscan cause this problem.• If background scatter covers the entire surface of a printedpage, adjust the print resolution through your softwareapplication or the printer properties.Background scatterAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcA• If characters are improperly formed, producing hollowimages, the paper stock may be too slick. Try a differentpaper. See “Paper Type and Size” for faxing on page 1.17and “Selecting Print Media” for PC printing on page 4.1.• If characters are improperly formed, producing a wavyeffect, the scanner unit may need service. Verify that it alsooccurs on a demo page.Press Demo (*) on the front panel when the machine isready. If you need service, contact a service representative.Misformed charactersAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc
6.14 TroubleshootingProblem Possible Cause and Remedy• Check the paper type and quality. See “Paper Type andSize” for faxing on page 1.17 and “Selecting Print Media”for PC printing on page 4.1.• Make sure that the paper or other media is loadedcorrectly and the guides are not too tight or too looseagainst the paper stack.Page skewAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc• Check the paper type and quality. Both high temperatureand humidity will cause paper curl. See “Paper Type andSize” for faxing on page 1.17 and “Selecting Print Media”for PC printing on page 4.1.• Turn over the stack of paper in the input tray. Also tryrotating the paper 180° in the input tray.Curl or wave• Make sure that paper is loaded properly.• Check the paper type and quality. See “Paper Type andSize” for faxing on page 1.17 and “Selecting Print Media”for PC printing on page 4.1.• Turn over the stack of paper in the input tray. Also tryrotating the paper 180° in the tray.Wrinkles or creases• The transfer roller area may be dirty. See “Cleaning theInside” on page 5.4.• Check if the toner is leaking. Clean inside the machine.See page 5.4.Back of printouts dirtyAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc• The toner cartridge may not be installed properly. Removethe cartridge and reinsert it.• The toner cartridge may be defective and need replacing.Install a new toner cartridge.• The printer may require repairs. Contact a servicerepresentative.Black pagesAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc
6.15TroubleshootingProblem Possible Cause and RemedyCharacter voids are white areas within the parts of charactersthat should be solid black:• If you are using transparencies when you experience thisproblem, try another type of transparency. (Because of thecomposition of transparency media, some character voidsare normal.) • You may be printing on the wrong surface on the paper.Remove the paper and turn it around. • The paper may not meet paper specifications. See “PaperType and Size” for faxing on page 1.17 and “Selecting PrintMedia” for PC printing on page 4.1.Character Voids• Clean the inside of the printer. • Check the paper type and quality. See “Paper Type andSize” for faxing on page 1.17 and “Selecting Print Media”for PC printing on page 4.1.• Try installing a new toner cartridge.• If the problem persists, the printer may require repairs.Contact a service representative.Loose tonerIf horizontally aligned black streaks or smears appear:• The toner cartridge may be installed improperly. Removethe cartridge and reinsert it.• The toner cartridge may be defective. Install a new tonercartridge.• If the problem persists, the printer may require repairs.Contact a service representative.Horizontal stripesAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc
◆Connecting Other Devices to the Phone Line◆SpecificationsGeneralPrinterScannerCopyFax◆Safety InformationAppendix
A.1AppendixConnecting Other Devices to the Phone LineYou can connect other devices to the same phone line as the SF-555Pproduct.Deciding What to ConnectYou have connected the SF-555P to the wall jack. Generally, there arethree other devices that can be connected to the same phone line:• a telephone• an answering machine• an external modem or a computer with an internal modemWhich, of these you connect to this phone line depends on yourconfiguration. Please see the following configurations.Situation 1You connected the SF-555P to a wall jack with a phone line forfax calls only (a dedicated fax line).You do not need to connect any other devices. However:• You can connect an external modem or a computer with an internalmodem to this phone line if you want to use the fax line to access theInternet or e-mail.• You can connect an extra telephone to this wall jack if you would liketo make outgoing voice calls.To connect any of these devices to the same phone line, go to“Connecting Other Devices, Overview” on page A.3. If you have anotherwall jack for this phone line, you can connect the extra phone and/orexternal modem or computer with internal modem to the other wall jack.Note: Because this is a dedicated fax line, you should never have ananswering machine or computer connected. Or, using computervoicemail, you must connect the computer with internal modem orthe external modem to your dedicated voice line. You will connect tothe Internet or e-mail using the dedicated voice line.
A.2 AppendixSituation 2You connected the SF-555P to a wall jack with a phone line forfax and voice calls (a shared line).Connect any other devices you have to this phone line. To connect theother devices you have to the same wall jack as the product, go toAppendix “Connecting Other Devices, Overview” on page A.3.If you have another wall jack for this phone line, you can connect someof the devices to that wall jack. However, if you have an answeringmachine or computer with voicemail, make sure to connect it to thesame wall jack as the SF-555PSpecial SituationsYou have two phone lines coming into one wall jack.When you connected the SF-555P, you should have plugged it into aphone unit splitter connected to the wall jack. Proceed as if that side ofthe phone unit splitter is a phone line for fax calls only (a dedicatedline). See “Situation 1” on page A.1.You have one phone line with two phone numbers anddistinctive ring service.Use the same guidelines in “Situation 2” above for connecting otherdevices. You can change settings for distinctive ring later.
A.3AppendixConnecting Other Devices, OverviewConnect other device in the order indicated. Note:• The SF-555P the device connected to the wall jack. If it isn’t, it cannotanswer incoming fax calls.• As the drawing indicates, always plug the LINE jack into one deviceand the EXT. jack into another device.• Some computers have a second LINE jack which is used to connectthe computer to a dedicated voice line. If you have a second LINEjack, check your computer’s documentation to ensure you areconnecting to the correct LINE jack.SF-530 seriesLINE EXT. LINE EXT. LINE EXT. LINE EXT.Computer withInternal ModemExternalModemAnsweringMachine Phone

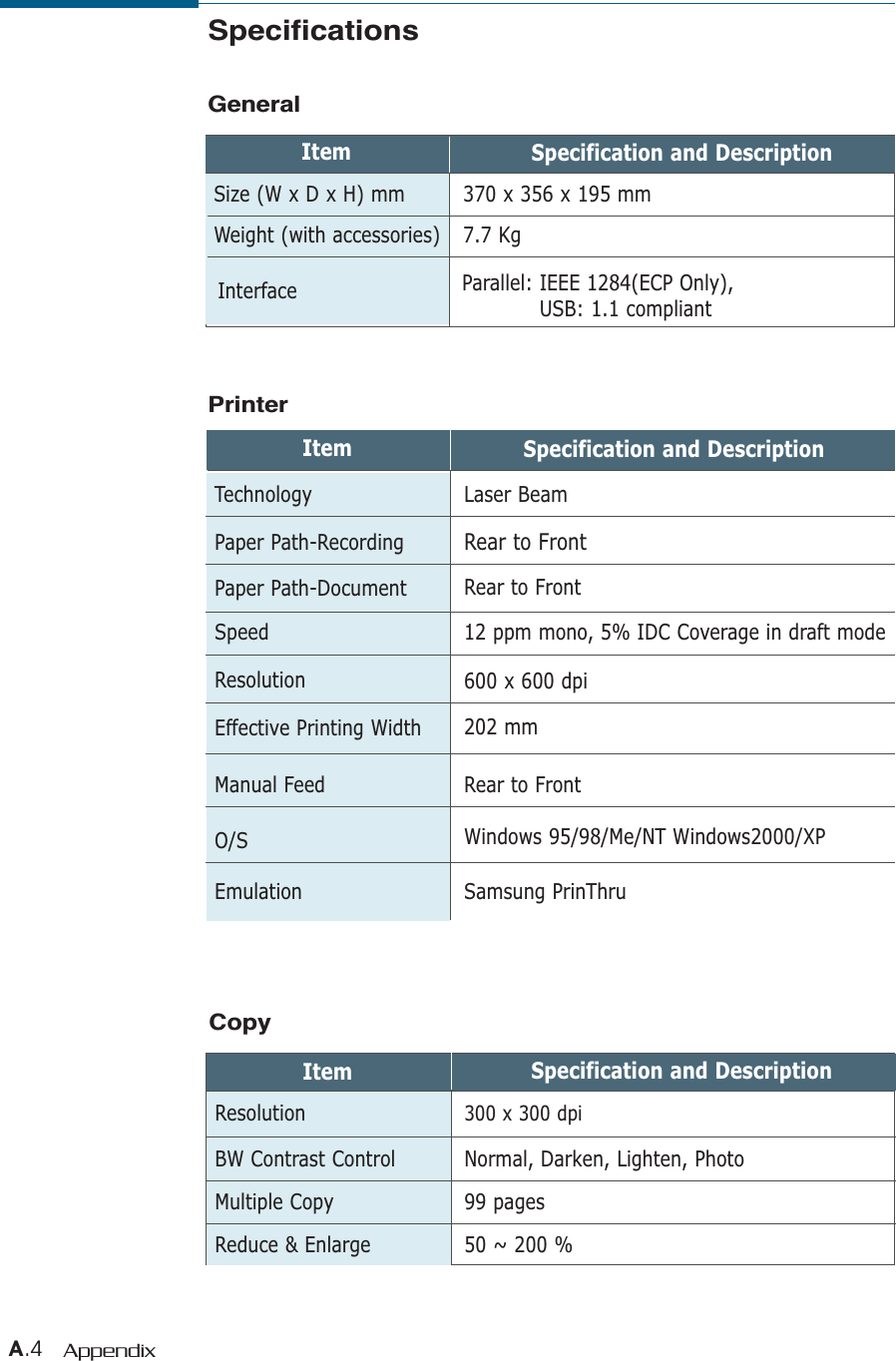

A.4 AppendixCopyItem Specification and DescriptionResolution 300 x 300 dpiBW Contrast Control Normal, Darken, Lighten, PhotoMultiple Copy 99 pagesReduce & Enlarge 50 ~ 200 %SpecificationsGeneralItem Specification and DescriptionTechnology Laser BeamPaper Path-Recording Rear to FrontPaper Path-Document Rear to FrontEffective Printing Width 202 mmManual Feed Rear to FrontO/S Windows 95/98/Me/NT Windows2000/XPEmulation Samsung PrinThruResolution 600 x 600 dpiSpeed 12 ppm mono, 5% IDC Coverage in draft modeItem Specification and DescriptionSize (W x D x H) mm 370 x 356 x 195 mmWeight (with accessories) 7.7 KgInterface Parallel: IEEE 1284(ECP Only), USB: 1.1 compliantPrinter
A.5AppendixScannerItem Specification and DescriptionScan Method Contact Image Sensor (CIS)Scan Width Max. 216 mm, Effective: 210 mmScan Resolution-Optical 300 x 300 dpiADF Capacity Max 20 sheetsBW Contrast Control Normal, Darken, Lighten, PhotoFeeding Method Sheet-fedScan(Copy) Speed SF-531P: 6 sec/pageFaxItem Specification and DescriptionModem Speed 33.6 kbpsCompatibility ITU-T Group 3Resolution(Selectable by 1-key & LCD)Standard: 200 x 100 dpi (Default)Fine: 200 x 200 dpiSuperFine: 300 x 300 dpiECM Support YesHalftone Photo: 64 grayscalesTAD Interface YesMemory 2 MBMemory Backup 30 Min.Receive Mode TEL, FAX, AUTO, ANS/FAXCompression MH/MR/MMR
A.6 AppendixImportant Precautions and Safety InformationWhen using this fax machine, these basic safety precautions should always befollowed to reduce risk of fire, electric shock, and injury to persons:1. Read and understand all instructions.2. Use common sense whenever operating electrical appliances.3. Follow all warnings and instructions marked on the product and in theliterature accompanying the product.4. If an operating instruction appears to conflict with safety information, heedthe safety information. You may have misunderstood the operatinginstruction. If you cannot resolve the conflict, contact your sales or servicerepresentative for assistance.5. Unplug the fax machine from the AC wall socket and/or telephone jack beforecleaning. Do not use liquid or aerosol cleaners. Use only a damp cloth forcleaning.6. Do not place the fax machine on an unstable cart, stand, or table. It may fall,causing serious damage.7. Your fax machine should never be placed on, near, or over a radiator, heater,air conditioner, or ventilation duct.8. Do not allow anything to rest on the power, telephone. Do not locate your faxmachine where the cords will be abused by persons walking on them.9. Do not overload wall outlets and extension cords. This can diminishperformance, and may result in the risk of fire or electric shock.10. Do not allow pets to chew on the AC power, telephone, or PC interfacecords.11. Never push objects of any kind into the fax machine through case or cabinetopenings. They may touch dangerous voltage points, creating a risk of fireor shock. Never spill liquid of any kind onto or into the fax machine.Safety Information
A.7Appendix12. Your product may have a heavy cover for optimal pressure on the documentfor the best scanning and/or faxing (usually the flatbed-type product). Inthis case, replace the cover after placing document on the scan glass, byholding and moving it down slowly until it seats on its location.13. To reduce the risk of electric shock, do not disassemble the fax machine.Take it to aqualified service technician when repair work is required.Opening or removing covers may expose you to dangerous voltages or otherrisks. Incorrect reassembly could cause electric shock when the unit issubsequently used.14. Unplug the machine from the telephone jack, PC, and AC wall outlet, andrefer servicing to qualified service personnel under the following conditions:• When any part of the power cord, plug, or connecting cable is damaged orfrayed.• If liquid has been spilled into the product.• If the product has been exposed to rain or water.• If the product does not operate properly after instructions have beenfollowed.• If the product has been dropped, or the cabinet appears damaged.• If the product exhibits a sudden and distinct change in performance.15. Adjust only those controls covered by the operating instructions. Improperadjustment of other controls may result in damage, and may requireextensive work by a qualified service technician to restore the product tonormal operation.16. Avoid using this fax machine during a lightning storm. There may be aremote risk of electric shock from lightning. If possible, unplug the ACpower and telephone for the duration of the lightning storm.17. SAVE THESE INSTRUCTIONS.In Case of InterferenceIn normal operation, your SAMSUNG fax machine produces and uses radio-frequency energy. In some cases, this can cause interference to other electronicequipment. Part 15 of the FCC rules establishes guidelines limiting the amountof radio-frequency energy which may be produced by electronic equipment.Tests have proven that your Samsung FAX machine meets or exceeds theseguidelines, and is classified a “Class B Digital Device” for operation in aresidential environment. When installed and operated according to instructions,your SAMSUNG fax machine should not cause interference to the types ofequipment expected to be found in a normal residential environment.Unauthorized changes or modifications could void the user’s authority to operatethe equipment.
A.8 AppendixFax BrandingThe Telephone Consumer Protection Act of 1991 makes it unlawful for anyperson to use a computer or other electronic device to send any message via atelephone facsimile machine unless such message clearly contains in a marginat the top or bottom of each transmitted pageor on the first page of the transmission the following information:(1) the date and time of transmission(2) identification of either business, business entity or individual sending themessage; and(3) telephone number of either the sending machine, business, businessentity or individual.See pages 1.22 to 1.23 for instructions on how to enter this information intoyour Samsung FAX machine’s memory.The Telephone Company may make changes in its communications facilities,equipment operations, or procedures where such action is reasonably requiredin the operation of its business and is not inconsistent with the rules andregulations in FCC Part 68. If such changes can be reasonably expected torender any customer terminal equipment incompatible with telephone companycommunications facilities, or require modification or alteration of such terminalequipment, or otherwise materially affect its use or performance, the customershall be given adequate notice in writing, to allow the customer an opportunityto maintain uninterrupted service.In the event your SAMSUNG fax machine appears to cause interference to otherelectronic equipment, it can often be easily remedied. First determine if thesource of interference really is your FAX machine. To do this, turn its power offand on while observing the equipment experiencing the interference. If theinterference disappears when you turn the FAX machine off, the following stepscan be very effective in correcting interference problems:• Connect the FAX machine to an AC outlet which is on a different circuitbreaker from the equipment experiencing interference.• Increase the distance between the FAX machine and the equipmentexperiencing interference.• Cable TV amplifiers and splitters are extremely prone to interference. Becertain that they are as far as possible from the FAX machine and its ACpower and telephone cords.• Replace “twin lead” antenna wire with shielded coaxial cable, and use properconnectors and adaptors.• Turn or relocate the receiving antenna. In most cases this is easily done bysim-ply moving a radio. A TV antenna may need to be re-oriented or installedin another area of the building.• Consult your dealer, a reputable radio/TV technician, or an Amateur RadioOperator for help.* To locate an Amateur Radio Operator in your area, contact The AmericanRadio Relay League, 610 Main St., Newington, CT 06111.
A.9AppendixTelephone Company InformationFCC IDENTIFICATION NUMBERThe Ringer Equivalence Number and FCC Registration Number for this equipmentmay be found on the label located on the bottom or rear of the machine. In someinstances you may need to provide these numbers to the telephone company.RINGER EQUIVALENCE NUMBERThe Ringer Equivalence Number (REN) is a measure of the electrical load placed onthe telephone line, and is useful for determining whether you have “overloaded”the line. Installing several types of equipment on the same telephone line mayresult in problems making and receiving telephone calls, especially ringing whenyour line is called. The sum of all Ringer Equivalence Numbers of the equipment onyour telephone line should be less than five in order to assure proper service fromthe telephone company. In some cases, a sum of five may not be usable on yourline. If any of your telephone equipment is not operating properly, you shouldimmediately remove it from your telephone line, as it may cause harm to thetelephone network.WARNING:FCC Regulations state that changes or modifications to this equipment notexpressly approved by the manufacturer could void the user’s authority to operatethis equipment. In the event that terminal equipment causes harm to thetelephone network, the telephone company should notify the customer that servicemay be stopped. However, where prior notice is impractical, the company maytemporarily cease service, providing that they:a) Promptly notify the customer.b) Give the customer an opportunity to correct the equipment problem.c) Inform the customer of the right to bring a complaint to the FederalCommunication Commission pursuant to procedures set out in FCC Rules andRegulations Subpart E of Part 68.You should also know that:• Your Samsung FAX machine is not designed to be connected to a digital PBXsystem.• If you intend to use a computer modem or fax modem on the same phone line asyour FAX machine, you may experience transmission and reception problems withall the equipment. It is recommended that no other equipment, except for aregular telephone, share the line with your FAX machine.• If your area experiences a high incidence of lightning or power surges, werecommend that you install surge protectors for both the power and thetelephone lines. Surge protectors can be purchased from your dealer ortelephone and electronic specialty stores.• When programming emergency numbers and/or making test calls to emergencynumbers, use a non-emergency number to advise the emergency servicedispatcher of your intentions. The dispatcher will give you further instructions onhow to actually test the emergency number.• This equipment may not be used on coin service or party lines.• This telephone provides magnetic coupling to hearing aids.• You may safely connect this equipment to the telephone network by means of astandard modular jack, USOC RJ-11C.

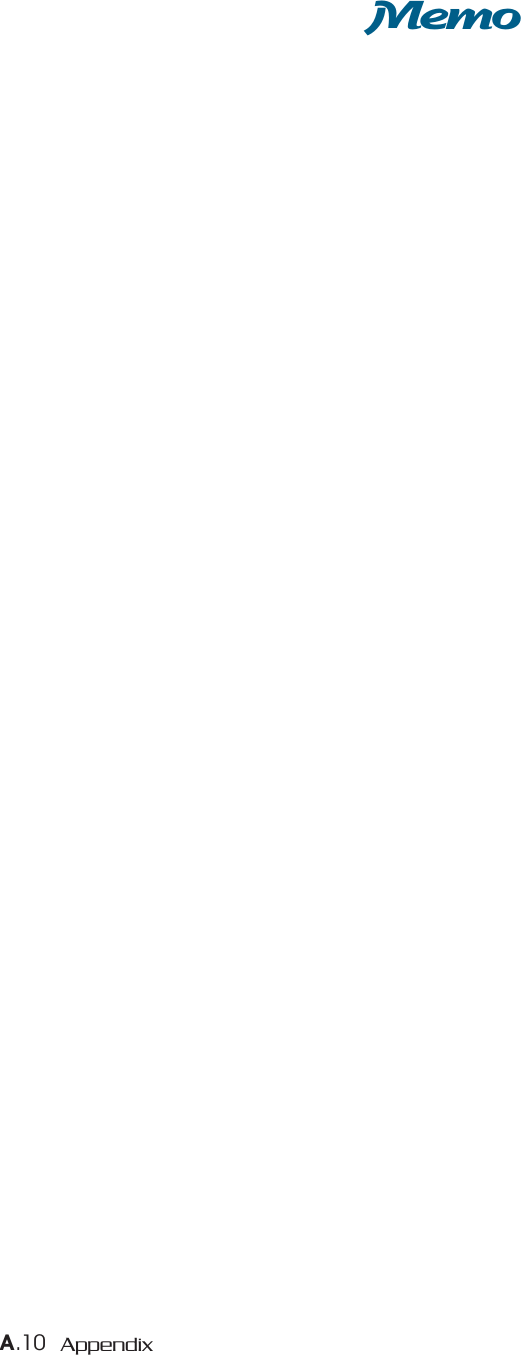

A.10 AppendixMemo
A.11AppendixIndexAadding documents 3.34address label, using 3.23adjusting shading 5.2alert tone, setting 3.2automatic dialone-touch dial 3.21speed dial 3.23using remote control panel 3.25automatic input trayloading paper 1.15, 4.3paper source setting 4.10Bbroadcasting transmission 3.28Ccancelprint job 4.12scheduled operation 3.34cleaningdocument scanner 5.5machine 5.4OPC drum 5.2connectingother devices A.1parallel cable 1.14phone line 1.12power cord 1.15USB cable 2.8contents 1.3copyingusing advanced features 3.18 overview 3.17single copying 3.17Ddate and time, setting 1.20delayed transmission 3.29document contrast, setting 3.8document feeder, loading 3.9document resolution, setting 3.8document scanner, cleaning 5.5driver, access 4.9install 2.4Eentering, name 3.19error messages 6.5Ffax problem, solving 6.7fitting document to selected paper 4.19forwarding received faxes 3.36front panel, features 1.6Ggroup dialing 3.40Hhandset, inserting 1.11
A.12 AppendixIinstallprinter software 2.4toner cartridge 1.18introduction SF-555P 1.1SmarThru software 2.1Lload, document 3.9load, paperin the automatic input tray 1.15, 4.3in the manual input tray 4.5location, choosing 1.9Mmanual input trayloading paper 4.5paper source setting 4.10memoryclearing 5.1searching 3.27monitoring status 3.35multiple pages on one sheet, print 4.17Nnetwork, setting 4.31notifying toner low 5.3number and name, setting 1.21Oone-touch dialing 3.21one-touch label plate 3.23OPC drum, cleaning 5.2orientation 4.10overlay, using 4.24Ppaperin automatic input tray 1.15, 4.3in the manual input tray 4.5selecting 1.17, 4.1setting 3.3, 4.10paper jam, clear 6.8document 6.1inside the machine 6.3output area 6.2paper input tray 6.2tips avoiding paper jams 6.4paper orientation, setting 4.10paper save mode 1.23paper size, setting 4.10paper source, setting 4.10paper type, setting 4.10parallel, connection 1.14parts, identifying 1.4pause, inserting 3.21phone line, connection 1.12pollingreception 3.33transmission 3.32poster, printing 4.20power, plugging 1.15power save mode 1.22print media see paperprint quality problem, solving 6.11print quality, setting 4.28print resolution 4.28printer driver see driverprinter software, install 2.4printing problem, solving 6.9printingcancel 4.12cleaning page 5.2document 4.9general problems, solving 6.9help 4.12in network environment 4.31several pages per sheet 4.17quality problems, solving 6.11reports 3.38
A.13AppendixP (continued)priority transmission 3.31problem, solvingerror messages 6.5fax 6.7general printing 6.9paper jam 6.1print quality 6.11print Reduced.Enlarged 4.18Qquality, problems 6.11Rreceiving fax by an extension telephone 3.16in ANS/FAX mode 3.15in AUTO mode 3.15in DRPD mode 3.6in FAX mode 3.14in TEL mode 3.16reception mode 3.13rediallingautomatic 3.10last number 3.11Redistrubuting, toner cartridge 5.8remote test 5.3reports, printing 3.38Ssearching, memory 3.27sendfax 3.10flash 3.35settingalert tones 3.2date and time 1.20fax number and name 1.21resolution and contrast 3.8volume 3.1stand-alone fax system 3.2specifications A.4speed dialing 3.23storinggroup dial 3.40one-touch 3.21speed dial 3.23supports, attaching 1.10system options, 3.2system requirements, for software 2.3Ttape, removing 1.9toll save transmission 3.37toner cartridgeinstalling 1.18replacing 5.7toner save mode 1.22, 4.15troubleshooting see problem, solvingUuninstall, MFP driver 2.10SmarThru software 2.11using CD-ROM 2.13USB port, connection 2.8user-selectable options 3.3Vvoice request 3.12volume, setting 3.1Wwatermarks, printing 4.21
