UVEE1_1.2_WCe635_051705_f3_rev SGH-E635PORTABLE Tri-BandTELEPHONEUser GuidePlease read this manual before operating yourphone, and keep it for future reference.e635.book Page 1 Tuesday, May 17, 2005 4:55 PM

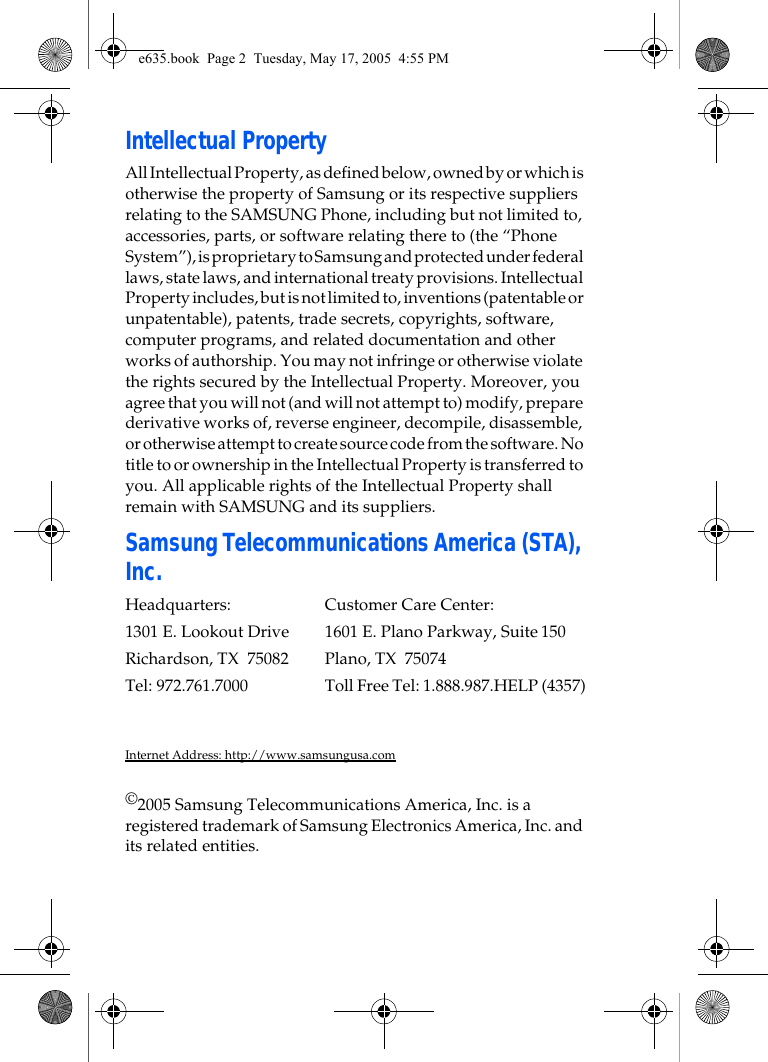

Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.Samsung Telecommunications America (STA), Inc.Headquarters: Customer Care Center:1301 E. Lookout Drive 1601 E. Plano Parkway, Suite150Richardson, TX 75082 Plano, TX 75074Tel: 972.761.7000 Toll Free Tel: 1.888.987.HELP (4357)Internet Address: http://www.samsungusa.com©2005 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities.e635.book Page 2 Tuesday, May 17, 2005 4:55 PM

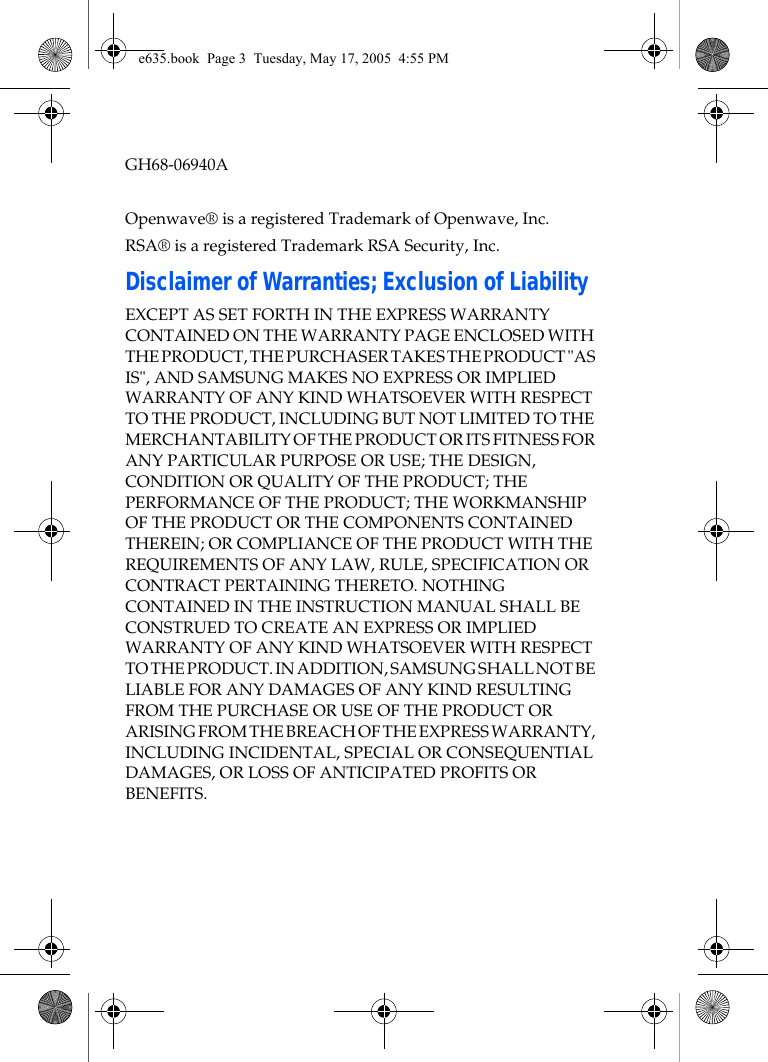

GH68-06940AOpenwave® is a registered Trademark of Openwave, Inc.RSA® is a registered Trademark RSA Security, Inc.Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.e635.book Page 3 Tuesday, May 17, 2005 4:55 PM
e635.book Page 4 Tuesday, May 17, 2005 4:55 PM

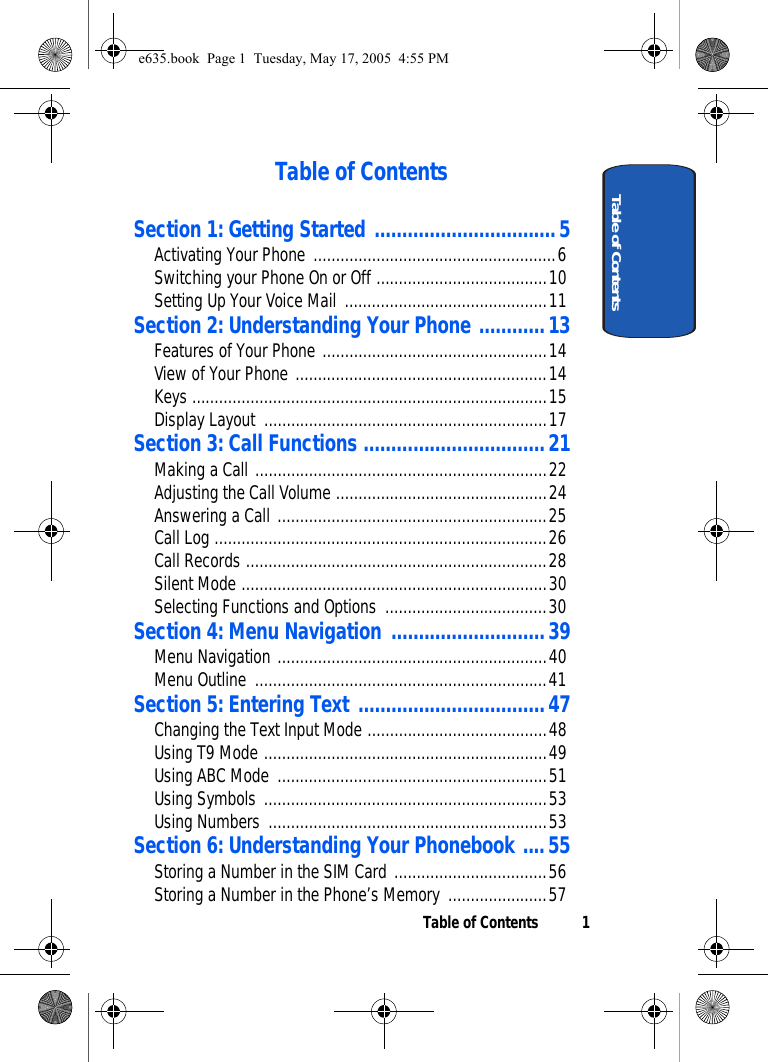

Table of Contents 1Table of ContentsTable of ContentsSection 1: Getting Started .................................5Activating Your Phone ......................................................6Switching your Phone On or Off ......................................10Setting Up Your Voice Mail .............................................11Section 2: Understanding Your Phone ............13Features of Your Phone ..................................................14View of Your Phone ........................................................14Keys ...............................................................................15Display Layout ...............................................................17Section 3: Call Functions .................................21Making a Call .................................................................22Adjusting the Call Volume ...............................................24Answering a Call ............................................................25Call Log ..........................................................................26Call Records ...................................................................28Silent Mode ....................................................................30Selecting Functions and Options ....................................30Section 4: Menu Navigation ............................39Menu Navigation ............................................................40Menu Outline .................................................................41Section 5: Entering Text ..................................47Changing the Text Input Mode ........................................48Using T9 Mode ...............................................................49Using ABC Mode ............................................................51Using Symbols ...............................................................53Using Numbers ..............................................................53Section 6: Understanding Your Phonebook ....55Storing a Number in the SIM Card ..................................56Storing a Number in the Phone’s Memory ......................57e635.book Page 1 Tuesday, May 17, 2005 4:55 PM

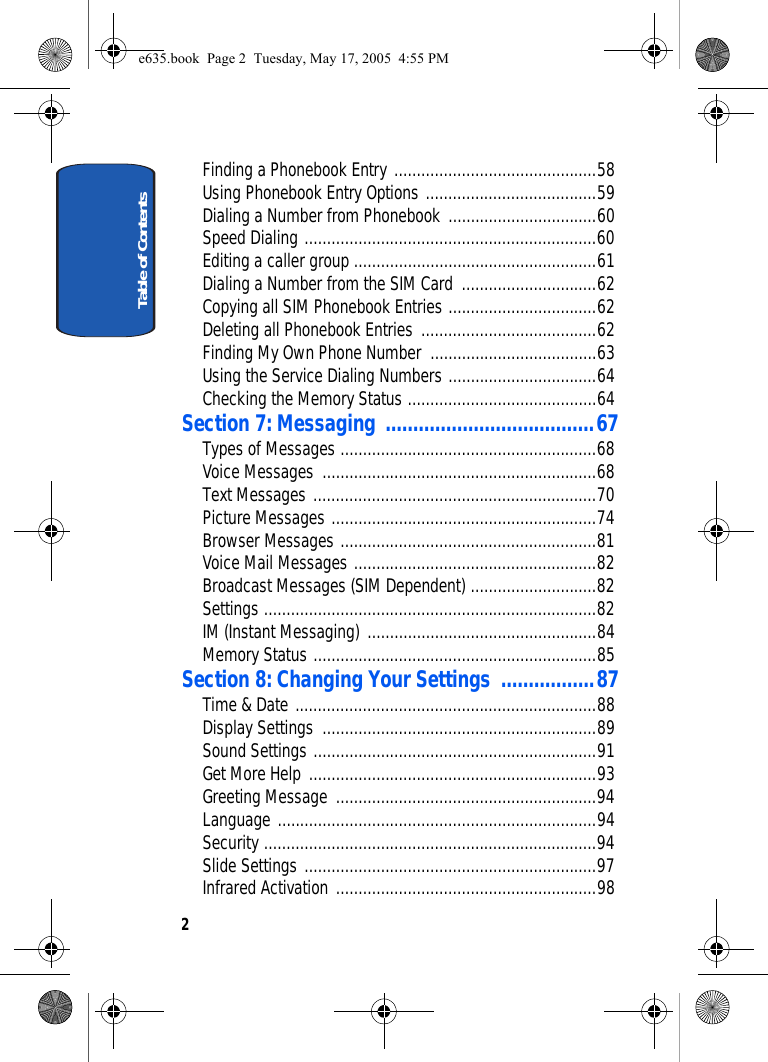

Table of Contents2Finding a Phonebook Entry .............................................58Using Phonebook Entry Options ......................................59Dialing a Number from Phonebook .................................60Speed Dialing .................................................................60Editing a caller group ......................................................61Dialing a Number from the SIM Card ..............................62Copying all SIM Phonebook Entries .................................62Deleting all Phonebook Entries .......................................62Finding My Own Phone Number .....................................63Using the Service Dialing Numbers .................................64Checking the Memory Status ..........................................64Section 7: Messaging ......................................67Types of Messages .........................................................68Voice Messages .............................................................68Text Messages ...............................................................70Picture Messages ...........................................................74Browser Messages .........................................................81Voice Mail Messages ......................................................82Broadcast Messages (SIM Dependent) ............................82Settings ..........................................................................82IM (Instant Messaging) ...................................................84Memory Status ...............................................................85Section 8: Changing Your Settings .................87Time & Date ...................................................................88Display Settings .............................................................89Sound Settings ...............................................................91Get More Help ................................................................93Greeting Message ..........................................................94Language .......................................................................94Security ..........................................................................94Slide Settings .................................................................97Infrared Activation ..........................................................98e635.book Page 2 Tuesday, May 17, 2005 4:55 PM

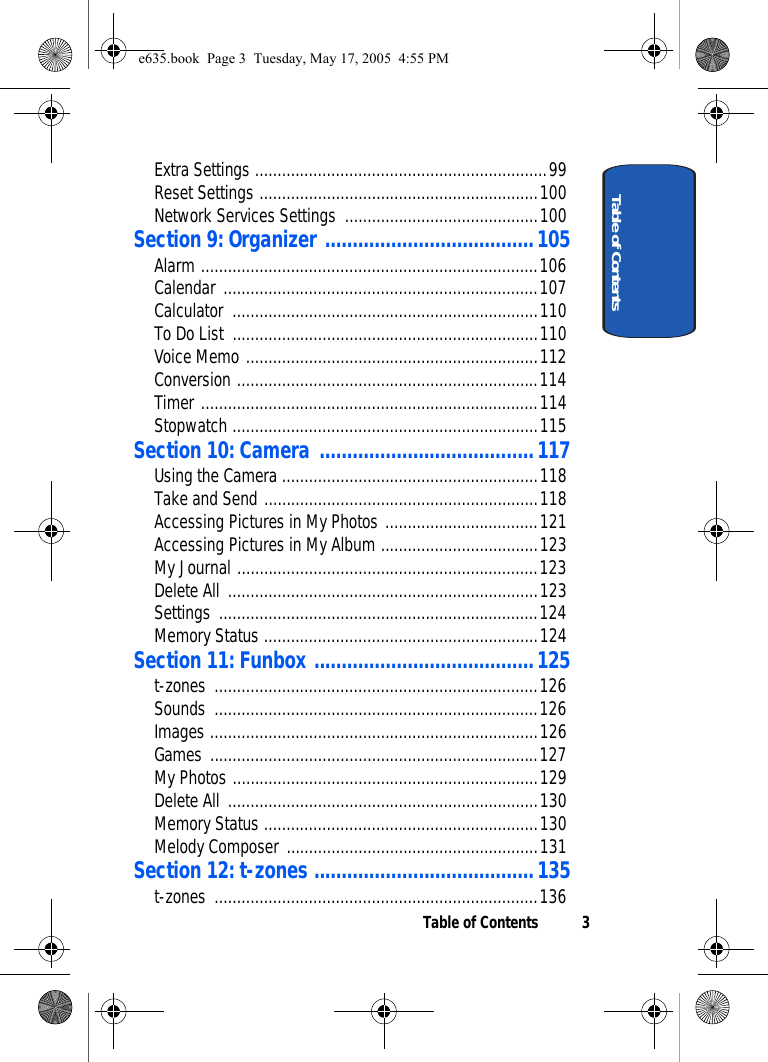

Table of Contents 3Table of ContentsExtra Settings .................................................................99Reset Settings ..............................................................100Network Services Settings ...........................................100Section 9: Organizer ......................................105Alarm ...........................................................................106Calendar ......................................................................107Calculator ....................................................................110To Do List ....................................................................110Voice Memo .................................................................112Conversion ...................................................................114Timer ...........................................................................114Stopwatch ....................................................................115Section 10: Camera .......................................117Using the Camera .........................................................118Take and Send .............................................................118Accessing Pictures in My Photos ..................................121Accessing Pictures in My Album ...................................123My Journal ...................................................................123Delete All .....................................................................123Settings .......................................................................124Memory Status .............................................................124Section 11: Funbox ........................................125t-zones ........................................................................126Sounds ........................................................................126Images .........................................................................126Games .........................................................................127My Photos ....................................................................129Delete All .....................................................................130Memory Status .............................................................130Melody Composer ........................................................131Section 12: t-zones ........................................135t-zones ........................................................................136e635.book Page 3 Tuesday, May 17, 2005 4:55 PM

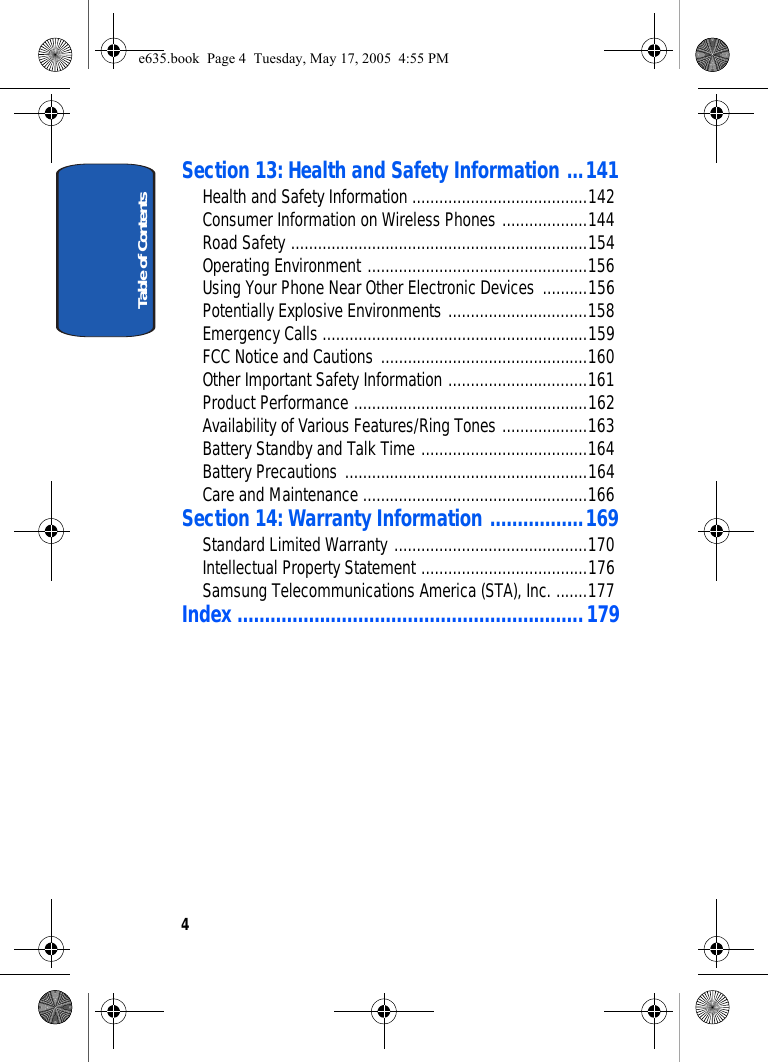

Table of Contents4Section 13: Health and Safety Information ...141Health and Safety Information .......................................142Consumer Information on Wireless Phones ...................144Road Safety ..................................................................154Operating Environment .................................................156Using Your Phone Near Other Electronic Devices ..........156Potentially Explosive Environments ...............................158Emergency Calls ...........................................................159FCC Notice and Cautions ..............................................160Other Important Safety Information ...............................161Product Performance ....................................................162Availability of Various Features/Ring Tones ...................163Battery Standby and Talk Time .....................................164Battery Precautions ......................................................164Care and Maintenance ..................................................166Section 14: Warranty Information .................169Standard Limited Warranty ...........................................170Intellectual Property Statement .....................................176Samsung Telecommunications America (STA), Inc. .......177Index ...............................................................179e635.book Page 4 Tuesday, May 17, 2005 4:55 PM
Section 1: Getting Started 5Section 1Section 1: Getting StartedTopics Covered• Activating Your Phone• Switching Your Phone On or Off• Setting Up VoicemailThis section allows you to start using your phone by activating your service and setting up your voice mail. e635.book Page 5 Tuesday, May 17, 2005 4:55 PM

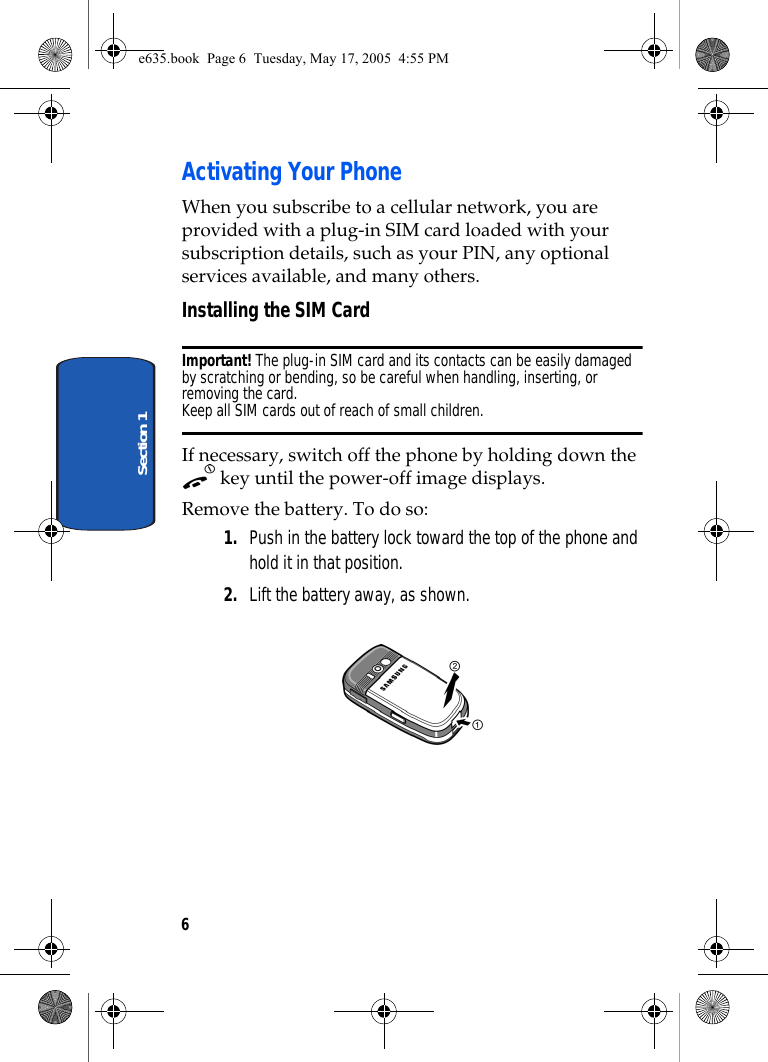

6Section 1Activating Your PhoneWhen you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, any optional services available, and many others.Installing the SIM CardImportant! The plug-in SIM card and its contacts can be easily damaged by scratching or bending, so be careful when handling, inserting, or removing the card.Keep all SIM cards out of reach of small children.If necessary, switch off the phone by holding down the key until the power-off image displays.Remove the battery. To do so:1. Push in the battery lock toward the top of the phone and hold it in that position.2. Lift the battery away, as shown. e635.book Page 6 Tuesday, May 17, 2005 4:55 PM
Section 1: Getting Started 7Activating Your PhoneSection 13. Slide the SIM card into the SIM card socket so that the card locks into place. Make sure the gold contacts of the card face into the phone. Note: When you need to remove the SIM card, slide it, as shown, and take it out of the socket.4. Place the battery so that the tabs on the end align with the slots at the bottom of the phone. e635.book Page 7 Tuesday, May 17, 2005 4:55 PM

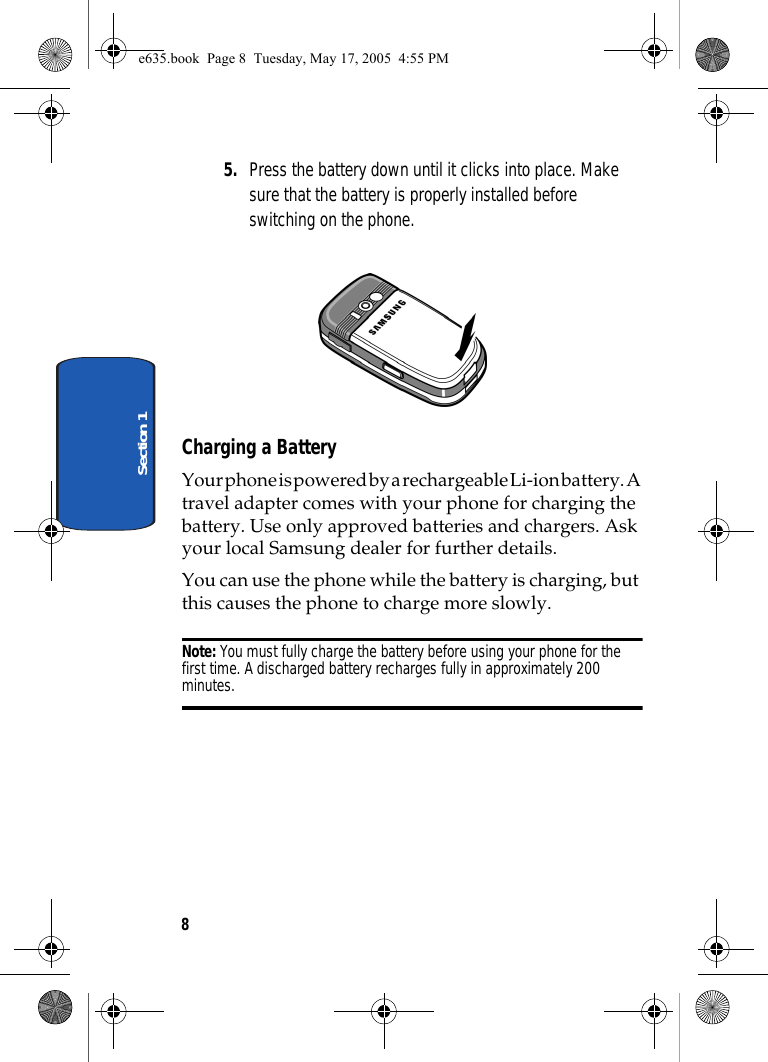

8Section 15. Press the battery down until it clicks into place. Make sure that the battery is properly installed before switching on the phone. Charging a BatteryYour phone is powered by a rechargeable Li-ion battery. A travel adapter comes with your phone for charging the battery. Use only approved batteries and chargers. Ask your local Samsung dealer for further details.You can use the phone while the battery is charging, but this causes the phone to charge more slowly.Note: You must fully charge the battery before using your phone for the first time. A discharged battery recharges fully in approximately 200 minutes.e635.book Page 8 Tuesday, May 17, 2005 4:55 PM
Section 1: Getting Started 9Activating Your PhoneSection 11. With the battery in position on the phone, plug the connector of the travel adapter into the jack at the bottom of the phone. 2. Plug the adapter into a standard AC wall outlet.3. When charging is finished, unplug the adapter from the AC wall outlet and disconnect it from the phone by pressing the buttons on both sides of the connector and pulling the connector out. Note: You must unplug the adapter before you remove the battery from the phone during charging; otherwise, the phone could be damaged. e635.book Page 9 Tuesday, May 17, 2005 4:55 PM
10Section 1Low Battery IndicatorWhen the battery is weak and only a few minutes of talk time remain, your phone does the following: • Sounds a warning tone.• Repeats the “Warning Low Battery” message at regular intervals on the display.• Turns off the display backlight to conserve the remaining battery power.When the battery level becomes too low, the phone automatically turns itself off.Switching your Phone On or Off1. Slide the phone open. 2. Press and hold the key until the phone switches on.3. If the phone asks you to enter the phone password, enter the password and press the OK soft key or the key. The password is preset to “00000000” at the factory. For further details, see "Change Password" on page 95.4. If the phone asks for a PIN, enter the PIN and press the OK soft key or the key. For further details, see "PIN Check" on page 94.The phone searches for your network and after finding it, the Idle screen appears. Now, you can make or receive calls.Note: The display language is preset to English at the factory. To change the language, use the Language menu. For further details, see "Language" on page 94.e635.book Page 10 Tuesday, May 17, 2005 4:55 PM
Section 1: Getting Started 11Setting Up Your Voice MailSection 15. When you wish to switch off the phone, press and hold the key until the power-off image displays.Setting Up Your Voice MailFor new users, follow the instructions below to set up voicemail:To set up your voice mail, use the following steps: 1. Slide your phone open to access the keypad.2. In idle mode, press and hold the key on the keypad. You are prompted to enter the password. 3. Follow the tutorial to create a password, a greeting, and your name.Note: These steps may be different depending on your network.Accessing Your Voice MailTo access you voice mail from your keypad, use the following steps: 1. Slide your phone open to access the keypad.2. From the Idle screen, press and hold the key.3. Follow the voice mail prompts to access your messages.To access you voice mail by using the menu, use the following steps: 1. In Idle mode, press the Menu soft key to access Menu mode.2. Highlight Messages and press the Select soft key or the key.e635.book Page 11 Tuesday, May 17, 2005 4:55 PM
12Section 13. Highlight Voice mail and press the Select soft key or the key.4. Highlight Call voice mail and press the Select soft key or the key. Your phone dials the specified voice mail number.5. When connected, follow the voice prompts from the voice mail center.Changing the Voice Mail NumberYour SIM card gives you the default service number of the voice mail center. However, you may need to change the number. To change your voice mail number, use the following procedures: 1. In Idle mode, press the Menu soft key to access the Menu mode.2. Highlight Messages and press Select soft key or the key.3. Highlight Voice mail and press Select soft key or the key.4. Highlight Voice server number and press the Select soft key or the key. 5. Highlight Empty and press the Select soft key or the key.6. Press Edit number to change the number.7. Press the OK soft key to save the update.8. Press the key to return to Idle mode.e635.book Page 12 Tuesday, May 17, 2005 4:55 PM
Section 2: Understanding Your Phone 13Section 2Section 2: Understanding Your PhoneTopics Covered• Features of Your Phone• View of Your Phone•Keys• Display LayoutThis section outlines some key features of your phone. It also displays the screen and the icons that are displayed when the phone is in use.e635.book Page 13 Tuesday, May 17, 2005 4:55 PM
14Section 2Features of Your PhoneYour phone is lightweight, easy-to-use and offers many significant features. The following list outlines a few of the features included in your phone.• User friendly, menu driven access to features and options• Instant Messaging capability • Multimedia capability • Organizer feature provides calendar, to-do list, alarms, calculator, and conversion capabilitiesView of Your PhoneThe following illustrations show the main elements of your phone: e635.book Page 14 Tuesday, May 17, 2005 4:55 PM
Section 2: Understanding Your Phone 15KeysSection 2KeysThe following list correlates to the illustrations.1. The headset jack is used for the hands-free headset.2. Performs the functions indicated by the screen text on the bottom line of the display.3. During a call, adjusts the earpiece volume.In Idle mode with the phone open, adjusts the keypad tone volume.4. Makes or answers a call.In Idle mode, recalls the last number dialed or received when held down.In Menu mode, selects a menu function or stores information that you have entered, such as a name in the phone or SIM memory.5. In Idle mode, when held down accesses voice mail.6. Enters special characters. Performs various functions.7. The microphone used during phone calls and voice memo recordings.e635.book Page 15 Tuesday, May 17, 2005 4:55 PM
16Section 28. Enters numbers, letters, and some special characters.In idle mode, switches phone to silent mode when held down. 9. Deletes characters from the display. In Menu mode, returns you to the previous menu level.10.Ends a call. Also switches the phone on and off when held down. In Menu mode, cancels your input and returns the phone to Idle mode.11.In Idle mode, launches the WAP (Wireless Application Protocol) browser. In Menu mode, selects the highlighted menu options.12.In Menu mode, scrolls through the menus and Phonebook. When entering text, moves the cursor to the left or right, depending on which side you push.In Idle mode you can use the following shortcuts:•The Down key allows you to access the Phonebook Search menu•The Up key accesses the Camera•The Left key allows you to write a text message•The Right key allows you to make a voice recording13.The infrared sensor is used to send and receive data.14.Display area where text and graphics are displayed.15.The earpiece is used to listen to audio from your phone.16.The camera key is used to launch the camera (with a press and hold) and to take a photo (with a short press).e635.book Page 16 Tuesday, May 17, 2005 4:55 PM

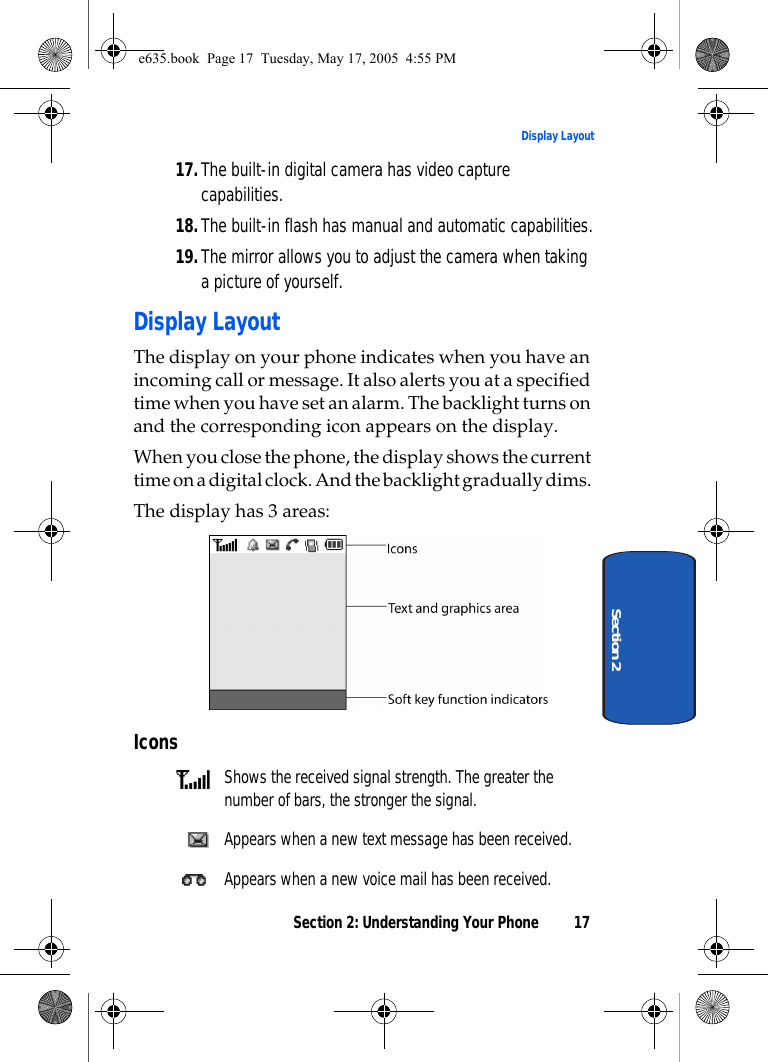

Section 2: Understanding Your Phone 17Display LayoutSection 217.The built-in digital camera has video capture capabilities. 18.The built-in flash has manual and automatic capabilities.19.The mirror allows you to adjust the camera when taking a picture of yourself. Display LayoutThe display on your phone indicates when you have an incoming call or message. It also alerts you at a specified time when you have set an alarm. The backlight turns on and the corresponding icon appears on the display.When you close the phone, the display shows the current time on a digital clock. And the backlight gradually dims. The display has 3 areas:IconsShows the received signal strength. The greater the number of bars, the stronger the signal. Appears when a new text message has been received.Appears when a new voice mail has been received.e635.book Page 17 Tuesday, May 17, 2005 4:55 PM
18Section 2Appears when a new multimedia message has been received.Appears when the IrDA port is active. For details, see "Infrared Activation" on page 98.Appears when you set an alarm to ring at a specified time. For details, see page "Alarm" on page 106.Appears when you are out of your service area.Appears when a call is in progress.Appears when the Call Forwarding feature is active. For details, see page "Call Forwarding" on page 100.Appears when Alert type is vibration or you set the phone to vibrate when you receive a call. Appears when the flash is set to on. Appears when Silent mode is active.Appears when Mute is active.Shows the level of your battery. The more bars you see, the more power you have remaining. BacklightA backlight illuminates the display and the keypad. When you press any key or slide open the phone, the backlight comes on. It goes off when no keys are pressed within a given period of time, depending on the setting in the Backlight menu. The display turns off after one minute to conserve battery power. To specify the length of time the backlight is active, set the Backlight menu option. To access the Backlight menu, e635.book Page 18 Tuesday, May 17, 2005 4:55 PM
Section 2: Understanding Your Phone 19Display LayoutSection 2from the idle screen, press the Menu (left) soft key, then press (Settings), press (Display settings), and (Backlight). See "Backlight" on page 90 for further details. e635.book Page 19 Tuesday, May 17, 2005 4:55 PM
20Section 2e635.book Page 20 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 21Section 3Section 3: Call FunctionsTopics Covered• Making a Call• Adjusting the Call Volume• Answering a Call•Call Log•Call Records• Silent Mode• Selecting Functions and OptionsThis section describes how to make or answer a call. It also includes the features and functionality associated with making or answering a call.e635.book Page 21 Tuesday, May 17, 2005 4:55 PM
22Section 3Making a CallWhen the idle screen displays, enter the area code and phone number, and press the key.Note: When you activate the Auto redial option in the Extra settings menu, the phone will automatically redial up to 10 times when the person does not answer the call or is already on the phone. See "Extra Settings" on page 99 for further details.Making an International Call1. Press and hold the 0 key. The + character appears.2. Enter the country code, area code, and phone number and press the key.Correcting the Number1. To clear the last digit displayed, press the C key.2. To clear any other digit in the number, press the Left or Right Navigation key until the cursor is immediately to the right of the digit to be cleared. Press the C key. You can also enter a missing digit.3. To clear the whole display, press and hold the C key. Ending a CallWhen you want to finish your call, briefly press the key.e635.book Page 22 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 23Making a CallSection 3Redialing the Last NumberThe phone stores the numbers of the calls you’ve dialed, received, or missed if the call recipient or caller is identified. See "Caller ID" on page 104 for further details. To recall any of these numbers:1. If you have typed characters on the display, press the key to return to Idle mode. 2. Press the key to display a list of the most recent numbers used in the order you dialed or received them.3. Use the Up and Down keys to scroll through the numbers until the number you want highlights.4. To dial the number, press the key.Before you dial the number, you also have the following options:•To see the details of the number, press the Options soft key and select Details. Press the Select soft key or the key.•To dial the number, press the Options soft key and select Call back. Press the Select soft key or the key.•To send a message to the number, press the Options soft key and select Send Message. Press the Select soft key or the key. You have the option of sending a text, picture, or voice message.•To edit the number, press the Options soft key and select Edit. Press the Select soft key or the key. Edit the number, then press the Save soft key.•To delete the number, press the Options soft key and select Delete. Press the Select soft key or the key.•To delete all of the numbers, press the Options soft key and select Delete all. Press the Select soft key or the key.e635.book Page 23 Tuesday, May 17, 2005 4:55 PM
24Section 3Making a Call from the PhonebookYou can store phone numbers that you use regularly on your SIM card or in your phone’s memory. These entries are collectively stored in the Phonebook. Once you have stored a number in the Phonebook, you can dial the number by pressing a few keys. You can also assign Speed Dial keys to your most frequently-used numbers. For further details about the Phonebook feature, see "Using Phonebook Entry Options" on page 59. Adjusting the Call VolumeDuring a call, if you want to adjust the earpiece volume, use the Volume keys on the left side of the phone.Press the key to increase the volume level and the key to decrease the level.In Idle mode, you can also adjust the keypad tone volume using these keys.e635.book Page 24 Tuesday, May 17, 2005 4:55 PM

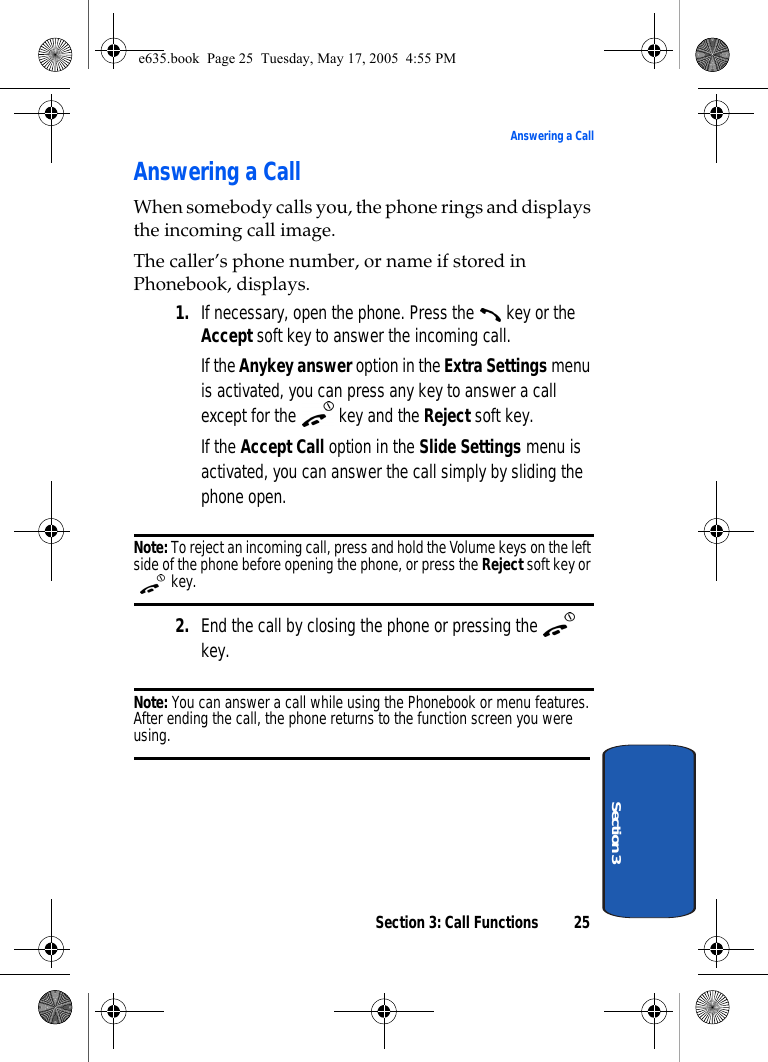

Section 3: Call Functions 25Answering a CallSection 3Answering a CallWhen somebody calls you, the phone rings and displays the incoming call image.The caller’s phone number, or name if stored in Phonebook, displays.1. If necessary, open the phone. Press the key or the Accept soft key to answer the incoming call.If the Anykey answer option in the Extra Settings menu is activated, you can press any key to answer a call except for the key and the Reject soft key.If the Accept Call option in the Slide Settings menu is activated, you can answer the call simply by sliding the phone open.Note: To reject an incoming call, press and hold the Volume keys on the left side of the phone before opening the phone, or press the Reject soft key or key. 2. End the call by closing the phone or pressing the key.Note: You can answer a call while using the Phonebook or menu features. After ending the call, the phone returns to the function screen you were using.e635.book Page 25 Tuesday, May 17, 2005 4:55 PM
26Section 3Call LogAll incoming, outgoing and missed calls are listed in the Call Log. 1. To access the Call Log option, press the key. A list of calls displays. 2. Press the Options soft key to see Details, Call back, Edit, Send message, or Delete the calls. 3. To place a call press the key.Viewing Missed CallsWhen you are unable to answer a call for any reason, you can find out who is calling you, if this service is available, so that you can call the person back. The number of calls you have missed displays on the idle screen immediately after a call is missed.To view a missed call immediately:1. If the phone is closed, open the phone.2. Press the View soft key.The number corresponding to the most recent missed call displays, if available.3. To scroll through the missed calls, press the Up or Down key.4. To call the number displayed, press the key.Editing a Missed Call NumberTo edit a missed call number:1. Press the View soft key. Press the Options soft key and select Edit.e635.book Page 26 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 27Call LogSection 32. Change the number and press the Save soft key or the key. 3. Select a location (SIM or Phone) and press the Select soft key or the key.4. If you saved the number to Phone, highlight a phone type and press the Select soft key or the key.5. Enter a name and press the OK soft key or the key.6. Press the Options soft key to Send message, Assign speed dial, Edit name or number, Delete entry, Copy, or Send via infrared.Note: When the number corresponding to the missed call is not available, the Edit option does not display.Deleting a Missed Call1. Press the View soft key. A list of missed calls displays. 2. If necessary, press the Up or Down key to highlight the missed call and press the Options soft key.3. Highlight Delete and press the Select soft key or the key.4. Select Yes to confirm deletion or No to cancel.You can press the key at any time to exit the Missed Call feature.Note: You can access the Missed Call feature at any time by selecting the Missed calls menu.e635.book Page 27 Tuesday, May 17, 2005 4:55 PM

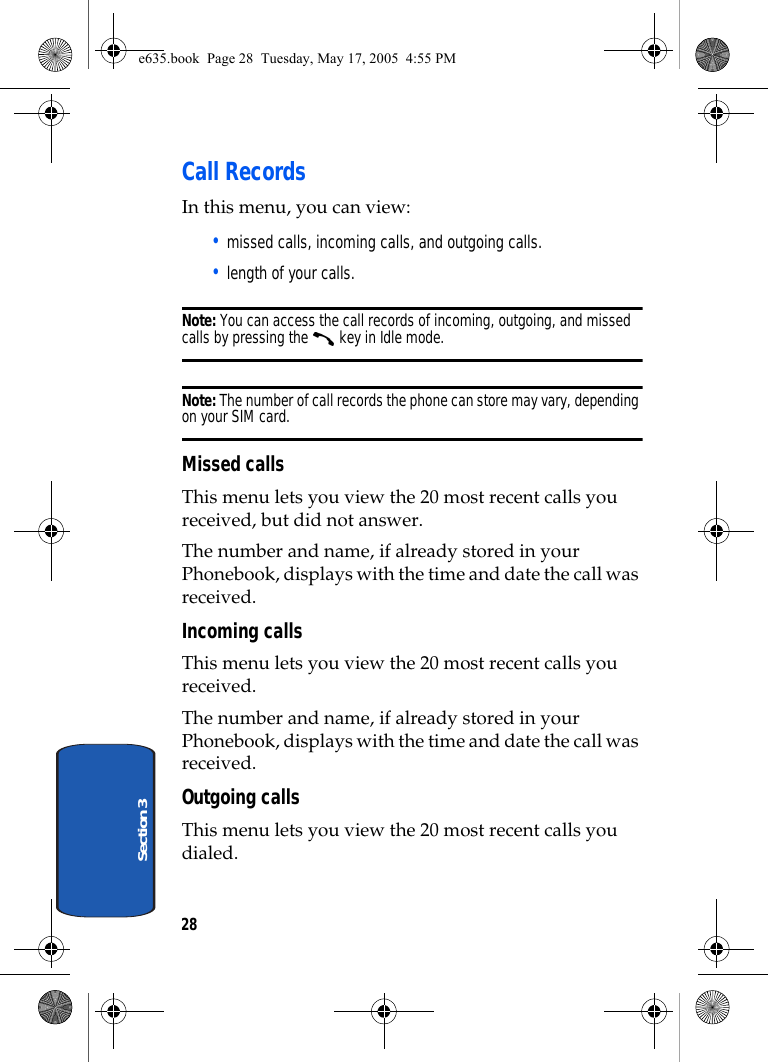

28Section 3Call RecordsIn this menu, you can view:• missed calls, incoming calls, and outgoing calls.• length of your calls.Note: You can access the call records of incoming, outgoing, and missed calls by pressing the key in Idle mode.Note: The number of call records the phone can store may vary, depending on your SIM card.Missed callsThis menu lets you view the 20 most recent calls you received, but did not answer. The number and name, if already stored in your Phonebook, displays with the time and date the call was received. Incoming callsThis menu lets you view the 20 most recent calls you received. The number and name, if already stored in your Phonebook, displays with the time and date the call was received. Outgoing callsThis menu lets you view the 20 most recent calls you dialed.e635.book Page 28 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 29Call RecordsSection 3The number and name, if already stored in your Phonebook, displays with the time and date the call was made. Delete allThis menu allows you to delete all of the records in each call record separately, or you can delete all of your call records at one time.1. Highlight the type of calls you want to delete and press the Select soft key or the key to make a check mark. 1. Press the OK soft key to delete the calls.2. When a confirmation message displays, press the Yes soft key or key to confirm.Call timeThis menu lets you view the time log for calls made and received. Note: The actual time invoiced by your service provider may vary, depending on network features, rounding-off for billing purposes, and so on.The following time logs are available:• Last call: shows the length of your last call.• Total outgoing: shows the total length of all calls you have made since the timer was last reset.• Total incoming: shows the total length of all calls you have received since the timer was last reset.• Life time: shows the total length of time for incoming and outgoing calls. The length of call time must be at least 1 minute to increment this field. This information cannot be cleared.e635.book Page 29 Tuesday, May 17, 2005 4:55 PM
30Section 3• Reset timers: allows you to reset the call timers. You must first enter the phone password and then press the OK soft key or key.Note: The password is preset to “00000000” at the factory. To change this password, see "Change Password" on page 95.Note: This will not reset the Life time timer option.Silent ModeSilent mode is convenient when you wish to stop the phone from making noise, in a theater for example.In Idle mode, press and hold the key until the “Silent Mode On” message and the Silent Mode icon ( ) is displayed.In Silent mode, instead of sounds, your phone will vibrate.To exit and reactivate the previous sound settings, press and hold the key again until “Exit Silent Mode” appears. The Silent Mode icon ( ) no longer displays.Selecting Functions and OptionsYour phone offers a set of functions that allow you to customize it. These functions are arranged in menus and sub-menus, accessed using the two soft keys. Each menu and sub-menu allows you to view and alter the settings of a particular function. e635.book Page 30 Tuesday, May 17, 2005 4:55 PM

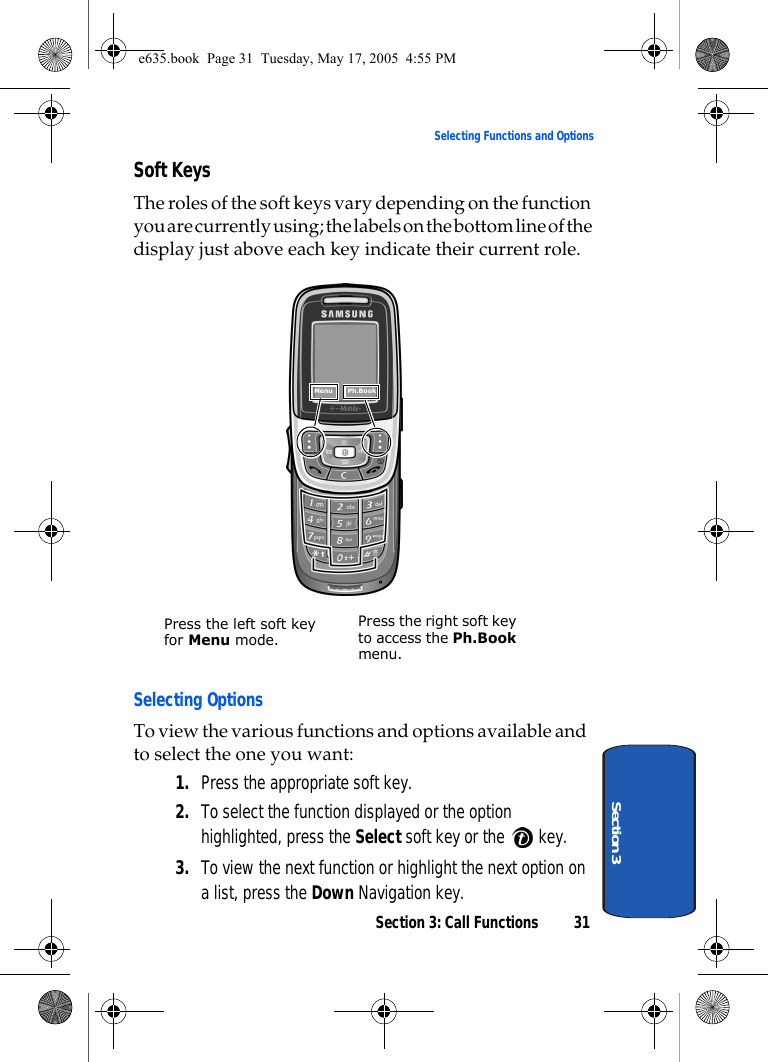

Section 3: Call Functions 31Selecting Functions and OptionsSection 3Soft KeysThe roles of the soft keys vary depending on the function you are currently using; the labels on the bottom line of the display just above each key indicate their current role. Selecting OptionsTo view the various functions and options available and to select the one you want:1. Press the appropriate soft key.2. To select the function displayed or the option highlighted, press the Select soft key or the key.3. To view the next function or highlight the next option on a list, press the Down Navigation key.Menu Ph.BookPress the left soft key for Menu mode.Press the right soft key to access the Ph.Book menu.e635.book Page 31 Tuesday, May 17, 2005 4:55 PM
32Section 34. To move back to the previous function or option on a list, press the Up key.5. To move back up one level in the menu structure, press the key.6. To exit the menu structure without changing the settings, press the key.In some functions, you may be asked for a password or PIN. Enter the code and press the OK soft key or the key.When you access a list of options, your phone highlights the currently active option. If, however, there are only two options, such as On/Off or Enable/Disable, your phone highlights the option that is not currently active, so that you can select it directly.Options During a CallYour phone provides a number of control functions that you can use during a call.Putting a Call on HoldYou can place the current call on hold whenever you want. You can make another call while you have a call in progress if your network supports this service.To place a call on hold, simply press the Options soft key, highlight the Hold option and press the Select soft key or the key. You can reactivate the call whenever you want, by pressing the Resume soft key.To make a call while you have a call in progress:1. Enter the phone number that you wish to dial or look it up in the Phonebook.e635.book Page 32 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 33Selecting Functions and OptionsSection 32. Press the key to dial the second call. The first call is automatically put on hold.Or 1. Press the Options soft key and select New call.2. Make the second call in the normal way.When you have an active call and a call on hold, you can switch between the two calls, changing the one on hold to active and placing the other on hold.To switch between the two calls, simply press the Swap soft key.The current call is placed on hold and the call on hold is reactivated so that you can continue conversing with that person.When you want to finish, end each call normally by pressing the key.Switching off the Microphone (Mute)You can temporarily switch your phone’s microphone off, so that the other person cannot hear you.Example: You wish to say something to another person in the room, but do not want the person on the phone to hear you.To switch the microphone off temporarily:1. Press the Options soft key or the key.2. If necessary, press the Down key to highlight the Mute option.3. Press the Select soft key or the key. The other person can no longer hear you.e635.book Page 33 Tuesday, May 17, 2005 4:55 PM

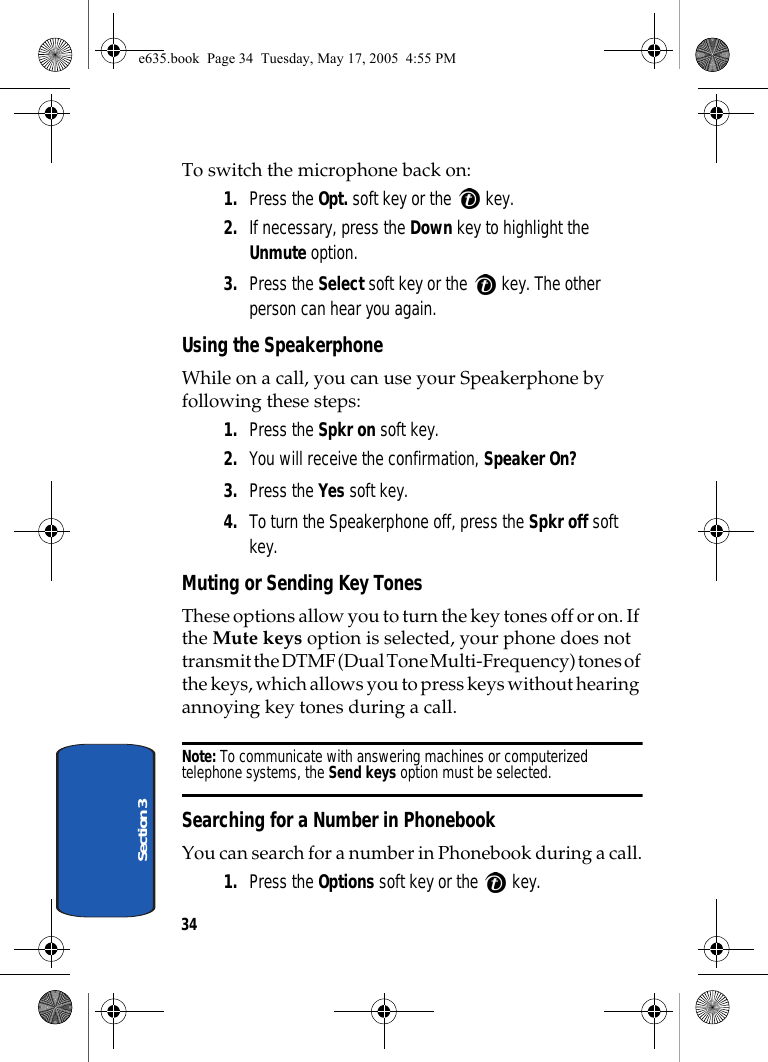

34Section 3To switch the microphone back on:1. Press the Opt. soft key or the key.2. If necessary, press the Down key to highlight the Unmute option.3. Press the Select soft key or the key. The other person can hear you again.Using the SpeakerphoneWhile on a call, you can use your Speakerphone by following these steps:1. Press the Spkr on soft key.2. You will receive the confirmation, Speaker On?3. Press the Yes soft key.4. To turn the Speakerphone off, press the Spkr off soft key.Muting or Sending Key TonesThese options allow you to turn the key tones off or on. If the Mute keys option is selected, your phone does not transmit the DTMF (Dual Tone Multi-Frequency) tones of the keys, which allows you to press keys without hearing annoying key tones during a call.Note: To communicate with answering machines or computerized telephone systems, the Send keys option must be selected.Searching for a Number in PhonebookYou can search for a number in Phonebook during a call.1. Press the Options soft key or the key.e635.book Page 34 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 35Selecting Functions and OptionsSection 32. Press the Down key to highlight the Phonebook option and press the Select soft key or the key.3. Press the Down key to highlight the Search option and press the Select soft key or the key.The Phonebook entries are listed.4. Enter the name that you wish to find in the textbox located below the entries.5. If you enter the first few letters of the name, the Phonebook entries are listed starting with the first entry matching your input.6. To view the highlighted entry, press the View soft key.For further details about the Phonebook feature, see "Finding a Phonebook Entry" on page 58.Call WaitingYou can answer an incoming call while you have a call in progress, if this service is supported by the network and you have set the Call waiting menu to Activate. You are notified of an incoming call by a call waiting tone.To answer a call while you have a call in progress:1. Press the key to answer the incoming call. The first call is automatically put on hold.2. To switch between the two calls, press the Swap soft key.To end a call on hold, press the Options soft key or the key and select the End held call option.To end the current call, press the key.e635.book Page 35 Tuesday, May 17, 2005 4:55 PM

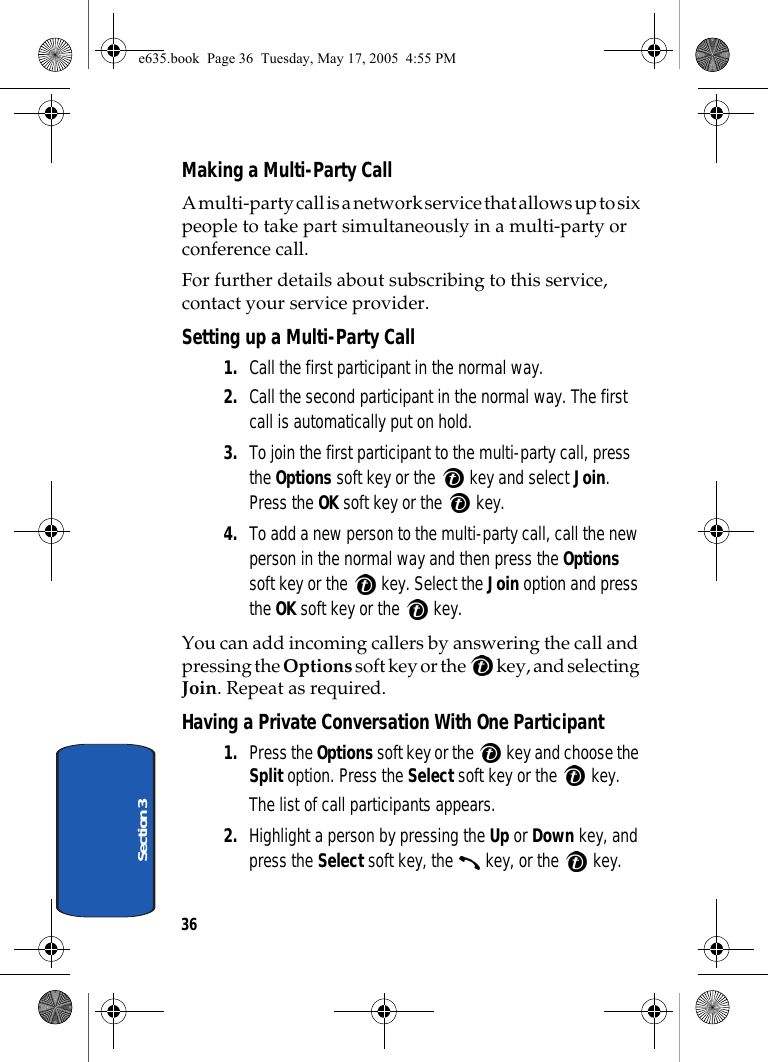

36Section 3Making a Multi-Party CallA multi-party call is a network service that allows up to six people to take part simultaneously in a multi-party or conference call.For further details about subscribing to this service, contact your service provider.Setting up a Multi-Party Call1. Call the first participant in the normal way. 2. Call the second participant in the normal way. The first call is automatically put on hold.3. To join the first participant to the multi-party call, press the Options soft key or the key and select Join. Press the OK soft key or the key.4. To add a new person to the multi-party call, call the new person in the normal way and then press the Options soft key or the key. Select the Join option and press the OK soft key or the key.You can add incoming callers by answering the call and pressing the Options soft key or the key, and selecting Join. Repeat as required.Having a Private Conversation With One Participant1. Press the Options soft key or the key and choose the Split option. Press the Select soft key or the key.The list of call participants appears.2. Highlight a person by pressing the Up or Down key, and press the Select soft key, the key, or the key.e635.book Page 36 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 37Selecting Functions and OptionsSection 3Now you can talk privately to that person. The other participants can continue to converse with each other.3. To return to the multi-party call, press the Options soft key or the key and select Join. Press the Select soft key or the key.All of the multi-party call participants can now hear each other.Dropping One Participant1. Press the Options soft key or the key and choose the Split option. Press the Select soft key or the key.The list of call participants appears.2. Highlight a person by pressing the Up or Down key, and press the Select soft key or the key.3. Press the Options soft key. Highlight the End held multiparty option. Press the Select soft key or the key.The call with that participant ends, but you can continue to talk to the other participants.4. When you want to end the multi-party call, close the phone or press the key.e635.book Page 37 Tuesday, May 17, 2005 4:55 PM

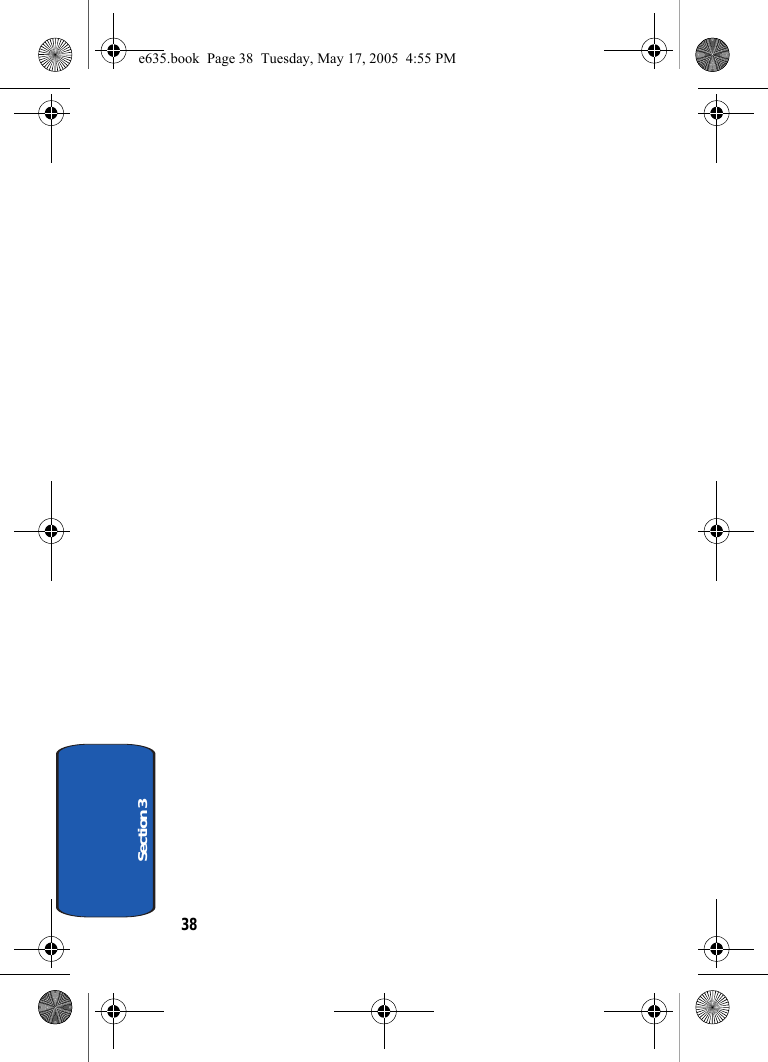

38Section 3e635.book Page 38 Tuesday, May 17, 2005 4:55 PM
Section 4Section 4: Menu Navigation 39Section 4: Menu NavigationTopics Covered• Menu Navigation• Menu OutlineThis section explains the menu navigation for your phone. It also includes an outline of all the available menus associated with your phone.e635.book Page 39 Tuesday, May 17, 2005 4:55 PM
Section 440Menu NavigationYou can tailor the phone’s range of functions to your needs using menus and sub-menus. Menus and sub-menus can be accessed by scrolling using the Navigation keys or by using the shortcuts.Accessing a Menu Function by Scrolling1. In Idle mode, press the Menu soft key to access Menu mode.2. Scroll using the Navigation keys to reach a main menu Settings, for example. Press the Select soft key or the key to enter the menu. 3. If the menu contains sub-menus, Language for example, you can access them by pressing the Select soft key or the key.If the menu that you have selected contains further options, repeat this step.4. To scroll through the menus, press the Up or Down Navigation keys.5. To confirm the chosen setting, press the Select soft key, or the key.6. To return to the previous menu level, press the key, or the key.7. To exit the menu without changing the settings, press the key.e635.book Page 40 Tuesday, May 17, 2005 4:55 PM
Section 4: Menu Navigation 41Menu OutlineSection 4Using ShortcutsThe menu items, such as menus, sub-menus, and options, are numbered and can be accessed quickly by using their shortcut numbers. For the main menus, you can access any one of them by pressing the number keys (1 to 0) corresponding to their location on the screen.Example: Accessing the Language menu.1. Press the Menu soft key.2. Press the 9 key for Settings.3. Press the 6 key for Language.Menu OutlineThe following list shows the menu structure andindicates the number assigned to each option.1 Voice messages2 Call records2.1 Missed calls2.2 Incoming calls2.3 Outgoing calls2.4 Delete all2.5 Call time2.5.1 Last call2.5.2 Total outgoing2.5.3 Total incoming2.5.4 Life time2.5.5 Reset timerse635.book Page 41 Tuesday, May 17, 2005 4:55 PM
Section 4423t-zones3.1 Home3.2 Favorites3.3 Go to URL3.4 Clear cache4IM5 Messages5.1 Text messages5.1.1 Create5.1.2 Inbox5.1.3 Outbox5.1.4 Delete all5.2 Picture messages5.2.1 Create5.2.2 Inbox5.2.3 Outbox5.2.4 Draft5.2.5 Delete all5.3 Browser messages5.3.1 Inbox5.3.2 Receive5.3.3 Delete all5.4 Voice mail5.4.1 Call voice mail5.4.2 Voice server number5.5 Broadcast messages*5.6 Settings5.6.1 Text messages5.6.2 Picture messages5.7 Memory statuse635.book Page 42 Tuesday, May 17, 2005 4:55 PM
Section 4: Menu Navigation 43Menu OutlineSection 45.7.1 Text messages5.7.2 Picture messages6 Fun box6.1 t-zones6.2 Sounds6.3 Images6.4 Games6.5 My photos6.6 Delete all6.6.1 Sounds6.6.2 Images6.6.3 My photos6.7 Memory status6.7.1 Sounds & Images6.7.2 Games6.8 Melody composer6.8.1 Compose melody6.8.2 Memory status7 Organizer7.1 Alarm7.2 Calendar7.3 Calculator7.4 To do list7.5 Voice memo7.5.1 Record voice7.5.2 Voice memos7.5.3 Delete all7.5.4 Settings7.5.5 Memory status7.6 Conversione635.book Page 43 Tuesday, May 17, 2005 4:55 PM

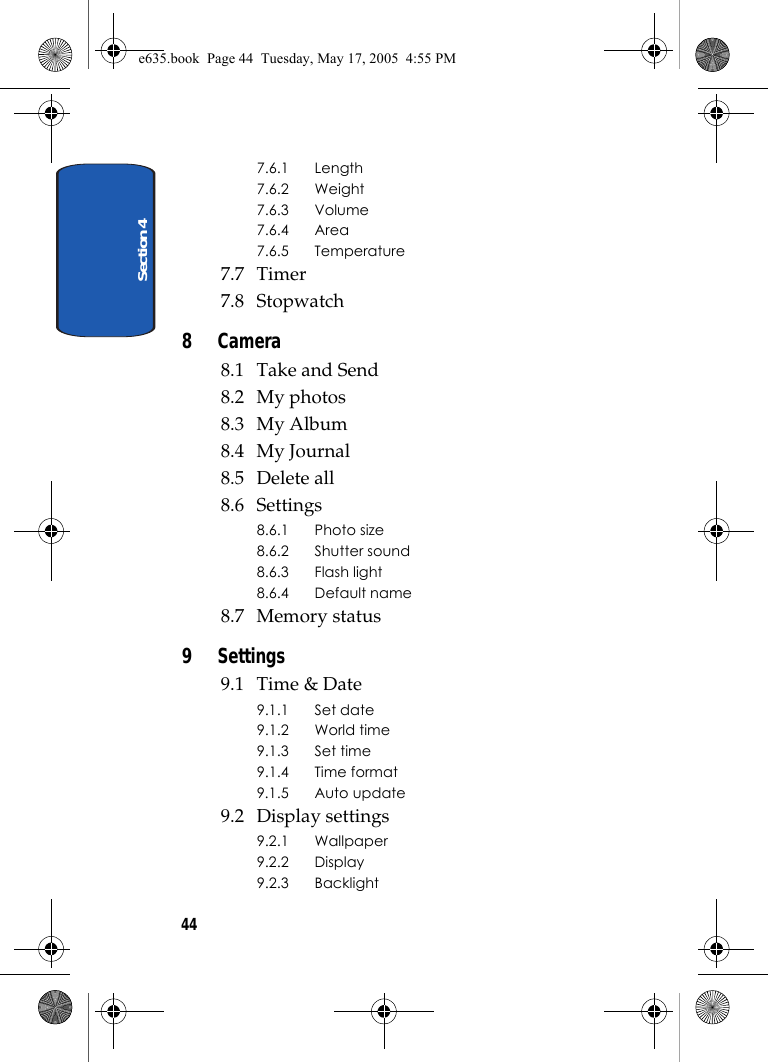

Section 4447.6.1 Length7.6.2 Weight7.6.3 Volume7.6.4 Area7.6.5 Temperature7.7 Timer7.8 Stopwatch8Camera8.1 Take and Send8.2 My photos8.3 My Album8.4 My Journal8.5 Delete all8.6 Settings8.6.1 Photo size8.6.2 Shutter sound8.6.3 Flash light8.6.4 Default name8.7 Memory status9 Settings9.1 Time & Date9.1.1 Set date9.1.2 World time9.1.3 Set time9.1.4 Time format9.1.5 Auto update9.2 Display settings9.2.1 Wallpaper9.2.2 Display9.2.3 Backlighte635.book Page 44 Tuesday, May 17, 2005 4:55 PM

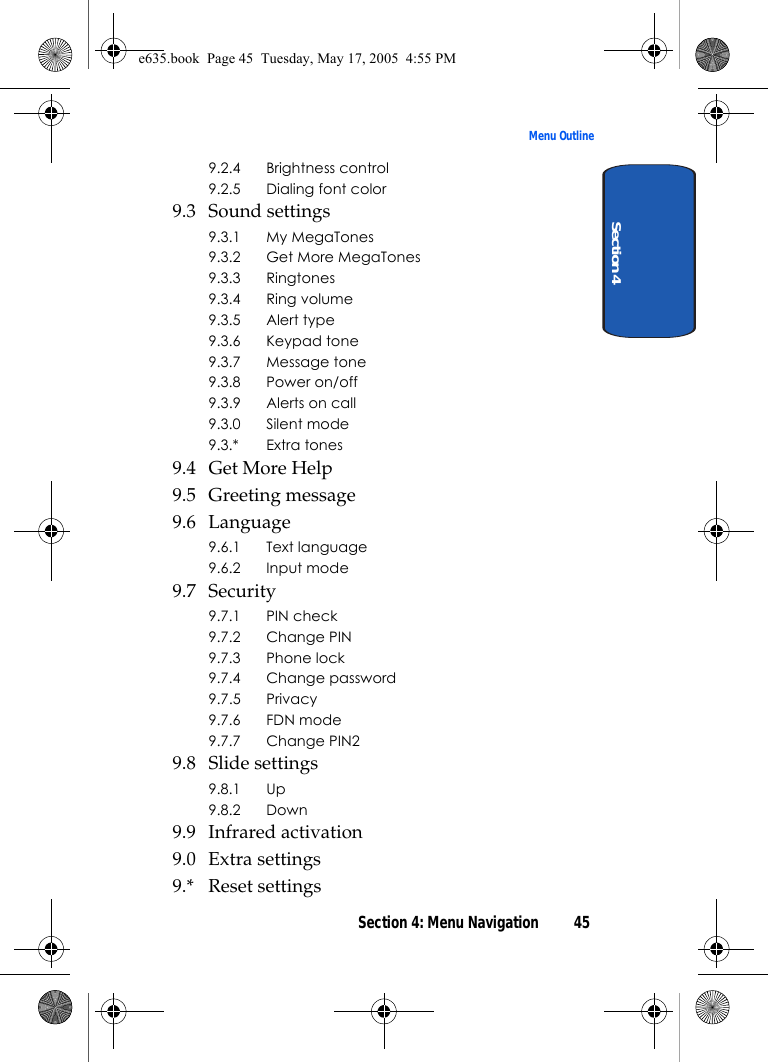

Section 4: Menu Navigation 45Menu OutlineSection 49.2.4 Brightness control9.2.5 Dialing font color9.3 Sound settings9.3.1 My MegaTones9.3.2 Get More MegaTones9.3.3 Ringtones9.3.4 Ring volume9.3.5 Alert type9.3.6 Keypad tone9.3.7 Message tone9.3.8 Power on/off9.3.9 Alerts on call9.3.0 Silent mode9.3.* Extra tones9.4 Get More Help9.5 Greeting message9.6 Language9.6.1 Text language9.6.2 Input mode9.7 Security9.7.1 PIN check9.7.2 Change PIN9.7.3 Phone lock9.7.4 Change password9.7.5 Privacy9.7.6 FDN mode9.7.7 Change PIN29.8 Slide settings9.8.1 Up9.8.2 Down9.9 Infrared activation9.0 Extra settings9.* Reset settingse635.book Page 45 Tuesday, May 17, 2005 4:55 PM
Section 4469.*.1 Sound settings9.*.2 Phone settings9.*.3 All settings9.# Network services9.#.1 Call forwarding9.#.2 Call waiting9.#.3 Network selection9.#.4 Caller ID9.#.5 Band selection* Shows only if supported by your SIM card.e635.book Page 46 Tuesday, May 17, 2005 4:55 PM

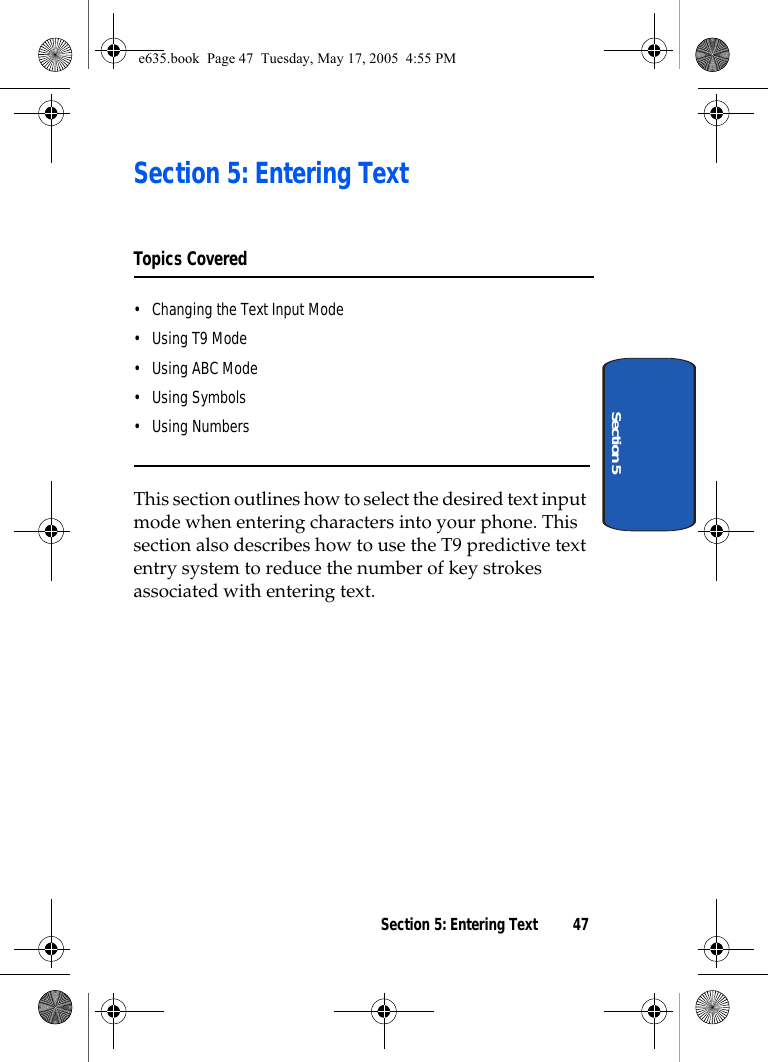

Section 5: Entering Text 47Section 5Section 5: Entering TextTopics Covered• Changing the Text Input Mode• Using T9 Mode• Using ABC Mode• Using Symbols• Using NumbersThis section outlines how to select the desired text input mode when entering characters into your phone. This section also describes how to use the T9 predictive text entry system to reduce the number of key strokes associated with entering text.e635.book Page 47 Tuesday, May 17, 2005 4:55 PM

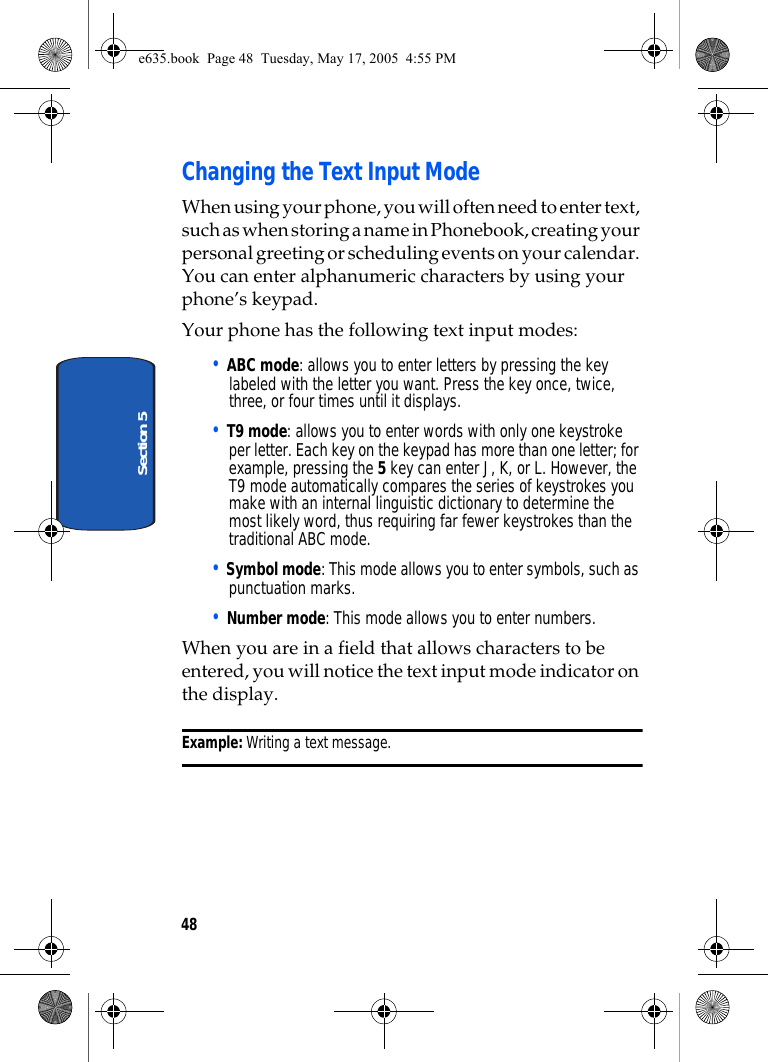

48Section 5Changing the Text Input ModeWhen using your phone, you will often need to enter text, such as when storing a name in Phonebook, creating your personal greeting or scheduling events on your calendar. You can enter alphanumeric characters by using your phone’s keypad.Your phone has the following text input modes: • ABC mode: allows you to enter letters by pressing the key labeled with the letter you want. Press the key once, twice, three, or four times until it displays. • T9 mode: allows you to enter words with only one keystroke per letter. Each key on the keypad has more than one letter; for example, pressing the 5 key can enter J, K, or L. However, the T9 mode automatically compares the series of keystrokes you make with an internal linguistic dictionary to determine the most likely word, thus requiring far fewer keystrokes than the traditional ABC mode. • Symbol mode: This mode allows you to enter symbols, such as punctuation marks. • Number mode: This mode allows you to enter numbers.When you are in a field that allows characters to be entered, you will notice the text input mode indicator on the display. Example: Writing a text message.e635.book Page 48 Tuesday, May 17, 2005 4:55 PM
Section 5: Entering Text 49Using T9 ModeSection 51. To change the text input mode, press the key. 2. Highlight the input option you want, and press the Select (left) soft key ( ) or the key.3. Choose from the following options:: ABC mode : T9 mode : Number modeUsing T9 ModeT9 is a predictive text input mode that allows you to key in any character using single keystrokes. This text input mode is based on a built-in dictionary.To enter a word in T9 mode:1. When you are in T9 mode, start entering a word by pressing the 2 to 9 keys. Press each key only once for each letter. Example: To enter “Hello” in T9 mode, press the 4, 3, 5, 5, and 6 keys. Text input mode indicatore635.book Page 49 Tuesday, May 17, 2005 4:55 PM
50Section 5The word that you are typing appears on the display. It may change with each key that you press.2. Enter the whole word before editing or deleting the keystrokes.3. When the word displays correctly, go to step 4.If the word doesn’t display correctly, press the 0 key to display alternative word choices for the keys that you have pressed. Example: Both “Of” and “Me” have the 6 and 3 keys. The phone displays the most commonly used choice first.4. Insert a space by pressing the key and start entering the next word.To add a new word into the T9 dictionary:1. After pressing the keys corresponding to the word you want to add, press the 0 key to display the alternative words.2. When you press the 0 key at the last alternative word, the display shows Spell on the bottom line. Press the Spell soft key or the key.3. Enter the word you want to add using ABC mode.4. Press the OK soft key.The word is added to the T9 dictionary and becomes the first word for the associated keypress series.Note: This feature may not be available for some languages.e635.book Page 50 Tuesday, May 17, 2005 4:55 PM
Section 5: Entering Text 51Using ABC ModeSection 5• To enter periods, hyphens, or apostrophes, press the 1 key. T9 mode applies grammar rules to ensure that correct punctuation is used. • To see all of the symbols, press and hold the key. Use the Up and Down Navigation keys to page through the different symbols. Press the corresponding number to the symbol you want. Press the OK soft key.• To shift case in T9 mode, use the key. There are 3 cases: Initial capital, Capital lock, and Lower case.• You can move the cursor by using the Left and Right keys. To delete letters, press the C key. Press and hold the C key to clear the display.Using ABC ModeTo use ABC Mode, use the 1 to 0 keys to enter your text. 1. Press the key labeled with the letter you want:•- Once for the first letter•- Twice for the second letter•- And so on2. Select the other letters in the same way.Note: The cursor moves to the right when you press a different key. When entering the same letter twice or a different letter on the same key, just wait for a few seconds for the cursor to move to the right automatically, and then select the next letter.Keys e635.book Page 51 Tuesday, May 17, 2005 4:55 PM

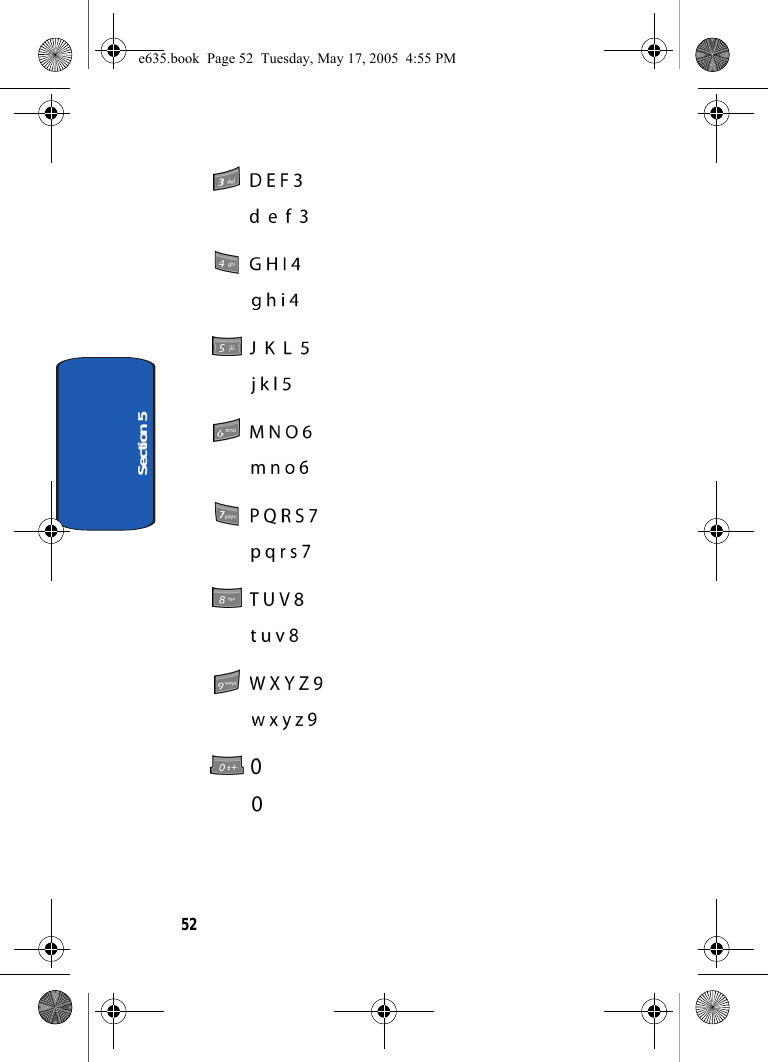

52Section 5 e635.book Page 52 Tuesday, May 17, 2005 4:55 PM

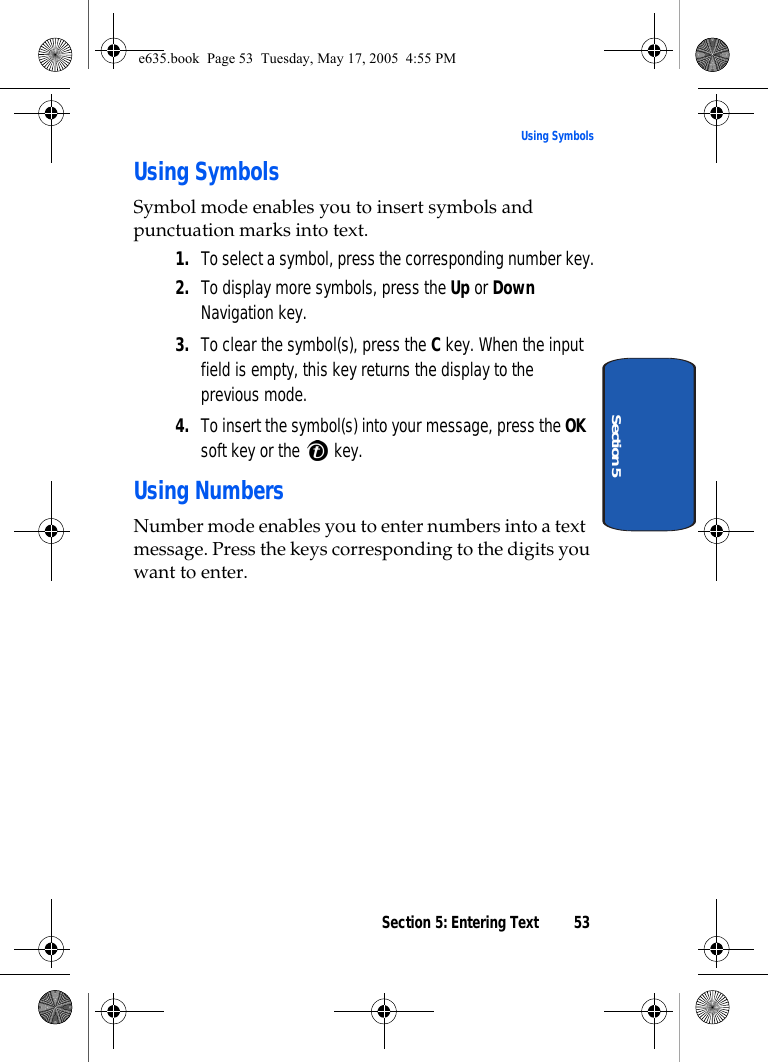

Section 5: Entering Text 53Using SymbolsSection 5Using SymbolsSymbol mode enables you to insert symbols and punctuation marks into text.1. To select a symbol, press the corresponding number key.2. To display more symbols, press the Up or Down Navigation key.3. To clear the symbol(s), press the C key. When the input field is empty, this key returns the display to the previous mode.4. To insert the symbol(s) into your message, press the OK soft key or the key.Using NumbersNumber mode enables you to enter numbers into a text message. Press the keys corresponding to the digits you want to enter.e635.book Page 53 Tuesday, May 17, 2005 4:55 PM

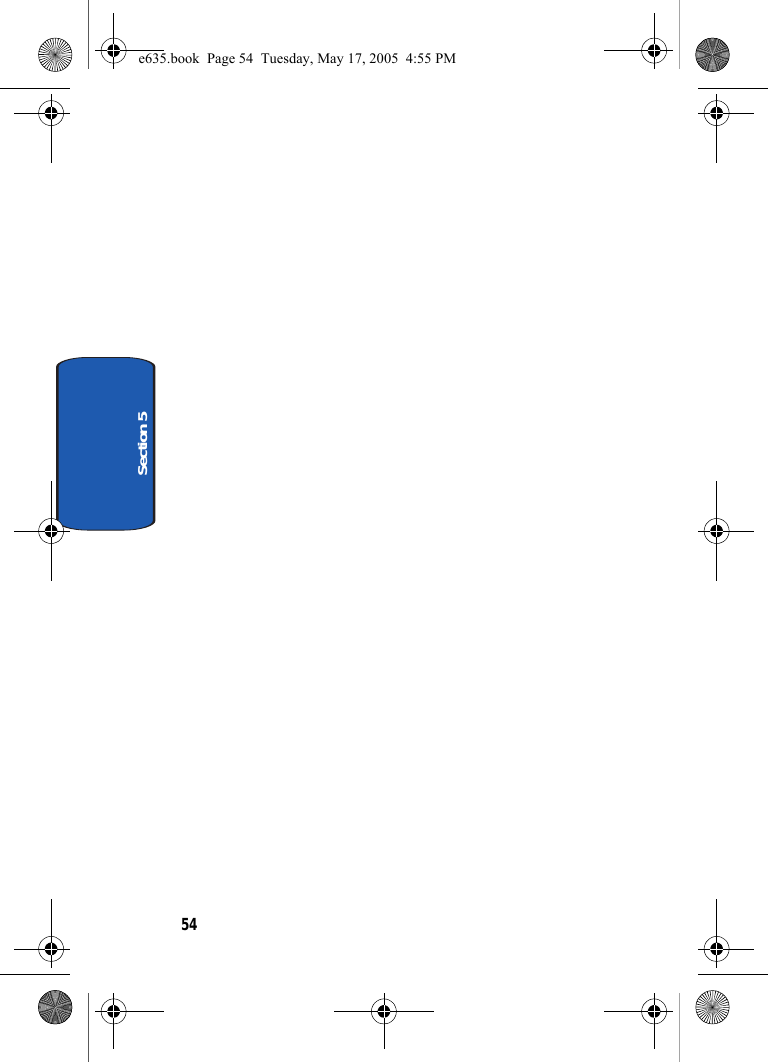

54Section 5e635.book Page 54 Tuesday, May 17, 2005 4:55 PM
Section 6: Understanding Your Phonebook 55Section 6Section 6: Understanding Your PhonebookTopics Covered• Storing a Number in the SIM Card• Storing a Number in the Phone’s Memory• Finding a Phonebook Entry• Using Phonebook Entry Options• Dialing a Number from Phonebook• Speed Dialing• Editing a Caller Group• Dialing a Number from the SIM Card• Copying all SIM Phonebook Entries• Deleting all Phonebook Entries• Finding My Phone Number• Using the Service Dialing Numbers• Checking the Memory StatusThis section allows you to manage your daily contacts by storing their name and number in your Phonebook. Phonebook entries can be sorted by name, entry, or group.e635.book Page 55 Tuesday, May 17, 2005 4:55 PM

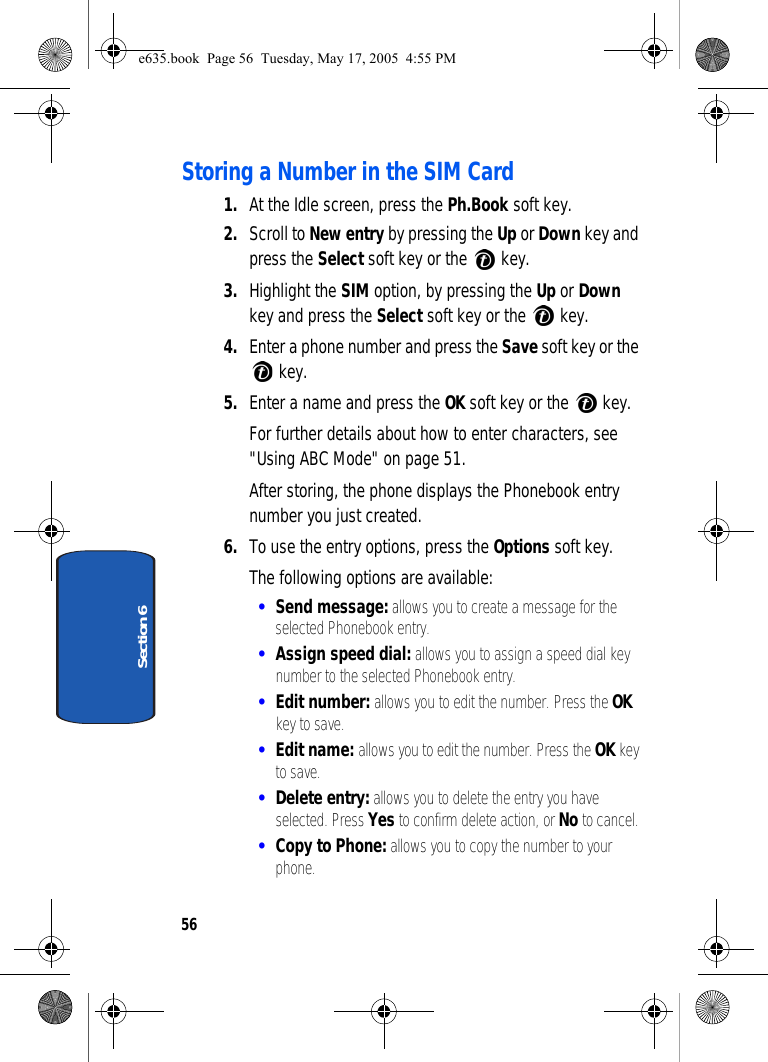

56Section 6Storing a Number in the SIM Card1. At the Idle screen, press the Ph.Book soft key. 2. Scroll to New entry by pressing the Up or Down key and press the Select soft key or the key.3. Highlight the SIM option, by pressing the Up or Down key and press the Select soft key or the key.4. Enter a phone number and press the Save soft key or the key. 5. Enter a name and press the OK soft key or the key.For further details about how to enter characters, see "Using ABC Mode" on page 51.After storing, the phone displays the Phonebook entry number you just created.6. To use the entry options, press the Options soft key. The following options are available:•Send message: allows you to create a message for the selected Phonebook entry. •Assign speed dial: allows you to assign a speed dial key number to the selected Phonebook entry.•Edit number: allows you to edit the number. Press the OK key to save.•Edit name: allows you to edit the number. Press the OK key to save.•Delete entry: allows you to delete the entry you have selected. Press Yes to confirm delete action, or No to cancel.•Copy to Phone: allows you to copy the number to your phone.e635.book Page 56 Tuesday, May 17, 2005 4:55 PM
