Users Manual 1
UVEE1_1.2_WCe635_051705_f3_rev
SGH-E635
PORTABLE Tri-Band
TELEPHONE
User Guide
Please read this manual before operating your
phone, and keep it for future reference.
e635.book Page 1 Tuesday, May 17, 2005 4:55 PM
Intellectual Property
All Intellectual Property, as defined below, owned by or which is
otherwise the property of Samsung or its respective suppliers
relating to the SAMSUNG Phone, including but not limited to,
accessories, parts, or software relating there to (the “Phone
System”), is proprietary to Samsung and protected under federal
laws, state laws, and international treaty provisions. Intellectual
Property includes, but is not limited to, inventions (patentable or
unpatentable), patents, trade secrets, copyrights, software,
computer programs, and related documentation and other
works of authorship. You may not infringe or otherwise violate
the rights secured by the Intellectual Property. Moreover, you
agree that you will not (and will not attempt to) modify, prepare
derivative works of, reverse engineer, decompile, disassemble,
or otherwise attempt to create source code from the software. No
title to or ownership in the Intellectual Property is transferred to
you. All applicable rights of the Intellectual Property shall
remain with SAMSUNG and its suppliers.
Samsung Telecommunications America (STA),
Inc.
Headquarters: Customer Care Center:
1301 E. Lookout Drive 1601 E. Plano Parkway, Suite150
Richardson, TX 75082 Plano, TX 75074
Tel: 972.761.7000 Toll Free Tel: 1.888.987.HELP (4357)
Internet Address: http://www.samsungusa.com
©2005 Samsung Telecommunications America, Inc. is a
registered trademark of Samsung Electronics America, Inc. and
its related entities.
e635.book Page 2 Tuesday, May 17, 2005 4:55 PM
GH68-06940A
Openwave® is a registered Trademark of Openwave, Inc.
RSA® is a registered Trademark RSA Security, Inc.
Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY
CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH
THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS
IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT
TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE
MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR
ANY PARTICULAR PURPOSE OR USE; THE DESIGN,
CONDITION OR QUALITY OF THE PRODUCT; THE
PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP
OF THE PRODUCT OR THE COMPONENTS CONTAINED
THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE
REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR
CONTRACT PERTAINING THERETO. NOTHING
CONTAINED IN THE INSTRUCTION MANUAL SHALL BE
CONSTRUED TO CREATE AN EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT
TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE
LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING
FROM THE PURCHASE OR USE OF THE PRODUCT OR
ARISING FROM THE BREACH OF THE EXPRESS WARRANTY,
INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR
BENEFITS.
e635.book Page 3 Tuesday, May 17, 2005 4:55 PM
e635.book Page 4 Tuesday, May 17, 2005 4:55 PM
Table of Contents 1
Table of Contents
Table of Contents
Section 1: Getting Started .................................5
Activating Your Phone ......................................................6
Switching your Phone On or Off ......................................10
Setting Up Your Voice Mail .............................................11
Section 2: Understanding Your Phone ............13
Features of Your Phone ..................................................14

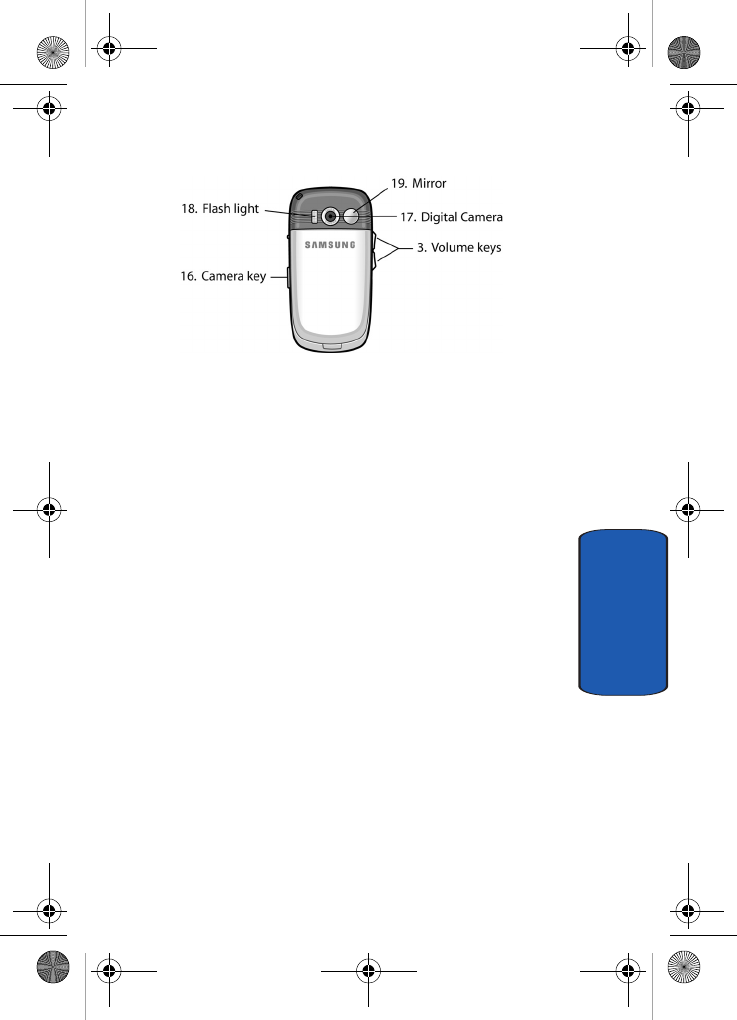

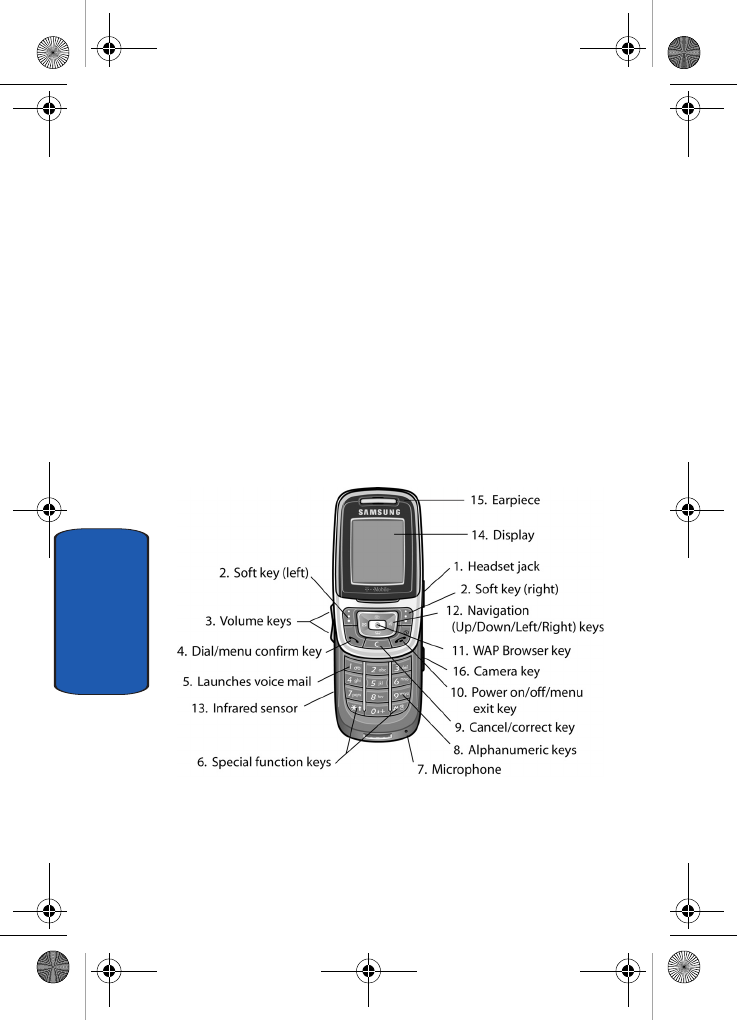

View of Your Phone ........................................................14
Keys ...............................................................................15

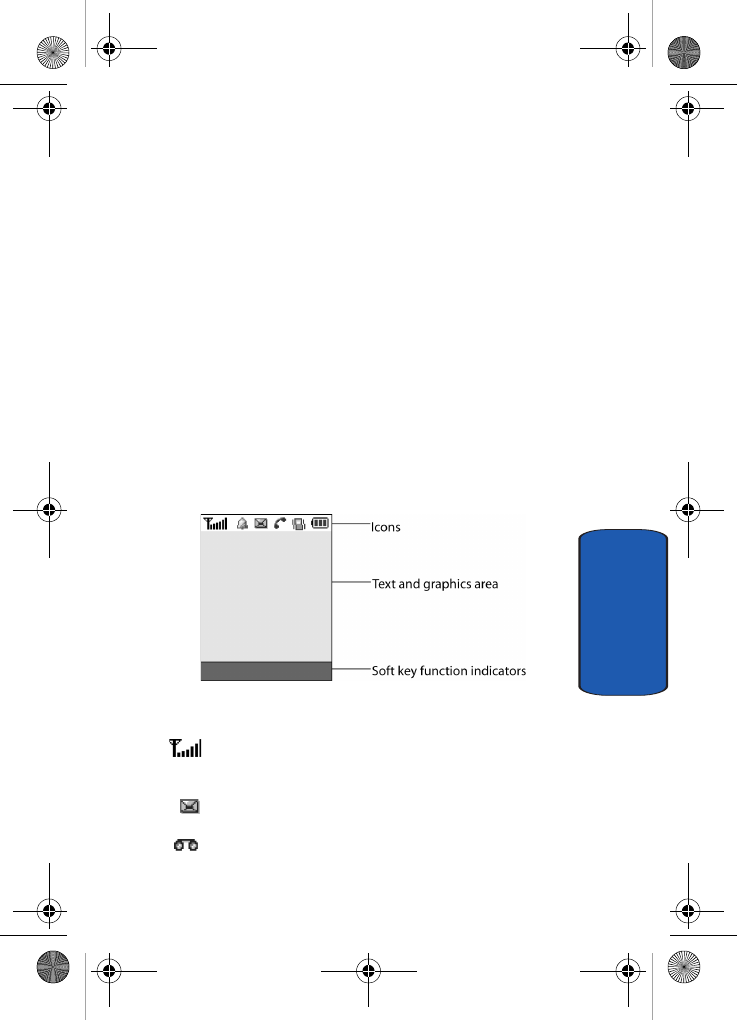

Display Layout ...............................................................17
Section 3: Call Functions .................................21
Making a Call .................................................................22
Adjusting the Call Volume ...............................................24
Answering a Call ............................................................25
Call Log ..........................................................................26
Call Records ...................................................................28
Silent Mode ....................................................................30
Selecting Functions and Options ....................................30
Section 4: Menu Navigation ............................39
Menu Navigation ............................................................40
Menu Outline .................................................................41
Section 5: Entering Text ..................................47
Changing the Text Input Mode ........................................48
Using T9 Mode ...............................................................49
Using ABC Mode ............................................................51
Using Symbols ...............................................................53
Using Numbers ..............................................................53
Section 6: Understanding Your Phonebook ....55
Storing a Number in the SIM Card ..................................56
Storing a Number in the Phone’s Memory ......................57
e635.book Page 1 Tuesday, May 17, 2005 4:55 PM
Table of Contents
2
Finding a Phonebook Entry .............................................58
Using Phonebook Entry Options ......................................59
Dialing a Number from Phonebook .................................60
Speed Dialing .................................................................60
Editing a caller group ......................................................61
Dialing a Number from the SIM Card ..............................62
Copying all SIM Phonebook Entries .................................62
Deleting all Phonebook Entries .......................................62
Finding My Own Phone Number .....................................63
Using the Service Dialing Numbers .................................64
Checking the Memory Status ..........................................64
Section 7: Messaging ......................................67
Types of Messages .........................................................68
Voice Messages .............................................................68
Text Messages ...............................................................70
Picture Messages ...........................................................74
Browser Messages .........................................................81
Voice Mail Messages ......................................................82
Broadcast Messages (SIM Dependent) ............................82
Settings ..........................................................................82
IM (Instant Messaging) ...................................................84
Memory Status ...............................................................85
Section 8: Changing Your Settings .................87
Time & Date ...................................................................88
Display Settings .............................................................89
Sound Settings ...............................................................91
Get More Help ................................................................93
Greeting Message ..........................................................94
Language .......................................................................94
Security ..........................................................................94
Slide Settings .................................................................97
Infrared Activation ..........................................................98
e635.book Page 2 Tuesday, May 17, 2005 4:55 PM
Table of Contents 3
Table of Contents
Extra Settings .................................................................99
Reset Settings ..............................................................100
Network Services Settings ...........................................100
Section 9: Organizer ......................................105
Alarm ...........................................................................106
Calendar ......................................................................107
Calculator ....................................................................110
To Do List ....................................................................110
Voice Memo .................................................................112
Conversion ...................................................................114
Timer ...........................................................................114
Stopwatch ....................................................................115
Section 10: Camera .......................................117
Using the Camera .........................................................118
Take and Send .............................................................118
Accessing Pictures in My Photos ..................................121
Accessing Pictures in My Album ...................................123
My Journal ...................................................................123
Delete All .....................................................................123
Settings .......................................................................124
Memory Status .............................................................124
Section 11: Funbox ........................................125
t-zones ........................................................................126
Sounds ........................................................................126
Images .........................................................................126
Games .........................................................................127
My Photos ....................................................................129
Delete All .....................................................................130
Memory Status .............................................................130
Melody Composer ........................................................131
Section 12: t-zones ........................................135
t-zones ........................................................................136
e635.book Page 3 Tuesday, May 17, 2005 4:55 PM
Table of Contents
4
Section 13: Health and Safety Information ...141
Health and Safety Information .......................................142
Consumer Information on Wireless Phones ...................144
Road Safety ..................................................................154
Operating Environment .................................................156
Using Your Phone Near Other Electronic Devices ..........156
Potentially Explosive Environments ...............................158
Emergency Calls ...........................................................159
FCC Notice and Cautions ..............................................160
Other Important Safety Information ...............................161
Product Performance ....................................................162
Availability of Various Features/Ring Tones ...................163
Battery Standby and Talk Time .....................................164
Battery Precautions ......................................................164
Care and Maintenance ..................................................166
Section 14: Warranty Information .................169
Standard Limited Warranty ...........................................170
Intellectual Property Statement .....................................176
Samsung Telecommunications America (STA), Inc. .......177
Index ...............................................................179
e635.book Page 4 Tuesday, May 17, 2005 4:55 PM
Section 1: Getting Started 5
Section 1
Section 1: Getting Started
Topics Covered
• Activating Your Phone
• Switching Your Phone On or Off
• Setting Up Voicemail
This section allows you to start using your phone by
activating your service and setting up your voice mail.
e635.book Page 5 Tuesday, May 17, 2005 4:55 PM
6
Section 1
Activating Your Phone
When you subscribe to a cellular network, you are
provided with a plug-in SIM card loaded with your
subscription details, such as your PIN, any optional
services available, and many others.
Installing the SIM Card
Important! The plug-in SIM card and its contacts can be easily damaged
by scratching or bending, so be careful when handling, inserting, or
removing the card.
Keep all SIM cards out of reach of small children.
If necessary, switch off the phone by holding down the
key until the power-off image displays.
Remove the battery. To do so:
1. Push in the battery lock toward the top of the phone and
hold it in that position.
2. Lift the battery away, as shown.
e635.book Page 6 Tuesday, May 17, 2005 4:55 PM
Section 1: Getting Started 7
Activating Your Phone
Section 1
3. Slide the SIM card into the SIM card socket so that the
card locks into place. Make sure the gold contacts of the
card face into the phone.
Note: When you need to remove the SIM card, slide it, as shown, and
take it out of the socket.
4. Place the battery so that the tabs on the end align with
the slots at the bottom of the phone.
e635.book Page 7 Tuesday, May 17, 2005 4:55 PM
8
Section 1
5. Press the battery down until it clicks into place. Make
sure that the battery is properly installed before
switching on the phone.
Charging a Battery
Your phone is powered by a rechargeable Li-ion battery. A
travel adapter comes with your phone for charging the
battery. Use only approved batteries and chargers. Ask
your local Samsung dealer for further details.
You can use the phone while the battery is charging, but
this causes the phone to charge more slowly.
Note: You must fully charge the battery before using your phone for the
first time. A discharged battery recharges fully in approximately 200
minutes.
e635.book Page 8 Tuesday, May 17, 2005 4:55 PM
Section 1: Getting Started 9
Activating Your Phone
Section 1
1. With the battery in position on the phone, plug the
connector of the travel adapter into the jack at the
bottom of the phone.
2. Plug the adapter into a standard AC wall outlet.
3. When charging is finished, unplug the adapter from the
AC wall outlet and disconnect it from the phone by
pressing the buttons on both sides of the connector and
pulling the connector out.
Note: You must unplug the adapter before you remove the battery from the
phone during charging; otherwise, the phone could be damaged.
e635.book Page 9 Tuesday, May 17, 2005 4:55 PM
10
Section 1
Low Battery Indicator
When the battery is weak and only a few minutes of talk
time remain, your phone does the following:
• Sounds a warning tone.
• Repeats the “Warning Low Battery” message at regular
intervals on the display.
• Turns off the display backlight to conserve the remaining
battery power.
When the battery level becomes too low, the phone
automatically turns itself off.
Switching your Phone On or Off
1. Slide the phone open.
2. Press and hold the key until the phone switches on.
3. If the phone asks you to enter the phone password, enter
the password and press the OK soft key or the key.
The password is preset to “00000000” at the factory. For
further details, see "Change Password" on page 95.
4. If the phone asks for a PIN, enter the PIN and press the
OK soft key or the key. For further details, see "PIN
Check" on page 94.
The phone searches for your network and after finding it,
the Idle screen appears. Now, you can make or receive
calls.
Note: The display language is preset to English at the factory. To change
the language, use the Language menu. For further details, see
"Language" on page 94.
e635.book Page 10 Tuesday, May 17, 2005 4:55 PM
Section 1: Getting Started 11
Setting Up Your Voice Mail
Section 1
5. When you wish to switch off the phone, press and hold
the key until the power-off image displays.
Setting Up Your Voice Mail
For new users, follow the instructions below to set up
voicemail:
To set up your voice mail, use the following steps:
1. Slide your phone open to access the keypad.
2. In idle mode, press and hold the key on the keypad.
You are prompted to enter the password.
3. Follow the tutorial to create a password, a greeting, and
your name.
Note: These steps may be different depending on your network.
Accessing Your Voice Mail
To access you voice mail from your keypad, use the
following steps:
1. Slide your phone open to access the keypad.
2. From the Idle screen, press and hold the key.
3. Follow the voice mail prompts to access your messages.
To access you voice mail by using the menu, use the
following steps:
1. In Idle mode, press the Menu soft key to access Menu
mode.
2. Highlight Messages and press the Select soft key or the
key.
e635.book Page 11 Tuesday, May 17, 2005 4:55 PM
12
Section 1
3. Highlight Voice mail and press the Select soft key or the
key.
4. Highlight Call voice mail and press the Select soft key
or the key. Your phone dials the specified voice mail
number.
5. When connected, follow the voice prompts from the
voice mail center.
Changing the Voice Mail Number
Your SIM card gives you the default service number of the
voice mail center. However, you may need to change the
number. To change your voice mail number, use the
following procedures:
1. In Idle mode, press the Menu soft key to access the
Menu mode.
2. Highlight Messages and press Select soft key or the
key.
3. Highlight Voice mail and press Select soft key or the
key.
4. Highlight Voice server number and press the Select
soft key or the key.
5. Highlight Empty and press the Select soft key or the
key.
6. Press Edit number to change the number.
7. Press the OK soft key to save the update.
8. Press the key to return to Idle mode.
e635.book Page 12 Tuesday, May 17, 2005 4:55 PM
Section 2: Understanding Your Phone 13
Section 2
Section 2: Understanding Your Phone
Topics Covered
• Features of Your Phone
• View of Your Phone
•Keys
• Display Layout
This section outlines some key features of your phone. It
also displays the screen and the icons that are displayed
when the phone is in use.
e635.book Page 13 Tuesday, May 17, 2005 4:55 PM
14
Section 2
Features of Your Phone
Your phone is lightweight, easy-to-use and offers many
significant features. The following list outlines a few of the
features included in your phone.
• User friendly, menu driven access to features and options
• Instant Messaging capability
• Multimedia capability
• Organizer feature provides calendar, to-do list, alarms,
calculator, and conversion capabilities
View of Your Phone
The following illustrations show the main elements of
your phone:
e635.book Page 14 Tuesday, May 17, 2005 4:55 PM
Section 2: Understanding Your Phone 15
Keys
Section 2
Keys
The following list correlates to the illustrations.
1. The headset jack is used for the hands-free headset.
2. Performs the functions indicated by the screen text on
the bottom line of the display.
3. During a call, adjusts the earpiece volume.
In Idle mode with the phone open, adjusts the keypad
tone volume.
4. Makes or answers a call.
In Idle mode, recalls the last number dialed or received
when held down.
In Menu mode, selects a menu function or stores
information that you have entered, such as a name in the
phone or SIM memory.
5. In Idle mode, when held down accesses voice mail.
6. Enters special characters. Performs various functions.
7. The microphone used during phone calls and voice
memo recordings.
e635.book Page 15 Tuesday, May 17, 2005 4:55 PM
16
Section 2
8. Enters numbers, letters, and some special characters.
In idle mode, switches phone to silent mode when held
down.
9. Deletes characters from the display.
In Menu mode, returns you to the previous menu level.
10.Ends a call. Also switches the phone on and off when
held down.
In Menu mode, cancels your input and returns the phone
to Idle mode.
11.In Idle mode, launches the WAP (Wireless Application
Protocol) browser.
In Menu mode, selects the highlighted menu options.
12.In Menu mode, scrolls through the menus and
Phonebook.
When entering text, moves the cursor to the left or right,
depending on which side you push.
In Idle mode you can use the following shortcuts:
•The Down key allows you to access the Phonebook Search
menu
•The Up key accesses the Camera
•The Left key allows you to write a text message
•The Right key allows you to make a voice recording
13.The infrared sensor is used to send and receive data.
14.Display area where text and graphics are displayed.
15.The earpiece is used to listen to audio from your phone.
16.The camera key is used to launch the camera (with a
press and hold) and to take a photo (with a short press).
e635.book Page 16 Tuesday, May 17, 2005 4:55 PM
Section 2: Understanding Your Phone 17
Display Layout
Section 2
17.The built-in digital camera has video capture
capabilities.
18.The built-in flash has manual and automatic capabilities.
19.The mirror allows you to adjust the camera when taking
a picture of yourself.
Display Layout
The display on your phone indicates when you have an
incoming call or message. It also alerts you at a specified
time when you have set an alarm. The backlight turns on
and the corresponding icon appears on the display.
When you close the phone, the display shows the current
time on a digital clock. And the backlight gradually dims.
The display has 3 areas:
Icons
Shows the received signal strength. The greater the
number of bars, the stronger the signal.
Appears when a new text message has been received.
Appears when a new voice mail has been received.
e635.book Page 17 Tuesday, May 17, 2005 4:55 PM
18
Section 2
Appears when a new multimedia message has been
received.
Appears when the IrDA port is active. For details, see
"Infrared Activation" on page 98.
Appears when you set an alarm to ring at a specified time.
For details, see page "Alarm" on page 106.
Appears when you are out of your service area.
Appears when a call is in progress.
Appears when the Call Forwarding feature is active. For
details, see page "Call Forwarding" on page 100.
Appears when Alert type is vibration or you set the phone
to vibrate when you receive a call.
Appears when the flash is set to on.
Appears when Silent mode is active.
Appears when Mute is active.
Shows the level of your battery. The more bars you see,
the more power you have remaining.
Backlight
A backlight illuminates the display and the keypad.
When you press any key or slide open the phone, the
backlight comes on. It goes off when no keys are pressed
within a given period of time, depending on the setting in
the Backlight menu. The display turns off after one
minute to conserve battery power.
To specify the length of time the backlight is active, set the
Backlight menu option. To access the Backlight menu,
e635.book Page 18 Tuesday, May 17, 2005 4:55 PM
Section 2: Understanding Your Phone 19
Display Layout
Section 2
from the idle screen, press the Menu (left) soft key, then
press (Settings), press (Display settings), and
(Backlight). See "Backlight" on page 90 for further
details.
e635.book Page 19 Tuesday, May 17, 2005 4:55 PM
20
Section 2
e635.book Page 20 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 21
Section 3
Section 3: Call Functions
Topics Covered
• Making a Call
• Adjusting the Call Volume
• Answering a Call
•Call Log
•Call Records
• Silent Mode
• Selecting Functions and Options
This section describes how to make or answer a call. It also
includes the features and functionality associated with
making or answering a call.
e635.book Page 21 Tuesday, May 17, 2005 4:55 PM
22
Section 3
Making a Call
When the idle screen displays, enter the area code and
phone number, and press the key.
Note: When you activate the Auto redial option in the Extra settings menu,
the phone will automatically redial up to 10 times when the person does
not answer the call or is already on the phone. See "Extra Settings" on
page 99 for further details.
Making an International Call
1. Press and hold the 0 key. The + character appears.
2. Enter the country code, area code, and phone number
and press the key.
Correcting the Number
1. To clear the last digit displayed, press the C key.
2. To clear any other digit in the number, press the Left or
Right Navigation key until the cursor is immediately to
the right of the digit to be cleared. Press the C key. You
can also enter a missing digit.
3. To clear the whole display, press and hold the C key.
Ending a Call
When you want to finish your call, briefly press the
key.
e635.book Page 22 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 23
Making a Call
Section 3
Redialing the Last Number
The phone stores the numbers of the calls you’ve dialed,
received, or missed if the call recipient or caller is
identified. See "Caller ID" on page 104 for further details.
To recall any of these numbers:
1. If you have typed characters on the display, press the
key to return to Idle mode.
2. Press the key to display a list of the most recent
numbers used in the order you dialed or received them.
3. Use the Up and Down keys to scroll through the
numbers until the number you want highlights.
4. To dial the number, press the key.
Before you dial the number, you also have the following
options:
•To see the details of the number, press the Options soft key
and select Details. Press the Select soft key or the key.
•To dial the number, press the Options soft key and select
Call back. Press the Select soft key or the key.
•To send a message to the number, press the Options soft key
and select Send Message. Press the Select soft key or the
key. You have the option of sending a text, picture, or
voice message.
•To edit the number, press the Options soft key and select
Edit. Press the Select soft key or the key. Edit the
number, then press the Save soft key.
•To delete the number, press the Options soft key and select
Delete. Press the Select soft key or the key.
•To delete all of the numbers, press the Options soft key and
select Delete all. Press the Select soft key or the key.
e635.book Page 23 Tuesday, May 17, 2005 4:55 PM
24
Section 3
Making a Call from the Phonebook
You can store phone numbers that you use regularly on
your SIM card or in your phone’s memory. These entries
are collectively stored in the Phonebook.
Once you have stored a number in the Phonebook, you
can dial the number by pressing a few keys.
You can also assign Speed Dial keys to your most
frequently-used numbers.
For further details about the Phonebook feature, see
"Using Phonebook Entry Options" on page 59.
Adjusting the Call Volume
During a call, if you want to adjust the earpiece volume,
use the Volume keys on the left side of the phone.
Press the key to increase the volume level and the key
to decrease the level.
In Idle mode, you can also adjust the keypad tone volume
using these keys.
e635.book Page 24 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 25
Answering a Call
Section 3
Answering a Call
When somebody calls you, the phone rings and displays
the incoming call image.
The caller’s phone number, or name if stored in
Phonebook, displays.
1. If necessary, open the phone. Press the key or the
Accept soft key to answer the incoming call.
If the Anykey answer option in the Extra Settings menu
is activated, you can press any key to answer a call
except for the key and the Reject soft key.
If the Accept Call option in the Slide Settings menu is
activated, you can answer the call simply by sliding the
phone open.
Note: To reject an incoming call, press and hold the Volume keys on the left
side of the phone before opening the phone, or press the Reject soft key or
key.
2. End the call by closing the phone or pressing the
key.
Note: You can answer a call while using the Phonebook or menu features.
After ending the call, the phone returns to the function screen you were
using.
e635.book Page 25 Tuesday, May 17, 2005 4:55 PM
26
Section 3
Call Log
All incoming, outgoing and missed calls are listed in the
Call Log.
1. To access the Call Log option, press the key. A list of
calls displays.
2. Press the Options soft key to see Details, Call back, Edit,
Send message, or Delete the calls.
3. To place a call press the key.
Viewing Missed Calls
When you are unable to answer a call for any reason, you
can find out who is calling you, if this service is available,
so that you can call the person back.
The number of calls you have missed displays on the idle
screen immediately after a call is missed.
To view a missed call immediately:
1. If the phone is closed, open the phone.
2. Press the View soft key.
The number corresponding to the most recent missed call
displays, if available.
3. To scroll through the missed calls, press the Up or Down
key.
4. To call the number displayed, press the key.
Editing a Missed Call Number
To edit a missed call number:
1. Press the View soft key. Press the Options soft key and
select Edit.
e635.book Page 26 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 27
Call Log
Section 3
2. Change the number and press the Save soft key or the
key.
3. Select a location (SIM or Phone) and press the Select
soft key or the key.
4. If you saved the number to Phone, highlight a phone
type and press the Select soft key or the key.
5. Enter a name and press the OK soft key or the key.
6. Press the Options soft key to Send message, Assign
speed dial, Edit name or number, Delete entry, Copy, or
Send via infrared.
Note: When the number corresponding to the missed call is not available,
the Edit option does not display.
Deleting a Missed Call
1. Press the View soft key. A list of missed calls displays.
2. If necessary, press the Up or Down key to highlight the
missed call and press the Options soft key.
3. Highlight Delete and press the Select soft key or the
key.
4. Select Yes to confirm deletion or No to cancel.
You can press the key at any time to exit the Missed
Call feature.
Note: You can access the Missed Call feature at any time by selecting the
Missed calls menu.
e635.book Page 27 Tuesday, May 17, 2005 4:55 PM
28
Section 3
Call Records
In this menu, you can view:
• missed calls, incoming calls, and outgoing calls.
• length of your calls.
Note: You can access the call records of incoming, outgoing, and missed
calls by pressing the key in Idle mode.
Note: The number of call records the phone can store may vary, depending
on your SIM card.
Missed calls
This menu lets you view the 20 most recent calls you
received, but did not answer.
The number and name, if already stored in your
Phonebook, displays with the time and date the call was
received.
Incoming calls
This menu lets you view the 20 most recent calls you
received.
The number and name, if already stored in your
Phonebook, displays with the time and date the call was
received.
Outgoing calls
This menu lets you view the 20 most recent calls you
dialed.
e635.book Page 28 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 29
Call Records
Section 3
The number and name, if already stored in your
Phonebook, displays with the time and date the call was
made.
Delete all
This menu allows you to delete all of the records in each
call record separately, or you can delete all of your call
records at one time.
1. Highlight the type of calls you want to delete and press
the Select soft key or the key to make a check mark.
1. Press the
OK
soft key to delete the calls.
2. When a confirmation message displays, press the
Yes
soft key or key to confirm.
Call time
This menu lets you view the time log for calls made and
received.
Note: The actual time invoiced by your service provider may vary,
depending on network features, rounding-off for billing purposes, and so
on.
The following time logs are available:
• Last call: shows the length of your last call.
• Total outgoing: shows the total length of all calls you have
made since the timer was last reset.
• Total incoming: shows the total length of all calls you have
received since the timer was last reset.
• Life time: shows the total length of time for incoming and
outgoing calls. The length of call time must be at least 1
minute to increment this field. This information cannot be
cleared.
e635.book Page 29 Tuesday, May 17, 2005 4:55 PM
30
Section 3
• Reset timers: allows you to reset the call timers. You must
first enter the phone password and then press the OK soft key
or key.
Note: The password is preset to “00000000” at the factory. To change this
password, see "Change Password" on page 95.
Note: This will not reset the Life time timer option.
Silent Mode
Silent mode is convenient when you wish to stop the
phone from making noise, in a theater for example.
In Idle mode, press and hold the key until the “Silent
Mode On” message and the Silent Mode icon ( ) is
displayed.
In Silent mode, instead of sounds, your phone will
vibrate.
To exit and reactivate the previous sound settings, press
and hold the key again until “Exit Silent Mode”
appears. The Silent Mode icon ( ) no longer displays.
Selecting Functions and Options
Your phone offers a set of functions that allow you to
customize it. These functions are arranged in menus and
sub-menus, accessed using the two soft keys. Each menu
and sub-menu allows you to view and alter the settings of
a particular function.
e635.book Page 30 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 31
Selecting Functions and Options
Section 3
Soft Keys
The roles of the soft keys vary depending on the function
you are currently using; the labels on the bottom line of the
display just above each key indicate their current role.
Selecting Options
To view the various functions and options available and
to select the one you want:
1. Press the appropriate soft key.
2. To select the function displayed or the option
highlighted, press the Select soft key or the key.
3. To view the next function or highlight the next option on
a list, press the Down Navigation key.
Menu Ph.Book
Press the left soft key
for
Menu
mode.
Press the right soft key
to access the
Ph.Book
menu.
e635.book Page 31 Tuesday, May 17, 2005 4:55 PM
32
Section 3
4. To move back to the previous function or option on a list,
press the Up key.
5. To move back up one level in the menu structure, press
the key.
6. To exit the menu structure without changing the settings,
press the key.
In some functions, you may be asked for a password or
PIN. Enter the code and press the OK soft key or the
key.
When you access a list of options, your phone highlights
the currently active option. If, however, there are only two
options, such as On/Off or Enable/Disable, your phone
highlights the option that is not currently active, so that
you can select it directly.
Options During a Call
Your phone provides a number of control functions that
you can use during a call.
Putting a Call on Hold
You can place the current call on hold whenever you
want. You can make another call while you have a call in
progress if your network supports this service.
To place a call on hold, simply press the Options soft key,
highlight the Hold option and press the Select soft key or
the key. You can reactivate the call whenever you
want, by pressing the Resume soft key.
To make a call while you have a call in progress:
1. Enter the phone number that you wish to dial or look it up
in the Phonebook.
e635.book Page 32 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 33
Selecting Functions and Options
Section 3
2. Press the key to dial the second call.
The first call is automatically put on hold.
Or 1. Press the Options soft key and select New call.
2. Make the second call in the normal way.
When you have an active call and a call on hold, you can
switch between the two calls, changing the one on hold to
active and placing the other on hold.
To switch between the two calls, simply press the Swap
soft key.
The current call is placed on hold and the call on hold is
reactivated so that you can continue conversing with that
person.
When you want to finish, end each call normally by
pressing the key.
Switching off the Microphone (Mute)
You can temporarily switch your phone’s microphone
off, so that the other person cannot hear you.
Example: You wish to say something to another person in the room, but do
not want the person on the phone to hear you.
To switch the microphone off temporarily:
1. Press the Options soft key or the key.
2. If necessary, press the Down key to highlight the Mute
option.
3. Press the Select soft key or the key. The other
person can no longer hear you.
e635.book Page 33 Tuesday, May 17, 2005 4:55 PM
34
Section 3
To switch the microphone back on:
1. Press the Opt. soft key or the key.
2. If necessary, press the Down key to highlight the
Unmute option.
3. Press the Select soft key or the key. The other
person can hear you again.
Using the Speakerphone
While on a call, you can use your Speakerphone by
following these steps:
1. Press the Spkr on soft key.
2. You will receive the confirmation, Speaker On?
3. Press the Yes soft key.
4. To turn the Speakerphone off, press the Spkr off soft
key.
Muting or Sending Key Tones
These options allow you to turn the key tones off or on. If
the Mute keys option is selected, your phone does not
transmit the DTMF (Dual Tone Multi-Frequency) tones of
the keys, which allows you to press keys without hearing
annoying key tones during a call.
Note: To communicate with answering machines or computerized
telephone systems, the Send keys option must be selected.
Searching for a Number in Phonebook
You can search for a number in Phonebook during a call.
1. Press the Options soft key or the key.
e635.book Page 34 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 35
Selecting Functions and Options
Section 3
2. Press the Down key to highlight the Phonebook option
and press the Select soft key or the key.
3. Press the Down key to highlight the Search option and
press the Select soft key or the key.
The Phonebook entries are listed.
4. Enter the name that you wish to find in the textbox
located below the entries.
5. If you enter the first few letters of the name, the
Phonebook entries are listed starting with the first entry
matching your input.
6. To view the highlighted entry, press the View soft key.
For further details about the Phonebook feature, see
"Finding a Phonebook Entry" on page 58.
Call Waiting
You can answer an incoming call while you have a call in
progress, if this service is supported by the network and
you have set the Call waiting menu to Activate. You are
notified of an incoming call by a call waiting tone.
To answer a call while you have a call in progress:
1. Press the key to answer the incoming call. The first
call is automatically put on hold.
2. To switch between the two calls, press the Swap soft
key.
To end a call on hold, press the Options soft key or the
key and select the End held call option.
To end the current call, press the key.
e635.book Page 35 Tuesday, May 17, 2005 4:55 PM
36
Section 3
Making a Multi-Party Call
A multi-party call is a network service that allows up to six
people to take part simultaneously in a multi-party or
conference call.
For further details about subscribing to this service,
contact your service provider.
Setting up a Multi-Party Call
1. Call the first participant in the normal way.
2. Call the second participant in the normal way. The first
call is automatically put on hold.
3. To join the first participant to the multi-party call, press
the Options soft key or the key and select Join.
Press the OK soft key or the key.
4. To add a new person to the multi-party call, call the new
person in the normal way and then press the Options
soft key or the key. Select the Join option and press
the OK soft key or the key.
You can add incoming callers by answering the call and
pressing the Options soft key or the key, and selecting
Join. Repeat as required.
Having a Private Conversation With One Participant
1. Press the Options soft key or the key and choose the
Split option. Press the Select soft key or the key.
The list of call participants appears.
2. Highlight a person by pressing the Up or Down key, and
press the Select soft key, the key, or the key.
e635.book Page 36 Tuesday, May 17, 2005 4:55 PM
Section 3: Call Functions 37
Selecting Functions and Options
Section 3
Now you can talk privately to that person. The other
participants can continue to converse with each other.
3. To return to the multi-party call, press the Options soft
key or the key and select Join. Press the Select soft
key or the key.
All of the multi-party call participants can now hear each
other.
Dropping One Participant
1. Press the Options soft key or the key and choose the
Split option. Press the Select soft key or the key.
The list of call participants appears.
2. Highlight a person by pressing the Up or Down key, and
press the Select soft key or the key.
3. Press the Options soft key. Highlight the End held
multiparty option. Press the Select soft key or the
key.
The call with that participant ends, but you can continue
to talk to the other participants.
4. When you want to end the multi-party call, close the
phone or press the key.
e635.book Page 37 Tuesday, May 17, 2005 4:55 PM
38
Section 3
e635.book Page 38 Tuesday, May 17, 2005 4:55 PM
Section 4
Section 4: Menu Navigation 39
Section 4: Menu Navigation
Topics Covered
• Menu Navigation
• Menu Outline
This section explains the menu navigation for your
phone. It also includes an outline of all the available
menus associated with your phone.
e635.book Page 39 Tuesday, May 17, 2005 4:55 PM
Section 4
40
Menu Navigation
You can tailor the phone’s range of functions to your
needs using menus and sub-menus. Menus and sub-
menus can be accessed by scrolling using the Navigation
keys or by using the shortcuts.
Accessing a Menu Function by Scrolling
1. In Idle mode, press the Menu soft key to access Menu
mode.
2. Scroll using the Navigation keys to reach a main menu
Settings, for example. Press the Select soft key or the
key to enter the menu.
3. If the menu contains sub-menus, Language for
example, you can access them by pressing the Select
soft key or the key.
If the menu that you have selected contains further
options, repeat this step.
4. To scroll through the menus, press the Up or Down
Navigation keys.
5. To confirm the chosen setting, press the Select soft key,
or the key.
6. To return to the previous menu level, press the key, or
the key.
7. To exit the menu without changing the settings, press
the key.
e635.book Page 40 Tuesday, May 17, 2005 4:55 PM
Section 4: Menu Navigation 41
Menu Outline
Section 4
Using Shortcuts
The menu items, such as menus, sub-menus, and options,
are numbered and can be accessed quickly by using their
shortcut numbers. For the main menus, you can access
any one of them by pressing the number keys (1 to 0)
corresponding to their location on the screen.
Example: Accessing the Language menu.
1. Press the Menu soft key.
2. Press the 9 key for Settings.
3. Press the 6 key for Language.
Menu Outline
The following list shows the menu structure andindicates
the number assigned to each option.
1 Voice messages
2 Call records
2.1 Missed calls
2.2 Incoming calls
2.3 Outgoing calls
2.4 Delete all
2.5 Call time
2.5.1 Last call
2.5.2 Total outgoing
2.5.3 Total incoming
2.5.4 Life time
2.5.5 Reset timers
e635.book Page 41 Tuesday, May 17, 2005 4:55 PM
Section 4
42
3t-zones
3.1 Home
3.2 Favorites
3.3 Go to URL
3.4 Clear cache
4IM
5 Messages
5.1 Text messages
5.1.1 Create
5.1.2 Inbox
5.1.3 Outbox
5.1.4 Delete all
5.2 Picture messages
5.2.1 Create
5.2.2 Inbox
5.2.3 Outbox
5.2.4 Draft
5.2.5 Delete all
5.3 Browser messages
5.3.1 Inbox
5.3.2 Receive
5.3.3 Delete all
5.4 Voice mail
5.4.1 Call voice mail
5.4.2 Voice server number
5.5 Broadcast messages*
5.6 Settings
5.6.1 Text messages
5.6.2 Picture messages
5.7 Memory status
e635.book Page 42 Tuesday, May 17, 2005 4:55 PM
Section 4: Menu Navigation 43
Menu Outline
Section 4
5.7.1 Text messages
5.7.2 Picture messages
6 Fun box
6.1 t-zones
6.2 Sounds
6.3 Images
6.4 Games
6.5 My photos
6.6 Delete all
6.6.1 Sounds
6.6.2 Images
6.6.3 My photos
6.7 Memory status
6.7.1 Sounds & Images
6.7.2 Games
6.8 Melody composer
6.8.1 Compose melody
6.8.2 Memory status
7 Organizer
7.1 Alarm
7.2 Calendar
7.3 Calculator
7.4 To do list
7.5 Voice memo
7.5.1 Record voice
7.5.2 Voice memos
7.5.3 Delete all
7.5.4 Settings
7.5.5 Memory status
7.6 Conversion
e635.book Page 43 Tuesday, May 17, 2005 4:55 PM
Section 4
44
7.6.1 Length
7.6.2 Weight
7.6.3 Volume
7.6.4 Area
7.6.5 Temperature
7.7 Timer
7.8 Stopwatch
8Camera
8.1 Take and Send
8.2 My photos
8.3 My Album
8.4 My Journal
8.5 Delete all
8.6 Settings
8.6.1 Photo size
8.6.2 Shutter sound
8.6.3 Flash light
8.6.4 Default name
8.7 Memory status
9 Settings
9.1 Time & Date
9.1.1 Set date
9.1.2 World time
9.1.3 Set time
9.1.4 Time format
9.1.5 Auto update
9.2 Display settings
9.2.1 Wallpaper
9.2.2 Display
9.2.3 Backlight
e635.book Page 44 Tuesday, May 17, 2005 4:55 PM
Section 4: Menu Navigation 45
Menu Outline
Section 4
9.2.4 Brightness control
9.2.5 Dialing font color
9.3 Sound settings
9.3.1 My MegaTones
9.3.2 Get More MegaTones
9.3.3 Ringtones
9.3.4 Ring volume
9.3.5 Alert type
9.3.6 Keypad tone
9.3.7 Message tone
9.3.8 Power on/off
9.3.9 Alerts on call
9.3.0 Silent mode
9.3.* Extra tones
9.4 Get More Help
9.5 Greeting message
9.6 Language
9.6.1 Text language
9.6.2 Input mode
9.7 Security
9.7.1 PIN check
9.7.2 Change PIN
9.7.3 Phone lock
9.7.4 Change password
9.7.5 Privacy
9.7.6 FDN mode
9.7.7 Change PIN2
9.8 Slide settings
9.8.1 Up
9.8.2 Down
9.9 Infrared activation
9.0 Extra settings
9.* Reset settings
e635.book Page 45 Tuesday, May 17, 2005 4:55 PM
Section 4
46
9.*.1 Sound settings
9.*.2 Phone settings
9.*.3 All settings
9.# Network services
9.#.1 Call forwarding
9.#.2 Call waiting
9.#.3 Network selection
9.#.4 Caller ID
9.#.5 Band selection
* Shows only if supported by your SIM card.
e635.book Page 46 Tuesday, May 17, 2005 4:55 PM
Section 5: Entering Text 47
Section 5
Section 5: Entering Text
Topics Covered
• Changing the Text Input Mode
• Using T9 Mode
• Using ABC Mode
• Using Symbols
• Using Numbers
This section outlines how to select the desired text input
mode when entering characters into your phone. This
section also describes how to use the T9 predictive text
entry system to reduce the number of key strokes
associated with entering text.
e635.book Page 47 Tuesday, May 17, 2005 4:55 PM
48
Section 5
Changing the Text Input Mode
When using your phone, you will often need to enter text,
such as when storing a name in Phonebook, creating your
personal greeting or scheduling events on your calendar.
You can enter alphanumeric characters by using your
phone’s keypad.
Your phone has the following text input modes:
• ABC mode: allows you to enter letters by pressing the key
labeled with the letter you want. Press the key once, twice,
three, or four times until it displays.
• T9 mode: allows you to enter words with only one keystroke
per letter. Each key on the keypad has more than one letter; for
example, pressing the 5 key can enter J, K, or L. However, the
T9 mode automatically compares the series of keystrokes you
make with an internal linguistic dictionary to determine the
most likely word, thus requiring far fewer keystrokes than the
traditional ABC mode.
• Symbol mode: This mode allows you to enter symbols, such as
punctuation marks.
• Number mode: This mode allows you to enter numbers.
When you are in a field that allows characters to be
entered, you will notice the text input mode indicator on
the display.
Example: Writing a text message.
e635.book Page 48 Tuesday, May 17, 2005 4:55 PM
Section 5: Entering Text 49
Using T9 Mode
Section 5
1. To change the text input mode, press the key.
2. Highlight the input option you want, and press the
Select (left) soft key ( ) or the key.
3. Choose from the following options:
: ABC mode
: T9 mode
: Number mode
Using T9 Mode
T9 is a predictive text input mode that allows you to key
in any character using single keystrokes. This text input
mode is based on a built-in dictionary.
To enter a word in T9 mode:
1. When you are in T9 mode, start entering a word by
pressing the 2 to 9 keys. Press each key only once for
each letter.
Example: To enter “Hello” in T9 mode, press the 4, 3, 5, 5, and 6 keys.
Text input mode
indicator
e635.book Page 49 Tuesday, May 17, 2005 4:55 PM
50
Section 5
The word that you are typing appears on the display. It
may change with each key that you press.
2. Enter the whole word before editing or deleting the
keystrokes.
3. When the word displays correctly, go to step 4.
If the word doesn’t display correctly, press the 0 key to
display alternative word choices for the keys that you
have pressed.
Example: Both “Of” and “Me” have the 6 and 3 keys. The phone displays
the most commonly used choice first.
4. Insert a space by pressing the key and start entering
the next word.
To add a new word into the T9 dictionary:
1. After pressing the keys corresponding to the word you
want to add, press the 0 key to display the alternative
words.
2. When you press the 0 key at the last alternative word,
the display shows Spell on the bottom line. Press the
Spell soft key or the key.
3. Enter the word you want to add using ABC mode.
4. Press the OK soft key.
The word is added to the T9 dictionary and becomes the
first word for the associated keypress series.
Note: This feature may not be available for some languages.
e635.book Page 50 Tuesday, May 17, 2005 4:55 PM
Section 5: Entering Text 51
Using ABC Mode
Section 5
• To enter periods, hyphens, or apostrophes, press the 1 key. T9
mode applies grammar rules to ensure that correct punctuation
is used.
• To see all of the symbols, press and hold the key. Use the Up
and Down Navigation keys to page through the different
symbols. Press the corresponding number to the symbol you
want. Press the OK soft key.
• To shift case in T9 mode, use the key. There are 3 cases:
Initial capital, Capital lock, and Lower case.
• You can move the cursor by using the Left and Right keys. To
delete letters, press the C key. Press and hold the C key to
clear the display.
Using ABC Mode
To use ABC Mode, use the 1 to 0 keys to enter your text.
1. Press the key labeled with the letter you want:
•- Once for the first letter
•- Twice for the second letter
•- And so on
2. Select the other letters in the same way.
Note: The cursor moves to the right when you press a different key. When
entering the same letter twice or a different letter on the same key, just
wait for a few seconds for the cursor to move to the right automatically,
and then select the next letter.
Keys
e635.book Page 51 Tuesday, May 17, 2005 4:55 PM
52
Section 5
e635.book Page 52 Tuesday, May 17, 2005 4:55 PM
Section 5: Entering Text 53
Using Symbols
Section 5
Using Symbols
Symbol mode enables you to insert symbols and
punctuation marks into text.
1. To select a symbol, press the corresponding number key.
2. To display more symbols, press the Up or Down
Navigation key.
3. To clear the symbol(s), press the C key. When the input
field is empty, this key returns the display to the
previous mode.
4. To insert the symbol(s) into your message, press the OK
soft key or the key.
Using Numbers
Number mode enables you to enter numbers into a text
message. Press the keys corresponding to the digits you
want to enter.
e635.book Page 53 Tuesday, May 17, 2005 4:55 PM
54
Section 5
e635.book Page 54 Tuesday, May 17, 2005 4:55 PM
Section 6: Understanding Your Phonebook 55
Section 6
Section 6: Understanding Your
Phonebook
Topics Covered
• Storing a Number in the SIM Card
• Storing a Number in the Phone’s Memory
• Finding a Phonebook Entry
• Using Phonebook Entry Options
• Dialing a Number from Phonebook
• Speed Dialing
• Editing a Caller Group
• Dialing a Number from the SIM Card
• Copying all SIM Phonebook Entries
• Deleting all Phonebook Entries
• Finding My Phone Number
• Using the Service Dialing Numbers
• Checking the Memory Status
This section allows you to manage your daily contacts by
storing their name and number in your Phonebook.
Phonebook entries can be sorted by name, entry, or group.
e635.book Page 55 Tuesday, May 17, 2005 4:55 PM
56
Section 6
Storing a Number in the SIM Card
1. At the Idle screen, press the Ph.Book soft key.
2. Scroll to New entry by pressing the Up or Down key and
press the Select soft key or the key.
3. Highlight the SIM option, by pressing the Up or Down
key and press the Select soft key or the key.
4. Enter a phone number and press the Save soft key or the
key.
5. Enter a name and press the OK soft key or the key.
For further details about how to enter characters, see
"Using ABC Mode" on page 51.
After storing, the phone displays the Phonebook entry
number you just created.
6. To use the entry options, press the Options soft key.
The following options are available:
•Send message: allows you to create a message for the
selected Phonebook entry.
•Assign speed dial: allows you to assign a speed dial key
number to the selected Phonebook entry.
•Edit number: allows you to edit the number. Press the OK
key to save.
•Edit name: allows you to edit the number. Press the OK key
to save.
•Delete entry: allows you to delete the entry you have
selected. Press Yes to confirm delete action, or No to cancel.
•Copy to Phone: allows you to copy the number to your
phone.
e635.book Page 56 Tuesday, May 17, 2005 4:55 PM
