Samsung Electronics Co SGHE635 Dual-Band GSM Phone User Manual 2

Samsung Electronics Co Ltd Dual-Band GSM Phone Users Manual 2

Contents

Users Manual 2

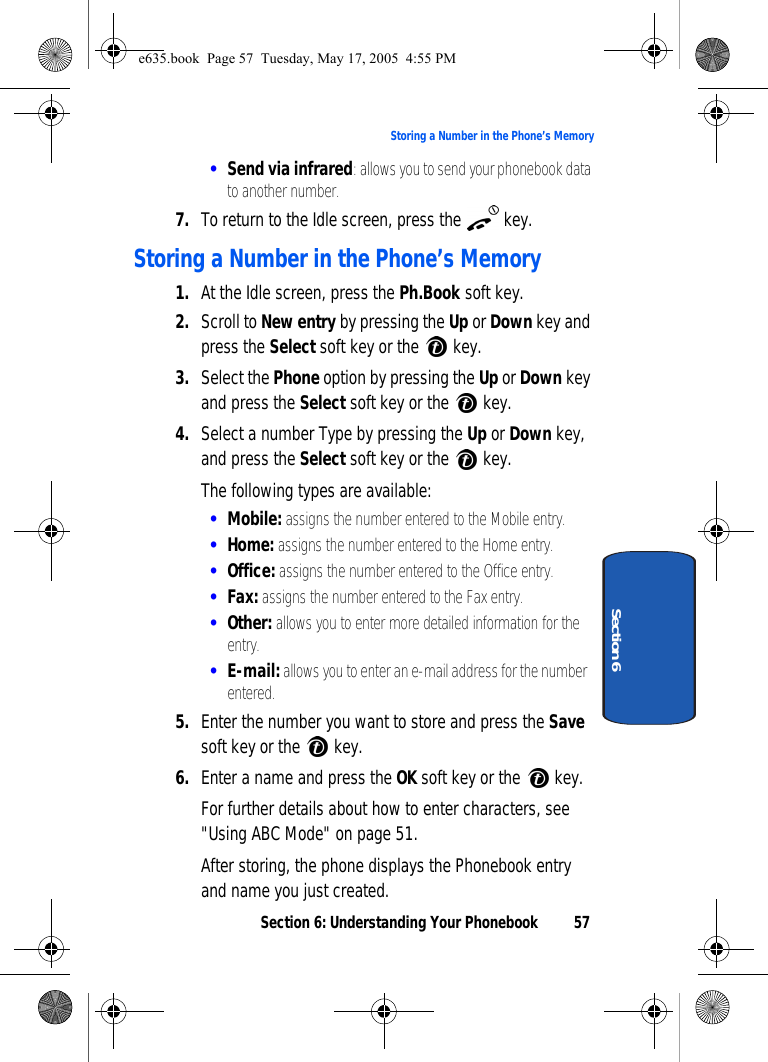

Section 6: Understanding Your Phonebook 57Storing a Number in the Phone’s MemorySection 6•Send via infrared: allows you to send your phonebook data to another number.7. To return to the Idle screen, press the key.Storing a Number in the Phone’s Memory1. At the Idle screen, press the Ph.Book soft key.2. Scroll to New entry by pressing the Up or Down key and press the Select soft key or the key.3. Select the Phone option by pressing the Up or Down key and press the Select soft key or the key.4. Select a number Type by pressing the Up or Down key, and press the Select soft key or the key.The following types are available:•Mobile: assigns the number entered to the Mobile entry.•Home: assigns the number entered to the Home entry.•Office: assigns the number entered to the Office entry.•Fax: assigns the number entered to the Fax entry.•Other: allows you to enter more detailed information for the entry. •E-mail: allows you to enter an e-mail address for the number entered.5. Enter the number you want to store and press the Save soft key or the key.6. Enter a name and press the OK soft key or the key. For further details about how to enter characters, see "Using ABC Mode" on page 51.After storing, the phone displays the Phonebook entry and name you just created.e635.book Page 57 Tuesday, May 17, 2005 4:55 PM

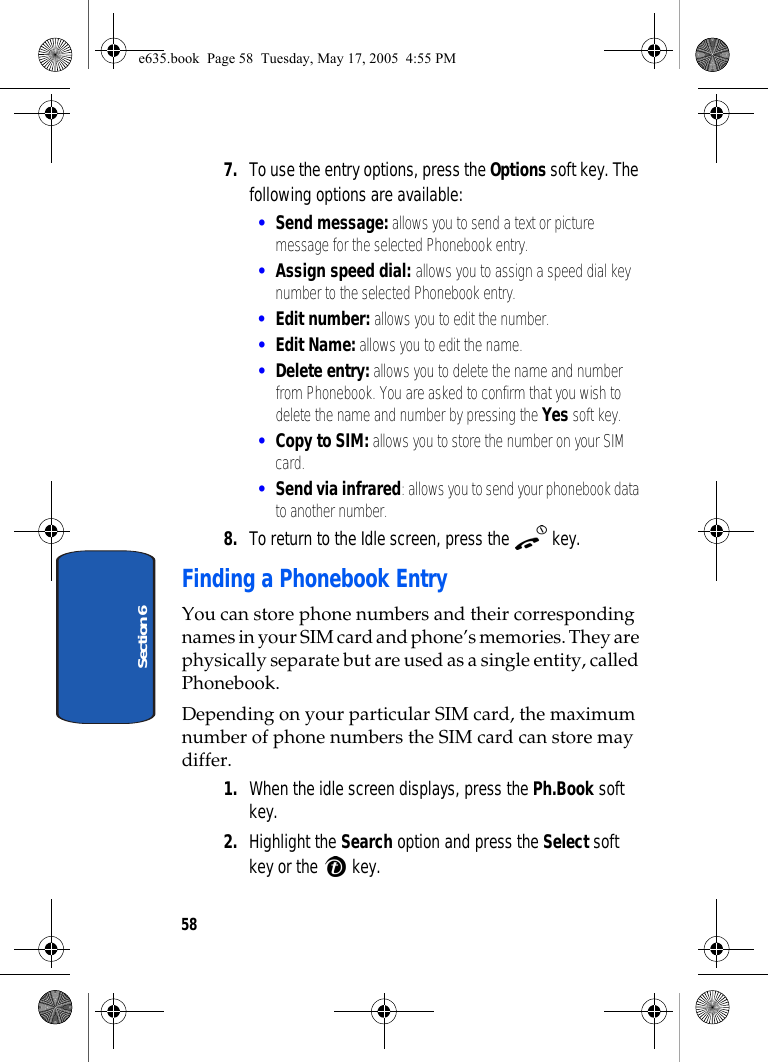

58Section 67. To use the entry options, press the Options soft key. The following options are available:•Send message: allows you to send a text or picture message for the selected Phonebook entry. •Assign speed dial: allows you to assign a speed dial key number to the selected Phonebook entry.•Edit number: allows you to edit the number. •Edit Name: allows you to edit the name.•Delete entry: allows you to delete the name and number from Phonebook. You are asked to confirm that you wish to delete the name and number by pressing the Yes soft key.•Copy to SIM: allows you to store the number on your SIM card.•Send via infrared: allows you to send your phonebook data to another number.8. To return to the Idle screen, press the key.Finding a Phonebook EntryYou can store phone numbers and their corresponding names in your SIM card and phone’s memories. They are physically separate but are used as a single entity, called Phonebook. Depending on your particular SIM card, the maximum number of phone numbers the SIM card can store may differ.1. When the idle screen displays, press the Ph.Book soft key. 2. Highlight the Search option and press the Select soft key or the key. e635.book Page 58 Tuesday, May 17, 2005 4:55 PM

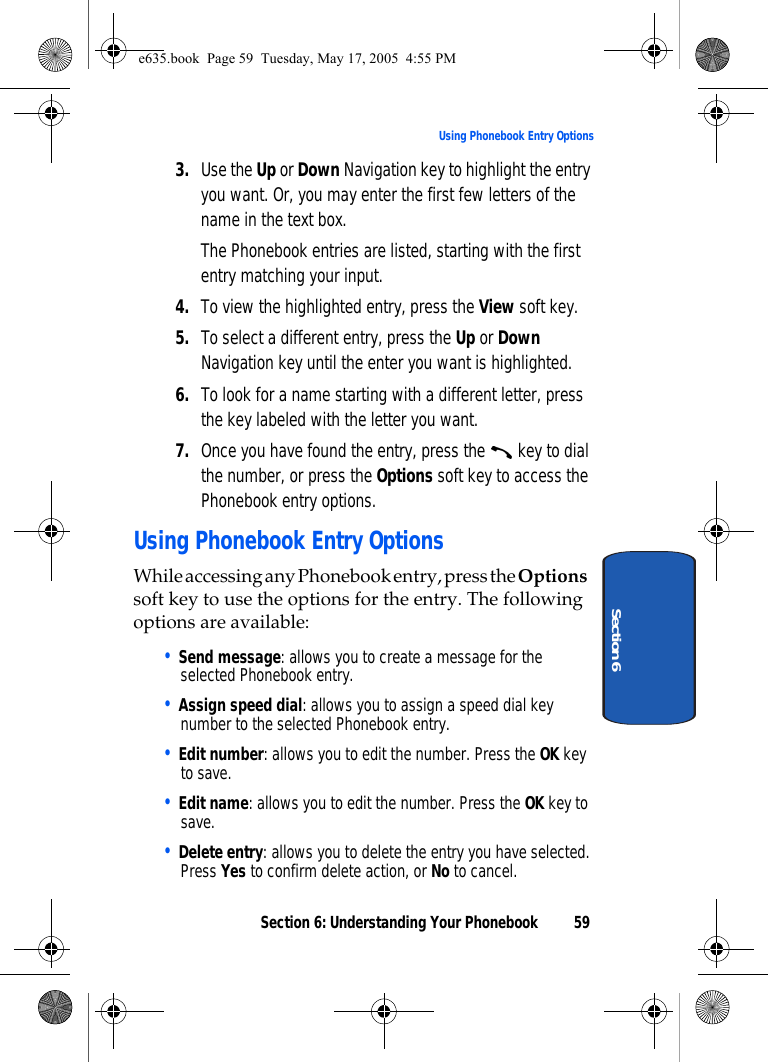

Section 6: Understanding Your Phonebook 59Using Phonebook Entry OptionsSection 63. Use the Up or Down Navigation key to highlight the entry you want. Or, you may enter the first few letters of the name in the text box.The Phonebook entries are listed, starting with the first entry matching your input.4. To view the highlighted entry, press the View soft key.5. To select a different entry, press the Up or Down Navigation key until the enter you want is highlighted.6. To look for a name starting with a different letter, press the key labeled with the letter you want.7. Once you have found the entry, press the key to dial the number, or press the Options soft key to access the Phonebook entry options.Using Phonebook Entry OptionsWhile accessing any Phonebook entry, press the Options soft key to use the options for the entry. The following options are available:• Send message: allows you to create a message for the selected Phonebook entry. • Assign speed dial: allows you to assign a speed dial key number to the selected Phonebook entry.• Edit number: allows you to edit the number. Press the OK key to save.• Edit name: allows you to edit the number. Press the OK key to save.• Delete entry: allows you to delete the entry you have selected. Press Yes to confirm delete action, or No to cancel.e635.book Page 59 Tuesday, May 17, 2005 4:55 PM

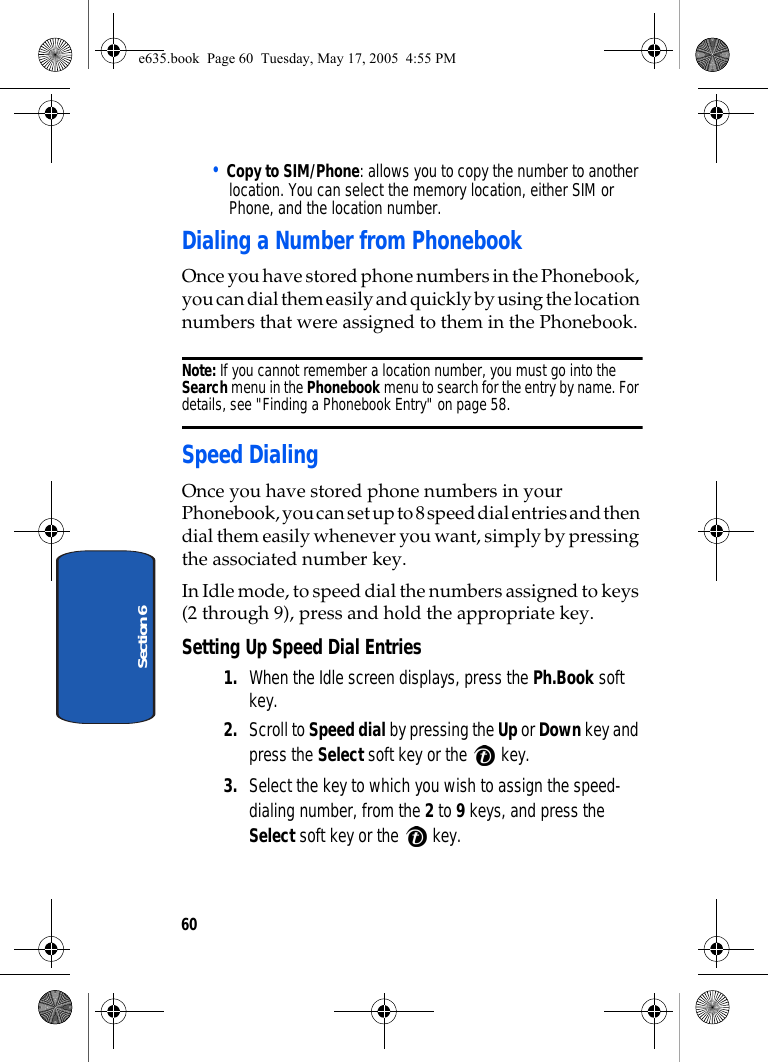

60Section 6• Copy to SIM/Phone: allows you to copy the number to another location. You can select the memory location, either SIM or Phone, and the location number.Dialing a Number from PhonebookOnce you have stored phone numbers in the Phonebook, you can dial them easily and quickly by using the location numbers that were assigned to them in the Phonebook. Note: If you cannot remember a location number, you must go into the Search menu in the Phonebook menu to search for the entry by name. For details, see "Finding a Phonebook Entry" on page 58.Speed DialingOnce you have stored phone numbers in your Phonebook, you can set up to 8 speed dial entries and then dial them easily whenever you want, simply by pressing the associated number key. In Idle mode, to speed dial the numbers assigned to keys (2 through 9), press and hold the appropriate key. Setting Up Speed Dial Entries1. When the Idle screen displays, press the Ph.Book soft key.2. Scroll to Speed dial by pressing the Up or Down key and press the Select soft key or the key.3. Select the key to which you wish to assign the speed-dialing number, from the 2 to 9 keys, and press the Select soft key or the key.e635.book Page 60 Tuesday, May 17, 2005 4:55 PM

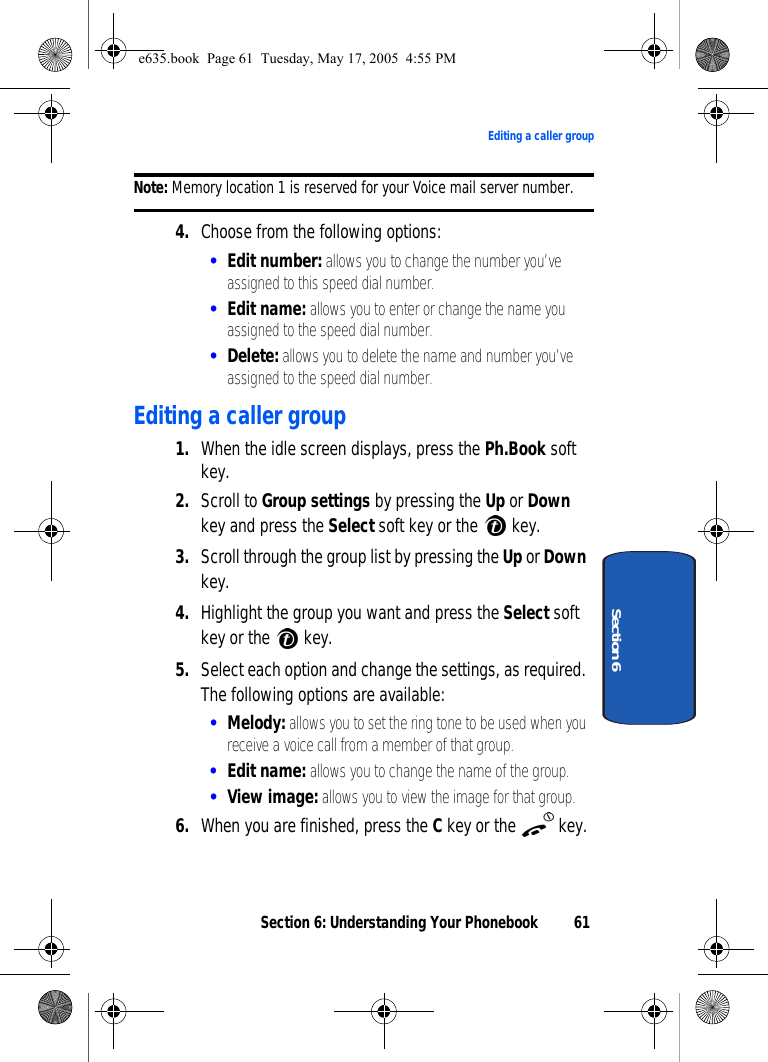

Section 6: Understanding Your Phonebook 61Editing a caller groupSection 6Note: Memory location 1 is reserved for your Voice mail server number. 4. Choose from the following options:•Edit number: allows you to change the number you’ve assigned to this speed dial number.•Edit name: allows you to enter or change the name you assigned to the speed dial number.•Delete: allows you to delete the name and number you’ve assigned to the speed dial number. Editing a caller group1. When the idle screen displays, press the Ph.Book soft key.2. Scroll to Group settings by pressing the Up or Down key and press the Select soft key or the key.3. Scroll through the group list by pressing the Up or Down key.4. Highlight the group you want and press the Select soft key or the key.5. Select each option and change the settings, as required. The following options are available:•Melody: allows you to set the ring tone to be used when you receive a voice call from a member of that group.•Edit name: allows you to change the name of the group.•View image: allows you to view the image for that group.6. When you are finished, press the C key or the key.e635.book Page 61 Tuesday, May 17, 2005 4:55 PM

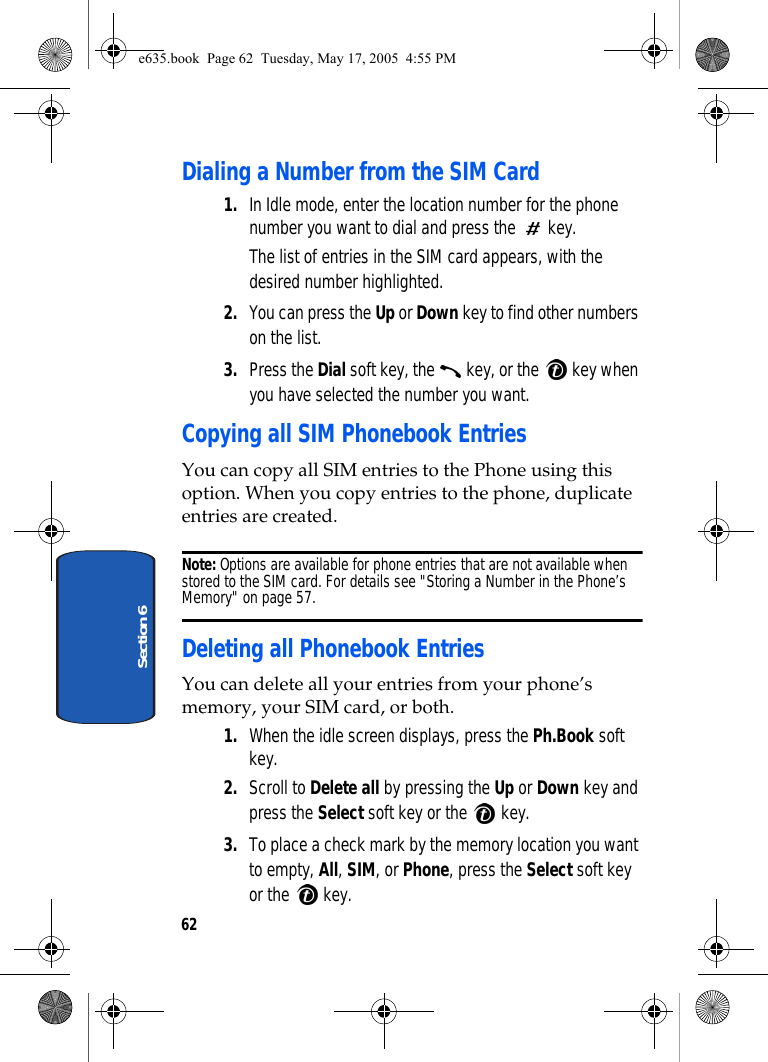

62Section 6Dialing a Number from the SIM Card1. In Idle mode, enter the location number for the phone number you want to dial and press the key.The list of entries in the SIM card appears, with the desired number highlighted.2. You can press the Up or Down key to find other numbers on the list.3. Press the Dial soft key, the key, or the key when you have selected the number you want.Copying all SIM Phonebook EntriesYou can copy all SIM entries to the Phone using this option. When you copy entries to the phone, duplicate entries are created. Note: Options are available for phone entries that are not available when stored to the SIM card. For details see "Storing a Number in the Phone’s Memory" on page 57. Deleting all Phonebook EntriesYou can delete all your entries from your phone’s memory, your SIM card, or both. 1. When the idle screen displays, press the Ph.Book soft key.2. Scroll to Delete all by pressing the Up or Down key and press the Select soft key or the key.3. To place a check mark by the memory location you want to empty, All, SIM, or Phone, press the Select soft key or the key. e635.book Page 62 Tuesday, May 17, 2005 4:55 PM

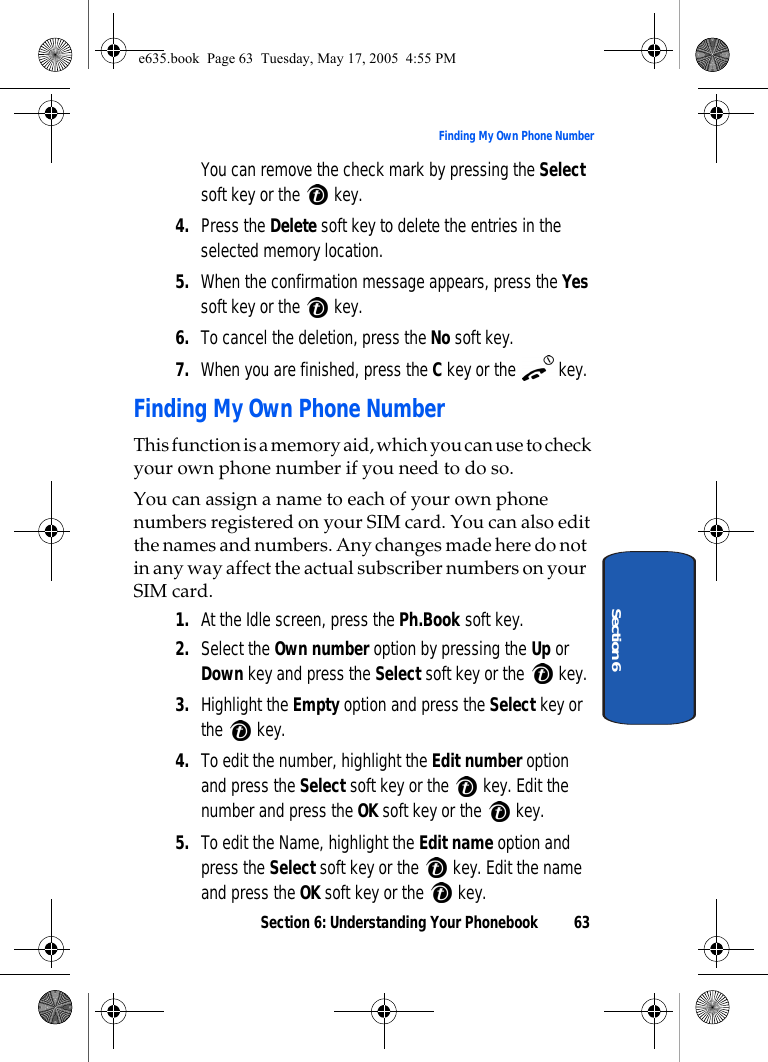

Section 6: Understanding Your Phonebook 63Finding My Own Phone NumberSection 6You can remove the check mark by pressing the Select soft key or the key.4. Press the Delete soft key to delete the entries in the selected memory location.5. When the confirmation message appears, press the Yes soft key or the key.6. To cancel the deletion, press the No soft key.7. When you are finished, press the C key or the key.Finding My Own Phone NumberThis function is a memory aid, which you can use to check your own phone number if you need to do so.You can assign a name to each of your own phone numbers registered on your SIM card. You can also edit the names and numbers. Any changes made here do not in any way affect the actual subscriber numbers on your SIM card.1. At the Idle screen, press the Ph.Book soft key.2. Select the Own number option by pressing the Up or Down key and press the Select soft key or the key.3. Highlight the Empty option and press the Select key or the key. 4. To edit the number, highlight the Edit number option and press the Select soft key or the key. Edit the number and press the OK soft key or the key.5. To edit the Name, highlight the Edit name option and press the Select soft key or the key. Edit the name and press the OK soft key or the key.e635.book Page 63 Tuesday, May 17, 2005 4:55 PM

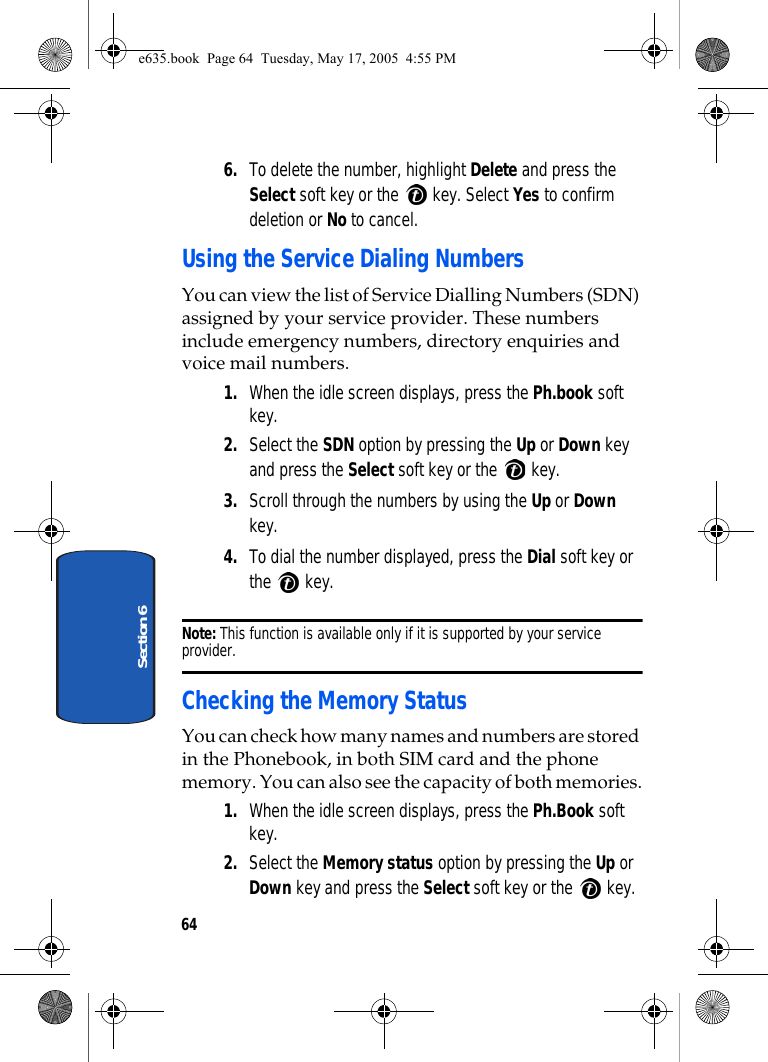

64Section 66. To delete the number, highlight Delete and press the Select soft key or the key. Select Yes to confirm deletion or No to cancel. Using the Service Dialing NumbersYou can view the list of Service Dialling Numbers (SDN) assigned by your service provider. These numbers include emergency numbers, directory enquiries and voice mail numbers. 1. When the idle screen displays, press the Ph.book soft key.2. Select the SDN option by pressing the Up or Down key and press the Select soft key or the key.3. Scroll through the numbers by using the Up or Down key.4. To dial the number displayed, press the Dial soft key or the key.Note: This function is available only if it is supported by your service provider.Checking the Memory StatusYou can check how many names and numbers are stored in the Phonebook, in both SIM card and the phone memory. You can also see the capacity of both memories.1. When the idle screen displays, press the Ph.Book soft key.2. Select the Memory status option by pressing the Up or Down key and press the Select soft key or the key.e635.book Page 64 Tuesday, May 17, 2005 4:55 PM

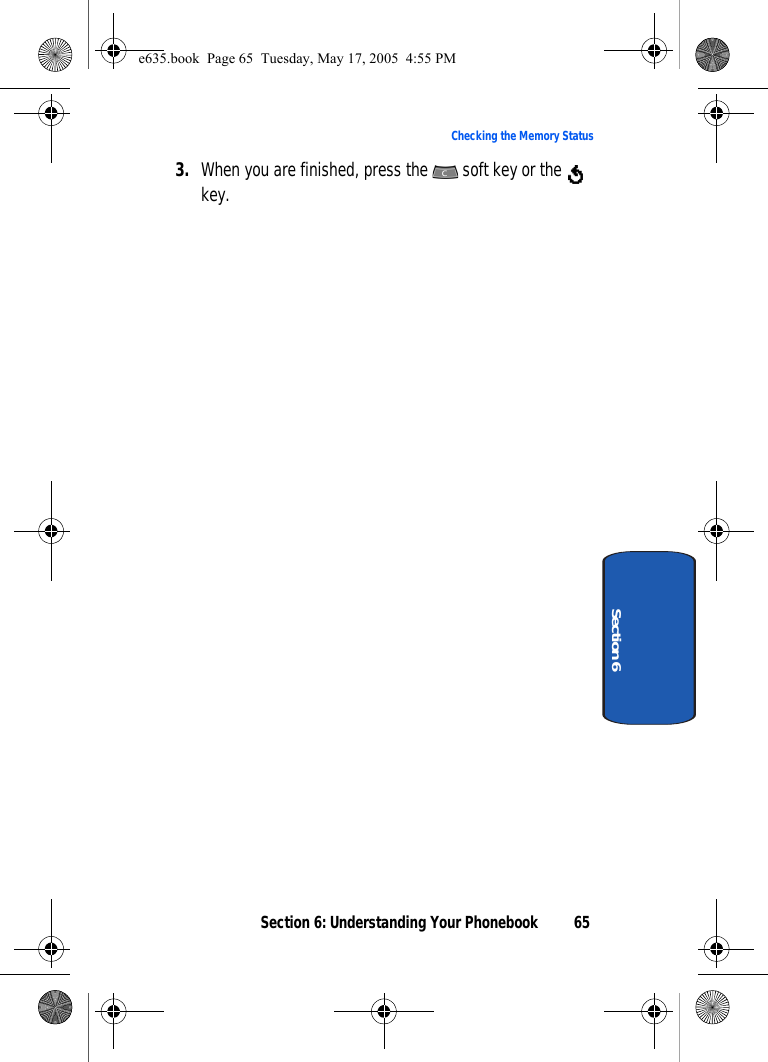

Section 6: Understanding Your Phonebook 65Checking the Memory StatusSection 63. When you are finished, press the soft key or the key.e635.book Page 65 Tuesday, May 17, 2005 4:55 PM

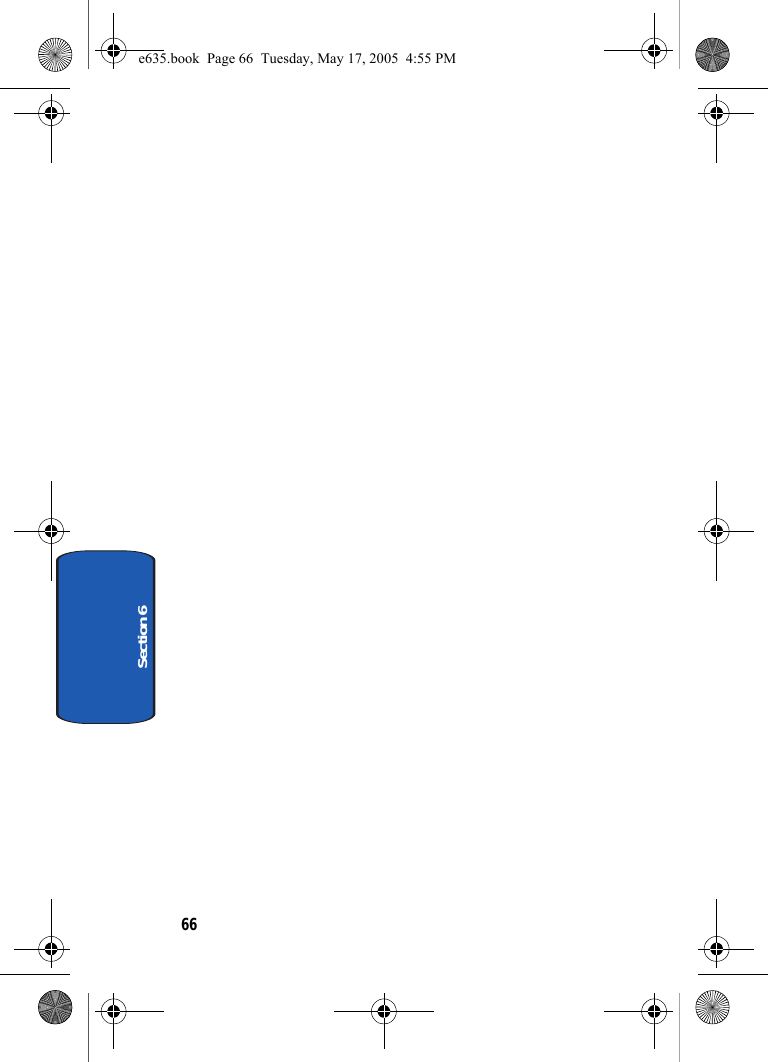

66Section 6e635.book Page 66 Tuesday, May 17, 2005 4:55 PM

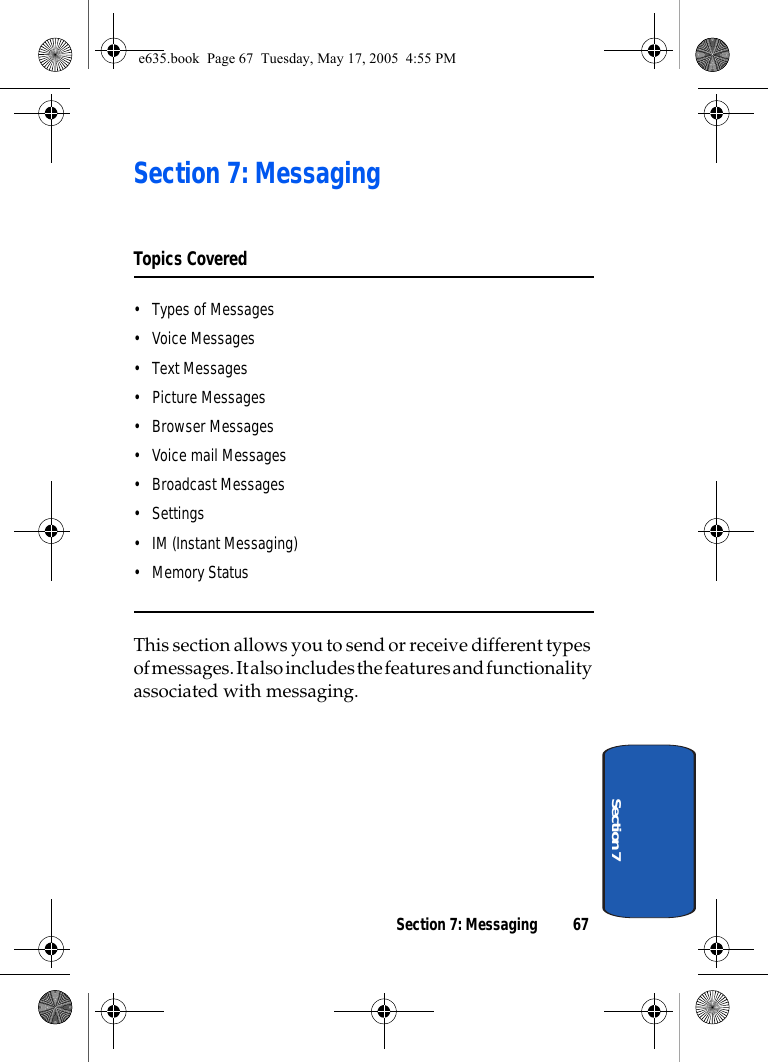

Section 7: Messaging 67Section 7Section 7: MessagingTopics Covered• Types of Messages• Voice Messages• Text Messages• Picture Messages• Browser Messages• Voice mail Messages• Broadcast Messages• Settings• IM (Instant Messaging)• Memory StatusThis section allows you to send or receive different types of messages. It also includes the features and functionality associated with messaging.e635.book Page 67 Tuesday, May 17, 2005 4:55 PM

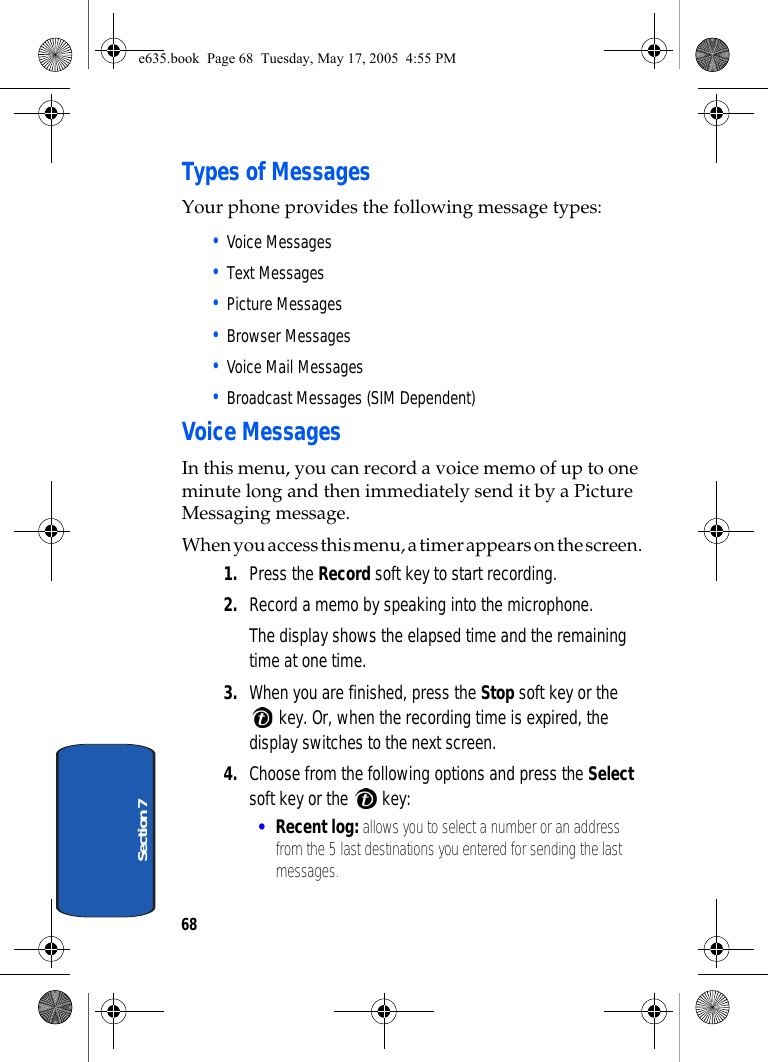

68Section 7Types of MessagesYour phone provides the following message types:• Voice Messages• Text Messages• Picture Messages• Browser Messages• Voice Mail Messages• Broadcast Messages (SIM Dependent)Voice MessagesIn this menu, you can record a voice memo of up to one minute long and then immediately send it by a Picture Messaging message.When you access this menu, a timer appears on the screen.1. Press the Record soft key to start recording.2. Record a memo by speaking into the microphone.The display shows the elapsed time and the remaining time at one time.3. When you are finished, press the Stop soft key or the key. Or, when the recording time is expired, the display switches to the next screen.4. Choose from the following options and press the Select soft key or the key: •Recent log: allows you to select a number or an address from the 5 last destinations you entered for sending the last messages.e635.book Page 68 Tuesday, May 17, 2005 4:55 PM

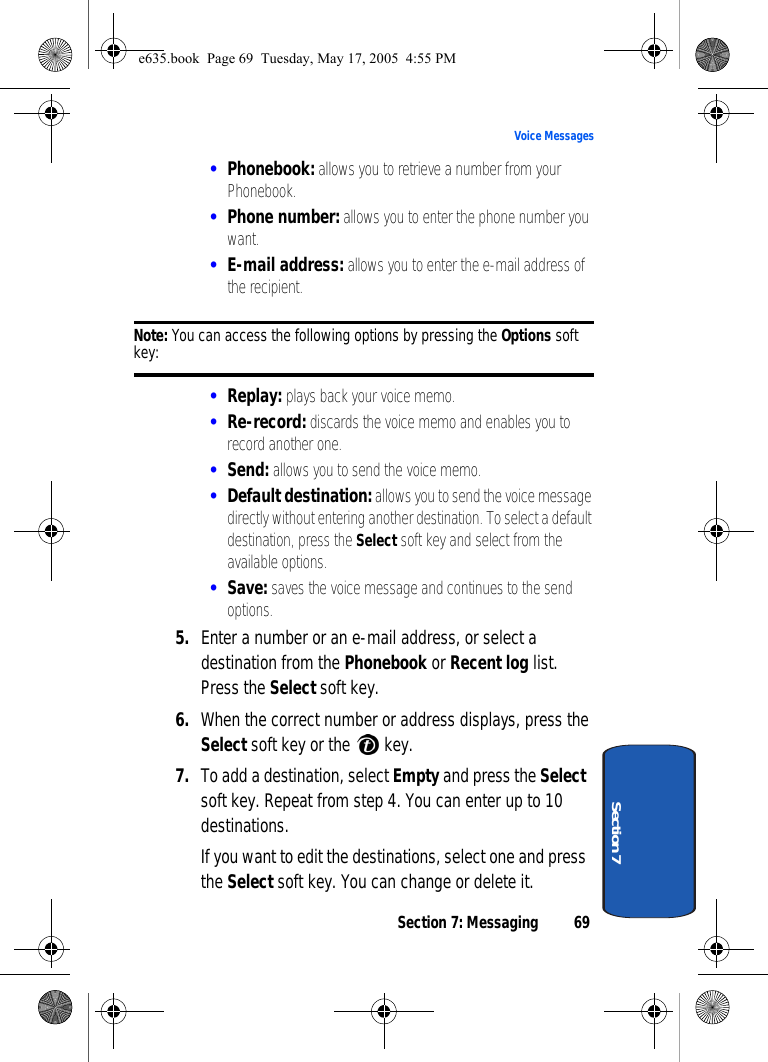

Section 7: Messaging 69Voice MessagesSection 7•Phonebook: allows you to retrieve a number from your Phonebook.•Phone number: allows you to enter the phone number you want.•E-mail address: allows you to enter the e-mail address of the recipient.Note: You can access the following options by pressing the Options soft key:•Replay: plays back your voice memo.•Re-record: discards the voice memo and enables you to record another one.•Send: allows you to send the voice memo.•Default destination: allows you to send the voice message directly without entering another destination. To select a default destination, press the Select soft key and select from the available options.•Save: saves the voice message and continues to the send options.5. Enter a number or an e-mail address, or select a destination from the Phonebook or Recent log list. Press the Select soft key.6. When the correct number or address displays, press the Select soft key or the key.7. To add a destination, select Empty and press the Select soft key. Repeat from step 4. You can enter up to 10 destinations.If you want to edit the destinations, select one and press the Select soft key. You can change or delete it.e635.book Page 69 Tuesday, May 17, 2005 4:55 PM

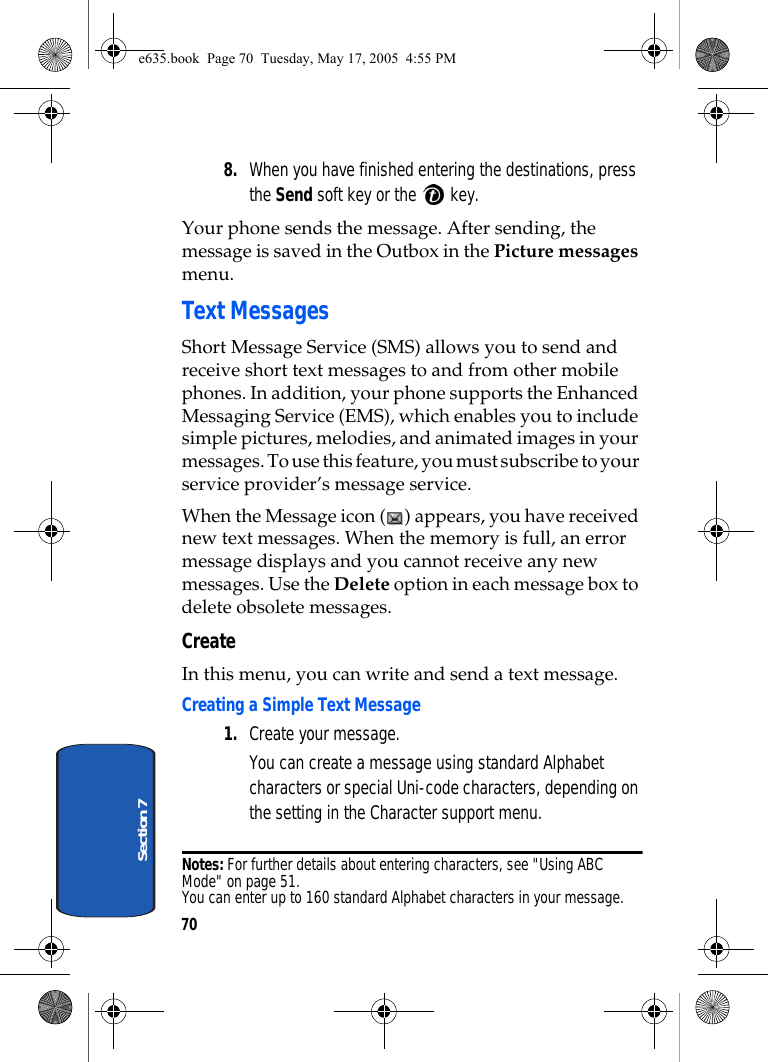

70Section 78. When you have finished entering the destinations, press the Send soft key or the key.Your phone sends the message. After sending, the message is saved in the Outbox in the Picture messages menu.Text MessagesShort Message Service (SMS) allows you to send and receive short text messages to and from other mobile phones. In addition, your phone supports the Enhanced Messaging Service (EMS), which enables you to include simple pictures, melodies, and animated images in your messages. To use this feature, you must subscribe to your service provider’s message service.When the Message icon ( ) appears, you have received new text messages. When the memory is full, an error message displays and you cannot receive any new messages. Use the Delete option in each message box to delete obsolete messages.CreateIn this menu, you can write and send a text message.Creating a Simple Text Message1. Create your message.You can create a message using standard Alphabet characters or special Uni-code characters, depending on the setting in the Character support menu.Notes: For further details about entering characters, see "Using ABC Mode" on page 51. You can enter up to 160 standard Alphabet characters in your message. e635.book Page 70 Tuesday, May 17, 2005 4:55 PM

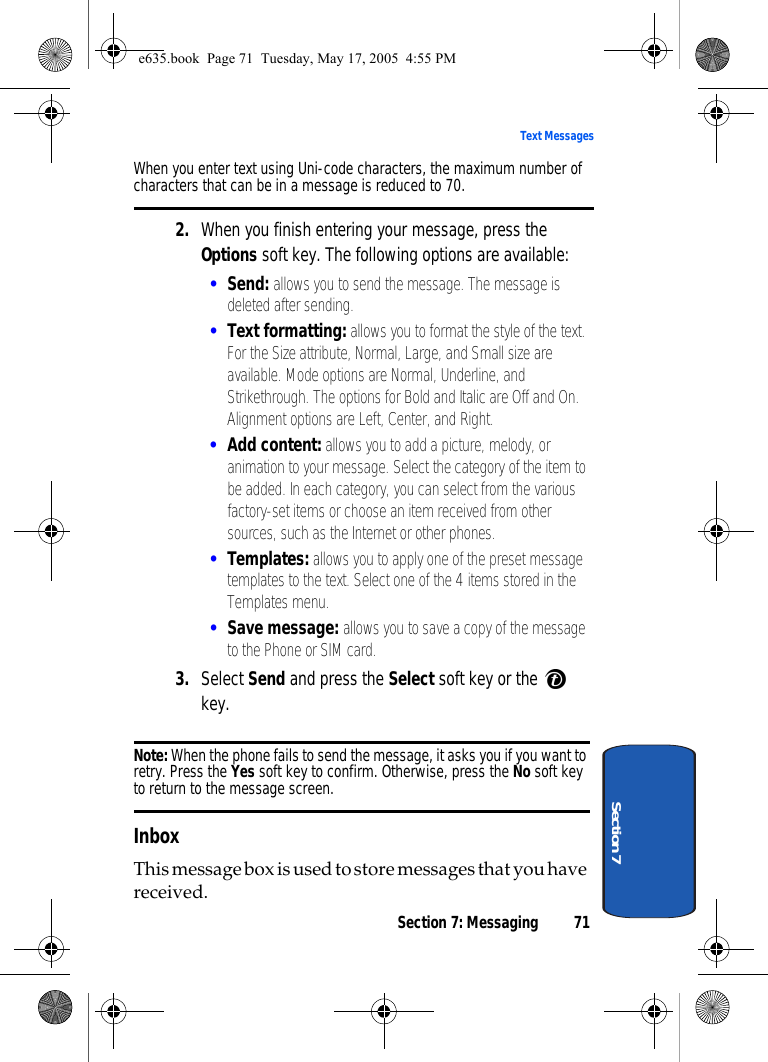

Section 7: Messaging 71Text MessagesSection 7When you enter text using Uni-code characters, the maximum number of characters that can be in a message is reduced to 70.2. When you finish entering your message, press the Options soft key. The following options are available:•Send: allows you to send the message. The message is deleted after sending.•Text formatting: allows you to format the style of the text. For the Size attribute, Normal, Large, and Small size are available. Mode options are Normal, Underline, and Strikethrough. The options for Bold and Italic are Off and On. Alignment options are Left, Center, and Right. •Add content: allows you to add a picture, melody, or animation to your message. Select the category of the item to be added. In each category, you can select from the various factory-set items or choose an item received from other sources, such as the Internet or other phones.•Templates: allows you to apply one of the preset message templates to the text. Select one of the 4 items stored in the Templates menu.•Save message: allows you to save a copy of the message to the Phone or SIM card. 3. Select Send and press the Select soft key or the key.Note: When the phone fails to send the message, it asks you if you want to retry. Press the Yes soft key to confirm. Otherwise, press the No soft key to return to the message screen.InboxThis message box is used to store messages that you have received.e635.book Page 71 Tuesday, May 17, 2005 4:55 PM

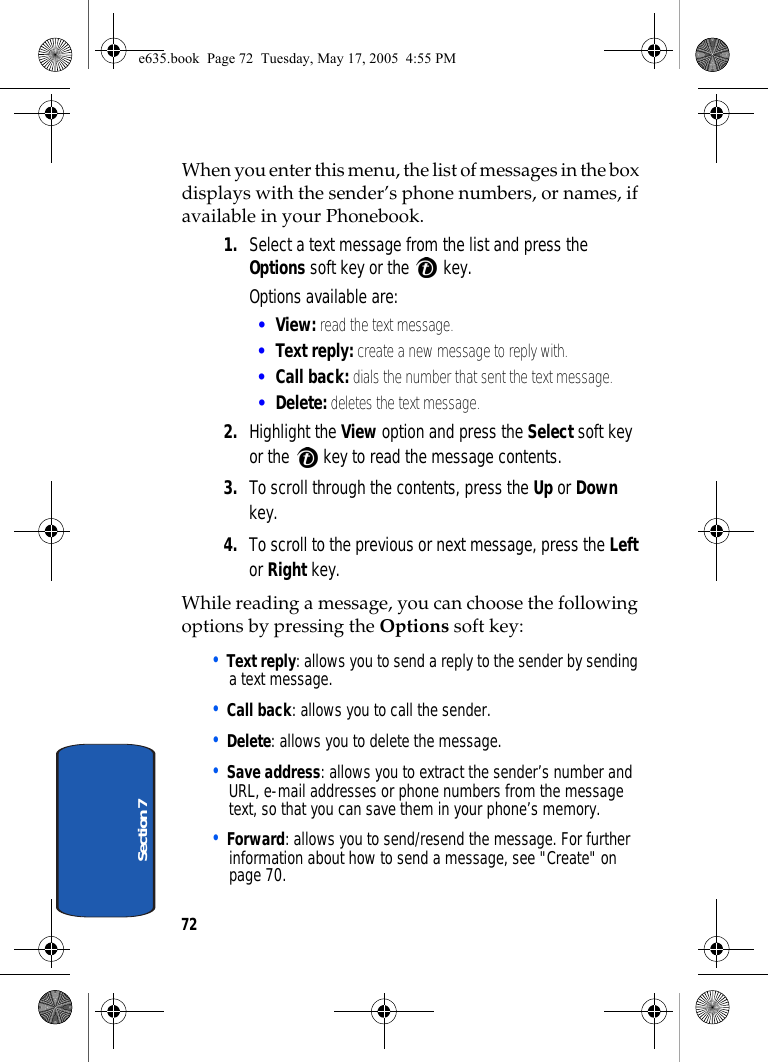

72Section 7When you enter this menu, the list of messages in the box displays with the sender’s phone numbers, or names, if available in your Phonebook.1. Select a text message from the list and press the Options soft key or the key. Options available are:•View: read the text message.•Text reply: create a new message to reply with.•Call back: dials the number that sent the text message.•Delete: deletes the text message.2. Highlight the View option and press the Select soft key or the key to read the message contents.3. To scroll through the contents, press the Up or Down key.4. To scroll to the previous or next message, press the Left or Right key. While reading a message, you can choose the following options by pressing the Options soft key:• Text reply: allows you to send a reply to the sender by sending a text message.• Call back: allows you to call the sender.• Delete: allows you to delete the message.• Save address: allows you to extract the sender’s number and URL, e-mail addresses or phone numbers from the message text, so that you can save them in your phone’s memory.• Forward: allows you to send/resend the message. For further information about how to send a message, see "Create" on page 70.e635.book Page 72 Tuesday, May 17, 2005 4:55 PM

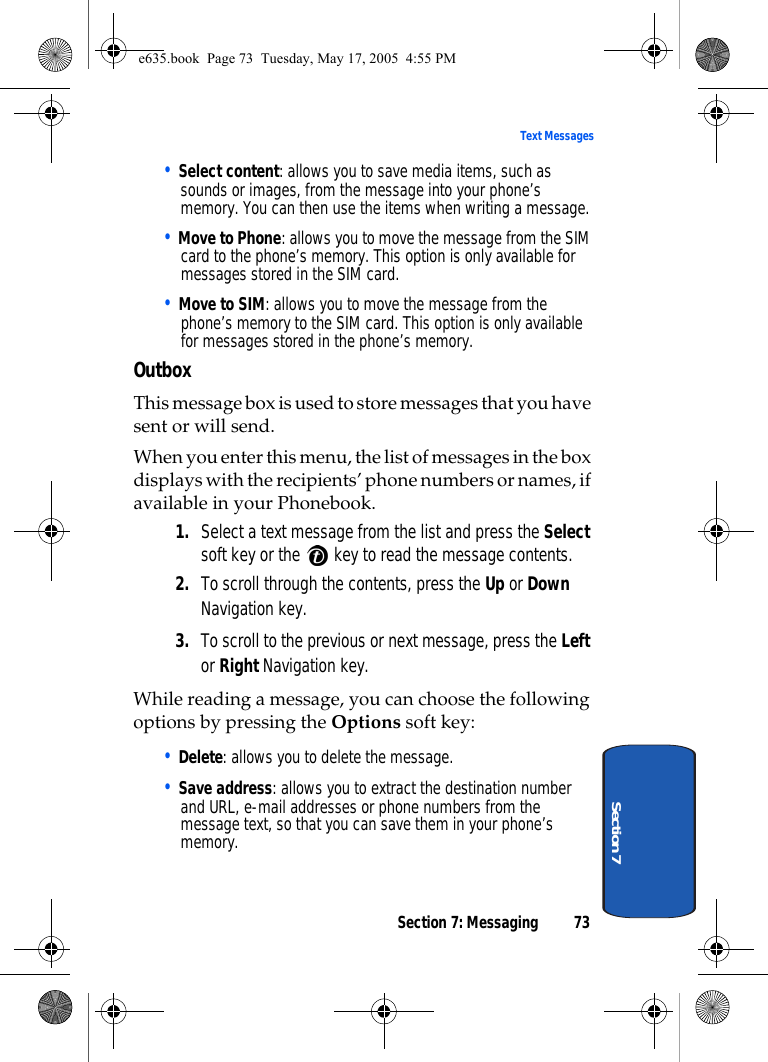

Section 7: Messaging 73Text MessagesSection 7• Select content: allows you to save media items, such as sounds or images, from the message into your phone’s memory. You can then use the items when writing a message.• Move to Phone: allows you to move the message from the SIM card to the phone’s memory. This option is only available for messages stored in the SIM card.• Move to SIM: allows you to move the message from the phone’s memory to the SIM card. This option is only available for messages stored in the phone’s memory.OutboxThis message box is used to store messages that you have sent or will send.When you enter this menu, the list of messages in the box displays with the recipients’ phone numbers or names, if available in your Phonebook.1. Select a text message from the list and press the Select soft key or the key to read the message contents.2. To scroll through the contents, press the Up or Down Navigation key.3. To scroll to the previous or next message, press the Left or Right Navigation key.While reading a message, you can choose the following options by pressing the Options soft key:• Delete: allows you to delete the message.• Save address: allows you to extract the destination number and URL, e-mail addresses or phone numbers from the message text, so that you can save them in your phone’s memory.e635.book Page 73 Tuesday, May 17, 2005 4:55 PM

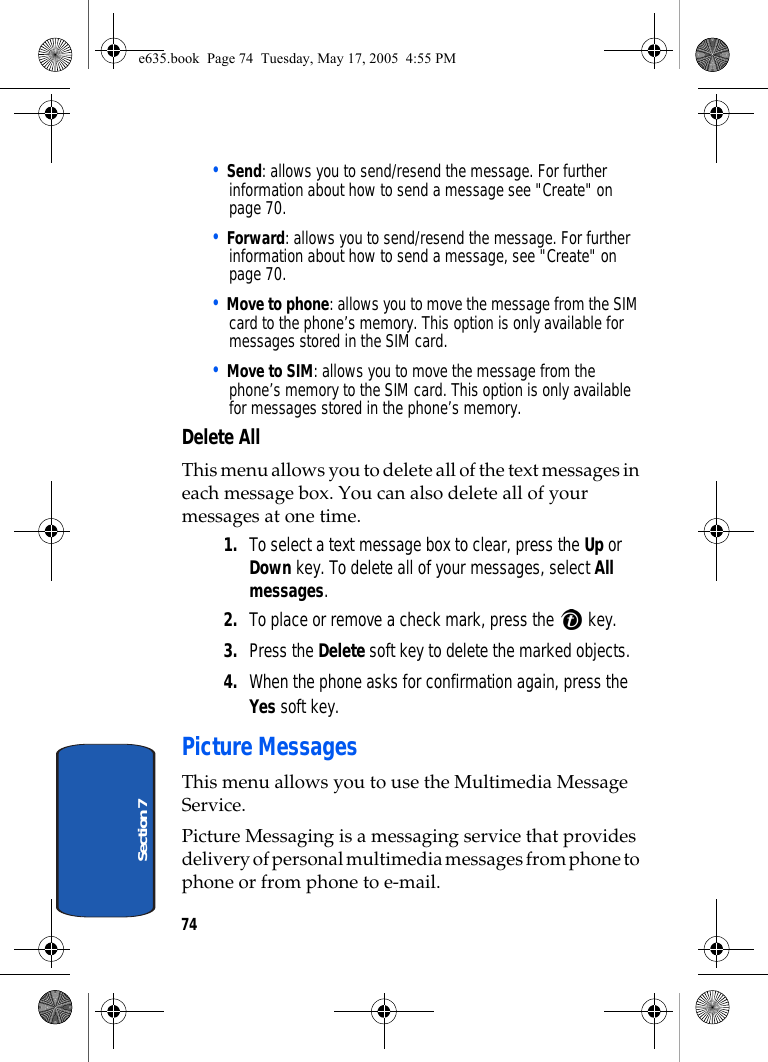

74Section 7• Send: allows you to send/resend the message. For further information about how to send a message see "Create" on page 70.• Forward: allows you to send/resend the message. For further information about how to send a message, see "Create" on page 70.• Move to phone: allows you to move the message from the SIM card to the phone’s memory. This option is only available for messages stored in the SIM card.• Move to SIM: allows you to move the message from the phone’s memory to the SIM card. This option is only available for messages stored in the phone’s memory.Delete AllThis menu allows you to delete all of the text messages in each message box. You can also delete all of your messages at one time.1. To select a text message box to clear, press the Up or Down key. To delete all of your messages, select All messages.2. To place or remove a check mark, press the key.3. Press the Delete soft key to delete the marked objects. 4. When the phone asks for confirmation again, press the Yes soft key.Picture MessagesThis menu allows you to use the Multimedia Message Service.Picture Messaging is a messaging service that provides delivery of personal multimedia messages from phone to phone or from phone to e-mail.e635.book Page 74 Tuesday, May 17, 2005 4:55 PM

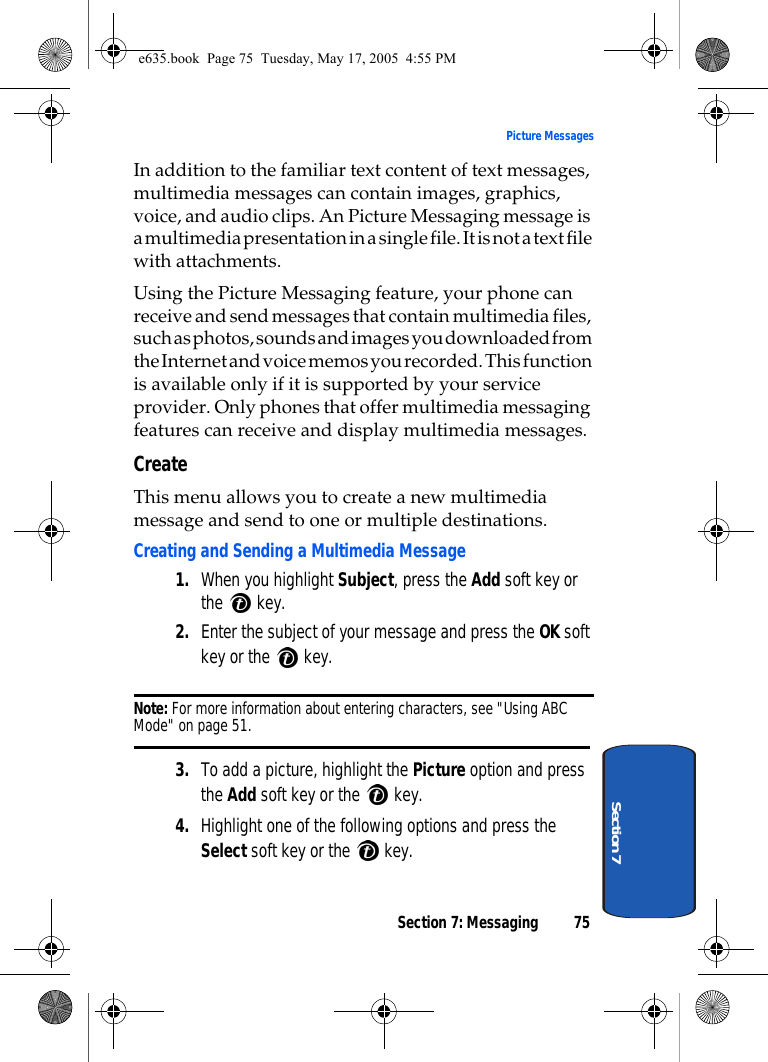

Section 7: Messaging 75Picture MessagesSection 7In addition to the familiar text content of text messages, multimedia messages can contain images, graphics, voice, and audio clips. An Picture Messaging message is a multimedia presentation in a single file. It is not a text file with attachments.Using the Picture Messaging feature, your phone can receive and send messages that contain multimedia files, such as photos, sounds and images you downloaded from the Internet and voice memos you recorded. This function is available only if it is supported by your service provider. Only phones that offer multimedia messaging features can receive and display multimedia messages.Create This menu allows you to create a new multimedia message and send to one or multiple destinations.Creating and Sending a Multimedia Message1. When you highlight Subject, press the Add soft key or the key.2. Enter the subject of your message and press the OK soft key or the key.Note: For more information about entering characters, see "Using ABC Mode" on page 51.3. To add a picture, highlight the Picture option and press the Add soft key or the key. 4. Highlight one of the following options and press the Select soft key or the key.e635.book Page 75 Tuesday, May 17, 2005 4:55 PM

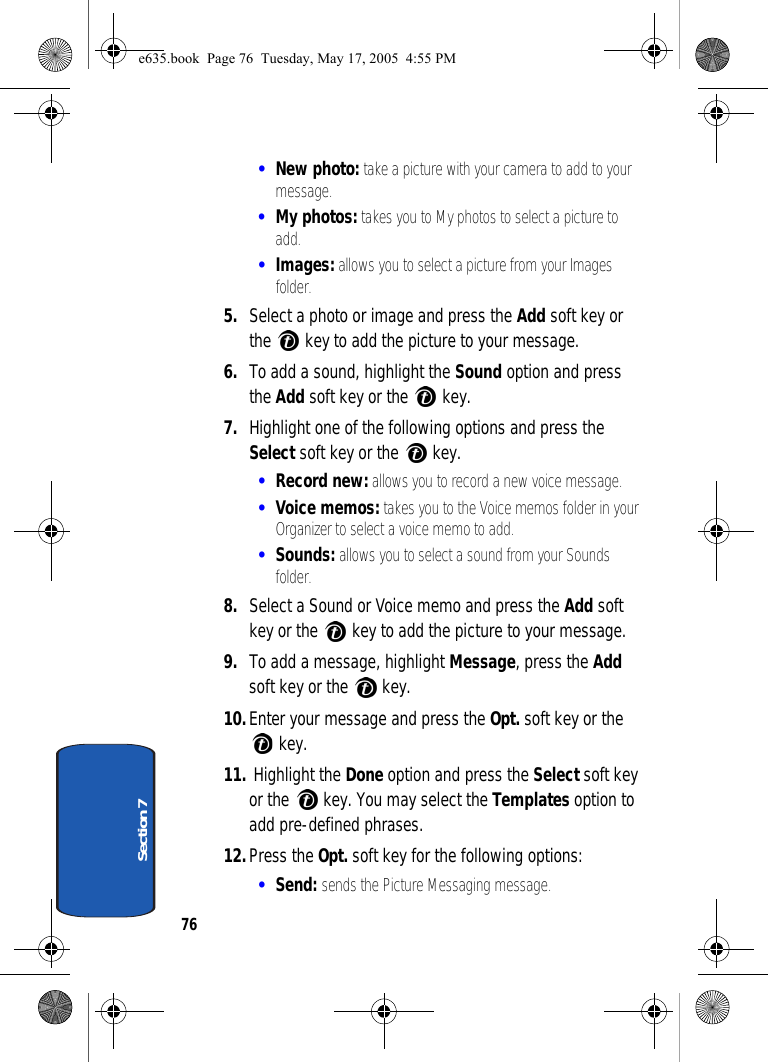

76Section 7•New photo: take a picture with your camera to add to your message.•My photos: takes you to My photos to select a picture to add.•Images: allows you to select a picture from your Images folder.5. Select a photo or image and press the Add soft key or the key to add the picture to your message.6. To add a sound, highlight the Sound option and press the Add soft key or the key. 7. Highlight one of the following options and press the Select soft key or the key.•Record new: allows you to record a new voice message.•Voice memos: takes you to the Voice memos folder in your Organizer to select a voice memo to add.•Sounds: allows you to select a sound from your Sounds folder.8. Select a Sound or Voice memo and press the Add soft key or the key to add the picture to your message.9. To add a message, highlight Message, press the Add soft key or the key.10.Enter your message and press the Opt. soft key or the key.11. Highlight the Done option and press the Select soft key or the key. You may select the Templates option to add pre-defined phrases.12.Press the Opt. soft key for the following options:•Send: sends the Picture Messaging message.e635.book Page 76 Tuesday, May 17, 2005 4:55 PM

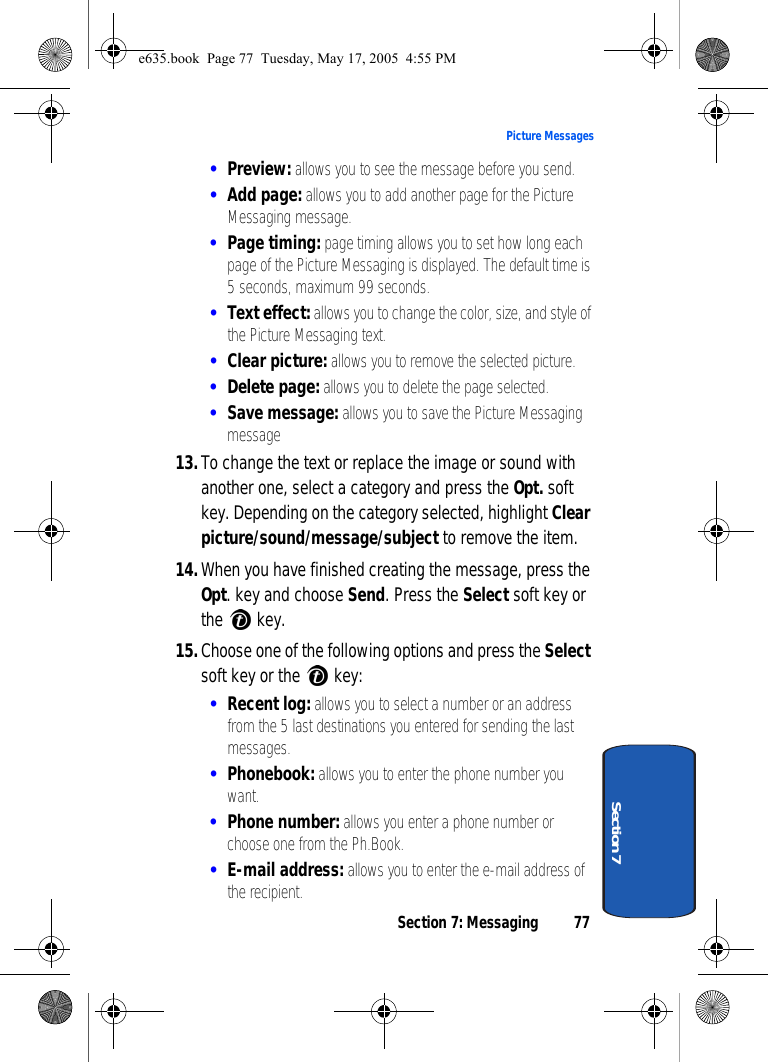

Section 7: Messaging 77Picture MessagesSection 7•Preview: allows you to see the message before you send.•Add page: allows you to add another page for the Picture Messaging message.•Page timing: page timing allows you to set how long each page of the Picture Messaging is displayed. The default time is 5 seconds, maximum 99 seconds.•Text effect: allows you to change the color, size, and style of the Picture Messaging text.•Clear picture: allows you to remove the selected picture.•Delete page: allows you to delete the page selected.•Save message: allows you to save the Picture Messaging message13.To change the text or replace the image or sound with another one, select a category and press the Opt. soft key. Depending on the category selected, highlight Clear picture/sound/message/subject to remove the item.14.When you have finished creating the message, press the Opt. key and choose Send. Press the Select soft key or the key.15.Choose one of the following options and press the Select soft key or the key:•Recent log: allows you to select a number or an address from the 5 last destinations you entered for sending the last messages.•Phonebook: allows you to enter the phone number you want.•Phone number: allows you enter a phone number or choose one from the Ph.Book.•E-mail address: allows you to enter the e-mail address of the recipient.e635.book Page 77 Tuesday, May 17, 2005 4:55 PM

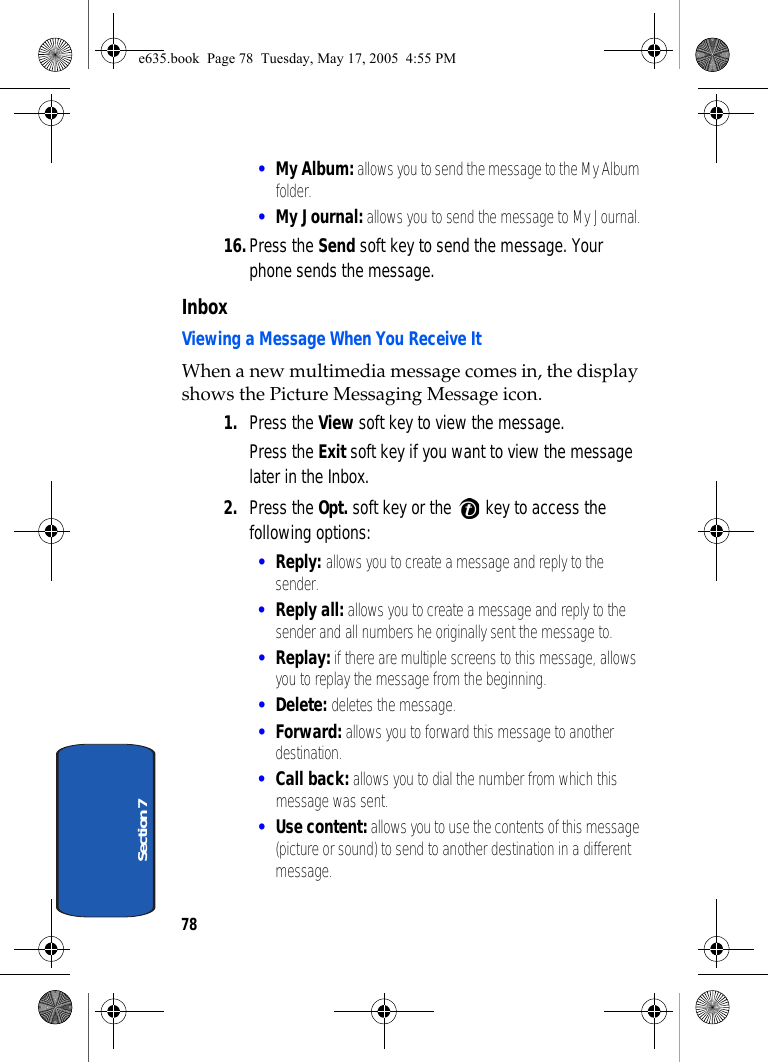

78Section 7•My Album: allows you to send the message to the My Album folder.•My Journal: allows you to send the message to My Journal.16.Press the Send soft key to send the message. Your phone sends the message.InboxViewing a Message When You Receive ItWhen a new multimedia message comes in, the display shows the Picture Messaging Message icon.1. Press the View soft key to view the message.Press the Exit soft key if you want to view the message later in the Inbox.2. Press the Opt. soft key or the key to access the following options:•Reply: allows you to create a message and reply to the sender.•Reply all: allows you to create a message and reply to the sender and all numbers he originally sent the message to.•Replay: if there are multiple screens to this message, allows you to replay the message from the beginning.•Delete: deletes the message.•Forward: allows you to forward this message to another destination.•Call back: allows you to dial the number from which this message was sent.•Use content: allows you to use the contents of this message (picture or sound) to send to another destination in a different message. e635.book Page 78 Tuesday, May 17, 2005 4:55 PM

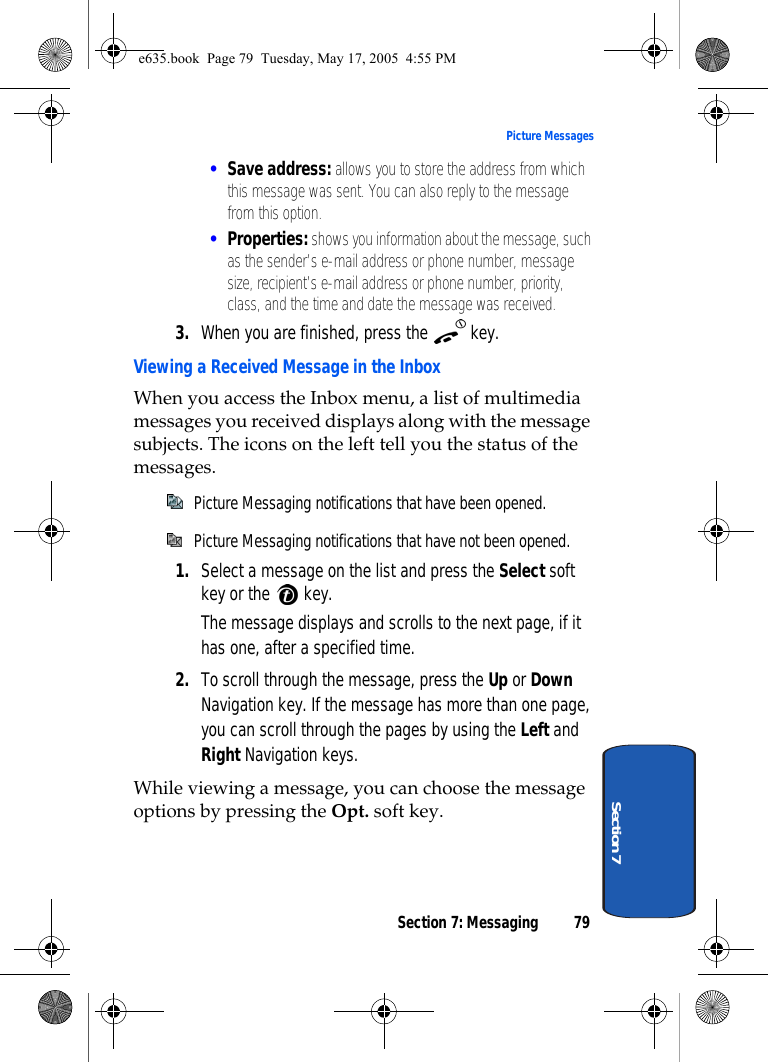

Section 7: Messaging 79Picture MessagesSection 7•Save address: allows you to store the address from which this message was sent. You can also reply to the message from this option.•Properties: shows you information about the message, such as the sender’s e-mail address or phone number, message size, recipient’s e-mail address or phone number, priority, class, and the time and date the message was received.3. When you are finished, press the key.Viewing a Received Message in the InboxWhen you access the Inbox menu, a list of multimedia messages you received displays along with the message subjects. The icons on the left tell you the status of the messages. Picture Messaging notifications that have been opened. Picture Messaging notifications that have not been opened.1. Select a message on the list and press the Select soft key or the key. The message displays and scrolls to the next page, if it has one, after a specified time.2. To scroll through the message, press the Up or Down Navigation key. If the message has more than one page, you can scroll through the pages by using the Left and Right Navigation keys.While viewing a message, you can choose the message options by pressing the Opt. soft key. e635.book Page 79 Tuesday, May 17, 2005 4:55 PM

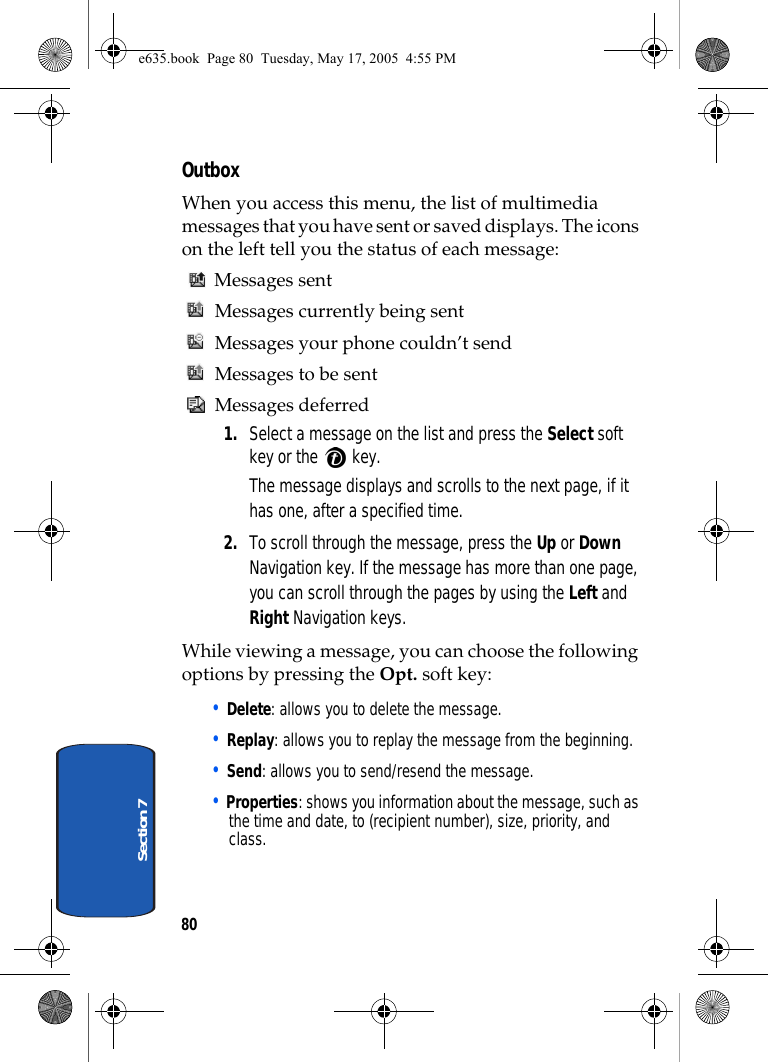

80Section 7OutboxWhen you access this menu, the list of multimedia messages that you have sent or saved displays. The icons on the left tell you the status of each message: Messages sent Messages currently being sent Messages your phone couldn’t send Messages to be sent Messages deferred1. Select a message on the list and press the Select soft key or the key. The message displays and scrolls to the next page, if it has one, after a specified time.2. To scroll through the message, press the Up or Down Navigation key. If the message has more than one page, you can scroll through the pages by using the Left and Right Navigation keys.While viewing a message, you can choose the following options by pressing the Opt. soft key:• Delete: allows you to delete the message.• Replay: allows you to replay the message from the beginning.• Send: allows you to send/resend the message.• Properties: shows you information about the message, such as the time and date, to (recipient number), size, priority, and class.e635.book Page 80 Tuesday, May 17, 2005 4:55 PM

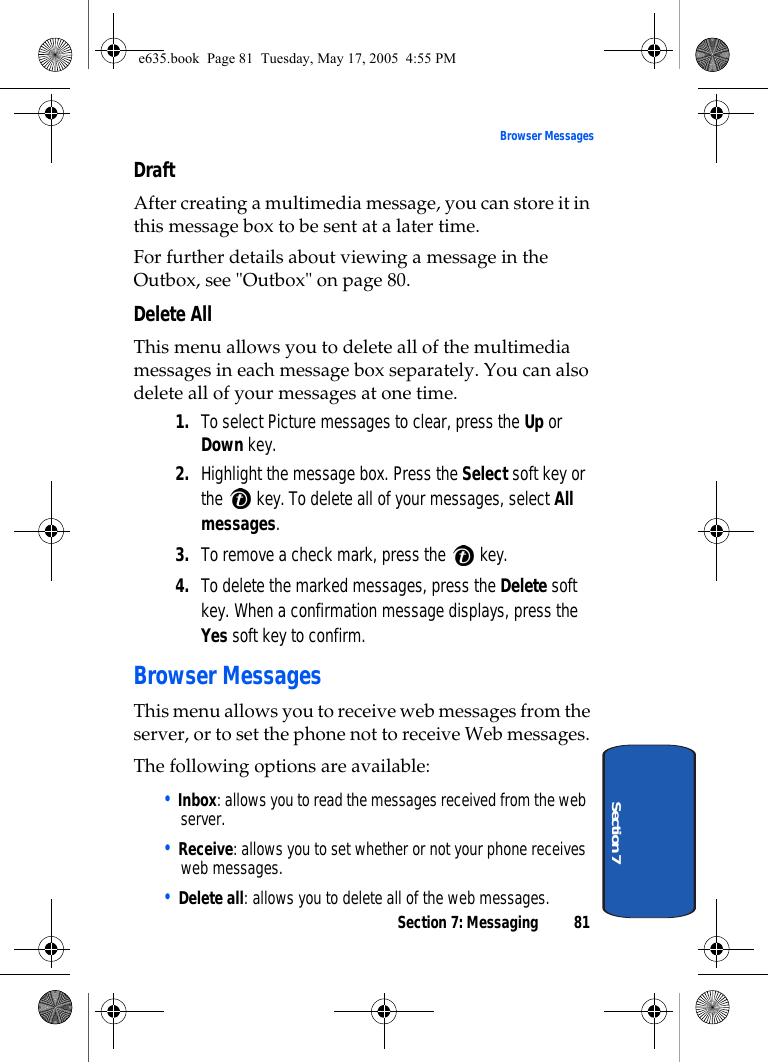

Section 7: Messaging 81Browser MessagesSection 7DraftAfter creating a multimedia message, you can store it in this message box to be sent at a later time. For further details about viewing a message in the Outbox, see "Outbox" on page 80.Delete AllThis menu allows you to delete all of the multimedia messages in each message box separately. You can also delete all of your messages at one time.1. To select Picture messages to clear, press the Up or Down key. 2. Highlight the message box. Press the Select soft key or the key. To delete all of your messages, select All messages.3. To remove a check mark, press the key. 4. To delete the marked messages, press the Delete soft key. When a confirmation message displays, press the Yes soft key to confirm.Browser MessagesThis menu allows you to receive web messages from the server, or to set the phone not to receive Web messages.The following options are available:• Inbox: allows you to read the messages received from the web server. • Receive: allows you to set whether or not your phone receives web messages.• Delete all: allows you to delete all of the web messages.e635.book Page 81 Tuesday, May 17, 2005 4:55 PM

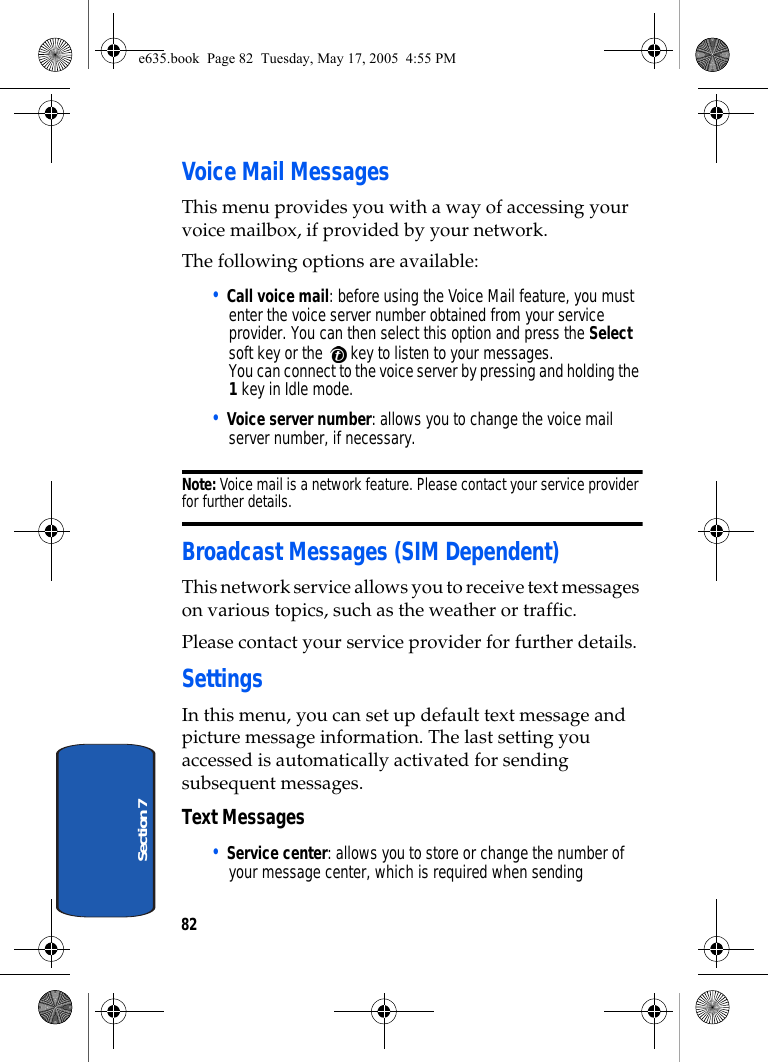

82Section 7Voice Mail MessagesThis menu provides you with a way of accessing your voice mailbox, if provided by your network. The following options are available:• Call voice mail: before using the Voice Mail feature, you must enter the voice server number obtained from your service provider. You can then select this option and press the Select soft key or the key to listen to your messages. You can connect to the voice server by pressing and holding the 1 key in Idle mode.• Voice server number: allows you to change the voice mail server number, if necessary.Note: Voice mail is a network feature. Please contact your service provider for further details.Broadcast Messages (SIM Dependent)This network service allows you to receive text messages on various topics, such as the weather or traffic. Please contact your service provider for further details.SettingsIn this menu, you can set up default text message and picture message information. The last setting you accessed is automatically activated for sending subsequent messages.Text Messages• Service center: allows you to store or change the number of your message center, which is required when sending e635.book Page 82 Tuesday, May 17, 2005 4:55 PM

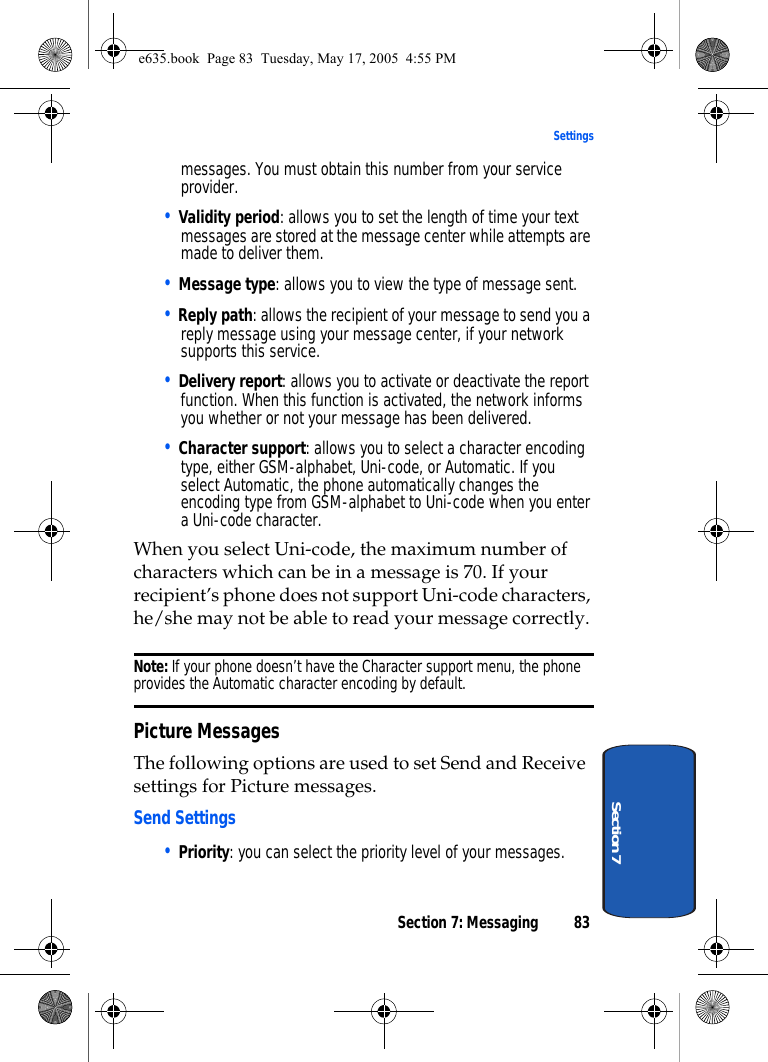

Section 7: Messaging 83SettingsSection 7messages. You must obtain this number from your service provider.• Validity period: allows you to set the length of time your text messages are stored at the message center while attempts are made to deliver them.• Message type: allows you to view the type of message sent.• Reply path: allows the recipient of your message to send you a reply message using your message center, if your network supports this service.• Delivery report: allows you to activate or deactivate the report function. When this function is activated, the network informs you whether or not your message has been delivered.• Character support: allows you to select a character encoding type, either GSM-alphabet, Uni-code, or Automatic. If you select Automatic, the phone automatically changes the encoding type from GSM-alphabet to Uni-code when you enter a Uni-code character.When you select Uni-code, the maximum number of characters which can be in a message is 70. If your recipient’s phone does not support Uni-code characters, he/she may not be able to read your message correctly. Note: If your phone doesn’t have the Character support menu, the phone provides the Automatic character encoding by default.Picture MessagesThe following options are used to set Send and Receive settings for Picture messages.Send Settings• Priority: you can select the priority level of your messages.e635.book Page 83 Tuesday, May 17, 2005 4:55 PM

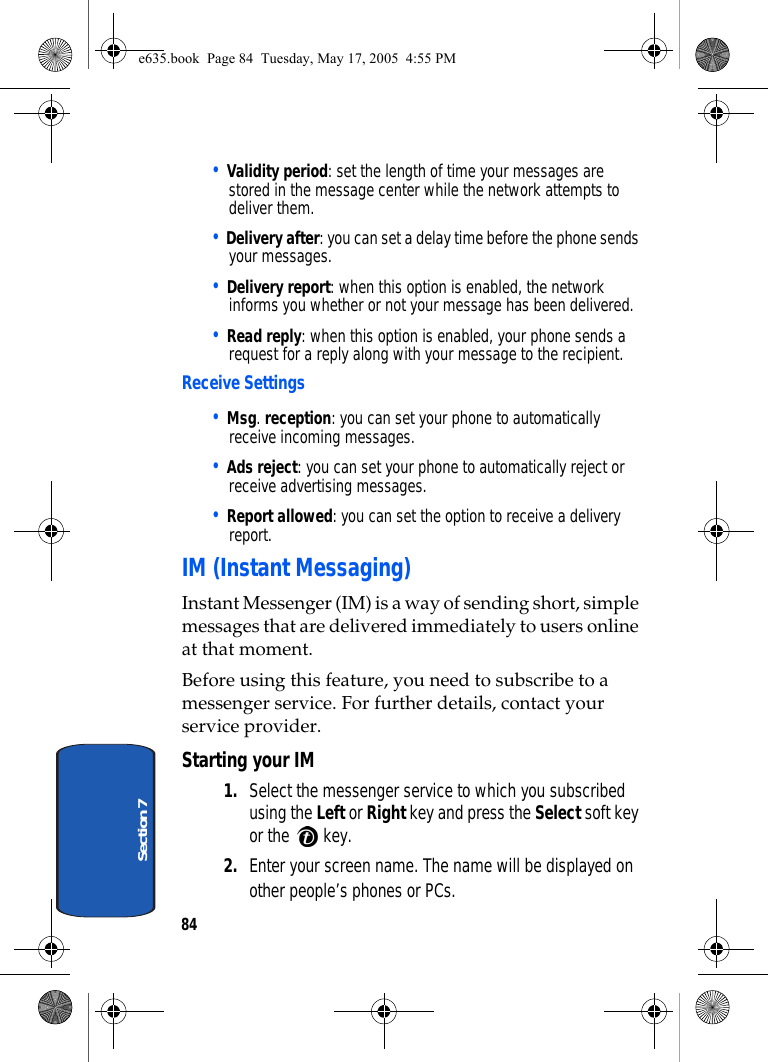

84Section 7• Validity period: set the length of time your messages are stored in the message center while the network attempts to deliver them.• Delivery after: you can set a delay time before the phone sends your messages.• Delivery report: when this option is enabled, the network informs you whether or not your message has been delivered.• Read reply: when this option is enabled, your phone sends a request for a reply along with your message to the recipient.Receive Settings• Msg. reception: you can set your phone to automatically receive incoming messages.• Ads reject: you can set your phone to automatically reject or receive advertising messages.• Report allowed: you can set the option to receive a delivery report.IM (Instant Messaging)Instant Messenger (IM) is a way of sending short, simple messages that are delivered immediately to users online at that moment.Before using this feature, you need to subscribe to a messenger service. For further details, contact your service provider.Starting your IM1. Select the messenger service to which you subscribed using the Left or Right key and press the Select soft key or the key.2. Enter your screen name. The name will be displayed on other people’s phones or PCs.e635.book Page 84 Tuesday, May 17, 2005 4:55 PM

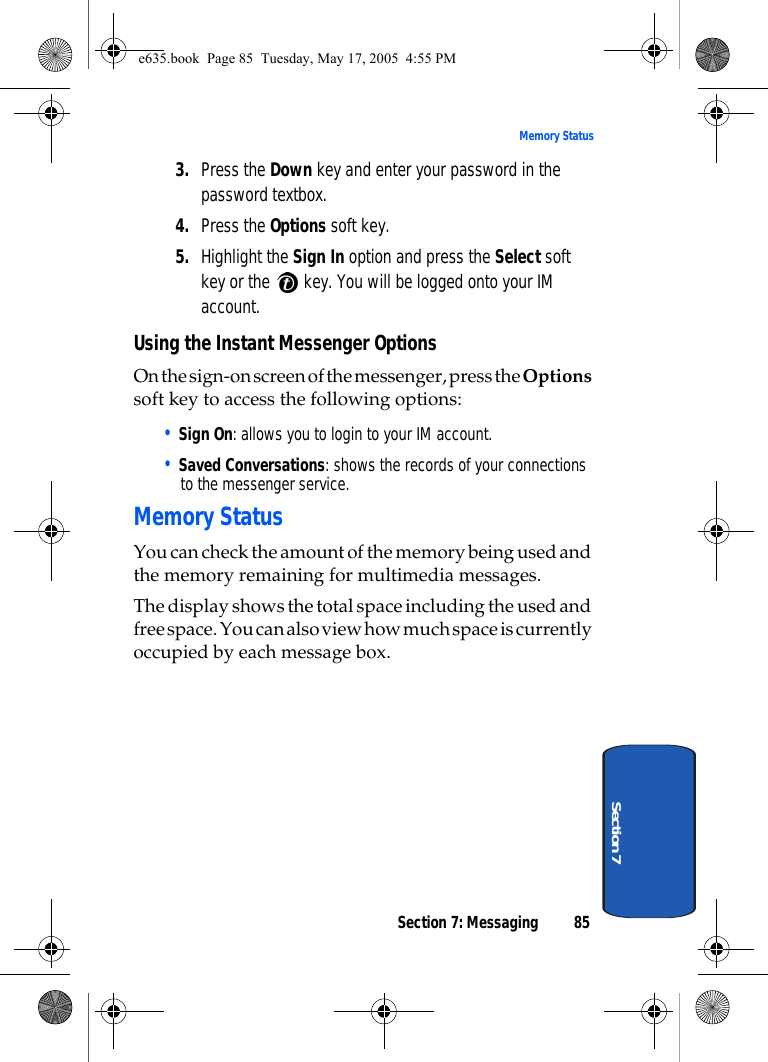

Section 7: Messaging 85Memory StatusSection 73. Press the Down key and enter your password in the password textbox.4. Press the Options soft key.5. Highlight the Sign In option and press the Select soft key or the key. You will be logged onto your IM account.Using the Instant Messenger OptionsOn the sign-on screen of the messenger, press the Options soft key to access the following options:• Sign On: allows you to login to your IM account.• Saved Conversations: shows the records of your connections to the messenger service.Memory StatusYou can check the amount of the memory being used and the memory remaining for multimedia messages.The display shows the total space including the used and free space. You can also view how much space is currently occupied by each message box.e635.book Page 85 Tuesday, May 17, 2005 4:55 PM

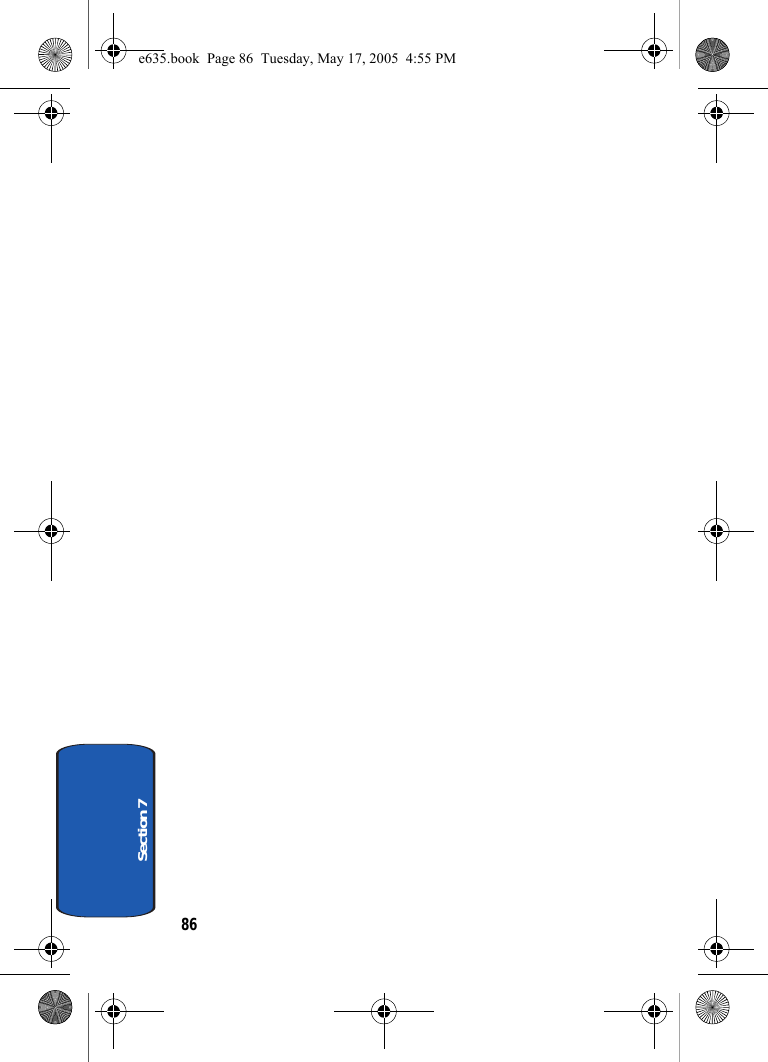

86Section 7e635.book Page 86 Tuesday, May 17, 2005 4:55 PM

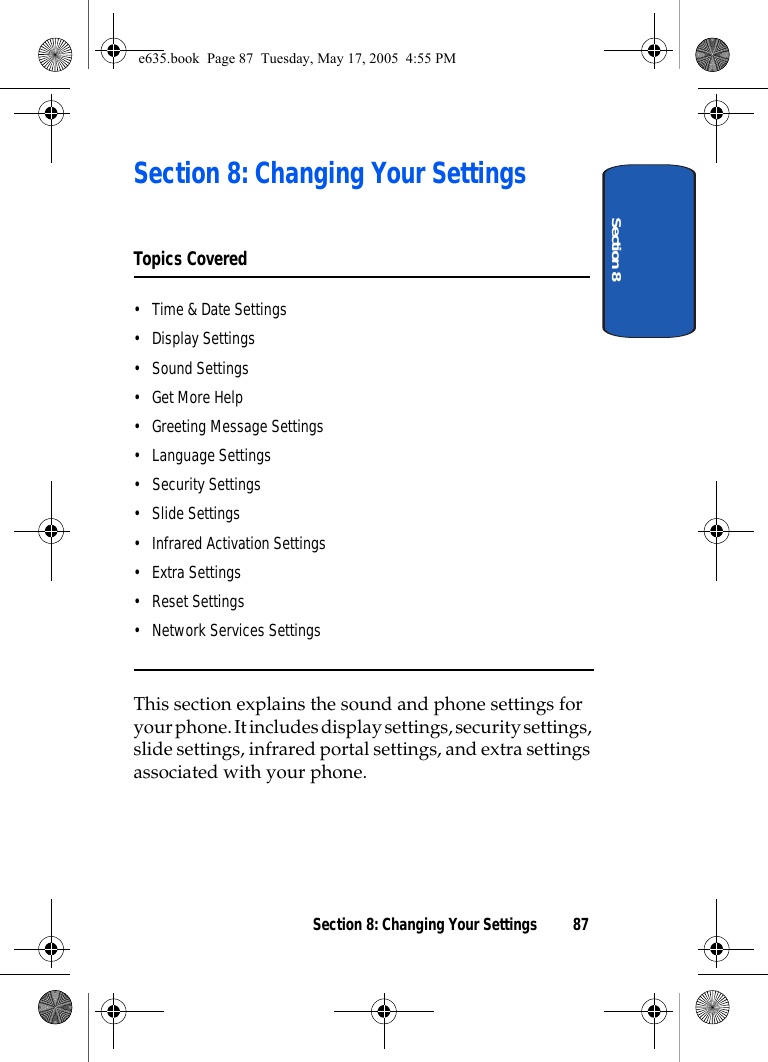

Section 8Section 8: Changing Your Settings 87Section 8: Changing Your SettingsTopics Covered• Time & Date Settings• Display Settings• Sound Settings•Get More Help• Greeting Message Settings• Language Settings• Security Settings• Slide Settings• Infrared Activation Settings• Extra Settings• Reset Settings• Network Services SettingsThis section explains the sound and phone settings for your phone. It includes display settings, security settings, slide settings, infrared portal settings, and extra settings associated with your phone.e635.book Page 87 Tuesday, May 17, 2005 4:55 PM

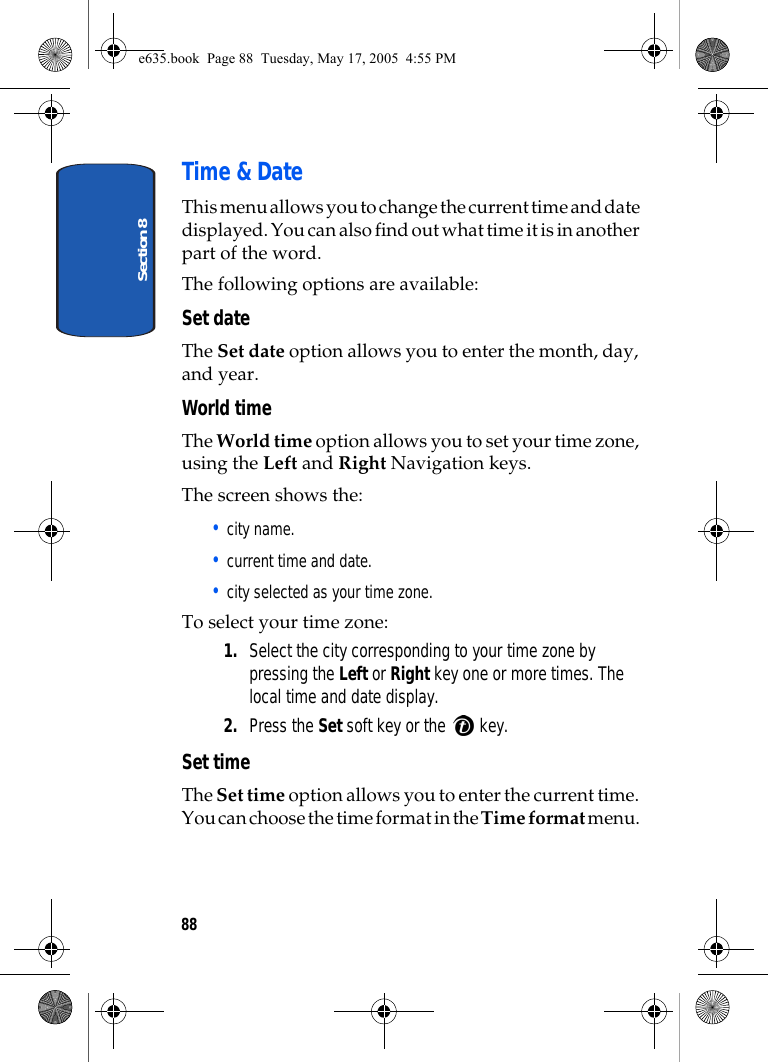

Section 888Time & DateThis menu allows you to change the current time and date displayed. You can also find out what time it is in another part of the word.The following options are available:Set dateThe Set date option allows you to enter the month, day, and year. World timeThe World time option allows you to set your time zone, using the Left and Right Navigation keys.The screen shows the:• city name.• current time and date.• city selected as your time zone.To select your time zone:1. Select the city corresponding to your time zone by pressing the Left or Right key one or more times. The local time and date display.2. Press the Set soft key or the key.Set timeThe Set time option allows you to enter the current time. You can choose the time format in the Time format menu. e635.book Page 88 Tuesday, May 17, 2005 4:55 PM

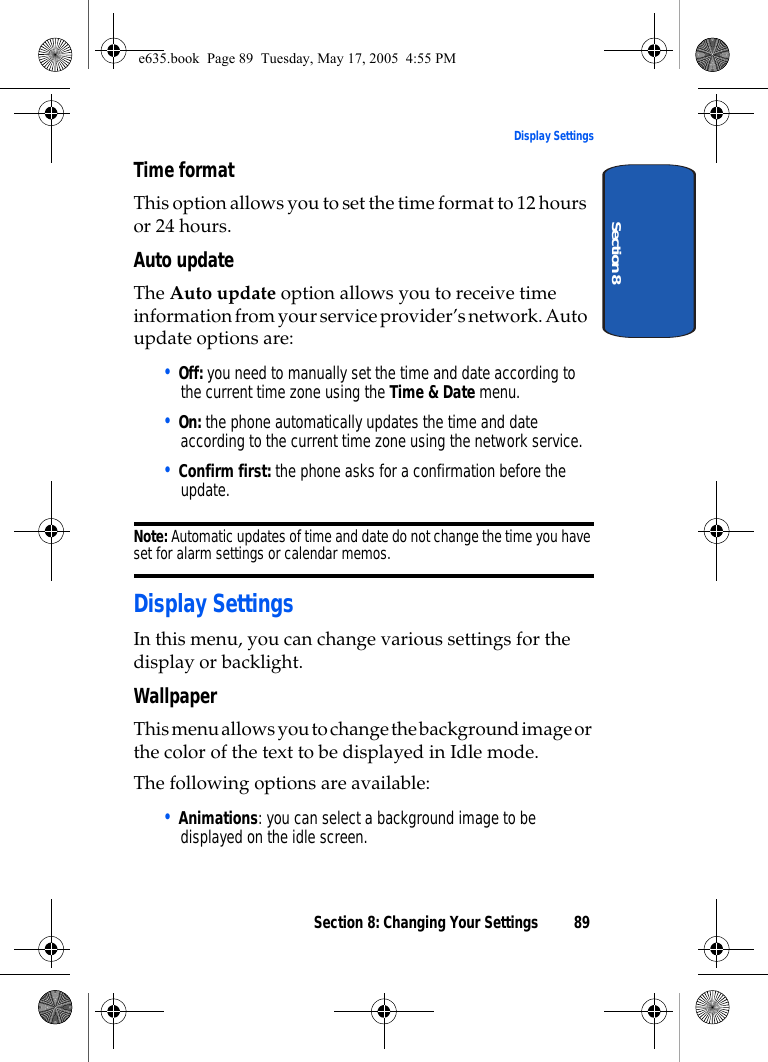

Section 8: Changing Your Settings 89Display SettingsSection 8Time formatThis option allows you to set the time format to 12 hours or 24 hours.Auto updateThe Auto update option allows you to receive time information from your service provider’s network. Auto update options are:• Off: you need to manually set the time and date according to the current time zone using the Time & Date menu.• On: the phone automatically updates the time and date according to the current time zone using the network service.• Confirm first: the phone asks for a confirmation before the update.Note: Automatic updates of time and date do not change the time you have set for alarm settings or calendar memos. Display SettingsIn this menu, you can change various settings for the display or backlight.WallpaperThis menu allows you to change the background image or the color of the text to be displayed in Idle mode.The following options are available:• Animations: you can select a background image to be displayed on the idle screen.e635.book Page 89 Tuesday, May 17, 2005 4:55 PM

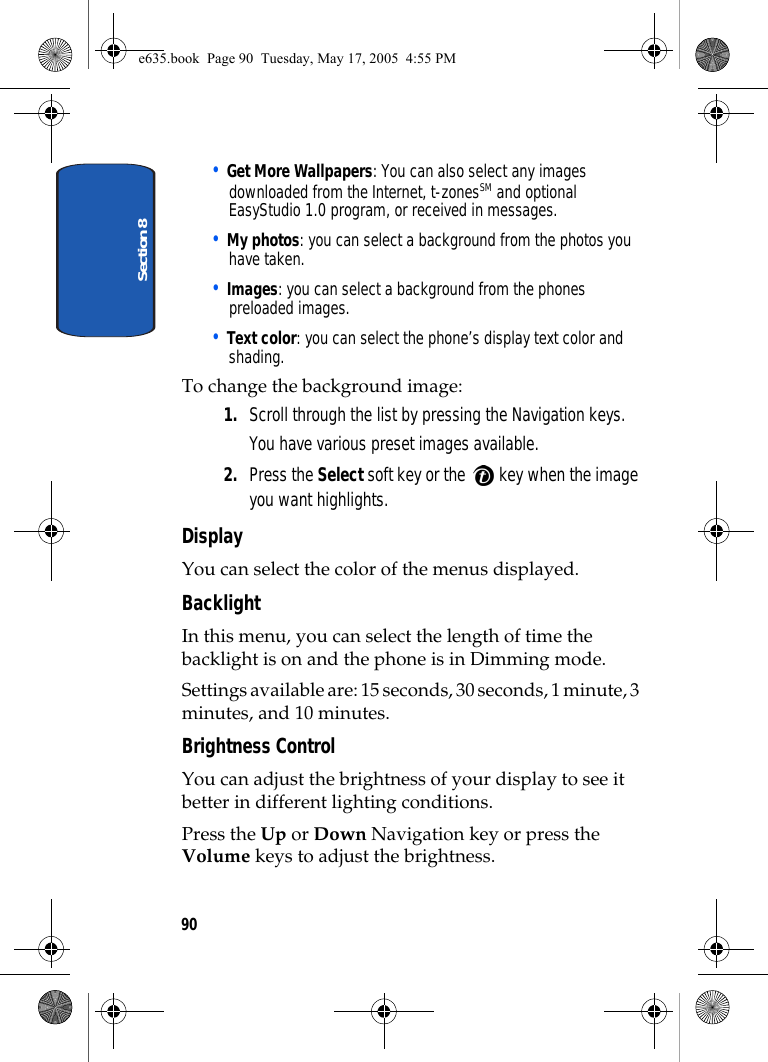

Section 890• Get More Wallpapers: You can also select any images downloaded from the Internet, t-zonesSM and optional EasyStudio 1.0 program, or received in messages. • My photos: you can select a background from the photos you have taken.• Images: you can select a background from the phones preloaded images.• Text color: you can select the phone’s display text color and shading.To change the background image:1. Scroll through the list by pressing the Navigation keys.You have various preset images available. 2. Press the Select soft key or the key when the image you want highlights. DisplayYou can select the color of the menus displayed.BacklightIn this menu, you can select the length of time the backlight is on and the phone is in Dimming mode.Settings available are: 15 seconds, 30 seconds, 1 minute, 3 minutes, and 10 minutes. Brightness ControlYou can adjust the brightness of your display to see it better in different lighting conditions.Press the Up or Down Navigation key or press the Volume keys to adjust the brightness.e635.book Page 90 Tuesday, May 17, 2005 4:55 PM

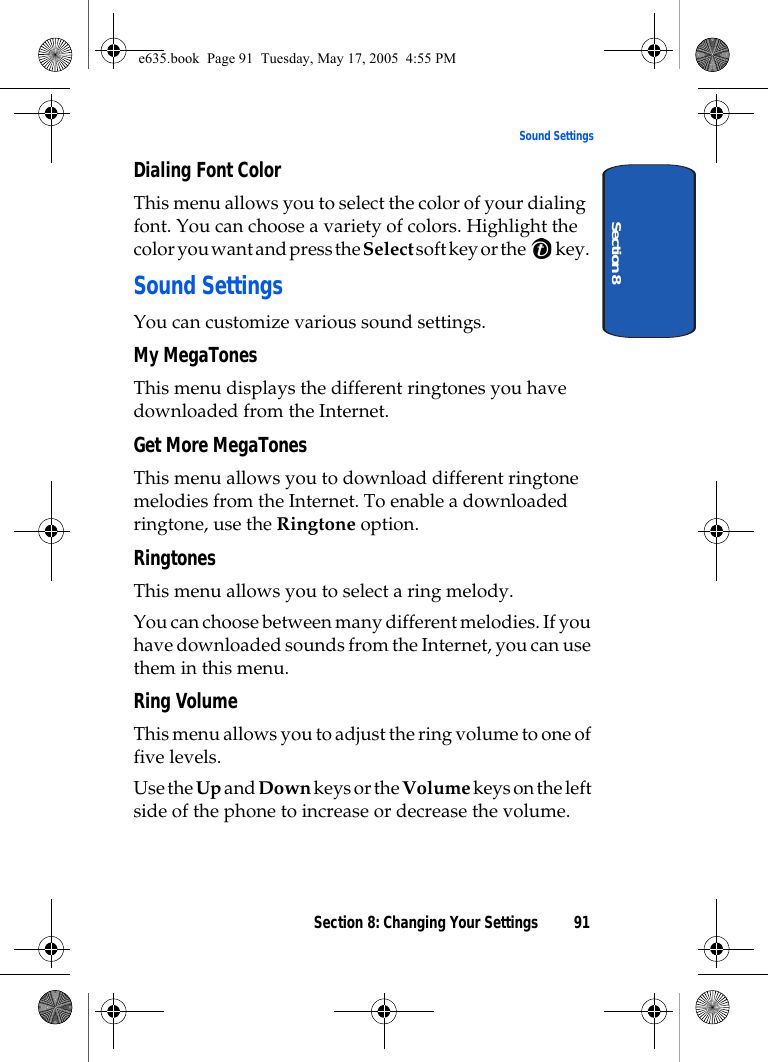

Section 8: Changing Your Settings 91Sound SettingsSection 8Dialing Font ColorThis menu allows you to select the color of your dialing font. You can choose a variety of colors. Highlight the color you want and press the Select soft key or the key.Sound SettingsYou can customize various sound settings.My MegaTonesThis menu displays the different ringtones you have downloaded from the Internet. Get More MegaTonesThis menu allows you to download different ringtone melodies from the Internet. To enable a downloaded ringtone, use the Ringtone option.RingtonesThis menu allows you to select a ring melody. You can choose between many different melodies. If you have downloaded sounds from the Internet, you can use them in this menu. Ring Volume This menu allows you to adjust the ring volume to one of five levels.Use the Up and Down keys or the Volume keys on the left side of the phone to increase or decrease the volume.e635.book Page 91 Tuesday, May 17, 2005 4:55 PM

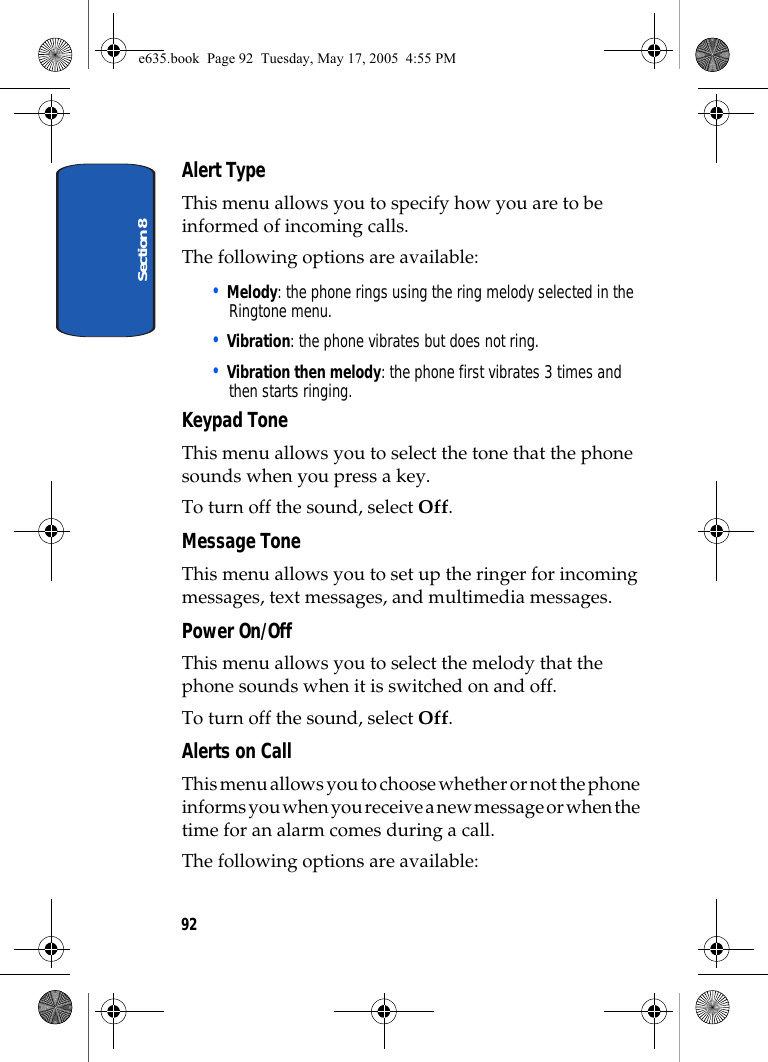

Section 892Alert TypeThis menu allows you to specify how you are to be informed of incoming calls. The following options are available:• Melody: the phone rings using the ring melody selected in the Ringtone menu.• Vibration: the phone vibrates but does not ring. • Vibration then melody: the phone first vibrates 3 times and then starts ringing.Keypad ToneThis menu allows you to select the tone that the phone sounds when you press a key.To turn off the sound, select Off.Message ToneThis menu allows you to set up the ringer for incoming messages, text messages, and multimedia messages.Power On/OffThis menu allows you to select the melody that the phone sounds when it is switched on and off. To turn off the sound, select Off.Alerts on CallThis menu allows you to choose whether or not the phone informs you when you receive a new message or when the time for an alarm comes during a call.The following options are available:e635.book Page 92 Tuesday, May 17, 2005 4:55 PM
Section 8: Changing Your Settings 93Get More HelpSection 8• Off: the phone doesn’t actively alert you to incoming messages or alarms. It only displays the corresponding notification.• On: the phone alerts you with a beep and displays the corresponding notification.Silent ModeThis menu allows you to choose whether or not your phone will vibrate when a call is received while in Silent Mode. You may set your phone to Vibration or Mute.Extra TonesYou can customize additional tones for the phone.The following options are available:• Indicative tones: sets whether or not the phone informs you when you make a mistake. • Minute minder: sets whether or not the phone beeps every minute during an outgoing call to keep you informed of the length of your call.• Connect tone: sets whether or not the phone beeps when your call is connected to the system. Note: To turn a given tone on, press the Select soft key or the key. A check mark displays in front of the option. To turn a given tone off, press the Select soft key or the key. The check mark no longer displays in front of the option.Get More HelpThis menu provides online help for your phone. You may browse general help topics, or enter specific search topics. Information located on this site is maintained by T-Mobile. e635.book Page 93 Tuesday, May 17, 2005 4:55 PM
Section 894Greeting MessageThis menu allows you to set a greeting to be displayed briefly when the phone is switched on. For details about entering characters, see "Using ABC Mode" on page 51.LanguageThis menu allows you to select a display language for Text language and Input mode. Choose from English, French, and Spanish.SecurityThe Security feature enables you to restrict the use of your phone by others and to restrict the types of calls.Various codes and passwords are used to protect the features of your phone. PIN Check When the PIN Check feature is enabled, you must enter your PIN each time you switch on the phone. Consequently, any person who does not have your PIN cannot use your phone without your approval.Note: Before disabling the PIN Check feature, you must enter your PIN.The following options are available:• Disable: the phone connects directly to the network when you switch it on.• Enable: you must enter the PIN each time the phone is switched on.e635.book Page 94 Tuesday, May 17, 2005 4:55 PM

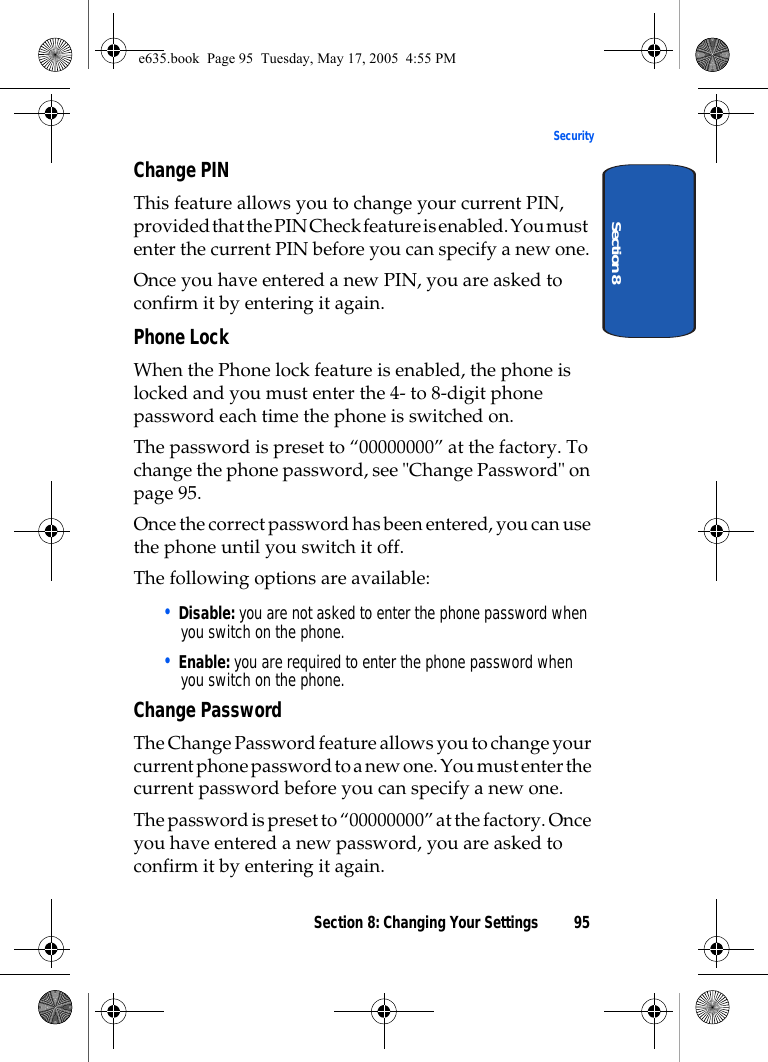

Section 8: Changing Your Settings 95SecuritySection 8Change PINThis feature allows you to change your current PIN, provided that the PIN Check feature is enabled. You must enter the current PIN before you can specify a new one.Once you have entered a new PIN, you are asked to confirm it by entering it again.Phone Lock When the Phone lock feature is enabled, the phone is locked and you must enter the 4- to 8-digit phone password each time the phone is switched on.The password is preset to “00000000” at the factory. To change the phone password, see "Change Password" on page 95.Once the correct password has been entered, you can use the phone until you switch it off.The following options are available:• Disable: you are not asked to enter the phone password when you switch on the phone.• Enable: you are required to enter the phone password when you switch on the phone.Change PasswordThe Change Password feature allows you to change your current phone password to a new one. You must enter the current password before you can specify a new one.The password is preset to “00000000” at the factory. Once you have entered a new password, you are asked to confirm it by entering it again.e635.book Page 95 Tuesday, May 17, 2005 4:55 PM

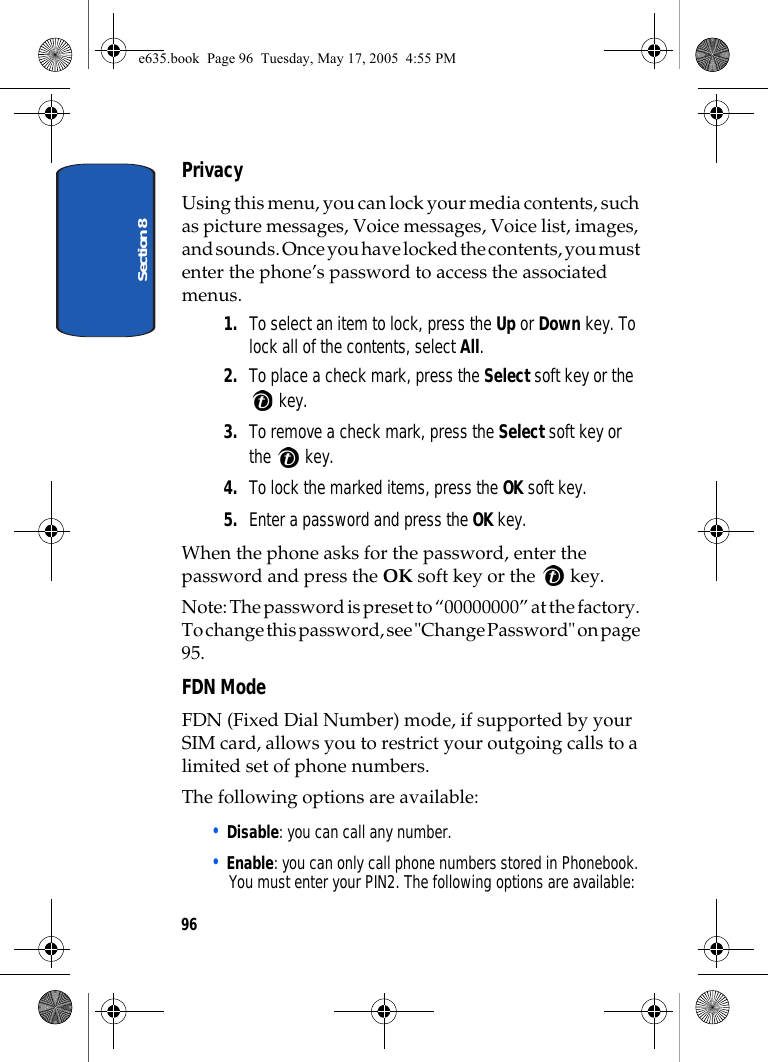

Section 896PrivacyUsing this menu, you can lock your media contents, such as picture messages, Voice messages, Voice list, images, and sounds. Once you have locked the contents, you must enter the phone’s password to access the associated menus.1. To select an item to lock, press the Up or Down key. To lock all of the contents, select All.2. To place a check mark, press the Select soft key or the key.3. To remove a check mark, press the Select soft key or the key.4. To lock the marked items, press the OK soft key.5. Enter a password and press the OK key.When the phone asks for the password, enter the password and press the OK soft key or the key.Note: The password is preset to “00000000” at the factory. To change this password, see "Change Password" on page 95.FDN ModeFDN (Fixed Dial Number) mode, if supported by your SIM card, allows you to restrict your outgoing calls to a limited set of phone numbers.The following options are available:• Disable: you can call any number.• Enable: you can only call phone numbers stored in Phonebook. You must enter your PIN2. The following options are available:e635.book Page 96 Tuesday, May 17, 2005 4:55 PM

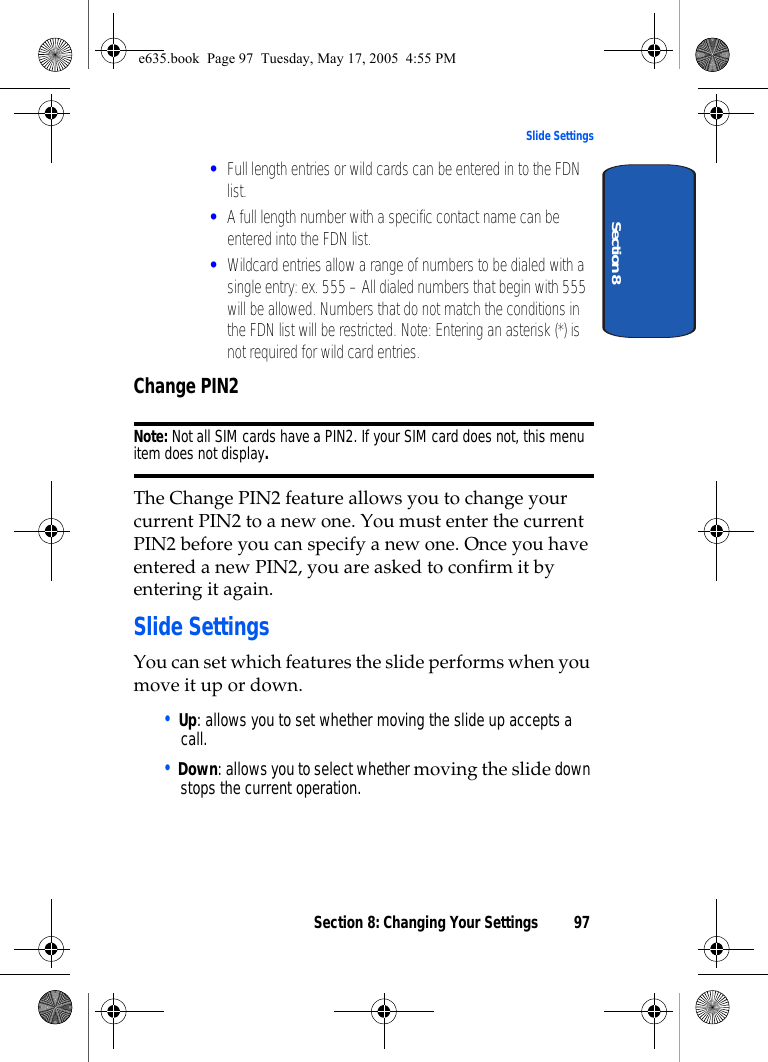

Section 8: Changing Your Settings 97Slide SettingsSection 8•Full length entries or wild cards can be entered in to the FDN list.•A full length number with a specific contact name can be entered into the FDN list.•Wildcard entries allow a range of numbers to be dialed with a single entry: ex. 555 – All dialed numbers that begin with 555 will be allowed. Numbers that do not match the conditions in the FDN list will be restricted. Note: Entering an asterisk (*) is not required for wild card entries. Change PIN2Note: Not all SIM cards have a PIN2. If your SIM card does not, this menu item does not display.The Change PIN2 feature allows you to change your current PIN2 to a new one. You must enter the current PIN2 before you can specify a new one. Once you have entered a new PIN2, you are asked to confirm it by entering it again.Slide SettingsYou can set which features the slide performs when you move it up or down. • Up: allows you to set whether moving the slide up accepts a call.• Down: allows you to select whether moving the slide down stops the current operation. e635.book Page 97 Tuesday, May 17, 2005 4:55 PM

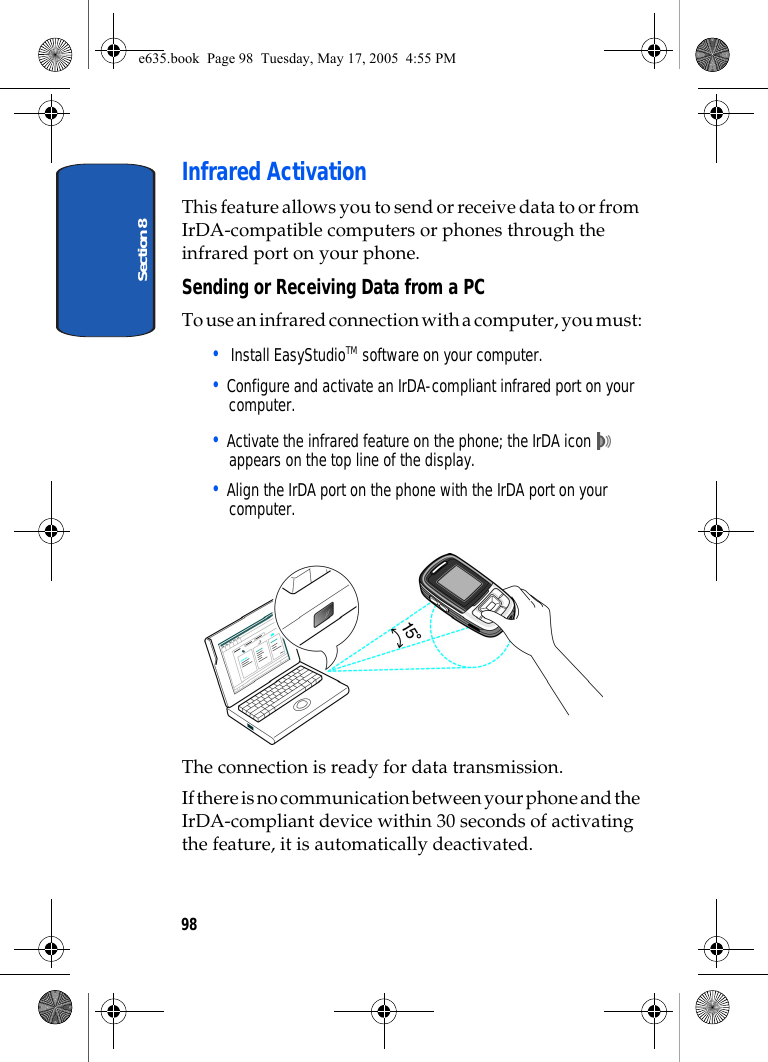

Section 898Infrared ActivationThis feature allows you to send or receive data to or from IrDA-compatible computers or phones through the infrared port on your phone.Sending or Receiving Data from a PCTo use an infrared connection with a computer, you must:• Install EasyStudioTM software on your computer.• Configure and activate an IrDA-compliant infrared port on your computer.• Activate the infrared feature on the phone; the IrDA icon appears on the top line of the display.• Align the IrDA port on the phone with the IrDA port on your computer.The connection is ready for data transmission.If there is no communication between your phone and the IrDA-compliant device within 30 seconds of activating the feature, it is automatically deactivated.e635.book Page 98 Tuesday, May 17, 2005 4:55 PM

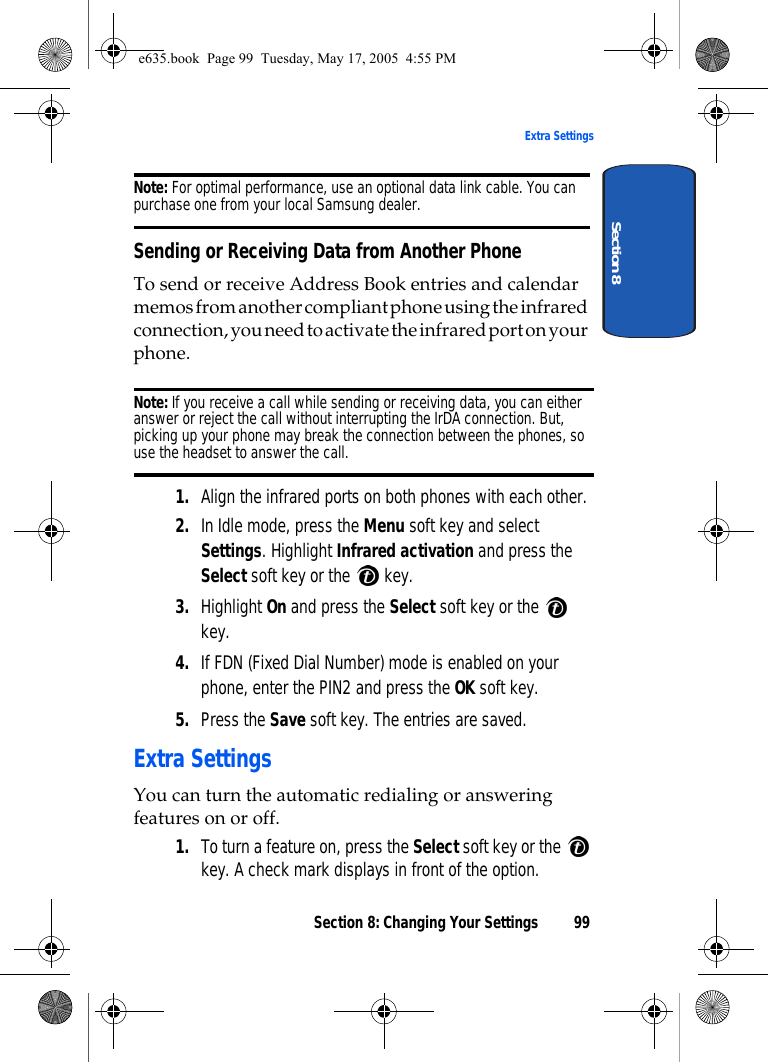

Section 8: Changing Your Settings 99Extra SettingsSection 8Note: For optimal performance, use an optional data link cable. You can purchase one from your local Samsung dealer.Sending or Receiving Data from Another PhoneTo send or receive Address Book entries and calendar memos from another compliant phone using the infrared connection, you need to activate the infrared port on your phone.Note: If you receive a call while sending or receiving data, you can either answer or reject the call without interrupting the IrDA connection. But, picking up your phone may break the connection between the phones, so use the headset to answer the call.1. Align the infrared ports on both phones with each other.2. In Idle mode, press the Menu soft key and select Settings. Highlight Infrared activation and press the Select soft key or the key. 3. Highlight On and press the Select soft key or the key.4. If FDN (Fixed Dial Number) mode is enabled on your phone, enter the PIN2 and press the OK soft key.5. Press the Save soft key. The entries are saved. Extra SettingsYou can turn the automatic redialing or answering features on or off.1. To turn a feature on, press the Select soft key or the key. A check mark displays in front of the option.e635.book Page 99 Tuesday, May 17, 2005 4:55 PM

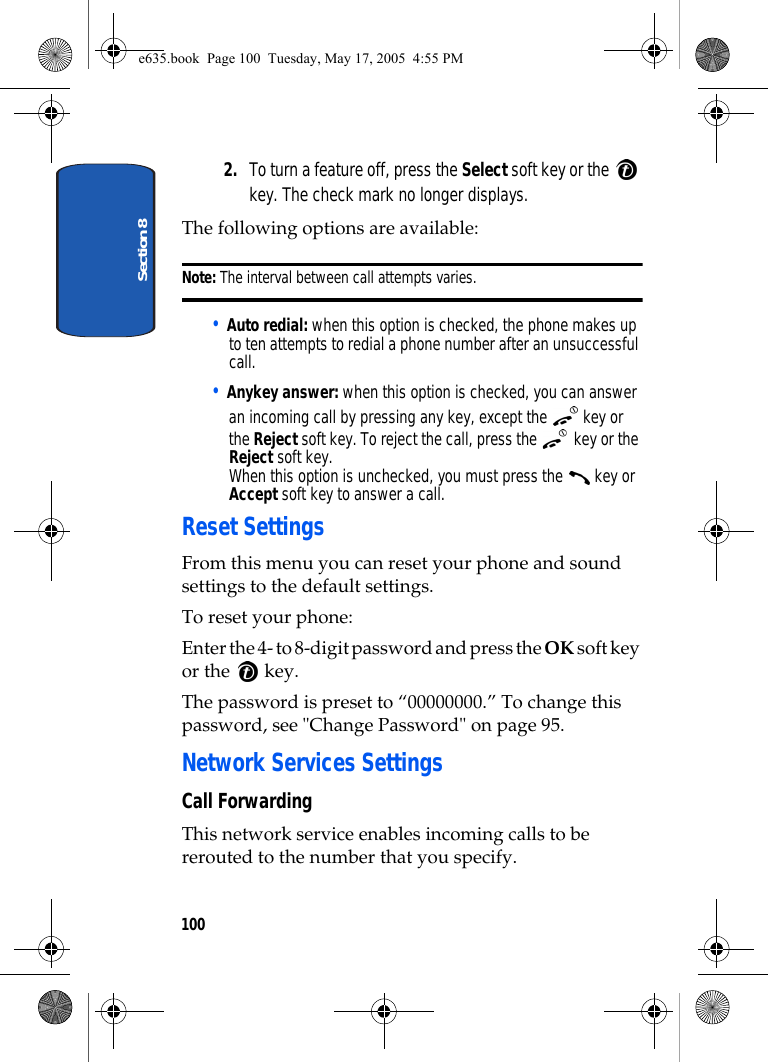

Section 81002. To turn a feature off, press the Select soft key or the key. The check mark no longer displays.The following options are available:Note: The interval between call attempts varies.• Auto redial: when this option is checked, the phone makes up to ten attempts to redial a phone number after an unsuccessful call.• Anykey answer: when this option is checked, you can answer an incoming call by pressing any key, except the key or the Reject soft key. To reject the call, press the key or the Reject soft key. When this option is unchecked, you must press the key or Accept soft key to answer a call.Reset SettingsFrom this menu you can reset your phone and sound settings to the default settings.To reset your phone: Enter the 4- to 8-digit password and press the OK soft key or the key.The password is preset to “00000000.” To change this password, see "Change Password" on page 95.Network Services SettingsCall ForwardingThis network service enables incoming calls to be rerouted to the number that you specify.e635.book Page 100 Tuesday, May 17, 2005 4:55 PM

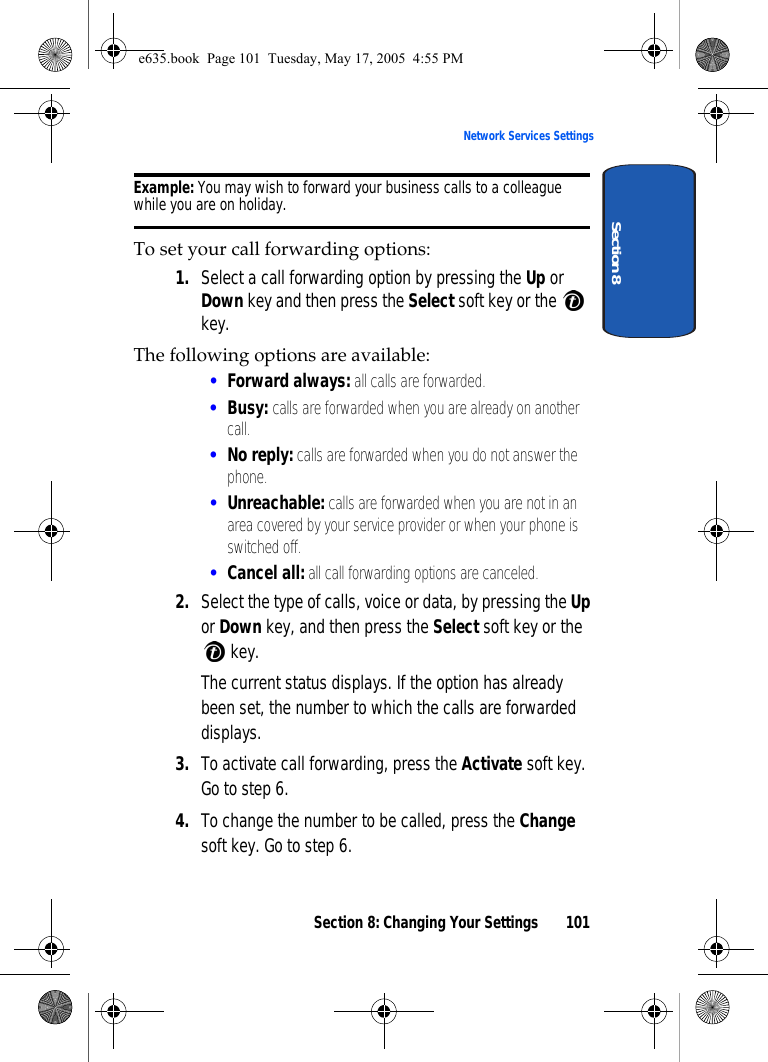

Section 8: Changing Your Settings 101Network Services SettingsSection 8Example: You may wish to forward your business calls to a colleague while you are on holiday.To set your call forwarding options:1. Select a call forwarding option by pressing the Up or Down key and then press the Select soft key or the key. The following options are available:•Forward always: all calls are forwarded.•Busy: calls are forwarded when you are already on another call.•No reply: calls are forwarded when you do not answer the phone.•Unreachable: calls are forwarded when you are not in an area covered by your service provider or when your phone is switched off.•Cancel all: all call forwarding options are canceled.2. Select the type of calls, voice or data, by pressing the Up or Down key, and then press the Select soft key or the key.The current status displays. If the option has already been set, the number to which the calls are forwarded displays.3. To activate call forwarding, press the Activate soft key. Go to step 6.4. To change the number to be called, press the Change soft key. Go to step 6.e635.book Page 101 Tuesday, May 17, 2005 4:55 PM

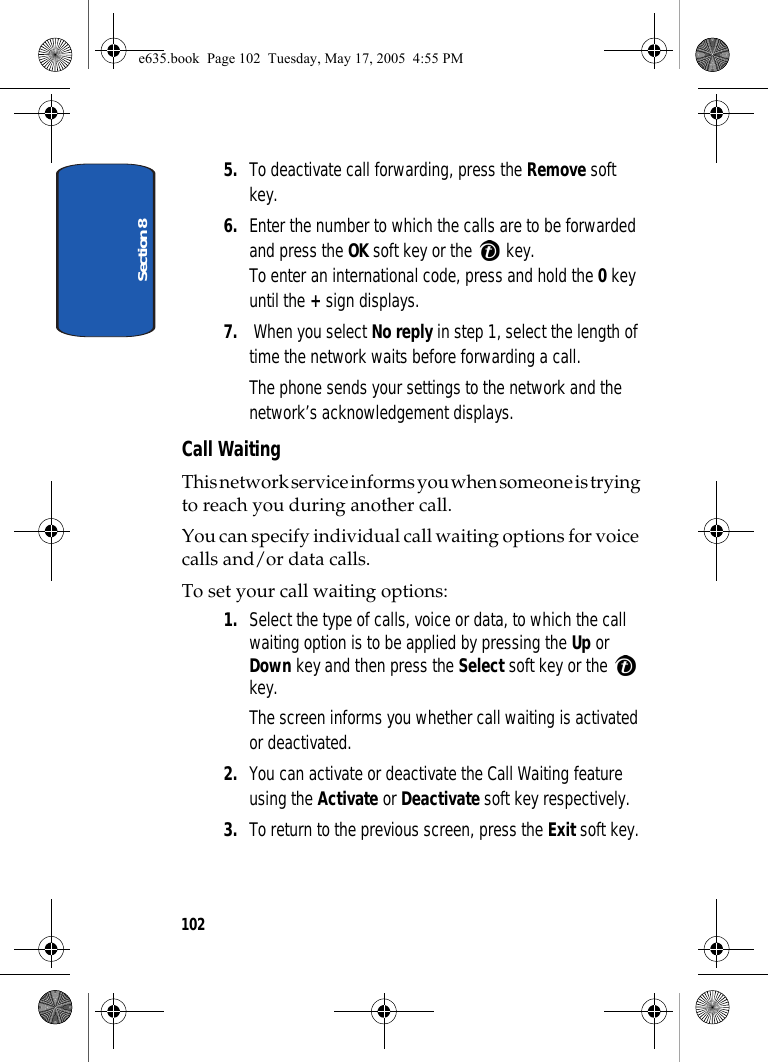

Section 81025. To deactivate call forwarding, press the Remove soft key.6. Enter the number to which the calls are to be forwarded and press the OK soft key or the key.To enter an international code, press and hold the 0 key until the + sign displays.7. When you select No reply in step 1, select the length of time the network waits before forwarding a call.The phone sends your settings to the network and the network’s acknowledgement displays.Call WaitingThis network service informs you when someone is trying to reach you during another call.You can specify individual call waiting options for voice calls and/or data calls.To set your call waiting options:1. Select the type of calls, voice or data, to which the call waiting option is to be applied by pressing the Up or Down key and then press the Select soft key or the key.The screen informs you whether call waiting is activated or deactivated. 2. You can activate or deactivate the Call Waiting feature using the Activate or Deactivate soft key respectively. 3. To return to the previous screen, press the Exit soft key.e635.book Page 102 Tuesday, May 17, 2005 4:55 PM

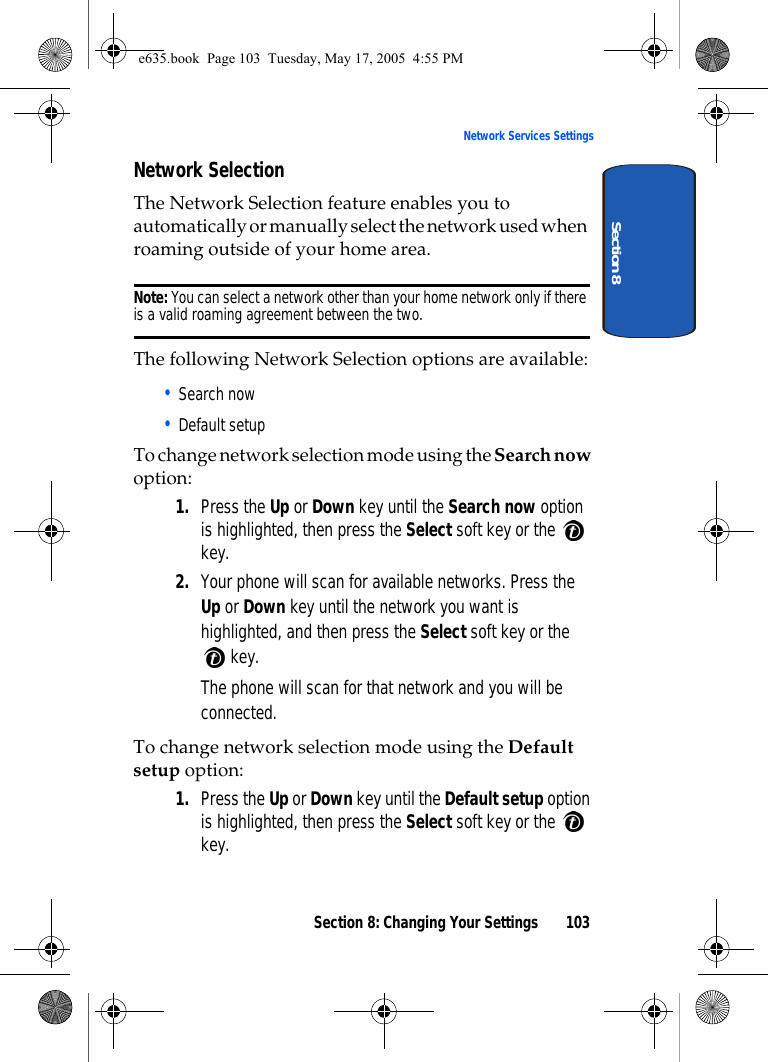

Section 8: Changing Your Settings 103Network Services SettingsSection 8Network SelectionThe Network Selection feature enables you to automatically or manually select the network used when roaming outside of your home area.Note: You can select a network other than your home network only if there is a valid roaming agreement between the two.The following Network Selection options are available:• Search now• Default setupTo change network selection mode using the Search now option: 1. Press the Up or Down key until the Search now option is highlighted, then press the Select soft key or the key.2. Your phone will scan for available networks. Press the Up or Down key until the network you want is highlighted, and then press the Select soft key or the key.The phone will scan for that network and you will be connected.To change network selection mode using the Default setup option: 1. Press the Up or Down key until the Default setup option is highlighted, then press the Select soft key or the key.e635.book Page 103 Tuesday, May 17, 2005 4:55 PM

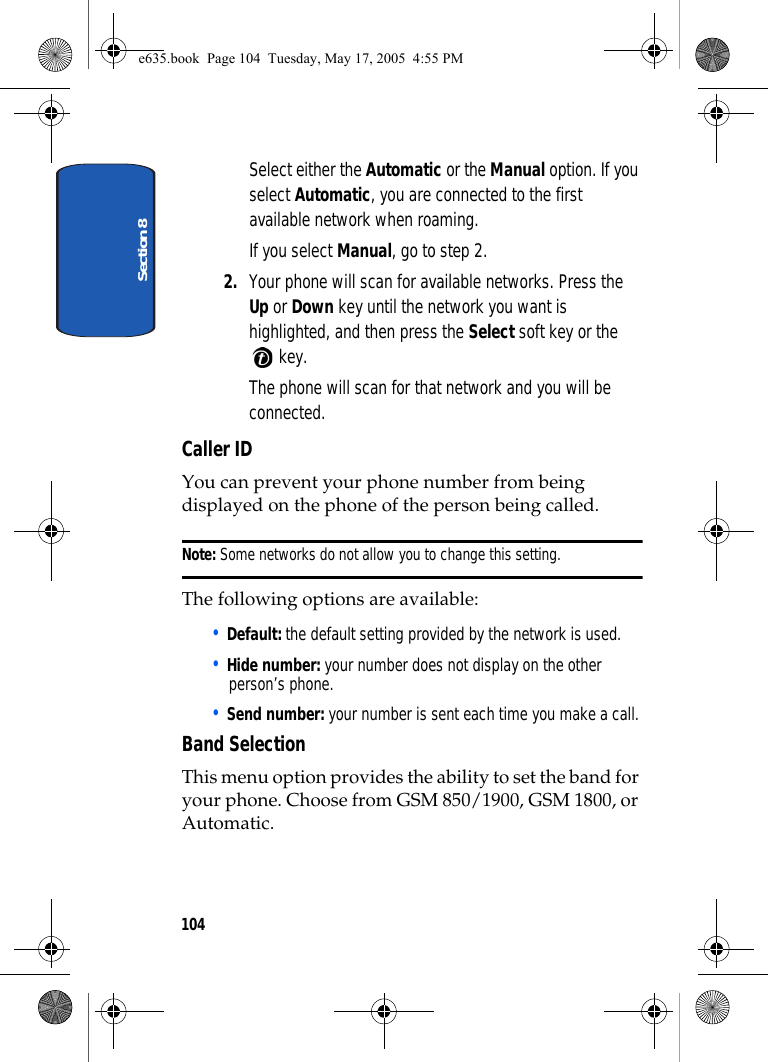

Section 8104Select either the Automatic or the Manual option. If you select Automatic, you are connected to the first available network when roaming.If you select Manual, go to step 2.2. Your phone will scan for available networks. Press the Up or Down key until the network you want is highlighted, and then press the Select soft key or the key.The phone will scan for that network and you will be connected.Caller IDYou can prevent your phone number from being displayed on the phone of the person being called.Note: Some networks do not allow you to change this setting.The following options are available:• Default: the default setting provided by the network is used.• Hide number: your number does not display on the other person’s phone.• Send number: your number is sent each time you make a call.Band SelectionThis menu option provides the ability to set the band for your phone. Choose from GSM 850/1900, GSM 1800, or Automatic.e635.book Page 104 Tuesday, May 17, 2005 4:55 PM

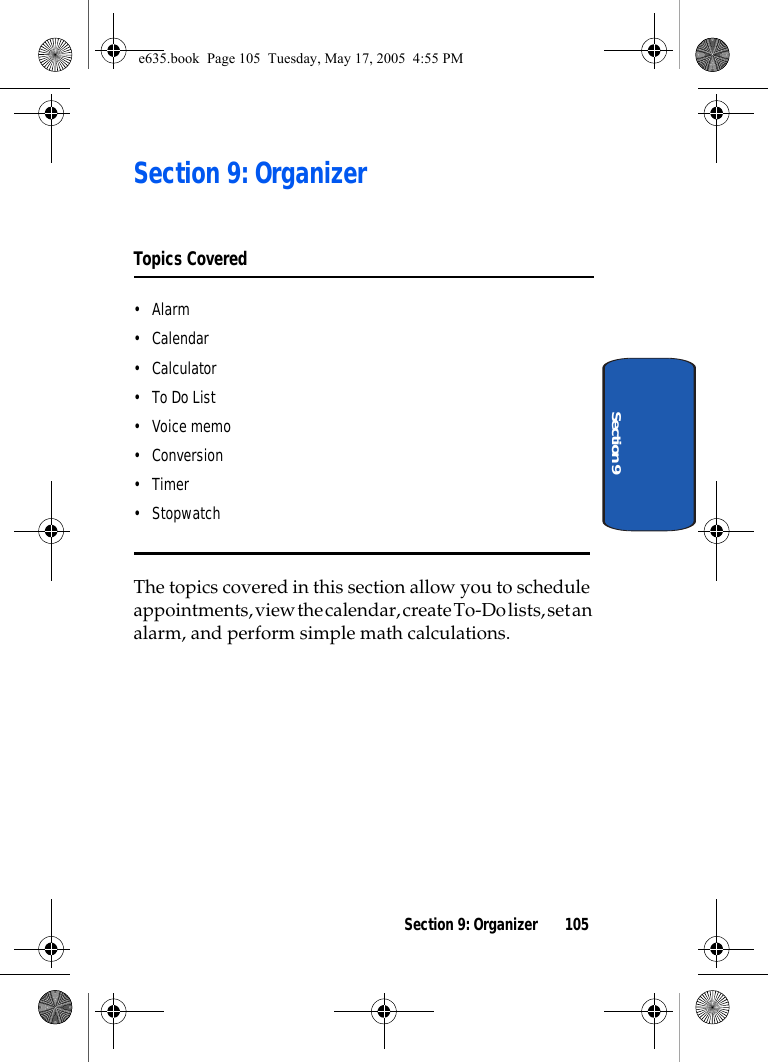

Section 9: Organizer 105Section 9Section 9: OrganizerTopics Covered•Alarm• Calendar•Calculator• To Do List•Voice memo•Conversion•Timer• StopwatchThe topics covered in this section allow you to schedule appointments, view the calendar, create To-Do lists, set an alarm, and perform simple math calculations.e635.book Page 105 Tuesday, May 17, 2005 4:55 PM

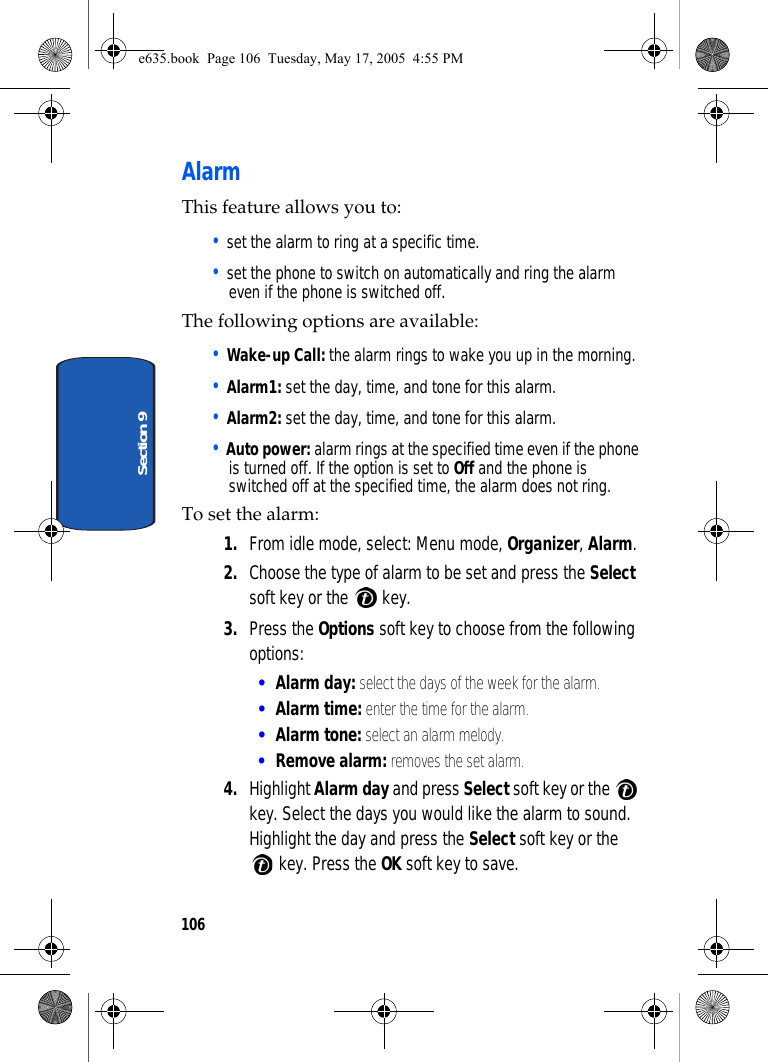

106Section 9AlarmThis feature allows you to:• set the alarm to ring at a specific time.• set the phone to switch on automatically and ring the alarm even if the phone is switched off.The following options are available:• Wake-up Call: the alarm rings to wake you up in the morning.• Alarm1: set the day, time, and tone for this alarm. • Alarm2: set the day, time, and tone for this alarm. • Auto power: alarm rings at the specified time even if the phone is turned off. If the option is set to Off and the phone is switched off at the specified time, the alarm does not ring.To set the alarm:1. From idle mode, select: Menu mode, Organizer, Alarm. 2. Choose the type of alarm to be set and press the Select soft key or the key.3. Press the Options soft key to choose from the following options:•Alarm day: select the days of the week for the alarm.•Alarm time: enter the time for the alarm.•Alarm tone: select an alarm melody.•Remove alarm: removes the set alarm.4. Highlight Alarm day and press Select soft key or the key. Select the days you would like the alarm to sound. Highlight the day and press the Select soft key or the key. Press the OK soft key to save. e635.book Page 106 Tuesday, May 17, 2005 4:55 PM

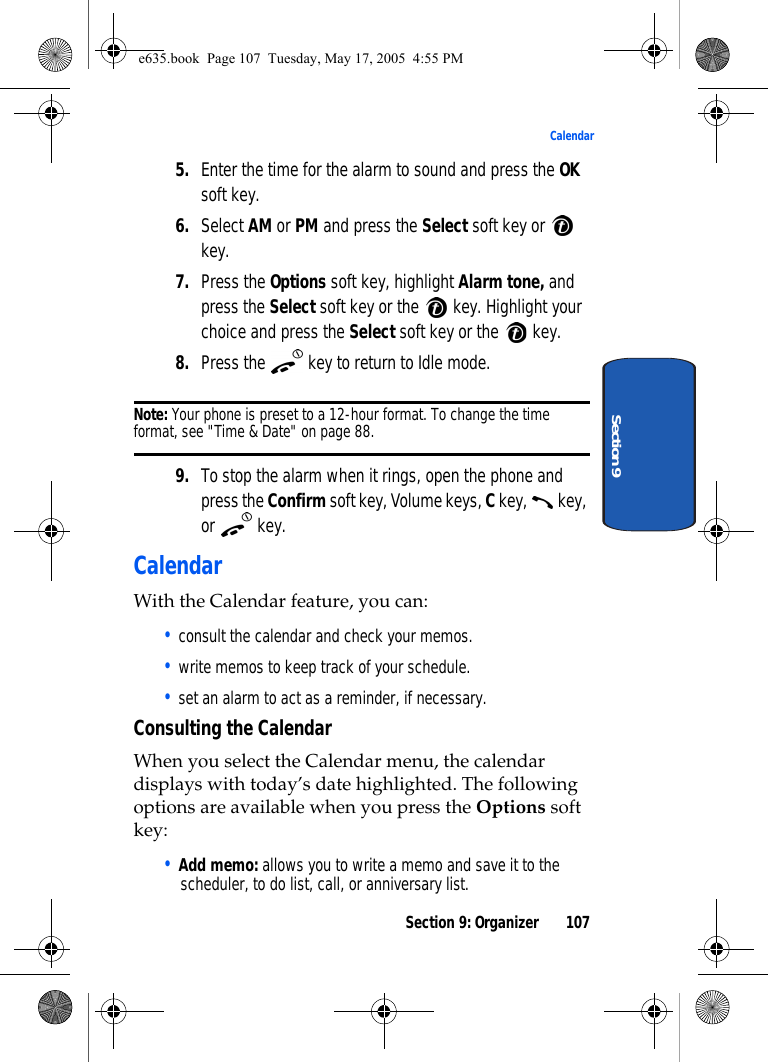

Section 9: Organizer 107CalendarSection 95. Enter the time for the alarm to sound and press the OK soft key.6. Select AM or PM and press the Select soft key or key. 7. Press the Options soft key, highlight Alarm tone, and press the Select soft key or the key. Highlight your choice and press the Select soft key or the key.8. Press the key to return to Idle mode.Note: Your phone is preset to a 12-hour format. To change the time format, see "Time & Date" on page 88.9. To stop the alarm when it rings, open the phone and press the Confirm soft key, Volume keys, C key, key, or key.CalendarWith the Calendar feature, you can: • consult the calendar and check your memos.• write memos to keep track of your schedule.• set an alarm to act as a reminder, if necessary.Consulting the CalendarWhen you select the Calendar menu, the calendar displays with today’s date highlighted. The following options are available when you press the Options soft key:• Add memo: allows you to write a memo and save it to the scheduler, to do list, call, or anniversary list.e635.book Page 107 Tuesday, May 17, 2005 4:55 PM

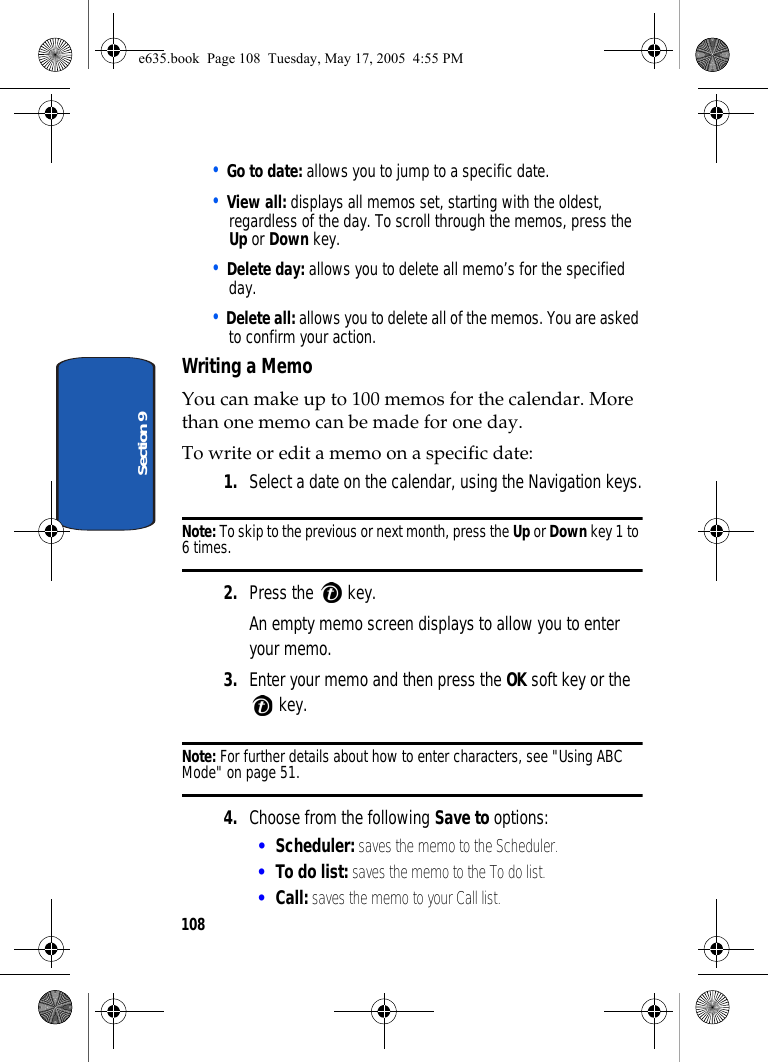

108Section 9• Go to date: allows you to jump to a specific date. • View all: displays all memos set, starting with the oldest, regardless of the day. To scroll through the memos, press the Up or Down key.• Delete day: allows you to delete all memo’s for the specified day.• Delete all: allows you to delete all of the memos. You are asked to confirm your action.Writing a MemoYou can make up to 100 memos for the calendar. More than one memo can be made for one day.To write or edit a memo on a specific date:1. Select a date on the calendar, using the Navigation keys.Note: To skip to the previous or next month, press the Up or Down key 1 to 6 times.2. Press the key.An empty memo screen displays to allow you to enter your memo.3. Enter your memo and then press the OK soft key or the key.Note: For further details about how to enter characters, see "Using ABC Mode" on page 51.4. Choose from the following Save to options:•Scheduler: saves the memo to the Scheduler.•To do list: saves the memo to the To do list.•Call: saves the memo to your Call list.e635.book Page 108 Tuesday, May 17, 2005 4:55 PM

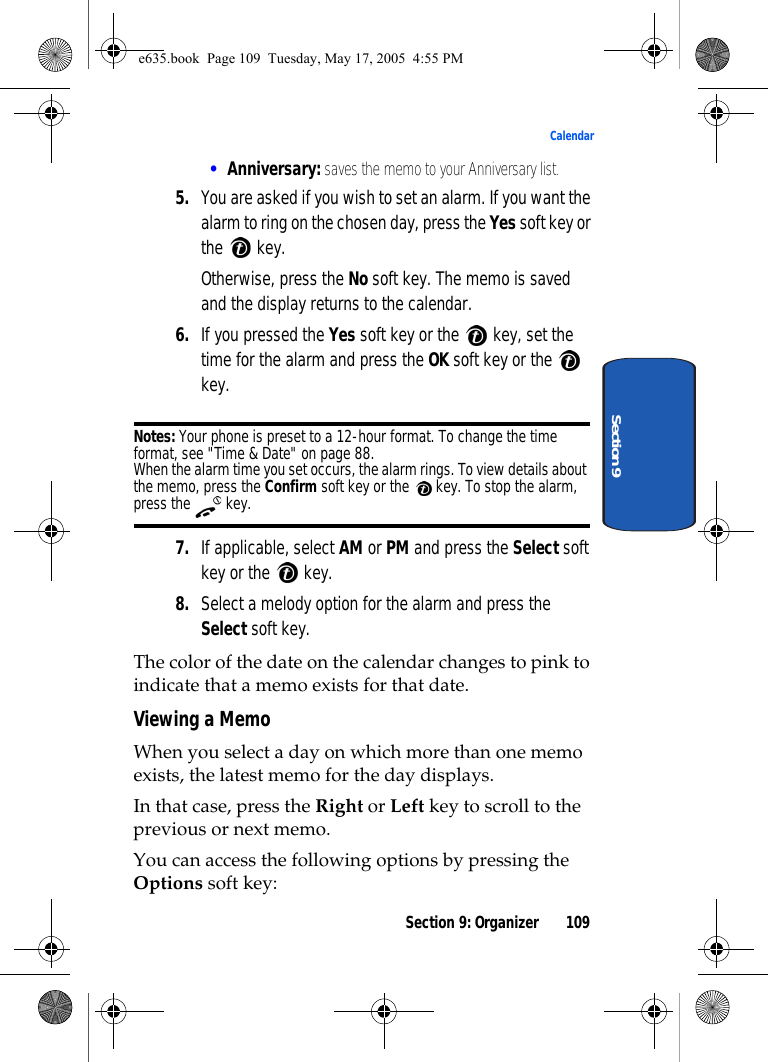

Section 9: Organizer 109CalendarSection 9•Anniversary: saves the memo to your Anniversary list.5. You are asked if you wish to set an alarm. If you want the alarm to ring on the chosen day, press the Yes soft key or the key.Otherwise, press the No soft key. The memo is saved and the display returns to the calendar.6. If you pressed the Yes soft key or the key, set the time for the alarm and press the OK soft key or the key.Notes: Your phone is preset to a 12-hour format. To change the time format, see "Time & Date" on page 88.When the alarm time you set occurs, the alarm rings. To view details about the memo, press the Confirm soft key or the key. To stop the alarm, press the key.7. If applicable, select AM or PM and press the Select soft key or the key.8. Select a melody option for the alarm and press the Select soft key.The color of the date on the calendar changes to pink to indicate that a memo exists for that date.Viewing a MemoWhen you select a day on which more than one memo exists, the latest memo for the day displays.In that case, press the Right or Left key to scroll to the previous or next memo.You can access the following options by pressing the Options soft key:e635.book Page 109 Tuesday, May 17, 2005 4:55 PM

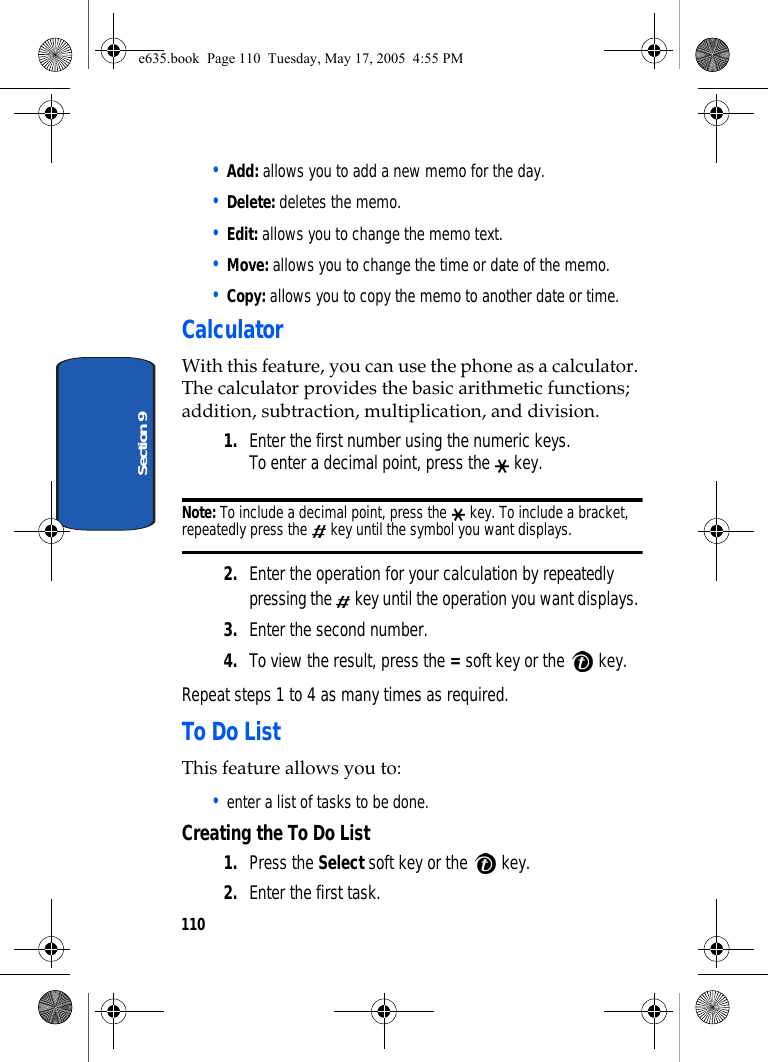

110Section 9• Add: allows you to add a new memo for the day.• Delete: deletes the memo.• Edit: allows you to change the memo text.• Move: allows you to change the time or date of the memo.• Copy: allows you to copy the memo to another date or time.CalculatorWith this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions; addition, subtraction, multiplication, and division.1. Enter the first number using the numeric keys. To enter a decimal point, press the key. Note: To include a decimal point, press the key. To include a bracket, repeatedly press the key until the symbol you want displays.2. Enter the operation for your calculation by repeatedly pressing the key until the operation you want displays. 3. Enter the second number.4. To view the result, press the = soft key or the key.Repeat steps 1 to 4 as many times as required.To Do ListThis feature allows you to:• enter a list of tasks to be done.Creating the To Do List1. Press the Select soft key or the key.2. Enter the first task.e635.book Page 110 Tuesday, May 17, 2005 4:55 PM

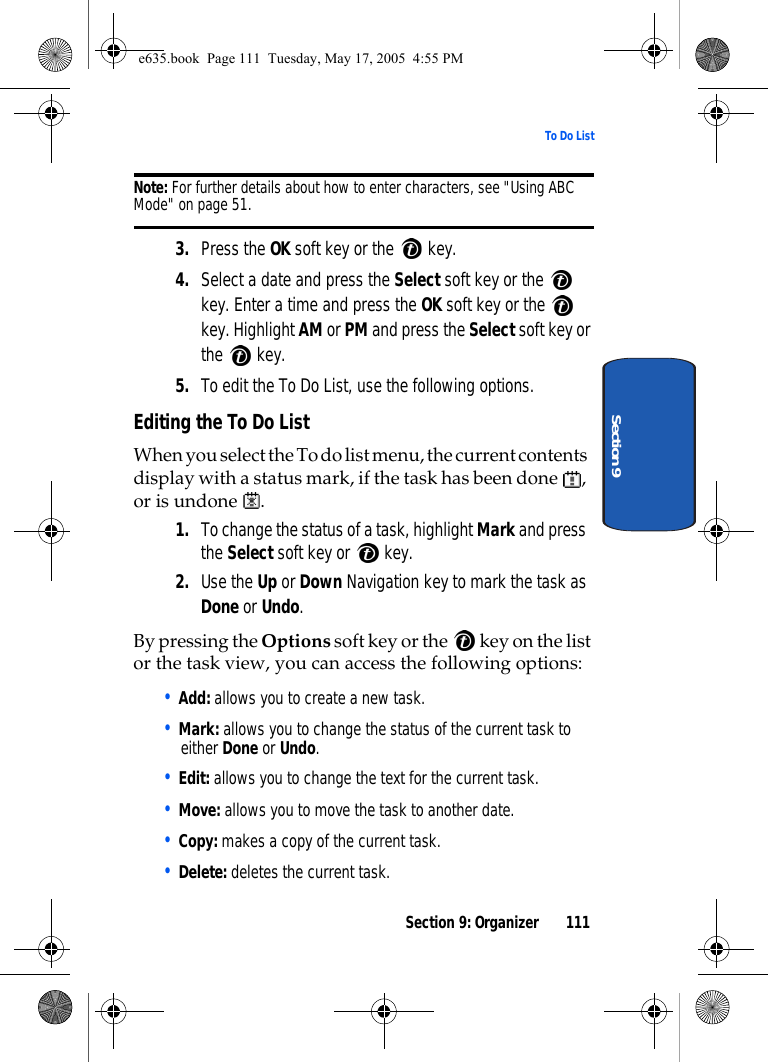

Section 9: Organizer 111To Do ListSection 9Note: For further details about how to enter characters, see "Using ABC Mode" on page 51.3. Press the OK soft key or the key.4. Select a date and press the Select soft key or the key. Enter a time and press the OK soft key or the key. Highlight AM or PM and press the Select soft key or the key.5. To edit the To Do List, use the following options.Editing the To Do ListWhen you select the To do list menu, the current contents display with a status mark, if the task has been done , or is undone .1. To change the status of a task, highlight Mark and press the Select soft key or key.2. Use the Up or Down Navigation key to mark the task as Done or Undo. By pressing the Options soft key or the key on the list or the task view, you can access the following options:• Add: allows you to create a new task.• Mark: allows you to change the status of the current task to either Done or Undo.• Edit: allows you to change the text for the current task.• Move: allows you to move the task to another date. • Copy: makes a copy of the current task.• Delete: deletes the current task.e635.book Page 111 Tuesday, May 17, 2005 4:55 PM

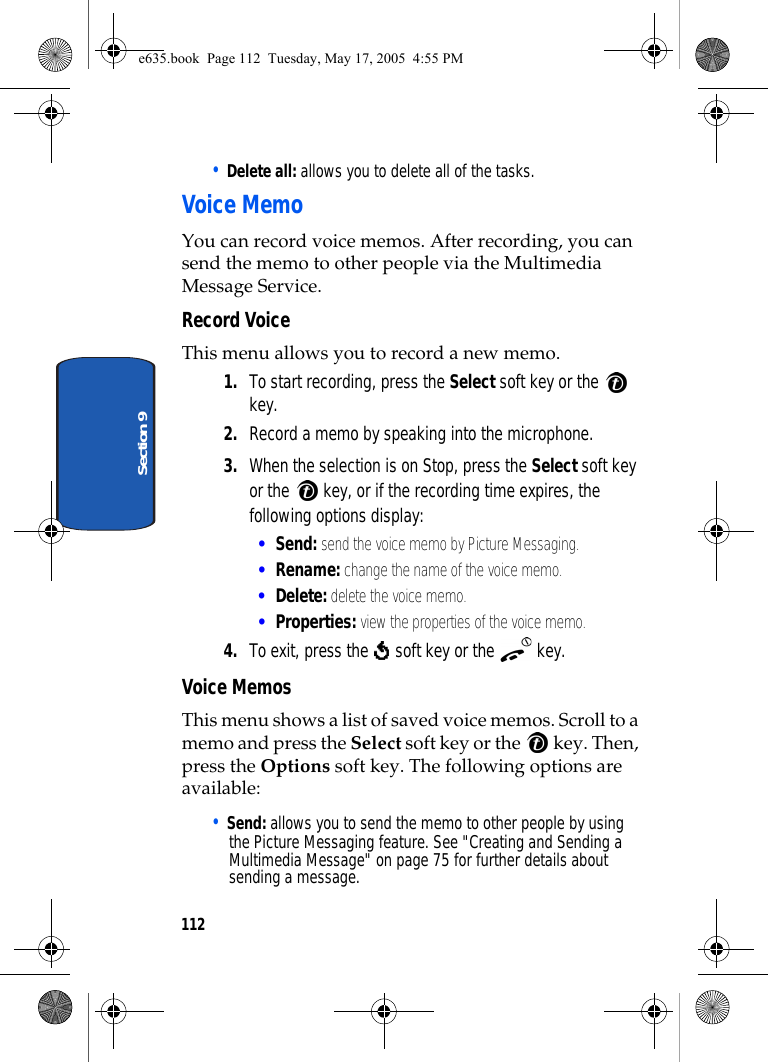

112Section 9• Delete all: allows you to delete all of the tasks.Voice MemoYou can record voice memos. After recording, you can send the memo to other people via the Multimedia Message Service.Record Voice This menu allows you to record a new memo.1. To start recording, press the Select soft key or the key. 2. Record a memo by speaking into the microphone.3. When the selection is on Stop, press the Select soft key or the key, or if the recording time expires, the following options display:•Send: send the voice memo by Picture Messaging.•Rename: change the name of the voice memo.•Delete: delete the voice memo.•Properties: view the properties of the voice memo.4. To exit, press the soft key or the key.Voice MemosThis menu shows a list of saved voice memos. Scroll to a memo and press the Select soft key or the key. Then, press the Options soft key. The following options are available:• Send: allows you to send the memo to other people by using the Picture Messaging feature. See "Creating and Sending a Multimedia Message" on page 75 for further details about sending a message.e635.book Page 112 Tuesday, May 17, 2005 4:55 PM

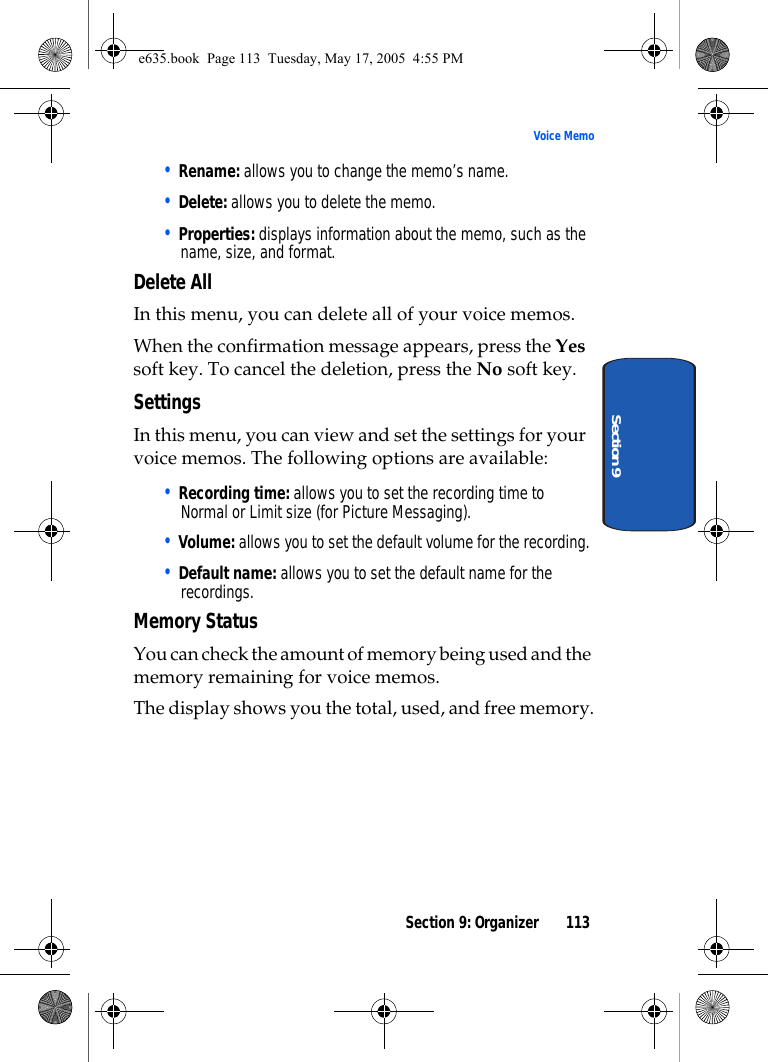

Section 9: Organizer 113Voice MemoSection 9• Rename: allows you to change the memo’s name.• Delete: allows you to delete the memo.• Properties: displays information about the memo, such as the name, size, and format.Delete All In this menu, you can delete all of your voice memos. When the confirmation message appears, press the Yes soft key. To cancel the deletion, press the No soft key.SettingsIn this menu, you can view and set the settings for your voice memos. The following options are available:• Recording time: allows you to set the recording time to Normal or Limit size (for Picture Messaging).• Volume: allows you to set the default volume for the recording.• Default name: allows you to set the default name for the recordings.Memory StatusYou can check the amount of memory being used and the memory remaining for voice memos.The display shows you the total, used, and free memory.e635.book Page 113 Tuesday, May 17, 2005 4:55 PM

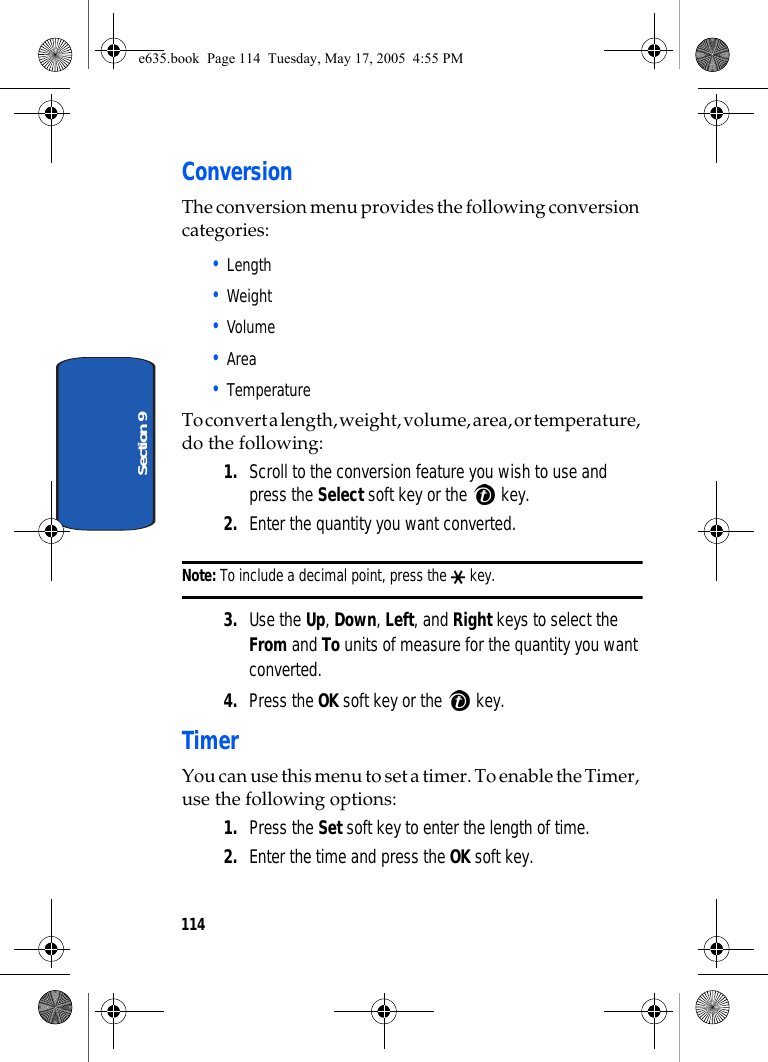

114Section 9ConversionThe conversion menu provides the following conversion categories:• Length• Weight• Volume• Area• TemperatureTo convert a length, weight, volume, area, or temperature, do the following: 1. Scroll to the conversion feature you wish to use and press the Select soft key or the key. 2. Enter the quantity you want converted. Note: To include a decimal point, press the key. 3. Use the Up, Down, Left, and Right keys to select the From and To units of measure for the quantity you want converted. 4. Press the OK soft key or the key. TimerYou can use this menu to set a timer. To enable the Timer, use the following options:1. Press the Set soft key to enter the length of time. 2. Enter the time and press the OK soft key.e635.book Page 114 Tuesday, May 17, 2005 4:55 PM

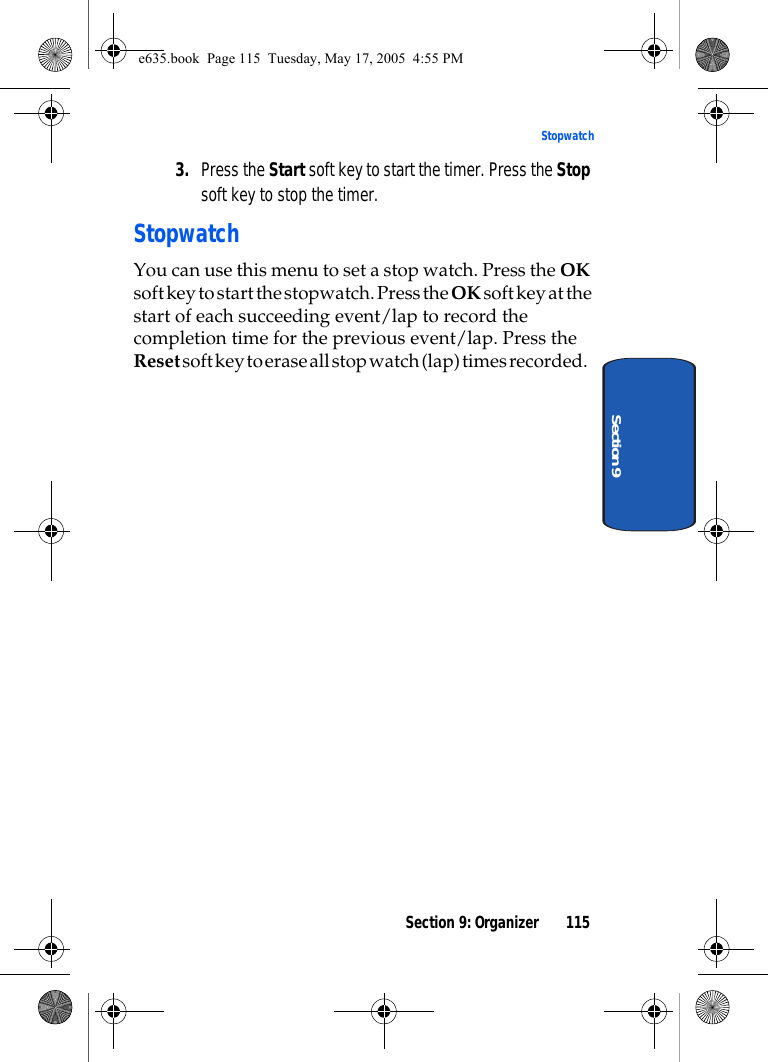

Section 9: Organizer 115StopwatchSection 93. Press the Start soft key to start the timer. Press the Stop soft key to stop the timer.StopwatchYou can use this menu to set a stop watch. Press the OK soft key to start the stopwatch. Press the OK soft key at the start of each succeeding event/lap to record the completion time for the previous event/lap. Press the Reset soft key to erase all stop watch (lap) times recorded. e635.book Page 115 Tuesday, May 17, 2005 4:55 PM

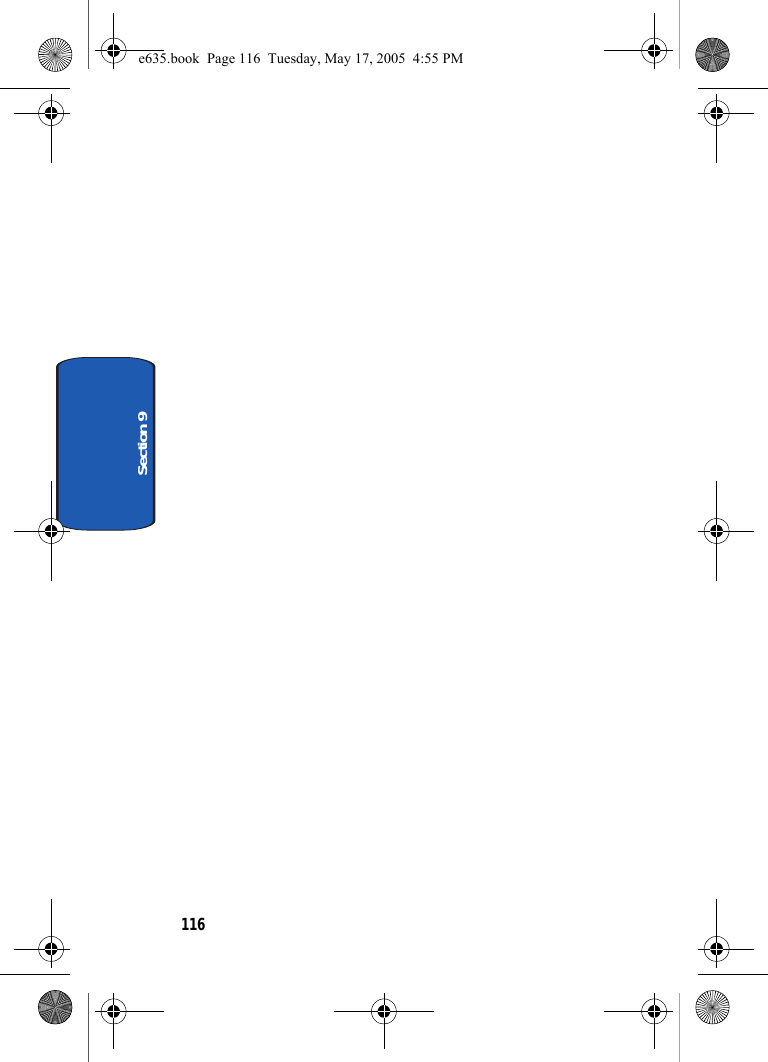

116Section 9e635.book Page 116 Tuesday, May 17, 2005 4:55 PM
Section 10: Camera 117Section 10Section 10: CameraTopics Covered• Using the Camera• Take and Send• Accessing Pictures in My Photos• Accessing Pictures in My Album• My Journal• Delete All• Settings• Memory StatusThis section explains how to use the camera in your phone. You can take a photo using the built-in camera. e635.book Page 117 Tuesday, May 17, 2005 4:55 PM

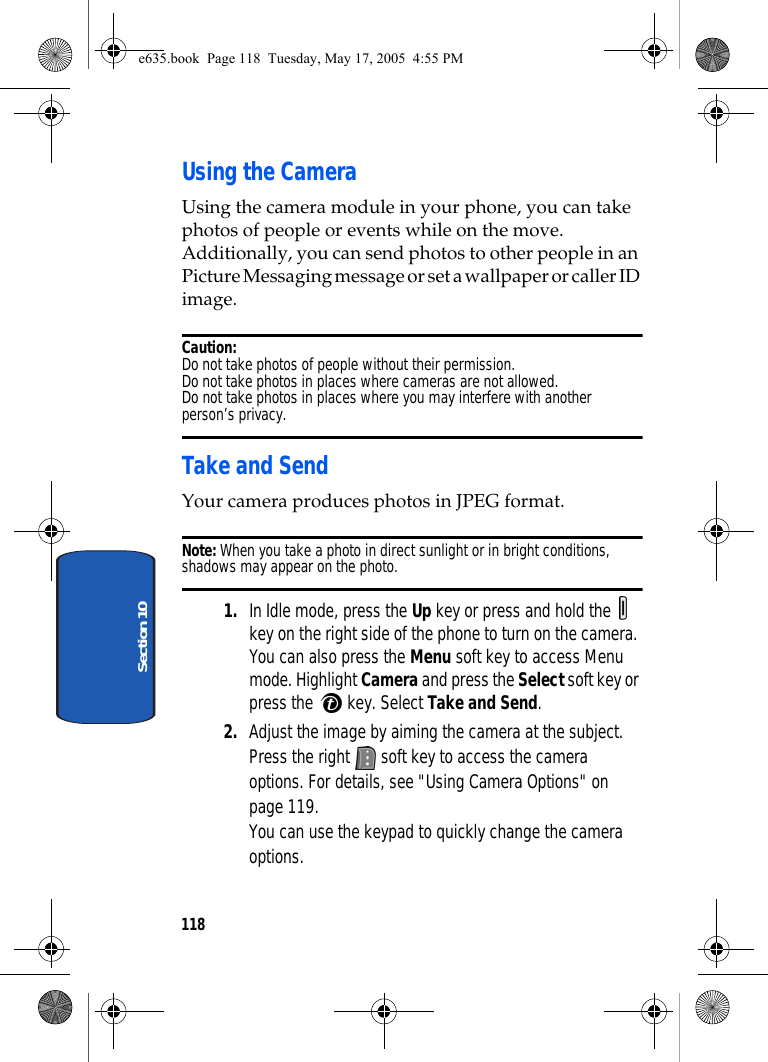

118Section 10Using the CameraUsing the camera module in your phone, you can take photos of people or events while on the move. Additionally, you can send photos to other people in an Picture Messaging message or set a wallpaper or caller ID image.Caution:Do not take photos of people without their permission.Do not take photos in places where cameras are not allowed.Do not take photos in places where you may interfere with another person’s privacy.Take and SendYour camera produces photos in JPEG format.Note: When you take a photo in direct sunlight or in bright conditions, shadows may appear on the photo.1. In Idle mode, press the Up key or press and hold the key on the right side of the phone to turn on the camera. You can also press the Menu soft key to access Menu mode. Highlight Camera and press the Select soft key or press the key. Select Take and Send.2. Adjust the image by aiming the camera at the subject.Press the right soft key to access the camera options. For details, see "Using Camera Options" on page 119.You can use the keypad to quickly change the camera options. e635.book Page 118 Tuesday, May 17, 2005 4:55 PM

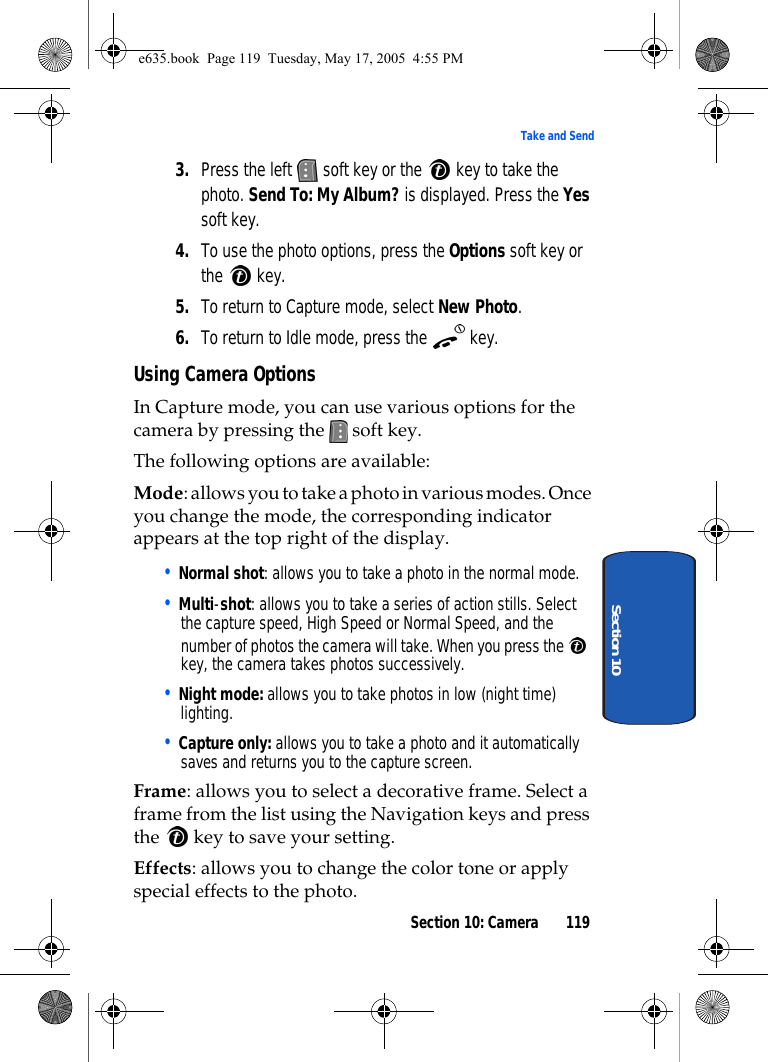

Section 10: Camera 119Take and SendSection 103. Press the left soft key or the key to take the photo. Send To: My Album? is displayed. Press the Yes soft key. 4. To use the photo options, press the Options soft key or the key.5. To return to Capture mode, select New Photo.6. To return to Idle mode, press the key.Using Camera OptionsIn Capture mode, you can use various options for the camera by pressing the soft key.The following options are available:Mode: allows you to take a photo in various modes. Once you change the mode, the corresponding indicator appears at the top right of the display.• Normal shot: allows you to take a photo in the normal mode.• Multi-shot: allows you to take a series of action stills. Select the capture speed, High Speed or Normal Speed, and the number of photos the camera will take. When you press the key, the camera takes photos successively.• Night mode: allows you to take photos in low (night time) lighting.• Capture only: allows you to take a photo and it automatically saves and returns you to the capture screen.Frame: allows you to select a decorative frame. Select a frame from the list using the Navigation keys and press the key to save your setting.Effects: allows you to change the color tone or apply special effects to the photo.e635.book Page 119 Tuesday, May 17, 2005 4:55 PM

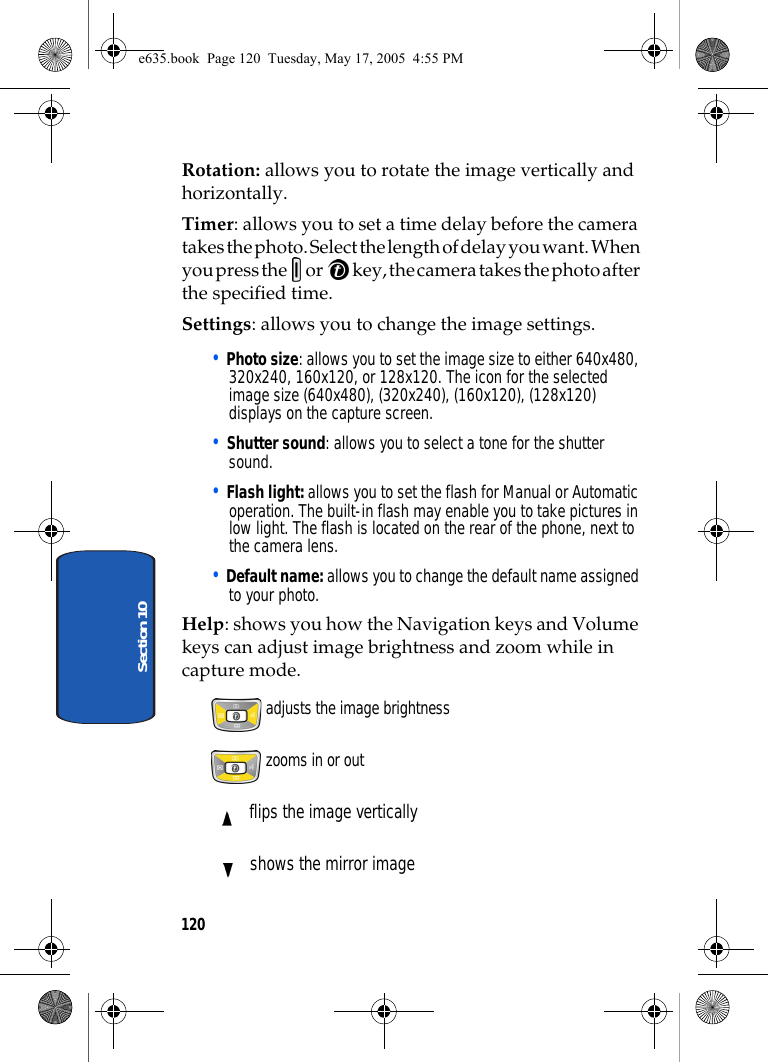

120Section 10Rotation: allows you to rotate the image vertically and horizontally.Timer: allows you to set a time delay before the camera takes the photo. Select the length of delay you want. When you press the or key, the camera takes the photo after the specified time.Settings: allows you to change the image settings.• Photo size: allows you to set the image size to either 640x480, 320x240, 160x120, or 128x120. The icon for the selected image size (640x480), (320x240), (160x120), (128x120) displays on the capture screen.• Shutter sound: allows you to select a tone for the shutter sound.• Flash light: allows you to set the flash for Manual or Automatic operation. The built-in flash may enable you to take pictures in low light. The flash is located on the rear of the phone, next to the camera lens. • Default name: allows you to change the default name assigned to your photo.Help: shows you how the Navigation keys and Volume keys can adjust image brightness and zoom while in capture mode. adjusts the image brightness zooms in or out flips the image vertically shows the mirror imagee635.book Page 120 Tuesday, May 17, 2005 4:55 PM

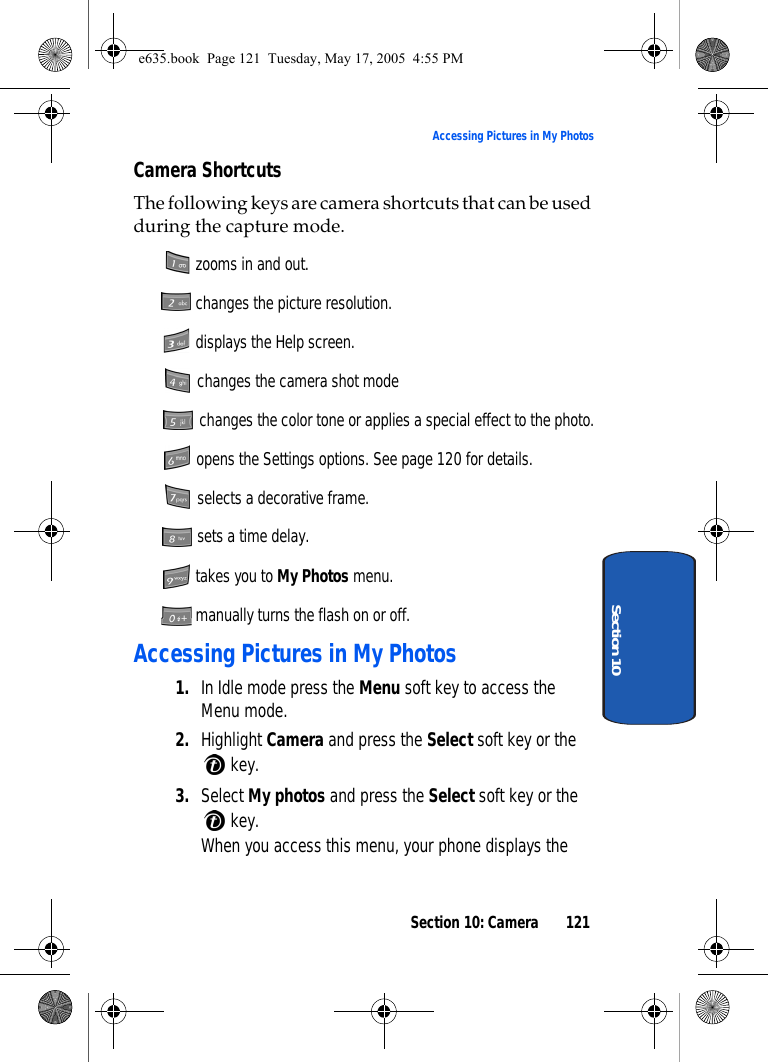

Section 10: Camera 121Accessing Pictures in My PhotosSection 10Camera ShortcutsThe following keys are camera shortcuts that can be used during the capture mode. zooms in and out. changes the picture resolution. displays the Help screen. changes the camera shot mode changes the color tone or applies a special effect to the photo. opens the Settings options. See page 120 for details. selects a decorative frame. sets a time delay. takes you to My Photos menu. manually turns the flash on or off.Accessing Pictures in My Photos1. In Idle mode press the Menu soft key to access the Menu mode.2. Highlight Camera and press the Select soft key or the key. 3. Select My photos and press the Select soft key or the key.When you access this menu, your phone displays the e635.book Page 121 Tuesday, May 17, 2005 4:55 PM
