1SGH-I307 Installation Guide and User manualSGH-I307Installation GuideInstallation GuideAnd User Manual1
2SGH-I307 Installation Guide and User manual1. IntroductionThe SGH-I307 Module is a module on board(MOB) that provides LTE and HSPA+ connectivityfor devices over several radio frequency bandsfor devices over several radio frequency bands.The SGH-I307 will be AT&T-certified, and Windows 8 Mobile Broadband Interface Model(MBIM) compliant.Supported RF bandsThe modem, based on Qualcomm’s MDM9200 baseband processor,Supports data operation on LTE and HSPA+ networks.Technology Bands NotesB d 4 (AWS)(1700/2100MH )Table. Supported RF bandsLTE•Band 4 (AWS)(1700/2100MHz)•Band 17 (700MHz) MISO supportHSPA+•Band 1 (2100MHz)•Band 2 (1900MHz)•Band5 (850MHz)Diversity support•Band5 (850MHz)GNSS•GPS (1575.42MHz)•GLONASS (1602MHz)2
3SGH-I307 Installation Guide and User manualPhysical features•SGH-I307 : 50mm X 30mm X 2.7mm•Operating temperature range : -20 to 60 Celsius temperatureModem features3
4SGH-I307 Installation Guide and User manual4
5SGH-I307 Installation Guide and User manualLTE features•Basic cell selection and system acquisitionPSS/SSS/MIB d d-PSS/SSS/MIB decode- SIB1-SIB8, SIB10, SIB11 decoding•NAS/AS security procedures- Snow 3G/AES security•CQI/RI/PMI reporting•Paging procedures- Paging in idle and Connected mode•Dedicated bearer- Network-initiated dedicated bearer-UE-initiated dedicated bearerUEinitiated dedicated bearer•Connected mode intra-LTE mobility•iRAT between LTE/3G for idle and connection release with redirection•Detach procedure- Network-initiated detach with reattach requiredNetworkinitiated detach followed by connection release-Network-initiated detach followed by connection release5
6SGH-I307 Installation Guide and User manualPosition location (GNSS)•Concurrent standalone GPS and GLONASS•Assisted GPS ( A-GPS) SUPL1.0•Assisted GNSS ( A-GPS) SUPL2.0•gpsOneXTRA2.0 with GPS + GLONASS supportStandards ComplianceThe SGH-I307 Module complies with the mandatory requirements described in the following standards.pyq gThe exact set of requirements supported is carrier-dependent.6

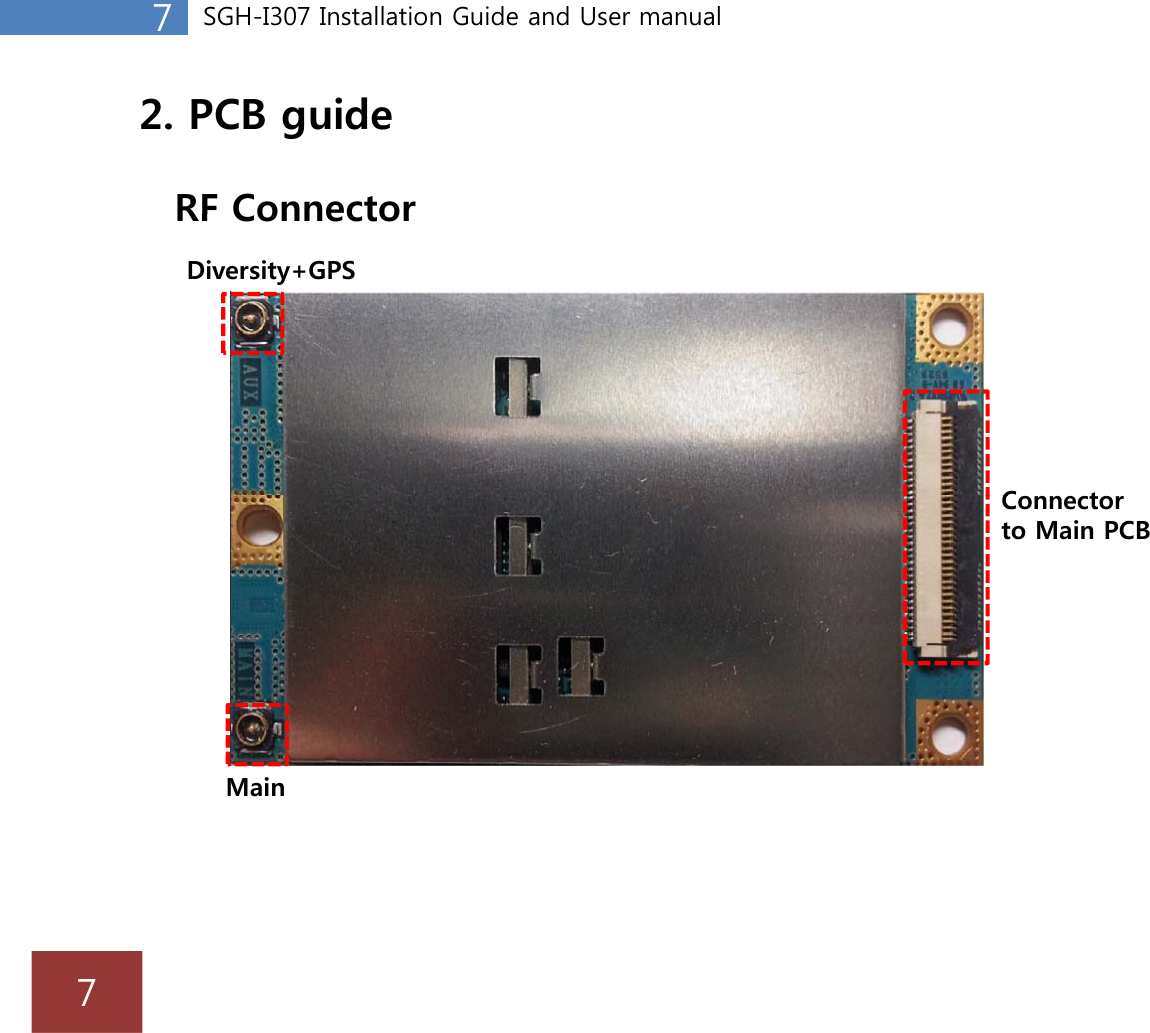

7SGH-I307 Installation Guide and User manual2. PCB guideRF ConnectorDiversity+GPSRF ConnectorCtConnectorto Main PCBMain7
8SGH-I307 Installation Guide and User manualRF ConnectorRF Connector①Housing①Housing②Contact③ Ground Contact8
9SGH-I307 Installation Guide and User manual3. Applicable DeviceSGH-I307 is a just RF module.if ifiddi blibll idihih SifIt is not for specified device. It can be applicable to electronic devices which use USB interface.But the manufacturer has to make sw for control MDM9200, main modem.TechnologyBandsNotesTechnologyBandsNotesLTE•Band 4 (AWS)(1700/2100MHz)•Band 17 (700MHz) MISO support•Band 1 (2100MHz)HSPA+ •Band 2 (1900MHz)•Band 5 (850MHz)Diversity supportGNSS•GPS (1575.42MHz)•GLONASS (1602MHz)9

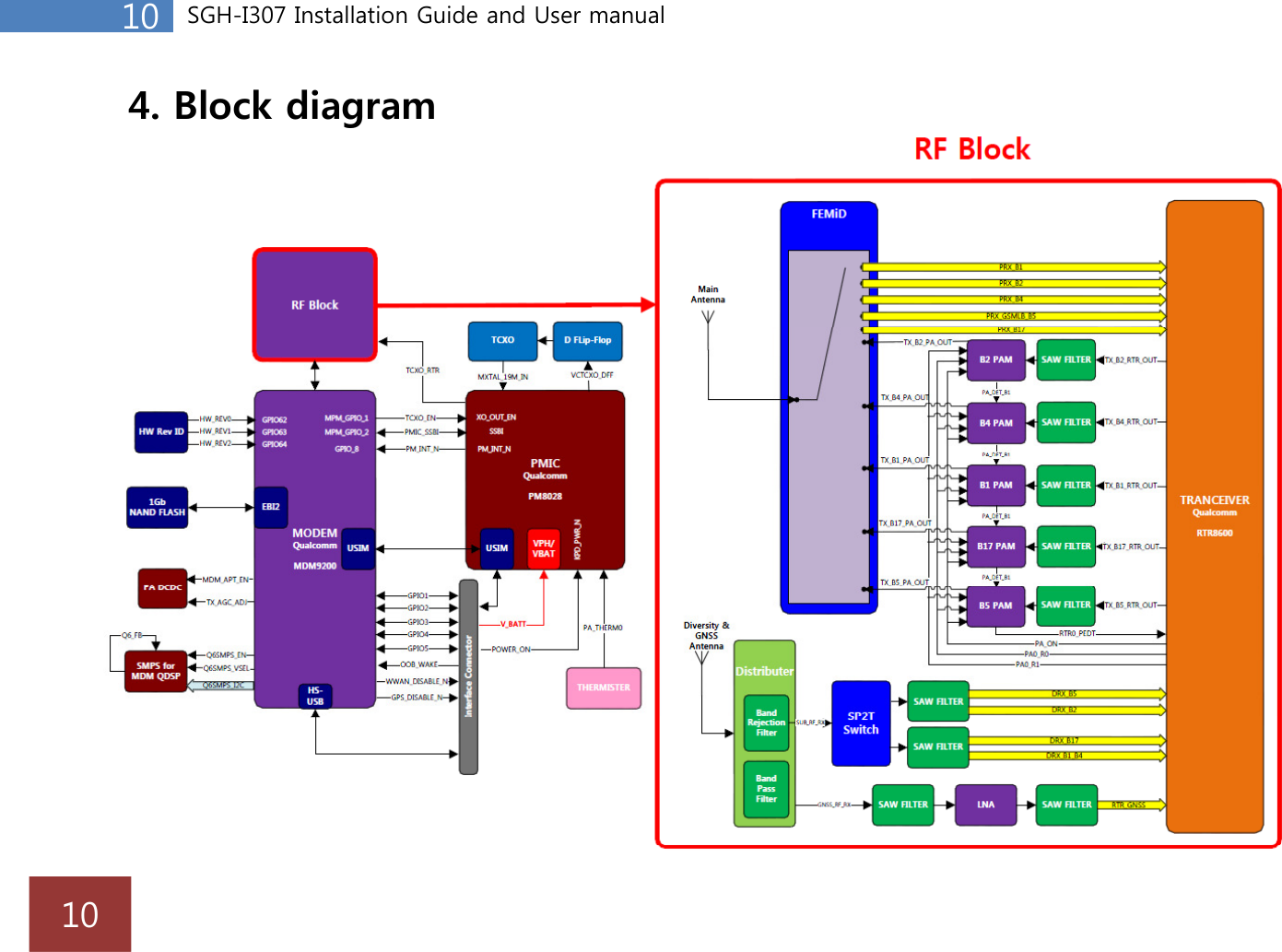

10 SGH-I307 Installation Guide and User manual4. Block diagram10
11 SGH-I307 Installation Guide and User manual5. SGH-I307 Interface70pin connector to main PCBI307 moduleMain PCB11
12 SGH-I307 Installation Guide and User manualConnector pin assignmentConnector pin assignment12
13 SGH-I307 Installation Guide and User manual13
14 SGH-I307 Installation Guide and User manual14
15 SGH-I307 Installation Guide and User manual15
16 SGH-I307 Installation Guide and User manualUSB interfaceThe USB interface is the path for communication between the host and module.The interface complies with the Universal Bus Specification, Rev2.0, and the host device must beppDesigned to the same standard.(When designing the host device, careful PCB layout practices must be followed) USB interface16

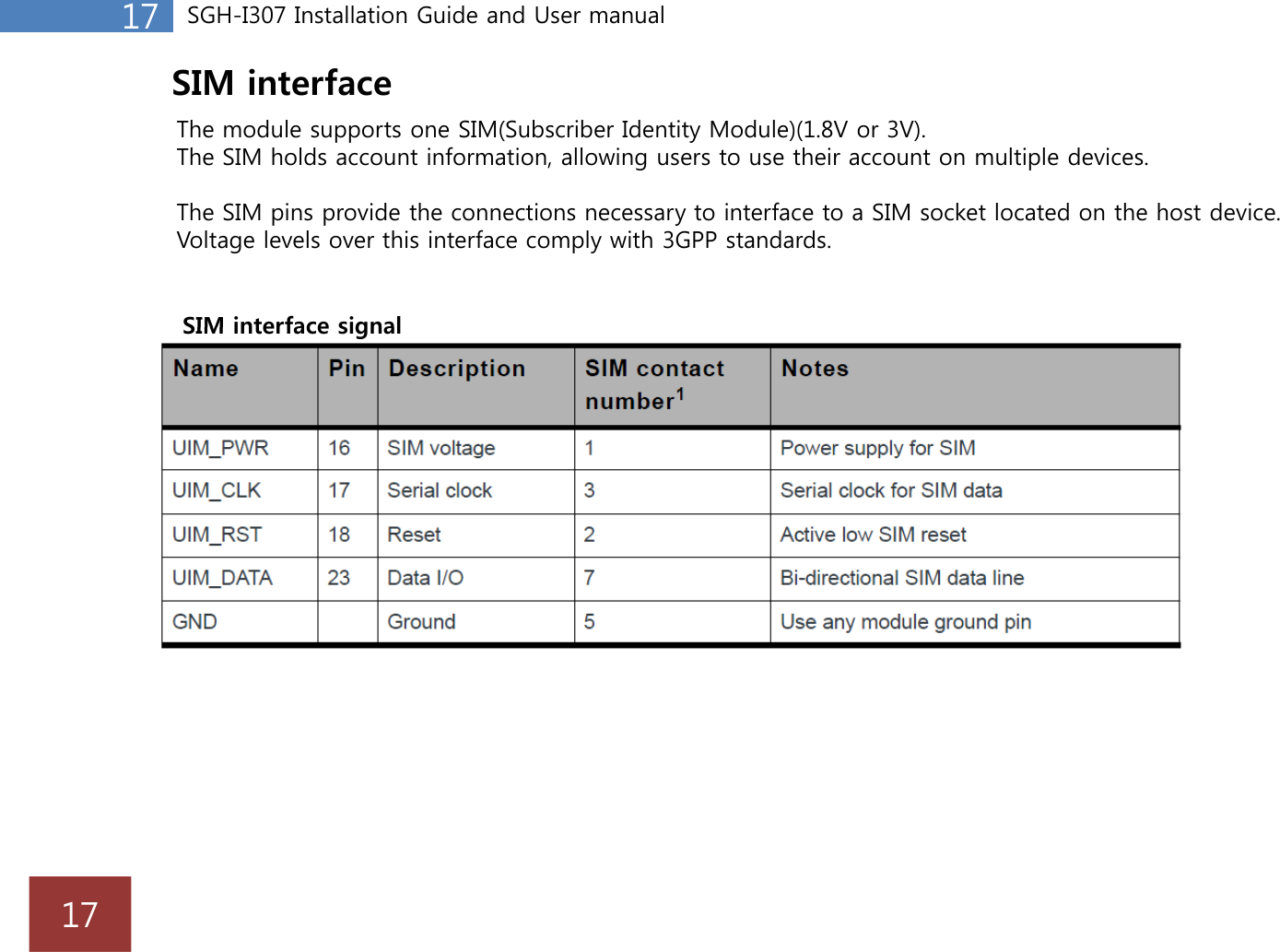

17 SGH-I307 Installation Guide and User manualSIM interfaceThe module supports one SIM(Subscriber Identity Module)(1.8V or 3V). The SIM holds account information, allowing users to use their account on multiple devices.The SIM pins provide the connections necessary to interface to a SIM socket located on the host device.Voltage levels over this interface comply with 3GPP standards.SIM interface signalSIM interface signal17
18 SGH-I307 Installation Guide and User manualCritical Installation RequirementsThis device is approved for use as a mobile installation meaning that it will only be used in productsThat are capable of maintaining a minimum separation distance of 20cm from the antenna(s) of this Device and end user.When installed in a final configuration the antenna must be installed such that a minimum separationOf 20cm(8 inches) between the wireless device and the body of the user(this does not include extremities)must be maintained during use and while the wireless device is on and transmitting.This distance must be ensured for all operating modes and conditionsThis distance must be ensured for all operating modes and conditions.This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter.Installations in which the device is collocated with other transmitters or the minimum separation distanceB t th b d d t ( ) t b i t i d i t FCC th i tiBetween the body and antenna(s) can not be maintained require a separate FCC authorization. Such installations may require additional testing for RF Exposure(i.e. SAR) and a Class II Permissive ChangeFilling for FCC approval. Please contact Samsung Electronics, Ltd. Regarding such installations.A label must be affixed to the outside of the end product into which the Module is installed, with a statement similar to the following:· This device contains FCC ID: A3LSGHI307Antenna RequirementsTo comply with FCC regulations limiting both maximum RF output power and human exposure to RF radiation, the maximum antenna gain including cable loss in a mobile-only exposure condition must notexceed 1.4dBi in WCDMA Band2/5, LTE Band 4 and LTE Band 17.18
19 SGH-I307 Installation Guide and User manualNoteIf this module is intended for use in a portable device, you are responsible for separate approval to satisfy the SAR requirements of FCC Part 2.1093.19
