Samsung Electronics Co SGHT719 Dual-Band GSM/ EDGE Phone with Bluetooth User Manual

Samsung Electronics Co Ltd Dual-Band GSM/ EDGE Phone with Bluetooth Users Manual

Contents

Users Manual 2

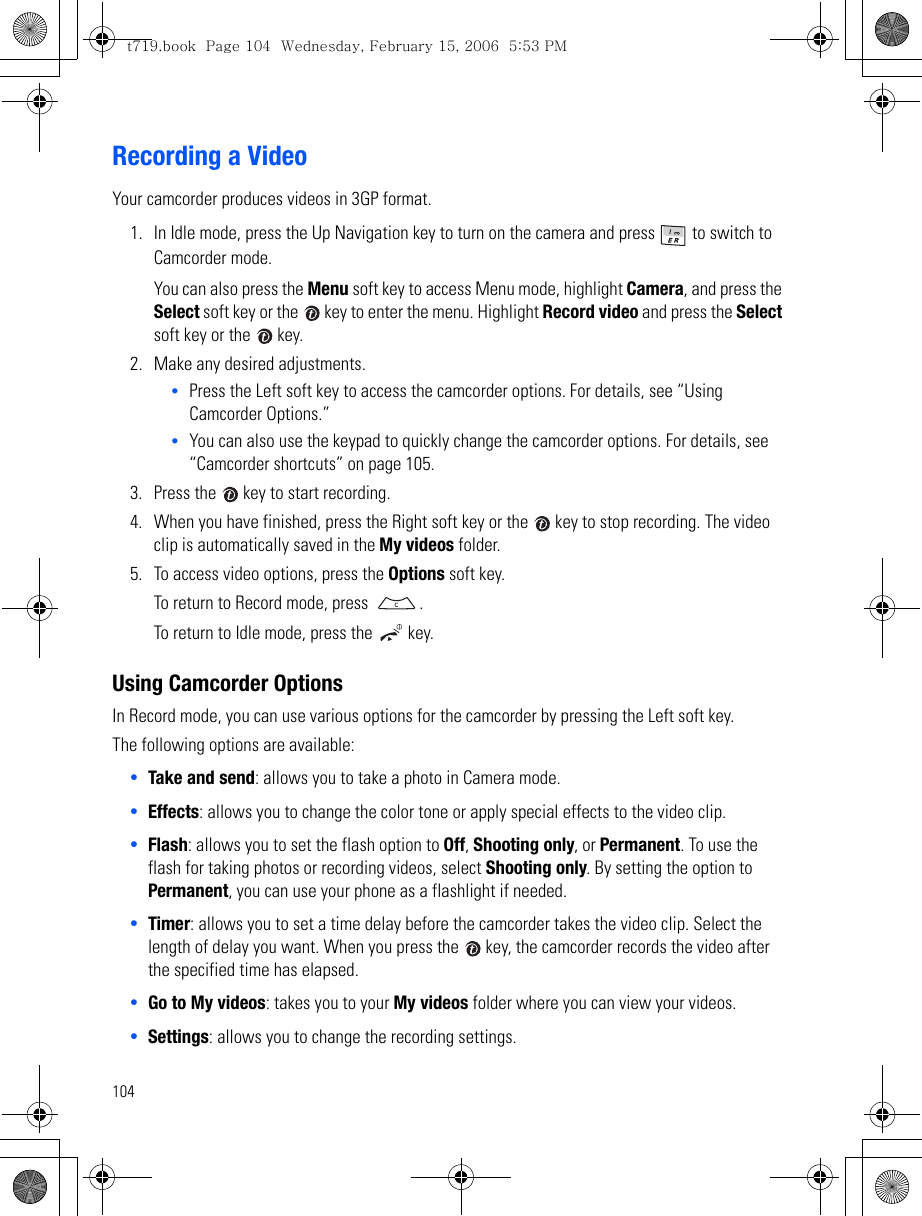

104Recording a VideoYour camcorder produces videos in 3GP format.1. In Idle mode, press the Up Navigation key to turn on the camera and press to switch to Camcorder mode.You can also press the Menu soft key to access Menu mode, highlight Camera, and press the Select soft key or the key to enter the menu. Highlight Record video and press the Select soft key or the key.2. Make any desired adjustments.•Press the Left soft key to access the camcorder options. For details, see “Using Camcorder Options.” •You can also use the keypad to quickly change the camcorder options. For details, see “Camcorder shortcuts” on page 105.3. Press the key to start recording.4. When you have finished, press the Right soft key or the key to stop recording. The video clip is automatically saved in the My videos folder.5. To access video options, press the Options soft key.To return to Record mode, press .To return to Idle mode, press the key.Using Camcorder OptionsIn Record mode, you can use various options for the camcorder by pressing the Left soft key.The following options are available:•Take and send: allows you to take a photo in Camera mode. •Effects: allows you to change the color tone or apply special effects to the video clip.•Flash: allows you to set the flash option to Off, Shooting only, or Permanent. To use the flash for taking photos or recording videos, select Shooting only. By setting the option to Permanent, you can use your phone as a flashlight if needed.•Timer: allows you to set a time delay before the camcorder takes the video clip. Select the length of delay you want. When you press the key, the camcorder records the video after the specified time has elapsed.•Go to My videos: takes you to your My videos folder where you can view your videos.•Settings: allows you to change the recording settings.t719.book Page 104 Wednesday, February 15, 2006 5:53 PM

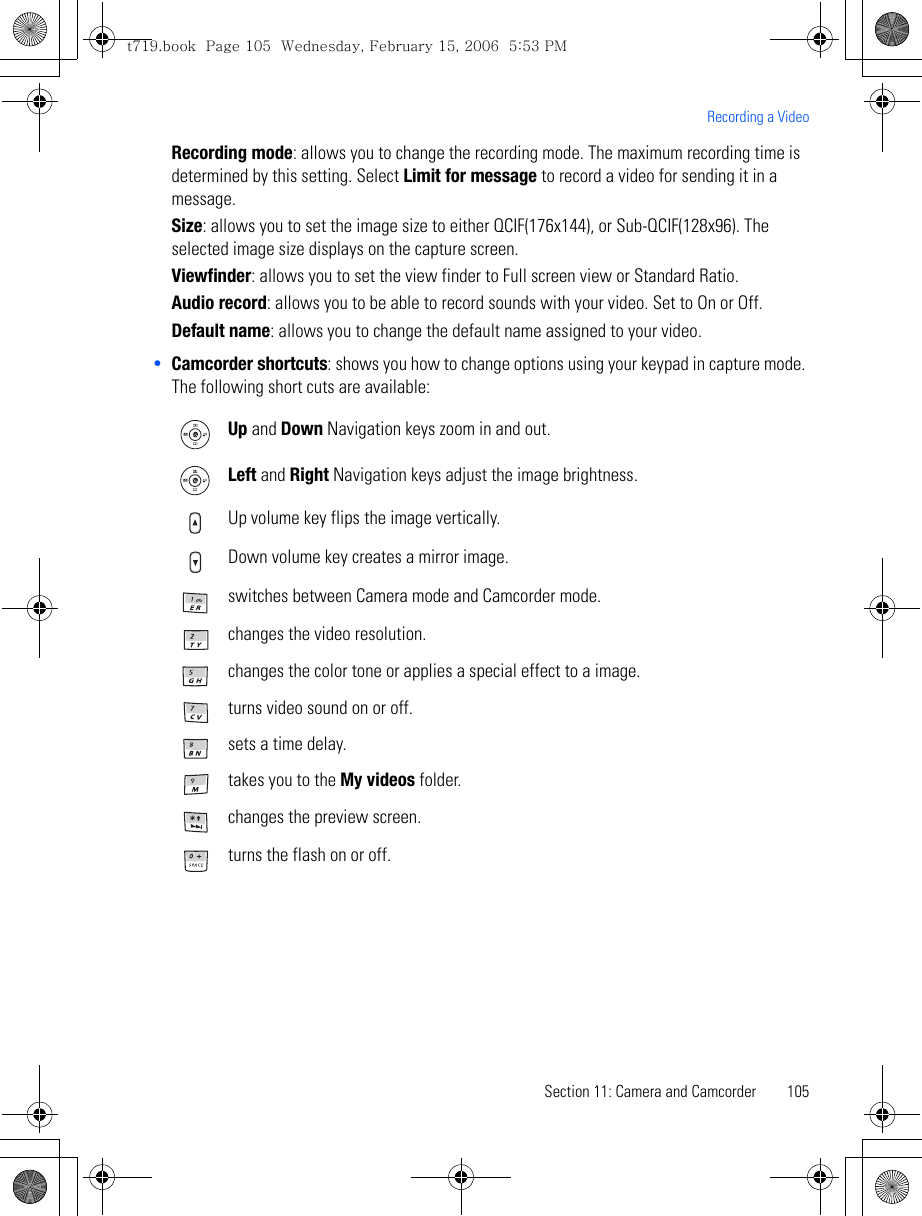

Section 11: Camera and Camcorder 105Recording a VideoRecording mode: allows you to change the recording mode. The maximum recording time is determined by this setting. Select Limit for message to record a video for sending it in a message.Size: allows you to set the image size to either QCIF(176x144), or Sub-QCIF(128x96). The selected image size displays on the capture screen.Viewfinder: allows you to set the view finder to Full screen view or Standard Ratio.Audio record: allows you to be able to record sounds with your video. Set to On or Off.Default name: allows you to change the default name assigned to your video.•Camcorder shortcuts: shows you how to change options using your keypad in capture mode. The following short cuts are available:Up and Down Navigation keys zoom in and out.Left and Right Navigation keys adjust the image brightness.Up volume key flips the image vertically.Down volume key creates a mirror image.switches between Camera mode and Camcorder mode.changes the video resolution.changes the color tone or applies a special effect to a image.turns video sound on or off.sets a time delay.takes you to the My videos folder.changes the preview screen.turns the flash on or off.t719.book Page 105 Wednesday, February 15, 2006 5:53 PM

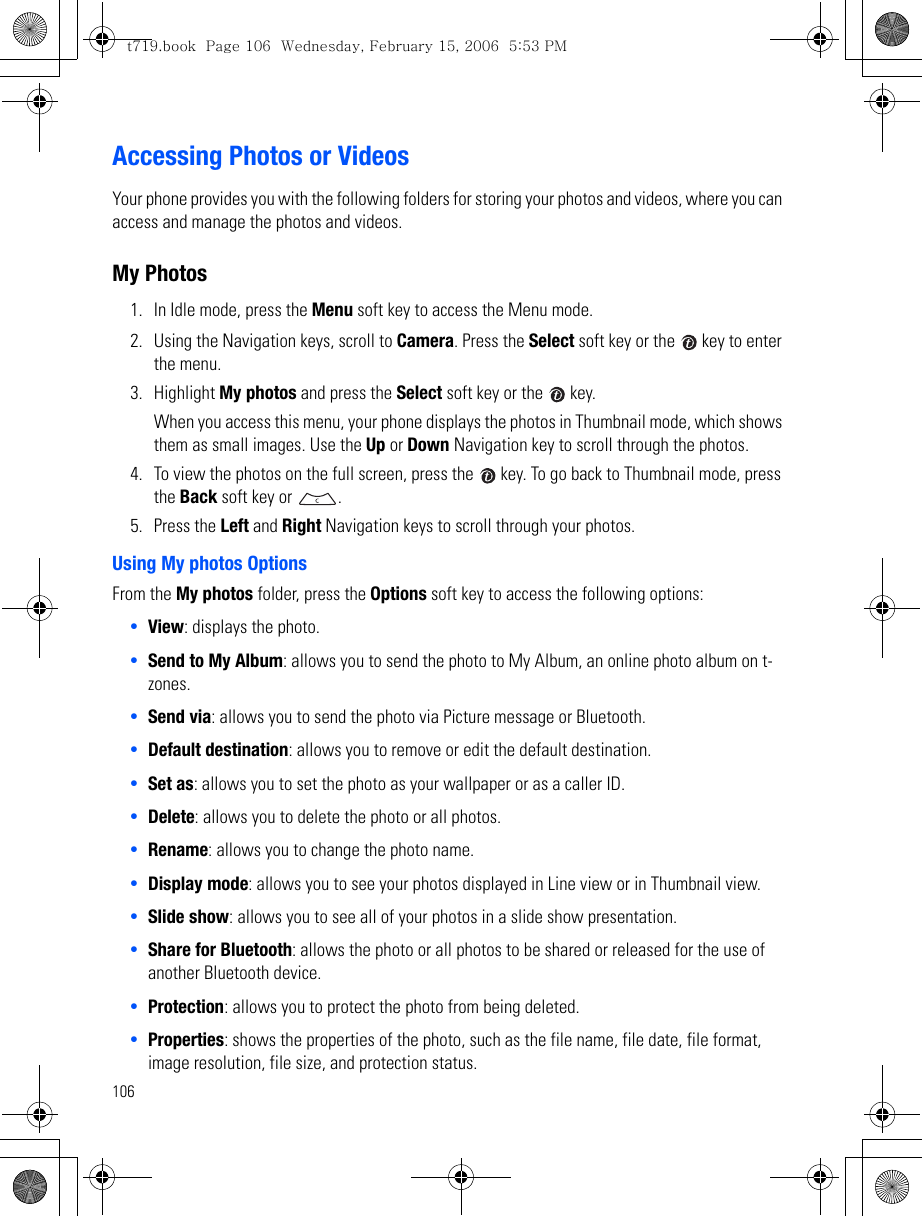

106Accessing Photos or VideosYour phone provides you with the following folders for storing your photos and videos, where you can access and manage the photos and videos.My Photos1. In Idle mode, press the Menu soft key to access the Menu mode.2. Using the Navigation keys, scroll to Camera. Press the Select soft key or the key to enter the menu. 3. Highlight My photos and press the Select soft key or the key.When you access this menu, your phone displays the photos in Thumbnail mode, which shows them as small images. Use the Up or Down Navigation key to scroll through the photos.4. To view the photos on the full screen, press the key. To go back to Thumbnail mode, press the Back soft key or .5. Press the Left and Right Navigation keys to scroll through your photos.Using My photos OptionsFrom the My photos folder, press the Options soft key to access the following options:•View: displays the photo.•Send to My Album: allows you to send the photo to My Album, an online photo album on t-zones.•Send via: allows you to send the photo via Picture message or Bluetooth.•Default destination: allows you to remove or edit the default destination.•Set as: allows you to set the photo as your wallpaper or as a caller ID.•Delete: allows you to delete the photo or all photos.•Rename: allows you to change the photo name.•Display mode: allows you to see your photos displayed in Line view or in Thumbnail view.•Slide show: allows you to see all of your photos in a slide show presentation. •Share for Bluetooth: allows the photo or all photos to be shared or released for the use of another Bluetooth device.•Protection: allows you to protect the photo from being deleted.•Properties: shows the properties of the photo, such as the file name, file date, file format, image resolution, file size, and protection status.t719.book Page 106 Wednesday, February 15, 2006 5:53 PM

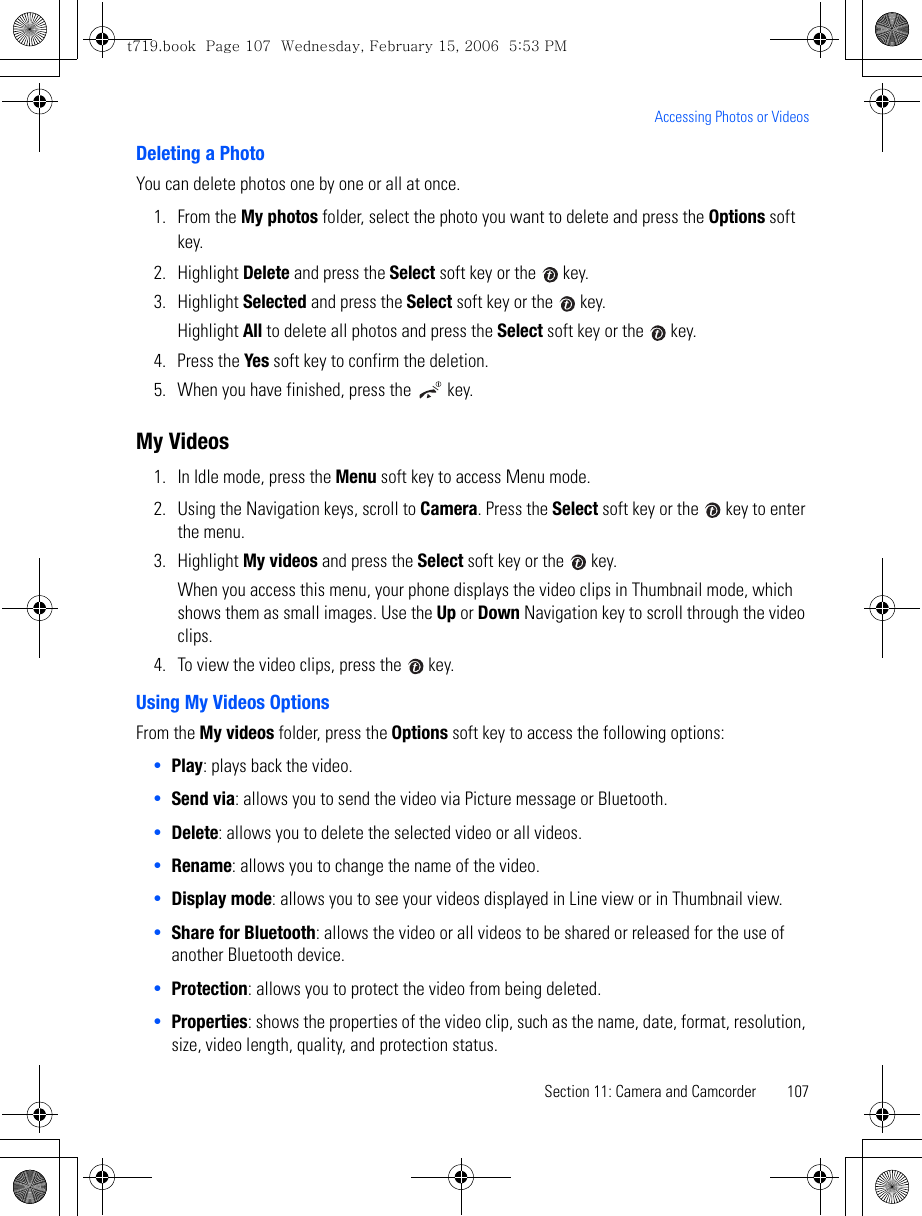

Section 11: Camera and Camcorder 107Accessing Photos or VideosDeleting a PhotoYou can delete photos one by one or all at once. 1. From the My photos folder, select the photo you want to delete and press the Options soft key. 2. Highlight Delete and press the Select soft key or the key.3. Highlight Selected and press the Select soft key or the key. Highlight All to delete all photos and press the Select soft key or the key.4. Press the Yes soft key to confirm the deletion.5. When you have finished, press the key.My Videos1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, scroll to Camera. Press the Select soft key or the key to enter the menu. 3. Highlight My videos and press the Select soft key or the key.When you access this menu, your phone displays the video clips in Thumbnail mode, which shows them as small images. Use the Up or Down Navigation key to scroll through the video clips.4. To view the video clips, press the key.Using My Videos OptionsFrom the My videos folder, press the Options soft key to access the following options:•Play: plays back the video.•Send via: allows you to send the video via Picture message or Bluetooth. •Delete: allows you to delete the selected video or all videos.•Rename: allows you to change the name of the video.•Display mode: allows you to see your videos displayed in Line view or in Thumbnail view.•Share for Bluetooth: allows the video or all videos to be shared or released for the use of another Bluetooth device.•Protection: allows you to protect the video from being deleted.•Properties: shows the properties of the video clip, such as the name, date, format, resolution, size, video length, quality, and protection status.t719.book Page 107 Wednesday, February 15, 2006 5:53 PM

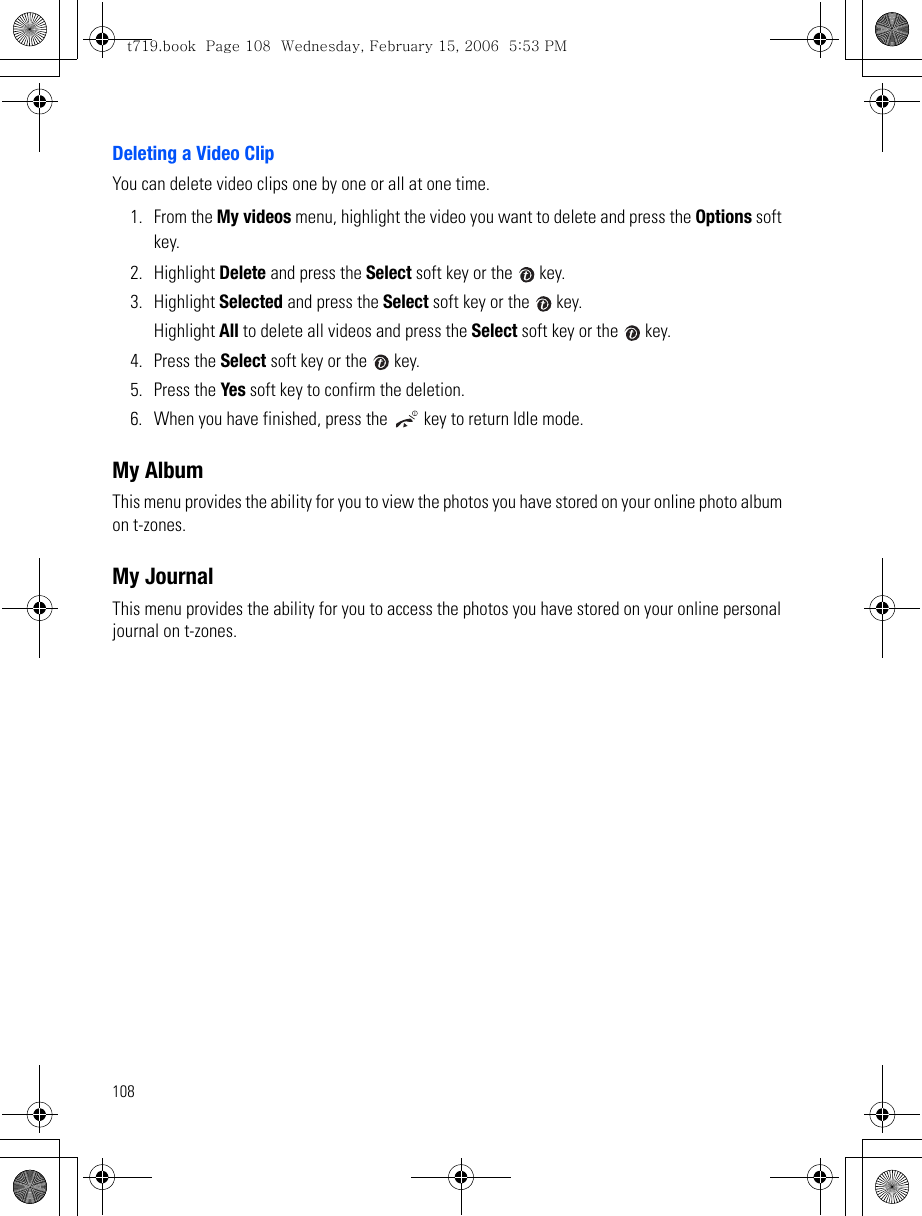

108Deleting a Video ClipYou can delete video clips one by one or all at one time. 1. From the My videos menu, highlight the video you want to delete and press the Options soft key.2. Highlight Delete and press the Select soft key or the key.3. Highlight Selected and press the Select soft key or the key. Highlight All to delete all videos and press the Select soft key or the key. 4. Press the Select soft key or the key.5. Press the Yes soft key to confirm the deletion.6. When you have finished, press the key to return Idle mode.My AlbumThis menu provides the ability for you to view the photos you have stored on your online photo album on t-zones. My JournalThis menu provides the ability for you to access the photos you have stored on your online personal journal on t-zones.t719.book Page 108 Wednesday, February 15, 2006 5:53 PM

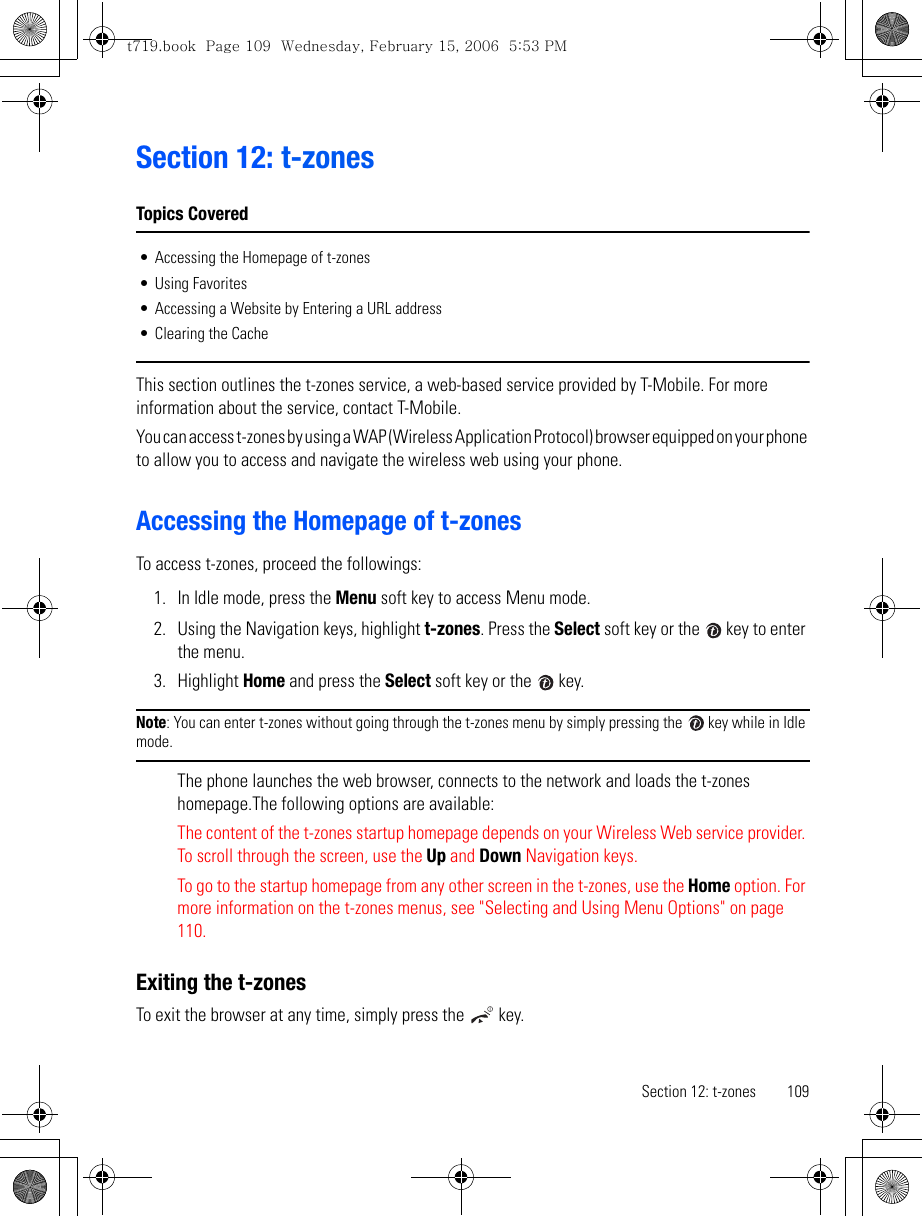

Section 12: t-zones 109Section 12: t-zonesTopics Covered• Accessing the Homepage of t-zones• Using Favorites• Accessing a Website by Entering a URL address• Clearing the CacheThis section outlines the t-zones service, a web-based service provided by T-Mobile. For more information about the service, contact T-Mobile.You can access t-zones by using a WAP (Wireless Application Protocol) browser equipped on your phone to allow you to access and navigate the wireless web using your phone.Accessing the Homepage of t-zonesTo access t-zones, proceed the followings:1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, highlight t-zones. Press the Select soft key or the key to enter the menu.3. Highlight Home and press the Select soft key or the key. Note: You can enter t-zones without going through the t-zones menu by simply pressing the key while in Idle mode.The phone launches the web browser, connects to the network and loads the t-zones homepage.The following options are available:The content of the t-zones startup homepage depends on your Wireless Web service provider. To scroll through the screen, use the Up and Down Navigation keys.To go to the startup homepage from any other screen in the t-zones, use the Home option. For more information on the t-zones menus, see "Selecting and Using Menu Options" on page 110.Exiting the t-zonesTo exit the browser at any time, simply press the key.t719.book Page 109 Wednesday, February 15, 2006 5:53 PM

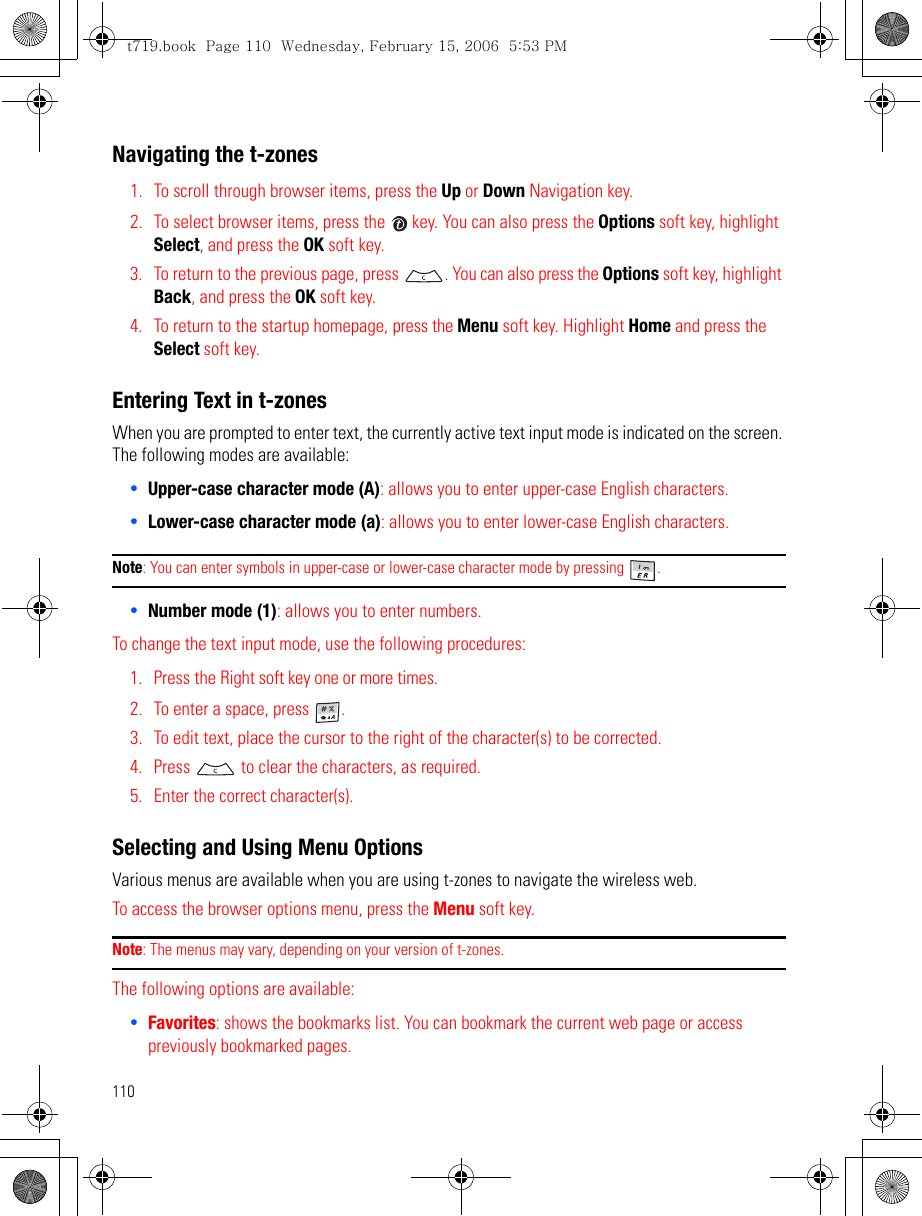

110Navigating the t-zones1. To scroll through browser items, press the Up or Down Navigation key.2. To select browser items, press the key. You can also press the Options soft key, highlight Select, and press the OK soft key. 3. To return to the previous page, press . You can also press the Options soft key, highlight Back, and press the OK soft key.4. To return to the startup homepage, press the Menu soft key. Highlight Home and press the Select soft key.Entering Text in t-zonesWhen you are prompted to enter text, the currently active text input mode is indicated on the screen. The following modes are available: •Upper-case character mode (A): allows you to enter upper-case English characters.•Lower-case character mode (a): allows you to enter lower-case English characters. Note: You can enter symbols in upper-case or lower-case character mode by pressing . •Number mode (1): allows you to enter numbers. To change the text input mode, use the following procedures: 1. Press the Right soft key one or more times.2. To enter a space, press .3. To edit text, place the cursor to the right of the character(s) to be corrected.4. Press to clear the characters, as required.5. Enter the correct character(s).Selecting and Using Menu OptionsVarious menus are available when you are using t-zones to navigate the wireless web.To access the browser options menu, press the Menu soft key. Note: The menus may vary, depending on your version of t-zones.The following options are available:•Favorites: shows the bookmarks list. You can bookmark the current web page or access previously bookmarked pages.t719.book Page 110 Wednesday, February 15, 2006 5:53 PM

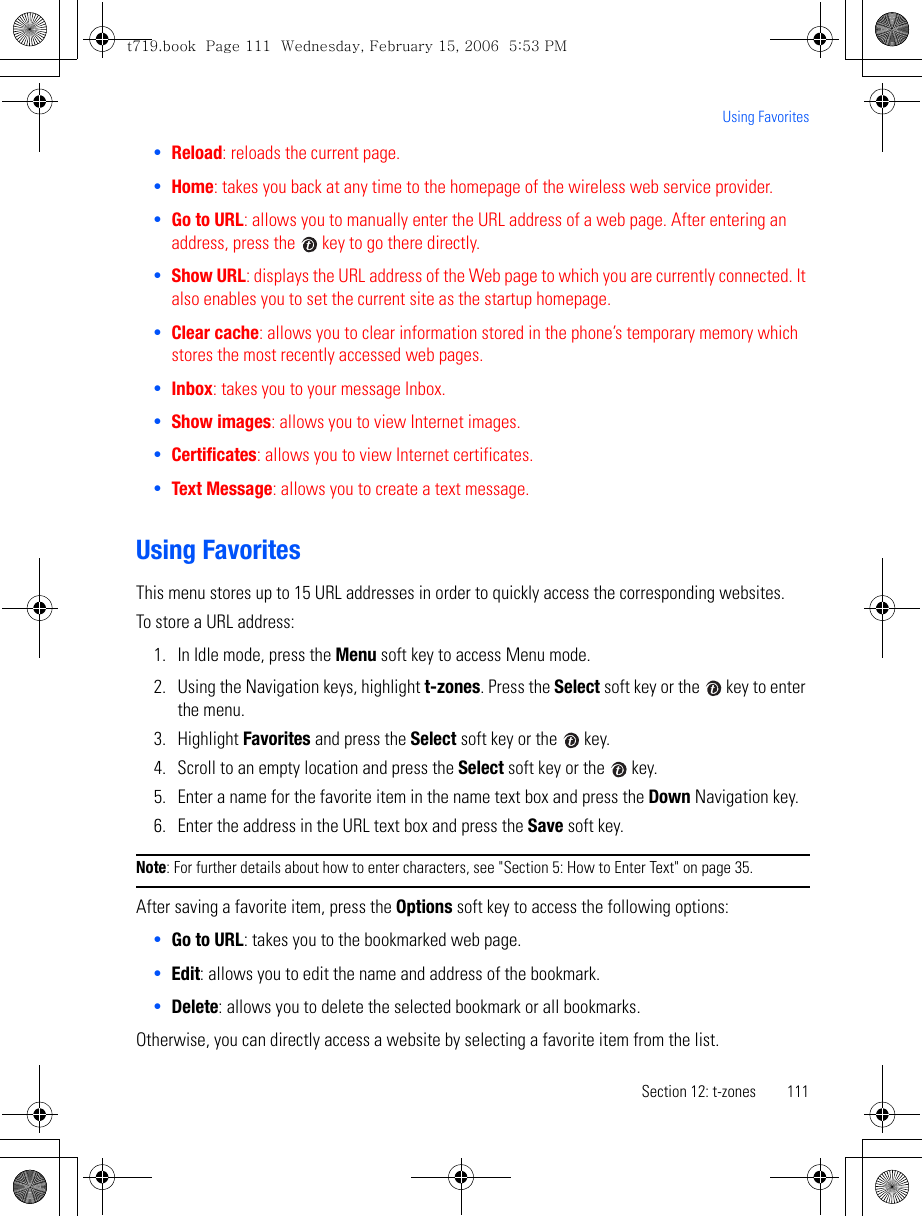

Section 12: t-zones 111Using Favorites•Reload: reloads the current page.•Home: takes you back at any time to the homepage of the wireless web service provider.•Go to URL: allows you to manually enter the URL address of a web page. After entering an address, press the key to go there directly.•Show URL: displays the URL address of the Web page to which you are currently connected. It also enables you to set the current site as the startup homepage.•Clear cache: allows you to clear information stored in the phone’s temporary memory which stores the most recently accessed web pages.•Inbox: takes you to your message Inbox.•Show images: allows you to view Internet images.•Certificates: allows you to view Internet certificates.•Text Message: allows you to create a text message.Using FavoritesThis menu stores up to 15 URL addresses in order to quickly access the corresponding websites.To store a URL address:1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, highlight t-zones. Press the Select soft key or the key to enter the menu.3. Highlight Favorites and press the Select soft key or the key. 4. Scroll to an empty location and press the Select soft key or the key.5. Enter a name for the favorite item in the name text box and press the Down Navigation key.6. Enter the address in the URL text box and press the Save soft key.Note: For further details about how to enter characters, see "Section 5: How to Enter Text" on page 35.After saving a favorite item, press the Options soft key to access the following options:•Go to URL: takes you to the bookmarked web page.•Edit: allows you to edit the name and address of the bookmark.•Delete: allows you to delete the selected bookmark or all bookmarks.Otherwise, you can directly access a website by selecting a favorite item from the list.t719.book Page 111 Wednesday, February 15, 2006 5:53 PM

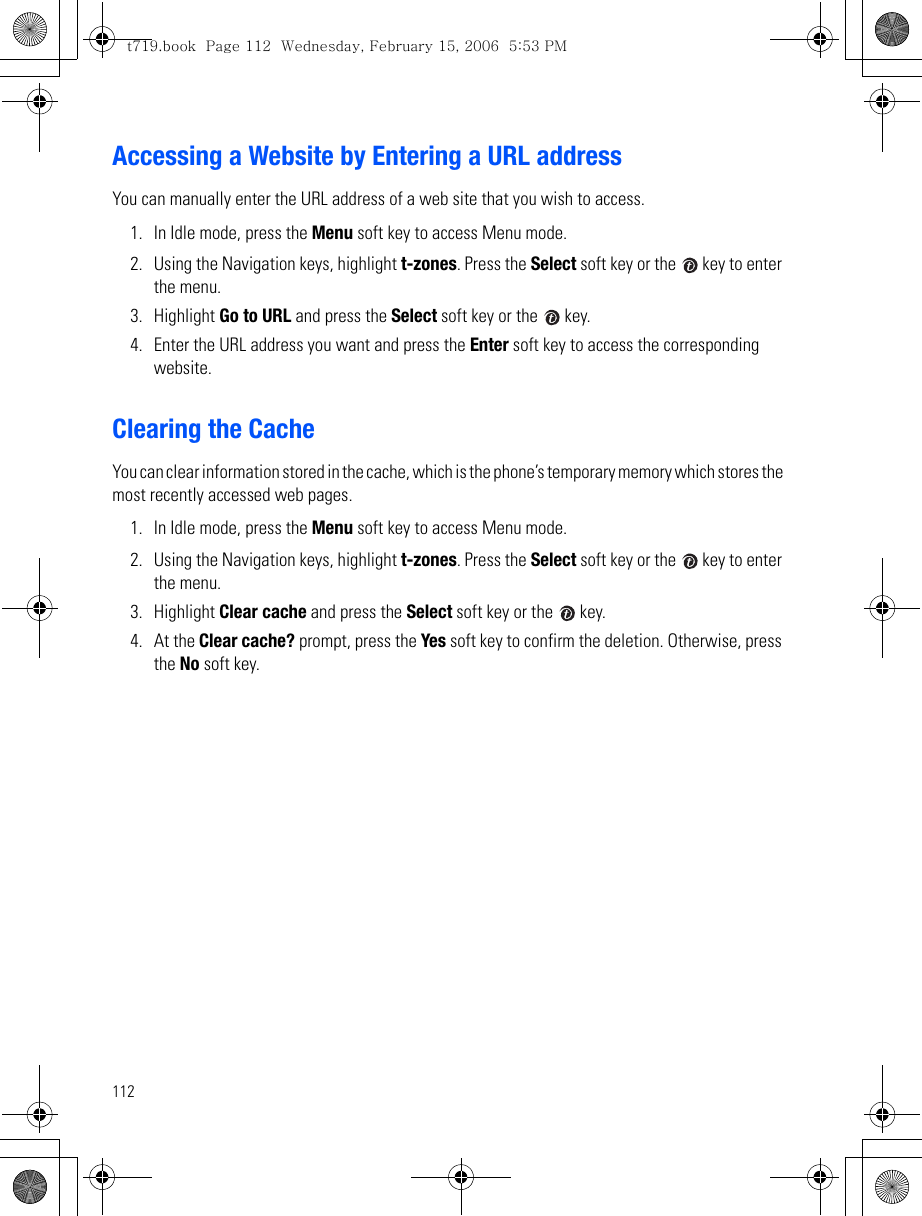

112Accessing a Website by Entering a URL addressYou can manually enter the URL address of a web site that you wish to access.1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, highlight t-zones. Press the Select soft key or the key to enter the menu.3. Highlight Go to URL and press the Select soft key or the key. 4. Enter the URL address you want and press the Enter soft key to access the corresponding website. Clearing the CacheYou can clear information stored in the cache, which is the phone’s temporary memory which stores the most recently accessed web pages.1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, highlight t-zones. Press the Select soft key or the key to enter the menu.3. Highlight Clear cache and press the Select soft key or the key. 4. At the Clear cache? prompt, press the Yes soft key to confirm the deletion. Otherwise, press the No soft key.t719.book Page 112 Wednesday, February 15, 2006 5:53 PM

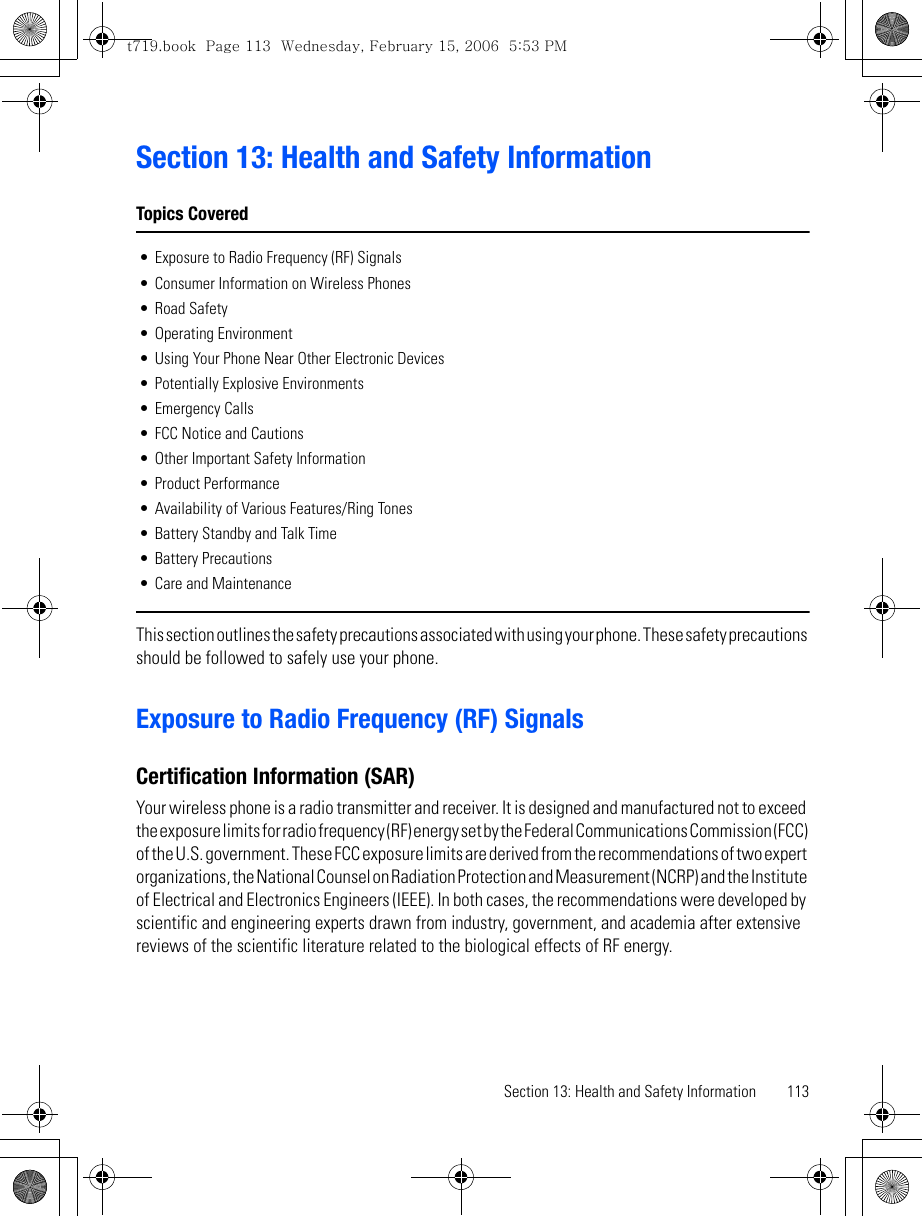

Section 13: Health and Safety Information 113Section 13: Health and Safety InformationTopics Covered• Exposure to Radio Frequency (RF) Signals• Consumer Information on Wireless Phones• Road Safety• Operating Environment• Using Your Phone Near Other Electronic Devices• Potentially Explosive Environments• Emergency Calls• FCC Notice and Cautions• Other Important Safety Information• Product Performance• Availability of Various Features/Ring Tones• Battery Standby and Talk Time• Battery Precautions• Care and MaintenanceThis section outlines the safety precautions associated with using your phone. These safety precautions should be followed to safely use your phone.Exposure to Radio Frequency (RF) SignalsCertification Information (SAR)Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.t719.book Page 113 Wednesday, February 15, 2006 5:53 PM

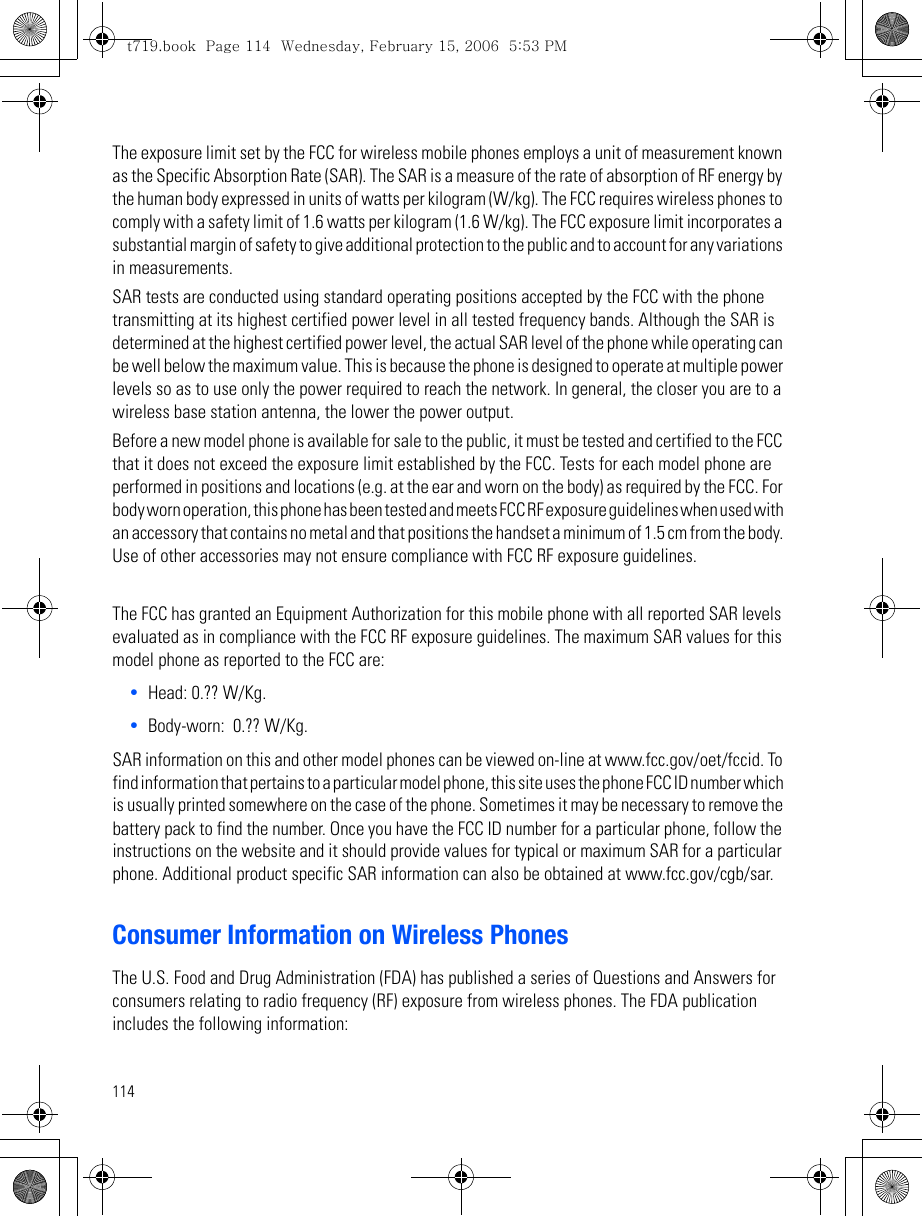

114The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements. SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.The FCC has granted an Equipment Authorization for this mobile phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. The maximum SAR values for this model phone as reported to the FCC are:•Head: 0.?? W/Kg.•Body-worn: 0.?? W/Kg.SAR information on this and other model phones can be viewed on-line at www.fcc.gov/oet/fccid. To find information that pertains to a particular model phone, this site uses the phone FCC ID number which is usually printed somewhere on the case of the phone. Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar. Consumer Information on Wireless PhonesThe U.S. Food and Drug Administration (FDA) has published a series of Questions and Answers for consumers relating to radio frequency (RF) exposure from wireless phones. The FDA publication includes the following information:t719.book Page 114 Wednesday, February 15, 2006 5:53 PM

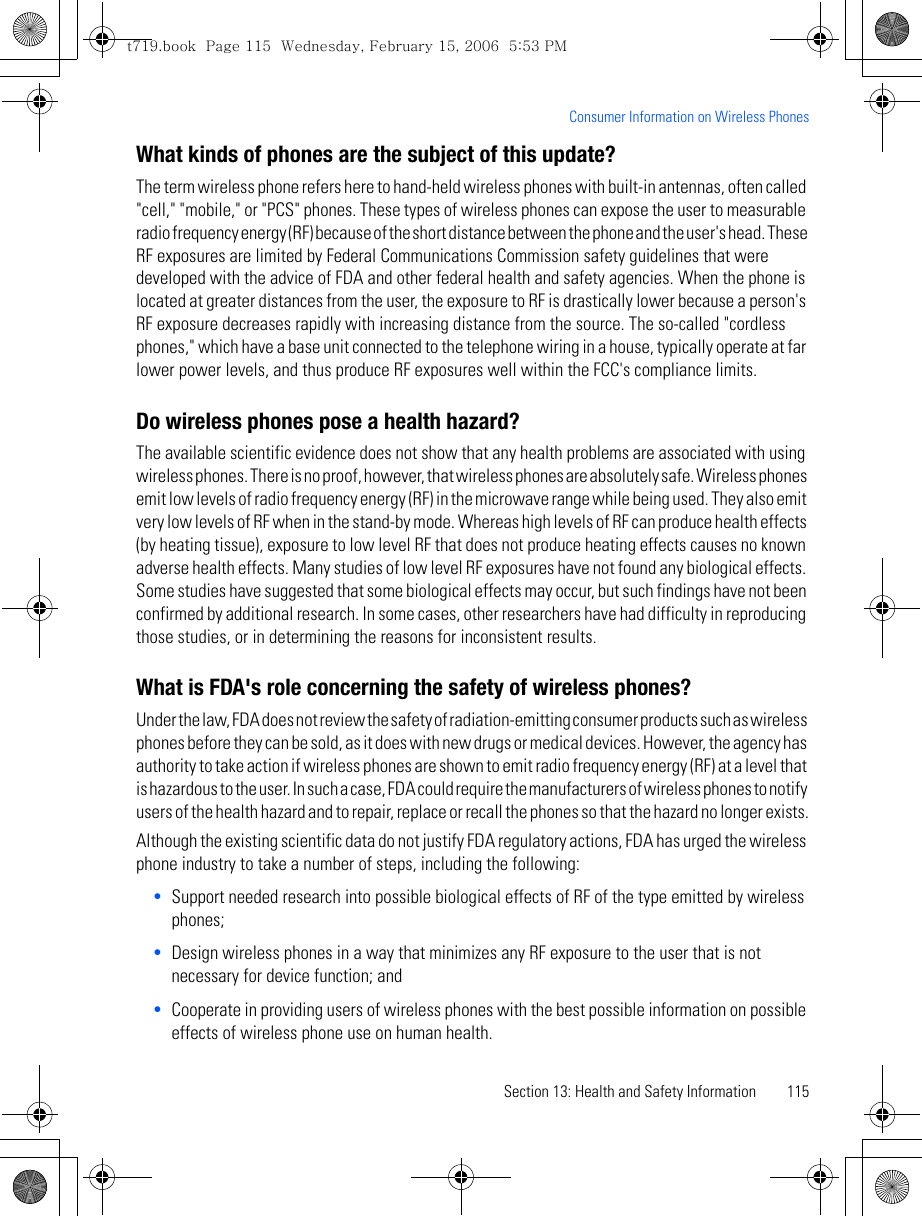

Section 13: Health and Safety Information 115Consumer Information on Wireless PhonesWhat kinds of phones are the subject of this update?The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called "cell," "mobile," or "PCS" phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called "cordless phones," which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC's compliance limits.Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.What is FDA's role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:•Support needed research into possible biological effects of RF of the type emitted by wireless phones;•Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and•Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.t719.book Page 115 Wednesday, February 15, 2006 5:53 PM

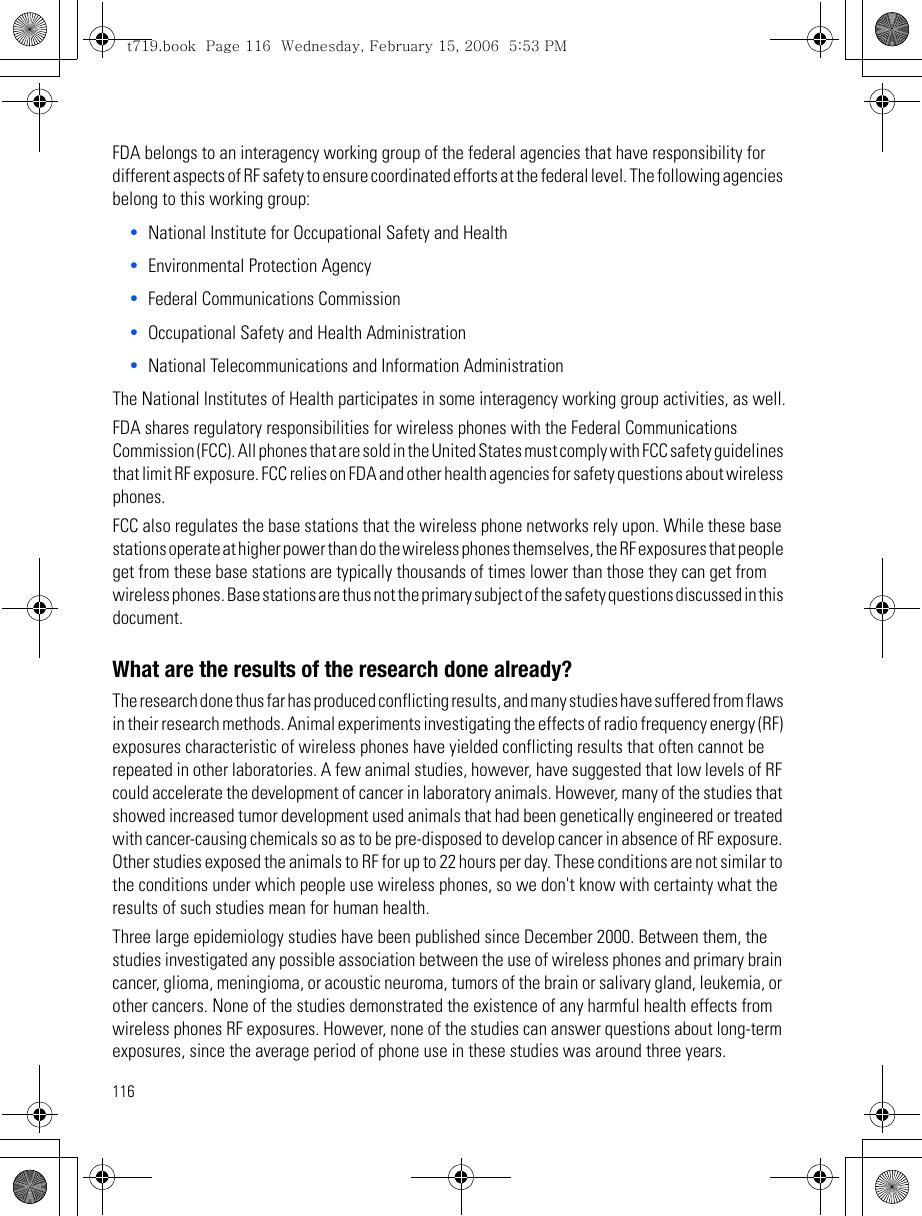

116FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:•National Institute for Occupational Safety and Health •Environmental Protection Agency•Federal Communications Commission•Occupational Safety and Health Administration•National Telecommunications and Information AdministrationThe National Institutes of Health participates in some interagency working group activities, as well.FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the safety questions discussed in this document.What are the results of the research done already?The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in absence of RF exposure. Other studies exposed the animals to RF for up to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health.Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phones RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.t719.book Page 116 Wednesday, February 15, 2006 5:53 PM

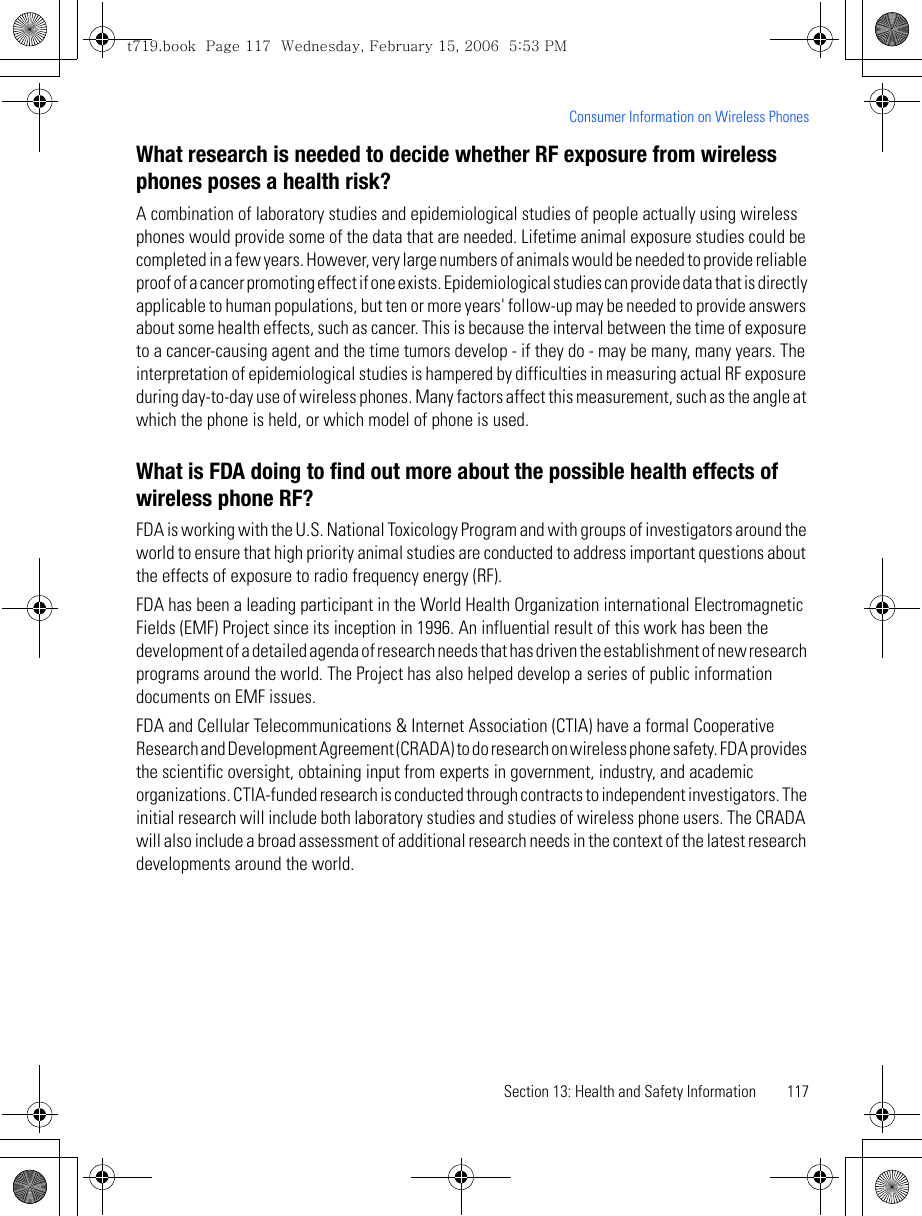

Section 13: Health and Safety Information 117Consumer Information on Wireless PhonesWhat research is needed to decide whether RF exposure from wireless phones poses a health risk?A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but ten or more years' follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.What is FDA doing to find out more about the possible health effects of wireless phone RF?FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).FDA has been a leading participant in the World Health Organization international Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.FDA and Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.t719.book Page 117 Wednesday, February 15, 2006 5:53 PM

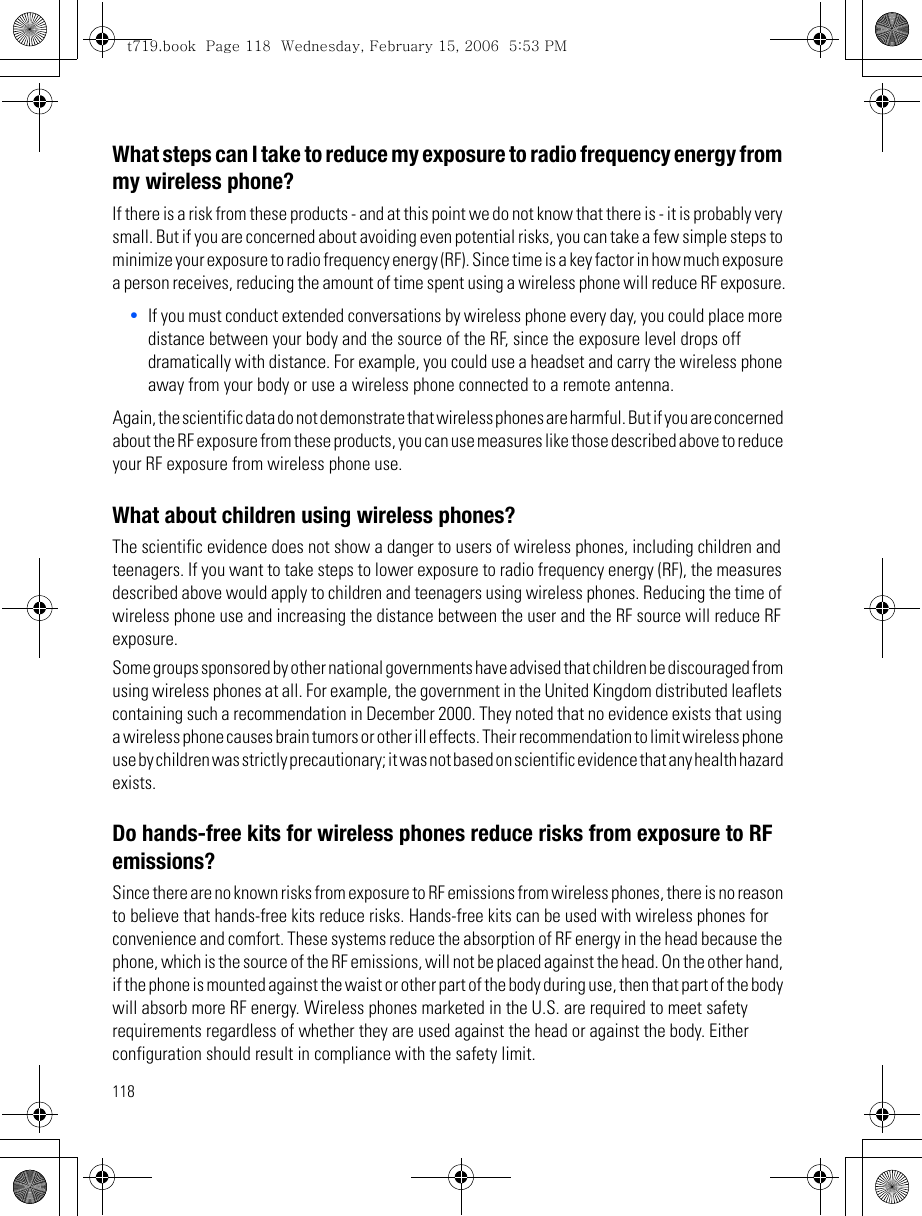

118What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.•If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.What about children using wireless phones?The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they are used against the head or against the body. Either configuration should result in compliance with the safety limit.t719.book Page 118 Wednesday, February 15, 2006 5:53 PM

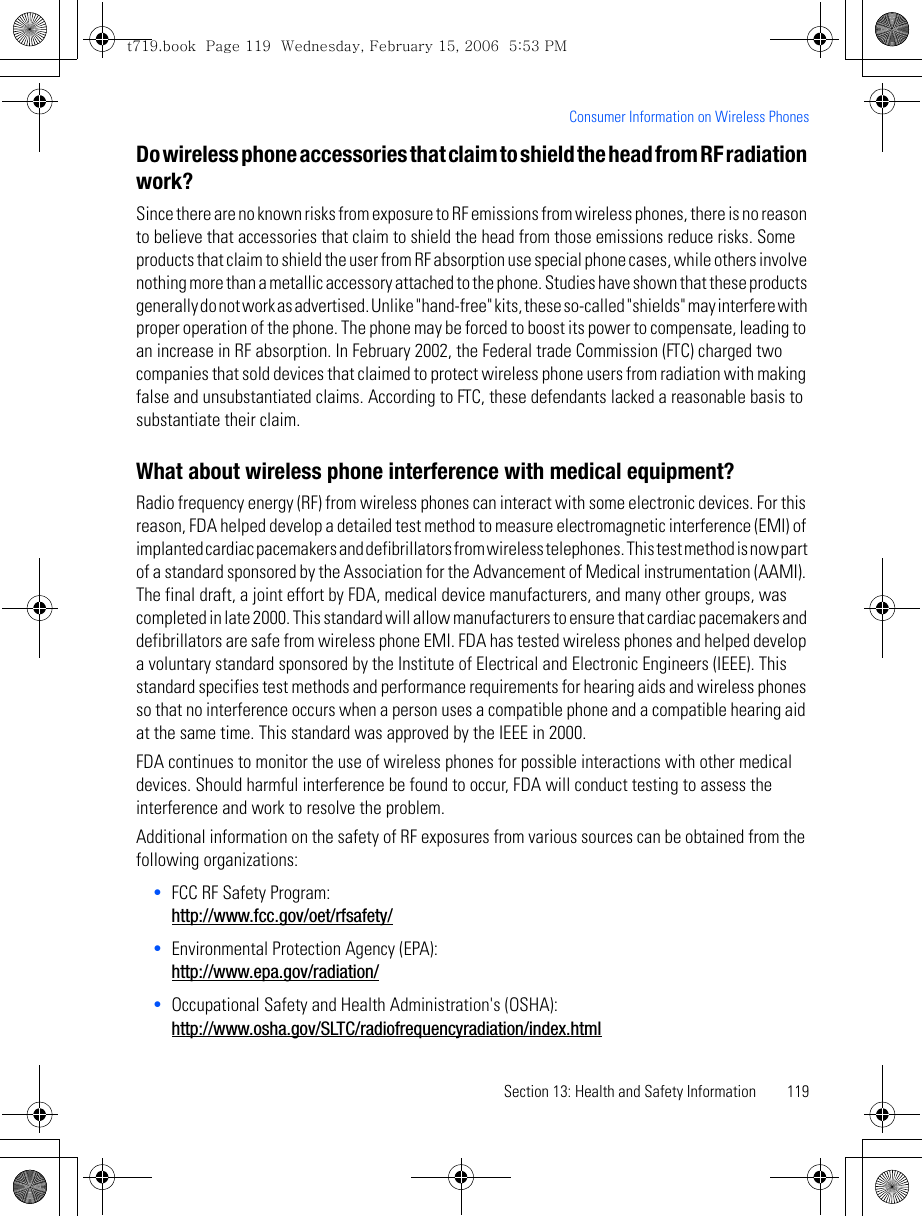

Section 13: Health and Safety Information 119Consumer Information on Wireless PhonesDo wireless phone accessories that claim to shield the head from RF radiation work?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike "hand-free" kits, these so-called "shields" may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable basis to substantiate their claim.What about wireless phone interference with medical equipment?Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested wireless phones and helped develop a voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a compatible phone and a compatible hearing aid at the same time. This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations:•FCC RF Safety Program:http://www.fcc.gov/oet/rfsafety/•Environmental Protection Agency (EPA):http://www.epa.gov/radiation/•Occupational Safety and Health Administration's (OSHA):http://www.osha.gov/SLTC/radiofrequencyradiation/index.htmlt719.book Page 119 Wednesday, February 15, 2006 5:53 PM

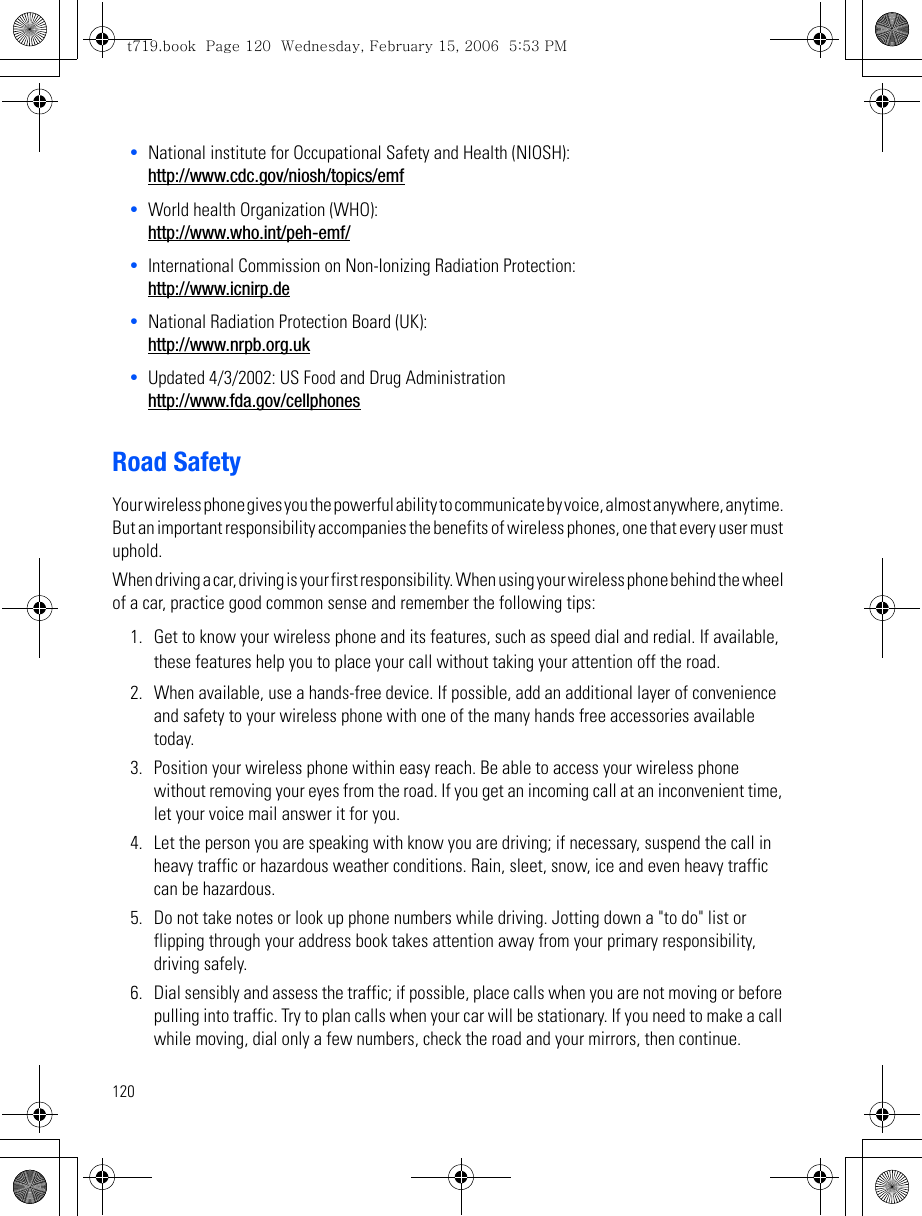

120•National institute for Occupational Safety and Health (NIOSH):http://www.cdc.gov/niosh/topics/emf•World health Organization (WHO):http://www.who.int/peh-emf/•International Commission on Non-Ionizing Radiation Protection:http://www.icnirp.de•National Radiation Protection Board (UK):http://www.nrpb.org.uk•Updated 4/3/2002: US Food and Drug Administrationhttp://www.fda.gov/cellphonesRoad SafetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:1. Get to know your wireless phone and its features, such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.2. When available, use a hands-free device. If possible, add an additional layer of convenience and safety to your wireless phone with one of the many hands free accessories available today.3. Position your wireless phone within easy reach. Be able to access your wireless phone without removing your eyes from the road. If you get an incoming call at an inconvenient time, let your voice mail answer it for you.4. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice and even heavy traffic can be hazardous.5. Do not take notes or look up phone numbers while driving. Jotting down a "to do" list or flipping through your address book takes attention away from your primary responsibility, driving safely.6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.t719.book Page 120 Wednesday, February 15, 2006 5:53 PM

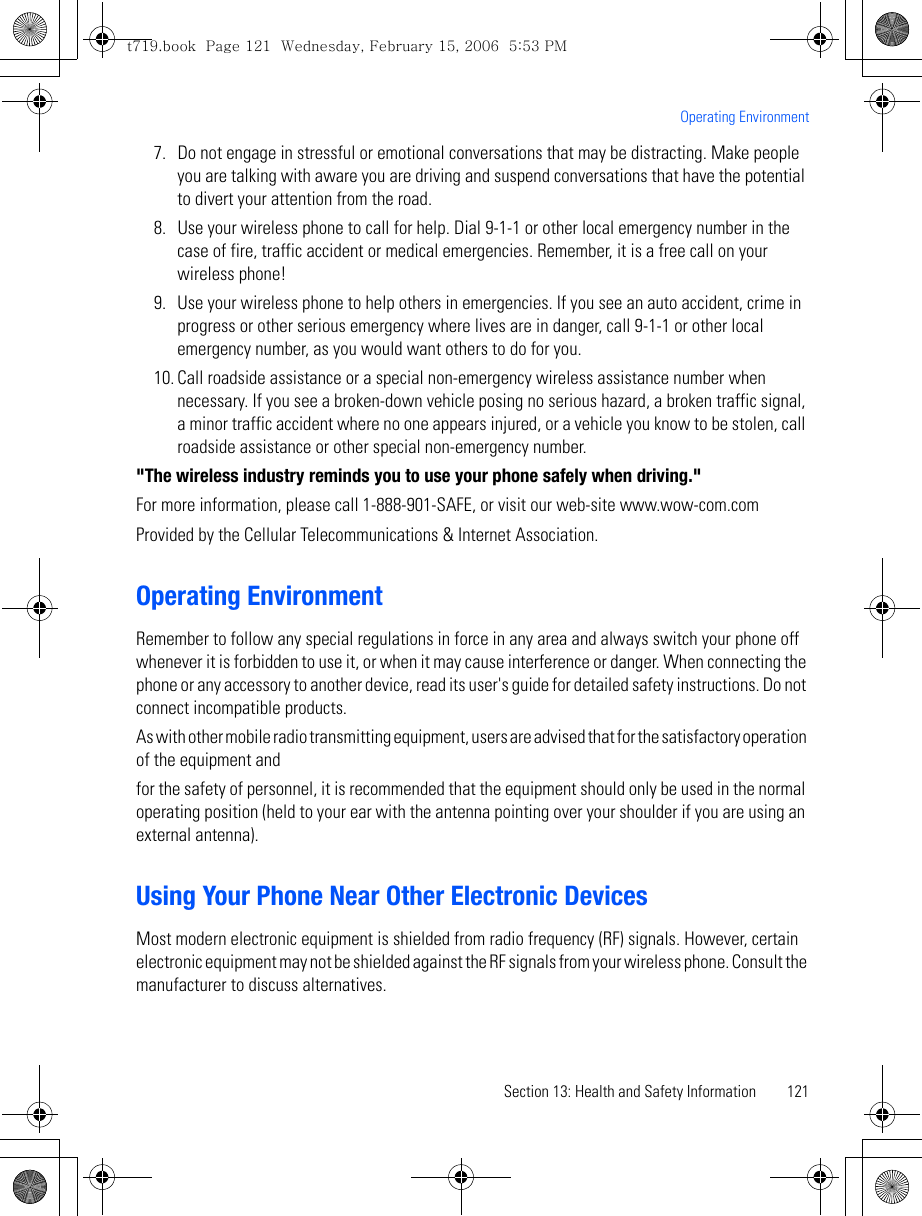

Section 13: Health and Safety Information 121Operating Environment7. Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road.8. Use your wireless phone to call for help. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident or medical emergencies. Remember, it is a free call on your wireless phone!9. Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 9-1-1 or other local emergency number, as you would want others to do for you.10. Call roadside assistance or a special non-emergency wireless assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency number."The wireless industry reminds you to use your phone safely when driving."For more information, please call 1-888-901-SAFE, or visit our web-site www.wow-com.com Provided by the Cellular Telecommunications & Internet Association.Operating EnvironmentRemember to follow any special regulations in force in any area and always switch your phone off whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the phone or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment andfor the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder if you are using an external antenna).Using Your Phone Near Other Electronic DevicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. Consult the manufacturer to discuss alternatives.t719.book Page 121 Wednesday, February 15, 2006 5:53 PM

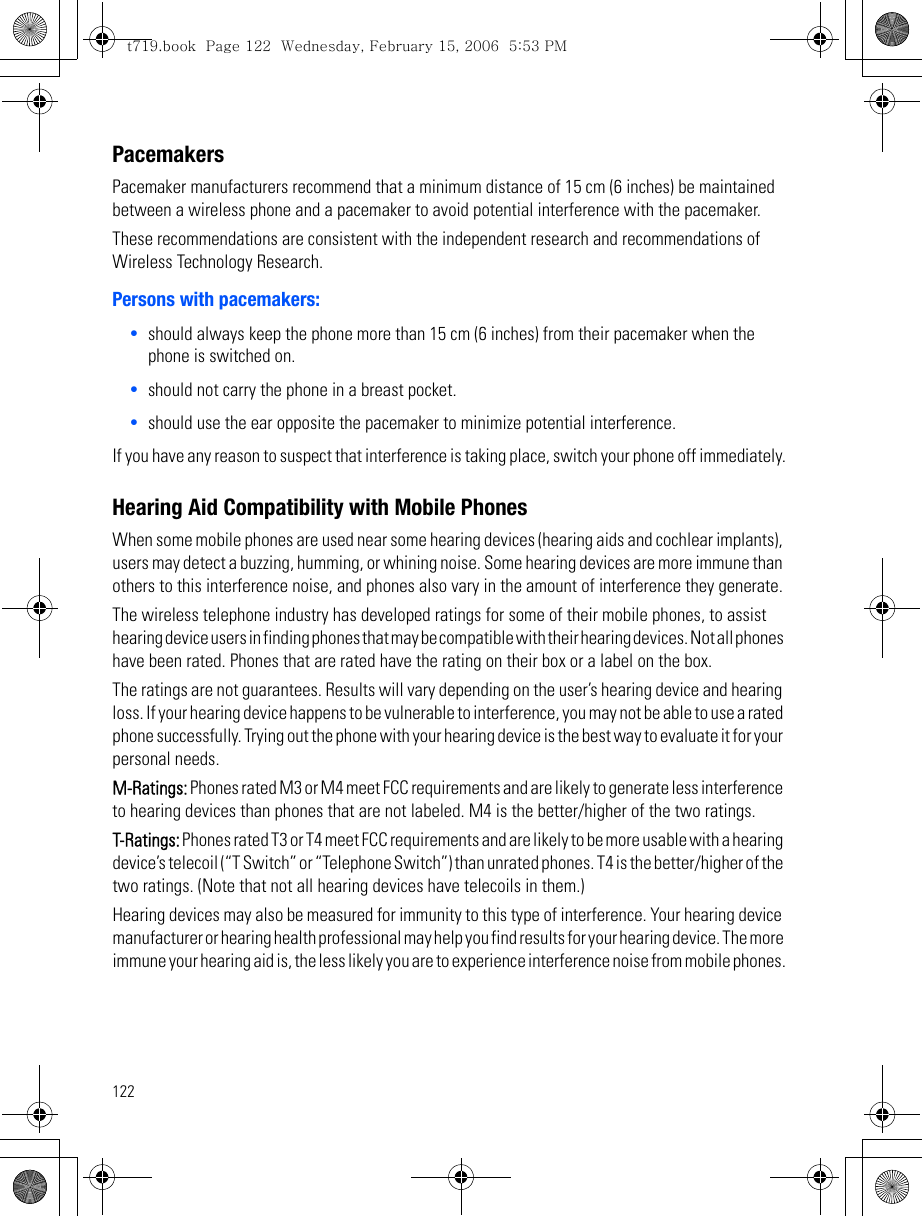

122PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker.These recommendations are consistent with the independent research and recommendations of Wireless Technology Research.Persons with pacemakers:•should always keep the phone more than 15 cm (6 inches) from their pacemaker when the phone is switched on.•should not carry the phone in a breast pocket.•should use the ear opposite the pacemaker to minimize potential interference.If you have any reason to suspect that interference is taking place, switch your phone off immediately.Hearing Aid Compatibility with Mobile PhonesWhen some mobile phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.The wireless telephone industry has developed ratings for some of their mobile phones, to assist hearing device users in finding phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label on the box.The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.)Hearing devices may also be measured for immunity to this type of interference. Your hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more immune your hearing aid is, the less likely you are to experience interference noise from mobile phones.t719.book Page 122 Wednesday, February 15, 2006 5:53 PM

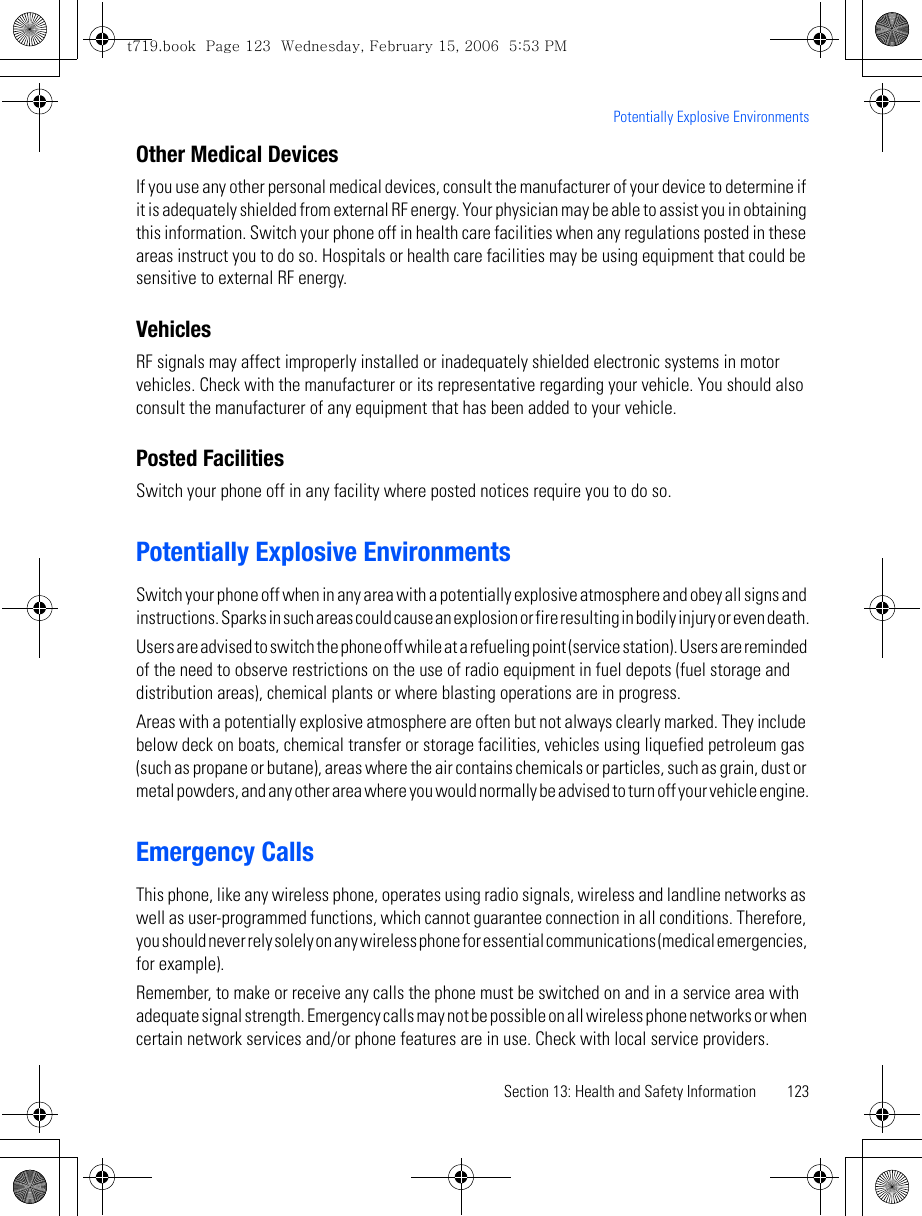

Section 13: Health and Safety Information 123Potentially Explosive EnvironmentsOther Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Switch your phone off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your phone off in any facility where posted notices require you to do so.Potentially Explosive EnvironmentsSwitch your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch the phone off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.Emergency CallsThis phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user-programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.t719.book Page 123 Wednesday, February 15, 2006 5:53 PM

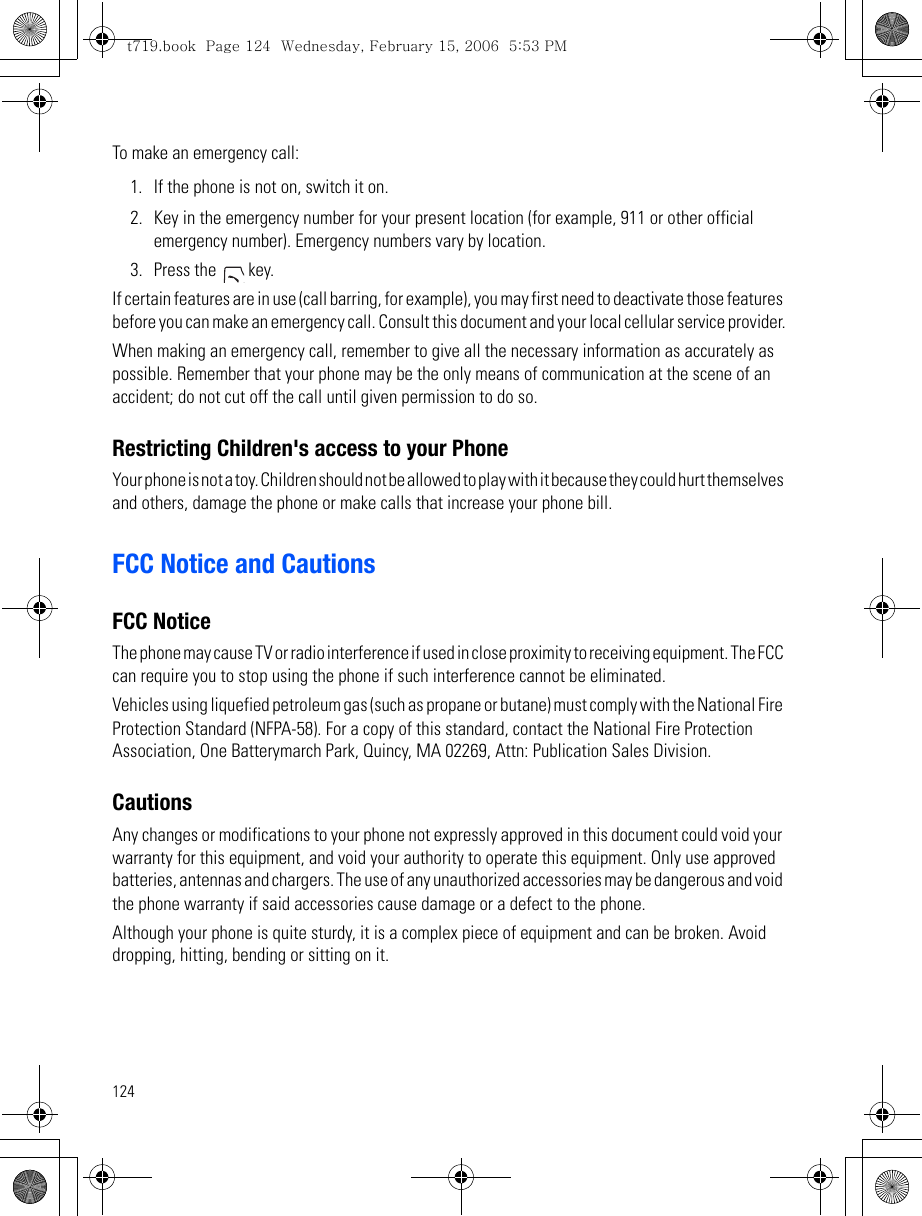

124To make an emergency call:1. If the phone is not on, switch it on.2. Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.3. Press the key.If certain features are in use (call barring, for example), you may first need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your phone may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Restricting Children's access to your PhoneYour phone is not a toy. Children should not be allowed to play with it because they could hurt themselves and others, damage the phone or make calls that increase your phone bill.FCC Notice and CautionsFCC NoticeThe phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated.Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Batterymarch Park, Quincy, MA 02269, Attn: Publication Sales Division.CautionsAny changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment, and void your authority to operate this equipment. Only use approved batteries, antennas and chargers. The use of any unauthorized accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.t719.book Page 124 Wednesday, February 15, 2006 5:53 PM

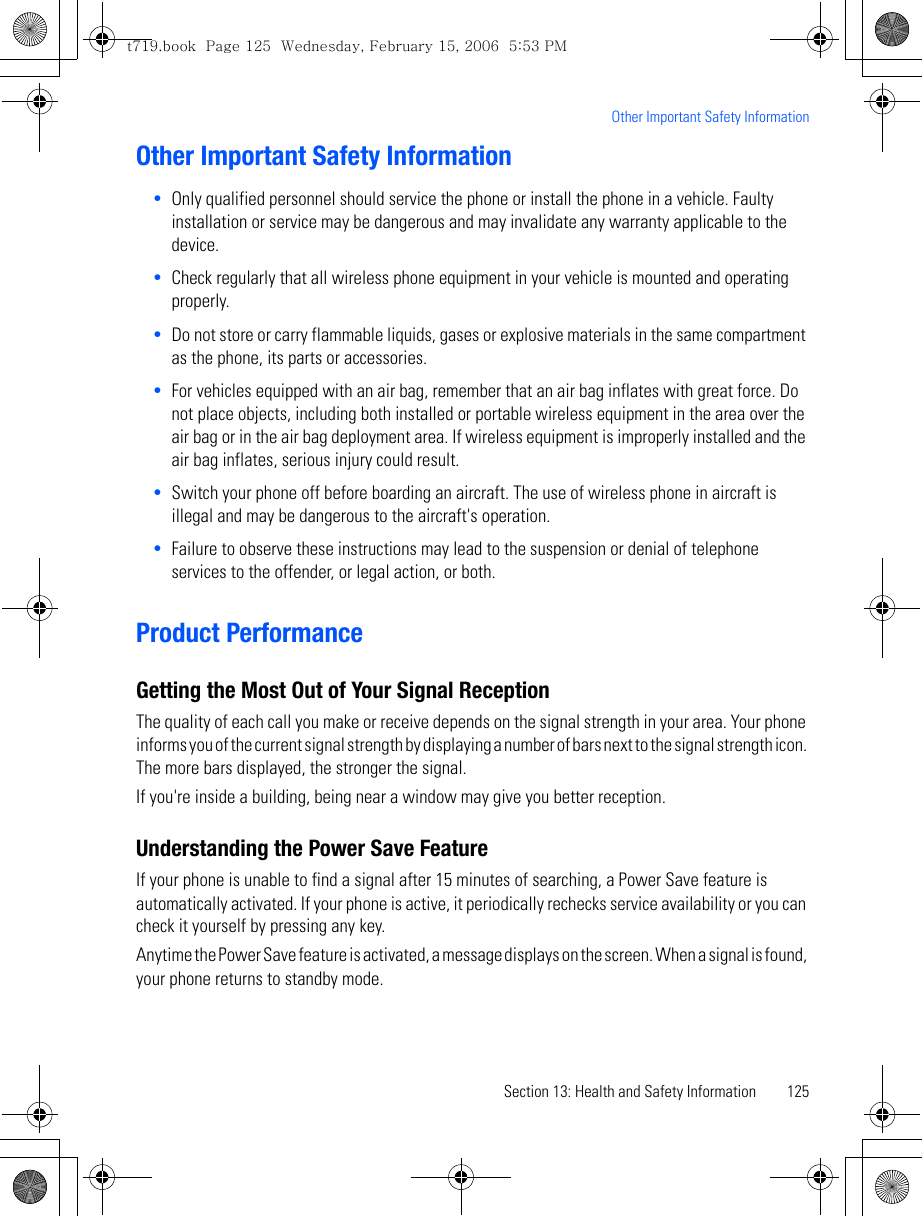

Section 13: Health and Safety Information 125Other Important Safety InformationOther Important Safety Information•Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.•Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.•Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.•For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.•Switch your phone off before boarding an aircraft. The use of wireless phone in aircraft is illegal and may be dangerous to the aircraft's operation.•Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.Product PerformanceGetting the Most Out of Your Signal ReceptionThe quality of each call you make or receive depends on the signal strength in your area. Your phone informs you of the current signal strength by displaying a number of bars next to the signal strength icon. The more bars displayed, the stronger the signal.If you're inside a building, being near a window may give you better reception.Understanding the Power Save FeatureIf your phone is unable to find a signal after 15 minutes of searching, a Power Save feature is automatically activated. If your phone is active, it periodically rechecks service availability or you can check it yourself by pressing any key.Anytime the Power Save feature is activated, a message displays on the screen. When a signal is found, your phone returns to standby mode.t719.book Page 125 Wednesday, February 15, 2006 5:53 PM

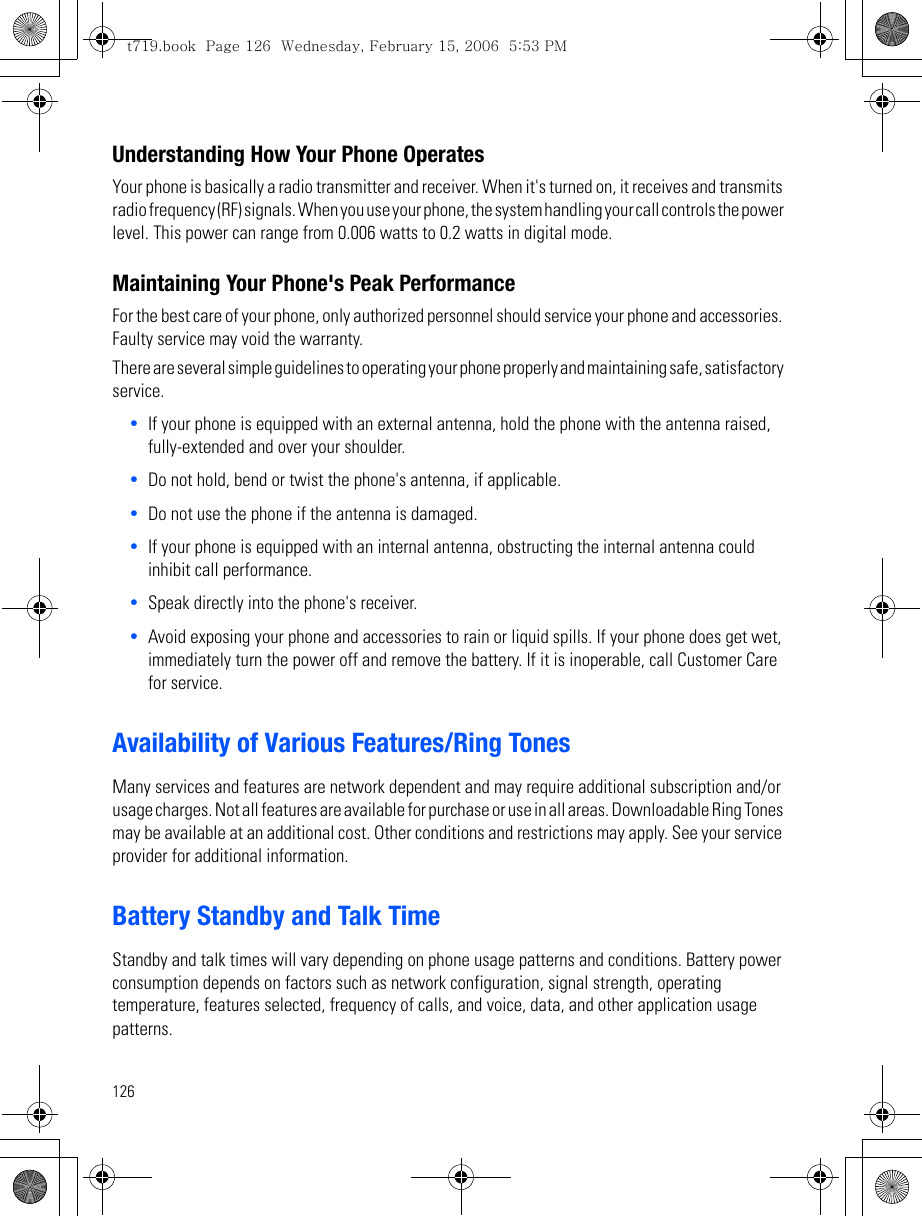

126Understanding How Your Phone OperatesYour phone is basically a radio transmitter and receiver. When it's turned on, it receives and transmits radio frequency (RF) signals. When you use your phone, the system handling your call controls the power level. This power can range from 0.006 watts to 0.2 watts in digital mode.Maintaining Your Phone's Peak PerformanceFor the best care of your phone, only authorized personnel should service your phone and accessories. Faulty service may void the warranty.There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service.•If your phone is equipped with an external antenna, hold the phone with the antenna raised, fully-extended and over your shoulder.•Do not hold, bend or twist the phone's antenna, if applicable.•Do not use the phone if the antenna is damaged.•If your phone is equipped with an internal antenna, obstructing the internal antenna could inhibit call performance.•Speak directly into the phone's receiver.•Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off and remove the battery. If it is inoperable, call Customer Care for service.Availability of Various Features/Ring TonesMany services and features are network dependent and may require additional subscription and/or usage charges. Not all features are available for purchase or use in all areas. Downloadable Ring Tones may be available at an additional cost. Other conditions and restrictions may apply. See your service provider for additional information.Battery Standby and Talk TimeStandby and talk times will vary depending on phone usage patterns and conditions. Battery power consumption depends on factors such as network configuration, signal strength, operating temperature, features selected, frequency of calls, and voice, data, and other application usage patterns.t719.book Page 126 Wednesday, February 15, 2006 5:53 PM

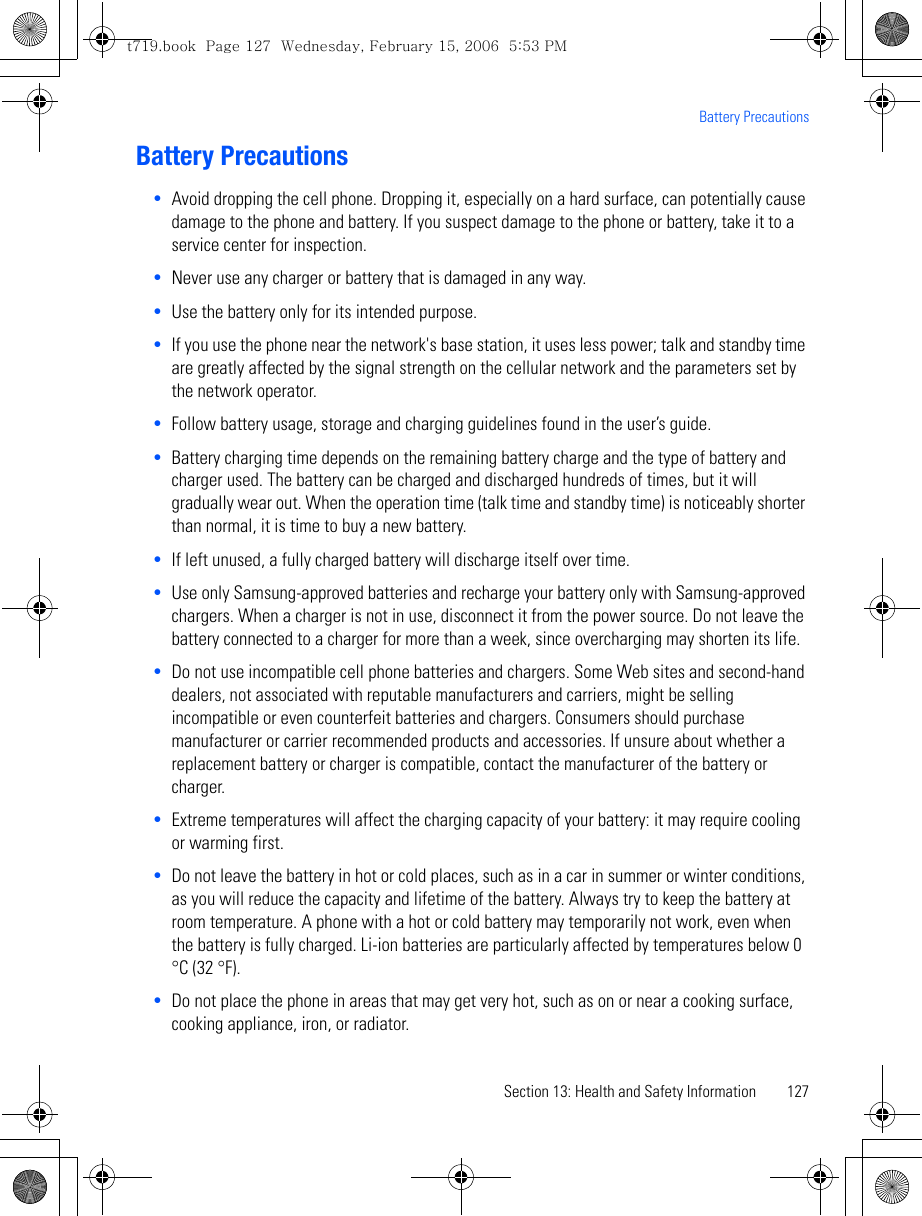

Section 13: Health and Safety Information 127Battery PrecautionsBattery Precautions•Avoid dropping the cell phone. Dropping it, especially on a hard surface, can potentially cause damage to the phone and battery. If you suspect damage to the phone or battery, take it to a service center for inspection. •Never use any charger or battery that is damaged in any way.•Use the battery only for its intended purpose.•If you use the phone near the network's base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.•Follow battery usage, storage and charging guidelines found in the user’s guide. •Battery charging time depends on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.•If left unused, a fully charged battery will discharge itself over time.•Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.•Do not use incompatible cell phone batteries and chargers. Some Web sites and second-hand dealers, not associated with reputable manufacturers and carriers, might be selling incompatible or even counterfeit batteries and chargers. Consumers should purchase manufacturer or carrier recommended products and accessories. If unsure about whether a replacement battery or charger is compatible, contact the manufacturer of the battery or charger. •Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.•Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).•Do not place the phone in areas that may get very hot, such as on or near a cooking surface, cooking appliance, iron, or radiator. t719.book Page 127 Wednesday, February 15, 2006 5:53 PM

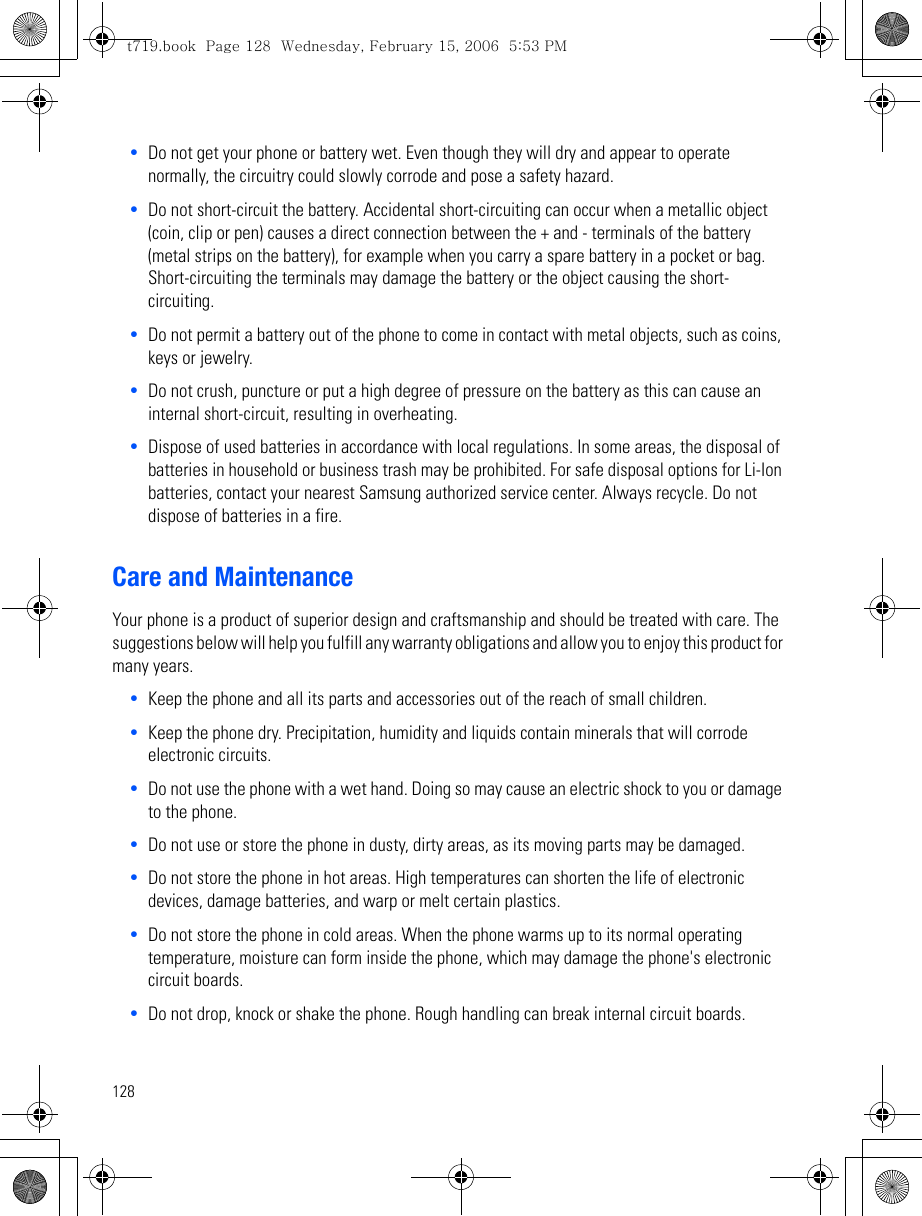

128•Do not get your phone or battery wet. Even though they will dry and appear to operate normally, the circuitry could slowly corrode and pose a safety hazard. •Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.•Do not permit a battery out of the phone to come in contact with metal objects, such as coins, keys or jewelry. •Do not crush, puncture or put a high degree of pressure on the battery as this can cause an internal short-circuit, resulting in overheating. •Dispose of used batteries in accordance with local regulations. In some areas, the disposal of batteries in household or business trash may be prohibited. For safe disposal options for Li-Ion batteries, contact your nearest Samsung authorized service center. Always recycle. Do not dispose of batteries in a fire.Care and MaintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years.•Keep the phone and all its parts and accessories out of the reach of small children.•Keep the phone dry. Precipitation, humidity and liquids contain minerals that will corrode electronic circuits.•Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone.•Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.•Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.•Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone's electronic circuit boards.•Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.t719.book Page 128 Wednesday, February 15, 2006 5:53 PM

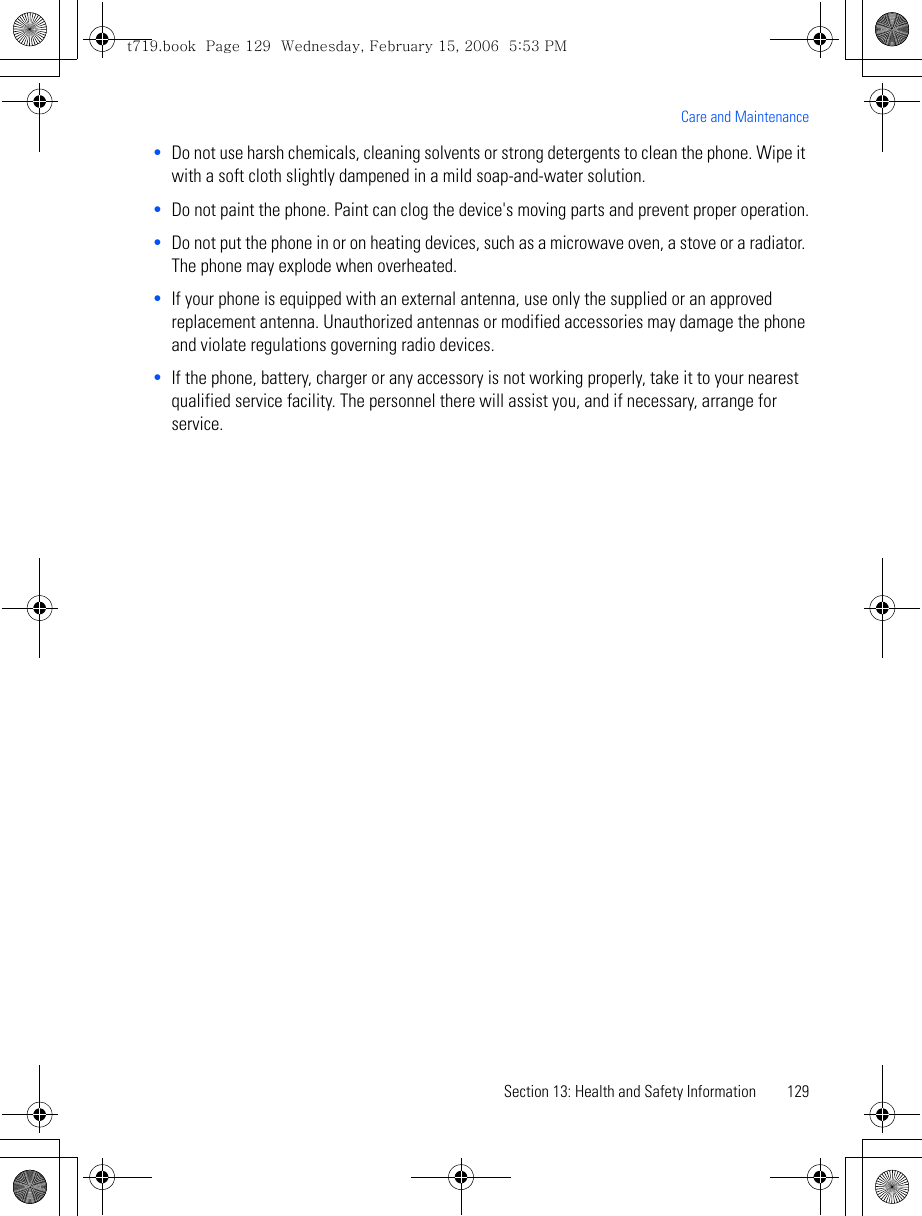

Section 13: Health and Safety Information 129Care and Maintenance•Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.•Do not paint the phone. Paint can clog the device's moving parts and prevent proper operation.•Do not put the phone in or on heating devices, such as a microwave oven, a stove or a radiator. The phone may explode when overheated.•If your phone is equipped with an external antenna, use only the supplied or an approved replacement antenna. Unauthorized antennas or modified accessories may damage the phone and violate regulations governing radio devices.•If the phone, battery, charger or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.t719.book Page 129 Wednesday, February 15, 2006 5:53 PM

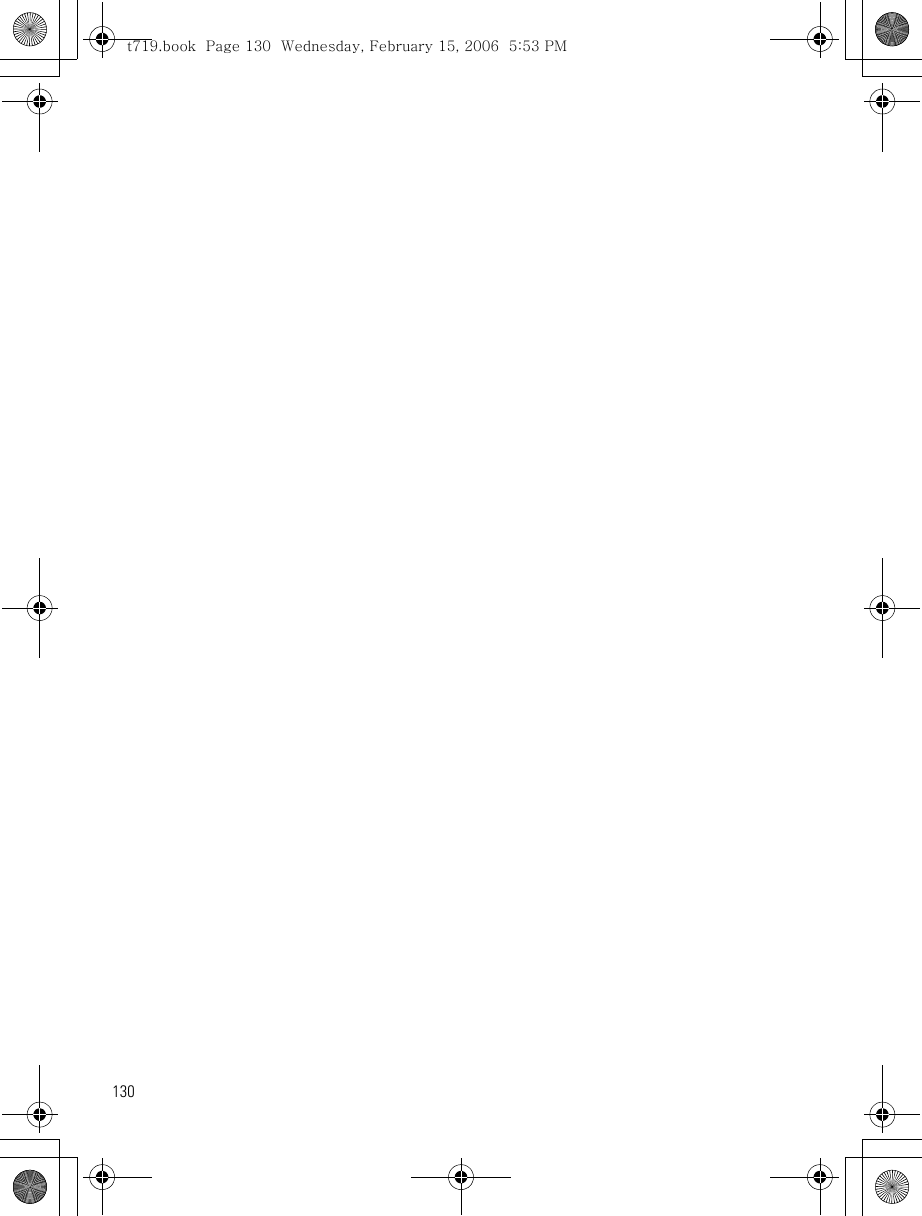

130t719.book Page 130 Wednesday, February 15, 2006 5:53 PM

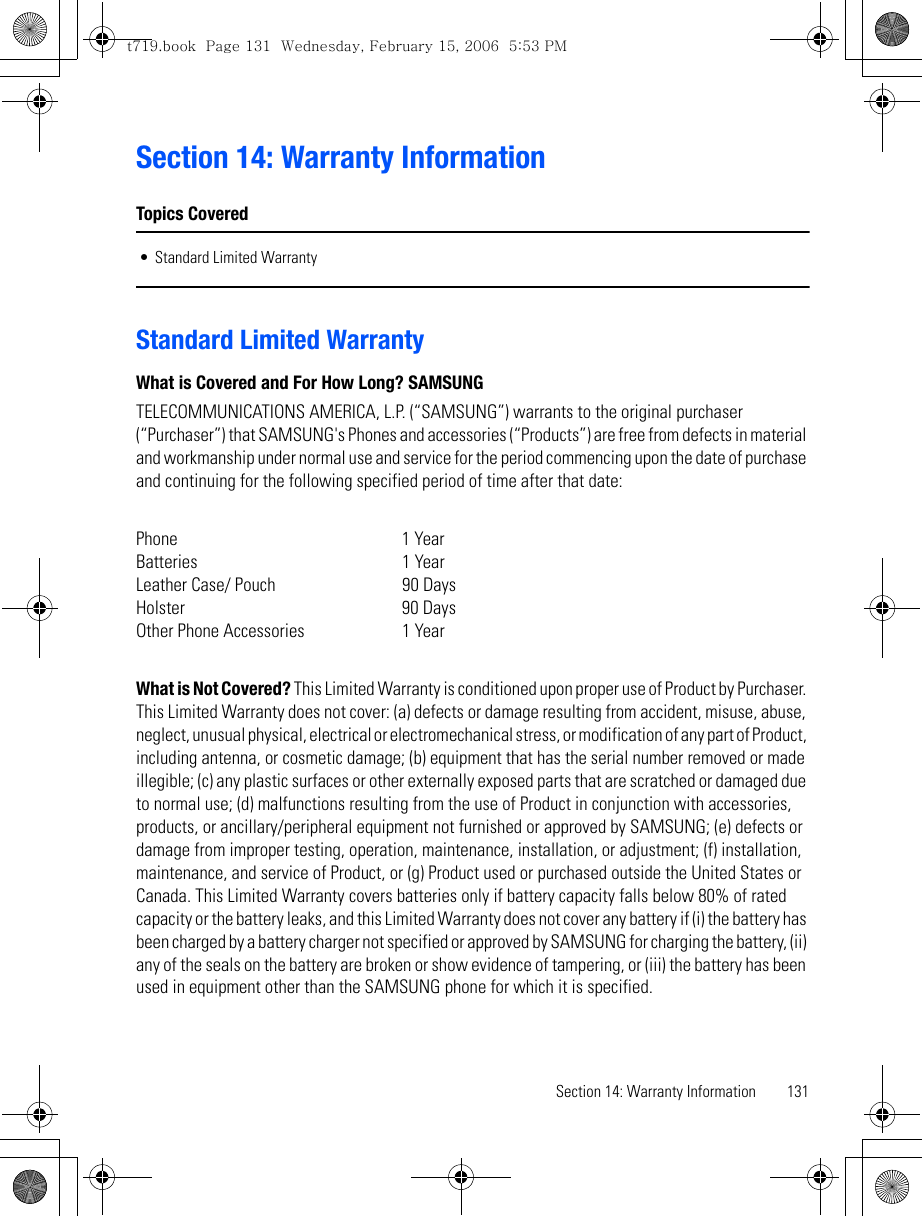

Section 14: Warranty Information 131Section 14: Warranty InformationTopics Covered• Standard Limited WarrantyStandard Limited WarrantyWhat is Covered and For How Long? SAMSUNGTELECOMMUNICATIONS AMERICA, L.P. (“SAMSUNG”) warrants to the original purchaser (“Purchaser”) that SAMSUNG's Phones and accessories (“Products”) are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase and continuing for the following specified period of time after that date:Phone 1 YearBatteries 1 YearLeather Case/ Pouch 90 DaysHolster 90 DaysOther Phone Accessories 1 YearWhat is Not Covered? This Limited Warranty is conditioned upon proper use of Product by Purchaser. This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, or modification of any part of Product, including antenna, or cosmetic damage; (b) equipment that has the serial number removed or made illegible; (c) any plastic surfaces or other externally exposed parts that are scratched or damaged due to normal use; (d) malfunctions resulting from the use of Product in conjunction with accessories, products, or ancillary/peripheral equipment not furnished or approved by SAMSUNG; (e) defects or damage from improper testing, operation, maintenance, installation, or adjustment; (f) installation, maintenance, and service of Product, or (g) Product used or purchased outside the United States or Canada. This Limited Warranty covers batteries only if battery capacity falls below 80% of rated capacity or the battery leaks, and this Limited Warranty does not cover any battery if (i) the battery has been charged by a battery charger not specified or approved by SAMSUNG for charging the battery, (ii) any of the seals on the battery are broken or show evidence of tampering, or (iii) the battery has been used in equipment other than the SAMSUNG phone for which it is specified.t719.book Page 131 Wednesday, February 15, 2006 5:53 PM

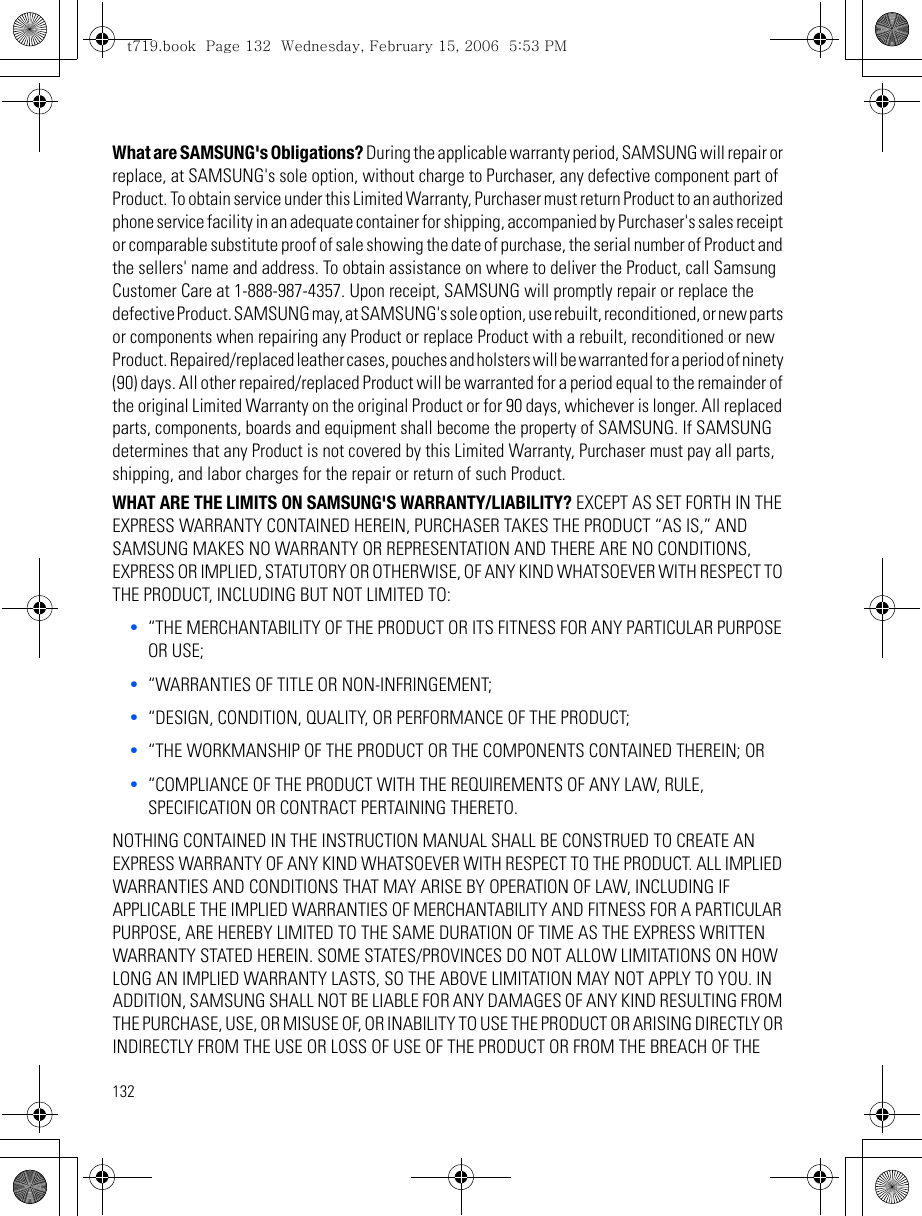

132What are SAMSUNG's Obligations? During the applicable warranty period, SAMSUNG will repair or replace, at SAMSUNG's sole option, without charge to Purchaser, any defective component part of Product. To obtain service under this Limited Warranty, Purchaser must return Product to an authorized phone service facility in an adequate container for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the date of purchase, the serial number of Product and the sellers' name and address. To obtain assistance on where to deliver the Product, call Samsung Customer Care at 1-888-987-4357. Upon receipt, SAMSUNG will promptly repair or replace the defective Product. SAMSUNG may, at SAMSUNG's sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product or replace Product with a rebuilt, reconditioned or new Product. Repaired/replaced leather cases, pouches and holsters will be warranted for a period of ninety (90) days. All other repaired/replaced Product will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for 90 days, whichever is longer. All replaced parts, components, boards and equipment shall become the property of SAMSUNG. If SAMSUNG determines that any Product is not covered by this Limited Warranty, Purchaser must pay all parts, shipping, and labor charges for the repair or return of such Product.WHAT ARE THE LIMITS ON SAMSUNG'S WARRANTY/LIABILITY? EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED HEREIN, PURCHASER TAKES THE PRODUCT “AS IS,” AND SAMSUNG MAKES NO WARRANTY OR REPRESENTATION AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO:•“THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE;•“WARRANTIES OF TITLE OR NON-INFRINGEMENT;•“DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT;•“THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR•“COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO.NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. ALL IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE BY OPERATION OF LAW, INCLUDING IF APPLICABLE THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE SAME DURATION OF TIME AS THE EXPRESS WRITTEN WARRANTY STATED HEREIN. SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE, USE, OR MISUSE OF, OR INABILITY TO USE THE PRODUCT OR ARISING DIRECTLY OR INDIRECTLY FROM THE USE OR LOSS OF USE OF THE PRODUCT OR FROM THE BREACH OF THE t719.book Page 132 Wednesday, February 15, 2006 5:53 PM

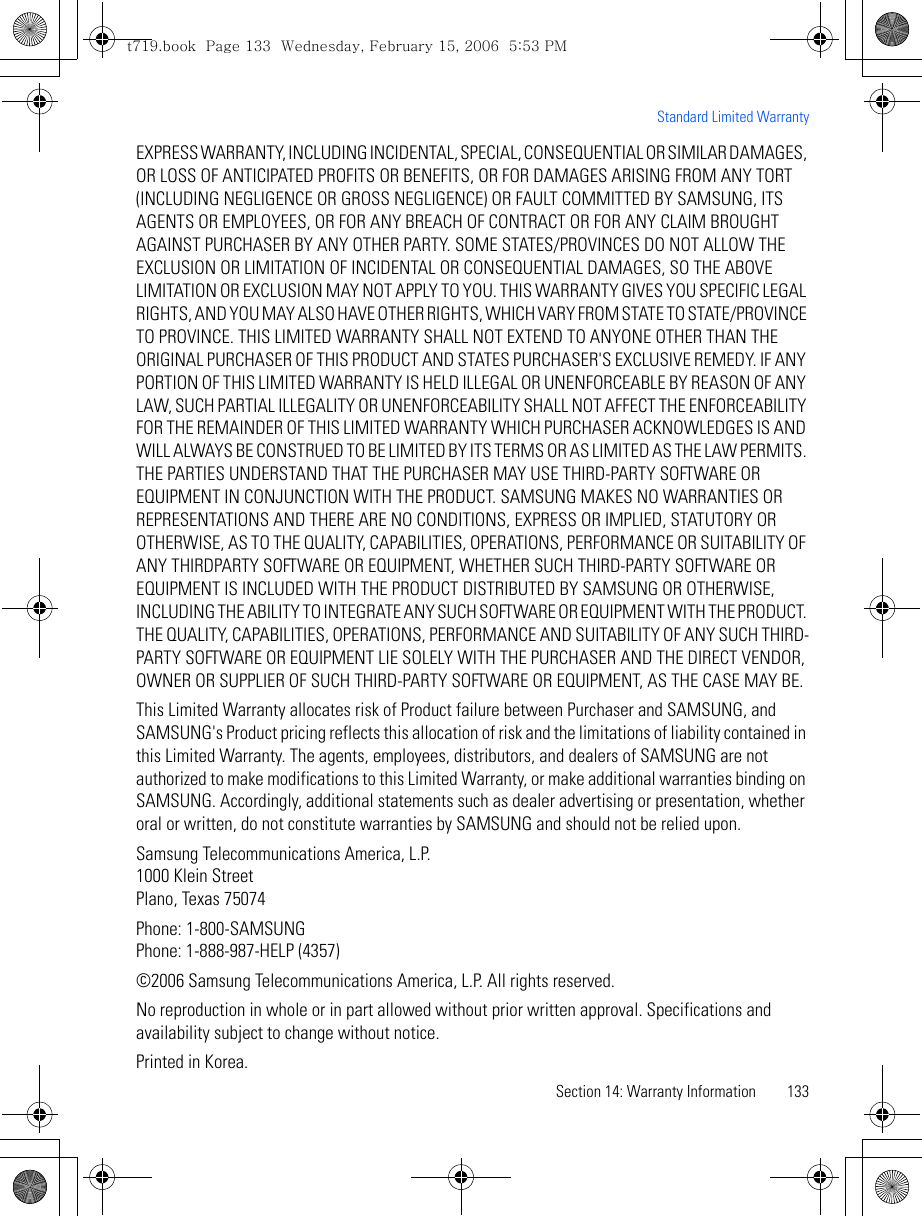

Section 14: Warranty Information 133Standard Limited WarrantyEXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS, OR FOR DAMAGES ARISING FROM ANY TORT (INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULT COMMITTED BY SAMSUNG, ITS AGENTS OR EMPLOYEES, OR FOR ANY BREACH OF CONTRACT OR FOR ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER PARTY. SOME STATES/PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE/PROVINCE TO PROVINCE. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT AND STATES PURCHASER'S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED WARRANTY WHICH PURCHASER ACKNOWLEDGES IS AND WILL ALWAYS BE CONSTRUED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS THE LAW PERMITS. THE PARTIES UNDERSTAND THAT THE PURCHASER MAY USE THIRD-PARTY SOFTWARE OR EQUIPMENT IN CONJUNCTION WITH THE PRODUCT. SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRDPARTY SOFTWARE OR EQUIPMENT, WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE, INCLUDING THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE PRODUCT. THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE AND SUITABILITY OF ANY SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT LIE SOLELY WITH THE PURCHASER AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT, AS THE CASE MAY BE.This Limited Warranty allocates risk of Product failure between Purchaser and SAMSUNG, and SAMSUNG's Product pricing reflects this allocation of risk and the limitations of liability contained in this Limited Warranty. The agents, employees, distributors, and dealers of SAMSUNG are not authorized to make modifications to this Limited Warranty, or make additional warranties binding on SAMSUNG. Accordingly, additional statements such as dealer advertising or presentation, whether oral or written, do not constitute warranties by SAMSUNG and should not be relied upon.Samsung Telecommunications America, L.P.1000 Klein StreetPlano, Texas 75074Phone: 1-800-SAMSUNGPhone: 1-888-987-HELP (4357)©2006 Samsung Telecommunications America, L.P. All rights reserved.No reproduction in whole or in part allowed without prior written approval. Specifications and availability subject to change without notice.Printed in Korea.t719.book Page 133 Wednesday, February 15, 2006 5:53 PM
134t719.book Page 134 Wednesday, February 15, 2006 5:53 PM

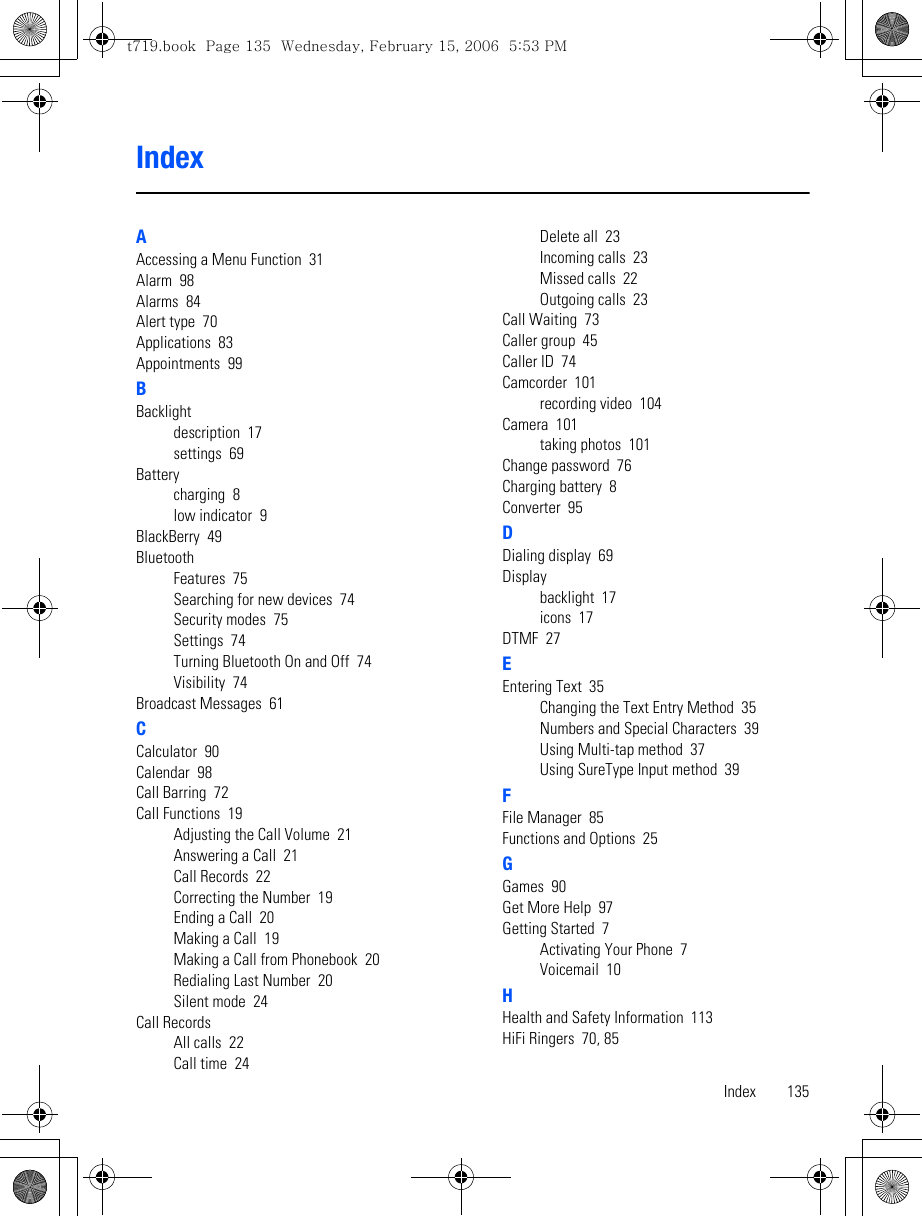

Index 135IndexAAccessing a Menu Function 31Alarm 98Alarms 84Alert type 70Applications 83Appointments 99BBacklightdescription 17settings 69Batterycharging 8low indicator 9BlackBerry 49BluetoothFeatures 75Searching for new devices 74Security modes 75Settings 74Turning Bluetooth On and Off 74Visibility 74Broadcast Messages 61CCalculator 90Calendar 98Call Barring 72Call Functions 19Adjusting the Call Volume 21Answering a Call 21Call Records 22Correcting the Number 19Ending a Call 20Making a Call 19Making a Call from Phonebook 20Redialing Last Number 20Silent mode 24Call RecordsAll calls 22Call time 24Delete all 23Incoming calls 23Missed calls 22Outgoing calls 23Call Waiting 73Caller group 45Caller ID 74Camcorder 101recording video 104Camera 101taking photos 101Change password 76Charging battery 8Converter 95DDialing display 69Displaybacklight 17icons 17DTMF 27EEntering Text 35Changing the Text Entry Method 35Numbers and Special Characters 39Using Multi-tap method 37Using SureType Input method 39FFile Manager 85Functions and Options 25GGames 90Get More Help 97Getting Started 7Activating Your Phone 7Voicemail 10HHealth and Safety Information 113HiFi Ringers 70, 85t719.book Page 135 Wednesday, February 15, 2006 5:53 PM

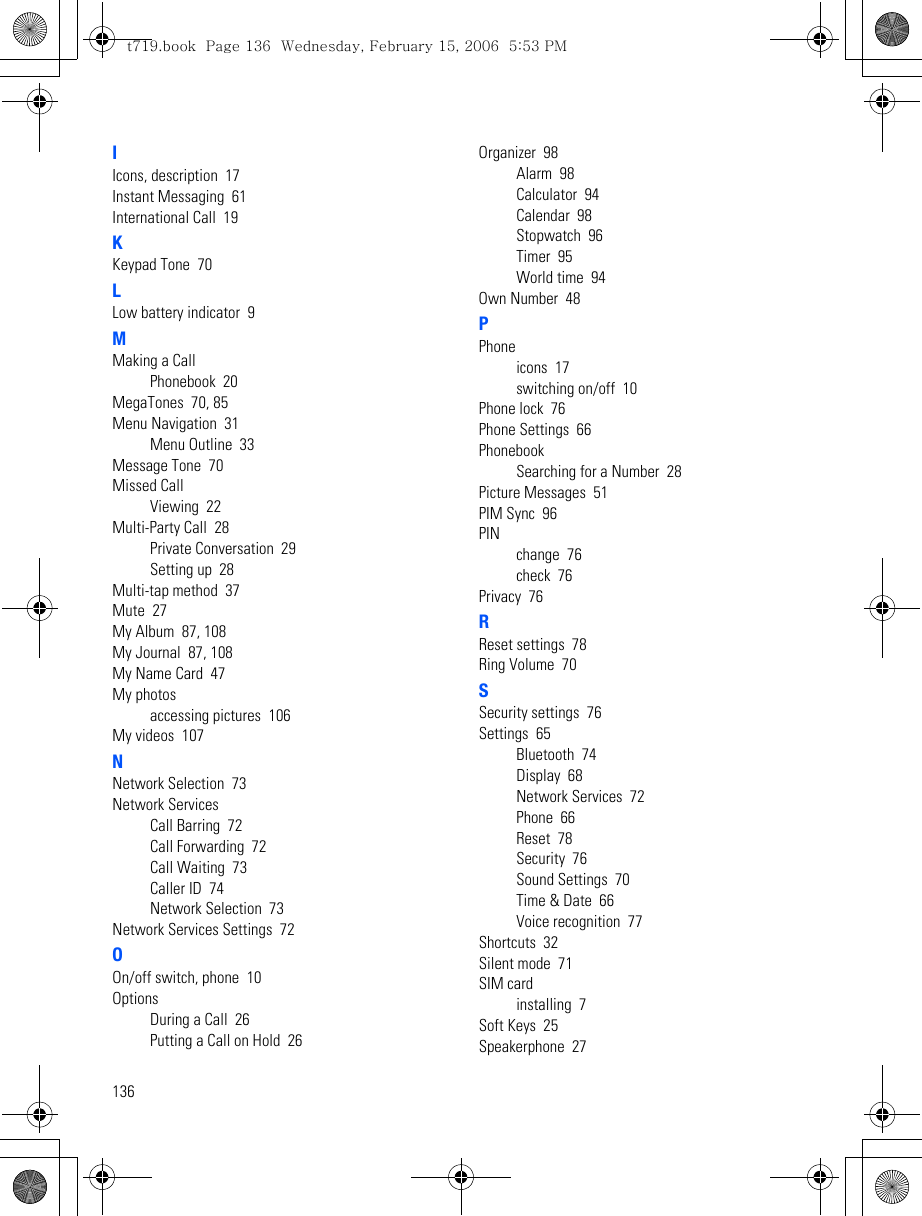

136IIcons, description 17Instant Messaging 61International Call 19KKeypad Tone 70LLow battery indicator 9MMaking a CallPhonebook 20MegaTones 70, 85Menu Navigation 31Menu Outline 33Message Tone 70Missed CallViewing 22Multi-Party Call 28Private Conversation 29Setting up 28Multi-tap method 37Mute 27My Album 87, 108My Journal 87, 108My Name Card 47My photosaccessing pictures 106My videos 107NNetwork Selection 73Network ServicesCall Barring 72Call Forwarding 72Call Waiting 73Caller ID 74Network Selection 73Network Services Settings 72OOn/off switch, phone 10OptionsDuring a Call 26Putting a Call on Hold 26Organizer 98Alarm 98Calculator 94Calendar 98Stopwatch 96Timer 95World time 94Own Number 48PPhoneicons 17switching on/off 10Phone lock 76Phone Settings 66PhonebookSearching for a Number 28Picture Messages 51PIM Sync 96PINchange 76check 76Privacy 76RReset settings 78Ring Volume 70SSecurity settings 76Settings 65Bluetooth 74Display 68Network Services 72Phone 66Reset 78Security 76Sound Settings 70Time & Date 66Voice recognition 77Shortcuts 32Silent mode 71SIM cardinstalling 7Soft Keys 25Speakerphone 27t719.book Page 136 Wednesday, February 15, 2006 5:53 PM

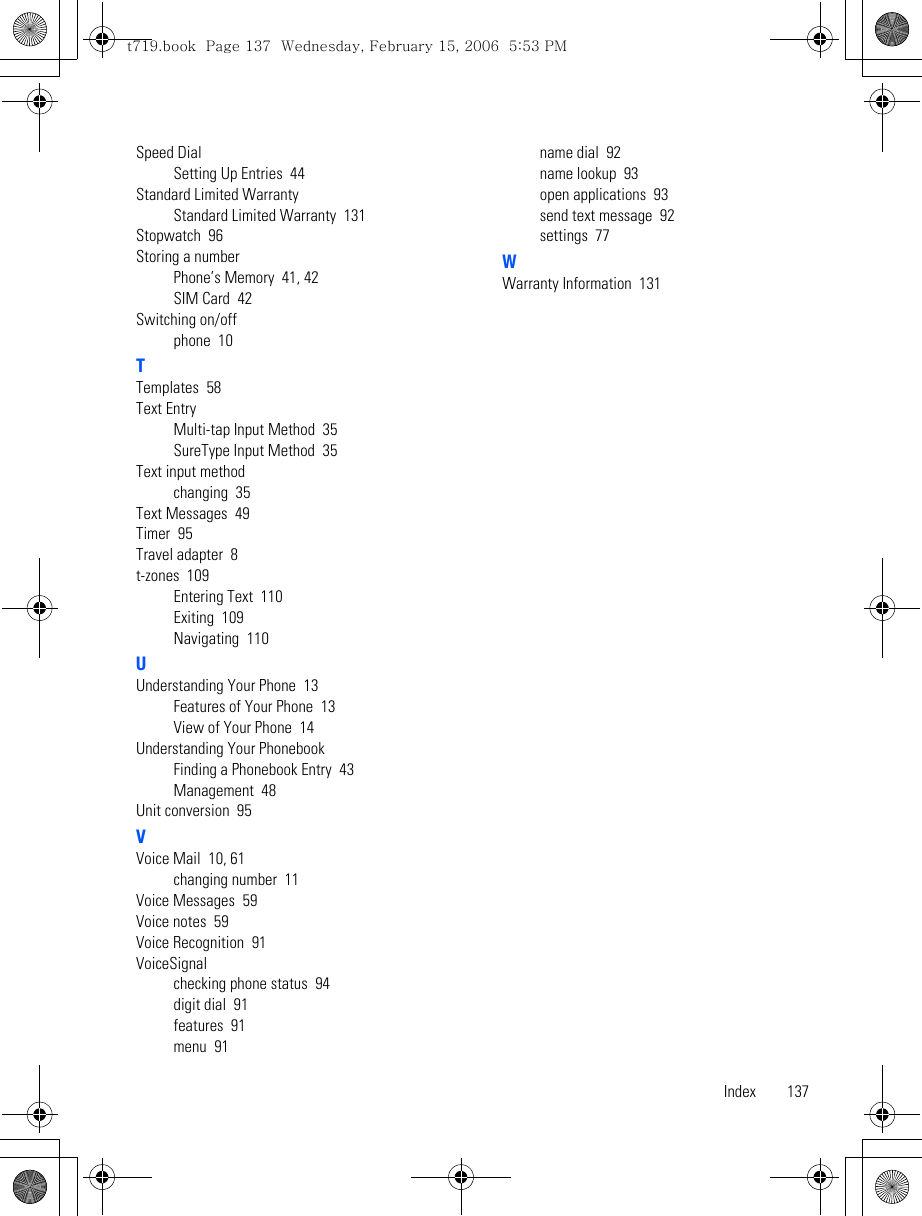

Index 137Speed DialSetting Up Entries 44Standard Limited WarrantyStandard Limited Warranty 131Stopwatch 96Storing a numberPhone’s Memory 41, 42SIM Card 42Switching on/offphone 10TTemplates 58Text EntryMulti-tap Input Method 35SureType Input Method 35Text input methodchanging 35Text Messages 49Timer 95Travel adapter 8t-zones 109Entering Text 110Exiting 109Navigating 110UUnderstanding Your Phone 13Features of Your Phone 13View of Your Phone 14Understanding Your PhonebookFinding a Phonebook Entry 43Management 48Unit conversion 95VVoice Mail 10, 61changing number 11Voice Messages 59Voice notes 59Voice Recognition 91VoiceSignalchecking phone status 94digit dial 91features 91menu 91name dial 92name lookup 93open applications 93send text message 92settings 77WWarranty Information 131t719.book Page 137 Wednesday, February 15, 2006 5:53 PM

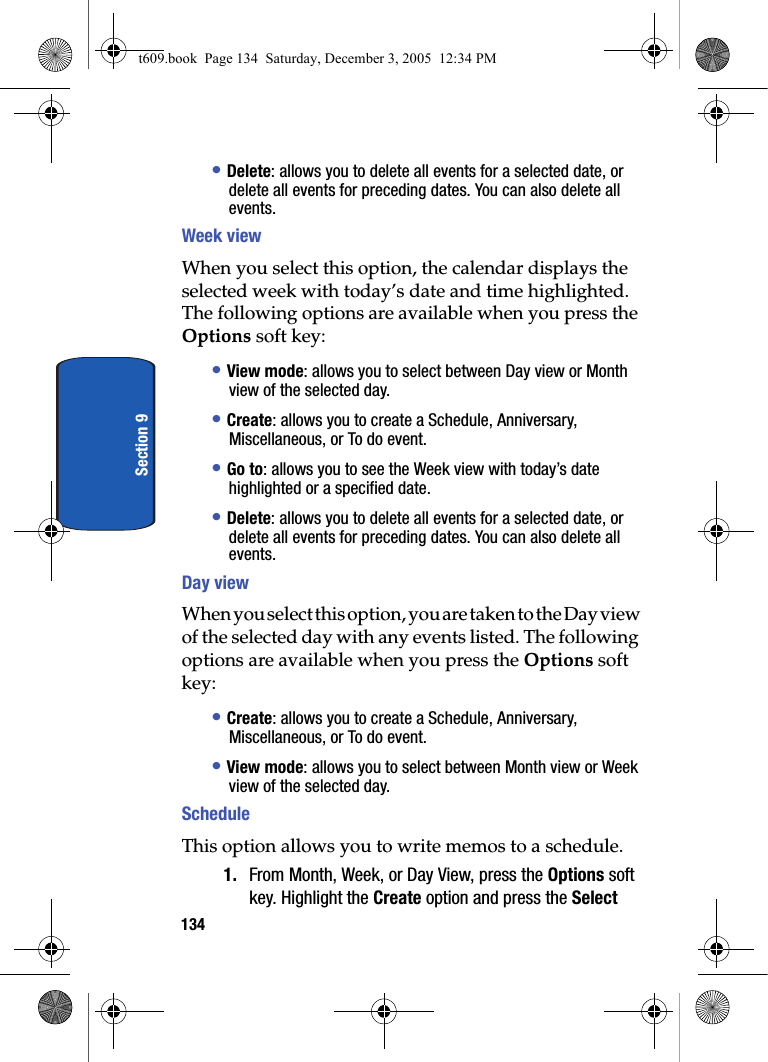

134Section 9• Delete: allows you to delete all events for a selected date, or delete all events for preceding dates. You can also delete all events.Week viewWhen you select this option, the calendar displays the selected week with today’s date and time highlighted. The following options are available when you press the Options soft key:• View mode: allows you to select between Day view or Month view of the selected day.• Create: allows you to create a Schedule, Anniversary, Miscellaneous, or To do event.• Go to: allows you to see the Week view with today’s date highlighted or a specified date.• Delete: allows you to delete all events for a selected date, or delete all events for preceding dates. You can also delete all events.Day viewWhen you select this option, you are taken to the Day view of the selected day with any events listed. The following options are available when you press the Options soft key:• Create: allows you to create a Schedule, Anniversary, Miscellaneous, or To do event.• View mode: allows you to select between Month view or Week view of the selected day.ScheduleThis option allows you to write memos to a schedule.1. From Month, Week, or Day View, press the Options soft key. Highlight the Create option and press the Select t609.book Page 134 Saturday, December 3, 2005 12:34 PM
Section 9: Fun & Apps 135OrganizerSection 9soft key or the key.2. Highlight the Schedule option and press the Select soft key or the key.3. Enter the subject in the Subject text box then press the Down soft key.4. Continue to enter other information including Details, Start date, Start time, AM/PM, End date, End time, AM/PM, Location, Alarm, and Alarm tone. Check the Repeat box using the key if you want to repeat the alarm.5. When you are finished, press the Save soft key.Your information is saved to the Schedule.AnniversaryThis option allows you to record Anniversaries in your calendar. You can also set an alarm to remind you of important anniversaries.1. From Month, Week, or Day View, press the Options soft key. Highlight the Create option and press the Select soft key or the key.2. Highlight the Anniversary option and press the Select soft key or the key.3. Enter the occasion in the Occasion text box then press the Down soft key.4. Continue to enter other information including Date, Alarm, Alarm time, AM/PM, Alarm tone, and whether or not to Repeat every year.5. When you are finished, press the Save soft key.Your Anniversary information is saved to the Calendar.t609.book Page 135 Saturday, December 3, 2005 12:34 PM

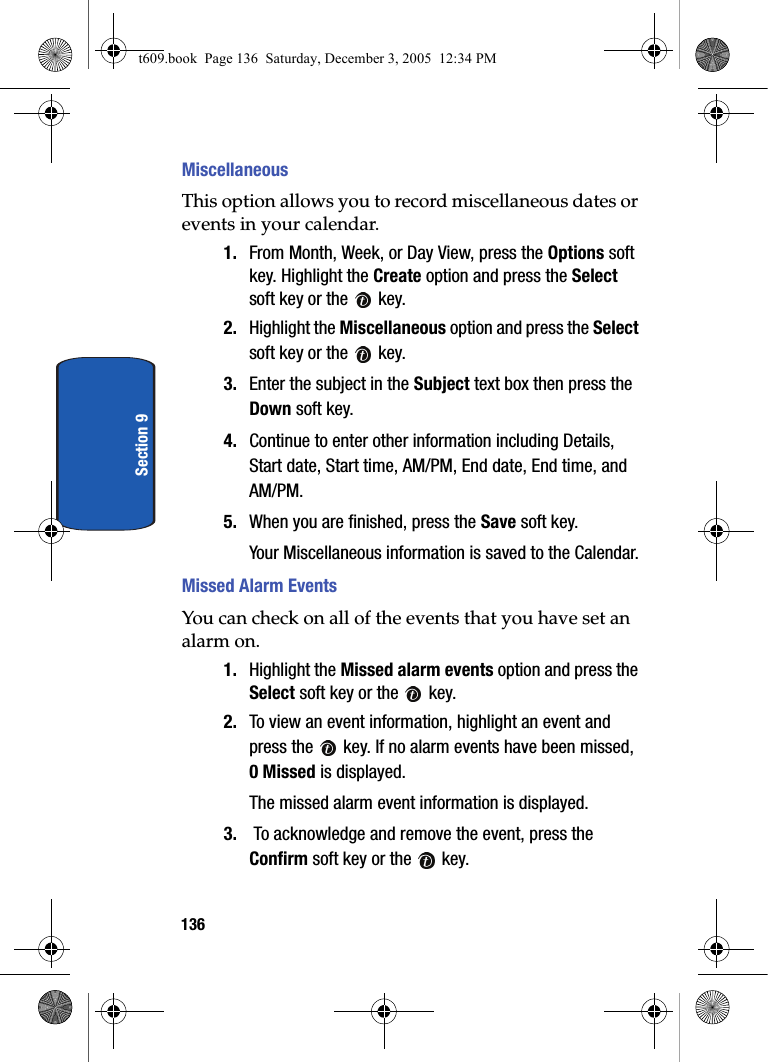

136Section 9MiscellaneousThis option allows you to record miscellaneous dates or events in your calendar.1. From Month, Week, or Day View, press the Options soft key. Highlight the Create option and press the Select soft key or the key.2. Highlight the Miscellaneous option and press the Select soft key or the key.3. Enter the subject in the Subject text box then press the Down soft key.4. Continue to enter other information including Details, Start date, Start time, AM/PM, End date, End time, and AM/PM.5. When you are finished, press the Save soft key.Your Miscellaneous information is saved to the Calendar.Missed Alarm EventsYou can check on all of the events that you have set an alarm on. 1. Highlight the Missed alarm events option and press the Select soft key or the key.2. To view an event information, highlight an event and press the key. If no alarm events have been missed, 0 Missed is displayed.The missed alarm event information is displayed.3. To acknowledge and remove the event, press the Confirm soft key or the key.t609.book Page 136 Saturday, December 3, 2005 12:34 PM

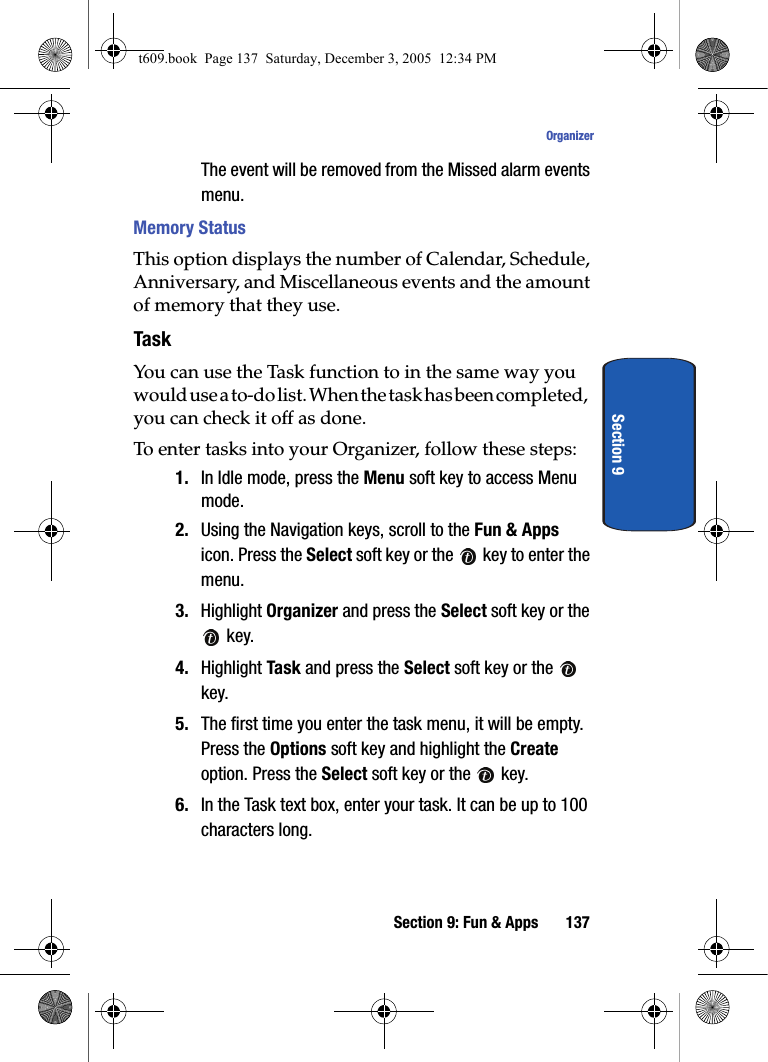

Section 9: Fun & Apps 137OrganizerSection 9The event will be removed from the Missed alarm events menu.Memory StatusThis option displays the number of Calendar, Schedule, Anniversary, and Miscellaneous events and the amount of memory that they use.TaskYou can use the Task function to in the same way you would use a to-do list. When the task has been completed, you can check it off as done. To enter tasks into your Organizer, follow these steps:1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, scroll to the Fun & Apps icon. Press the Select soft key or the key to enter the menu.3. Highlight Organizer and press the Select soft key or the key.4. Highlight Task and press the Select soft key or the key.5. The first time you enter the task menu, it will be empty. Press the Options soft key and highlight the Create option. Press the Select soft key or the key.6. In the Task text box, enter your task. It can be up to 100 characters long.t609.book Page 137 Saturday, December 3, 2005 12:34 PM

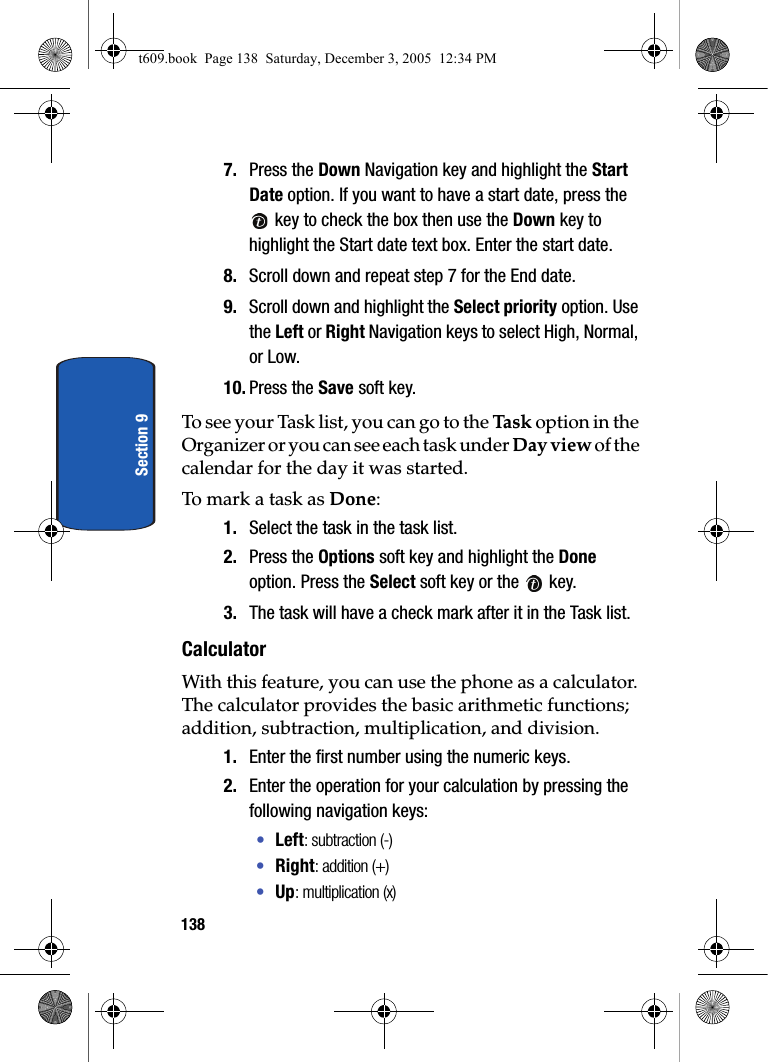

138Section 97. Press the Down Navigation key and highlight the Start Date option. If you want to have a start date, press the key to check the box then use the Down key to highlight the Start date text box. Enter the start date.8. Scroll down and repeat step 7 for the End date.9. Scroll down and highlight the Select priority option. Use the Left or Right Navigation keys to select High, Normal, or Low.10. Press the Save soft key.To see your Task list, you can go to the Task option in the Organizer or you can see each task under Day view of the calendar for the day it was started.To mark a task as Done:1. Select the task in the task list.2. Press the Options soft key and highlight the Done option. Press the Select soft key or the key.3. The task will have a check mark after it in the Task list.CalculatorWith this feature, you can use the phone as a calculator. The calculator provides the basic arithmetic functions; addition, subtraction, multiplication, and division.1. Enter the first number using the numeric keys.2. Enter the operation for your calculation by pressing the following navigation keys:•Left: subtraction (-)•Right: addition (+)•Up: multiplication (x)t609.book Page 138 Saturday, December 3, 2005 12:34 PM

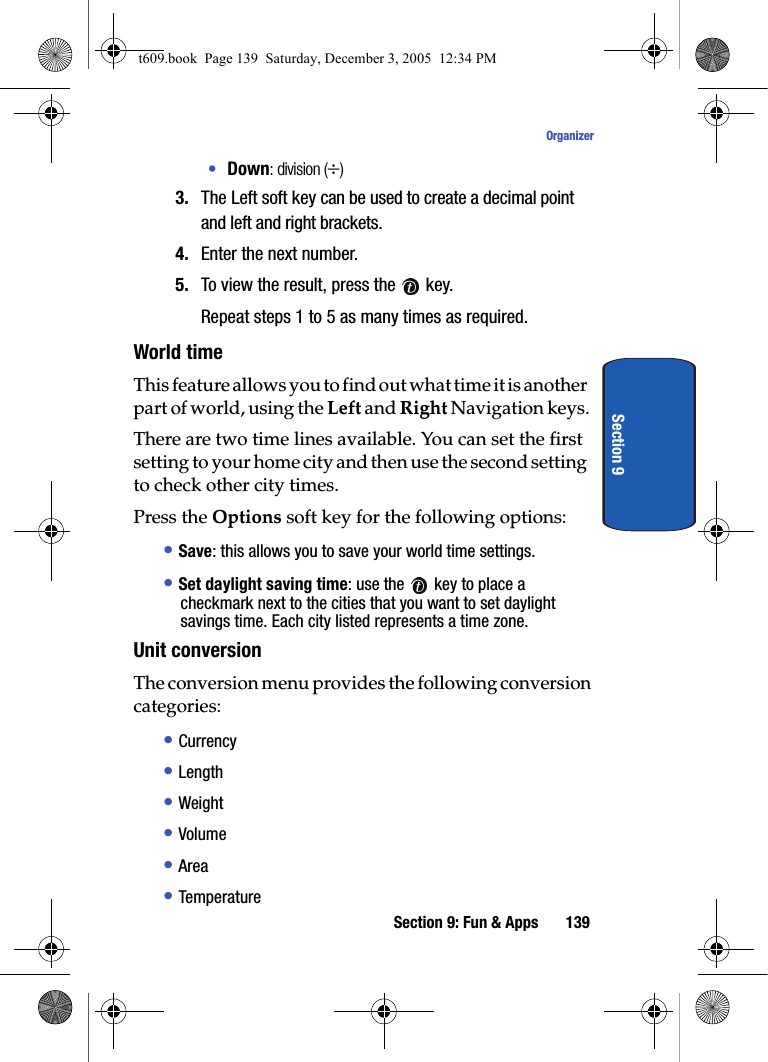

Section 9: Fun & Apps 139OrganizerSection 9•Down: division (÷)3. The Left soft key can be used to create a decimal point and left and right brackets.4. Enter the next number.5. To view the result, press the key.Repeat steps 1 to 5 as many times as required.World timeThis feature allows you to find out what time it is another part of world, using the Left and Right Navigation keys.There are two time lines available. You can set the first setting to your home city and then use the second setting to check other city times. Press the Options soft key for the following options:• Save: this allows you to save your world time settings.• Set daylight saving time: use the key to place a checkmark next to the cities that you want to set daylight savings time. Each city listed represents a time zone.Unit conversionThe conversion menu provides the following conversion categories:• Currency• Length• Weight• Volume• Area• Temperaturet609.book Page 139 Saturday, December 3, 2005 12:34 PM

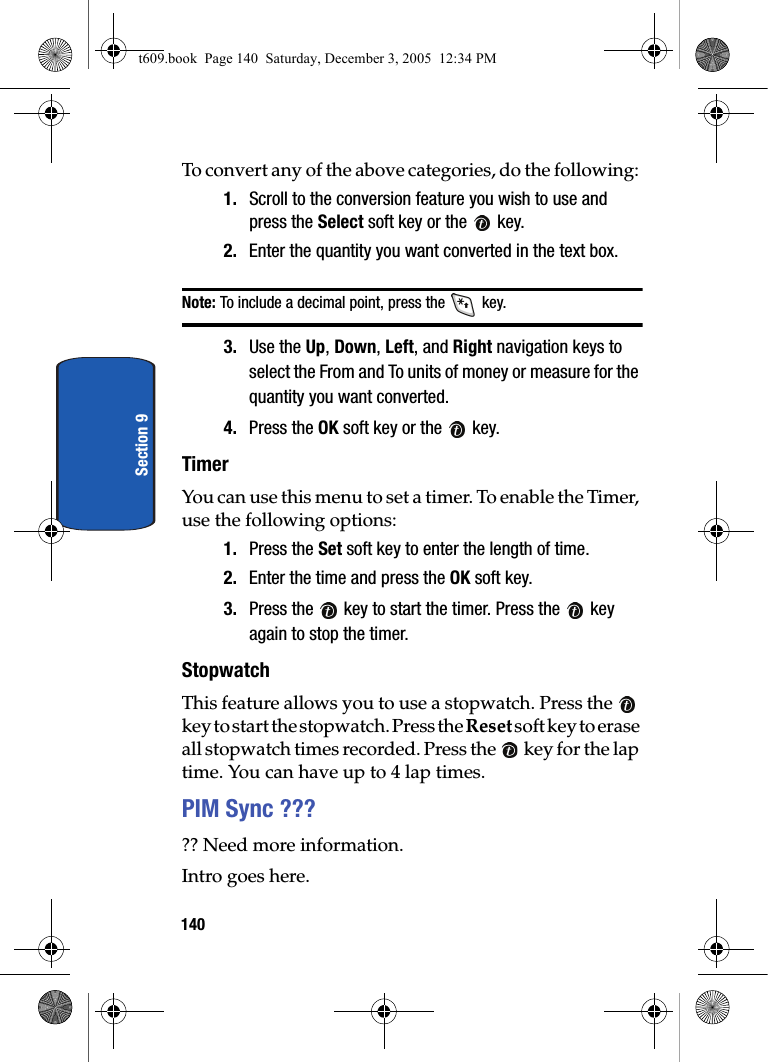

140Section 9To convert any of the above categories, do the following: 1. Scroll to the conversion feature you wish to use and press the Select soft key or the key. 2. Enter the quantity you want converted in the text box. Note: To include a decimal point, press the key. 3. Use the Up, Down, Left, and Right navigation keys to select the From and To units of money or measure for the quantity you want converted. 4. Press the OK soft key or the key. TimerYou can use this menu to set a timer. To enable the Timer, use the following options:1. Press the Set soft key to enter the length of time. 2. Enter the time and press the OK soft key.3. Press the key to start the timer. Press the key again to stop the timer.StopwatchThis feature allows you to use a stopwatch. Press the key to start the stopwatch. Press the Reset soft key to erase all stopwatch times recorded. Press the key for the lap time. You can have up to 4 lap times.PIM Sync ????? Need more information.Intro goes here.t609.book Page 140 Saturday, December 3, 2005 12:34 PM

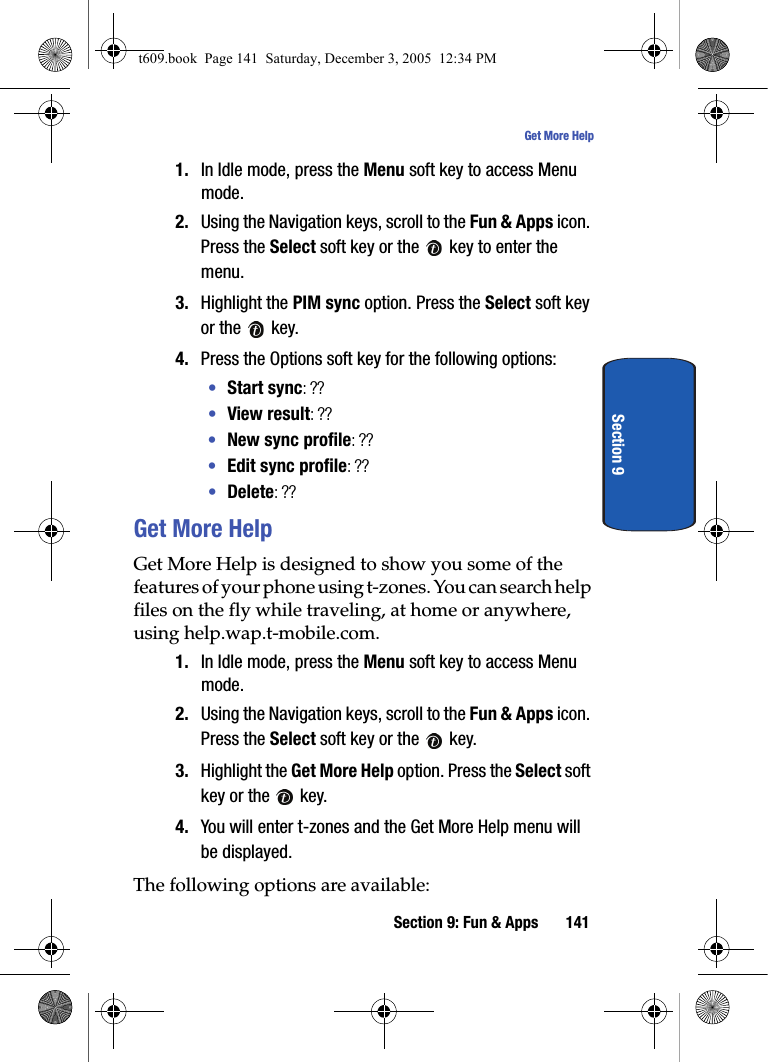

Section 9: Fun & Apps 141Get More HelpSection 91. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, scroll to the Fun & Apps icon. Press the Select soft key or the key to enter the menu.3. Highlight the PIM sync option. Press the Select soft key or the key.4. Press the Options soft key for the following options:•Start sync: ??•View result: ??•New sync profile: ??•Edit sync profile: ??•Delete: ??Get More HelpGet More Help is designed to show you some of the features of your phone using t-zones. You can search help files on the fly while traveling, at home or anywhere, using help.wap.t-mobile.com.1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, scroll to the Fun & Apps icon. Press the Select soft key or the key.3. Highlight the Get More Help option. Press the Select soft key or the key.4. You will enter t-zones and the Get More Help menu will be displayed.The following options are available:t609.book Page 141 Saturday, December 3, 2005 12:34 PM

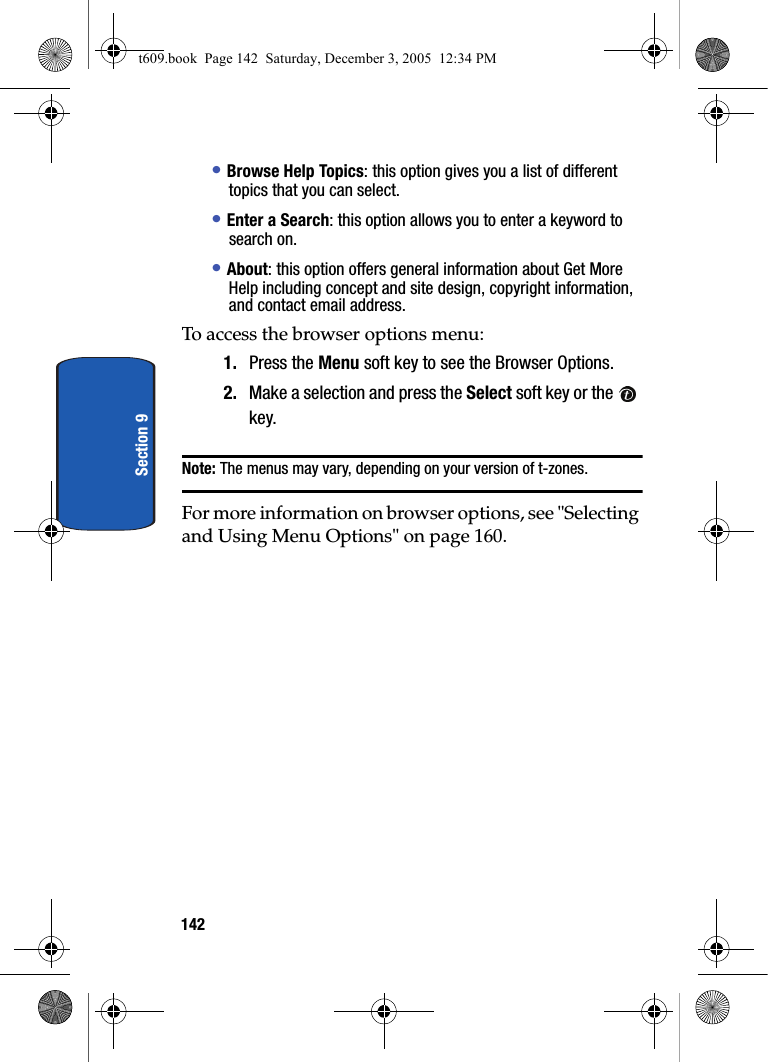

142Section 9• Browse Help Topics: this option gives you a list of different topics that you can select.• Enter a Search: this option allows you to enter a keyword to search on.• About: this option offers general information about Get More Help including concept and site design, copyright information, and contact email address.To access the browser options menu:1. Press the Menu soft key to see the Browser Options. 2. Make a selection and press the Select soft key or the key.Note: The menus may vary, depending on your version of t-zones.For more information on browser options, see "Selecting and Using Menu Options" on page 160.t609.book Page 142 Saturday, December 3, 2005 12:34 PM

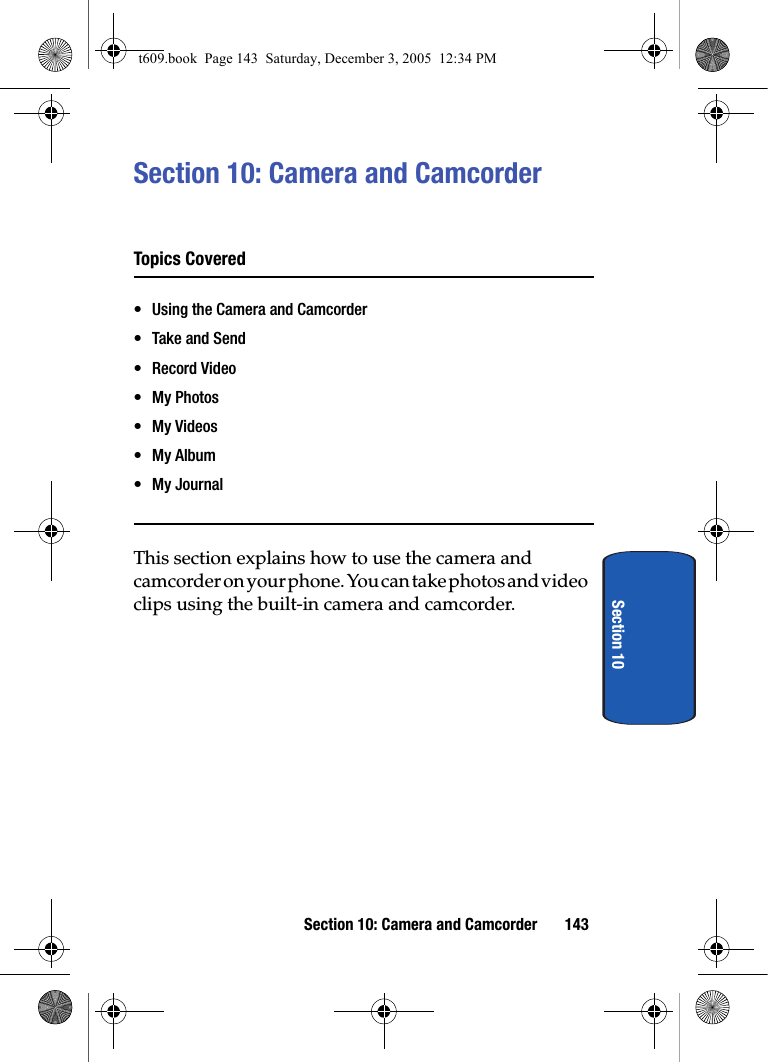

Section 10: Camera and Camcorder 143Section 10Section 10: Camera and CamcorderTopics Covered• Using the Camera and Camcorder• Take and Send• Record Video• My Photos• My Videos• My Album• My JournalThis section explains how to use the camera and camcorder on your phone. You can take photos and video clips using the built-in camera and camcorder. t609.book Page 143 Saturday, December 3, 2005 12:34 PM

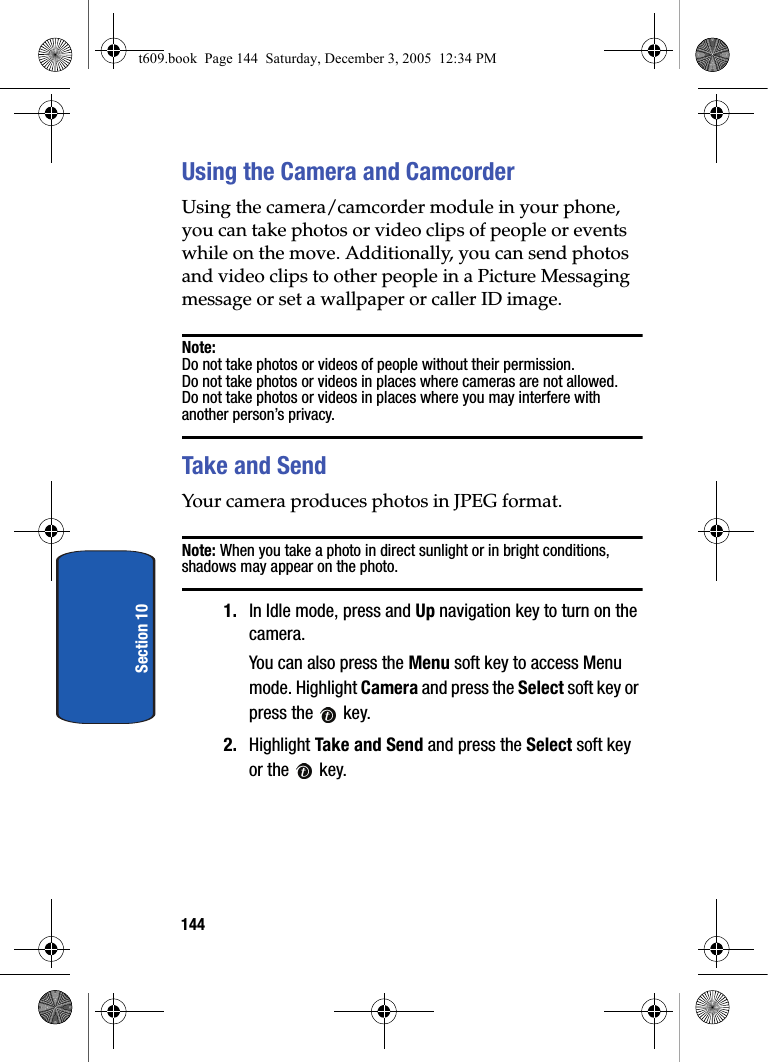

144Section 10Using the Camera and CamcorderUsing the camera/camcorder module in your phone, you can take photos or video clips of people or events while on the move. Additionally, you can send photos and video clips to other people in a Picture Messaging message or set a wallpaper or caller ID image.Note:Do not take photos or videos of people without their permission.Do not take photos or videos in places where cameras are not allowed.Do not take photos or videos in places where you may interfere with another person’s privacy.Take and SendYour camera produces photos in JPEG format.Note: When you take a photo in direct sunlight or in bright conditions, shadows may appear on the photo.1. In Idle mode, press and Up navigation key to turn on the camera. You can also press the Menu soft key to access Menu mode. Highlight Camera and press the Select soft key or press the key. 2. Highlight Take and Send and press the Select soft key or the key.t609.book Page 144 Saturday, December 3, 2005 12:34 PM

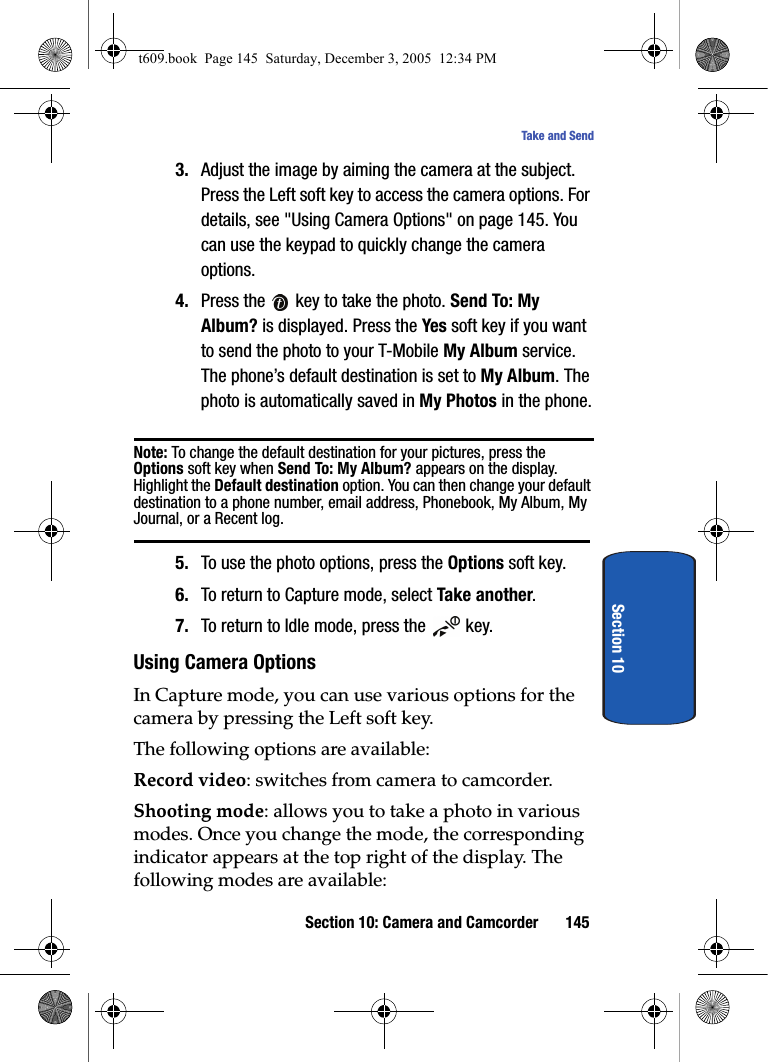

Section 10: Camera and Camcorder 145Take and SendSection 103. Adjust the image by aiming the camera at the subject. Press the Left soft key to access the camera options. For details, see "Using Camera Options" on page 145. You can use the keypad to quickly change the camera options. 4. Press the key to take the photo. Send To: My Album? is displayed. Press the Yes soft key if you want to send the photo to your T-Mobile My Album service. The phone’s default destination is set to My Album. The photo is automatically saved in My Photos in the phone.Note: To change the default destination for your pictures, press the Options soft key when Send To: My Album? appears on the display. Highlight the Default destination option. You can then change your default destination to a phone number, email address, Phonebook, My Album, My Journal, or a Recent log.5. To use the photo options, press the Options soft key.6. To return to Capture mode, select Take another.7. To return to Idle mode, press the key.Using Camera OptionsIn Capture mode, you can use various options for the camera by pressing the Left soft key.The following options are available:Record video: switches from camera to camcorder.Shooting mode: allows you to take a photo in various modes. Once you change the mode, the corresponding indicator appears at the top right of the display. The following modes are available:t609.book Page 145 Saturday, December 3, 2005 12:34 PM

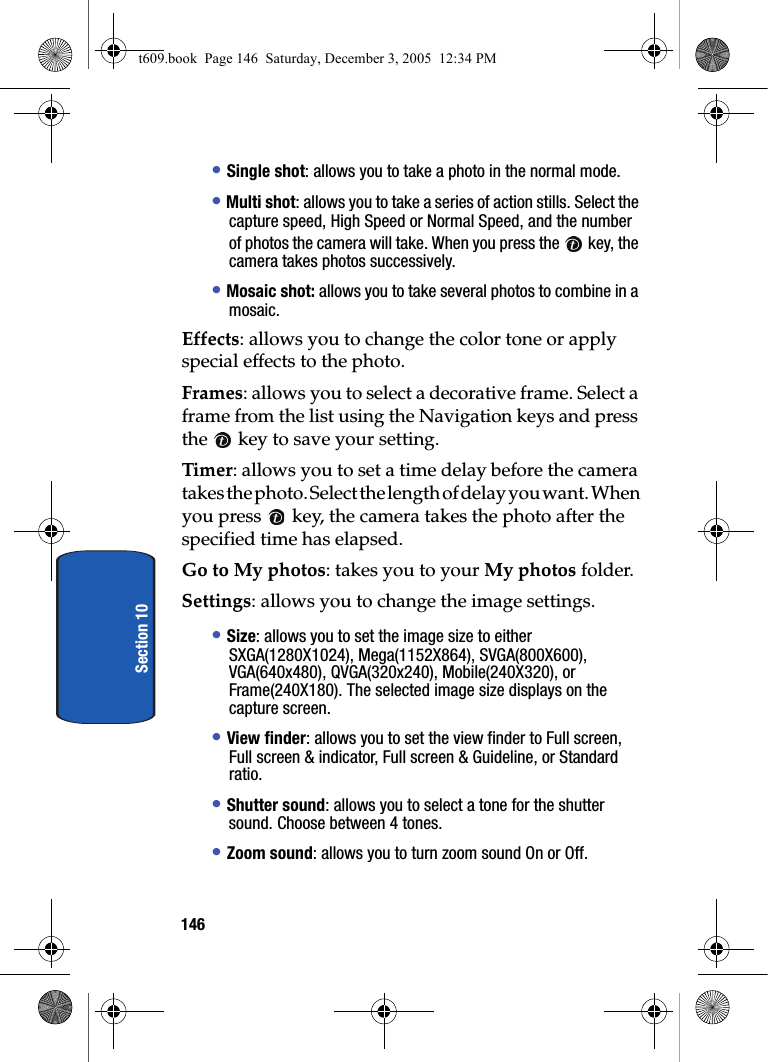

146Section 10• Single shot: allows you to take a photo in the normal mode.• Multi shot: allows you to take a series of action stills. Select the capture speed, High Speed or Normal Speed, and the number of photos the camera will take. When you press the key, the camera takes photos successively.• Mosaic shot: allows you to take several photos to combine in a mosaic.Effects: allows you to change the color tone or apply special effects to the photo.Frames: allows you to select a decorative frame. Select a frame from the list using the Navigation keys and press the key to save your setting.Timer: allows you to set a time delay before the camera takes the photo. Select the length of delay you want. When you press key, the camera takes the photo after the specified time has elapsed.Go to My photos: takes you to your My photos folder.Settings: allows you to change the image settings.• Size: allows you to set the image size to either SXGA(1280X1024), Mega(1152X864), SVGA(800X600), VGA(640x480), QVGA(320x240), Mobile(240X320), or Frame(240X180). The selected image size displays on the capture screen.• View finder: allows you to set the view finder to Full screen, Full screen & indicator, Full screen & Guideline, or Standard ratio.• Shutter sound: allows you to select a tone for the shutter sound. Choose between 4 tones.• Zoom sound: allows you to turn zoom sound On or Off.t609.book Page 146 Saturday, December 3, 2005 12:34 PM

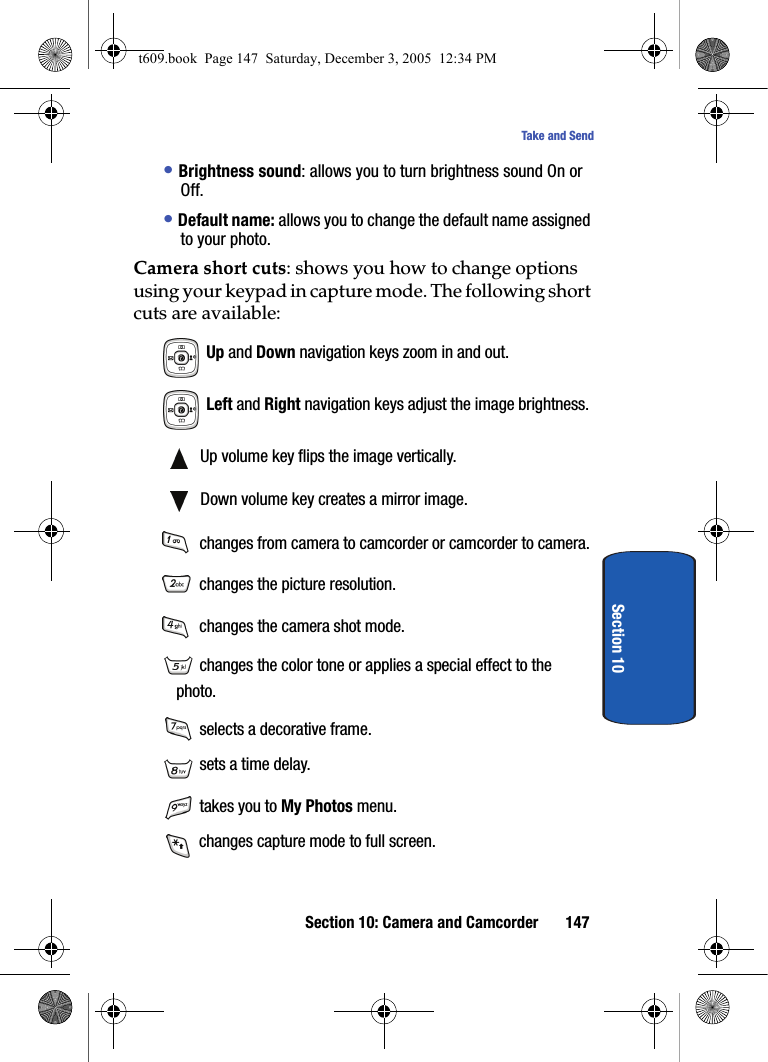

Section 10: Camera and Camcorder 147Take and SendSection 10• Brightness sound: allows you to turn brightness sound On or Off.• Default name: allows you to change the default name assigned to your photo.Camera short cuts: shows you how to change options using your keypad in capture mode. The following short cuts are available: Up and Down navigation keys zoom in and out. Left and Right navigation keys adjust the image brightness. Up volume key flips the image vertically. Down volume key creates a mirror image. changes from camera to camcorder or camcorder to camera. changes the picture resolution. changes the camera shot mode. changes the color tone or applies a special effect to the photo. selects a decorative frame. sets a time delay. takes you to My Photos menu. changes capture mode to full screen.t609.book Page 147 Saturday, December 3, 2005 12:34 PM

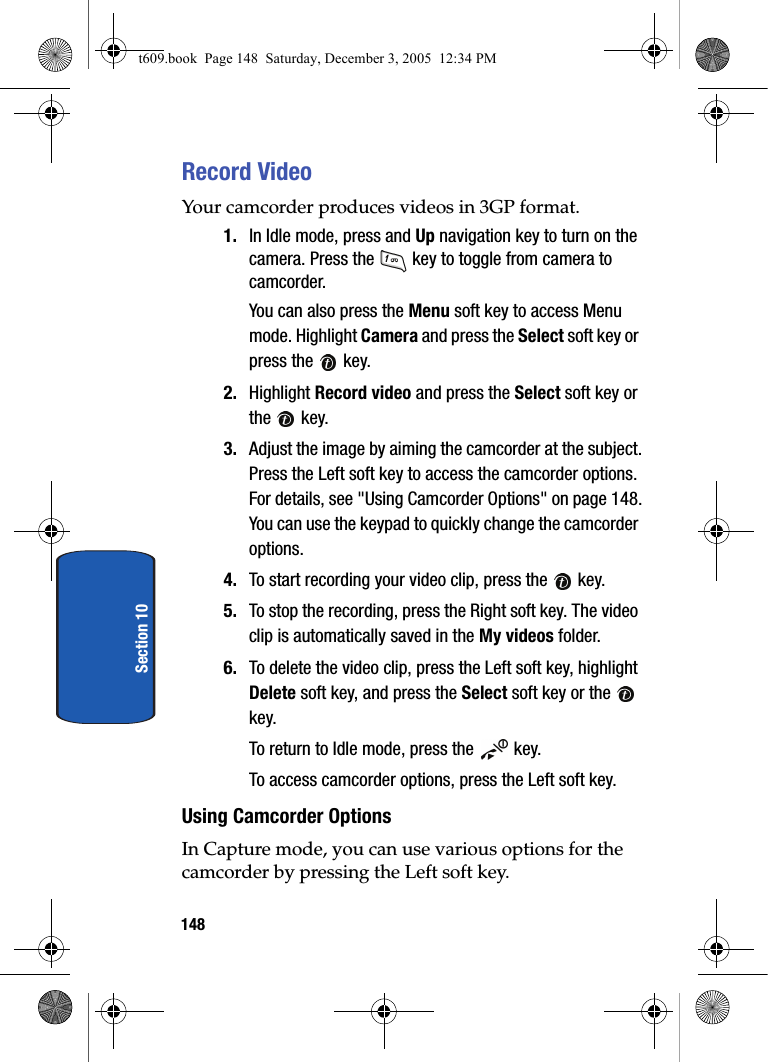

148Section 10Record VideoYour camcorder produces videos in 3GP format.1. In Idle mode, press and Up navigation key to turn on the camera. Press the key to toggle from camera to camcorder.You can also press the Menu soft key to access Menu mode. Highlight Camera and press the Select soft key or press the key. 2. Highlight Record video and press the Select soft key or the key.3. Adjust the image by aiming the camcorder at the subject.Press the Left soft key to access the camcorder options. For details, see "Using Camcorder Options" on page 148.You can use the keypad to quickly change the camcorder options. 4. To start recording your video clip, press the key.5. To stop the recording, press the Right soft key. The video clip is automatically saved in the My videos folder.6. To delete the video clip, press the Left soft key, highlight Delete soft key, and press the Select soft key or the key.To return to Idle mode, press the key.To access camcorder options, press the Left soft key.Using Camcorder OptionsIn Capture mode, you can use various options for the camcorder by pressing the Left soft key.t609.book Page 148 Saturday, December 3, 2005 12:34 PM

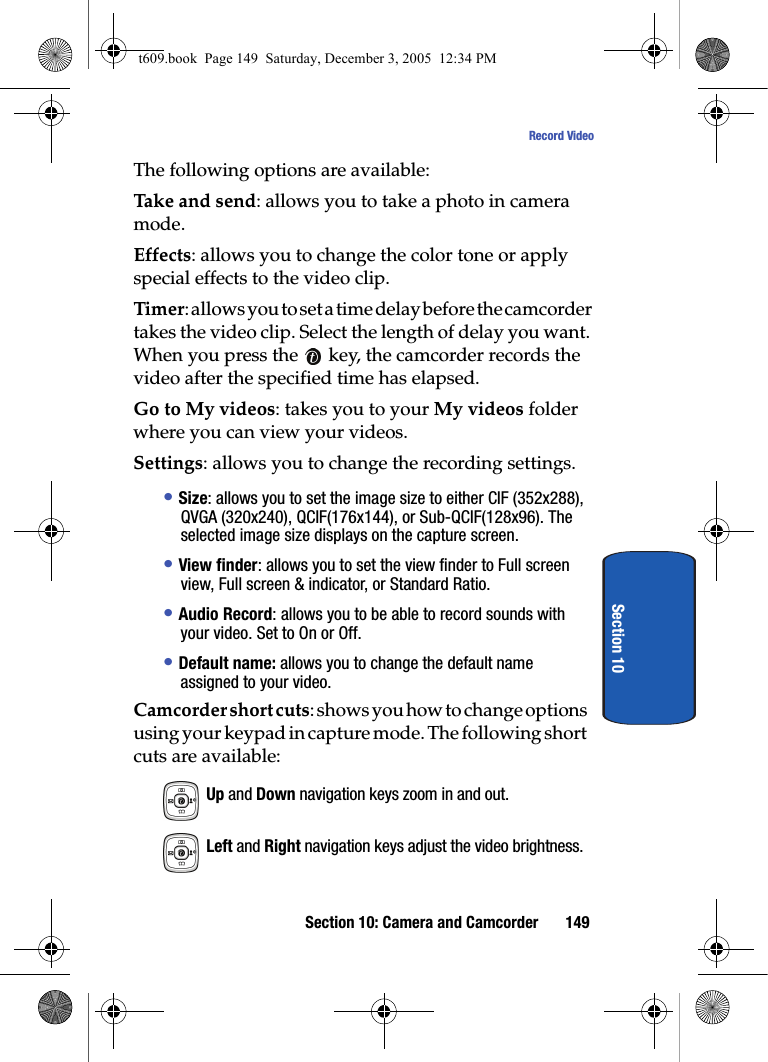

Section 10: Camera and Camcorder 149Record VideoSection 10The following options are available:Take and send: allows you to take a photo in camera mode. Effects: allows you to change the color tone or apply special effects to the video clip.Timer: allows you to set a time delay before the camcorder takes the video clip. Select the length of delay you want. When you press the key, the camcorder records the video after the specified time has elapsed.Go to My videos: takes you to your My videos folder where you can view your videos.Settings: allows you to change the recording settings.• Size: allows you to set the image size to either CIF (352x288), QVGA (320x240), QCIF(176x144), or Sub-QCIF(128x96). The selected image size displays on the capture screen.• View finder: allows you to set the view finder to Full screen view, Full screen & indicator, or Standard Ratio.• Audio Record: allows you to be able to record sounds with your video. Set to On or Off.• Default name: allows you to change the default name assigned to your video.Camcorder short cuts: shows you how to change options using your keypad in capture mode. The following short cuts are available: Up and Down navigation keys zoom in and out. Left and Right navigation keys adjust the video brightness.t609.book Page 149 Saturday, December 3, 2005 12:34 PM

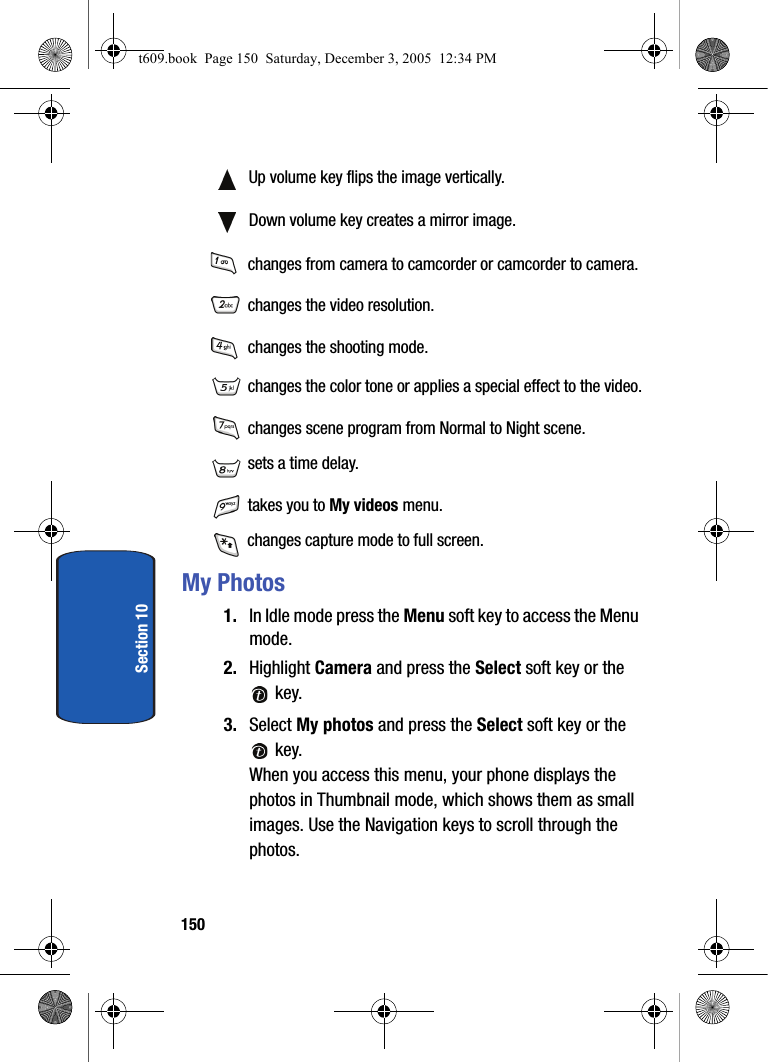

150Section 10 Up volume key flips the image vertically. Down volume key creates a mirror image. changes from camera to camcorder or camcorder to camera. changes the video resolution. changes the shooting mode. changes the color tone or applies a special effect to the video. changes scene program from Normal to Night scene. sets a time delay. takes you to My videos menu. changes capture mode to full screen.My Photos1. In Idle mode press the Menu soft key to access the Menu mode.2. Highlight Camera and press the Select soft key or the key. 3. Select My photos and press the Select soft key or the key.When you access this menu, your phone displays the photos in Thumbnail mode, which shows them as small images. Use the Navigation keys to scroll through the photos.t609.book Page 150 Saturday, December 3, 2005 12:34 PM

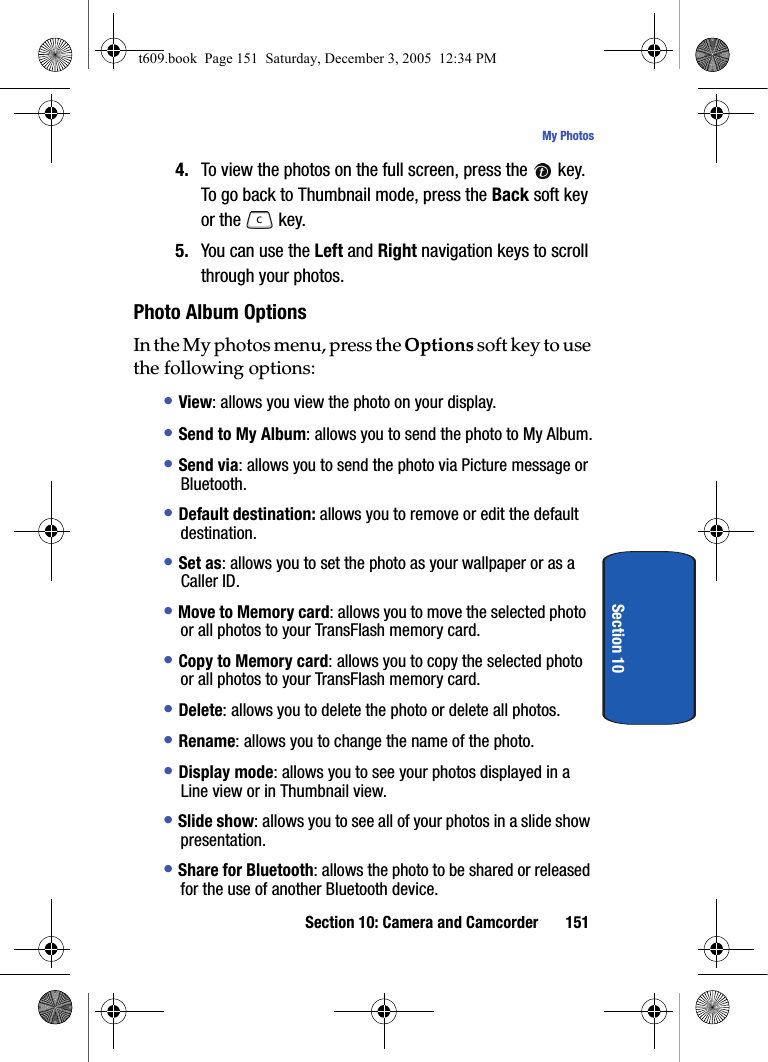

Section 10: Camera and Camcorder 151My PhotosSection 104. To view the photos on the full screen, press the key. To go back to Thumbnail mode, press the Back soft key or the key.5. You can use the Left and Right navigation keys to scroll through your photos.Photo Album OptionsIn the My photos menu, press the Options soft key to use the following options:• View: allows you view the photo on your display.• Send to My Album: allows you to send the photo to My Album.• Send via: allows you to send the photo via Picture message or Bluetooth.• Default destination: allows you to remove or edit the default destination.• Set as: allows you to set the photo as your wallpaper or as a Caller ID.• Move to Memory card: allows you to move the selected photo or all photos to your TransFlash memory card.• Copy to Memory card: allows you to copy the selected photo or all photos to your TransFlash memory card.• Delete: allows you to delete the photo or delete all photos.• Rename: allows you to change the name of the photo.• Display mode: allows you to see your photos displayed in a Line view or in Thumbnail view.• Slide show: allows you to see all of your photos in a slide show presentation. • Share for Bluetooth: allows the photo to be shared or released for the use of another Bluetooth device.t609.book Page 151 Saturday, December 3, 2005 12:34 PM

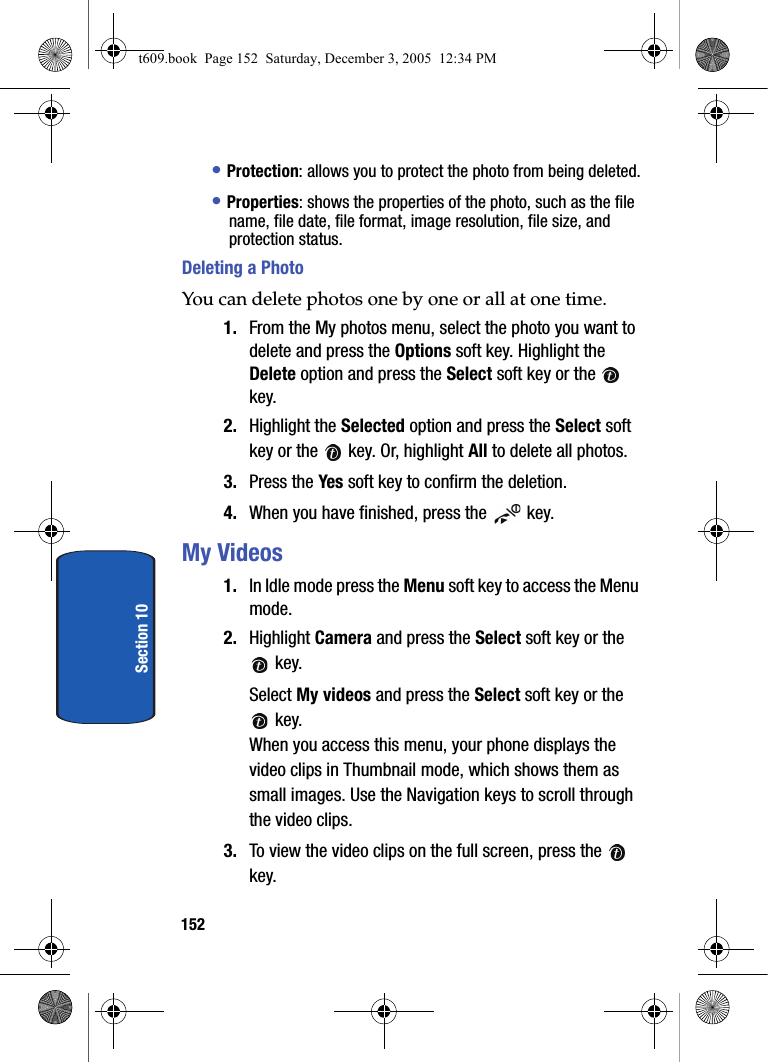

152Section 10• Protection: allows you to protect the photo from being deleted.• Properties: shows the properties of the photo, such as the file name, file date, file format, image resolution, file size, and protection status.Deleting a PhotoYou can delete photos one by one or all at one time. 1. From the My photos menu, select the photo you want to delete and press the Options soft key. Highlight the Delete option and press the Select soft key or the key.2. Highlight the Selected option and press the Select soft key or the key. Or, highlight All to delete all photos.3. Press the Yes soft key to confirm the deletion.4. When you have finished, press the key.My Videos1. In Idle mode press the Menu soft key to access the Menu mode.2. Highlight Camera and press the Select soft key or the key. Select My videos and press the Select soft key or the key.When you access this menu, your phone displays the video clips in Thumbnail mode, which shows them as small images. Use the Navigation keys to scroll through the video clips.3. To view the video clips on the full screen, press the key.t609.book Page 152 Saturday, December 3, 2005 12:34 PM

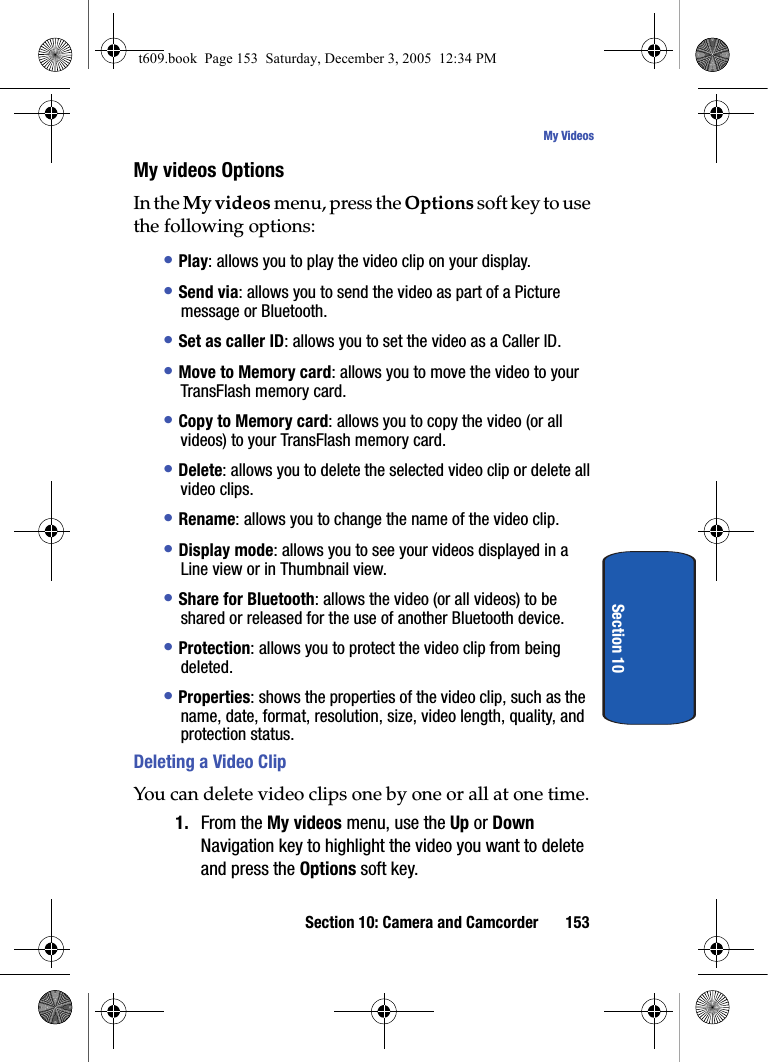

Section 10: Camera and Camcorder 153My VideosSection 10My videos OptionsIn the My videos menu, press the Options soft key to use the following options:• Play: allows you to play the video clip on your display.• Send via: allows you to send the video as part of a Picture message or Bluetooth. • Set as caller ID: allows you to set the video as a Caller ID.• Move to Memory card: allows you to move the video to your TransFlash memory card.• Copy to Memory card: allows you to copy the video (or all videos) to your TransFlash memory card.• Delete: allows you to delete the selected video clip or delete all video clips.• Rename: allows you to change the name of the video clip.• Display mode: allows you to see your videos displayed in a Line view or in Thumbnail view.• Share for Bluetooth: allows the video (or all videos) to be shared or released for the use of another Bluetooth device.• Protection: allows you to protect the video clip from being deleted.• Properties: shows the properties of the video clip, such as the name, date, format, resolution, size, video length, quality, and protection status.Deleting a Video ClipYou can delete video clips one by one or all at one time. 1. From the My videos menu, use the Up or Down Navigation key to highlight the video you want to delete and press the Options soft key.t609.book Page 153 Saturday, December 3, 2005 12:34 PM

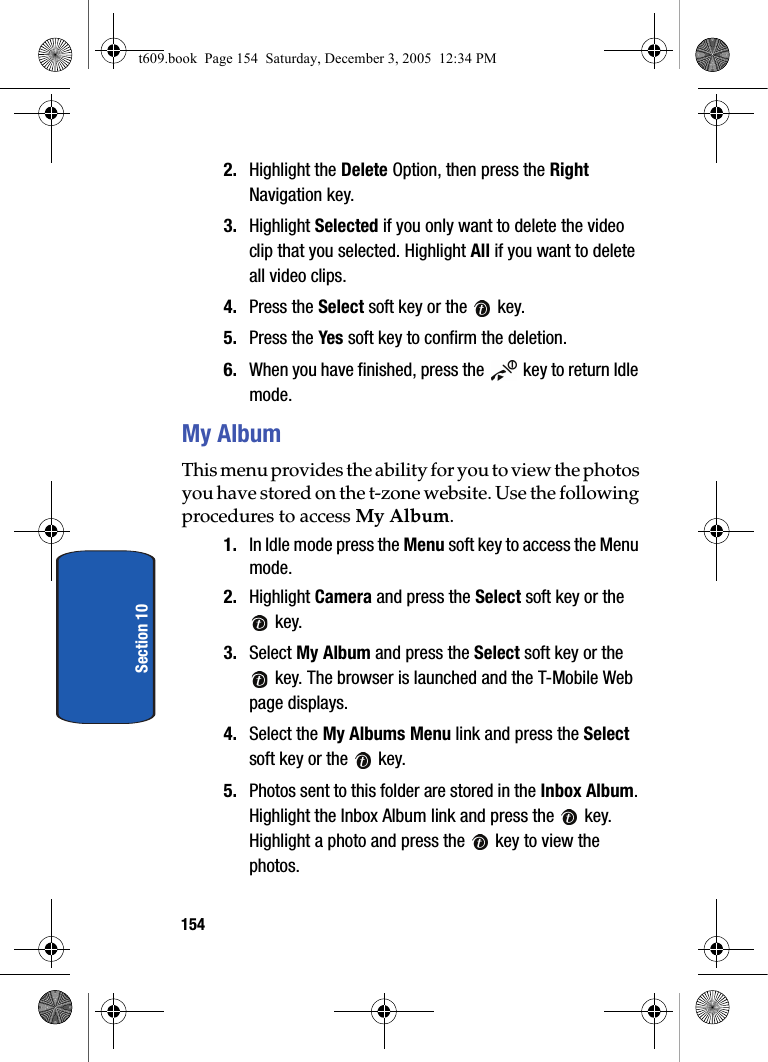

154Section 102. Highlight the Delete Option, then press the Right Navigation key.3. Highlight Selected if you only want to delete the video clip that you selected. Highlight All if you want to delete all video clips.4. Press the Select soft key or the key.5. Press the Yes soft key to confirm the deletion.6. When you have finished, press the key to return Idle mode.My AlbumThis menu provides the ability for you to view the photos you have stored on the t-zone website. Use the following procedures to access My Album. 1. In Idle mode press the Menu soft key to access the Menu mode.2. Highlight Camera and press the Select soft key or the key.3. Select My Album and press the Select soft key or the key. The browser is launched and the T-Mobile Web page displays.4. Select the My Albums Menu link and press the Select soft key or the key.5. Photos sent to this folder are stored in the Inbox Album. Highlight the Inbox Album link and press the key. Highlight a photo and press the key to view the photos.t609.book Page 154 Saturday, December 3, 2005 12:34 PM

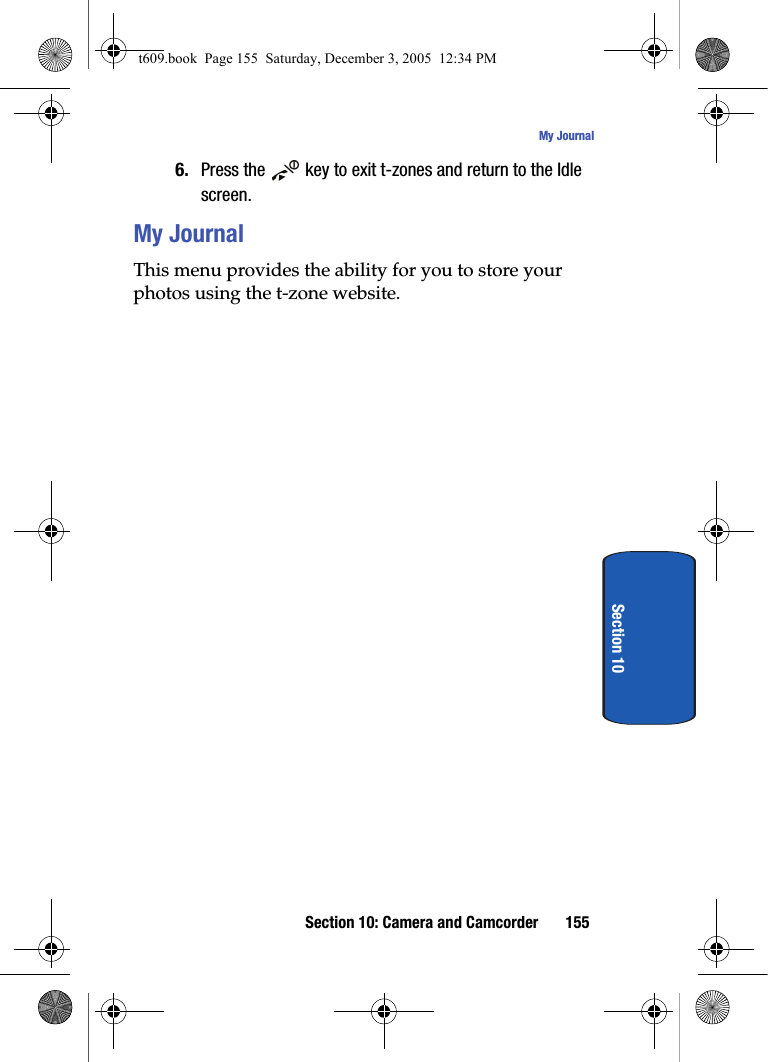

Section 10: Camera and Camcorder 155My JournalSection 106. Press the key to exit t-zones and return to the Idle screen.My JournalThis menu provides the ability for you to store your photos using the t-zone website.t609.book Page 155 Saturday, December 3, 2005 12:34 PM

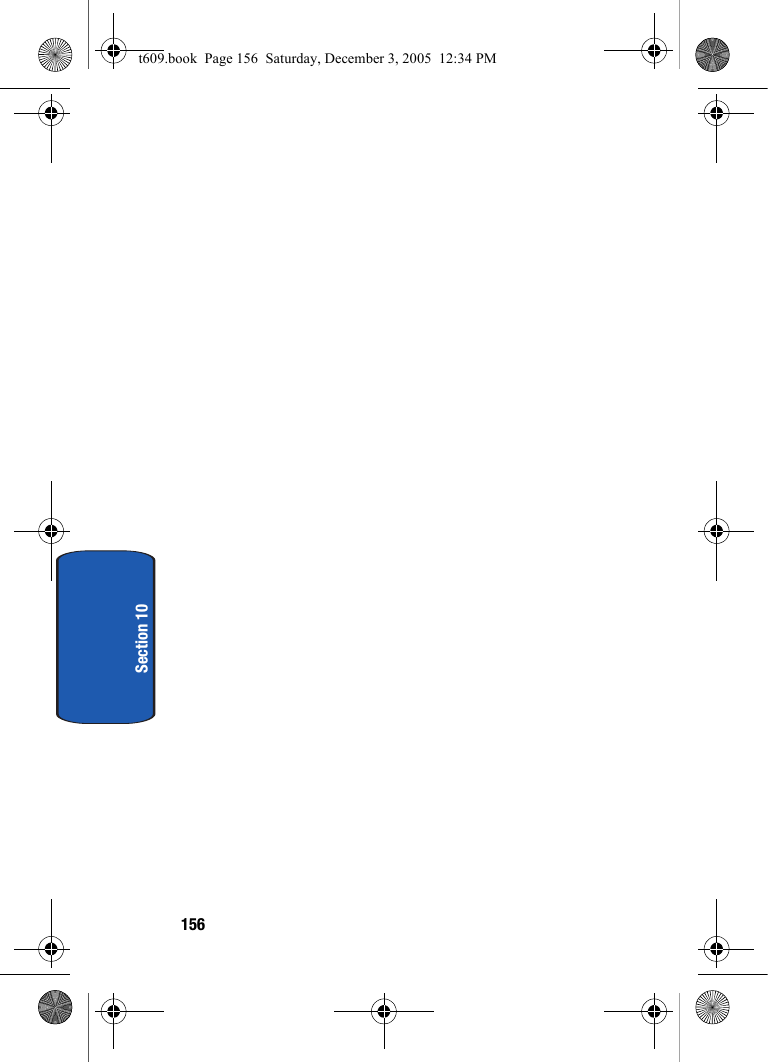

156Section 10t609.book Page 156 Saturday, December 3, 2005 12:34 PM

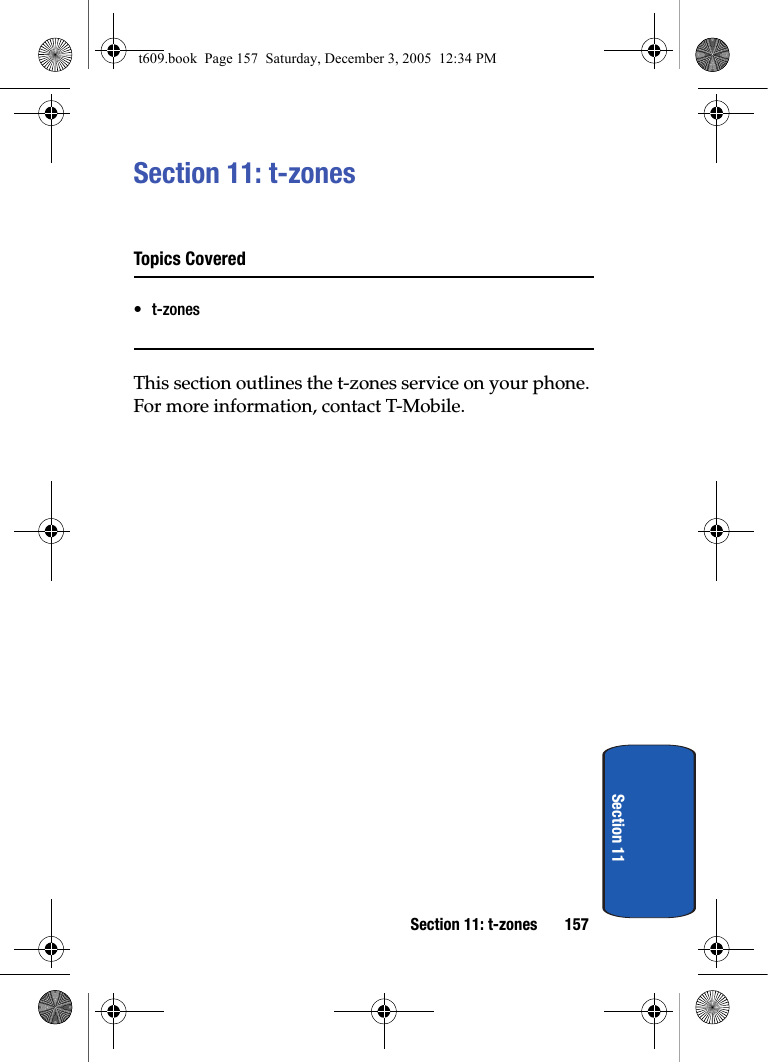

Section 11: t-zones 157Section 11Section 11: t-zonesTopics Covered•t-zonesThis section outlines the t-zones service on your phone. For more information, contact T-Mobile.t609.book Page 157 Saturday, December 3, 2005 12:34 PM

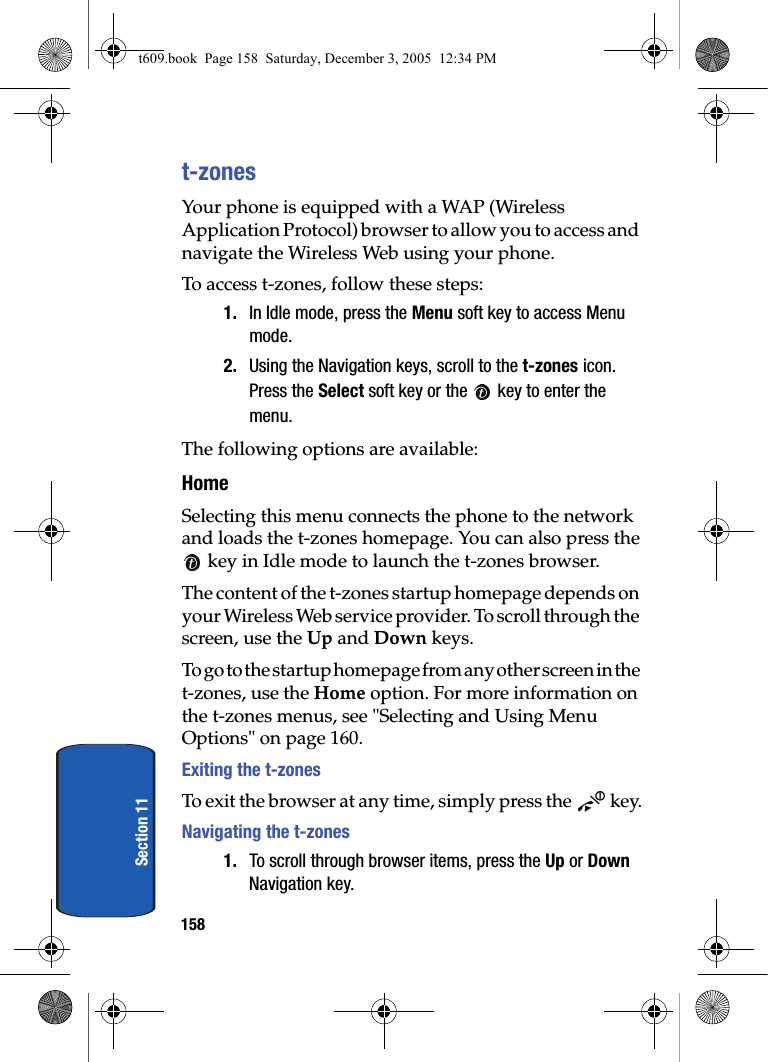

158Section 11t-zonesYour phone is equipped with a WAP (Wireless Application Protocol) browser to allow you to access and navigate the Wireless Web using your phone.To access t-zones, follow these steps:1. In Idle mode, press the Menu soft key to access Menu mode.2. Using the Navigation keys, scroll to the t-zones icon. Press the Select soft key or the key to enter the menu.The following options are available:HomeSelecting this menu connects the phone to the network and loads the t-zones homepage. You can also press the key in Idle mode to launch the t-zones browser.The content of the t-zones startup homepage depends on your Wireless Web service provider. To scroll through the screen, use the Up and Down keys.To go to the startup homepage from any other screen in the t-zones, use the Home option. For more information on the t-zones menus, see "Selecting and Using Menu Options" on page 160.Exiting the t-zonesTo exit the browser at any time, simply press the key.Navigating the t-zones1. To scroll through browser items, press the Up or Down Navigation key.t609.book Page 158 Saturday, December 3, 2005 12:34 PM

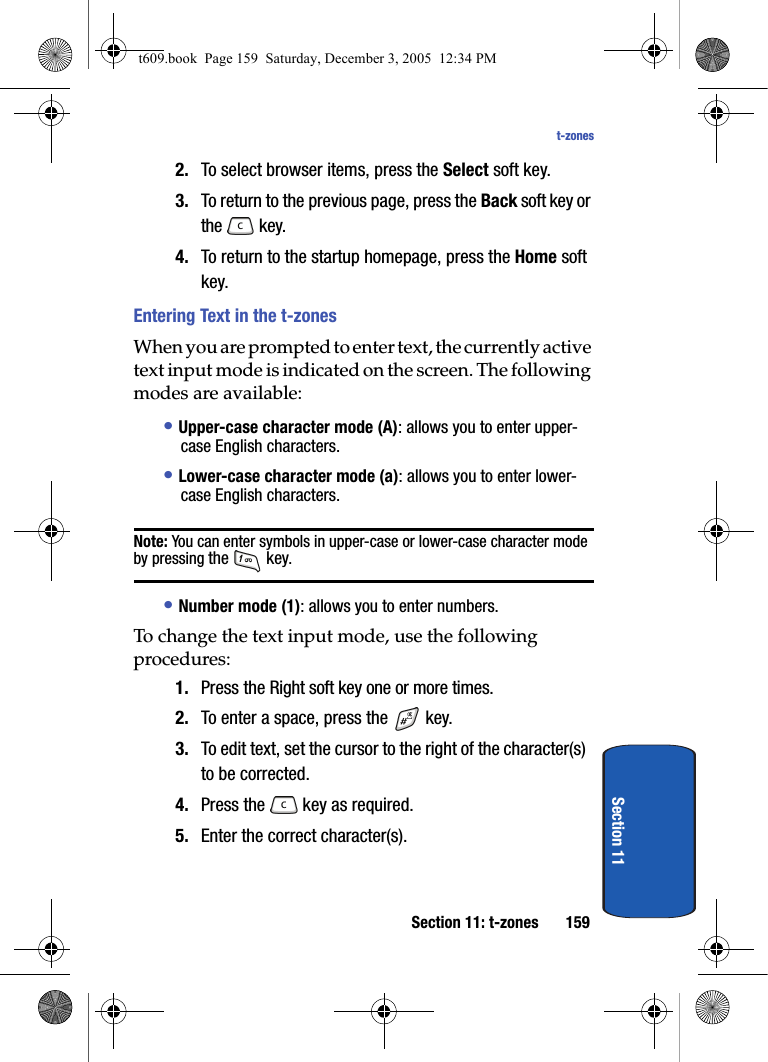

Section 11: t-zones 159t-zonesSection 112. To select browser items, press the Select soft key.3. To return to the previous page, press the Back soft key or the key.4. To return to the startup homepage, press the Home soft key.Entering Text in the t-zonesWhen you are prompted to enter text, the currently active text input mode is indicated on the screen. The following modes are available: • Upper-case character mode (A): allows you to enter upper-case English characters.• Lower-case character mode (a): allows you to enter lower-case English characters. Note: You can enter symbols in upper-case or lower-case character mode by pressing the key. • Number mode (1): allows you to enter numbers. To change the text input mode, use the following procedures: 1. Press the Right soft key one or more times.2. To enter a space, press the key.3. To edit text, set the cursor to the right of the character(s) to be corrected.4. Press the key as required.5. Enter the correct character(s).t609.book Page 159 Saturday, December 3, 2005 12:34 PM

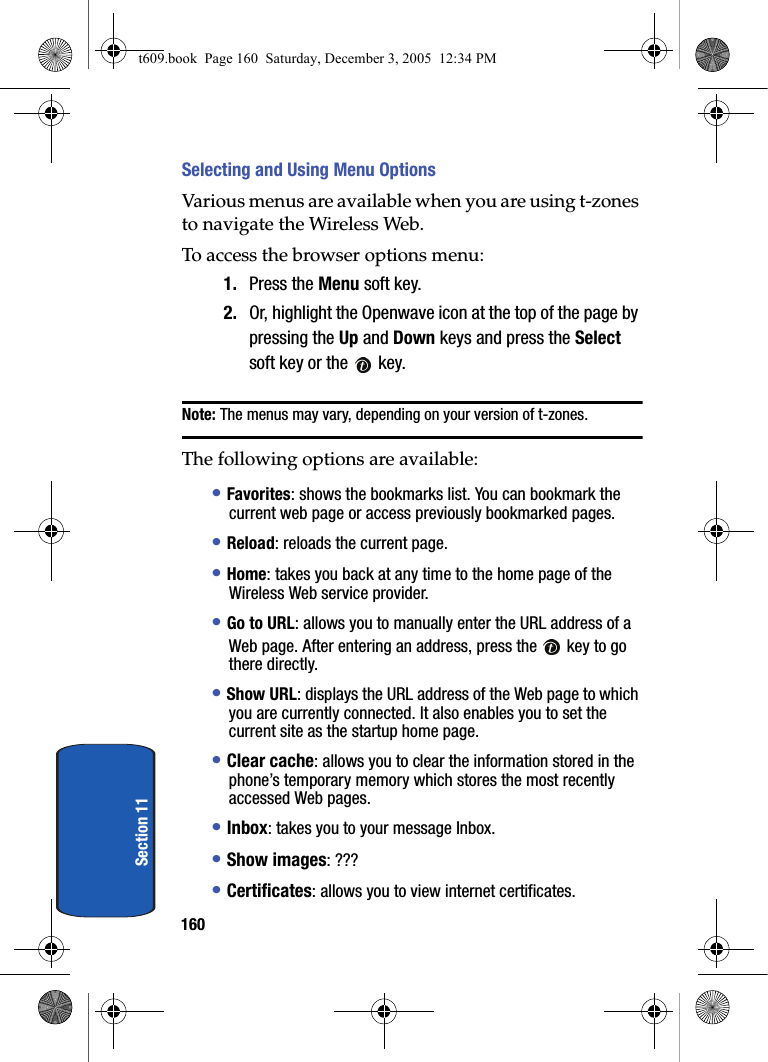

160Section 11Selecting and Using Menu OptionsVarious menus are available when you are using t-zones to navigate the Wireless Web.To access the browser options menu:1. Press the Menu soft key. 2. Or, highlight the Openwave icon at the top of the page by pressing the Up and Down keys and press the Select soft key or the key.Note: The menus may vary, depending on your version of t-zones.The following options are available:• Favorites: shows the bookmarks list. You can bookmark the current web page or access previously bookmarked pages.• Reload: reloads the current page.• Home: takes you back at any time to the home page of the Wireless Web service provider.• Go to URL: allows you to manually enter the URL address of a Web page. After entering an address, press the key to go there directly.• Show URL: displays the URL address of the Web page to which you are currently connected. It also enables you to set the current site as the startup home page.• Clear cache: allows you to clear the information stored in the phone’s temporary memory which stores the most recently accessed Web pages.• Inbox: takes you to your message Inbox.• Show images: ???• Certificates: allows you to view internet certificates.t609.book Page 160 Saturday, December 3, 2005 12:34 PM

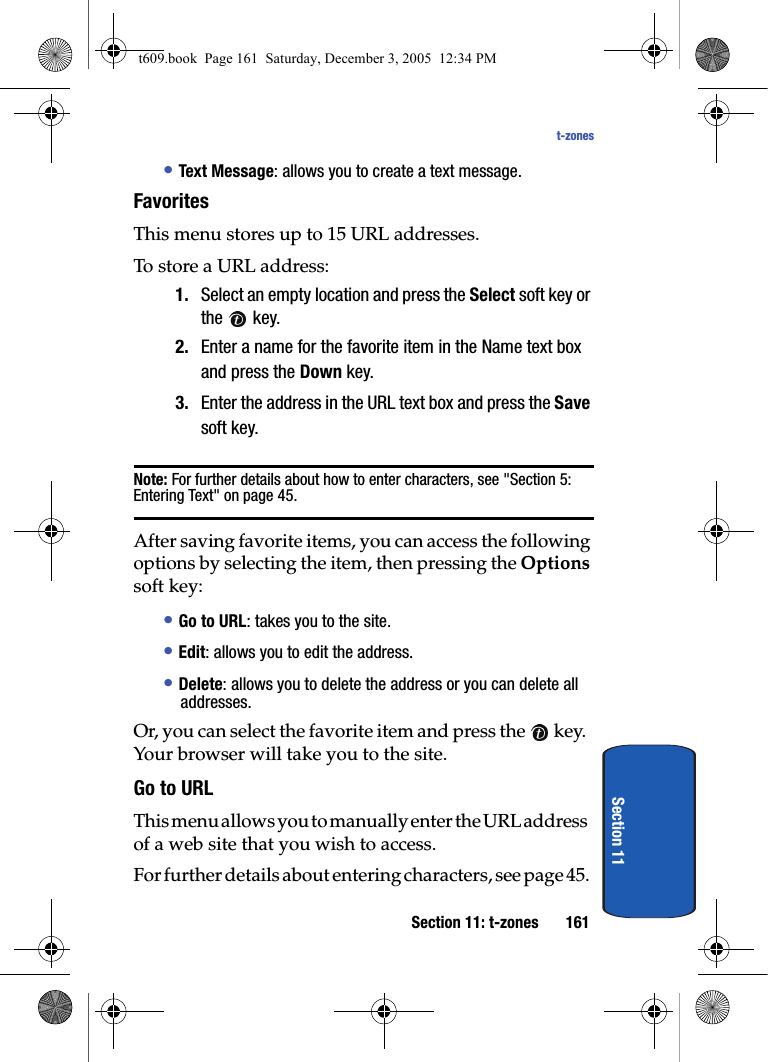

Section 11: t-zones 161t-zonesSection 11• Text Message: allows you to create a text message.Favorites This menu stores up to 15 URL addresses.To store a URL address:1. Select an empty location and press the Select soft key or the key.2. Enter a name for the favorite item in the Name text box and press the Down key.3. Enter the address in the URL text box and press the Save soft key.Note: For further details about how to enter characters, see "Section 5: Entering Text" on page 45.After saving favorite items, you can access the following options by selecting the item, then pressing the Options soft key:• Go to URL: takes you to the site.• Edit: allows you to edit the address.• Delete: allows you to delete the address or you can delete all addresses.Or, you can select the favorite item and press the key. Your browser will take you to the site.Go to URLThis menu allows you to manually enter the URL address of a web site that you wish to access.For further details about entering characters, see page 45.t609.book Page 161 Saturday, December 3, 2005 12:34 PM

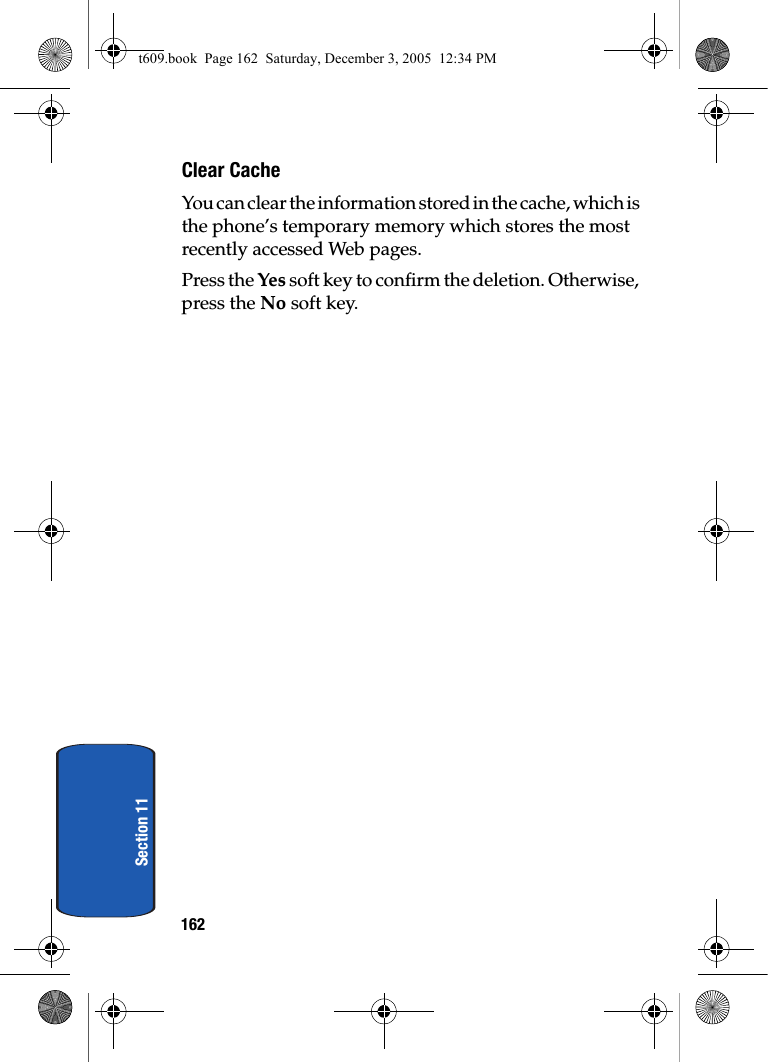

162Section 11Clear Cache You can clear the information stored in the cache, which is the phone’s temporary memory which stores the most recently accessed Web pages.Press the Yes soft key to confirm the deletion. Otherwise, press the No soft key.t609.book Page 162 Saturday, December 3, 2005 12:34 PM

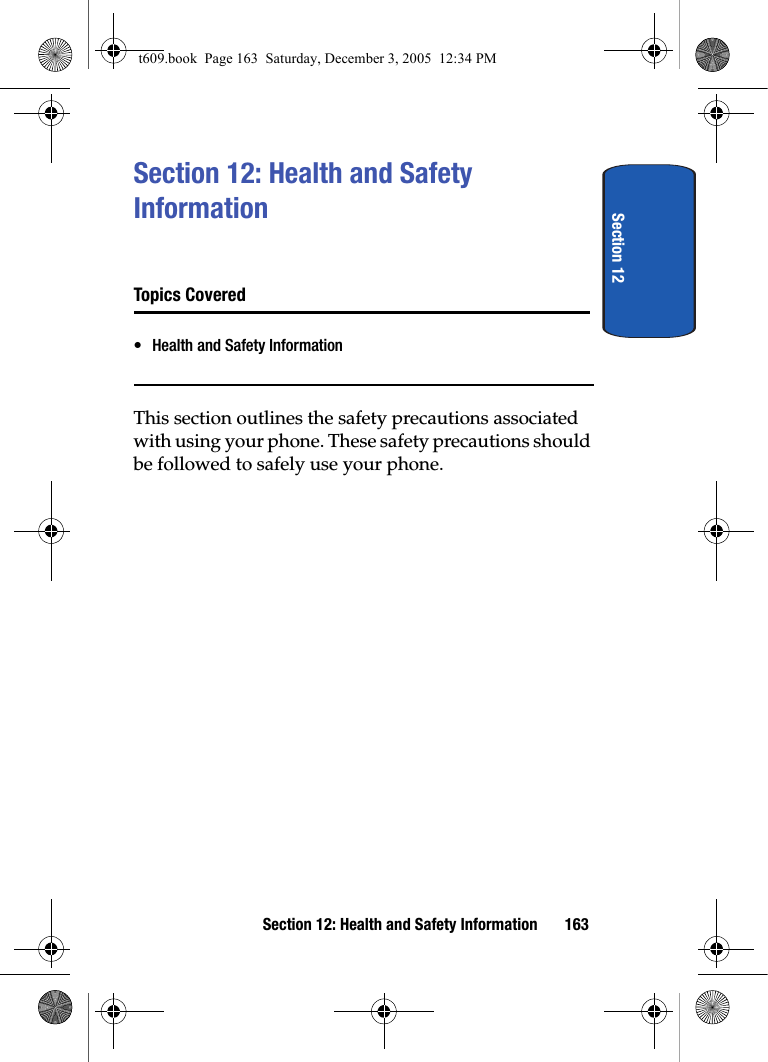

Section 12Section 12: Health and Safety Information 163Section 12: Health and Safety InformationTopics Covered• Health and Safety InformationThis section outlines the safety precautions associated with using your phone. These safety precautions should be followed to safely use your phone.t609.book Page 163 Saturday, December 3, 2005 12:34 PM

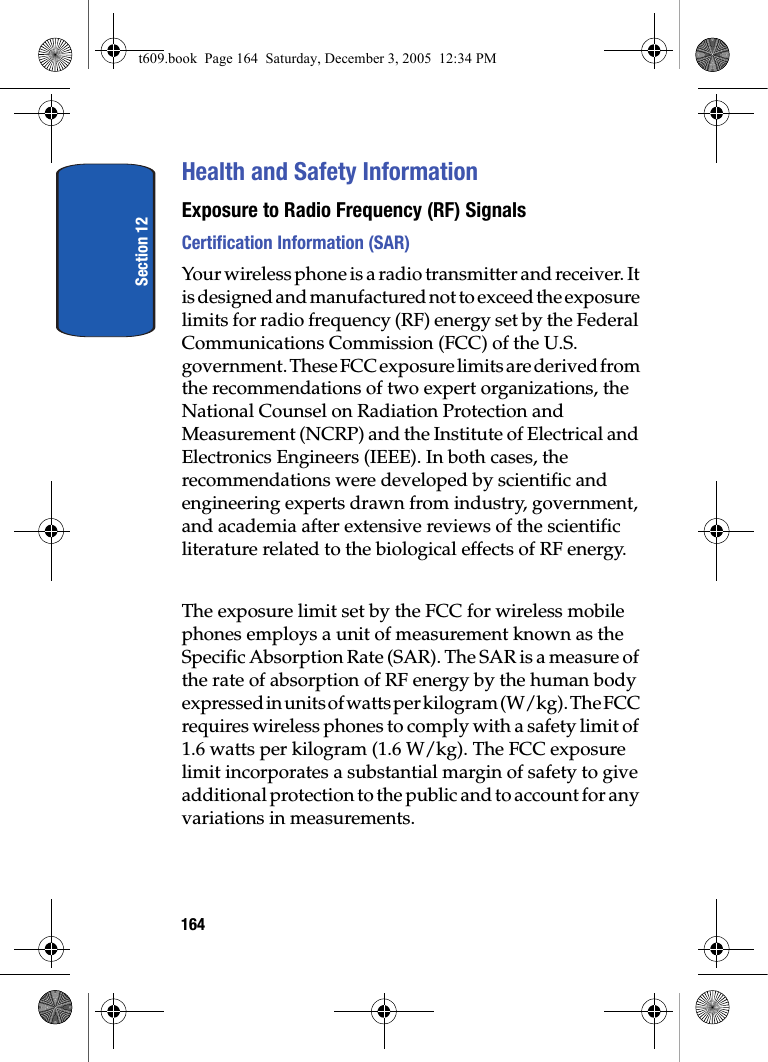

Section 12164Health and Safety InformationExposure to Radio Frequency (RF) SignalsCertification Information (SAR)Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy.The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account for any variations in measurements. t609.book Page 164 Saturday, December 3, 2005 12:34 PM

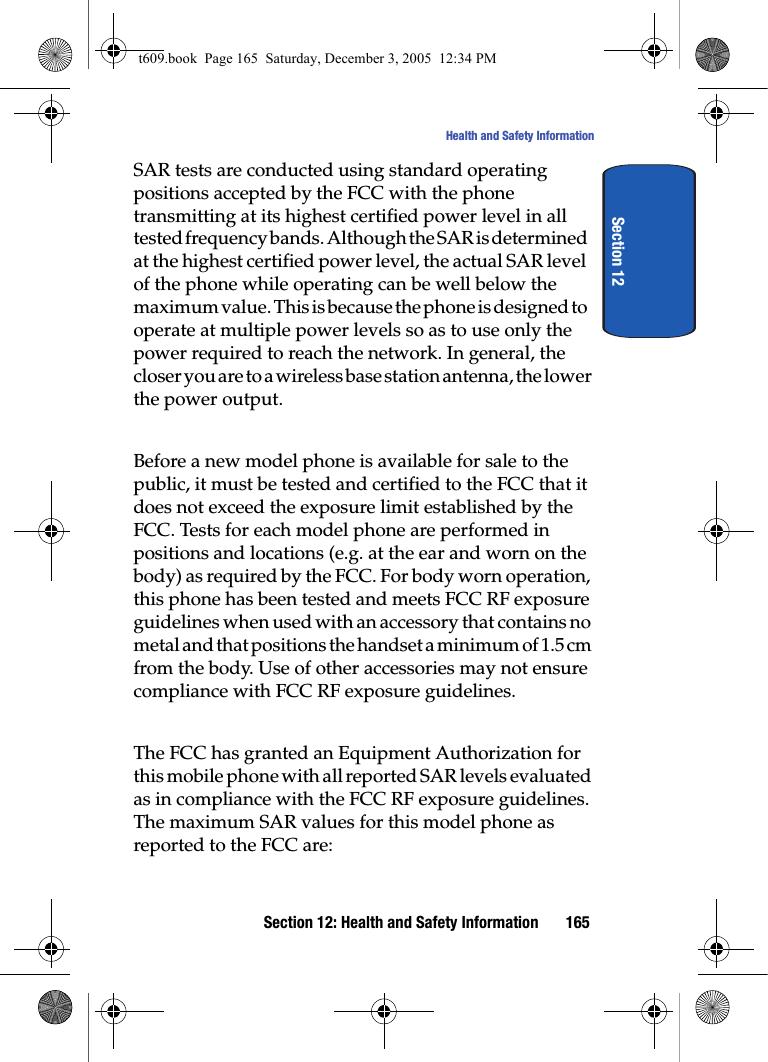

Section 12: Health and Safety Information 165Health and Safety InformationSection 12SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.The FCC has granted an Equipment Authorization for this mobile phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. The maximum SAR values for this model phone as reported to the FCC are:t609.book Page 165 Saturday, December 3, 2005 12:34 PM

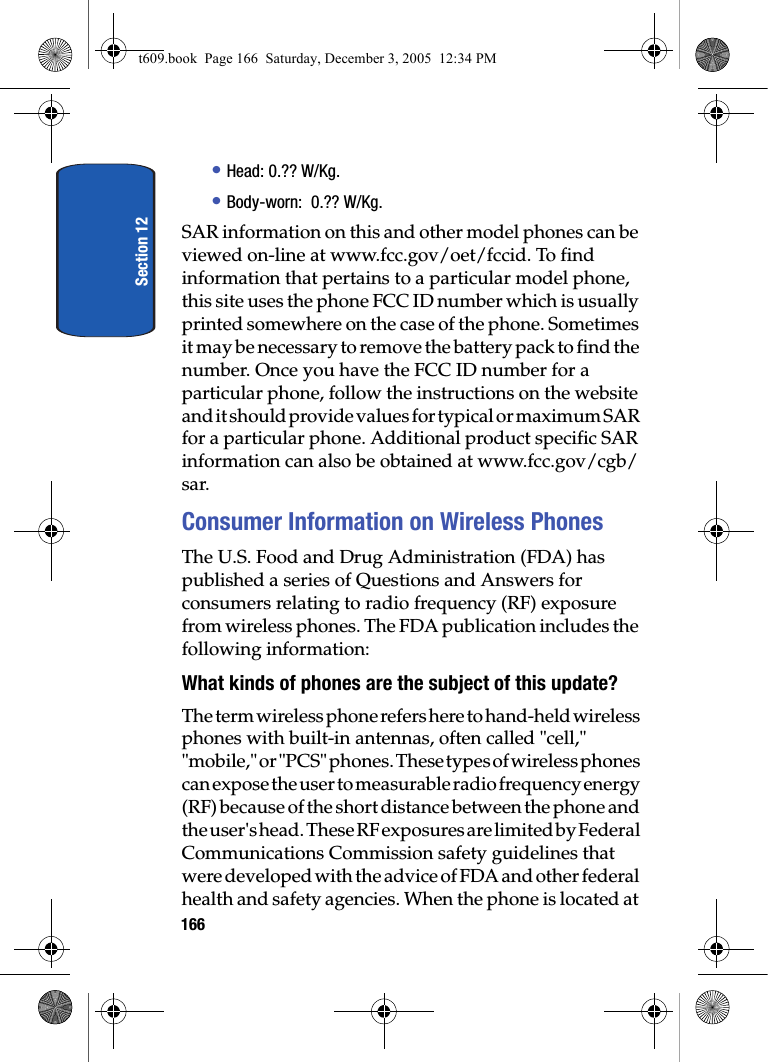

Section 12166• Head: 0.?? W/Kg.• Body-worn: 0.?? W/Kg.SAR information on this and other model phones can be viewed on-line at www.fcc.gov/oet/fccid. To find information that pertains to a particular model phone, this site uses the phone FCC ID number which is usually printed somewhere on the case of the phone. Sometimes it may be necessary to remove the battery pack to find the number. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for typical or maximum SAR for a particular phone. Additional product specific SAR information can also be obtained at www.fcc.gov/cgb/sar. Consumer Information on Wireless PhonesThe U.S. Food and Drug Administration (FDA) has published a series of Questions and Answers for consumers relating to radio frequency (RF) exposure from wireless phones. The FDA publication includes the following information:What kinds of phones are the subject of this update?The term wireless phone refers here to hand-held wireless phones with built-in antennas, often called "cell," "mobile," or "PCS" phones. These types of wireless phones can expose the user to measurable radio frequency energy (RF) because of the short distance between the phone and the user's head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the phone is located at t609.book Page 166 Saturday, December 3, 2005 12:34 PM

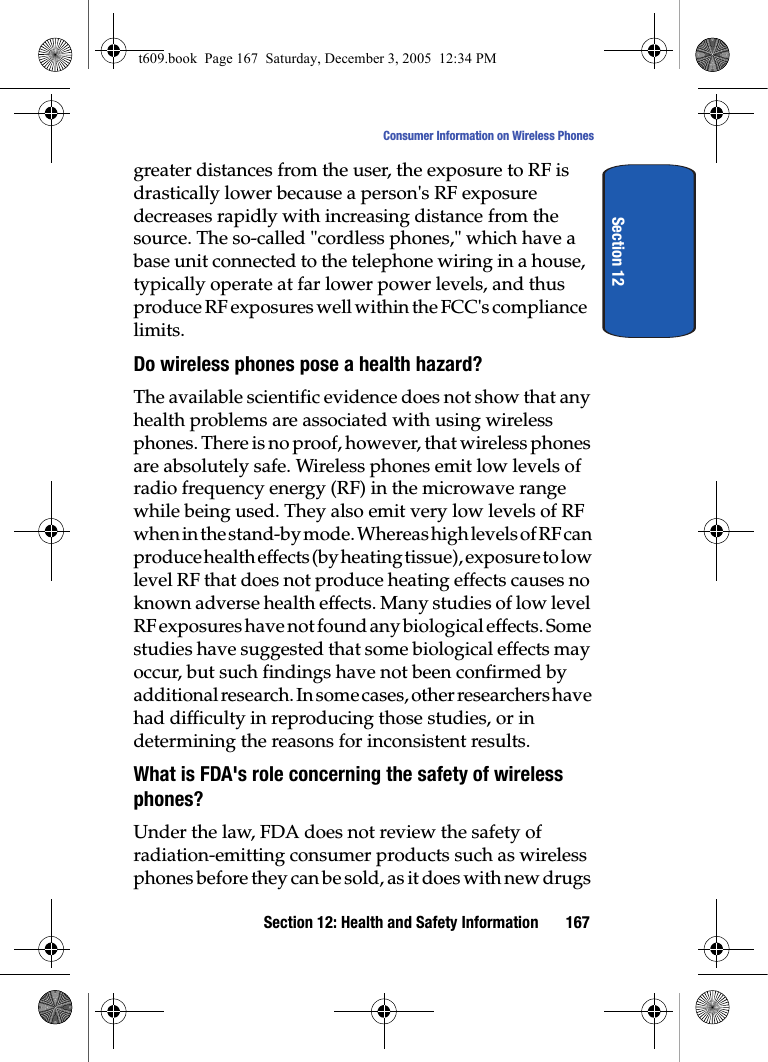

Section 12: Health and Safety Information 167Consumer Information on Wireless PhonesSection 12greater distances from the user, the exposure to RF is drastically lower because a person's RF exposure decreases rapidly with increasing distance from the source. The so-called "cordless phones," which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures well within the FCC's compliance limits.Do wireless phones pose a health hazard?The available scientific evidence does not show that any health problems are associated with using wireless phones. There is no proof, however, that wireless phones are absolutely safe. Wireless phones emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results.What is FDA's role concerning the safety of wireless phones?Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless phones before they can be sold, as it does with new drugs t609.book Page 167 Saturday, December 3, 2005 12:34 PM

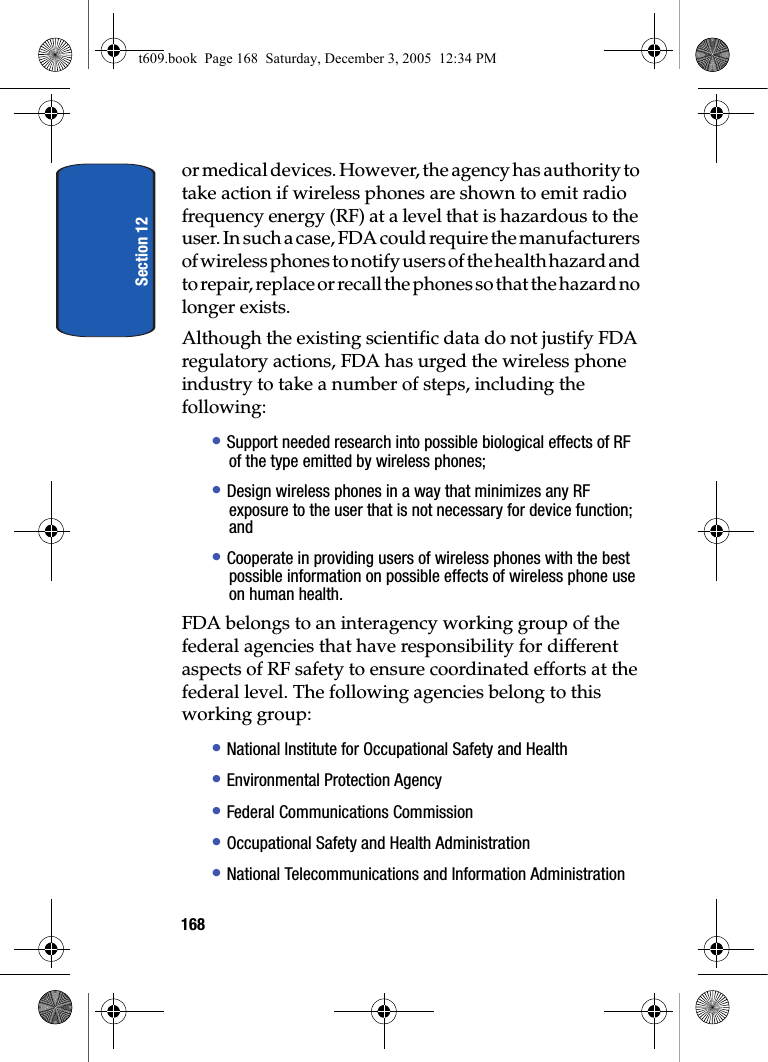

Section 12168or medical devices. However, the agency has authority to take action if wireless phones are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless phones to notify users of the health hazard and to repair, replace or recall the phones so that the hazard no longer exists.Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless phone industry to take a number of steps, including the following:• Support needed research into possible biological effects of RF of the type emitted by wireless phones;• Design wireless phones in a way that minimizes any RF exposure to the user that is not necessary for device function; and• Cooperate in providing users of wireless phones with the best possible information on possible effects of wireless phone use on human health.FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group:• National Institute for Occupational Safety and Health • Environmental Protection Agency• Federal Communications Commission• Occupational Safety and Health Administration• National Telecommunications and Information Administrationt609.book Page 168 Saturday, December 3, 2005 12:34 PM

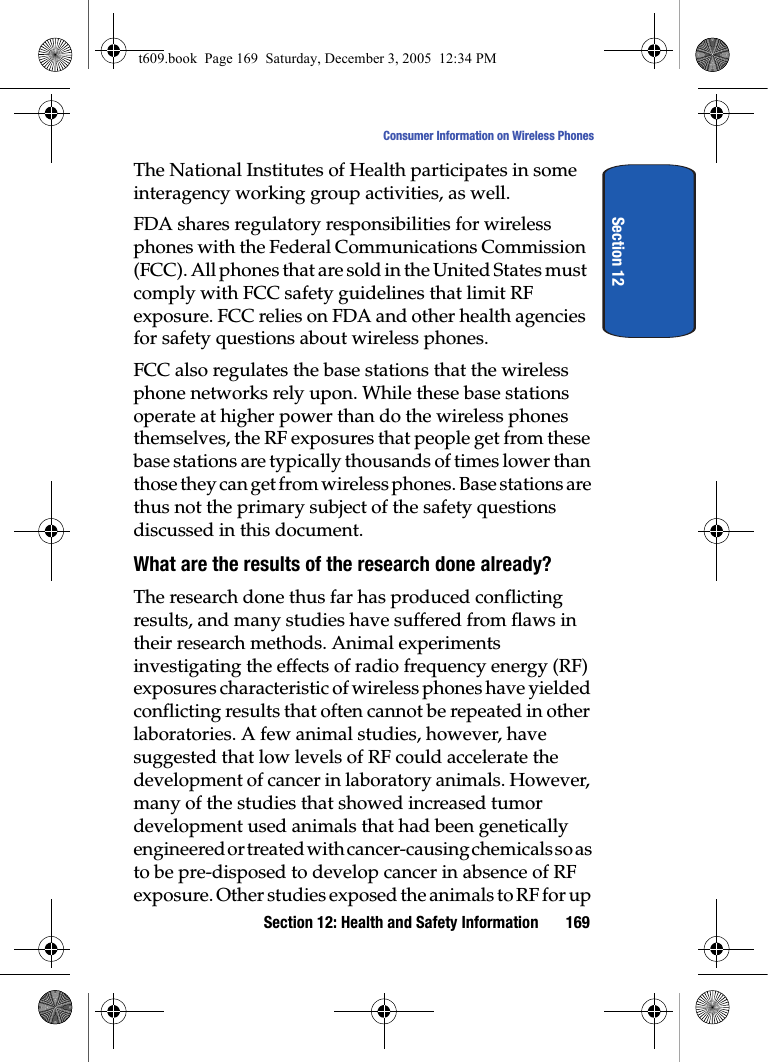

Section 12: Health and Safety Information 169Consumer Information on Wireless PhonesSection 12The National Institutes of Health participates in some interagency working group activities, as well.FDA shares regulatory responsibilities for wireless phones with the Federal Communications Commission (FCC). All phones that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless phones.FCC also regulates the base stations that the wireless phone networks rely upon. While these base stations operate at higher power than do the wireless phones themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless phones. Base stations are thus not the primary subject of the safety questions discussed in this document.What are the results of the research done already?The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless phones have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in absence of RF exposure. Other studies exposed the animals to RF for up t609.book Page 169 Saturday, December 3, 2005 12:34 PM

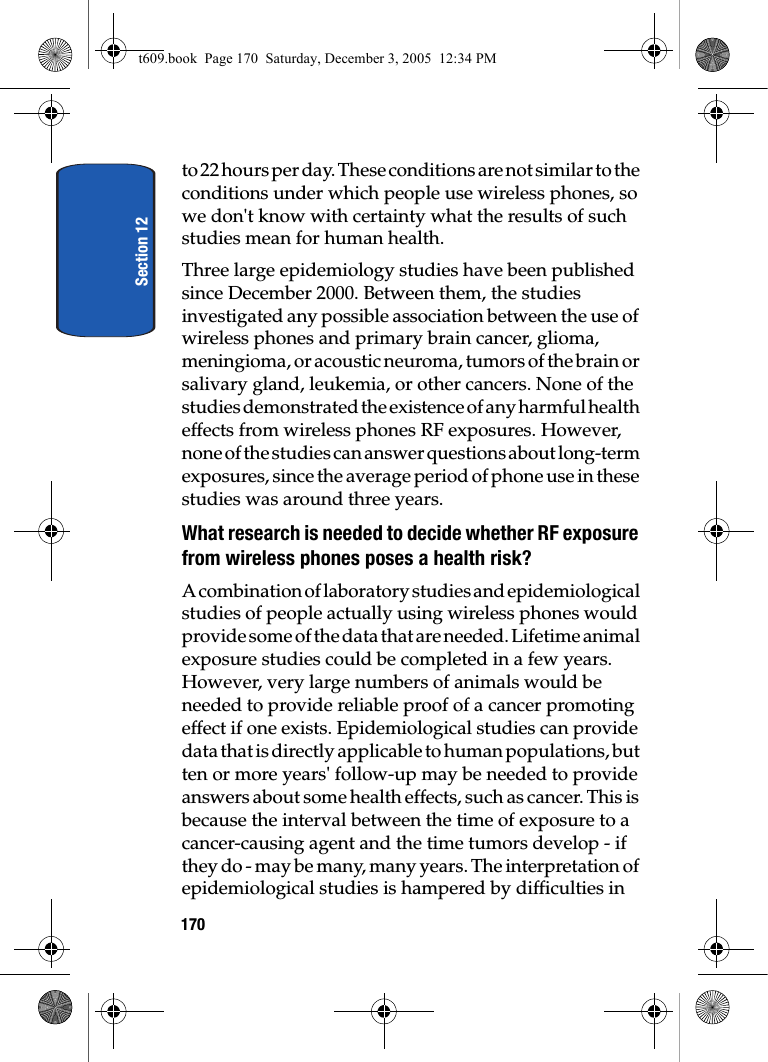

Section 12170to 22 hours per day. These conditions are not similar to the conditions under which people use wireless phones, so we don't know with certainty what the results of such studies mean for human health.Three large epidemiology studies have been published since December 2000. Between them, the studies investigated any possible association between the use of wireless phones and primary brain cancer, glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None of the studies demonstrated the existence of any harmful health effects from wireless phones RF exposures. However, none of the studies can answer questions about long-term exposures, since the average period of phone use in these studies was around three years.What research is needed to decide whether RF exposure from wireless phones poses a health risk?A combination of laboratory studies and epidemiological studies of people actually using wireless phones would provide some of the data that are needed. Lifetime animal exposure studies could be completed in a few years. However, very large numbers of animals would be needed to provide reliable proof of a cancer promoting effect if one exists. Epidemiological studies can provide data that is directly applicable to human populations, but ten or more years' follow-up may be needed to provide answers about some health effects, such as cancer. This is because the interval between the time of exposure to a cancer-causing agent and the time tumors develop - if they do - may be many, many years. The interpretation of epidemiological studies is hampered by difficulties in t609.book Page 170 Saturday, December 3, 2005 12:34 PM

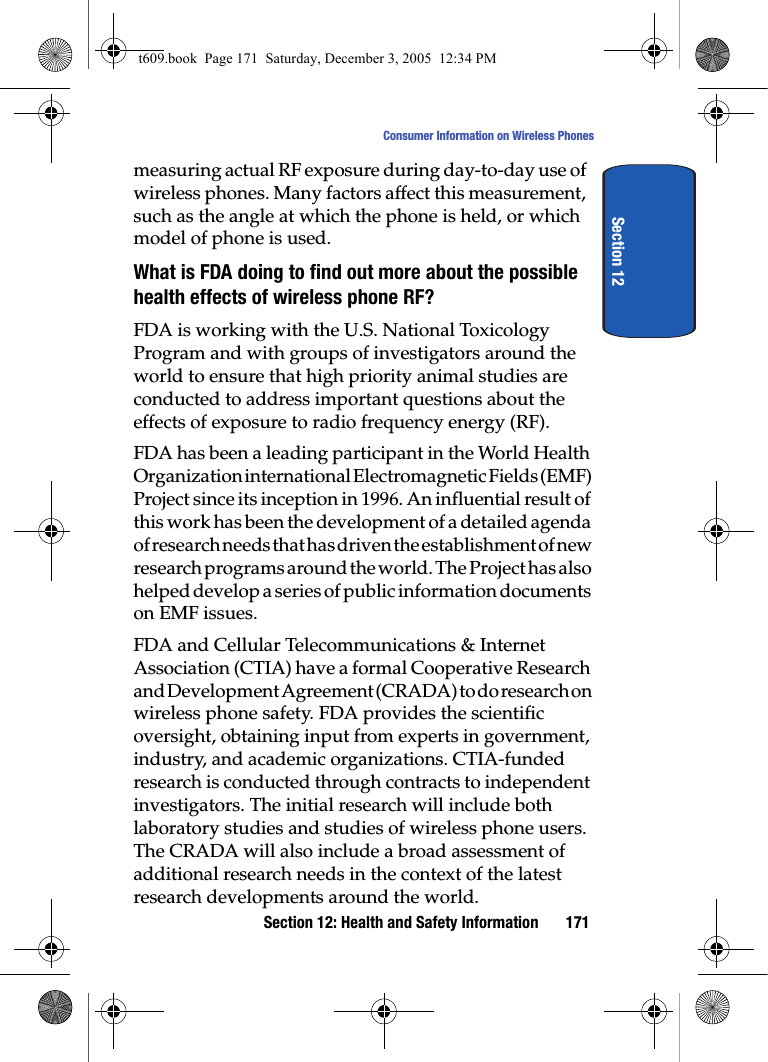

Section 12: Health and Safety Information 171Consumer Information on Wireless PhonesSection 12measuring actual RF exposure during day-to-day use of wireless phones. Many factors affect this measurement, such as the angle at which the phone is held, or which model of phone is used.What is FDA doing to find out more about the possible health effects of wireless phone RF?FDA is working with the U.S. National Toxicology Program and with groups of investigators around the world to ensure that high priority animal studies are conducted to address important questions about the effects of exposure to radio frequency energy (RF).FDA has been a leading participant in the World Health Organization international Electromagnetic Fields (EMF) Project since its inception in 1996. An influential result of this work has been the development of a detailed agenda of research needs that has driven the establishment of new research programs around the world. The Project has also helped develop a series of public information documents on EMF issues.FDA and Cellular Telecommunications & Internet Association (CTIA) have a formal Cooperative Research and Development Agreement (CRADA) to do research on wireless phone safety. FDA provides the scientific oversight, obtaining input from experts in government, industry, and academic organizations. CTIA-funded research is conducted through contracts to independent investigators. The initial research will include both laboratory studies and studies of wireless phone users. The CRADA will also include a broad assessment of additional research needs in the context of the latest research developments around the world.t609.book Page 171 Saturday, December 3, 2005 12:34 PM

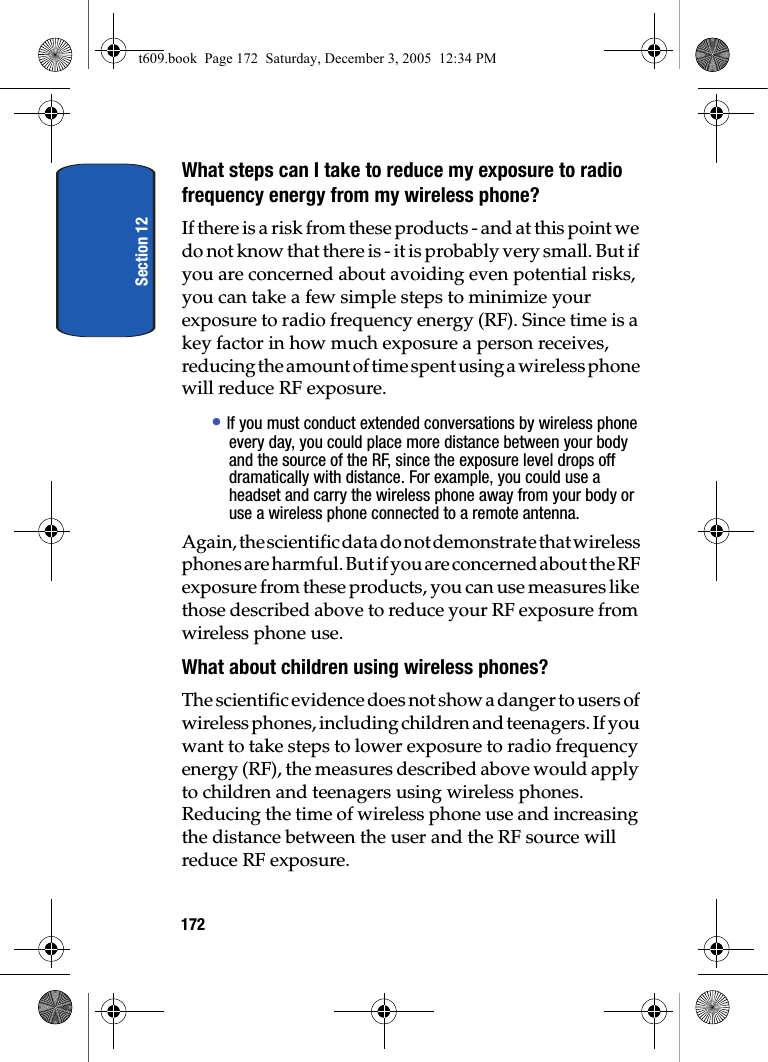

Section 12172What steps can I take to reduce my exposure to radio frequency energy from my wireless phone?If there is a risk from these products - and at this point we do not know that there is - it is probably very small. But if you are concerned about avoiding even potential risks, you can take a few simple steps to minimize your exposure to radio frequency energy (RF). Since time is a key factor in how much exposure a person receives, reducing the amount of time spent using a wireless phone will reduce RF exposure.• If you must conduct extended conversations by wireless phone every day, you could place more distance between your body and the source of the RF, since the exposure level drops off dramatically with distance. For example, you could use a headset and carry the wireless phone away from your body or use a wireless phone connected to a remote antenna.Again, the scientific data do not demonstrate that wireless phones are harmful. But if you are concerned about the RF exposure from these products, you can use measures like those described above to reduce your RF exposure from wireless phone use.What about children using wireless phones?The scientific evidence does not show a danger to users of wireless phones, including children and teenagers. If you want to take steps to lower exposure to radio frequency energy (RF), the measures described above would apply to children and teenagers using wireless phones. Reducing the time of wireless phone use and increasing the distance between the user and the RF source will reduce RF exposure.t609.book Page 172 Saturday, December 3, 2005 12:34 PM

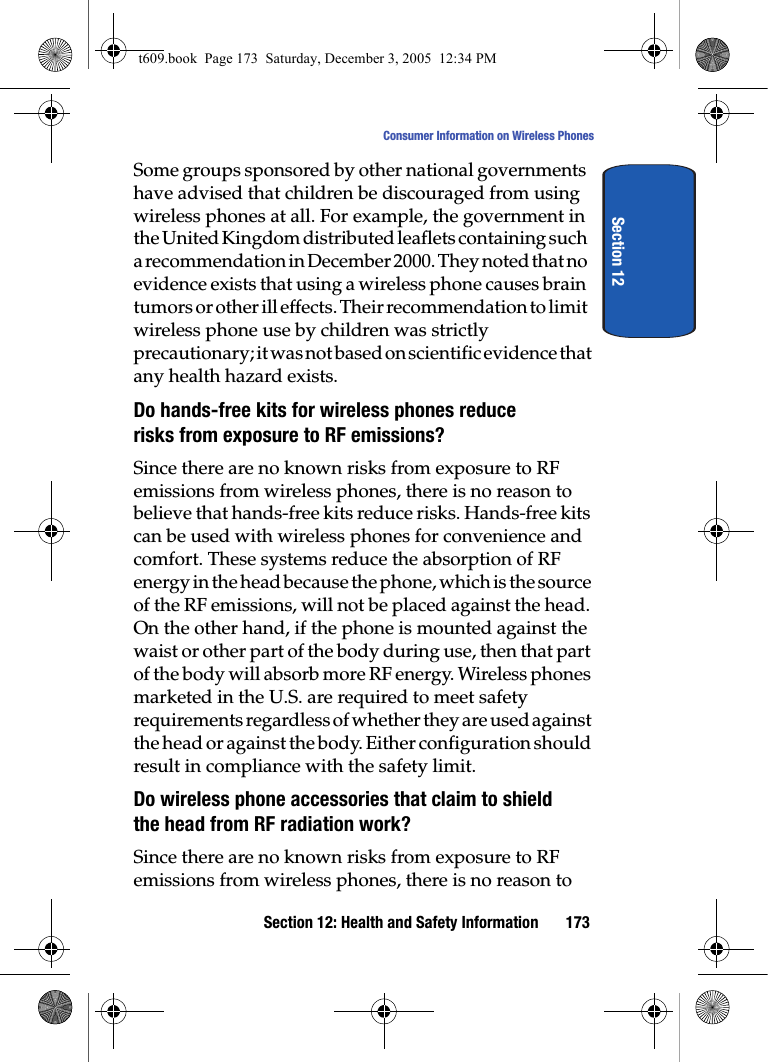

Section 12: Health and Safety Information 173Consumer Information on Wireless PhonesSection 12Some groups sponsored by other national governments have advised that children be discouraged from using wireless phones at all. For example, the government in the United Kingdom distributed leaflets containing such a recommendation in December 2000. They noted that no evidence exists that using a wireless phone causes brain tumors or other ill effects. Their recommendation to limit wireless phone use by children was strictly precautionary; it was not based on scientific evidence that any health hazard exists.Do hands-free kits for wireless phones reduce risks from exposure to RF emissions?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to believe that hands-free kits reduce risks. Hands-free kits can be used with wireless phones for convenience and comfort. These systems reduce the absorption of RF energy in the head because the phone, which is the source of the RF emissions, will not be placed against the head. On the other hand, if the phone is mounted against the waist or other part of the body during use, then that part of the body will absorb more RF energy. Wireless phones marketed in the U.S. are required to meet safety requirements regardless of whether they are used against the head or against the body. Either configuration should result in compliance with the safety limit.Do wireless phone accessories that claim to shield the head from RF radiation work?Since there are no known risks from exposure to RF emissions from wireless phones, there is no reason to t609.book Page 173 Saturday, December 3, 2005 12:34 PM

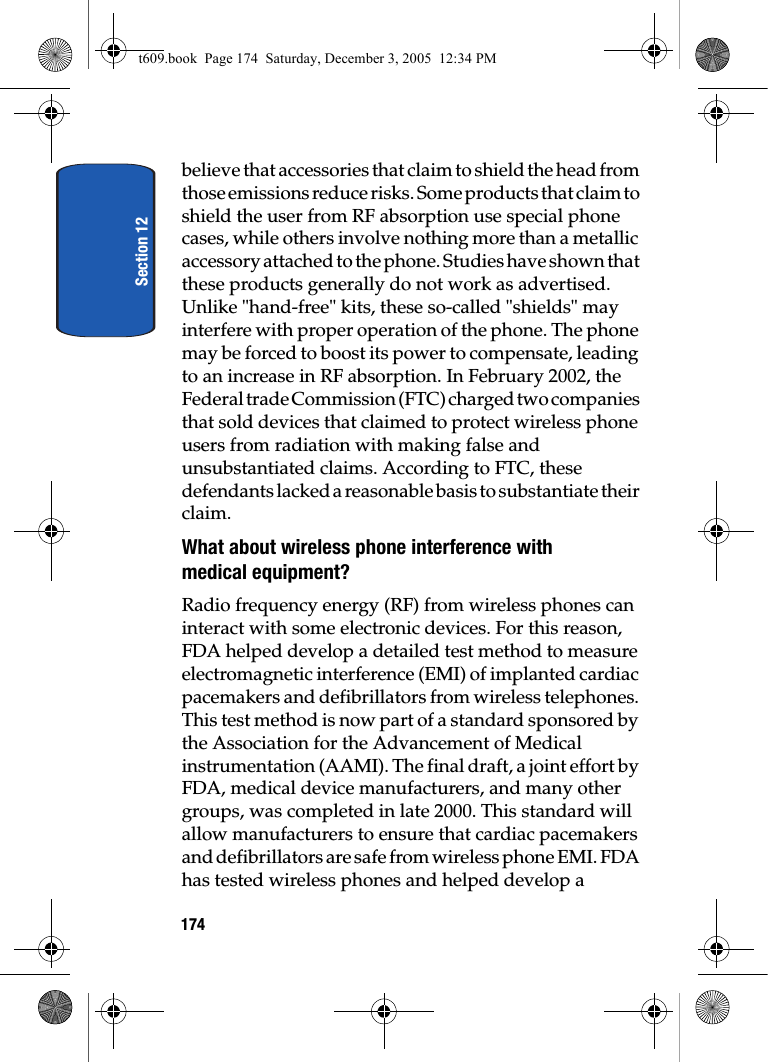

Section 12174believe that accessories that claim to shield the head from those emissions reduce risks. Some products that claim to shield the user from RF absorption use special phone cases, while others involve nothing more than a metallic accessory attached to the phone. Studies have shown that these products generally do not work as advertised. Unlike "hand-free" kits, these so-called "shields" may interfere with proper operation of the phone. The phone may be forced to boost its power to compensate, leading to an increase in RF absorption. In February 2002, the Federal trade Commission (FTC) charged two companies that sold devices that claimed to protect wireless phone users from radiation with making false and unsubstantiated claims. According to FTC, these defendants lacked a reasonable basis to substantiate their claim.What about wireless phone interference with medical equipment?Radio frequency energy (RF) from wireless phones can interact with some electronic devices. For this reason, FDA helped develop a detailed test method to measure electromagnetic interference (EMI) of implanted cardiac pacemakers and defibrillators from wireless telephones. This test method is now part of a standard sponsored by the Association for the Advancement of Medical instrumentation (AAMI). The final draft, a joint effort by FDA, medical device manufacturers, and many other groups, was completed in late 2000. This standard will allow manufacturers to ensure that cardiac pacemakers and defibrillators are safe from wireless phone EMI. FDA has tested wireless phones and helped develop a t609.book Page 174 Saturday, December 3, 2005 12:34 PM

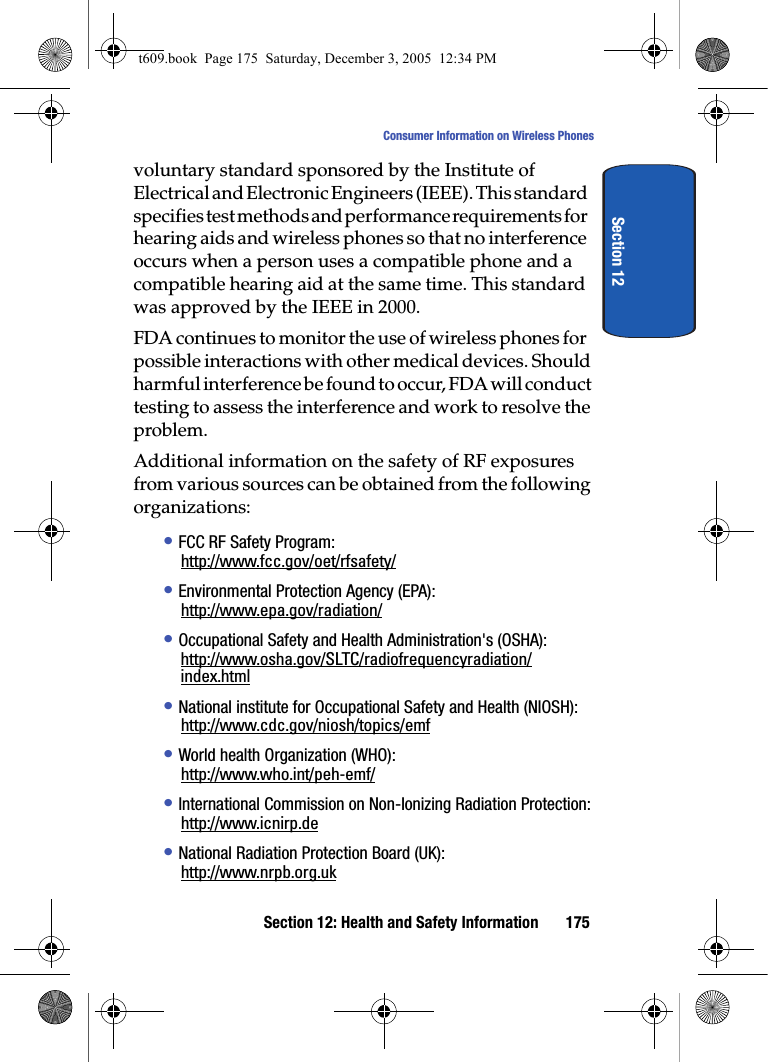

Section 12: Health and Safety Information 175Consumer Information on Wireless PhonesSection 12voluntary standard sponsored by the Institute of Electrical and Electronic Engineers (IEEE). This standard specifies test methods and performance requirements for hearing aids and wireless phones so that no interference occurs when a person uses a compatible phone and a compatible hearing aid at the same time. This standard was approved by the IEEE in 2000.FDA continues to monitor the use of wireless phones for possible interactions with other medical devices. Should harmful interference be found to occur, FDA will conduct testing to assess the interference and work to resolve the problem.Additional information on the safety of RF exposures from various sources can be obtained from the following organizations:• FCC RF Safety Program:http://www.fcc.gov/oet/rfsafety/• Environmental Protection Agency (EPA):http://www.epa.gov/radiation/• Occupational Safety and Health Administration's (OSHA):http://www.osha.gov/SLTC/radiofrequencyradiation/index.html• National institute for Occupational Safety and Health (NIOSH):http://www.cdc.gov/niosh/topics/emf• World health Organization (WHO):http://www.who.int/peh-emf/• International Commission on Non-Ionizing Radiation Protection:http://www.icnirp.de• National Radiation Protection Board (UK):http://www.nrpb.org.ukt609.book Page 175 Saturday, December 3, 2005 12:34 PM
Section 12176• Updated 4/3/2002: US Food and Drug Administrationhttp://www.fda.gov/cellphonesRoad SafetyYour wireless phone gives you the powerful ability to communicate by voice, almost anywhere, anytime. But an important responsibility accompanies the benefits of wireless phones, one that every user must uphold.When driving a car, driving is your first responsibility. When using your wireless phone behind the wheel of a car, practice good common sense and remember the following tips:1. Get to know your wireless phone and its features, such as speed dial and redial. If available, these features help you to place your call without taking your attention off the road.2. When available, use a hands-free device. If possible, add an additional layer of convenience and safety to your wireless phone with one of the many hands free accessories available today.3. Position your wireless phone within easy reach. Be able to access your wireless phone without removing your eyes from the road. If you get an incoming call at an inconvenient time, let your voice mail answer it for you.4. Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice and even heavy traffic can be hazardous.t609.book Page 176 Saturday, December 3, 2005 12:34 PM

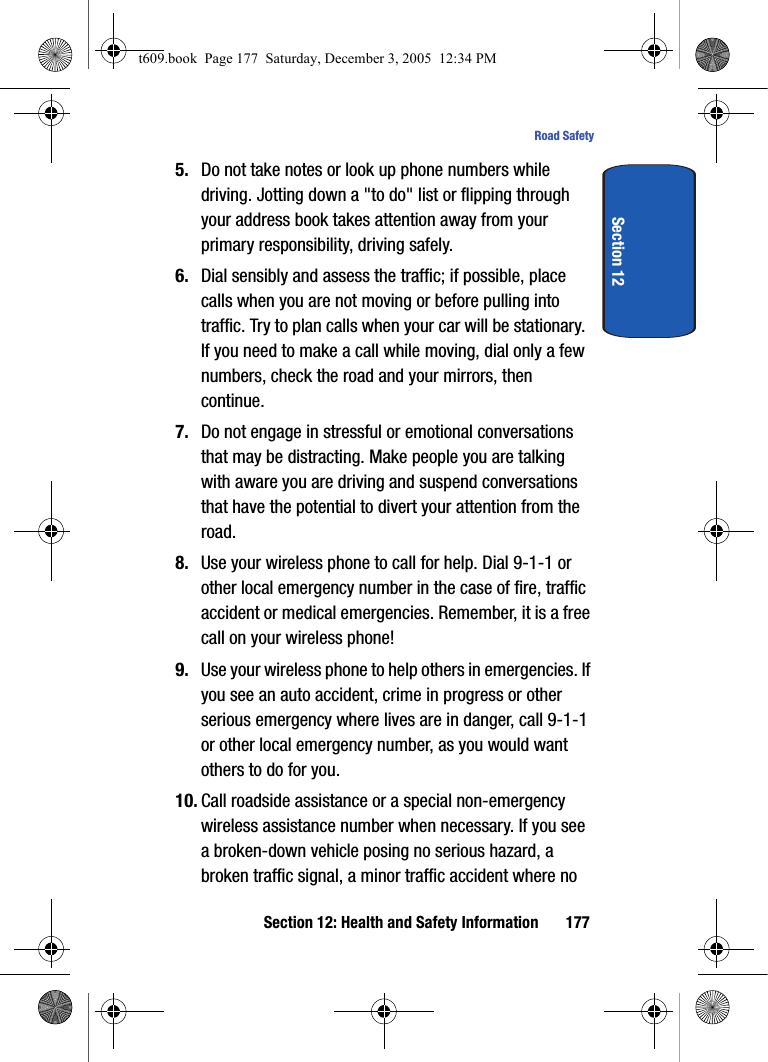

Section 12: Health and Safety Information 177Road SafetySection 125. Do not take notes or look up phone numbers while driving. Jotting down a "to do" list or flipping through your address book takes attention away from your primary responsibility, driving safely.6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.7. Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road.8. Use your wireless phone to call for help. Dial 9-1-1 or other local emergency number in the case of fire, traffic accident or medical emergencies. Remember, it is a free call on your wireless phone!9. Use your wireless phone to help others in emergencies. If you see an auto accident, crime in progress or other serious emergency where lives are in danger, call 9-1-1 or other local emergency number, as you would want others to do for you.10. Call roadside assistance or a special non-emergency wireless assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no t609.book Page 177 Saturday, December 3, 2005 12:34 PM
Section 12178one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency number."The wireless industry reminds you to use your phone safely when driving."For more information, please call 1-888-901-SAFE, or visit our web-site www.wow-com.com Provided by the Cellular Telecommunications & Internet Association.Operating EnvironmentRemember to follow any special regulations in force in any area and always switch your phone off whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the phone or any accessory to another device, read its user's guide for detailed safety instructions. Do not connect incompatible products.As with other mobile radio transmitting equipment, users are advised that for the satisfactory operation of the equipment andfor the safety of personnel, it is recommended that the equipment should only be used in the normal operating position (held to your ear with the antenna pointing over your shoulder if you are using an external antenna).Using Your Phone Near Other Electronic DevicesMost modern electronic equipment is shielded from radio frequency (RF) signals. However, certain electronic equipment may not be shielded against the RF signals t609.book Page 178 Saturday, December 3, 2005 12:34 PM

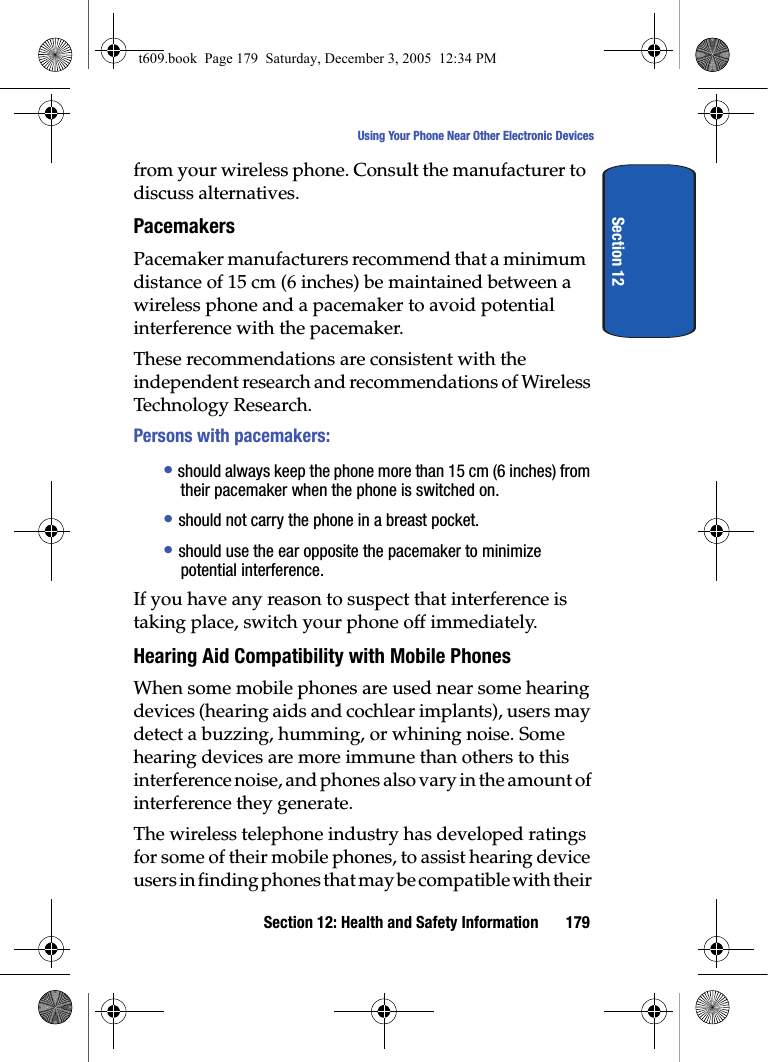

Section 12: Health and Safety Information 179Using Your Phone Near Other Electronic DevicesSection 12from your wireless phone. Consult the manufacturer to discuss alternatives.PacemakersPacemaker manufacturers recommend that a minimum distance of 15 cm (6 inches) be maintained between a wireless phone and a pacemaker to avoid potential interference with the pacemaker.These recommendations are consistent with the independent research and recommendations of Wireless Technology Research.Persons with pacemakers:• should always keep the phone more than 15 cm (6 inches) from their pacemaker when the phone is switched on.• should not carry the phone in a breast pocket.• should use the ear opposite the pacemaker to minimize potential interference.If you have any reason to suspect that interference is taking place, switch your phone off immediately.Hearing Aid Compatibility with Mobile PhonesWhen some mobile phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.The wireless telephone industry has developed ratings for some of their mobile phones, to assist hearing device users in finding phones that may be compatible with their t609.book Page 179 Saturday, December 3, 2005 12:34 PM

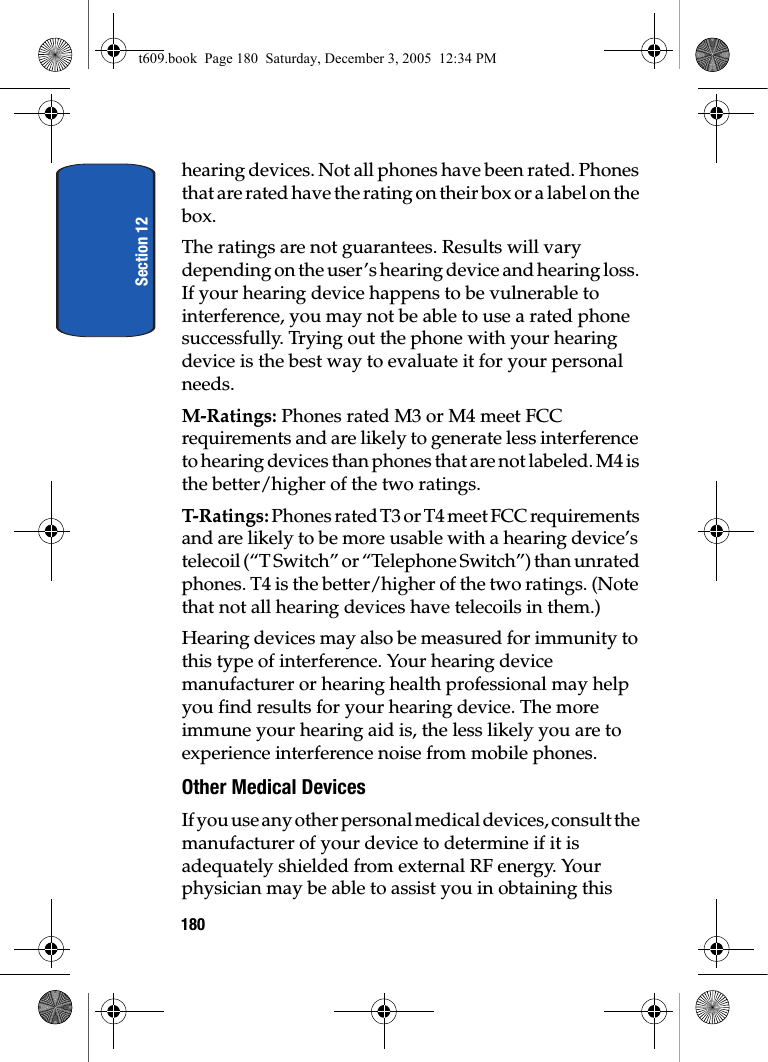

Section 12180hearing devices. Not all phones have been rated. Phones that are rated have the rating on their box or a label on the box.The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.T-Ratings: P ho ne s r at ed T 3 o r T 4 mee t F CC req ui rem en ts and are likely to be more usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”) than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.)Hearing devices may also be measured for immunity to this type of interference. Your hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more immune your hearing aid is, the less likely you are to experience interference noise from mobile phones.Other Medical DevicesIf you use any other personal medical devices, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this t609.book Page 180 Saturday, December 3, 2005 12:34 PM
Section 12: Health and Safety Information 181Potentially Explosive EnvironmentsSection 12information. Switch your phone off in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesSwitch your phone off in any facility where posted notices require you to do so.Potentially Explosive EnvironmentsSwitch your phone off when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.Users are advised to switch the phone off while at a refueling point (service station). Users are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progress.Areas with a potentially explosive atmosphere are often but not always clearly marked. They include below deck on boats, chemical transfer or storage facilities, vehicles t609.book Page 181 Saturday, December 3, 2005 12:34 PM

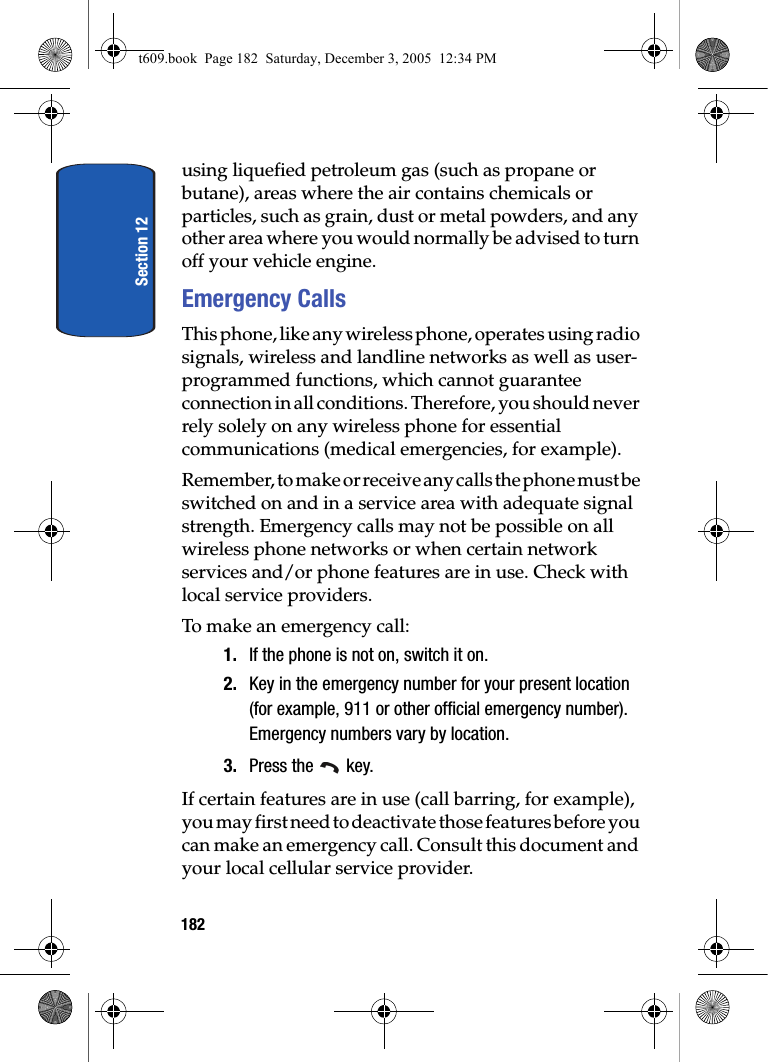

Section 12182using liquefied petroleum gas (such as propane or butane), areas where the air contains chemicals or particles, such as grain, dust or metal powders, and any other area where you would normally be advised to turn off your vehicle engine.Emergency CallsThis phone, like any wireless phone, operates using radio signals, wireless and landline networks as well as user-programmed functions, which cannot guarantee connection in all conditions. Therefore, you should never rely solely on any wireless phone for essential communications (medical emergencies, for example).Remember, to make or receive any calls the phone must be switched on and in a service area with adequate signal strength. Emergency calls may not be possible on all wireless phone networks or when certain network services and/or phone features are in use. Check with local service providers.To make an emergency call:1. If the phone is not on, switch it on.2. Key in the emergency number for your present location (for example, 911 or other official emergency number). Emergency numbers vary by location.3. Press the key.If certain features are in use (call barring, for example), you may first need to deactivate those features before you can make an emergency call. Consult this document and your local cellular service provider.t609.book Page 182 Saturday, December 3, 2005 12:34 PM

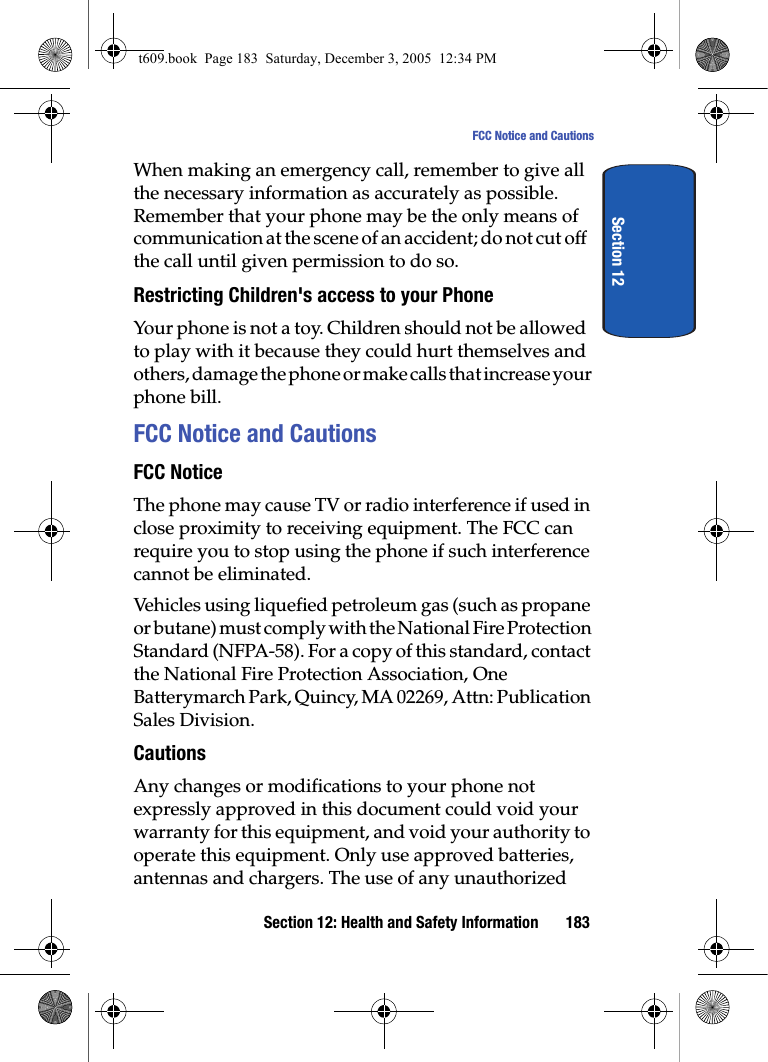

Section 12: Health and Safety Information 183FCC Notice and CautionsSection 12When making an emergency call, remember to give all the necessary information as accurately as possible. Remember that your phone may be the only means of communication at the scene of an accident; do not cut off the call until given permission to do so.Restricting Children's access to your PhoneYour phone is not a toy. Children should not be allowed to play with it because they could hurt themselves and others, damage the phone or make calls that increase your phone bill.FCC Notice and CautionsFCC NoticeThe phone may cause TV or radio interference if used in close proximity to receiving equipment. The FCC can require you to stop using the phone if such interference cannot be eliminated.Vehicles using liquefied petroleum gas (such as propane or butane) must comply with the National Fire Protection Standard (NFPA-58). For a copy of this standard, contact the National Fire Protection Association, One Batterymarch Park, Quincy, MA 02269, Attn: Publication Sales Division.CautionsAny changes or modifications to your phone not expressly approved in this document could void your warranty for this equipment, and void your authority to operate this equipment. Only use approved batteries, antennas and chargers. The use of any unauthorized t609.book Page 183 Saturday, December 3, 2005 12:34 PM

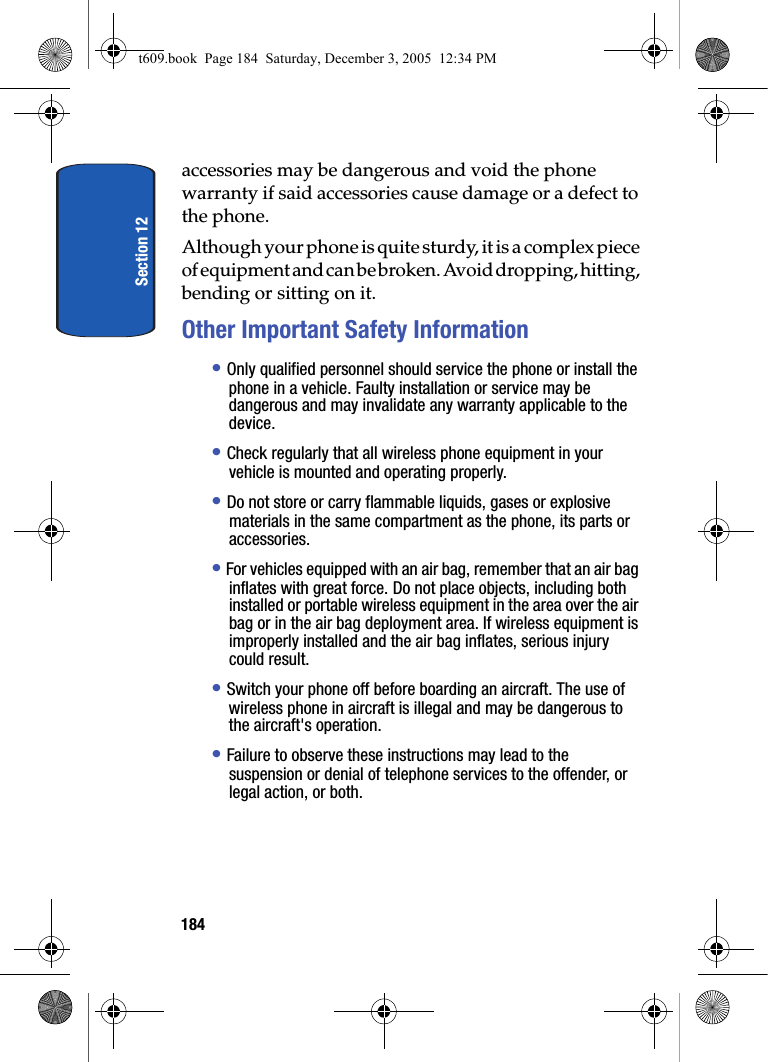

Section 12184accessories may be dangerous and void the phone warranty if said accessories cause damage or a defect to the phone.Although your phone is quite sturdy, it is a complex piece of equipment and can be broken. Avoid dropping, hitting, bending or sitting on it.Other Important Safety Information• Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device.• Check regularly that all wireless phone equipment in your vehicle is mounted and operating properly.• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as the phone, its parts or accessories.• For vehicles equipped with an air bag, remember that an air bag inflates with great force. Do not place objects, including both installed or portable wireless equipment in the area over the air bag or in the air bag deployment area. If wireless equipment is improperly installed and the air bag inflates, serious injury could result.• Switch your phone off before boarding an aircraft. The use of wireless phone in aircraft is illegal and may be dangerous to the aircraft's operation.• Failure to observe these instructions may lead to the suspension or denial of telephone services to the offender, or legal action, or both.t609.book Page 184 Saturday, December 3, 2005 12:34 PM

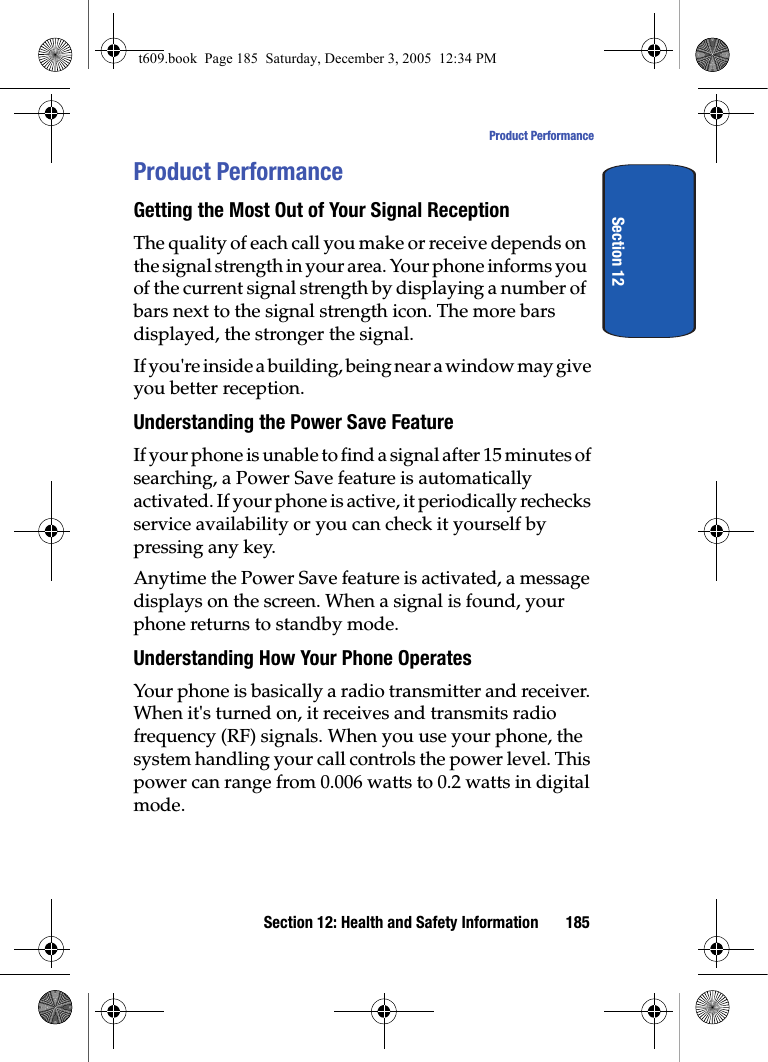

Section 12: Health and Safety Information 185Product PerformanceSection 12Product PerformanceGetting the Most Out of Your Signal ReceptionThe quality of each call you make or receive depends on the signal strength in your area. Your phone informs you of the current signal strength by displaying a number of bars next to the signal strength icon. The more bars displayed, the stronger the signal.If you're inside a building, being near a window may give you better reception.Understanding the Power Save FeatureIf your phone is unable to find a signal after 15 minutes of searching, a Power Save feature is automatically activated. If your phone is active, it periodically rechecks service availability or you can check it yourself by pressing any key.Anytime the Power Save feature is activated, a message displays on the screen. When a signal is found, your phone returns to standby mode.Understanding How Your Phone OperatesYour phone is basically a radio transmitter and receiver. When it's turned on, it receives and transmits radio frequency (RF) signals. When you use your phone, the system handling your call controls the power level. This power can range from 0.006 watts to 0.2 watts in digital mode.t609.book Page 185 Saturday, December 3, 2005 12:34 PM

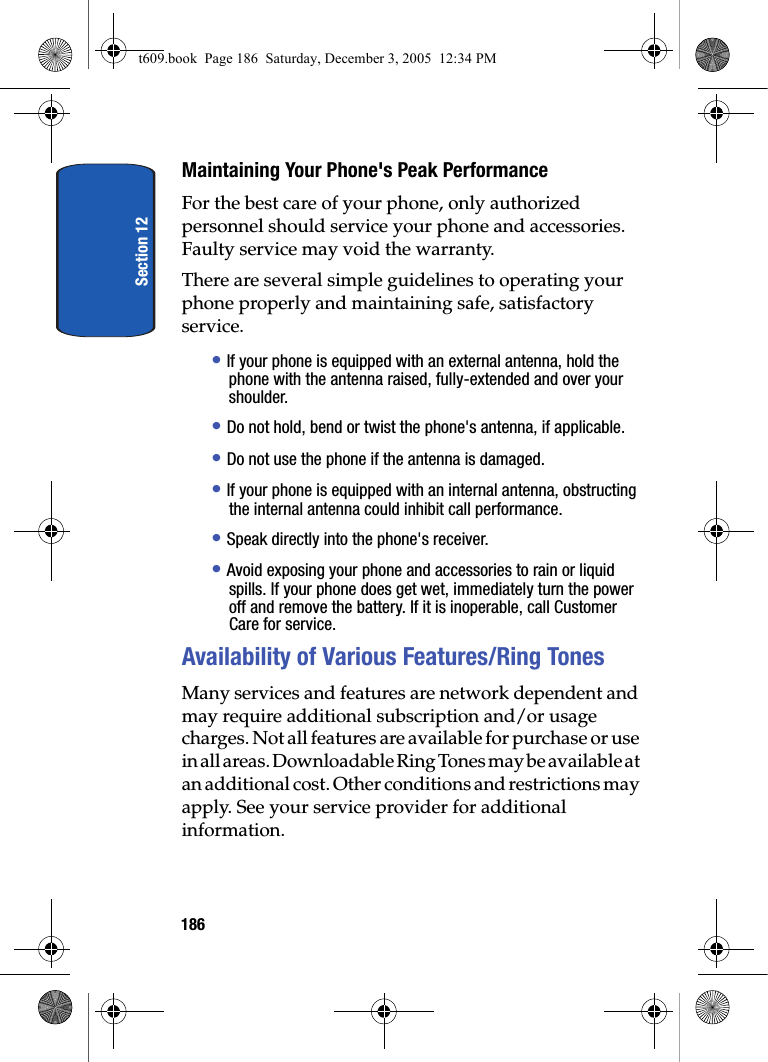

Section 12186Maintaining Your Phone's Peak PerformanceFor the best care of your phone, only authorized personnel should service your phone and accessories. Faulty service may void the warranty.There are several simple guidelines to operating your phone properly and maintaining safe, satisfactory service.• If your phone is equipped with an external antenna, hold the phone with the antenna raised, fully-extended and over your shoulder.• Do not hold, bend or twist the phone's antenna, if applicable.• Do not use the phone if the antenna is damaged.• If your phone is equipped with an internal antenna, obstructing the internal antenna could inhibit call performance.• Speak directly into the phone's receiver.• Avoid exposing your phone and accessories to rain or liquid spills. If your phone does get wet, immediately turn the power off and remove the battery. If it is inoperable, call Customer Care for service.Availability of Various Features/Ring TonesMany services and features are network dependent and may require additional subscription and/or usage charges. Not all features are available for purchase or use in all areas. Downloadable Ring Tones may be available at an additional cost. Other conditions and restrictions may apply. See your service provider for additional information.t609.book Page 186 Saturday, December 3, 2005 12:34 PM

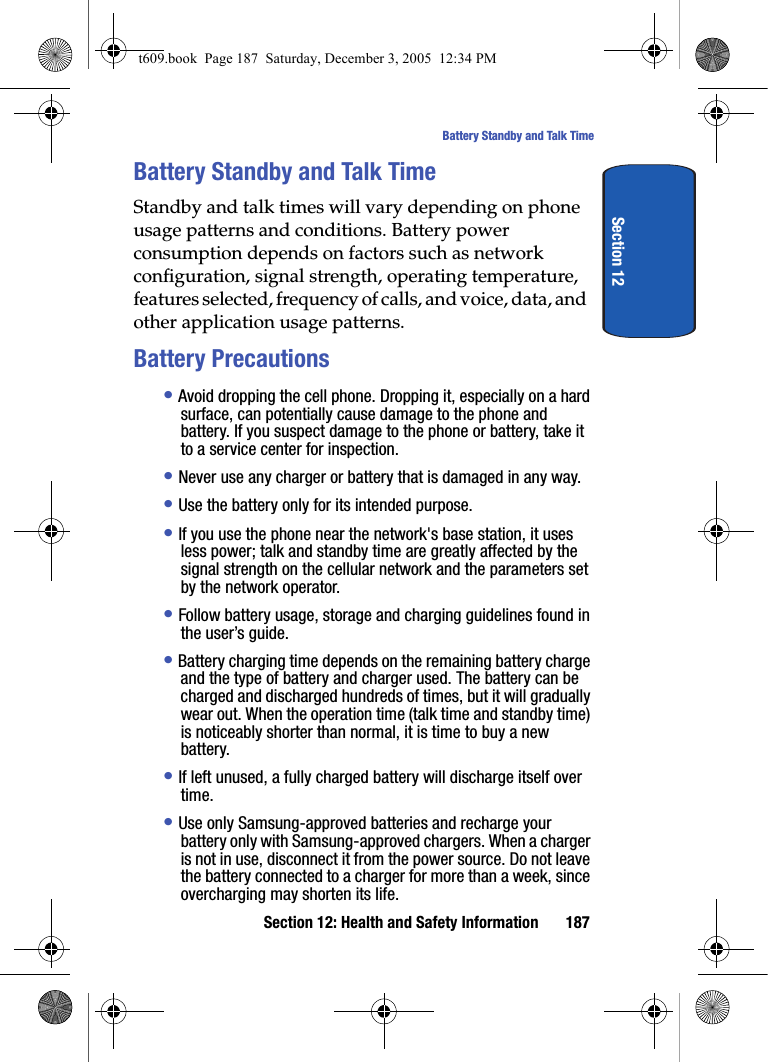

Section 12: Health and Safety Information 187Battery Standby and Talk TimeSection 12Battery Standby and Talk TimeStandby and talk times will vary depending on phone usage patterns and conditions. Battery power consumption depends on factors such as network configuration, signal strength, operating temperature, features selected, frequency of calls, and voice, data, and other application usage patterns.Battery Precautions• Avoid dropping the cell phone. Dropping it, especially on a hard surface, can potentially cause damage to the phone and battery. If you suspect damage to the phone or battery, take it to a service center for inspection. • Never use any charger or battery that is damaged in any way.• Use the battery only for its intended purpose.• If you use the phone near the network's base station, it uses less power; talk and standby time are greatly affected by the signal strength on the cellular network and the parameters set by the network operator.• Follow battery usage, storage and charging guidelines found in the user’s guide. • Battery charging time depends on the remaining battery charge and the type of battery and charger used. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.• If left unused, a fully charged battery will discharge itself over time.• Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers. When a charger is not in use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life.t609.book Page 187 Saturday, December 3, 2005 12:34 PM

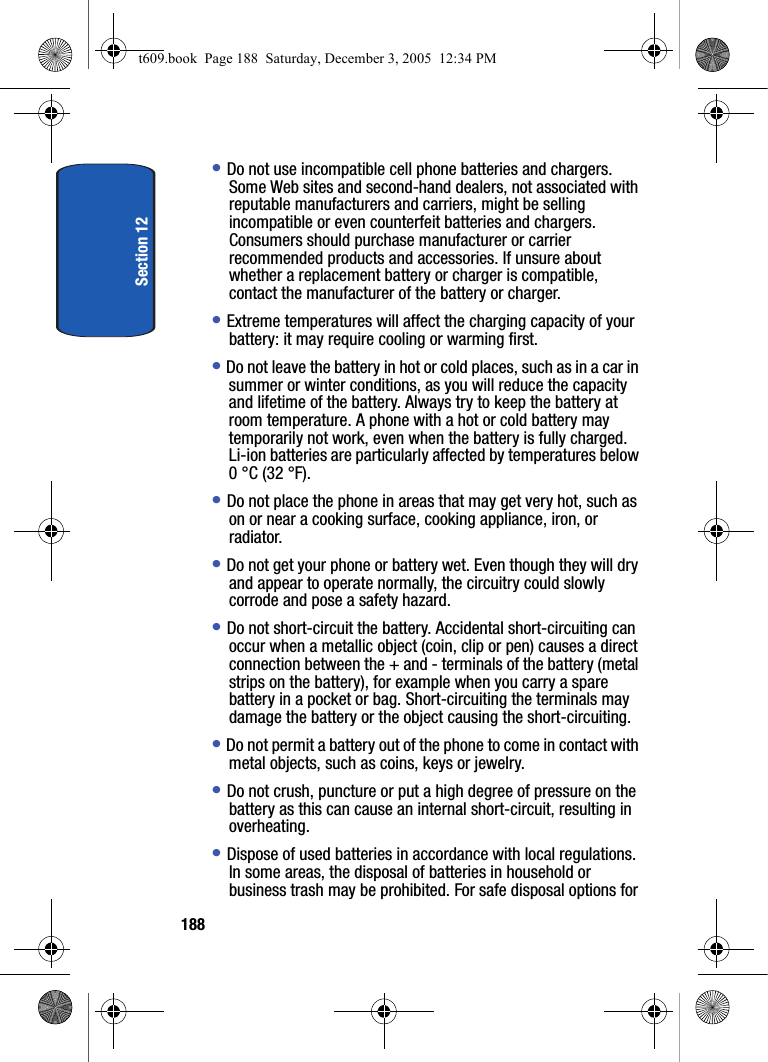

Section 12188• Do not use incompatible cell phone batteries and chargers. Some Web sites and second-hand dealers, not associated with reputable manufacturers and carriers, might be selling incompatible or even counterfeit batteries and chargers. Consumers should purchase manufacturer or carrier recommended products and accessories. If unsure about whether a replacement battery or charger is compatible, contact the manufacturer of the battery or charger. • Extreme temperatures will affect the charging capacity of your battery: it may require cooling or warming first.• Do not leave the battery in hot or cold places, such as in a car in summer or winter conditions, as you will reduce the capacity and lifetime of the battery. Always try to keep the battery at room temperature. A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0 °C (32 °F).• Do not place the phone in areas that may get very hot, such as on or near a cooking surface, cooking appliance, iron, or radiator. • Do not get your phone or battery wet. Even though they will dry and appear to operate normally, the circuitry could slowly corrode and pose a safety hazard. • Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and - terminals of the battery (metal strips on the battery), for example when you carry a spare battery in a pocket or bag. Short-circuiting the terminals may damage the battery or the object causing the short-circuiting.• Do not permit a battery out of the phone to come in contact with metal objects, such as coins, keys or jewelry. • Do not crush, puncture or put a high degree of pressure on the battery as this can cause an internal short-circuit, resulting in overheating. • Dispose of used batteries in accordance with local regulations. In some areas, the disposal of batteries in household or business trash may be prohibited. For safe disposal options for t609.book Page 188 Saturday, December 3, 2005 12:34 PM

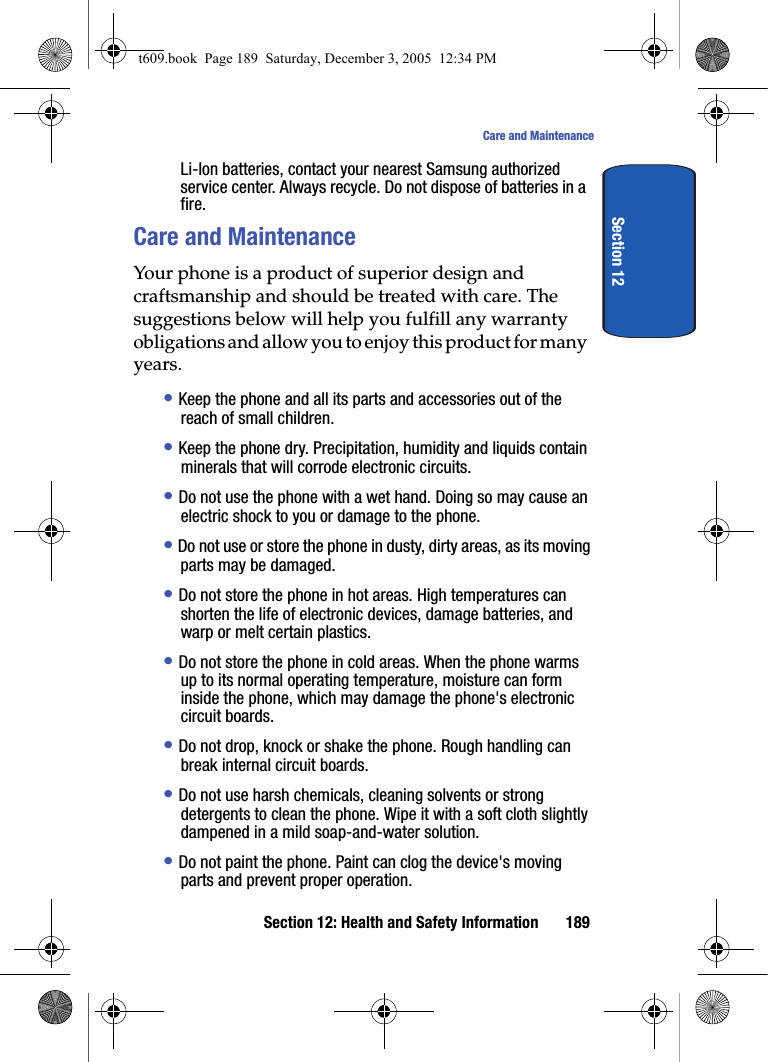

Section 12: Health and Safety Information 189Care and MaintenanceSection 12Li-Ion batteries, contact your nearest Samsung authorized service center. Always recycle. Do not dispose of batteries in a fire.Care and MaintenanceYour phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill any warranty obligations and allow you to enjoy this product for many years.• Keep the phone and all its parts and accessories out of the reach of small children.• Keep the phone dry. Precipitation, humidity and liquids contain minerals that will corrode electronic circuits.• Do not use the phone with a wet hand. Doing so may cause an electric shock to you or damage to the phone.• Do not use or store the phone in dusty, dirty areas, as its moving parts may be damaged.• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.• Do not store the phone in cold areas. When the phone warms up to its normal operating temperature, moisture can form inside the phone, which may damage the phone's electronic circuit boards.• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the phone. Wipe it with a soft cloth slightly dampened in a mild soap-and-water solution.• Do not paint the phone. Paint can clog the device's moving parts and prevent proper operation.t609.book Page 189 Saturday, December 3, 2005 12:34 PM

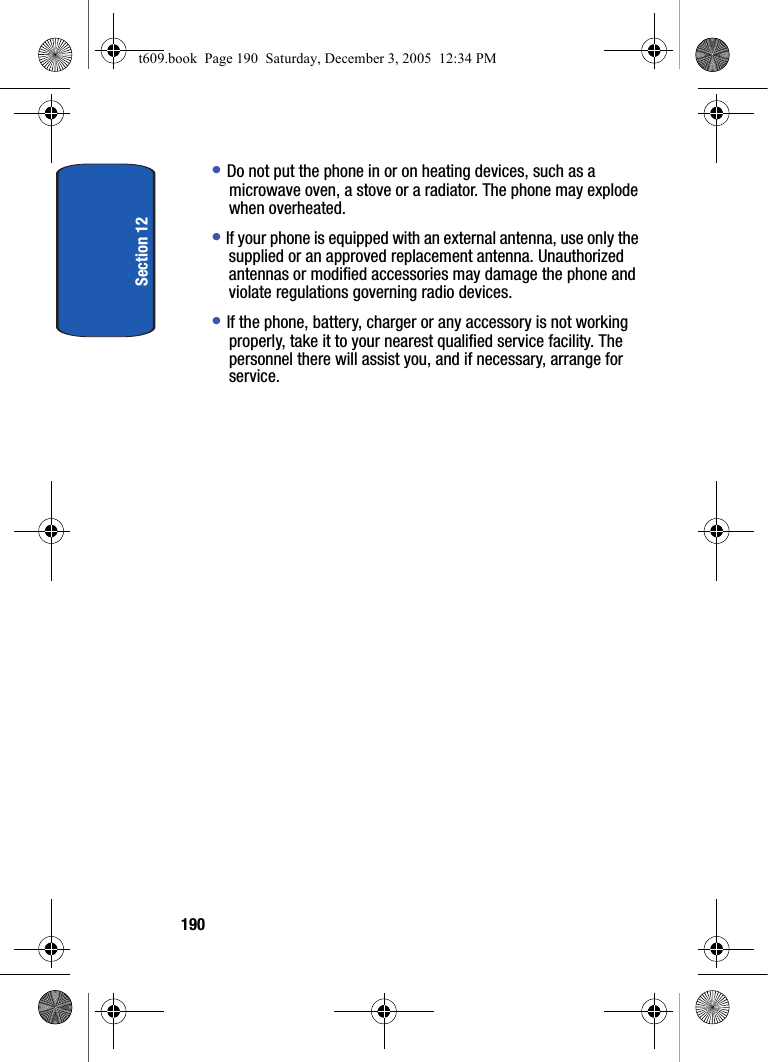

Section 12190• Do not put the phone in or on heating devices, such as a microwave oven, a stove or a radiator. The phone may explode when overheated.• If your phone is equipped with an external antenna, use only the supplied or an approved replacement antenna. Unauthorized antennas or modified accessories may damage the phone and violate regulations governing radio devices.• If the phone, battery, charger or any accessory is not working properly, take it to your nearest qualified service facility. The personnel there will assist you, and if necessary, arrange for service.t609.book Page 190 Saturday, December 3, 2005 12:34 PM

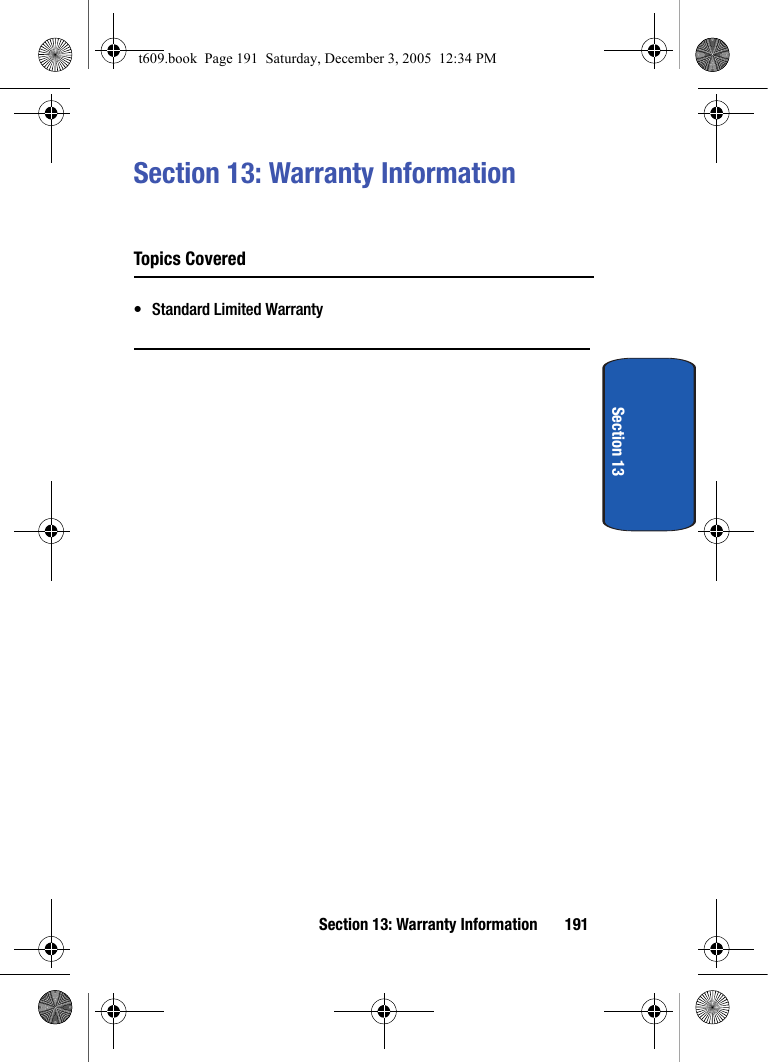

Section 13: Warranty Information 191Section 13Section 13: Warranty InformationTopics Covered• Standard Limited Warrantyt609.book Page 191 Saturday, December 3, 2005 12:34 PM

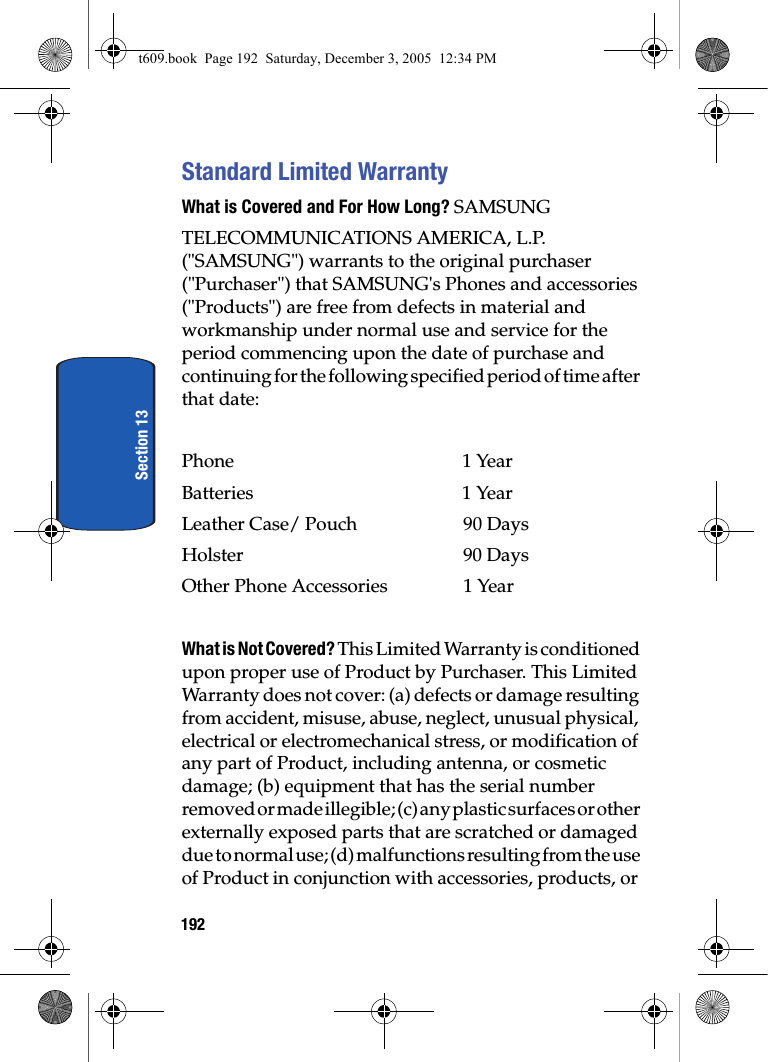

192Section 13Standard Limited WarrantyWhat is Covered and For How Long? SAMSUNGTELECOMMUNICATIONS AMERICA, L.P. ("SAMSUNG") warrants to the original purchaser ("Purchaser") that SAMSUNG's Phones and accessories ("Products") are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase and continuing for the following specified period of time after that date:Phone 1 YearBatteries 1 YearLeather Case/ Pouch 90 DaysHolster 90 DaysOther Phone Accessories 1 YearWhat is Not Covered? This Limited Warranty is conditioned upon proper use of Product by Purchaser. This Limited Warranty does not cover: (a) defects or damage resulting from accident, misuse, abuse, neglect, unusual physical, electrical or electromechanical stress, or modification of any part of Product, including antenna, or cosmetic damage; (b) equipment that has the serial number removed or made illegible; (c) any plastic surfaces or other externally exposed parts that are scratched or damaged due to normal use; (d) malfunctions resulting from the use of Product in conjunction with accessories, products, or t609.book Page 192 Saturday, December 3, 2005 12:34 PM

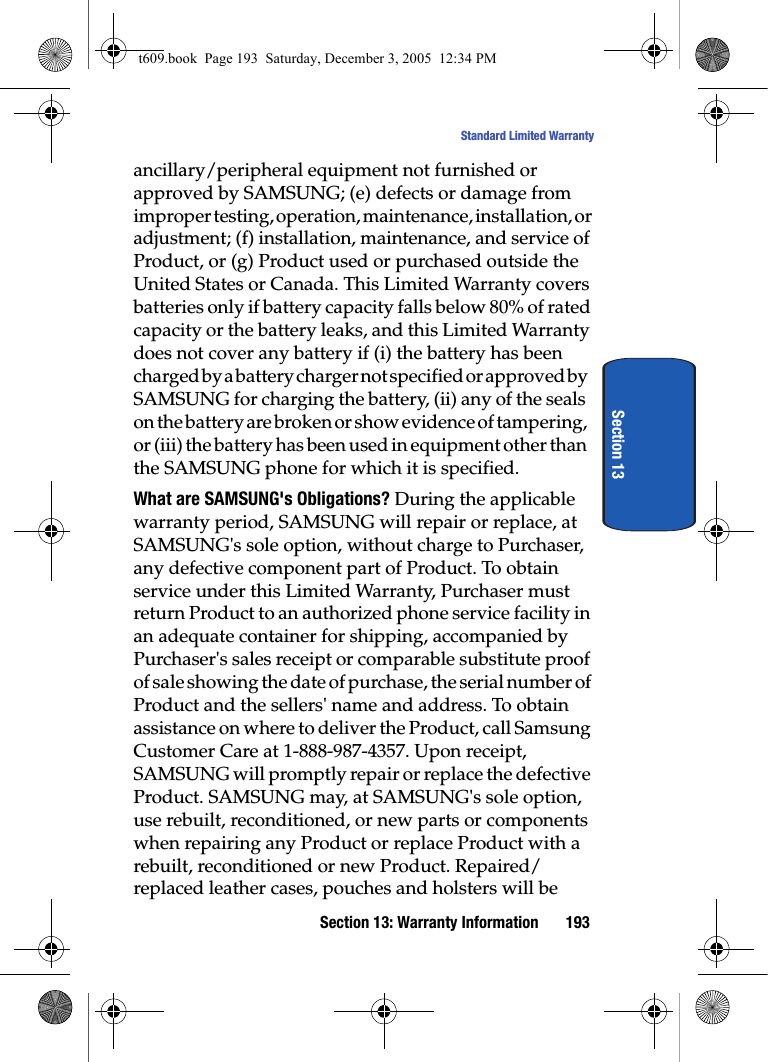

Section 13: Warranty Information 193Standard Limited WarrantySection 13ancillary/peripheral equipment not furnished or approved by SAMSUNG; (e) defects or damage from improper testing, operation, maintenance, installation, or adjustment; (f) installation, maintenance, and service of Product, or (g) Product used or purchased outside the United States or Canada. This Limited Warranty covers batteries only if battery capacity falls below 80% of rated capacity or the battery leaks, and this Limited Warranty does not cover any battery if (i) the battery has been charged by a battery charger not specified or approved by SAMSUNG for charging the battery, (ii) any of the seals on the battery are broken or show evidence of tampering, or (iii) the battery has been used in equipment other than the SAMSUNG phone for which it is specified.What are SAMSUNG's Obligations? During the applicable warranty period, SAMSUNG will repair or replace, at SAMSUNG's sole option, without charge to Purchaser, any defective component part of Product. To obtain service under this Limited Warranty, Purchaser must return Product to an authorized phone service facility in an adequate container for shipping, accompanied by Purchaser's sales receipt or comparable substitute proof of sale showing the date of purchase, the serial number of Product and the sellers' name and address. To obtain assistance on where to deliver the Product, call Samsung Customer Care at 1-888-987-4357. Upon receipt, SAMSUNG will promptly repair or replace the defective Product. SAMSUNG may, at SAMSUNG's sole option, use rebuilt, reconditioned, or new parts or components when repairing any Product or replace Product with a rebuilt, reconditioned or new Product. Repaired/replaced leather cases, pouches and holsters will be t609.book Page 193 Saturday, December 3, 2005 12:34 PM

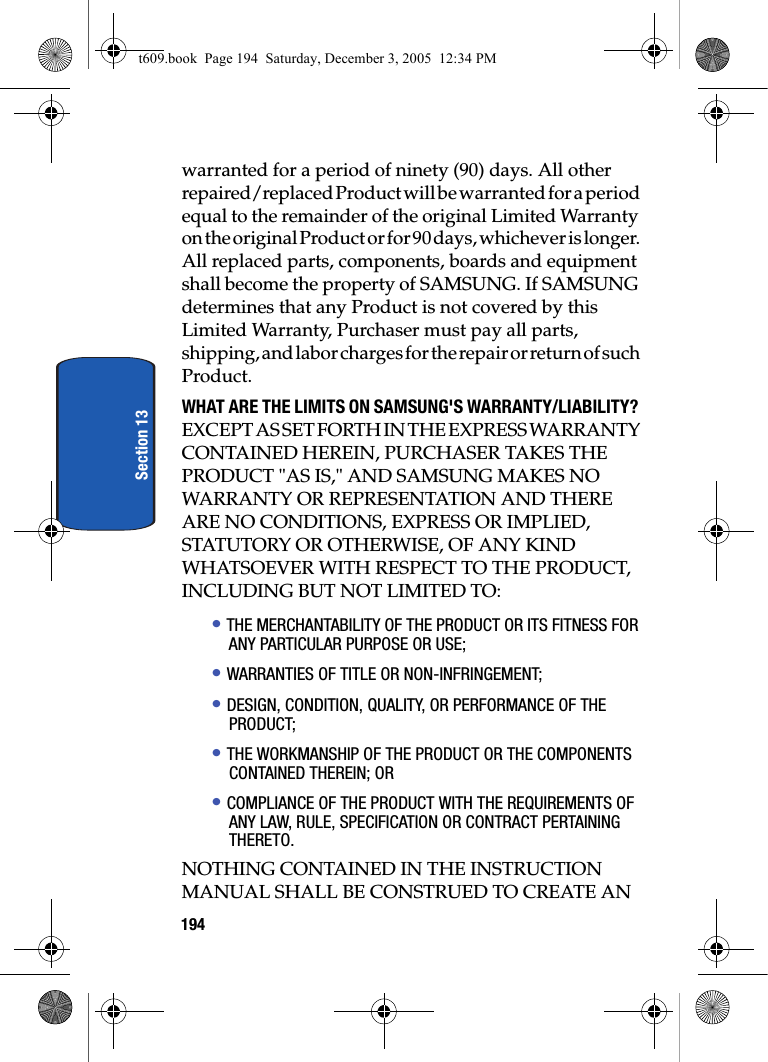

194Section 13warranted for a period of ninety (90) days. All other repaired/replaced Product will be warranted for a period equal to the remainder of the original Limited Warranty on the original Product or for 90 days, whichever is longer. All replaced parts, components, boards and equipment shall become the property of SAMSUNG. If SAMSUNG determines that any Product is not covered by this Limited Warranty, Purchaser must pay all parts, shipping, and labor charges for the repair or return of such Product.WHAT ARE THE LIMITS ON SAMSUNG'S WARRANTY/LIABILITY? EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED HEREIN, PURCHASER TAKES THE PRODUCT "AS IS," AND SAMSUNG MAKES NO WARRANTY OR REPRESENTATION AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO:• THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE;• WARRANTIES OF TITLE OR NON-INFRINGEMENT;• DESIGN, CONDITION, QUALITY, OR PERFORMANCE OF THE PRODUCT;• THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR• COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO.NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN t609.book Page 194 Saturday, December 3, 2005 12:34 PM

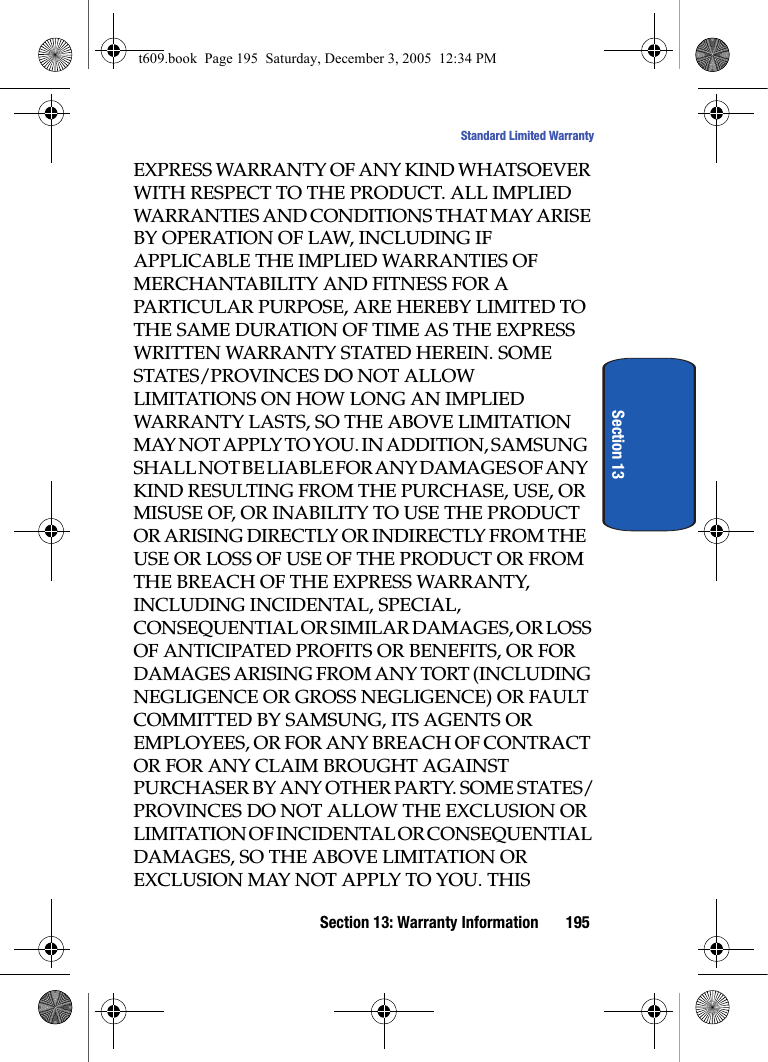

Section 13: Warranty Information 195Standard Limited WarrantySection 13EXPRESS WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. ALL IMPLIED WARRANTIES AND CONDITIONS THAT MAY ARISE BY OPERATION OF LAW, INCLUDING IF APPLICABLE THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY LIMITED TO THE SAME DURATION OF TIME AS THE EXPRESS WRITTEN WARRANTY STATED HEREIN. SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE, USE, OR MISUSE OF, OR INABILITY TO USE THE PRODUCT OR ARISING DIRECTLY OR INDIRECTLY FROM THE USE OR LOSS OF USE OF THE PRODUCT OR FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS, OR FOR DAMAGES ARISING FROM ANY TORT (INCLUDING NEGLIGENCE OR GROSS NEGLIGENCE) OR FAULT COMMITTED BY SAMSUNG, ITS AGENTS OR EMPLOYEES, OR FOR ANY BREACH OF CONTRACT OR FOR ANY CLAIM BROUGHT AGAINST PURCHASER BY ANY OTHER PARTY. SOME STATES/PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS t609.book Page 195 Saturday, December 3, 2005 12:34 PM
196Section 13WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE/PROVINCE TO PROVINCE. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT AND STATES PURCHASER'S EXCLUSIVE REMEDY. IF ANY PORTION OF THIS LIMITED WARRANTY IS HELD ILLEGAL OR UNENFORCEABLE BY REASON OF ANY LAW, SUCH PARTIAL ILLEGALITY OR UNENFORCEABILITY SHALL NOT AFFECT THE ENFORCEABILITY FOR THE REMAINDER OF THIS LIMITED WARRANTY WHICH PURCHASER ACKNOWLEDGES IS AND WILL ALWAYS BE CONSTRUED TO BE LIMITED BY ITS TERMS OR AS LIMITED AS THE LAW PERMITS. THE PARTIES UNDERSTAND THAT THE PURCHASER MAY USE THIRD-PARTY SOFTWARE OR EQUIPMENT IN CONJUNCTION WITH THE PRODUCT. SAMSUNG MAKES NO WARRANTIES OR REPRESENTATIONS AND THERE ARE NO CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, AS TO THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE OR SUITABILITY OF ANY THIRDPARTY SOFTWARE OR EQUIPMENT, WHETHER SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT IS INCLUDED WITH THE PRODUCT DISTRIBUTED BY SAMSUNG OR OTHERWISE, INCLUDING THE ABILITY TO INTEGRATE ANY SUCH SOFTWARE OR EQUIPMENT WITH THE PRODUCT. THE QUALITY, CAPABILITIES, OPERATIONS, PERFORMANCE AND SUITABILITY t609.book Page 196 Saturday, December 3, 2005 12:34 PM

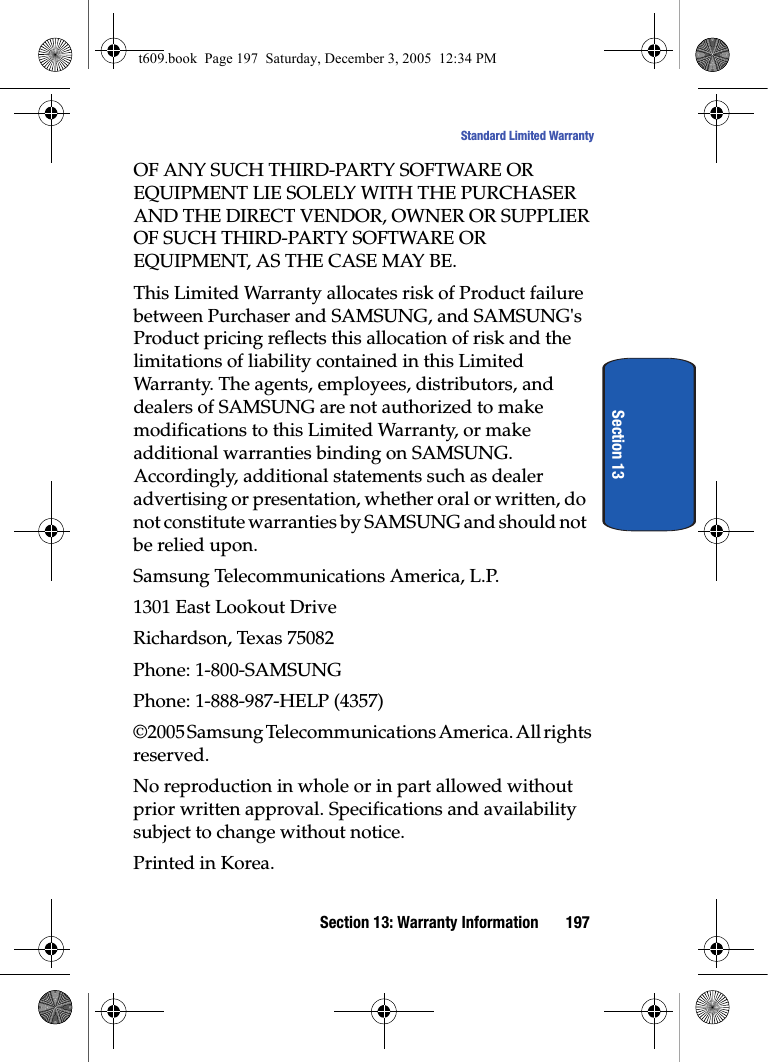

Section 13: Warranty Information 197Standard Limited WarrantySection 13OF ANY SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT LIE SOLELY WITH THE PURCHASER AND THE DIRECT VENDOR, OWNER OR SUPPLIER OF SUCH THIRD-PARTY SOFTWARE OR EQUIPMENT, AS THE CASE MAY BE.This Limited Warranty allocates risk of Product failure between Purchaser and SAMSUNG, and SAMSUNG's Product pricing reflects this allocation of risk and the limitations of liability contained in this Limited Warranty. The agents, employees, distributors, and dealers of SAMSUNG are not authorized to make modifications to this Limited Warranty, or make additional warranties binding on SAMSUNG. Accordingly, additional statements such as dealer advertising or presentation, whether oral or written, do not constitute warranties by SAMSUNG and should not be relied upon.Samsung Telecommunications America, L.P.1301 East Lookout DriveRichardson, Texas 75082Phone: 1-800-SAMSUNGPhone: 1-888-987-HELP (4357)©2005 Samsung Telecommunications America. All rights reserved.No reproduction in whole or in part allowed without prior written approval. Specifications and availability subject to change without notice.Printed in Korea.t609.book Page 197 Saturday, December 3, 2005 12:34 PM

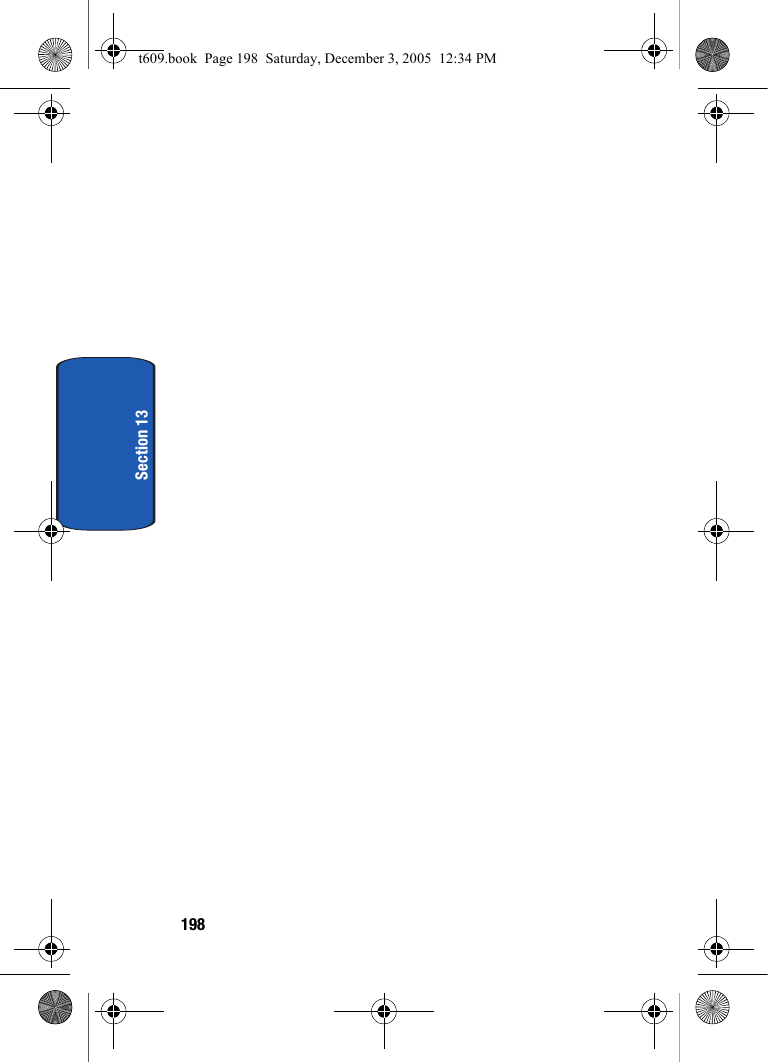

198Section 13t609.book Page 198 Saturday, December 3, 2005 12:34 PM

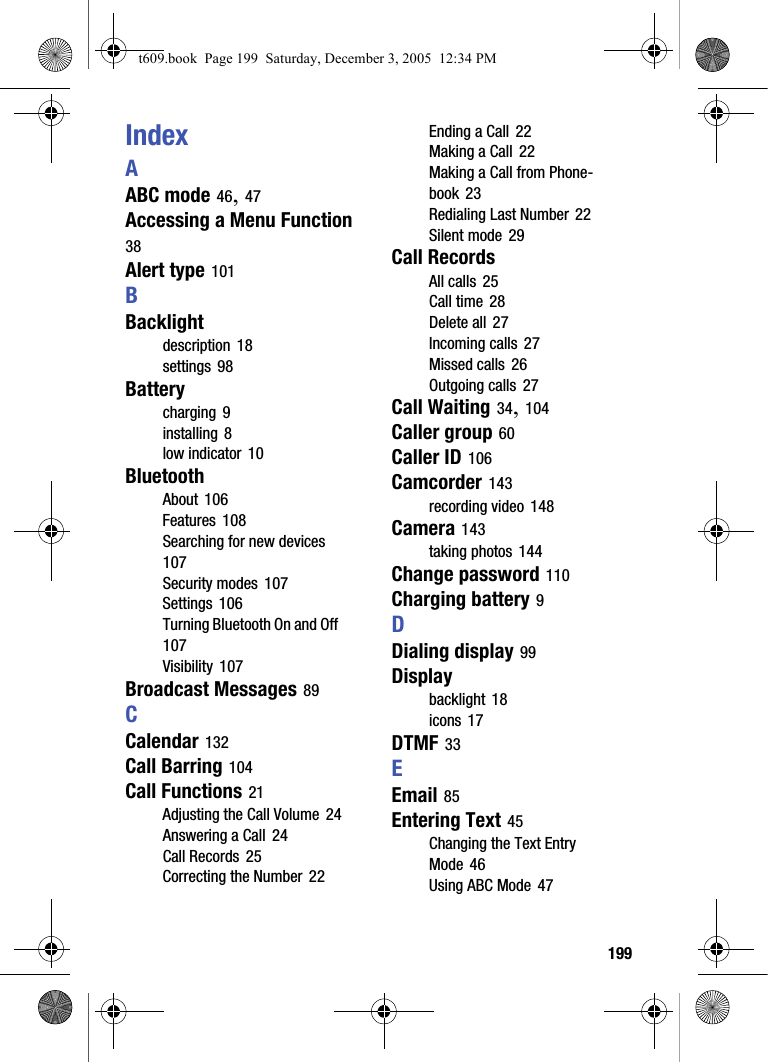

199IndexAABC mode 46, 47Accessing a Menu Function 38Alert type 101BBacklightdescription 18settings 98Batterycharging 9installing 8low indicator 10BluetoothAbout 106Features 108Searching for new devices 107Security modes 107Settings 106Turning Bluetooth On and Off 107Visibility 107Broadcast Messages 89CCalendar 132Call Barring 104Call Functions 21Adjusting the Call Volume 24Answering a Call 24Call Records 25Correcting the Number 22Ending a Call 22Making a Call 22Making a Call from Phone-book 23Redialing Last Number 22Silent mode 29Call RecordsAll calls 25Call time 28Delete all 27Incoming calls 27Missed calls 26Outgoing calls 27Call Waiting 34, 104Caller group 60Caller ID 106Camcorder 143recording video 148Camera 143taking photos 144Change password 110Charging battery 9DDialing display 99Displaybacklight 18icons 17DTMF 33EEmail 85Entering Text 45Changing the Text Entry Mode 46Using ABC Mode 47t609.book Page 199 Saturday, December 3, 2005 12:34 PM

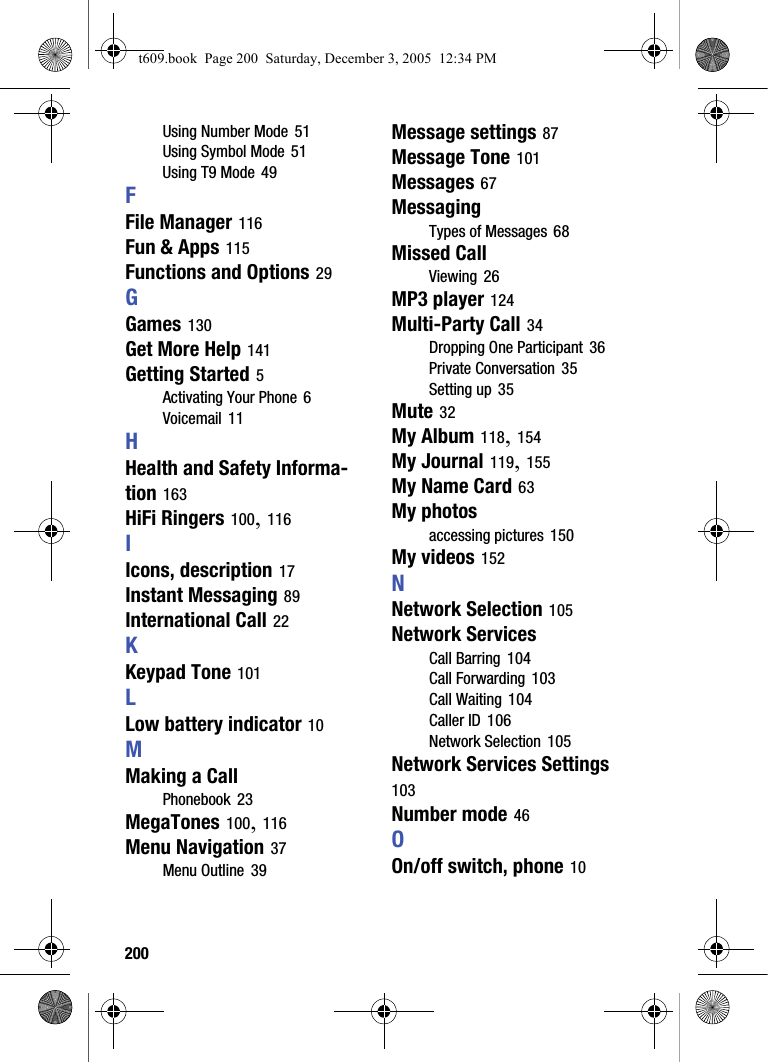

200Using Number Mode 51Using Symbol Mode 51Using T9 Mode 49FFile Manager 116Fun & Apps 115Functions and Options 29GGames 130Get More Help 141Getting Started 5Activating Your Phone 6Voicemail 11HHealth and Safety Informa-tion 163HiFi Ringers 100, 116IIcons, description 17Instant Messaging 89International Call 22KKeypad Tone 101LLow battery indicator 10MMaking a CallPhonebook 23MegaTones 100, 116Menu Navigation 37Menu Outline 39Message settings 87Message Tone 101Messages 67MessagingTypes of Messages 68Missed CallViewing 26MP3 player 124Multi-Party Call 34Dropping One Participant 36Private Conversation 35Setting up 35Mute 32My Album 118, 154My Journal 119, 155My Name Card 63My photosaccessing pictures 150My videos 152NNetwork Selection 105Network ServicesCall Barring 104Call Forwarding 103Call Waiting 104Caller ID 106Network Selection 105Network Services Settings 103Number mode 46OOn/off switch, phone 10t609.book Page 200 Saturday, December 3, 2005 12:34 PM

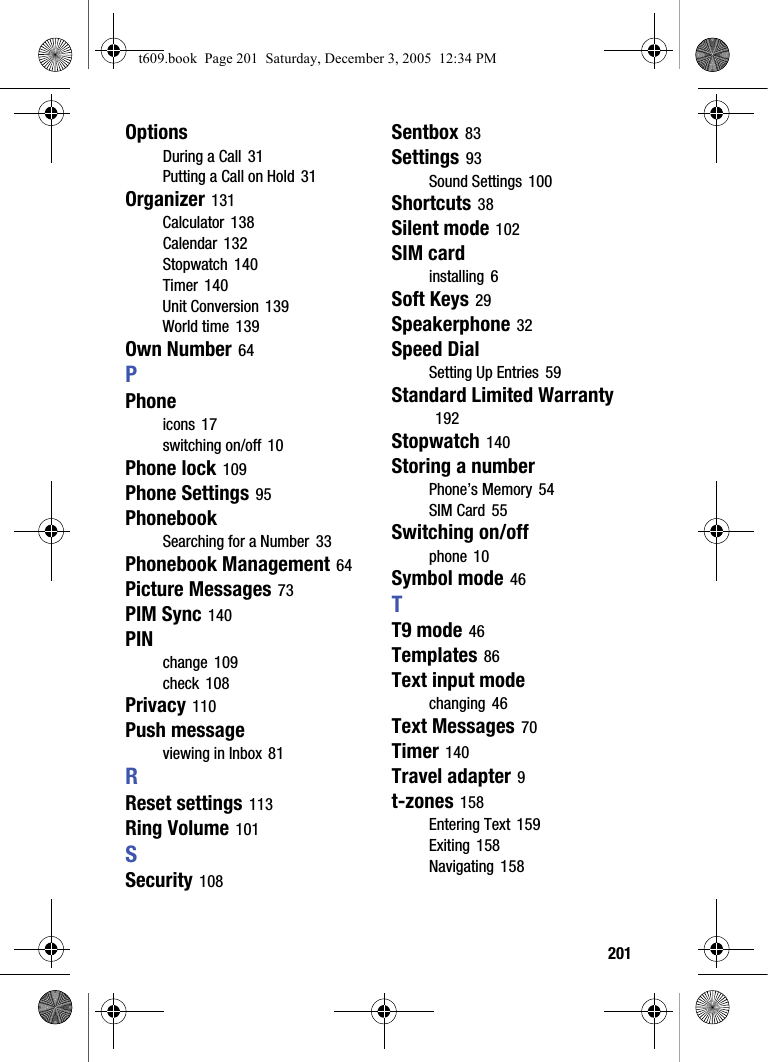

201OptionsDuring a Call 31Putting a Call on Hold 31Organizer 131Calculator 138Calendar 132Stopwatch 140Timer 140Unit Conversion 139World time 139Own Number 64PPhoneicons 17switching on/off 10Phone lock 109Phone Settings 95PhonebookSearching for a Number 33Phonebook Management 64Picture Messages 73PIM Sync 140PINchange 109check 108Privacy 110Push messageviewing in Inbox 81RReset settings 113Ring Volume 101SSecurity 108Sentbox 83Settings 93Sound Settings 100Shortcuts 38Silent mode 102SIM cardinstalling 6Soft Keys 29Speakerphone 32Speed DialSetting Up Entries 59Standard Limited Warranty 192Stopwatch 140Storing a numberPhone’s Memory 54SIM Card 55Switching on/offphone 10Symbol mode 46TT9 mode 46Templates 86Text input modechanging 46Text Messages 70Timer 140Travel adapter 9t-zones 158Entering Text 159Exiting 158Navigating 158t609.book Page 201 Saturday, December 3, 2005 12:34 PM

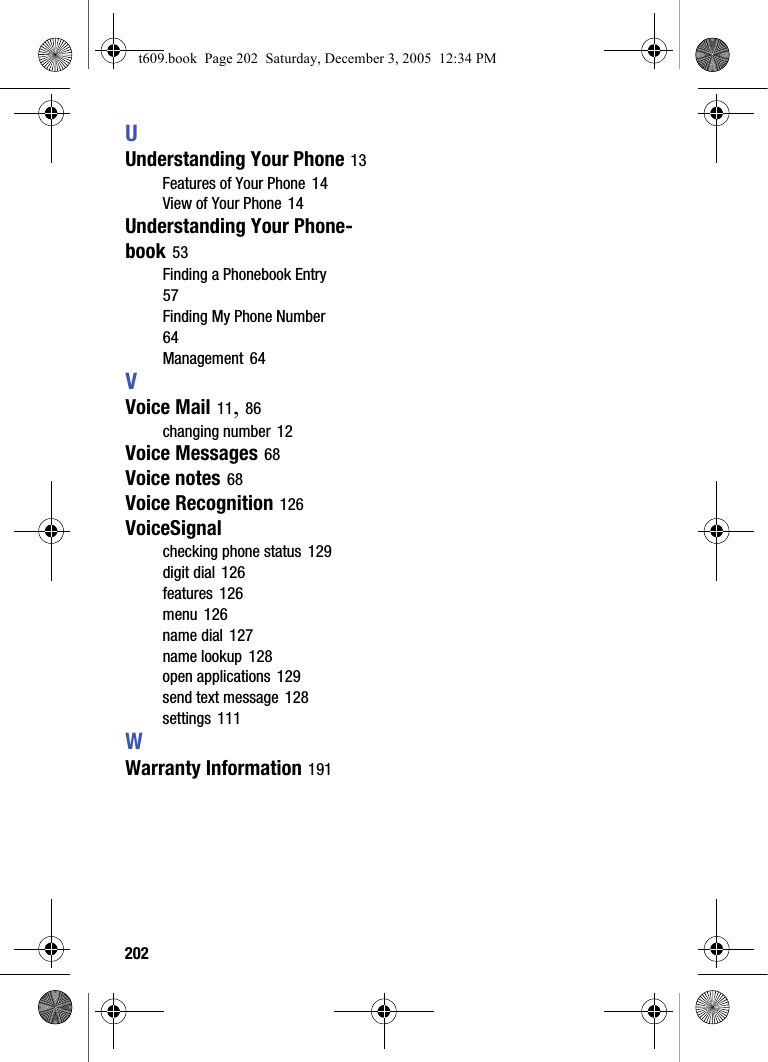

202UUnderstanding Your Phone 13Features of Your Phone 14View of Your Phone 14Understanding Your Phone-book 53Finding a Phonebook Entry 57Finding My Phone Number 64Management 64VVoice Mail 11, 86changing number 12Voice Messages 68Voice notes 68Voice Recognition 126VoiceSignalchecking phone status 129digit dial 126features 126menu 126name dial 127name lookup 128open applications 129send text message 128settings 111WWarranty Information 191t609.book Page 202 Saturday, December 3, 2005 12:34 PM
