Samsung Electronics Co SLM4030ND Printer User Manual

Samsung Electronics Co Ltd Printer

Users Manual 8

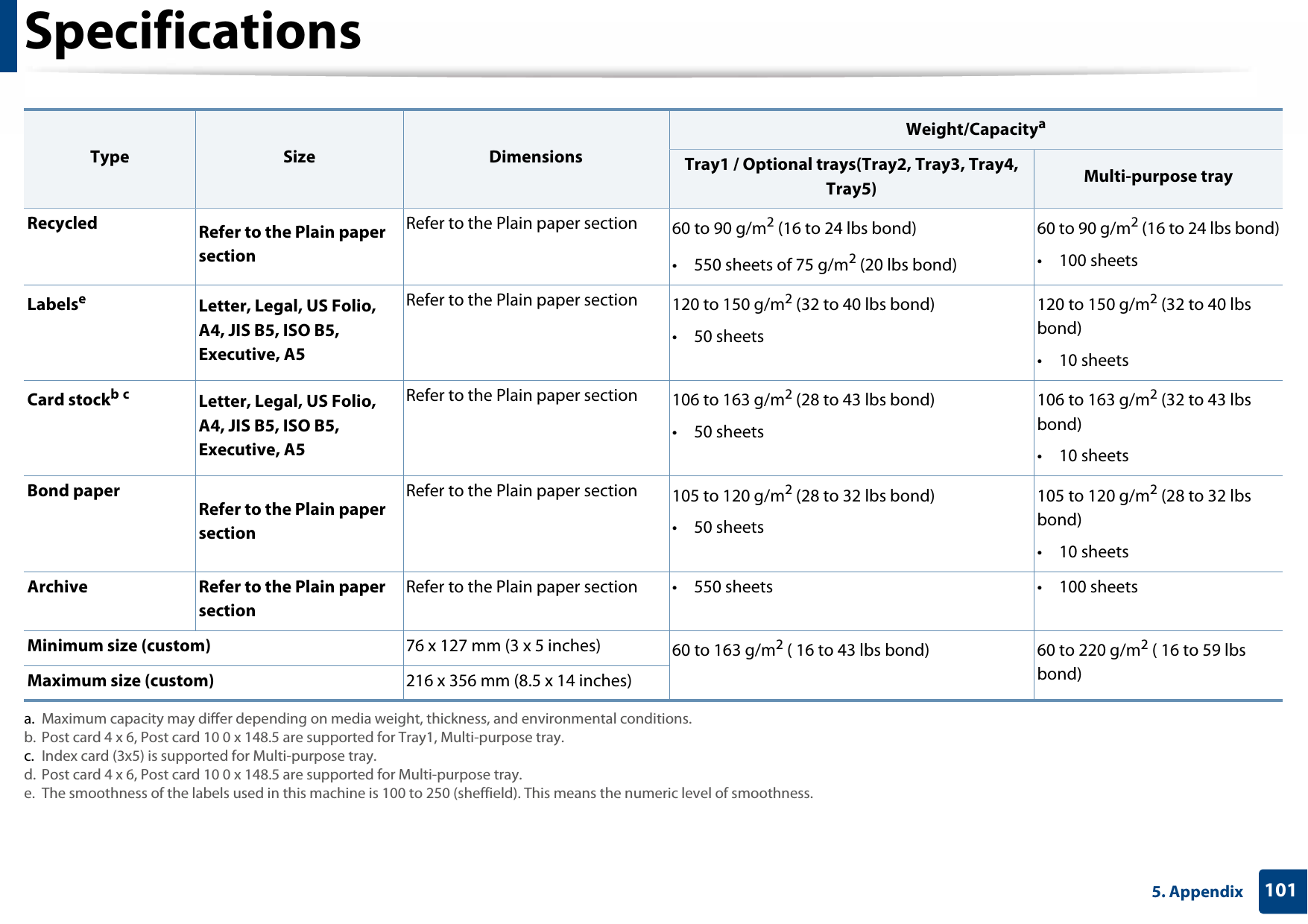

Specifications1015. Appendix Recycled Refer to the Plain paper sectionRefer to the Plain paper section 60 to 90 g/m2 (16 to 24 lbs bond)• 550 sheets of 75 g/m2 (20 lbs bond)60 to 90 g/m2 (16 to 24 lbs bond)• 100 sheetsLabelseLetter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lbs bond)• 50 sheets120 to 150 g/m2 (32 to 40 lbs bond)• 10 sheetsCard stockb cLetter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section 106 to 163 g/m2 (28 to 43 lbs bond)• 50 sheets106 to 163 g/m2 (32 to 43 lbs bond)• 10 sheetsBond paperRefer to the Plain paper section Refer to the Plain paper section 105 to 120 g/m2 (28 to 32 lbs bond)• 50 sheets105 to 120 g/m2 (28 to 32 lbs bond)• 10 sheetsArchive Refer to the Plain paper section Refer to the Plain paper section • 550 sheets • 100 sheetsMinimum size (custom) 76 x 127 mm (3 x 5 inches) 60 to 163 g/m2 ( 16 to 43 lbs bond) 60 to 220 g/m2 ( 16 to 59 lbs bond)Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions.b. Post card 4 x 6, Post card 10 0 x 148.5 are supported for Tray1, Multi-purpose tray.c. Index card (3x5) is supported for Multi-purpose tray.d. Post card 4 x 6, Post card 10 0 x 148.5 are supported for Multi-purpose tray.e. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.Type Size DimensionsWeight/CapacityaTray1 / Optional trays(Tray2, Tray3, Tray4, Tray5) Multi-purpose tray

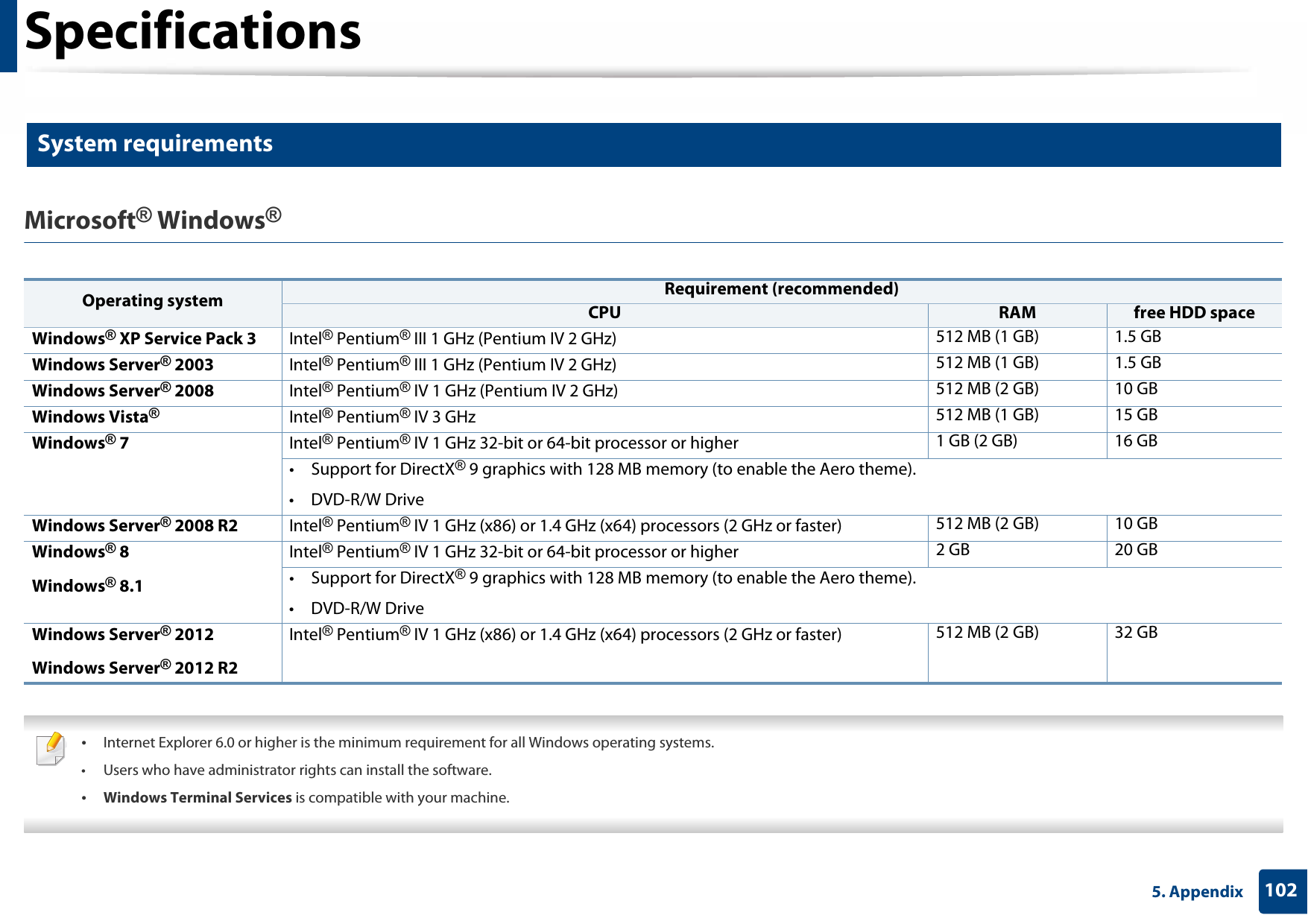

Specifications1025. Appendix3 System requirementsMicrosoft® Windows® •Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.• Users who have administrator rights can install the software.•Windows Terminal Services is compatible with your machine. Operating system Requirement (recommended)CPU RAM free HDD spaceWindows® XP Service Pack 3 Intel® Pentium® III 1 GHz (Pentium IV 2 GHz) 512 MB (1 GB) 1.5 GBWindows Server® 2003 Intel® Pentium® III 1 GHz (Pentium IV 2 GHz) 512 MB (1 GB) 1.5 GBWindows Server® 2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz) 512 MB (2 GB) 10 GBWindows Vista®Intel® Pentium® IV 3 GHz 512 MB (1 GB) 15 GBWindows® 7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).•DVD-R/W DriveWindows Server® 2008 R2 Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 10 GBWindows® 8Windows® 8.1Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 2 GB 20 GB• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).•DVD-R/W DriveWindows Server® 2012Windows Server® 2012 R2Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 32 GB

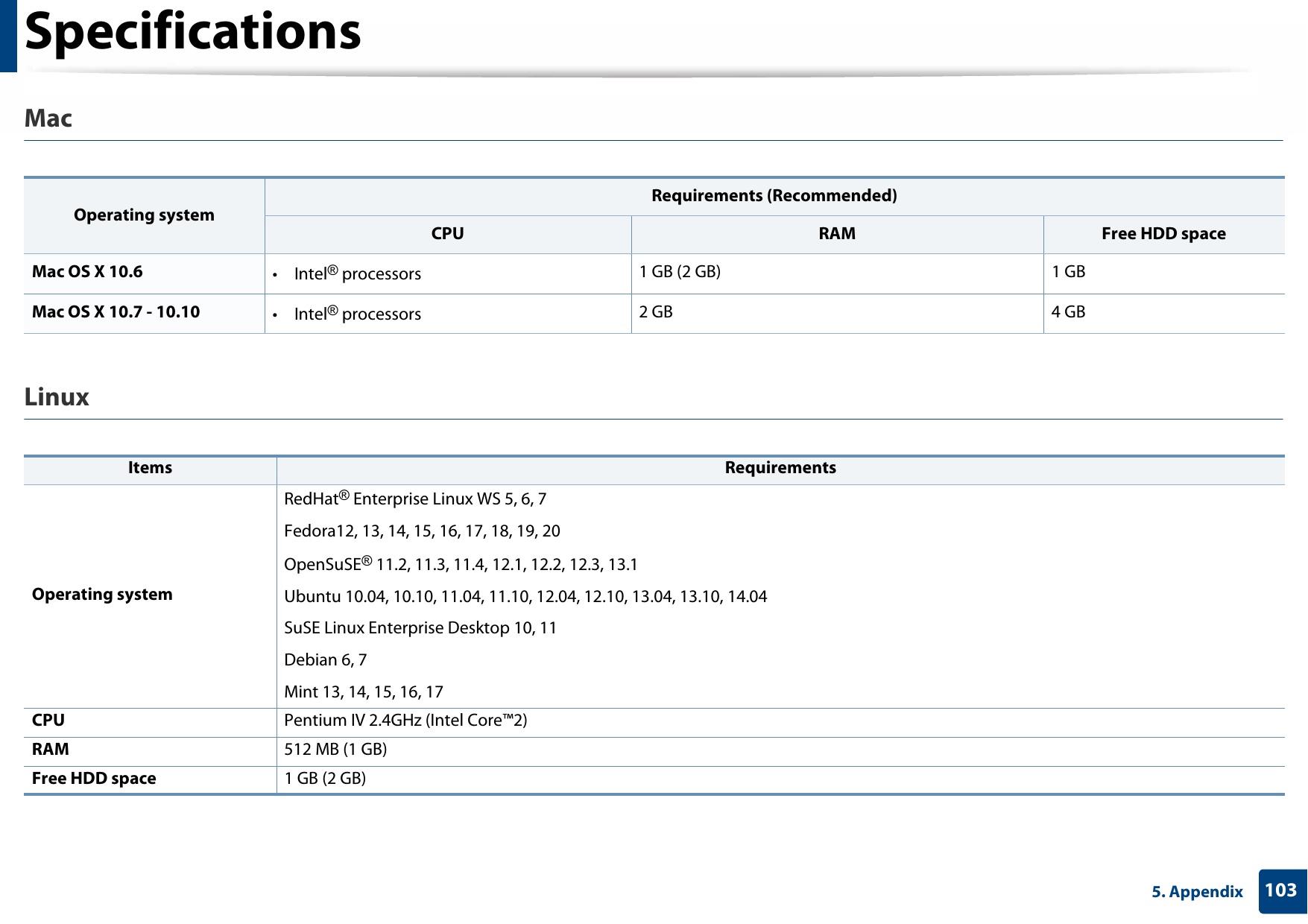

Specifications1035. AppendixMac Linux Operating systemRequirements (Recommended)CPU RAM Free HDD spaceMac OS X 10.6 •Intel® processors 1 GB (2 GB) 1 GBMac OS X 10.7 - 10.10 •Intel® processors 2 GB 4 GBItems RequirementsOperating systemRedHat® Enterprise Linux WS 5, 6, 7Fedora12, 13, 14, 15, 16, 17, 18, 19, 20OpenSuSE® 11.2, 11.3, 11.4, 12.1, 12.2, 12.3, 13.1Ubuntu 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04SuSE Linux Enterprise Desktop 10, 11Debian 6, 7Mint 13, 14, 15, 16, 17CPU Pentium IV 2.4GHz (Intel Core™2)RAM 512 MB (1 GB)Free HDD space 1 GB (2 GB)

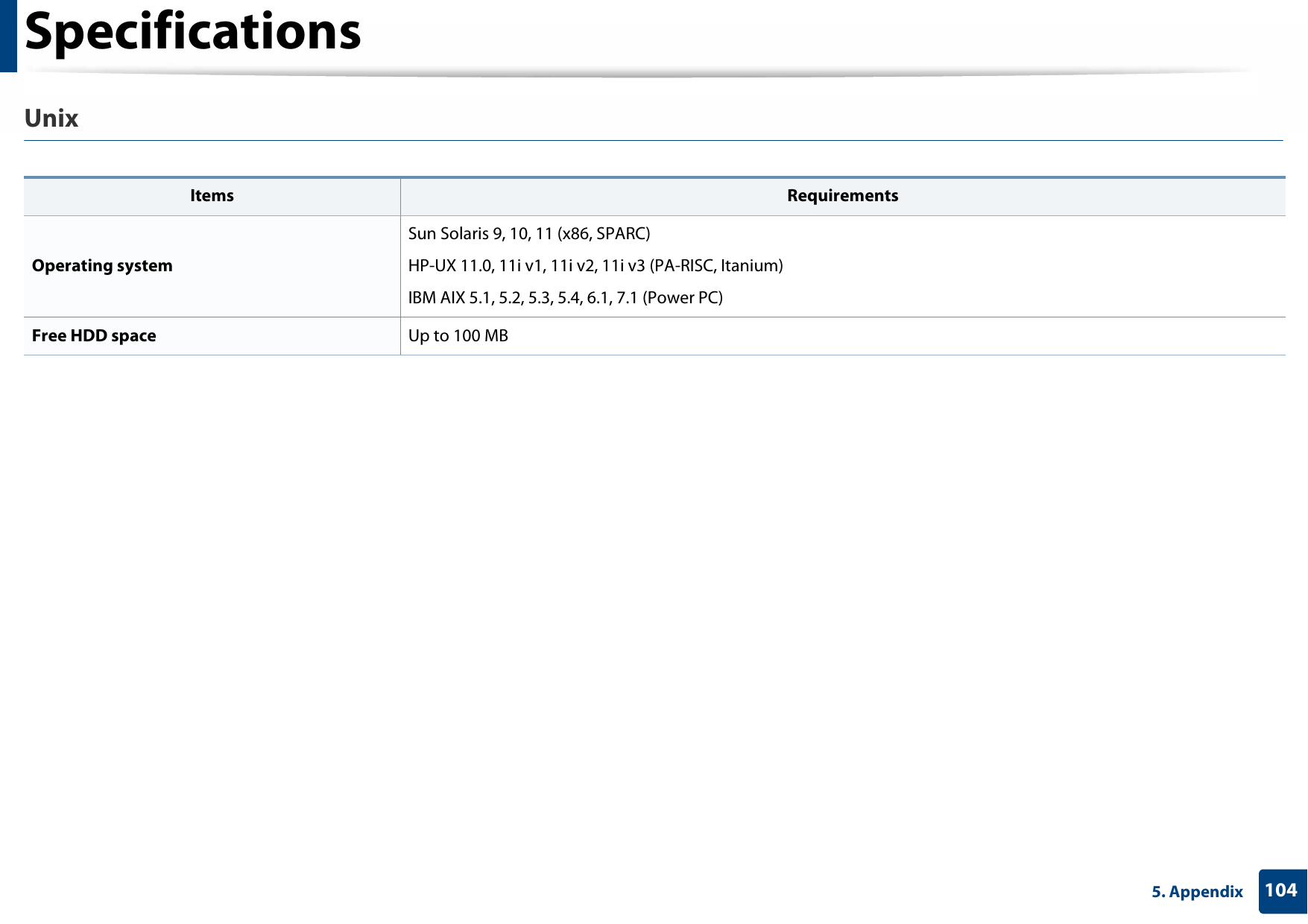

Specifications1045. AppendixUnixItems RequirementsOperating systemSun Solaris 9, 10, 11 (x86, SPARC) HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium) IBM AIX 5.1, 5.2, 5.3, 5.4, 6.1, 7.1 (Power PC)Free HDD space Up to 100 MB

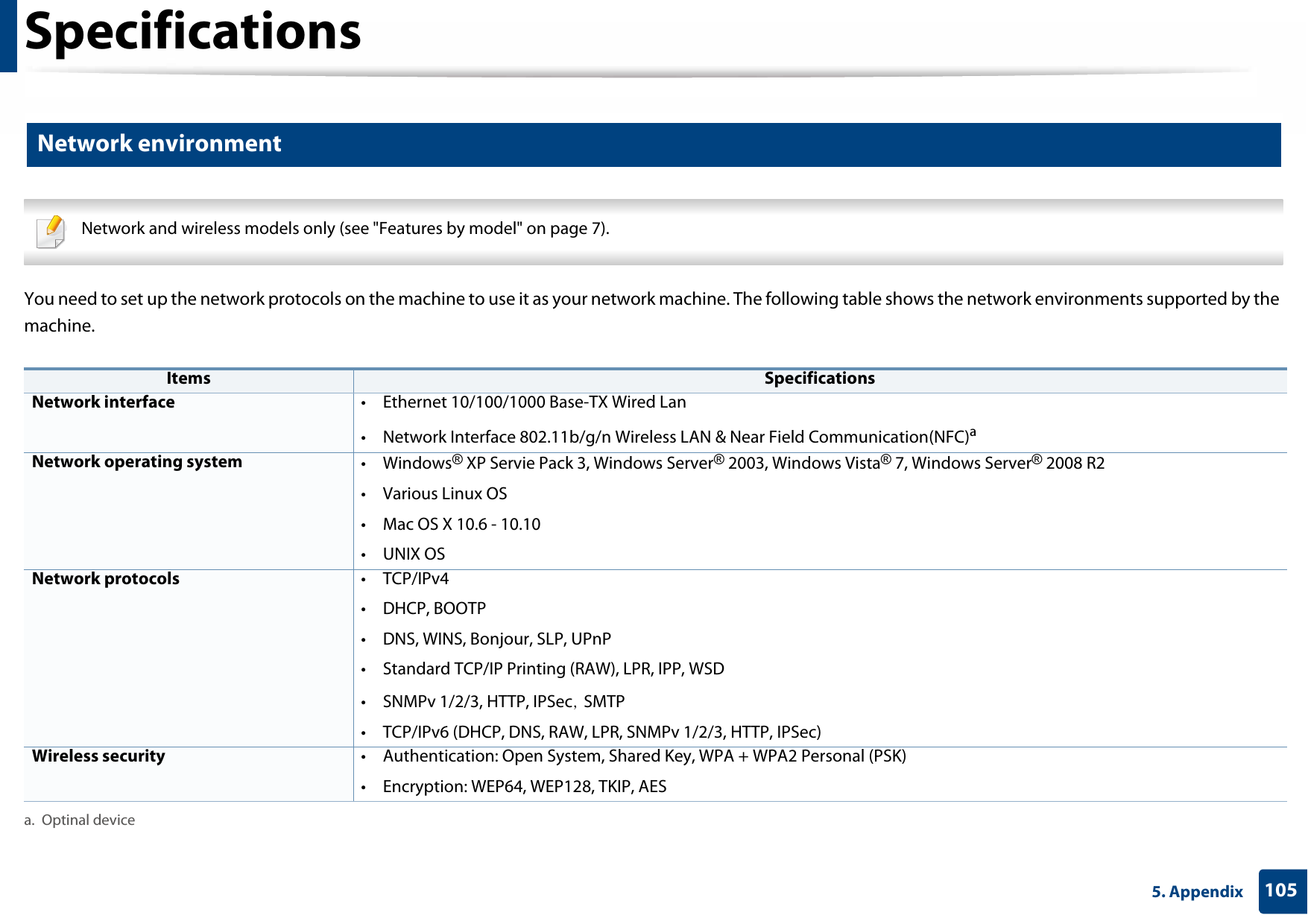

Specifications1055. Appendix4 Network environment Network and wireless models only (see "Features by model" on page 7). You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the machine. Items SpecificationsNetwork interface • Ethernet 10/100/1000 Base-TX Wired Lan• Network Interface 802.11b/g/n Wireless LAN & Near Field Communication(NFC)aa. Optinal deviceNetwork operating system •Windows® XP Servie Pack 3, Windows Server® 2003, Windows Vista® 7, Windows Server® 2008 R2•Various Linux OS• Mac OS X 10.6 - 10.10•UNIX OSNetwork protocols •TCP/IPv4• DHCP, BOOTP• DNS, WINS, Bonjour, SLP, UPnP• Standard TCP/IP Printing (RAW), LPR, IPP, WSD• SNMPv 1/2/3, HTTP, IPSec, SMTP• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP, IPSec)Wireless security • Authentication: Open System, Shared Key, WPA + WPA2 Personal (PSK)• Encryption: WEP64, WEP128, TKIP, AES

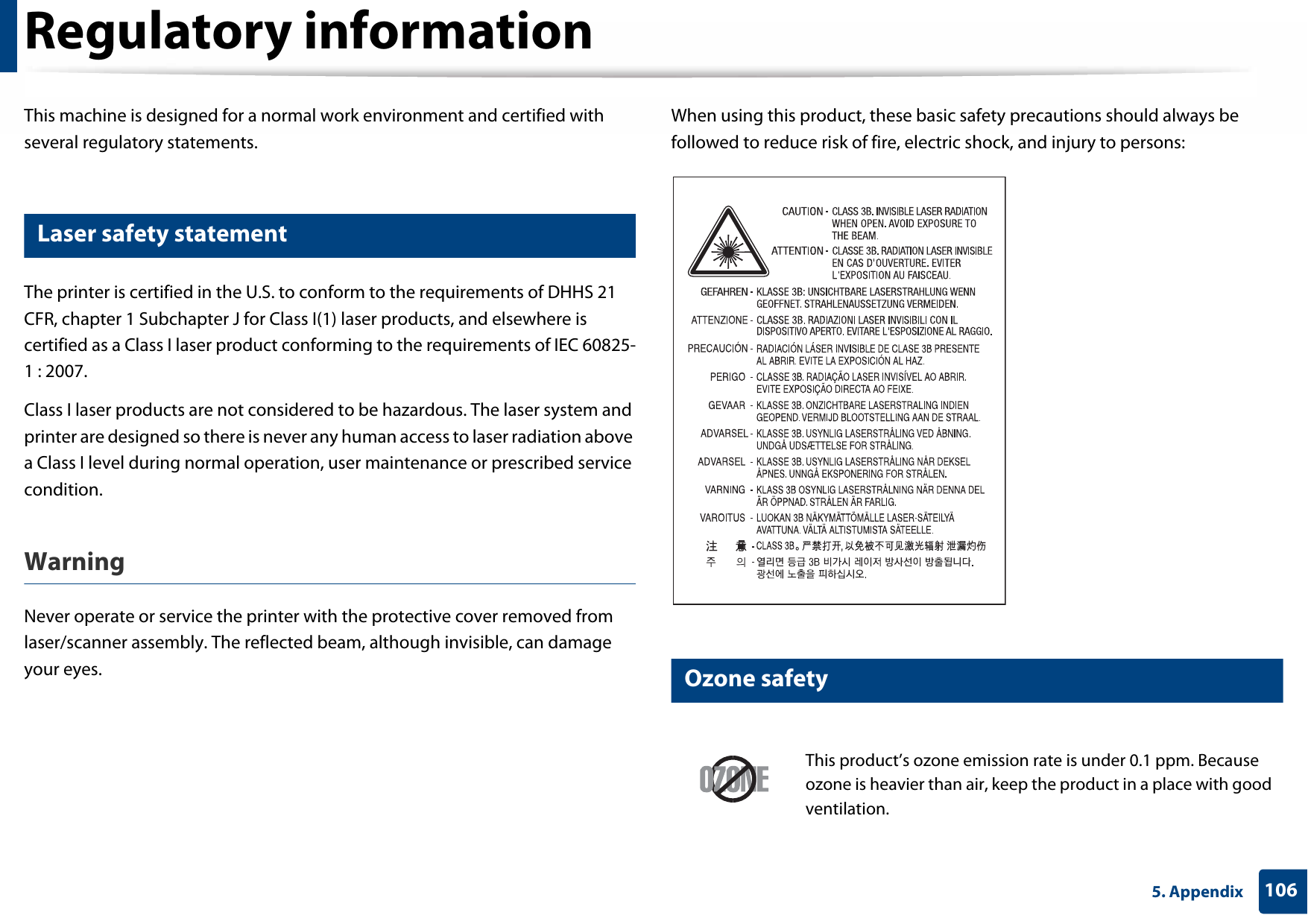

1065. AppendixRegulatory informationThis machine is designed for a normal work environment and certified with several regulatory statements.5 Laser safety statementThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1 : 2007.Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.Warning Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:6 Ozone safetyThis product’s ozone emission rate is under 0.1 ppm. Because ozone is heavier than air, keep the product in a place with good ventilation.

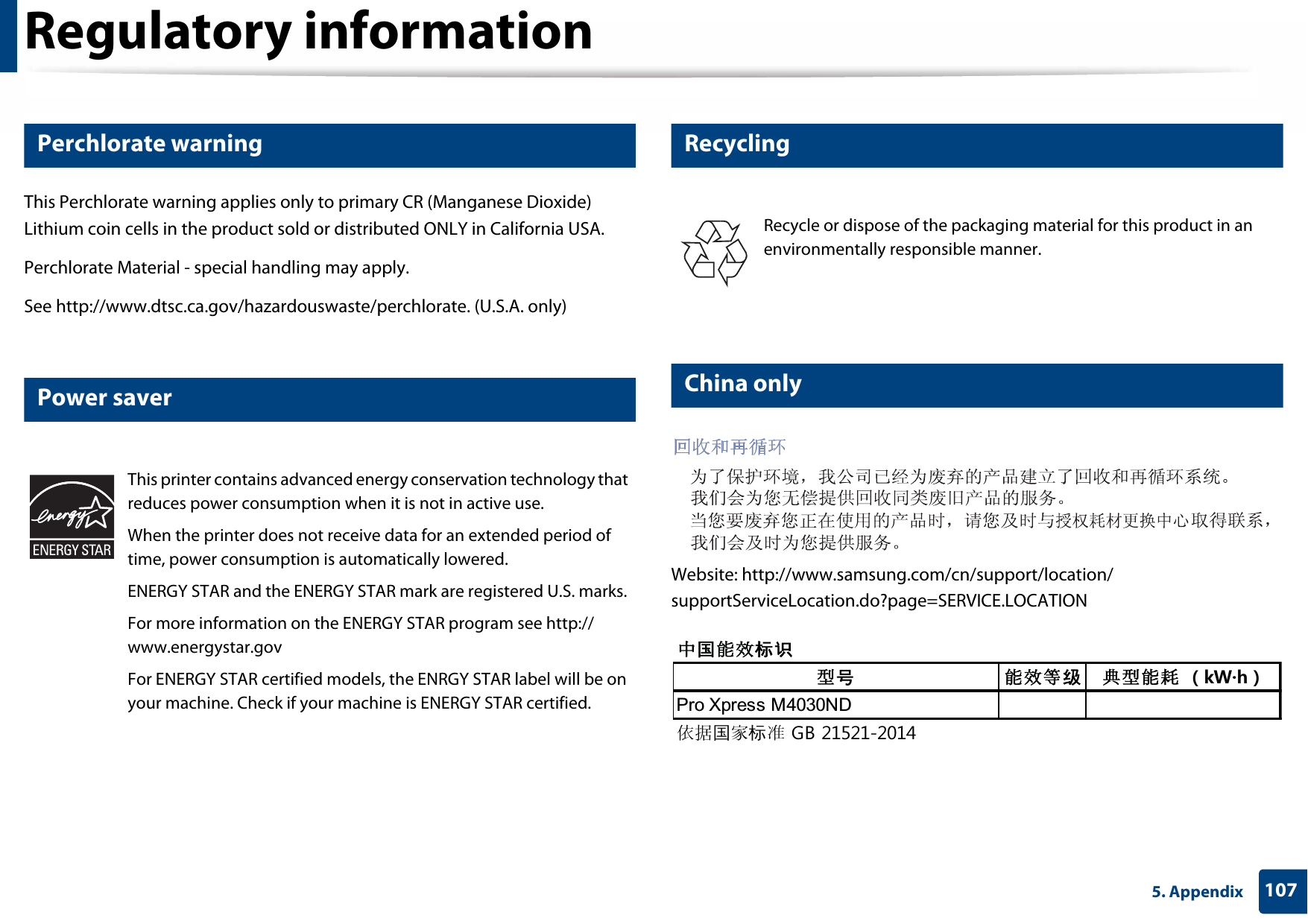

Regulatory information1075. Appendix7 Perchlorate warningThis Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.Perchlorate Material - special handling may apply.See http://www.dtsc.ca.gov/hazardouswaste/perchlorate. (U.S.A. only)8 Power saver9 Recycling10 China onlyWebsite: http://www.samsung.com/cn/support/location/supportServiceLocation.do?page=SERVICE.LOCATIONThis printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the printer does not receive data for an extended period of time, power consumption is automatically lowered.ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.govFor ENERGY STAR certified models, the ENRGY STAR label will be on your machine. Check if your machine is ENERGY STAR certified.Recycle or dispose of the packaging material for this product in an environmentally responsible manner.襦襦愤縑趀爮闭賉賉帞縑趀绌裎術賉縑聱ポM9śJマ3UR;SUHVV01'蜷筨愤竖爮襔*%

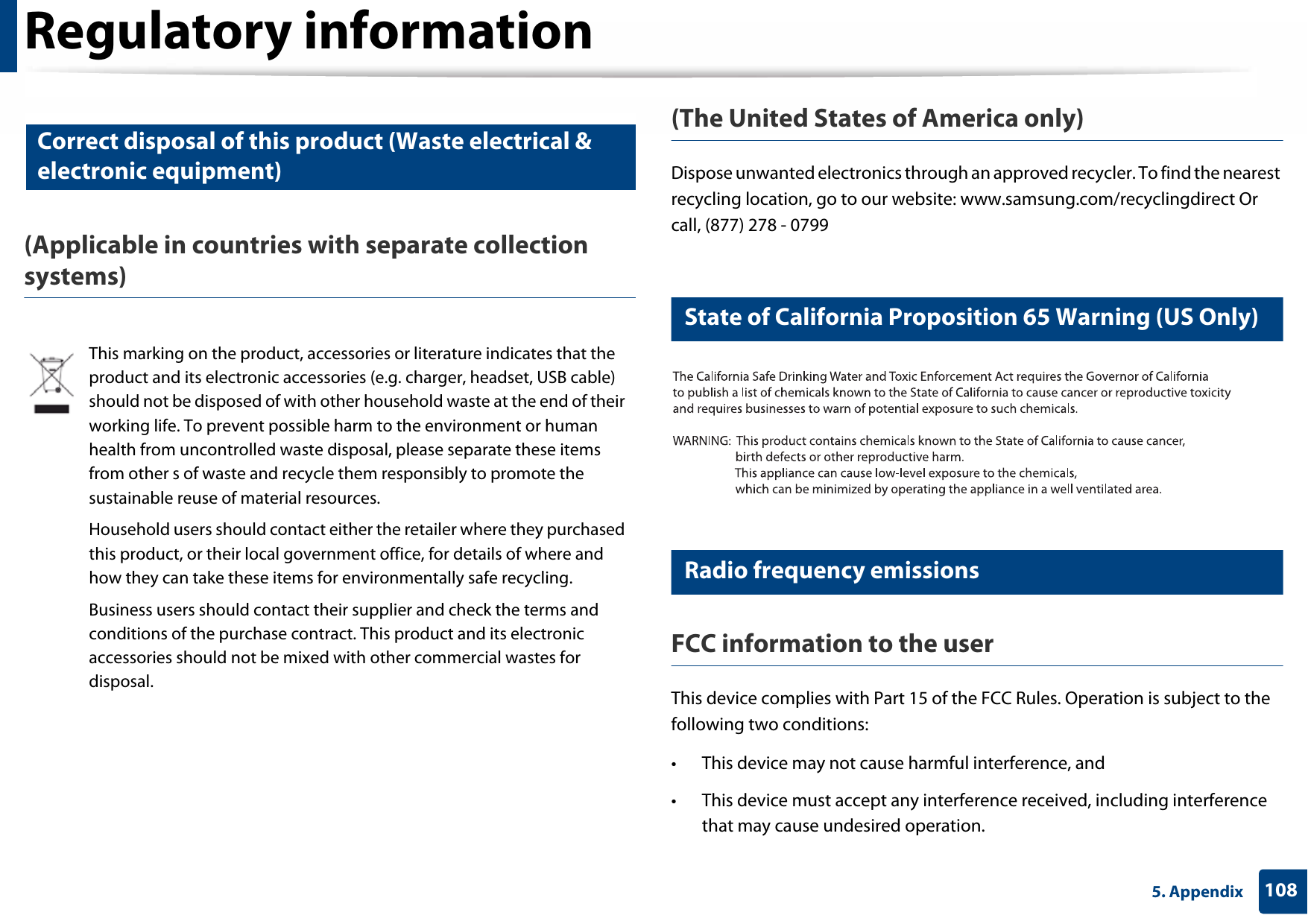

Regulatory information1085. Appendix11 Correct disposal of this product (Waste electrical & electronic equipment)(Applicable in countries with separate collection systems)(The United States of America only)Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 079912 State of California Proposition 65 Warning (US Only)13 Radio frequency emissionsFCC information to the userThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and• This device must accept any interference received, including interference that may cause undesired operation.This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other s of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

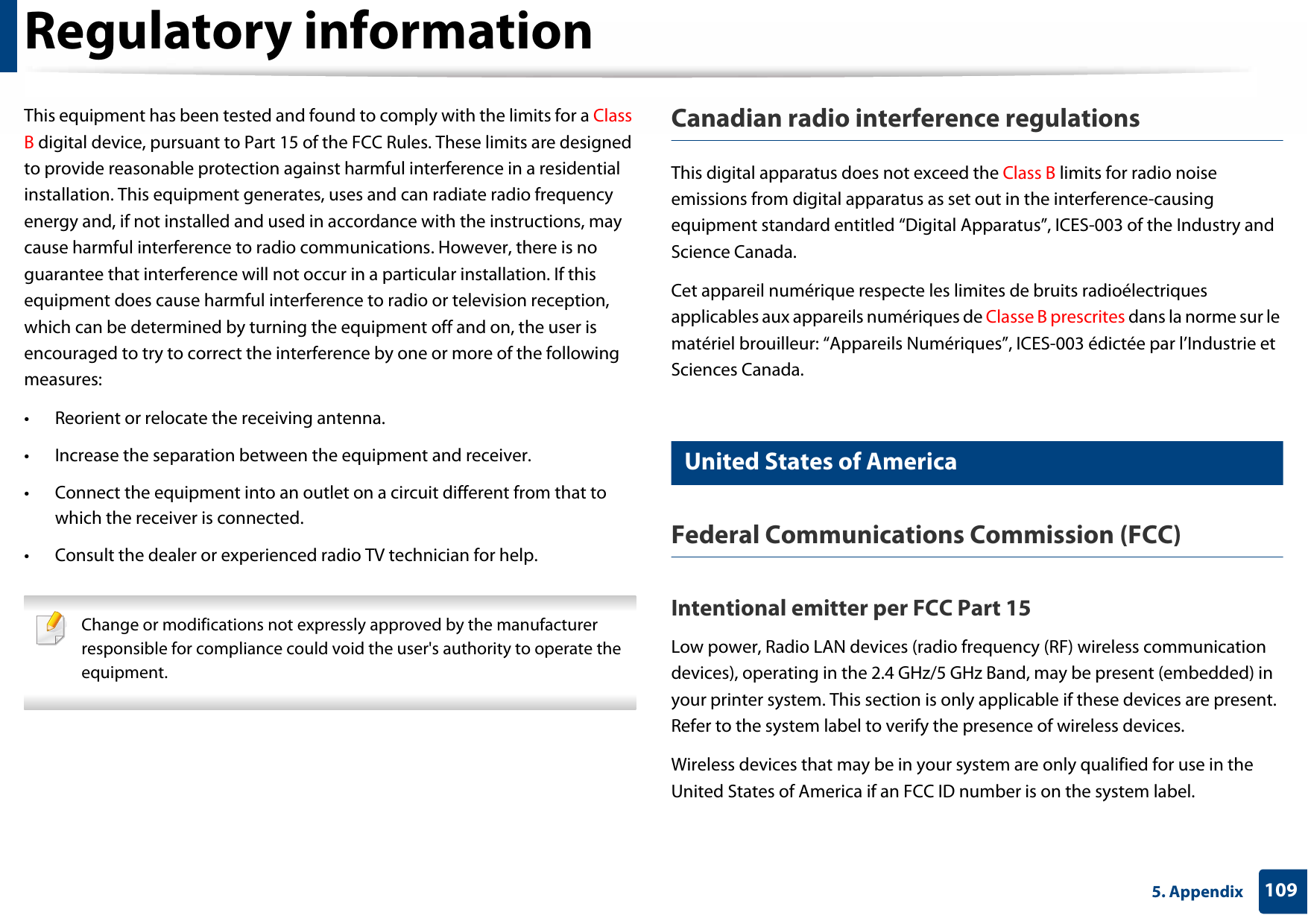

Regulatory information1095. AppendixThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or experienced radio TV technician for help. Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. Canadian radio interference regulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.14 United States of AmericaFederal Communications Commission (FCC)Intentional emitter per FCC Part 15Low power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

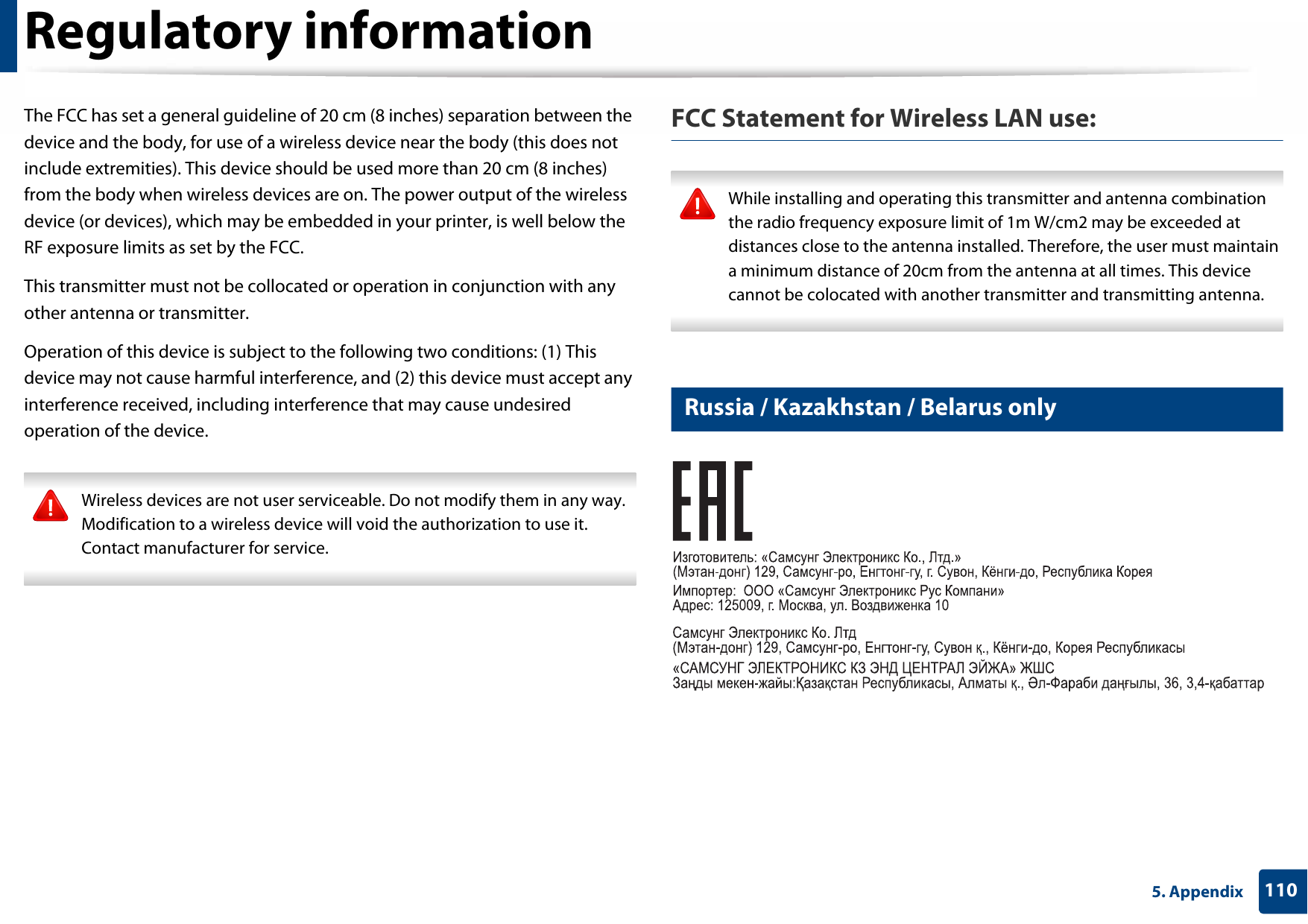

Regulatory information1105. AppendixThe FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service. FCC Statement for Wireless LAN use: While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device cannot be colocated with another transmitter and transmitting antenna. 15 Russia / Kazakhstan / Belarus only

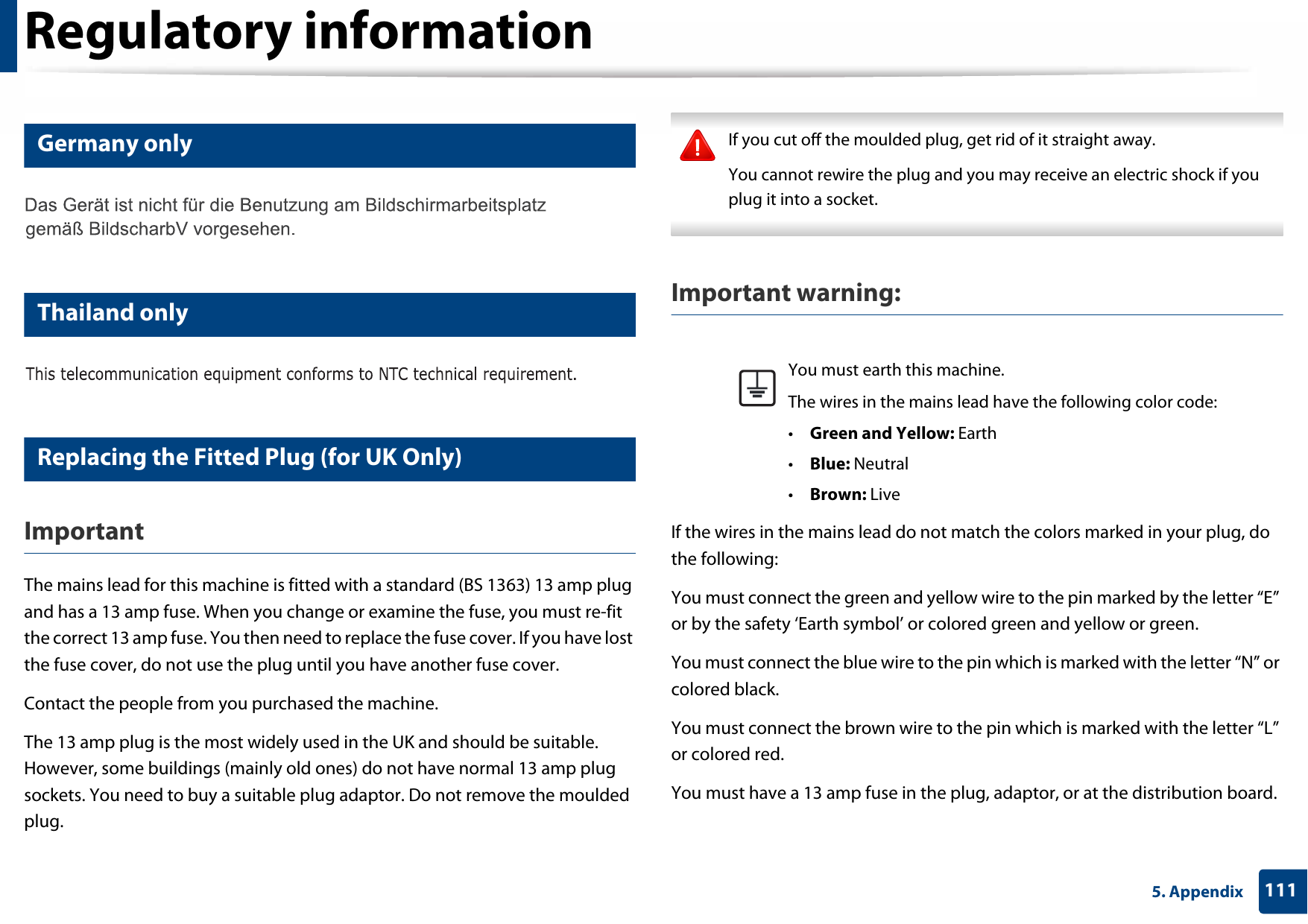

Regulatory information1115. Appendix16 Germany only17 Thailand only18 Replacing the Fitted Plug (for UK Only)ImportantThe mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover.Contact the people from you purchased the machine.The 13 amp plug is the most widely used in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug. If you cut off the moulded plug, get rid of it straight away.You cannot rewire the plug and you may receive an electric shock if you plug it into a socket. Important warning: If the wires in the mains lead do not match the colors marked in your plug, do the following:You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.You must connect the blue wire to the pin which is marked with the letter “N” or colored black.You must connect the brown wire to the pin which is marked with the letter “L” or colored red.You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.You must earth this machine.The wires in the mains lead have the following color code:•Green and Yellow: Earth•Blue: Neutral•Brown: Live

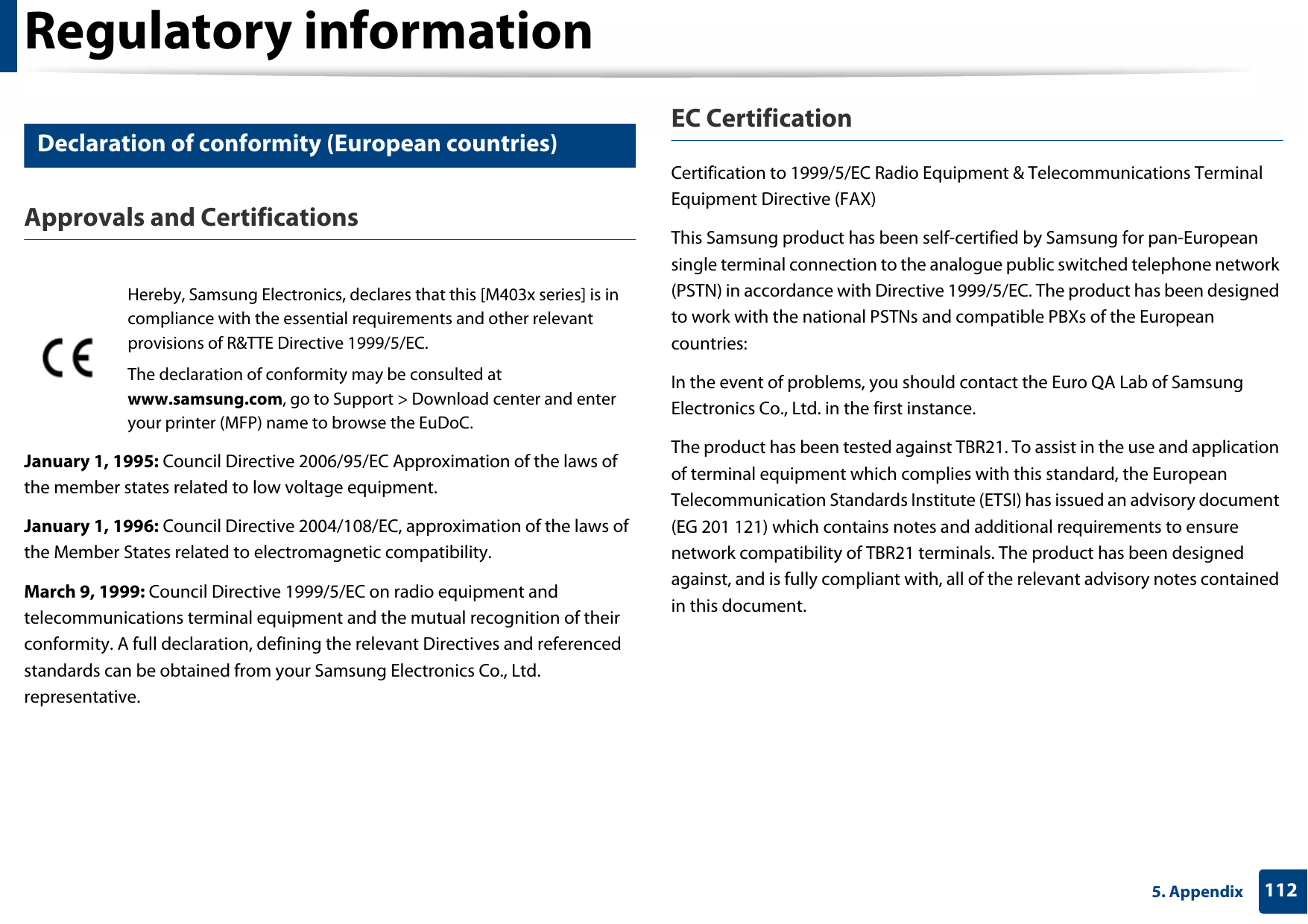

Regulatory information1125. Appendix19 Declaration of conformity (European countries)Approvals and CertificationsJanuary 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of the Member States related to electromagnetic compatibility.March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.EC CertificationCertification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.Hereby, Samsung Electronics, declares that this [M403x series] is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.The declaration of conformity may be consulted at www.samsung.com, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC.

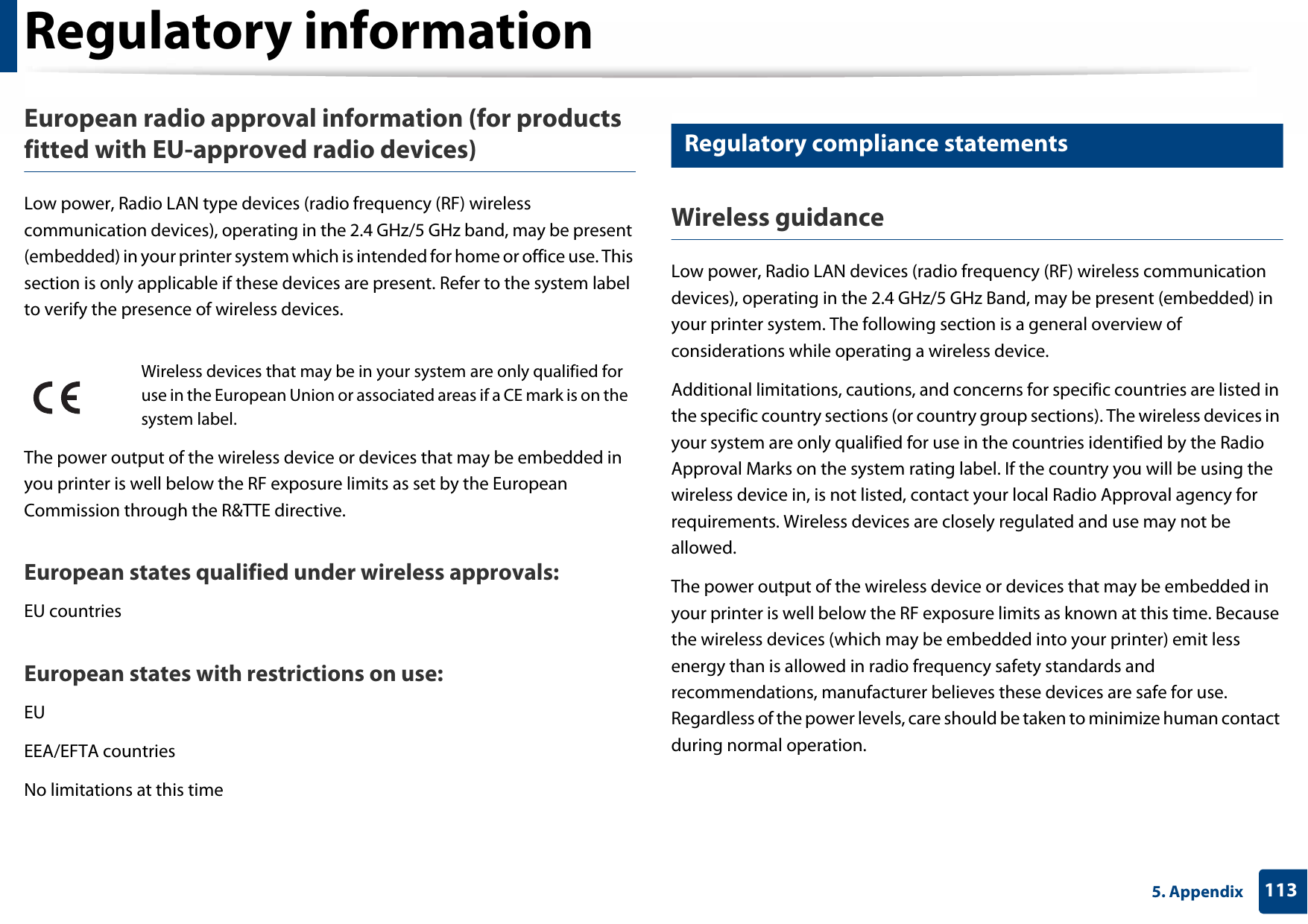

Regulatory information1135. AppendixEuropean radio approval information (for products fitted with EU-approved radio devices)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.European states qualified under wireless approvals:EU countriesEuropean states with restrictions on use:EUEEA/EFTA countriesNo limitations at this time20 Regulatory compliance statementsWireless guidanceLow power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark is on the system label.

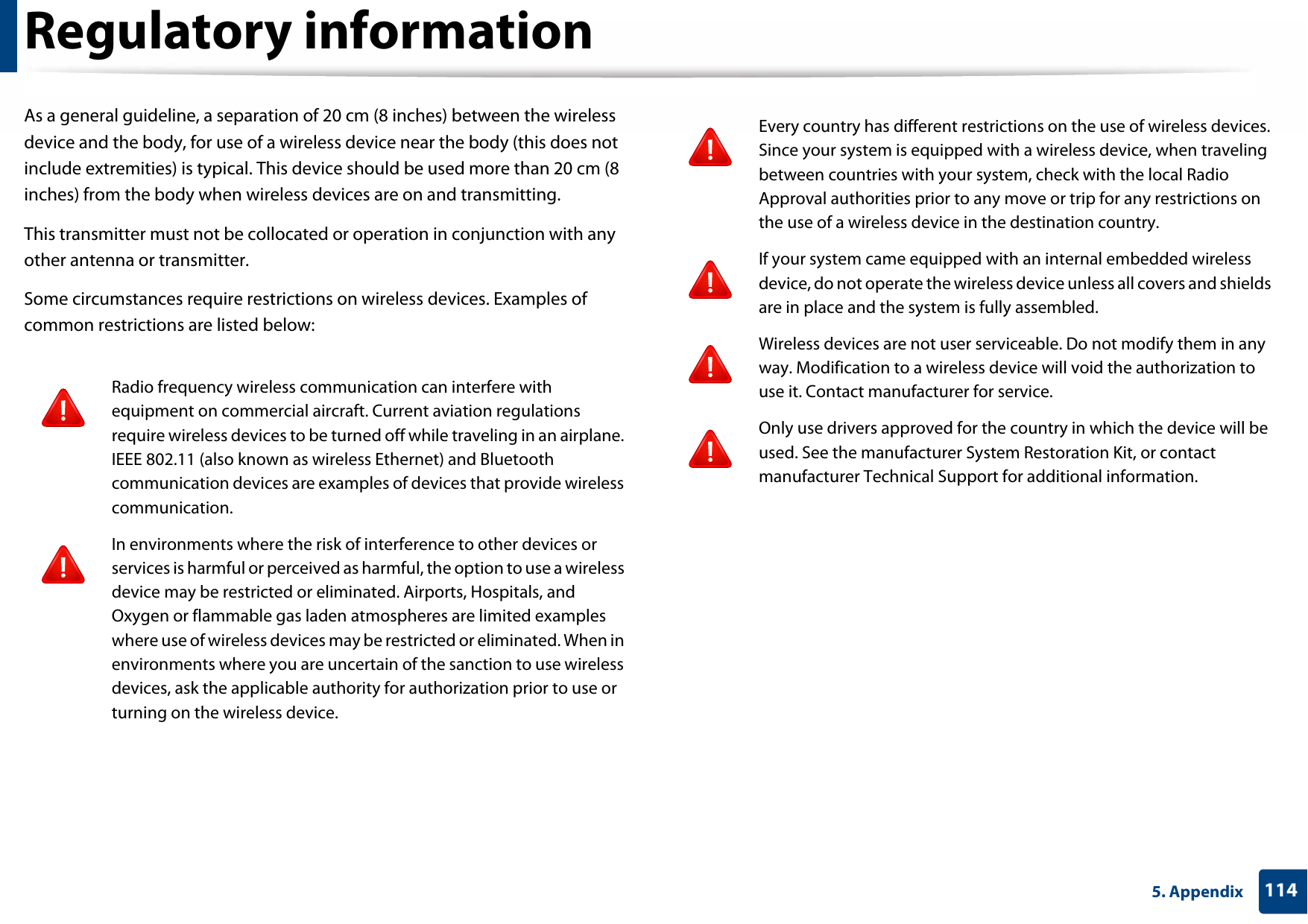

Regulatory information1145. AppendixAs a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

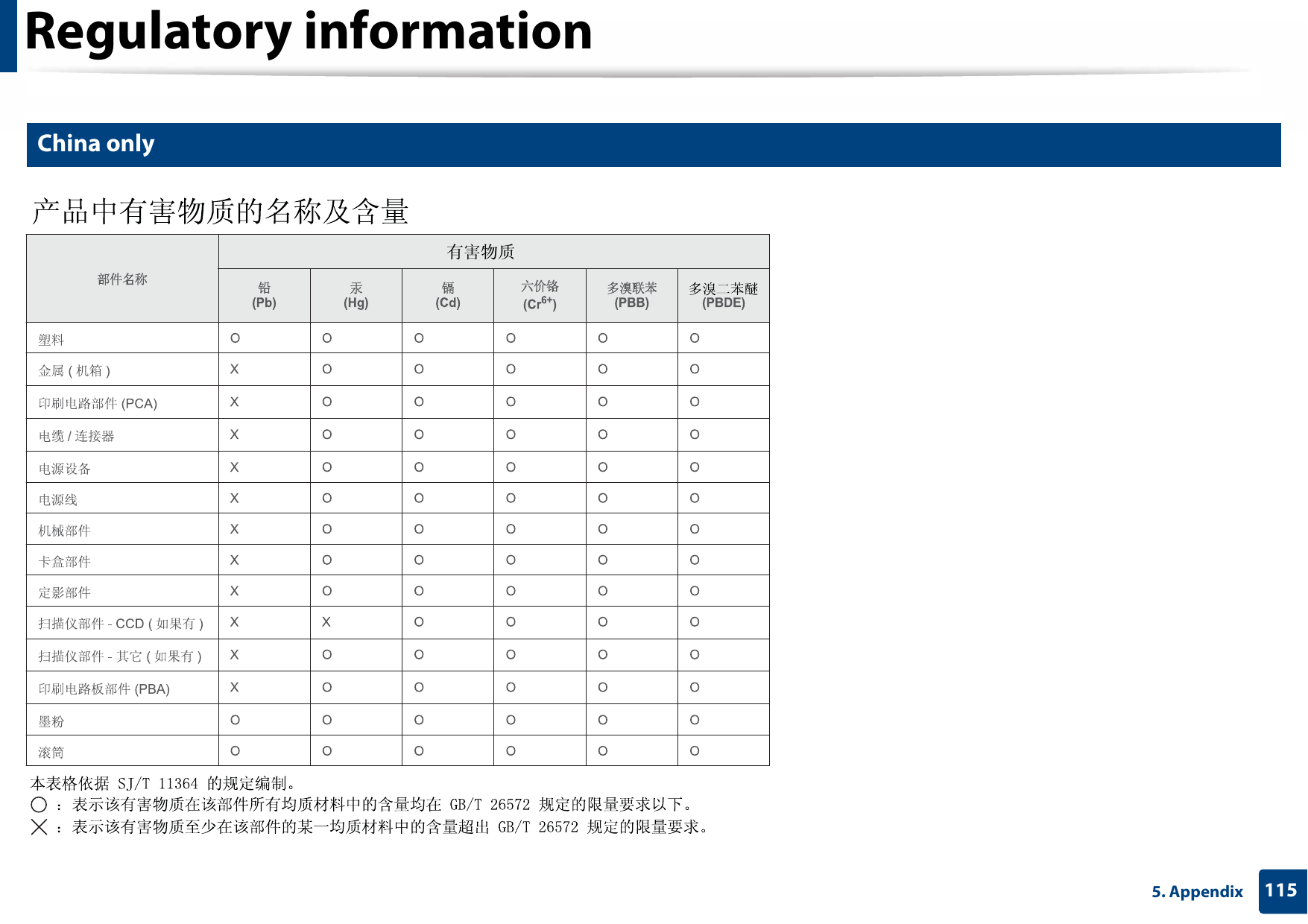

Regulatory information1155. Appendix21 China only᳝ᆇ⠽䋼

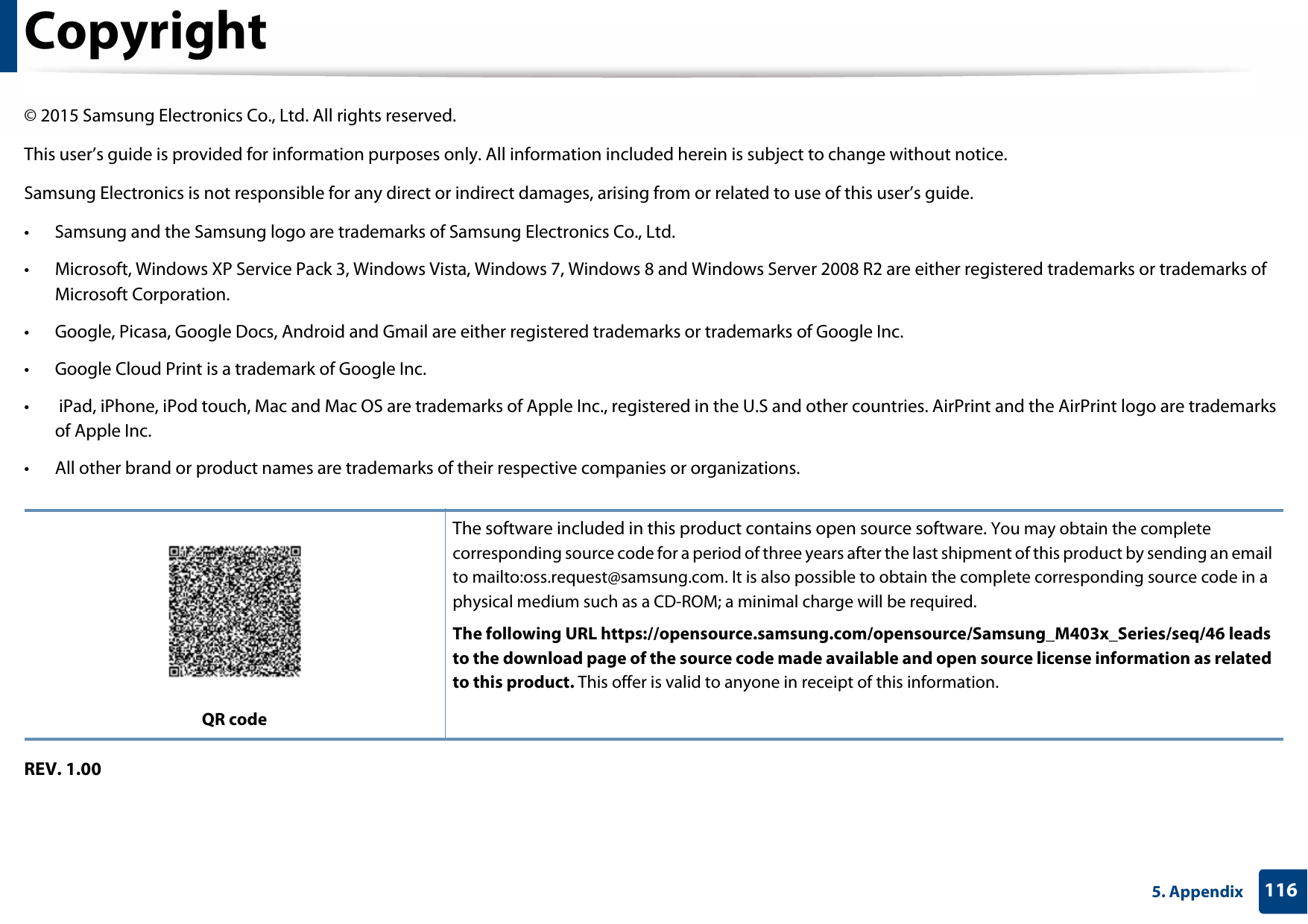

1165. AppendixCopyright© 2015 Samsung Electronics Co., Ltd. All rights reserved.This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.• Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.• Microsoft, Windows XP Service Pack 3, Windows Vista, Windows 7, Windows 8 and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation.• Google, Picasa, Google Docs, Android and Gmail are either registered trademarks or trademarks of Google Inc.• Google Cloud Print is a trademark of Google Inc.• iPad, iPhone, iPod touch, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S and other countries. AirPrint and the AirPrint logo are trademarks of Apple Inc.• All other brand or product names are trademarks of their respective companies or organizations.REV. 1.00QR codeThe software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:oss.request@samsung.com. It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.The following URL https://opensource.samsung.com/opensource/Samsung_M403x_Series/seq/46 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

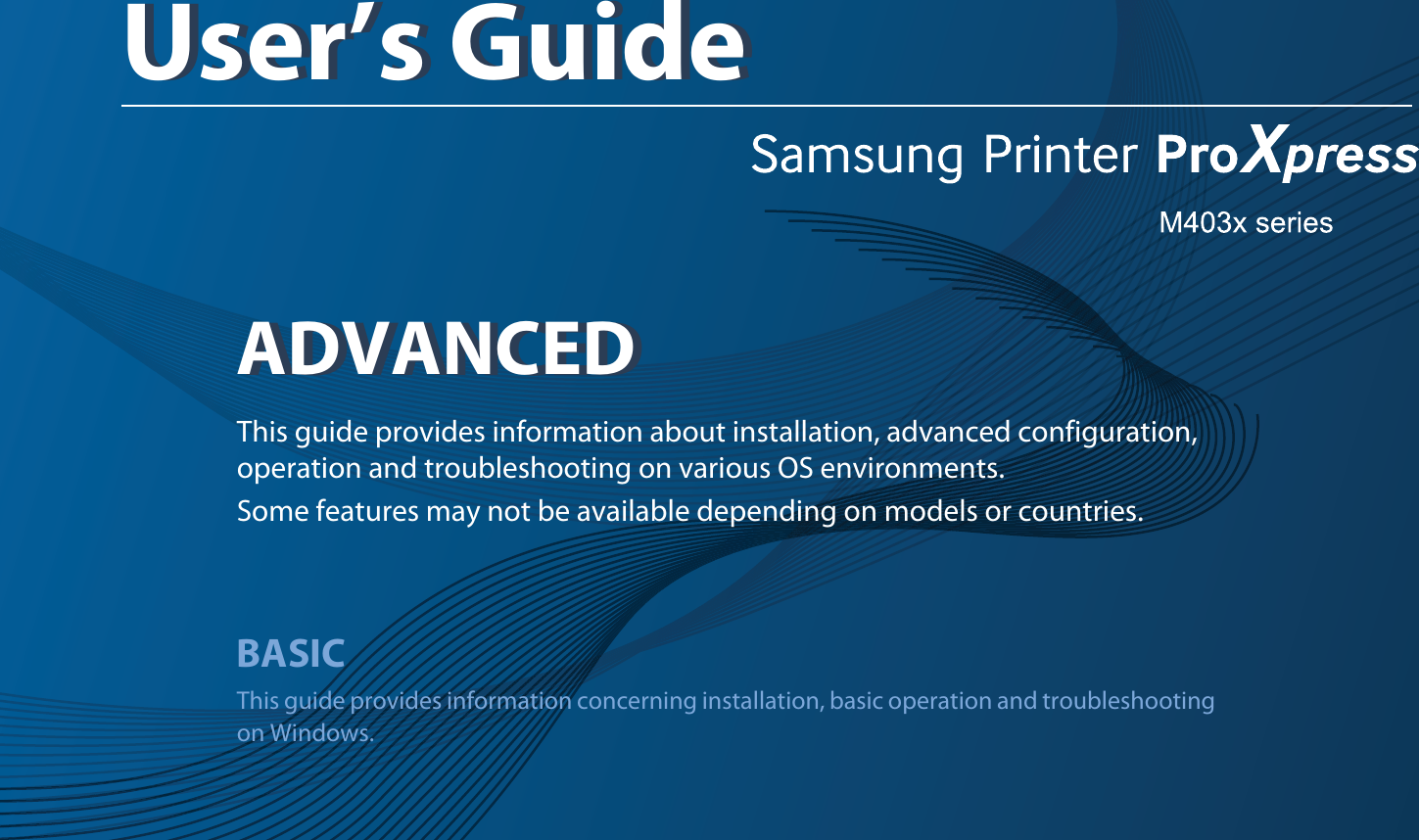

ADVANCEDUser’s GuideADVANCEDUser’s GuideThis guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries.BASICThis guide provides information concerning installation, basic operation and troubleshooting on Windows.

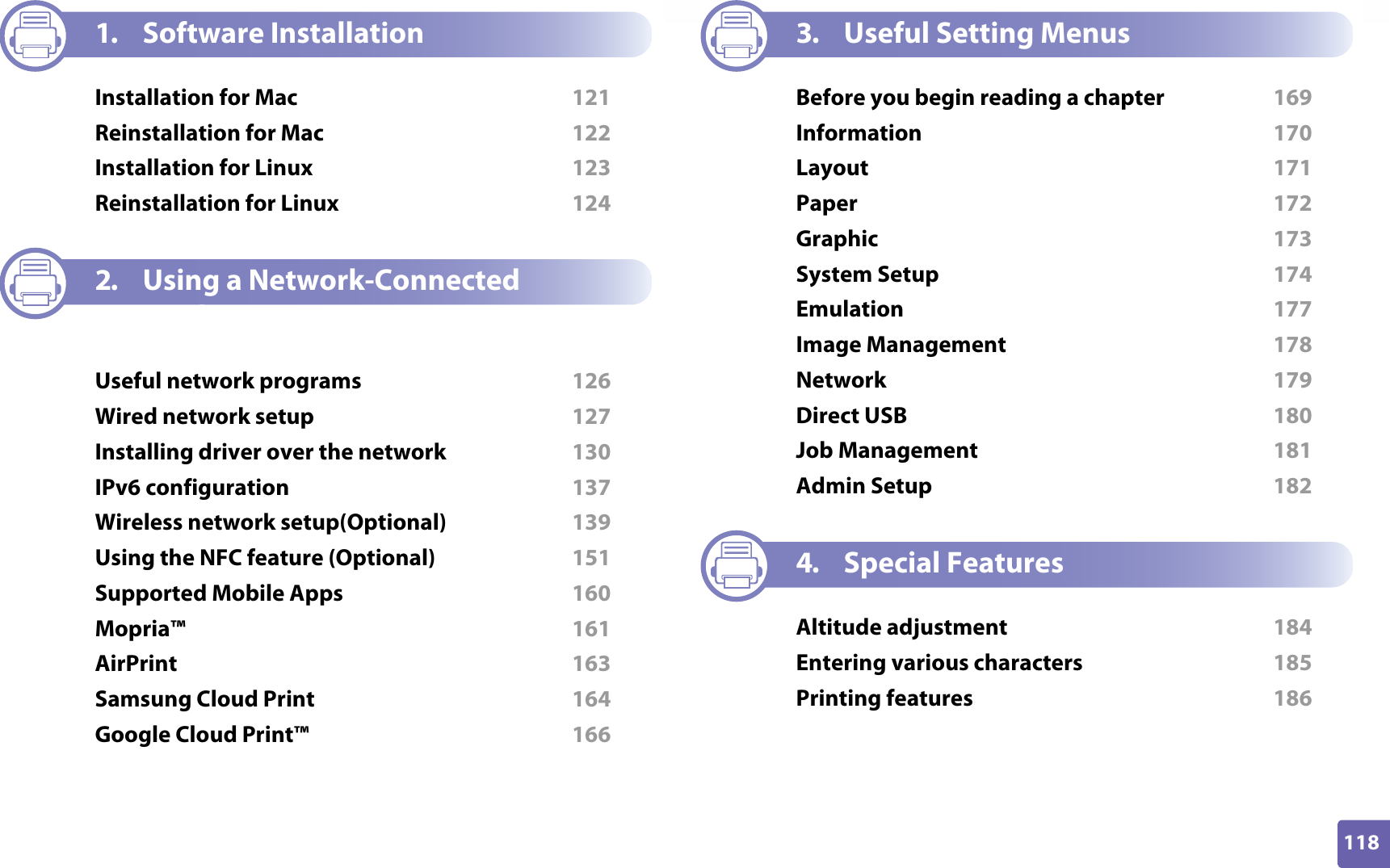

118ADVANCED1. Software InstallationInstallation for Mac 121Reinstallation for Mac 122Installation for Linux 123Reinstallation for Linux 1242. Using a Network-Connected MachineUseful network programs 126Wired network setup 127Installing driver over the network 130IPv6 configuration 137Wireless network setup(Optional) 139Using the NFC feature (Optional) 151Supported Mobile Apps 160Mopria™ 161AirPrint 163Samsung Cloud Print 164Google Cloud Print™ 1663. Useful Setting MenusBefore you begin reading a chapter 169Information 170Layout 171Paper 172Graphic 173System Setup 174Emulation 177Image Management 178Network 179Direct USB 180Job Management 181Admin Setup 1824. Special FeaturesAltitude adjustment 184Entering various characters 185Printing features 186

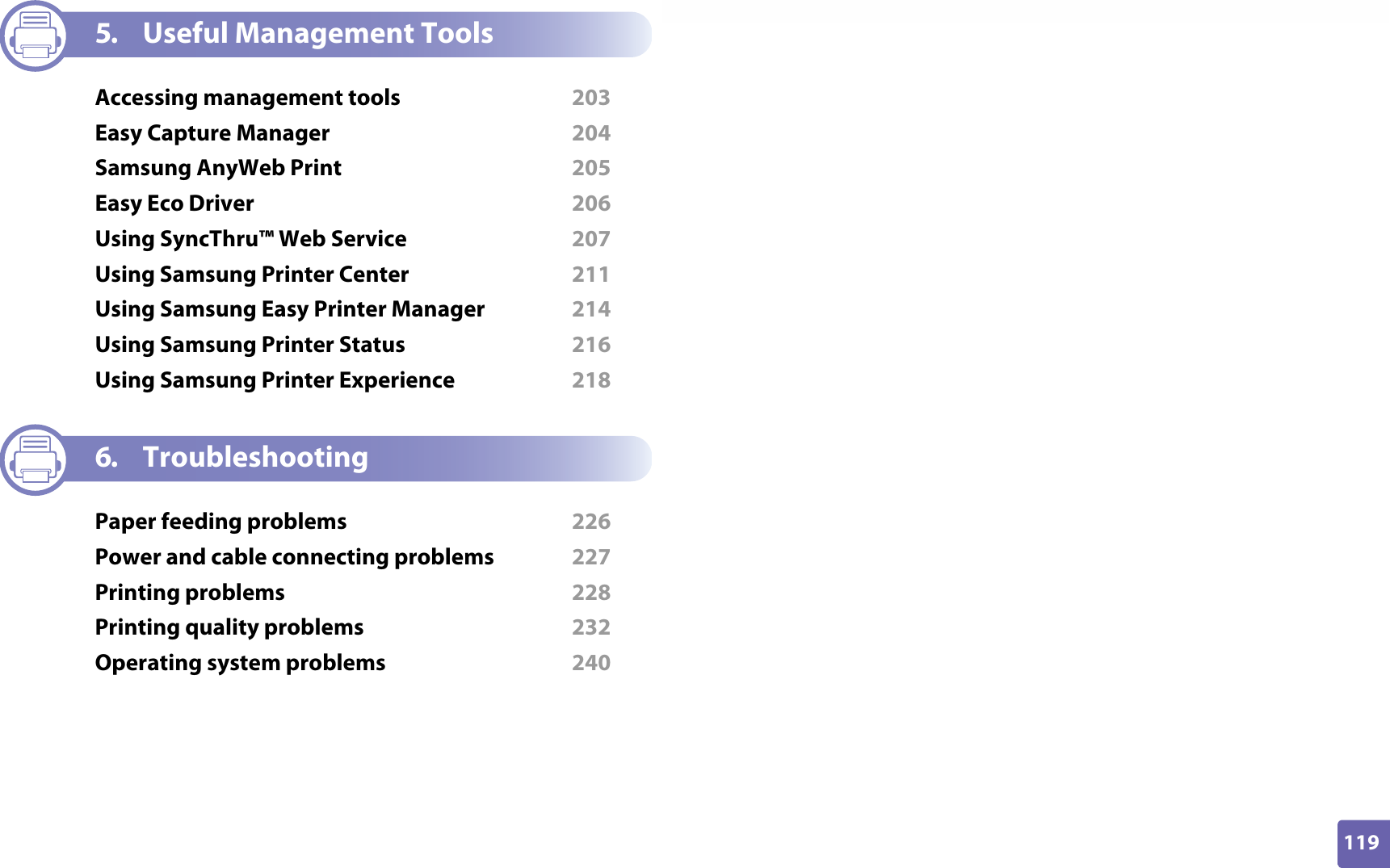

119ADVANCED5. Useful Management ToolsAccessing management tools 203Easy Capture Manager 204Samsung AnyWeb Print 205Easy Eco Driver 206Using SyncThru™ Web Service 207Using Samsung Printer Center 211Using Samsung Easy Printer Manager 214Using Samsung Printer Status 216Using Samsung Printer Experience 2186. TroubleshootingPaper feeding problems 226Power and cable connecting problems 227Printing problems 228Printing quality problems 232Operating system problems 240

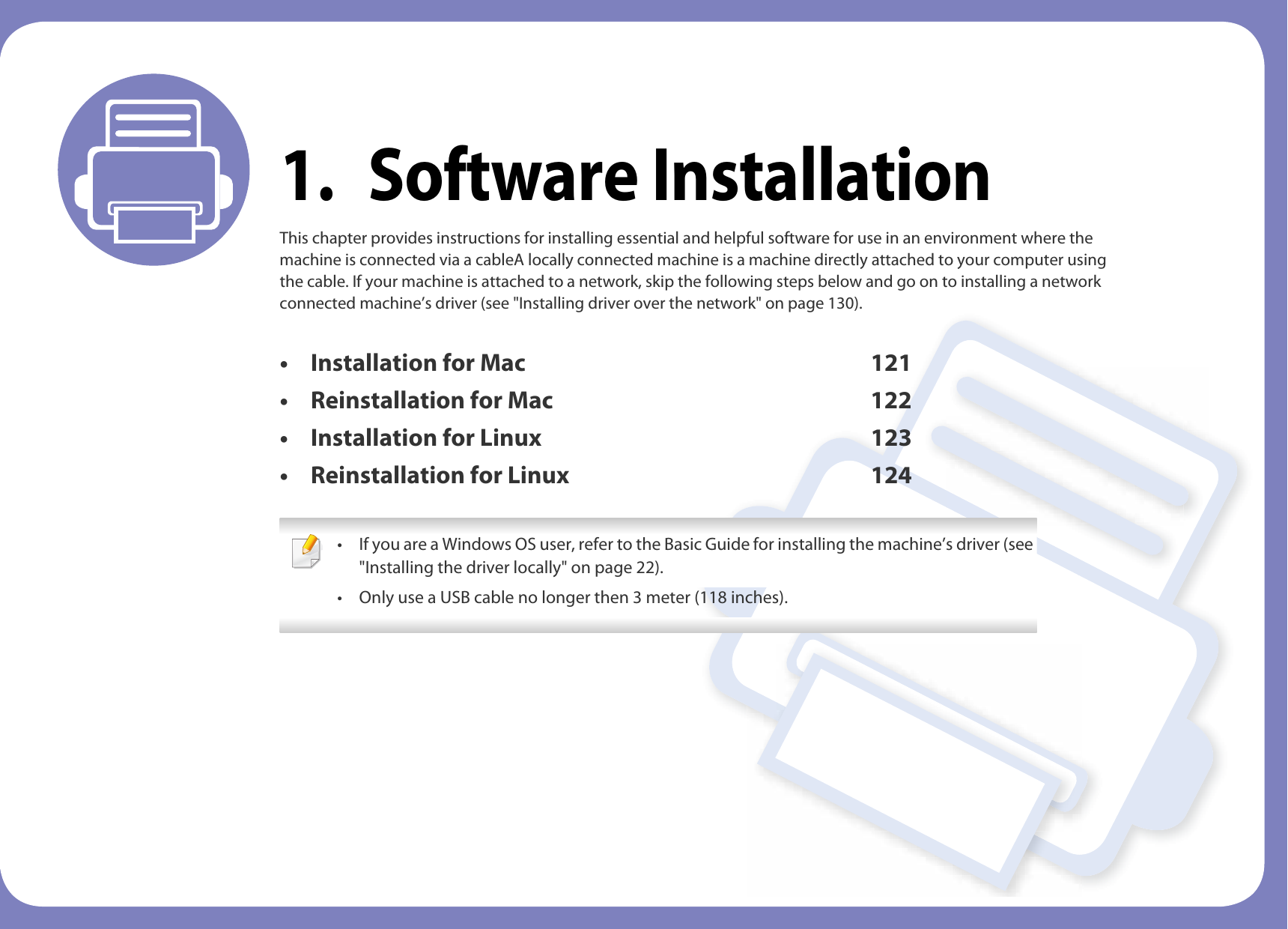

1. Software InstallationThis chapter provides instructions for installing essential and helpful software for use in an environment where the machine is connected via a cableA locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 130).• Installation for Mac 121• Reinstallation for Mac 122• Installation for Linux 123• Reinstallation for Linux 124 • If you are a Windows OS user, refer to the Basic Guide for installing the machine’s driver (see "Installing the driver locally" on page 22).• Only use a USB cable no longer then 3 meter (118 inches).

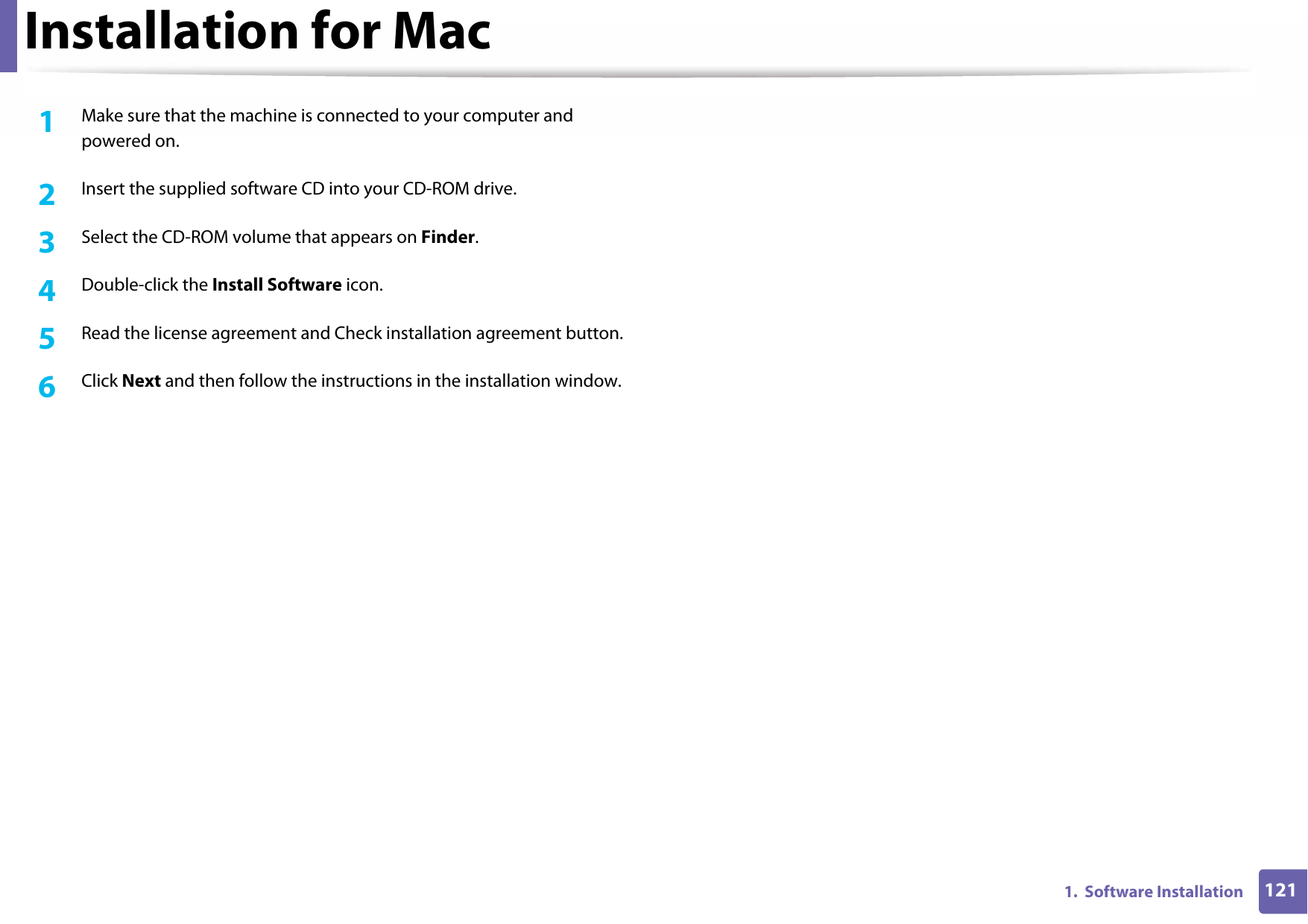

1211. Software InstallationInstallation for Mac1Make sure that the machine is connected to your computer and powered on.2 Insert the supplied software CD into your CD-ROM drive.3 Select the CD-ROM volume that appears on Finder.4 Double-click the Install Software icon.5 Read the license agreement and Check installation agreement button.6 Click Next and then follow the instructions in the installation window.

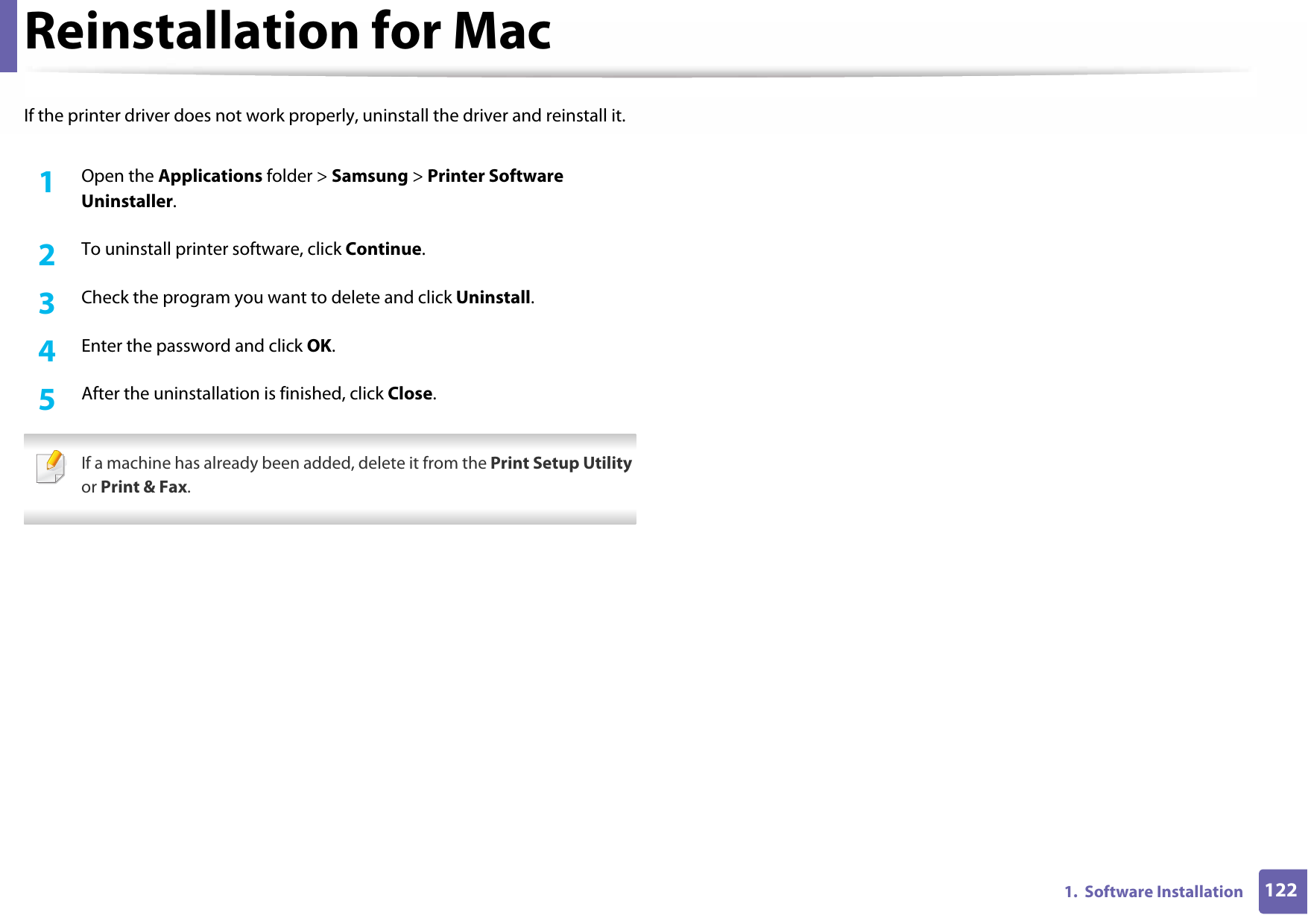

1221. Software InstallationReinstallation for MacIf the printer driver does not work properly, uninstall the driver and reinstall it.1Open the Applications folder > Samsung > Printer Software Uninstaller.2 To uninstall printer software, click Continue.3 Check the program you want to delete and click Uninstall.4 Enter the password and click OK.5 After the uninstallation is finished, click Close. If a machine has already been added, delete it from the Print Setup Utility or Print & Fax.
1231. Software InstallationInstallation for LinuxYou need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).1 Installing the Unified Linux Driver You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator. 1Make sure that the machine is connected to your computer and powered on.2 Copy Unified Linux Driver package to your system.3 Open Terminal program and go to the folder that you copied the package to.4 Extract the package.5 Move to uld folder.6 Execute "./install.sh" command (If you're not logged in as root, execute the command with "sudo" as "sudo ./install.sh")7 Proceed with installation.8 When installation finished, launch printing utility (Go to System > Administration > Printing or execute "system-config-printer" command in Terminal program).9 Click Add button.10 Select your printer.11 Click Forward button and add it to your system.

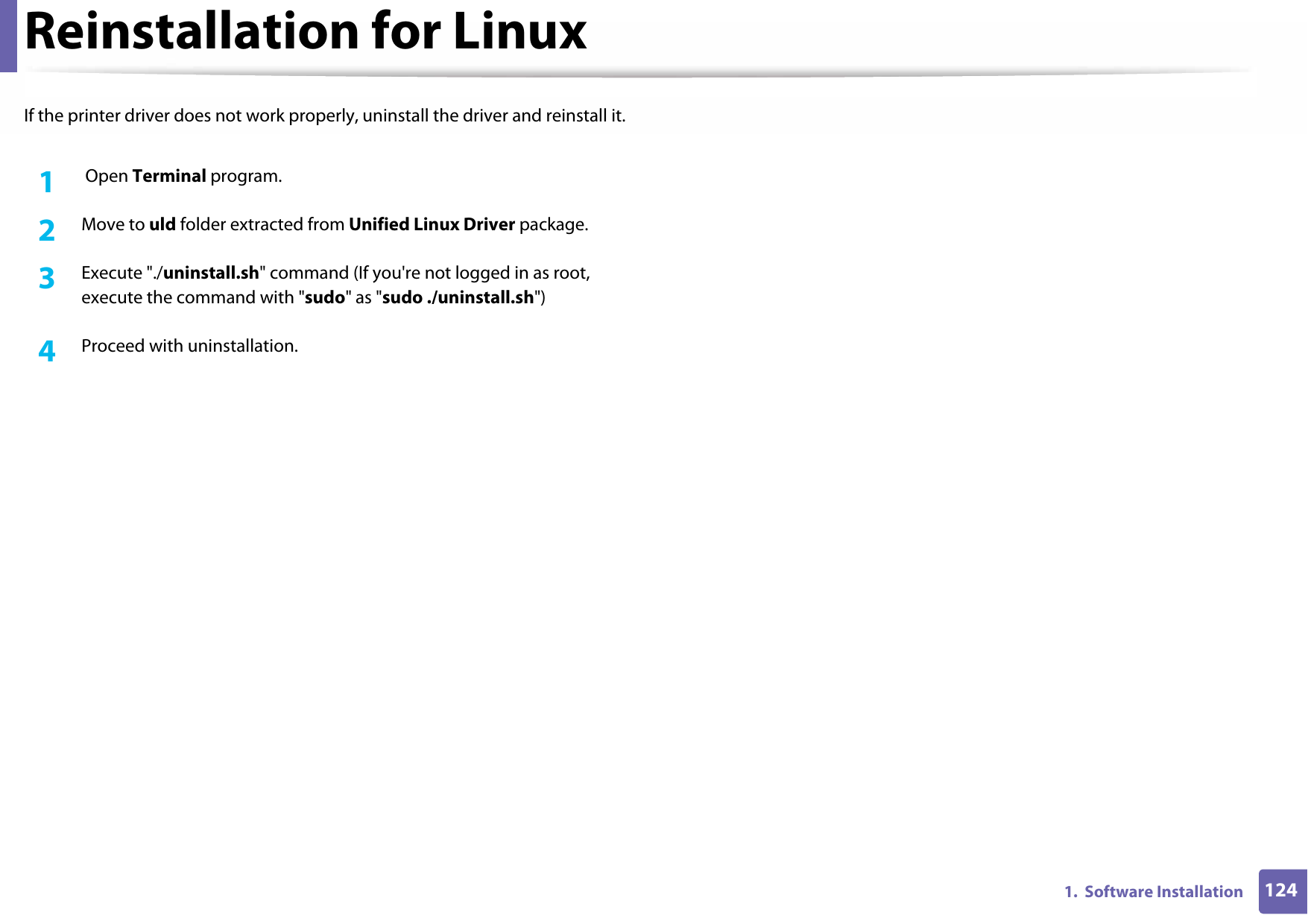

1241. Software InstallationReinstallation for LinuxIf the printer driver does not work properly, uninstall the driver and reinstall it.1 Open Terminal program.2 Move to uld folder extracted from Unified Linux Driver package.3 Execute "./uninstall.sh" command (If you're not logged in as root, execute the command with "sudo" as "sudo ./uninstall.sh")4 Proceed with uninstallation.

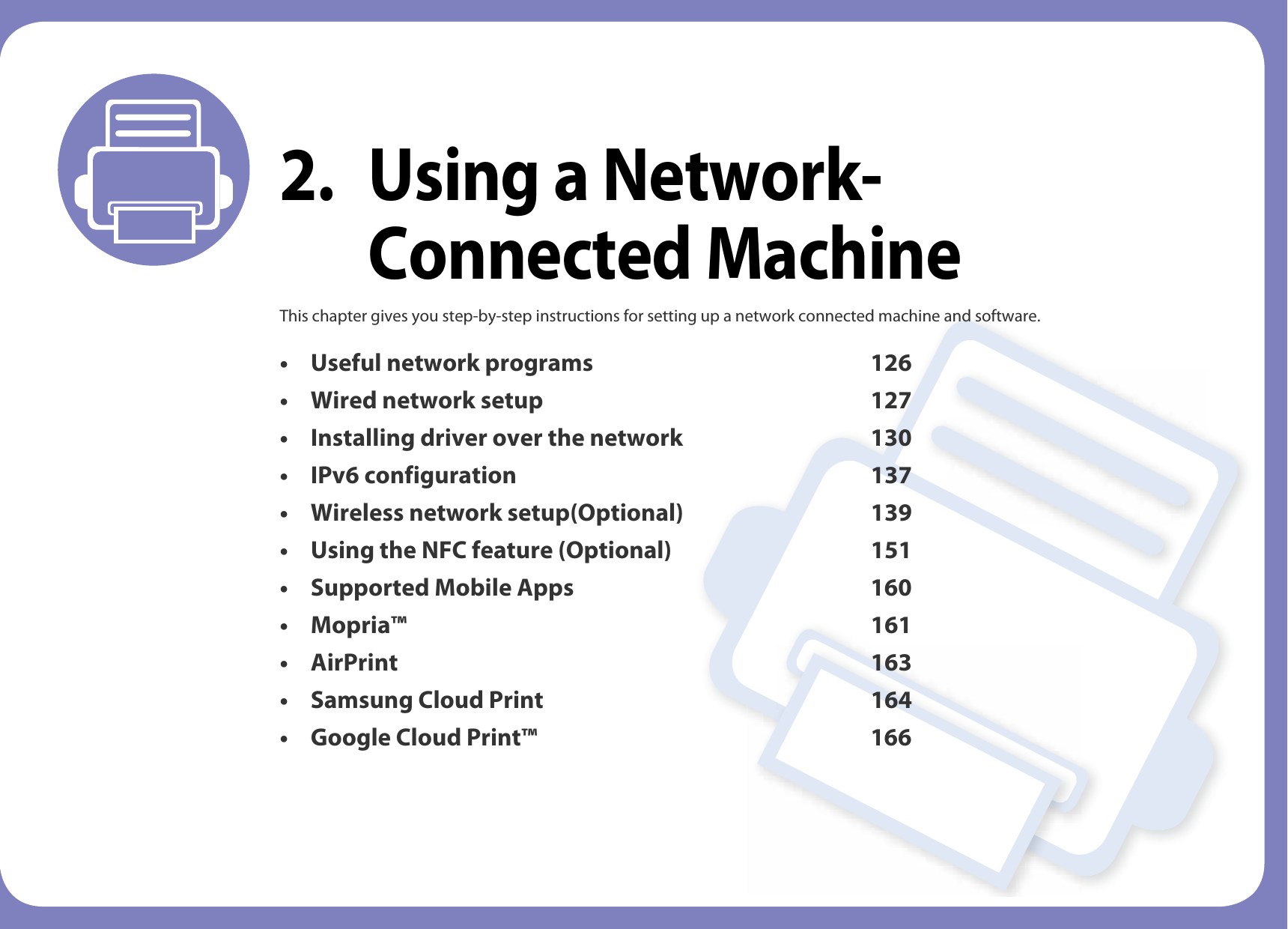

2. Using a Network-Connected MachineThis chapter gives you step-by-step instructions for setting up a network connected machine and software.• Useful network programs 126• Wired network setup 127• Installing driver over the network 130• IPv6 configuration 137• Wireless network setup(Optional) 139• Using the NFC feature (Optional) 151• Supported Mobile Apps 160• Mopria™ 161• AirPrint 163• Samsung Cloud Print 164• Google Cloud Print™ 166

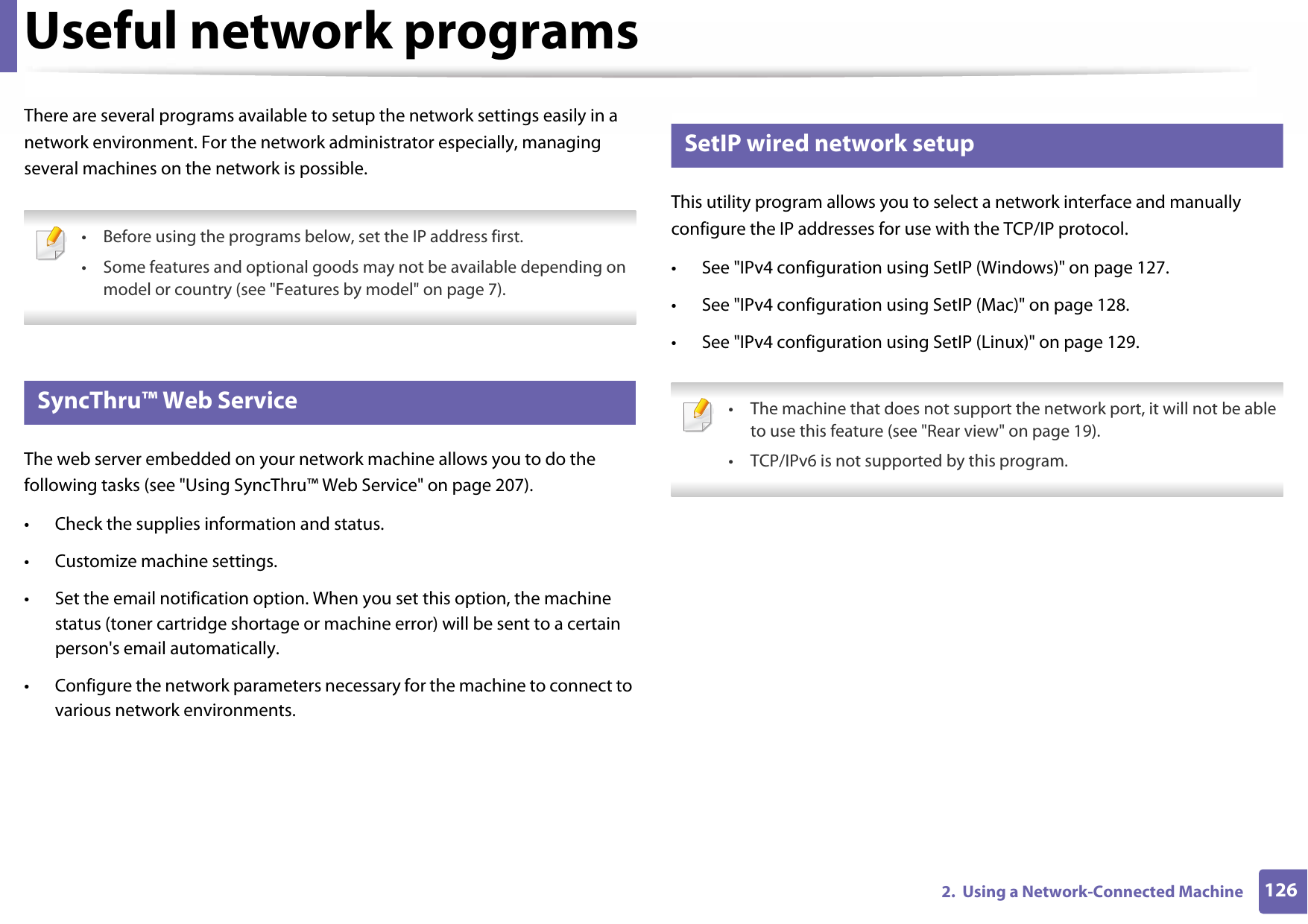

1262. Using a Network-Connected MachineUseful network programsThere are several programs available to setup the network settings easily in a network environment. For the network administrator especially, managing several machines on the network is possible. • Before using the programs below, set the IP address first.• Some features and optional goods may not be available depending on model or country (see "Features by model" on page 7). 1 SyncThru™ Web ServiceThe web server embedded on your network machine allows you to do the following tasks (see "Using SyncThru™ Web Service" on page 207).• Check the supplies information and status.• Customize machine settings.• Set the email notification option. When you set this option, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's email automatically.• Configure the network parameters necessary for the machine to connect to various network environments.2 SetIP wired network setupThis utility program allows you to select a network interface and manually configure the IP addresses for use with the TCP/IP protocol.• See "IPv4 configuration using SetIP (Windows)" on page 127.• See "IPv4 configuration using SetIP (Mac)" on page 128.• See "IPv4 configuration using SetIP (Linux)" on page 129. • The machine that does not support the network port, it will not be able to use this feature (see "Rear view" on page 19).• TCP/IPv6 is not supported by this program.

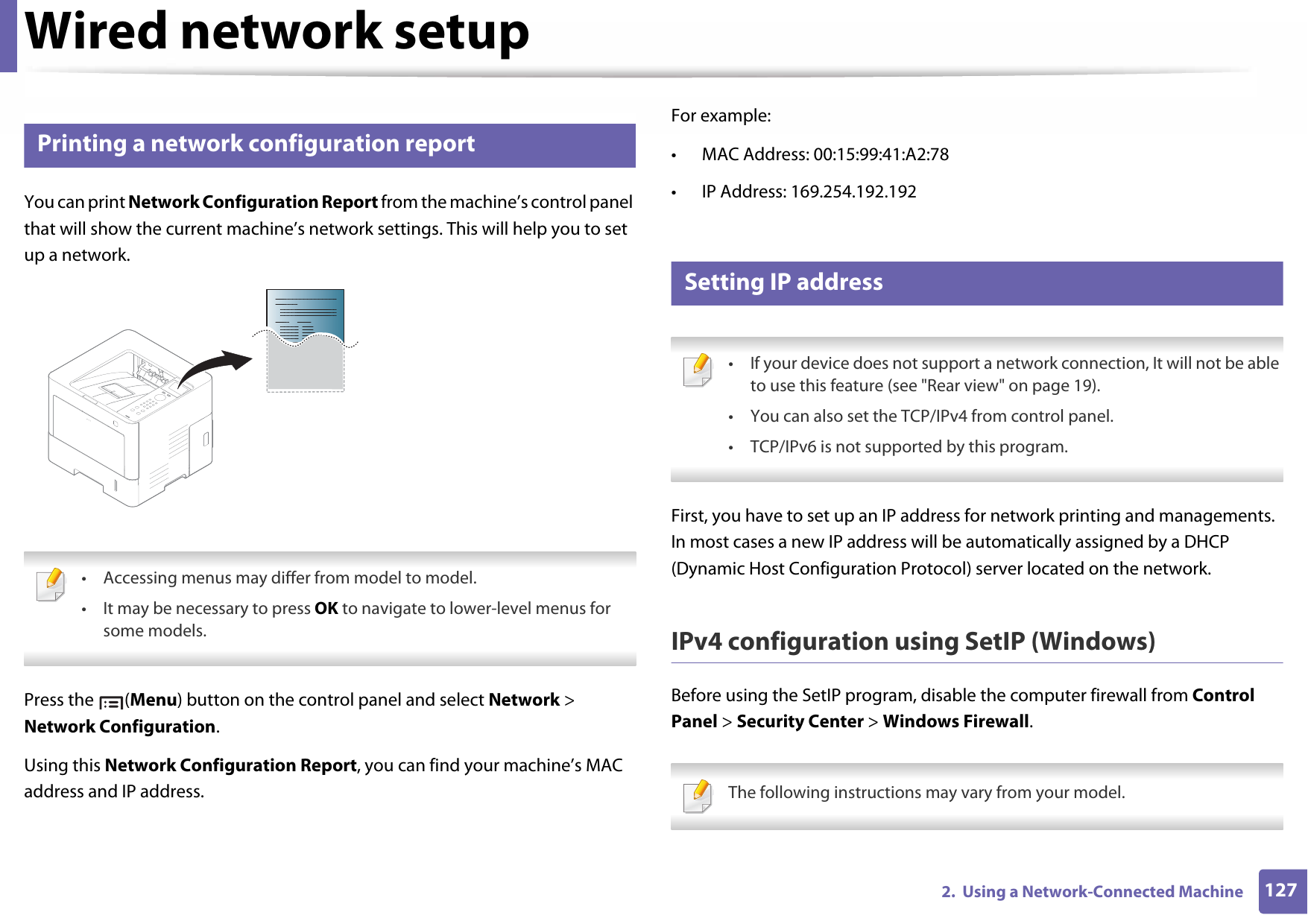

1272. Using a Network-Connected MachineWired network setup3 Printing a network configuration reportYou can print Network Configuration Report from the machine’s control panel that will show the current machine’s network settings. This will help you to set up a network. • Accessing menus may differ from model to model.• It may be necessary to press OK to navigate to lower-level menus for some models. Press the (Menu) button on the control panel and select Network > Network Configuration.Using this Network Configuration Report, you can find your machine’s MAC address and IP address.For example:• MAC Address: 00:15:99:41:A2:78• IP Address: 169.254.192.1924 Setting IP address • If your device does not support a network connection, It will not be able to use this feature (see "Rear view" on page 19).• You can also set the TCP/IPv4 from control panel.• TCP/IPv6 is not supported by this program. First, you have to set up an IP address for network printing and managements. In most cases a new IP address will be automatically assigned by a DHCP (Dynamic Host Configuration Protocol) server located on the network.IPv4 configuration using SetIP (Windows)Before using the SetIP program, disable the computer firewall from Control Panel > Security Center > Windows Firewall. The following instructions may vary from your model.

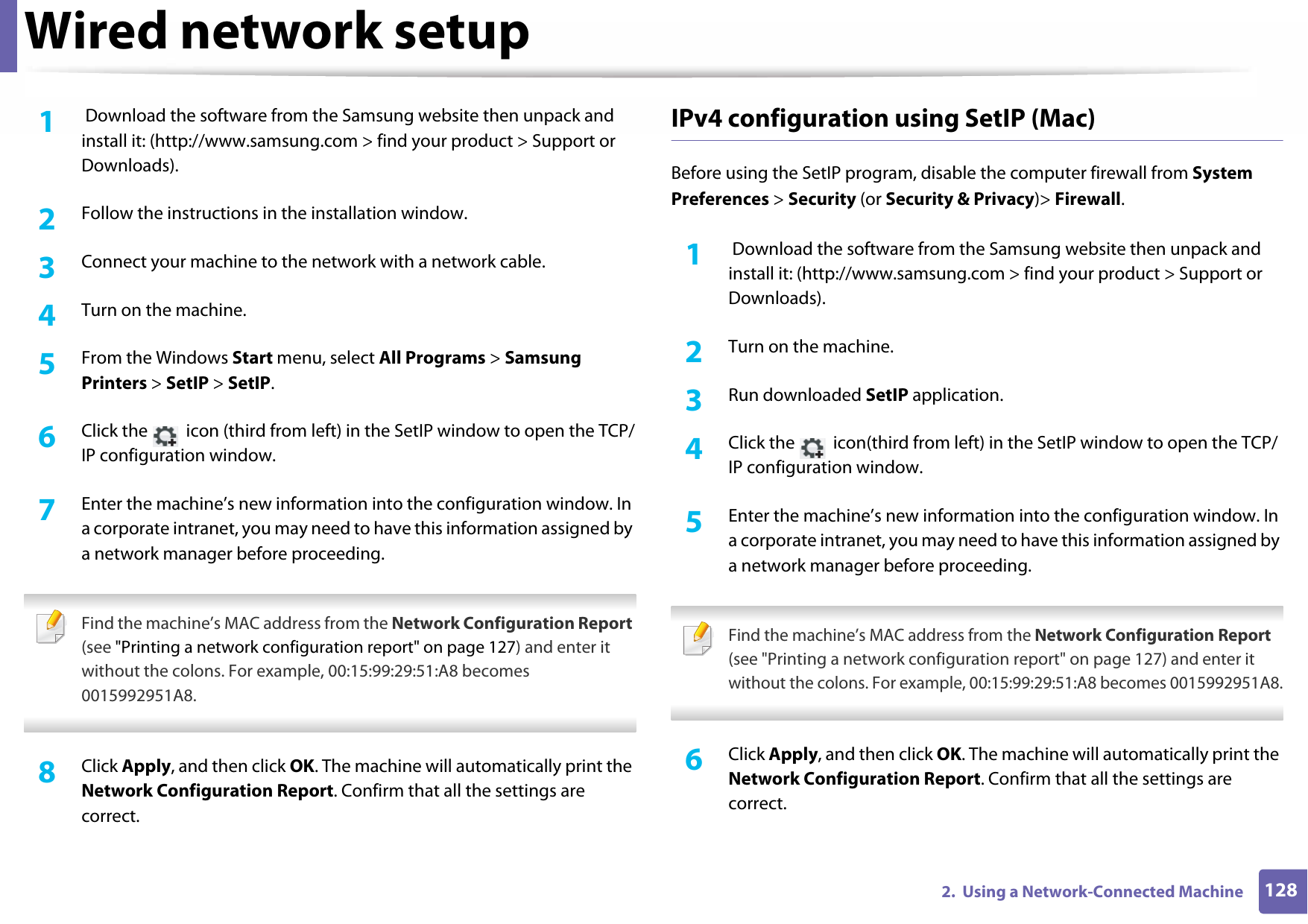

Wired network setup1282. Using a Network-Connected Machine1 Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).2 Follow the instructions in the installation window.3 Connect your machine to the network with a network cable.4 Turn on the machine.5 From the Windows Start menu, select All Programs > Samsung Printers > SetIP > SetIP.6 Click the icon (third from left) in the SetIP window to open the TCP/IP configuration window.7 Enter the machine’s new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 127) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 8 Click Apply, and then click OK. The machine will automatically print the Network Configuration Report. Confirm that all the settings are correct.IPv4 configuration using SetIP (Mac)Before using the SetIP program, disable the computer firewall from System Preferences > Security (or Security & Privacy)> Firewall.1 Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).2 Turn on the machine.3 Run downloaded SetIP application.4 Click the icon(third from left) in the SetIP window to open the TCP/IP configuration window.5 Enter the machine’s new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 127) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 6 Click Apply, and then click OK. The machine will automatically print the Network Configuration Report. Confirm that all the settings are correct.

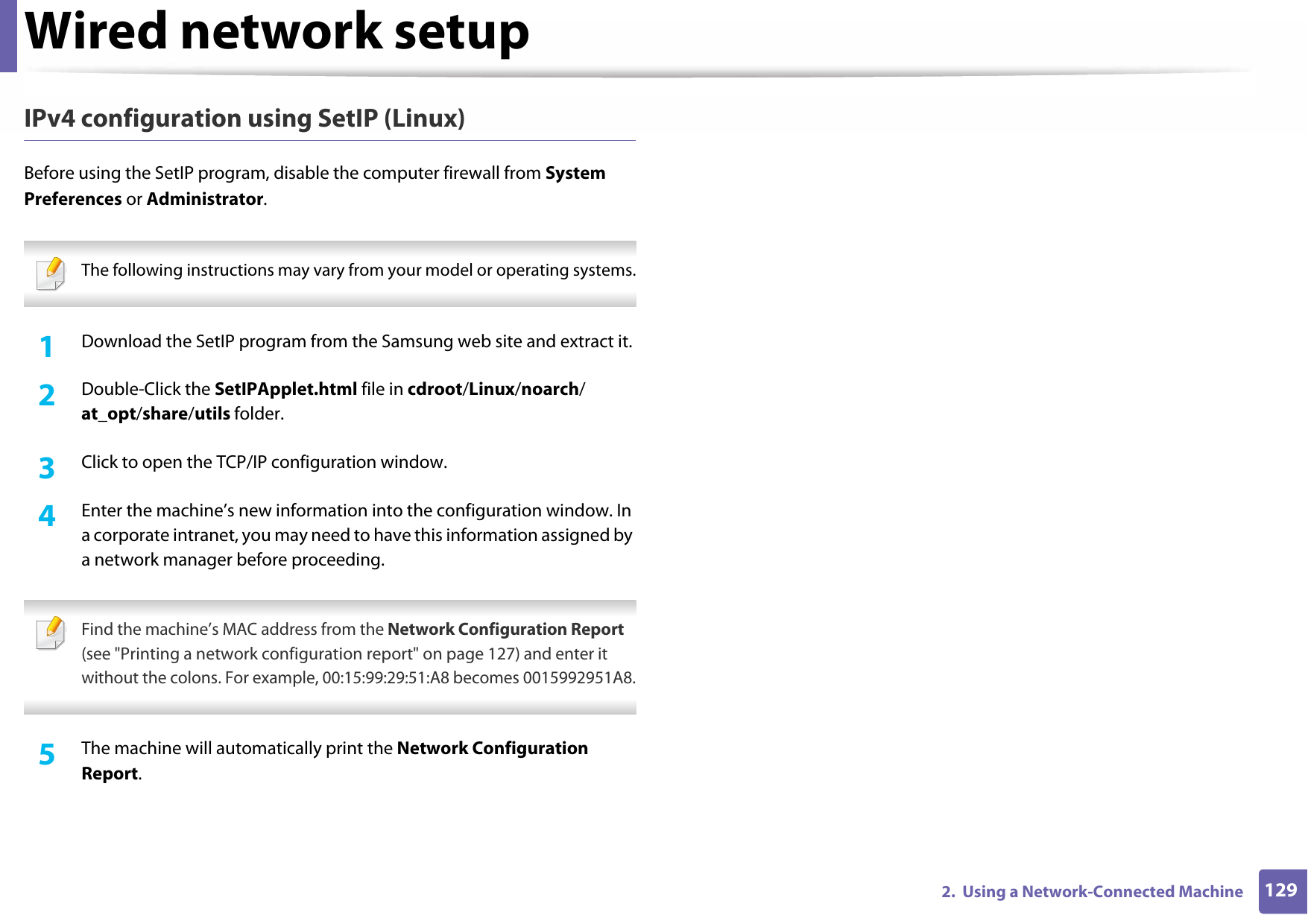

Wired network setup1292. Using a Network-Connected MachineIPv4 configuration using SetIP (Linux)Before using the SetIP program, disable the computer firewall from System Preferences or Administrator. The following instructions may vary from your model or operating systems. 1Download the SetIP program from the Samsung web site and extract it.2 Double-Click the SetIPApplet.html file in cdroot/Linux/noarch/at_opt/share/utils folder.3 Click to open the TCP/IP configuration window.4 Enter the machine’s new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding. Find the machine’s MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 127) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8. 5 The machine will automatically print the Network Configuration Report.

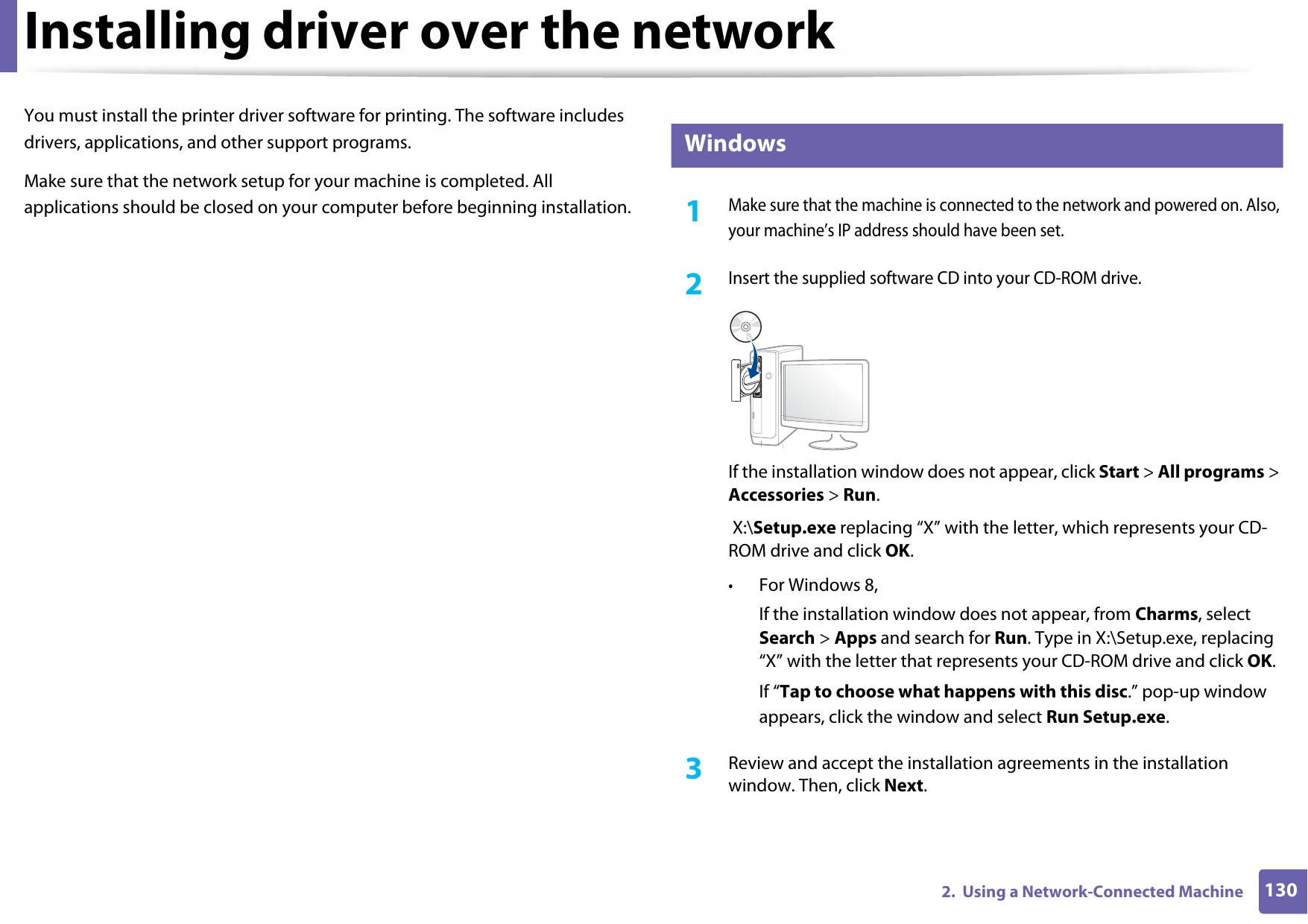

1302. Using a Network-Connected MachineInstalling driver over the networkYou must install the printer driver software for printing. The software includes drivers, applications, and other support programs.Make sure that the network setup for your machine is completed. All applications should be closed on your computer before beginning installation.5 Windows1Make sure that the machine is connected to the network and powered on. Also, your machine’s IP address should have been set.2 Insert the supplied software CD into your CD-ROM drive.If the installation window does not appear, click Start > All programs > Accessories > Run. X:\Setup.exe replacing “X” with the letter, which represents your CD-ROM drive and click OK.•For Windows 8,If the installation window does not appear, from Charms, select Search > Apps and search for Run. Type in X:\Setup.exe, replacing “X” with the letter that represents your CD-ROM drive and click OK.If “Tap to choose what happens with this disc.” pop-up window appears, click the window and select Run Setup.exe.3 Review and accept the installation agreements in the installation window. Then, click Next.

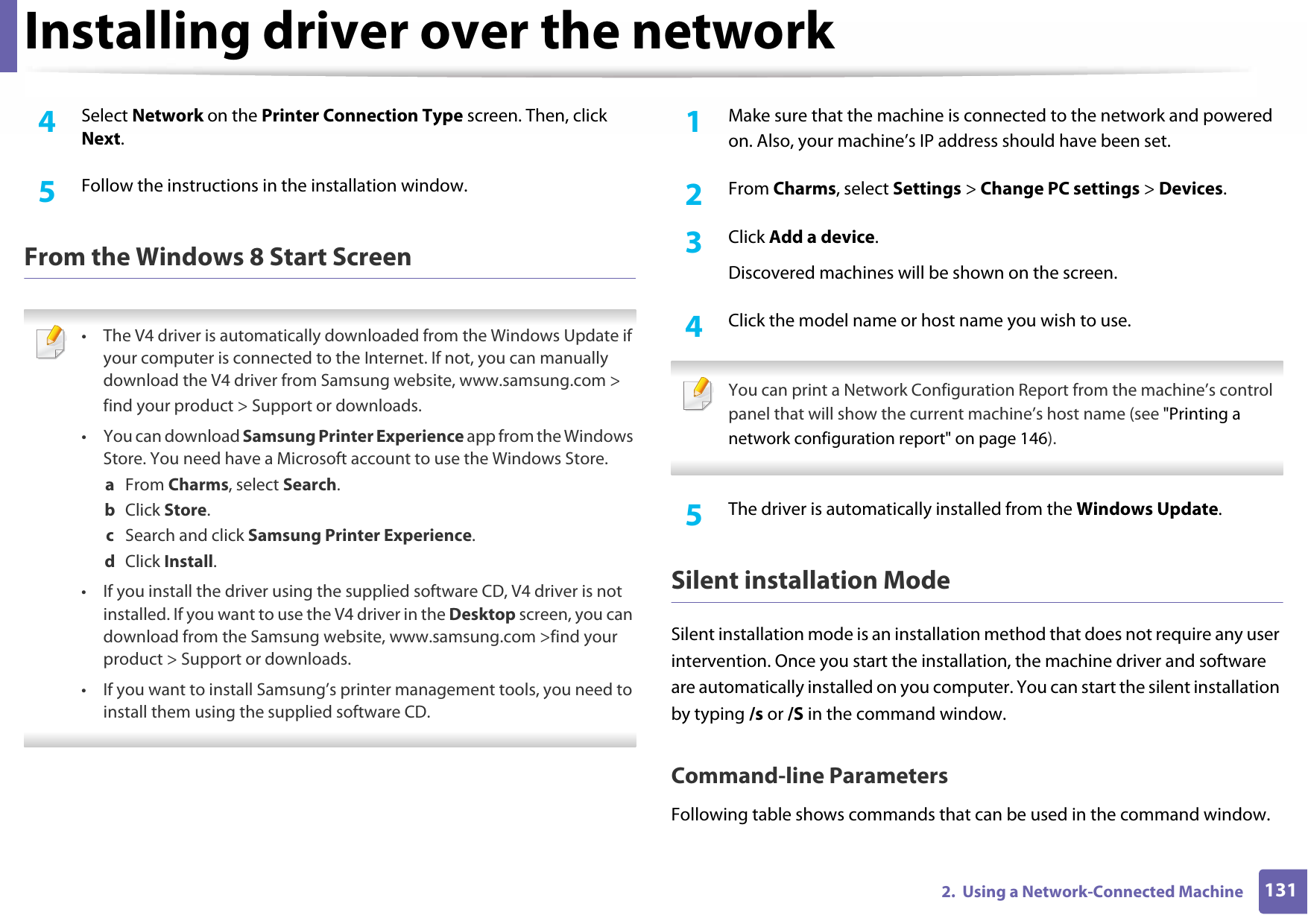

Installing driver over the network1312. Using a Network-Connected Machine4 Select Network on the Printer Connection Type screen. Then, click Next.5 Follow the instructions in the installation window.From the Windows 8 Start Screen • The V4 driver is automatically downloaded from the Windows Update if your computer is connected to the Internet. If not, you can manually download the V4 driver from Samsung website, www.samsung.com >find your product > Support or downloads.• You can download Samsung Printer Experience app from the Windows Store. You need have a Microsoft account to use the Windows Store.a From Charms, select Search.b Click Store.c Search and click Samsung Printer Experience.d Click Install.• If you install the driver using the supplied software CD, V4 driver is not installed. If you want to use the V4 driver in the Desktop screen, you can download from the Samsung website, www.samsung.com >find your product > Support or downloads.• If you want to install Samsung’s printer management tools, you need to install them using the supplied software CD. 1Make sure that the machine is connected to the network and powered on. Also, your machine’s IP address should have been set.2 From Charms, select Settings > Change PC settings > Devices.3 Click Add a device.Discovered machines will be shown on the screen.4 Click the model name or host name you wish to use. You can print a Network Configuration Report from the machine’s control panel that will show the current machine’s host name (see "Printing a network configuration report" on page 146). 5 The driver is automatically installed from the Windows Update.Silent installation ModeSilent installation mode is an installation method that does not require any user intervention. Once you start the installation, the machine driver and software are automatically installed on you computer. You can start the silent installation by typing /s or /S in the command window.Command-line ParametersFollowing table shows commands that can be used in the command window.

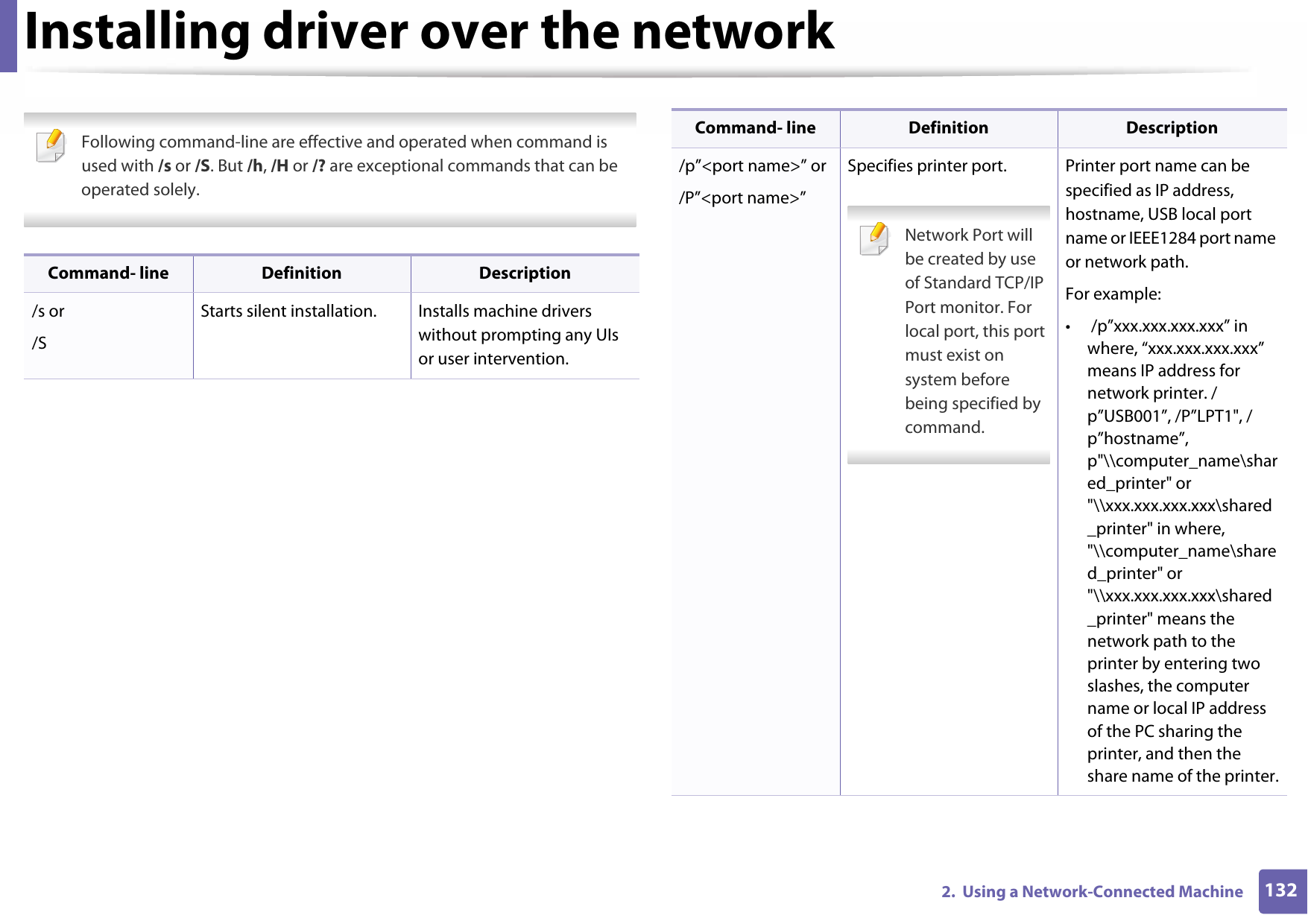

Installing driver over the network1322. Using a Network-Connected Machine Following command-line are effective and operated when command is used with /s or /S. But /h, /H or /? are exceptional commands that can be operated solely. Command- line Definition Description/s or/SStarts silent installation. Installs machine drivers without prompting any UIs or user intervention./p”<port name>” or/P”<port name>”Specifies printer port. Network Port will be created by use of Standard TCP/IP Port monitor. For local port, this port must exist on system before being specified by command. Printer port name can be specified as IP address, hostname, USB local port name or IEEE1284 port name or network path.For example:• /p”xxx.xxx.xxx.xxx” in where, “xxx.xxx.xxx.xxx” means IP address for network printer. /p”USB001”, /P”LPT1", /p”hostname”, p"\\computer_name\shared_printer" or "\\xxx.xxx.xxx.xxx\shared_printer" in where, "\\computer_name\shared_printer" or "\\xxx.xxx.xxx.xxx\shared_printer" means the network path to the printer by entering two slashes, the computer name or local IP address of the PC sharing the printer, and then the share name of the printer.Command- line Definition Description

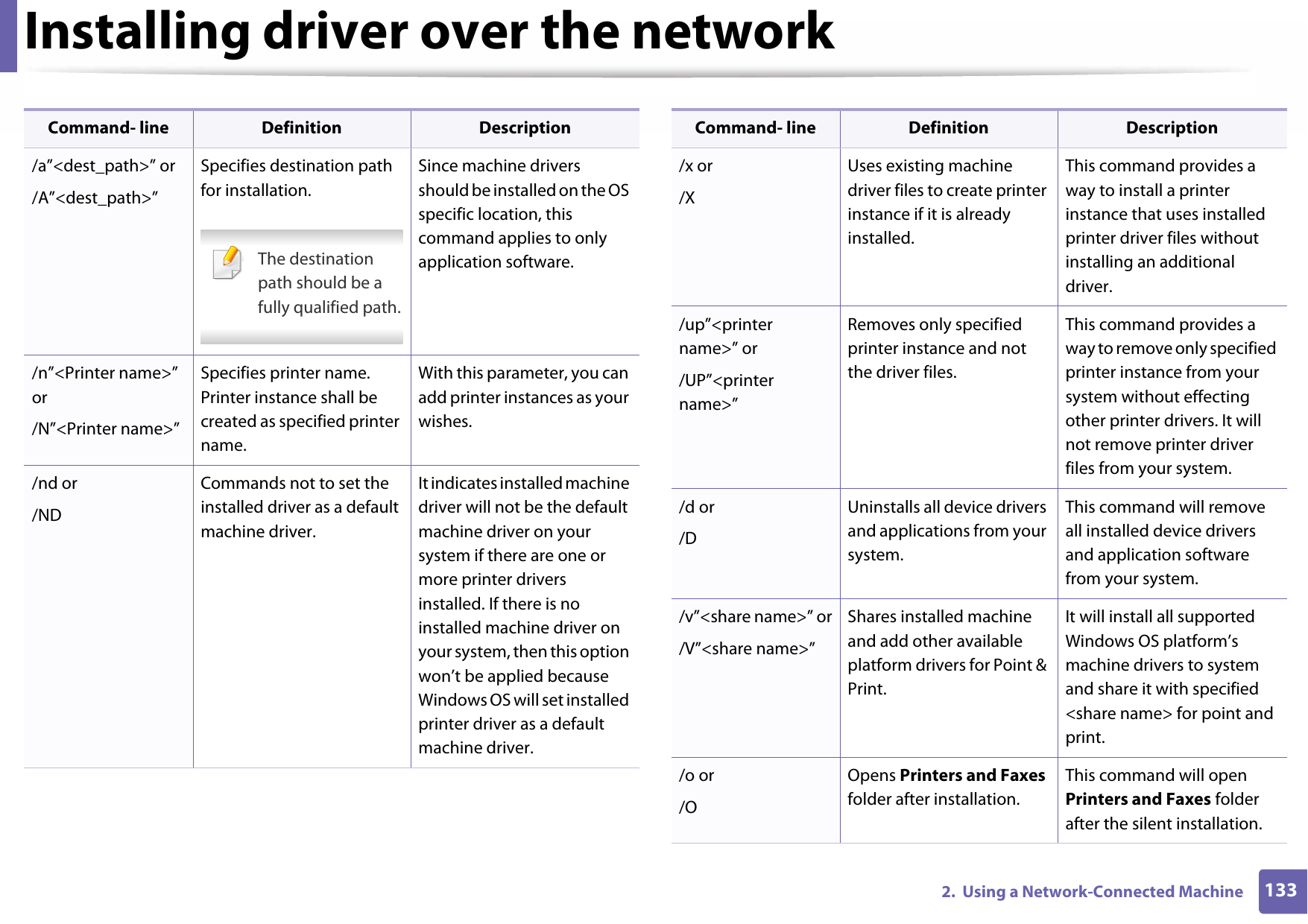

Installing driver over the network1332. Using a Network-Connected Machine/a”<dest_path>” or/A”<dest_path>”Specifies destination path for installation. The destination path should be a fully qualified path. Since machine drivers should be installed on the OS specific location, this command applies to only application software./n”<Printer name>” or/N”<Printer name>”Specifies printer name. Printer instance shall be created as specified printer name.With this parameter, you can add printer instances as your wishes./nd or/NDCommands not to set the installed driver as a default machine driver.It indicates installed machine driver will not be the default machine driver on your system if there are one or more printer drivers installed. If there is no installed machine driver on your system, then this option won’t be applied because Windows OS will set installed printer driver as a default machine driver.Command- line Definition Description/x or/XUses existing machine driver files to create printer instance if it is already installed.This command provides a way to install a printer instance that uses installed printer driver files without installing an additional driver./up”<printer name>” or/UP”<printer name>”Removes only specified printer instance and not the driver files.This command provides a way to remove only specified printer instance from your system without effecting other printer drivers. It will not remove printer driver files from your system./d or/DUninstalls all device drivers and applications from your system.This command will remove all installed device drivers and application software from your system./v”<share name>” or/V”<share name>”Shares installed machine and add other available platform drivers for Point & Print.It will install all supported Windows OS platform’s machine drivers to system and share it with specified <share name> for point and print./o or /OOpens Printers and Faxes folder after installation.This command will open Printers and Faxes folder after the silent installation.Command- line Definition Description

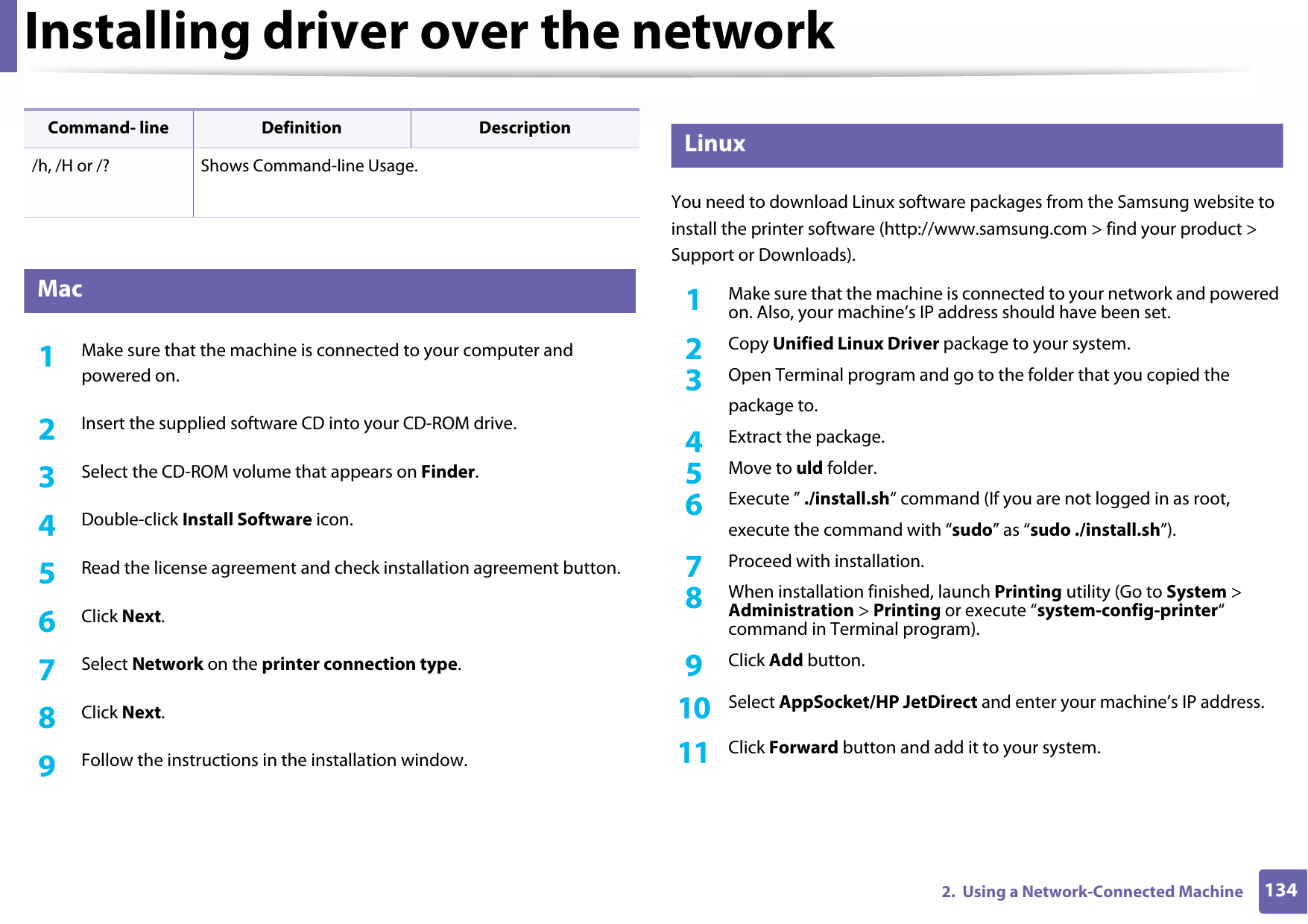

Installing driver over the network1342. Using a Network-Connected Machine6 Mac1Make sure that the machine is connected to your computer and powered on.2 Insert the supplied software CD into your CD-ROM drive.3 Select the CD-ROM volume that appears on Finder.4 Double-click Install Software icon.5 Read the license agreement and check installation agreement button.6 Click Next.7 Select Network on the printer connection type.8 Click Next.9 Follow the instructions in the installation window.7 LinuxYou need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).1Make sure that the machine is connected to your network and powered on. Also, your machine’s IP address should have been set.2 Copy Unified Linux Driver package to your system.3 Open Terminal program and go to the folder that you copied thepackage to.4 Extract the package.5 Move to uld folder.6 Execute ” ./install.sh“ command (If you are not logged in as root,execute the command with “sudo” as “sudo ./install.sh”).7 Proceed with installation.8 When installation finished, launch Printing utility (Go to System > Administration > Printing or execute “system-config-printer“ command in Terminal program).9 Click Add button.10 Select AppSocket/HP JetDirect and enter your machine’s IP address.11 Click Forward button and add it to your system./h, /H or /? Shows Command-line Usage.Command- line Definition Description

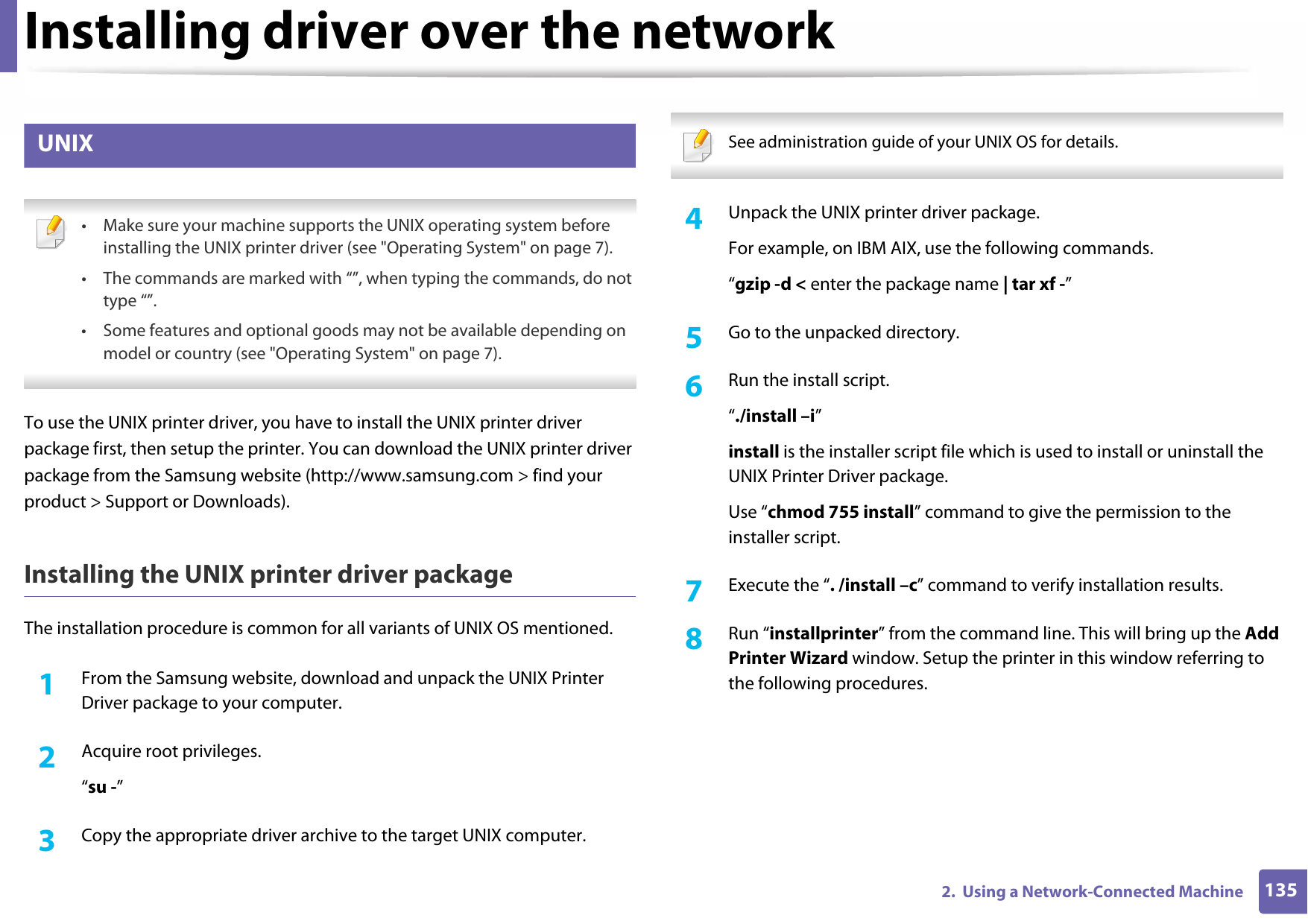

Installing driver over the network1352. Using a Network-Connected Machine8 UNIX • Make sure your machine supports the UNIX operating system before installing the UNIX printer driver (see "Operating System" on page 7).• The commands are marked with “”, when typing the commands, do not type “”.• Some features and optional goods may not be available depending on model or country (see "Operating System" on page 7). To use the UNIX printer driver, you have to install the UNIX printer driver package first, then setup the printer. You can download the UNIX printer driver package from the Samsung website (http://www.samsung.com > find your product > Support or Downloads).Installing the UNIX printer driver packageThe installation procedure is common for all variants of UNIX OS mentioned.1From the Samsung website, download and unpack the UNIX Printer Driver package to your computer.2 Acquire root privileges.“su -”3 Copy the appropriate driver archive to the target UNIX computer. See administration guide of your UNIX OS for details. 4 Unpack the UNIX printer driver package.For example, on IBM AIX, use the following commands.“gzip -d < enter the package name | tar xf -”5 Go to the unpacked directory.6 Run the install script.“./install –i”install is the installer script file which is used to install or uninstall the UNIX Printer Driver package.Use “chmod 755 install” command to give the permission to the installer script.7 Execute the “. /install –c” command to verify installation results.8 Run “installprinter” from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window referring to the following procedures.

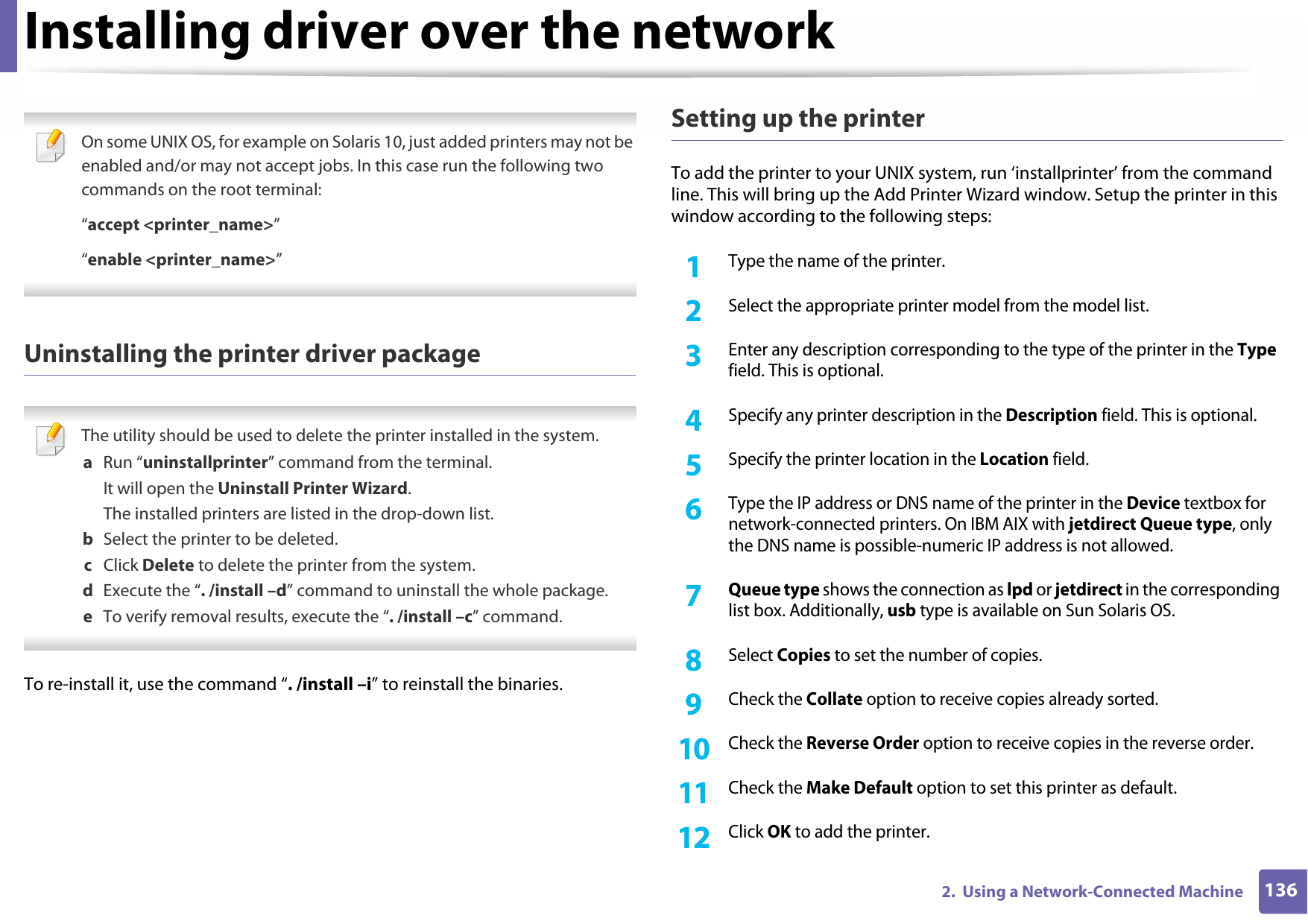

Installing driver over the network1362. Using a Network-Connected Machine On some UNIX OS, for example on Solaris 10, just added printers may not be enabled and/or may not accept jobs. In this case run the following two commands on the root terminal:“accept <printer_name>”“enable <printer_name>” Uninstalling the printer driver package The utility should be used to delete the printer installed in the system.a Run “uninstallprinter” command from the terminal.It will open the Uninstall Printer Wizard.The installed printers are listed in the drop-down list.b Select the printer to be deleted.c Click Delete to delete the printer from the system.d Execute the “. /install –d” command to uninstall the whole package.e To verify removal results, execute the “. /install –c” command. To re-install it, use the command “. /install –i” to reinstall the binaries.Setting up the printerTo add the printer to your UNIX system, run ‘installprinter’ from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window according to the following steps:1Type the name of the printer.2 Select the appropriate printer model from the model list.3 Enter any description corresponding to the type of the printer in the Type field. This is optional.4 Specify any printer description in the Description field. This is optional.5 Specify the printer location in the Location field.6 Type the IP address or DNS name of the printer in the Device textbox for network-connected printers. On IBM AIX with jetdirect Queue type, only the DNS name is possible-numeric IP address is not allowed.7 Queue type shows the connection as lpd or jetdirect in the corresponding list box. Additionally, usb type is available on Sun Solaris OS.8 Select Copies to set the number of copies.9 Check the Collate option to receive copies already sorted.10 Check the Reverse Order option to receive copies in the reverse order.11 Check the Make Default option to set this printer as default.12 Click OK to add the printer.

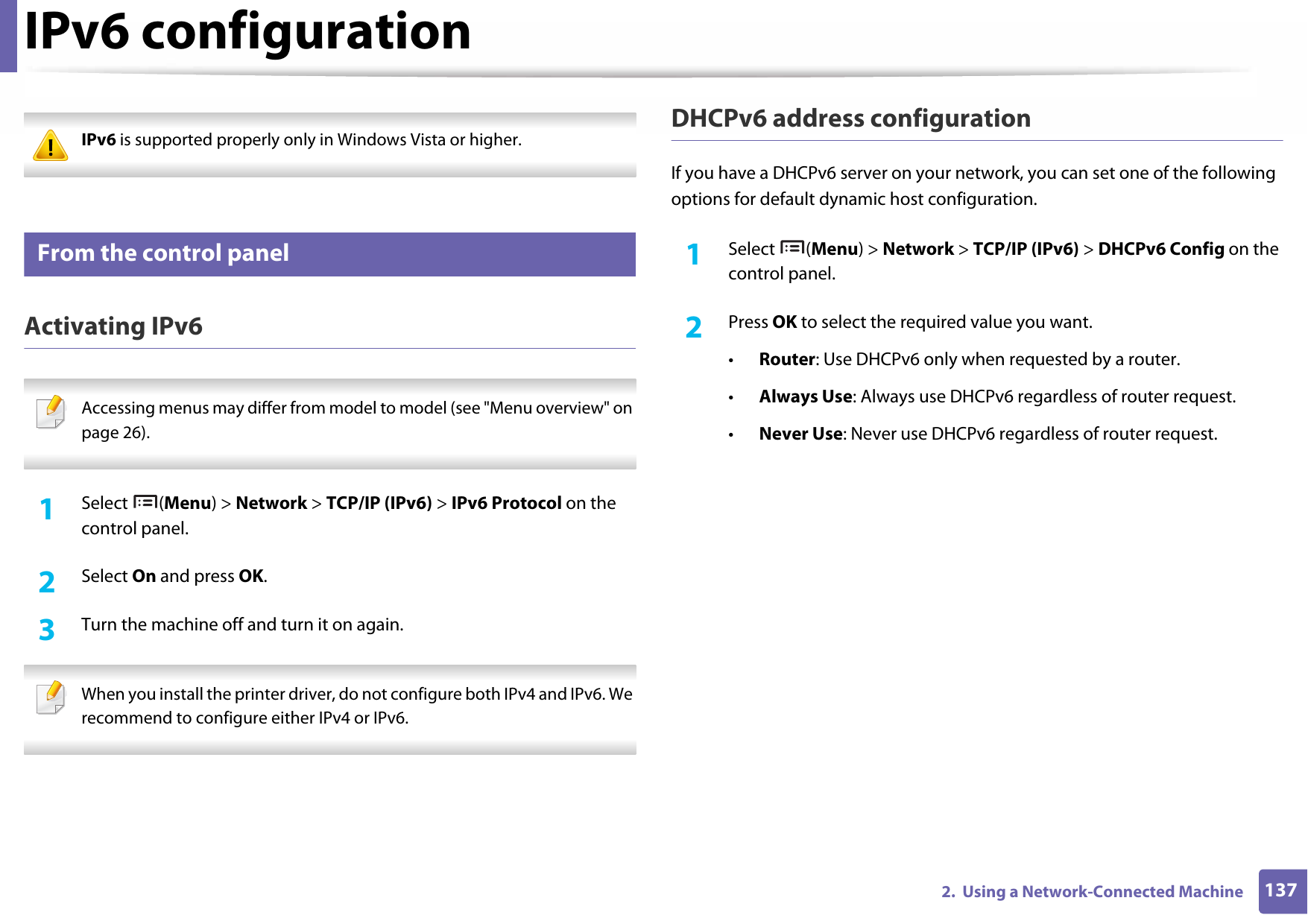

1372. Using a Network-Connected MachineIPv6 configuration IPv6 is supported properly only in Windows Vista or higher. 9 From the control panelActivating IPv6 Accessing menus may differ from model to model (see "Menu overview" on page 26). 1Select (Menu) > Network > TCP/IP (IPv6) > IPv6 Protocol on the control panel.2 Select On and press OK.3 Turn the machine off and turn it on again. When you install the printer driver, do not configure both IPv4 and IPv6. We recommend to configure either IPv4 or IPv6. DHCPv6 address configurationIf you have a DHCPv6 server on your network, you can set one of the following options for default dynamic host configuration.1Select (Menu) > Network > TCP/IP (IPv6) > DHCPv6 Config on the control panel.2 Press OK to select the required value you want.•Router: Use DHCPv6 only when requested by a router.•Always Use: Always use DHCPv6 regardless of router request.•Never Use: Never use DHCPv6 regardless of router request.

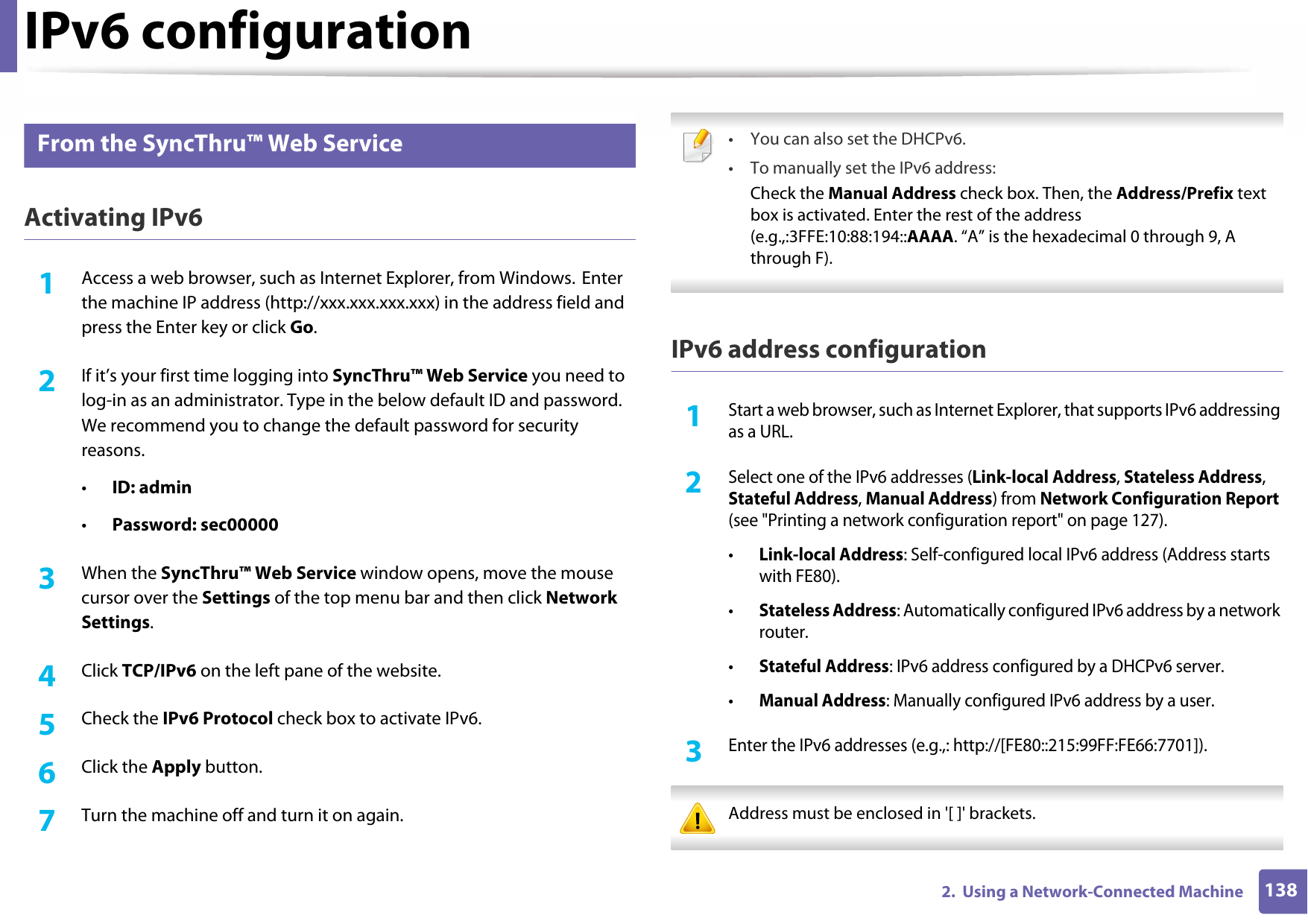

IPv6 configuration1382. Using a Network-Connected Machine10 From the SyncThru™ Web ServiceActivating IPv61Access a web browser, such as Internet Explorer, from Windows. Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 If it’s your first time logging into SyncThru™ Web Service you need to log-in as an administrator. Type in the below default ID and password. We recommend you to change the default password for security reasons.•ID: admin•Password: sec000003 When the SyncThru™ Web Service window opens, move the mouse cursor over the Settings of the top menu bar and then click Network Settings.4 Click TCP/IPv6 on the left pane of the website.5 Check the IPv6 Protocol check box to activate IPv6.6 Click the Apply button.7 Turn the machine off and turn it on again. • You can also set the DHCPv6.• To manually set the IPv6 address:Check the Manual Address check box. Then, the Address/Prefix text box is activated. Enter the rest of the address (e.g.,:3FFE:10:88:194::AAAA. “A” is the hexadecimal 0 through 9, A through F). IPv6 address configuration1Start a web browser, such as Internet Explorer, that supports IPv6 addressing as a URL.2 Select one of the IPv6 addresses (Link-local Address, Stateless Address, Stateful Address, Manual Address) from Network Configuration Report (see "Printing a network configuration report" on page 127).•Link-local Address: Self-configured local IPv6 address (Address starts with FE80).•Stateless Address: Automatically configured IPv6 address by a network router.•Stateful Address: IPv6 address configured by a DHCPv6 server.•Manual Address: Manually configured IPv6 address by a user.3 Enter the IPv6 addresses (e.g.,: http://[FE80::215:99FF:FE66:7701]). Address must be enclosed in '[ ]' brackets.

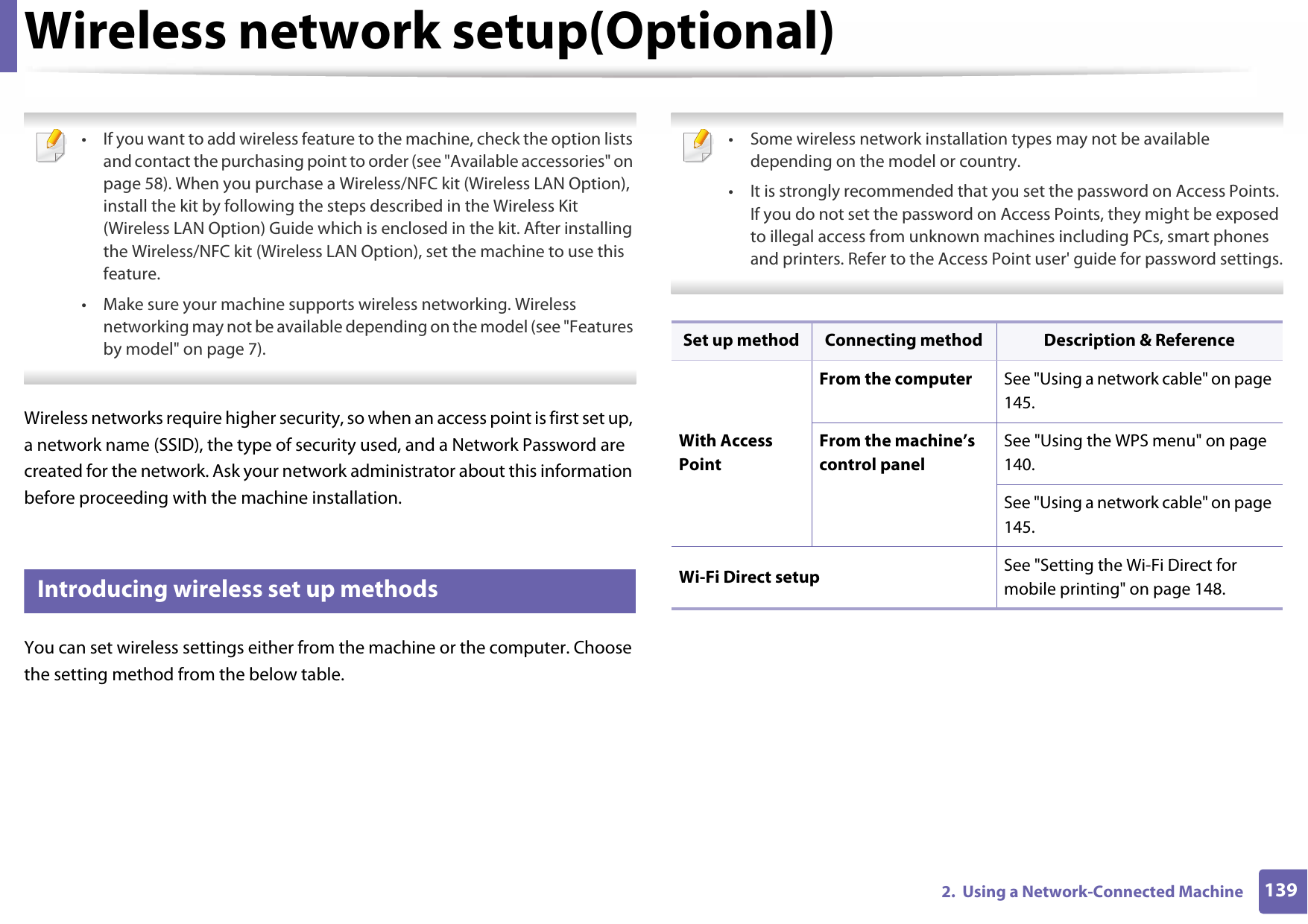

1392. Using a Network-Connected MachineWireless network setup(Optional) • If you want to add wireless feature to the machine, check the option lists and contact the purchasing point to order (see "Available accessories" on page 58). When you purchase a Wireless/NFC kit (Wireless LAN Option), install the kit by following the steps described in the Wireless Kit (Wireless LAN Option) Guide which is enclosed in the kit. After installing the Wireless/NFC kit (Wireless LAN Option), set the machine to use this feature.• Make sure your machine supports wireless networking. Wireless networking may not be available depending on the model (see "Features by model" on page 7). Wireless networks require higher security, so when an access point is first set up, a network name (SSID), the type of security used, and a Network Password are created for the network. Ask your network administrator about this information before proceeding with the machine installation.11 Introducing wireless set up methodsYou can set wireless settings either from the machine or the computer. Choose the setting method from the below table. • Some wireless network installation types may not be available depending on the model or country.• It is strongly recommended that you set the password on Access Points. If you do not set the password on Access Points, they might be exposed to illegal access from unknown machines including PCs, smart phones and printers. Refer to the Access Point user' guide for password settings. Set up method Connecting method Description & ReferenceWith Access PointFrom the computer See "Using a network cable" on page 145.From the machine’s control panelSee "Using the WPS menu" on page 140.See "Using a network cable" on page 145.Wi-Fi Direct setup See "Setting the Wi-Fi Direct for mobile printing" on page 148.

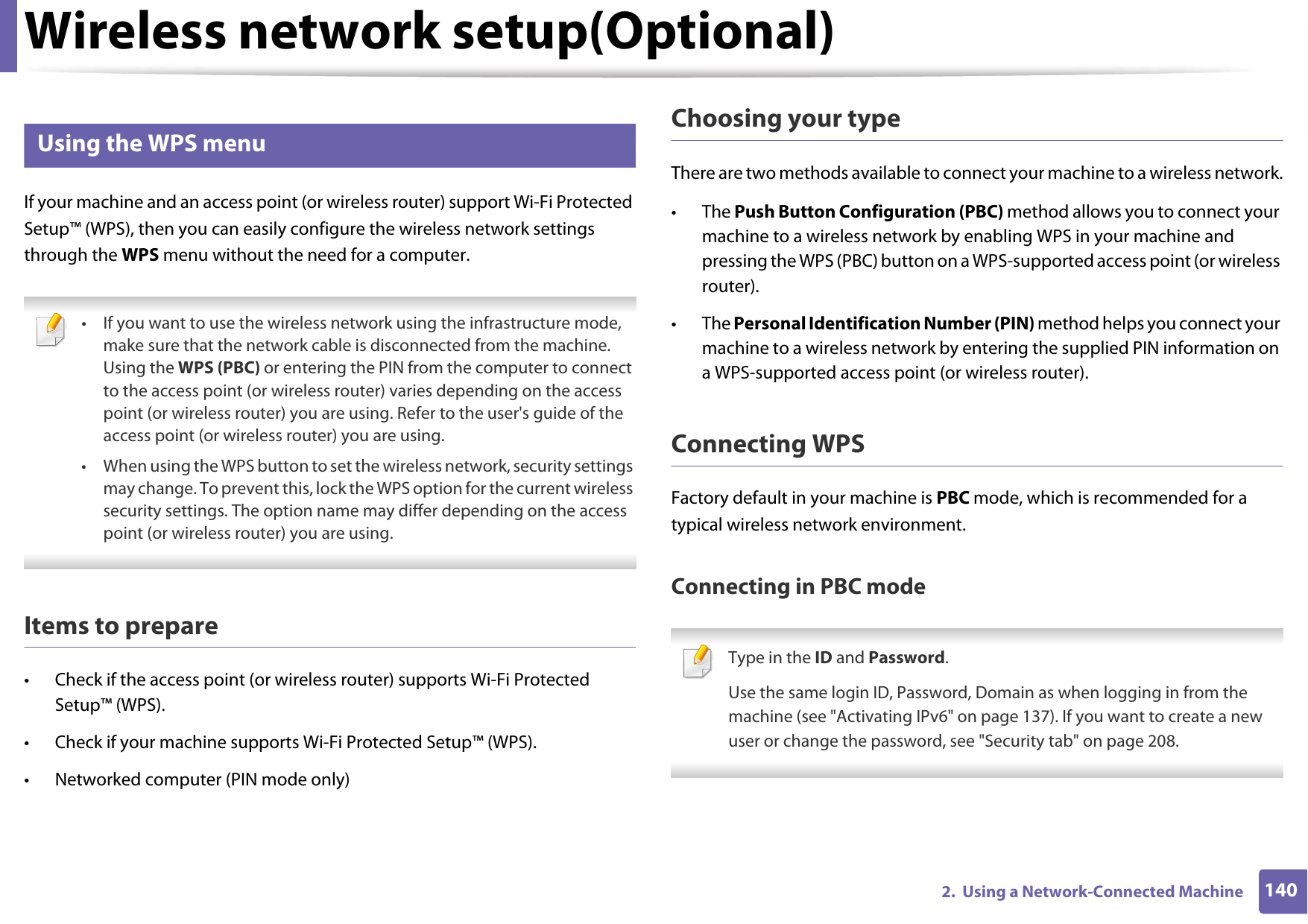

Wireless network setup(Optional)1402. Using a Network-Connected Machine12 Using the WPS menuIf your machine and an access point (or wireless router) support Wi-Fi Protected Setup™ (WPS), then you can easily configure the wireless network settings through the WPS menu without the need for a computer. • If you want to use the wireless network using the infrastructure mode, make sure that the network cable is disconnected from the machine. Using the WPS (PBC) or entering the PIN from the computer to connect to the access point (or wireless router) varies depending on the access point (or wireless router) you are using. Refer to the user's guide of the access point (or wireless router) you are using.• When using the WPS button to set the wireless network, security settings may change. To prevent this, lock the WPS option for the current wireless security settings. The option name may differ depending on the access point (or wireless router) you are using. Items to prepare• Check if the access point (or wireless router) supports Wi-Fi Protected Setup™ (WPS).• Check if your machine supports Wi-Fi Protected Setup™ (WPS).• Networked computer (PIN mode only)Choosing your typeThere are two methods available to connect your machine to a wireless network.• The Push Button Configuration (PBC) method allows you to connect your machine to a wireless network by enabling WPS in your machine and pressing the WPS (PBC) button on a WPS-supported access point (or wireless router).• The Personal Identification Number (PIN) method helps you connect your machine to a wireless network by entering the supplied PIN information on a WPS-supported access point (or wireless router).Connecting WPSFactory default in your machine is PBC mode, which is recommended for a typical wireless network environment.Connecting in PBC mode Type in the ID and Password.Use the same login ID, Password, Domain as when logging in from the machine (see "Activating IPv6" on page 137). If you want to create a new user or change the password, see "Security tab" on page 208.

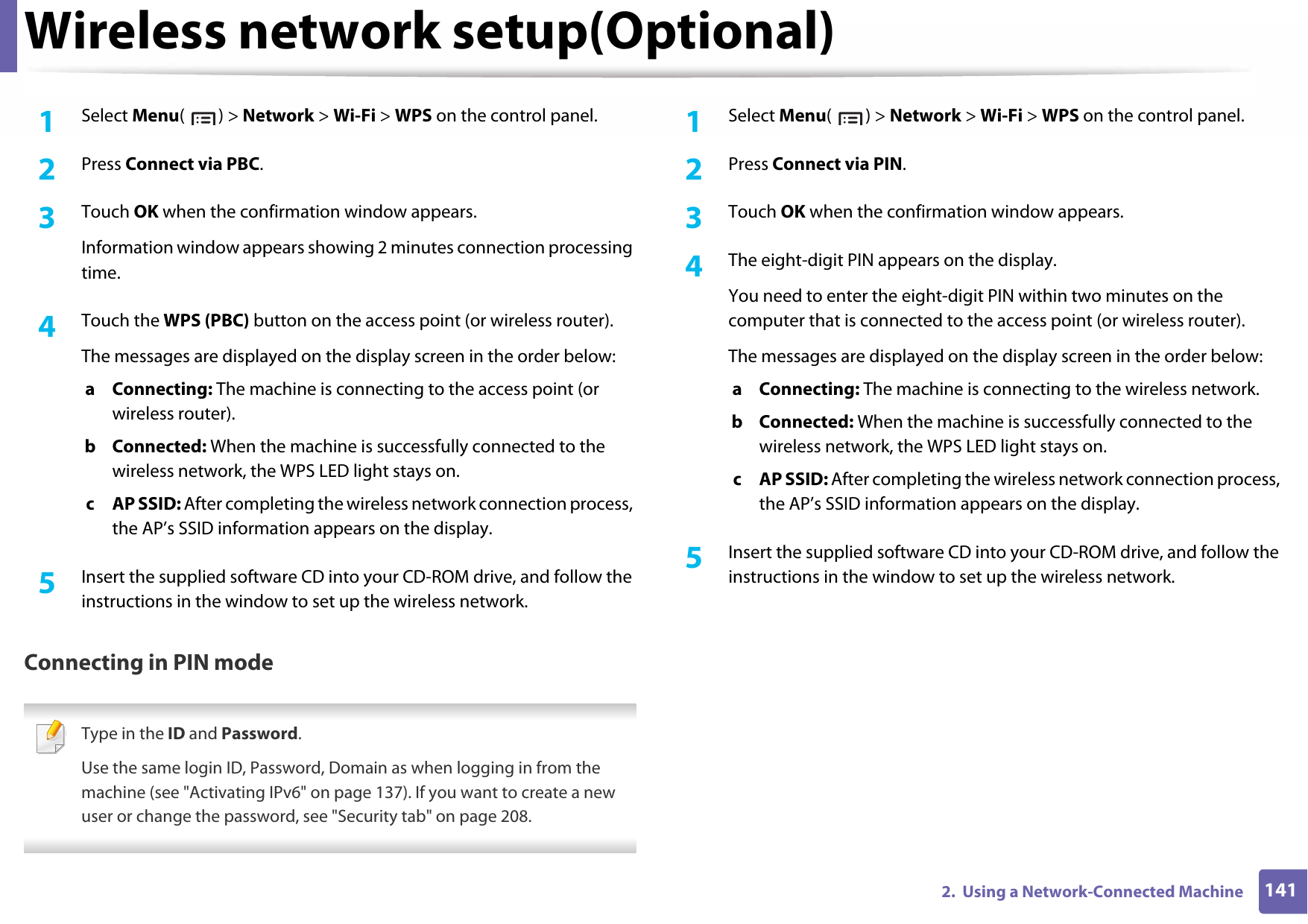

Wireless network setup(Optional)1412. Using a Network-Connected Machine1Select Menu() > Network > Wi-Fi > WPS on the control panel.2 Press Connect via PBC.3 Touch OK when the confirmation window appears.Information window appears showing 2 minutes connection processing time.4 Touch the WPS (PBC) button on the access point (or wireless router).The messages are displayed on the display screen in the order below:a Connecting: The machine is connecting to the access point (or wireless router).b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.c AP SSID: After completing the wireless network connection process, the AP’s SSID information appears on the display.5 Insert the supplied software CD into your CD-ROM drive, and follow the instructions in the window to set up the wireless network.Connecting in PIN mode Type in the ID and Password.Use the same login ID, Password, Domain as when logging in from the machine (see "Activating IPv6" on page 137). If you want to create a new user or change the password, see "Security tab" on page 208. 1Select Menu() > Network > Wi-Fi > WPS on the control panel.2 Press Connect via PIN.3 Touch OK when the confirmation window appears.4 The eight-digit PIN appears on the display.You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).The messages are displayed on the display screen in the order below:a Connecting: The machine is connecting to the wireless network.b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.c AP SSID: After completing the wireless network connection process, the AP’s SSID information appears on the display.5 Insert the supplied software CD into your CD-ROM drive, and follow the instructions in the window to set up the wireless network.

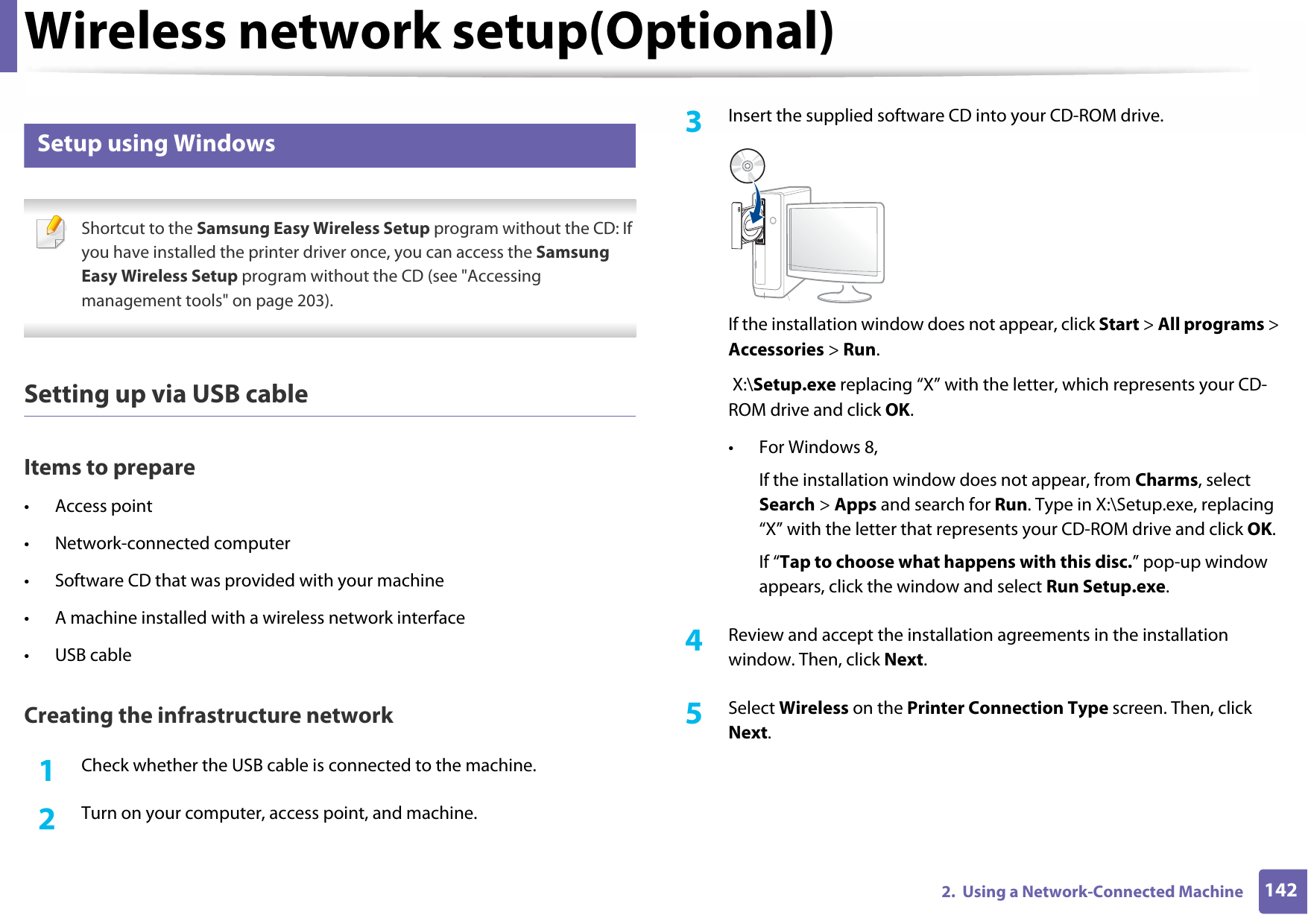

Wireless network setup(Optional)1422. Using a Network-Connected Machine13 Setup using Windows Shortcut to the Samsung Easy Wireless Setup program without the CD: If you have installed the printer driver once, you can access the Samsung Easy Wireless Setup program without the CD (see "Accessing management tools" on page 203). Setting up via USB cableItems to prepare• Access point• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• USB cableCreating the infrastructure network1Check whether the USB cable is connected to the machine.2 Turn on your computer, access point, and machine.3 Insert the supplied software CD into your CD-ROM drive.If the installation window does not appear, click Start > All programs > Accessories > Run. X:\Setup.exe replacing “X” with the letter, which represents your CD-ROM drive and click OK.• For Windows 8,If the installation window does not appear, from Charms, select Search > Apps and search for Run. Type in X:\Setup.exe, replacing “X” with the letter that represents your CD-ROM drive and click OK.If “Tap to choose what happens with this disc.” pop-up window appears, click the window and select Run Setup.exe.4 Review and accept the installation agreements in the installation window. Then, click Next.5 Select Wireless on the Printer Connection Type screen. Then, click Next.

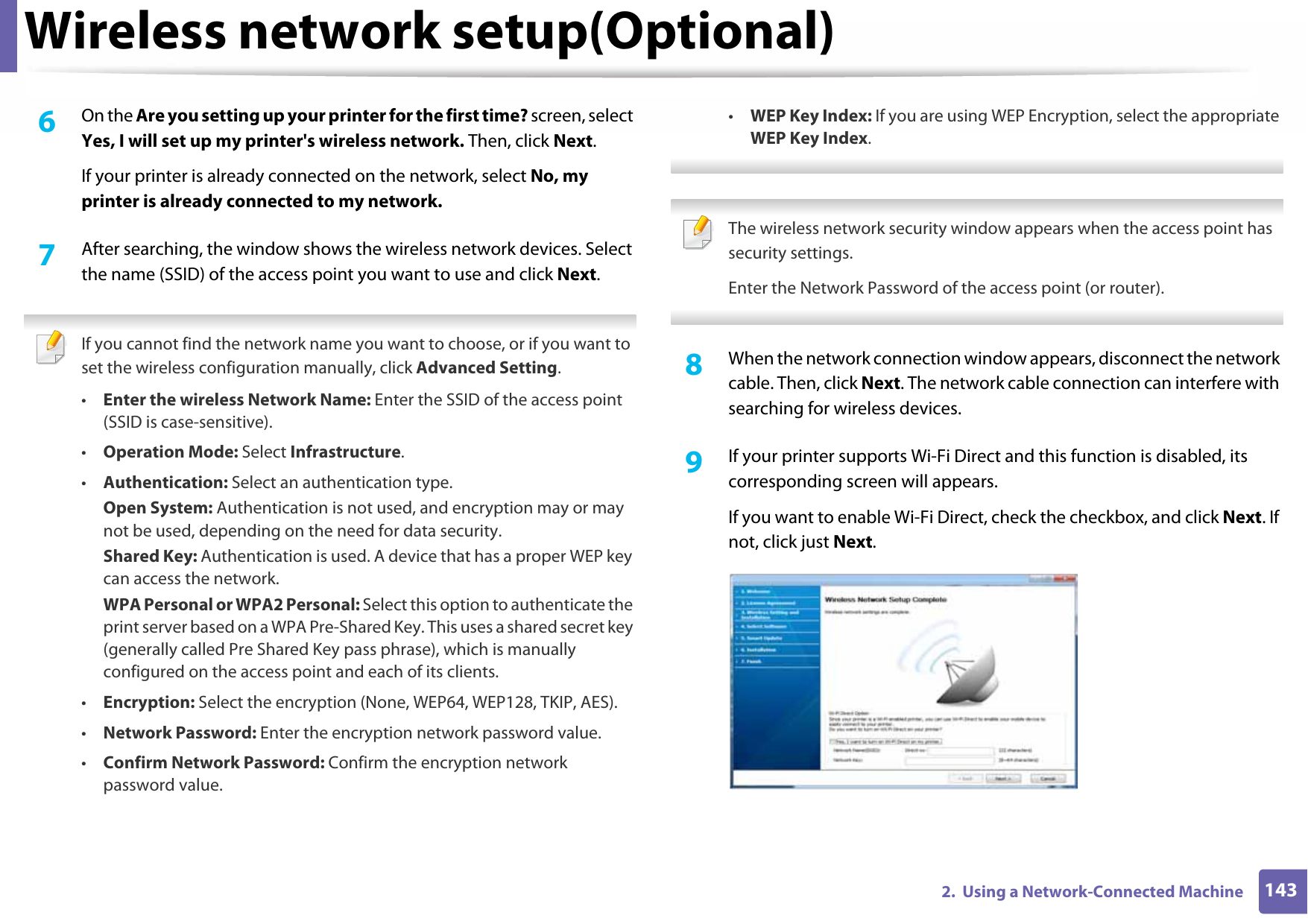

Wireless network setup(Optional)1432. Using a Network-Connected Machine6 On the Are you setting up your printer for the first time? screen, select Yes, I will set up my printer's wireless network. Then, click Next.If your printer is already connected on the network, select No, my printer is already connected to my network.7 After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you want to use and click Next. If you cannot find the network name you want to choose, or if you want to set the wireless configuration manually, click Advanced Setting.•Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).•Operation Mode: Select Infrastructure.•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on a WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase), which is manually configured on the access point and each of its clients.•Encryption: Select the encryption (None, WEP64, WEP128, TKIP, AES).•Network Password: Enter the encryption network password value.•Confirm Network Password: Confirm the encryption network password value.•WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index. The wireless network security window appears when the access point has security settings.Enter the Network Password of the access point (or router). 8 When the network connection window appears, disconnect the network cable. Then, click Next. The network cable connection can interfere with searching for wireless devices.9 If your printer supports Wi-Fi Direct and this function is disabled, its corresponding screen will appears.If you want to enable Wi-Fi Direct, check the checkbox, and click Next. If not, click just Next.

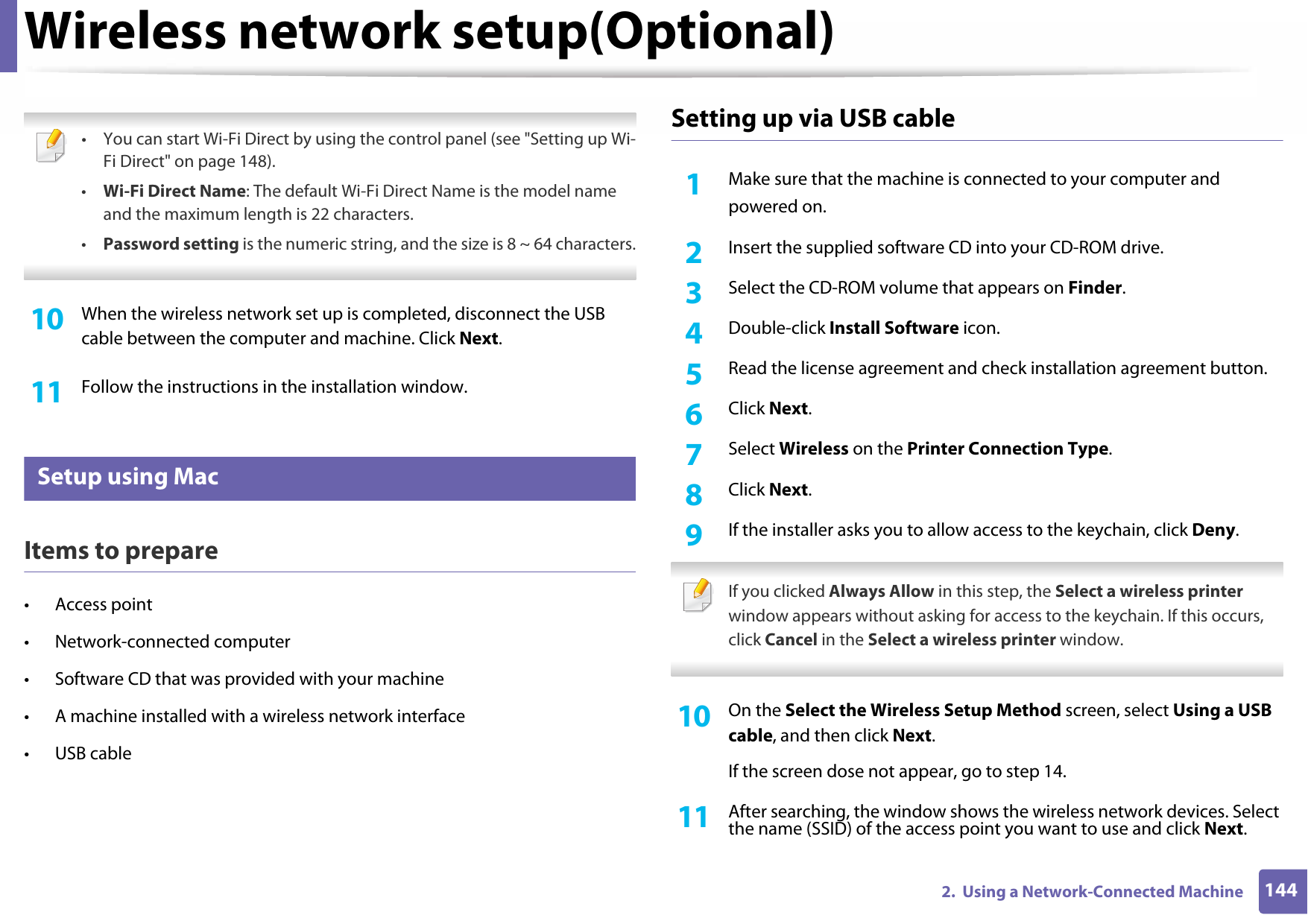

Wireless network setup(Optional)1442. Using a Network-Connected Machine • You can start Wi-Fi Direct by using the control panel (see "Setting up Wi-Fi Direct" on page 148).•Wi-Fi Direct Name: The default Wi-Fi Direct Name is the model name and the maximum length is 22 characters.•Password setting is the numeric string, and the size is 8 ~ 64 characters. 10 When the wireless network set up is completed, disconnect the USB cable between the computer and machine. Click Next.11 Follow the instructions in the installation window.14 Setup using MacItems to prepare• Access point• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• USB cableSetting up via USB cable1Make sure that the machine is connected to your computer andpowered on.2 Insert the supplied software CD into your CD-ROM drive.3 Select the CD-ROM volume that appears on Finder.4 Double-click Install Software icon.5 Read the license agreement and check installation agreement button.6 Click Next.7 Select Wireless on the Printer Connection Type.8 Click Next.9 If the installer asks you to allow access to the keychain, click Deny. If you clicked Always Allow in this step, the Select a wireless printer window appears without asking for access to the keychain. If this occurs, click Cancel in the Select a wireless printer window. 10 On the Select the Wireless Setup Method screen, select Using a USB cable, and then click Next.If the screen dose not appear, go to step 14.11 After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you want to use and click Next.

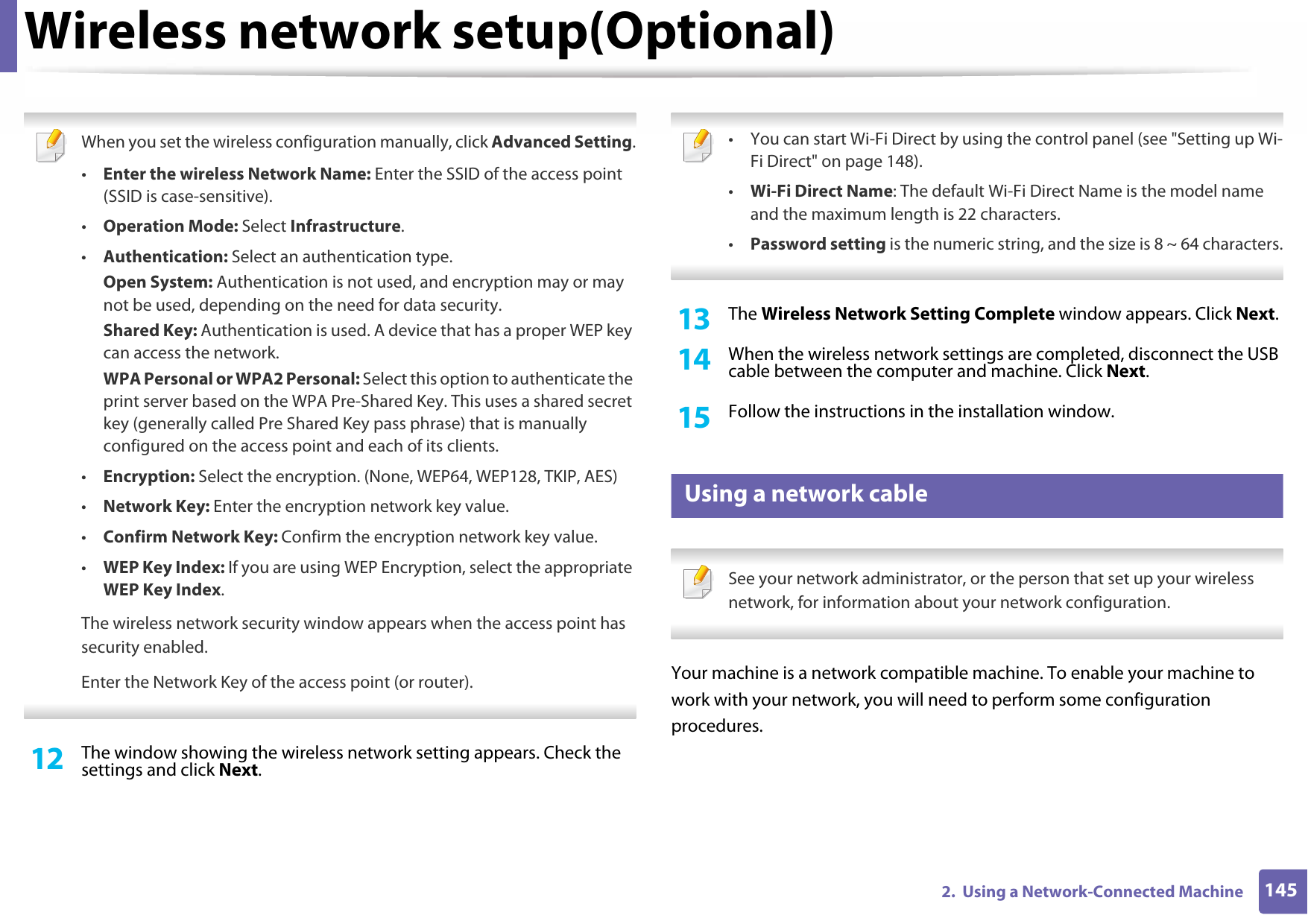

Wireless network setup(Optional)1452. Using a Network-Connected Machine When you set the wireless configuration manually, click Advanced Setting.•Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).•Operation Mode: Select Infrastructure.•Authentication: Select an authentication type.Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.Shared Key: Authentication is used. A device that has a proper WEP key can access the network.WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on the WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase) that is manually configured on the access point and each of its clients.•Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES)•Network Key: Enter the encryption network key value.•Confirm Network Key: Confirm the encryption network key value.•WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.The wireless network security window appears when the access point has security enabled.Enter the Network Key of the access point (or router). 12 The window showing the wireless network setting appears. Check the settings and click Next. • You can start Wi-Fi Direct by using the control panel (see "Setting up Wi-Fi Direct" on page 148).•Wi-Fi Direct Name: The default Wi-Fi Direct Name is the model name and the maximum length is 22 characters.•Password setting is the numeric string, and the size is 8 ~ 64 characters. 13 The Wireless Network Setting Complete window appears. Click Next.14 When the wireless network settings are completed, disconnect the USB cable between the computer and machine. Click Next.15 Follow the instructions in the installation window.15 Using a network cable See your network administrator, or the person that set up your wireless network, for information about your network configuration. Your machine is a network compatible machine. To enable your machine to work with your network, you will need to perform some configuration procedures.

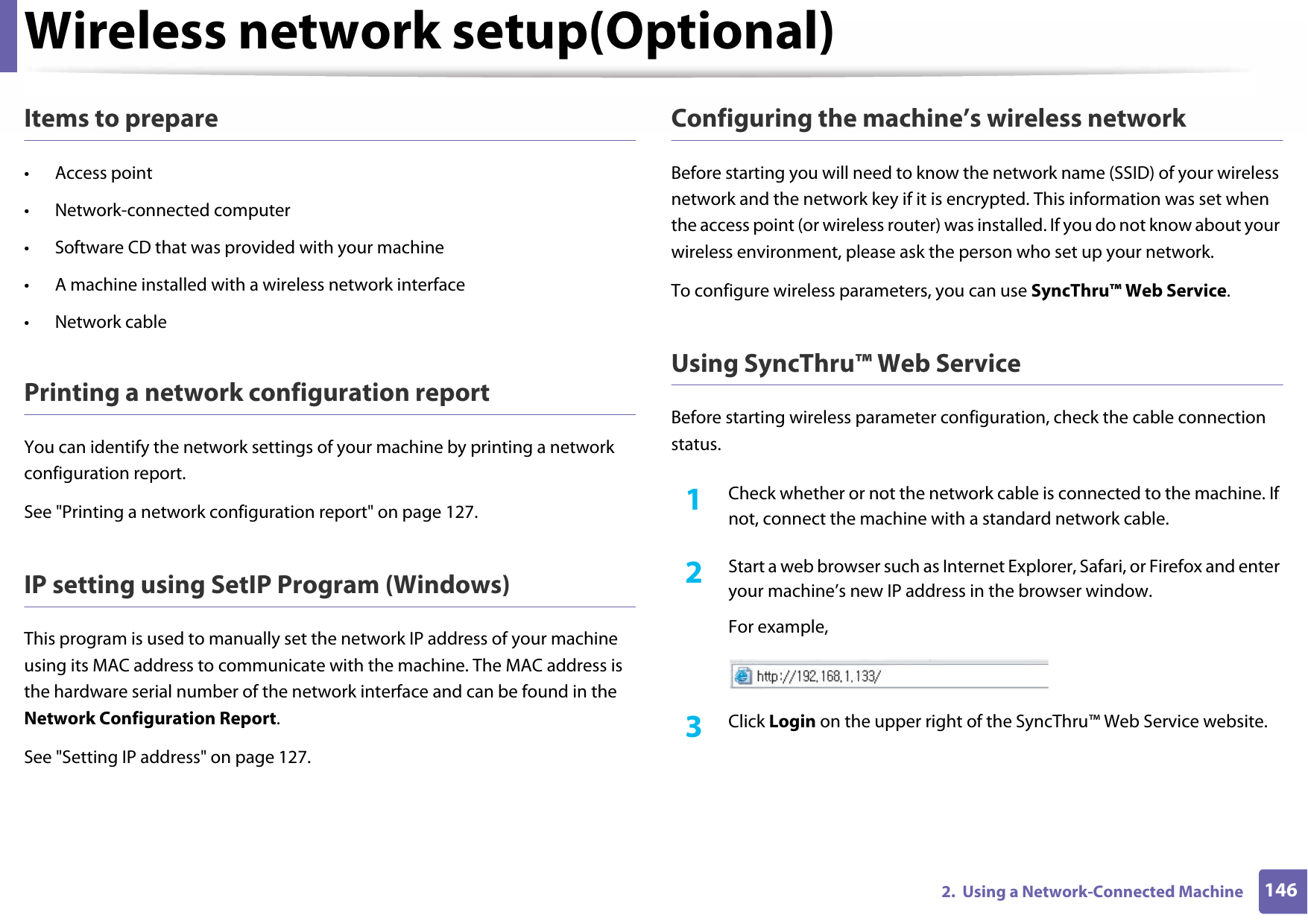

Wireless network setup(Optional)1462. Using a Network-Connected MachineItems to prepare• Access point• Network-connected computer• Software CD that was provided with your machine• A machine installed with a wireless network interface• Network cablePrinting a network configuration reportYou can identify the network settings of your machine by printing a network configuration report.See "Printing a network configuration report" on page 127.IP setting using SetIP Program (Windows)This program is used to manually set the network IP address of your machine using its MAC address to communicate with the machine. The MAC address is the hardware serial number of the network interface and can be found in the Network Configuration Report.See "Setting IP address" on page 127.Configuring the machine’s wireless networkBefore starting you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.To configure wireless parameters, you can use SyncThru™ Web Service.Using SyncThru™ Web ServiceBefore starting wireless parameter configuration, check the cable connection status.1Check whether or not the network cable is connected to the machine. If not, connect the machine with a standard network cable.2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine’s new IP address in the browser window.For example,3 Click Login on the upper right of the SyncThru™ Web Service website.

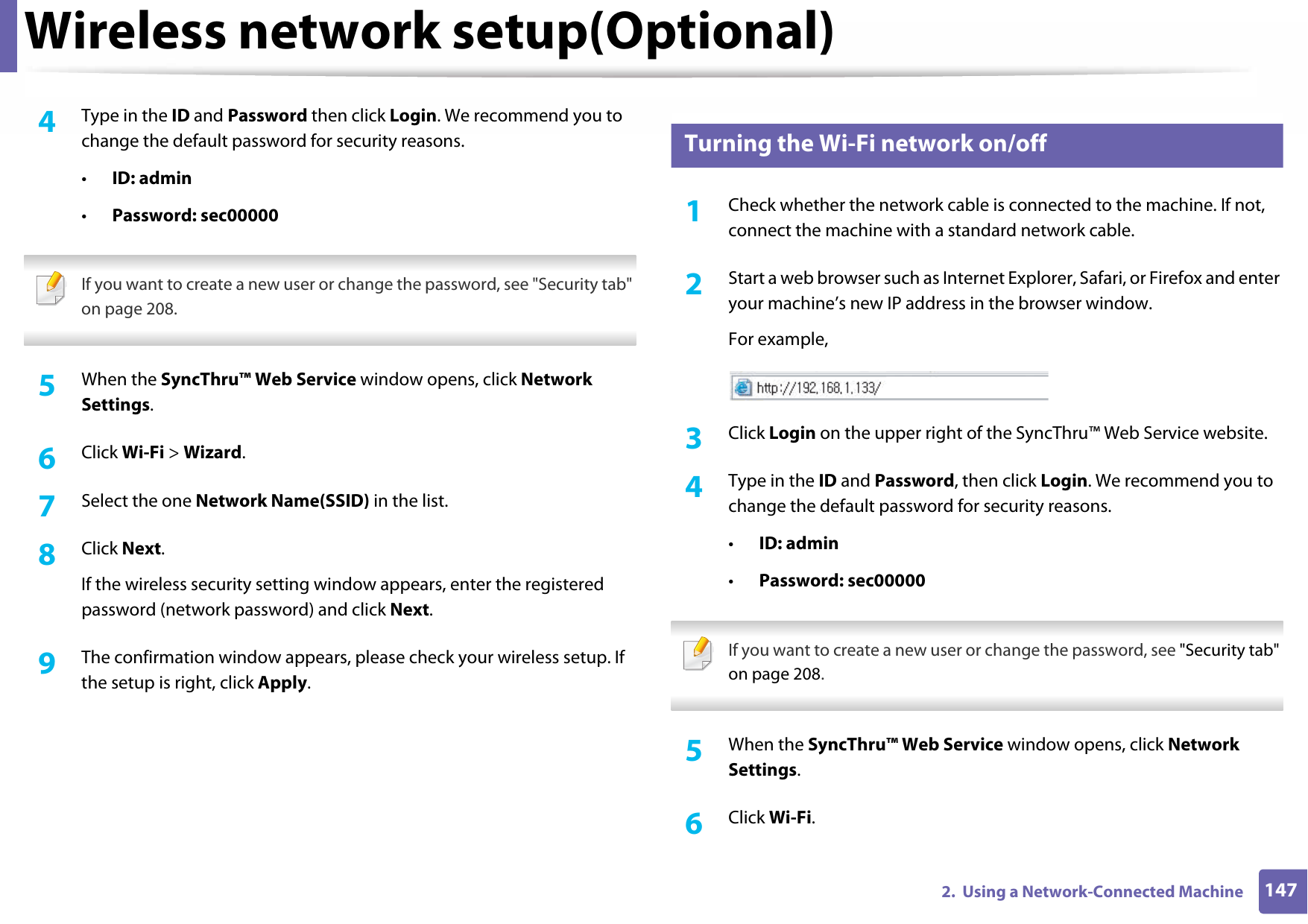

Wireless network setup(Optional)1472. Using a Network-Connected Machine4 Type in the ID and Password then click Login. We recommend you to change the default password for security reasons.•ID: admin •Password: sec00000 If you want to create a new user or change the password, see "Security tab" on page 208. 5 When the SyncThru™ Web Service window opens, click Network Settings.6 Click Wi-Fi > Wizard.7 Select the one Network Name(SSID) in the list.8 Click Next.If the wireless security setting window appears, enter the registered password (network password) and click Next.9 The confirmation window appears, please check your wireless setup. If the setup is right, click Apply.16 Turning the Wi-Fi network on/off1Check whether the network cable is connected to the machine. If not, connect the machine with a standard network cable.2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine’s new IP address in the browser window.For example,3 Click Login on the upper right of the SyncThru™ Web Service website.4 Type in the ID and Password, then click Login. We recommend you to change the default password for security reasons.•ID: admin •Password: sec00000 If you want to create a new user or change the password, see "Security tab" on page 208. 5 When the SyncThru™ Web Service window opens, click Network Settings.6 Click Wi-Fi.

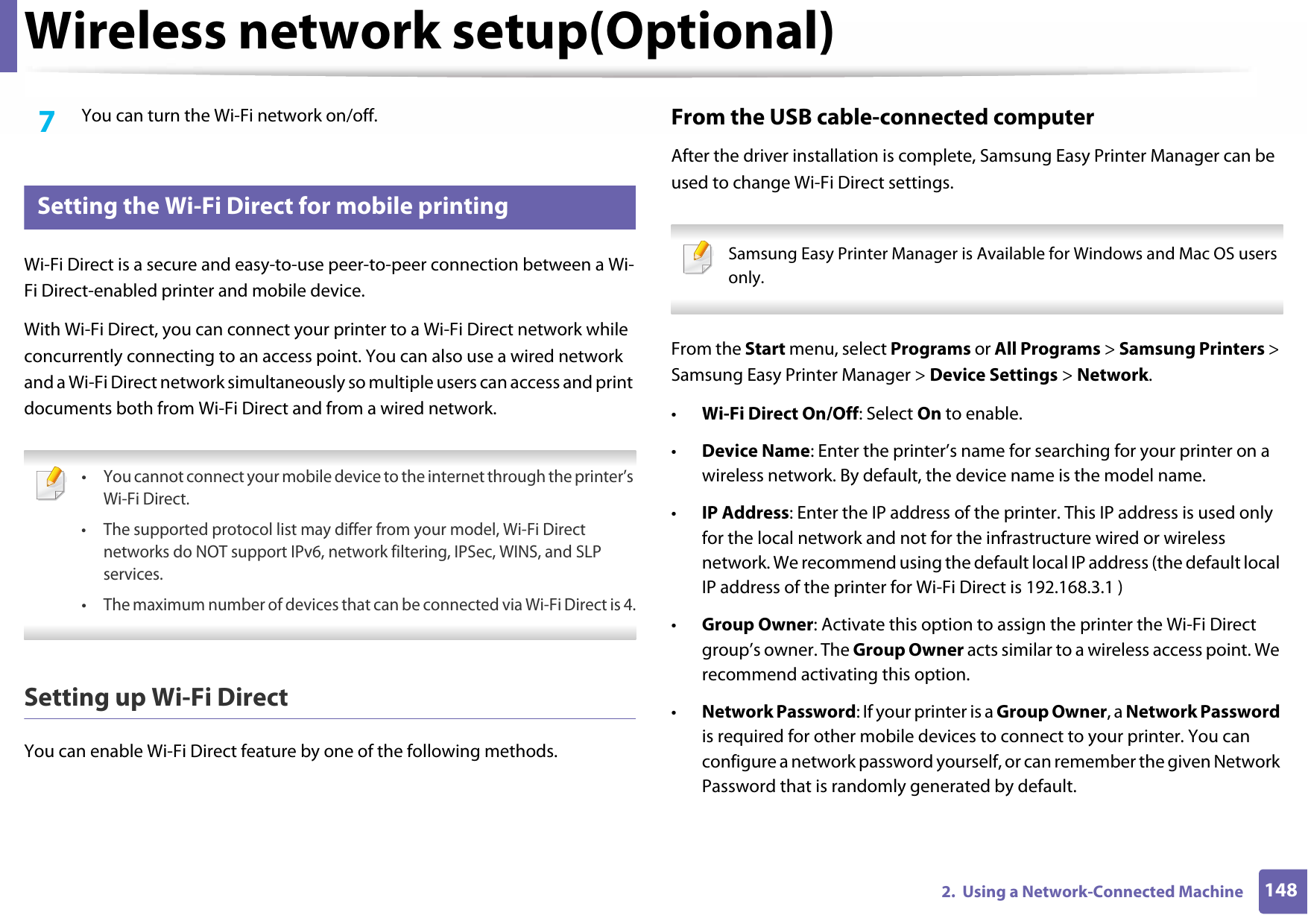

Wireless network setup(Optional)1482. Using a Network-Connected Machine7 You can turn the Wi-Fi network on/off.17 Setting the Wi-Fi Direct for mobile printingWi-Fi Direct is a secure and easy-to-use peer-to-peer connection between a Wi-Fi Direct-enabled printer and mobile device.With Wi-Fi Direct, you can connect your printer to a Wi-Fi Direct network while concurrently connecting to an access point. You can also use a wired network and a Wi-Fi Direct network simultaneously so multiple users can access and print documents both from Wi-Fi Direct and from a wired network. •You cannot connect your mobile device to the internet through the printer’s Wi-Fi Direct.• The supported protocol list may differ from your model, Wi-Fi Direct networks do NOT support IPv6, network filtering, IPSec, WINS, and SLP services.•The maximum number of devices that can be connected via Wi-Fi Direct is 4. Setting up Wi-Fi DirectYou can enable Wi-Fi Direct feature by one of the following methods.From the USB cable-connected computerAfter the driver installation is complete, Samsung Easy Printer Manager can be used to change Wi-Fi Direct settings. Samsung Easy Printer Manager is Available for Windows and Mac OS users only. From the Start menu, select Programs or All Programs > Samsung Printers > Samsung Easy Printer Manager > Device Settings > Network.•Wi-Fi Direct On/Off: Select On to enable.•Device Name: Enter the printer’s name for searching for your printer on a wireless network. By default, the device name is the model name.•IP Address: Enter the IP address of the printer. This IP address is used only for the local network and not for the infrastructure wired or wireless network. We recommend using the default local IP address (the default local IP address of the printer for Wi-Fi Direct is 192.168.3.1 )•Group Owner: Activate this option to assign the printer the Wi-Fi Direct group’s owner. The Group Owner acts similar to a wireless access point. We recommend activating this option.•Network Password: If your printer is a Group Owner, a Network Password is required for other mobile devices to connect to your printer. You can configure a network password yourself, or can remember the given Network Password that is randomly generated by default.

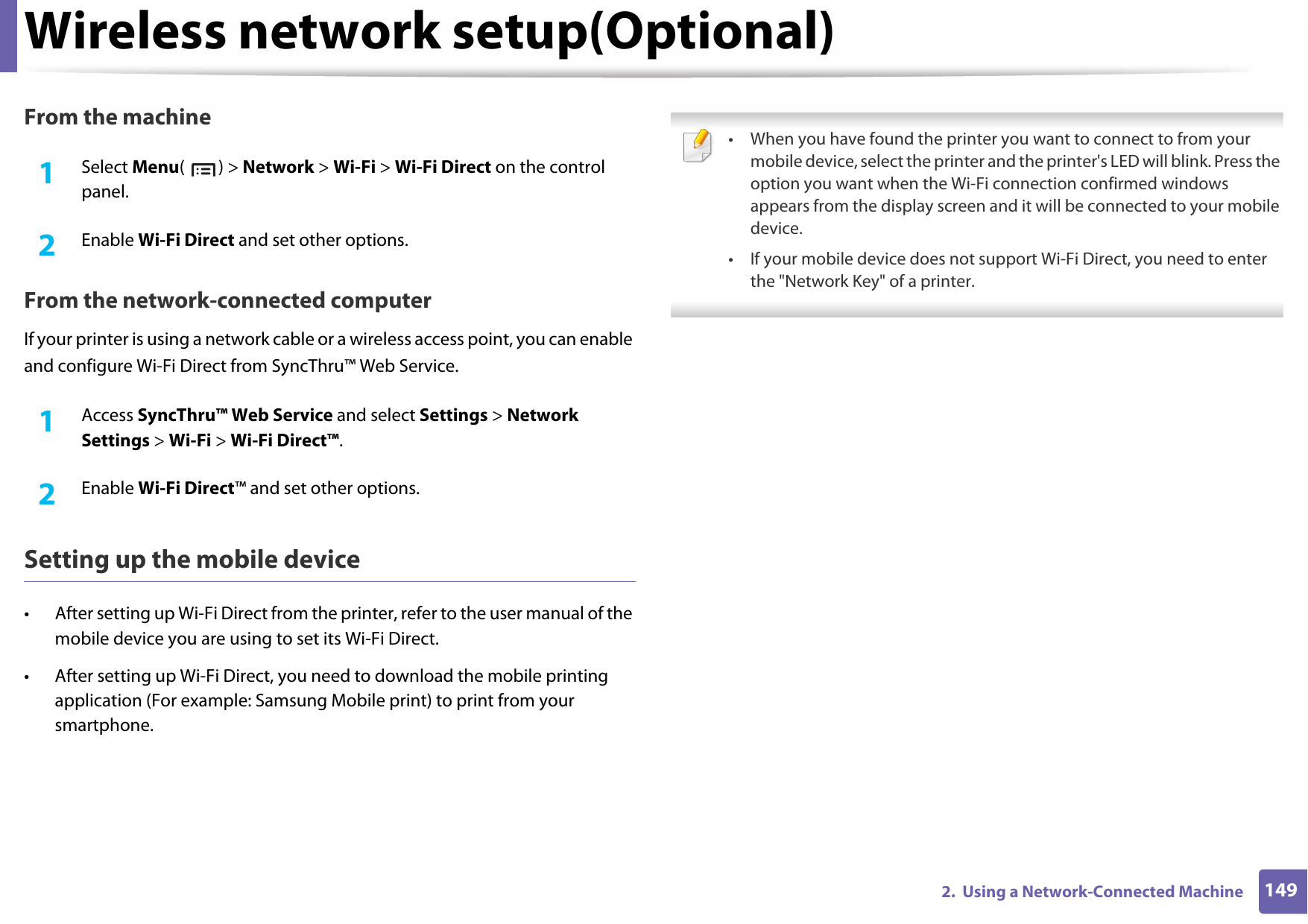

Wireless network setup(Optional)1492. Using a Network-Connected MachineFrom the machine1Select Menu() > Network > Wi-Fi > Wi-Fi Direct on the control panel.2 Enable Wi-Fi Direct and set other options.From the network-connected computerIf your printer is using a network cable or a wireless access point, you can enable and configure Wi-Fi Direct from SyncThru™ Web Service.1Access SyncThru™ Web Service and select Settings > Network Settings > Wi-Fi > Wi-Fi Direct™.2 Enable Wi-Fi Direct™ and set other options.Setting up the mobile device• After setting up Wi-Fi Direct from the printer, refer to the user manual of the mobile device you are using to set its Wi-Fi Direct.• After setting up Wi-Fi Direct, you need to download the mobile printing application (For example: Samsung Mobile print) to print from your smartphone. • When you have found the printer you want to connect to from your mobile device, select the printer and the printer's LED will blink. Press the option you want when the Wi-Fi connection confirmed windows appears from the display screen and it will be connected to your mobile device.• If your mobile device does not support Wi-Fi Direct, you need to enter the "Network Key" of a printer.

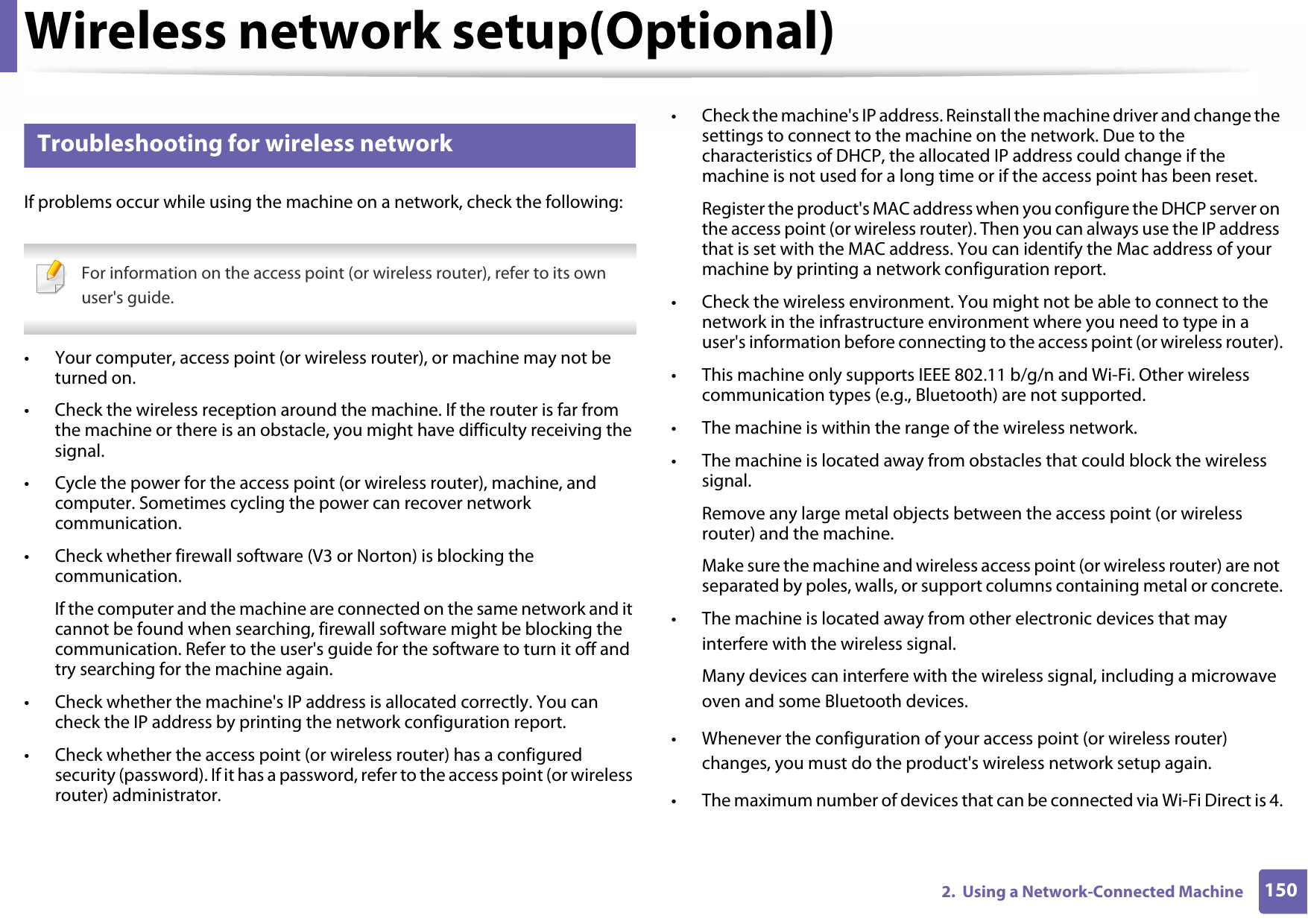

Wireless network setup(Optional)1502. Using a Network-Connected Machine18 Troubleshooting for wireless networkIf problems occur while using the machine on a network, check the following: For information on the access point (or wireless router), refer to its own user's guide. • Your computer, access point (or wireless router), or machine may not be turned on.• Check the wireless reception around the machine. If the router is far from the machine or there is an obstacle, you might have difficulty receiving the signal.• Cycle the power for the access point (or wireless router), machine, and computer. Sometimes cycling the power can recover network communication.• Check whether firewall software (V3 or Norton) is blocking the communication.If the computer and the machine are connected on the same network and it cannot be found when searching, firewall software might be blocking the communication. Refer to the user's guide for the software to turn it off and try searching for the machine again.• Check whether the machine's IP address is allocated correctly. You can check the IP address by printing the network configuration report.• Check whether the access point (or wireless router) has a configured security (password). If it has a password, refer to the access point (or wireless router) administrator.• Check the machine's IP address. Reinstall the machine driver and change the settings to connect to the machine on the network. Due to the characteristics of DHCP, the allocated IP address could change if the machine is not used for a long time or if the access point has been reset.Register the product's MAC address when you configure the DHCP server on the access point (or wireless router). Then you can always use the IP address that is set with the MAC address. You can identify the Mac address of your machine by printing a network configuration report.• Check the wireless environment. You might not be able to connect to the network in the infrastructure environment where you need to type in a user's information before connecting to the access point (or wireless router).• This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless communication types (e.g., Bluetooth) are not supported.• The machine is within the range of the wireless network.• The machine is located away from obstacles that could block the wireless signal.Remove any large metal objects between the access point (or wireless router) and the machine.Make sure the machine and wireless access point (or wireless router) are not separated by poles, walls, or support columns containing metal or concrete.• The machine is located away from other electronic devices that may interfere with the wireless signal.Many devices can interfere with the wireless signal, including a microwave oven and some Bluetooth devices.• Whenever the configuration of your access point (or wireless router) changes, you must do the product's wireless network setup again.• The maximum number of devices that can be connected via Wi-Fi Direct is 4.
