Users Manual 10

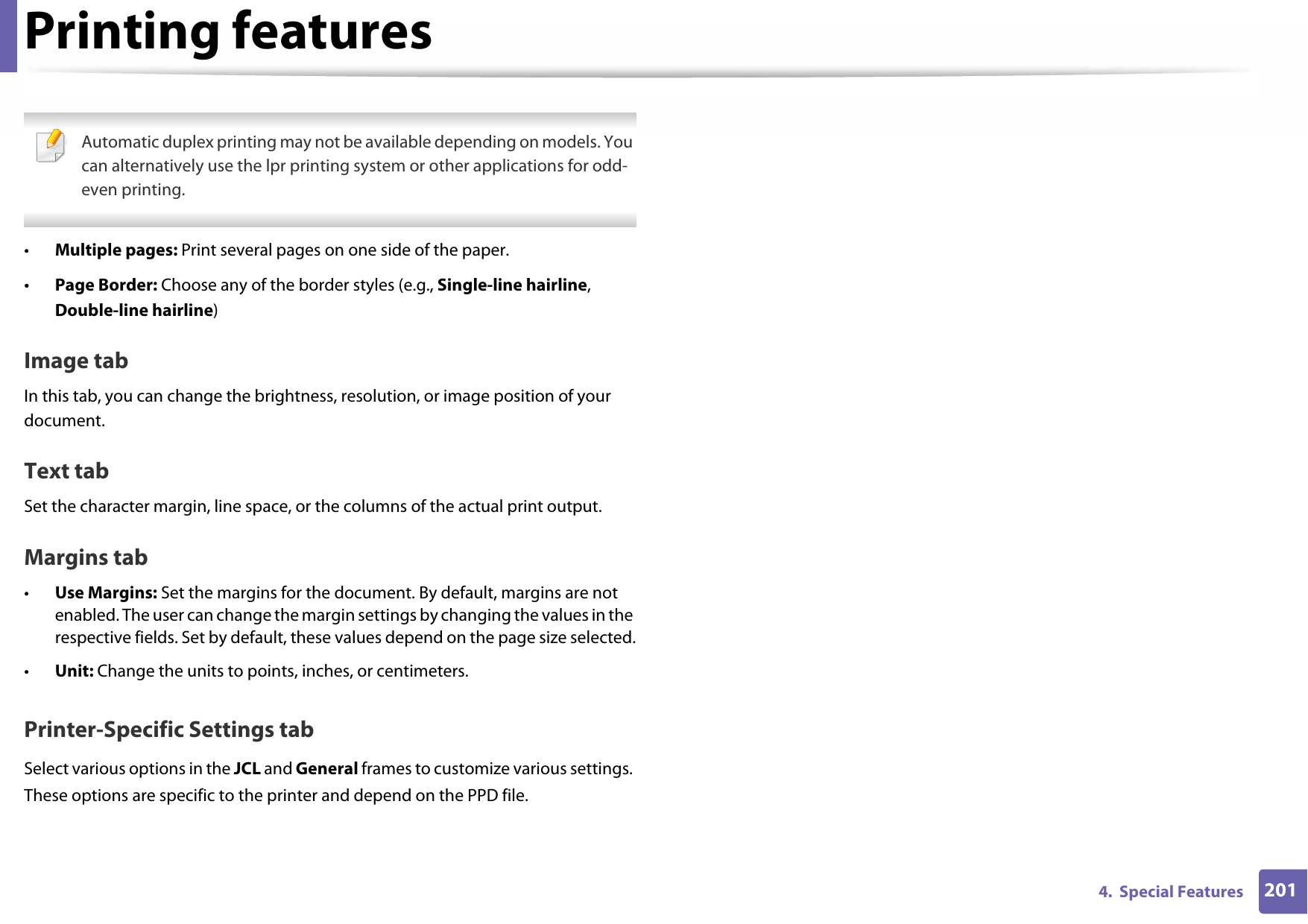

Printing features2014. Special Features Automatic duplex printing may not be available depending on models. You can alternatively use the lpr printing system or other applications for odd-even printing. •Multiple pages: Print several pages on one side of the paper.•Page Border: Choose any of the border styles (e.g., Single-line hairline, Double-line hairline)Image tabIn this tab, you can change the brightness, resolution, or image position of your document.Text tabSet the character margin, line space, or the columns of the actual print output.Margins tab•Use Margins: Set the margins for the document. By default, margins are not enabled. The user can change the margin settings by changing the values in the respective fields. Set by default, these values depend on the page size selected.•Unit: Change the units to points, inches, or centimeters.Printer-Specific Settings tabSelect various options in the JCL and General frames to customize various settings. These options are specific to the printer and depend on the PPD file.

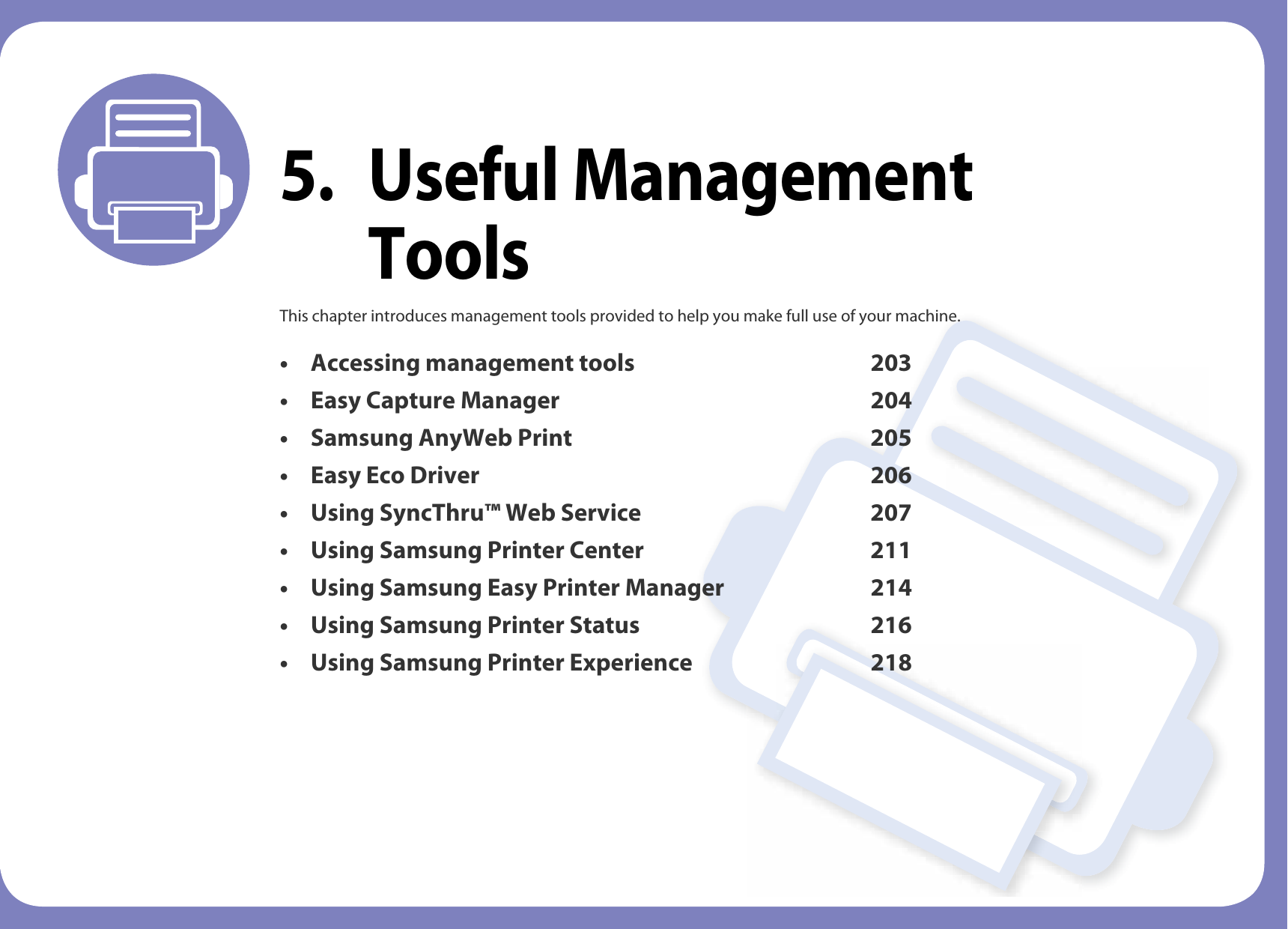

5. Useful Management ToolsThis chapter introduces management tools provided to help you make full use of your machine.• Accessing management tools 203• Easy Capture Manager 204• Samsung AnyWeb Print 205• Easy Eco Driver 206• Using SyncThru™ Web Service 207• Using Samsung Printer Center 211• Using Samsung Easy Printer Manager 214• Using Samsung Printer Status 216• Using Samsung Printer Experience 218

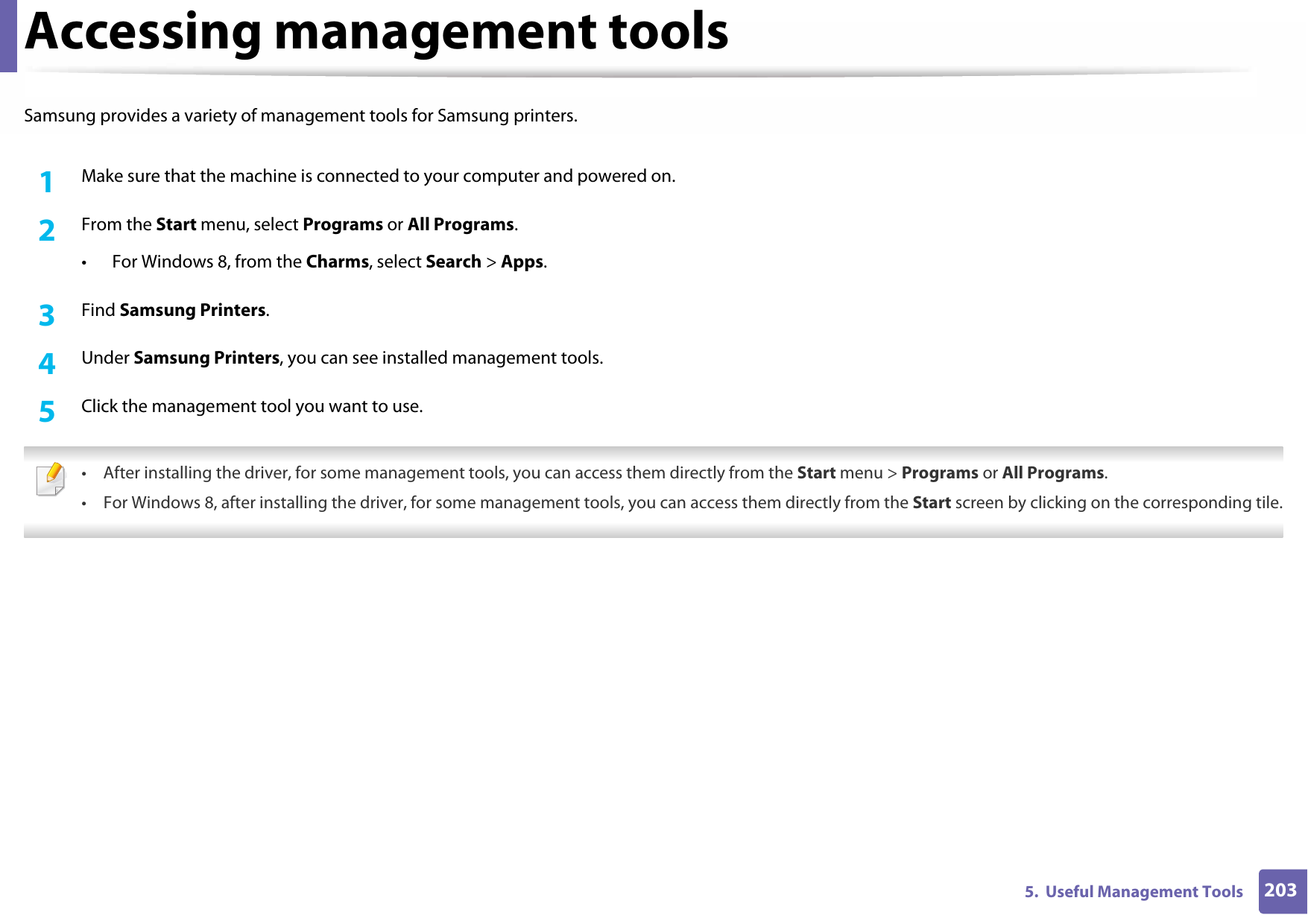

2035. Useful Management ToolsAccessing management toolsSamsung provides a variety of management tools for Samsung printers.1Make sure that the machine is connected to your computer and powered on.2 From the Start menu, select Programs or All Programs.• For Windows 8, from the Charms, select Search > Apps.3 Find Samsung Printers.4 Under Samsung Printers, you can see installed management tools.5 Click the management tool you want to use. • After installing the driver, for some management tools, you can access them directly from the Start menu > Programs or All Programs.• For Windows 8, after installing the driver, for some management tools, you can access them directly from the Start screen by clicking on the corresponding tile.

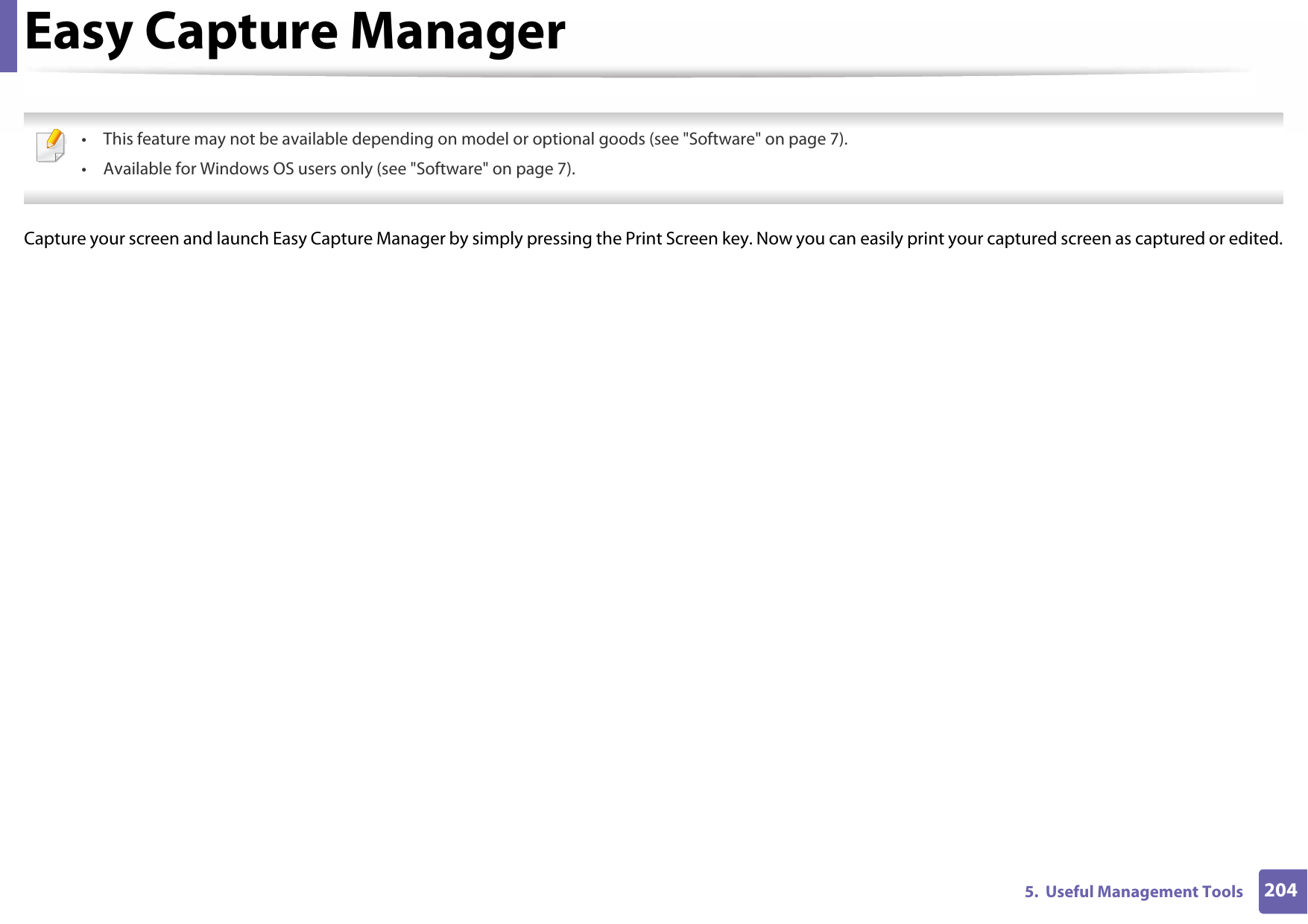

2045. Useful Management ToolsEasy Capture Manager • This feature may not be available depending on model or optional goods (see "Software" on page 7).• Available for Windows OS users only (see "Software" on page 7). Capture your screen and launch Easy Capture Manager by simply pressing the Print Screen key. Now you can easily print your captured screen as captured or edited.

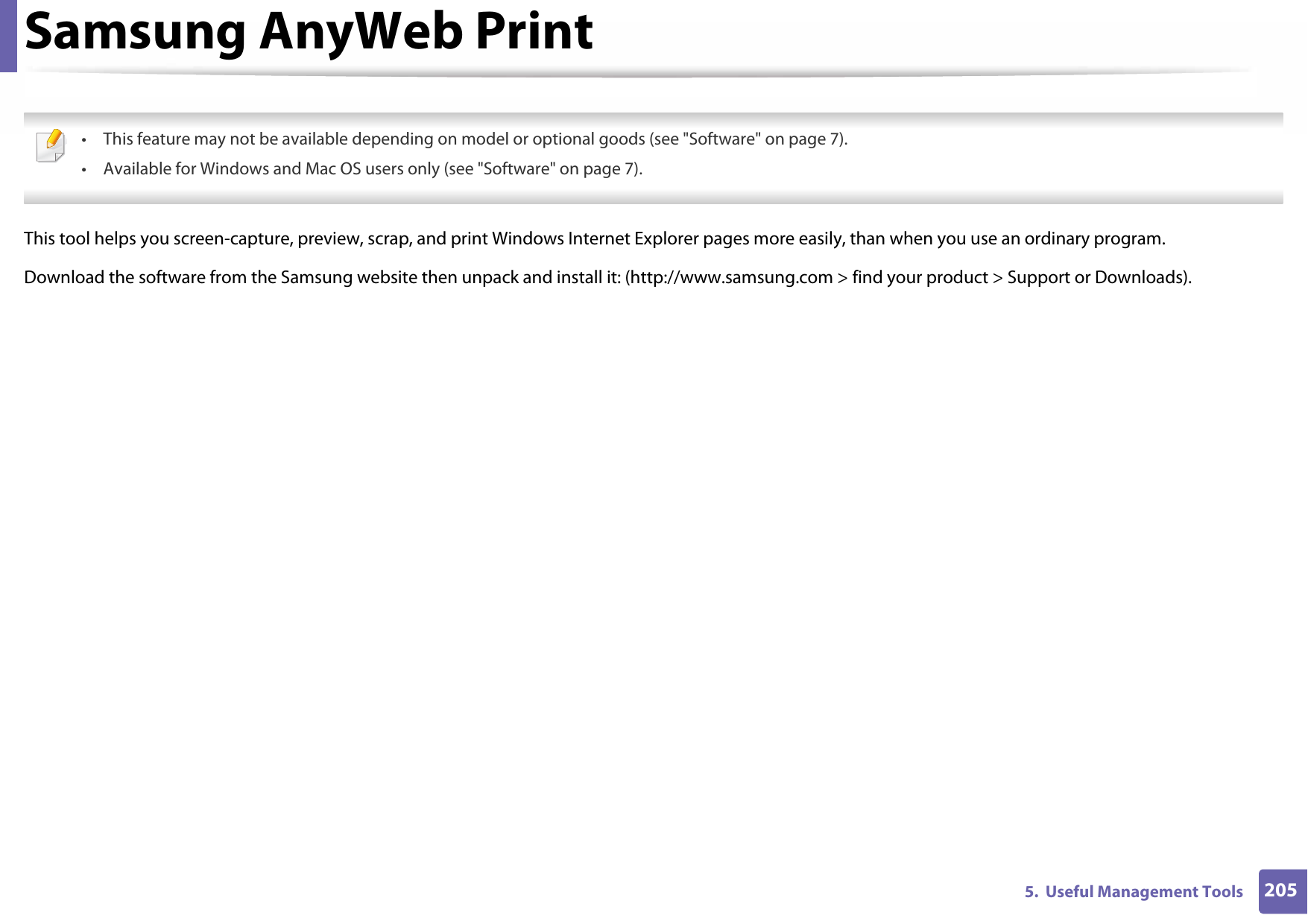

2055. Useful Management ToolsSamsung AnyWeb Print • This feature may not be available depending on model or optional goods (see "Software" on page 7).• Available for Windows and Mac OS users only (see "Software" on page 7). This tool helps you screen-capture, preview, scrap, and print Windows Internet Explorer pages more easily, than when you use an ordinary program.Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).

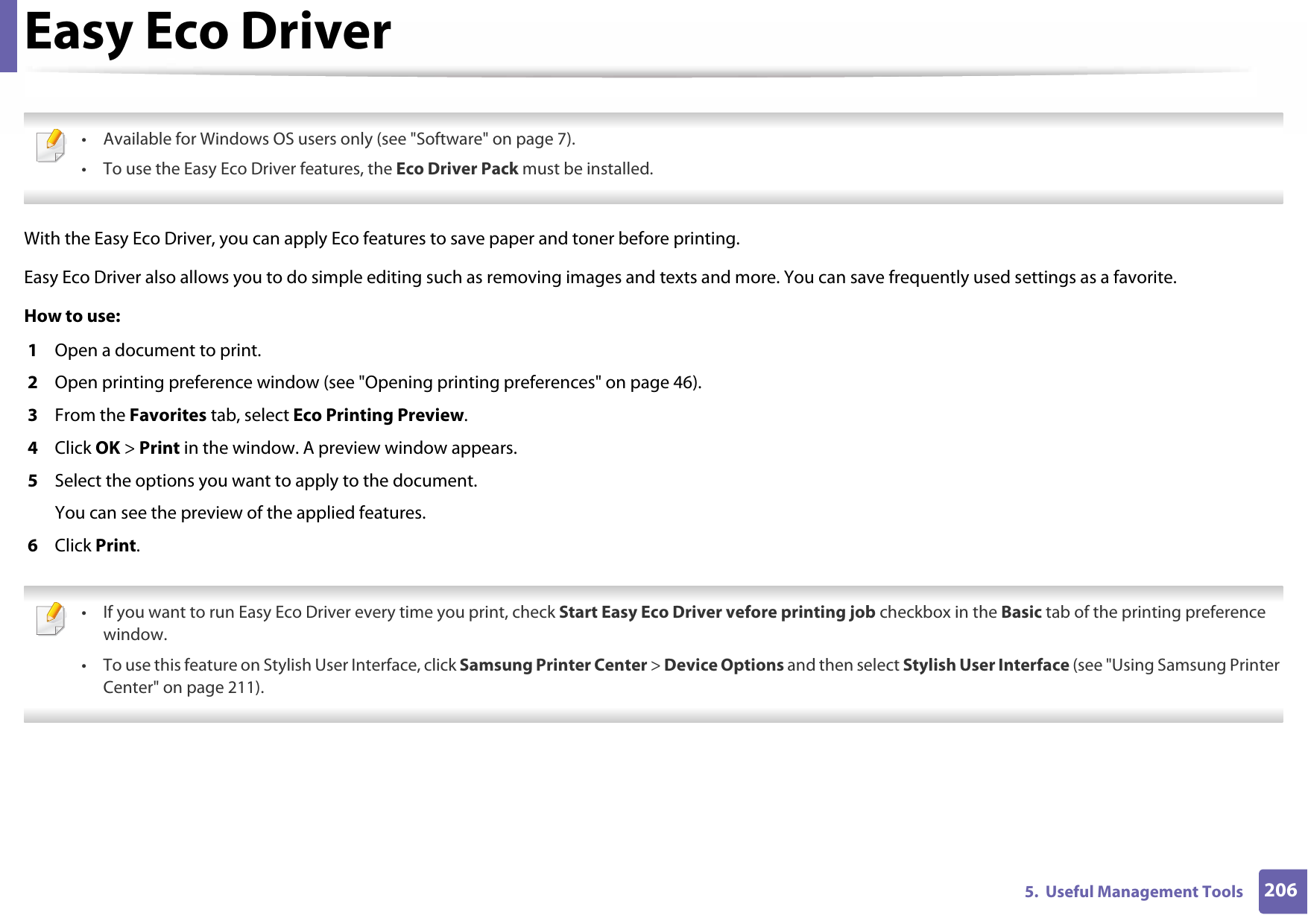

2065. Useful Management ToolsEasy Eco Driver • Available for Windows OS users only (see "Software" on page 7).• To use the Easy Eco Driver features, the Eco Driver Pack must be installed. With the Easy Eco Driver, you can apply Eco features to save paper and toner before printing.Easy Eco Driver also allows you to do simple editing such as removing images and texts and more. You can save frequently used settings as a favorite.How to use: 1 Open a document to print.2 Open printing preference window (see "Opening printing preferences" on page 46).3 From the Favorites tab, select Eco Printing Preview.4 Click OK > Print in the window. A preview window appears.5 Select the options you want to apply to the document.You can see the preview of the applied features.6 Click Print. • If you want to run Easy Eco Driver every time you print, check Start Easy Eco Driver vefore printing job checkbox in the Basic tab of the printing preference window.• To use this feature on Stylish User Interface, click Samsung Printer Center > Device Options and then select Stylish User Interface (see "Using Samsung Printer Center" on page 211).

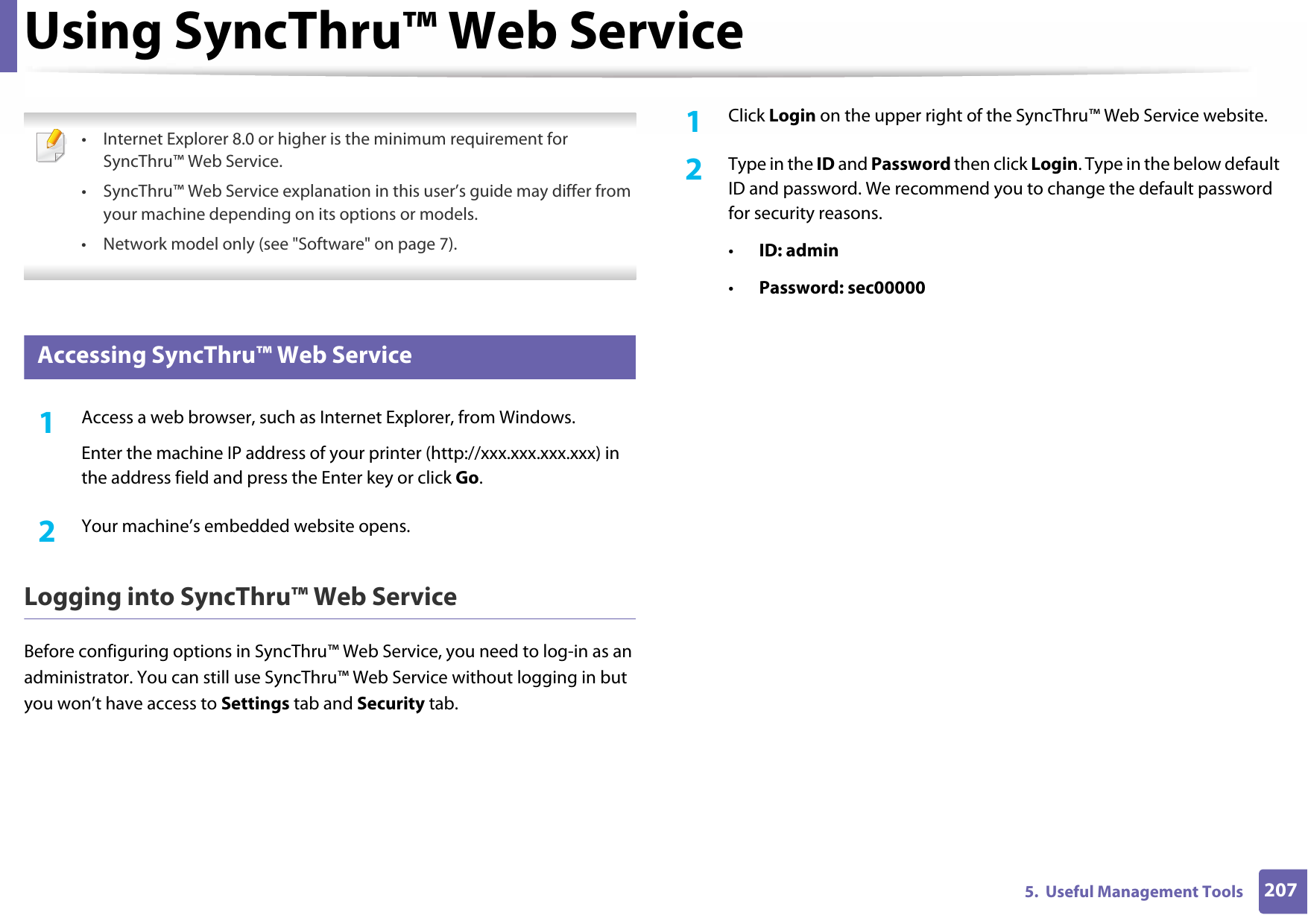

2075. Useful Management ToolsUsing SyncThru™ Web Service • Internet Explorer 8.0 or higher is the minimum requirement for SyncThru™ Web Service.• SyncThru™ Web Service explanation in this user’s guide may differ from your machine depending on its options or models.• Network model only (see "Software" on page 7). 1 Accessing SyncThru™ Web Service1Access a web browser, such as Internet Explorer, from Windows.Enter the machine IP address of your printer (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 Your machine’s embedded website opens.Logging into SyncThru™ Web ServiceBefore configuring options in SyncThru™ Web Service, you need to log-in as an administrator. You can still use SyncThru™ Web Service without logging in but you won’t have access to Settings tab and Security tab.1Click Login on the upper right of the SyncThru™ Web Service website.2 Type in the ID and Password then click Login. Type in the below default ID and password. We recommend you to change the default password for security reasons.•ID: admin •Password: sec00000

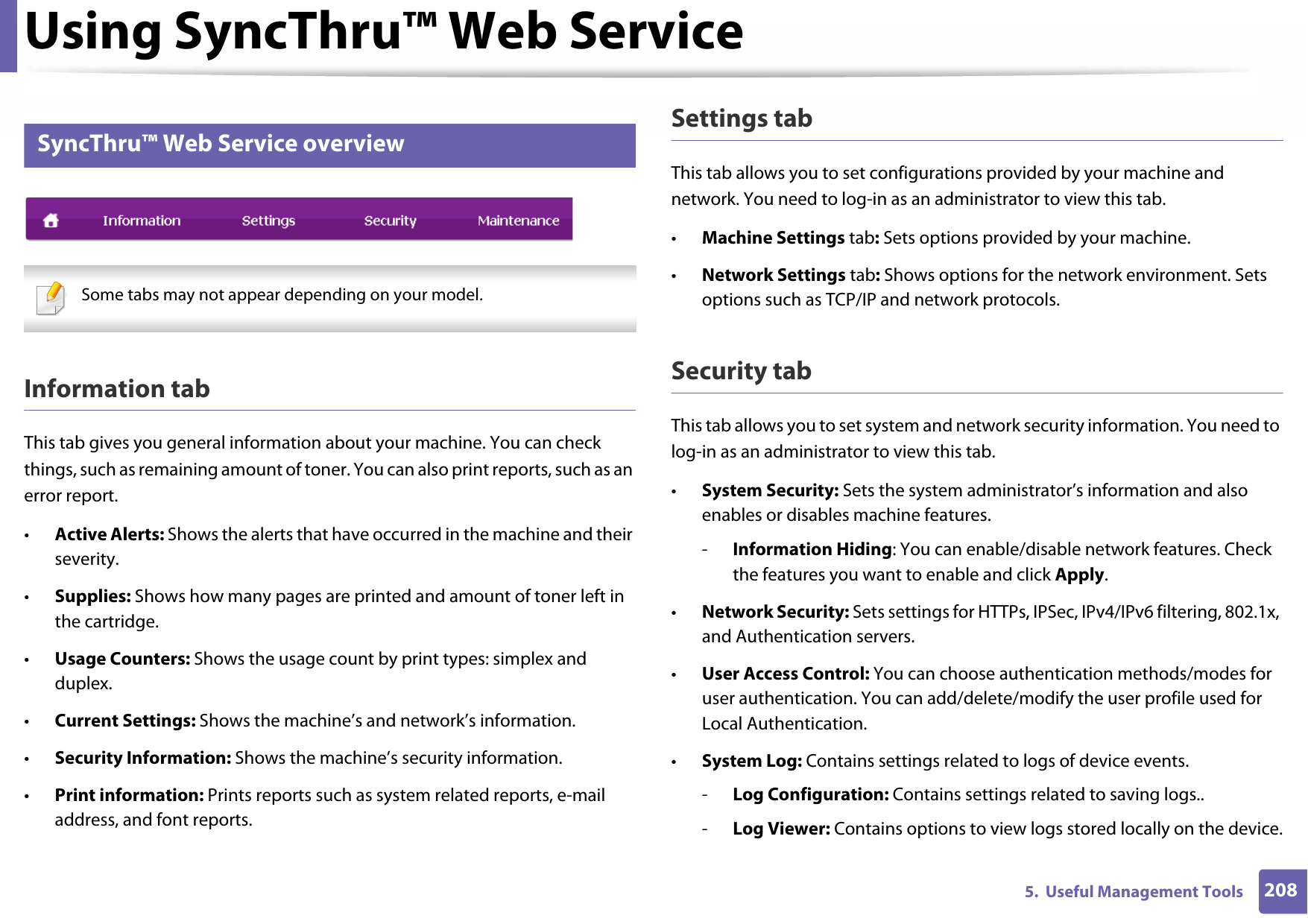

Using SyncThru™ Web Service2085. Useful Management Tools2 SyncThru™ Web Service overview Some tabs may not appear depending on your model. Information tabThis tab gives you general information about your machine. You can check things, such as remaining amount of toner. You can also print reports, such as an error report.•Active Alerts: Shows the alerts that have occurred in the machine and their severity.•Supplies: Shows how many pages are printed and amount of toner left in the cartridge.•Usage Counters: Shows the usage count by print types: simplex and duplex.•Current Settings: Shows the machine’s and network’s information.•Security Information: Shows the machine’s security information.•Print information: Prints reports such as system related reports, e-mail address, and font reports.Settings tabThis tab allows you to set configurations provided by your machine and network. You need to log-in as an administrator to view this tab.•Machine Settings tab: Sets options provided by your machine.•Network Settings tab: Shows options for the network environment. Sets options such as TCP/IP and network protocols.Security tabThis tab allows you to set system and network security information. You need to log-in as an administrator to view this tab.•System Security: Sets the system administrator’s information and also enables or disables machine features.-Information Hiding: You can enable/disable network features. Check the features you want to enable and click Apply.•Network Security: Sets settings for HTTPs, IPSec, IPv4/IPv6 filtering, 802.1x, and Authentication servers.•User Access Control: You can choose authentication methods/modes for user authentication. You can add/delete/modify the user profile used for Local Authentication.•System Log: Contains settings related to logs of device events.-Log Configuration: Contains settings related to saving logs..-Log Viewer: Contains options to view logs stored locally on the device.

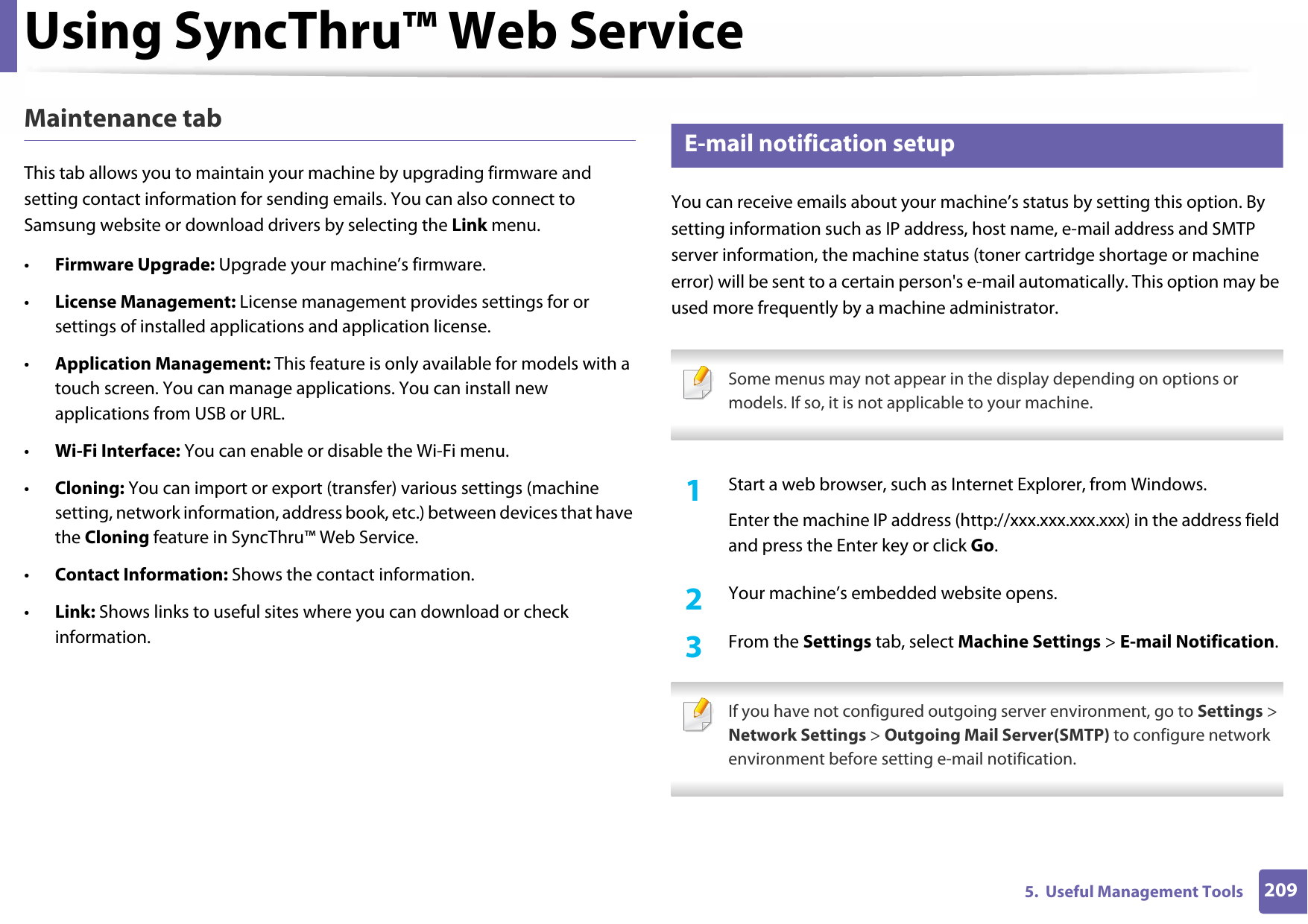

Using SyncThru™ Web Service2095. Useful Management ToolsMaintenance tabThis tab allows you to maintain your machine by upgrading firmware and setting contact information for sending emails. You can also connect to Samsung website or download drivers by selecting the Link menu.•Firmware Upgrade: Upgrade your machine’s firmware.•License Management: License management provides settings for or settings of installed applications and application license.•Application Management: This feature is only available for models with a touch screen. You can manage applications. You can install new applications from USB or URL.•Wi-Fi Interface: You can enable or disable the Wi-Fi menu.•Cloning: You can import or export (transfer) various settings (machine setting, network information, address book, etc.) between devices that have the Cloning feature in SyncThru™ Web Service.•Contact Information: Shows the contact information.•Link: Shows links to useful sites where you can download or check information.3 E-mail notification setupYou can receive emails about your machine’s status by setting this option. By setting information such as IP address, host name, e-mail address and SMTP server information, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's e-mail automatically. This option may be used more frequently by a machine administrator. Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine. 1Start a web browser, such as Internet Explorer, from Windows.Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 Your machine’s embedded website opens.3 From the Settings tab, select Machine Settings > E-mail Notification. If you have not configured outgoing server environment, go to Settings > Network Settings > Outgoing Mail Server(SMTP) to configure network environment before setting e-mail notification.

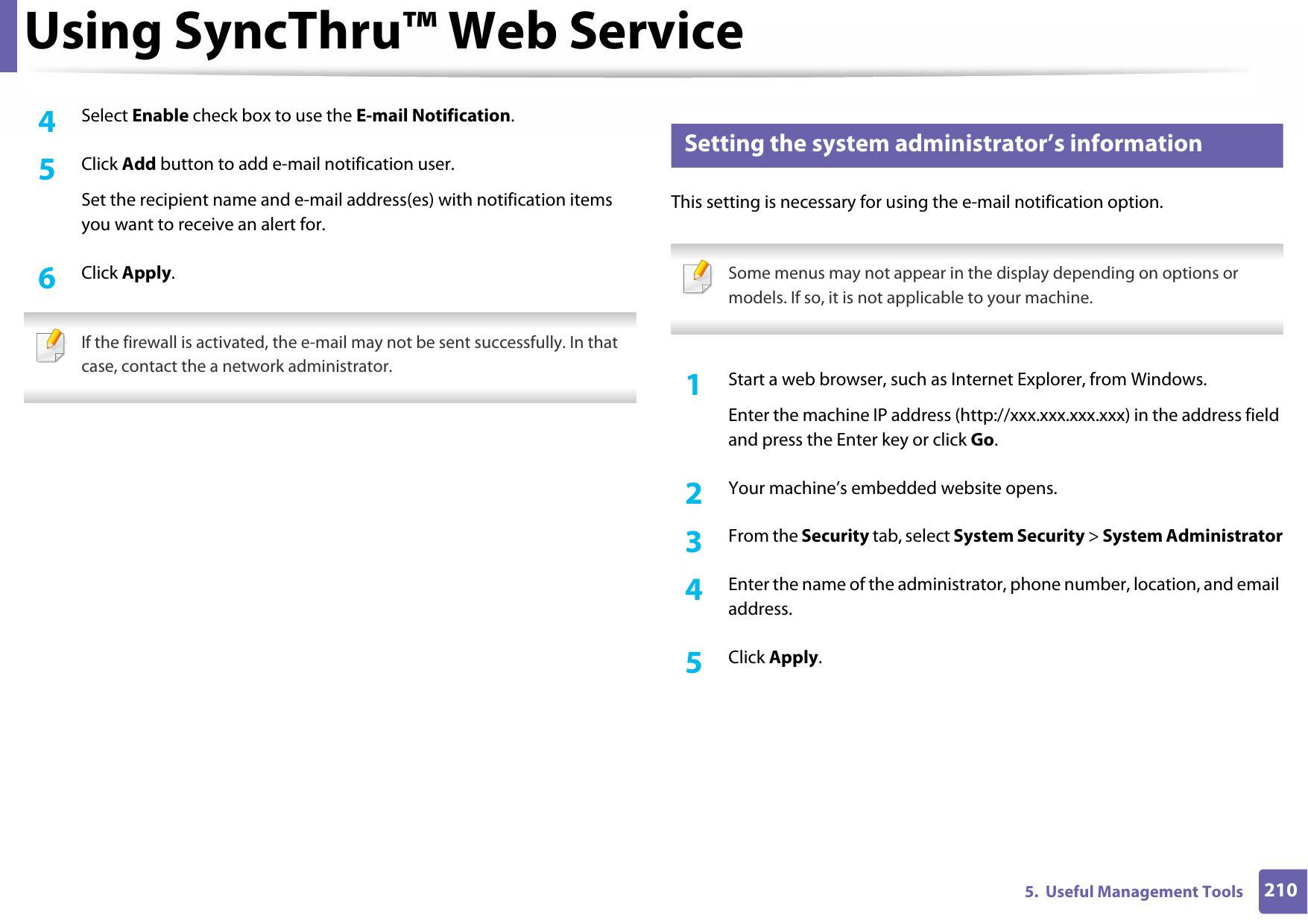

Using SyncThru™ Web Service2105. Useful Management Tools4 Select Enable check box to use the E-mail Notification.5 Click Add button to add e-mail notification user.Set the recipient name and e-mail address(es) with notification items you want to receive an alert for.6 Click Apply. If the firewall is activated, the e-mail may not be sent successfully. In that case, contact the a network administrator. 4 Setting the system administrator’s informationThis setting is necessary for using the e-mail notification option. Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine. 1Start a web browser, such as Internet Explorer, from Windows.Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.2 Your machine’s embedded website opens.3 From the Security tab, select System Security > System Administrator4 Enter the name of the administrator, phone number, location, and email address.5 Click Apply.

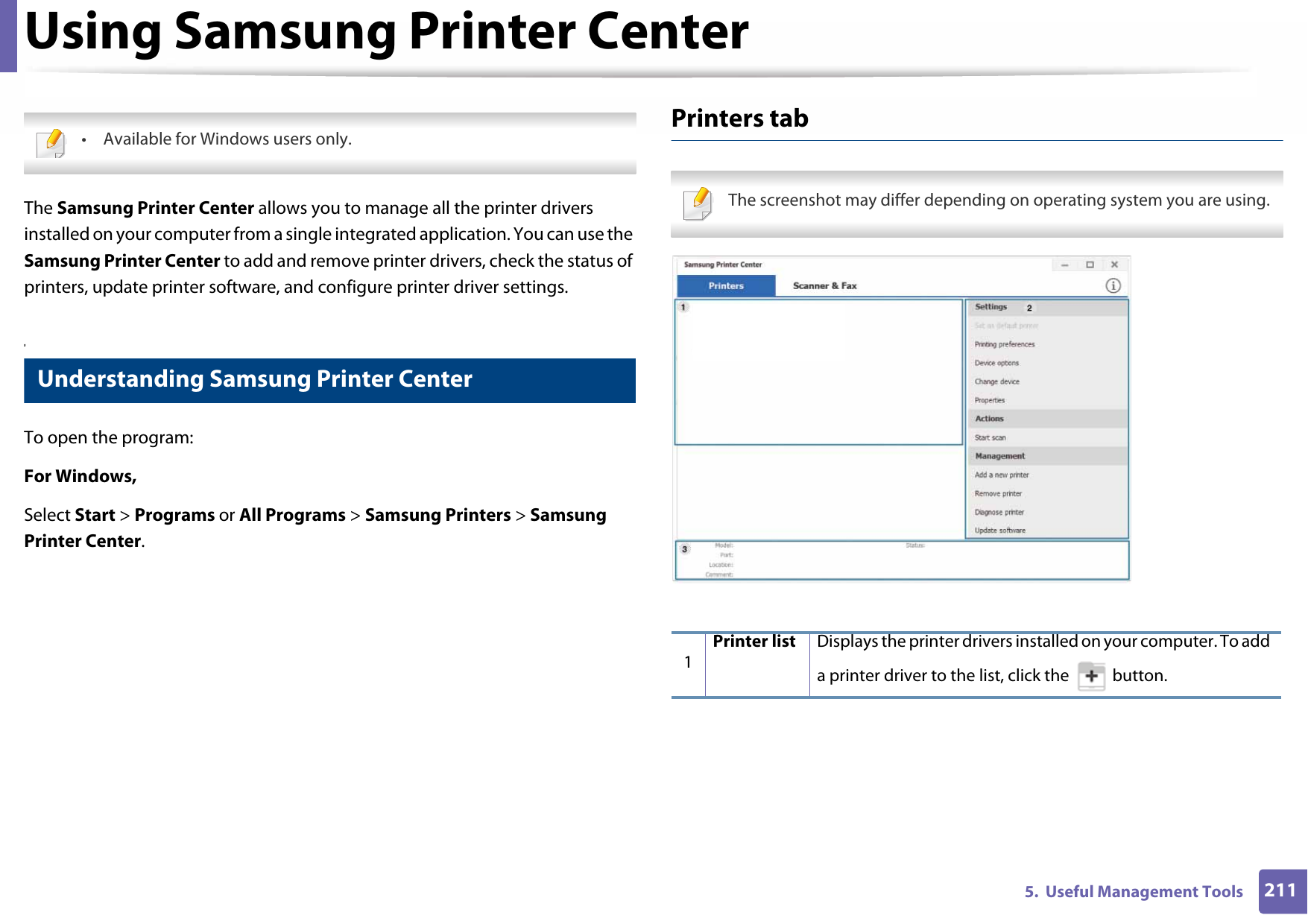

2115. Useful Management ToolsUsing Samsung Printer Center • Available for Windows users only. The Samsung Printer Center allows you to manage all the printer drivers installed on your computer from a single integrated application. You can use the Samsung Printer Center to add and remove printer drivers, check the status of printers, update printer software, and configure printer driver settings.5 Understanding Samsung Printer CenterTo open the program: For Windows,Select Start > Programs or All Programs > Samsung Printers > Samsung Printer Center.Printers tab The screenshot may differ depending on operating system you are using. 1Printer list Displays the printer drivers installed on your computer. To add a printer driver to the list, click the button.

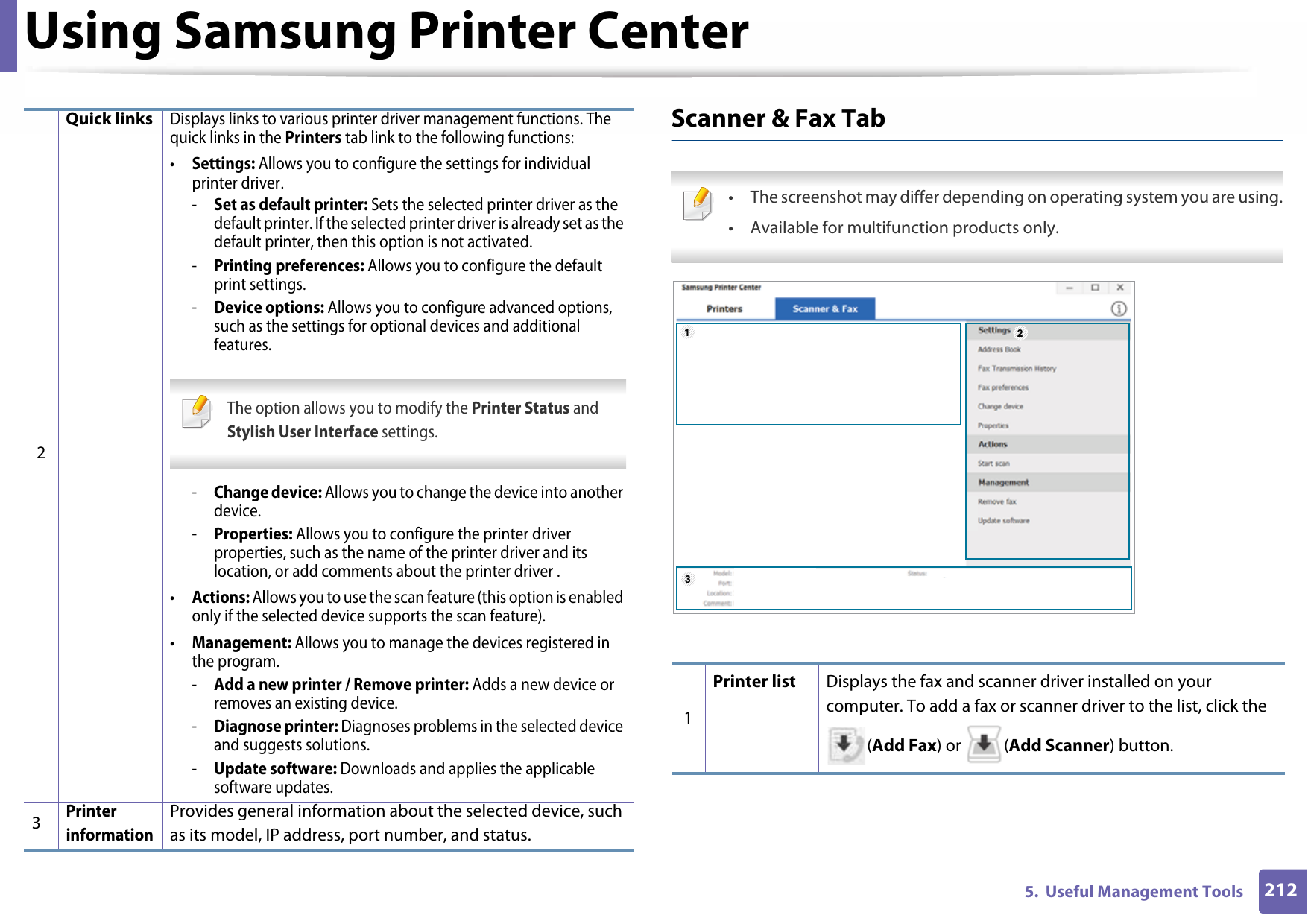

Using Samsung Printer Center2125. Useful Management ToolsScanner & Fax Tab • The screenshot may differ depending on operating system you are using.• Available for multifunction products only. 2Quick linksDisplays links to various printer driver management functions. The quick links in the Printers tab link to the following functions:•Settings: Allows you to configure the settings for individual printer driver.-Set as default printer: Sets the selected printer driver as the default printer. If the selected printer driver is already set as the default printer, then this option is not activated.-Printing preferences: Allows you to configure the default print settings.-Device options: Allows you to configure advanced options, such as the settings for optional devices and additional features. The option allows you to modify the Printer Status and Stylish User Interface settings. -Change device: Allows you to change the device into another device.-Properties: Allows you to configure the printer driver properties, such as the name of the printer driver and its location, or add comments about the printer driver .•Actions: Allows you to use the scan feature (this option is enabled only if the selected device supports the scan feature).•Management: Allows you to manage the devices registered in the program.-Add a new printer / Remove printer: Adds a new device or removes an existing device.-Diagnose printer: Diagnoses problems in the selected device and suggests solutions.-Update software: Downloads and applies the applicable software updates.3Printer informationProvides general information about the selected device, such as its model, IP address, port number, and status.1Printer list Displays the fax and scanner driver installed on your computer. To add a fax or scanner driver to the list, click the (Add Fax) or (Add Scanner) button.123

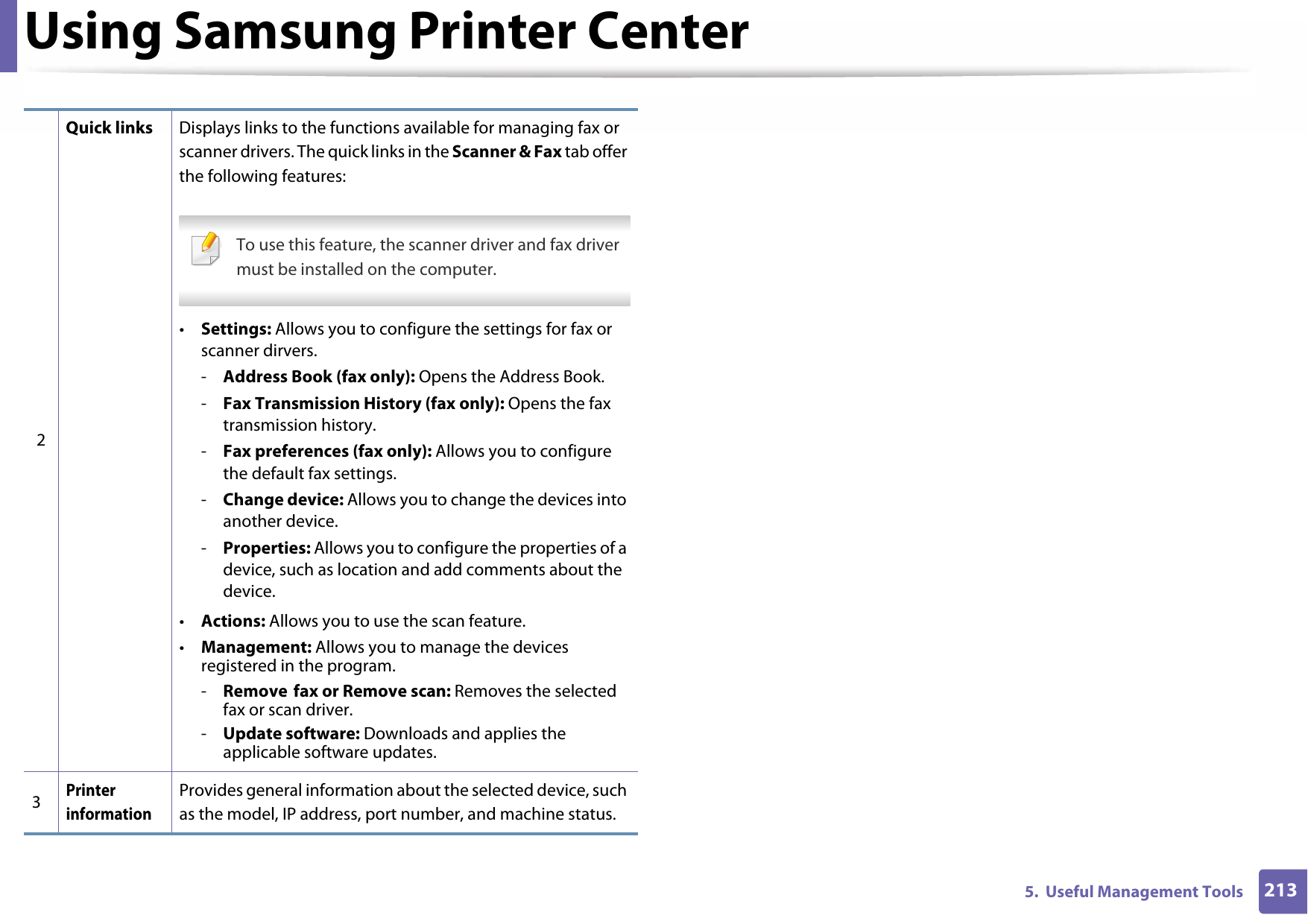

Using Samsung Printer Center2135. Useful Management Tools2Quick links Displays links to the functions available for managing fax or scanner drivers. The quick links in the Scanner & Fax tab offer the following features: To use this feature, the scanner driver and fax driver must be installed on the computer. •Settings: Allows you to configure the settings for fax or scanner dirvers.-Address Book (fax only): Opens the Address Book.-Fax Transmission History (fax only): Opens the fax transmission history.-Fax preferences (fax only): Allows you to configure the default fax settings.-Change device: Allows you to change the devices into another device.-Properties: Allows you to configure the properties of a device, such as location and add comments about the device.•Actions: Allows you to use the scan feature.•Management: Allows you to manage the devices registered in the program.-Remove fax or Remove scan: Removes the selected fax or scan driver.-Update software: Downloads and applies the applicable software updates.3Printer informationProvides general information about the selected device, such as the model, IP address, port number, and machine status.

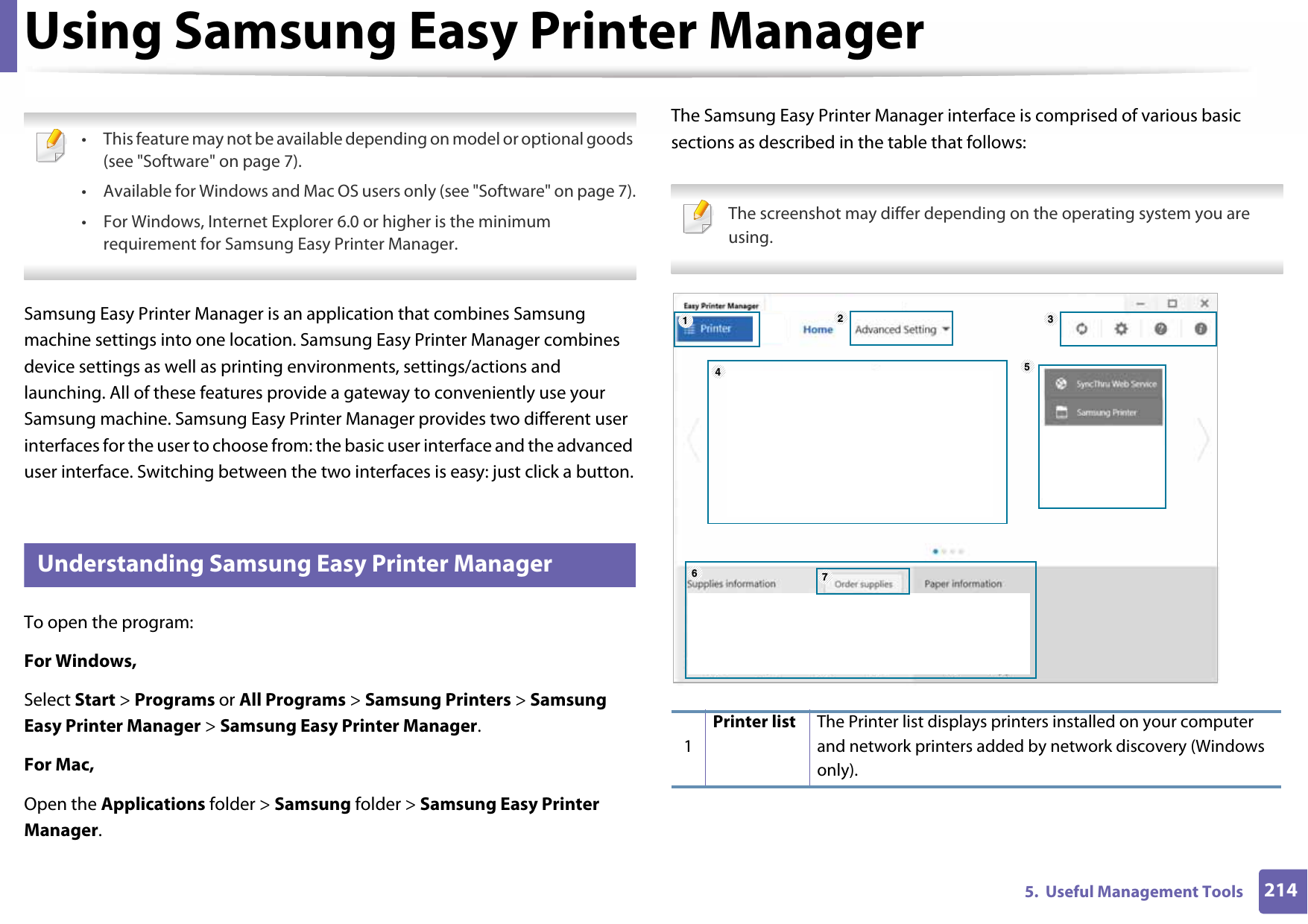

2145. Useful Management ToolsUsing Samsung Easy Printer Manager • This feature may not be available depending on model or optional goods (see "Software" on page 7).• Available for Windows and Mac OS users only (see "Software" on page 7).• For Windows, Internet Explorer 6.0 or higher is the minimum requirement for Samsung Easy Printer Manager. Samsung Easy Printer Manager is an application that combines Samsung machine settings into one location. Samsung Easy Printer Manager combines device settings as well as printing environments, settings/actions and launching. All of these features provide a gateway to conveniently use your Samsung machine. Samsung Easy Printer Manager provides two different user interfaces for the user to choose from: the basic user interface and the advanced user interface. Switching between the two interfaces is easy: just click a button.6 Understanding Samsung Easy Printer ManagerTo open the program: For Windows,Select Start > Programs or All Programs > Samsung Printers > Samsung Easy Printer Manager > Samsung Easy Printer Manager.For Mac,Open the Applications folder > Samsung folder > Samsung Easy Printer Manager.The Samsung Easy Printer Manager interface is comprised of various basic sections as described in the table that follows: The screenshot may differ depending on the operating system you are using. 1Printer list The Printer list displays printers installed on your computer and network printers added by network discovery (Windows only).1564327

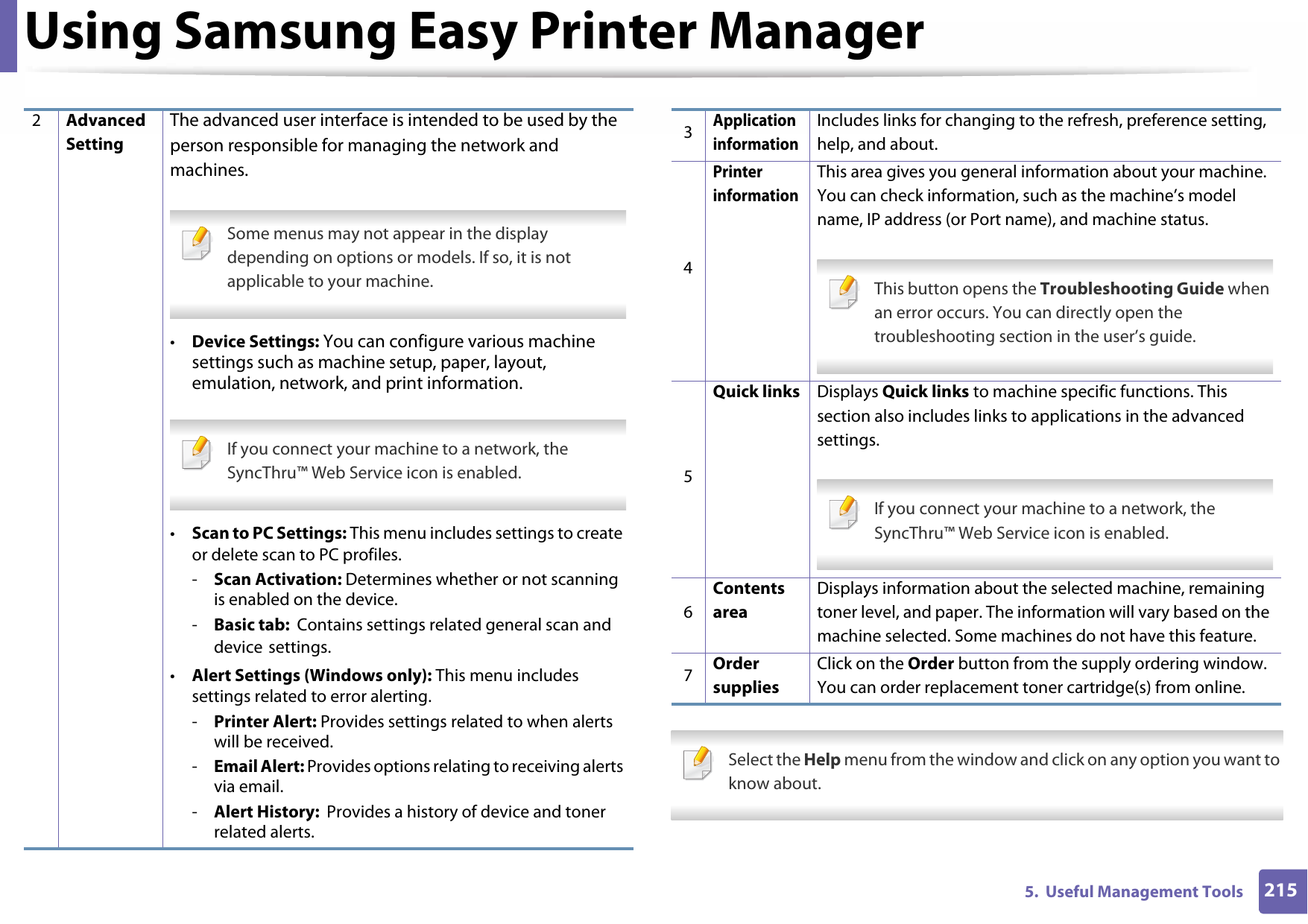

Using Samsung Easy Printer Manager2155. Useful Management Tools Select the Help menu from the window and click on any option you want to know about. 2Advanced SettingThe advanced user interface is intended to be used by the person responsible for managing the network and machines. Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine. •Device Settings: You can configure various machine settings such as machine setup, paper, layout, emulation, network, and print information. If you connect your machine to a network, the SyncThru™ Web Service icon is enabled. •Scan to PC Settings: This menu includes settings to create or delete scan to PC profiles.-Scan Activation: Determines whether or not scanning is enabled on the device.-Basic tab: Contains settings related general scan and device settings.•Alert Settings (Windows only): This menu includes settings related to error alerting.-Printer Alert: Provides settings related to when alerts will be received.-Email Alert: Provides options relating to receiving alerts via email.-Alert History: Provides a history of device and toner related alerts.3Application informationIncludes links for changing to the refresh, preference setting, help, and about.4Printer informationThis area gives you general information about your machine. You can check information, such as the machine’s model name, IP address (or Port name), and machine status. This button opens the Troubleshooting Guide when an error occurs. You can directly open the troubleshooting section in the user’s guide. 5Quick links Displays Quick links to machine specific functions. This section also includes links to applications in the advanced settings. If you connect your machine to a network, the SyncThru™ Web Service icon is enabled. 6Contents areaDisplays information about the selected machine, remaining toner level, and paper. The information will vary based on the machine selected. Some machines do not have this feature.7Order suppliesClick on the Order button from the supply ordering window. You can order replacement toner cartridge(s) from online.

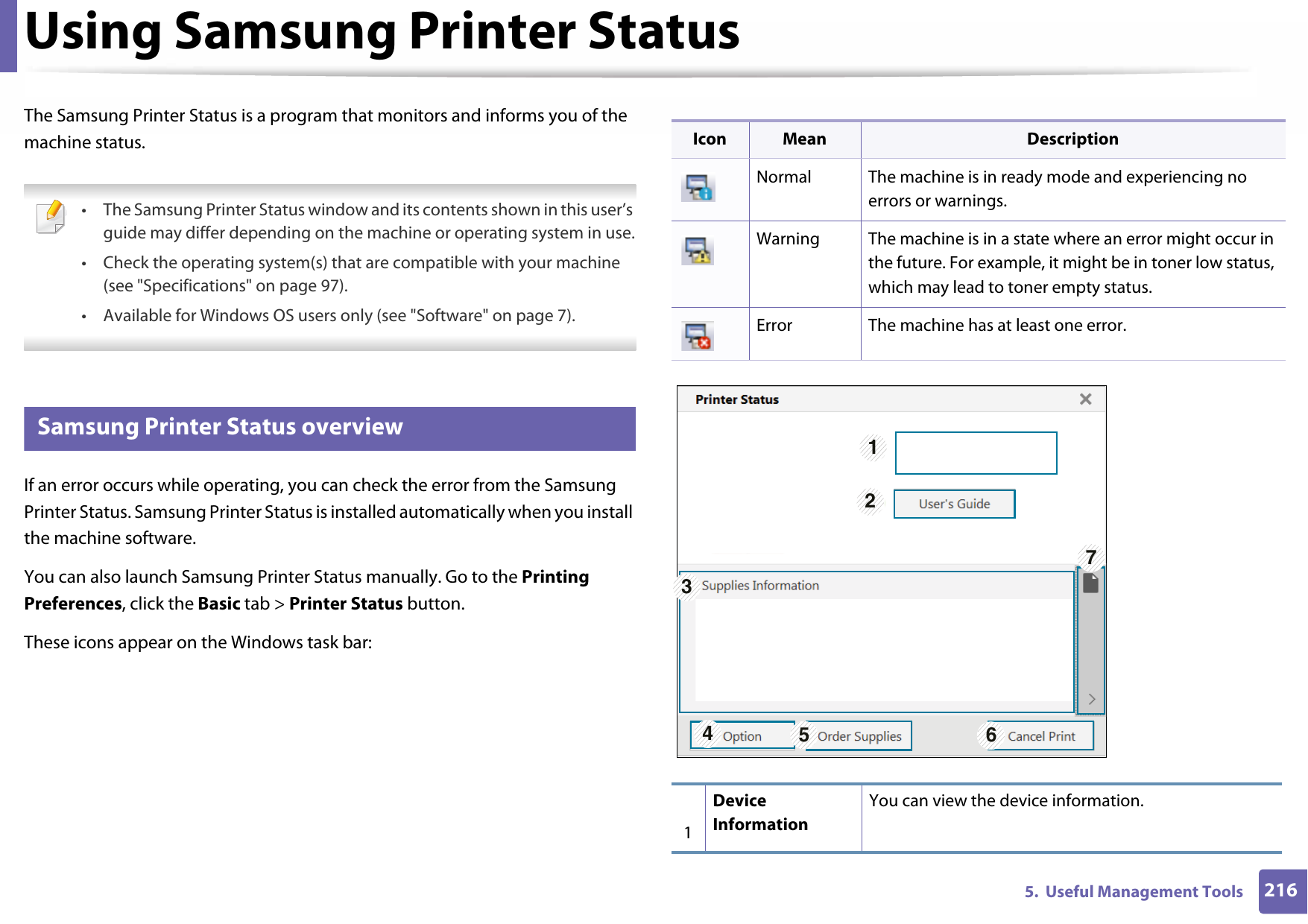

2165. Useful Management ToolsUsing Samsung Printer Status The Samsung Printer Status is a program that monitors and informs you of the machine status. • The Samsung Printer Status window and its contents shown in this user’s guide may differ depending on the machine or operating system in use.• Check the operating system(s) that are compatible with your machine (see "Specifications" on page 97).• Available for Windows OS users only (see "Software" on page 7). 7 Samsung Printer Status overviewIf an error occurs while operating, you can check the error from the Samsung Printer Status. Samsung Printer Status is installed automatically when you install the machine software.You can also launch Samsung Printer Status manually. Go to the Printing Preferences, click the Basic tab > Printer Status button.These icons appear on the Windows task bar:Icon Mean DescriptionNormal The machine is in ready mode and experiencing no errors or warnings.Warning The machine is in a state where an error might occur in the future. For example, it might be in toner low status, which may lead to toner empty status.Error The machine has at least one error.1Device InformationYou can view the device information.1327456

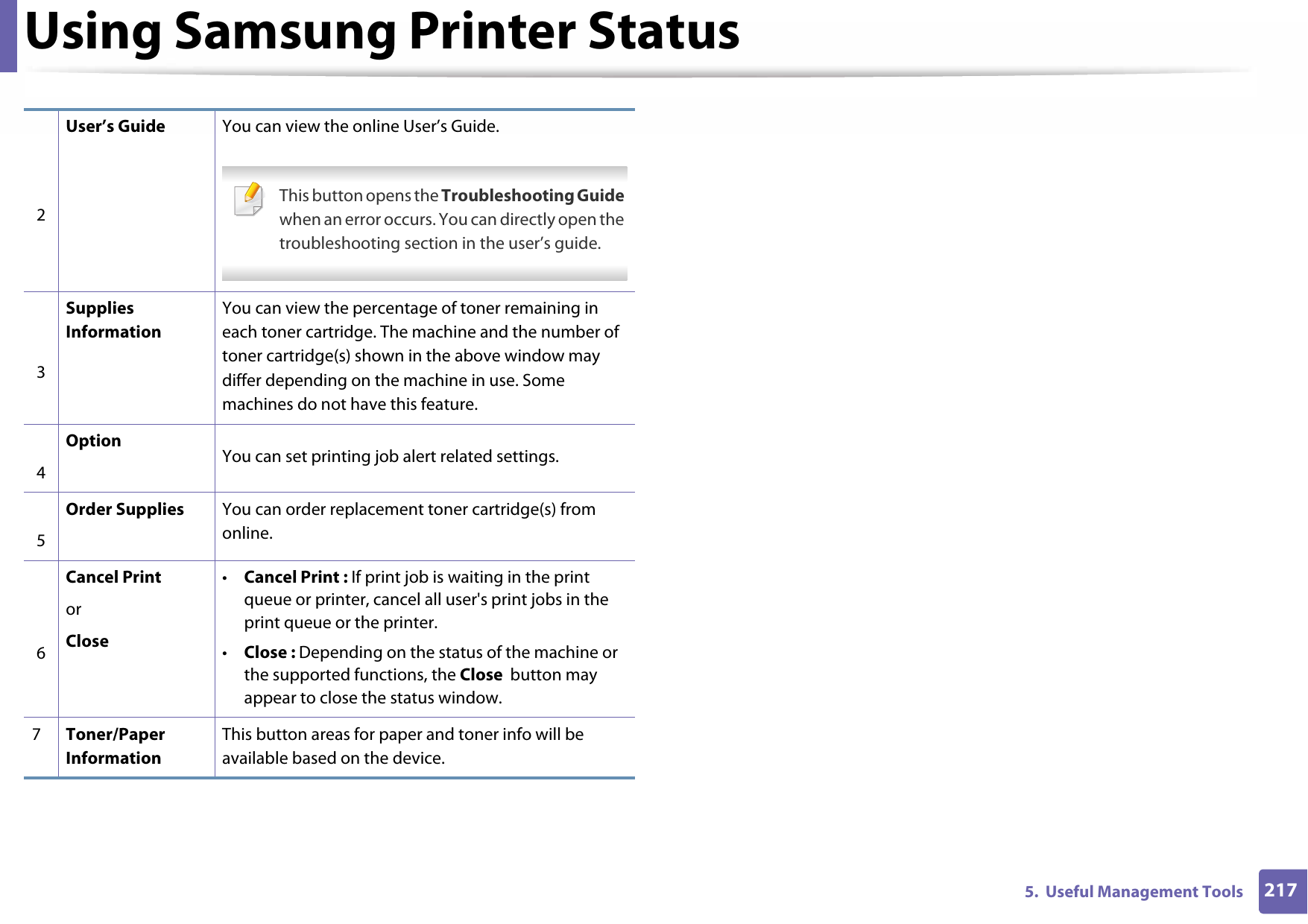

Using Samsung Printer Status2175. Useful Management Tools2User’s Guide You can view the online User’s Guide. This button opens the Troubleshooting Guide when an error occurs. You can directly open the troubleshooting section in the user’s guide. 3Supplies InformationYou can view the percentage of toner remaining in each toner cartridge. The machine and the number of toner cartridge(s) shown in the above window may differ depending on the machine in use. Some machines do not have this feature.4Option You can set printing job alert related settings.5Order Supplies You can order replacement toner cartridge(s) from online.6Cancel Print or Close•Cancel Print : If print job is waiting in the print queue or printer, cancel all user's print jobs in the print queue or the printer.•Close : Depending on the status of the machine or the supported functions, the Close button may appear to close the status window.7Toner/Paper InformationThis button areas for paper and toner info will be available based on the device.

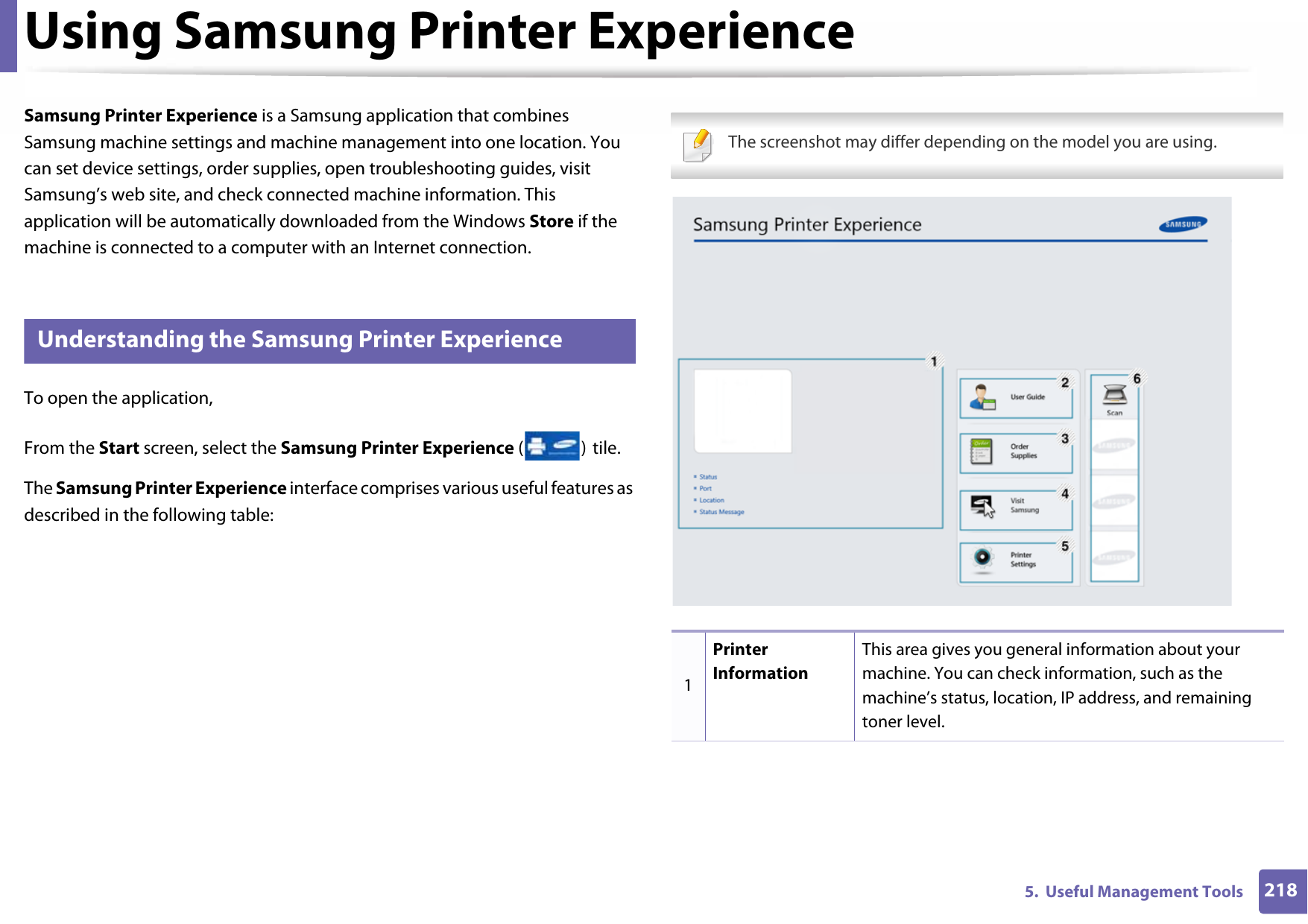

2185. Useful Management ToolsUsing Samsung Printer Experience Samsung Printer Experience is a Samsung application that combines Samsung machine settings and machine management into one location. You can set device settings, order supplies, open troubleshooting guides, visit Samsung’s web site, and check connected machine information. This application will be automatically downloaded from the Windows Store if the machine is connected to a computer with an Internet connection.8 Understanding the Samsung Printer ExperienceTo open the application, From the Start screen, select the Samsung Printer Experience () tile.The Samsung Printer Experience interface comprises various useful features as described in the following table: The screenshot may differ depending on the model you are using. 1Printer InformationThis area gives you general information about your machine. You can check information, such as the machine’s status, location, IP address, and remaining toner level.

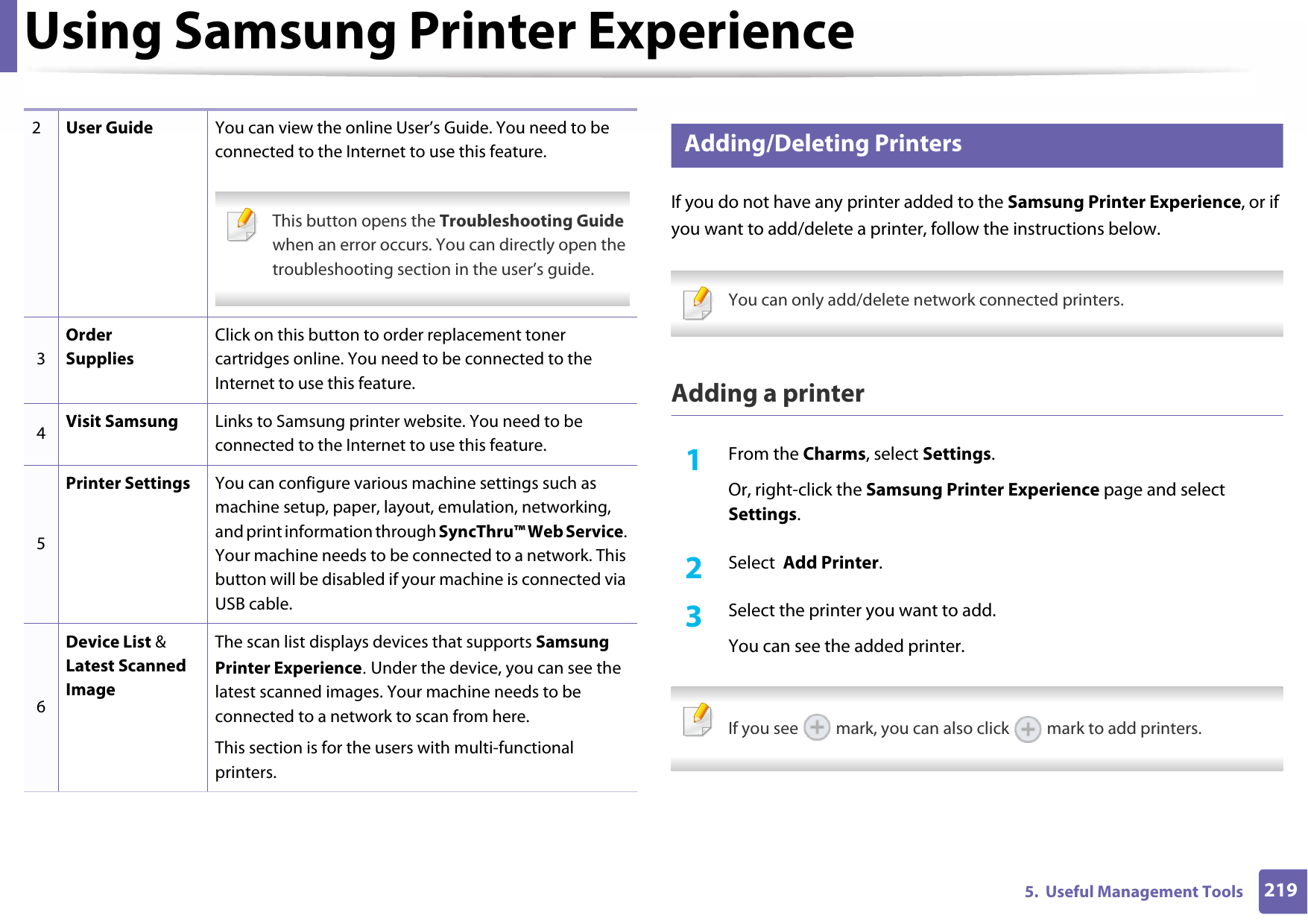

Using Samsung Printer Experience2195. Useful Management Tools9 Adding/Deleting PrintersIf you do not have any printer added to the Samsung Printer Experience, or if you want to add/delete a printer, follow the instructions below. You can only add/delete network connected printers. Adding a printer1From the Charms, select Settings.Or, right-click the Samsung Printer Experience page and select Settings.2 Select Add Printer.3 Select the printer you want to add.You can see the added printer. If you see mark, you can also click mark to add printers. 2User Guide You can view the online User’s Guide. You need to be connected to the Internet to use this feature. This button opens the Troubleshooting Guide when an error occurs. You can directly open the troubleshooting section in the user’s guide. 3Order SuppliesClick on this button to order replacement toner cartridges online. You need to be connected to the Internet to use this feature.4Visit Samsung Links to Samsung printer website. You need to be connected to the Internet to use this feature.5Printer Settings You can configure various machine settings such as machine setup, paper, layout, emulation, networking, and print information through SyncThru™ Web Service. Your machine needs to be connected to a network. This button will be disabled if your machine is connected via USB cable.6Device List & Latest Scanned ImageThe scan list displays devices that supports Samsung Printer Experience. Under the device, you can see the latest scanned images. Your machine needs to be connected to a network to scan from here.This section is for the users with multi-functional printers.

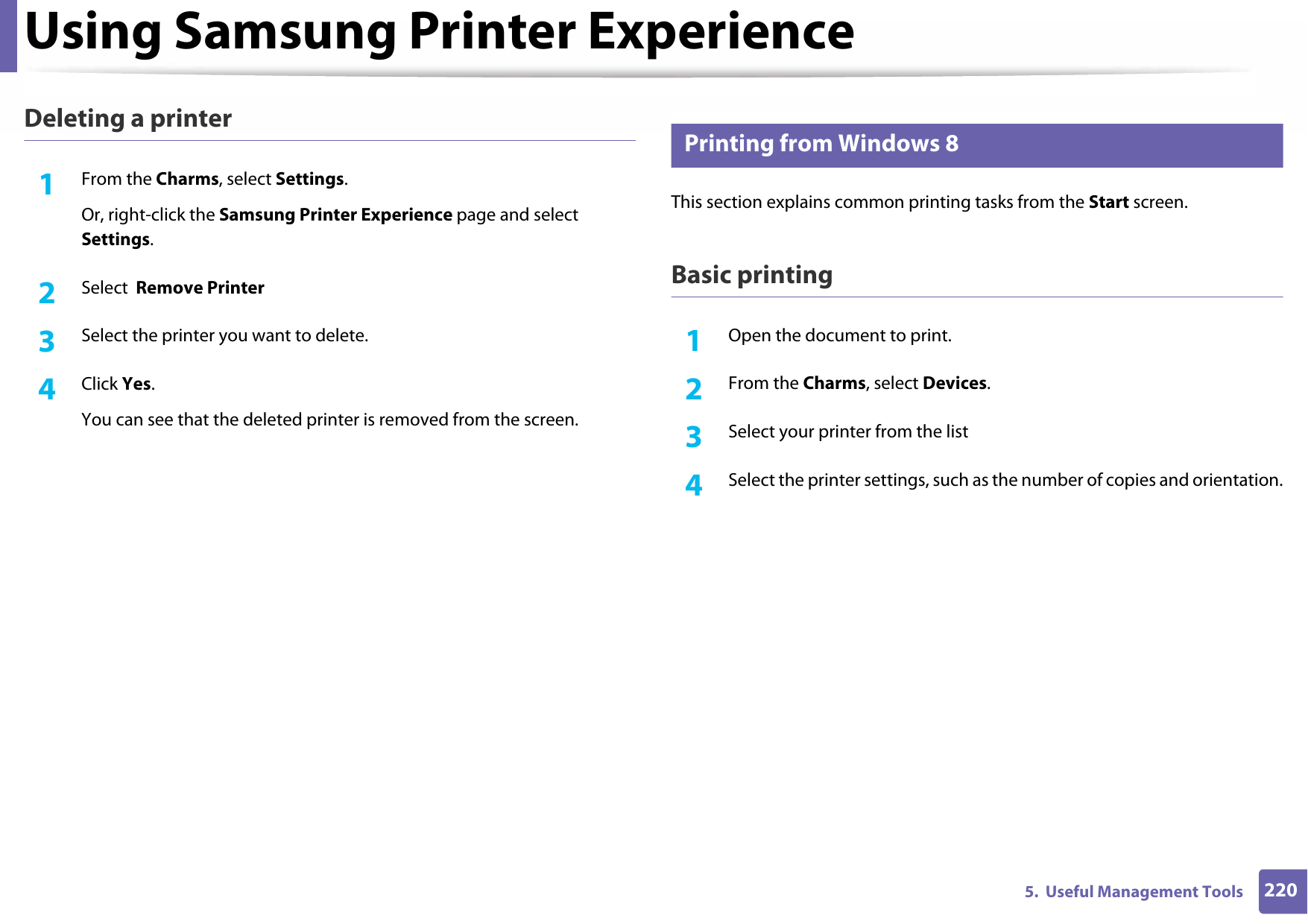

Using Samsung Printer Experience2205. Useful Management ToolsDeleting a printer1From the Charms, select Settings.Or, right-click the Samsung Printer Experience page and select Settings.2 Select Remove Printer3 Select the printer you want to delete.4 Click Yes.You can see that the deleted printer is removed from the screen.10 Printing from Windows 8This section explains common printing tasks from the Start screen.Basic printing1Open the document to print.2 From the Charms, select Devices.3 Select your printer from the list4 Select the printer settings, such as the number of copies and orientation.

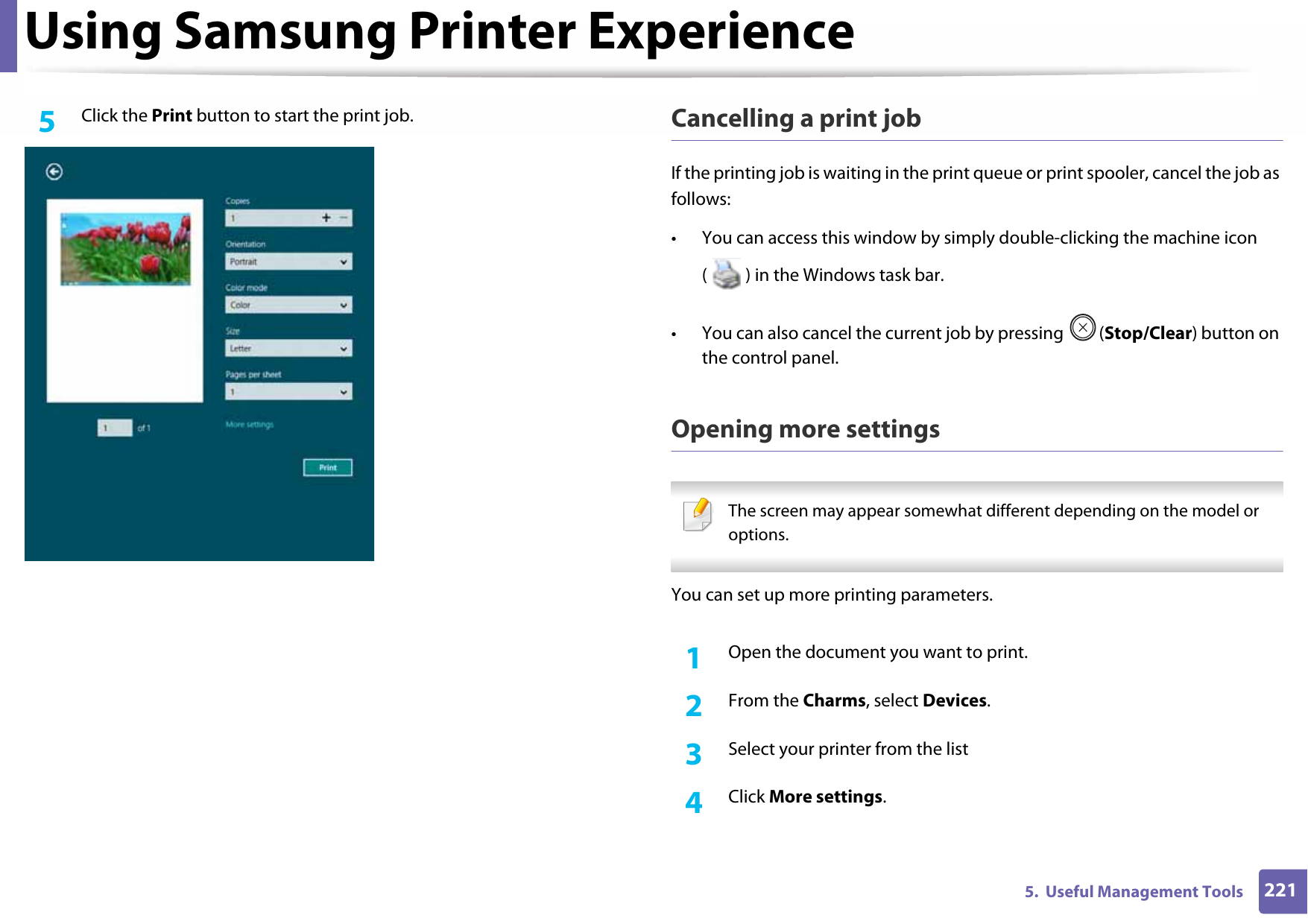

Using Samsung Printer Experience2215. Useful Management Tools5 Click the Print button to start the print job. Cancelling a print jobIf the printing job is waiting in the print queue or print spooler, cancel the job as follows:• You can access this window by simply double-clicking the machine icon ( ) in the Windows task bar.• You can also cancel the current job by pressing (Stop/Clear) button on the control panel.Opening more settings The screen may appear somewhat different depending on the model or options. You can set up more printing parameters.1Open the document you want to print.2 From the Charms, select Devices.3 Select your printer from the list4 Click More settings.

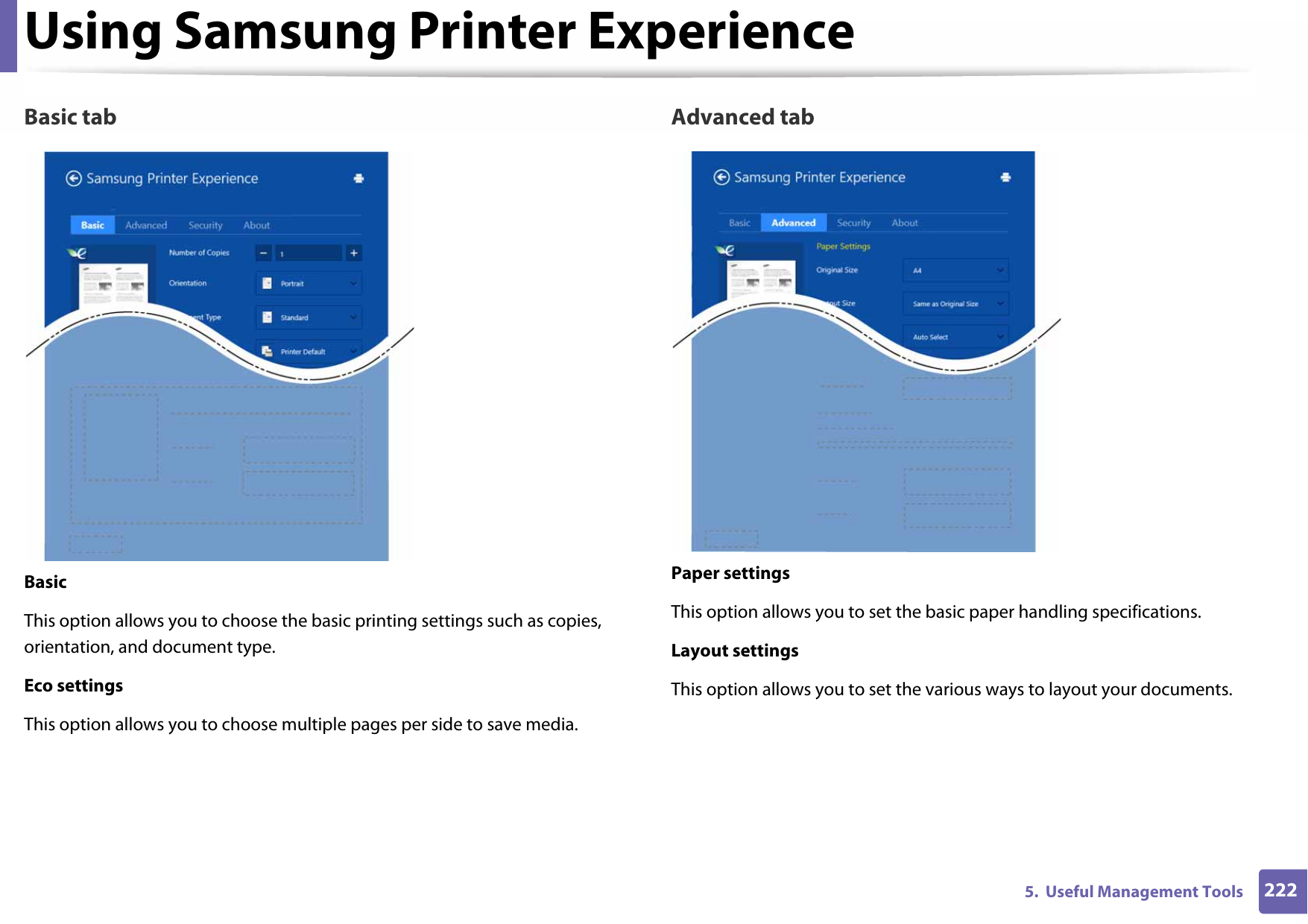

Using Samsung Printer Experience2225. Useful Management ToolsBasic tabBasicThis option allows you to choose the basic printing settings such as copies, orientation, and document type.Eco settingsThis option allows you to choose multiple pages per side to save media.Advanced tabPaper settingsThis option allows you to set the basic paper handling specifications.Layout settingsThis option allows you to set the various ways to layout your documents.

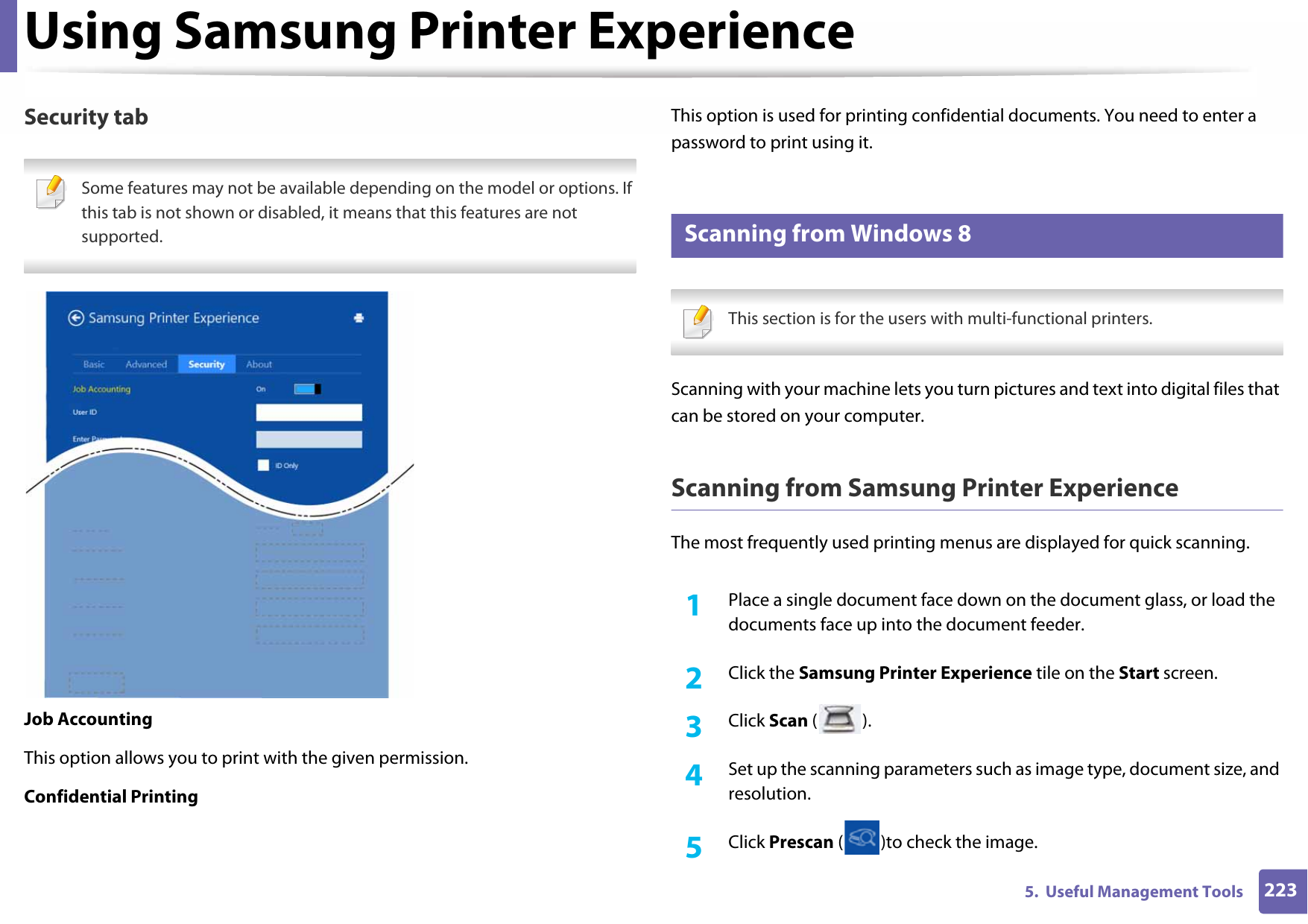

Using Samsung Printer Experience2235. Useful Management ToolsSecurity tab Some features may not be available depending on the model or options. If this tab is not shown or disabled, it means that this features are not supported. Job AccountingThis option allows you to print with the given permission.Confidential PrintingThis option is used for printing confidential documents. You need to enter a password to print using it.11 Scanning from Windows 8 This section is for the users with multi-functional printers. Scanning with your machine lets you turn pictures and text into digital files that can be stored on your computer.Scanning from Samsung Printer ExperienceThe most frequently used printing menus are displayed for quick scanning.1Place a single document face down on the document glass, or load the documents face up into the document feeder.2 Click the Samsung Printer Experience tile on the Start screen.3 Click Scan ().4 Set up the scanning parameters such as image type, document size, and resolution.5 Click Prescan ( )to check the image.

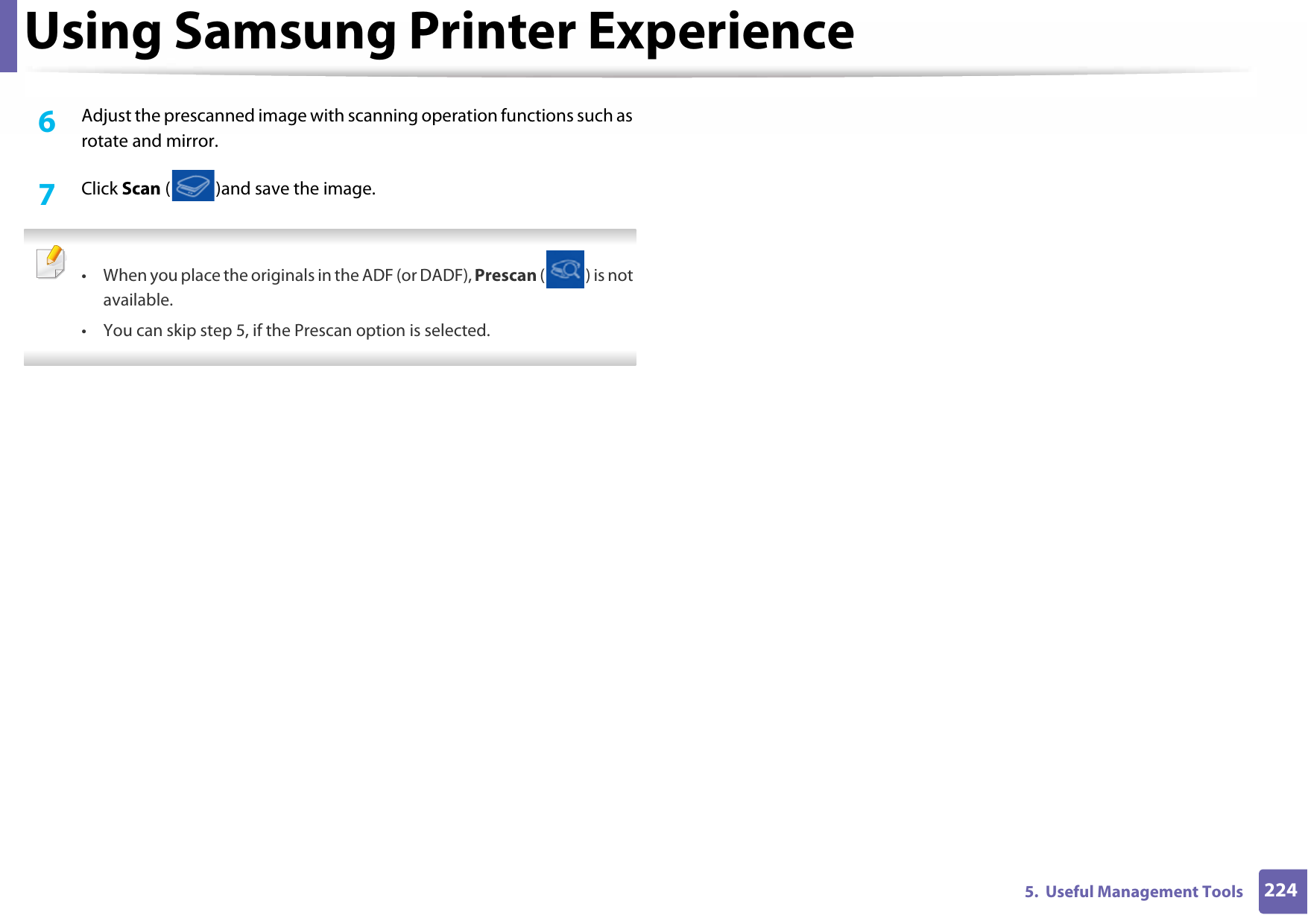

Using Samsung Printer Experience2245. Useful Management Tools6 Adjust the prescanned image with scanning operation functions such as rotate and mirror.7 Click Scan ( )and save the image. • When you place the originals in the ADF (or DADF), Prescan ( ) is not available.• You can skip step 5, if the Prescan option is selected.

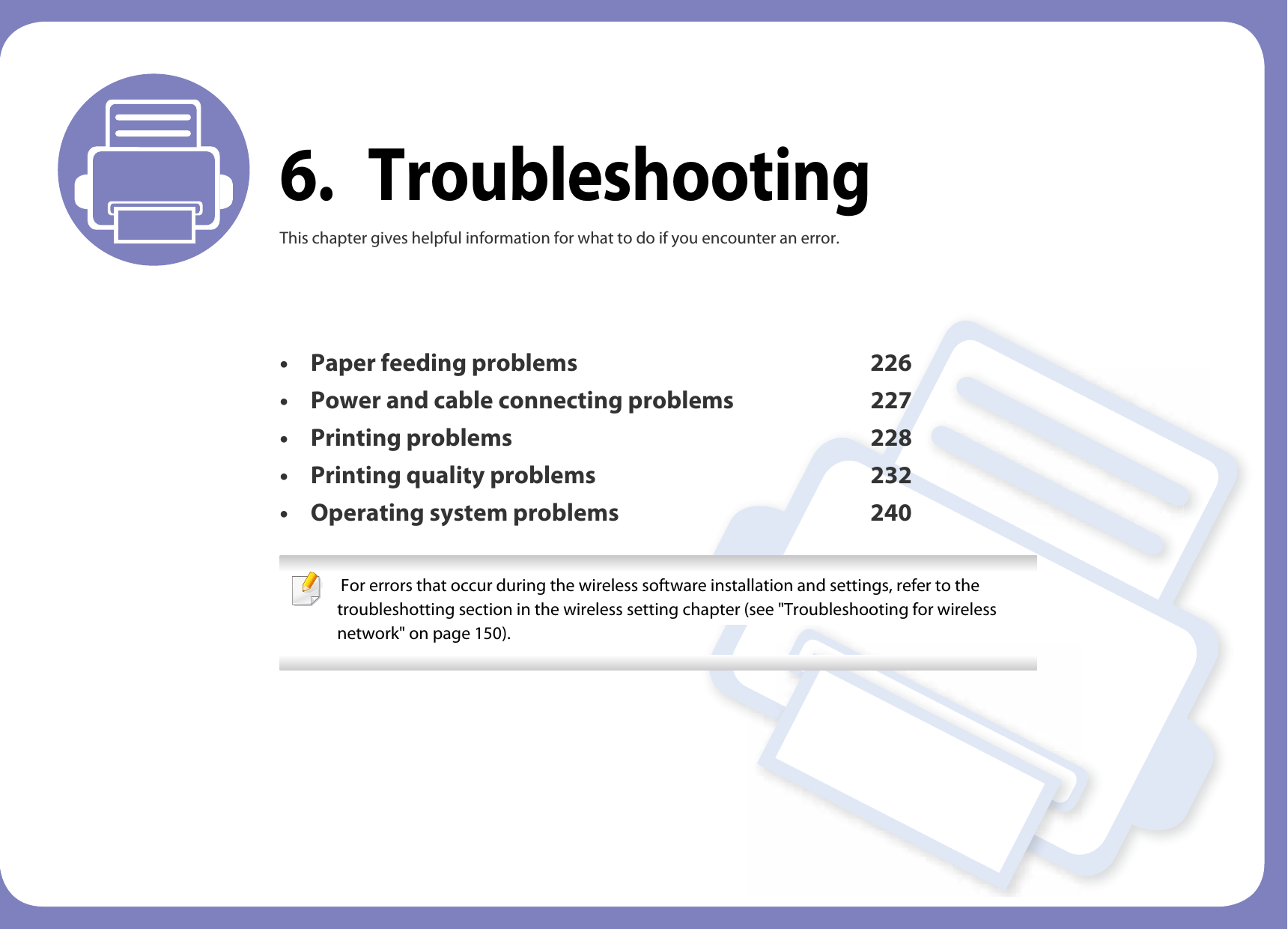

6. TroubleshootingThis chapter gives helpful information for what to do if you encounter an error.• Paper feeding problems 226• Power and cable connecting problems 227• Printing problems 228• Printing quality problems 232• Operating system problems 240 For errors that occur during the wireless software installation and settings, refer to the troubleshotting section in the wireless setting chapter (see "Troubleshooting for wireless network" on page 150).

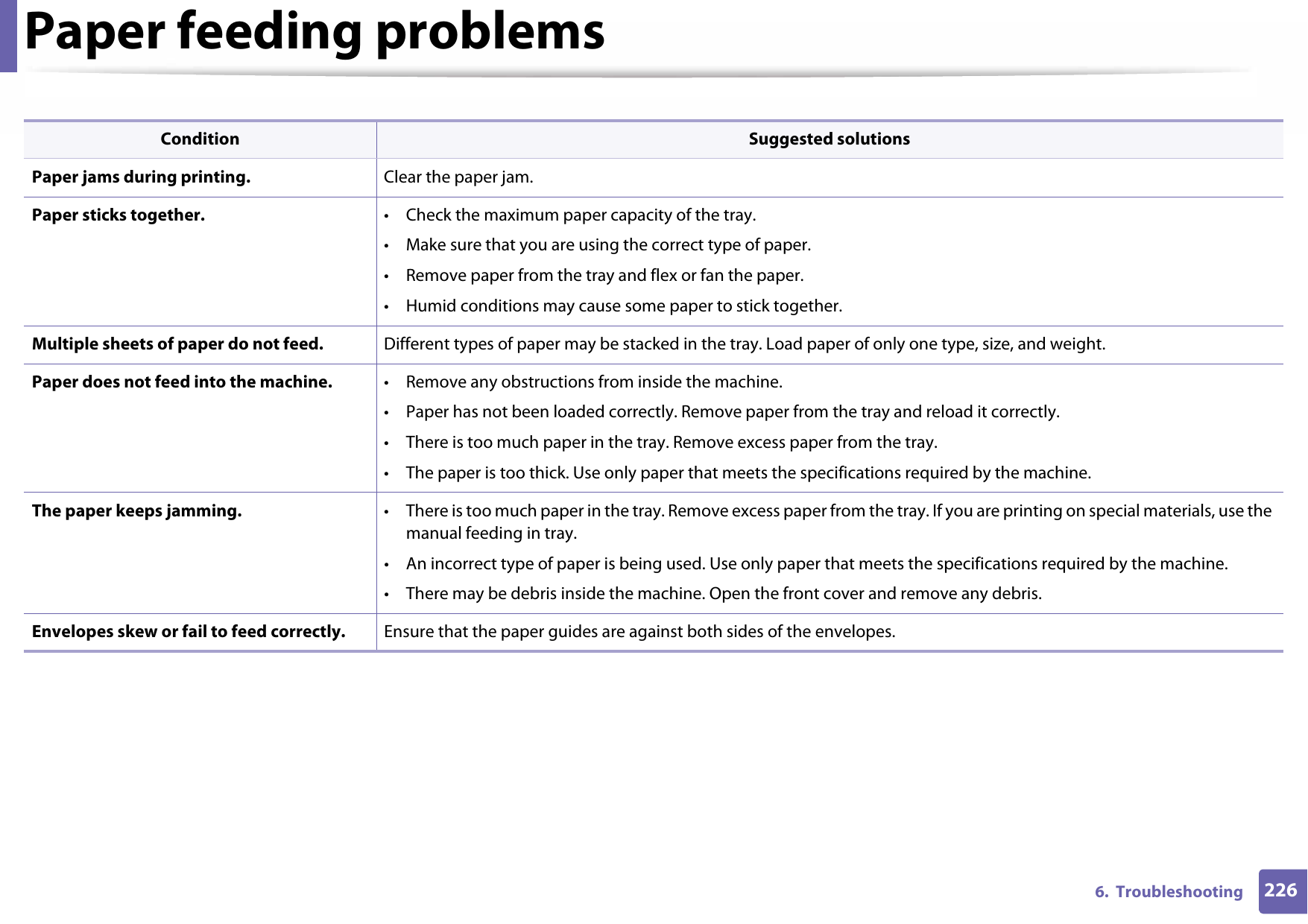

2266. TroubleshootingPaper feeding problemsCondition Suggested solutionsPaper jams during printing. Clear the paper jam.Paper sticks together. • Check the maximum paper capacity of the tray.• Make sure that you are using the correct type of paper.• Remove paper from the tray and flex or fan the paper.• Humid conditions may cause some paper to stick together.Multiple sheets of paper do not feed. Different types of paper may be stacked in the tray. Load paper of only one type, size, and weight.Paper does not feed into the machine. • Remove any obstructions from inside the machine.• Paper has not been loaded correctly. Remove paper from the tray and reload it correctly.• There is too much paper in the tray. Remove excess paper from the tray.• The paper is too thick. Use only paper that meets the specifications required by the machine.The paper keeps jamming. • There is too much paper in the tray. Remove excess paper from the tray. If you are printing on special materials, use the manual feeding in tray.• An incorrect type of paper is being used. Use only paper that meets the specifications required by the machine.• There may be debris inside the machine. Open the front cover and remove any debris.Envelopes skew or fail to feed correctly. Ensure that the paper guides are against both sides of the envelopes.

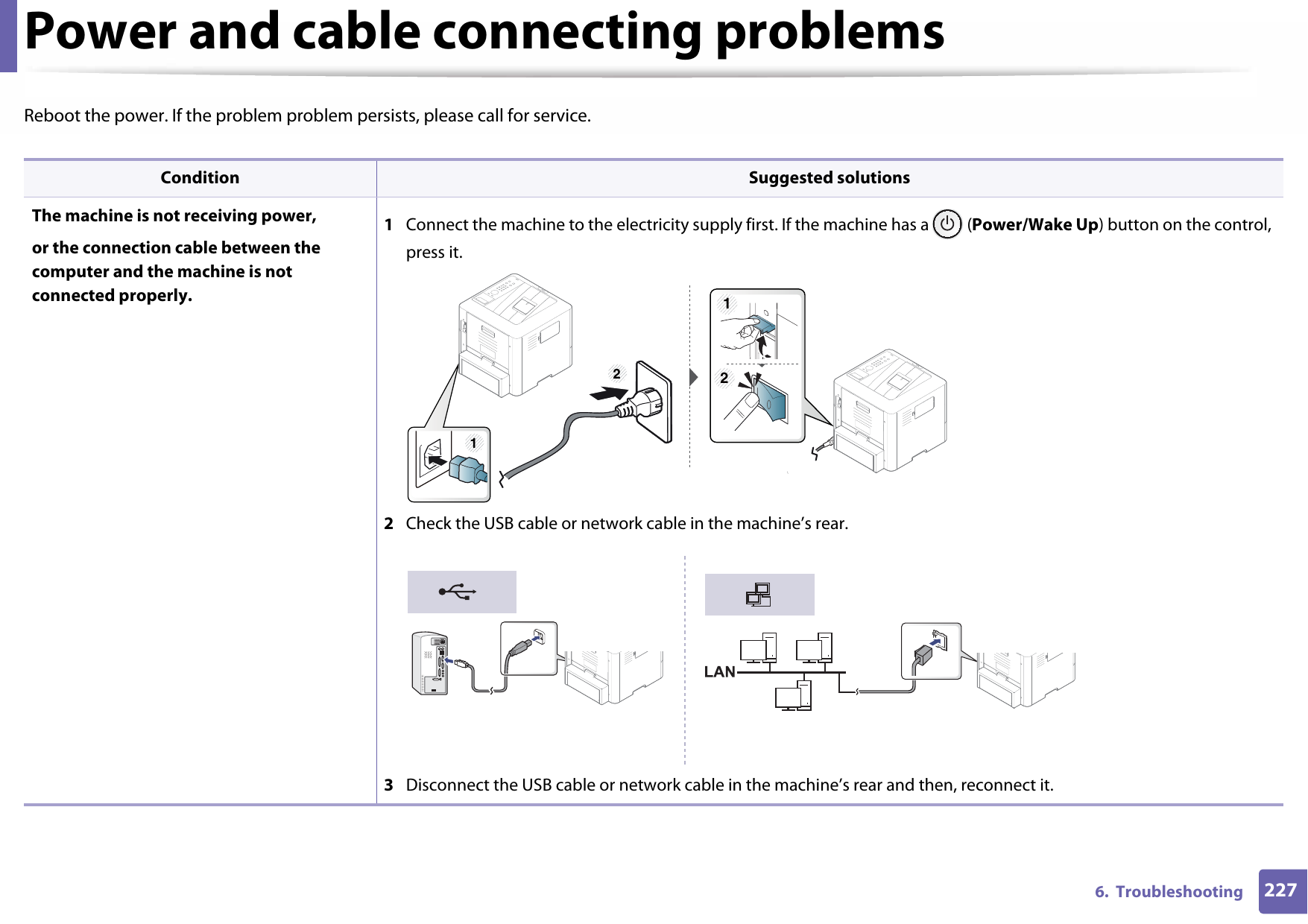

2276. TroubleshootingPower and cable connecting problemsReboot the power. If the problem problem persists, please call for service. Condition Suggested solutionsThe machine is not receiving power, or the connection cable between the computer and the machine is not connected properly.1 Connect the machine to the electricity supply first. If the machine has a (Power/Wake Up) button on the control, press it.2 Check the USB cable or network cable in the machine’s rear.3 Disconnect the USB cable or network cable in the machine’s rear and then, reconnect it.21 12

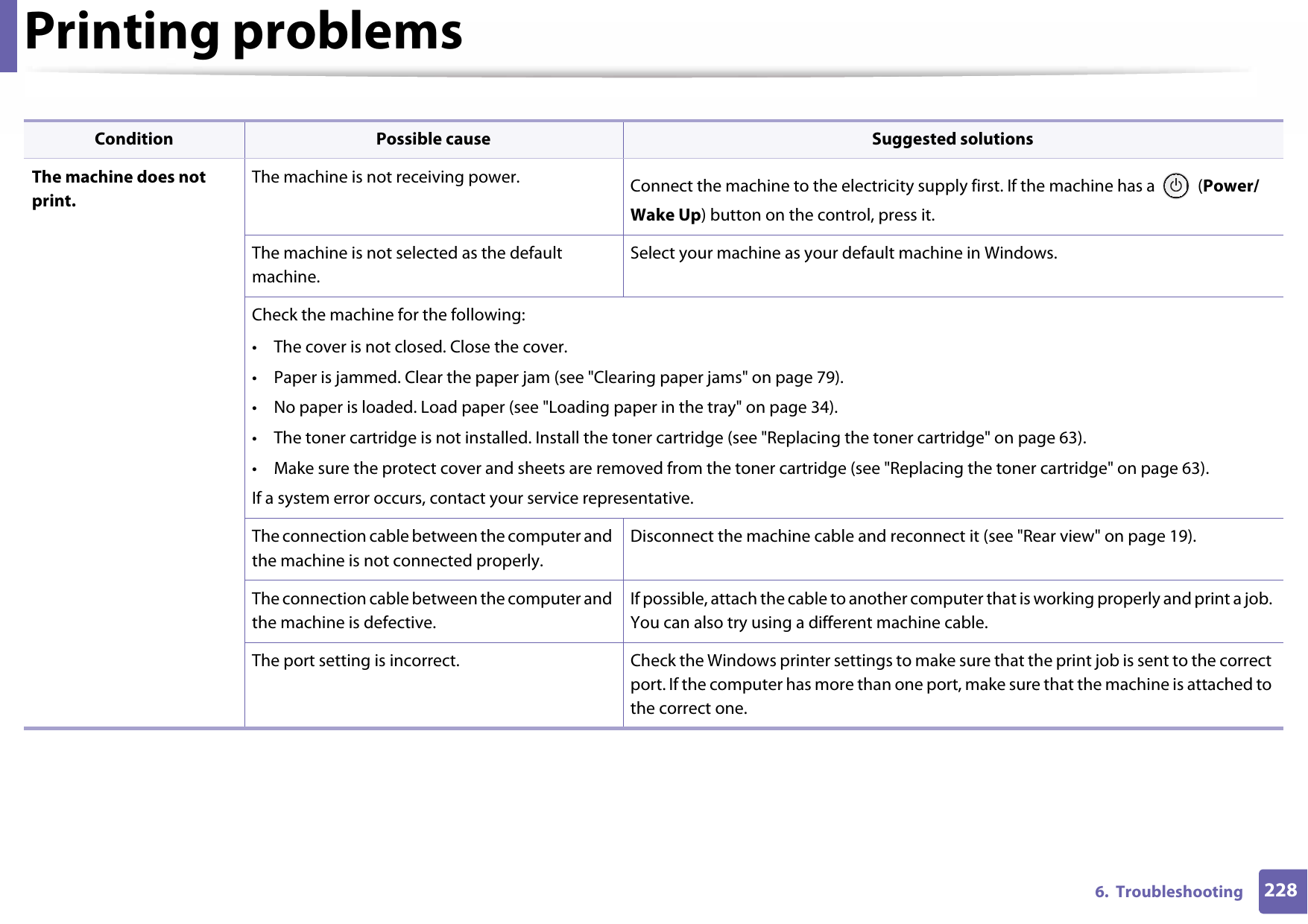

2286. TroubleshootingPrinting problemsCondition Possible cause Suggested solutionsThe machine does not print.The machine is not receiving power. Connect the machine to the electricity supply first. If the machine has a (Power/Wake Up) button on the control, press it.The machine is not selected as the default machine.Select your machine as your default machine in Windows.Check the machine for the following:• The cover is not closed. Close the cover.• Paper is jammed. Clear the paper jam (see "Clearing paper jams" on page 79).• No paper is loaded. Load paper (see "Loading paper in the tray" on page 34).• The toner cartridge is not installed. Install the toner cartridge (see "Replacing the toner cartridge" on page 63).• Make sure the protect cover and sheets are removed from the toner cartridge (see "Replacing the toner cartridge" on page 63).If a system error occurs, contact your service representative.The connection cable between the computer and the machine is not connected properly.Disconnect the machine cable and reconnect it (see "Rear view" on page 19).The connection cable between the computer and the machine is defective.If possible, attach the cable to another computer that is working properly and print a job. You can also try using a different machine cable.The port setting is incorrect. Check the Windows printer settings to make sure that the print job is sent to the correct port. If the computer has more than one port, make sure that the machine is attached to the correct one.

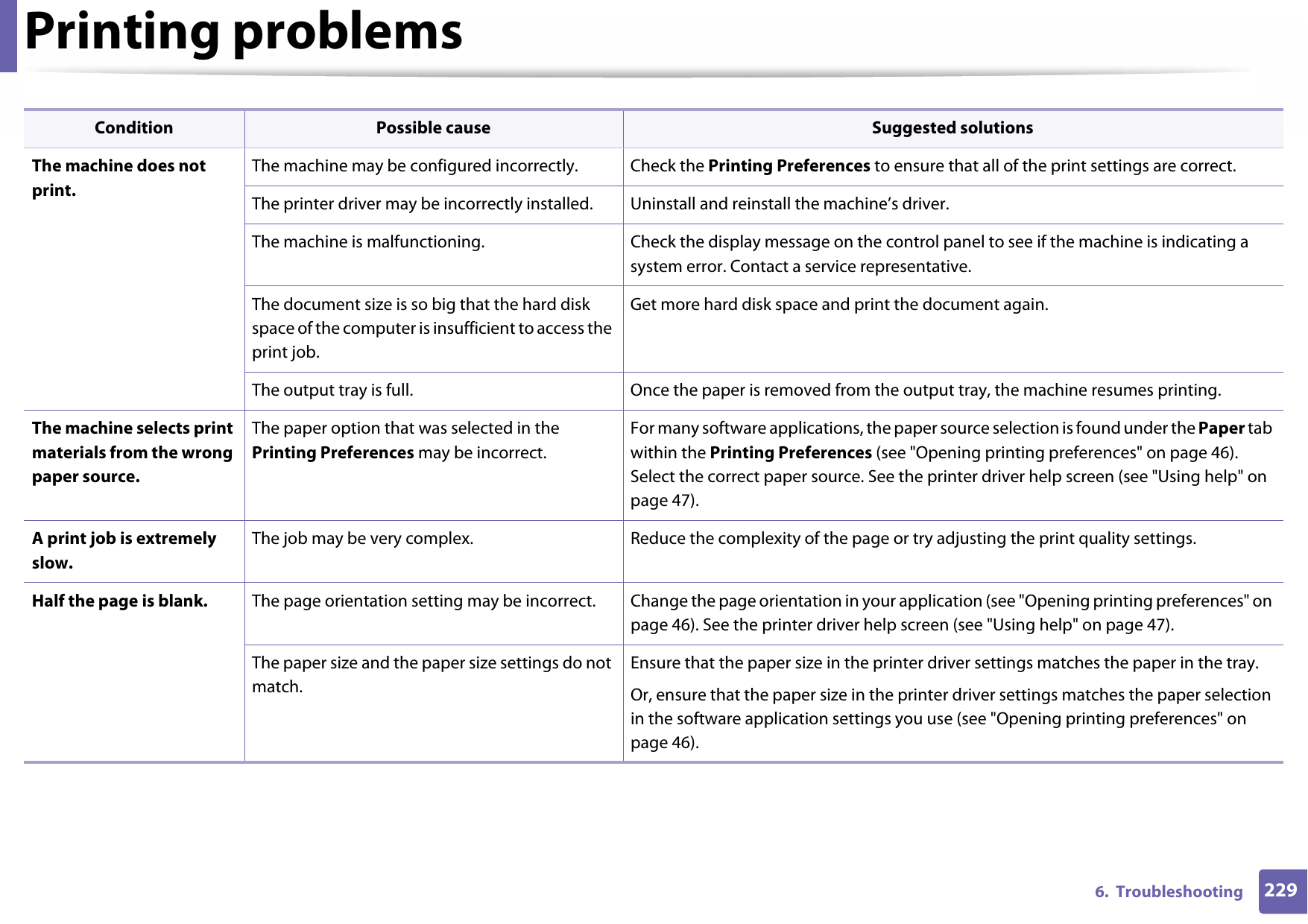

Printing problems2296. TroubleshootingThe machine does not print.The machine may be configured incorrectly. Check the Printing Preferences to ensure that all of the print settings are correct.The printer driver may be incorrectly installed. Uninstall and reinstall the machine’s driver.The machine is malfunctioning. Check the display message on the control panel to see if the machine is indicating a system error. Contact a service representative.The document size is so big that the hard disk space of the computer is insufficient to access the print job.Get more hard disk space and print the document again.The output tray is full. Once the paper is removed from the output tray, the machine resumes printing.The machine selects print materials from the wrong paper source.The paper option that was selected in the Printing Preferences may be incorrect.For many software applications, the paper source selection is found under the Paper tab within the Printing Preferences (see "Opening printing preferences" on page 46). Select the correct paper source. See the printer driver help screen (see "Using help" on page 47).A print job is extremely slow.The job may be very complex. Reduce the complexity of the page or try adjusting the print quality settings.Half the page is blank. The page orientation setting may be incorrect. Change the page orientation in your application (see "Opening printing preferences" on page 46). See the printer driver help screen (see "Using help" on page 47).The paper size and the paper size settings do not match.Ensure that the paper size in the printer driver settings matches the paper in the tray.Or, ensure that the paper size in the printer driver settings matches the paper selection in the software application settings you use (see "Opening printing preferences" on page 46).Condition Possible cause Suggested solutions

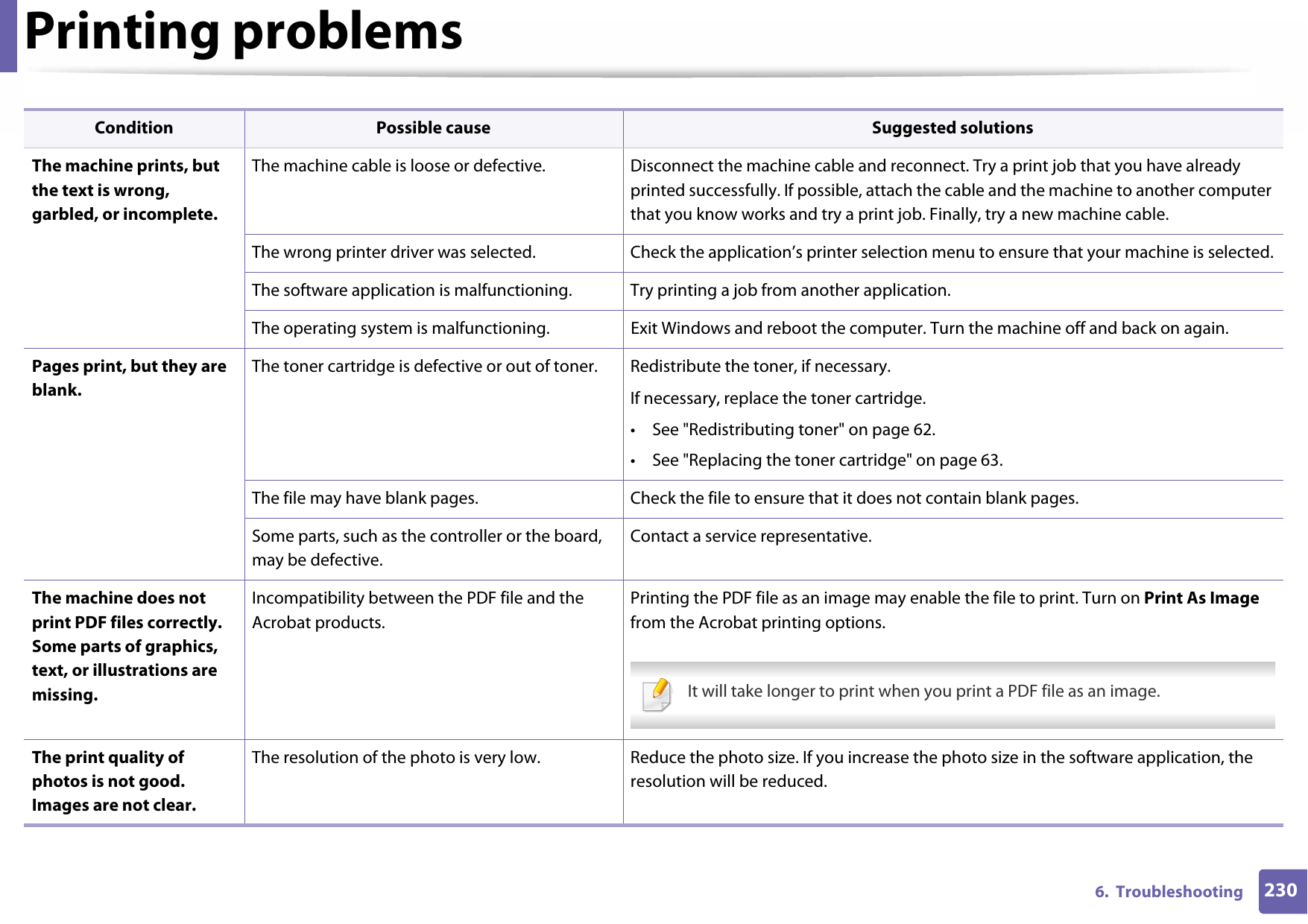

Printing problems2306. TroubleshootingThe machine prints, but the text is wrong, garbled, or incomplete.The machine cable is loose or defective. Disconnect the machine cable and reconnect. Try a print job that you have already printed successfully. If possible, attach the cable and the machine to another computer that you know works and try a print job. Finally, try a new machine cable.The wrong printer driver was selected. Check the application’s printer selection menu to ensure that your machine is selected.The software application is malfunctioning. Try printing a job from another application.The operating system is malfunctioning. Exit Windows and reboot the computer. Turn the machine off and back on again.Pages print, but they are blank.The toner cartridge is defective or out of toner. Redistribute the toner, if necessary.If necessary, replace the toner cartridge.• See "Redistributing toner" on page 62.• See "Replacing the toner cartridge" on page 63.The file may have blank pages. Check the file to ensure that it does not contain blank pages.Some parts, such as the controller or the board, may be defective.Contact a service representative.The machine does not print PDF files correctly. Some parts of graphics, text, or illustrations are missing.Incompatibility between the PDF file and the Acrobat products.Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options. It will take longer to print when you print a PDF file as an image. The print quality of photos is not good. Images are not clear.The resolution of the photo is very low. Reduce the photo size. If you increase the photo size in the software application, the resolution will be reduced.Condition Possible cause Suggested solutions

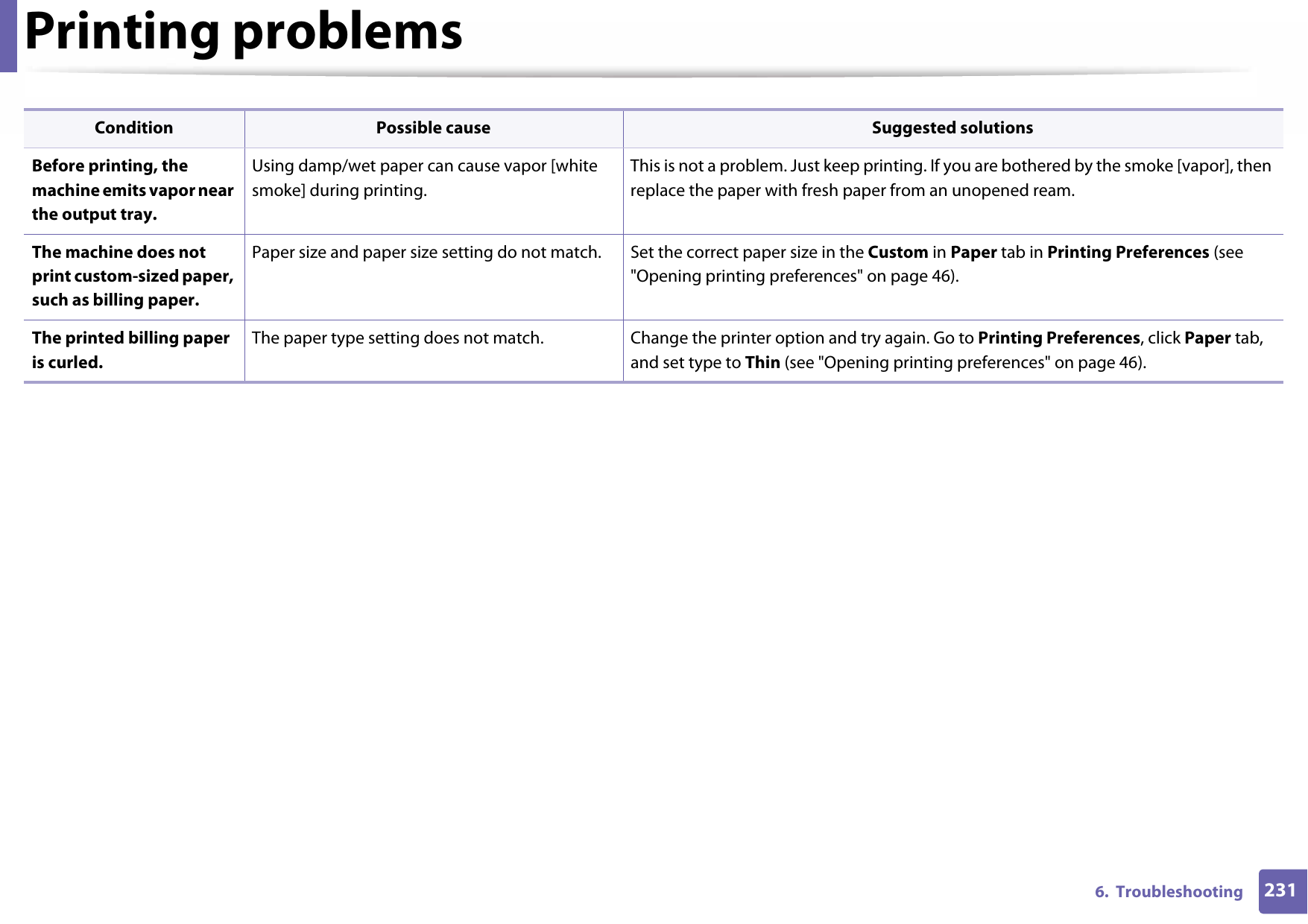

Printing problems2316. TroubleshootingBefore printing, the machine emits vapor near the output tray.Using damp/wet paper can cause vapor [white smoke] during printing.This is not a problem. Just keep printing. If you are bothered by the smoke [vapor], then replace the paper with fresh paper from an unopened ream.The machine does not print custom-sized paper, such as billing paper.Paper size and paper size setting do not match. Set the correct paper size in the Custom in Paper tab in Printing Preferences (see "Opening printing preferences" on page 46).The printed billing paper is curled.The paper type setting does not match. Change the printer option and try again. Go to Printing Preferences, click Paper tab, and set type to Thin (see "Opening printing preferences" on page 46).Condition Possible cause Suggested solutions

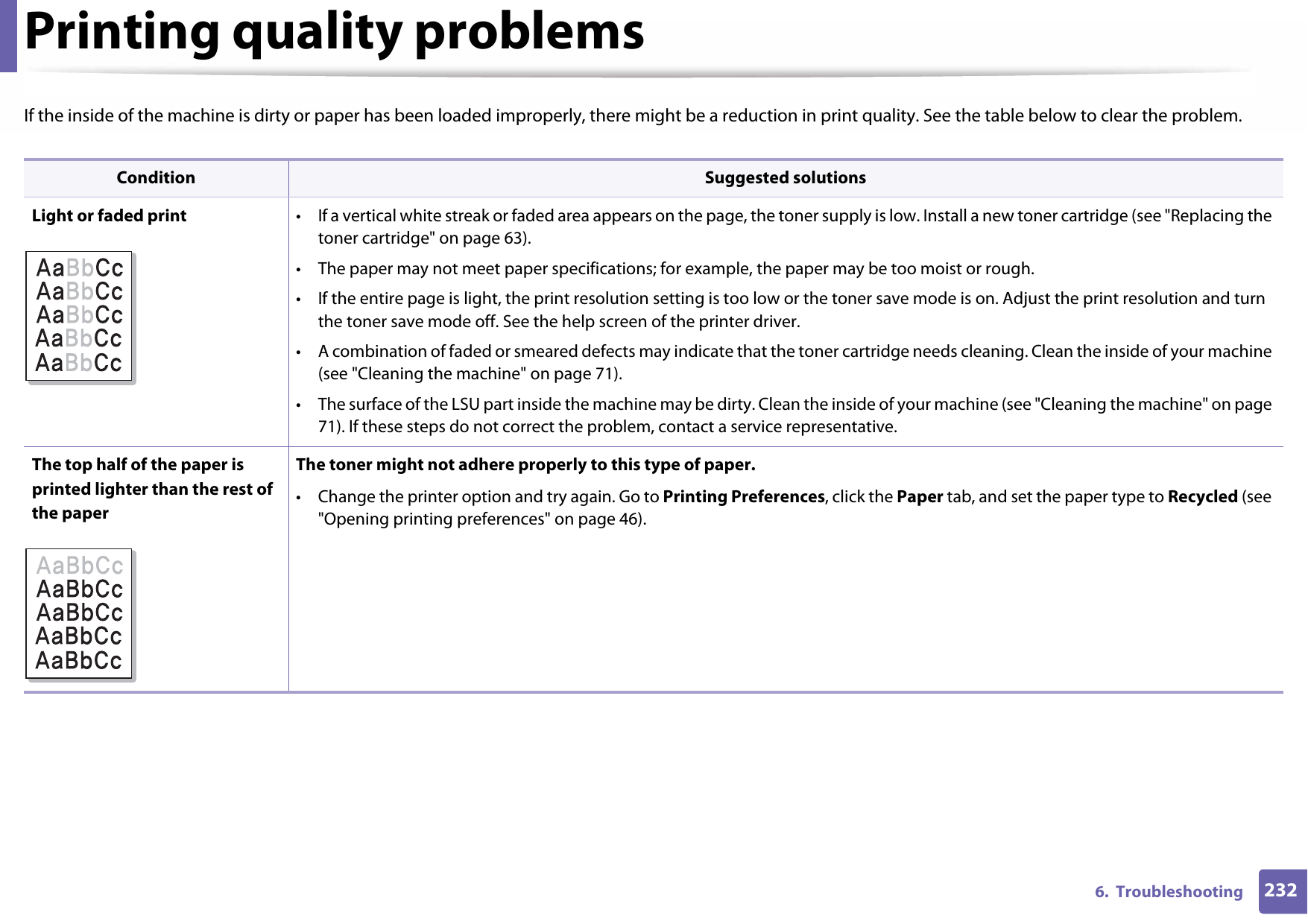

2326. TroubleshootingPrinting quality problemsIf the inside of the machine is dirty or paper has been loaded improperly, there might be a reduction in print quality. See the table below to clear the problem. Condition Suggested solutionsLight or faded print • If a vertical white streak or faded area appears on the page, the toner supply is low. Install a new toner cartridge (see "Replacing the toner cartridge" on page 63).• The paper may not meet paper specifications; for example, the paper may be too moist or rough.• If the entire page is light, the print resolution setting is too low or the toner save mode is on. Adjust the print resolution and turn the toner save mode off. See the help screen of the printer driver.• A combination of faded or smeared defects may indicate that the toner cartridge needs cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 71).• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 71). If these steps do not correct the problem, contact a service representative.The top half of the paper is printed lighter than the rest of the paperThe toner might not adhere properly to this type of paper.• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set the paper type to Recycled (see "Opening printing preferences" on page 46).

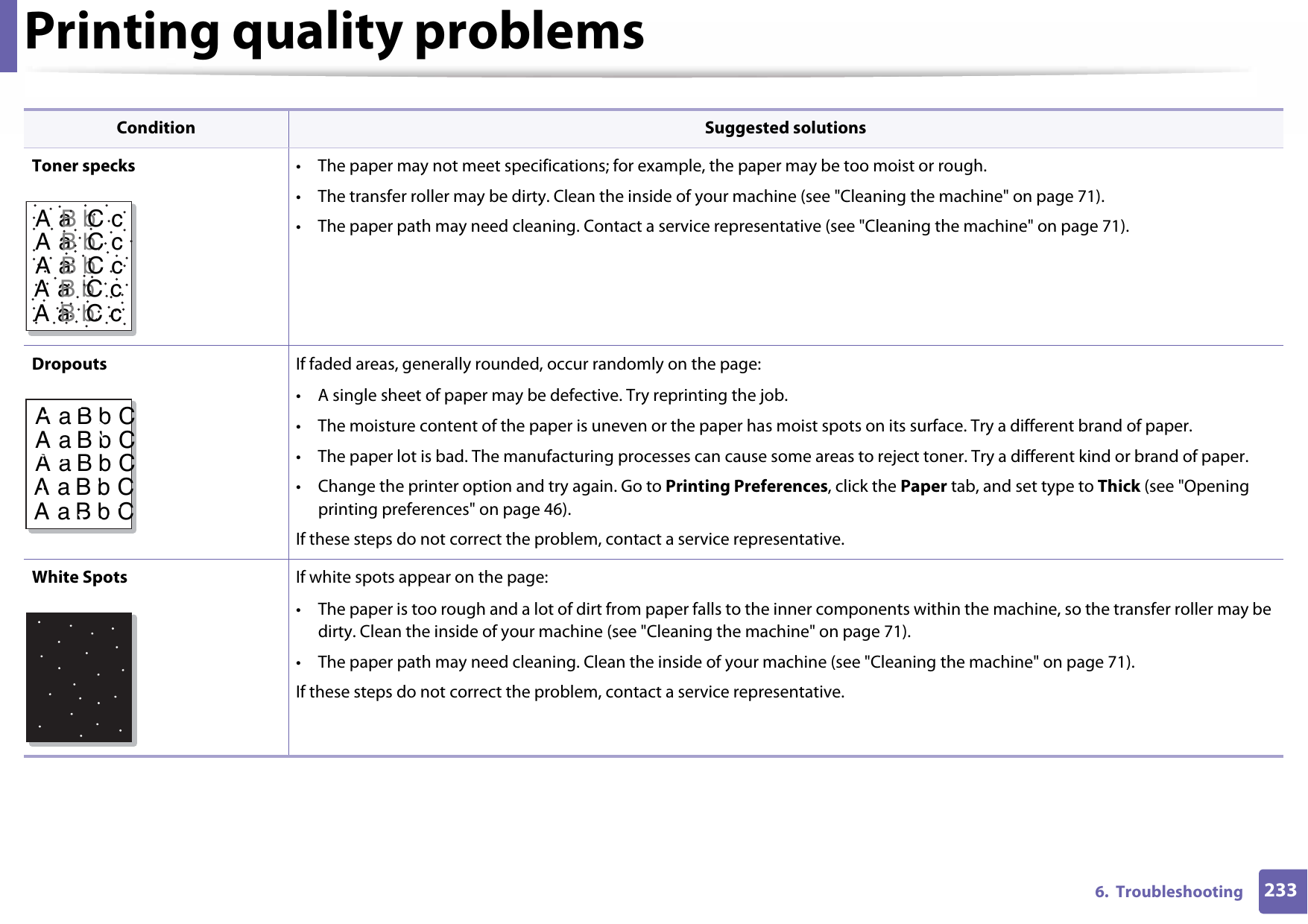

Printing quality problems2336. TroubleshootingToner specks • The paper may not meet specifications; for example, the paper may be too moist or rough.• The transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 71).• The paper path may need cleaning. Contact a service representative (see "Cleaning the machine" on page 71).Dropouts If faded areas, generally rounded, occur randomly on the page:• A single sheet of paper may be defective. Try reprinting the job.• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper.• The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thick (see "Opening printing preferences" on page 46).If these steps do not correct the problem, contact a service representative.White Spots If white spots appear on the page:• The paper is too rough and a lot of dirt from paper falls to the inner components within the machine, so the transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 71).• The paper path may need cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 71).If these steps do not correct the problem, contact a service representative.Condition Suggested solutionsAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCAaBbCAaBbCAaBbCAaBbC

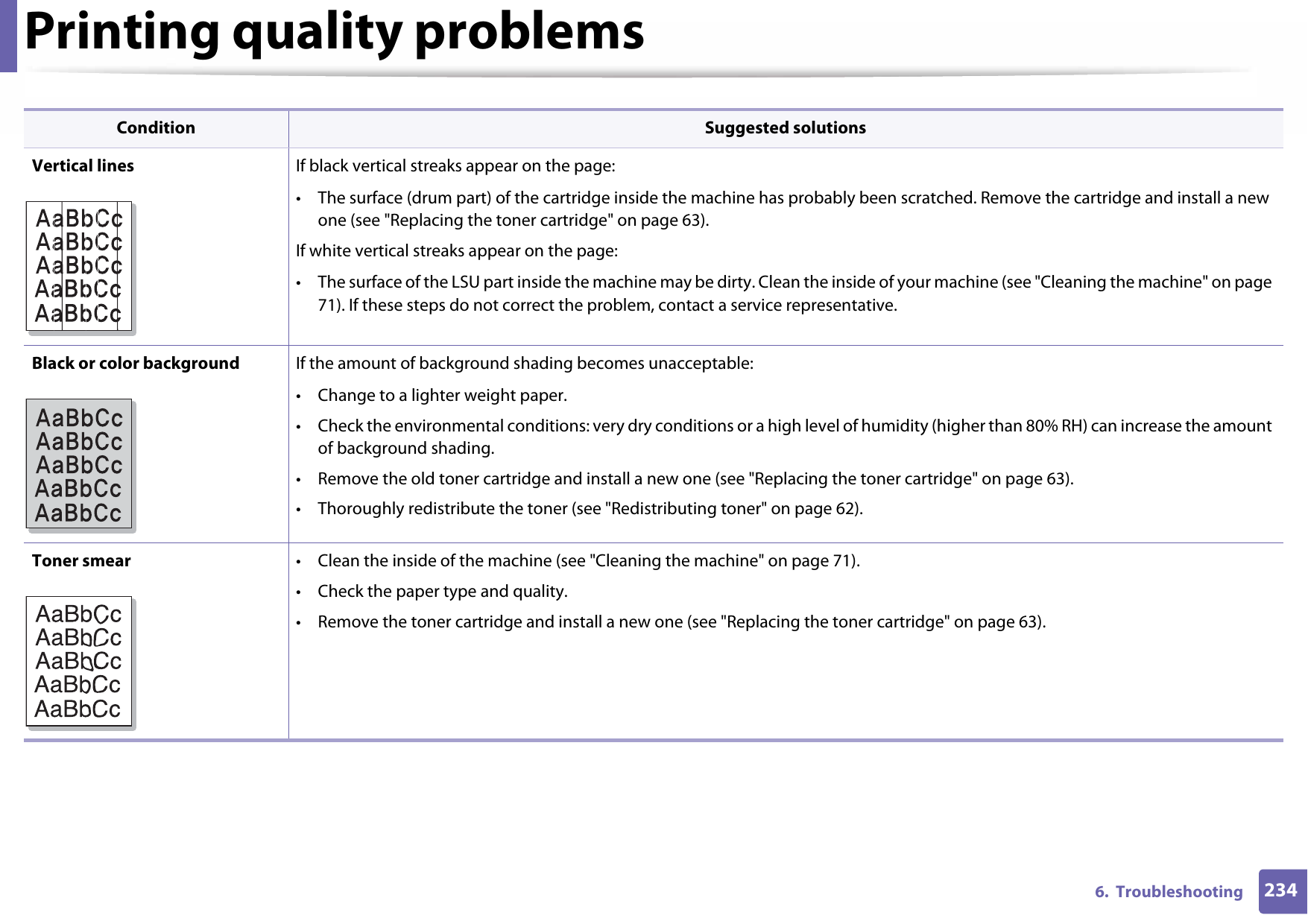

Printing quality problems2346. TroubleshootingVertical lines If black vertical streaks appear on the page:• The surface (drum part) of the cartridge inside the machine has probably been scratched. Remove the cartridge and install a new one (see "Replacing the toner cartridge" on page 63).If white vertical streaks appear on the page:• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 71). If these steps do not correct the problem, contact a service representative.Black or color background If the amount of background shading becomes unacceptable:• Change to a lighter weight paper.• Check the environmental conditions: very dry conditions or a high level of humidity (higher than 80% RH) can increase the amount of background shading.• Remove the old toner cartridge and install a new one (see "Replacing the toner cartridge" on page 63).• Thoroughly redistribute the toner (see "Redistributing toner" on page 62).Toner smear • Clean the inside of the machine (see "Cleaning the machine" on page 71).• Check the paper type and quality.• Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 63).Condition Suggested solutions

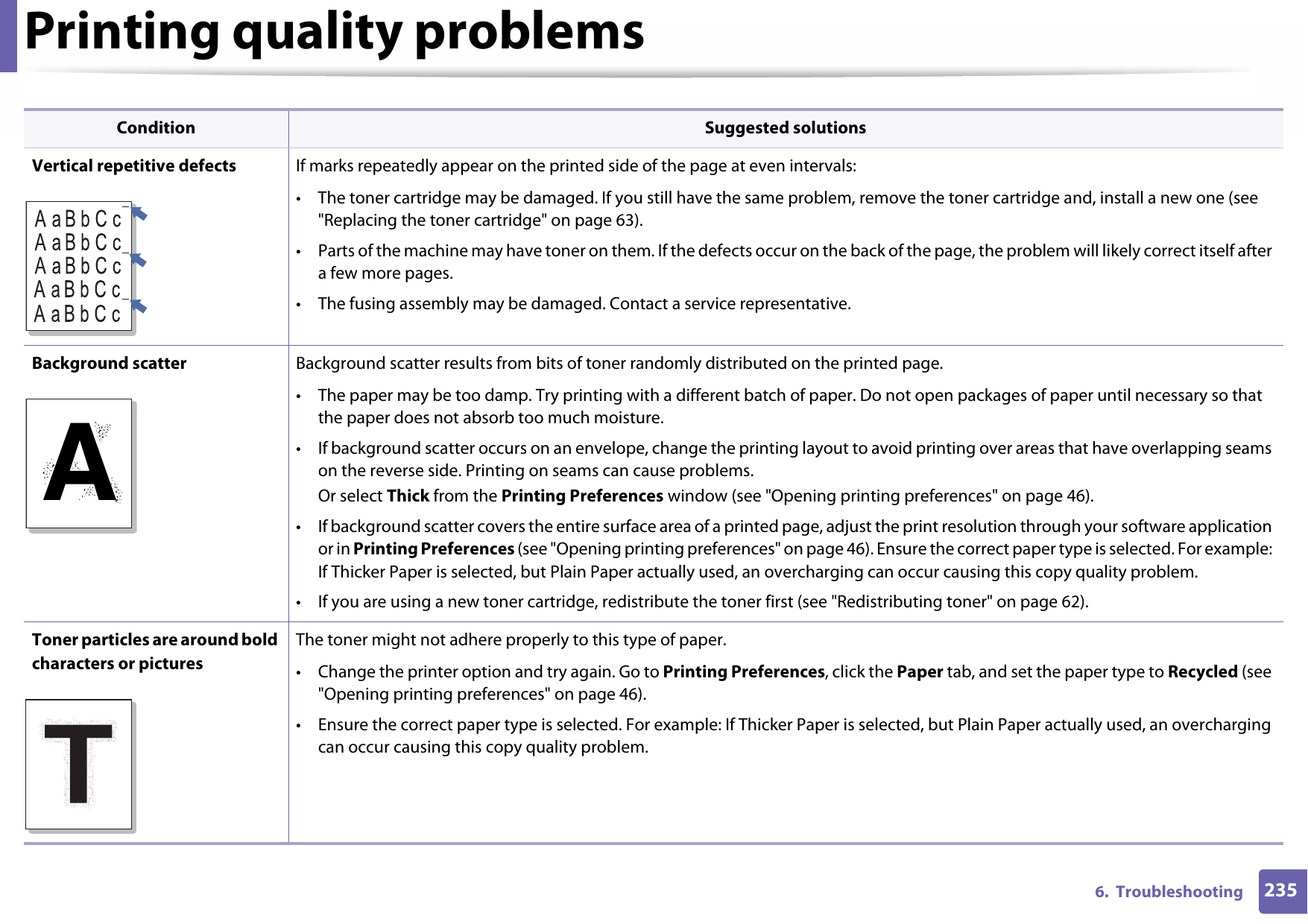

Printing quality problems2356. TroubleshootingVertical repetitive defects If marks repeatedly appear on the printed side of the page at even intervals:• The toner cartridge may be damaged. If you still have the same problem, remove the toner cartridge and, install a new one (see "Replacing the toner cartridge" on page 63).• Parts of the machine may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.• The fusing assembly may be damaged. Contact a service representative.Background scatter Background scatter results from bits of toner randomly distributed on the printed page.• The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.• If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems.Or select Thick from the Printing Preferences window (see "Opening printing preferences" on page 46).• If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application or in Printing Preferences (see "Opening printing preferences" on page 46). Ensure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.• If you are using a new toner cartridge, redistribute the toner first (see "Redistributing toner" on page 62).Toner particles are around bold characters or picturesThe toner might not adhere properly to this type of paper.• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set the paper type to Recycled (see "Opening printing preferences" on page 46).• Ensure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.Condition Suggested solutionsA
Printing quality problems2366. TroubleshootingMisformed characters • If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try different paper.Page skew • Ensure that the paper is loaded properly.• Check the paper type and quality.• Ensure that the guides are not too tight or too loose against the paper stack.Curl or wave • Ensure that the paper is loaded properly.• Check the paper type and quality. Both high temperature and humidity can cause paper curl.• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.Condition Suggested solutionsAaBbCAaBbCAaBbCAaBbCAaBbCc

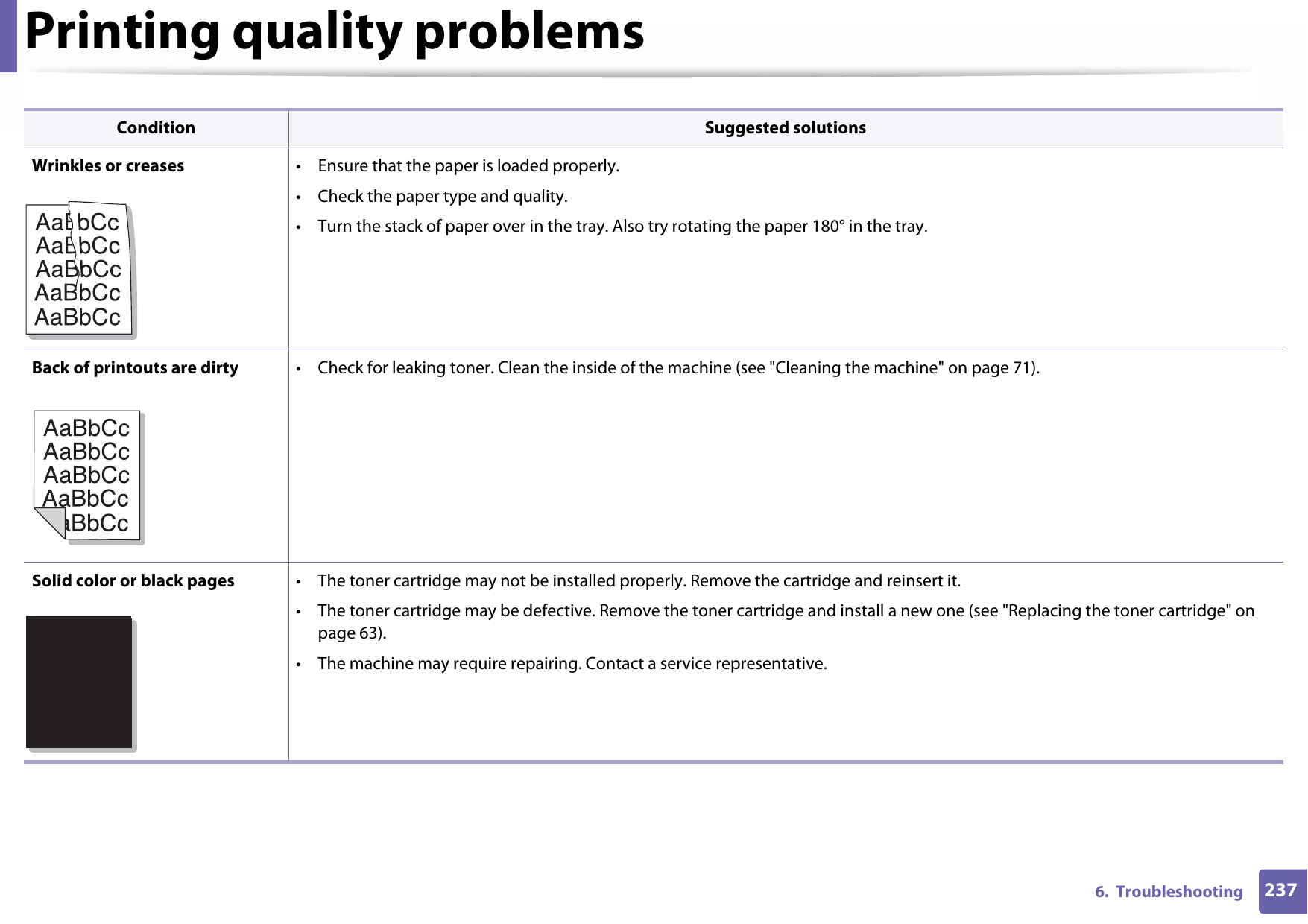

Printing quality problems2376. TroubleshootingWrinkles or creases • Ensure that the paper is loaded properly.• Check the paper type and quality.• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.Back of printouts are dirty • Check for leaking toner. Clean the inside of the machine (see "Cleaning the machine" on page 71).Solid color or black pages • The toner cartridge may not be installed properly. Remove the cartridge and reinsert it.• The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 63).• The machine may require repairing. Contact a service representative.Condition Suggested solutionsA

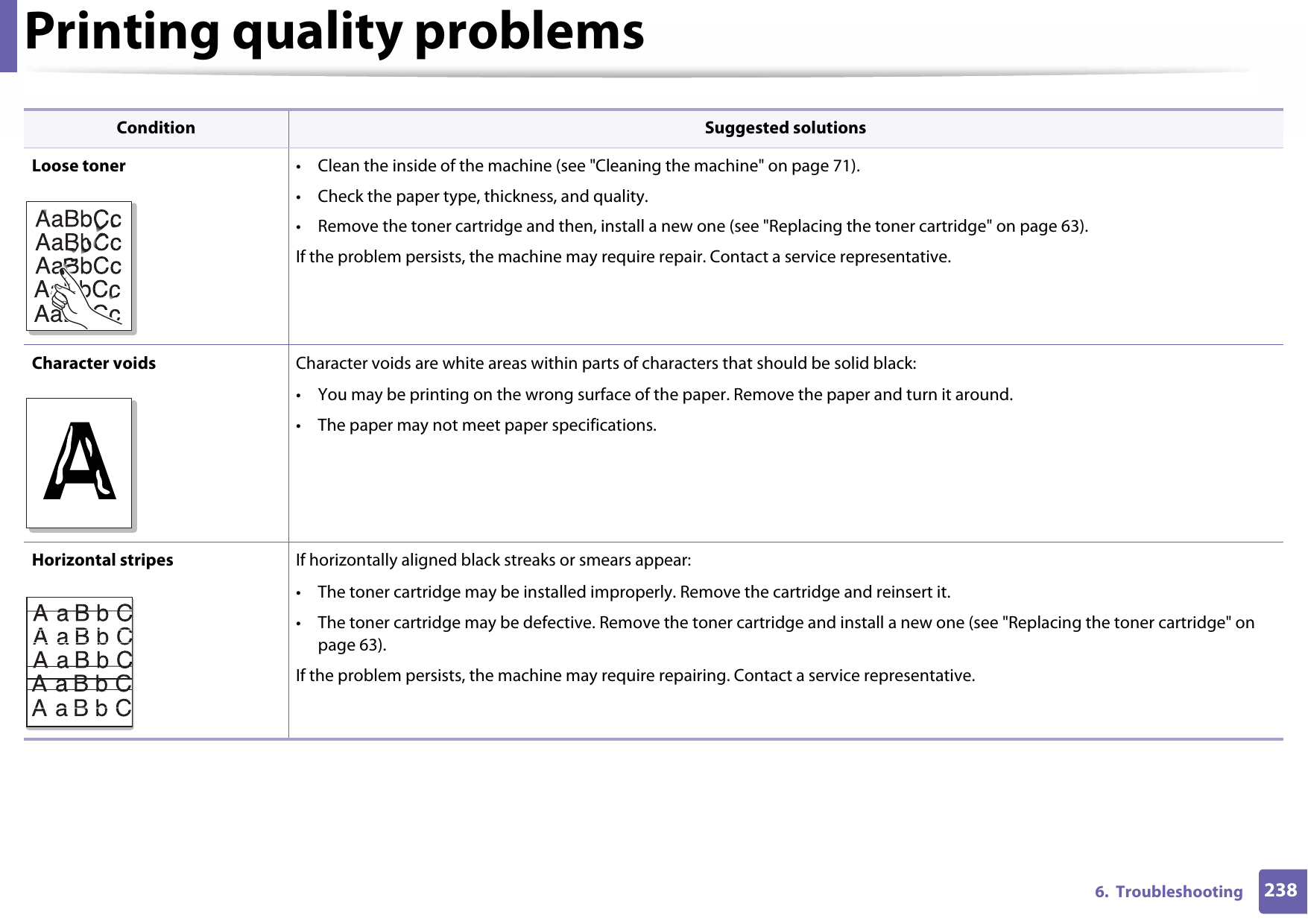

Printing quality problems2386. TroubleshootingLoose toner • Clean the inside of the machine (see "Cleaning the machine" on page 71).• Check the paper type, thickness, and quality.• Remove the toner cartridge and then, install a new one (see "Replacing the toner cartridge" on page 63).If the problem persists, the machine may require repair. Contact a service representative.Character voids Character voids are white areas within parts of characters that should be solid black:• You may be printing on the wrong surface of the paper. Remove the paper and turn it around.• The paper may not meet paper specifications.Horizontal stripes If horizontally aligned black streaks or smears appear:• The toner cartridge may be installed improperly. Remove the cartridge and reinsert it.• The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 63).If the problem persists, the machine may require repairing. Contact a service representative.Condition Suggested solutionsA

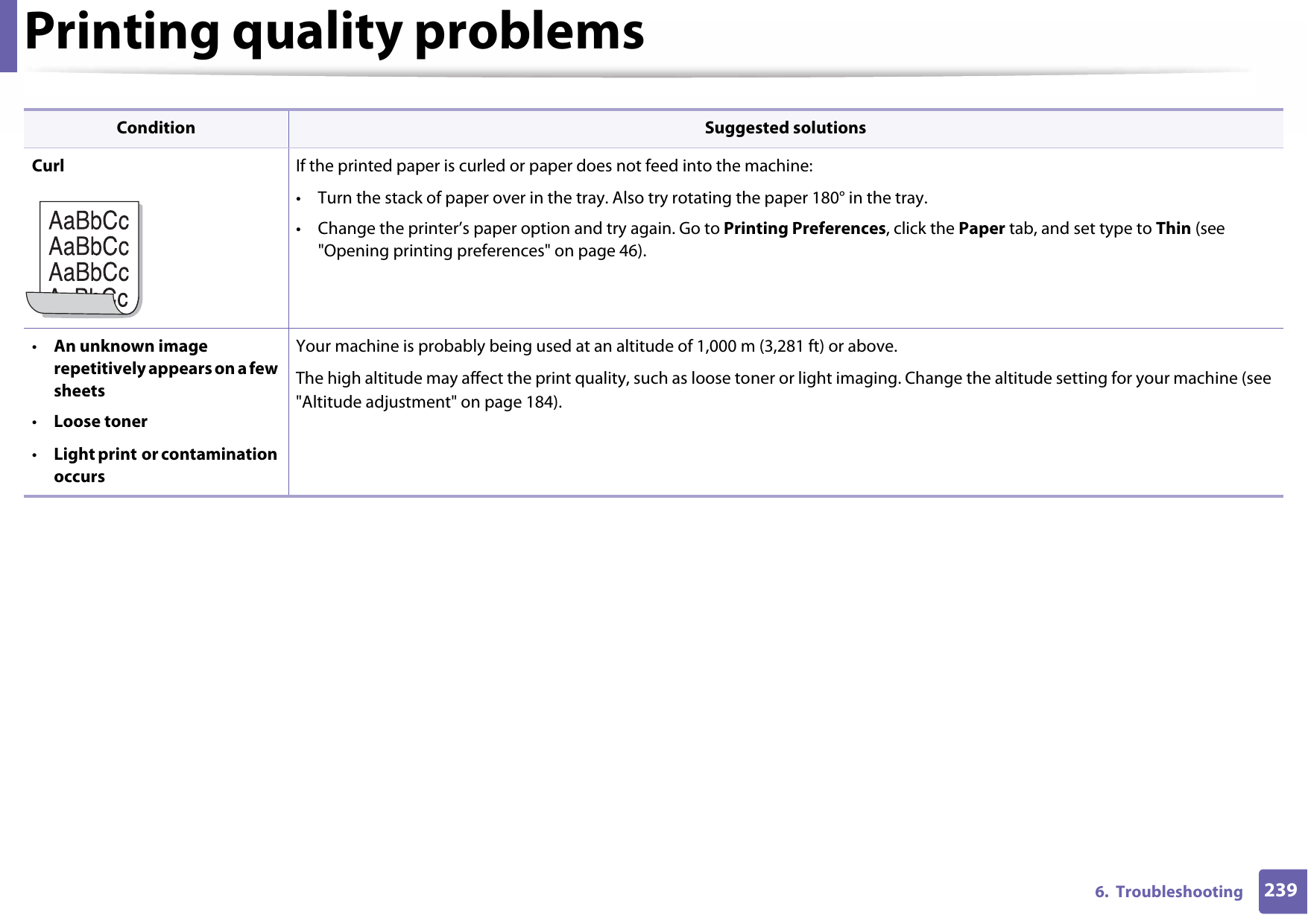

Printing quality problems2396. Troubleshooting Curl If the printed paper is curled or paper does not feed into the machine:• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.• Change the printer’s paper option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thin (see "Opening printing preferences" on page 46).•An unknown image repetitively appears on a few sheets•Loose toner•Light print or contamination occursYour machine is probably being used at an altitude of 1,000 m (3,281 ft) or above.The high altitude may affect the print quality, such as loose toner or light imaging. Change the altitude setting for your machine (see "Altitude adjustment" on page 184).Condition Suggested solutions

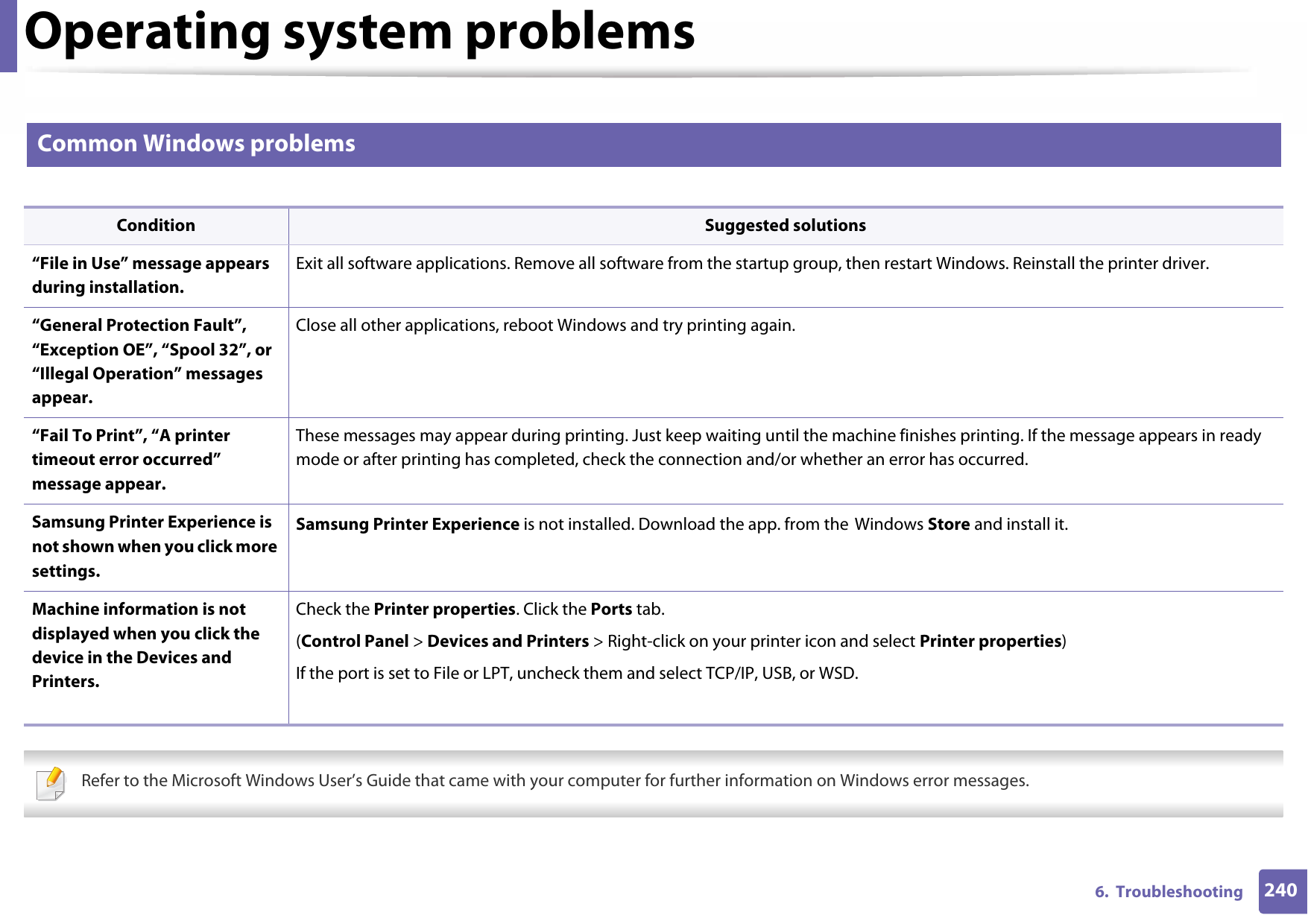

2406. TroubleshootingOperating system problems1 Common Windows problems Refer to the Microsoft Windows User’s Guide that came with your computer for further information on Windows error messages. Condition Suggested solutions“File in Use” message appears during installation.Exit all software applications. Remove all software from the startup group, then restart Windows. Reinstall the printer driver.“General Protection Fault”, “Exception OE”, “Spool 32”, or “Illegal Operation” messages appear.Close all other applications, reboot Windows and try printing again.“Fail To Print”, “A printer timeout error occurred” message appear.These messages may appear during printing. Just keep waiting until the machine finishes printing. If the message appears in ready mode or after printing has completed, check the connection and/or whether an error has occurred.Samsung Printer Experience is not shown when you click more settings.Samsung Printer Experience is not installed. Download the app. from the Windows Store and install it.Machine information is not displayed when you click the device in the Devices and Printers.Check the Printer properties. Click the Ports tab.(Control Panel > Devices and Printers > Right-click on your printer icon and select Printer properties)If the port is set to File or LPT, uncheck them and select TCP/IP, USB, or WSD.

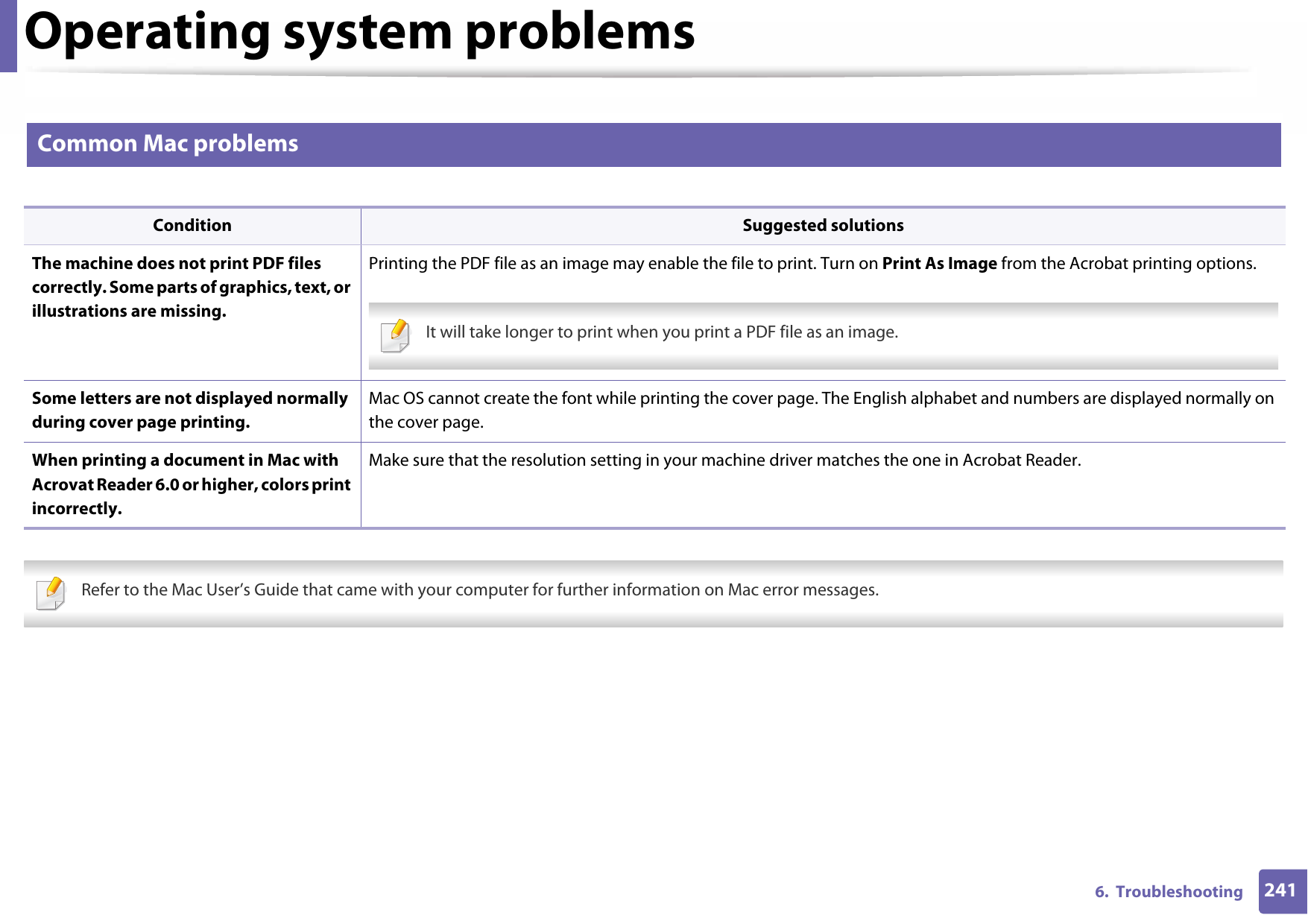

Operating system problems2416. Troubleshooting2 Common Mac problems Refer to the Mac User’s Guide that came with your computer for further information on Mac error messages. Condition Suggested solutionsThe machine does not print PDF files correctly. Some parts of graphics, text, or illustrations are missing.Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options. It will take longer to print when you print a PDF file as an image. Some letters are not displayed normally during cover page printing.Mac OS cannot create the font while printing the cover page. The English alphabet and numbers are displayed normally on the cover page.When printing a document in Mac with Acrovat Reader 6.0 or higher, colors print incorrectly.Make sure that the resolution setting in your machine driver matches the one in Acrobat Reader.

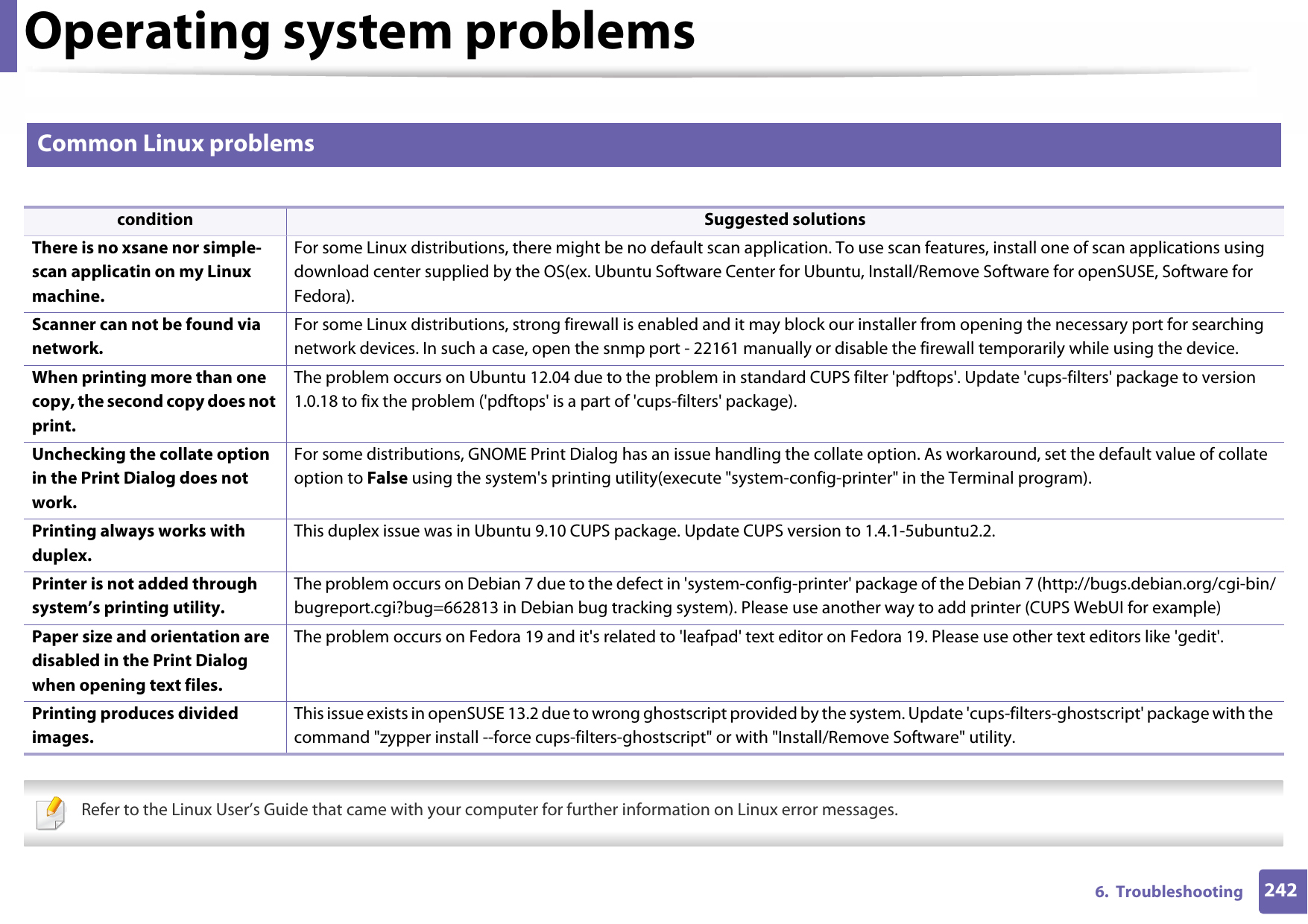

Operating system problems2426. Troubleshooting3 Common Linux problems Refer to the Linux User’s Guide that came with your computer for further information on Linux error messages. condition Suggested solutionsThere is no xsane nor simple-scan applicatin on my Linux machine.For some Linux distributions, there might be no default scan application. To use scan features, install one of scan applications using download center supplied by the OS(ex. Ubuntu Software Center for Ubuntu, Install/Remove Software for openSUSE, Software for Fedora).Scanner can not be found via network.For some Linux distributions, strong firewall is enabled and it may block our installer from opening the necessary port for searching network devices. In such a case, open the snmp port - 22161 manually or disable the firewall temporarily while using the device.When printing more than one copy, the second copy does not print.The problem occurs on Ubuntu 12.04 due to the problem in standard CUPS filter 'pdftops'. Update 'cups-filters' package to version 1.0.18 to fix the problem ('pdftops' is a part of 'cups-filters' package).Unchecking the collate option in the Print Dialog does not work.For some distributions, GNOME Print Dialog has an issue handling the collate option. As workaround, set the default value of collate option to False using the system's printing utility(execute "system-config-printer" in the Terminal program).Printing always works with duplex.This duplex issue was in Ubuntu 9.10 CUPS package. Update CUPS version to 1.4.1-5ubuntu2.2.Printer is not added through system’s printing utility.The problem occurs on Debian 7 due to the defect in 'system-config-printer' package of the Debian 7 (http://bugs.debian.org/cgi-bin/bugreport.cgi?bug=662813 in Debian bug tracking system). Please use another way to add printer (CUPS WebUI for example)Paper size and orientation are disabled in the Print Dialog when opening text files.The problem occurs on Fedora 19 and it's related to 'leafpad' text editor on Fedora 19. Please use other text editors like 'gedit'.Printing produces divided images.This issue exists in openSUSE 13.2 due to wrong ghostscript provided by the system. Update 'cups-filters-ghostscript' package with the command "zypper install --force cups-filters-ghostscript" or with "Install/Remove Software" utility.

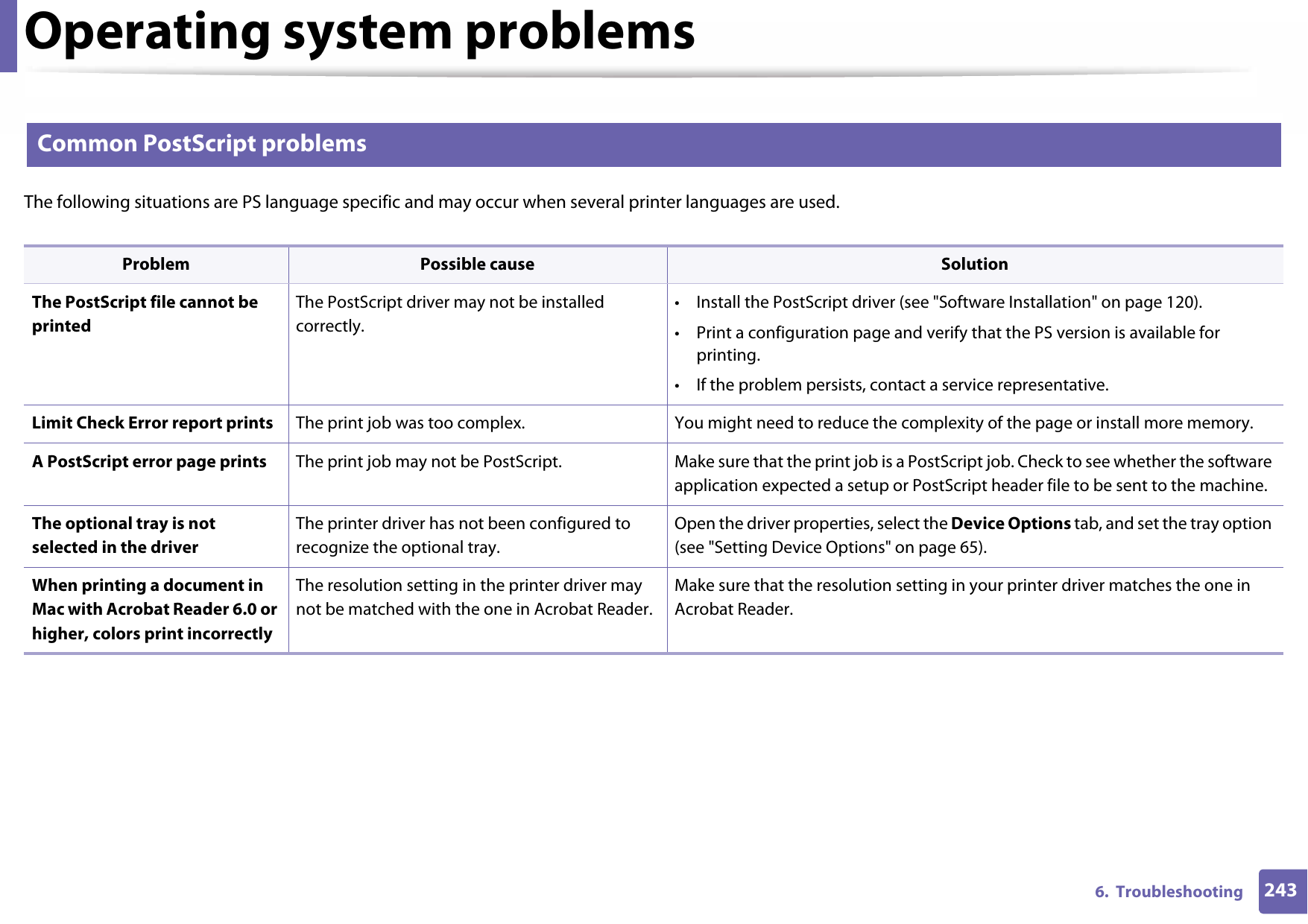

Operating system problems2436. Troubleshooting4 Common PostScript problemsThe following situations are PS language specific and may occur when several printer languages are used. Problem Possible cause SolutionThe PostScript file cannot be printedThe PostScript driver may not be installed correctly.• Install the PostScript driver (see "Software Installation" on page 120).• Print a configuration page and verify that the PS version is available for printing.• If the problem persists, contact a service representative.Limit Check Error report prints The print job was too complex. You might need to reduce the complexity of the page or install more memory.A PostScript error page prints The print job may not be PostScript. Make sure that the print job is a PostScript job. Check to see whether the software application expected a setup or PostScript header file to be sent to the machine.The optional tray is not selected in the driverThe printer driver has not been configured to recognize the optional tray.Open the driver properties, select the Device Options tab, and set the tray option (see "Setting Device Options" on page 65).When printing a document in Mac with Acrobat Reader 6.0 or higher, colors print incorrectlyThe resolution setting in the printer driver may not be matched with the one in Acrobat Reader.Make sure that the resolution setting in your printer driver matches the one in Acrobat Reader.

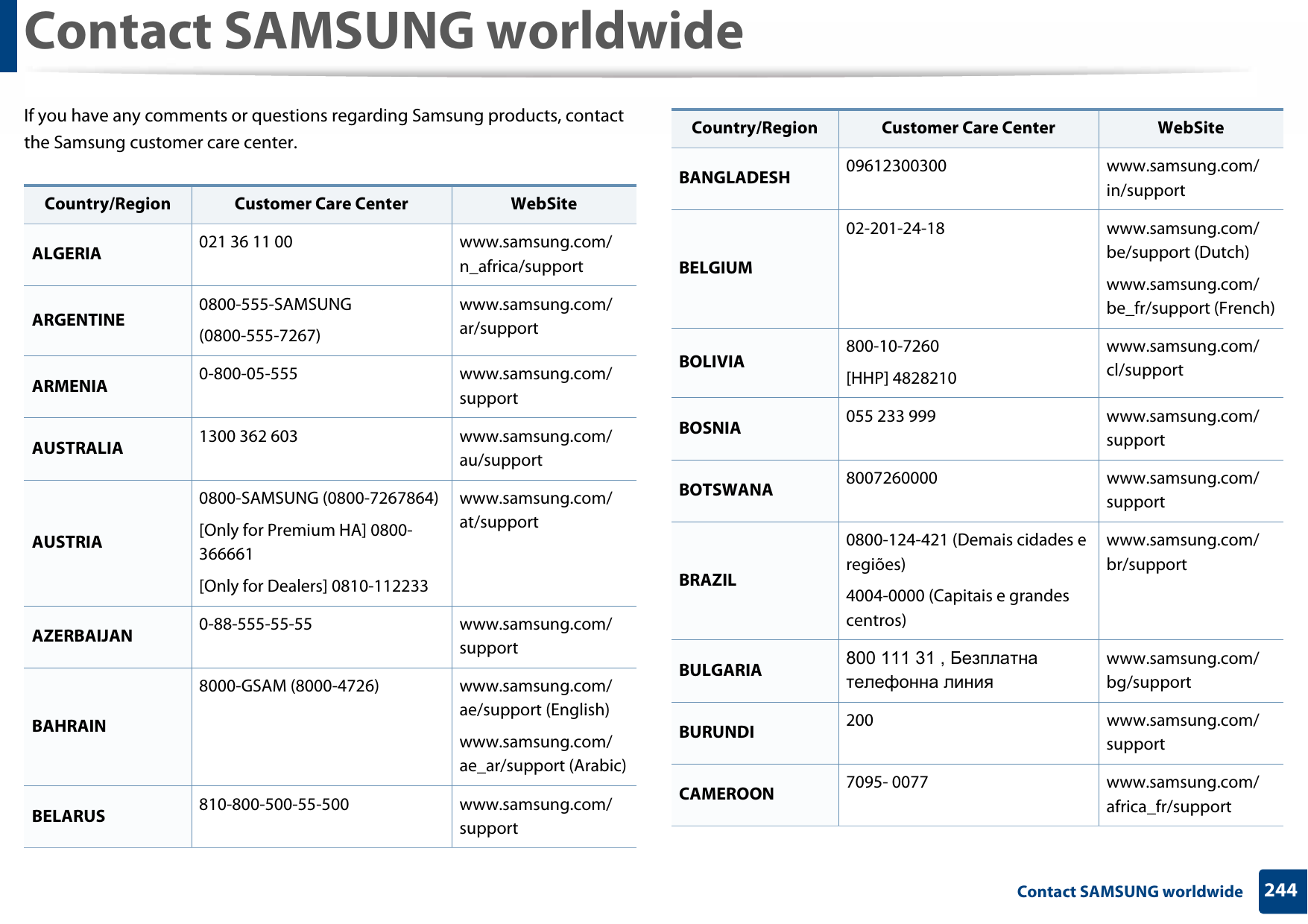

244 Contact SAMSUNG worldwideContact SAMSUNG worldwideIf you have any comments or questions regarding Samsung products, contact the Samsung customer care center.Country/Region Customer Care Center WebSiteALGERIA 021 36 11 00 www.samsung.com/n_africa/supportARGENTINE 0800-555-SAMSUNG (0800-555-7267) www.samsung.com/ar/supportARMENIA 0-800-05-555 www.samsung.com/supportAUSTRALIA 1300 362 603 www.samsung.com/au/supportAUSTRIA0800-SAMSUNG (0800-7267864)[Only for Premium HA] 0800-366661[Only for Dealers] 0810-112233www.samsung.com/at/supportAZERBAIJAN 0-88-555-55-55 www.samsung.com/supportBAHRAIN8000-GSAM (8000-4726) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)BELARUS 810-800-500-55-500 www.samsung.com/supportBANGLADESH 09612300300 www.samsung.com/in/supportBELGIUM02-201-24-18 www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)BOLIVIA 800-10-7260[HHP] 4828210www.samsung.com/cl/supportBOSNIA 055 233 999 www.samsung.com/supportBOTSWANA 8007260000 www.samsung.com/supportBRAZIL0800-124-421 (Demais cidades e regiões)4004-0000 (Capitais e grandes centros)www.samsung.com/br/supportBULGARIA 800 111 31 , Безплатна телефонна линияwww.samsung.com/bg/supportBURUNDI 200 www.samsung.com/supportCAMEROON 7095- 0077 www.samsung.com/africa_fr/supportCountry/Region Customer Care Center WebSite

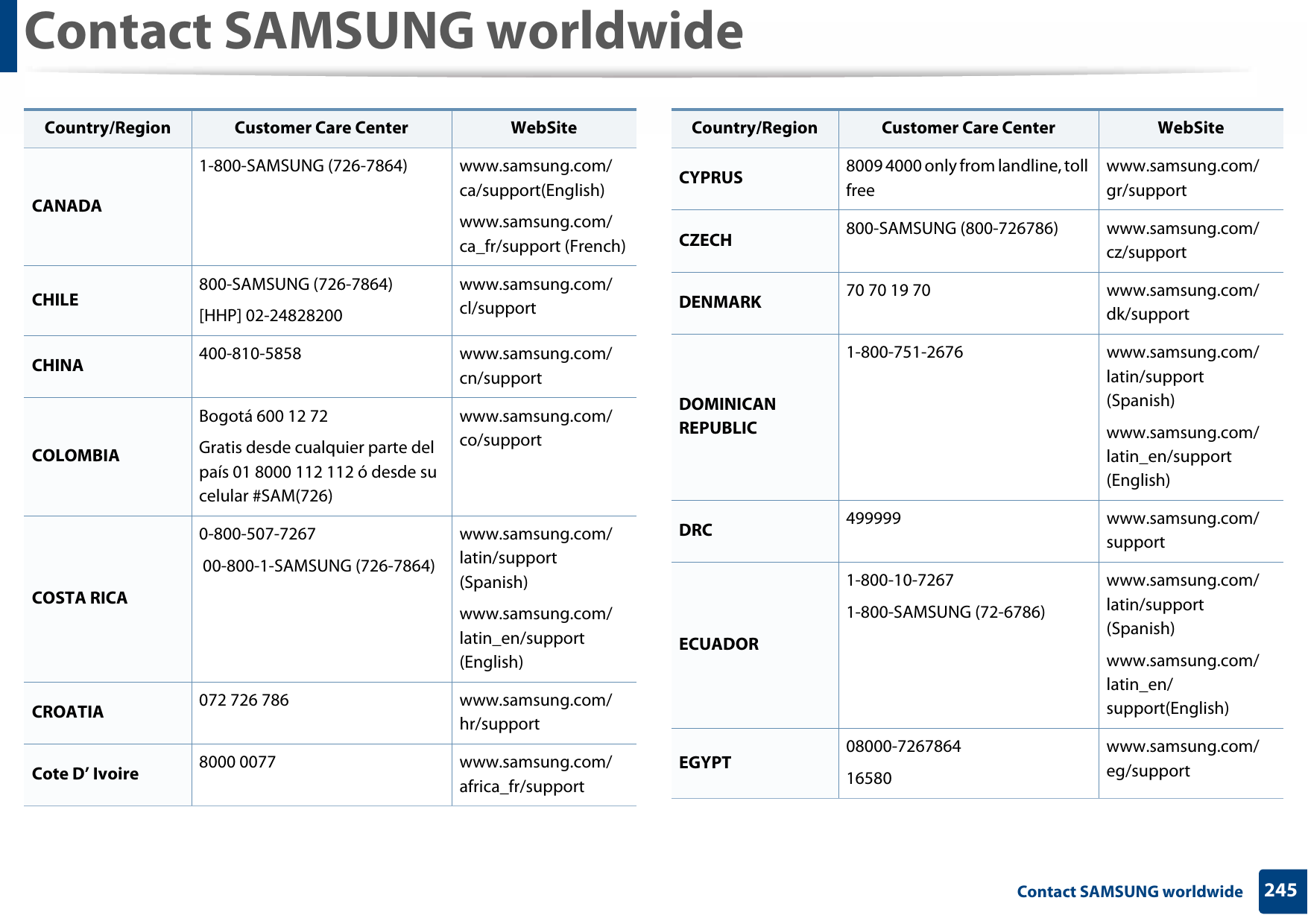

Contact SAMSUNG worldwide245 Contact SAMSUNG worldwideCANADA1-800-SAMSUNG (726-7864) www.samsung.com/ca/support(English)www.samsung.com/ca_fr/support (French)CHILE 800-SAMSUNG (726-7864)[HHP] 02-24828200www.samsung.com/cl/supportCHINA 400-810-5858 www.samsung.com/cn/supportCOLOMBIABogotá 600 12 72Gratis desde cualquier parte del país 01 8000 112 112 ó desde su celular #SAM(726)www.samsung.com/co/supportCOSTA RICA0-800-507-7267 00-800-1-SAMSUNG (726-7864)www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)CROATIA 072 726 786 www.samsung.com/hr/supportCote D’ Ivoire 8000 0077 www.samsung.com/africa_fr/supportCountry/Region Customer Care Center WebSiteCYPRUS 8009 4000 only from landline, toll freewww.samsung.com/gr/supportCZECH 800-SAMSUNG (800-726786) www.samsung.com/cz/supportDENMARK 70 70 19 70 www.samsung.com/dk/supportDOMINICAN REPUBLIC1-800-751-2676 www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)DRC 499999 www.samsung.com/supportECUADOR1-800-10-72671-800-SAMSUNG (72-6786)www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support(English)EGYPT 08000-726786416580www.samsung.com/eg/supportCountry/Region Customer Care Center WebSite

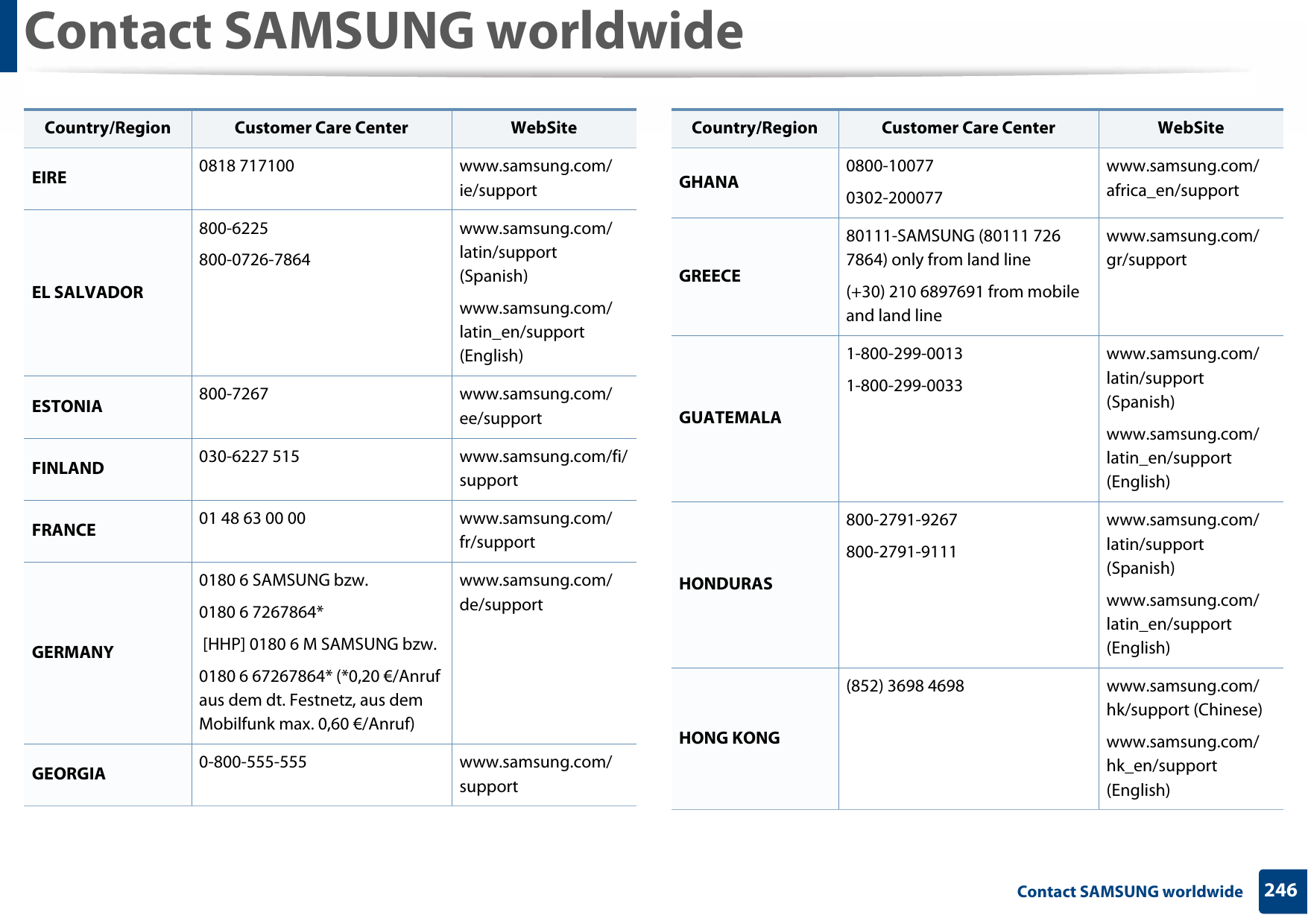

Contact SAMSUNG worldwide246 Contact SAMSUNG worldwideEIRE 0818 717100 www.samsung.com/ie/supportEL SALVADOR800-6225800-0726-7864www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)ESTONIA 800-7267 www.samsung.com/ee/supportFINLAND 030-6227 515 www.samsung.com/fi/supportFRANCE 01 48 63 00 00 www.samsung.com/fr/supportGERMANY0180 6 SAMSUNG bzw. 0180 6 7267864* [HHP] 0180 6 M SAMSUNG bzw.0180 6 67267864* (*0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk max. 0,60 €/Anruf)www.samsung.com/de/supportGEORGIA 0-800-555-555 www.samsung.com/supportCountry/Region Customer Care Center WebSiteGHANA 0800-100770302-200077www.samsung.com/africa_en/supportGREECE80111-SAMSUNG (80111 726 7864) only from land line(+30) 210 6897691 from mobile and land linewww.samsung.com/gr/supportGUATEMALA1-800-299-00131-800-299-0033www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)HONDURAS800-2791-9267 800-2791-9111www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)HONG KONG(852) 3698 4698 www.samsung.com/hk/support (Chinese)www.samsung.com/hk_en/support (English)Country/Region Customer Care Center WebSite

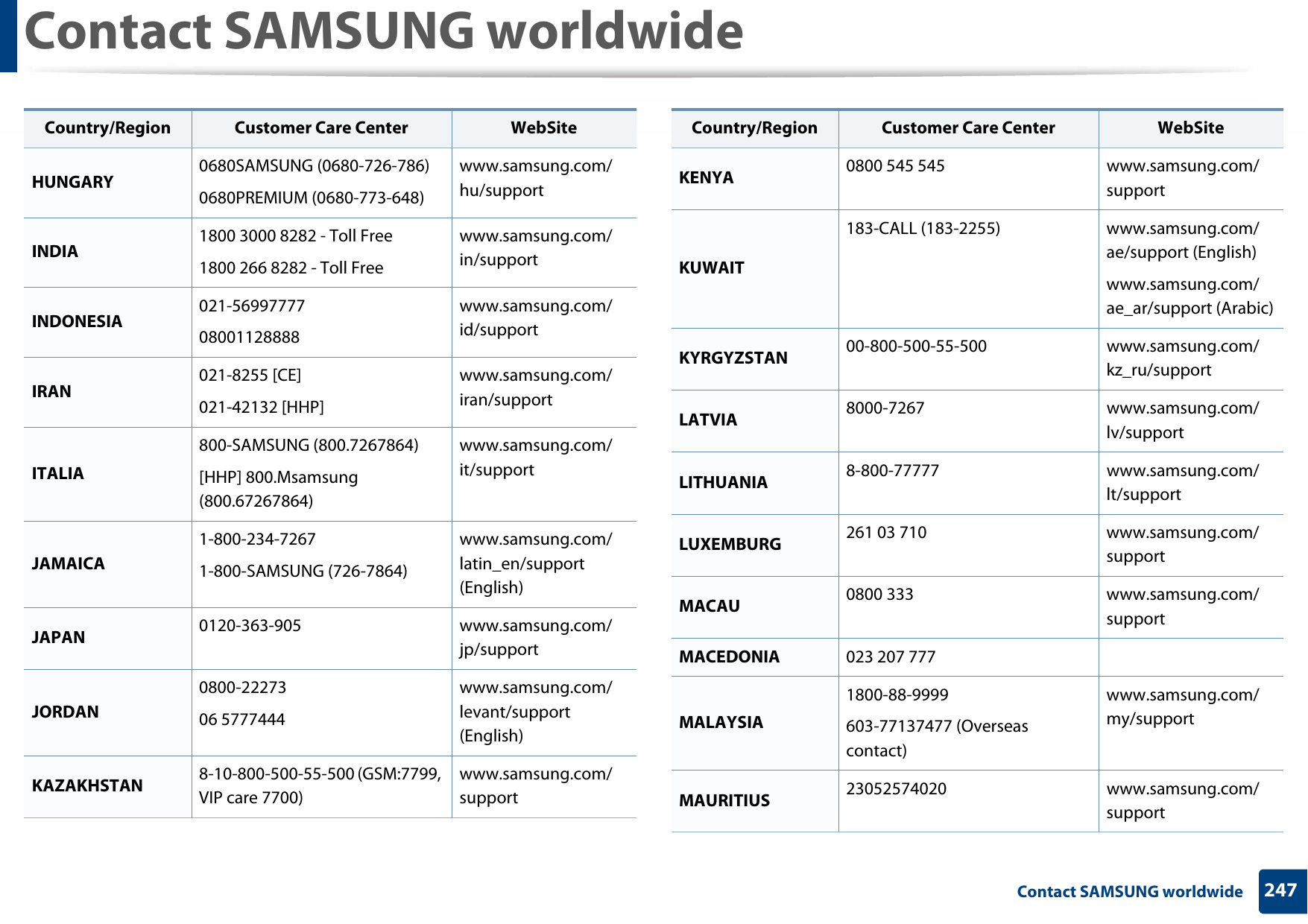

Contact SAMSUNG worldwide247 Contact SAMSUNG worldwideHUNGARY 0680SAMSUNG (0680-726-786)0680PREMIUM (0680-773-648)www.samsung.com/hu/supportINDIA 1800 3000 8282 - Toll Free1800 266 8282 - Toll Freewww.samsung.com/in/supportINDONESIA 021-5699777708001128888www.samsung.com/id/supportIRAN 021-8255 [CE]021-42132 [HHP]www.samsung.com/iran/supportITALIA800-SAMSUNG (800.7267864)[HHP] 800.Msamsung (800.67267864)www.samsung.com/it/supportJAMAICA1-800-234-72671-800-SAMSUNG (726-7864)www.samsung.com/latin_en/support (English)JAPAN 0120-363-905 www.samsung.com/jp/supportJORDAN0800-2227306 5777444www.samsung.com/levant/support (English)KAZAKHSTAN 8-10-800-500-55-500 (GSM:7799, VIP care 7700)www.samsung.com/supportCountry/Region Customer Care Center WebSiteKENYA 0800 545 545 www.samsung.com/supportKUWAIT183-CALL (183-2255) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)KYRGYZSTAN 00-800-500-55-500 www.samsung.com/kz_ru/supportLATVIA 8000-7267 www.samsung.com/lv/supportLITHUANIA 8-800-77777 www.samsung.com/lt/supportLUXEMBURG 261 03 710 www.samsung.com/supportMACAU 0800 333 www.samsung.com/supportMACEDONIA 023 207 777MALAYSIA1800-88-9999603-77137477 (Overseas contact)www.samsung.com/my/supportMAURITIUS 23052574020 www.samsung.com/supportCountry/Region Customer Care Center WebSite

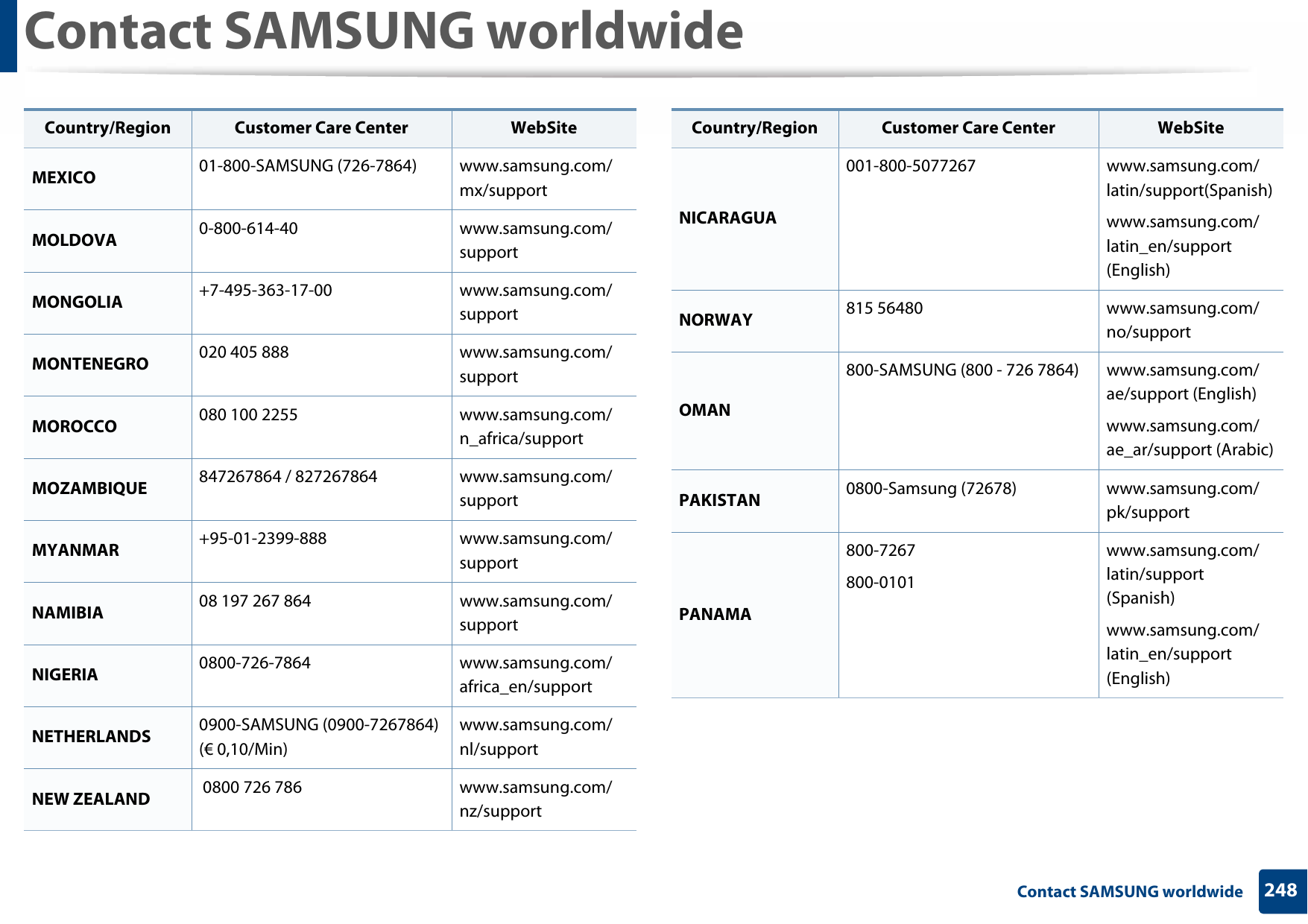

Contact SAMSUNG worldwide248 Contact SAMSUNG worldwideMEXICO 01-800-SAMSUNG (726-7864) www.samsung.com/mx/supportMOLDOVA 0-800-614-40 www.samsung.com/supportMONGOLIA +7-495-363-17-00 www.samsung.com/supportMONTENEGRO 020 405 888 www.samsung.com/supportMOROCCO 080 100 2255 www.samsung.com/n_africa/supportMOZAMBIQUE 847267864 / 827267864 www.samsung.com/supportMYANMAR +95-01-2399-888 www.samsung.com/supportNAMIBIA 08 197 267864 www.samsung.com/supportNIGERIA 0800-726-7864 www.samsung.com/africa_en/supportNETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min)www.samsung.com/nl/supportNEW ZEALAND 0800 726 786 www.samsung.com/nz/supportCountry/Region Customer Care Center WebSiteNICARAGUA001-800-5077267 www.samsung.com/latin/support(Spanish)www.samsung.com/latin_en/support (English)NORWAY 815 56480 www.samsung.com/no/supportOMAN800-SAMSUNG (800 - 726 7864) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)PAKISTAN 0800-Samsung (72678) www.samsung.com/pk/supportPANAMA800-7267800-0101www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)Country/Region Customer Care Center WebSite

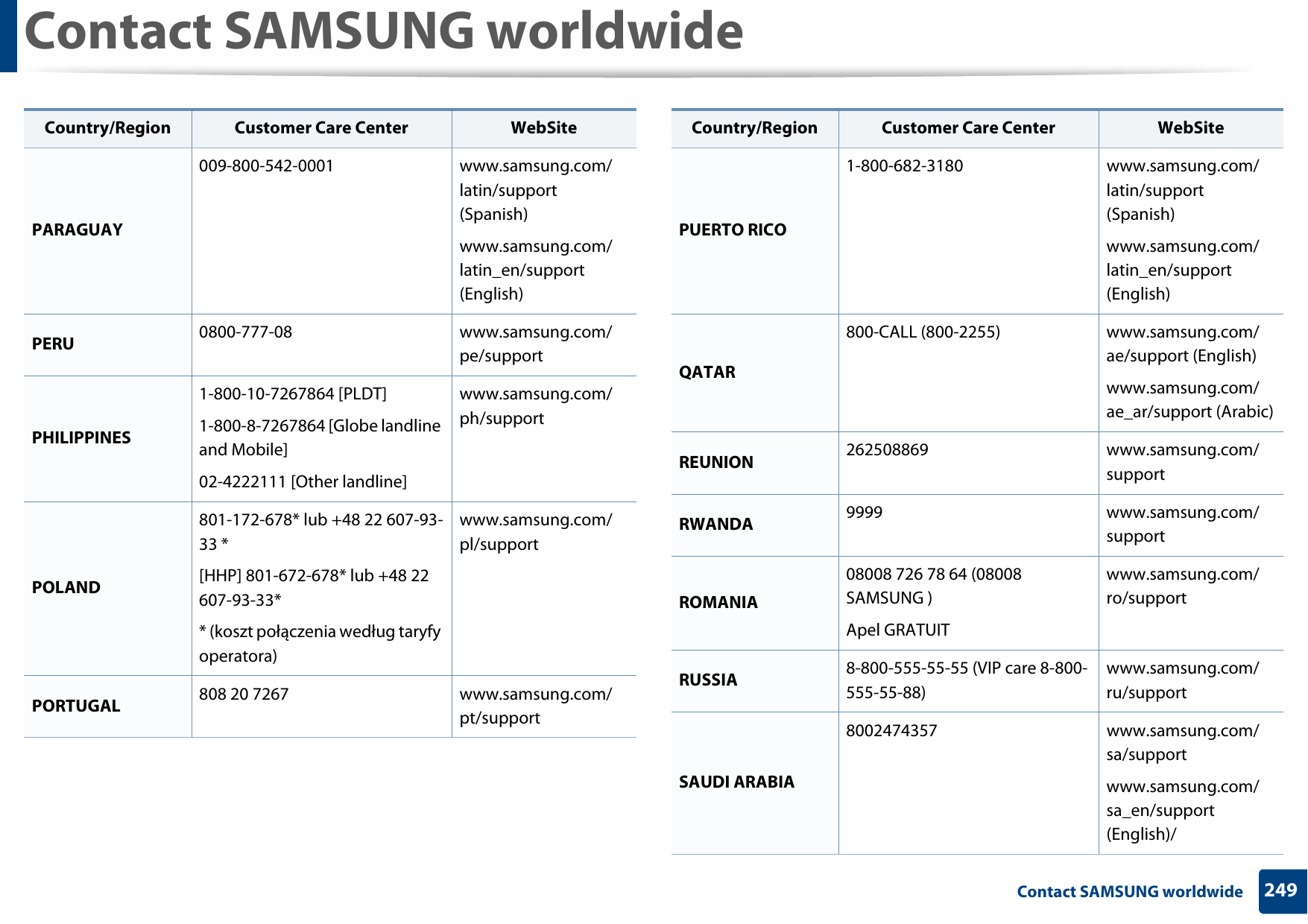

Contact SAMSUNG worldwide249 Contact SAMSUNG worldwidePARAGUAY009-800-542-0001 www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)PERU 0800-777-08 www.samsung.com/pe/supportPHILIPPINES1-800-10-7267864 [PLDT]1-800-8-7267864 [Globe landline and Mobile]02-4222111 [Other landline]www.samsung.com/ph/supportPOLAND801-172-678* lub +48 22 607-93-33 *[HHP] 801-672-678* lub +48 22 607-93-33** (koszt połączenia według taryfy operatora)www.samsung.com/pl/supportPORTUGAL 808 20 7267 www.samsung.com/pt/supportCountry/Region Customer Care Center WebSitePUERTO RICO1-800-682-3180 www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)QATAR800-CALL (800-2255) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)REUNION 262508869 www.samsung.com/supportRWANDA 9999 www.samsung.com/supportROMANIA08008 726 78 64 (08008 SAMSUNG )Apel GRATUITwww.samsung.com/ro/supportRUSSIA 8-800-555-55-55 (VIP care 8-800-555-55-88)www.samsung.com/ru/supportSAUDI ARABIA8002474357 www.samsung.com/sa/supportwww.samsung.com/sa_en/support (English)/Country/Region Customer Care Center WebSite

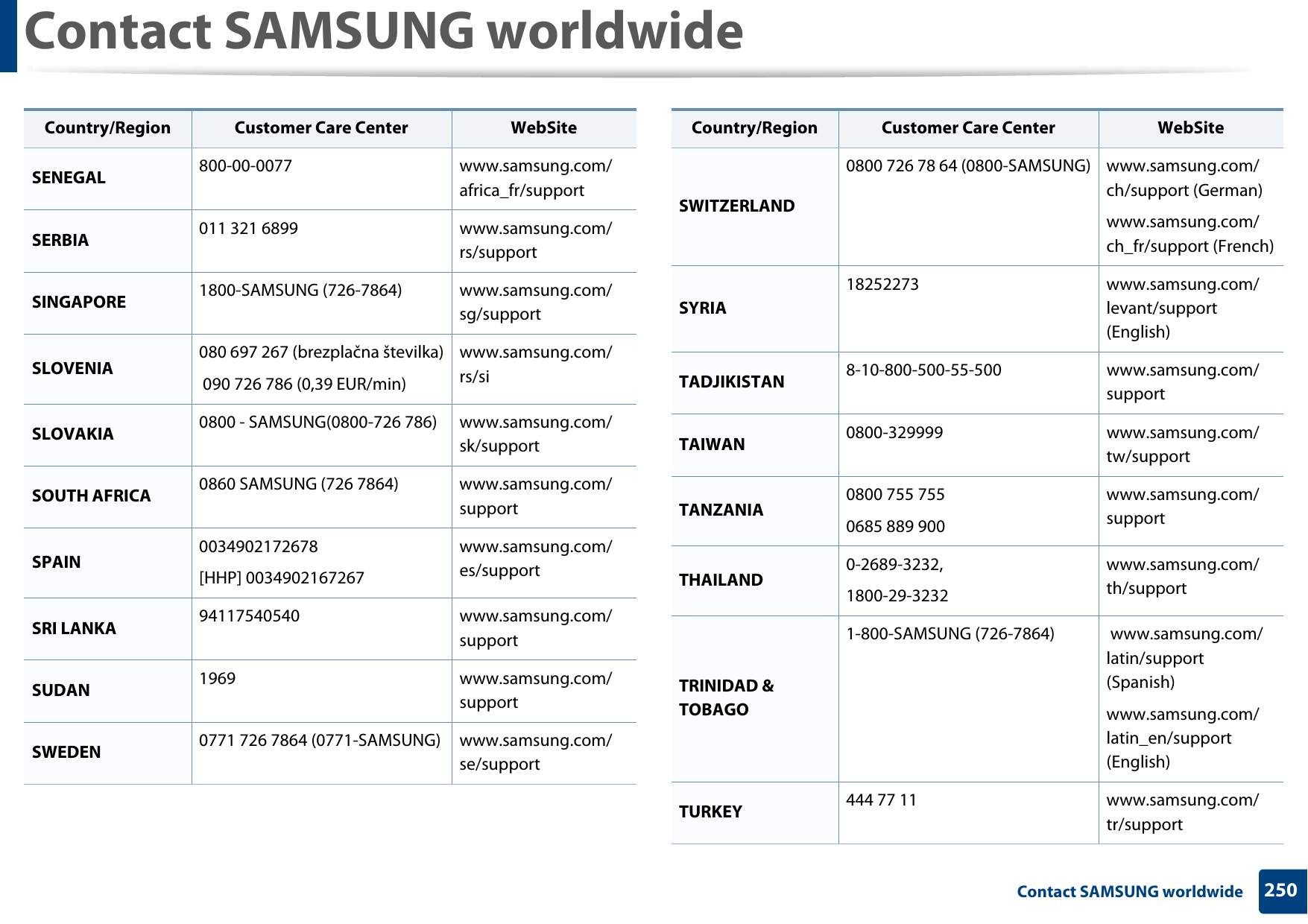

Contact SAMSUNG worldwide250 Contact SAMSUNG worldwideSENEGAL 800-00-0077 www.samsung.com/africa_fr/supportSERBIA 011 321 6899 www.samsung.com/rs/supportSINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com/sg/supportSLOVENIA 080 697 267 (brezplačna številka) 090 726 786 (0,39 EUR/min)www.samsung.com/rs/siSLOVAKIA 0800 - SAMSUNG(0800-726 786) www.samsung.com/sk/supportSOUTH AFRICA 0860 SAMSUNG (726 7864) www.samsung.com/supportSPAIN 0034902172678[HHP] 0034902167267www.samsung.com/es/supportSRI LANKA 94117540540 www.samsung.com/supportSUDAN 1969 www.samsung.com/supportSWEDEN 0771 726 7864 (0771-SAMSUNG) www.samsung.com/se/supportCountry/Region Customer Care Center WebSiteSWITZERLAND0800 726 78 64 (0800-SAMSUNG) www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)SYRIA18252273 www.samsung.com/levant/support (English)TADJIKISTAN 8-10-800-500-55-500 www.samsung.com/supportTAIWAN 0800-329999 www.samsung.com/tw/supportTANZANIA 0800 755 7550685 889 900www.samsung.com/supportTHAILAND 0-2689-3232,1800-29-3232www.samsung.com/th/supportTRINIDAD & TOBAGO1-800-SAMSUNG (726-7864) www.samsung.com/latin/support (Spanish)www.samsung.com/latin_en/support (English)TURKEY 444 77 11 www.samsung.com/tr/supportCountry/Region Customer Care Center WebSite

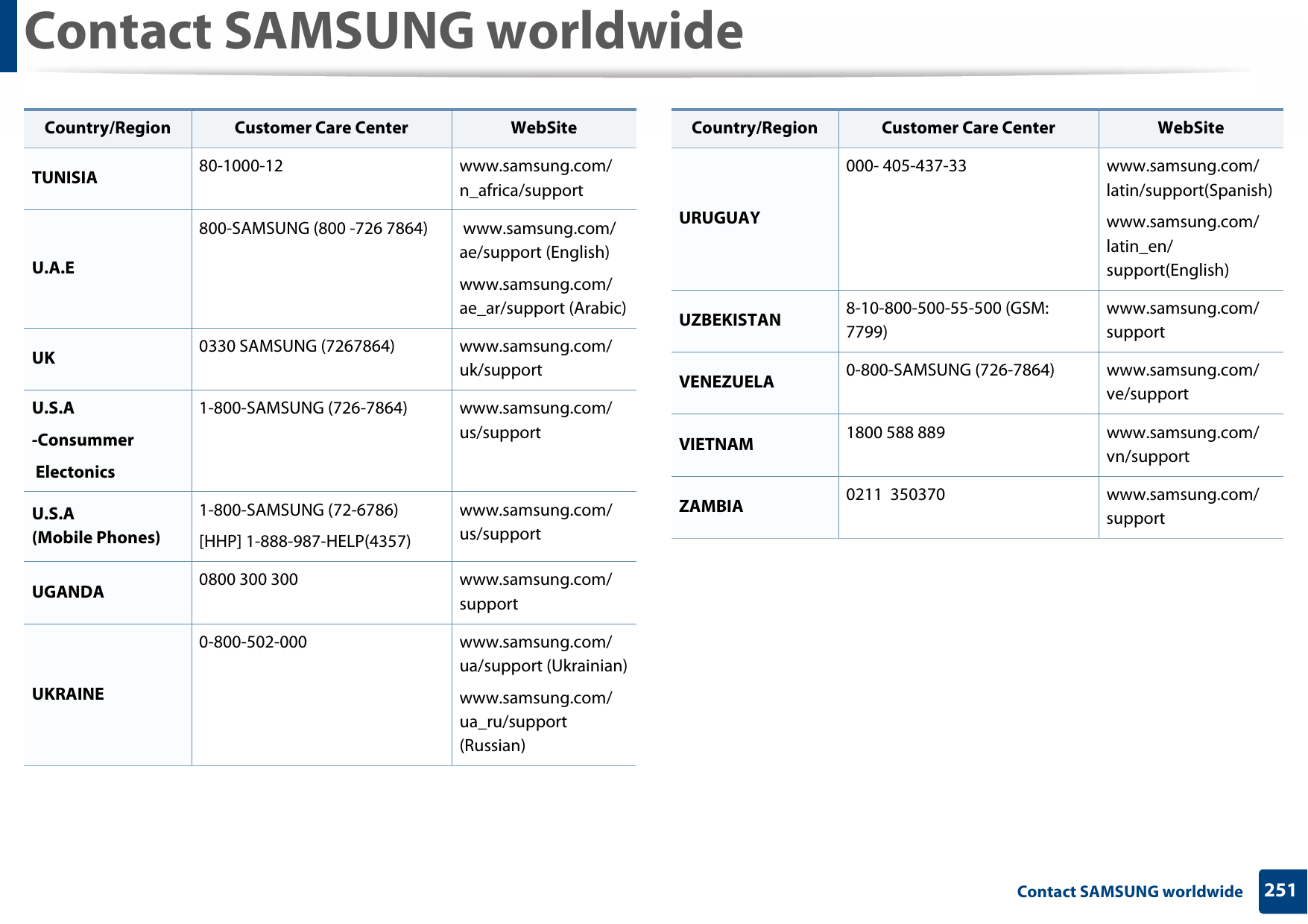

Contact SAMSUNG worldwide251 Contact SAMSUNG worldwideTUNISIA 80-1000-12 www.samsung.com/n_africa/supportU.A.E800-SAMSUNG (800 -726 7864) www.samsung.com/ae/support (English)www.samsung.com/ae_ar/support (Arabic)UK 0330 SAMSUNG (7267864) www.samsung.com/uk/supportU.S.A-Consummer Electonics1-800-SAMSUNG (726-7864) www.samsung.com/us/supportU.S.A(Mobile Phones)1-800-SAMSUNG (72-6786)[HHP] 1-888-987-HELP(4357)www.samsung.com/us/supportUGANDA 0800 300 300 www.samsung.com/supportUKRAINE0-800-502-000 www.samsung.com/ua/support (Ukrainian)www.samsung.com/ua_ru/support (Russian)Country/Region Customer Care Center WebSiteURUGUAY000- 405-437-33 www.samsung.com/latin/support(Spanish)www.samsung.com/latin_en/support(English)UZBEKISTAN 8-10-800-500-55-500 (GSM: 7799)www.samsung.com/supportVENEZUELA 0-800-SAMSUNG (726-7864) www.samsung.com/ve/supportVIETNAM 1800 588 889 www.samsung.com/vn/supportZAMBIA 0211 350370 www.samsung.com/supportCountry/Region Customer Care Center WebSite

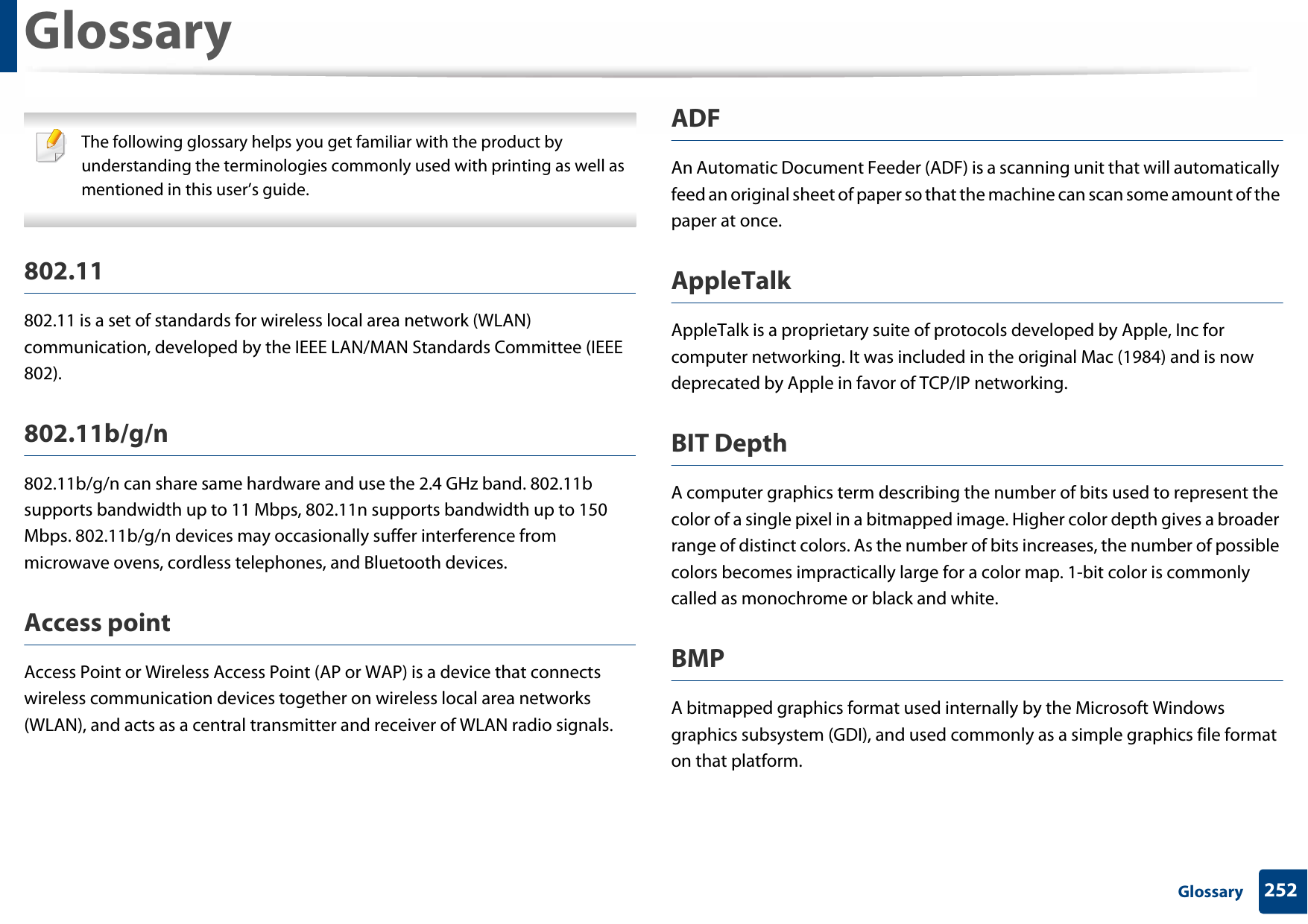

252 GlossaryGlossary The following glossary helps you get familiar with the product by understanding the terminologies commonly used with printing as well as mentioned in this user’s guide. 802.11802.11 is a set of standards for wireless local area network (WLAN) communication, developed by the IEEE LAN/MAN Standards Committee (IEEE 802). 802.11b/g/n802.11b/g/n can share same hardware and use the 2.4 GHz band. 802.11b supports bandwidth up to 11 Mbps, 802.11n supports bandwidth up to 150 Mbps. 802.11b/g/n devices may occasionally suffer interference from microwave ovens, cordless telephones, and Bluetooth devices.Access pointAccess Point or Wireless Access Point (AP or WAP) is a device that connects wireless communication devices together on wireless local area networks (WLAN), and acts as a central transmitter and receiver of WLAN radio signals. ADFAn Automatic Document Feeder (ADF) is a scanning unit that will automatically feed an original sheet of paper so that the machine can scan some amount of the paper at once. AppleTalkAppleTalk is a proprietary suite of protocols developed by Apple, Inc for computer networking. It was included in the original Mac (1984) and is now deprecated by Apple in favor of TCP/IP networking.BIT DepthA computer graphics term describing the number of bits used to represent the color of a single pixel in a bitmapped image. Higher color depth gives a broader range of distinct colors. As the number of bits increases, the number of possible colors becomes impractically large for a color map. 1-bit color is commonly called as monochrome or black and white.BMPA bitmapped graphics format used internally by the Microsoft Windows graphics subsystem (GDI), and used commonly as a simple graphics file format on that platform.

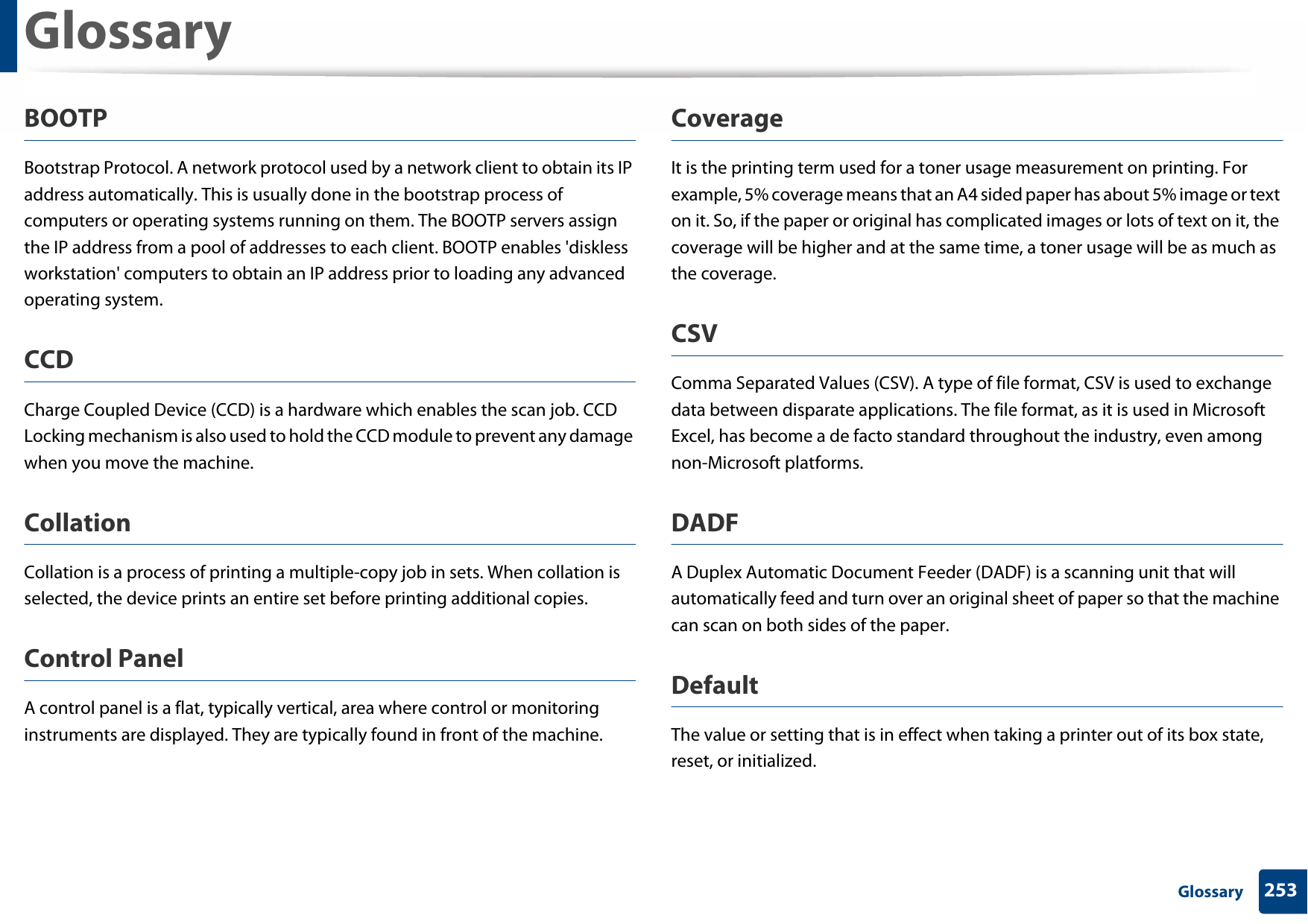

Glossary253 GlossaryBOOTPBootstrap Protocol. A network protocol used by a network client to obtain its IP address automatically. This is usually done in the bootstrap process of computers or operating systems running on them. The BOOTP servers assign the IP address from a pool of addresses to each client. BOOTP enables 'diskless workstation' computers to obtain an IP address prior to loading any advanced operating system.CCDCharge Coupled Device (CCD) is a hardware which enables the scan job. CCD Locking mechanism is also used to hold the CCD module to prevent any damage when you move the machine.CollationCollation is a process of printing a multiple-copy job in sets. When collation is selected, the device prints an entire set before printing additional copies.Control PanelA control panel is a flat, typically vertical, area where control or monitoring instruments are displayed. They are typically found in front of the machine. CoverageIt is the printing term used for a toner usage measurement on printing. For example, 5% coverage means that an A4 sided paper has about 5% image or text on it. So, if the paper or original has complicated images or lots of text on it, the coverage will be higher and at the same time, a toner usage will be as much as the coverage.CSVComma Separated Values (CSV). A type of file format, CSV is used to exchange data between disparate applications. The file format, as it is used in Microsoft Excel, has become a de facto standard throughout the industry, even among non-Microsoft platforms.DADFA Duplex Automatic Document Feeder (DADF) is a scanning unit that will automatically feed and turn over an original sheet of paper so that the machine can scan on both sides of the paper.DefaultThe value or setting that is in effect when taking a printer out of its box state, reset, or initialized.

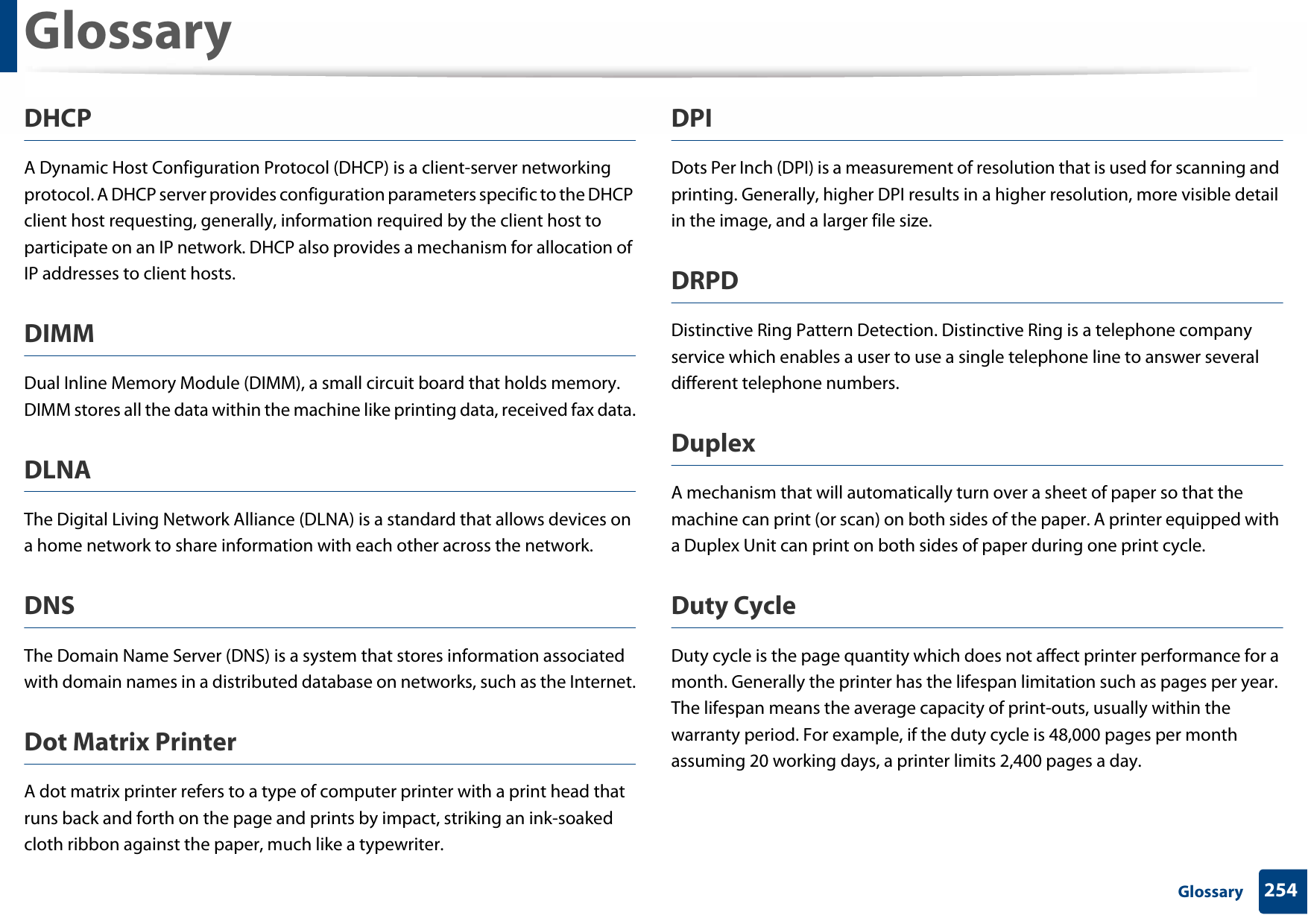

Glossary254 GlossaryDHCPA Dynamic Host Configuration Protocol (DHCP) is a client-server networking protocol. A DHCP server provides configuration parameters specific to the DHCP client host requesting, generally, information required by the client host to participate on an IP network. DHCP also provides a mechanism for allocation of IP addresses to client hosts.DIMMDual Inline Memory Module (DIMM), a small circuit board that holds memory. DIMM stores all the data within the machine like printing data, received fax data.DLNAThe Digital Living Network Alliance (DLNA) is a standard that allows devices on a home network to share information with each other across the network.DNSThe Domain Name Server (DNS) is a system that stores information associated with domain names in a distributed database on networks, such as the Internet.Dot Matrix PrinterA dot matrix printer refers to a type of computer printer with a print head that runs back and forth on the page and prints by impact, striking an ink-soaked cloth ribbon against the paper, much like a typewriter.DPIDots Per Inch (DPI) is a measurement of resolution that is used for scanning and printing. Generally, higher DPI results in a higher resolution, more visible detail in the image, and a larger file size.DRPD Distinctive Ring Pattern Detection. Distinctive Ring is a telephone company service which enables a user to use a single telephone line to answer several different telephone numbers.DuplexA mechanism that will automatically turn over a sheet of paper so that the machine can print (or scan) on both sides of the paper. A printer equipped with a Duplex Unit can print on both sides of paper during one print cycle.Duty CycleDuty cycle is the page quantity which does not affect printer performance for a month. Generally the printer has the lifespan limitation such as pages per year. The lifespan means the average capacity of print-outs, usually within the warranty period. For example, if the duty cycle is 48,000 pages per month assuming 20 working days, a printer limits 2,400 pages a day.

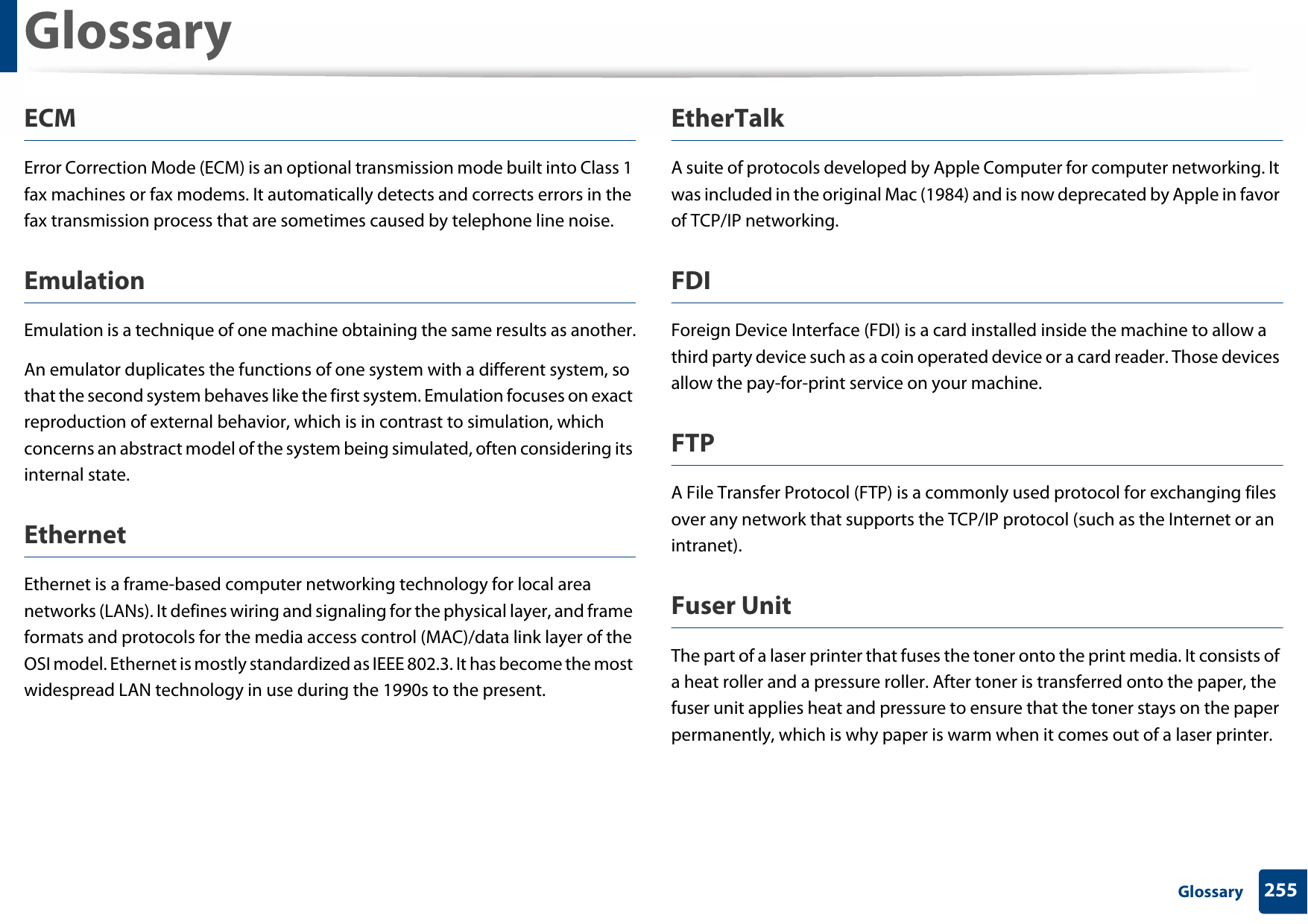

Glossary255 GlossaryECMError Correction Mode (ECM) is an optional transmission mode built into Class 1 fax machines or fax modems. It automatically detects and corrects errors in the fax transmission process that are sometimes caused by telephone line noise.EmulationEmulation is a technique of one machine obtaining the same results as another.An emulator duplicates the functions of one system with a different system, so that the second system behaves like the first system. Emulation focuses on exact reproduction of external behavior, which is in contrast to simulation, which concerns an abstract model of the system being simulated, often considering its internal state.EthernetEthernet is a frame-based computer networking technology for local area networks (LANs). It defines wiring and signaling for the physical layer, and frame formats and protocols for the media access control (MAC)/data link layer of the OSI model. Ethernet is mostly standardized as IEEE 802.3. It has become the most widespread LAN technology in use during the 1990s to the present.EtherTalkA suite of protocols developed by Apple Computer for computer networking. It was included in the original Mac (1984) and is now deprecated by Apple in favor of TCP/IP networking. FDIForeign Device Interface (FDI) is a card installed inside the machine to allow a third party device such as a coin operated device or a card reader. Those devices allow the pay-for-print service on your machine.FTPA File Transfer Protocol (FTP) is a commonly used protocol for exchanging files over any network that supports the TCP/IP protocol (such as the Internet or an intranet).Fuser Unit The part of a laser printer that fuses the toner onto the print media. It consists of a heat roller and a pressure roller. After toner is transferred onto the paper, the fuser unit applies heat and pressure to ensure that the toner stays on the paper permanently, which is why paper is warm when it comes out of a laser printer.

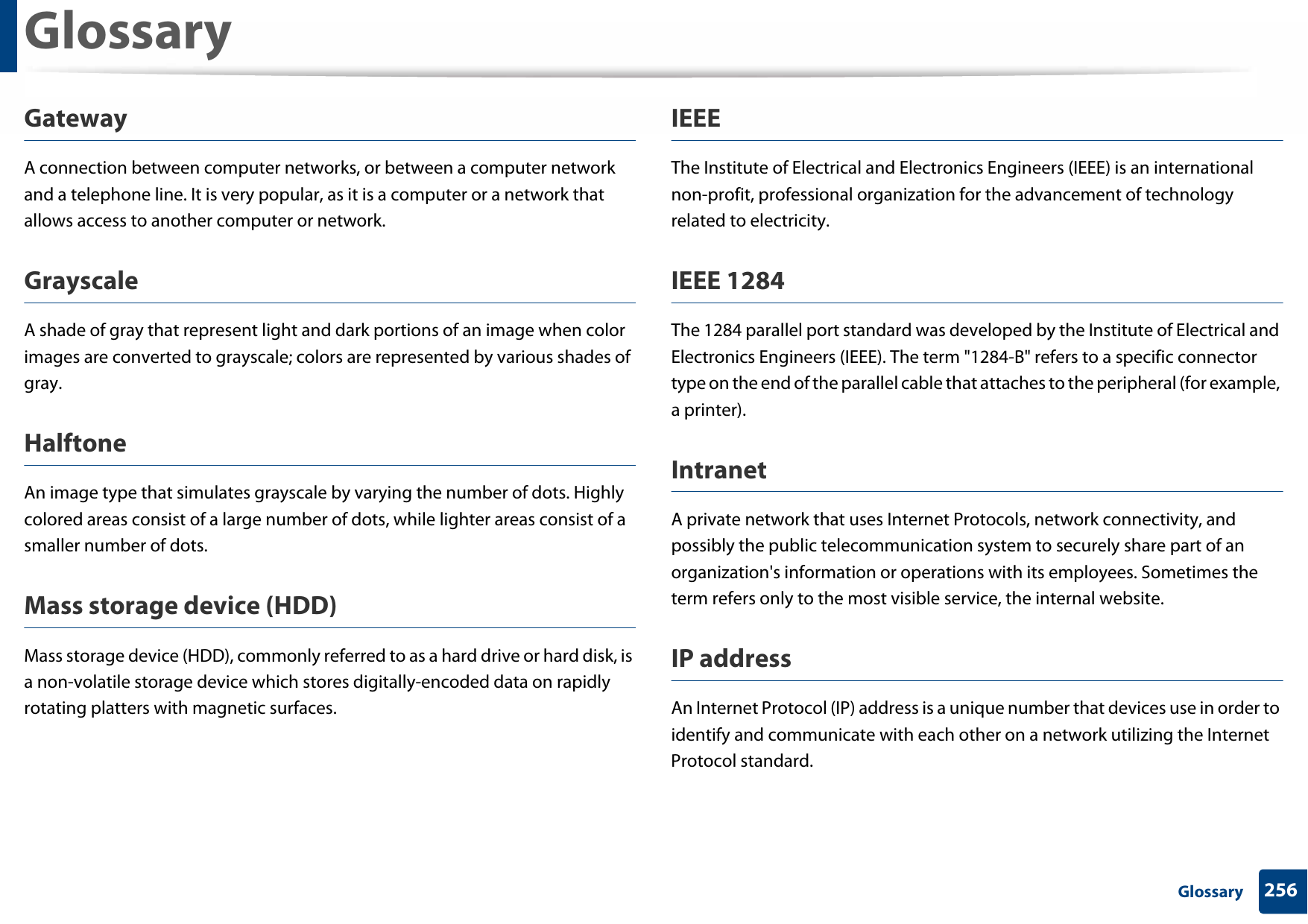

Glossary256 GlossaryGatewayA connection between computer networks, or between a computer network and a telephone line. It is very popular, as it is a computer or a network that allows access to another computer or network.GrayscaleA shade of gray that represent light and dark portions of an image when color images are converted to grayscale; colors are represented by various shades of gray.HalftoneAn image type that simulates grayscale by varying the number of dots. Highly colored areas consist of a large number of dots, while lighter areas consist of a smaller number of dots.Mass storage device (HDD)Mass storage device (HDD), commonly referred to as a hard drive or hard disk, is a non-volatile storage device which stores digitally-encoded data on rapidly rotating platters with magnetic surfaces.IEEEThe Institute of Electrical and Electronics Engineers (IEEE) is an international non-profit, professional organization for the advancement of technology related to electricity.IEEE 1284The 1284 parallel port standard was developed by the Institute of Electrical and Electronics Engineers (IEEE). The term "1284-B" refers to a specific connector type on the end of the parallel cable that attaches to the peripheral (for example, a printer). IntranetA private network that uses Internet Protocols, network connectivity, and possibly the public telecommunication system to securely share part of an organization's information or operations with its employees. Sometimes the term refers only to the most visible service, the internal website.IP addressAn Internet Protocol (IP) address is a unique number that devices use in order to identify and communicate with each other on a network utilizing the Internet Protocol standard.

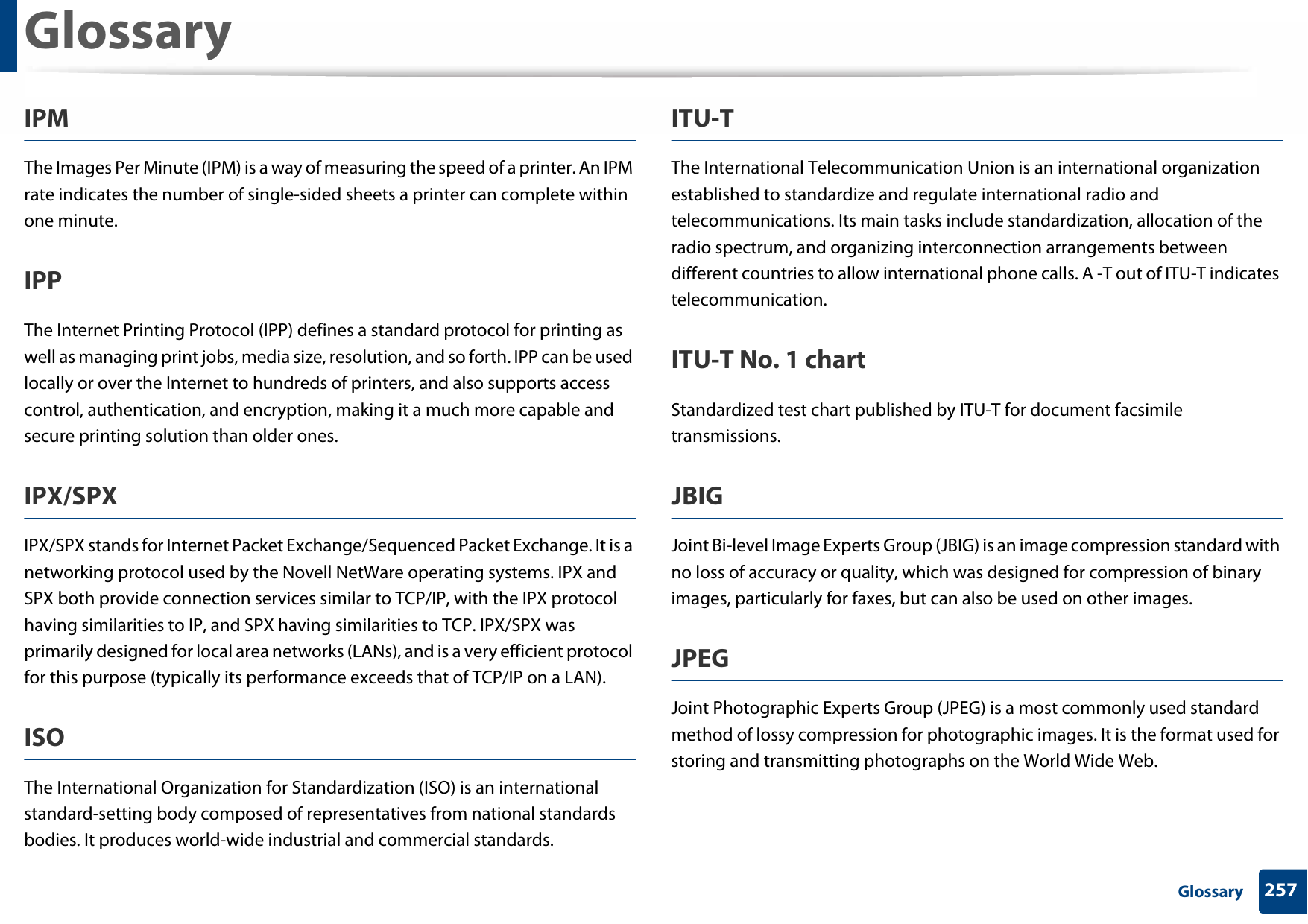

Glossary257 GlossaryIPMThe Images Per Minute (IPM) is a way of measuring the speed of a printer. An IPM rate indicates the number of single-sided sheets a printer can complete within one minute.IPPThe Internet Printing Protocol (IPP) defines a standard protocol for printing as well as managing print jobs, media size, resolution, and so forth. IPP can be used locally or over the Internet to hundreds of printers, and also supports access control, authentication, and encryption, making it a much more capable and secure printing solution than older ones.IPX/SPXIPX/SPX stands for Internet Packet Exchange/Sequenced Packet Exchange. It is a networking protocol used by the Novell NetWare operating systems. IPX and SPX both provide connection services similar to TCP/IP, with the IPX protocol having similarities to IP, and SPX having similarities to TCP. IPX/SPX was primarily designed for local area networks (LANs), and is a very efficient protocol for this purpose (typically its performance exceeds that of TCP/IP on a LAN).ISOThe International Organization for Standardization (ISO) is an international standard-setting body composed of representatives from national standards bodies. It produces world-wide industrial and commercial standards.ITU-TThe International Telecommunication Union is an international organization established to standardize and regulate international radio and telecommunications. Its main tasks include standardization, allocation of the radio spectrum, and organizing interconnection arrangements between different countries to allow international phone calls. A -T out of ITU-T indicates telecommunication.ITU-T No. 1 chartStandardized test chart published by ITU-T for document facsimile transmissions.JBIGJoint Bi-level Image Experts Group (JBIG) is an image compression standard with no loss of accuracy or quality, which was designed for compression of binary images, particularly for faxes, but can also be used on other images.JPEGJoint Photographic Experts Group (JPEG) is a most commonly used standard method of lossy compression for photographic images. It is the format used for storing and transmitting photographs on the World Wide Web.

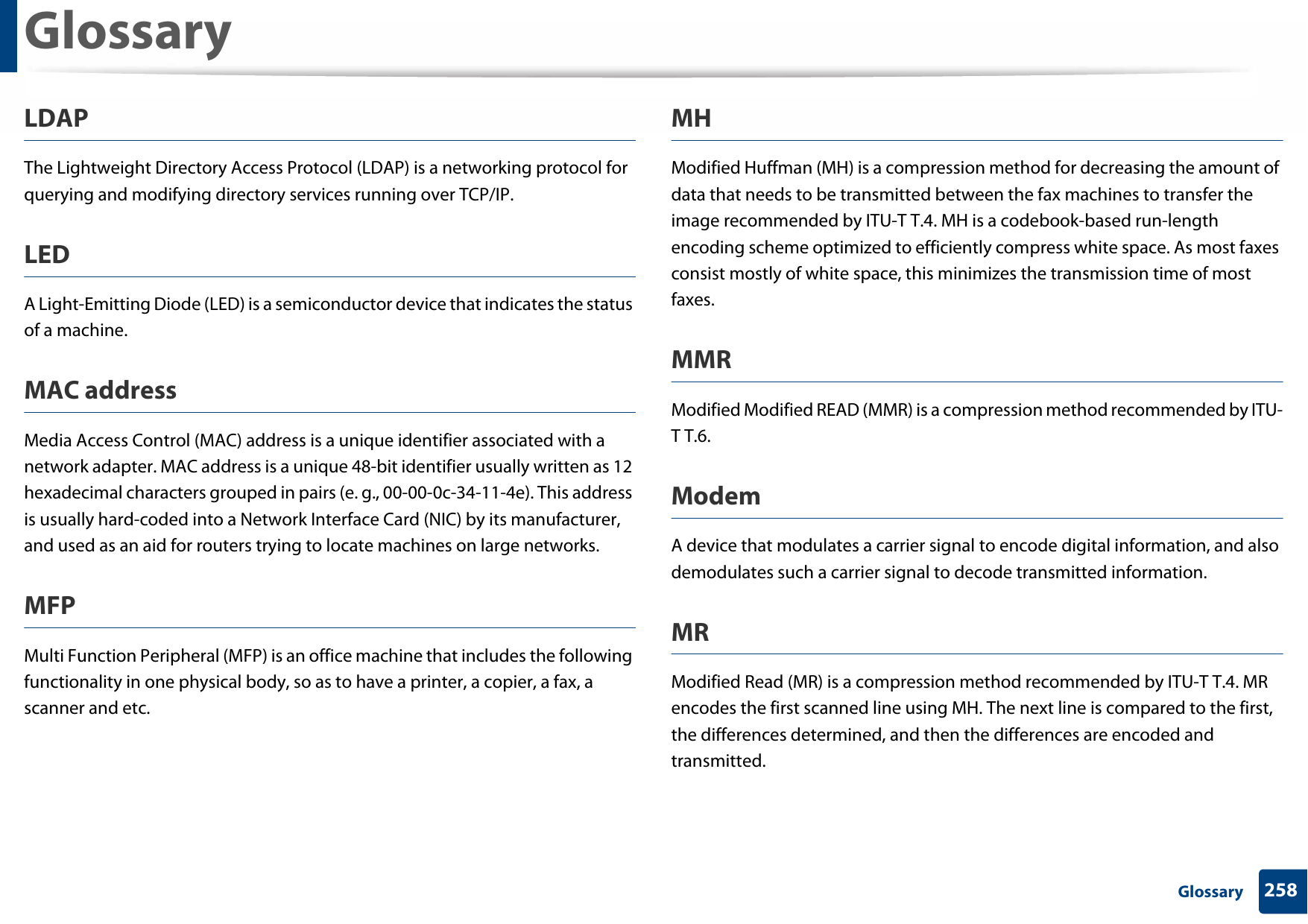

Glossary258 GlossaryLDAPThe Lightweight Directory Access Protocol (LDAP) is a networking protocol for querying and modifying directory services running over TCP/IP.LEDA Light-Emitting Diode (LED) is a semiconductor device that indicates the status of a machine.MAC addressMedia Access Control (MAC) address is a unique identifier associated with a network adapter. MAC address is a unique 48-bit identifier usually written as 12 hexadecimal characters grouped in pairs (e. g., 00-00-0c-34-11-4e). This address is usually hard-coded into a Network Interface Card (NIC) by its manufacturer, and used as an aid for routers trying to locate machines on large networks.MFPMulti Function Peripheral (MFP) is an office machine that includes the following functionality in one physical body, so as to have a printer, a copier, a fax, a scanner and etc.MHModified Huffman (MH) is a compression method for decreasing the amount of data that needs to be transmitted between the fax machines to transfer the image recommended by ITU-T T.4. MH is a codebook-based run-length encoding scheme optimized to efficiently compress white space. As most faxes consist mostly of white space, this minimizes the transmission time of most faxes. MMRModified Modified READ (MMR) is a compression method recommended by ITU-T T.6.ModemA device that modulates a carrier signal to encode digital information, and also demodulates such a carrier signal to decode transmitted information.MRModified Read (MR) is a compression method recommended by ITU-T T.4. MR encodes the first scanned line using MH. The next line is compared to the first, the differences determined, and then the differences are encoded and transmitted.

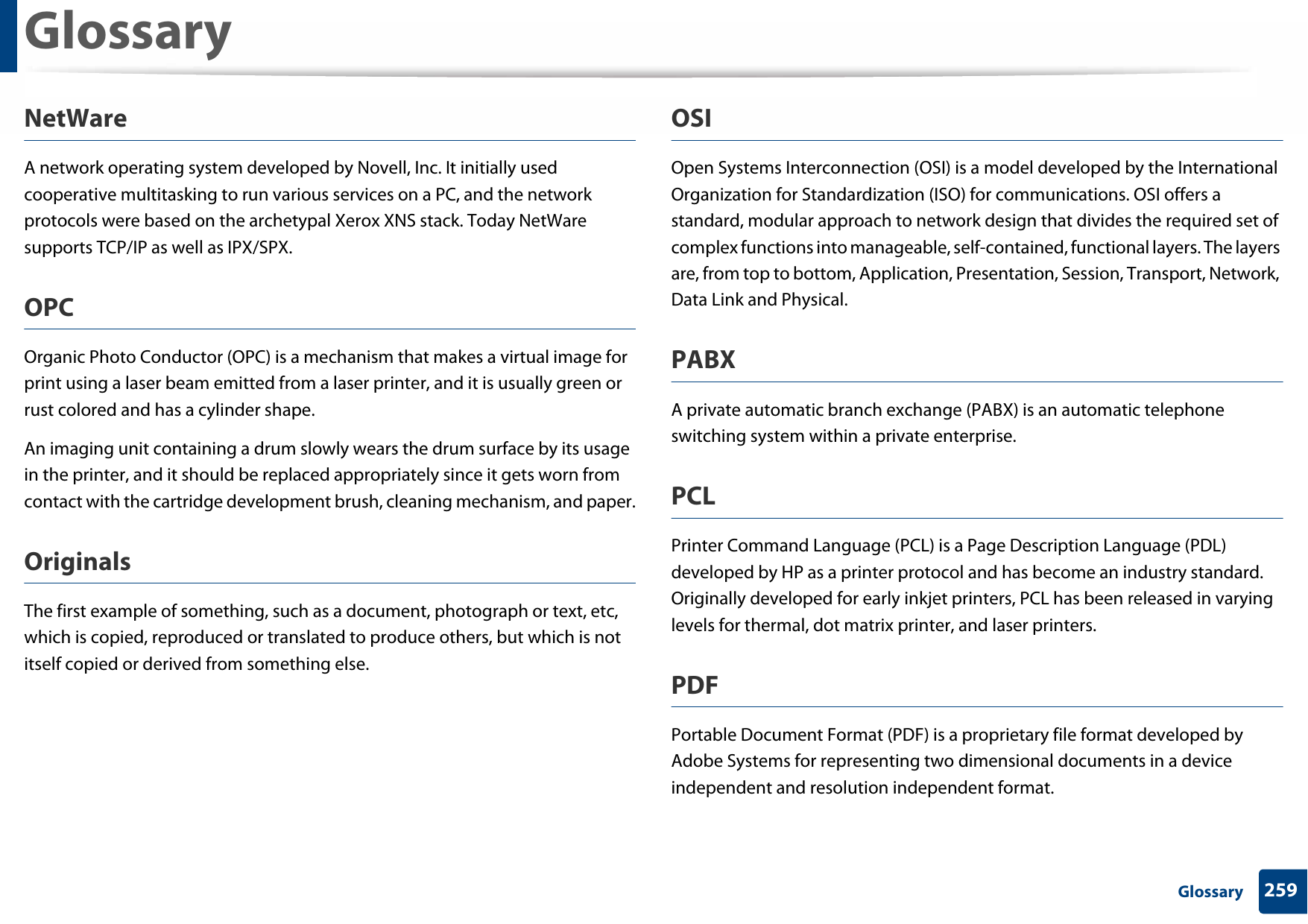

Glossary259 GlossaryNetWareA network operating system developed by Novell, Inc. It initially used cooperative multitasking to run various services on a PC, and the network protocols were based on the archetypal Xerox XNS stack. Today NetWare supports TCP/IP as well as IPX/SPX.OPCOrganic Photo Conductor (OPC) is a mechanism that makes a virtual image for print using a laser beam emitted from a laser printer, and it is usually green or rust colored and has a cylinder shape. An imaging unit containing a drum slowly wears the drum surface by its usage in the printer, and it should be replaced appropriately since it gets worn from contact with the cartridge development brush, cleaning mechanism, and paper.OriginalsThe first example of something, such as a document, photograph or text, etc, which is copied, reproduced or translated to produce others, but which is not itself copied or derived from something else.OSIOpen Systems Interconnection (OSI) is a model developed by the International Organization for Standardization (ISO) for communications. OSI offers a standard, modular approach to network design that divides the required set of complex functions into manageable, self-contained, functional layers. The layers are, from top to bottom, Application, Presentation, Session, Transport, Network, Data Link and Physical.PABX A private automatic branch exchange (PABX) is an automatic telephone switching system within a private enterprise.PCLPrinter Command Language (PCL) is a Page Description Language (PDL) developed by HP as a printer protocol and has become an industry standard. Originally developed for early inkjet printers, PCL has been released in varying levels for thermal, dot matrix printer, and laser printers.PDFPortable Document Format (PDF) is a proprietary file format developed by Adobe Systems for representing two dimensional documents in a device independent and resolution independent format.

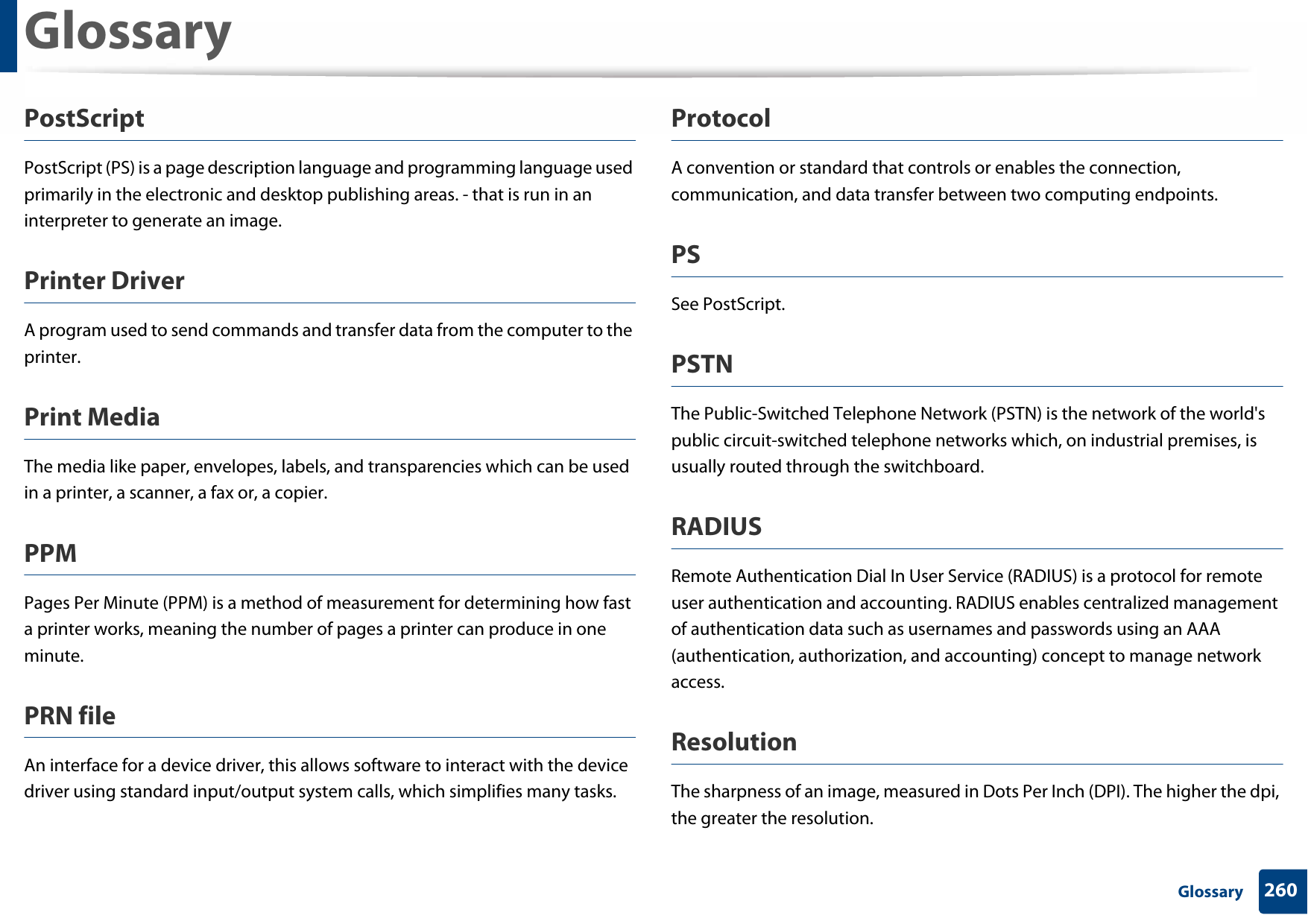

Glossary260 GlossaryPostScriptPostScript (PS) is a page description language and programming language used primarily in the electronic and desktop publishing areas. - that is run in an interpreter to generate an image.Printer DriverA program used to send commands and transfer data from the computer to the printer.Print MediaThe media like paper, envelopes, labels, and transparencies which can be used in a printer, a scanner, a fax or, a copier.PPMPages Per Minute (PPM) is a method of measurement for determining how fast a printer works, meaning the number of pages a printer can produce in one minute.PRN fileAn interface for a device driver, this allows software to interact with the device driver using standard input/output system calls, which simplifies many tasks. ProtocolA convention or standard that controls or enables the connection, communication, and data transfer between two computing endpoints.PSSee PostScript.PSTNThe Public-Switched Telephone Network (PSTN) is the network of the world's public circuit-switched telephone networks which, on industrial premises, is usually routed through the switchboard.RADIUSRemote Authentication Dial In User Service (RADIUS) is a protocol for remote user authentication and accounting. RADIUS enables centralized management of authentication data such as usernames and passwords using an AAA (authentication, authorization, and accounting) concept to manage network access.ResolutionThe sharpness of an image, measured in Dots Per Inch (DPI). The higher the dpi, the greater the resolution.

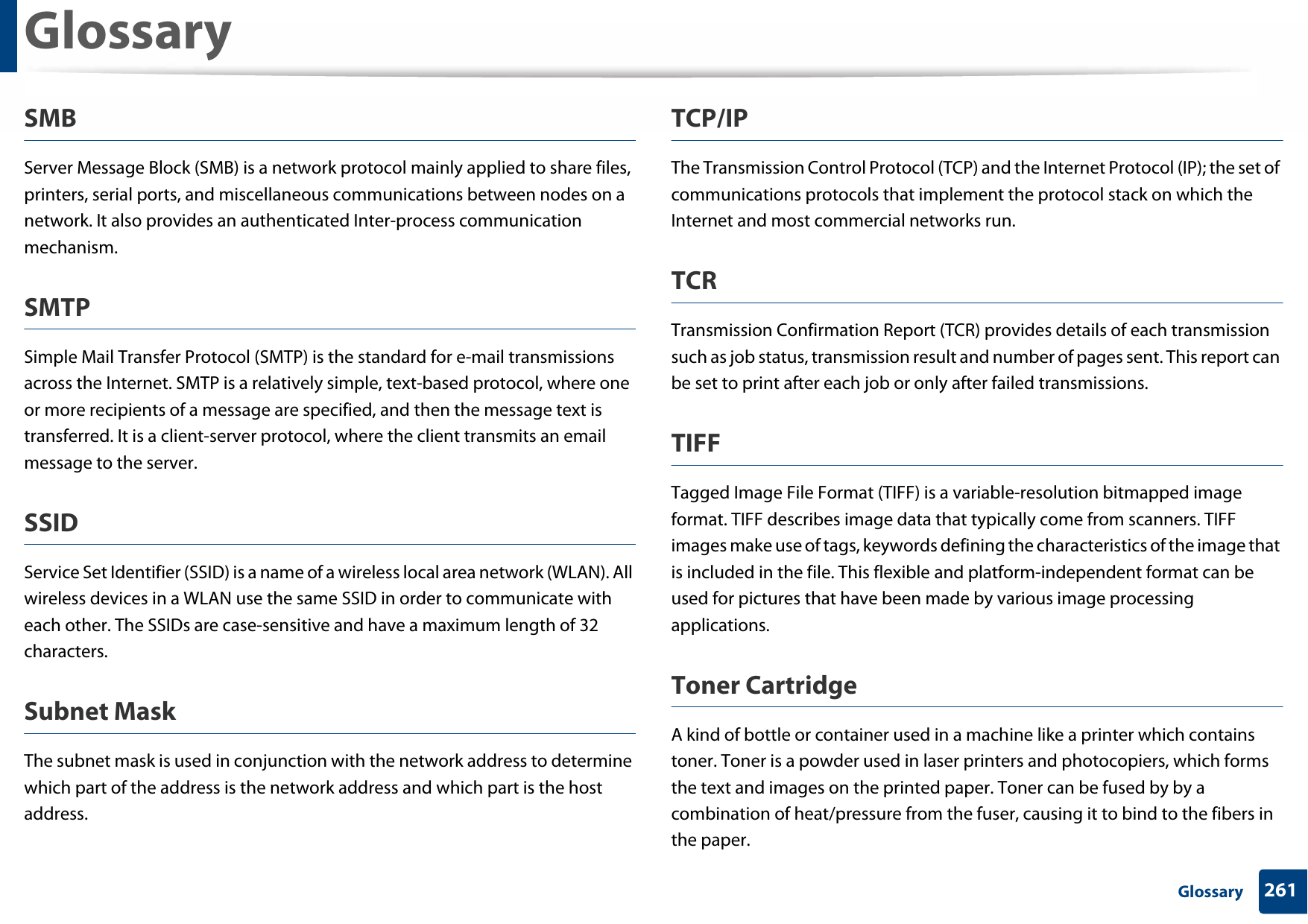

Glossary261 GlossarySMBServer Message Block (SMB) is a network protocol mainly applied to share files, printers, serial ports, and miscellaneous communications between nodes on a network. It also provides an authenticated Inter-process communication mechanism.SMTPSimple Mail Transfer Protocol (SMTP) is the standard for e-mail transmissions across the Internet. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified, and then the message text is transferred. It is a client-server protocol, where the client transmits an email message to the server.SSIDService Set Identifier (SSID) is a name of a wireless local area network (WLAN). All wireless devices in a WLAN use the same SSID in order to communicate with each other. The SSIDs are case-sensitive and have a maximum length of 32 characters.Subnet Mask The subnet mask is used in conjunction with the network address to determine which part of the address is the network address and which part is the host address.TCP/IPThe Transmission Control Protocol (TCP) and the Internet Protocol (IP); the set of communications protocols that implement the protocol stack on which the Internet and most commercial networks run.TCRTransmission Confirmation Report (TCR) provides details of each transmission such as job status, transmission result and number of pages sent. This report can be set to print after each job or only after failed transmissions.TIFFTagged Image File Format (TIFF) is a variable-resolution bitmapped image format. TIFF describes image data that typically come from scanners. TIFF images make use of tags, keywords defining the characteristics of the image that is included in the file. This flexible and platform-independent format can be used for pictures that have been made by various image processing applications.Toner CartridgeA kind of bottle or container used in a machine like a printer which contains toner. Toner is a powder used in laser printers and photocopiers, which forms the text and images on the printed paper. Toner can be fused by by a combination of heat/pressure from the fuser, causing it to bind to the fibers in the paper.

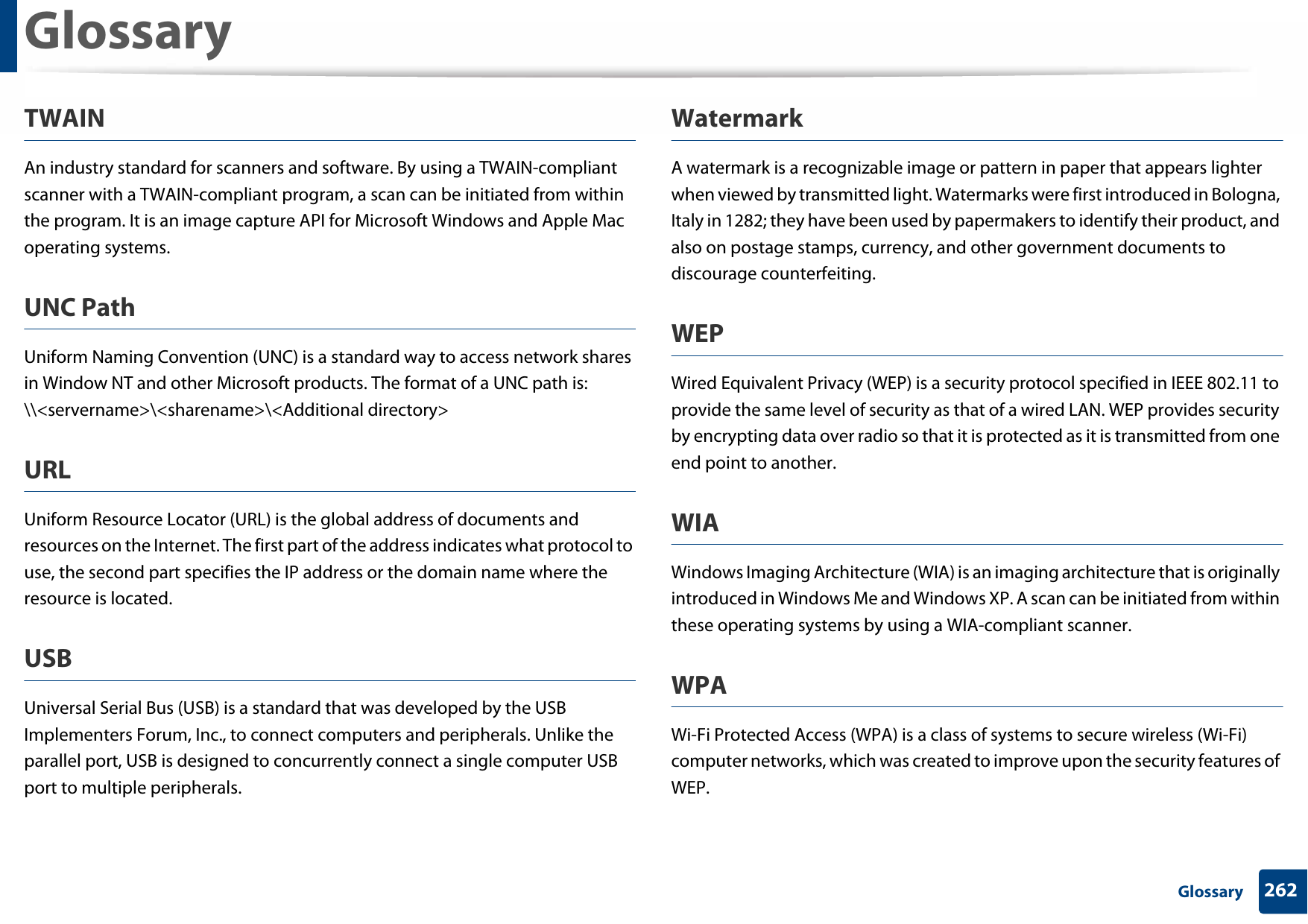

Glossary262 GlossaryTWAINAn industry standard for scanners and software. By using a TWAIN-compliant scanner with a TWAIN-compliant program, a scan can be initiated from within the program. It is an image capture API for Microsoft Windows and Apple Mac operating systems.UNC PathUniform Naming Convention (UNC) is a standard way to access network shares in Window NT and other Microsoft products. The format of a UNC path is: \\<servername>\<sharename>\<Additional directory>URLUniform Resource Locator (URL) is the global address of documents and resources on the Internet. The first part of the address indicates what protocol to use, the second part specifies the IP address or the domain name where the resource is located.USBUniversal Serial Bus (USB) is a standard that was developed by the USB Implementers Forum, Inc., to connect computers and peripherals. Unlike the parallel port, USB is designed to concurrently connect a single computer USB port to multiple peripherals.WatermarkA watermark is a recognizable image or pattern in paper that appears lighter when viewed by transmitted light. Watermarks were first introduced in Bologna, Italy in 1282; they have been used by papermakers to identify their product, and also on postage stamps, currency, and other government documents to discourage counterfeiting.WEPWired Equivalent Privacy (WEP) is a security protocol specified in IEEE 802.11 to provide the same level of security as that of a wired LAN. WEP provides security by encrypting data over radio so that it is protected as it is transmitted from one end point to another.WIAWindows Imaging Architecture (WIA) is an imaging architecture that is originally introduced in Windows Me and Windows XP. A scan can be initiated from within these operating systems by using a WIA-compliant scanner.WPAWi-Fi Protected Access (WPA) is a class of systems to secure wireless (Wi-Fi) computer networks, which was created to improve upon the security features of WEP.

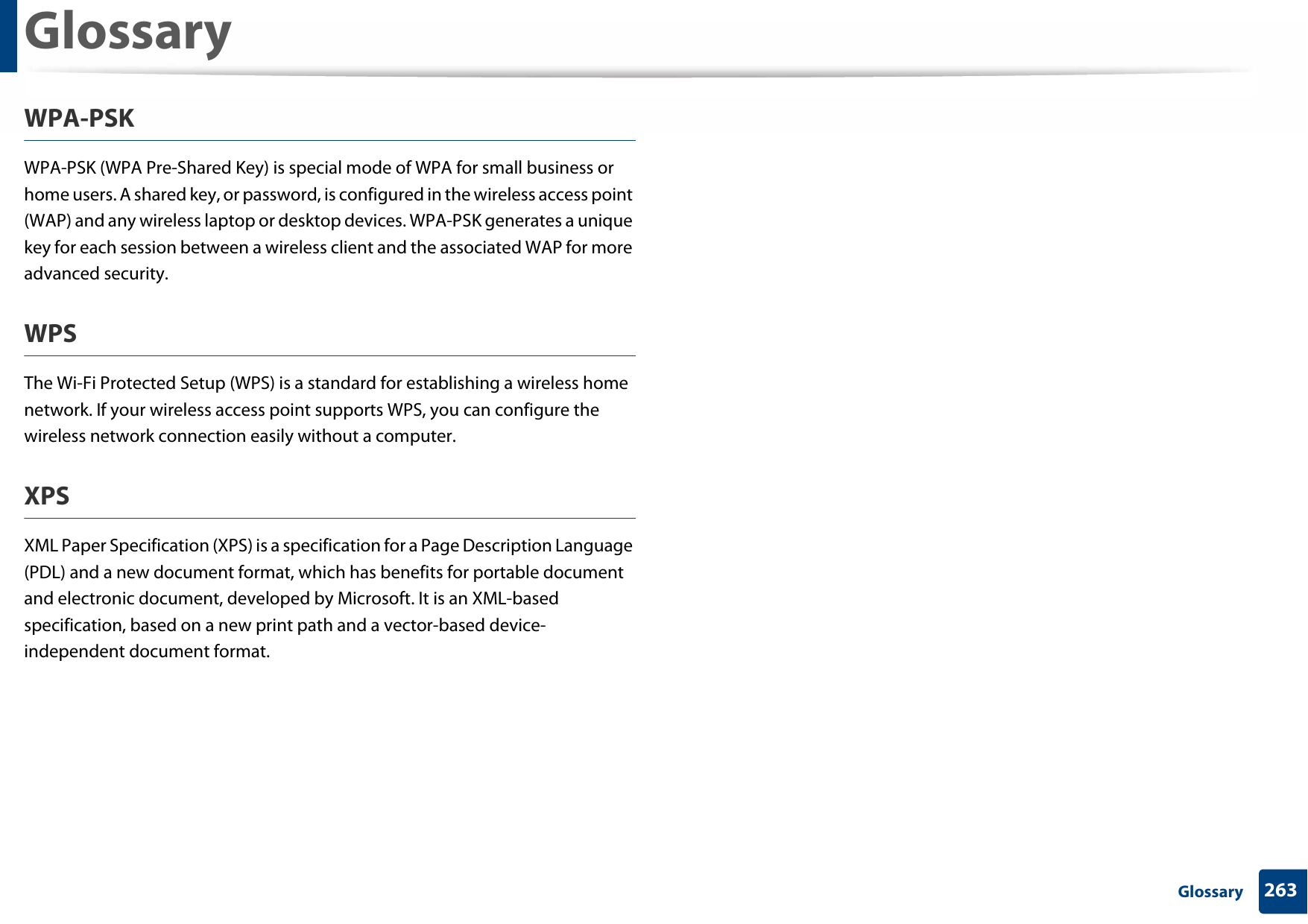

Glossary263 GlossaryWPA-PSKWPA-PSK (WPA Pre-Shared Key) is special mode of WPA for small business or home users. A shared key, or password, is configured in the wireless access point (WAP) and any wireless laptop or desktop devices. WPA-PSK generates a unique key for each session between a wireless client and the associated WAP for more advanced security.WPSThe Wi-Fi Protected Setup (WPS) is a standard for establishing a wireless home network. If your wireless access point supports WPS, you can configure the wireless network connection easily without a computer.XPSXML Paper Specification (XPS) is a specification for a Page Description Language (PDL) and a new document format, which has benefits for portable document and electronic document, developed by Microsoft. It is an XML-based specification, based on a new print path and a vector-based device-independent document format.

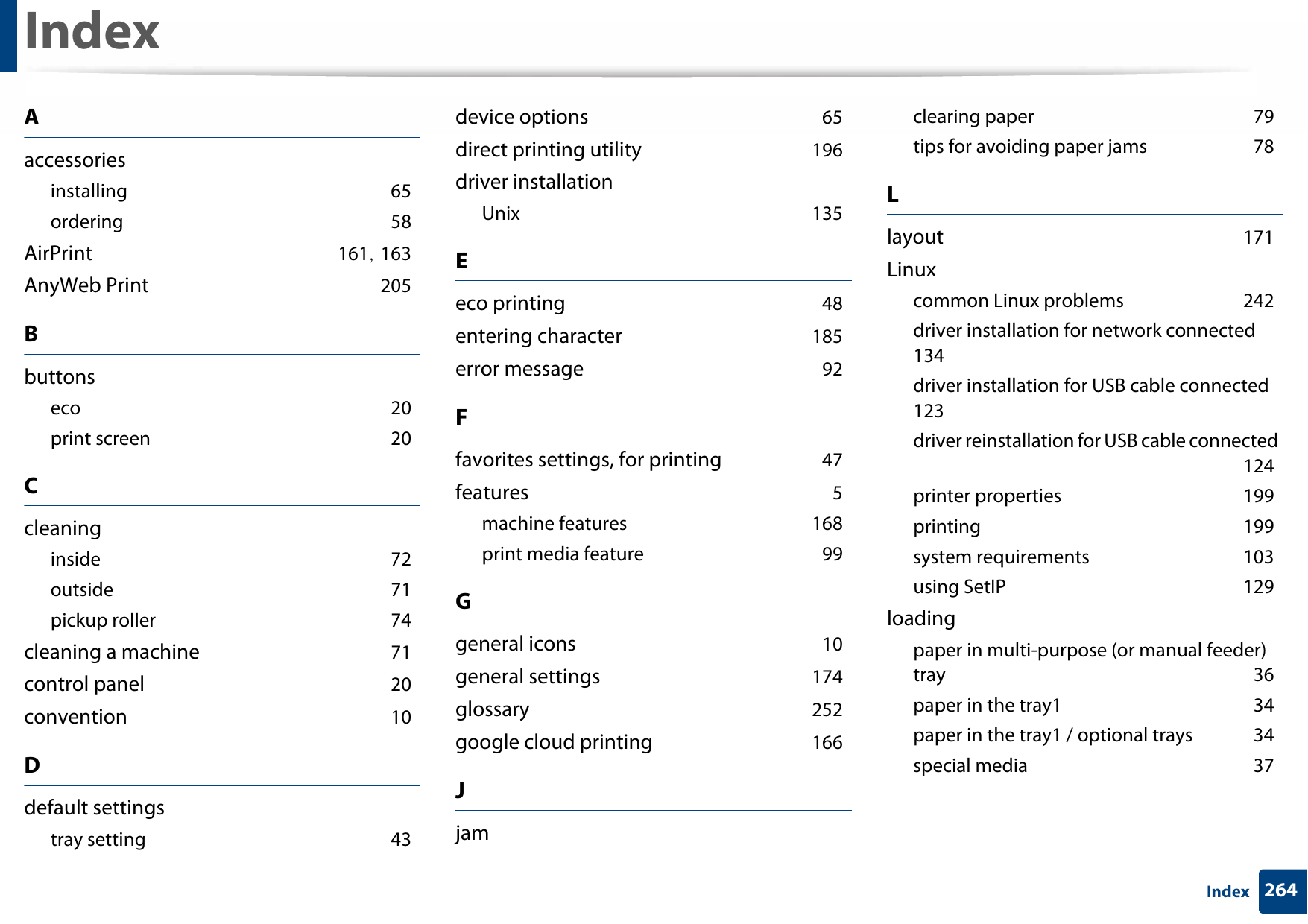

264IndexIndexAaccessoriesinstalling 65ordering 58AirPrint 161, 163AnyWeb Print 205Bbuttonseco 20print screen 20Ccleaninginside 72outside 71pickup roller 74cleaning a machine 71control panel 20convention 10Ddefault settingstray setting 43device options 65direct printing utility 196driver installationUnix 135Eeco printing 48entering character 185error message 92Ffavorites settings, for printing 47features 5machine features 168print media feature 99Ggeneral icons 10general settings 174glossary 252google cloud printing 166Jjamclearing paper 79tips for avoiding paper jams 78Llayout 171Linuxcommon Linux problems 242driver installation for network connected 134driver installation for USB cable connected 123driver reinstallation for USB cable connected 124printer properties 199printing 199system requirements 103using SetIP 129loadingpaper in multi-purpose (or manual feeder) tray 36paper in the tray1 34paper in the tray1 / optional trays 34special media 37

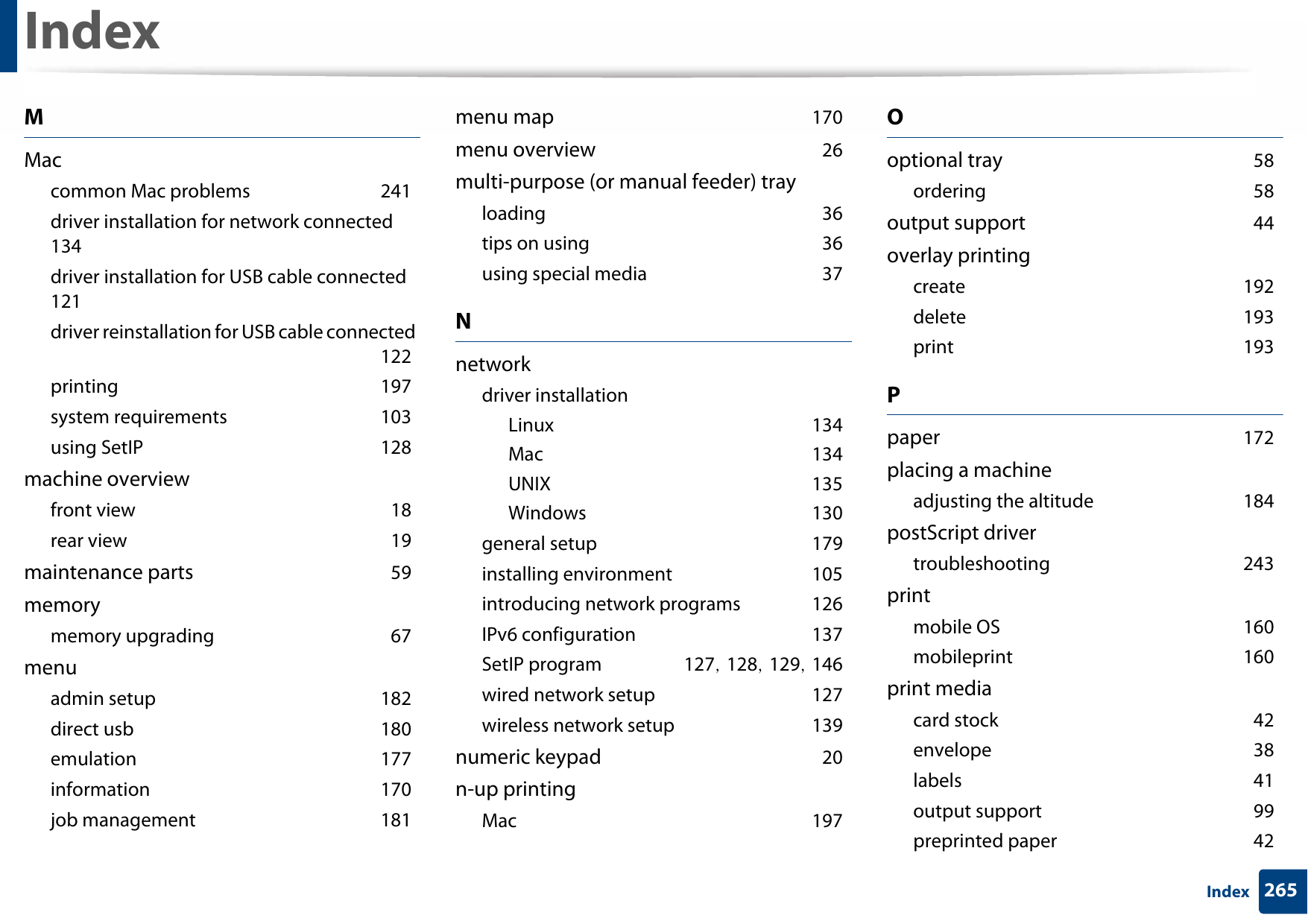

Index265IndexMMaccommon Mac problems 241driver installation for network connected 134driver installation for USB cable connected 121driver reinstallation for USB cable connected 122printing 197system requirements 103using SetIP 128machine overviewfront view 18rear view 19maintenance parts 59memorymemory upgrading 67menuadmin setup 182direct usb 180emulation 177information 170job management 181menu map 170menu overview 26multi-purpose (or manual feeder) trayloading 36tips on using 36using special media 37Nnetworkdriver installationLinux 134Mac 134UNIX 135Windows 130general setup 179installing environment 105introducing network programs 126IPv6 configuration 137SetIP program 127, 128, 129, 146wired network setup 127wireless network setup 139numeric keypad 20n-up printingMac 197Ooptional tray 58ordering 58output support 44overlay printingcreate 192delete 193print 193Ppaper 172placing a machineadjusting the altitude 184postScript drivertroubleshooting 243printmobile OS 160mobileprint 160print mediacard stock 42envelope 38labels 41output support 99preprinted paper 42

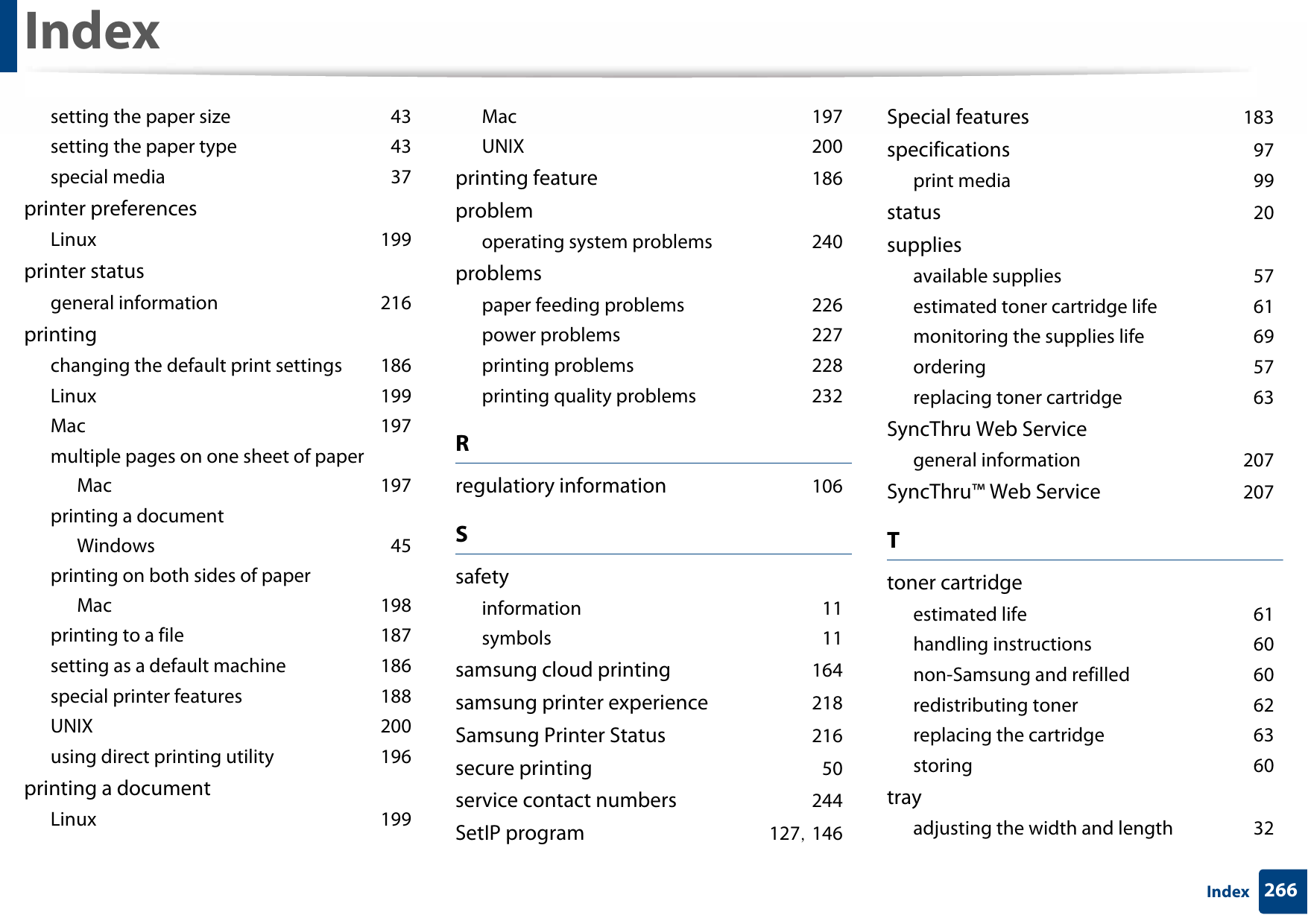

Index266Indexsetting the paper size 43setting the paper type 43special media 37printer preferencesLinux 199printer statusgeneral information 216printingchanging the default print settings 186Linux 199Mac 197multiple pages on one sheet of paperMac 197printing a documentWindows 45printing on both sides of paperMac 198printing to a file 187setting as a default machine 186special printer features 188UNIX 200using direct printing utility 196printing a documentLinux 199Mac 197UNIX 200printing feature 186problemoperating system problems 240problemspaper feeding problems 226power problems 227printing problems 228printing quality problems 232Rregulatiory information 106Ssafetyinformation 11symbols 11samsung cloud printing 164samsung printer experience 218Samsung Printer Status 216secure printing 50service contact numbers 244SetIP program 127, 146Special features 183specifications 97print media 99status 20suppliesavailable supplies 57estimated toner cartridge life 61monitoring the supplies life 69ordering 57replacing toner cartridge 63SyncThru Web Servicegeneral information 207SyncThru™ Web Service 207Ttoner cartridgeestimated life 61handling instructions 60non-Samsung and refilled 60redistributing toner 62replacing the cartridge 63storing 60trayadjusting the width and length 32

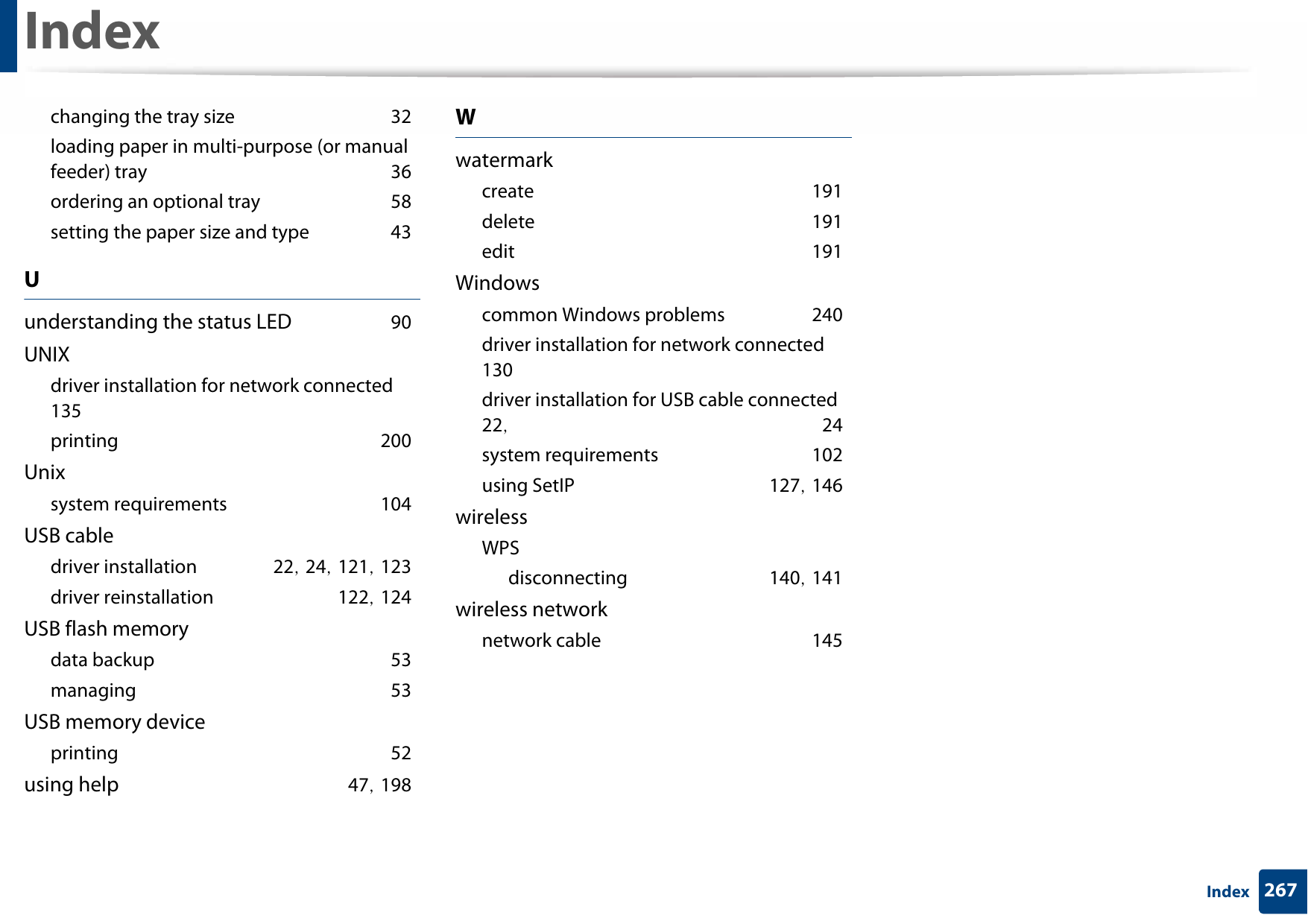

Index267Indexchanging the tray size 32loading paper in multi-purpose (or manual feeder) tray 36ordering an optional tray 58setting the paper size and type 43Uunderstanding the status LED 90UNIXdriver installation for network connected 135printing 200Unixsystem requirements 104USB cabledriver installation 22, 24, 121, 123driver reinstallation 122, 124USB flash memorydata backup 53managing 53USB memory deviceprinting 52using help 47, 198Wwatermarkcreate 191delete 191edit 191Windowscommon Windows problems 240driver installation for network connected 130driver installation for USB cable connected 22, 24system requirements 102using SetIP 127, 146wirelessWPSdisconnecting 140, 141wireless networknetwork cable 145
