Users Manual 3

Customizing Your Computer 63
Using External Display Devices
Using external display devices such as a monitor, projector, TV, etc allows you to view
screen images alternatively or simultaneously on each device. You can also split a
screen into two display devices, or view different images on each display device. Using
external display devices is especially useful when you are giving a presentation or
watching a movie through your TV.
Switching Display Devices Using the Shortcut Key
You can watch the screen through either the LCD or an external display device, or you
can even watch the screen through both the LCD and an external display device
simultaneously.
1. Connect the external display device (e.g. a monitor or a projector) to the
corresponding port of the system.To connect a TV, connect the TV to the TV
output port of the system.
2. Press the <Fn>+<F4/ > keys. Provided that an external display device is
connected, the display option changes in LCD > CRT > LCD+CRT order
whenever the <Fn>+<F4/ > keys are pressed.
Provided that multiple external display devices are connected, the display
order would be LCD > CRT > LCD+CRT > TV whenever the <Fn+F4/ >
keys are pressed.
You cannot view the screen via the LCD, CRT, and TV simultaneously.
Using Dual View to View Extended Screen
You can expand the screen into two display devices and work conveniently in separate
workspaces.
In Dual View mode, you can select the screen resolution and color quality for each
display device, as if there were two separate graphics cards.
1. Connect the external display device (e.g. a monitor or a projector) to the
corresponding port of the system. To connect a TV, connect the TV to the TV
output port of the system.
2. Click Start > Control Panel > Appearance and Themes > Change the screen
resolution.
64 Users Manual

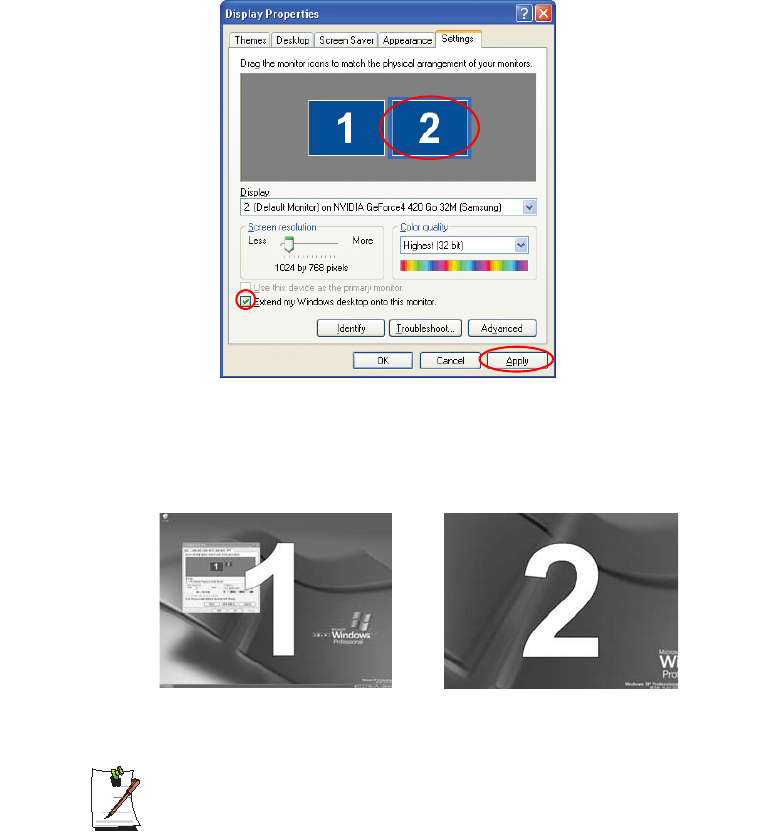

3. Click the monitor '2' icon, select the 'Extend my Windows desktop onto this
monitor' check box, and then click Apply.
4. When the configuration is complete, click OK on the left side of Troubleshoot.
The primary display device(the LCD) is indicated as '1', and the secondary display
device is indicated as '2'. Now you can view the screen through two monitors.
When using Dual View, it is recommended that LCD is kept as '1', the primary
display device.
2 : Secondary1 : Primary
Customizing Your Computer 65
If the screen of the secondary display device is displayed at 640x480 pixels,
with 256 colors, change the settings to the desired screen resolution and color
quality in the [Display Properties] window.
Deactivating Dual View Mode
Click the monitor '2' icon, clear the 'Extend my Windows desktop onto this monitor'
check box, and then click Apply.
To move a window between display devices in Dual View mode.
Click the title bar of the window in the primary display device(1, the LCD), and
drag it to the secondary display device (2). The window is move to the
secondary display device.
66 Users Manual
System Management
Using Power Management Options
Your computer includes Power Management options that can help the battery charge
last longer and extend the life of the battery. Power-management options will slow
down or shut off system components when the components are not being used.
Power management may slow down system performance. Your computer runs fastest
with the power cord attached, when power management is disabled.
In the next sections, basic and advanced methods of power management will be
discussed.
Basic Power Management Schemes
This section discusses the basic schemes of power management when the computer is
operating on battery power or using AC power.
Standby vs. Hibernation
Hibernation is a state where the contents of memory are stored in a special file
on the hard disk, and Standby simply keeps a small holding current through
the memory to keep the data. You are more likely to sustain loss of data in
Standby mode so it is recommended to save all open files before entering
Standby.
Changing Devices:
Do not change PC Cards while in standby or hibernate modes.
To enter the power management window complete the following:
1. Click Start > Control Panel > Performance and Maintenance.
2. Click icon to display the Power Options Properties window.
System Management 67

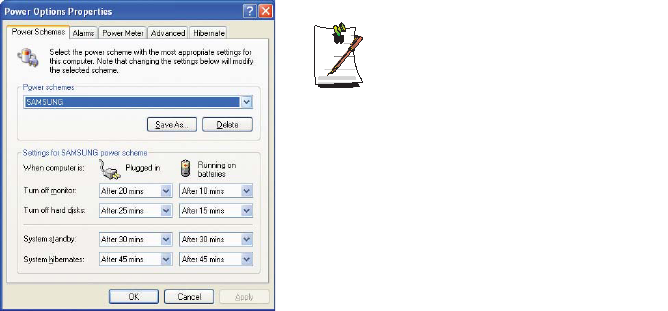

3. Click the Power Schemes tab to display the basic power management options.
4. Select the time that you wish each of the following actions to occur in Battery and
AC power mode.
xTurn off monitor
xTurn off hard disks
xSystem standby
xSystem hibernates
Turning off the monitor and HDDs will save a substantial amount of battery power,
therefore when in battery only mode select the shortest time practical.
aHibernate Mode (Power Management or Manual Method)
When hibernation is used, your computer turns off and when you power up again,
everything is restored exactly as you left it—including programs and documents
you may not have saved or closed. Everything in memory gets saved to the HDD,
and the monitor and hard disk get turned off.
By default, the power scheme is
configured to SAMSUNG mode.
SAMSUNG mode extends the
battery life and optimizes the Intel
Speedstep function.To use
SAMSUNG mode after reinstalling
Windows, install the PowerCFG
program using the system software
CD.
68 Users Manual
If You Reinstall Windows:
You should re-establish hibernate in power options by opening Power
Options Properties window and click on the Hibernate tab then click
“Enable Hibernation”.
Frequent Interruptions:
If you experience frequent interruptions, you might also consider putting your
computer into automatic hibernation after a specified number of minutes using
the power management options.
aStandby Mode (Power Management or Manual Method)
Standby is used mainly for conserving battery power in your notebook computer. It
also gives you the benefit of getting right back to your work without waiting for the
computer to restart. Standby turns off your monitor and hard disks, placing your entire
system in a low-power state. When you return to your computer, restores your desktop
exactly as you left it. It is recommended that you do not enter standby mode with less
than 20% battery power.
5. Click OK to set your power management options and close the window.
Rest Key:
The manual <Fn+Esc/ > key combination will not activate Standby or
Hibernate modes while you are playing a multimedia program or have an
active USB device connected.
Hibernate Tab
System Management 69
Advanced Power Management Schemes
This section discusses the advanced power management schemes. There are two
buttons that you can use to manually conserve power.
To enter the power management window complete the following:
1. Click Start > Control Panel > Performance and Maintenance.
2. Click icon to display the Power Options Properties window.
3. Click the Advanced tab to display the advanced power management options.
4. Select the mode (Do nothing/Ask me what to do/Standby/Hibernate/Shut
down) assigned to the Power button and/or Rest <Esc> key. Also select the action
(Do nothing/Standby/Hibernate) associated with closing the computer lid.
The “Rest” key is assigned to the <Fn+Esc/ >key combination. See ”Basic
Power Management Schemes” on page 66 for a better understanding of
Standby and Hibernate modes.
5. Click OK to set your power management options and close the window.
You can return to normal operation after you have used one of the “Power
Management” buttons by quickly pushing and releasing the Power button.
Advanced Tab
Power & Sleep Button
Programming Windows
70 Users Manual
Using the Battery
Please refer to the following instructions when running the computer on battery power
without connecting the AC power.
Please read the instructions on the battery before use.
Please refer to the system operation environment (p103) of this manual and
operate and store the battery at room temperature.
Ejecting and Attaching Battery
1. Shutdown system and close LCD.
2. Put the computer upside down.
3. While holding the battery latch to the Unlock position, remove the battery.
4. To attach the battery, place the battery into the system. Check that the battery latch
is in the Lock position.
System Management 71
Monitoring the Battery Charge
To monitor in control panel
Click Start > Control Panel > Performance and Management > Power Options >
Power Meter tab. Power source and remaining battery charge are displayed.
Using the battery
Battery is an expendable supply, so when you use it for a long time, the
capacity/battery life is shortened. If the battery life is reduced to under half of
the initial time, we recommend that you purchase a new battery to use.
Battery Warning
You will hear an alarm when the remaining battery charge is under 10%.
Connect the power cable or turn off the computer and install a fully charged
battery.
When the remaining battery charge is under 3%, the computer automatically
saves current work and turns off. This may be different according to the
settings in Control Panel > Performance and Maintenance > Power
Options > Alarms tab.
If the remaining battery level is less than 5% when you turned on the
system
The system will shut down during the start up process to prevent any loss of
data. Connect the AC adapter, and then turn the system on.
Power supply status
Remaining battery charge
72 Users Manual
Battery Calibration
Calibrating your battery once a month is one of the recommended methods of
increasing your computer’s battery life. To calibrate the battery complete the following
steps:
Calibration Notes:
You should start the battery calibration process with a fully charged battery,
battery status LED is green. The power meter may not show 100%.
Before you commence the battery calibration process you should fully charge,
then fully discharge and finally fully recharge the battery again.
1. Disconnect the AC power adapter after turning off the system.
2. Restart your computer and press <F2> to enter BIOS setup.
3. Using the arrow keys, highlight Smart Battery Calibration in the Boot menu.
4. Press <Enter> to start calibration process. The calibration usually takes 3 to 5
hours depending on the current battery charge.
5. When the calibration process is complete, recharge the battery fully.
System Management 73
Upgrading Memory Module
There are two memory slots, one inside the computer and the other at the bottom of the
computer. There is one or more 256MB memory modules installed in the computer.
The procedure to install additional memory is described below.
To replace the memory inside the system, contact the Samsung service
center.
Before installing the memory module, turn off the system completely. Do not
install the memory module when the system is in suspended mode.
1. Using a screwdriver, open the memory compartment cover on the bottom of the
system.
2. Align the new memory module connectors accordingly and slide it into the slot at
a 30° angle.
Screw
74 Users Manual

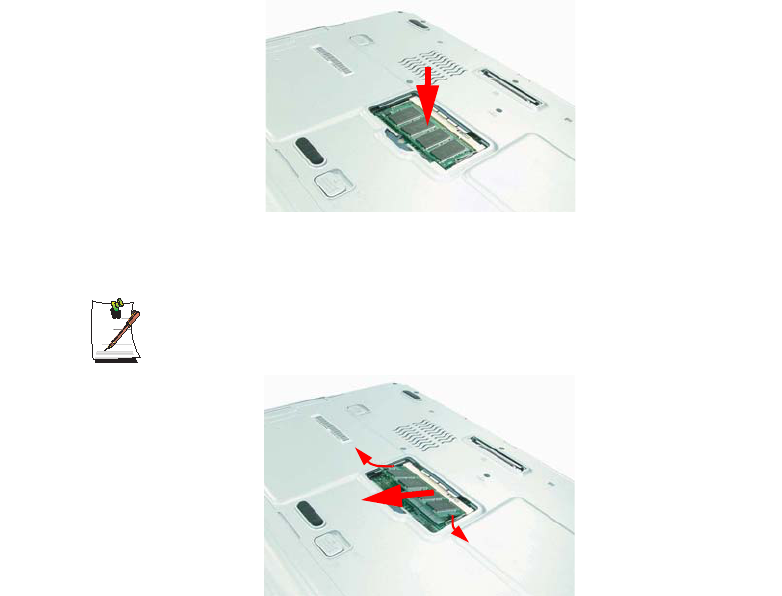

3. Push the memory module in until the module clicks into place. If the memory
module is not fixed completely, push the module while pushing the memory
module latches outward.
4. Replace the memory cover and secure using a screwdriver.
To remove a memory module
Push the memory module latches outward until the memory module pops up,
and then pull out the module at an angle of about 30° angle.
System Management 75
Using the Security Lock Port
The security lock is a device used to physically 'fix' the system when using it in a public
place. The locking device needs to be purchased separately. The shape and methods of
use may differ depending on the manufacturer. Please refer to the manual provided
with the security lock for proper use.

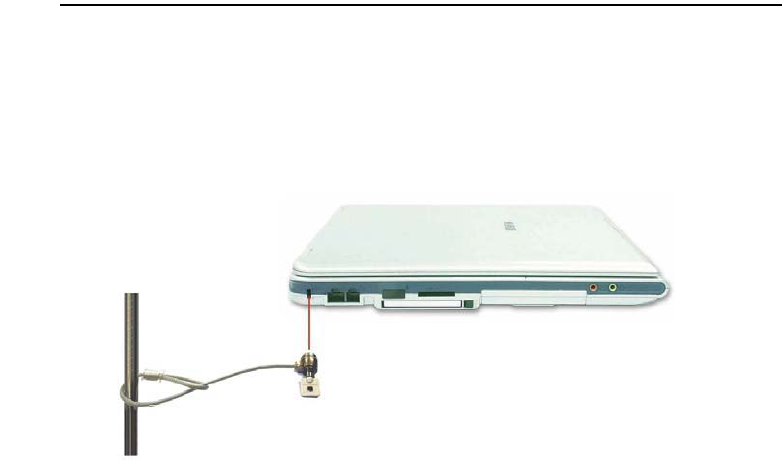

Connect a security lock cable to a fixed object, and to the security lock port.
76 Users Manual

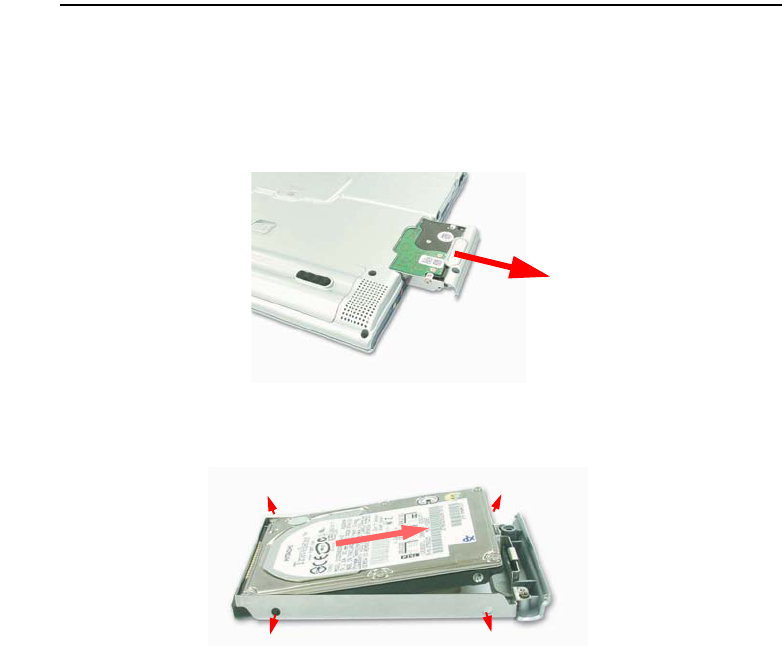

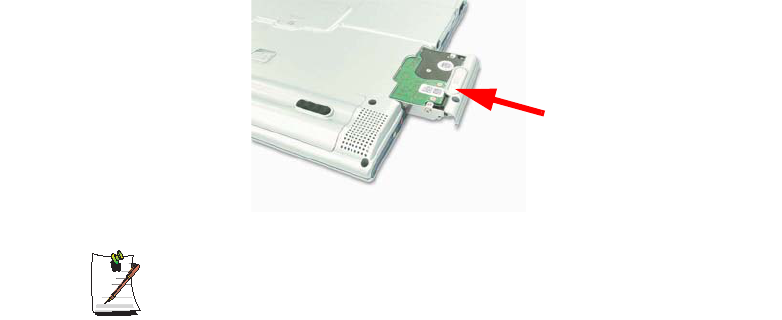

Replacing the Hard Disk Drive
The procedures for replacing the hard disk will be described below.
1. Turn off the computer.
2. Using a screwdriver, remove the screw securing the hard disk, and pull out the hard
disk bracket.
3. Remove the 4 screws securing the hard disk to the bracket and remove the hard
disk.
4. Insert a new hard disk into the bracket so that the labeled side is outside.
5. Fix the hard disk to the bracket using the 4 screws removed previoiusly.
System Management 77
6. Insert the bracket into the hard disk compartment, and secure it using the screw.
After replacing the hard disk
Referring to ”Reinstalling Windows XP” (p 100), reinstall Windows, and
reinstall the drivers and programs referring to ”Reinstalling Software” (p 98).
78 Users Manual
Tips for Using Your Computer
The following information helps you avoid potential problems as you use your
computer:
Do not try to disassemble your computer. Opening the system chassis voids
your warranty. Only an authorised manufacturer service center can replace or
add any parts inside the chassis.
xFollow all the instructions and cautions in your computer user documentation.
xThe LCD has a polarized surface and can be damaged easily. To prevent
damage, avoid touching the screen.
xUse only approved AC adapters, auto adapters, memory modules and other
options.
xBecause a notebook computer is small and has restricted air flow around
components, it is more likely to overheat than a desktop computer. A fan inside
your computer runs when needed to help eliminate heat. Make sure the fan vent
on the left side of your computer is not blocked when you use the computer.
Occasionally check the vents and remove any accumulated dust on the outside.
xAvoid using or storing the computer in extremely hot or cold areas, such as a
car on a hot day. Keep the computer away from heaters and out of direct
sunlight. Exposure to excessive heat may damage computer components. If you
have left your computer in a hot place, let it cool down slowly to room
temperature (with the LCD panel open) before using it.
xDo not remove the memory-module compartment door, or try to install a
memory module when the computer is on. (For information on installing
memory modules, see “Upgrading Memory Module” on page 73.)
xSet up your computer work area to avoid physical strain. Sit with your back
straight and supported by your chair. Adjust your chair or work table so that
your arms and wrists can remain in a relaxed position, parallel with the floor.
Avoid bending or twisting your wrists as you work. Your hands should “float”
slightly above the keyboard. Refer to a book on office ergonomics for more
information on setting up your work area.
xTake frequent breaks from working at the computer to rest your eyes and
stretch your muscles.
xRemember to save your data files frequently and to make backup copies of your
files.
System Management 79
Travelling with Your Computer
Air Travel
If you are travelling by air, follow these tips:
xTake the computer with you as carry-on luggage. Do not check the computer
with your baggage.
xAllow the computer and disks to go through the X-ray security devices. Do not
hand-carry disks through the walk-through metal detectors, which can cause
loss of data.
xMake sure that the battery is charged or the power cord is easily accessible.
You may be required to turn on the computer for airport security personnel.
xBe prepared to turn off the computer during take off and landing.
Handling Spills
Do not spill anything on your computer. The best way to avoid spills is to avoid eating
and drinking around your computer. If you do spill something on your computer, turn
off your computer, unplug it immediately, and do the following:
xIf you spill liquid on the keyboard, drain as much of the liquid from the
keyboard as possible. Be careful not to let the liquid drip onto the LCD panel.
Allow the system to dry for several days before trying to use it.
xIf you spill liquid on an external keyboard or keypad, unplug it and drain as
much of the liquid as possible. Allow the keyboard to sit at room temperature
for a full day before trying to use it.
Sweet liquids leave a sticky residue that may jam the keyboard despite your
efforts to dry it.
xIf you spill liquid on the LCD panel, clean it immediately with a soft cloth and
denatured alcohol or a proprietary LCD screen cleaner. Do not use water,
window cleaner, acetone, aromatic solvent, or dry, rough towels to clean it.
Some liquids damage the polarized LCD screen. If your screen is damaged,
contact your authorized manufacturer’s service center for a replacement.
80 Users Manual
Storing the Computer for Long Periods
If possible, leave the power cord connected to the computer and an electrical outlet
when the computer is not in use. This extends the life of the battery and keeps the
battery fully charged.
If you will not be using the computer for a long period of time (a month or more), you
should charge the battery until it is completely full. After you have done so, remove the
battery from the unit.
Troubleshooting 81
Troubleshooting
Complete the following in the order presented until your system is functioning
properly. If all of the steps below fail then contact your local reseller for assistance.
Questions and Answers
Please see “Questions and Answers” on page 83 for assistance in correcting any
computer operational problems.
Check the Connections
Verify all of the power and peripheral cables are securely plugged into their sockets
and that your system and power supply is on.
Norton AntiVirus
Run Norton AntiVirus to ensure a virus is not affecting your computer.
To run Norton AntiVirus proceed as follows:
Click Start > All Programs > Norton AntiVirus > Norton AntiVirus 2003.
The Norton Antivirus Subscription on your Samsung notebook will expire within 3
months. It is your responsibility to update the virus definitions, and renew subscription
with Symantec when the subscription expires.
Windows Help and Support
Run Windows Help and Support to find problem that may be affecting your
computer.
To run Windows Help and Support proceed as follows:
Click Start > Help and Support.
Frequently Asked Questions
To view FAQ’s on your computer, please visit www.samsung.com.
Reinstalling Software
If for some reason your system crashes you may corrupt your HDD, Windows
operating system and/or some of your device drivers. If this is the case, use System
Recovery CD to reinstall OS and System Software CD to reinstall the corrupt device
drivers.
82 Users Manual
System Recovery Precaution:
Before you start restoring your windows operating system insure you backup
all data on your hard drive.
Samsung is NOT responsible for any data loss.
Troubleshooting 83
Questions and Answers
This section provides information on possible problems, solutions and other references
for system use.
Windows Related
Q1 The system does not shutdown properly.
A When the system does not shutdown normally, press and hold the Power button
until the system manually shuts off. If the Power-Saving Mode is configured into
the Power button, press and hold for more than 4 seconds to shut the system off.
When the system is turned on after such manual shutdown, Scandisk will run to
check errors in the system.
Q2 The system freezes during program operation
A1 There is an error with the program currently being used. Press the <Ctrl>, <Alt>,
and <Delete> keys simultaneously and click and Task in the [Windows Task
Manager] window.
A2 There is an error with the Windows OS. Reboot the system by using the Power
button.
84 Users Manual
Display Related
Q1 The LCD screen is blank.
AAdjust the LCD screen brightness. Use the <Fn>+< / >,<Fn>+< / >
keys.
Q2 In DOS mode, changing the full screen DOS mode by pressing
<ALT+Enter> key displays a broken image for a short period.
AThe DOS mode which supports 2 Byte characters such as Korean and Japanese
runs in graphic not in text mode. In this case, a broken image may be displayed
while changing the video mode settings.
Q3 The screen blinks or displays noise for a short time.
A This problem may occur when you started the computer, enter or come out of
standby/hibernate mode, pressed <Fn>+<F4/ > keys, or performed tasks such
as changing resolution or scanning new hardware. This may occur when you
connected a projector and performed one of above actions.
After a short time, the screen displays normally.
Troubleshooting 85
Modem Related
Q1 I cannot hear the modem sound.
A1 Check that the telephone line is properly connected to the modem.
A2 Check that the modem driver is installed properly.
1. Click Start > Control Panel > Performance and Maintenance > System.
2. Select Hardware tab > Device Manager > Modems in the System Properties
window, and check if there is a yellow exclamation mark on the installed modem
icon. If there is, delete the modem device driver and reinstall the driver, because
the yellow exclamation mark represents a not properly installed driver.
3. If there is no yellow exclamation mark, double-click the installed modem, and
click Diagnostics tab > Query Modem in the Modem Properties window to
diagnose the modem.
No message in either of Command and Response in the Diagnostics tab means
that the modem is not operating properly.
Diagnose the modem again after restarting the system or reinstalling the driver.
(You have to exit all programs using modem in the advance of diagnostics of the
modem).
A3 Although I can make a connection with the modem, I cannot hear the dial tone
and modem connection sound. In this case check the following list:
1. Click Start > All Programs > Accessories > Entertainment > Volume Control.
2. Clear the Mute check box in the Telephone Line item.
(Depending on the sound driver, it may be displayed as another name such as
Modem, Phone, Mono. If there is no corresponding item, click Options >
Properties > Volume Control, select 'Playback', and select the 'Telephone Line'
under the 'Display the following volume controls'. Click OK.)
Q2 I cannot make a call using an extension line.
AIn general, the dial tone of a PBX or a digital phone switching system is not a
continuous one, unlike that of a trunk line.
Therefore, the modem may not make a call because the modem mistakes the dial
tone from a PBX or a digital phone switching system as a busy tone.
In this case, complete the following procedures.
86 Users Manual
- Using an AT command
As an initialization command, use the command, ATX3.
Otherwise, enter the ATX3 command manually before making a call.
It can correct this problem by skipping the dial tone check step.
- Configuring the Modem through the Control Panel
1. Click Start > Control Panel > Network and Internet Connections.
2. Under See Also, click Phone and Modem Options.
3. In the Modems tab, select the installed modem, and click Properties.
4. In the Modem tab of the Modem Properties window, clear the 'Wait for dial tone
before dialing' check box.
5. When the configuration is completed, click OK.
Q3 How do I use my modem when dialing from overseas?
A1 Check that the modem is correctly configured according to the current country.
Because the values for communication may differ according to the country, you
may not be able to connect via the modem due to an incorrect modem
configuration.
1. Click Start > Control Panel > Network and Internet Connections.
2. Under See Also, click Phone and Modem Options.
3. In the Dialing Rules tab, click Edit.
4. In the General tab in the Edit Location window, select the current country from
the Country/region radio box, specify the Area code, and click OK.
A2 Because the shape of the telephone plug may differ according to the country, you
have to purchase and use the appropriate telephone plug for that particular
country.
Q4 How do I receive a fax while the system is in power saving mode (Rest mode)
(For Windows XP and 2000)?
ATo receive a fax when the system is in power saving mode, and the operating
system is Windows XP or 2000, configure the system as follows:
1. The automatic fax reception function of the fax program needs to be activated.
(For more information, refer to the corresponding fax program manual.)
2. Click Start > Control Panel > Network and Internet Connections.
Troubleshooting 87
3. Under See Also, click Phone and Modem Options.
4. In the Modems tab, select the installed modem, and click Properties.
5. In the Power Management tab of the Modem Properties window, select the "This
device activates the computer in power saving mode" check box, and click OK.
The above setting enables the modem to turn on the system and receive a fax
when in power saving mode.
88 Users Manual
Wired LAN Related
Q1 <Wake On LAN> function
A<Wake On LAN> is a function that activates the system in rest mode when a
signal (such as ping or magic packet commands) arrives from network (wired
LAN).
To use <Wake On LAN> function:
1. Click Start > My Computer > My Network Places > View network connections.
2. Click the right button on the touchpad over Local Area Connection, and select
Properties.
3. Click Configure, and select Power Management tab. Select ’Allow this device to
bring the computer out of standby’, then click OK. Restart the system.
If the system in rest mode is activated when there is no received signal, use the
system after disabling <Wake On LAN> function.
Connecting with wired LAN while also using wireless LAN may not execute
<Wake On LAN> function. To remedy this, configure wireless LAN to ’Disable’
to use <Wake On LAN> function.
Troubleshooting 89
Wireless LAN Related
Q1 The Wireless LAN device is operating properly, but I cannot connect to the
Internet or to another computer.
This is due to an incorrect configuration, or a configuration error. Check the
following check lists:
A1 If you are using a computer-to-computer (Ad Hoc) network connection, check
that the name of the configured network (SSID) is correct. The network name
(SSID) is case sensitive.
A2 If you are using a network key (encryption key), you have to use the same
network keys for an AP (Access Point) and a computer-to-computer network (Ad
Hoc). The network key of the AP is configured in the AP management program.
Ask your network administrator for more detailed information.
A3 Check that the device driver is properly installed. If the driver is not properly
installed, you will find a yellow exclamation mark on the network icon by
clicking Start > Control Panel > Performance and Maintenance > System >
Hardware tab > Device Manager > Network adapters > Wireless LAN adapter. If
there is a yellow exclamation mark, please reinstall the device driver with the
system software CD.
A4 Referring to A2 of Q3, Check that the network bridge configuration is correct.
Q2 The signal strength is excellent, but I cannot connect to the network.
Even if the signal strength is excellent, the network connection may not operate
properly if the TCP/IP properties are not properly configured, or the network key
(encryption key) is incorrect.
A1 Check that the TCP/IP properties are configured properly. When you connect to
an AP, click the Wireless Network Connection icon on the taskbar and select the
Support tab. If the IP is not allocated properly, the IP address will be displayed
as follows (e.g. 169.254.xxx.xxx).
If the network does not provide DHCP, you have to specify the correct IP address
by asking your network administrator.
Even if the network provides DHCP, the server may not allocate an IP address to
the client properly, and the client station cannot connect to the network.
A2 Referring to A2 of Q1, check that the network key is correct.
A3 Referring to Q4, check that AP is operating properly.
A4 If the security patch (Q815485) has been installed, uninstall the patch.
90 Users Manual
WPA Q815485 patch provided by Microsoft requires 802.11x, RADUIS, and
authentication server. Also the patch requires the AP and the driver to support the
patch. The current version of the driver does not support the WPA function.
Click Start > Control Panel > Add or Remove Programs. If you can find the
Q815485 patch in the [Add or Remove Programs] window, uninstall the patch
before use.
Q3 I cannot share an Internet connection.
A1 It may require some time to synchronize the computers to share an Internet
connection after the Internet connection sharing configuration is completed. If
you cannot share Internet connection even after a longer period, restart the
computer.
A2 Check if the connection between the network adapters is configured to bridge. If
there is a configured bridge connection between the network adapters through the
network configuration wizard, remove the network bridge, and reconfigure the
Internet connection sharing.
A bridge connection is created when you ran Network Setup Wizard from the
[Network Connections] window, and selected both the internal connection
adapter and another adapter in the wizard.
Q4 I cannot connect to the AP.
A1 Check the wireless LAN radio environment. Using a wireless LAN may be
restricted by the surrounding radio environment, and the distance between
wireless stations. Also obstacles such as walls or doors may affect wireless LAN
connections.
A2 Check that the AP is operating properly. If the AP is not operating properly, turn
off the AP, and turn it on again after a short wait.
A3 Check that the network key (encryption key) configuration for the AP is correct.
A4 Check that the wireless LAN function of the AP is enabled. If it is disabled,
enable the wireless LAN function referring to the description in ”Connecting
Through a Wireless LAN (Option)” (p 37).
- If you are using Windows XP, click Start > Control Panel > Network
Connections and check that the wireless network connection is configured to
’Enable’.
- If you are using Windows 2000, check that the Turn on/Turn off Radio is
configured to ’Turn on’ in the General tab of the PROSet program.
Troubleshooting 91
Q5 In the Windows XP 'Available wireless networks' window, the Wireless
Network Connection is displayed as 'Not Available'.
A1 Check that the specific program for a wireless LAN connection is installed.
Windows XP supports wireless LAN connections through the Wireless Zero
Configuration (WZC) service. Therefore, an additional program for a wireless
LAN connection is not required. However, installation of the specific program
for a wireless LAN connection may disable the 'Available wireless networks'
window of the Wireless Network Connection supported by WZC service in
certain cases. Exit the program and try again.
A2 Initialize the device driver.
Click Start > Control Panel > Performance and Maintenance > System >
Hardware tab > Device Manager > Network adapters, and select the wireless
LAN adapter. Right-click the network adaptor and select 'Disable'. Then right-
click over the network adaptor and select 'Enable' after a short wait to check that
the device is operating properly.
A3 Right-click the My computer icon, and select Manage. When the Computer
Management window appears, double-click Services and Applications on the
left, and then click Services from the sub menu tree. Select the Standard tab in
the right pane, double-click Wireless Zero Configuration and check that Startup
Type is configured to Automatic, and the Service status is Started.
Q6 The Wireless network connection operates properly, but the Wireless
Network Connection icon on the Taskbar displays the "Disconnected"
message.
A This is one of the known problems when you are using a wireless LAN
connection after installing Windows XP service pack 1.
Check that the wireless LAN card is operating properly by initializing the device
driver referring to A2 of Q5. For more information, refer to the following link for
known problems with Microsoft.
http://support.microsoft.com/default.aspx?scid=kb;en-us;Q328647
Q7 When connecting to a computer-to-computer (Ad Hoc) network, I cannot
connect to another computer connected to the same computer-to-computer
network.
A1 Make sure that the security settings and network name of the computer-to-
computer (Ad Hoc) network is correct.
A2 Check the TCP/IP properties of the computers to be connected through the
computer-to-computer (Ad Hoc) network. All of the computers to be connected
92 Users Manual
through a computer-to-computer (Ad Hoc) network should be configured so that
their IP addresses are within the same subnet range.
- If the IP address is configured to DHCP (Obtain an IP address automatically) in
TCP/IP properties, IP address is configured within the same subnet range
automatically.
- If the IP address is configured to static IP in TCP/IP properties, select Use the
following IP address in the TCP/IP properties of the wireless adapter, configure
IP address:10.0.0.1~10.0.0.254, and Subnet mask: 255.255.0.0, and then try
again.
Q8 When using a computer-to-computer (Ad Hoc) network, sometimes I cannot
search the access point.
A It may happen occasionally when you are using a computer-to-computer (Ad
Hoc) network connection. Even if you cannot find some access points, the
computer-to-computer (Ad Hoc) network is operating properly. Click Refresh to
view the latest search result.
Q9 Running Help file while running Profile Wizard in the wireless LAN
program (PROSet) makes the PROSet window white.
A It will be displayed properly when you finish the profile wizard. It dose not affect
the program operation.
Q10 The network does not operate properly when both the wireless and the wired
network connections are simultaneously configured with the same IP
address.
AYou cannot use the wireless and the wired network connections using the same
IP address simultaneously. To use either the wireless or the wired network in turn
with the same IP address, you have to Disable whichever network device will not
be using in the network connection of the Control Panel.
Q11 The wireless LAN does not operate properly when there are other products
operating in the 2.4GHz band.
ADevices compliant with IEEE 802.11b, operate in the public frequency, ISM
band. Therefore some channel interference may happen when there are other
devices using the same frequency band such as a wireless video transceiver, a
microwave oven, etc. If other products cause channel interference, changing the
AP channel is recommended.
Troubleshooting 93
Q12 An established wireless LAN connection is disconnected after 2~3 minutes,
and the connection is not recovered.
A1 This may be caused by channel interference. Change the channel of the AP, and
reconnect.
A2 This may be caused by selecting the ’Use IEEE 802.1x network authentication’
option when IEEE 802.1x authentication is not available.
Check the properties of the AP in the wireless network settings. If the ’Use IEEE
802.1x authentication in this network’ option is selected, deselect the option on
the Authentication tab.
For more detailed information about authentication server, ask your network
administrator.
A3 If the AP is configured to ’Use network authentication (Shared Key)’
If the AP is configured to authentication shared mode, all computers to be
connected should be configured as follows:
- If you are using Windows XP, select network authentication(shared mode) in
the wireless network settings.
Click Start > Control Panel > Network and Internet Connections > Network
Connections. Right-click the Wireless Network Connection icon, and click View
Available Wireless Networks > Advanced. In the Wireless Networks tab, select
an AP in the Available Networks field and click Configure and select ’Network
Authentication (Shared Mode).
- If you are using Windows 2000, check that the network authentication mode is
configured to Share in the security settings of the wireless LAN program
(PROSet).
For more network authentication procedures, ask your AP (Access Point)
administrator.
94 Users Manual
Games and Programs Related
Q1 When I pressed <Fn>+<F4/ > keys to convert display devices while
playing a 3D game, the computer does not operate.
A Do not press <Fn>+<F4/ > keys while playing a 3D game, since it may cause
a system error.
Q2 When I pressed <Fn>+<F4/ > keys to convert display devices while
playing a game, the screen is not displayed properly.
A This problem may occur in some games. Use <Fn>+<F4/ > keys before
launching a game, and not while playing the game.
Q3 When you press shortcut keys while playing a game, icons(OSD) are not
displayed properly on the screen.
AThis problem may occur when you press shortcut keys repeatedly while playing
a game. You are not recommended to use shortcut keys while playing a game.
Q4 The running speed of a game is too slow or fast.
AChange the setting of Power Schemes to 'Always On'.
(Click Start > Control Panel > Performance and Maintenance > Power Options >
Power Schemes tab, then configure the Power schemes field to 'Always On'.)
Q5 When I played 'The Sims: House Party' game in Dual Display Clone mode,
a mouse afterimage is displayed.
A1 Press <Fn>+<F4/ > to change the display setting to Dual Display mode, then
play the game.
A2 If above method does not solve the problem, change the setting to display only
on the LCD.
Troubleshooting 95
Restoring the System
This description is only for models running Window XP.
The System Restore function allows you to restore your computer to an earlier copy
(called restore point), and restores the settings if a problem occurs.The System Restore
function is provided by Windows XP to enable the resolution of various problems
without reinstalling Windows XP completely.
You can use System Restore in the following cases.
xThe system files are deleted or damaged by mistake.
xThe system is unstable or a problem occurs in a device driver.
xA problem occurs after changing system files such as the registry.
xA problem occurs after installing a new program.
Creating a Restore Point
Restore points are created at predetermined times and at times of significant system
events such as when a program or a driver is installed. You can also decide when to
create your own restore points.
There has to more than 200MB of free space on the hard disk drive. If the disk
space is insufficient, a saved restore point might be deleted.
You are recommended to create a restore point when you have purchased a
new computer and before installing new programs or device drivers. Before
creating a restore point, check that the computer is operating properly.
The procedures to create your own restore point are described below.
1. Click Start > All Programs > Accessories > System Tools > System Restore.
96 Users Manual

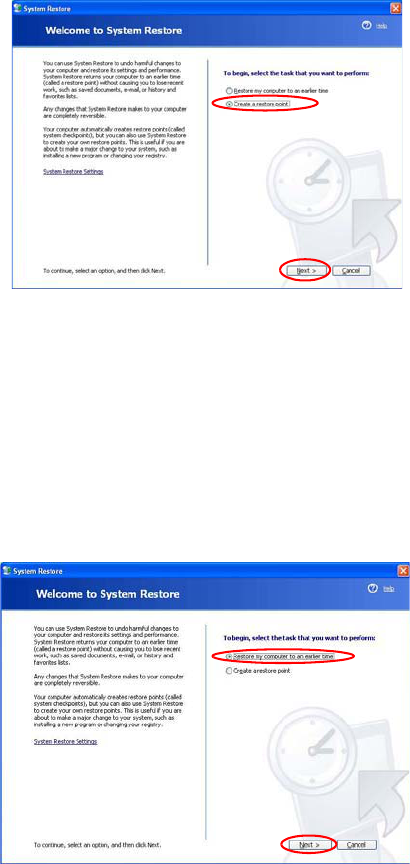

2. Select "Create a restore point", and click Next.
3. In the Restore point description box, type a name to identify the restore point, and
than click Create. A restore point has been created.
Returning your computer to an earlier restore point
The procedures to return your computer to an earlier restore point when a problem has
occurred are described below.
1. Click Start > All Programs > Accessories > System Tools > System Restore.
2. Select "Restore my computer to an earlier time", and then click Next.
Troubleshooting 97

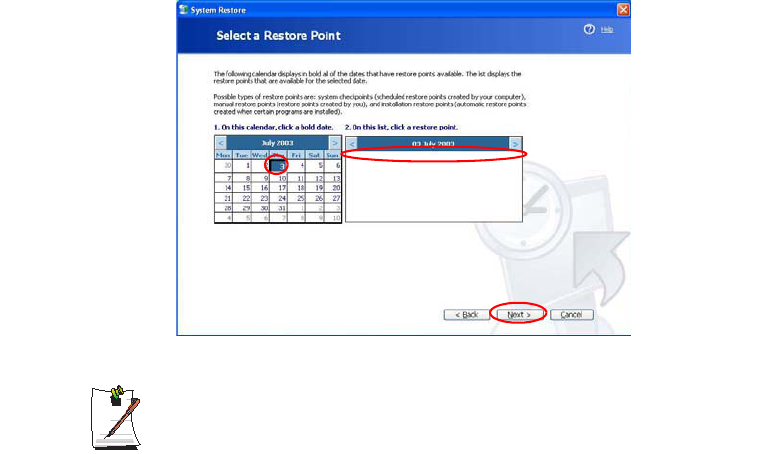

3. Select the desired restore date from the calendar restoration and select the desired
restore point from the list, and then click Next.
The date of the restore point is displayed in bold font.
4. Confirm the selected restore point and click Next. System Restore shuts down
Windows, and starts the restoration processes.
5. After the restoration is complete, Windows restarts. In the [System Restore
completed] dialog box, click OK.Your computer has been restored to the selected
restore point.
Undoing the last restoration
The procedures to undo a restoration are described below.
1. Click Start > All Programs > Accessories > System Tools > System Restore.
2. Select "Undo my last restoration", and then click Next.
3. Confirm the restoration information to undo, and than click Next. System Restore
shuts down Windows and starts undoing the restoration.
4. After the undo restoration is complete, Windows restarts. In the [Undo the last
restoration completed] dialog box, click OK.Your computer has been restored to the
point prior to the last restoration.
98 Users Manual
Reinstalling Software
If you have reinstalled the Windows operating system, or the system and program do
not operate properly, you can re-install the driver and program using the system
software CD.
The drivers and programs included in the system software CD are listed in the
D:\ReadMe.htm file. (Provided that the name of CD-ROM drive is "D".)
Running the system software CD
Insert the system software CD into the CD-ROM drive. The initial screen appears
automatically.
Installing drivers
1. In the initial screen, click Driver Installation.
2. Select the driver you want to install from the device installation screen, and click
Install Now.
How can one install the drivers for operating systems other than
Windows XP?
Install the appropriate driver software included in the system software CD.
Installs device drivers
Installs programs
Troubleshooting 99
Installing programs
1. In the initial screen, click Application Installation.
2. Click Standard installation in the program installation screen (standard
installation is recommended).
xStandard installation: Installs and recovers programs to the state of shipment.
xUser installation: You can select the program installation location, and other
options for the program installation.
100 Users Manual
Reinstalling Windows XP
If the Windows XP does not operate properly due to an error in the system, or if you
have replaced the hard disk drive, you can reinstall Windows XP using the system
recovery CD.
With the system recovery CD, you can reinstall Windows XP only. To return
the system to the state of shipment, reinstall the device drivers and programs
with the system software CD after reinstalling Windows XP with the system
recovery CD.
Reinstalling Window may delete the data on the hard disk drive such as files,
programs, etc. In order to minimize damage from data loss, please remember
to always back up data. Samsung Electronics is not liable in the case of data
loss, please consult your warranty statement for clarification.
Reinstalling Windows
1. Insert the system recovery CD into the CD-ROM drive.
2. In the initial screen, click Standard installation. (Installation with the standard
installation option is recommended. The standard installation does not require
steps 5 and 7.)
xStandard installation: Installs Windows preserving the data saved on the hard
disk drive. However, since personal data that is in the Windows folder may be
deleted, please backup personal data.
xCustom installation: Enables Windows installation after partitioning or
formatting the hard disk drive. Note that all data on the hard disk drives may be
deleted depending on your configuration.
Troubleshooting 101
3. The description for the standard installation appears. Click Yes.
The installation starts, and the system will be restarted after a while.
4. After the system has restarted, the message ’Press any key to boot from CD’
appears. Do not press any key at this time. After a while the partition configuration
screen appears.
To not change the partition, press <Enter>.
What is partition configuration?
Partition configuration is a function that devides the hard disk drive into one or
several partitions. Note that changing the partition deletes all of the data on the
hard disk drive.
5. Select the desired file system (format).
To maintain the current file system, press <Enter>.
What is Format?
Format is an operation that initializes the hard disk drive. Since formatting
operation deletes all content on the hard disk drive, use Format with great
care.
6. Select the folder to install the Windows operating system.
To delete the previous version of Windows and install in the current folder, press
<L> on the keyboard.
Note that selecting ’Use another folder to install’ creates a new windows folder
and installs Windows in dual boot mode.
7. The Windows XP installation wizard appears. Proceed with the installation
according to the instructions provided by the Windows XP installation wizard.
When the installation is completed, the computer will restart.
8. After the system has restarted, the message 'Press any key to boot from CD'
appears. Do not press any key at this time.
The Windows installation has been completed. Remove the system recovery CD, and
insert the system software CD into the CR-ROM drive to install the device drivers and
programs.
102 Users Manual
If You Cannot Run Windows
If you cannot run Windows, you have to boot the system with the system recovery CD,
and reinstall Windows. If you boot the system from the system recovery CD, you can
install Windows only with the user installation option. You cannot install with the
standard installation option.
1. Insert the system recovery CD into the CD-ROM drive and start the computer.
2. If the following message appears on the screen, press any key from the keyboard.
This message appears only when the CD drive has booting priority. If the
message does not appear, configure the CD drive as the first booting device
referring to ”Changing Booting Priority” on page 59.
3. After a while, the partition configuration screen appears. Complete the installation
referring to ”Reinstalling Windows” on page 100.
Press any key to boot from CD.....
Specifications 103
Specifications
System Specification
The following is the basic hardware specification for the purchased product. Variations
may exist depending on the model type.
* Please refer to the product catalog or consult your product provider for availability when purchasing optional
accessories for this system.
Item Specification Remarks
CPU Intel Banias 1.3GHz~1.7GHz
Cache memory L2 1MB
Main memory 266 MHz DDR memory, 2 Memory slot.
(You can add 128/256/512MB module additionally)
standard : 256MB,
max : 1 GB
Main Chipset Intel 855PM(ODEM) + ICH4-M
Hard disk drive (HDD) 2.5’’, UltraDMA 100, S.M.A.R.T 9.5mmH
CD Drive CD-ROM drive, CD-RW drive, DVD-ROM drive, CD-RW/DVD-ROM
Combo drive, DVD-Multi drive, or 2nd HDD Pack
Optional
Graphics ATi Mobility Radeon M9+32CL or M9-CSP64
Sound SigmaTel STAC9750
Network Interface Modem : ActionTec MDC S/W Modem or Bluetooth/Modem Combo
Wired LAN: RealTek RTL8101L
Wireless LAN: Intel Calexico
Infrared: FIR
Optional
PCMCIA Slot Type I and II Compatible
Memory Card Slot Memory Stick, SD(Secure Digital) Memory Card, and MMC(Multi Media
Card) Supported
Maximum 128 MB
FingerPrint ST TCS2CF Optional
Ports Monitor, USB 2.0 x2, Modem (RJ-11), LAN (RJ-45), IEEE 1394 (4 Pin),
S-VHS, PS/2, Serial, Parallel, DC-In, Microphone, Headphone
Options Lithium-Ion smart battery
Dimensions (mm) 323 X 270.5 X 29.5 W x D x H
LCD Panel Size 15"-SXGA+, 15"-XGA, 14.1"-XGA Optional
Weight 2.5Kg (14.1")
Battery Lithium-Ion smart battery
Operation
Environment
Temperature (storage) : -5 ~ 40°C (operation) : 10 ~ 32° C
Humidity (storage) : 5% ~ 90% (operation) : 20% ~ 80%
Operation Voltage 100 - 240 VAC
Frequency 50 - 60 Hz
Input/Output Power 1.5-0.8A,100 ~ 240V
Output Voltage DC 19V / 3.15A
104 Users Manual
Wireless LAN Specification (Optional)
Product Specification
Radio Specifications
Item Detailed Specifications
Physical
Specifications
Dimensions (Width X Height) 59.75 X 44.45 mm
operation temperature and
humidity
Same as system operation
Temperature: 0°C ~ 70°C
Humidity: less than 85%
Power Specification Power Saving Mode 135 mW
Receiving Mode 1.0 W
Transmission Mode 1.6 W
Power 3.3V
Network
Specifications
Compatibility IEEE802.11b standard (DSSS)
Mini-PCI Rev.1.0
Operating System Microsoft Windows XP, 2000
- NDIS5 Miniport Driver
Media Access Protocol CSMA/CA (Collision Avoidance) with
Acknowledgement(ACK)
Security Wired Equivalent Privacy support (WEP)
64bit / 128bit
RF Band 2.4 GHz
Support Channels 1~13 channel (See "Regulatory Notice for Channel Use in France".)
Device Transceiver
Direct Sequence Spread Spectrum (DSSS)
Modulation Scheme Direct Sequence Spread Spectrum (DSSS)
CCK for high and mid transmission rate
DQPSK for standard transmission rate
DBPSK for low transmission rate
Standard Output Power 5 mW
Transmission Rate High Speed Mid Speed Standard Low Speed
11 Mb/s 5.5 Mb/s 2 Mb/s 1 Mb/s
Antenna Type Internal antenna (TX/RX)
Specifications 105
Regulatory Notice for Channel Use in France
The number of channels that can be used for wireless LAN differs from country to
country. In France however, use only 4 channels (channel 10, 11, 12, 13) when using
wireless networks.
xStandard: IEEE 802.b
xRegulation: ETSI 300 328, CE Marked
xChannel Allocation:
– Channel 10 (2457 MHz)
– Channel 11 (2462 MHz)
– Channel 12 (2467 MHz)
– Channel 13 (2472 MHz)
106 Users Manual
Abbreviations
A . . . . . . . . . Amperes
AC . . . . . . . . Alternating current
ACPI . . . . . . Advanced Configuration and Power management Interface
APM . . . . . . Advanced Power Management
ATA. . . . . . . AT attachment (refers to the hard-drive interface in an AT-
compatible computer)
ATAPI. . . . . AT attachment packet interface
BBS . . . . . . . Bulletin board system
BIOS . . . . . . Basic input/output system
C . . . . . . . . . Centigrade
CD . . . . . . . . Compact disc
CD-ROM . . Compact disc read-only memory
cm . . . . . . . . Centimeters
COM . . . . . . Communication (as in communication port)
CMOS . . . . . Complementary metal-oxide semiconductor
DC . . . . . . . . Direct current
DMA . . . . . . Direct memory access
DPMS . . . . . Display power-management signaling
DRAM. . . . . Dynamic random access memory
DSTN . . . . . Double layer super twist nematic
ECP . . . . . . . Extended capabilities port
EPP . . . . . . . Enhanced parallel port
g. . . . . . . . . . gram
G . . . . . . . . . Gravity
GB . . . . . . . . Gigabytes
hr . . . . . . . . . hour
Hz . . . . . . . . Hertz
IDE . . . . . . . Integrated drive electronics
I/O . . . . . . . . Input/output
IRQ . . . . . . . Interrupt request line
Abbreviations 107
ISA . . . . . . . Industry Standard Architecture
KB . . . . . . . . Kilobytes
kg. . . . . . . . . Kilograms
LAN. . . . . . . Local-area network
lb.. . . . . . . . . Pounds
LBA. . . . . . . Logical block addressing
LCD. . . . . . . Liquid-crystal display
m . . . . . . . . . Meters
mA. . . . . . . . Milliampere
mAhr. . . . . . Milliampere hour
MB. . . . . . . . Megabyte
mm . . . . . . . millimeter
MPEG . . . . . Motion Picture Experts Group
MPU . . . . . . Microprocessor unit
ms . . . . . . . . Millisecond
PDF . . . . . . . Portable document format
PC . . . . . . . . Personal computer
PCI . . . . . . . Peripheral component interconnect
PCMCIA. . . Personal Computer Memory Card International Association
POST. . . . . . Power-on self-test
PNP . . . . . . . Plug and play
PS/2 . . . . . . . Personal System/2
RAM . . . . . . Random-access memory
ROM . . . . . . Read-only memory
SVGA . . . . . Super video graphics array
TFT . . . . . . . Thin-film transistor
USB . . . . . . . Universal serial bus
V . . . . . . . . . Volt
VAC . . . . . . Voltage alternating current
VCC . . . . . . Voltage collector current
VDC . . . . . . Voltage direct current
whr . . . . . . . Watt hour
108 Users Manual
Glossary
AC adapter
The AC (or alternating current) adapter regulates current coming into your
computer from the wall outlet. The current at the wall outlet is alternating current
and needs to be changed by the adapter to DC (direct current) before your
computer can use it for power.
ACPI
ACPI (Advanced Configuration and Power Interface)- a method for describing
hardware interfaces in terms abstract enough to allow flexible and innovative
hardware implementations and concrete enough to allow shrink-wrap OS code to
use such hardware interfaces.
BIOS
BIOS stands for basic input/output system. The BIOS is software (often called
firmware) that is independent of any operating system. It enables the computer to
communicate with the screen, keyboard, and other peripheral devices without
using programs on the hard disk.
The BIOS on your computer is flash BIOS, which means that it has been recorded
on a flash memory chip that can be updated if needed.
Boot
To start your computer. A cold boot resets the entire computer and runs through
all computer self-tests. A warm boot clears out computer memory only.
Boot disk
A disk containing operating system programs required to start your computer. A
boot disk can be a floppy disk, hard drive, or compact disc.
Byte
The basic unit of measure for computer memory. A character—such as a letter of
the alphabet—uses one byte of memory. Computer memory is often measured in
kilobytes (1,024 bytes) or megabytes (1,048,576 bytes).
Each byte is made up of eight bits. For more information on bytes and bits, see an
introductory book on computers.
Cache memory
Cache is very fast, zero-wait-state memory located between the microprocessor
and main memory. Cache reduces the average time required by the
microprocessor to get the data it needs from the main memory by storing recently
accessed data in the cache.
Glossary 109
CardBus
CardBus technology enables the computer to use 32-bit PC Cards. Hardware in
the computer and the Windows operating system provide support for the 32-bit
cards. The voltage of 32-bit cards (3.3 volts) is lower than that of 16-bit cards (5
volts). The 32-bit cards can transmit more data at a time than the 16-bit cards, thus
increasing their speed.
CMOS memory
CMOS (complementary metal oxide semiconductor) memory is powered by the
CMOS battery. The System Setup settings and other parameters are maintained in
CMOS memory. Even when you turn your computer off, the information in
CMOS memory is saved.
COM port
COM stands for communication. COM ports are the serial ports in your computer.
Compact Disc
A compact disc (CD).
Conventional memory
The first 640 KB of system memory. Operating systems and application programs
can directly access this memory without using memory-management software.
Disk
The device used by the computer to store and retrieve information. Disk can refer
to a floppy disk, hard disk, or RAM disk.
Disk cache
A software device that accumulates copies of recently used disk sectors in RAM.
The application program can then read these copies without accessing the disk.
This, in turn, speeds up the performance of the application.
A cache is a buffer for transferring disk sectors in and out of RAM. Data stored in
a disk cache is a copy of data already stored on the physical disk.
DMA (direct memory access)
A method of transferring data from a device to memory without having the data
pass through the microprocessor. Using DMA can speed up system performance.
DPMS
Display Power Management Signalling. Displays or monitors that comply with
this can be managed by the Power Management features found in the system
setup.
Floppy disk
A removable disk, also called floppy or diskette.
110 Users Manual
Hard drive
Also called fixed disk. A hard drive is connected to the computer and can be
installed or removed. Data written to a hard drive remains until it is overwritten
or corrupted.
The 2.5-inch hard drive in your computer was designed for use in a notebook
computer. Because hard drives in notebook computers are smaller than those in
desktop computers, their maximum storage capacity may be less than that of
desktop hard drives. However, because of their smaller size, the drives handle
shock and vibration better than larger drives, which is important for a notebook
computer.
I/O
Input/output. Refers to peripheral devices, such as printers, that are addressed
through an I/O address.
I/O address
I/O stands for input/output. Peripheral devices, such as printers, are addressed
through the I/O port address.
IRQ (interrupt request line)
The IRQ is a hardware line that a device uses to signal the microprocessor when
the device needs the microprocessor’s services. The number of IRQs is limited by
industry standards.
LCD (liquid-crystal display)
The LCD screen on your computer differs from the display screen of a desktop
monitor. Most desktop monitors use CRT (cathode-ray tube) displays, which
work by moving an electron beam across phosphor dots on the back of the screen.
The phosphor dots light up to show the image. LCDs use a liquid-crystal solution
between two sheets of polarizing material. Electric current passing through the
liquid aligns the crystals so that light can or cannot pass through them, creating an
image.
MB (megabyte)
1,024 kilobytes.
Megabit
1,048,576 bits or about 128 kilobytes.
Operating system
A program that supervises the computer's operation, including handling I/O.
Application programs and users can request operating-system services. A user
might request operation-system services to copy files or format a disk. An
application program might use the operating system to obtain keyboard input,
write data to a file, or write data to a screen.
Glossary 111
PC Card
PC Card stands for personal computer card. The Personal Computer Memory
Card International Association (PCMCIA) defines the standards used to develop
all PC Cards. PC Card types include: modems, Ethernet adapters, SCSI adapters,
ATA cards, and memory cards.
PC slot
The PC slot is the hardware slot in the computer where the PC Card is placed.
Pixel
A pixel is an individual dot in a graphic displayed on your computer. The pixels
are so close together that they look as though they are connected. An LCD screen
displays thousands or millions of pixels.
Plug and Play
A plug and play operating system automatically configures computer components
to work with your system. With this type of operating system, you normally do
not need to set jumpers on devices or set memory addresses or IRQs.
RAM (random access memory)
The computer's system memory, including conventional and extended memory.
You can write to and read from RAM. Information stored in RAM is temporary,
and is erased when the system is turned off.
Refresh rate
The refresh rate is the rate at which the image on the LCD screen is rewritten to
the screen. A fast refresh rate helps keep the image from flickering.
Resolution
The resolution is the sharpness or clarity of the image on your LCD screen.
Resolution is measured by the number of pixels the computer’s screen can
display. For example, a resolution of 800 x 600 means that the screen can display
800 pixels in row and can display 600 rows. The more pixels displayed, the higher
the resolution and the better the image.
ROM (read-only memory)
Permanent computer memory dedicated to a particular function. For example, the
instructions for starting the computer when you first turn on power are contained
in ROM. You cannot write to ROM. (ROM is not the same as RAM).
Sector
Also known as disk sector. The portion of a track that is numbered and can hold
a specified number of characters (usually 512 KB).
112 Users Manual
Shadow RAM
A write-protected area of RAM that contains a copy of the BIOS. As the computer
boots, the BIOS is copied from its permanent location in ROM to RAM. The
BIOS can be executed much faster in RAM than in ROM. The BIOS remains in
shadow RAM until you turn off the computer.
TFT (thin film transistor) LCD
A TFT LCD uses a separate transistor circuit to control each pixel. This
technology provides the best resolution for an LCD screen. A TFT LCD is also
sometimes called an active matrix LCD.
Using Windows 2000 113
Using Windows 2000
Samsung notebook provides Windows XP or 2000 as operating system depending on
the product model.
Because the use of Windows XP is similar to Windows 2000, the same User Guide
(Online Manual) is used regardless of operating system installed on your notebook.
However, since there are some differences in menus, screens, and operations, you need
to refer to this Guide if your notebook's operating system is Windows 2000.
Registering Windows 2000
The procedure for registering your Windows presented in the Installation Guide is
explained based on Windows XP. However, because registration procedure for
Windows 2000 is similar, you can proceed the registration by following the direction
displayed on the screens.
Locations of Programs folder and Control Panel
Location of Programs folder
Location of Control Panel
Click the Start button.
114 Users Manual
Introducing Windows
Descriptions presented in ”Introducing Windows” (p 20) are applicable only to
Windows XP. For Windows 2000, location of menus, shape of icons and some uses
may differ from those of Windows XP.
To Playback Audio or Video CD
Just insert your audio or video CD into your CD drive. The associated application
program will start automatically and playback the audio or video files.
If your video CD is not played back automatically, locate and run the video file (for
example, DAT file) to playback on your video CD.
Writing Data to CD (Applicable to the model equipping with CD-RW)
Descriptions in p27”To write data on a CD (Option)” (p 27) section are applicable only
to Windows XP. For using CD-RW drive on Windows 2000, refer to the CD-RW
manual provided separately with your CD-RW.
Reinstalling Windows 2000
For reinstallation of Windows 2000, refer to ”Reinstalling Windows XP” (p 100)
section in the User Guide. The installation procedure for Windows 2000 is similar to
Windows XP, but some screens may differ.

Navigation menu
